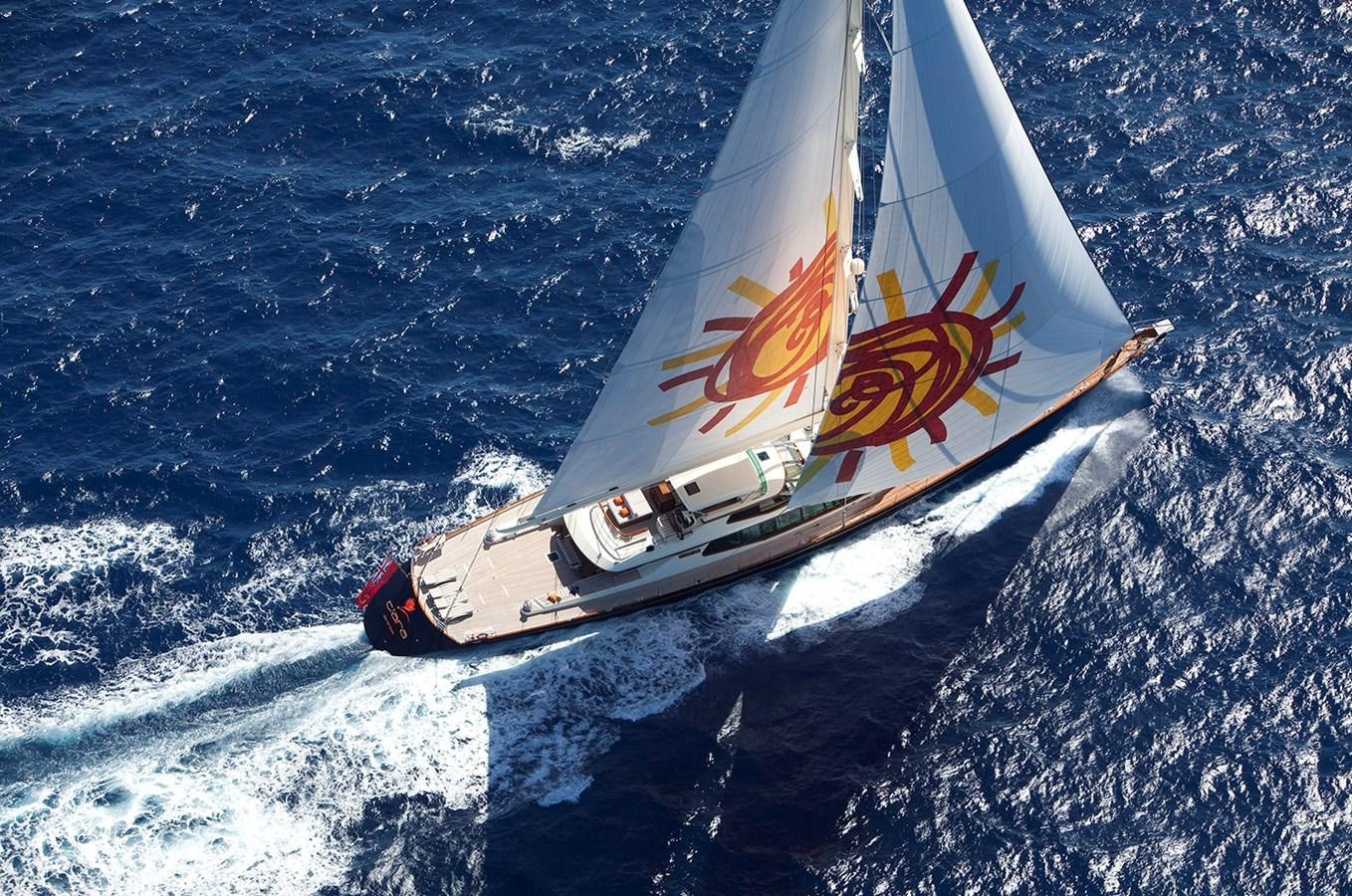

TIARA II Yacht for Sale

177' (54.25m)
Asking Price

Not for sale or charter to U.S. residents while in U.S. waters.

Built in aluminium by New Zealand yard   to a design by  Tiara was delivered in 2004 with a recent six million-euro refit, including brand new teak decks and a mechanical overhaul.

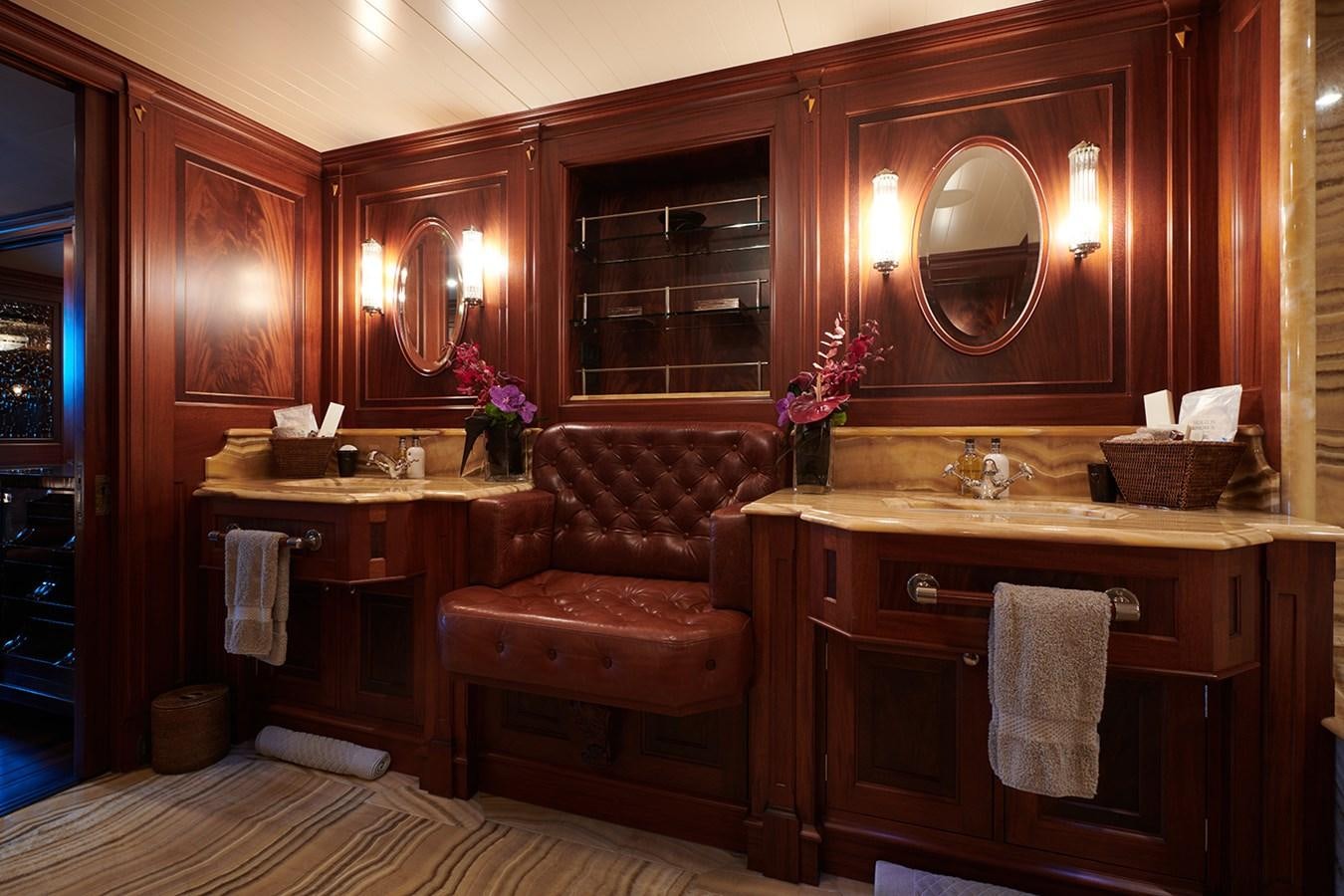

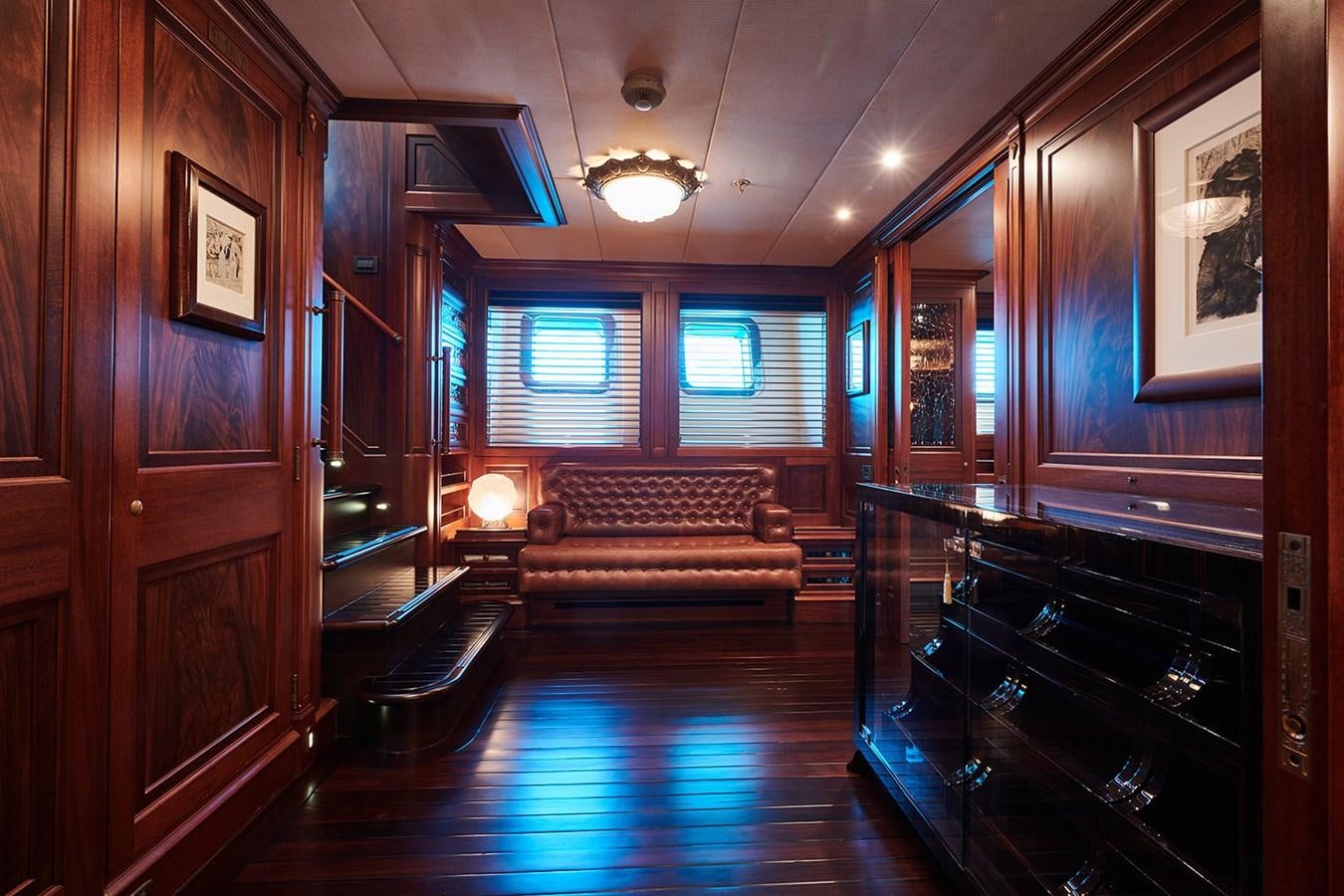

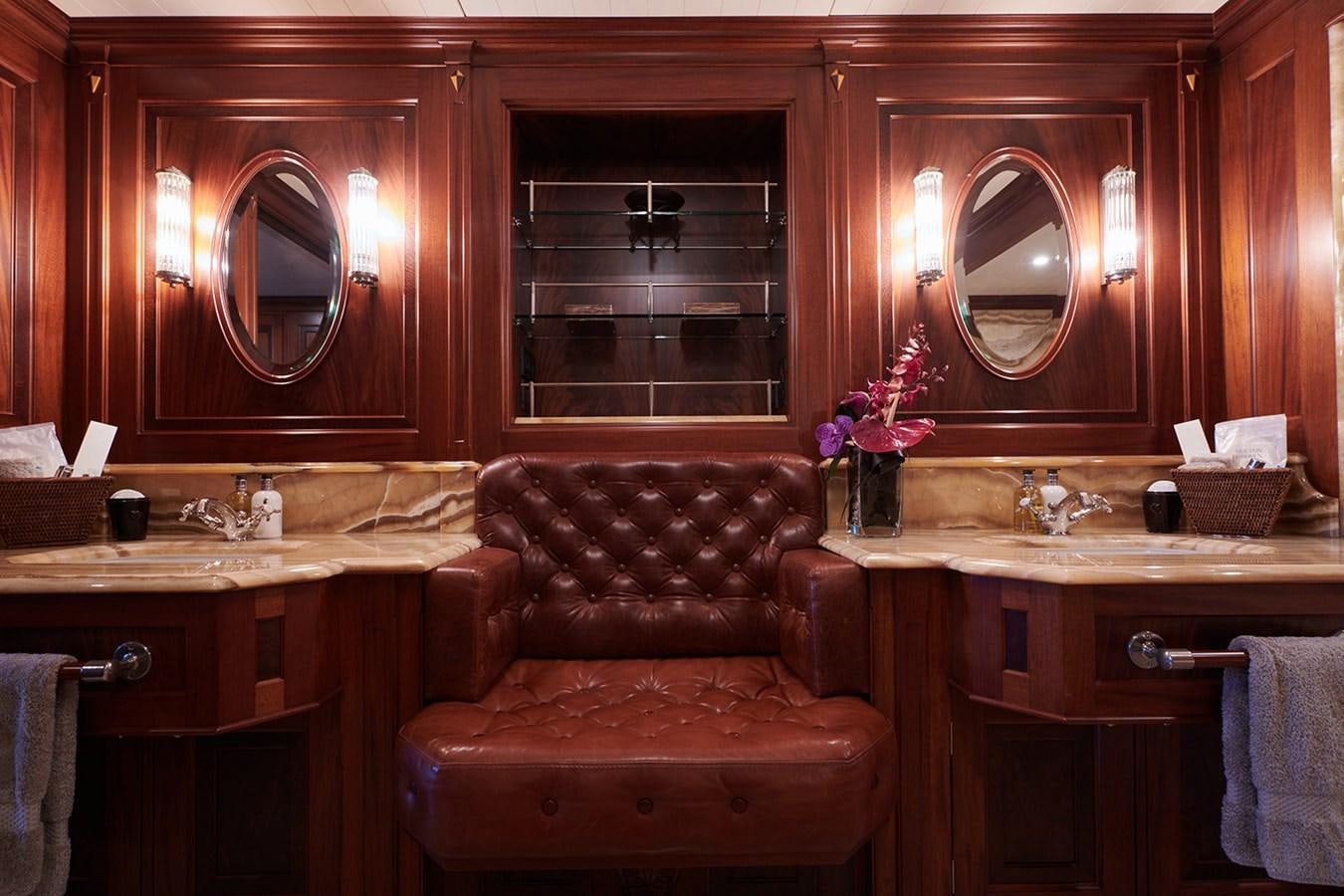

A classic interior by John Munford features flamed mahogany, elegant marquetry and vintage Art-Deco touches, and can accommodate up to 10 guests across five cabins. An impressive split-level master suite benefits from a private lounge and study area, a large marble bathroom and a full-beam cabin with a queen-sized bed.

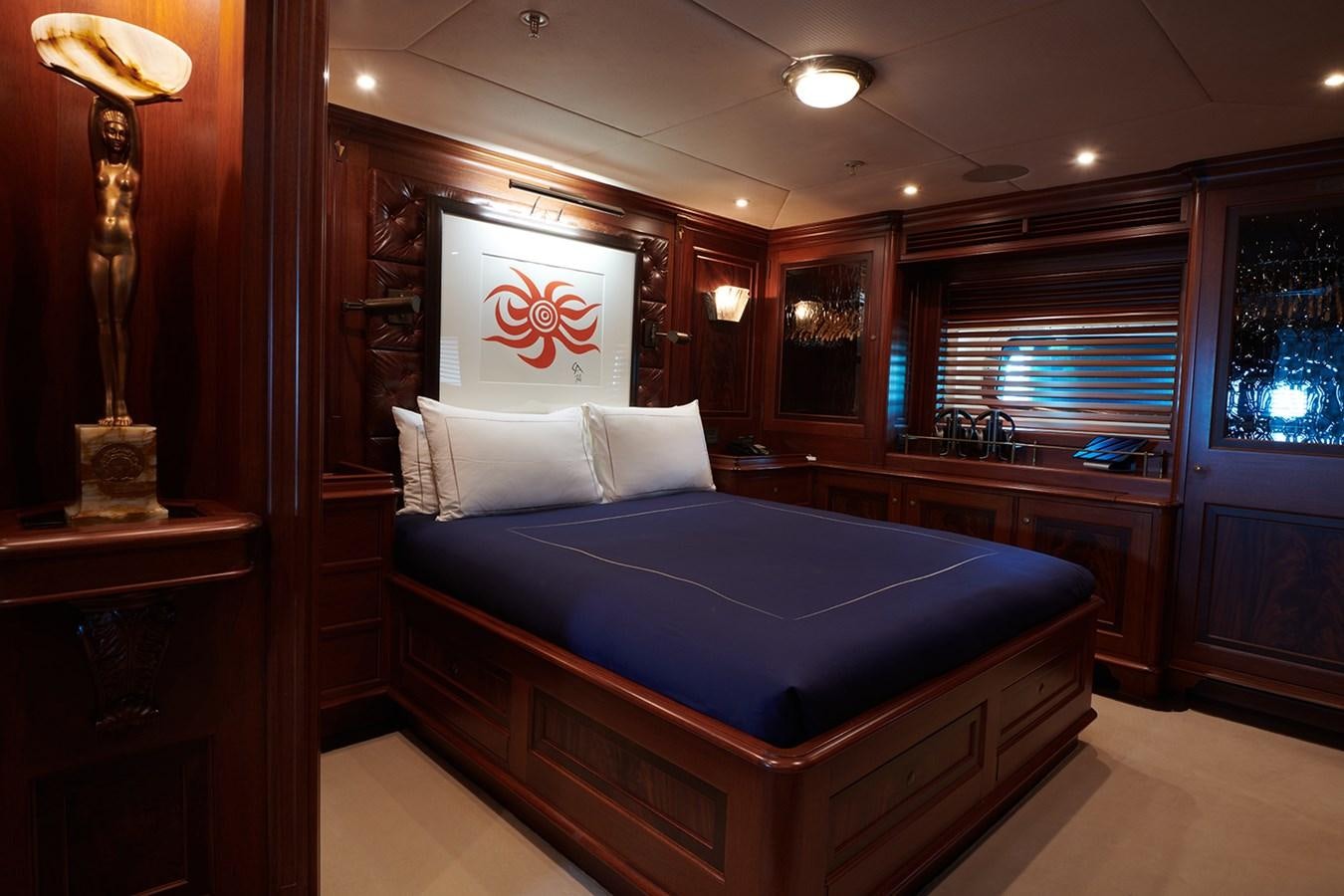

Two double guest staterooms aft can easily convert into a full-beam VIP suite and a further two cabins can serve as either doubles or twins, and each has an additional Pullman berth. All guest cabins have entertainment centres, television screens and full en suite bathroom facilities, while a further six cabins sleep up to 10 crew members aboard this

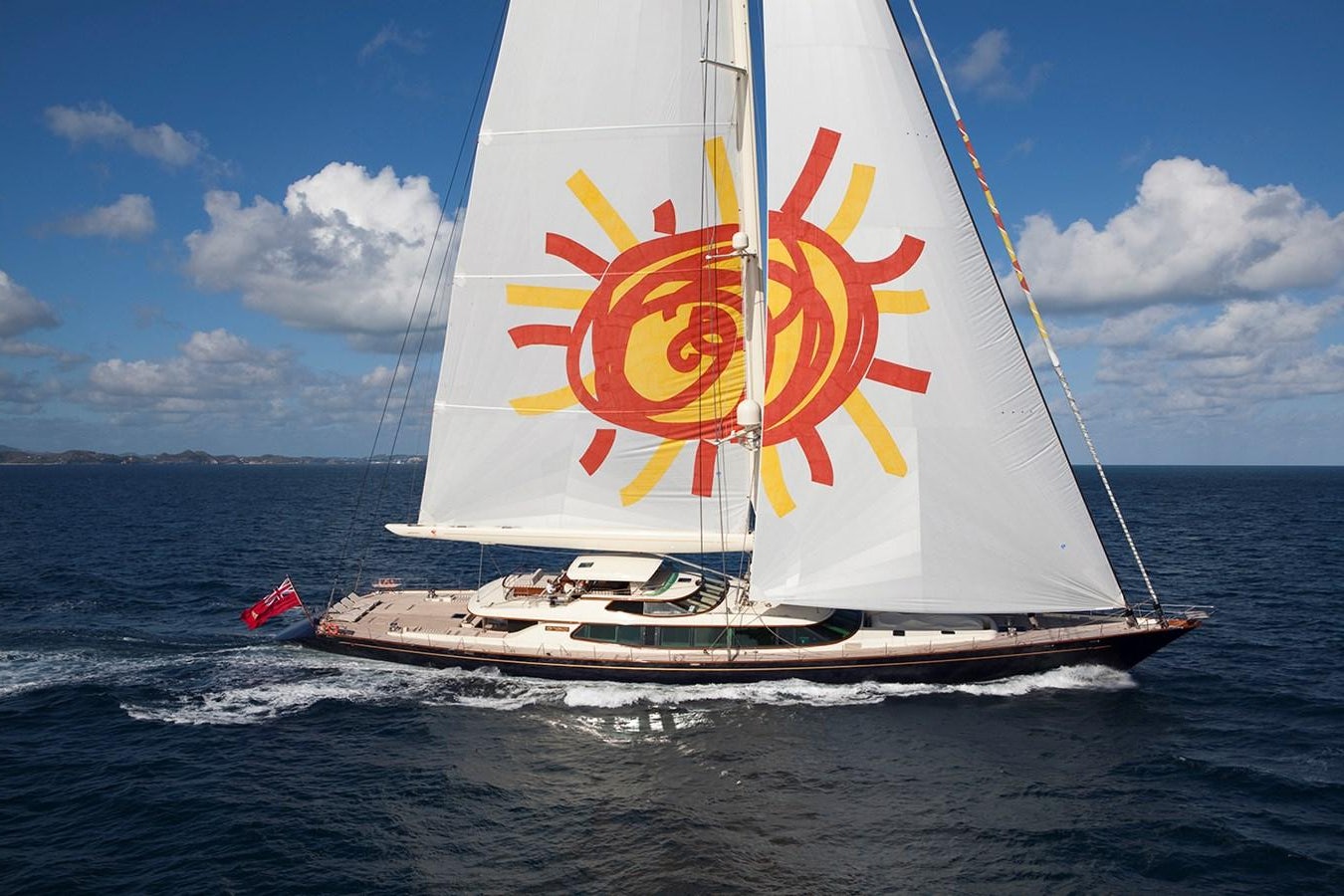

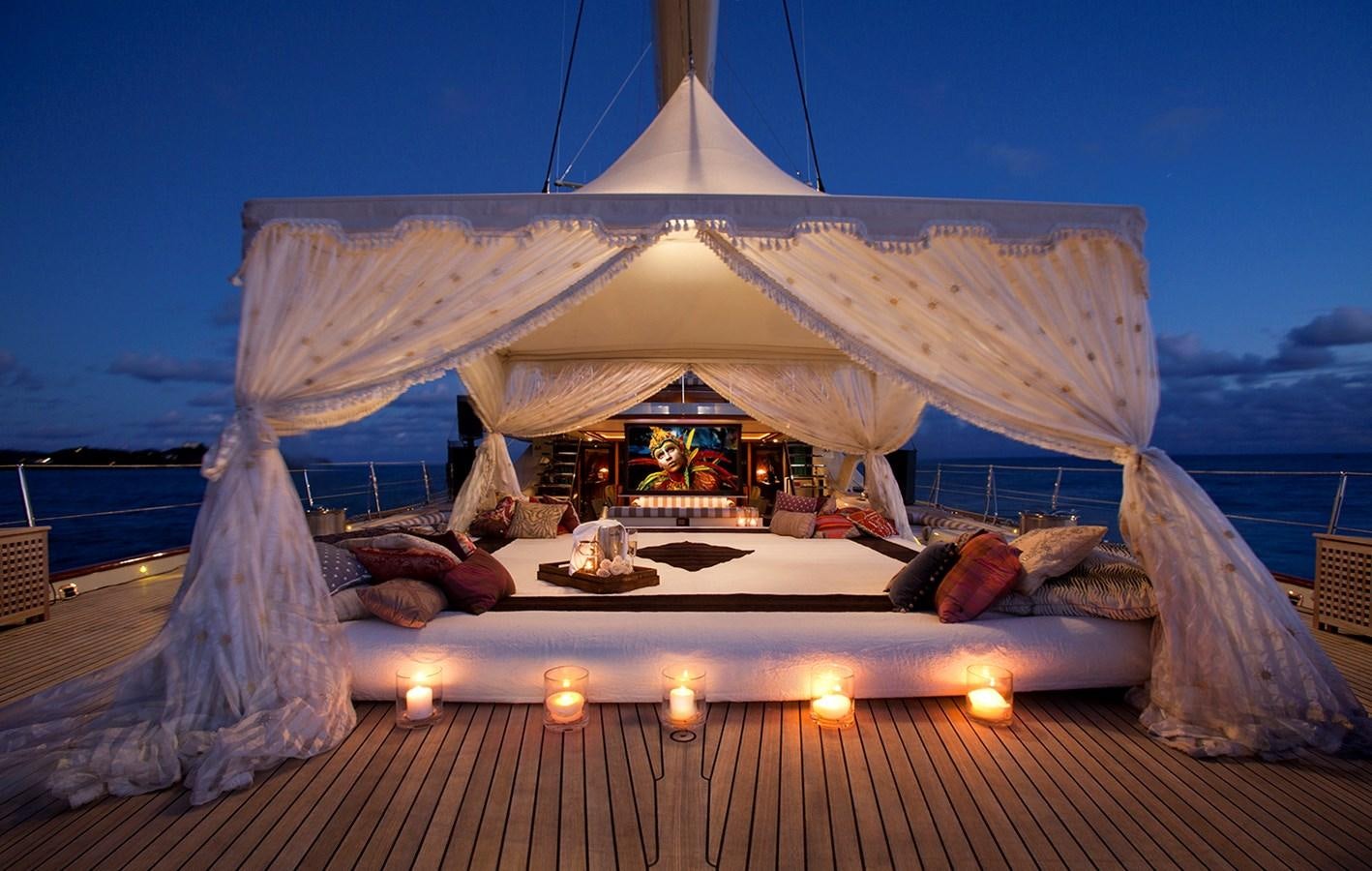

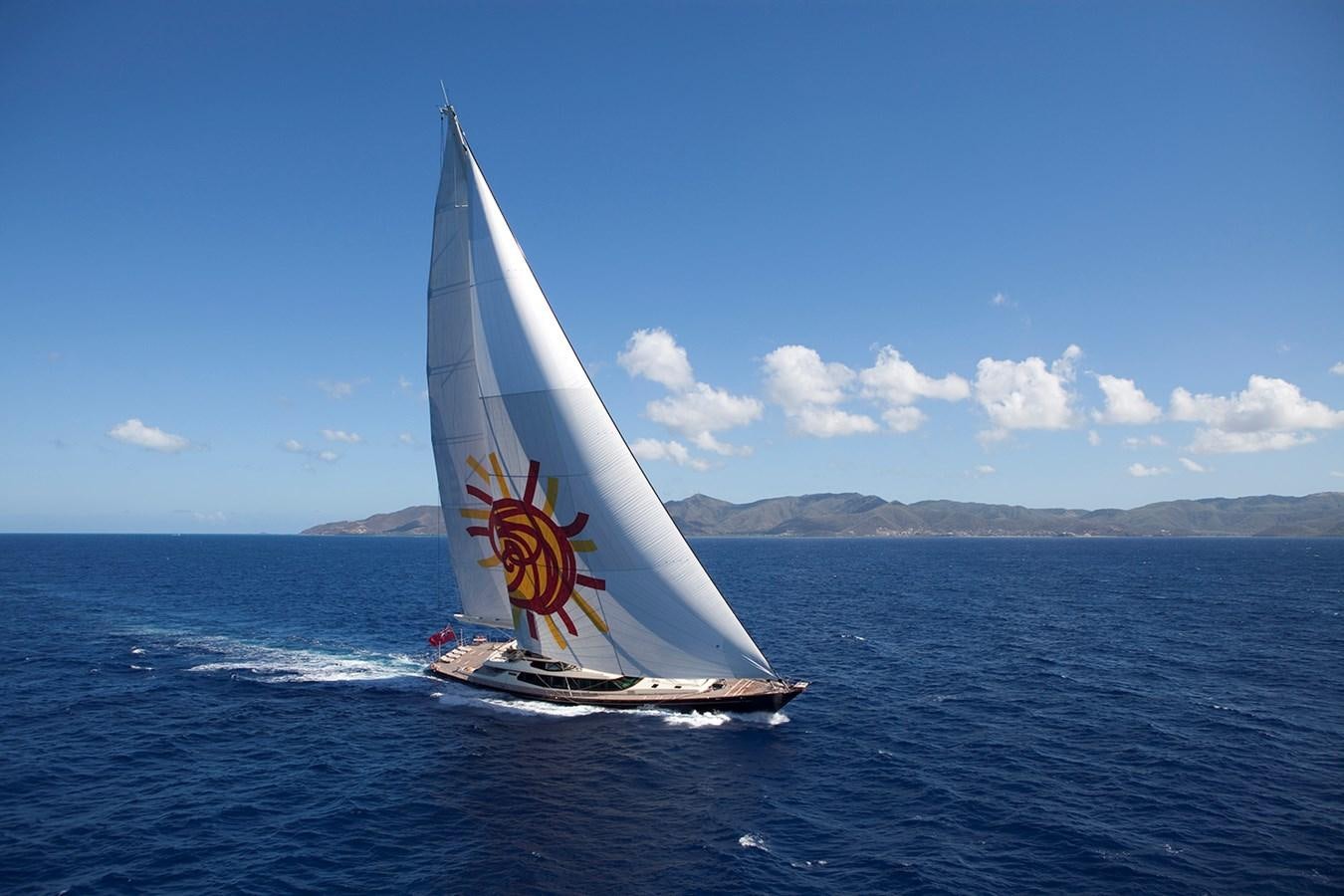

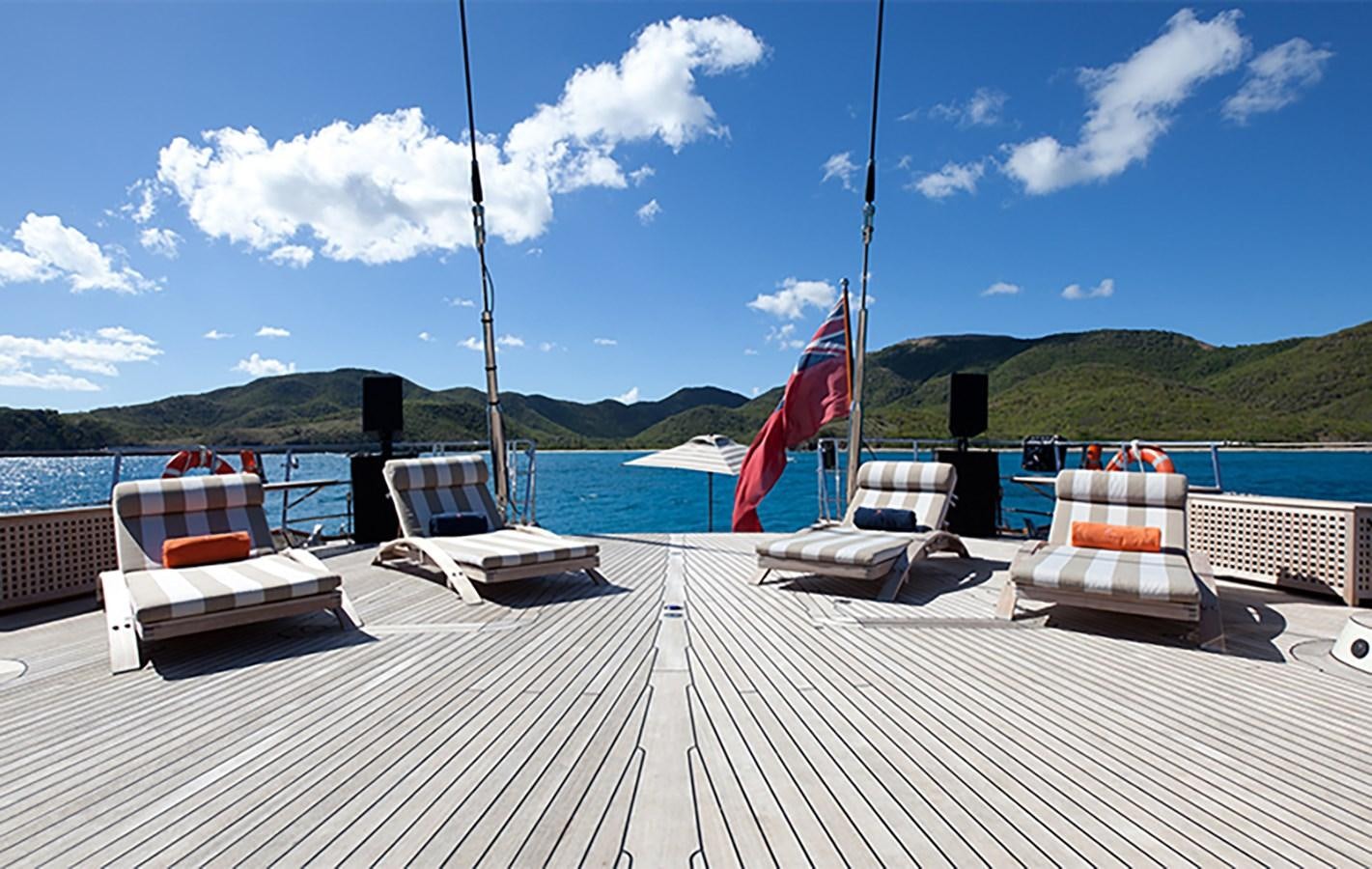

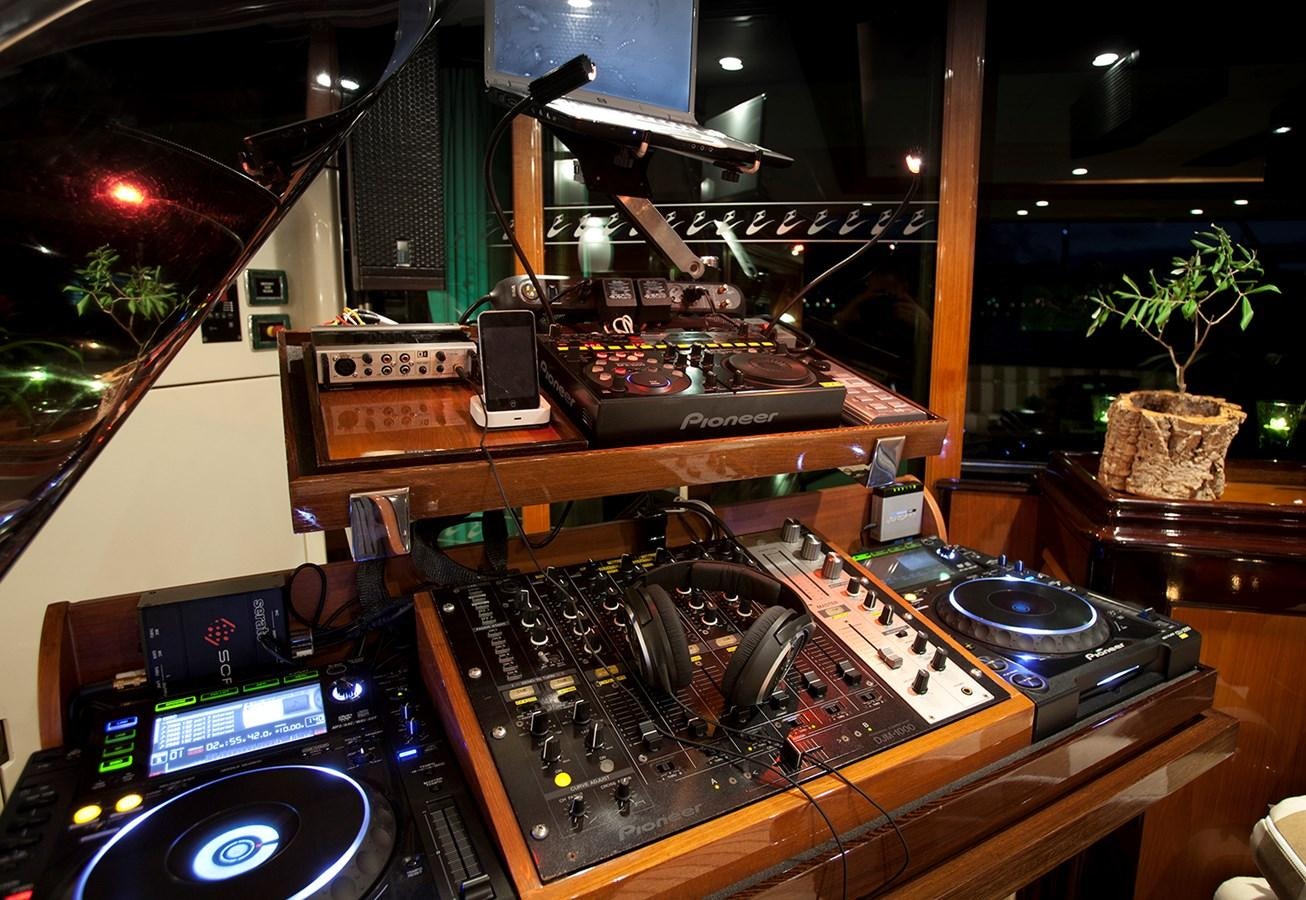

Tiara is a fast, powerful yacht with a formidable mast of 62.5 metres, the maximum height capable of passing through the Panama Canal. On the aft deck, cocktail tables convert to a full dining table seating 12 and this area can also be an open air dance floor with DJ facilities. Alternatively, a Bedouin tent can be set up offering welcome shade when cruising warmer climes or creating the perfect setting for a movie al fresco. A unique feature for a sailing yacht is the fact that the aft deck is also able to land the owner's eight-seater executive helicopter.

Under power, a 1,400hp Caterpillar diesel engine allows a maximum speed of 15 knots and a range of 5,900 nautical miles at 11 knots.


  • Gym
  • Jacuzzi
  • Wi-Fi


Builder ALLOY
Length (LOA) 177' (54.25m)
Year 2004
Gross Tonn. 428
Draft 18' (5.2m)
Beam 36' (11.1m)
Location Monaco


Staterooms 5
Sleeps 12

Dimensions & Capacity

LOA 177' (54.25m)
Min Draft 18' (5.2m)
Max Draft 18' (5.2m)
Fuel Tank 10,144 g (38,400 L)
Fresh Water 2,642 g (10,000 L)
Gross Tonn. 428


Hull Material Aluminum
Ext. Designer Dubois Naval Architects
Int. Designer John Munford Design
Cruising Speed 10 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Propulsion: Single screw
  • Rudder Angle: 2x Sperry +1 Cplath rudder indicators
  • Water Maker: 2x HEM 30 modular capacity to produce 2400 litres/Day
  • Hydraulics: Power pack Alloy custom
  • Chargers: MasterVolt
  • Sewage System: Hamann-compact mini
  • Converters: Shore power ASEA
  • Toilet System: Actana
  • Fuel Centrifuge: Westfalia

Galley & Laundry Equipment


  • 1 x Custom made induction stove + oven+ Grill
  • 1 x walking fridge. Alloy custom made
  • 1 x small fridge & 1 freezer
  • 1 x big undersole freezer


  • 2 x Miele washing machine
  • 2 x Miele Dryers
  • 1 x Ironing board

Communication Equipment

  • Satcom: 2x V-SAT Cobham
  • SSB: 1x ICOM
  • VHF: 3x ICOM
  • Landline/Intercom: 1x PABX Panasonic + 15 Units

Navigation Equipment

  • Magnetic Compass: 2 x Major on each sailing console
  • Gyro Compass: 1 x Cplath -Sperry Navigat X Mk1
  • Automatic Pilot: 1 x Navipilot 4000
  • Echo Sounder: 1 x Furuno FCV-600L + B&G
  • Radar: 2 x Furuno FAR-2807 Series
  • Searchlights: X 1
  • Camera(s): 5x + Elbex +1 Night vision FLIR
  • Chart Plotter: 2 x Maxsea TimeZero PRO with world charts
  • Navtex: 1 x Furuno NX-500
  • AIS: 1 x Furuno FA-150
  • GPS: 2 x Furuno DGPS-GP37

Entertainment Equipment

  • 1 x Crestron system + 8 processors in network
  • 10 iPad controlling individual area
  • 8 x HD TV - Panasonics
  • Possibility of 10 TV decoders
  • 2 x Cinema projectors. One outside, one inside
  • 2 x Cinema screens. (One inside in main salon, one outside aft deck)

Tenders & Toys

  • 2 x Sea bobs
  • 1 x Electric Foil Fliteboard
  • 1 x Electric Radinn surfboard
  • 20 x Diving BCDs (XS-XL)
  • 8 x Nitrox Bottles
  • 10 x Air Bottles
  • 30 x Pairs of snorkelling/diving fins (Assorted sizes)
  • 15 x Mask and snorkels
  • 3 x Kitesurfing boards
  • 2 x Kites (10m, 12m)
  • 2 x Hard stand up paddleboards (windsurf compatible)
  • 2 x Inflatable Paddleboards (windsurf compatible)
  • 2 x Windsurf boards (Hard)
  • 8 x Windsurfer sails (Assorted sizes)
  • 1 x Surfboard (6ft4)
  • 2 x Wakeboards
  • 2 x Pairs water-skis (Adult, Kids)
  • 1 x Omnia kneeboard
  • 3 x Assorted towable tubes
  • 1 x Inflatable double kayak
  • 10 x Water sports lifejackets
  • 40 x Wetsuits (Assorted sizes and thickness, Half sleeve, Long sleeve)
  • 1 x Inflatable Dingy Tender with Yamaha 20HP Outboard
  • 1 x Tiwal inflatable sailing dinghy

Deck Equipment

  • Anchor Windlasses: 2 x Maxwell
  • Anchors: 2 x custom Alloy
  • Bedouin Tent: 1 x tent with mattress and curtains
  • Passerelle: 1 x stern passerelle
  • Awnings: 1 x c flybridge+1haf-deck
  • Side Boarding Ladder: 1x custom Alloy hydraulic
  • Side Boarding Gangway: 1 x portable gangway
  • Jacuzzi: 1 x Alloy custom made
  • Swimming Platform: 1 x stern platform
  • Covers: Full deck furniture covers

Rigs & Sails


  • Custom Carbon Southern Spars mast (2004)
  • L=58,845m / P=52,295m/J=21,23m/E=20,47m
  • Full Germanischer Lloyd survey
  • Crow’s Nest system going alf the mast
  • Hydraulic furling Carbon Boom from Southern Spars
  • 3 x Reckman RF90-6.5 furlers with carbon foils
  • Serviced by Southern Spars every five years

New in 2016
North sail from 2017. Spectra/carbon
5 sails for a total sail area of 3411Sq Meters:

  • Mainsail.632 Sq Meters
  • Staysail. 269 Sq Meters
  • Blade. 523 Sq Meters
  • Reacher. 837 Sq Meters
  • Asymetrical. 1100 Sq Meters


  • Full S/S rod rigging was replaced in 2014 by OYS
  • Full Gleistein set of running rigging replaced every 2 years
  • Kevlar Backstay,Kevlar runners. Rig Pro, Replaced in 2017

Safety & Security Equipment


  • 2 x RFD 25 man life rafts Embarkation/Pilot ladder
  • Extensive
  • Personal Lifesaving equipment

Fire Fighting

  • Autronica fire system
  • Sea water fire fighting system Engine room
  • CO2 system
  • Freshwater sprinkler system with sea water back up Portable fire extinguishers throughout the vessel


  • 5 x video camera system+ screen
  • General crew call alarm
  • Intercom system
  • Stew pager system

Refit History

Refit Comments ( 2018-2019) - €6M Refit
Mast & Rigging:

  • Mast in and out of the vessel
  • Mast, boom, spreaders repainted
  • Mast, boom, x-ray check for delimitation
  • All sheaves and blocks serviced
  • All Halyards and sheets changed
  • New electronic cables installed
  • All rigging sent to the factory for survey
  • All hydraulics sail motor serviced at the factory
  • Mast re-classified by GL
  • Sails serviced


  • All teak decking removed; new teak decking installed
  • Hull and superstructures repainted
  • All deck hardware removed and serviced
  • All deck wood trim re-varnished
  • 8 custom sailing winches totally serviced
  • Windlass replacement
  • Nitrox Service
  • All outside furniture serviced
  • Removal and service of transom door


  • 2 new generators installed, including all the piping & wiring
  • New exhaust system for generators
  • Service exhaust system for engine
  • Total rebuild of the engine
  • All aircon systems cleaned and serviced
  • All seacocks serviced and rebuilt
  • Full service on water makers (new membranes)
  • UPS system changed
  • All hydraulic pumps serviced


  • Service centre board
  • Stern tube replaced
  • Plating on water tanks replaced
  • New welding on fuel tanks
  • Full service of the prop
  • Four coats of antifouling


  • New satellite dishes for V-SAT
  • Replacement of depth sounder
  • Navigation system charts upgraded
  • Engineering
  • Hull
  • Wind computer displays upgraded
  • Security video system upgraded
  • New SatCom system

AV System:

  • All new speaker system
  • New TV in Master cabin


  • All tubes changed
  • Jet gearbox replaced
  • Engine serviced
  • Electrical system rebuilt


  • New Salon/dining room carpet
  • Certain deck heads changed

Refit Comments (2015)

  • Stern tube changed

Refit Comments (2014)

  • Change plating for water tanks
  • Full paint job, hull, superstructures
  • Generators rebuild
  • Full Lloyd survey
  • Deck sand
  • Full mast survey

Refit Comments (2008)

  • Full paint job, hull, superstructures
  • Generators rebuilt
  • V-Sat upgrade
  • New Hard top Bimini
  • Engine service
  • Full Lloyds survey
  • All hull windows replaced
  • Full mast survey
