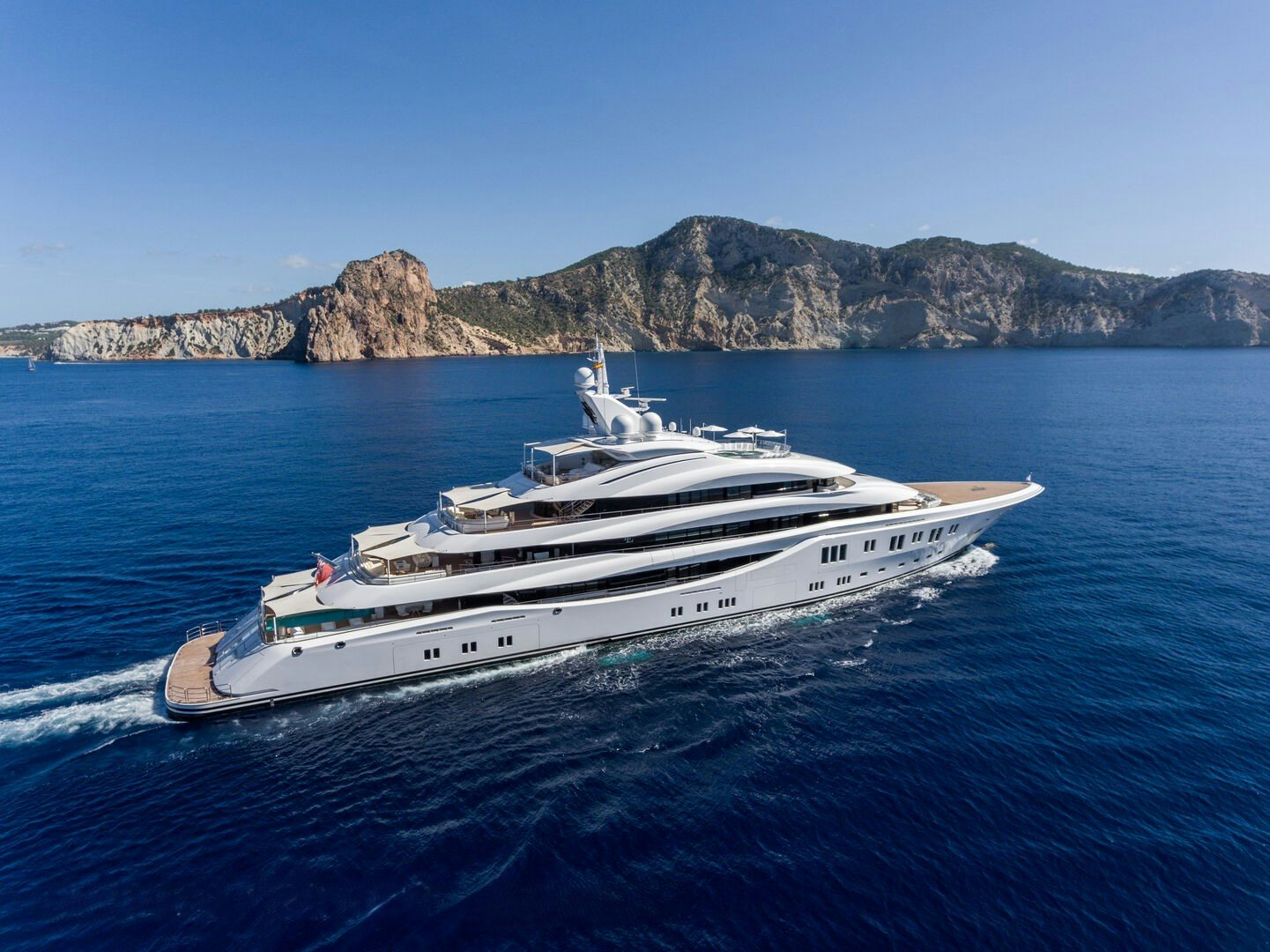

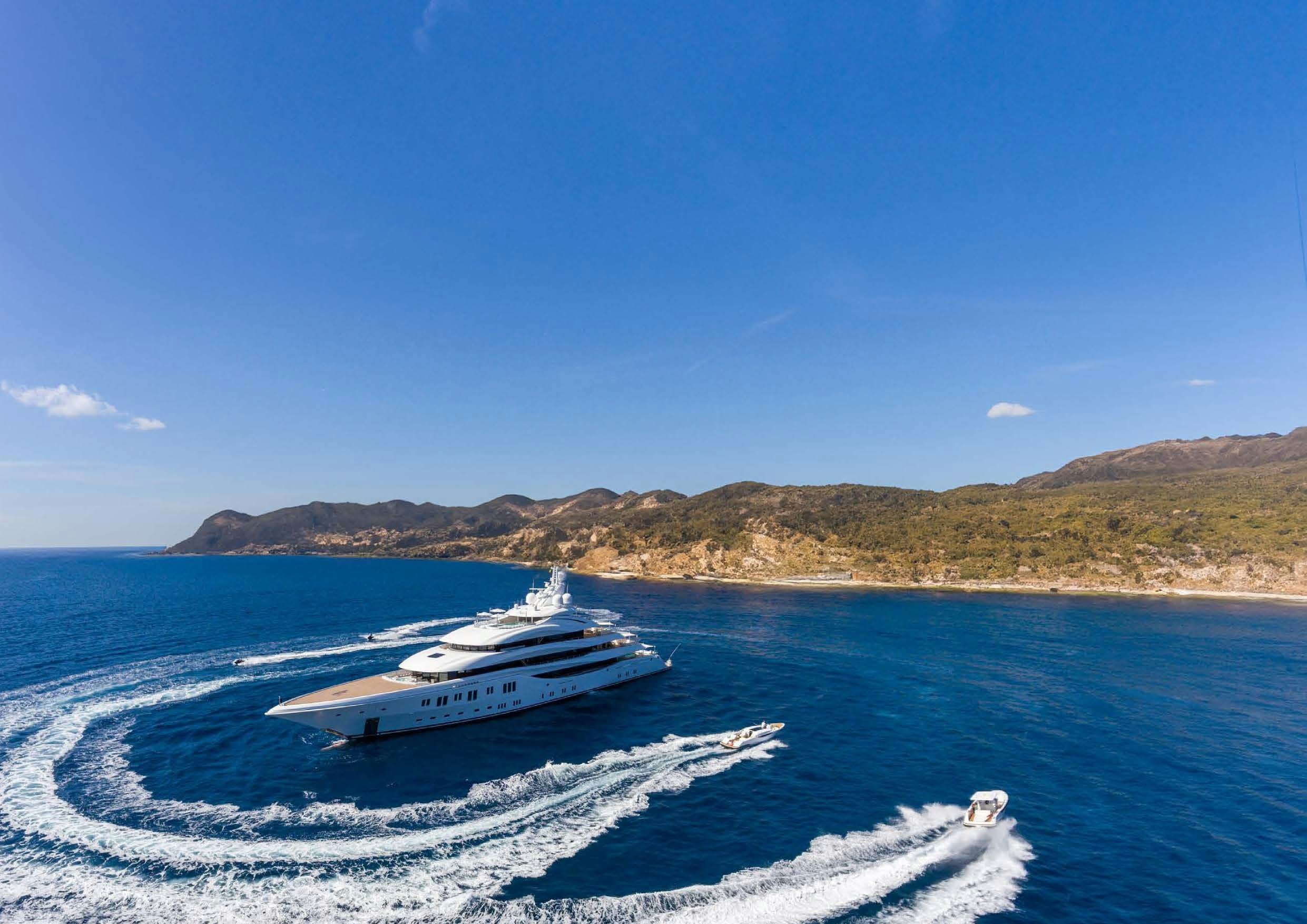

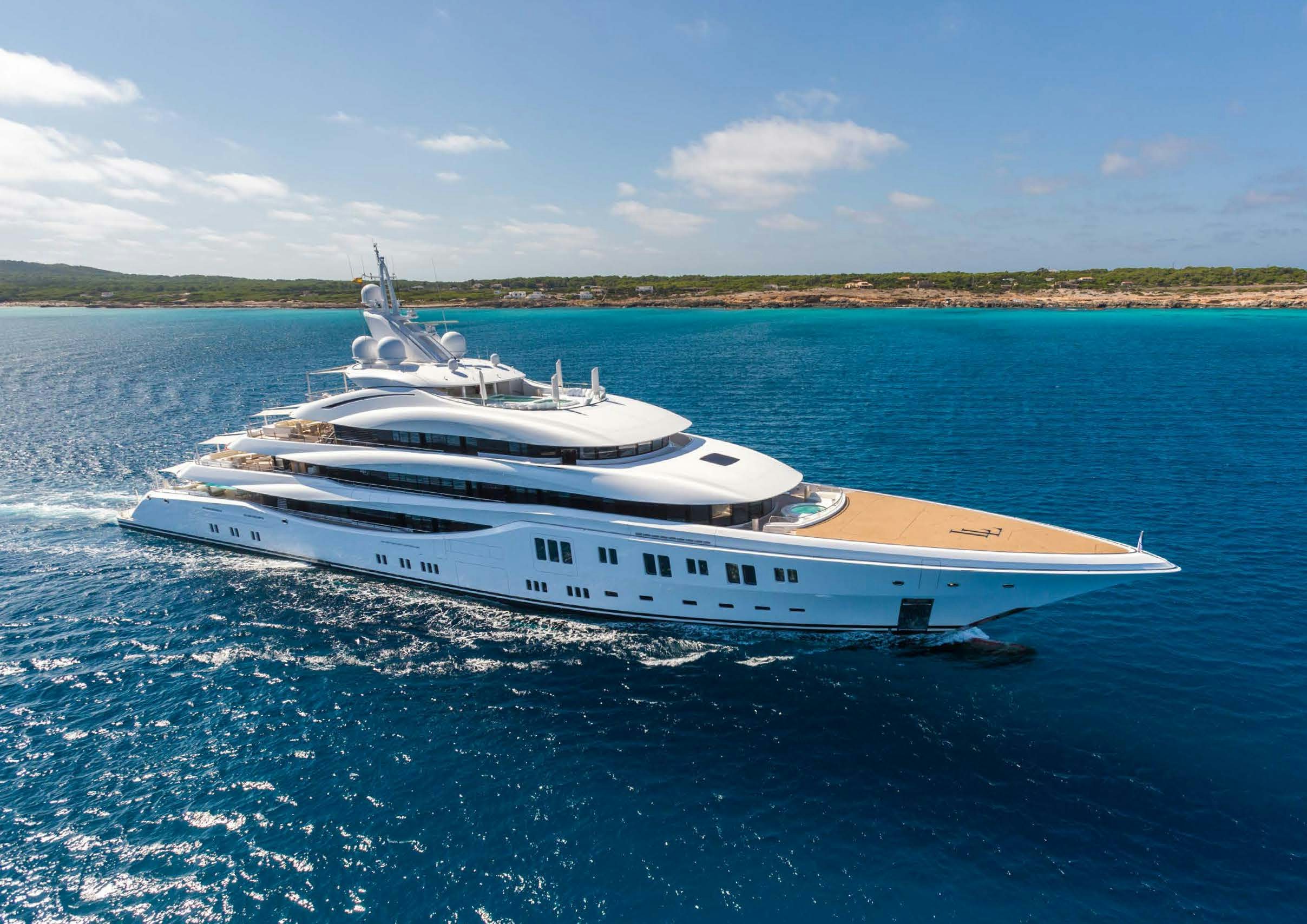

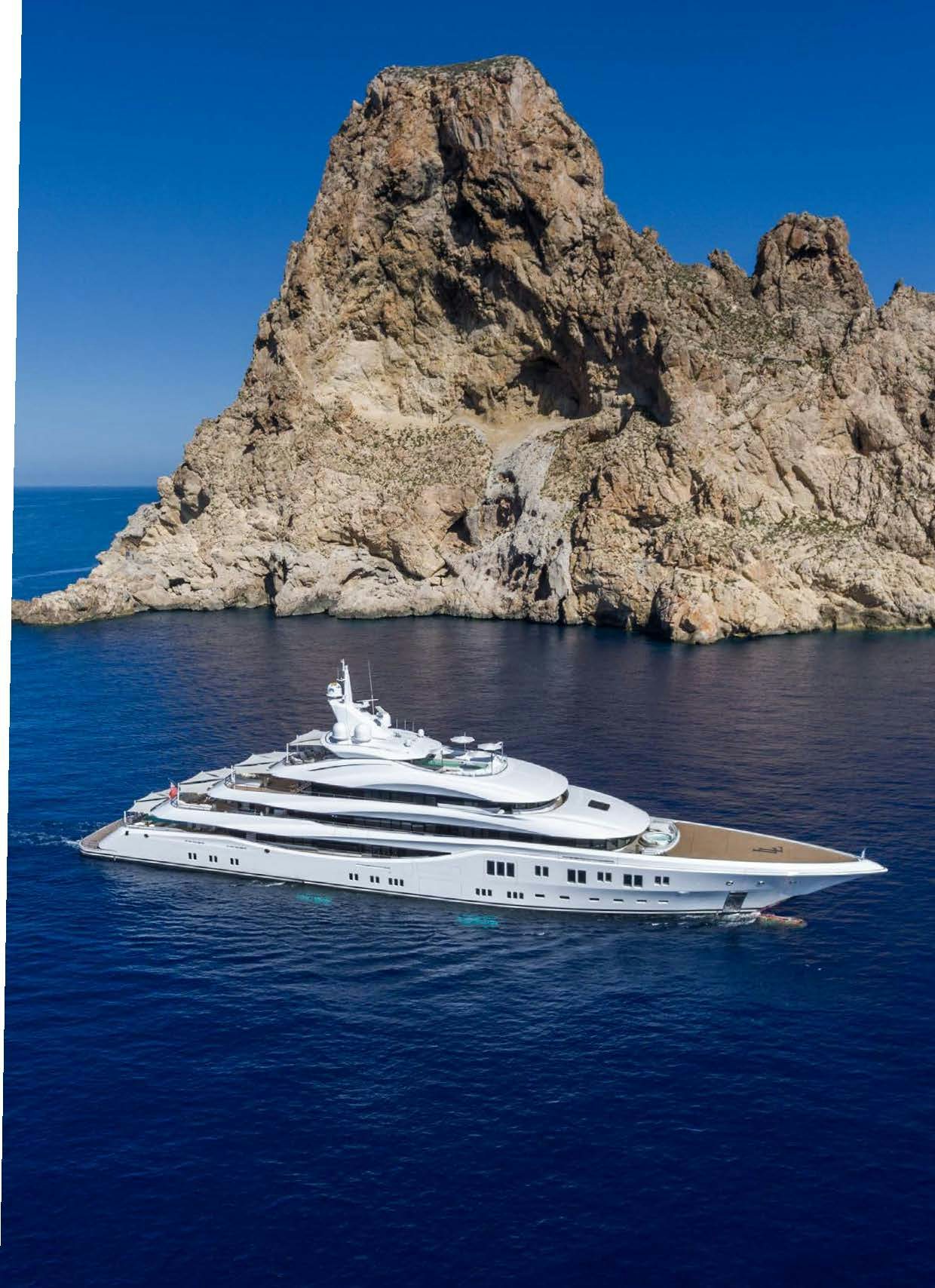

LADY LARA Yacht for Sale

• Propellers: Two Piening five-bladed fixed pitched propellers
• Rudder Angle: Limit switches at 2 x 35 degrees for ship’s speed under 7-8 knots and at 2 x 15 degrees over 8 knots
• Main Engine Start: Air start
• Generator Start: Air start
• Water Maker: Idromar, 30 tons/day
• Water System: Domestic Fresh Water system with hot water circulation system
• Toilet System: Vacuum system and wastewater treatment plant
• Sewage System: Vacuum system with DVZ biological treatment unit
• Fuel Separator: Afla Laval

Shore Power

• x2 shore connection cable
• x2 transformers, each 150kVA.
• Input: 380/400/420 V, 50Hz
• Output: 400/230 V, 50Hz
• x1 shore connection box with 2 sockets each with circuit breaker and voltmeter

Lifts

• x1 Food lift 150Kg, 1200mm cabin height, serving all decks from Tank
• Deck to Bridge Deck

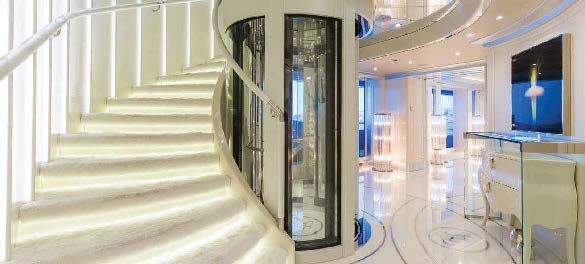

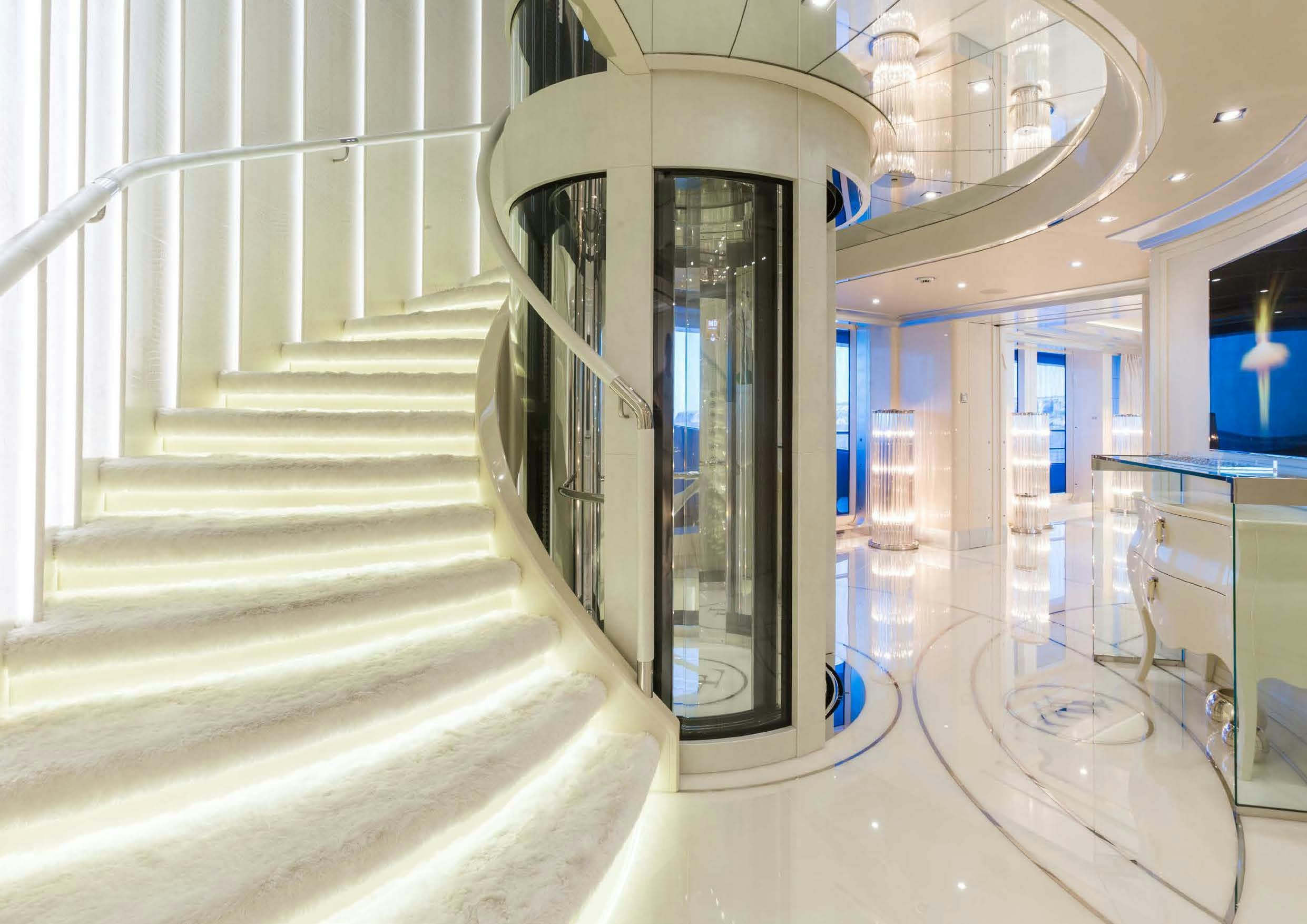

• x1 Passenger lift 4pax serving all decks from Tack Deck to Bridge Deck

Hydraulics

• Tender door, beachclub door, Transom doors, swim ladder, beach club door, crew/ provisioning door, 2 VIP cabin balcony platforms, mooring gear covers, pool floor lift, 2 overhead cranes in tender garage, foredeck rescue boat hatch and crane, foredeck jetski store hatch and crane, mooring balconies, guest side boarding ladder, boarding platform,
• Owners deck bulwark flaps

Air Conditioning

• Heinen & Hopman fully air-conditioned system (including bathrooms) with central air handling units, while cooling of technical areas and the beach club has AC. Floor heating installed in bathrooms.

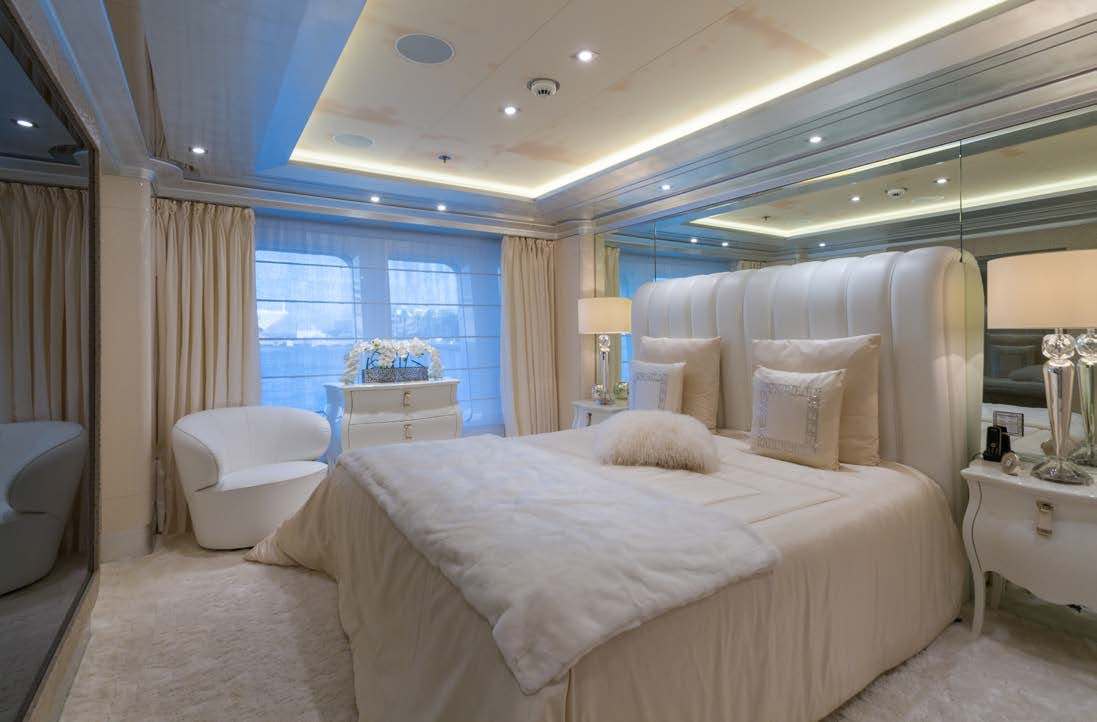

• Guest Accommodation 16 guests in 8 cabins and 4 staff in 2 cabins
• Crew 29 Crew in 16 Cabins (Captain’s cabin is double)

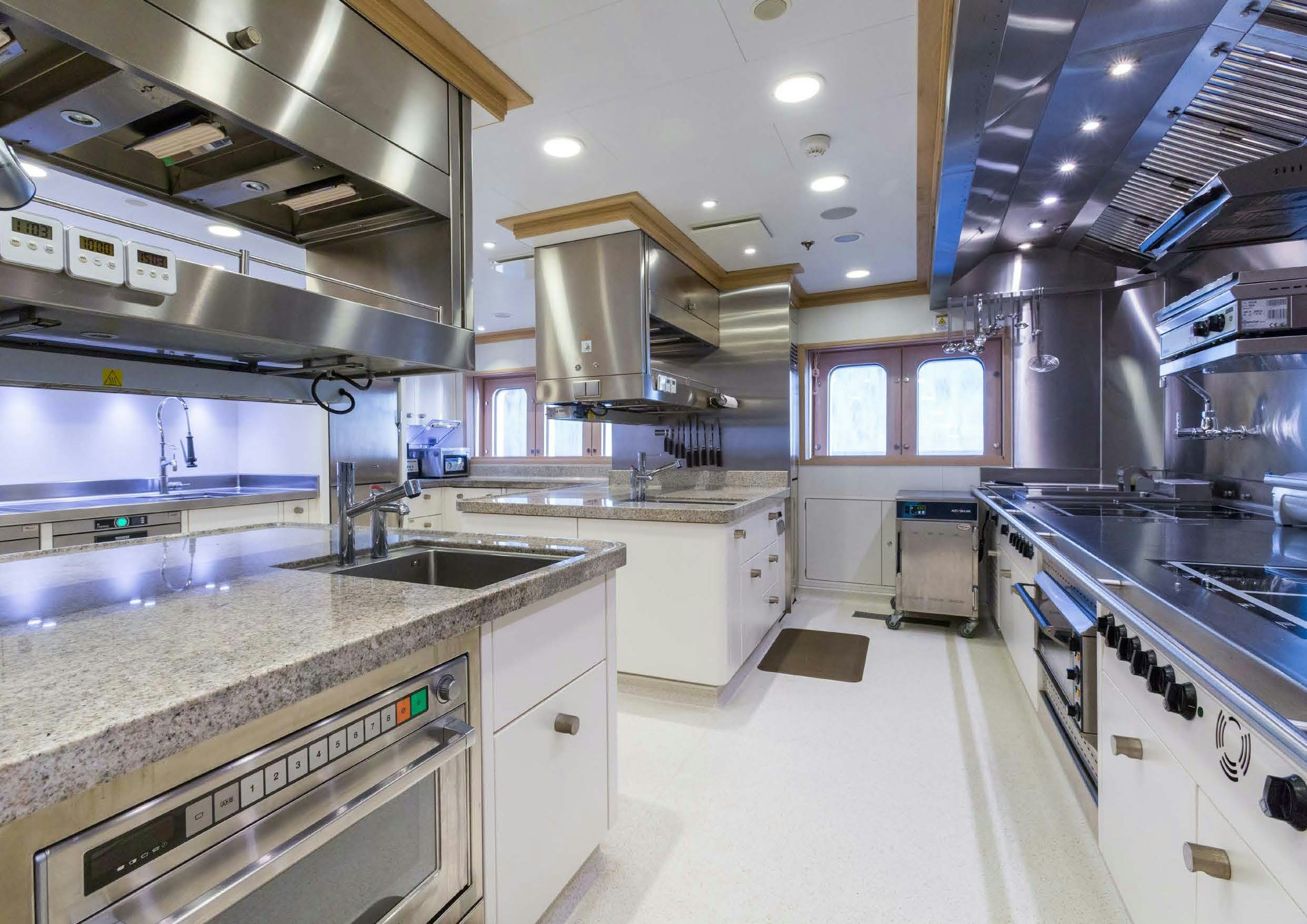

Galley

• x1 Single Deep Fat Fryer
• x1 2 Burner induction range
• x1 Griddle Plate approx.. 600/600mm
• x2 Combi Steamers (Rational 6/1 GN)
• x1 Salamander
• x1 Full Height Freezer
• x2 Full Height Friges
• x2 Undercounter Fridges with Drawers
• x1 Microwave
• x1 Hot water dispenser
• x1 Icemaker
• x1 Heating Bridge

Crew Lounge

• x1 Full height fridge with icemaker
• x1 Domestic Dishwasher

Crew Mess

• x1 Full Height fridge
• x1 Hot water dispenser
• x1 Sink
• x1 Built-in Microwave
• x1 Icemaker
• x1 coffee machine

Pantry Main Deck

• x1 Domestic Dishwasher
• x1 Built-In Microwave
• x1 Undercounter Fridge
• x1 Icemaker
• x1 Undercounter Winecooler
• x1 Hot water dispenser

Pantry Owner’s Deck

• x1 Domestic Dishwasher
• x1 Built-in Microwave
• x1 Undercounter Fridge
• x1 Icemaker
• x1 Undercounter Winecooler
• x1 Hot water Dispenser

General

• x1 braked trolley for the food lift
• x1 Wine storage on Lower Deck

Sundeck

• 1x Teppanyaki and barbeque

LAUNDRY EQUIPMENT

• x2 Washing Machine 13kg
• x2 Tumble Dryer 16kg
• x4 Washing machine (one in Beachclub area) 6.5kg
• x4 Tumble Dryer (one in Beachclub Area) 6.5kg
• x1 Ironing Machine 140cm
• x2 Washing sink
• x1 full-length Electrolux drying cupboard in the laundry


• Satcom: x2 VSAT, x1 Fleet broadband, x2 Starlink
• VHF: Digital radio system upgraded in 2020
• SSB: x1 SSB Radio transmitting/receiving system
• Landline/Intercom: A one-way communication System type PHONTEC System 3100 for 8 substations + UHF system
• Telephone: A Cisco IP Network based Telephone system

• Magnetic Compass: x1 Cassens & Plath Magnetic Compass with interfaces
• Gyro Compass: x1 Twin set Anschutz gyro compass system with gyro operator unit and repeater in bridge console and emergency steering gear compartment
• Integrated bridge: Raytheon
• Autopilot: Anschutz
• Dynamic Positioning: EMRI DP system
• Echo Sounder: Furuno Echosounder System
• Radar:  x1 S-band radar, x1 X-band radar
• AIS: x1 JRC AIS
• GPS: x2 Saab GDPS
• Chart Plotter: ECDIS Transas Class approved
• Navtex: x1 JRC Navtex receiver
• Searchlights: x2 searchlights controllable from wheelhouse and wing stations (new in 2022)

Camera(s):

• Security network-based CCTV system comprising of
• Server with recording functionality
• Four control panels
• x12 fixed IT cameras
• x2 PTZ camera
• x5 PTZ cameras
• x2 workstation with two 19inch TFT screens each
• x1 workstation with 22” widescreen
• x1 PTZ camera on bulbous bow
• x2 PTZ cameras on underwater hull

Upgraded in 2023 by Sensory with new PC’s, cameras, and workstations

• Cinema on Tank Deck, disco/ party setup on Main Deck aft with dancefloor, hidden TV’s behind mirrors in guest cabins, exterior TV’s on Owners Deck aft and sundeck
• Apple Airplay throughout exterior and interior spaces, Kaleidescape system, exterior TV’s on Owners deck aft and sundeck, seamless Wi-Fi throughout, Kerio Wi-Fi manager
• Central AV & IT rack room on tank deck.
• x2 VSAT, x1 TVRO, x1 4g/5g system and Starlink

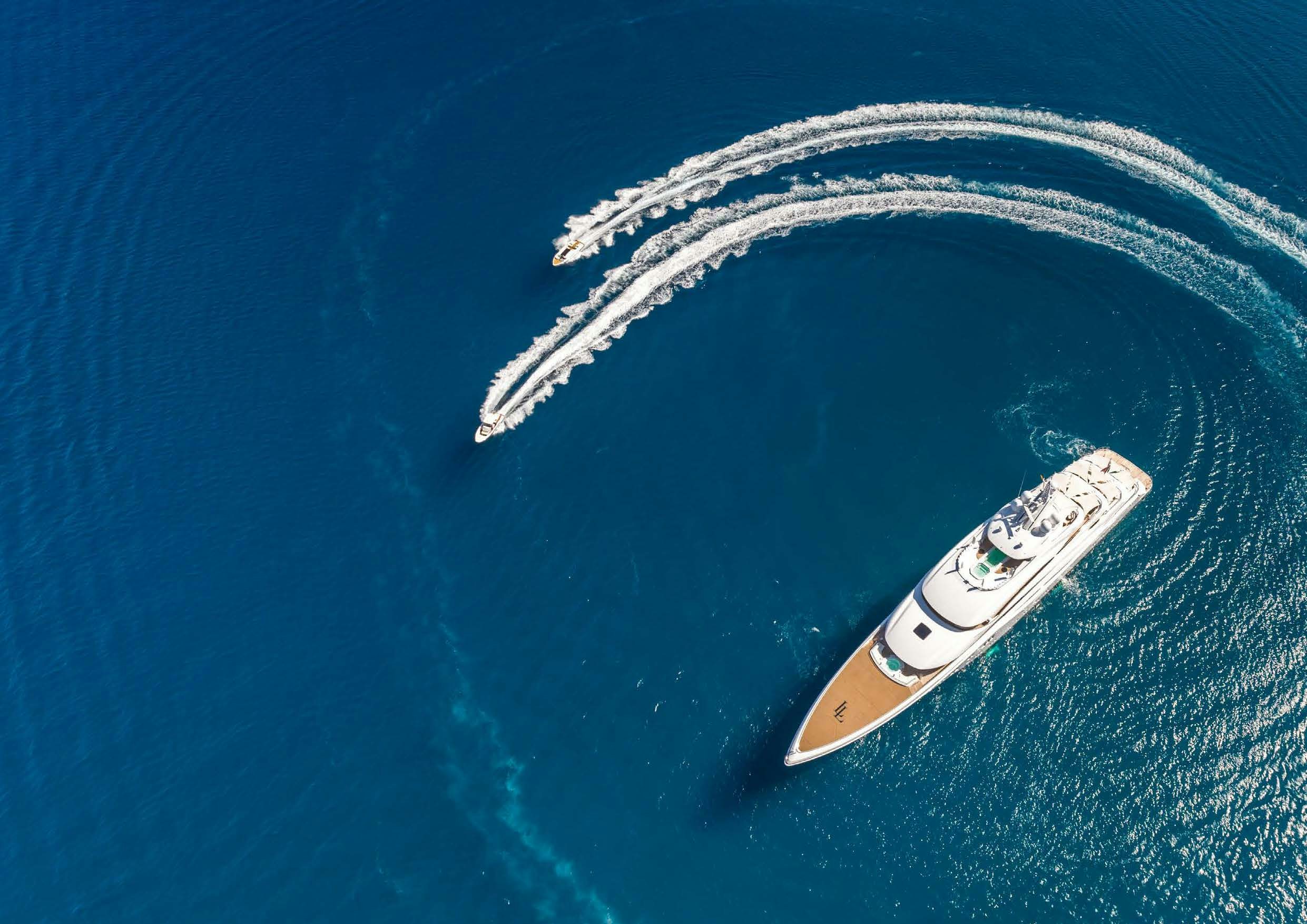

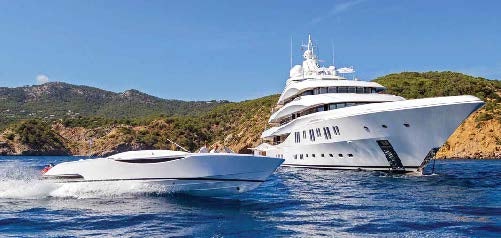

Tender

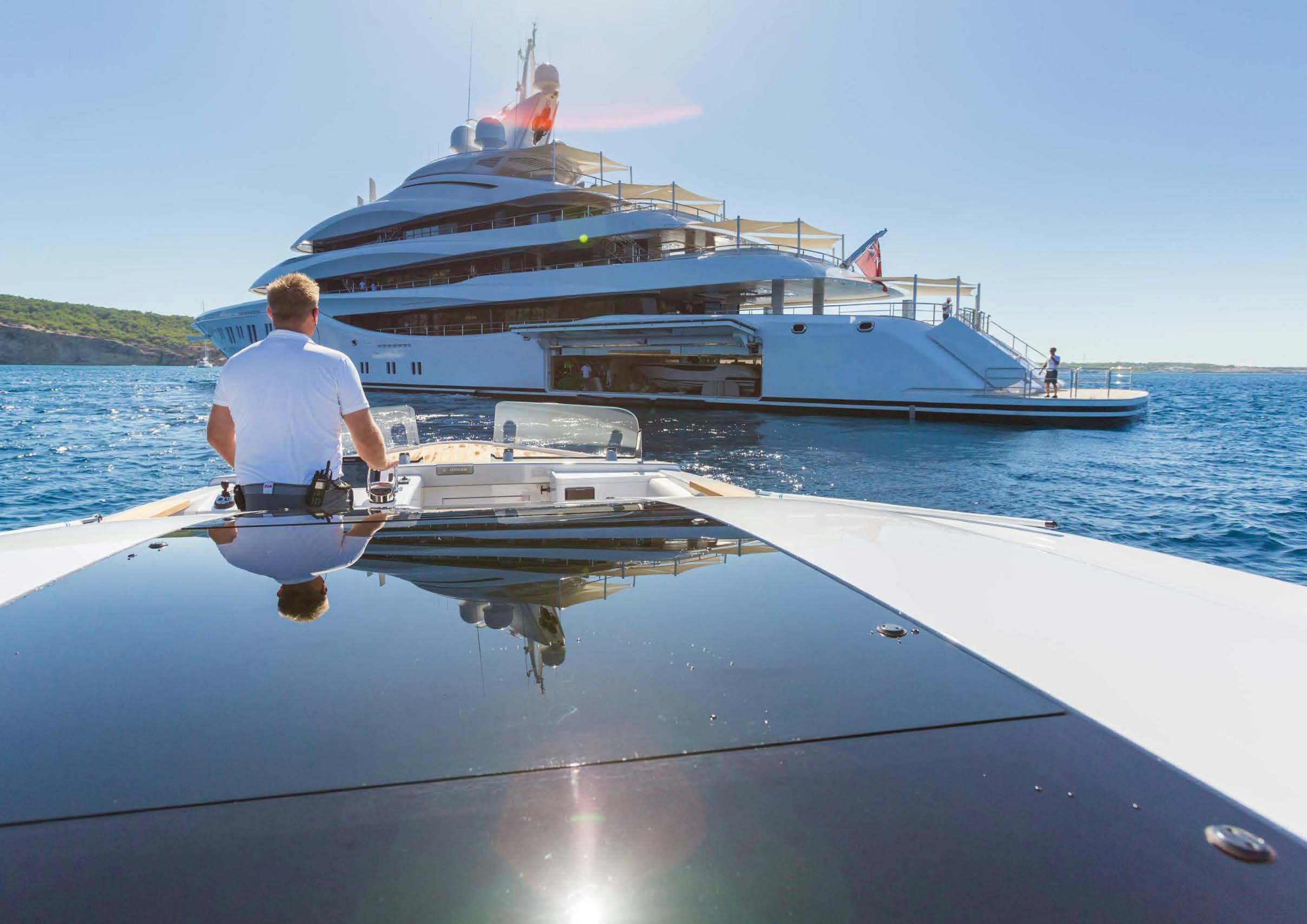

• x1 custom 9m Compass sport tender (refit 2023)
• x1 custom 11.6m Compass limo tender (refit 2023)
• x1 custom 6.8m Xtender rescue boat (new 2020)

Helicopter facilities

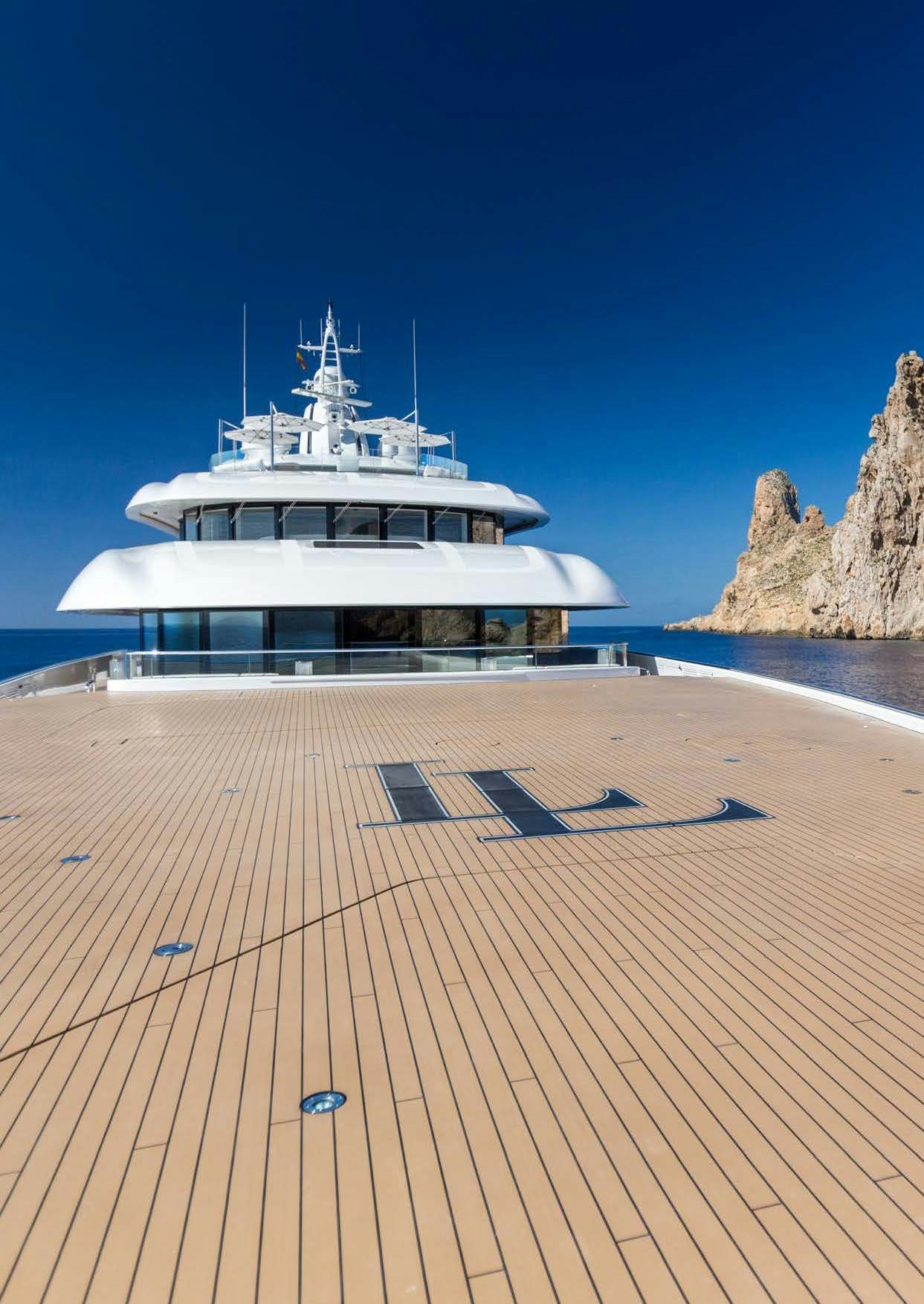

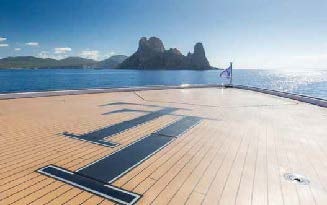

• Helipad on Owner’s Deck for EC130 or similar up to 3t

Watersports

• x2 waverunner Seadoo GTX-300
• x2 Seabobs F5-S
• Dive & snorkeling equipment
• x1 20’ Bouncer with swimstep
• x1 Jungle Joe II
• x1 E-foil

Diving

• x16 Dive bottles
• x1 custom dive compressor
• x1 deep sink (cooling tank)
• x1 filling station for filling the dive bottles

Anchor Windlasses

• x2 Steen Stainless steel anchor capstans, gear electrically driven (2 speeds) and self-breaking fitted with:
• Stainless steel chain stopper
• Stainless steel devil claw
• Guide roller
• Chain counter and mooring deck

Aft Warping Capstans

• x2 Steen electrically driven warping reversible capstans having a maximum pull of abt. 10m/min (2 speeds)

Anchors

• x2 bow anchors with swivels, galvanised steel

Anchor Chains:

• Galvanised anchor stud link chain fastened in the chain locker, 8 shackles

Boat Crane & Davits

• x2 Overhead Davit Tender crane
• x1 Rescue Boat crane
• x1 Jetski Crane

Gangway

• At port side below Main Deck level a hydraulic operated retractable, rotating stern gangway with a capacity of about 250 kg. Length: 10m –
• Width: 1m

Side boarding ladder:

• SB side hydraulic guest boarding ladder

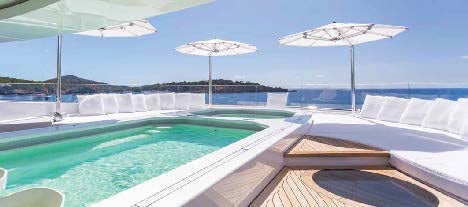

Pool

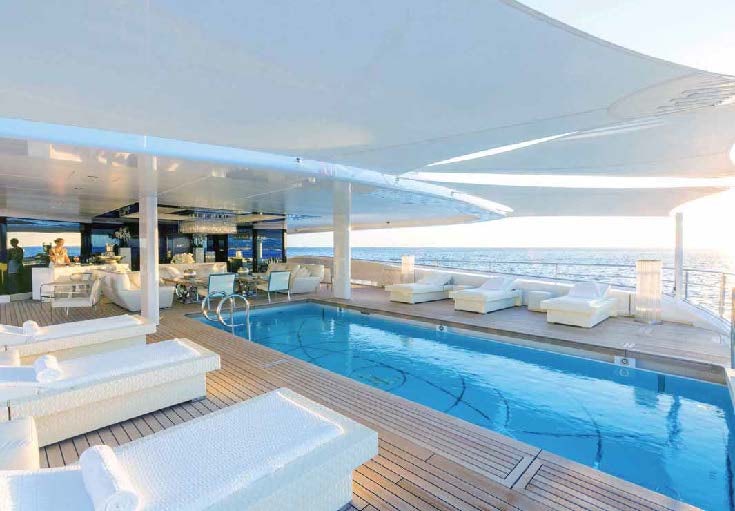

• x1 contra flow raisable pool on Main Deck (8m x 3.5m x 1.35m)

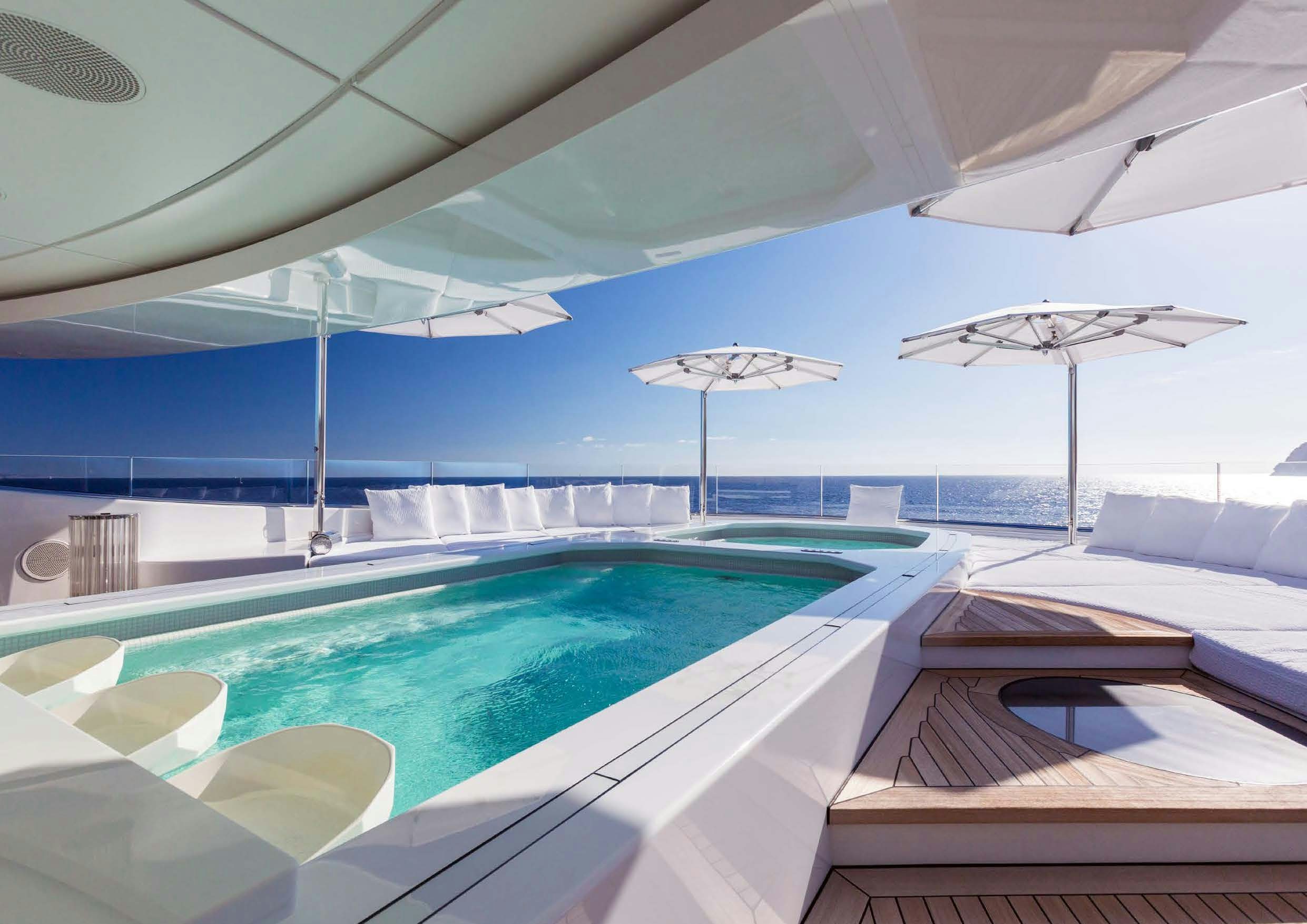

• x1 contra flow pool on Top Deck with bar seats
• Hot and cold shower adjacent to each

Jacuzzi

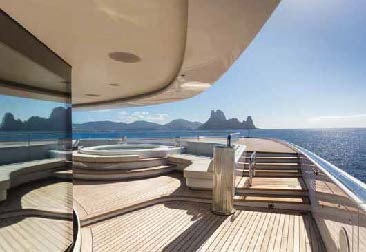

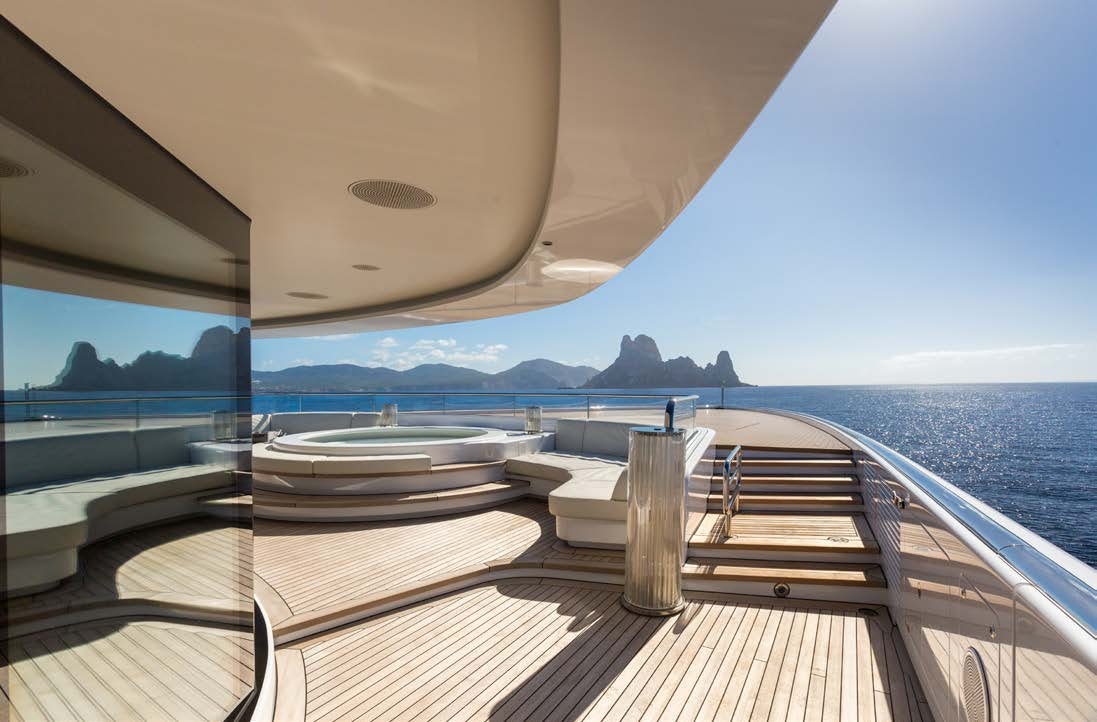

• x1 jacuzzi on Top Deck
• x1 jacuzzi on Owner’s Deck
• Hot and cold shower adjacent to each

Swimming Platform

• Hydraulic sea stairs
• Tender fenders with heavy duty whips
• Shower
• Umbrellas

Awnings:

• Sun Deck forward / Sun Deck aft / Bridge Deck aft / Owner’s Deck forward / Owner’s Deck aft / Main deck aft / Sea Terrace

Safety

• BIS integrated in the IMCS providing control access for Navigation
• Lights, Exterior Lights, Fire pumps, Hi-Fog System, Shell openings, Fire
• Doors, Watertight Doors, Watertight Dampers, Telecopic Mast, Security deter and detection screen
• Liferafts fitted on Owner’s Deck in manual foldable S/S launcher
• x5 Watertight handhelds
• x2 EPIRB

Firefighting

• x1 Fire alarm control panel in the wheelhouse and 1 in the Engine Watch Room.
• Heat or optical smoke detectors in accommodation and machinery spaces according to Class requirements.
• Manual alarm push buttons behind glad in the alleyways according to
• Class requirements.
• Seawater Fire Extinguishing system in compliance with Class requirements
• Marioff hi-fog system

Security

• Full security system by Marineguard upgraded by Sensory in 2023 with CCTV, intruder alarms, deck sensors, door sensors.

2022-23

• +15M EUR 8-month refit at MB92. Full paint job, engine services, stabilizer overhauls, new coating system in tanks, new carpets throughout, new IT system, security system upgrade, hydraulic system overhauls, interior touch ups.
