Asking
$14,995,000
TIGER LILY TOO Yacht for Sale

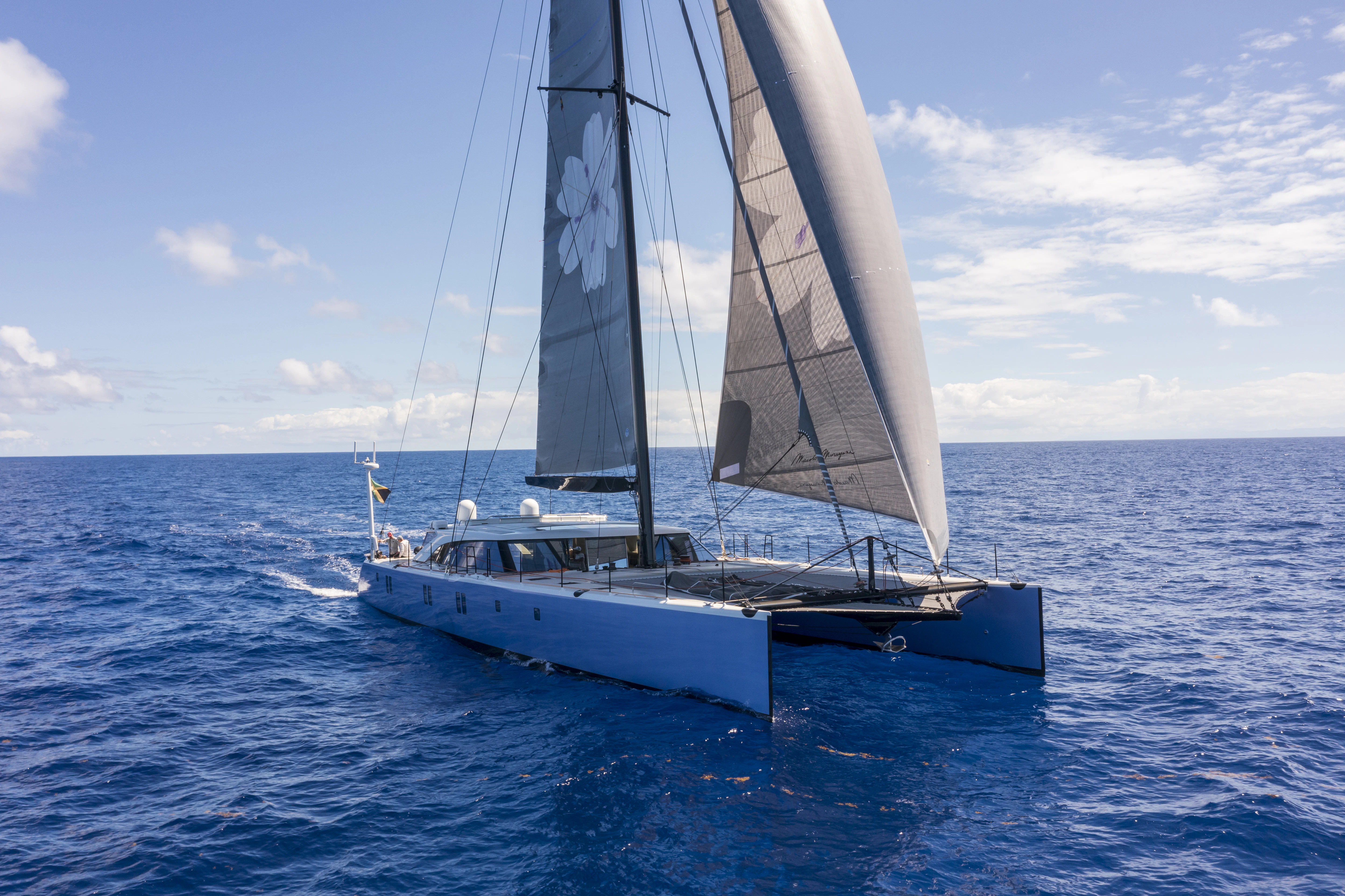

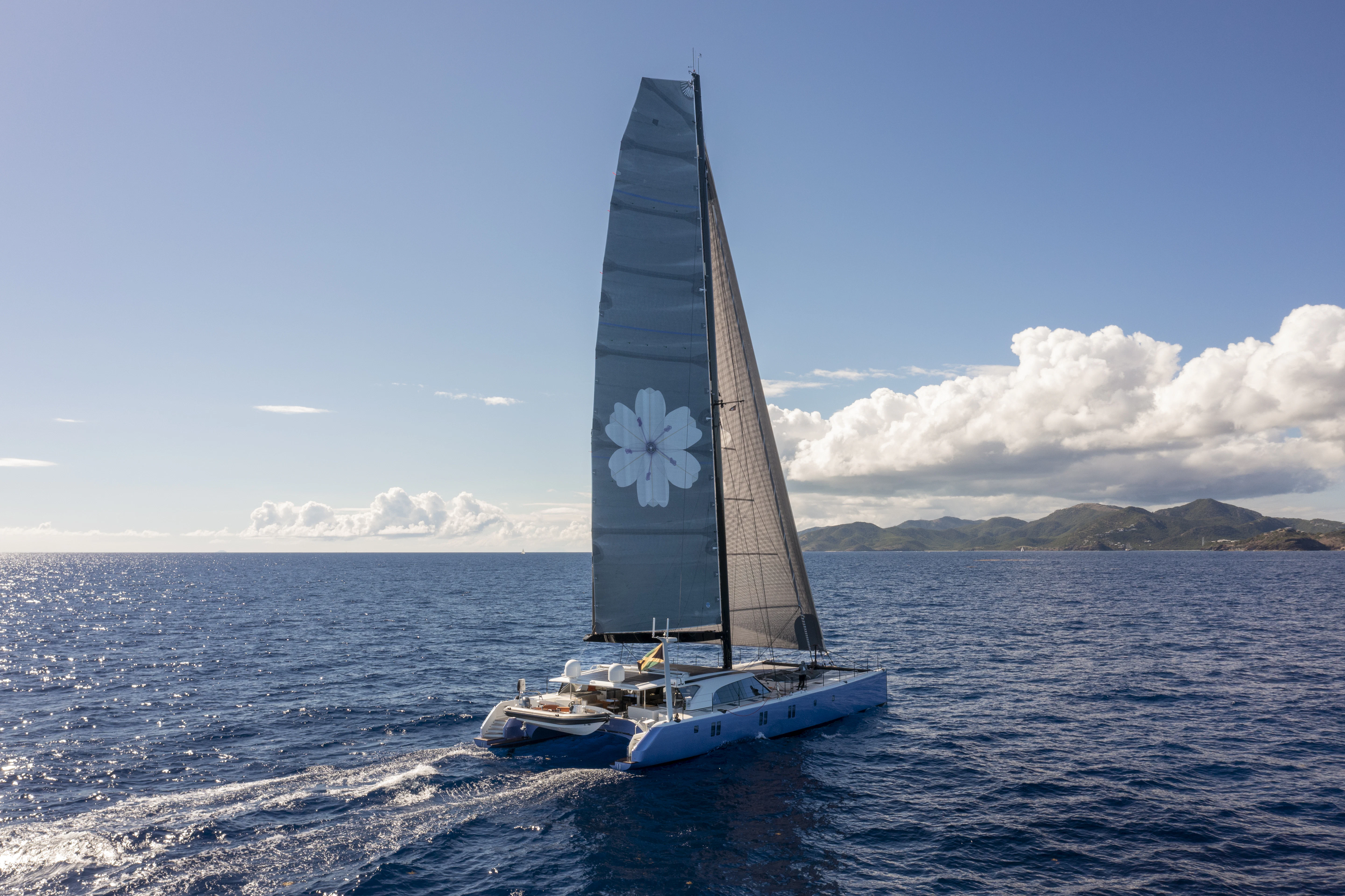

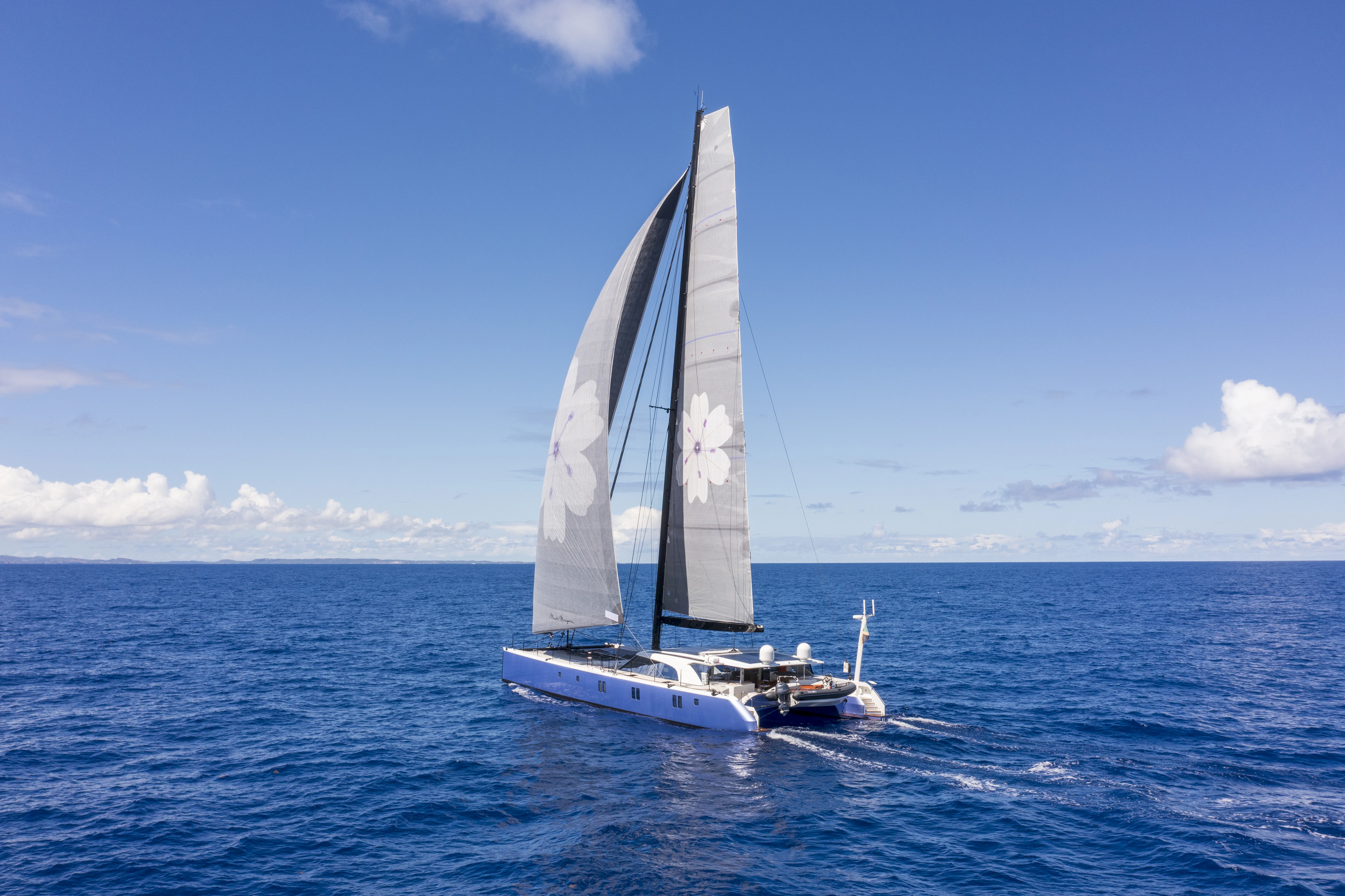

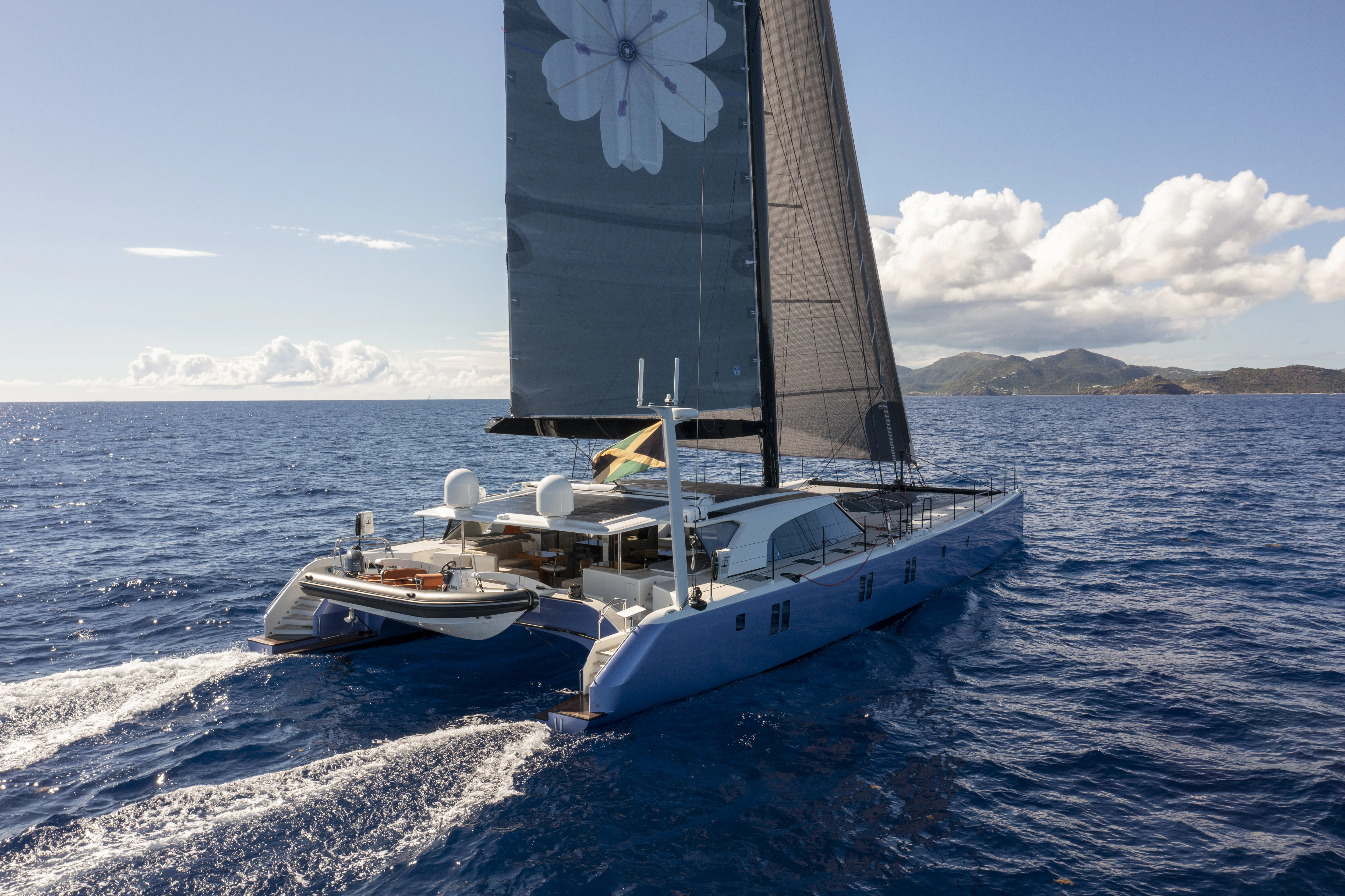

TIGER LILY TOO is the only Gunboat 90 ever built, a custom performance cruising catamaran designed by Morrelli & Melvin and constructed in Cape Town, South Africa in 2010. Her lightweight platform uses full-carbon composite construction, with vacuum-bagged epoxy hull and deck structures over a Nomex aramid honeycomb core, carbon fiber inner skins and Kevlar outer skins. With lifting rudders and daggerboards, she draws just 5.2 feet. She has never been raced and has instead been cruised, operated and maintained by an experienced crew.
From 2019 through 2021, TIGER LILY TOO completed a substantial $11 million refit at Newport Shipyard that substantially updated both her technical systems and onboard arrangement. All systems were replaced or upgraded, with work encompassing machinery, appliances, electronics, wiring and piping. The interior was also reconfigured, most notably through the removal of four structural posts in the salon and installation of a full-width carbon beam. The galley was moved from the salon into the starboard hull, creating a separate galley and crew area away from the principal guest spaces.
The same refit addressed much of the sailing platform. Work included renewal and upgrades to the mast components, sail package, standing rigging and running rigging, as well as replacement daggerboards and new titanium rudder bearings. PTO-driven bow thrusters were also incorporated for additional maneuverability. The project further included changes to the coach roof, exterior styling and boarding arrangements.
TIGER LILY TOO accommodates eight guests in four cabins. The port midships principal cabin has a walk-around king berth, private en-suite and dedicated office with a built-in desk. Two additional double staterooms are positioned aft to port and starboard, while a separate bunk cabin connects through the day head to the starboard aft cabin, allowing the two spaces to function together when required. Crew accommodations are separated forward, with two crew cabins, dedicated wet heads and capacity for up to four crew. Interior finishes include satin-stained birch cabinetry and Brazilian mahogany flooring.
The salon consolidates the main social and navigation spaces into one open-plan area. Wraparound windows provide 360-degree views, with two curved sofas positioned forward, a custom round dining table and a full-length bar and coffee station to starboard. The helm is centrally positioned within the salon, while the navigation station sits forward to starboard. For entertainment, a projector concealed within the ceiling operates with a retractable screen.

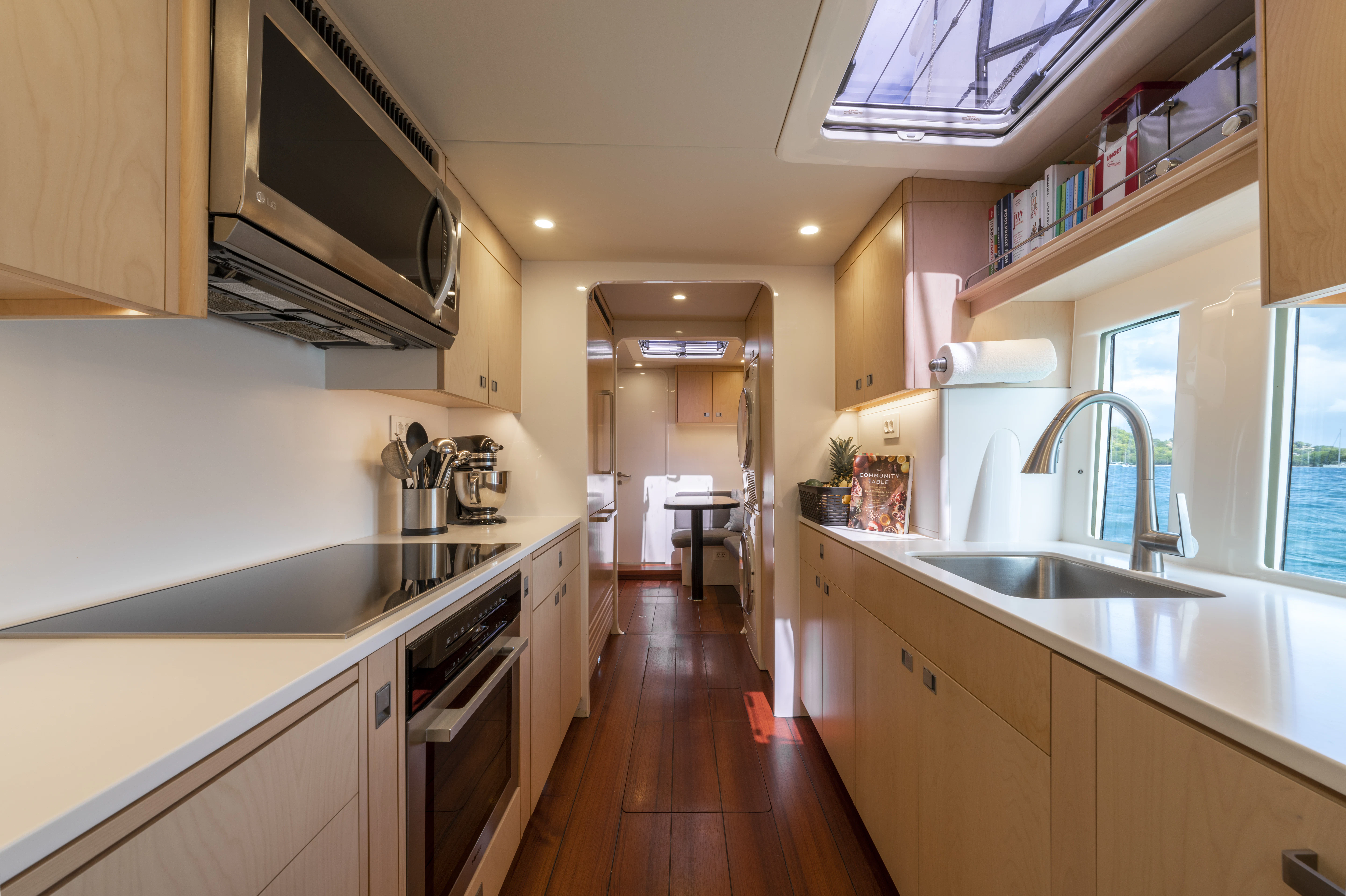

The galley occupies the starboard hull amidships and includes extensive counter space and storage, a large refrigerator, underfloor chest freezer and stacked Miele washer and dryer. Immediately alongside is the crew mess, equipped with an L-shaped banquette and dining/work table, flat-screen television, CZone and chartplotter displays, VHF handset and fire alarm panel.
The aft cockpit provides the principal alfresco dining area, arranged with two opposing L-shaped seating areas and lifting, expanding tables. Double sliding doors open between the cockpit and salon, connecting the two spaces. A custom Falcon tender is carried on the aft davits.
Continued investment in 2025 included replacement of the teak throughout the yacht, including the transoms, steps, and forward and aft cockpits. The mast was repainted and overhauled, the headstay was replaced and the rig underwent an overhaul with a new switch car stack pack and car system. Her sail inventory was updated with a 2025 North 3Di main and Solent with an RP locking headboard.

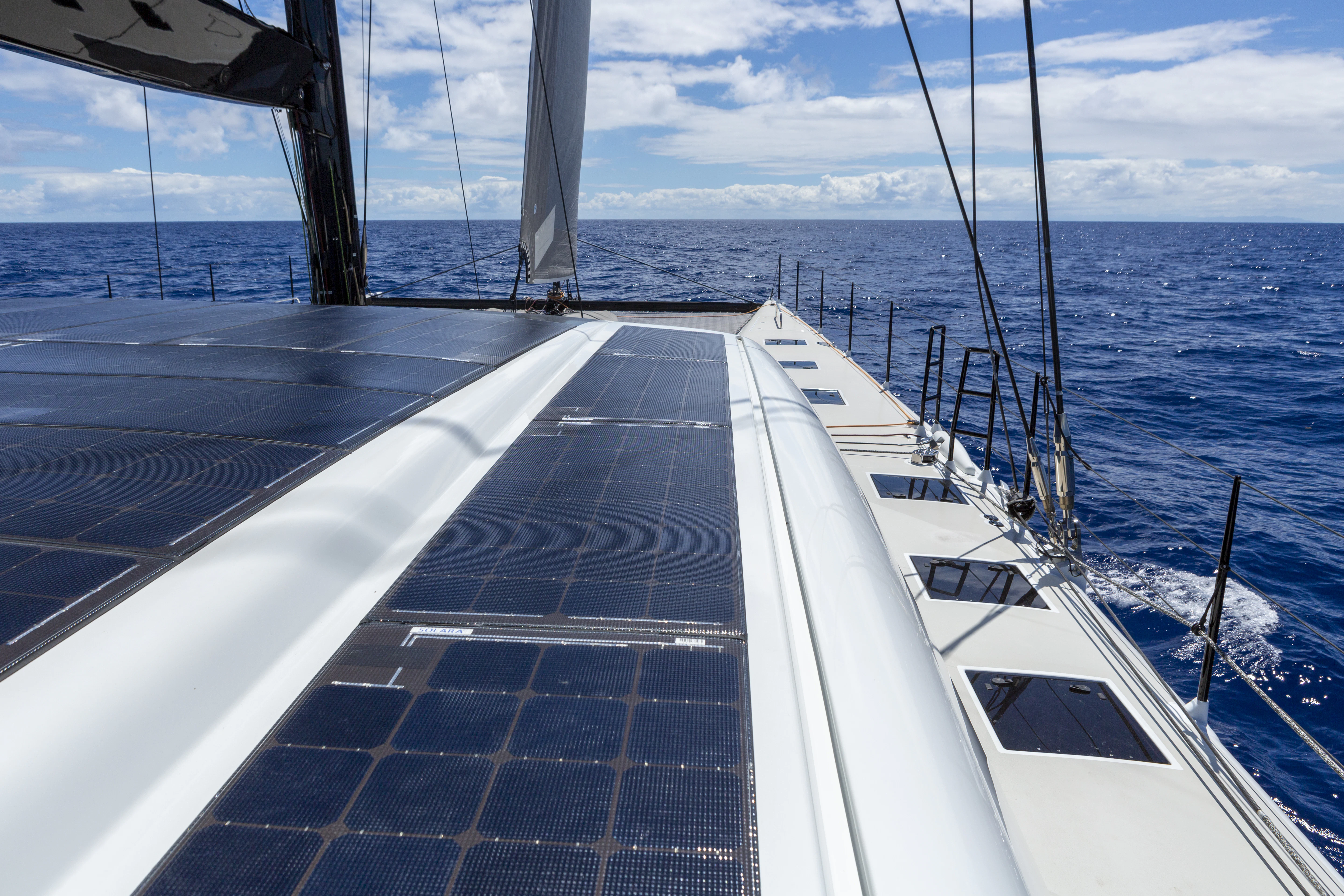

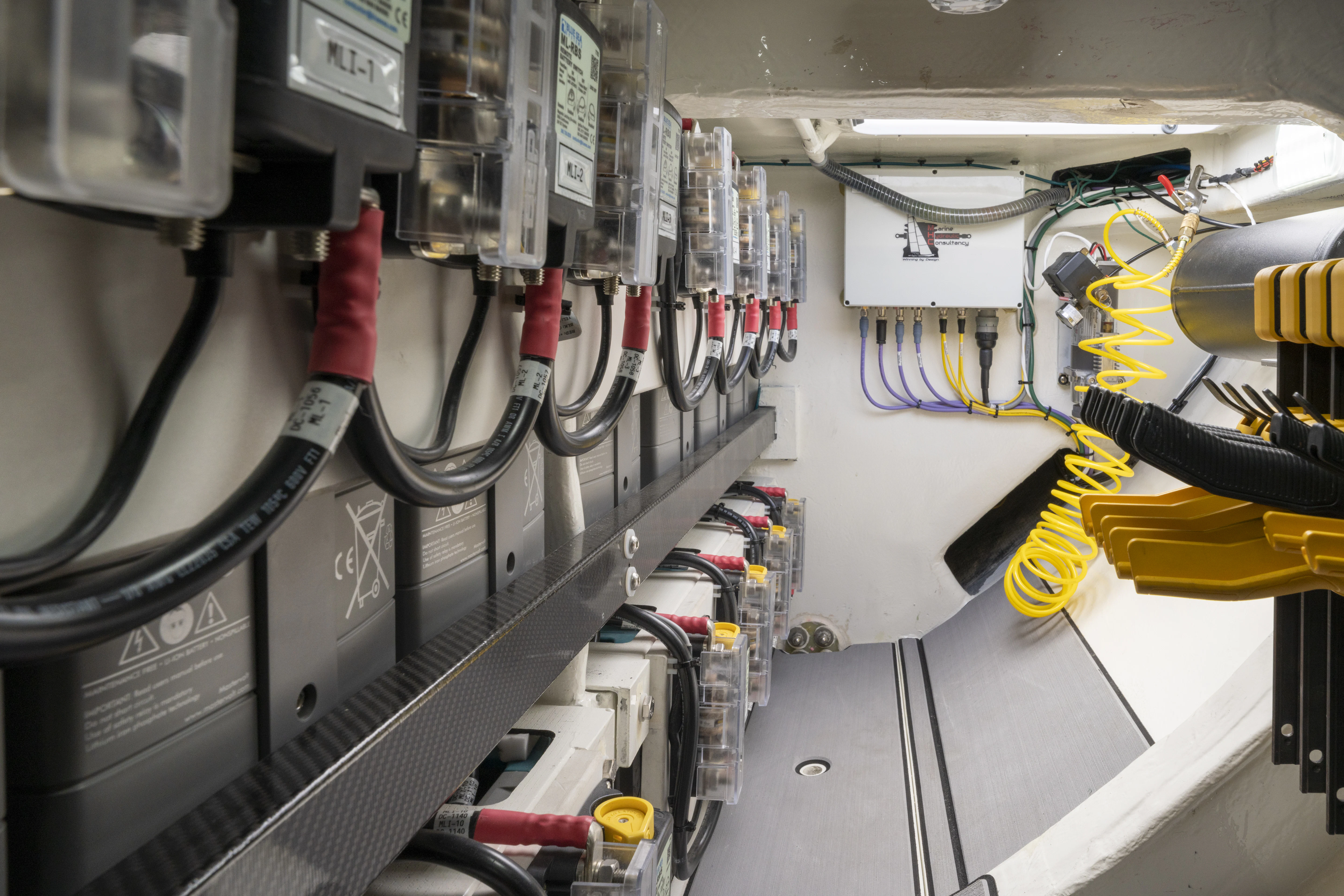

The yacht's onboard energy system incorporates 7,700 watts of solar generation from 53 panels paired with a high-capacity battery bank. Her transoms are also configured for large Watt & Sea hydro-generators. Together with her extensive 2019–2021 refit and further 2025 sailing and deck updates, TIGER LILY TOO presents a comprehensively updated example of this one-off Gunboat 90 platform.
Highlights
- The only Gunboat 90 ever built - a one-off custom performance cruising catamaran designed by Morrelli & Melvin and built in Cape Town in 2010.
- Full-carbon composite construction with vacuum-bagged epoxy structures, Nomex aramid honeycomb core, carbon inner skins and Kevlar outer skins.
- Shallow 5.2-foot draft thanks to lifting rudders and daggerboards, enhancing access to shallower cruising grounds.
- Major $11 million refit from 2019–2021 at Newport Shipyard, comprehensively upgrading machinery, electronics, wiring, piping, appliances and onboard systems.
- Reimagined open-plan salon with four structural posts removed and replaced by a full-width carbon beam, plus 360-degree views through wraparound windows.
- Reimagined open-plan salon with four structural posts removed and replaced by a full-width carbon beam, plus 360-degree views through wraparound windows.
- Significant 2025 upgrades, including all-new teak, mast overhaul and repaint, new headstay and updated North 3Di mainsail and Solent.
- Highly capable renewable-energy system featuring 7,700 watts of solar generation from 53 panels, a high-capacity battery bank and provision for large hydro-generators.
- Strong indoor-outdoor living and cruising functionality, with a separate galley and crew area, expansive aft cockpit, opening salon doors and custom Falcon tender on aft davits.
Amenities
-
Wi-Fi
-
Crane
In The News
Specifications
| Builder | Gunboat |
|---|---|
| Model | G90 |
| Length (LOA) | 90' 8" (27.63m) |
| Year | 2010 |
| Gross Tonn. | 101 |
| Draft | 12' 7" (3.88m) |
| Beam | 38' (11.6m) |
| Location | Cole Bay, Sint Maarten |
Accommodations
| Staterooms | 4 |
|---|---|
| Double Cabins | 4 |
| Sleeps | 8 |
| Heads | 4 |
| Crew Cabins | 2 |
|---|---|
| Crew Sleeps | 4 |
| Crew Mess | 1 |
Dimensions & Capacity
| LOA | 90' 8" (27.63m) |
|---|---|
| LWL | 85' (25.95m) |
| Min Draft | 5' 20" (1.58m) |
| Max Draft | 12' 7" (3.88m) |
| Fuel Tank | 600 g (2,272 L) |
| Fresh Water | 400 g (1,514 L) |
| Gross Tonn. | 101 |
| Displacement | 37 |
Construction
| Hull Material | Composite |
|---|---|
| Hull Config | None |
| Ext. Designer | Morrelli & Melvin |
| Int. Designer | Rhoades Young |
| Max Speed | 12 Knots |
| Cruising Speed | 8 Knots |
Complete the form below and one of our experienced sales brokers will be in touch soon.
Full Details
Brokers Comments
Tiger Lily Too is one of the most extraordinary performance cruising catamarans ever built.
A fully custom Gunboat 90 designed by Morrelli & Melvin and built in Cape Town, South Africa in 2010 to the highest possible specification and without compromise. Her all-carbon and Nomex honeycomb construction gives her a displacement-to-length ratio more indicative of an offshore race boat than a cruising yacht, and the Gunboat 90 still stands entirely alone in the marketplace. No other vessel of her size combines this level of structural sophistication, sailing performance, and ocean capability and ability to only draw 5.2ft with her lifting rudders and daggerboards. She is a platform that has simply never been replicated.
From 2019 to 2021, Tiger Lily Too underwent an $11,000,000 major refit and transformation in the USA, one of the most comprehensive ever undertaken on a performance cruising catamaran. Every system was replaced or upgraded by world-leading specialists. The interior layout was reimagined to include a dedicated crew area, transforming the platform into a true superyacht capable of global exploration while providing owners with sumptuous luxury and privacy.
Tiger Lily Too is finished throughout in birch cabinetry with a satin stain finish, Brazilian mahogany floors, and impeccable Italian fabrics and detailing. She accommodates eight guests across three large double walk-around beds, each with its own private en-suite, an extra bunk room perfect for kids or guests, and up to four crew.
Tiger Lily Too is offered to the market in turn-key, step-on superyacht condition.
Boarding, Transom, Interior & Accommodation
TRANSOM & BOARDING

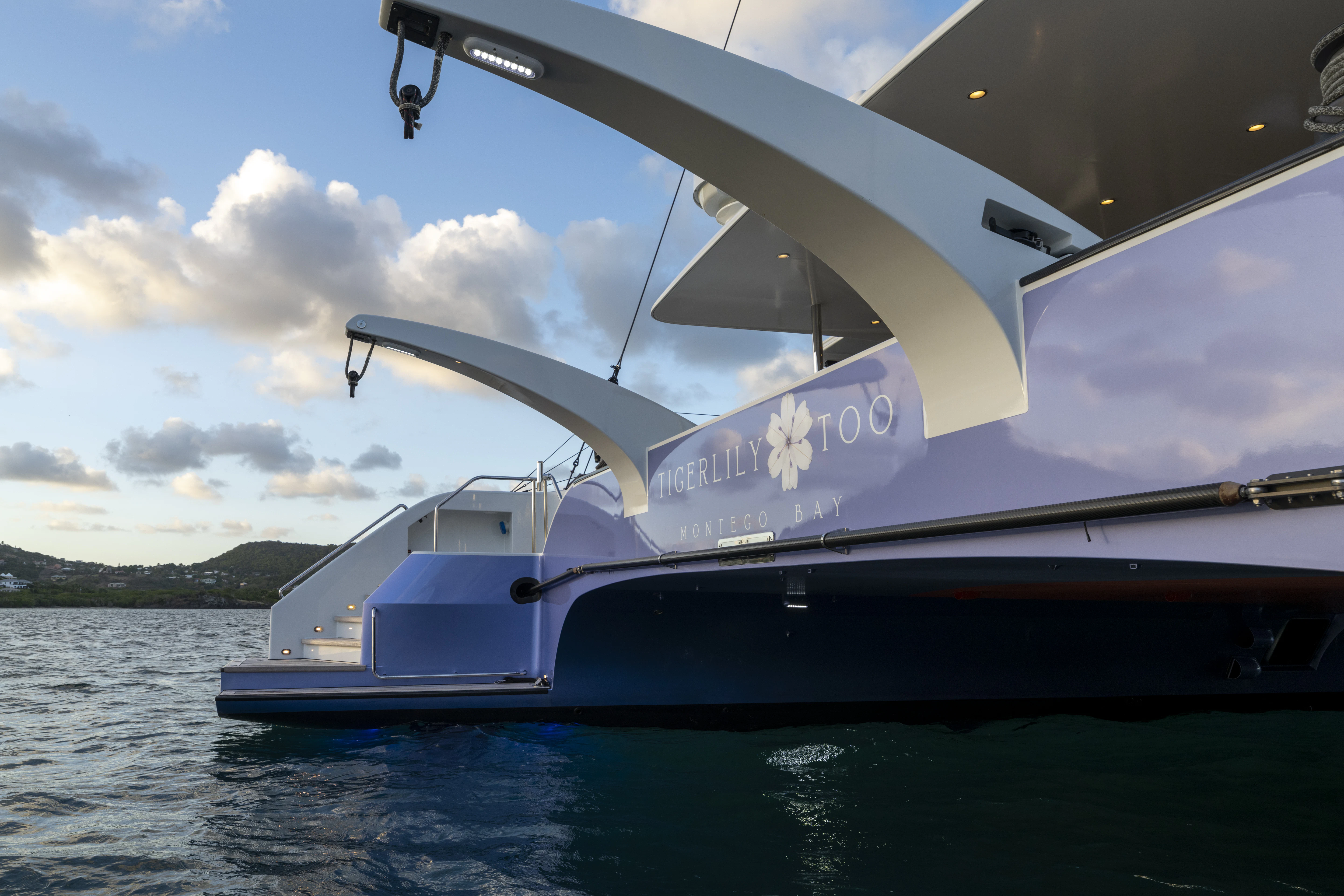

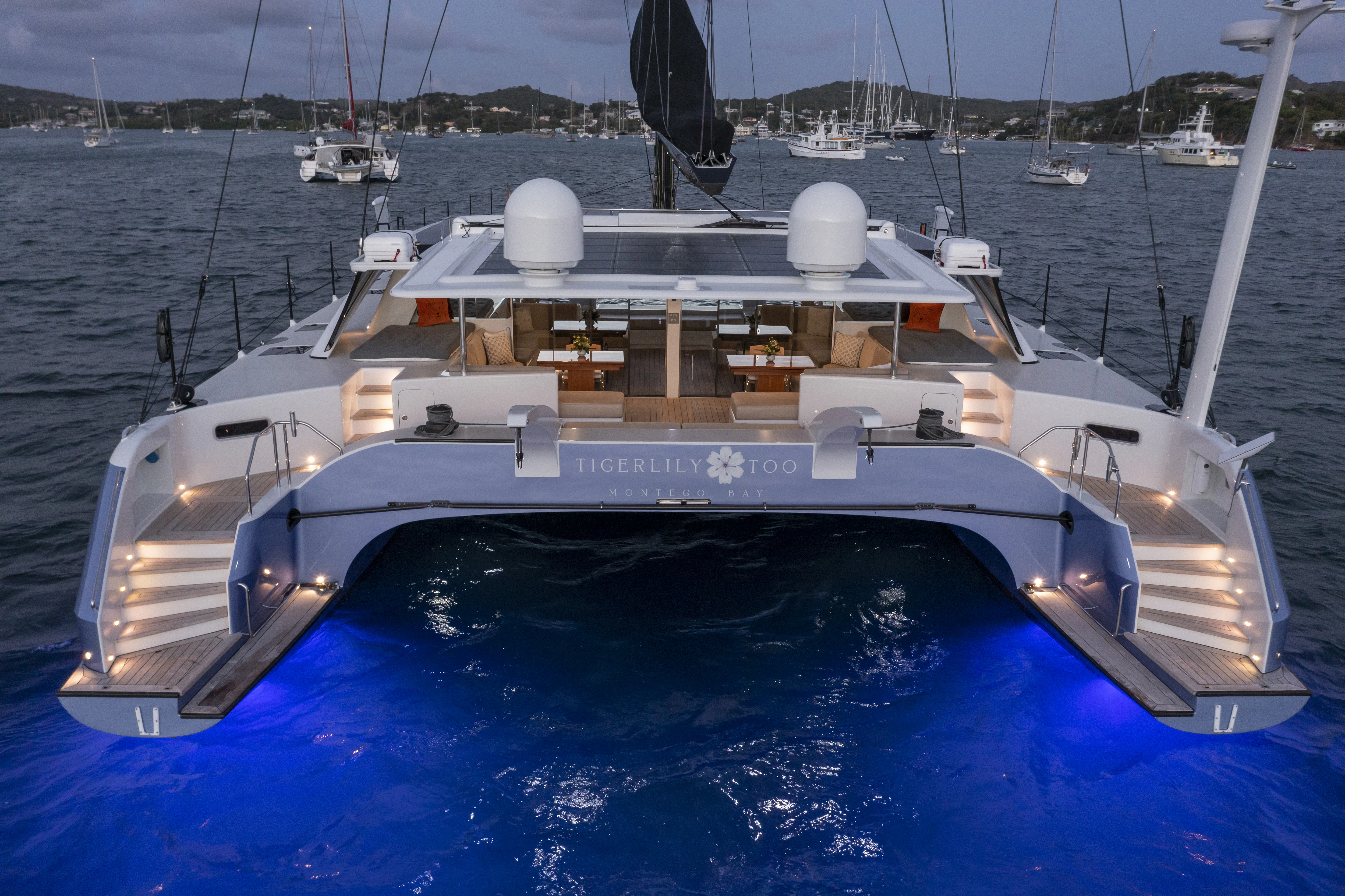

Stepping aboard Tiger Lily Too from the aft sugar scoops, you're greeted with a wide outer step that allows effortless boarding directly from the dock, while a second inboard lip provides easy access from the tender, both practical details that make a genuine difference in daily use.
All teak on the transoms, steps, aft and forward cockpits were replaced in 2025.
Four curved teak steps with stainless-steel handrails lead up from the water onto a flat deck that flows naturally forward into the aft cockpit. The steps are mirrored port and starboard, giving the transom a symmetry that carries through the entire aft end of the boat.

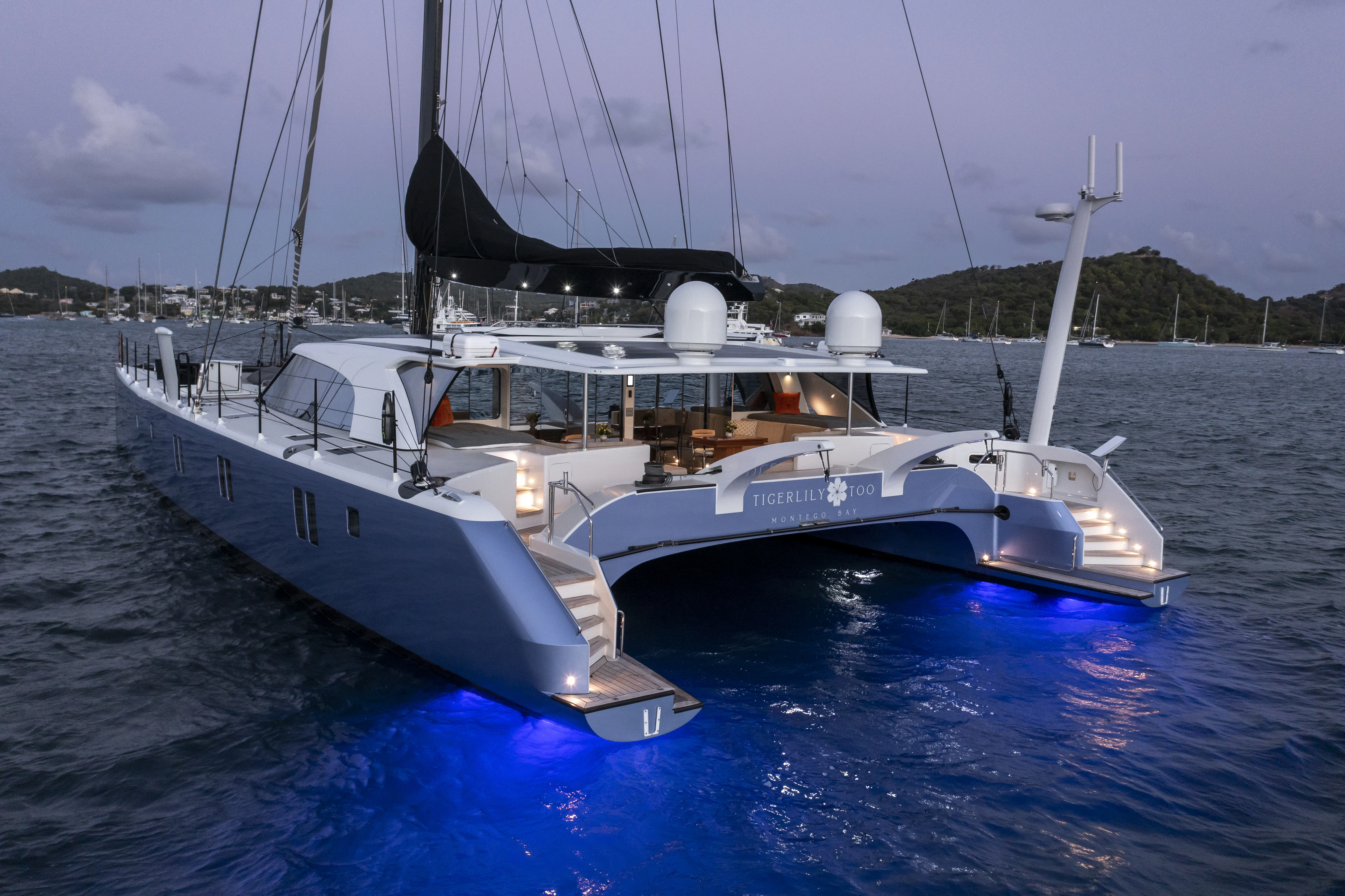

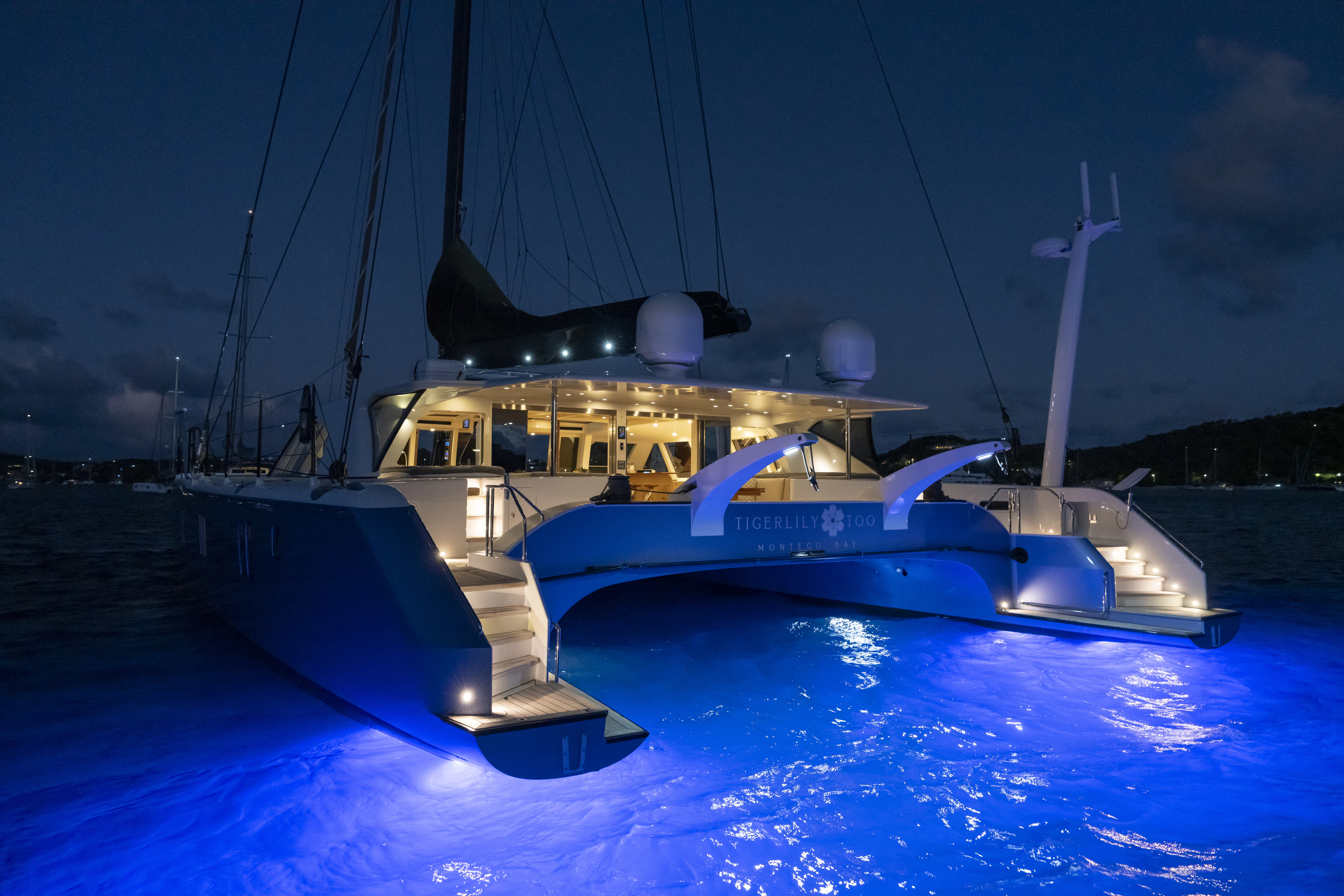

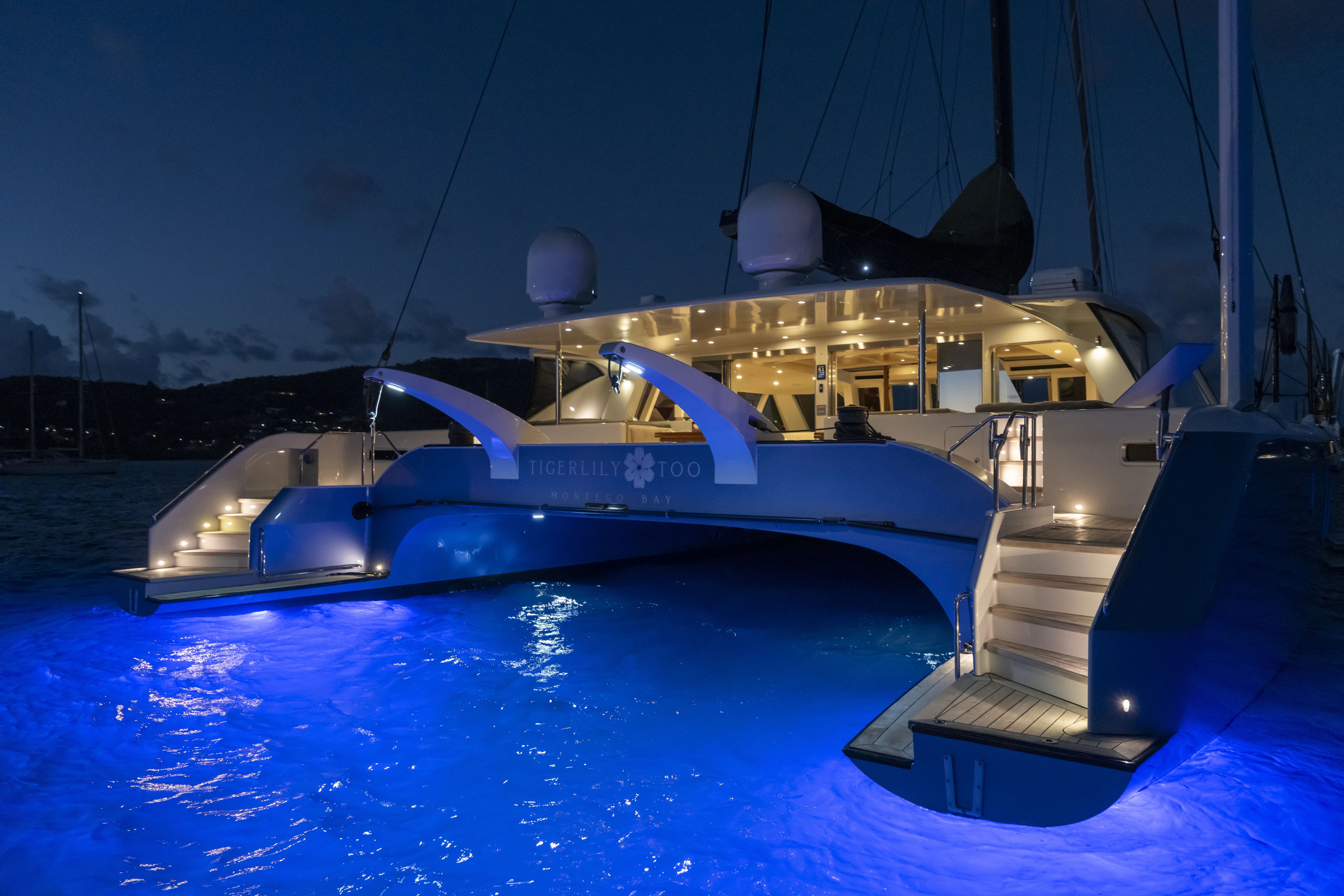

Underwater lighting illuminates the water beneath both hulls in vivid blue, making the transom as striking at anchor after dark. For offshore passage-making, the transoms are fitted for large hydro-Watt & Sea generators.
AFT BEAM

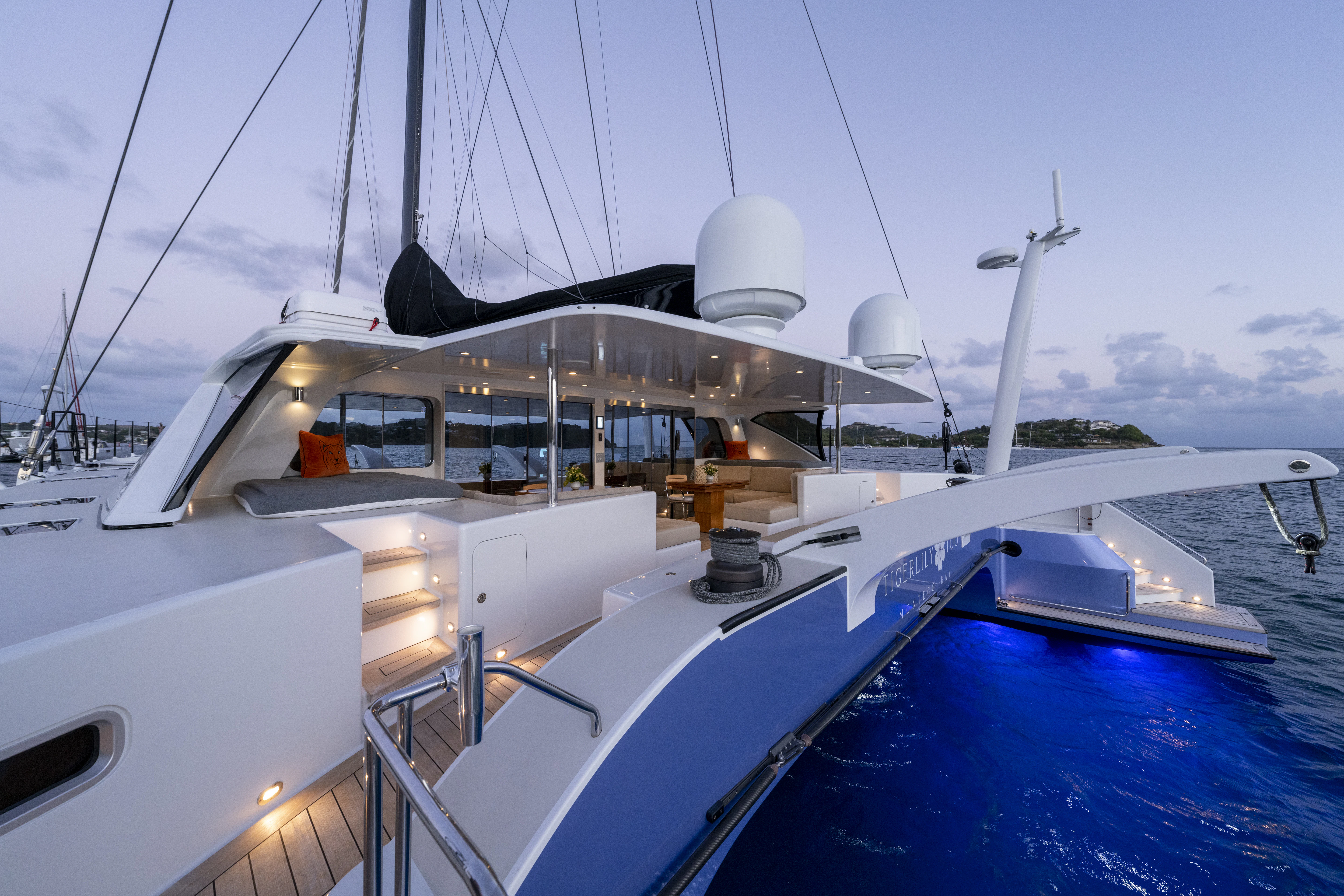

Walking up from the transoms and moving forward along the deck, you pass the large davits that hold the custom Falcon tender and the aft Harken 990 winches.
Steps port and starboard, again perfectly mirrored, lead up to two large oversized daybeds, one on each side, ideal for lounging underway or at anchor.
The aft beam features a large central loveseat on the centerline that comfortably accommodates 6 people, designed at a height for unobstructed views, with built-in storage on either side. The flow from transom to beam to cockpit is seamless — wide, open, and detailed.

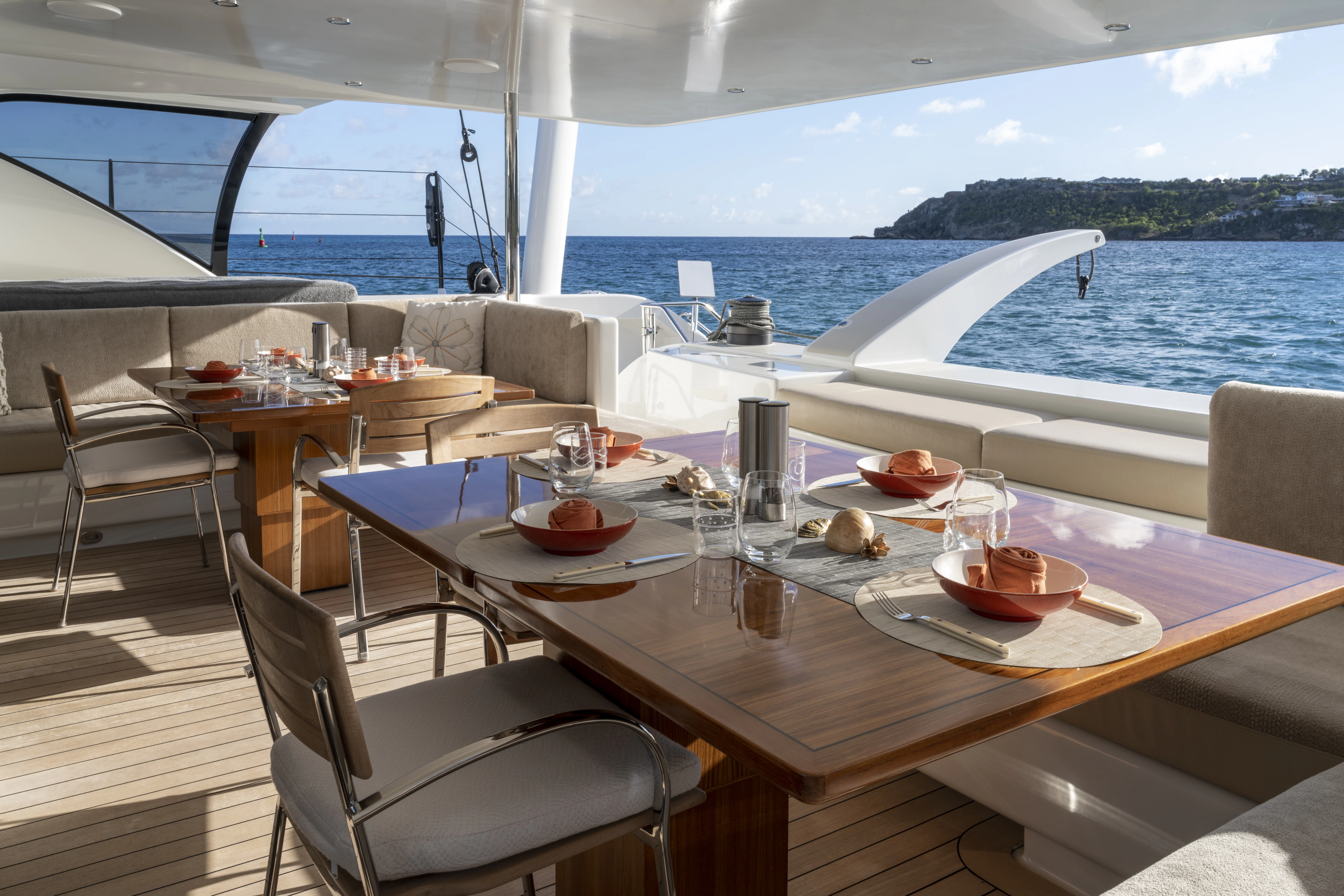

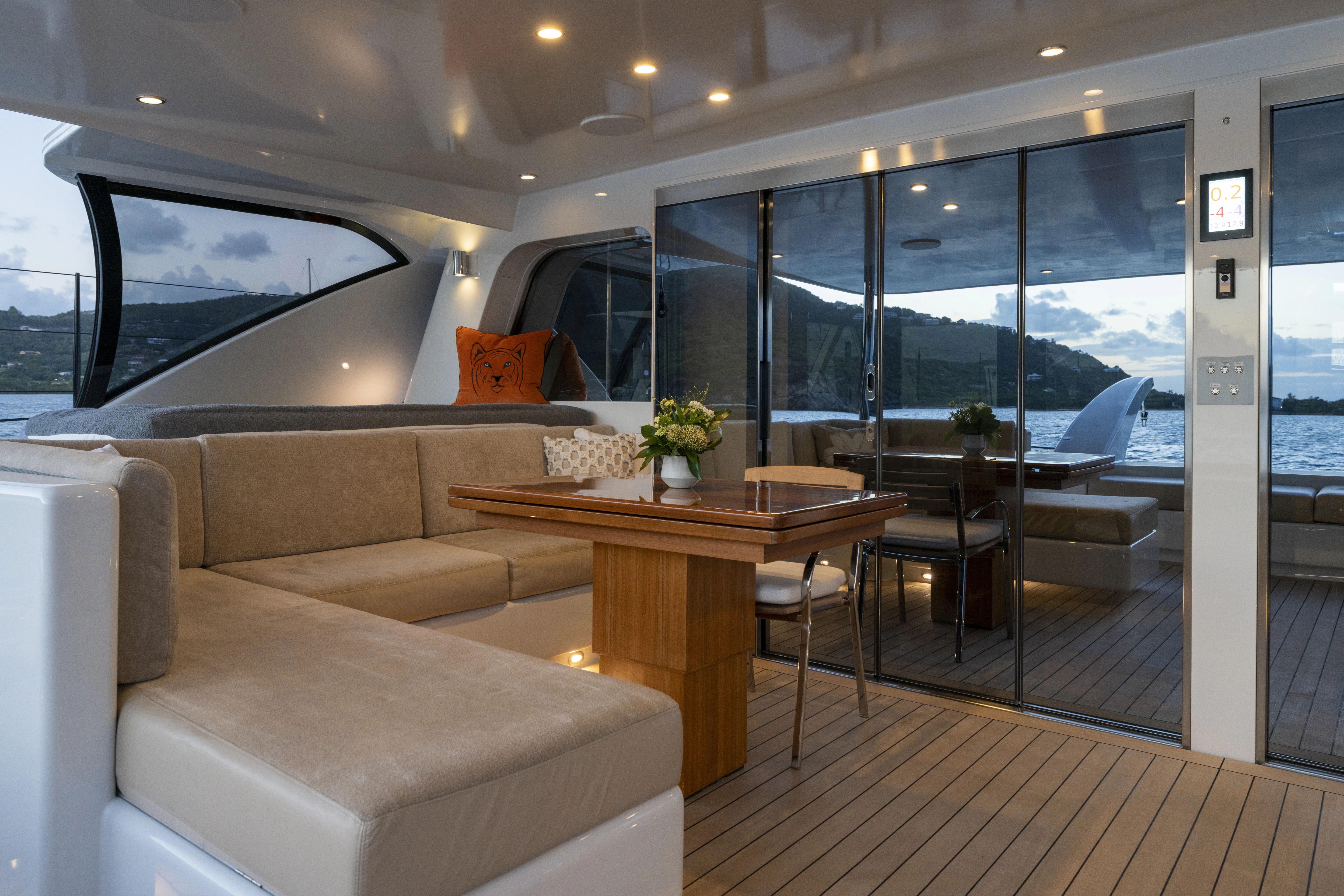

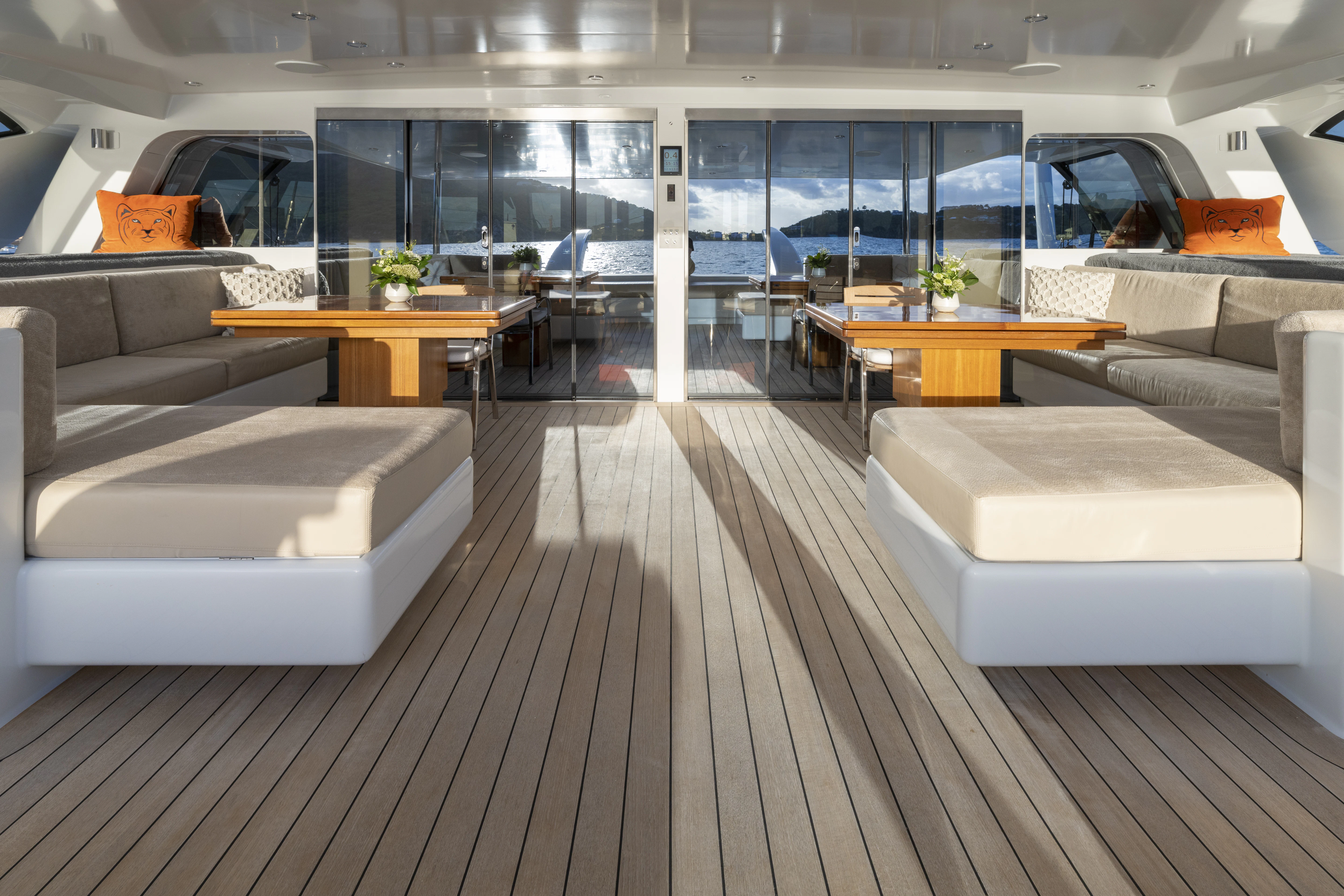

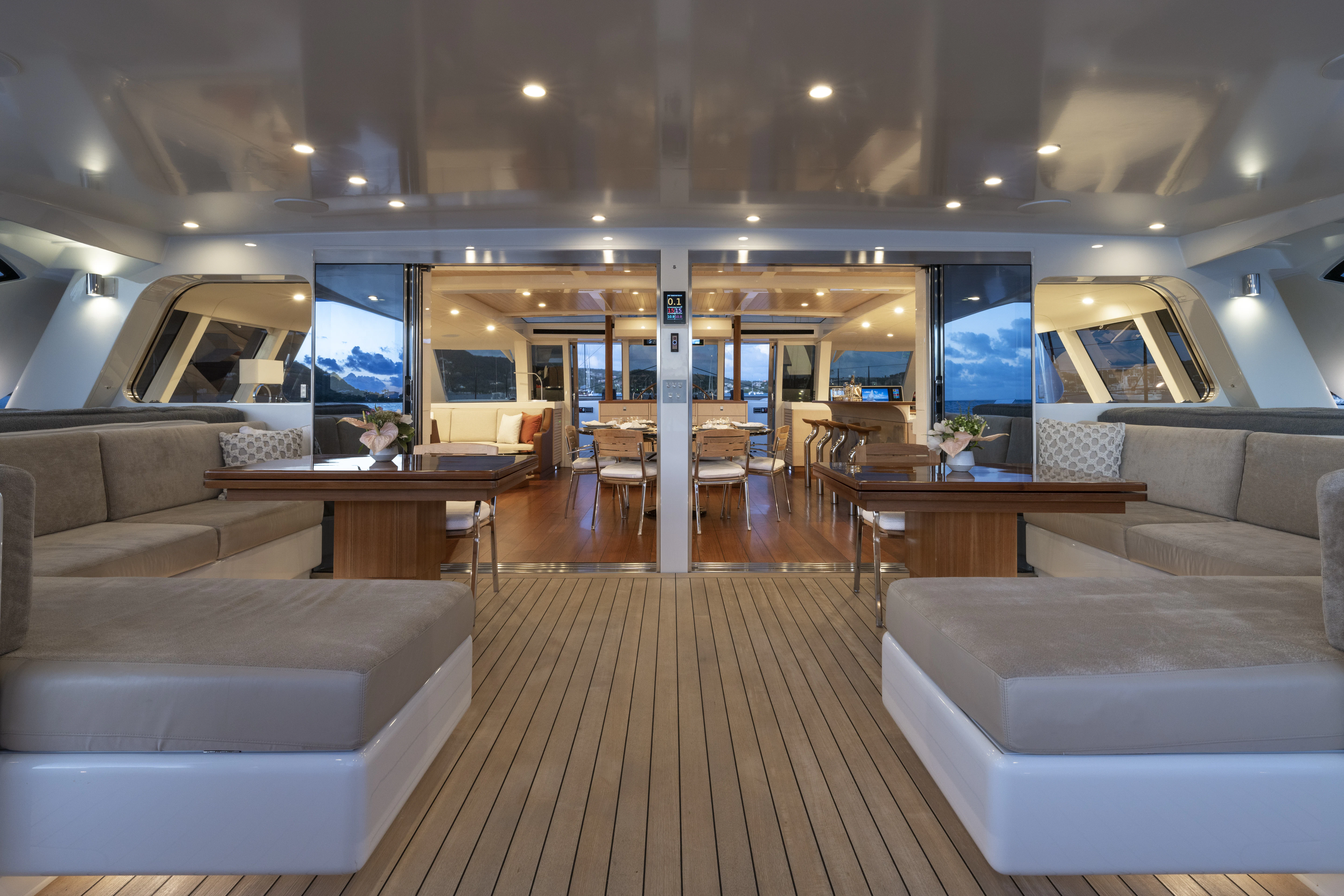

AFT COCKPIT

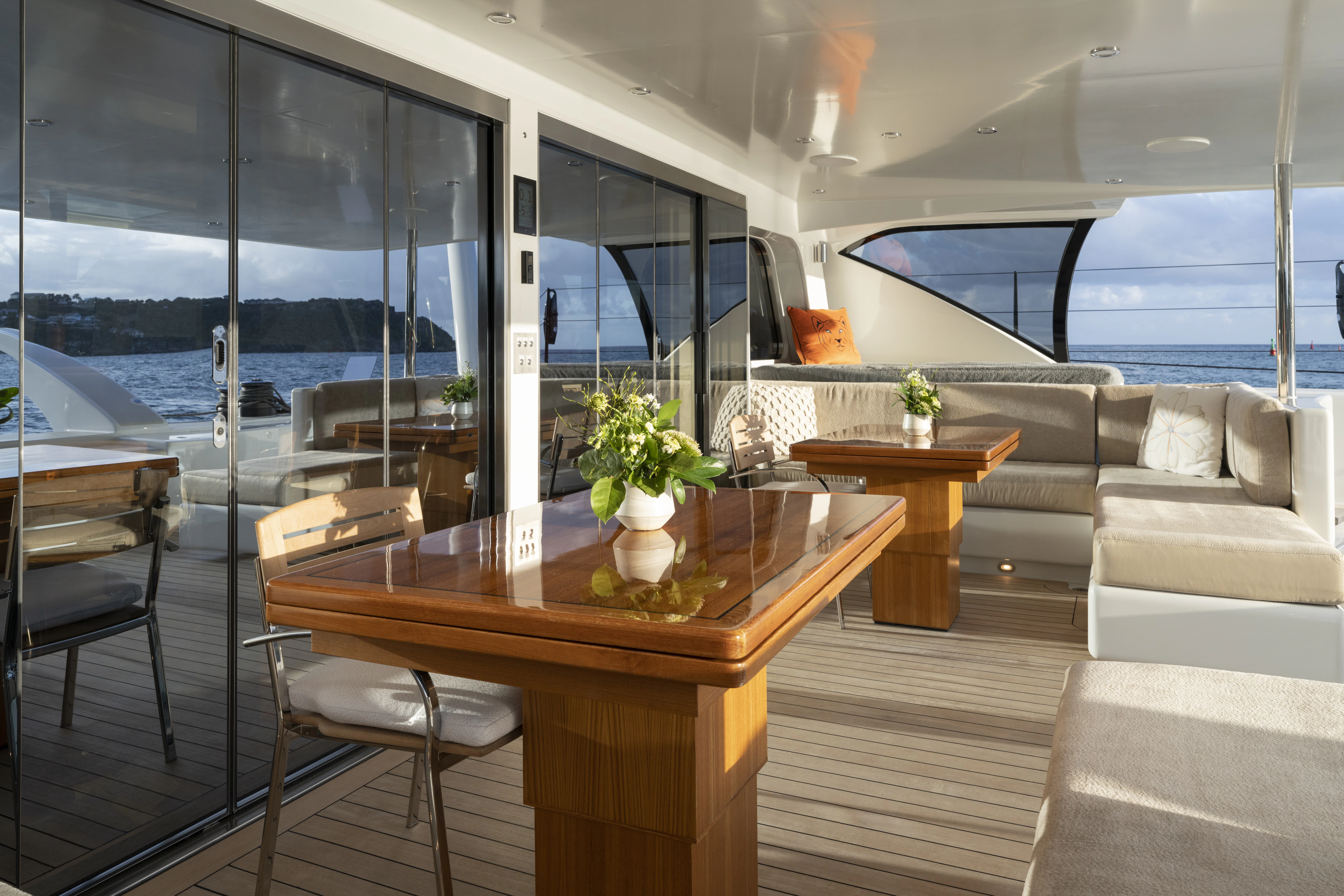

Stepping through into the aft cockpit, the space immediately impresses with its layout, privacy, and sense of occasion. Two L-shaped seating areas face each other, each with a varnished lifting and expanding table provides flexible outdoor dining configurations for large groups.
The cushions are light Italian fabric, soft and elegantly understated against the teak. The space is framed by large mirrored double sliding doors that open fully to connect the cockpit with the saloon, erasing the boundary between inside and outside living.
Overhead lighting runs the full length of the cockpit canopy, making the space equally usable day and night.
The entire aft cockpit delivers the combination of complete privacy and genuine luxury that defines Tiger Lily Too.

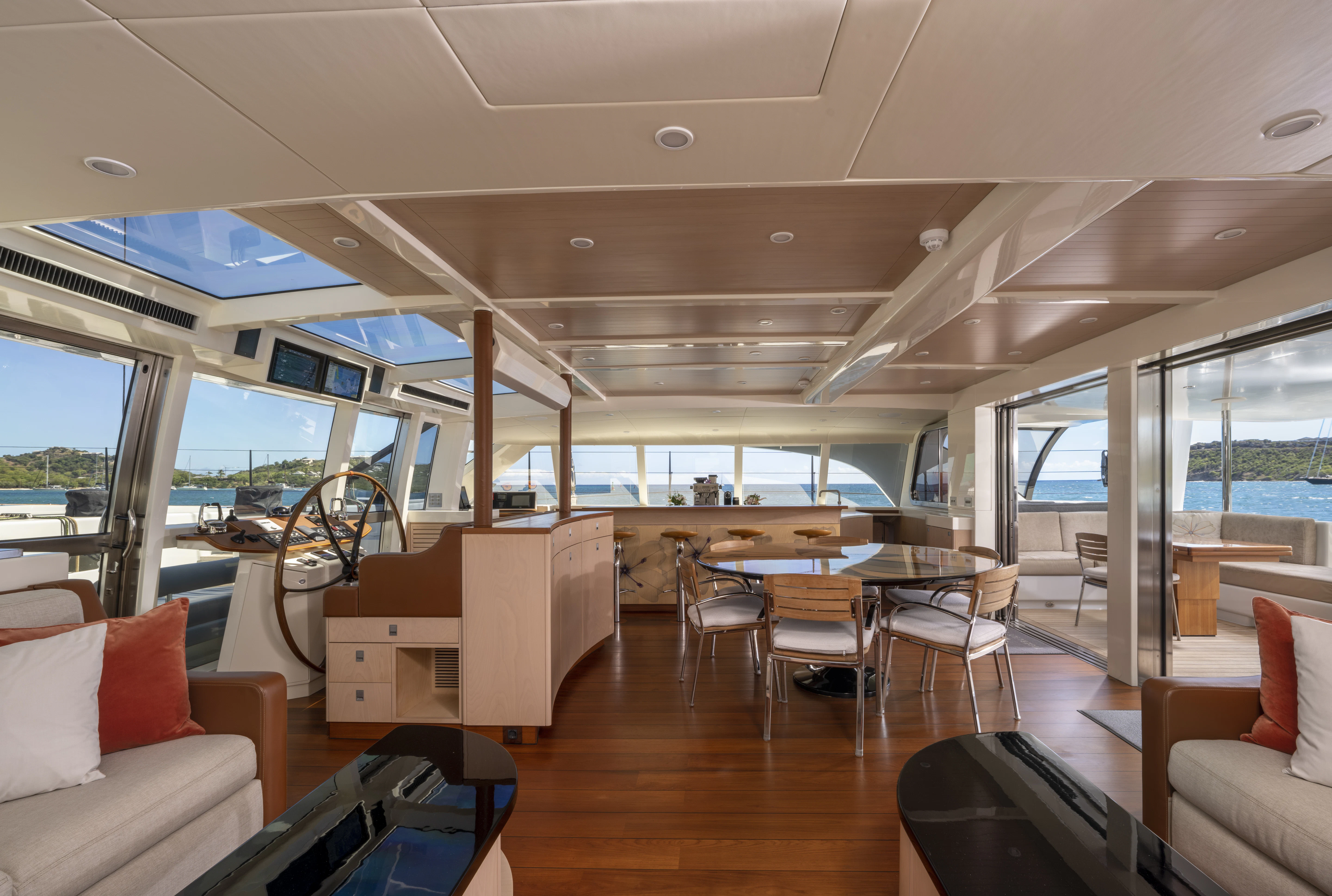

SALON

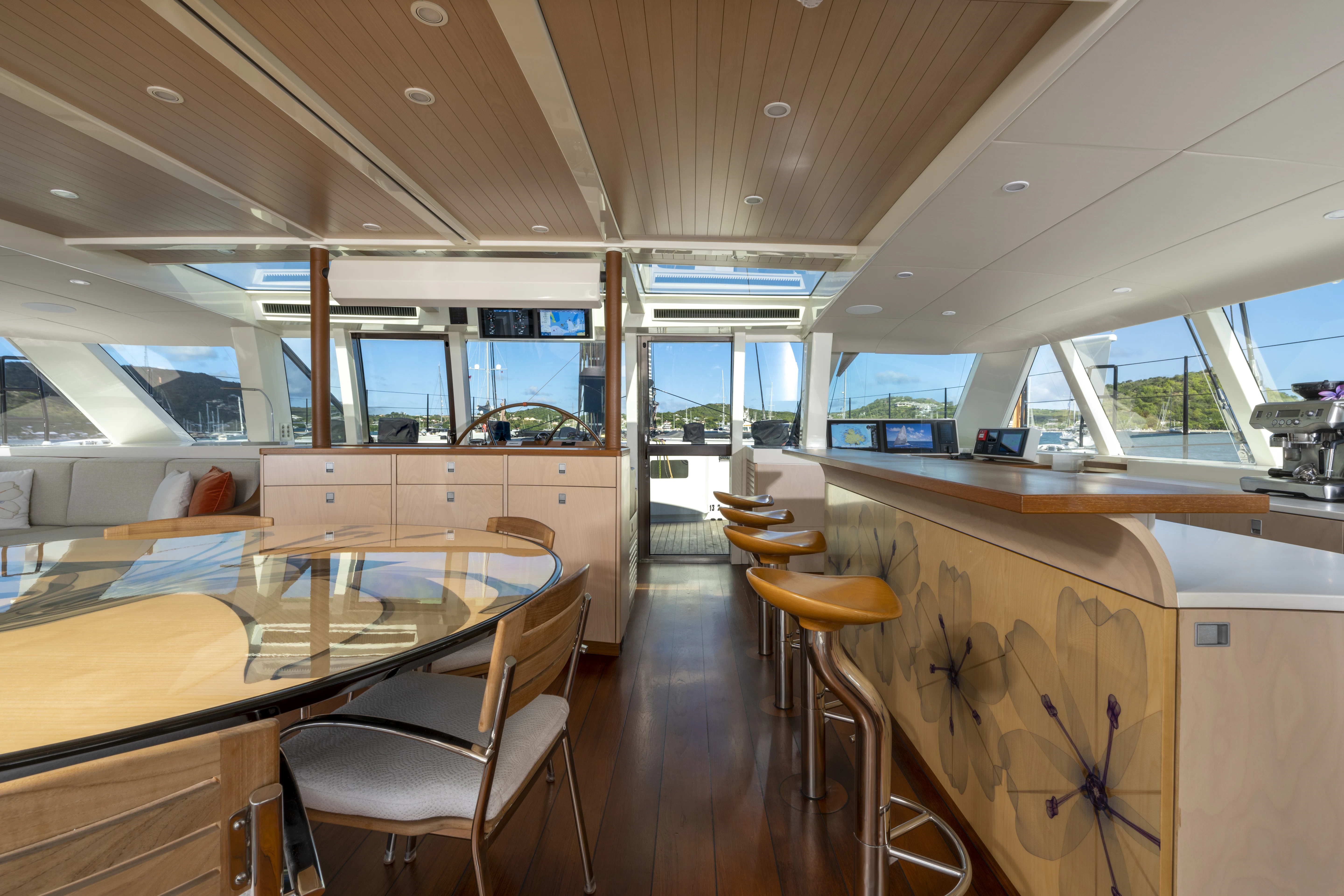

An open, unobstructed salon of a scale that feels more like a great room than a boat interior. Warm timber-paneled ceiling linings run the length of the space, with recessed LED downlights and opening skylight hatches that flood the interior with natural light and air. The panoramic wraparound windows give the saloon a 360 -degree connection to the water and horizon.

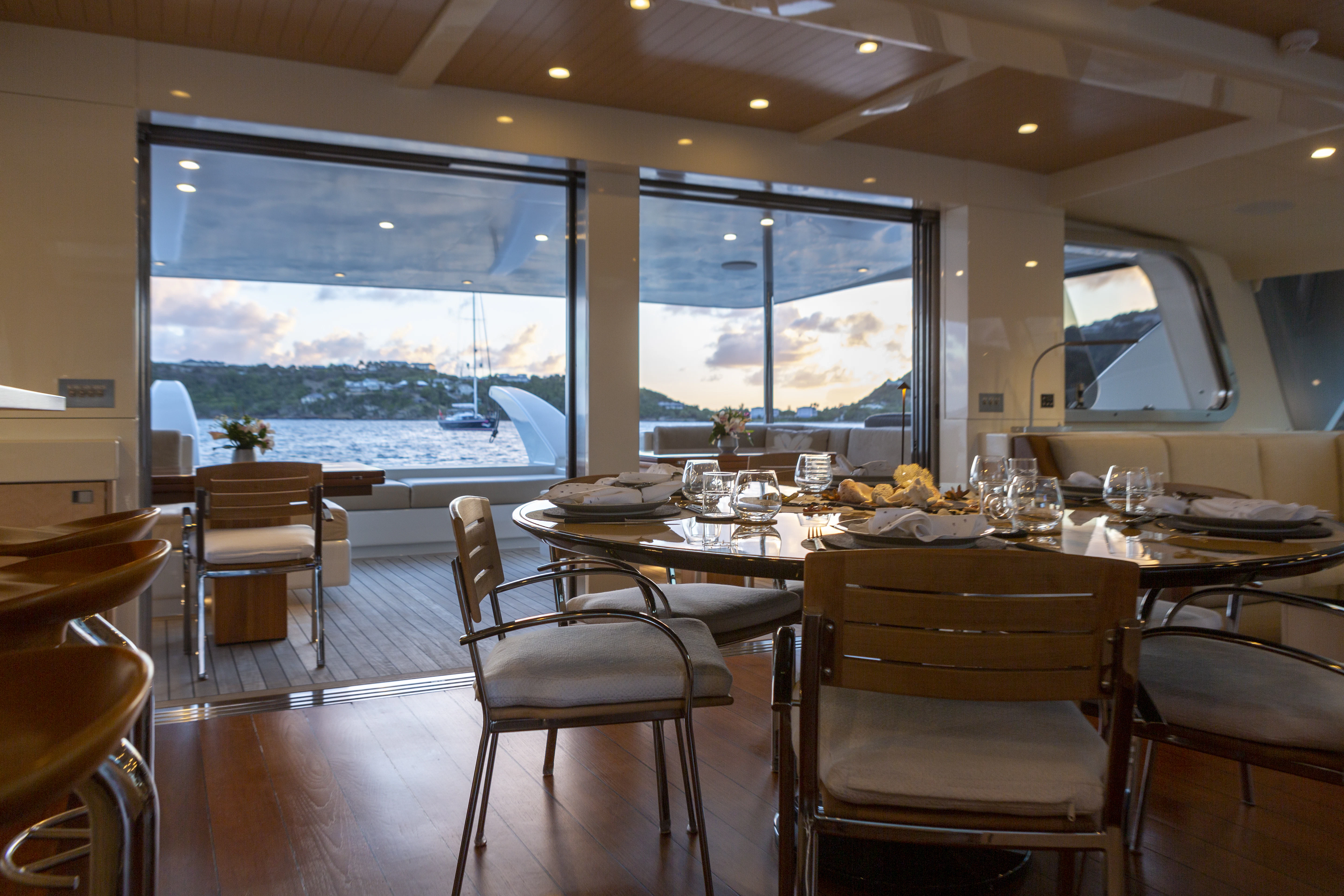

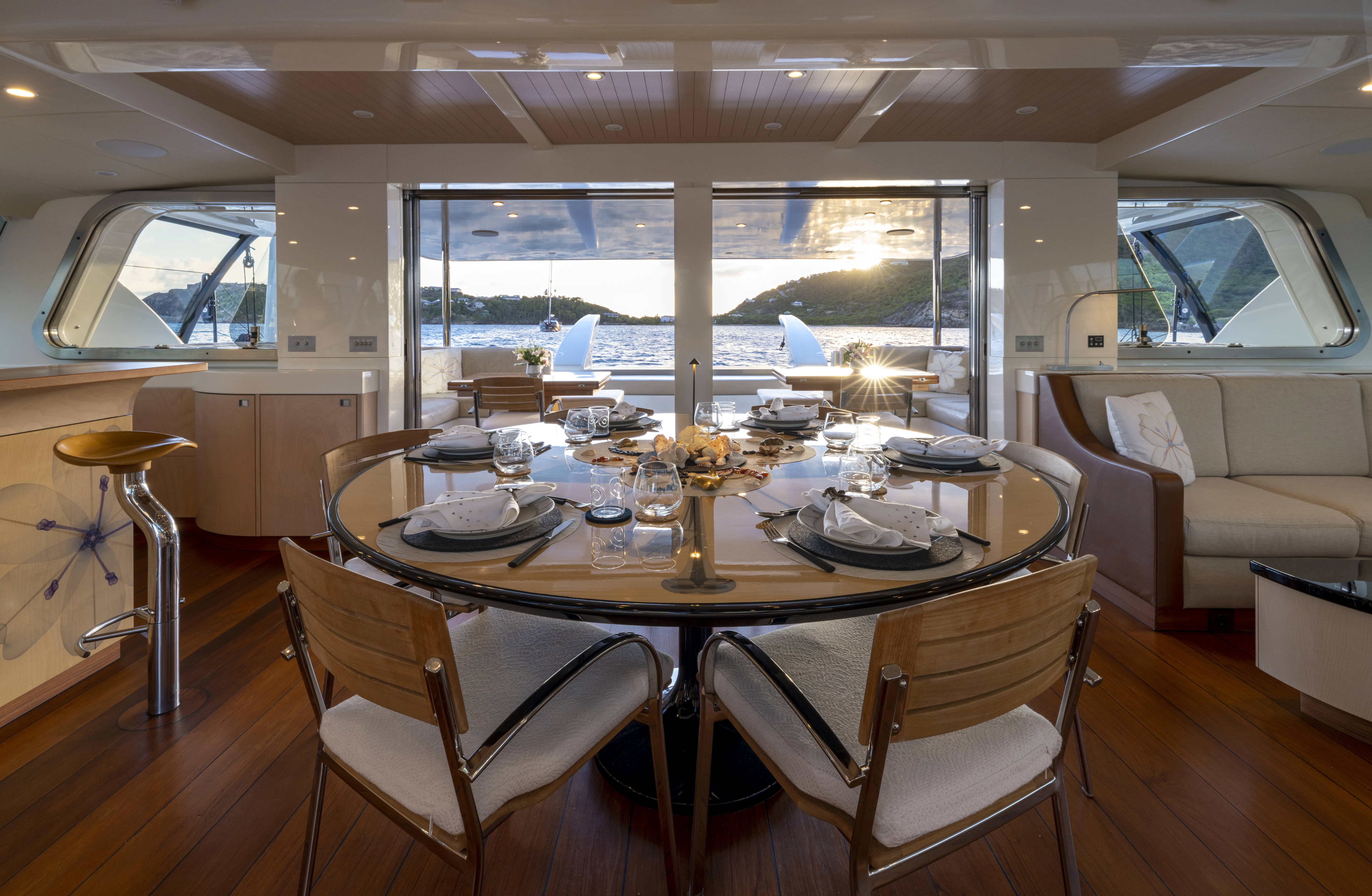

At the heart of the space sits a beautiful custom round designer dining table, surrounded by teak and upholstered dining chairs. To starboard, the bar and coffee station runs the full length of the space alongside the dining area: a long varnished timber counter with leather-topped bar stools, fronted by a cabinet face featuring stunning inlays.
Bar seating provides a relaxed feel and allows for self-service without disrupting the flow of the saloon, and serves equally well as a proper bar for evening entertaining or just relaxing.

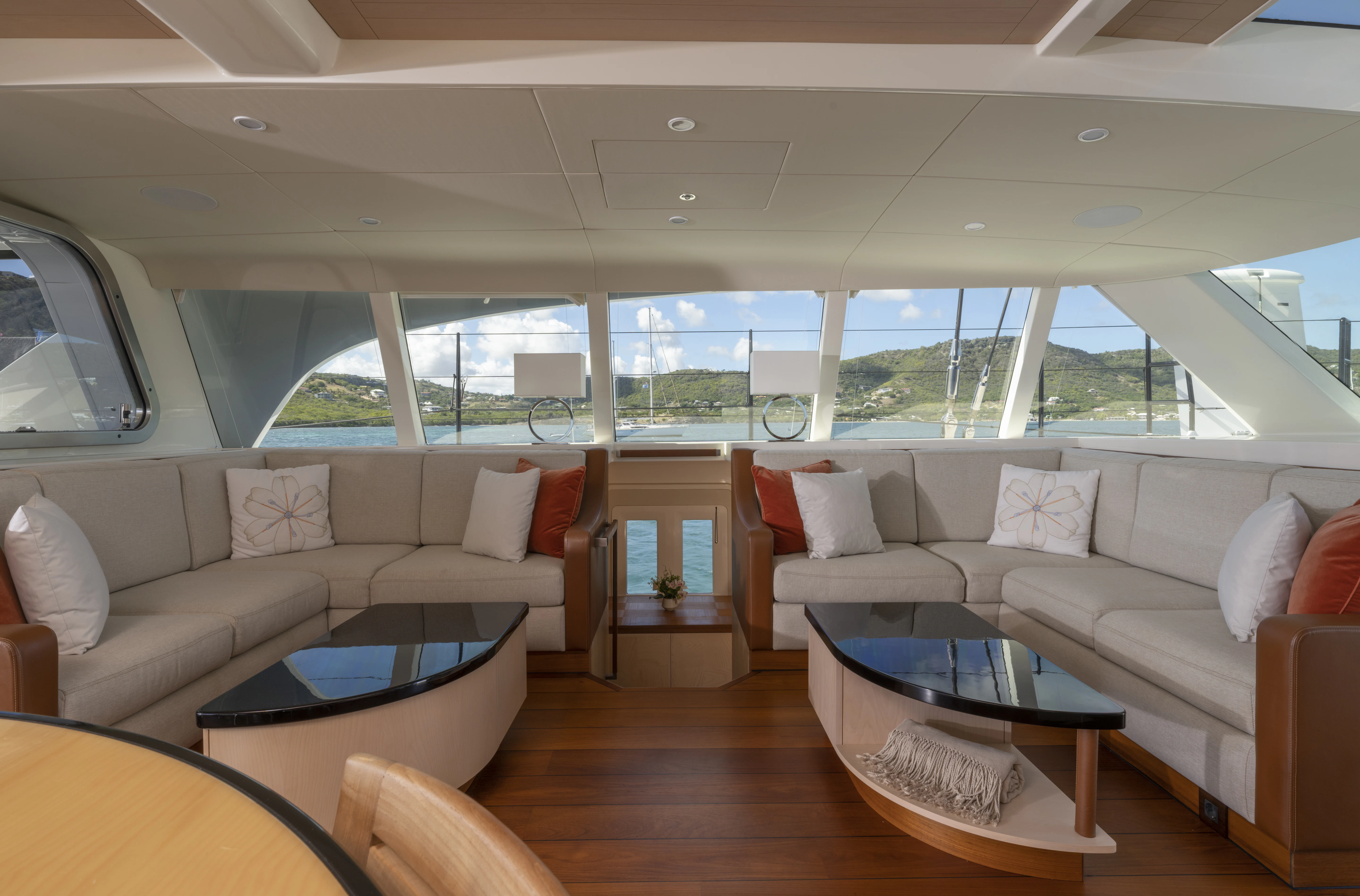

The forward port section of the saloon provides two generous curved sofas in warm beige fabric with a low black coffee table to each side. This forward lounge faces forward through the full-width windows, giving unobstructed sea views.

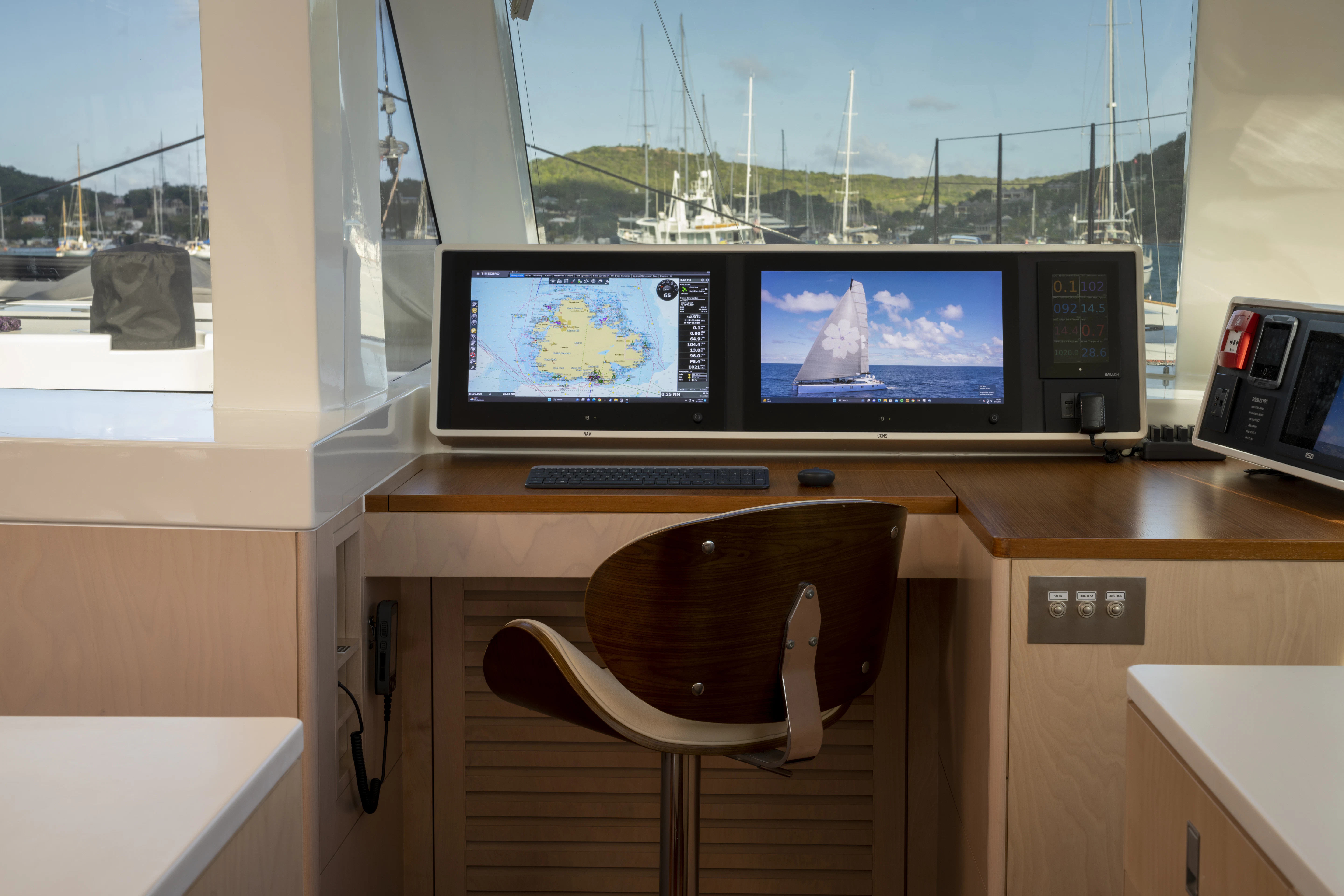

The nav station is positioned to starboard forward of the helm, housing chart plotters and instrument displays.
One further detail deserves particular mention: a hidden panel in the saloon ceiling conceals a built-in projector that drops a screen on command, transforming the saloon into a private cinema at anchor.

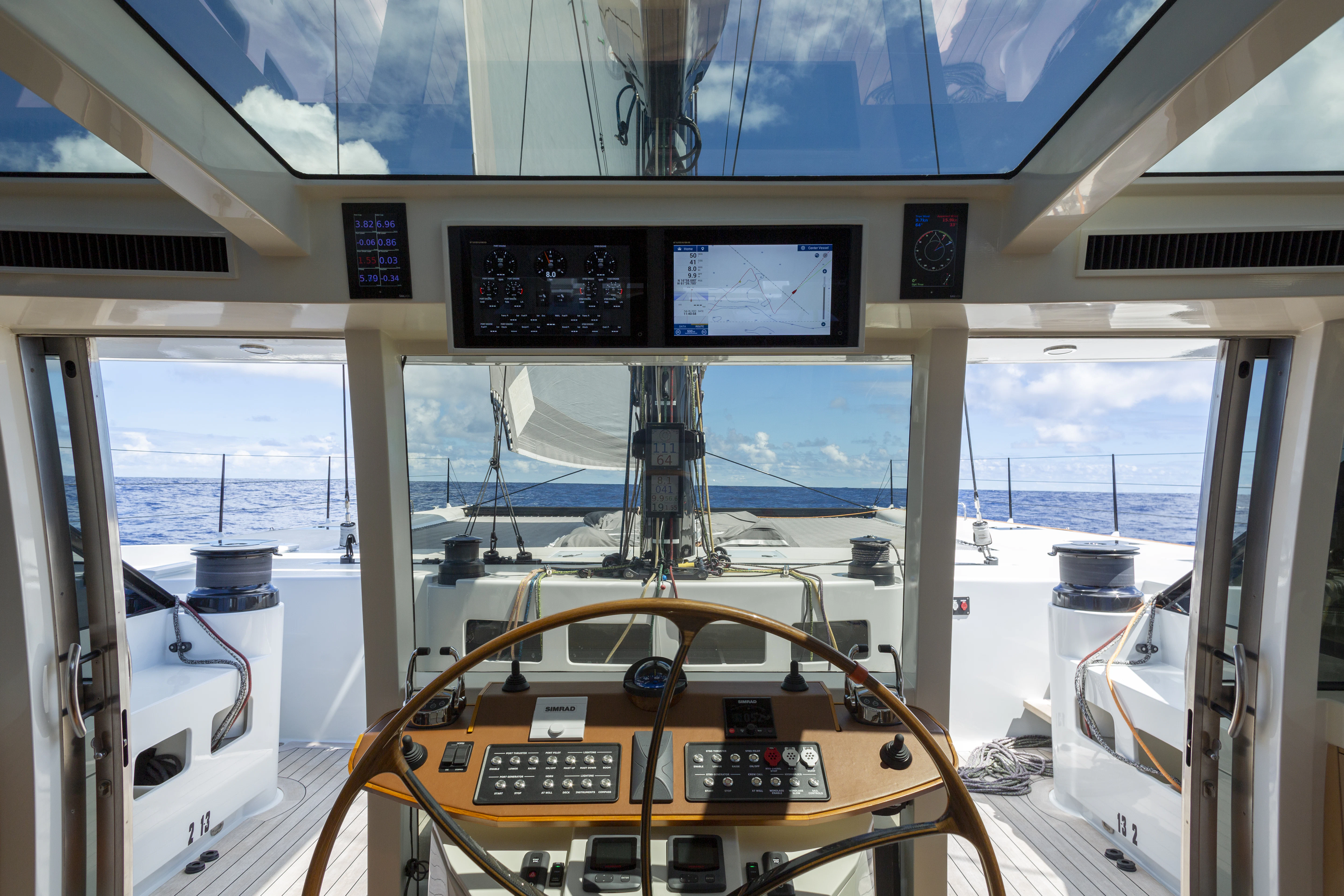

HELM STATION
At the center of the saloon sits the helm — positioned centrally to allow the driver to control every aspect of the vessel while remaining fully connected.
Its striking, beautifully proportioned design makes it a stunning piece that blends functionality, safety, and luxury, highlighting the quality of this platform.
From this single position, the helmsman has 360-degree sightlines, complete engine and systems control, full instrument visibility, and command of all aspects of sailing, whilst remaining connected to guests.
(1) Custom varnished timber and carbon spoke steering wheel — large diameter Leather-padded varnished timber helm console
(1) Traditional compass in polished binnacle — centrally mounted
(2) Overhead Furuno TZT16F 16" MFD displays — helm display shelf
(2) Sailmon Element instrument displays — port and starboard helm positions (1) Simrad autopilot controller (1) Furuno chartplotter
-
Port and starboard thruster controls
-
Port and starboard pilot on/off
-
Mainsheet in/out and traveler in/out controls
-
Lighting controls — mast, deck, instruments, compass
-
Port and starboard generator start/stop
-
Crew call
-
Windlass
-
Hydraulic emergency stop
-
Main dump
-
Sail controls
-
Yanmar engine management displays
-
MOB button
-
Horn
(1) Helm seat — companion seating for 2–3 persons immediately aft of the wheel
CABINS — OVERVIEW
Tiger Lily Too accommodates owners and guests across four cabins, with two additional crew cabins and a separate crew area. All cabinetry and veneers throughout are finished in birch with a satin stain finish — warm, elegant, and consistent from master cabin to crew quarters. The layout places the principal owner's cabin at port midships, with two equivalent VIP and guest staterooms at port aft and starboard aft, a double bunk room and a crew mess at starboard midships, and a Captain and crew cabin with a wet head forward starboard and port.

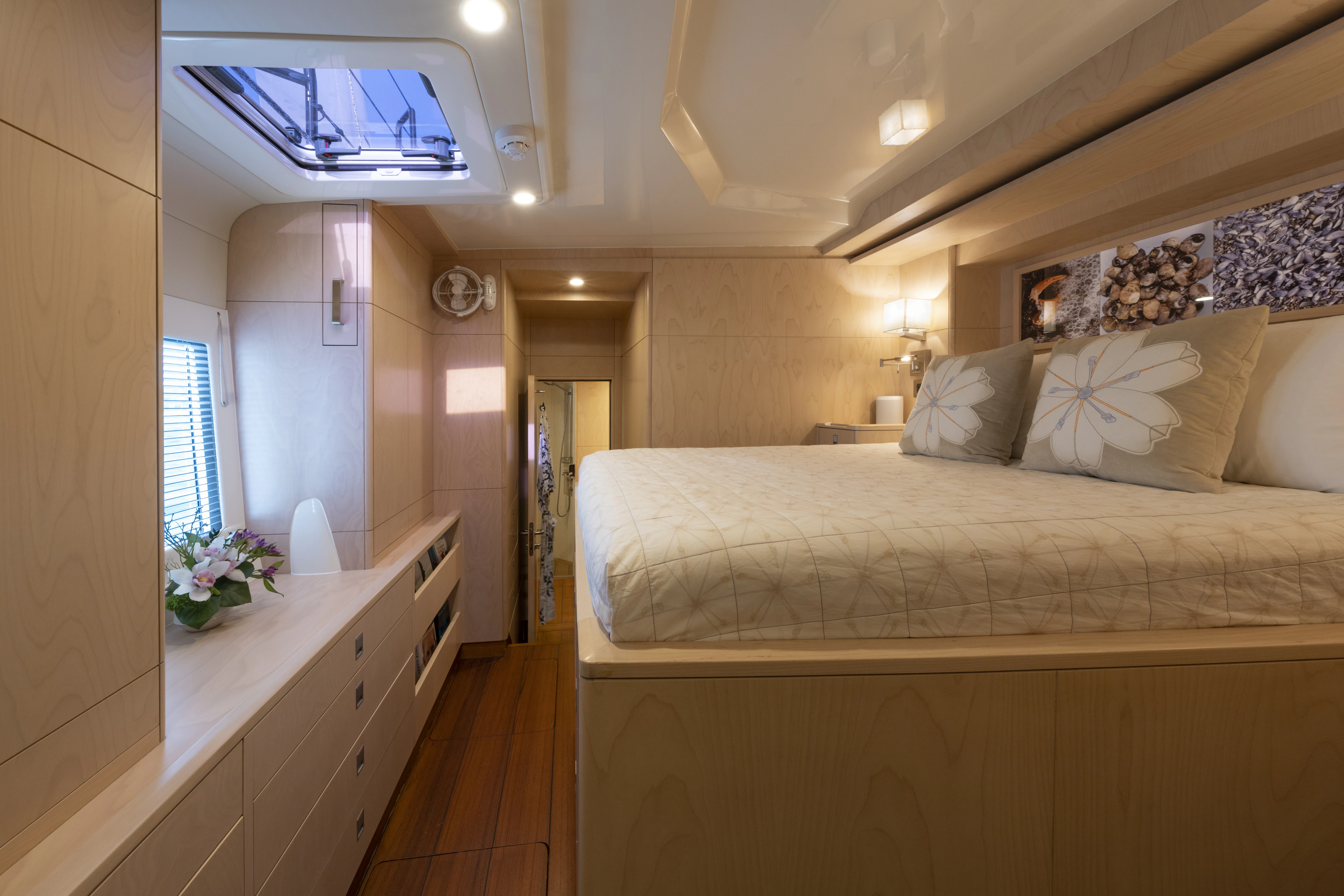

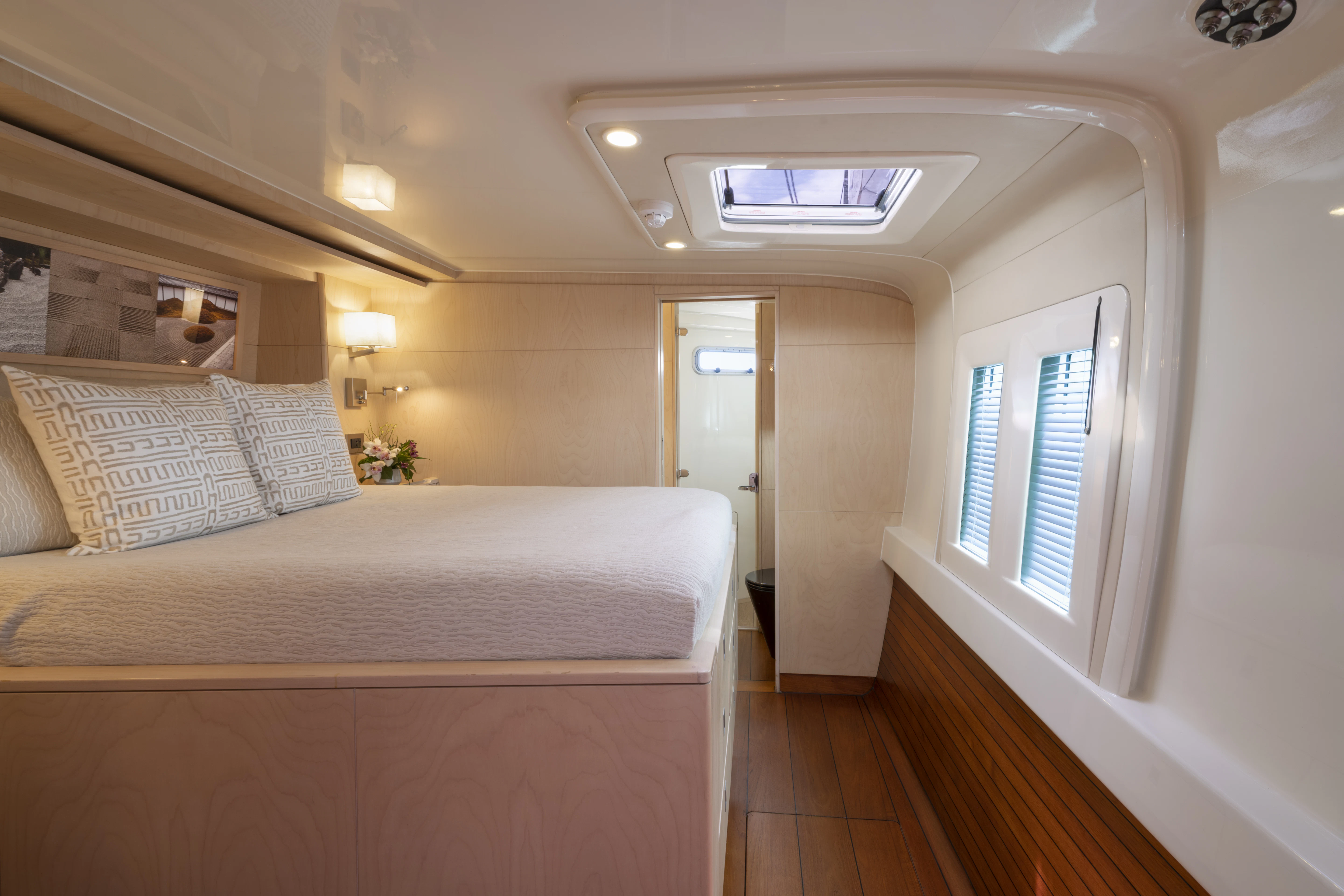

PORT MIDSHIPS PRINCIPAL / MASTER CABIN
The principal cabin is located at port midships. A full walk-around island king berth sits inboard, dressed in fine linens with an upholstered headboard and custom artwork panels above. Generous built-in storage runs the full length of the outboard side — a long, beautifully finished chest of drawers with a vanity surface and personal space for the owner's private possessions. Overhead, a large opening deck hatch with integrated mesh screen and blackout blind floods the cabin with natural light and ventilation. Recessed LED downlights and warm bedside wall lights create an atmosphere that is entirely residential in quality. The en-suite bathroom features a separate shower with full-height glass screen, Tecma carbon toilet, vanity washbasin with solid teak top, stainless fittings, and tiled surfaces throughout. The owner's office occupies a dedicated zone as you enter the cabin, with a full-width built-in desk allowing you to run a business from anywhere in the world.
(1) Walk-around king island berth with upholstered headboard
(1) Full-length built-in chest of drawers with vanity surface

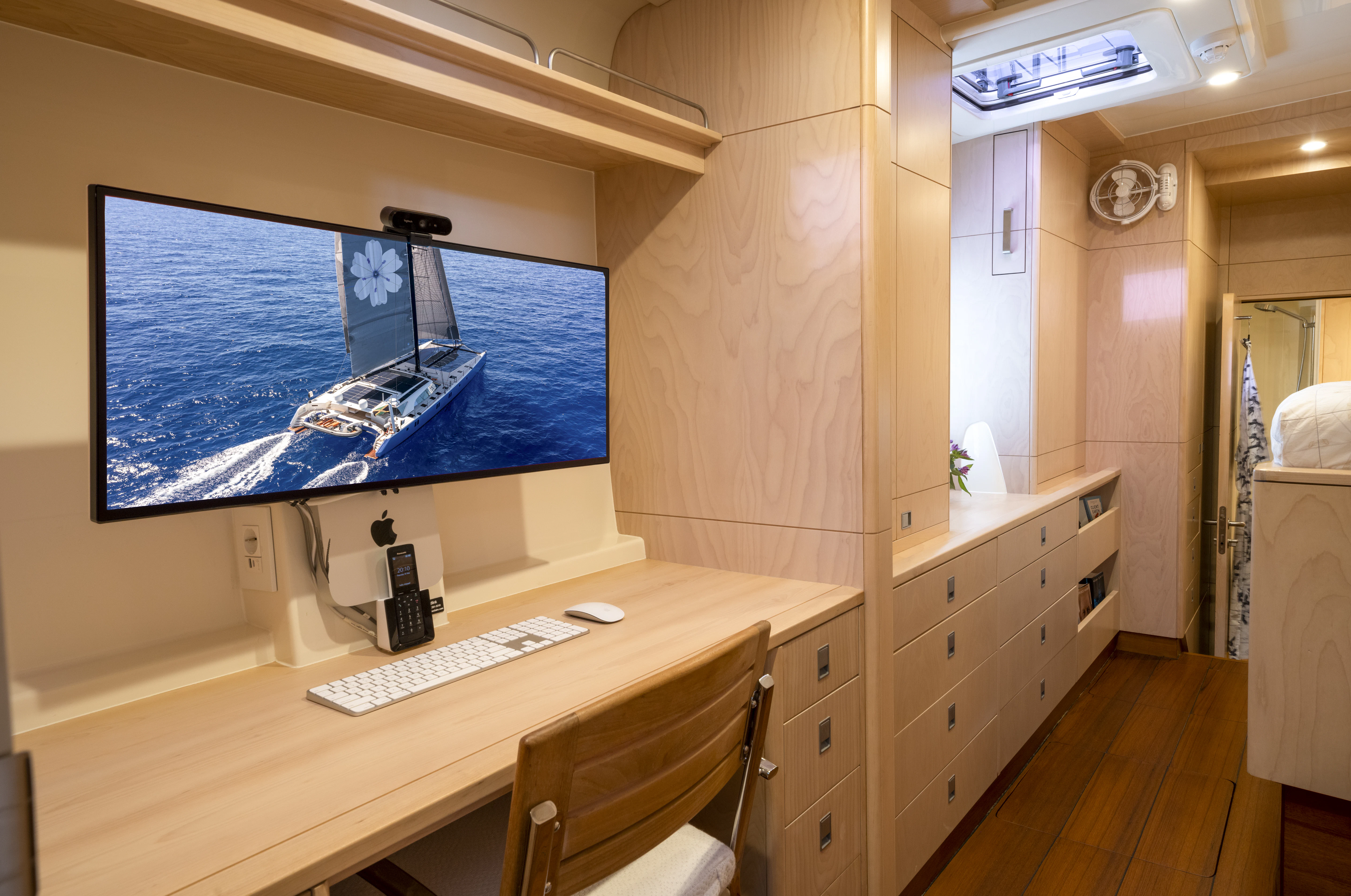

(1) Owner's office — full-width built-in desk with:
-
Large widescreen monitor wall-mounted
-
Mac Mini
-
Apple keyboard and mouse
-
Telephone handset book shelf

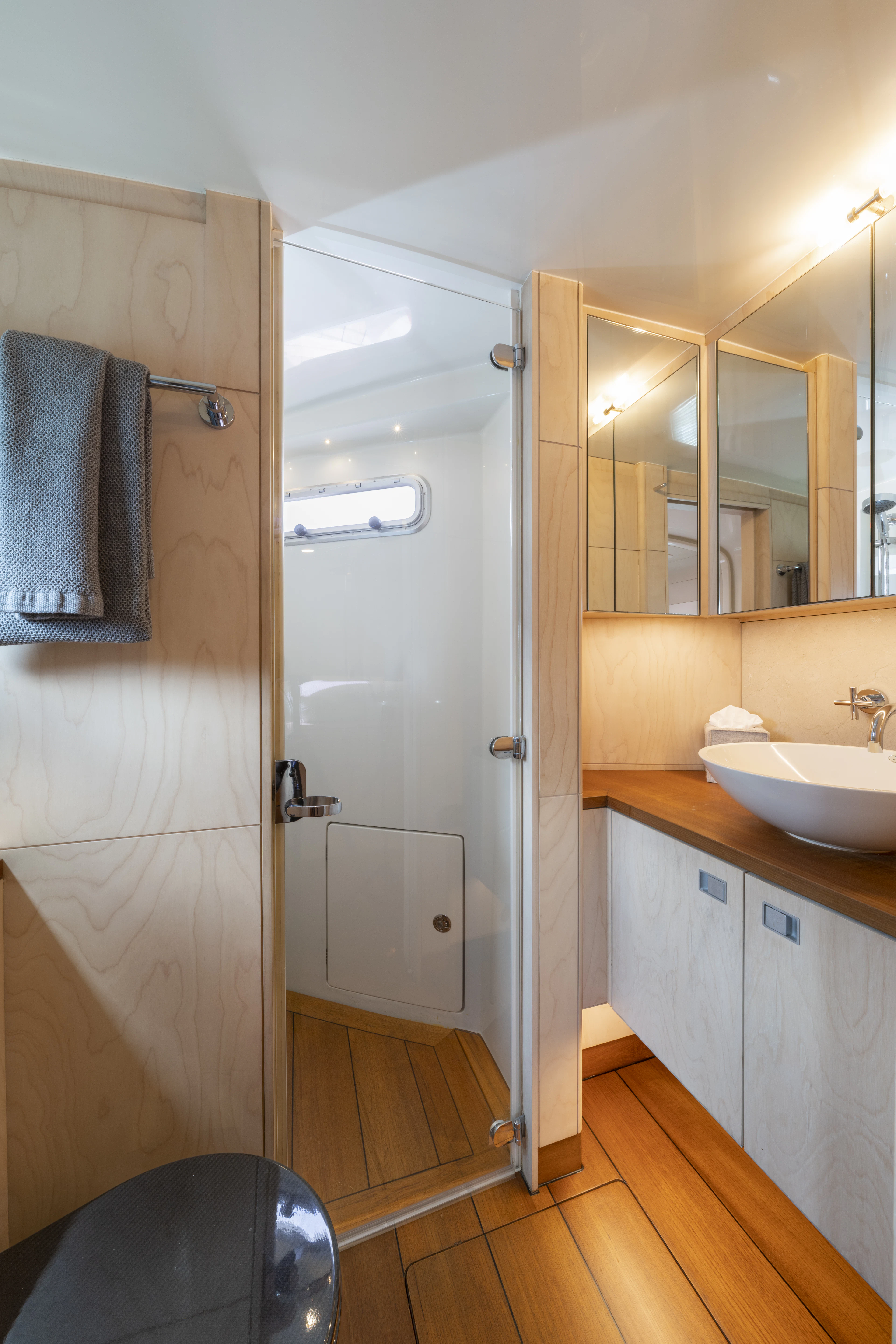

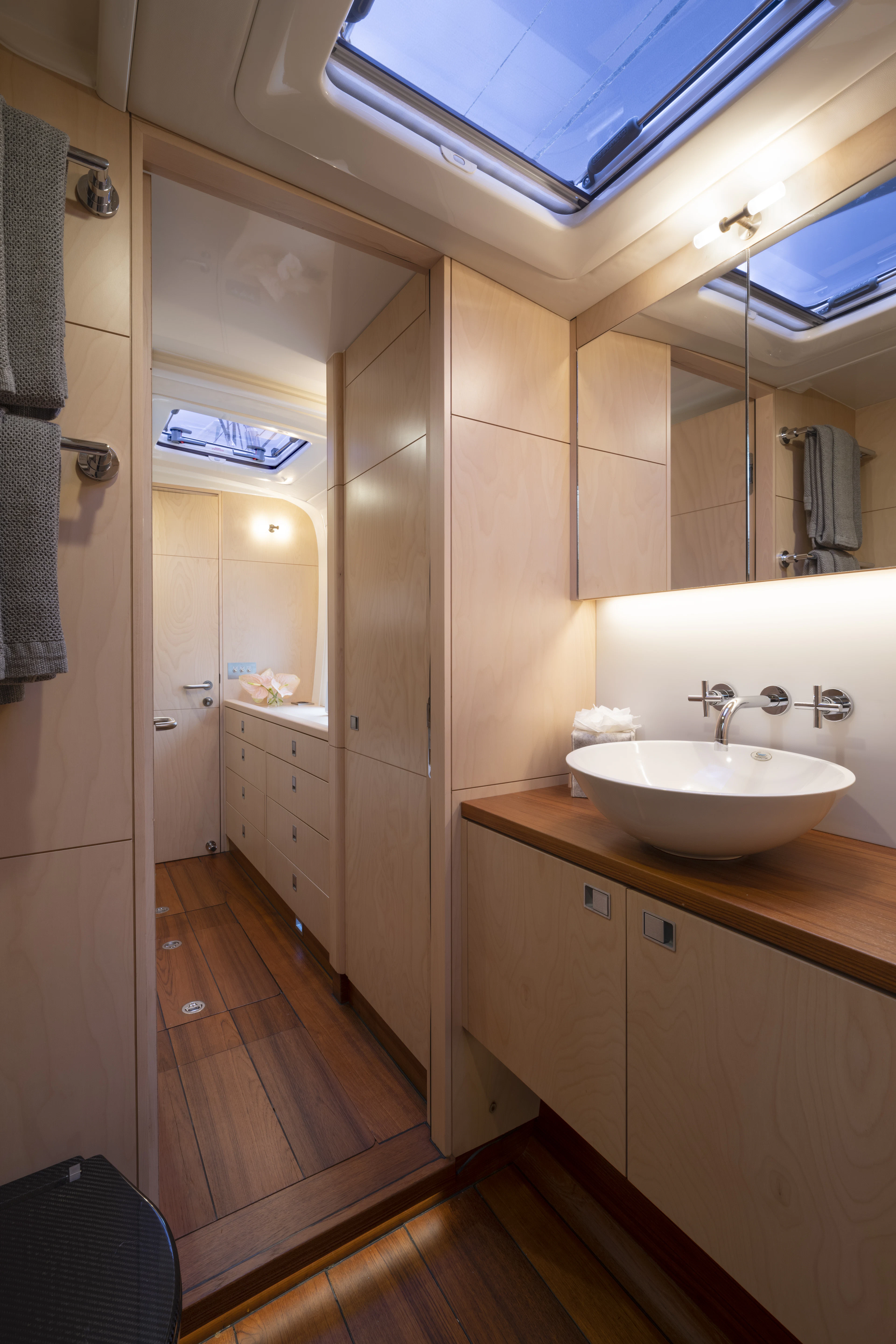

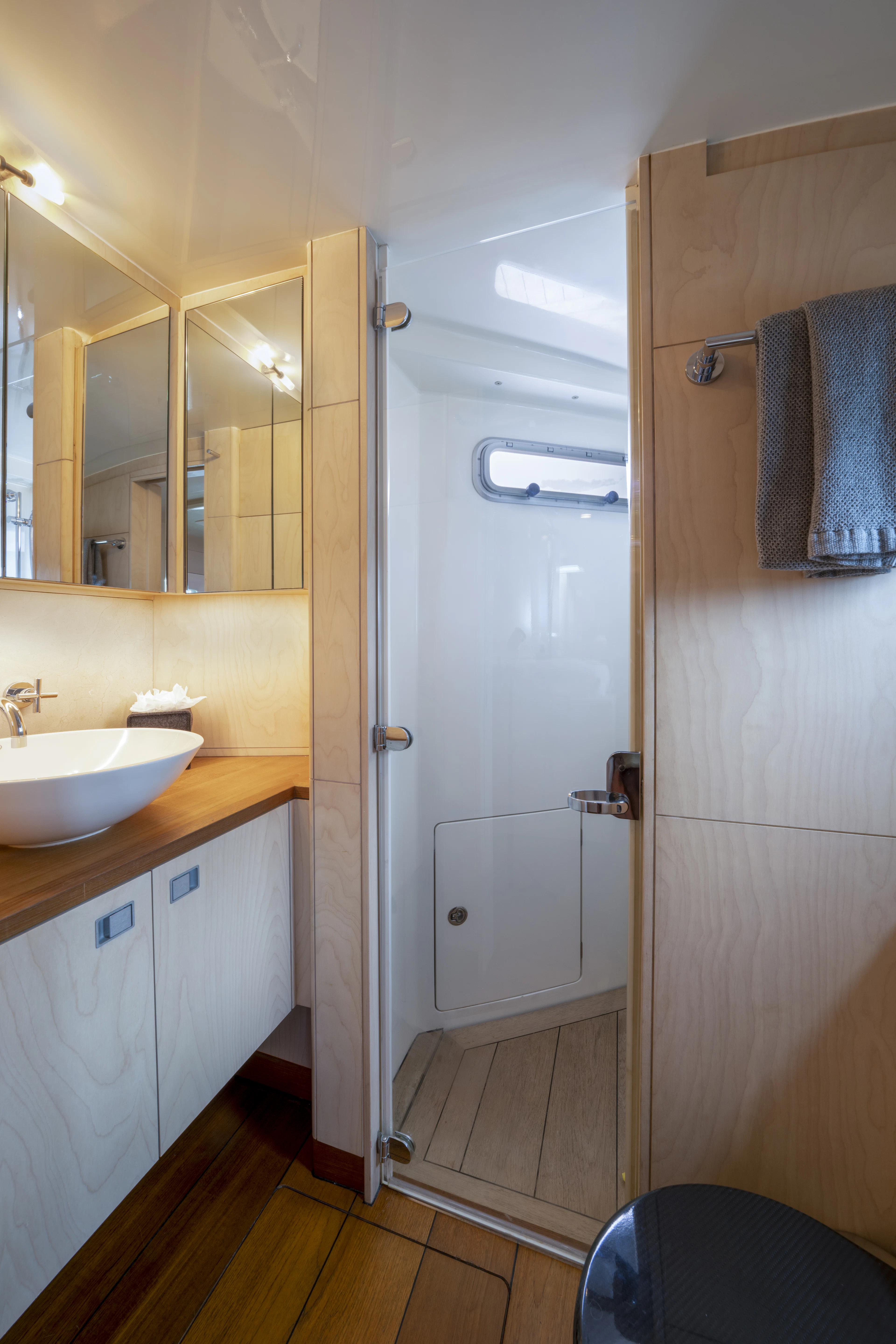

(1) En-suite bathroom
-
Separate shower with full-height glass screen
-
Tecma carbon toilet
-
Vanity washbasin — solid teak top, stainless fittings
(1) Overhead Lewmar opening deck hatch with mesh and blackout blind
(1) Large fixed port with built-in slatted blinds
(2) Bedside wall lights
(2) Angled reading lights
(1) Dimmable overhead LED lighting
(1) Ceiling fan
(1) Air conditioning fan coil (2) Sonos Ports — audio routing for TV and Mac Mini (2) Sonos Ones — master cabin.

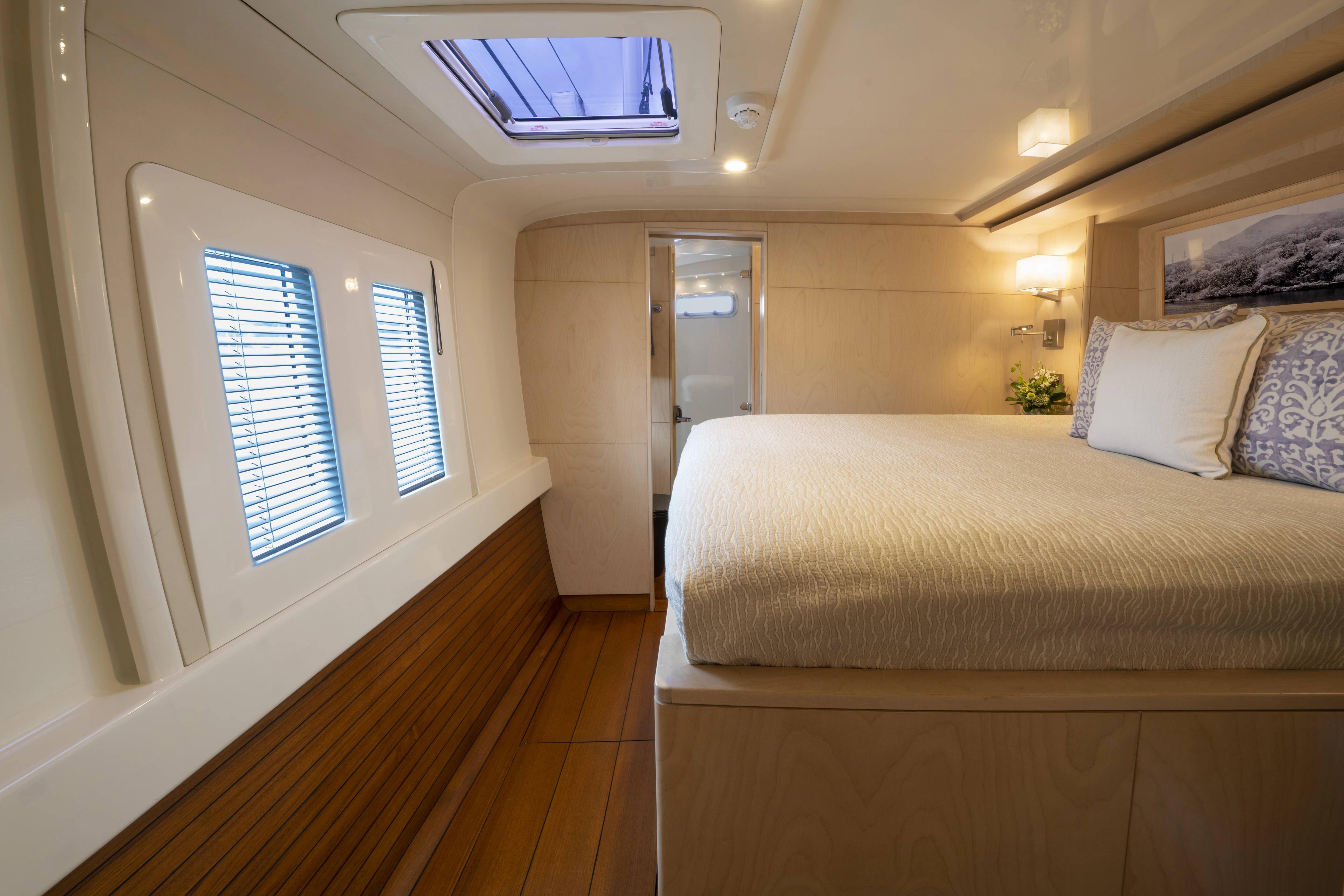

PORT AFT VIP STATEROOM
The port aft VIP stateroom is a full double cabin with its own private en-suite, finished to the same birch satin standard as the principal cabin. It is equivalent in specification to the starboard aft guest cabin and provides a fully independent, private experience for VIP guests.
(1) King Island walk around berth with upholstered headboard

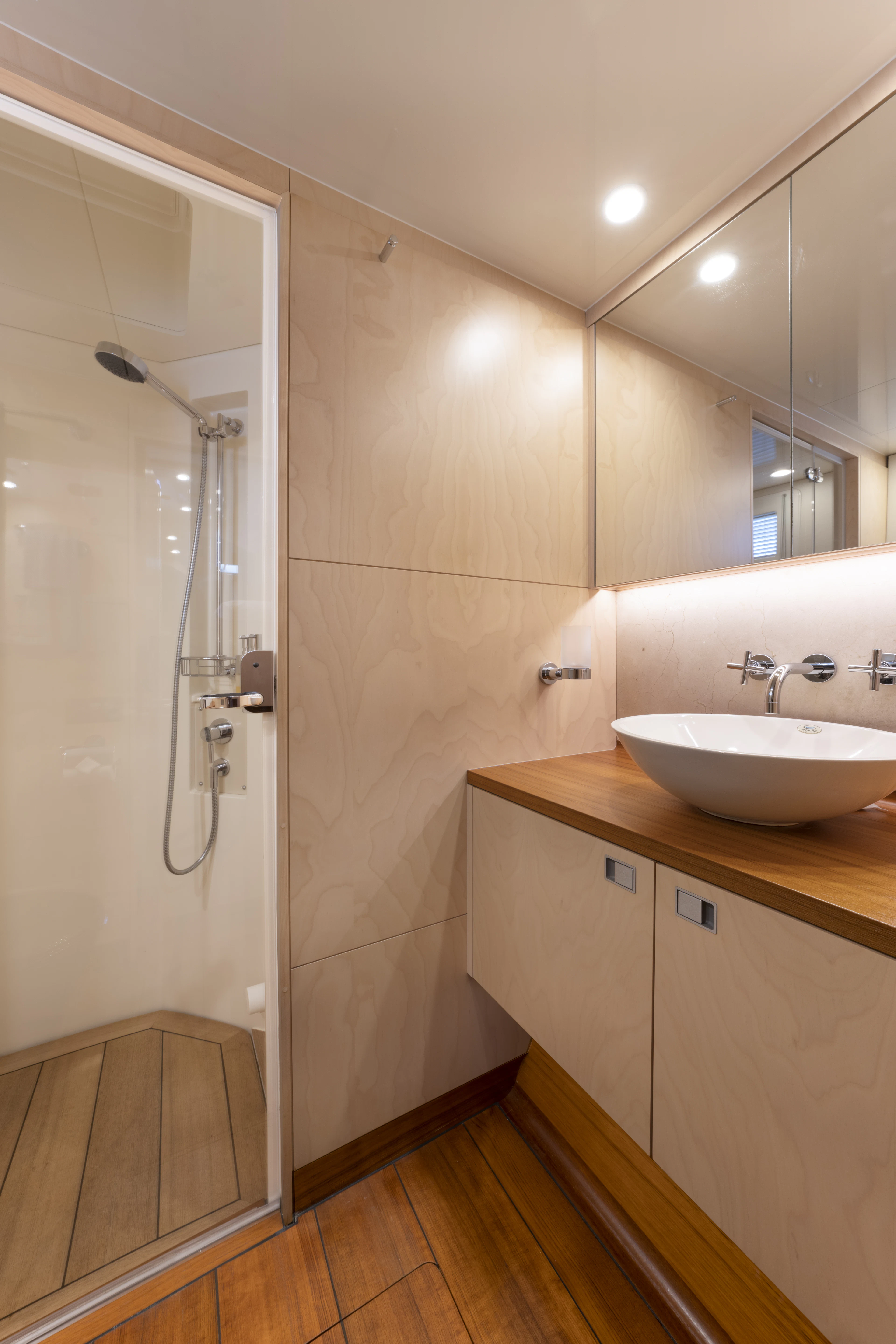

(1) En-suite bathroom with: Tecma carbon toilet - Shower, washbasin — solid teak top - stainless fittings (1) Full-height cedar-lined hanging closet
(1) Bookshelf over further storage cabinets
(2) Bedside cabinets with drawer and storage
(2) Fixed wall lights
(2) Angled reading lights
(1) Overhead deck hatch with mesh screen and blackout blind
(1) Large fixed port with built-in slatted blinds
(1) Dimmable overhead LED lighting
(1) Air conditioning fan coil (1) Sonos One speaker
STARBOARD AFT GUEST STATEROOM
The starboard aft guest stateroom mirrors the port aft VIP in specification and finish. A connecting door from the en-suite opens to a day head, which in turn provides access to the starboard bunk cabin — making this an ideal family suite configuration when required.
(1) Queen berth with upholstered headboard
(1) En-suite bathroom with connecting day head
-
Tecma carbon toilet
-
Shower, washbasin — solid teak top, stainless fittings
-
Connecting door to day head and bunk cabin
(1) Full-height cedar-lined hanging closet
(2) Bedside cabinets with drawer and storage
(2) Fixed wall lights
(2) Angled reading lights
(1) Overhead deck hatch with mesh screen and blackout blind
(1) Large fixed port with built-in slatted blinds
(1) Dimmable overhead LED lighting
(1) Air conditioning fancoil (1) Sonos One speaker

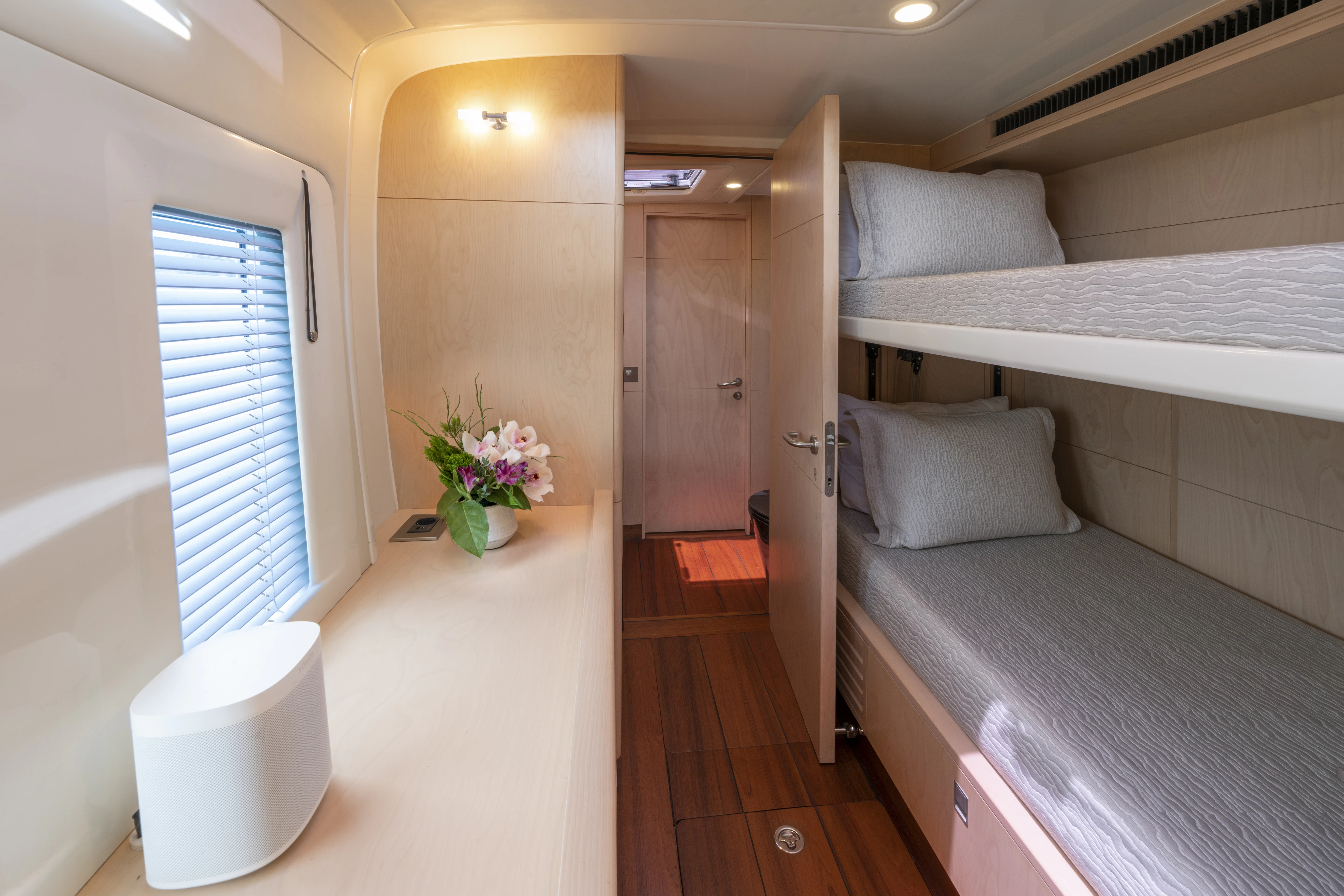

STARBOARD MIDSHIPS - Bunk Cabin
Accessed via the connecting day head from the starboard aft guest stateroom, the bunk cabin provides flexible additional sleeping for children, guests or staff. Together with Cabin 3 and the shared day head it forms a natural family suite.
(2) Bunk berths
(1) Access via connecting day head from Cabin 3
(1) Air conditioning fancoil
CREW AREA:
STARBOARD FORWARD | Captain’s Cabin
The captain's cabin is positioned starboard forward, providing a private and self-contained space for the captain fully separated from the guest accommodation. Twin bunks and a dedicated wet head give the captain and first mate, or a couple, comfortable and private independent living.
(2) Bunk berths with storage (1) Dedicated wet head
PORT FORWARD | Crew Cabin
The port forward crew cabin accessed from the port deck provides twin bunk accommodation with a dedicated wet head — a self-contained space fully forward of the guest areas.
(1) Twin bunk berths
(1) Dedicated wet head

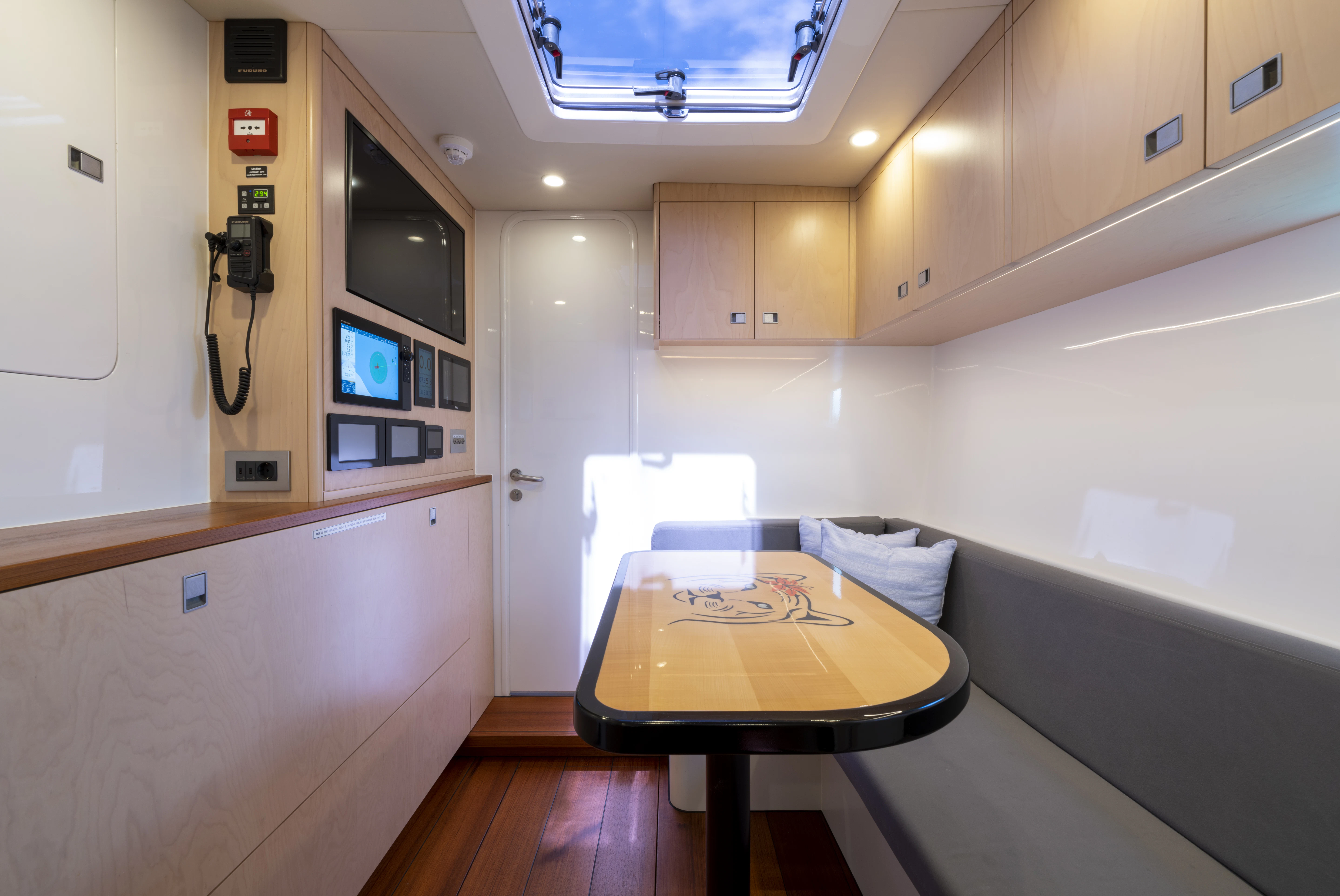

CREW MESS
The crew mess is positioned immediately adjacent to the galley and provides the crew with a comfortable, well-equipped rest and working space. A fixed L-shaped upholstered banquette in grey runs around a varnished timber pedestal table — large enough for a full crew team to eat, brief, and plan passage work. The electronics panel on the forward bulkhead houses a large flat-screen TV, a dedicated instruments display panel with CZone and chartplotter screens, a wired VHF handset, and a fire alarm panel. A large overhead Lewmar hatch with opening arms provides excellent natural light and ventilation. Upper cabinetry provides additional crew storage. Forward, a door leads through to the technical rooms and the captain's cabin.
(1) Fixed L-shaped grey upholstered banquette
(1) Varnished timber pedestal dining/chart table (1) Large flat-screen TV — forward bulkhead
(1) Instruments display panel — CZone and chartplotter screens
(1) Wired VHF handset — bulkhead mounted
(1) Fire alarm panel
(1) Large overhead Lewmar hatch with opening arms
(1) Upper cabinetry storage (1) Air conditioning fancoil (1) Furuno TZT12F 12" MFD
Navigation Equipment & Systems
INSTRUMENTATION
The primary sailing processor is the Sailmon E4 Silver, running the Ethernet Sailmon display network and the NMEA 2000 sensor network from the helm pedestal. Sailmon Element displays are positioned throughout the vessel for full situational awareness from any position.
(1) Sailmon E4 Silver high-performance sailing processor — helm pedestal (1) Sailmon Element 7” portrait display — nav station
(2) Sailmon Element 7” portrait displays — overhead forward helm station
(1) Sailmon Element 7” portrait display — crew mess instrument panel

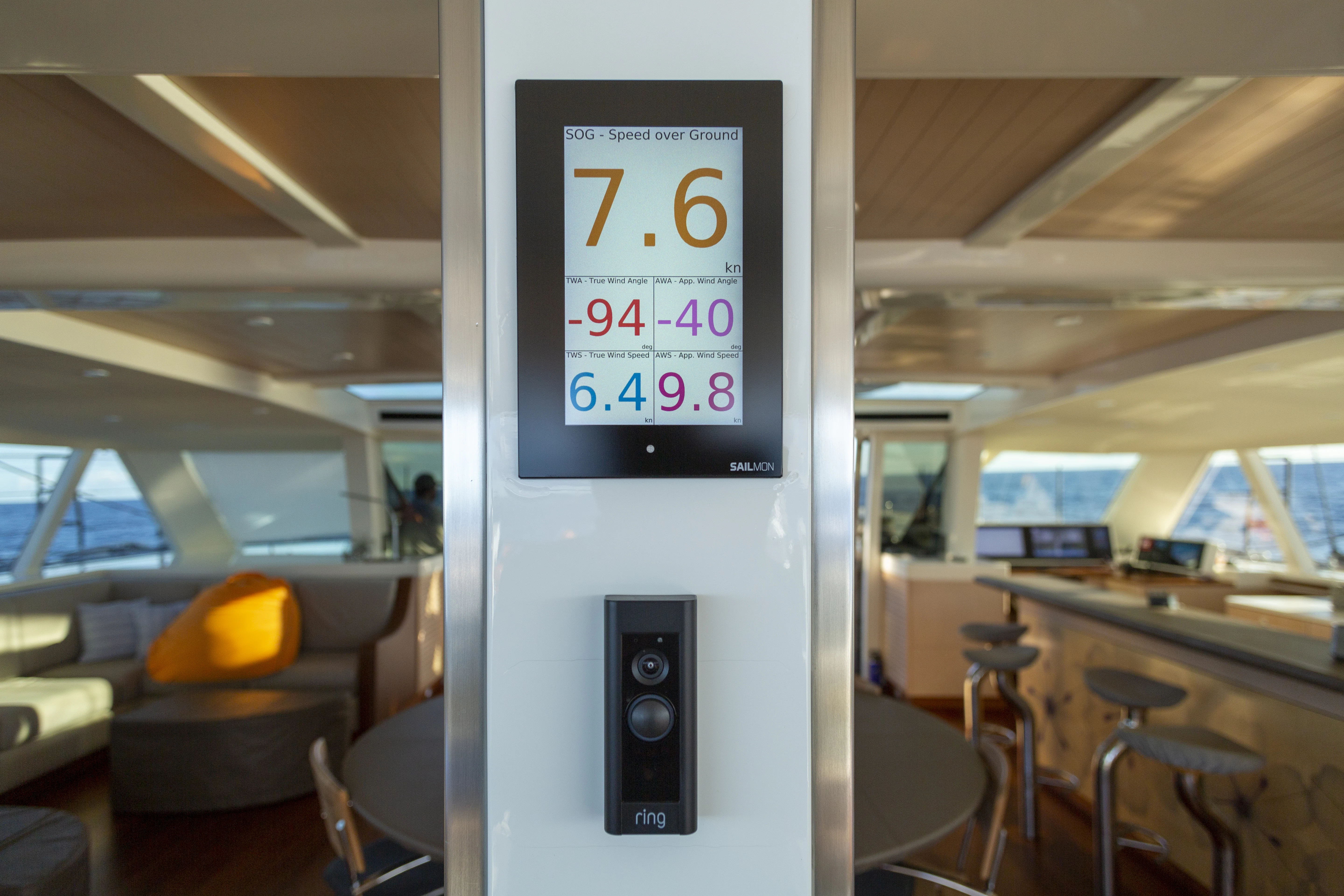

(1) Sailmon Element 7” portrait display — aft cockpit (2) Sailmon Element 10” portrait displays — mast bracket
NAVIGATION
Navigation is anchored by dual Furuno TZT16F 16-inch MFDs at the helm and a Time Zero Professional PC-based platform at the nav station, with full radar, AIS, weather overlay and route planning integration throughout.
(2) Furuno TZT16F 16" MFD — overhead forward helm station
-
Primary navigation — radar, AIS, camera video, alarms, engine and generator data
-
Can serve as PC monitors
(2) Nottrot N185KGE high-brightness PC monitors — nav station
-
Time Zero Professional — full AIS, radar, weather overlay, route planning
(1) Furuno TZT12F 12" MFD — crew mess
-
Chart plotter, AIS display, instrument data, alarms
(1) ZG100 GPS — coach roof (1) MCU-004 Remote Control for NavNet TZtouch3 — helm console
(1) Furuno DRS4D 24" solid-state Doppler radar — stbd aft antenna post
-
48nm range — Revolutionary Target Analyzer
AUTOPILOT
Dual B&G NAC-3 pilot computers provide fully independent, failsafe autopilot networks — each self-contained and able to operate in the event of main instrumentation failure.
(1) B&G NAC-3 Pilot Computer — port pilot locker
(1) B&G NAC-3 Pilot Computer — stbd pilot locker
(2) AP44 Autopilot Controllers — helm console (2) RF300 Rudder Feedback Units — wired to respective pilot computers
(2) B&G Hydraulic Rams
SENSORS
A comprehensive sensor suite provides high-precision wind, position, heading, speed, and depth data across both NMEA 2000 and Ethernet networks, with redundant compasses on both pilot networks.
(1) WS730 Vertical Wind Sensor 1.4m — mast head
-
1.4m carbon spar elevates sensor above sail-plan disturbance
(1) Furuno SCX20 GPS Compass — coach roof (primary)
(1) Precision 9 Compass — stbd pilot locker (secondary heading sensor)
-
Failsafe secondary heading on stbd pilot network
(1) DT800 Depth Transducer — crew mess bilge
-
NMEA 2000 depth/temperature, zero degree element, no speed
(1) DST810 Speed, Depth and Temperature Transducer — master cabin heads bilge
(2) ST800 P120 Speed Transducers — crew mess bilge and master cabin heads bilge
(1) P79 In-hull Dual-frequency Depth Transducer — stbd crew cabin bilge
-
50 kHz to 294m — 200 kHz to 180m — no hull protrusions
(2) Port and Stbd Speed, Depth and Chirp transducers — bilge
Communications
COMMUNICATIONS
Tiger Lily Too carries a comprehensive communications suite providing satellite voice and data, AIS, VHF, and Inmarsat C safety systems — fully integrated and redundant.
(1) Starlink on custom pole (2025)
(1) Thales VesseLINK 700 Iridium Certus Terminal
(1) Thales SureLINK IP Handset 6ft coil cord — nav station
-
Iridium Certus ruggedised IP handset with dedicated distress button
(1) Inmarsat C Sailor 6150 Mini-C Non-SOLAS system with distress button
(1) FM4850 VHF — DSC, AIS, black-box — mast base electronics locker
(1) HS-4800 VHF Handset and SF-4800 Speaker — crew mess
(1) FA-70 Class B AIS Transponder and Splitter — mast base electronics locker (1) Pepwave B One Router
(1) HD 1 Max Dome — stbd spreader
-
5G cellular and on-deck WiFi — Osprty BYO eSIM
CAMERA SYSTEM
A full AXIS IP camera system covers engine rooms, generator rooms, spreaders, and the mast head, all recorded and managed by a central AXIS S2212 recorder with integrated PoE switching.
(1) AXIS S2212 Video Recorder with integrated PoE switch — helm seat racks
-
Hub for all onboard AXIS cameras — 4K recording
(1) Teledyne 720C-AL analogue camera with Axis M7011 encoder — mast head
-
View down from top of rig
(2) AXIS P5655-E Spreader PTZ Cameras — port and stbd spreaders
-
Pan/Tilt/Zoom — IP66
(4) AXIS M3046-V Cameras — port and stbd engine rooms and generator rooms
-
Ultra-compact — 4MP — 128° FOV
(1) Ring Doorbell — aft cockpit
-
160° FOV — WiFi — 1080 HD — infrared night vision — two-way audio
AUDIO VISUAL
A fully integrated Sonos audio system serves the saloon, cockpit, and all cabins. The saloon also features a 4K projector with hidden ceiling-mounted drop-down screen for movie nights at anchor.
(1) Optoma UHZ65 4K Projector — port saloon head lining
-
Hidden ceiling panel with drop-down screen for cinema mode
(4) Speakercraft flush-mount ceiling speakers — saloon
(4) Speakercraft flush-mount ceiling speakers — aft cockpit
(1) Sonos Subwoofer — under aft saloon coffee table (4) Sonos Amps — port and stbd saloon head linings (2 per side)
-
Powers 4 saloon speakers and 4 cockpit speakers
(2) Sonos Ports — master cabin
(2) Sonos Ones — master cabin
(1) Sonos Ones — port aft guest cabin
(1) Sonos Ones — stbd aft guest cabin
(1) Sonos Ones — stbd fwd guest cabin
(1) Apple TV — port saloon head lining
(1) Mac Mini — master cabin desk
Rudder Bearings & Steering
RUDDER BEARINGS & STEERING
The rudder bearing assemblies are custom-engineered Grade 2 titanium supplied by Ti64 designed in cooperation with McCollough Yacht Design.
These are purpose-designed for the Gunboat 90, with all bearing surfaces receiving a baked-on lubricious coating to reduce wear. Components include outer and inner races, ball-loading pocket covers, upper and lower keepers, and Grade 5 titanium mounting hardware throughout. The steering system is a Herculeus Titanium and carbon system with full aft-beam-facing titanium and carbon components at the transom. Both rudder bearings and daggerboard bearings were serviced in May 2026.
(2) Ti64 Grade 2 Titanium lower rudder bearing assemblies — custom Gunboat 90 specification
-
Rolling-pin style rudder interface
-
Designed in cooperation with McCollough Yachts LLC
-
Baked-on lubricious coating on all bearing surfaces
-
Outer Race × 2
-
Inner Race × 2
-
Ball Loading Pocket Cover × 4
-
Gr5 Ti hardware for keepers and ball loading pocket covers
-
Serviced May 2026
(1) Herculeus Titanium and carbon steering system
-
Full titanium and carbon components at the transom
(1) Ti64 Titanium daggerboard bearings
-
Serviced May 2026
Deck Equipment, Winches & Hydraulics
DECK HARDWARE
Deck hardware is chosen for structural safety and performance at load, with custom titanium halyard leads and a purpose-built jib track system with a 4:1 purchase ratio.
(1) Custom titanium halyard deck lead
(1) Antal curved jib track with triple cars — 4:1 with Harken turning blocks
(1) Harken Spinnaker blocks
WINCHES
The forward cockpit carries large, hydraulically assisted primaries for sail trim and sail hoisting. The aft cockpit handles tender operations with electric winches.
(2) Harken 990 — forward cockpit
(2) Harken 1135 — forward cockpit
-
Hydraulic assist
(2) Harken 990 electric — aft cockpit (tender operations)
HYDRAULICS
The hydraulic system was designed and built by Marine Hydraulic Consultancy, powering the primary sail controls and bow thrusters from a central power pack. The system is controlled by PLC screens that monitor all aspects of operation.
(1) Marine Hydraulic Consultancy main power pack
-
Powers: 4 sailing winches - mainsheet - traveler
(2) Drop-down bow thrusters — driven by generator PTOs
Mast & Boom Electronics And Lighting
MAST & BOOM ELECTRONICS AND LIGHTING
Electronics at the mast and on the coach roof cover communications, navigation, radar, and instrumentation. Lighting covers all COLREGS navigation lights, spreader lights, deck lights, and boom cockpit lighting.
(1) FM4850 VHF — mast base electronics locker
(1) FA-70 Class B AIS Transponder and VHF Splitter — mast base electronics locker
(1) MOXA S110 serial device server — mast base electronics locker
(2) DRS2D NXT Radar — port and stbd spreaders (dual redundant) (
1) Peplink lid dome — stbd spreader
(1) AIS GPS — port spreader (1) Furuno SCX20 GPS Compass — coach roof centre
(1) Thales ADU Iridium Certus antenna — coach roof port side
(2) ZG100 GPS — coach roof stbd side
(1) SAT-C Alarm Panel — overhead aft helm station
(1) VHF + AIS 12V antenna — mast
(1) Qnd-1 — mast
(1) Sailmon-2 — mast
(1) Electric airhorn — mast
(1) 360° Red Light — mast head
(1) Anchor Light — mast head
(1) Strobe Light — mast head (1) Windex Light 12V — mast head
(2) 180° Green Light — mast head
(1) Steam Light (motoring light) — mast
(1) Deck Light — mast
(2) Spreader Up Lights — port and stbd
(2) Spreader Down Lights — port and stbd
(2) Port / Starboard Navigation Lights
(1) Boom Cockpit Lights
Rigs, Sails & Rigging
MAST HARDWARE
The mast carries a comprehensive suite of hardware selected for high load carrying capacity and reliability, including custom Facnor furlers, Harken Ti structural blocks, Spinlock clutches and jammers with ceramic jaws, and Sailmon instrumentation units.
(1) Hanging Locks — full set (5) Facnor Custom Furlers
(2) Sailmon units — mast
(5) Harken Ti V Blocks at mast base — 8 Ton (4) and 5 Ton (1)
(1) Snatch block — mast base
-
Misc thimbles with lashing
(4) Spinlock XX0812 clutches with ceramic jaws
(4) Spinlock 12-16 Jammers with ceramic jaws
(2) Runners and check stays
STANDING RIGGING
The standing rigging was comprehensively renewed in 2025, with a new headstay, full service of cap shrouds and diamonds, and new high-load loops from specialist riggers Tensile Rigging.
(1) 2025 New PBO Headstay
(2) 2025 ECSix Cap Shrouds
(4) 2025 ECSix Diamonds
(1) 2025 All high-load loops replaced by Tensile Rigging
LOAD MONITORING
Nine load pins are interfaced to the Sailmon E4 CPU via Sailmon loadcell boxes.
(1) Sailmon E4 CPU — loadcell interface
(9) Sailmon loadcell pins
-
1 — Port Cap
-
2 —Stbd Cap
-
3 —Staysail
-
4 —Maxi Reacher (Bow)
-
5 —AP Reacher
-
6 —Forestay
-
7 —Port Lower
-
8 —Stbd Lower
-
9 —Mainsheet
SAILS
Tiger Lily Too carries a comprehensive and largely new sail wardrobe. The mainsail and solent are 2025 North 3Di Ocean.
The A3 asymmetric was custom-designed by Brian Thompson, one of the world's foremost offshore sail racers and designers. All headsails are furling and on external hanging locks.
(1) 2025 North Square Top 3Di Ocean Mainsail
-
2025 Rigging Projects Titanium locking headboard car with halyard locks
-
3 external reefing locks in clew
-
CTech carbon battens
(1) 2025 North 3Di Furling Solent / J2 — with battens (1) 2024 Doyle Status 1100 A3 Asymmetric — top-down furling cable
-
Designed by Brian Thompson
(1) 2019 North J1
-
2025 Furling cable replaced
(1) 2019 North Trinquette / Storm Jib
MAST & SPARS
Hall Spars Ultra High Modulus carbon mast with single spreaders, with a Park Avenue carbon boom.
The longeron and crossbeam are Marstrom carbon construction.
In 2025 the mast received a comprehensive service and overhaul, a full repaint to Jet Black, and a series of targeted upgrades improving both performance and ease of handling.
(1) Hall Spars Ultra High Modulus carbon mast — single spreader
-
2025 Repainted Jet Black
-
2025 Full mast service and overhaul
-
2025 40mm Mast track with Harken 40mm cars switch track
-
2025 New roller bearing cars in high-load areas — reduces sail stack height
-
2025 Rigging Projects Titanium locking headboard car
-
2025 Mast top crane camera or easy viewing lock on/off
(2) Furuno dual radar — one per spreader, fully redundant (1) Park Avenue carbon boom
(1) Marstrom carbon longeron
-
3 × 3:1 longeron tack lines with tensioning and locking system
(1) Marstrom carbon crossbeam
RUNNING RIGGING
Running rigging is high end specification throughout by Tensile Rigging Newport.
STANDING RIGGING
The standing rigging was comprehensively renewed in 2025, with a new headstay, full service of cap shrouds and diamonds, and new high-load loops from specialist riggers Tensile Rigging.
(1) 2025 New PBO Headstay (2) 2025 ECSix Cap Shrouds (4) 2025 ECSix Diamonds (1) 2025 All high-load loops replaced by Tensile Rigging
LOAD MONITORING
Nine load pins are interfaced to the Sailmon E4 CPU via Sailmon loadcell boxes.
(1) Sailmon E4 CPU — loadcell interface
(9) Sailmon loadcell pins
1 — Port Cap
2 —Stbd Cap
3 —Staysail
4 —Maxi Reacher (Bow)
5 —AP Reacher
6 —Forestay
7 —Port Lower
8 —Stbd Lower
9 —Mainsheet
Engines & Generators

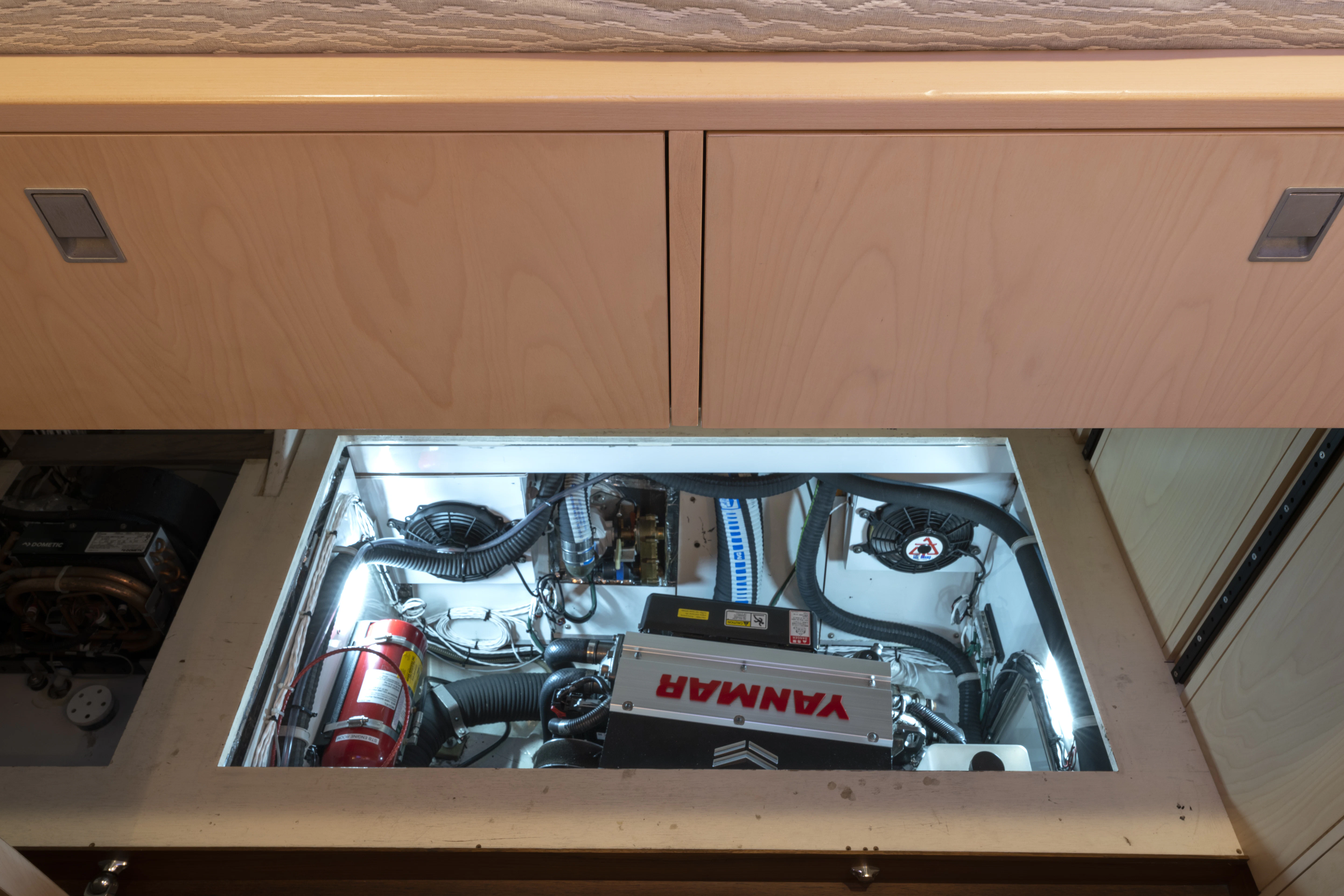

ENGINES
Two (2021) Yanmar 4VL 230hp diesel engines.
(2) Yanmar 4VL 230hp
-
Starboard — 2,368 hours
-
Port — 2,371 hours
Engine rooms situated midships
(1) May 2026 — Cutlass bearings replaced
(1) May 2026 — Antifoul completed
(2) May 2026 — Gori props with overdrive serviced and Propspeed applied
(1) May 2026 — Rudder bearings serviced
(1) May 2026 — Daggerboard bearings serviced
GENERATORS
Two Northern Lights 20kW generators provide full redundancy for offshore passages and high-load hotel use.
(2) Northern Lights 20kW — model 864W3.3G
-
Starboard — 2,185 hours
-
Port — 2,186 hours
Tankage
FUEL: 2.272L (600gal) in 2 tanks
FRESH WATER: 1.514L (400gal) in 2 tanks
Water Systems
WATERMAKERS
Dual Spot Zero watermakers provide high-output fresh water production with the redundancy of two units.
(2) Spot Zero XTC II watermakers
(1) Spot Zero ZTC II system
FRESH WATER SYSTEM
The freshwater system is fully duplicated port and starboard with independent pumps, heaters, and treatment. Carbon filter and UV light purification on both sides ensure drinking-quality water from any source.
(2) HeadHunter X Caliber
(2) Carbon filter and UV light water treatment — port and starboard
(2) Fresh water pumps — port and starboard
(4) Water heaters — fwd port, fwd stbd, aft port, aft stbd
(2) Pressure accumulators — port and starboard
(2) Y-valves for independent tank filling — port and starboard
(1) Deck shower, deck wash and deck pressure — port and starboard
BLACK WATER
USCG Type II certified black water management with full offshore capability and overboard by-pass.
(1) TW HMX 600 — USCG Type II MSD system (1) HeadHunter waste management with overboard by-pass
-
Extra one-way valves on all heads
-
Overboard discharge valves — port and starboard
GREY WATER
The grey water system uses multiple sumps with pumps distributed throughout the vessel. Three industrial sumps handle primary loads; dedicated sumps serve individual zones.
(3) Industrial sumps
-
Sump 1 — washer, galley sink, dishwasher, condensate
-
Sump 2 — bunk cabin sump, bar sink, ice maker
-
Sump 3 — port aft guest, owners, guest and salon condensate
(1) Captain's sump
(1) Galley condensate sump
(1) Bunk cabin sump
(1) Port crew sump
(1) Port forward guest sump
(1) Port aft guest sump
(1) Starboard aft guest grey sump
(1) Dishwasher — integrated into grey water system
(1) Washing machine — integrated into grey water system
BILGE PUMPS
Rule 3700 bilge pumps with 1.5-inch hoses are installed throughout, with one-way valves at the top of each loop.
(12) Rule 3700 bilge pumps — 1.5" hose
-
Port forepeak - Port crew cabin - Owners cabin - Port engine room - Port aft shaft alley - Port rudder locker - Stbd sail locker (forepeak) - Stbd crew cabin - Galley - Stbd engine room - Stbd aft shaft alley - Stbd rudder locker
Batteries & Solar

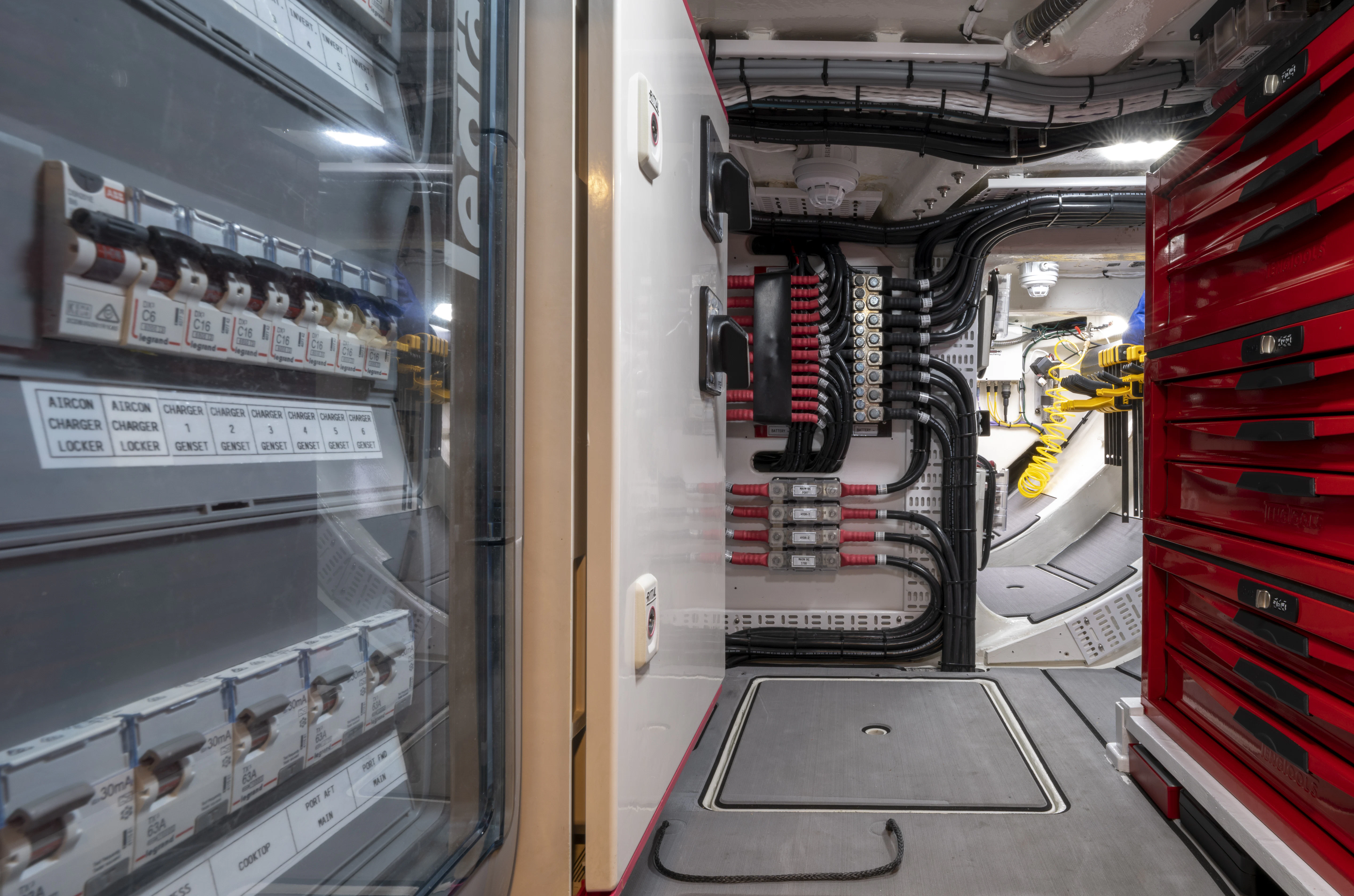

BATTERIES
The electrical system is built around a 2,800 Ah Mastervolt lithium bank, providing huge load capacity for extended passagemaking and for use without the constant need to run the generators. Multiple charging sources provide full redundancy throughout.
(14) Mastervolt MLI Ultra 24/5500 house batteries
-
200 Ah / 5,500 Wh per unit
-
2,800 Ah total capacity
(6) Mastervolt Ultra 24/4000W inverters
(6) Mastervolt 24DC / 3.5 kW / 100 Ah generator chargers
(4) Mastervolt 24DC / 110 Amp / 3.5 kW shore power chargers
(4) Mastervolt Alpha Pro 3.6 kW / 24V DC / 150 Amp alternators
SOLAR
The entire solar array was replaced in 2025 and is under full 5 year warranty. Fifty-five Solara flexible walk-on panels across three deck zones deliver a combined 34.33 kWh per day, providing exceptional energy independence at anchor or underway.
(10) Mastervolt SCM 60 charge controllers
(27) Solara S560M43 Marine panels — forward array
-
150W each
-
17.95 kWh/day output
(12) Solara S560M43 Marine panels — aft array * 150W each — 7.98 kWh/day
(6) Solara S460M35 Marine panels — aft array
-
120W each — 3.15 kWh/day
(10) Solara S460M35 Marine panels — side arrays (combined)
-
120W each — 5.25 kWh/day
-
TOTAL: 55 panels / 7,700W peak / 34.33 kWh/day / 272.8 kg
Air Conditioning
AIR CONDITIONING
Chilled water air conditioning system with VARC variable-capacity chiller units throughout. Fan coil units serve all guest and crew zones.
(1) 48,000 BTU VARC chiller unit with condensate sump (1) Chilled water pump
(1) Seawater cooling pump (1) Sea strainer with through-hull inlet valves
(1) Fresh water make-up circuit — 15 psi regulator, charging valve, accumulator (11) Fan coil units
-
Crew (under stairs)
-
Port crew
-
Owners cabin
-
Port salon (VARC variable capacity)
-
Starboard salon (VARC variable capacity)
-
Electrical locker
-
Galley
-
Captain's cabin
-
Bunk cabin
-
Port aft guest
-
Starboard aft guest
(2) Industrial condensate sumps with overboard discharge — port and starboard
Galley & Laundry
GALLEY
The galley space runs along the starboard hull midships. A long preparation counter with an undermount sink and mixer tap runs the full length, with generous drawer and cabinet storage beneath. The stacked Miele washer and dryer are integrated at the forward end of the galley corridor. To port, a large panel-fronted refrigerator provides substantial cold storage. A large underfloor chest freezer provides additional bulk frozen storage. The galley is a genuinely capable space that can provision and serve a full owner-and-guest program.
(1) Full-length galley counter with undermount sink and mixer tap
(1) Large panel-fronted refrigerator
(1) Large underfloor chest freezer
(1) Large opening fridge
(1) Large opening freezer
(1) Miele washer — stacked unit
(1) Miele dryer — stacked above washer
-
Induction cooktop
-
Generous drawer and cabinet storage throughout
-
Birch satin cabinetry — matching interior fit-out
Tenders & Toys
MISCELLANEOUS
Tiger Lily Too is offered with a full complement of tender, dock lines, and fenders ready for immediate use.
(1) Falcon Custom tender
-
Fenders — full set
-
Dock lines — full set
TOYS & WATER SPORTS
Tiger Lily Too carries a well-equipped selection of water sports toys for guests, all in excellent condition.
The Captain currently carries a mix of kites and wing foils for all occasions
(2) Inflatable paddleboards (2) Hobie inflatable kayaks with Mirage drives
(1) Tiwal inflatable sailboat (2) Dive tanks
(1) BCD — for working on the boat
-
Wakeboards, snorkel gear and assorted water sports equipment
Fire Main - Safety
FIRE MAIN
Copper-nickel (CuNi) fire main system throughout.
(1) Fire pump with sea strainer and through-hull inlet
(1) 70 psi pressure relief valve — discharges into chain locker
(1) Fire hydrant with fire hose — saloon
(1) Chain locker fresh water wash-down connection
(1) Fire main flush connection
Full Details
Brokers Comments

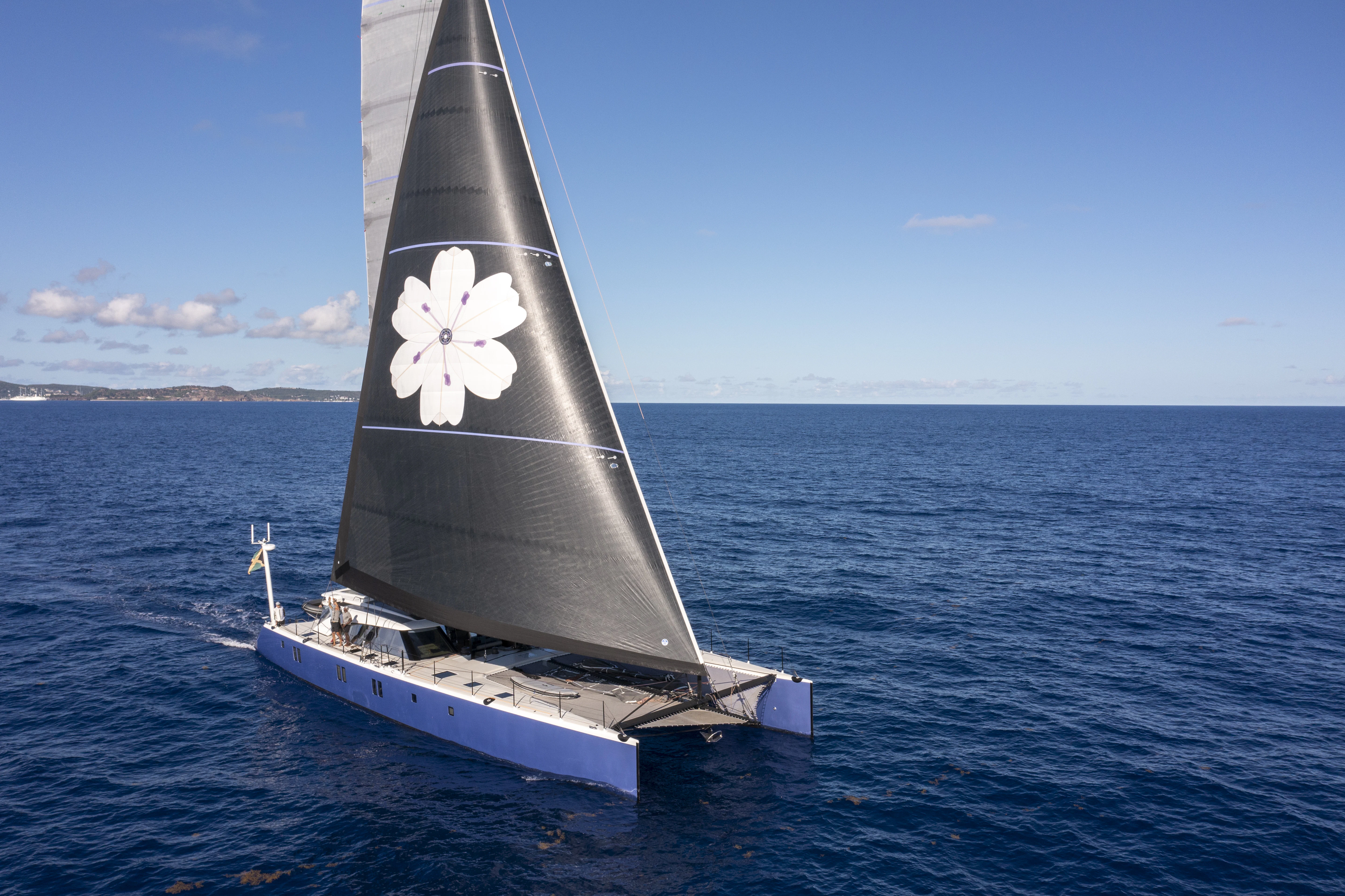

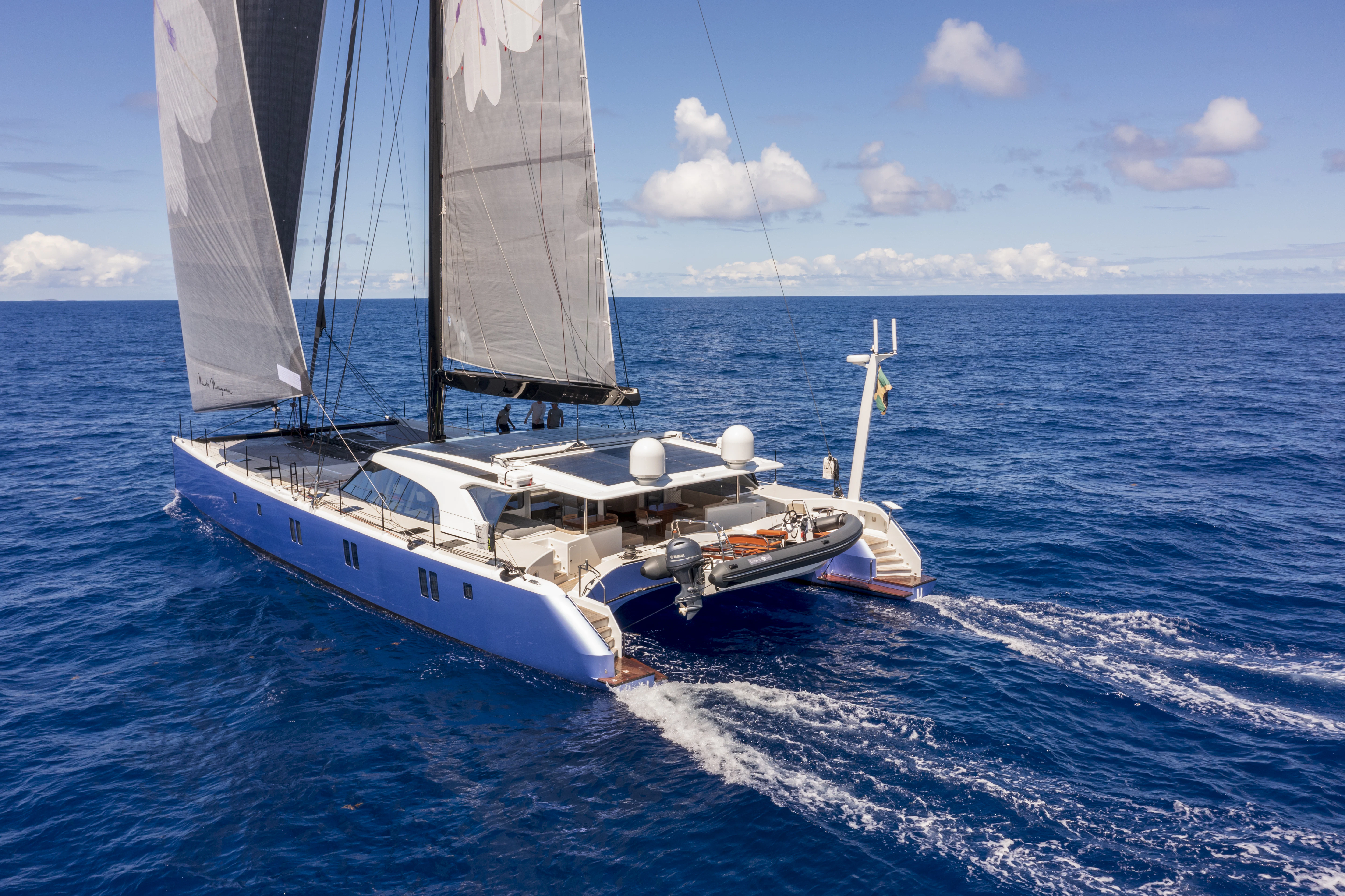

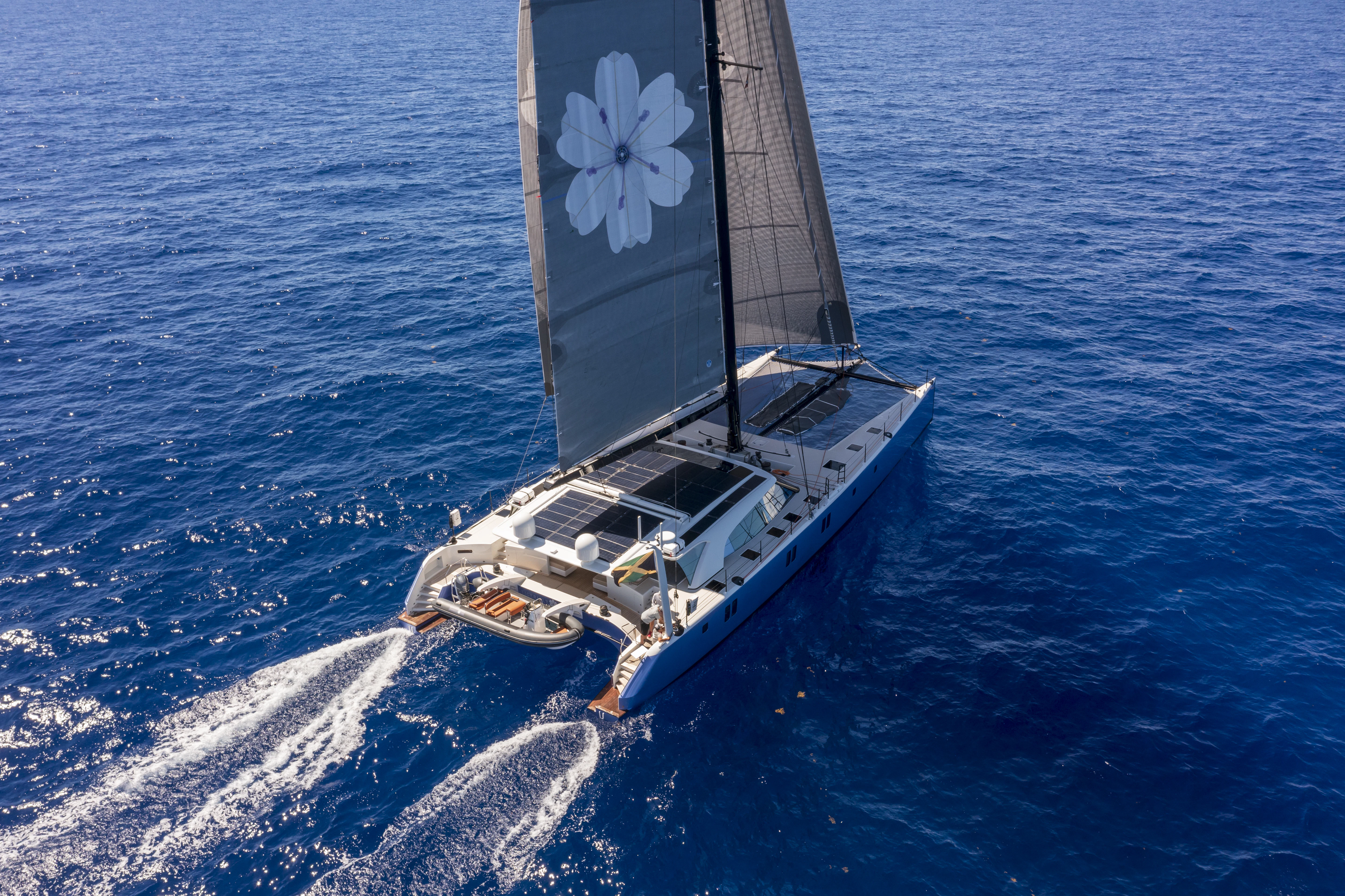

Tiger Lily Too is one of the most extraordinary performance cruising catamarans ever built.
A fully custom Gunboat 90 designed by Morrelli & Melvin and built in Cape Town, South Africa in 2010 to the highest possible specification and without compromise. Her all-carbon and Nomex honeycomb construction gives her a displacement-to-length ratio more indicative of an offshore race boat than a cruising yacht, and the Gunboat 90 still stands entirely alone in the marketplace. No other vessel of her size combines this level of structural sophistication, sailing performance, and ocean capability and ability to only draw 5.2ft with her lifting rudders and daggerboards. She is a platform that has simply never been replicated.
From 2019 to 2021, Tiger Lily Too underwent an $11,000,000 major refit and transformation in the USA, one of the most comprehensive ever undertaken on a performance cruising catamaran. Every system was replaced or upgraded by world-leading specialists. The interior layout was reimagined to include a dedicated crew area, transforming the platform into a true superyacht capable of global exploration while providing owners with sumptuous luxury and privacy.
Tiger Lily Too is finished throughout in birch cabinetry with a satin stain finish, Brazilian mahogany floors, and impeccable Italian fabrics and detailing. She accommodates eight guests across three large double walk-around beds, each with its own private en-suite, an extra bunk room perfect for kids or guests, and up to four crew.
Tiger Lily Too is offered to the market in turn-key, step-on superyacht condition.
Boarding, Transom, Interior & Accommodation
TRANSOM & BOARDING
Stepping aboard Tiger Lily Too from the aft sugar scoops, you're greeted with a wide outer step that allows effortless boarding directly from the dock, while a second inboard lip provides easy access from the tender, both practical details that make a genuine difference in daily use.
All teak on the transoms, steps, aft and forward cockpits were replaced in 2025.
Four curved teak steps with stainless-steel handrails lead up from the water onto a flat deck that flows naturally forward into the aft cockpit. The steps are mirrored port and starboard, giving the transom a symmetry that carries through the entire aft end of the boat.
Underwater lighting illuminates the water beneath both hulls in vivid blue, making the transom as striking at anchor after dark. For offshore passage-making, the transoms are fitted for large hydro-Watt & Sea generators.
AFT BEAM
Walking up from the transoms and moving forward along the deck, you pass the large davits that hold the custom Falcon tender and the aft Harken 990 winches.
Steps port and starboard, again perfectly mirrored, lead up to two large oversized daybeds, one on each side, ideal for lounging underway or at anchor.
The aft beam features a large central loveseat on the centerline that comfortably accommodates 6 people, designed at a height for unobstructed views, with built-in storage on either side. The flow from transom to beam to cockpit is seamless — wide, open, and detailed.

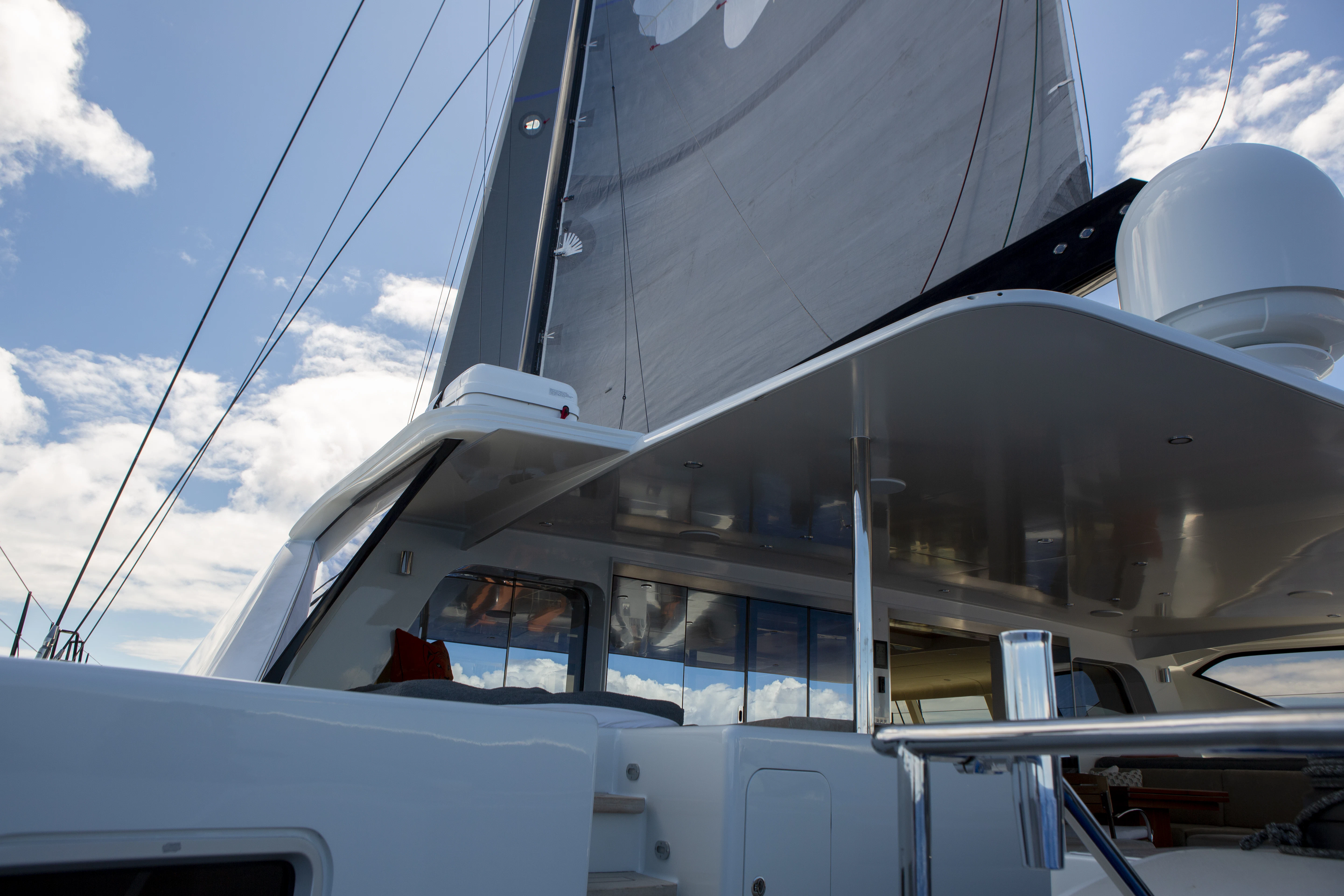

AFT COCKPIT
Stepping through into the aft cockpit, the space immediately impresses with its layout, privacy, and sense of occasion. Two L-shaped seating areas face each other, each with a varnished lifting and expanding table provides flexible outdoor dining configurations for large groups.
The cushions are light Italian fabric, soft and elegantly understated against the teak. The space is framed by large mirrored double sliding doors that open fully to connect the cockpit with the saloon, erasing the boundary between inside and outside living.
Overhead lighting runs the full length of the cockpit canopy, making the space equally usable day and night.
The entire aft cockpit delivers the combination of complete privacy and genuine luxury that defines Tiger Lily Too.
SALON
An open, unobstructed salon of a scale that feels more like a great room than a boat interior. Warm timber-paneled ceiling linings run the length of the space, with recessed LED downlights and opening skylight hatches that flood the interior with natural light and air. The panoramic wraparound windows give the saloon a 360 -degree connection to the water and horizon.
At the heart of the space sits a beautiful custom round designer dining table, surrounded by teak and upholstered dining chairs. To starboard, the bar and coffee station runs the full length of the space alongside the dining area: a long varnished timber counter with leather-topped bar stools, fronted by a cabinet face featuring stunning inlays.
Bar seating provides a relaxed feel and allows for self-service without disrupting the flow of the saloon, and serves equally well as a proper bar for evening entertaining or just relaxing.
The forward port section of the saloon provides two generous curved sofas in warm beige fabric with a low black coffee table to each side. This forward lounge faces forward through the full-width windows, giving unobstructed sea views.
The nav station is positioned to starboard forward of the helm, housing chart plotters and instrument displays.
One further detail deserves particular mention: a hidden panel in the saloon ceiling conceals a built-in projector that drops a screen on command, transforming the saloon into a private cinema at anchor.
HELM STATION
At the center of the saloon sits the helm — positioned centrally to allow the driver to control every aspect of the vessel while remaining fully connected.
Its striking, beautifully proportioned design makes it a stunning piece that blends functionality, safety, and luxury, highlighting the quality of this platform.
From this single position, the helmsman has 360-degree sightlines, complete engine and systems control, full instrument visibility, and command of all aspects of sailing, whilst remaining connected to guests.
(1) Custom varnished timber and carbon spoke steering wheel — large diameter Leather-padded varnished timber helm console
(1) Traditional compass in polished binnacle — centrally mounted
(2) Overhead Furuno TZT16F 16" MFD displays — helm display shelf
(2) Sailmon Element instrument displays — port and starboard helm positions (1) Simrad autopilot controller (1) Furuno chartplotter
-
Port and starboard thruster controls
-
Port and starboard pilot on/off
-
Mainsheet in/out and traveler in/out controls
-
Lighting controls — mast, deck, instruments, compass
-
Port and starboard generator start/stop
-
Crew call
-
Windlass
-
Hydraulic emergency stop
-
Main dump
-
Sail controls
-
Yanmar engine management displays
-
MOB button
-
Horn
(1) Helm seat — companion seating for 2–3 persons immediately aft of the wheel

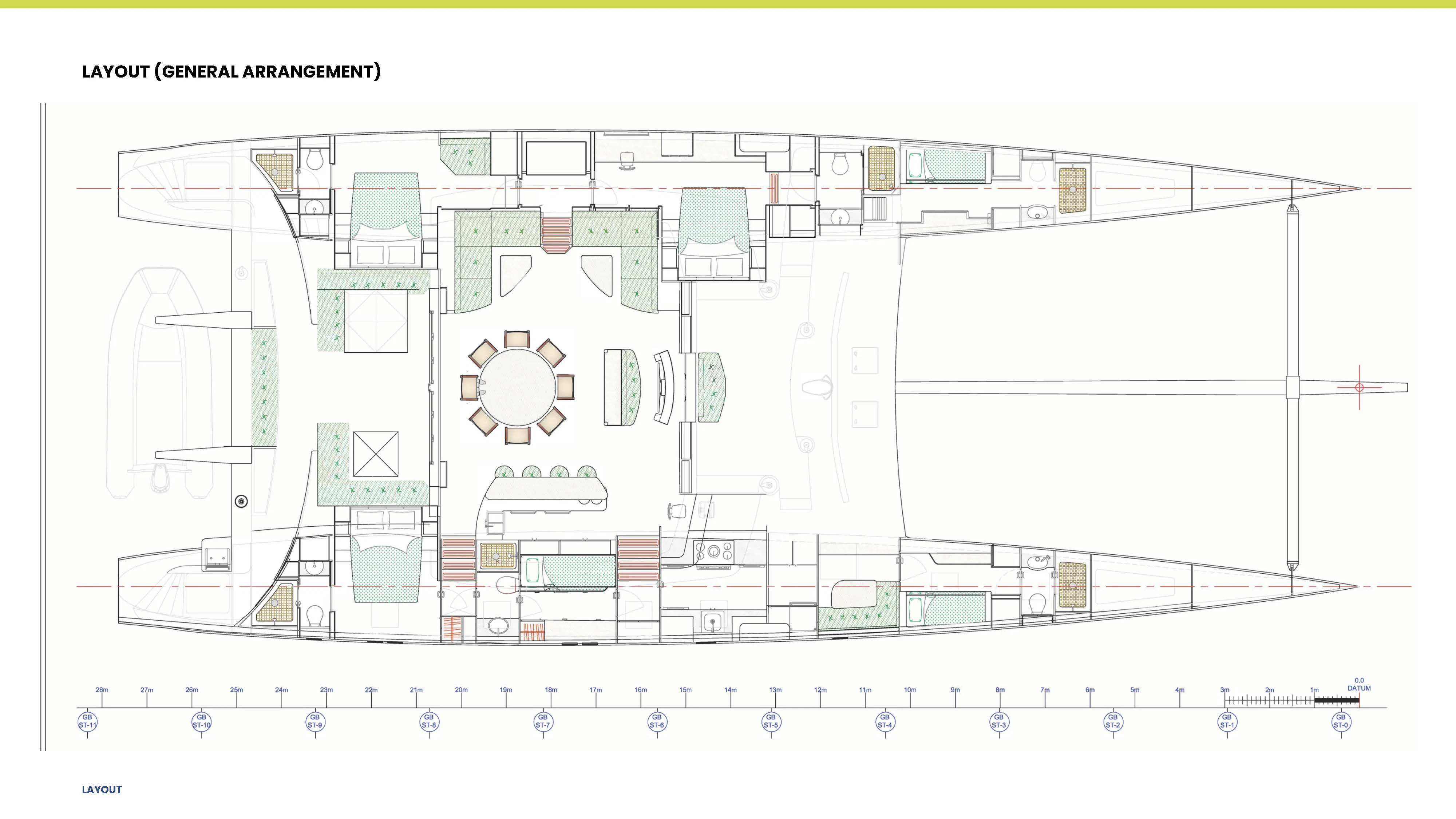

CABINS — OVERVIEW
Tiger Lily Too accommodates owners and guests across four cabins, with two additional crew cabins and a separate crew area. All cabinetry and veneers throughout are finished in birch with a satin stain finish — warm, elegant, and consistent from master cabin to crew quarters. The layout places the principal owner's cabin at port midships, with two equivalent VIP and guest staterooms at port aft and starboard aft, a double bunk room and a crew mess at starboard midships, and a Captain and crew cabin with a wet head forward starboard and port.
PORT MIDSHIPS PRINCIPAL / MASTER CABIN
The principal cabin is located at port midships. A full walk-around island king berth sits inboard, dressed in fine linens with an upholstered headboard and custom artwork panels above. Generous built-in storage runs the full length of the outboard side — a long, beautifully finished chest of drawers with a vanity surface and personal space for the owner's private possessions. Overhead, a large opening deck hatch with integrated mesh screen and blackout blind floods the cabin with natural light and ventilation. Recessed LED downlights and warm bedside wall lights create an atmosphere that is entirely residential in quality. The en-suite bathroom features a separate shower with full-height glass screen, Tecma carbon toilet, vanity washbasin with solid teak top, stainless fittings, and tiled surfaces throughout. The owner's office occupies a dedicated zone as you enter the cabin, with a full-width built-in desk allowing you to run a business from anywhere in the world.
(1) Walk-around king island berth with upholstered headboard
(1) Full-length built-in chest of drawers with vanity surface
(1) Owner's office — full-width built-in desk with:
-
Large widescreen monitor wall-mounted
-
Mac Mini
-
Apple keyboard and mouse
-
Telephone handset book shelf
(1) En-suite bathroom
-
Separate shower with full-height glass screen
-
Tecma carbon toilet
-
Vanity washbasin — solid teak top, stainless fittings
(1) Overhead Lewmar opening deck hatch with mesh and blackout blind
(1) Large fixed port with built-in slatted blinds
(2) Bedside wall lights
(2) Angled reading lights
(1) Dimmable overhead LED lighting
(1) Ceiling fan
(1) Air conditioning fan coil (2) Sonos Ports — audio routing for TV and Mac Mini (2) Sonos Ones — master cabin.
PORT AFT VIP STATEROOM
The port aft VIP stateroom is a full double cabin with its own private en-suite, finished to the same birch satin standard as the principal cabin. It is equivalent in specification to the starboard aft guest cabin and provides a fully independent, private experience for VIP guests.
(1) King Island walk around berth with upholstered headboard
(1) En-suite bathroom with: Tecma carbon toilet - Shower, washbasin — solid teak top - stainless fittings (1) Full-height cedar-lined hanging closet
(1) Bookshelf over further storage cabinets
(2) Bedside cabinets with drawer and storage
(2) Fixed wall lights
(2) Angled reading lights
(1) Overhead deck hatch with mesh screen and blackout blind
(1) Large fixed port with built-in slatted blinds
(1) Dimmable overhead LED lighting
(1) Air conditioning fan coil (1) Sonos One speaker
STARBOARD AFT GUEST STATEROOM
The starboard aft guest stateroom mirrors the port aft VIP in specification and finish. A connecting door from the en-suite opens to a day head, which in turn provides access to the starboard bunk cabin — making this an ideal family suite configuration when required.
(1) Queen berth with upholstered headboard
(1) En-suite bathroom with connecting day head
-
Tecma carbon toilet
-
Shower, washbasin — solid teak top, stainless fittings
-
Connecting door to day head and bunk cabin
(1) Full-height cedar-lined hanging closet
(2) Bedside cabinets with drawer and storage
(2) Fixed wall lights
(2) Angled reading lights
(1) Overhead deck hatch with mesh screen and blackout blind
(1) Large fixed port with built-in slatted blinds
(1) Dimmable overhead LED lighting
(1) Air conditioning fancoil (1) Sonos One speaker
STARBOARD MIDSHIPS - Bunk Cabin
Accessed via the connecting day head from the starboard aft guest stateroom, the bunk cabin provides flexible additional sleeping for children, guests or staff. Together with Cabin 3 and the shared day head it forms a natural family suite.
(2) Bunk berths
(1) Access via connecting day head from Cabin 3
(1) Air conditioning fancoil
CREW AREA:
STARBOARD FORWARD | Captain’s Cabin
The captain's cabin is positioned starboard forward, providing a private and self-contained space for the captain fully separated from the guest accommodation. Twin bunks and a dedicated wet head give the captain and first mate, or a couple, comfortable and private independent living.
(2) Bunk berths with storage (1) Dedicated wet head
PORT FORWARD | Crew Cabin
The port forward crew cabin accessed from the port deck provides twin bunk accommodation with a dedicated wet head — a self-contained space fully forward of the guest areas.
(1) Twin bunk berths
(1) Dedicated wet head
CREW MESS
The crew mess is positioned immediately adjacent to the galley and provides the crew with a comfortable, well-equipped rest and working space. A fixed L-shaped upholstered banquette in grey runs around a varnished timber pedestal table — large enough for a full crew team to eat, brief, and plan passage work. The electronics panel on the forward bulkhead houses a large flat-screen TV, a dedicated instruments display panel with CZone and chartplotter screens, a wired VHF handset, and a fire alarm panel. A large overhead Lewmar hatch with opening arms provides excellent natural light and ventilation. Upper cabinetry provides additional crew storage. Forward, a door leads through to the technical rooms and the captain's cabin.
(1) Fixed L-shaped grey upholstered banquette
(1) Varnished timber pedestal dining/chart table (1) Large flat-screen TV — forward bulkhead
(1) Instruments display panel — CZone and chartplotter screens
(1) Wired VHF handset — bulkhead mounted
(1) Fire alarm panel
(1) Large overhead Lewmar hatch with opening arms
(1) Upper cabinetry storage (1) Air conditioning fancoil (1) Furuno TZT12F 12" MFD
Navigation Equipment & Systems
INSTRUMENTATION
The primary sailing processor is the Sailmon E4 Silver, running the Ethernet Sailmon display network and the NMEA 2000 sensor network from the helm pedestal. Sailmon Element displays are positioned throughout the vessel for full situational awareness from any position.
(1) Sailmon E4 Silver high-performance sailing processor — helm pedestal (1) Sailmon Element 7” portrait display — nav station
(2) Sailmon Element 7” portrait displays — overhead forward helm station
(1) Sailmon Element 7” portrait display — crew mess instrument panel
(1) Sailmon Element 7” portrait display — aft cockpit (2) Sailmon Element 10” portrait displays — mast bracket
NAVIGATION
Navigation is anchored by dual Furuno TZT16F 16-inch MFDs at the helm and a Time Zero Professional PC-based platform at the nav station, with full radar, AIS, weather overlay and route planning integration throughout.
(2) Furuno TZT16F 16" MFD — overhead forward helm station
-
Primary navigation — radar, AIS, camera video, alarms, engine and generator data
-
Can serve as PC monitors
(2) Nottrot N185KGE high-brightness PC monitors — nav station
-
Time Zero Professional — full AIS, radar, weather overlay, route planning
(1) Furuno TZT12F 12" MFD — crew mess
-
Chart plotter, AIS display, instrument data, alarms
(1) ZG100 GPS — coach roof (1) MCU-004 Remote Control for NavNet TZtouch3 — helm console
(1) Furuno DRS4D 24" solid-state Doppler radar — stbd aft antenna post
-
48nm range — Revolutionary Target Analyzer
AUTOPILOT
Dual B&G NAC-3 pilot computers provide fully independent, failsafe autopilot networks — each self-contained and able to operate in the event of main instrumentation failure.
(1) B&G NAC-3 Pilot Computer — port pilot locker
(1) B&G NAC-3 Pilot Computer — stbd pilot locker
(2) AP44 Autopilot Controllers — helm console (2) RF300 Rudder Feedback Units — wired to respective pilot computers
(2) B&G Hydraulic Rams
SENSORS
A comprehensive sensor suite provides high-precision wind, position, heading, speed, and depth data across both NMEA 2000 and Ethernet networks, with redundant compasses on both pilot networks.
(1) WS730 Vertical Wind Sensor 1.4m — mast head
-
1.4m carbon spar elevates sensor above sail-plan disturbance
(1) Furuno SCX20 GPS Compass — coach roof (primary)
(1) Precision 9 Compass — stbd pilot locker (secondary heading sensor)
-
Failsafe secondary heading on stbd pilot network
(1) DT800 Depth Transducer — crew mess bilge
-
NMEA 2000 depth/temperature, zero degree element, no speed
(1) DST810 Speed, Depth and Temperature Transducer — master cabin heads bilge
(2) ST800 P120 Speed Transducers — crew mess bilge and master cabin heads bilge
(1) P79 In-hull Dual-frequency Depth Transducer — stbd crew cabin bilge
-
50 kHz to 294m — 200 kHz to 180m — no hull protrusions
(2) Port and Stbd Speed, Depth and Chirp transducers — bilge
Communications
COMMUNICATIONS
Tiger Lily Too carries a comprehensive communications suite providing satellite voice and data, AIS, VHF, and Inmarsat C safety systems — fully integrated and redundant.
(1) Starlink on custom pole (2025)
(1) Thales VesseLINK 700 Iridium Certus Terminal
(1) Thales SureLINK IP Handset 6ft coil cord — nav station
-
Iridium Certus ruggedised IP handset with dedicated distress button
(1) Inmarsat C Sailor 6150 Mini-C Non-SOLAS system with distress button
(1) FM4850 VHF — DSC, AIS, black-box — mast base electronics locker
(1) HS-4800 VHF Handset and SF-4800 Speaker — crew mess
(1) FA-70 Class B AIS Transponder and Splitter — mast base electronics locker (1) Pepwave B One Router
(1) HD 1 Max Dome — stbd spreader
-
5G cellular and on-deck WiFi — Osprty BYO eSIM
CAMERA SYSTEM
A full AXIS IP camera system covers engine rooms, generator rooms, spreaders, and the mast head, all recorded and managed by a central AXIS S2212 recorder with integrated PoE switching.
(1) AXIS S2212 Video Recorder with integrated PoE switch — helm seat racks
-
Hub for all onboard AXIS cameras — 4K recording
(1) Teledyne 720C-AL analogue camera with Axis M7011 encoder — mast head
-
View down from top of rig
(2) AXIS P5655-E Spreader PTZ Cameras — port and stbd spreaders
-
Pan/Tilt/Zoom — IP66
(4) AXIS M3046-V Cameras — port and stbd engine rooms and generator rooms
-
Ultra-compact — 4MP — 128° FOV
(1) Ring Doorbell — aft cockpit
-
160° FOV — WiFi — 1080 HD — infrared night vision — two-way audio
AUDIO VISUAL
A fully integrated Sonos audio system serves the saloon, cockpit, and all cabins. The saloon also features a 4K projector with hidden ceiling-mounted drop-down screen for movie nights at anchor.
(1) Optoma UHZ65 4K Projector — port saloon head lining
-
Hidden ceiling panel with drop-down screen for cinema mode
(4) Speakercraft flush-mount ceiling speakers — saloon
(4) Speakercraft flush-mount ceiling speakers — aft cockpit
(1) Sonos Subwoofer — under aft saloon coffee table (4) Sonos Amps — port and stbd saloon head linings (2 per side)
-
Powers 4 saloon speakers and 4 cockpit speakers
(2) Sonos Ports — master cabin
(2) Sonos Ones — master cabin
(1) Sonos Ones — port aft guest cabin
(1) Sonos Ones — stbd aft guest cabin
(1) Sonos Ones — stbd fwd guest cabin
(1) Apple TV — port saloon head lining
(1) Mac Mini — master cabin desk
Rudder Bearings & Steering
RUDDER BEARINGS & STEERING
The rudder bearing assemblies are custom-engineered Grade 2 titanium supplied by Ti64 designed in cooperation with McCollough Yacht Design.
These are purpose-designed for the Gunboat 90, with all bearing surfaces receiving a baked-on lubricious coating to reduce wear. Components include outer and inner races, ball-loading pocket covers, upper and lower keepers, and Grade 5 titanium mounting hardware throughout. The steering system is a Herculeus Titanium and carbon system with full aft-beam-facing titanium and carbon components at the transom. Both rudder bearings and daggerboard bearings were serviced in May 2026.
(2) Ti64 Grade 2 Titanium lower rudder bearing assemblies — custom Gunboat 90 specification
-
Rolling-pin style rudder interface
-
Designed in cooperation with McCollough Yachts LLC
-
Baked-on lubricious coating on all bearing surfaces
-
Outer Race × 2
-
Inner Race × 2
-
Ball Loading Pocket Cover × 4
-
Gr5 Ti hardware for keepers and ball loading pocket covers
-
Serviced May 2026
(1) Herculeus Titanium and carbon steering system
-
Full titanium and carbon components at the transom
(1) Ti64 Titanium daggerboard bearings
-
Serviced May 2026
Deck Equipment, Winches & Hydraulics
DECK HARDWARE
Deck hardware is chosen for structural safety and performance at load, with custom titanium halyard leads and a purpose-built jib track system with a 4:1 purchase ratio.
(1) Custom titanium halyard deck lead
(1) Antal curved jib track with triple cars — 4:1 with Harken turning blocks
(1) Harken Spinnaker blocks
WINCHES
The forward cockpit carries large, hydraulically assisted primaries for sail trim and sail hoisting. The aft cockpit handles tender operations with electric winches.
(2) Harken 990 — forward cockpit
(2) Harken 1135 — forward cockpit
-
Hydraulic assist
(2) Harken 990 electric — aft cockpit (tender operations)
HYDRAULICS
The hydraulic system was designed and built by Marine Hydraulic Consultancy, powering the primary sail controls and bow thrusters from a central power pack. The system is controlled by PLC screens that monitor all aspects of operation.
(1) Marine Hydraulic Consultancy main power pack
-
Powers: 4 sailing winches - mainsheet - traveler
(2) Drop-down bow thrusters — driven by generator PTOs
Mast & Boom Electronics And Lighting
MAST & BOOM ELECTRONICS AND LIGHTING
Electronics at the mast and on the coach roof cover communications, navigation, radar, and instrumentation. Lighting covers all COLREGS navigation lights, spreader lights, deck lights, and boom cockpit lighting.
(1) FM4850 VHF — mast base electronics locker
(1) FA-70 Class B AIS Transponder and VHF Splitter — mast base electronics locker
(1) MOXA S110 serial device server — mast base electronics locker
(2) DRS2D NXT Radar — port and stbd spreaders (dual redundant) (
1) Peplink lid dome — stbd spreader
(1) AIS GPS — port spreader (1) Furuno SCX20 GPS Compass — coach roof centre
(1) Thales ADU Iridium Certus antenna — coach roof port side
(2) ZG100 GPS — coach roof stbd side
(1) SAT-C Alarm Panel — overhead aft helm station
(1) VHF + AIS 12V antenna — mast
(1) Qnd-1 — mast
(1) Sailmon-2 — mast
(1) Electric airhorn — mast
(1) 360° Red Light — mast head
(1) Anchor Light — mast head
(1) Strobe Light — mast head (1) Windex Light 12V — mast head
(2) 180° Green Light — mast head
(1) Steam Light (motoring light) — mast
(1) Deck Light — mast
(2) Spreader Up Lights — port and stbd
(2) Spreader Down Lights — port and stbd
(2) Port / Starboard Navigation Lights
(1) Boom Cockpit Lights
Rigs, Sails & Rigging
MAST HARDWARE
The mast carries a comprehensive suite of hardware selected for high load carrying capacity and reliability, including custom Facnor furlers, Harken Ti structural blocks, Spinlock clutches and jammers with ceramic jaws, and Sailmon instrumentation units.
(1) Hanging Locks — full set (5) Facnor Custom Furlers
(2) Sailmon units — mast
(5) Harken Ti V Blocks at mast base — 8 Ton (4) and 5 Ton (1)
(1) Snatch block — mast base
-
Misc thimbles with lashing
(4) Spinlock XX0812 clutches with ceramic jaws
(4) Spinlock 12-16 Jammers with ceramic jaws
(2) Runners and check stays
STANDING RIGGING
The standing rigging was comprehensively renewed in 2025, with a new headstay, full service of cap shrouds and diamonds, and new high-load loops from specialist riggers Tensile Rigging.
(1) 2025 New PBO Headstay
(2) 2025 ECSix Cap Shrouds
(4) 2025 ECSix Diamonds
(1) 2025 All high-load loops replaced by Tensile Rigging
LOAD MONITORING
Nine load pins are interfaced to the Sailmon E4 CPU via Sailmon loadcell boxes.
(1) Sailmon E4 CPU — loadcell interface
(9) Sailmon loadcell pins
-
1 — Port Cap
-
2 —Stbd Cap
-
3 —Staysail
-
4 —Maxi Reacher (Bow)
-
5 —AP Reacher
-
6 —Forestay
-
7 —Port Lower
-
8 —Stbd Lower
-
9 —Mainsheet
SAILS
Tiger Lily Too carries a comprehensive and largely new sail wardrobe. The mainsail and solent are 2025 North 3Di Ocean.
The A3 asymmetric was custom-designed by Brian Thompson, one of the world's foremost offshore sail racers and designers. All headsails are furling and on external hanging locks.
(1) 2025 North Square Top 3Di Ocean Mainsail
-
2025 Rigging Projects Titanium locking headboard car with halyard locks
-
3 external reefing locks in clew
-
CTech carbon battens
(1) 2025 North 3Di Furling Solent / J2 — with battens (1) 2024 Doyle Status 1100 A3 Asymmetric — top-down furling cable
-
Designed by Brian Thompson
(1) 2019 North J1
-
2025 Furling cable replaced
(1) 2019 North Trinquette / Storm Jib

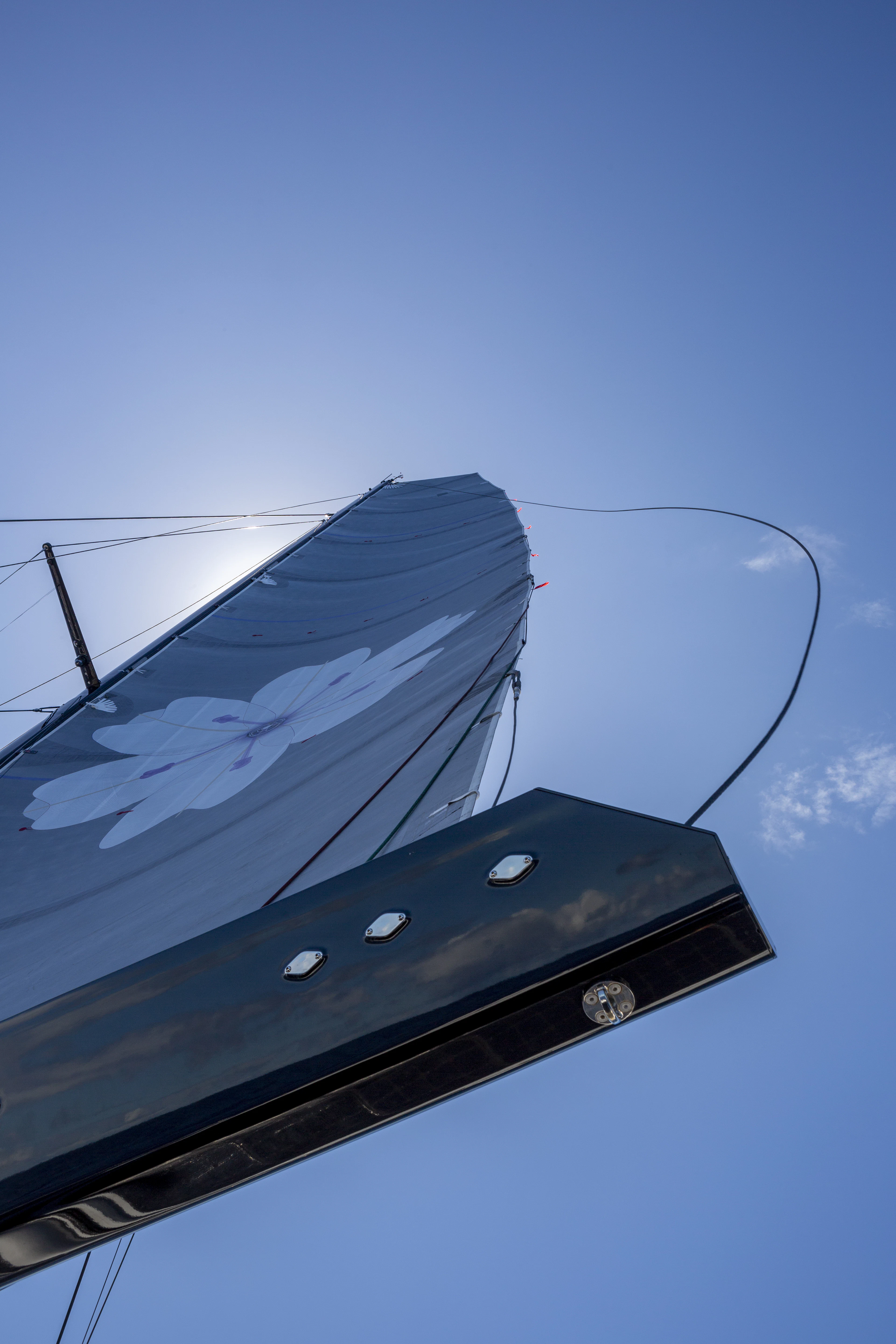

MAST & SPARS
Hall Spars Ultra High Modulus carbon mast with single spreaders, with a Park Avenue carbon boom.
The longeron and crossbeam are Marstrom carbon construction.
In 2025 the mast received a comprehensive service and overhaul, a full repaint to Jet Black, and a series of targeted upgrades improving both performance and ease of handling.
(1) Hall Spars Ultra High Modulus carbon mast — single spreader
-
2025 Repainted Jet Black
-
2025 Full mast service and overhaul
-
2025 40mm Mast track with Harken 40mm cars switch track
-
2025 New roller bearing cars in high-load areas — reduces sail stack height
-
2025 Rigging Projects Titanium locking headboard car
-
2025 Mast top crane camera or easy viewing lock on/off
(2) Furuno dual radar — one per spreader, fully redundant (1) Park Avenue carbon boom
(1) Marstrom carbon longeron
-
3 × 3:1 longeron tack lines with tensioning and locking system
(1) Marstrom carbon crossbeam
RUNNING RIGGING
Running rigging is high end specification throughout by Tensile Rigging Newport.
STANDING RIGGING
The standing rigging was comprehensively renewed in 2025, with a new headstay, full service of cap shrouds and diamonds, and new high-load loops from specialist riggers Tensile Rigging.
(1) 2025 New PBO Headstay (2) 2025 ECSix Cap Shrouds (4) 2025 ECSix Diamonds (1) 2025 All high-load loops replaced by Tensile Rigging
LOAD MONITORING
Nine load pins are interfaced to the Sailmon E4 CPU via Sailmon loadcell boxes.
(1) Sailmon E4 CPU — loadcell interface
(9) Sailmon loadcell pins
1 — Port Cap
2 —Stbd Cap
3 —Staysail
4 —Maxi Reacher (Bow)
5 —AP Reacher
6 —Forestay
7 —Port Lower
8 —Stbd Lower
9 —Mainsheet
Engines & Generators
ENGINES
Two (2021) Yanmar 4VL 230hp diesel engines.
(2) Yanmar 4VL 230hp
-
Starboard — 2,368 hours
-
Port — 2,371 hours
Engine rooms situated midships
(1) May 2026 — Cutlass bearings replaced
(1) May 2026 — Antifoul completed
(2) May 2026 — Gori props with overdrive serviced and Propspeed applied
(1) May 2026 — Rudder bearings serviced
(1) May 2026 — Daggerboard bearings serviced
GENERATORS
Two Northern Lights 20kW generators provide full redundancy for offshore passages and high-load hotel use.
(2) Northern Lights 20kW — model 864W3.3G
-
Starboard — 2,185 hours
-
Port — 2,186 hours
Tankage
FUEL: 2.272L (600gal) in 2 tanks
FRESH WATER: 1.514L (400gal) in 2 tanks
Water Systems
WATERMAKERS
Dual Spot Zero watermakers provide high-output fresh water production with the redundancy of two units.
(2) Spot Zero XTC II watermakers
(1) Spot Zero ZTC II system
FRESH WATER SYSTEM
The freshwater system is fully duplicated port and starboard with independent pumps, heaters, and treatment. Carbon filter and UV light purification on both sides ensure drinking-quality water from any source.
(2) HeadHunter X Caliber
(2) Carbon filter and UV light water treatment — port and starboard
(2) Fresh water pumps — port and starboard
(4) Water heaters — fwd port, fwd stbd, aft port, aft stbd
(2) Pressure accumulators — port and starboard
(2) Y-valves for independent tank filling — port and starboard
(1) Deck shower, deck wash and deck pressure — port and starboard
BLACK WATER
USCG Type II certified black water management with full offshore capability and overboard by-pass.
(1) TW HMX 600 — USCG Type II MSD system (1) HeadHunter waste management with overboard by-pass
-
Extra one-way valves on all heads
-
Overboard discharge valves — port and starboard
GREY WATER
The grey water system uses multiple sumps with pumps distributed throughout the vessel. Three industrial sumps handle primary loads; dedicated sumps serve individual zones.
(3) Industrial sumps
-
Sump 1 — washer, galley sink, dishwasher, condensate
-
Sump 2 — bunk cabin sump, bar sink, ice maker
-
Sump 3 — port aft guest, owners, guest and salon condensate
(1) Captain's sump
(1) Galley condensate sump
(1) Bunk cabin sump
(1) Port crew sump
(1) Port forward guest sump
(1) Port aft guest sump
(1) Starboard aft guest grey sump
(1) Dishwasher — integrated into grey water system
(1) Washing machine — integrated into grey water system
BILGE PUMPS
Rule 3700 bilge pumps with 1.5-inch hoses are installed throughout, with one-way valves at the top of each loop.
(12) Rule 3700 bilge pumps — 1.5" hose
-
Port forepeak - Port crew cabin - Owners cabin - Port engine room - Port aft shaft alley - Port rudder locker - Stbd sail locker (forepeak) - Stbd crew cabin - Galley - Stbd engine room - Stbd aft shaft alley - Stbd rudder locker
Batteries & Solar
BATTERIES
The electrical system is built around a 2,800 Ah Mastervolt lithium bank, providing huge load capacity for extended passagemaking and for use without the constant need to run the generators. Multiple charging sources provide full redundancy throughout.
(14) Mastervolt MLI Ultra 24/5500 house batteries
-
200 Ah / 5,500 Wh per unit
-
2,800 Ah total capacity
(6) Mastervolt Ultra 24/4000W inverters
(6) Mastervolt 24DC / 3.5 kW / 100 Ah generator chargers
(4) Mastervolt 24DC / 110 Amp / 3.5 kW shore power chargers
(4) Mastervolt Alpha Pro 3.6 kW / 24V DC / 150 Amp alternators
SOLAR
The entire solar array was replaced in 2025 and is under full 5 year warranty. Fifty-five Solara flexible walk-on panels across three deck zones deliver a combined 34.33 kWh per day, providing exceptional energy independence at anchor or underway.
(10) Mastervolt SCM 60 charge controllers
(27) Solara S560M43 Marine panels — forward array
-
150W each
-
17.95 kWh/day output
(12) Solara S560M43 Marine panels — aft array * 150W each — 7.98 kWh/day
(6) Solara S460M35 Marine panels — aft array
-
120W each — 3.15 kWh/day
(10) Solara S460M35 Marine panels — side arrays (combined)
-
120W each — 5.25 kWh/day
-
TOTAL: 55 panels / 7,700W peak / 34.33 kWh/day / 272.8 kg
Air Conditioning
AIR CONDITIONING
Chilled water air conditioning system with VARC variable-capacity chiller units throughout. Fan coil units serve all guest and crew zones.
(1) 48,000 BTU VARC chiller unit with condensate sump (1) Chilled water pump
(1) Seawater cooling pump (1) Sea strainer with through-hull inlet valves
(1) Fresh water make-up circuit — 15 psi regulator, charging valve, accumulator (11) Fan coil units
-
Crew (under stairs)
-
Port crew
-
Owners cabin
-
Port salon (VARC variable capacity)
-
Starboard salon (VARC variable capacity)
-
Electrical locker
-
Galley
-
Captain's cabin
-
Bunk cabin
-
Port aft guest
-
Starboard aft guest
(2) Industrial condensate sumps with overboard discharge — port and starboard
Galley & Laundry
GALLEY
The galley space runs along the starboard hull midships. A long preparation counter with an undermount sink and mixer tap runs the full length, with generous drawer and cabinet storage beneath. The stacked Miele washer and dryer are integrated at the forward end of the galley corridor. To port, a large panel-fronted refrigerator provides substantial cold storage. A large underfloor chest freezer provides additional bulk frozen storage. The galley is a genuinely capable space that can provision and serve a full owner-and-guest program.
(1) Full-length galley counter with undermount sink and mixer tap
(1) Large panel-fronted refrigerator
(1) Large underfloor chest freezer
(1) Large opening fridge
(1) Large opening freezer
(1) Miele washer — stacked unit
(1) Miele dryer — stacked above washer
-
Induction cooktop
-
Generous drawer and cabinet storage throughout
-
Birch satin cabinetry — matching interior fit-out
Tenders & Toys
MISCELLANEOUS
Tiger Lily Too is offered with a full complement of tender, dock lines, and fenders ready for immediate use.
(1) Falcon Custom tender
-
Fenders — full set
-
Dock lines — full set
TOYS & WATER SPORTS
Tiger Lily Too carries a well-equipped selection of water sports toys for guests, all in excellent condition.
The Captain currently carries a mix of kites and wing foils for all occasions
(2) Inflatable paddleboards (2) Hobie inflatable kayaks with Mirage drives
(1) Tiwal inflatable sailboat (2) Dive tanks
(1) BCD — for working on the boat
-
Wakeboards, snorkel gear and assorted water sports equipment
Fire Main - Safety
FIRE MAIN
Copper-nickel (CuNi) fire main system throughout.
(1) Fire pump with sea strainer and through-hull inlet
(1) 70 psi pressure relief valve — discharges into chain locker
(1) Fire hydrant with fire hose — saloon
(1) Chain locker fresh water wash-down connection
(1) Fire main flush connection
