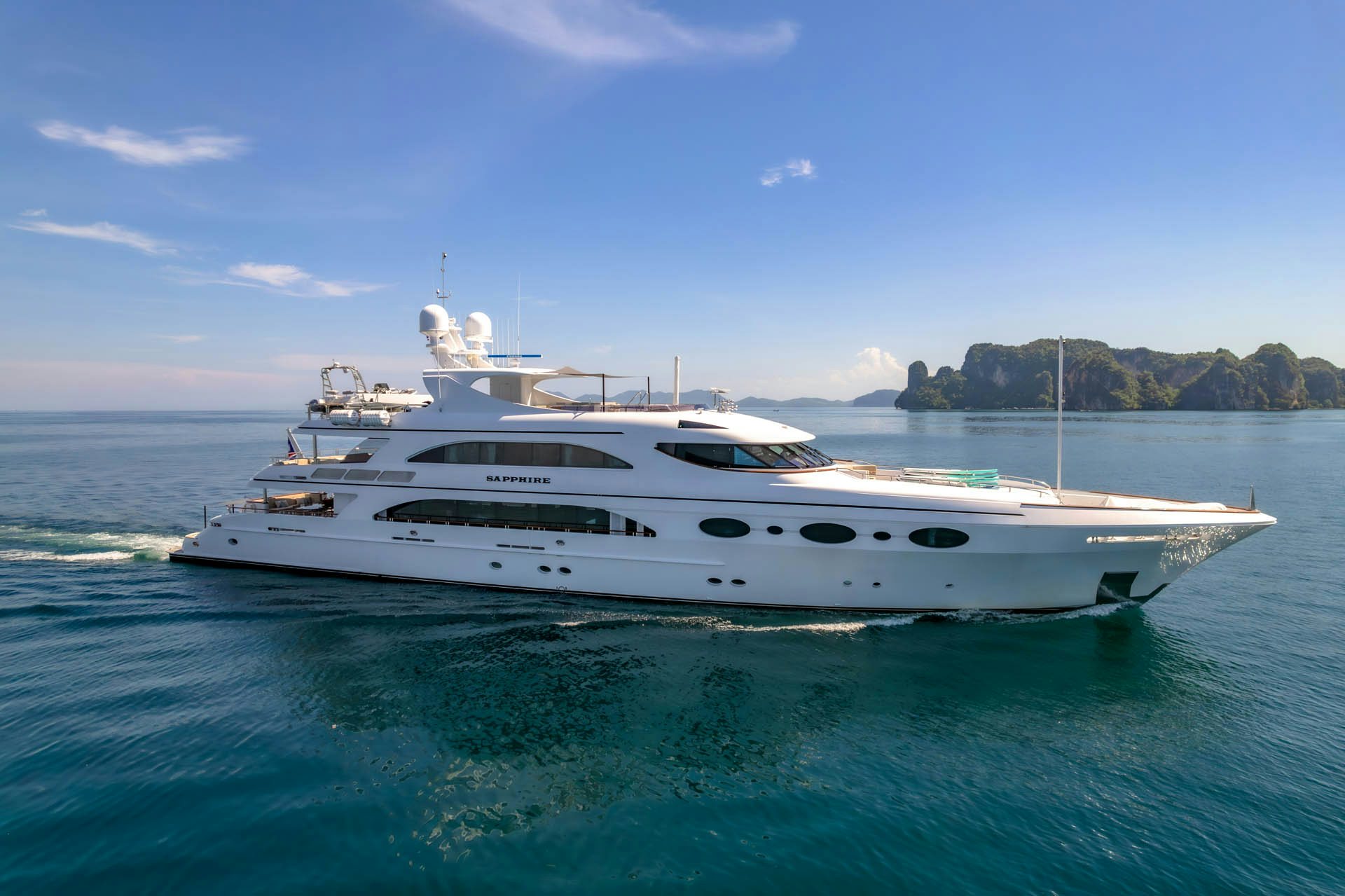

SAPPHIRE Yacht for Sale

SAPPHIRE is a stunning 51m Trinity built to ABS classification. She was delivered in 2009 and had a major refit in 2019, followed by additional upgrades in 2020 and 2021, including new engines and generators. She has completed her five-year survey and is in immaculate condition, ready to set sail with her next owner.

The accommodations are flexible, comfortably accommodating up to 20 guests in seven beautifully designed staterooms. The master stateroom, located on the bridge deck, is filled with warm wood tones and bathed in natural light. It features an en-suite bathroom finished in marble, complete with a large bathtub that invites relaxation. Just outside, sliding glass doors lead to an expansive private deck space, perfect for lounging. There’s also a guest stateroom on this deck, and another on the main deck, while below deck you’ll find two guest staterooms, each with a queen and a twin bed, and two twin guest staterooms, both with Pullman berths.

On the main deck aft, there is a large dining table for alfresco meals, while the bridge deck lounge and Portuguese bridge offer seating to enjoy the views. The sundeck is the perfect area for guests to enjoy lounging, dining and sipping cocktails at the bar. There is a Jacuzzi for soaking under the stars after a day of adventure. Storage for tenders and toys is cleverly integrated on this deck.

The interior, designed by James McFarlane, is an illustration of timeless comfort. The main salon is both inviting and spacious, with an abundance of seating options and a bar in the foyer to entertain guests. The formal dining area comfortably seats 14 and is lined with large windows that flood the space with natural light. Forward of the salon is a unique recreational room, ideal for children or easily convertible into a VIP cabin if needed.

A range of 4,000 nautical miles ensures SAPPHIRE is ready for extended cruising, and with zero-speed stabilizers, you’ll experience maximum comfort whether at anchor or underway. The craftsmanship and attention to detail throughout the yacht speak to her American build and the continuous care she’s received since her launch.

MAIN FEATURES

• Private master deck and stateroom

• American pedigree

• Immaculate condition

• Shallow draft for Florida and The Bahamas

• Seven stateroom yacht

• Recent upgrades

• Ideal family yacht or mother ship that can accommodate up to 20

Length Overall:  50.5m (165'8")
Length at Waterline:  43.86m (143’11”)
Beam:  8.59m (28’2”)
Draft:  2.59m (8’6”)
Air Draft:  15.50m (50’10”)
Year Completed:  2009
Model Year: 2009
Refit:  2019 & 2021
Type: Custom Tri-deck Motor Yacht
HIN:  TTY16554K910
Tonnage:  478
Net Tonnage:  143
Displacement:  Semi-Displacement
Cabins:  7
Guests:  20
Crew:  12

Builder: Trinity Yachts LLC
Naval Architect:  Trinity Yachts LLC
Exterior & Interior Design/Stylist:  James McFarlane
Hull Material:  Aluminum
Deck Material: Teak & nonskid on sun deck
Classification:  American Bureau of Shipping

Maximum:  23 knots
Cruising:  15 knots
Economical:  12 knots
Range:  4,000nm
Consumption @ Cruising:  300L/hr

Fuel:  58,761L (15,523.011g)
Water:  9,986L (2,638.022g)
Grey Water:  6,101L (1,612g)
Black Water:  1,597L (422g)
Lube Oil Capacity:  2,294L (606g)
Waste Oil Capacity: 1000L (265g)

Flag: Marshall Islands
Classification: American Bureau of Shipping

Engine Type:   2 x MTU 16V 4000 M90
Horsepower:  3650 hp
Engine Serial Numbers:  527 104 598 & 527 104 599
Main Engine Hours (Port):  1638 (as of 7/31/24)
Main Engine Hours (Stbd):  1636 (as of 7/31/24)

*At the time of zero-hour overhaul, ME: Port – 9003 hours STBD – 9500 hours

Output:  290 KW
Generators:  2 x Northern Lights 145 kW@1800rpm Model M1066A2 120/208-3-60
Generator Fuel Consumption:  23L/pHr
Port Generator Hours:  6106 (as of 7/31/24)
Starboard Generator Hours:  6060 (as of 7/31/24)
Shore power:  ASEA AC75LC-3

Generator Starting: (2) 2 x 12-volt AGM Full River FT1450-8D 225AH
Emergency:  2 x 12-volt Lead Acid Northstar NSB 190FT BLUE+ 180AH

Gearboxes for Main Engines:  ZF - 7640
Stabilizer:  Quantum Marine QC-1800 Zero Speed q/ ARC -3001 MK2 Controller
Stabilizer Underway & at Anchor:   Yes
Steering System:  Engine Monitoring Inc. Model DE03 Dual x 3HP HPU FFU

Water Makers:  2 x FCI - NM55263+APC
Water Softeners:   1 x HEM K50
Bow Thruster:  Quantum Marine QT-150 150-hp
Fuel Separator and Filtration:  Alfa
Laval MAB 104 B 14/42 Sewage System:   HeadHunter TW-300B
Fresh Water System:
-  Pumps:  2 x Grundfos 30 SQE-130 MODEL- B/E P2 1737
-  Treatment:  Silver Sterilizer - Brannstrom Silster 168
UV - Atlantic Ultraviolet Corp. Model No. S2400C
Oily Water Separator:  Recovered Energy Inc. - Boss 2.2T/107
Air Compressor:  Jenny Products Inc. Model G
Air Conditioning:  5 x Marine Air Makeup Air Units, Panasonic Exhaust Blowers
Chillers:  H&H

PILOTHOUSE
SAT COM: Tracphone 252 + KVH FB500 + Thuraya FDU 3500
Telephone System:  Panasonic PBX KX-TDA200
SSB:  Furuno FS1570 w/ Coupler
VHF:  2 x FURUNO FM -8800
MF/HF:  FURUNO/ FS 1570
Iridium:  Thales VesseLINK
Navtex:   FURUNO / NX-700B
Enhanced Group Call:  FURUNO / FELCOME-15

NAVIGATION SYSTEMS
Radar:  2 x X-Band Radars Furuno / FAR-28-7 Series
Gyrocompass:  C-Plath Navigat X MK2
Magnetic Compass:  Ritchie Powerdamp
Auto Pilot:  C-Plath Navipilot 4000
Depth Sounder:  Furuno Instrumentation w/7 RD30 Displays
GPS:  FURUNO / GP-170
AIS:   FURUNO / FA 150
Ships Computer:   Email Server Comp. – VEI E-Server & Router
Laser Plotter:  Raymarine
Wind/Speed Log:   Furuno Instrumentation w/7 RD30 Displays

ENTERTAINMENT SYSTEMS
VSAT:  Seatel 4004
TVRO:  Seatel 4004
iPads:  Crestron

MAIN GALLEY EQUIPMENT
Cooktop:  Gaggenau Vario Flex Induction 400 Series
Oven:   2 x Gaggenau HLEB38(8)
Microwave:   KictchenAid KBMS1454SSS-1
Refrigerator:   1 x Cospolich Walk in Fridge
Freezer:  1 x Cospolich Walk in Freezer
Additional Refrigerator:  Delfield GAR1NP-S-IV
Additional Freezer:  Delfield GAF1P-S-I18
Dishwasher:   Hobart LXEC

CREW GALLEY/ MESS
Fridge:  Marvel ML24RAS2LS
Microwave:  KictchenAid KBMS1454SSS-1
Dishwasher:  Miele - GG07

LAUNDRY
Washing Machines:  2 x Miele - PW6068
Dryers:  2 x Miele - PT7138

Anchor Windlass:  2 x Muir VRC-11000 Hydraulic w/ handheld Pendants
Aft Warping Capstans:  2x Muir VRC-4000 w/ footswitch
Anchors:  2 x HHP “Talon HP” anchors
Anchor Chain:   2 x 165m
Boat Crane and Davits:
Sundeck Crane: Nautical Structures EZ-5000-EX-204-258w/Freefall MCA
Foredeck Crane: Nautical Structures Eur1300-1700-MCA Compliant w/DC Emergency Power
Passarelle:  Marquipt Hydraulic 23.7ft Telescopic 8-Function Passarelle w/RF control

1 x Sea-Doo 2020 GTX LTD 230 HP
1 x Sea-Doo 2020 GTX 230 HP
Novurania Launch 650 (6.5m)
Neuvisa Rescue Boat (4.19m)

Note: Subject to change and/or negotiation during the buying process.

SECURITY
CCTV System:  Seven Cameras + Bosch MR16 DVR
Monitors:  Servowatch System

FIRE FIGHTING EQUIPMENT
Fire Control System:  Consilium Fire Detection System
Fire Extinguishers:  26 x 4.5 kg Dry Powder, 1 x 1 kg Dry Powder, 2 x 2kg Dry Powder, 1 x
6kg Dry Powder, 6 x 9kg Dry Powder, 2 x 5kg CO2, 5 x 9Ltr Foam
Fireman Suits:  2 x setups
Alarms:  Servowatch System
Fire Pumps: Main Fire Pump in engine room, General Service pump in engine room, Emergency Fire pump in steering gear compartment
CO2 System:  Fixed CO2 system in engine room

SAFETY EQUIPMENT
Life Rafts:  4 x 25 person RFD Surviva Mk IV TO inflatable life-raft
Life Rings:  4 x lifebuoys
EPIRBS:  2 x ACR / RLB, S/N 10134
Lifejackets:  43 x Adult Life Jackets, 9 x Child Lifejackets, 14 x inflatable lifejackets
Immersion Suits:  14 x Immersion Suits
Flares:  6 x Red Parachute Rocket Flares, 6 x handheld flares, 2 x smoke floating
signal flares
Line Throwers:  2 x Line Throwers
Medical Equipment:  Medaire – Category A Pack
SART:   2 x JOTRON / TRON SART-20, 9 Ghz, S/N 49149 & 49150

GUESTS
Lower Deck Port Fwd: 3 Pax (Twins or King (Convertible) plus pullman)
Lower Deck Starboard Fwd: 3 Pax (Twins or King (Convertible) plus pullman)
Lower Deck Port Aft: 4 Pax (King and single plus pullman)
Lower Deck Starboard Aft: 3 Pax (King and Single)
Bridge Deck: 2 Pax (Double)
Master Stateroom on Bridge Deck: 2 Pax (King)
Main deck: 3 Pax (Queen plus pullman)
Total: 20 Guests

CREW
Captain: 1-2 Pax (Double bed)
Main Deck Starboard: 2 Pax (Bunk beds)
Lower Deck Port: 2 Pax (Bunk beds)
Lower Deck Starboard Aft: 2 Pax (Bunk beds)
Lower Deck Starboard Fwd: 2 Pax (Bunk beds)
Engineer Cabin: 1-2 Pax (Pullman Bed)
Engineer Cabin: 1 Pax
Total: 11-13 Crew

SPRING / SUMMER 2024
Engineering
Incline test completed
Tanks blast and coat
Shafts removal and inspection
Port & Starboard stern tube renewed
Cutlas bearings renewed
Chloride remover wash and brush blast Grey Water holding tank
Propulsion equipment alignment
Anchor gear renewed
Anchor chain thickness measurement
Rudders removal and inspection
Anchor Inspection
Sand and coat starboard and port rudder tubes
Overboard Valve removal and replacement
Overboard Vale service
Tank recoating and Touch ups
Bow Thruster Service
Engine Room Fire Dampers replacement
ER Pipework Clean – Removal and inspection

Hull
Yacht hauled out and bottom was inspected
Bottom was prepped and painted
Anodes replaced

Deck
Paint touch ups around various parts of the exterior on high visible areas

2020/2021
Deck
Hull repainted
New ice machine on sun deck
New sun deck awning
Replaced glass paneling of main deck and owner’s deck sliding doors

Interior
Crew mess flooring replaced
Replaced crew mess table top
Varnished bridge floor
Replaced all interior lights with LEDS
New crew mess dishwasher
All interior door handles replaced
Replaced guest bathroom tapware

Engineering
New Generators
New Engines
Tank inspection, cleaning and repainted
Gearbox servicing
New water softener installed
Majority of guest accommodation pipework replaced
New fire detection system
Paint engine room bilges
MTU Go system installed
Pipework

Hull
Shaft removal, replaced bearings and shaft seals
Pressure washed and antifouling applied

2019
Deck
Full exterior paint job
Cushion covers replaced
Main deck table
Main deck seating
Owners deck seating
Sun deck seating
New Perspex on sun deck
Jacuzzi on sun deck replaced
Sun deck bar area and table tops replaced
Teak decks sanded
Capping rails stripped and refinished

Interior
New Galley flooring
Galley painted
New refrigeration compressor area in bosun store rebuilt
New carpet in lower guest
Refinished main deck and dining room flooring
Laundry room flooring replaced
Air handlers in Master replaced
Marble polished
All ducts cleaned
A/C System

Engineering
New H&H chiller installed
New chilled water loops installed
New fuel tank sensors installed
Fresh water tanks repaired and coated
Quantum Stabiliser serviced

Bridge
Night vision camera replaced
New Raymarine plotter
New mast search lights
New mast antennas

Hull
Antifouling
New zinc anodes
True-hull valves inspected and sea chest
Rudders removed and re-installed
Inspection of shafts, seals and bearings
Shafts removed and inspected
Hull Plating and stern tubes

Safety
Outboard Harken track replaced

AV/IT
Upgraded movie server & AV hardware
New exterior speakers
