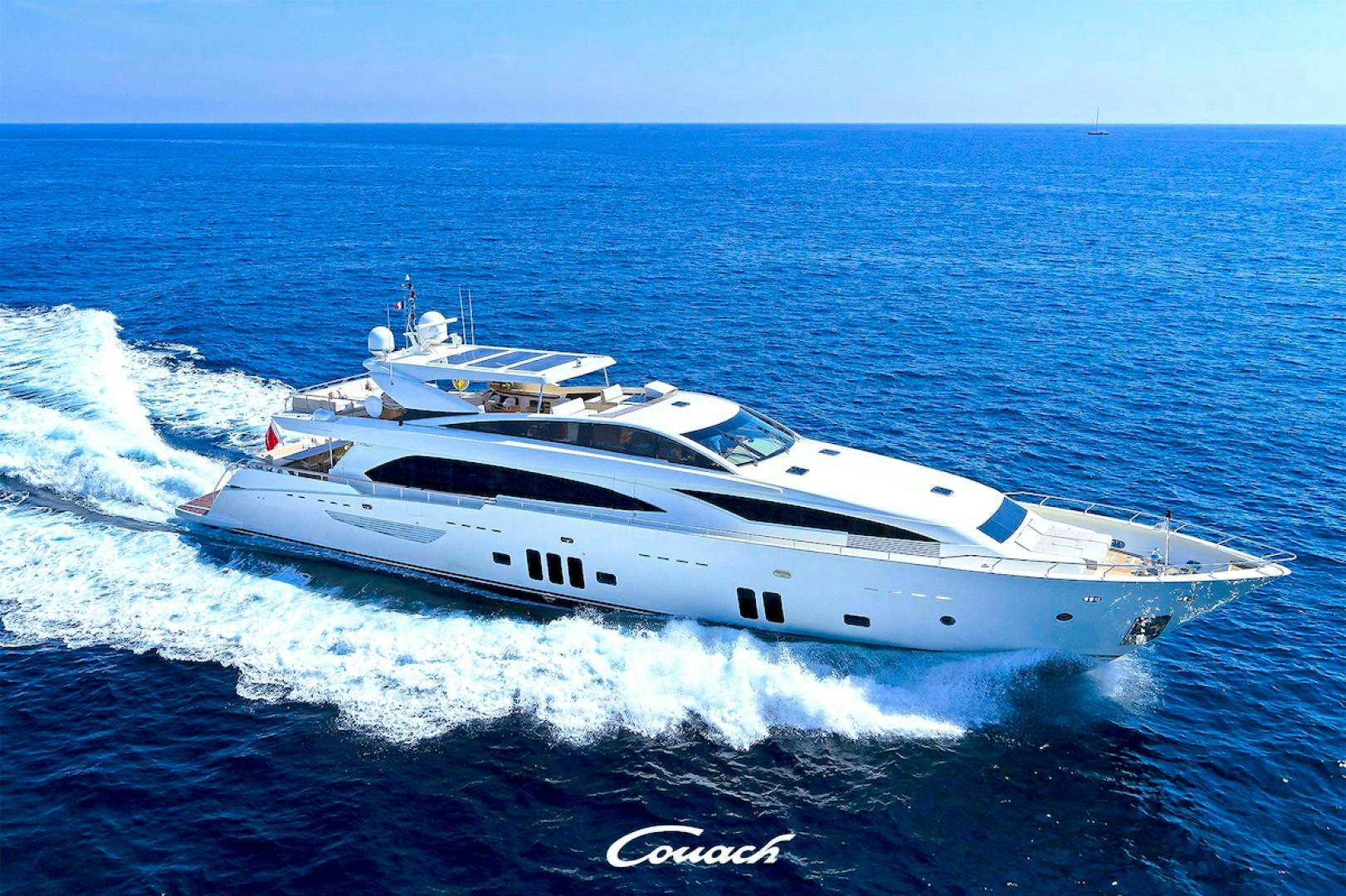

No Name Yacht for Sale

MAIN CHARACTERISTICS

• Overall length: 37 m
• Width: 7,30 m
• Full load mass: 157 tonnes
• Draft: 2,40 m
• Light displacement: 132 tonnes
• Maximum speed: 27 knots
• Gross tonnage: under 200 GT
• Passengers: 5 cabins
• Class Society: Bureau Veritas
• Flag: Malta Commercial

STRUCTURE

• Hull, deck and superstructure: composite sandwich in Glass
• Kevlar ® with Carbon ® reinforcement, balsa or PVC foam core.

SYSTEMS

Fuel:

• Capacity: 17 000 L divided into 3 tanks (including 1 day tank of 2900 L)
• Dedicated fuel cleaning treatment system

Water:

• Fresh water tank: 4000L
• Water Maker: 6500L/day
• 380V high capacity fresh water pump
• Waste water treatment
• Black/Grey water tanks: 3800L

Fire/Bilge:

• 80 V dedicated pumping systems for bilge and fire
• fighting; each system being interchangeable for backup
• Fixed fire fighting system FM200 in engine room
• Bilge water level in each compartment

Ventilation/Air conditioning:

• 380V 336000 BTU, 4 hermetic compressors
• Centralized fresh air (intake and extraction)
• Engine room ventilation: 1 x 380V Variable speed + 2x230V

 ELECTRICITY

Alternative current power

380 V / 50Hz supplied from:

• 2 x 72 KVA Generator
• 1 x 125A shore plug
• 1 x 100KVA shore transformer for galvanic insulation
• 1 x 5000 VA DC/AC converter

Direct current power

• 24V supplied from gel batteries:
• 2 sets for engines and Gen Set starting (1 set for starboard and 1 set for portside)
• 1 set for service with dedicated charger
• 1 set for radio emergency with dedicated GMDSS charger
• 1 set for emergency lights

Others

• 1 halogen search lights
• 8 underwater LED lights (4 at transom, 2x2 on lateral aft sides)
• Yacht Management System with Redundancy and Data
• Acquisition capabilities including 2 touch screens”

TECHNICAL SPECIFICATIONS

MECHANICAL

• 2 x 12V4000 M90 MTU engines, 2 * 2040 KW (2735 HP), diesel, Gearbox 2F 4650
• Engine Controls in engine room, Fybridge and wheelhouse, blue line type
• 2 x stainless steel DUPLEX 4462 shaft lines diam 125 mm with fixed pitch NIBRAL ISO Class S propellers
• Hydraulic assisted steering system ith tiller in wheelhouse + emergency system in the garage
• 80 Hp Bow Thruster attached on main engine PTO
• 1 gyro stabilizer VEEM for roll reduction at anchor and underway

HULL AND DECK FITTINGS

• Polished stainless steel deck fittings (Handrails, Bollards, Cleats)
• Windshield whipers equiped with fresh water wahing jet
• Two anchoring lines consisting of 380V, 4kW Windlass / 105 kg anchor, 110m of 16mm galvanised chain
• 4.9m tender arrangement in aft garage
• Manual Swimming ladder
• Hydraulic platform with dual fonctions (tilt and lift)
• Reinforced insulation on hull and decks for noise and vibration reduction

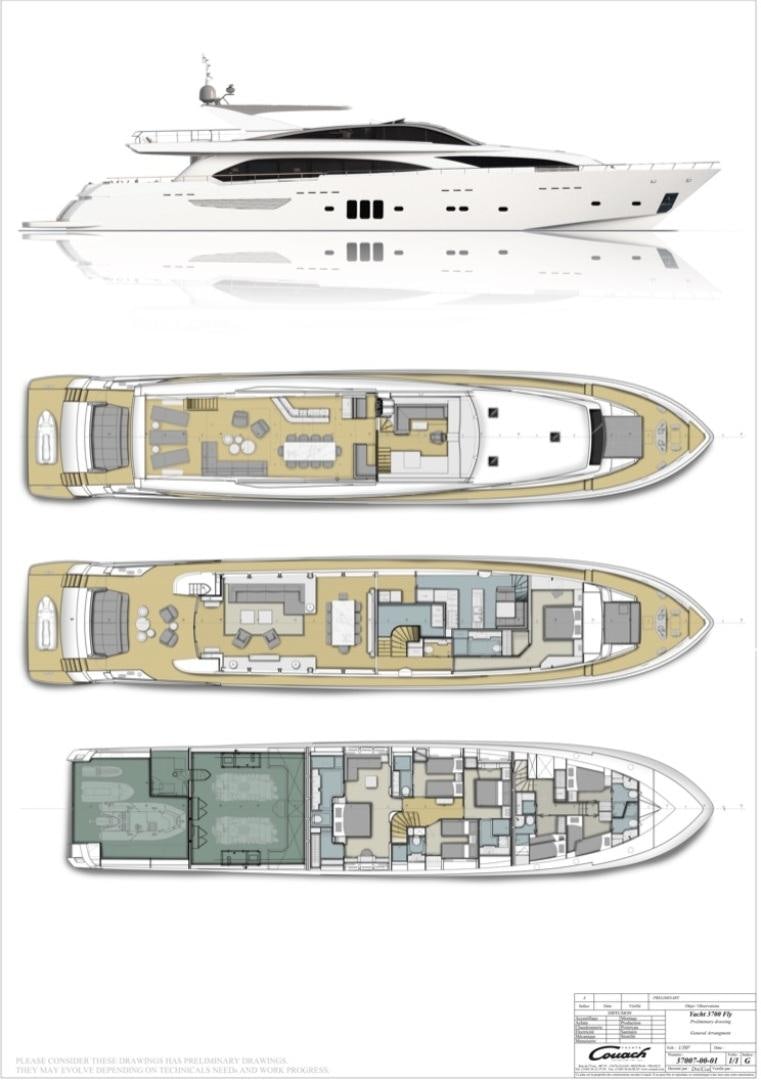

INTERNAL LAYOUT

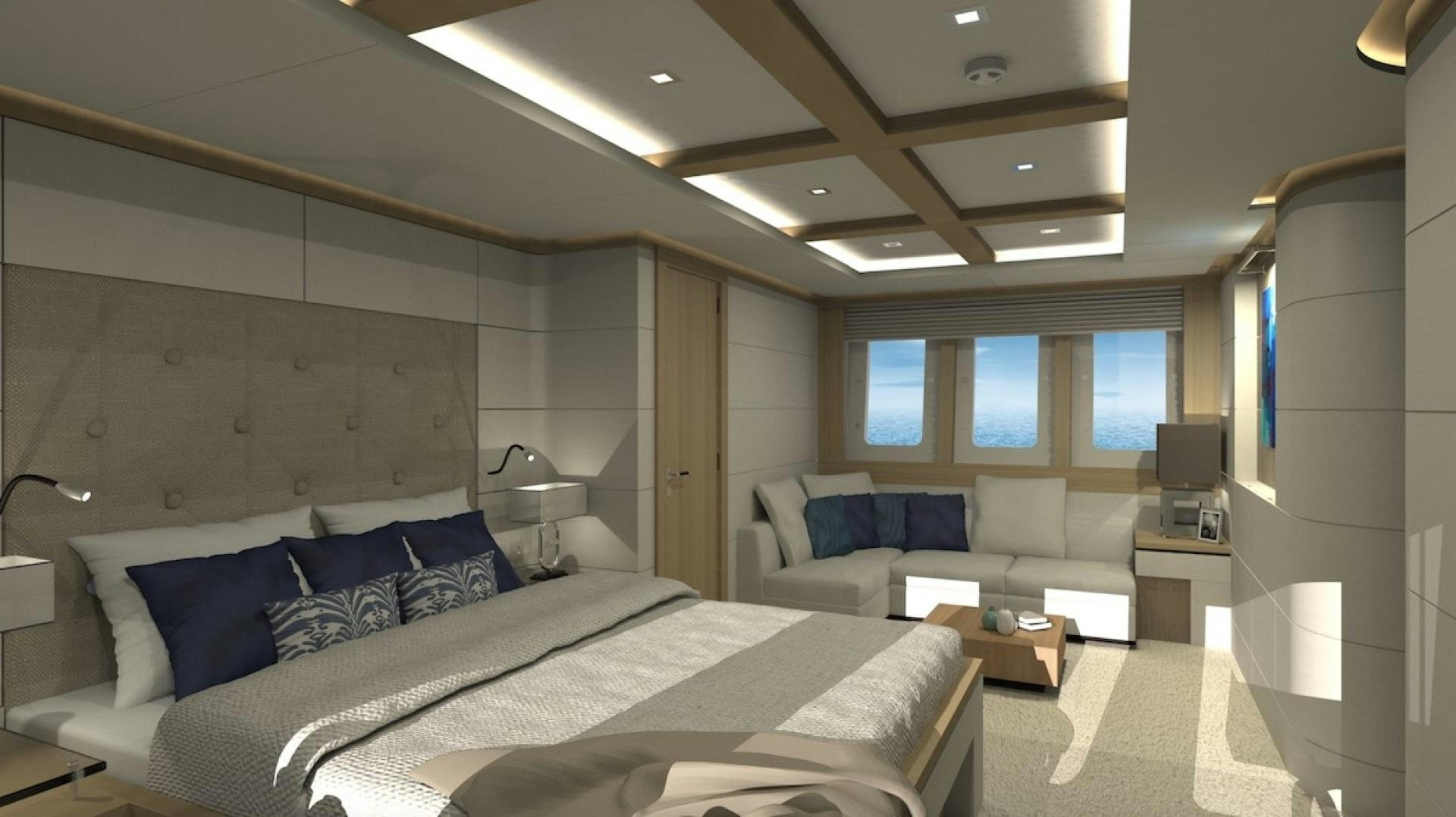

• 5 guests cabins, including a master suite and VIP suite with a large dressing
• 1 captain cabin, 2 crew cabins on the fore deck
• Large separated galley, equiped with household appliances

ELECTRONICS

• Furuno long range radar
• Furuno Autopilot
• Furuno GPS
• Furuno NavNet TZT2-BB
• Echo Sounder
• Furuno Satellite compass
• Furuno portable VHF
• Furuno Inmarsat C
• Furuno Navtex
• Fleet Broadband 250
• Furuno AIS
• VHF GMDSS
• SART
• EPIRB
• Furuno Brige Navigational Watch Alarm System (BNWAS)

SAFETY EQUIPMENT

• Lifejackets, Liferaft, Rescue Boat
• Immersion suits

CLASSIFICATION

• Classification : Bureau Veritas Charter Yacht Motor / C, short range,
• Mach Engine Room
• Commercial Malta Flag (or equivalent on demand)
