WATERMAKERS

• 2 x HEM – 1,400 litres per day


CLEAN LUB OIL

• 2,700 litres (713 US Gallons)

DIRTY LUB OIL

• 900 litres (238 US Gallons)

RUDDER ANGLE INDICATORS

• Northrop Grumman - Bridge, Wings stations, Emergency steering station

FUEL OIL SEPERATOR

• Alfa Laval

BILGE WATER SEPARATOR

• NFV PPT-BWS-500


BILGE PUMP

• 2 x Johnson pump free-flow bilge pumps

FIRE PUMP

• 2 x Johnson pump free-flow fire fighting pumps

BOILERS

• 2x AS OSO 650 litres 9kw

SEWAGE TREATMENT

• Hamman HL-Cont

WC's

• Jets Vacuum AS Charm Wall mount

VENTILATION

• W.Sick Gmbh. 3 x Air Handlers 7000m3/hr
• 5 x Supply Air Fans 40000m3/hr

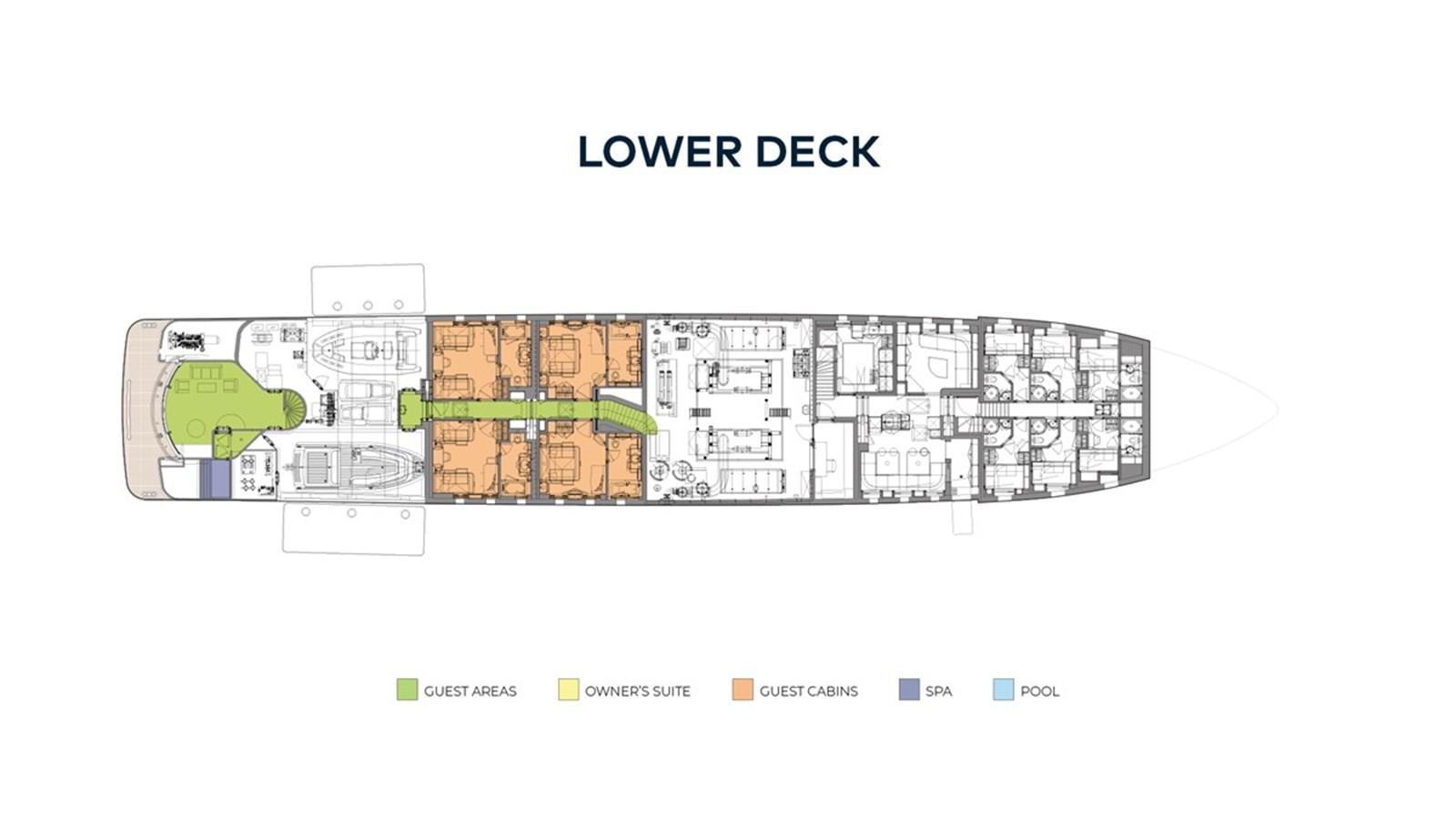

Accommodation for 12 guests in 6 cabins

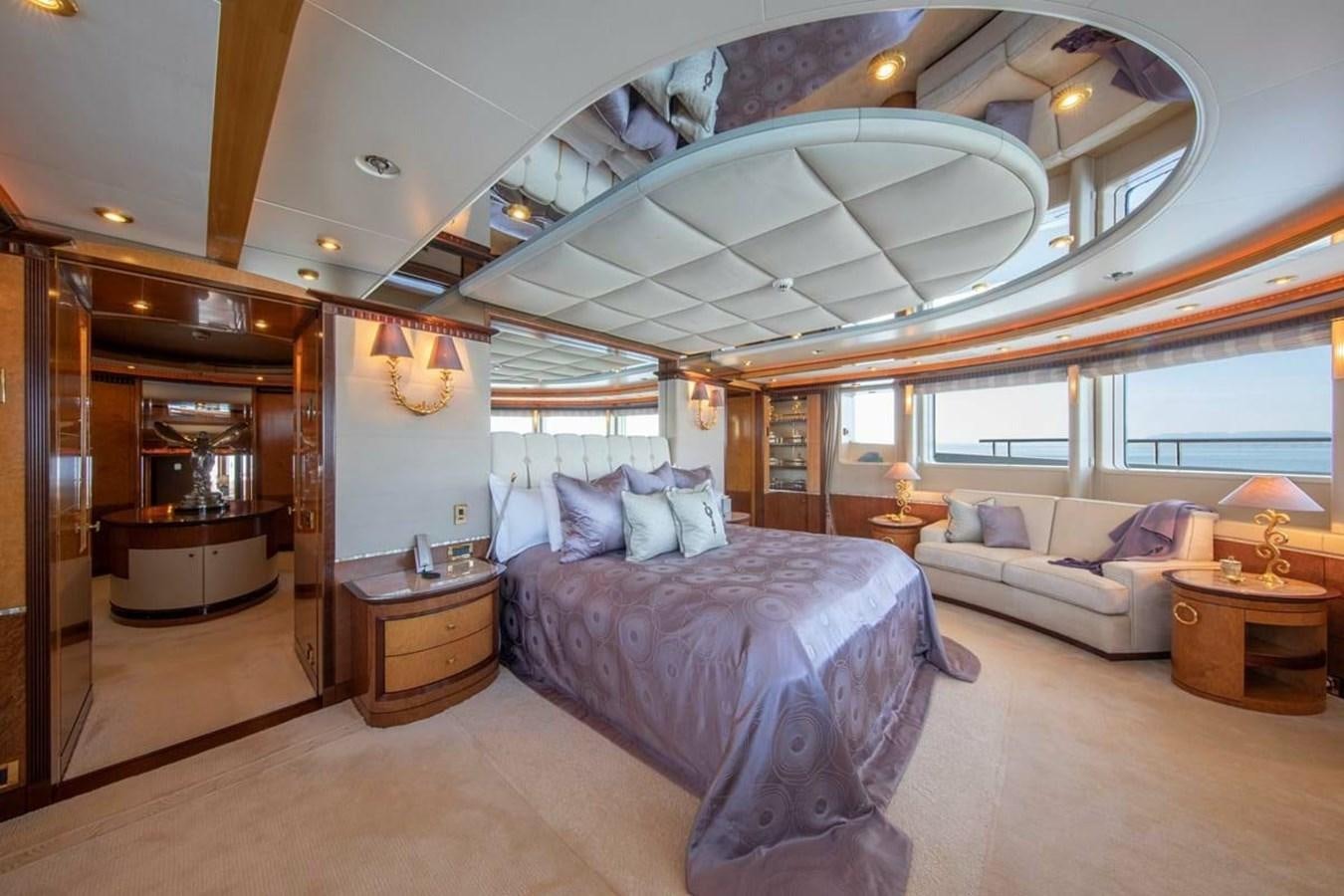

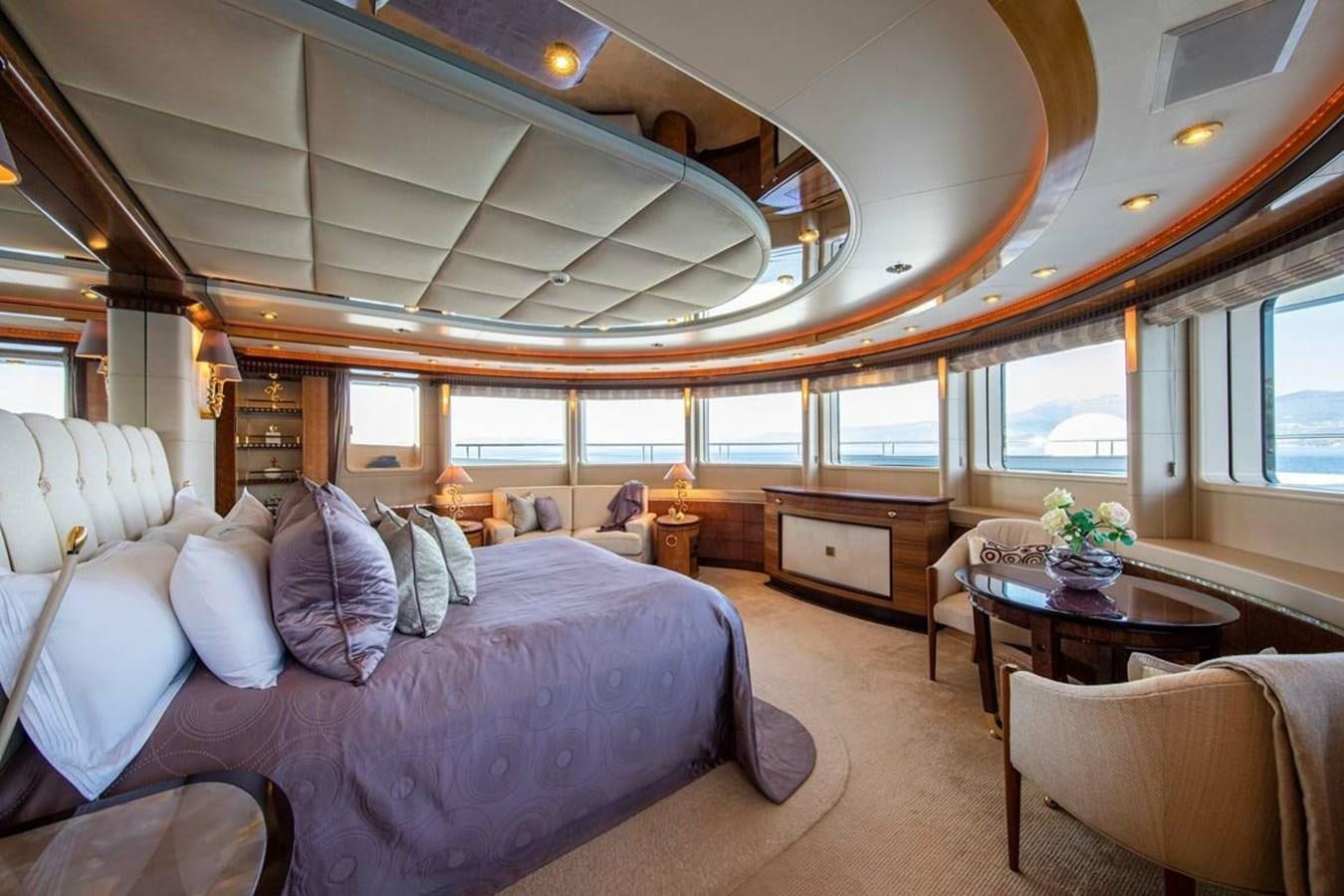

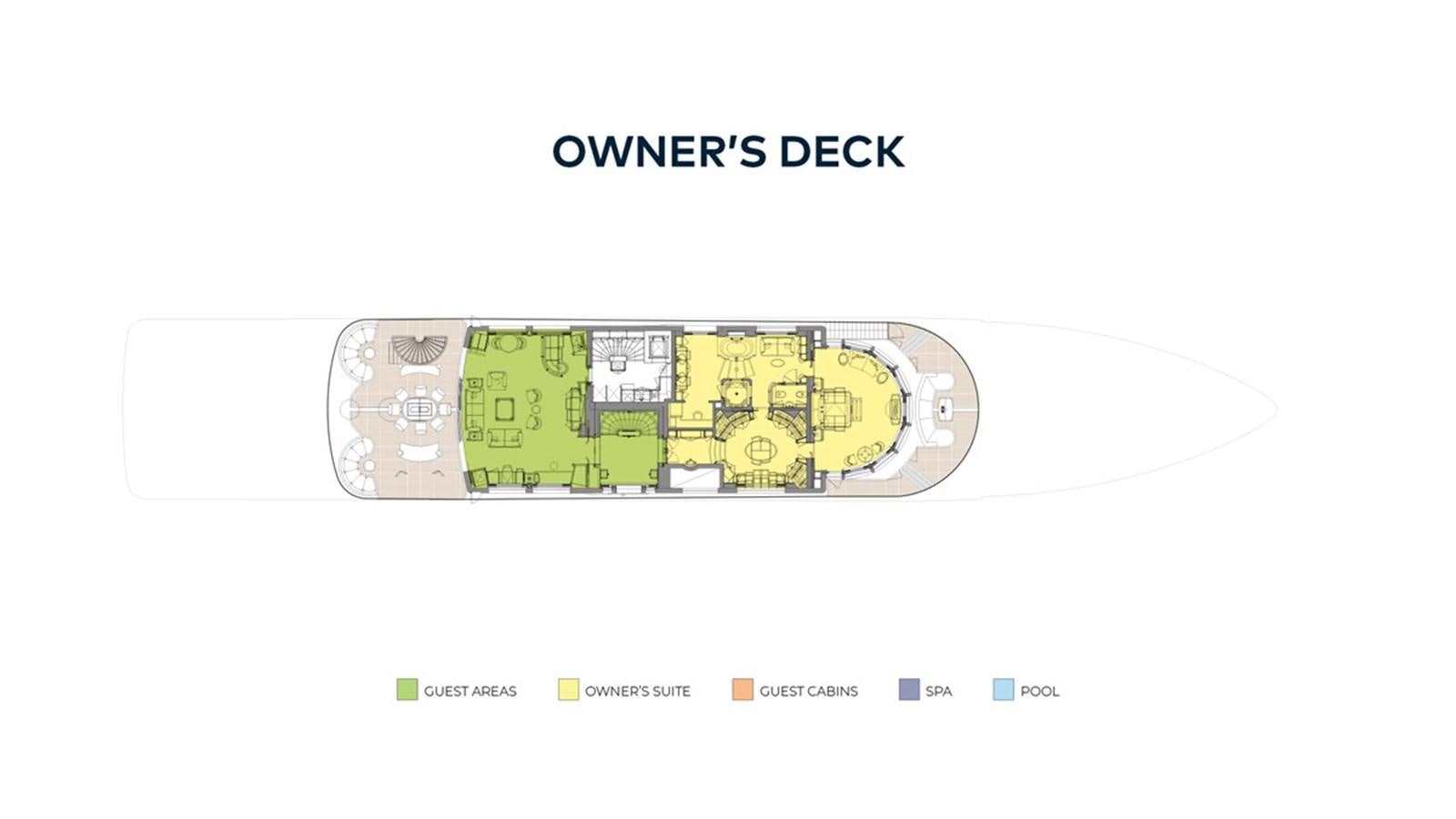

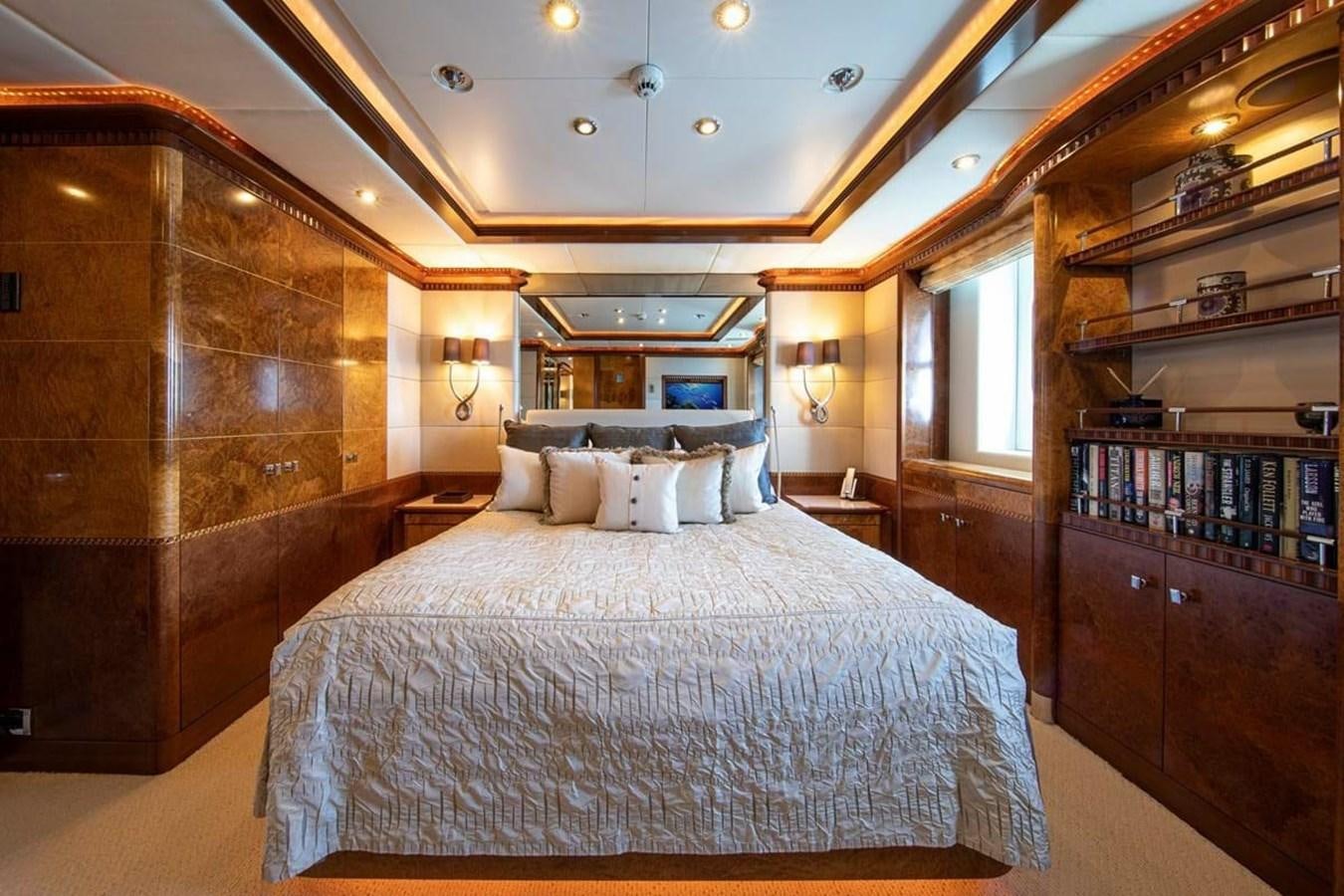

OWNER’s SUITE

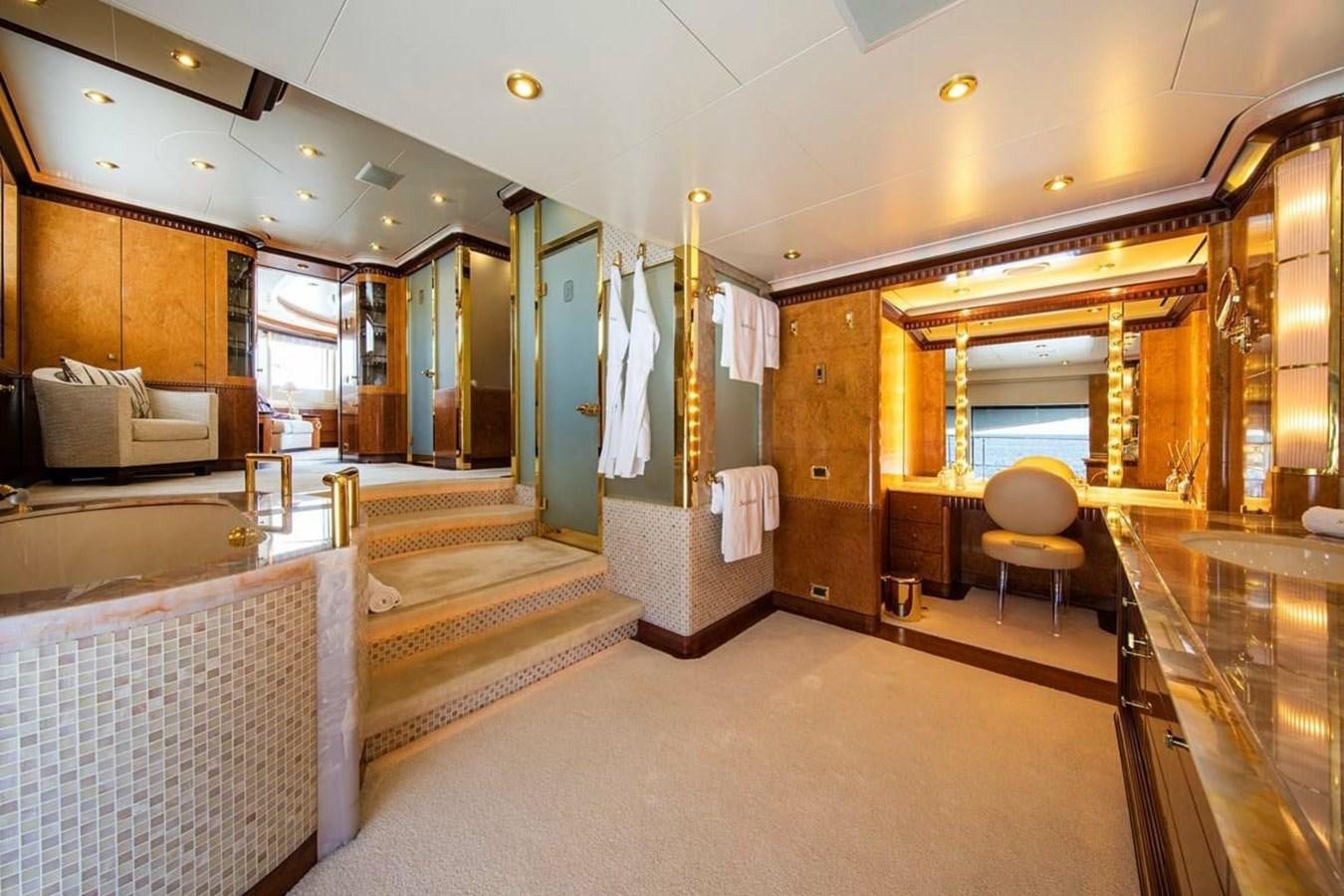

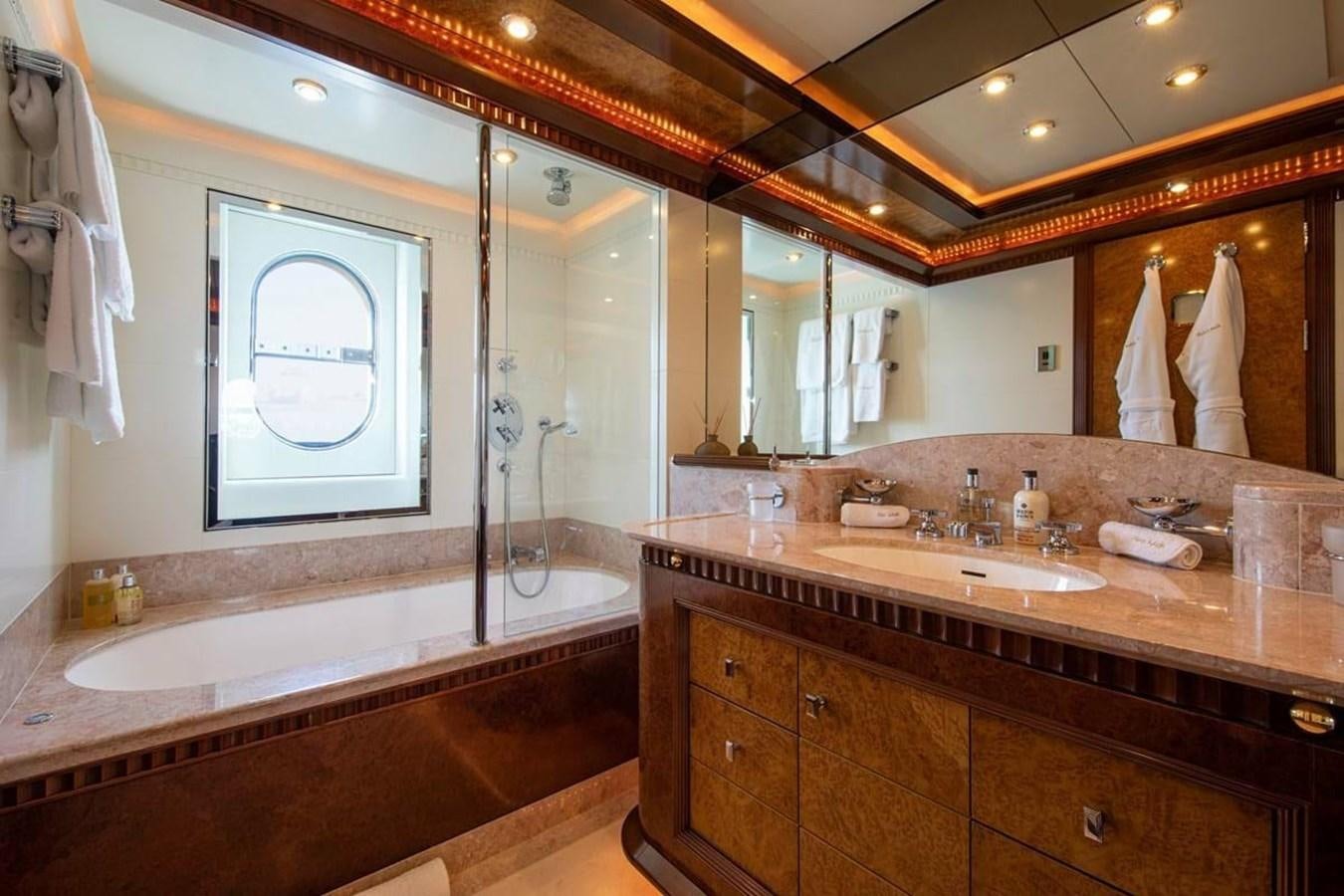

• King-sized bed with en suite split-level bathroom
• Raised oval dressing room

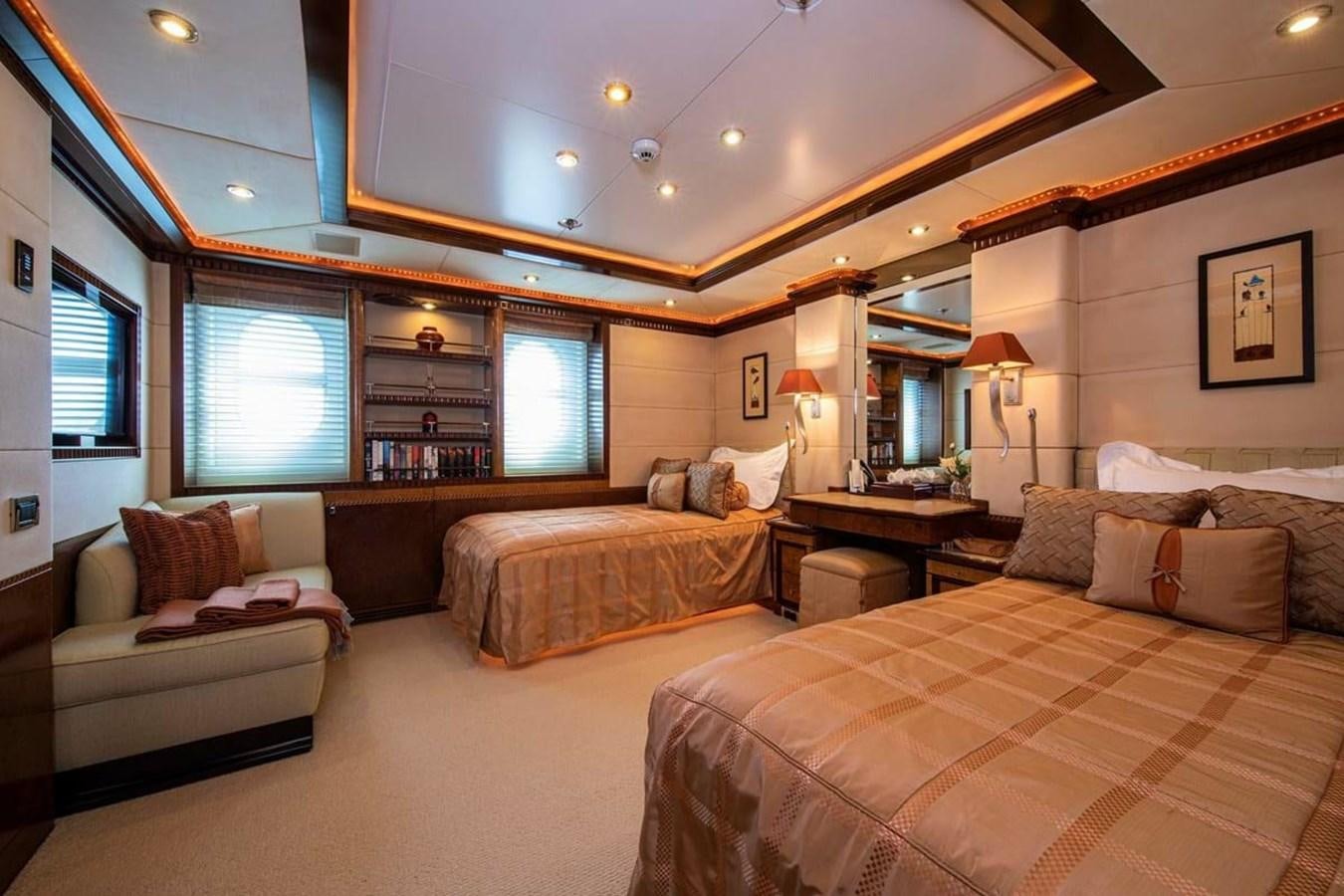

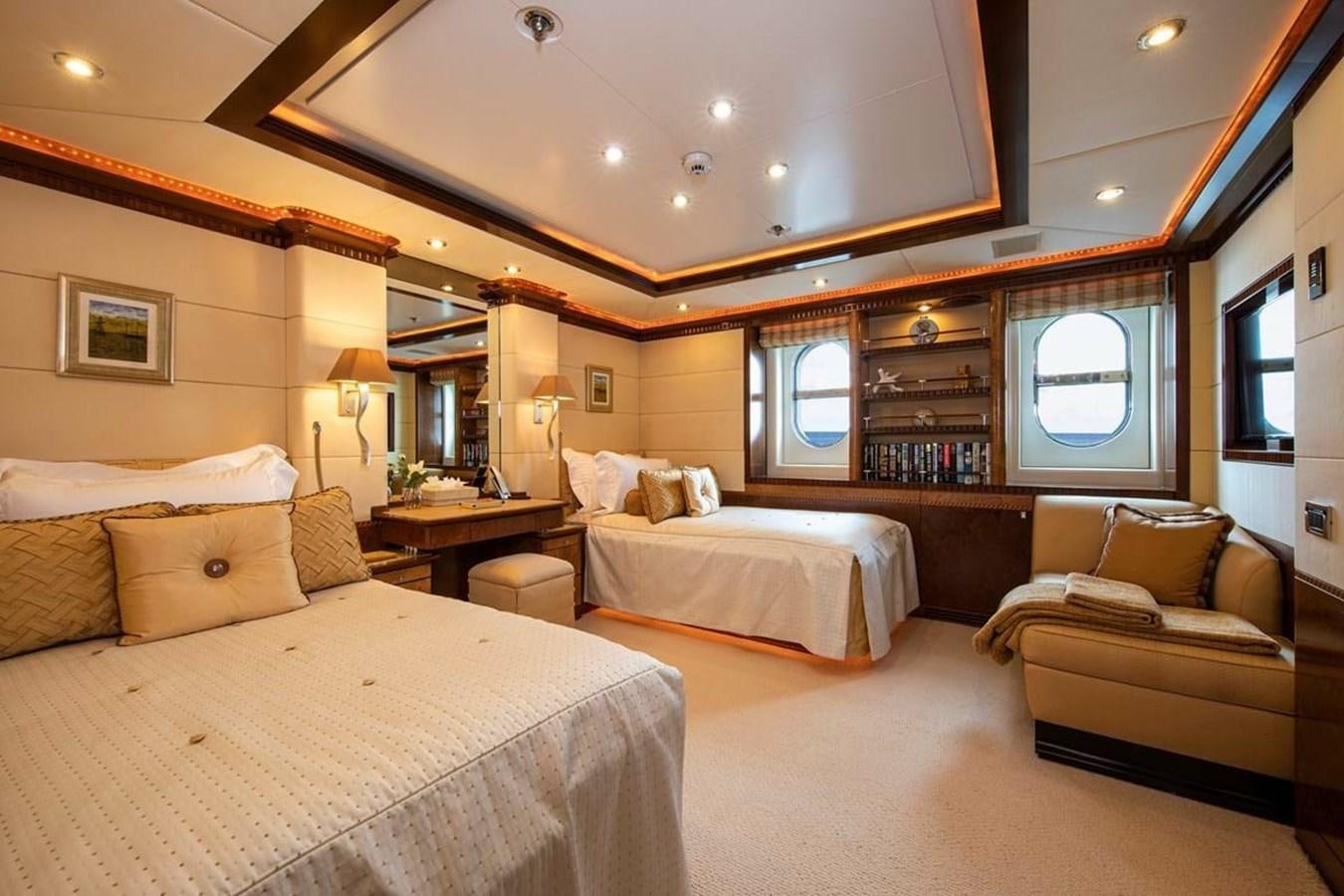

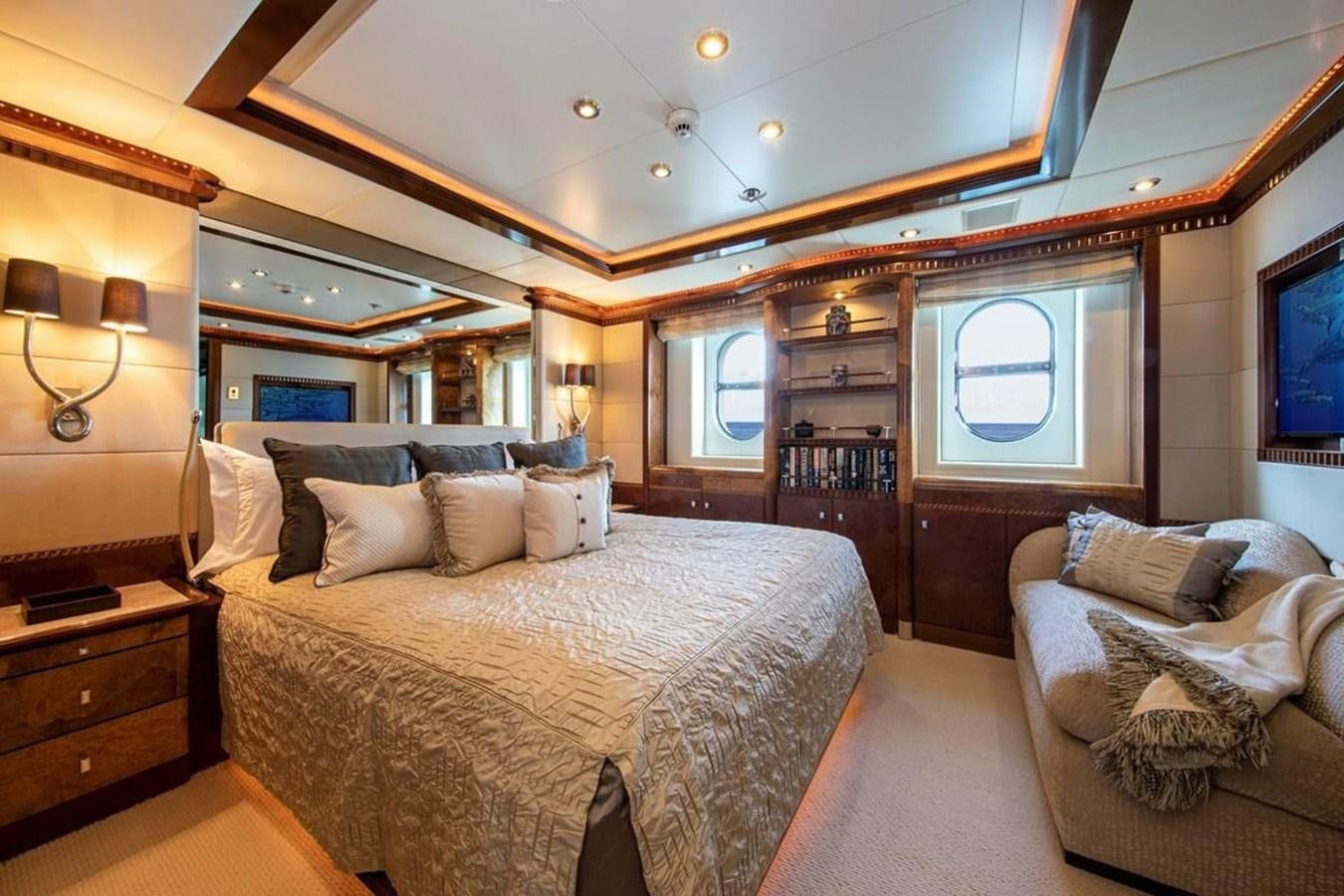

GUESTS

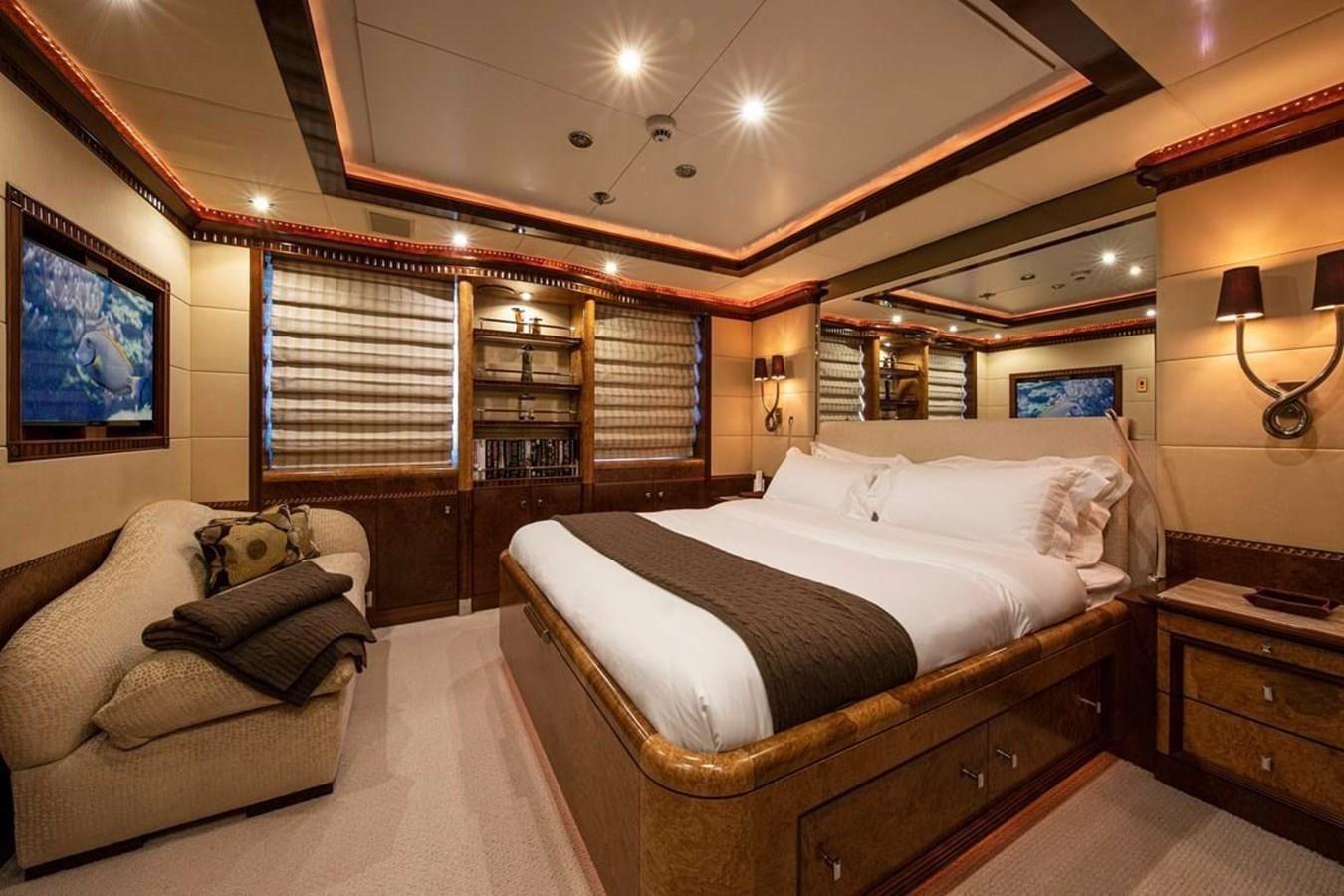

• 2 x double cabins with en suite bathroom
• 2 x twin cabins with en suite shower rooms
• 1 x twin cabin on main deck – could be used for children or additional staff

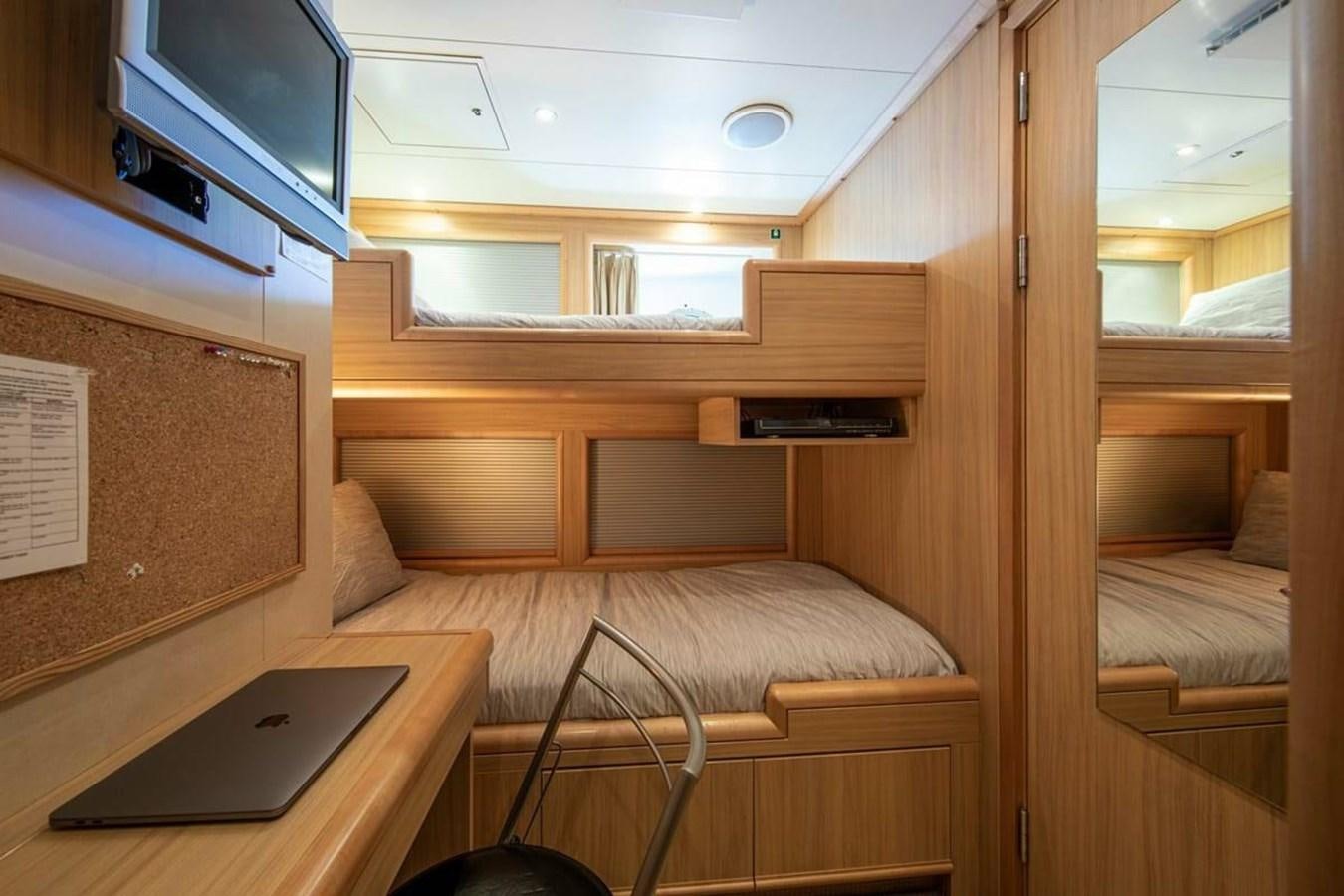

CREW

• Accommodation for 13 crew in 7 cabins - separate Captain’s cabin.

MAIN GALLEY

• Deep fat Frier
• BBQ hot plate
• Microwave
• Steam oven convection oven
• Food warmer
• Salamander
• 6 Zone stove top
• Fridge & freezer
• 2 x Miele dishwashers
• 2 x Large fridge and freezer

LAUNDRY

• 3 x Miele professional washers
• 3 x Miele professional driers
• Ironing machine
• Heated drying locker
• Large hand laundry washing sink


PANTRY

• Foster ice maker & fridge
• Large walk in wine cellar

BRIDGE DECK PANTRY

• Foster ice maker
• Wine fridge
• Microwave
• 2 x Fridges & freezer

CREW MESS

• Miele Dishwasher
• Miele Fridge
• Panasonic microwave

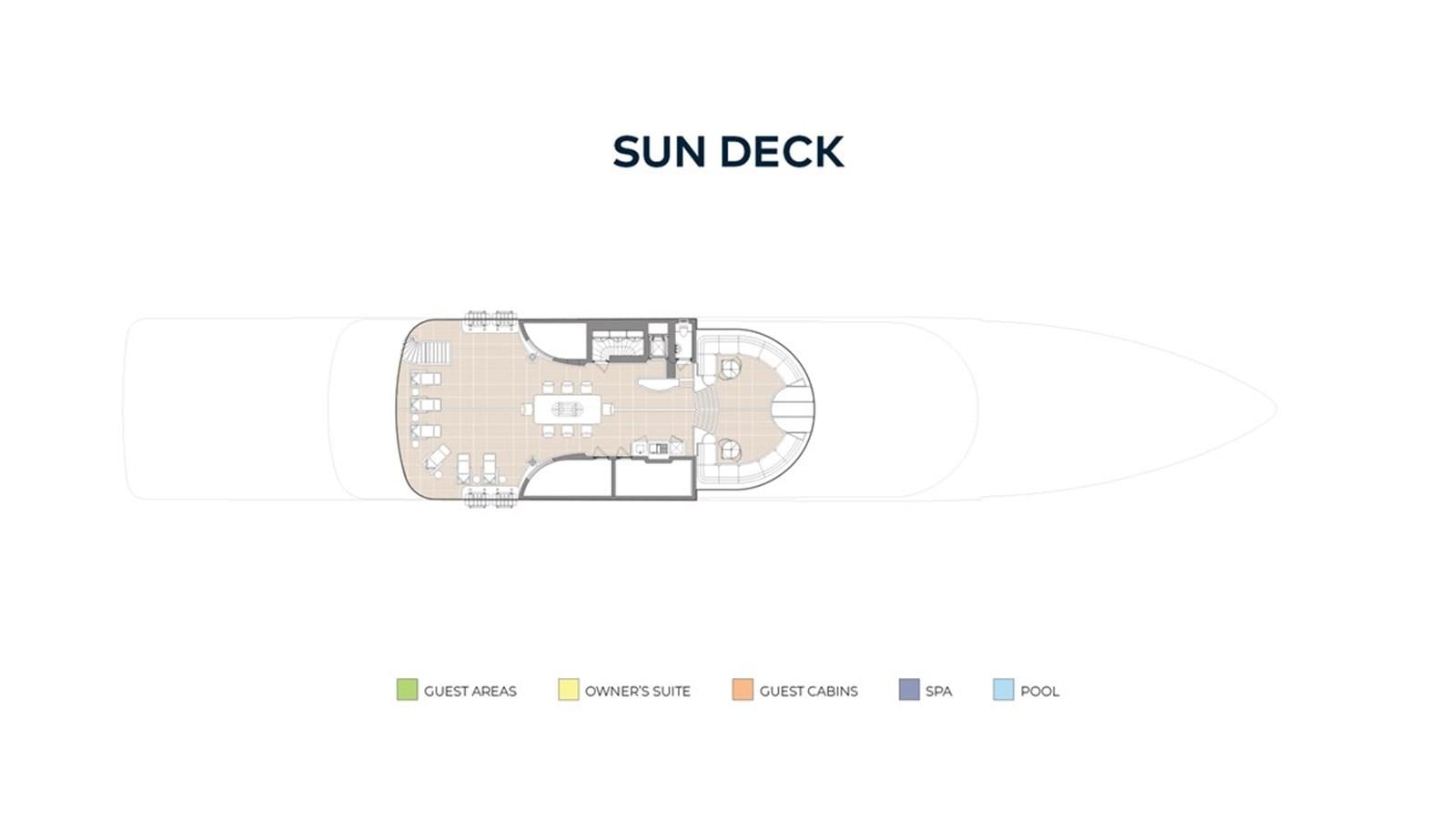

SUNDECK

• Gas BBQ
• Fridge

OTHER

• Walk-in freezer, fridge and dry goods store
• Refrigerated garbage store

SATCOM

• Sailor Fleet One
• Furuno Sat-C IC215
• 2 x Seatel 6004
• 4G Router

VSAT

• Seatel 4006


TELEPHONE COMMUNICATION

• Panasonic digital telephone exchange with phone throughout the vessel
• Phonetec emergency telephones in safety areas
• Manacor Public address system throughout vessel


WATCHKEEPING

• BNWAS- Integrated AMS

UHF COMMUNICATIONS

• Furuno FS2570C

MAGNETIC COMPASS

• Sperry Marine


GYRO COMPASS

• Sperry Marine Navigat X Mk 1

AUTOMATIC PILOT

• Sperry Marine Navipilot 4000

LOG

• B&G

ECHO SOUNDER

• Furuno FE700

RADAR

• Furuno X-Band
• Furuno S-Band

CHARTS

• Transas/Wartsila ECDIS
• Maxsea chart plotter


DGPS

• Sailor

NAVTEX

• Furuno

WIND INSTRUMENTS

• B&G Hydra2000

AIS

• Sailor

All main internal guest areas and cabins plus crew lounge and Captain’s cabin are fed Satellite TV, Video and Audio on demand from a central server located in the purpose built Entertainment room. Exterior areas are also fed audio on demand. Crestron Controls via iPad interface.

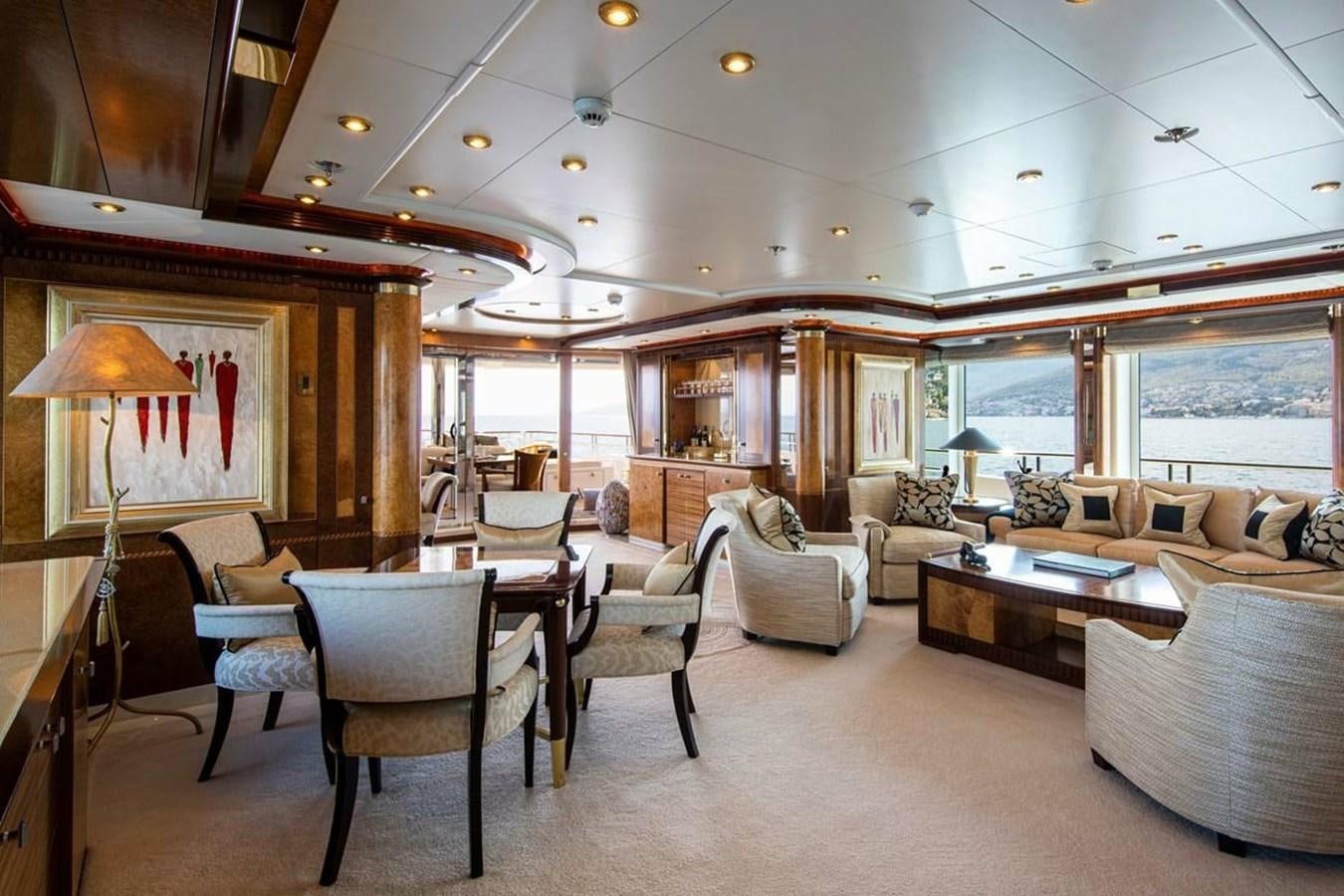

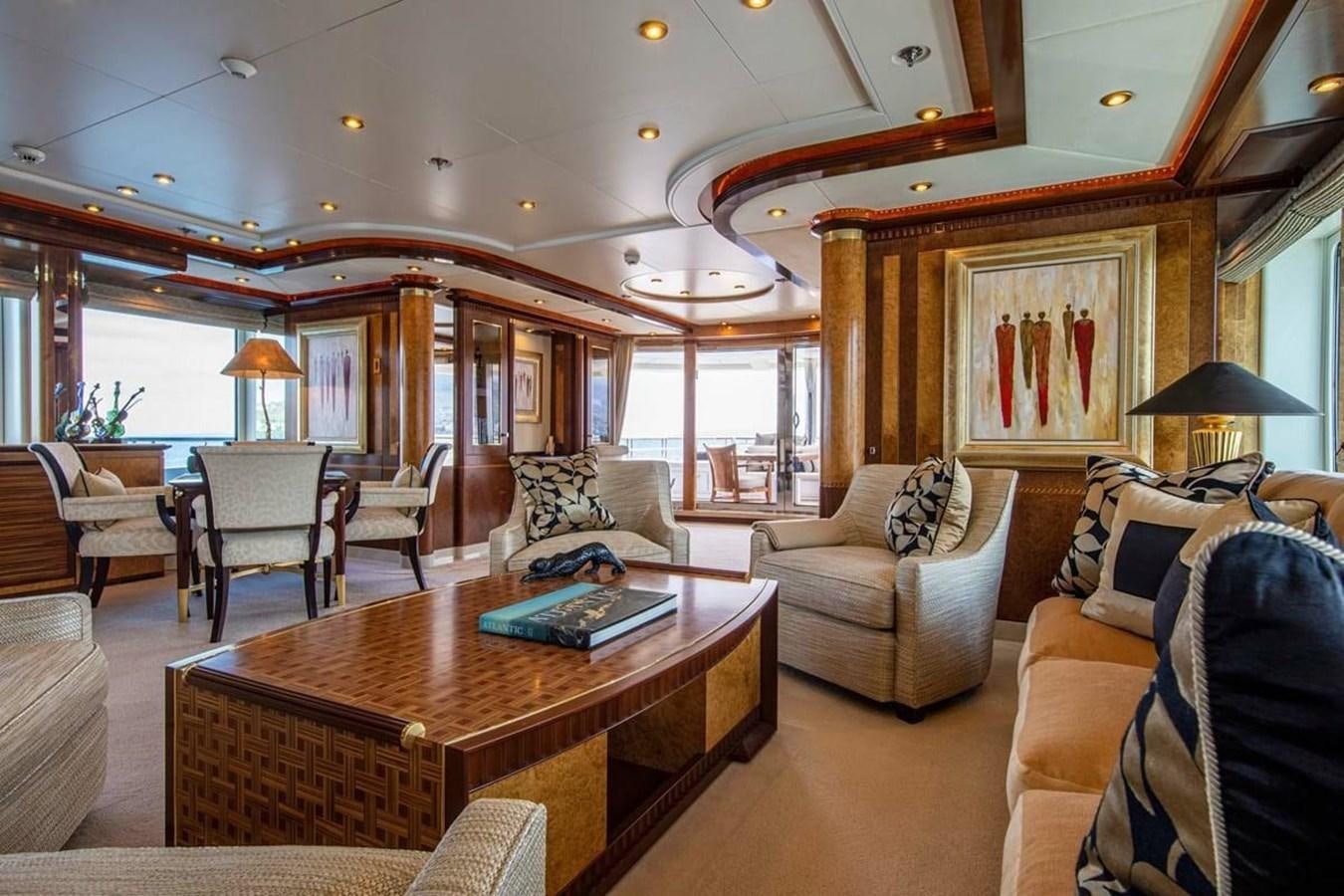

MAIN SALON

• Drop down cinema screen and projector
• Plasma TV with surround sound system

BRIDGE DECK  LOUNGE

• Plasma 60”TV with Surround Sound system

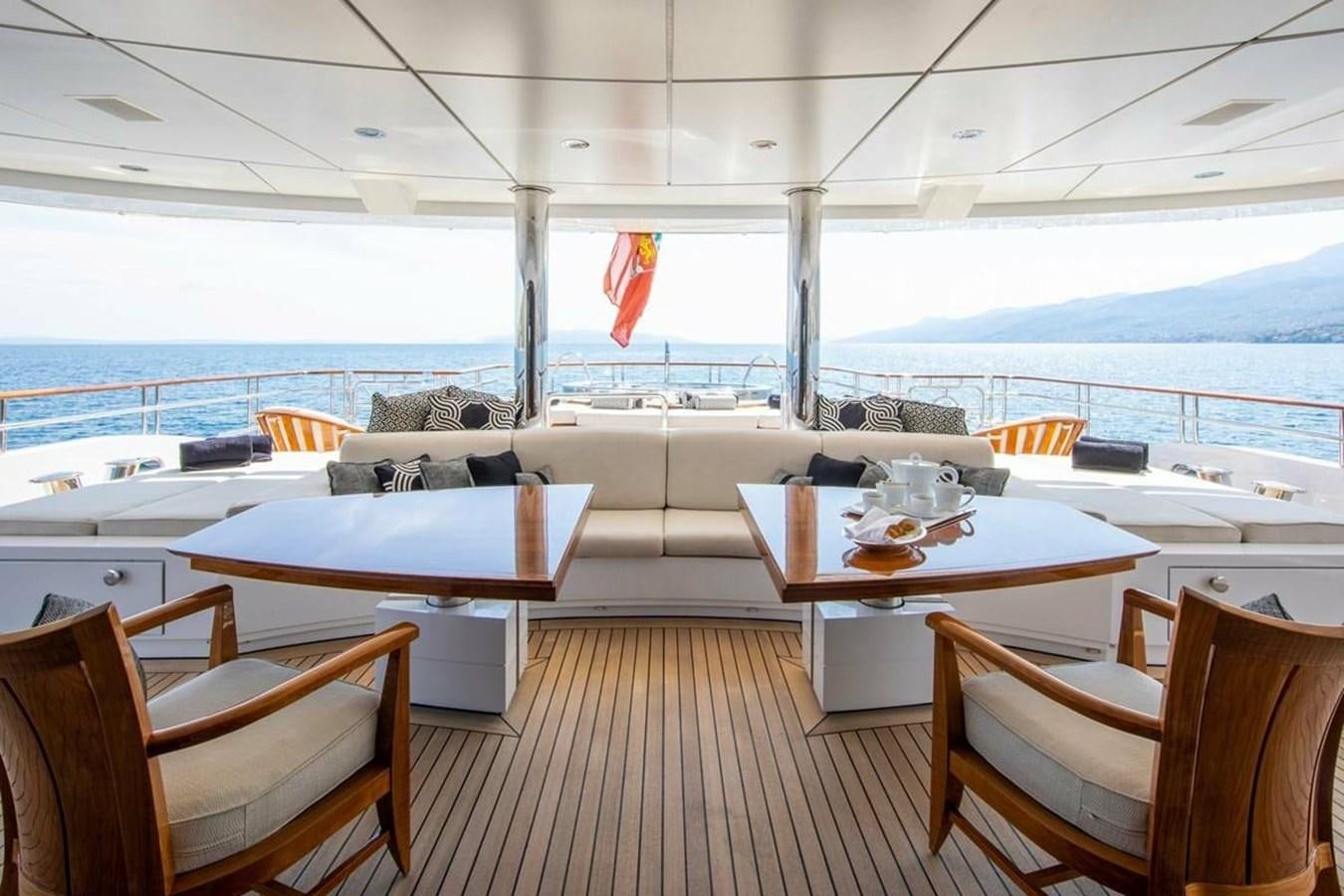

MAIN DECK AFT

• 4 x loudspeakers for sound system
• Indirect lighting system

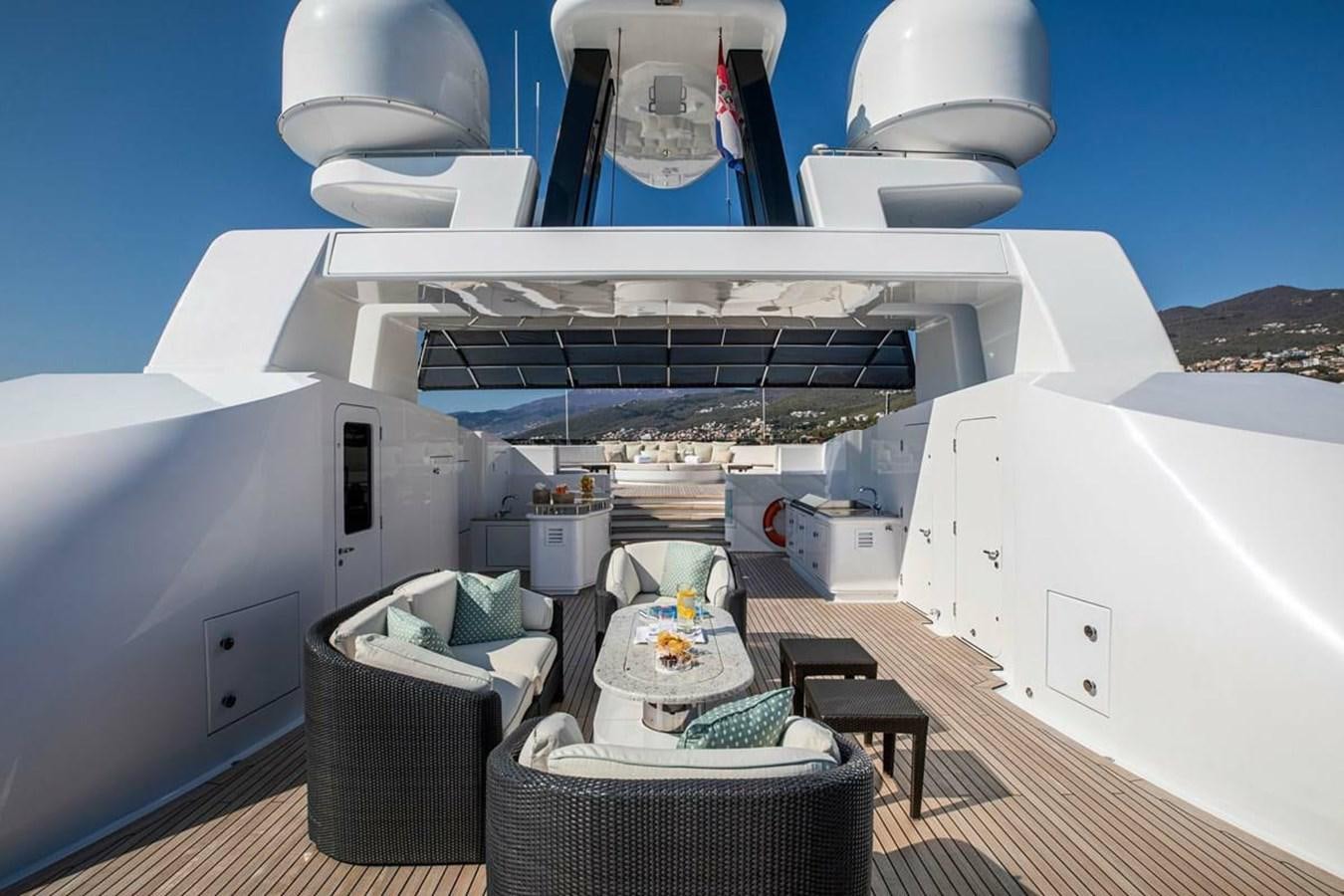

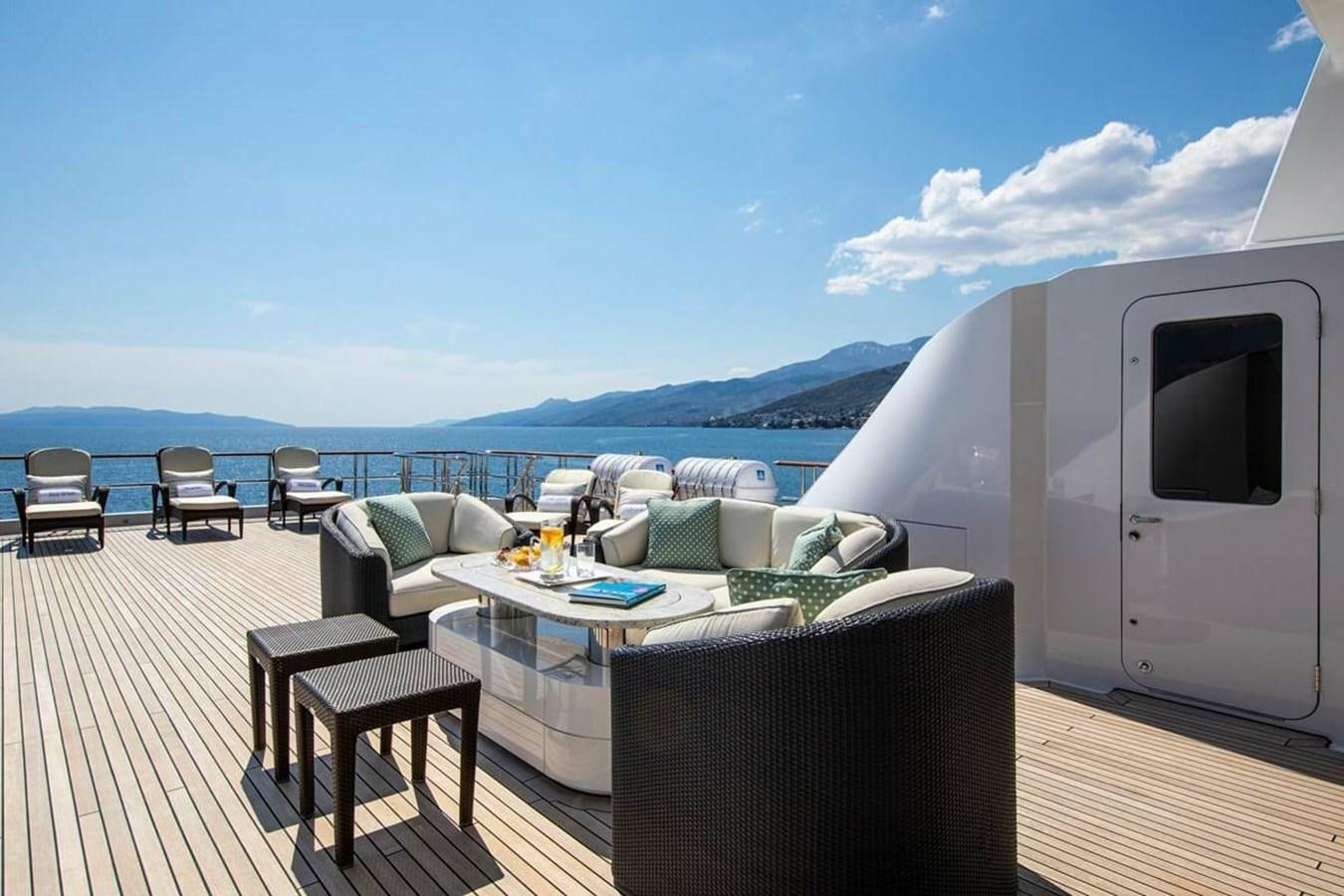

SUN DECK

• 6 x loudspeakers for sound systems
• Indirect lighting system

OWNERS CABIN

• 2 x loudspeakers for sound system
• 42” TV with surround sound system

OWNERS DECK AFT

• 4 x loudspeakers for sound system

GUEST CABINS

• Flat screens in all cabins linked to central TV system in galley

CAPTAIN´S CABIN

• Flat screen TV

CREWMESS

• Flat screen TV
• Vessel monitoring system
• 2 x loudspeakers for sound system

CREW LOUNGE

• Flat screen TV
• 2 x loudspeakers for sound system


TENDERS

• 7.4m Special craft designed custom build tender by Yachtwerft Meyer with 340hp Yanmar Diesel
• 5.4m Nautica Jet RIB with 240 hp Yanmar Diesel
• Duarry SR5 Rescue Boat with 15 hp outboard engine


WATERSPORTS  EQUIPMENT

• 2 x Sea Doo Spark jet skis

OTHER SPORTS EQUIPMENT

• 1 x Diving compressor

ANCHOR WINDLASS

• 2 x Stein Anchor winch

AFT WARPING CAPSTANS

• 2 x Stein Capstans

GROUND TACKLE

• 2 x 550kg high holding power anchors

BOAT CRANE & DAVITS

• Over head beam davits – Cramm
• 3 x Shell doors: Wardeel

PASSERELLE

• Van der Velnder 900 NM

BOARDING LADDER

• Marquipt boarding ladder – variable length

SWIMMING PLATFORM

• Yes

SEARCHLIGHT

• ACR

AWNINGS

• Electric Retractable on Sundeck Aft, Fixed Fwd
• 3 x Aft deck Removable sunshades


SAFETY

• 6 x Winel watertight doors
• 4 x Life rafts located on sun deck
• 6 x Life rings on exterior decks
• Rescue tender and launching davit on sun deck

MEDICAL

• MSN 1768 Cat A 20 Crew

FIRE FIGHTING

• 1 x Hi-Fog System Firefighting (Semco Watermist safe water system)
• 2 x Firefighting pumps Johnson pump freeflow

ALARMS & MONITORING SYSTEMS

• Thorn Minerva fire alarms
• Panasonic CCTV hard drive recording system with 10 cameras
• Intruder alarms fitted throughout the vessel
• York/Interschallt computer alarm and monitoring system for all machinery with a second system backup on the bridge

2010

• Beauty room was converted into twin crew/staff cabin

2013/14 MB92 Barcelona

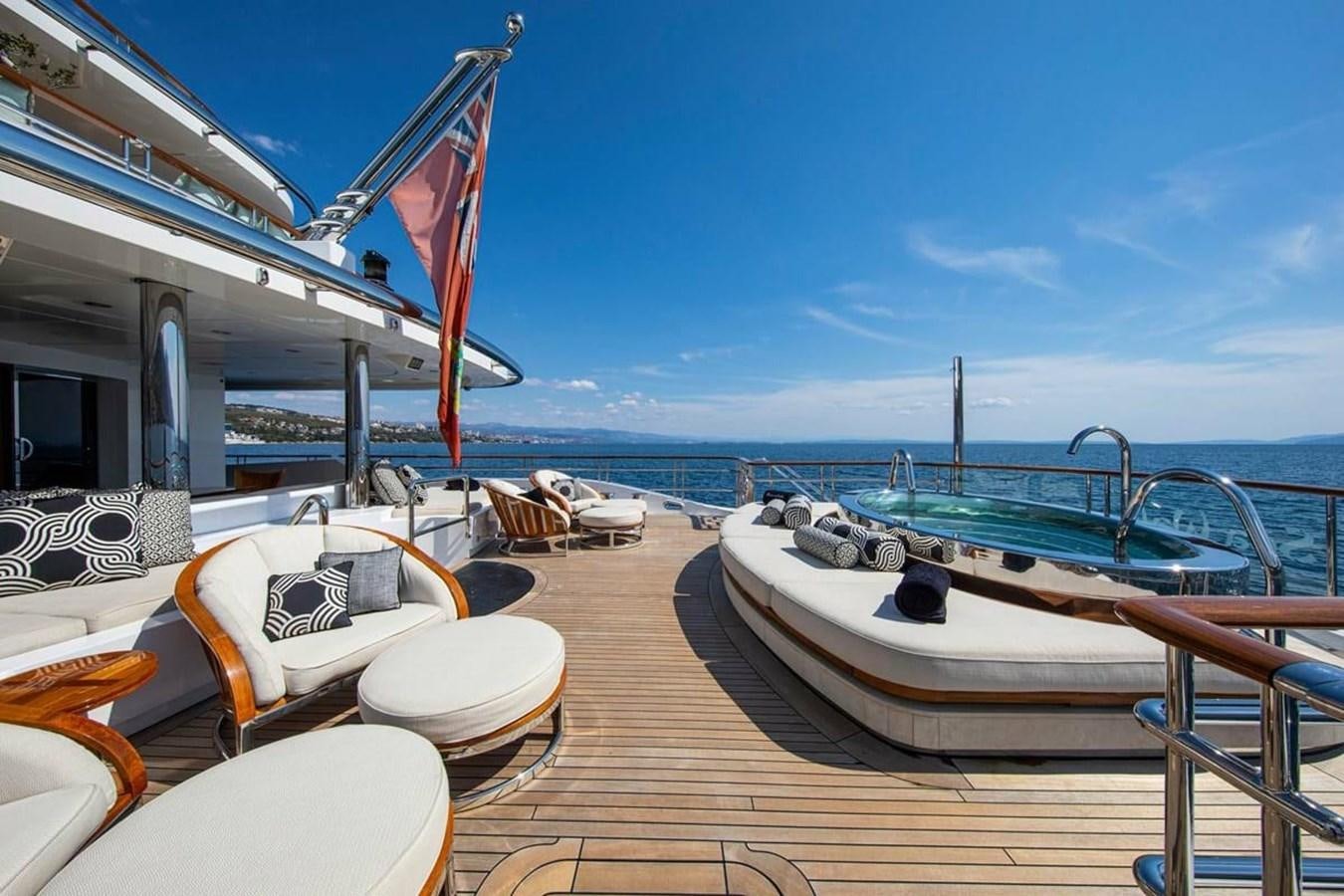

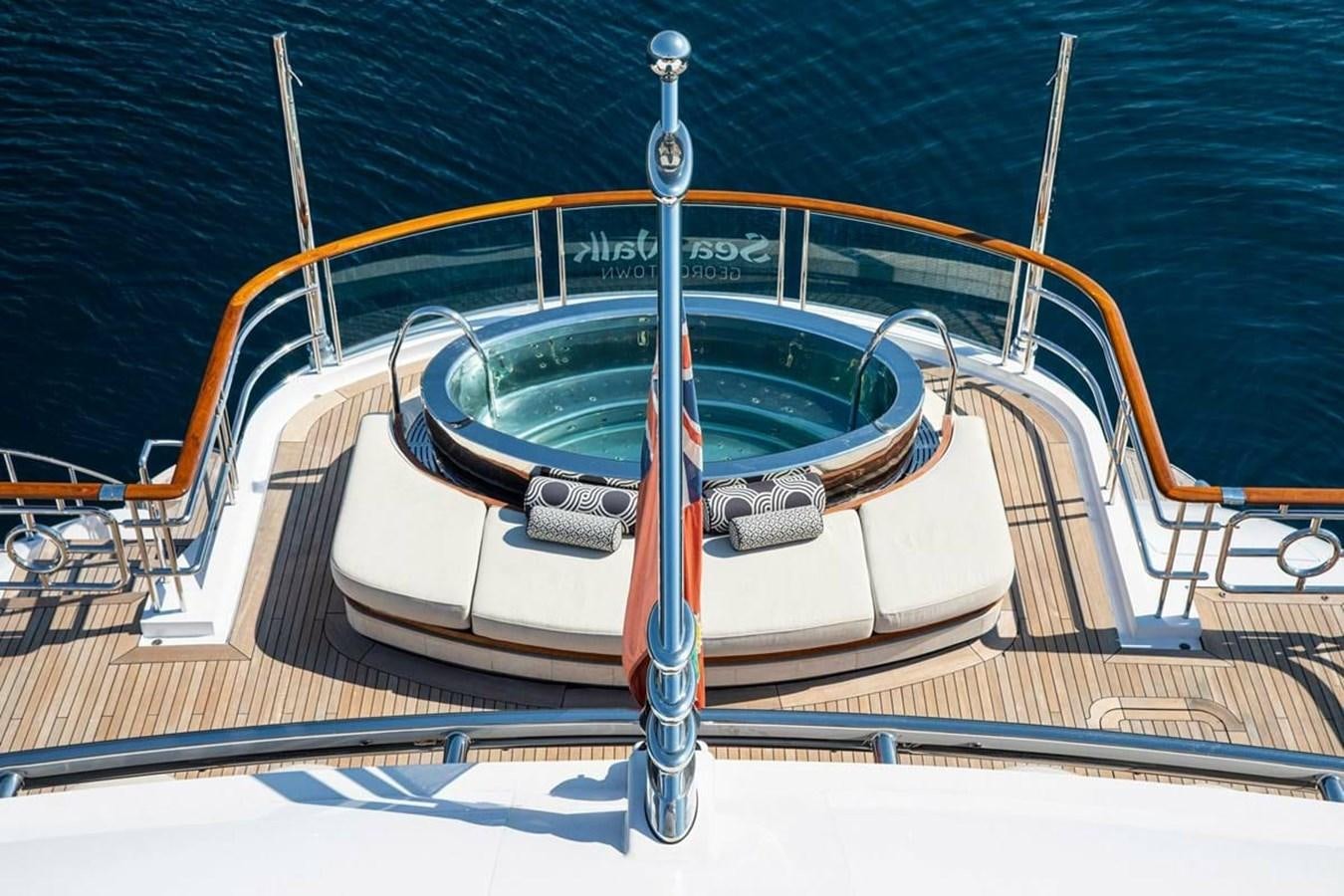

• Extend main aft deck and install a jacuzzi and seating
• New loose exterior furniture on main deck
• New awing system main aft deck
• Replace swim platform and main deck electric sliding doors
• Re-paint all exterior superstructure that requires scaffolding (excluding upper mast)
• Antifouling
• Class & Flag annuals
• Hydraulic passerelle refit and repaint (removed and re-installed)
• Guest and crew tenders refitted
• Main deck aft, owners deck fwd. & aft, gym and swim platform teak decks re-caulked
• New Cat C9 Generator installed – Stbd
• Upgrade AV Crestron Controllers to iPad

2014/15 MB 92 Barcelona

• Lloyd’s 10 year special survey & associated required works – shafts, rudders, valves etc
• Stabiliser major overhaul – Naiad
• Main engine exhaust lagging replaced
• Engine and technical room bilges blasted and re-painted
• Antifouling
• Armaflex replaced engine room
• All interior superstructure repainted (areas not requiring scaffold)
• Minor upgrades to AV – all new TVs, change to Russian Sat TV receivers
• Minor bridge electronics
• Warranty claims from previous refit
• Foredeck teak deck re-caulked
• Exterior upholstery replaced Owners deck Aft
• Upgrade various upholstery

2017/18 Navantia Cartagena

• Hull repaint – including all interior bulwarks (all steel structures)
• Sand blast underwater hull and new under water coating system
• Flag and class annuals
• Repaint - guest tender
• Re-caulking of sun deck teak decks
• Ceramic coating hull
• Superstructure paint repairs
• Major overhaul port generator (zero-houred)
• New steam oven galley

2019 MB92 La Ciotat

• Lloyds 15 year Special Survey & required works – shafts, rudders, valves etc
• Stabilizers major overhaul
• Install new 150Kw shore power converter
• Antifouling
• New guest tender engine installed
• Conversion of gym to beach club
• Install ECDIS bridge
• Upgrade some bridge equipment (AIS, VHFs, Fleet One etc)

2020/21 Rijeka/Trogir, Croatia (alongside Marina)

• Exterior paint repairs to superstructure
• Exterior paint ceramic coated
• Interior varnish repairs
• All exterior varnish stripped and re-finished
• Upgrade various upholstery in panoramic lounge
• Interior fittings re-gilded
• Major overhaul STBD generator (zero-houred)
• 5000-hour Cat service port generator
• Engine room painting
• Guest tender painted
• Ballast tanks repainted
