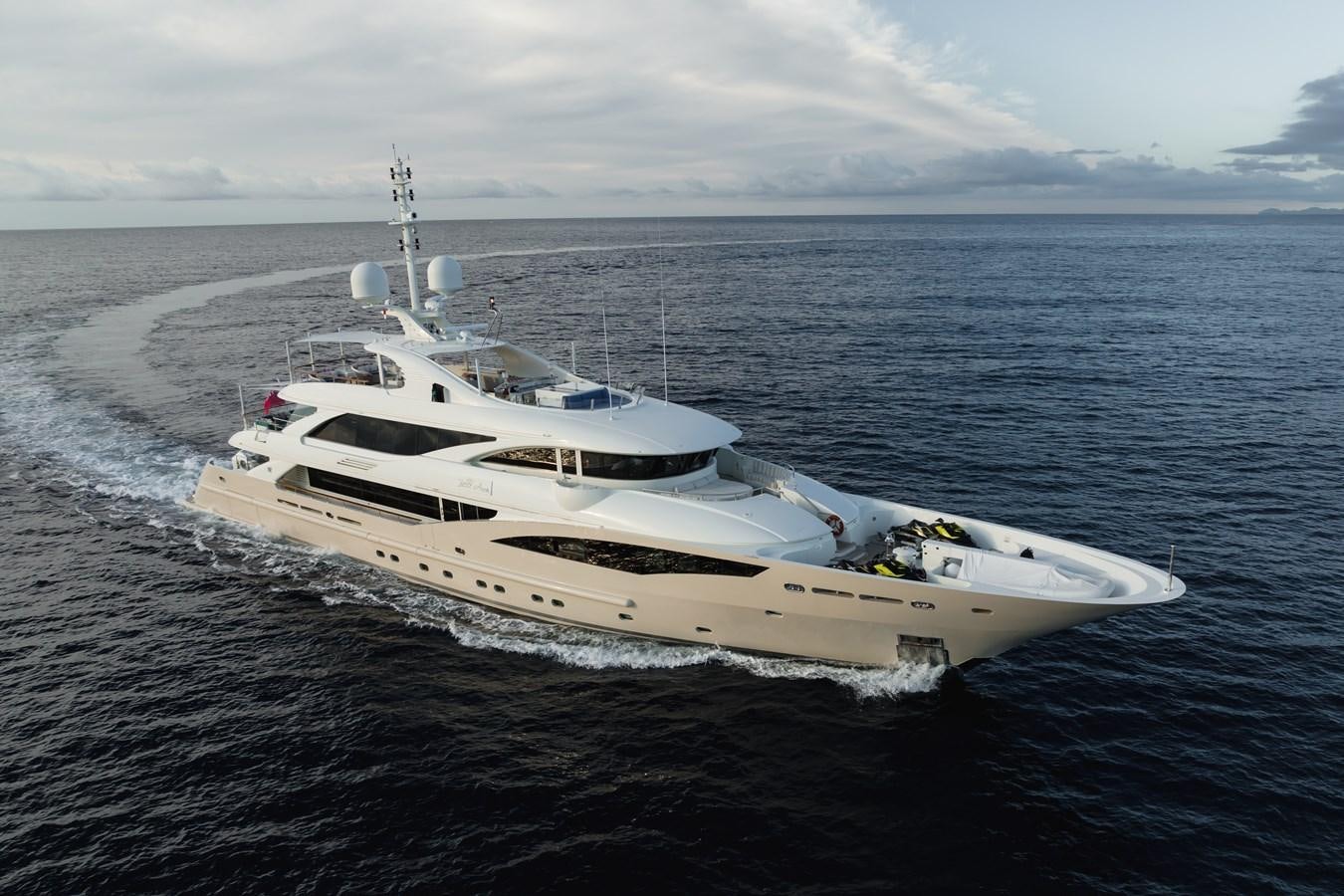

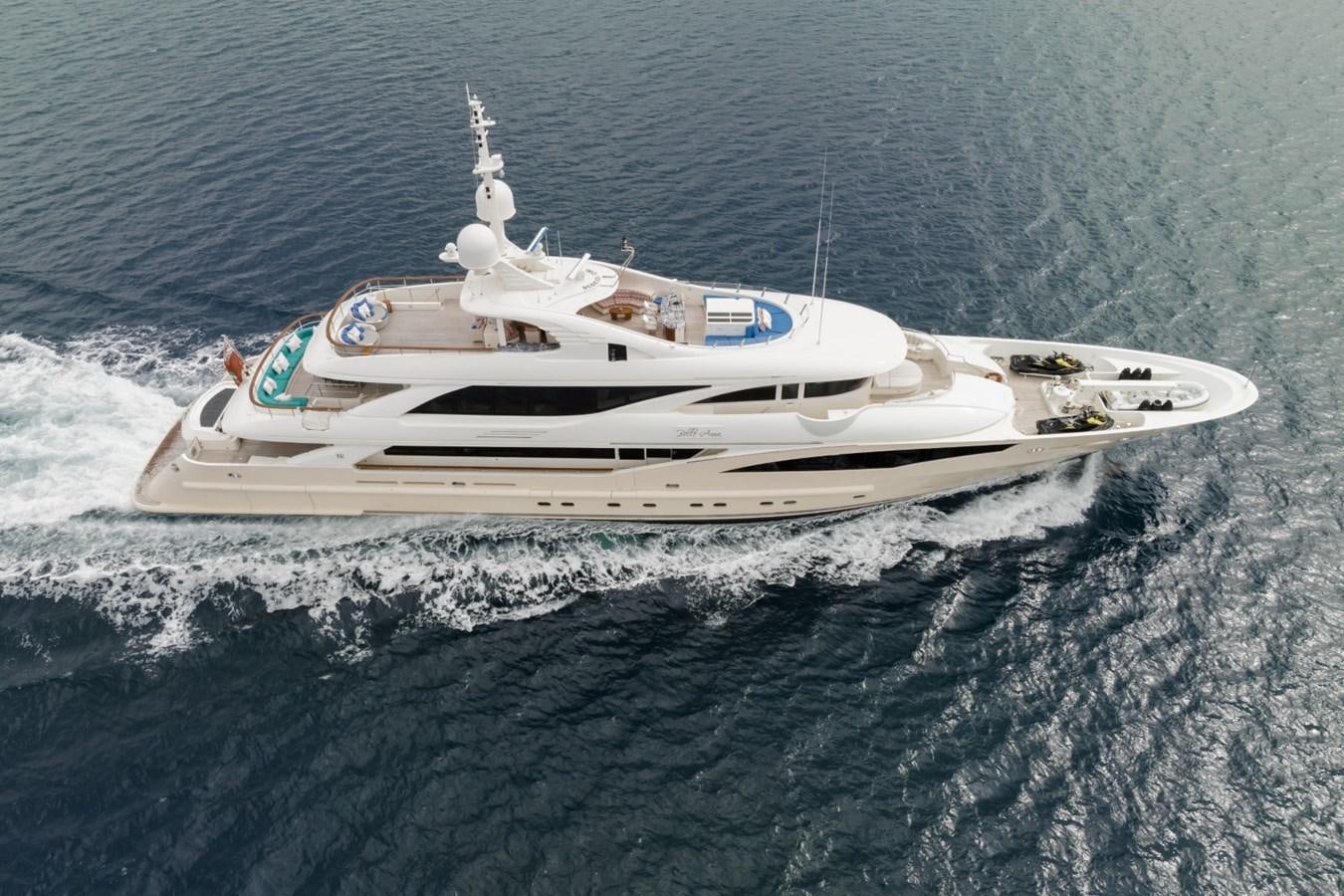

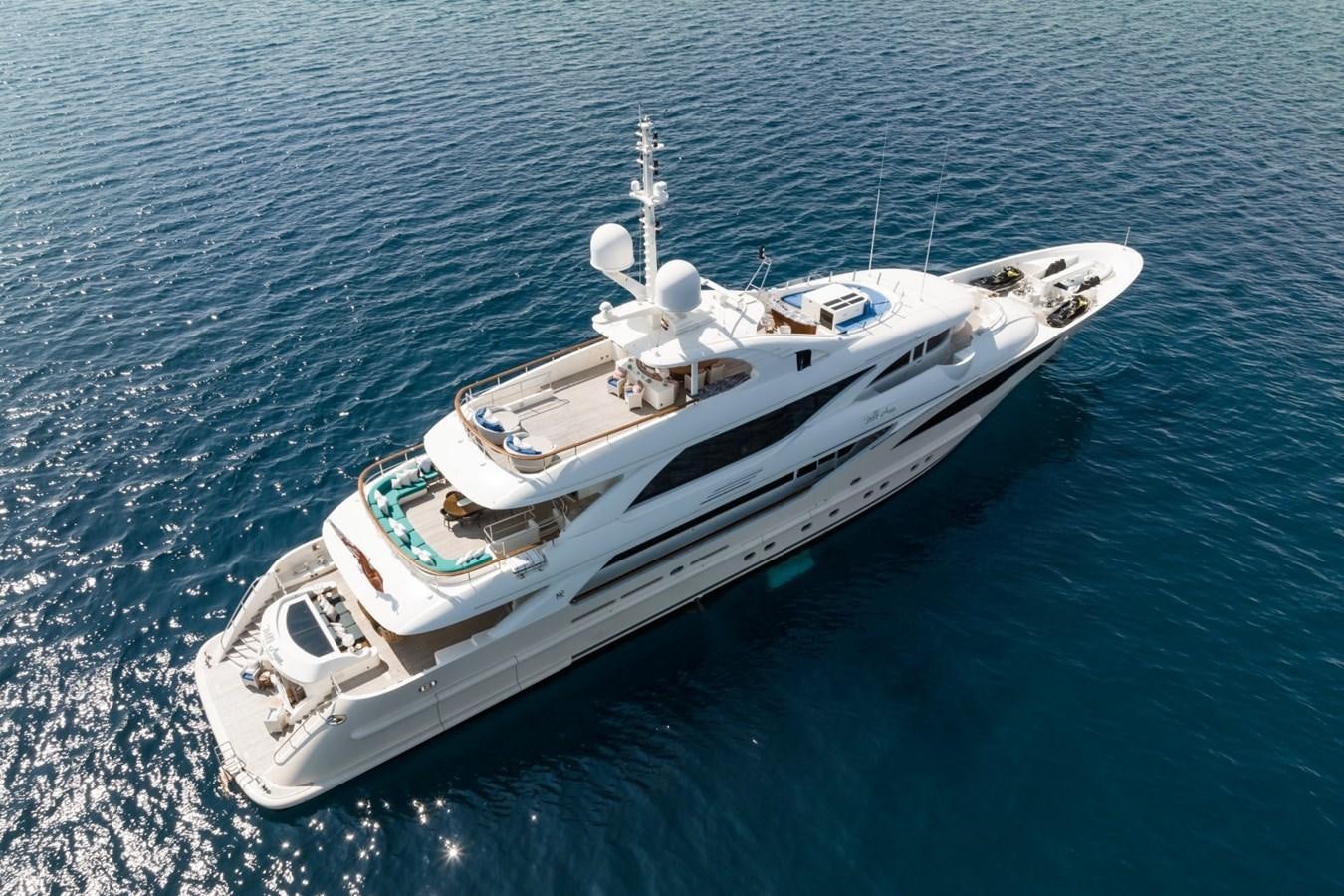

BELLE ANNA Yacht for Sale

Length
163' (49.95m)
Builder
ISA YACHTS
Build
2012
Cabins
6
Crew
10

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder ISA YACHTS
Model 470
Length (LOA) 163' (49.95m)
Year 2012
Gross Tonn. 498
Draft 9' (2.55m)
Beam 29' (9m)
Range 3,000 NM
Location Croatia

Accommodations

Staterooms 6
Sleeps 12
Heads 6
Crew Cabins 10
Crew Sleeps 10

Dimensions & Capacity

LOA 163' (49.95m)
Max Draft 9' (2.55m)
Fuel Tank 18,756 g (71,000 L)
Fresh Water 4,955 g (18,758 L)
Holding Tank 21,134 g (80,000 L)
Gross Tonn. 498
Displacement 450

Construction

Hull Material Steel
Hull Config Full Displacement
Ext. Designer ANDREA VALLICELLI
Int. Designer FRANCOIS ZURETTI
Cruising Speed 15 Knots
Range 3,000 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

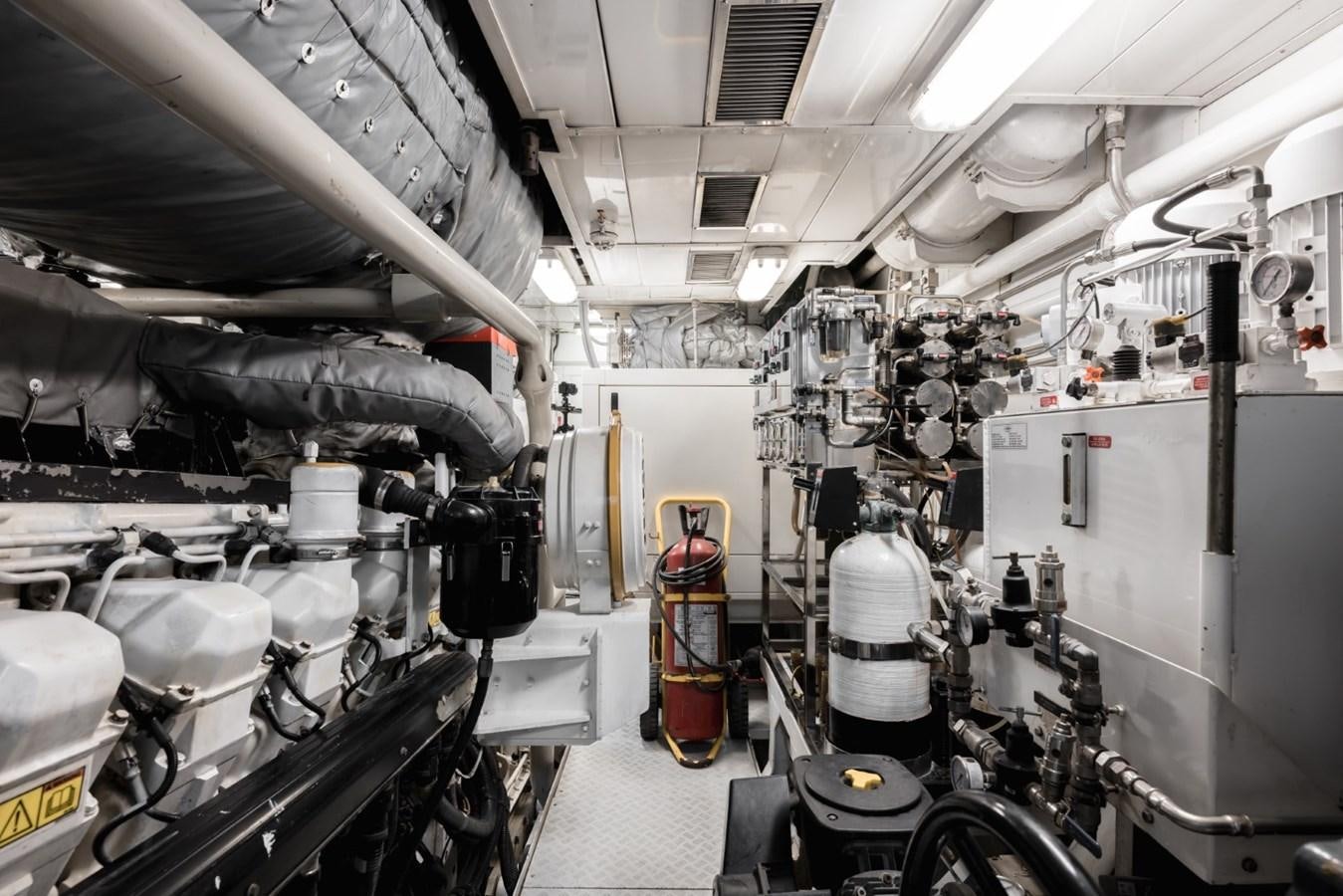

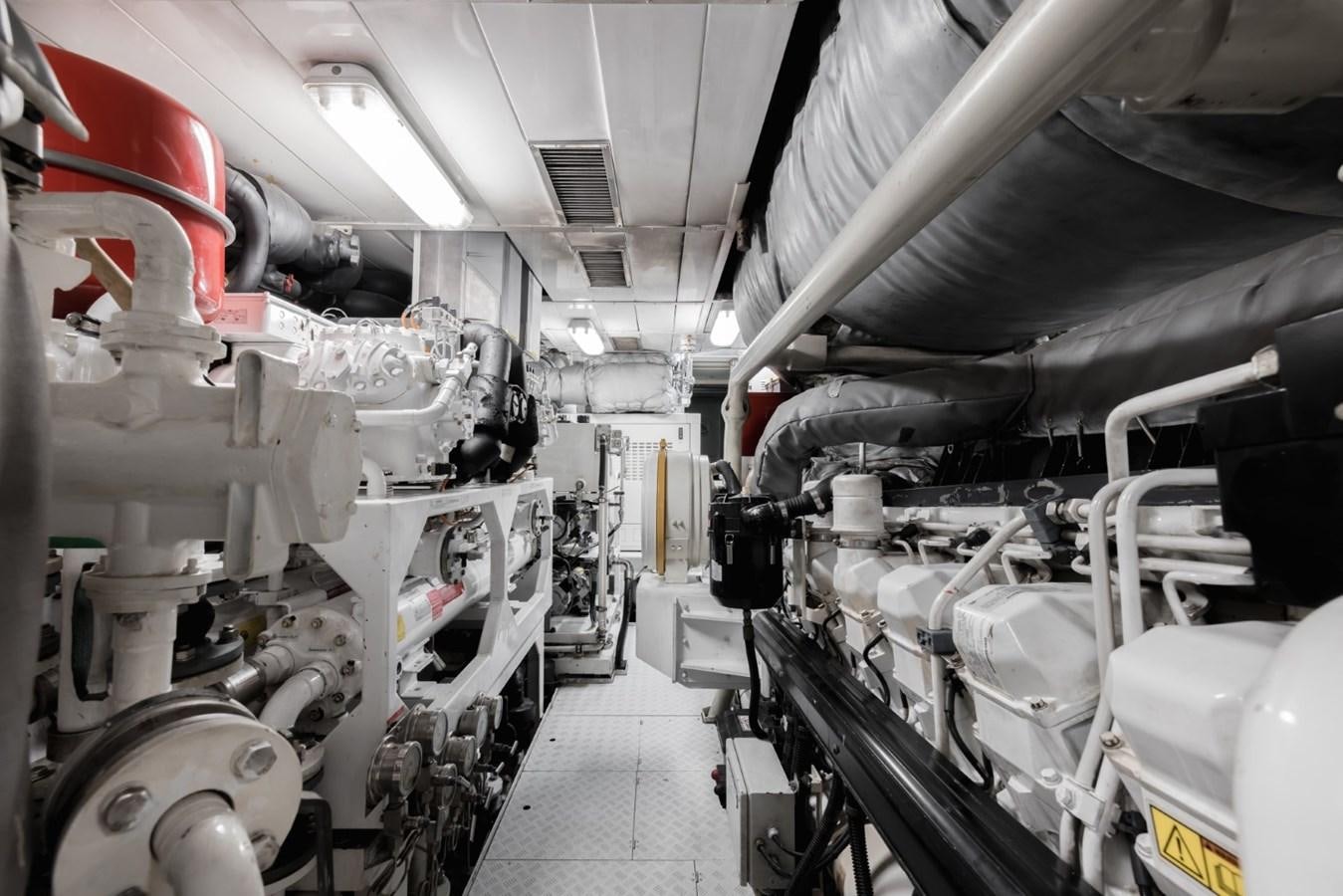

Other Machinery

  • Generator Fuel Consumption: 20 Lit/h
  • Generator Exhaust System: Silencer Marine & Xeamos particulate filter
  • Night Generator: N/a
  • Shore Power Converter: N/a
  • Frequency Converter: N/a
  • Shore Power Transformer: Ang Power System 120kW
  • Battery Chargers: Master Volt
  • Generator Start: Electric
  • UPS (uninterruptible power supplies): Sae Type 40731 PNG 709
  • Steering Gear: Opem
  • Emergency Steering: Opem
  • Under Water Lights: x 10
  • Helm/Wing Station Controls: Rexroth
  • Fuel & Oil System
  • Fuel Filters: Fuel separators and fuel filters
  • Fuel Oil Separator: 1 x PA600, Alfa Laval
  • Fuel Transfer Pump: 2 pcs
  • Fuel Filling Pump: N/A
  • Bunkering Station: Port side aft
  • Oily Bilge Water Separator: Dvz
  • Dirty Oil Pump: Garbarino
  • Lubrication Oil Pump: Garbarino
  • Firefighting & Bilge System
  • Firefighting & Bilge Pump: Garbarino
  • Fresh Water System
  • Fresh Water Makers: 2 x 13,000 l/day Hem 30/3,400 Duplex
  • Fresh Water Treatment: Octomarine
  • Fresh Water Pressure: 2-4 bar, max 8 bar
  • Hot & Cold Circulation Pump: 2 x H.W.
  • Hot Water Boilers: 2 x Giannesci, 2 x 300 Lit
  • Black & Grey Water Treatment: Tecnicomar
  • WC's (toilets/bidets): Jets
  • Sanitary Vacuum System: Jets vacuum type
  • Sanitary Water System: Jets
  • Black & Grey Water Pumps: Tecnicomar
  • Garbage Management System
  • Capacity: N/a
  • Garbage Compactor: N/a
  • Fast Freezer Locker: N/a
  • Garbage Cold Storage Room: N/a
  • Automatic Grease Trap: N/a
  • AC & Ventilation System
  • Air Compressor: 2 x Atlas, 2.5 Lt/s, 30 bar
  • Air Handling Units: 1 x H & Hopman
  • Provision Refrigeration: Unifrigo
  • Engine Room AC: N/a
  • Engine Room Ventilation: Actionair
  • Galley Ventilation & Extraction: Actionair
  • Hydraulic Power Packs: Motomar
  • Emergency Power Pack: Motomar
  • Antifouling System Type: Cathelco

Galley & Laundry Equipment

OWNER’S AND GUEST AREAS:

  • Owner’s Suite: 1
  • Guest Staterooms: 2 with double beds
  • Guest Staterooms: 2 with twin beds
  • VIP Stateroom: 1
  • CREW AREA:
  • Captain’s Cabin: 1 with double bed
  • Crew Cabins: 4 with two beds in each

MAIN GALLEY EQUIPMENT

  • Cooking Equipment: Elextrolux
  • Refrigeration/Freezer: 2 Deep Freezers and 2 fridges, 1 crew fridge
  • Dishwasher: Miele

PANTRIES AND OTHERS

  • Refrigeration/Freezer: Wind fridge and ice maker

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

  • Microwave: Miele
  • Dishwasher: Miele
  • Sun Deck: Fridge and icemaker
  • Wine Storage: Wine fridge
  • Main Laundry Equipment: 2 x Miele washing machine
  • Crew Laundry Equipment: 2 x Miele dryer
  • Owner/Guest Staterooms: N/a

Communication Equipment

  • SAT com: Seatel
  • VSAT: Setel
  • INMARSAT – C: Seatel
  • SSAS: N/A
  • ECDIS: Transas
  • Telecom Systems: N/a
  • VHF Radiotelephones: Sailor
  • Portable VHF: Silor
  • Portable GMDSS VHF: N/a
  • Iridium Satellite Phone: Thrane&Thrane
  • Intercom – Talk Back: Vingtor
  • Telephone System: Panasonic
  • Intercom System: Panasonic
  • VHF Digital Radios: Sailor
  • SSB: Sailor
  • Radar Transponders: Sailor
  • Navtex Receiver: Thrane &Thrane
  • GMDSS Battery Plant: General ships battery UpS system 1,4kW
  • Guest Phones: N/a
  • Internal Ship’s Communication: Panasonic

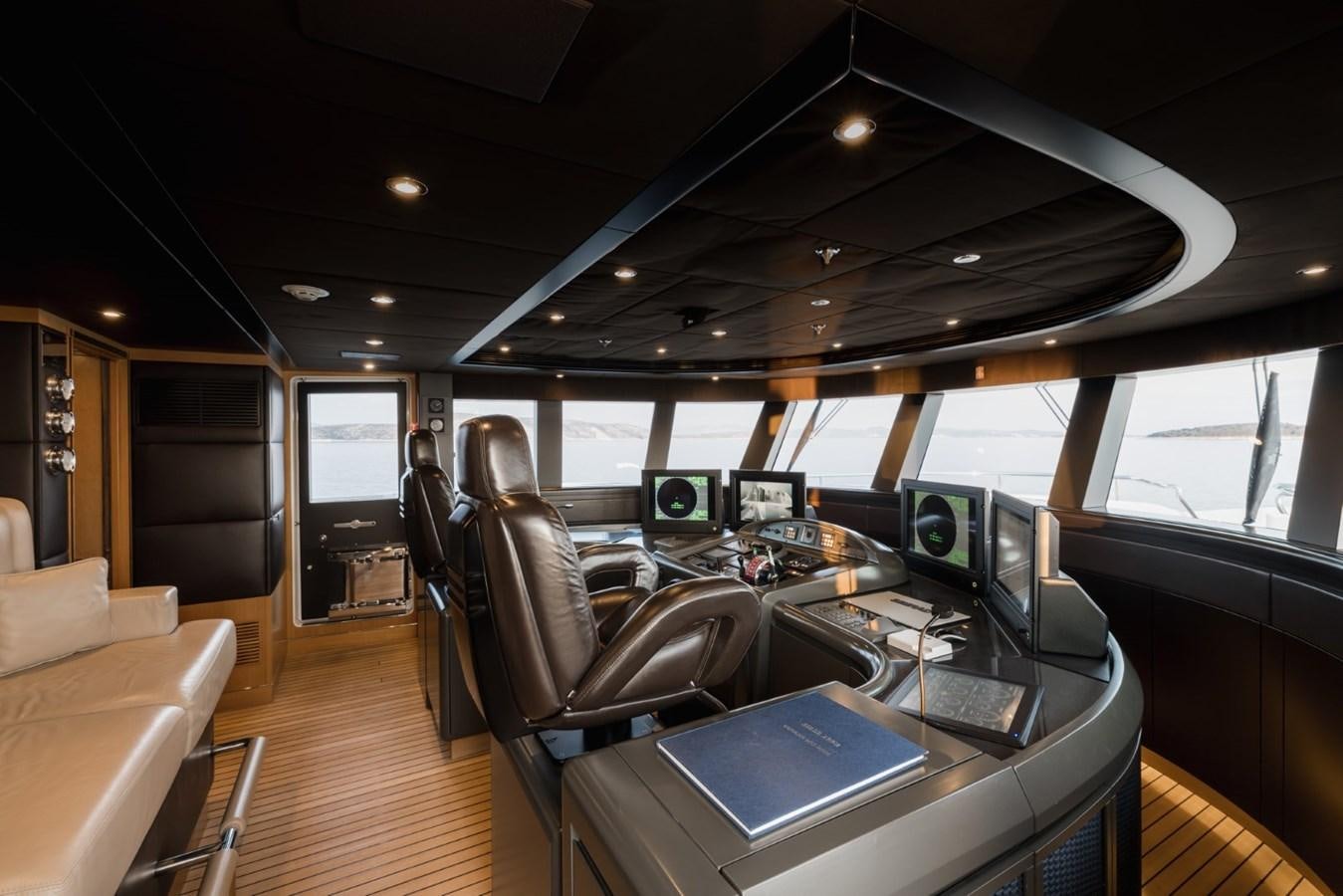

Navigation Equipment

  • Monitors: Hatteland 4 PCS
  • Multifunctional Workstation: N/a
  • Chart Plotter: Transas and Simrad (Navionics)
  • UPS: General Ships Ups 1,4kW
  • Magnetic Compass: Sperry Marine
  • Gyrocompass: Navigat X MK 2
  • Auto Pilot: Sperry Marine
  • Rudder Angle Indicator System: N/A
  • Echo Sounder: Skipper
  • Speed Log: Sperry Marine
  • Depth Sounder: B&G
  • Video Sounder: N/a
  • DGPS: Simrad
  • GPS: Simrad
  • AIS: Transas
  • Navtex: Thrane&Thrane
  • Wind Instruments: B&G
  • Horn: 1 x E / Pneumatic horn T3A Khalenberg
  • Search Lights: 1 x Searchlight 200W Xenon Lamp the Carlisle & Finch
  • Night Vision Camera: N/a
  • Tender Tracking System: Ais
  • Bridge Navigation Watch Alarm: Onyx Marine
  • Weather Fax: Sailor
  • Ships Computer: HP

Entertainment Equipment

  • Video Equipment: TV and Plex system
  • TVRO: N/a
  • Audio Equipment: N/a
  • Control: Ipad (crestron) and individual Plex remote control
  • Light Management: N/a
  • Main Salon: N/a
  • Master Stateroom: N/a
  • VIP Stateroom: N/a
  • Guest Staterooms: N/a
  • Sky Lounge: TV, plex, apple tv
  • Exterior, Aft Deck, Bar, Bridge Deck: N/a
  • Captain’s Cabin: N/a
  • Crew Mess: Tv
  • IT: N/a
  • WIFI:
  • Hybrid Digital PABX / VOIP: N/a
  • Panic Buttons: N/a
  • Other Equipment: N/a

Tenders & Toys

  • Tenders: 1 x Castoldi Jet 21 LC
  • Rescue Tender Castoldi Jet 15
  • Toys: 2 x Sea Doo
  • 1 x Sea Bob
  • 1 x Sup
  • 1 x kayak
  • Diving Compressor: Bauer, Oceanus E3
  • Dive Board: N/a

OTHER EQUIPMENT

  • Pool: N/a
  • Spa Tub: N/a
  • Sauna: N/a
  • Hammam: N/a
  • Guest Elevator: N/a
  • Dumbwaiter: N/a
  • Gym Equipment: N/a
  • Sun Awnings: Aft and fwd

Deck Equipment

  • Anchors: 2 x HHP Anchor in galvanised steel 360 Kg
  • Anchor Chains: 2 x 137,5 m Galvanised chain anchor 19 mm
  • Anchor Windlass System: 2 x Electric windlasses, Muir, 7.5 KW
  • Bitts: 14 x Polished stainless steel bitts
  • Cranes: Cramm
  • Warping Capstans: 2 x Electric capstans, 4.0 KW, Muir
  • Ground Tackle: N/a
  • Bow Crane: Motomar
  • Davits: N/a
  • Passerelle: 1x Electrohydraulic passerelle Cramm
  • Side Boarding Ladder: 2 x Electrohydraulic accommodation ladder Cramm
  • Sea-stair: N/a
  • Stern Boarding Gangway: Motomar
  • Swimming Ladder: Custom Made
  • Spotlights: N/a
  • Hull Paint: Moon Dust Topcoat Dupont
  • Superstructure Paint: Dupont Oyster White

Safety & Security Equipment

  • Security System: MCA, LY2
  • CCTV: Panasonic
  • Monitors: Hatteland
  • Motion Sensors: N/A
  • Ship’s Safe: N/A
  • Doorbell: N/A
  • Fixed Firefighting System: MCA, LY2
  • Firefighting Equipment: MCA, LY2
  • Gas Detection: Consilium Marine
  • Smoke Detection: Consilium Marine
  • Fire Alarm: Consilium
  • Alarms: Consilium
  • MOB Boat: Pain&Wessex
  • Life Rafts: Zodiac
  • Breathing Apparatus: N/a
  • Lifejackets: Canepa&Campi
  • Immersion Suits: Vicking
  • Life Rings: Canepa&Campi
  • EPIRB: Kannad Marine
  • SART: Sailor
  • Flares and Signals: Pains&Wessex
  • Medical Equipment: MCA Medical Bag
