MAGELLAN Yacht for Sale

Length
135' (41.15m)
Builder
JFA
Build
2020
Guests
12
Cabins
6
Crew
8

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Being offered as a 60-percent completed project, she can be purchased and finished for a fraction of the cost of a similar replacement yacht.

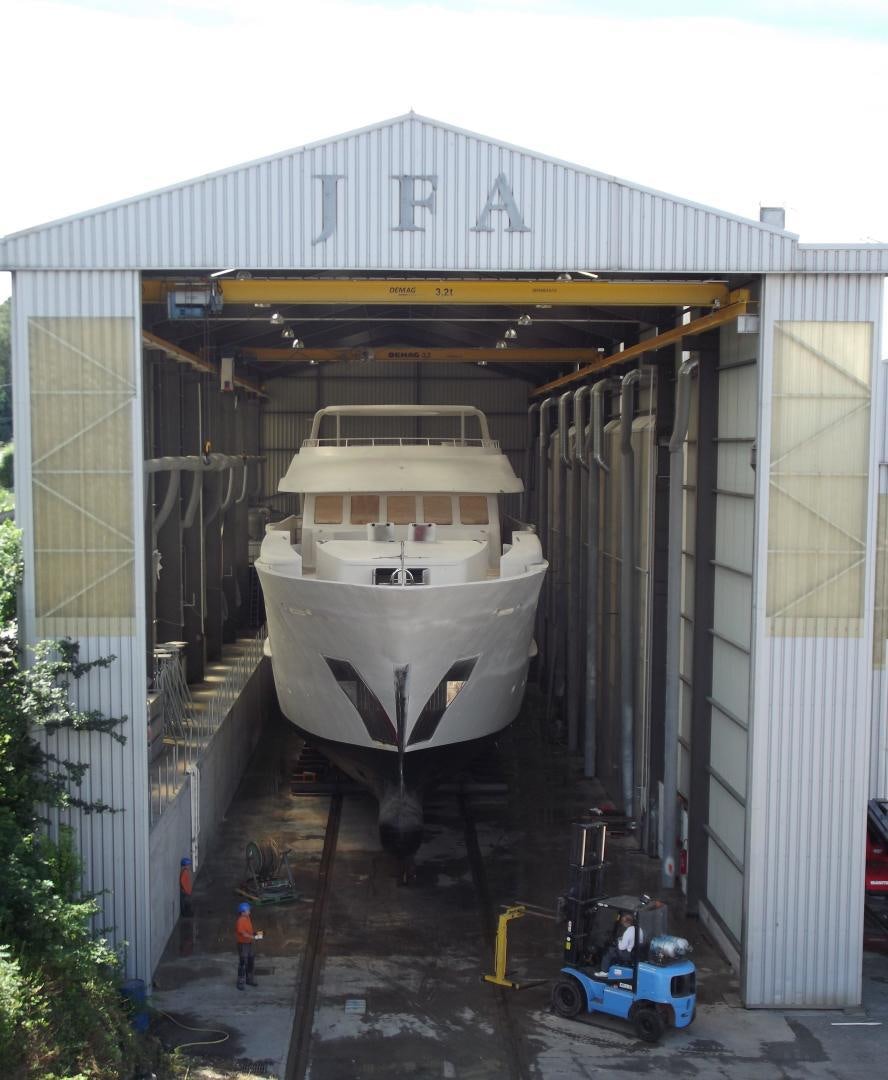

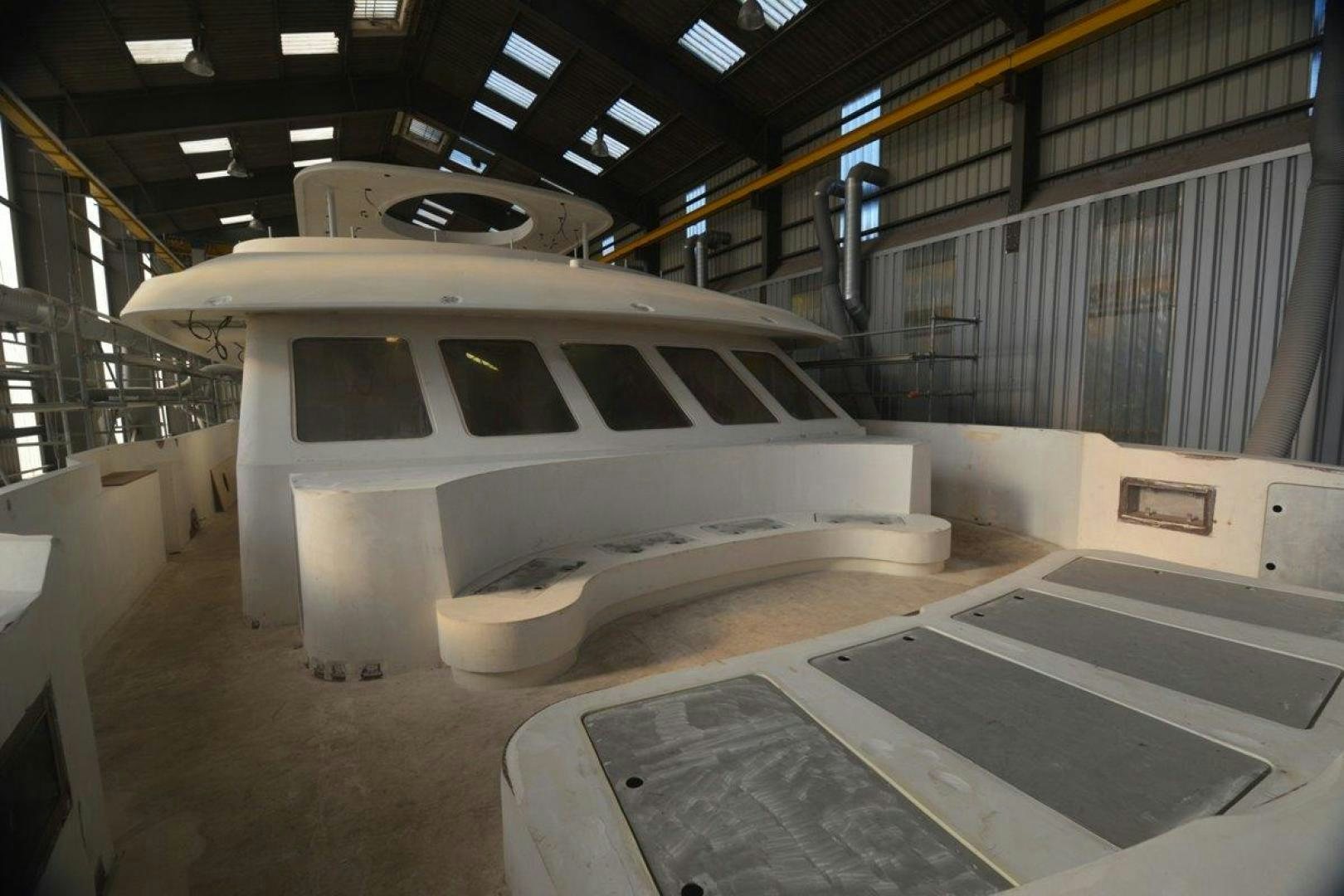

Located at the renowned JFA yacht builder’s facility in France, the seller has priced the boat for a quick sale, ensuring the combined cost of the vessel and its completion at the JFA yard — which is considerably less than any similar yacht currently on the market, new or used.

Designed as a world cruising yacht, PROJECT MAGELLAN incorporates all the typical aspects of a modern luxury yacht. She combines the best of both worlds to create a vessel with enormous interior and exterior volumes, endless horizons, and shallow drafts to gain access to the best anchorages. She offers a 7,000-mile range.

PROJECT MAGELLAN currently is designed with six en-suite guest rooms for up to 12 guests. Her master cabin is 72sqm (775sqft), which is larger than most yachts of her size on the market.

Allowing her owner the ability to customize many aspects of the yacht to his or her particular specifications and design aesthetics, PROJECT MAGELLAN is, with no doubt, the best deal currently on the market.

Highlights

  • 7,000-mile range
  • Shallow draft of less than eight feet
  • Six en-suite guest cabins
  • 72-square-meter (775-square-foot) master suite, bigger than many 60 meter yachts
  • Oversized tender
  • Huge interior and exterior volume
  • BV Maltese Cross A1
  • Zero Speed stabilizers
  • 420 gross tonnage

MAGELLAN in the News

Specifications

Builder JFA
Model 2020
Length (LOA) 135' (41.15m)
Year 2020
Gross Tonn. 420
Draft 7' 11" (2.41m)
Beam 27' 6" (8.38m)
Range 7,000 NM
Location Concarneau, France

Accommodations

Staterooms 6
Sleeps 12
Heads 9
Crew Cabins 4
Crew Sleeps 8
Capt. Quarters No

Dimensions & Capacity

LOA 135' (41.15m)
Max Draft 7' 11" (2.41m)
Fuel Tank 21,002 g (79,501 L)
Fresh Water 2,853 g (10,799 L)
Gross Tonn. 420

Construction

Hull Material Steel
Int. Designer Michael Krschstein
Max Speed 15 Knots
Cruising Speed 12 Knots
Range 7,000 NM
Stabilizers Zero Speed

Engines (x2)

Engine Make Caterpillar
Engine Model C32
Power KW 0
Fuel Type Diesel
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Overview

Attention all traders and investors seeking distress sale situations.
The 135’ (41m) Project Magellan is currently 60% complete, and can be purchased and finished for a fraction of the cost of a similar pedigree yacht. The seller has severely dropped the price to encourage immediate offers.

Located at the renowned JFA yacht builders shipyard in France, Magellan is designed as a world cruising explorer yacht that incorporates all the typical aspects of a modern luxury yacht.
Combining the best of both worlds to create a vessel with enormous interior & exterior volume, endless horizons and shallow drafts.

Built to BV Maltese Cross A1, with a 7000 mile range, there are no limits to where this yacht can travel.

Highlights

  • 7,000 mile range
  • 420 gross tonnage
  • BV Maltese Cross A1
  • Shallow draft under 8’
  • Zero speed stabilizers
  • 6 en suite guest cabins
  • 72sqm (775sqft) master suite, bigger than many 60 meter yachts
  • Oversized tender
  • Huge interior and exterior volume

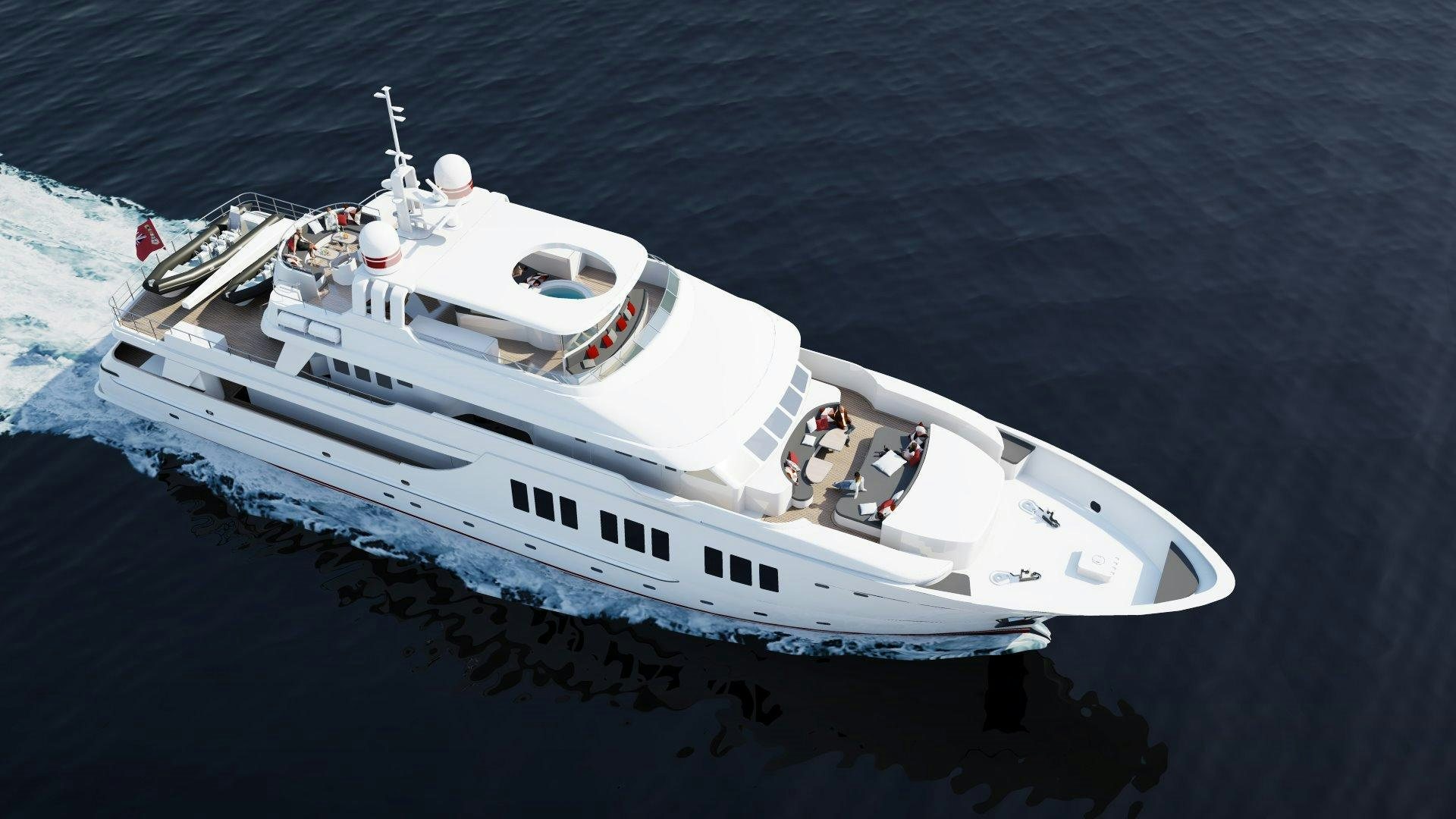

Exterior

The exterior spaces are large and plentiful, offering guests several relaxing choices from various areas around the yacht, ensuring that everyone finds their own secluded retreat.

From Jacuzzi’s and sun pads, to bars and party decks, this yacht has something for every occasion.

Main Deck

Located on the main deck aft is a large teak dining table which seats 10 or 12 depending on the table configuration, this is the main exterior dining location for the yacht. There is a large hydraulic boarding gangway on the aft port quarter, to accommodate stern-to berthing. Stairs on each side lead down to the bathingplatform, giving easy access to the water and to the tenders. A shower is also located on this platform.  The transom door leads to the sports lazarette where all the yachts toys and water sports equipment is stored.

Bridge Deck

Forward on the bow is the working area with mooring cleats and anchor windlasses. Aft of this is a large storage locker which doubles as an exterior crew space.

Just aft of this area is the foreward guest deck, comprising of comfortable bench seating with tables and five large sunpads to offer further exterior relaxing options. This area can be shaded if required, with large sail shape awnings. The walk around bridge has excellent visibility with port and starboard bridge wing control stations for easier docking.

The aft bridge deck has an intimate seating area, with a small service station is on the port side. Aft are the guest and crew tenders and crane. The owner has the option to swap the crew tender for jet skis. Once the tenders are removed this whole area can be shaded, and turns into an unobstructed entertainment deck.

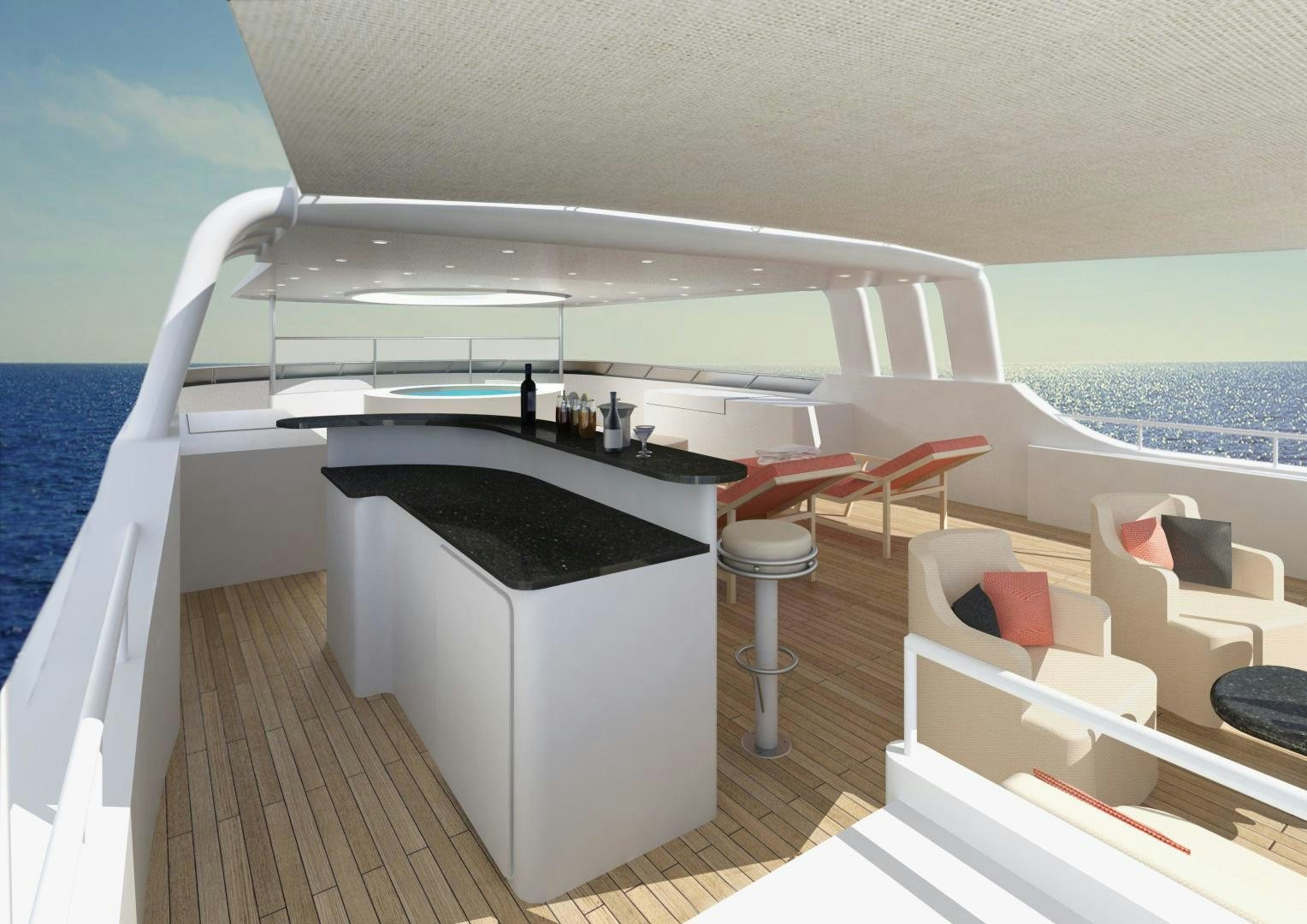

Sun Deck

Access to the sundeck is via an exterior staircase from the aft bridge deck.

Forward is an almost full beam bench seat for taking in the panoramic views, behind this is a jacuzzi and four sunpads. To port there is a full service wet bar, complete with bar stools, refrigerator, ice maker and BBQ.

Further aft is a comfortable seating area with cocktail tables and a set of awnings to provide shade.

Interior

Interior design is by Michael Kirschstein Designs based in Henley-on-Thames in the UK. This accomplished studio combines raised paneling in satin finished American Cherry with sunken ceilings, fabric panels and fine carpets to create a relaxed ambience.  This timeless style will not go out of fashion and will be well suited to any climate this very capable yacht may find herself in.

Materials have been chosen to provide the luxurious surroundings expected of a superyacht whilst also being hard wearing and low maintenance. The same mentality has been applied to all aspects of the yacht’s extensive specification.

A key aesthetic design focus was to allow a large amount of natural light to flow into the yacht and this is superbly achieved through the extensive use of oversized picture windows. Careful consideration was also given to operational practicality and this effort has resulted in a yacht that is versatile and will prove easy to operate.

Master Suite

Located forward on the main deck the 73sqm owner’s suite is very large for a yacht of this size.

Entering the suite on the starboard side you firstly come to the owner’s study and lounge. Immediately to starboard is a desk with two chairs and bookshelves, further forward is a sofa and armchairs with coffee table providing an area for private relaxation. There is also great storage including ample wardrobe space.

This whole area enjoys a large amount of natural light thanks to six very large windows, and a hidden doorway leading to the crew stairwell provides access for a higher level of service.

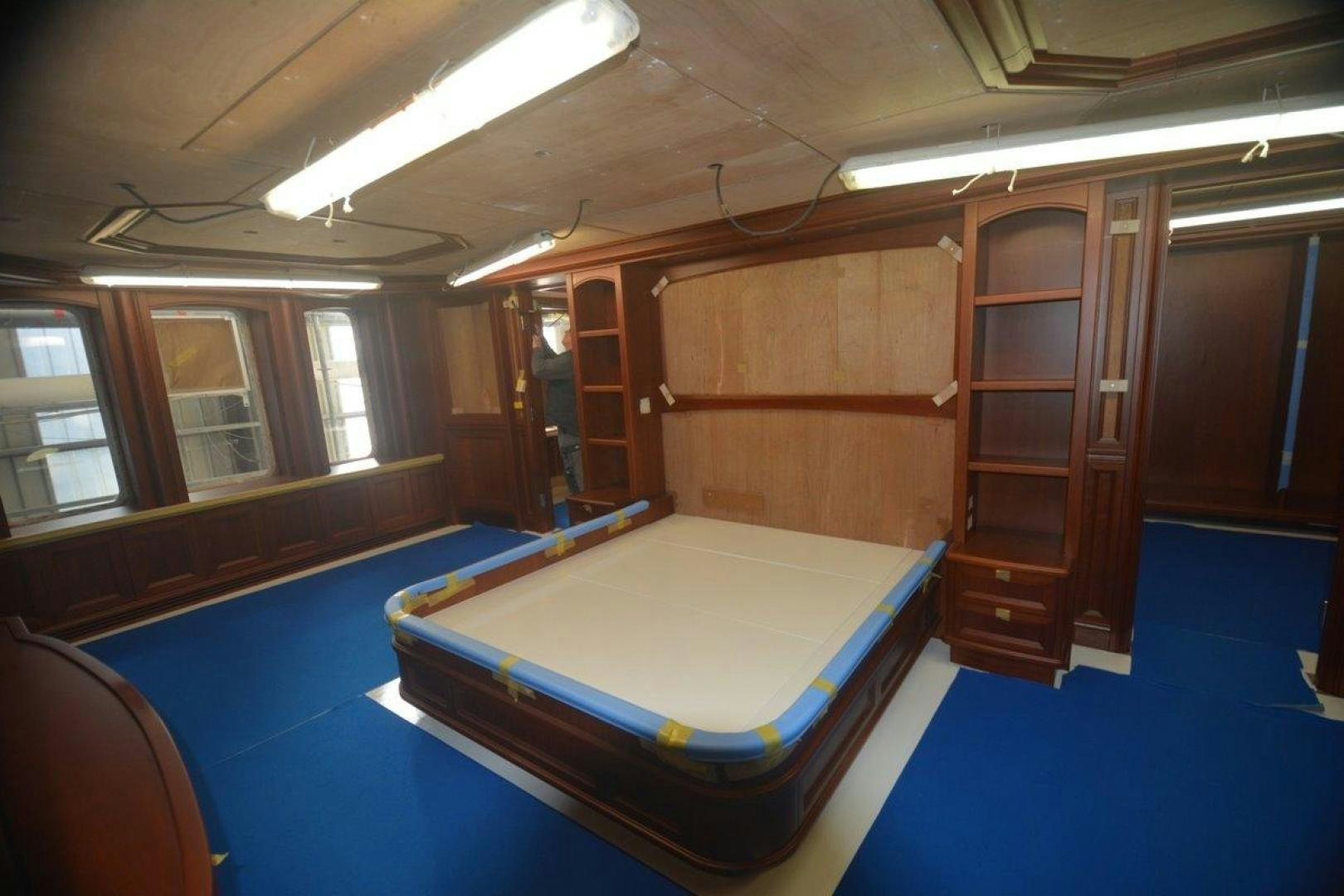

Continuing forward through another door you enter the bedroom. The king size bed is on the yacht’s centerline and faces forward where a large flatscreen TV is wall mounted. To either side are three very large ¾ height windows again allowing in a huge amount of natural light to fill this room.

His and her’s bathrooms are situated forward with separate access to port and starboard. Each has a WC, bidet, basin and beautiful fit out including polished marble. The port bathroom has a bathtub whilst the starboard has a shower.

On the port side aft of the bedroom is a dressing room with full height wardrobes, a large chest of drawers, dressing table and full-length mirror.

Guest Cabins

Five guest cabins are located on the lower deck. These comprise two VIP cabins with queen size bed, a desk and dressing table, and two twin cabins each with two single berths. Each cabin has its own en-­suite bathroom with WC, basin and shower. Additionally, the two aft VIP en-­suites each have a bathtub.

This deck is easily serviced by the crew thanks to discreet access directly from the crew quarters.

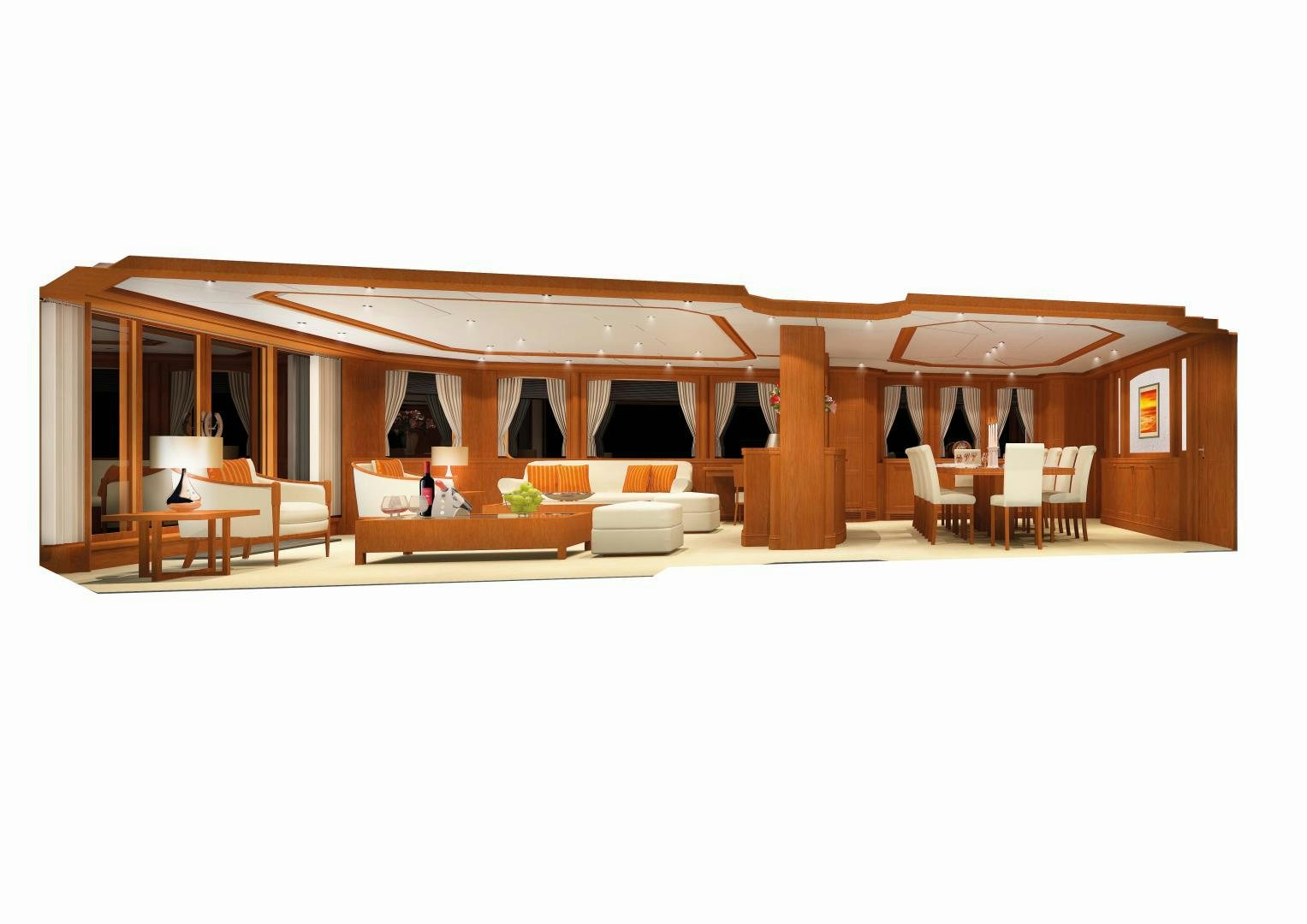

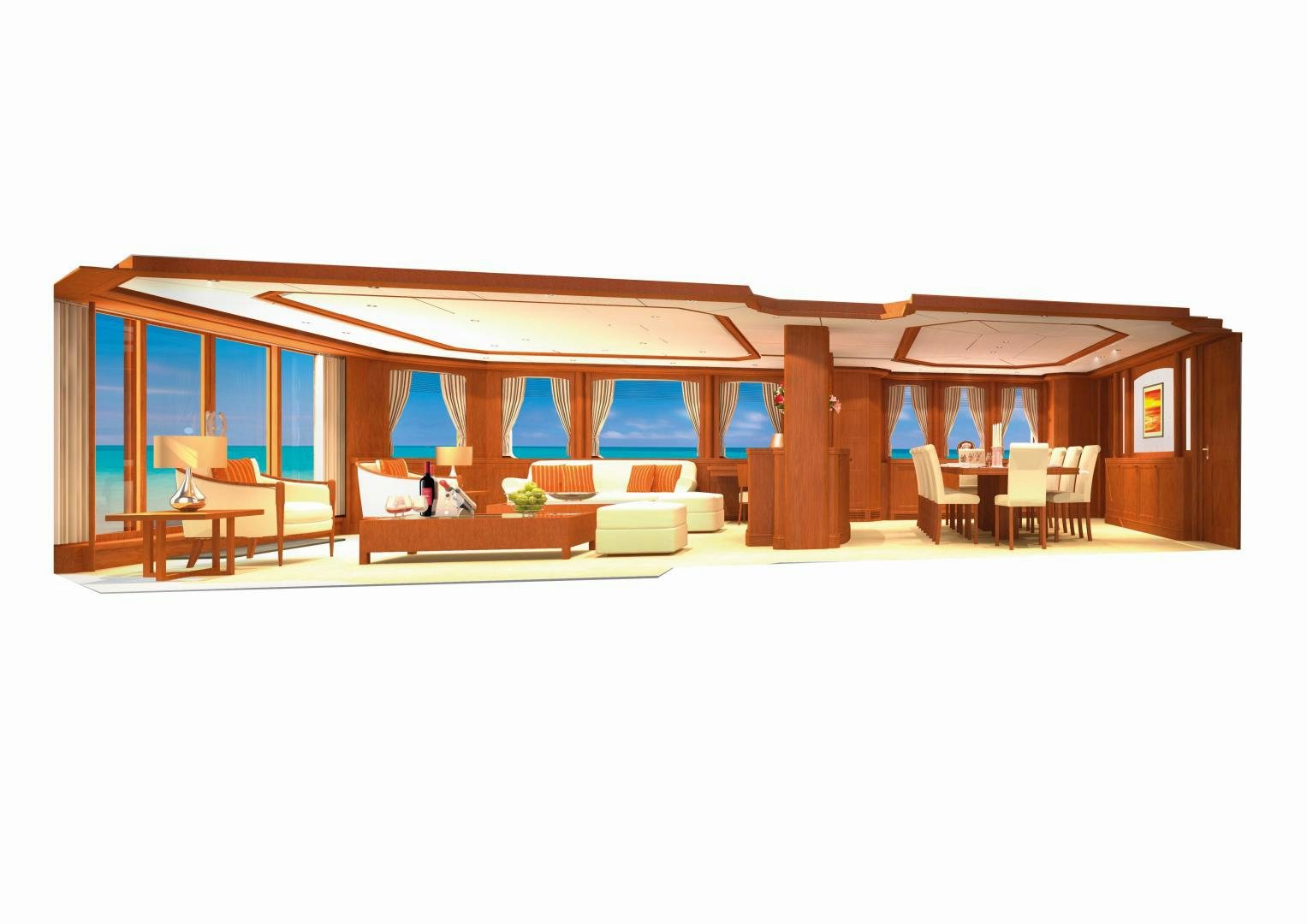

Saloon & Formal Dining

Entering from the aft deck via double sliding glass doors you first enter the saloon. It is symmetrically arranged with a sofa, armchair, ottoman and coffee table to either side and separated the from the formal dining area further forward by a central island cabinet that houses a pop up flat screen TV. The dining table can seat 12 and is surrounded by plenty of storage for crockery, cutlery, glassware etc. and a wine chiller.

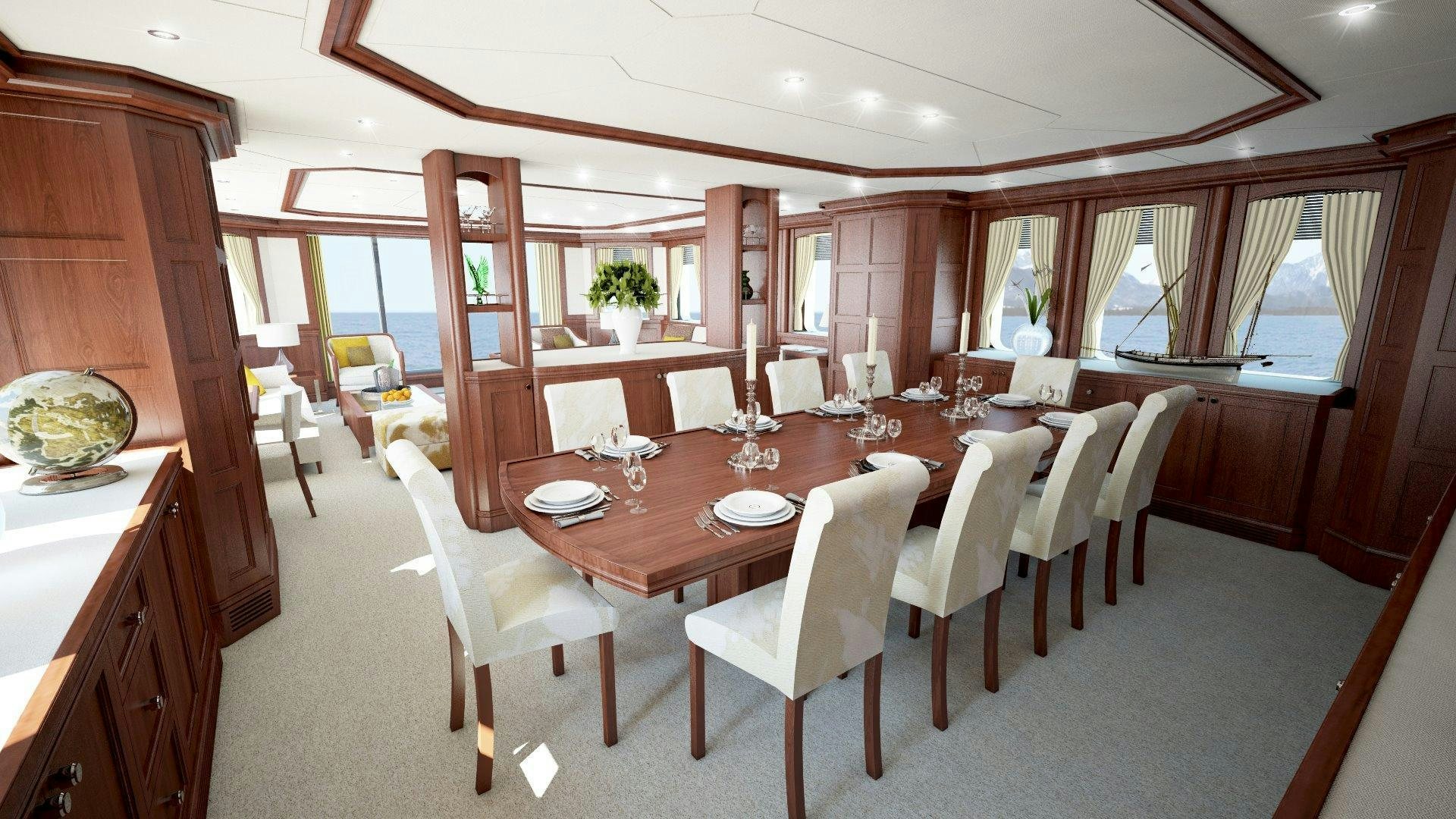

Moving forward through a door on the starboard side you arrive in the lobby. Here there is a day head, internal stair down to the lower deck guest cabins and up to the sky lounge, access forward to the master suite and an external door to the starboard side deck leading to the aft deck or up via an external stair to the upper deck.

Forward of the dining area on the port side is crew access to a pantry and the professionally equipped galley. From the pantry an external door to the port side deck allows access to the aft deck and upper deck via an external stair. Smooth service is helped by the inclusion of a dumb waiter serving the main deck and upper deck pantries plus the sun deck.

Skylounge

The sky lounge is a cosy area, more intimate than the main deck saloon, with a pop up flat screen TV, built­-in sofa, four loose armchairs, a large centered coffee table with two smaller occasional tables. This is a great location from which to enjoy the stunning views, thanks to the full height picture windows, 13 in total, on three sides.

If desired a fold out sofa bed could be fitted in place of the standard sofa to accommodate additional guests. To support this area’s use as a cabin there is a wardrobe and full bathroom with WC, basin and shower in the upper lobby which is directly accessed via a door on the starboard side. The lobby also provides an external door to the starboard side deck from where you may access the forward or aft decks. A further practical feature, especially for those using the foredeck lounging area or sun deck, is the external access to the upper deck bathroom / day head.

Crew service for the sky lounge is from the large upper pantry via a forward door on the port side.

Forward of the sky lounge and lobby is the bridge which is comprehensively equipped in preparation for global navigation. There are two large helm chairs, a ships office to starboard and raised sofa around a coffee table to port that is an ideal place for the owner and any guests to position themselves to be involved in the navigation.

Crew Quarters

Aft of the bridge on the port side is the captain’s cabin with double bed and en-suite bathroom.

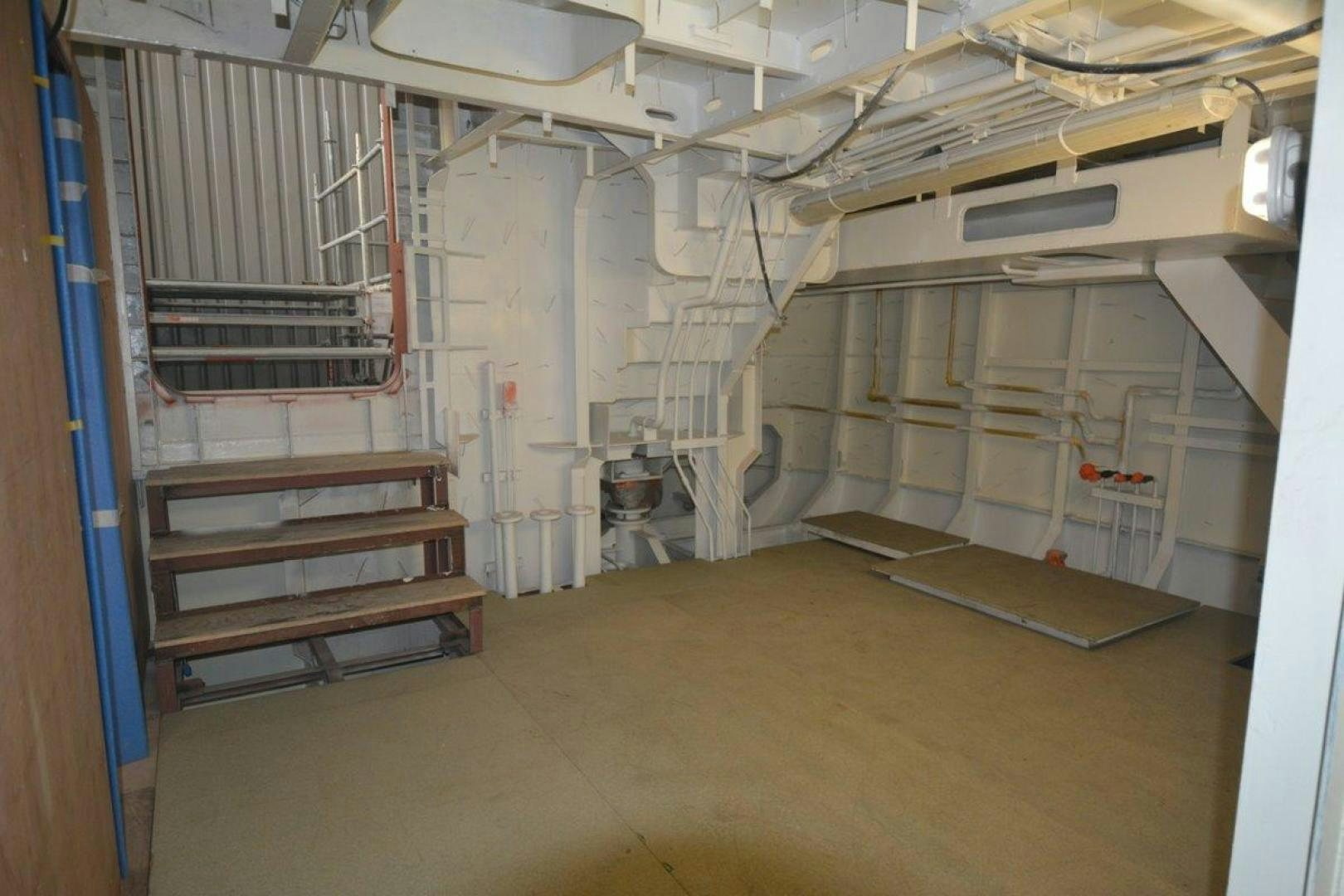

The main crew area is forward on the lower deck. Here there is a crew mess and pantry, the yacht’s laundry and two crew cabins each with two single beds in bunk formation and separate en-suite bathrooms.

At the aft end of the lower deck with access from the lazarette is the engineers cabin with two single beds in bunk formation and an en-suite bathroom. From this cabin the engineers have access directly to the engine room via the lazarette.

Equipment Spec

02 CATERPILLAR engines Cat C32 – B rated at 1100 BHP at 2100 RPM 24V electric start, lubricating oil filters, dry exhaust manifolds, 24 alarm system, electronic instrument panel X 2 each and conical flexible mounts from Vulcan
Purchased and onboard

02 TWIN DISK reduction gear on the ratio 4:1.
Purchased and onboard

02 Vulcan flexible shaft couplings between gearbox and propeller shafts
Purchased and onboard

01 ABTC (American Bow Thruster Co) Hydraulic integrated system with a 20” – 100 Hp bow thruster, a 4 fin size 16X stabilizer system as recommended by American Bow Thruster, with support for dual windlasses.
Purchased, dry fit and removed until final fitout

01 AQUA AIR - A30-4-3 air conditioning system or as dimensioned by the manufacturer per GA with make up air.
Purchased, dry fit and being installed. Fan coils installed.

02 Soundown engine exhaust mufflers horizontally arranged above the engines, resonators, exhaust piping.
Spec'd, ready for purchase

03 station KOBELT engine controls.
Spec'd, ready for purchase

01 ALFA LAVAL water separator model MIB 303.
Purchased, dry fit and removed until final fitout. Electrical box to be purchased.

01 ATLAS 75 KW power converter.
Spec'd, ready for purchase

01 OBERDORFER N1100X-30N fuel transfer pump, 3 phase, 40 gpm @ 0 psi.
Purchased, dry fit and removed until final fit-out.

01 OBERDORFER fuel transfer pump, 24V, 40 gpm @ 0 psi.
Purchased, dry fit and removed until final fit-out.

02 ECONOSTO main fuel manifolds
Purchased, dry fit and removed until final fit-out.

02 RACOR fuel filters for main engines.
Purchased, dry fit and removed until final fit-out

02 RACOR fuel filters for generators.
Purchased, dry fit and removed until final fit-out

01 OBERDORFER N992C81 lube oil pump model.
Purchased, dry fit and removed until final fit-out

02 Northern Lights Generators, 1 X 65kW, 1 X 40 kW @ 1800 rpm, with sound enclosures and mufflers inside, double mounted on Vulcan conical mounts.
Purchased and onboard, awaiting wiring

16 gel cell Marine grade 12 volt batteries.
Spec'd, ready for purchase

02 BOSWORTH 2800-A-30M18CT diaphragm pumps (Black and Gray)
Purchased, dry fit and removed until final fitout

02 MP PUMP HHLF, 5 hp, 3 phase motor, and 2” ports. (Fire and Bilge)
Purchased, dry fit and removed until final fitout

02 Frequency drives for pumps
Spec'd, ready for purchase

01 Emergency bilge pump system
Purchased, ready to be installed

01 KOBELT power steering system with a reservoir and 02 hydraulic pumps.
Spec'd, ready for purchase

02 FCI 1500 gpd, Village Marine or similar water makers, double mounted with separate sediment filters for each unit.
Spec'd, ready for purchase

01 Main electrical panel from LeGall
Spec'd, ready for purchase

02 WEG Fans (Exhaust and Intake ) from Delta T
Spec'd, ready for purchase

02 Frequency drive fan controllers.
Spec'd, ready for purchase

01 XINTEX 4000 watts inverter.
Spec'd, ready for purchase

06 AQUASIGNAL55 navigational lights.
Spec'd, ready for purchase

02 MUIR 8000 lbs, Hydraulic windlass.
Purchased, dry fit and removed until final fitout.

02 MUIR 4000 lbs, 24V capstain.
Purchased, dry fit and removed until final fitout.

01 NAUTICAL STRUCTURES 2000 Kgs Crane.
Purchased, currently being dry fit.

01 BESSENZONI passarelle with 5m reach
Spec'd, ready for purchase

05 EXALTO windshield wipers with controls.
Spec'd, ready for purchase

01 KIDDE FENWAL FM-200 fire extinguishing system
Spec'd, ready for purchase

04 10 people ZODIAK or similar liferaft.
Spec'd, ready for purchase

02 BOSTRON LCR helm chairs with stainless steel pedestal.
Spec'd, ready for purchase

HEADHUNTER toilet system per GA.
Spec'd, ready for purchase

HEADHUNTER toilets, bidets, and solenoid valves
Purchased and ready to be installed

BUELL 4 trumpet air horn.
Spec'd, ready for purchase

09 FREEMAN exterior weathertight doors
Purchased and installed

01 FREEMAN watertight transom door
Purchased and installed

06 FREEMAN watertight flush deck hatches.
Spec'd, ready for purchase

03 NEWTHEX watertight interior doors.
Spec'd, ready for purchase

22 TEMPESTA portholes
Purchased, ready to be installed

01 TEMPESTA salon electric sliding door
Spec'd, ready for purchase

03 SENTRY battery charges (2 x 24V/40A e 1 x 12V/60A)
Spec'd, ready for purchase

04 DURAMAX mod. shaft bearings.
Purchased and onboard

02 THORDON rudder bearing.
Purchased and onboard

02 Anchors and chain.
Spec'd, not quoted yet

SOUTHCO exterior latches as required.
Spec'd, some have been purchased

Interior door hardware per GA.
Spec'd, ready for purchase

Faucets, showers hardware per GA.
Spec'd, ready for purchase

Tank monitoring system.
Spec'd, ready for purchase

02 TIDES MARINE shaft seal FS-4500
Purchased, dry fit and removed until final fit-out

02 GLEDINNING MC-8 100 A shore power cable retriever.
Spec'd, ready for purchase

02 GRUNDFOSS MQ45 water pump. (Fresh water).
Spec'd, ready for purchase

03 GE 40 gls water heaters.
Spec'd, ready for purchase

01 DAYTON fiberglass pressure tank.
Purchased, dry fit and removed until final fit-out

Galley equipment/white goods as per spec.
Spec'd, ready for purchase

Audio visual equipment
Spec'd, ready for purchase

Navigation equipment
Spec'd, ready for purchase
