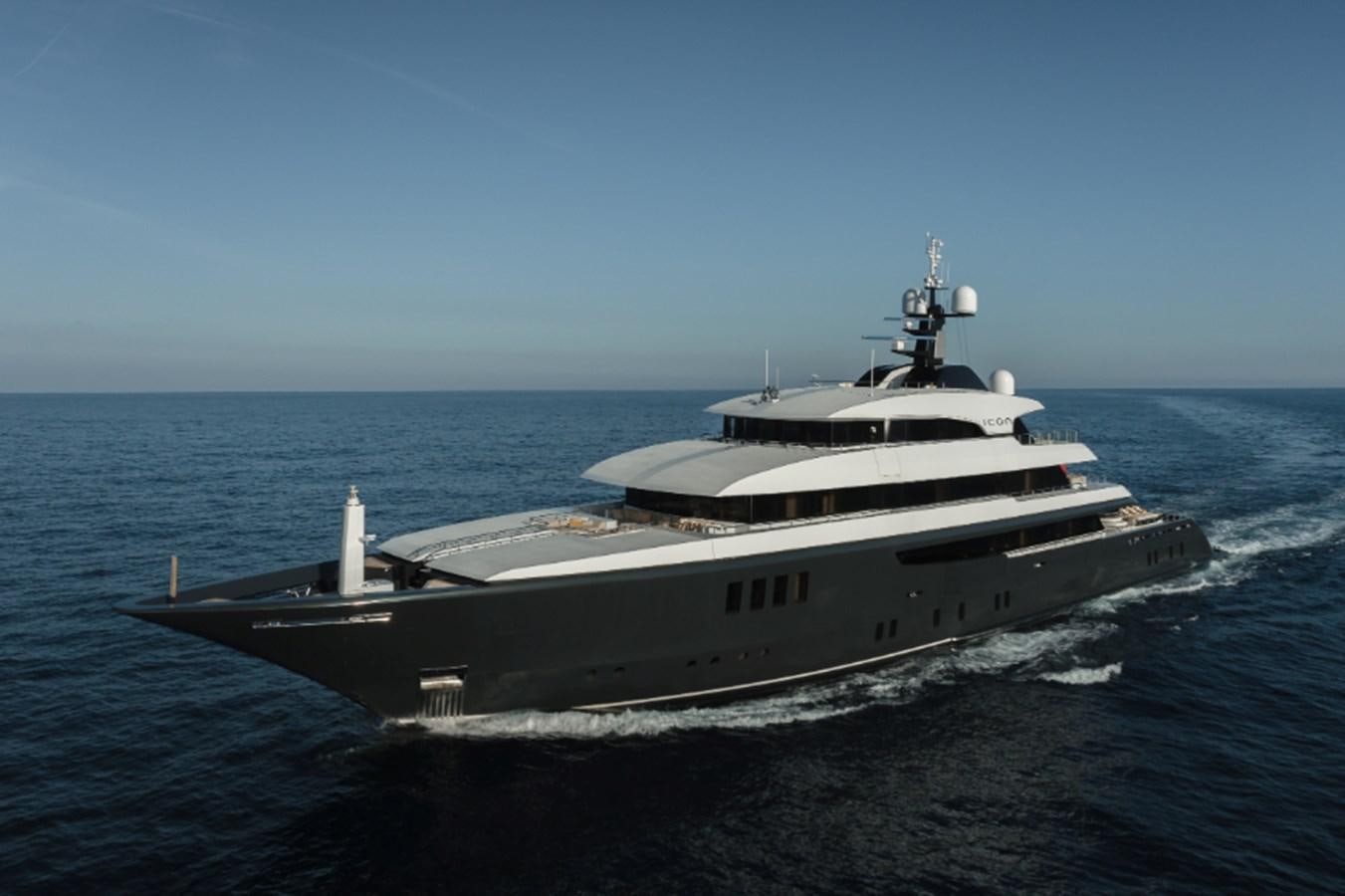

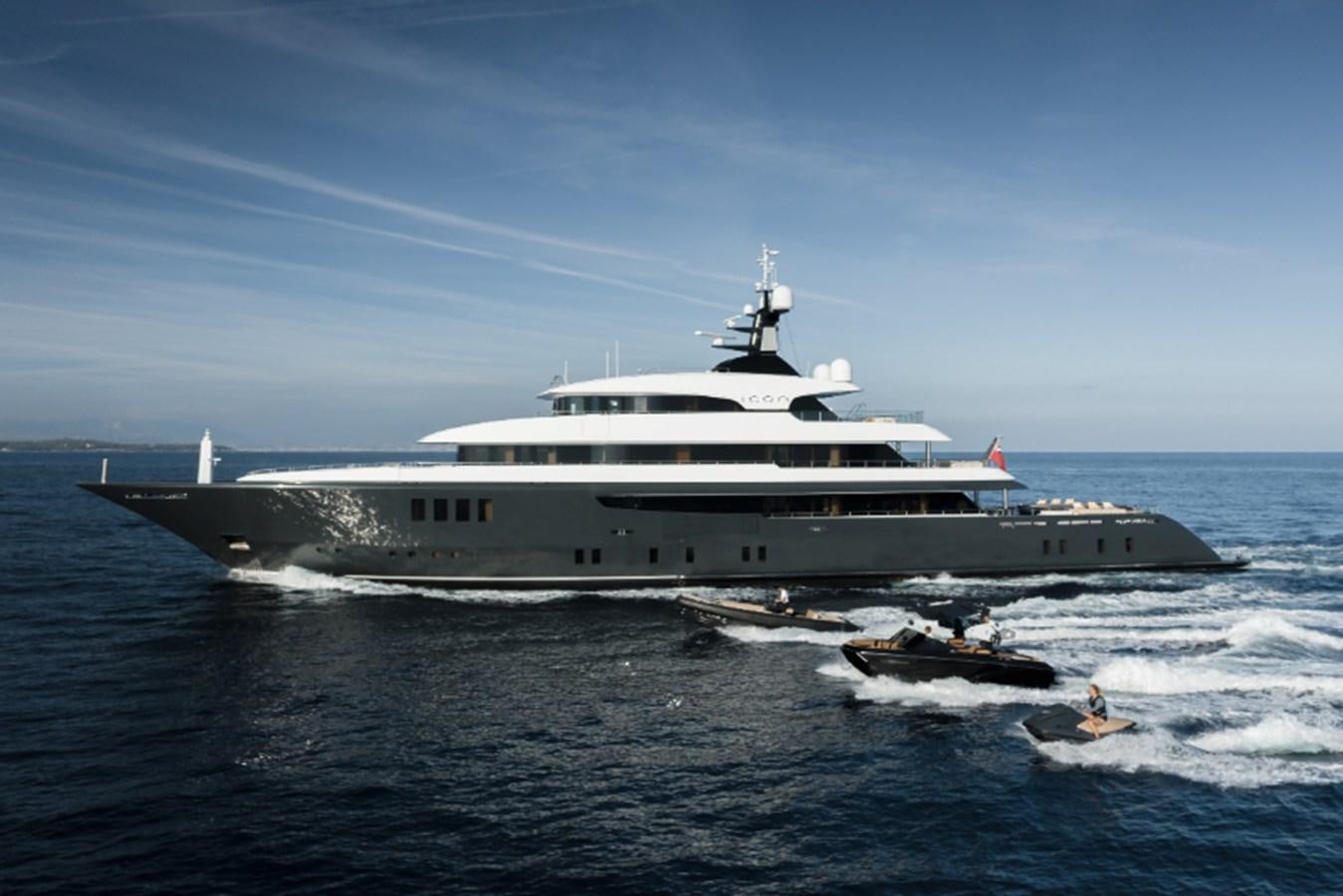

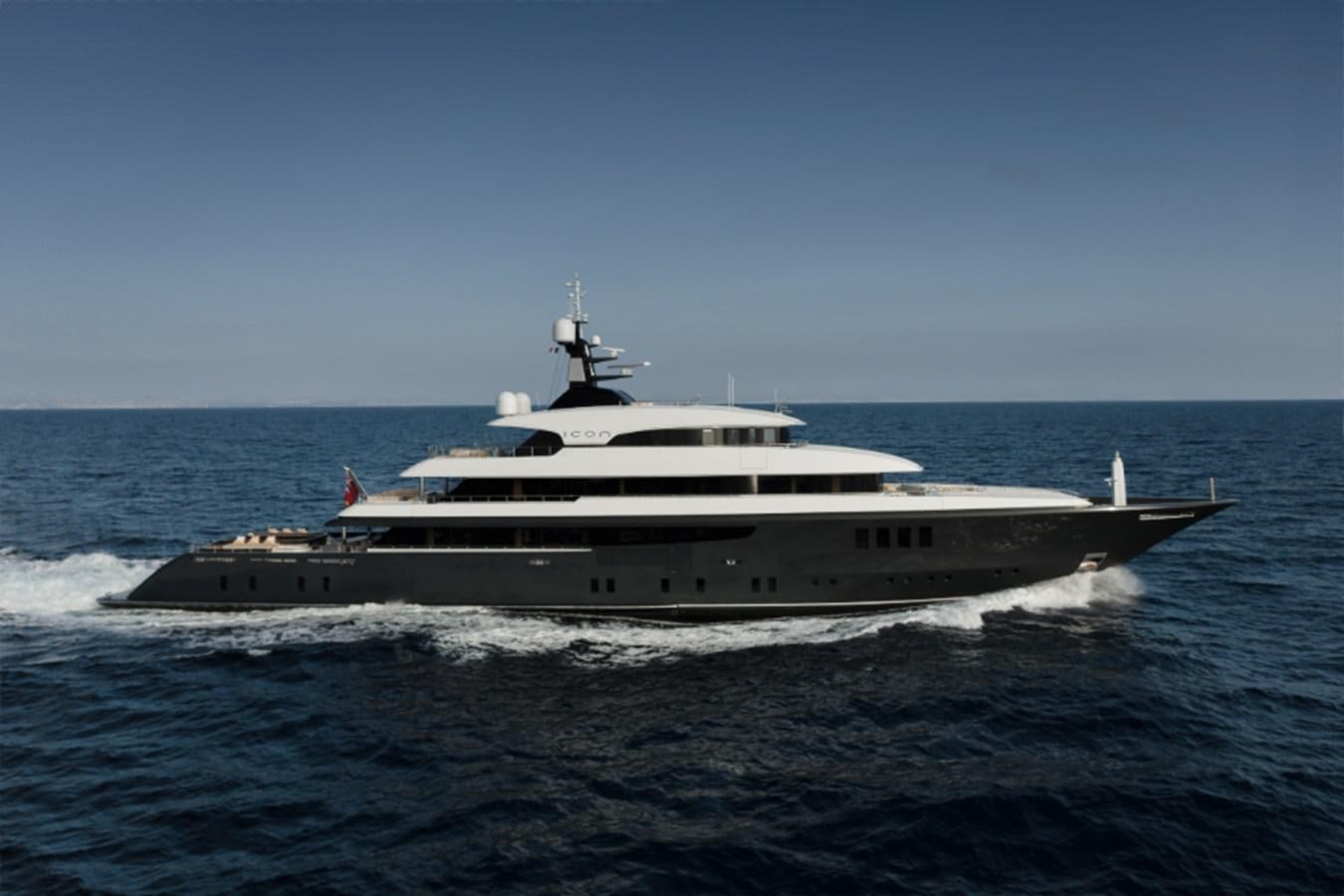

LOON Yacht for Sale

Length
221' (67.5m)
Builder
ICON YACHTS
Build
2010/2020
Cabins
7
Crew
19

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

  • At-Anchor Stabilizers

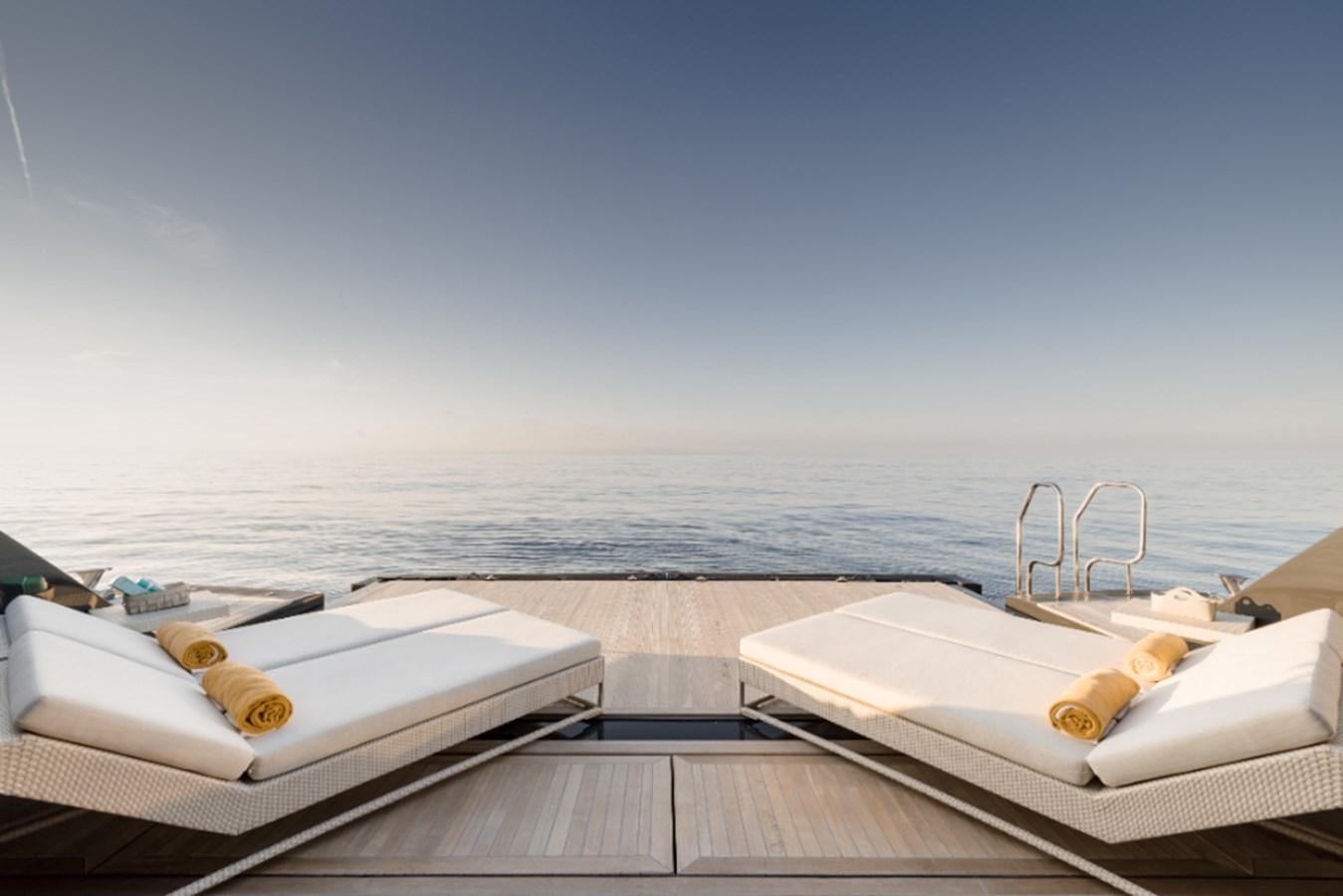

  • Beach Club
  • Gym
  • Jacuzzi
  • Masseuse
  • Personal Watercraft
  • Sauna
  • Swimming Pool
  • Wi-Fi

Specifications

Builder ICON YACHTS
Length (LOA) 221' (67.5m)
Year 2010
Year Refit 2020
Gross Tonn. 1,295
Draft 13' (3.8m)
Beam 37' (11.4m)
Range 6,000 NM
Location Monaco

Accommodations

Staterooms 7
Sleeps 13
Crew Cabins 19
Crew Sleeps 19
Capt. Quarters Yes

Dimensions & Capacity

LOA 221' (67.5m)
LWL 169' (51.4m)
Max Draft 13' (3.8m)
Fuel Tank 42,268 g (160,000 L)
Fresh Water 7,661 g (29,000 L)
Gross Tonn. 1,295
Displacement 1,279

Construction

Hull Material Steel
Ext. Designer Redman Whiteley Dixon
Int. Designer Studio Linse
Cruising Speed 12 Knots
Range 6,000 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

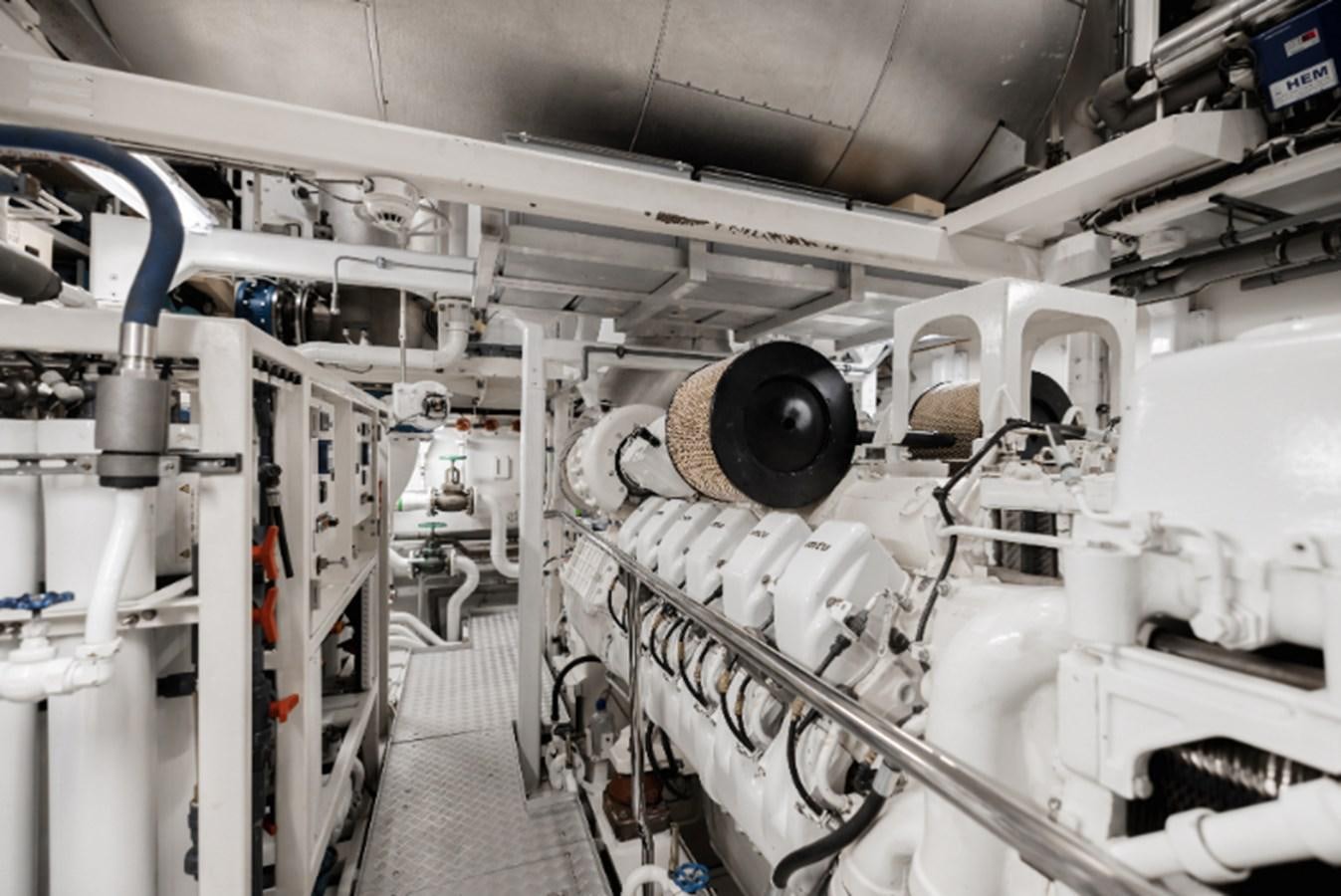

Other Machinery

  • Under Water Lights: UL Ti MATE 75 SA
  • Helm/Wing Station Controls: Radio Zeeland
  • Fuel Filters: Alfa Laval fuel filtration system
  • Fuel Oil Separator: Alfa Laval PU 150
  • Fuel Transfer Pump: Alfa Laval ACP 32
  • Fuel Filling Pump: Azcue CA50/2A
  • Bunkering Station: Port Aft
  • Oily Bilge Water Separator: Facet CPS-2.5B MKIII+ EBM14X1
  • Dirty Oil Pump: Wilden P2
  • Lubrication Oil Pump: Azcue BT-HM32D2-F
  • Fresh Water Makers: 2 x HEM Hydro Electric Marine H40 series RO water makers (20,000 litres per day)
  • Fresh Water Pressure: 4 bar
  • Hot & Cold Circulation Pump: Azcue CP25/160(hot water) 2 x Azcue MO36/20 (hydrophore pumps)
  • Hot Water Boilers: 3 x ACV HRs Jumbo 360 l + 3 x ACV e tech 20kW
  • Black & Grey Water Treatment: Biological sewage treatment unit HMSA MS-II
  • WC's (toilets/bidets): Evac
  • Sanitary Vacuum System: Jets
  • Black & Grey Water Pumps: Azcue CA50/2A
  • Garbage Management System
  • Capacity: 3m3
  • Garbage Compactor: Glass
  • Garbage Cold Storage Room: 3m3
  • AC & Ventilation System
  • Air Compressor: 2 x Kaeser Airtower 6
  • Air Handling Units: HH
  • Provision Refrigeration: 3 x Bitzer semi hermetic compressors 4FC-5.2Y
  • Engine Room AC: Bitzer semi hermetic compressor 4DC-5.2Y
  • Engine Room Ventilation: HH automatic ventilation system with overpressure
  • Galley Ventilation & Extraction: HH 3 x supply fan and exhaust fan
  • Hydraulic Power Packs: 2x Cramm
  • Emergency Power Pack: Cramm

Antifouling System

  • Type: ICPP Cathelco Minites 40Amp

Fresh Water Treatment:

  • HEM reverse osmosis freshwater system / HEM water softener
  • HEM UV water sterilization system / HEM charcoal filtration system

Firefighting & Bilge Pump:

  • Facet bilge water filtration system
  • Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for diving and 300bar for firefighting)

Accommodation

ACCOMMODATIONS:

  • Accommodation for up to 13 guests including an Owner's duplex apartment three double staterooms, two twin staterooms that can be converted to doubles and an additional single cabin.

LOWER DECK:

  • Four convertible staterooms.

MAIN DECK:

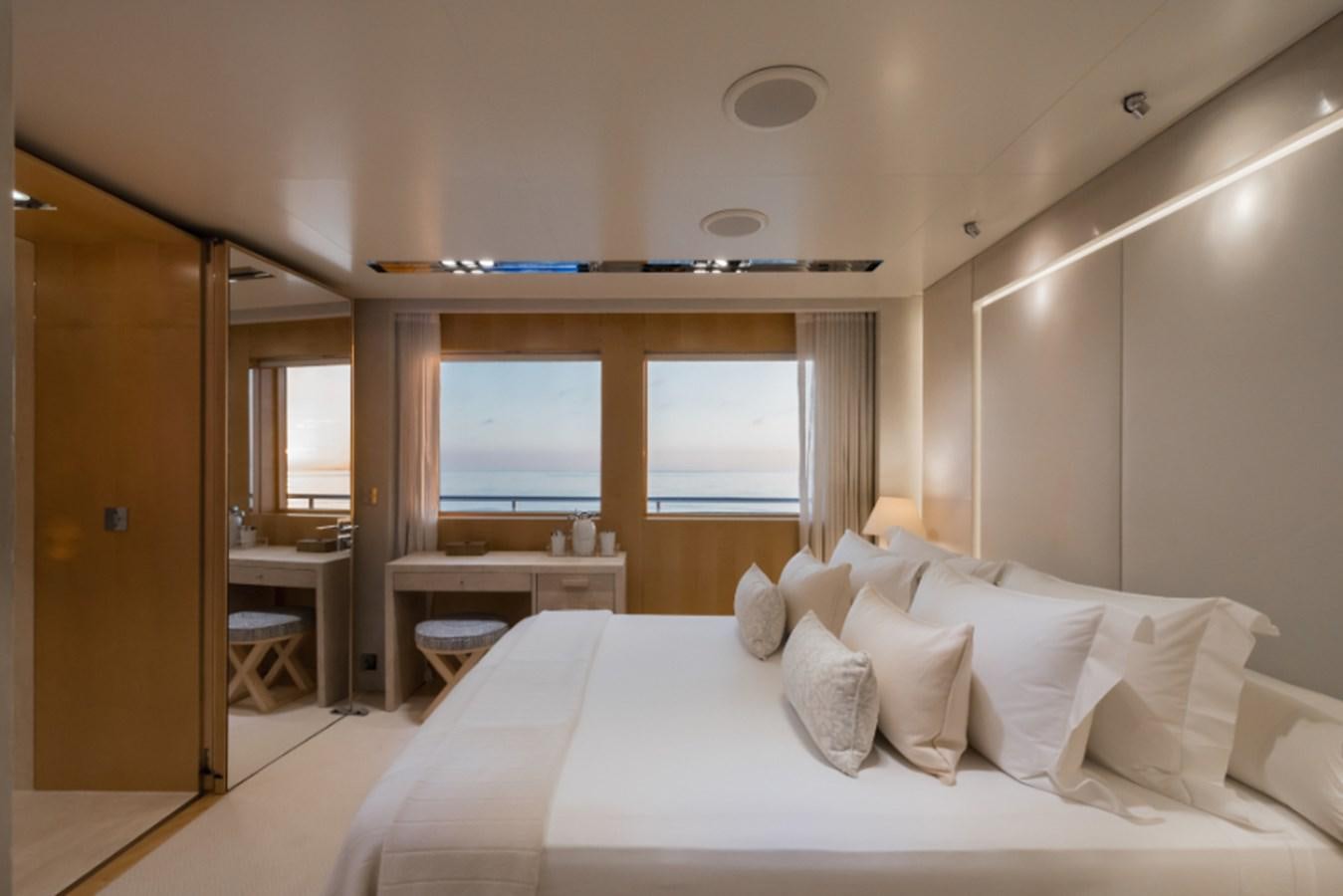

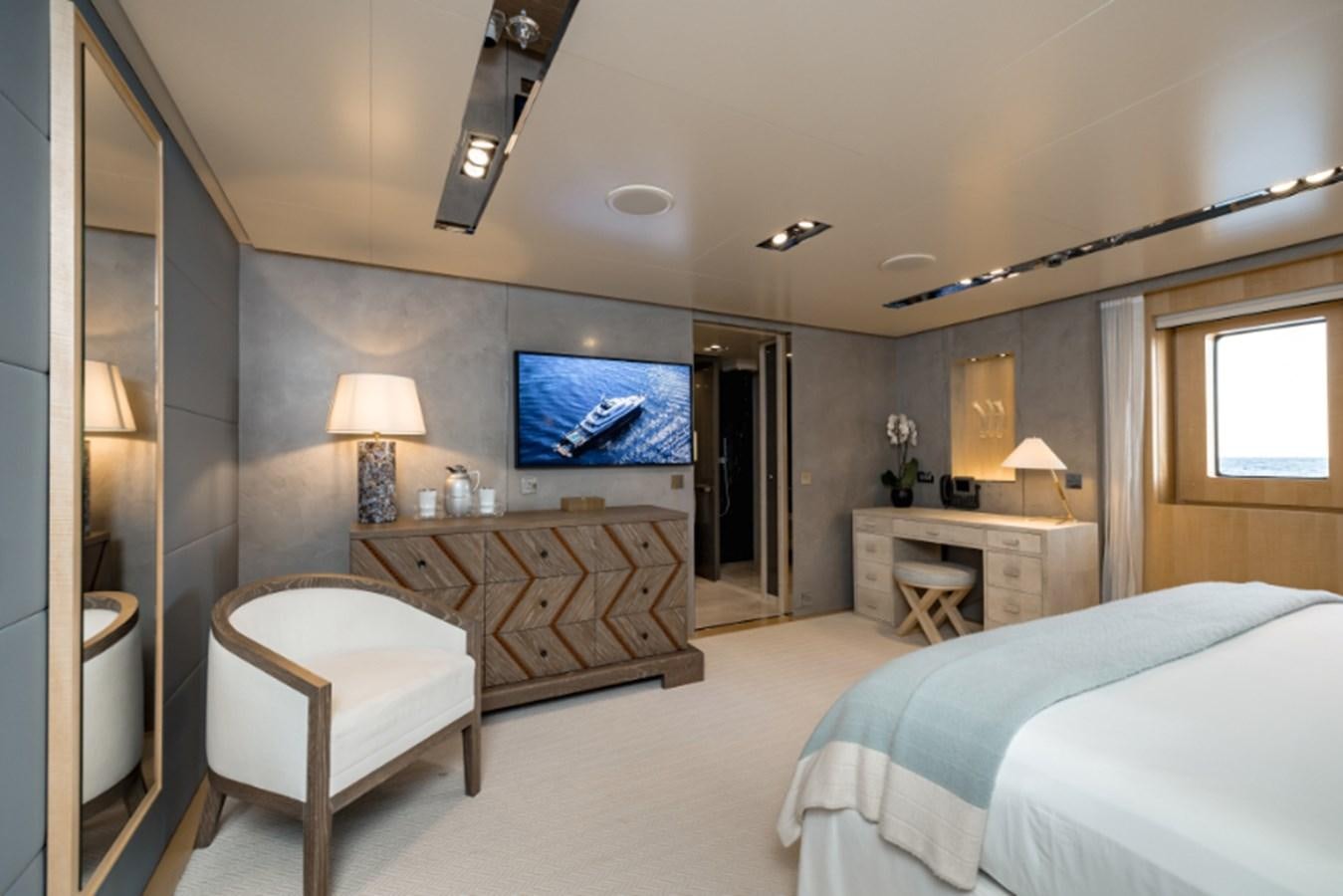

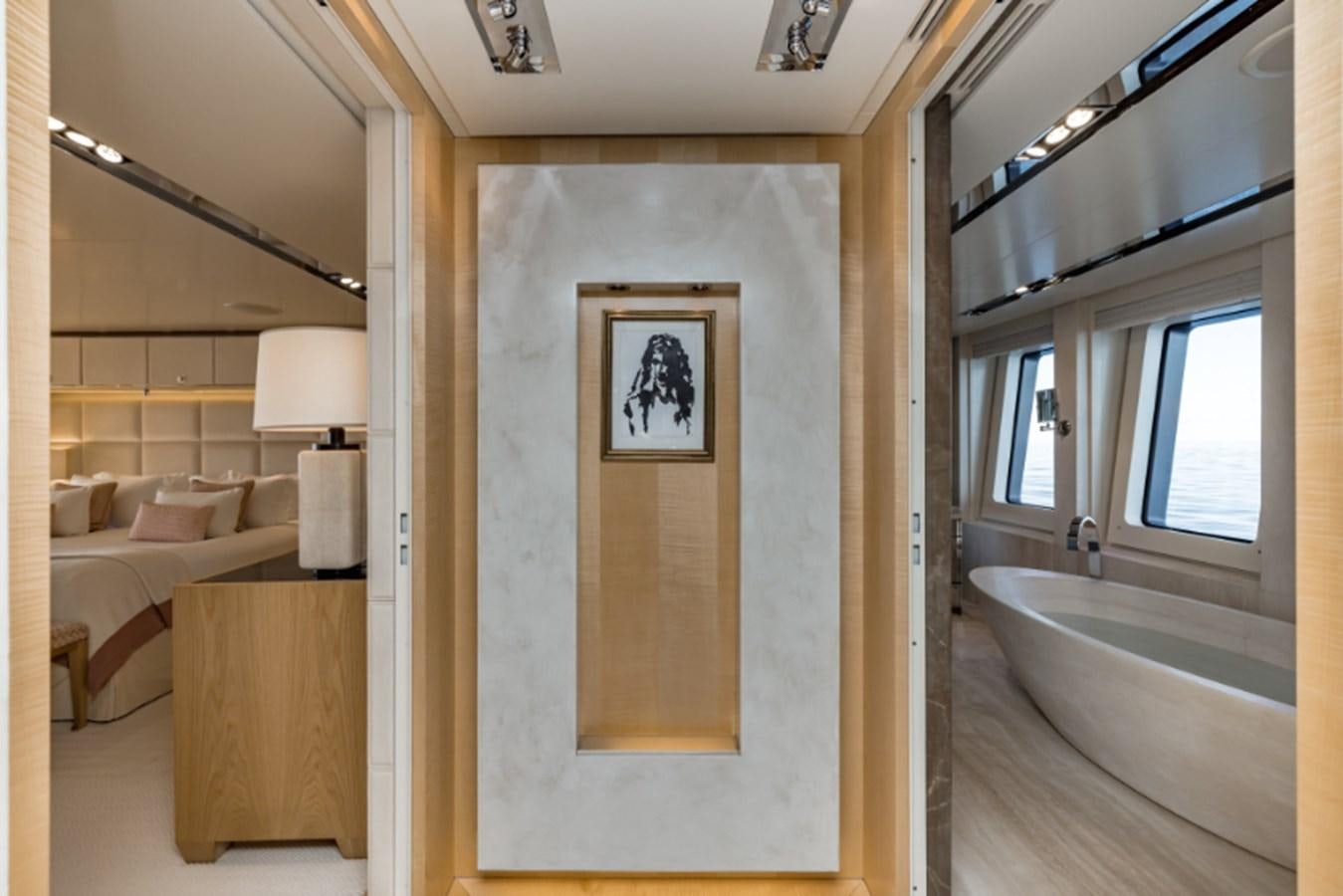

  • Master suite with owner’s office/sky lounge on the upper deck

UPPER DECK:

  • One double VIP stateroom and one single cabin

BRIDGE DECK:

  • Captain and Chief Officers Cabin

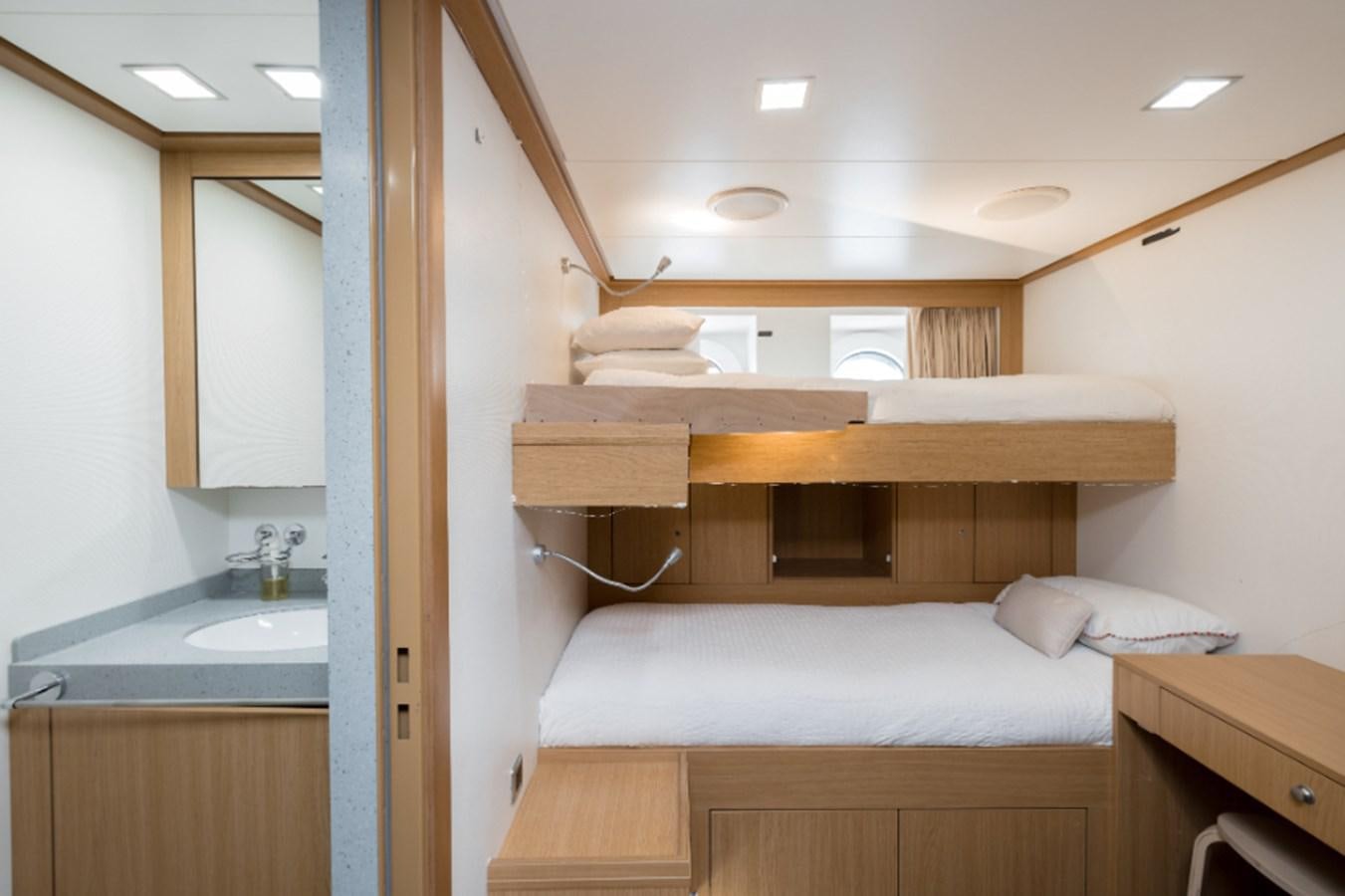

CREW ACCOMODATION:

  • Crew accommodation: Captain and first officer on bridge deck. On the lower deck, a chief engineer’s cabin, 6 shared cabins for crew with direct access to the guest accommodations’ corridor for service. On the tank deck there is the crew mess room and relaxation area as well as 2 additional crew cabins

Galley & Laundry Equipment

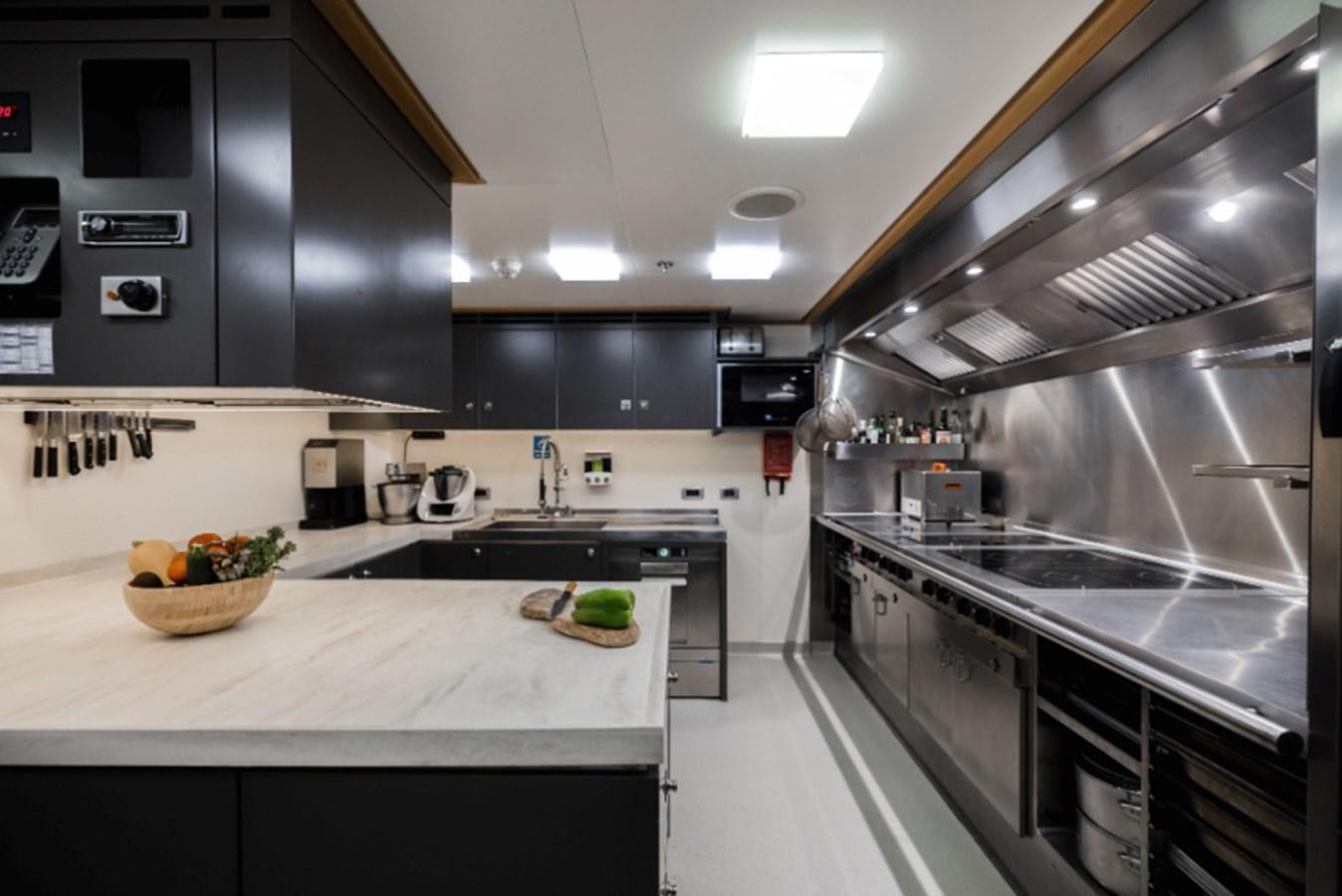

MAIN GALLEY EQUIPMENT
Cooking Equipment:

  • Professional MKN cooking equipment, fully integrated in seamless stainless steel work surface.

Refrigeration/Freezer:

  • 1 x walk-in fridge 6m2
  • 2 x walk-in freezers 6m2 (can be raised to fridge temperature)

Dishwasher:

  • Hobart industrial dishwasher

Dumbwaiters:

  • 2 x dumb waiters by Holland Marine which together serve all decks. Innovative lift cage with two compartments, one standard for trays and a large lower compartment for trolleys

Other:

  • 1 x Weber BBQ
  • Buffet cabinets with refrigerator, ice maker, plate warmer

PANTRIES AND OTHERS
Refrigeration/Freezer:

  • 60L Fridge Frigonautica

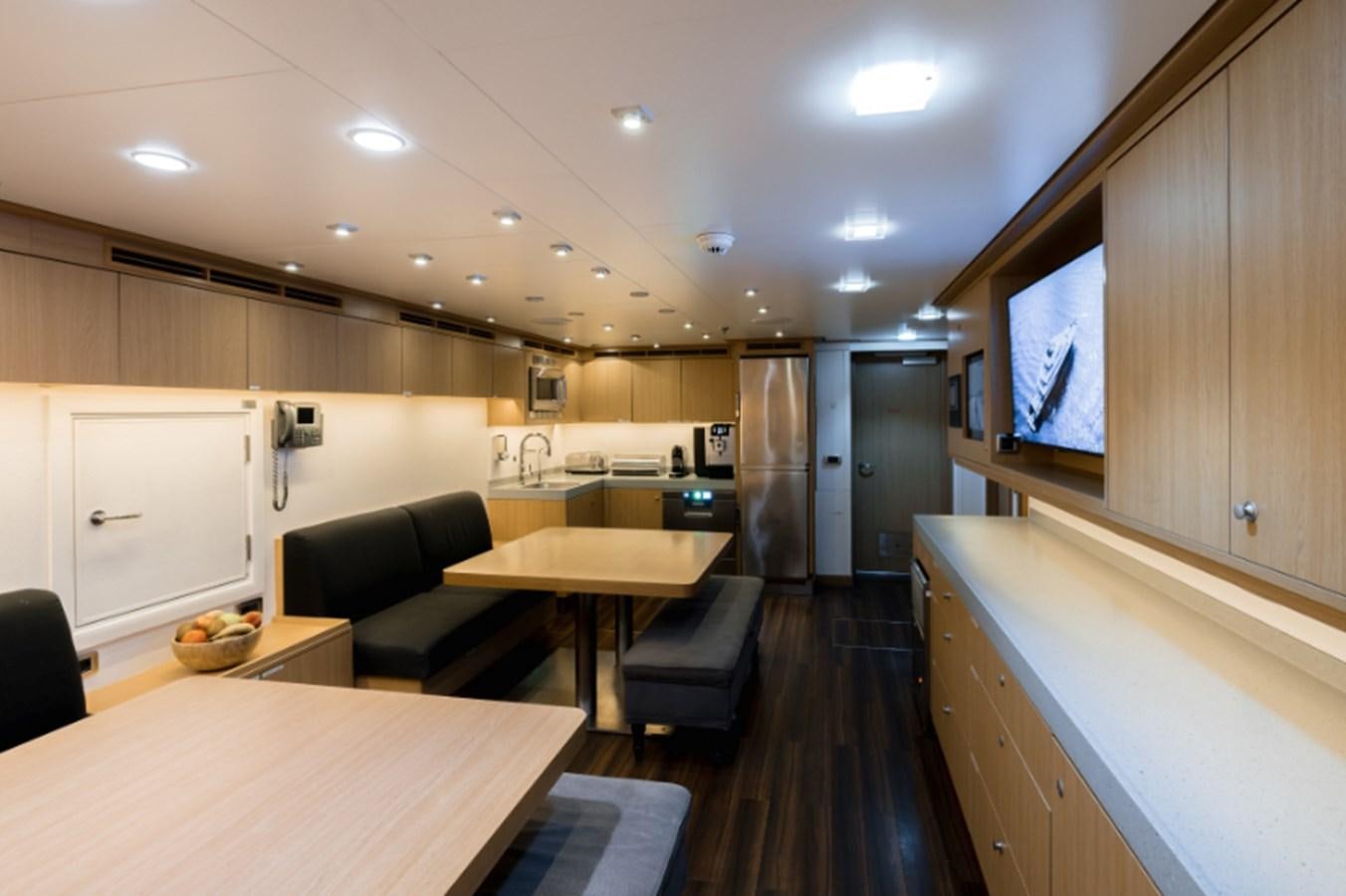

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT
Microwave:

  • Panasonic professional combi microwave

Refrigeration/Freezer:

  • 1 x Frigoboat

Dishwasher:

  • Hobart industrial dishwasher

Wine Storage:

  • 1 x Fridge and 1 x Storeroom

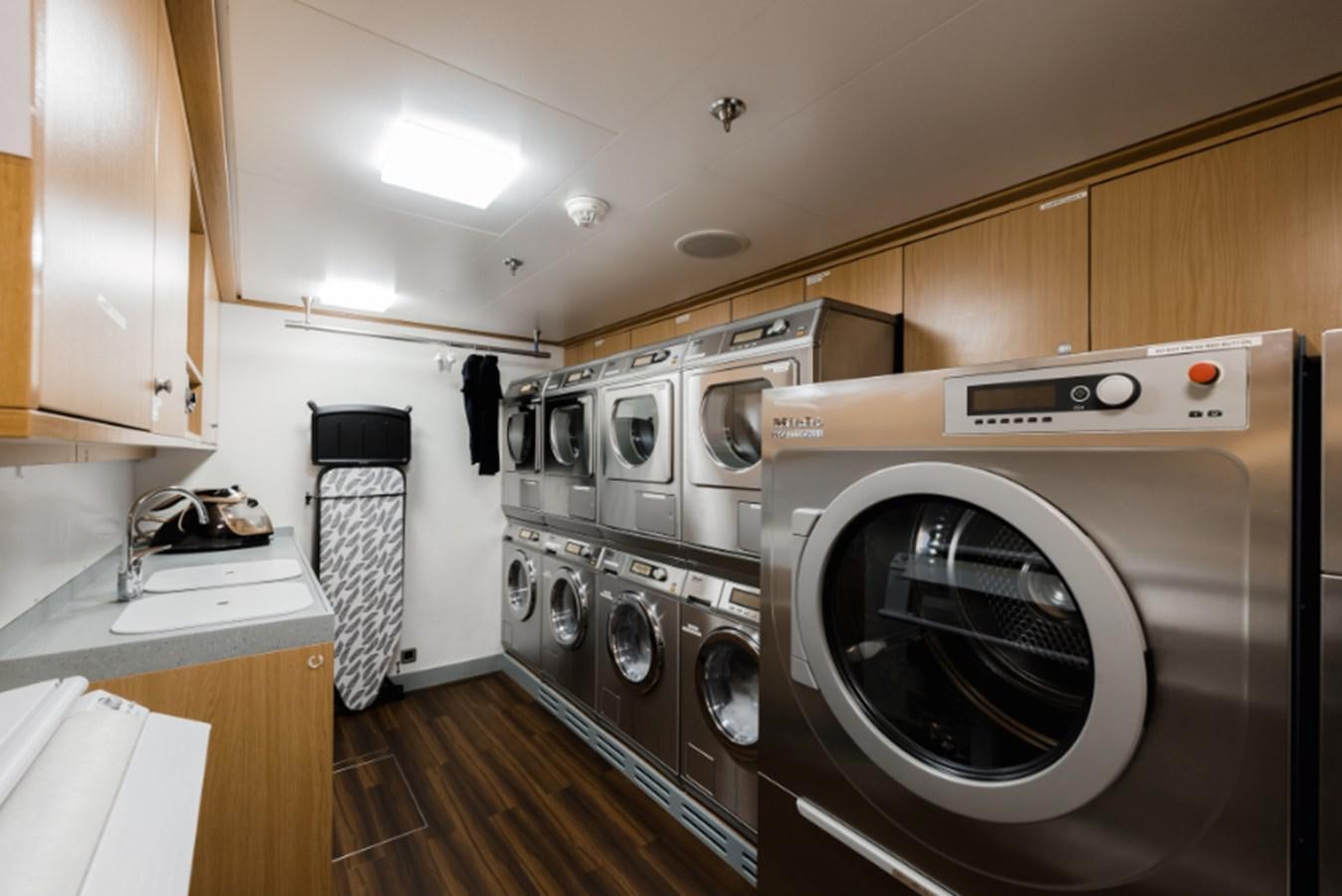

Main Laundry Equipment:

  • Miele professional 4 x PW6065 washing machines, 4 x PT7136 dryer, 1 x PW6133 washing machine, 1 x PT7331 dryer, 1x HM 16-80D rotary ironer.

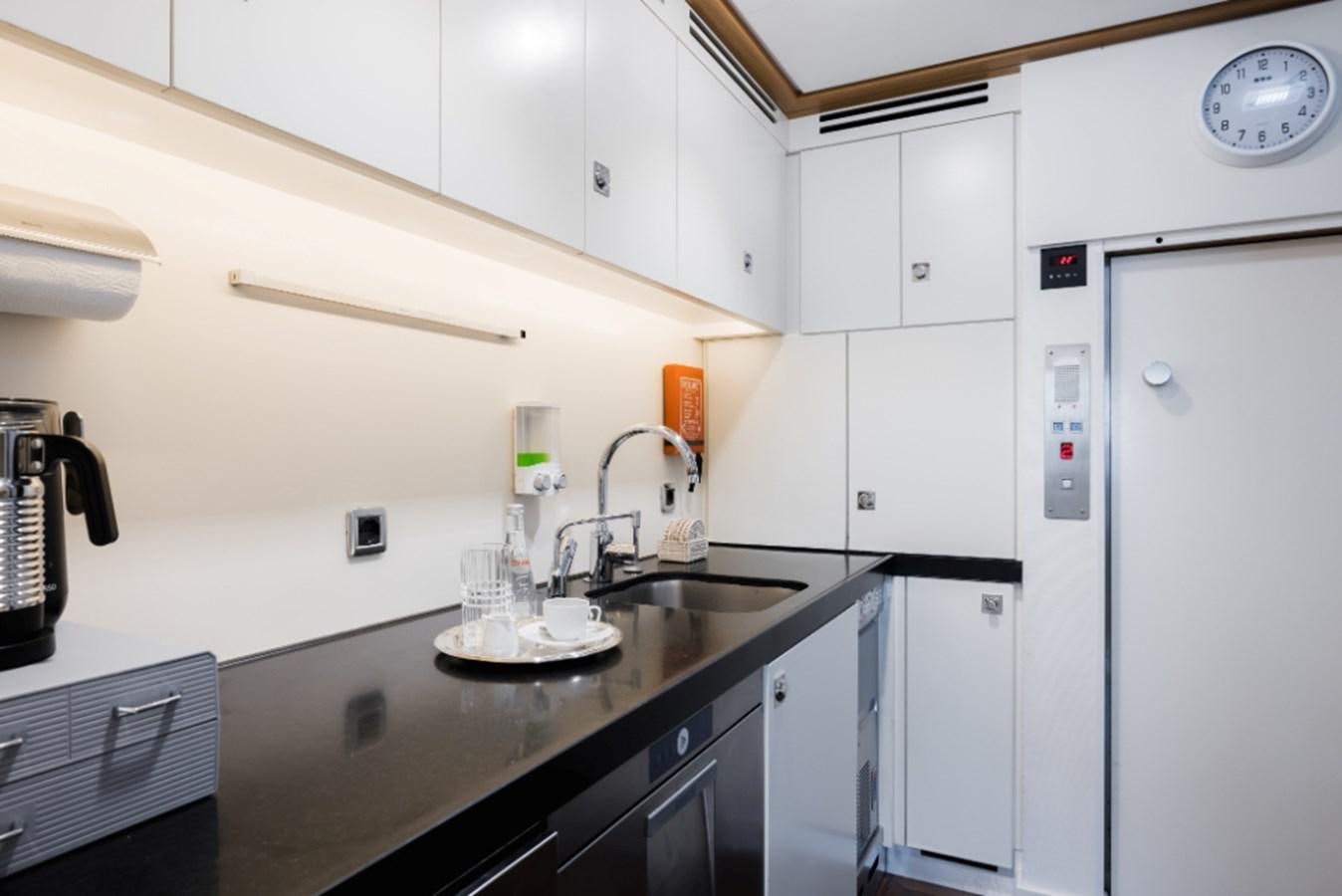

BRIDGE DECK PANTRY

  • Nespresso coffee machine
  • Quooker instant boiling water tap
  • Mixer tap
  • Insinkerator
  • Stainless steel sink
  • 60L drinks fridge

MAIN DECK PANTRY

  • 60L drinks fridge
  • Foster Ice maker
  • Hobart industrial dishwasher
  • Santos citrus juicer
  • Panasonic professional combi microwave
  • 4 zone hob
  • Griddle
  • Pasta cooker
  • Deep fryer
  • Static oven
  • Combination steam oven
  • Salamander grill
  • 1 x walk in garbage fridge 6m2
  • Custom stainless steel exhaust hood with 3 variable frequency intakes and one extraction fan to insure slight under pressure over cooking range to minimize smells and cold air extraction

LOWER GUEST LOBBY

  • 1 x guest drinks fridge 60L

UPPER DECK PANTRY

  • Nespresso coffee machine
  • Quooker instant boiling water tap
  • Mixer Tap
  • Insinkerator
  • Stainless steel sink

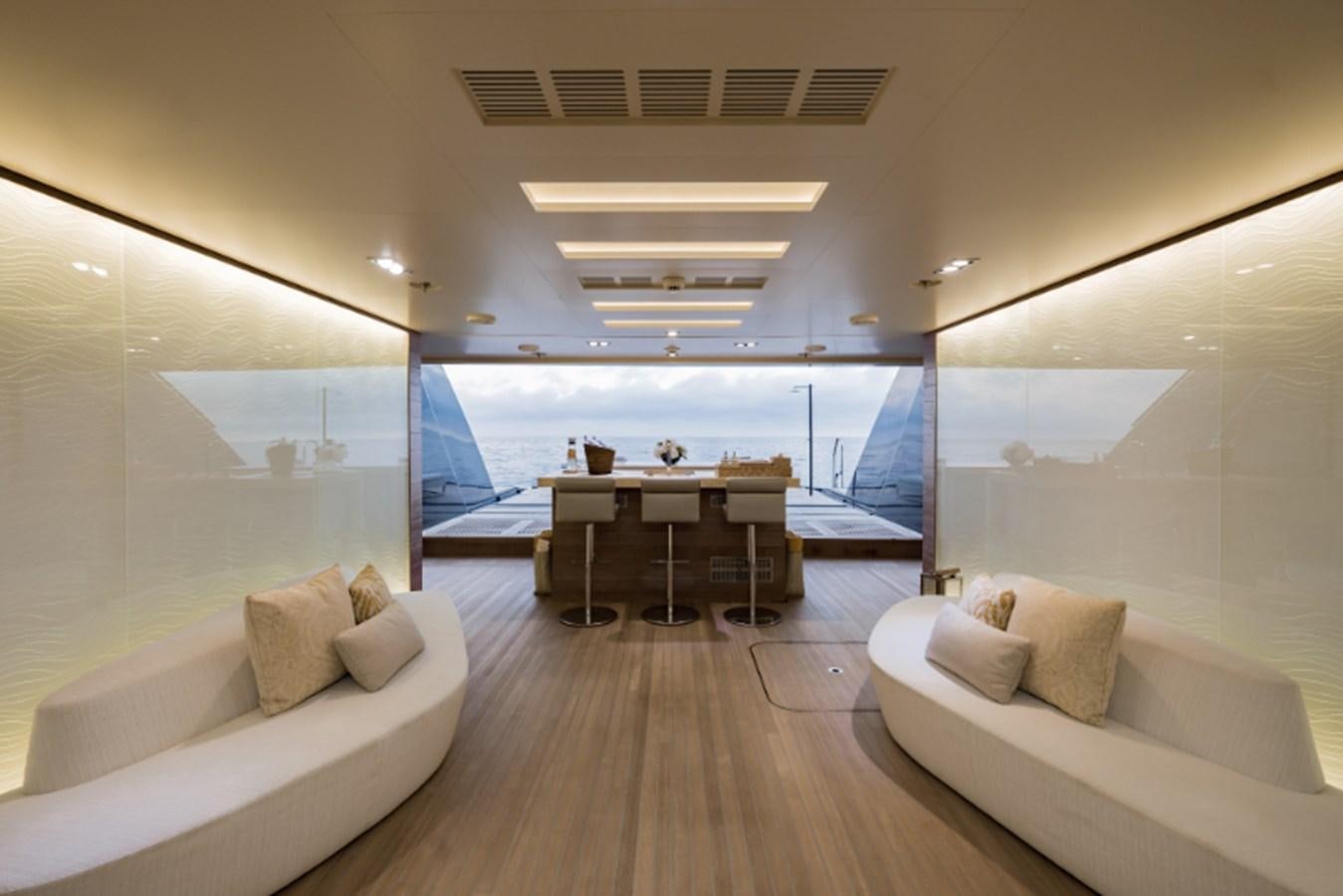

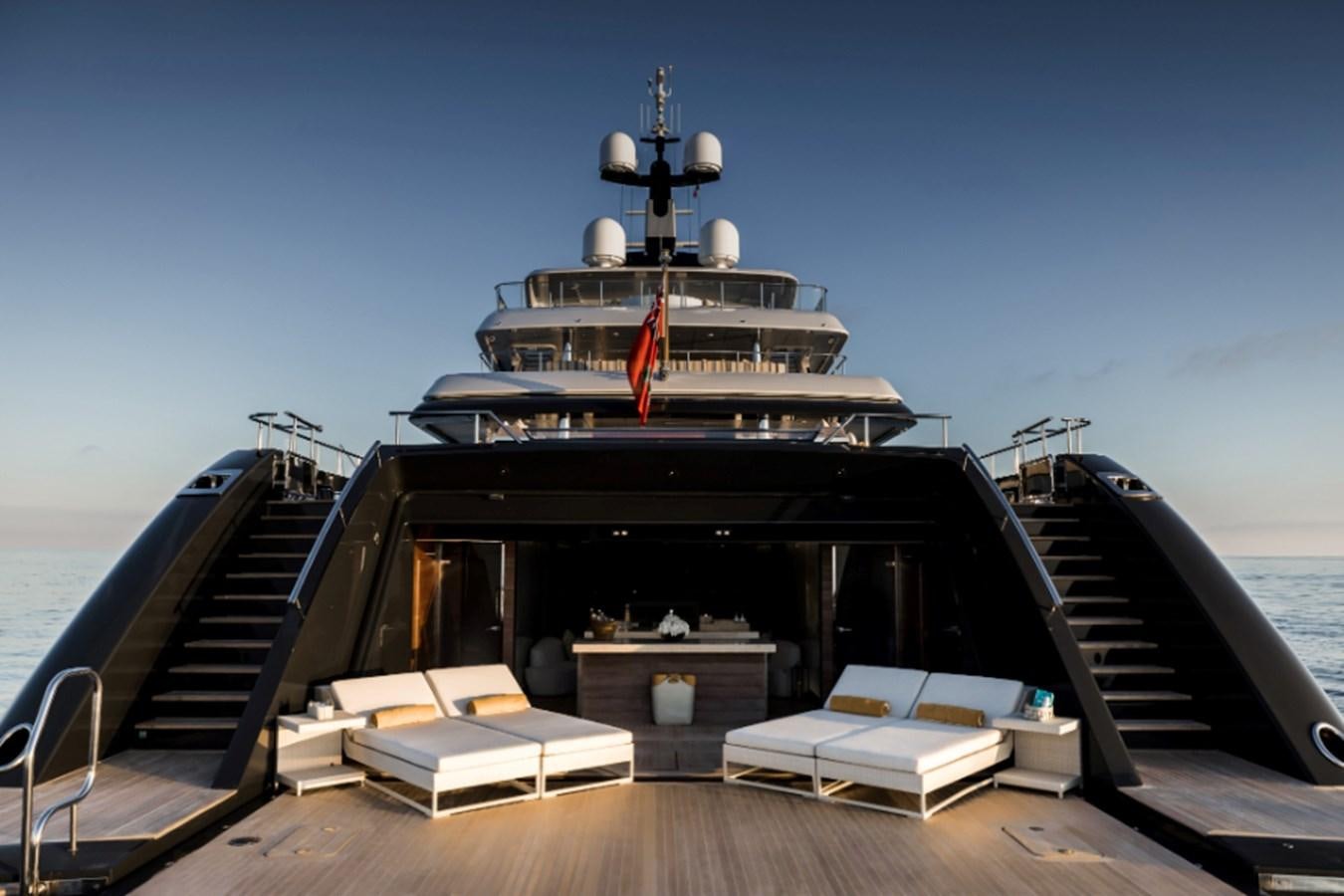

BEACH CLUB

  • 60L drinks fridge
  • Foster Ice maker
  • Bar
  • Marble sink

OTHER EQUIPMENT

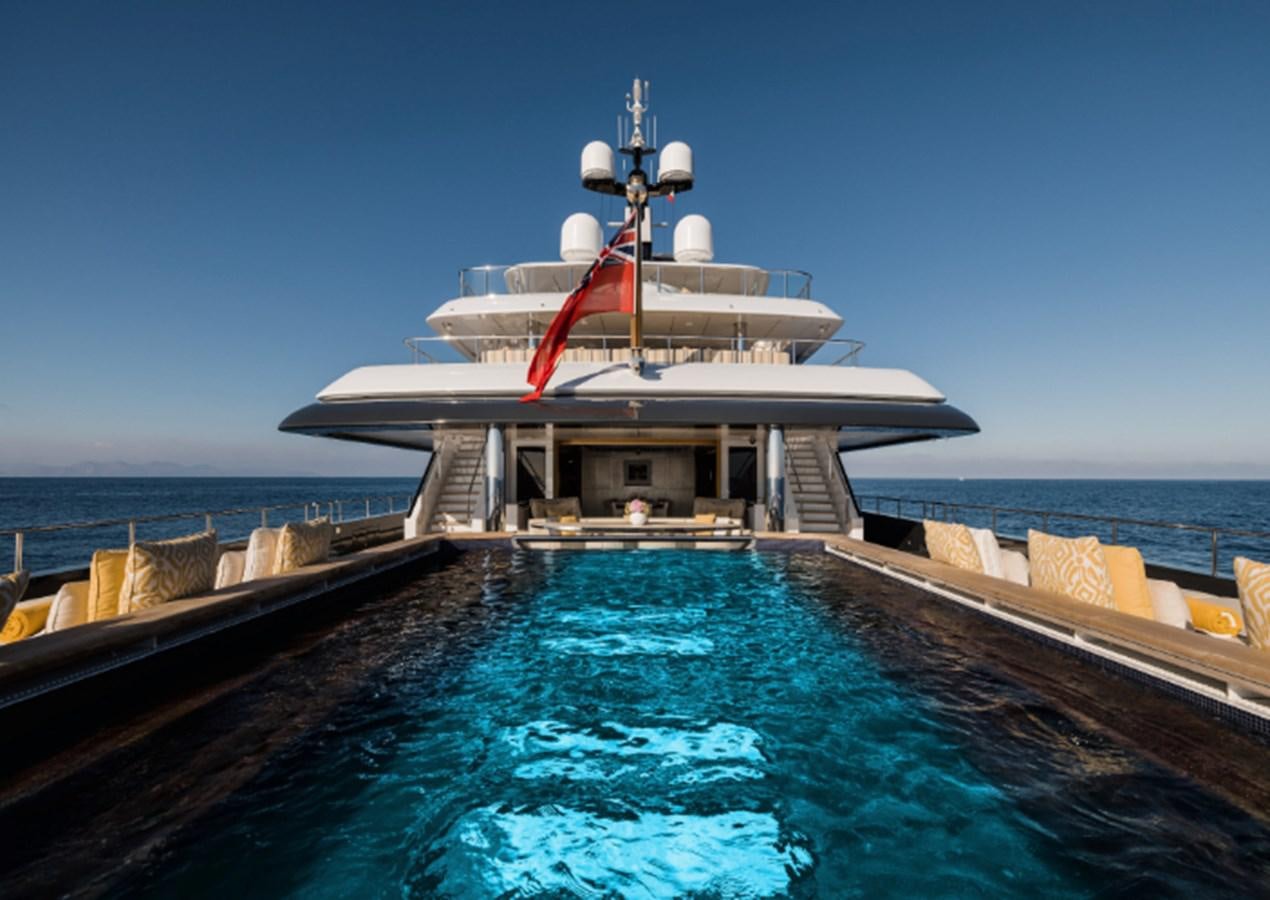

Pool:

  • Filtered Salt Water

Spa Tub:

  • Hoesch Alabama whirlpool on bridge aft deck

Sauna:

  • 1 x Sauna

Massage Room:

  • 1 x Massage Room

Gym Equipment:

  • 1 x BonPilates Reformer Compact
  • 1 x Technogym Kinesis Personal Multi-Functional Gym
  • 1 x Technogym Recline Bike
  • 1 x Technogym Forma Synchro
  • 1 x Technogym Unica Compact Multi Gym

Sun Awnings:

  • 1 x UpperDeck Aft

Communication Equipment

SAT com:

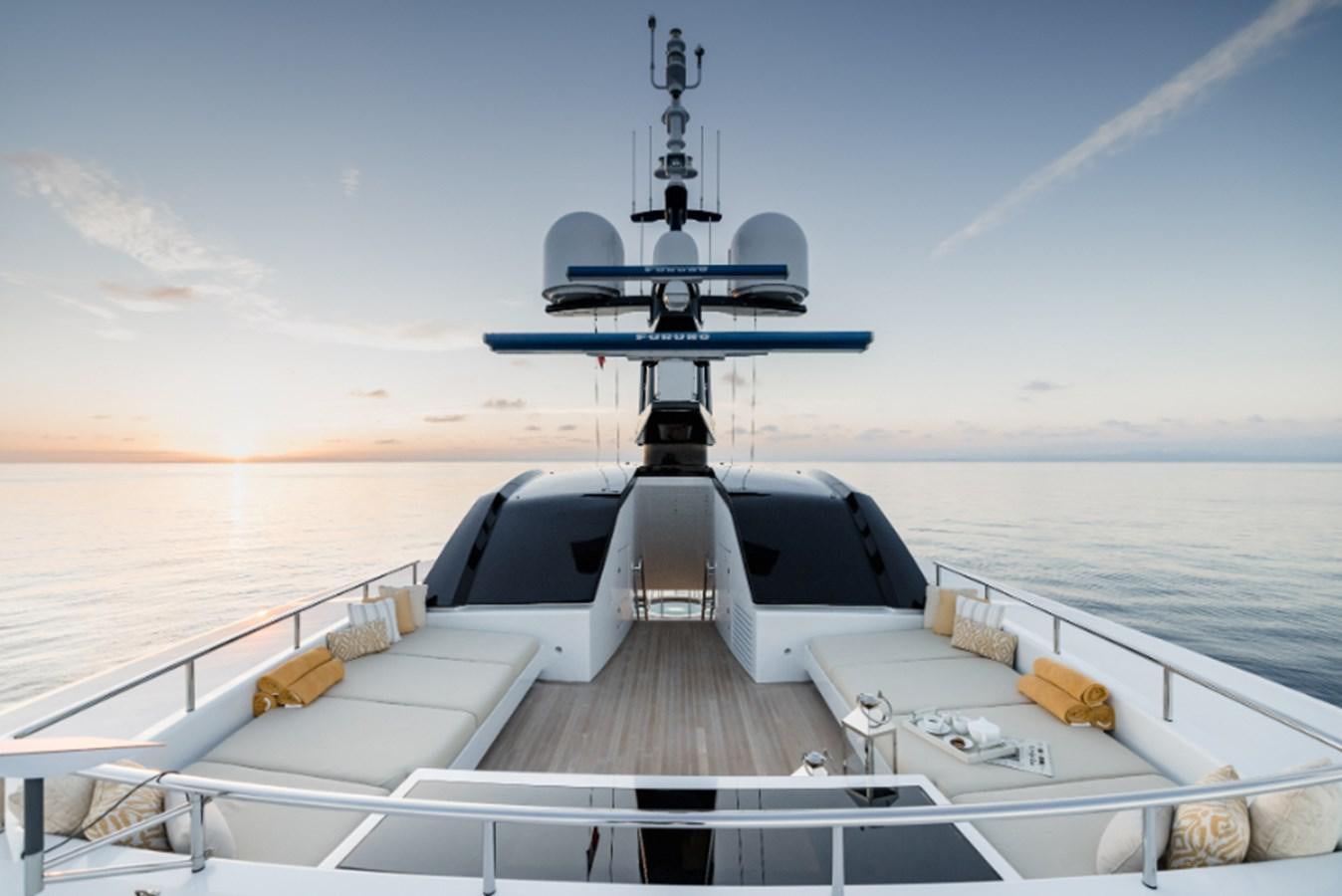

Satellite antennas:

  • TVRO: 2 x Sea Tel 100 TVHD
  • VSAT: 2 x Sailor 900
  • VSAT:
  • 1 x Seatel 4006 VSAT 512kbs/256kbs

INMARSAT – C:

  • 1 x Furuno Inmarsat C TT-3606E GMDSS system
  • 1 x Inmarsat Fleet 500 with internet and emergency worldwide communication

SSAS:

  • 1 x TT-3000E SSAS

ECDIS:

  • Full ECDIS Transas 4000 paperless bridge

Telecom Systems:

  • 2N VoiceBlue MAX

VHF Radiotelephones:

  • 1 x Sailor 6222 VHF/DSC radio
  • 20 x Icom IC-F2000S UHF radio

Portable VHF:

  • 3 x Jotron handheld VHF radios

Portable GMDSS VHF:

  • 1 x Sailor 6110 Gmdss system

Iridium Satellite Phone:

  • 1 x Iridium Sat Phone

Intercom – Talk Back:

  • Phontech CIS

Telephone System:

  • Cisco CME

SSB:

  • 2 x Sailor SSB radio TT3042C

Radar Transponders:

  • 2 x Jotron Tron SART20

Navtex Receiver:

  • 1 x Furuno Navtex NX 700

GMDSS Battery Plant:

  • 2 x 12V PowerSafe monoblocs

Guest Phones:

  • 15 x Cisco IP Phone 7945

Internal Ship’s Communication:

  • Cisco CME, 20 X Icom IC-F2000S UHF radio

IP Phones:

  • Cisco IP phones in every room, all connected to VSAT and GSM

Portable Phones:

  • 1 x wireless Cisco portable phone, linked to VSAT and GSM and internal phone line

GSM Phones:

  • 4 x cellular GSM/data phones
  • Each cabin has a wired and wireless LAN connection

Navigation Equipment

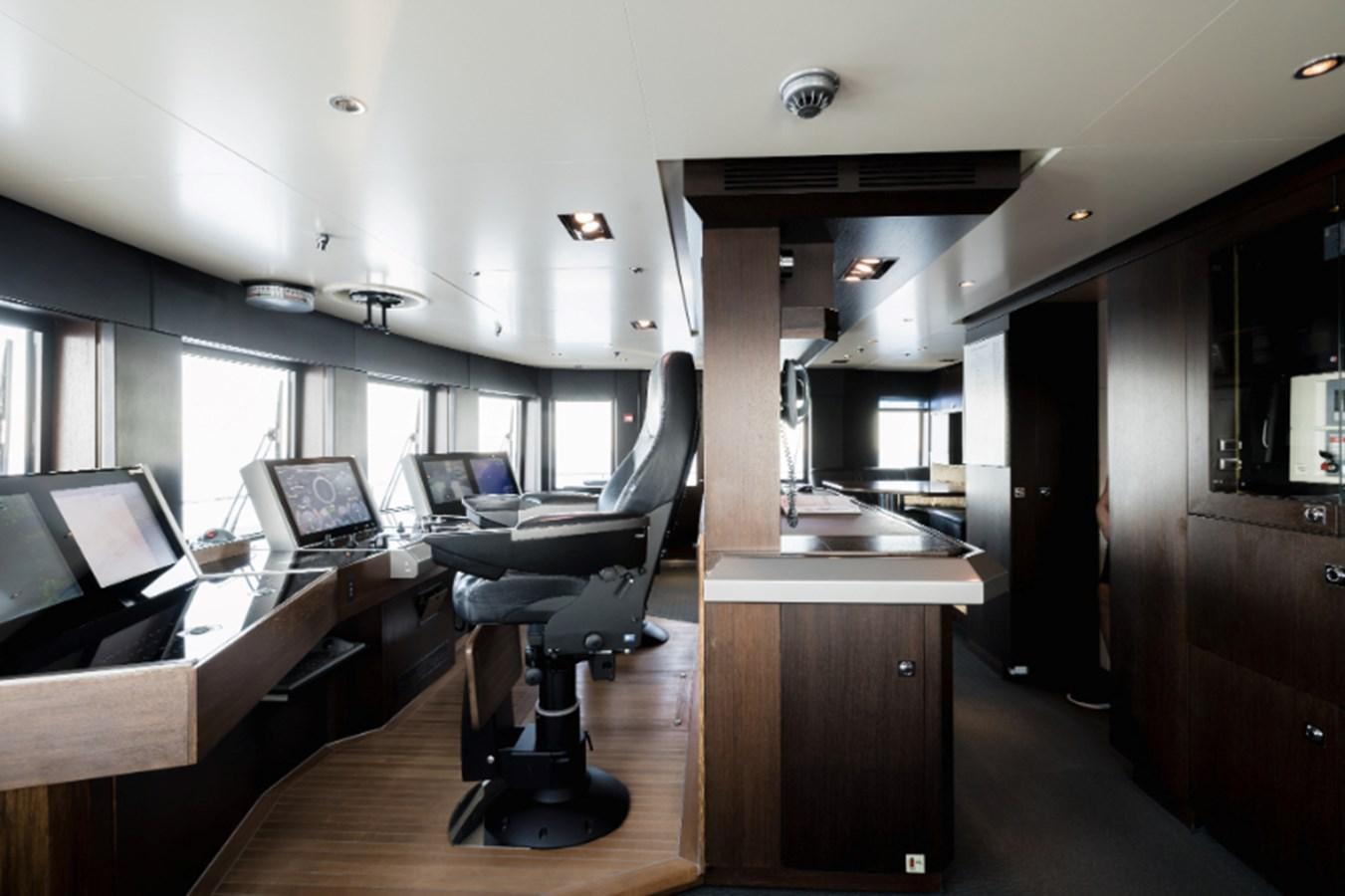

  • Navigation Bridge: Full ECDIS Transas 4000 paperless bridge (September 2017)
  • Monitors: 5x Hatteland
  • X-Band Radar: 1 x Furuno X-band radar FAR-2117BB
  • S-Band Radar: 1 x Furuno S-band radar FAR-21375BB
  • Multifunctional Workstation: Radio Zeeland
  • Chart Plotter: 1 x Transas Laser Plotter
  • UPS: APC Smart 3000
  • Magnetic Compass: 1 x Cassens & Plath Magnetic compass 33001
  • Gyrocompass: 1 x Raytheon standard gyrocompass STD22
  • Auto Pilot: 1 x Raytheon Auto Pilot 102-886
  • Rudder Angle Indicator System: 1 x Vaisala Weather Transmitter WXT520
  • Speed Log: 1 x Furuno Wind/Speed Log DS80
  • Depth Sounder: 1 x Furuno Depth Sounder Fe700
  • GPS: 1 x Furuno GPS GP-170 & 1 X Furuno GPS GP-150-DUAL
  • AIS: 1 x Furuno AIS FA 150
  • Navtex: 1 x Furuno NX 700 Navtex
  • Wind Instruments: Vaisala Weather Transmitter WXT520
  • Horn: 5 x tone air horns
  • Search Lights: Sanshin PP208
  • Bridge Navigation Watch Alarm: Watchkeeper BNWAS
  • Ships Computer: 4 x Lenovo Mx0q, 1 x Dell OptiPlex, 4 x Surface, 1 x MacBook Pro

Entertainment Equipment

Video Equipment:

  • In the Mediterranean, ICON has a Full SKY TV package (coverage depends on yacht’s location.)

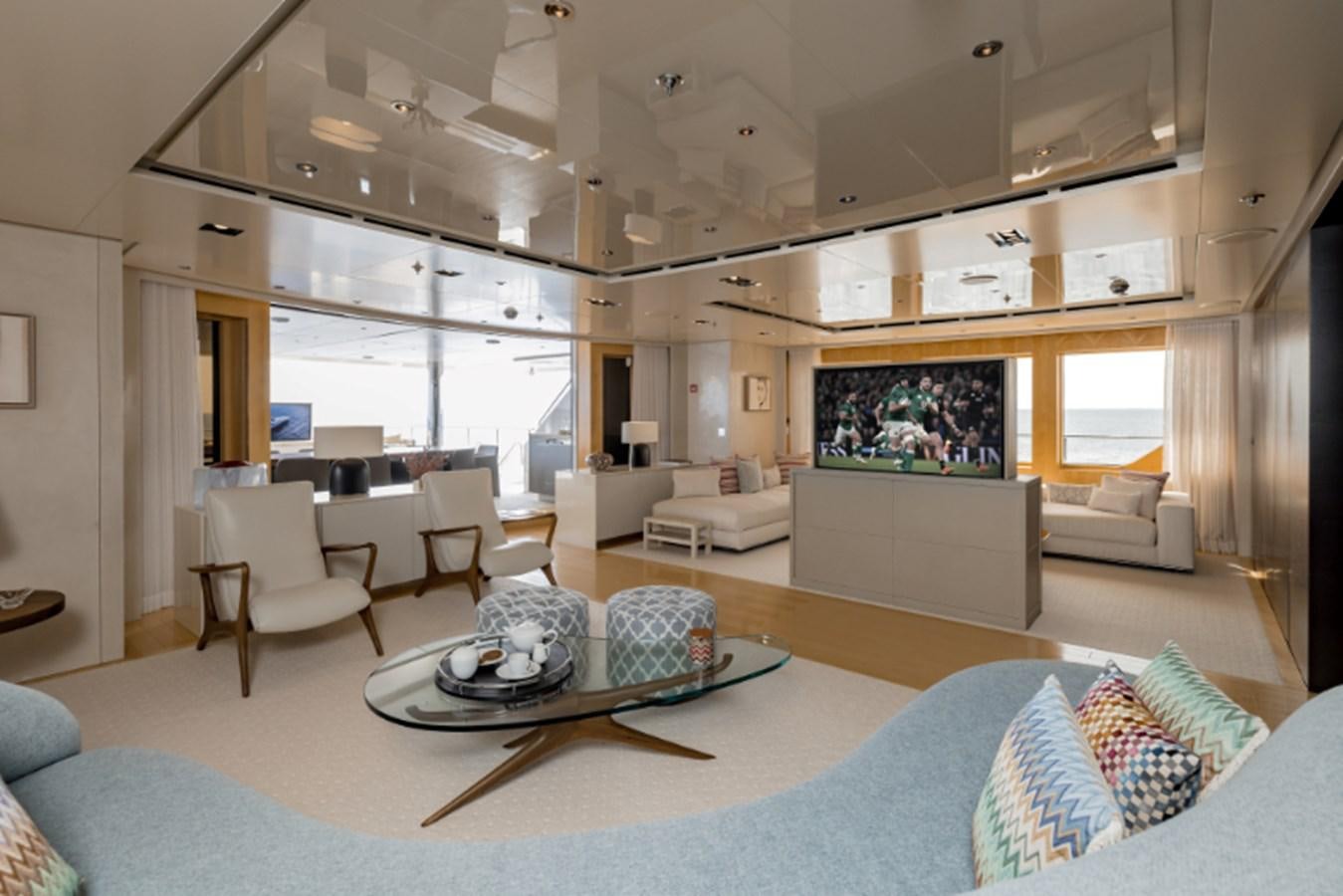

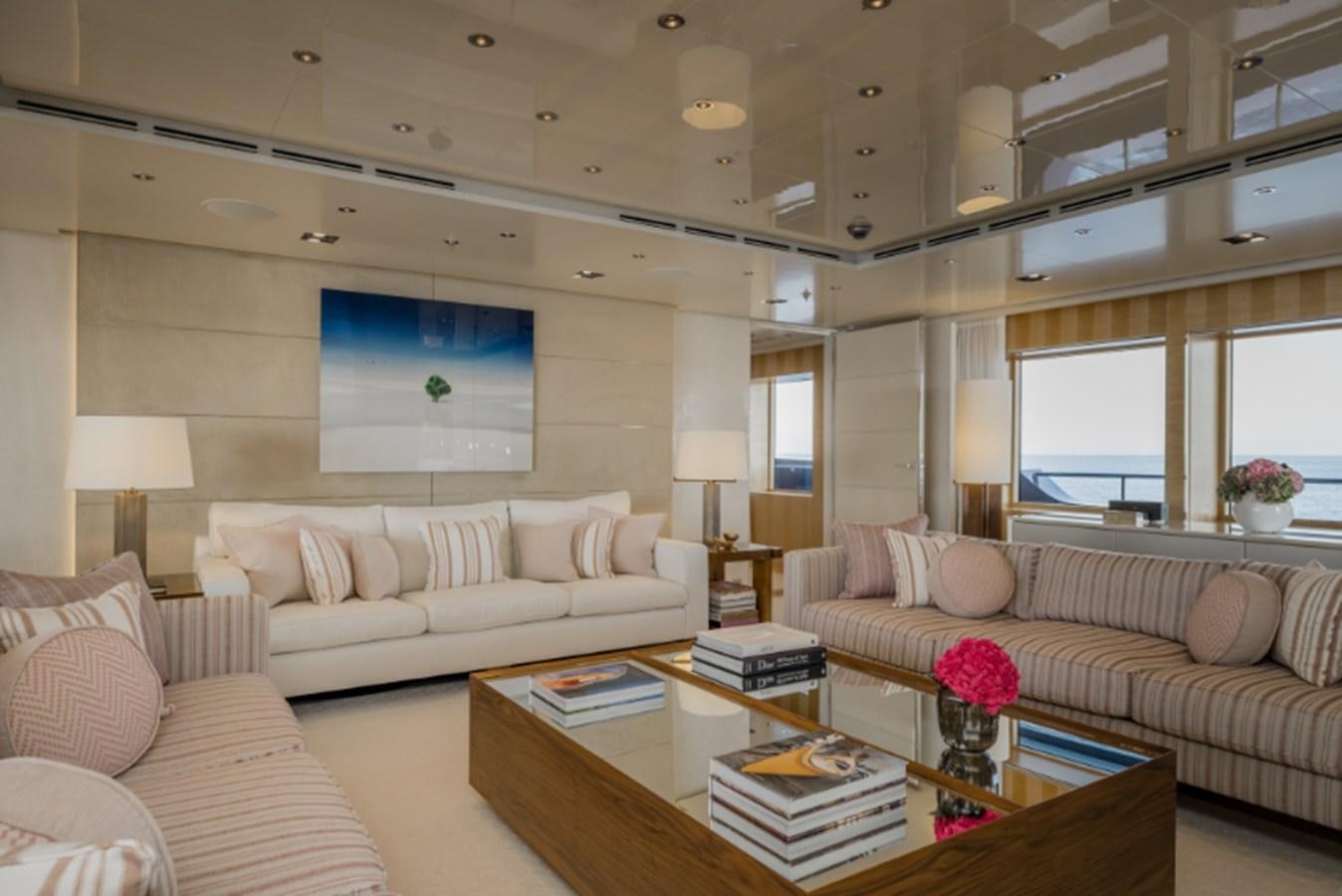

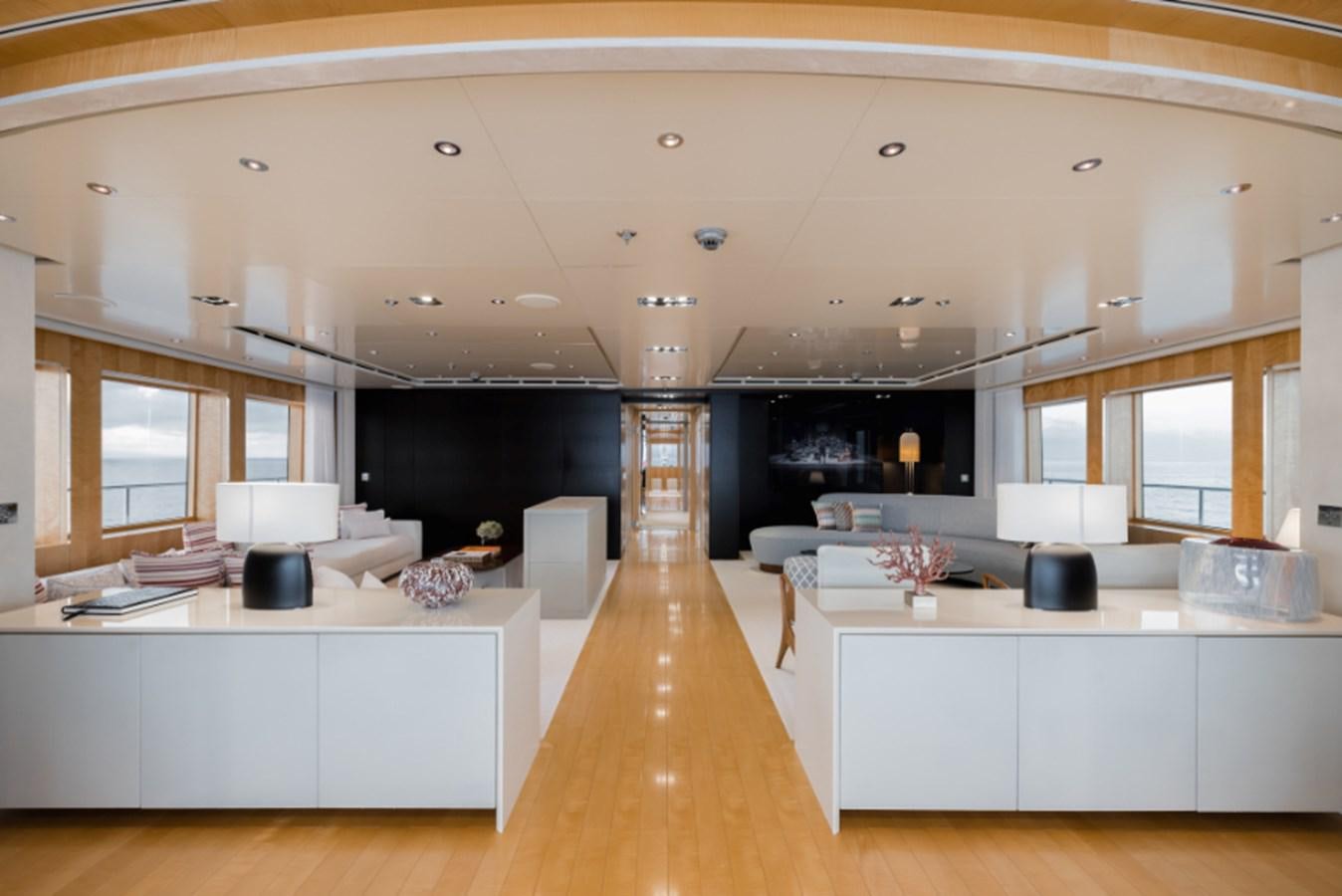

Main Salon:

  • Equipped with Bang & Olufsen BeoVision Avant 85" 4K Ultra HD LED TV with surround sound

Upper Deck:

  • Equipped with TV lift carrying 43" NEC LED TV
  • Upper saloon is equipped with TV lift carrying 2 x 55" Samsung LCD TVs with surround sound
  • Observation lounge is equipped with 65" Samsung 8K QLED TV with surround sound

Master Stateroom:

  • Equipped with 49" Samsung LCD TV with surround sound
  • The rooms are also equipped with IPOD docking station which can be used for personal iPods

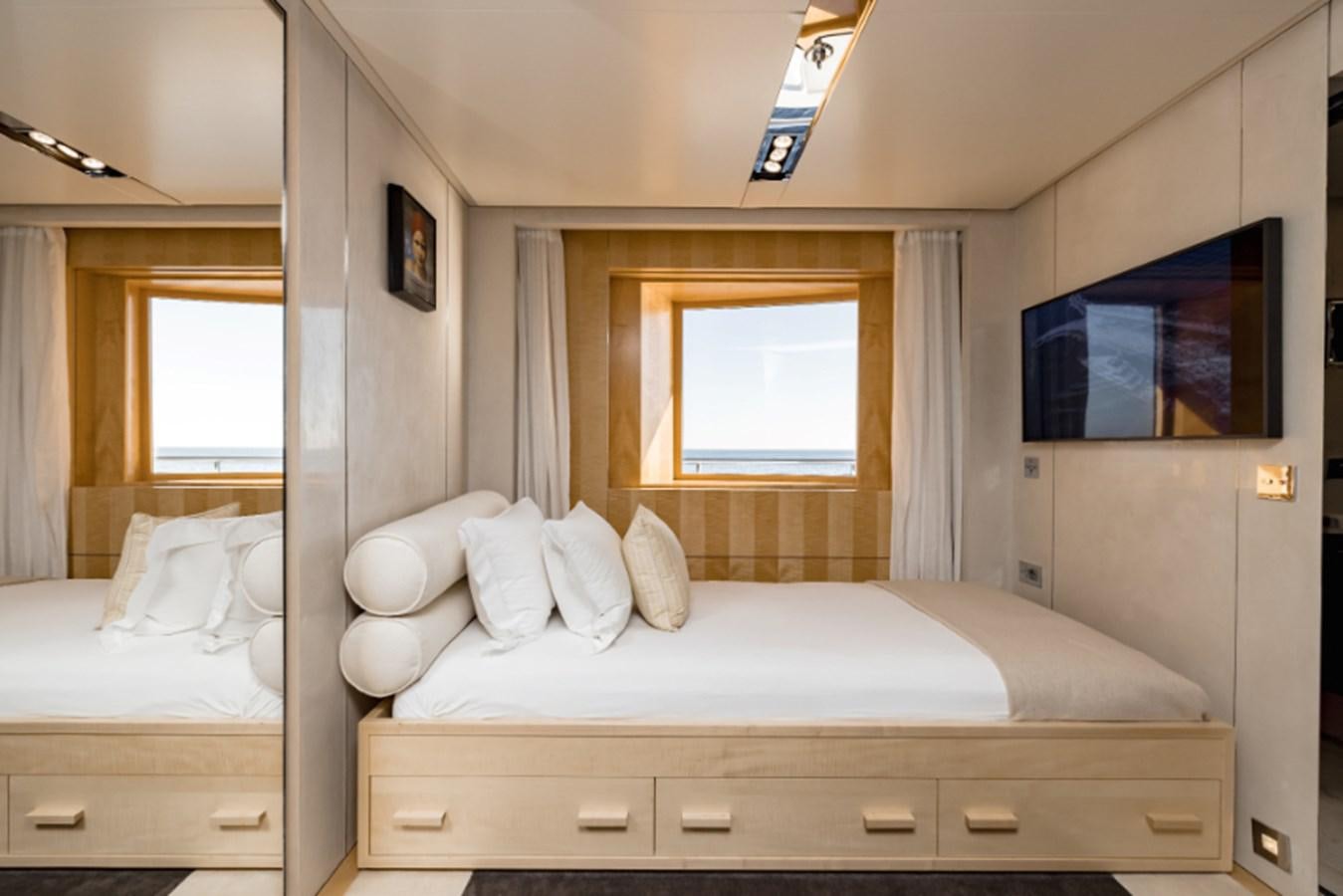

Guest Staterooms:

  • The 4 lower deck guest staterooms are equipped with a 48" LED Samsung Frame TVs
  • The 2 upper deck guest staterooms are equipped with a 43" LED Samsung TVs
  • The rooms are also equipped with IPOD docking stations that can be used for personal iPods

Beach club:

  • Equipped with TV lift carrying 43" Samsung LCD TV

Gym:

  • Equipped with 32" Samsung LCD TV

Crew Mess:

  • Both crew lounge and crew mess have a 43" Samsung LCD TVs which are linked to the satellite and entertainment systems. Surround sound in crew lounge.

Other Equipment:

  • All TVs are controlled with iPads which are used to control the entertainment system, Satellite TV and streaming.
  • PS4 and PS5 gaming console
  • One movie server with 1500 movies and tv show titles of all genres
  • The guest staterooms and saloons are equipped with automatic lights, curtains with 100% light shut, and air conditioning controls
  • Wi-Fi coverage: over 95% of yacht

Tenders & Toys

Tenders:

  • 1 x 7.2m 2022 Super Air Nautique Ski Boat
  • 1 x 7.5m 2022 X-craft Beachlander
  • 1 x 3.6m Narwhal unsinkable rescue boat

Jet Skis:

  • 1 x Yamaha VX 4-stroke jet ski (2013)
  • 1 x Yamaha EX 4-stroke jet ski (2018)
  • 1 x Yamaha Superjet standup jet ski (2018)

Toys:

  • 2 x Seabob F5S (2015)
  • 1 x Lift efoil (2021)
  • 1 x 4m inflatable waterslide
  • 3 x Nautiboy inflatable swim platforms
  • 2 x Inflatable paddleboards
  • 2 x Inflatable kayaks
  • 2 x Wakeboards
  • 1 x Foil board
  • 2 x Wake surf boards
  • 2 x Water skis
  • 1 x Mono ski
  • 1 x 8 person inflatable banana
  • 2 x Inflatable donuts
  • 4 x Inflatable sun loungers
  • 1 x Beach setup including marquee, chairs, tables and Weber BBQs
  • Sets of PFDs, helmets, gloves, snorkels and fins

Diving Compressor:

  • Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for diving and 300bar for firefighting)

Dive Board:

  • 2 x sets

Deck Equipment

  • Anchors: 2 x POOL fully balanced high holding power
  • Anchor Chains: 190 metres x 28mm of anchor chain for each anchor
  • Cranes: 2 x Cramm lifting cranes, one rated at 4 ton lifting capacity for the Super Air Nautique (starboard) the other 4 ton lifting capacity for X Craft Beachlander, rescue boat and jet skis
  • Warping Capstans: 3 x polished Stainless steel Maxwell 8000 capstans
  • Passerelle: 1 x aft Cramm passerelle with 90 degrees or possible rotation plus up and down feature
  • Side Boarding Ladder: 2 x Cramm side boarding passerelle with 90 degrees rotation possible plus up and down feature
  • Stern Boarding Gangway: CRAMM hydromar hydraulic stern boarding
  • Swimming Ladder: Stainless with teak steps
  • Paint Exterior: Awlcraft
  • Paint Underwater: ICPP Cathelco Minites 40Amp

Safety & Security Equipment

  • Security System: Axis
  • CCTV: 9 x CCTV cameras with motion sensors
  • Monitors: 2 x Surface, 1 x Hatteland
  • Ship’s Safe: Royal Safe SD-XPL 004501
  • Doorbell: Fanvil SIP IP Door Phone
  • Fixed Firefighting System: Hi-Fog firefighting system throughout boat and a co2 system in galley duct
  • Firefighting Equipment: 22 x fire hydrants/hoses, 34 x portable fire extinguishers
  • Gas Detection: 2 x Monicon S-500
  • Smoke Detection: 150 x Tyco Smoke and Heat detectors
  • Fire Alarm: Tyco Minerva T2000
  • Alarms: E2S System Horns
  • MOB Boat: Narwhal SV420
  • Life Rafts: 4 x 25-person 1 x 8 person
  • Breathing Apparatus: 4 x BA equipment 8 x Bottles
  • Lifejackets: 37
  • Immersion Suits: 37
  • Life Rings: 8
  • Line Thrower: 2 x Pains Wessex 250 line throwers
  • EPIRB: 2 x Jotron 40S EPIRB
  • SART: 2 x Jotron SART-20 SARTS
  • Flares and Signals: 12 x parachutes
  • Medical Equipment: MSOS class A

Refit History

2022
Exterior:

  • G21 Nautique Tender
  • X-craft Beachlander
  • Allexterior cushions re-upholstered

Interior:

  • New carpets in various areas

2020

  • Full Exterior Paint
  • All teak recaulked and sanded
How to Buy a Yacht Our experienced brokers will assist you throughout your yacht buying journey
Northrop & Johnson
Hi there!
Would you like to get more information about LOON? Our brokers are standing by to help.
