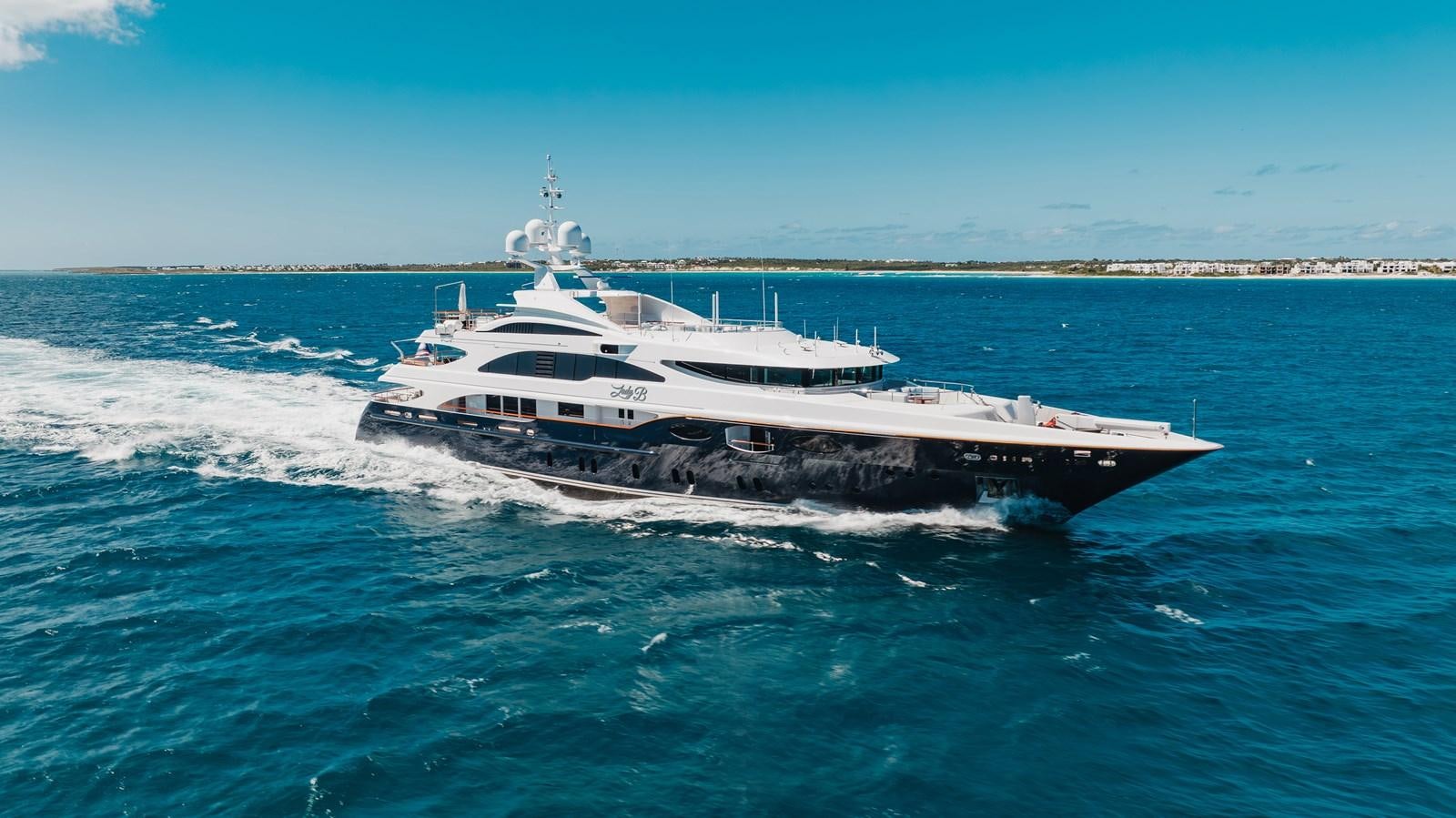

LADY B Yacht for Sale

• Storage Tanks: 1200 Litres, 317 Gallons
• Water Makers: x 2 600 Litres/Hr each, 158 Gallons
• Bilge Water Tank: 1295 Litres, 342 Gallons
• Waste Oil: 1,542 Litres, 407 Gallons
• Propulsion Type: Inboard Shaft Driven 02/2024
• Engine Controls: Rexroth
• Engine Mounts: Fixed

Engines Exhaust System:

•  The hot exhaust is led to a dry silencer mounted above the engines and injected with sea water through a ss spray ring. The cooled exhaust exits under the water line via an electric butterfly valve. During low rpms, the exhaust above the waterline via the electric actuated valve.

Engine Ventilation:

• 2 Axial blowers for supply air 37.4k m3 from the pt and stbd bridge deck, 2 axial blowers for exhaust air 28.5 m3 to pt and stbd sun deck. Demisters are fitted on the intakes with silencers. All 4 fans are variable speed.

Generator Exhaust System:

• The generator exhausts exit the back of the generators at the turbochargers. At this point the exhausts are heavily insulated and run dry to the aft quarter of the machinery space where they are raw water injected is injected into a fiberglass Verna-Lift type exhaust pot. From here the exhaust gas is pushed up into a fiberglass water-drop silencer in which the raw water is released under the waterline and the dry exhaust exits the hull at the boot stripe.

Shore Power Converter:

• SHF-125KVA input v 170-520 output v 380/220 DOM 2018
• Shore Power Transformer Input 400V 50Hz output 115V 50Hz 8KVA – 50A max @120V

Batteries:

• This vessel has a 24VDC system for main and gen start, radio and nav equipment, pumps, lighting, and ships systems. Numerous battery banks serve these systems with Battery chargers.

Battery Chargers:

• Mastervolt 24V/50 Amp UPS (uninterruptible power supplies) Various throughout the vessel

Steering Gear:

•  (2) steering rams connected to rudderstocks & connecting rod – foil well shaped

Emergency Steering:

• Hydraulic Hand Wheel / Located stbd side garage

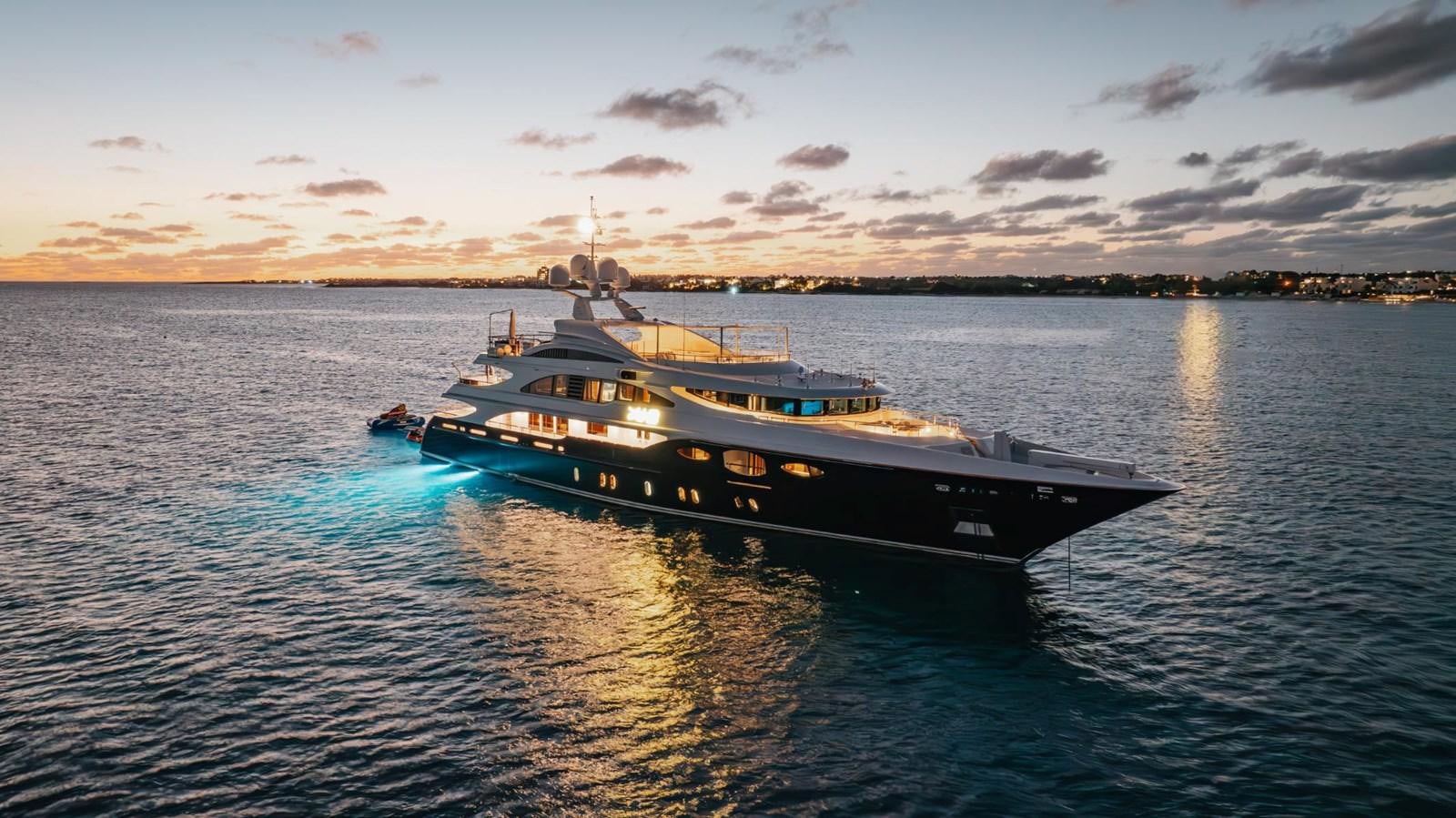

Under Water Lights:

• 6 on at stern and Bulbous Fwd Bow

Helm/Wing Station Controls:

• Fwd & Stbd

Fuel Separator system:

• Alfa Laval MAB 103 0.9m3/h

Fuel Transfer Pump:

• (1) electrical self-priming & (1) hand operated pump
• Bunkering Station: Three (3) - Port, starboard and port aft main deck via 65mm Camlock fittings

Oily Bilge Water Separator:

• DVZ 0.3 m3/h

Dirty Oil Pump:

• (1) G & R Model CP-40

Lubrication Oil Pump:

• (2) G & R Model CP-40

Fresh Water Makers:

• (2) Idromar MC13S 14400 l/day each

Fresh Water Treatment:

• (1) Octo Marine Silver Ion

Fresh Water Pressure:

• (2) centrifugal pumps 380 V / 3 ph / 50 Hz, 6000 lt/h at 3.5 Bar (2) 20 litre accumulators

Hot & Cold Circulation Pump:

• (2) Wilo

Hot Water Boilers:

• (2) 300 litres stainless steel (2x5kW) – 10kW, 5 kw heating elements & (2) hot water circulating pumps

Sea Water Pumps:

• (3) G&R Model: BNM 4 50/25

Black & Grey Water Treatment:

• Hamann (2) Jets (1) for each

WC's (toilets/bidets):

• (16) JETS toilets

Sanitary Vacuum System:

• The black water system is a vacuum type using three (3) vacuum / macerator pumps located in the ER.

Sanitary Water System:

• Hamann HL CONT 24m3 a day

Black & Grey Water Pumps:

• (3) vacuum/macerator pumps

Air Conditioning:

• Condaria -, 1 440 000 BTU/hour, reverse cycle hot/chilled water circulation
• (2) chilled water units
• (4) compressors New in 2022
• (5) There are five fresh air units fitted to the yacht which consist of a filter, cooling coil, centrifugal belt driven fan and a three-way valve

Air Compressor:

• (2) G&R 2 stage belt driven reciprocating units 440 litters/min

Air Handling Units:

• (41) fan coil throughout the vessel which consists of a heat exchanger, fan, three-way valve, and a drip pan

Engine Room AC:

• Only ECR

Engine Room Ventilation:

• (2) supply 7.5kW & (2) extractors 5.5kW per main engine

Hydraulic System:

• (4) Naiad stabilisers
• (1) Motomar Aft (garage door/crane, passerelle)
• (1) Motomar midship (side boarding ladder)
• (1) Motomar forward (rescue tender crane)

Antifouling System:

• Yes

Guest Elevator:

• Under Lower Deck to Bridge Deck

OVERWIEW

• This vessel is inspired with a contemporary art deco flair reflecting the ambiance and grandeur of the TRANSATLANTIC ocean liners of the 1920’s and the 1930’s. Materials used are Mahogany, Cherry-wood, Macassar, Ebony, Teak, unpolished-Glass, Galuchat, and Leather … perfectly manufactured and laid by fitting-out company Artline.
• She has a perfect lay out providing the best possible circulation for guests and service for the crew. With her exceptional volume (812 GT) and beam (10.4m) for a 52m yacht the comfort is comparable to a 60m yacht. She was the first yacht to join the prestigious “La Belle Classe” label of the Monaco Yacht Club.

MAIN DECK

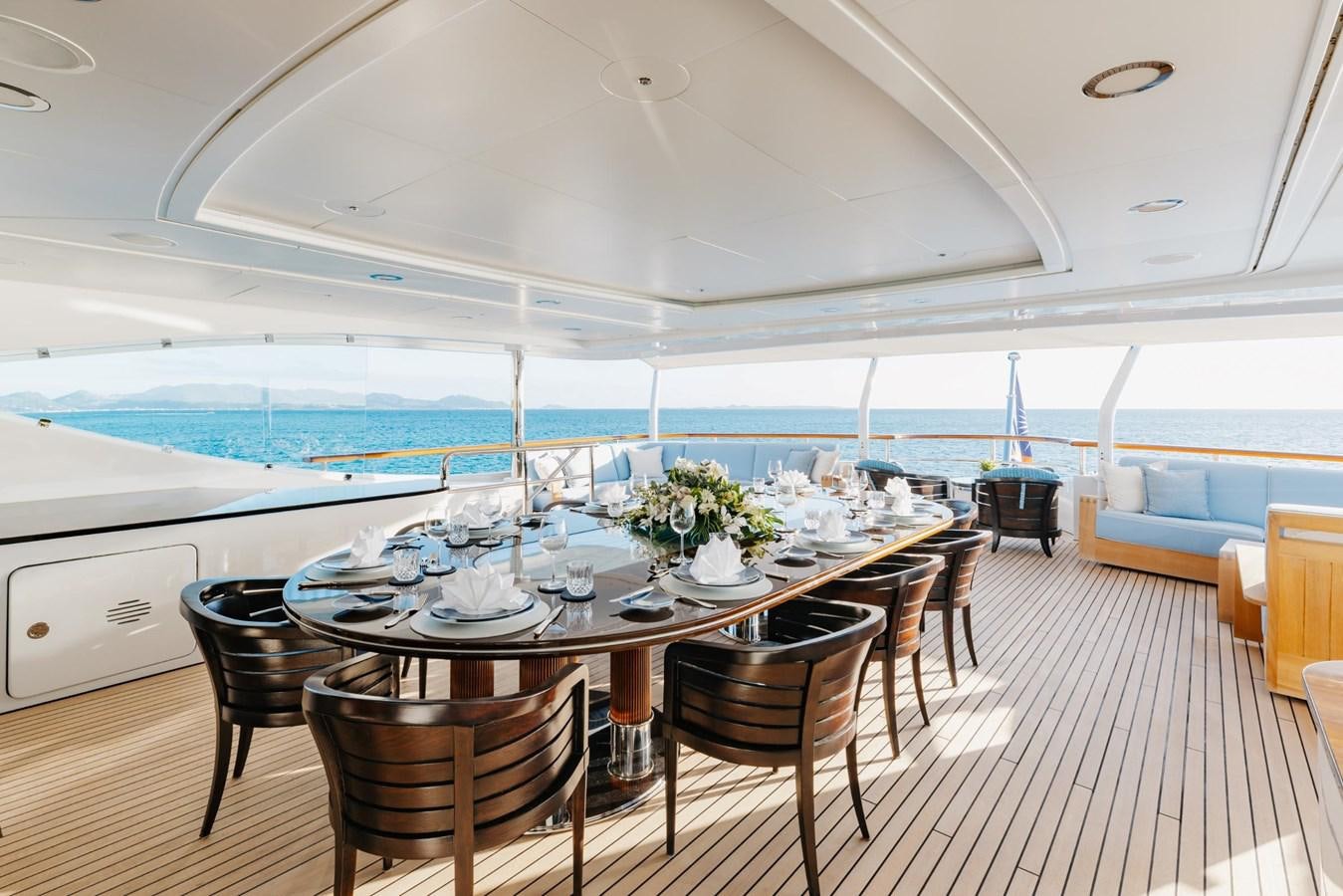

AFT MAIN DECK

• The aft deck was made more spacious by 3ft during the refit, this deck hidden from public eyes on the dock, welcomes guests on board with a large al fresco sofa for 8 and two low tables. On the starboard side, a staircase leads down to the Beach Club, the Garage, and the Swim Platform.
• Further forward on the starboard sidewalk, a staircase leads up to the Aft Bridge-Deck and sky-lounge.

MAIN SALOON

• From the Aft-deck an automatic sliding door opens to the main saloon. Immediately to port is a Grand piano with a mirrored outboard wall. Opposite to stbd is circular glass top table with three occasional chairs. Down two step to the Main Saloon, there is a small desk with chair to stbd and a stand alone cabinet opposite to port. Further fwd is a contemporary art deco sofa, love seat, 2 large armchairs all surrounding a glass a rectangular wood table. To port is an armchair with ottoman and a chaise lounge. Matching fabric and colors for all seating. Storage cabinets and end tables port and stbd. The fwd salon wall has TV flanked by two sconces and a large cabinet underneath. Walkthrough on either side to the dining room. The large windows on both sides provide the saloon with plenty of natural light.

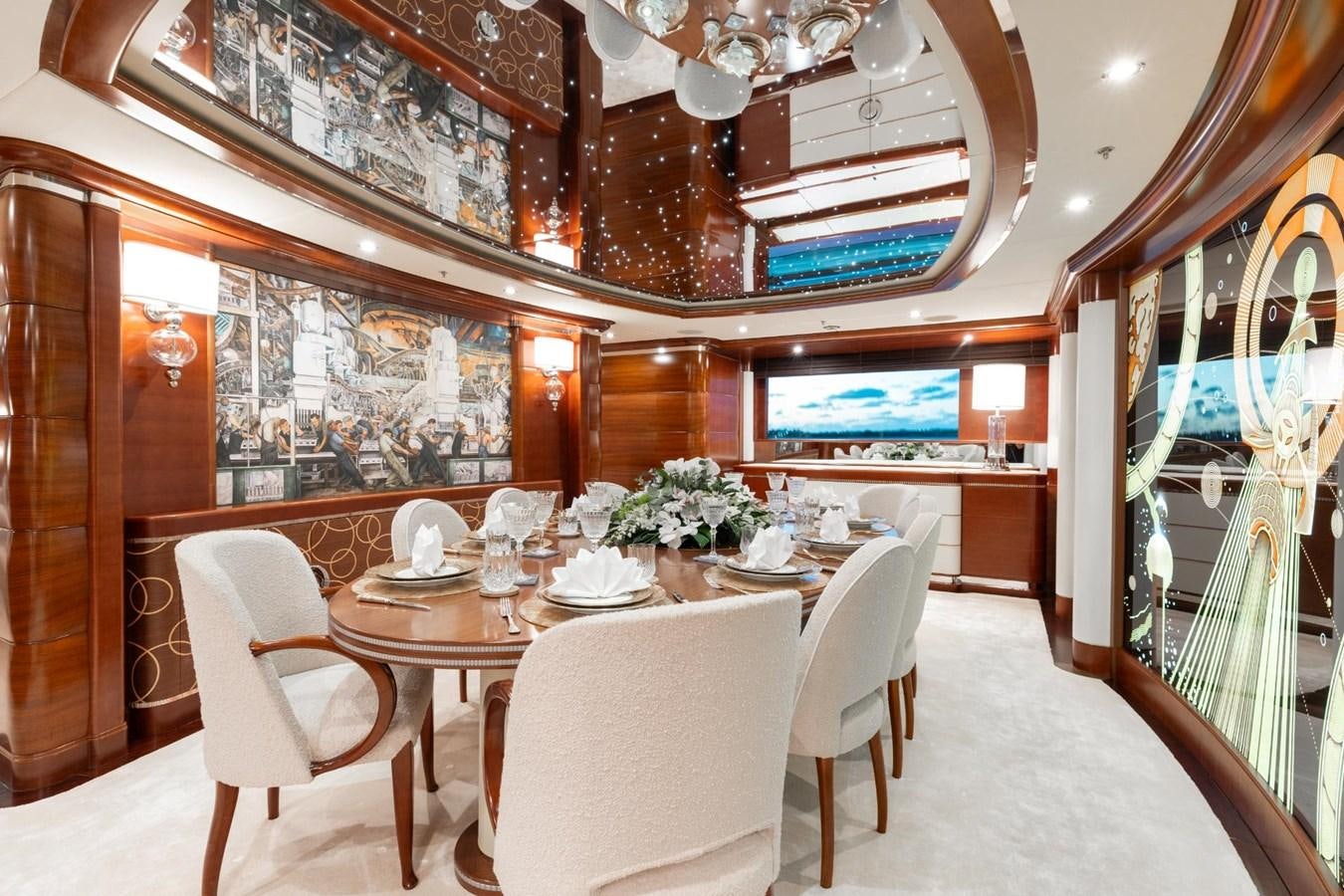

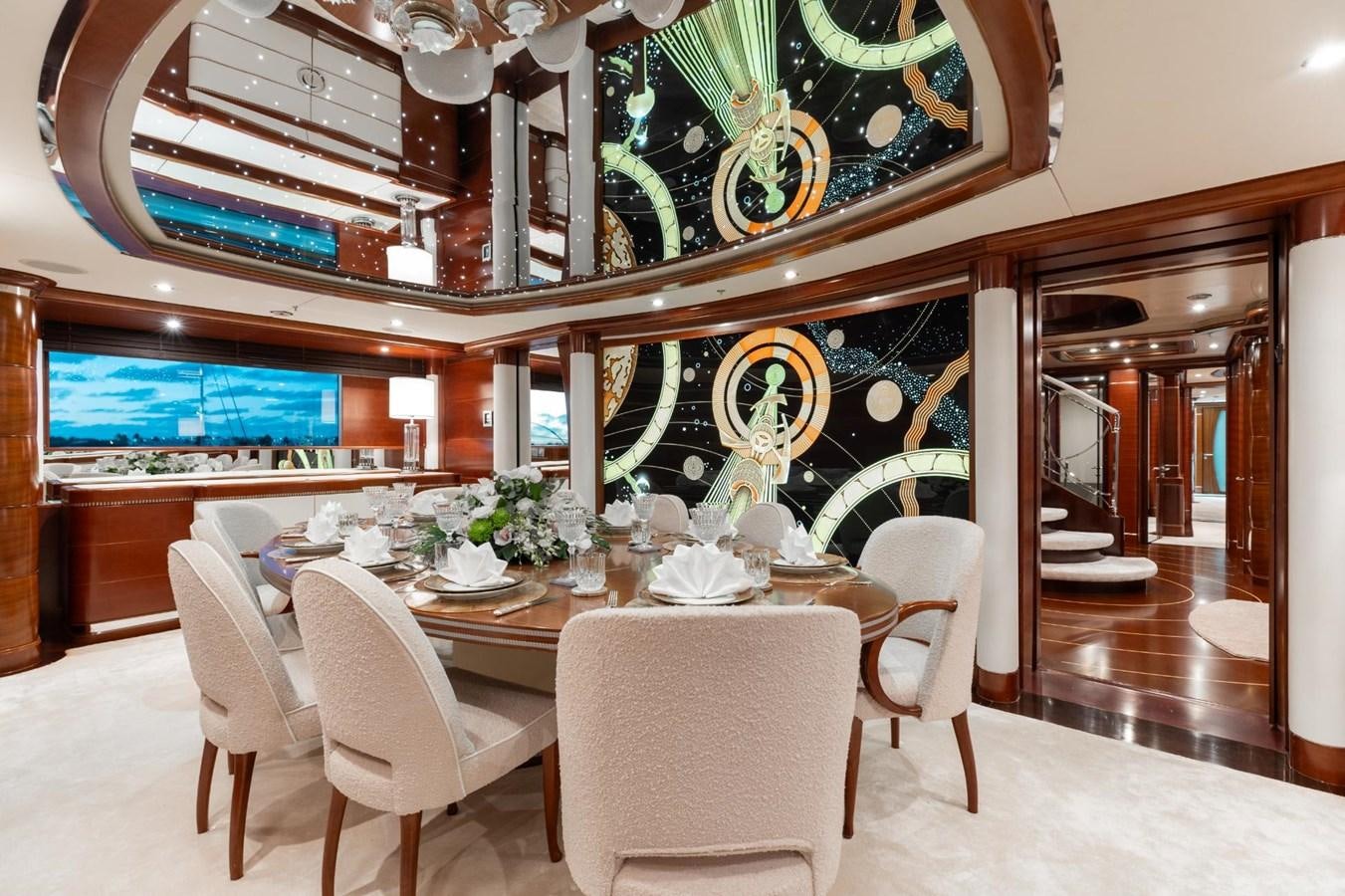

DINING ROOM

• The dining room welcomes 4 to 14 guests around two inlaid veneer tables that can be assembled to create a larger formal dining area. The mirror ceiling and the huge backlit glass feature enhance the art deco theme and provide this dining area with an exquisite feeling of refinement. Cabinets for dining ware are outboard each side.

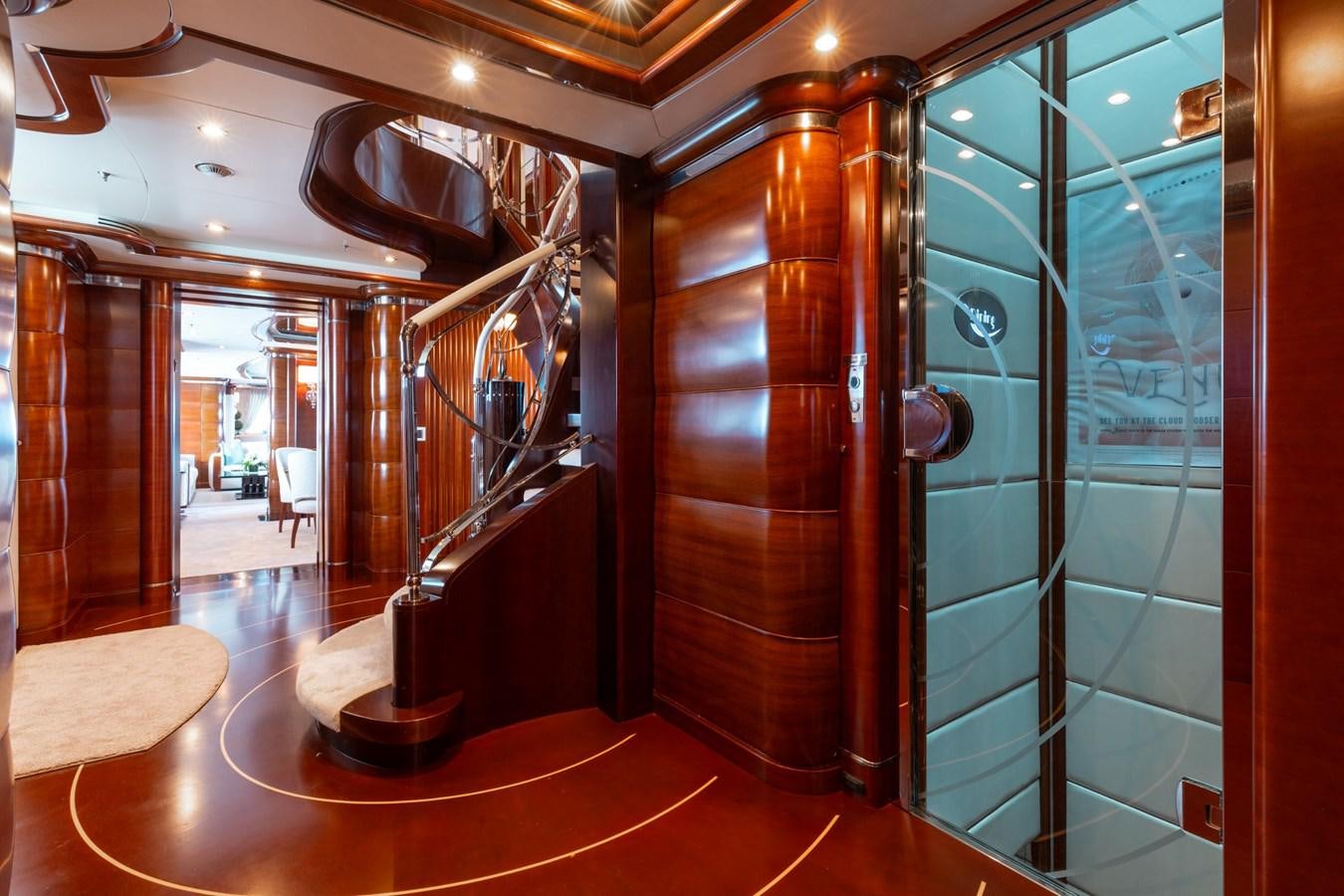

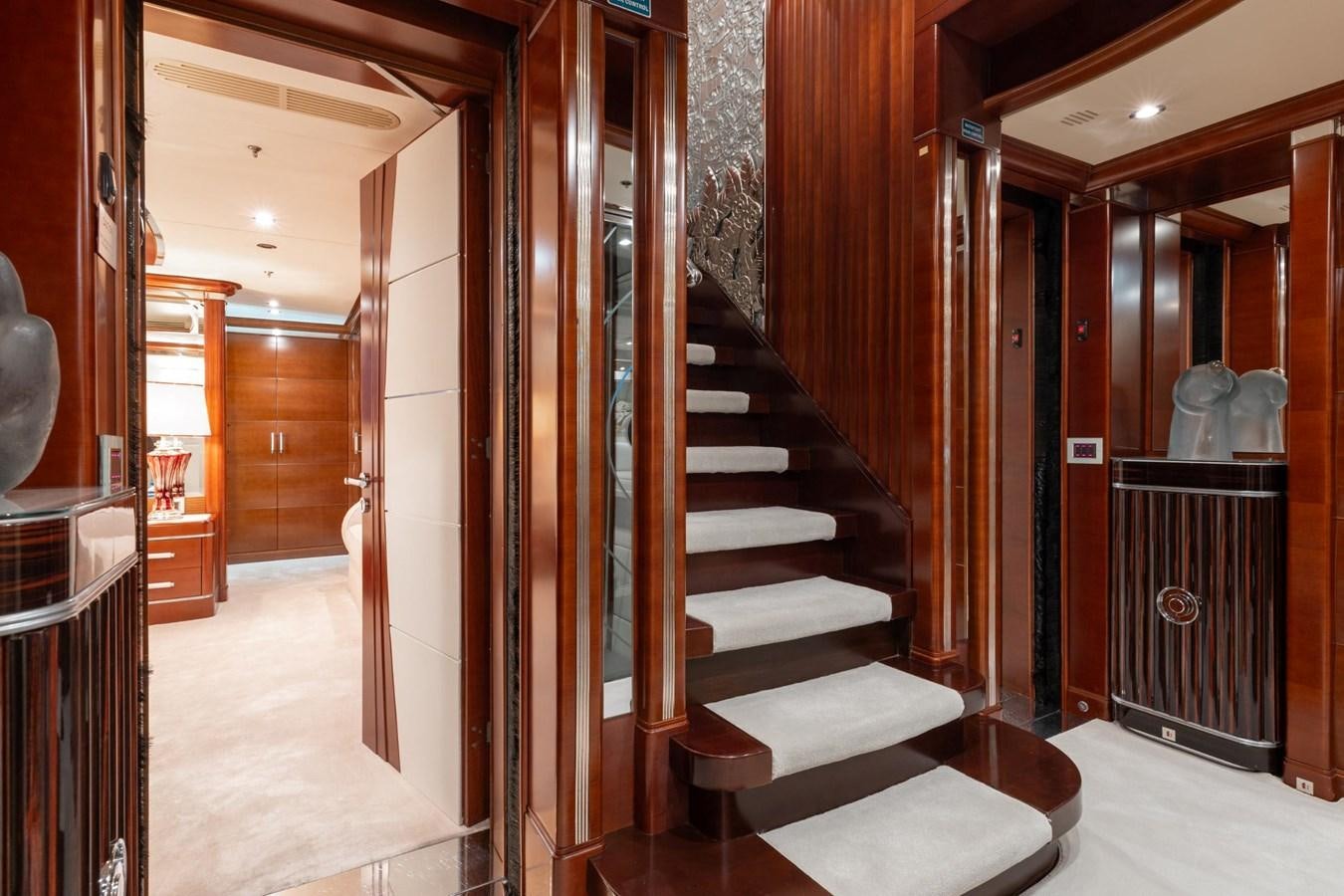

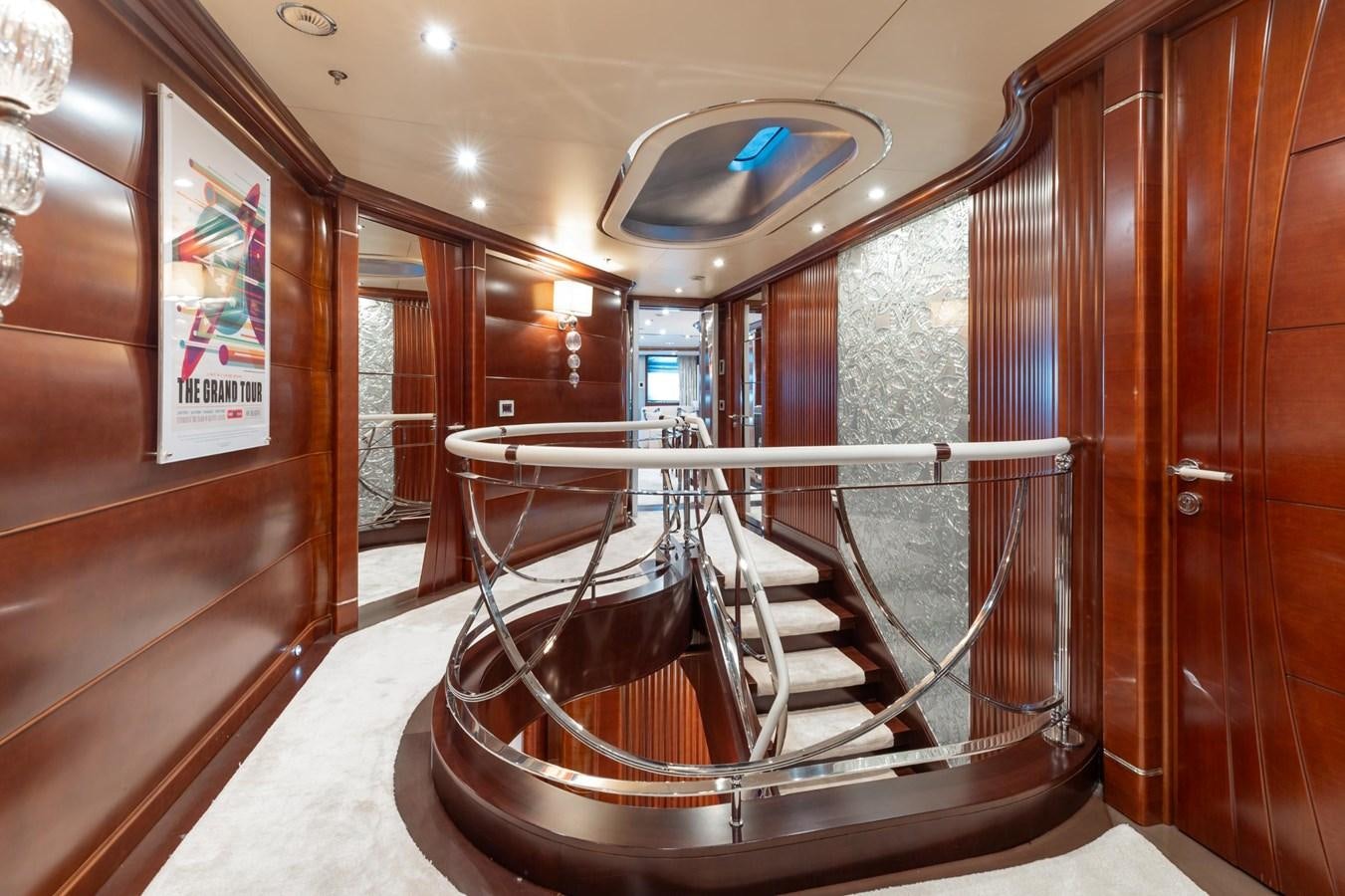

FOYER

• Forward of the Dining Room, a sweeping staircase leads to upper and lower decks. The glass panelled elevator serves four decks from the wine-cellar on tank-deck up to the bridge deck. The Foyer also includes a day head and side entry access.

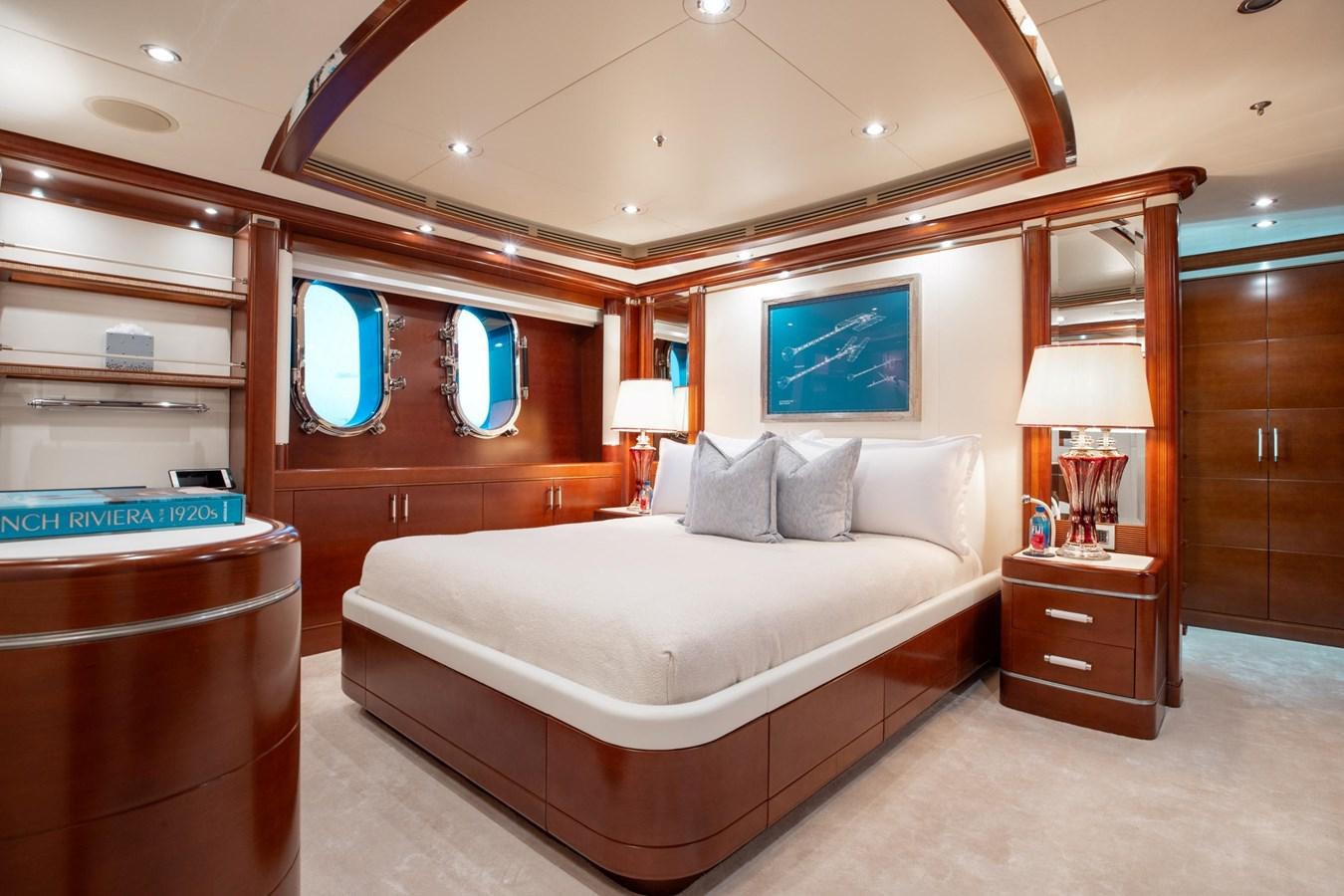

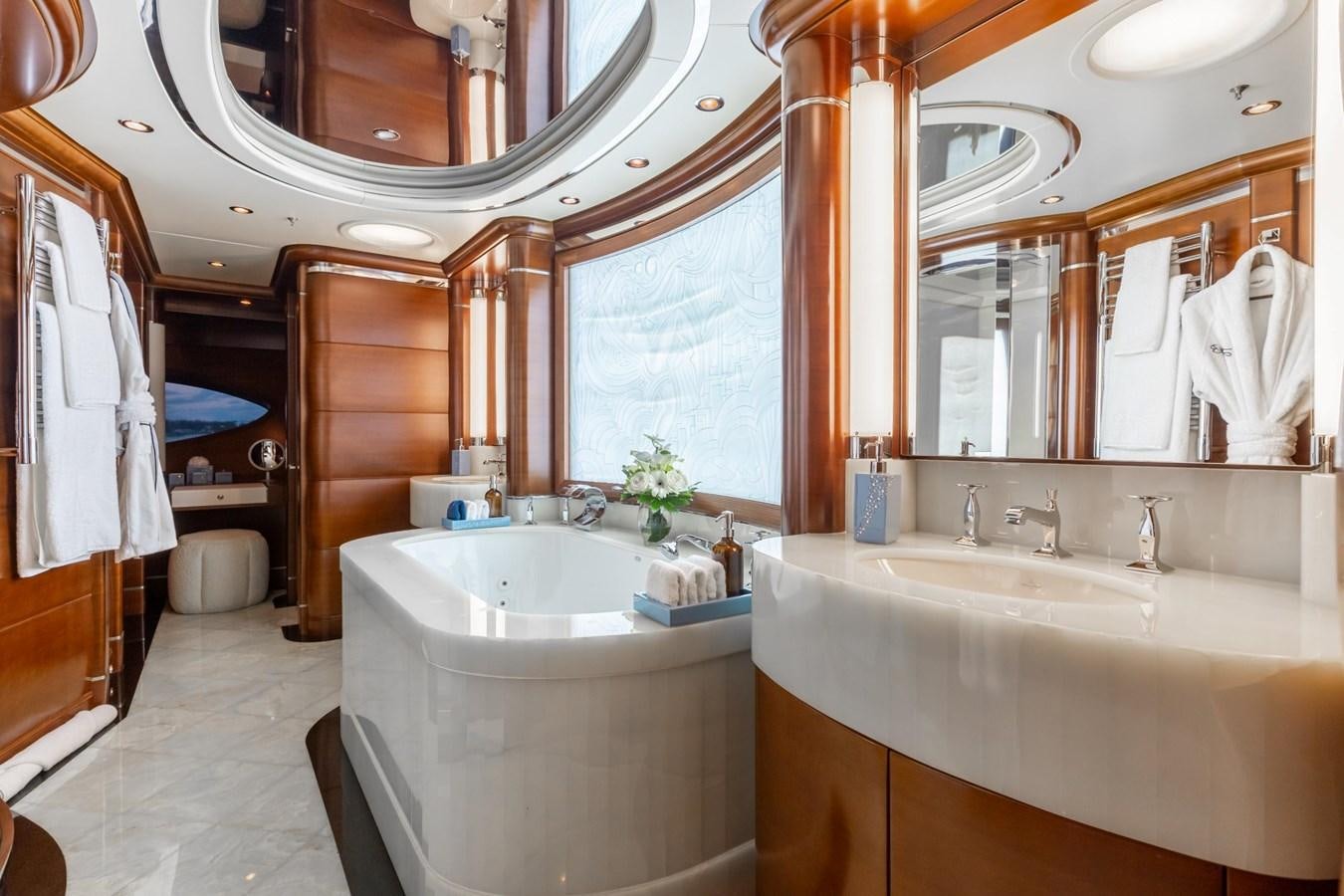

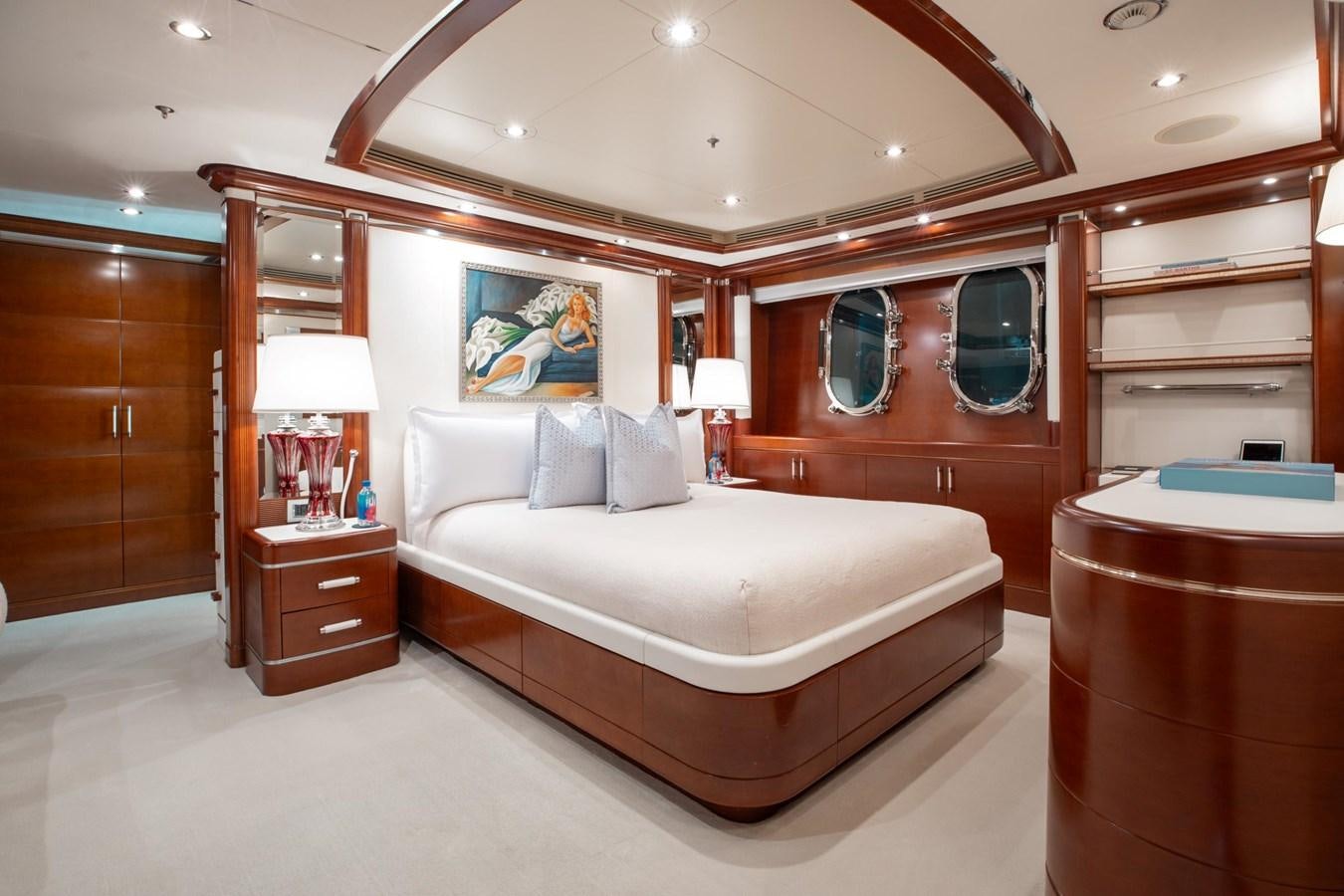

MASTER STATEROOM

• Main deck forward, the full beam Master Stateroom with facing forward king size bed, is built with structural private balconies each accessible through sliding doors. No crew setup necessary. The master bathroom is accessed through ‘his’ and ‘hers’ dressing rooms. it is fully equipped with washbasins on each side of the bathtub/Jacuzzi, one large massage shower, one vanity table and separate toilets/bidet on each side.

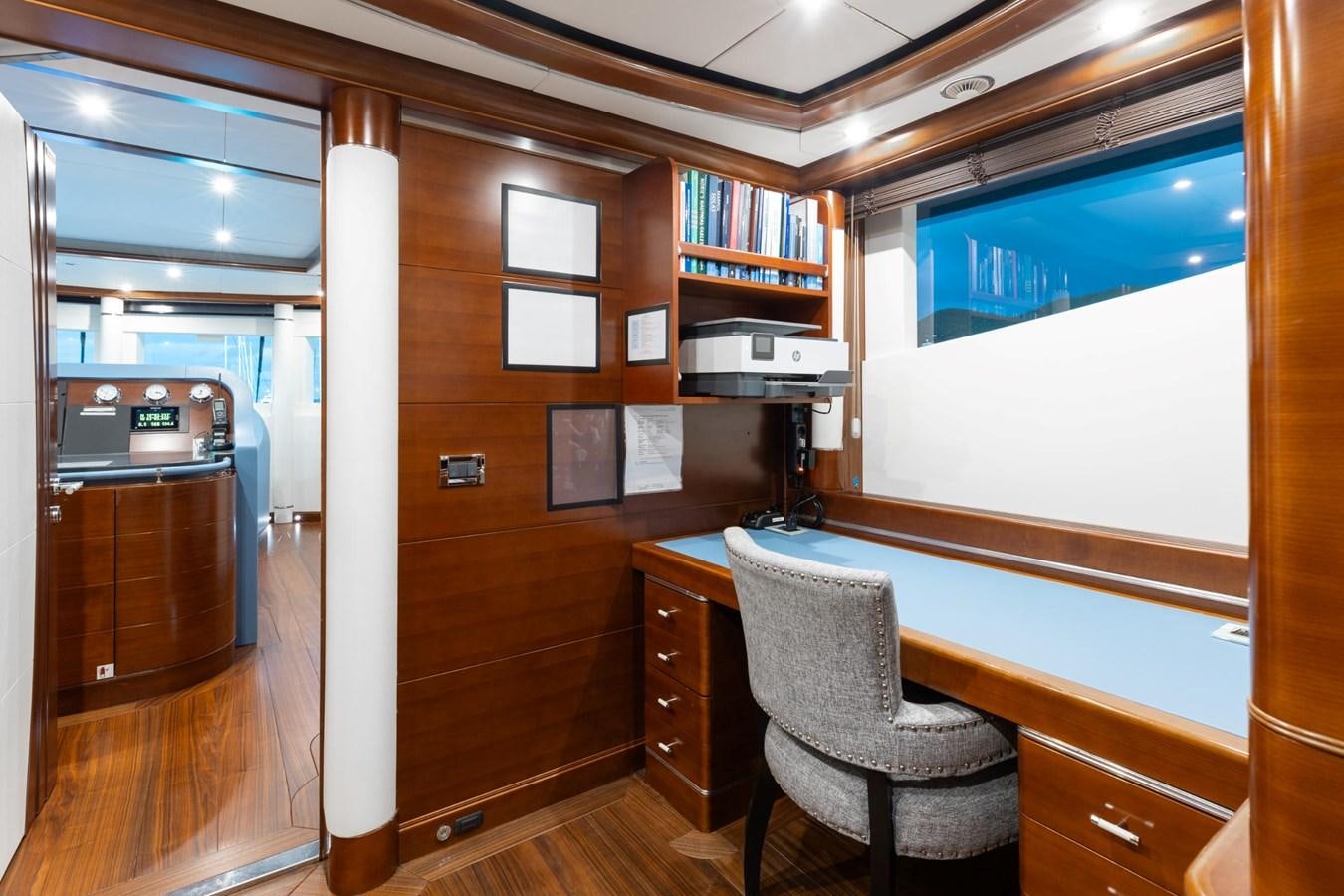

• Aft of Owner’s Stateroom is the Owner’s study, with a beautiful leather/lacquered Makassar ebony wood desk and armchairs. Huge portholes provide a fabulous sea view.

LOWER DECK

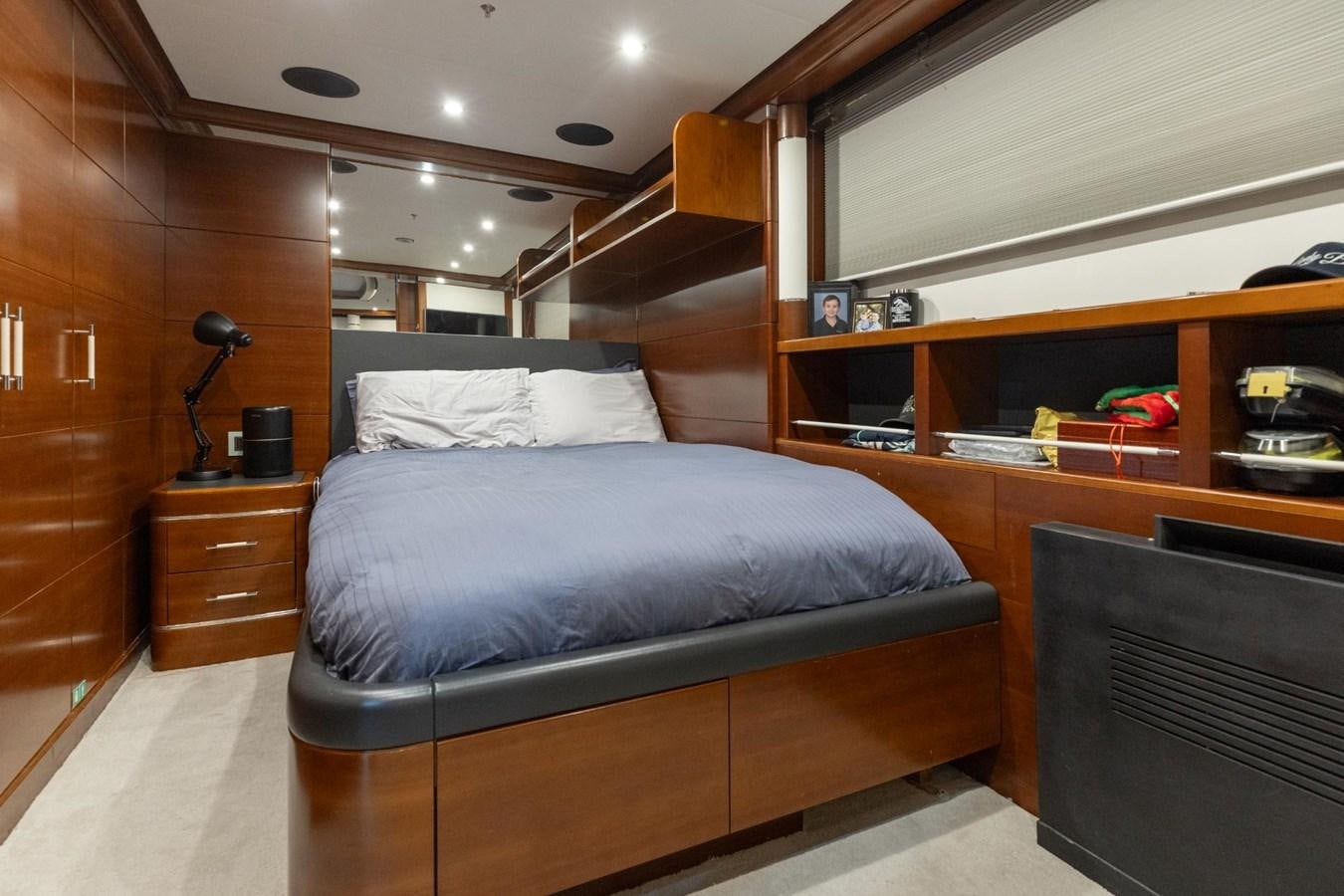

GUEST CABINS

• The two largest Guest Cabins aft-amidships with queen-size beds are strictly identical, with desk and sofa, walk-in wardrobe and ensuite bathroom.
• The third double bed cabin forward to starboard side with its own ensuite bathroom and hanging wardrobe is perfectly sized.
• The fourth cabin is equipped (twin beds removed and in storage) with gym equipment, 2 Peloton bikes, bowflex elliptical and weight bench. A pullman bed is concealed in the inboard wall.
• All cabins are decorated in the same spirit, smooth beige carpet and cherry wood furniture. Each is fitted with a flat screen TV, hidden behind an electrically operated rise and fall mirror. All cabins receive plenty of natural light from the oval portholes.

BRIDGE DECK & SUN DECK
SKY-LOUNGE

• The Sky-lounge is accessible aft of the foyer. There is a day head in the foyer.
• A full-beam room that has a fantastic sea view, decorated in the same fashion as the main deck. It accommodates a comfortable L shaped sofa, armchairs, games table and aft-facing bar to port. A TV flat screen slides horizontally from the forward bulkhead. The Service pantry is forward of the bar to portside.

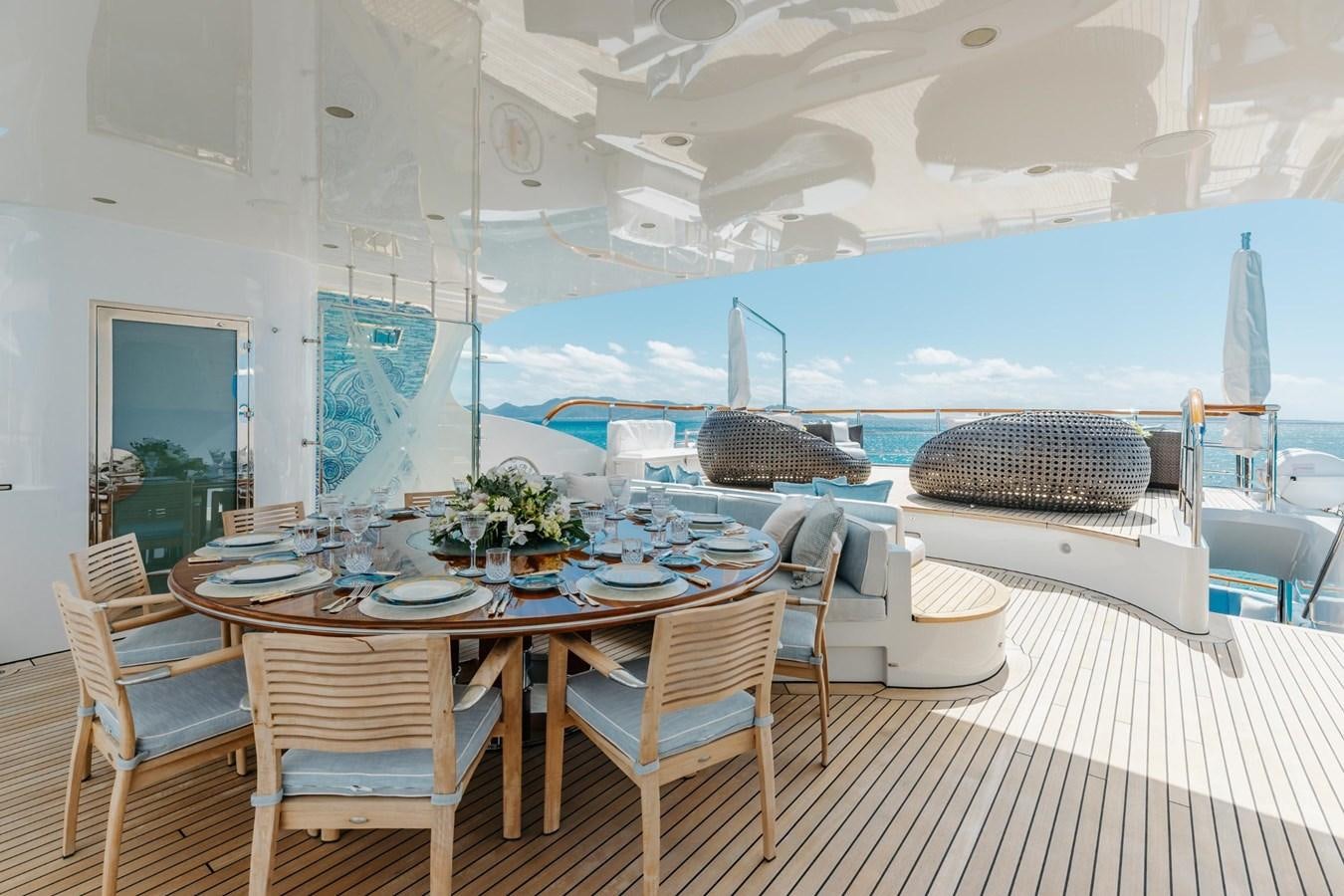

• Aft through a glass door to the sky lounge aft deck the beautiful alfresco oval dining table can easily seat 12 guests and is in a recessed area well protected from the winds with side glass protection for wind and rain. There are also sofas and low tables aft of the deck.

VIP CABIN

• Located on the starboard midship of the Bridge-Deck, this cabin has a fabulous view over the sea, creating a real feeling of space and luxury. The huge ensuite bathroom receives plenty of natural light.

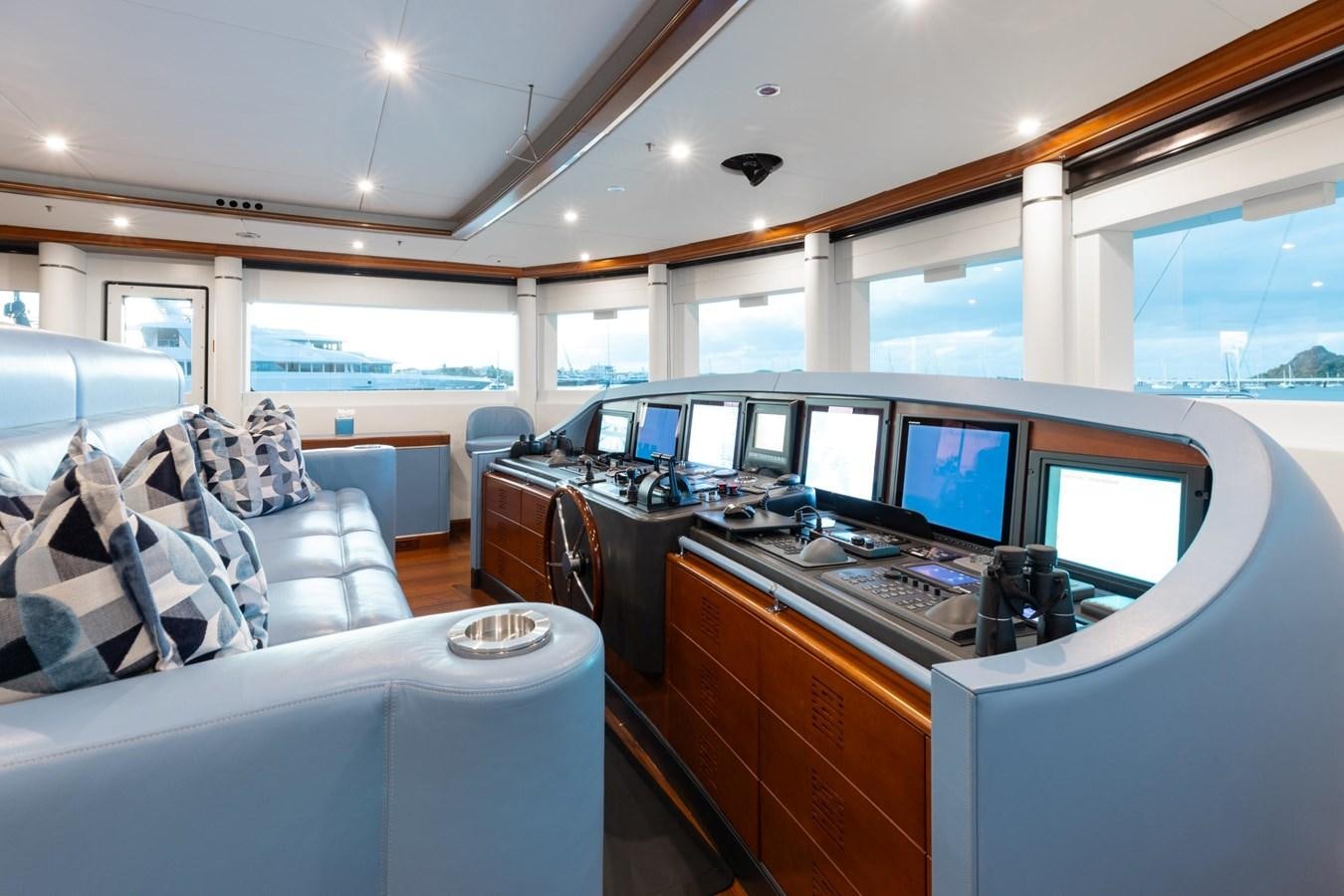

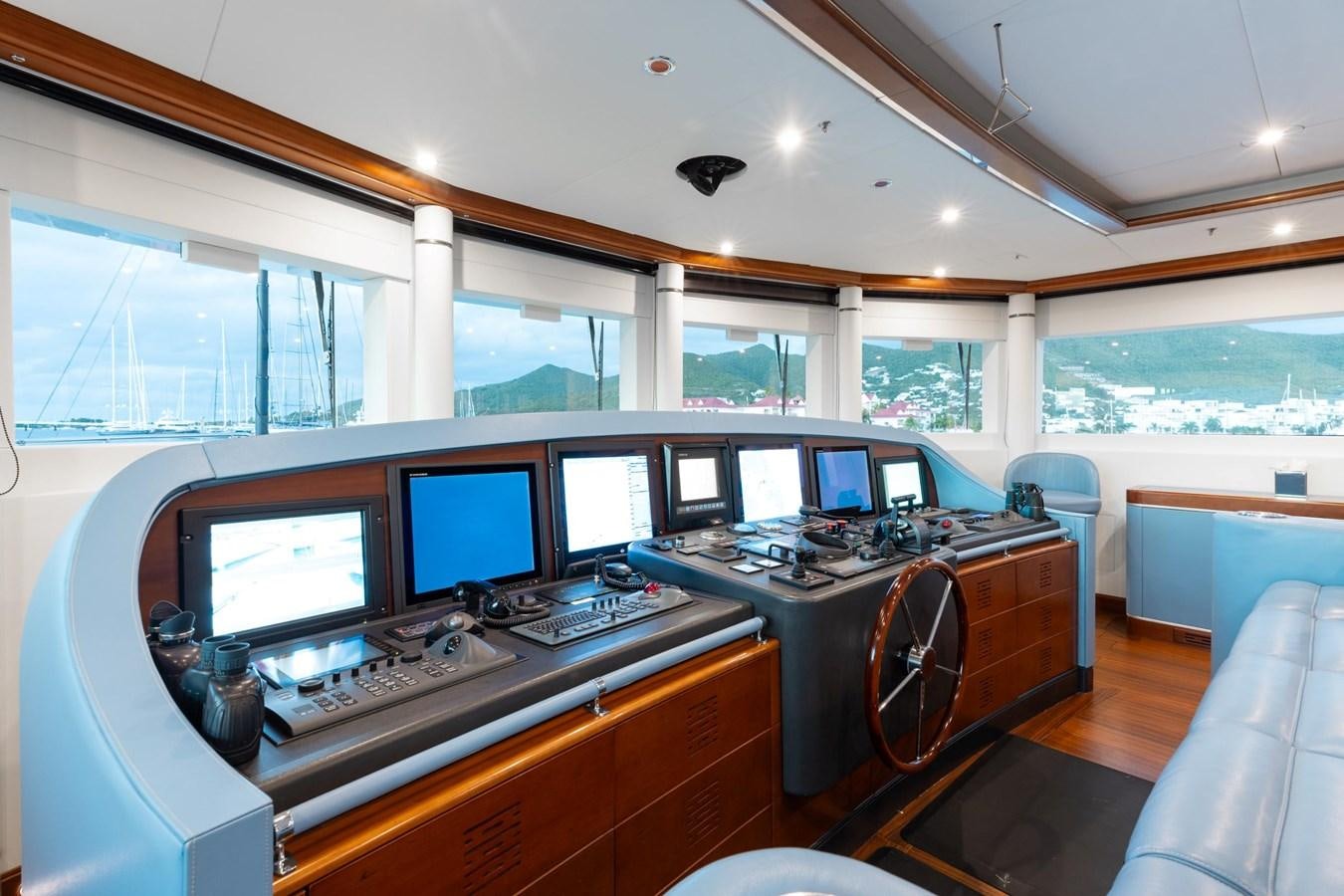

WHEELHOUSE

• The navigation bridge is also inspired by transatlantic liners and designed to be fully adapted for commercial use. The main navigation console is centrally fitted, for easy electronics access, maintenance and visibility, the red leather raised sofa is an invitation for guest spend time in the bridge. Two working desk each side of the bridge and an aft chart/navigation desk with various display screens and CCTV monitoring screen make this bridge area exceptional for navigation day or night.
• Aft portside there is the captain ensuite cabin with working desk and to starboard aft the purser office separate the bridge from the bridge deck foyer.

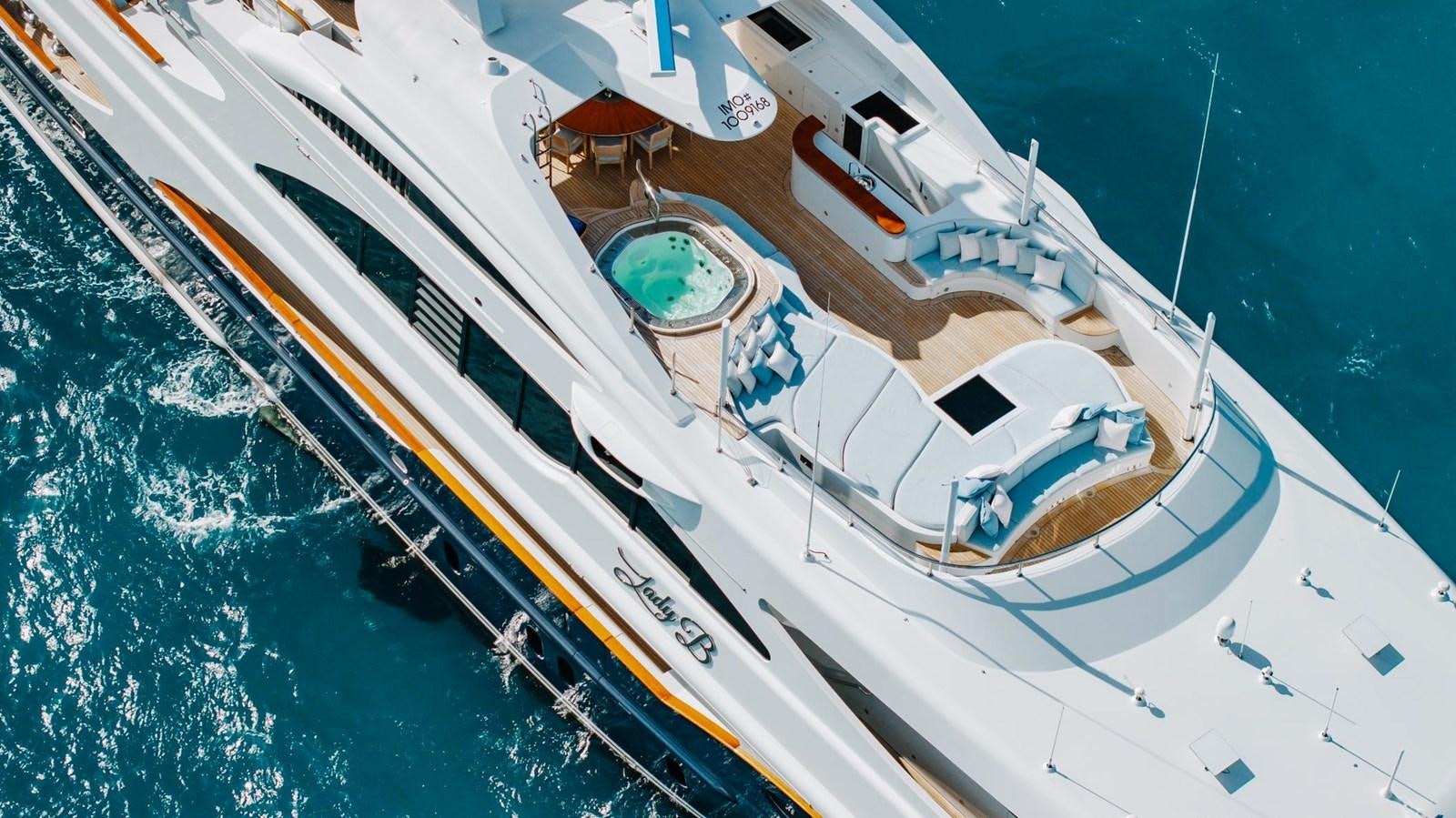

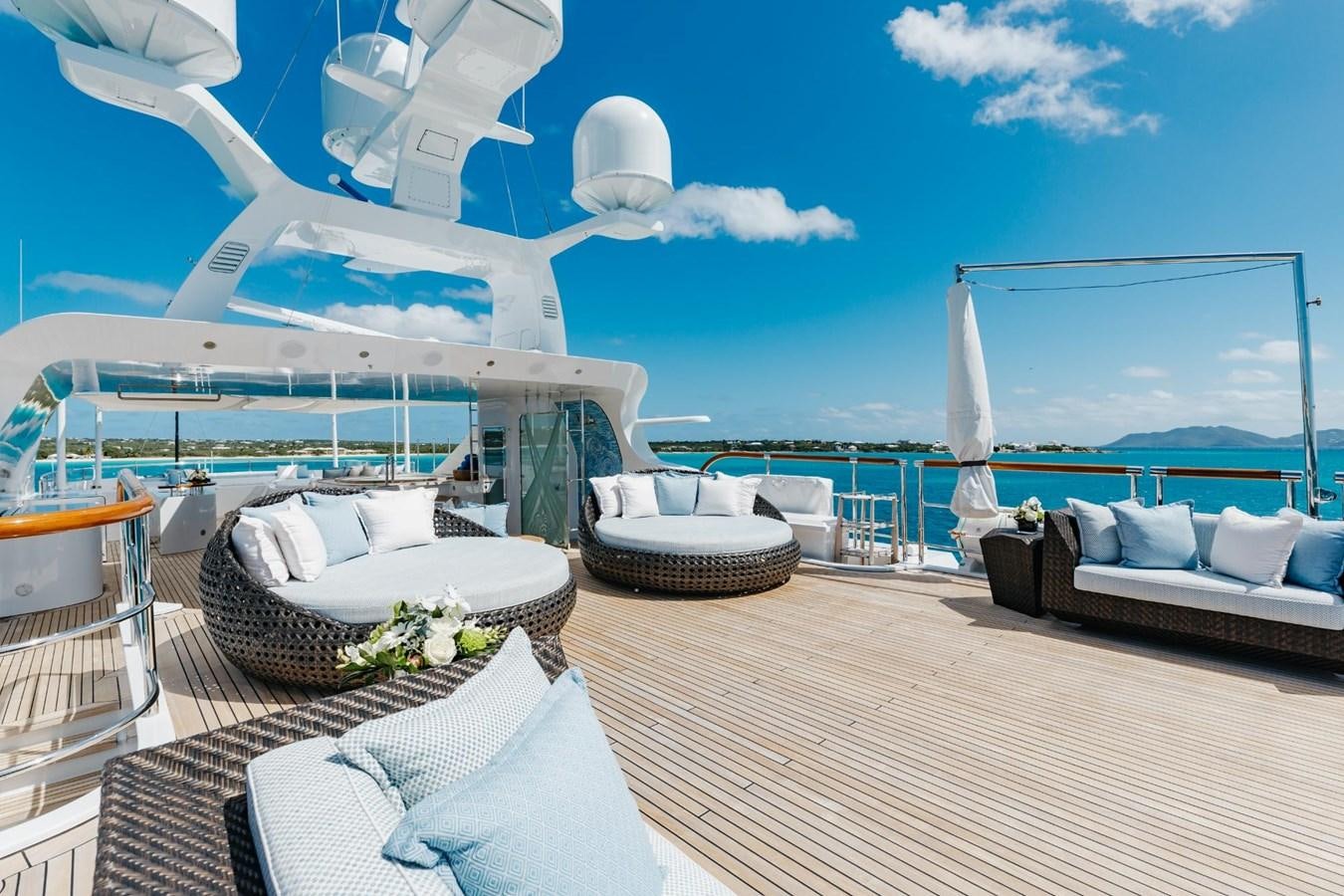

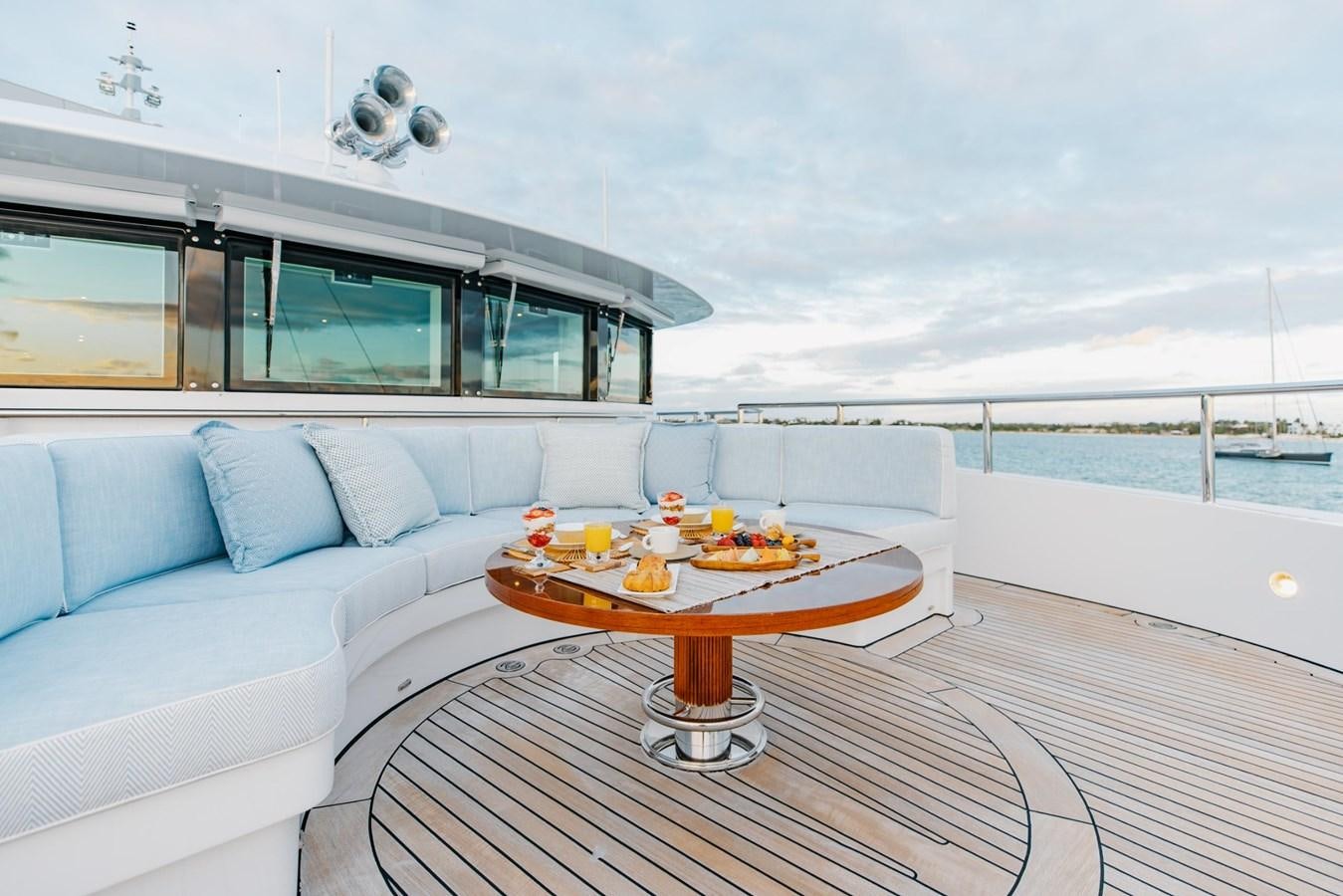

SUN DECK

• Guests access this exceptionally large Sun Deck from the Bridge-Deck, or by portside crew stairway.
• The Sun Deck features three specific areas:
• Forward: sunbathing mattresses forward of the Jacuzzi, sofa with coffee table and elevator window, this area is dedicated to the sun.
• Center: shaded by the mast-arch, to port side the crew staircase wet bar and electric BBQ grill.
• To starboard side an open shower and day-head. Further aft there is a round table for eight and an aft facing sofa.
• Aft: This area is fitted with sun-loungers.
• Outdoor cinema with projector facing aft and 12ft screen.

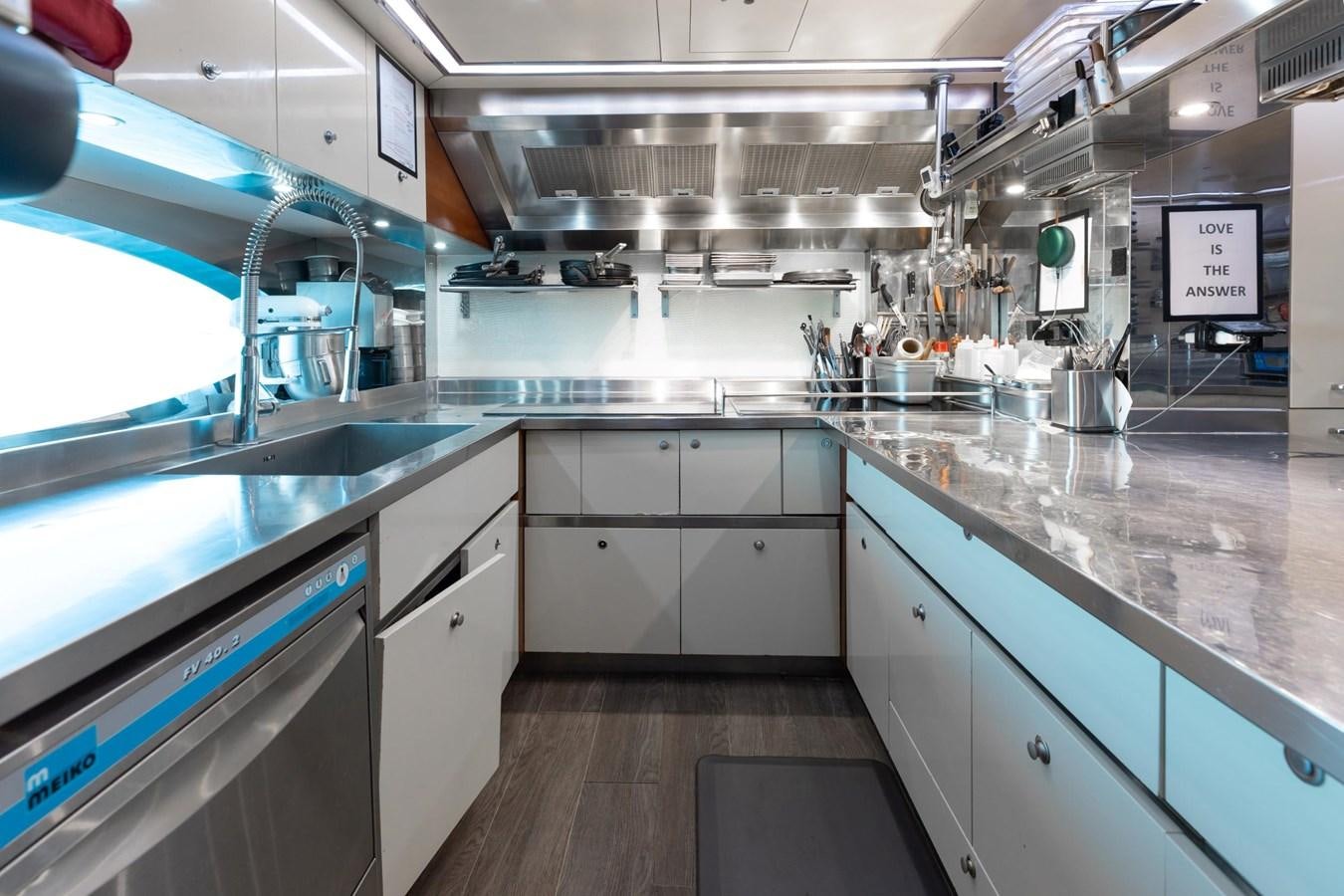

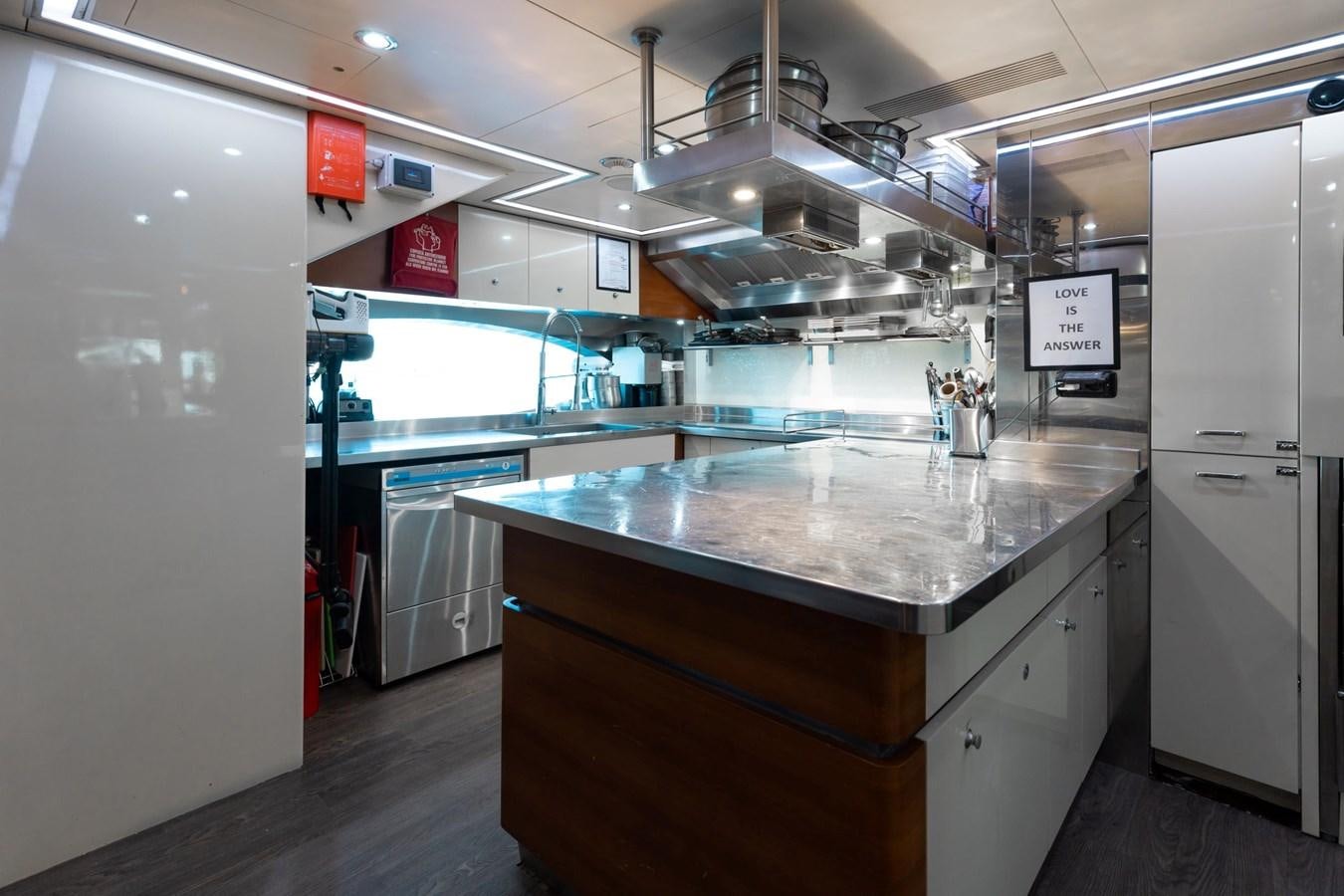

MAIN GALLEY EQUIPMENT

• 2 x 6 induction electric range with hot plate WOLF
• Two convection ovens Convo-therm
• Exhaust hood over range variable speed fans
• Miele microwave oven
• Refrigerator/freezer - refrigerator: 75%/freezer: 25%
• Mieko FV40.2 commercial dish-washer
• Sink in stainless steel
• Two food warming lights

MAIN DECK PANTRY

• Wine cellar 70 bottles Eurocave
• Sink in stainless steel
• Ice maker Iso-therm
• Nespresso
• Under counter fridge

BRIDGE DECK PANTRY

• Icemaker Hoshizaki
• Fridge Miele
• Microwave oven Miele
• Sink in stainless steel
• Nespresso
• Refrigeration/Freezer

EXTERNAL & INTERIOR BAR

• Sink in stainless steel
• Ice maker Hoshizaki
• Standard size under counter fridge Miele

OWNER’S STUDY

• Mini-fridge Whirlpool

GUEST LOBBY

• Mini-fridge Whirlpool

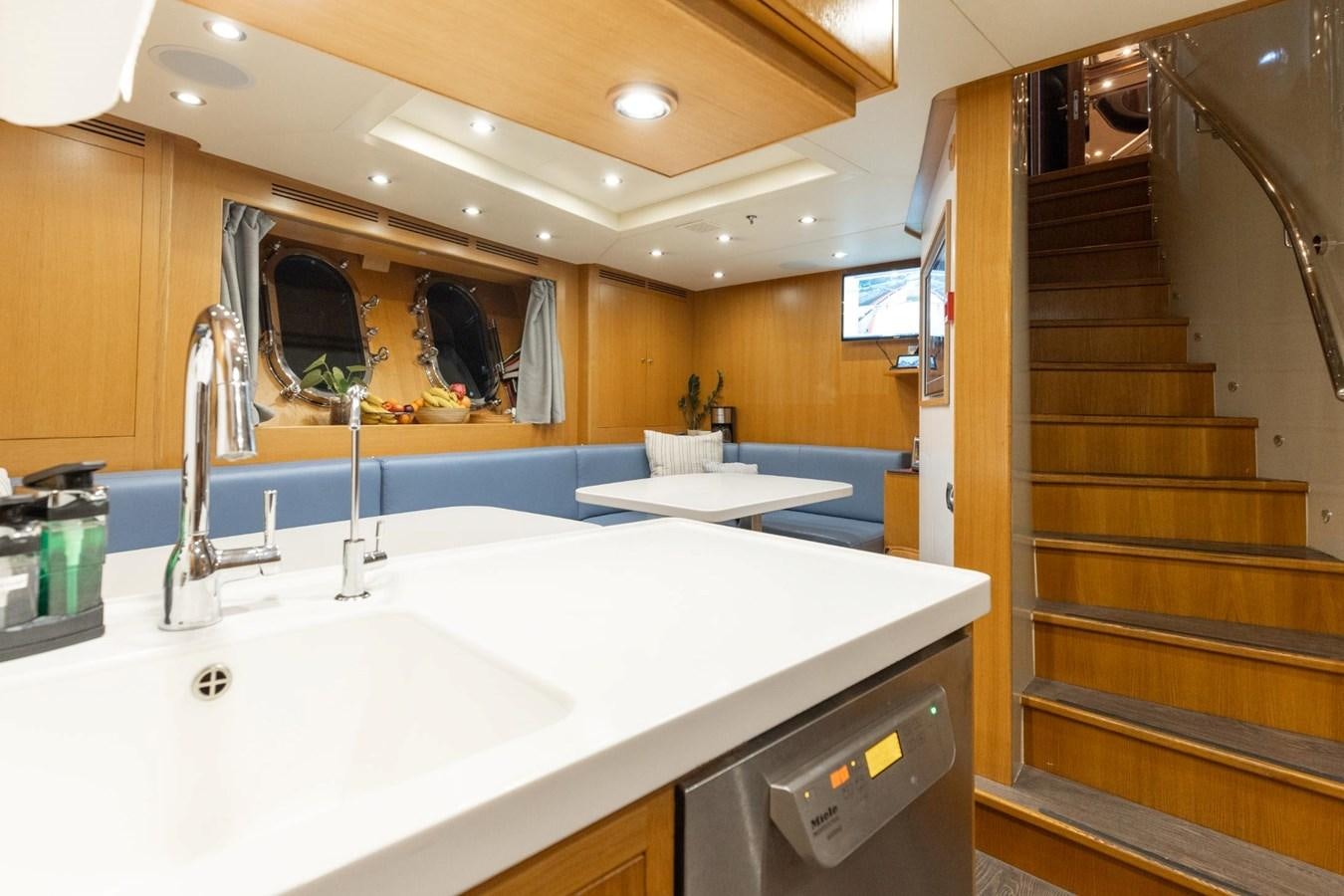

CREW MESS

• Sink in stainless-steel
• Domestic fridge Miele
• Dish washer Miele
• Microwave Miele

LAUNDRY (tank deck)

• (3) Miele professional washing machines
• (3) Miele professional drying machines
• Single stainless-steel sink

TANK DECK

• (2) wine cellar 120 bottles Eurocave
• Dry storage
• 300lb Hoshizaki Icemaker (garage)

Dumbwaiter

• Main pantry to Sundeck

• Her communications equipment upgrade in 2013 included a Fleet broadband FB250 system and a 2nd VSAT antenna dome on the mast to allow for un-interrupted internet communications at all times.
• INMARSAT – C: Yes SAILOR 6018
• SSAS: Via SAT-C
• ECDIS: Transas Navi-sailor 4000 x2
• VHF Systems: VHF Sailor RT 5020 DSC Duplex GMDSS, VHF Sailor 6222, icom m605
• MF/HF systems: Sailor HC 4500
• Portable GMDSS VHF: (2) Entel Hand-held VHF
• SSB: Sailor HC4500 MF/HF
• Navtex Receiver: Sailor 6004
• Internal Ship’s Communication: Crew UHF Motorola radios

Satellite communications:

• Inmarsat FB250 Fleet Broadband
• Satcom Inmarsat C Sailor TT 3020C
• (2) VSAT Internet antennas
• 2x 2nd gen Starlink Marine Panels

Intercom System

• Wi-Fi is accessible throughout
• LAN network
• 20 outlets with Cat 5 cables

Intercom and magneto phonic telephones to/from:

• wheelhouse
• engine control room
• lazarette emergency steering station

• Navigation Bridge: Helm Station and First officer’ Station
• Monitors: 2 x Furuno radar, 2 x ecdis, 1 depth, 1 cctv
• X-Band Radar: Transas, Furuno 96 NM, ARPA interface FAR-2218(-BB), Sperry mod. 96 NM, ARPA interface Inter-switch system
• S-Band Radar: Furuno FAR-2338S(-NXT)
• Multifunctional Workstation: TimeZero
• Chart Plotter: (2) Transas Navisailor 4000 ECDIS compliant
• Magnetic Compass: Magnetic compass Jupiter 73436-2843 (Sperry 2843 Fluxgate compass)
• Gyrocompass: Gyrocompass Sperry Marine NAVIGAT X MK1
• Auto Pilot: Autopilot Sperry AD II/G-TMC
• Rudder Angle Indicator System: Sperry Marine
• Echo Sounder: JRC colour echosounder model JFC 130
• Speed Log: B&G heading and speed
• Depth Sounder: Yes
• Video Sounder: Yes
• DGPS: Simrad P3007
• GPS: (2) MX Marine MX 420
• AIS: Transas integrated to chart system (SAAB R5)
• Navtex: JRC NCR 333 (SAILOR 6004)
• Wind Instruments: Brookes & Gatehouse HYDRA 2000
• Horn: Kahlenberg triple array air horns w/ MS11A Auto-whistle controller
• Search Lights: (2) ACR 100
• Night Vision Camera: Yes
• Tender Tracking System: Yes
• Bridge Navigation Watch Alarm: (BNWAS)
• Weather Fax: Via Sat-C
• Ships Computer: Yes

• All public areas and cabins (14 areas) were upgraded with new LED TV’s, new Denon AV receivers (AVR 2313), Local Crestron control system, I-Pad 2 remote control pads with custom design interface and Crestron docking stations for complete area control, Apple TV in all areas.
• The Kaleidescape Movie/Music server with over 1000 films is accessible independently from all cabins and public areas, PLEX movie system on board and all guest areas.

• (1) tender Whitmarsh 7.1m inboard 260 HP Yanmar engine (2013 year, approx. 200 hours)
• (1) Rescue tender MOB
• (2) personal watercrafts jet ski Seadoo, 300, 2016
• 4 seabobs,

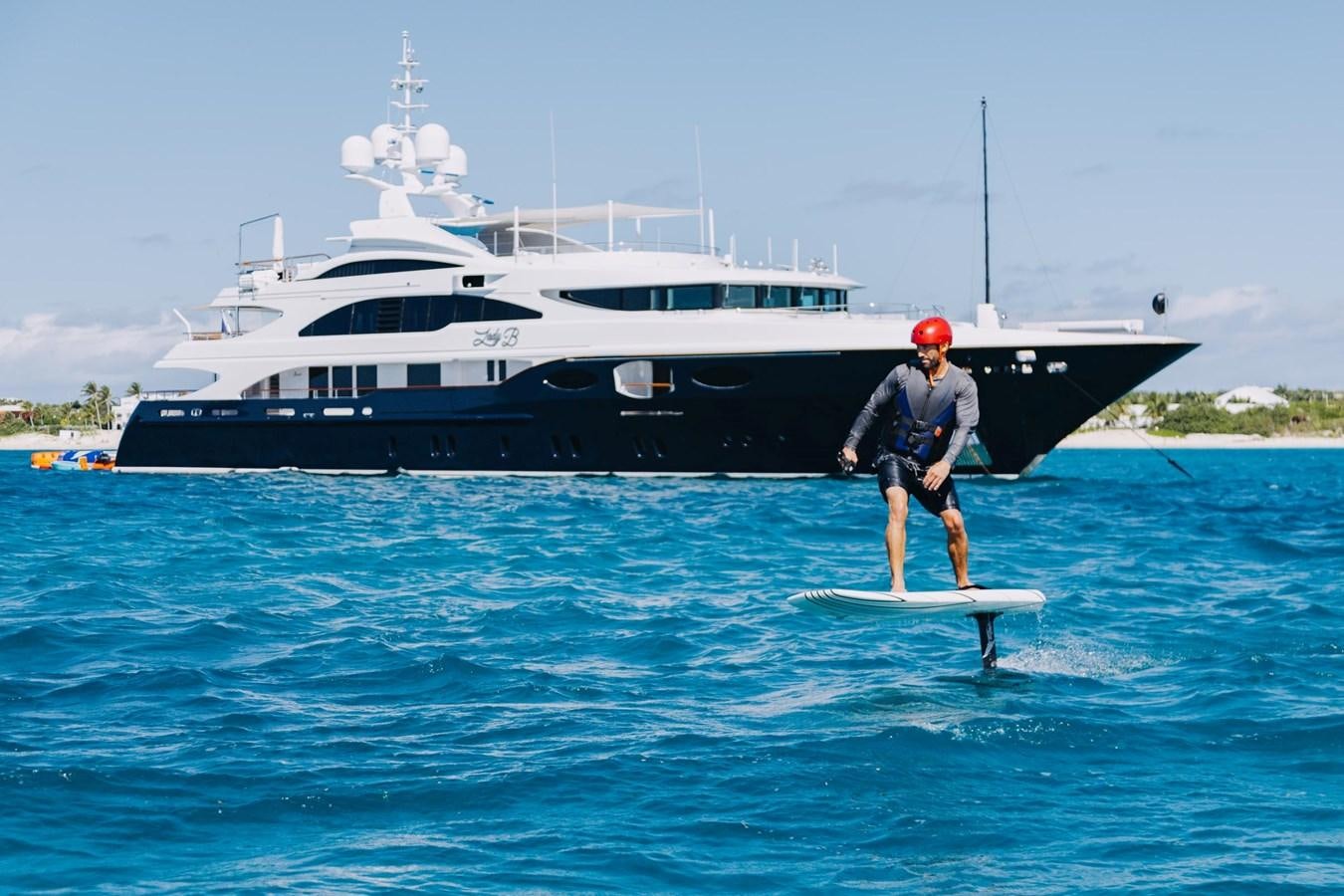

• 1 efoil
• 2 kayaks
• 2 paddleboards
• Dive Compressor and Cascade system (Bauer
• 6 complete sets dive gear
• Inflatable toys misc. tube etc.
• Large set of life vests and wet suits (adult & children)

• Anchors: (2) 225kgs SEC anchors
• Anchor Chains: Poseidon Ø 20,5mm, PtSd7/StBd5 shackles, length: 190/135m
• Anchor Windlass System: (2) Nanni 8,8kW
• Garage Crane: Motomar electro/hydraulic duty rotating Max. 2,000 kg
• Rescue Tender Crane: Motomar electro/hydraulic quick release hook
• Warping Capstans: (2) Nanni 4kW
• Ground Tackle: (2) Windlass Malegaon L. & Figli MT132 M2
• Bow Crane: (rescue tender crane)
• Passerelle: Motomar, hydraulic adjustable both in height and angle
• Side Boarding Ladder: Motomar, hydraulic adjustable in height
• Sea-stair: Marquipt 8-step tide rider
• Spotlights: 2 x Sanshin HR 1012
• Paint Exterior: Awl-craft 2000 Summer 2022
• Paint Underwater: International paint micron extra black 5693

OTHER EQUIPMENT

• Pool

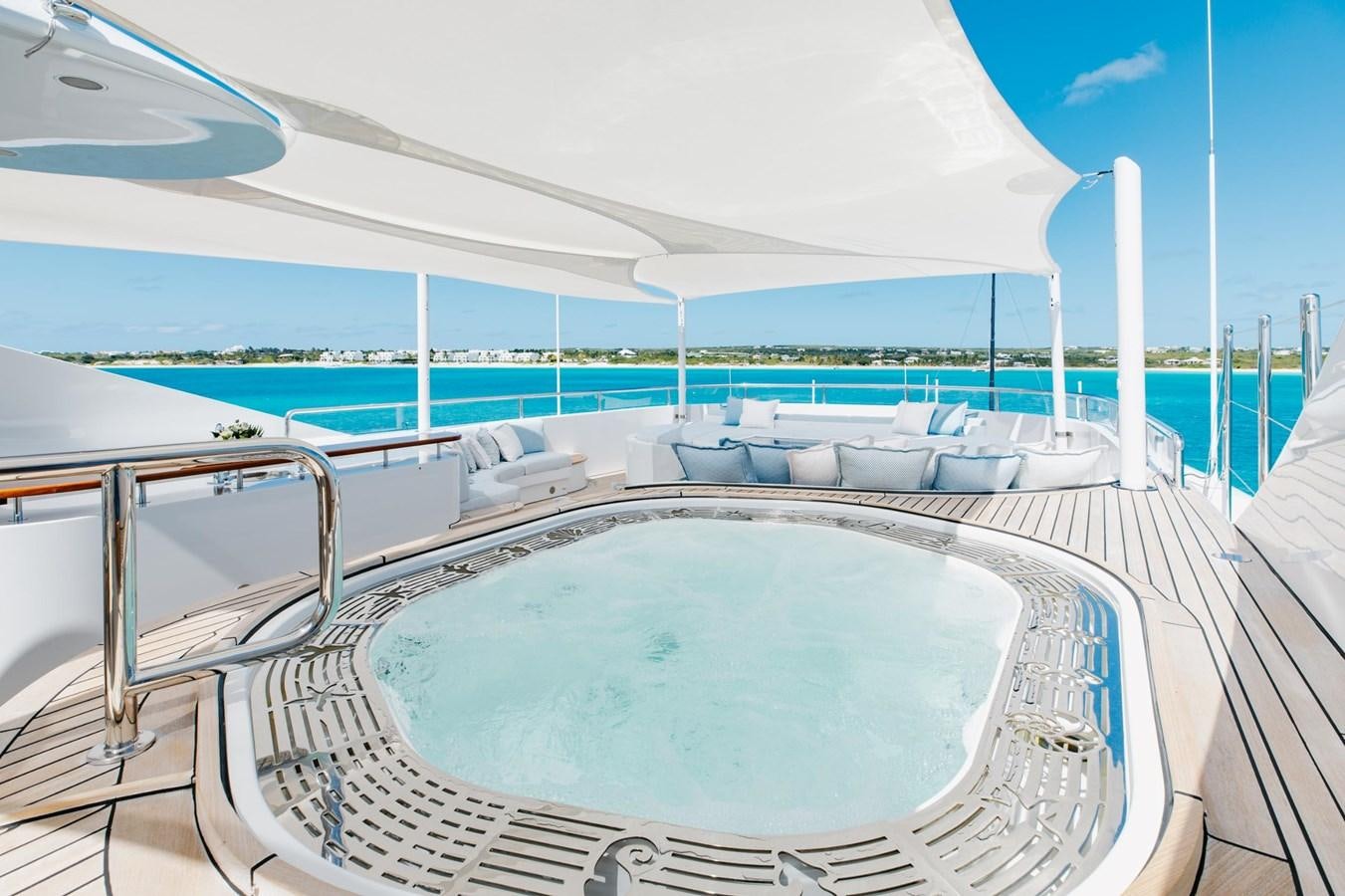

• Spa Tub: Sundeck Jacuzzi
• Sauna: Steam shower in Gym

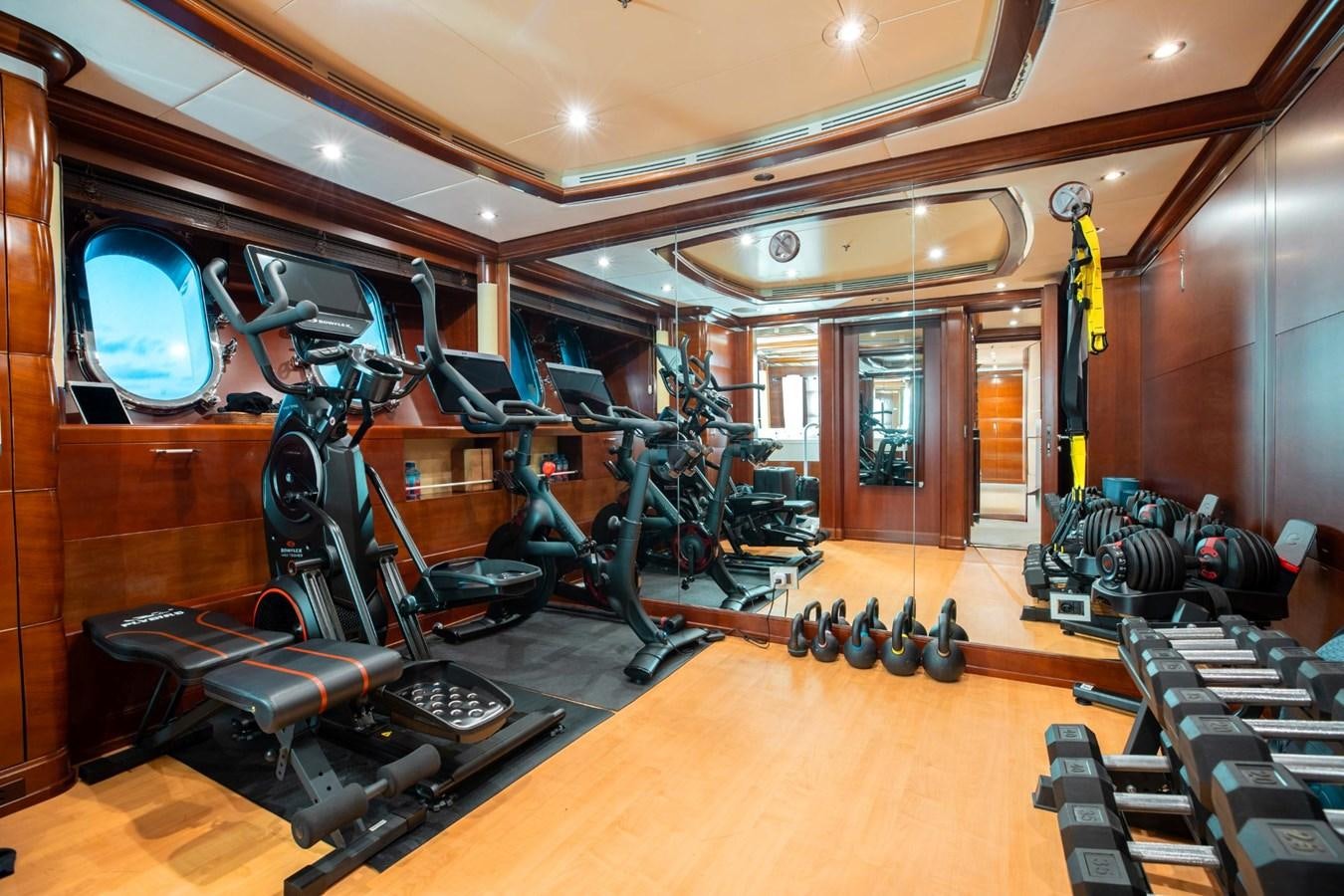

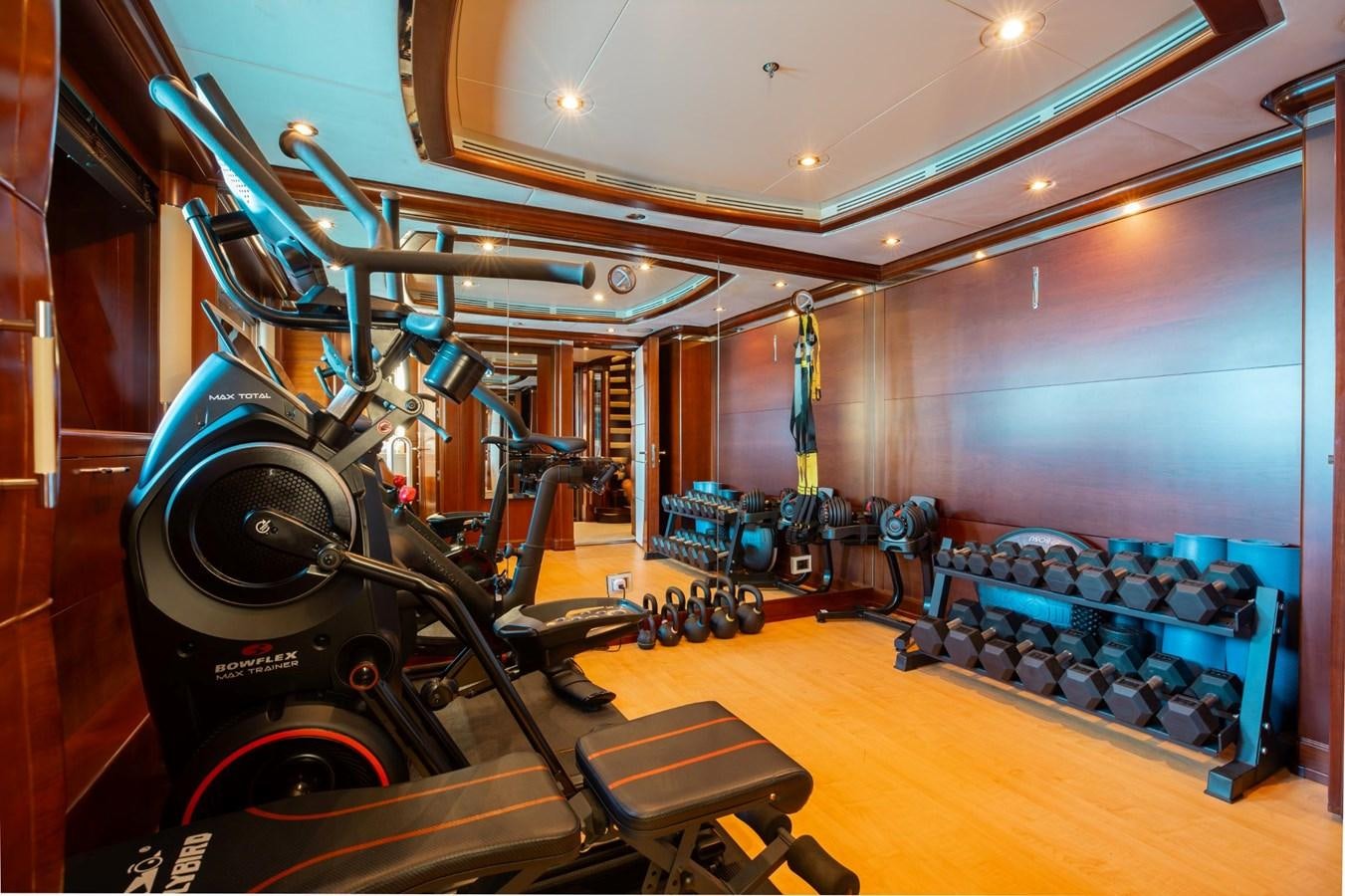

• Gym Equipment: Peloton, Bowflex elliptical, Lulu mirror, Freeweights and bench
• Sun Awnings: Multiplex on sundeck and bridge deck aft

Security System

• CCTV Cameras AXIS, installation as per ISPS
• (4) Main deck PTZs
• (1) Engine room PTZ
• (1) beach club 360 degree
• (3) Control stations – Bridge, Crew Mess, ECR
• search light Sanshin HR-1012

Safety

• (6) watertight bulkhead
• (8) watertight doors lower & tank deck
• (36) immersions suits
• (4) 16-man life raft SOLAS RFD with HRU
• (8) life buoys (lifeline/lights/smoke)
• (4) life buoys (lifeline/lights/smoke)
• (31) + (3) XXL adult life jackets
• (7) children life jackets

Safety Eletronic

• (2) radar transponder Mcmurdo SmartFind s5a AIS Sart
• (3) ACR Gpirb

Firefighting

• (2) self-priming electric bilge/fire pumps 380V/3ph/50Hz
• (1) fixed diesel emergency bilge/fire pump 9kW
• (16) fire hydrants, hoses & nozzles
• (2) fire blankets in galley
• galley hood fixed Co2 installation
• engine room water mist fire-extinguishing system Ultrafog
• accommodation water mist fire-extinguishing system Ultrafog

Firefighting Equipment

• 2 x scott scba with 4 spare bottles

Gas Detection

• 3 gas detectors

Smoke Detection

• 81 detectors

Fire Alarm

• 18 manual call points

Alarms

• bridge fire alarm system Autronica connected with manual alarm system throughout
• integrated monitoring & alarm system (PLC) tank levels, tank alarms, bilge alarms, main engines, generator sets, gear boxes
• heat/smoke detector throughout guest/crew/technical area
• common alarm system in control room with repeater in crew mess and engineer cabin
• manned Engine room ECR

MOB Boat

• Narwhal SV Unsinkable

Life Rafts

• LALIZAS

Breathing Apparatus

• SCOTT

Lifejackets

• LALIZAS

Immersion Suits

• LALIZAS

EPIRB

• Yes

SART

• Yes

Flares and Signals

• Yes

Medical Equipment

• CAT 1 medical kit & certificate

2022 Refit
Exterior

• Full exterior paint with removal of hardware by Virgin. Awlcraft. Change hull color to Blue
• Sand and renew all varnish cap rails
• Sand all teak decks and renew caulking as necessary post paint job
• Fabricate new awing support poles for main deck matching FB awning poles
• Design new aft deck seating. Cut out aft deck seating and move aft 3’
• Fabricate new support beams and re weld in place
• Renew aft deck teak, reroute drains and misc services to match
• New aft deck chairs and tables
• Replace all exterior canvas includes cushions and covers all decks
• New sundeck shades fore and aft
• Renew hot tub jets and polish interior sundeck
• Replace sundeck windshield plexiglass
• Fabricate and install teak countertops port and stbd FB deck aft outboard
• Fabricate and install glass windshield port and stbd wings for wind protection FB deck
• Renew and replace misc surfaces of decorative silver leaf, chrome, ss, glass and varnish
• Remove built in FB aft L- shaped deck seating
• Replace teak decking, fill and fare bullworks
• Add new custom teak furniture
• Exterior LED lighting
• Two major projects designed by Murray and Associates for FB aft deck removal of fixed seating and main aft deck moving the built seating 3 feet aft. Class approved. Full tenting for painting. Miscellaneous metal work grinding, fabricating and faring
• Mechanical and 15 year survey compliance

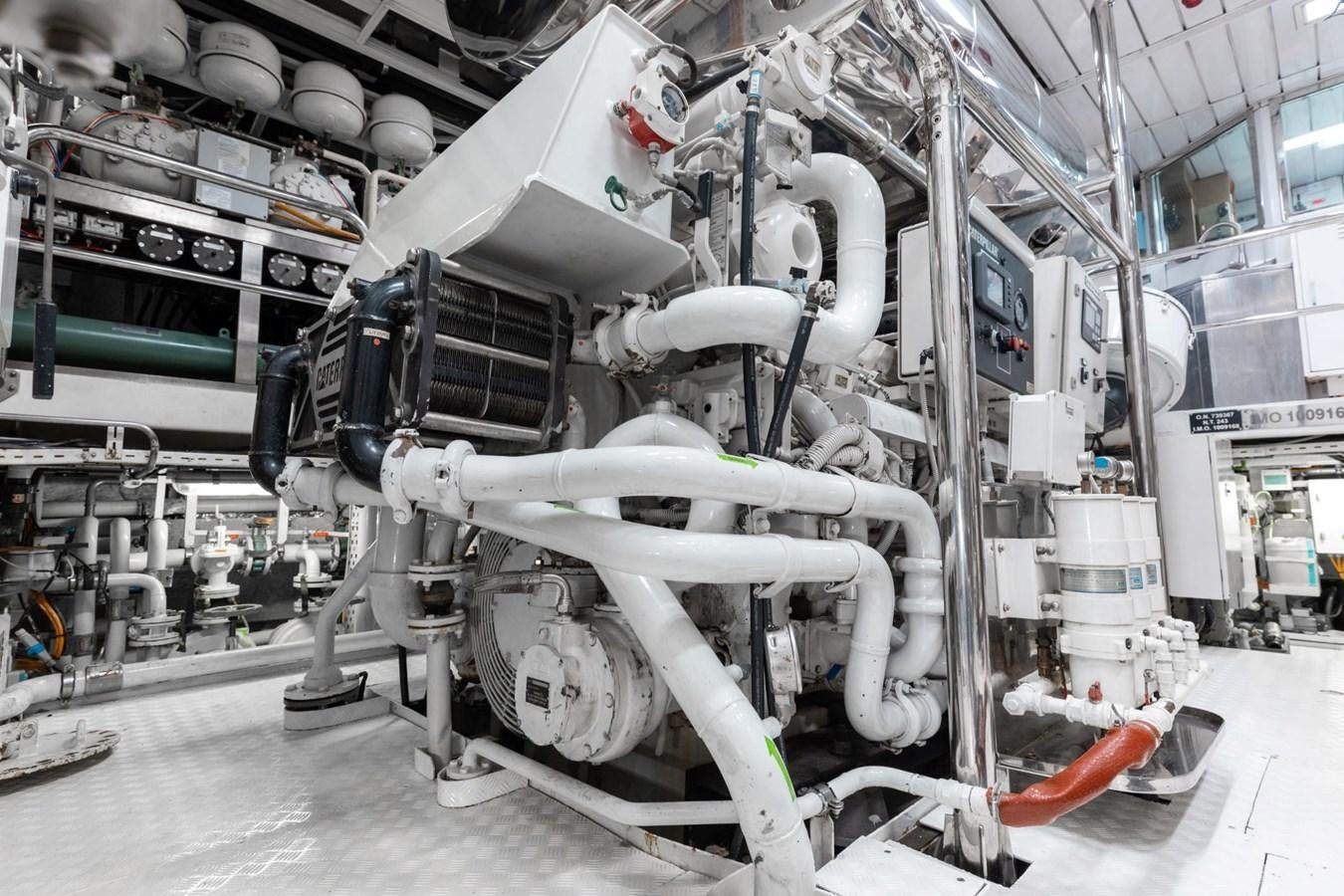

• Main engine service
• Fabricate and install 4 new a/c plant chiller condensers VFD’s, and new LP/HP gauges
• Rewrap A/C chiller pipes in ER
• Service A/C 44 evaporator units throughout the vessel
• Install new A/C make up air units
• Service and clean all galley hood ducts and dryer ducts
• Rebuild and service bow davit
• Remove and tender overhead crane and send out for service
• Service aft passerelle hydraulics
• Rebuilt Stern door hydraulic rams Feb 2024
• Fabricate new Chain strippers in anchor gear
• Service elevator and dumbwaiter – Annual certification due 28th Feb 2024
• Misc electrical service; replace breakers, freg drives, chargers, batteries, new rack UPS
• Replace all sea valves at haul out 8/22
• Tank inspection and cleaning
• Recondition propellors
• Remove shafts and test for true
• Shaft Bearings renewed
• Service main engine gears
• Main engine mounts and alignment
• Megger test electrical equipment
• Replaced (1) fire sprinkler head
• New Autronica fire panel
• Service steering hydraulics
• Naiad stabilizer service will be completed on April
• Sand and paint bottom
• Replace zincs
• Hull sounding for class

Interior

• Replace rope lighting
• Replace and rewrap all door handles (leather)
• Cover handrails with leather
• Reupholster bed and bath rails all rooms and pilothouse
• Reupholster FB leather on helm, desks, settee, stools
• Replace FB and Skylounge stone and vanities
• Build out interior cabinets with lucite for glassware storage
• Replace MSR marble floors and vanity tops
• New MSR bed soft goods and headboard
• Fabricate MSR her side (pt) toilet room
• New MSR bathtub (jacuzzi and heater) and vanities
• New MSR toilets
• New MSR bath marble
• Renew/replace MSR shower and bath fixtures add steam shower
• New drapes Main salon, skylounge & gym
• Refinish wood floors throughout
• Replace misc galley appliances
• Refinish/renew galley flooring
• Fabricate new lower galley cabinets
• New bar top marble and stone Skylounge
• Guest s/r’s new linens, renew woodwork and polish stone
• Replace misc wall mounted TV’s with smart throughout the vessel
• Crew accommodations renewed
• New Led lighting crew areas
• Flooring and carpet replaced throughout
• The interior was gutted with headliners down and access cabinets opened. All areas cleaned, serviced, and renewed as necessary. All interior wood professionally sweated and repaired for nicks and scratches. Misc finish carpentry throughout the interior. Removal of items, enclose exposed plumbing, re-silver or replace mirrors as necessary.
