LADY ARLENE Yacht for Sale

Length
105' (32m)
Builder
Heesen Yachts
Build
1988
Cabins
4

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

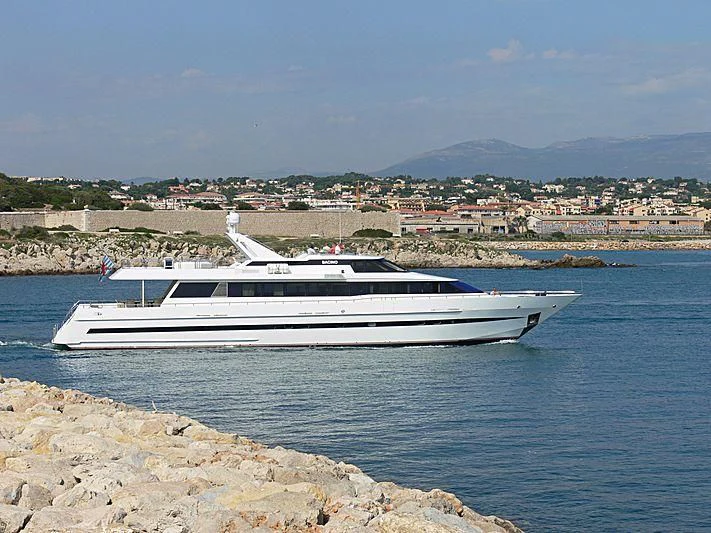

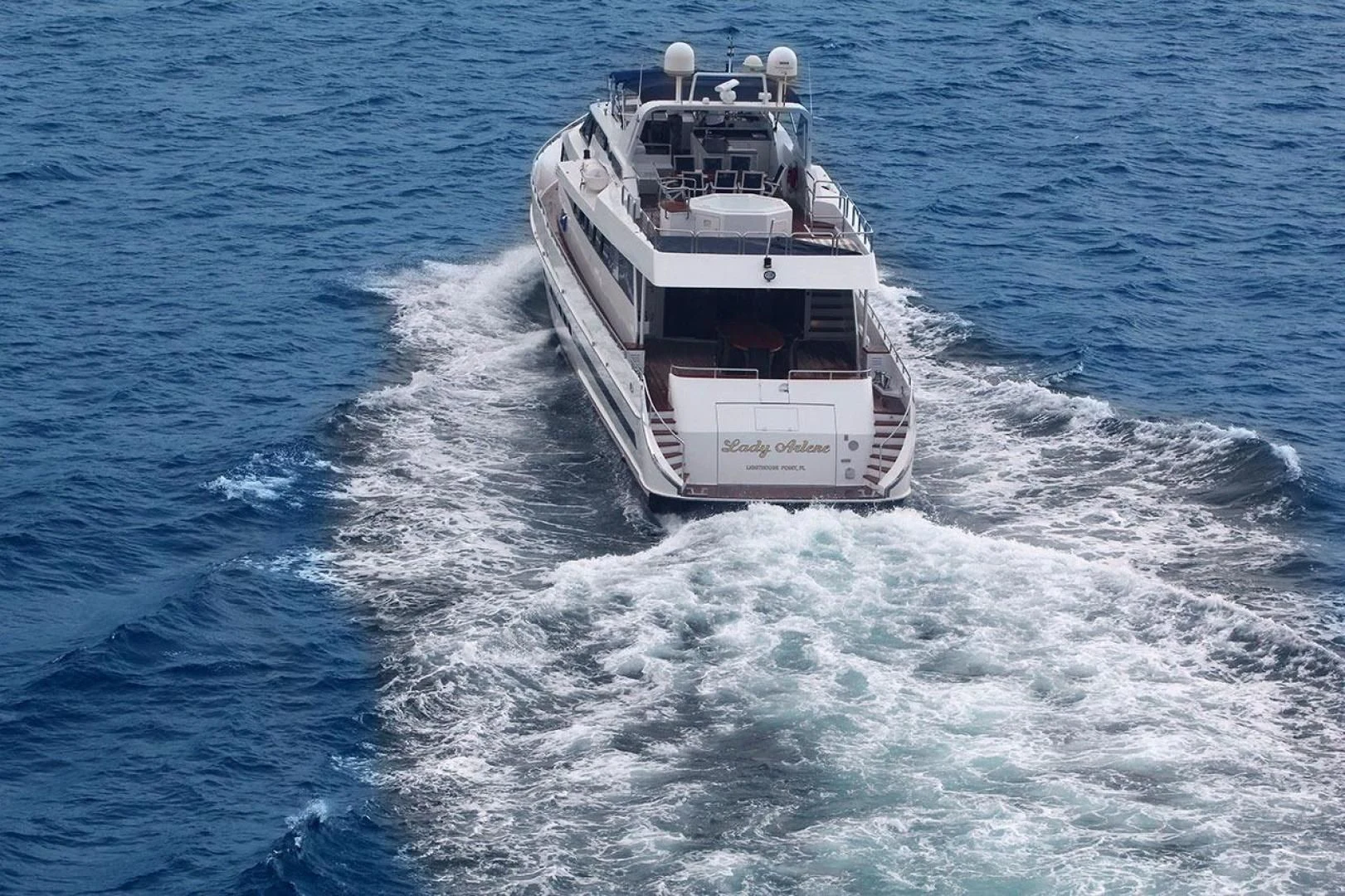

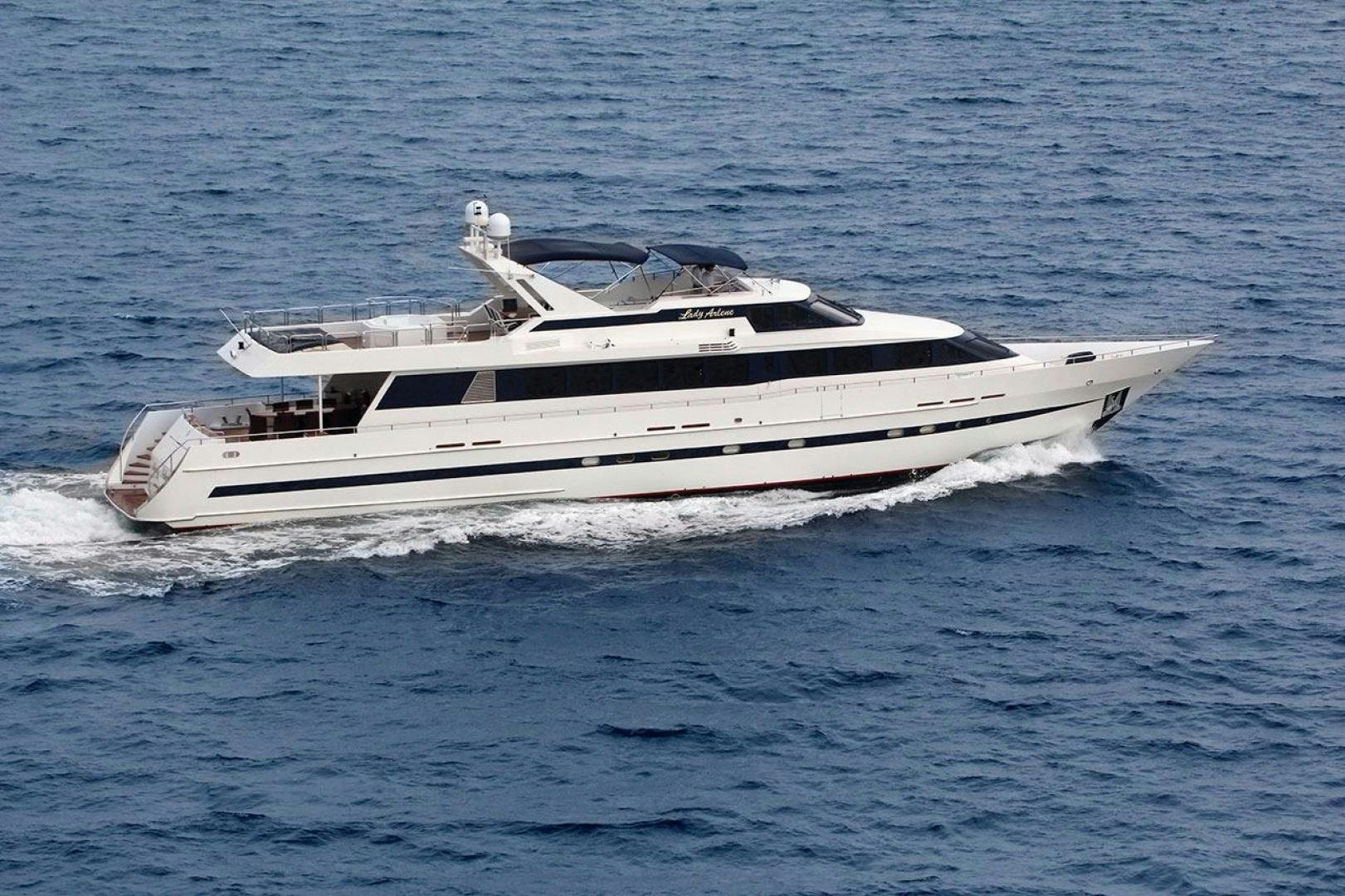

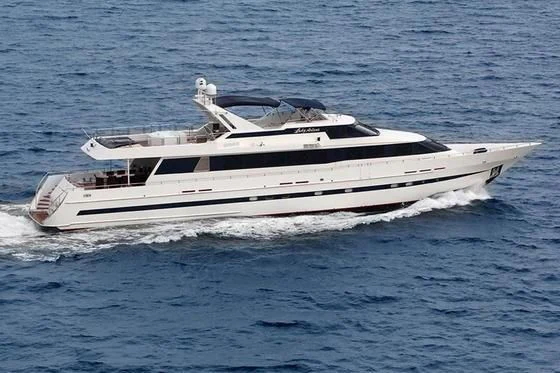

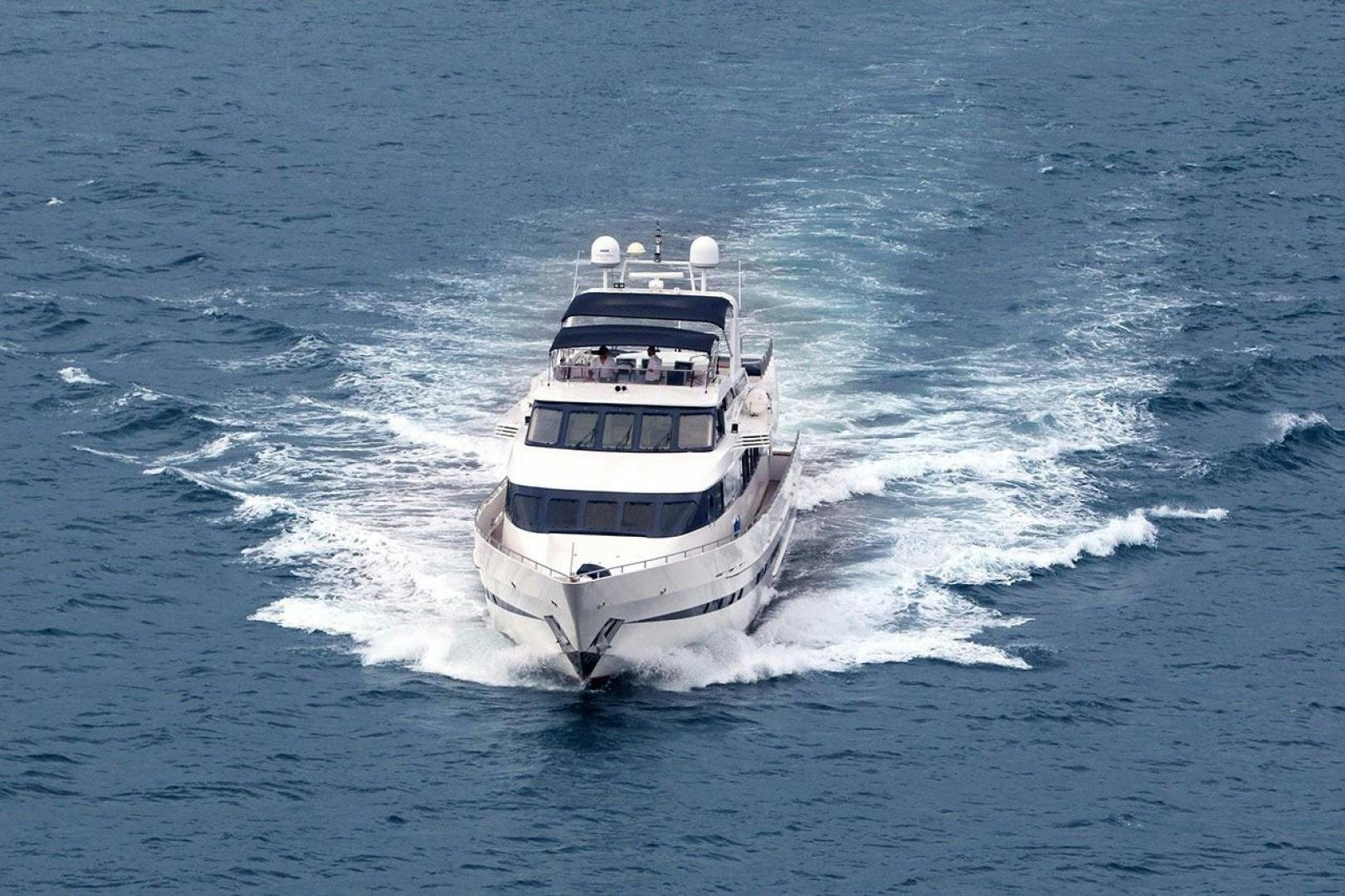

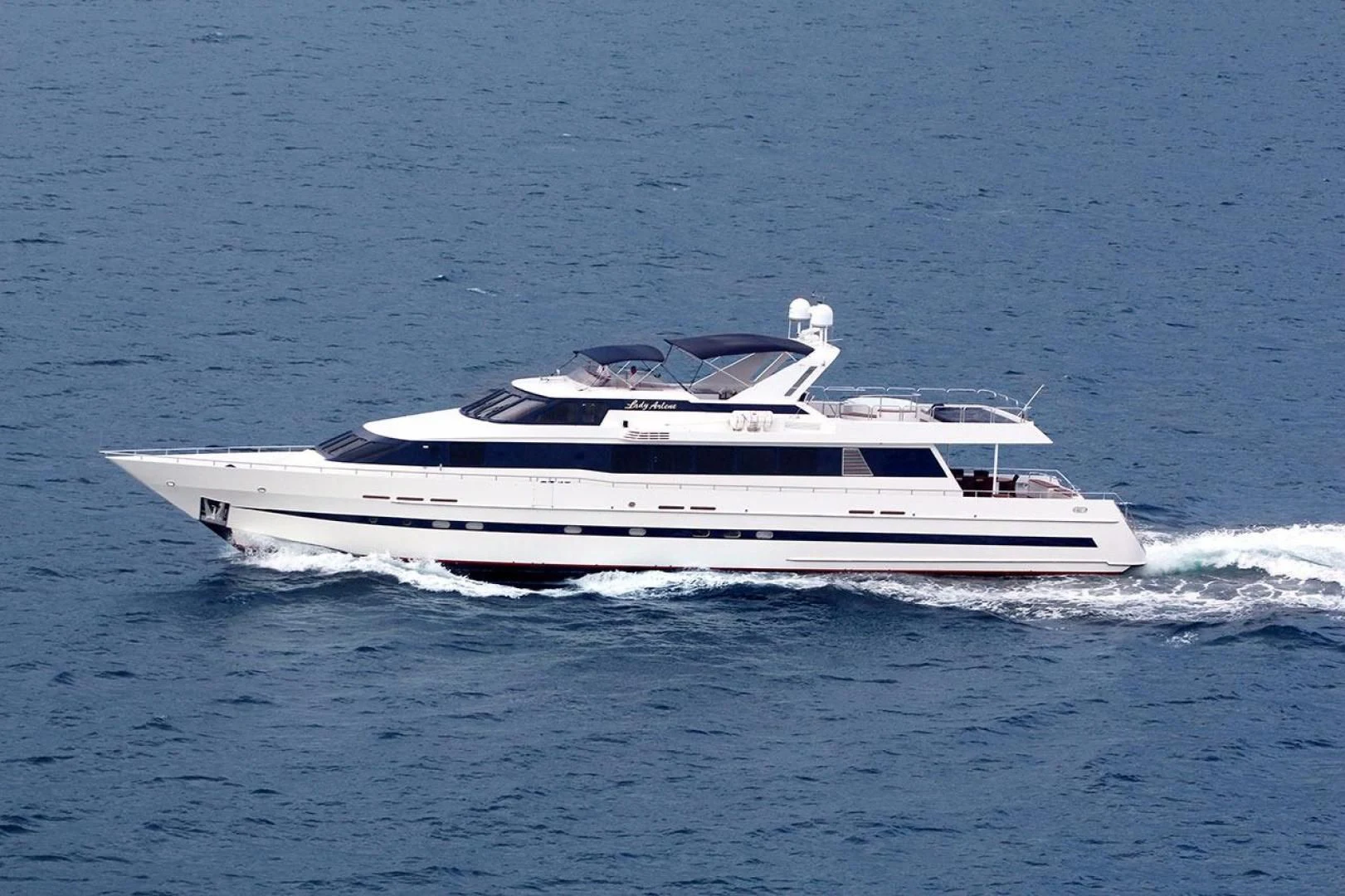

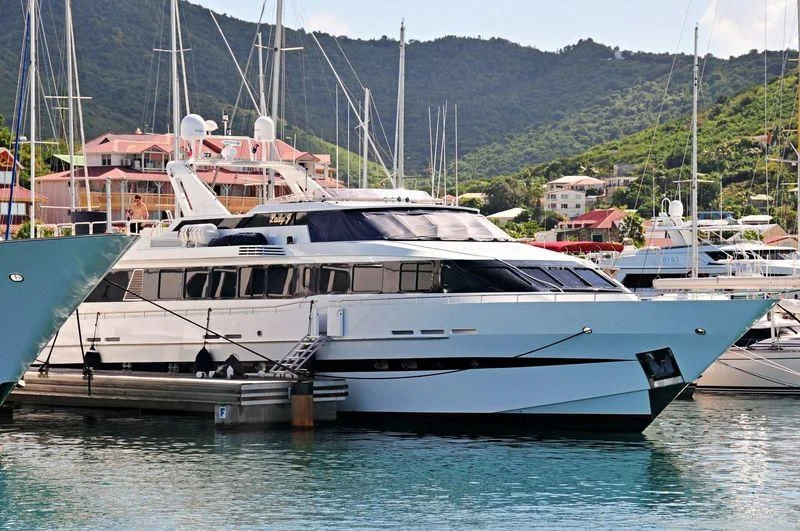

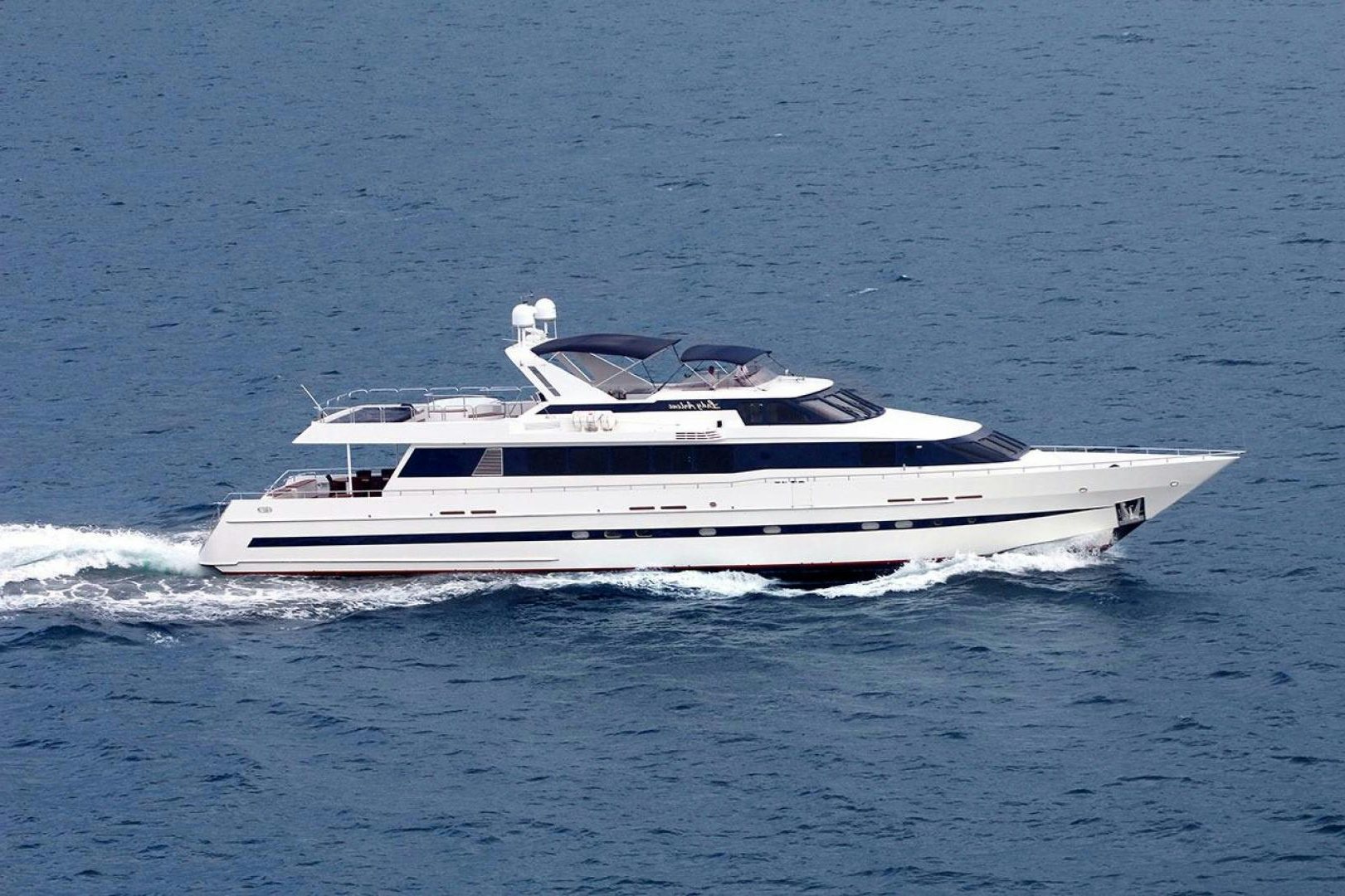

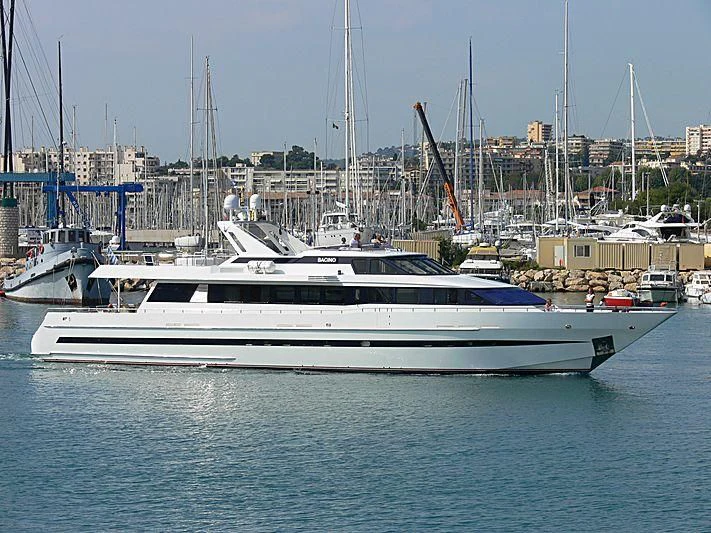

105' Heesen Motor Yacht LADY ARLENE

LADY ARLENE in the News

Specifications

Builder Heesen Yachts
Length (LOA) 105' (32m)
Year 1988
Draft 6' 6" (1.98m)
Beam 23' (7.01m)
Range 1,260 NM
Location Fort Lauderdale, United States

Accommodations

Staterooms 4
Capt. Quarters No

Dimensions & Capacity

LOA 105' (32m)
Max Draft 6' 6" (1.98m)
Fuel Tank 4,400 g
Fresh Water 1,540 g

Construction

Hull Material Aluminum
Max Speed 18 Knots
Cruising Speed 14 Knots
Range 1,260 NM
Stabilizers None

Engines (x2)

Engine Make Detroit Diesel
Power HP 1,080
Power KW 805
Fuel Type Diesel
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Brokers Comments And Overview

The 104' Heesen Motor Yacht LADY ARLENE is one of the most impressive Motor Yachts built by the pedigree Dutch builder christened in 1988 and completely refitted in 2012/2013 with continuous upgrades since. The exterior of Lady Arlene is very modern and stylish with a timeless interior making it a perfect entry level pedigree yacht for any discerning owner at a fraction of replacement cost.

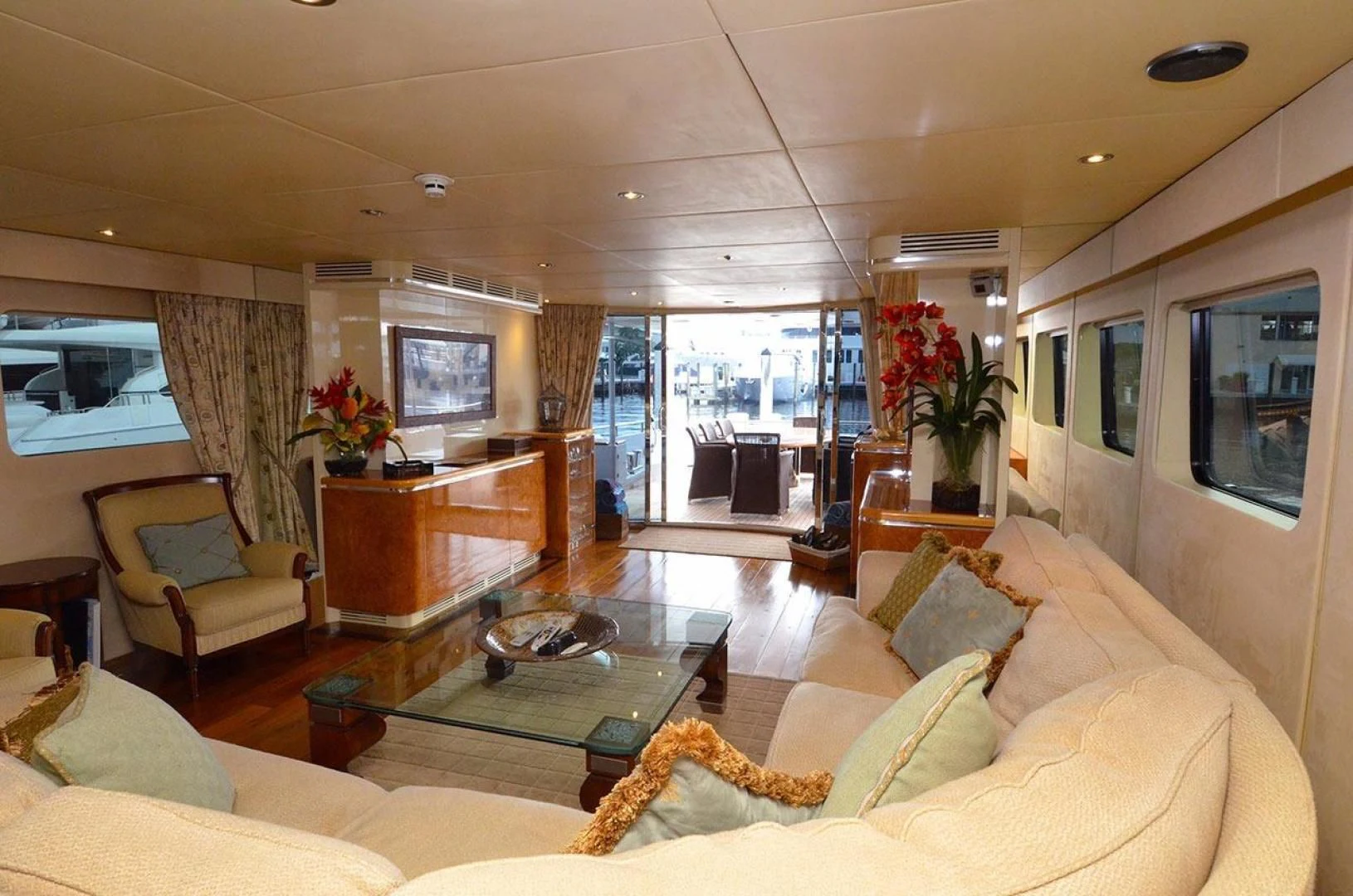

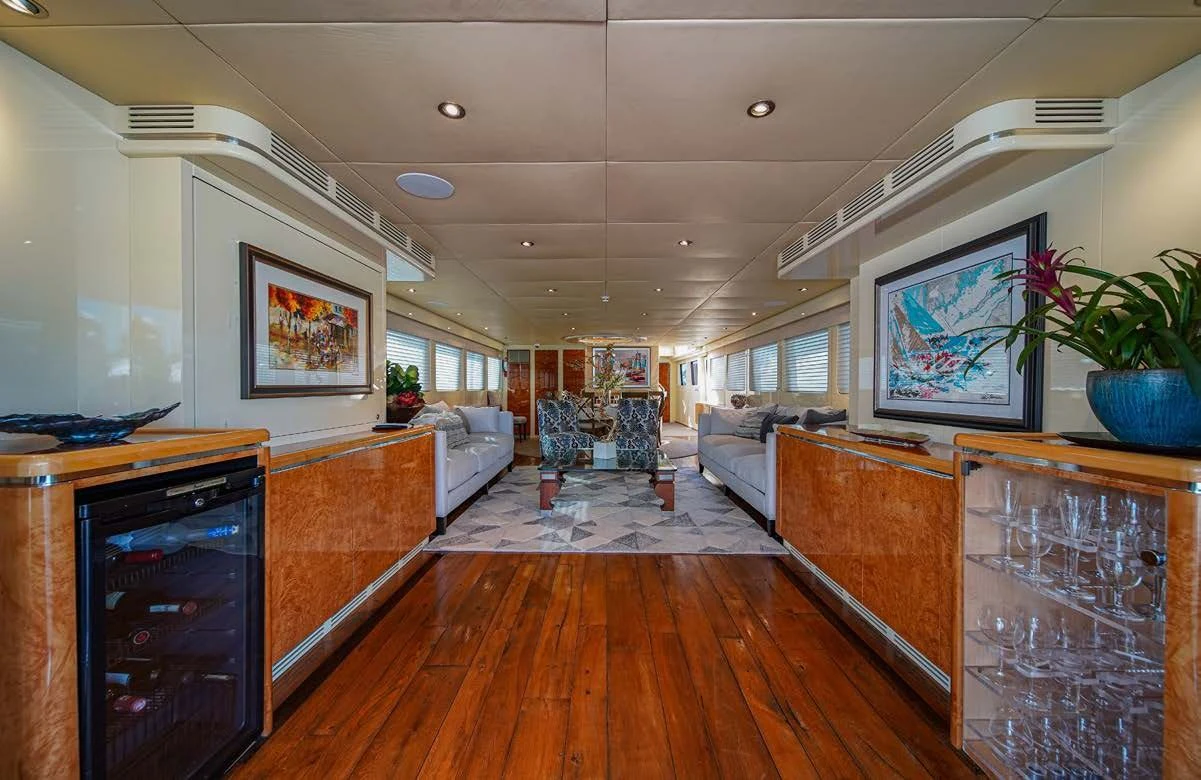

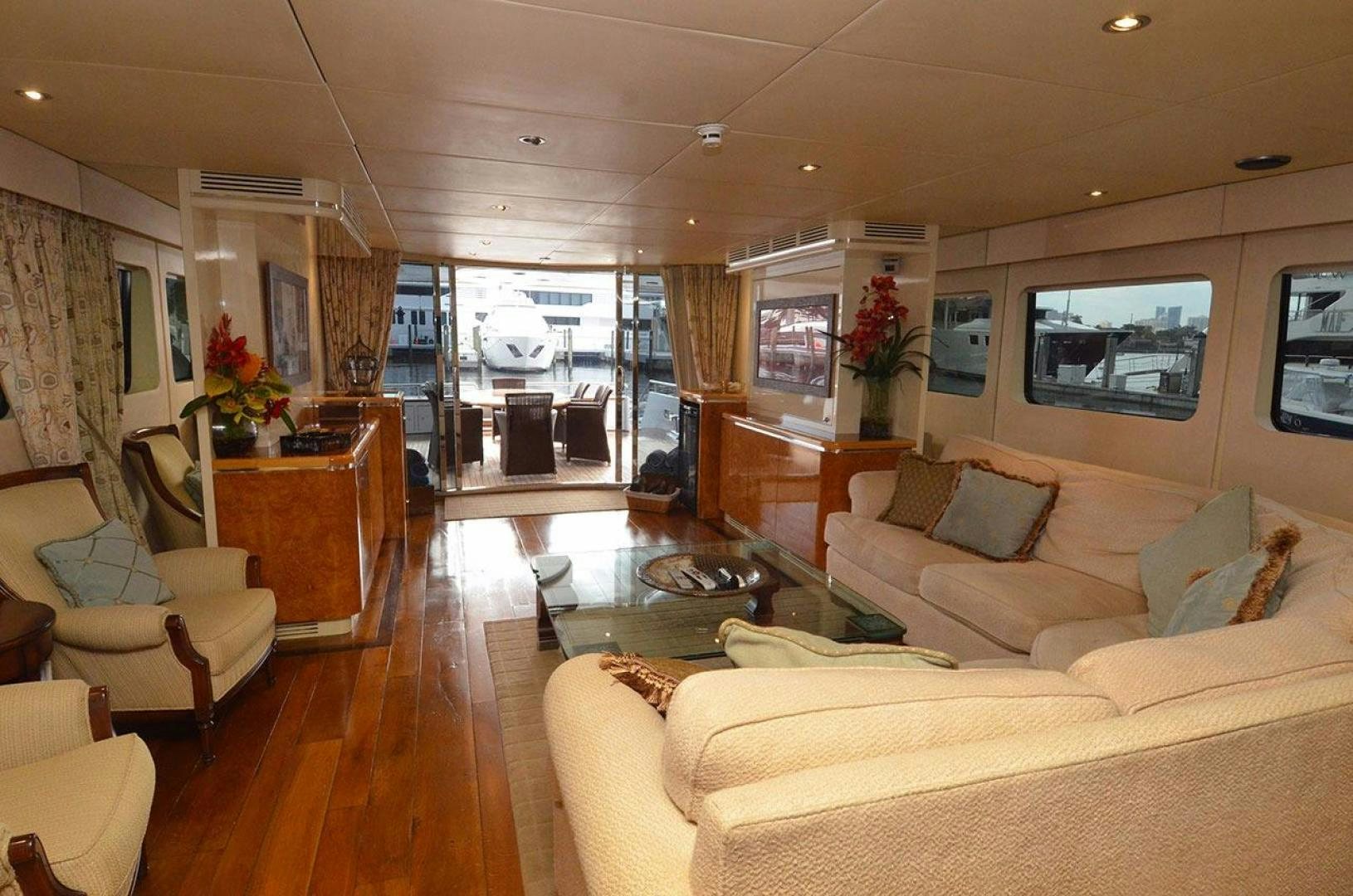

Salon

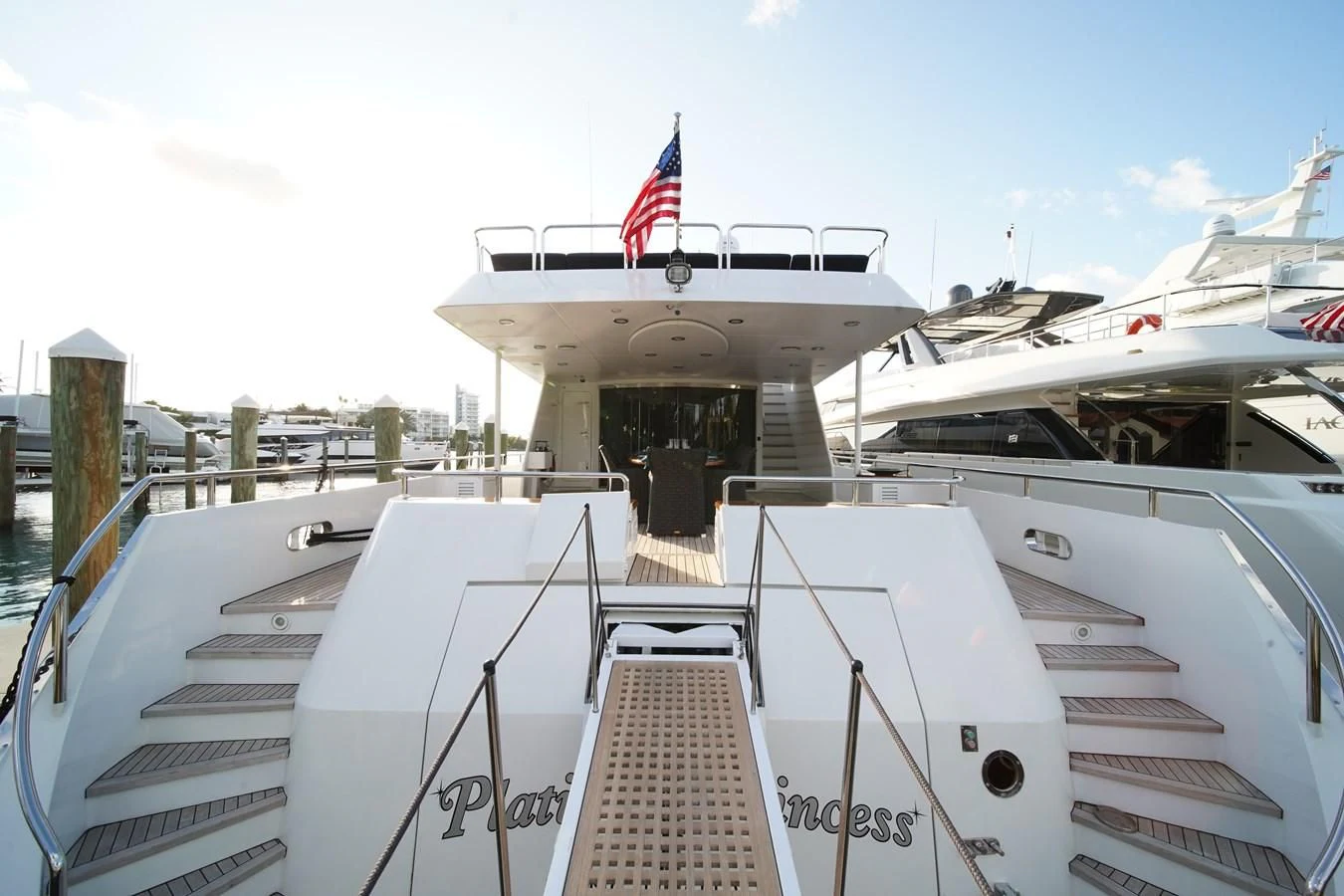

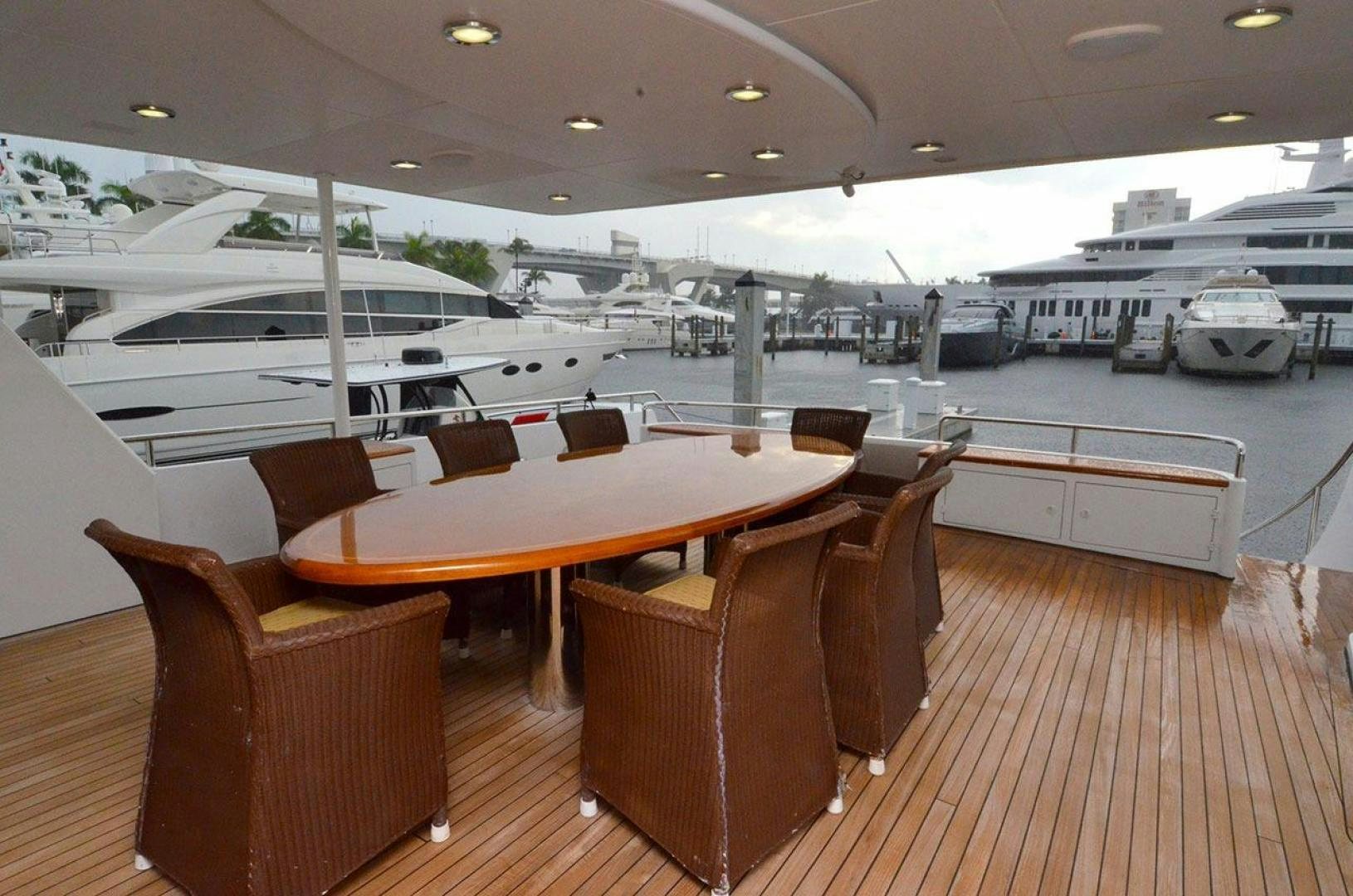

Walking onto the yacht from the stern, there are 2 stairways on each side of the garage of the Euro transom. The first impression is that you see a huge alfresco dining table which can easily accommodate 10 people for formal or informal dining.

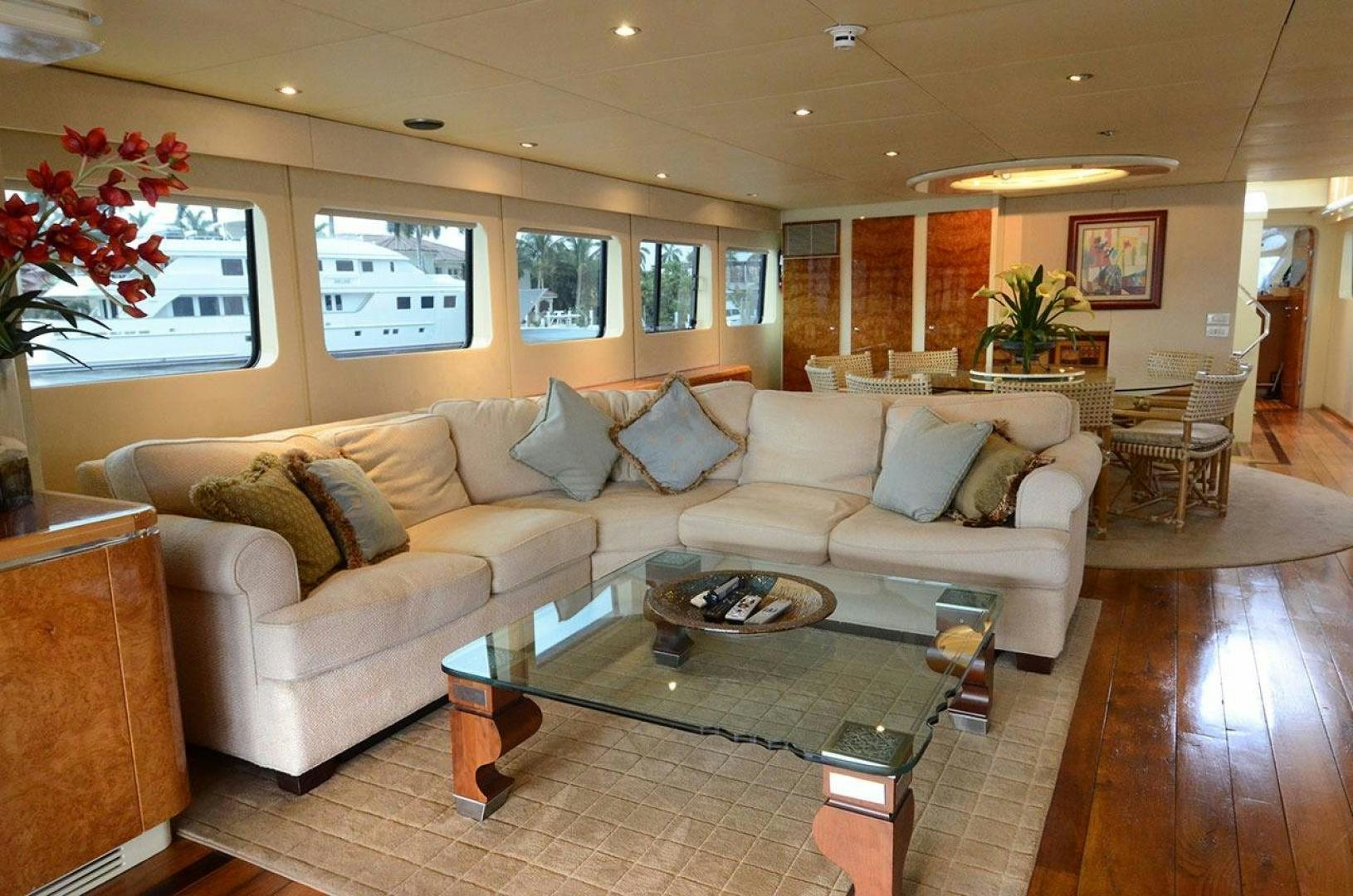

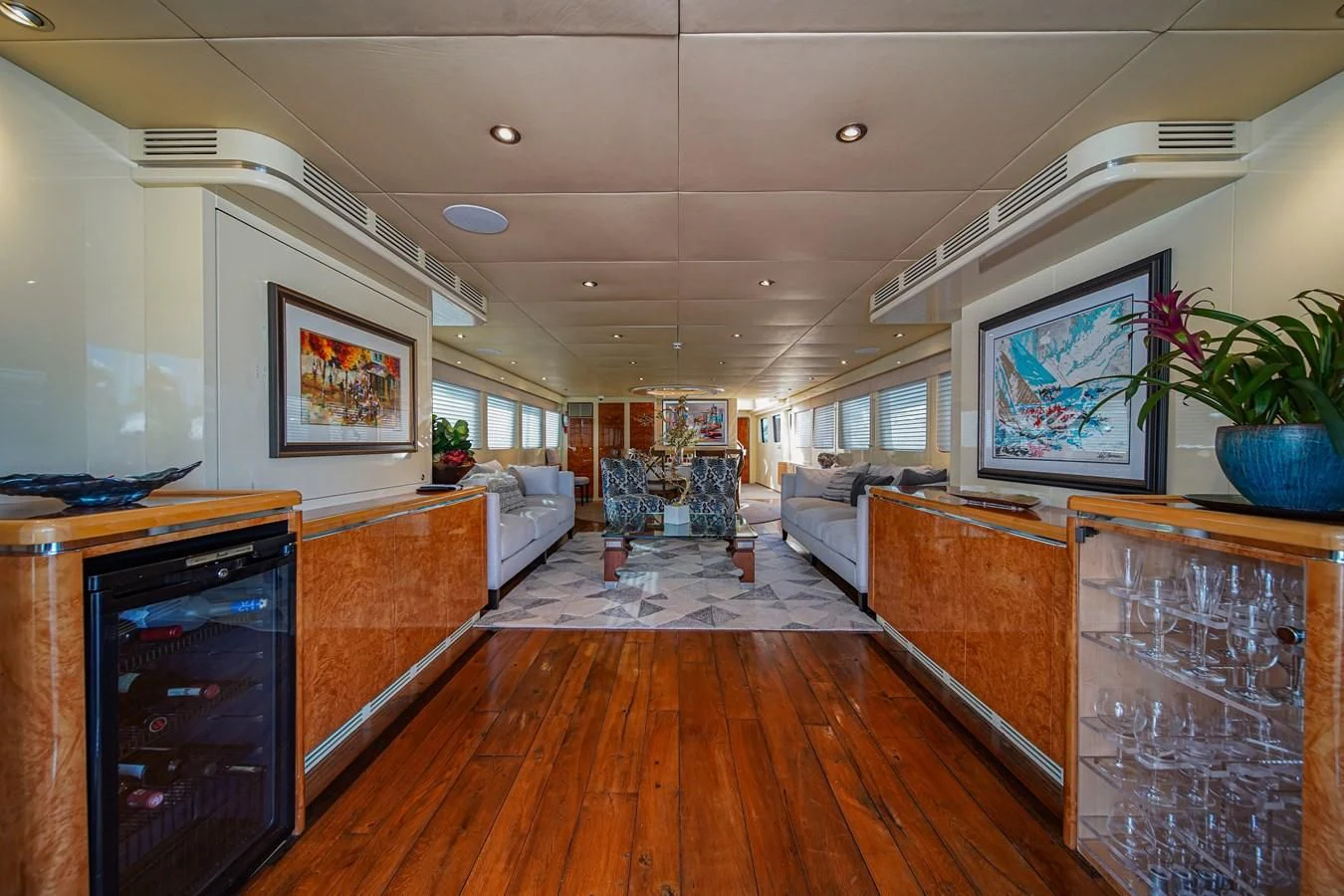

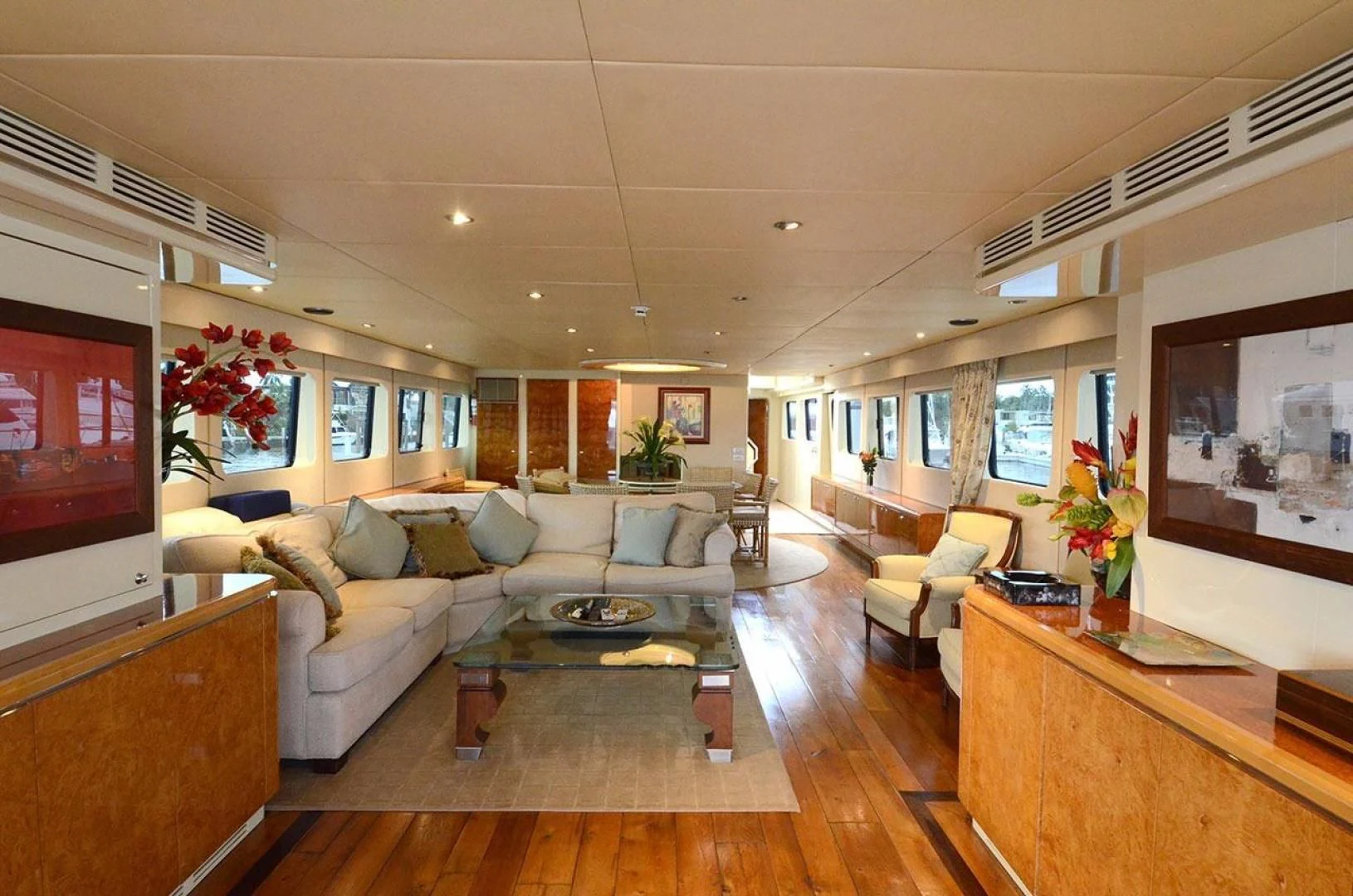

Moving forward into the salon through automatic oval sliding glass doors you immediately notice the flooring, this unique floor was installed by the original owner and is original oak wood from a 15th century French church (papers to verify). On the port side is a credenza with a hidden 42 inch television behind the picture frame, under the picture is a wine cooler and liquor storage, to the starboard is glass storage in a similar Credenza.

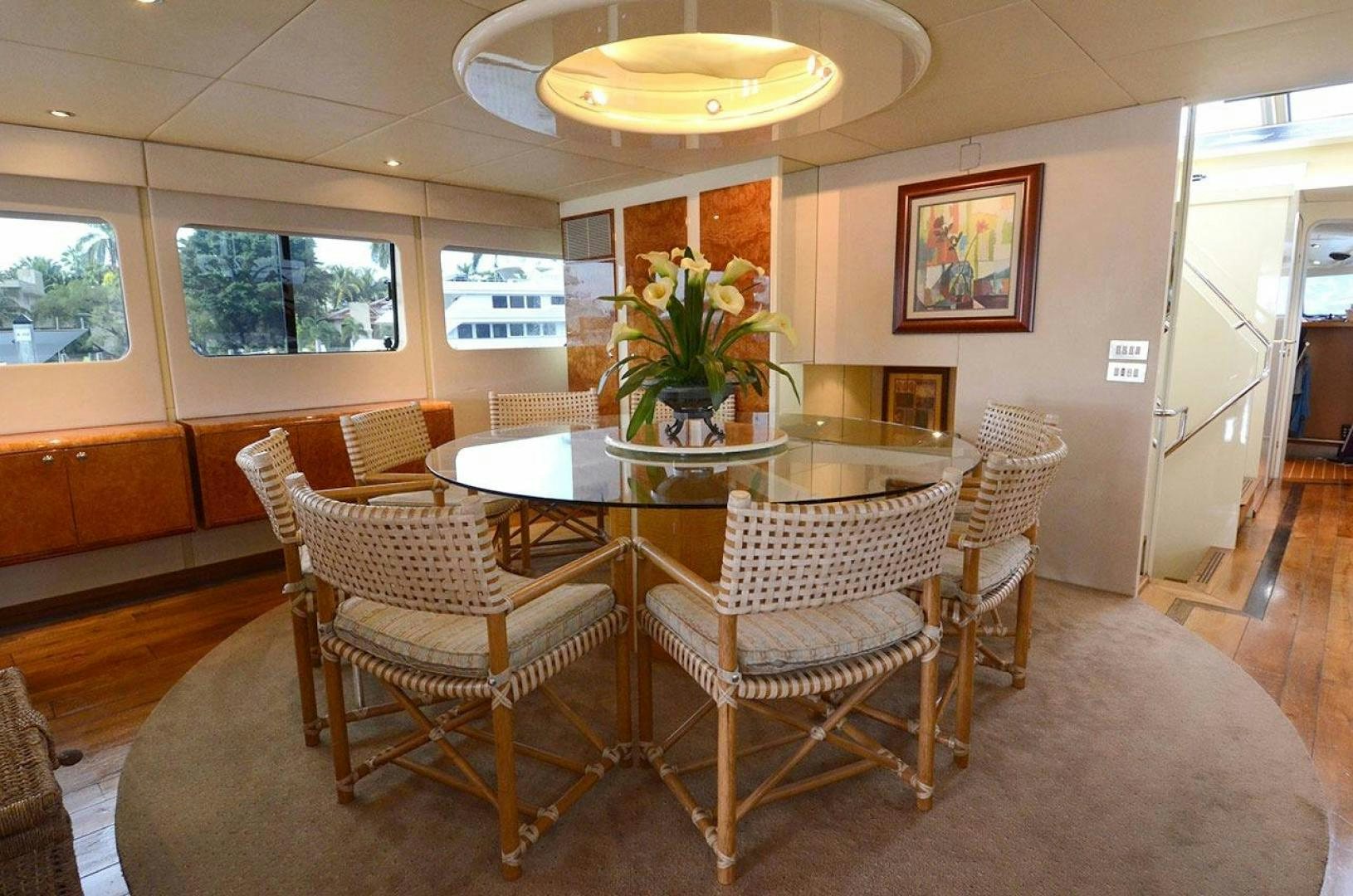

There is a walkway going forward to the galley passing the huge round dining table which comfortably seats 8-10 guests. The salon itself is very comfortable and airy with 10 large windows with electric blackout shades and curtains for indirect lighting if needed. In all the surrounding salon areas are Burl Maple cabinets stored with many variations of flatware for different dinning occasions.

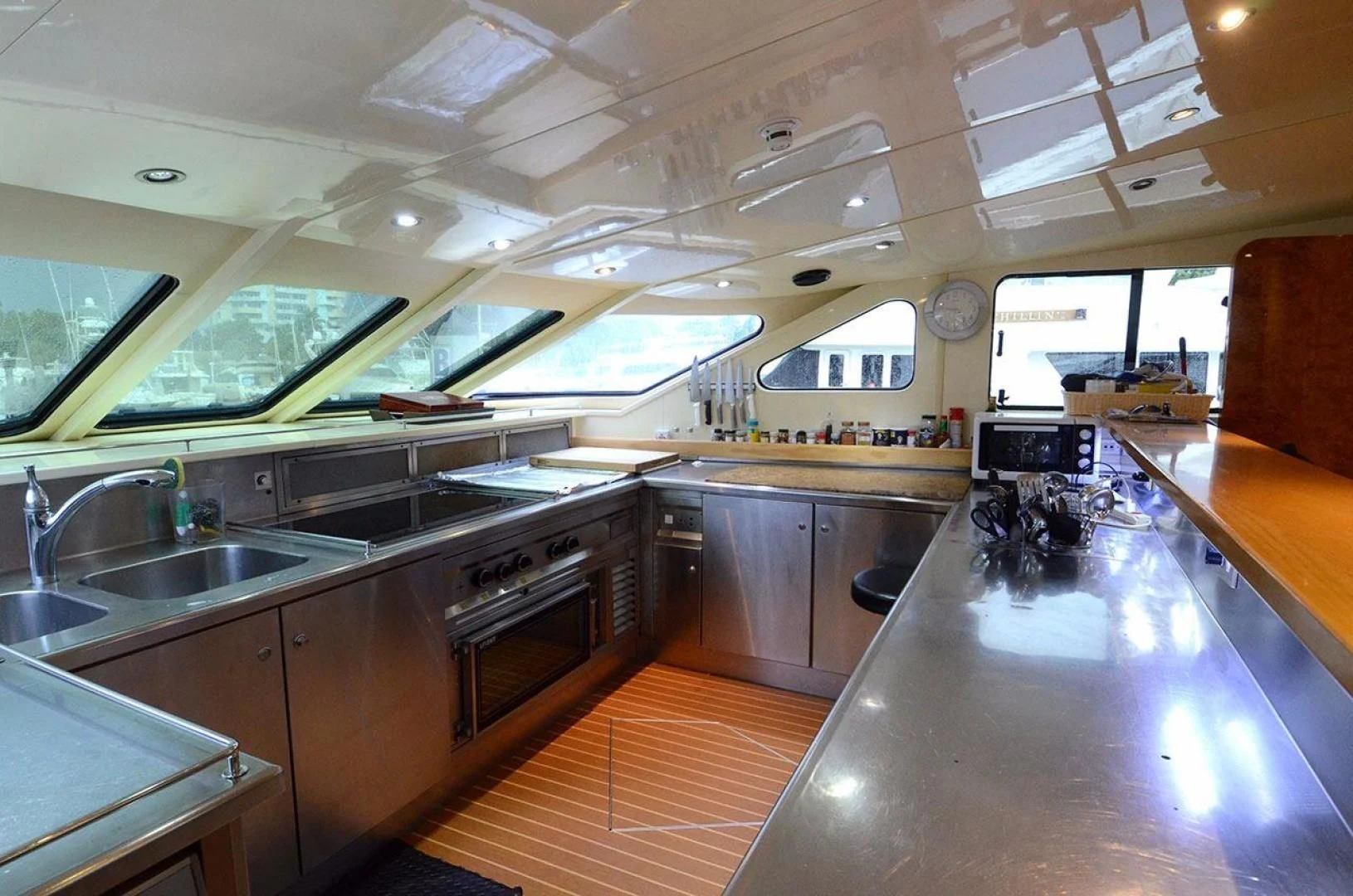

Galley/day Head

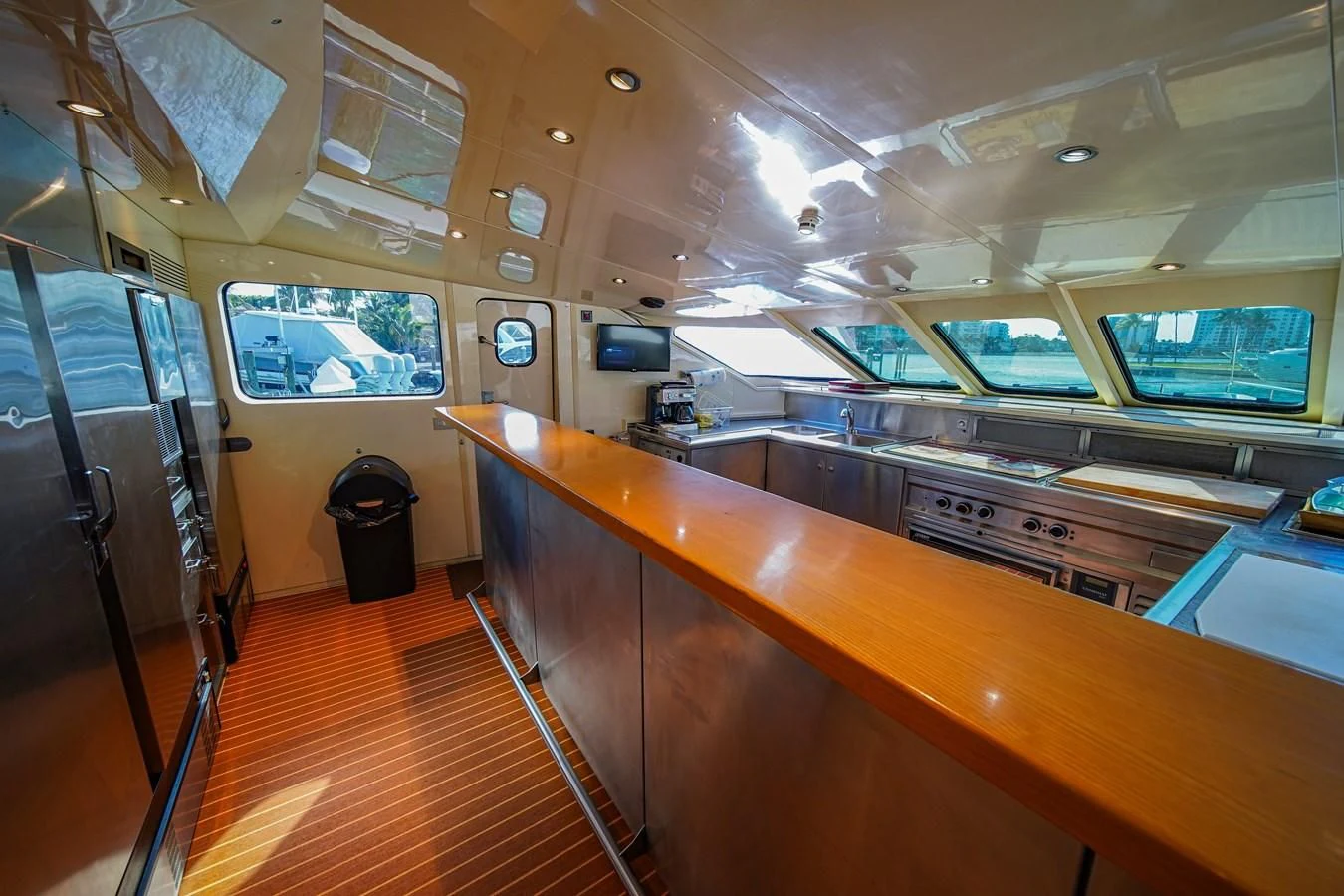

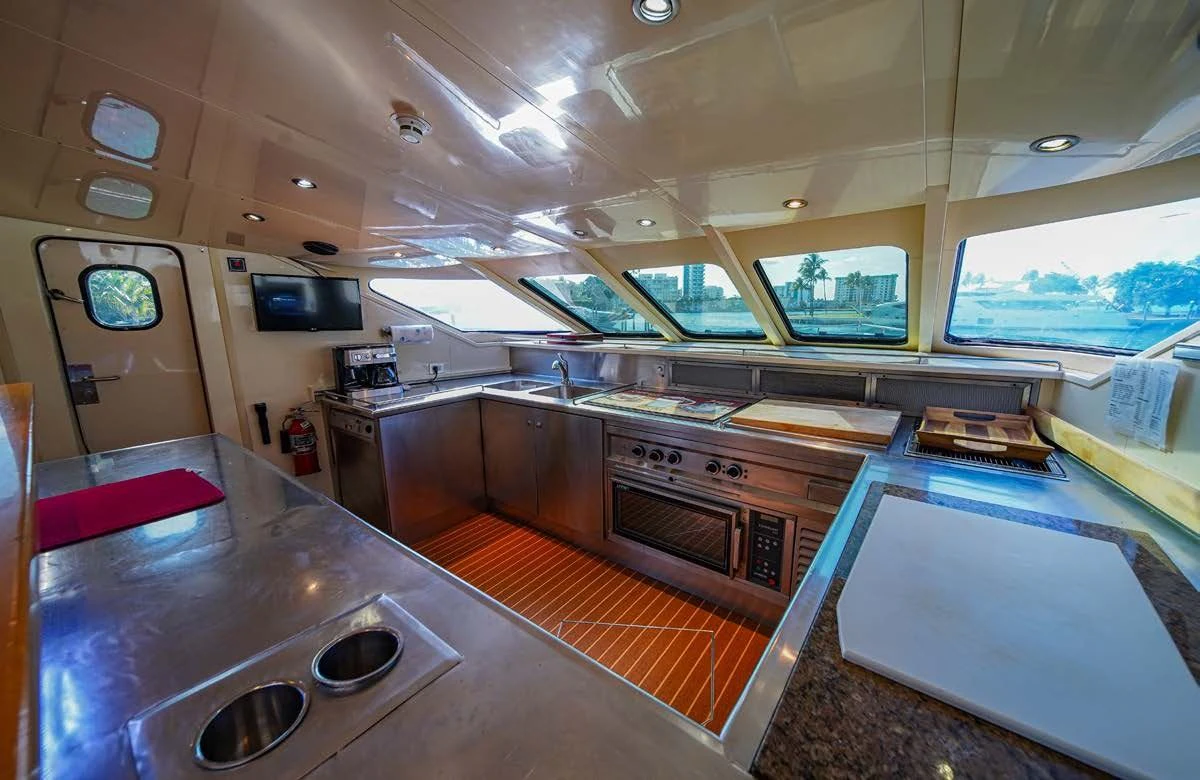

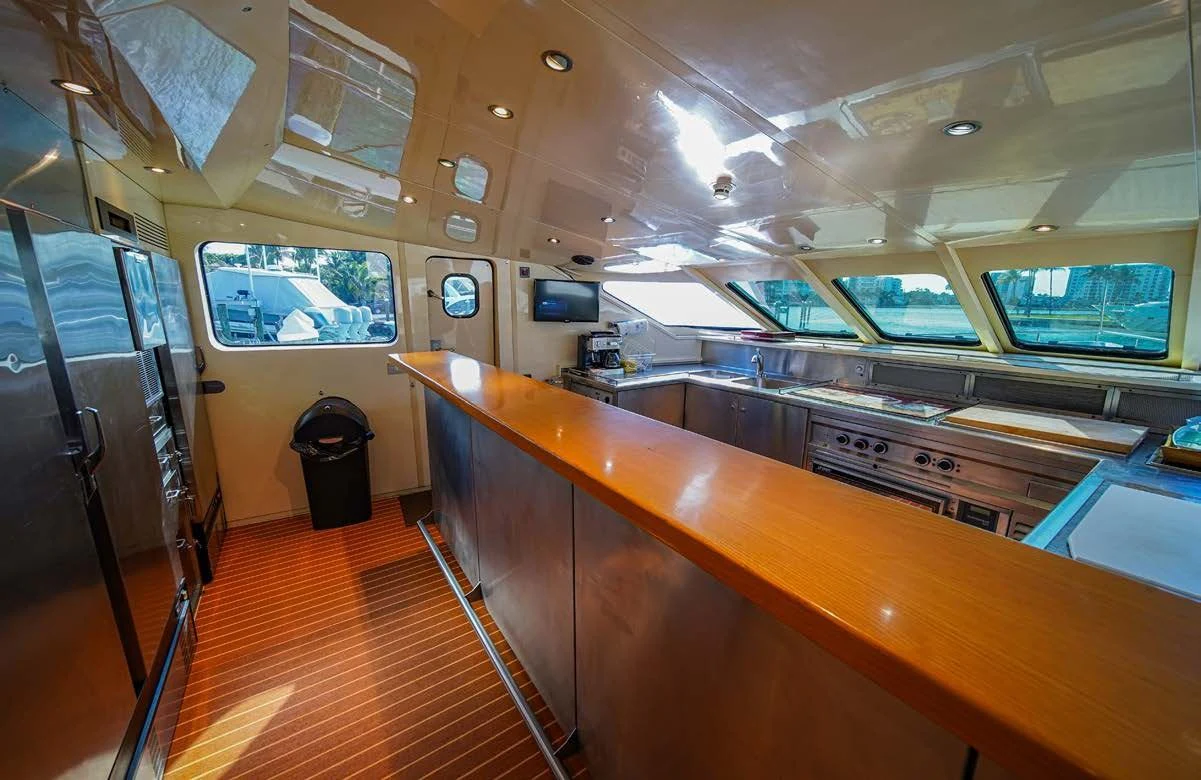

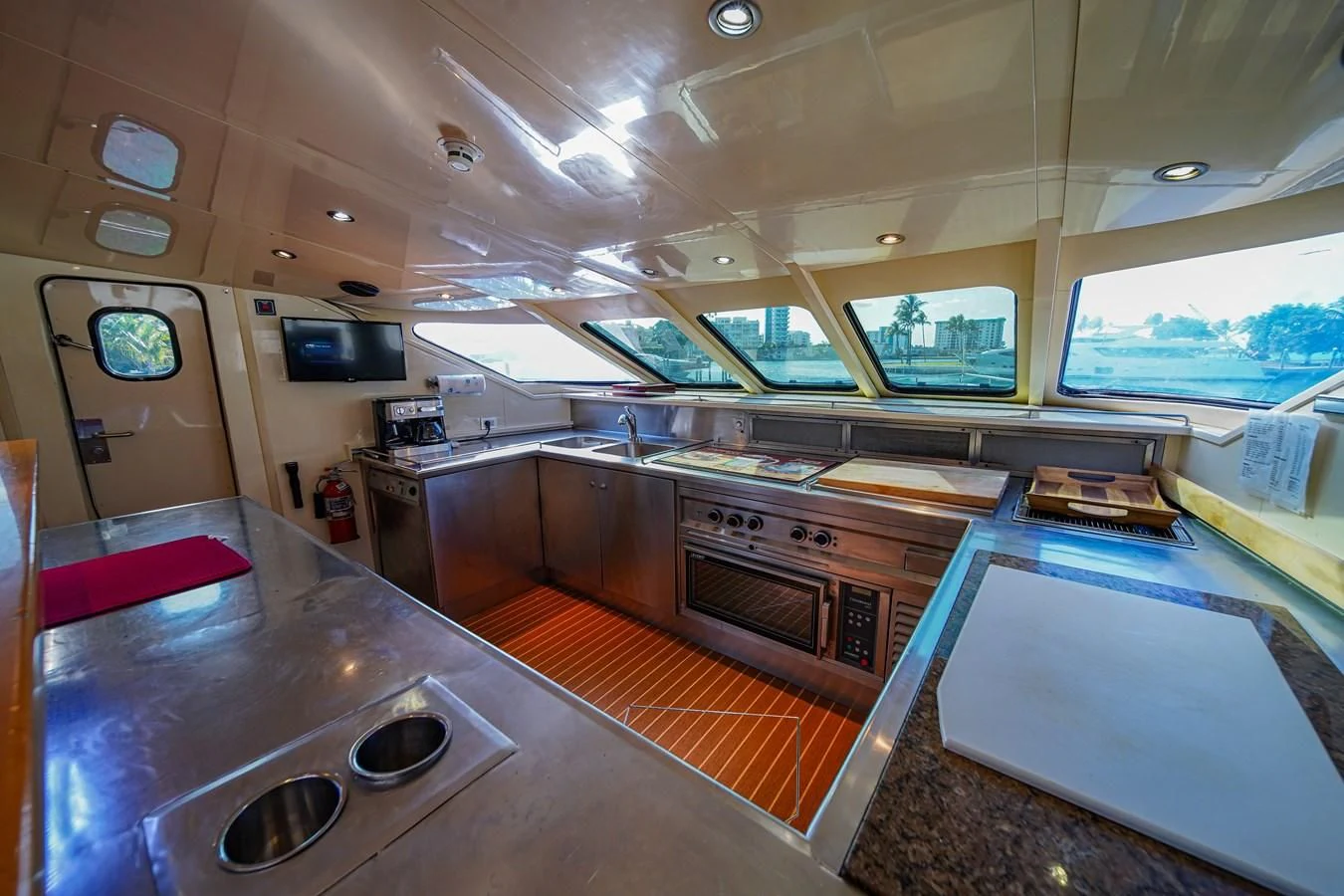

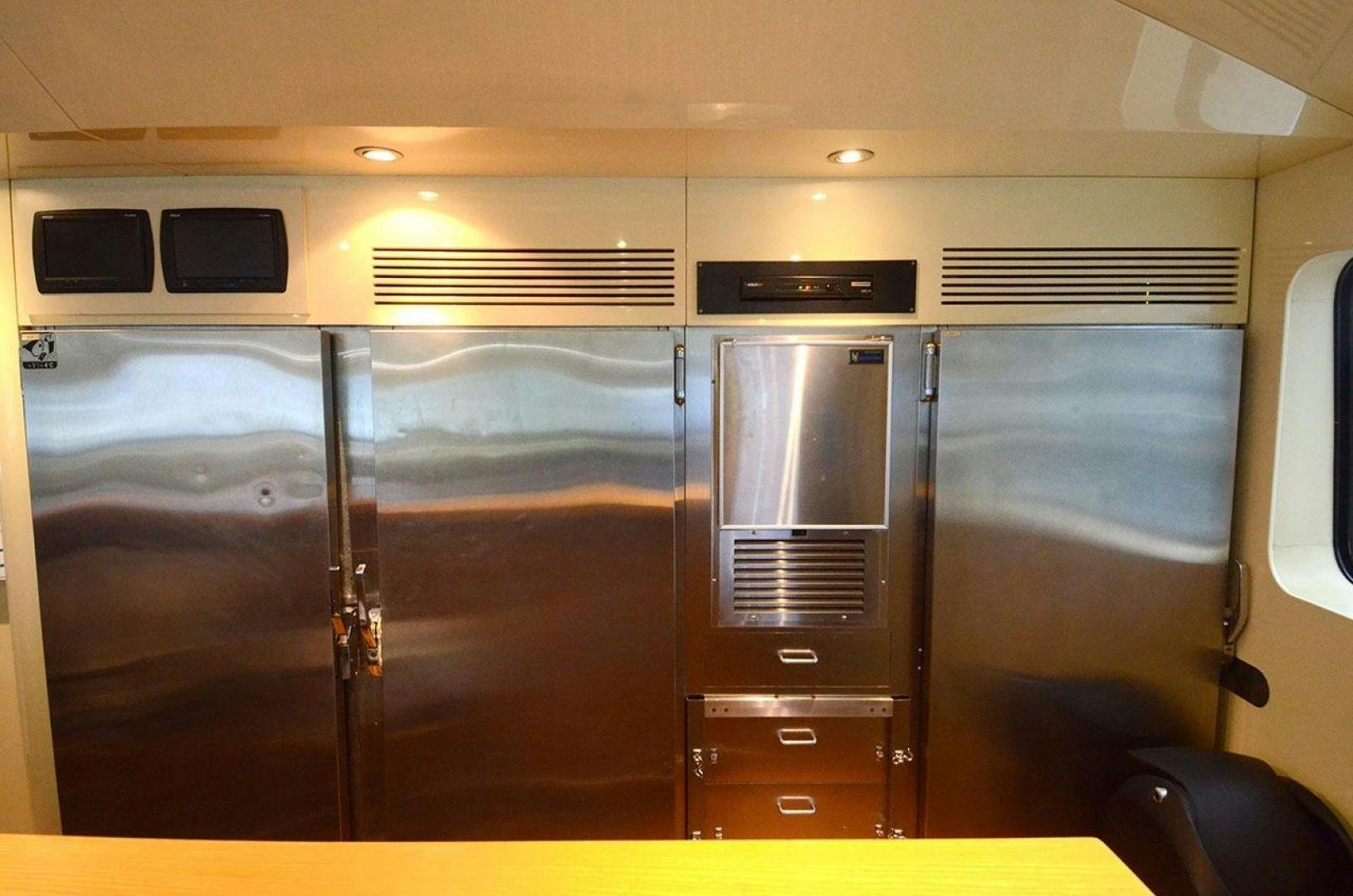

Moving forward past a stairway to the lower guest quarters and the stairs to the raised pilothouse is an "on deck" day head just behind the galley. Entering the galley you will notice the commercial appliances normally seen in restaurants. The galley features 3 huge standup refrigerator units that can be either freezers or refrigerators, this refrigeration system is found only on the world's best built yachts. More commercial appliances including grill and deep fryer in the galley are made of stainless steel.

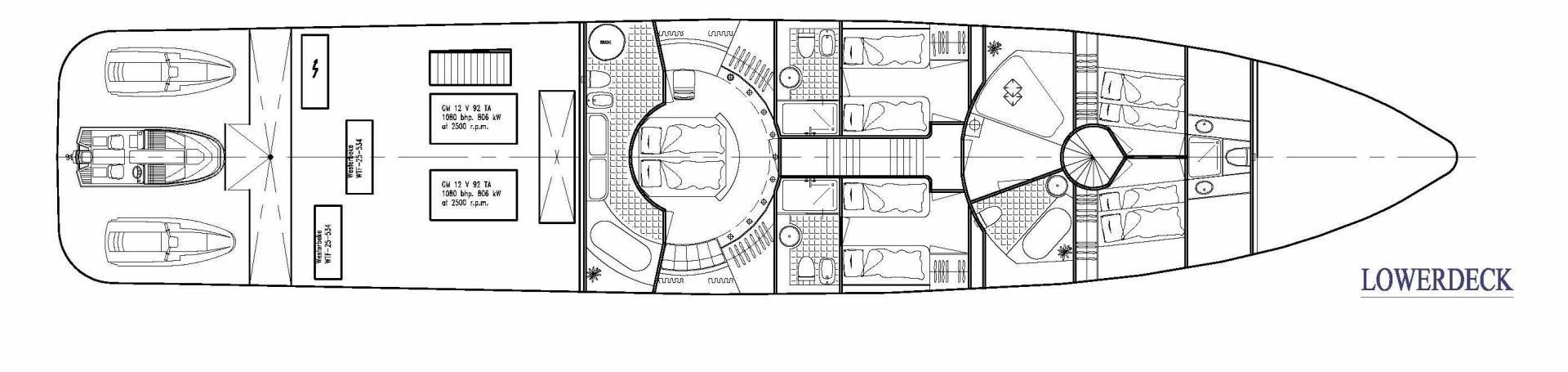

Accommodations

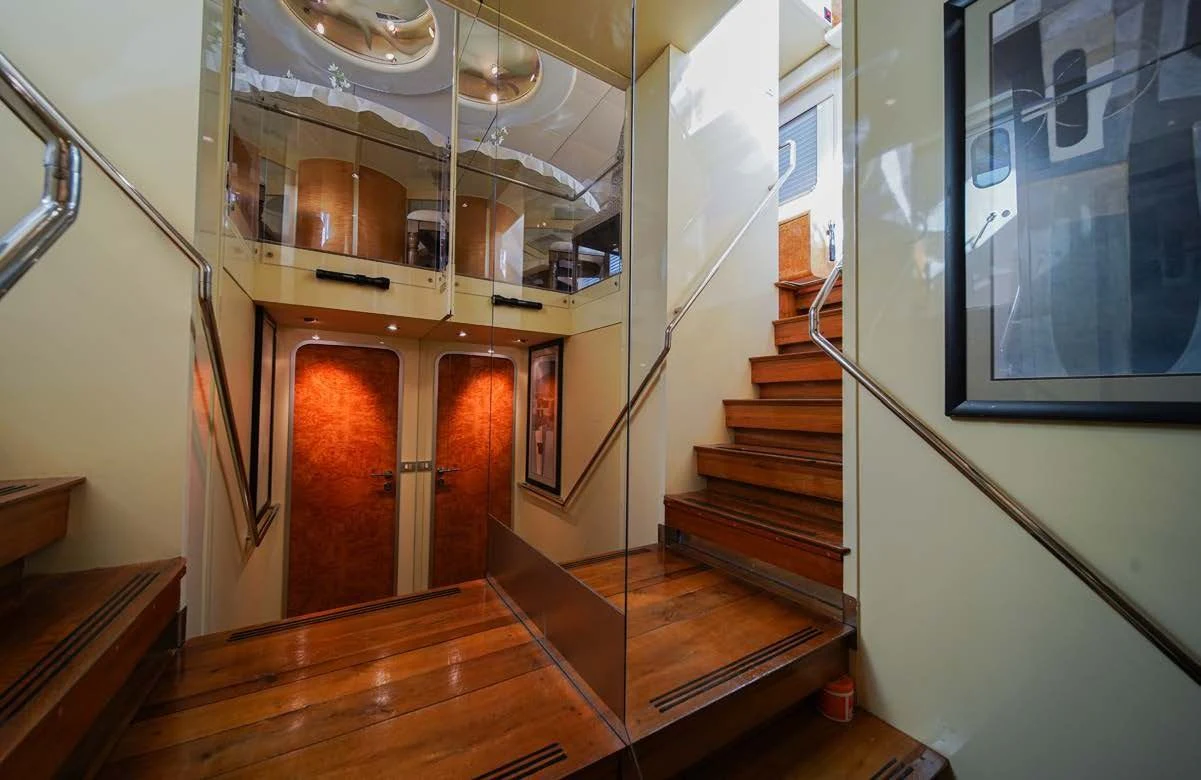

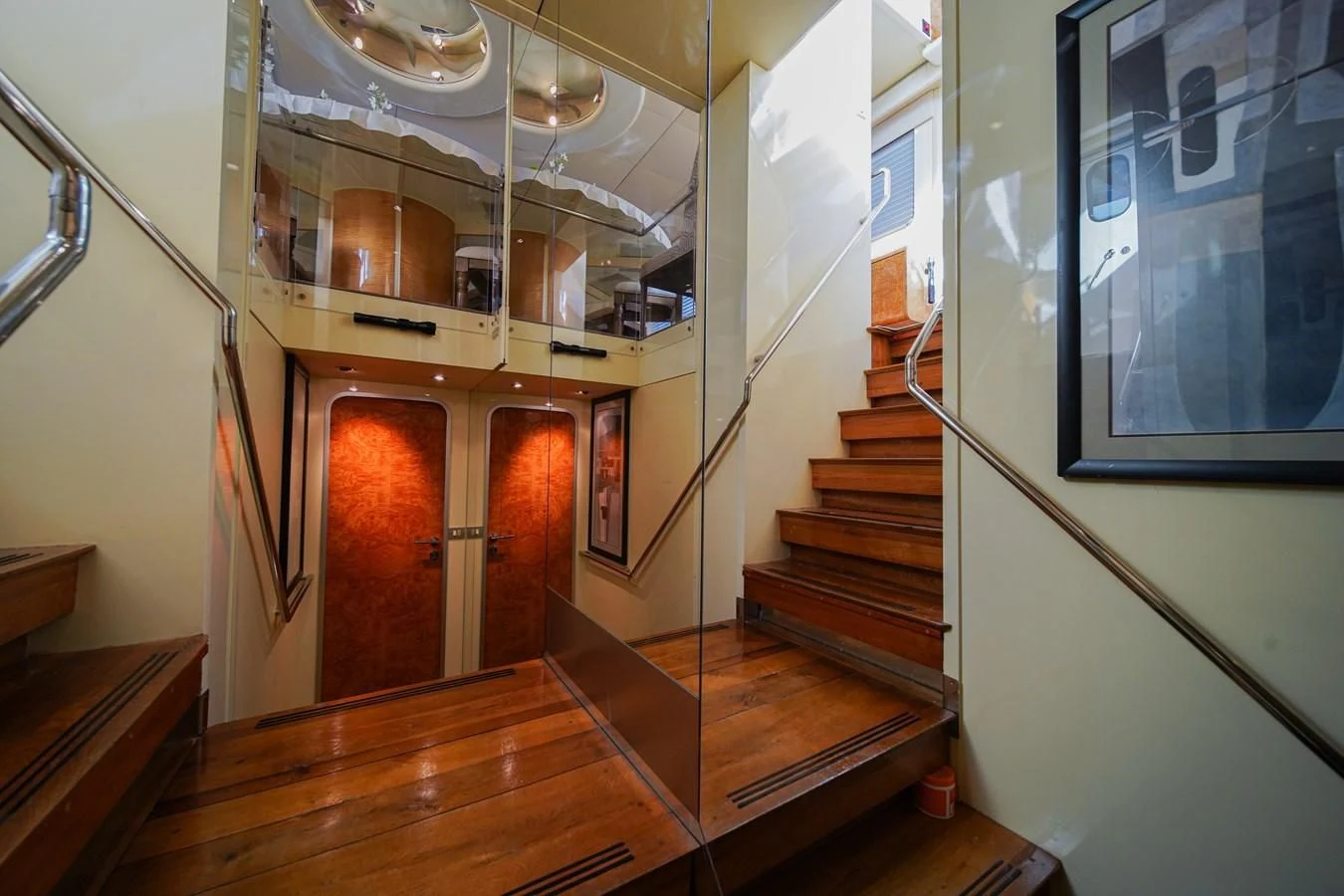

In the foyer directly as you come in from the starboard exterior door is the stairway down to the guest quarters.

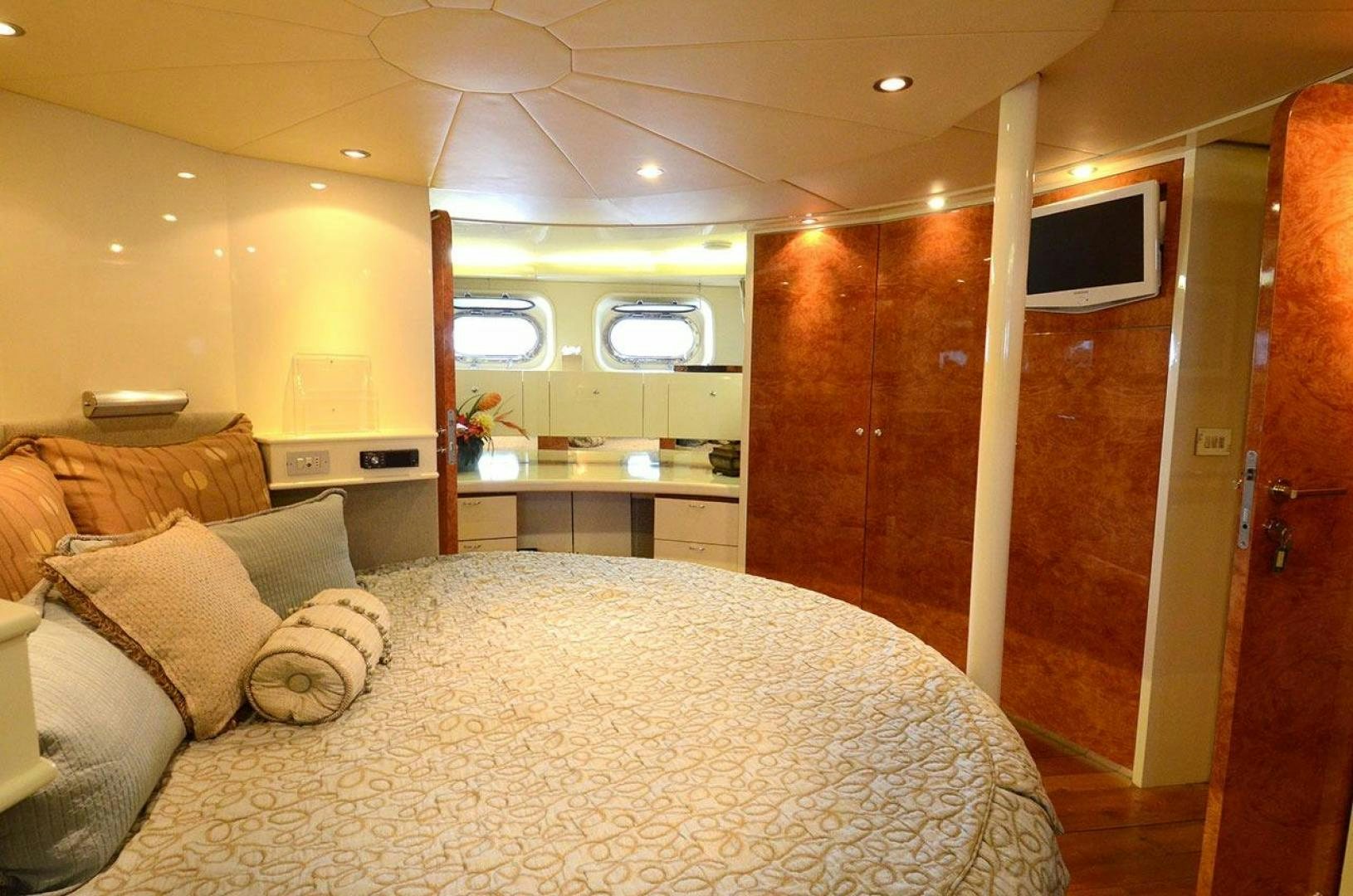

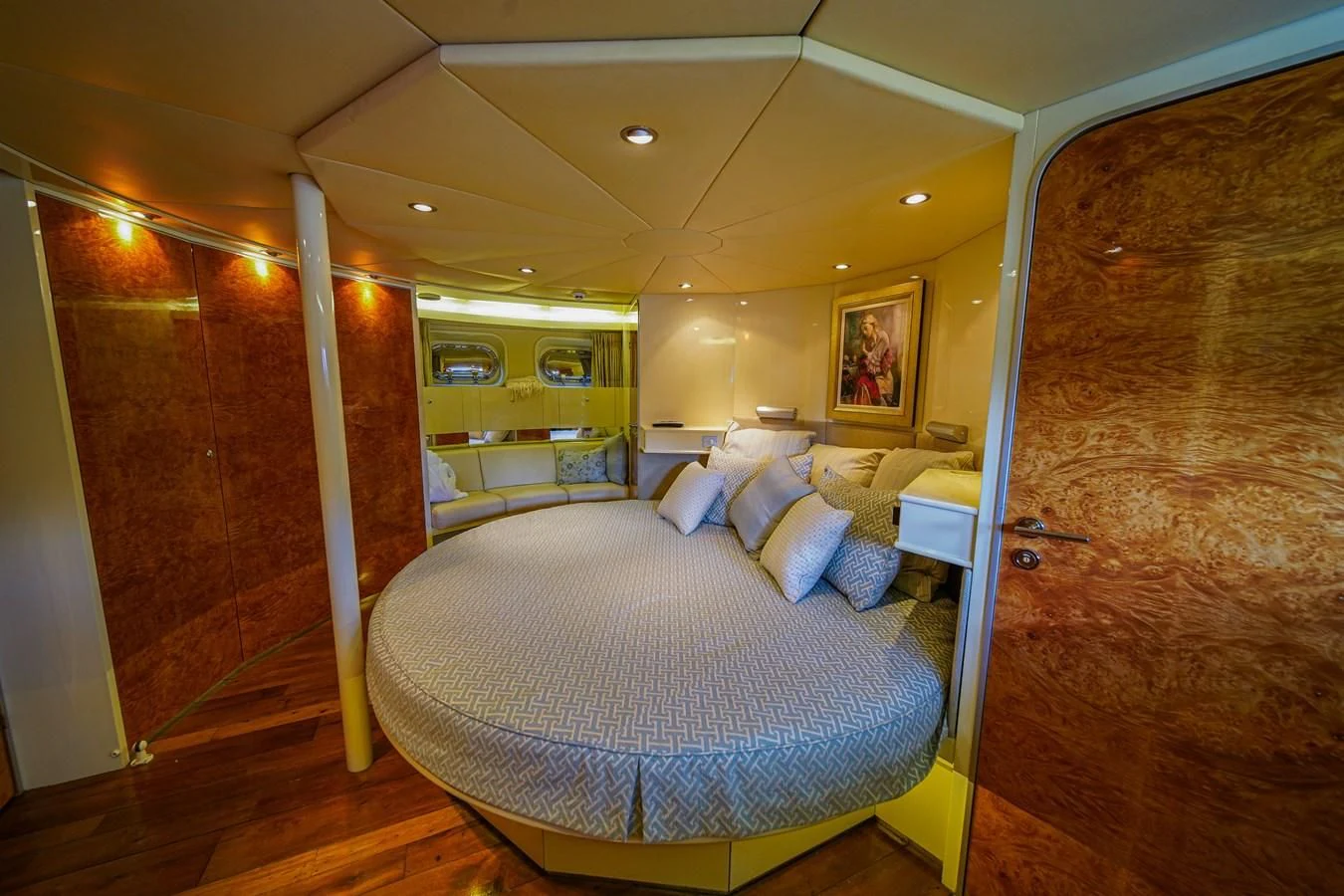

Master Stateroom

As you enter the master stateroom you notice the theme of the cabin is round. There is a huge round bed, larger than king size bed positioned in the center of the cabin. In front of the bed is a decorative pole. Burl maple wardrobes face the bed and there is a large vanity and make up area to the port and comfortable seating to the starboard in a rich cream leather. There is a safe in the master along with a discreet 15 inch Sat TV and stereo system with surround sounds. There are 2 port lights either side with storm shutters. The bathroom is located behind the bed with entrances on either side of the cabin. There is a full size bath to the starboard and a large steam shower to the port with 2 sinks centered in the bathroom. All of the fixtures are marble, including the floor.

VIP Cabin

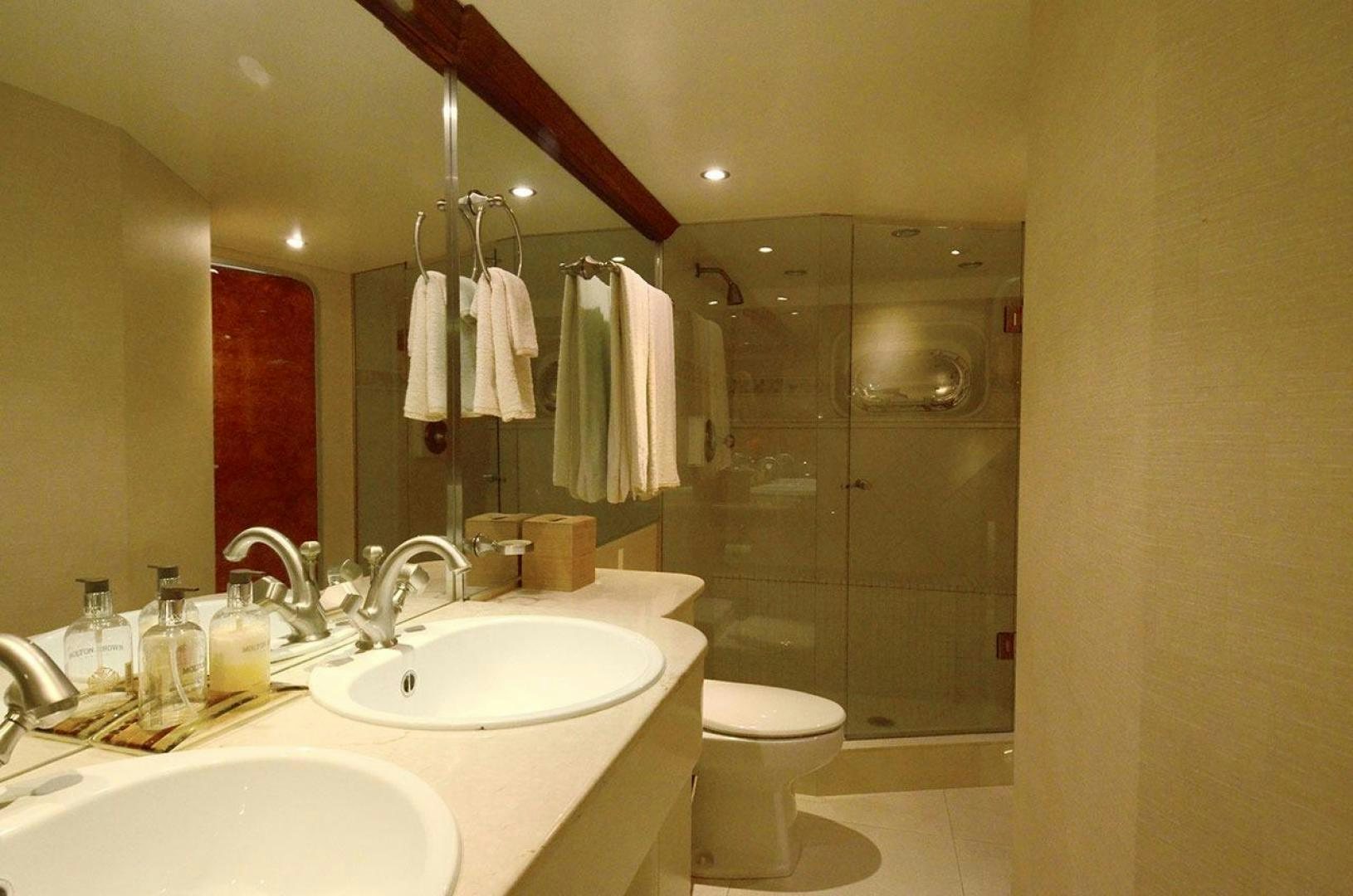

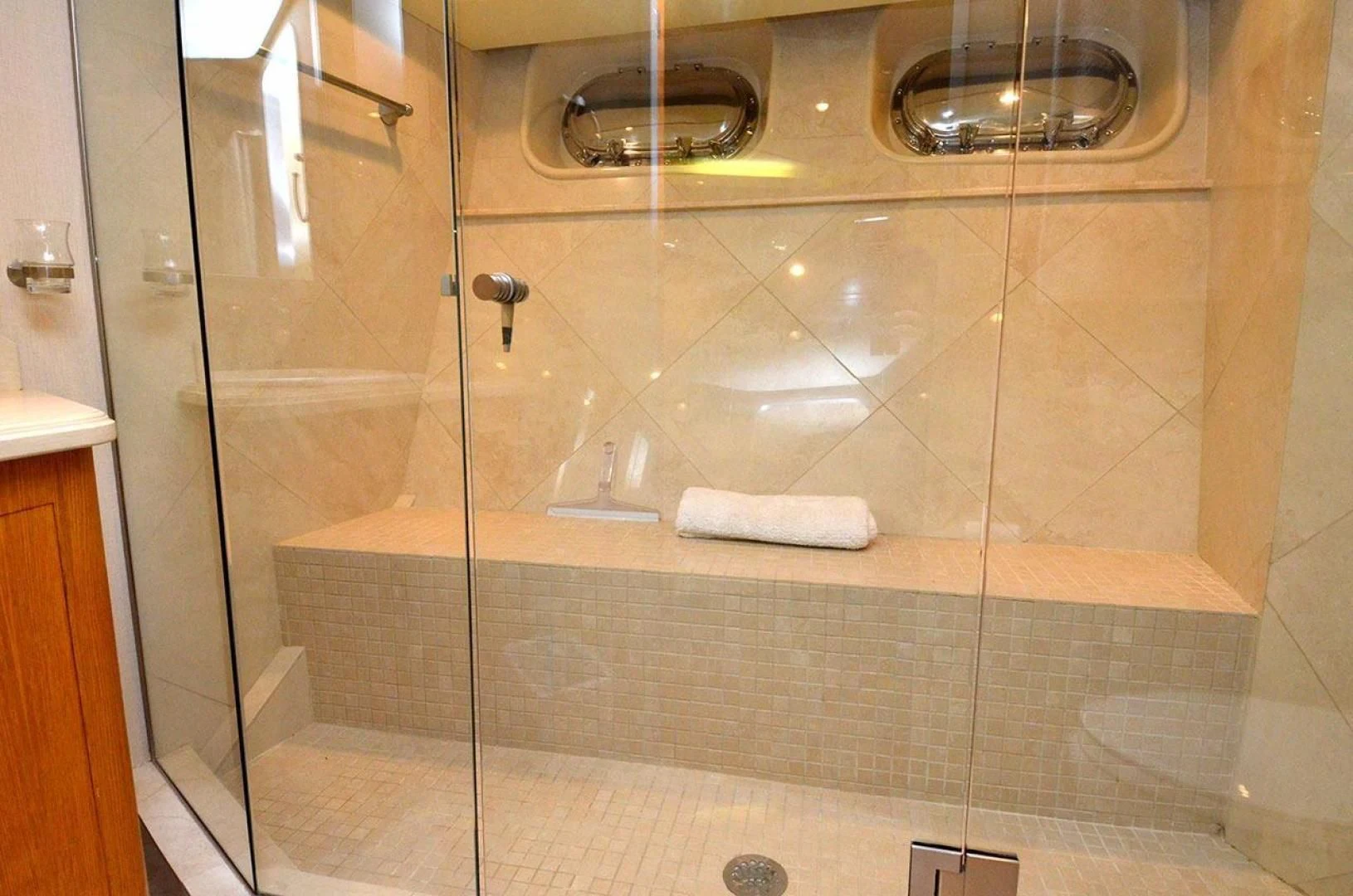

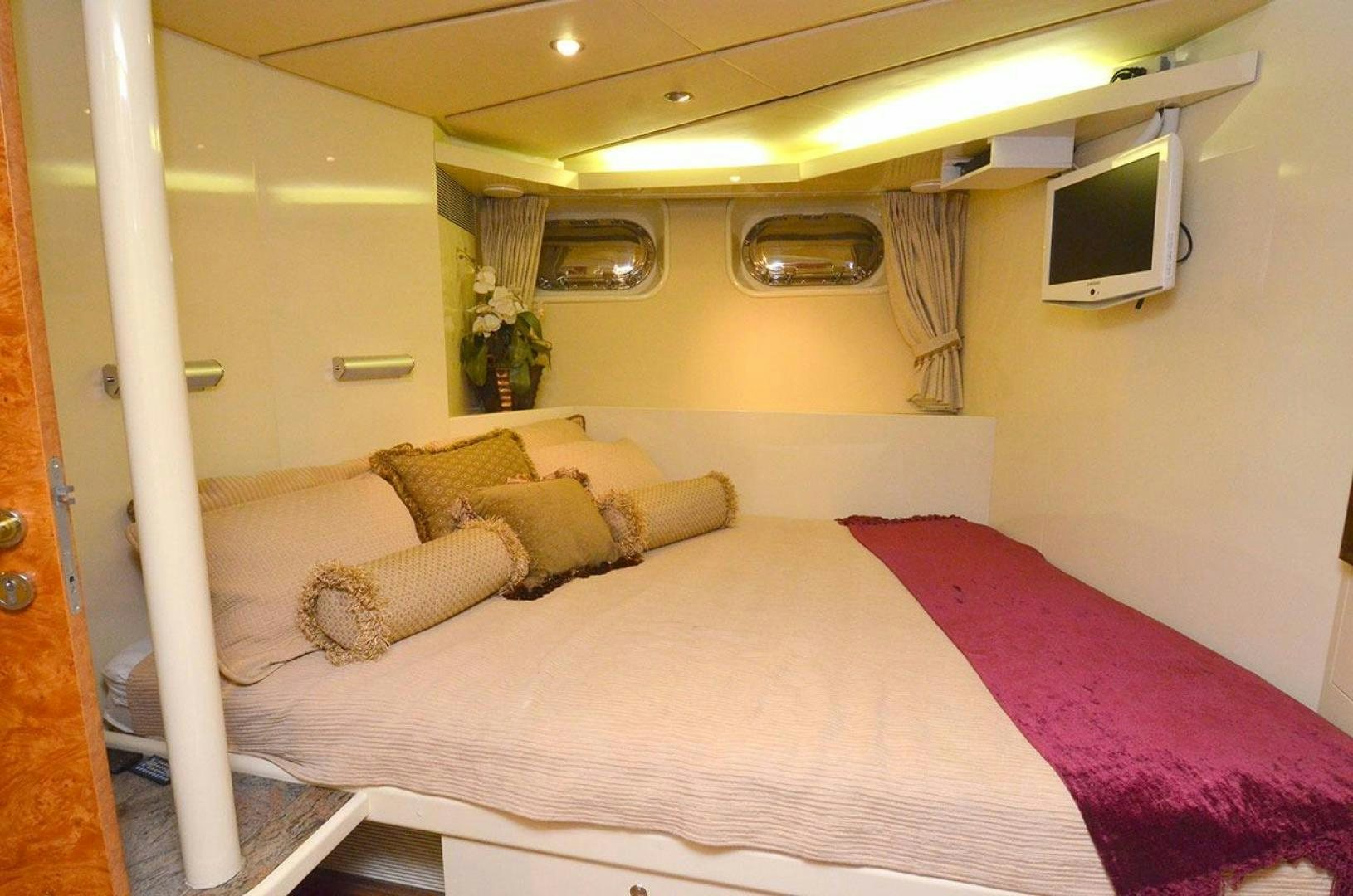

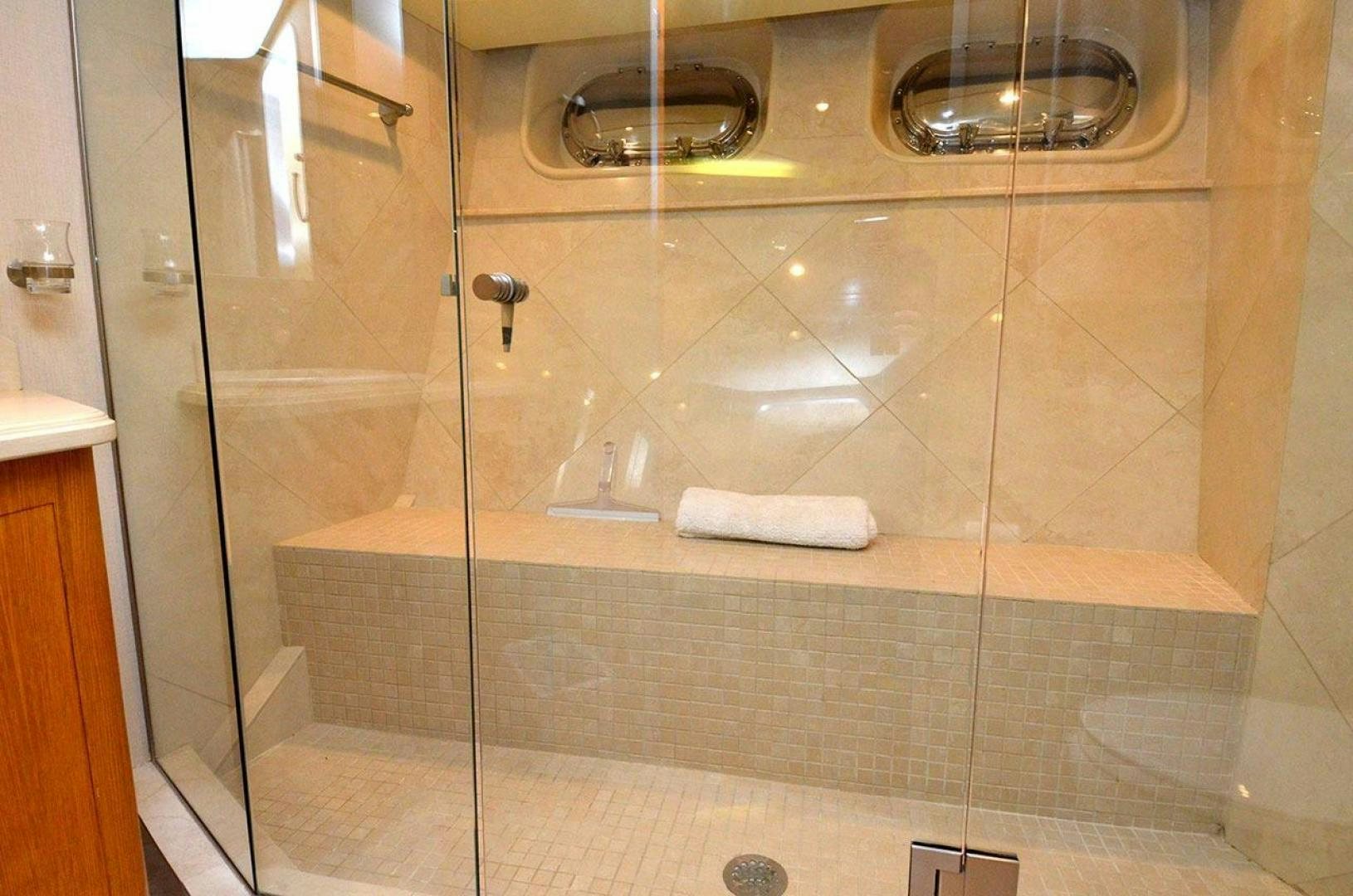

In the forward area of the lower deck is a full beam VIP. There is a king size bed fitted to the port side and huge marble shower in the bathroom to starboard. SAT TV with 15 inch Samsung LCD TV. Plenty of storage below bed and hanging locker to starboard. There is an emergency escape hatch in the forward bulkhead concealed by a painting.

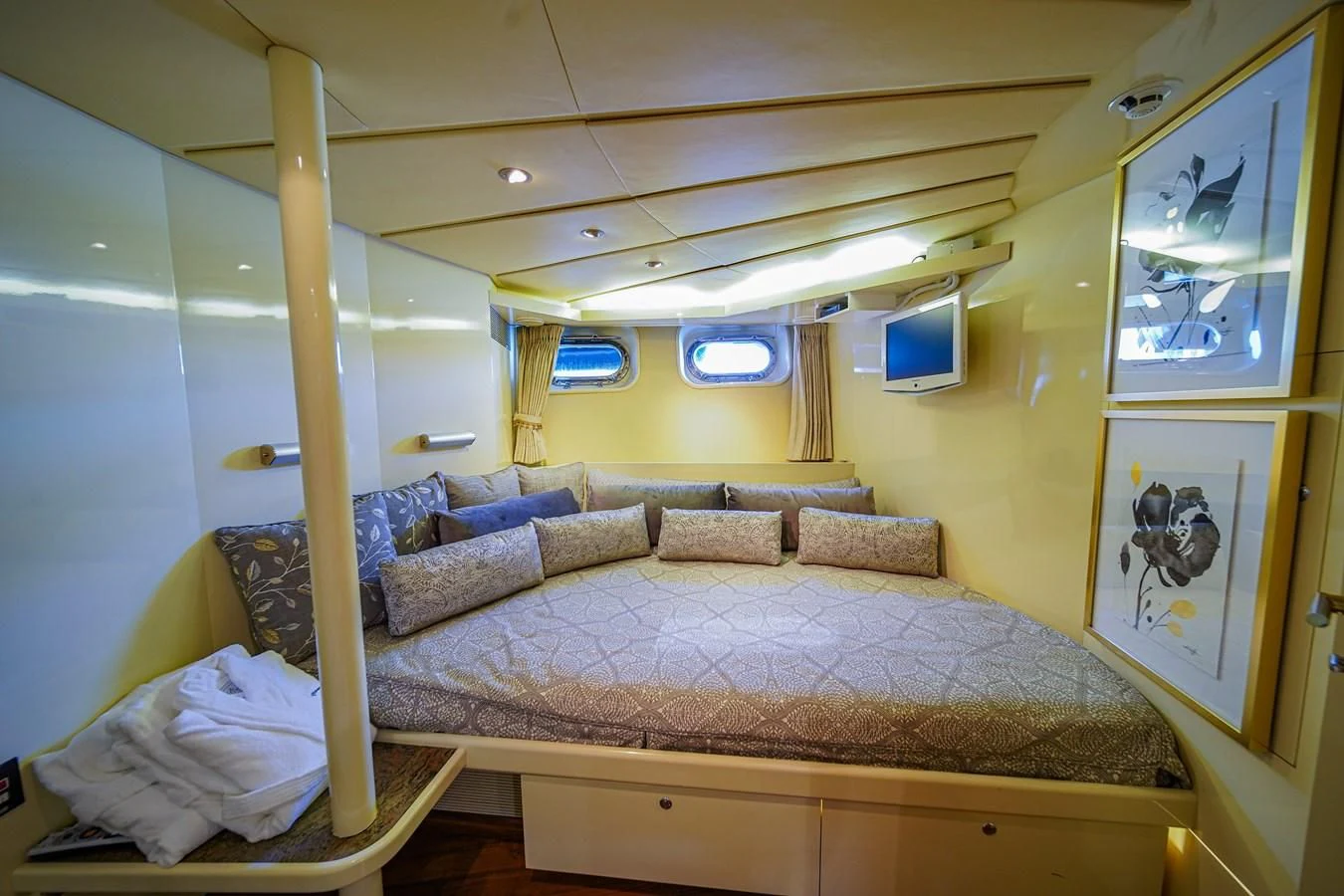

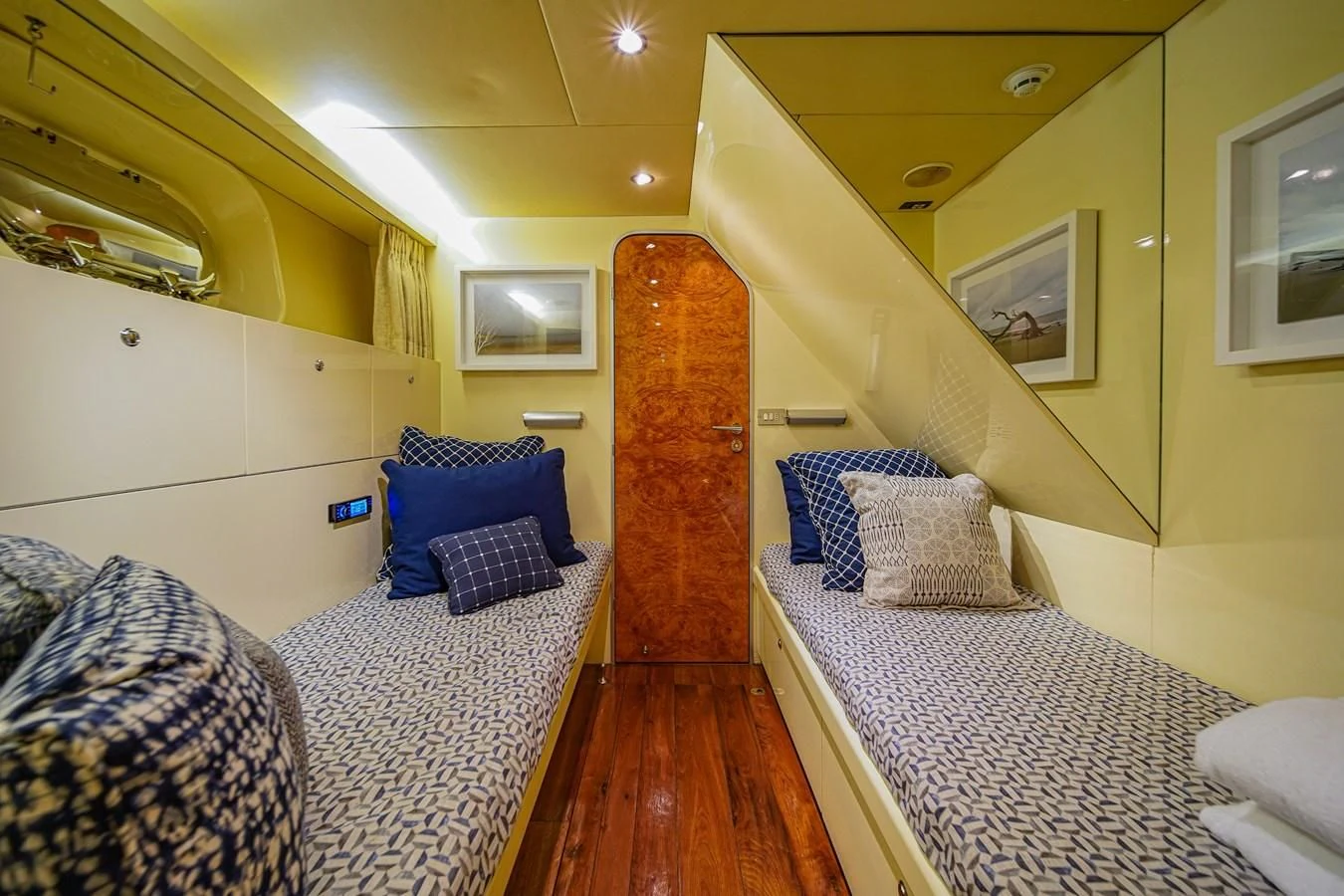

Guest Cabins 3 and 4

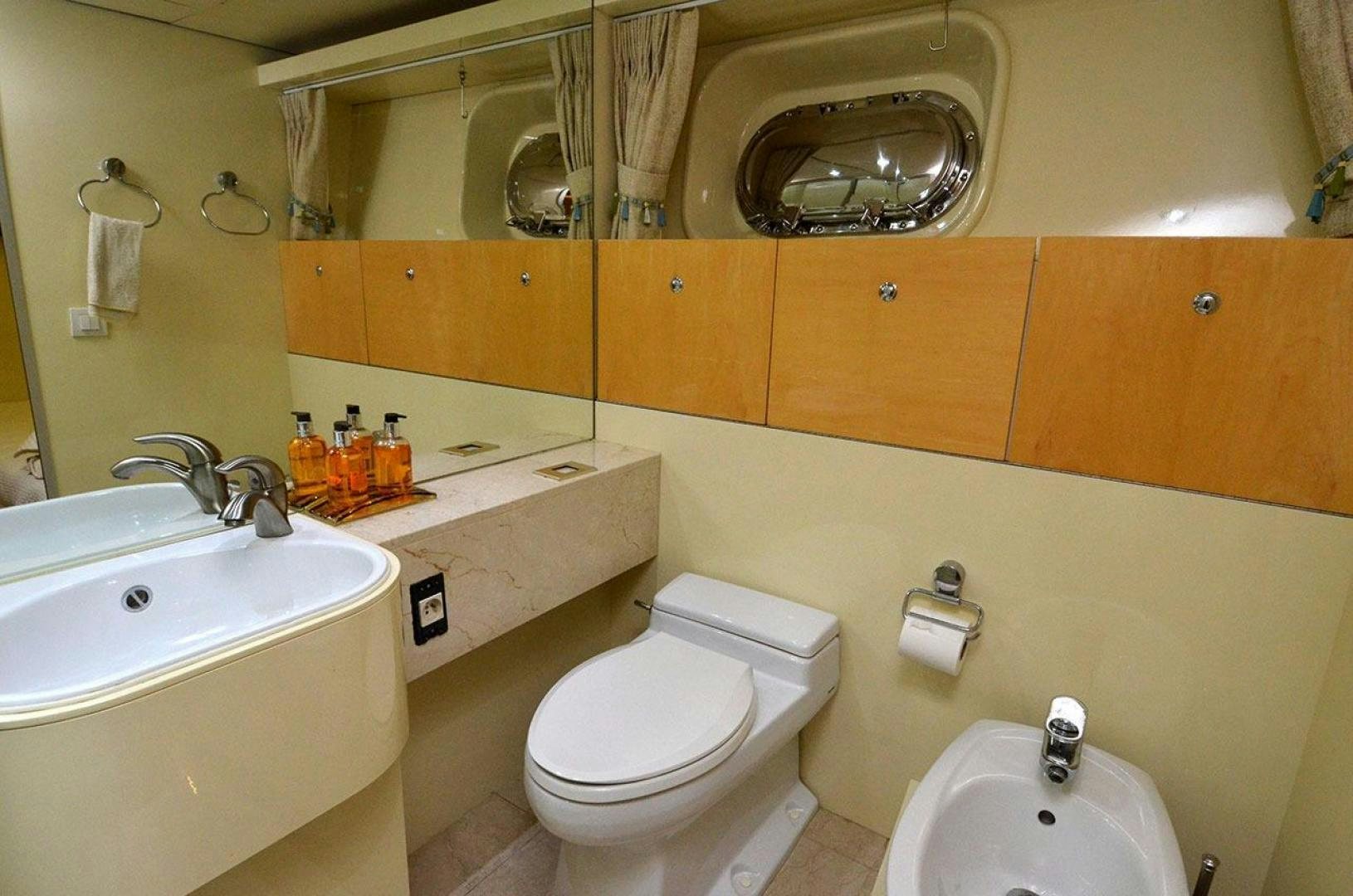

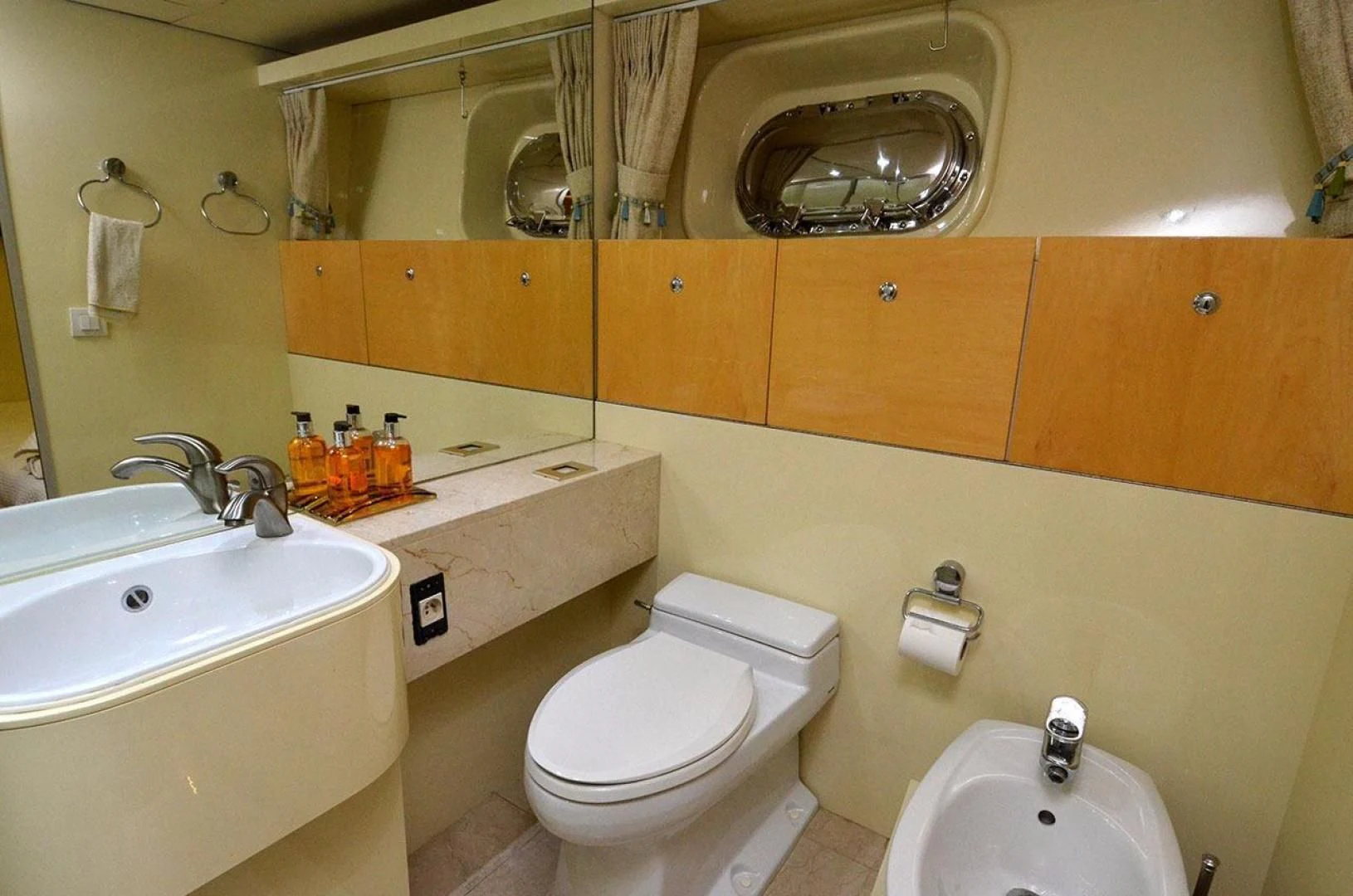

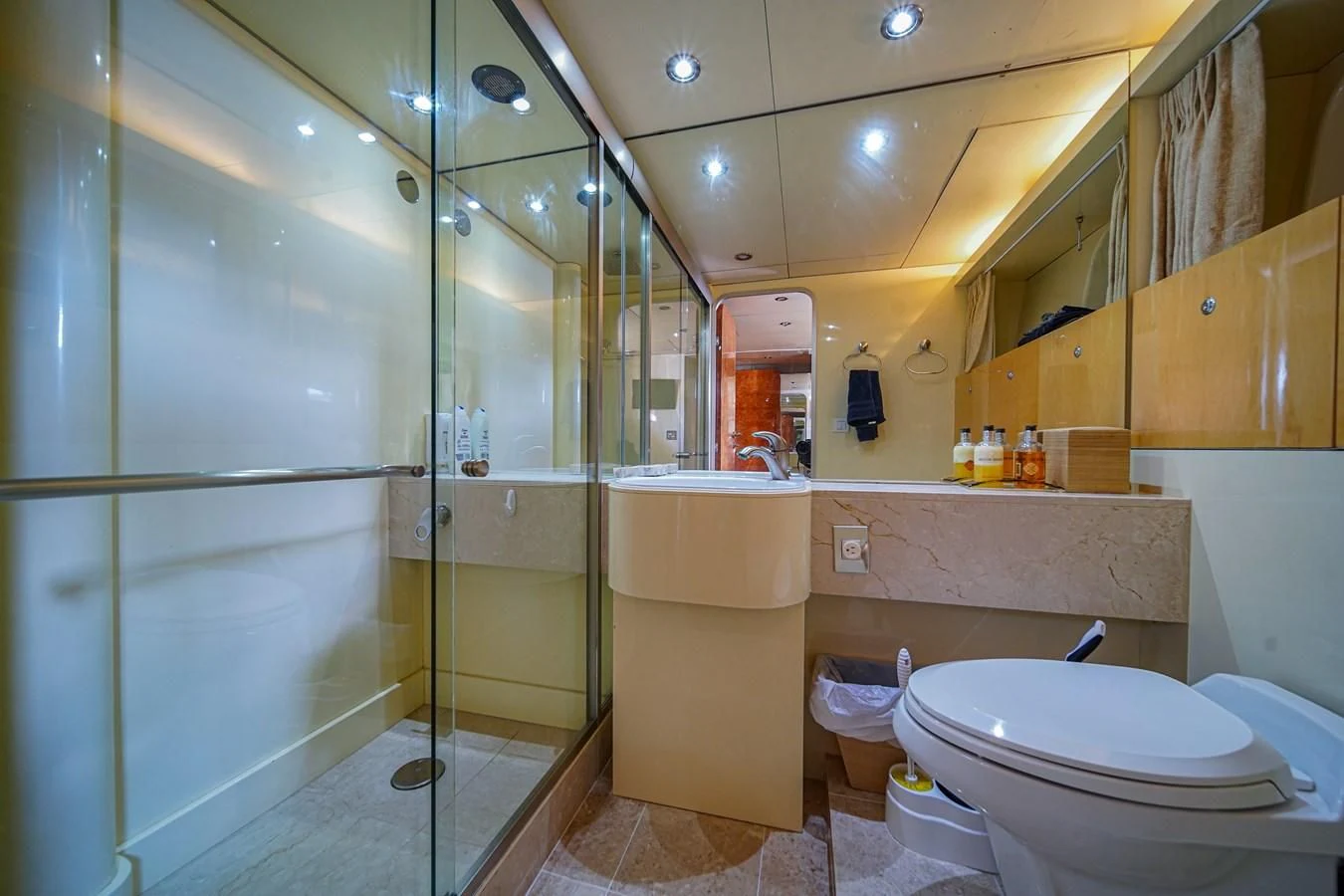

Located aft of the VIP are two identical staterooms, both with side by side bunks the only difference is that the port cabin has an additional pullman bunk on the inboard side. The bathrooms are located behind the aft bulkheads and both have large showers, toilets and bidets. All finishes are in natural stone and marble.

Crew Quarters

The unique layout of Lady Arlene was designed to operate with a minimal crew of no more than four. In order to maximize the owner's accommodations and recreational areas the crew quarters are conveniently located under the galley floor and a Bomar style Hatch on the foredeck drops into the crew quarters also. The galley becomes a designated crew area which allows the complete privacy of the owners in other areas of the yacht.

Foredeck

There are two side entry doors one from the crew galley area and one from the salon starboard side which allows you to go to the fore and aft deck.

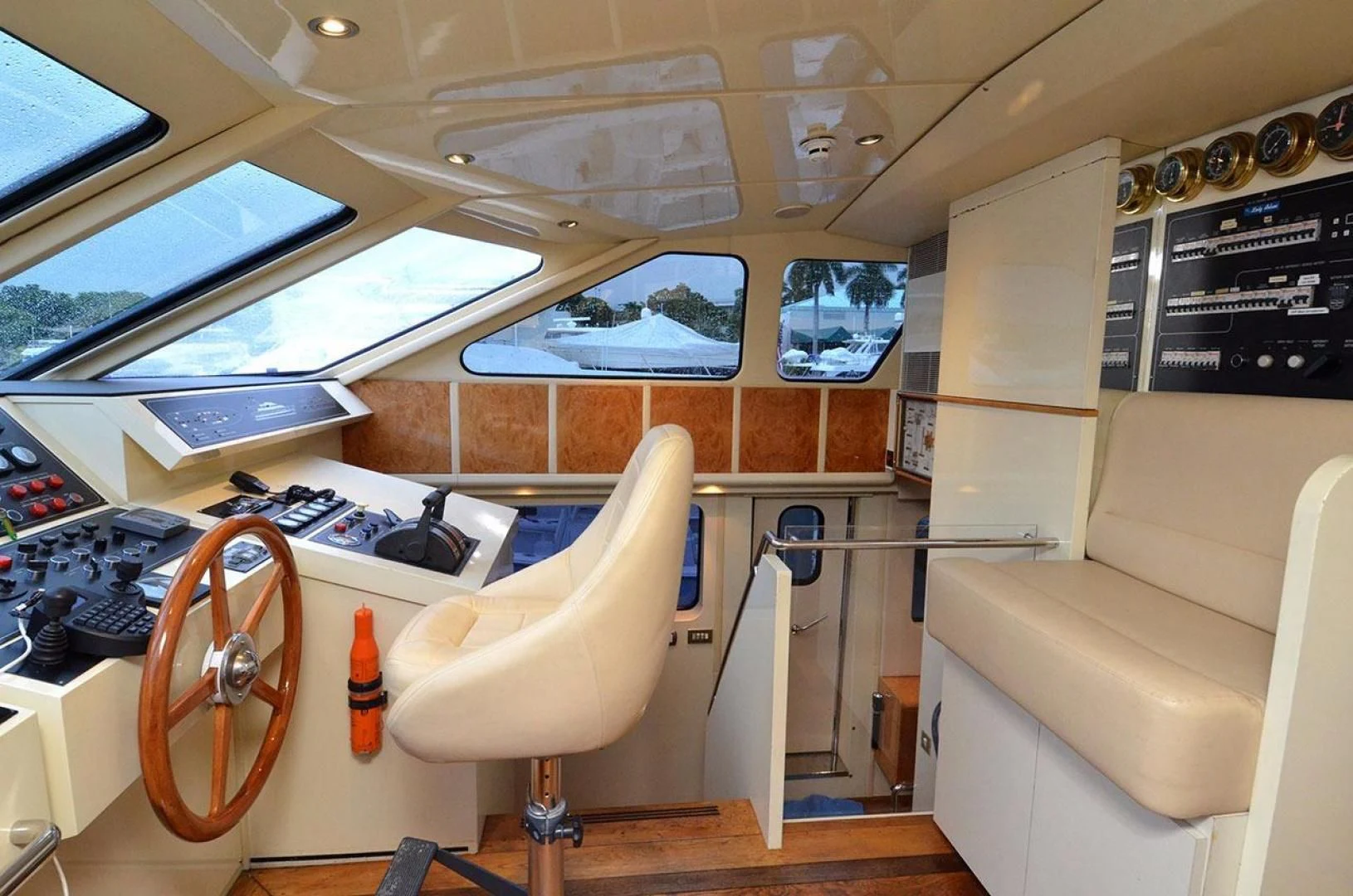

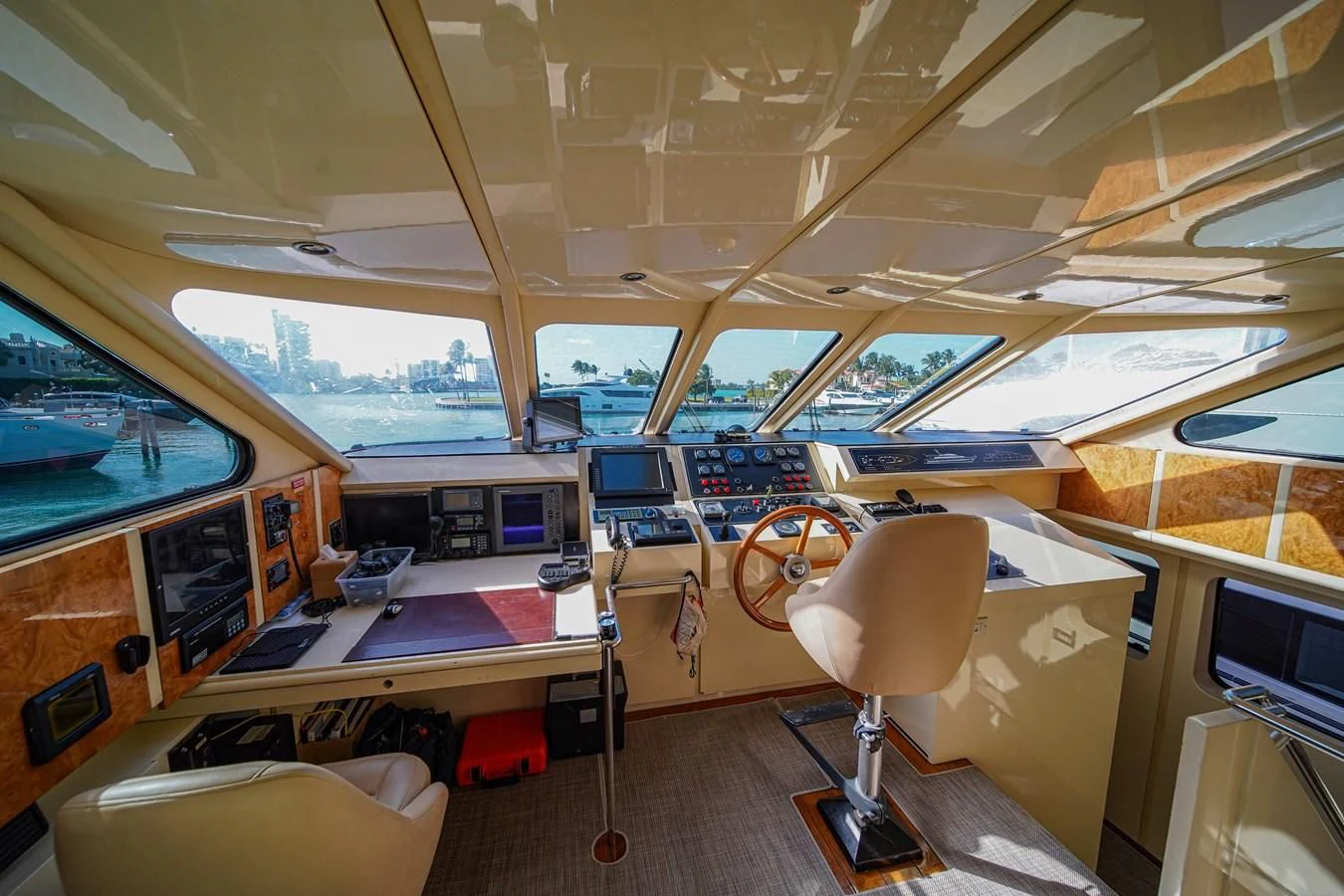

Raised Pilothouse

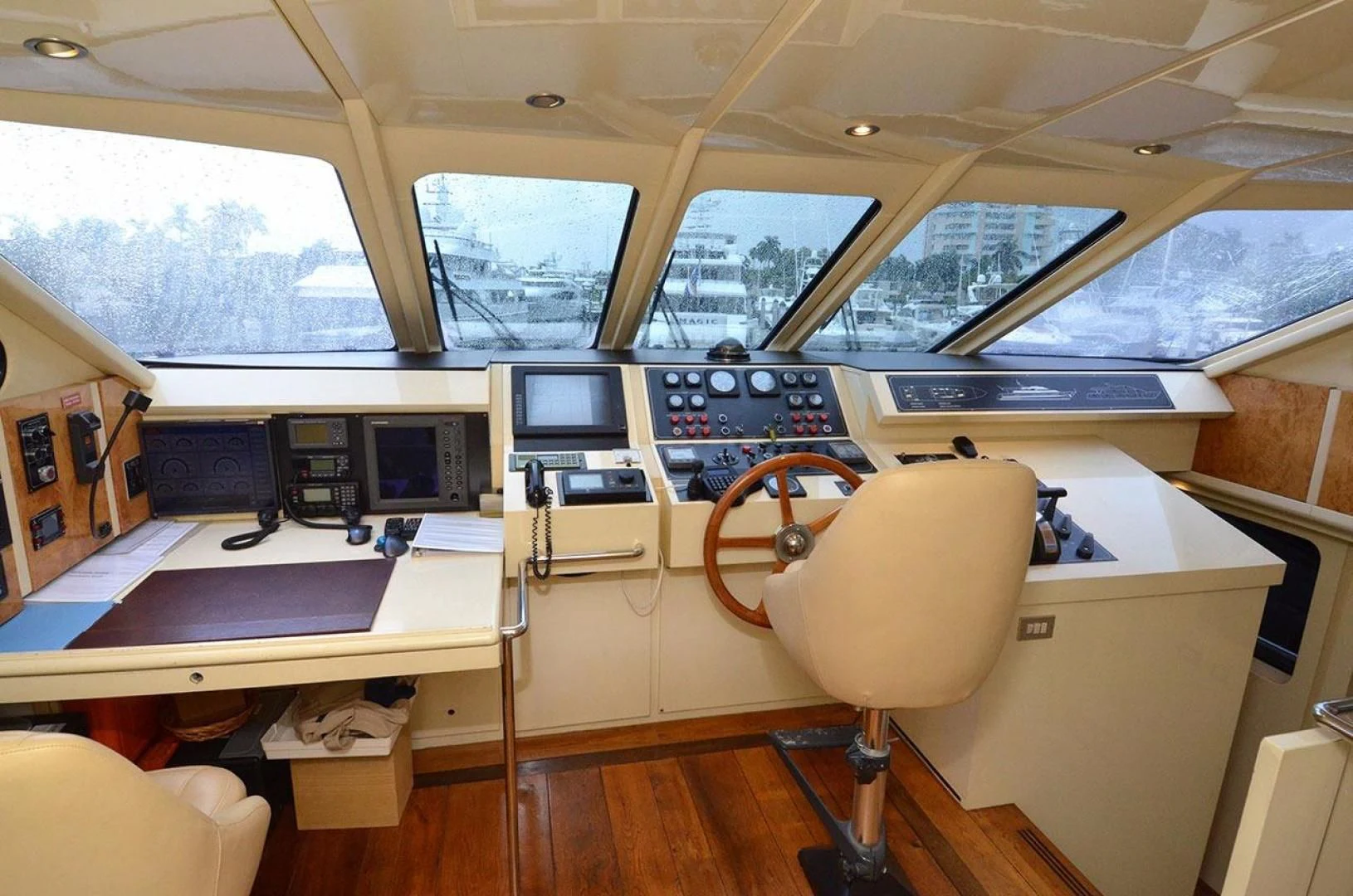

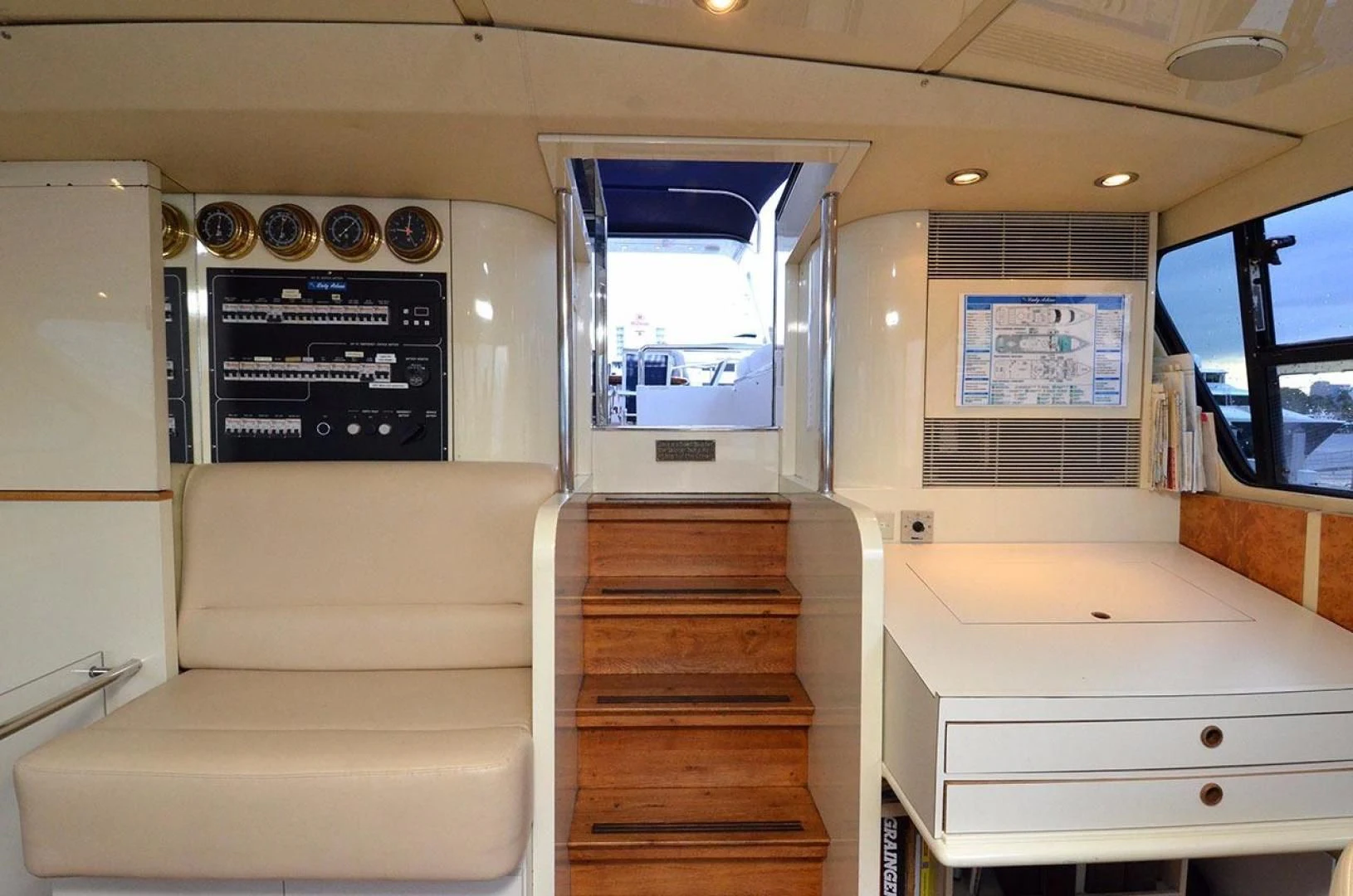

Walking up some stairs from the companionway on the starboard side is the raised pilot house. To the port side of the helm is a very large navigation station, behind the station is a troll storage, this with all of the ships maintenance and technical manuals stored underneath. Because KVH receivers and CCTV and ISIS ships monitoring system alarm system all located in this area. The ships controls are to the starboard of the helm and behind the helm is an observation area for passengers. There is good visibility forward, to port and starboard and for quick access to the flybridge there's a stairway with an automatic sliding glass door.

Navigational Instrumentation (pilothouse)

Furuno 72 mile Radar
Simrad AP 50 Autopilot
Radio Holland VHF RT2047
ICOM IC M 324 VHF
ICOM IC M802 Single Side Band Radio
ISIS (Integrated Shipboard Information System) Computer/Monitoring system
Raytheon ST 60 Windometer
Raytheon ST 60 Electronic Compass
Furuno GPS/WASS
VDO Rudder Angle Indicator
VEI Chartplotter
5 Station Louder Hailer system
Orion CCTV 4 Color High Definition Cameras with zoom/pan/tilt
KVH MINI V SAT Phone
KVH SAT TV
Hydraulic Bowthruster 40HP
Waco Air Shift Gear Controls with Aft Deck and Flybridge and Engine Room Controls all with Low Air Pressure Alarm
VDO Engine Water Gauges
VDO Engine Oil Pressure Gauges
VDO Gear Box Oil Temp Gauges
VDO Gear Box Pressure Gauges
VDO Fuel Tank Gauges x 4
All above with Visible Alarms
2 Ray Line Search Lights one on Bridge, One on Flybridge
Naiad Anti Roll Stabilizers (12sq ft) Fins
Ships GA Panel of all Decks with Audible and Visual Alarm

Bow

The bow has a magnificent view and has a huge sunpad area located just in front of the galley area. Private second access to crew quarters is located here, also all of the deck cleaning materials are located in a locker underneath the seating area. Dual anchor system and wrapping drum with each with 400ft of chain. Dual stockless 300lb anchors protected in stainless steel anchor pockets with fresh water wash down. The collision bulkhead is cleverly incorporated in the chain locker.

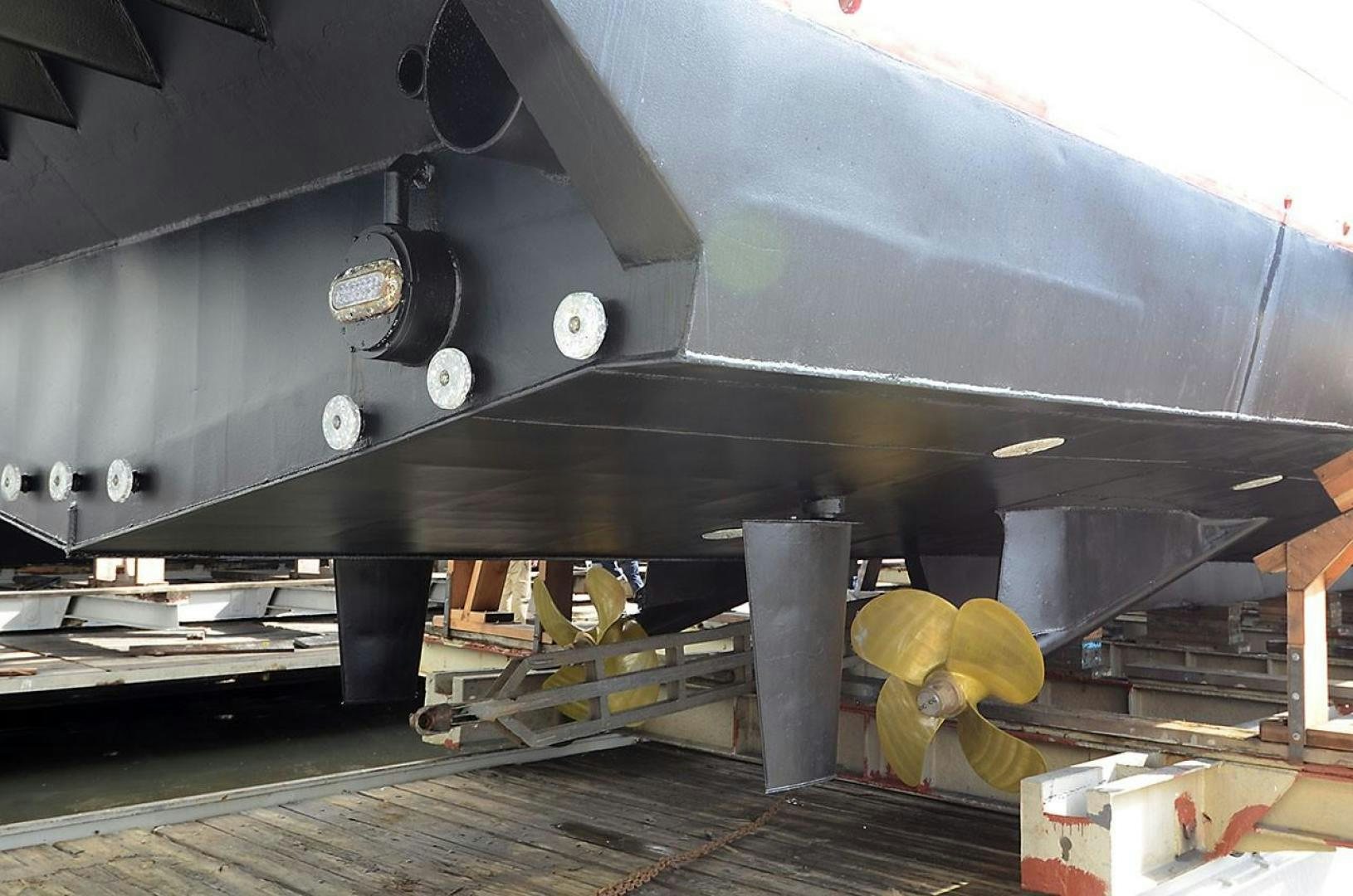

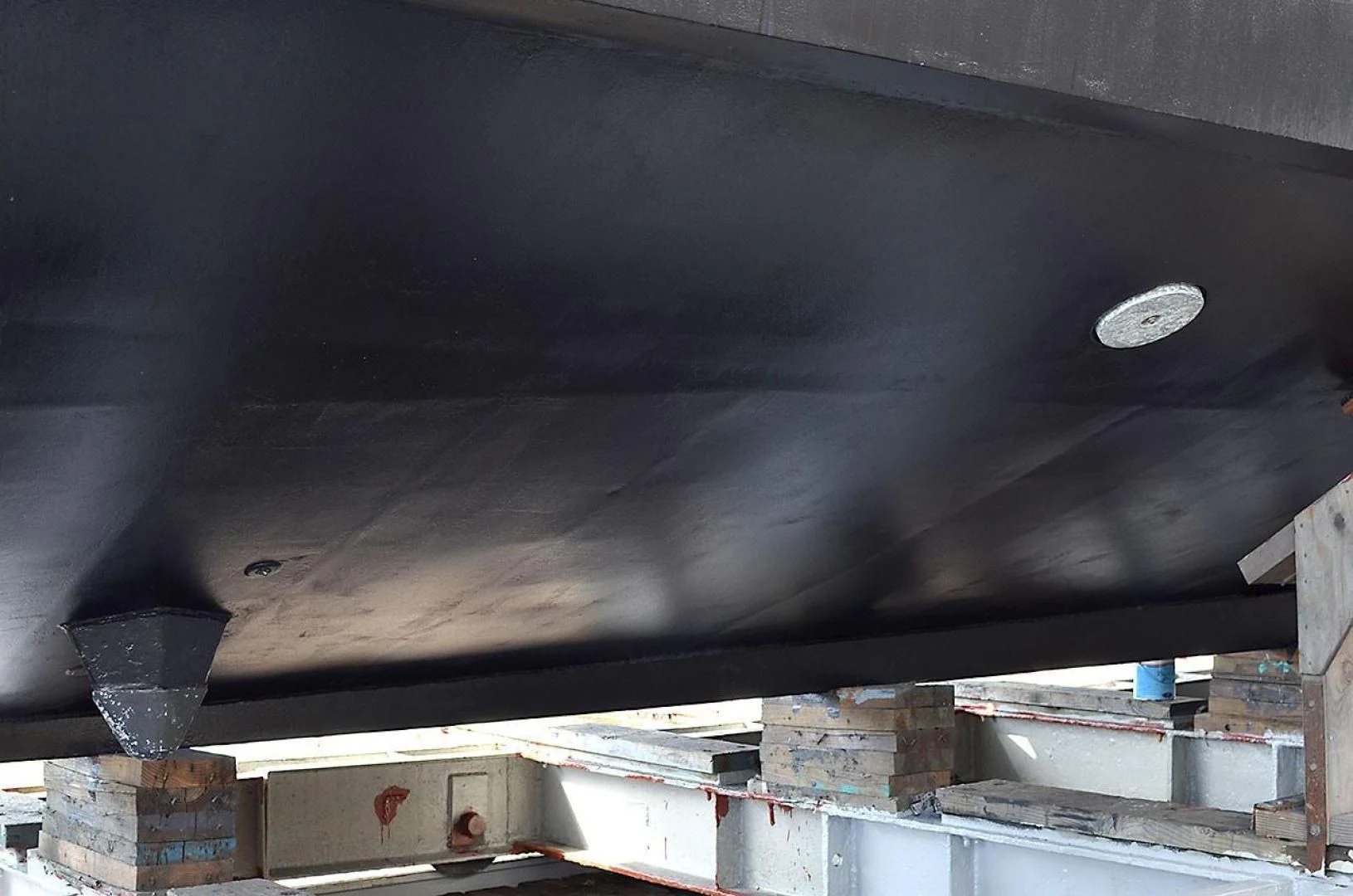

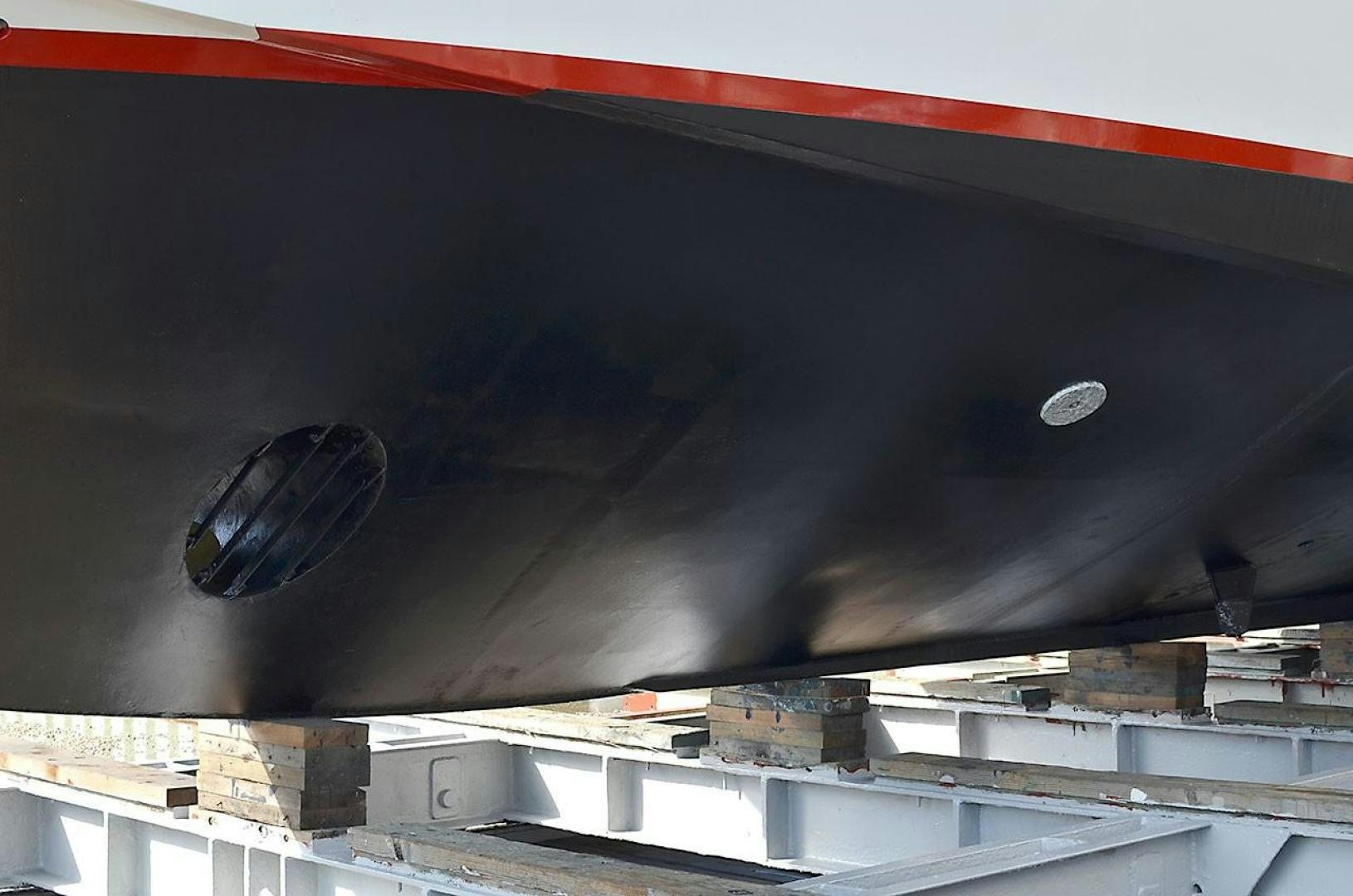

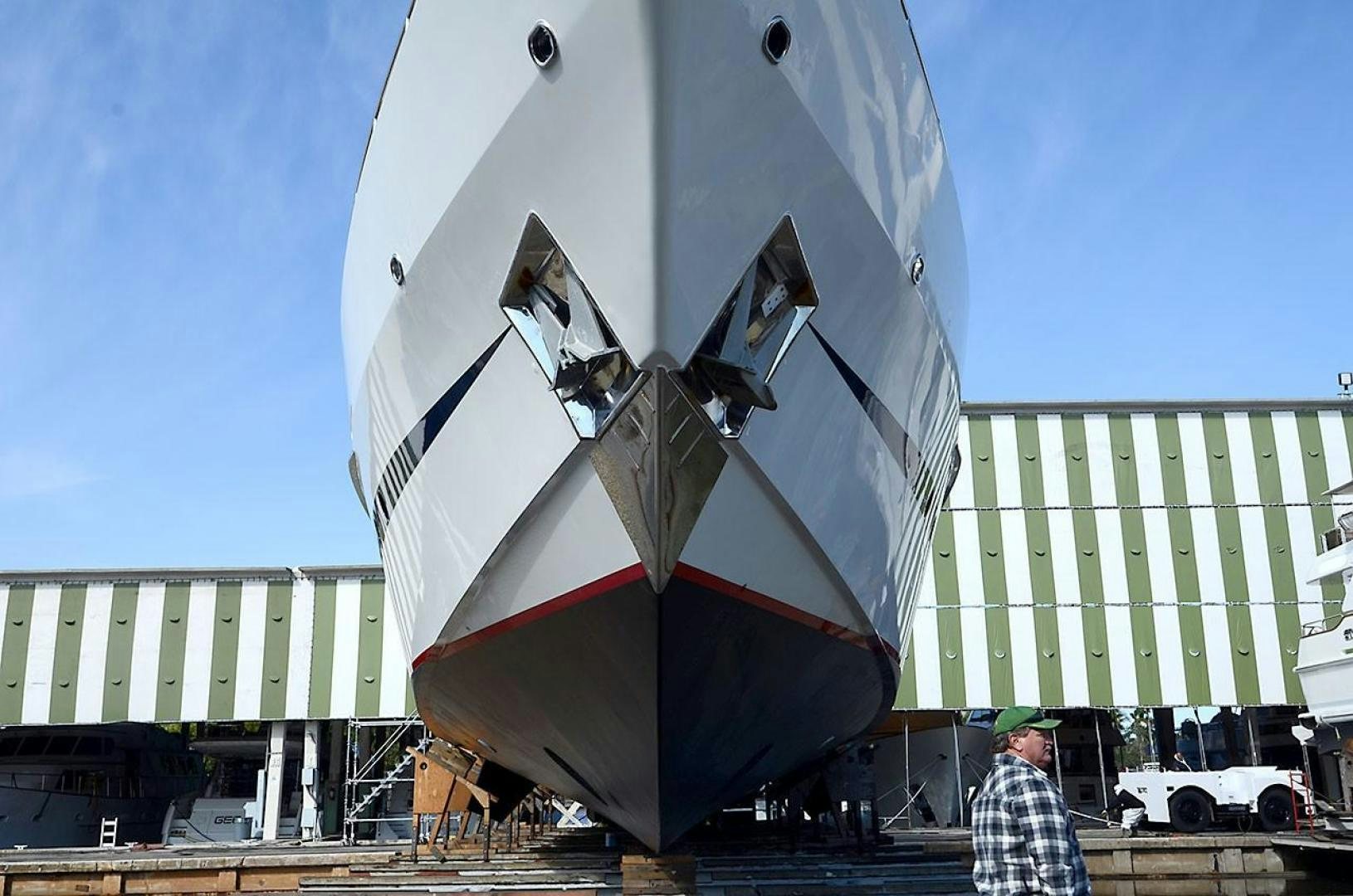

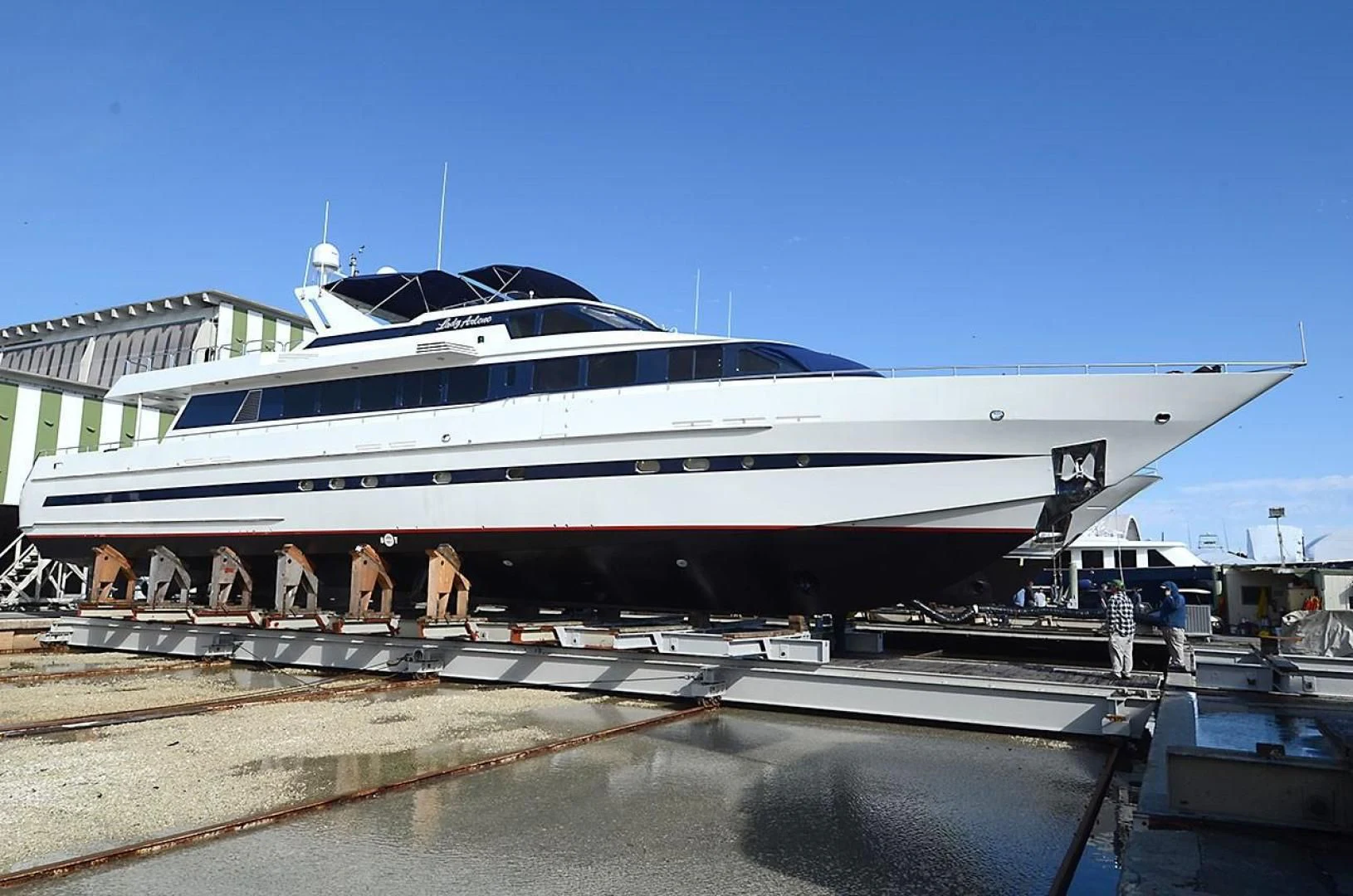

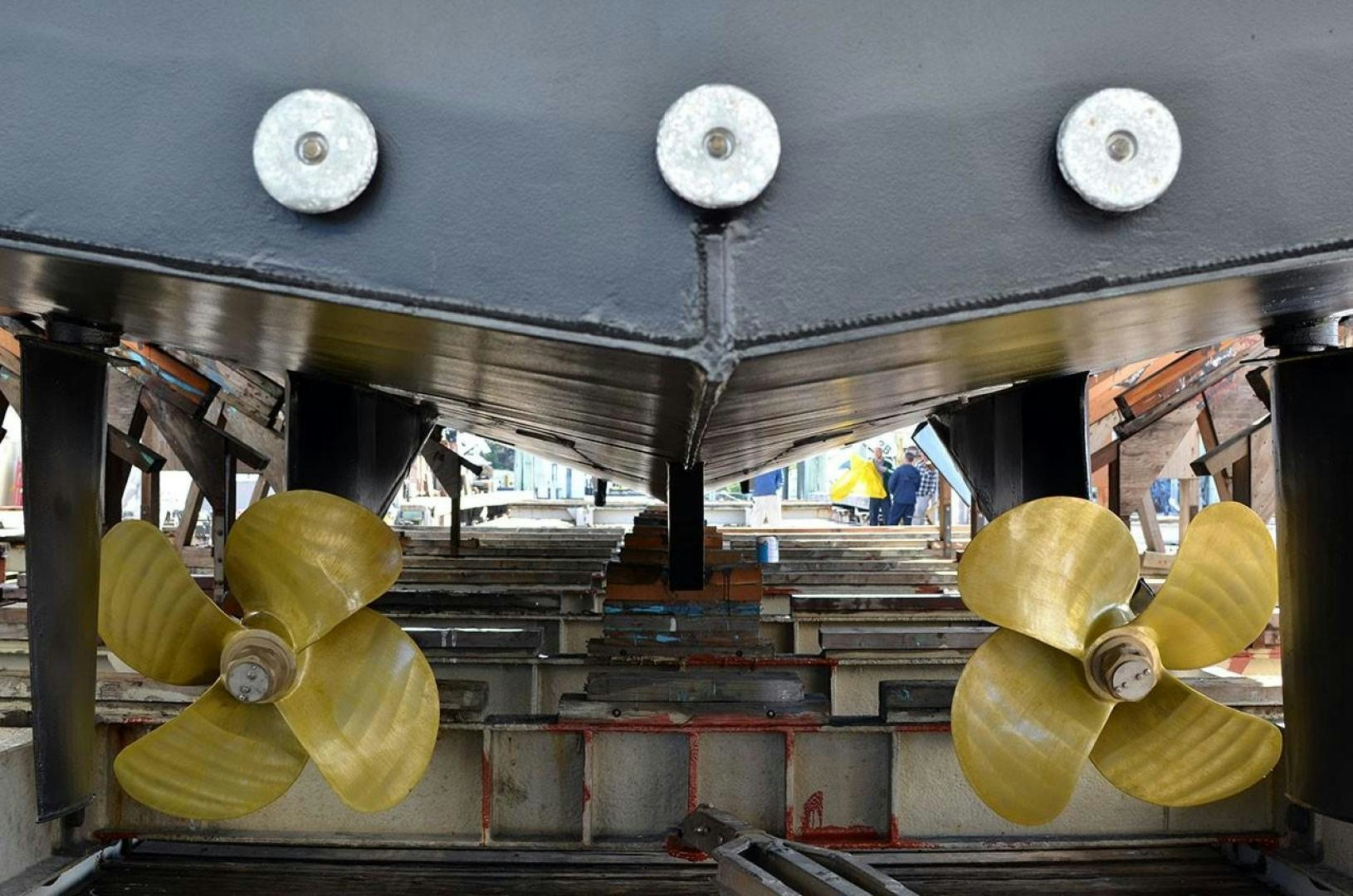

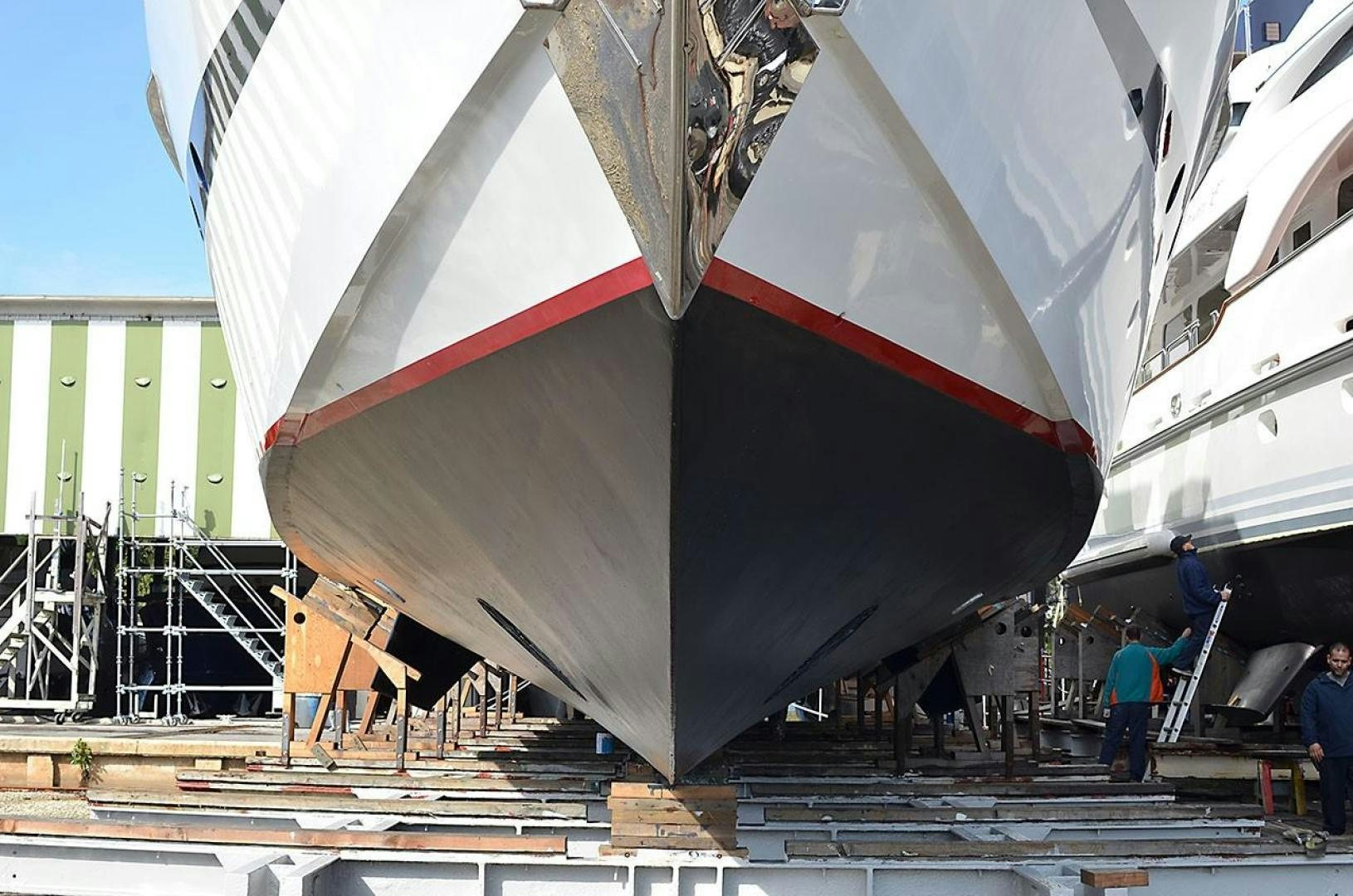

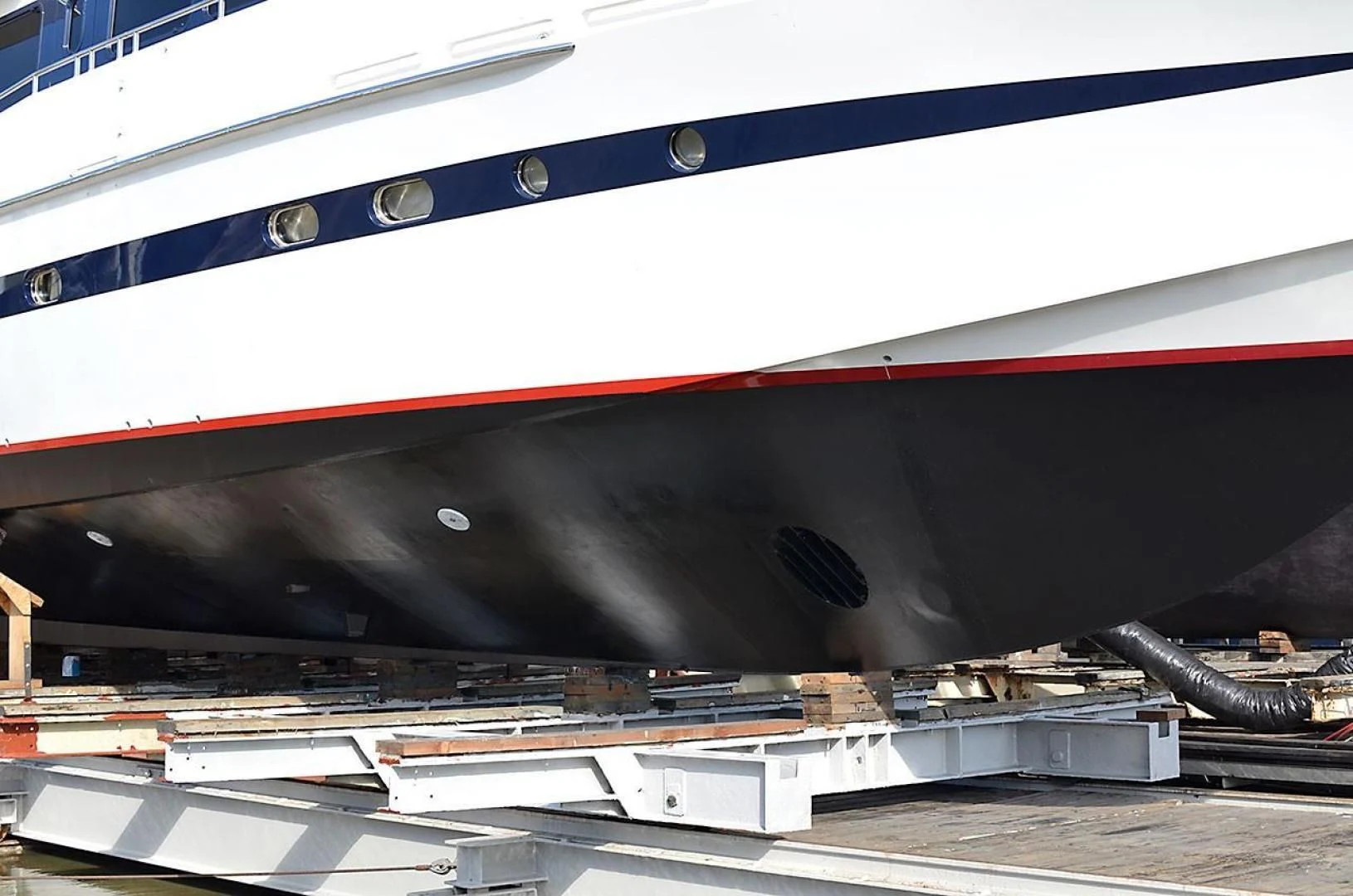

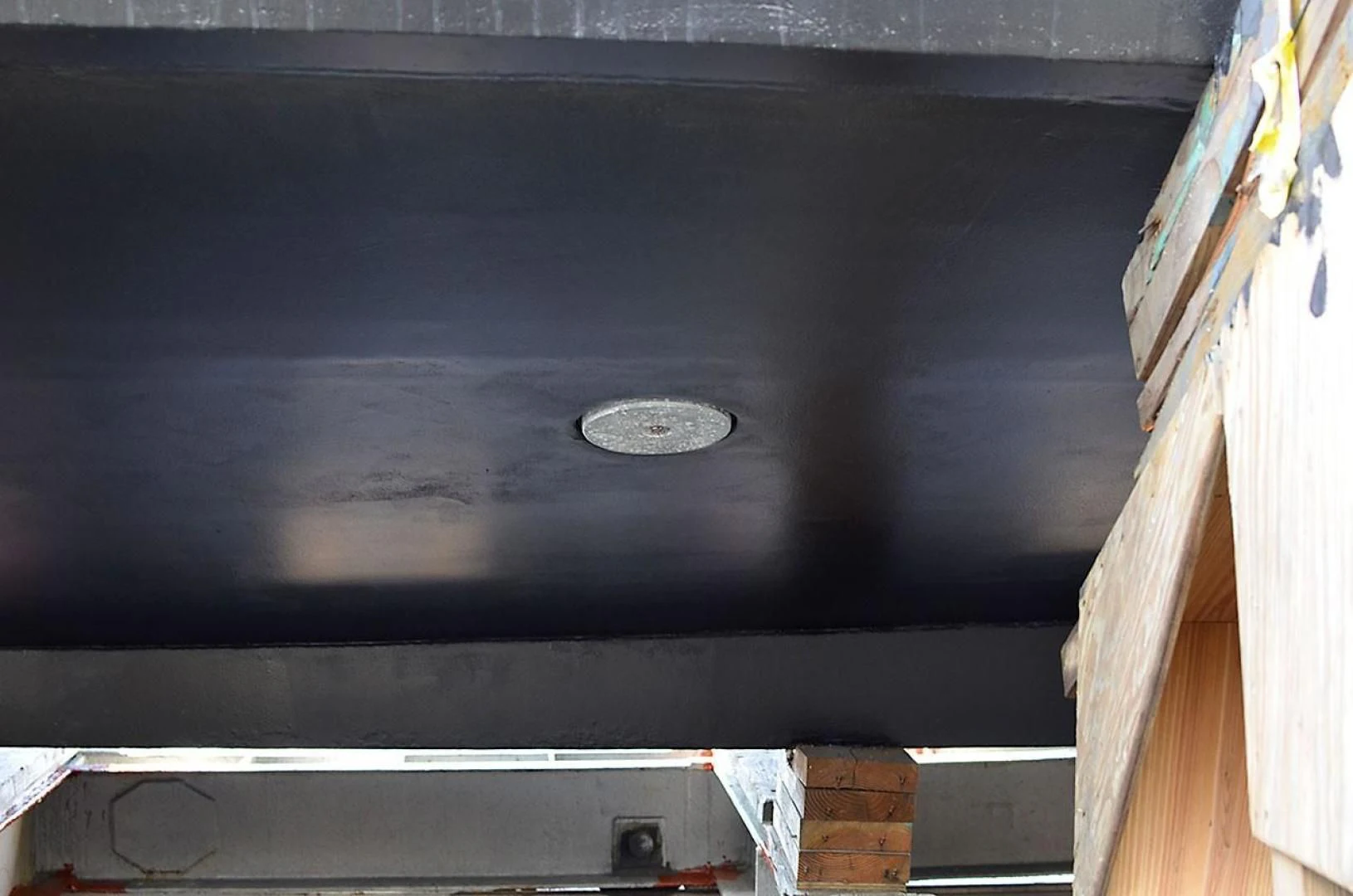

Hull

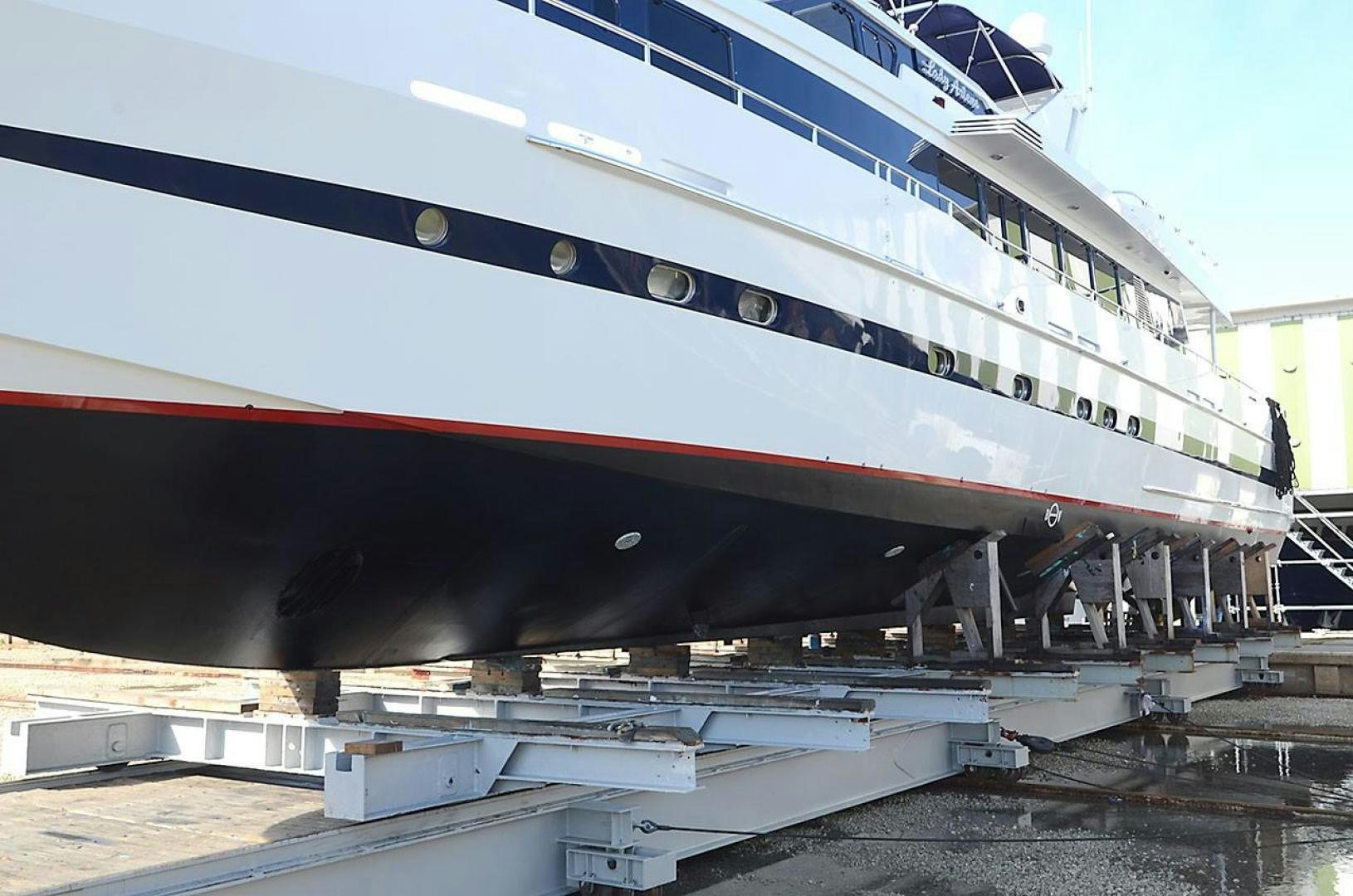

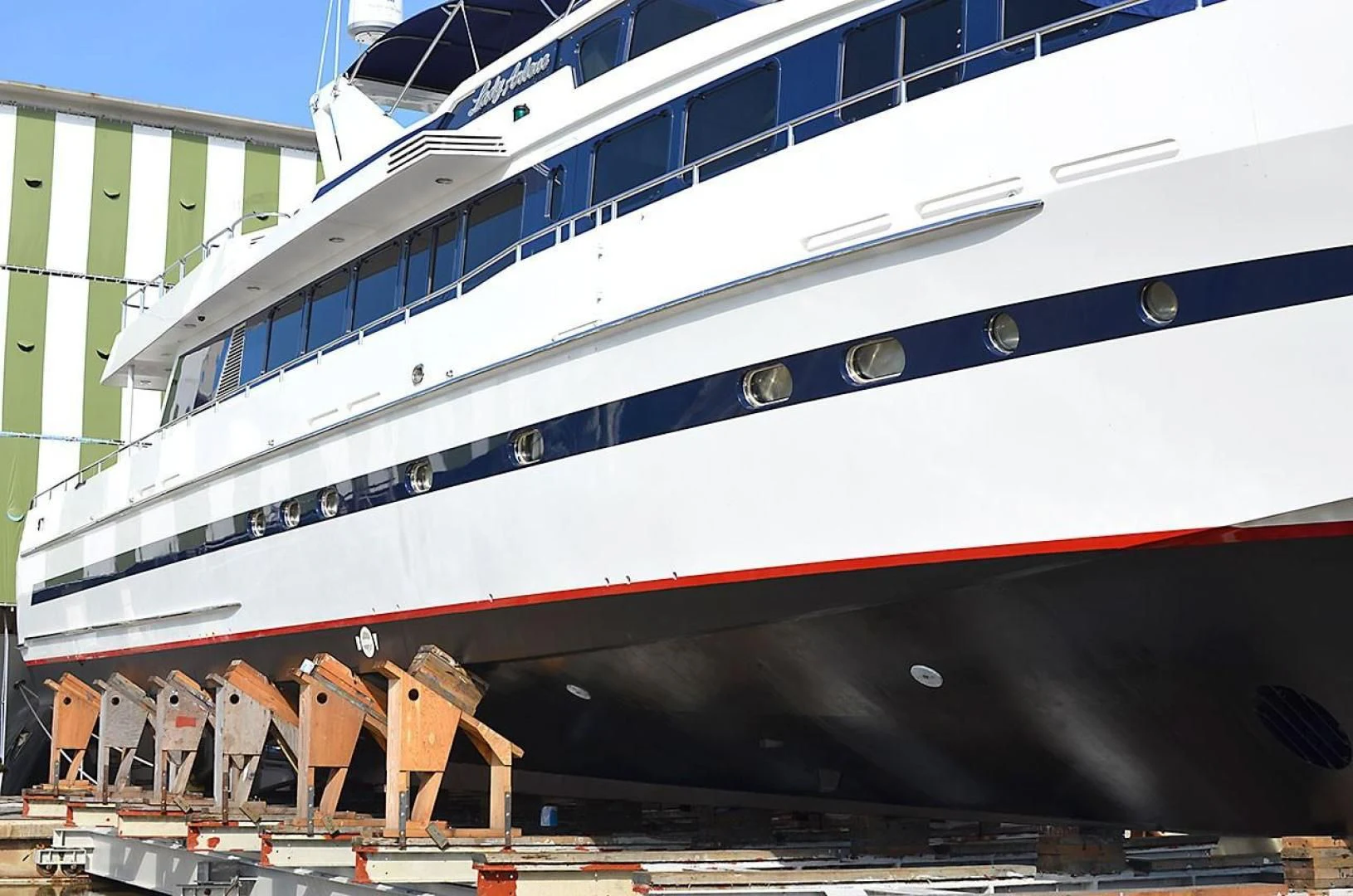

The bottom of the yacht was sandblasted in 2014 and complete new finish with the latest technology in bottom coatings.

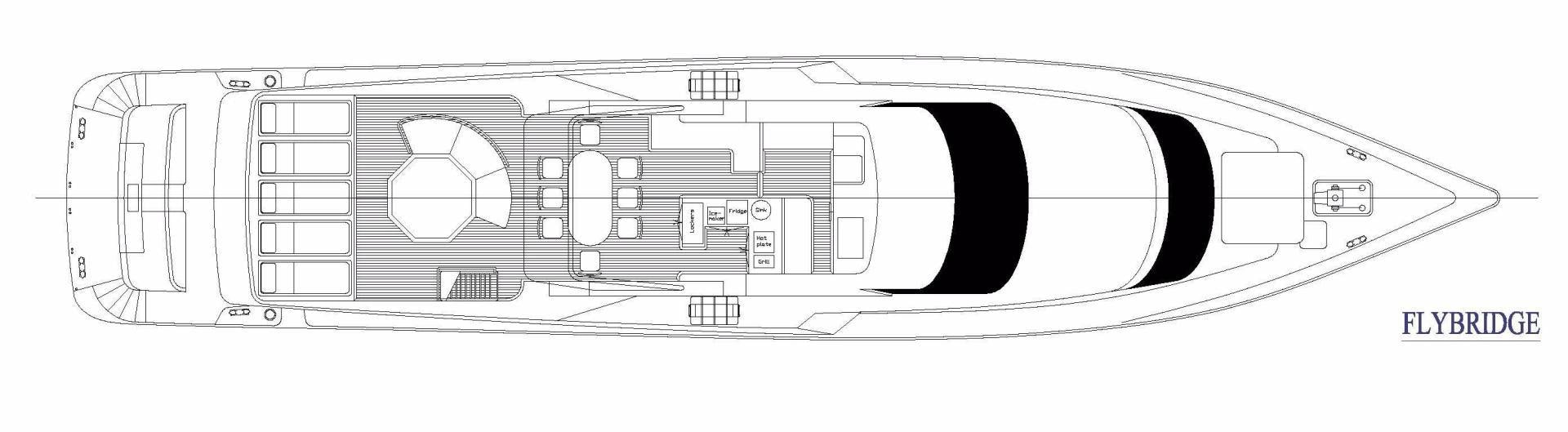

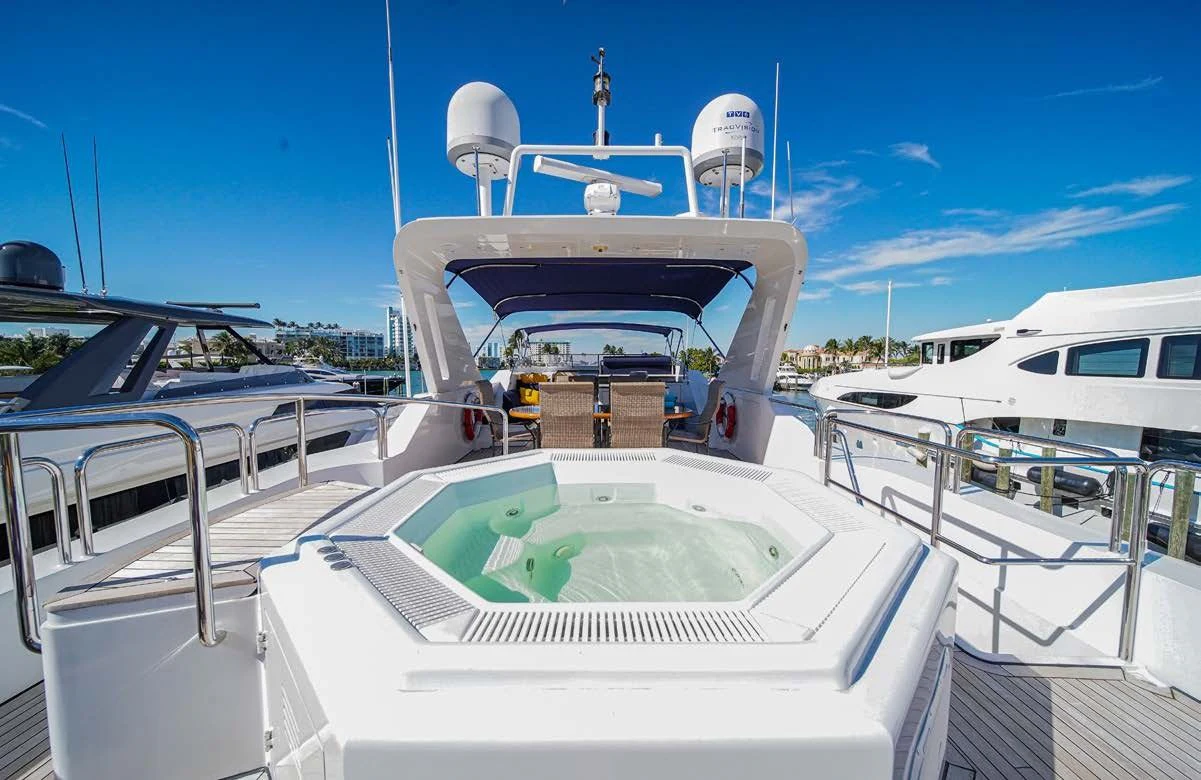

Flybridge

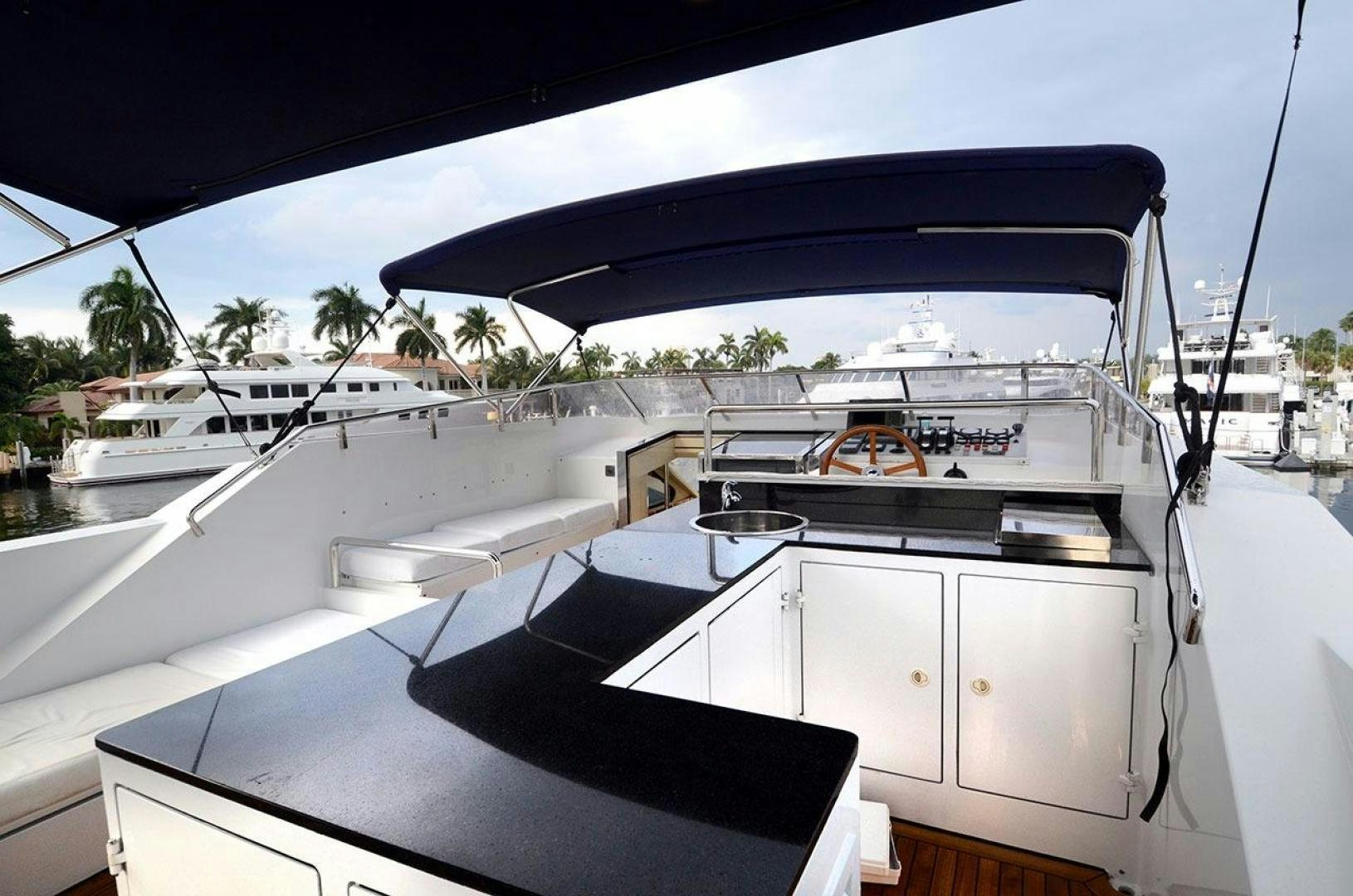

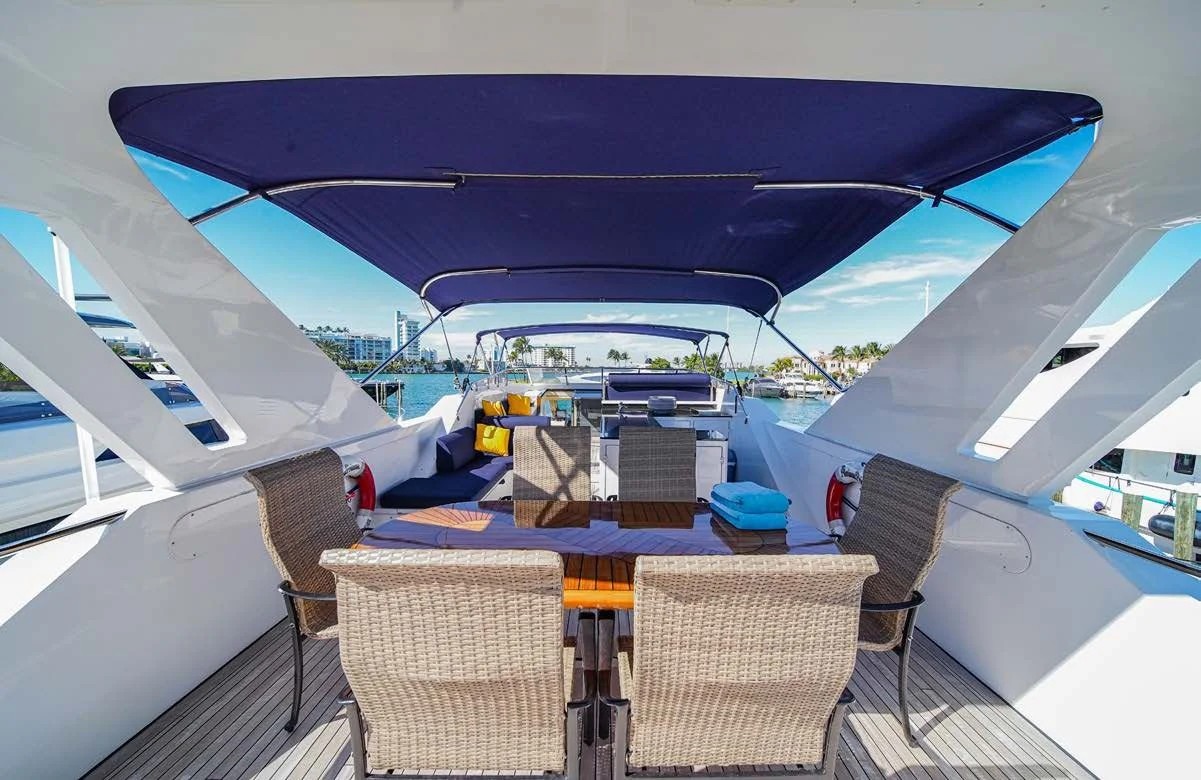

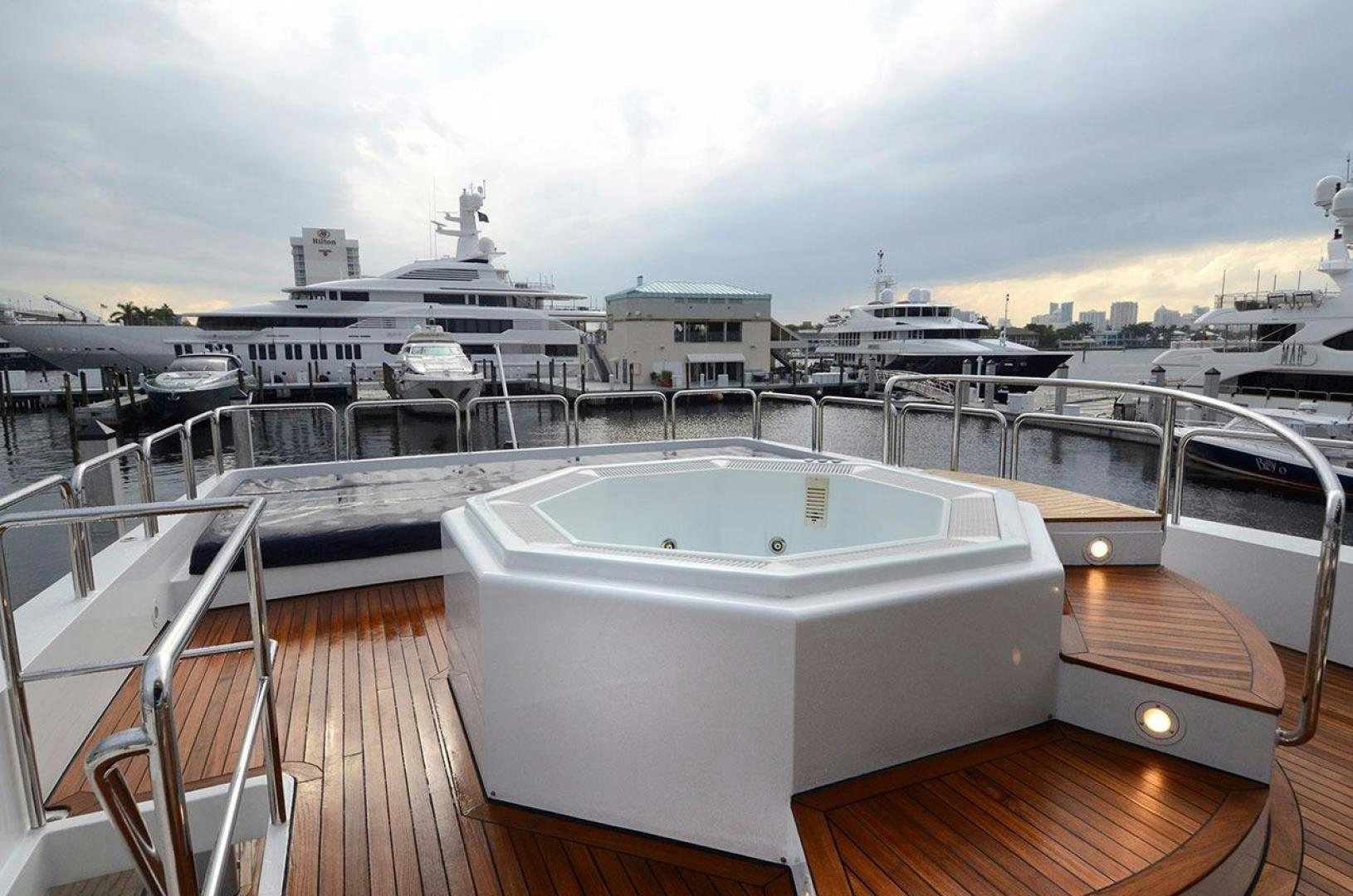

You can enter the flybridge from two different ways either from the aft deck or the electric door coming up from the pilot house. You will immediately notice the vastness of this area. Immediately behind the helm is a huge bar with built in refrigerator and icemaker and barbecue grill. Seating to the port side for at least 8 people. Under the radar is a teak inlaid table which easily accommodates up to 10. Moving off is a teak stairway and stainless handrail which enters into the six person Jacuzzi. There are 2 new Bimini tops which are easily retractable for the correct amount of sun or shade desired. At the very end of the flybridge is iced some pads for up to 10 people. The deck is new (2012/2013) with three-quarter inch teak.

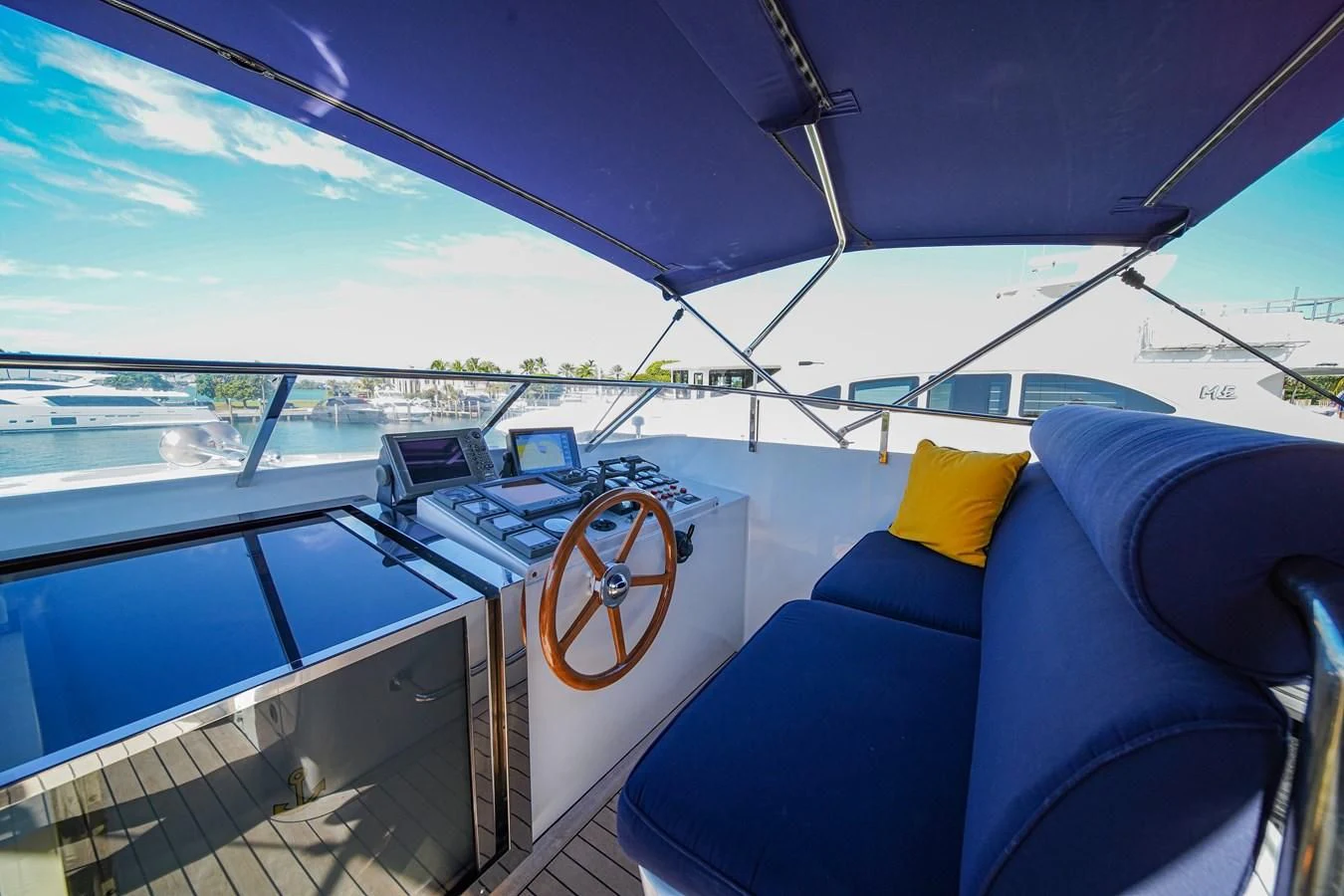

Flybridge Helm

The helm controls and instrumentation consist of the following:

Furuno 72 mile Radar
Furuno Chart plot
Raytheon ST 60 Digital Compass
Raytheon ST 60 Windometer
Raytheon ST 60 Speed Log
Raytheon ST 60 Depth gauge
VDO Rudder Angle Indicator
VDO RPM Gauges
VDO Engine Lube Oil Pressure
VDO Engine Lube Oil Temp
VDO Gearbox Lube Oil Temp
VDO Gearbox Lube oil pressure
Engine audible and visual Alarms Oil-Water-
Gearbox Audible and visual Alarms Oil-Water
ARC Searchlight
ICOM VHF mc 50
Air Controls
Air pressure Gauge
Autopilot
Bow Thruster
Stabilizer Control

Capacities

H20 Forward - 4750 liters
Aft - 3200 liters
Fuel
Day tank - 900
Port - 4000
Stbd - 4000
Forward - 4100
Lazarette 5500
Black Water - 500
Gray water - 350

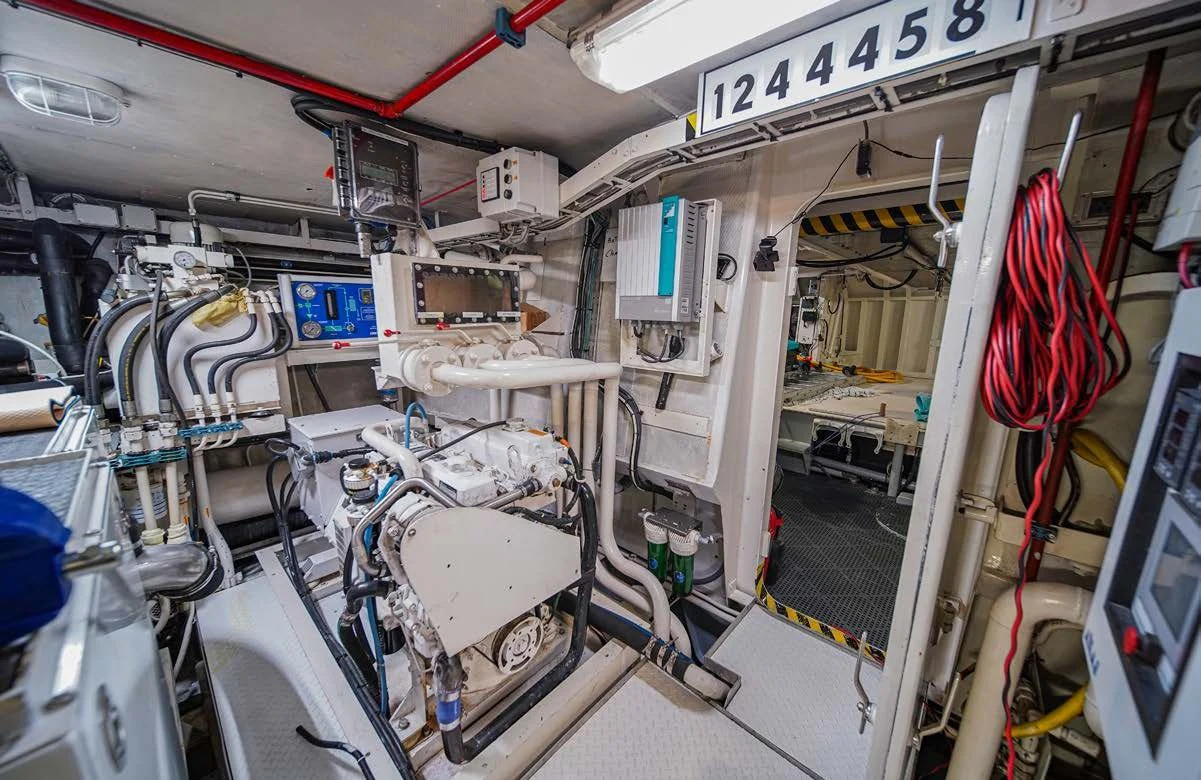

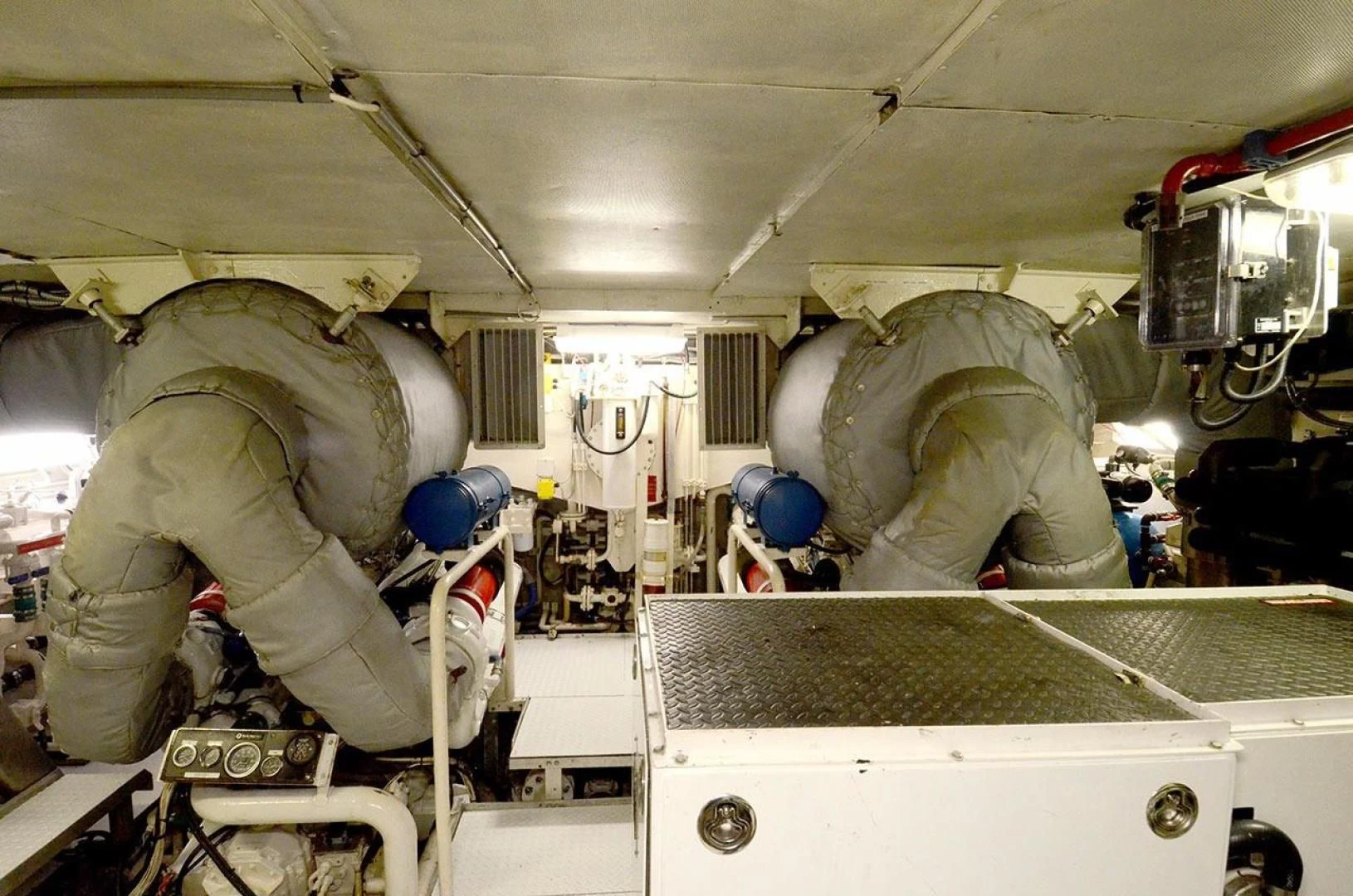

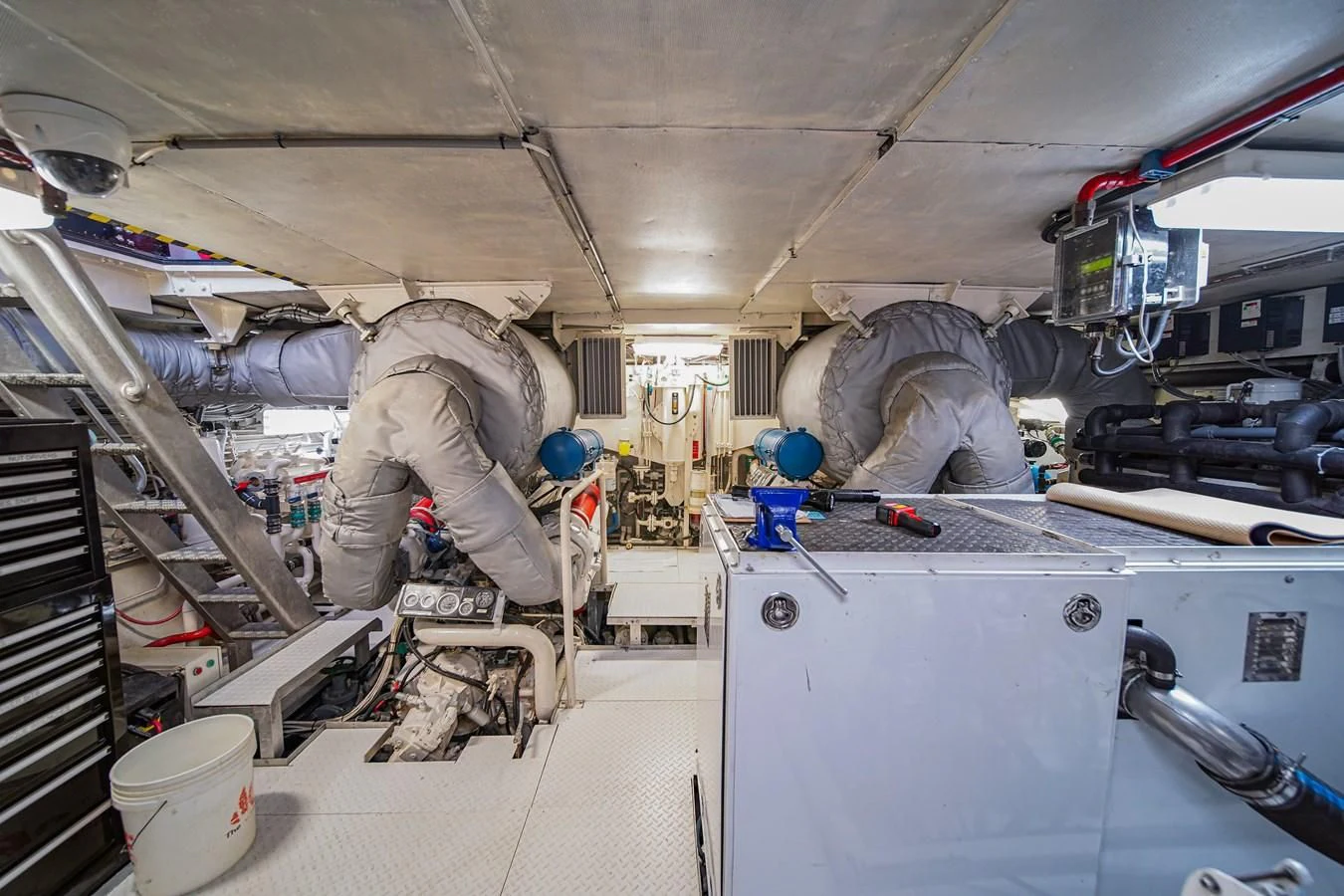

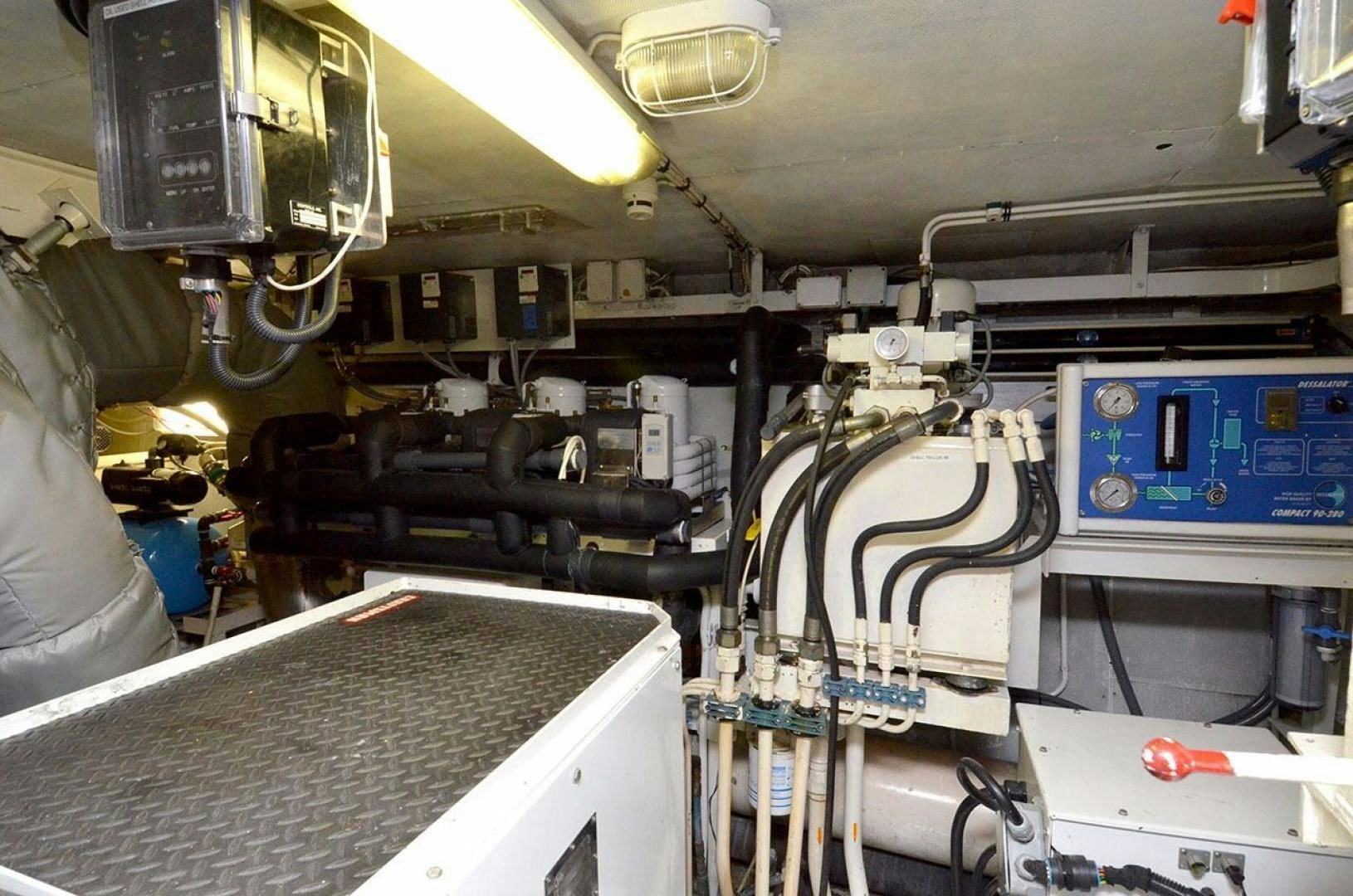

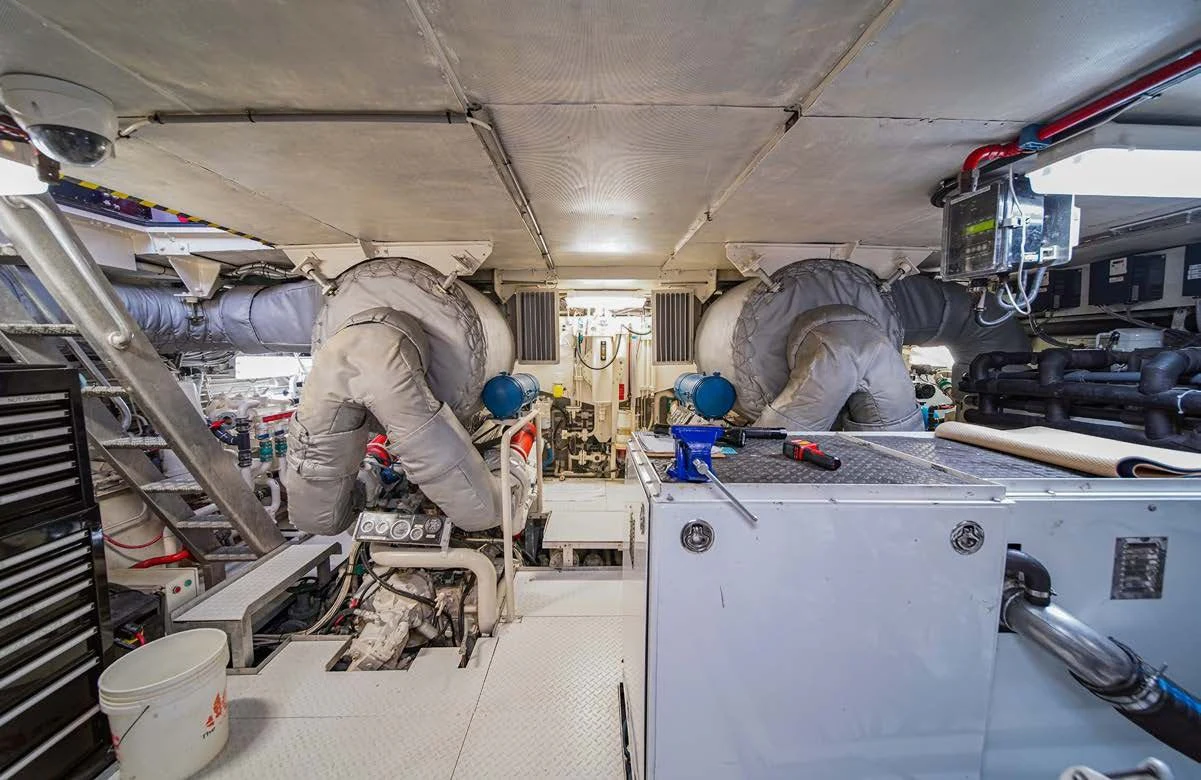

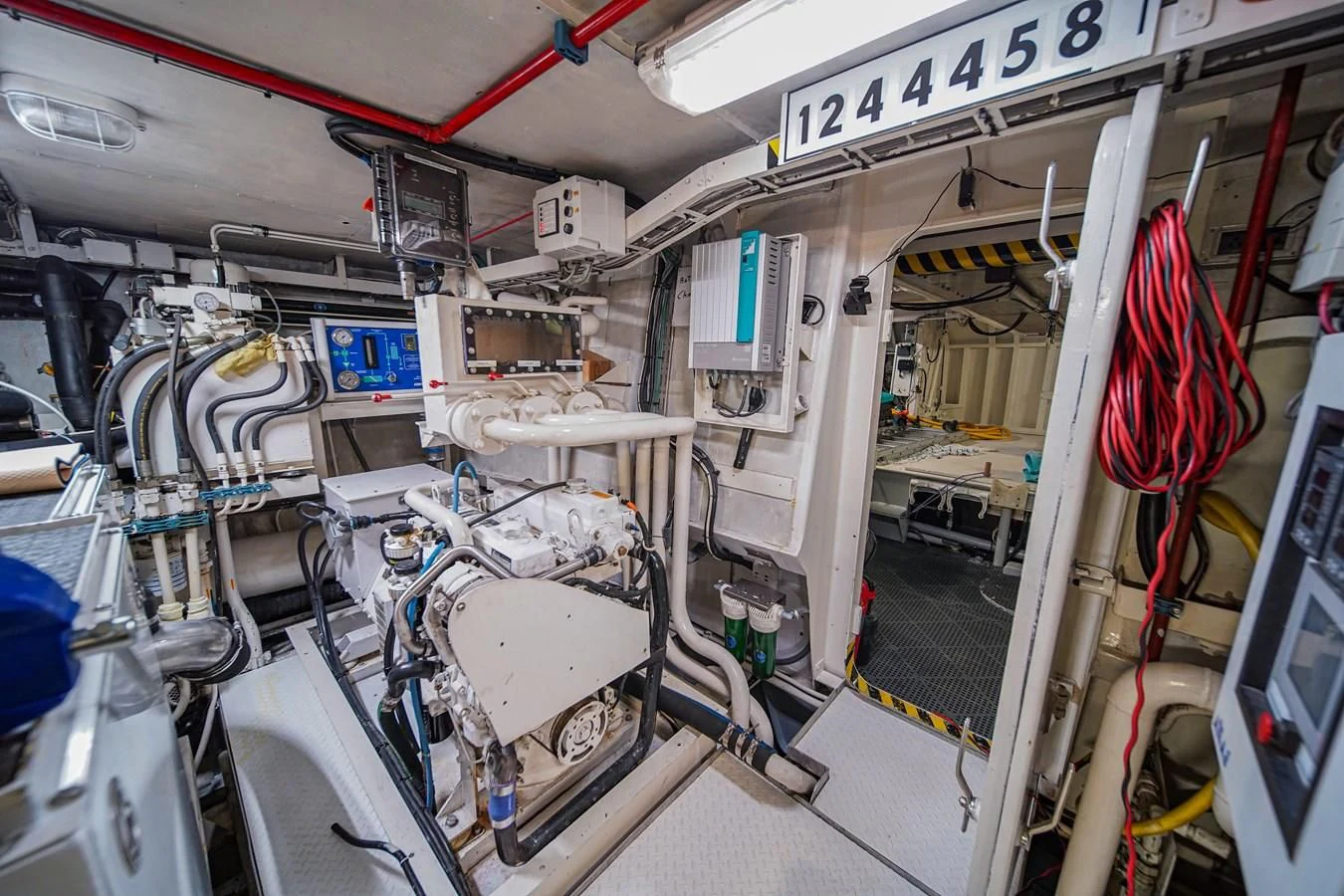

Engine Room

Batteries 8 D8 (6 house and 2 start)
2 compressors for air controls with 3 separate shut off positions
Bilge manifold system for tender garage, engine room aft, engine room, forward guest, crew and foredeck as well as the engine room and rudder compartment with automatic electric bilge pump 2000GPH
Emergency high water alarms throughout vessel
Air intake and extraction blowers
Atlas 80KVA frequency converter (Serviced 2013)
Electrical distribution
Three phase 220 volt
Shore power selector and generator 1 and 2 and both

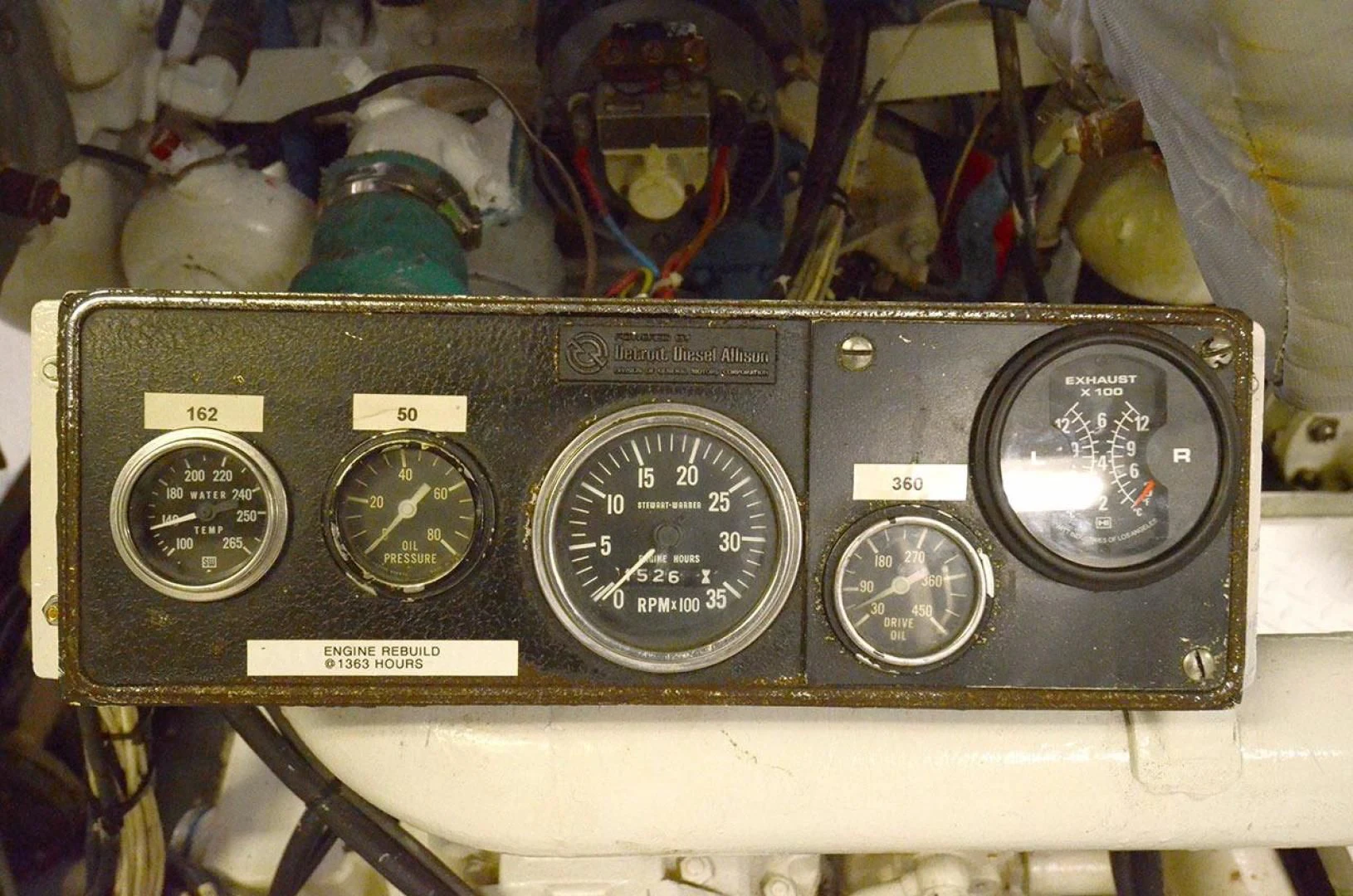

Main Engines

Detriot Diesel 12V92 TA 1050 HP rebuilt (RPM Diesel) 300 hours SMOH
Dual 2010 Racor filter for both engines
New exhaust risers with silencer system (2012)
Power take offs PTO's on both Engines

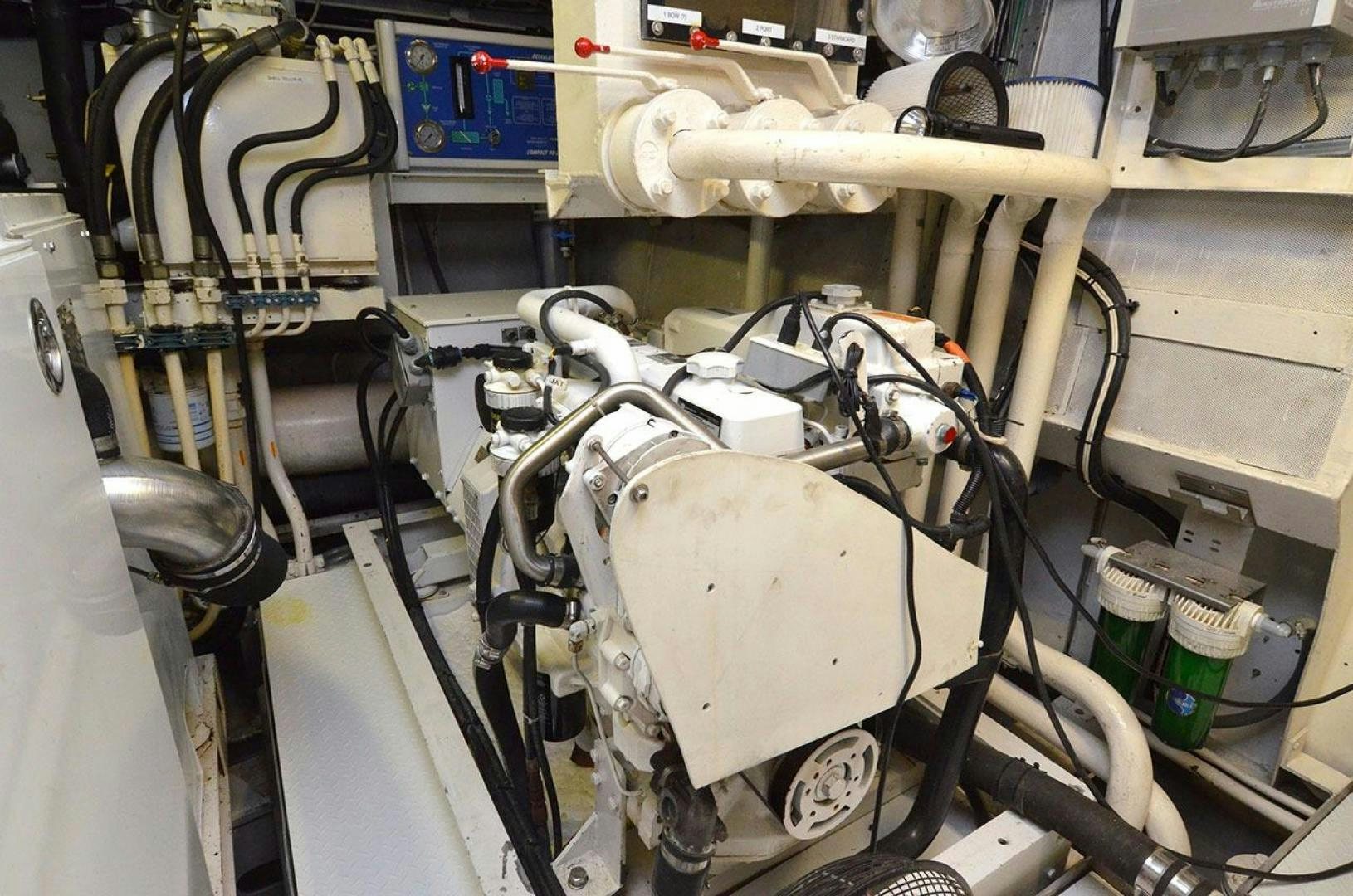

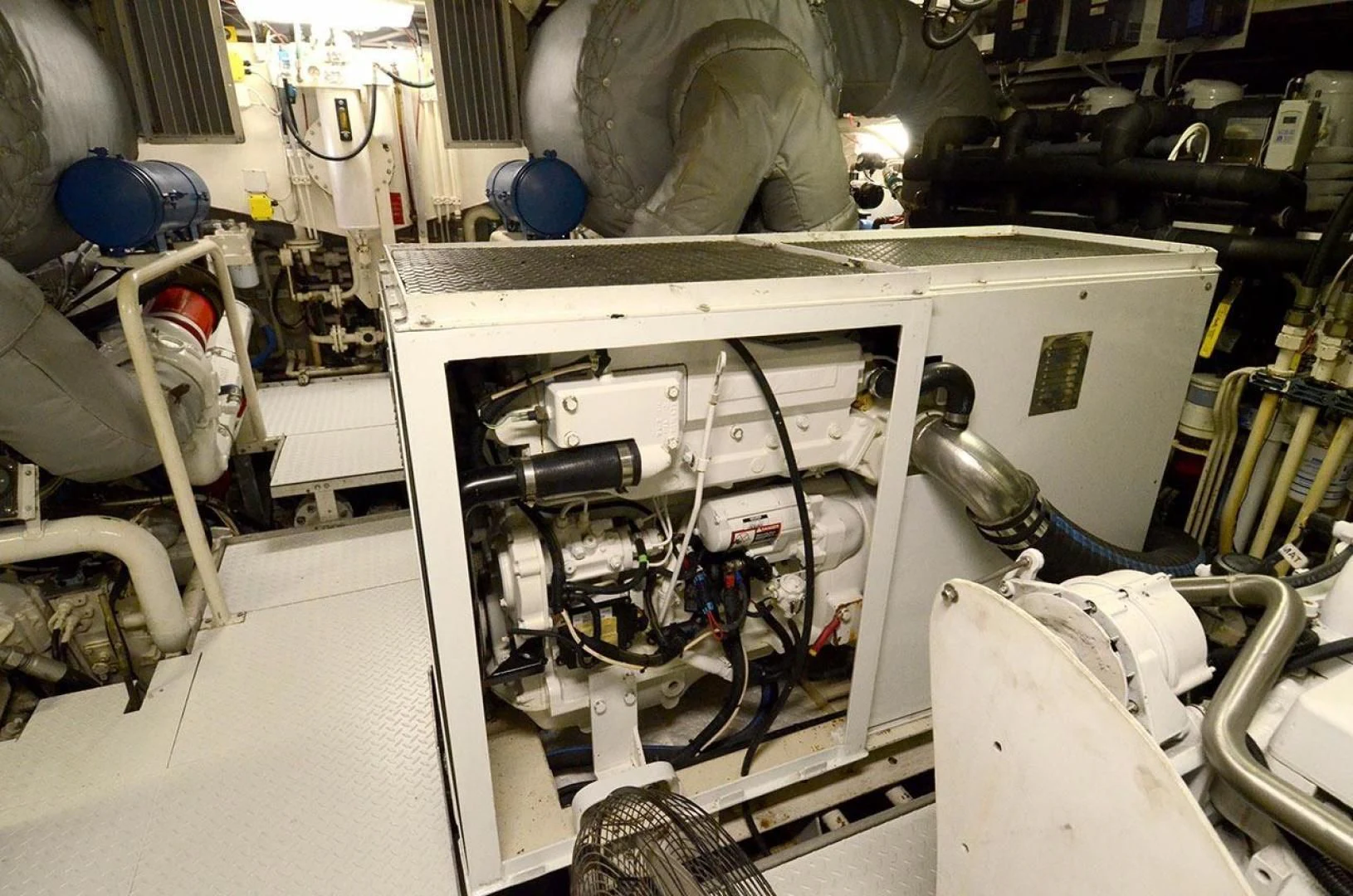

Generator 1 John Deere 40 KW replaced 2011 Hours 3200
Generator 2 John Deere 40 KW replaced 2011 Hours 1900
Single 2020 Racor fuel filters generators
Naid anti roll stabilizer system with 12 sq ft fins (Fully serviced 2012)
Beers Marine (Ranco) chilled water air con system 144,000 BTU 3 x 48,000 BTU (New 2015)

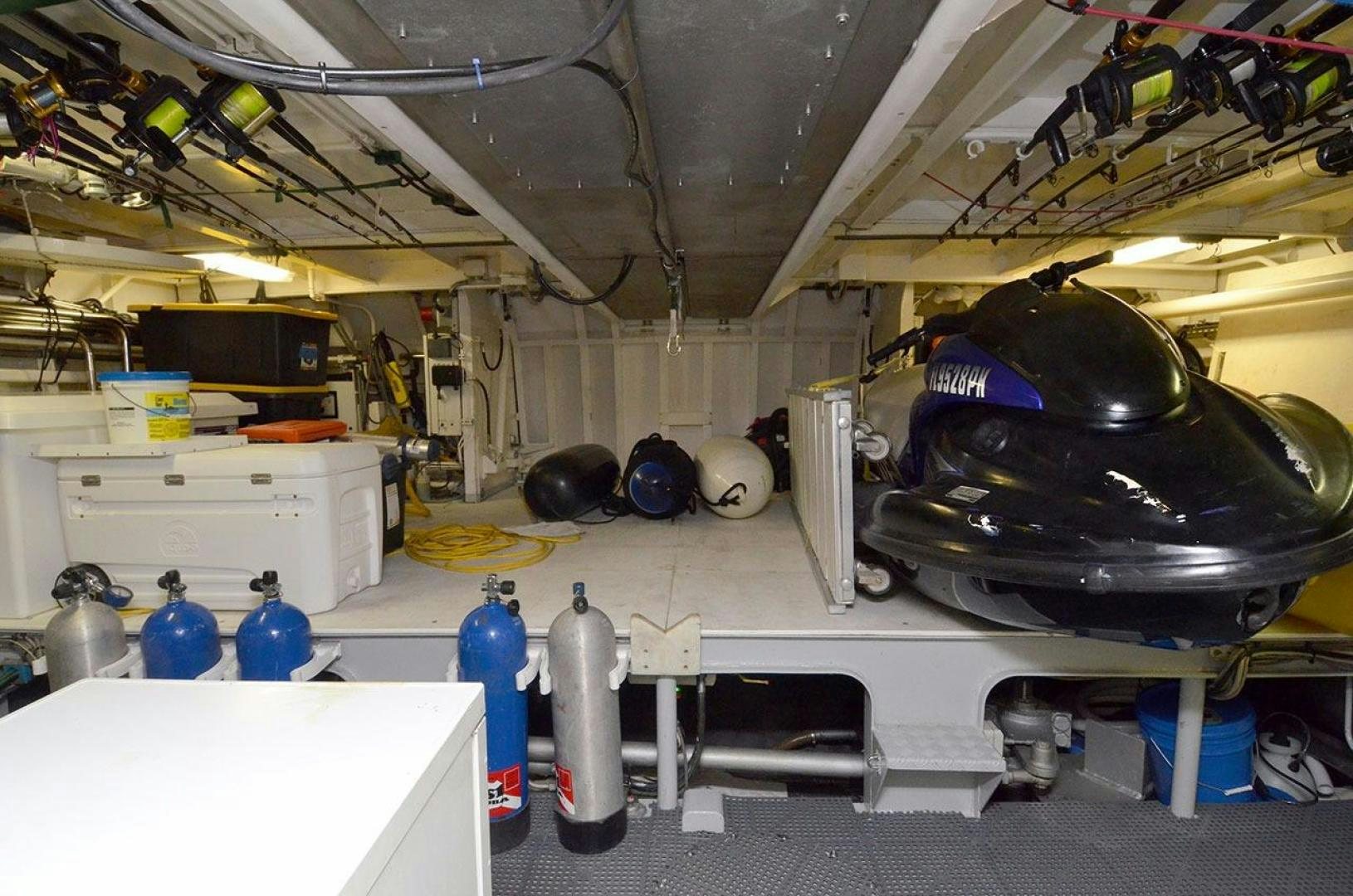

Tender Garage

The garage has an electric locking system, water tight seal and operated with 2 hydraulic rams. Upon entering from the stern you will find enough space to put a 15 foot hard bottom inflatable and a full-size jet ski 2013 Yamaha GP1300
2 Kayaks which are currently on board
Bait freezer with storage for fishing rods and dive gear and dive tank storage
The passerelle is centered above and makes any mediterranean mooring simple
2 commercial stainless steel Miele washing and dryer machines
The main components of the Atlas frequency converter system are here, which allows the heat to escape as all these units typically need plenty of ventilation
Visible access to all rudder posts and aft bilges and fuel tank are aft
Aft deck wrapping drum motors are mounted on ceiling for easy maintenance
The swim platform has 2 cleats for tender mooring and is fitted with removable stainless steel stantions

Broker Comments

Any person in search of a 100' pedigree motor yacht who is looking at Browards and similar motor yachts must see LADY ARLENE. Dutch quality super well maintained by a knowledgeable owner who will consider a 70' plus sportfish in trade.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
