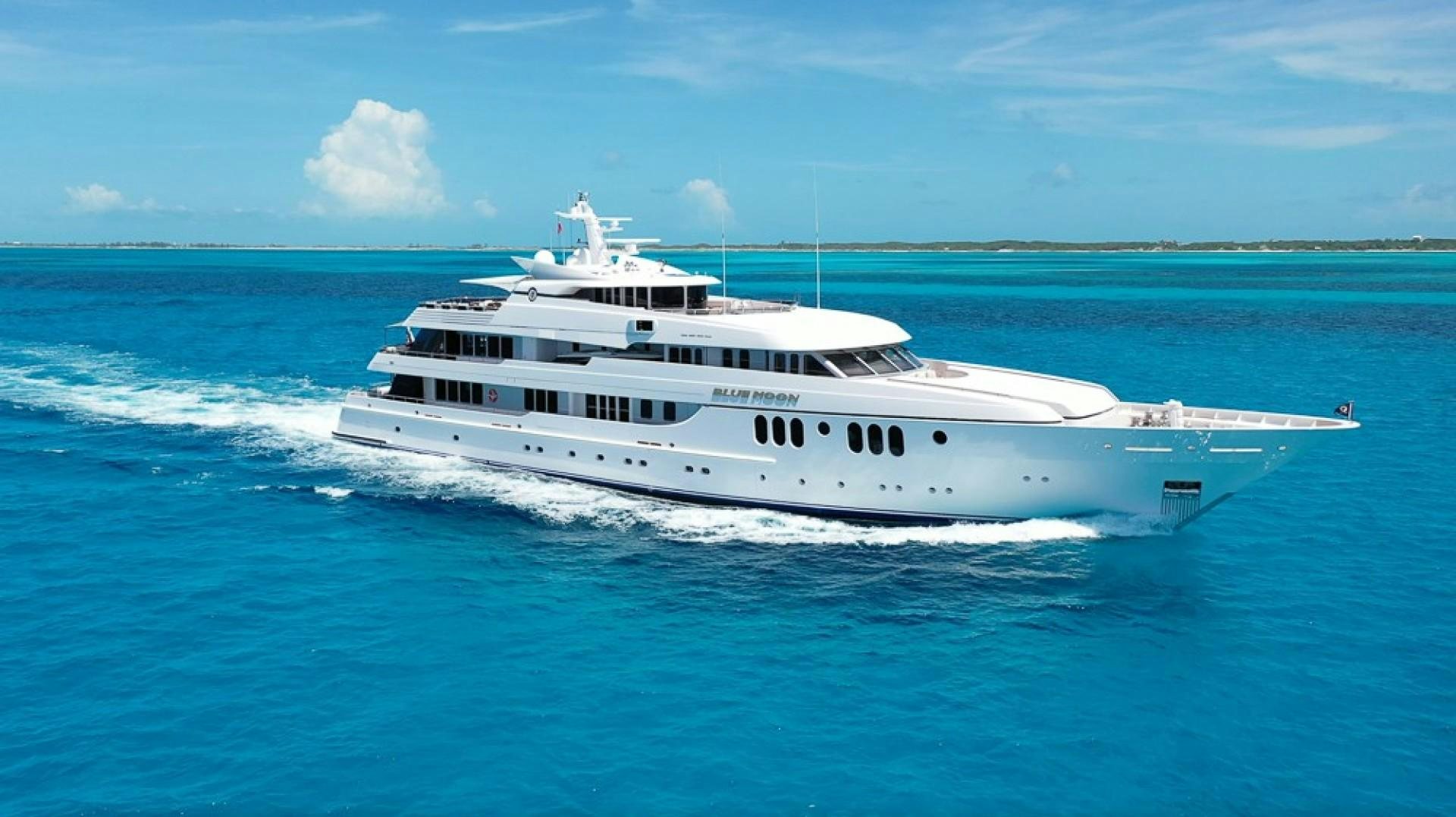

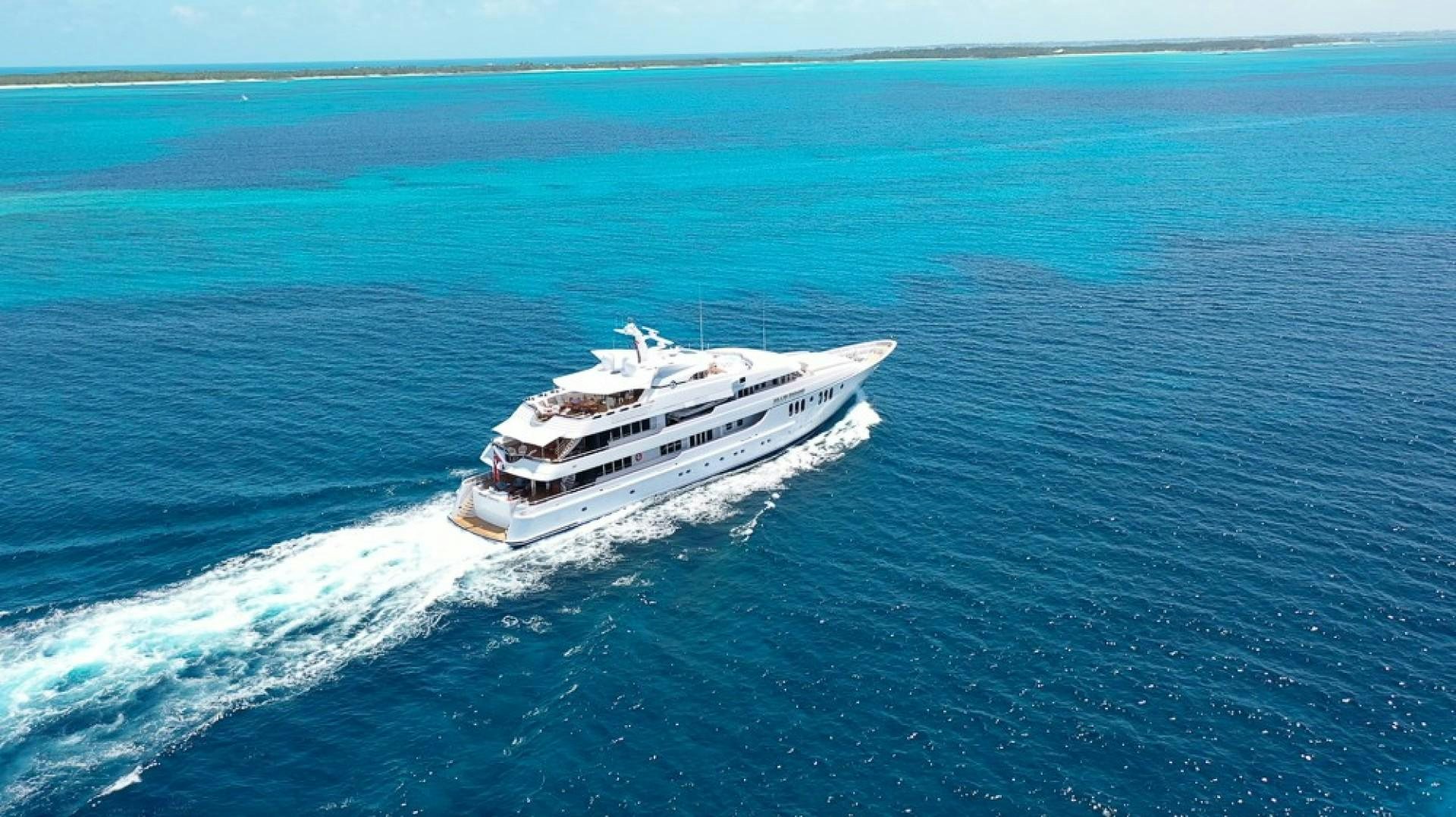

BLUE MOON Yacht for Sale

1. Quantum Zero speed stabilizers upgraded to XT fin type (Nov 2019)
2. Shore power units replaced (Nov 2019)
3. All three Generators upgraded to Scania 300kw.
4. Hull & main deck bulwarks repainted Feb '21. Superstructure repainted in 2018/19
5. 15 year Lloyds Class survey completed Nov '19
6. Excellent Feadship quality
7. Experienced owner has built multiple Feadship’s
8. Original owner and an extremely experienced, longstanding crew
9. 6 staterooms, elevator, guest & owner gymnasiums, and tender pockets on bridge deck
10. Wheelchair accessible

• 2006 World Yacht Trophy 150’-200’
• 2006 Showboat Best Full Displacement Motor Yacht Over 56 Meters
• 2005 Monaco “Star of the Show”, awarded by the Prince of Monaco.*
• Yacht Magazine 60 Meter of the Year

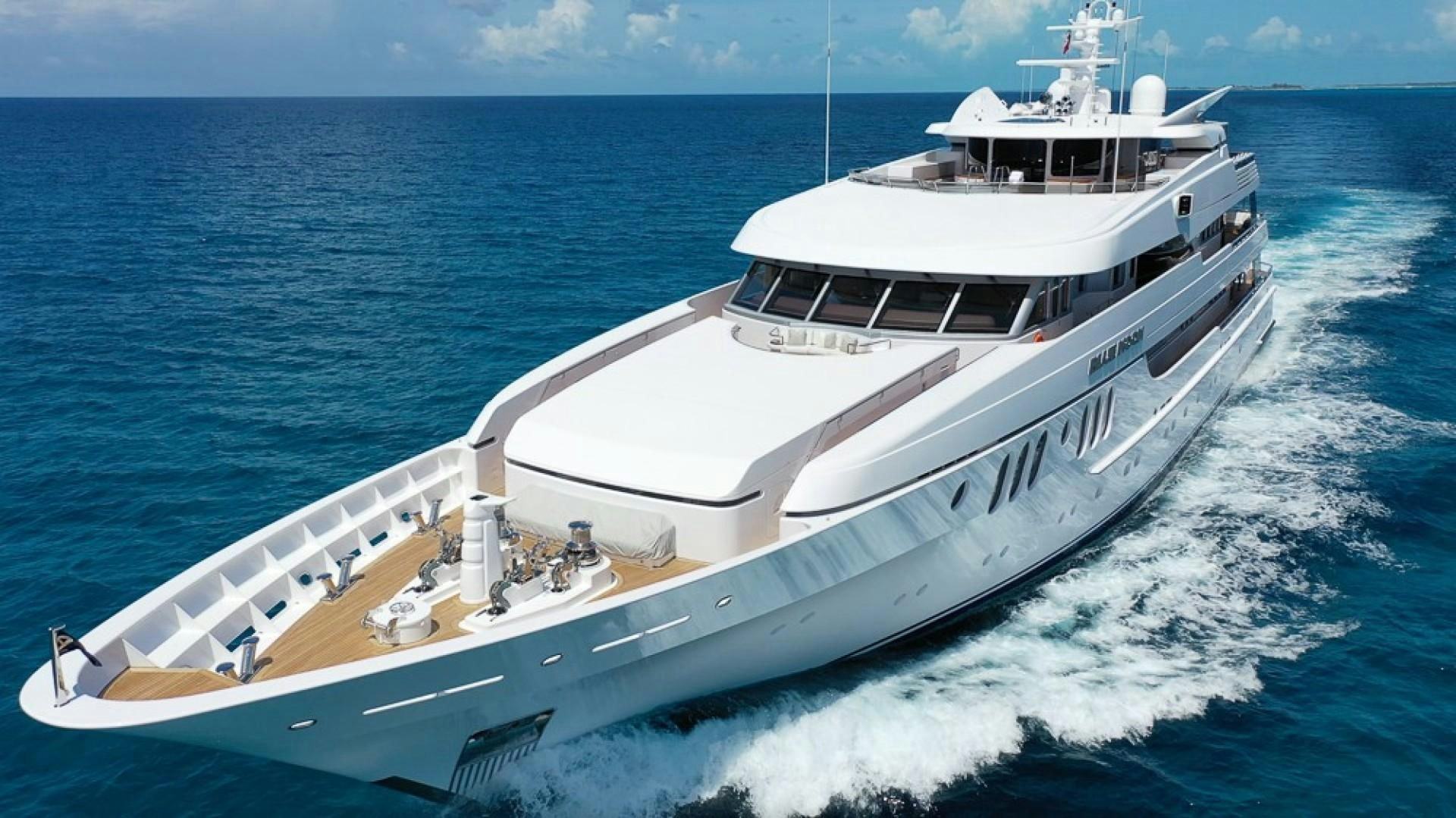

2005 198’ Feadship built at the Royal Van Lent Shipyard (Yard #793, delivered June 4, 2005) and naval architecture by De Voogt Naval Architects. Exterior styling and interior design by Donald Starkey and Lee Perot. She has a displacement hull, constructed of steel with an aluminum superstructure and is built to Lloyds Class (Class notation: 100 A1, SSC,Yacht (P), Mono, G6, LMC, SCM) with MCA compliance. Note: Lloyds 15 year class survey completed in Nov. 2019. Blue Moon has seven (7) watertight compartments, and nearly 9,000 square feet of living space.

General

Length Overall: 198 feet (60.35 meters)

Length at Waterline: 175 feet (53.35 meters)

Beam: 37 feet (11.29 meters)

Draft:11 feet (3.35 meters)

Air Draft: 52.5 feet (16.0 meters)

Tonnage: 1,102 gross

Net tonnage: 330 (NT)

Displacement full: 1,064 tonnes

Capacities

Fuel Capacity: 37,433 US Gallons (141,700 liters)

Water Capacity: 8,084 US Gallons (30,600 liters)

Lube Oil: 674 US Gallons (2,550 liters)

Waste Oil: 621 US Gallons (2,350 liters)

Wastewater:565 US Gallons w/M.S.D. (2,140 liters)

Gray Water: 2,787 US Gallons (4 tanks) (10,550 liters)

Speed and Fuel Usage

      Speed     Range

Maximum:  16 knots

Cruising: 13 knots   4,700 nm

Paint

Manufacturer: Awlgrip

Hull color: Snow White - Painted 2021

Superstructure color: Snow White - Painted 2019

Antifouling: Black Micron 99 - Painted 2019

Wood

Owner’s area & Main Salon: Cherry with inlaid panels

Guest staterooms: Mahogany with cherry inlaid panels

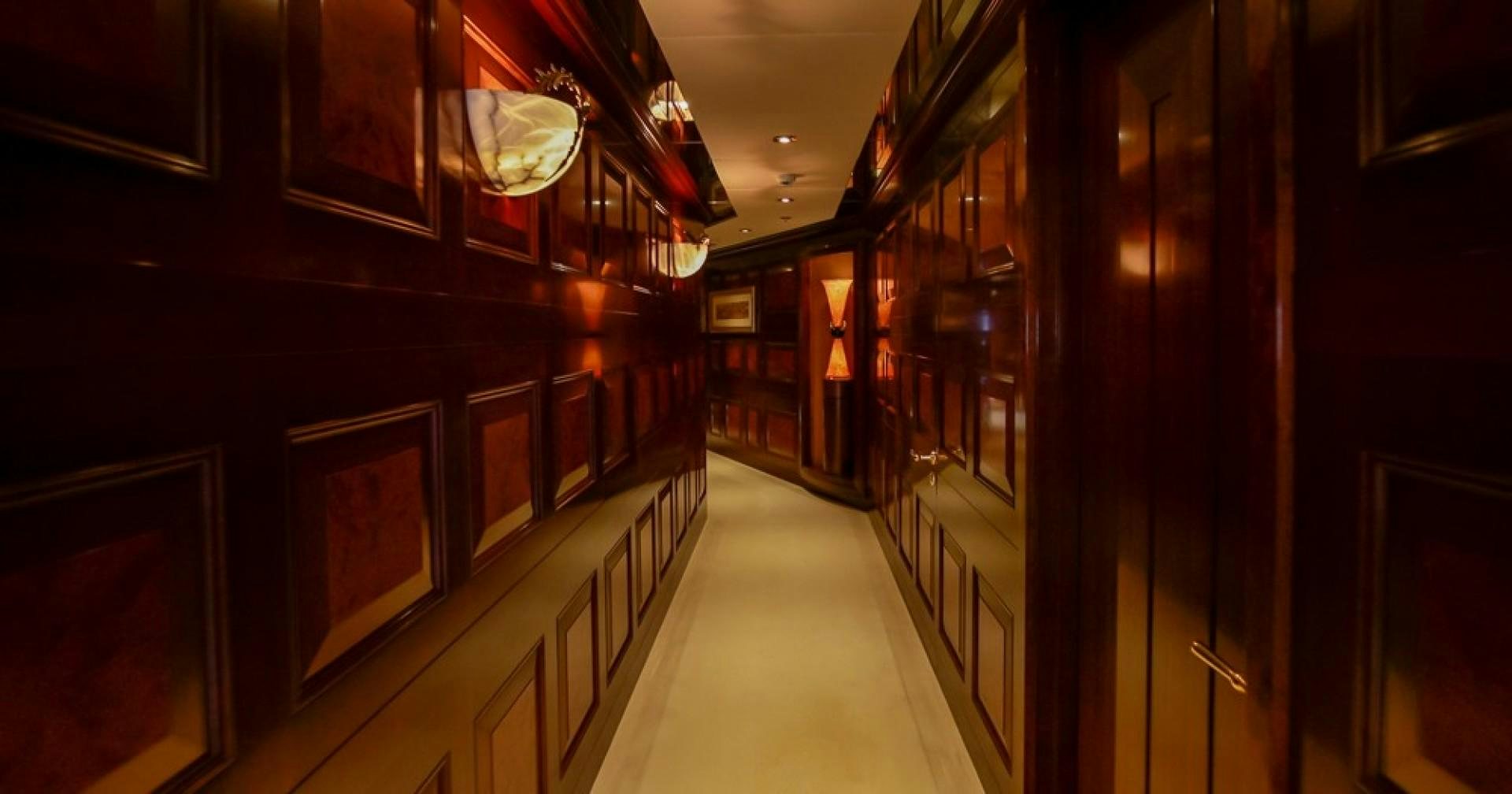

Foyers: Flame Mahogany

Bridge& Captains cabin: Teak with flame cut teak inlay panels

Skylounge: Chestnut with quarter cut chestnut inlay

Crew Area: Elm

Number of Guests: 12

Number of Cabins: 6

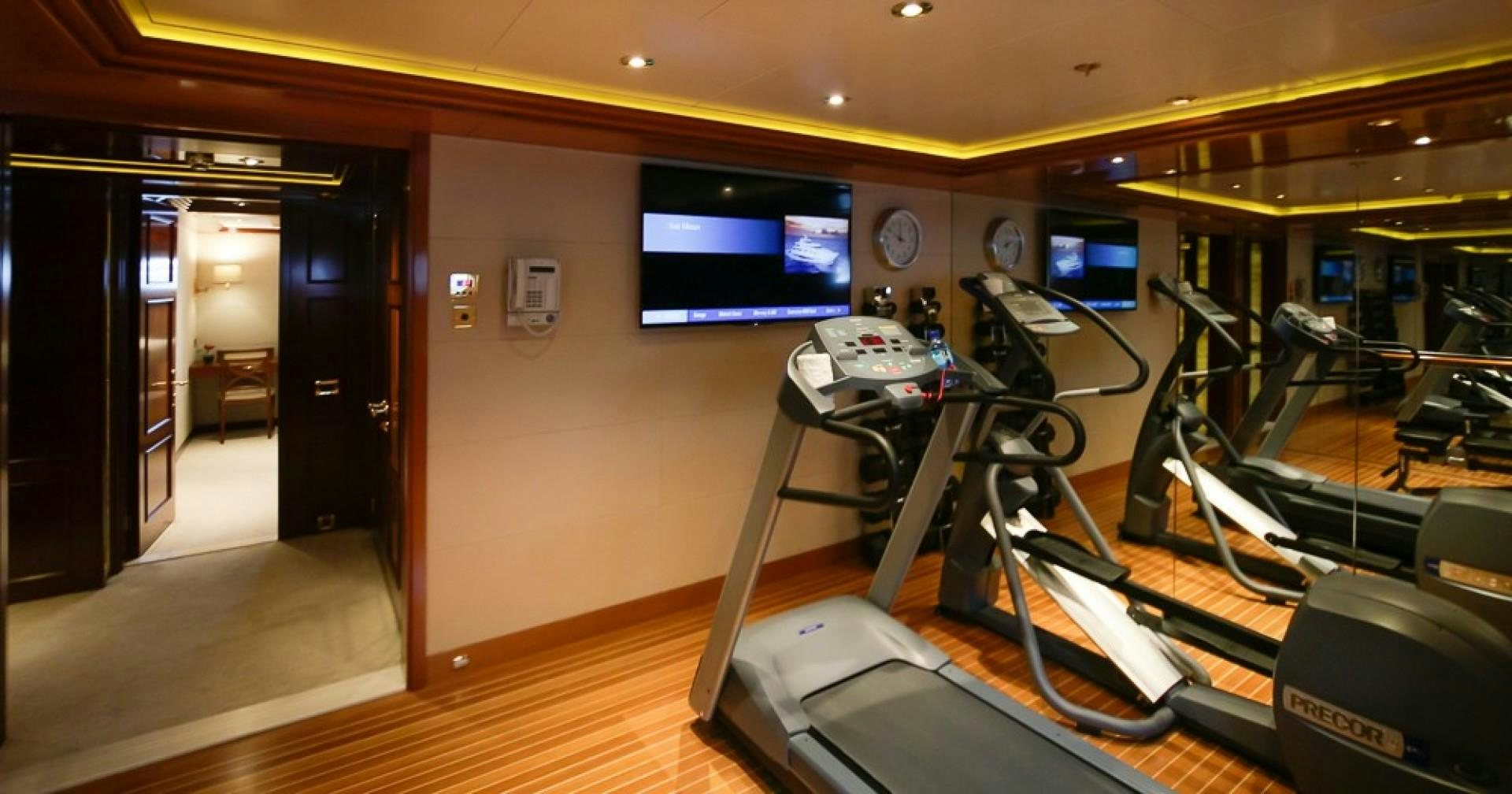

Gymnasium: one for guests on lower level and one for owner in the Master.

Elevator: 4 station hydraulic elevator from lower deck to sundeck, rated for 350Kg. Capable of fitting a small wheelchair.

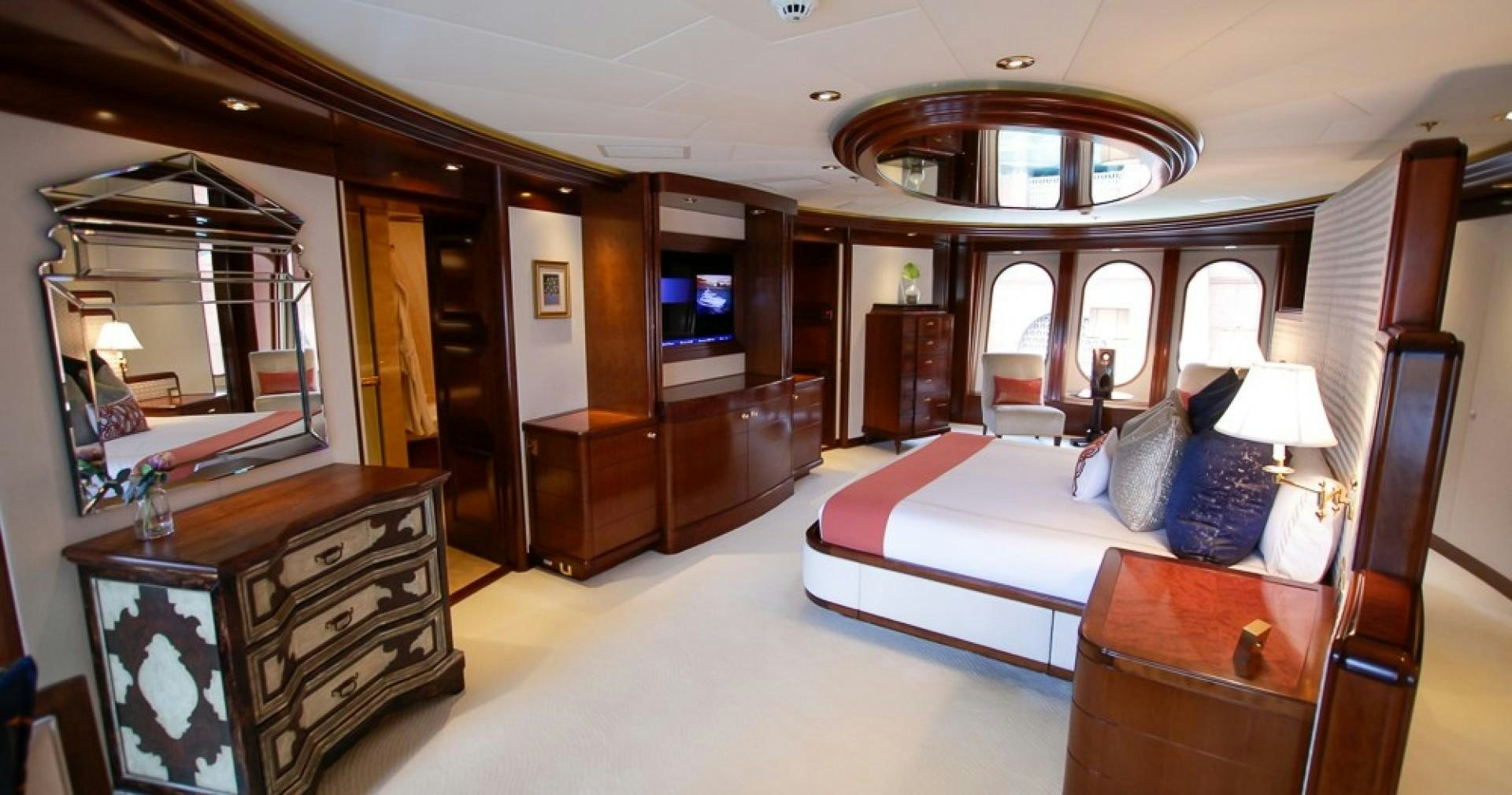

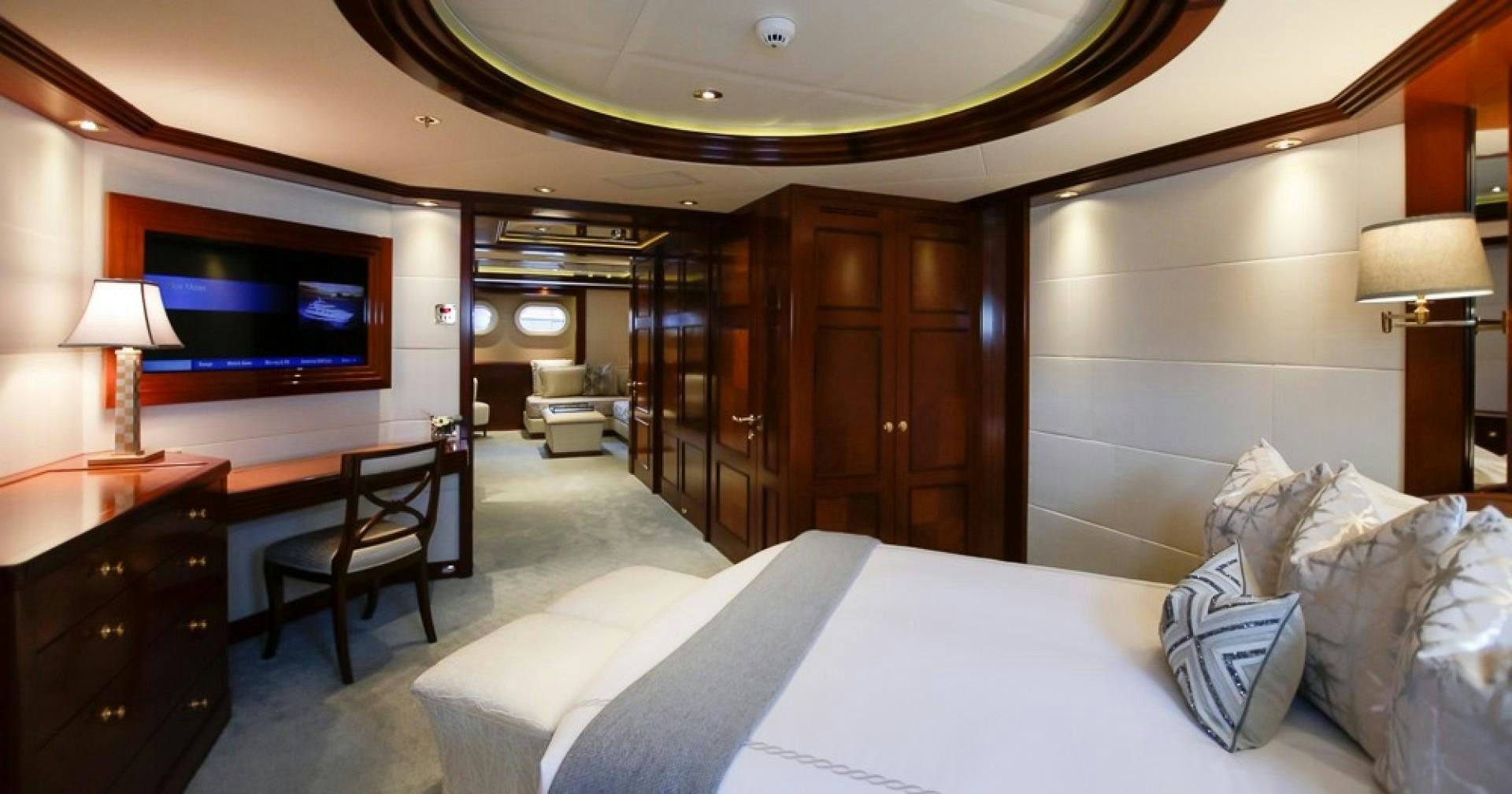

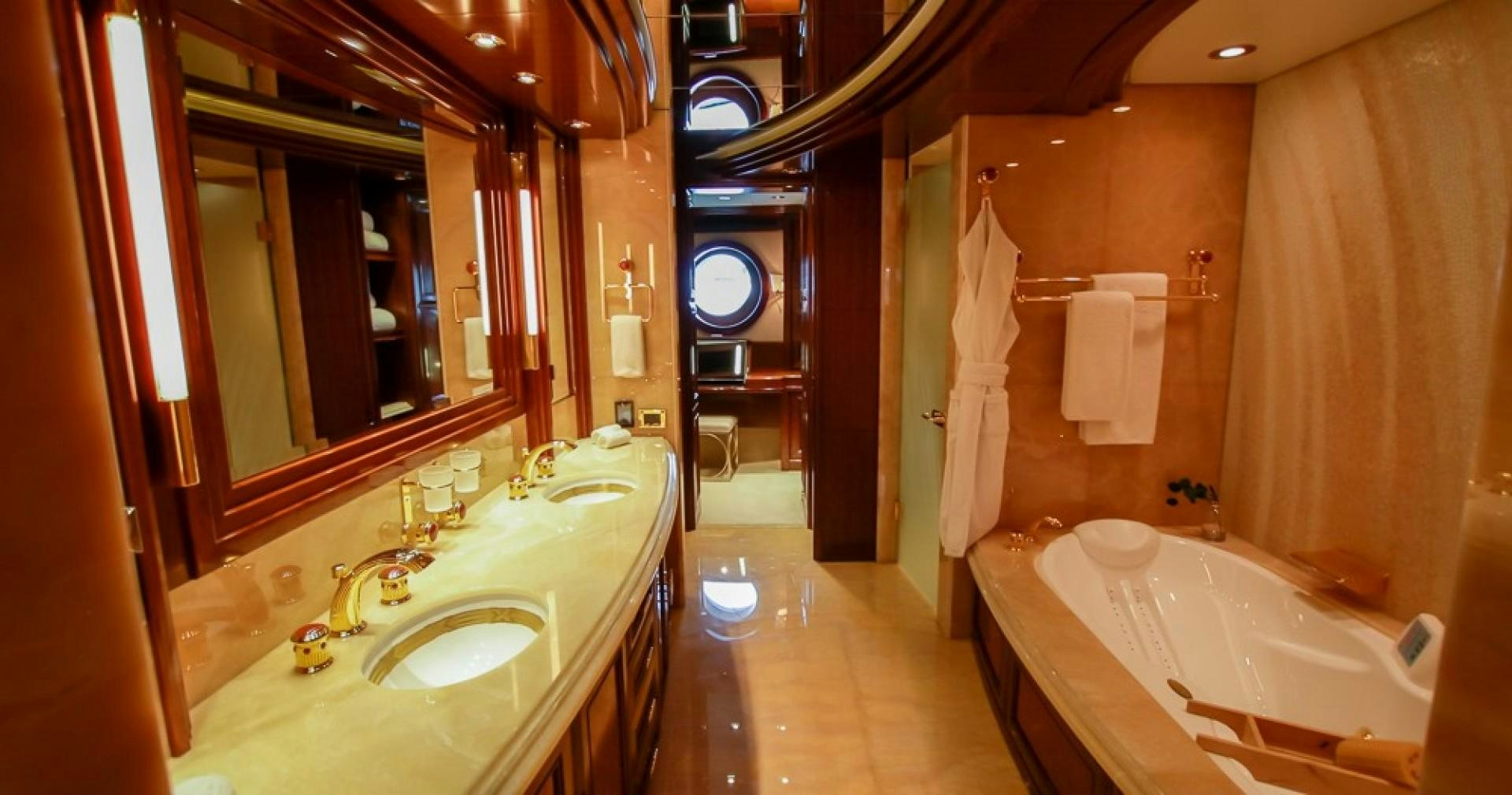

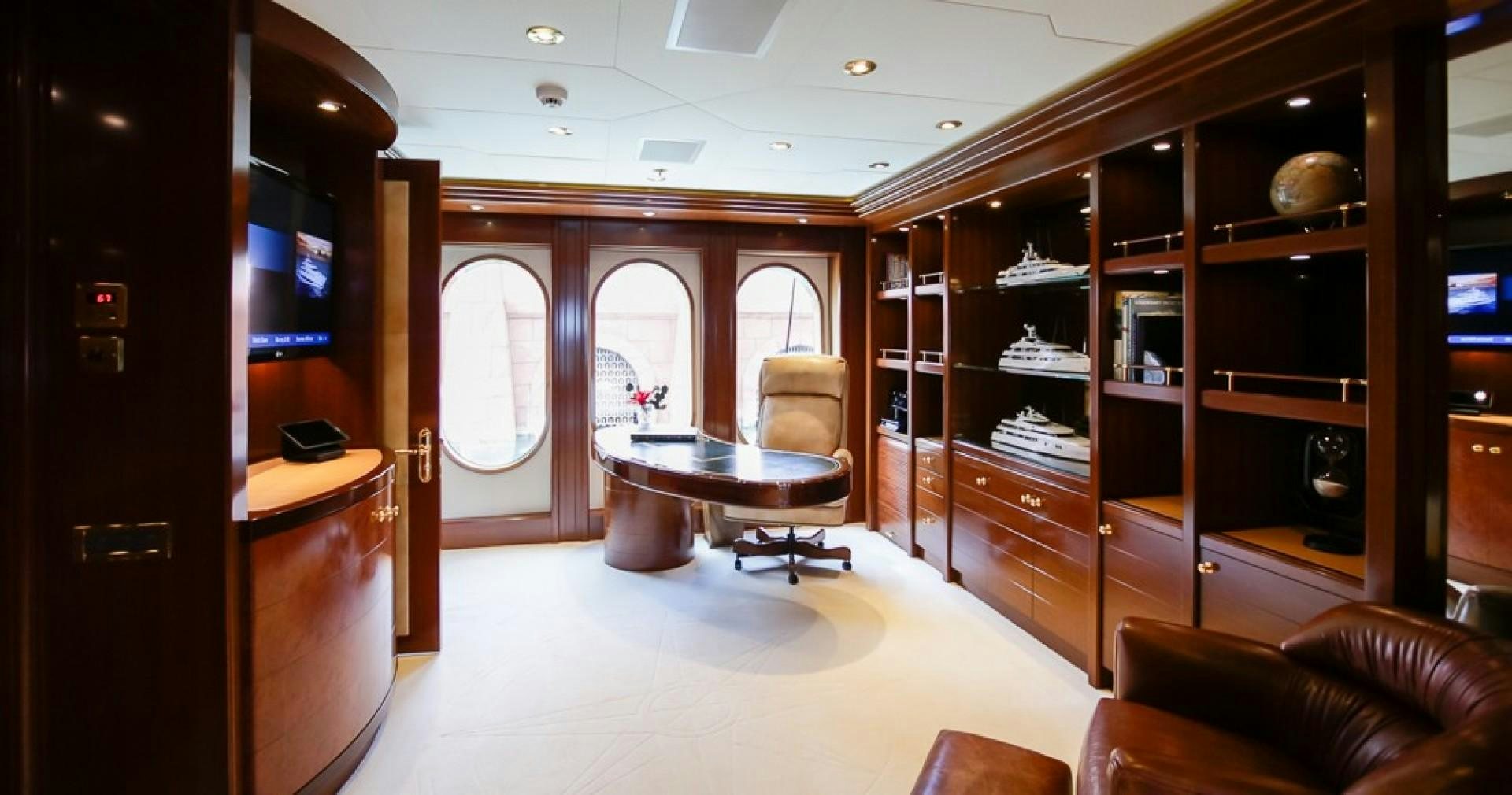

Owner’s Suite

Master stateroom is on deck with 1,200 square feet of Owner’s Suite, including a separate large Owner’s office to starboard and Owner’s gymnasium/spa to port. This is a much larger than the average Owner’s suite with private/separate access to all three rooms which have their own en-suite bathrooms. Large, windows allow maximum light and visibility to the sea.

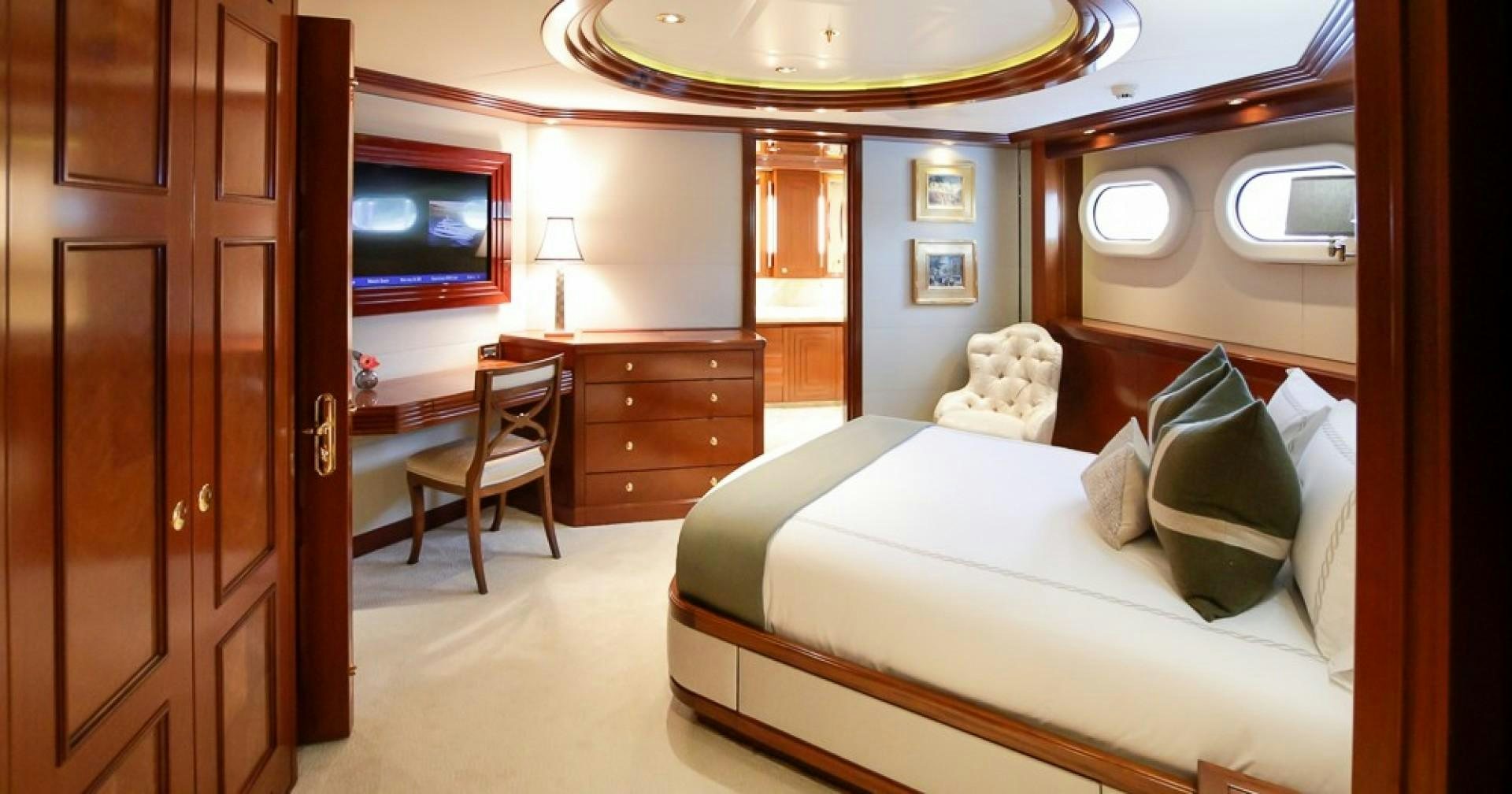

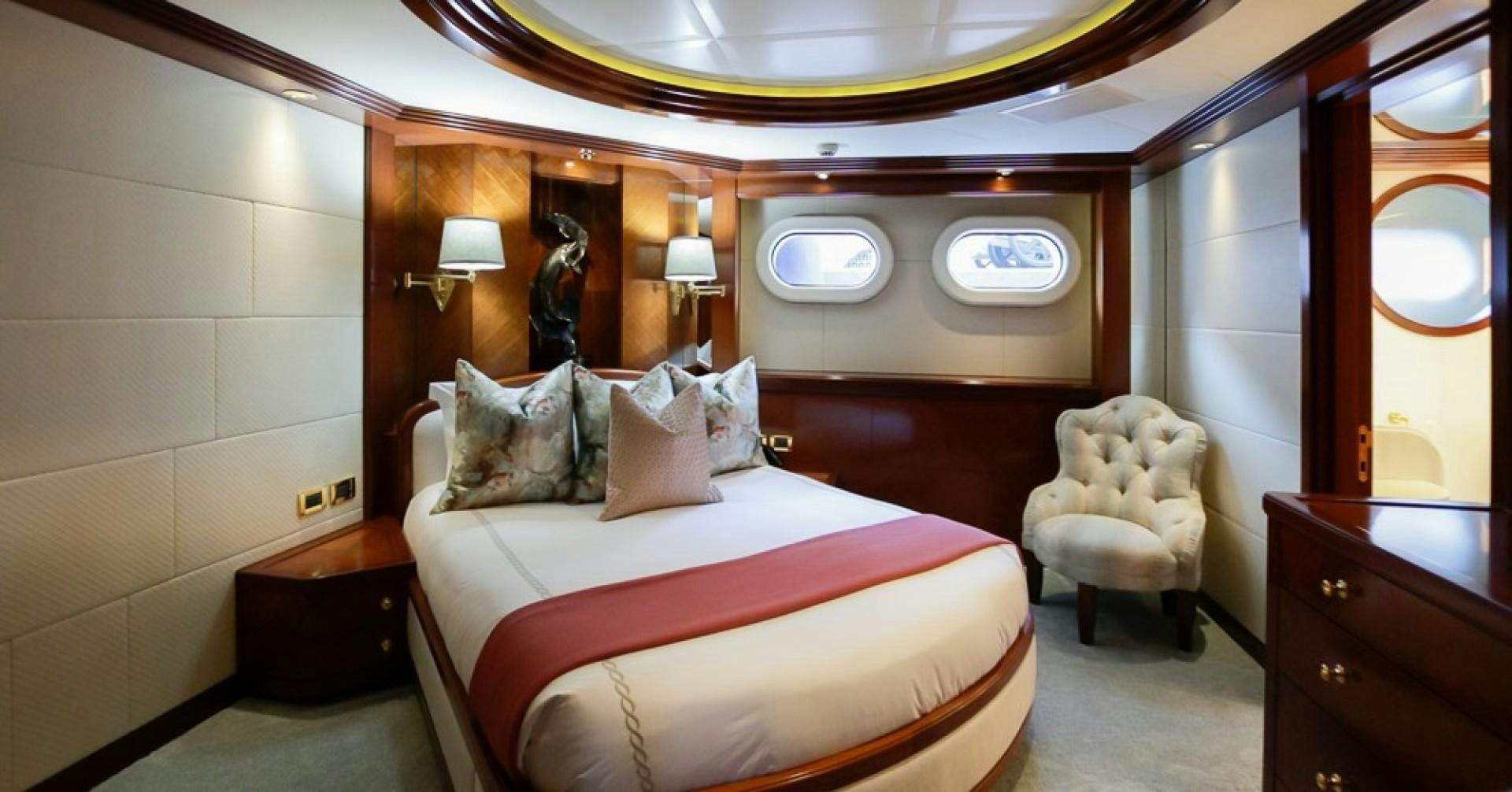

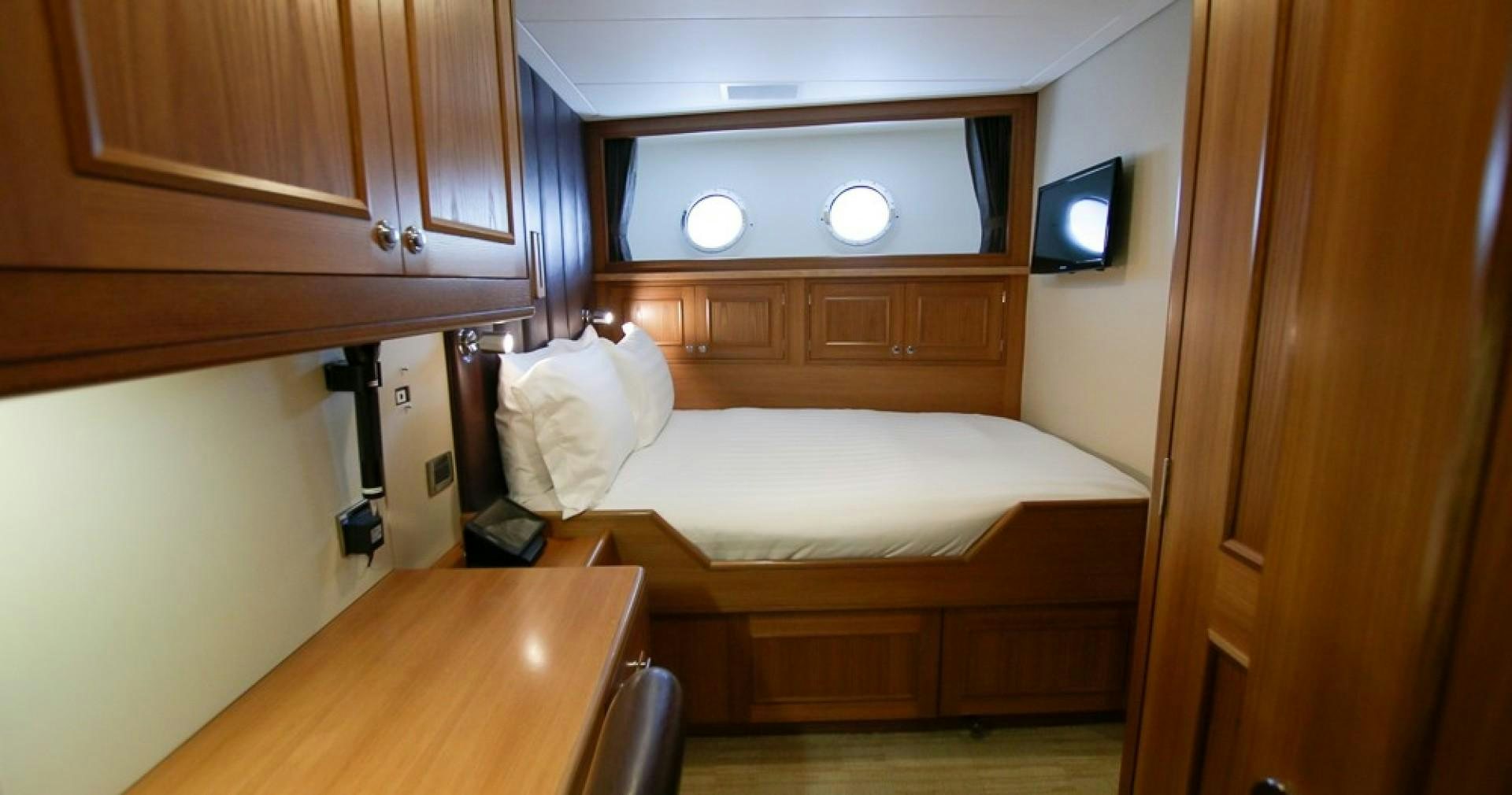

Guest Staterooms

BLUE MOON offers 5 guest staterooms on the lower deck plus a separate guest gymnasium (forward to starboard).

This extremely flexible design provides for the option to combine four of these guest staterooms to create two large VIP suites, each with a sitting room and separate his and her bathroom. As such, on the Guest Level, you have the choice of a five, four, or three stateroom layout. Options:

• Guest Cabin 1 (Queen)

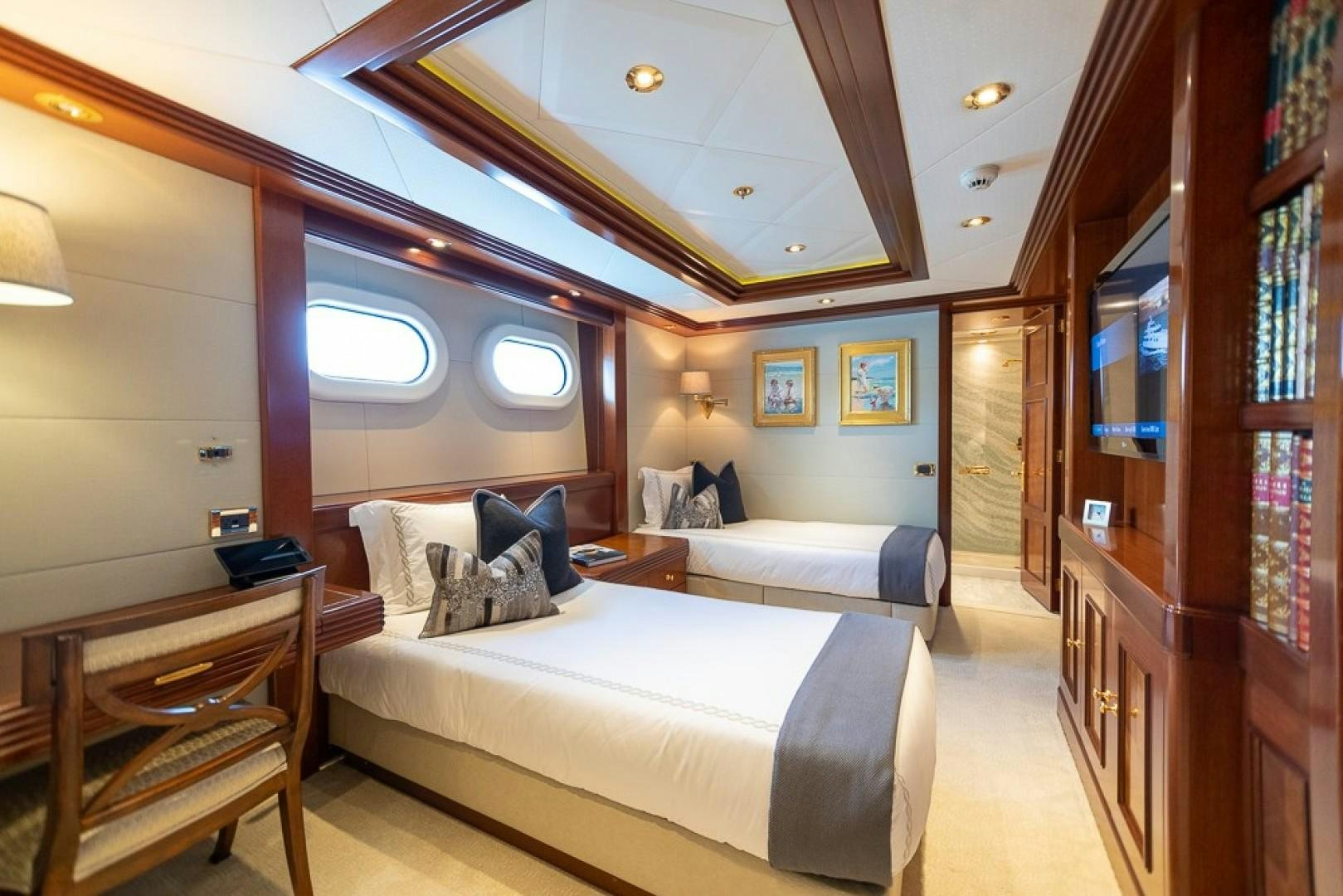

• Guest Cabin 2 (King, 2 x Twins or Lounge)
• Guest Cabin 3 (Queen)
• Guest Cabin 4 (Queen)
• Guest Cabin 5 (King, 2 x Twins or Lounge)
• Forward Suite Conversion:
• Guest Cabin 1
• Guest Cabin 2
• Aft Suite Conversion:
• Guest Cabin 3
• Guest Cabin 5
• Mega Suite Conversion:
• Guest Cabin 3
• Guest Cabin 4
• Guest Cabin 5

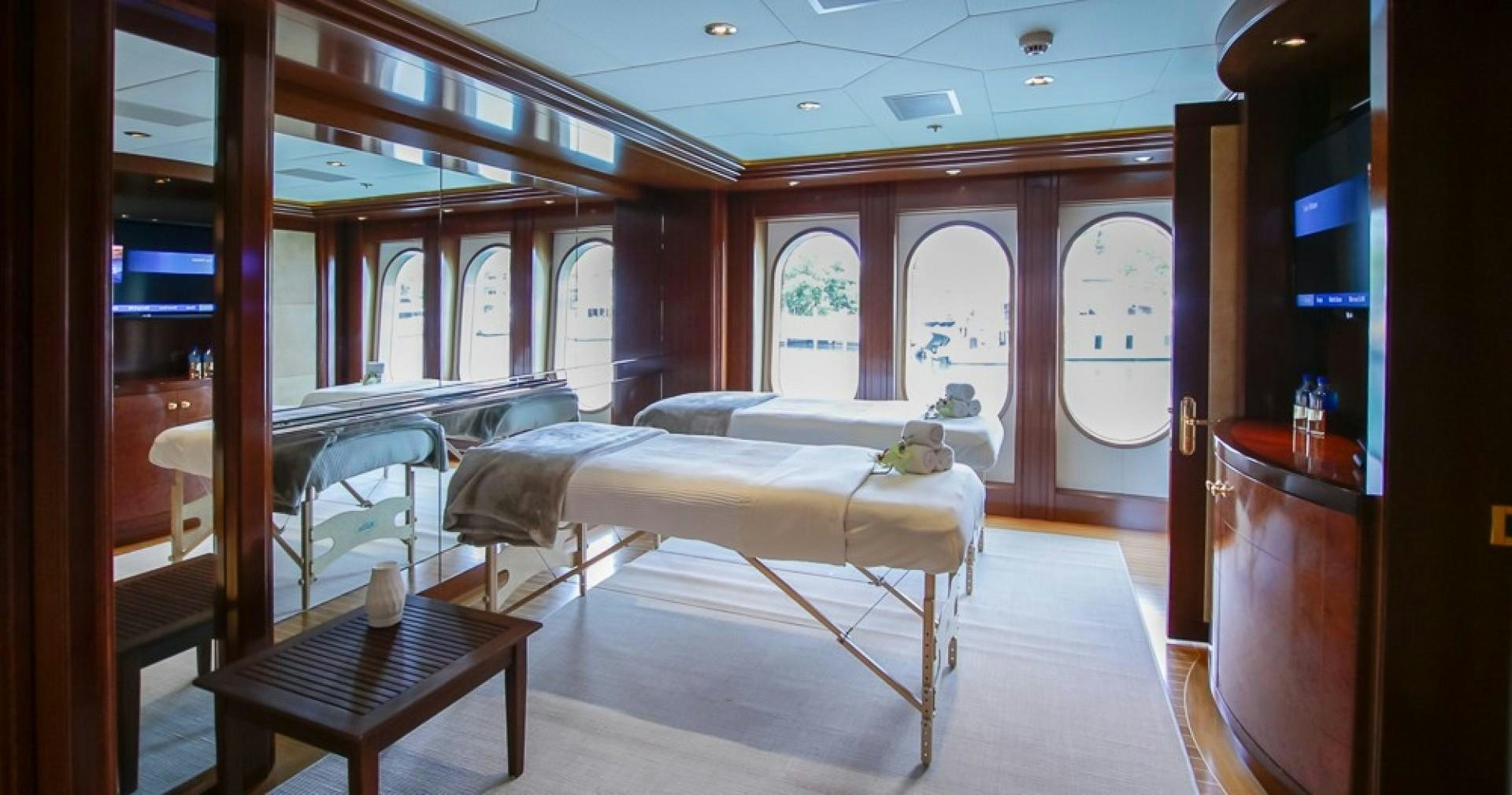

• Guest Gym (Can be used for Massage Bed set up)

Guest area notes:

• Guest foyer with Subzero refrigerator and Hoshizaki ice maker under service area.
• Guest cabins 1 & 3 have tubs
• Elevator access to this level.
• Crew access for service is hidden in the forward part of the hallway.

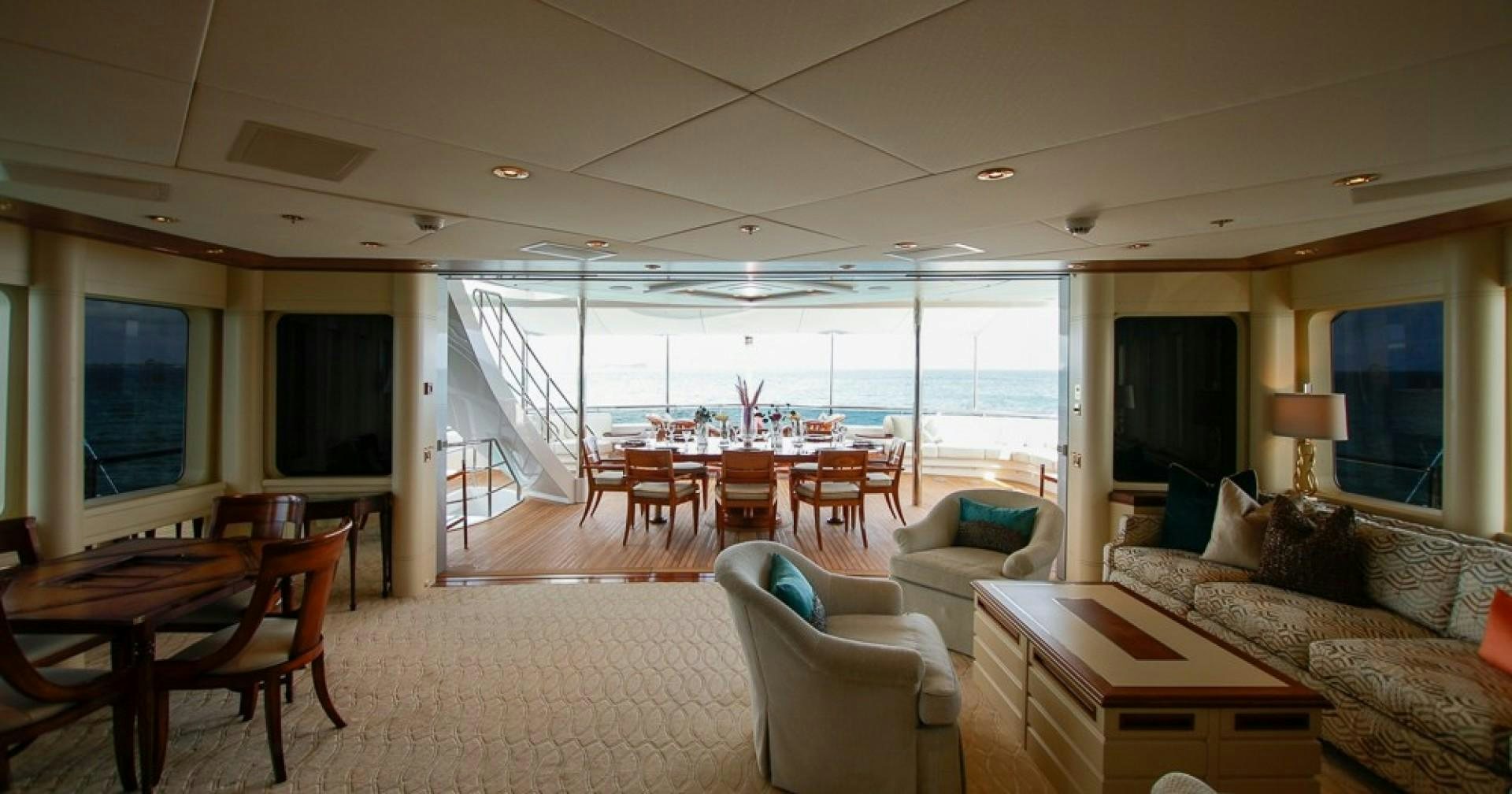

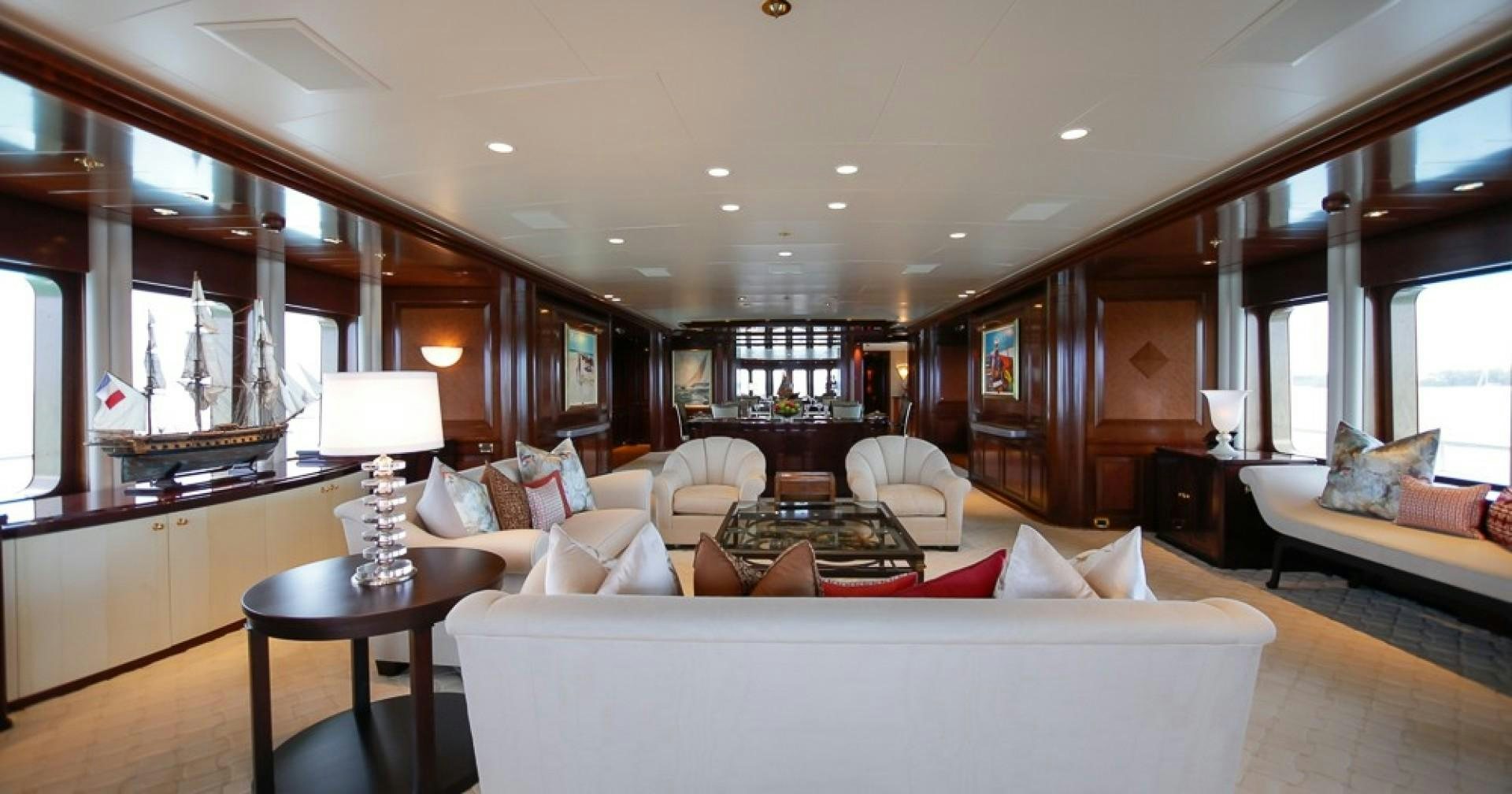

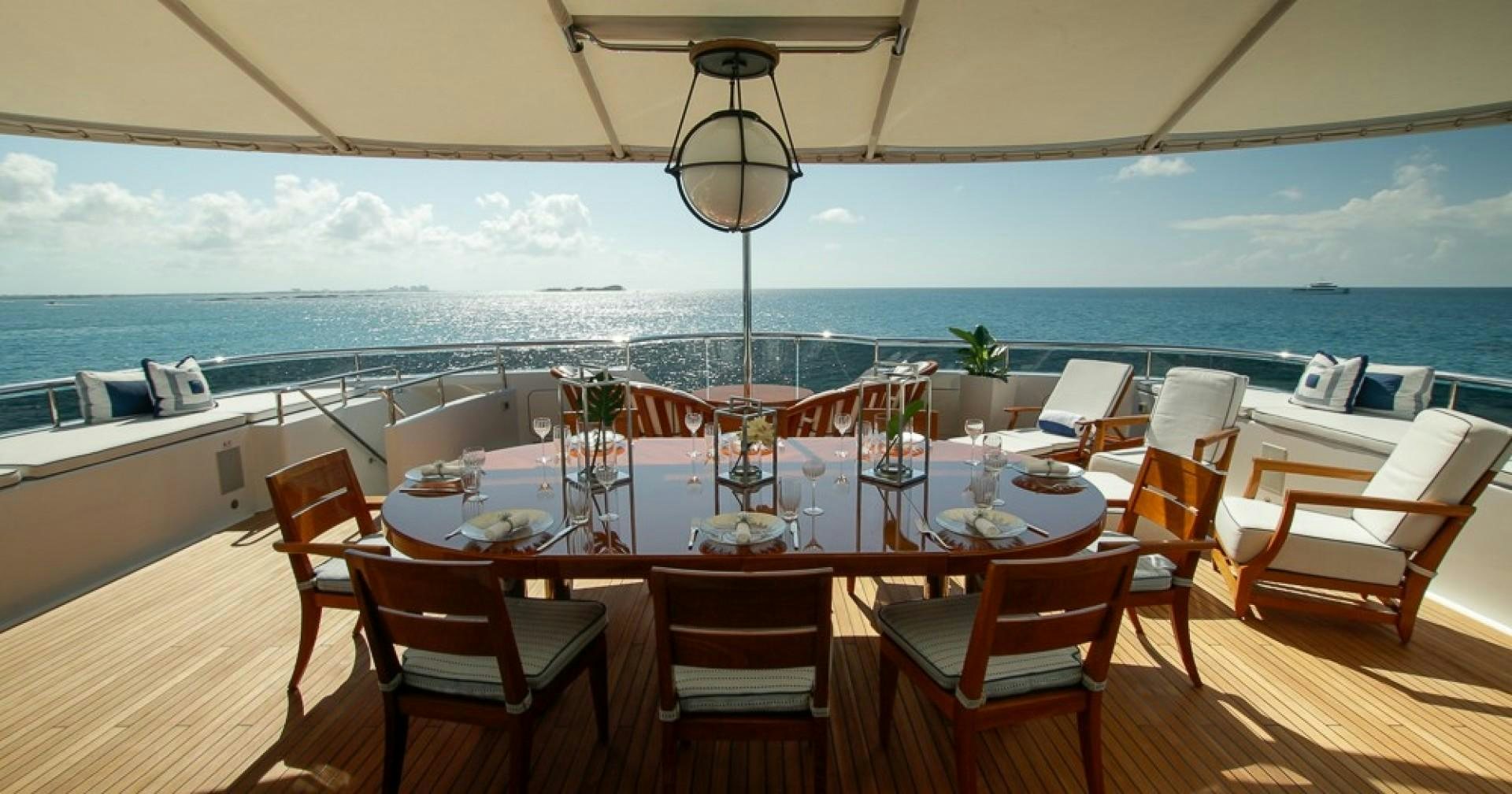

Main Salon

The main salon is accessed from the aft deck via automated doors and is surrounded on all sides by massive windows.  Separated by a small buffet cabinet from the formal dining area, the beautiful wood clad room is a perfect place to greet guests or have a relaxed conversation. Just forward of the main salon is the primary guest entry foyer with a separate formal entrance to starboard. From this area, you can proceed forward to the master stateroom, up to the skylounge or down to the guest staterooms via a beautiful circular stairway or spacious 4 level elevator.

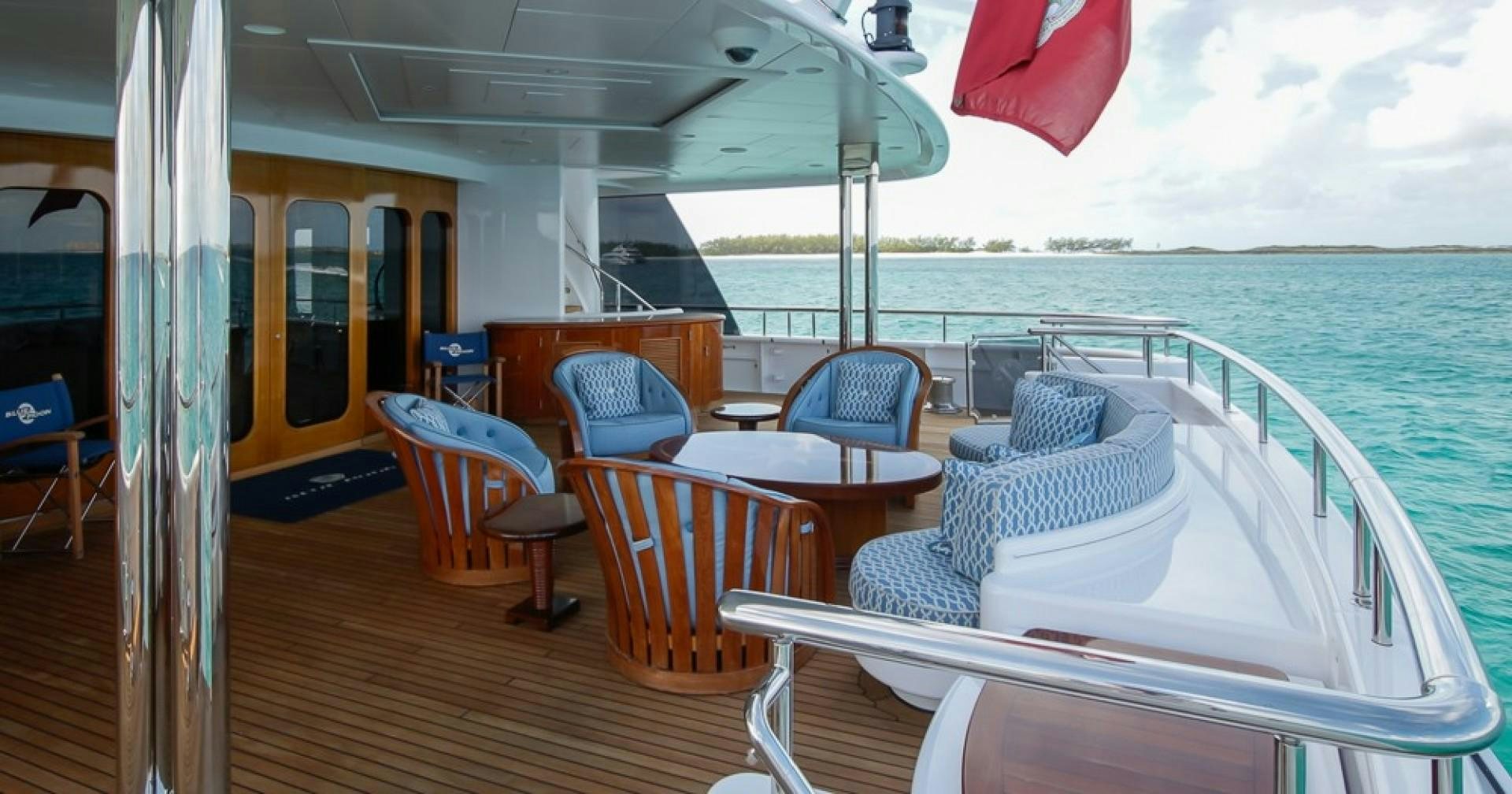

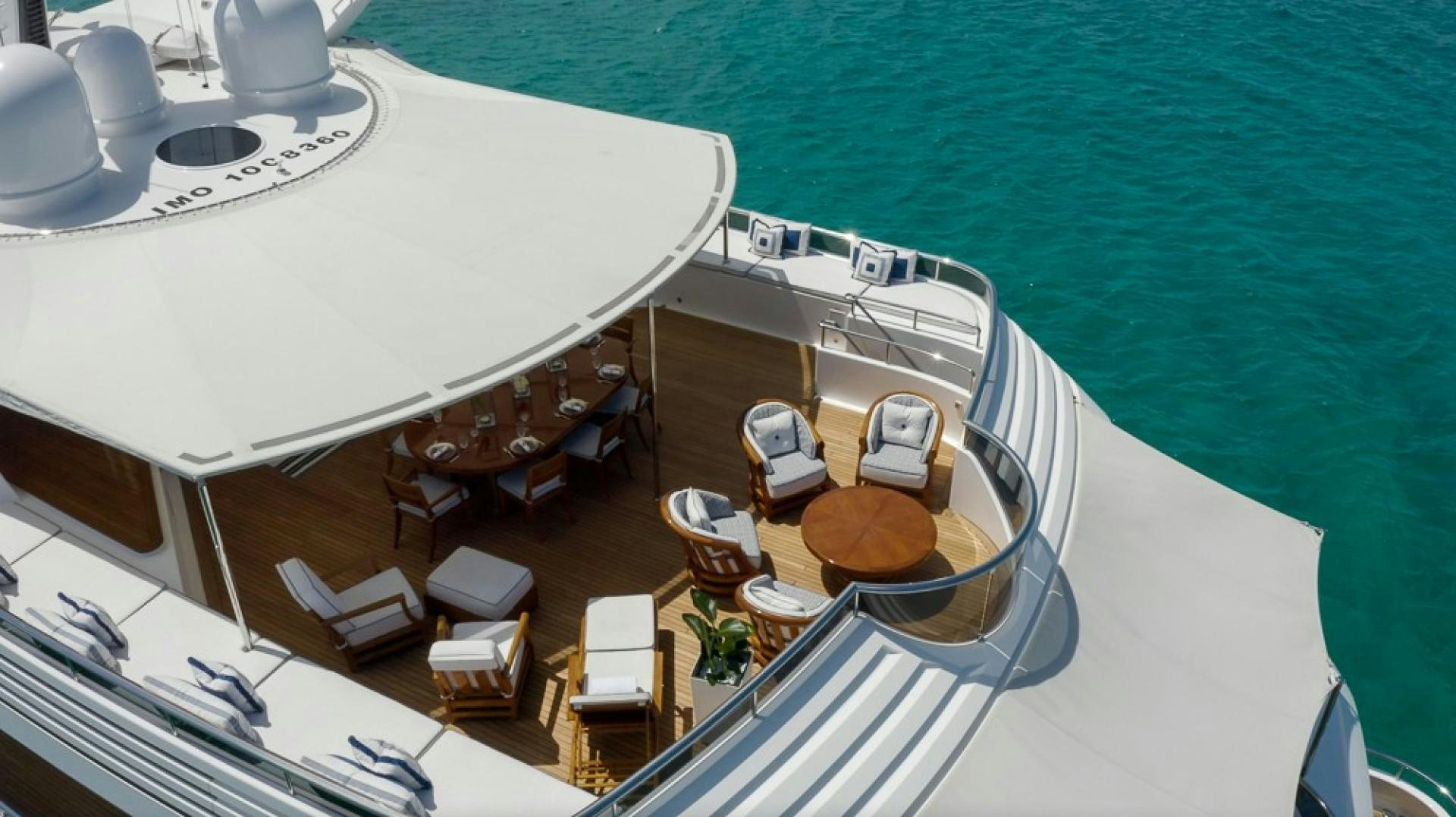

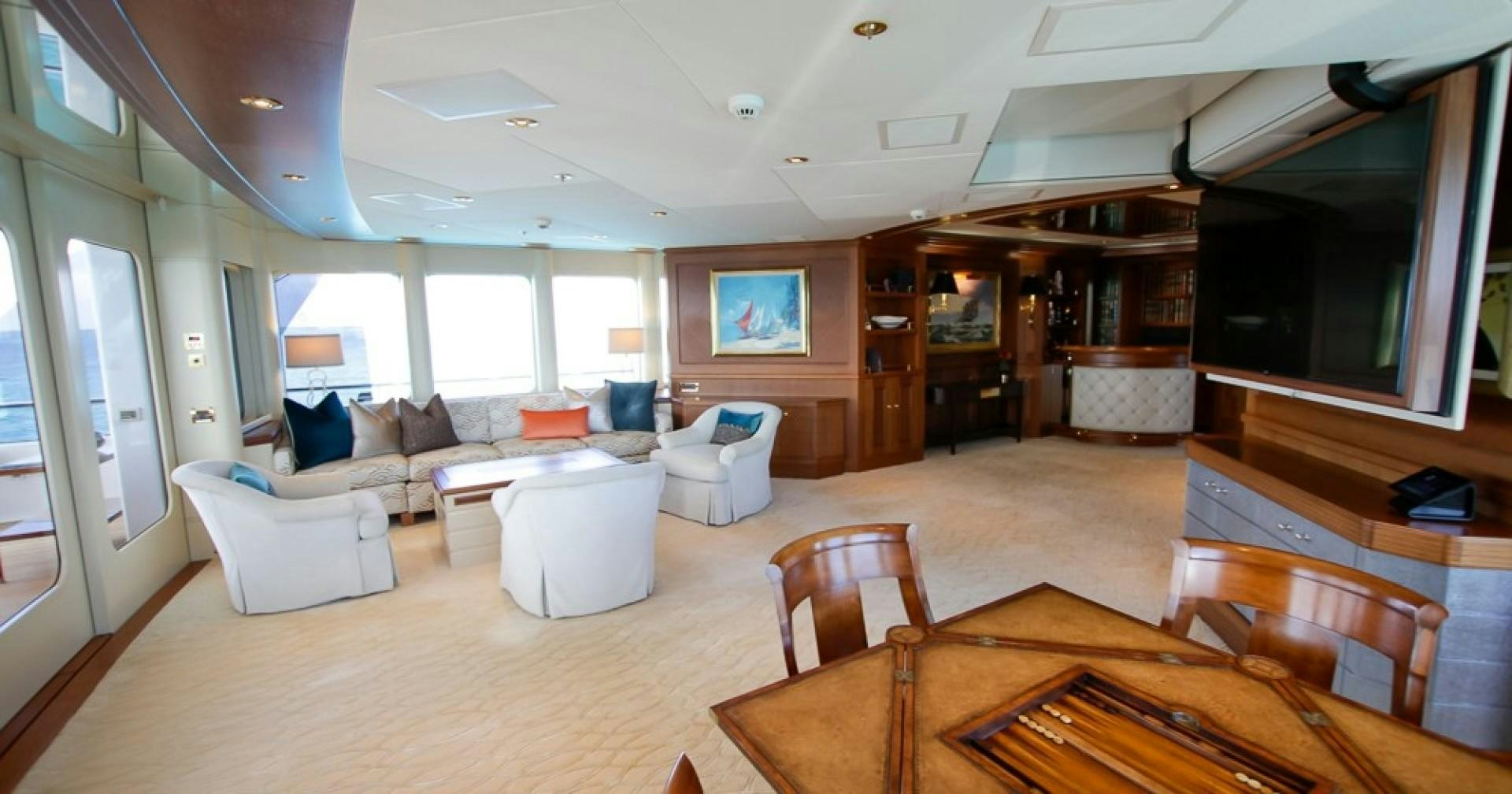

Skylounge and Upper aft deck

• Large seating area to port side and game table to starboard
• Wet bar forward with Subzero refrigerator and Hoshizaki ice maker, concealed glass storage
• 65” TV in ceiling
• 4 panel sliding door that opens full beam to combine skylounge with upper aft deck.

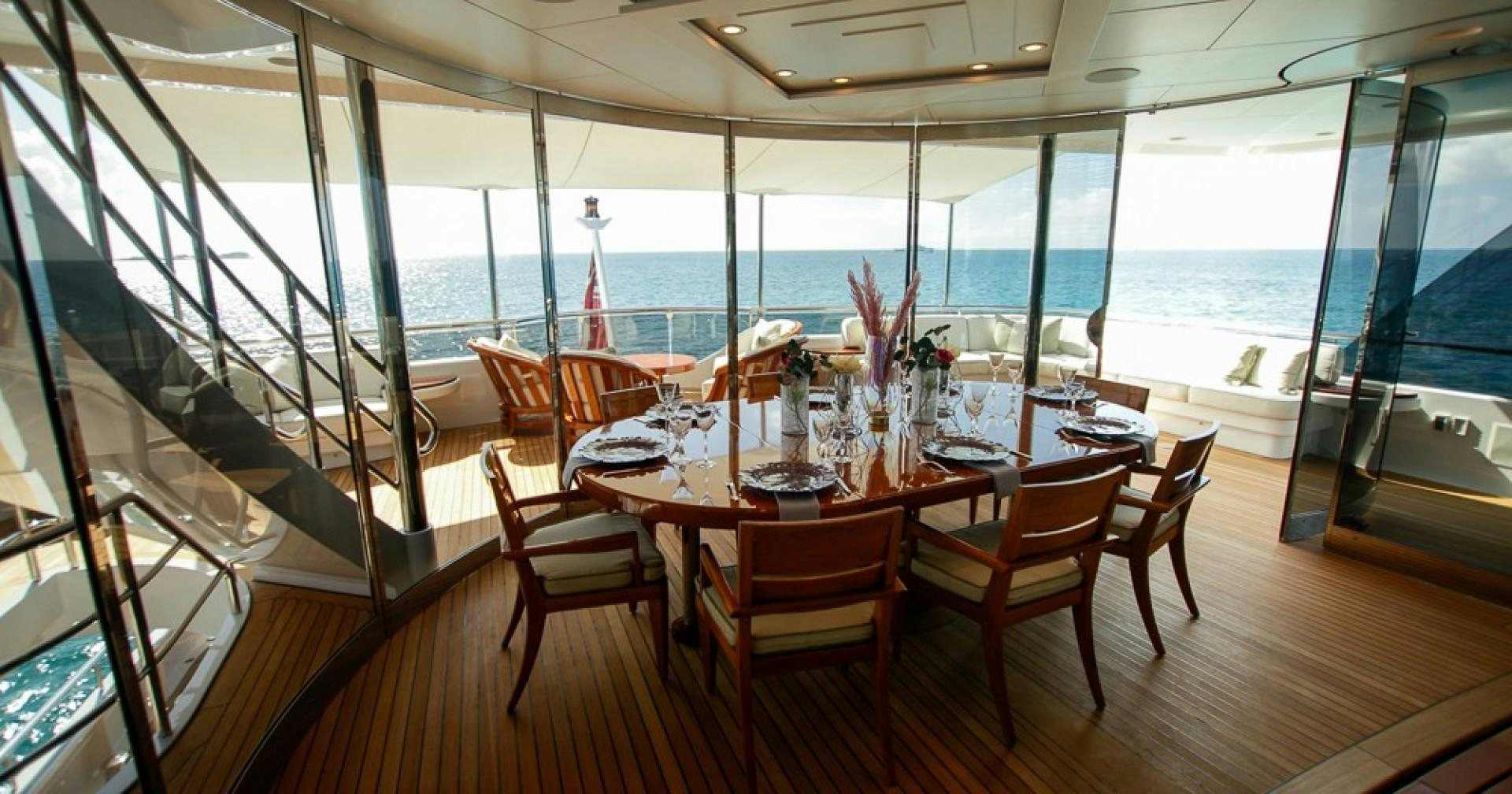

• Customized sliding door system allows the aft dining area to be enclosed in inclement weather.
• Assorted settees and chairs scattered throughout the upper aft deck.
• Dining for 8-12 guests
• Windscreen doors to port and starboard

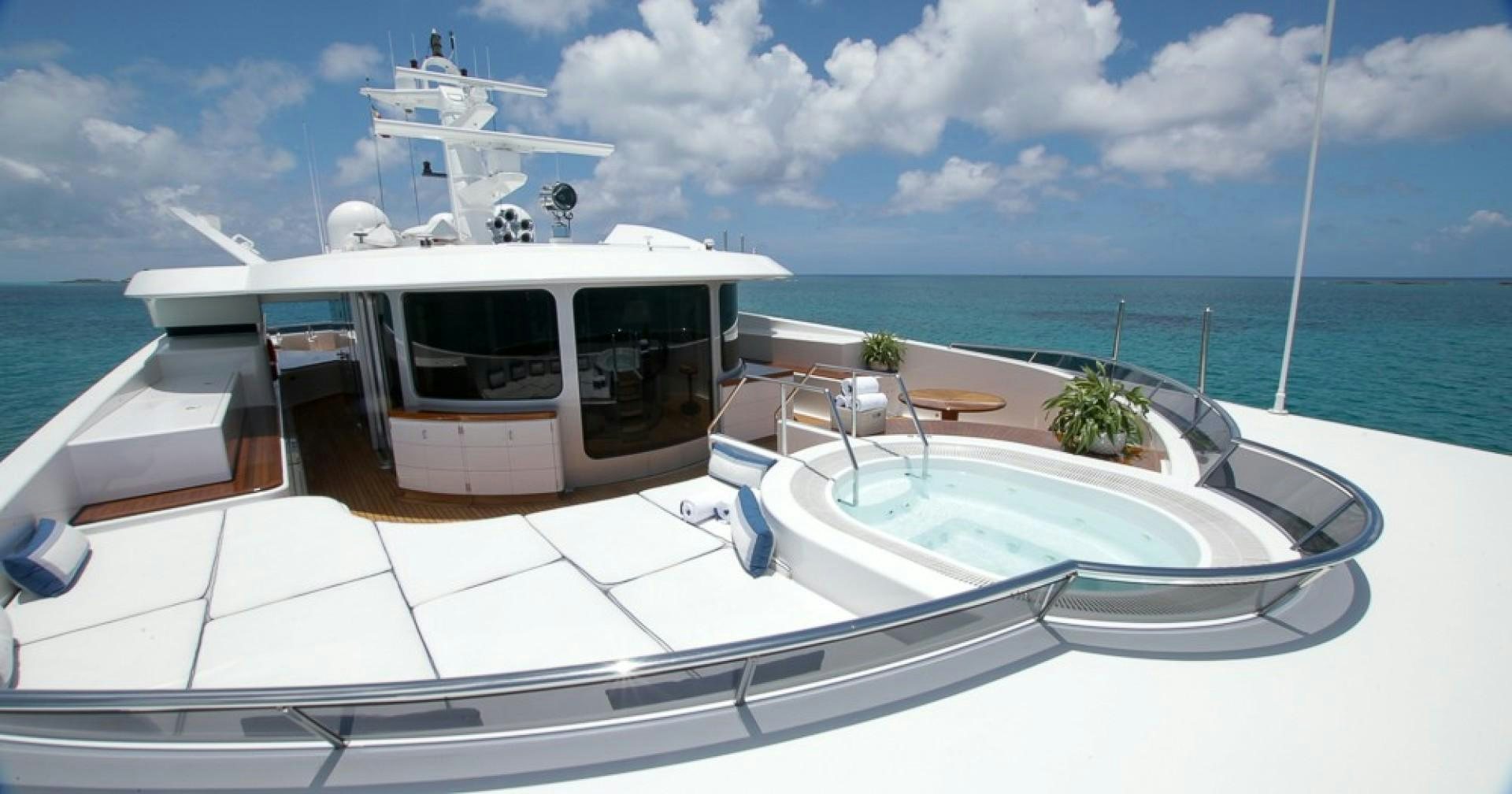

Sundeck

• Dining for 8-12 guests aft
• Hidden TV behind cabinet
• Assorted chairs and chaise lounges
• Windscreen doors to port and starboard
• Elevators to sundeck interior near a large interior observation room with large windows

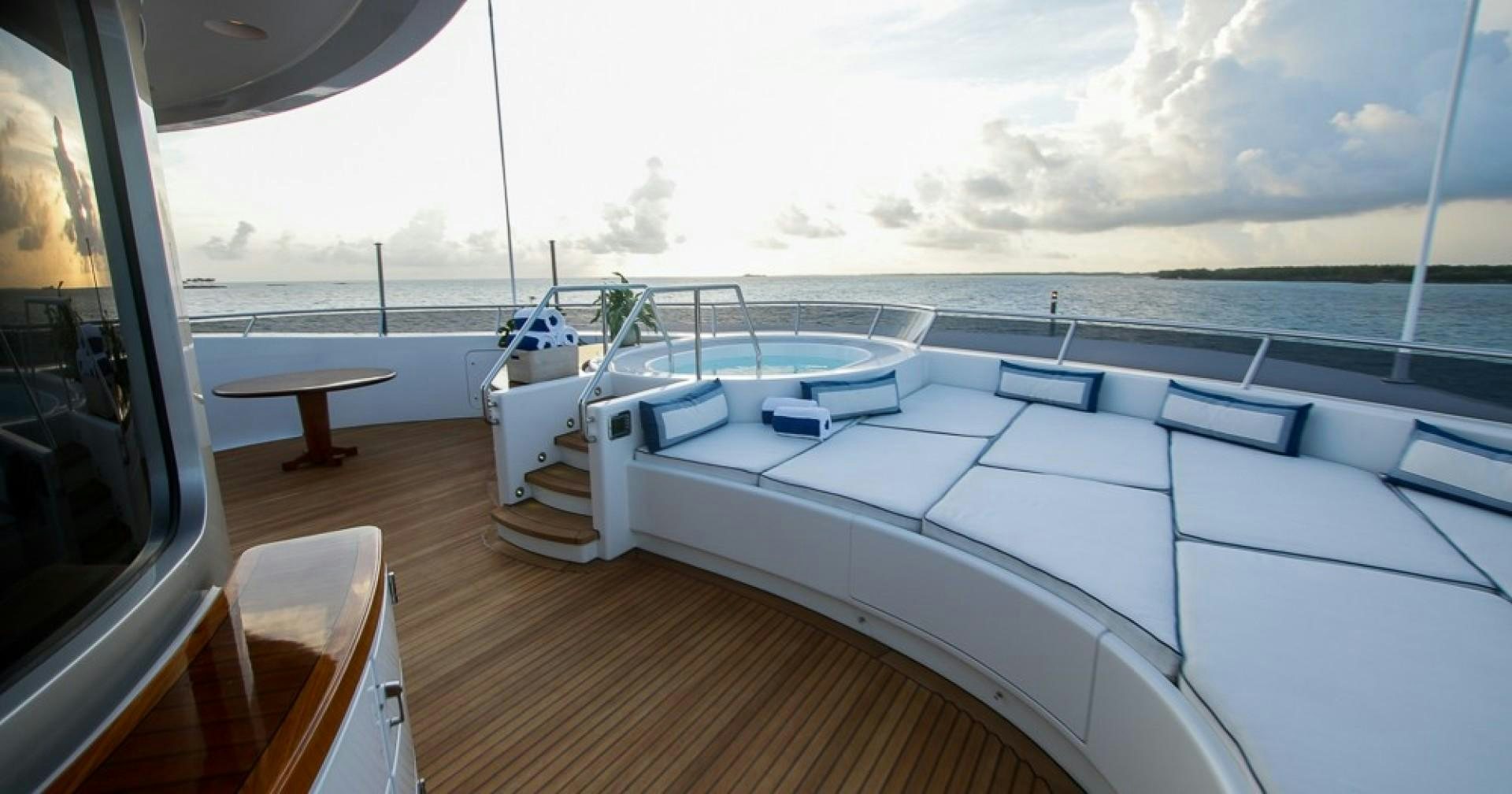

• Jacuzzi forward surrounded by large sunpad
• Grill, bar, dumbwaiter, refrigerator, ice maker on port side forward

Crew

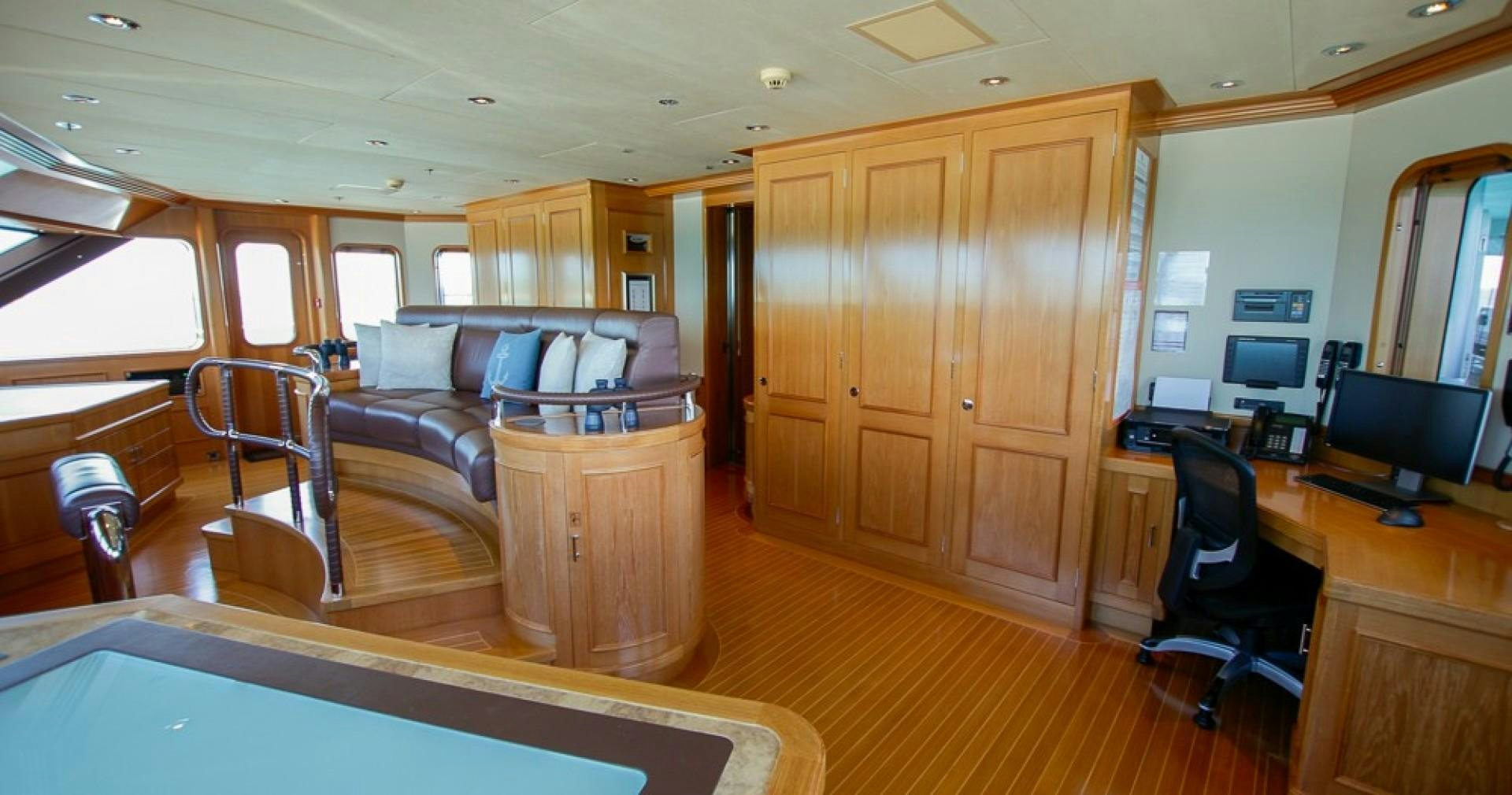

• Captains stateroom behind bridge with second access to walkaround deck.

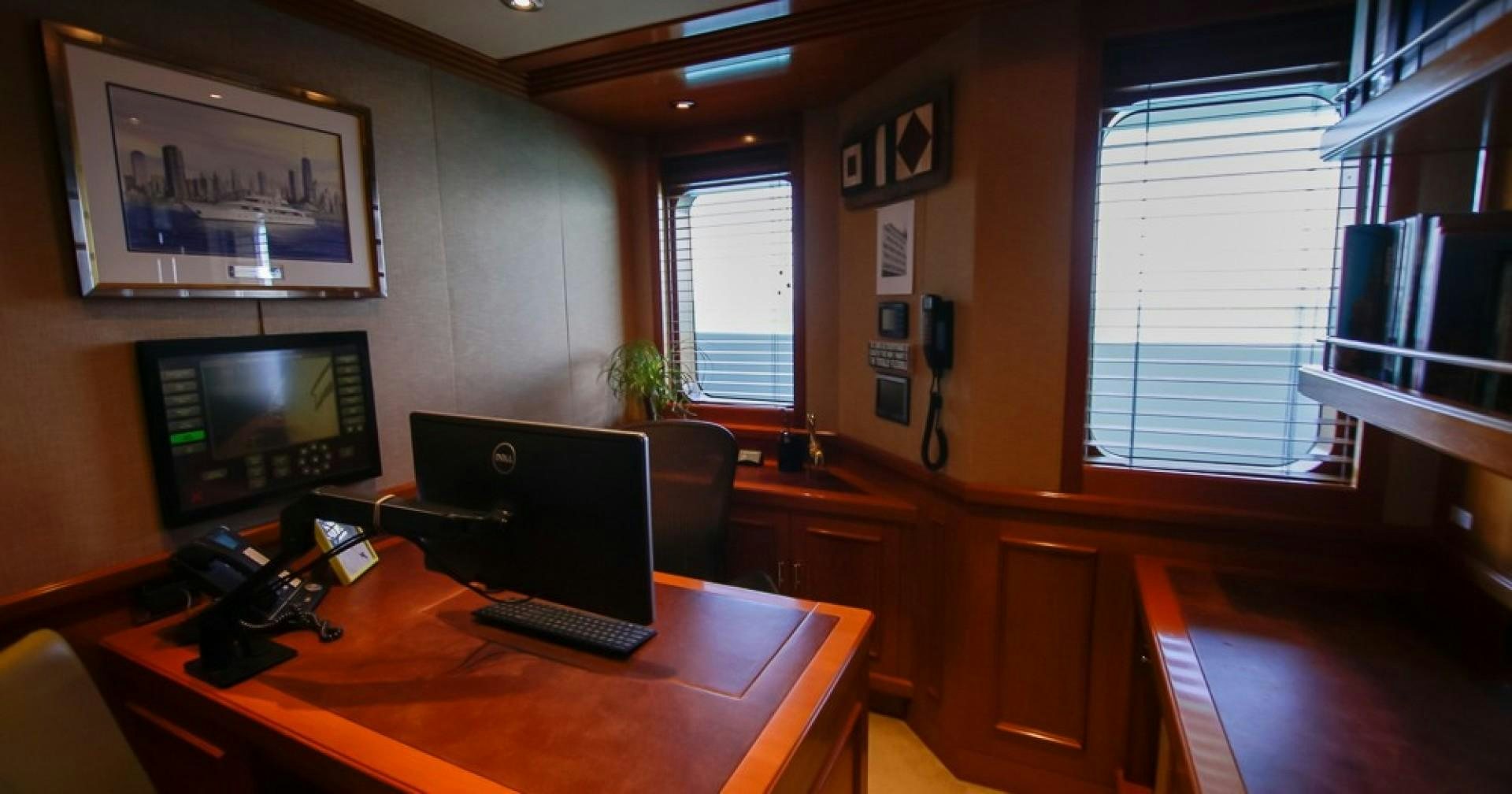

• Captains office across the hall behind bridge
• Note:1st officer and chief stewardess offices in pilothouse
• 7 crew cabins forward below deck

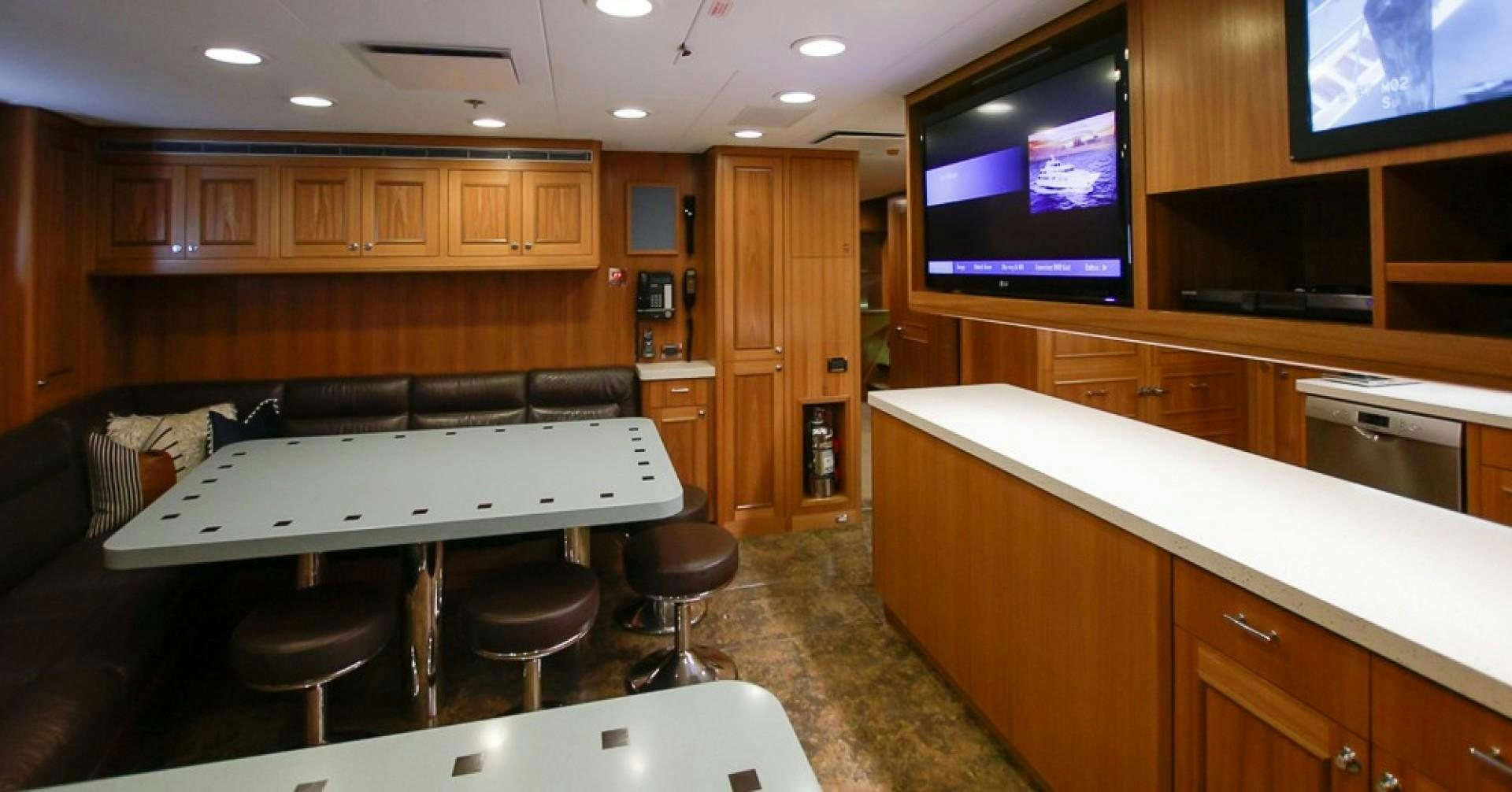

• Crew Mess and crew galley
• Starboard passage to shell door opening at waterline level
• Tank Deck
• Additional staff cabin for two (2) persons
• Walk in refrigerators to starboard side
• Two (2) dry stores lockers starboard side
• Laundry to port side
• Lower deck crew lounge
• Wine cellar

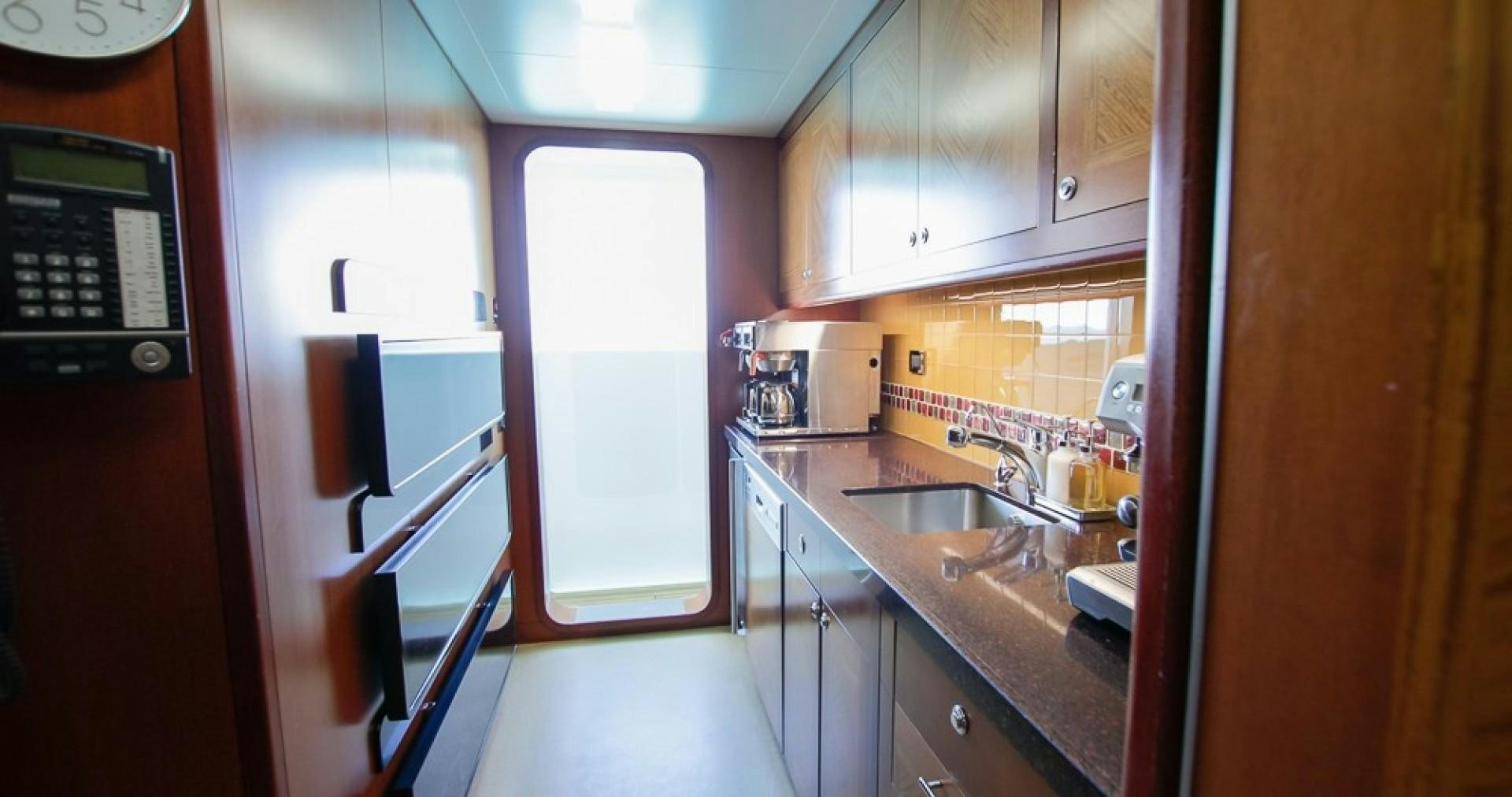

Upper pantry

• Coffee station
• Milk refrigeration
• Subzero 601R
• Second access to walkaround deck
• Sink & Insinkerator
• Commercial ice machine
• Additional foldable counter space
• Dumbwaiter

Lazarette

• Large storage area for toys and gear
• Overhead gantry crane to launch two (2) jetskis
• Large storage lockers to starboard side
• Technical areas to port and starboard for ship’s equipment
• Entry to engine room forward

Wheelchair access: yacht is generally wheelchair accessible for a small wheelchair.

Main Engines

• Engine Type: 2x Caterpillar 3516B DI-TA 1492 kW @ 1600 rpm maximum. Sixteen (16) cylinder, twin turbo charged, after cooled, four-stroke cycle high speed diesel engines. They are fitted with block heaters, triple Racor fuel filters, pre-lube pumps and are 24VDC started. They are coupled to the reverse / reduction gear using a flexible Centa coupling and four (4) point resiliently mounted.
• Engine Hours (as of 6/15/21): Port: 13,778, Starboard: 13,782
• Next Service: Major overhaul due at 16,000 hours (estimated)
• Gearboxes: ZF (ZFW 7500) with 4.026:1 reduction gear
• Drive: Two 5-bladed NiBrAl propellers (1900mm diameter/1664mm pitch), C45-N special steel shaft (175mm diameter) in oil bath stern tubes.

Fuel Consumption

Engine RPM  Engine Load  Consumption/ Engine  Gen Load  Consumption/ Generator  Total Consumption/Hour  Total Consumption/24 Hours

1600  100%  370 L/hr (95 Gal/hr )  70%  36 L/hr (10 Gal/hr)  776 L/hr (207 Gal/hr)  18,624 L/day (4,968 Gal/day)

1500  82%  310 L/hr (82 Gal/hr)  70%  36 L/hr (10 Gal/hr) 656 L/hr (175 Gal/hr) 15,744 L/day (4,200 Gal/day)

1400  65%  240 L/hr (64 Gal/hr) 70%  36 L/hr (10 Gal/hr)  516 L/hr (138 Gal/hr)  12,384 L/day (3,312 Gal/day)

1300  47%  190 L/hr (51 Gal/hr)  70%  36 L/hr (10 Gal/hr)  416 L/hr (111 Gal/hr)  9,984 L/day (2,664 Gal/day)

 1200  43%  145 L/hr  (39 Gal/hr)  70%  36 L/hr (10 Gal/hr)  326 L/hr (87 Gal/hr)  7,824 L/day (2,088 Gal/day)

 1100  30%  110 L/hr (29 Gal/hr) 70%  36 L/hr (10 Gal/hr)  256 L/hr (68 Gal/hr) 6,144 L/day (1,632 Gal/day)

 1000  25%  80 L/hr (21 Gal/hr)  70%  36 L/hr (10 Gal/hr)  196 L/hr (52 Gal/hr)  4,704 L/day (1,248 Gal/day)

Generators & Electricity

Generators: 3x Scania DI13 074M, 300kW (New 2013) – dedicated generator room

1x Perkins 4TGM/13 - 73KW emergency generator (outside engine room) – 52 hours

Hours (as of June 14, 2021): Port:10,271  Center: 10,530      Starboard: 12,579

Next Service: Top end rebuild due at 20,000 hours (estimated)

Generator Fuel Consumption: 40 liters per hour, 960 liters per day per generator

Shore Power: 2x Shore power cables

Converter: 2x 150 kVa ASEA Shorepower converters (new 2019)

Incoming: 480V 3phase or any frequency/voltage worldwide

Output volts: 440 volt/ 60 Hz

Batteries: 2x Main engine starting: 24V

3x Generator starting: 24v

Shipboard description: Three-phase 440V/60Hz system with automatic parallel system with automatic synchronizing and load sharing.

Air-Conditioning

 Type: Heinen & Hopman chilled water circulation system to the central air-handling units with ducting throughout the yacht. Certain technical areas have dedicated fan coil units. Heating from electric heaters. Compressors have frequency controls for power management. Fresh air makeup units installed.

Other Machinery

Watermakers: 2x HEM 40 reverse osmosis w/ capacity for 16,000 lt / day each

Stabilizers: 1x Quantum Zero speed fin stabilizers with XT Upgrade (2019)

Bow Thruster: 1x Jastram 135 kW electro motor with 4 bladed propeller with frequency control.

Stern Thruster: 1x Veth 110 kW electro motor retractable – 360 degrees

Fuel Filtration: 1x Westfalia OTC 2-02-137 fuel oil purifier

2x  Racor fuel filters on each engine

Air Compressors:2x Kaeser

Steering System: Tenfjord

Oily Water Separator: DVZ – 500 liters/day

Hot water: 2x Nine 800 liter tanks with 18kw heating elements. Hot water circulating pump installed.

Bilge Water Filtration: An oily bilge water separator, type DVZ 250, 15 ppm, with alarm

Sewage System: Hamann treatment system – US Coast Guard Type II & IMP approved – 24,000 liters / day.

Fresh Water System: Three Speck pumps, one pressure tank with water softener. A silver sterilizer and charcoal filter are also in line.

Grey & Black Water Pumps: 6x Johnson

Fire and Bilge Pumps: 4x Johnson

Antifouling: Cathelco system installed in seawater inlet chests

Communication Systems

Satcom: 1x Inmarsat-F Satcom Nera F77

1x Inmarsat-F Satcom Nera F33

Tele. System: 1x Panasonic KX-TD 12/32 PABX

AIS: Furuno FA-170

SSB: 1x Sailor Compact 4500 SSB

VHF: 2x Sperry RT 4822 w/ DSC

8x Portable ICOM IC-M1V

Intercom: Panasonic PBX or individual radios

Ships Computer: Dell computer

Computer Printer: Hewlett Packard

Nav. Computer: Custom

Navigation Systems

 Radar: 1x Furuno X band with 8 ft antenna and ARPA

1x Furuno S Band with 12 ft antenna and ARPA

Gyrocompass: 2x Anschutz Standard 20 gyro

Compass: 1x Observator MK3

Automatic Pilot: 1x Anschutz Nautopilot 2015

Horn: 1x Kahlenberg Air Horn Model T5

Digital Depth: 1x Furuno FCV-582L w/ 50/200 kHz transducer

1x B&G Hydra 2000

GPS: 2x LEICA, model MX-420

BNWAS: 1x Furuno

Speedlog: 1x Sperry Naviknot III

Wind: B&G hydra 2000 wind system with 20/20 display

System Monitor: Dekasis by DeKaizer

Chart Plotter :Transas Marine with ECDIS

Monitors: 7x Bridge monitors for multifunction

Searchlights:1x Carlisle and Finch 35 million candle power

AV

• Six (6) centralized AV racks in pilothouse in air conditioned AV storage. AMX architecture, upgraded annually with “white glove” service. Interface is via IPad/Iphone app in each zone or centralized access. Boca Theater Automation (BTA).
• New state-of-the-art DVR streaming device & server, named MODULUS, installed in July 2021. This service is accessible in every room/TV on the yacht, including crew, via WiFi/VSAT. DVR storage capability built into the system.
• KALIEDESCAPE system accessible in every room/TV on the yacht.
• DirecTV (including Caribbean access) accessible in every room/TV on the yacht. HD service.
• Variety of music/audio inputs and capability.
• XBOX1 in Salon and Skylounge.
• Complete AV control via IPad or Iphone in each room of the yacht. All new IPads in 2020.
• TV’s
• Salon fold down TV from ceiling: 65” Sony
• Skylounge fold down TV from ceiling: 65” Sony

Lighting/Blinds

• Lurton system integrated with AMX architecture for full ship’s lighting control via IPad/Iphone.
• Lighting upgraded to LED throughout the yacht.
• Underwater lights aft (x8).
• Blinds are all controlled locally by electronic switch (can be upgraded to central system).

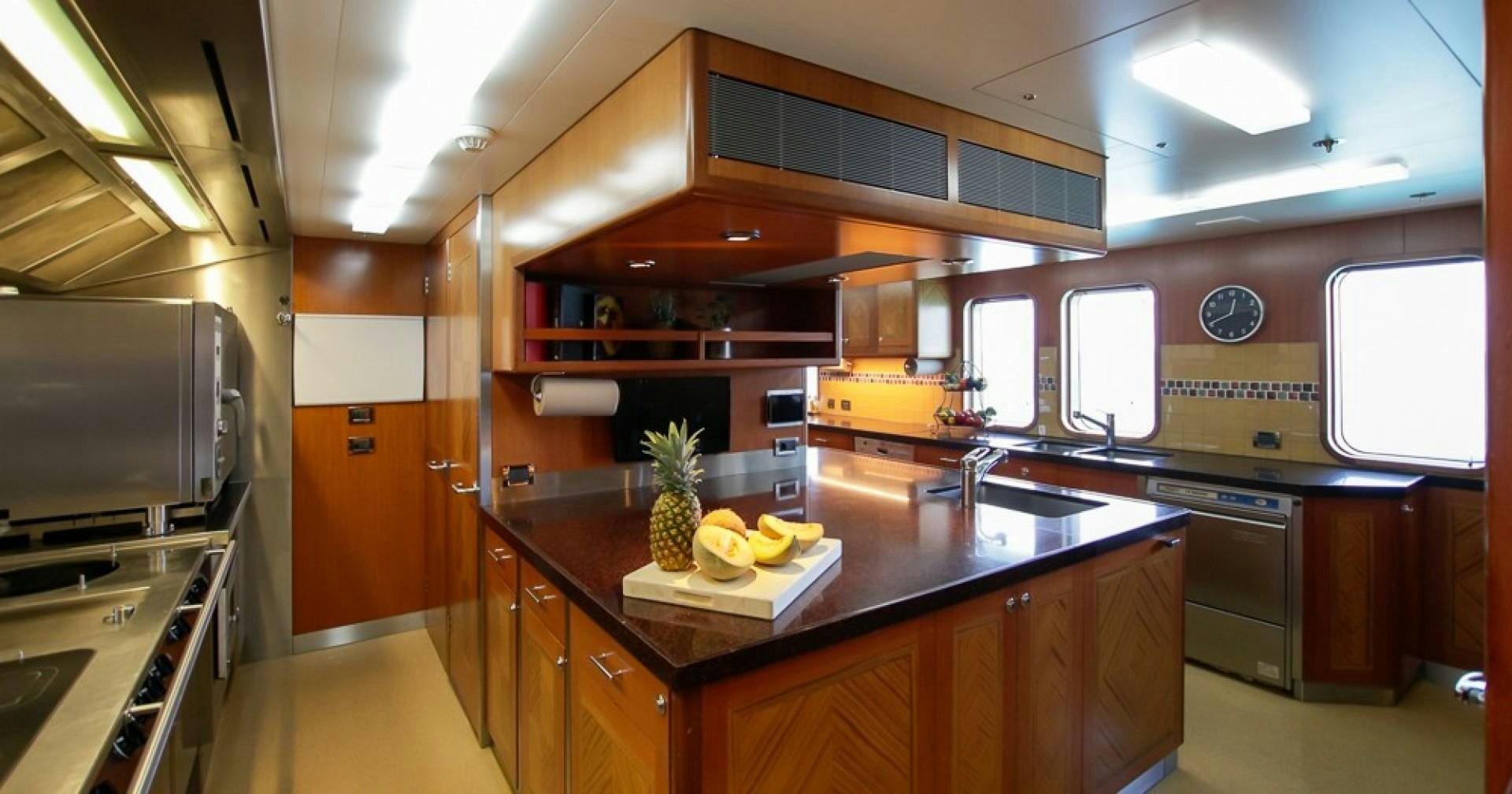

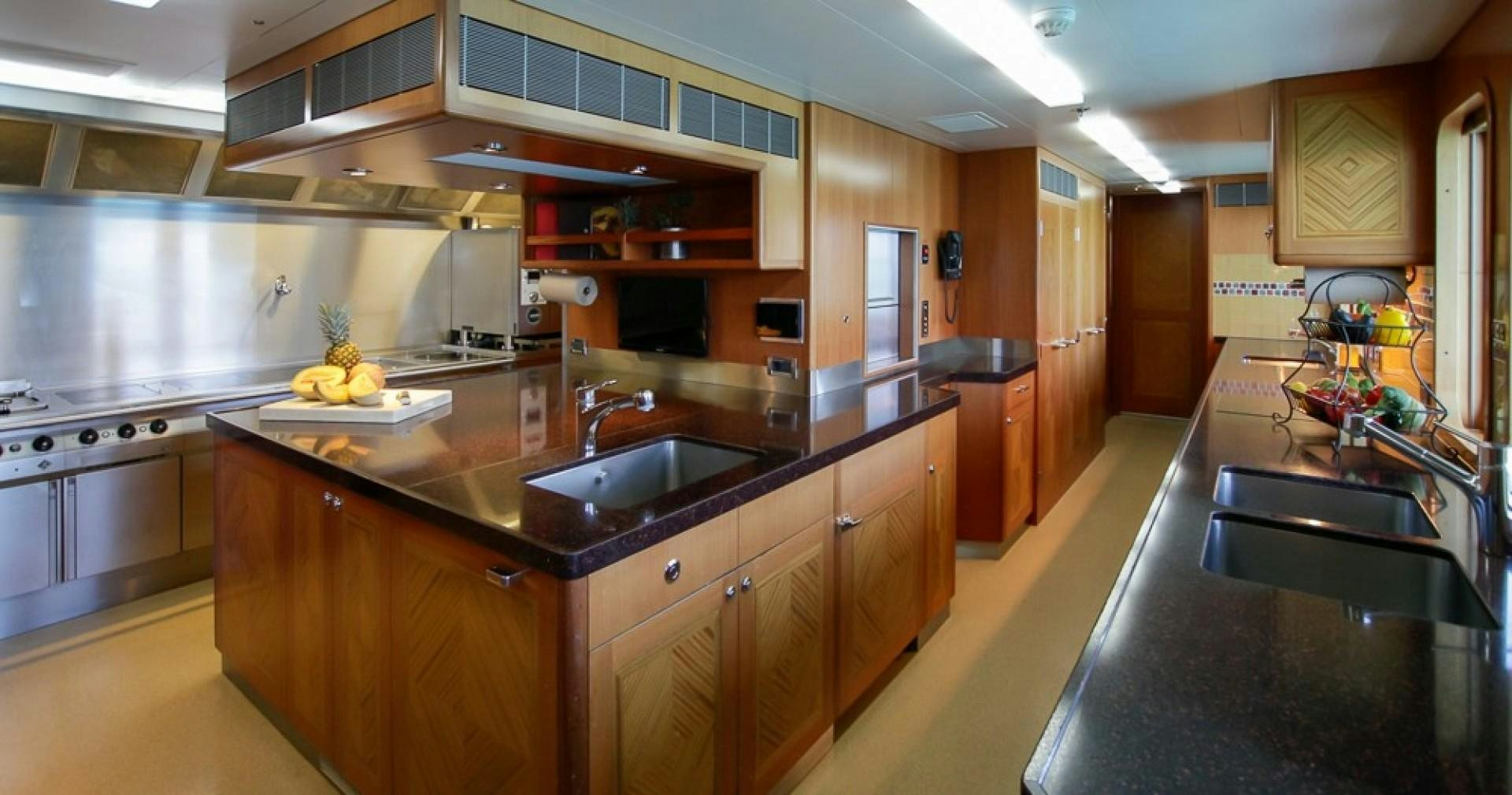

Main Deck Galley Equipment

Cooking Equipment:

• 1x MKN 6-burner electric range w/ Griddle
• 1x MKN commercial steam oven w/ hood
• 1x MKN Salamander
• 1x Viking microwave oven
• 2x Wolf Ovens (standard)
• 1x twin basket deep fat fryer
• 1x Prepping rack system

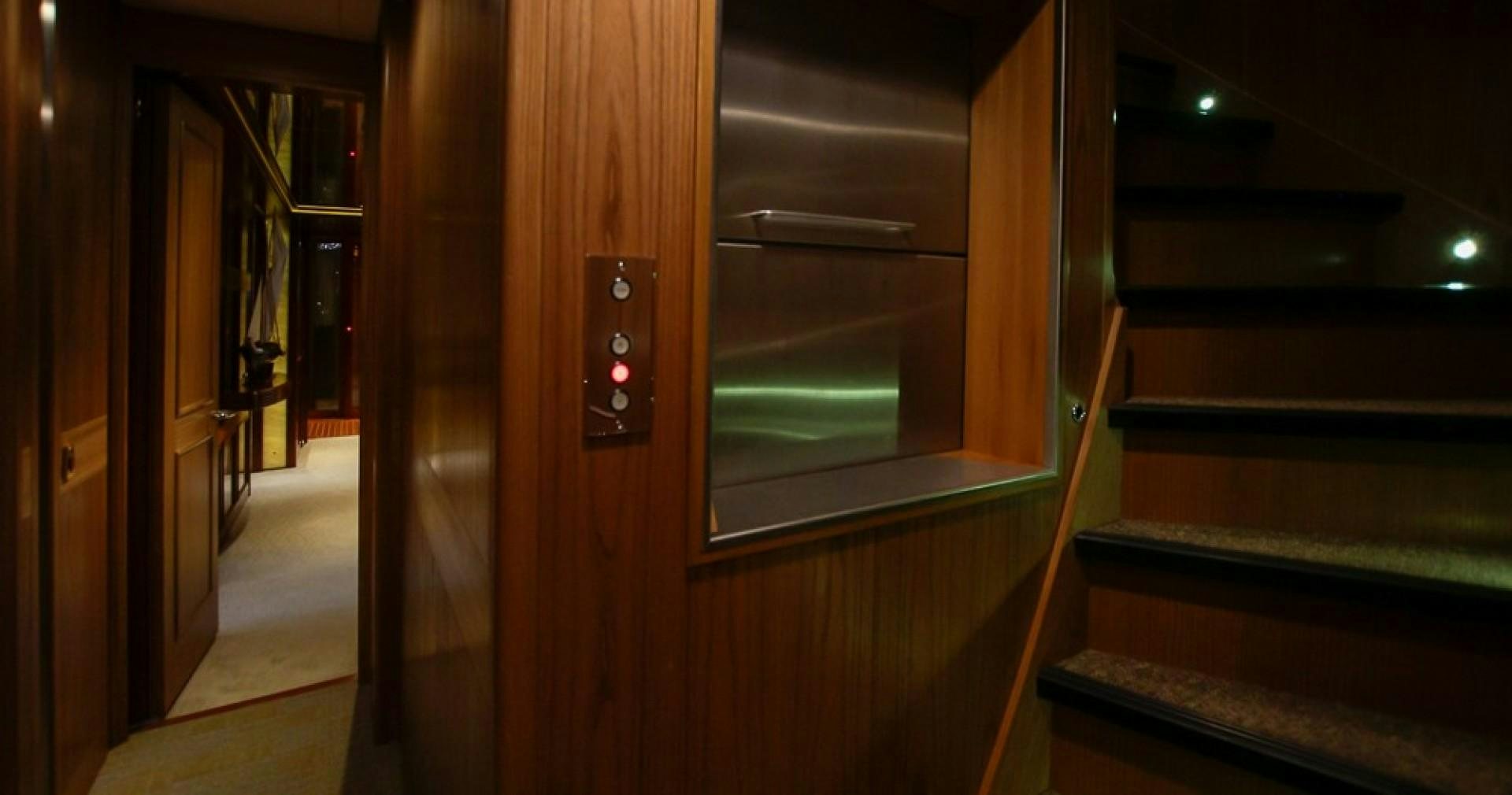

Dumbwaiter: 1x 3 station foodlift from tank deck to main deck and a 3 station foodlift from main deck to sundeck – 100kg capacity, electrically driven

Refrigerations:2x SubZero 601R in galley

Walk-in Refrigeration: 2x Two custom-built cool/freeze rooms – 18 cu meters of storage

Garbarge:1x Refrigerated garbage storage

Sink: 1x Stainless steel – one for chef and double for service

Wine Cooler: 1x 48 bottle Subzero

Trash compactor: 1x Commercial Trash compactor on tank deck

Waste: 1x Garbage disposal in galley

Main Pantry Equipment

Refrigeration & Freezer: 1x Subzero 601R refrigerator & Subzero min freezer

Ice Maker: 1x Hoshizaki: IM-30C/E

Wine Cooler: 1x Subzero 424

Dishwasher: 2x Hobart & Bosch super silent

Waste: 1x waste disposer ISE 75

Crew Galley/Mess Equipment

Cooking Equipment: 1x Viking microwave oven

Refrigeration:

• 2x Subzero refrigerators 700TR (refrigerator plus 4 drawers)
• 1x Ice-cube maker Hoshizaki IM-30CLE

Coffee: 1x Bunn

Dishwasher: 1x Bosch super silent

Trash compactor: 1x Viking (on tank deck)

Guest lobby on lower deck

Refrigeration: 1x Undercounter refrigerator Miele K621 Ui

Ice-cube maker: 1x Hostizaki IM 30CLE

Laundry Equipment

Laundry Equipment: 2x 10kg capacity WS 5100 Miele

Pressing Equipment: 1x Roller ironer Miele B 890

Dryer:

• 2x 10kg capacity T 6251 Miele
• 1x Stacked washer/dryer combo of 5kg capacity Miele WS 5425/T 5206

Tenders: 1x 25’ Chris Craft (2004) with Volvo Penta 8.2 liter gas engine

1x Nautica 15’ RIB emergency tender (2003) with 2012 Yamaha T60C outboard (on bow)

Toys: 2x Yamaha XL700 wave runners (2004, in Lazarette)

Anchor Windlass: 2x Ascon vertical two-speed electric windlasses - 7.5 kW, 440 V Volt, three phase, 60 cycle, each with wildcats and stainless-steel gypsy for handling lines

Anchors: 2x HHP Pool-type high holding power, semi-balanced galvanized bow anchors 765 kg

Anchor Chain: 2x 192.5 meters of 28mm Grade U2 galvanized studlink chain

Deck Capstans: 2x Ascon vertical capstans - 4 kW, 208 Volt AC, 3-phase, for handling lines of the aft deck

Crane and Davits: 2x custom-built Van Driel electric operated overhead crane beams with safe working load of 2,500 kg each beam. Two speed lifting and lowering.

         1x separate Van Driel crane for handling 16’ MOB-boat/crew on foredeck. 750Kg working load.

         1x Van Driel aft peak crane in Lazarette – 400kg capacity

Passerelle: 1x Akerboom 6.22m (20.5’) aluminum Riviera electric/hydraulic gangway and wheel set for resting on dock – 200kg capacity

Boarding Ladders: 1x Akerboom hydraulic side boarding ladder with adjustable steps, integrated in the bulwark at the Owner’s entrance (starboard) – 350kg capacity. Additional “Marquipt” provided for other entrances.

Swim Ladder: 1x removable swimming ladder

Showers: 2x Sundeck side deck and swim platform

Mooring Whips: 4x Mooring whips for tenders installed on swim platform with additional brackets on port and starboard side amidships

Security Equipment

CCTV System: 5x Monitors in wheelhouse, captain’s cabin,captain’s office, crew mess & crew lounge

Cameras:

• 2x Cameras, one facing each side deck
• 1x Mounted facing aft on aft deck
• 1x Engine room
• 2x Color camera on bridge deck side near bridge
• 2x Color camera to the mast
• 1x Color camera to the swim platform

Monitors:

• 2x In the bridge and crew mess
• 1x Captain’s cabin
• 1x Ship’s office
• 1x 23 hour timelapse recording unit in bridge deck hallway
• 1x Flatscreen to be sub-divided for as many zones as possible
• Security Alarm: Deck sensors throughout the vessel

Ship Safe: 2x In owner’s suite & captain’s office

Fire Fighting Equipment

Hi-Fog system: Marioff – throughout vessel

Fire/Heat/Smoke Detectors: Throughout

Portable CO2: Throughout

Fire Extinguishers: Throughout

Seawater Firefighting Station:Throughout

Firefighting suits: 2x w/ breathing equipment

 Safety Equipment

Life rafts: 4x 25 person inflatable liferafts

EPRIBS: 2x JOTRON, TRON-40 S

SART: 2x JOTRON 9 SARTS

1. Garwood tender

A complete list of exclusions is available upon request.

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
