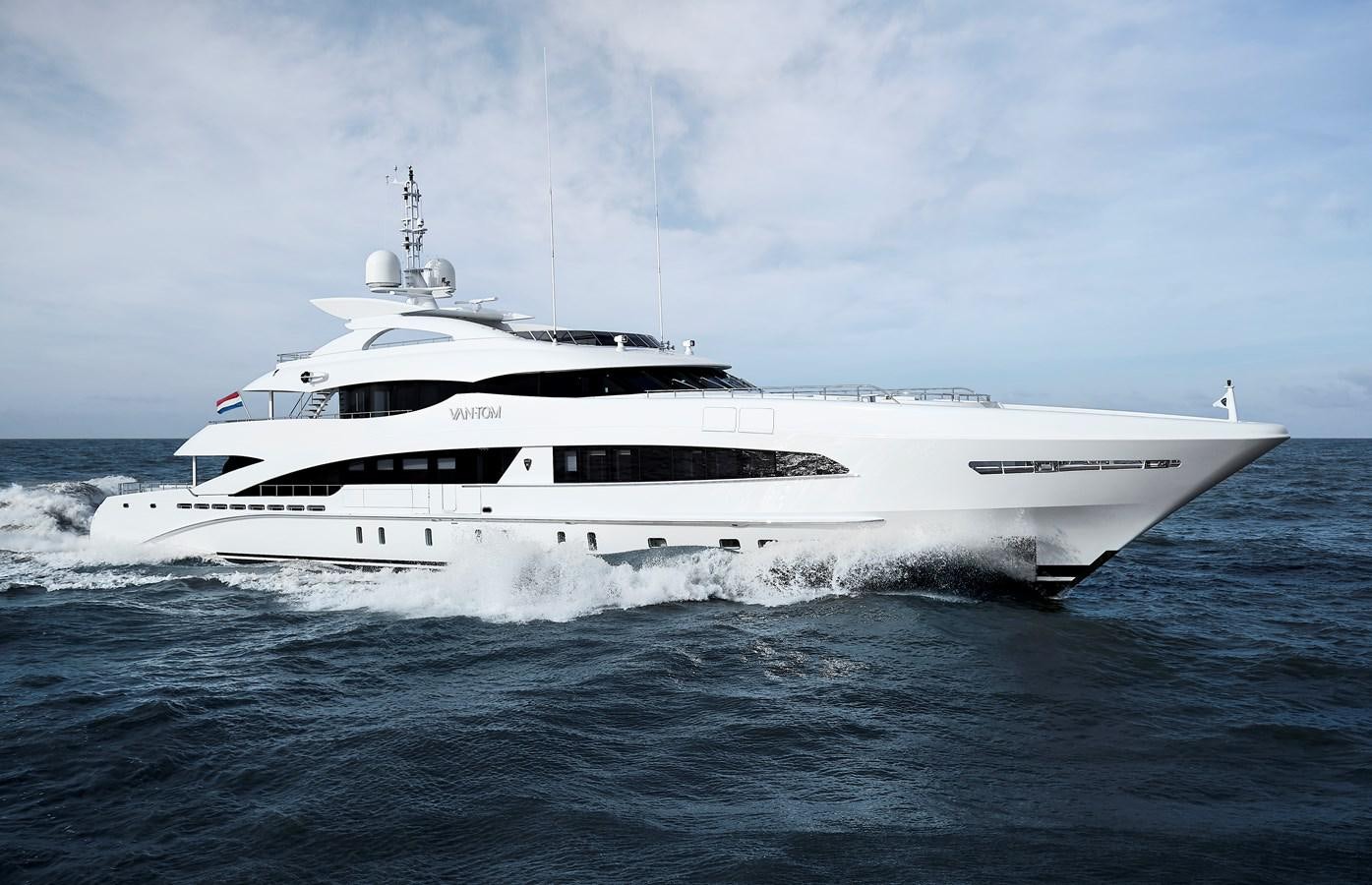

VAN TOM Yacht for Sale

Length
163' (49.8m)
Builder
HEESEN YACHTS
Build
2018
Cabins
6

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder HEESEN YACHTS
Length (LOA) 163' (49.8m)
Year 2018
Gross Tonn. 499
Draft 9' (2.5m)
Beam 27' (8.5m)
Range 1,850 NM

Accommodations

Staterooms 6

Dimensions & Capacity

LOA 163' (49.8m)
Min Draft 9' (2.5m)
Max Draft 9' (2.5m)
Fuel Tank 18,175 g (68,800 L)
Fresh Water 4,280 g (16,200 L)
Gross Tonn. 499
Displacement 317

Construction

Hull Material Aluminum
Hull Config Semi-Displacement
Ext. Designer Omega Architects
Int. Designer Francesco Paszkowski and Margherita Casprini
Cruising Speed 20 Knots
Range 1,850 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • WATER MAKER: Idromar dublex reverse osmosis desalination system, 2x 12,000 l/day
  • WATER SYSTEM: 2x Pumps, Idromar freshwater softener, silver ion sterilizer, charcoal filter, UV sterilizer. WILO circulating pumps for hot and cold water lines, Alpha Laval heat exchanger to cool water. 2x 200 l electric boilers.
  • FUEL SEPARATOR: Mahle Fuel treatment system KFWA 2by + AF 173
  • BILGE WATER SEPARATOR: RWO Veolia OWS-COM
  • SOOT FILTER: Both generator exhausts have a soot filter system NPS Zero Soot

Electricity:

  • 24VDC - 230V/400VAC, with ships monitoring system

Chargers:

  • 1x 24V 75A for service batteries in the engine room
  • 2x 24V 25A for start batteries in the engine room
  • 1x 24V 50A for the emergency battery in wheelhouse
  • 1x 24V 15A for the emergency GMDSS battery in wheelhouse

Batteries:

  • 2x 24V 100Ah main engine and gens starting batteries
  • 1x 24V 600Ah service batteries
  • 1x 24V 600Ah emergency service batteries

Accommodation

  • Accommodation for up to 12 guests in 6 cabins and up to 9 crew

GUEST CABINS:

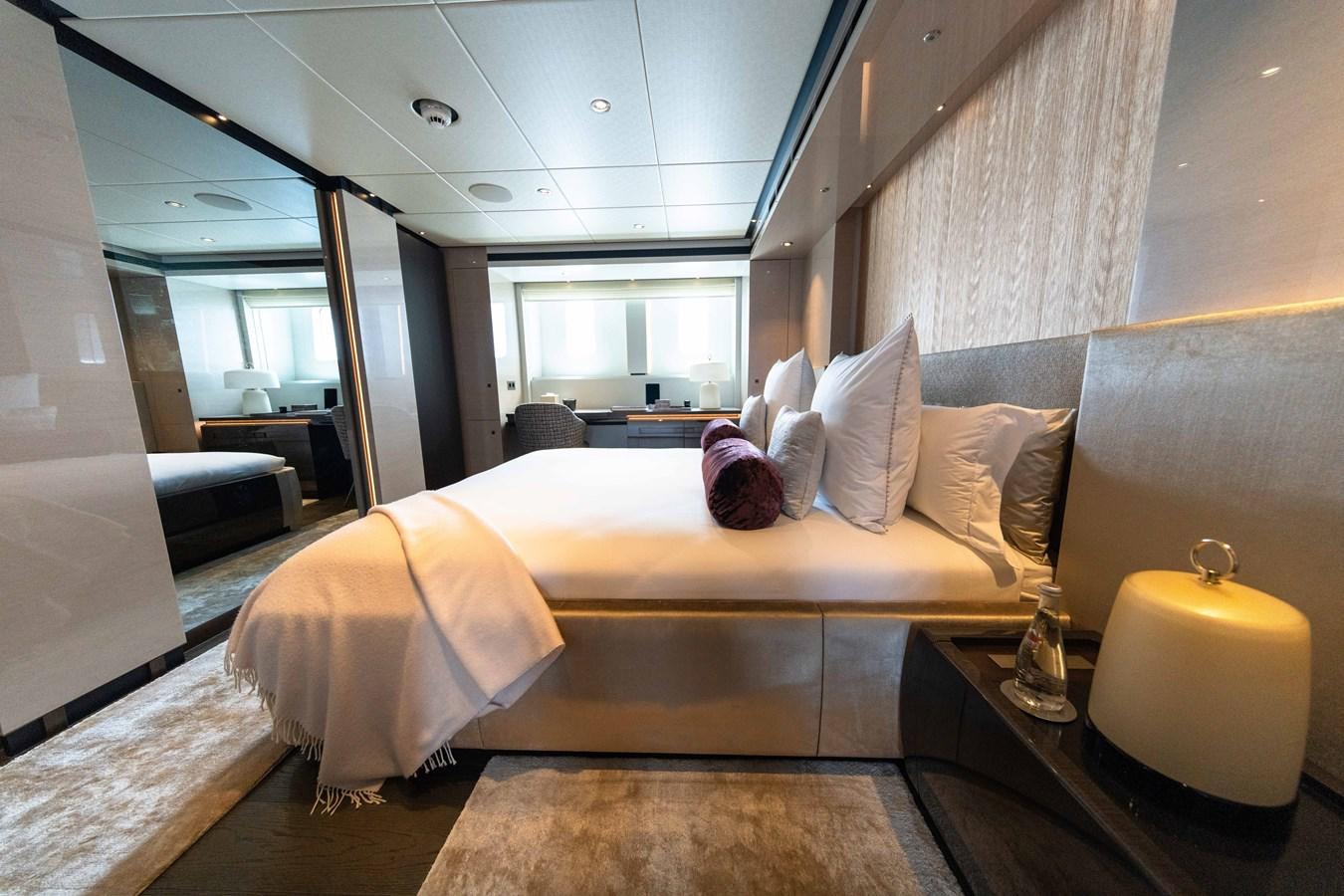

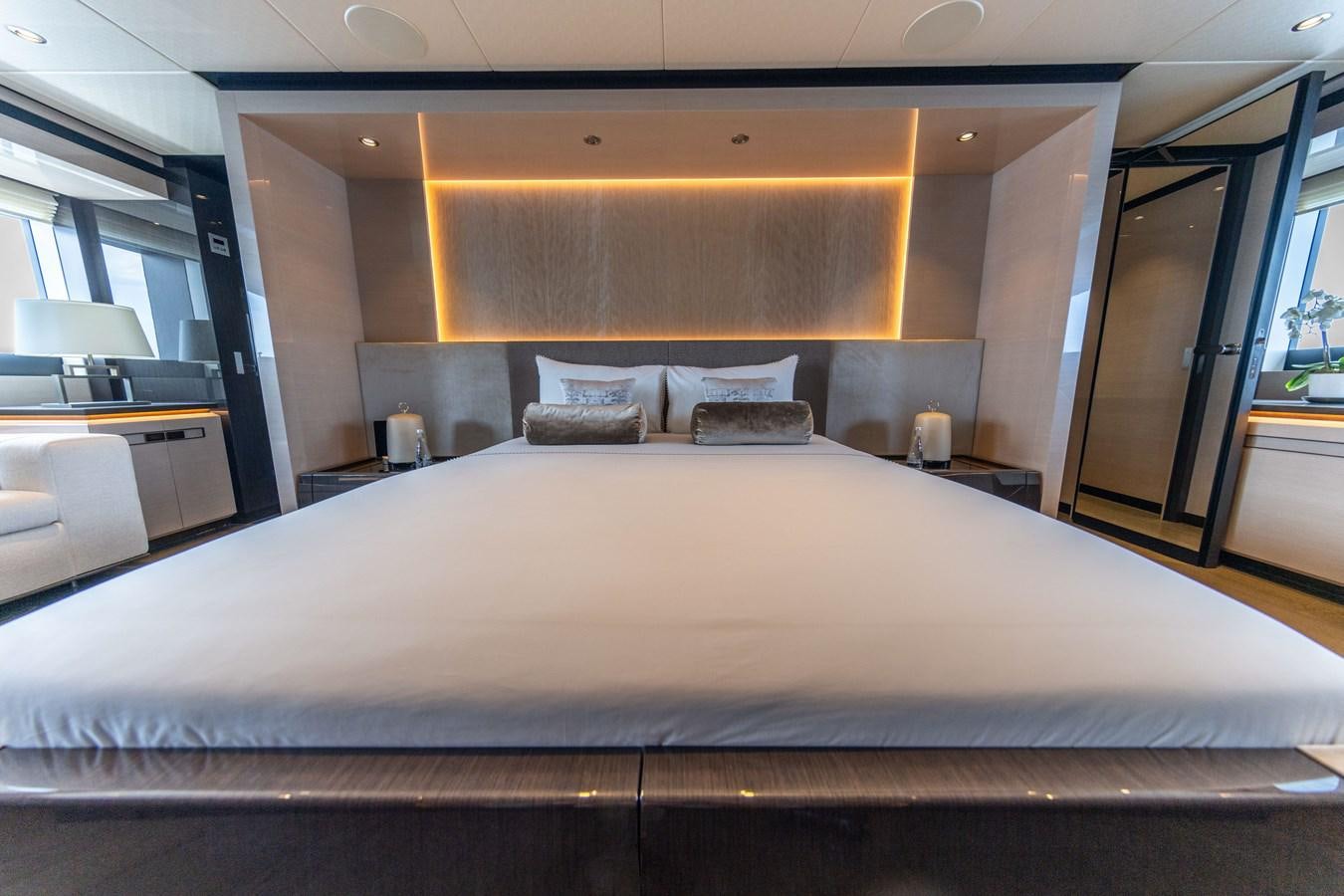

  • 1x Master cabin
  • 1x VIP cabin
  • 2x Double cabins
  • 2x Twin cabins

CREW CABINS:

  • 1x Captain cabin
  • 4x Crew cabins

Galley & Laundry Equipment

GALLEY

  • 1x Miele Deep pan fryer
  • 3x Miele induction cooking plate with 2 zones
  • 1x Miele grill
  • 1x Miele steam oven
  • 1x Miele oven
  • 1x Miele microwave
  • 1x Miele drawer type plate warmer
  • 1x Miele dishwasher
  • 2x Foster Gastro refrigeratros 600 l
  • 2x Foster Gastro freezer 600 l
  • 1x Foster under counter refrigerator

PANTRY

  • Main Deck
  • 1x Eurocave wine cooler for 35 bottles
  • 1x Miele dishwasher
  • 1x Hoshizaki icemaker

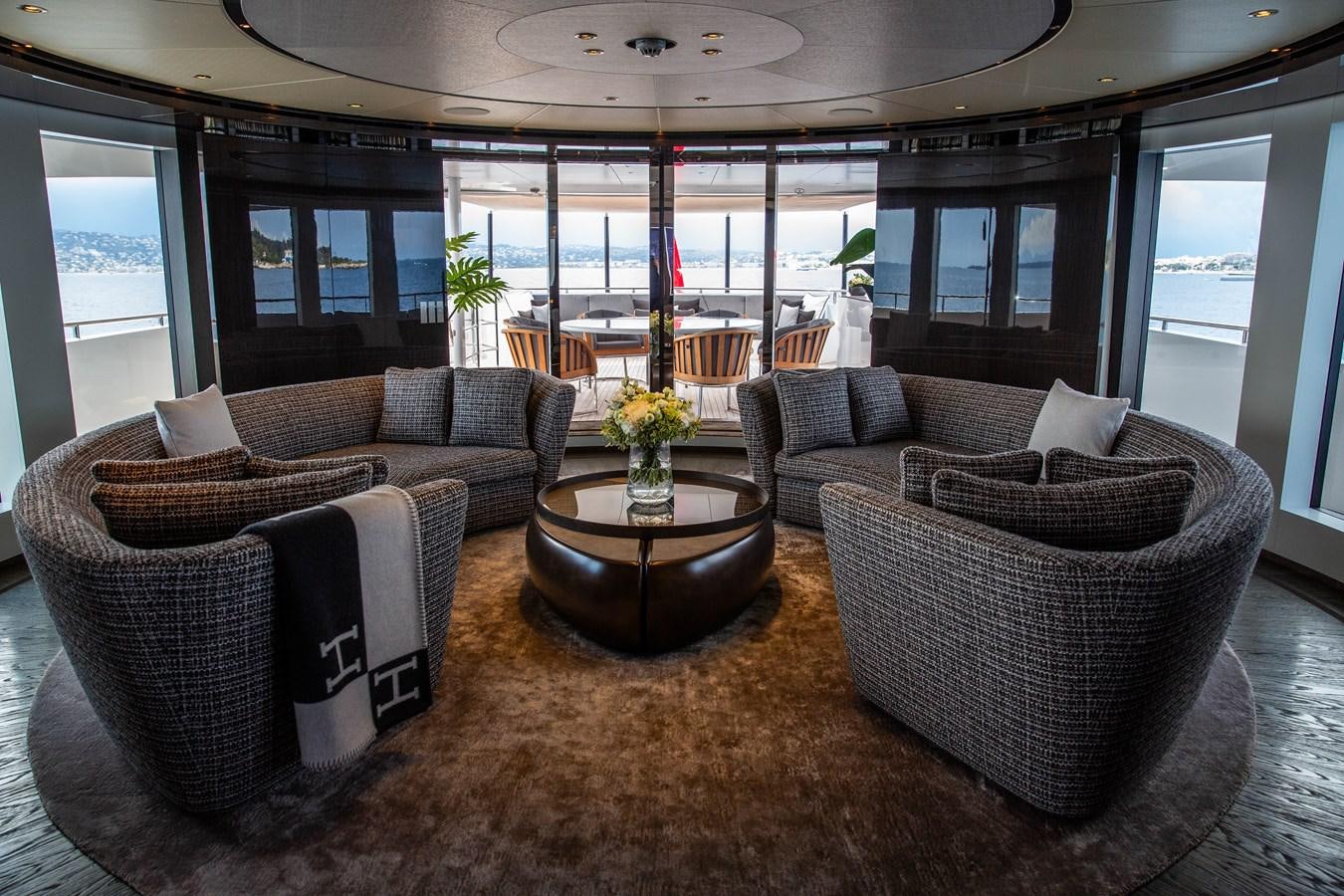

SALON BAR

  • 1x Frigonaurica refrigerator

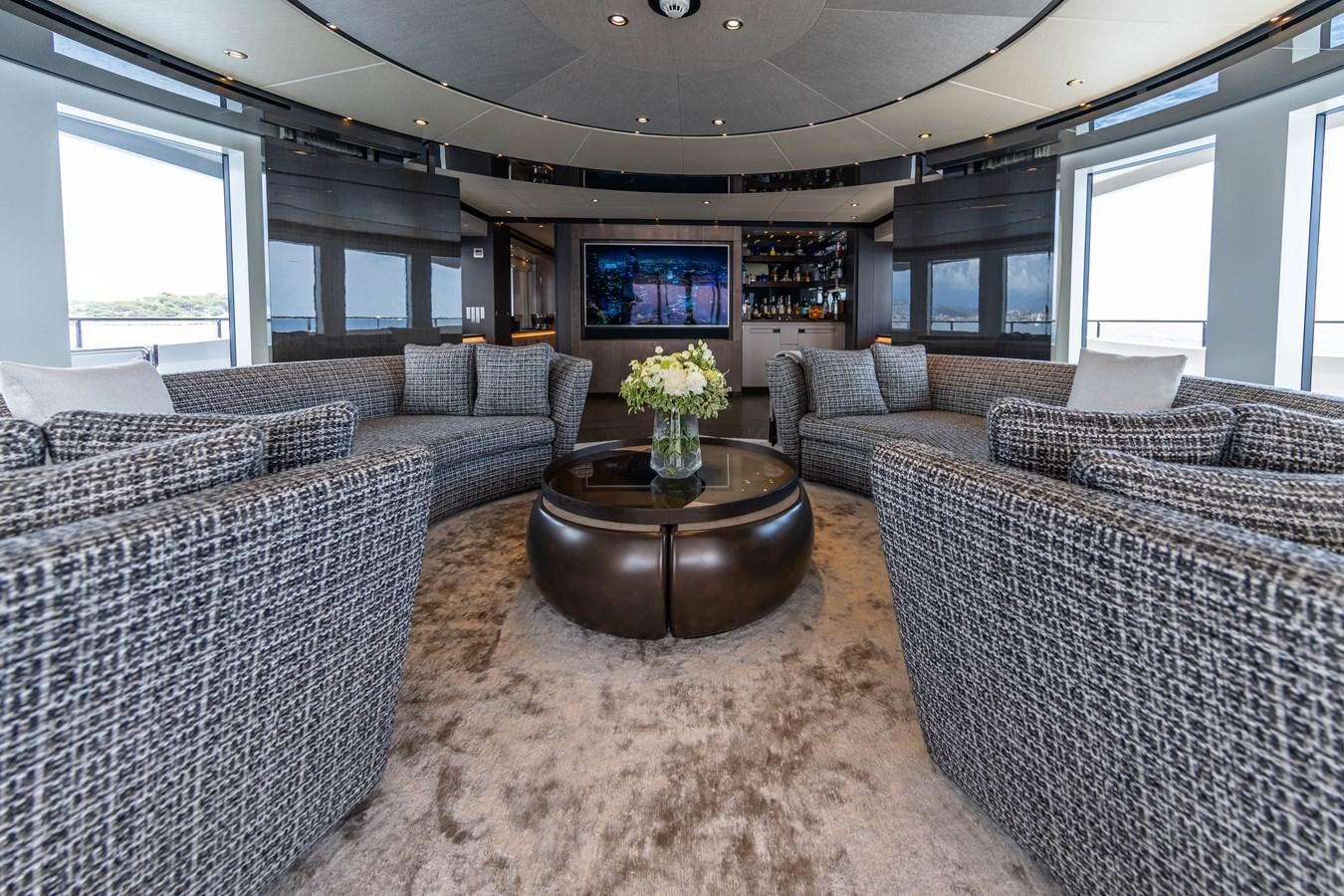

SKYLOUNGE BAR

  • 1x Frigonautica refrigerator

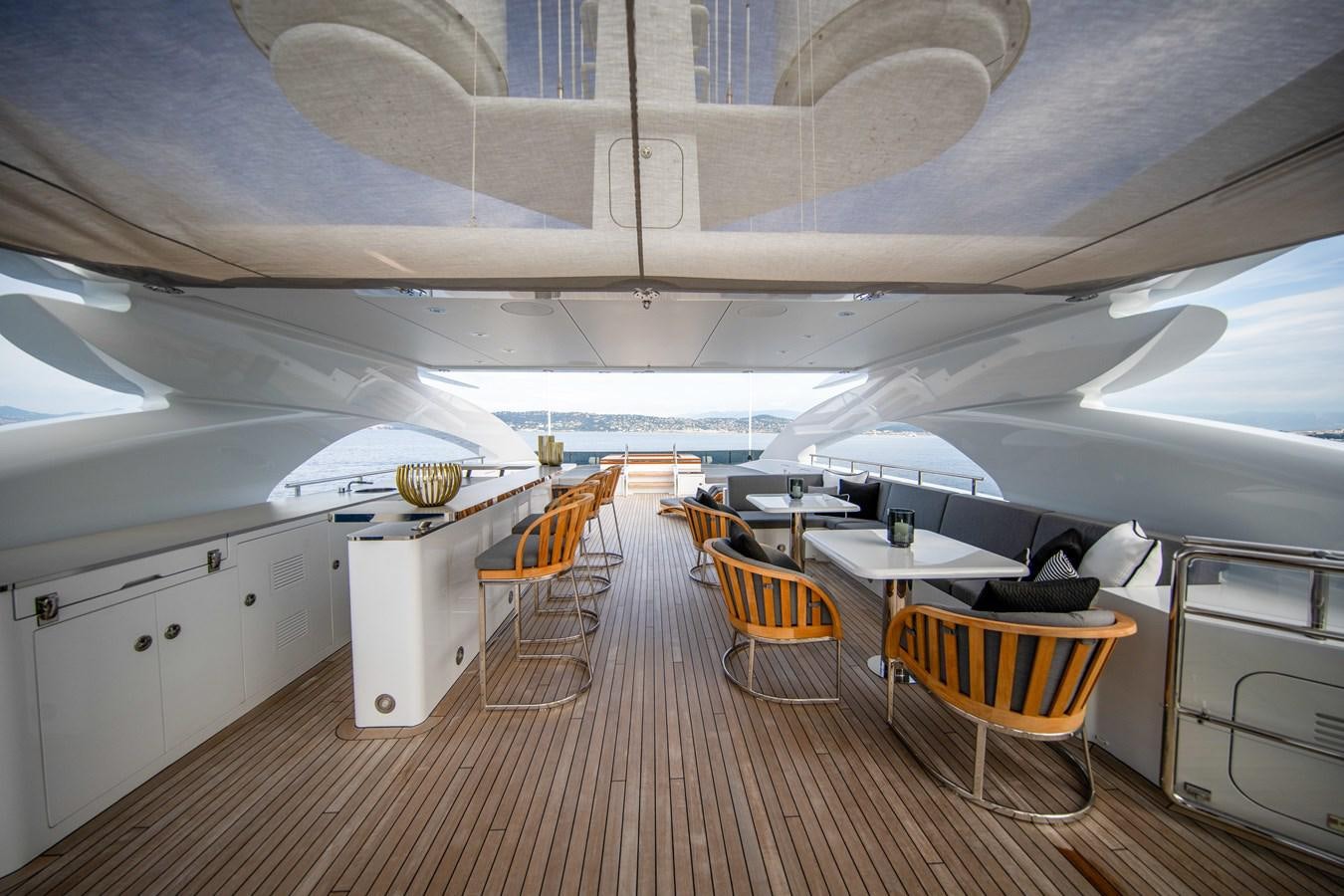

SUN DECK

  • 1x Frigonautica refrigerator
  • 1x Hoshizaki icemaker
  • 1x Atag teppan yaki

GARAGE

  • 1x Liebherr freezer

CREW MESS

  • 1x Foster under counter refrigerator
  • 1x Miele microwave combi
  • 1x Miele dishwasher

LAUNDRY

  • 2x Miele washer
  • 2x Miele dryers

Communication Equipment

SATCOM:

  • Sailor 6110 Mini C Inmarsat
  • Sailor 250 Inmarsat F Fleetbroadband

VHF:

  • 2x Sailor 6222 VHF
  • 2x portable VHF Motorola

SSB:

  • Sailor 6300 MF/HF

BNWAS:

  • Furuno BR-500

INTERNET:

  • GSM/UMTS gateway with 4 cards

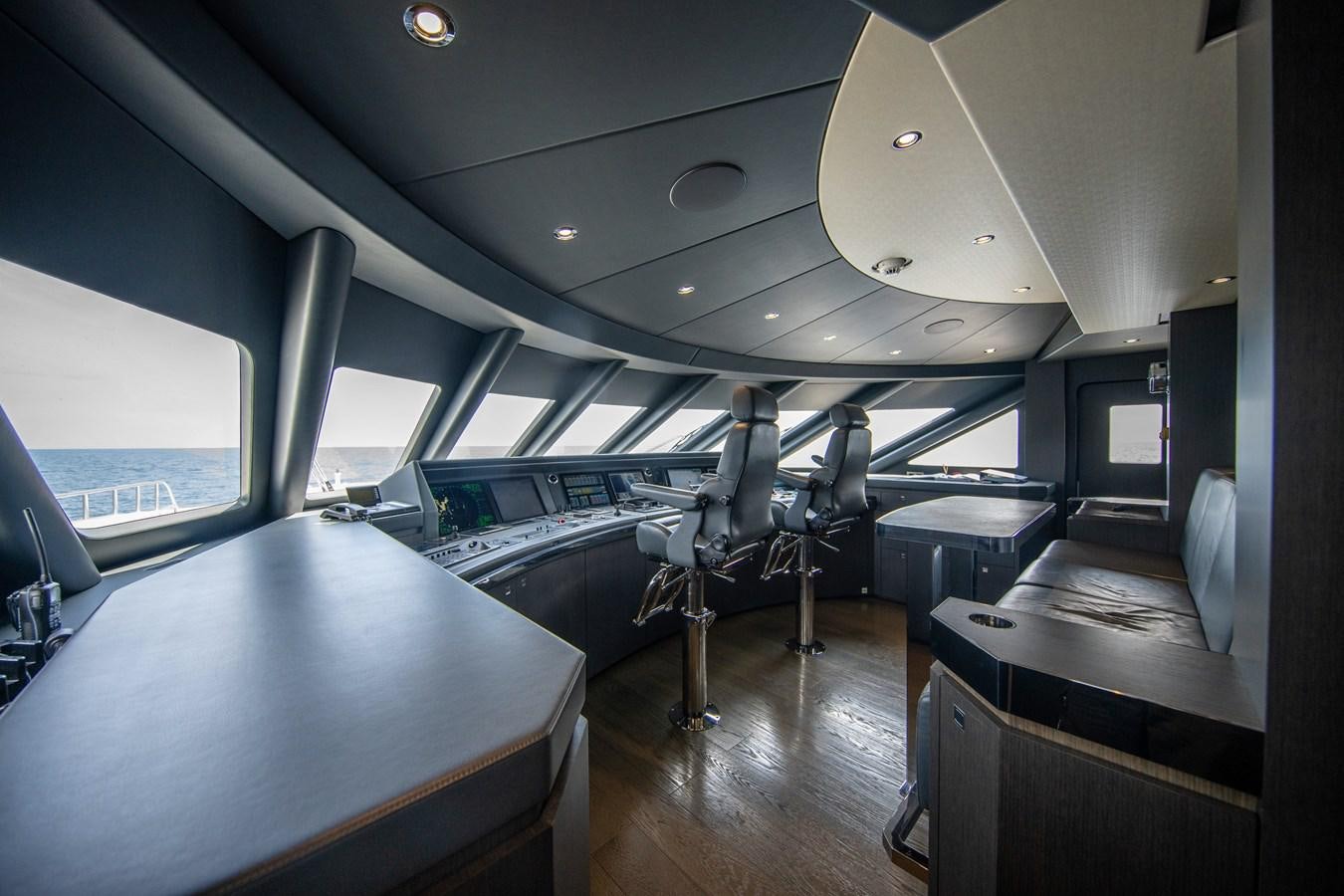

Navigation Equipment

  • MAGNETIC COMPASS: C.Plath
  • GYRO COMPASS: C.Plath Navigat X
  • AUTOMATIC PILOT: C.Plath Navipilot 4000
  • ECHO SOUNDER: Furuno FE-700
  • RADARS: 2x Furuno X Band
  • TRANSPONDER: Tron 60S
  • DUAL ECDIS: Transas dual ECDIS chart system Navi-Sailor 4000
  • AIS: 1x Furuno FA-150
  • DGPS: 1x Furuno GP-150 dual system
  • NAVTEX: Furuno NX-700
  • LOG: Furuno Doppler DS-80
  • WIND INSTRUMENTS: Vaisala WXT520
  • SEARCHLIGHTS: 2x Sanshin
  • HORN: 1x Kahlenberg

Entertainment Equipment

  • State of the art A/V system throughout the yacht with high-end speakers and amplifiers.
  • Simple but powerful control system with a user interface (ipad) that is quick to learn, simple to operate and elegant to behold.
  • The main equipment center is designed to hold as much hardware as possible into a single central location.
  • SeaTel 4004 auto tracking satellite TV reception system
  • 13x digital satellite receivers
  • Crew call system
  • Icon Connect Server
  • Light management system to control lighting, curtains and blinds in all guest areas
  • Panasonic telephone/intercom system
  • Samsung / Elbex colour camera system with 6 cameras throughout

Tenders & Toys

  • Dariel DT7 with inboard Yanmar 260HP 6BY, Alamarin Jet
  • Zodiac Classic Mark 2C HD with 25HP Yamaha rescue boat
  • 2x Jetski
  • Fuel fill station installed in the tender garage

Deck Equipment

  • ANCHOR WINCHES: 2x Maxwell 11000 VCW
  • AFT WARPING CAPSTANS: 2x Maxwell 8000
  • ANCHORS: 2x Pool Super High Holding Power anchors 260 kg
  • ANCHOR CHAINS: 2x 150m galvanized chain of 17.5mm diameter
  • PASSERELLE: Hydromar electric/hydraulic
  • SIDE BOARDING LADDER: Hydromar electric/hydraulic

SWIMMING LADDERS:

  • Automatic hydraulic swim ladder in the transom door
  • C-Quip carbon fibre manual foldable swimming ladder (can be used with the transom door closed)

COVERS:

  • Dacron covers for all outside seats, wheelhouse windscreens, anchor winches, jacuzzi, sea-stair, rescue boat, all exterior tables

AWNINGS:

  • Hand deployed sun awnings with white painted carbon poles on the main deck aft above the sitting area, wheelhouse deck aft above the sitting area, wheelhouse deck forward above the sitting area and sun bed, Sundeck aft above the sunbed area, 2x sundeck forward area, foredeck above the windlass area.

BOAT CRANE:

  • Hydromar, near the rescue boat (max 500 kg)

UNDERWATER LIGHTS:

  • 8x Seavision LED

Safety & Security Equipment

  • LIFERAFT: 4x 12-persons Zodiac liferaft
  • LIFEJACKETS: 24x inflatable lifejackets, 4x rigid life jackets for kids
  • EPIRB: Jotron EPIRB approved by class
  • SART: 2x Jotron SART approved by class

FIRE FIGHTING:

  • Electric bilge pump / electric firefighting pump / emergency diesel driven bilge-firefighting pump
  • Eltek fire alarm system throughout
  • Fire extinguishing system in the engine room with Novac 1230 gas
  • Dry pipe sprinkler system in the tender garage
  • CO2 fire fighting system in the galley extraction duct
  • Fire extinguishers throughout
  • 2x Firemen’s outfits

ALARM SYSTEM:

  • General alarm system integrated into the ships monitoring system

Comments

  • This vessel was delivered in 2018 and is still in her original ownership, she was only used privately and never chartered, with little use. She just completed the 5-year special survey and is presented fully in ABS class and built to LY3 commercial code by MCA.
  • The yacht has a top speed of 23 knots while being able to cross the Atlantic at displacement speed.
  • She was specified by the owners and her interior was custom built and designed by Studio Paszkowski with the owners input, offering modern but contemporary living areas and accommodation.
