TULIP Yacht for Sale

Length
87' (26.6m)
Builder
KM YACHTBUILDERS
Build
2012
Cabins
4

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder KM YACHTBUILDERS
Model Frers 88
Length (LOA) 87' (26.6m)
Year 2012
Draft 17' (5.1m)
Beam 20' (6.12m)
Location Spain

Accommodations

Staterooms 4
Sleeps 10
Heads 4

Dimensions & Capacity

LOA 87' (26.6m)
LWL 73' (22.04m)
Min Draft 11' (3.2m)
Max Draft 17' (5.1m)
Fuel Tank 740 g (2,800 L)
Fresh Water 549 g (2,080 L)
Holding Tank 159 g (600 L)
Displacement 52

Construction

Hull Material Aluminum
Hull Config Bulb Keel
Ext. Designer Mani Frers
Int. Designer SINOT
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Bilgepumps: 8 x RULE with additionally 1 x electric pump and 1 x diesel pump as backup.
  • Seawater pump for fire extinguishing with connections bow, stern and midship.
  • Duct strip heaters for additional heating.
  • Watermaker Tecnicomar Sailor MD1500 slim version.

Accommodation

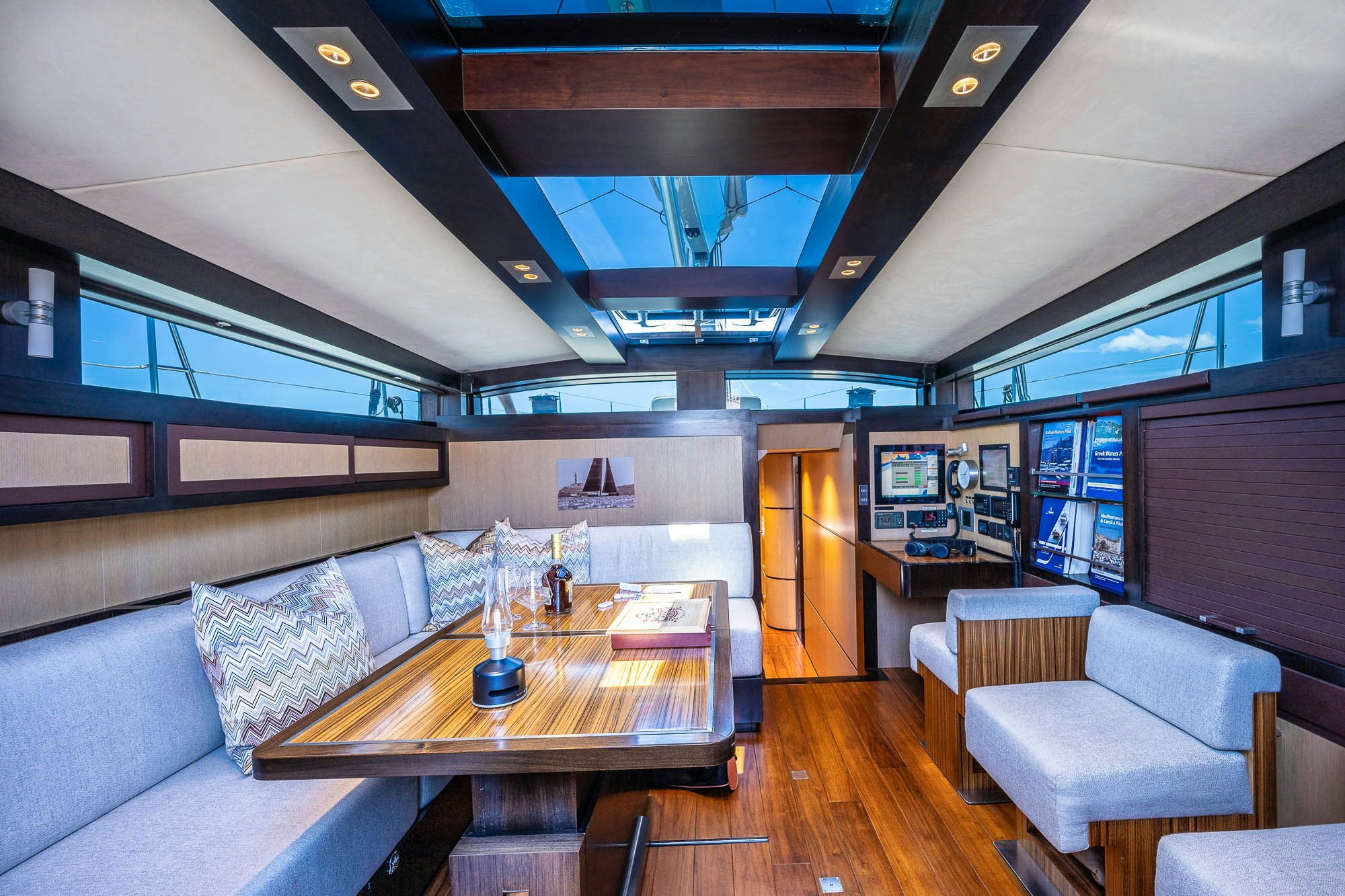

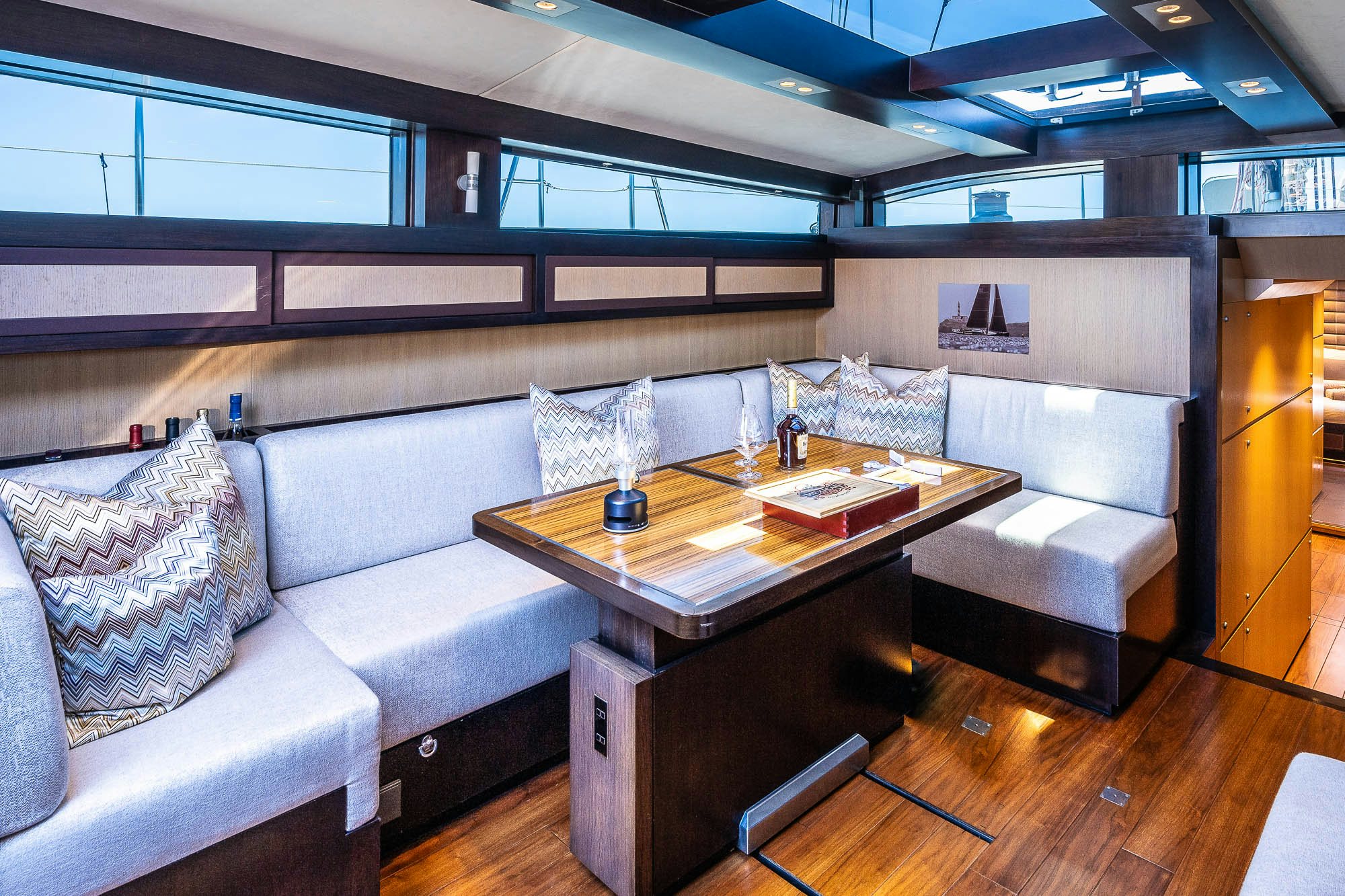

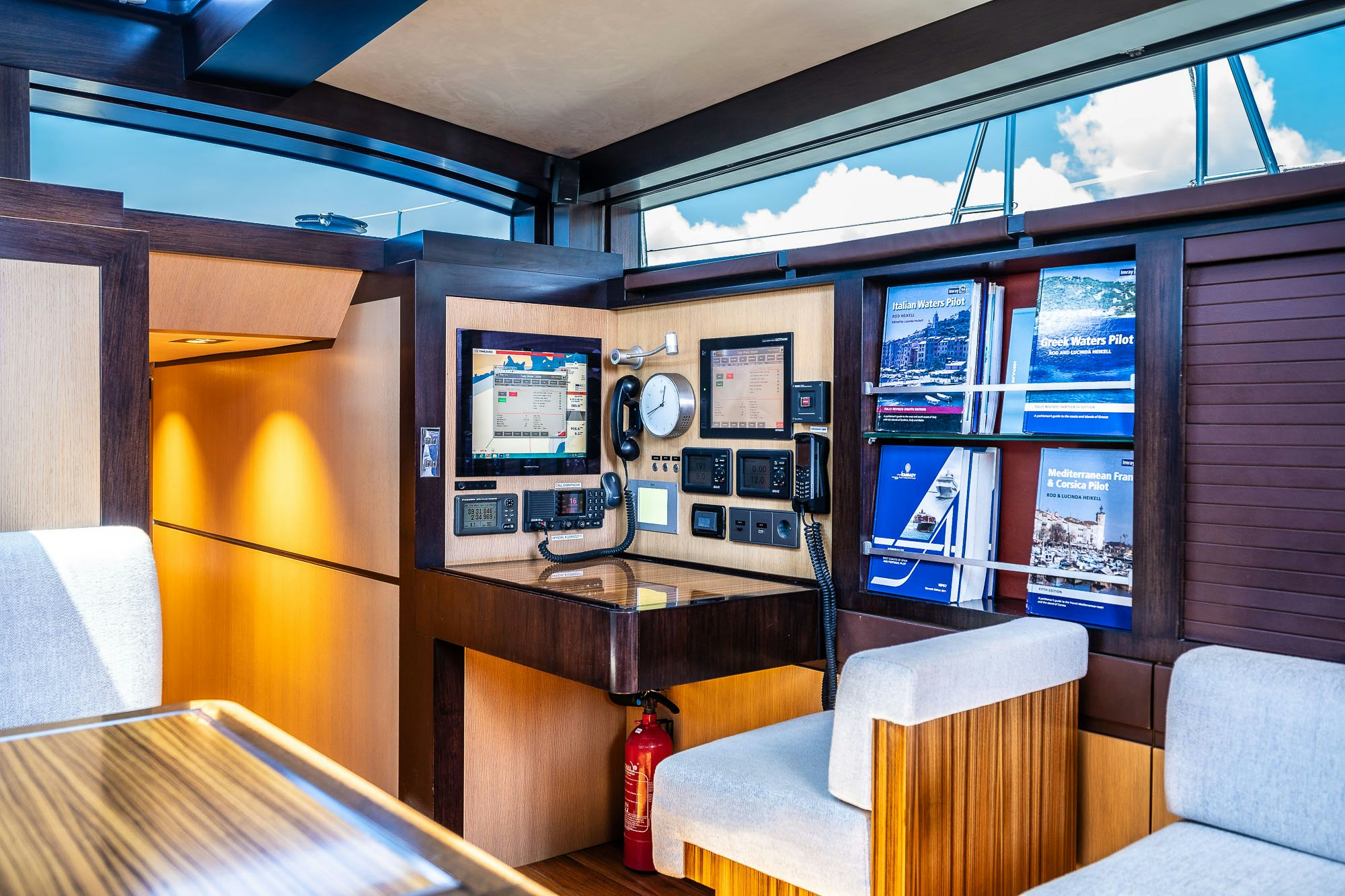

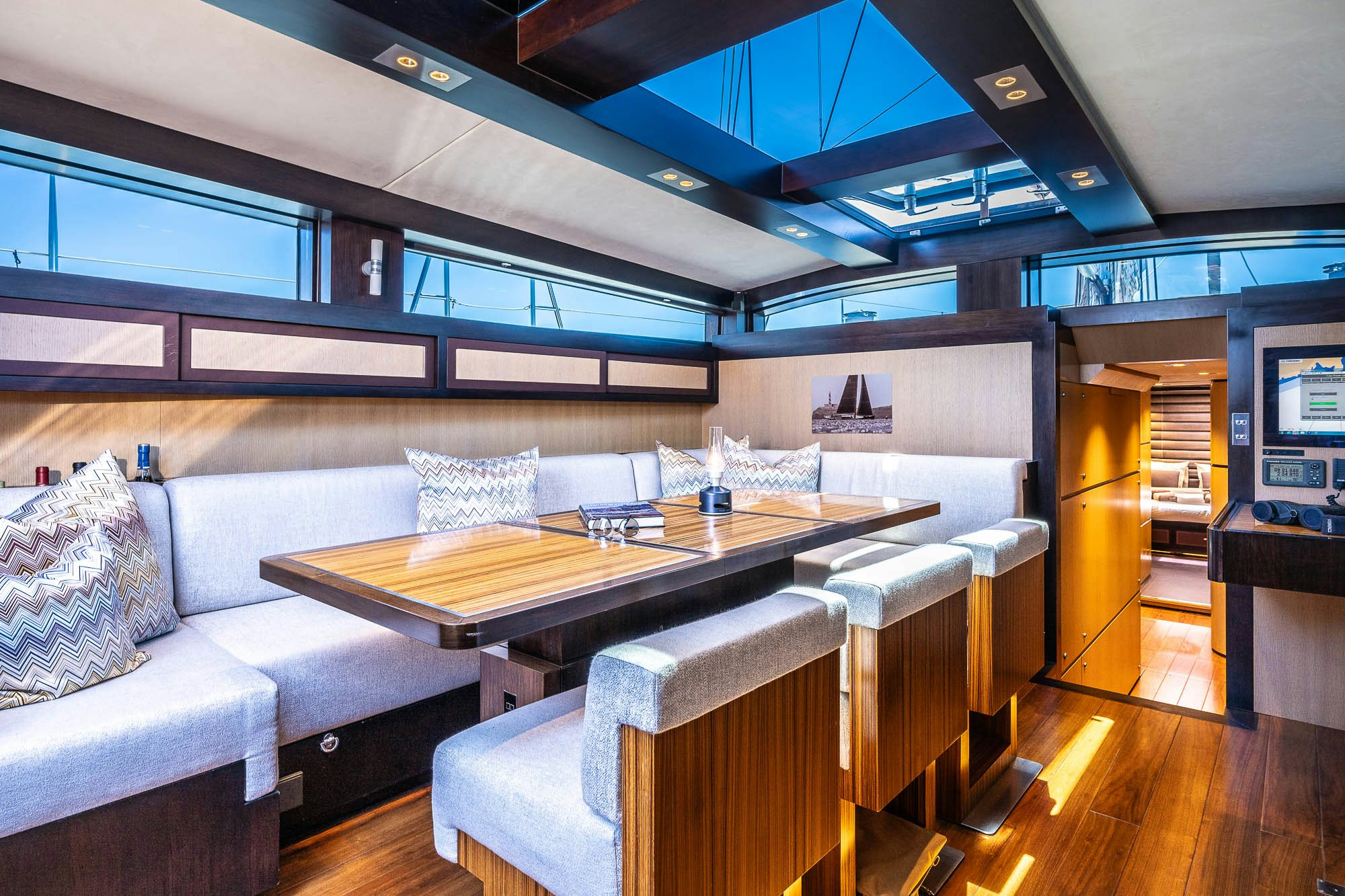

  • Inside, she continues to do what she does on the outside. Dutch company Sinot Yacht Design designed the interior. Colours are bold while dark palisander wood contrasts with light smoked oak. the vessel is set up to sail with six guests and two crew. These areas are well separated with guest accomodations all forward, and the galley, mess, engineroom and crewcabin aft of the raised saloon. The saloon is a leisure area with a card table, TV and library zones, plus a small chart table forward. The main feature is a zebrano wood table that lifts up, down, in and out electronically.
  • The huge, slightly curved pilothouse windows provide good views and sun-roof glazing over the entire central length ensures that plenty of daylight finds it's way into the interior. Bulkheads (honeycomb for weight and insulation) are lined with oak and details such as coves and borders are made of dark rosewood.

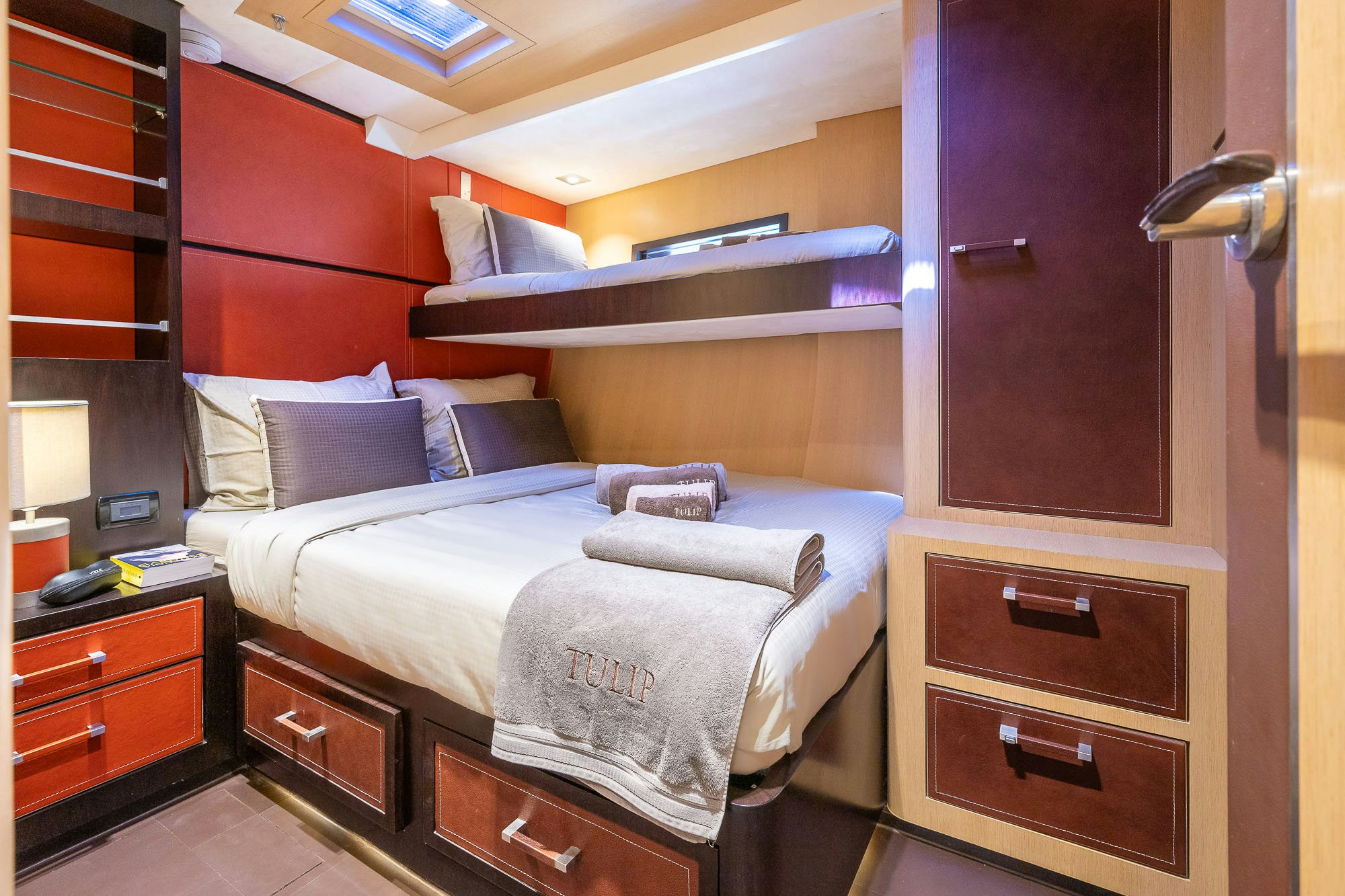

  • The two guest cabins forward of the saloon are split by the corridor and lifting keel box and have their own bathroom ensuite with heads and separate shower. The starboard guest cabin features a double bed plus pullman and the portside cabin features bunkbeds that can convert into a double, in such a way that each cabin can sleep three guests.

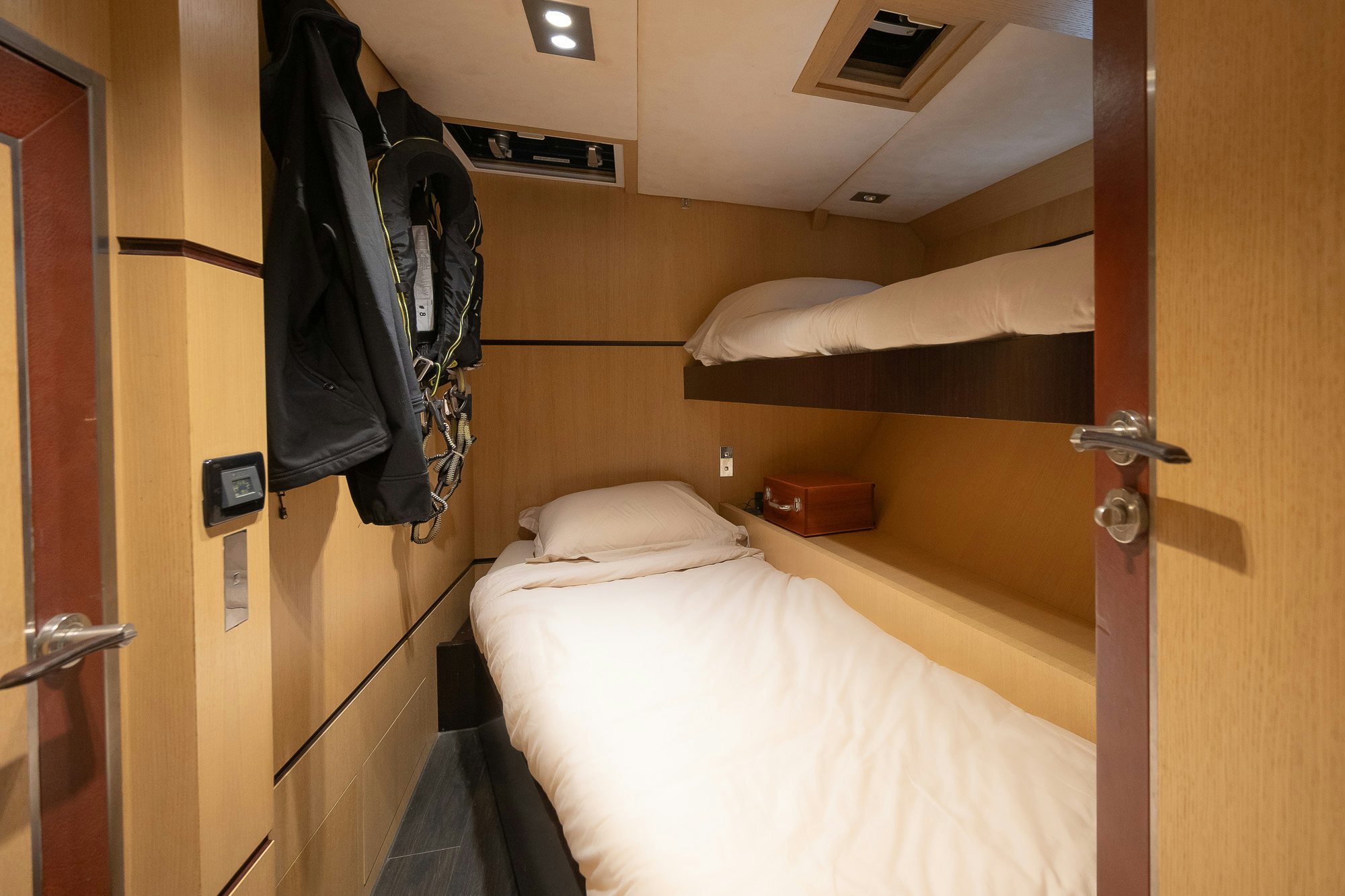

  • A forward master cabin with bathroom ensuite was chosen for optimal privacy. The cabin is very spacious andincludes a vast in-built closet hidden behind curved doors that blend into the bulkhead. The crewcabin for two crew, with it's own bathroom ensuite, is situated on portside aft and can be accessed through the galley and crew mess. The crew bathroom has a Miele washer/dryer combo. She is extremely well soundproofed and insulated, making her remarkably slient and quiet, even with all systems running. There's no problem at all to sleep with the engine running.

Galley & Laundry Equipment

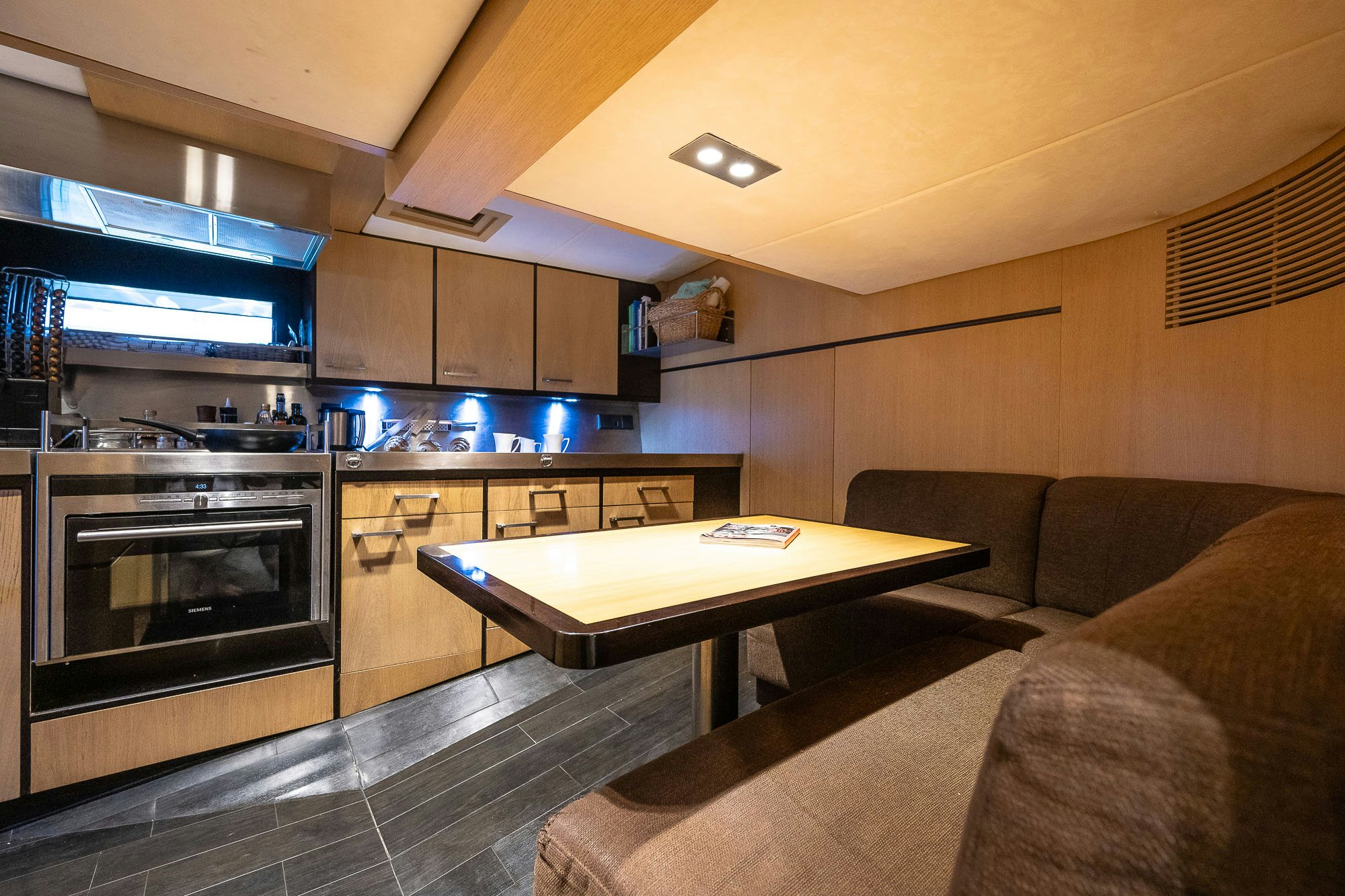

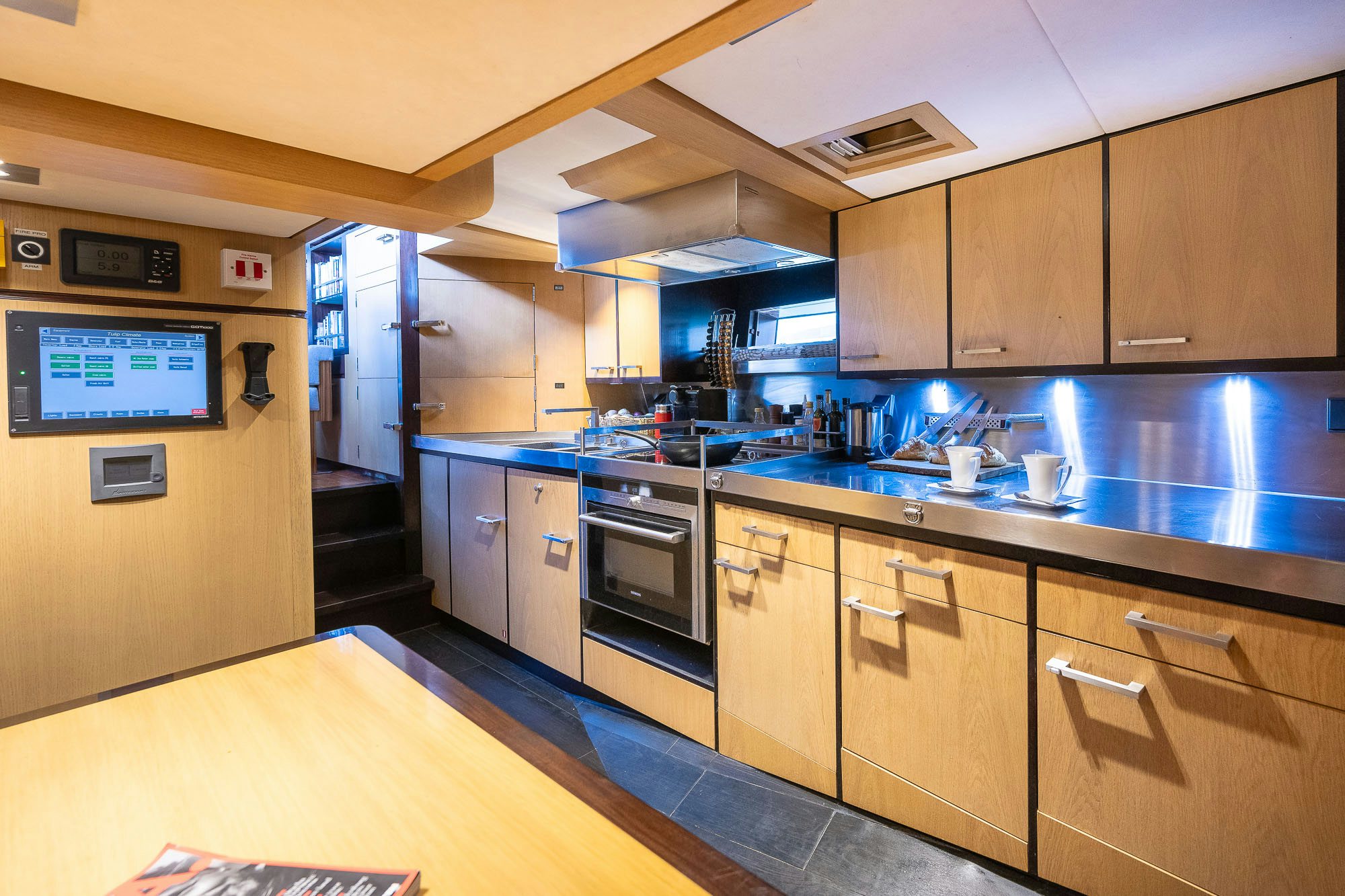

  • The galley area is situated on starboard aft, a few steps down from the saloon and includes a crew mess on the aftside. The galley area has a large window by the stove and an overhead hatch for added daylight and ventilation. Workspace is plentiful and the galley is equipped with a gimballed Siemens 4-burner induction cooker and oven with extractor fan above, two sinks (one with macerator), custom made fridge and freezer.

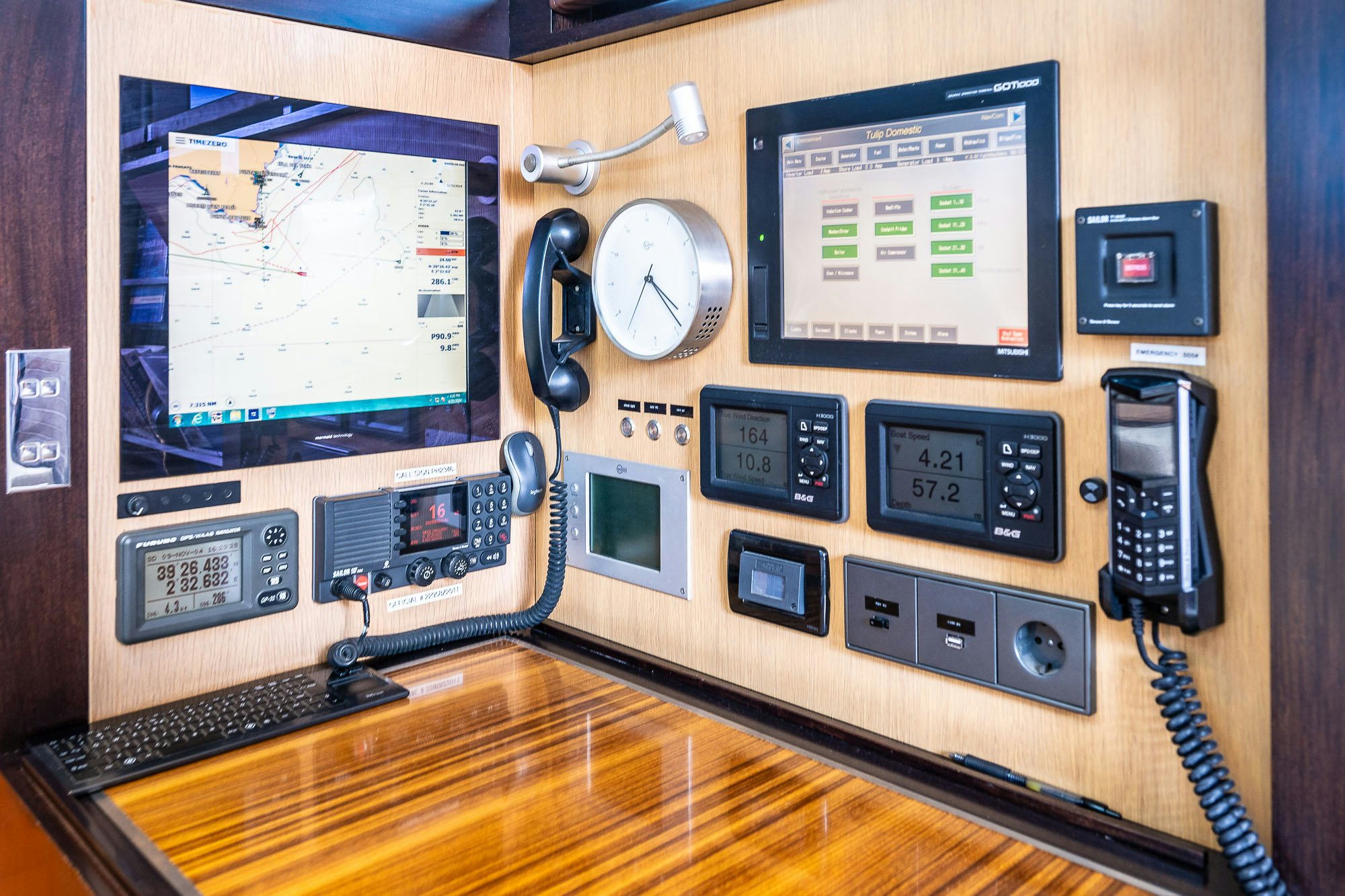

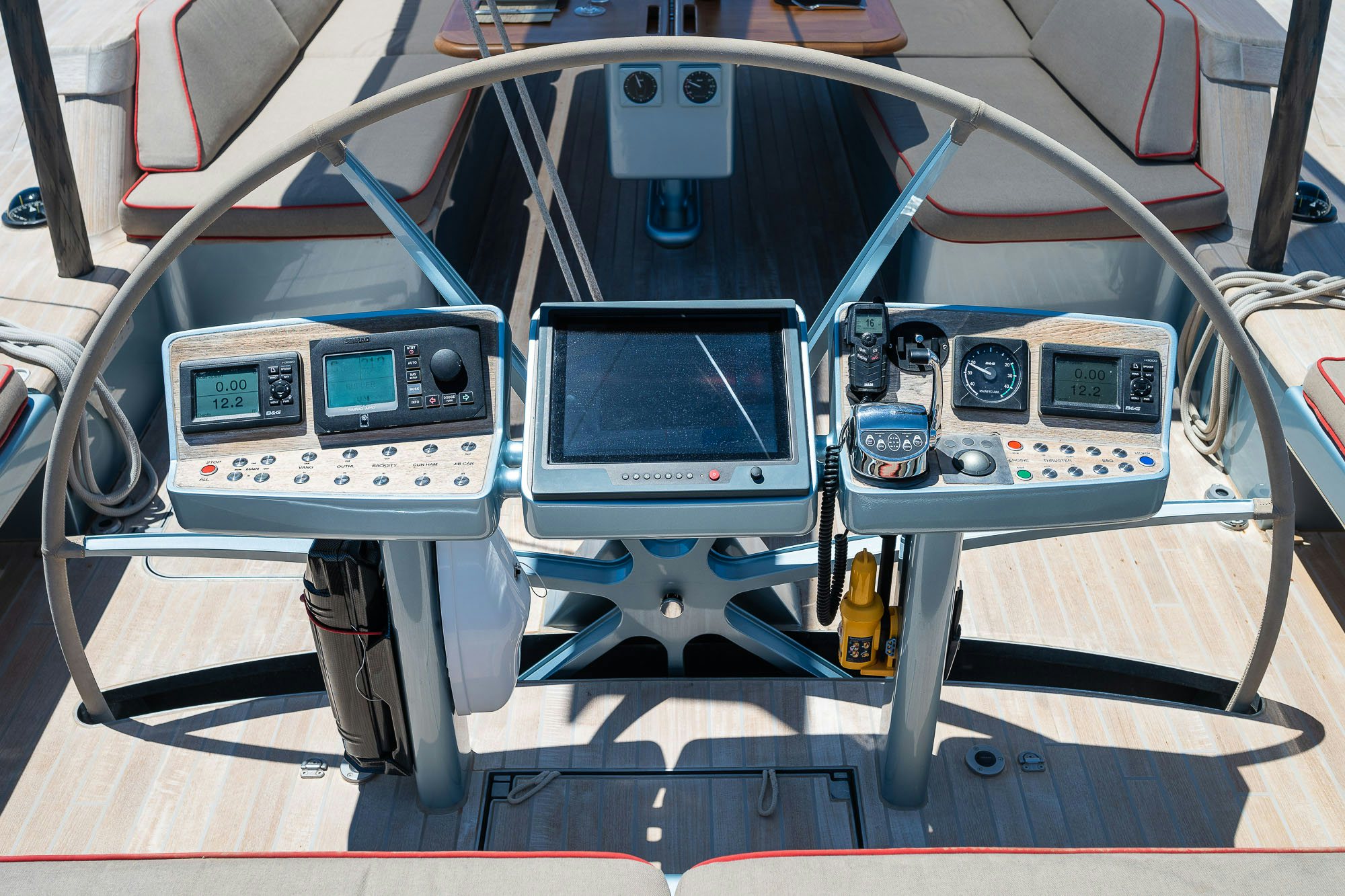

Navigation Equipment

  • Compass: Simrad RC25 fluxgate, 2 x C Plath Venus H
  • Echosounder/LOG/WIND: B&G H3000 cockpit, mast, helm
  • Radar: Nobeltec IR2-4D
  • Autopilot: Simrad AP50
  • GPS: Furuno GP32
  • Plotter: TIME ZERO
  • AIS: CTRXCarbon +
  • Emergency: McMurdo EPIRB, SART, Sailor TT3042E INMARSAT C DISTRESS
  • Sailor 150 Fleet Broadband
  • PLC's in crewmess, nav corner saloon, steering pedestal.

Communication Equipment

  • VHF: Thrane&Thrane Sailor 6222 VHF DSG and 2 x ICOM IC-M23

Entertainment Equipment

  • Stereo: Bose/Sonos
  • TV: Sony

Tenders & Toys

  • Tender: Neptune grey with black hull, 4m30 RIBLINE. Deck chocks and sea fastenings. Jockey pole.

Deck Equipment

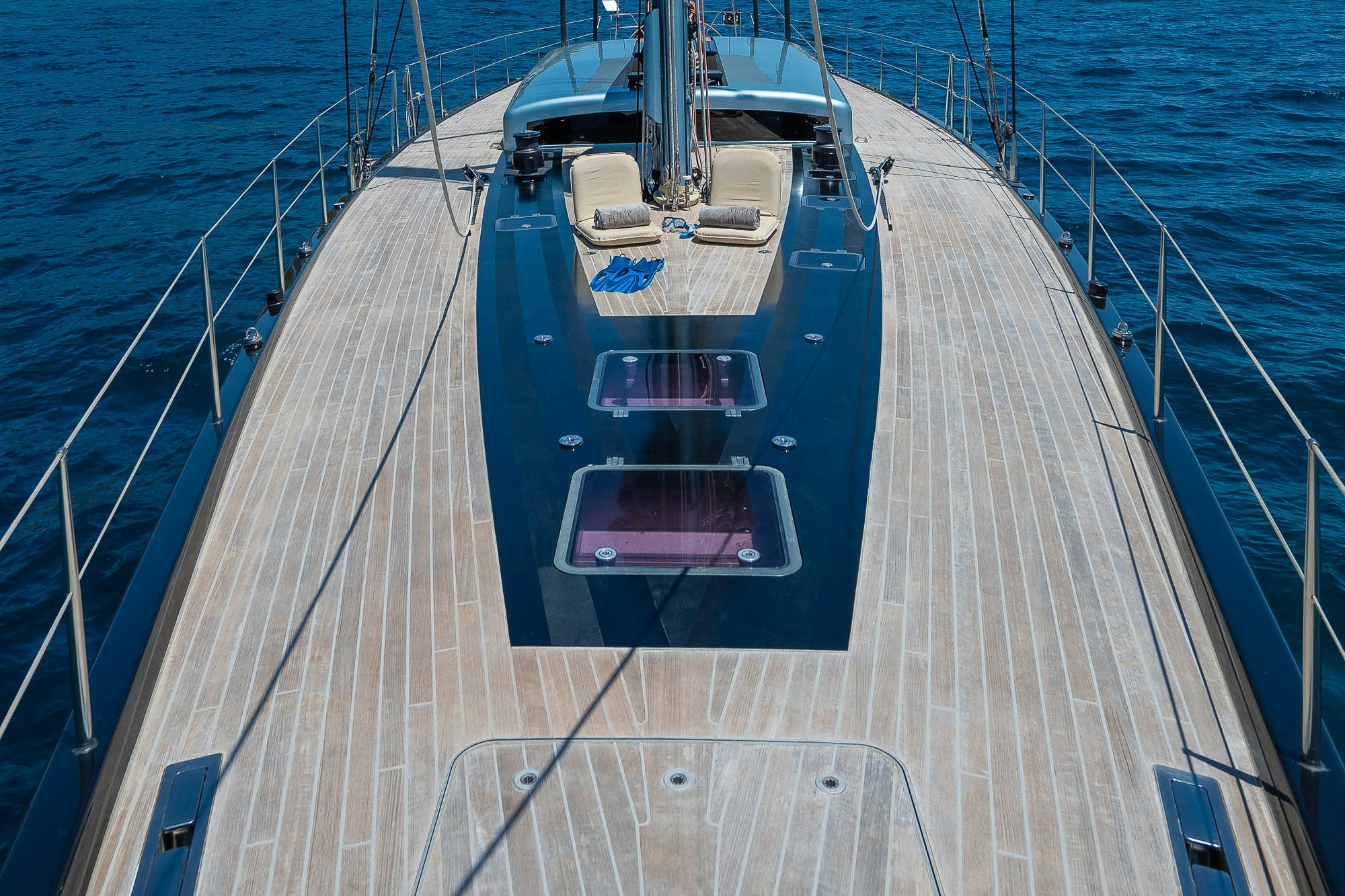

  • Hull fully insulated including decks underside.

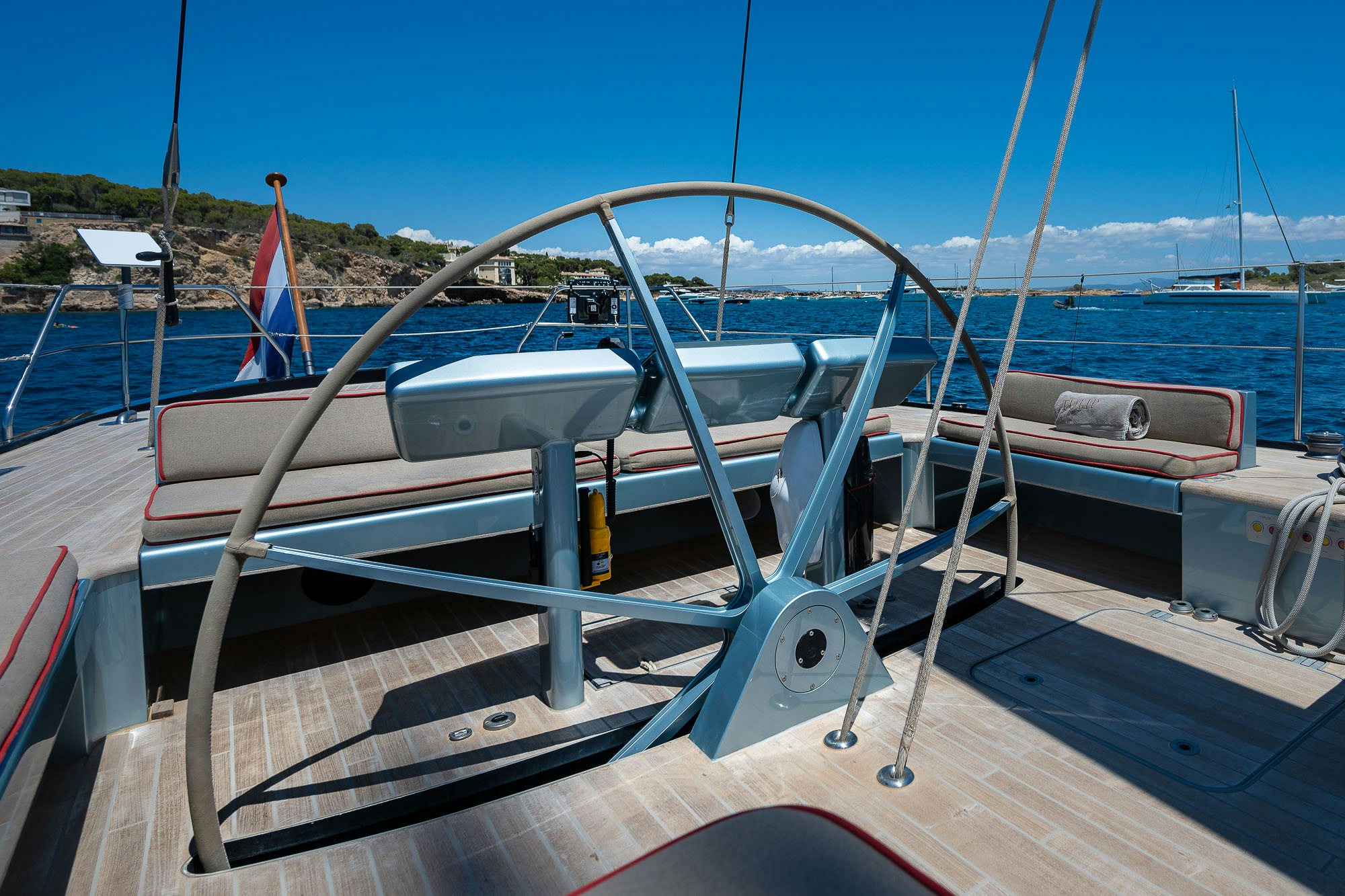

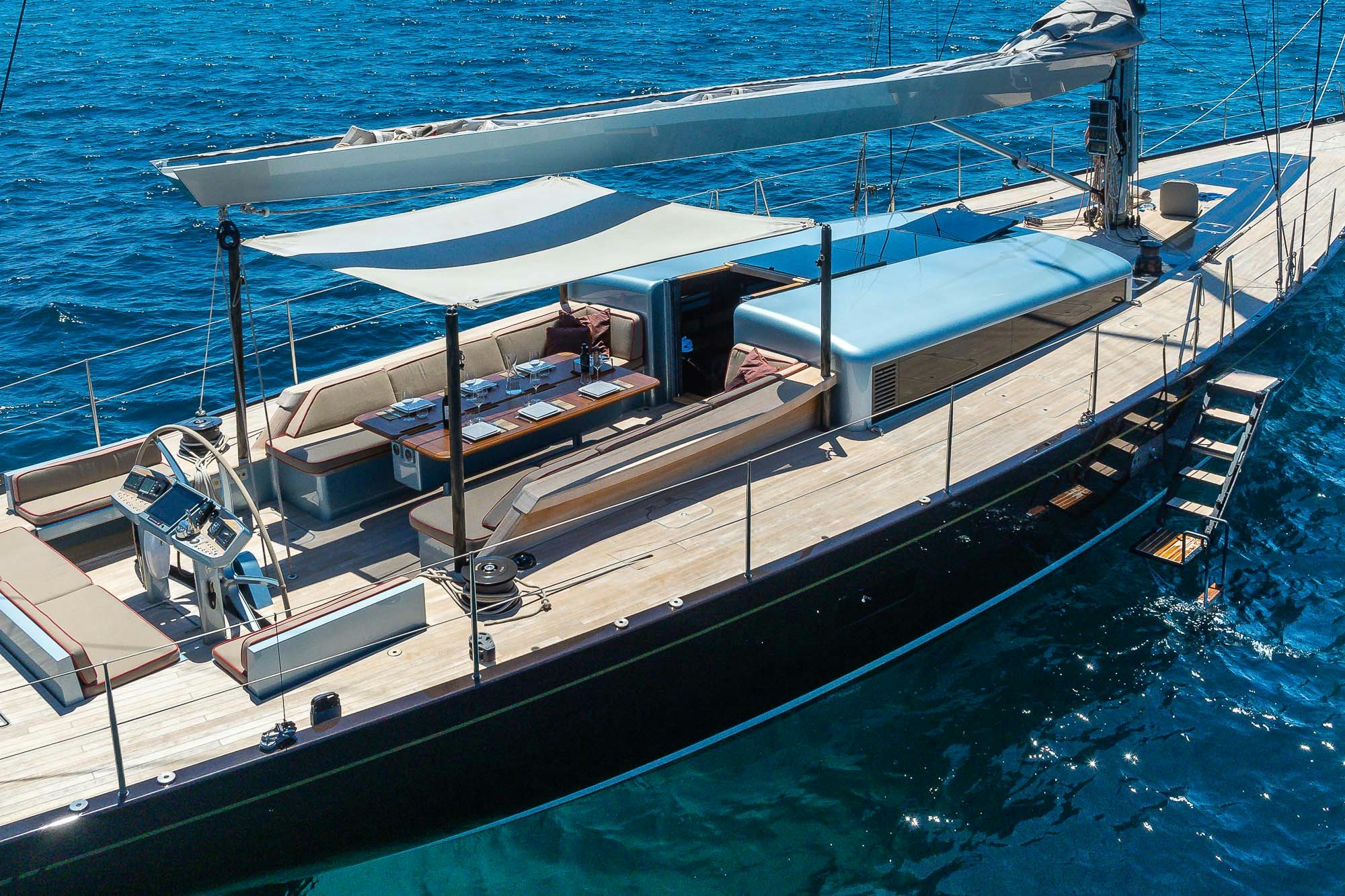

  • Bimini over cockpit and steering, easily removable.

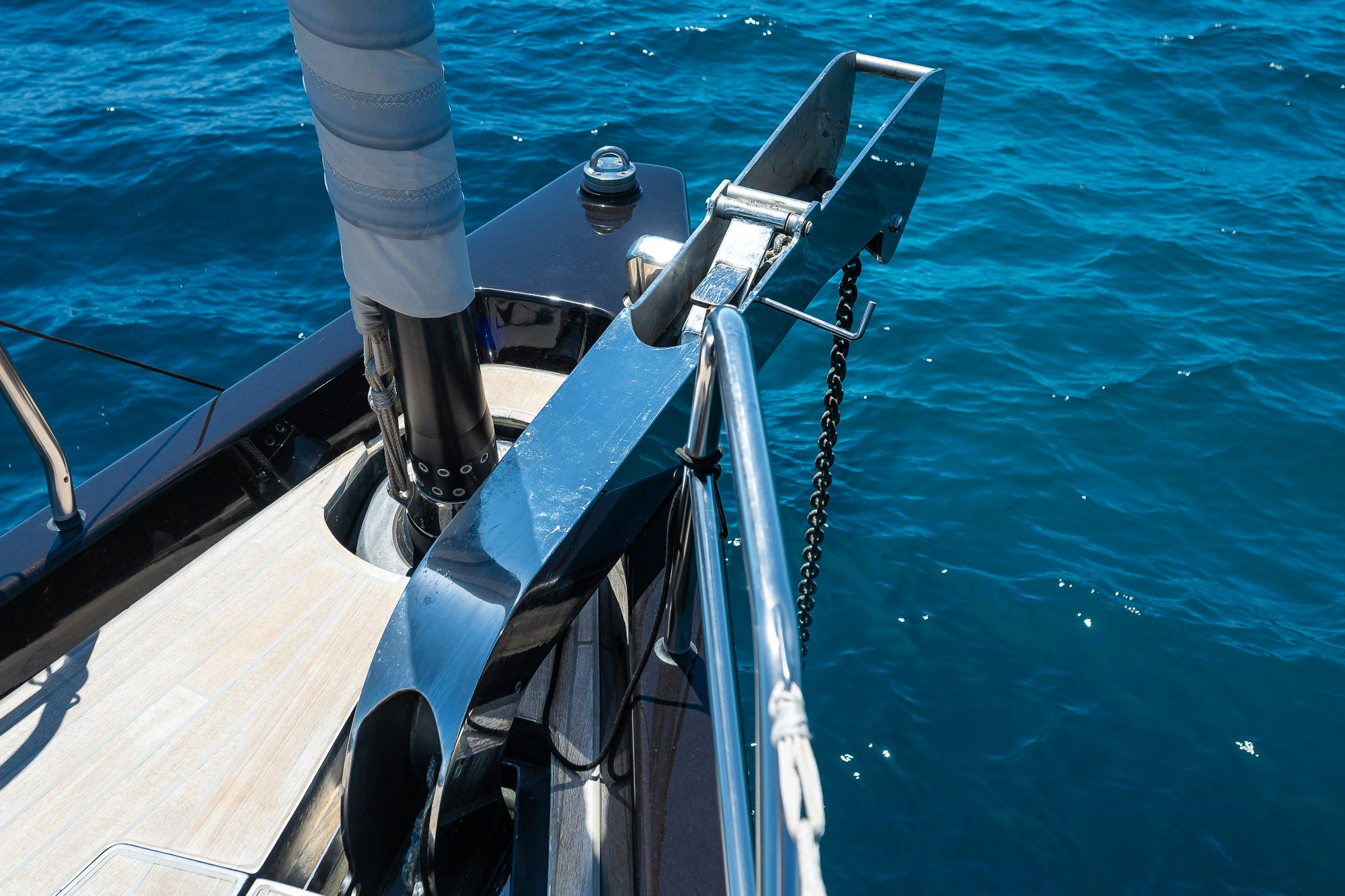

  • Outboard: Yamaha F60.Anchor chain: 13mm, 100m.
  • Retractable swim platform with shower and boarding staircase on starboard.

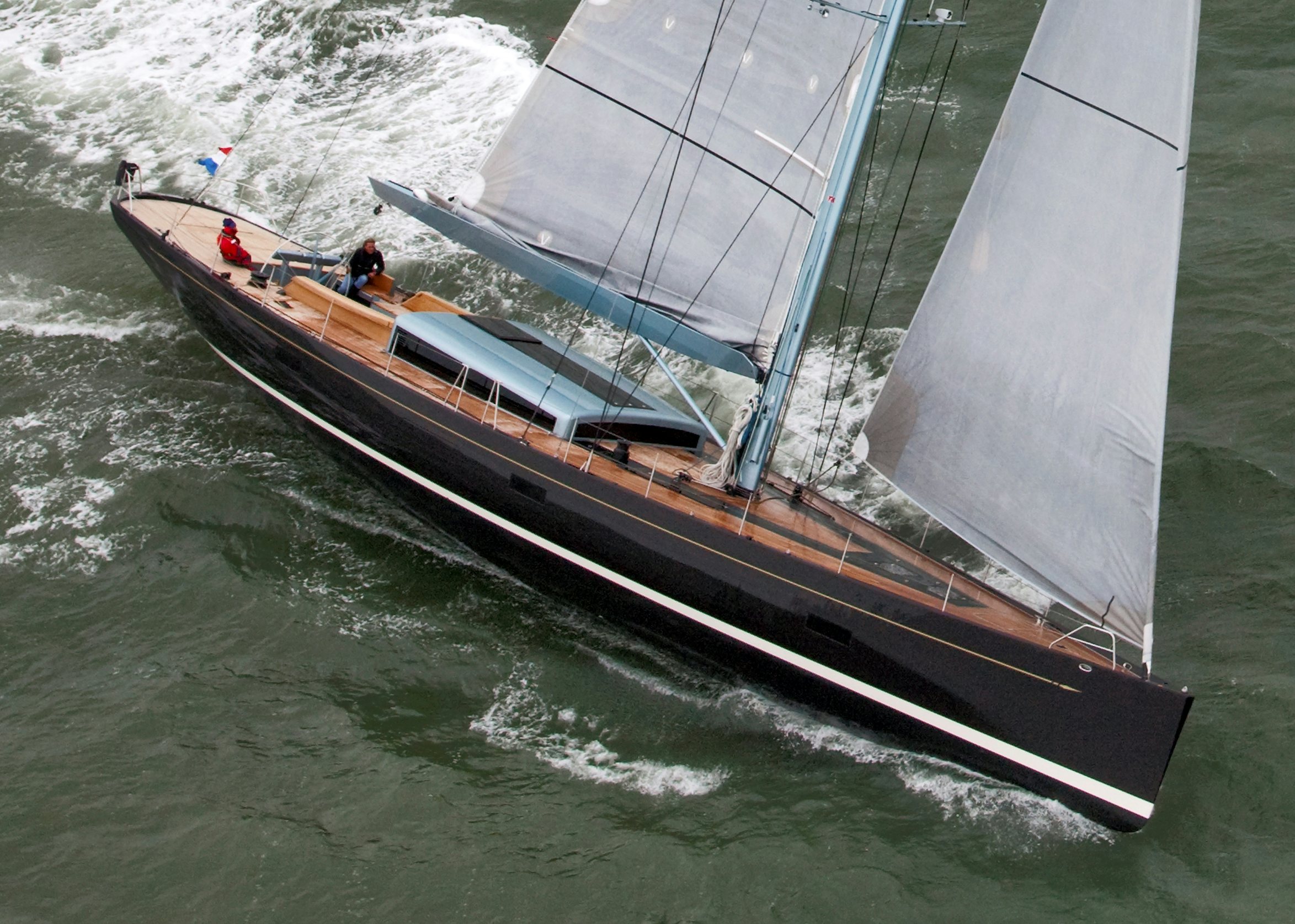

Rigs & Sails

  • Hall high modulus carbon mast.
  • Hall carbon boom with lazyjacks.
  • Carbon standing rigging.
  • BAMAR GFSI 25 flushdeck Furling on forestay.
  • Reckman SF12 furler on removable inner forestay.
  • North 3Di main (195m2) and jib (140m2) 2017.
  • Gennaker (591m2) 2019.
  • Code (337m2), staysail (84m2), stormjib original.
  • Boomvang Navteq A850-VC-060C

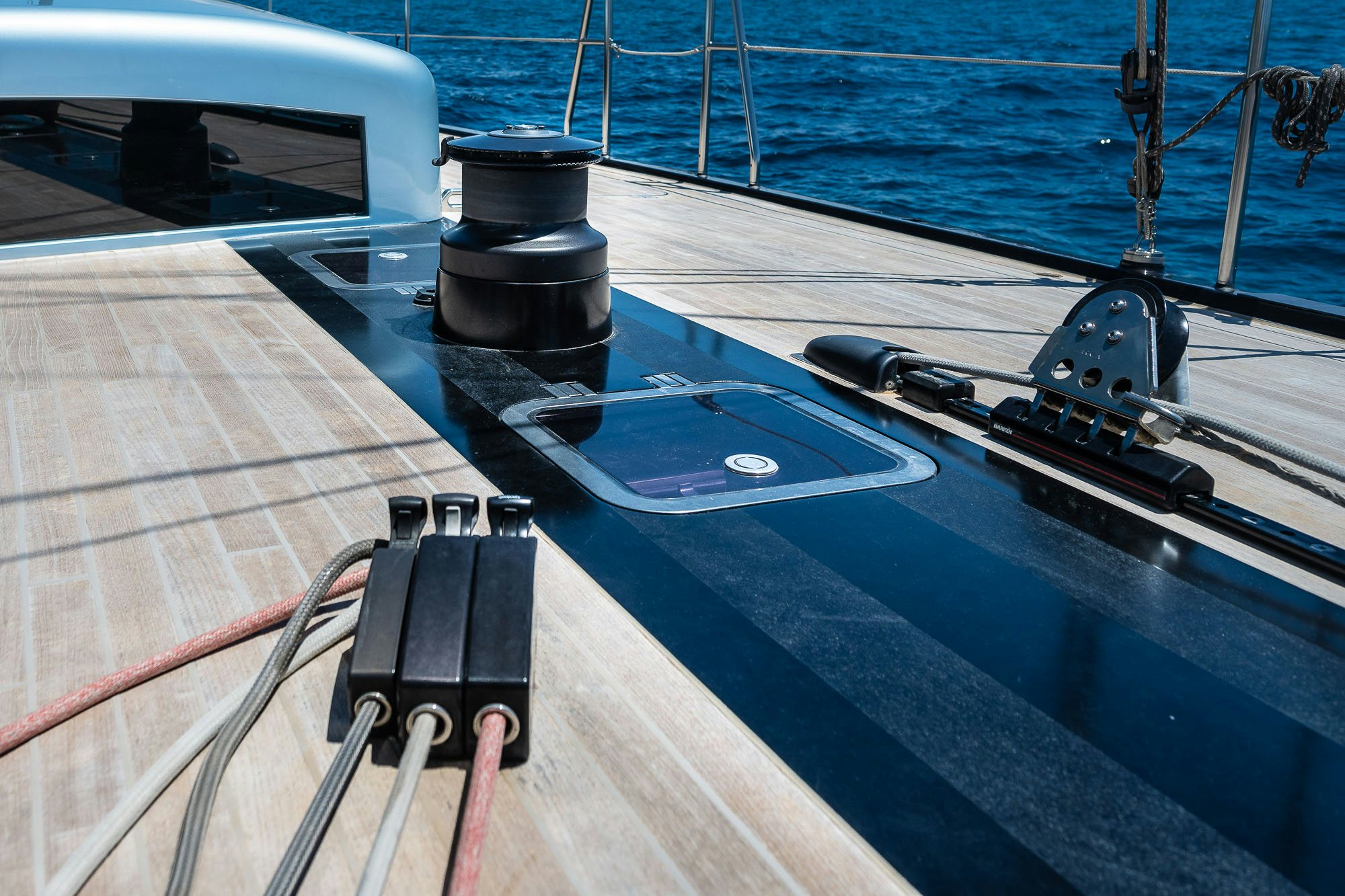

  • Primary winches: 3-speed Harken 1111 with double pushbutton controls
  • Mast foot winches: Harken 990

Safety & Security Equipment

  • Fire extinguishers: engineroom Fire Pro AF-X FP3000, 5 x foam 24L, 2 x powder 6kg.
  • Liferaft: 2 x Zodiac Extrem 8p, SOLAS A, including EPIRB and all safety equipment.
  • Lifevests: Spinlock
  • PLC alarms on all systems.
  • Smoke detectors

Refit History

10 YR Refit 2022-23

MAST

  • Rig –replace hanger, adjusters, forestay swages, repaint
  • Mast Jack –remove for service
  • Boom Vang –service, seals and Nitrogen recharge
  • Furler –service spherical joint; troubleshoot torque tube
  • Boom – paint, relace bushings on gooseneck and vang
  • Mast –repairs, repaint, pull new wires for lights, pull new antenna cables
  • Sails –cleaning, repair jib batten pockets, leach line, chafe repair

HULL

  • Paint –topsides, boot stripe, bottom
  • Blister Repairs –sandblasting around window
  • Rudder –pull rudder to access shaft and bearings, lube rudder bearings
  • Shaft –pull for full accessment
  • Boarding Ladder –remove for service of hydraulics, limit switches, water connections, door seal
  • Keel –service guides and bushings, remove hydraulic cylinders for service
  • Bowthruster – clean, inspect anodes, replace gear box oil, test old oil for contamination (replace shaft seals if needed)

DECK

  • Blister Repairs –sandblasting. z-block, coach window, cap rail
  • Paint –foredeck, companionway hatch
  • Winch Service
  • Anchor Locker Paint
  • Hatches –service hinges, seals, dogs; engineer single lever opening
  • Teak/Caulking –repair; cut back; sanding

MACHINERY

  • Hydraulics –keel rams, anchor swing arm, boarding ladder, staysail furler, auto pilot, windlass, replace suspect hoses
  • Tanks –inspect and cleaning all 7
  • Air Conditioning – service; descale, renew insulation, recharge, air handlers cleaning/inspection
  • Refrigeration –service; find gas leak in freezer compressor lines; replace sensor and fan motors on evaporators.
  • Pumps and motors –service impellers, seals, bearings, shafts, brushes, fans, test circuit and windings (short to ground, open windings) 60-75% of new replace
  • Main Engine –service
  • Generator -service
  • Water Maker –service, change membranes; replace sensors
  • Sewage Treatment Plant -service
  • Bilge Painting as needed
  • Replace suspect piping- jury rigged, previously failed

INTERIOR

  • Leather Floors –all cabins new
  • Varnish Repair –hallway, saloon, galley, fridge doors
  • Veneer Repair
  • LED Lights –fasten; replace ballasts
  • Replace OceanAir screens as needed

TENDER

  • Outboard –service, replace steering yolk
  • Steering – change oil, replace corroded fittings
  • Battery – clean/inspect cables
  • Electrical –clean/inspect switches, instruments, lights
  • Tubing/Conduit –replace for water tight integrity

ELECTRONICS

  • Pepwave
  • LOPO Lights – replace with sufficient wiring
  • Chargers –service (check burnt cables)
  • Mastervolt /Batteries –Load test, service check
  • Update Sonos player
