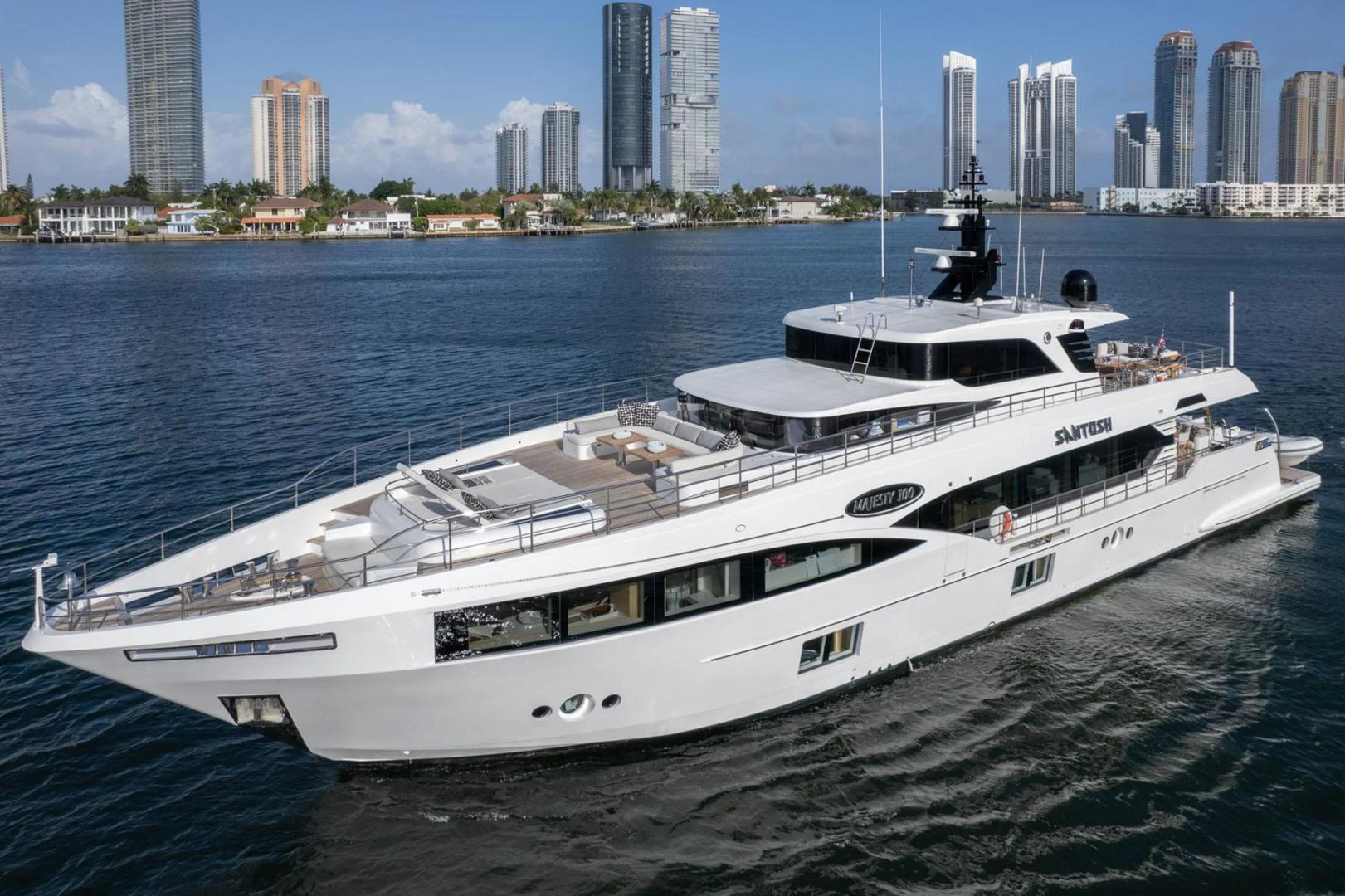

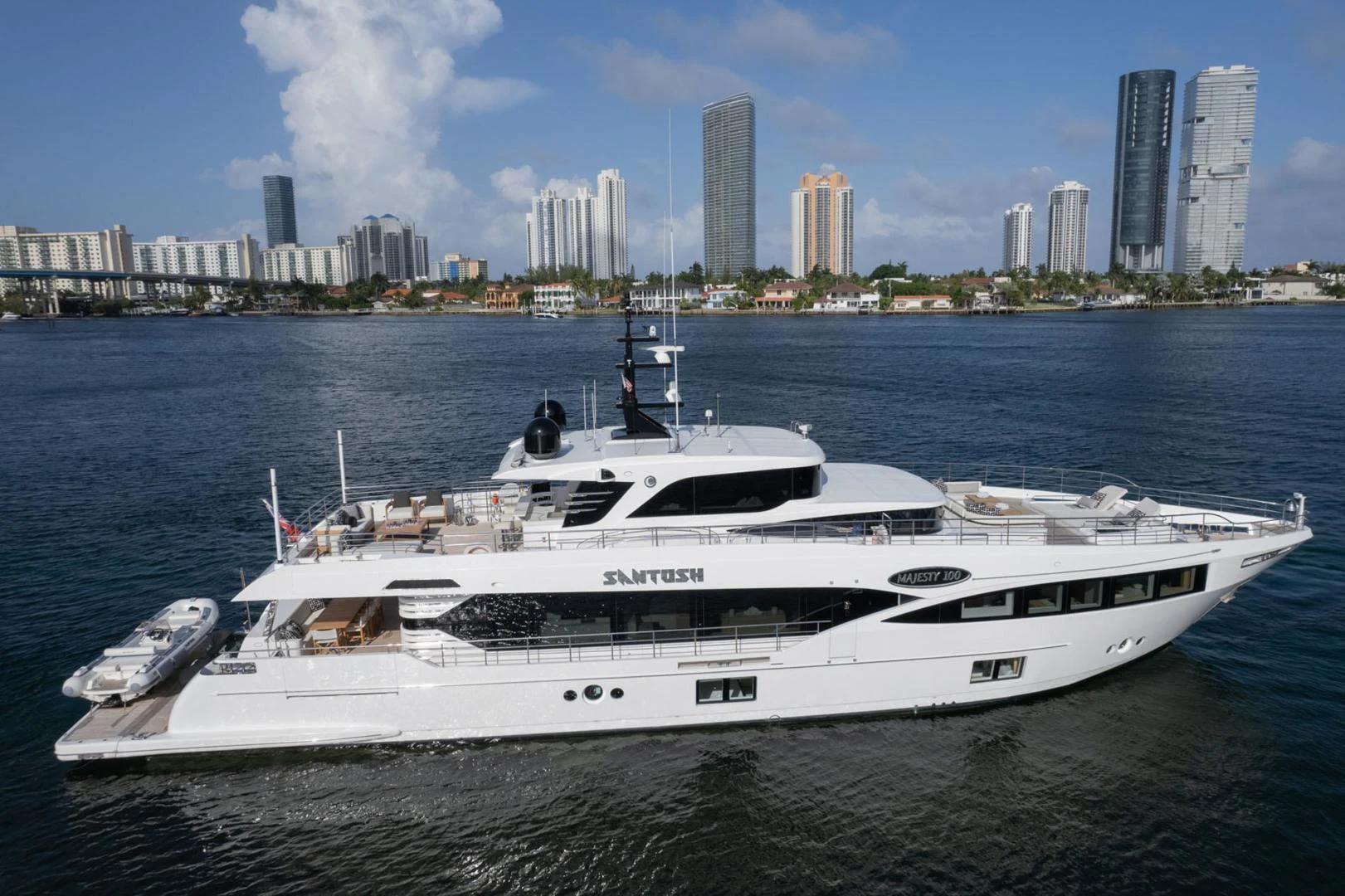

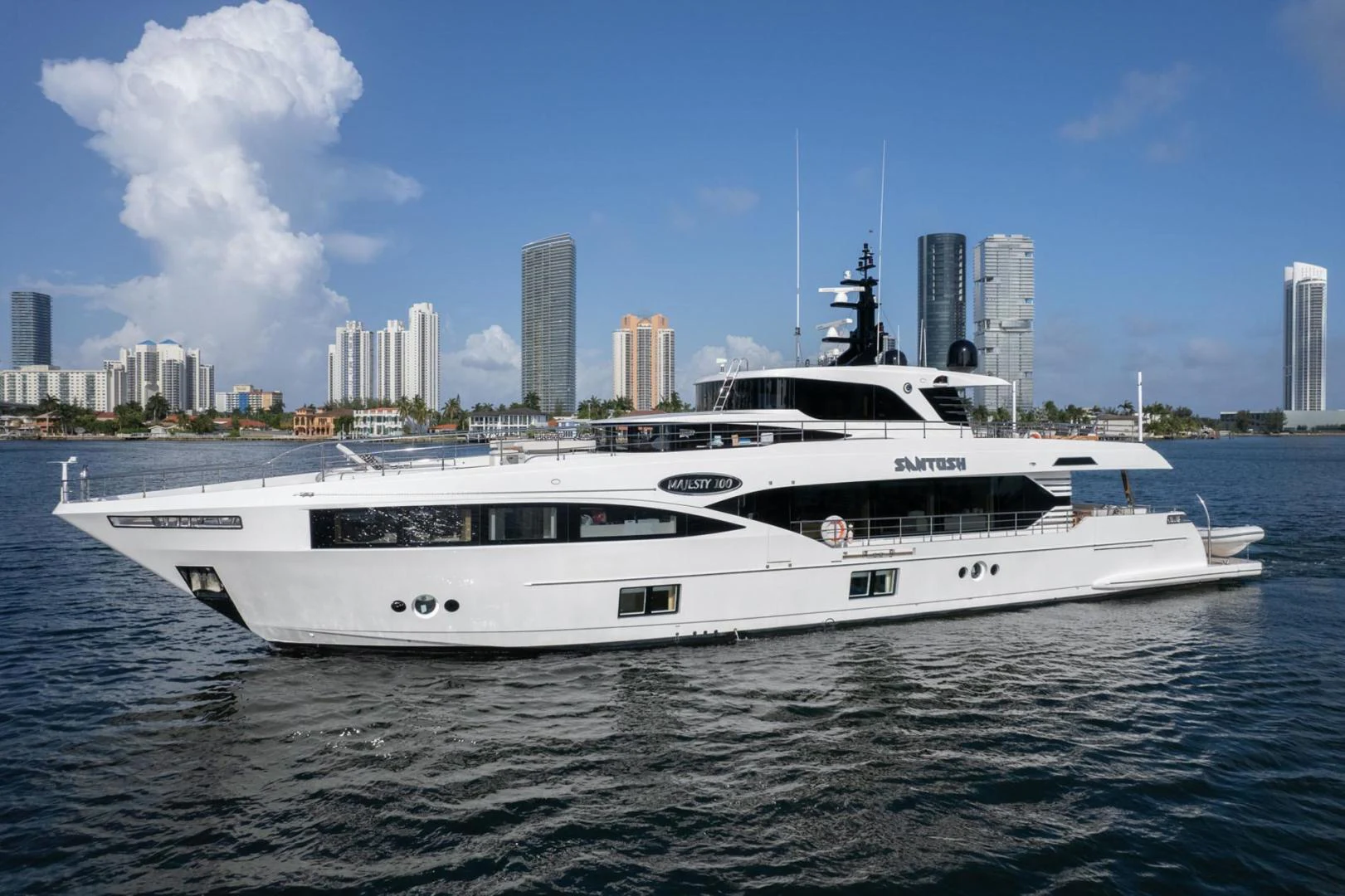

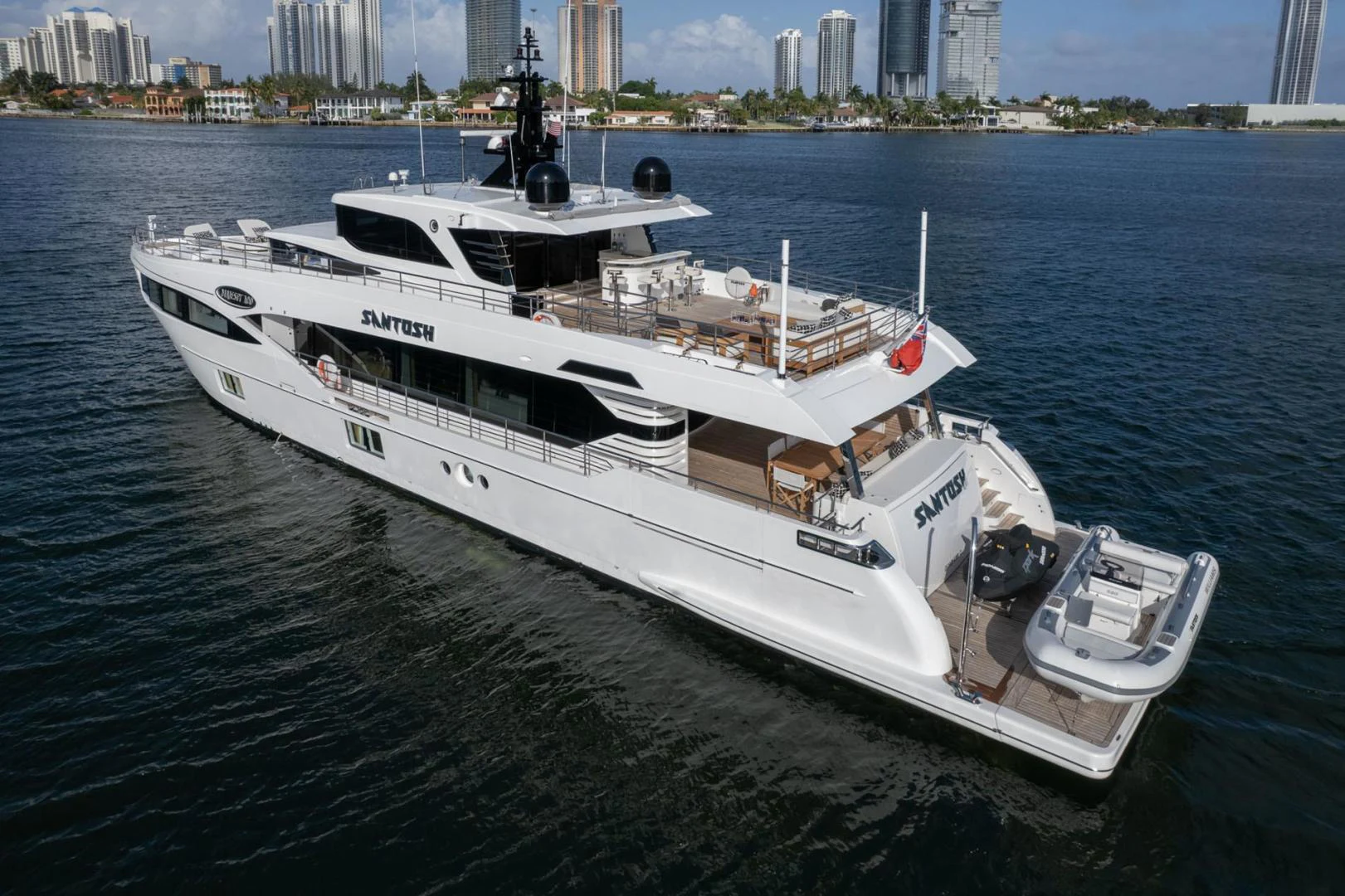

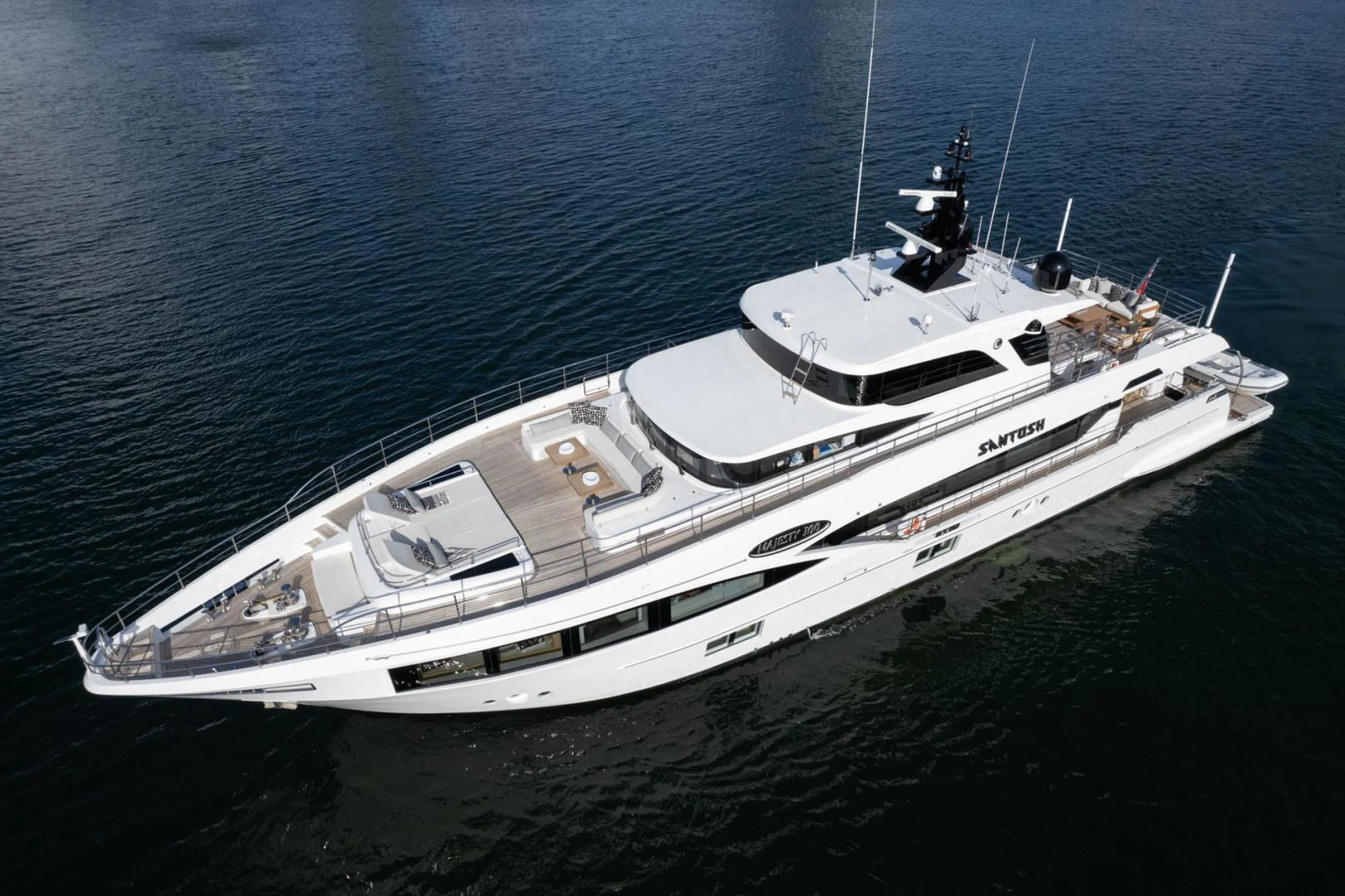

SANTOSH Yacht for Sale

• Water-cooled 4-stroke turbocharged engines with change air intercooler and waste gate
• Power System Electrical, 230-400V AC, 50Hz, 3~phase, 24V DC
• Yacht Controller: Yacht Controller, Dual Band Remote Controller

Lube Oil System

• AC Pump: Gianneschi, FQ70 T NO BY-PASS, 230/400V AC, 50Hz, Q:70 l/min,
• Power: 1.5 kW, RPM: 1400
• Manual Pump Sigma K1
• Exhaust and Ventilation Equipment
• Engine Room Exhaust Fan: CEM, VE56-P1, 460V AC, 50Hz, Q: 200 m3/min,
• Power: 3.6 kW, RPM: 1700
• Fire Dampers (Engine Room): CEM, FD-A60, Insulation Class: A60 Rated, Size: 570x570 mm
• Fire Dampers (Engine Room+ Galley): Gianneschi, G-MFD, Insulation Class:
• A0/A60 Rated Size: 100x100 mm
• Garage Room Blower: Gianneschi, ELPROM, Power: 0.25 kW, RPM: 2750
• Exhaust Blowers: Silent, TD 160/100N, Power:25W, RPM: 2500

Air Conditioning System

• Chillers: CLIMMA, CWS 961s Nominal Capacity: 96,000 B.T.U/hr, Supply; 400V
• AC, 50Hz
• AC Sea Water Pump: Calpeda, 1 HP
• Chilled Water Pump: Calpeda, 5.5kW
• Fresh Air Units: CLIMMA, 20k BTU/hr, Supply: 230V,50Hz, 2kW

Freshwater System

• Freshwater AC Pump: Gianneschi, ECOINOX 418, Head: H: 50/10 m Flowrate: Q: 5/90 l/min, 230/400V, 50Hz, RPM: 2900, Power: 0.85 kW
• Fresh Water DC Pump: Gianneschi, ECOINOX 418, Head H: 47/10 m:
• Flowrate: Q: 10/90 l/min, 24V DC. RPM: 2800, Power: 0.85 kW
• Water Maker: Idromar MC 2J Duplex, Capacity: 130x2 Liters/hour, 380VAC, 50
• Hz, 3-phase, 3kW, 190Kgs.
• Water Maker Pump: Lowara - Flowrate: 23-73L/min

Grey Water System

• Grey Water Pump: Gianneschi, Flowrate Q: 170/20 l/min,
• Sewage / Black Water System
• Electric Toilets: Tecma Toilets
• Black Water Pump: Gianneschi, Flowrate Q: 170/20 l/min
• Sewage Treatment Plant: Selmar, Blue Sea 2500 Plus, S/N: 2019H26001,
• Power: 400VAC, 50Hz, 3-PhASE + G
• Bilge System Electric
• Bilge Pump: Gianneschi, Q:500/100 l/min
• Manual Bilge Pump Super Lario 3”
• Submersible Electric Bilge Pumps: Rule, Type: 3700 Gallons/hour
• 24V DC System
• Glendenning Cable Master 25m shore power cable
• 50kW Isolation transformer (new)

Battery Chargers

• Engines Battery Chargers: Victron, Blue Smart, Output: 16A,24V DC, Supply: 230V AC
• Service Battery Charger: Victron Energy, Skylla-i, Output: 80 A, 24V DC,
• Number of outputs: 3
• Machinery Battery Charger: Victron Energy, Skylla-i, Output: 80 A, 24V DC,
• Number of outputs: 3
• Generator Battery Charger: Victron, Blue Smart, Output: 16A, 24V DC
• Emergency Battery Charger Manufacturer: Victron Energy, Centaur, Output: 30 A, 24V DC
• Distribution Panels
• 230V AC power is distributed through distribution panels located in the wheelhouse, galley passage area, crew lounge, and guest lobby
• 230V AC Main Deck Distribution Panel
• 230V AC Main Galley and Forward Crew Distribution Panel
• 230V AC Lower Deck Distribution Panel
• 230V AC Aft Crew Distribution Panel

• Radars Garmin, Open-Array, GMR 606 & 604 xHD, Tramit 6 kW, Maximum range: 72nm
• AIS: Garmin, 600 Blackbox Transceiver
• Navigation Lights: Dan Haan Rotterdam, 24V DC
• Navigation Displays: Garmin, Main Console GPSmap 8417
• Instrumentation Display: Garmin, Type: GMI 20
• BNWAS: JRC, Type: JCX-161
• Sonar Garmin, GSD24
• Transducer: Airmar, Type: B164 SS164, Max Depth 1200-1800 ft
• Autopilot: Garmin, GHC 20
• Searchlight: JABSCO, 24V DC
• Magnetic Compass: Ritchie, Type: Northern Hemisphere
• Night Vision Camera: FLIR, Model 3245 NTSC, 24V DC with joystick
• Chart Plotters: Garmin, GPSMAP 8417
• GPS: Garmin, 19x NMEA
• Wind Transducer Garmin, Gwind
• CCTV Cameras: Hikvision DS-2DE4225IW for Engine Room Fwd & Aft
• IP66 PTZ CCTV Cameras: Hikvision DS-2CD1123 GOE-1 / IP66 dome camera for Flybridge, Main Deck, Gunnels Port & Stbd
• Digital Video Recorder: Hikvision DS-7616NI-K2 / 16P-16-CH with Poe NVR
• Wheelhouse Camera Display: Garmin GMM 8417, 24V DC

• VHF Radio: JRC, NCM-1770
• MF/HF Radios: JRC, JSS 2150NB
• Navtex Receiver: JRC, NCR-333
• DGPS: JRC, JLR 7900
• GMDSS Batteries: Victron, Type: 12V-165 AH
• Satellite Phone: Thuraya Phone
• Intercom System: Panasonic PABX
• Master Station Intercom: Zenitel, Type Vingtor ETB5

• Anchor Winch: Italwinch, Sun E Windlass 1900, Hydraulic, 5.5 HP (4 kW), 1900kg Pulling power, 12m/min speed, 316L Material
• Anchors: Pool TW SHHP, 114 kg 150m length, 12.5mm diameter, Chain Grade: U2
• Mooring Ropes: HT Polypropylene 3 strand, 24 mm diameter, 70 m length
• Capstans: Italwinch – Aran 2300, 24V DC, 2300W
• Tender Lift: Opacmare 5211.12.08.24, Lifting capacity with swim platform = 800 Kg.
• Air horn

Safety Equipment

• Fitted with safety equipment and life-saving equipment according to the regulations by RINA rules
• Solas or MED approved inflatable life jacket with light and whistle - Adult 23 pcs. + 1 XXL
• Solas approved inflatable life jacket – Child 2 pcs.
• 2 x Lifebuoy with light & smoke
• 2 x Lifebuoy with buoyant lifeline
• Muster station
• Life raft 8 persons (type b) port & stbd
• Life raft 10 persons (type b) port & stbd
• 3 x First aid kits (category c)
• 4 x Sets of line throwing appliances (4 line plus 4 charges)
• 6 x Ships rocket parachute flares
• EPIRB
• SART
• 2 x Two-way radio telephone sets (VHF)
• Embarkation ladder
• Man overboard (Jason’s cradle)
• 8 x Smoke hood
• Immersion suits with inherent insulation - Adult 18 pcs.
• Immersion suits with inherent insulation - XXL 2 pcs.
• Immersion suits with inherent insulation - Child 2 pcs.

Firefighting Equipment

• 2 x Fire blankets
• 17 x Fire extinguishers 6kg dry powder (11pcs + 50% = 17pcs.)
• 3 x Fire extinguishers 9kg carbon dioxide (2pcs + 50% = 3pcs.)
• 1 x Fixed fire extinguisher fm-200
• 27 x Smoke detector
• 6 x Space or group of spaces monitored by heat detector(s)
• Control panel for fire detection and alarm system
• 12 x General alarmx
• 15 x Fire bells (klaxon)
• Fm-200 remote release station
• 10-meter bilge hose with strainer
• Remote control for fuel oil valves
• 4 x Engine room fire dampers
• 2 x Service & accommodation fire damper
• 4 x Fire hose reels – 38.1mm x 20mtr jet spray nozzle stz – 1 ½”
• 4 x Fire hydrants
• 1 x Fire pump
• 1 x Bilge pump
• 1 x Portable emergency fire/bilge diesel pump
• 1 x Remote control for fire dampers
• 1 x Remote control for fire pump
• 1 x Fuel oil pump remote shut off
• 1 x Emergency switch board
• 10 x Call points
• 2 x Fire axes
• Safety plan
• 1 x International shore connection
• 2 x Sets of Emergency source of electrical power
• 1 x Ventilation remote control or shut-off
• 2 x Fireman’s outfits
• 2 x Explosion proof fireman’s radios
• 1 x Fire main isolating valve
• 1 x Garage sprinkler isolating valve
• 2 x Garage protected by water sprinklers
• Push button switch for general alarm
• Portable gas detector
• Solas poster and signs showing survival craft and equipment operating instructions
• Training manual
• Instruction for onboard maintenance
• Life-saving signal & resque poster
• Gas fumes detectors loc in garage room: Salwico GD 2 pcs
