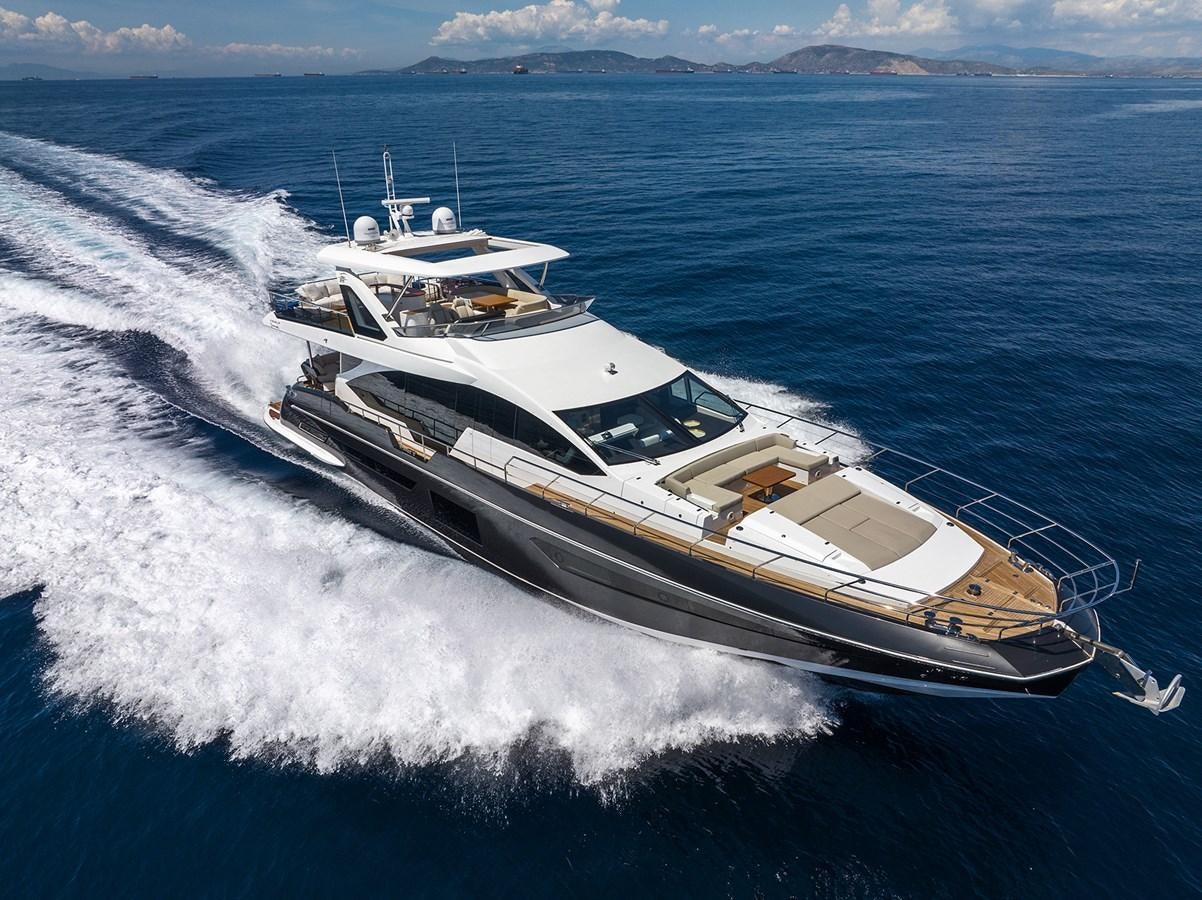

MIA CA Yacht for Sale

Length
87' (26.6m)
Builder
AZIMUT YACHTS
Build
2019
Cabins
4
Crew
4

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder AZIMUT YACHTS
Model 25 Metri Grande
Length (LOA) 87' (26.6m)
Year 2019
Gross Tonn. 78
Draft 7' (1.85m)
Beam 20' (6.2m)

Accommodations

Staterooms 4
Sleeps 8
Crew Cabins 4
Crew Sleeps 4

Dimensions & Capacity

LOA 87' (26.6m)
Max Draft 7' (1.85m)
Fuel Tank 1,902 g (7,200 L)
Fresh Water 291 g (1,100 L)
Gross Tonn. 78

Construction

Hull Material Fiberglass
Ext. Designer Pierluigi Ausonio Naval Architect &Azimut
Int. Designer Achille Salvagni
Cruising Speed 22 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Engine Ventilation: yes
  • Under Water Lights: yes

Firefighting & Bilge Pump:

  • Yes - Azimut spec available upon request

Air Conditioning:

  • One refrigerating unit with inverter, 144,000 BTU/h located in the engine roomOne seawater pump with relevant intake and filter The system is composed of 15 fan coils arranged as follows:
  • one in crew dinette
  • one in crew cabin
  • one in commander's cabin
  • two in owner's cabin
  • one in guest cabin with double bed
  • one in guest cabin with single beds
  • one in VIP cabin
  • four in saloon
  • one in galley
  • two in wheelhouse
  • Each area has its own independent control panel

Engine Room Ventilation:
Galley Ventilation & Extraction:

  • Engine room air intake through two axial fans, 2800 rpm, 24 V, 0.4 kW each Extractor hood

Accommodation

  • OVERWIEW: 4 cabins + 2 crew cabins
  • ACCOMMODATIONS: 1x Master cabin , 1x VIP cabin , 1x Double cabin , 1x Twin cabin (convertible)
  • MAIN DECK: Dining saloon, Main saloon, Aft Deck seating area with BBQ , Day head, Kitchen, Wheelhouse
  • SUN DECK: Sundeck with sunbathing area, dining area and BBQ
  • CREW ACCOMODATION: 2 crew cabins

Galley & Laundry Equipment

MAIN GALLEY EQUIPMENT
Cooking Equipment:

  • 1x Miele Oven
  • Extractor hood
  • Induction hobs

Refrigeration/Freezer:

  • 1x Mabe 419 l (14.8 cu.ft) refrigerator+ 2471 (8.7 cu.ft) freezer

Dishwasher:

  • 1x Miele

Other:

  • 1x Hoover washing machine, 1x Miele dryer machine

Other:

  • 1x Sun Deck BBQ , icemaker and fridge
  • 1x Aft Deck BBQ , icemaker and fridge

Communication Equipment

  • VHF Radiotelephones: yes
  • Portable VHF: yes

Navigation Equipment

  • Monitors: 4x Raymarine
  • X-Band Radar: 1x Raymarine
  • Chart Plotter: 1x Raymarine
  • Magnetic Compass: 1x Powerdamp
  • Auto Pilot: yes
  • Rudder Angle Indicator System: 1x Optima
  • Horn: yes
  • Search Lights: yes
  • Bridge Navigation Watch Alarm: yes

Entertainment Equipment

Main Salon:

  • TV lift system, port side
  • 40"TV
  • Two ceiling-mounted recessed speakers

Master Stateroom:

  • 40"TV
  • Audio system with two speakers on ceiling

VIP Stateroom:

  • 32"TV
  • Audio system with two speakers on ceiling

Guest Staterooms:

  • 24"TV
  • Audio system with two speakers on ceiling

Other :

  • Audio system in main external spaces: cockpit, flybridge, bow

Tenders & Toys

  • Tender: 1x AB380tender jet

Deck Equipment

Anchors:

  • 1x 110 kg

Anchor Chains:

  • Anchor chain 14mm, L= 100m

Anchor Windlass System:

  • One electric vertical anchor winch, 3500 W, reversible, fixed to a stainless steel plate and recessed in relation to the main deck level

Gangway:

  • yes

Platform:

  • Two stainless steel handrails 0 40 mm thickness 2 mm
  • Extractable manual swimming ladder positioned on starboard side

Safety & Security Equipment

  • CCTV: Yes

Monitors:

  • Raymarine monitoring and supervision system BRONZE Package (STDversion), it includes essentially:
  • Flybridge: 2 monitors mod. Axiom 16 Pro, 16"; p70 Rs (automatic pilotcontrol)
  • Wheelhouse: 2 monitors mod. Axiom 16 Pro, 16"; 1 monitor Axiom 7, 7"
  • Crew: 1 monitor mod. Axiom 9, 9"
  • Radar, quantum model

Smoke Detection:

  • yes

Fire Alarm:

  • yes

Life Rafts:

  • 2

Lifejackets:

  • yes

Life Rings:

  • yes

EPIRB:

  • yes

Flares and Signals:

  • yes

Medical Equipment:

  • yes
