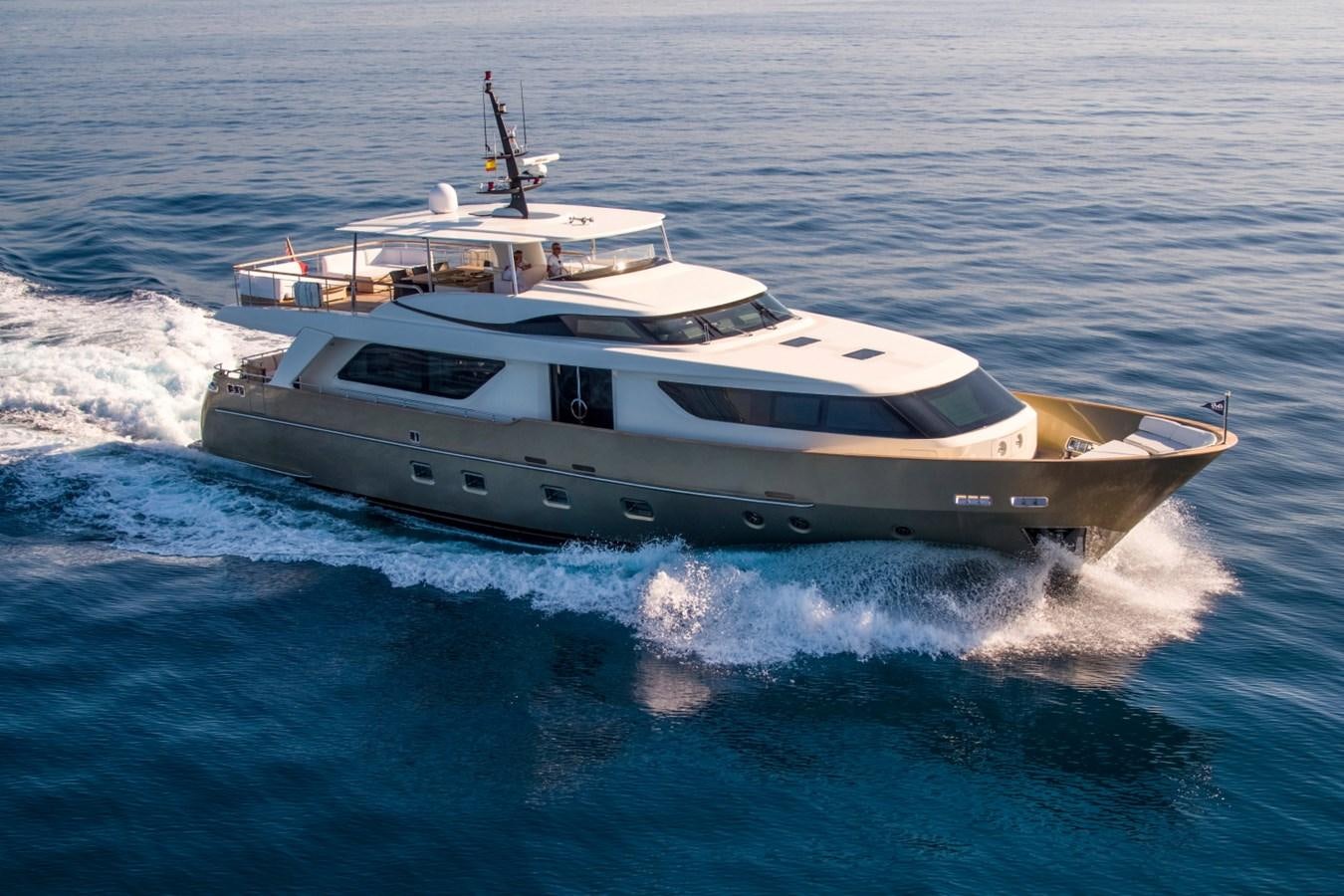

MAI Yacht for Sale

Hull ID – Hull no. SLV 92/21

Hull Configuration – Semi Displacement

Classification – RINA

VAT status – PAID in the UK

Base Category:  MY

Year Built:2010

Model Year: 2010

Model: 92 SD

Refit year:2019

Paint on hull – Olive Green Metallic Topsides, with White Superstructure

Naval Architect: Sanlorenzo

External Designer: Francesco Paszkowski

Internal Designer: Tiziana Vercelessi

Displacement: Light Ship 97.7 tonnes, fully loaded 116.4 tonnes

Gross tonnage: 111.12 tonnes

Engines: 2x MAN V 12 1200 882 kW/1200 Hp

Engine hours: Port 3146 HRS STBD 3141 HRS

Generators: 2x Kohler Gensets 33kW, 380VAC, 50Hz

Generator hours: Port 5317 HRS STBD 5323 HRS

propulsion type: Shaft/Propeller

Steering: Hydraulic Steering Rudder

Propeller: 5-Blade NiBrAl high skew units, reportedly Φ1050x1200mm

Gearbox: ZF BW 2150 A Reduction 2.92:1

Maximum speed:  17 kts

RPM@ max speed. 2150

Range: 600 NM

Cruising speed: 11 kts

RPM@ cruising speed: 1200

Range. 2200 NM

Consumption 80L/hr

Tankage

Fuel: 2 x GRP tanks (16000L)

Fresh water : 1 GRP tank (2700L)

Grey water: 1 GRP tank (1000L)

Bow thruster:   American Bow Thruster Electric

Stern Thrurster: ABT Hydraulic

Stabilizers Type: ABT Trac Fin x 2

2 x Hydraulic steering pump.

Water maker: Idromar 230 litres/hour 1125hours

Air-conditioning: Condaria Chiller rated at 180kBTU with Air Handlers

Voltage: 400 VAC
Frequency: 50 Hz
Shore power: 400 V
Batteries: Service – 24 x Tudor Gel GEPZV 480 AH 2 VDC

Engine Start: ME Port side 2 x Exide Gel G210 240 AH- 12VDC

                      ME STB side 2 x Exide Gel G210 240 AH-12VDC

Generator: Port 2 x Exide Gel G221 AH 12V DC

                  STB 2 x Exide Gel G221 AH 12V DC

                  8 x Tudor Gel 180 AH 6VDC for emergency utility batteries

                  1 x Exide Gel G60 60AH 12 BDC for Radio Emergency

Battery Charger: Mastervolt 2 x Mass 24/100 for Utility

                           1 x Mass 24/100 for ME Ignition

                           2 x Mass 24/15-2 for Emergency batteries

                           1 x IVO compact 12/24 for Generator

                           1 x EVO smart 12/15 for VHF

Lighting: LED  throughout the yacht

Underwater Lighting: 4 aft of the yacht

Weelhouse

- Magnetic Compass

- Magnetic Compass

- Chartplotter Raymarine

- Radar Furuno

- Rudder Angle Indicator NaviControl

- Flaps Angle Indication NaviControl

- Navtex JRC NCR300A

- SSB Skanti

- Motorola GSM Phone

- Intercom Bow Area

- Horn

- Remote Floodlight Sanshin

- Wipers (3x)

-2x Multifunction 19¨Monitor (GPS, ECO RADAR)

-Autopilot Simrad AP 50

-Tridata IS 20

-Wind station IS 20

-CCTV 6 cameras  3x on aft deck + 3x engine room

-Wind Display

-Thermal Camera Flir

-VHF Simrad RS82

-AIS Simrad Transponder

-Sanlorenzo multifunction display board

-2 x MAN engine display

Fly Bridge

Multifunction Monitor GB 60

Autopilot Simrad AP 50

Tridata IS 20

VHF Simrad RS 82

Network: Sanlorenzo

Toilet System: Techmar

Sewage Treatment: Hamann Mini

Hot Water Tanks: 2 x Boiler 100l

Fresh Water pumps: Gianneschi 1 x 380 V 1 x 24V

Bilge Pumps: 4 x Automatic bilge pumps

Seawater System: 1 x Seawater fire pump 380V

Fire Pumps: 24V Emergency

Anchor wash:  24V Anchor wash

Saloon: Samsung TV with Hifi system

Owners Suite: TV with Hifi system

VIP Cabin: TV Hifi

Guest cabins: TV with Hifi

Crew mess: TV

Sat Antenna

Crestron music system in all cabins

GE refrigeration

Miele washing machine and dryer

GE Frige Greezer

Icemaker on flybridge and fridge bottle frigormar

Miele Oven

Miele Microwave

Miele Dishwasher

Frigomar marine top loader Fridge / Freezer @ Flybridge with Heat Exchangers

Aft Deck

Large dining table to comfortably seat 8 guests

Flybridge

Coming up to the vast flybridge from the lower aft deck by exterior staircase, you will find a table for alfresco dining for guests, covered by the hardtop ensuring shade whilst dining.

Two vast sun- loungers are placed towards the aft corners of the fly, which can be converted into two L-shaped sofas with coffee tables, providing an exterior lounge and relaxation area. At the center of the flybridge the bar provides quick service of cold drinks and the BBQ (Teppanyaki) station for those chilled out evenings with friends and family.  There is also a shower located on the Stbd side for a quick cool down during the day.

Bow Seating

The bow of the yacht has very comfortable seating and sunbathing area, whether underway or when at anchor, guests can relax and enjoy the freedom of being at sea.  The walk-around deck allows easy access from the aft.

Interior Main Deck

Coming into the very welcoming Salon, with big windows, providing vast amounts of natural light.   The interior decoration is light and modern with a beach house feel.  The glass top dining table is large enough to accommodate 8 guests comfortably.

The TV is hidden away, but can be easily accessed by the lift for those cozy evenings in.

Moving forward towards the galley, through the port-side corridor you pass the day head and the access to the wheelhouse. The galley is sleek and modern and fully equipped.

The opposite corridor takes you to the Master stateroom, and access to the guest cabins on the lower level.

The Master stateroom consists of a centerline King Size bed, with windows, giving a 180 view towards the bow of the yacht.  The vanity desk allows for storage of small items and somewhere to sit and prepare for the evening entertainment or to work from, should you need a quiet space from the guests.  For relaxing the sofa on port side provides a quiet reading space. The TV is hidden in the forward cabinet

The modern en-suite bathroom has his & hers sinks, with separate door for the toilet.  There is a shower stall and a dressing room.

Lower Deck

Moving back along the corridor and taking the stairs down to the lower guest area, the port side forwards to bow guest cabin consists of a double cabin with Queen size bed, sofa, en- suite bathroom with shower stall and toilet with bidet.

The starboard side consists of a twin cabin with en- suite bathroom, toilet and shower.

The VIP guest cabin is aft on the lower deck and consists of a King size bed en -suite bathroom with his and hers sinks, shower stall and toilet with bidet function.

All Cabins are modern with lots of natural light coming from the huge port holes.

The Crew accommodation is located in the bow area, with a Crew dinette, giving privacy for both guests and crew.  The laundry facilities are also located in this area.  The cabin arrangement consists of a Captain’s Cabin and 2 cabins for crew, allowing four crew in total sharing two bathrooms.

CCTV in crew

Williams 325 Jet Tender

Launching system – steel cable

Toys - SUP

Fire Novac for technical room

Mist system for engine room, ECR and Garage

2 eight person liferaft Zodiac, next service 2020.

Fire extinguishers in all departments and cabins.

Bow sun bed with convertalbe table

2 x deck lockers

DECK EQUIPMENT

2x Danford Anchor 100Kg 2x 100 m chain

Passarelle: Besenzoni

Bathing ladder: Besenzoni

Shower on deck Shower on aft deck and fly

Deck-wash system: yes

Teak cuprail

Two side entrances

Aft Garage with tender and space for jetski

Emergency steering in ER entrance
