GRANDEUR Yacht for Sale

150' (45.72m)
Trinity Yachts
Asking Price

The elegant warm interior ambiance originally created by Dee Robinson with hand-crafted artisan pear wood joinery throughout. Since then, the vessel has gone through an interior refit with the use of exquisite marbles and granites throughout.

With an expansive main salon, intimate dining room along with a spacious skylounge that leads to a upper aft deck for more entertaining. Owner's and guest accommodations for up to eleven.

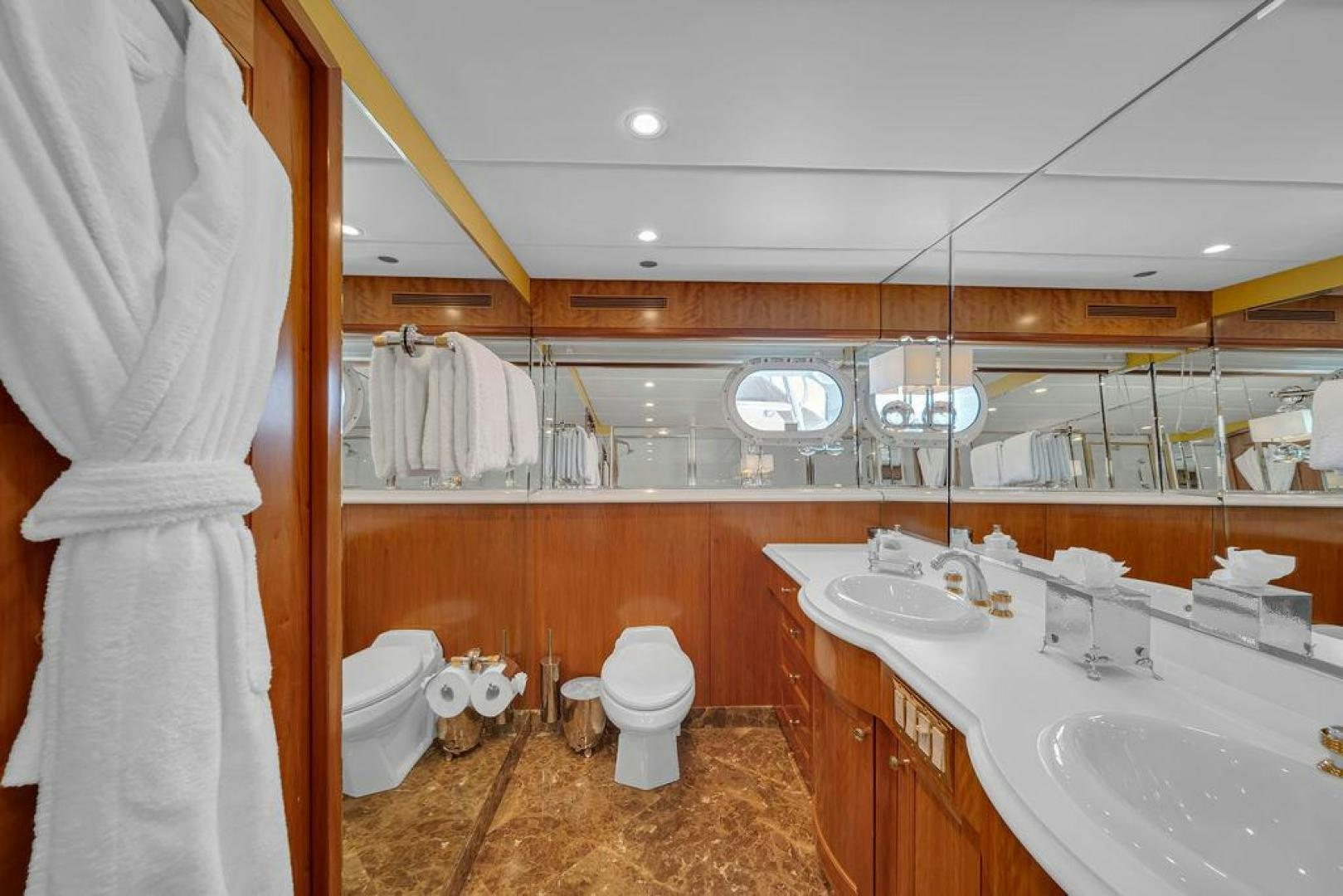

The main deck master stateroom with his and her identical baths with beautiful Italian marble and Jacuzzi. The stairway from the main deck ushers guests below to a spacious lower foyer with four ample guest staterooms to include VIP staterooms with full baths.


  • At-Anchor Stabilizers
  • Deck Jacuzzi
  • Gym
  • Jacuzzi
  • On Deck Master
  • Wi-Fi


Builder Trinity Yachts
Model Tri-Deck MY
Length (LOA) 150' (45.72m)
Year 1997
Year Refit 2018
Gross Tonn. 488
Draft 7' 3" (2.21m)
Beam 27' 11" (8.51m)
Range 5,000 NM
Location West Palm Beach, United States


Staterooms 5
Sleeps 11
Heads 11
Crew Cabins 3
Crew Sleeps 9
Crew Mess 1
Capt. Quarters Yes

Dimensions & Capacity

LOA 150' (45.72m)
LWL 150' (45.72m)
Max Draft 7' 3" (2.21m)
Fuel Tank 5,300 g (20,062 L)
Fresh Water 1,327 g (5,023 L)
Holding Tank 820 g (3,104 L)
Gross Tonn. 488


Hull Material Aluminum
Hull Config Displacement
Ext. Designer Trinity Yachts
Int. Designer Dee Robinson
Max Speed 17 Knots
Cruising Speed 12 Knots
Range 5,000 NM
Stabilizers Zero Speed

Engines (x2)

Engine Make CAT
Engine Model 3412b
Engine Year 1997
Engine Type Inboard
Power HP 2,250
Power KW 1,678
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Vessel Walkthrough

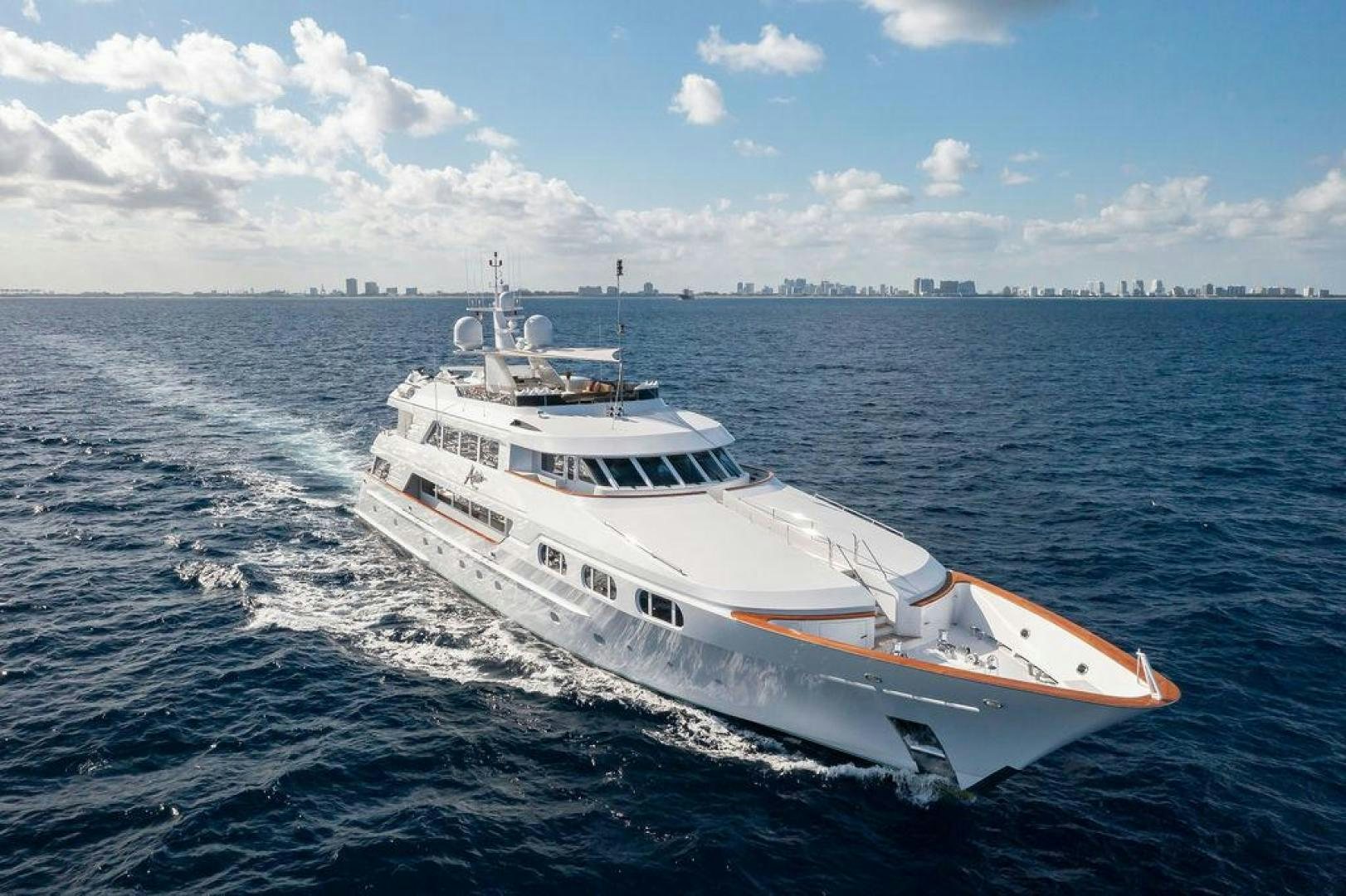

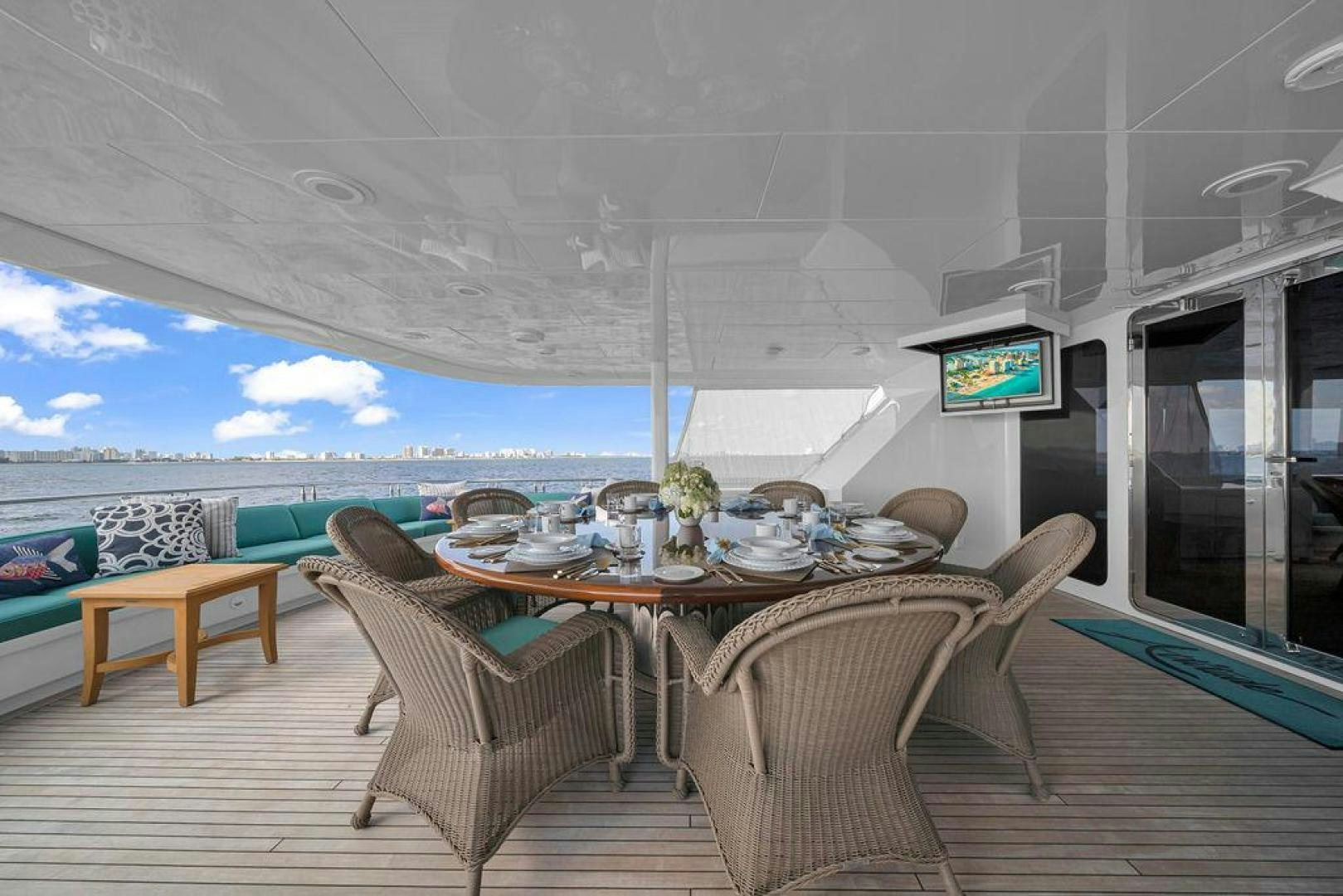

Walking aboard GRANDEUR from the starboard aft boarding ladder, you step onto the main deck aft which features a built-in settee with dining table as well as three, loose dining chairs. The space is shaded by the bridge deck aft and features a generously sized staircase to the flybridge on the starboard side and a second boarding gate to port. To port, is an access door to the crew mess, crew accommodations, and engine room. Looking aft from the main deck, a dual staircase on both port and starboard sides leads down to a swim platform. There, a tender or toy garage provides additional storage or beach club amenities.

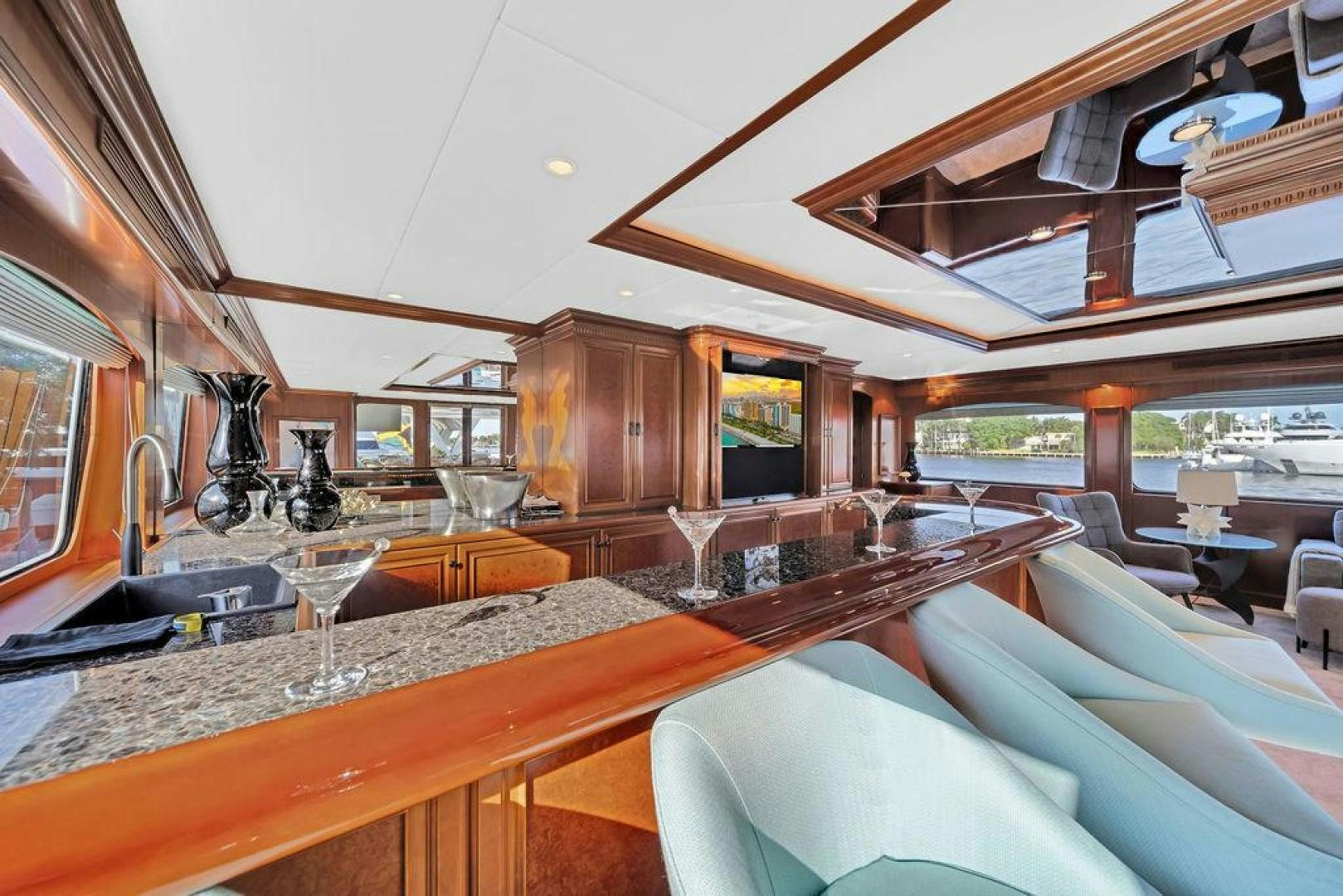

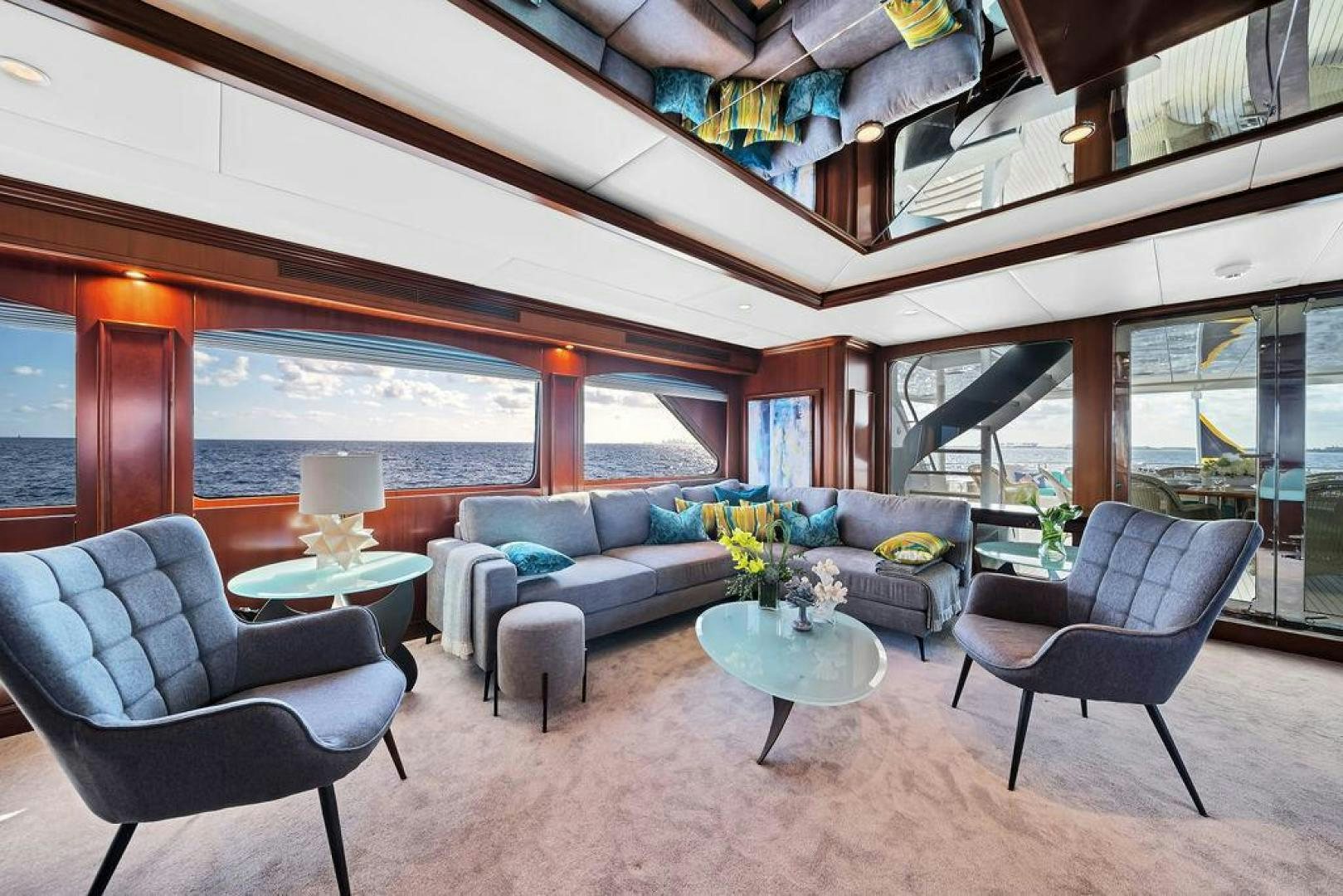

Continuing forward from the main deck aft and entering through electric sliding doors, you walk into GRANDEUR'S full beam main salon with over 7 1/2 feet of head room and large windows. Granite floors accent the entryway and continue forward to starboard into a built-in bar area with cabinet storage and bar stool seating. Moving forward, you walk past built-in storage to port with both beverage and wine refrigeration as well as an ice maker. A 50" television is in-laid into the wall with wood accents around the frame. To port is a small dining table with chairs and to starboard is an L-shaped sofa and two loose, high backed chairs.

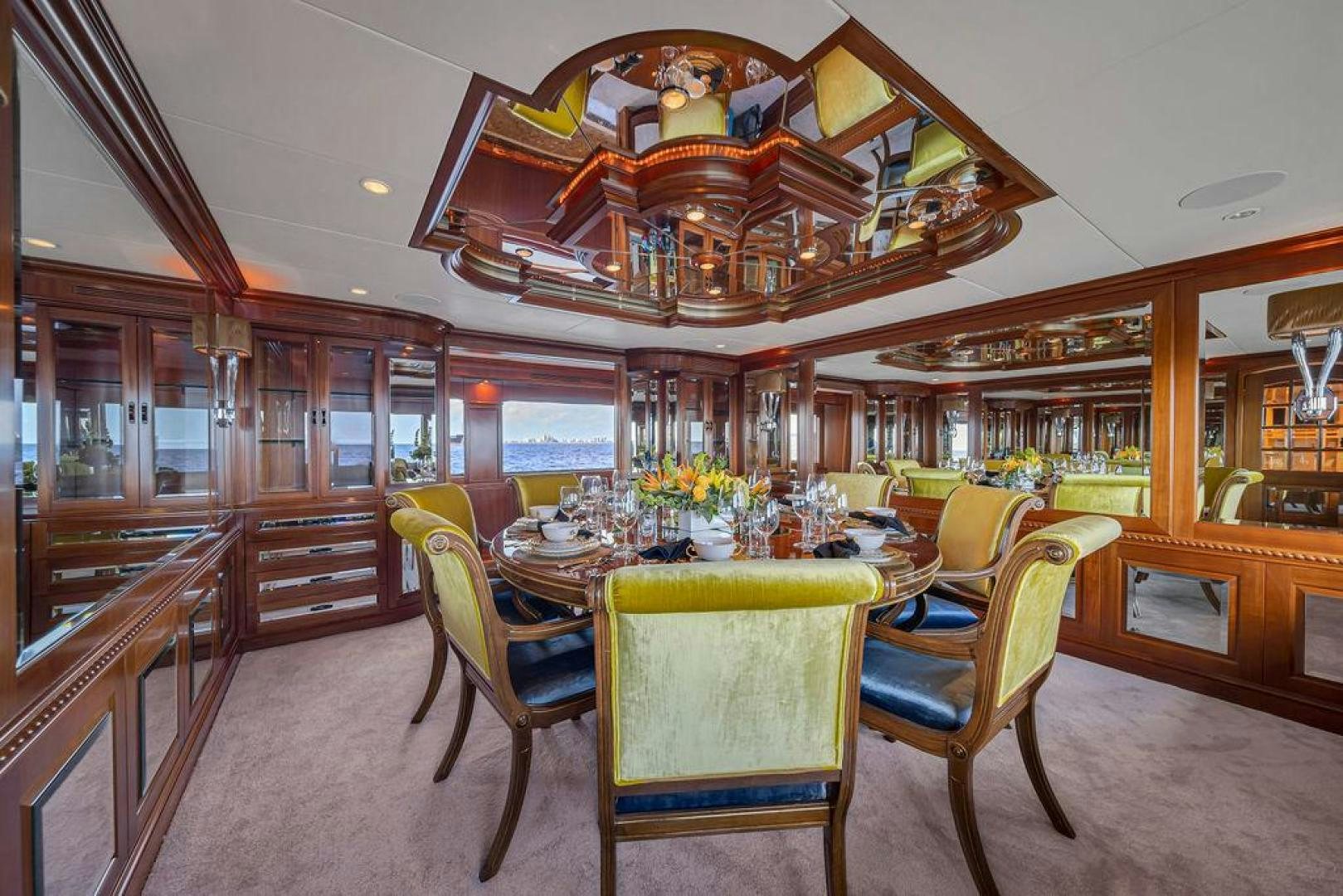

The circular shaped dining area, located forward and amidship of the main salon, is one of the most unique and special features aboard GRANDEUR. Guests can choose to keep the dining space informal and open to the salon, or closed off completely and open to the galley, providing a more formal and intimate dining experience thanks to a sliding privacy wall with beautiful wood patterns. A circular glass table with overhead chandelier and the same granite floors as the entryway, provides a truly one-of-a-kind experience.

Continuing forward to starboard from the main salon, guests walk through a seahorse etched glass doorway into a companionway that includes a large dayhead, teak stairs to the pilothouse, doghouse access, stairs to the lower guest accommodations, and a watertight door that provides access to the starboard side deck.

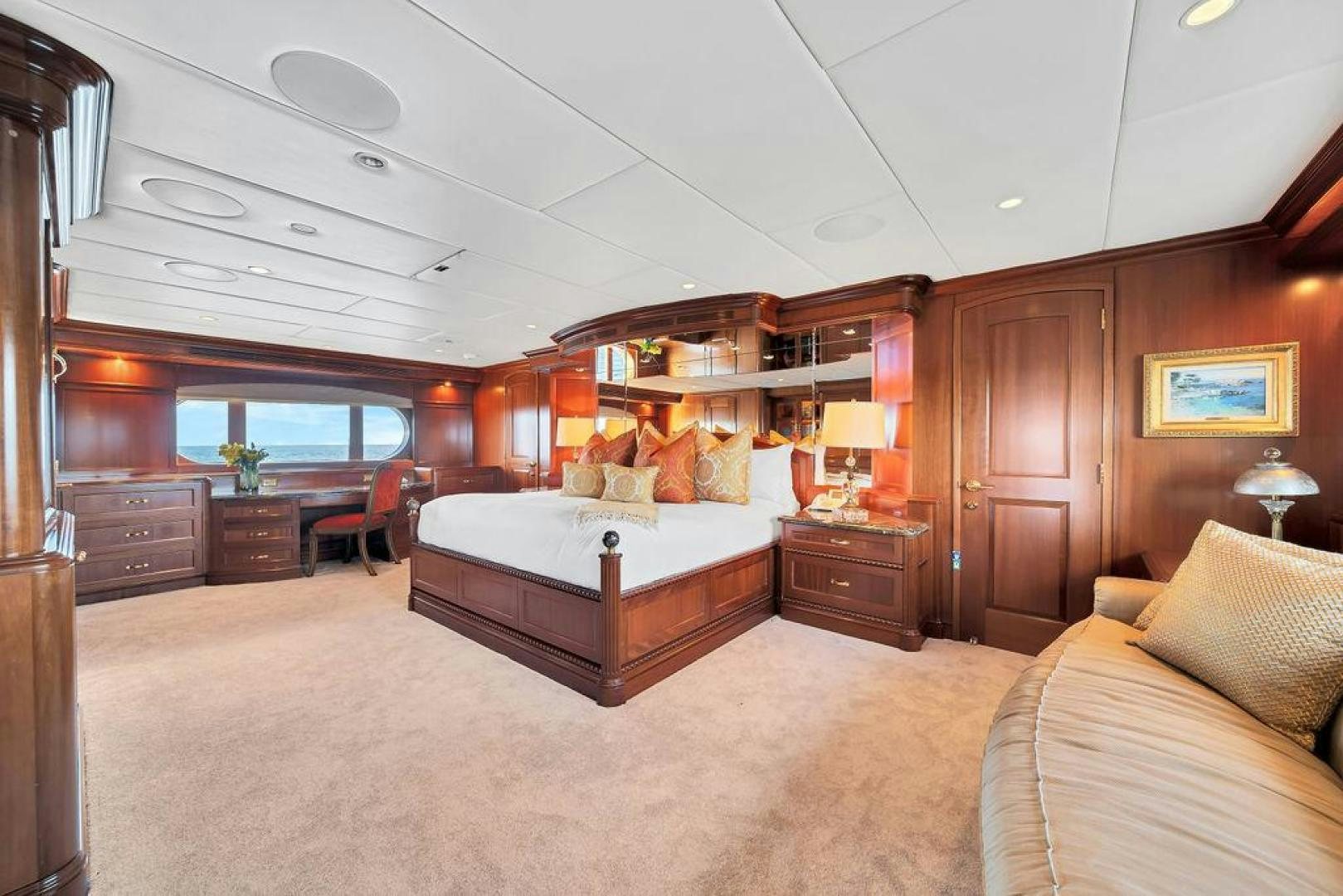

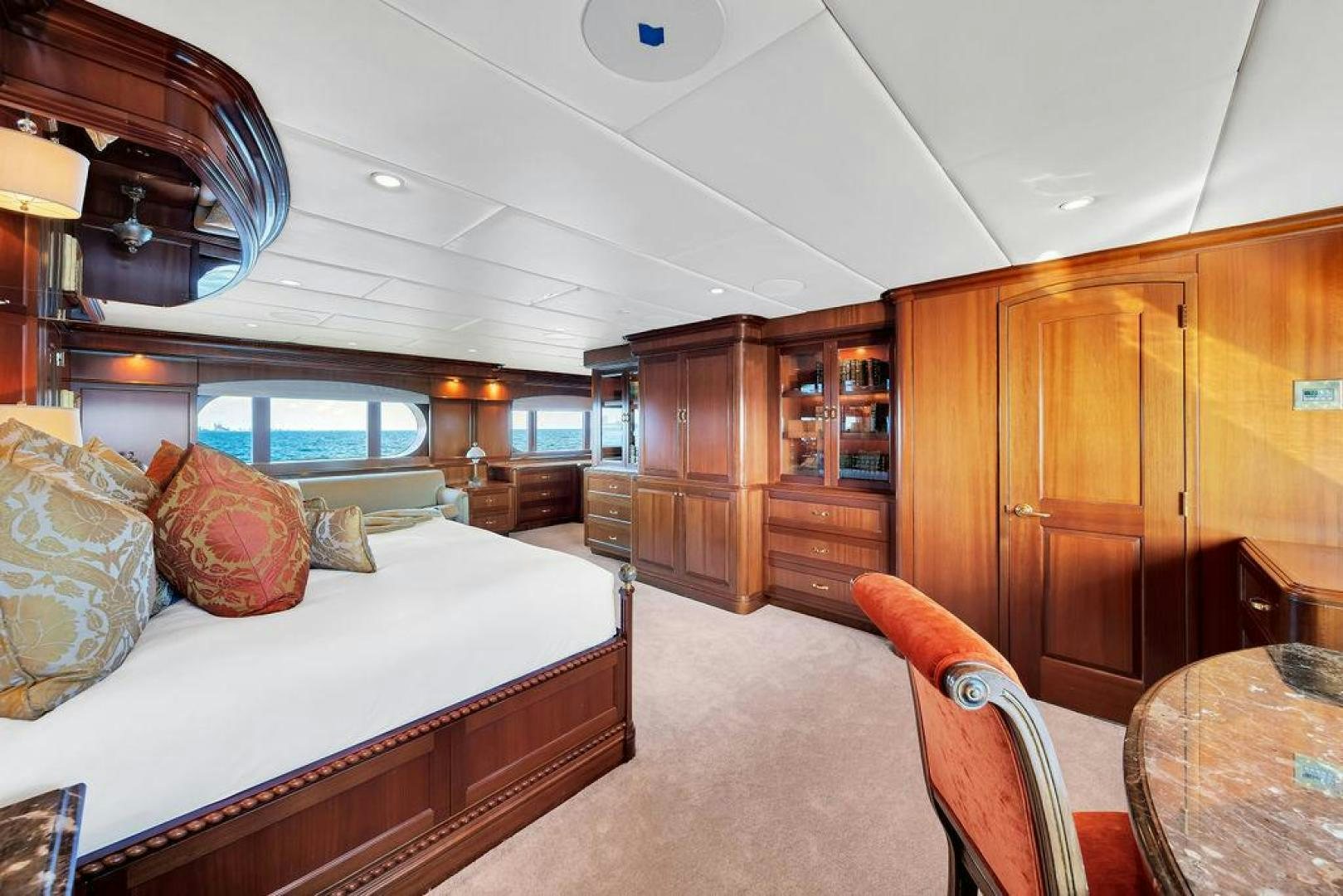

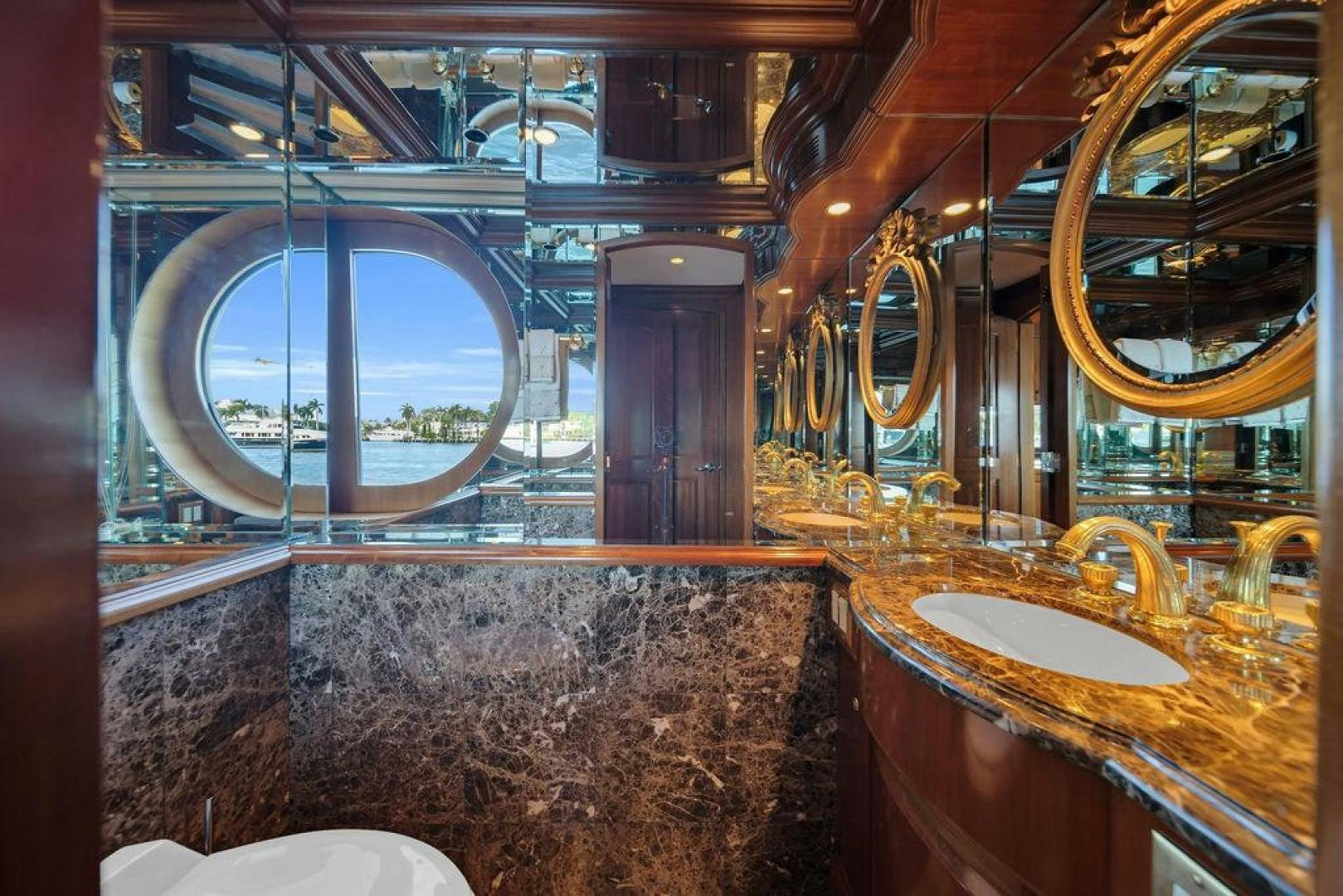

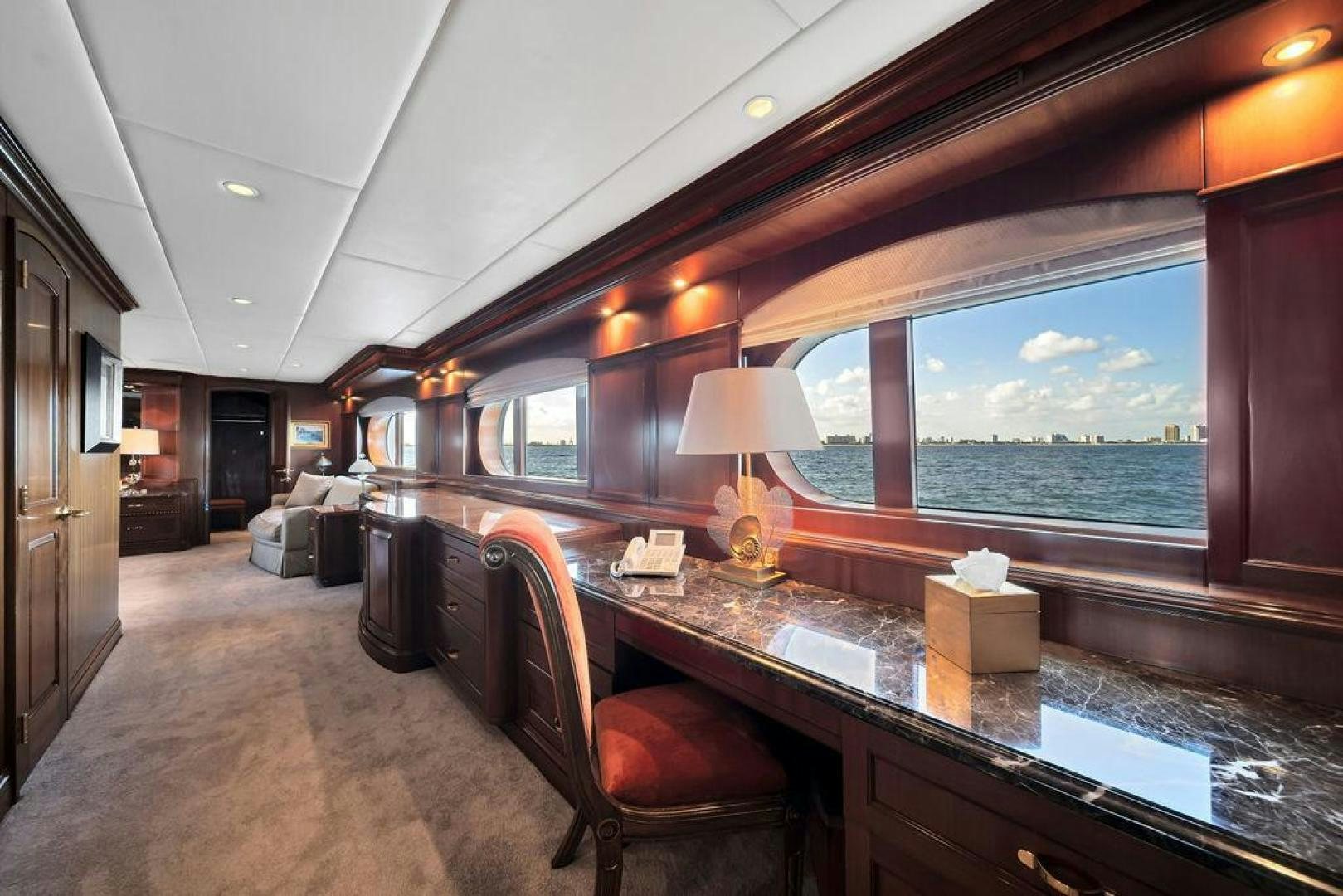

Forward of the lower guest staircase is the main-deck, split-level Master Stateroom. Upon entering the stateroom to port is the off-set king size bed with mirrored headboard and built-in nightstands on both sides. A TV located in a cabinet at the foot of the bed can be raised, lowered, and rotated 180 degrees. Across from the bed is a built-in circular-shaped sofa with coffee table. Both port and starboard sides of the stateroom feature built-in cabinet storage. A small refrigerator is located to port and a built-in safe is located to starboard.

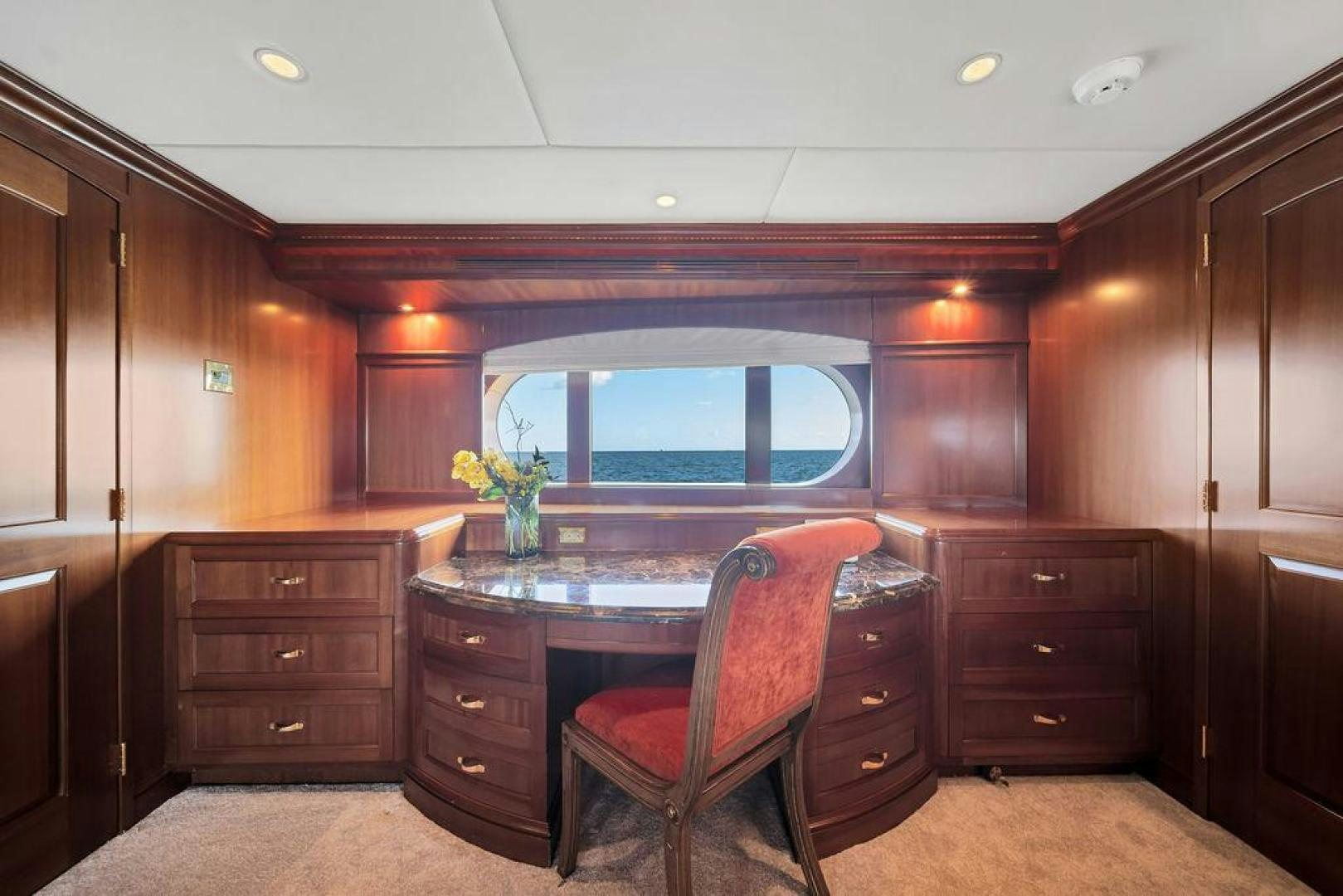

Moving forward and down a set of five steps is the generously sized and open dressing area, which features 8 closets with either hanging space or shelf/drawer storage. Additionally, a built-in make-up/vanity with mirror and seating provides an additional amenity. Moving forward into the master en-suite are two double sinks with storage provided behind the mirror, a large Jacuzzi tub, toilet and bidet, and circular, frosted glass shower.

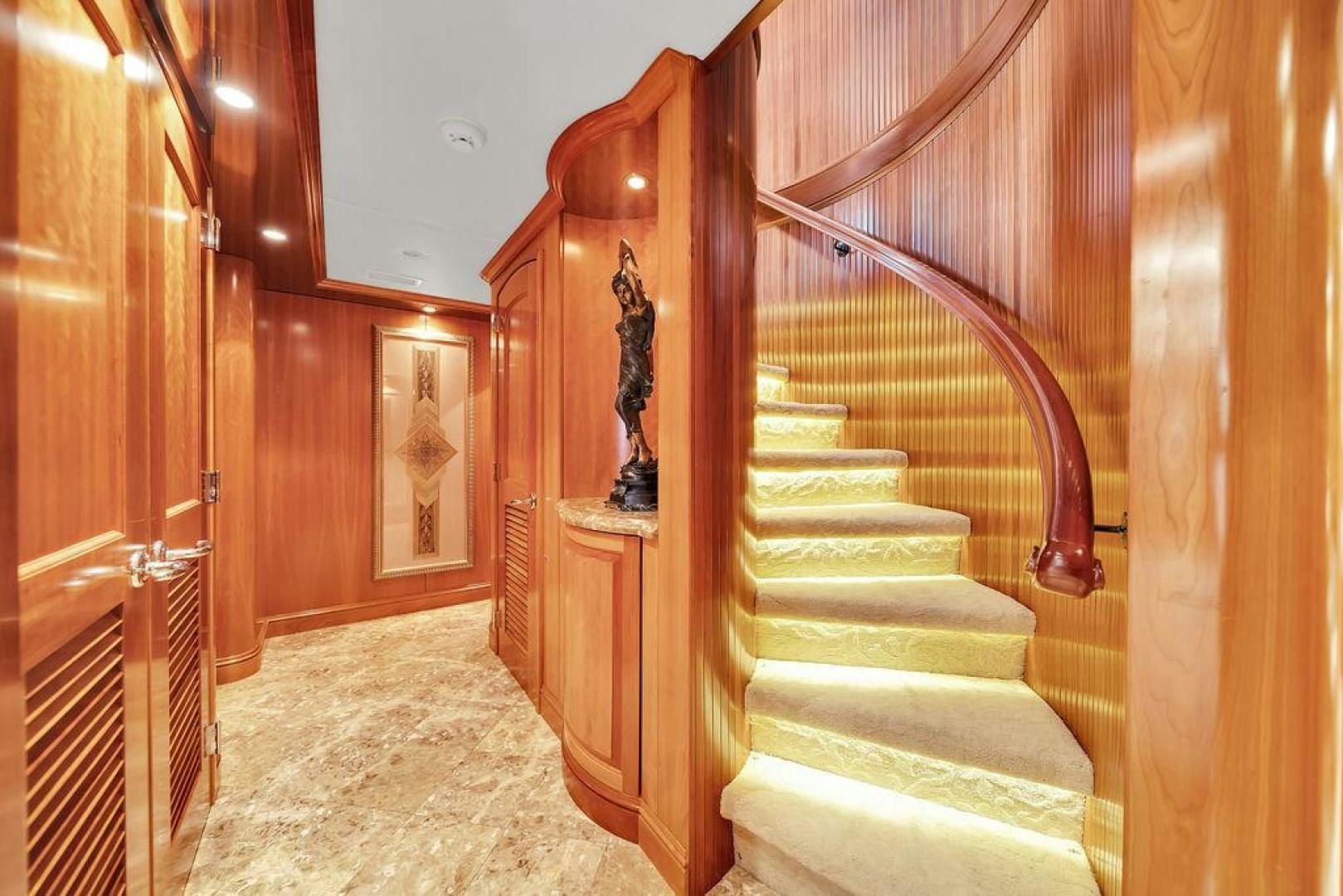

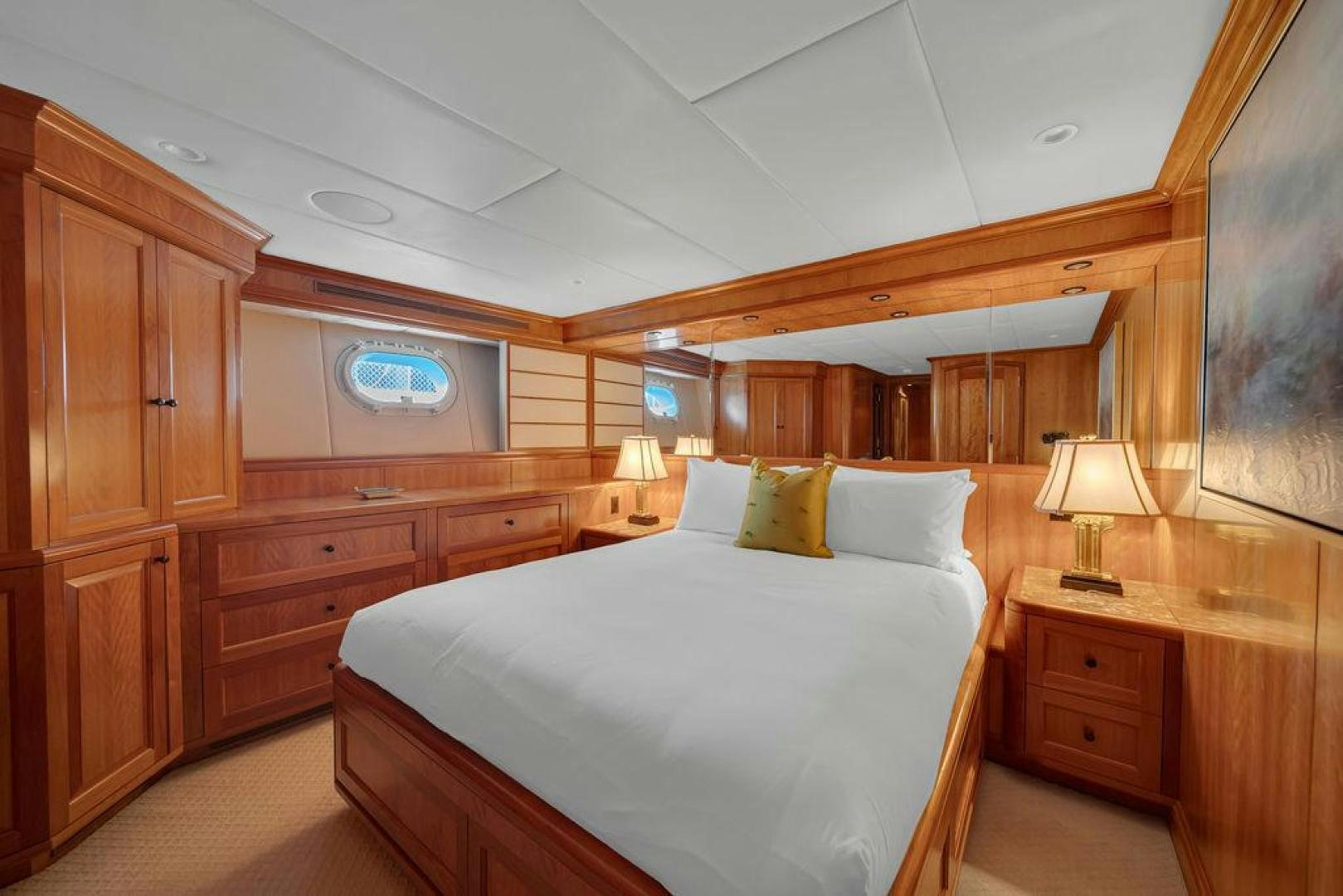

Back in the guest companionway and down the staircase to the lower guest staterooms is a welcome foyer with cabinet storage. Starting forward is the full-beam VIP stateroom with center-line queen size bed. Similar to the Master Stateroom, a built-in cabinet at the foot of the bed houses a hi/low television. To port is a built-in couch and access to the en-suite, which is located aft. To starboard is built-in cabinet storage, a walk-in closet, and make-up vanity. Large, rectangular portholes are located on both sides. The en-suite features a glass enclosed, circular shower, and sink with built-in medicine cabinet storage. Back in the lower guest companionway and moving aft is access to another doghouse under the stairs. Furthest aft are the two remaining staterooms. To port is a queen stateroom with two nightstands, built in drawers to port, a full size closet, and make-up vanity with chair. The en-suite features a sink, medicine cabinet storage, and glass enclosed, circle shower. The starboard aft cabin features two single beds, mirrored headboards, and a shared central nightstand. The en-suite is the same as the other staterooms, with glass, circle shower, sink, and medicine cabinet storage. Wall mounted TV's are located in both aft cabins.
The pilothouse, located up a set of teak steps from the starboard side main deck companionway also features teak flooring. Large windows provide excellent natural light. A built-in settee and table provide an excellent space to hang out while underway.

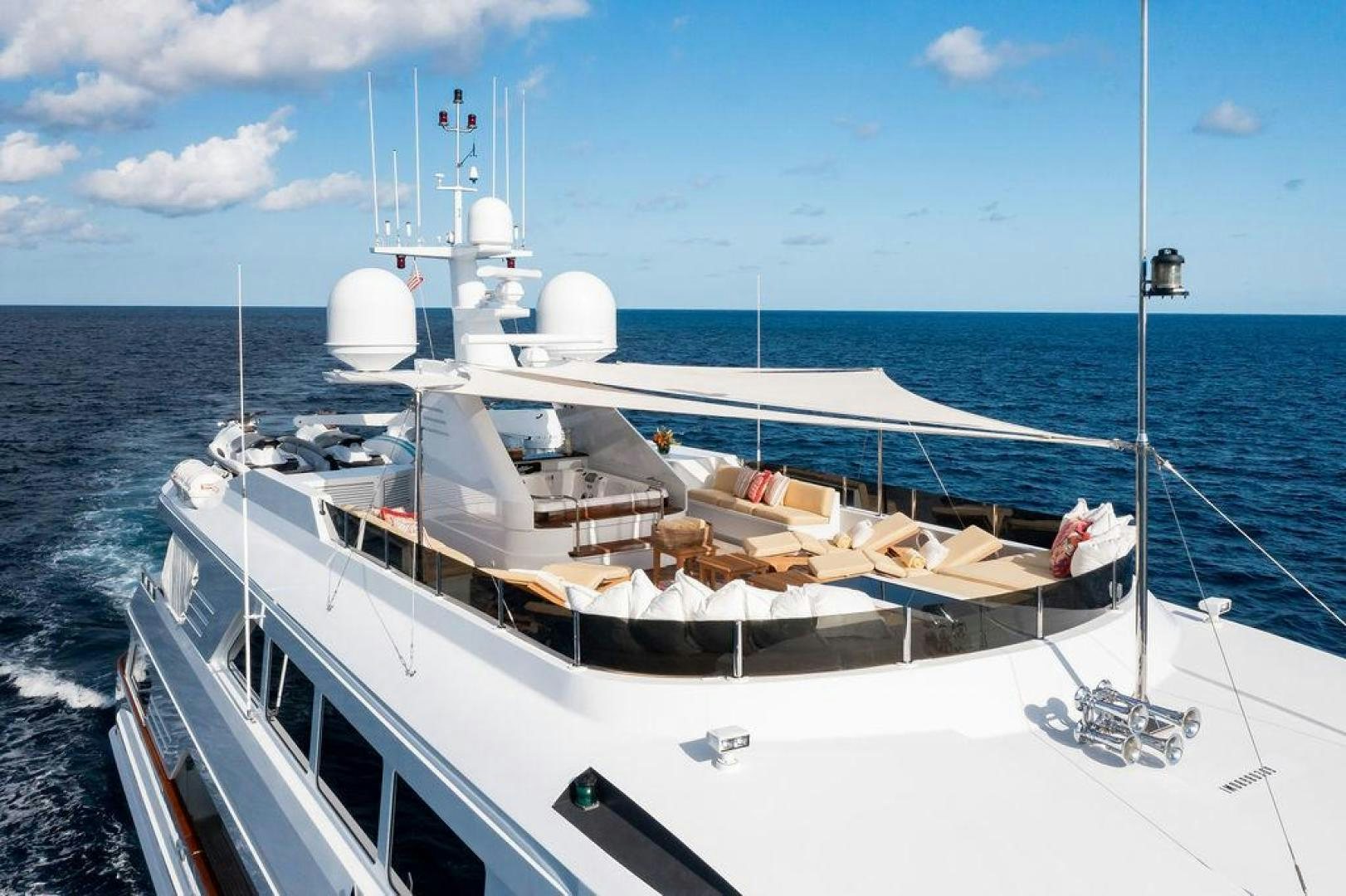

The flybridge is accessed from an overhead hatch in the pilothouse or the stairs leading up from the main deck aft. A driving station with chair is located to port with chest storage behind. A built-in L-shaped sofa provides plentiful seating. Across from the built-in sofa is a built-in bar with three stools for seating, sink, grill and refrigeration. Additionally, a dining table for eight is located to starboard. The space under the hardtop can be completely enclosed with eisenglass. Further aft to port is a built-in Jacuzzi with teak surround. A garage is located furthest aft with storage for jet skis or a small tender. The garage, when lifted, can also double as a movie screen on nights at anchor or as a space for sun loungers during the day.

Back on the main deck and looking forward from the main salon to port is access to the galley through a pocket doorway. Two windows provide natural light to the spacious galley, featuring the same granite as seen throughout the yacht. Plentiful countertop space and equipment are any chef's dream. Access to the port side deck is also provided by another exterior, watertight door. As previously mentioned, the dining room can be open to the galley, closed off from the galley, or closed off from the main salon entirely, providing an intimate dining experience.

Access to the crew's accommodations is through a port side door on the main deck aft. A generously sized crew mess with table and small galley provide an excellent space to hang out. There are three crew cabins- two with over/under berths and a captain's cabin with double berth. All crew cabins have their own private heads. Two sets of washers and dryers are also located in the crew area.

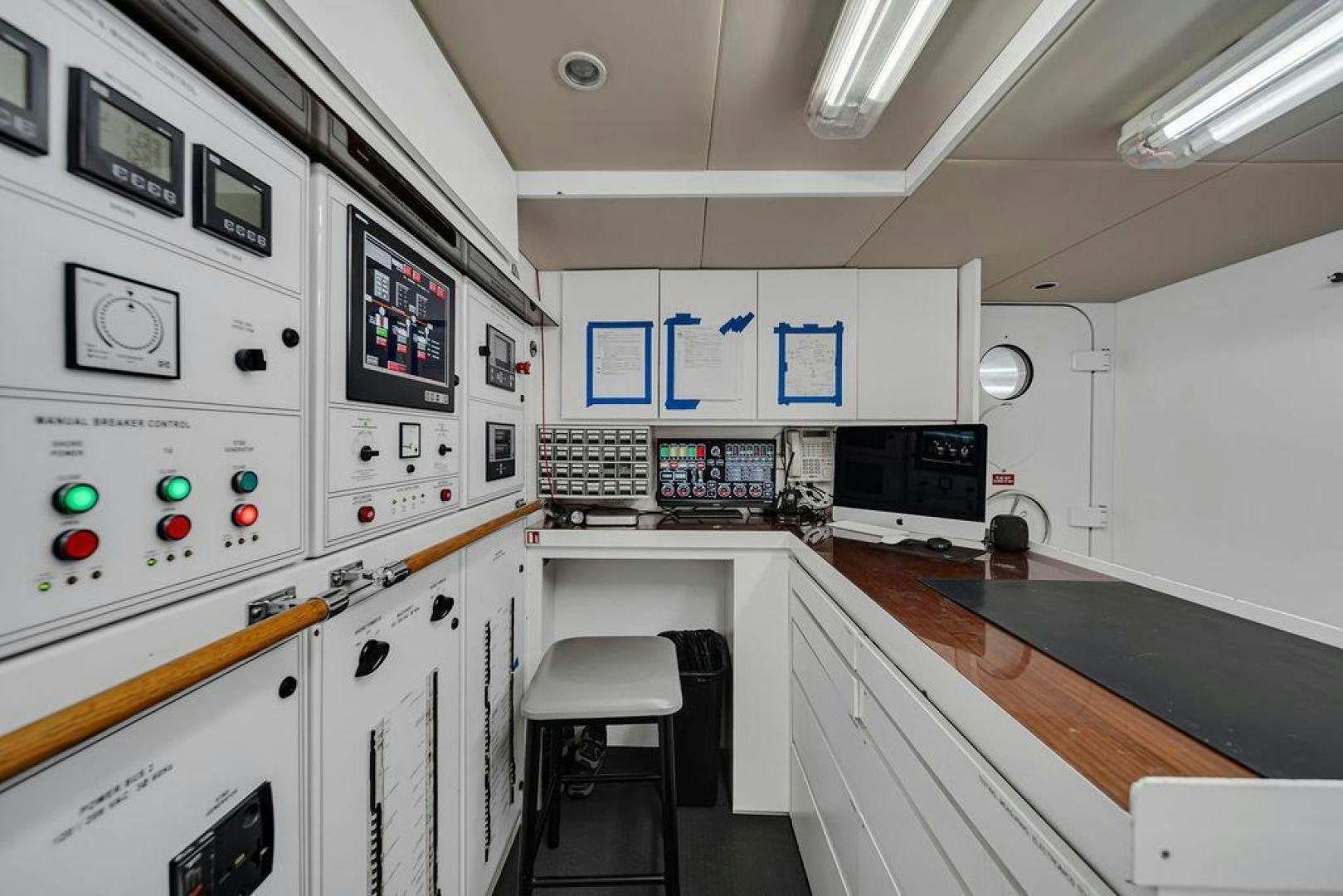

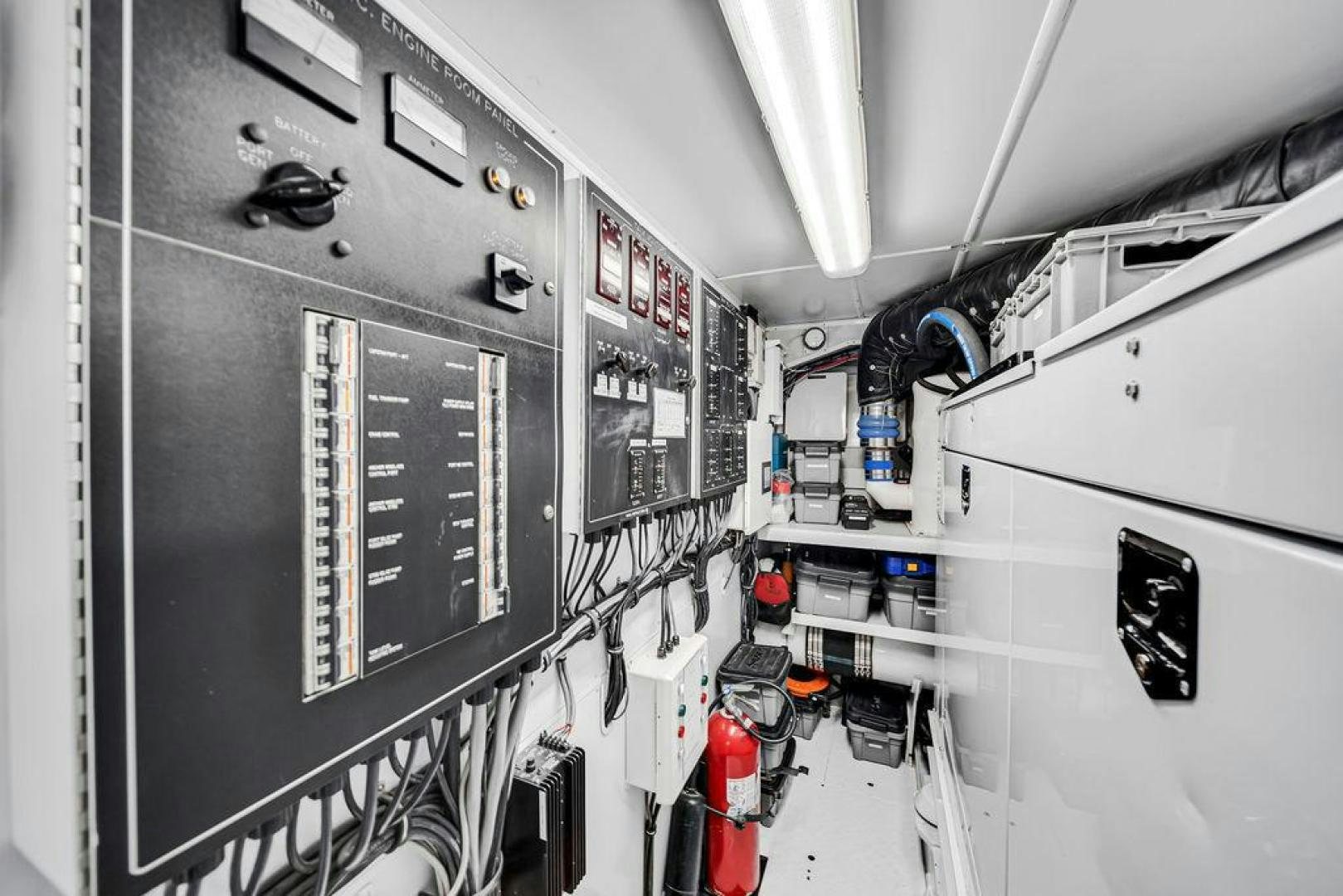

The engine room, aft of the crew mess and accessed through the same door from the port side main deck, features (2) x CAT3516 B engines, (2) x 65 kW Northern Lights generators, and an Atlas shorepower converter. GRANDEUR also features two watermakers, Dometic a/c chillers, Naiad stabilizers (underway only), and an Alfa Laval. A lazarette houses the yacht's hydraulics, steering, and storage. The engine room is well laid out and easy to maneuver, making service easily achievable.


  • Fiberglass hull and superstructure
  • Teak decks
  • Hardtop custom built 2022


Length Overall:    120'    (36.58m)
Length at Waterline:    90'7"    (27.60m)
Beam:    23'11"    (7.3m)
Draft (Maximum):    6'11"    (2.10m)
Tonnage:    224 GRT
Displacement:    148 Tons
Net Tonnage:    67 Tons

Fuel Capacity:    5,800 US Gallons    (21,995 liters)
Water Capacity:    700 US Gallons    (2,649 liters)
Grey Water Capacity:    475 US Gallons    (1,798 liters)
Speed    RPM    Consumption/hr    Range
Economical:    8 knots    1000    44 GPH    1023
Cruising:    11 knots    1100    72 GPH    763
Cruising:    13 knots    1400    120 GPH    593
Cruising:    16 knots
Maximum:    19 knots


GRANDEUR accommodates 8 guests in 4 staterooms.

The full beam, split-level Master Stateroom is located furthest forward on the main deck. A king size bed is offset, facing forward, with a cabinet with TV storage located at the foot of the bed. A large, semi-circular, built-in couch is located further forward for additional seating. A "dressing area" with 8 hanging closets as well as the en-suite, are located down a set of steps, with a built-in make-up vanity located in the dressing area. The en-suite, featuring granite soles and his and hers molded sinks is incredibly spacious. A stand alone shower, Jacuzzi tub with jets, toilet and bidet round out the space.

Located on the lower deck are three additional staterooms:

  • (1) x VIP stateroom, full-beam, with center-line queen size bed, couch to port, and desk area to starboard.
  • (1) x Queen Stateroom, located aft to port
  • (1) x Twin Stateroom, located aft to starboard

All guest staterooms feature built-in drawer storage, hanging closets, and televisions. All guest staterooms also have their own dedicated en-suite with shower and vanity.


Main Engines
Main Engines:    (2) x CAT3516B, 2600 hp
Engine Hours (11.2023):

  • Port: 6,231
  • Starboard: 6,238

Gearboxes:    ZF model BW465 IV Ratio 2.029:1
Propellors:    (2) x 5-blade, Nibral
Generators & Electricity

  • (2) x Northern Lights 65 kW III Phase
  • Voltage 12-240 60 Hz

Generator Hours:

  • Port: 12,713 hours
  • Starboard: 11,869 hours

Shore Power:

  • Atlas 65kW transformer
  • 220 V AC

Type:    Dometic (6) x chillers
Other Machinery

  • (2) x Sea Recovery
  • 900 US Gallons/day/each watermaker

Hot Water Heaters:    (2) x 50 gallon with circulation pump
Stabilizers:    Naiad, hydraulic, underway only, 54" x 35" fins
Bow Thruster:    Naiad, hydraulic
Stern Thruster:    Naiad, hydraulic
Fuel Filtration:

  • Alfa Laval
  • (2) x Racor filter each engine
  • (1) x Racor filter each generator

Steering System:    Hydraulic
Sewage System:

  • Hamann
  • Vacu-Flush jet heads

Black Water System:    Hamann

Galley & Laundry Equipment

Main Galley Equipment
Cooking Equipment:

  • 5-burner Miele cooktop with hood
  • Miele oven
  • Miele microwave

Refrigeration & Freezer:    Sub-Zero refrigerator
Dishwasher:    Miele
Other Equipment
Refrigeration:    Beverage fridge (Main Salon)
Beverage fridge (Master Stateroom)
Icemaker:    Perlick (Main Salon)
Wine Refrigerator:    Whirlpool (Main Salon)
Crew Mess
Cooking Equipment:    Miele, Microwave convection oven
Laundry Equipment

  • (1) x Deco
  • (1) x Maytag


  • (1) x Deco
  • (1) x Maytag

Deck Equipment

Anchor Windlass:    (2) x Muir, hydraulic
Anchors:    (2) x 125 kg
Anchor Chain:    (2) x Rhode 450'
Aft Deck Capstans:    (2) x Muir, hydraulic
Davit:    1000 kg, hydraulic
Passerelle:    Besenzoni, hydraulic
Boarding Ladder:    Marquipt Tide Ride, 8-step
Swim Ladder:    7-step, fold up, stainless steel
Fuel fill locker:    Starboard aft

Security, Fire Fighting & Safety Equipment

Security Equipment
Ship's Safe:     (1) x Pilothouse with key, (4) x Guest Cabins, digital
Fire-Fighting Equipment
Fixed System:    Yes
Fire Extinguishers:    Throughout
Smoke Detectors:    Throughout
Safety Equipment
Life Rafts:

  • (1) x 6-person, Euro-Vinyl
  • (1) x 8-person, Euro-Vinyl

Life Rings:    (3) x 30" SOLAS
EPIRB:    (1) x ACR-406
First Aid Kit:    (1) x Revere First

Communication, Navigation, And Entertainment Systems

Communication Systems
VHF:    (2) x Icom IC-M506
Navigation Systems
Compass:    6" Ritchie
Navnet:    (2) x GPS Furuno Nav-Net TZ Touch
Radar:    Furuno 96 NM
Rudder Indicator:    Furuno
Windmeter:    Raymarine
Digital Depth:    Furuno
Entertainment Systems
(1) x 50" Samsung    (Main Salon)
(1) x 42" Samsung        (Master Stateroom)
(1) x     (VIP Stateroom, on lift)
(1) x 22" Vizio    (Port Stateroom, Aft)
(1) x 22" Vizio    (Twin Stateroom)
(1) x 32" Samsung    (Crew Mess)
SAT TV receivers throughout, Bose lifestyle system with  3 zones (Main Salon, Aft Deck, and Flybridge), Bose amplifier and stereo speakers in Main Salon

Yard Period 2023

  • All windows replaced and resealed
  • Bottom soda blasted and re-faired
  • (2) x coats bottom paint
  • Hydraulic system rebuilt
  • Engine serviced September 2023
  • Generators serviced September 2023
  • (6) x A/C chillers fully serviced
  • Stabilizers serviced
  • Props reconditioned


The name GRANDEUR is reserved. All owner's and crew's personal belongings. A detailed list of exclusions will be provided at the time of sale, upon written request.
