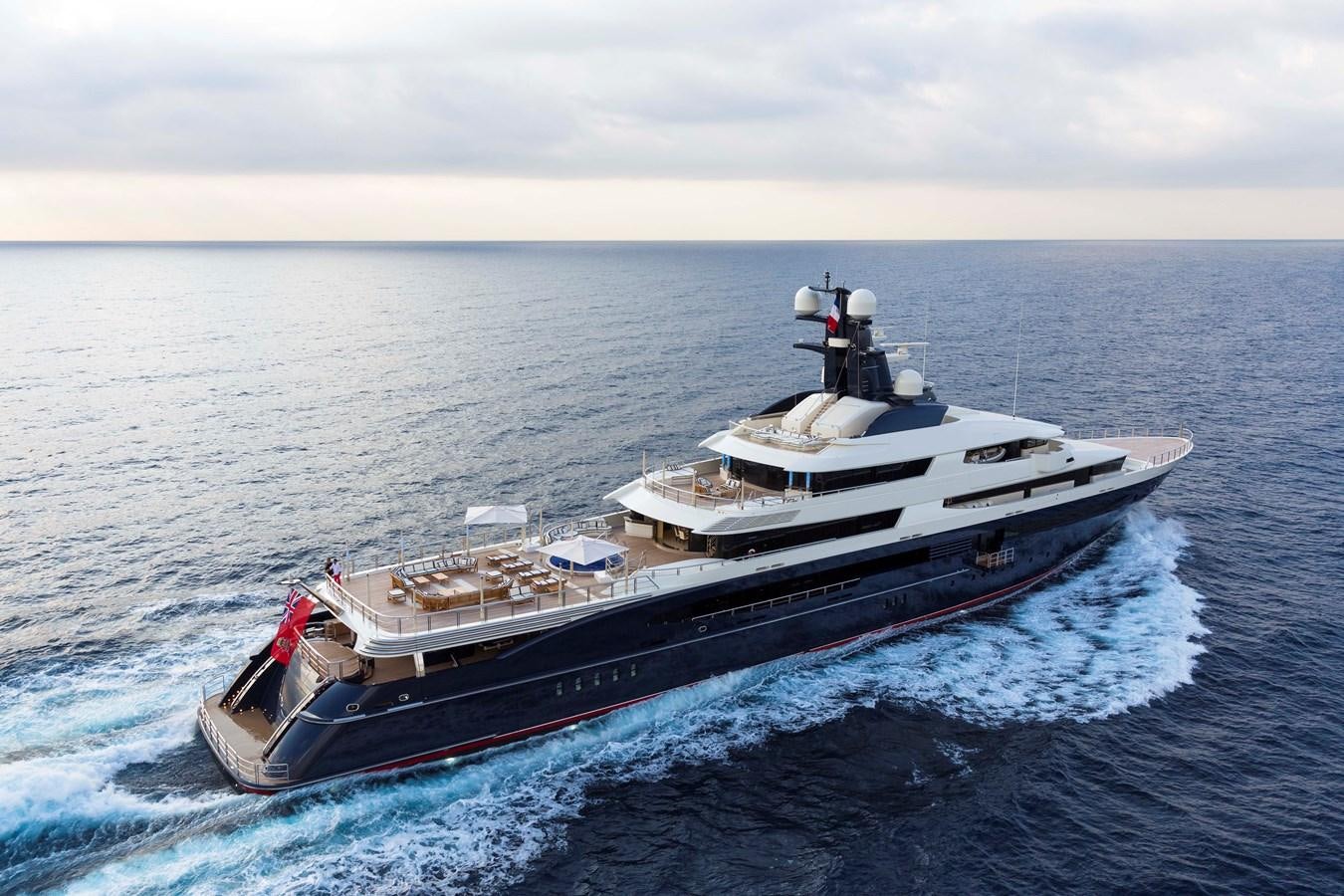

DRAAK Yacht for Sale

ELECTRICITY

• 400v AC, 3-phase, 50Hz
• 230v AC, single phase, 50Hz (lighting, domestic equipment, control circuits and nautical equipment)
• 24v DC
• The installation is a 3-phase, four wire system, neutral earthed, 400v/230v AC, 50Hz

SHORE POWER

• 1 x 400v AC, 50Hz shore connection rated 554kvA, 2 x 400 Amps

BATTERIES

• All batteries are of the Mastervolt Absorbent Glass Mat type
• 1 x Battery bank (24v DC) for GMDSS equipment;
• 1 x General Service battery bank (2v DC) above the loaded waterline. Battery capacity subject to electrical load balance;
• 3 x start battery banks (24v DC) for the main generators
• 2 x start battery banks (24v DC) for the main engines
• 2 x start battery bank (24v DC), for the emergency generator
• Where practical, the batteries are placed in acid-proof, ventilated battery boxes; otherwise in ventilated battery racks
• Each generator has a DC charger built on the generator set. Separate Mastervolt AGM chargers from the ships power distribution are installed as follows:
• 1 x radio;
• 1 x general service;
• 1 x emergency generator starter;
• 3 x main generator;
• 2 x main engine

WATERMAKERS

• Reverse Osmosis unit with 2 x HEM reverse osmosis desalination systems, with a capacity to produce approximately 20,000 Litres/ 5.280 US gallons per day

SLUDGE

• 6,400 litres/ 1,690 US gallons

BILGE

• 6,000 litres/ 1,585 US gallons

FRESH WATER BALLAST

• 39,900 litres 10,540 US gallons

POOL DUMP TANK

• 42,800 litres/ 11,306 US gallons

HELICOPTER FUEL

• 2,400 litres/ 634 US gallons

TENDER FUEL

• 2,200 litres/ 581 US gallons

STEERING SYSTEM

• Rolls-Royce (Tennfjord), type SR622-FCPX2
• The steering time for the installed system is (30°-0°-35°)
• - 22 sec with one (1) pump in operation
• - 11 sec with two (2) pumps in operation
• Modes of steering provided;
• - Follow-up steering by hand;
• - Non-follow up steering by hand via Rolls-Royce panel;
• - Follow up steering through auto-pilot;
• - Emergency steering in port side aft, hand hydraulic

DYNAMIC POSITIONING
Dynamic Positioning (DP) system, make Sirehna. Station keeping the yacht in position in calm weather (sea state 2) by means of bow- and stern thruster only
    System has the following functions:

• Station Keeping
• Station Keeping with economic heading
• Heading control
• Joystick maneuvering
• Heading mode at anchor (stern thruster only)

BOW THRUSTER
1 x Jastram type BU 90, 430Kw / 400v AC electrically driven,
1,470 rpm, 4-bladed fixed pitch
Propeller diameter 1600mm/63”
STERN THRUSTER

• 1 x Veth VS-550-SW, 400Kw (at 1,500rpm) 5-bladed fixed pitch in nozzle. Electrically driven foldable and 360 degrees azimuth stern thruster.
• Propeller diameter 1250mm/50”

FUEL FILTERS

• Two fuel treatment plants, type KFWA3, for separating both solids and water
• 1 x suction filter, before each fuel transfer/service pump
• 2 x filter units for fine filtration and water separation will be fitted after the booster pumps

FUEL SEPERATOR

• Gea Westfalia

OIL/WATER SEPARATOR

• 1 x Fully automatic oily bilge water separator, make RWO Rossmark type UltraPur OWS Skit, with 1,500 litres/396 US gallons per hour capacity. The system includes an alarm unit type and back to bilge water tank facilities in case the oil contents of treated water exceeds 15PPM. Control is from the ECR and Local at the unit.

FIRE/BILGE PUMP

• Three (3) identical self-priming centrifugal pumps, Azcue LN-EP20/200 with bronze housing and impellers with stainless steel shafts with a capacity of 60,000 litres/15,850 US gallons per hour
• Designated as emergency fire pump (technical space FWD), bilge pump (Main engine room) and emergency bilge pump (generator room)
• One (1) self-priming centrifugal pump, Azcue CA-65/20ALN-EP20/200 with bronze housing and impellers with stainless steel shafts with a capacity of 60,000 litres/15,850 US gallons per hour, designated as main fire pump (storeroom aft)

SEWAGE TREATMENT

• 1 x Biological sewage treatment plant make Hamann, type HL Cont Plus 10
• Capable of 24,000 litres/6,340 US gallons per day and complies to IMO MARPOL Annex IV Chapter 3 and IMO MEPC 159 (55)

TECHNICAL / DECK WASH

• 1 x After treatment plants make Baudoin type Aqua Force
• (Pure water Unit) with a capacity of about 1,000 litres/264 US gallons per hour
• WC's    Fresh water vacuum Toilet EVAC type VAC VT 900

AIRCONDITIONING

• Heinen & Hopman HVAC custom multi zone air conditioning system with single duct re-heat type with variable air volume system (VAV system) fully ventilated by natural, mechanical and ducted air conditioning systems

SUMMER

• Outside temperature:     35°C Relative humidity 90%
• Inside temperature:     21°C Relative humidity 50-55%
• Outside temperature:     45°C Relative humidity 50%
• Inside temperature:     21°C Relative humidity 50-55%

WINTER

• Outside temperature: -5°C
• Inside temperature: 22°C Relative humidity 35%

HOT WATER BOILERS

• Three (3) Jumbo boilers for domestic hot water supply, make ACV, capacity: 600 litres/158 US gallons each
• The calorifiers are heated by electric heaters (in 3 steps) each; fitted with a temperature alarm, as well as by the heat recovery system

She can accommodate up to 22 guests, in 11 cabins (once office foldable bed is removed)
OWNER

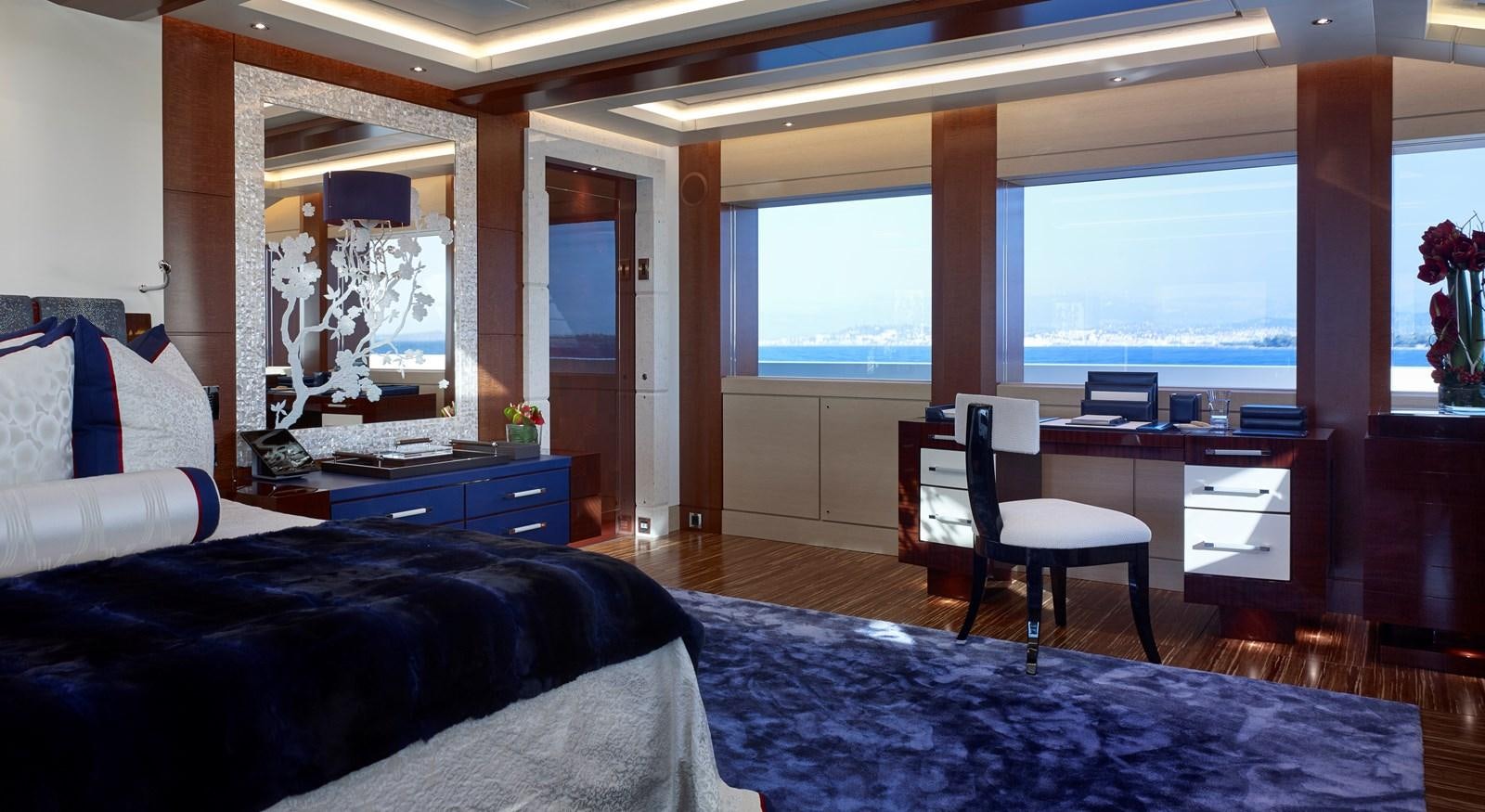

•  1 x Master cabin on Upper Deck with a full width suite forward with ensuite bathroom with a bathtub and luxury shower. His and hers vanity and WC. His and Hers dressing rooms

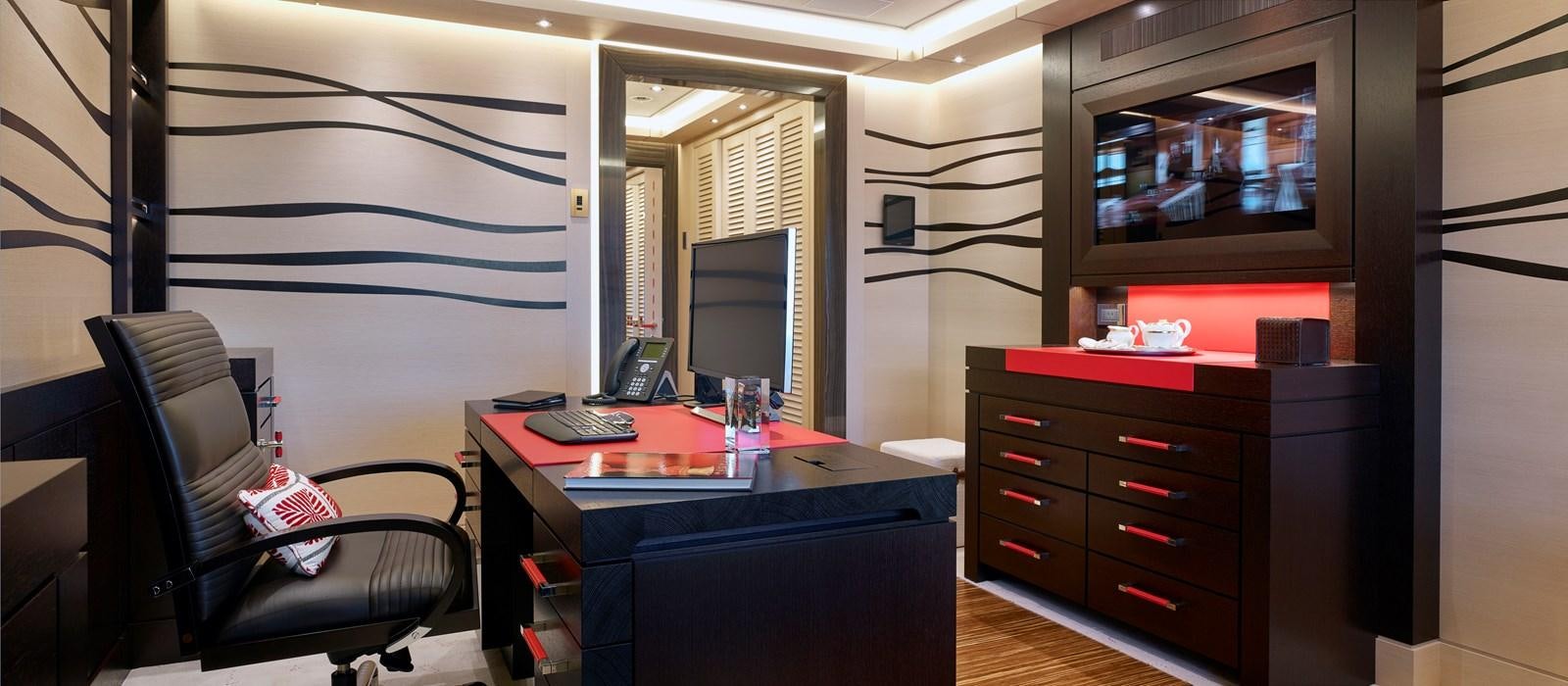

•   1 x Owner’s Office with fold-away bunkbed, can accommodate 1 or 2 persons. Shower ensuite

GUESTS

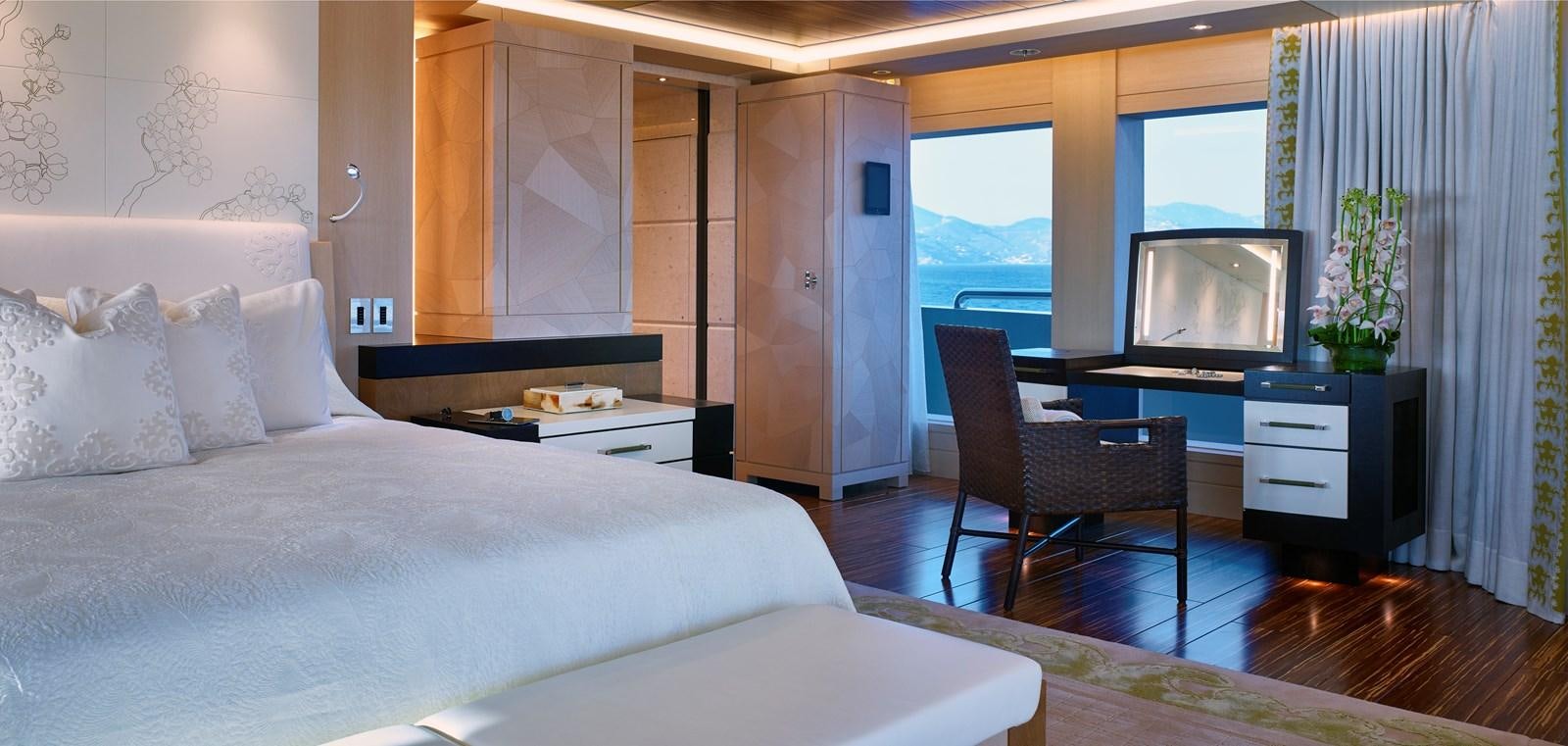

• 1 x VIP Cabin on Bridge Deck aft with ensuite bathroom
• 2 x double guest cabins on main deck each with private balcony and ensuite bathroom (one cabin can split into two separate cabins each with ensuite shower/bath room)
•  3 x double Guest cabins on main deck with bathtub and ensuite bathrooms

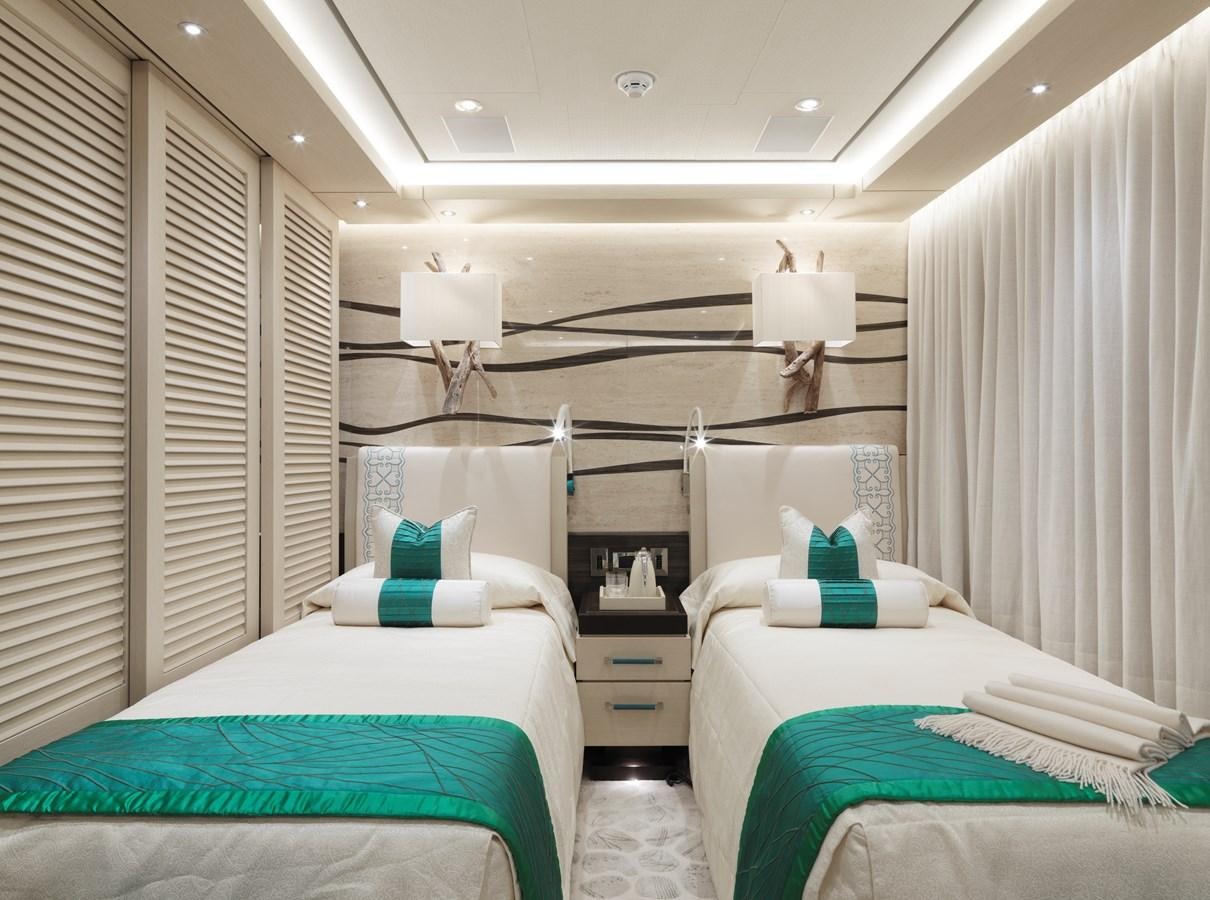

•  2 x twin cabins on main deck with ensuite bathroom.

CREW

• Accommodation for 31crew in a total of 17 cabins
• 1 x Captain Cabin with ensuite shower room
•  4 x Officer/HOD single cabins with ensuite shower rooms
• 10 x Twin crew cabins with ensuite shower room
• 2 x Triple crew cabins with ensuite shower rooms


SATCOM

• Two (2) x Thrane & Thrane InMarSat C, Sailor TT6110 GMDSS compliable, each consisting of:
• One (1) transceiver/antenna unit, including distress key
• One (1) Ethernet switch
• One (1) interconnection box
• One (1) INM-C data terminal
• Two (2) parallel printer
• One (1) SSAS add on system with 2 alert and 1 reset buttons

FLEET BROADBAND

• 2 x Thrane & Thrane 500

IRIDIUM

• Thrane & Thrane Iridium Satellite Phone type Sailor 4000   voice and data

NAVTEX

• Navtex receiver Furuno NX700AB

SART

• 2 x AIS-SART McMurdo S5 Smartfind

CELLULAR SYSTEM

• Two (2) triple band GSM for voice/fax/data
• Each consisting of:
• Main unit, cellular antenna and base & Data converter
• 1 x MCS 19” BRI AS551/4V ISDN/GSM gateway
• 1 x Pepwave Max BR1 US cellular router
• 1 X TP-Link Asia 4g cellular router (not industrial type)
• VHF RADIOTELEPHONES    A complete external communication system complying with the requirements for the Global Maritime Distress and Safety System (GMDSS) sea area A-3 consisting of the following installations and equipment.
• 1 x SSB MF/HF DSC Radio Telephone Thrane & Thrane type Sailor 6300
• 2 x VHF DSC radio telephone Sailor type RT6222
• 3 x VHF slave units for RT6222
• 1 x VHF radio telephone Sailor type RT6210
• 3 xSslave units for RT6210
• One (1) VHF Air Band Transceiver Icom type IC-A110 (Helicopter operations)
• One (1) VHF portable Air Band Receiver Icom type IC-A24E (Helicopter operations)
• One (1) Remote Helicopter handset FLIGHTCOM V90SP for IC-A24E
• Three (3) Portable Emergency GMDSS VHF Radios type Sailor SP3520, all kept in the wheelhouse

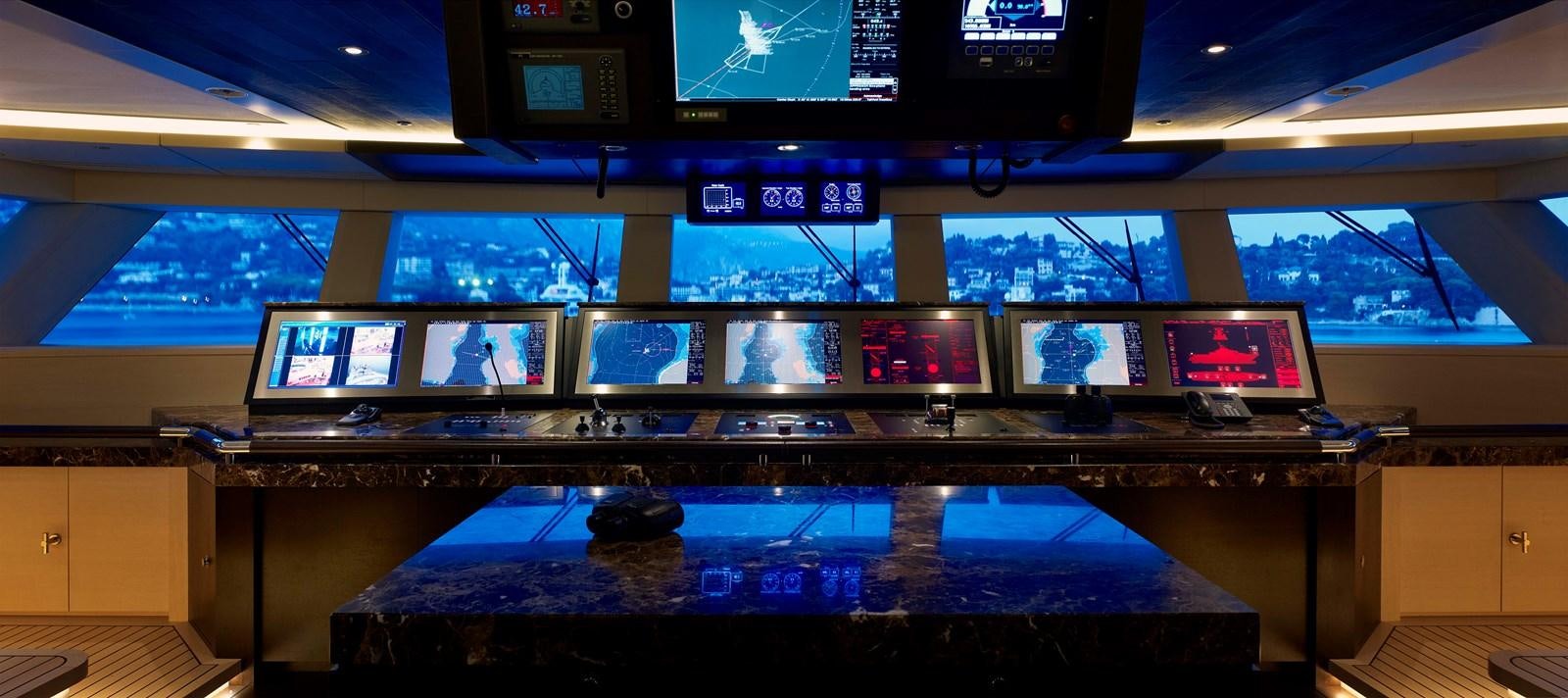

The navigational bridge is based upon seven (7) 66cm/26” flat multi-functional & inter-changeable screens. Equipment one (1) separately placed planning station. These workstation screens are able to display and control the following: Chart radar, Radar, Electronic chart display information system (ECDIS) and Conning. Four (4) multifunctional workstation screens display 2, 3, 4 and 6 are working as a dedicated redundant integrated navigation system. The three (3) remaining displays 1, 5 and 7 are reserved for the Alarm Monitoring and Control system (AMCS), Dynamic positioning, CCTV and entertainment. Display 8 (the 4th multifunctional workstation is independent from the other units in the wheelhouse console) with a 56cm/ 22” flat screen and keyboard and is designated as the planning station.  In the Three (3) overhead 33cm/ 13’’ displays essential navigational data such as wind speed/direction, ship’s speed, depth, ship’s course & ship’s position are shown.
MAGNETIC COMPASS

• 1 x Cassens & Plath type 11 magnetic compass with reflection mirror. Magnetic sonde and electrical output for autopilot

GYRO COMPASS

• Two (2) x Raytheon Anschütz Gyro/Satellite Compass System Standard 22 type 110-233 NG002
• Two (2) Anschütz repeater compass 360/10° - IP23 for Wheelhouse and IP44 for steering gear room.

AUTOMATIC PILOT

• 1x Raytheon Anschütz track pilot NautoPilot 5400
• 1x Raytheon Anschütz track pilot NautoPilot 5100

LOG

• Skipper DL850 2 Axis doppler log with digital display type EML 224

ECHO SOUNDER

•  Furuno type FE-700

RADAR

• 2 x Raytheon Anschütz SYNAPSYS ARPA radars (S-band & X-band) with 66cm/26” TFT wide screen monitors

NAV. DISPLAY

•  3 x Multipilot/ ECDIS Pilot Platinum with 56cm/22" TFT wide screen monitors (Captain Cabin, Ship’s Office, crew mess)

GPS

• 2 x Furuno GPS Navigator type GP-150

WIND INSTRUMENTS

• Lambrecht Meteo-LCD/NAV Multi-purpose Meteorological and Nautical Indicator

AUTOMATIC IDENTIFICATION  SYSTEM (AIS)

• Furuno type FA-150

• IPTV system based on OneVision CMS, locally installed Zotac/Intel NUC pc’s running VBH/OneVision software and connected via HDMI to local TV
• Crestron and Extron based audio and video distribution throughout the vessel
• All guest areas, Captain’s cabin, Wheelhouse, Pantry’s, Galley and Crew Mess are controlled via IPADs with Crestron App. The rest is controlled with Universal remote MX-450
• All music, picture and video files are stored on Netgear NAS’ in the AV room, bottom deck forward, serving IPTV via local LAN (Cat.6 Gigabit, all switches are from Cisco)
• Various Karaoke and Pioneer DJ equipment onboard including DJ booth, active speakers, fog machine and DJ lights
• Satellite Tv via 20 x Sky sat Tv boxes, 20 x DirectTv and 20 x Asia sat Tv boxes, Triax and Ericsson equipment also installed in AV rack
• Outdoor cinema setup possible on upper deck aft helipad

SATELLITE SYSTEM

• 2 x Sea Tel 6012 VSAT, MXP, Sea Tel arbitrator,  Idirect X7 modem
• 2 x Sea Tel 6004 TVRO, Sea Tel DAC 2202, Crestron arbitrator
• TVs    All TV’s Onboard, besides crew cabins on lower deck, are Samsung TV’s of various sizes.
• Lower deck crew cabins are fitted with Ampire flip down screens.
• Below A/V detailed by decks/ areas:

TANK DECK
MEC – AV Room

• 25 x Orbit Sat Receivers
• 29 x Nilesat Receivers
• 2 x Common Sat Receivers IPTV (Future Source)
• 1 x Media Server (600 Blu-ray/3,600 DVDs) Kaleidescape KSERVER-5000-0650
• 26 x Airplay Device Apple TV
• 2 x Blu-ray Player Denon DN-500BD

LAUNDRY

•  1 x 32”/ 82cm LED Screen Samsung UE32J5500
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x AV Receiver Yamaha RX-A660

CREW LOUNGE

• 1 x 48”/ 122cm LED Screen Samsung UE48JU6400
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x AV Receiver Yamaha RX-A750
• 1 x Media Player Kaleidescape KPLAYER-M300-C

HOSPITAL

• 1 x 32”/ 82cm LED Screen Samsung UE32J5500
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x AV Receiver Yamaha RX-A660

CH ENGINEER OFFICE

•  1 x Amplifier/Airplay Access Denon CEOL Piccolo N4

CREW GYM

•  1 x Amplifier/Airplay Access Denon CEOL Piccolo N4

WORKSHOP

•  1 x Amplifier/Airplay Access Denon CEOL Piccolo N4

PORTABLE

• VDJ Console & Lighting System Mixing Desk
• 1 x Mixer Pioneer DJM2000
• 2 x DJ Controller Pioneer CDJ2000
• 2 x Monitor Speaker Pioneer SDJ50X
• 1 x Headphones Pioneer HDJ500
• 1 x Wireless Microphone System Shure BLX14UK/SM35
• Speakers
• 4 x 3 way Active Speakers QSC KW153
• 2 x Active Subwoofers QSC KW181
• DJ Lighting
• 1 x DMX Controller Zero 88 Juggler
• 2 x Moving Head (LED) Chauvet Intimidator Scan LED 30
• 1 x LED LASER Chauvet Eclipse

SUN DECK

•  1 x 65”/ 165cm Weatherproof Screen Aqualite AQLH-65
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x Power Amplifier QSC CX168
• 1 x 3”/ 7.6cm Touch Panel Crestron MTX-3

OWNERS DECK

• Panoramic Master Suite
• 1 x 65”/ 165cm LED Screen Samsung UE65JU7000
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x 3”/ 7.6cm Touch Panel Crestron MTX-3
• 1 x Touch Screen Tablet Apple iPad

Dressing Room

• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x AV Receiver Yamaha RX-A3050

PA Cabin

• 1 x 40”/ 102cm LED Screen Samsung UE40JU7000
• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x Media Player (Owner’s Study) Kaleidescape KPLAYER-M300-C
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x AV Receiver Yamaha RX-A660
• 1 x AV Receiver (Owne’rs Study) Yamaha RX-A750

Owner’s Study

• 1 x 55”/ 140cm LED Screen Samsung UE55JU7000
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x 3”/ 7.6cm Touch Panel Crestron MTX-3

Owner’s External Terrace

• 1 x Weatherproof Screen Aqualite AQLH-55
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x AV Receiver Yamaha RX-A750
• 1 x 3”/7.6cm Touch Panel Crestron MTX-3

CAPTAIN CABIN

•  1 x 40”/ 102cm LED Screen Samsung UE40JU6400
• 1 x 32”/ 82cm LED Screen Samsung UE32J5500
• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x Dolby Digital – Converter for Blu-ray CYP AU-1H1DD
• 1 x AV Receiver Yamaha RX-A1060

OFFICER CABIN

• 1 x 32”/ 82cm LED Screen Samsung UE32J5500
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x AV Receiver Yamaha RX-A660

BRIDGE DECK

• VIP Cabins
• 4 x 55”/ 140cm Screen Samsung UE55JU7000
• 4 x Blu-ray Player Sony BDP-S6500
• 4 x Dolby Digital – Converter for Blu-ray CYP AU-1H1DD
• 4 x Media Player Kaleidescape KPLAYER-M300-C
• 4 x AV Receiver Yamaha RX-A1060

SERVICE PANTRY

• 1 x Amplifier/Airplay Access Denon CEOL Piccolo N4

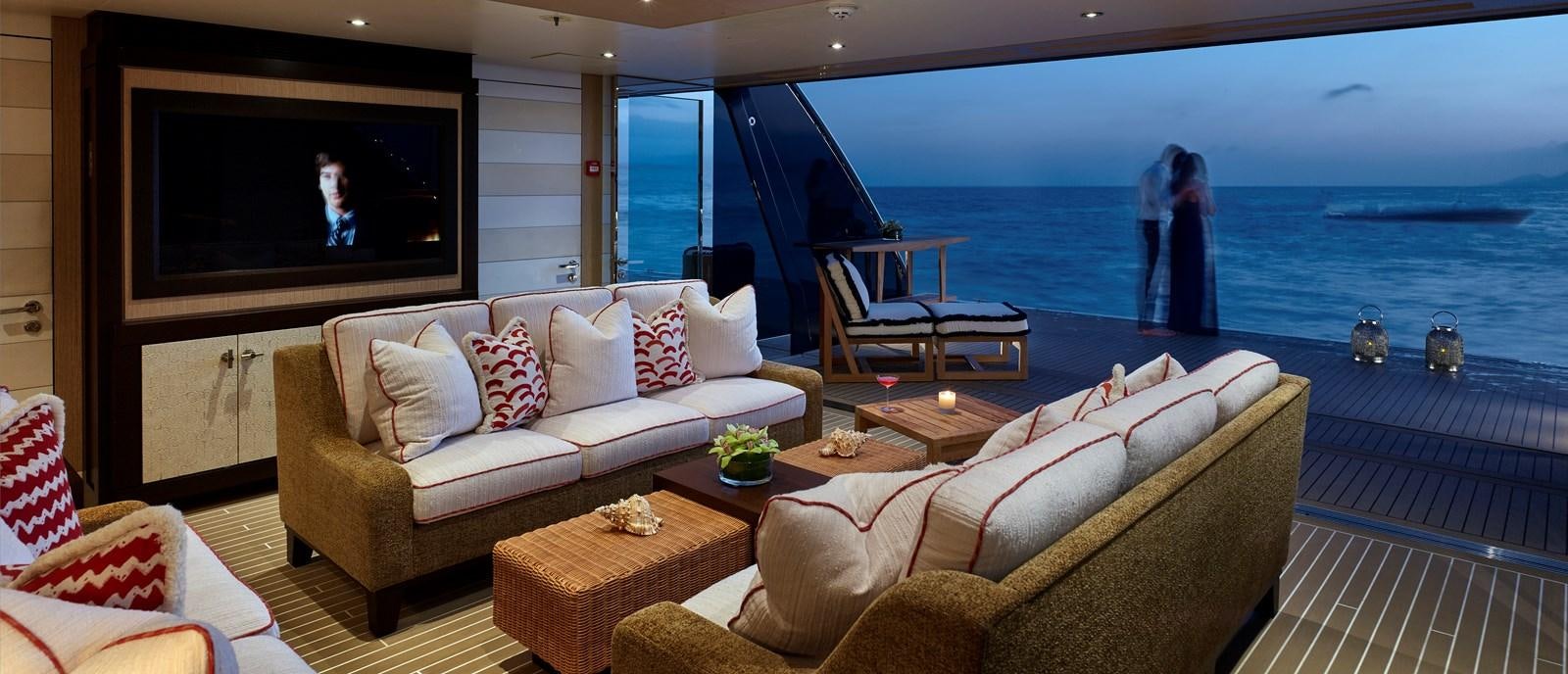

SKY LOUNGE

•  1 x 98”/ 250cm LED Screen LG 98LS95A
• 1 x AV Receiver Yamaha RX-A3050
• 1 x Amplifier (8Ch) (Sky Lounge Exterior) QSC CX168
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x Media Player (Sky Lounge External) Kaleidescape KPLAYER-M300-C
• 1 x 3”/ 7.6cm Touch Panel Crestron MTX-3

SKY LOUNGE EXTERNAL

• 1 x 55”/ 140cm Weatherproof Screen Aqualite AQLH-55
• 1 x 3”/ 7.6cm Touch Panel Crestron MTX-3

MAIN DECK

• 3 Berth Staff Cabins
• 6 x 22”/ 56cm Smart Screen Samsung UE22H5600
• 6 x Headphones AKG K77
• 2 x Amplifier/Airplay Access Denon CEOL Piccolo N4

Guest Suites

• 8 x 55”/ 140cm Screen Samsung UE55JU7000
• 2 x 48”/ 122cm Screen Samsung UE48JU7000
• 10 x Blu-ray Player Sony BDP-S6500
• 10 x Media Player Kaleidescape KPLAYER-M300-C
• 10 x AV Receiver Yamaha RX-A750

Club Lounge

• 2 x 65”/ 165cm LED Screen Samsung UE65JU7000
• 1 x AV Receiver Yamaha RX-A3050
• 2 x Amplifier (8Ch) QSC CX168
• 1 x Blu-ray Sony BDP-S6500
• 1 x Media Player (Club Lounge) Kaleidescape KPLAYER-M300-C
• 1 x Media Player (Dining Room) Kaleidescape KPLAYER-M300-C
• 1 x 3”/ 7.6cm Touch Panel Crestron MTX-3

Dining Room

• 1 x Wall Touch Panel Crestron TSW-750

Main Deck Service Pantry

• 1 x Amplifier/Airplay Access Denon CEOL Piccolo N4

Main Lobby

• 1 x Touch Screen Tablet Apple Ipad
• Majelis
• 1 x 98”/ 250cm LED Screen LG 98LS95A
• 1 x AV Receiver Yamaha RX-A3050
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x Media Player (Majelis) Kaleidescape KPLAYER-M300-C
• 1 x Media Player (Exterior Pool) Kaleidescape KPLAYER-M300-C
• 1 x 3”/ 7.6cm Touch Panel Crestron MTX-3

Exterior Pool Area

• 2 x Weatherproof Screen Aqualite AQLH-32
• 1 x Wall Touch Panel Crestron TSW-750

LOWER DECK

• Crew Cabins (4 berths)
• 8 x 22”/ 56cm Smart Screen Samsung UE22H5600
• 2 x Headphones AKG K77
• 2 x Amplifier/Airplay Access Denon CEOL Piccolo N4
• Crew Cabins (2 berths)
• 24 x 22”/ 56cm Smart Screen Samsung UE22H5600
• 24 x Headphones AKG K77
• 12 x Amplifier/Airplay Access Denon CEOL Piccolo N4

Officer Cabins

• 6 x 32”/ 82cm LED Screen Samsung UE32J5500
• 6 x Blu-ray Player Sony BDP-S6500
• 6 x AV Receiver Yamaha RX-A660

Chief Engineer Cabin

• 1 x 32”/ 82cm Screen Samsung UE32J5500
• 1 x Blu-ray Player Sony BDP-S6500
• 1 x AV Receiver Yamaha RX-A1060

Dayroom

• 1 x 40”/ 102cm LED Screen Samsung UE40JU6400

Officer and Crew Mess

• 3 x 48”/ 122cm LED Screen Samsung UE48JU6400
• 2 x Amplifier (8Ch) (Mess & Galley) QSC CX168
• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x Blu-ray Player Sony BDP-S6500

Galley

• 1 x 32”/ 82cm LED Screen Samsung UE32J5500

ECR

• 1 x Amplifier/Airplay Access Denon CEOL Piccolo N4
• Tender Garage
• 1 x Amplifier/Airplay Access Denon CEOL Piccolo N4

Gym

• 1 x Power Amplifier QSC CX168
• 1 x Media Player Kaleidescape KPLAYER-M300-C
• 1 x Blu-ray Player Sony BDP-S6500

Beach Club

• 2 x 55”/ 140cm Weatherproof Screen Aqualite AQLH-55  with dimensions as per General Arrangement Plan has been fitted. Suitable for fresh water only

OFFICE EQUIPMENT

COMPUTERS & PRINTERS

• 1 x OKI MC861 A3 duplex LAN printer (Wheelhouse)
• 6 x HP M475DW A4 duplex LAN printers in Offices/ECR/Captains’ cabin and 2 of them in guest areas
• 25 x Laptops, Dell, Sony and Lenovo
• 10 x Desktops, Lenovo and Mac Mini’s running windows via Bootcamp
• Dell servers with Windows Server
• Kerio Firewall
• MERU Wi-Fi controller and hotspots

DOMESTIC EQUIPMENT

CROWS NEST (Exterior)

• 1 x Vitrifigo Refrigerator

SUNDECK (Exterior)

• 1 x Wessamat Ice cube maker
• 1 x Vitrifigo Refrigerator

BRIDGE DECK

• 1 x Liebherr Refrigerator
• 1 x Juta Coffee Machine, with grinder

UPPER DECK (Exterior)

• 1 x Wessamat Ice cube maker
• 1 x Vitrifigo Refrigerator

UPPER DECK
Master Cabin

• 1 x Dometic Refrigerator

Owners Study

• 1 x Dometic Refrigerator

Guest Cabin

• 1 x Dometic Refrigerator

Pantry

• 1 x Miele Dishwasher
• 1 x Miele Wine fridge
• 1 x Samsung fridge & top freezer
• 1 x Liebherr Refrigerator

MAIN DECK

• Guest Cabins - 7
• 1 x Domestic Refrigerator

Pantry

• 1 x Wessamat Ice cube maker
• 1 x Hobart Dishwasher
• 1 x Liebherr Refrigerator
• 1 x Miele Wine Fridge
• 1 x Miele Microwave

LOWER DECK
GYM

• 1 x Miele Fridge

Beach Club

• 1 x Miele Fridge

Dive Locker

• 1 x Manitowoc Ice Cube Maker

Engine Room

• 1 x Nord Cap Refrigerator

Crew mess

• 1 x Sub Zero Fridge
• 2 x Jura Coffee Machines
• 1 x Miele Microwave
• 2 x Miele Dishwashers
• 1 x Wessamat Ice cube maker
• 1 x Bain-marie (air warmer)


BOTTOM DECK

• Hospital
• 1 x Domestic Refrigerator
• Dry Store
• 2 x Euro Cave Wine Fridges
• 1 x Liebherr Cigar Humidifier

LAUNDRY EQUIPMENT

• 3 x Miele Washer 10kg/22 lbs
• 2 x Miele Washer 6.5 kg/14. 3lbs
• 3 x Miele Dryer 10kg/22 lbs
• 2 x Miele Dryer 6.5kg/14.3 lbs
• 1 x Miele Rotary Iron
• 1 x Philips Iron with separate board
• 1 x Tefal Steamer
• 1 x Peko Drying Cabinet
• 1 x Miele Washer 6.5kg/14.3 lbs (Dive Locker)
• 1 x Miele Dryer 6.5kg/14.3 lbs (Dive Locker)


OTHER

• Garbage compactor Mil-Tec XP200S general waste press & a cold garbage locker (-5 degrees Celsius)
• Located in the garbage store on bottom deck
• One (1) food waste and galley grey water system, make USON with stainless steel collection tank with capacity of 1000 liters/265 US gallons
• The system consists of a food waste macerator, a reversible vacuum pump unit for the transport of food waste to the collection tank located in the bottom deck technical space

OTHER EQUIPMENT
HELIDECK

• Helicopter landing platform is provided at upper deck aft.
• The platform, laid out for a helicopter with a D value of 12.1m and a max take-off weight of 3.0 ton. (Eurocopter 135 or equivalent) is finished with teak decking and equipped with landing markings, texts and signs as required. Helicopter refuelling system installed in accordance with requirements. Fuel installation is suitable to defuel the helicopter


SHIP'S SAFES

• 2 x Master Suite
• 3 x Owner’s office
• 9 x Guest cabins
• 1 x Captain’s cabin
• 1 x Captain’s Office
• 1 x Ship’s Office

BARBEQUE

• 1 x Weber portable charcoal bbq Size L
• 1 x Weber portable charcoal bbq Size M

GYM EQUIPMENT
Beach Club

• 1 x Technogym Synchro Excite 700 Spinning bike
• 1 x Technogym Run Forma LT DDK52L Tread mill
• 1 x Technogym Kineses Personal Vision
• 1 x Concept 2 model E Indoor rower
• 1 x Merrithew Stott Pilates V2 Max Reformer
• 1 x Helix HLT3000 Aerobic lateral Trainer
• 1 x Octane fitness PRO4700 elliptical cross trainer
• 1 x Cybex Bravo 8830 functional trainer
• 1 x Hoist HF4165 (6 Position F.I.D.)
• 1 x Body Solid Squat Rack
• 1 x Domyos weight bench
• 1 x Body Solid Kettle bell stand incl. 7 x kettle bells
• Full set of weights for bench press & squat rack.
• Full set of dumbells from 3kg/6.6 lbs to 25kg/55 lbs

ANCHOR WINDLASS

• 2 x Steen type 23-9, size 19 stainless steel vertical anchor windlasses each with vertical warping capstans

AFT WARPING CAPSTANS

• Two (2) electrically driven Steen type 59-9 size 16 capstans with a pulling rate of approx. 60 kN at approx. 10m/32.8ft per minute, installed at aft deck - one (1) on PS and one (1) on SB

BOLLARDS

• 10 x Stainless steel with two pad-eyes of 55mm/2.2” (6 of Fore deck and 4 on Aft deck)
• Two (2) mooring bollards PS and SB on main deck at mid ship - these bollards include one (1) electrical capstan each with max pull torque of 20Kn at 10 m/32.8ft per min
• One (1) towing bollard is installed on main deck at fore deck. The bollard includes two (2) guidance rollers

GROUND TACKLE

• Two (2) fully balanced HHP (High Holding Power), make Wortelboer 1,440kg/3,175lbs each, type Pool N anchors
• Connected to 8 shackles/220m/721ft length of high tensile steel stud link galvanized chain grade U3 with a diameter of 36-mm/1.4”. Chains are marked every 27.5m/90ft with painted colour code

BOAT CRANE & DAVITS

• Tender Cranes
• Two (2) Van Driel electric full beam overhead sliding davits, one (1) front beam and one (1) aft beam
• The front beam has in total two (2) lifting points; one (1) lift point on PS and one (1) lift point on SB. Safe Working Load (SWL) per hoisting point is 5,000kg/11,023 lbs
• The aft beam has in total four (4) lifting points; one (1) pair (2 x 1) on PS and one (1) pair (2 x 1) on SB, SWL per pair is 5,000kg/11,023 lbs (2,500kg/5,512 lbs per lifting point)
• Overhead Davit in Jet ski garage – One Hydraulic powered double telescopic overhead sliding beam, maker Van Driel. Lifting and lowering of Jet Ski. SWL 400kg/882 lbs
• Rescue Boat Crane – Two (2) sliding boom cranes (each side), make van Driel, for launching and recovering the rescue boats - SWL 1,800kg/3,968 lbs
• Life Raft Cranes - Two (2), one (1) on PS and one (1) on SB, van Driel manual operated Life raft davit cranes with SWL 3,250kg/7,165 lbs

PASSERELLE

• One (1) electric hydraulic telescopic passerelle, make Staalart has been fitted hidden in a watertight trunk, integrated on top of the main deck. Distance between outboard end of Passerelle and stern is extendable to a length of 4m/13.12ft and approx. 950mm/37.4” width
•     Angle movement horizontally approx. 3 degrees to Starboard, 25 degrees to Port, Vertically the first section can move down 8 degrees and the last section were steps are integrated can be lowered up to 45 degrees

SIDE BOARDING LADDERS

•  One (1) electric/hydraulic operated Staalart accommodation ladder with a length of approximately 5m/ 16.40ft stowed in the bulwark construction, hinged at main deck level. Boarding ladder can be rotated outboard 90 degrees, to an angle perpendicular to the centreline of the yacht. In lowered position the lower grating will be about 0.5m/1.64ft above the waterline
• One (1) loose boarding ladder/sea stair  consisting of 12 steps with slewing platform. Provision foreseen for installation on Starboard and Portside bulwark side doors on main deck
• One (1) pilot ladder length 2.20m/7.20ft Provisions are provided for the installation of the Pilot ladder in way of PS and SB Main deck bulwark doors
• Two (2) removable, carbon fiber swimming ladders with stainless steel 316 hinge and swivel, teak on the treads, for the following locations: One (1) at the sea terrace door, One (1) at the transom

SEARCHLIGHT

• Two (2) searchlights on main mast, Francis type voyager VX330 with remote controls in wheelhouse installed

AWNING

• Eighteen (18) sun awning poles are foreseen of which twelve (12) on upper deck aft, two (2) on upper deck forward and four (4) on bridge deck aft. Ten (10) of the awning poles on upper deck aft are foreseen with RGB+W LED lights, the electricity and lightning control is integrated in the bottom of the poles. LED lights are controllable through a DMX controller linked to the AV-System

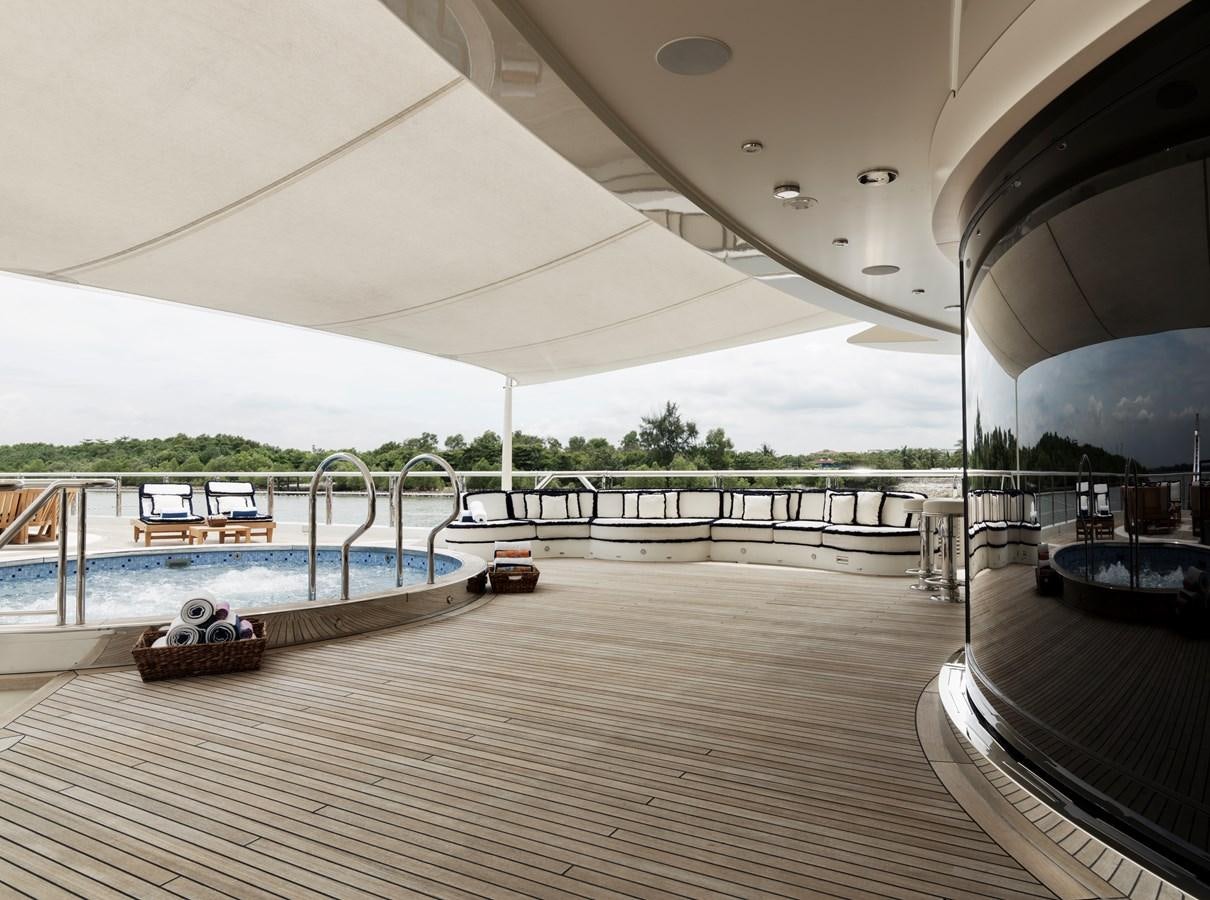

SWIMMINING POOL

• On the Upper deck aft (1) round custom-built swimming pool has been fitted to the deck with the top about 200mm/7.9” above the teak deck. The approximate dimensions are 4.6m/15.1ft diameter with a depth of 1.6m/5.3ft. The aft part of the side walls off the pool are fitted with glass panels. The swimming pool is suitable for fresh or seawater and provided with;
• -Six (6) RGBW LED underwater lights, Jetstream, Air bubbles, Integrated dump tank, heater filter installation, diamond electrolysis, diacell disinfection without chemicals.
• One (1) swimming ladder
• The pool can be heated up to 45 degrees Celsius

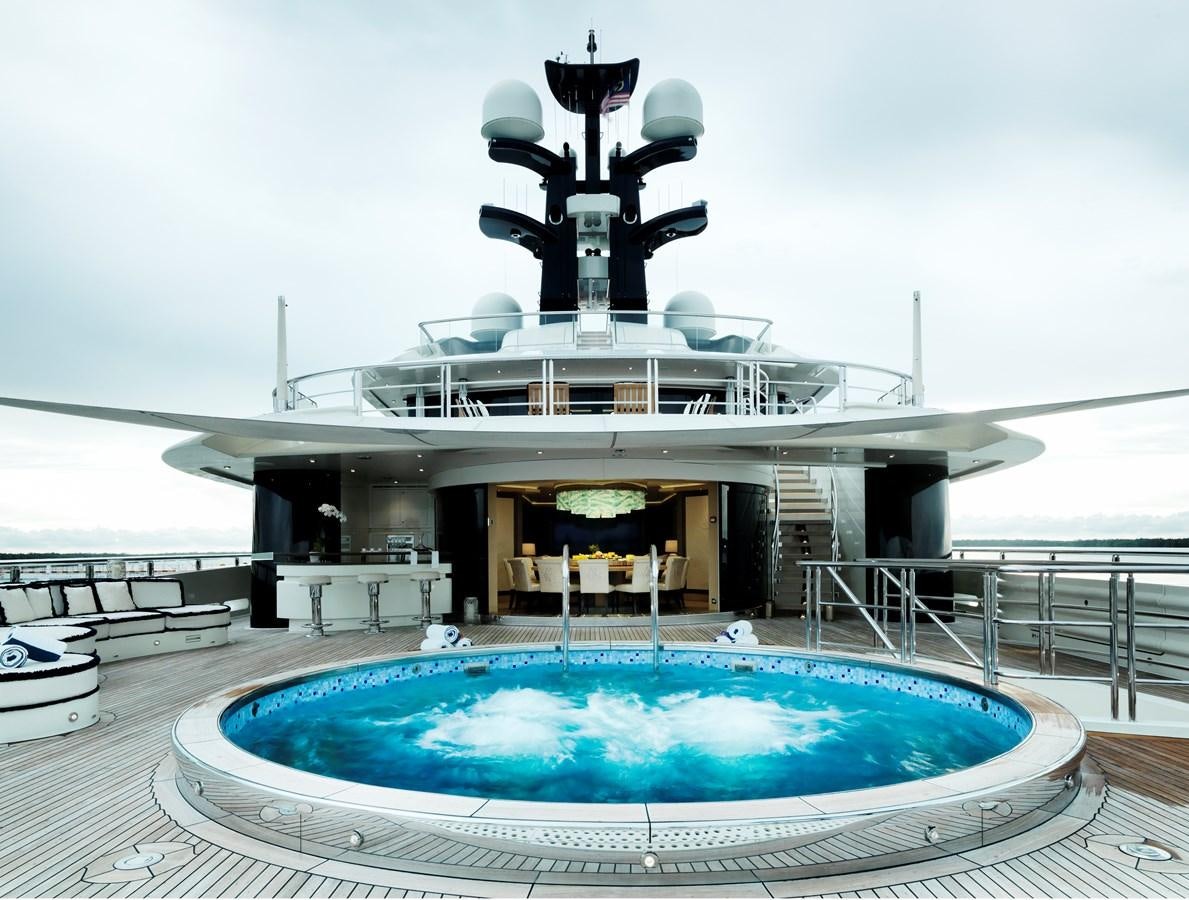

JACUZZI

• On upper deck forward one (1) custom glass-fiber whirlpool with heating and underwater RGBW LED lights

TENDERS

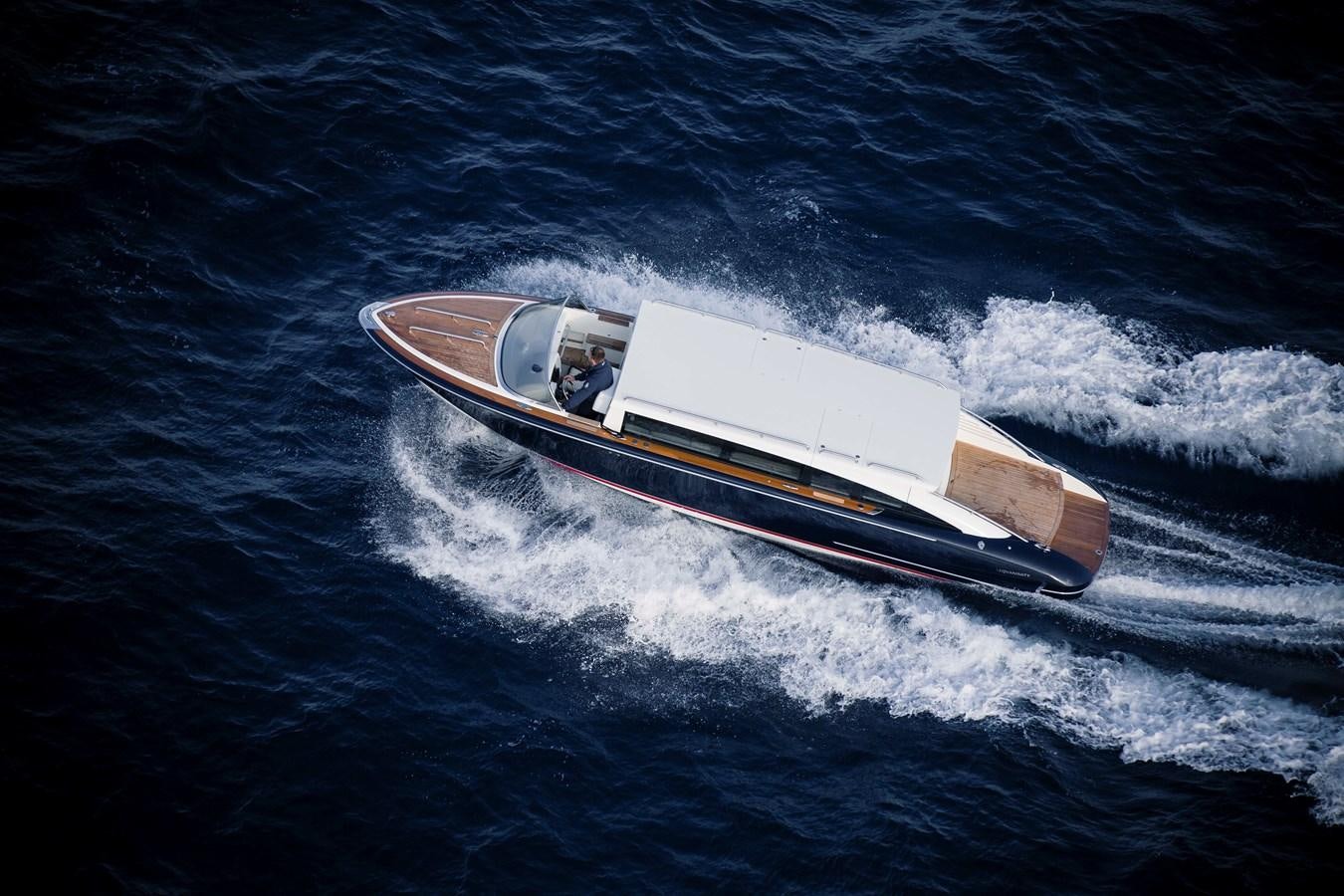

•  Hodgdon Limo Tender
• Model- Limo Tender 417
• HIN (serial) No- US-HGC004170812
• Maximum speed 37 knot, Max 14 persons
• Dimensions: Length 10.5m (35.5ft) x Beam 2.96m (9.7ft) x Height 2.8m (9.2ft)
• Volvo Penta D6-400, 294kW (400 metric hp), Stern Drive: DPH Duo prop Drive
• Maximum Mass displacement - 6833 Kilograms

Hodgdon Sports Tender

• Model- Open Tender 414
• HIN (serial) No- US-HGC004140812
• Maximum speed 35 knots, Max 13 persons plus luggage
• Dimensions: Length 10.5m (35.5ft) x Beam 3.0m (9.8ft) x Height 2.1m (6.9ft)
• Volvo Penta D6-370, 272kW (370 metric hp), Stern Drive: DPH Duo prop Drive
• Maximum Mass displacement - 5689 Kilograms

3 x Jet Ski's

• Manufacturer- YAMAHA Motor Corporation LTD.
• Model VX Cruiser,
• Top speed 53mph, Max 3 persons each Ski
• Value – EUR 9,750 each. (EUR 29,250 total for 3)
• Length 3.27m (10.7ft) x Width 1.17m (3.8ft) x Height 1.16m (3.8ft)
• Jet Ski 1. US YAMA22361314
• Jet Ski 2. US YAMA22411314
• Jet Ski 3. US YAMA22401314
• Dry Weight: 311kg/686 lbs - max fuel capacity: 70 litres (18.5 US gallons)

2 x Rescue Tenders

• Manufacturer- Zodiac Hurricane Technologies Inc.
• Model- JC561S14-W1
• Top speed 30 knots, Max 6 persons
• Volvo D3-170 HP to Castoldi 05 SOLAS Water Jet
• Value – EUR 112,916 each. (EUR 225,832 total for both)
• Length 5.83m (19.1ft) x Beam 2.59m (8.5ft) x Height 1.26m (4.1ft)
• Boat 1- CA-XDC 56051J314
• Boat 2- CA-XDC 56052 J314

1 x Zodiac MK 4 HD

• Manufacturer- Zodiac
• Serial number: FR-XMPC054WF617
• Yamaha F70 Outboard Engine
• Serial number: R14X238917
• Max 12 Persons

WAKE BOARDS / INFLATABLE / TOWABLES

• 1 x Funair Harmony Slide Height 7.6m (24.9ft)
• 1 x Funair Hanger Extreme Slide Height 7.6m (24.9ft) (No leg support (On order, 80% paid)
• 1 x Waterboggan 5-Person
• 1 x Connelly Dually Deluxe Double
• 1 x Wing Deluxe Single Tube
• 2 x Totora 3.35m (11.5ft) stand up Paddleboard
• 2 x Connelly Absolute Wakeboard
• 1 x Connelly Combo Cayman
• 1 x Connelly Outlaw Slalom Ski Nova
• 1 x Connelly Cadet Skis Child
• 1 x Hobbie Kona Paddle Kayak
• 2 x Double Kayak
• 12 x Luxfer Dive Cylinders
• 18 x Aqua Lung BCD’s (various sizes)
• 20 x Henderson Wetsuits (various sizes)
• 15 x Aqua Lung Regulators
• 15 x pairs Aqua Lung Fins (various sizes)
• 5 x Shimano Fishing Rods & Reels
• 20 x Mares Scuba Masks
• 2 x Underwater Canon Cameras with Naticam housing

SAFETY

• Two (2) x Rescue Boats, davit launched rigid/inflatable 5.7m (18.7ft) Zodiac Hurricane H560 Proluxe SOLAS approved with inboard diesel engine and waterjet propulsion stored on Bridge Deck (6 persons capacity)
• 6 x Inflatable self-righting davit launched life rafts (SOLAS-A pack), make Viking type 35DK+. Three (3) on each side with 35 person’s capacity
• Three (3) x Inflatable Free Floating Life rafts (SOLAS-A pack), make Viking type 35DK+, with 35 person’s capacity – Sun Deck, HRU equipped.
• Lifesaving equipment is provided for a maximum of 70 persons
• 8 x Lifebuoys, as per requirements of the regulatory bodies, equipped with safety lines or lights, including 2 x light & smoke signals
• 75 x Self-inflating life jackets - including four (4) inflatable life jackets for use in the rescue boat
• 10 x Child life jackets
• 5 x Infant life jackets
• 89 x Immersion suits (74 adult, 10 children, 5 infant)
• 12 x Rocket parachute flares (Bridge)
• 4 x Line-throwing appliances
• 60 x Smoke escape hoods Drager Parat 5520
• 14 x EEBD (Drager and Ocenco type)

FIRE FIGHTING

• Fire Detection System Consilium / Salwico type CS4000, main fire detection panel on the bridge, 2 repeater panels in ECR and crew mess. The Fire Detection system is connected to the AMCS system
• Sufficient number of smoke and smoke & heat detectors in all spaces and cabins. Infra-red detector over main and auxiliary engines
• 52 x Manually operated call points all around the vessel
• Marioff water mist firefighting installation throughout, activated by Fire detection System or manually for ER spaces, some technical spaces and petrol stores. Fresh water operated for 30min, as back-up connected to main FiFi
• 2 x CO2 fixed firefighting system for exhaust duct into the Main Galley and upper deck pantry galley – manually operated valve outside the galleys
• 2 x Fixed water mist sprinkler heads above deep fryers into the galley
• One (1) fixed fire-fighting foam installation with Six (6) pop-up deck nozzles (helideck)
• Four (4) Fire/Bilge identical self-priming centrifugal pumps with bronze housing and impellers with stainless steel shafts with a capacity of 45,000 litres/11,888 US gallons per hour
• Three pumps FiFi / Bilge are installed in the engine room spaces, fully interchangeable through valve settings. One of them is emergency Bilge / FiFi pump
• The fourth pump is designated as an Emergency FiFi/bilge pump, located in forward technical space, connected to emergency switch board
• Fire-extinguishers and fire hoses with nozzles are provided throughout
• 43 x Portable foam extinguisher 9L
• 1 x Portable foam extinguisher 45L
• 2 x Portable foam applicators
• 11 x Portable CO2 extinguisher 5kg
• 7 x Portable powder extinguisher 6kg/9kg
• 33 x Fire hydrants with hoses & nozzles
• The fire hoses and nozzles are housed into deck lockers in the direct vicinity of the valves, connected to the fire main and positioned throughout the yacht
• Four (4) sets of two (2) firemen outfits complete with hoods, gloves, boots, breathing apparatus, safety torch, fire axes and fire-proof suit
• 2 x Thermal fire detection cameras
• Diving compressor (section 802) manifold is suitable to refill the Breathing Apparatus
• Helicopter Crash box

ALARMS

• A complete general alarm system has been supplied and fitted in accordance with the requirements. This installation is incorporated into the PA system
• Six (6) off Signal panels are placed in the listed rooms. Two (2) in the engine room and One (1) in the generator room, pump room, technical space fore and emergency steering gear room. The panels will have the following fields:
• General alarm:         all panels
• Fire alarm:            all panels
• Phone:                Engine and generator room
• Sound powered comms:        Engine, generator & emergency steering gear room
• Water mist:            all Panels
• Engine room alarm:        all panels
• Engineers safety system:    Engine room panels
• In each Engine/generator/pump room and in the workshop a flashlight connected to the signal panel is placed
• Four (4) dedicated engineer’s crew Wi-Fi phones are linked to the engine control room group alarms and warnings to display these on the phones
• Alarm, Monitoring and Control System (AMCS) showing status of fire doors, watertight sliding doors, exterior doors, intruder alarms, etc
• Fire detection installation, make Consilium & Salwico type CS 4000 installed in all accommodation spaces, the engine room and technical spaces according requirements
• Addressable fire detection and smoke alarm installation consist of:
• A main fire detection panel, each section with visual and acoustic alarm installed in the wheelhouse. A repeat alarm panel is fitted in the crew’s mess and Engine Control Room.
• Heat and smoke detectors in accommodation, infra-red detector over main and auxiliary engines
• A number of manual break glass type call points
• Fire detection system is connected to the AMCS System

SECURITY

•  An IP-Based CCTV-system with cameras on inside and outside decks, and controlled with the Cisco Video Surveillance Manager
• The CCTV system is connected to the Ships LAN
• The video streams of the PTZ camera is recorded continuously and will be stored in chapter files containing movies of 5 min
• The video streams of the fixed cameras is recorded on motion detection
• The recording starts 10 seconds before motion detection and stops 10 seconds after the last motion detection
• The video stream of the motion detection recordings is stored with date and time tags
• The storage capacity is 120GB, when the disk reaches the final 10 GB of storage, it will remove the oldest recordings on a First in First out (FIFO basis)
• Control of the CCTV system is from the Crew Mess (1 unit) and the wheelhouse (2 units) by client desktop pc with additional monitor and trackball. The CCTV server is located in the central rack in the entertainment room
• In total nineteen (19) IP CCTV cameras are installed on the following locations:
• - Two (2) of PTZ camera main mast;
• - One (1) of fixed main deck forward on the mooring deck
• - One (1) of PTZ camera main deck aft;
• - One (1) of PTZ camera main deck passage way PS;
• - One (1) of PTZ camera main deck passage way SB;
• - Two (2) of fixed camera lower engine room (PS & SB);
• - Two (2) of fixed camera engine room (for & aft);
• - Two (2) of fixed camera in generator room;
• - One (1) of fixed camera wheelhouse corridor;
• - One (1) of fixed camera crew loading bay;
• - One (1) of fixed camera lower lobby entrance;
• - One (1) of fixed camera beach area terrace door;
• - One (1) of fixed camera jetski store:
• - One (1) of fixed camera lower deck lounge aft: and
• - One (1) of PTZ camera for UP aft helicopter operations

• Note 1: All cameras are with a VGA (704 x 576) resolution, 25 frames per second. CCTV system complies with the requirements of the ISPS – code
• The Intruder alarm system is a safety system onboard to prevent people entering the interior or exterior of the yacht unnoticed. The system is part of the AMCS since all components are connected to the AMCS and the functionality is programmed inside the AMCS it can be regarded as a separate system
• All doors and hatches giving access to the accommodation are equipped with open/close indication and are monitored and alarmed via the AMCS
• When the Intruder system is switched-on, these contacts can trigger the Intruder alarm system
• On the following positions on the yacht an 14.5cm/5.7 inch TFT touch panel screen controls the Intruder Alarm System:
• - Crew mess Integrated in AMCS Local operator panel;
• - Wheelhouse Integrated in AMCS Local operator panel;
• - Main deck Crew entrance same execution as AMC Local operator panel
• For crew mess and wheelhouse, the screen will have a double function, AMCS display and Intruder
• Alarming of the intruder system is by means of audible and visual indication of the intruder system control panel. Also a relay to the PABX exchange will be activated
• The system can be switched on or off by the AMCS on one of the mimic pages; and by the local intruder alarm panels
