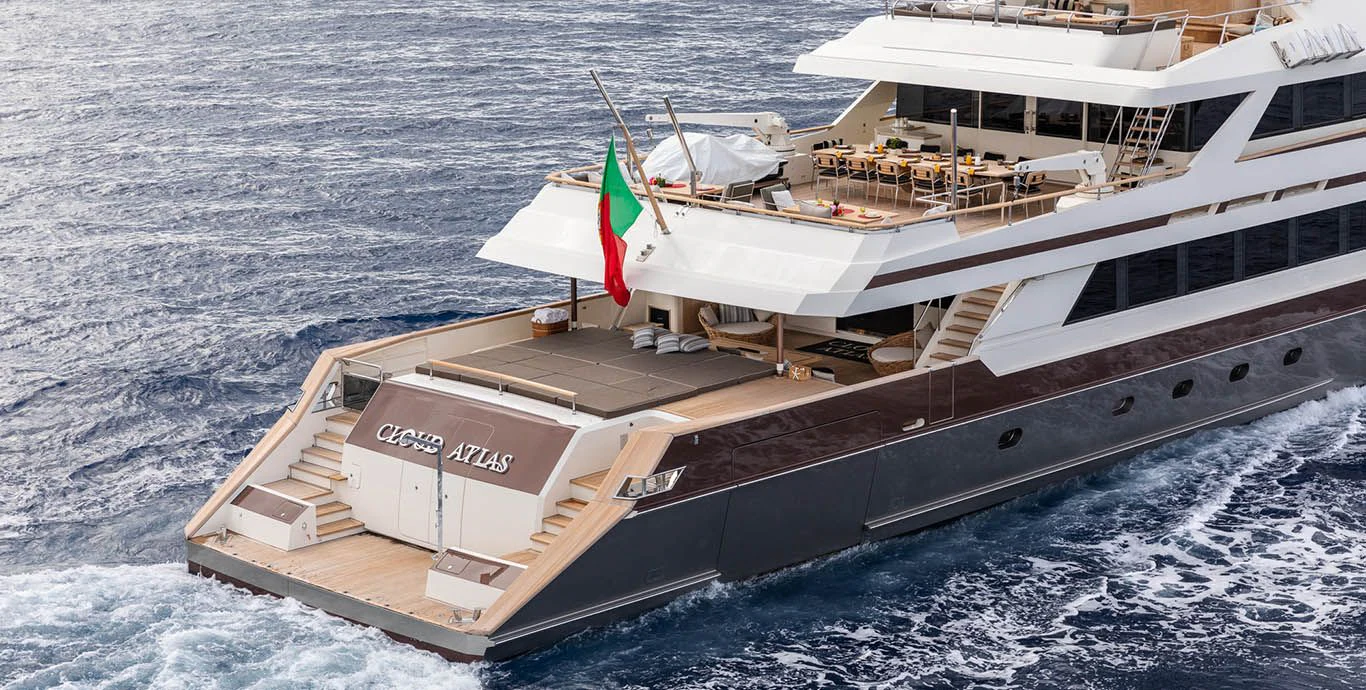

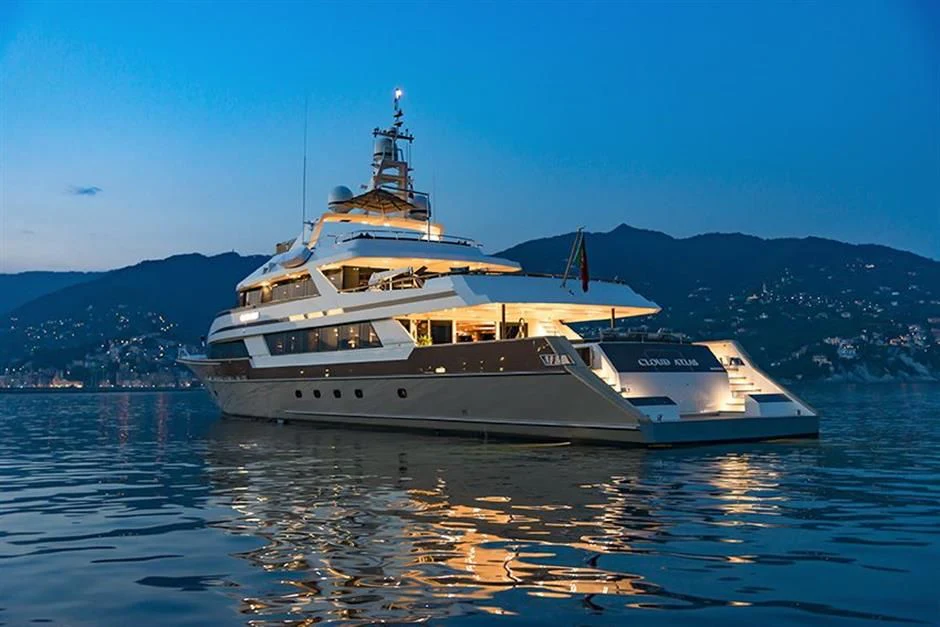

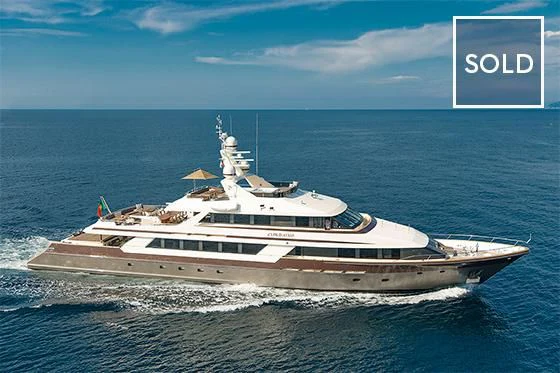

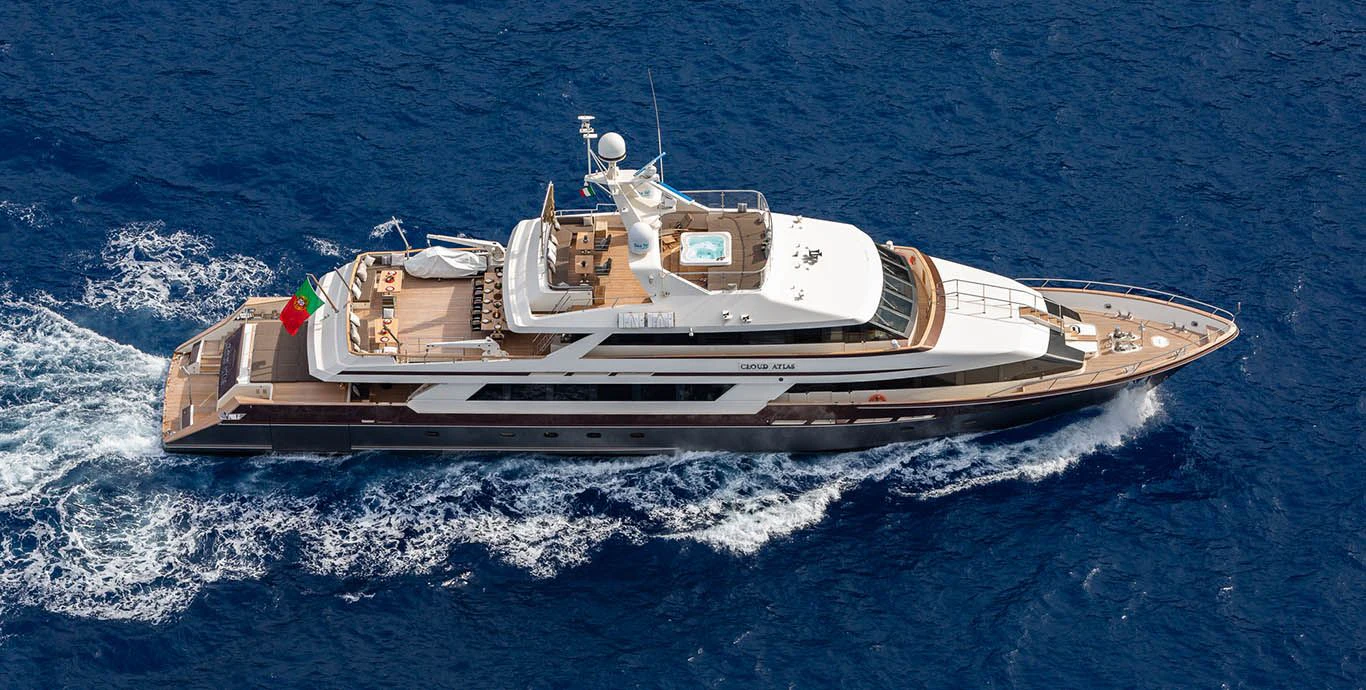

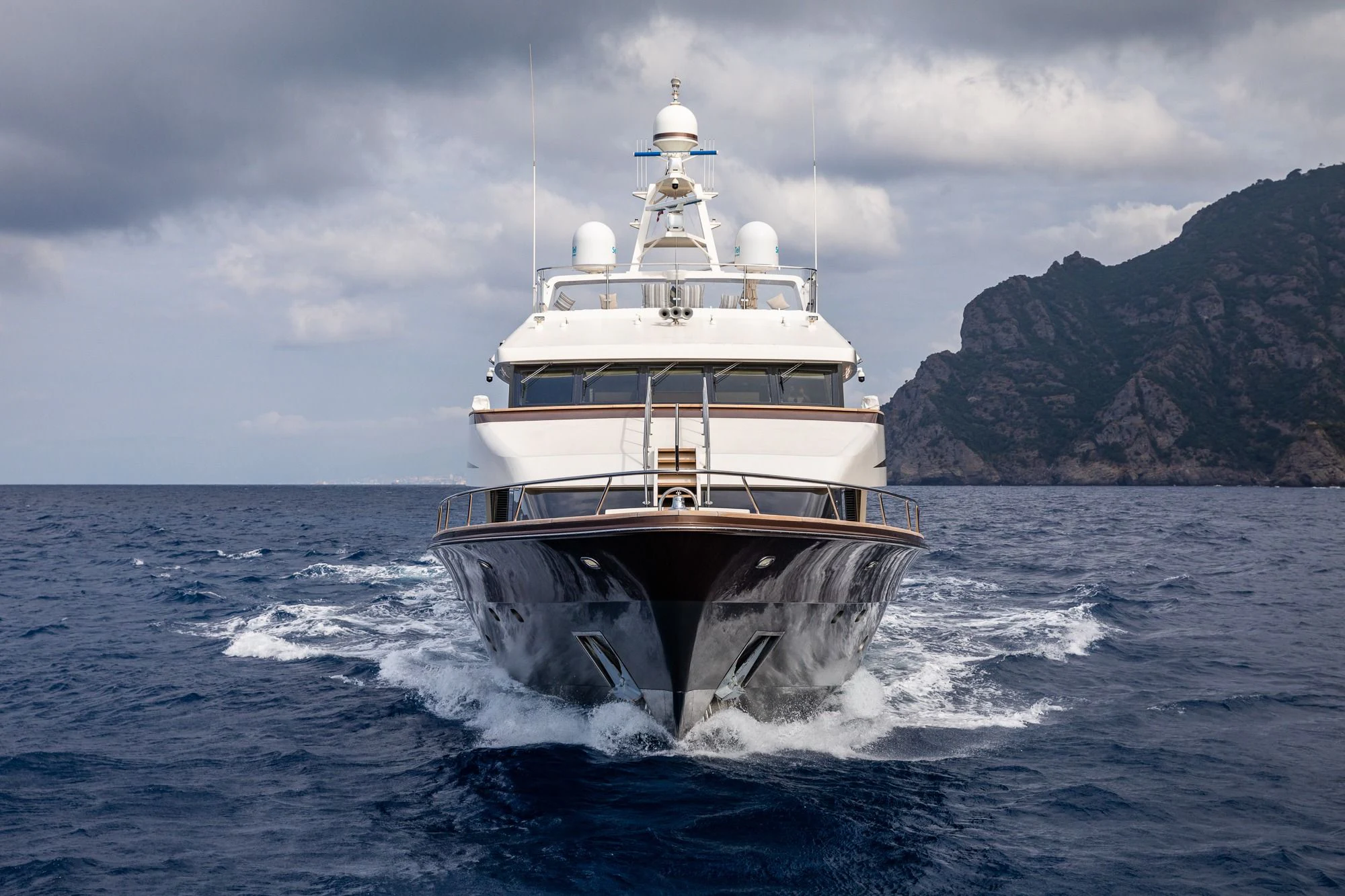

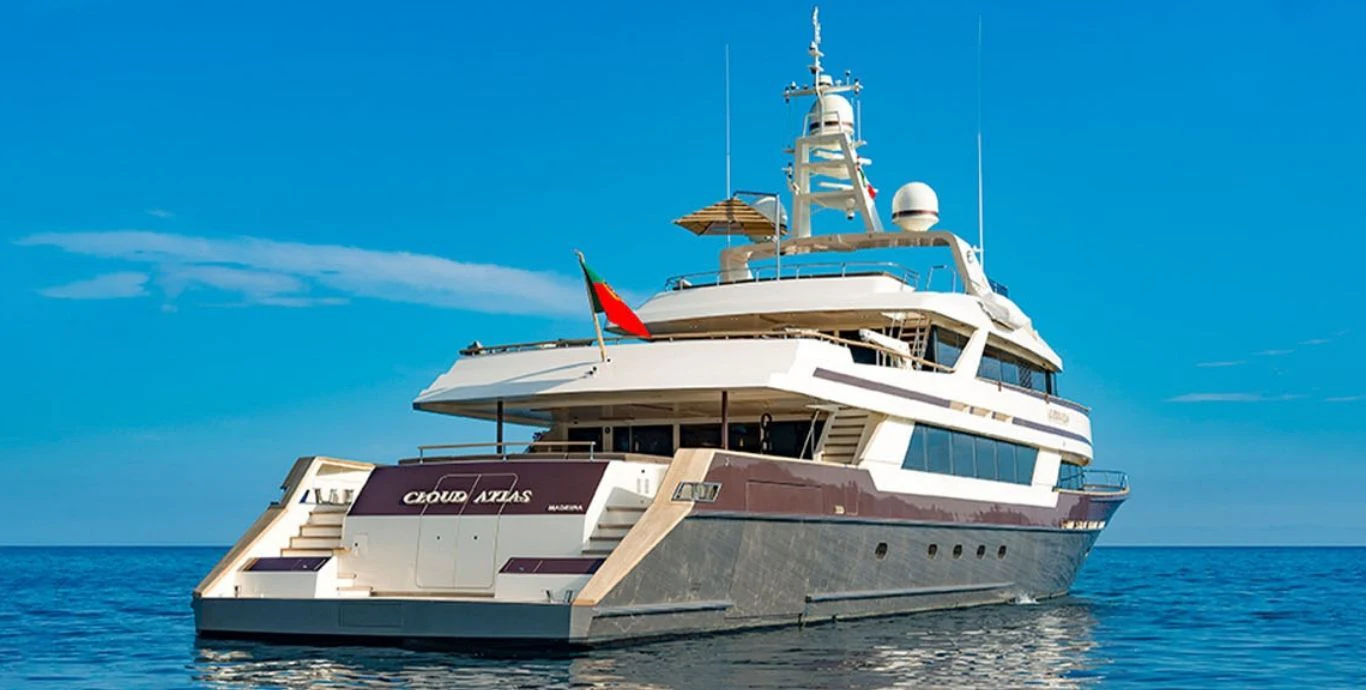

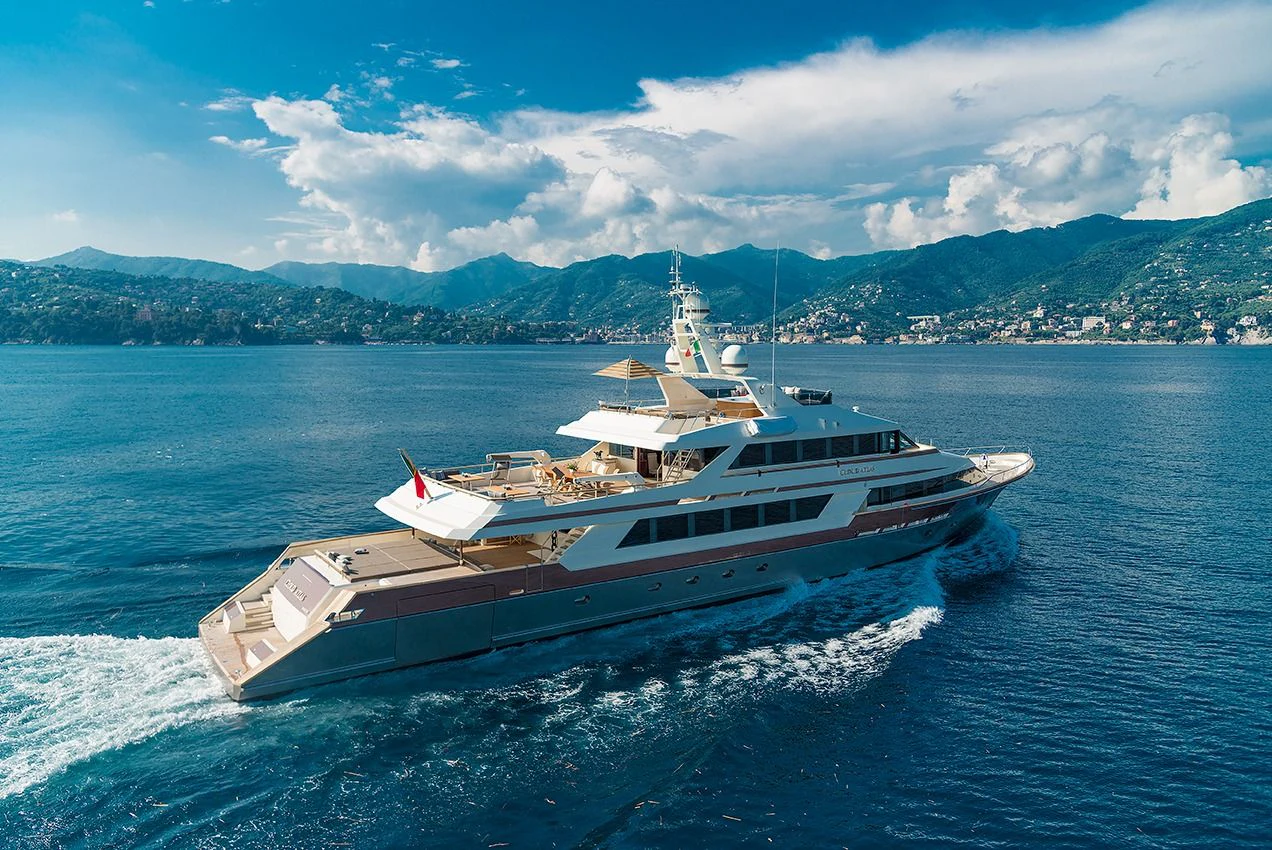

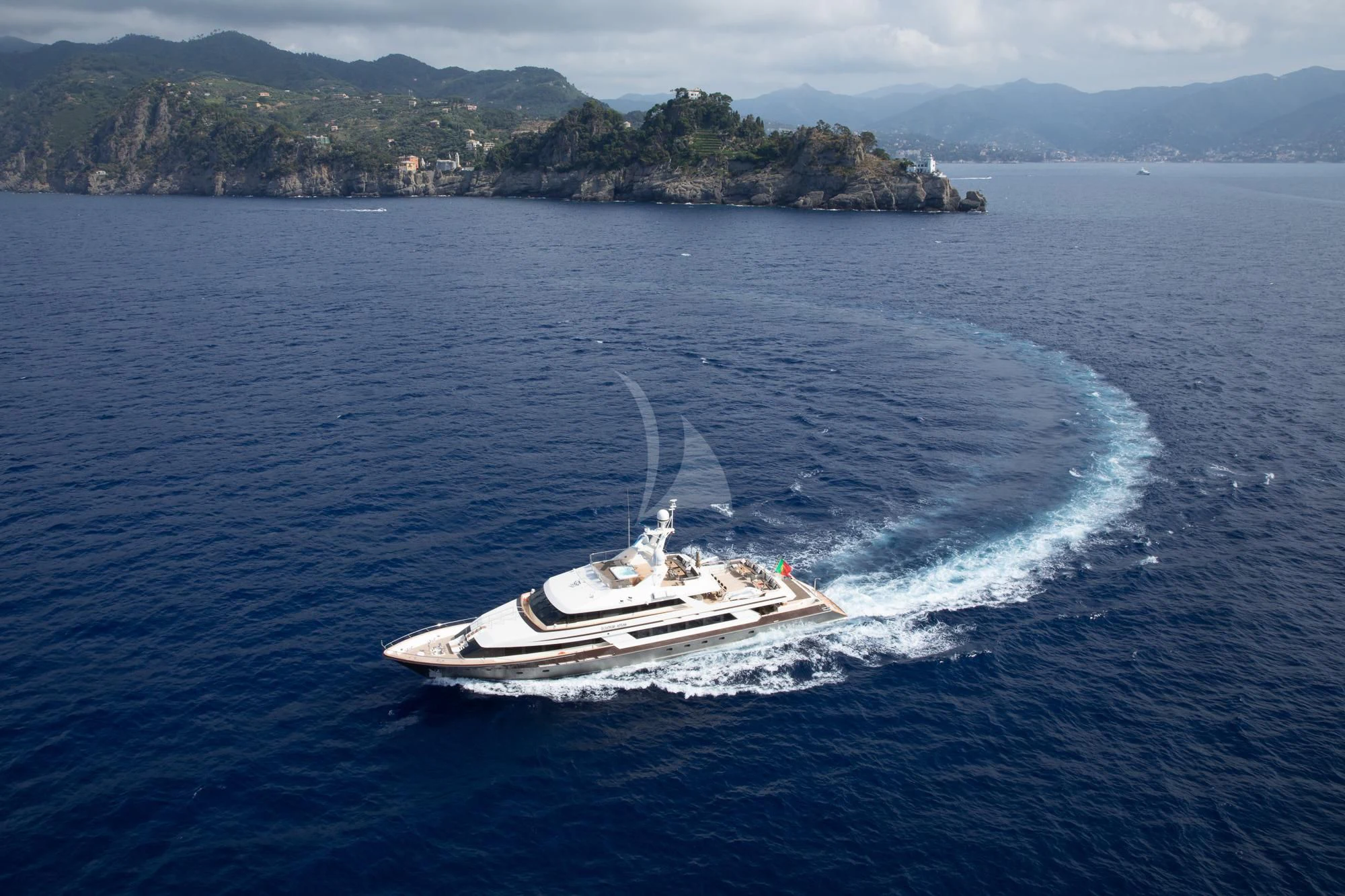

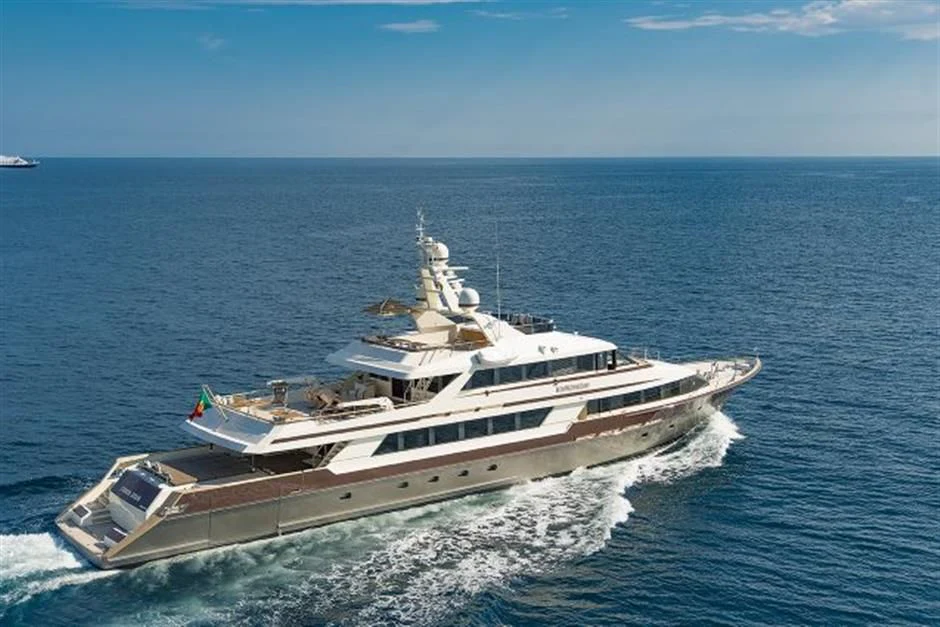

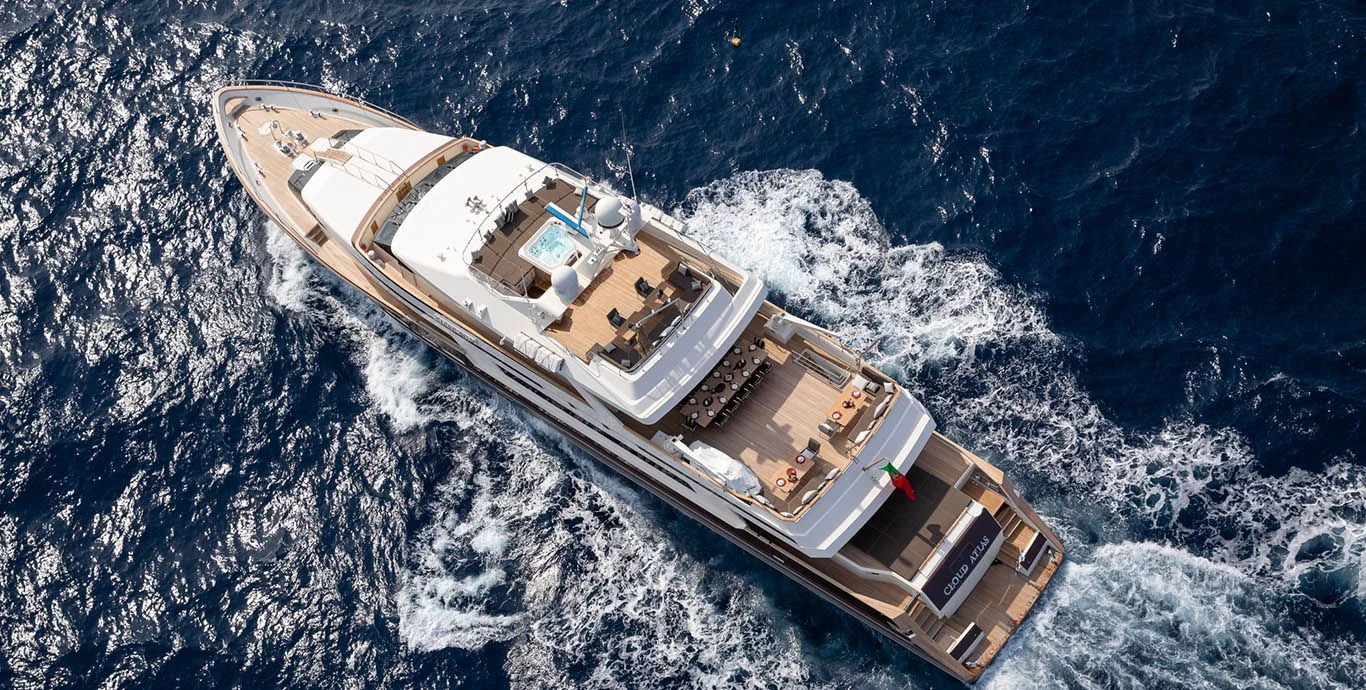

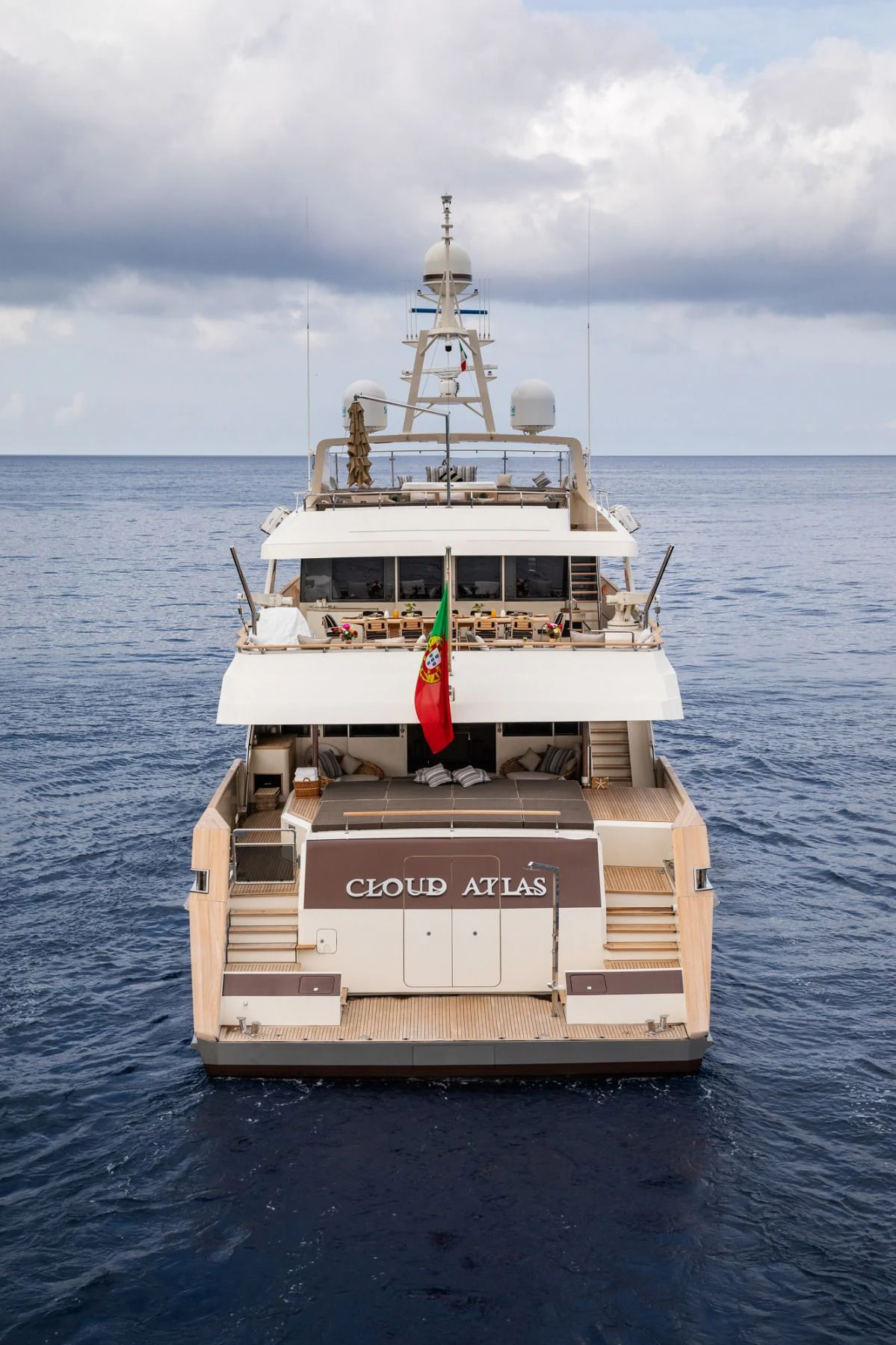

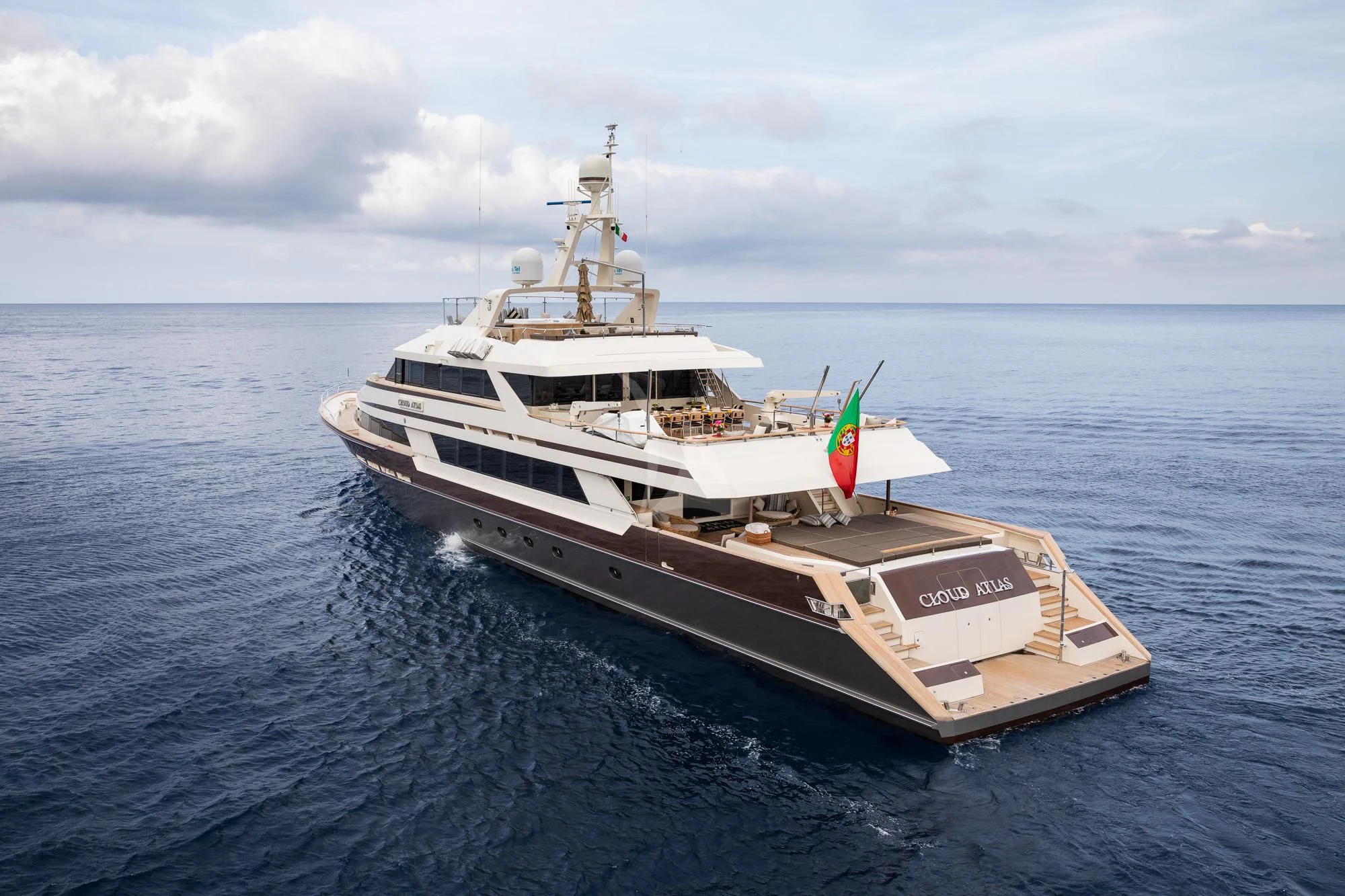

CLOUD ATLAS Yacht for Sale

Length
150' (46m)
Builder
LLOYDS SHIPS
Build
1990/2021
Cabins
5
Crew
10

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Amenities

  • At-Anchor Stabilizers
  • Gym
  • Jacuzzi
  • Personal Watercraft
  • Swimming Pool
  • Wi-Fi

Specifications

Builder LLOYDS SHIPS
Length (LOA) 150' (46m)
Year 1990
Year Refit 2021
Gross Tonn. 373
Beam 27' (8.5m)
Location Italy

Accommodations

Staterooms 5
Sleeps 12
Heads 8
Crew Cabins 10
Crew Sleeps 10

Dimensions & Capacity

LOA 150' (46m)
Min Draft 7' (2.05m)
Fuel Tank 15,850 g (60,000 L)
Fresh Water 4,227 g (16,000 L)
Gross Tonn. 373
Displacement 330

Construction

Hull Material Aluminum
Ext. Designer Nauta yacht Milan
Int. Designer Archyacht Genova
Cruising Speed 12 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

Fuel & Oil System

  • Fuel Cleaning:    Alfa Laval


Fresh Water System

  • Fresh Water Makers:    1 x Aqua Matic AQM Compact 700-1 1 x Selmar Seaberia 300


Black & Grey Water System

  • Sewage Treatment System:    Selmar

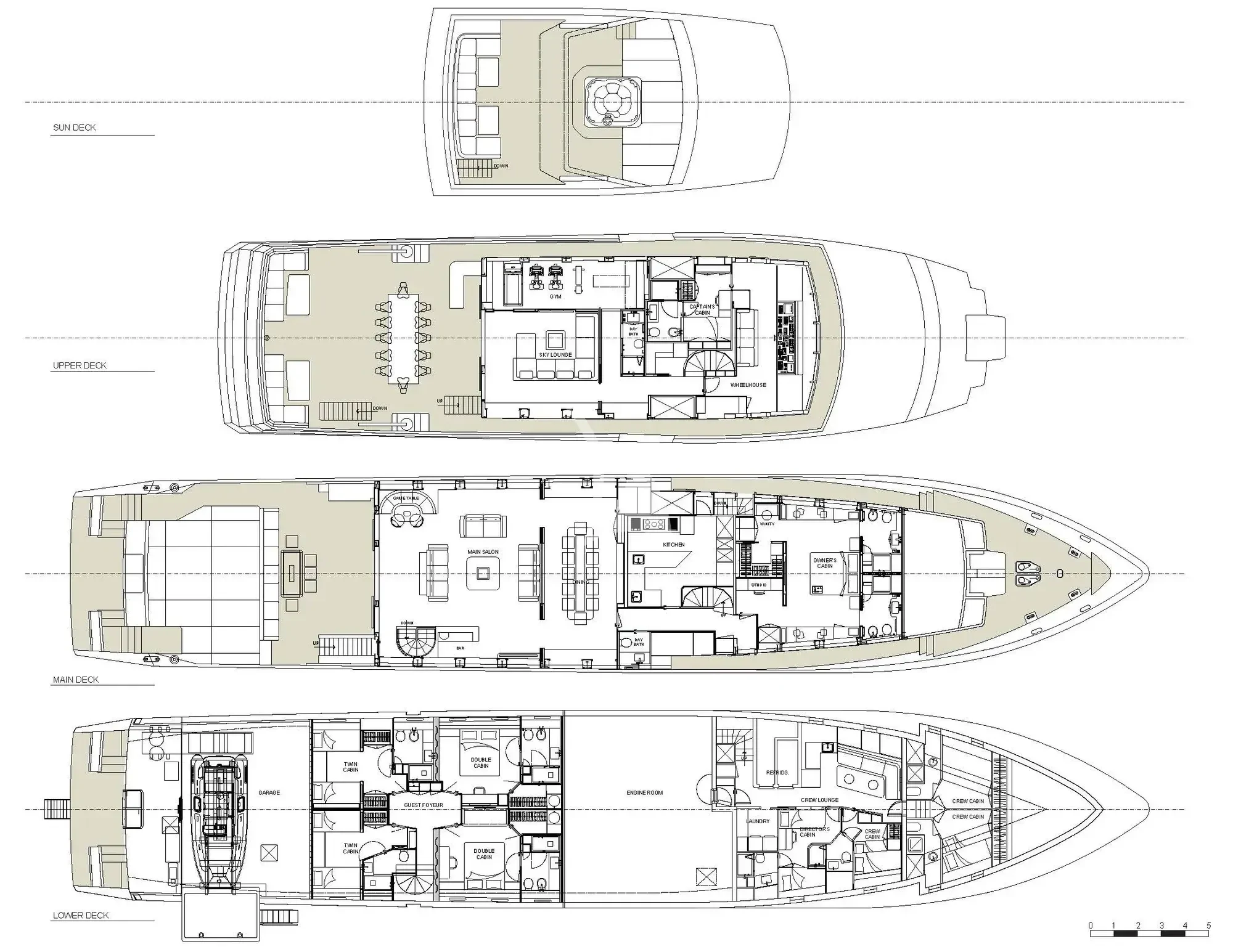

Accommodation

LOWER DECK:

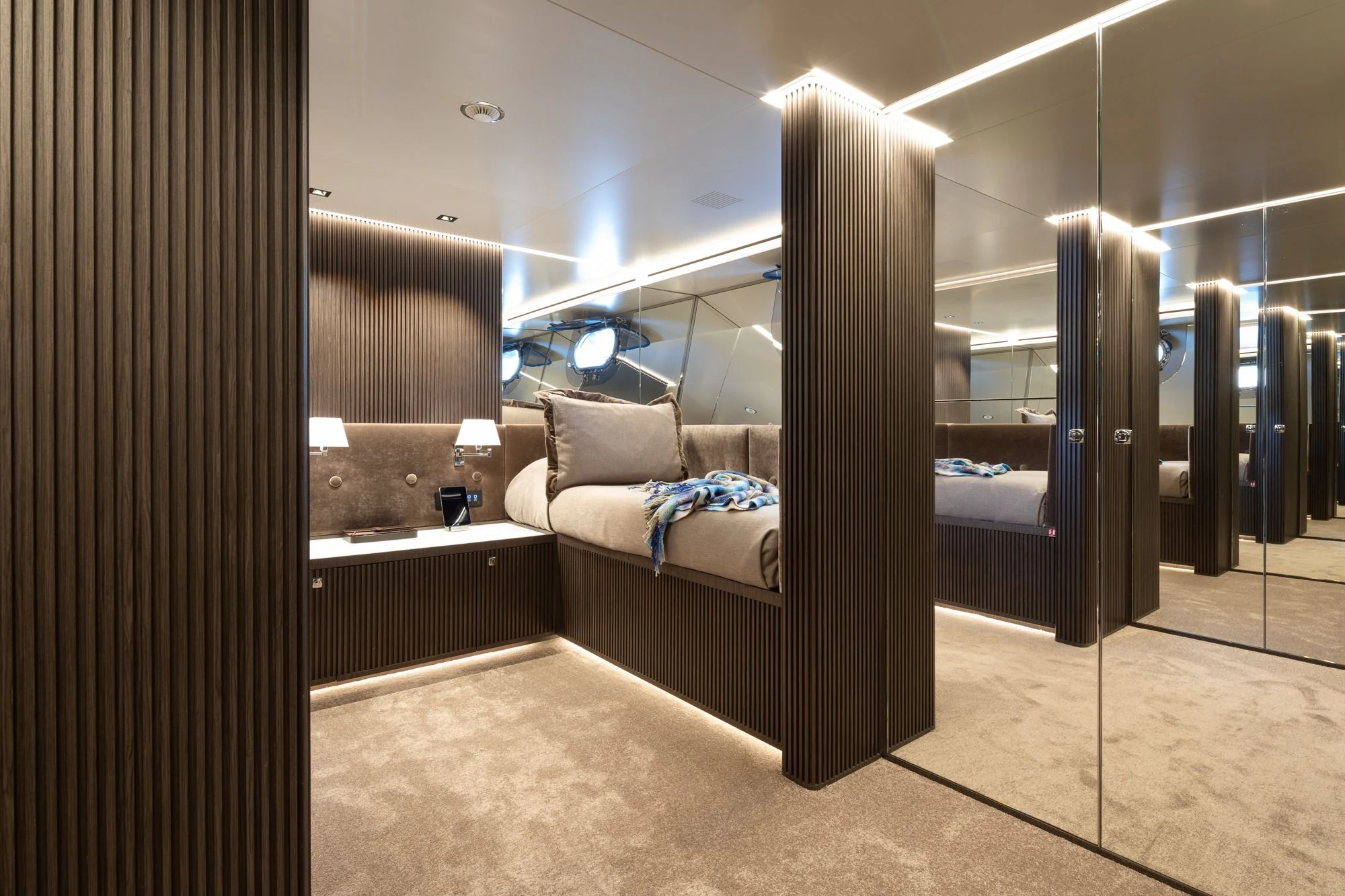

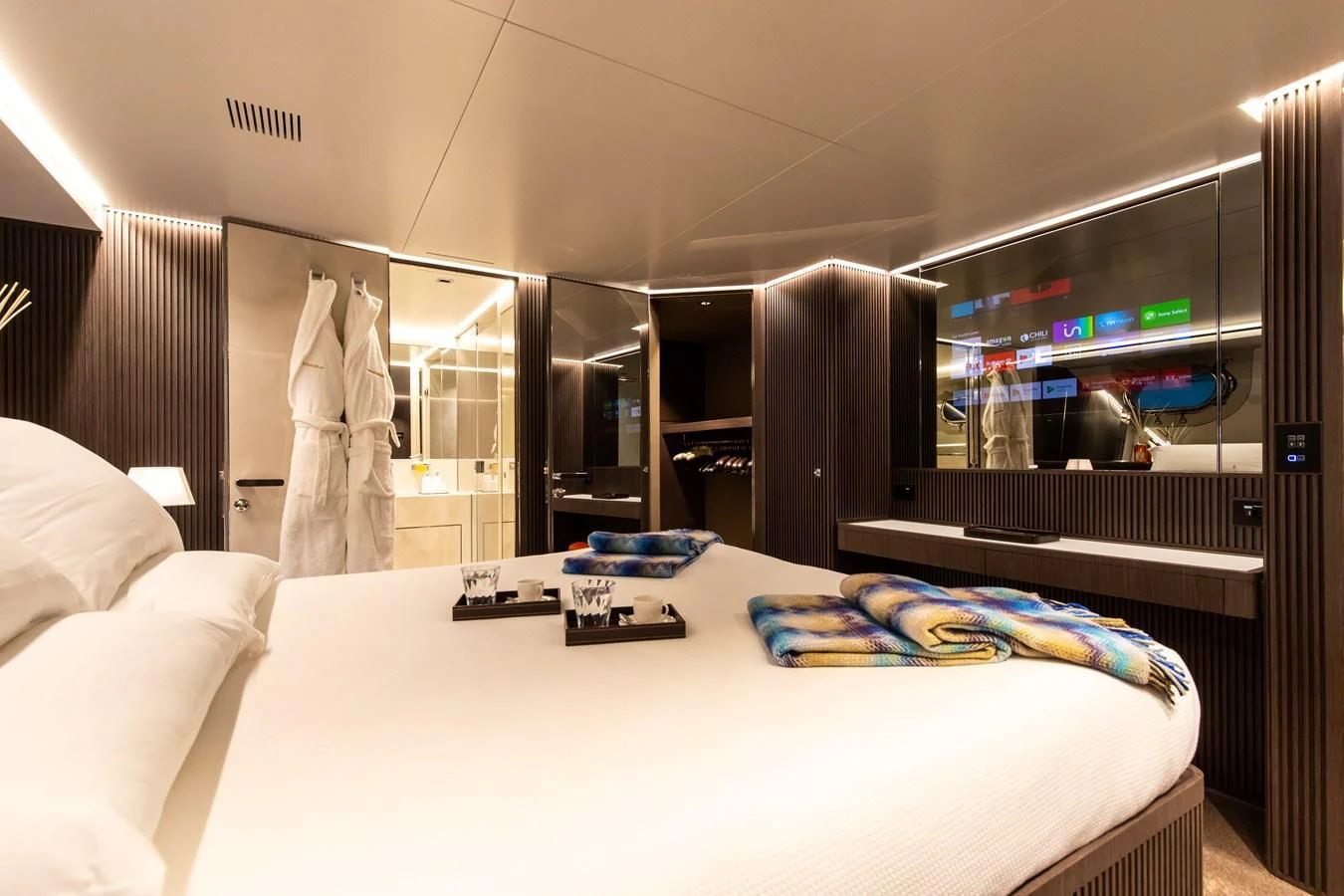

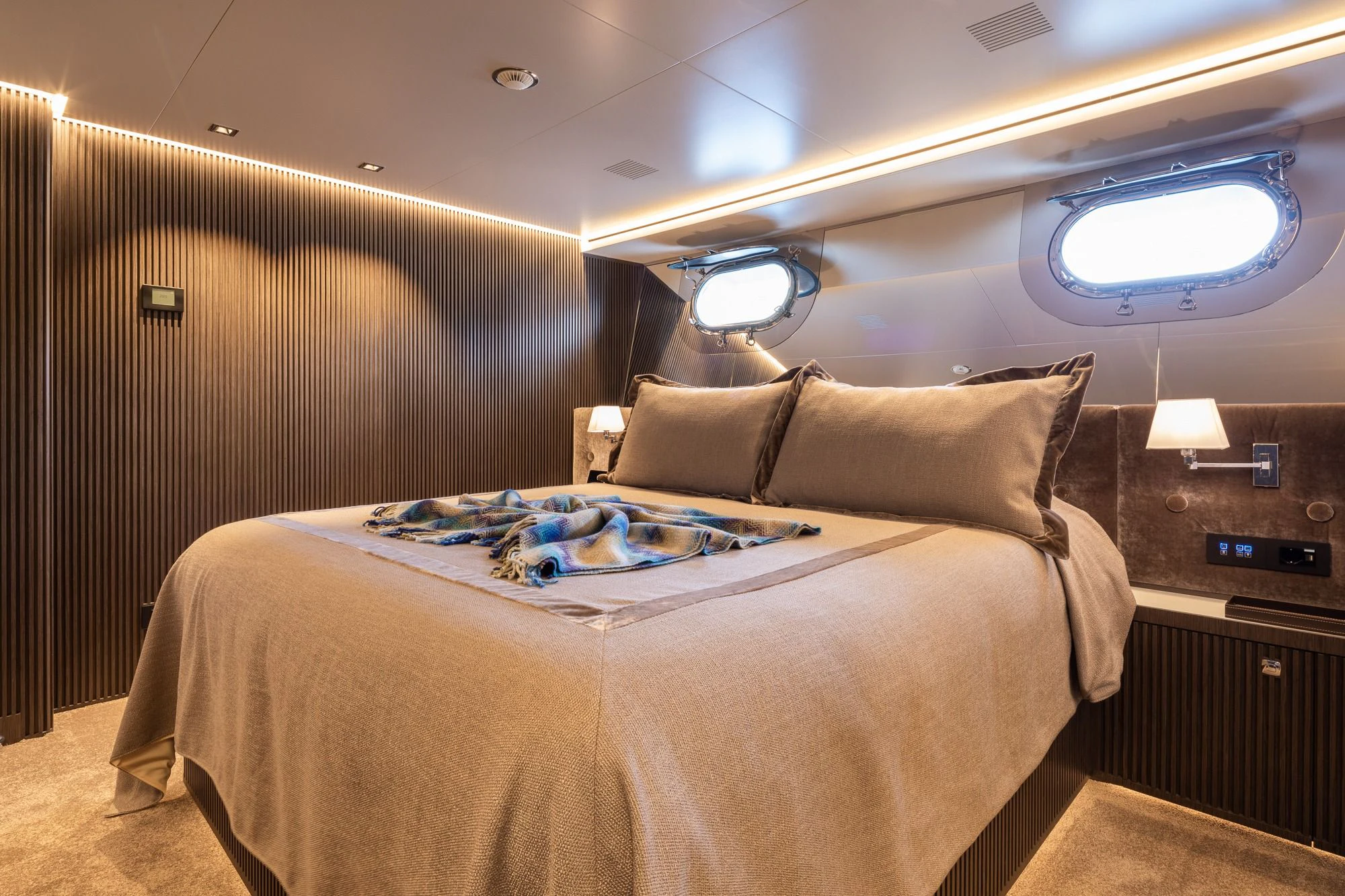

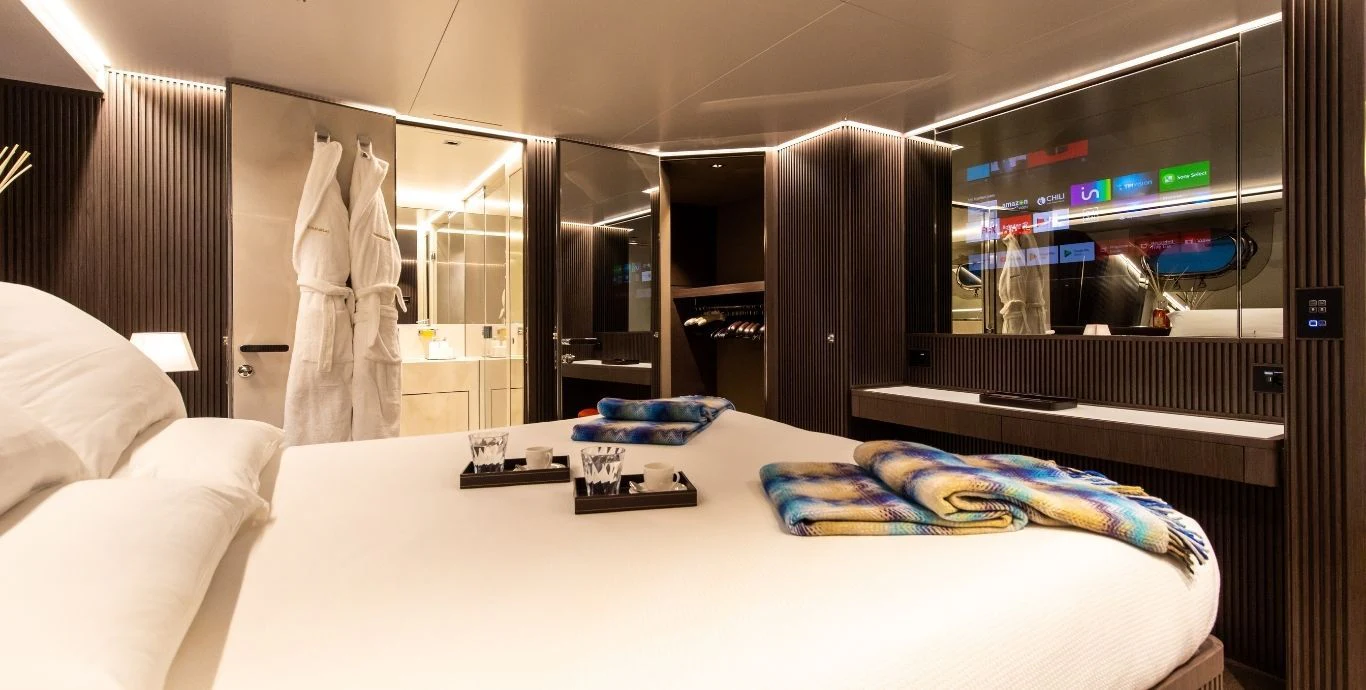

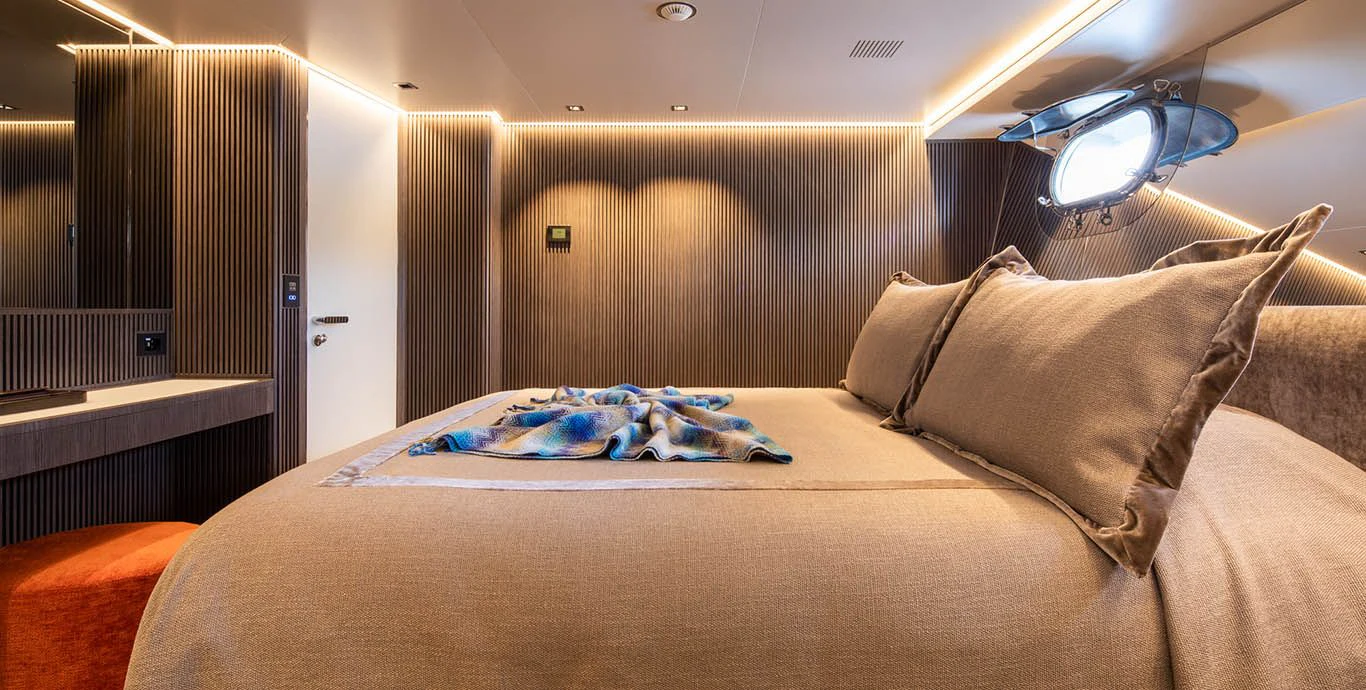

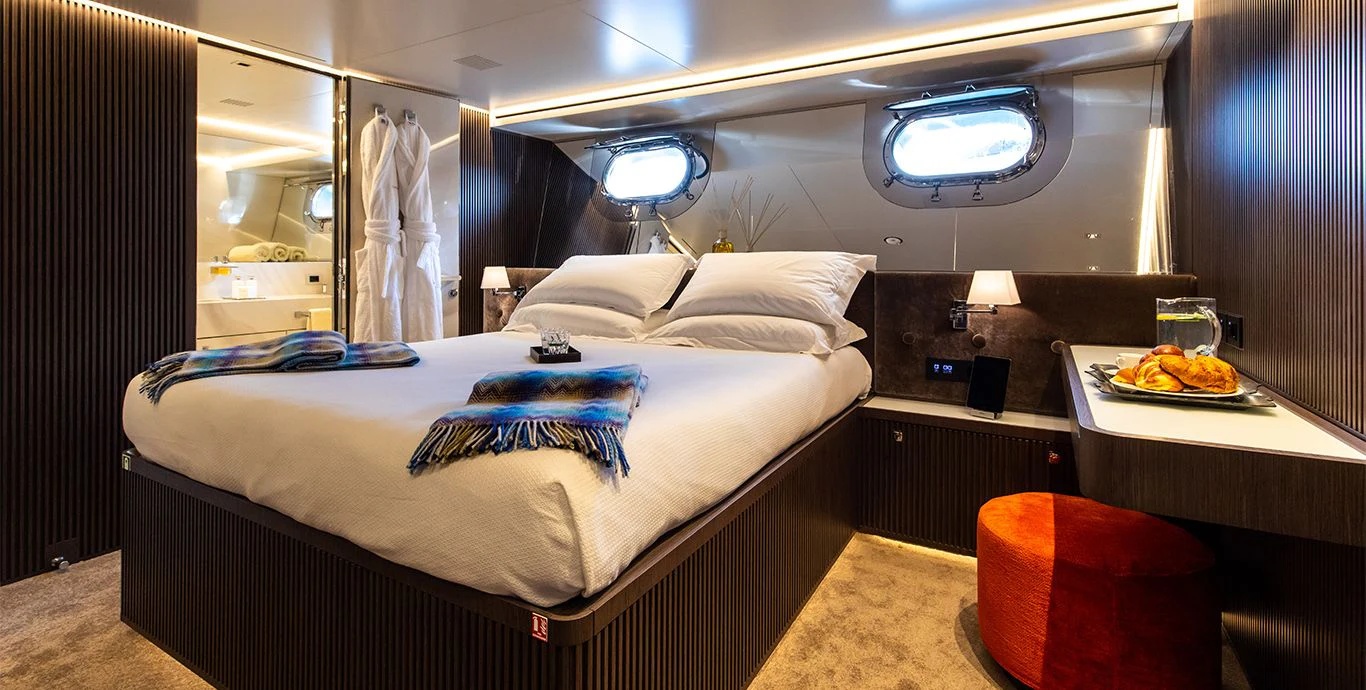

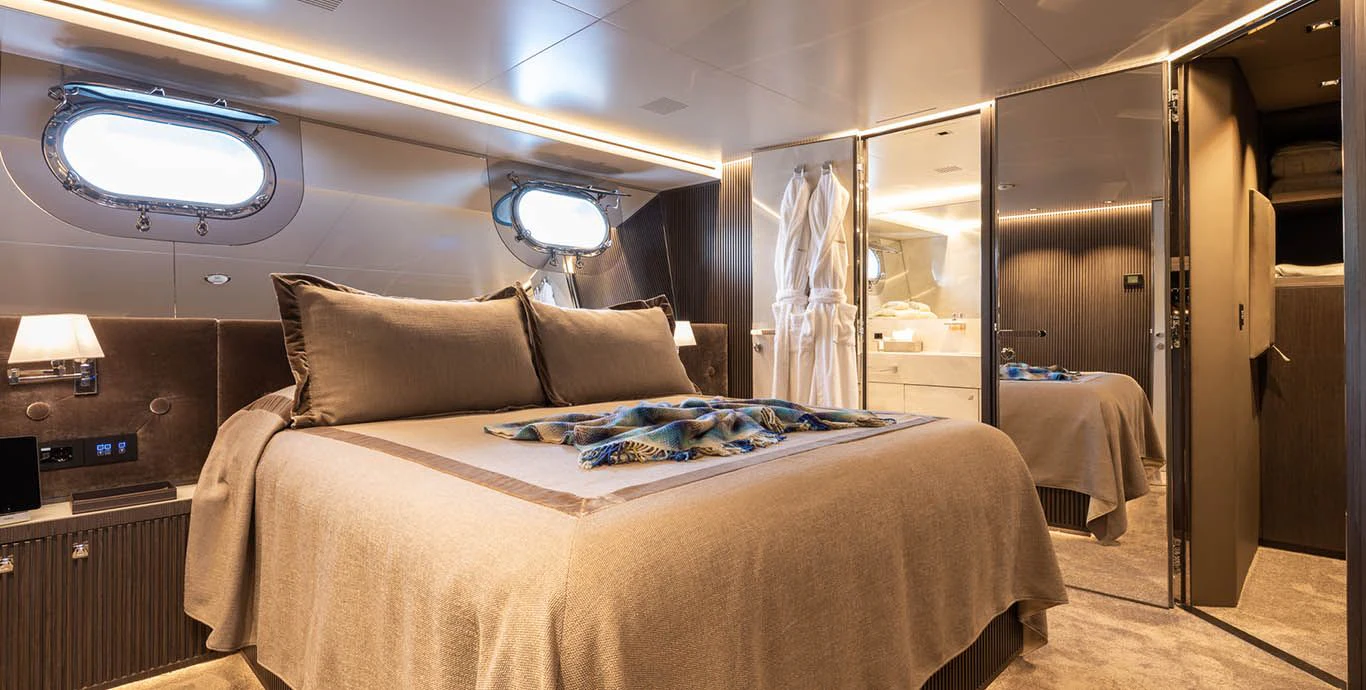

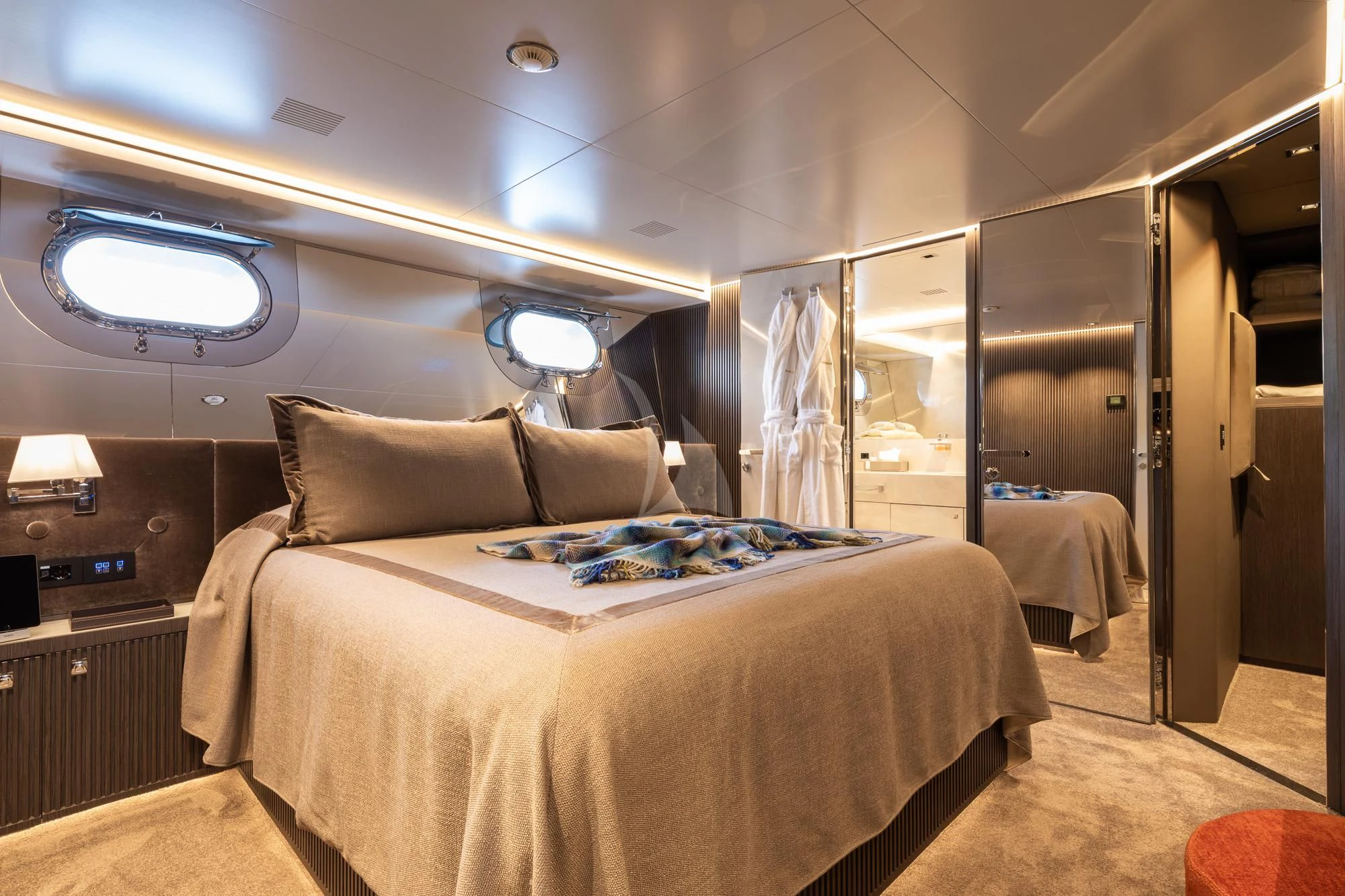

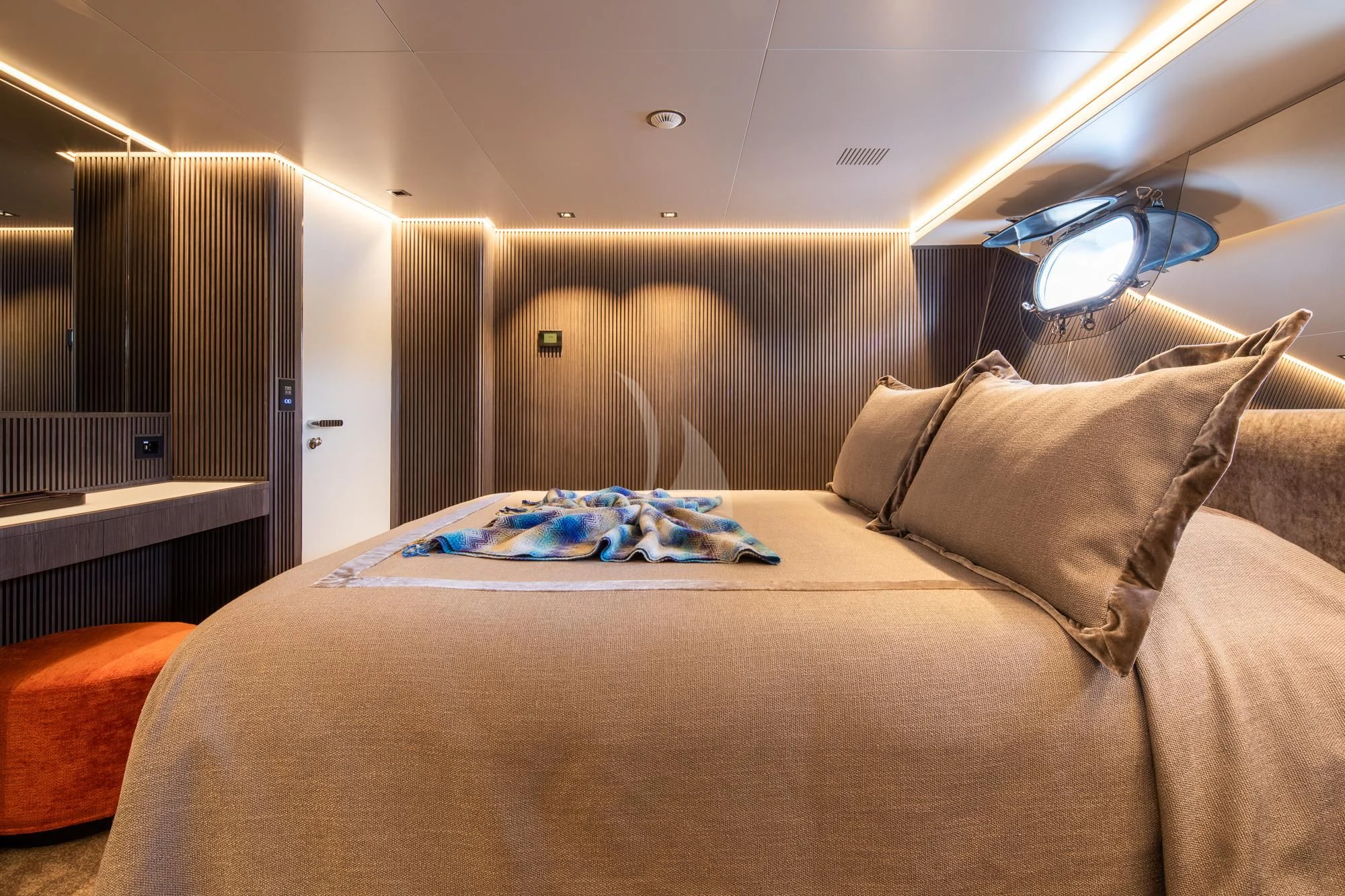

  • Double Stateroom / Bath + safe box and walk-in in wardrobe
  • Double Stateroom + 1 Convertible Sofa Bed /Bath + safe box and walk-in in wardrobe

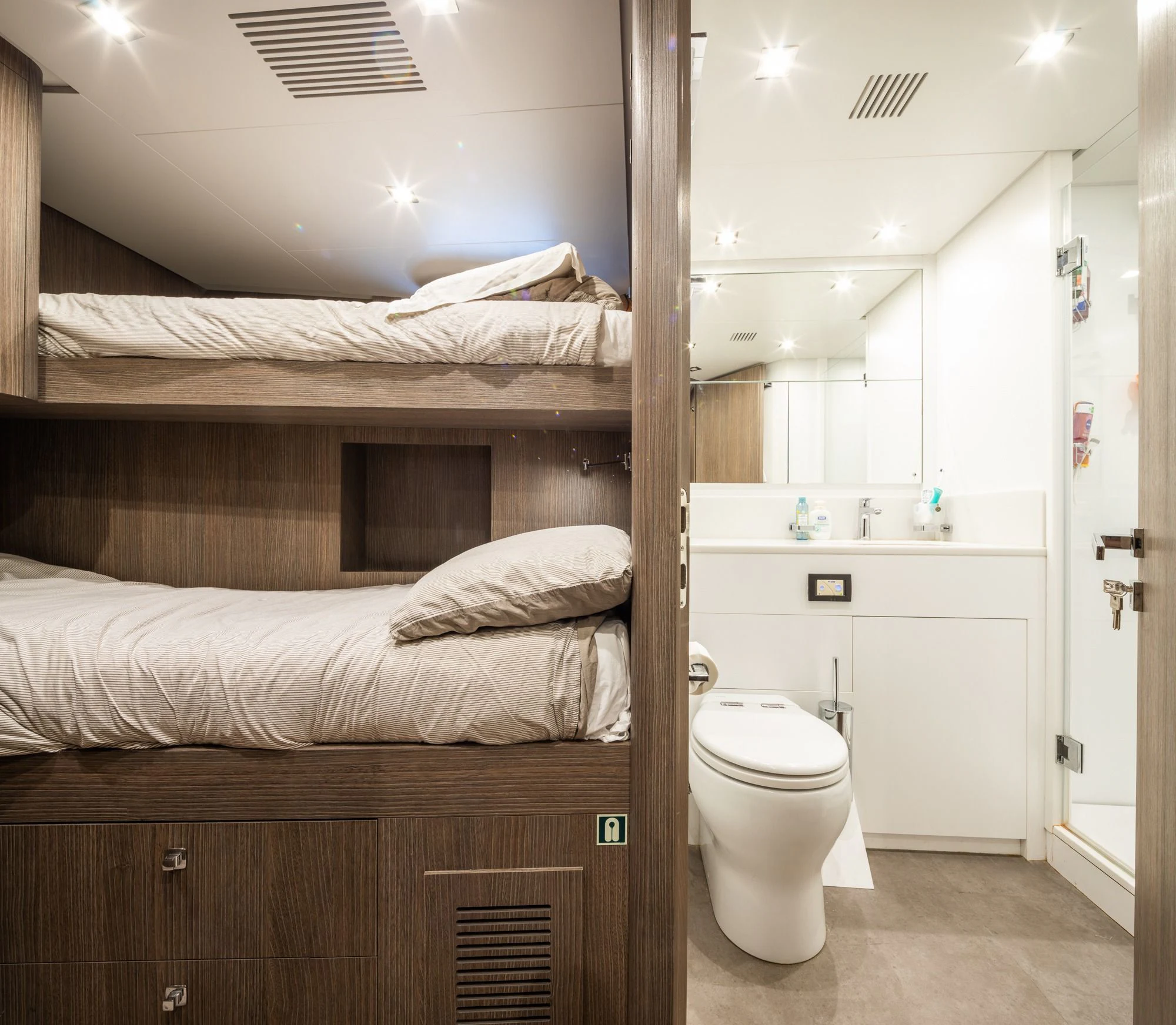

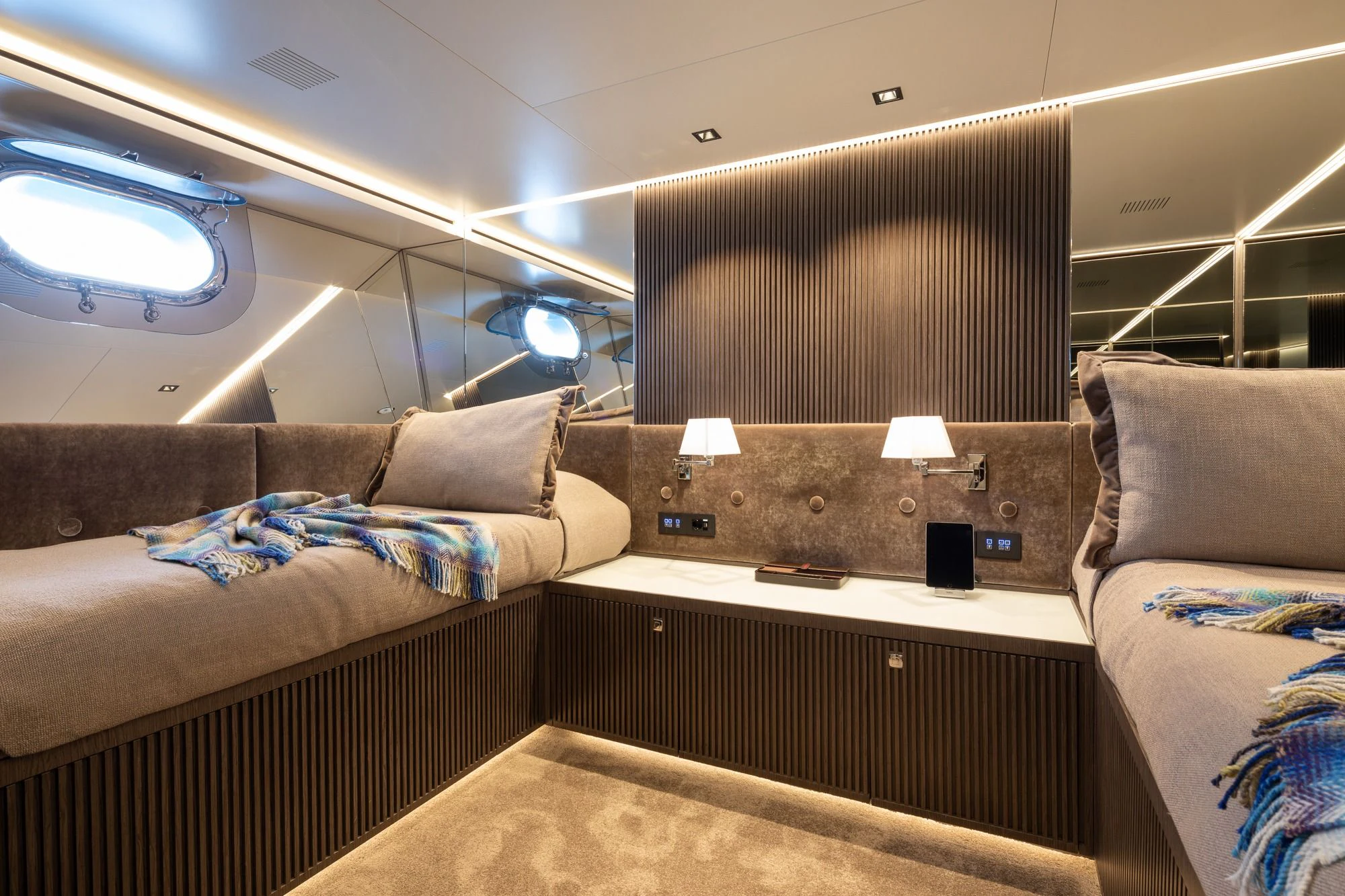

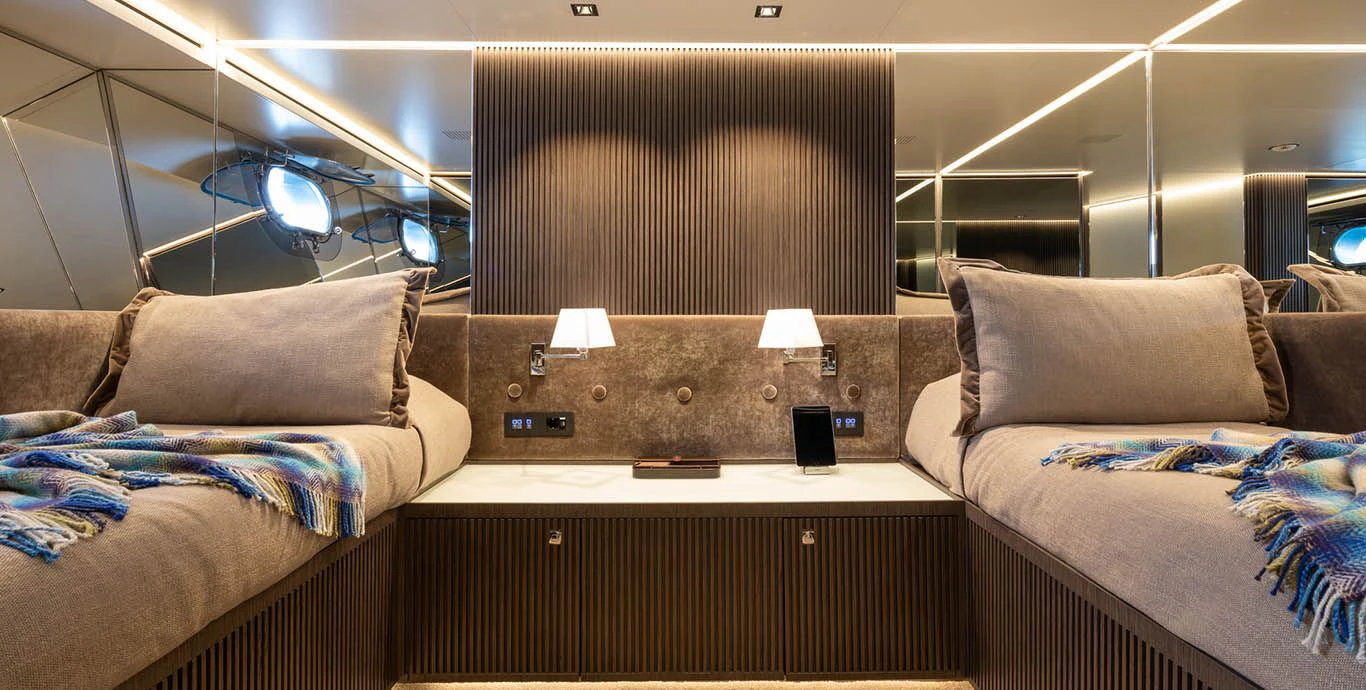

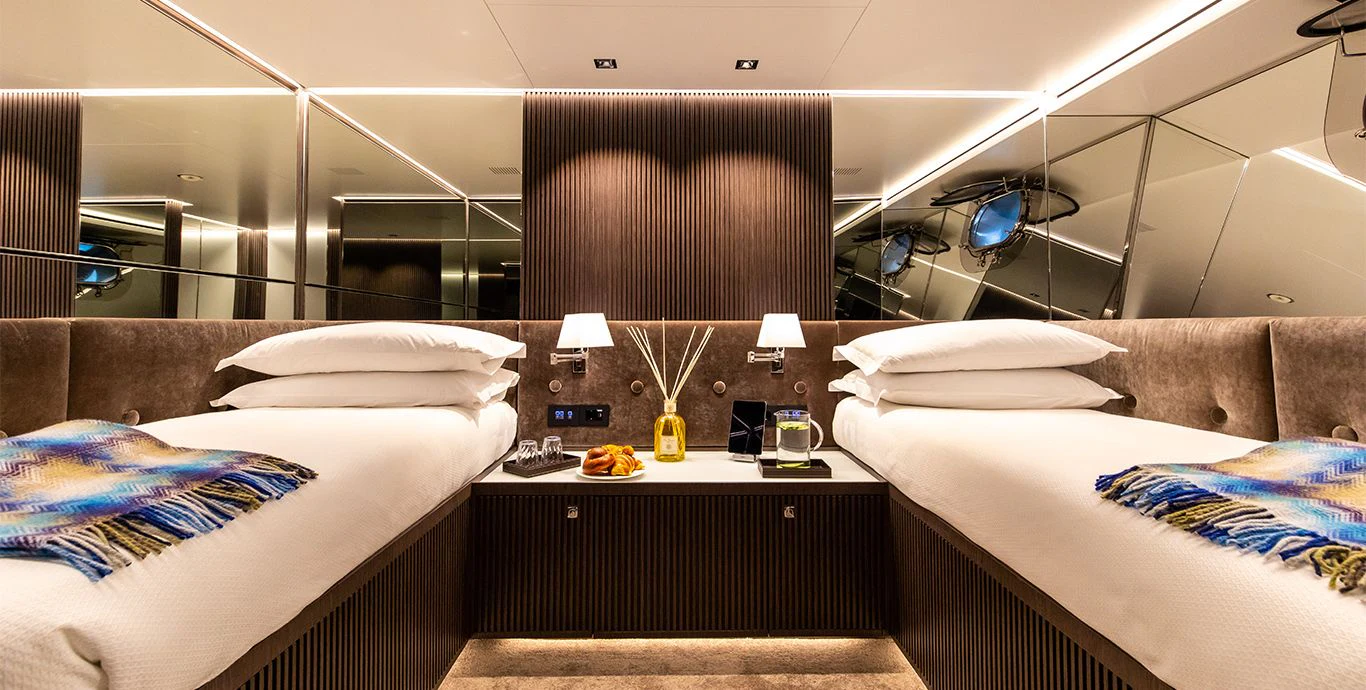

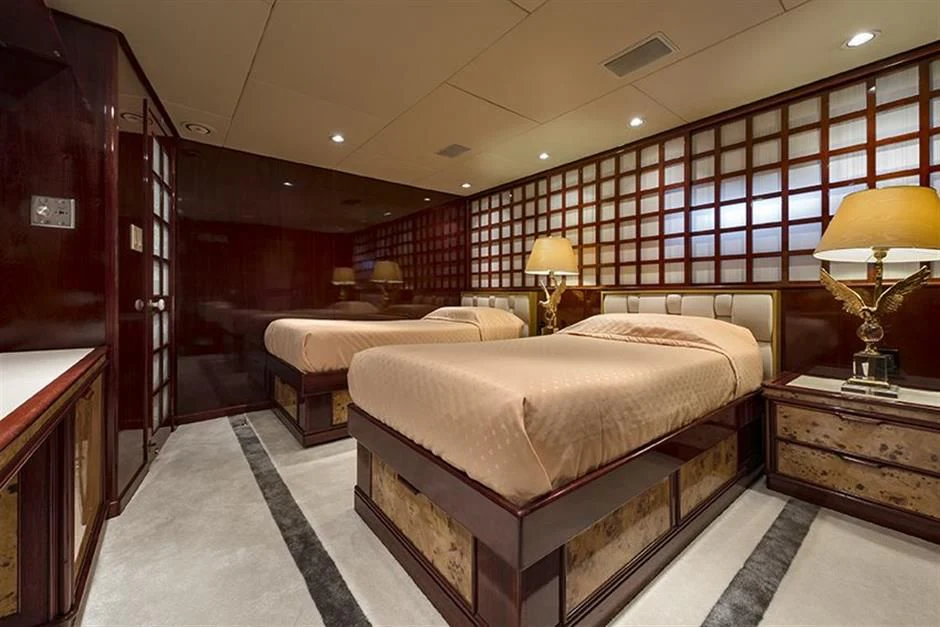

  • Twin Bed Stateroom + 1 Pullman Bed / Bath + safe box
  • Twin Bed Stateroom / Bath + safe box

MAIN DECK:

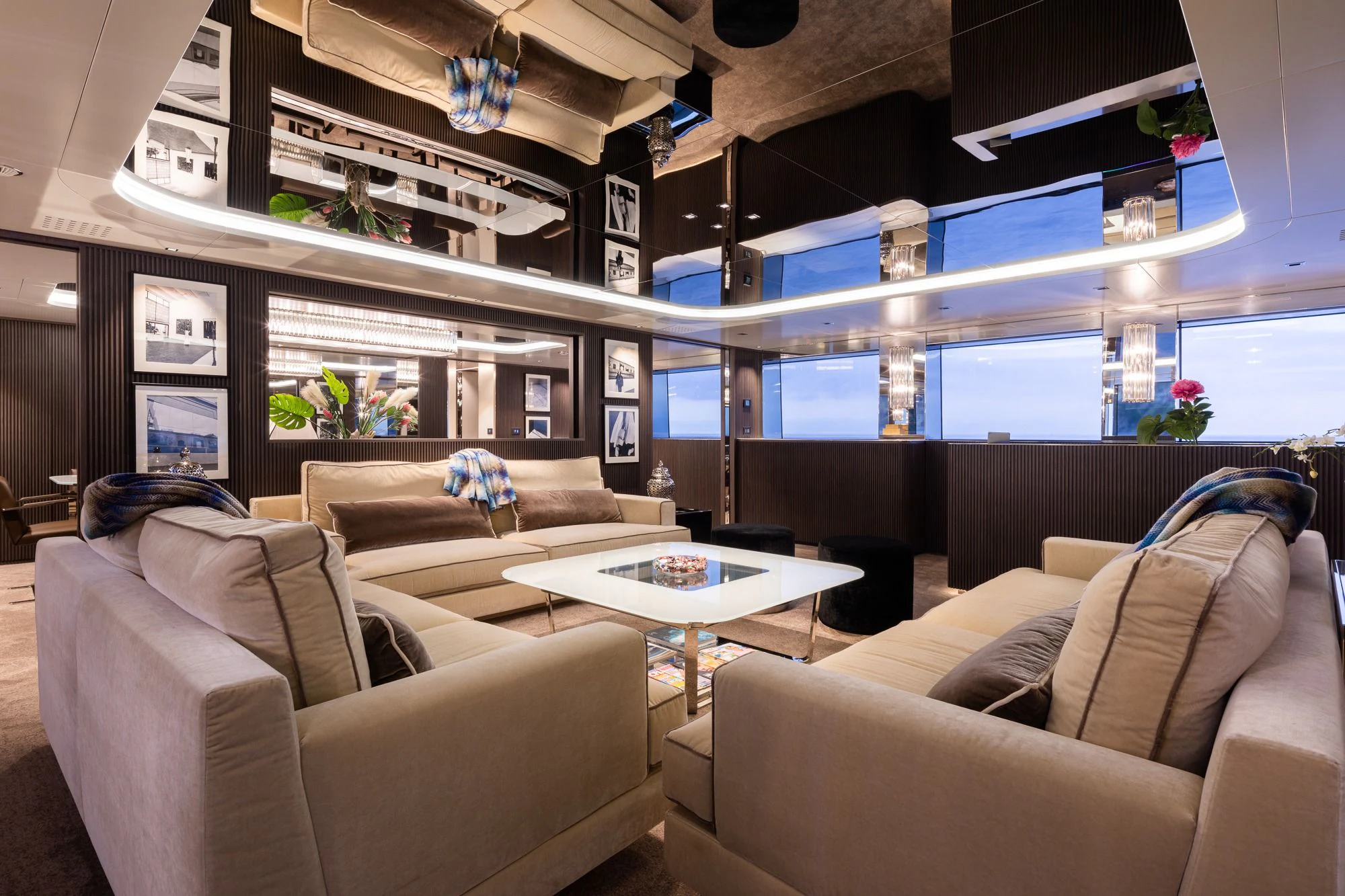

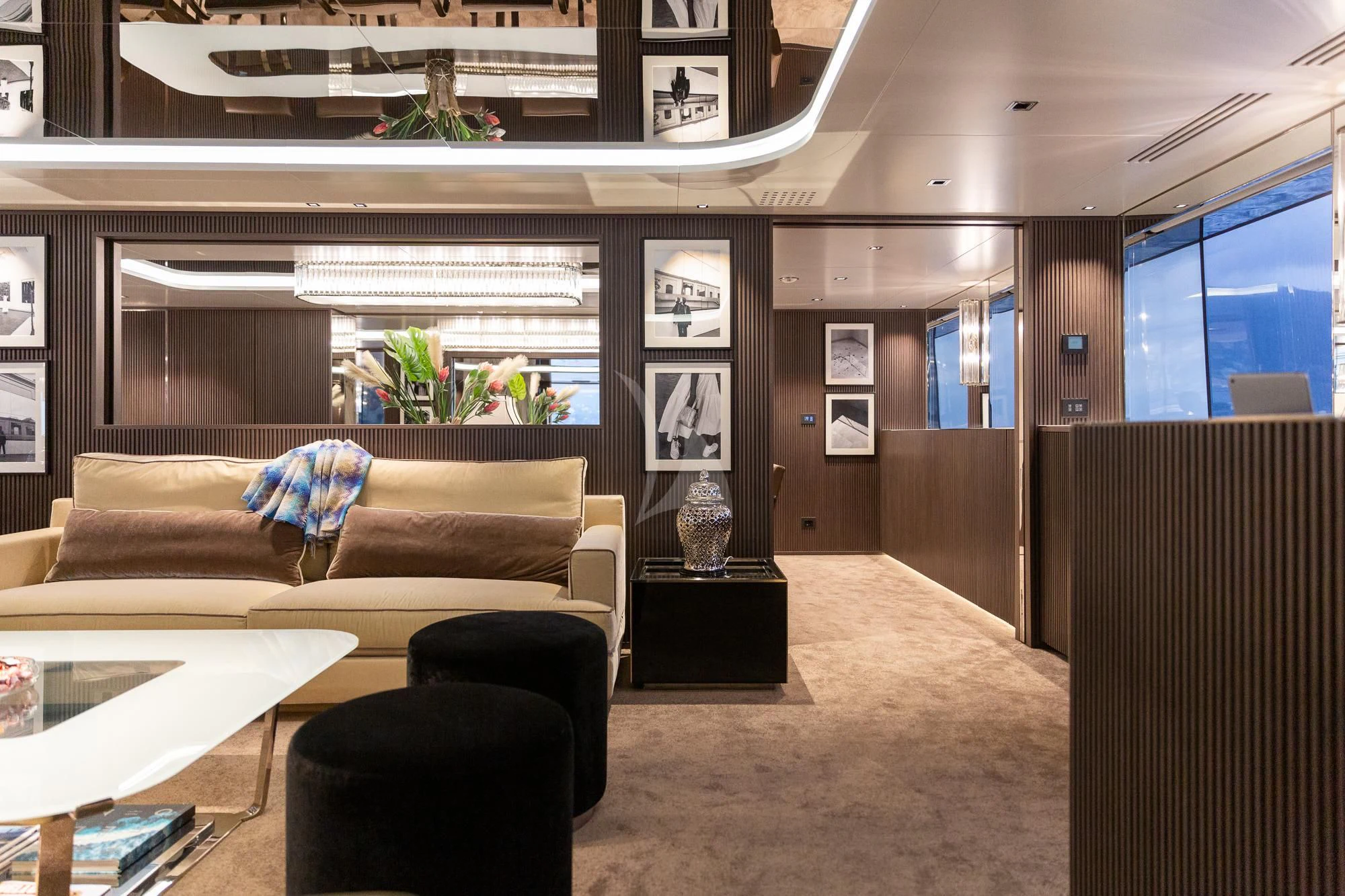

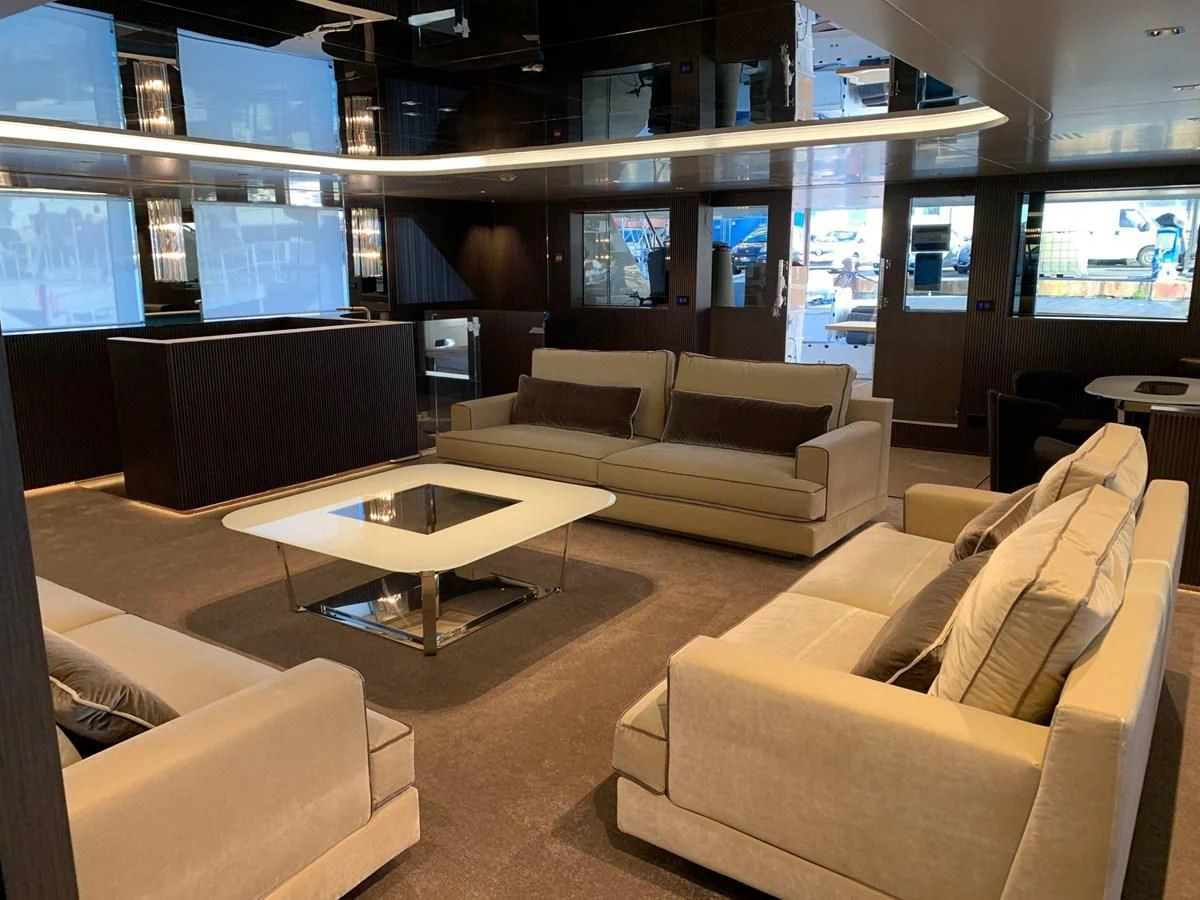

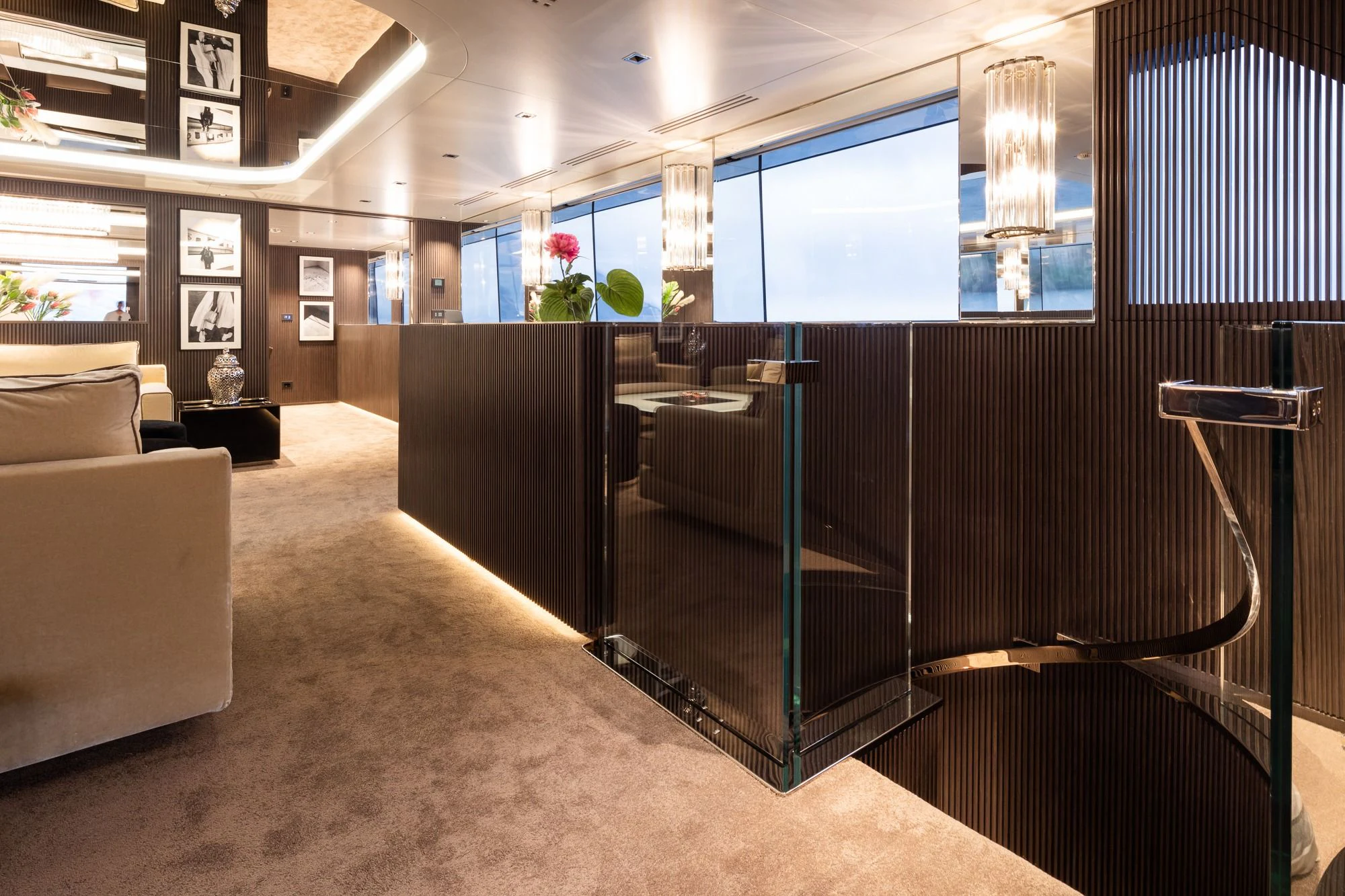

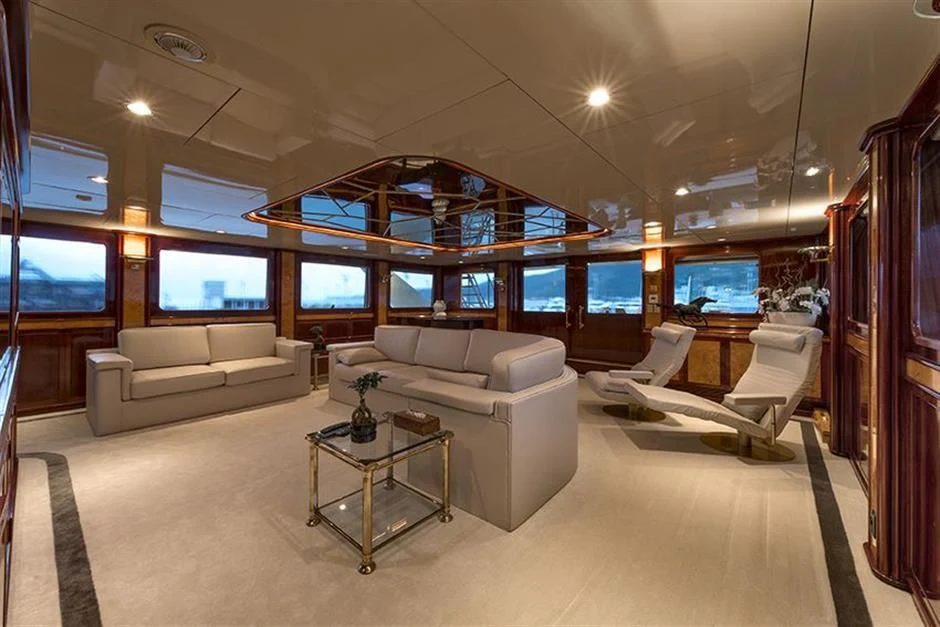

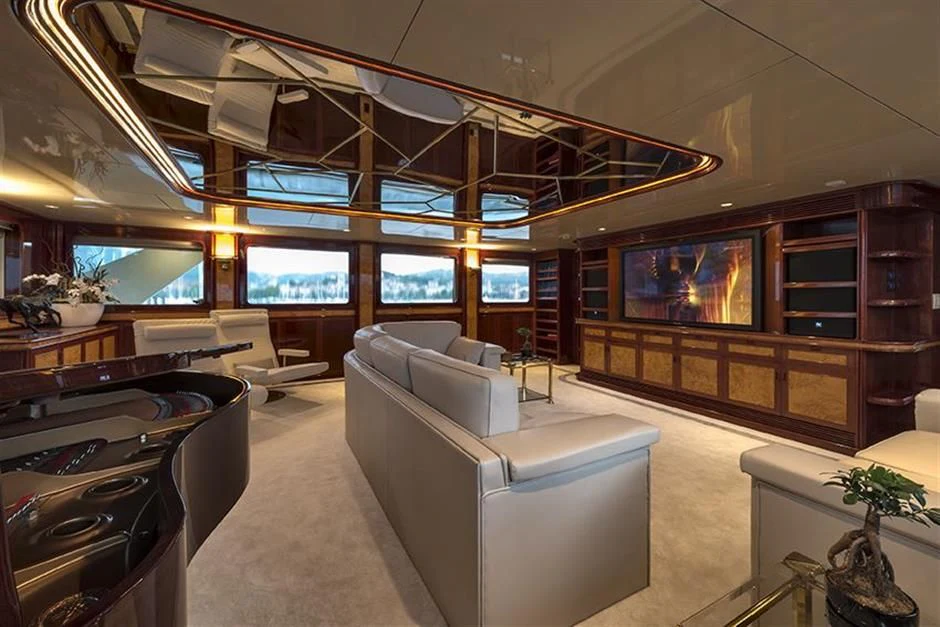

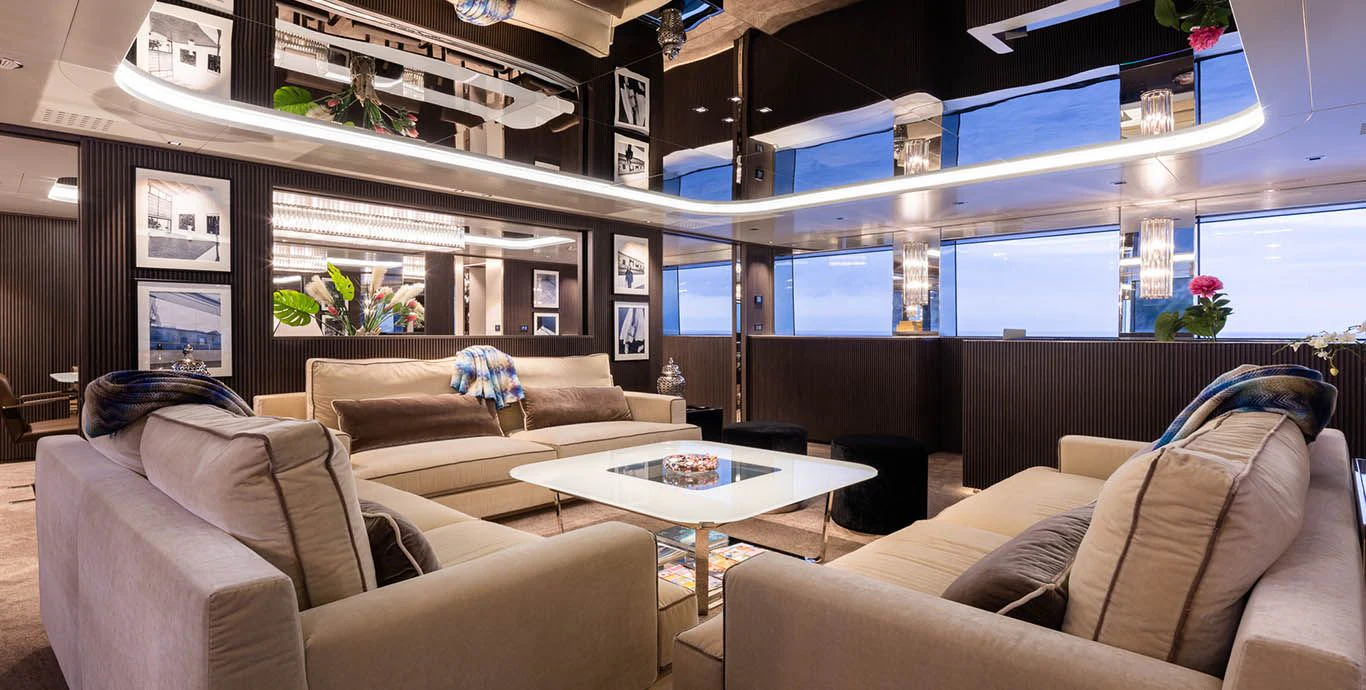

  • Main Salon + TV, sofa area, bar & game table

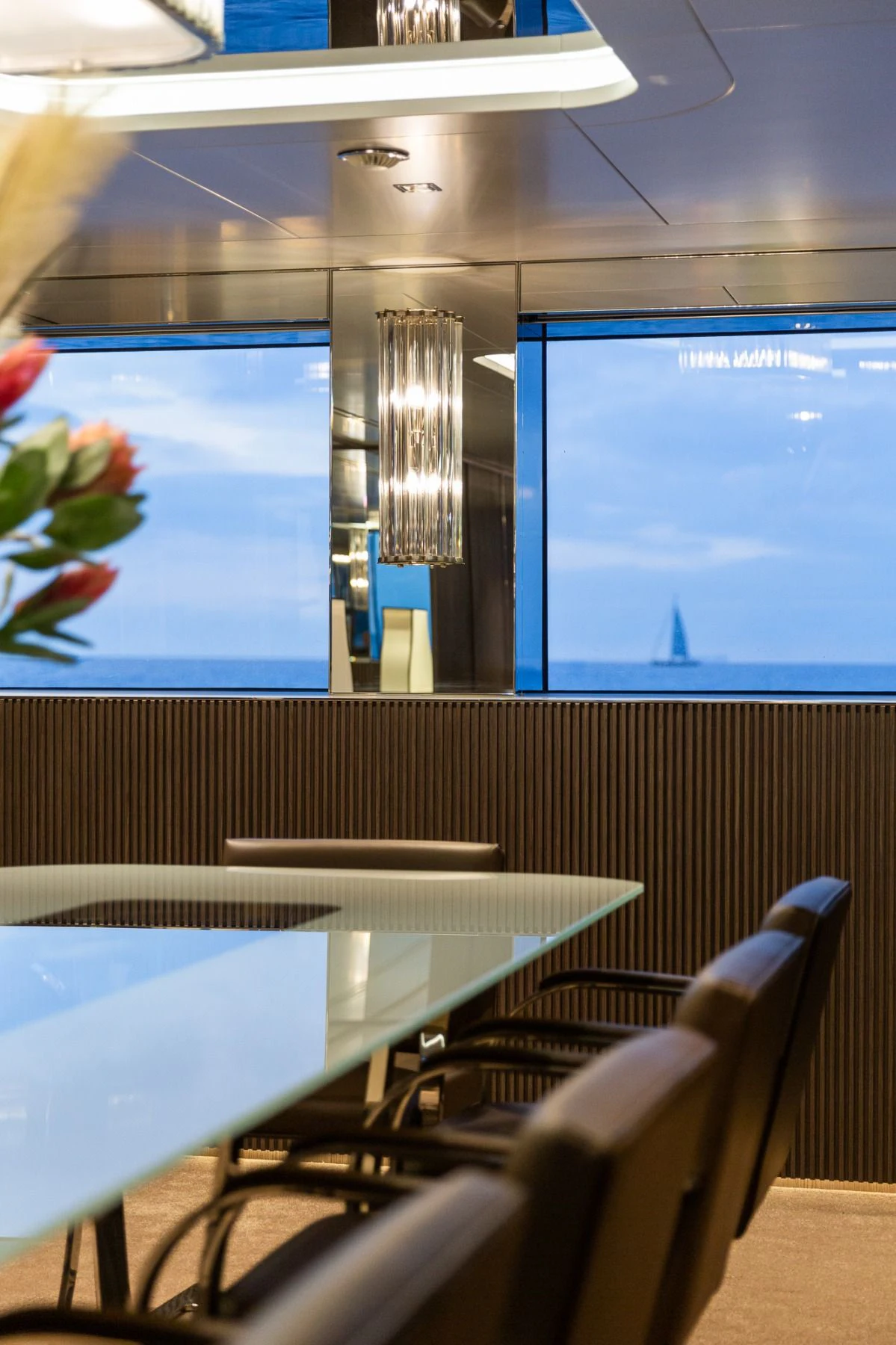

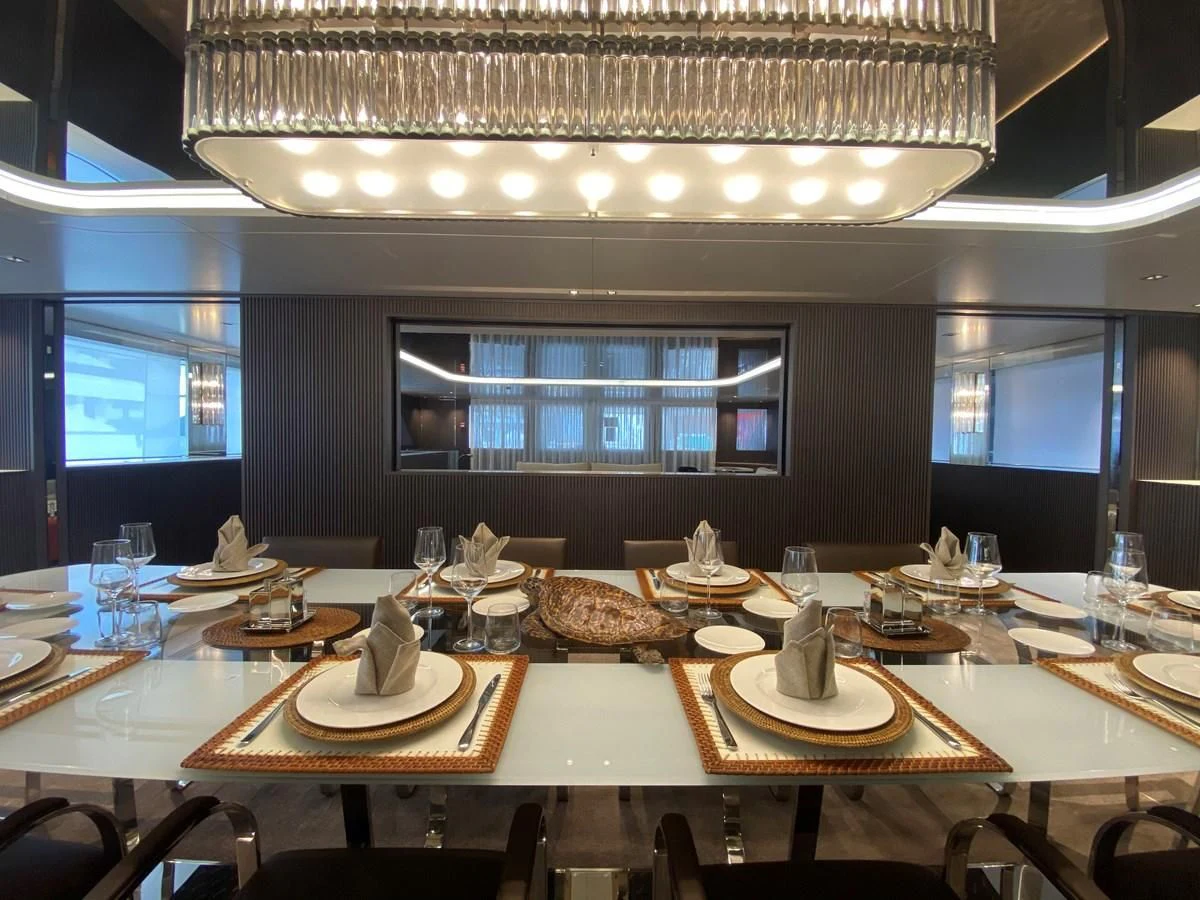

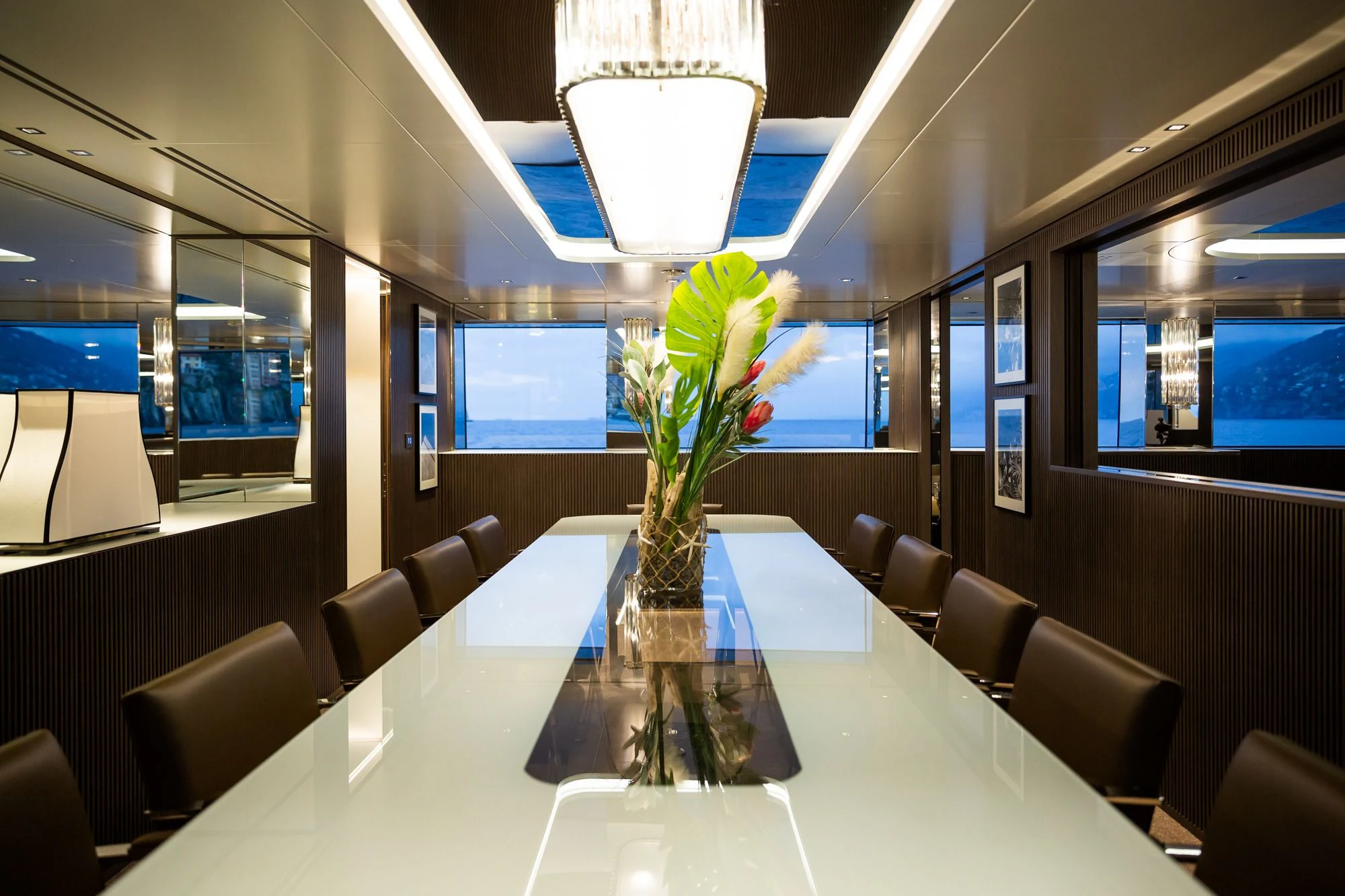

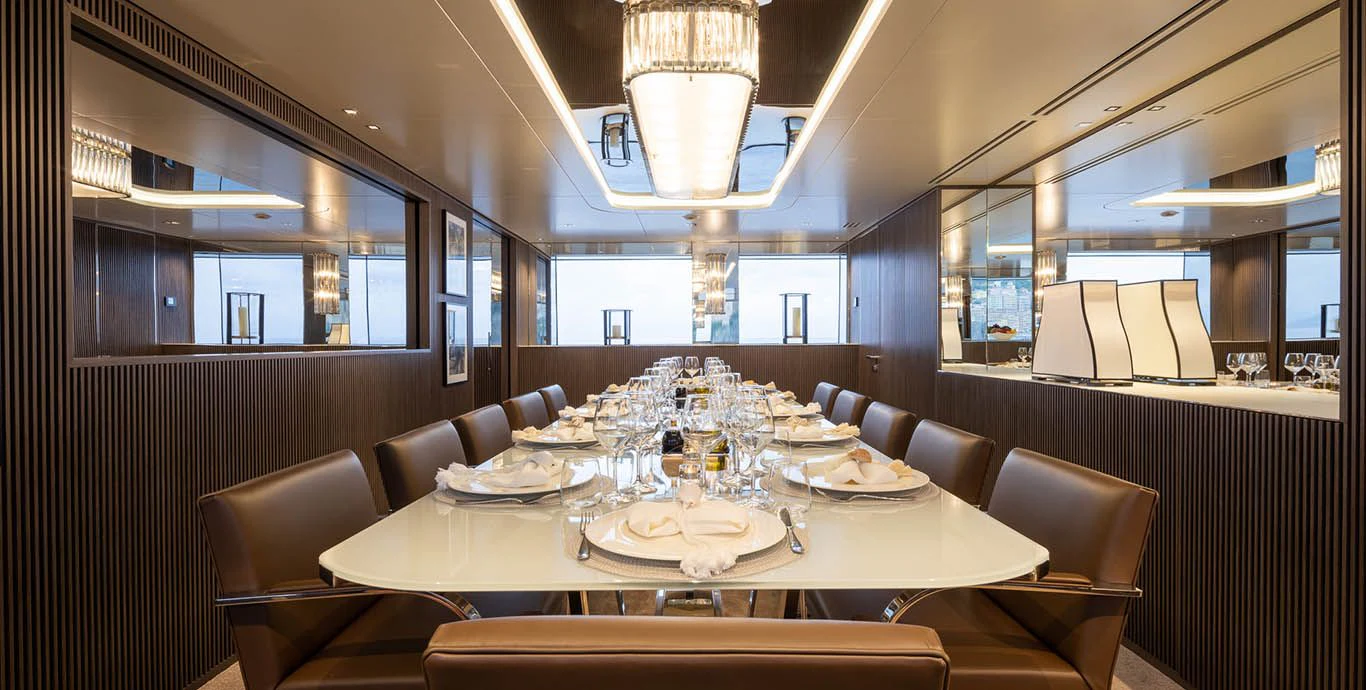

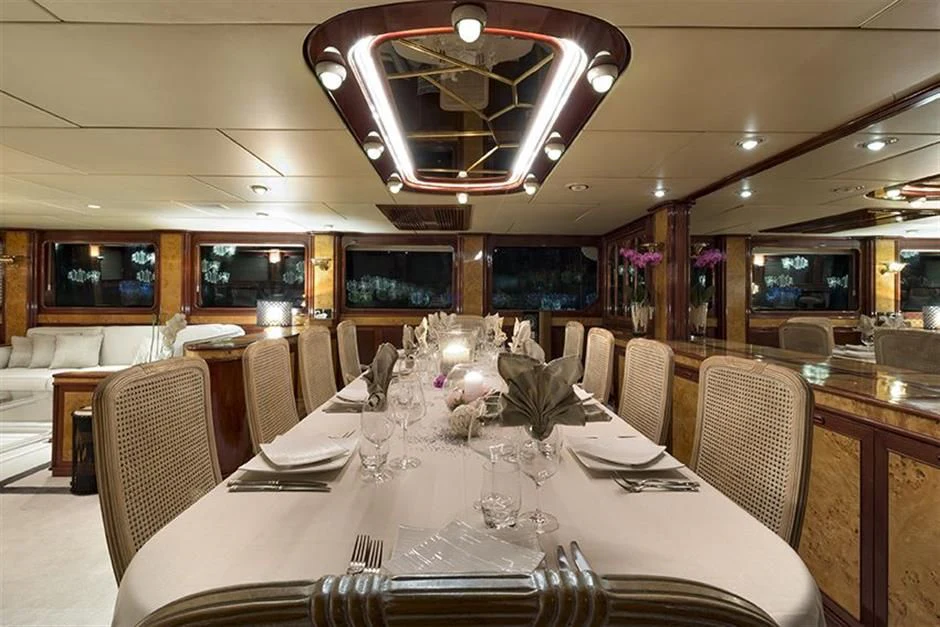

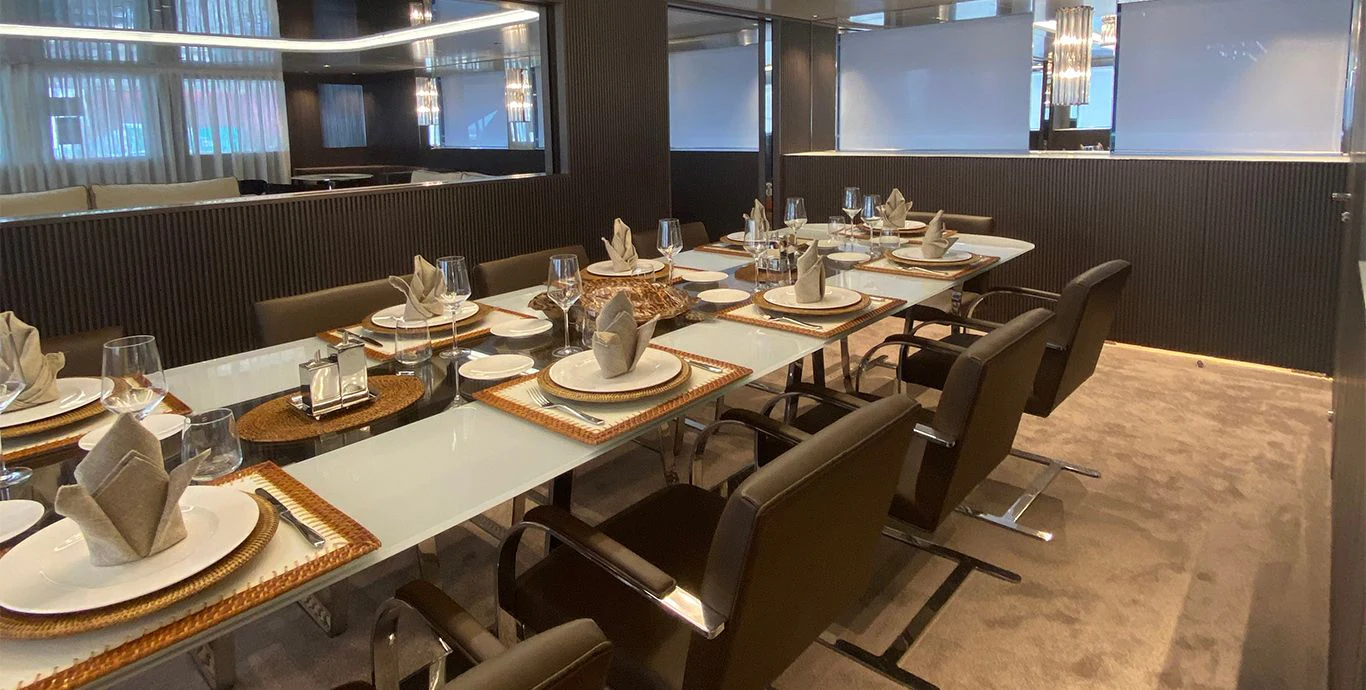

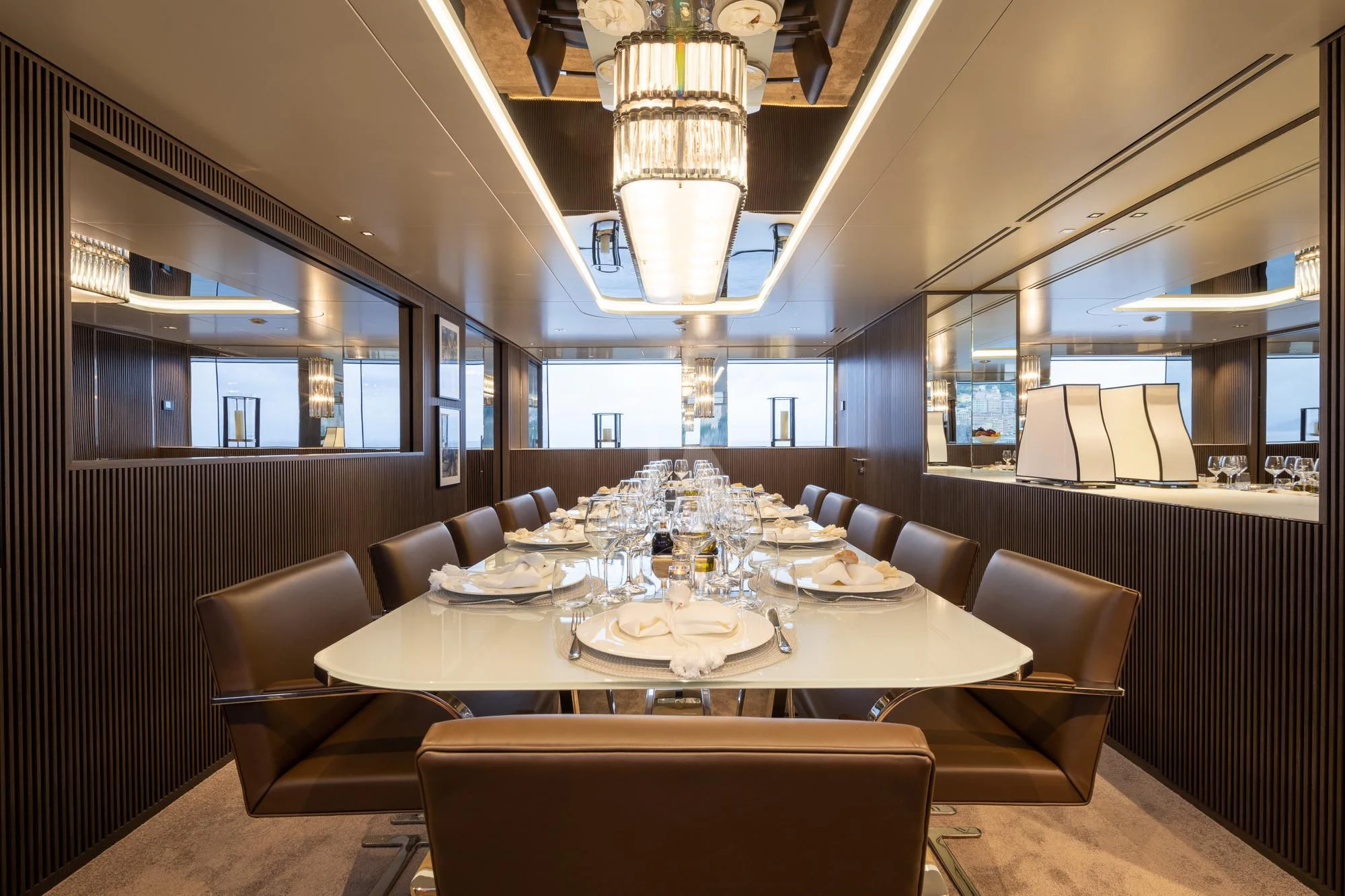

  • Dining Salon

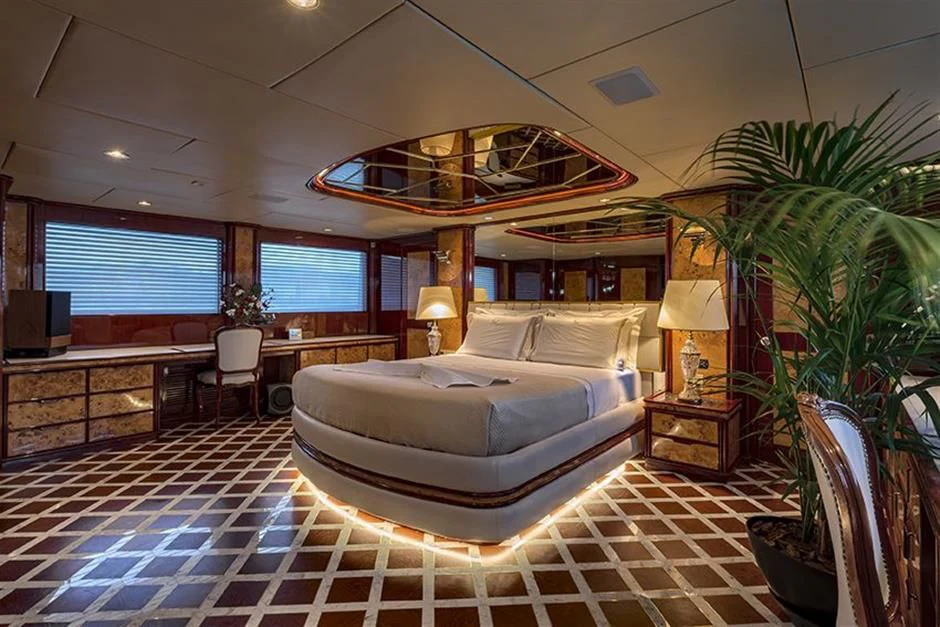

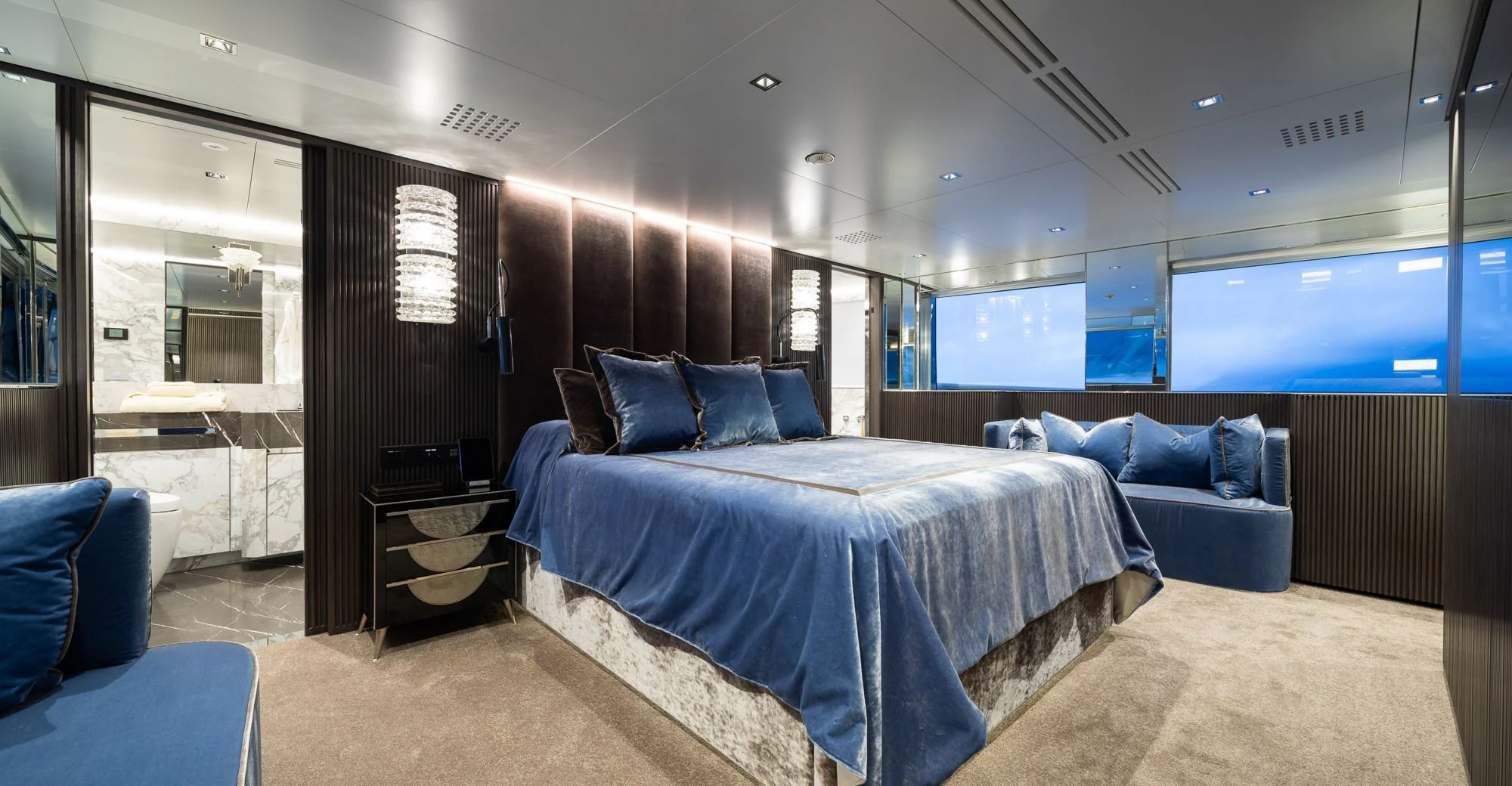

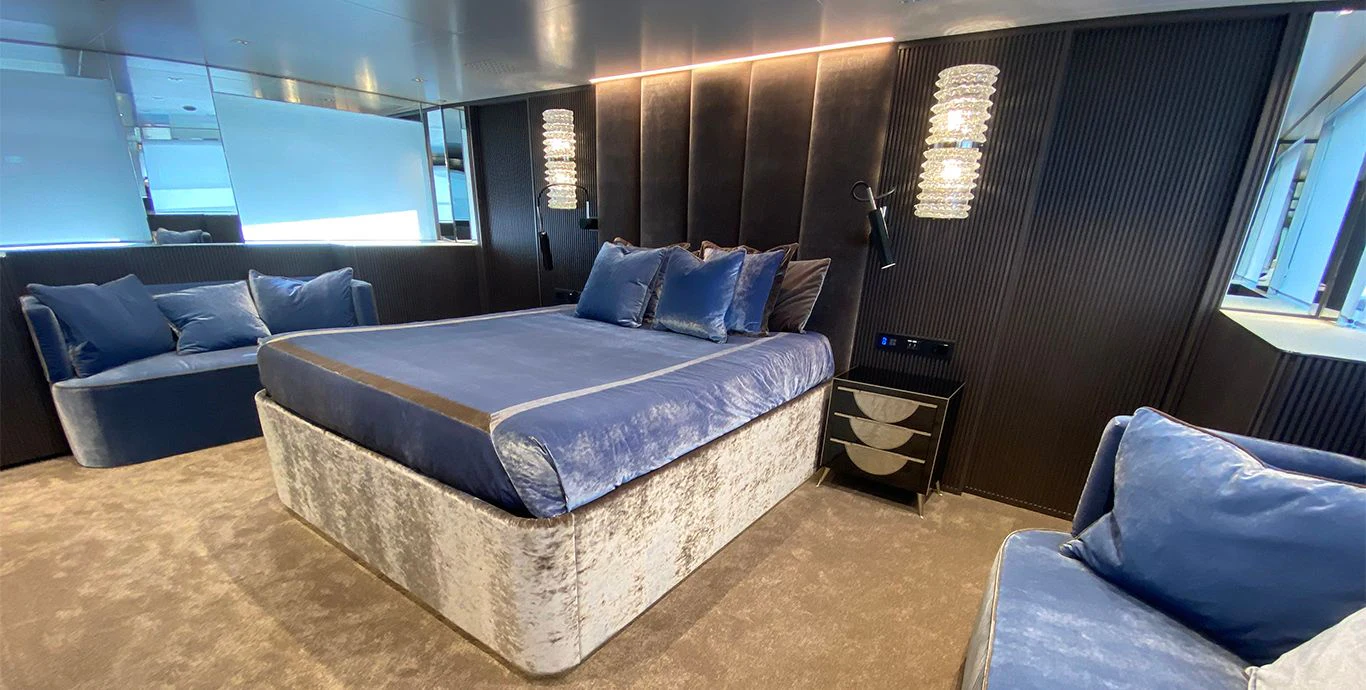

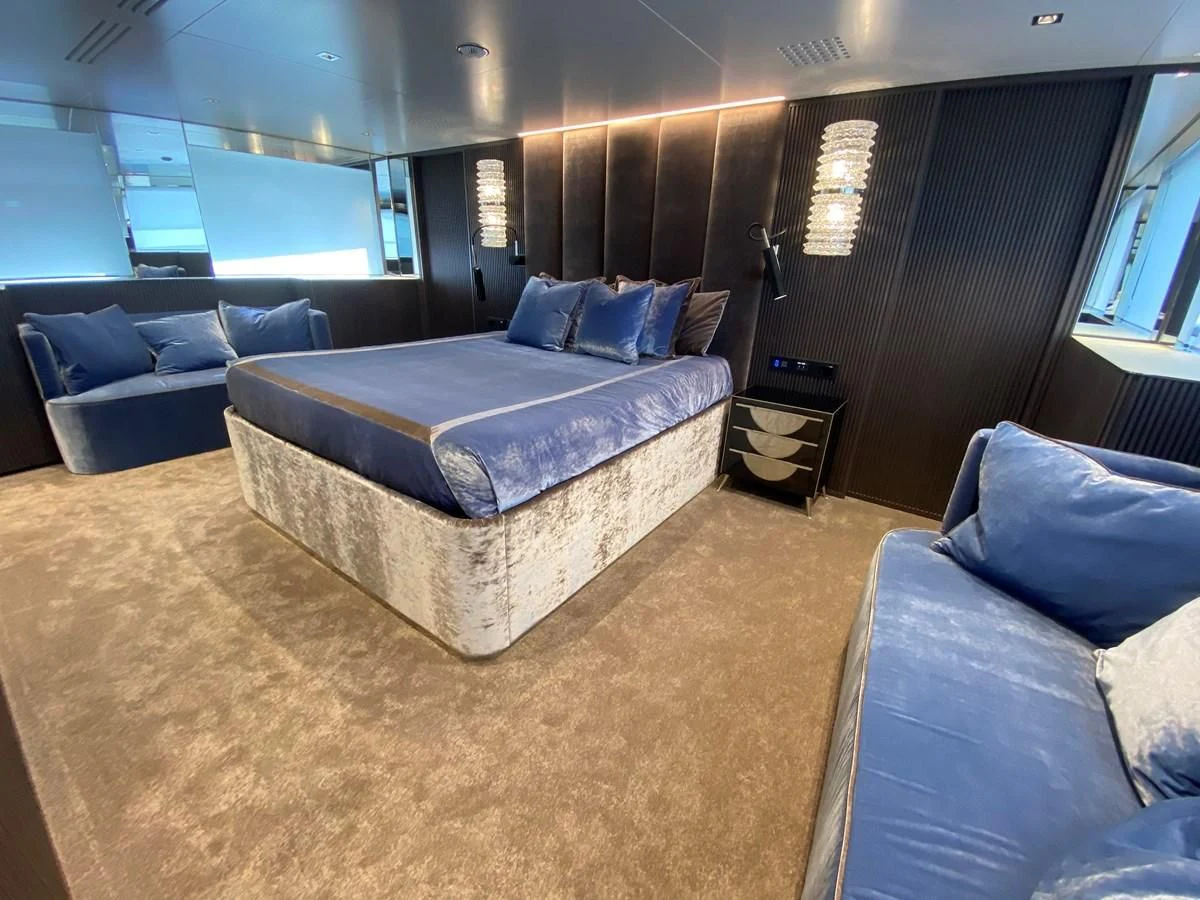

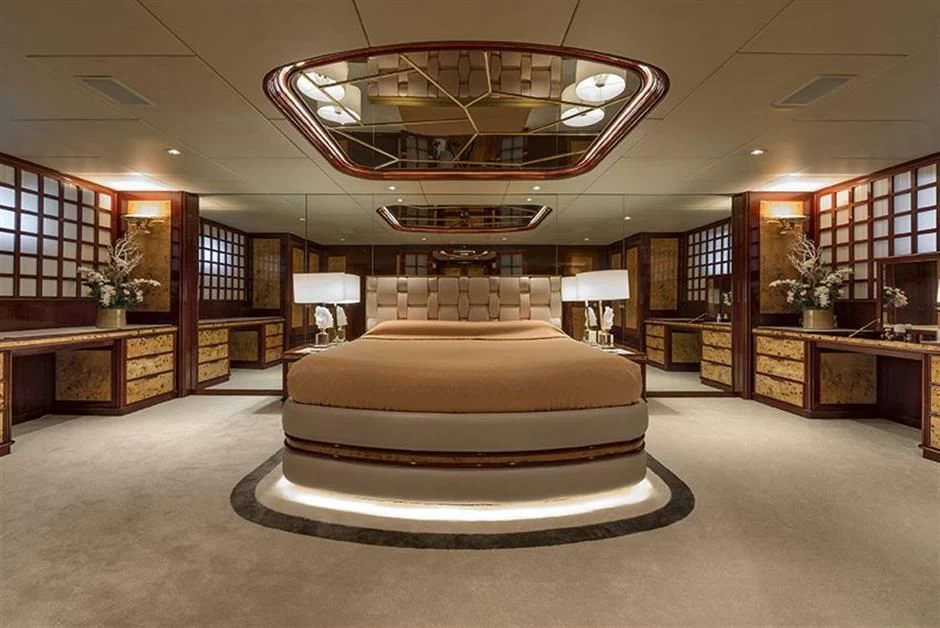

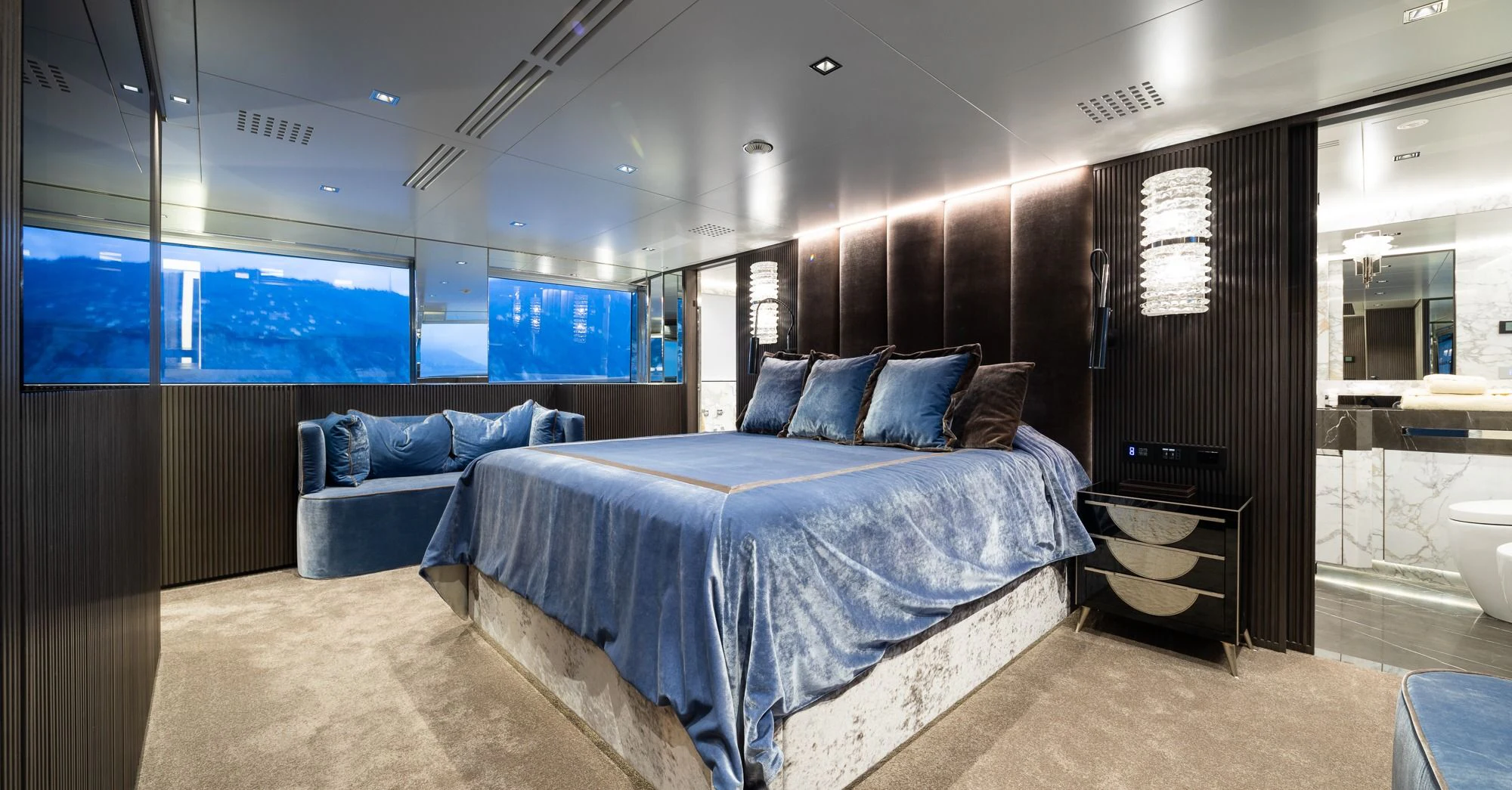

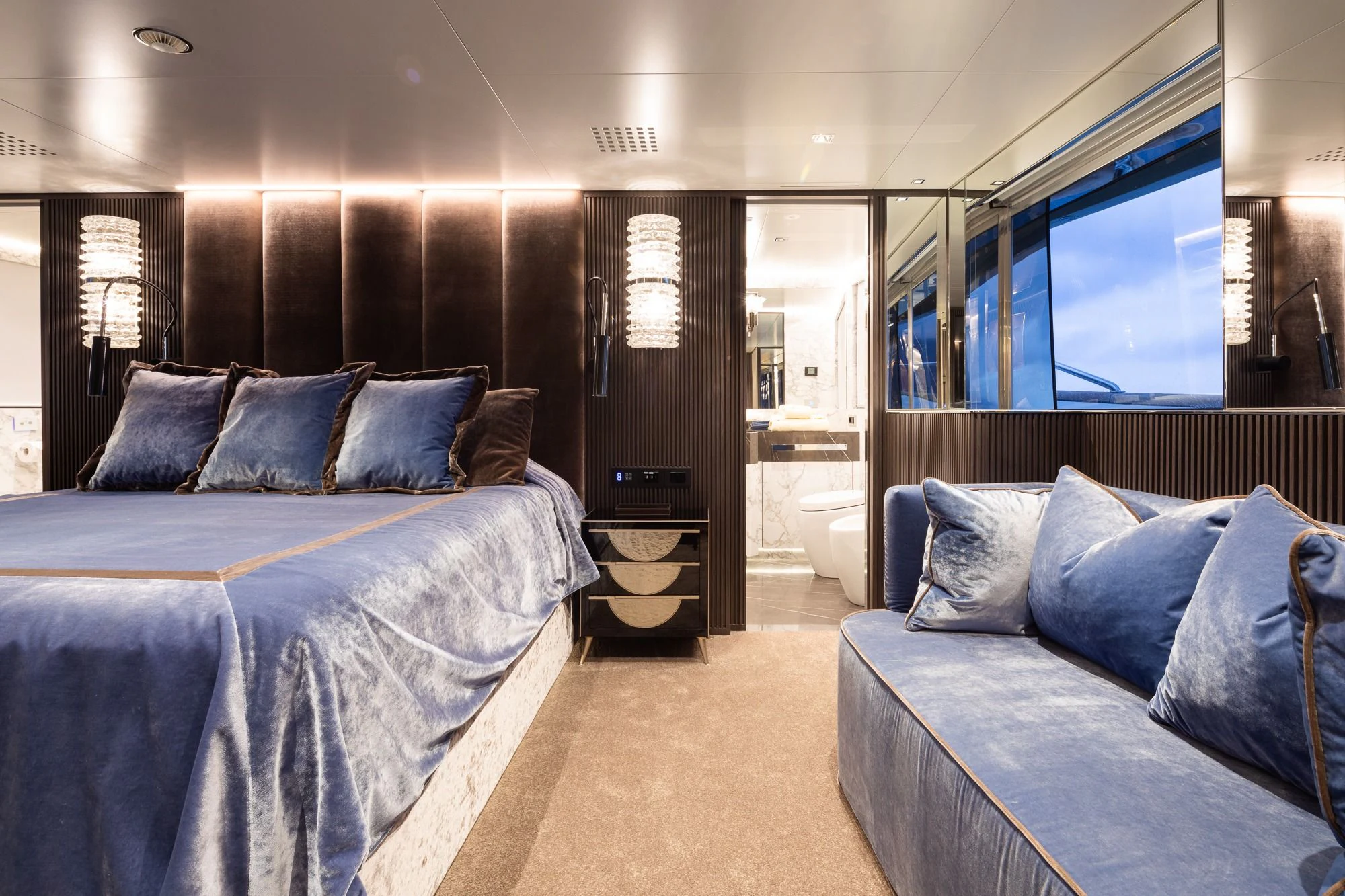

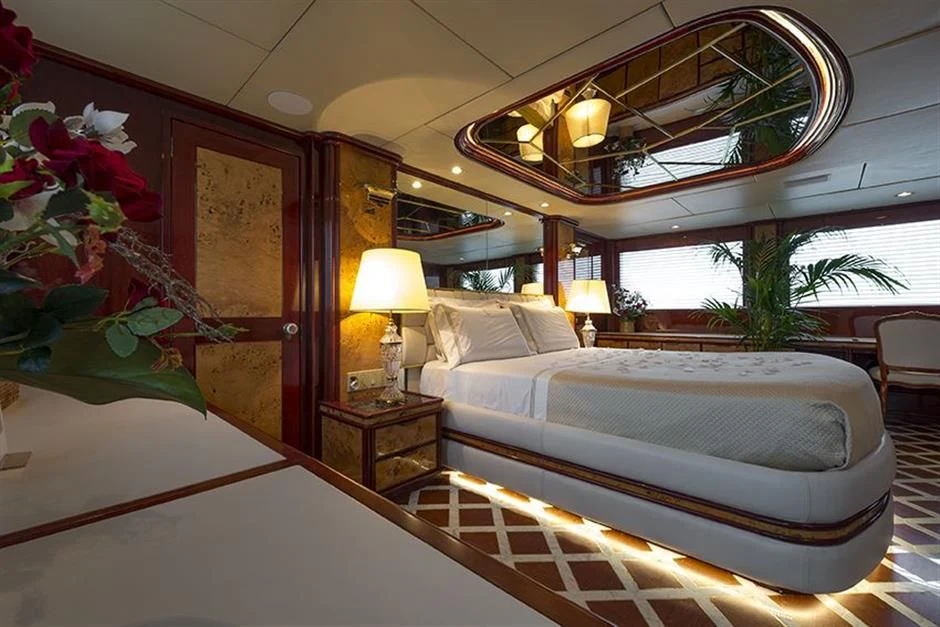

  • Master Stateroom + 2 Baths with Chromotherapy & Owner Office

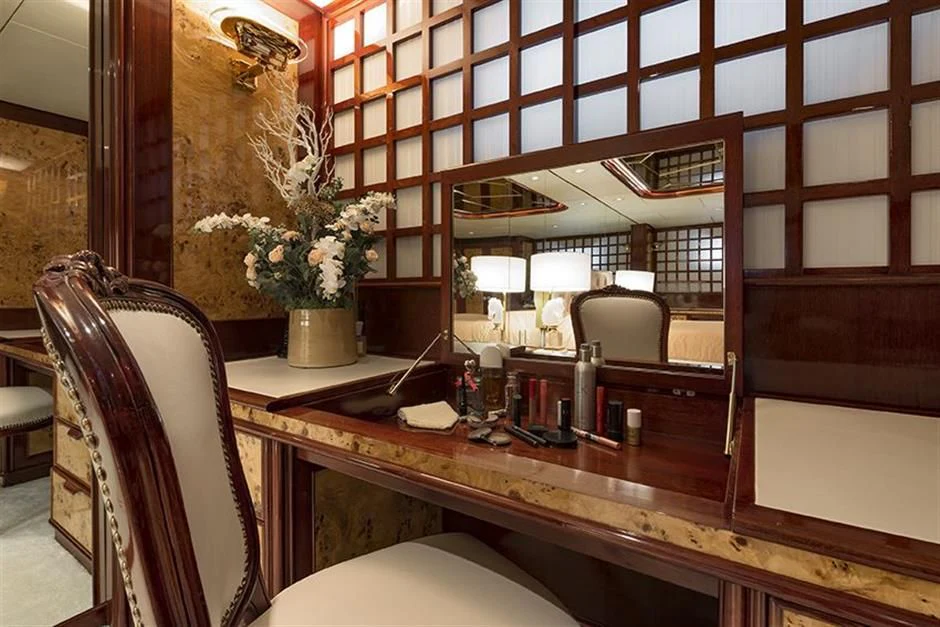

  • Service Bathroom. Frigo-bar, one walk in wardrobe, 2 closets and a makeup table for ladies + safe box


UPPER DECK:

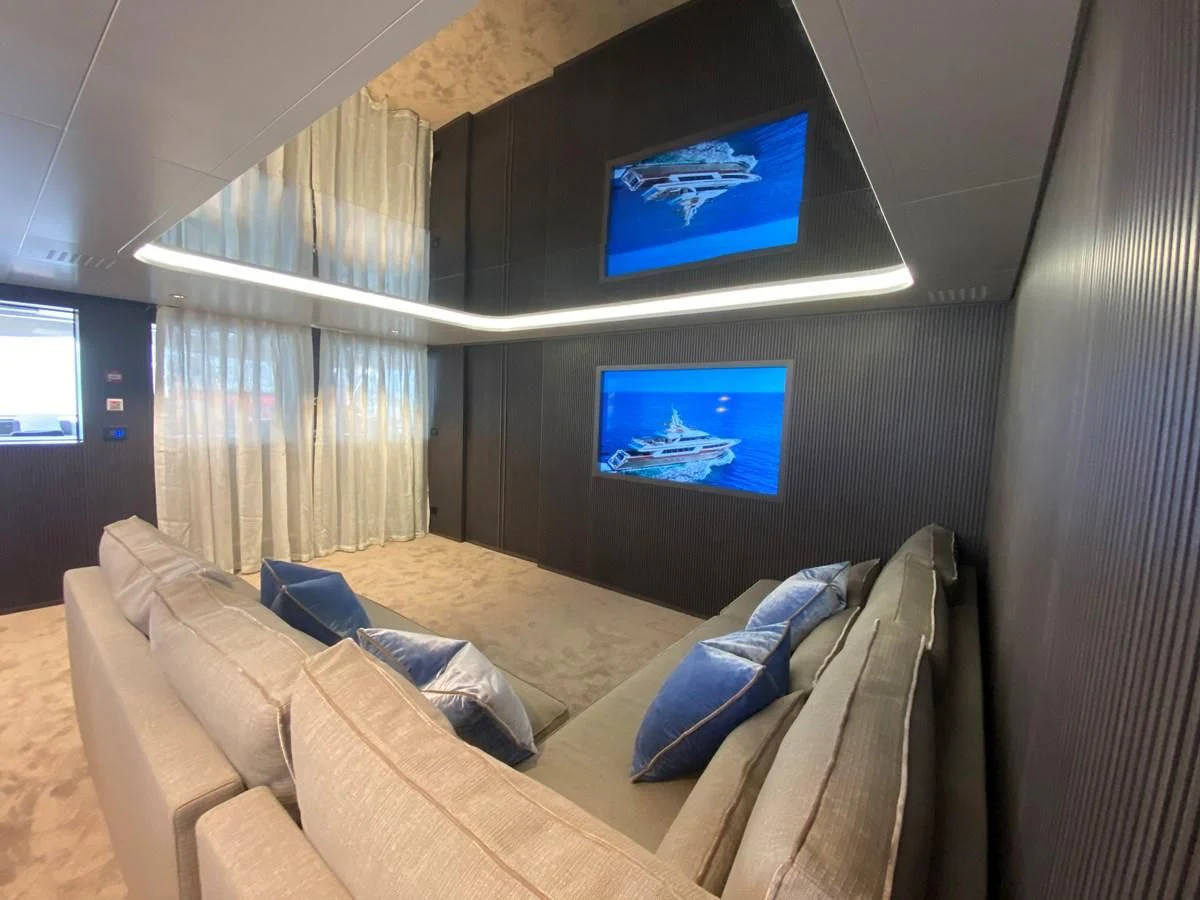

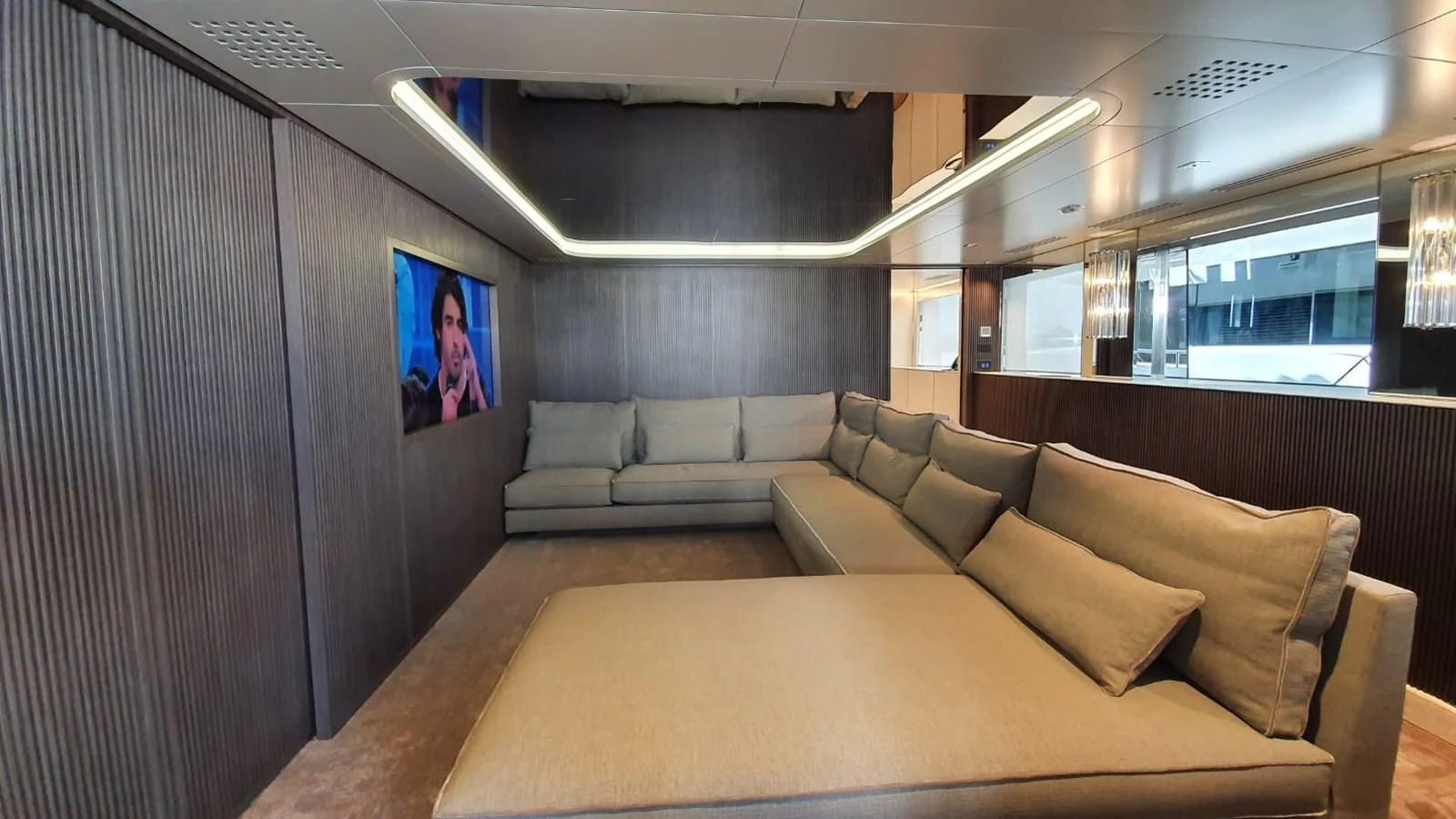

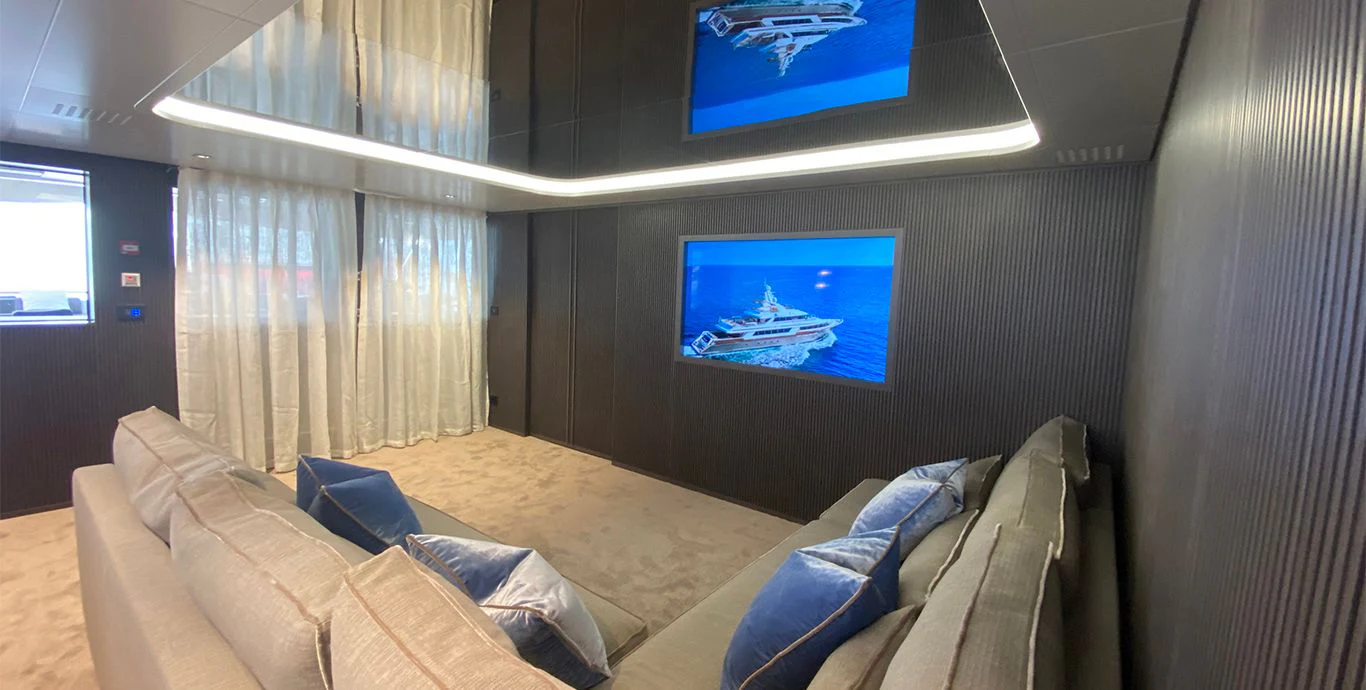

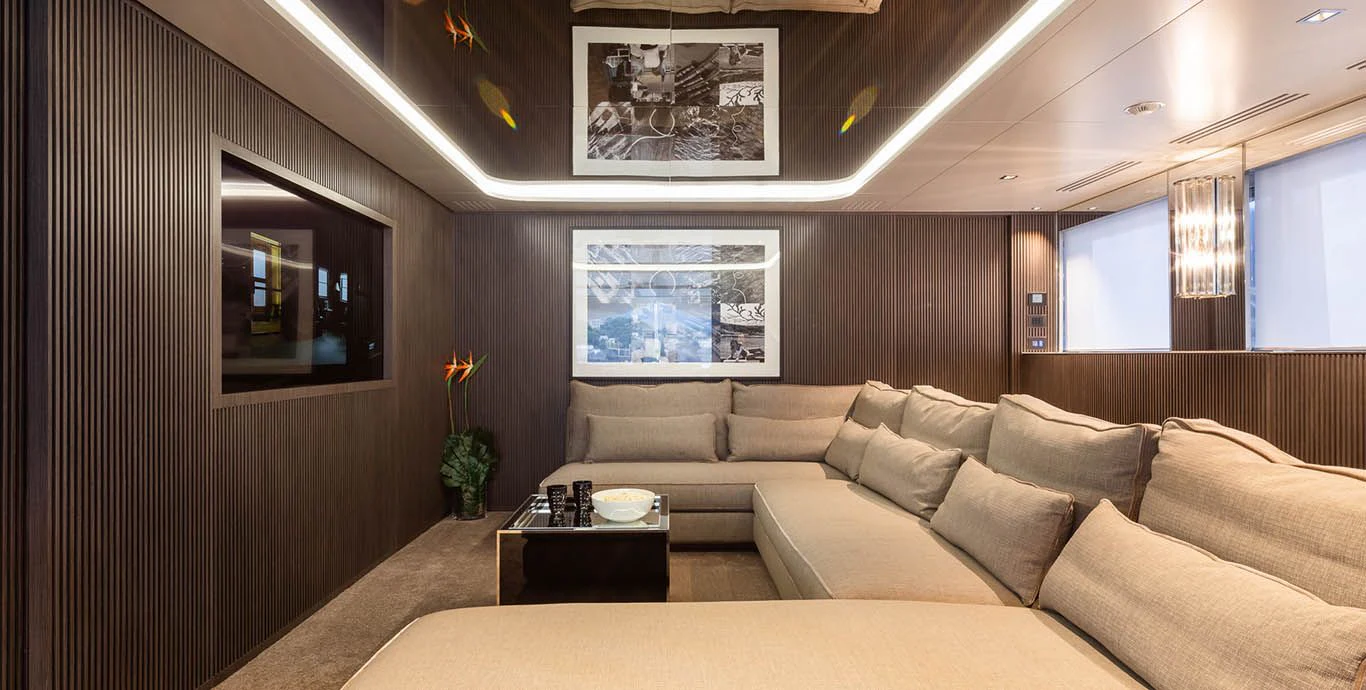

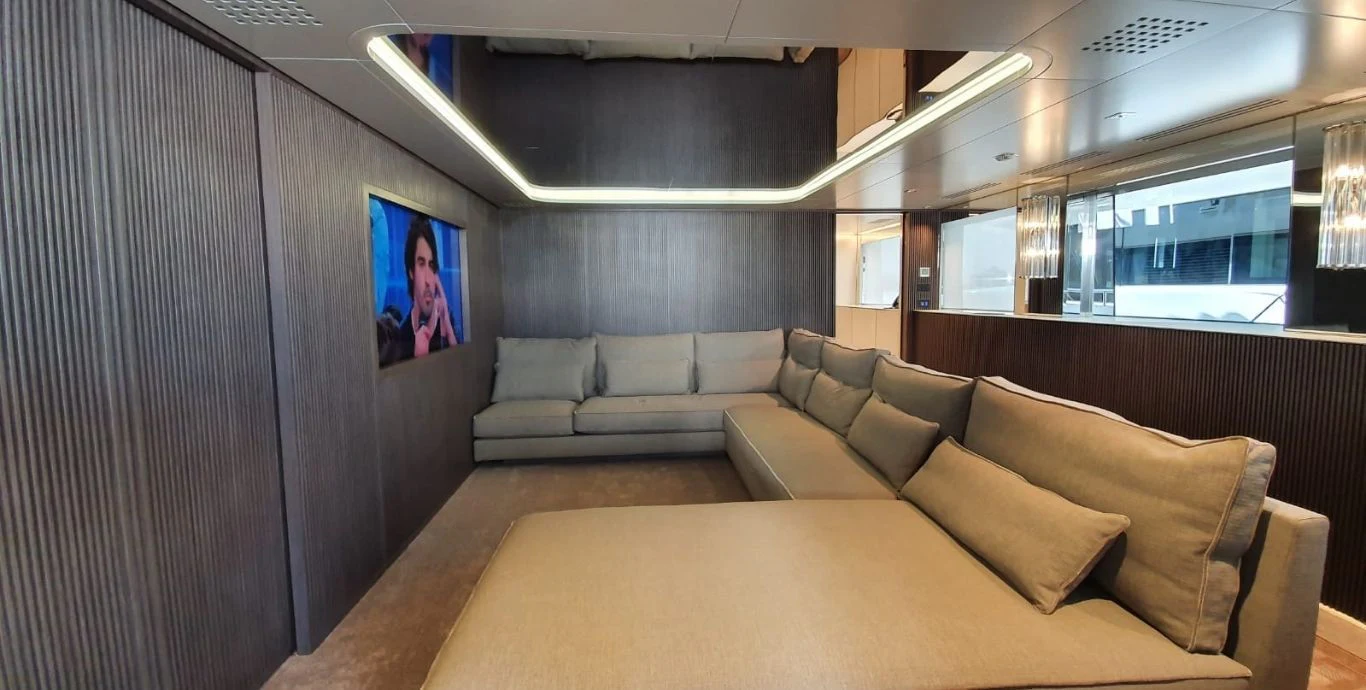

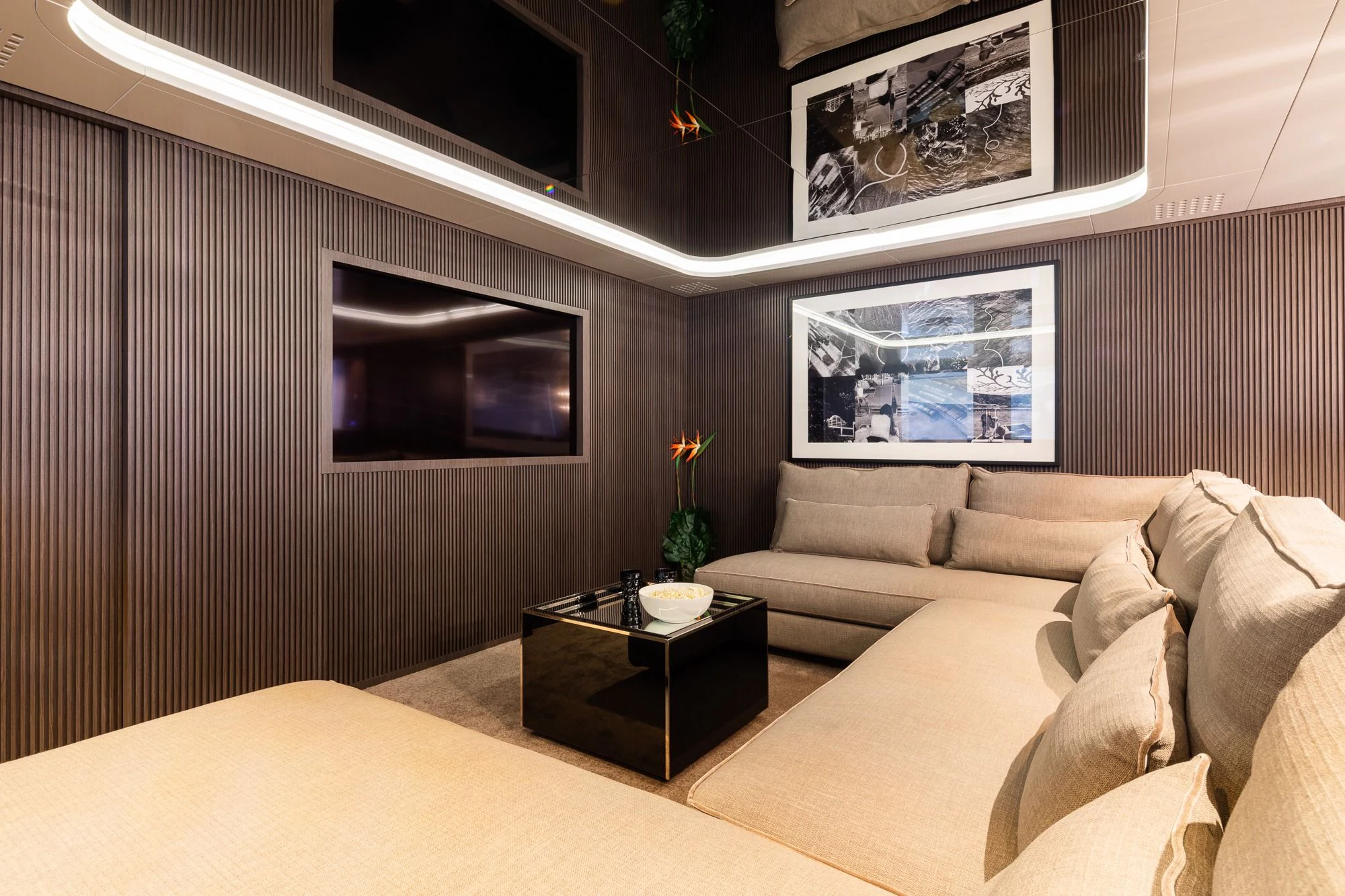

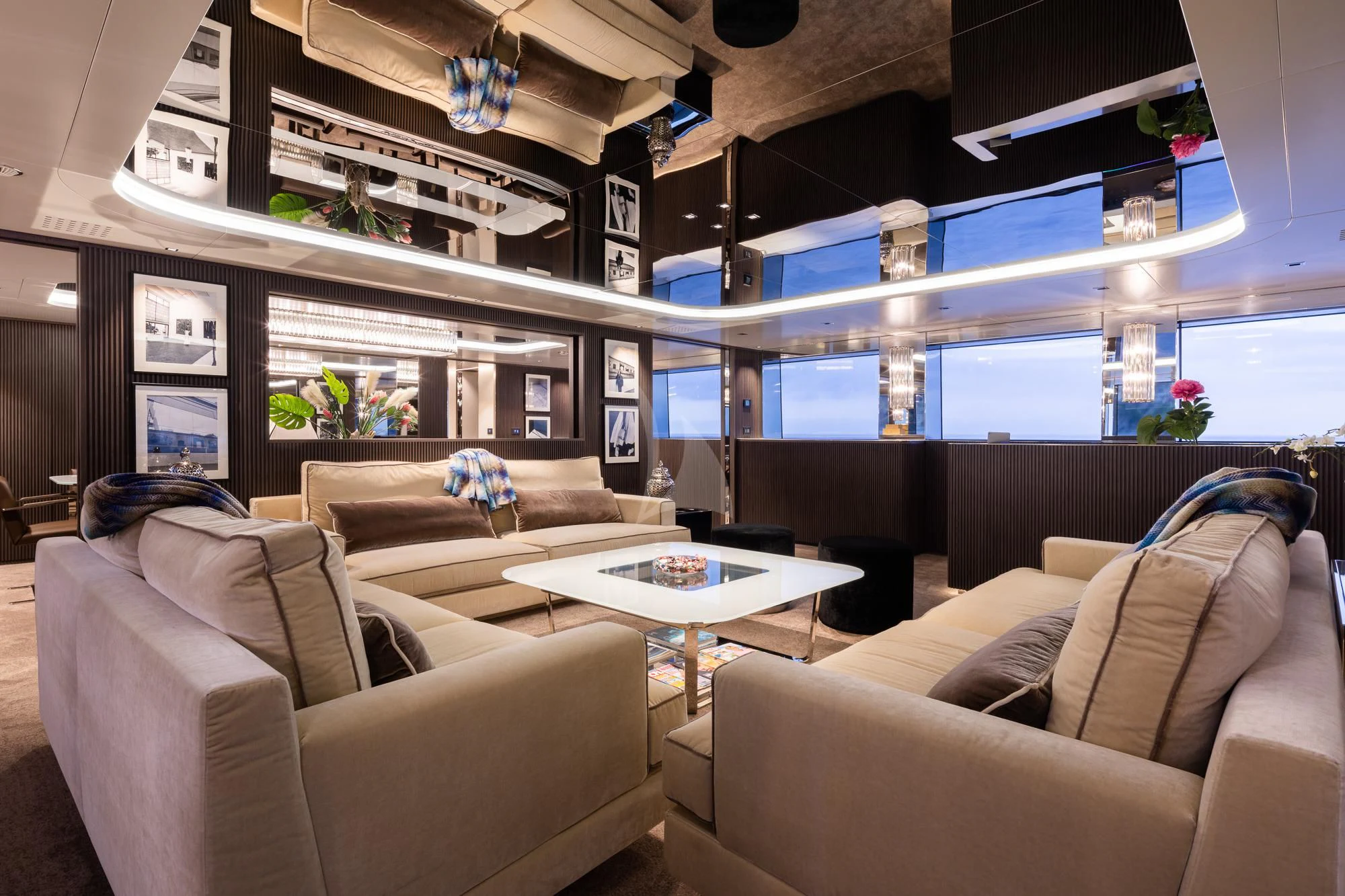

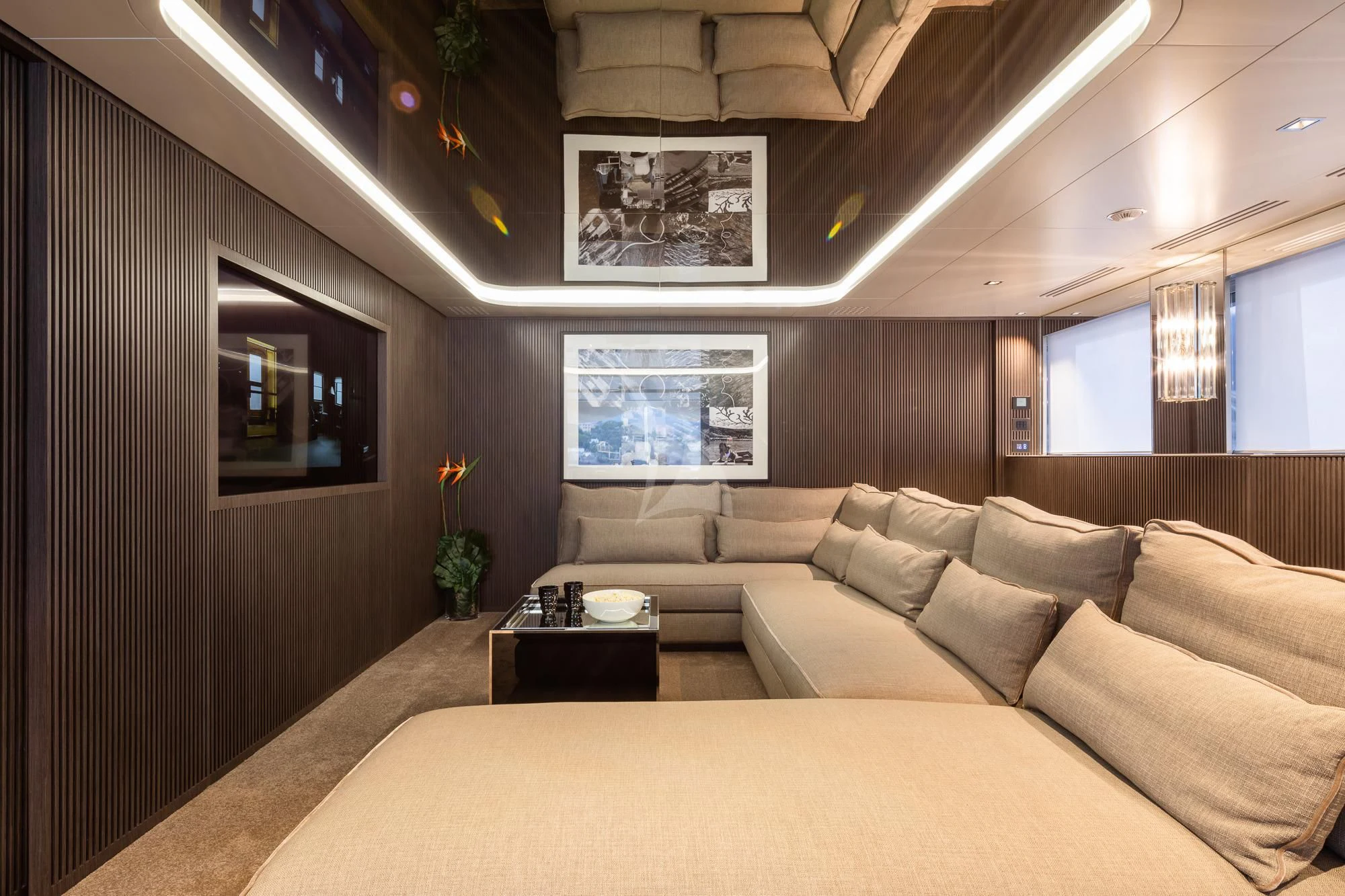

  • TV Lounge

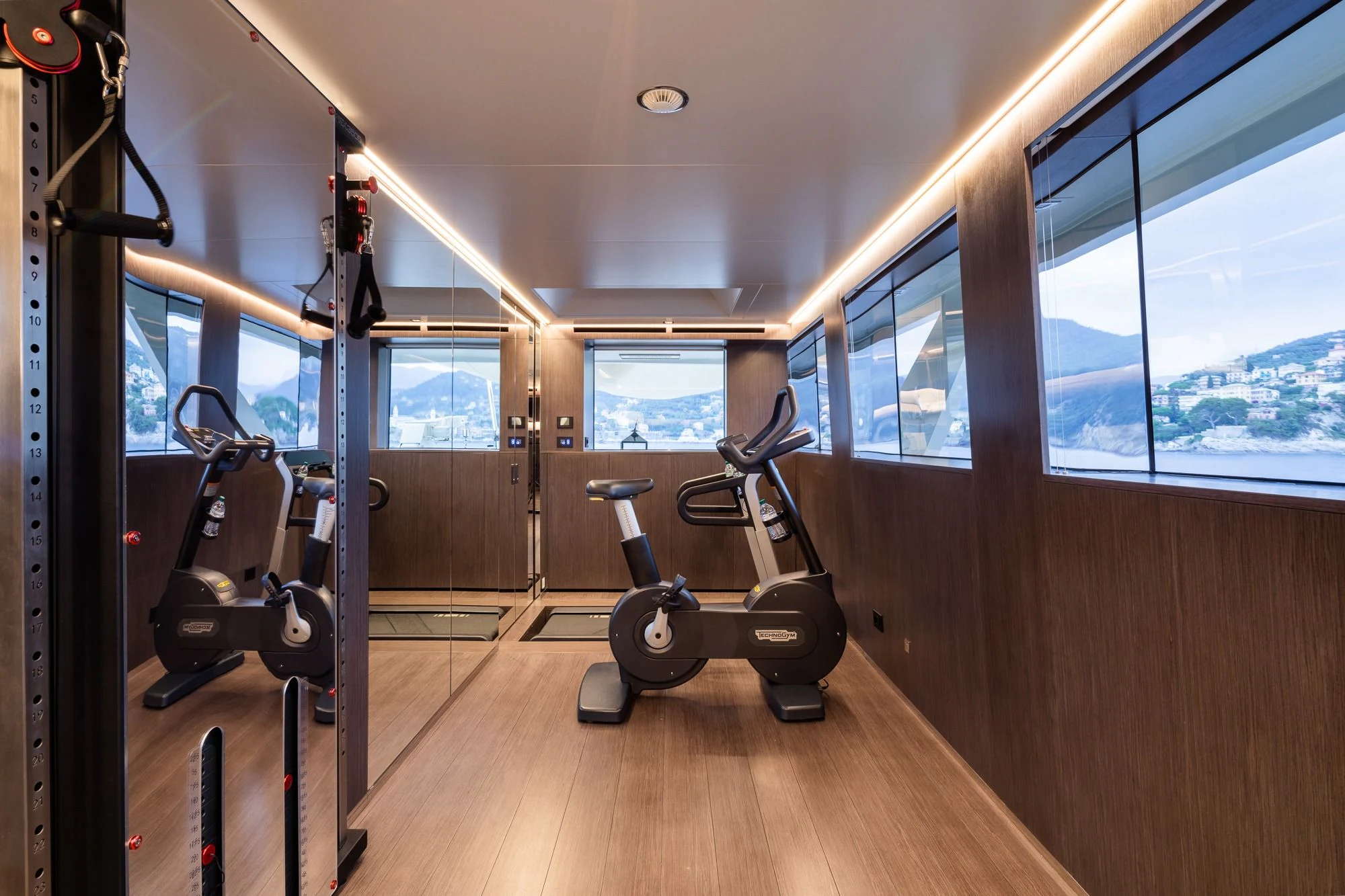

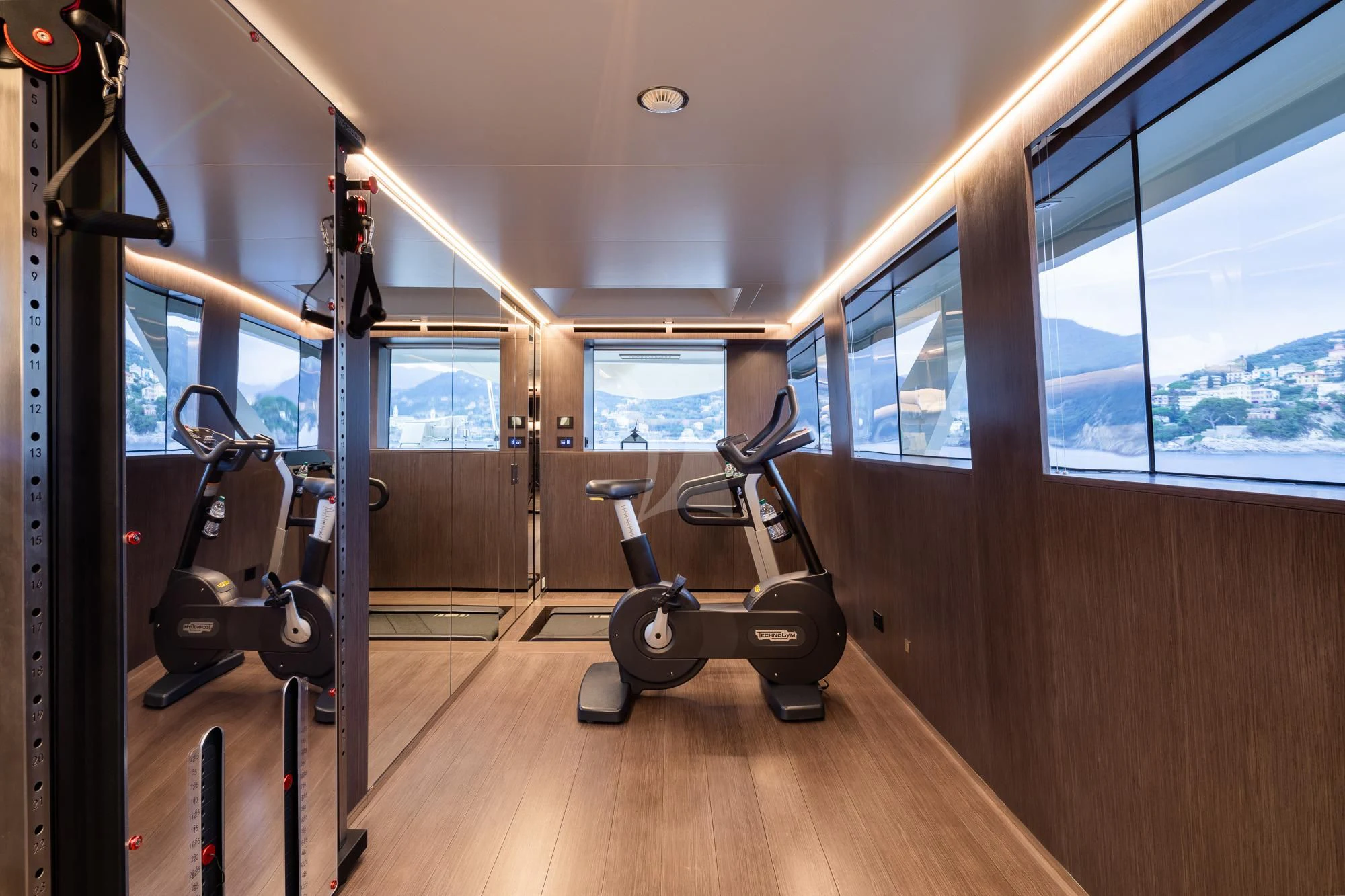

  • Gym

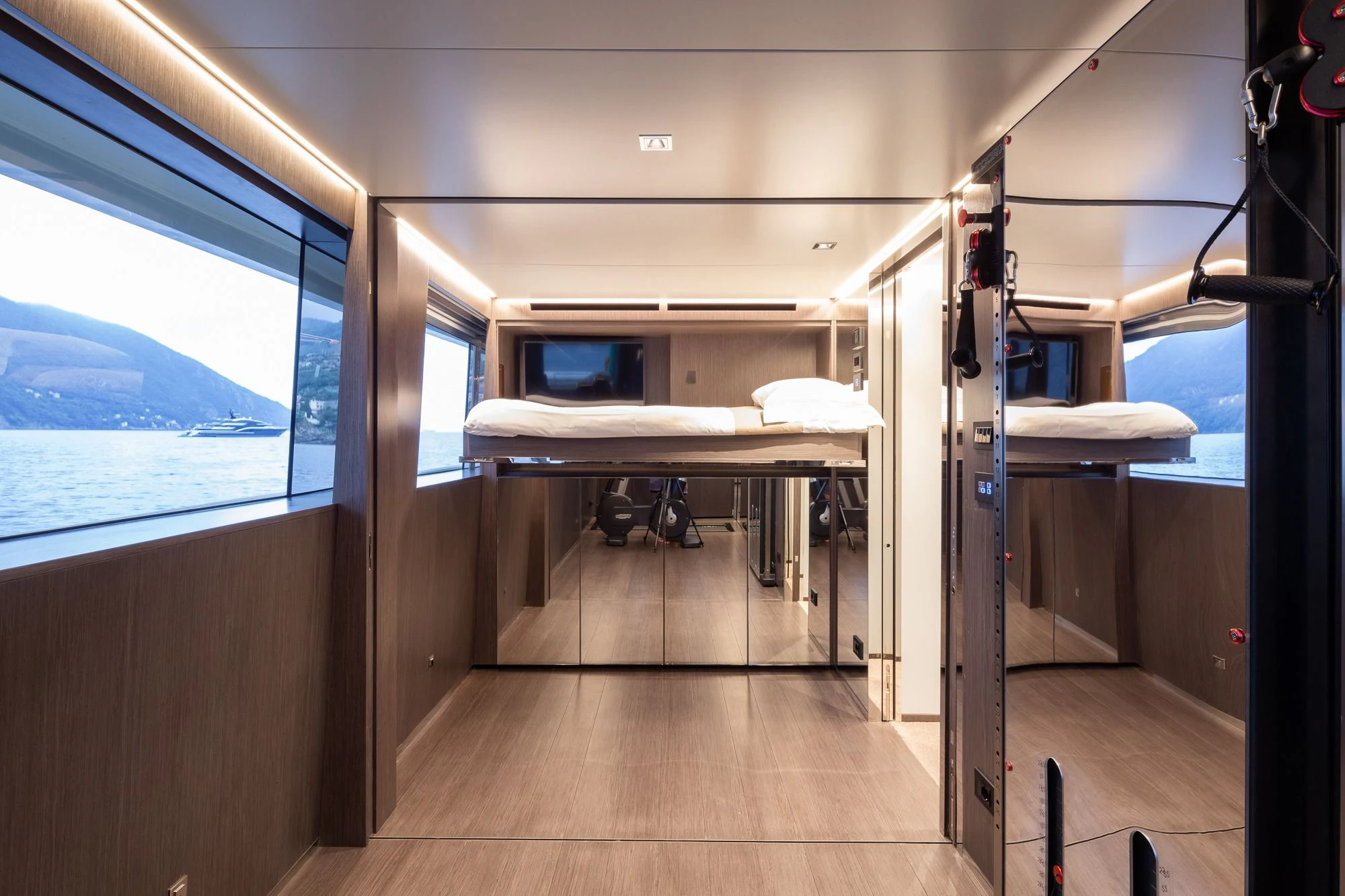

  • Nanny or personal trainer Cabin with 1 bed and bathroom adjacent to the gym area
  • Service Bathroom
  • Pantry with kitchen

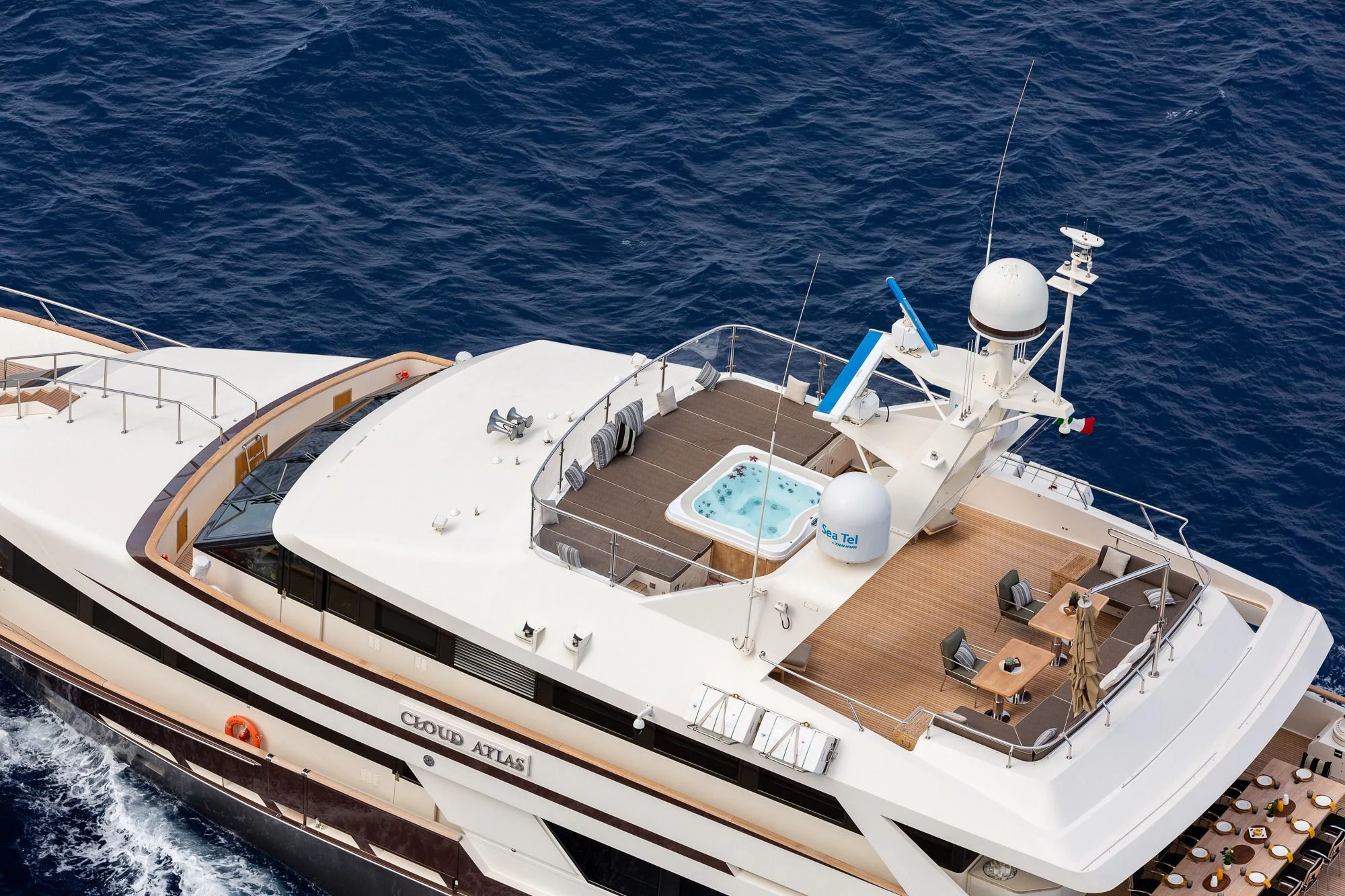

SUN DECK:

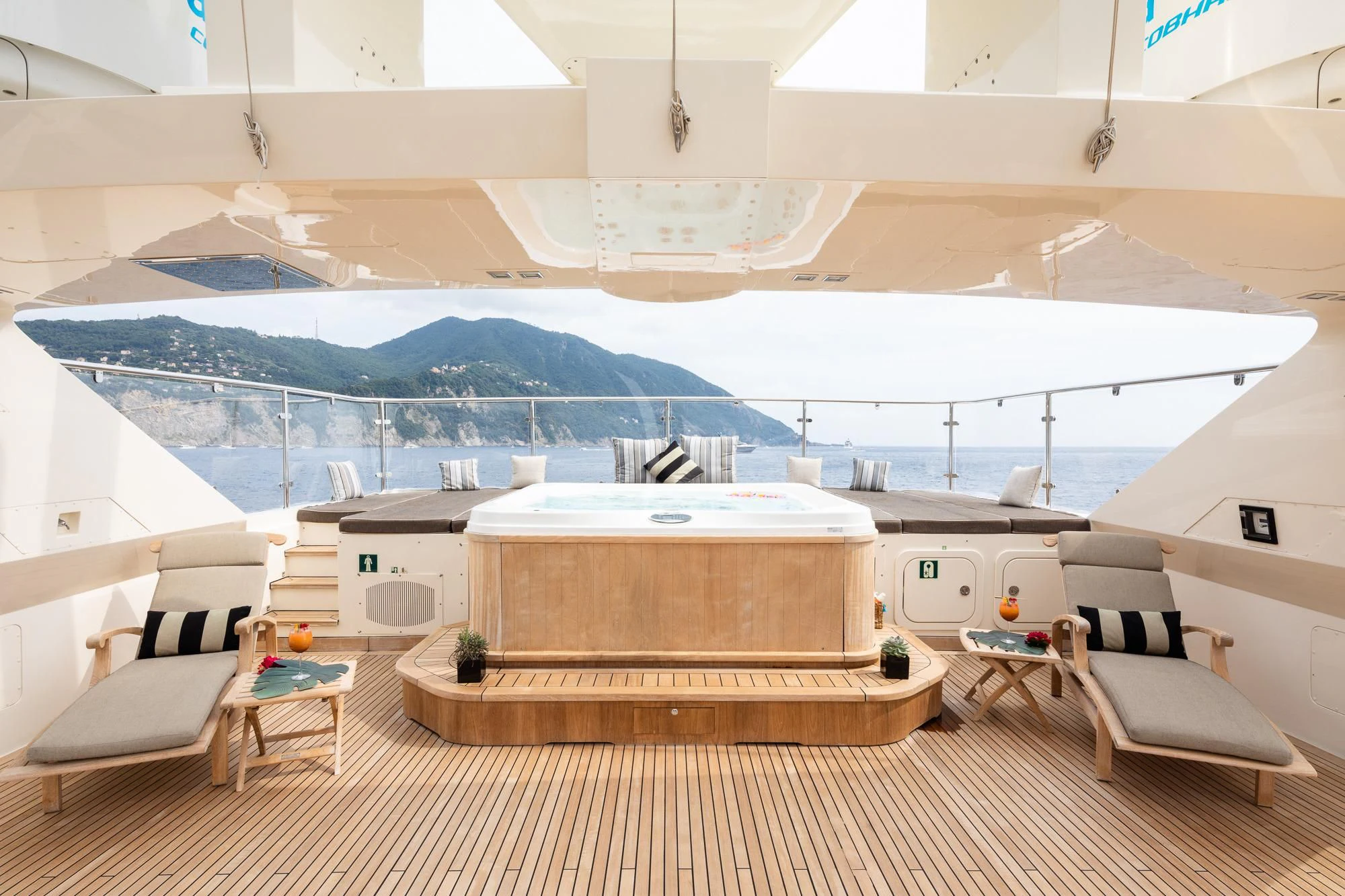

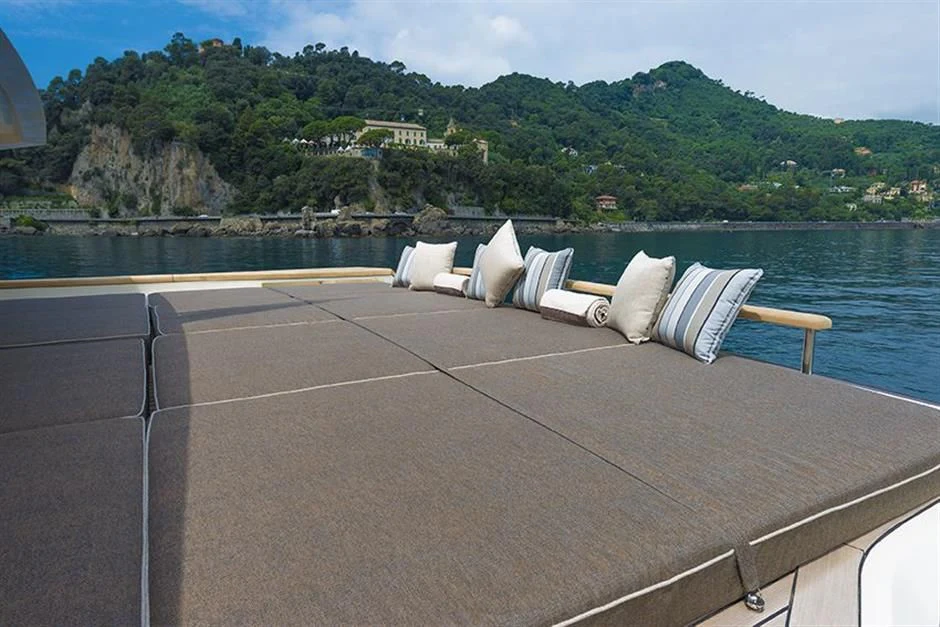

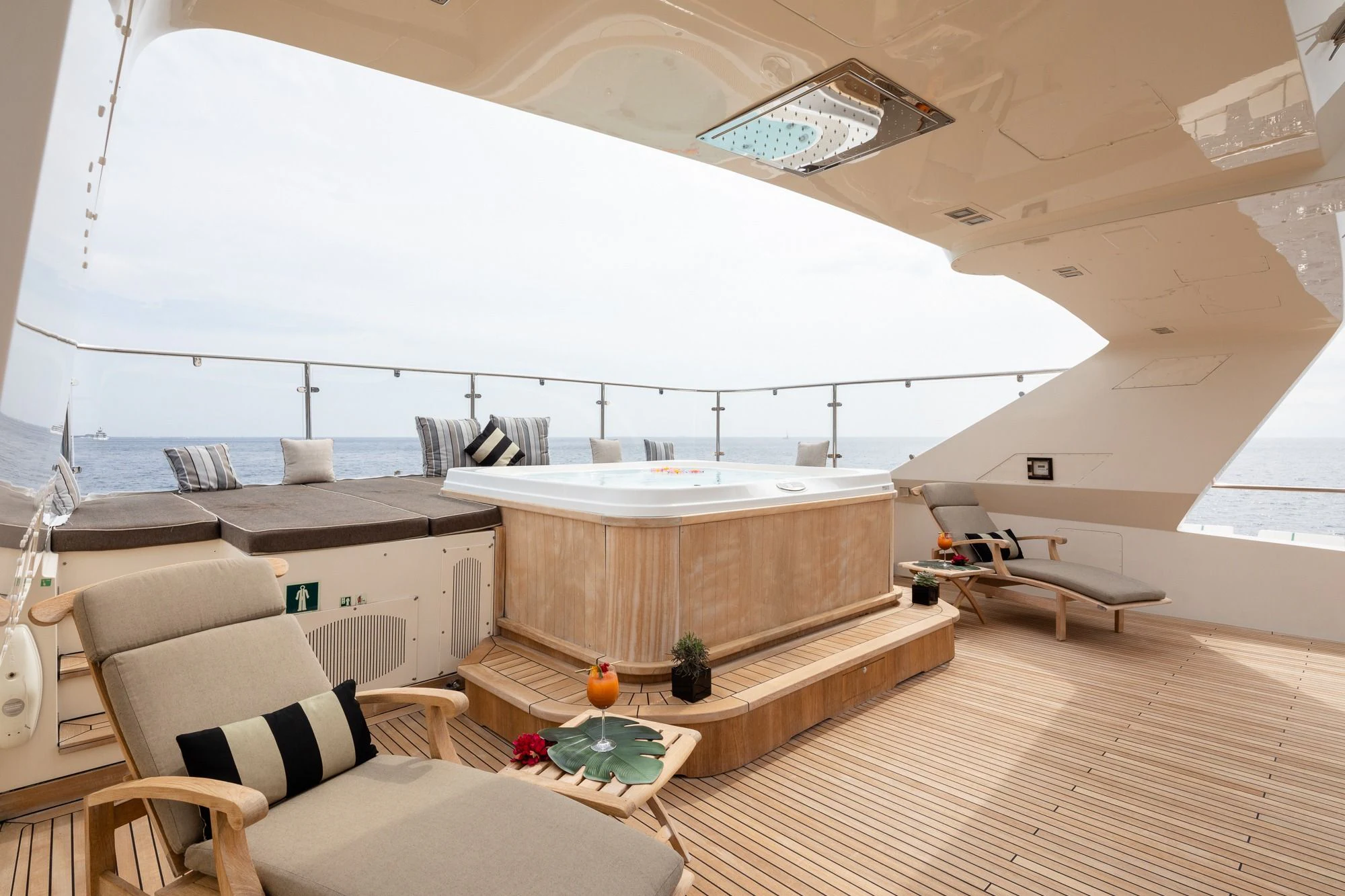

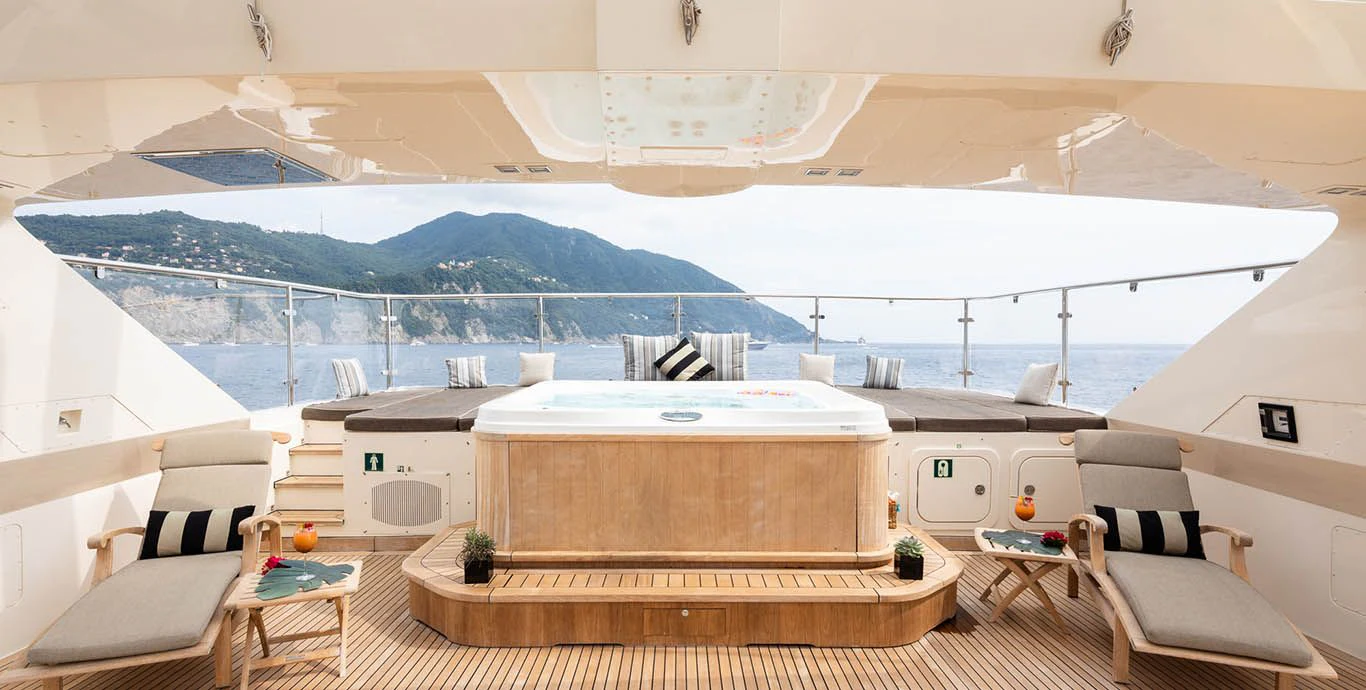

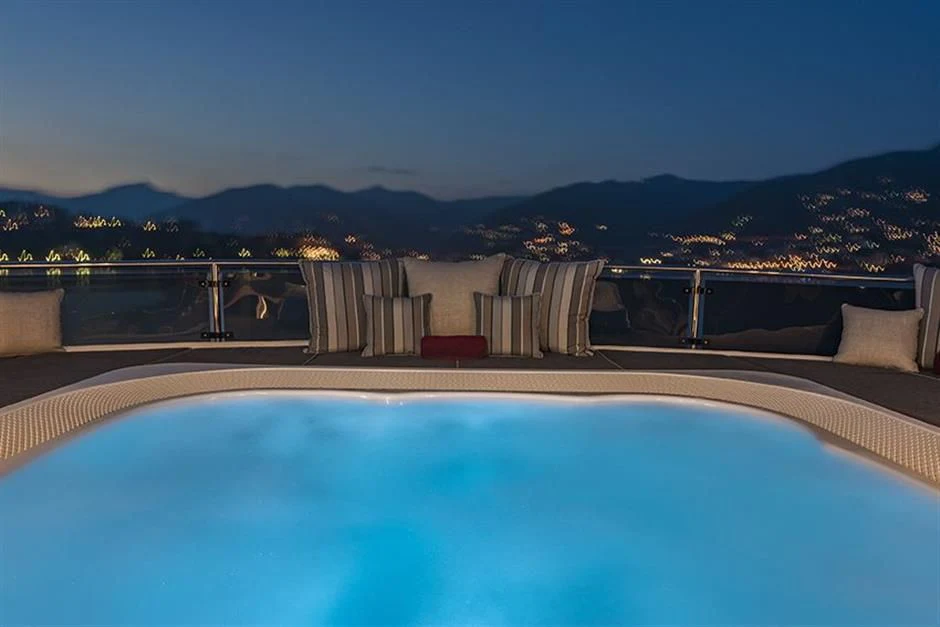

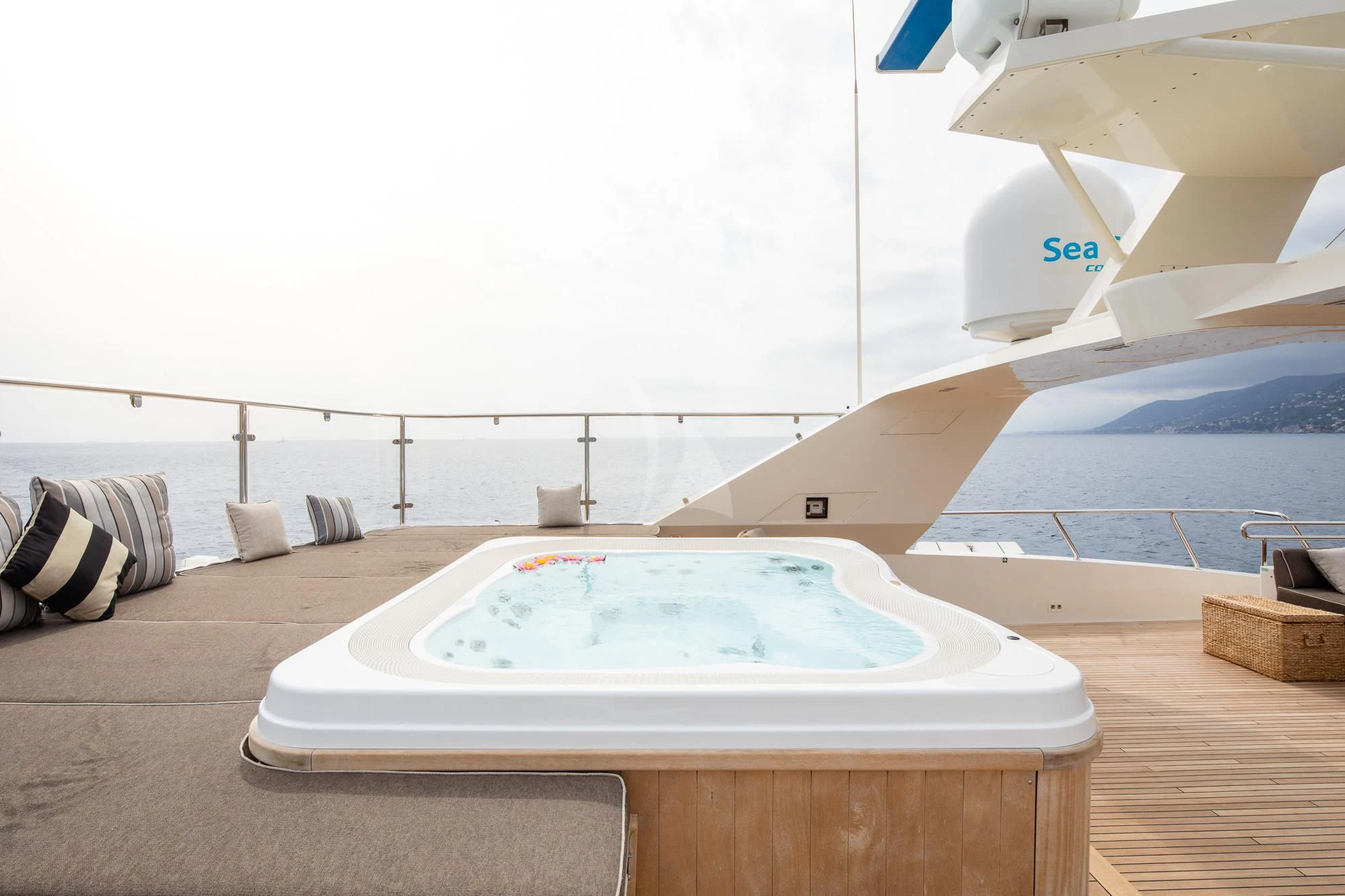

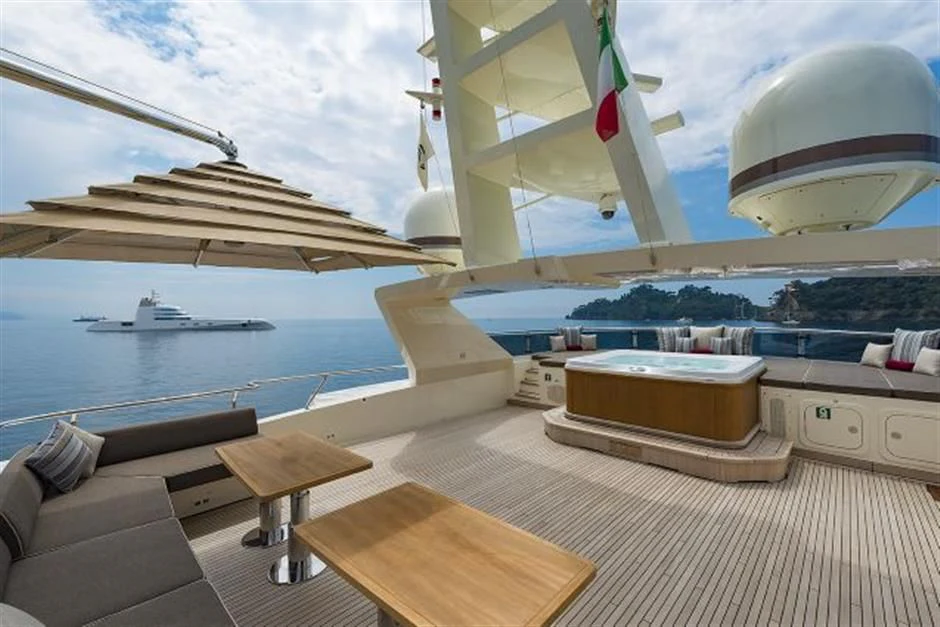

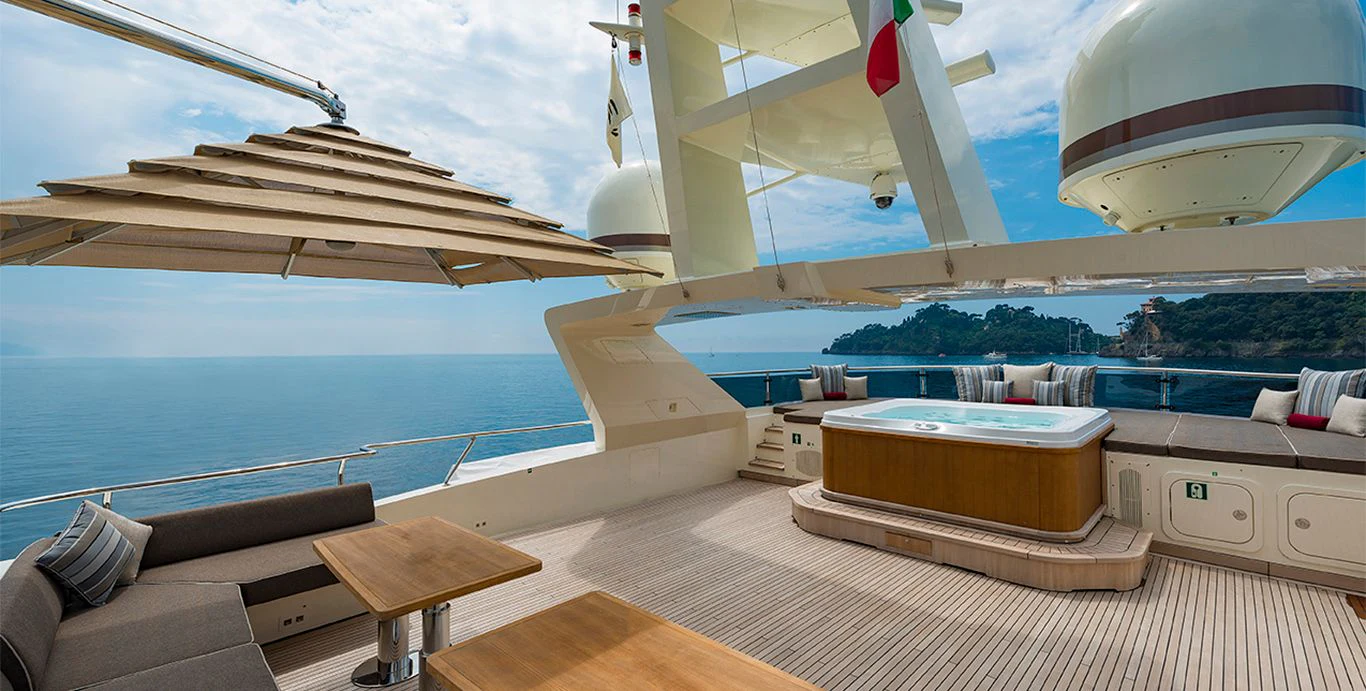

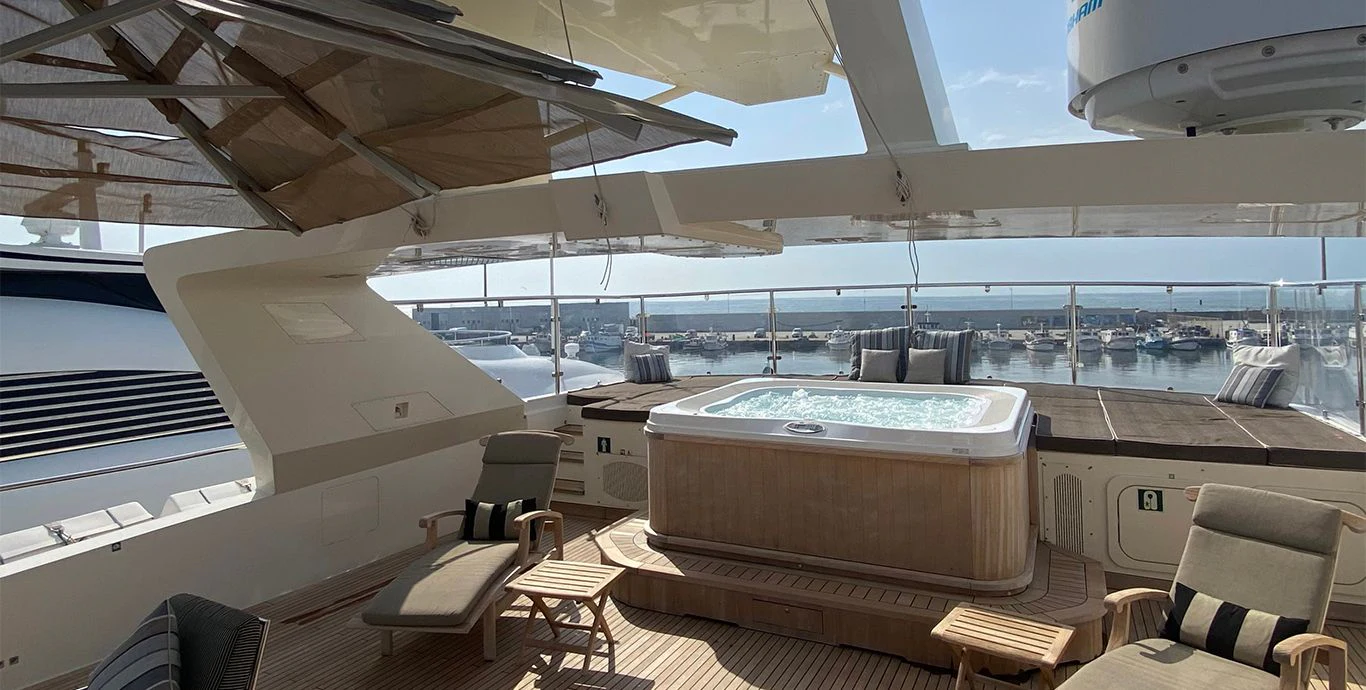

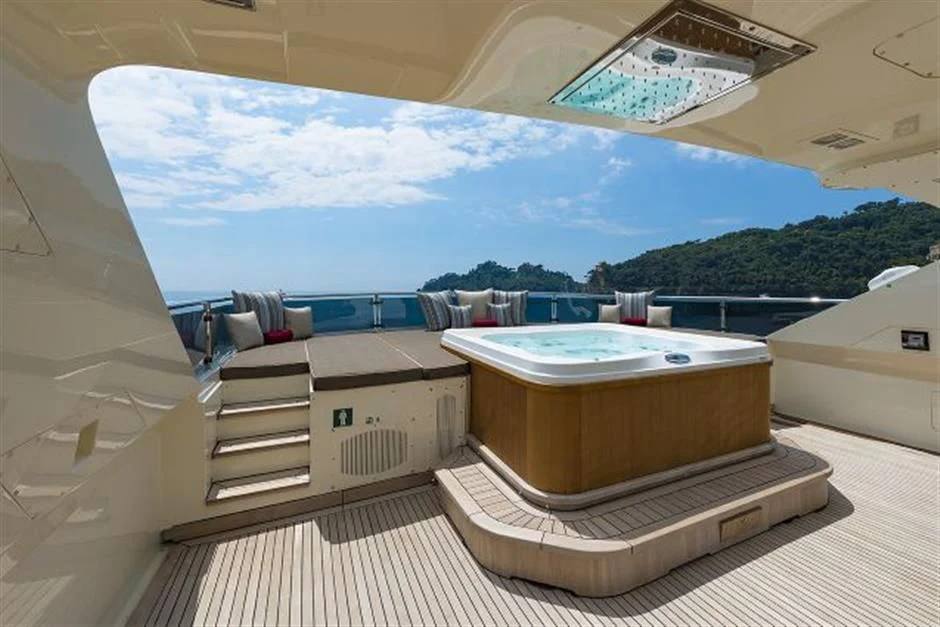

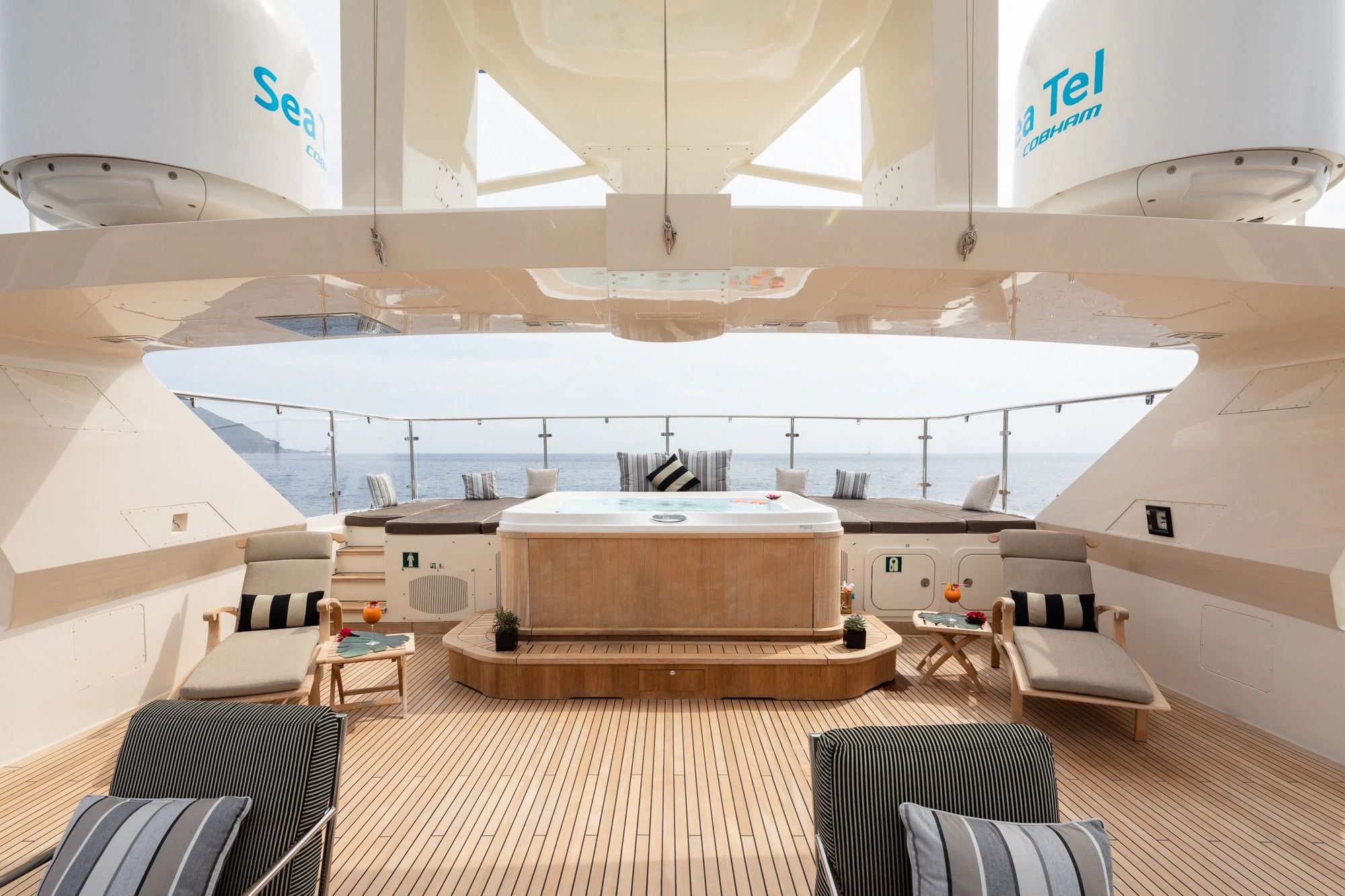

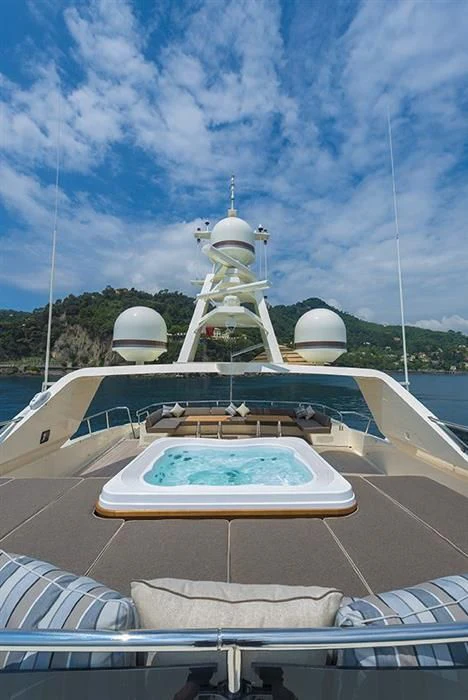

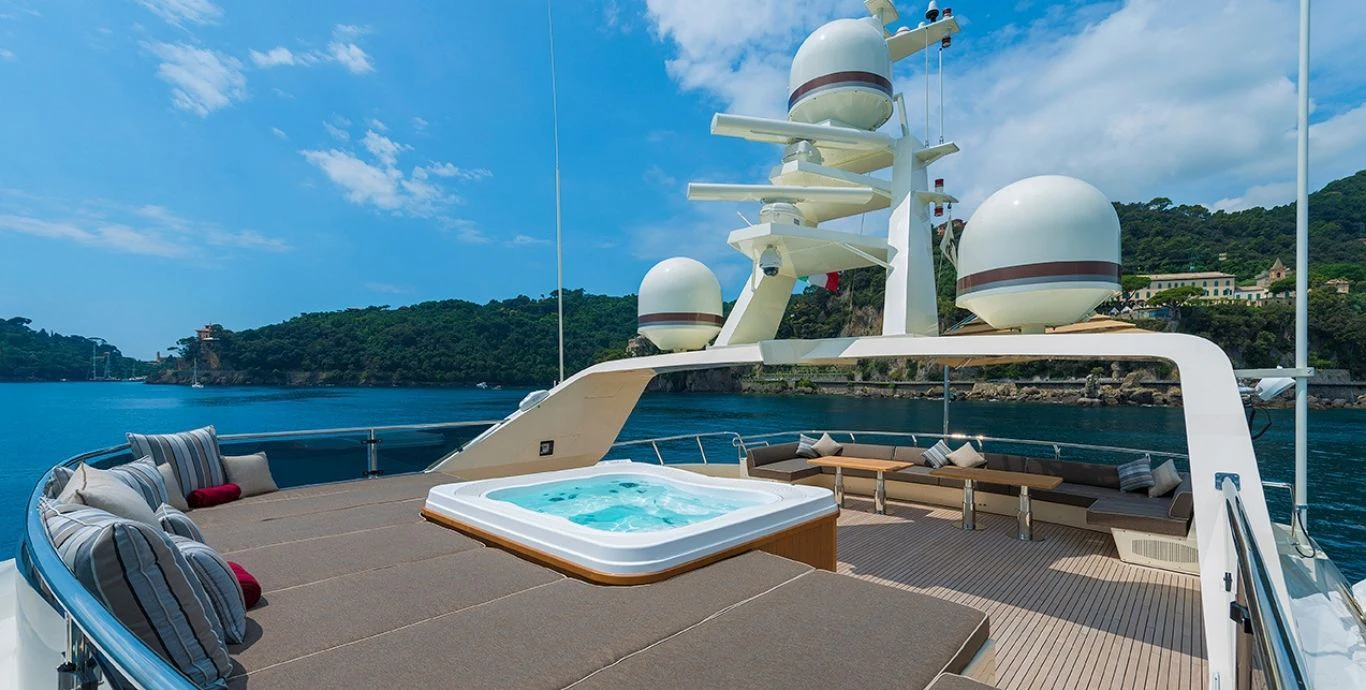

  • Jacuzzi, two dining table converting into 2 smoking table or sofas, one sun umbrella, two sunbed chairs & a big sundeck

UPPER DECK AFT:

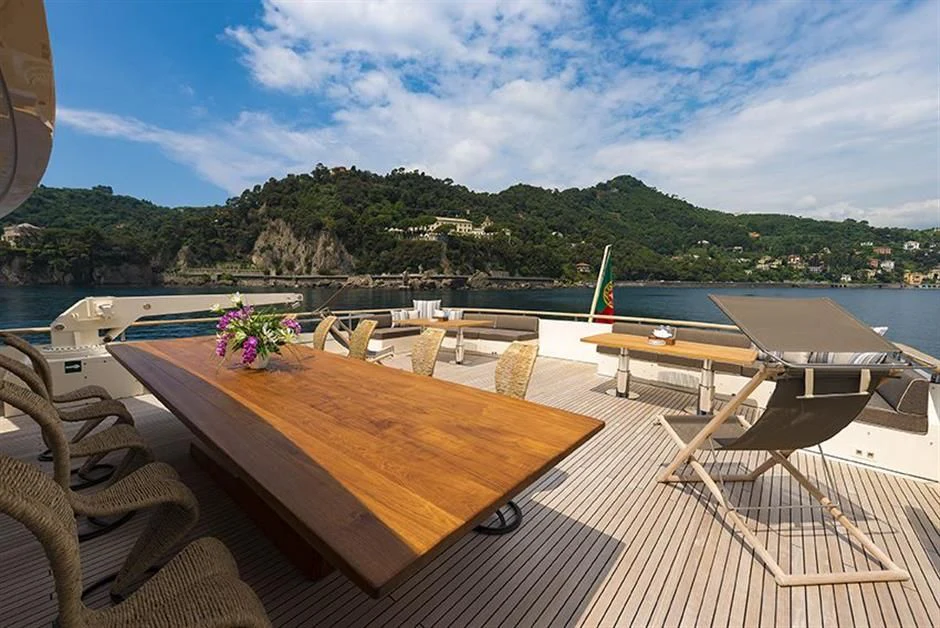

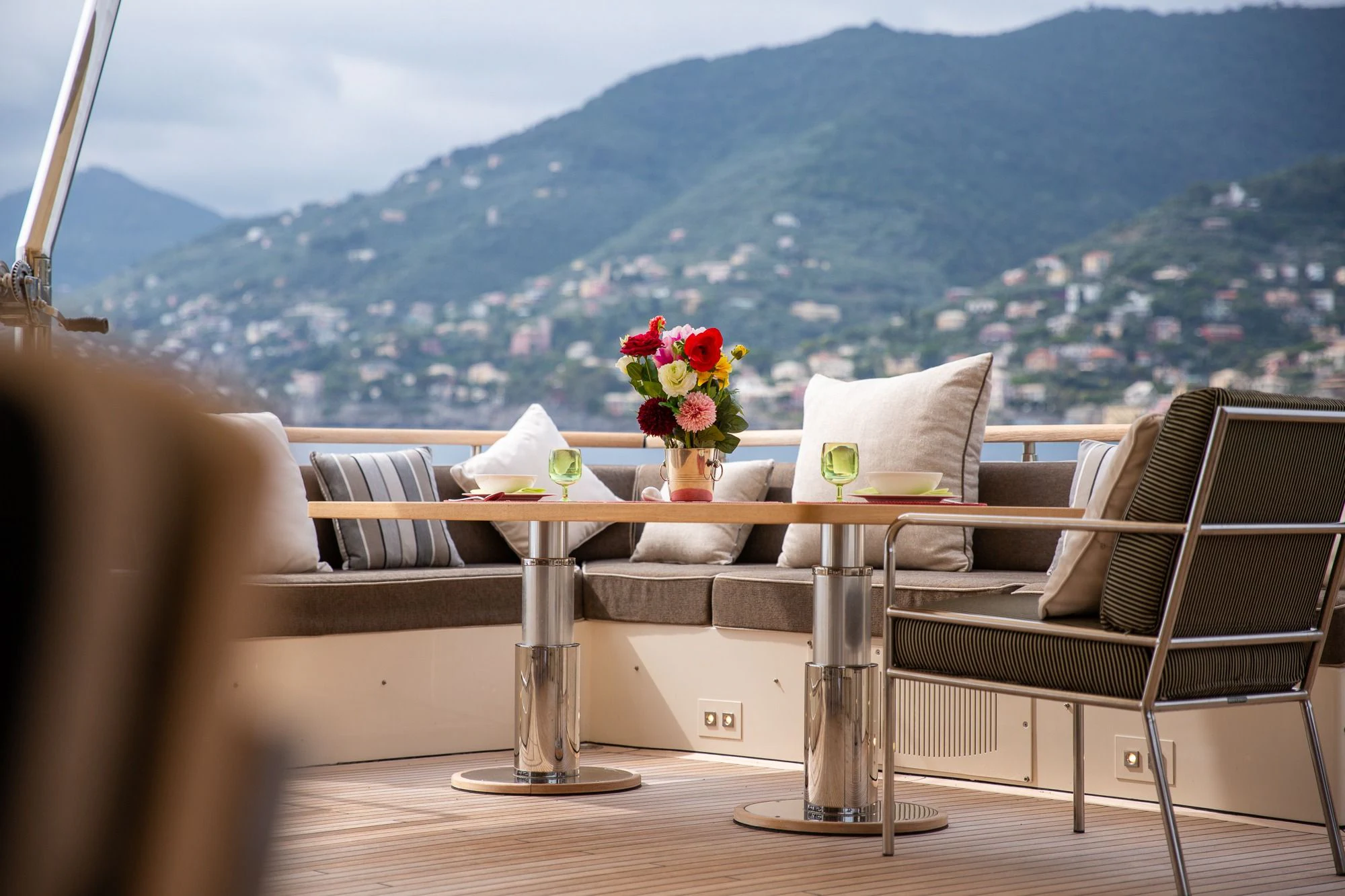

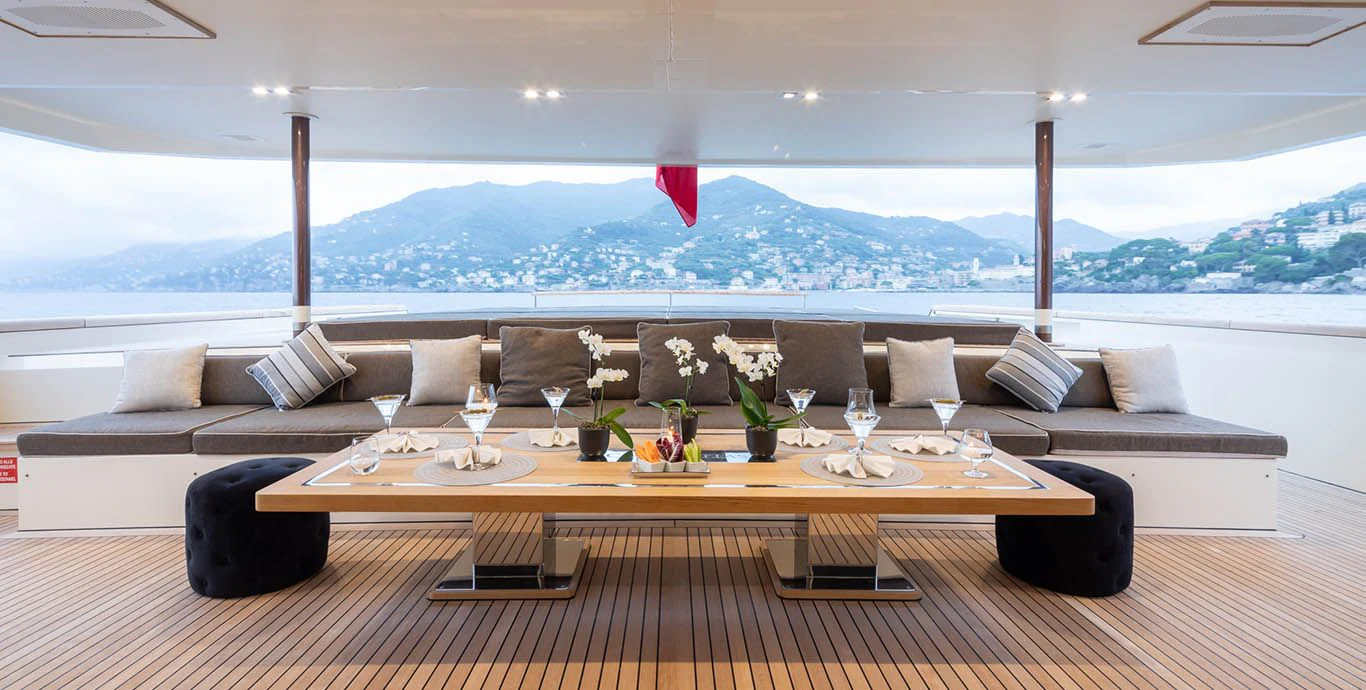

  • Two sun sofas, one dining table & one big awning

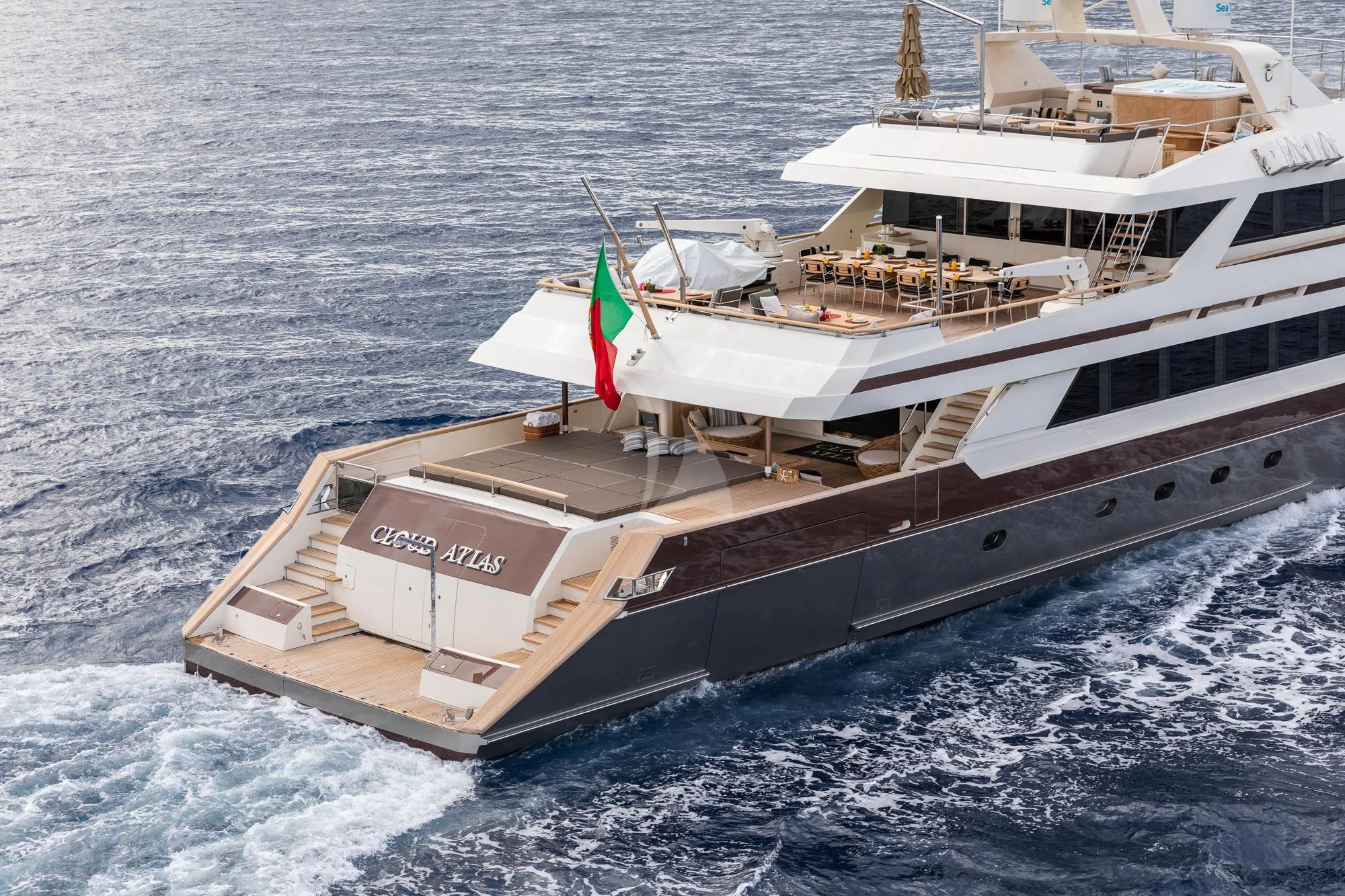

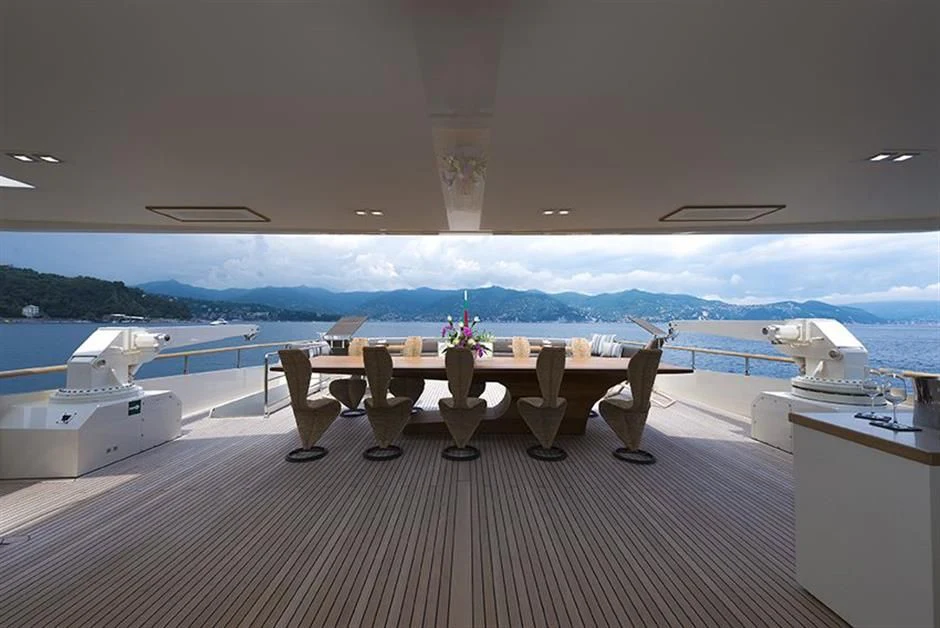

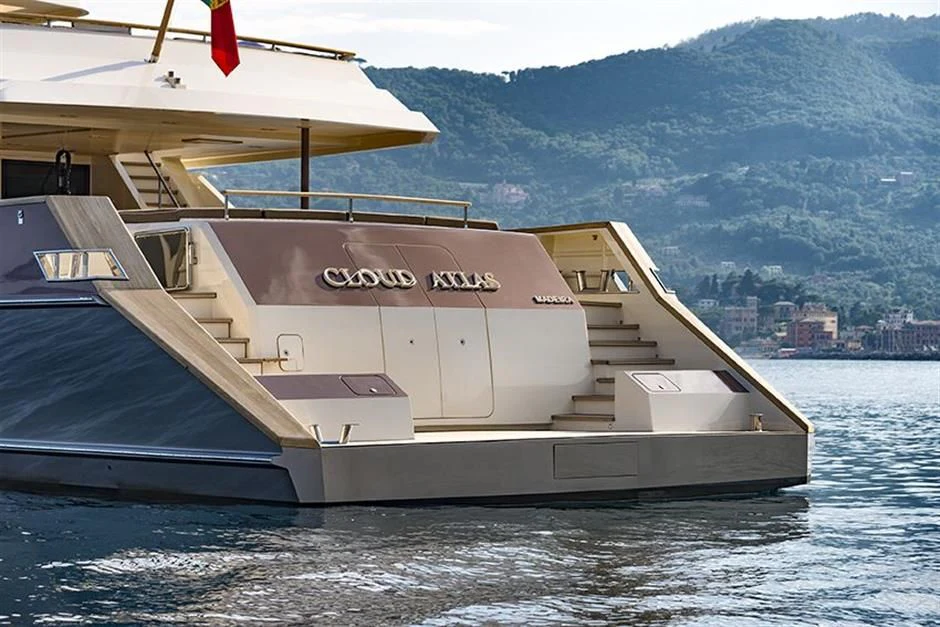

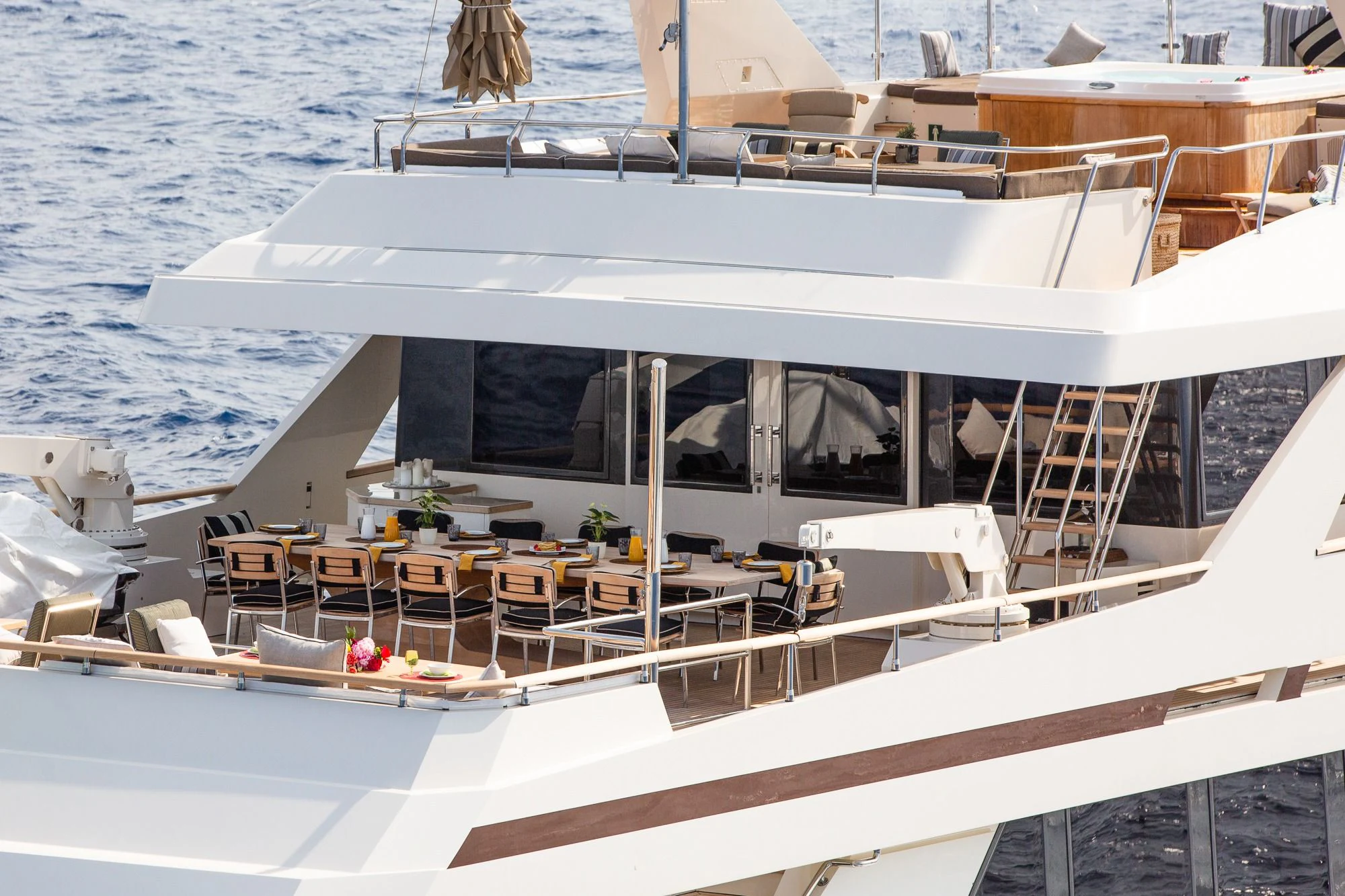

MAIN DECK AFT:

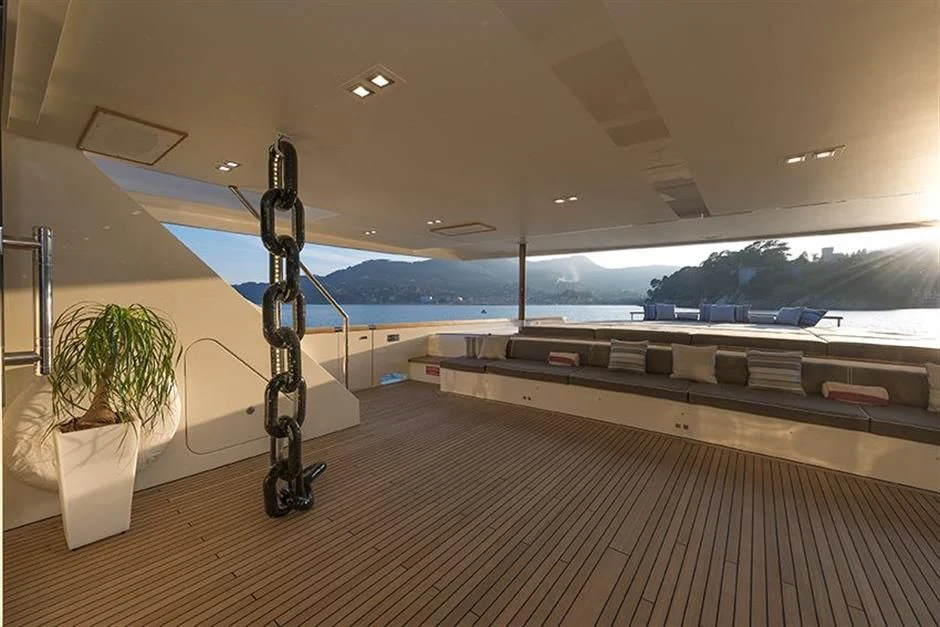

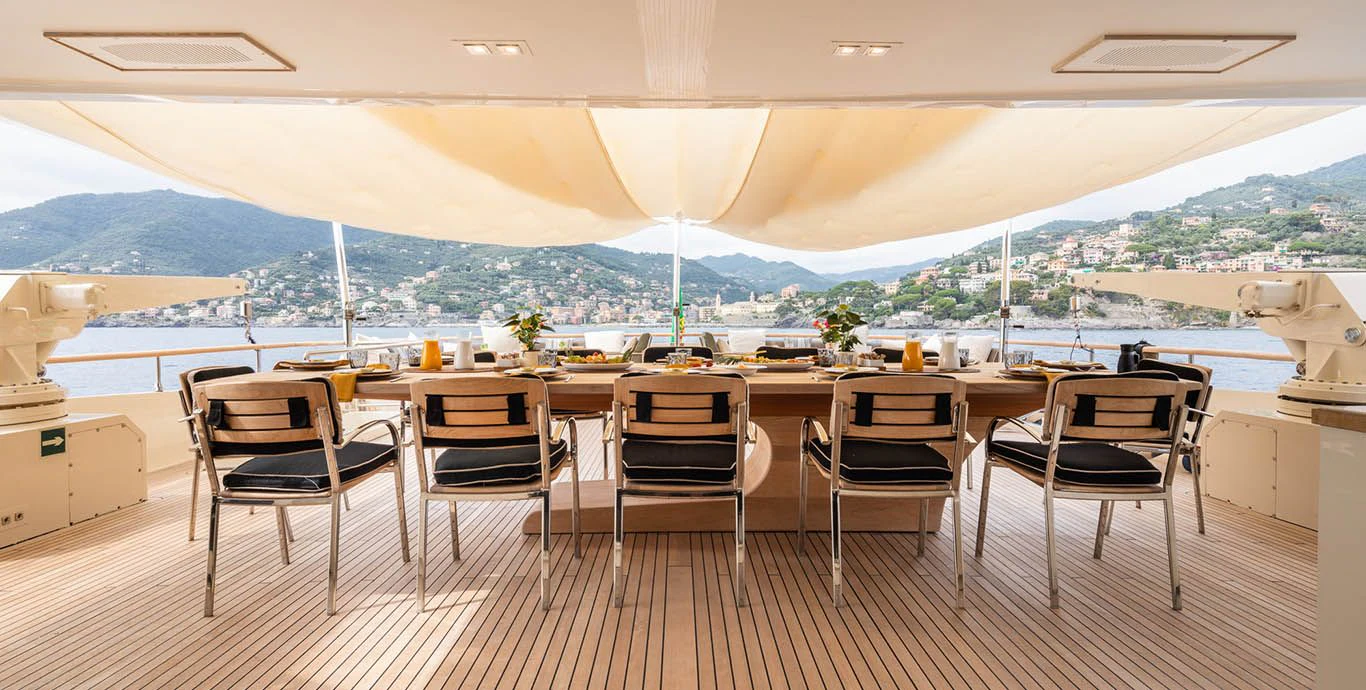

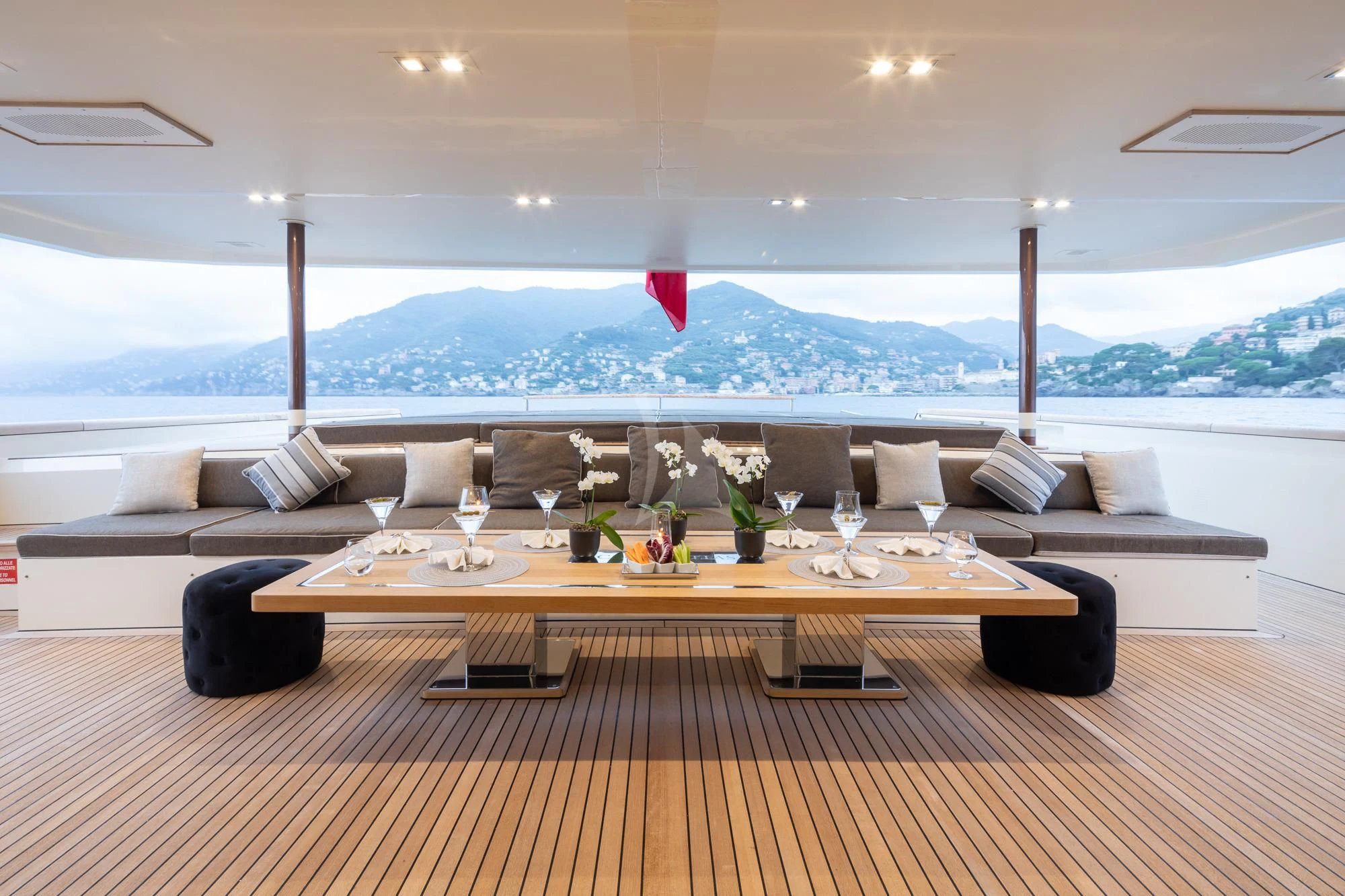

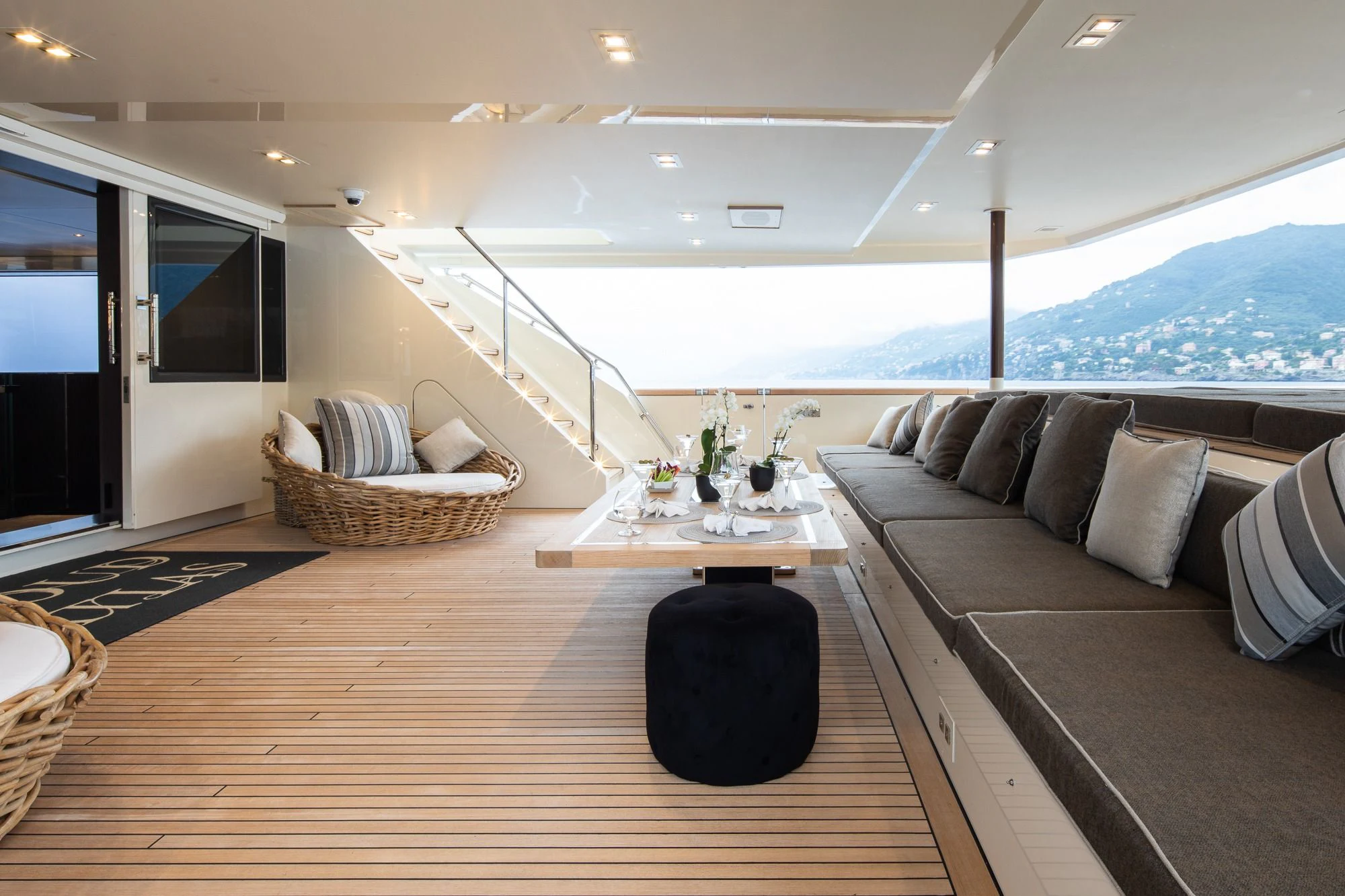

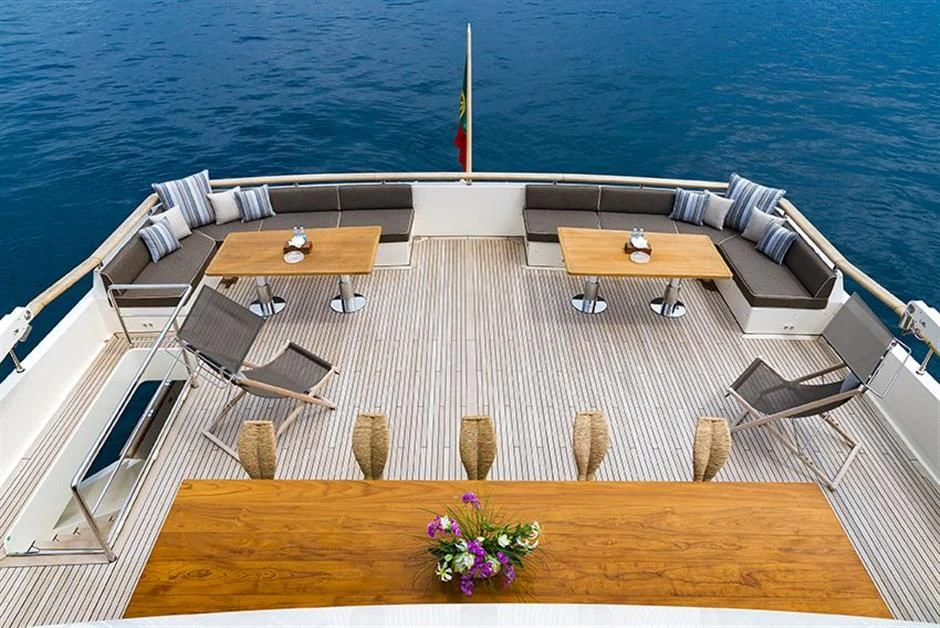

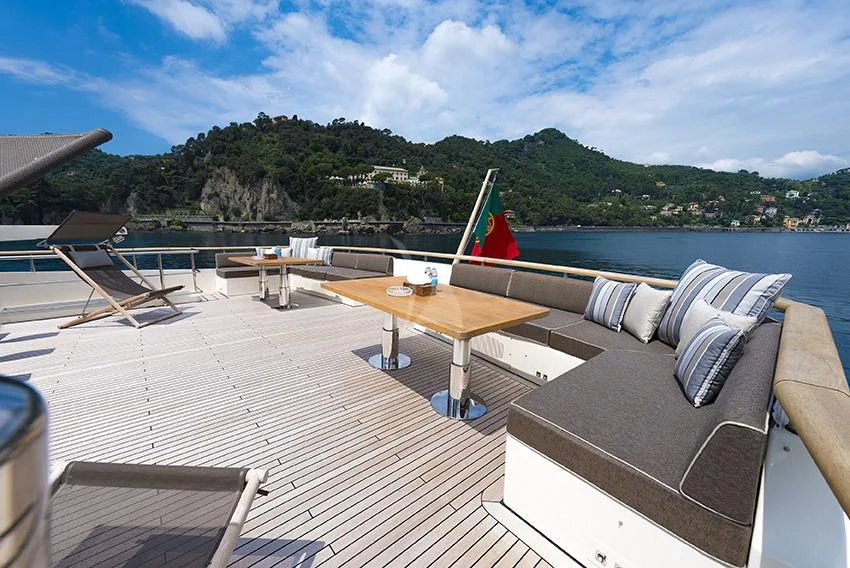

  • One dining table convertible in smoking table, two circle chaise longue, one big stern sundeck with access to the swimming platform, two swim ladder, hydraulic & manual.

Communication Equipment

  • SAT com:    Internet V-SAT: INTELLIAN 360°
  • Telecom Systems:    TV-SAT Sea Tel COBHAM (2x180°)
  • VHF Radiotelephones:    2 x VHF Furuno FM8900S
  • Routers:    Modem/Router PEPWAVE 4G (8 SIM CARD)
  • Connection Box:    PEPLINK Balance 210
  • Telephone System:    1 x MF/HF Furuno FS2575C
  • Interphone:    VISATON

Navigation Equipment

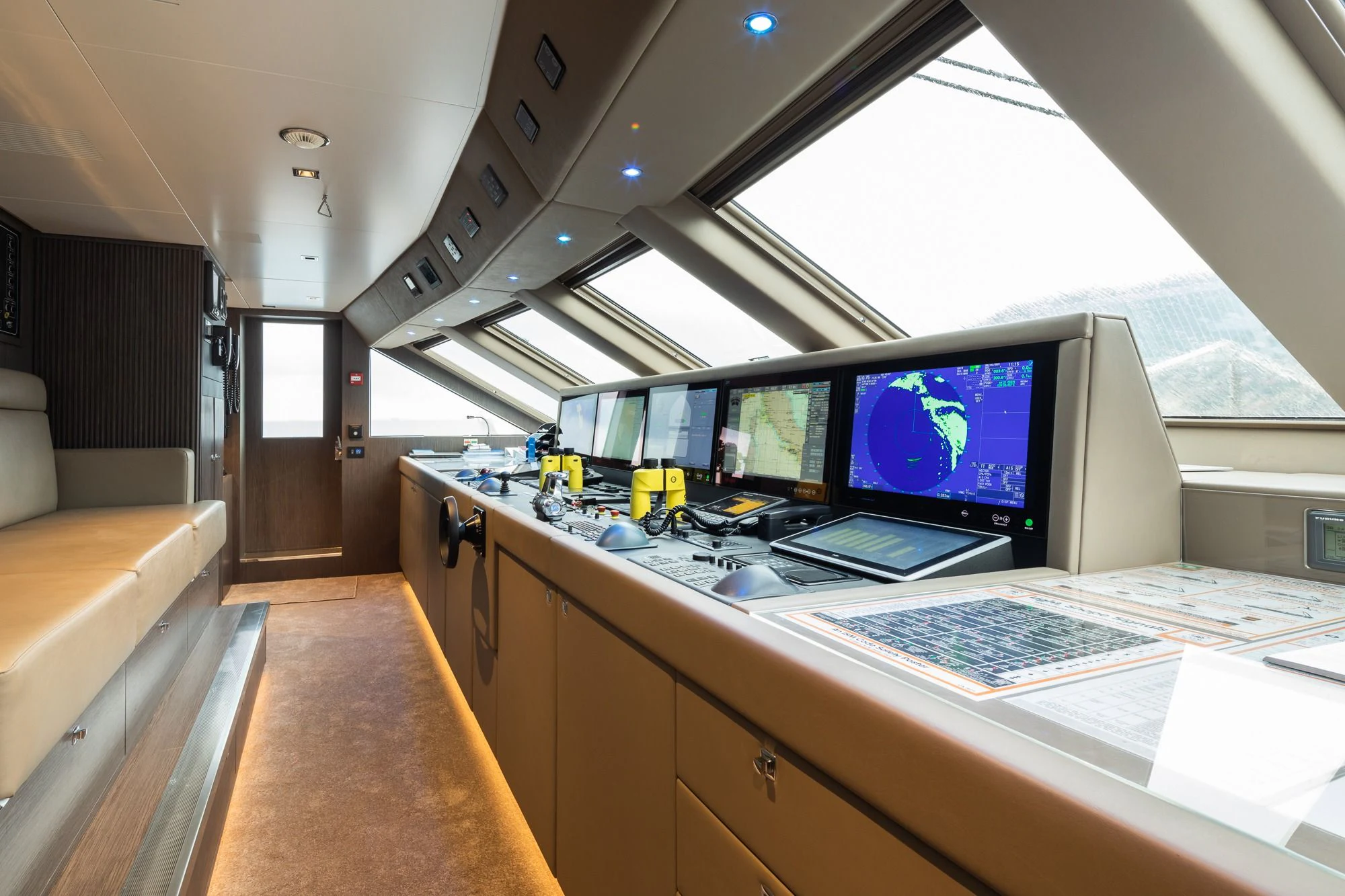

  • Navigation Bridge:   1 x E.C.D.I.S. TRANSAS 4000 / Full ECDIS Bridge.
  • 1 x BNWAS - Furuno
  • Control System: 1 x Autopilot SPERRY MARINE NAVIPLOT 4000+
  • 3 x Engines Throttles ZF
  • X-Band Radar:    1 x
  • S-Band Radar:    1 x
  • Multifunctional Workstation:    1 x Kahlenberg M 512 Sound Light Signal Controller
  • Magnetic Compass:    1 x Fuseli
  • Gyrocompass:    1 x SIMRAD AR80
  • 2 x Gyro Repeater SIMRAD
  • Auto Pilot:    1 x SPERRY MARINE NAVIPLOT 4000+
  • Rudder Angle Indicator System:    1 x SPERRY MARINE
  • Echo Sounder:    1 x Echosounder Furuno FE-800
  • GPS:    1 x Furuno GP-32
  • 1 x Furuno GPS NAVIGATOR GP-170
  • AIS:    1 x AIS / FA-170
  • Navtex:    1 x Navtex NX 700
  • Wind Instruments:    1 x Anemometer: Barigo
  • 1 x Anemometer FURUNO
  • Search Lights:    2 x Search Lights: SUNSHIN
  • Night Vision Camera:    1 x VDR / 14 Cameras (2PTZ included) HIKVISION
  • Weather instrument:    1 x Hygrometer: Barigo
  • Ship Computer:    1 x IMMARSAT C / Furuno FELCOM18
  • Satellite Compass:    1 x Satellite Compass Furuno SC-70
  • Speed log:    1 x Doppler Speed log Furuno-DS 80
  • Rudder Angle:    1 x Rudder Angle SPERRY MARINE
  • Stabilizer panel:    1 x CMC Marine
  • Fire Alarm Control Panel:    1 x Electronic Fire Fighting Detection System: AutroPrime / Autronica
  • Barometer:    1 x Barigo
  • Hygrometer:    1 x Barigo

Entertainment Equipment

Video Equipment:

  • 13 TV SONY 4K SMART
  • Apple duplicate screen in all TV


Audio Equipment:

  •  9 local pbs radio stations


Control:

  • Entertainment electronic systems managed in each area with only one remote control (MINI IPAD Apple)


Light Management:

  • All ship’s interior lights integrated in the Domotic CRESTRON System


Main Salon:

  • CRESTRON DOMOTIC, APPLE TV (music & movies on demand, satellite TV, NETFLIX, Apple TV in all Staterooms and Salons)
  • Airplay Music in each area (internal & external)


Master Stateroom:

  • CRESTRON DOMOTIC, APPLE TV (music & movies on demand, satellite TV, NETFLIX, Apple TV in all Staterooms and Salons)
  •  SKY TV Owner’s Stateroom & upper salon
  • Airplay Music in each area (internal & external)


VIP Stateroom:

  • CRESTRON DOMOTIC, APPLE TV (music & movies on demand, satellite TV, NETFLIX, Apple TV in all Staterooms and Salons)
  • Airplay Music in each area (internal & external)


Guest Staterooms:

  • CRESTRON DOMOTIC, APPLE TV (music & movies on demand, satellite TV, NETFLIX, Apple TV in all Staterooms and Salons)
  • Airplay Music in each area (internal & external)


Sky Lounge:

  • Airplay Music in each area (internal & external)


Exterior, Aft Deck, Bar, Bridge Deck:

  • Airplay Music in each area (internal & external)


IT:

  •  New & latest generation entertainment system

Tenders & Toys

Tenders:

  • 1 x Castoldi 6.25 m
  • 1 x Yanmar 315 mHP
  • 1 x Surmarine tender ST 330
  • 1 x Surmarine LT 270

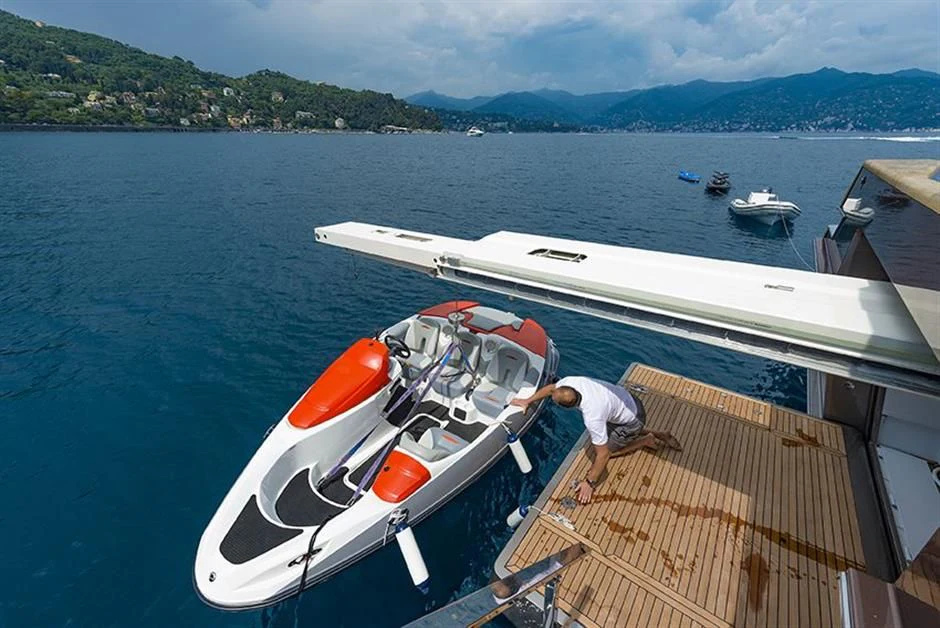

  • 1 x Sea Doo Jet Boat 4 persons


Jet Skis:

  • 2 x Jet Ski Sea Doo GTX


Toys:

  • 2 x Sea bob F5S
  • 2 x Sea bob F5
  • N.4 Towable inflatable toys (donuts, crocodile etc.)
  • N.3 Inflatable Kayak
  • N 2 pairs of water skis.
  • N 2 wakeboard.
  • N 5 helmet for wakeboard.
  • Various sizes of clothing for skis & wakeboard.
  • N 15 lifejackets for wakeboard, skis, and jet skis (including kid’s sizes).
  • N 2 S.U.P. stand up paddle.
  • Full equipment for snorkelling, all sizes.
  • N 2 floating swimming pool for kids.
  • N 3 Small wakeboards (short board) – hands keeping.


Gym Equipment:

  • Myrun Technogym.
  • Bike forma led
  • Toorx prx 3500’

Deck Equipment

  • Cranes:    1 x deck travel lift 1500 + 500 kg 1 x aft crane 450 kg
  • 2 x upper deck cranes
  • 1 x main deck vanishing crane suitable to bring on board a motorbike of 120 Kg max
  • Warping Capstans:    Warping Capstans:
  • Passerelle:    Sanguineti 5 m, port/stbd angle +75° – 15°, Up/down angle +15° - 15°

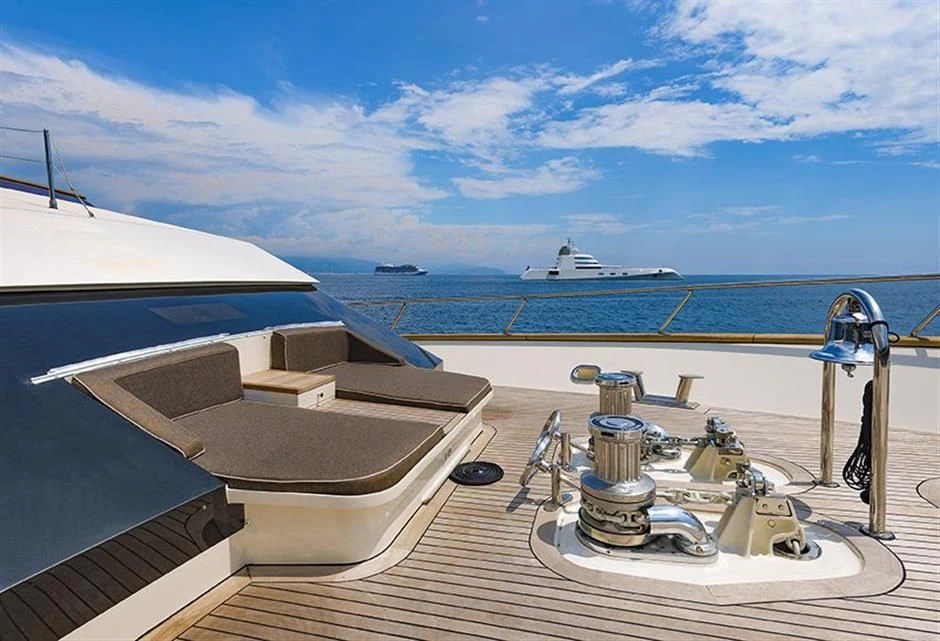

  • Anchor Capstans:    Maxwell VWC 11000 electric
  • Mooring Winches:    Maxwell VC 6000 electric
  • Accommodation Ladders:    1 x Sanguineti hydraulic (installed inside the side garage door, and can be used also as a swimming ladder); 2 x manual side ladder

Refit History

2014 / 2016

  • Exterior:    Elongation of the upper deck of about 2 meters (100%).
  •      Lengthening of the shaft line, with new supports, seals, bushings; new steering systems and rudders (100%)
  •      Construction of a new part of the skeg (100%).
  •      Total yacht re-painting (the hull was sandblasted totally and the complete painting cycle re- applied, the same for the superstructure parts) 100%.
  •      Remake of most part of the teak coverings (in addition to the newly built areas, main deck, upper deck and sundeck teak has been completely rebuilt).
  •      Installation of new mechanisms such as gangway, swimming ladder, garage door mechanism, garage travel lift, side ladder, transom crane 100%.
  •      Installation of a new zero speed stabilization system 100%.
  •      Installation of a new bow electric thruster 100%.
  •      Replacing of windlasses and mooring winches, replacing of anchors and chains (oversized), construction of new hawsepipes 100%.
  •      Installation of new Jacuzzi on the sun deck 100%
  •      Installation of all new outdoor cushions 100%
  •      Installation of a new upper deck sun awning 100%
  •      Water toys new 100%
  •      4 sea bob new 100%
  •      full rebuild: Tender Castoldi 100%

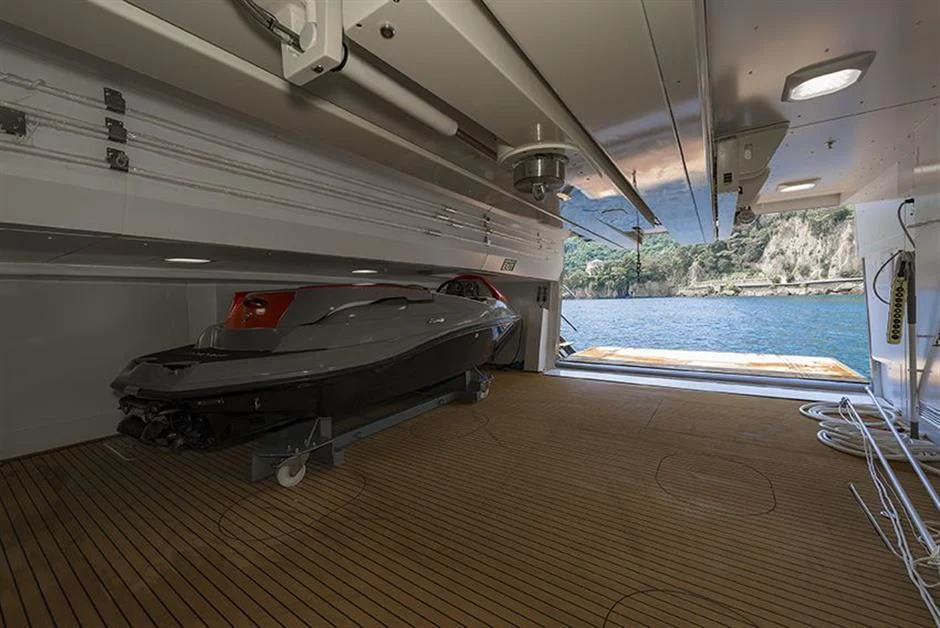

  • Interior:    Elongation at the stern of about 6 meters, with construction of new garage below main deck with side door, new aft technical area aft with access to beach, new sunbathing area in way of aft cockpit (100%).
  •      General re-arrangement of the engine room: new equipment (in addition to the gensets, water maker, sewage treatment plant, main engines starting compressors, refrigeration systems, various pumps), MMEE and gensets new exhaust system, complete overhaul of MME and gearboxes, new Vulkan couplings installation, new floor, reconstruction of almost all the plumbing (also outside engine room), renewal of engine room ventilation system, review of all hull valves and relevant piping, etc. etc. (100%).
  •      Almost total renewal of the electrical system on board, including
  • new main electrical switchboard 100%, new frequency converter
  • 100%, new generators 100%, reconstruction of almost all the lighting
  • and safety systems (ship monitoring system, tanks level system,
  • bilge and fire alarm systems)

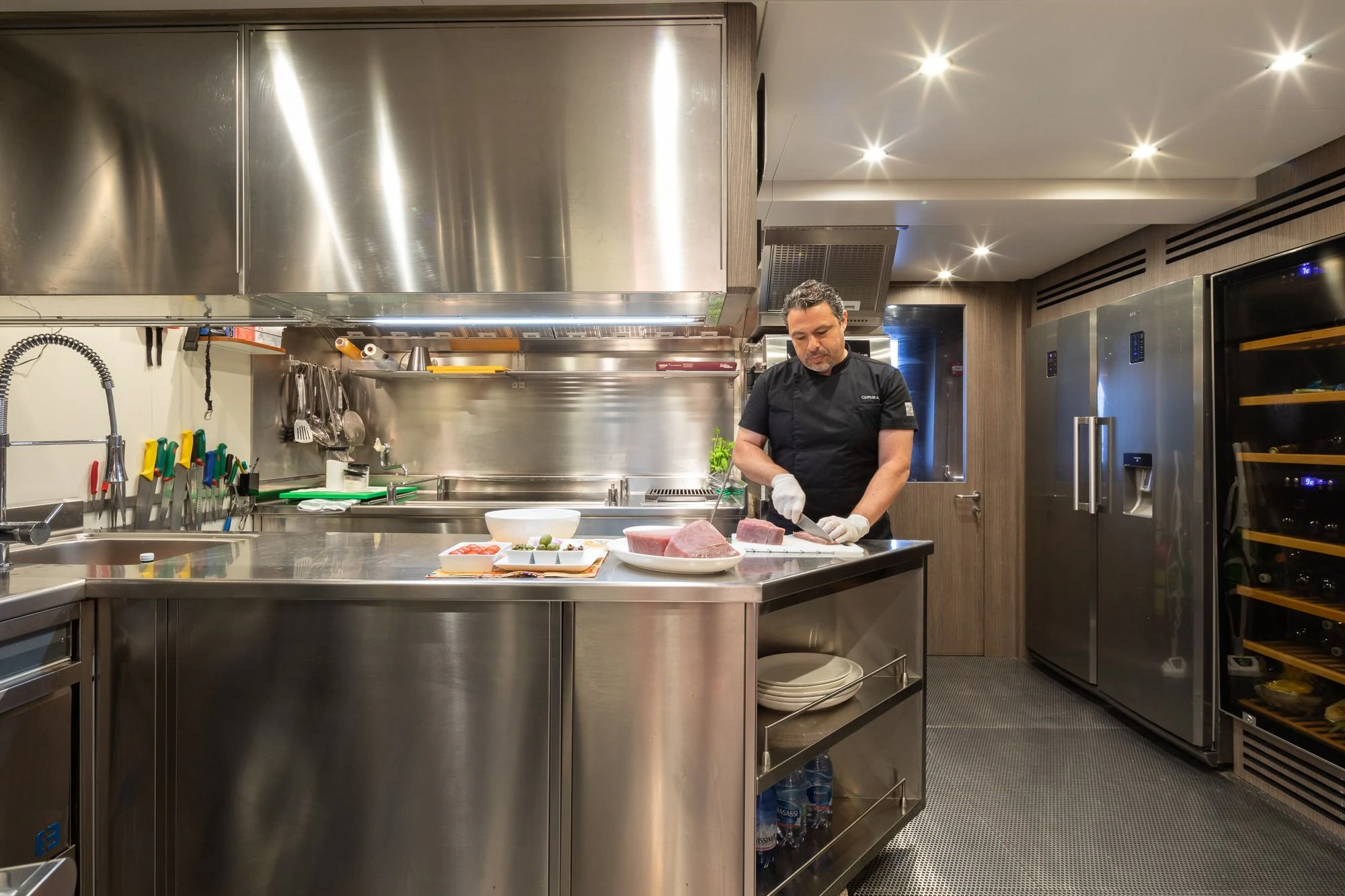

  •      Installation of new galley and relevant equipment 100%
  •      Installation of new domestic appliances on board 100%


2018 / 2021

  • Exterior:    New navigation instruments: 100% new
  •      Exterior steel ship names with lighting system 100% new
  •      New mast installation - 100%
  •      Security camera system: 100% new (Exterior)
  •      Upgrade of the yacht to increase the number of guests from 9 to 13 and to increase the number of crew members from 7 to 10.
  • Interior:    Rebuilding of the interiors area 100% (the ship was completely emptied and rebuilt starting from the metal sheets and the interior insulation: (new compartments, new furniture, new boiserie, new doors, new stairs, new ceilings, all new bathrooms, all new cabins, new lounges, new gym, new TV areas, new corridors, new bar, all new loose furniture, new closets, all new curtains, new sofas, new chairs and armchairs, new wheelhouse, and entirely new crew area).
  •      All hydraulic systems on the boat have been replaced (all zones)
  •      Internal electrical systems and lighting domotic systems: 100% new (all zones)
  •      New domotic entertainment systems: 100% new (all zones)
  •      New air conditioning & UTA systems: 100% new (all zones, all chillers & all fan coil)
  •      TV satellite systems: 100% new
  •      New internet systems - 100% new (satellite connection & 4G multiple sim card system with 8 telephone cards)
  •      Overhaul cold rooms, refrigeration system
  •      Electric curtains in all interior areas 100% new
  •      New laundry with new professional MIELE domestic appliances: 100% new
  •      New steel rails on the fly deck and in the external forward area
  •      Security camera system: 100% new (Interior)
  •      The interior is completely new with high quality finishes and extreme luxury. Many pieces of decoration are 100% handcrafted and of extreme value.
