CHARLATAN Yacht for Sale

Propulsion & Steering

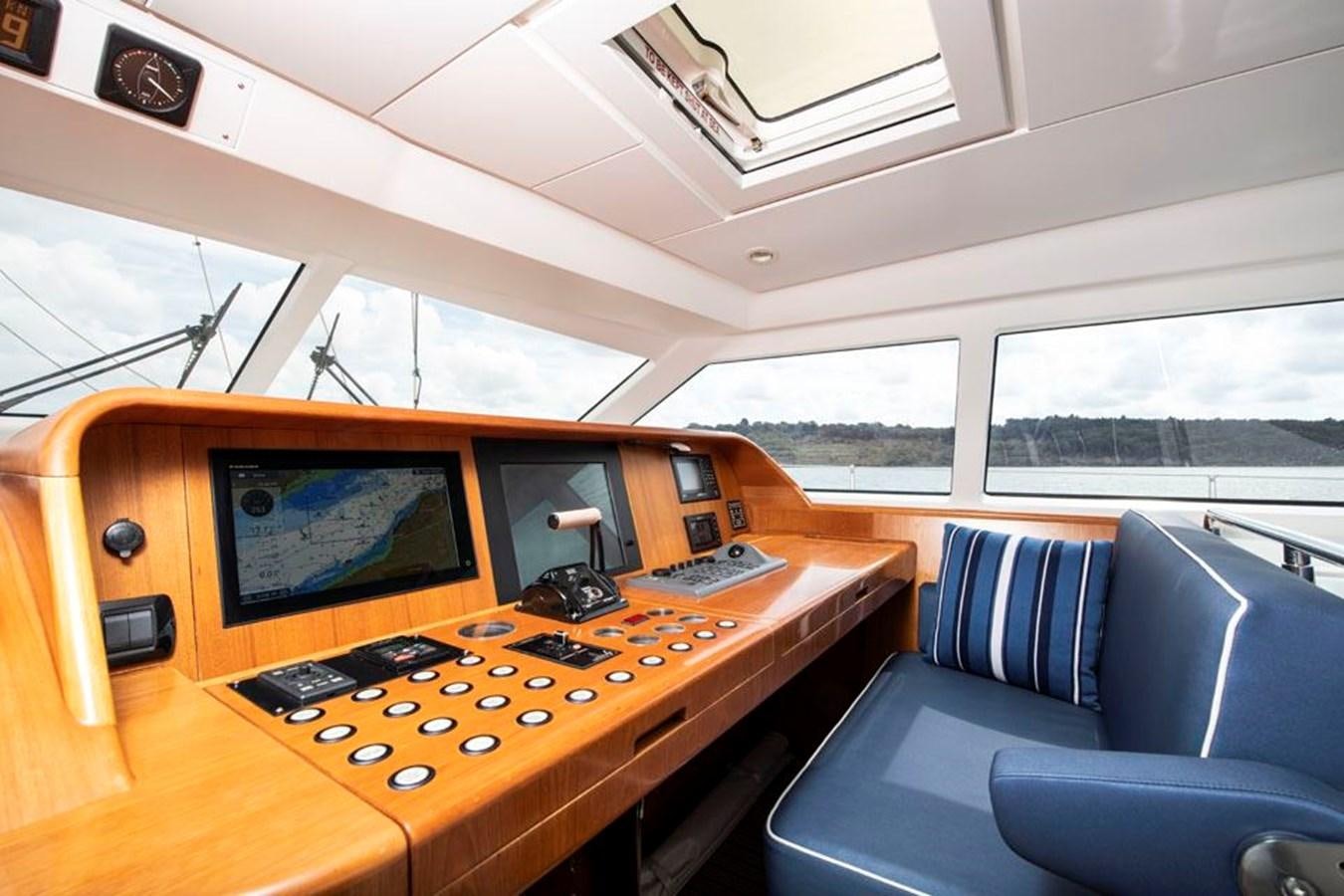

• Pilothouse helm station.
• Aft helm station.
• Electric oil change System with 150 litres new oil tank and 150 litres tank for dirty oil.

Bow thruster and Stern thruster

• The bowthruster was stripped down and serviced, new bushes and seals (January to April 2019).
• The power take off (PTO) on the main engine will drive the hydraulics, primarily both the thrusters, but the PTO runs the complete system when the engine is running. When sailing the power pack will run everything, except the thrusters.
• Three Hydromar hydraulic power pack pumps.

Electrical System

• Entire electrical system revised spring 2019 and new LED lighting with dimmers, plus new universal sockets with USB connectors installed.
• New helm switch panels made and new switchgear.

Voltage Systems

• VIVID has 12v, 24v, 220v and 380v systems.

Battery Banks

• New engine start batteries in December 2020.
• New start batteries for Kohler gen set in December 2020.
• New start batteries for the Cummins gen set in March 2019.
• The service batteries are those that were on board before, but they remain in good order.

Battery Chargers

• 1 x Mastervolt Sine inverter 24v / 2500W.
• 1 x Mastervolt Sine wave inverter 24v / 5000W.
• 3 x Mastervolt 24v / 100A battery chargers – service.
• 1 x Mastervolt 75A battery charger – for main engine.
• 1 x Mastervolt 25A battery charger – for main gen set.
• 1 x Mastervolt 10A battery charger – for the second gen set (unit in lazarette).

Fresh Water and Water Heating System

• Hot water circulation pump ((2019)
• Fresh water pump (2019)
• 120 litre s/s domestic hot water boiler immersion tank, new in Jan 2020.

Watermaker

• HEM 25 Series watermaker.
• Approx. 1400 gallons per day (1400 gpd = approx. 220 litres per hour assuming US gallons).
• Approx. 8531 hours run at May 2022.
• In 2016 the membranes replaced.
• The system had a full revision in spring 2019.

Bilge Pumps

• There are three main bilge pumps which all work through the same manifold to different sections of the bilges: forepeak, foreship fore, foreship aft, engine room, aft ship, and aft peak.
• There is a 380-volt AC, a 24-volt DC and an engine driven pump.
• They can all run separately or together and can be used to pump the bilge or as fire pumps.
• There is no automatic system, but each bilge section has a level sensor alarm.

Tankage

• Fresh Water: Aquafine ultraviolet water treatment unit series SL-10A.
• Gey/Blackwater holding tanks: Hamman sewage treatment plant – complete revision and pumps serviced 2019.

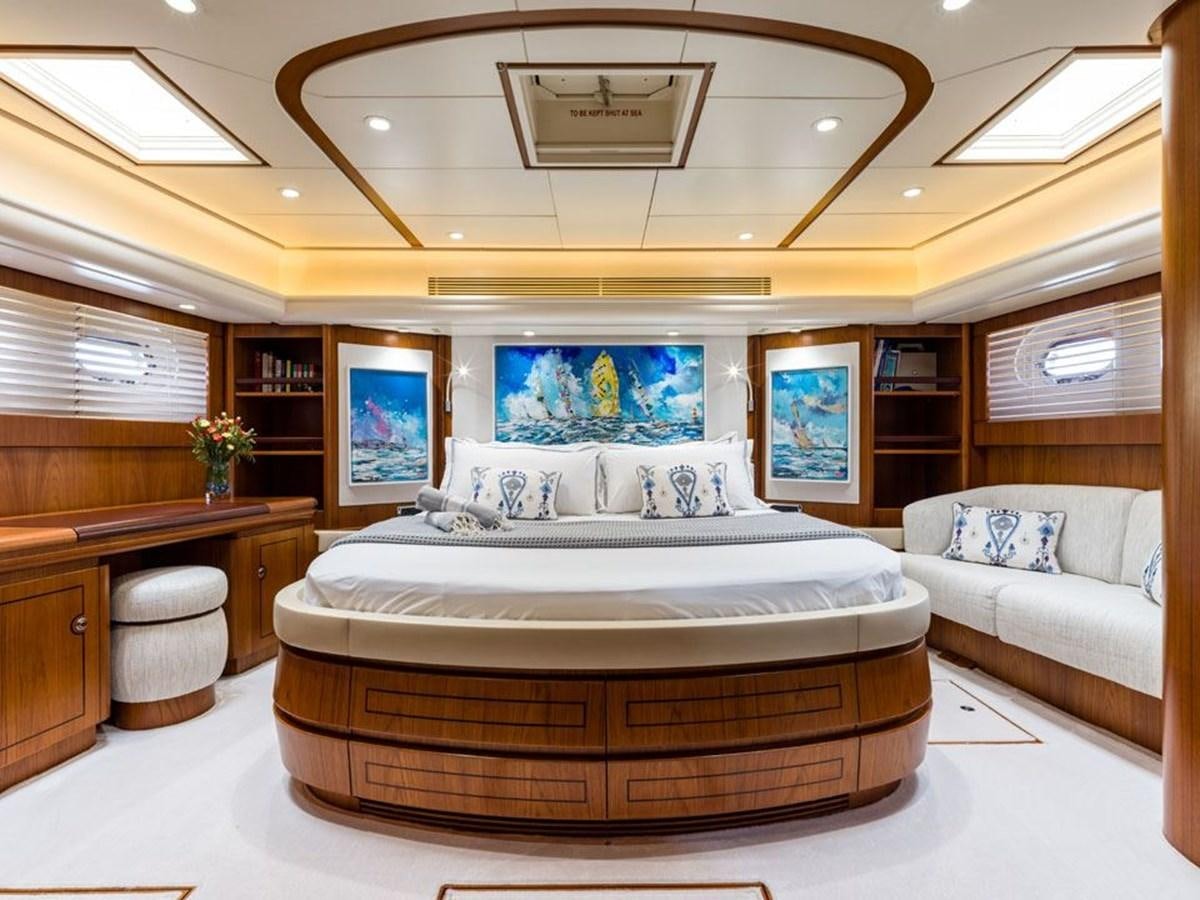

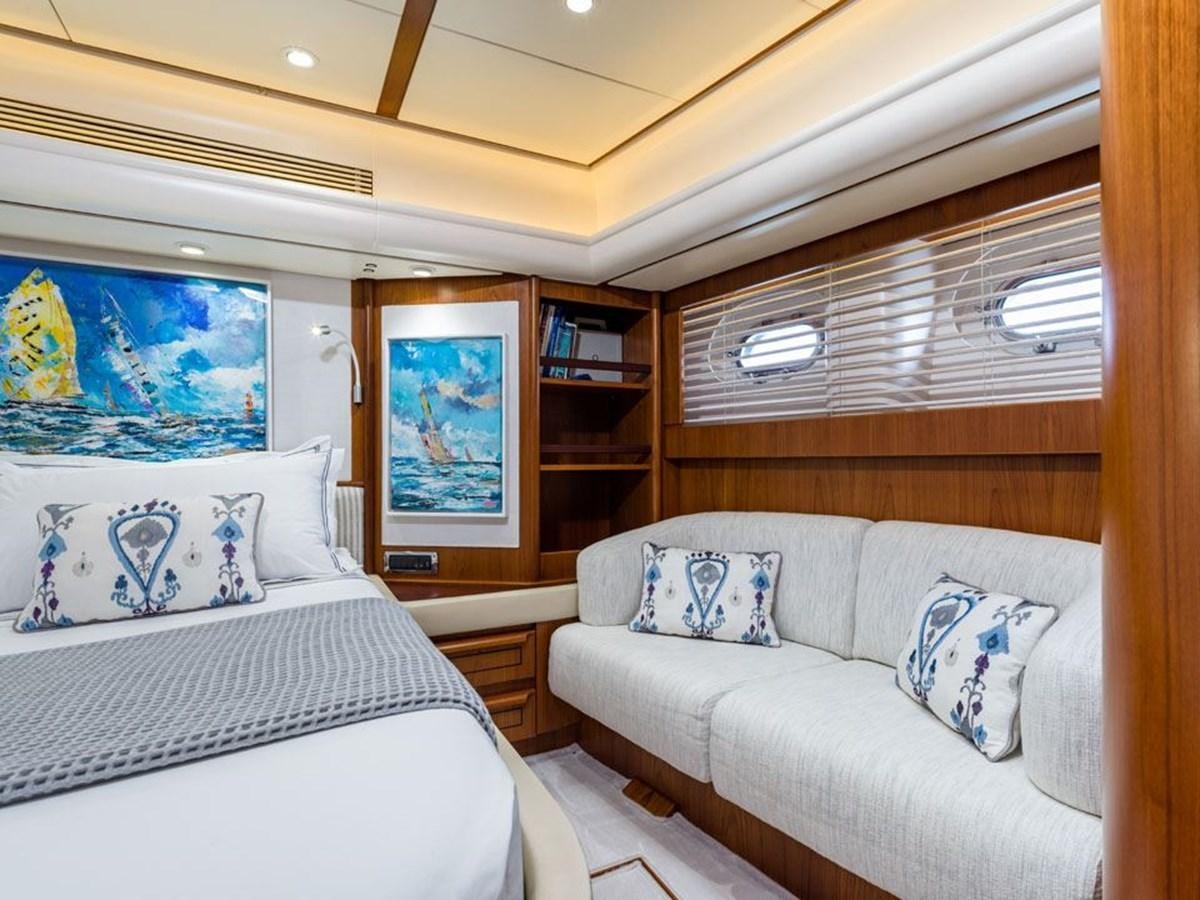

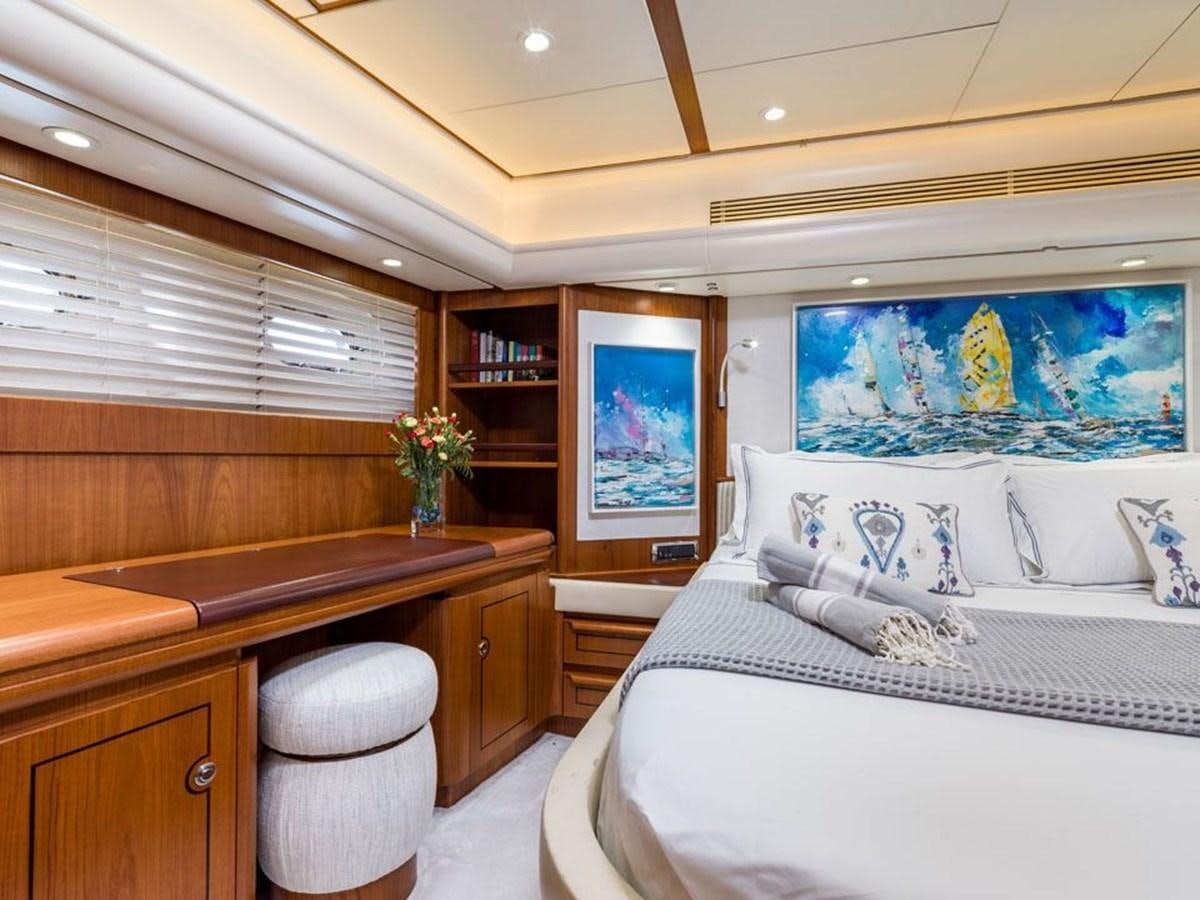

• Owner cabin aft is full width and has a double berth and ensuite bathroom.

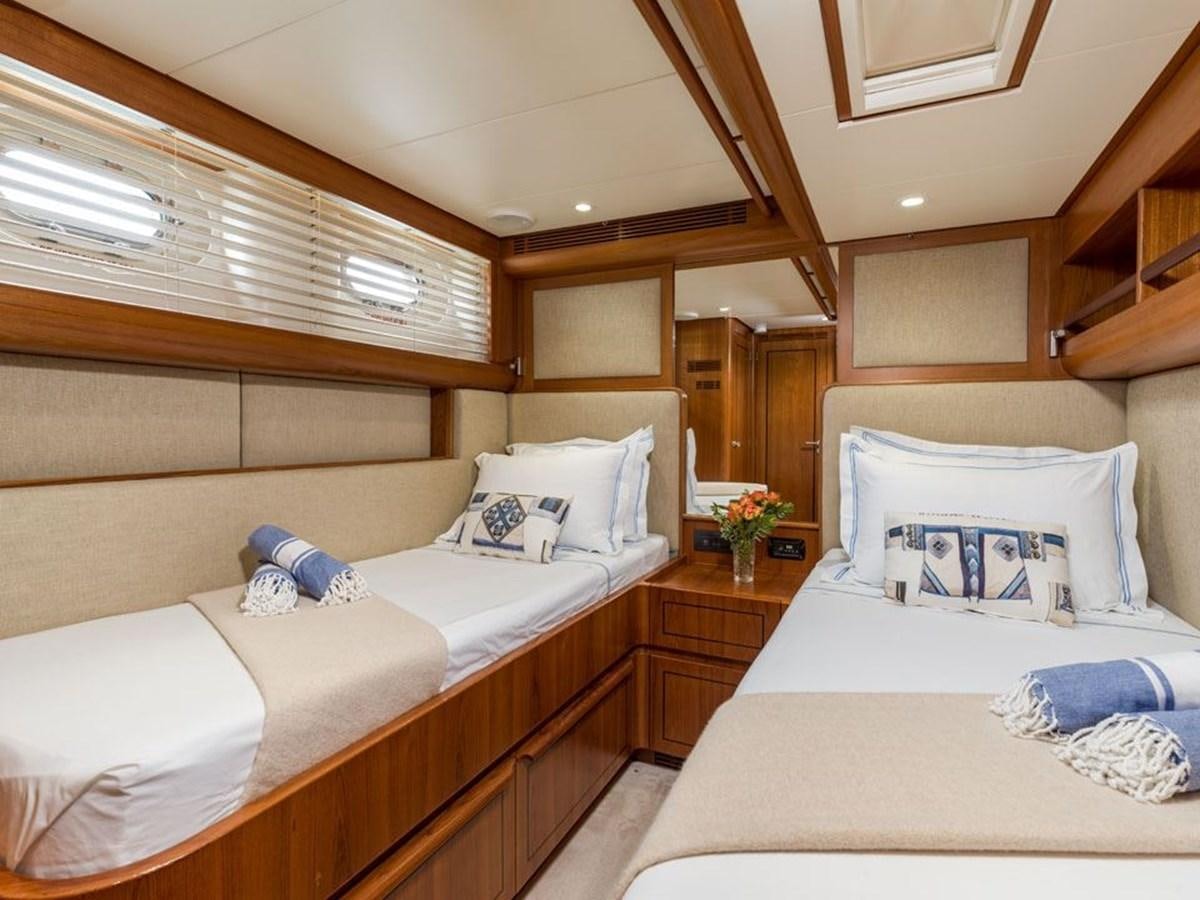

• Two Guests cabins each with two single beds and ensuite bathrooms.
• Two Crew cabins forward – port cabin with single bed and starboard cabin with one double bed with stowage below (this cabin was rebuilt during current ownership to provide a double cabin and with extra stowage below the bed). The crew share a head / shower area that is set to port. The galley is to starboard and opposite a crew dinette.

• Vitrifrigo ice maker machine in the saloon (new April 2019).

Galley

• Miele induction 3-burner hob and Miele oven – gimballed for use at sea.
• Bosch Series 8 Dishwasher– (2016), which can operate via the inverter.
• Miele Clothes Washer, new May 2022.
• Clothes Dryer Miele – (2016), serviced May 2022.
• Miele microwave and convection oven, which can operate via the inverter.
• 24v refrigeration and freezers by Frigomar – the system was new in 2012, with 4 x 200 litre refrigeration / freezer interchangeable units.
• Extractor hood with light over the cooker.
• Nespresso coffee machine.
• Stainless steel sink unit. Garbage bin. Good stowage.
• She is sold well equipped with galley utensils, cooking equipment, pots and pans etc.

Refrigeration Systems

• 24v Frigomar refrigeration system.
• 4 x 200 litre capacity fridge / freezer (interchangeable) front opening units at the galley.
• Drinks fridge in the cockpit (aft on starboard side), 24v.
• Drinks fridge in the saloon, port side forward, 24v.
• Vitrifrigo icemaker (new in spring 2019) at saloon, port side forward.

• Thrane and Thrane Sailor Fleet Broadband 500 satellite voice and data.
• Thrane and Thrane Sat C Capsat - Tracking, EGC.
• Icom IC-M506 VHF (2018-9) with a “Command Mic” plug in unit for the helm.
• Intellian VSat 60cm satellite voice and data.
• Iridium handheld sat phone.
• 2 x Icom handheld VHF’s.

VIVID has had a substantial upgrade and renewal program on her navigation and communication equipment.
January to April 2019, in Palma the following were installed:

• New Icom VHF radio fitted in pilothouse with additional station aft.

In March 2021 in the UK:

• New VHF antenna fitted to mast with new coaxial cable.

• Furuno Radar 2807.
• Furuno chart plotter.
• 1 x Furuno GPS, GP170.
• Furuno heading sensor.
• 6 x B&G 5000 series displays
• B&G gyro compass.

VIVID has had a substantial upgrade and renewal program on her navigation and communication equipment.
January to April 2019, in Palma the following were installed:

• New Furuno chart-plotters (3) fitted to helm station, pilothouse and captain’s cabin.
• All B&G graphic display units swapped for series 5000.
• New B&G computer fitted.
• New B&G autopilot system and control, plus a handheld Bluetooth remote unit.
• New 4G/Wi-Fi Pep wave router fitted.
• New computer and screen fitted in pilothouse.
• There are B&G repeater units also at the crew mess and the captain cabin.

In March 2021 in the UK:

• New 4G and Wi-Fi antennas fitted to mast with new coaxial cable.

• New Sonos Fusion system fitted throughout above and below deck in January - April 2019.
• New TV screen, DVD player and Apple TV fitted in the saloon, also spring 2019.
• Sony Bravia TV
• Apple TV system
• Sony DVD
• AM/FM radio
• New pep wave router, 2020.
• Good wi-fi throughout.

• Novurania 400DL, w/ Yamaha 40 hp 4-stroke engine, both new (2012).
• Wakeboard.
• Ring donut.
• 2 x Paddleboards.

New Toys 2019

• 15 x sets of Tusa fins assorted sizes
• 8 x adult Tusa masks and snorkels
• 4 x junior Tusa masks and snorkels

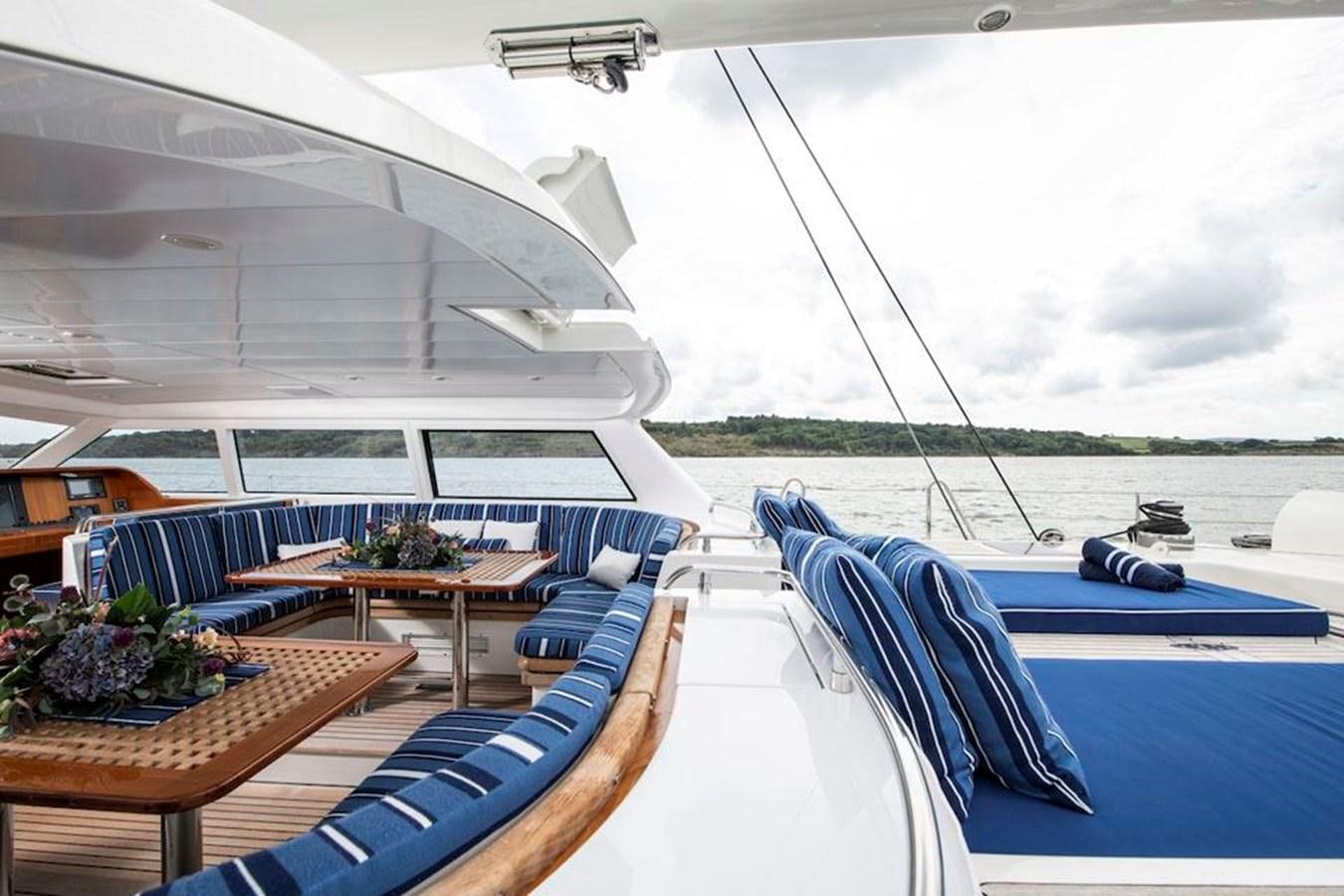

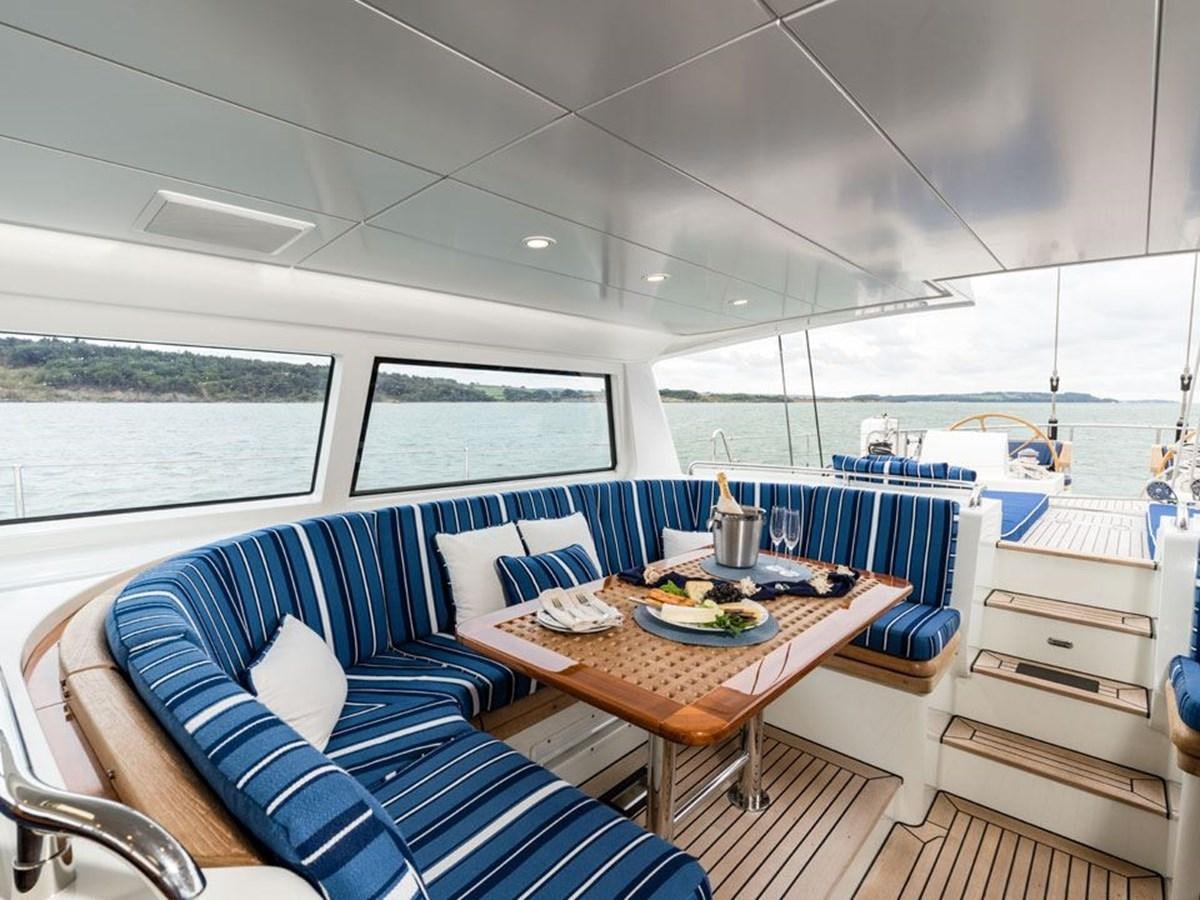

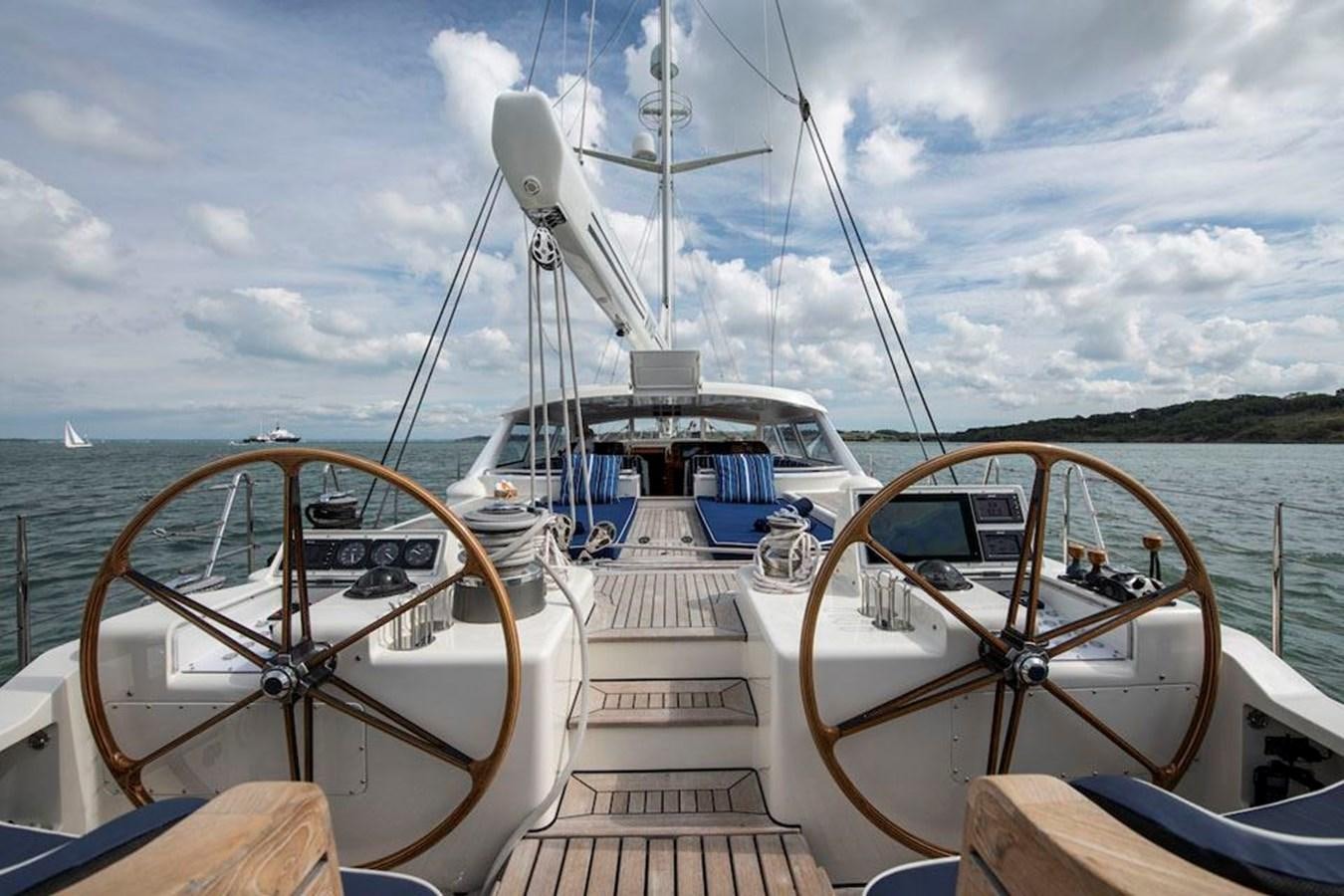

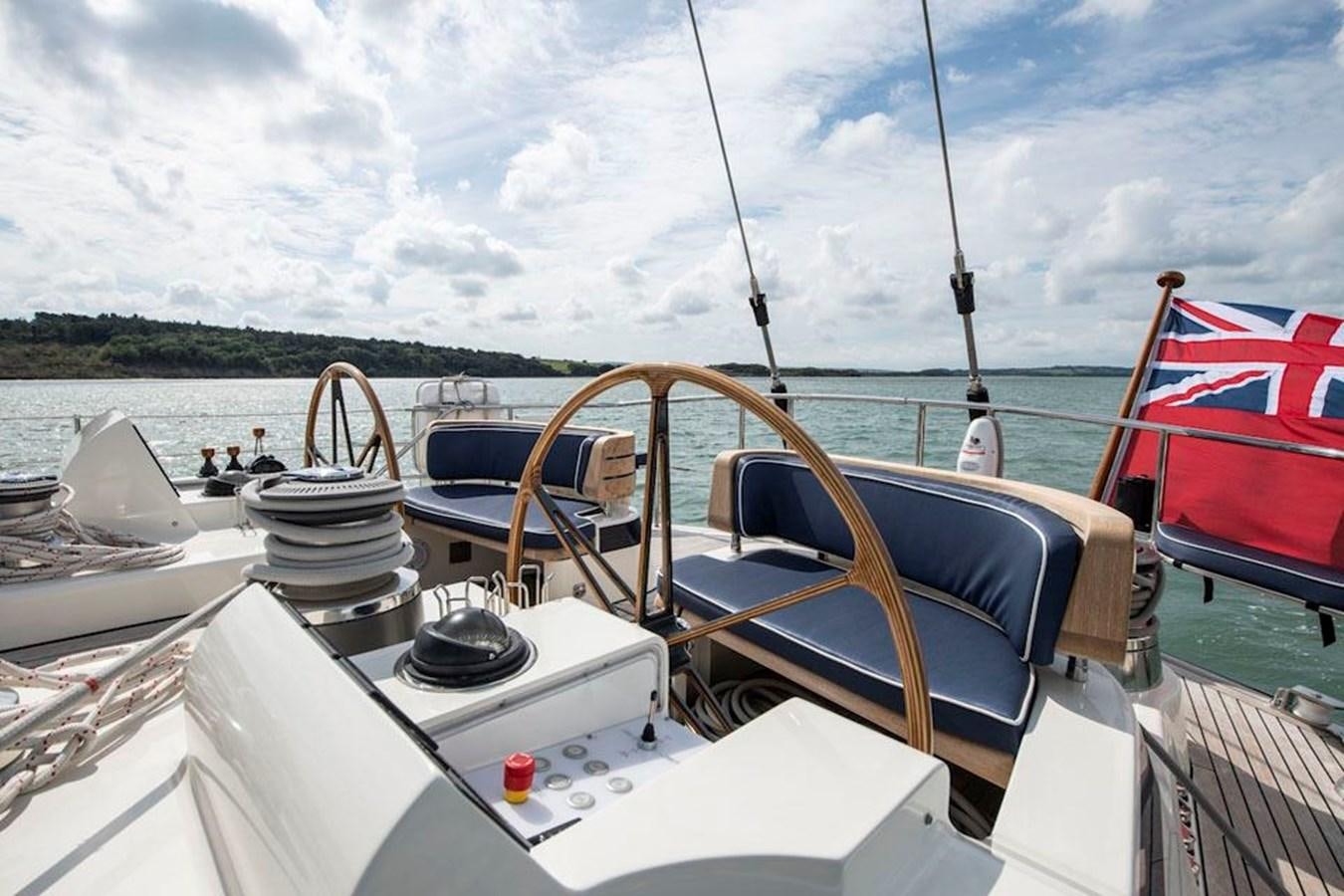

Cockpit

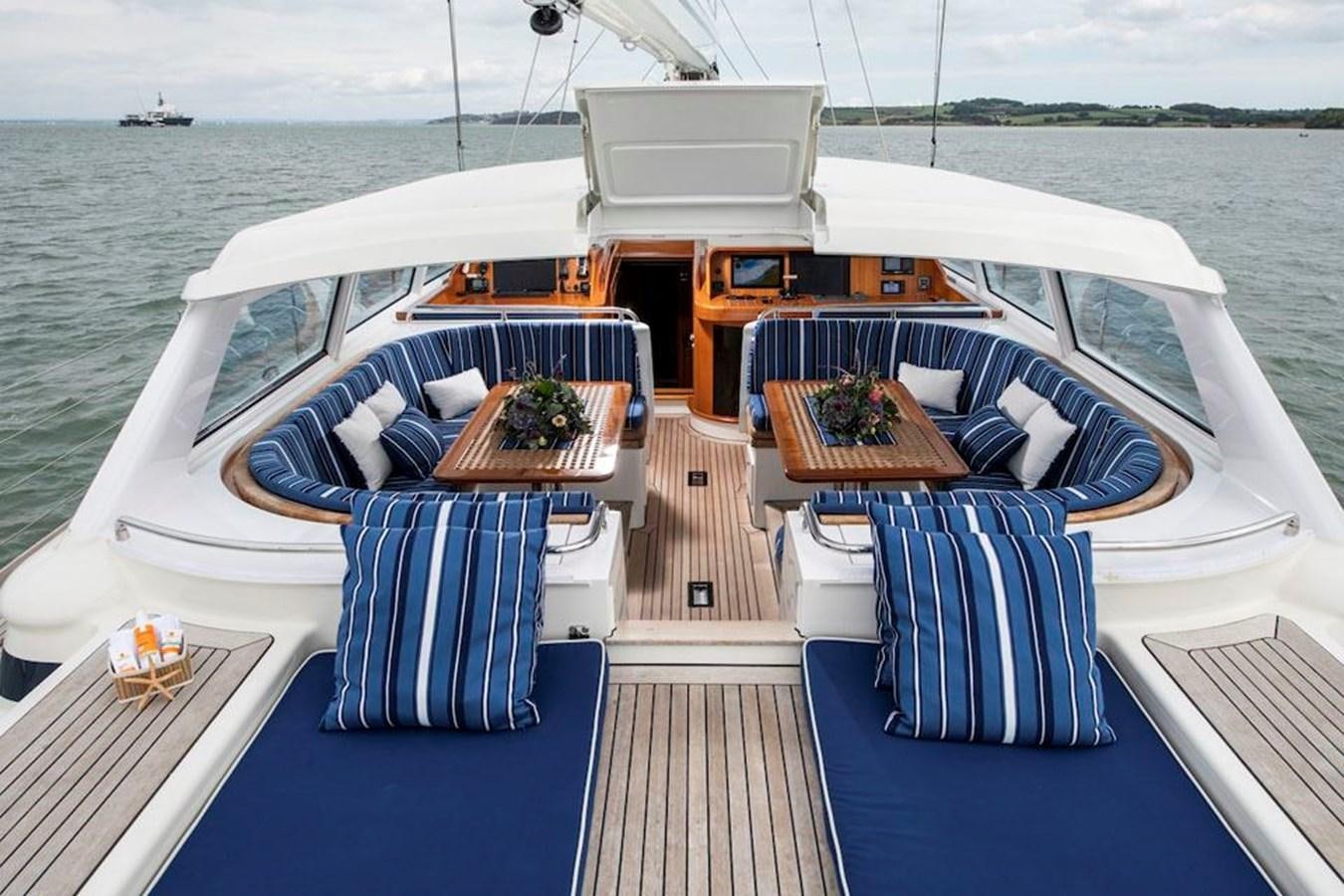

• The aft cockpit and helm area is carefully designed and provides twin helm positions, each with a teak seat for two persons. The sail controls and winches are all at hand and this enables easy short-handed sailing. VIVID has beautiful varnished wooden wheels. There is a custom raised teak platform in the walkway past the wheels to keep access easy and on one level. Forward of the helm stations is a clear deck area that may be used as a sun deck (cushions are on board). Aft of the helm area there is a hydraulic gangway and a hydraulic swim platform in the transom which give easy access to the shore, the water or to the tender. There is a hot and cold freshwater shower at the swim platform.

General

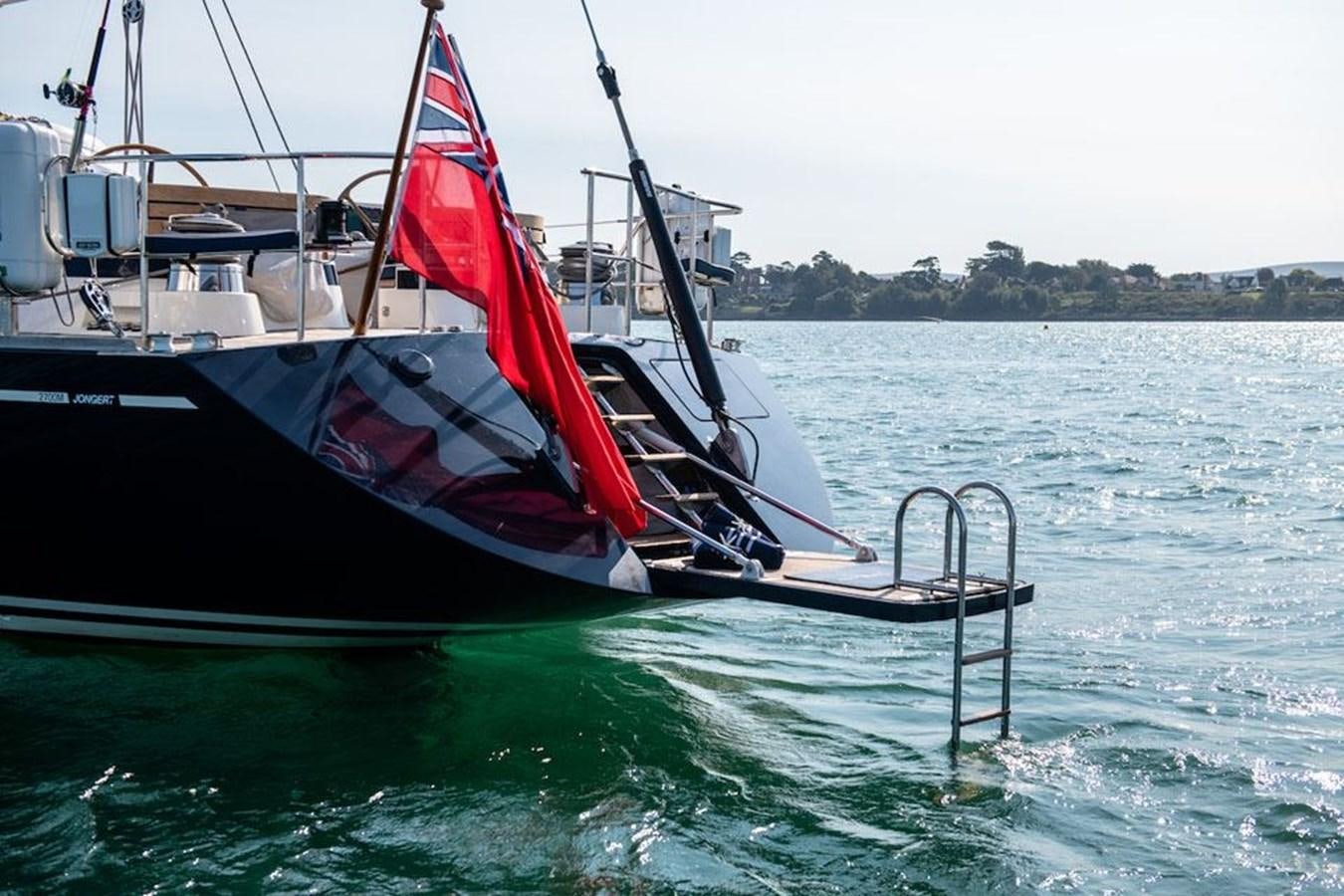

• Aft hydraulic swim platform door.
• Aft hydraulic boarding passarelle.
• Hydraulic operated up / down aft side windows to the deckhouse
• Side boarding ladder (one, which may be installed either side).
• Extensive tool kit.
• Stainless drink holders by each helm.

Anchoring and Mooring Equipment

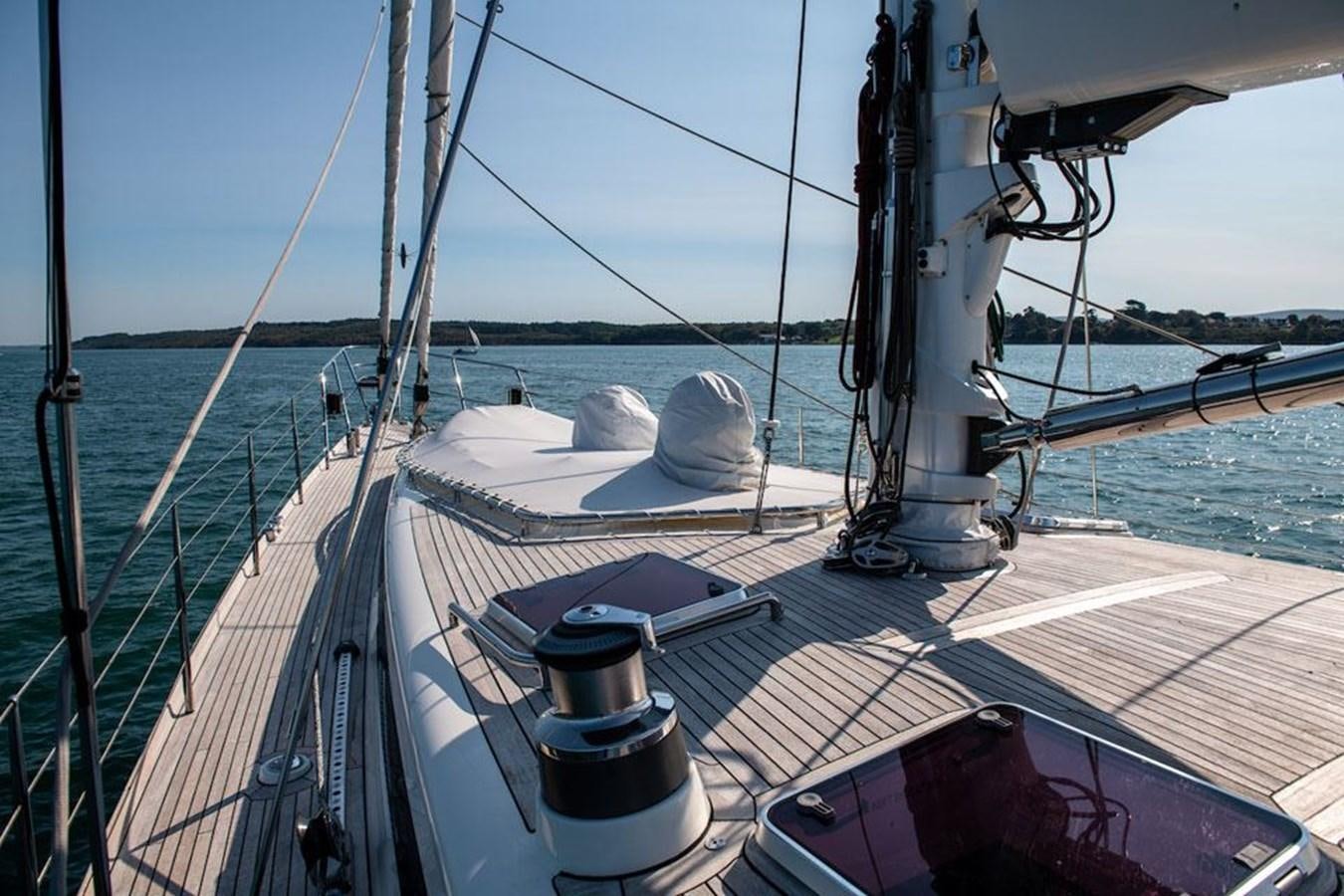

• Hydromar hydraulic anchor windlass mounted at bow with a plug-in handheld unit and a control at the helm.
• Bruce 80kg galvanized plough anchor.
• 140m of galvanized chain.

Covers, Canvas and Cushions

• Sunscreen covers for the deckhouse windows.
• Crew covers for cockpit seating, the cockpit table, wheels, pedestals and winches.
• White removable panels with windows in for the aft end of the cockpit to enclose it.
• Sun awning that mounts over the aft section of the boom.
• Cover to install in the boom as a sun protection to the mainsail.

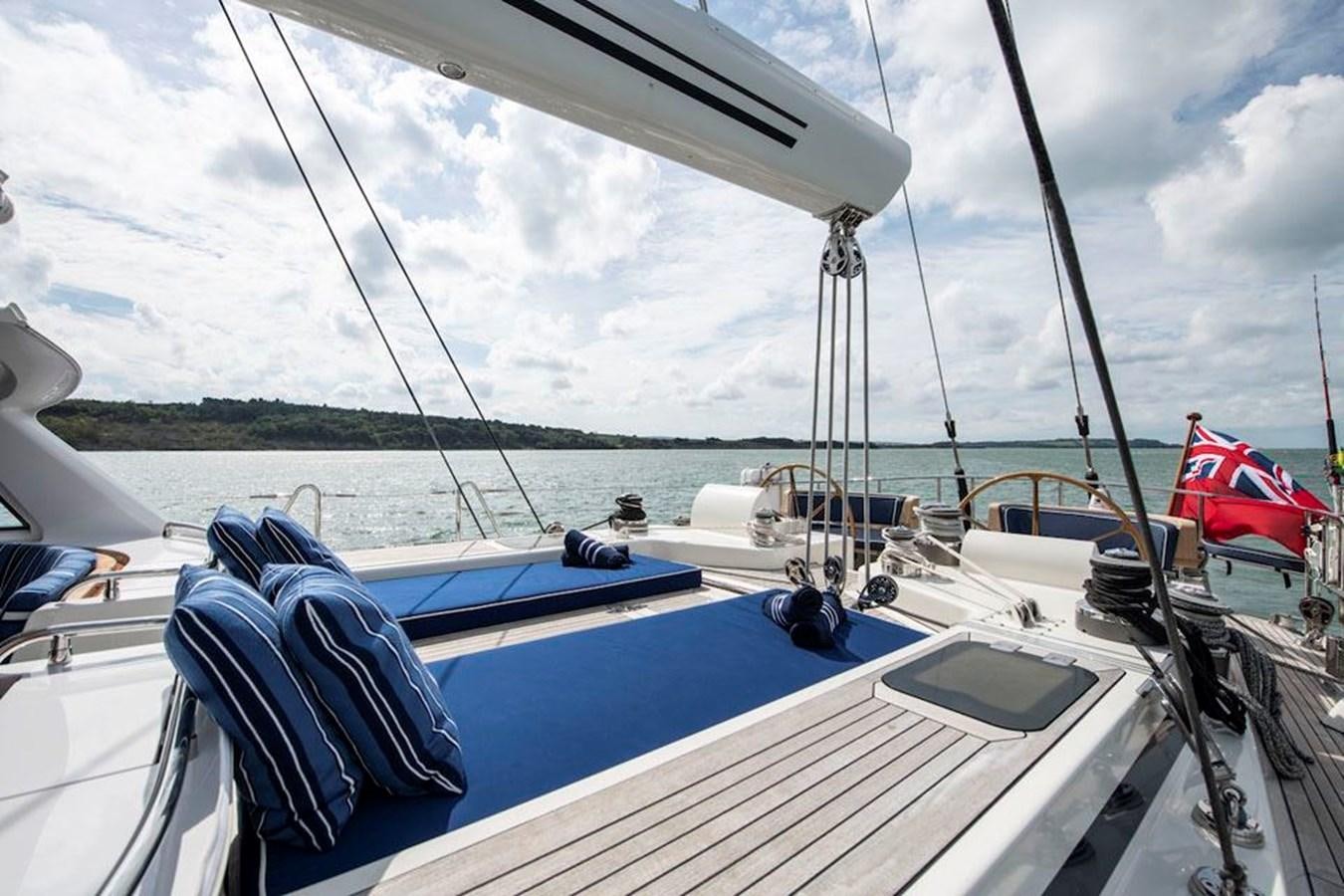

• Sunbed cushions and loose sun pillows for the aft sundeck area.

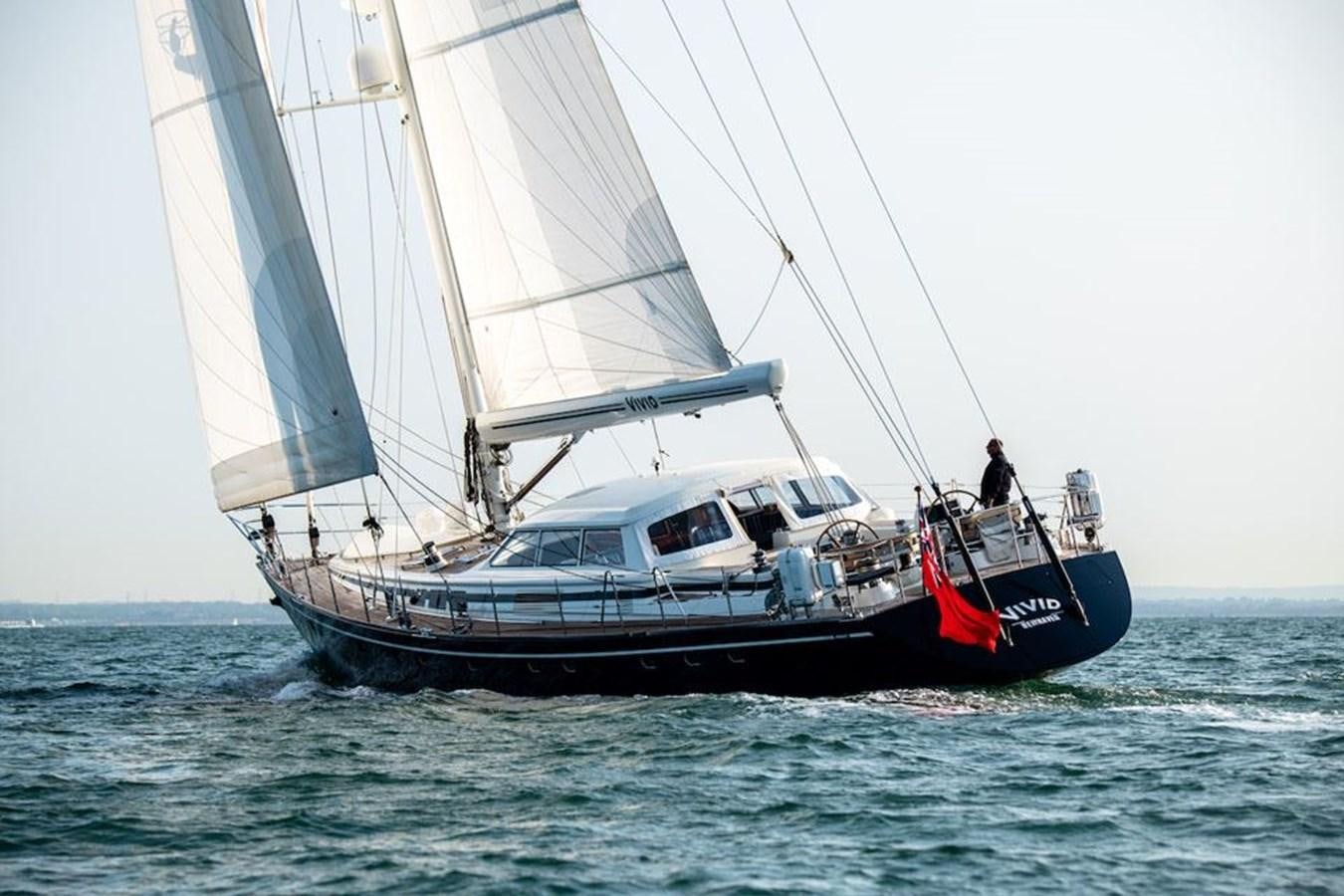

Rig

• Sloop cutter rig.
• Marten Marine carbon fibre mast and boom.
• Mast removed and a complete five-year service by Advanced Rigging, Hamble was made, with all new s/s rod standing rigging in 2020-21.
• In boom mainsail furling.
• Reckmann hydraulic headstay and staysail furlers.
• Both foresail furlers were sent to Reckmann for full service (January to March 2021).
• Navtec hydraulic system, for the boom-vang, the double backstays, and inner stay (for staysail).
• Genoa and staysail halyard tensioner.
• The running rigging has been renewed in stages since 2019 (January to March 2021).

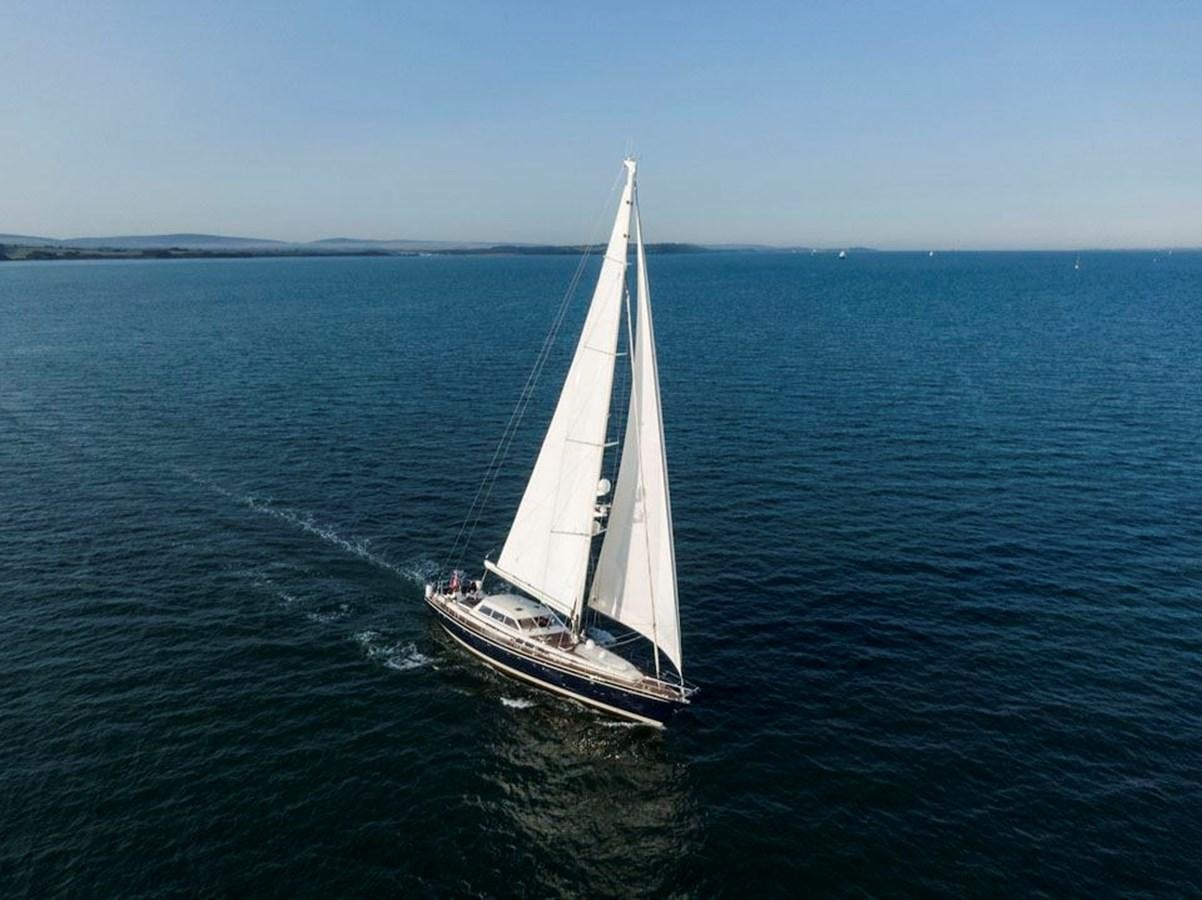

Sails

• Mainsail, Staysail and Yankee – new March 2019 (in Spectra by Elvstrom Mallorca).

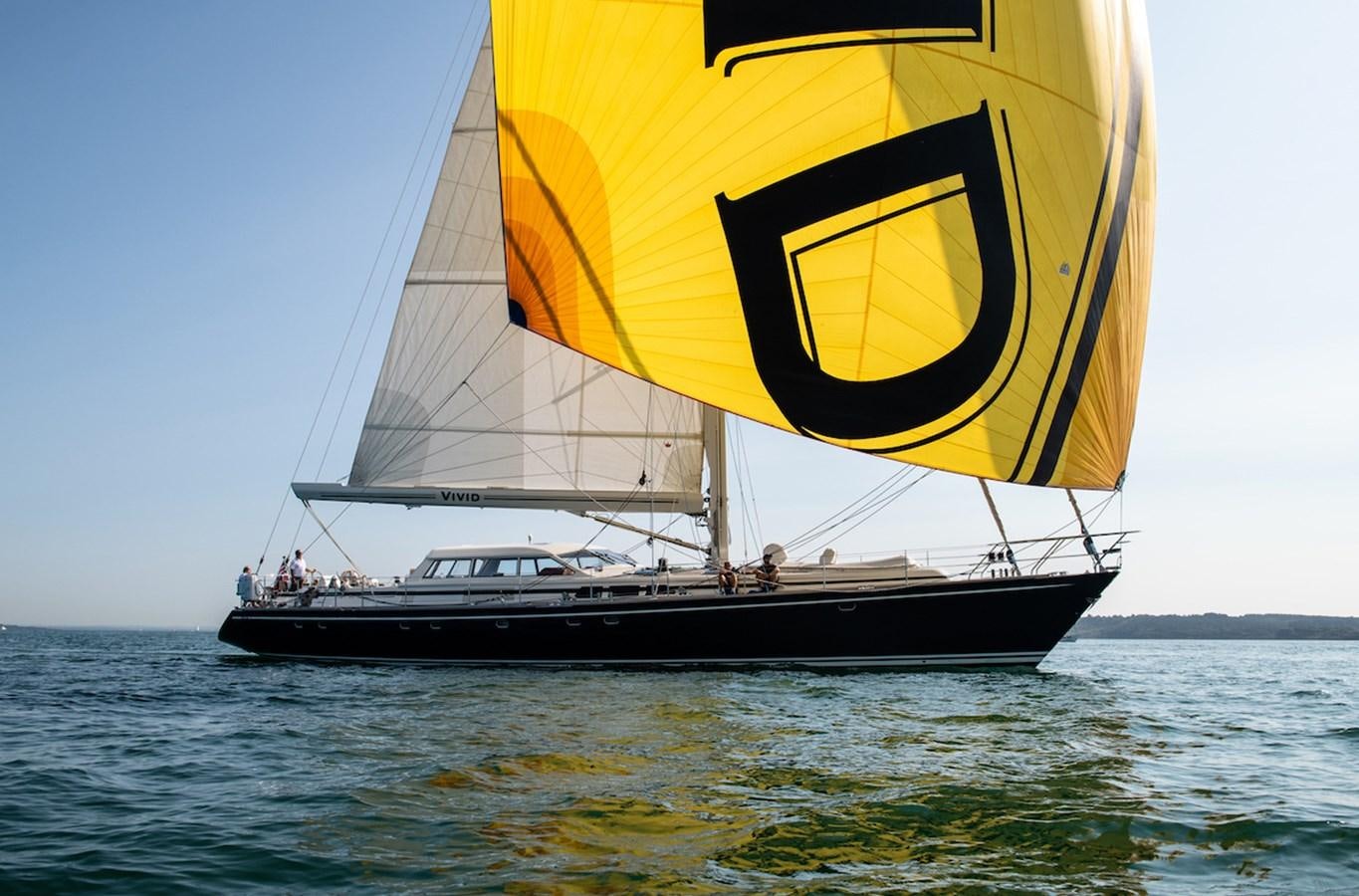

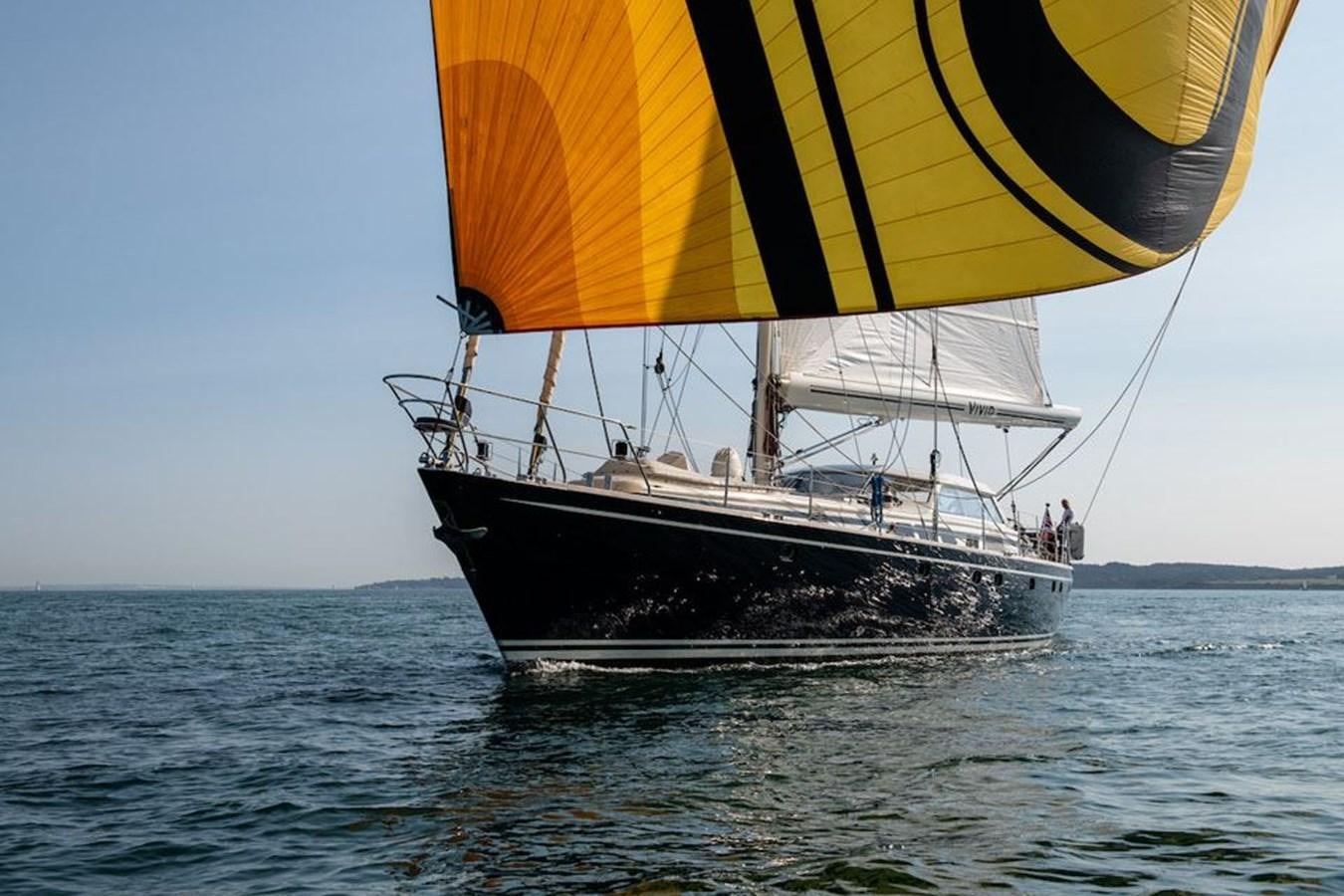

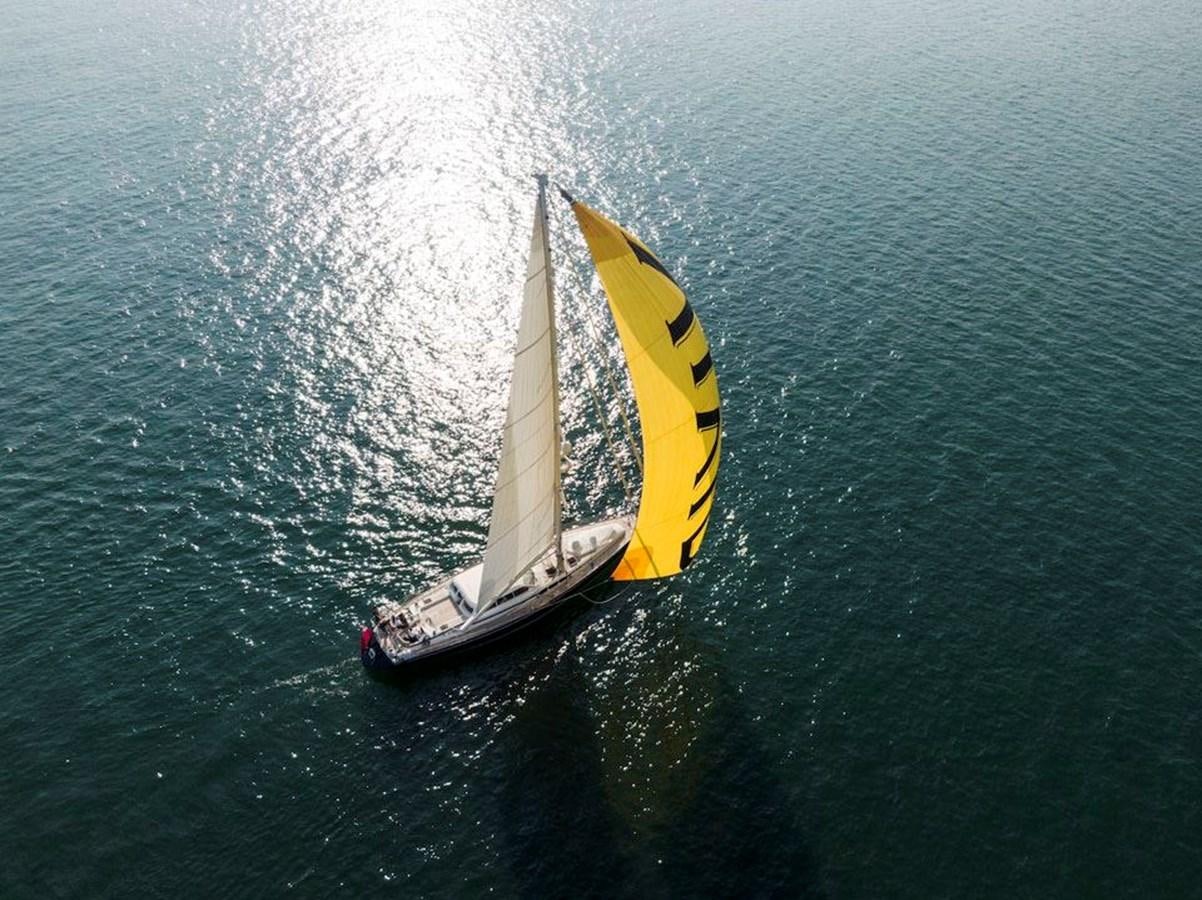

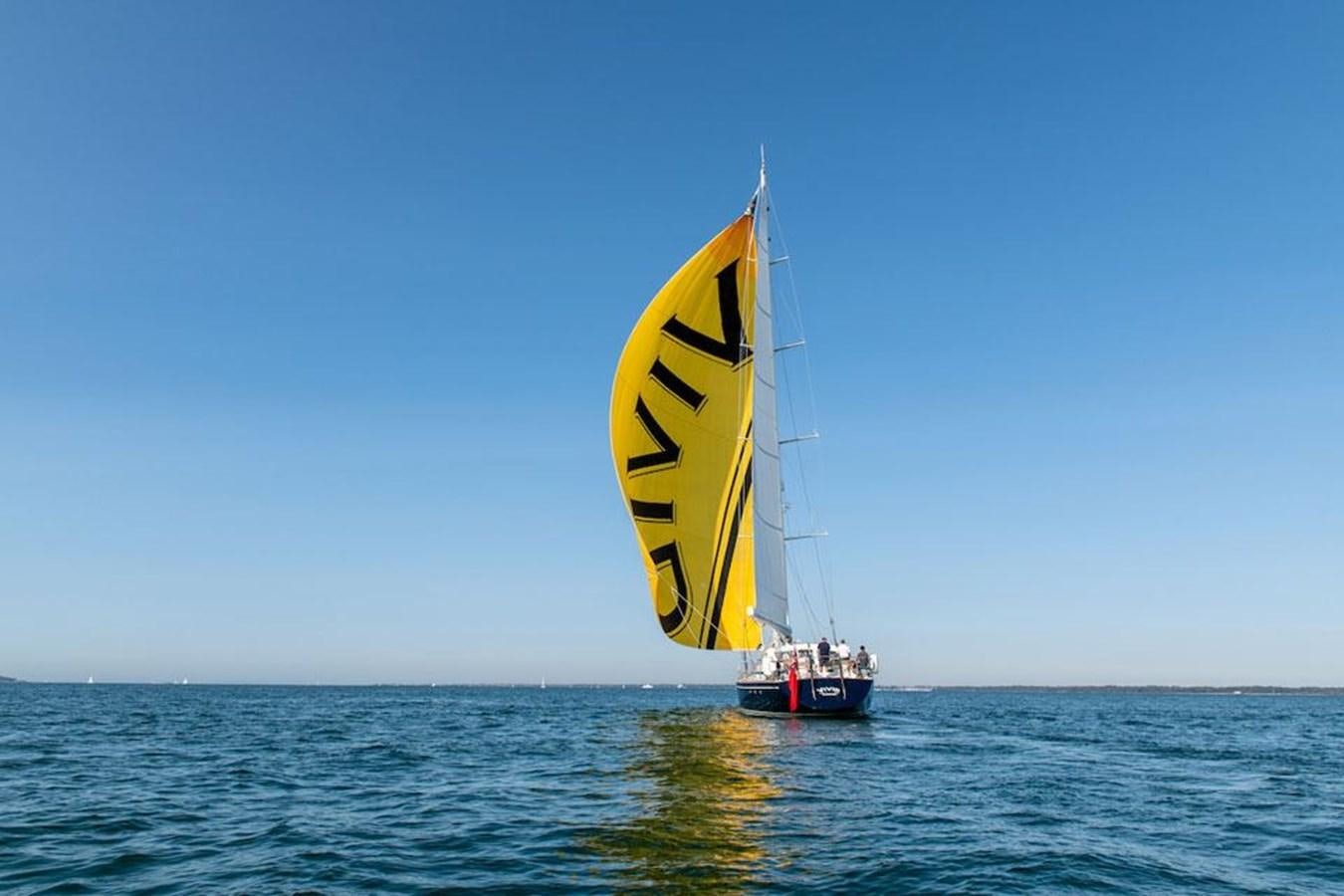

• Asymmetrical Spinnaker in hoisting sock.

Winches

• Lewmar winches.
• 2 x 111 hydraulic for genoa sheets.
• 1 x 77 hydraulic for the mainsheet.
• 1 x 77 hydraulic halyard winch.
• 1 x 77 manual halyard winch.
• 2 x 77 manual staysail winches.
• 2 x 66 for the running backstays, manual.
• 2 x 54 traveller winches, manual.
• Captive winch for mainsail halyard, located under the galley floor

She has full in class safety equipment as required by her class – including:

• 2 x Viking 8-man life rafts.
• 2 x JON Buoy Man Overboard modules (new 2016).
• Extensive world cruising medical equipment, Category 1
• Defibrillator,
• Ditch bag and Ditch med kit
• 1 x Oxygen kits.
• Offshore flare kit.
• Jotron EPIRB.
• 1 x McMurdo Personal EPIRBs.
• AIS (full send and receive).

New Safety Equipment 2019

• 11 x adult Spinlock lifejackets with AIS locators and 2 x junior Spinlock lifejackets with AIS locators.

New Safety Equipment March 2022

• 6 x Spinlock life vests and lifejackets (in the tender).

Fire-fighting equipment

• Engine room FM200 fire suppression system.
• 7 x Dry Chem fire extinguishers.
• 2 x CO2 fire extinguisher.
• 1 x Foam fire extinguisher at galley.
• 1 x Fire blanket.

Keel and Rudder

• Complete new rudder fabricated and fitted with new bearing and seals by Links Marine of Mallorca, a Lloyds certified fabricator (June 2019).

Engine Work

• Starter motor and both alternators serviced (January to April 2019).
• New feed cables to starter motor and alternators fitted (January to April 2019).
• Heat exchanger stripped down and serviced. New core fitted (January to April 2019).
• Transmission and power take off oil coolers stripped down and serviced (January to April 2019).
• New power take off to engine rubber coupling, drive belts, guides and tensioner fitted (January to April 2019).
• New exhaust temperature gauge fitted (January to April 2019).
• Transmission removed, rebuilt, and refitted (January to April 2019).
• Major service to include strip down of all Racor filter housings, new radiator cap and thermostats (January to April 2019).
• Fitted new turbo (March 2020).
• Removed exhaust sections. Cleaned, make up new gaskets and clamps. Refit (March 2020).
• Fit new exhaust cladding (March 2020).
• March 2021 – new start batteries.
• Removed oil cooler, cleaned, fitted new seals and refit (July 2021).
• Carried out engine flush and refill with fresh coolant (July 2021).
• New throttle and gear control cables fitted, and new gear control power box fitted (January to April 2019).
• Propellor shaft log inner bush fabricated and fitted with new seals (January to April 2019).
• MaxProp propeller stripped and serviced (January to April 2019).

Electrical Work

• Entire system inspected. Various bad connections remade, new breakers fitted, etc. (January to April 2019).
• New universal plug sockets with USB connectors fitted throughout (January to April 2019).
• New helm switch panels made and fitted with new switchgear (January to April 2019).

Generators Kohler 35kw

• Stripped down heat exchanger. Cleaned, fitted new seals and refit (April 2019).
• Fitted new timing chain cover and circulation pump (April 2019).
• Carried out engine flush and refill with fresh coolant (April 2019).
• Major service (April 2019).
• Fitted new fuel injectors, fuel injection and primary fuel pumps (March 2020).
• Fitted new raw water pump (October 2021).
• Carried out engine flush and replace with fresh coolant (October 2021).
• New start batteries (March 2020)

Generators Cummins Onan 22.5kW

• New in March 2019 and fitted with new start batteries, cabling, charger and remote start.

Plumbing

• New freshwater accumulator tank fitted (January - April 2019).
• New hot water circulation pump fitted (January - April 2019).
• New Tecma toilets fitted (Jan-April 2019).
• New freshwater pressure pump fitted (July 2019).
• New 120 litre stainless steel immersion heater tank fitted (January 2020).

Watermaker

• High pressure pump rebuilt (January to April 2019).
• Complete system inspected and rectified where necessary (January to April 2019).

Hamman System

• The black water treatment plant was stripped down and revised and pumps serviced, August 2019.

Hydraulic System

• Power take off removed from main engine, serviced and replaced (January to April 2019).
• All three power pack pumps removed, serviced and replaced (January to April 2019).
• Fluid reservoir emptied, cleaned, new filters and pressure gauge fitted, refilled with fresh fluid (January to April 2019).
• Whole system inspected and revised throughout the boat, (January to April 2019).

Refrigeration

• New refrigeration coolant circulation pumps fitted (January - April 2019).

Air-Conditioning

• Various air handlers replaced 2019 or 2020.
• New Dometic system 2020.

Spars and Rigging

• Mainsail halyard captive winch serviced, new sprockets and chain fitted (June 2019).
• Backstay rams, headsail and staysail tensioner rams serviced, and new seals fitted (March 2020).
• Mast removed and a complete five-year service by Advanced Rigging, Hamble was made, with all new standing rigging (Jan-March 2021).
• The running rigging has been renewed in stages since 2019 (January to March 2021).
• Both foresail furlers were sent to Reckmann for full service (January to March 2021).

Equipment and Fittings

• Windlass removed, stripped down and serviced (January to March 2021).
• Mainsail captive winch serviced, new sprockets and chain in June 2019.
• Backstay rams, headsail and staysail tensioner rams serviced and new seals fitted (March 2020).
• Both primary winch drums fitted with new main gear rings (January to March 2021).

Navigation and Communication
January to April 2019 upgrades included: -

• New Furuno chart-plotters fitted to helm station, pilothouse and captain’s cabin
• All B&G graphic display units swapped for series 5000.
• New B&G computer fitted.
• New B&G autopilot control fitted.
• New Icom VHF radio fitted in pilothouse with additional station aft.
• New 4G/Wifi Pepwave router fitted.
• New computer and screen fitted in pilothouse.

March 2021:

• New 4G and Wifi antennas fitted to mast with new coaxial cable.
• New VHF antenna fitted to mast with new coaxial cable.

Paintworks

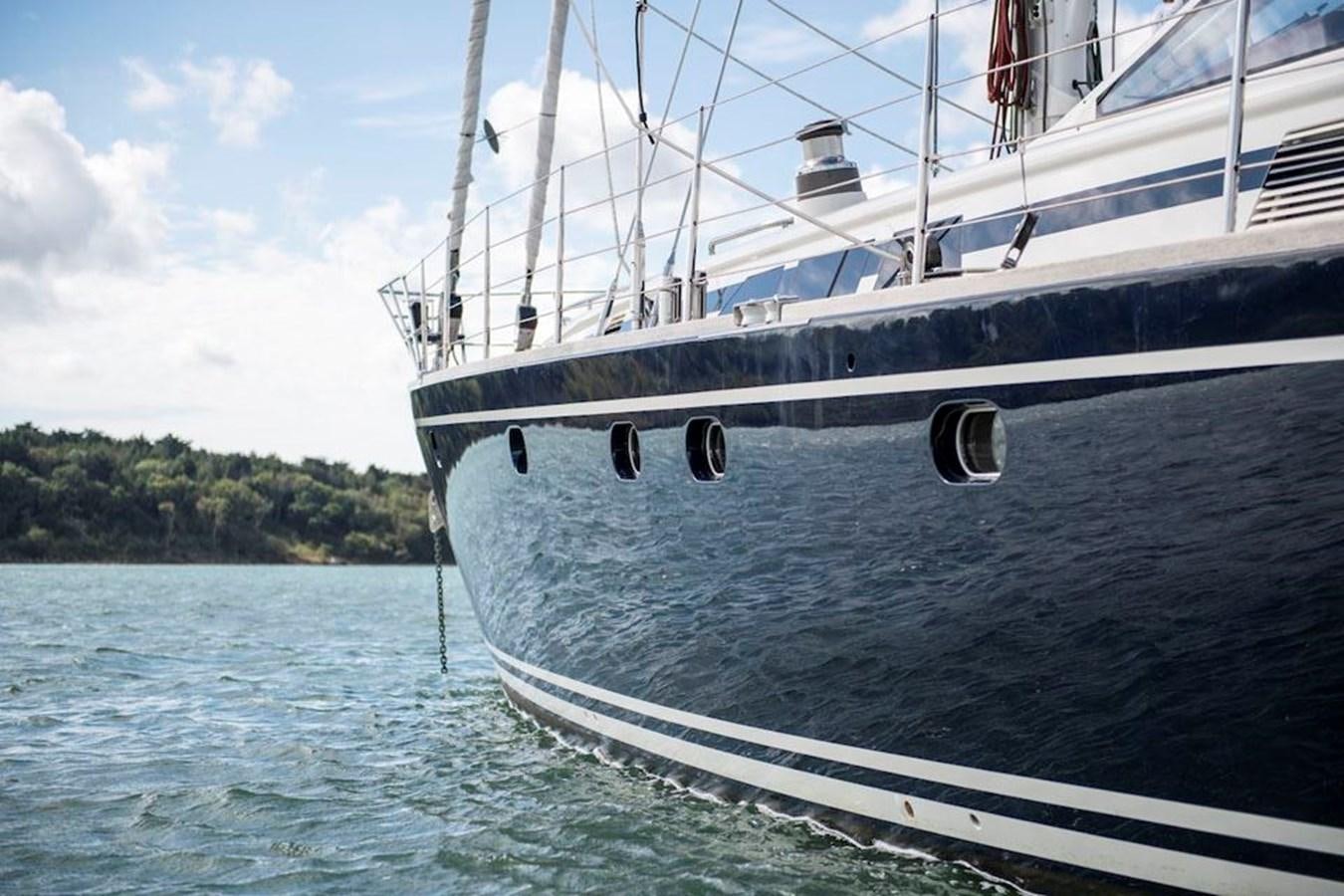

• The hull was completely resprayed (Oct-Dec 2020) in the UK.
• Much of the exterior varnish work was refinished (Jan-April 2019).
• Various areas of exterior paintwork around the deck and coaming were attended to as required (Jan-April 2019).

Other Refits

• There was also a refit by the previous owner made in 2016 in Palma and later works that year in Italy as well.
• VIVID underwent a 2m Euro refit in 2012 at Jongert in Holland under the former owner. The teak deck was replaced at that time.
• A list of the historic refits is available but much is since out-dated by more recent works.
