Asking
$ 17,950,000

CASTLEFINN Yacht for Sale

Length
146' 7" (44.68m)
Builder
HEESEN YACHTS
Build
2011/2023
Cabins
5
Crew
9
Asking Price
$ 17,950,000

Located in a Foreign Trade Zone at Bradford Marine Fort Lauderdale, FL.

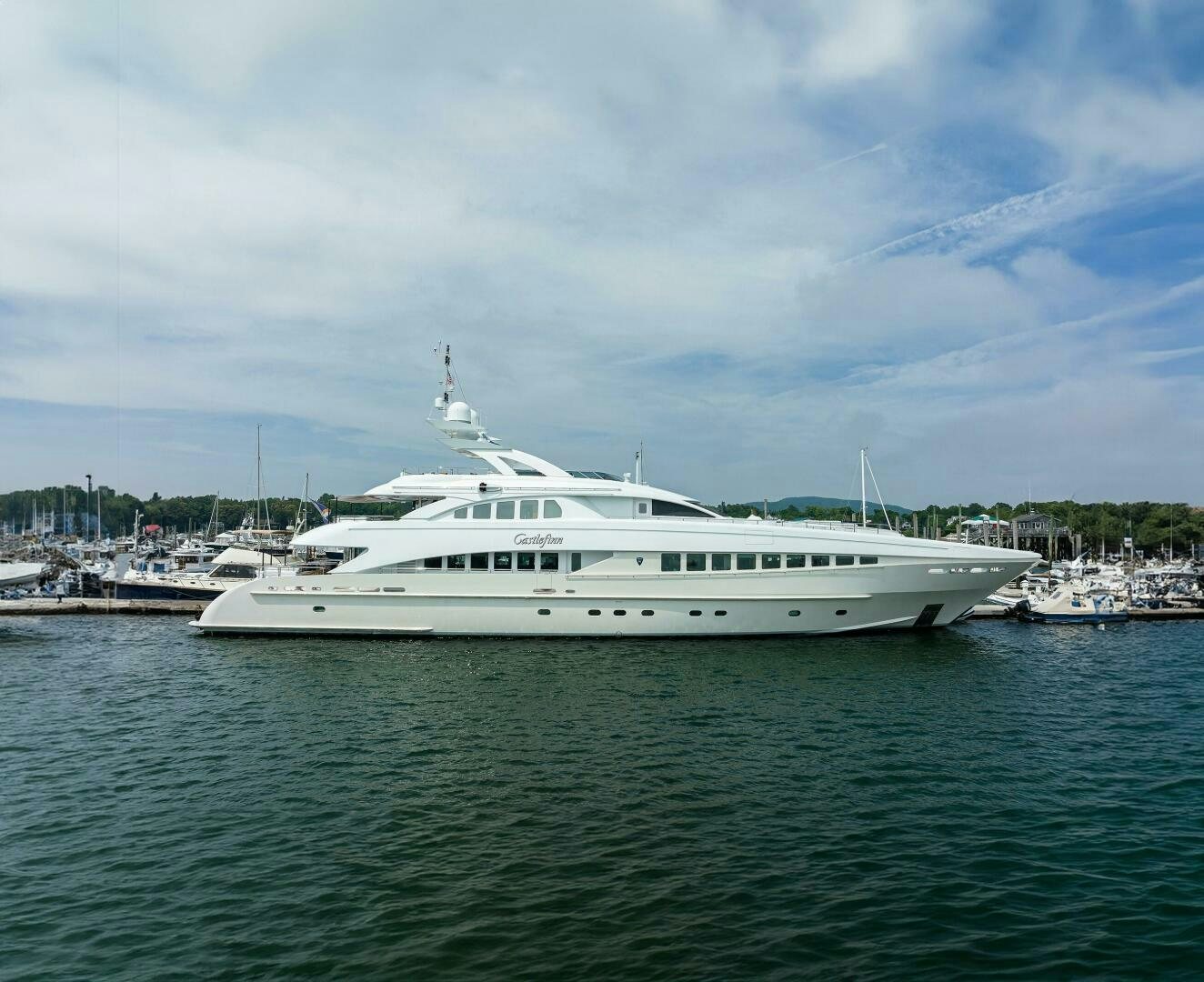

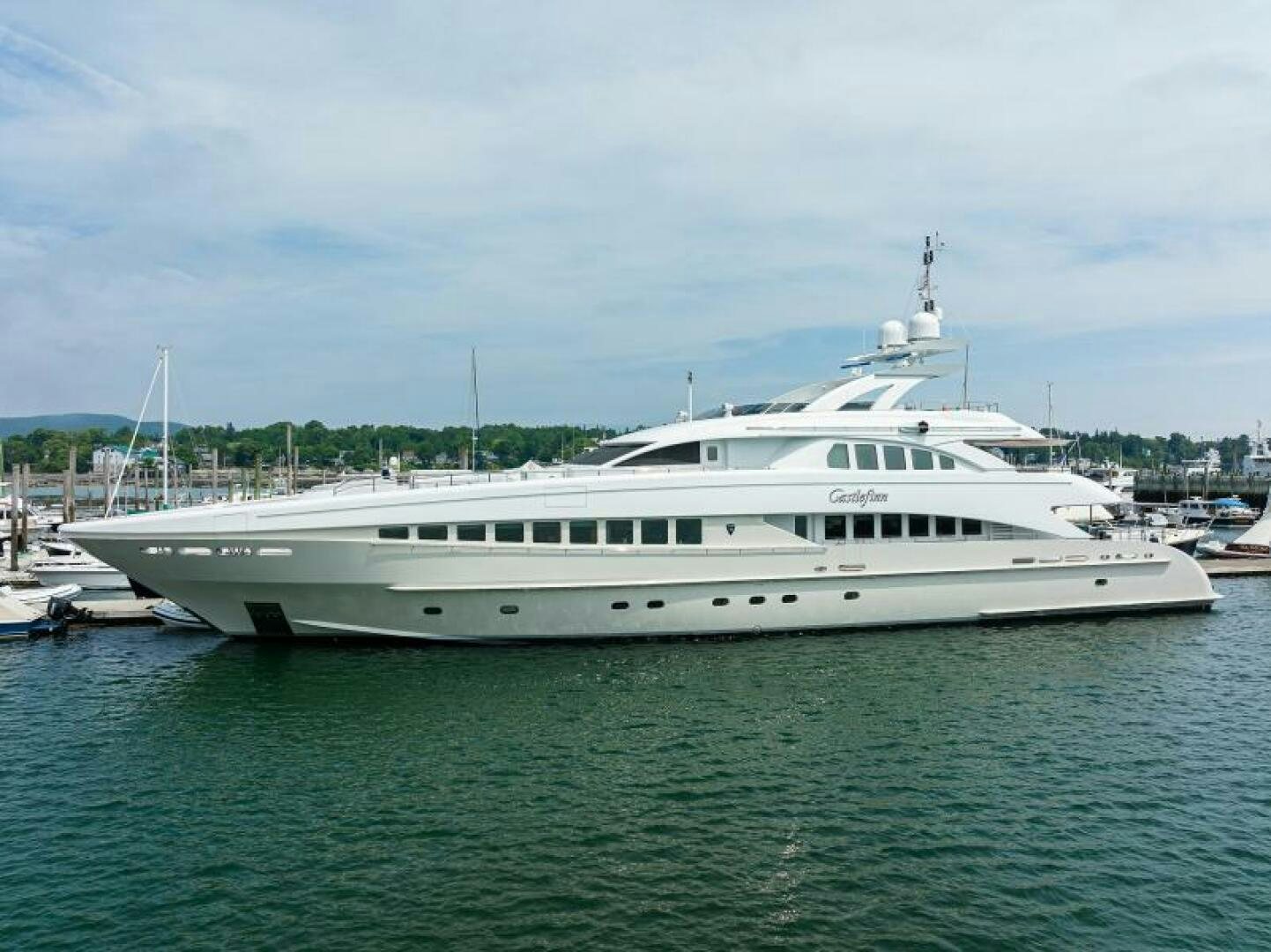

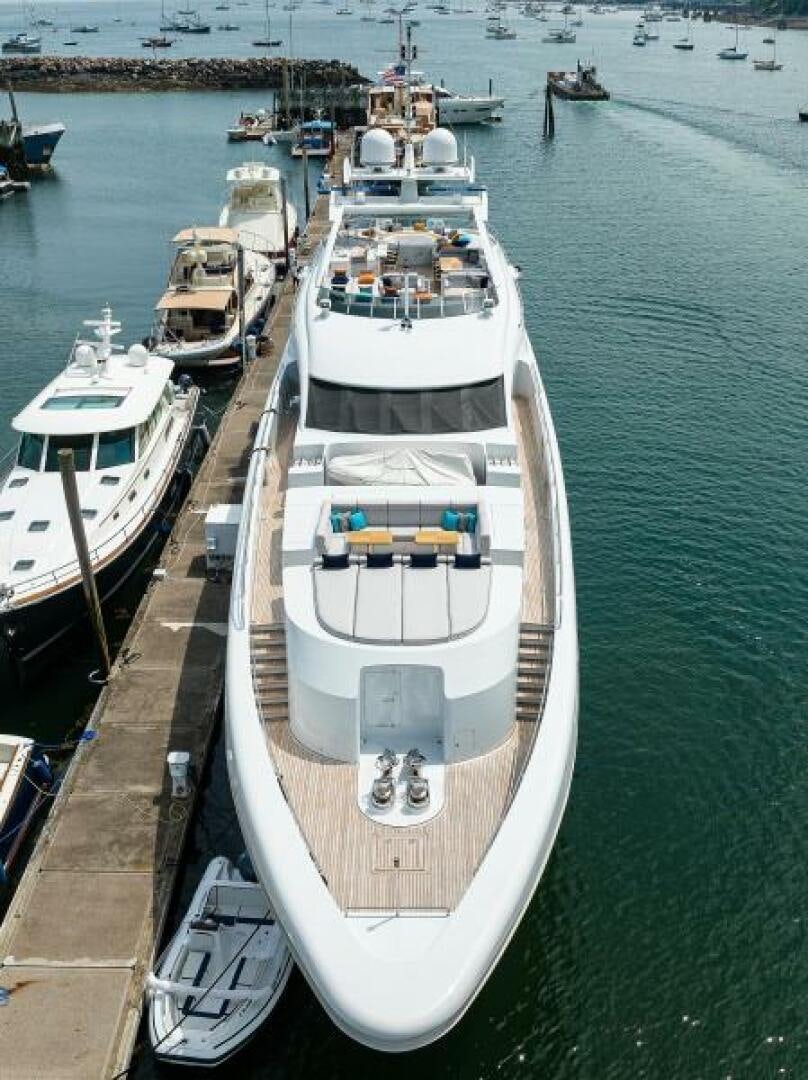

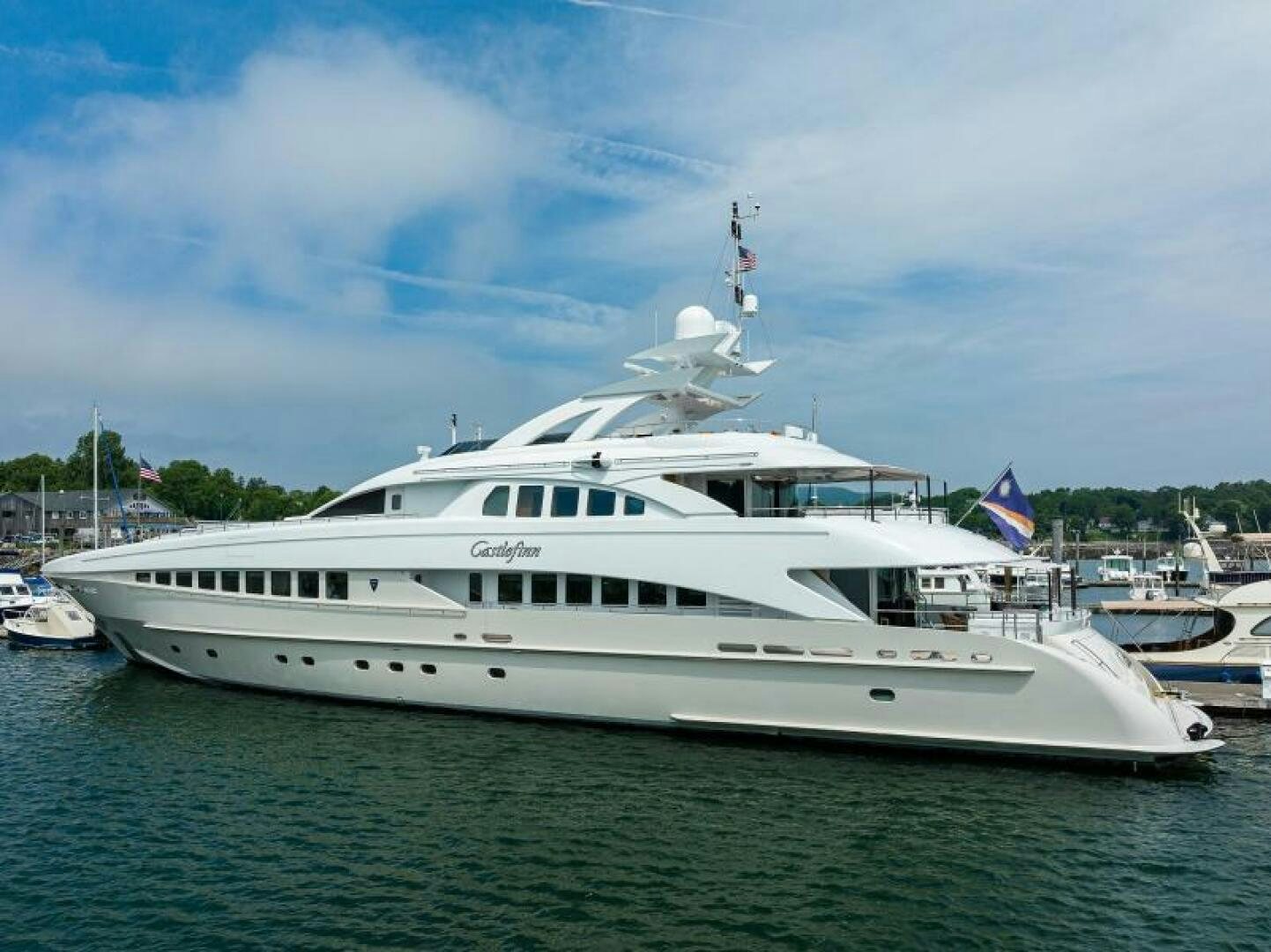

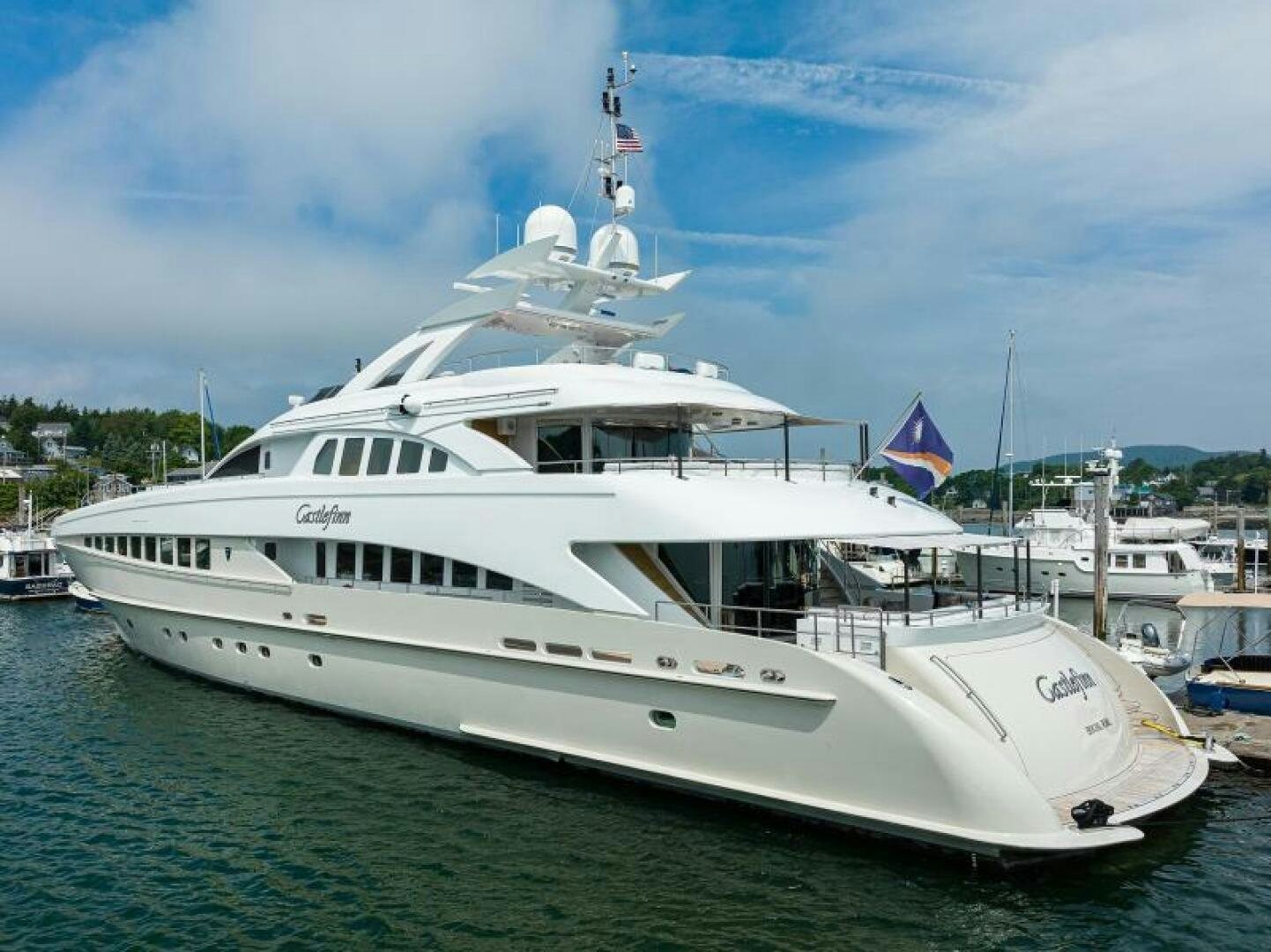

CASTLEFINN is a 146’ (44.68m) yacht, built by yacht builder Heesen and delivered in 2011 and refit in 2023. This vessel sleeps up to 12 guests in 6 staterooms and has accommodations for 9 crew in 5 cabins.

Specifications

Builder HEESEN YACHTS
Model 44m
Length (LOA) 146' 7" (44.68m)
Year 2011
Year Refit 2023
Gross Tonn. 458
Draft 27' (8m)
Beam 28' (8.53m)
Range 3,500 NM
Location united states

Accommodations

Staterooms 5
Sleeps 12
Crew Cabins 5
Crew Sleeps 9
Capt. Quarters Yes

Dimensions & Capacity

LOA 146' 7" (44.68m)
Max Draft 27' (8m)
Fuel Tank 16,980 g (64,275 L)
Fresh Water 1,280 g (4,845 L)
Holding Tank 1,560 g (5,906 L)
Gross Tonn. 458

Construction

Hull Material aluminum
Hull Config Semi Displacement
Ext. Designer Omega Architects
Int. Designer destry darr designs
Cruising Speed 20 Knots
Range 3,500 NM
Stabilizers None

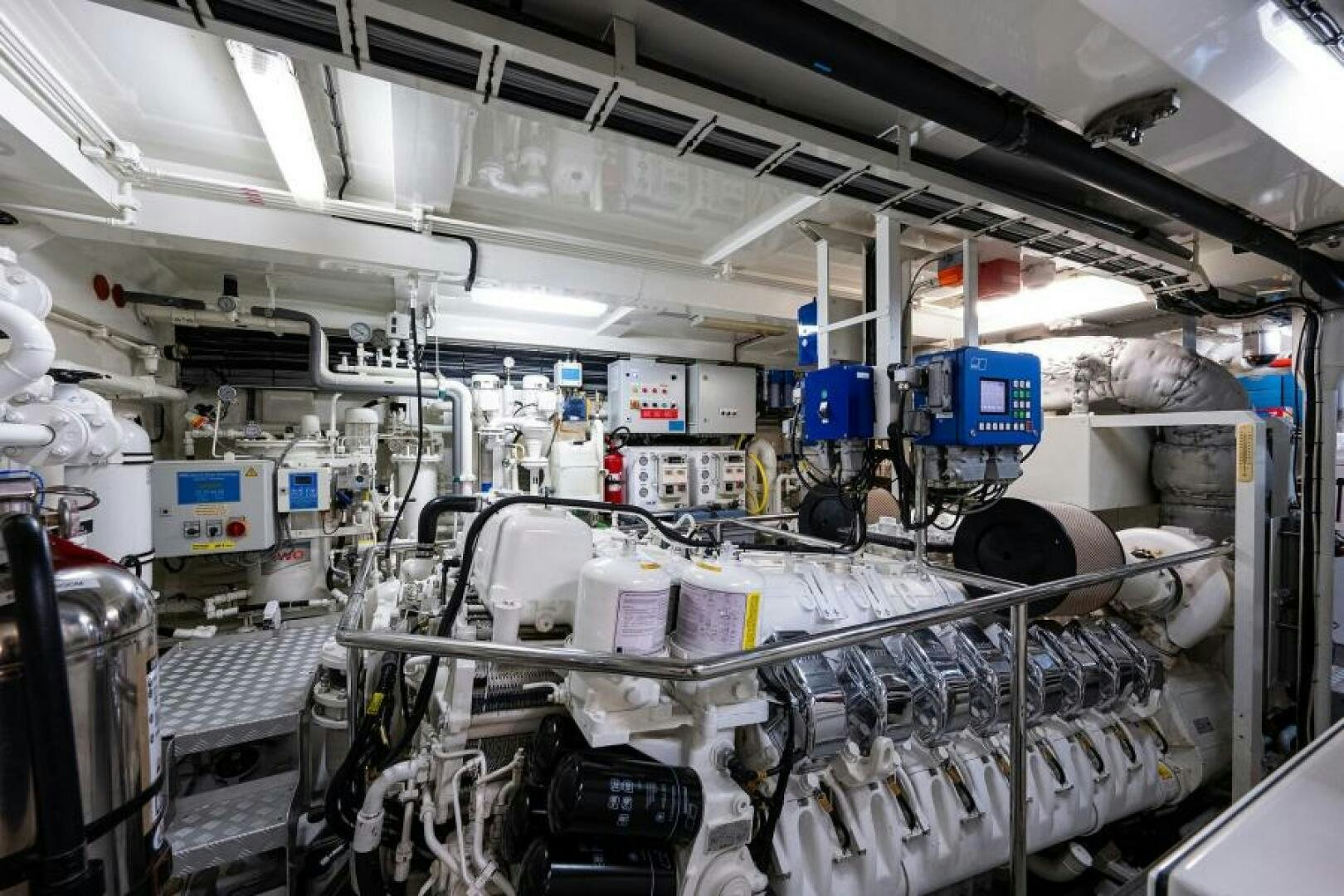

Engines (x2)

Engine Make MTU
Engine Model 16V4000 M90
Engine Type Inboard
Power HP 3,647
Fuel Type Diesel
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Chargers: 8 in total, make Mass, different types
  • Hydromar. Controls - retractable stern thruster of 80kW hydraulically driven
  • Water Maker: 2 x HEM type HEM 25/1400, Serviced -
  • Fuel Separator: 1 x Westphalia type OSD

Horn

  • 1 X Kahlenberg airhorn model Tl.
  • Air pressure type with solenoid valve connected to the main air pressure system. With one M-511A automatic Controller in the wheelhouse.

Windscreen Wipers

  • 5 X marine type windscreen wipers Hollex 235 KS. Wipers are equipped with two speed 24 VDC electric motors and interval switches.
  • Windscreen wash system is mounted on the wipers and connected to the ships freshwater system operated by means of a solenoid valve 24 VDC. Type 235 KS silent self-parking st.st. shafts, bolts, nulse ringsbronze bearings three speed 30 Watt, 50 Nm wipe angle 40° - 90°

Search Light

  • Two (2) Sanshin electric operated 24 VDC search light will be installed. Type ARC/RCL 600 - 24 VDC. Control panel for each in the Bridge. Internal elevation mechanism provides pitch control of spotlight beam while protecting elevation mechanism from weather.
  • Xenon lamp and parabolic reflector provide hyper-intense 6.000.000 candela spotlight beam. Housing rotates a full 360° allowing all-around illumination capability.
  • Auto return brings light back to a pre-set position. Focus adjustment gives spot or flood capability. Material: aluminum; color: white; operation: remote joystick control; beam angle: variable, can be narrowed and broadened; elevation angle: 18° up, 30° down; elevation speed 7½0 per second; turning speed: 11 ° per second low, 27° per second high; lamp 150 watt Xenon.

Galley & Laundry Equipment

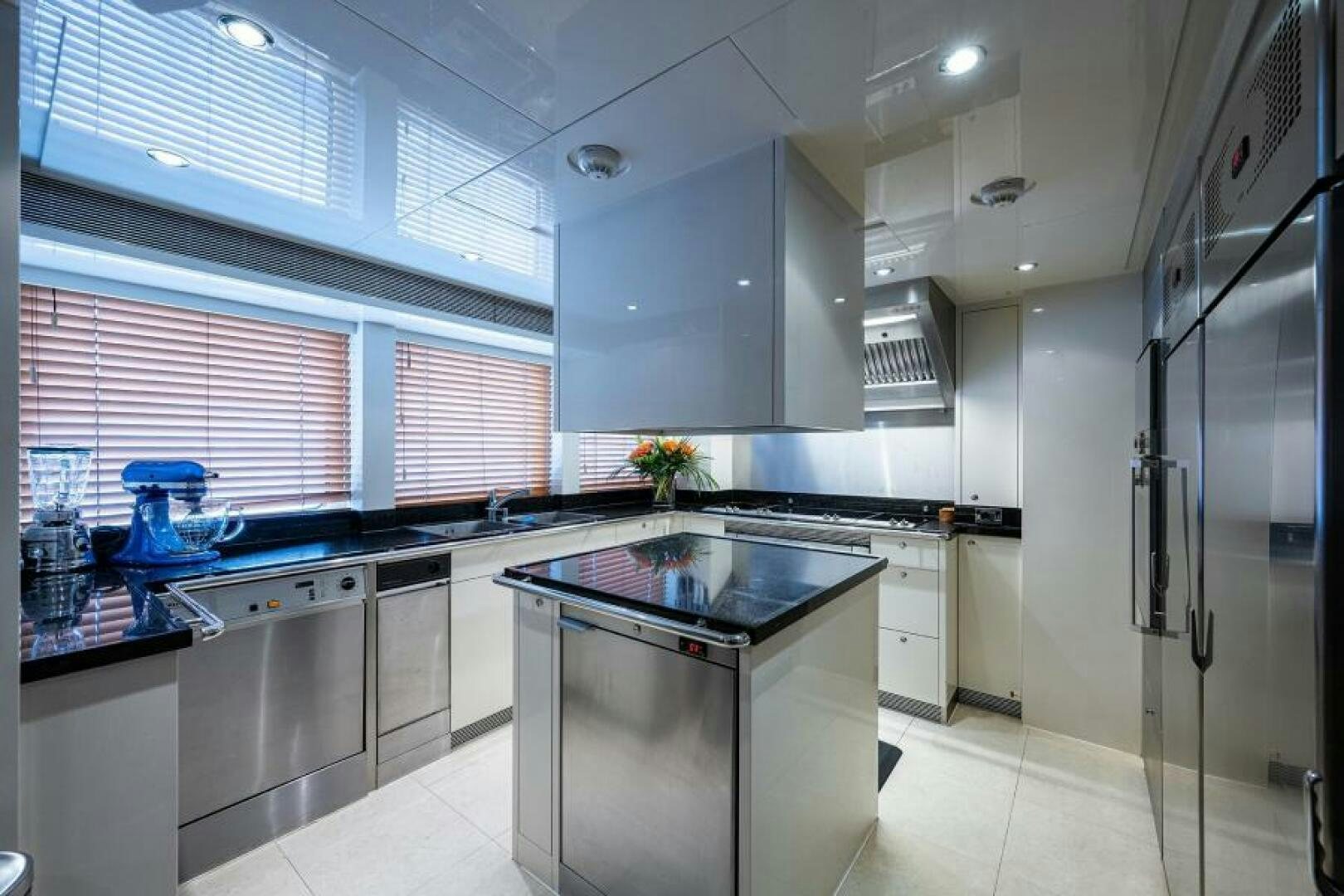

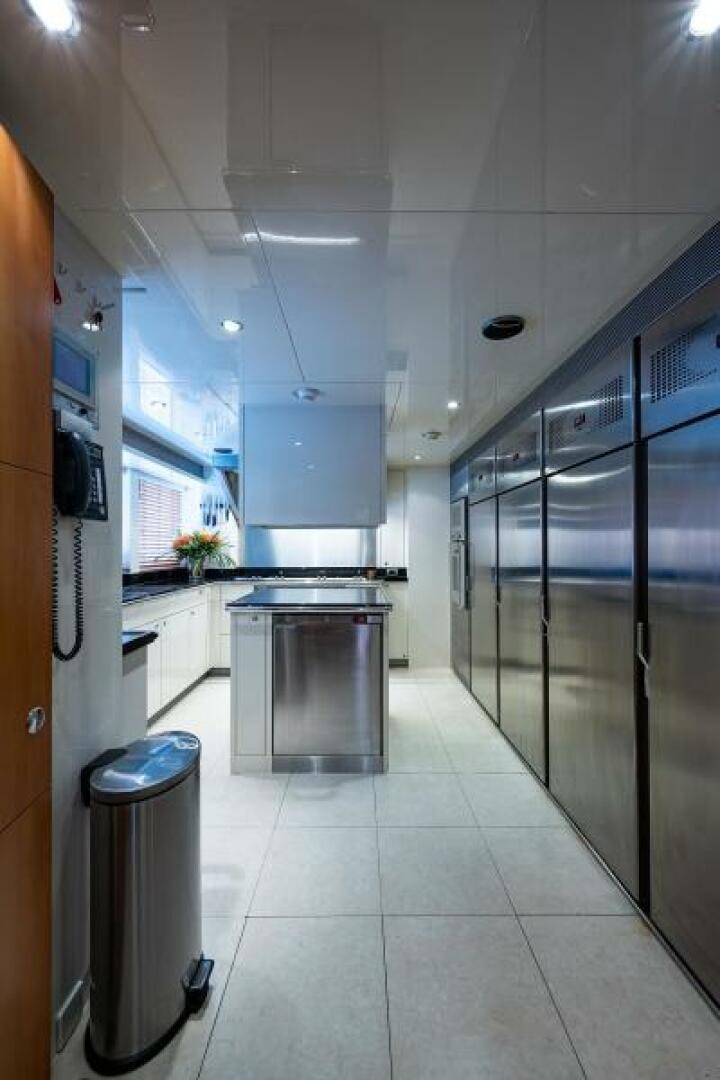

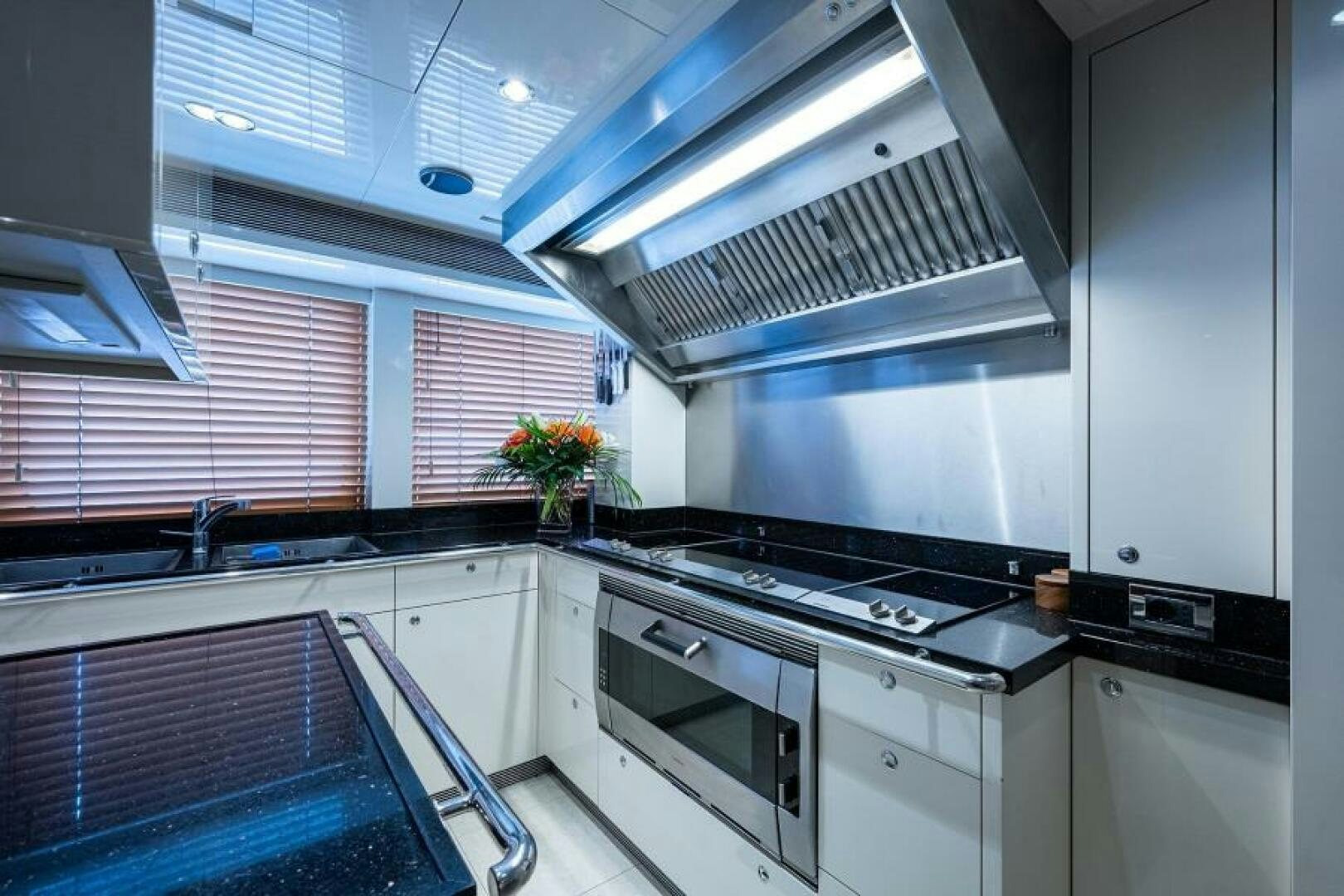

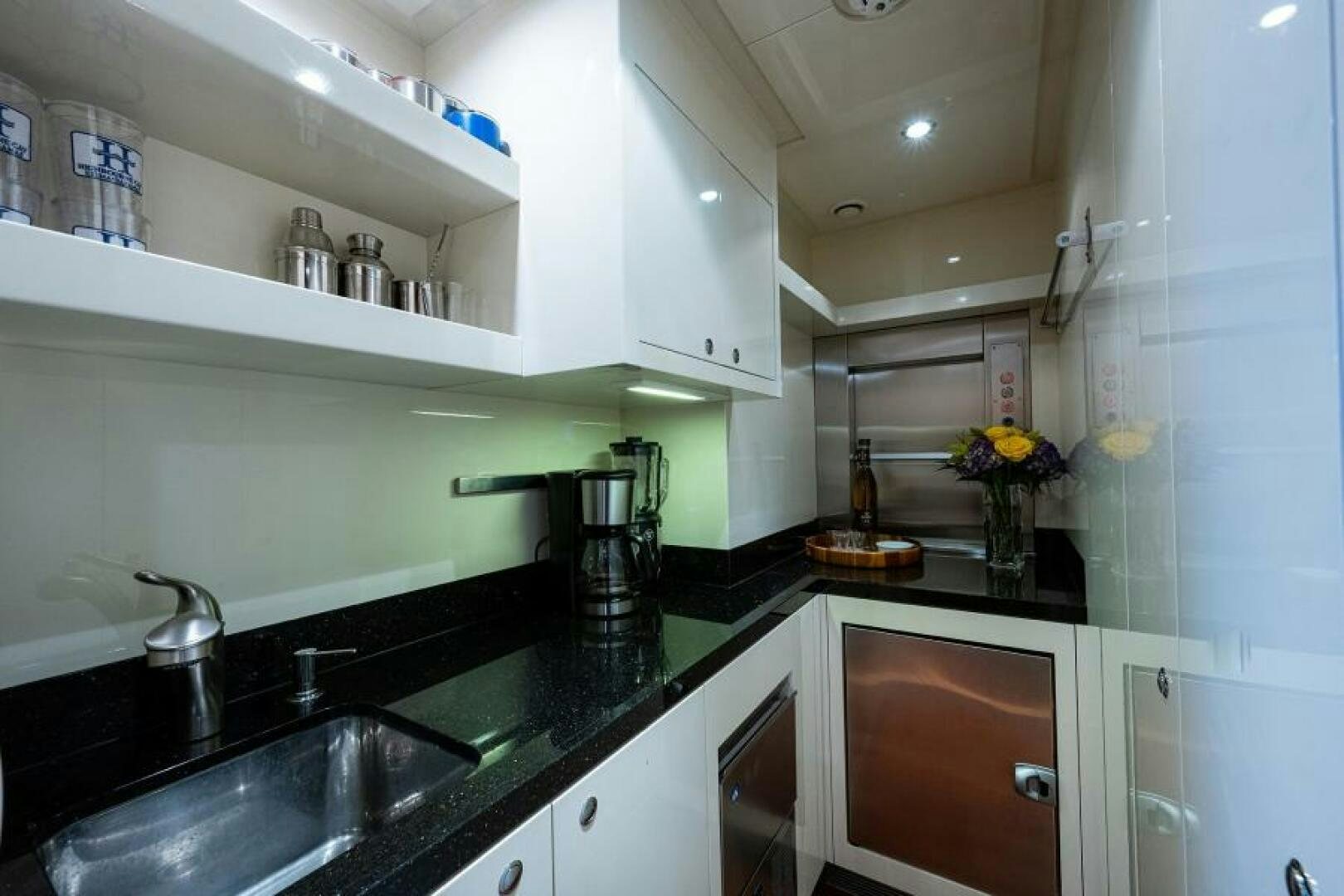

Galley and Pantry

  • 1 X Gaggenau oven/ grill combi 200 series
  • 1 X GIGA ceramic cooktop (4 zone)
  • 1 X GIGA professional Oven
  • 1 X Miele dishwasher Professional
  • 2 X Foster Gastro refrigerator 21.2 cu. Ft. (compressor in engine room)
  • 1 X Foster Gastro freezer 21.2 cu. ft. (compressor in engine room)
  • 1 x Liebherr Comfort refrigerator 3 cu. Ft.
  • 1 X Eurocave wine cooler for minimum of 175 bottles.
  • 1 x Hoshizaki Ice Maker


Laundry

  • 2 X Miele washer Professional
  • 2 X Miele dryer Professional

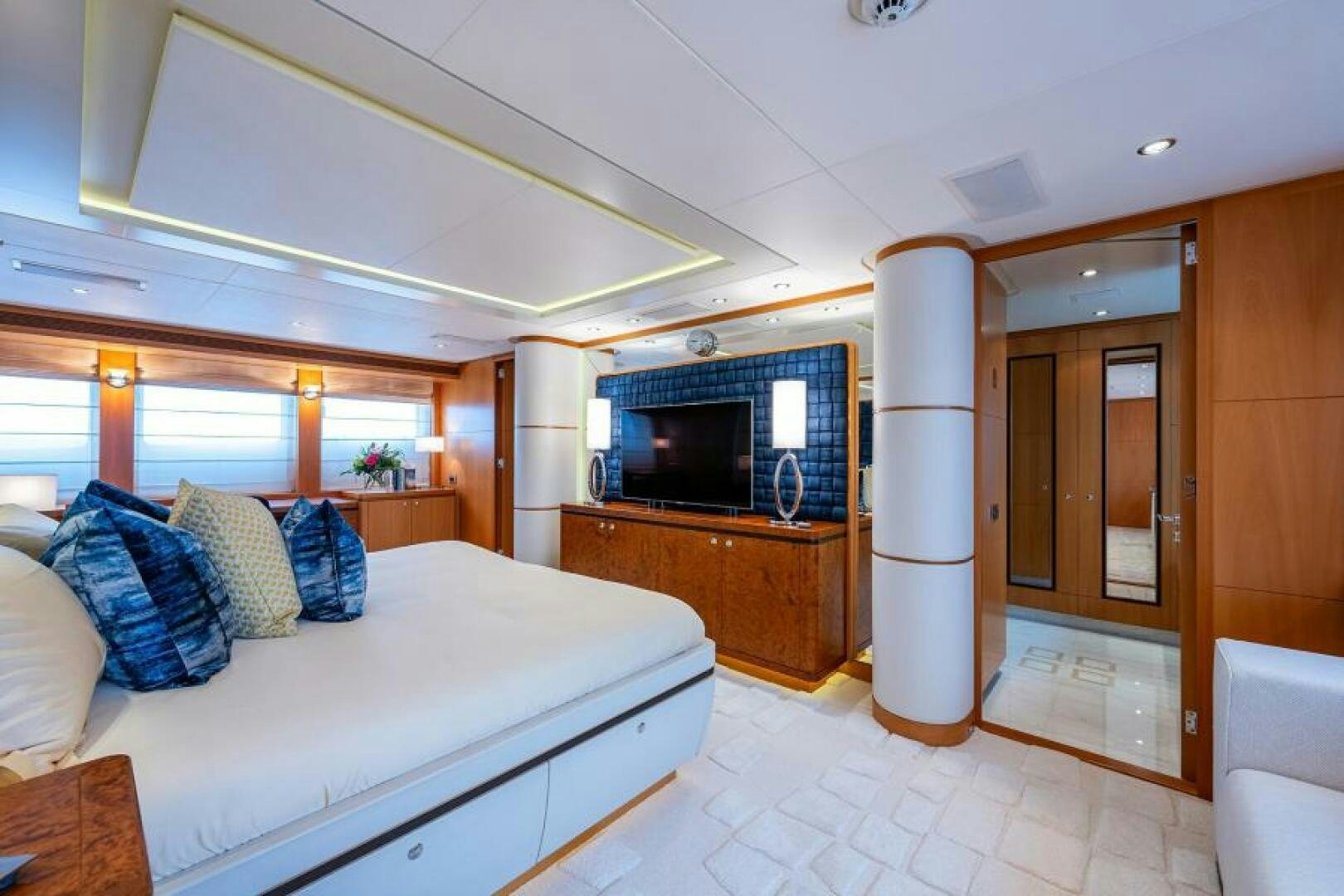

Owner's Stateroom

  • 1 X Frigonautica series 80 or equal refrigerator

Public Areas

  • 1 X Frigonautica series 80 or equal refrigerator in the lower deck guest corridor 1 X GAMKO professional Bar refrigerator 5.3 cu. ft. in Sky lounge
  • 1 X Hoshizaki icemaker in the sky lounge bar

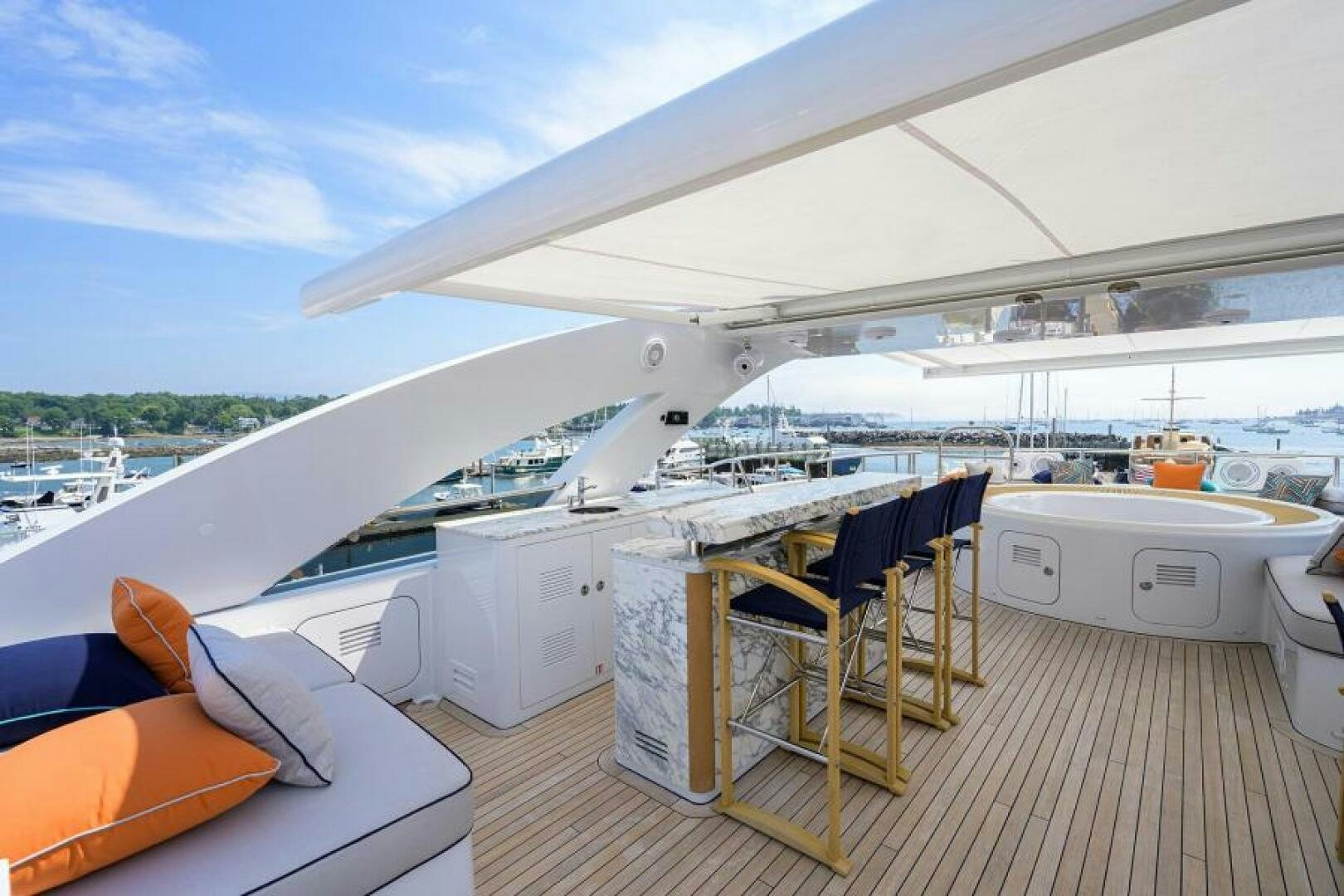

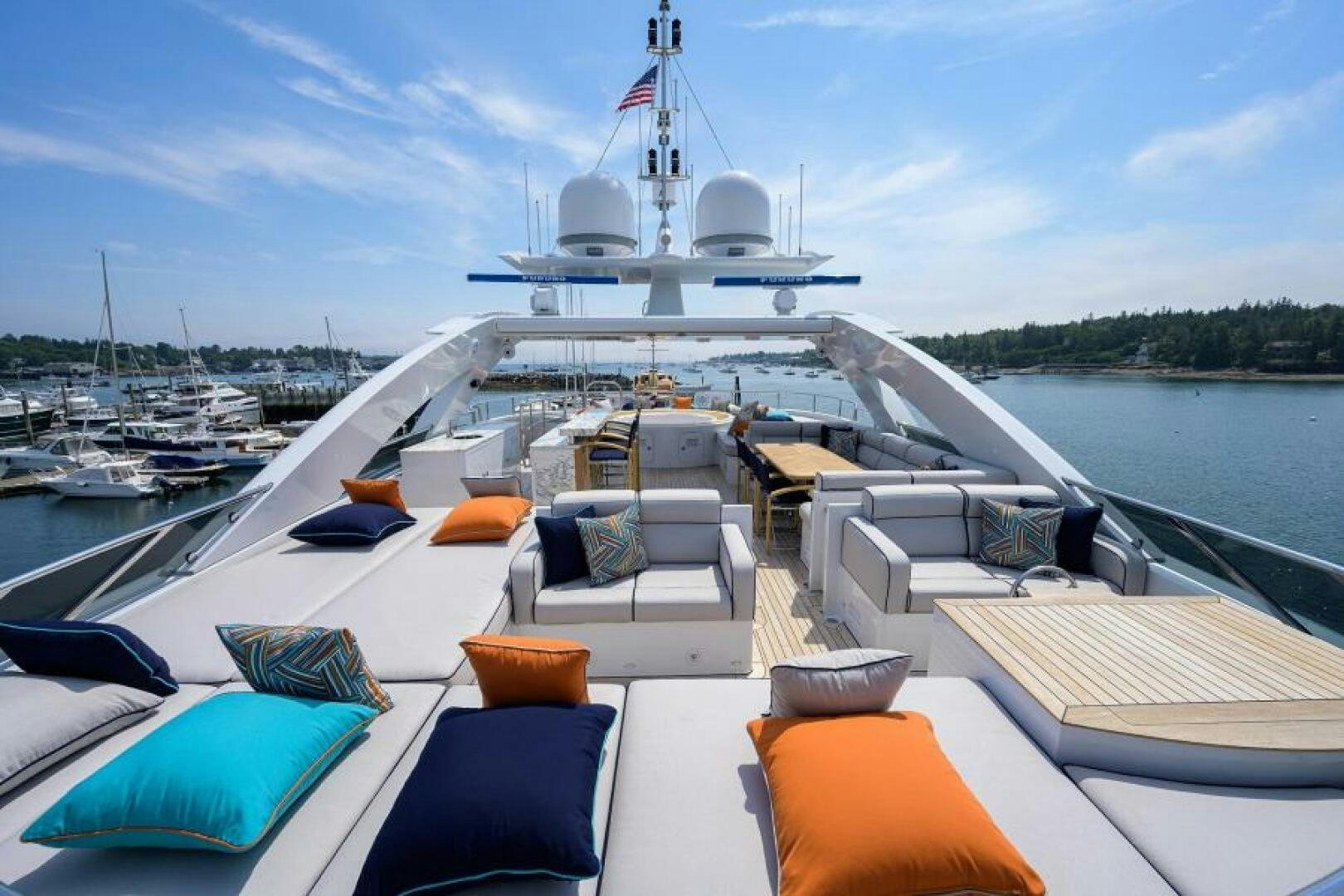

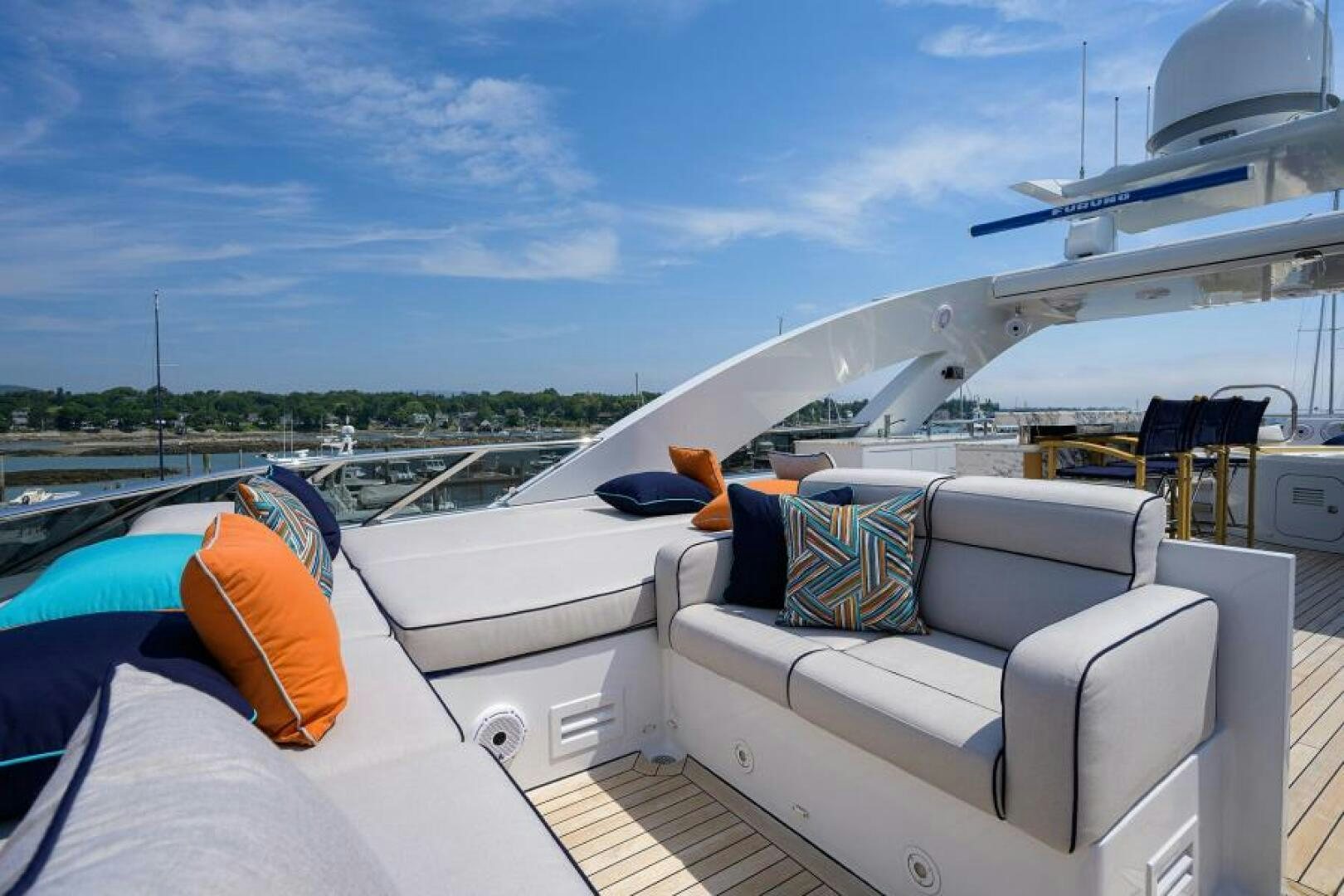

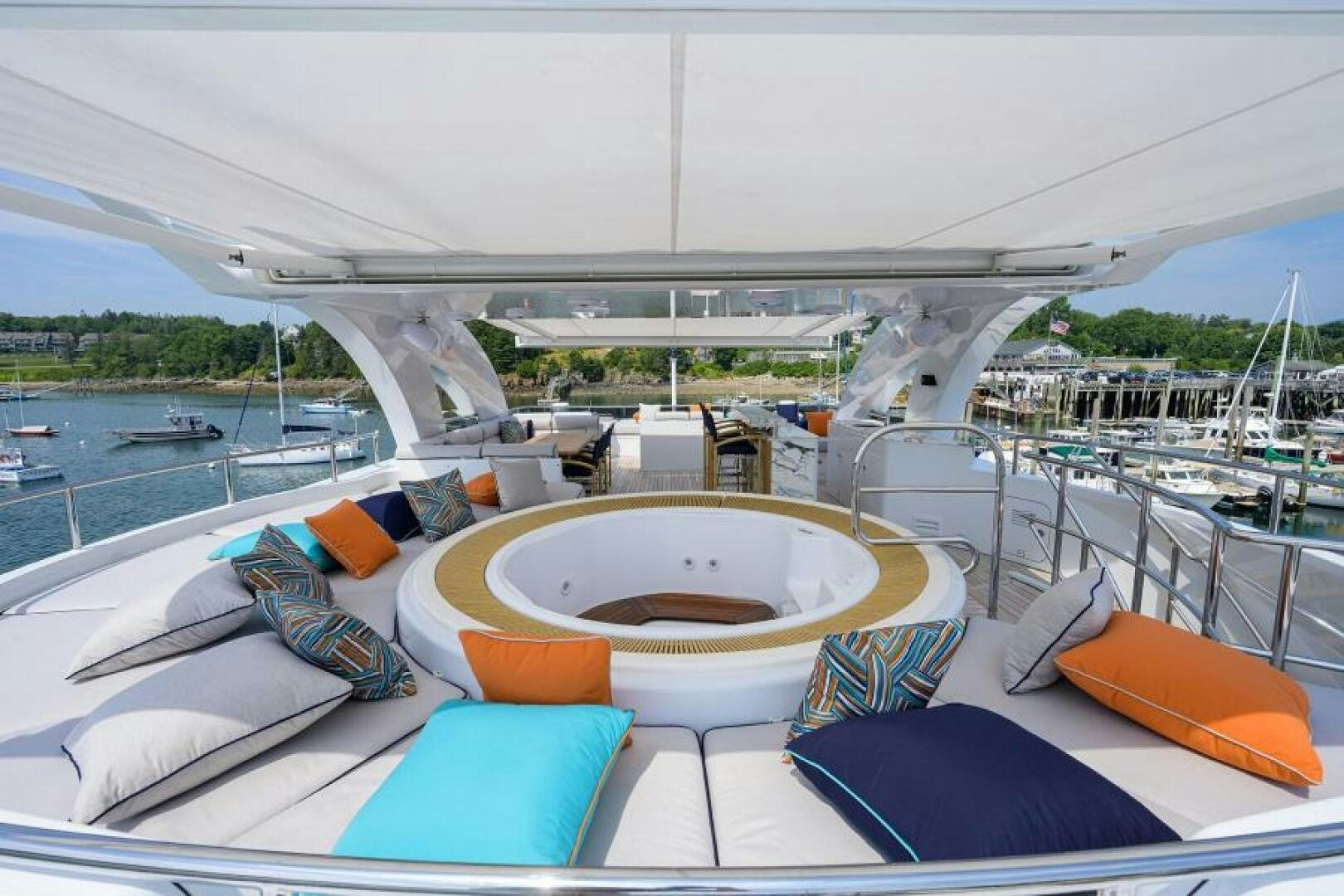

Exterior Decks

  • 2 X Frigonautica series 80 or equal refrigerator on the sundeck
  • 1 X Hoshizaki icemaker on the sundeck
  • Tapenake Pro Mirror SA 4Kw on sundeck

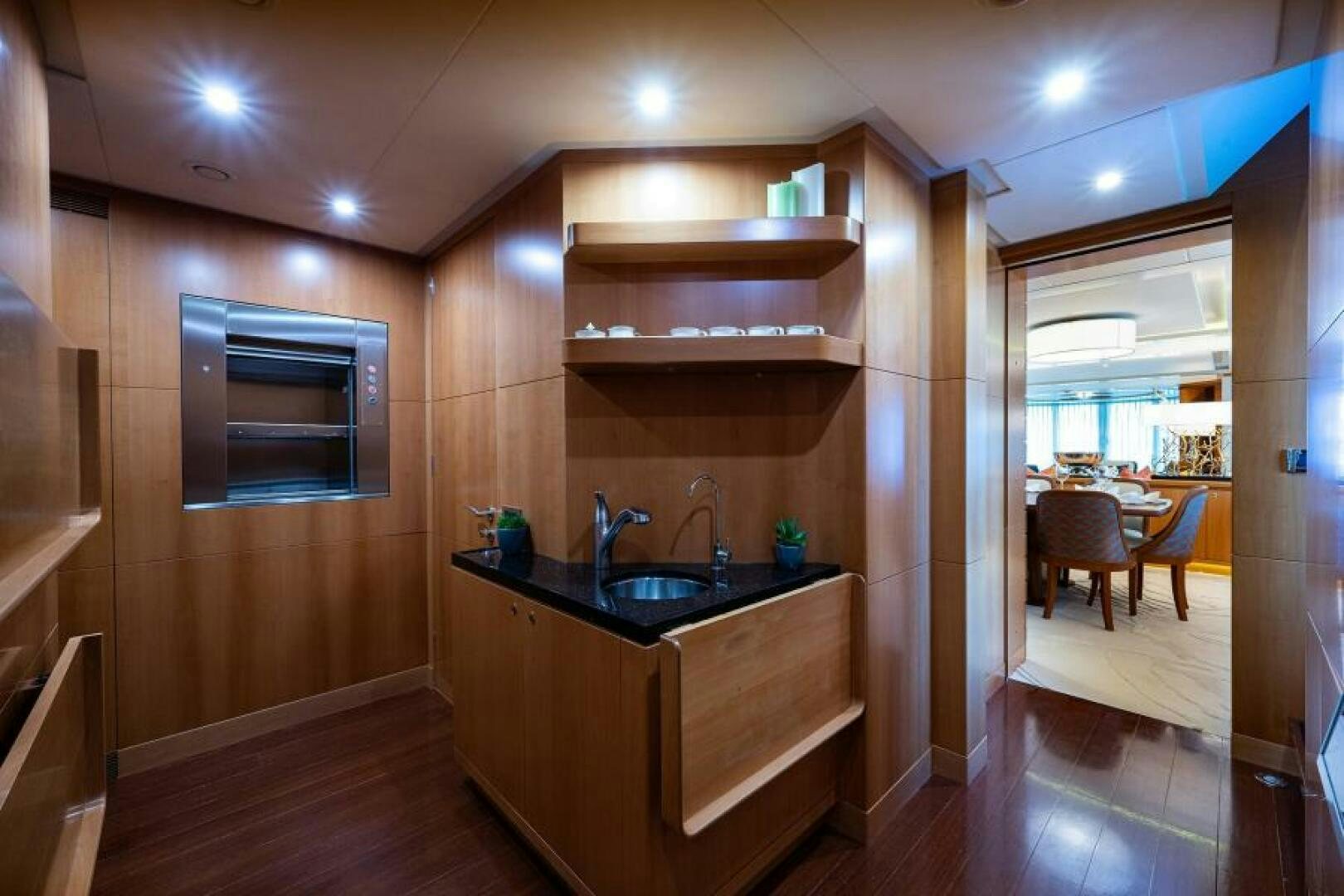

Dumbwaiters

  • 1 X Lodige Dumbwaiter from the main deck to the wheelhouse deck

Communication Equipment

  • Sailor lnmarsat-C system, type TT-3606E Operating from 220 VAC and 24 VDC failsafe
  • 2 X JOTRON portable VHF radio's, type TR20 Incl. spare batteries (2022)
  • Raytheon loudhailer/talk back unit, type RAY-430. Operating from 24VDC Sailor simplex / semi-duplex VHF station with DSC, type RT-5022 Operating from 220 VAC and 24 voe
  • Sailor duplex VHF station, type RT-4722 Operating from 24 VDC
  • 2 X lcom simplex/semi-duplex VHF station for both wing stations, type IC-M59 For connection to 24 VDC
  • 1 x ICOM IC-M421 simplex/duplex VHF Crew mess

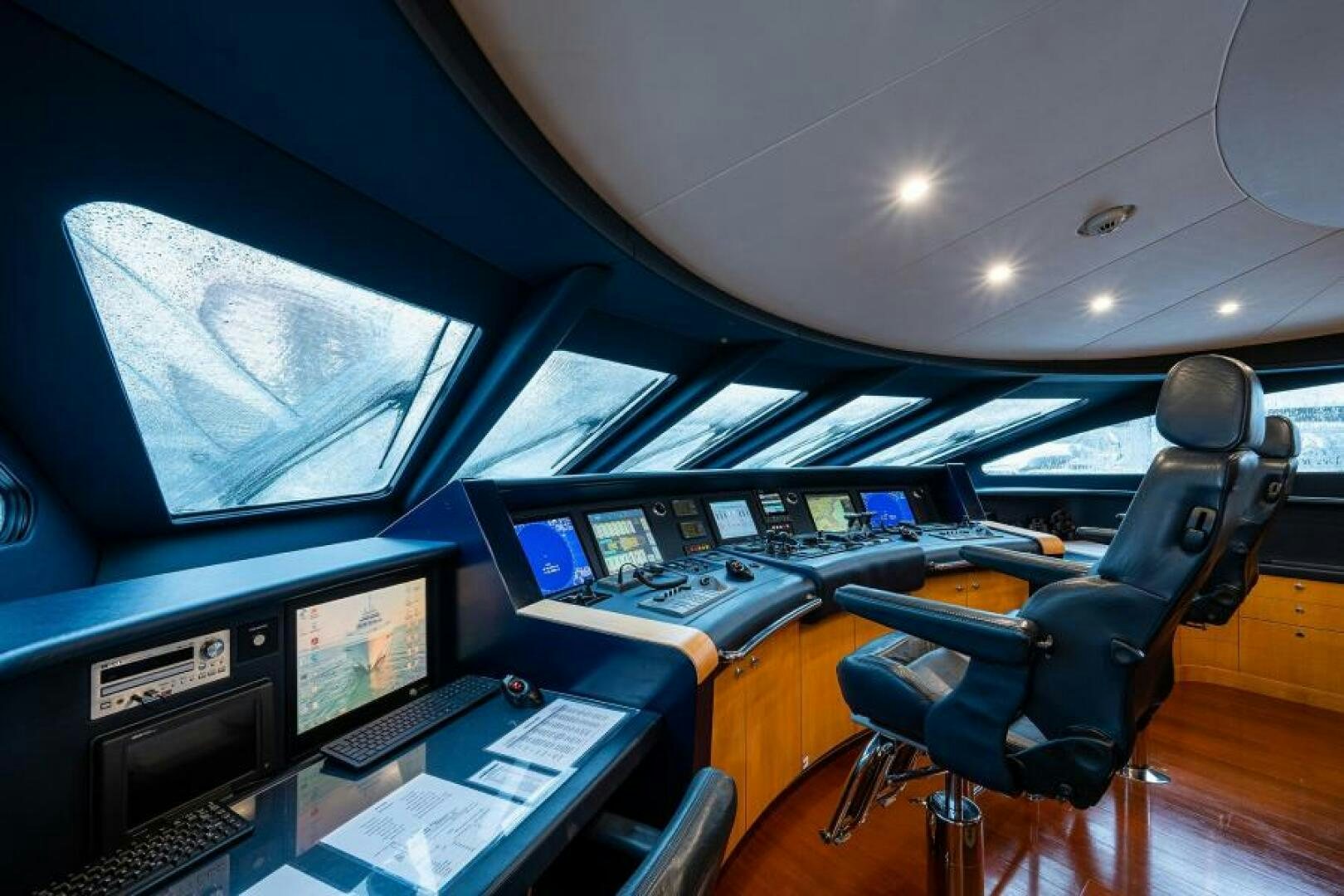

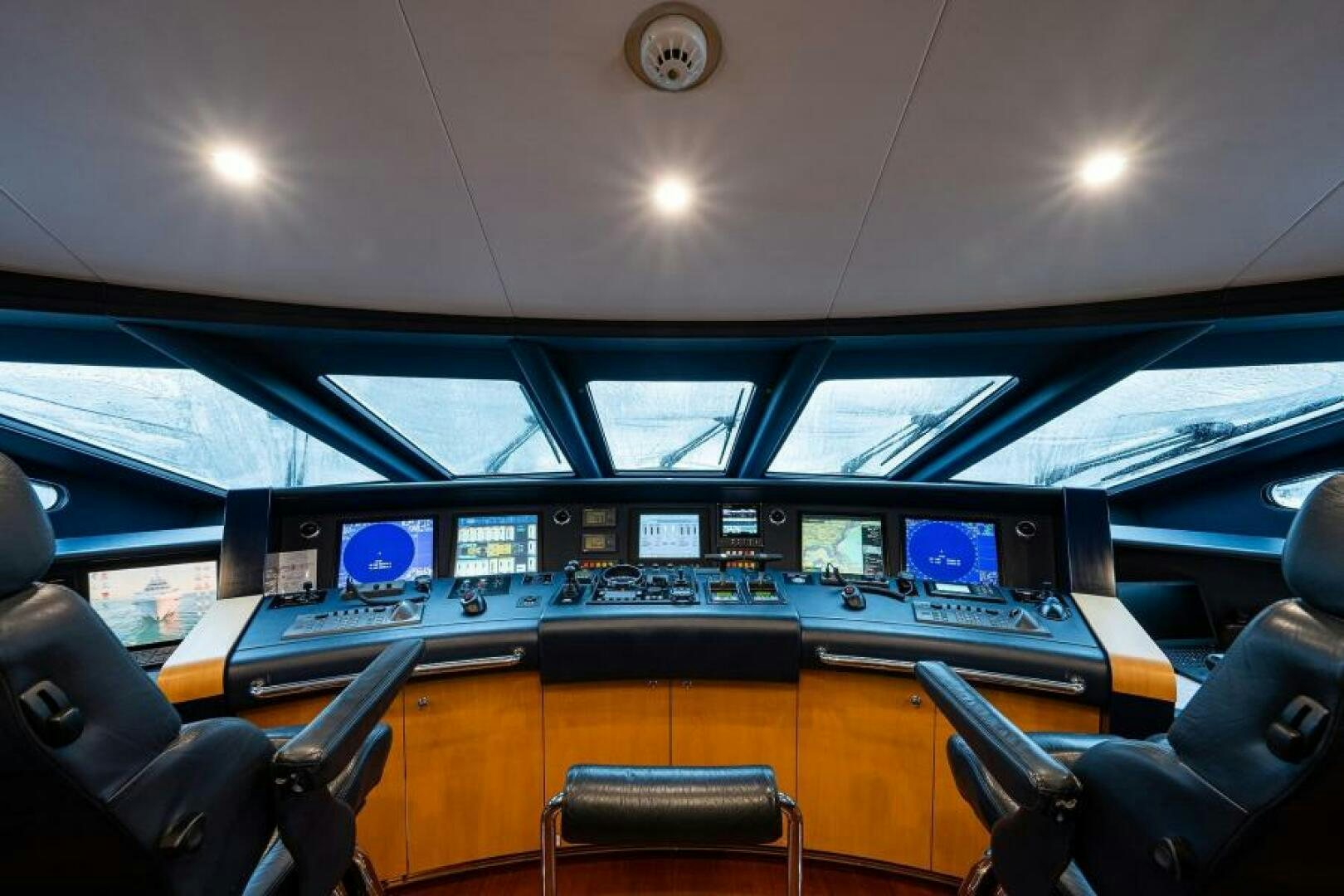

Navigation Equipment

  • Furuno Black Box X band radar, 12 kW with 6,5 ft scanner, type FAR-2117BB, Operating from 230 Vac Leica DGPS receiver, type AP Navigator MK12 For connection to 24 VDC (2022)
  • Furuno Satellite Compass/ GPS (2022)
  • C. Plath Gyrocompass, type Navigate X MKl. Operating from 24VDC or 115/230 VAC (2022)
  • Sperry Marine C. Plath autopilot, type Navipilot 4000 For connection to 24 VDC
  • Furuno Navtex, type NX-700 For connection to 24 VDC
  • Furuno Universal AIS FA -150
  • 3 x Brooks and Gatehouse Depth/Log/Wind pack, type Hydra-2000 Operating from 24 VDC Bridge and both wing stations
  • Furuno dual frequency color video depth sounder, type FCV-ll00L For connection to 24 VDC
  • 1 TimeZero Professional Electronic Chart System (2022)
  • Night Vision Camera mounted on Mast Nauti
  • 4 x Furuno RD-30 repeater crew mess/ captain cabin/engineer cabin/ garage
  • Alarm Remote System (2022)
  • Nav Computer (2022)

Entertainment Equipment

  • Centralized rack and control system including satellite/ video and audio, multizone capabilities (2022)

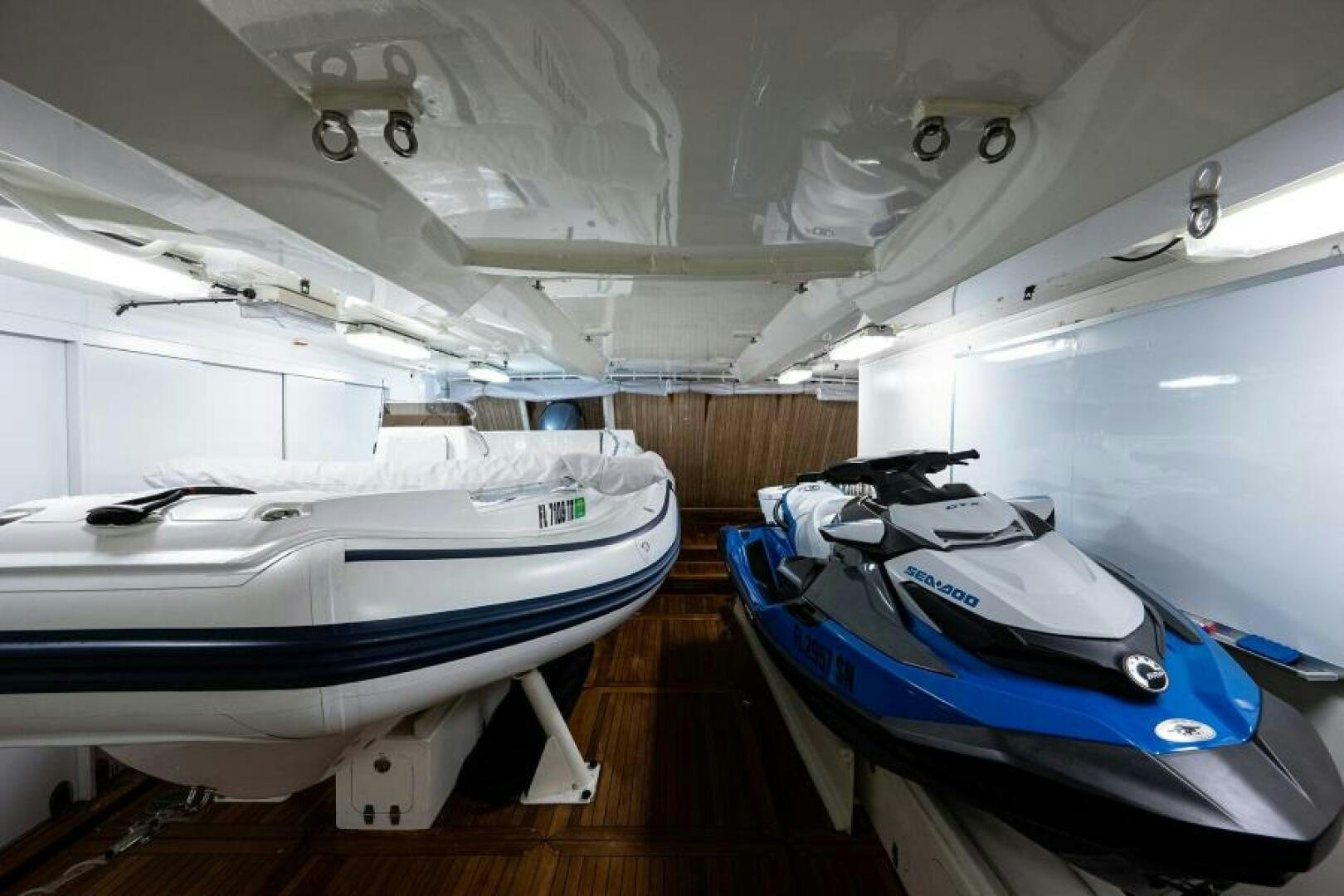

  • 1 x Novurania Custom Line 650 Volvo Penta D220 ( overhauled 2022)
  • 3 remote Fusion stereo systems (2022)

Deck Equipment

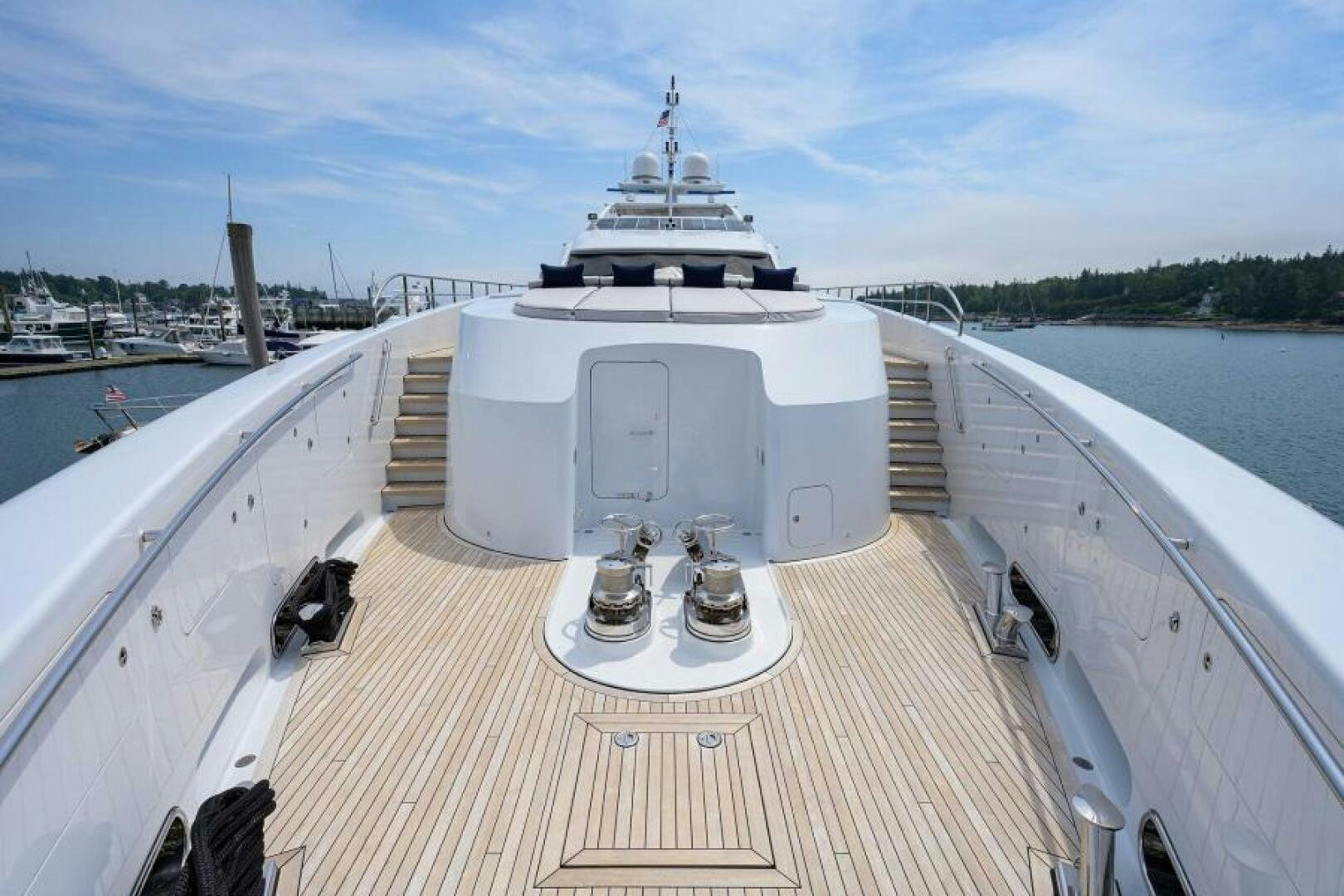

Anchor & Mooring System

  • 2 X electric stainless steel anchor capstan make Staalart model CAS23-17,5.ED with chain cable lifter suitable for 17,5 mm stud link chain cable made to quality U2.
  • Control box for 230V/400VAC 50Hz 3ph - 24VDC for anchor winch dual direction dual speed.
  • 2 X stainless steel chain stoppers mounted on baseplate of the anchor winch. Made to size for stud link chain grade U2 17,5 mm. Material stainless steel, completely polished, chain path glass beat.
  • 2 X tensionless square chain roller made for stud link chain grade U2 17,5 made of bronze.
  • 2 X stainless steel devils' claw for stud link chain grade U2 17,5 mm. Finish glass beat with polished stainless steel handwheel.
  • 2 X chain roller and devil claw foundations made of polished stainless-steel plating.
  • 6 X HY designed stainless steel oval mooring ports
  • 4 X of the freeing ports on the foredeck locally covered with stainless steel complete with vertical rollers to act as mooring ports.

Boarding Arrangements

  • 1 X electric/hydraulic operated side boarding ladder installed in the starboard bulwark, aft of the bulwark entrance door make Hydromar or equal.
  • Self-inclining steps.
  • Total width of ladder: 580 mm
  • Material ladder : stainless steel 316L
  • Material cover plate : aluminum
  • Material cylinders : stainless steel 316L Two locking cylinders
  • One extension cylinder for pivoting out of the bulwark, two topping cylinders for topping from horizontal down to  50°.
  • Including teak grating, Tivoli lighting and stainless-steel side railing. Control through push buttons recessed in the bulwark

Safety & Security Equipment

Liferaft - XTREAM Zodiac

  • The life raft capacity is in compliance with MCA for a total of 24 on board:
  • Four (4) twelve-persons Zodiac life rafts in fiberglass container is be supplied and installed on Nylon chocks on wheelhouse deck free floating as per plan, not concealed
  • Four (4) lifesaving rings recessed, two on main deck and two on wheelhouse deck, stainless steel brackets, two with IKROS M.O.B. light and orange smoke signal, four with 30 meter line

Rescue Boat

  • A rescue boat, Novurania 360TR with Yamaha Four Stroke 20HP outboard engine which will fit in the 4 meter wide recess on the wheelhouse deck in front of the wheelhouse complete with canvas cover.

Boatcrane

  • A boat crane make Hydromar on the wheelhouse deck in front of the wheelhouse. This crane is used for handling the rescue boat. Maximum reach: approx. 13' Maximum load : 1100 lbs. Rotation angle: 180° Hauling speed: 16.4'/minute Lifting height: maximum 30'

Sun Awnings (All new 2022)

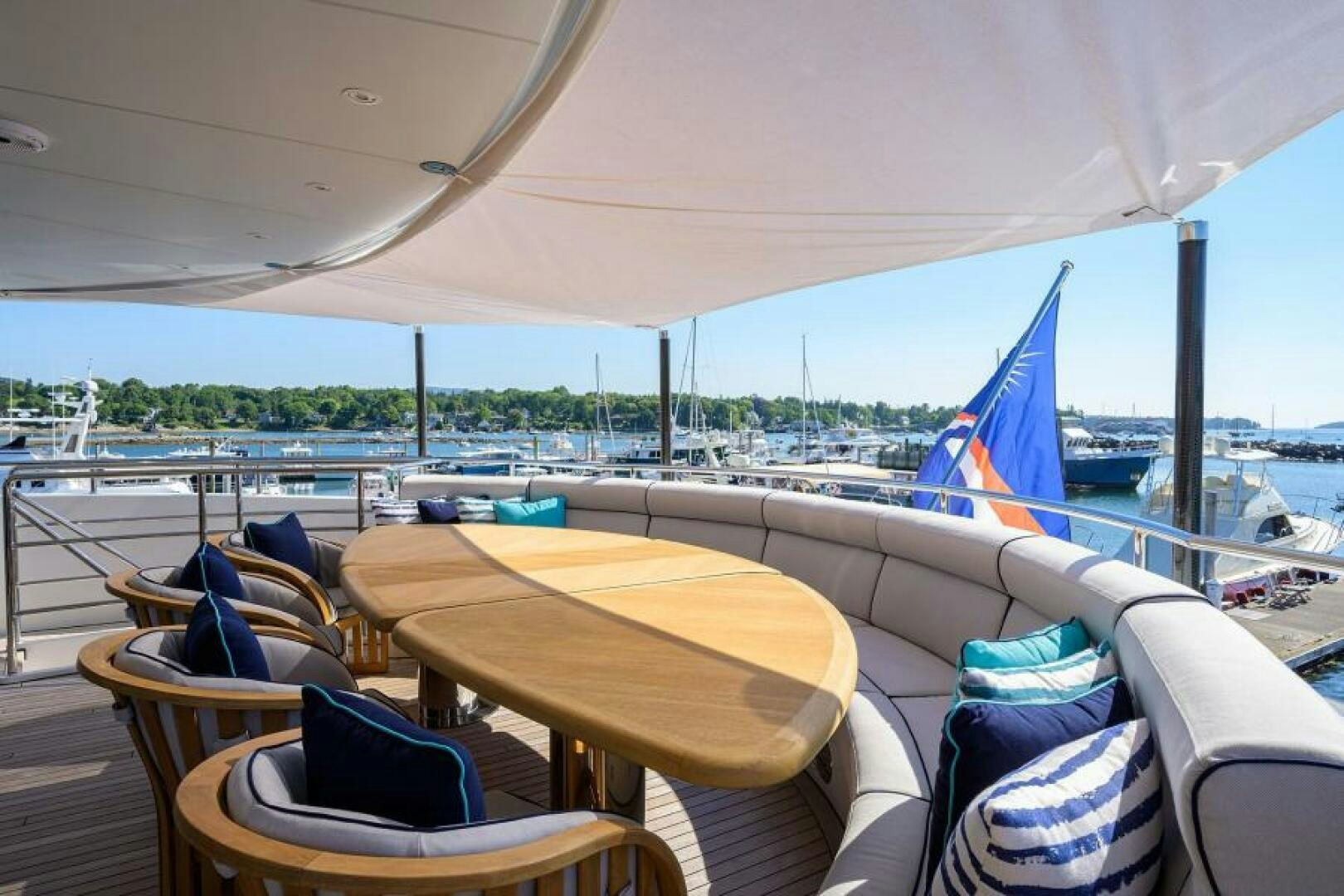

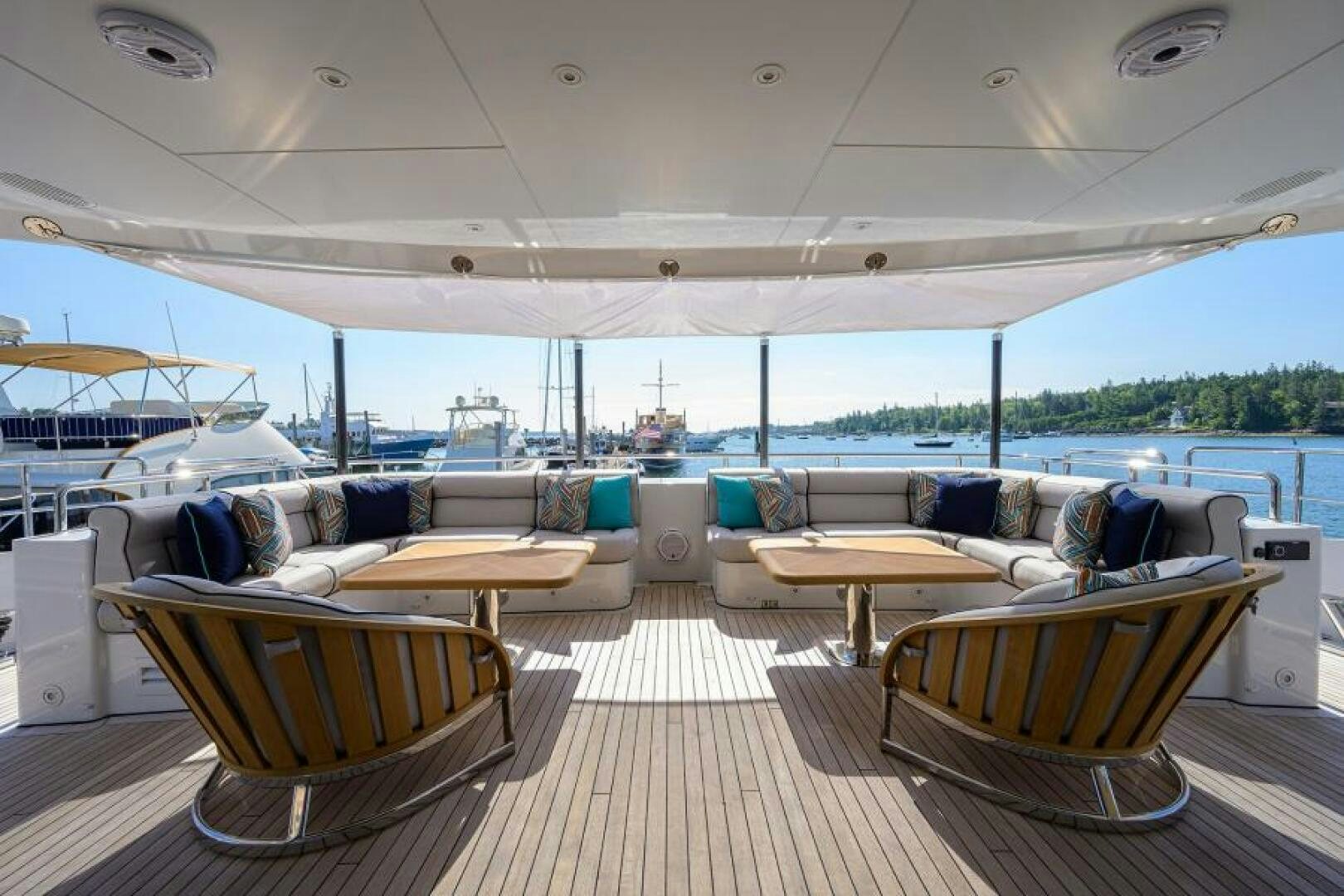

  • 4 X sun awnings at the following locations:
  • 1 X hand deployed sun awning on the main deck aft above the sitting area.
  • 1 X hand deployed sun awning on the wheelhouse deck aft above the sitting area.
  • 2 X hand deployed sun awnings on the sundeck in the front and aft end of the mast.
  • M.O.B. light, EPRIB & SART M.O.B. Twenty-four SOLAS (24) inflatable life jackets adult and four (4) inflatable life jackets child. All life jackets with light and whistle.

EPRIB&SART

  • One (1) Sailor 406 EPIRB and two (2) TRON 9Ghz SART's approved by classification. Hydrostatic release automatically deploys EPIRB if vessel sinks to approximately 12.8'. Open face bracket design facilitates testing and deployment; catapult spring loaded to ensure EPIRB deployment/float housing. Material High impact polycarbonate case Color Hi-Viz Yellow Deployment Automatic, hydrostatic release MCMU 200 Operation Automatically deploys when water depth is approximately 4 12.8' and begins transmitting

Refit History

2021 - 2022 Refit, Repairs, New Equipment

  • Painted bottom
  • Replaced all the batteries
  • Rebuilt Stbd Gen
  • Rebuilt port Gen 368 hours since rebuild at 10,379 hours Replaced Tool chests
  • Installed Alarm remote system
  • Replaced Starboard Radar
  • Replaced KVH antenna
  • Replaced VSAT antenna
  • Replaced Flybridge monitor
  • Installed new Nav software
  • Replaced Furuno Sounder
  • Replaced pilot house VHF Radio
  • Replaced Nav computer
  • Replaced mouses
  • Replaced GPS
  • Installed K4 antenna
  • Replaced Gyro
  • Installed Dish Receivers
  • Installed K4 TV remotes
  • Replaced Main Salon TV
  • Replaced Crew quarters bedding
  • Replaced Interior & Exterior cushions
  • Replaced exterior covers
  • Replaced exterior sun screens
  • Installed 3 remote Fusion stereo systems
  • Repaired Ice Makers
  • Replaced Hull/fuel tank plating
  • Repaired oil leaks on Naiad system
  • Repaired port side interior window water damage Repaired A/C
  • Repaired Hamans system
  • Repaired Fuel polisher
  • Repaired black water lines
  • Cleaned and repaired all fuel tanks
  • Cleaned Black water tank
  • Remove old oil/loaded new oil
  • Replaced crew quarters carpet
  • Cleaned all ale ducts
  • Replaced hydraulic steering lines
  • Repaired Stern thruster
  • Replaced 3 air handlers
  • Repaired Starboard Anchor capstan
  • Repaired Garage door seal
  • Replaced Life raft release cables
  • Replaced Life Rings/Lights
  • Replaced some fire equipment
  • Updated Safety plan
  • Conducted Converter Maintenance/Repair
  • Replaced davit cable
  • Repaired Freezer/Refrigerator
  • Replaced deck lines
  • Repaired horn
  • Repaired crew dishwasher
  • Repaired washers
  • FDDA repair of main engines
  • FDDA repair of main engines
  • New Injectors on both engines
  • Wax and Buff exterior
