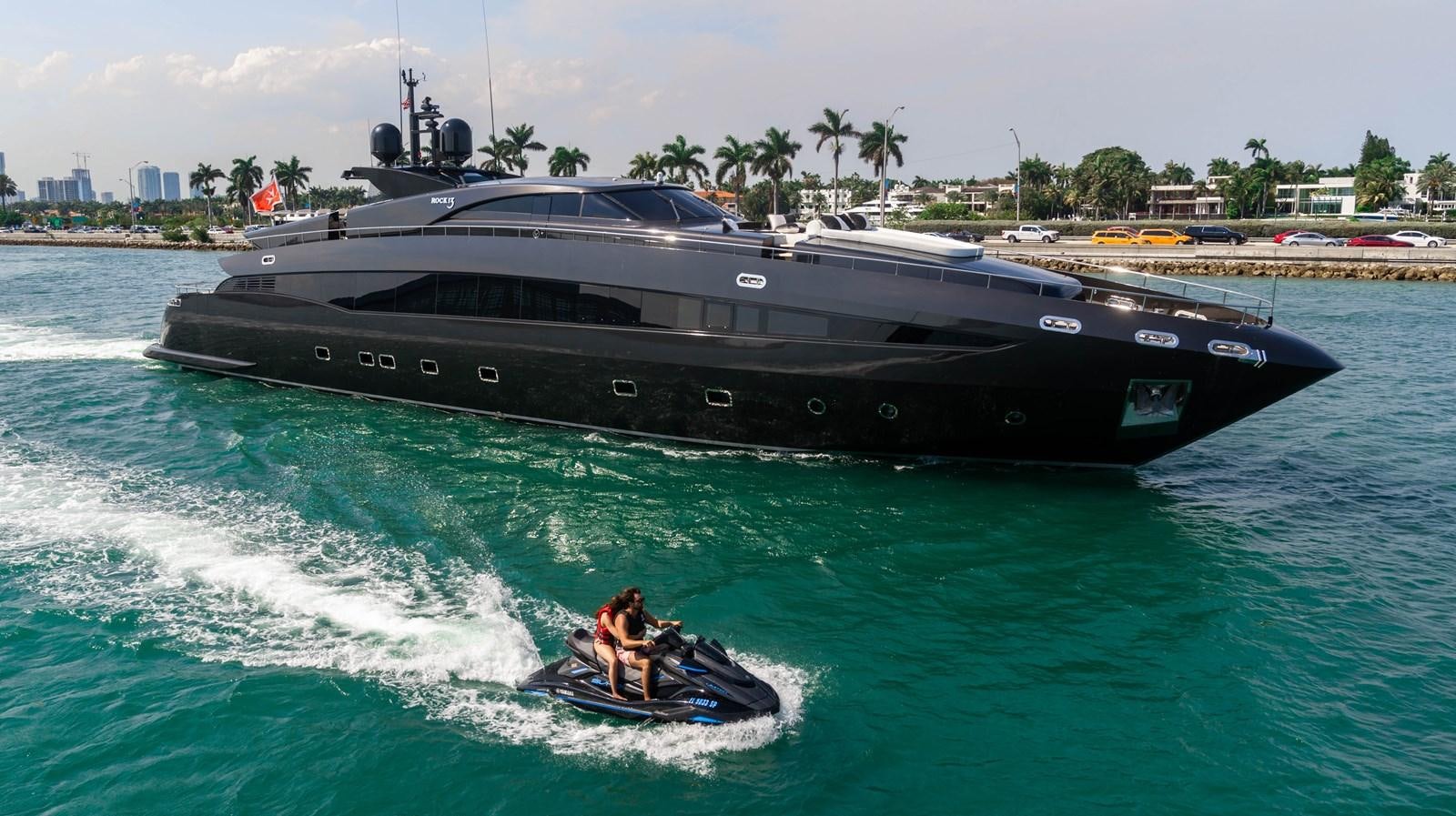

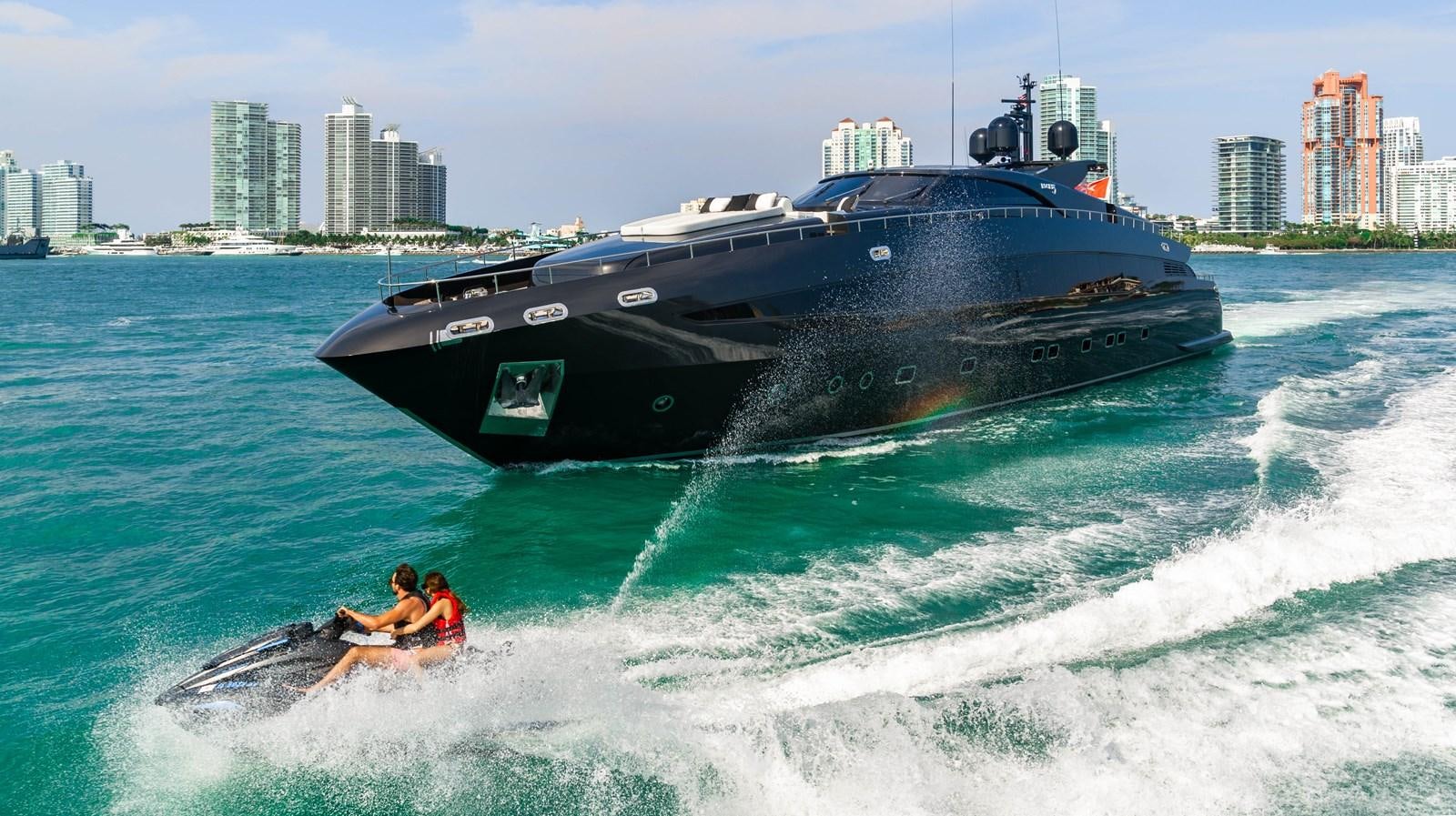

AQUILA Yacht for Sale

Length
136' (41.6m)
Builder
BAGLIETTO
Build
2004/2024
Cabins
5
Crew
9

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

  • At-Anchor Stabilizers
  • Jacuzzi
  • Personal Watercraft

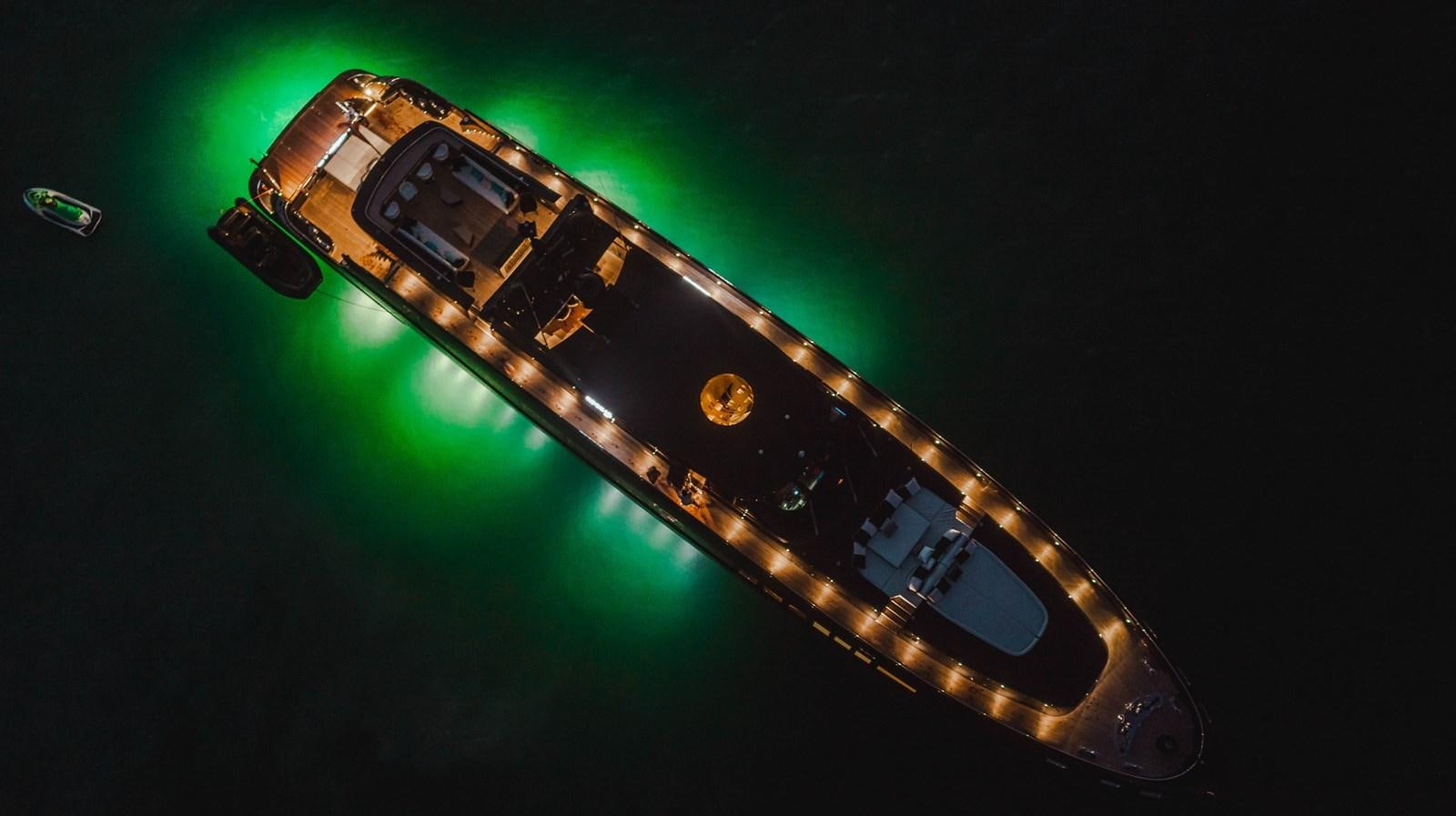

  • Underwater lights
  • Wi-Fi

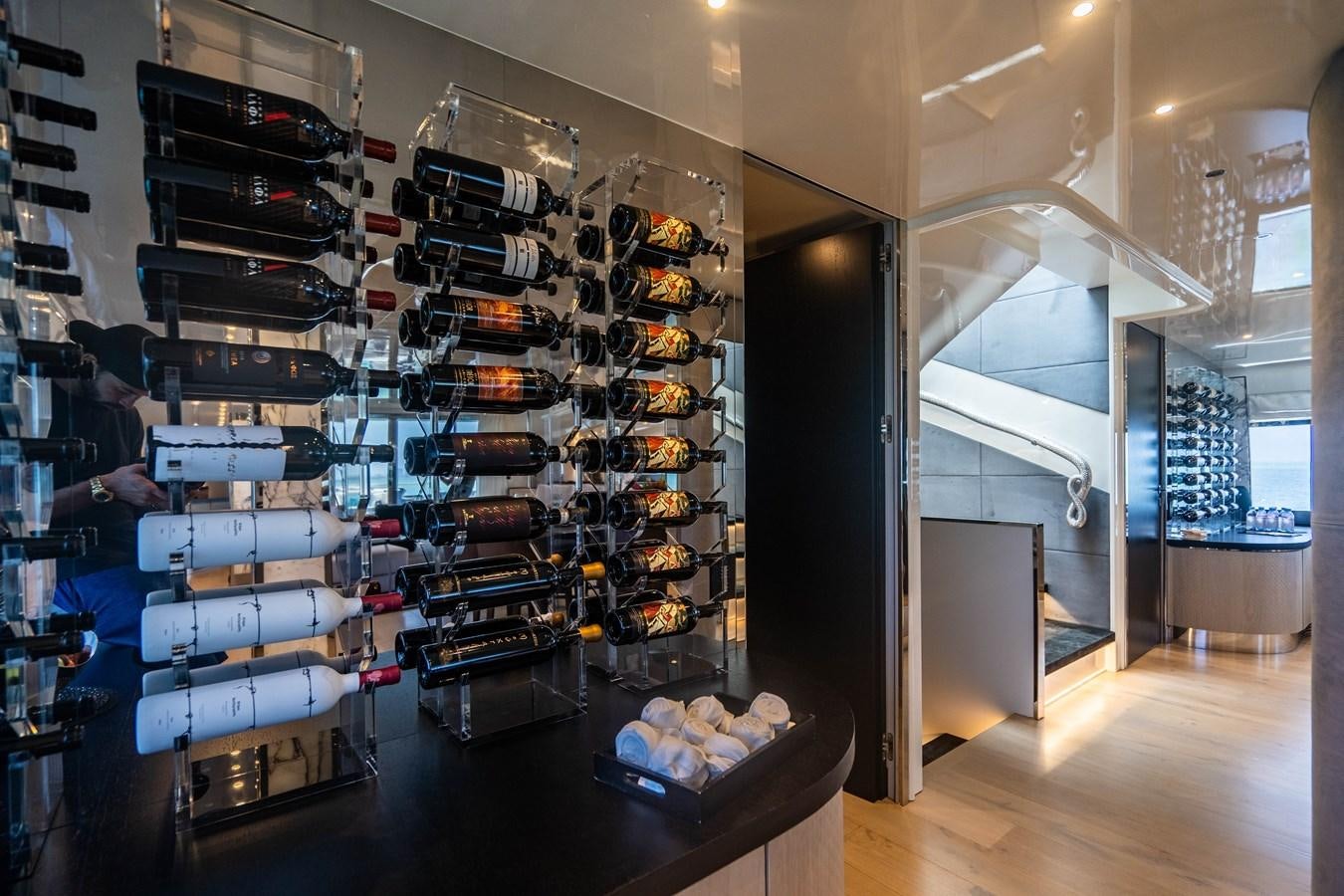

  • Wine Cellar

Specifications

Builder BAGLIETTO
Model Custom
Length (LOA) 136' (41.6m)
Year 2004
Year Refit 2024
Gross Tonn. 360
Draft 7' (2m)
Beam 26' (8m)
Range 1,000 NM
Location France

Accommodations

Staterooms 5
Sleeps 10
Crew Cabins 9
Crew Sleeps 9

Dimensions & Capacity

LOA 136' (41.6m)
Max Draft 7' (2m)
Fuel Tank 7,925 g (30,000 L)
Fresh Water 1,453 g (5,500 L)
Gross Tonn. 360

Construction

Hull Material Aluminum
Hull Config Planing
Ext. Designer Design Studio Spadolini
Int. Designer Studio Gagliardi
Cruising Speed 21 Knots
Range 1,000 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • 2 x Gianneschi and Ramacciotti (bilge pump)
  • Hamann (sewage treatment)
  • Alfa Laval/Raccord filters/fuel transfer pump

Accommodation

  • 10 guests in 5 staterooms
  • 9 crew in 4 cabins

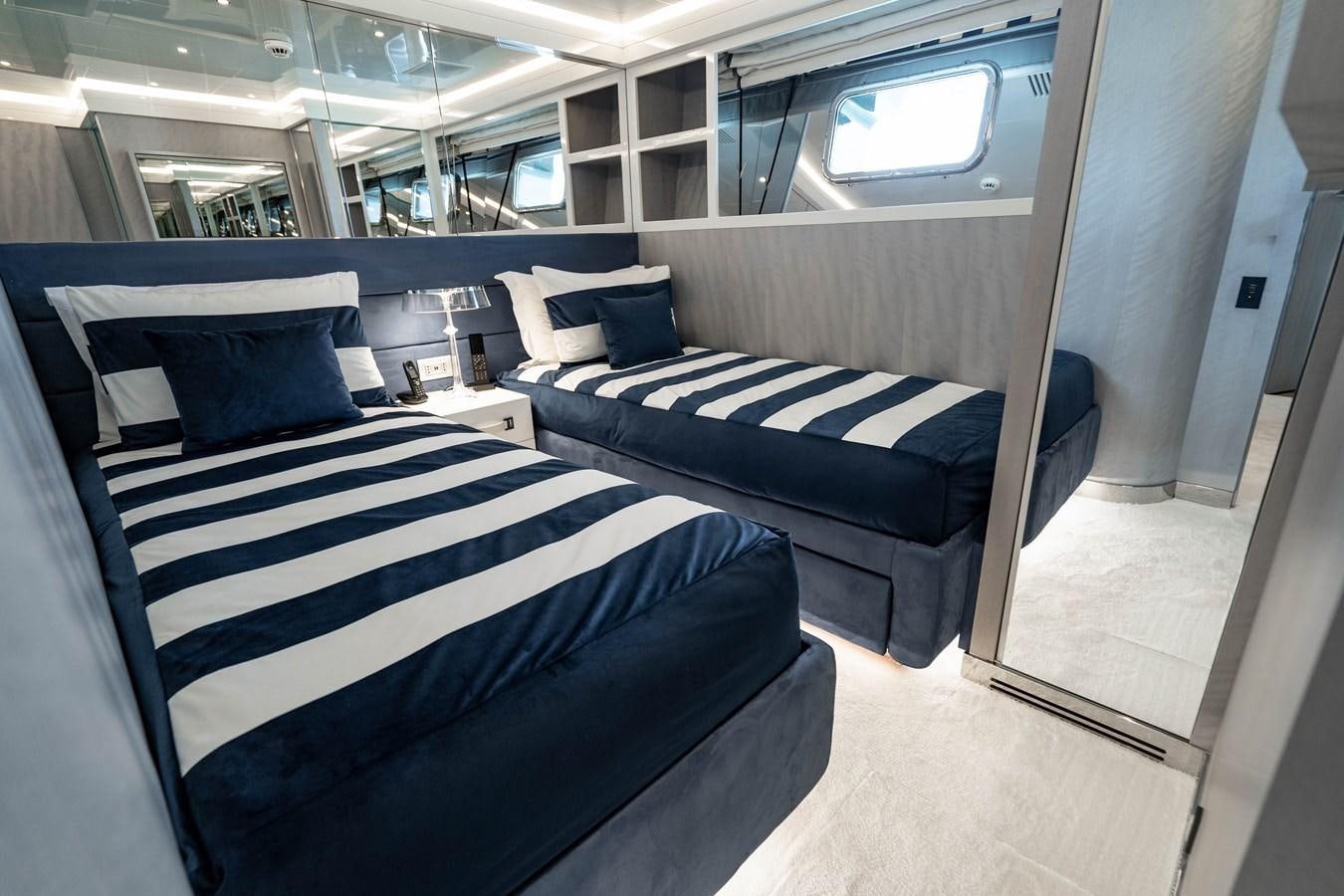

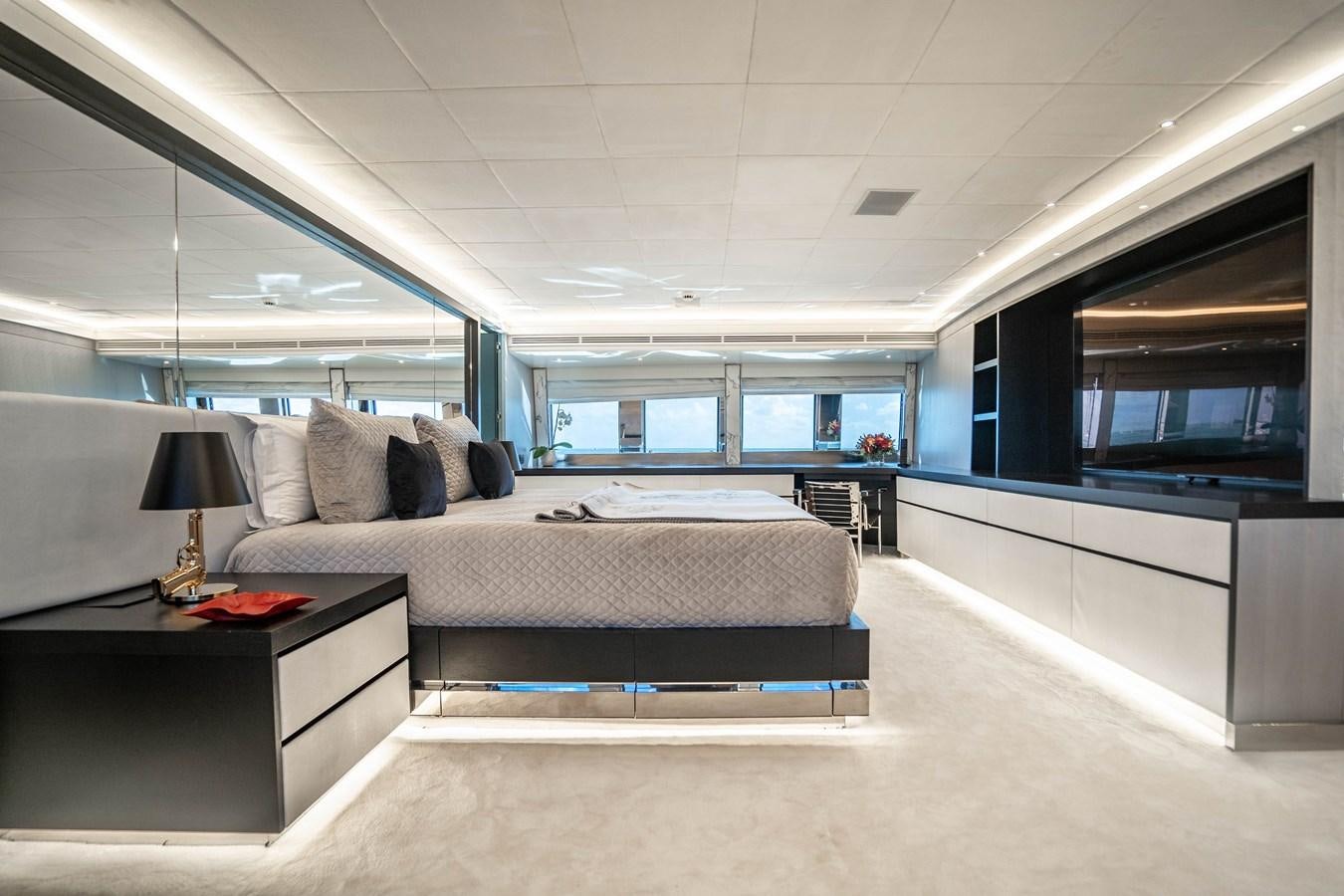

  • Guests - Master stateroom, three VIP staterooms and one twin
  • Crew - 1 x Captain’s cabin, 3 x Doubles cabins, 1 x Quatruple cabin

Galley & Laundry Equipment

Laundry

  • 2 x Dishwashers DIHR professional JAN 2020
  • 2 x Grandipianti  Washing machine- JAN 2020
  • 2 x Grandipianti  Washing dryer----- JAN 2020

Galley

  • 1 x Induction Mielle  with 6 fires (2018)
  • 1 x Induction Mielle  with 2 fires (2018)
  • 1 x Oven Mielle  90 cm  ( 2018)
  • 2 x Grill
  • 1 x Miele fryer (2018)
  • 2 x Ice maker Brema (galley and main deck pantry)
  • 1 x Frigobar in pantry of upper deck
  • 1 x Liebergh fridge main pantry
  • 1 x Wine cooler Scholtess main pantry

Communication Equipment

  • 1 x Satcom  Fleet 55
  • 1 x Furuno  FM 8900 S  DSC (vhf)
  • 1 x SIMRAD  DSC (vhf)
  • 1 x Furuno  FS 2575 C  DSC (mf/hf)
  • Panasonic Double line, Analogic and GSM (telephone system)
  • Vinctor professional (intercom)

Navigation Equipment

  • MC MURDO ( 2018) (ephirb)
  • 1 x Sperry marine ( Service April 2019) (gyro compass)
  • 1 x Navipilot U HSC autopilot
  • 1 x B&G NMEA 2000 log
  • 1 x MAX SEA Time Zero (chartplotter)
  • 1 x Furuno echo sounder
  • B&G wind sensors
  • 2 x Radar Furuno with Navnet system
  • 2 x GPS Furuno GP 32 Navigator
  • 1 x Navtex Furuno NX 700
  • 1 x AIS Furuno FA 150
  • 1 x Furuno Felcom 18 (STD C/LRIT)

Entertainment Equipment

  • 5 k Samsung TV Screens
  • External high resolution screen 7500 on lift

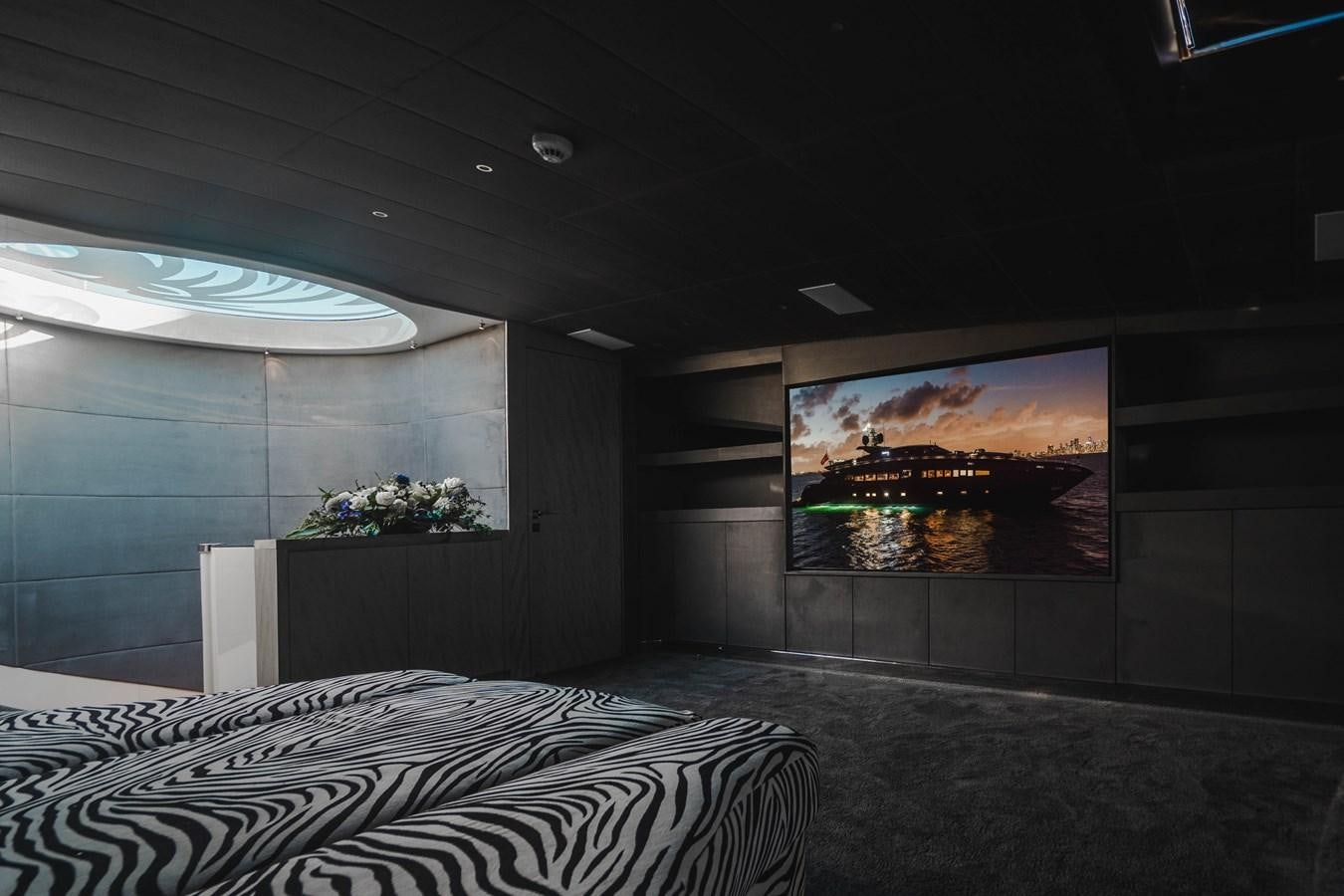

  • 2 x Cinema projectors with drop down screens ( Main salon. Cinema room)
  • Satellite & Sky television 4G internet connected
  • Satcom & cellular communications facilities
  • Wi-Fi internet access
  • Creston Pro2 control system
  • Denon amplifier
  • Ipad remote
  • Focal and Bose speakers

Tenders & Toys

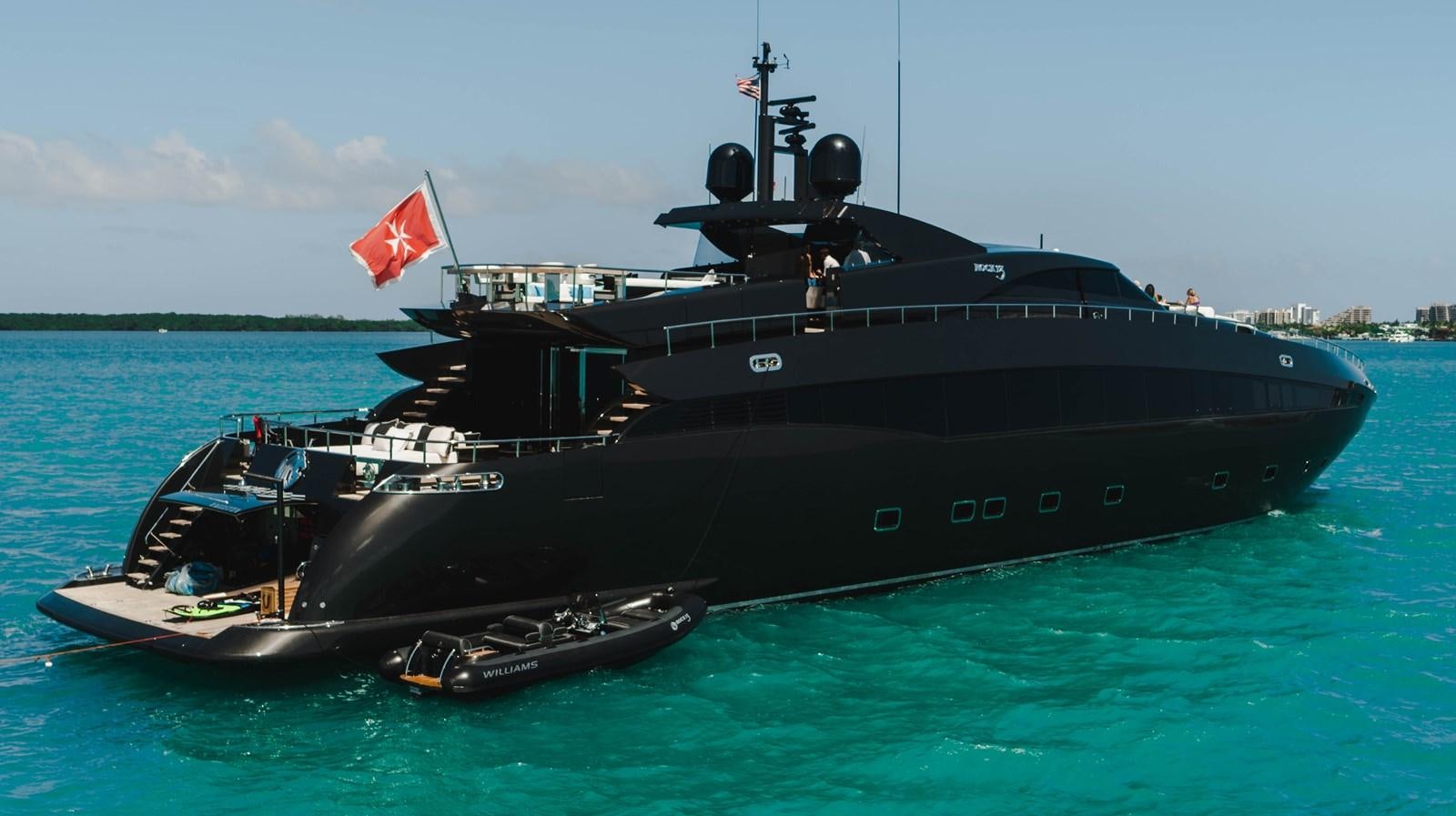

  • 1 x 5.05m Williams jet tender with 110hp Yanmar engine
  • 1 x SEADOO GTI 130Pro Jet ski
  • 1 x Jetsurf Ultimate
  • 1 x E-foil
  • 4 x Seabob F55
  • 2 x Paddle boards
  • Wakeboard, Waterskis.
  • Snorkelling and fishing gear
  • Aft pool - Fun air inflatable loungers
  • Trampoline

Deck Equipment

  • Boat crane & Davits Motomar custom made
  • Passerelle Motomar
  • Anchor Chains 195.5m, 22m galvanized, grade U2
  • Anchor  Windlass Maxwell mod. VWC 6000 – 4000 W  380 V 50 Hz
  • Capstans aft warping Maxwell mod. VC 4000 – 1200 W 380 V 50HZ
  • Jacuzzi

Safety & Security Equipment

  • Life Jackets  25
  • Life Raft (Solas) 2X12
  • Fire Fighting Personal Devices
  • Fire Fighting Pumps

Refit History

  • WINTER 2020/2021
  • MTU main engines and Kamewa's Rolls-Royce system:
  • MTU port main engine – replace HP & LP fuel pumps, replace alternator (December 2020)
  • Replaced intake flap cylinder – Stbd turbocharger, stbd main engine (March 2021)
  • MTU main engines 2 Years’ service was done in June 2021 by Ariexpo (MTU Greece representative)
  • Replaced starting batteries for both main engines (July 2021)- 8pcs
  • Replaced the exhaust temperature sensor stbd main engine port turbocharger (September 2021)
  • Replaced port side shaft seal, port main engine (August 2021)
  • Replaced gear box oil pumps on both gear boxes and replaced the oil of the gear boxes (January/February 2021)
  • Removed, cleaned and reinstalled both gearboxes heat exchangers (September 2021)
  • Replaced all hoses for both of the Kamewas, calibrate Kamewas (July 2021)
  • Replaced oil filters for both of the Kamewas and clean metal strainers oil filters Kamewas
  • Replaced oil for both of the Kamewas
  • Replaced anodes Kamewas tunnels port and stbd (August 2021)
  • Auxiliary Engines Kohler:
  • Maintenance was done every 250 running hrs according to the manufacture
  • Air conditioning system:
  • Glycol replaced in June 2021
  • Chiller actuator for the fan coil in master cabin replaced (July 2021)
  • Sacrificial anodes of the condensers replaced March 2021
  • New armaflex insulation installed on the pipes of the compressors (June 2021)
  • Fan coils from master cabin, 2 units from the main salon, the unit from main deck pantry, has been removed, cleaned, and reinstalled back (June 2021)
  • All fan coils air ducts from guests’ area have been cleaned and replaced were necessary (2020), all fan coils air ducts from crew area have been replaced with new ones (2021)
  • Replaced the fan and 3-speed box for the middle port side fan coil to main salon (July 2021)
  • Replaced the 3-speed box for stbd side forward guest cabin (July 2021)
  • New Armaflex insulation has been installed on few chiller pipes in the Cinema Room
  • Installed new air filters for the fresh air units (July 2021)
  • Air filters for the fan coils replaced (July 2021)
  • Checked, clean and replaced (where was necessary) the drainage pipes of the fan coils units (July 2021)
  • Clean and disinfect all fan coils units (monthly maintenance)
  • Flushed by chemical both condensers
  • Guests’ area, main deck pantry, bridge deck pantry, galley, laundry & crew area (June-July-August 2021):
  • All the cabinets doors replaced in the galley, crew mess, main deck pantry and bridge deck pantry
  • Painted around port holes in galley/crew mess
  • Painted main deck and bridge deck pantry and change the leather on the ceilings
  • Painted crew stairs and installed aluminum angle corner edge
  • Annual service for the oven Miele done by Miele representative (August 2021)
  • Cleaned bilges in guests’ area, crew area and galley
  • Removed all fridges, freezers and the compressors from the galley and installed new stand-alone professional Miele units (July 2021)
  • Cleaning hood extractor duct galley (August 2021)
  • Removed the old wash machines and the dryers from the laundry and installed new professional Miele units (July 2021)
  • Installed new submersible grey water pump with custom made aluminum small grey water tank in crew area (June 2021)
  • Made new shelves, new sliding wooden door in the 3rd shower cabin from crew area and in the crew bathrooms (June 2021)
  • Open, inspect toilets macerator pumps, cleaned, replaced the flap for all the toilets guests and crew area and reinstalled back (June 2021)
  • New teak floor installed in the following areas: Master wardrobe, Main-deck pantry, Bridge-deck pantry, Wheelhouse
  • Installed new Miele refrigerator bridge deck pantry
  • Installed new Brema Icemaker main deck pantry
  • Installed new water filters for the icemakers (July 2021)
  • Installed new Professional Ice cream machine Carpigiani in the galley
  • Installed new bed curtains in the crew cabins
  • Sanding and applying varnish protection on the floor crew area
  • Make new storage compartment with door under the crew beds
  • Replaced all mattress crew bed with new ones
  • Replaced motors and the electronic board controller for the sliding door main salon
  • Installed new curtain day-head main deck
  • New chairs for the wheelhouse 2pcs
  • Engine room department miscellaneous jobs (June/July 2021):
  • Intermediate service for the fuel purifier was done, also the shaft bearing sleeve replaced (April 2021)
  • Replaced production valve and the salinometer port water maker
  • Replaced heating boiler resistance on bottom boiler
  • Installed new Armaflex insulation on the boilers
  • Dismantled, cleaning, antifouling painted the sea water manifolds in engine room
  • Dismantled, cleaning, antifouling painted sea chest housing port and stbd
  • DIsmantled, cleaning and testing main sea chests valves
  • Cleaned bilges engine room
  • Installed new transform and breaker for the underwater lights swimming platform
  • Annual serviced was done for the ABT trac stabilizer system
  • Dismantled and take it away to the workshop both of the swimming ladders, service them, replaced pumps, belts, proximity switches and reinstalled back
  • Replaced remote control crane aft garage
  • Atlas shore power was service in December 2020 and in October 2021 the plc and two modules have been replaced
  • Crane forward garage: April 2021 – rotating electrical motor replaced, July 2021 -stainless-steel wire replaced, tested, certificate. Installed new proximity switch for the crane
  • New emergency motor fire pump Honda installed in the Forepeak
  • New air blower pump installed for the Jacuzzi, redesigned the drainage system and installed new motorized drainage valve. New Jacuzzi filter installed on October 2021
  • Installed new lights and transformers in the main salon ceilings compatible with Lutron system
  • Replaced lights transformer main deck pantry lights
  • Installed new lights transformer crew forward cabin lights
  • Service mixing pump Hamann sewage treatment system, repair dosing chlorination pump Hamann system
  • Cleaned grey/black water tank (July 2021)
  • New drainage system installed for the laundry dryers
  • Replaced oil to gravity tank to the bow thruster (July 2021)
  • Replaced both UV lamps for the fresh water system (July 2021)
  • Replaced water filters to Spot Zero, water softener (March 2021)
  • Removed bilge suction valve for the engine room, cleaned and reinstalled
  • Installed new foot lights sofa port and stbd side fly deck aft
  • Replaced ceiling led strip lights guest cabins corridor
  • Replaced bow thruster joystick port side wing station (March 2021)
  • Replaced hydraulic command panel from main deck aft port side (March 2021)
  • Internet, audio/video system:
  • Installed new internet network system: Ubiquiti professional access points (11pcs), Ubiquiti switches (7pcs), new ethernet cables CAT6
  • Installed Sonos new audio system: All guests area and outside deck is equipped with Sonos speakers and Sonos amplifiers.
  • Installed Synology movies server 4Terra
