$ 2,250,000

WINDWARD Yacht for Sale

90' (27.43m)
Cheoy Lee
Asking Price
$ 2,250,000

Northrop and Johnson is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Fraser Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel


  • Scuba Diving
  • Wi-Fi


Builder Cheoy Lee
Model bravo 90
Length (LOA) 90' (27.43m)
Year 2006
Year Refit 2017
Gross Tonn. 156
Draft 5' 6" (1.68m)
Beam 21' 2" (6.45m)
Location West Palm Beach, United States


Staterooms 4
Sleeps 8
King Beds 1
Queen Beds 1
Twin Beds 2
Heads 5
Crew Cabins 2
Crew Sleeps 3
Capt. Quarters Yes

Dimensions & Capacity

LOA 90' (27.43m)
Max Draft 5' 6" (1.68m)
Fuel Tank 2,900 g (10,977 L)
Fresh Water 650 g (2,460 L)
Gross Tonn. 156


Hull Material Fiberglass
Hull Config semi displacement
Ext. Designer tom fexas
Int. Designer argonautica interiors
Max Speed 25 Knots
Cruising Speed 20 Knots
Stabilizers Standard

Engines (x2)

Engine Model C30
Engine Year 2005
Power HP 1,550
Power KW 0
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Batteries:  Main Engine Starting: (2) 24V DC 175amp per hour
  • Generator Starting: (2) 12V DC 175amp per hour
  • Emergency: Parallel System, dual stations
  • Under Water Lights:   Yes, 6 Lights
  • Helm/Wing Station Controls:  Yes
  • Fuel Filters:  Racor
  • Fuel Transfer Pump:  Yes
  • Firefighting & Bilge Pump:  Fire extinguisher system (new bottle 2021)
  • Fresh Water Makers:  1 7CI 1200 gpd
  • Fresh Water Pressure:  (2) Headhunter Mach 5
  • Hot Water Heaters:  (2) Replaced new in 2021
  • Black & Grey Water Treatment:  Yes
  • Black & Grey Water Pumps:  Yes
  • Air Handling Units:  11 units
  • Engine Room Ventilation:   Yes, new extraction fans and AC
  • Galley Ventilation & Extraction:   Yes, new in 2021
  • Hydraulic Power Packs:    Yes
  • Antifouling System : Sea Hawk Biocup (February 2022)

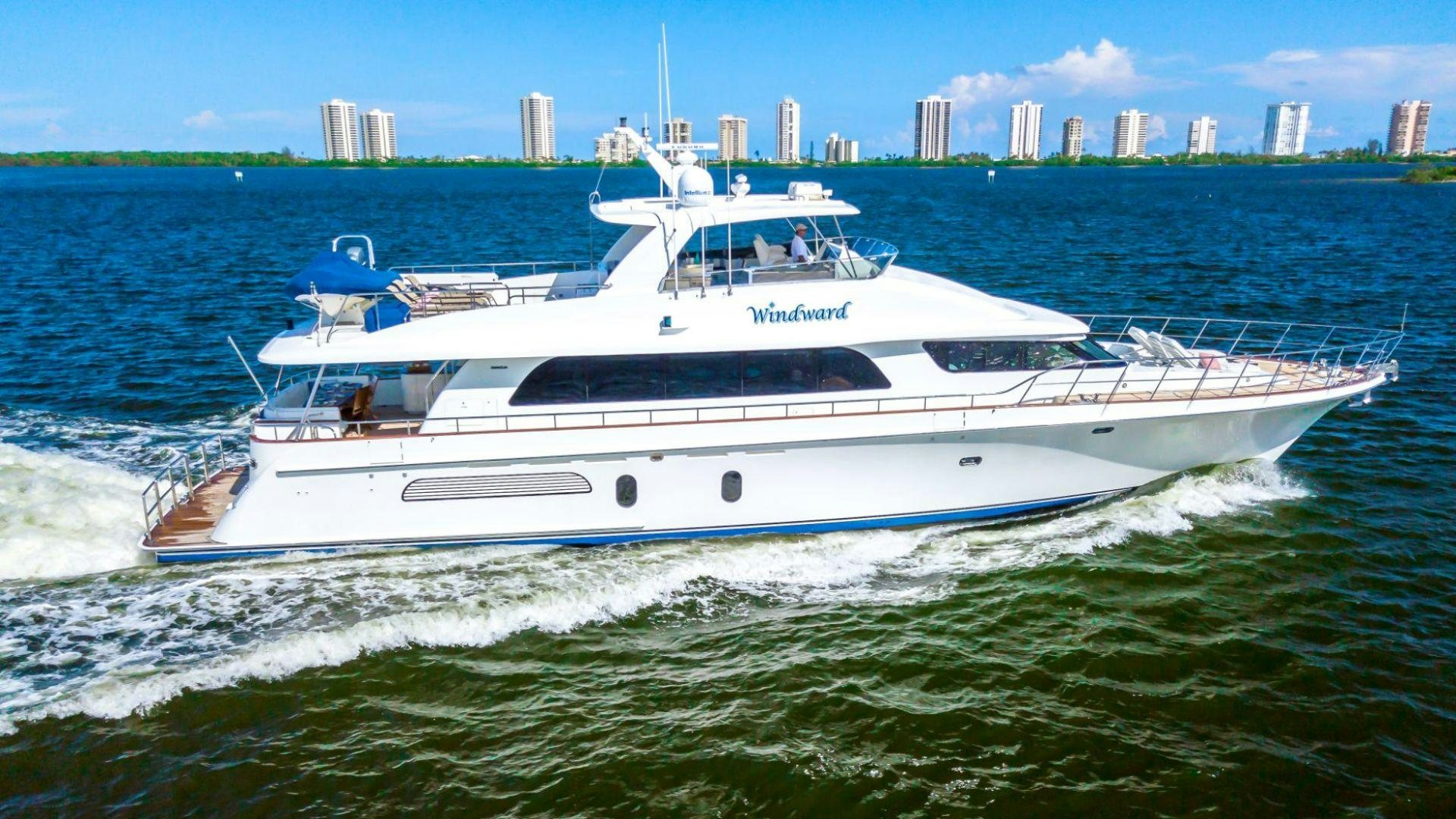

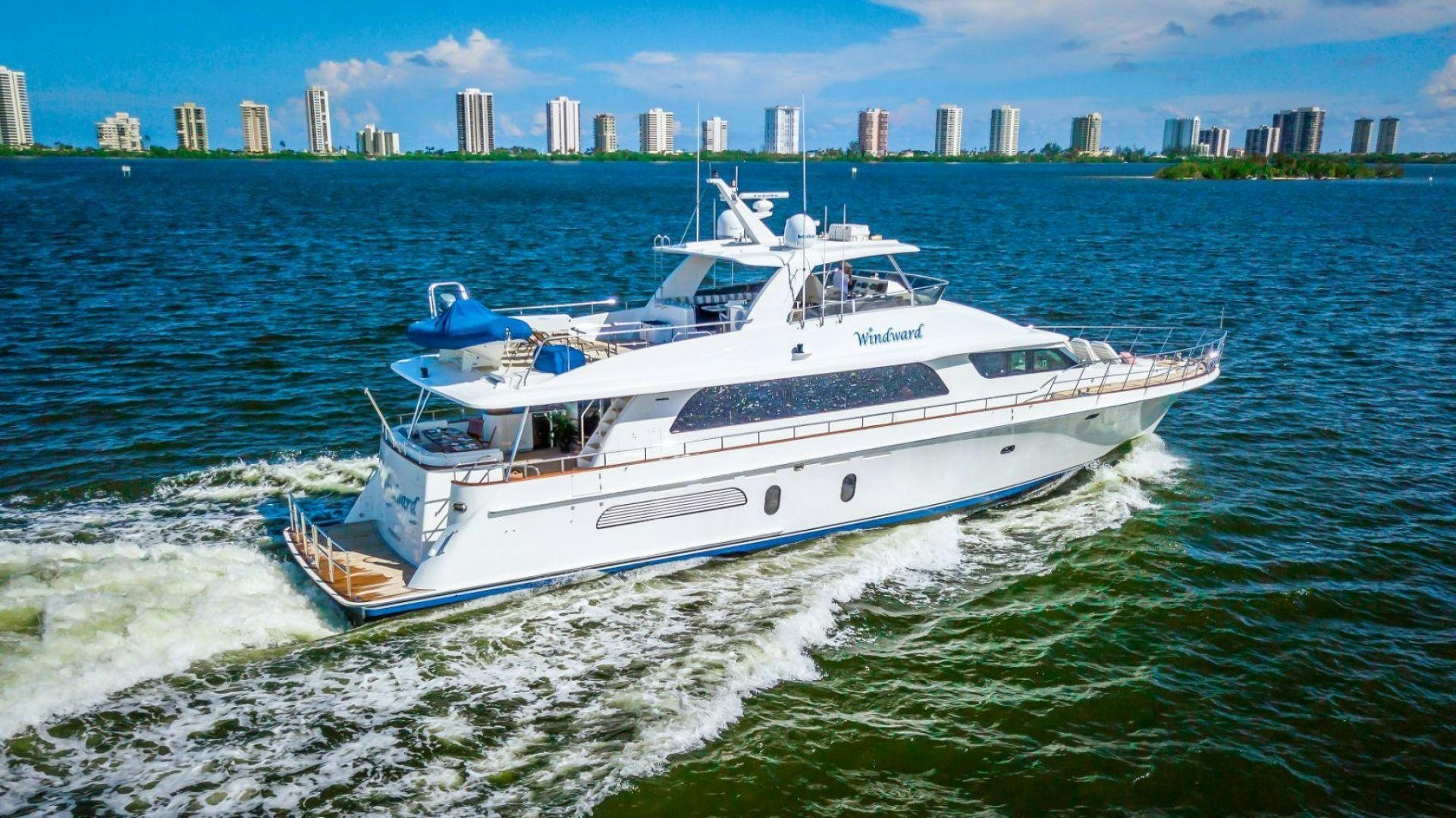

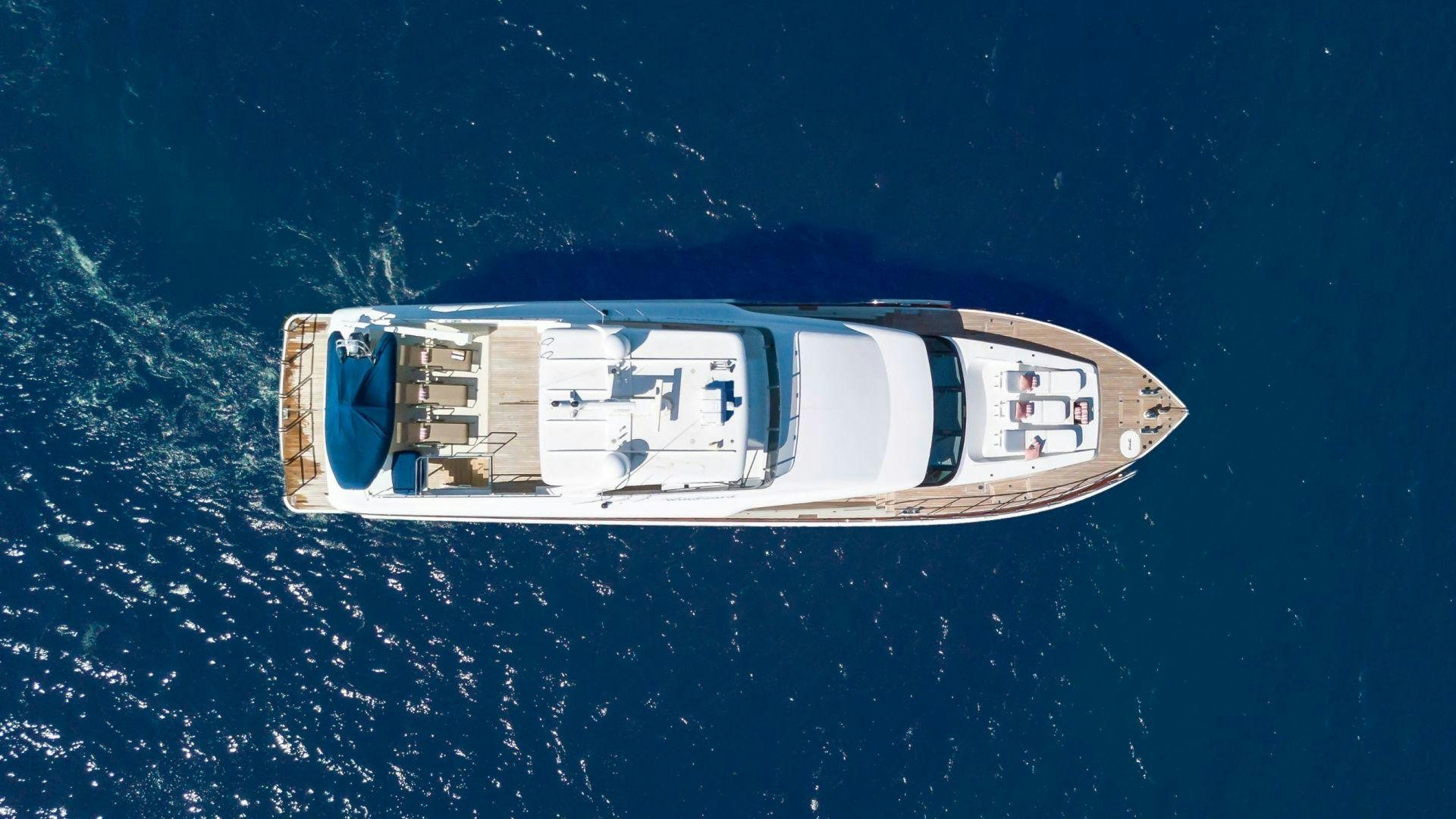

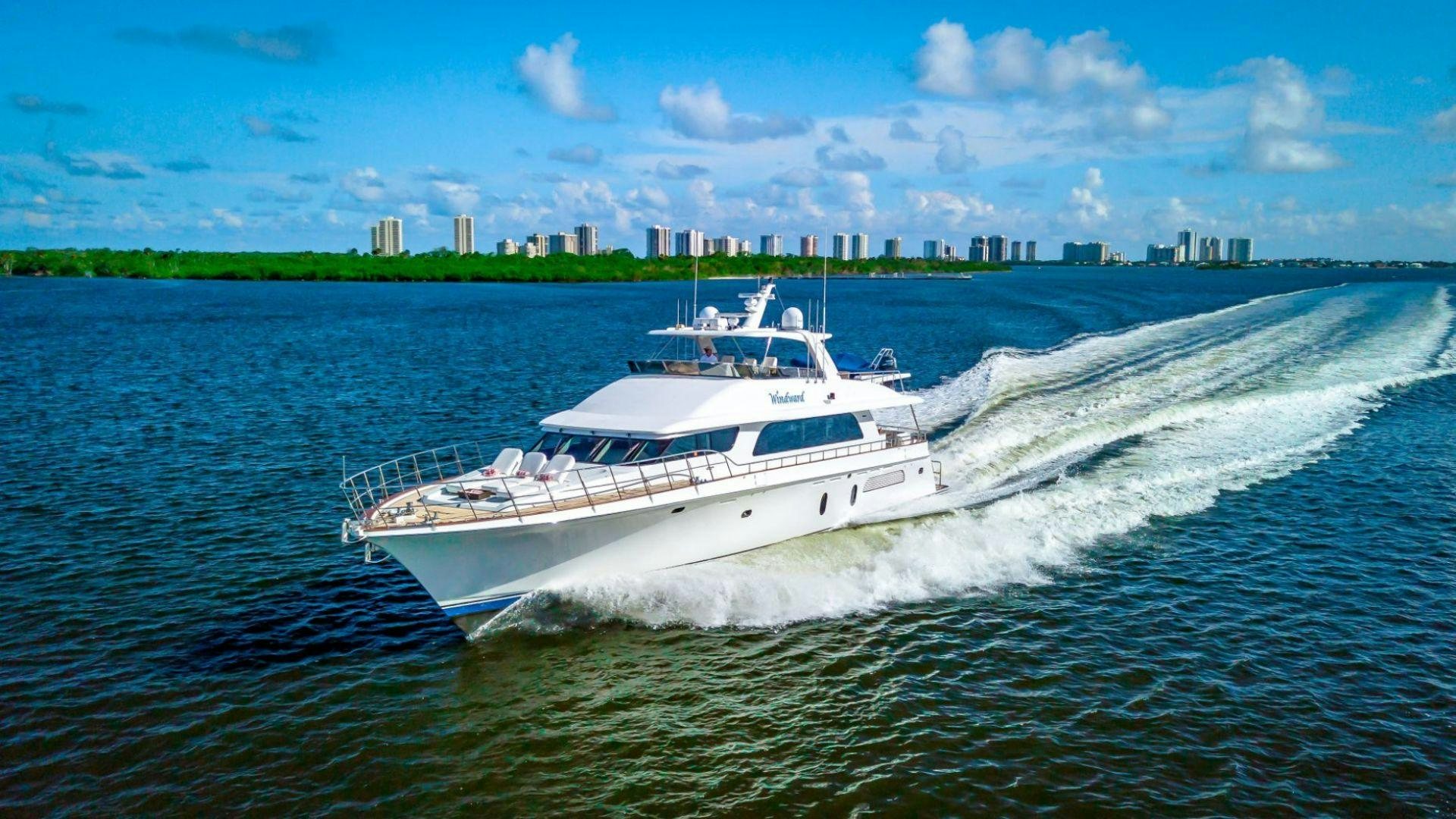

  • Built by Cheoy Lee Yachts with naval architecture from Tom Fexas, 27m/90ft vessel was launched in 2006 and last refitted in 2017. Her plentiful accommodations, speed and shallow draft make her an ideal vessel to cruise the islands. Accommodation sleeps a maximum of ten guests over five cabins.

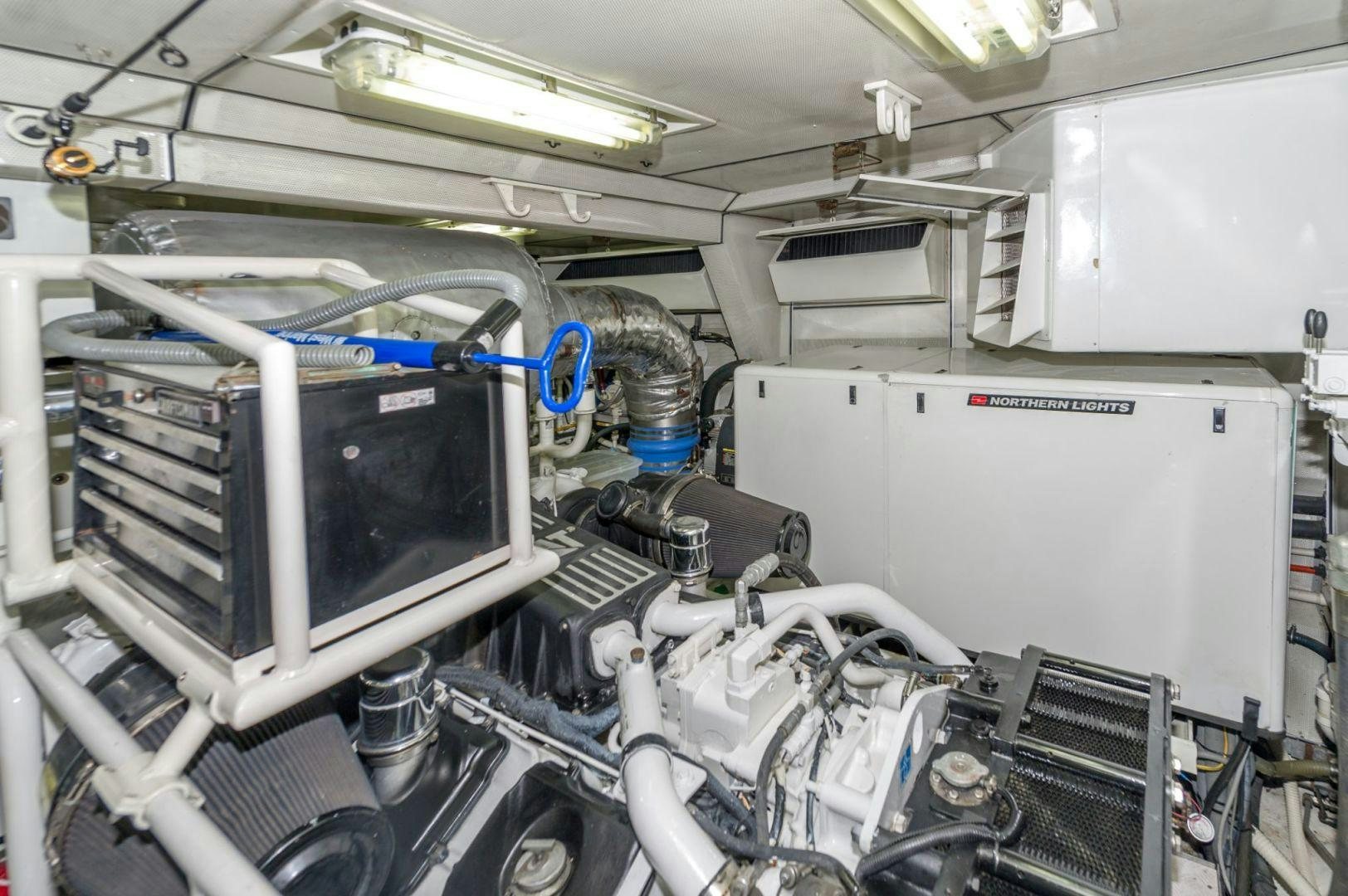

  • Additional systems and features that are noteworthy are the upgraded appliances throughout, teak decks on the main deck and under the hard top on the flybridge, varnished teak cap rails, underwater lights. Northern Lights port generator new in 2021.

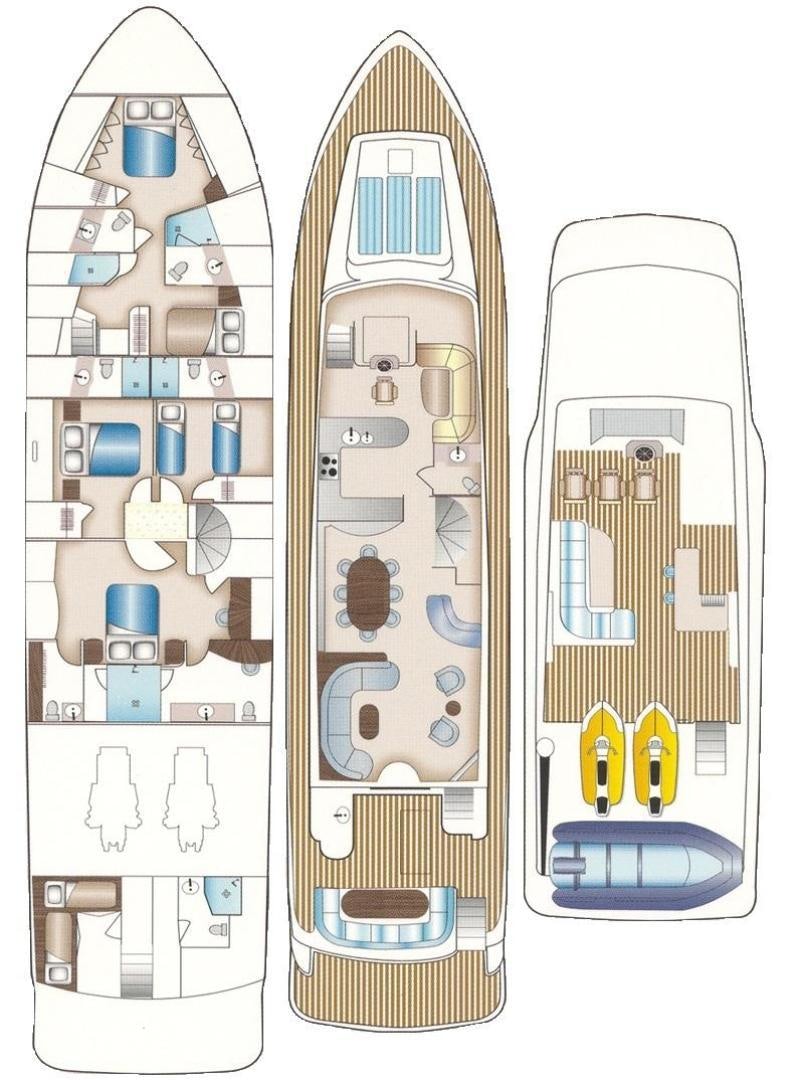

  • The lower deck hosts the guest accommodations, which consists of a Master suite, a double cabin and a twin cabin that can be converted to a double midship, and two double cabins forward, one which can be used as the captain’s cabin.

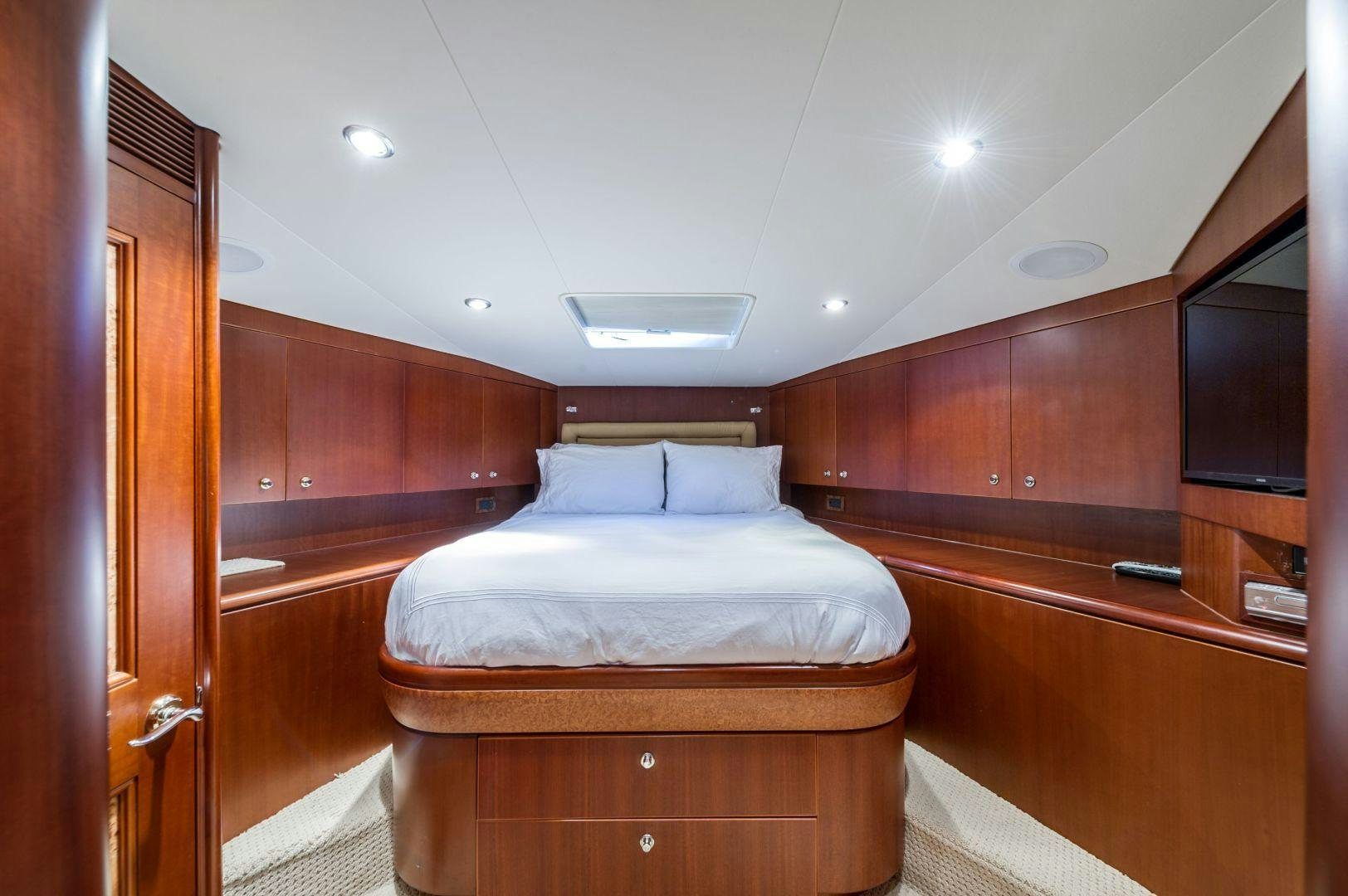

  • Forward VIP with centerline queen and separate head & shower.

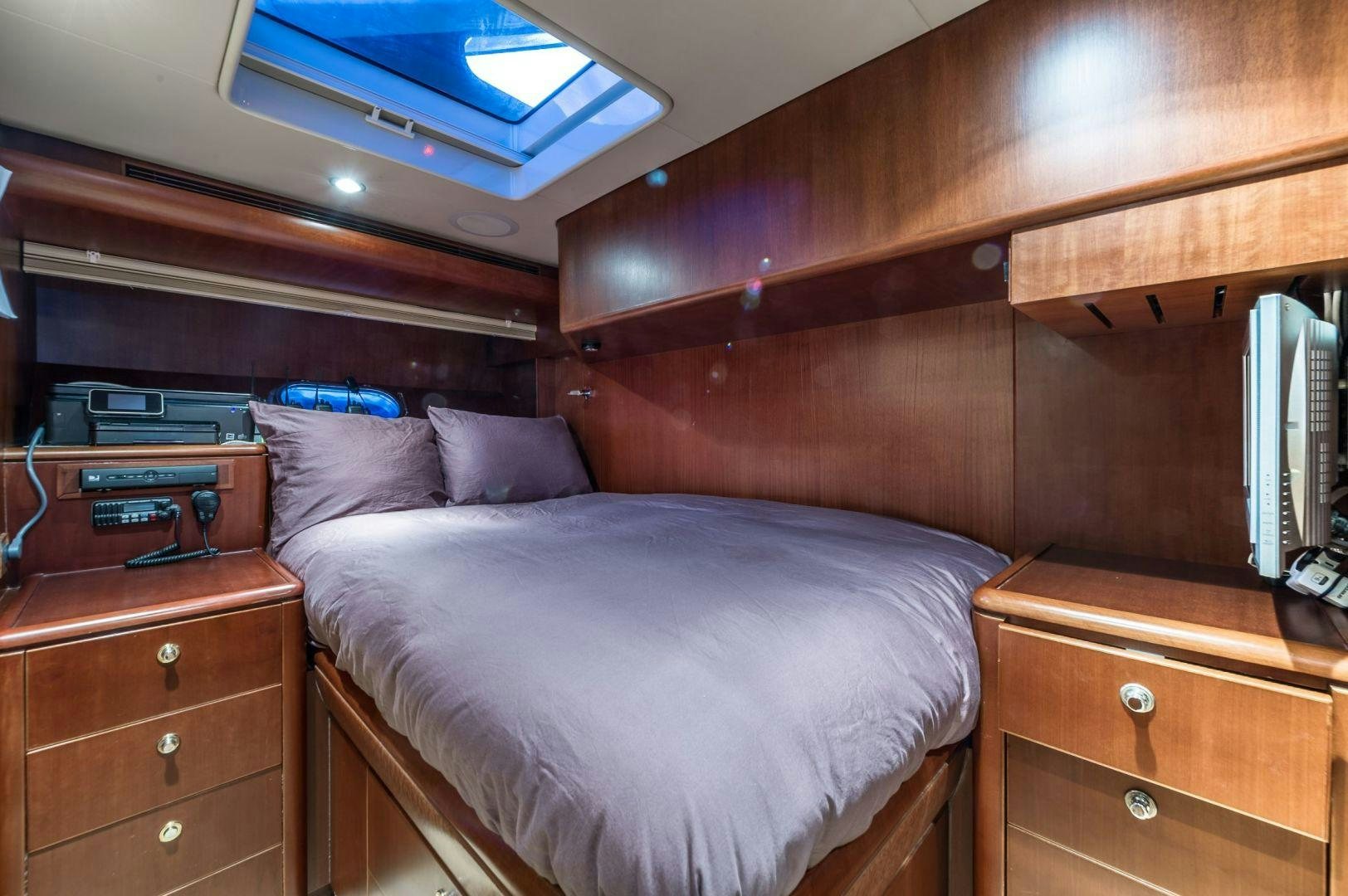

  • Forward double berth with en-suite bathroom which can be used as a Captain’s cabin as well.
  • Port side queen with separate head & shower.

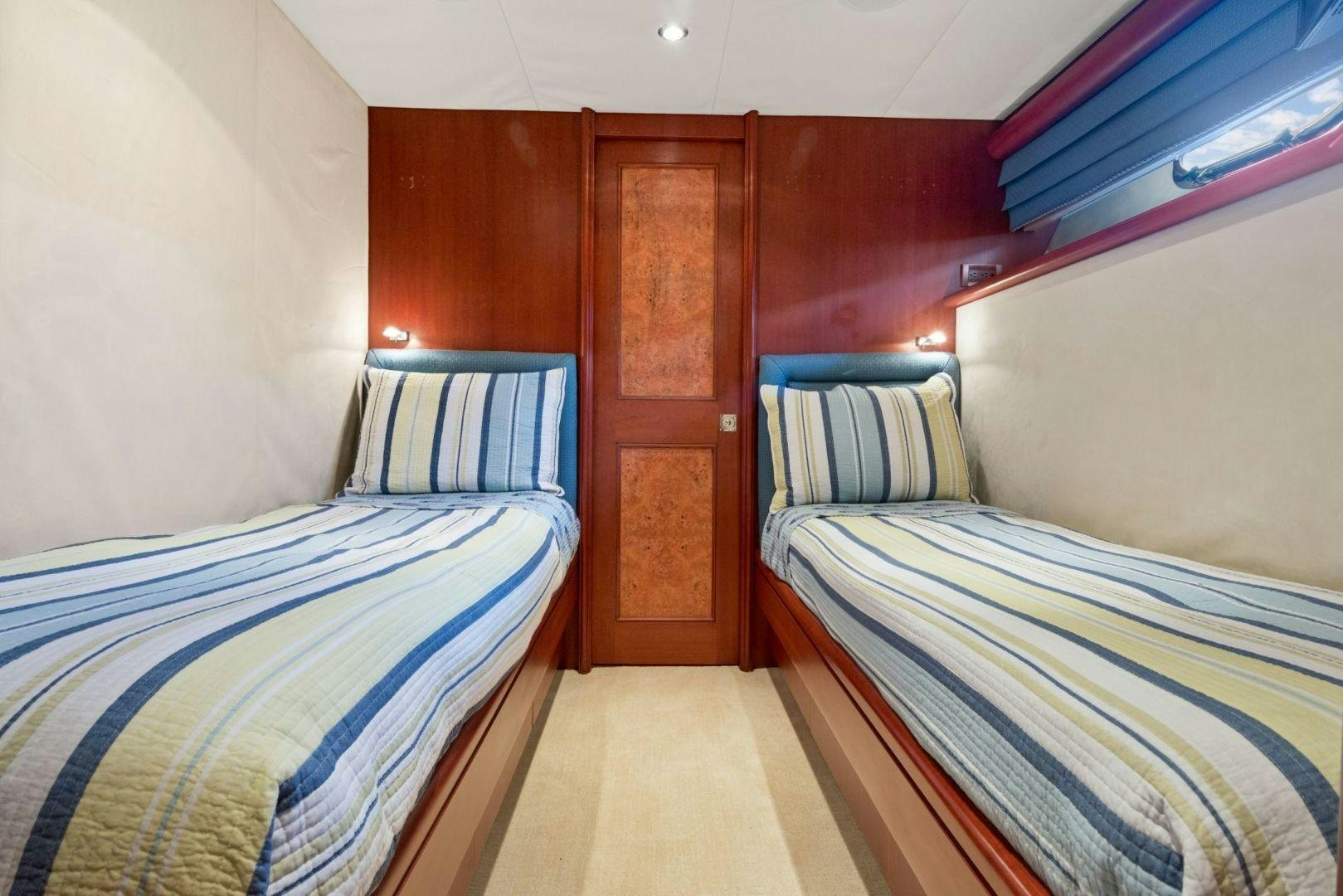

  • Starboard side by side single berths w/ separate head & shower.
  • Master stateroom amidships with en-suite bathroom.

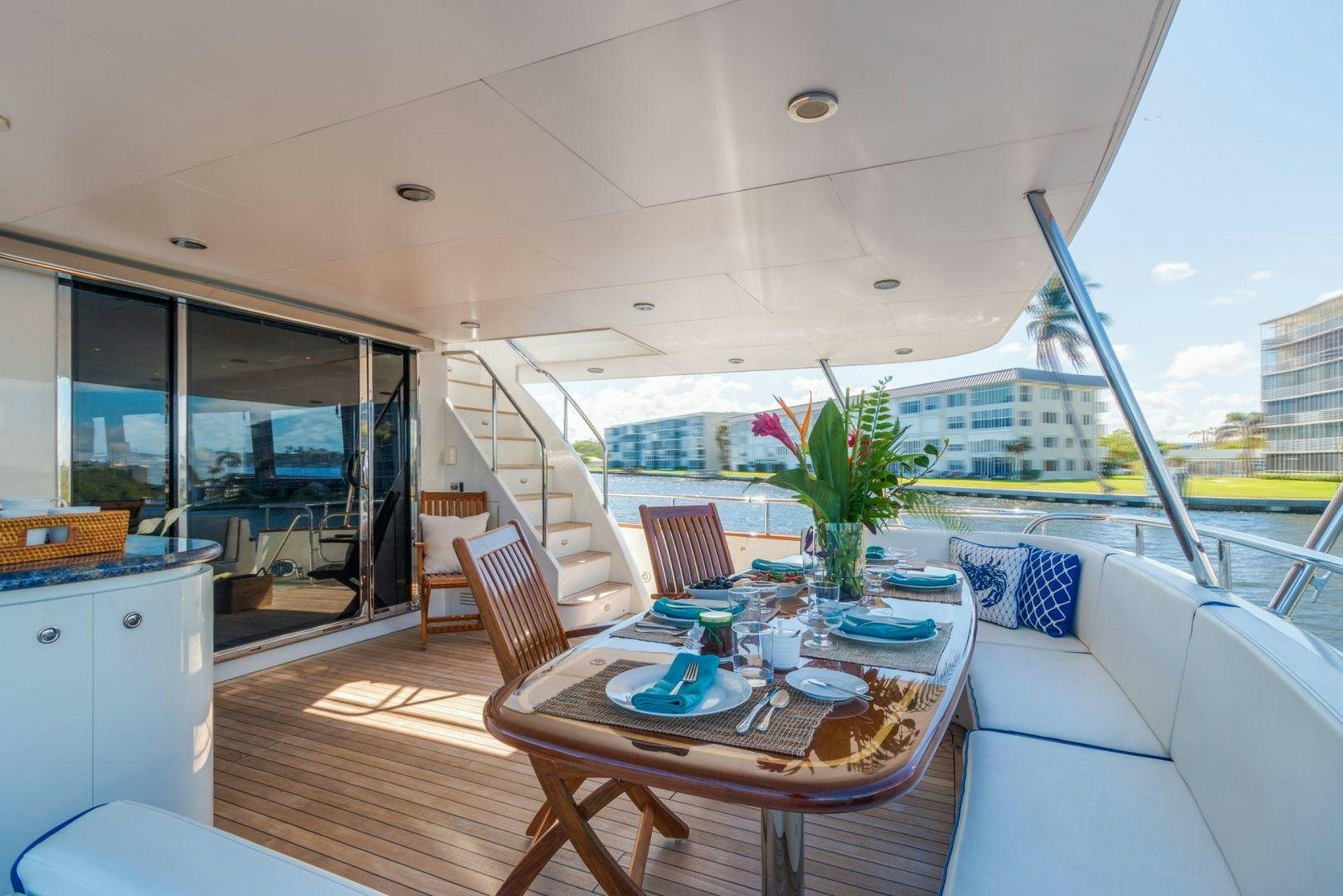

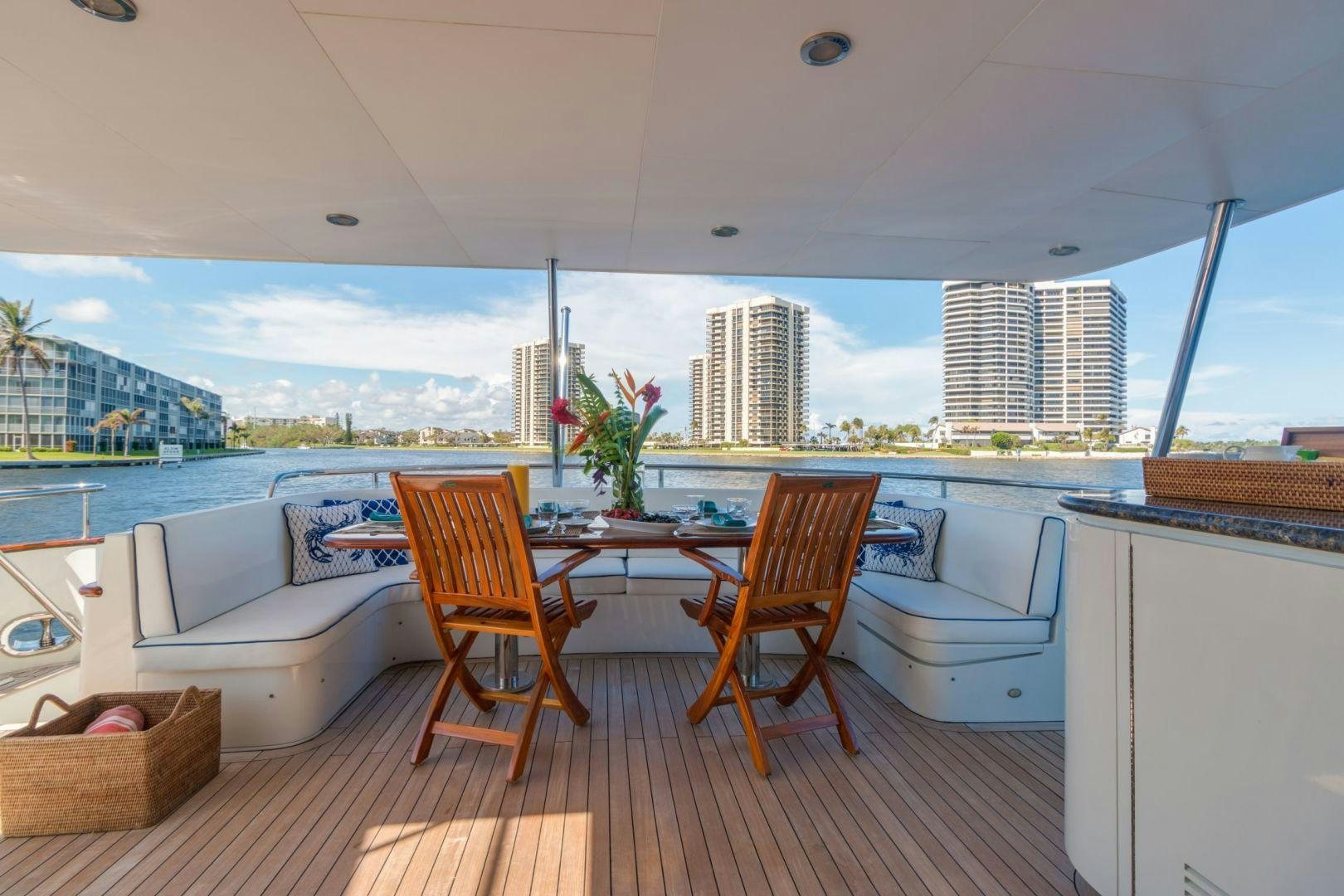

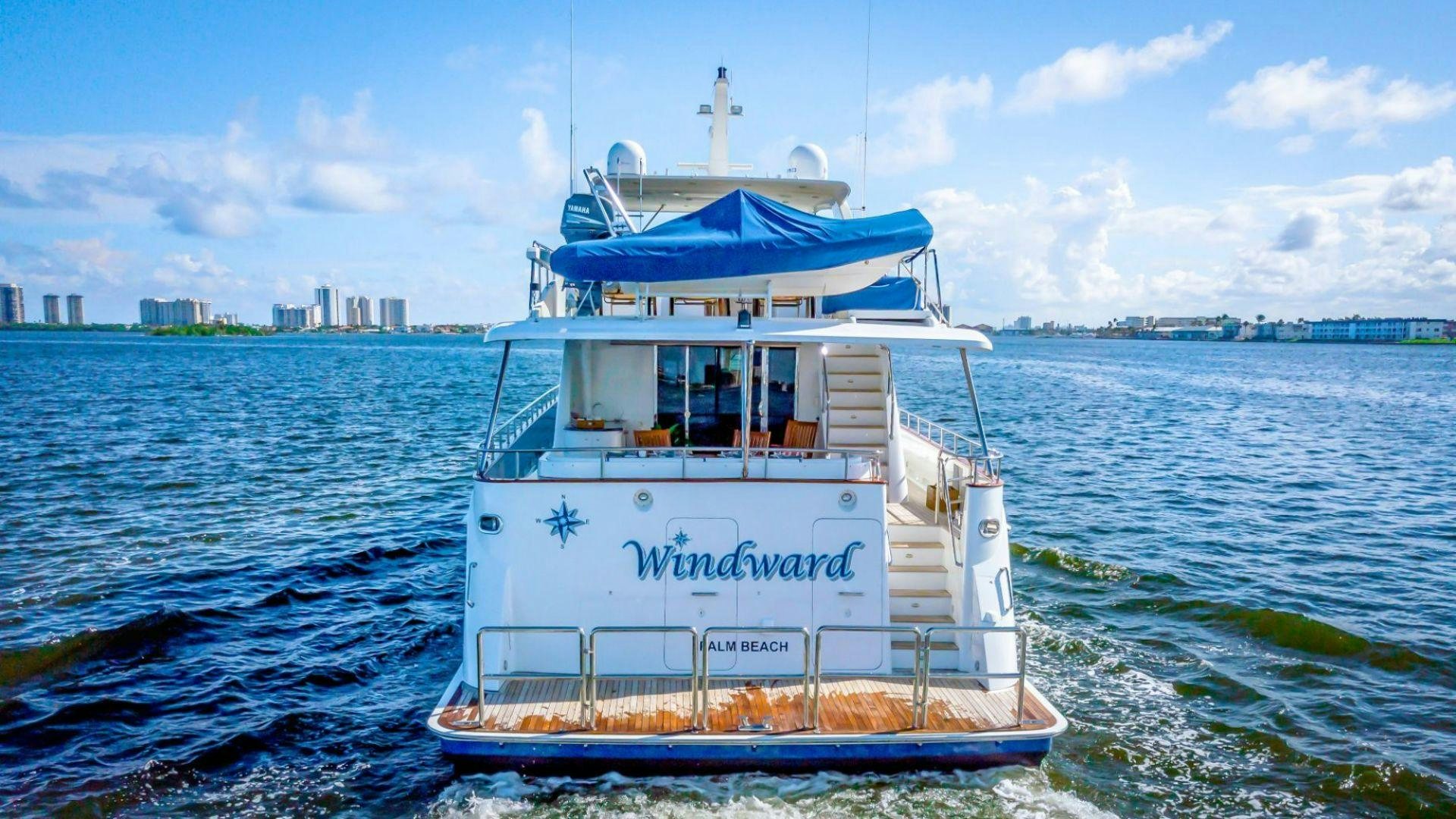

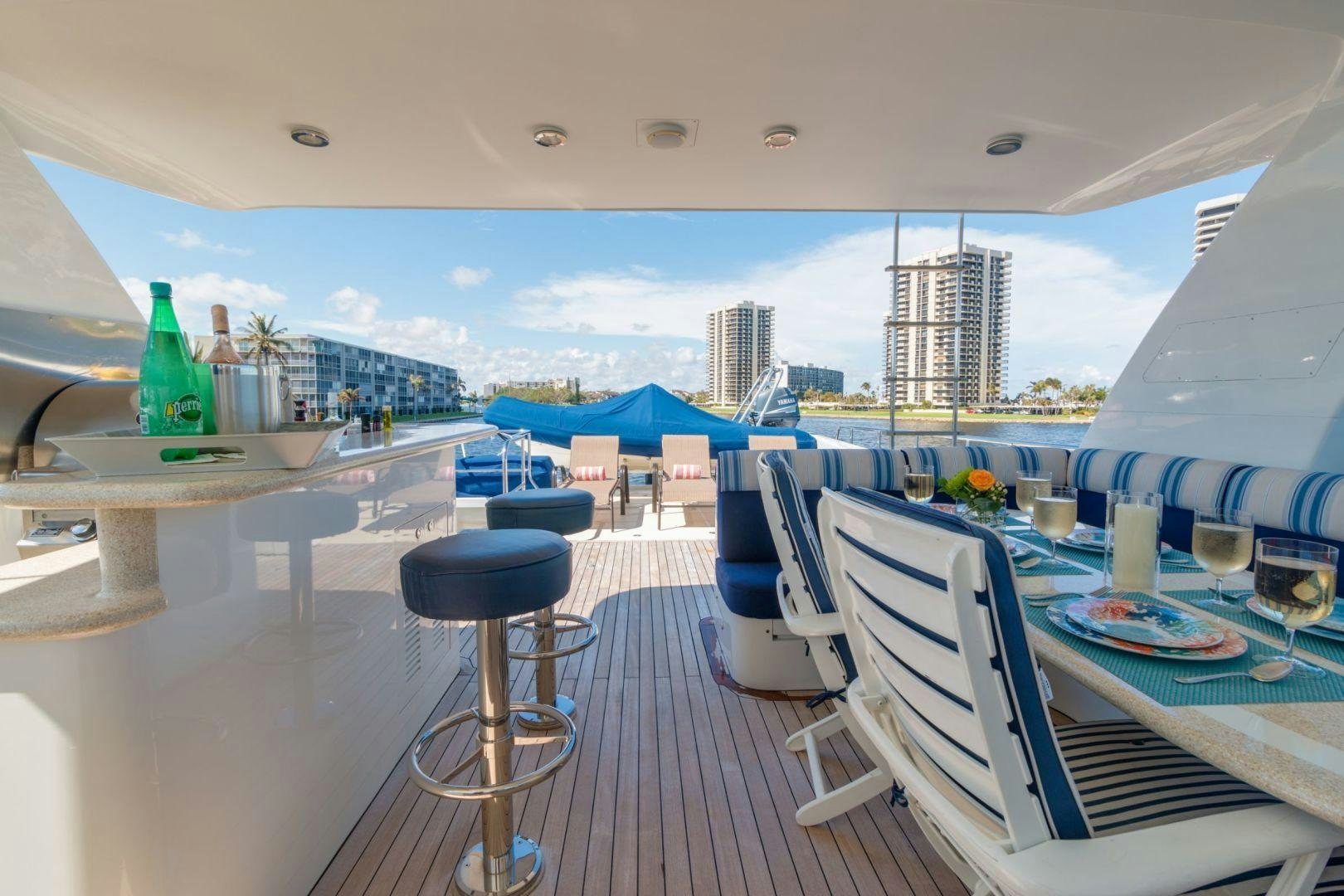

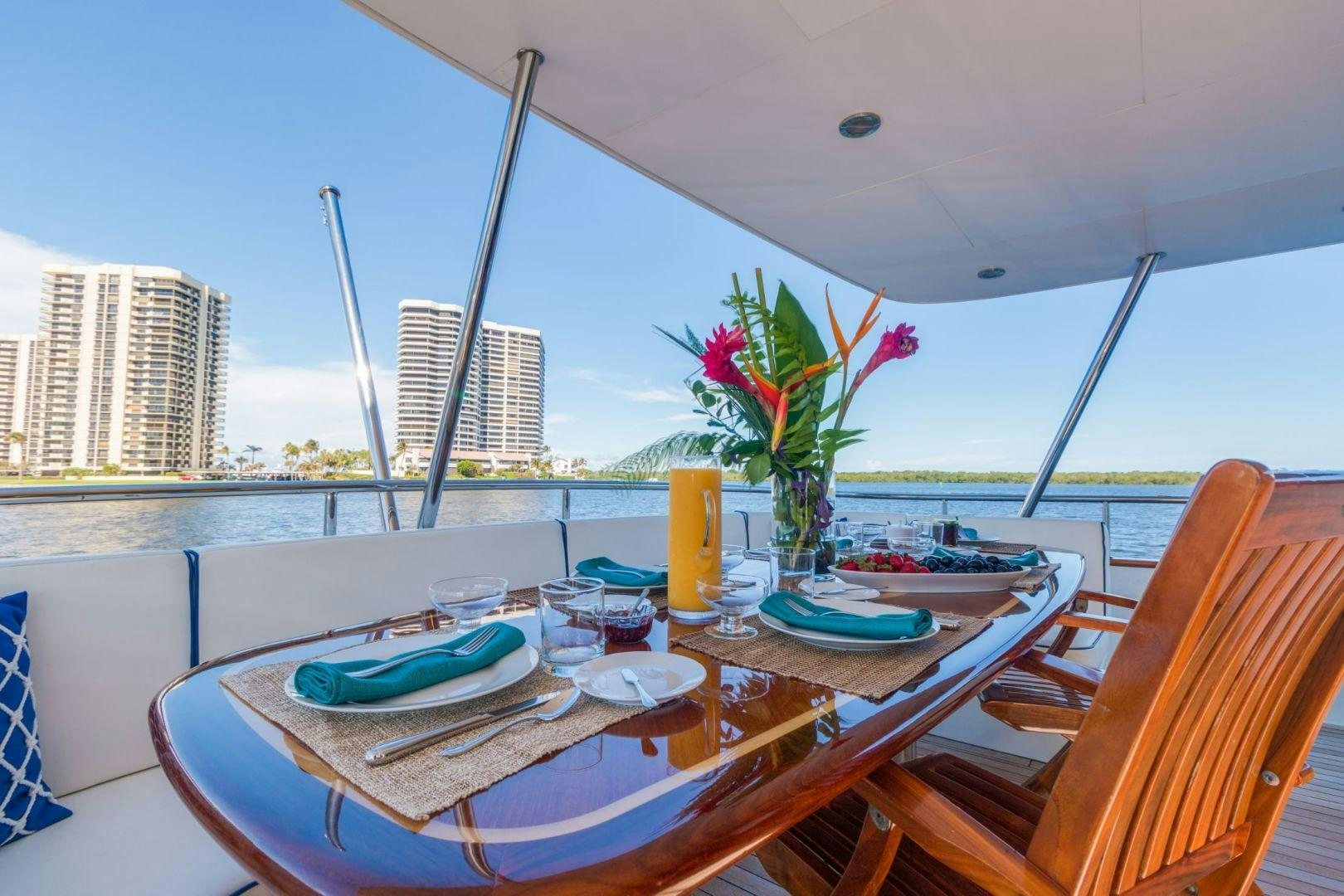

  • Access to her is via large the swim platform or port or starboard gates when docking alongside. The aft deck provides an undercover entertainment area with a U-bench settee and teak table. This seats 8-10 guests for al fresco dining. To port is a wet bar and to starboard is a stairway accessing the fly bridge.

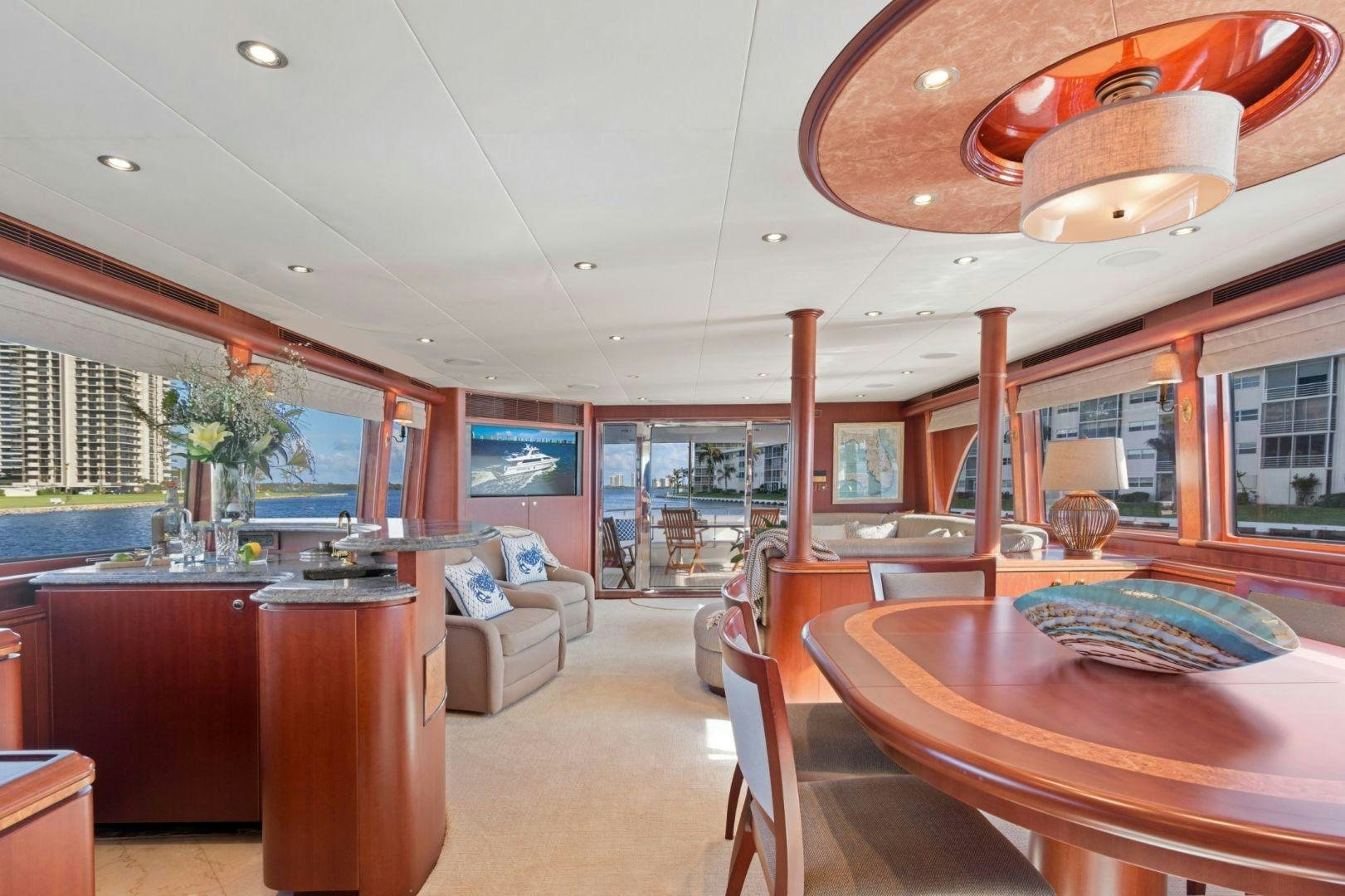

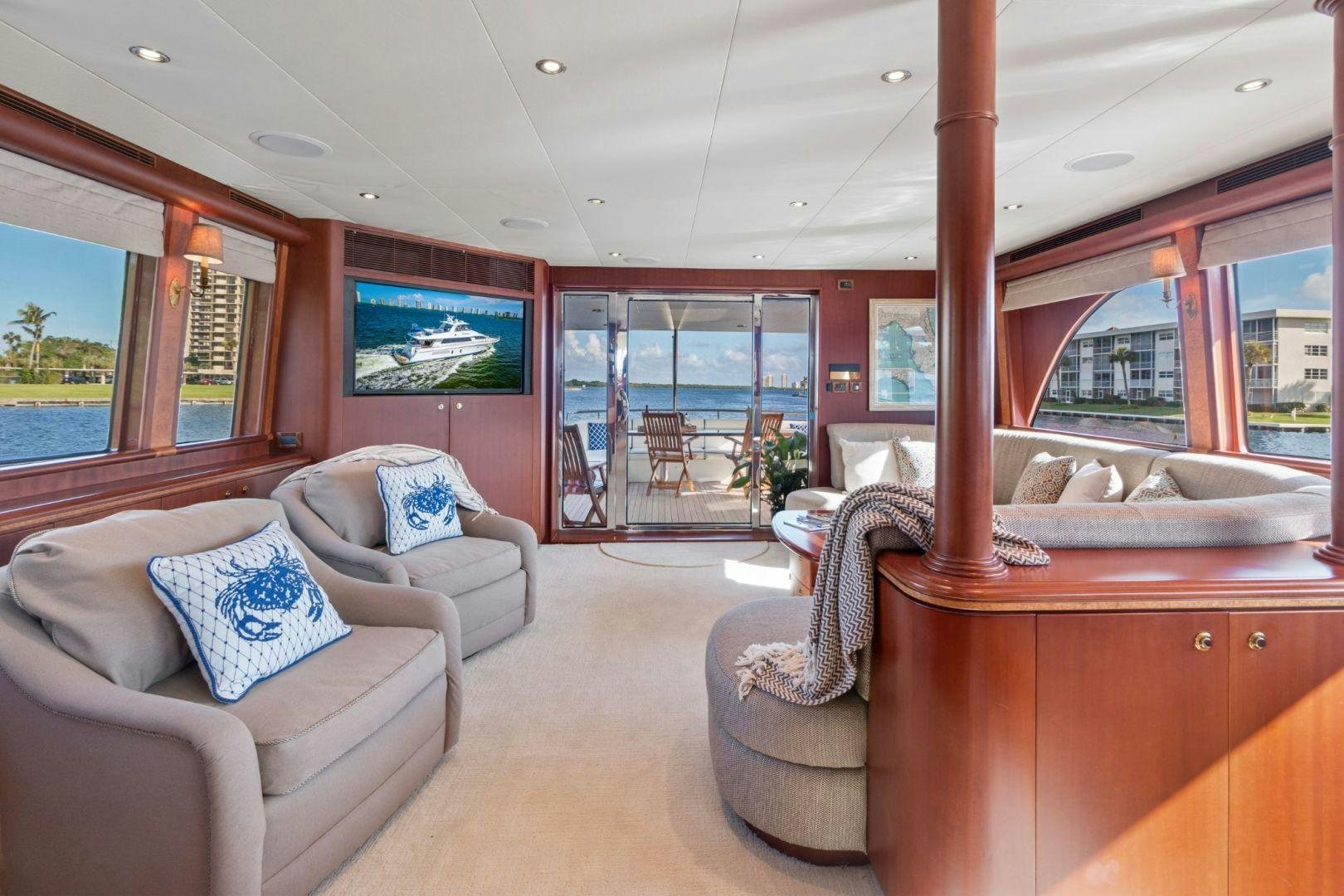

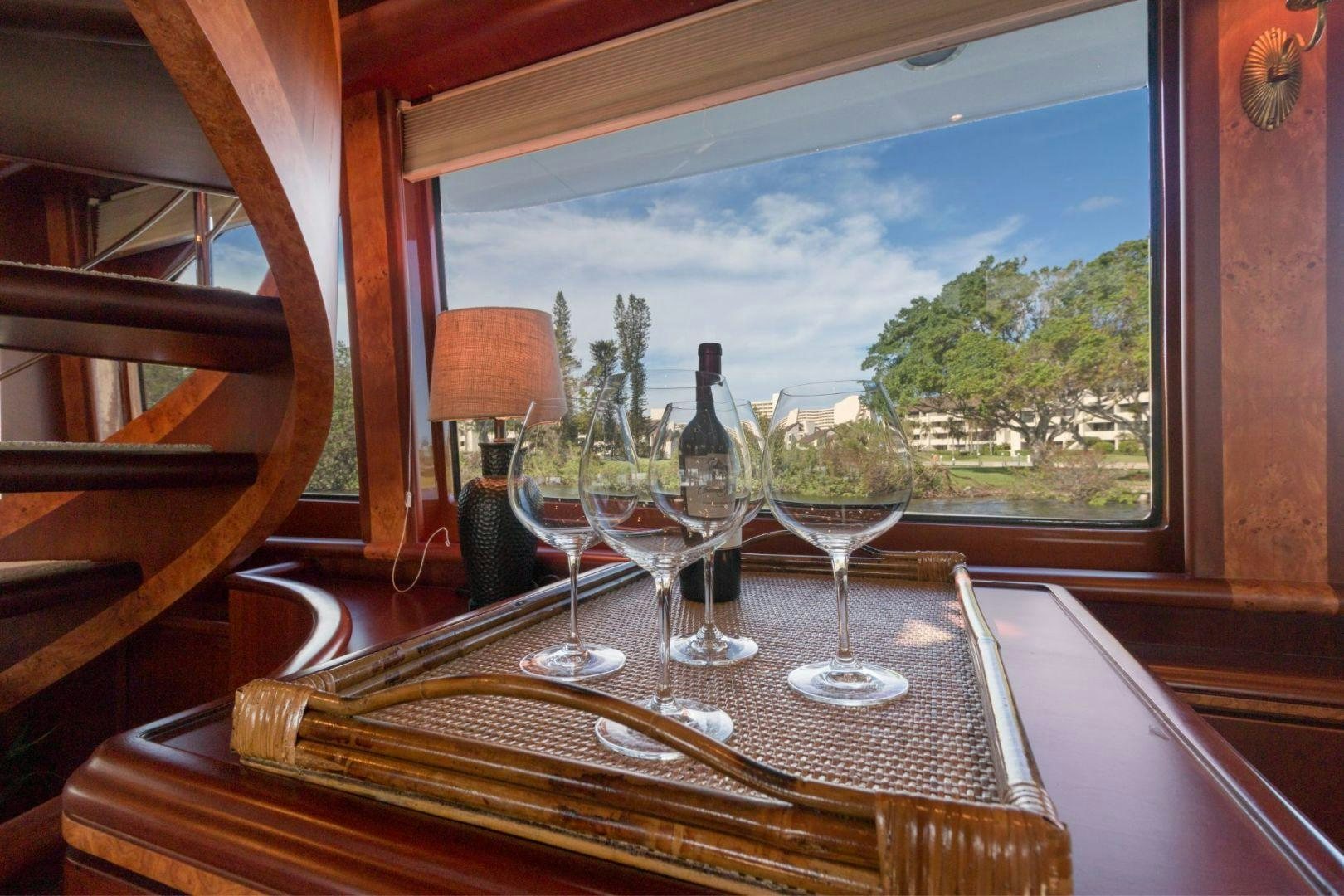

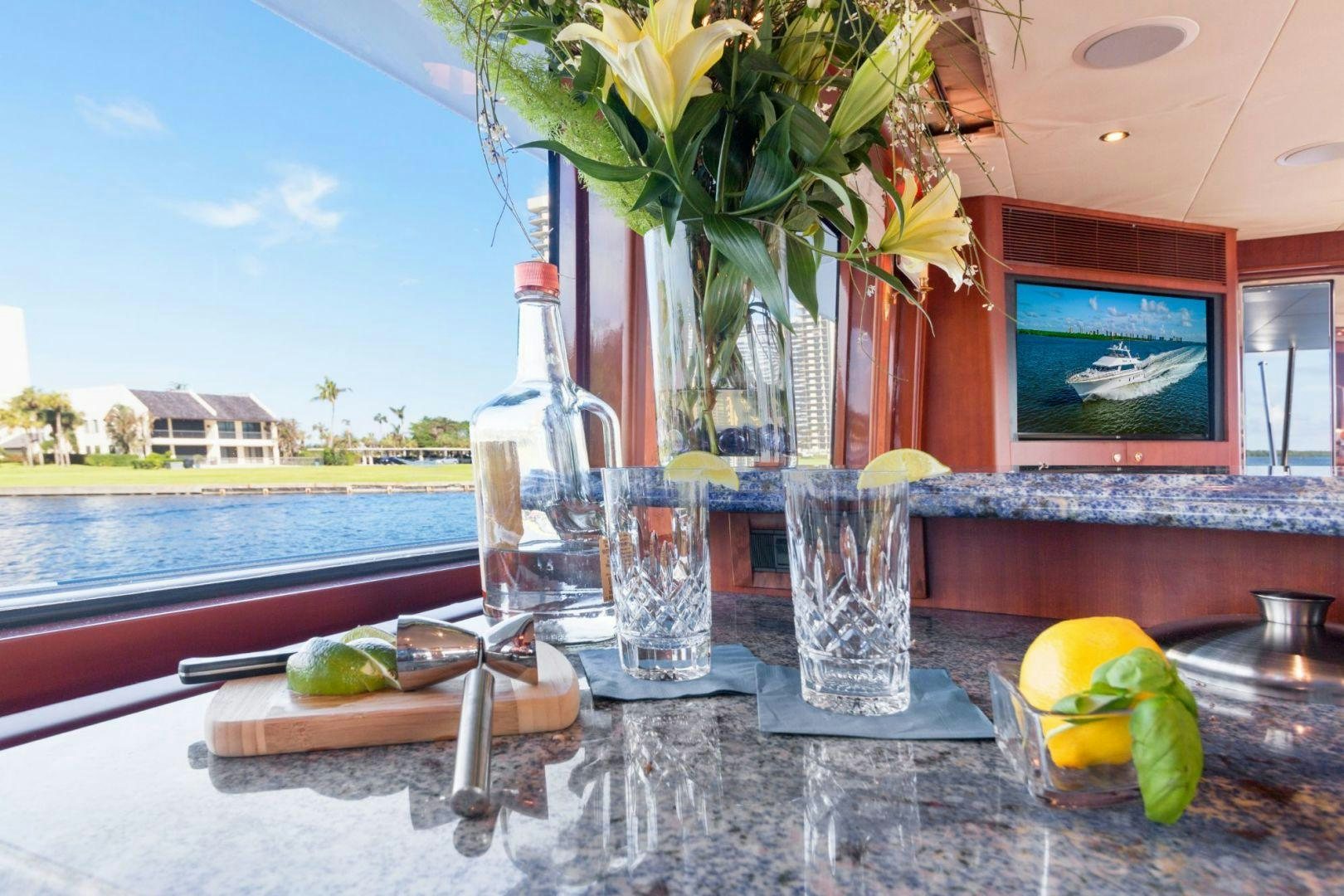

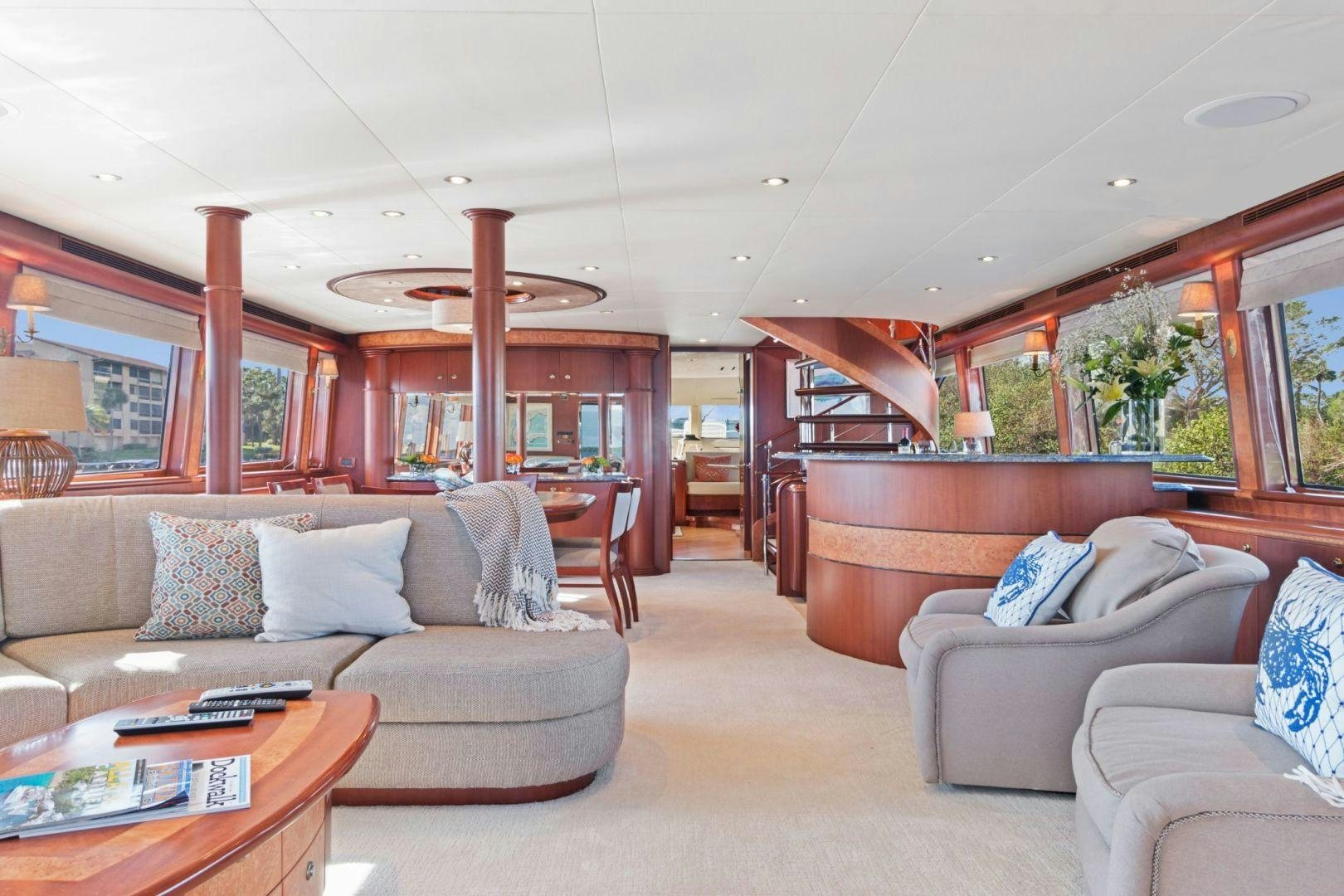

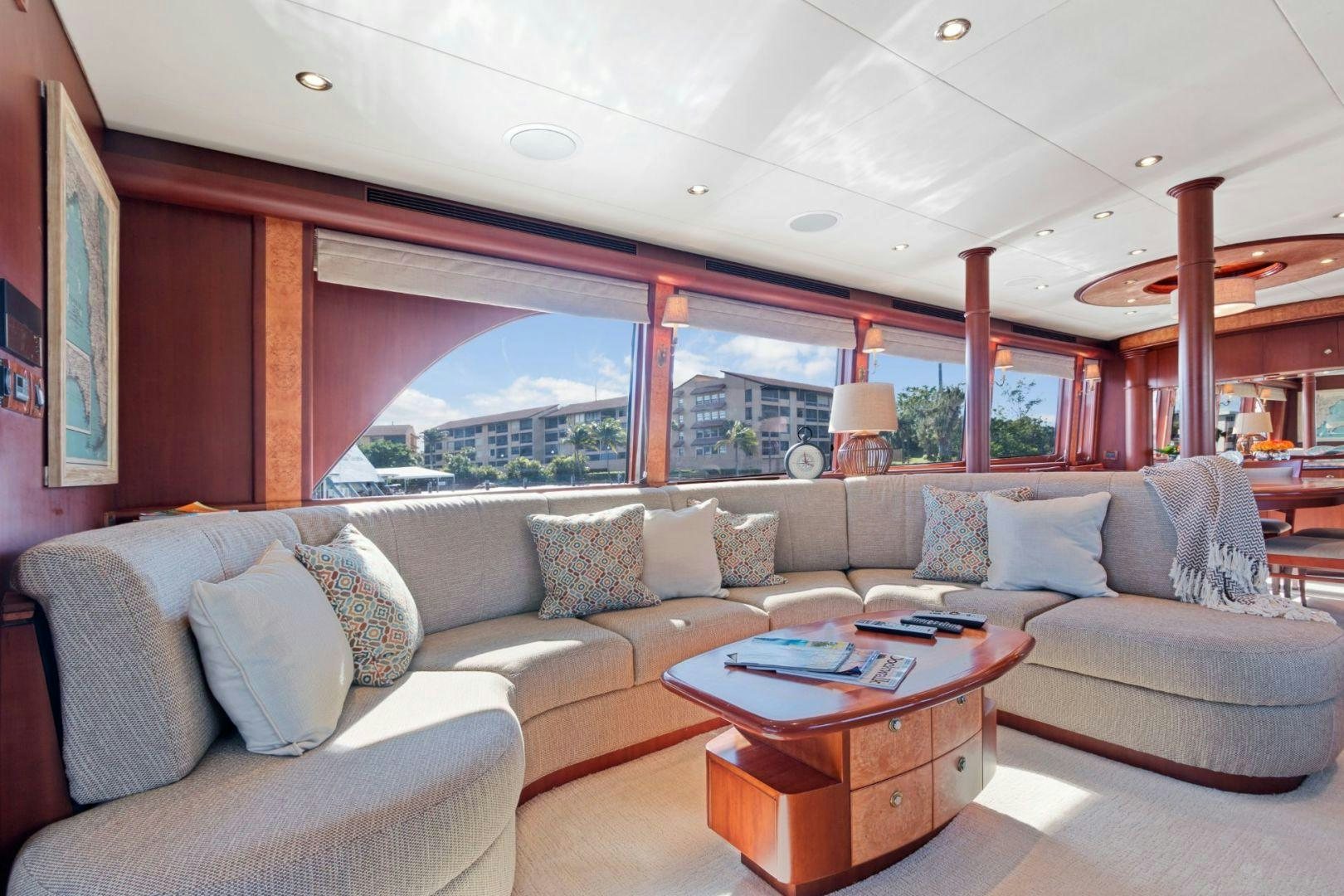

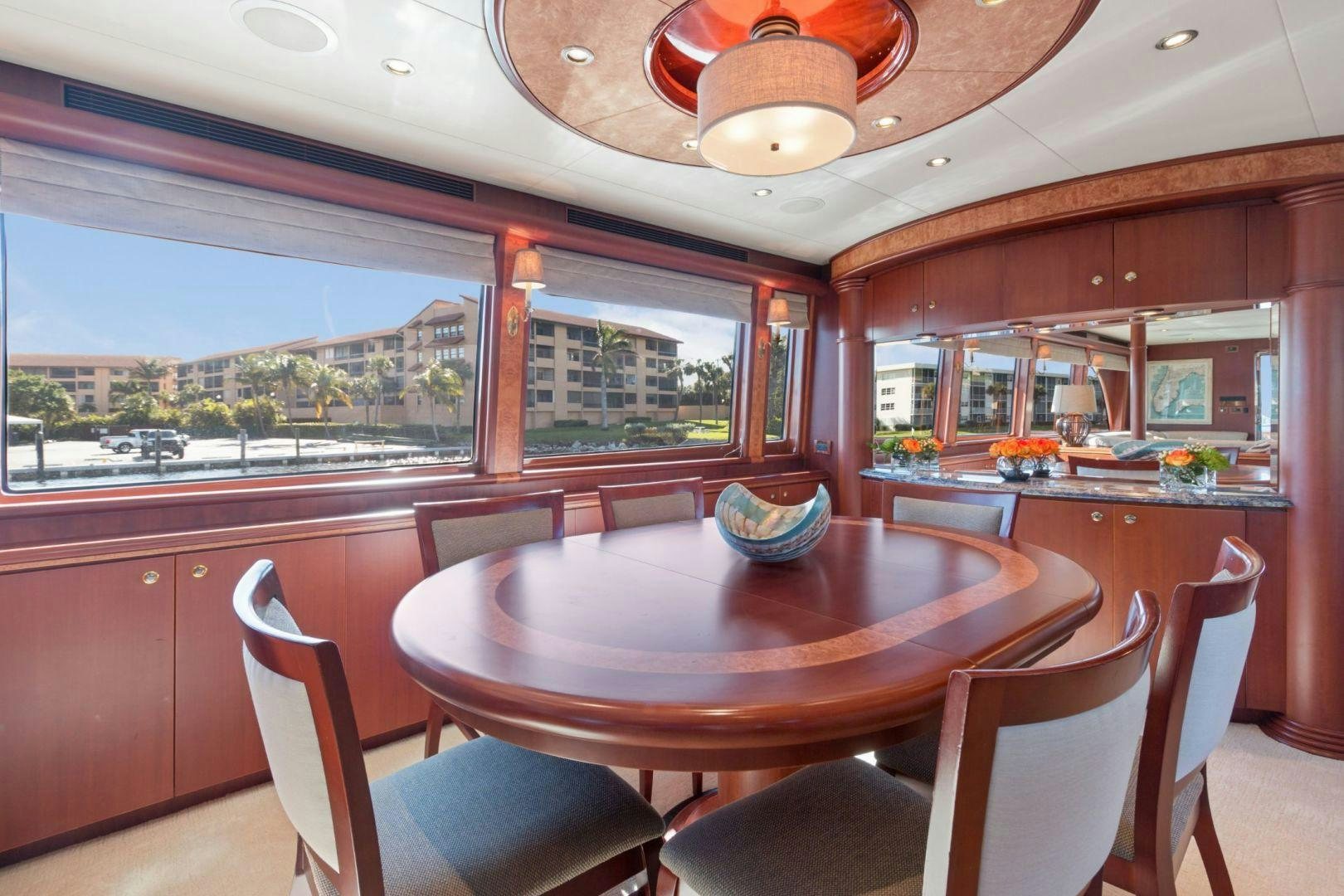

  • Entry to the main saloon is through tempered glass double sliding doors. The salon has panoramic windows for abundant natural light and roman shades for privacy. There is an entertainment center to starboard in the aft corner. A settee and coffee table are to port. The formal dining area to port was created with columns and a custom dining buffet featuring curved overhead cabinets and granite counter tops. The granite matches the wet bar to starboard which has a Subzero wine cooler, fridge, and icemaker, and in wall glass storage. Granite flooring matching the buffet and bar top completes this area. Lighting in this area is controlled by a Lutron lighting system for easy one button control. A spiral staircase accessing the Master suite and two guest suites as well as the fly bridge is located just forward of the bar to starboard.

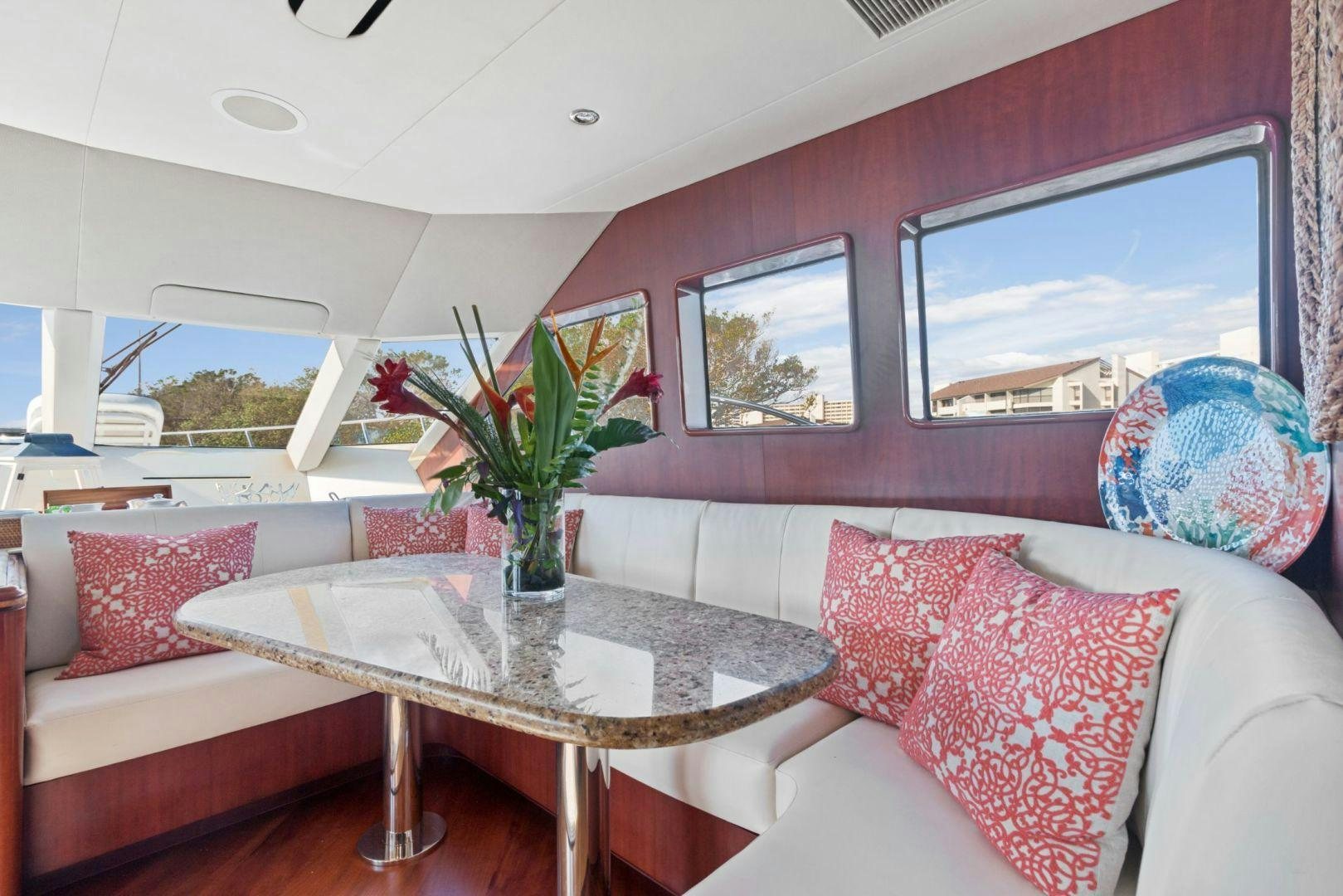

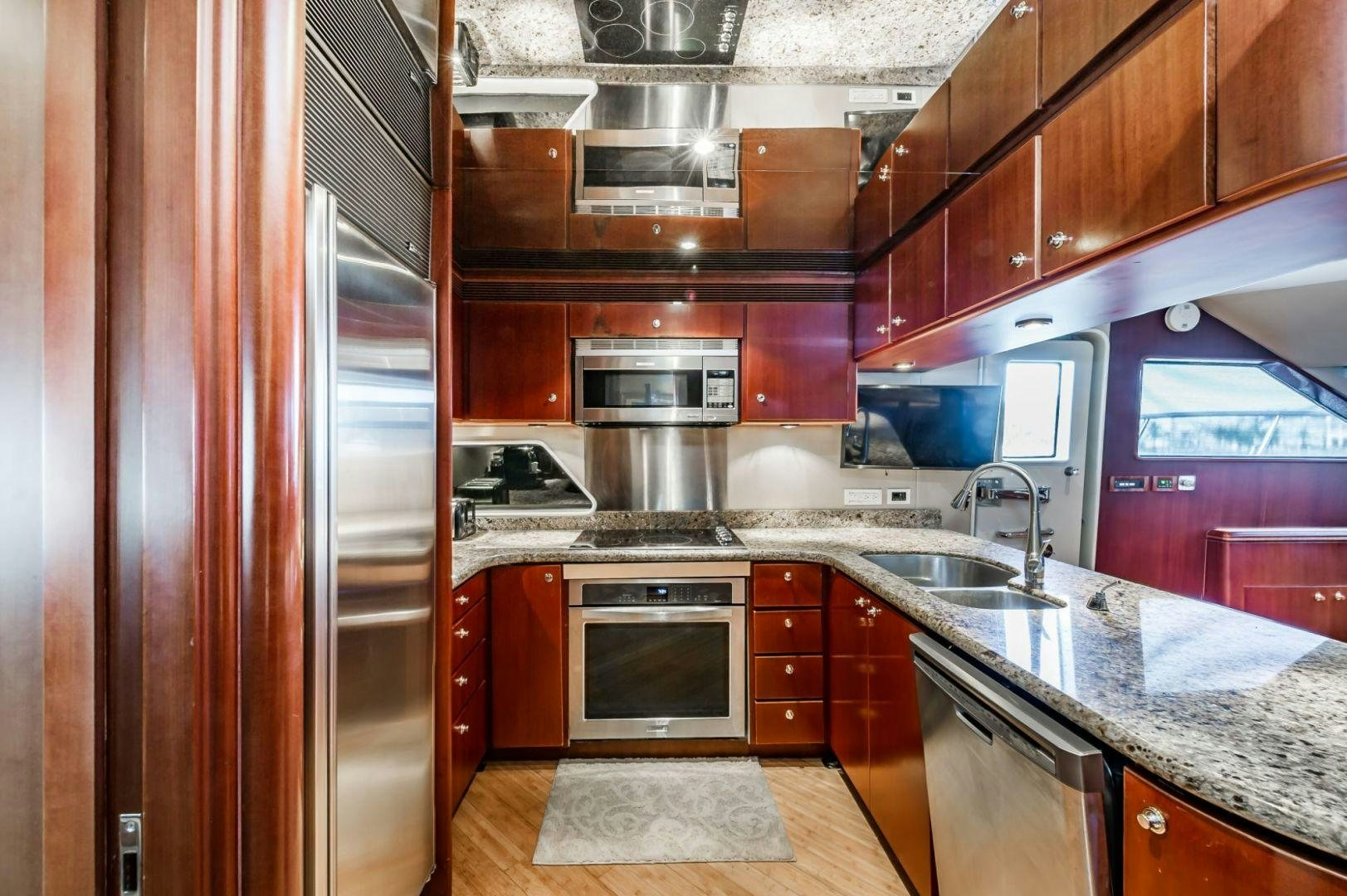

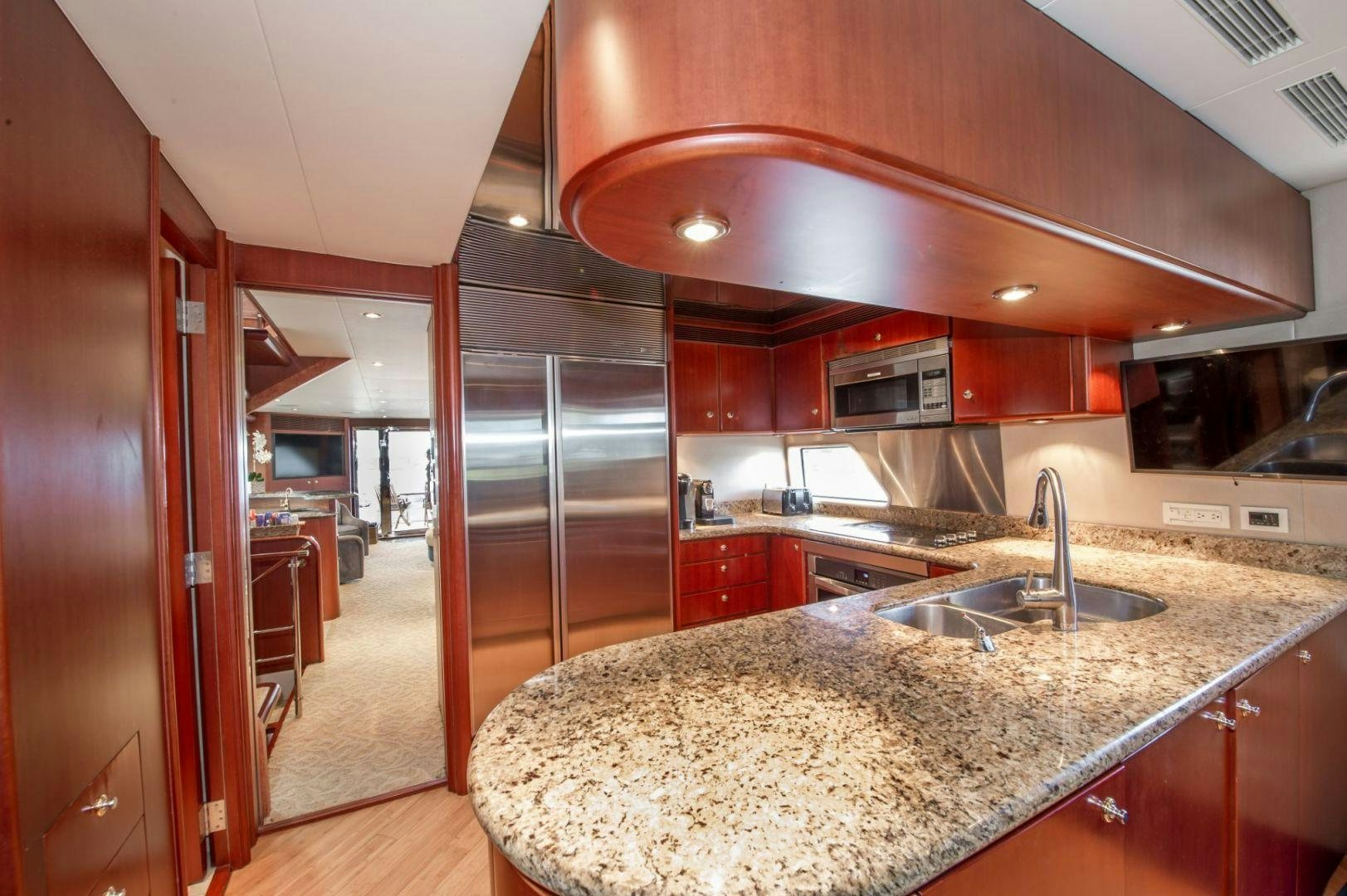

  • Door to starboard provides entry to galley/pilothouse. The galley is to port with granite countertops and stainless-steel appliances. To starboard is the day head. Forward to port is a U-shaped settee with table. This area creates an informal dining spot with panoramic vistas while underway. A stairway to the second laundry and two guest staterooms is to port.

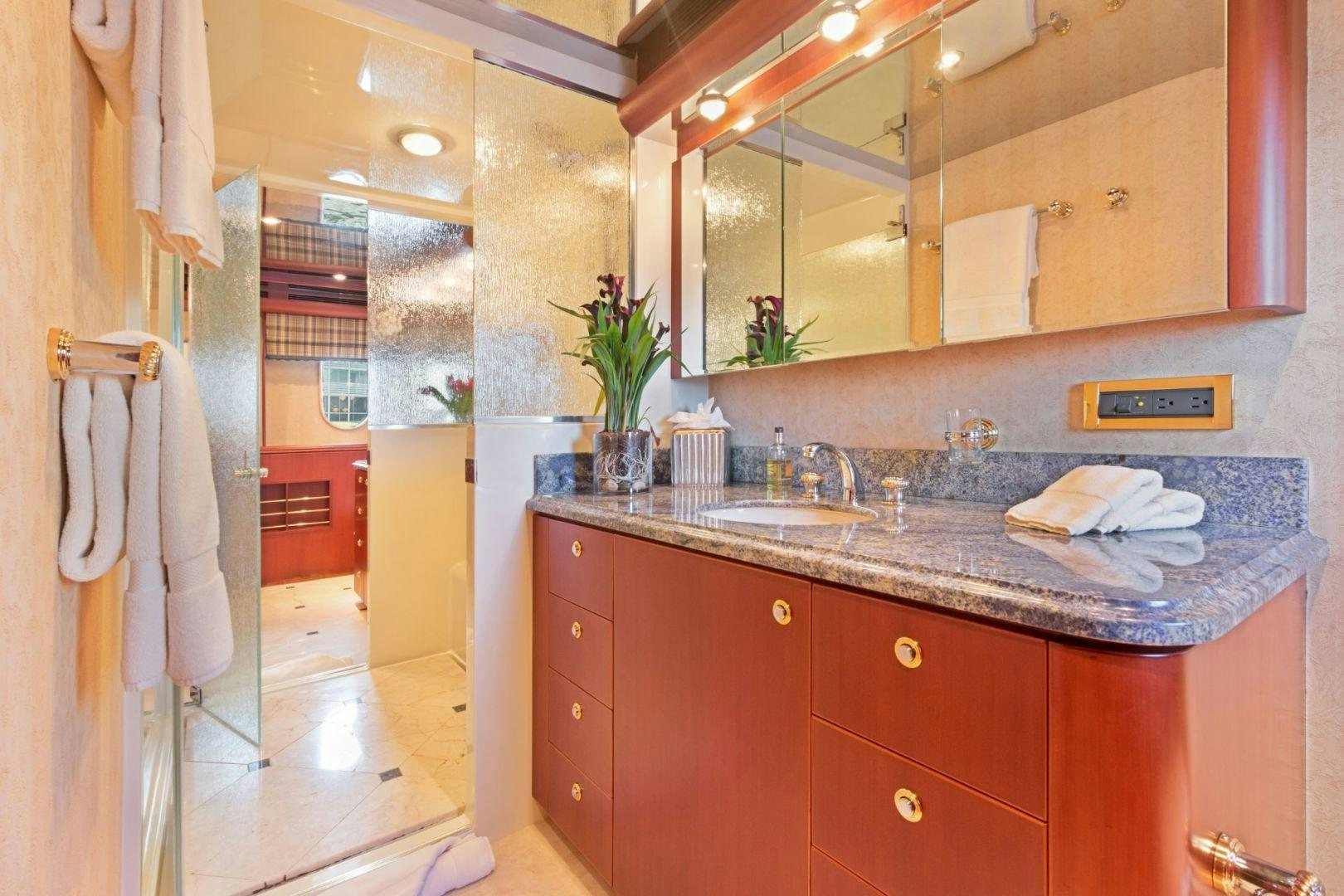

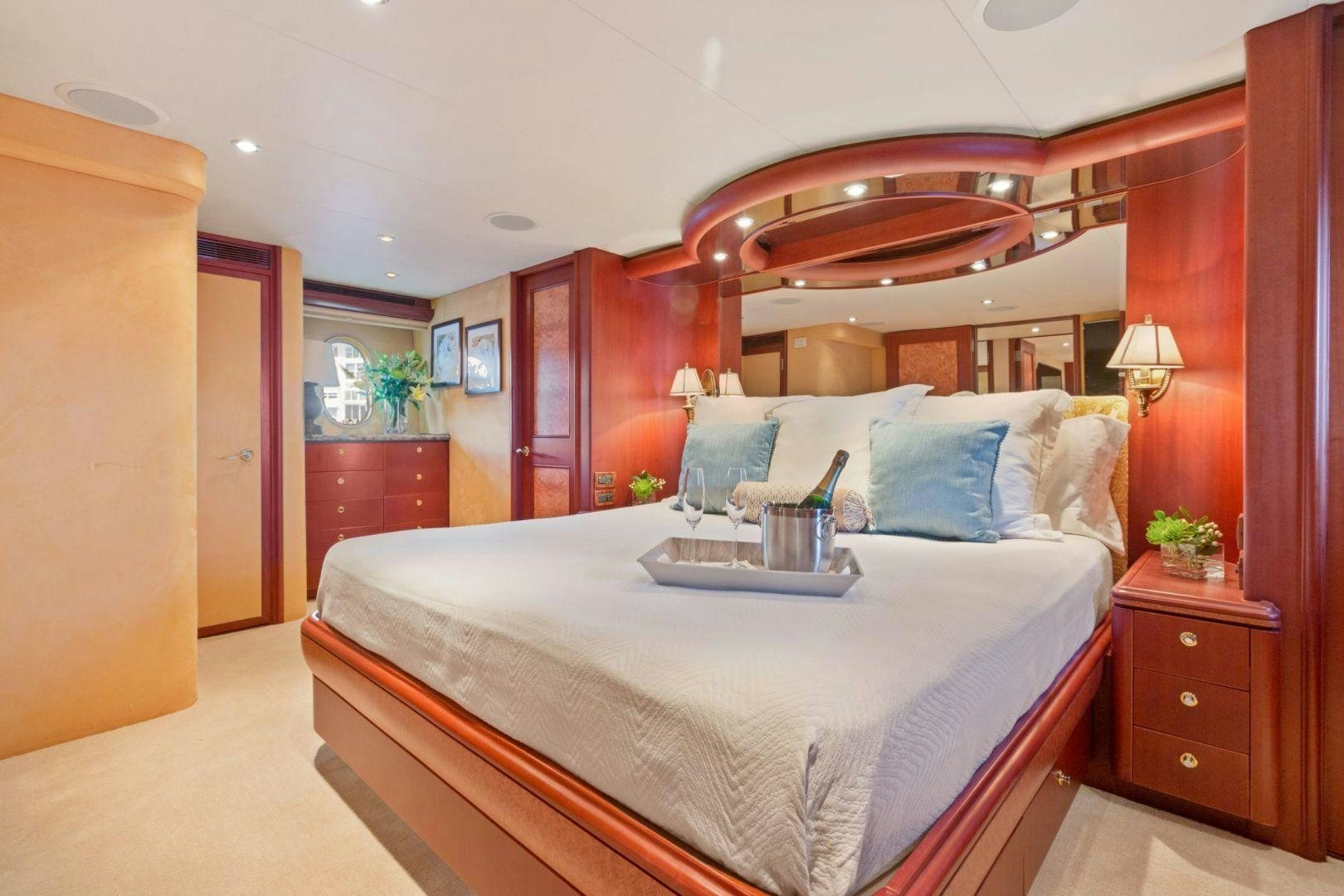

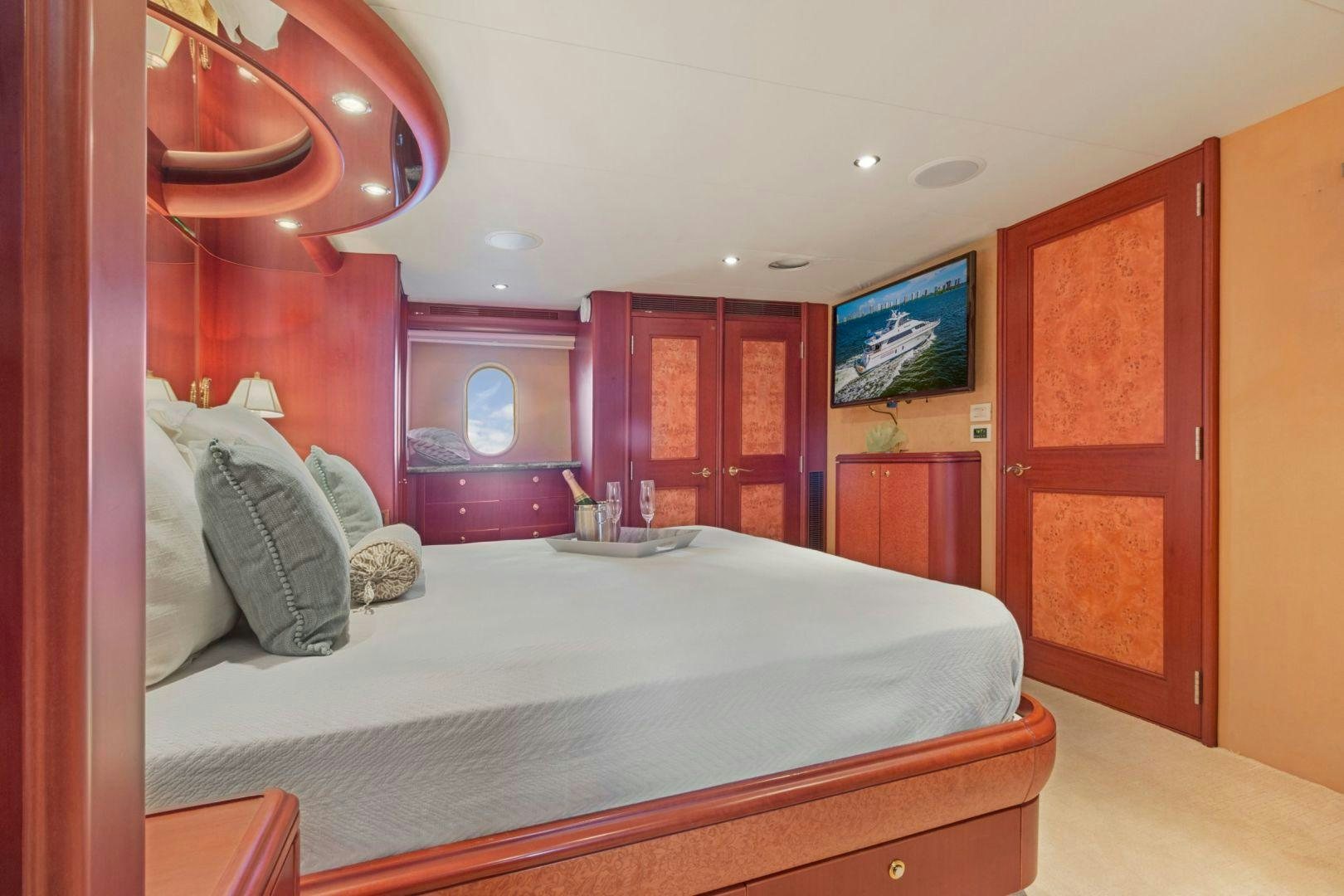

  • The master suite is full beam amidship. There is a king size berth with storage drawers beneath. Walk-in closet with cedar lining on aft bulkhead, ample drawer space. There is a his-and-her bath with a vanity on her side with large glass enclosed shower between.

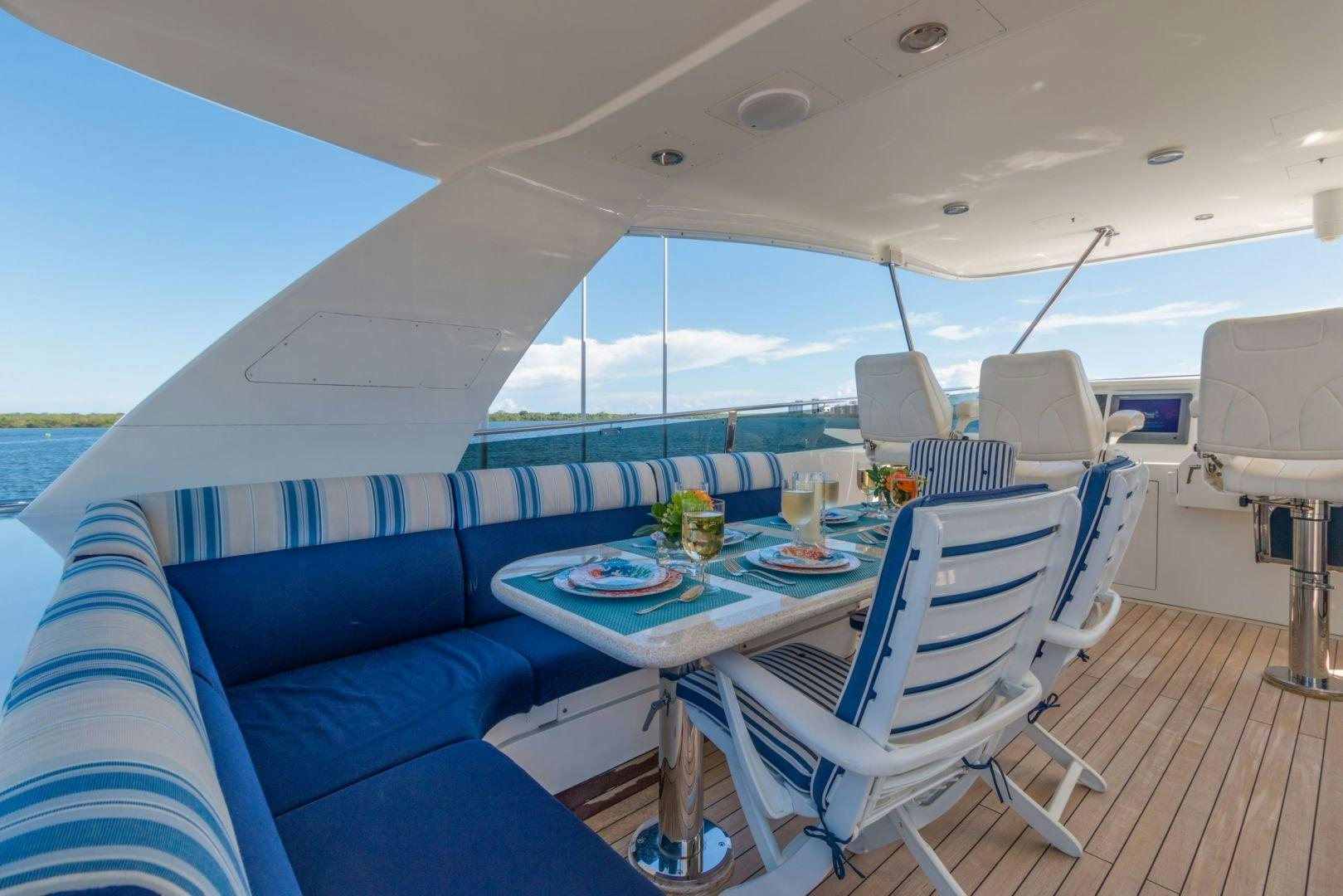

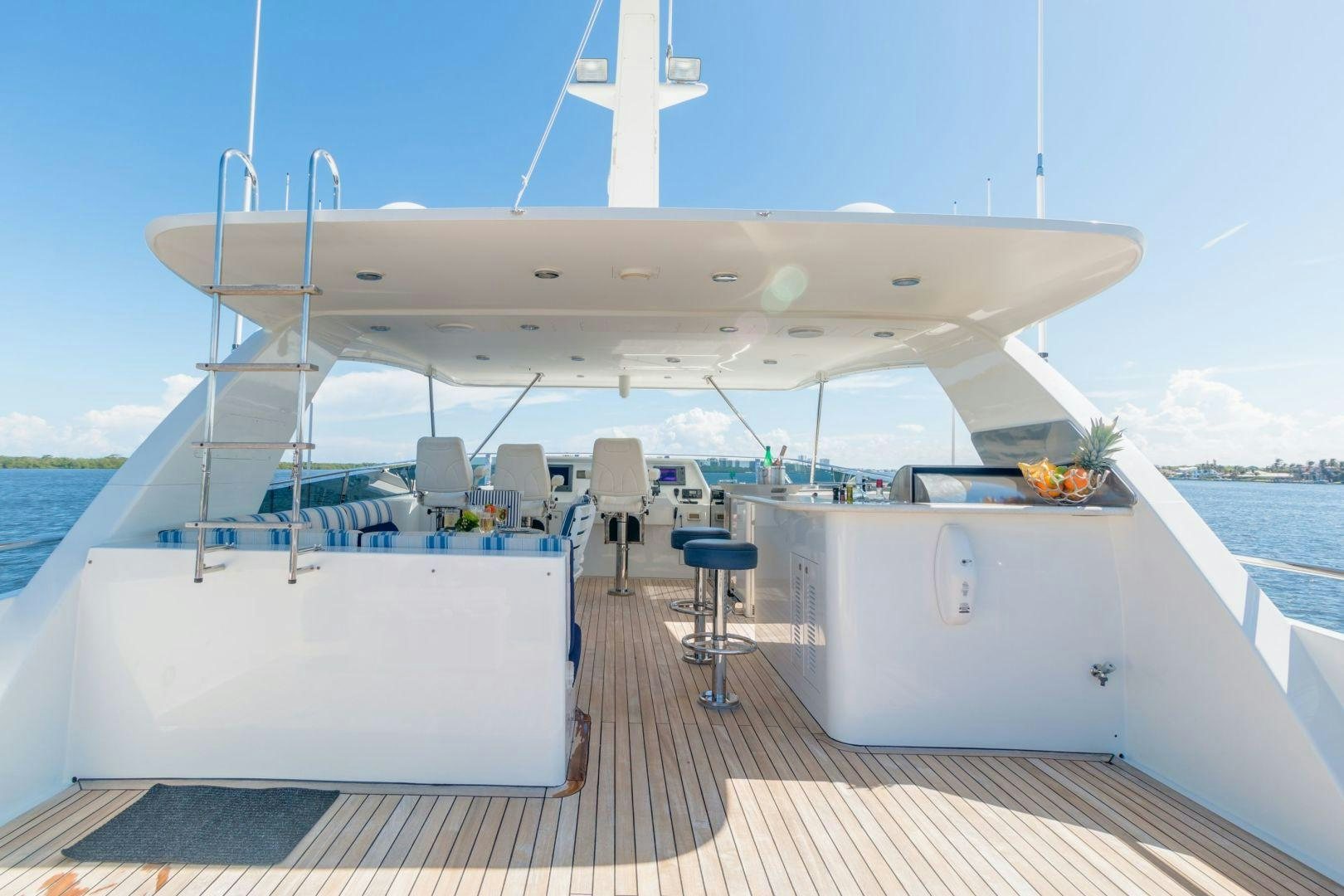

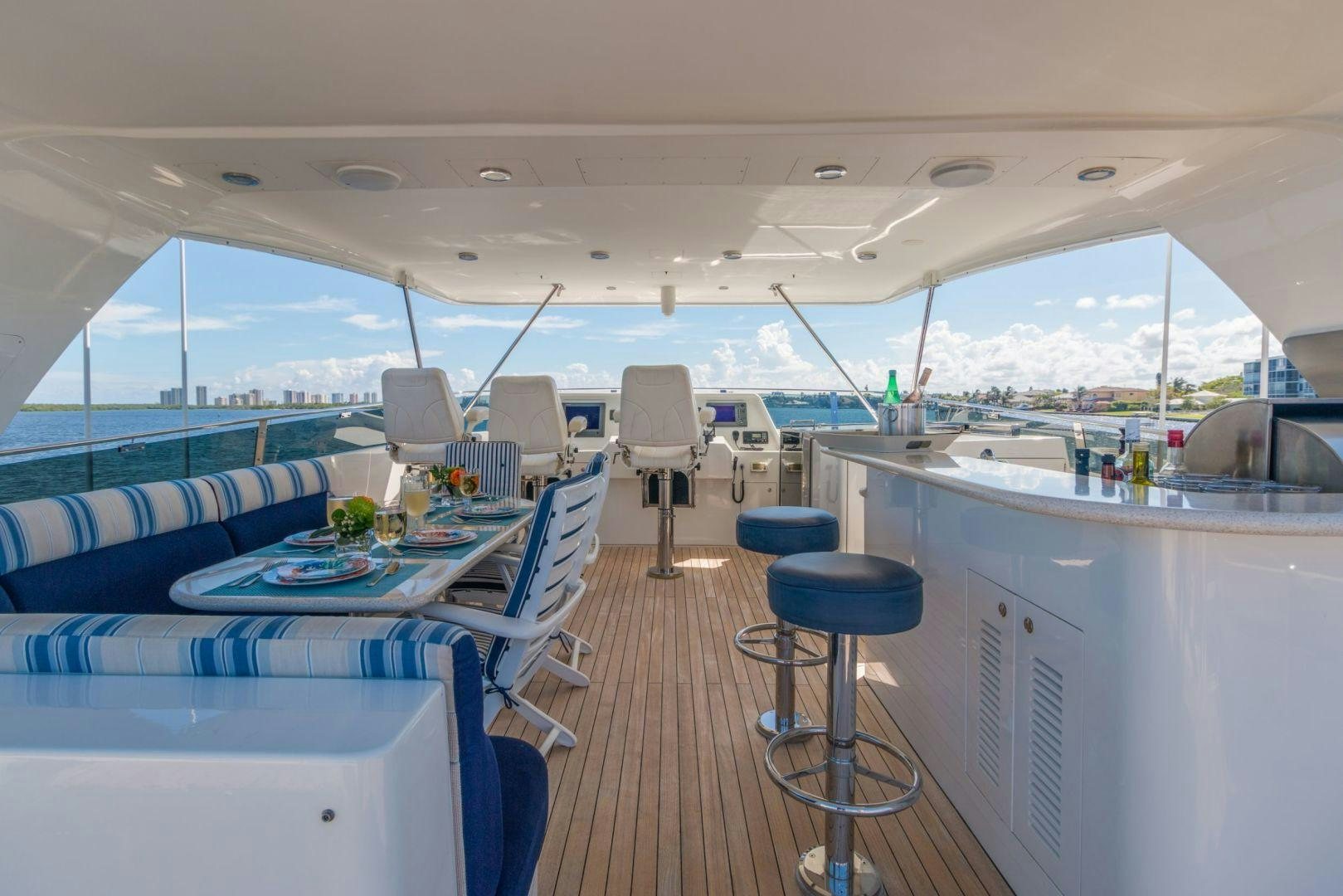

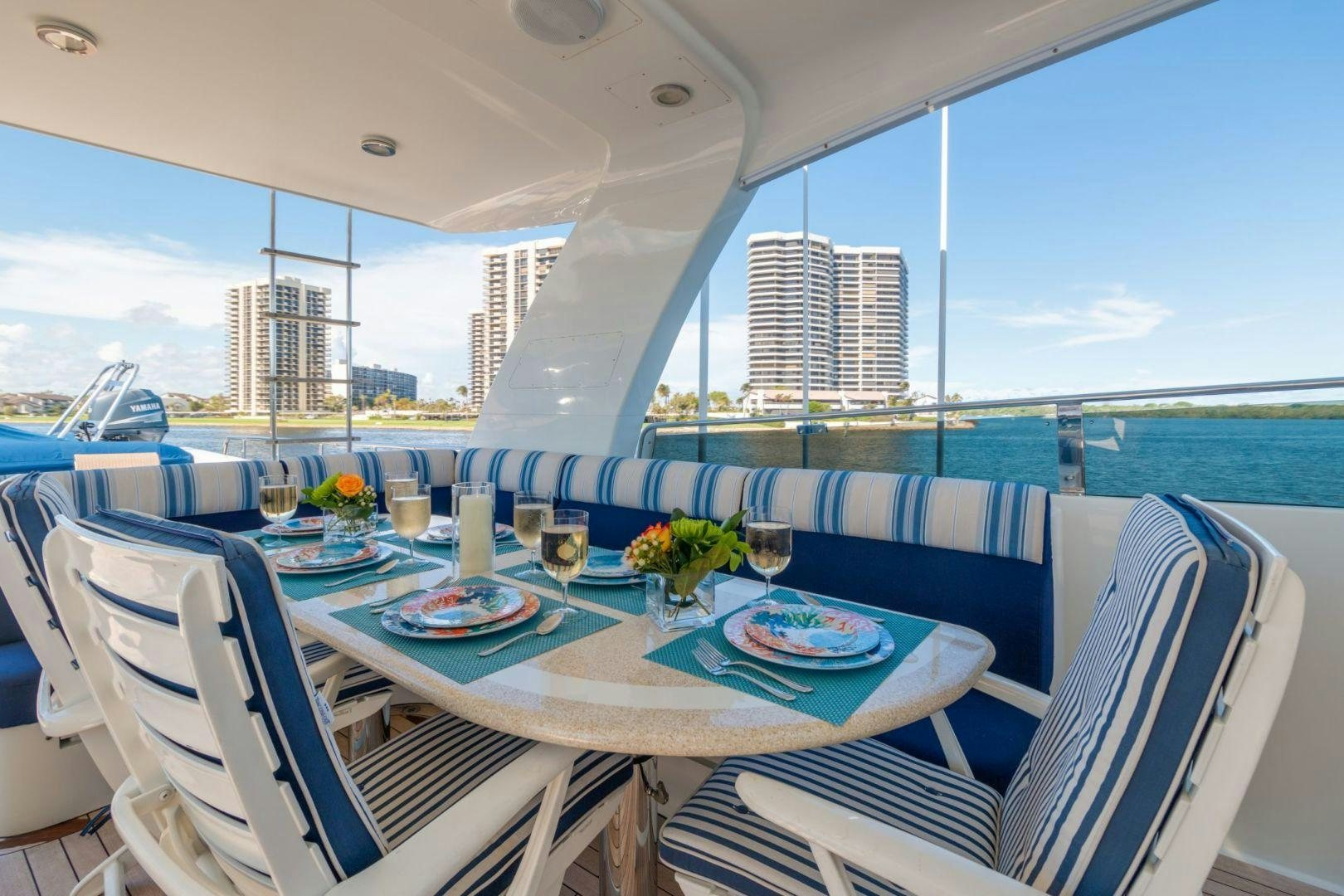

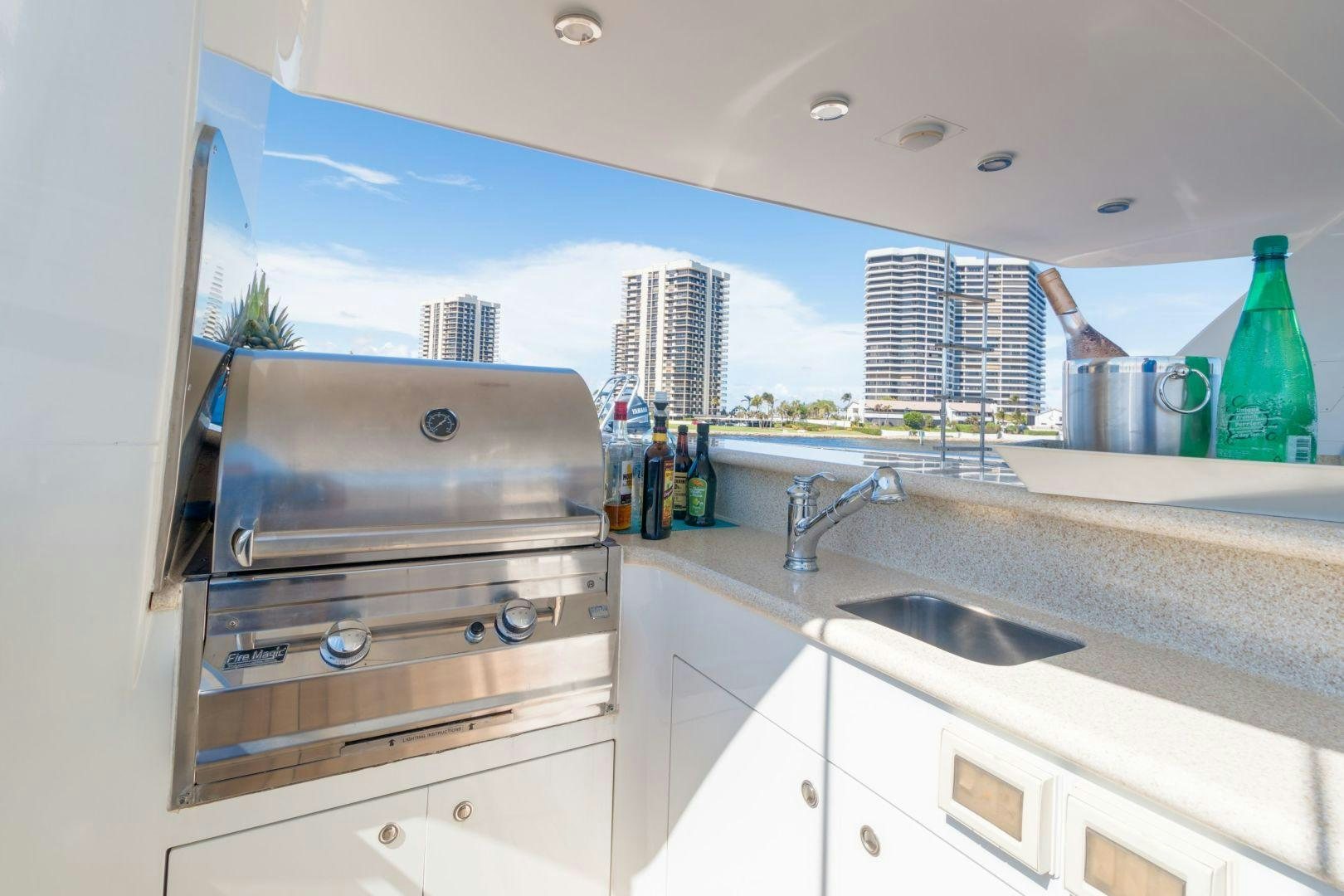

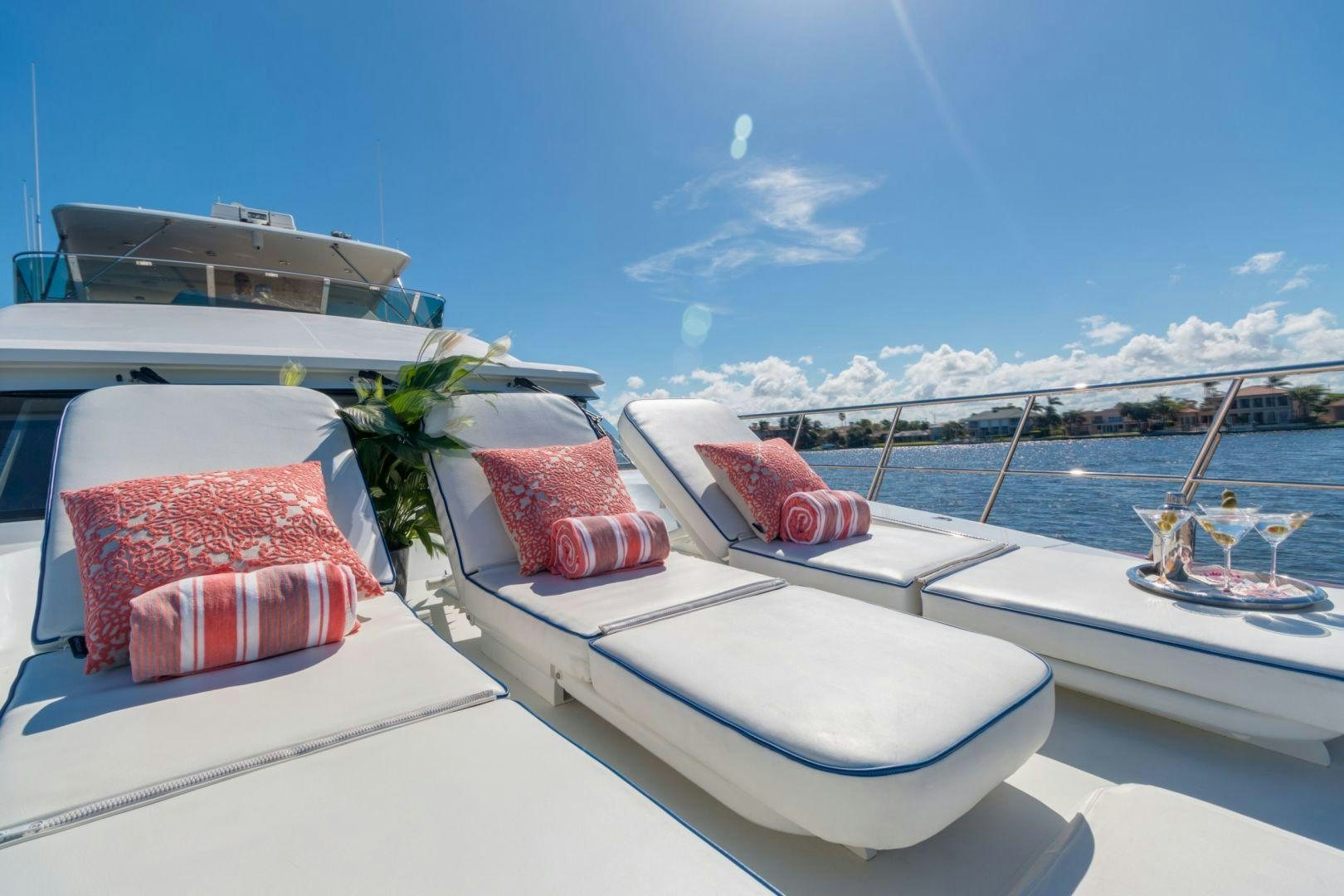

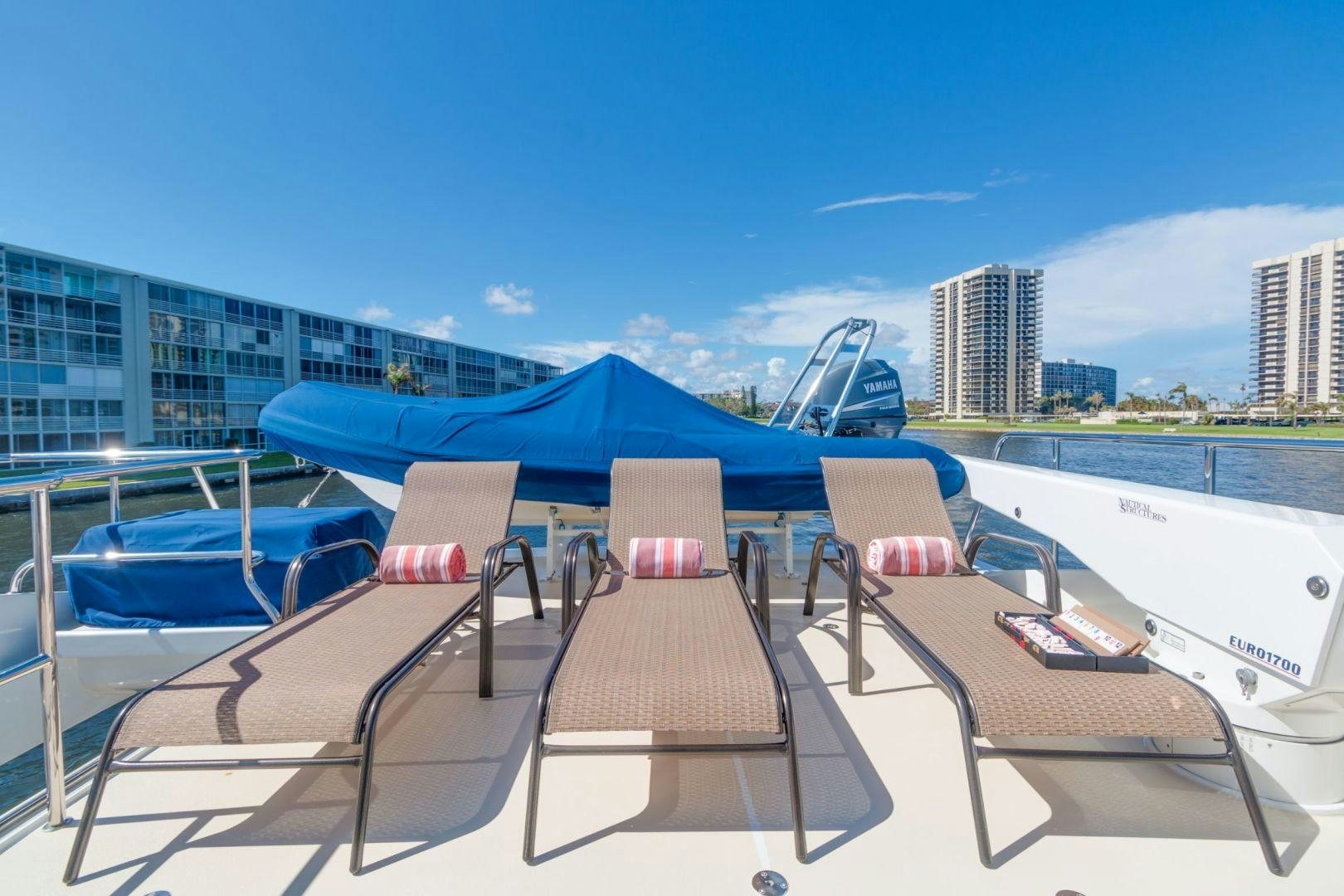

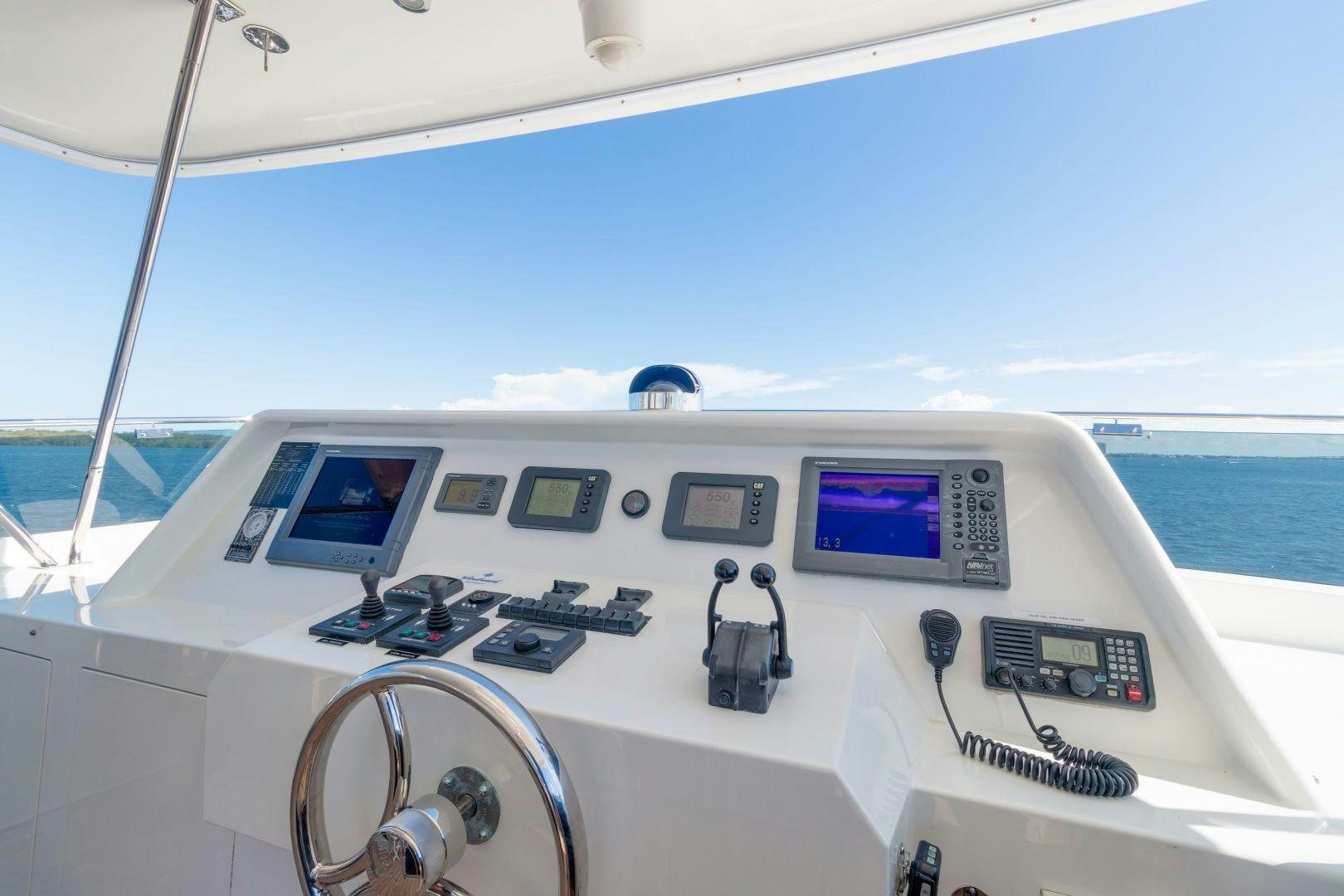

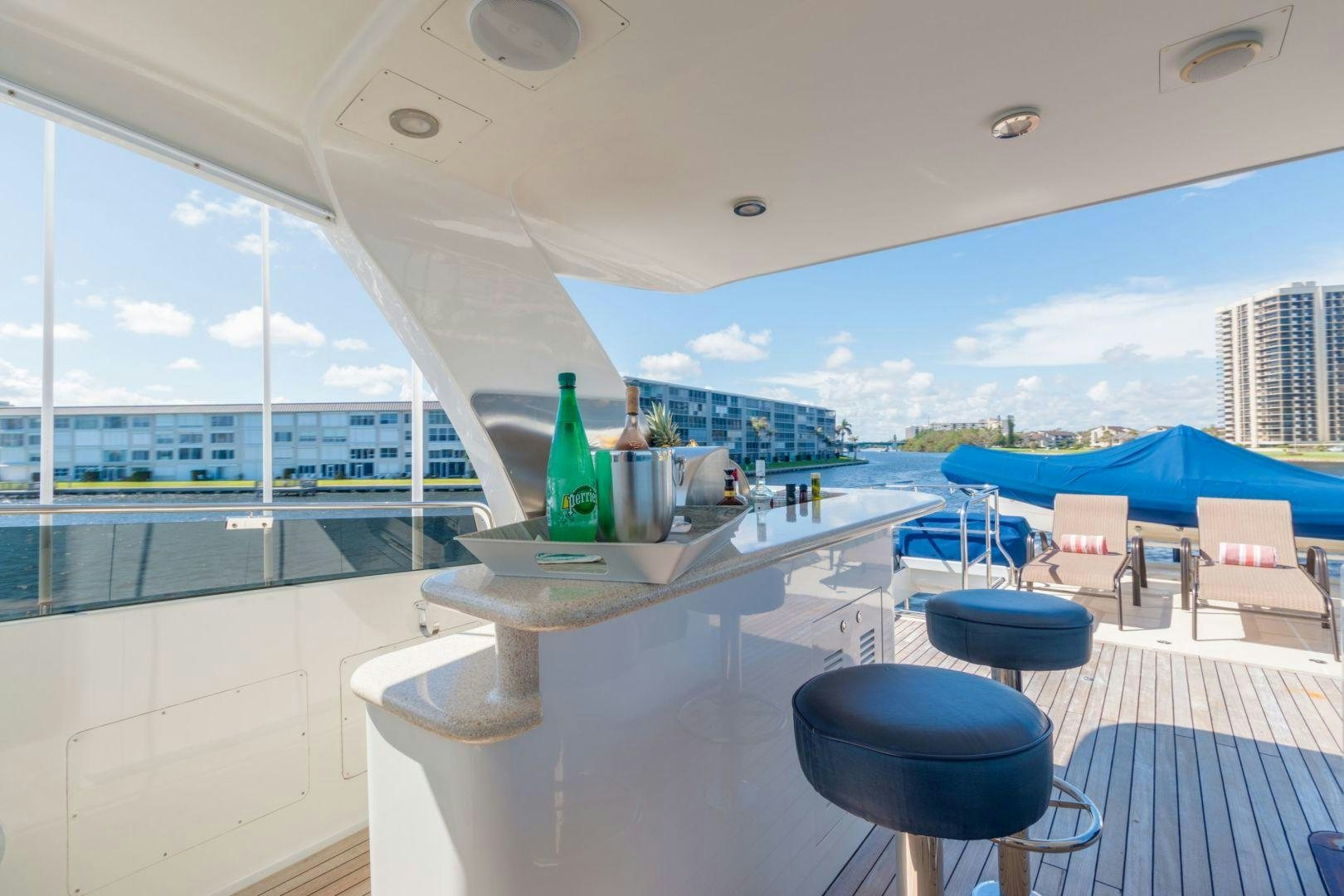

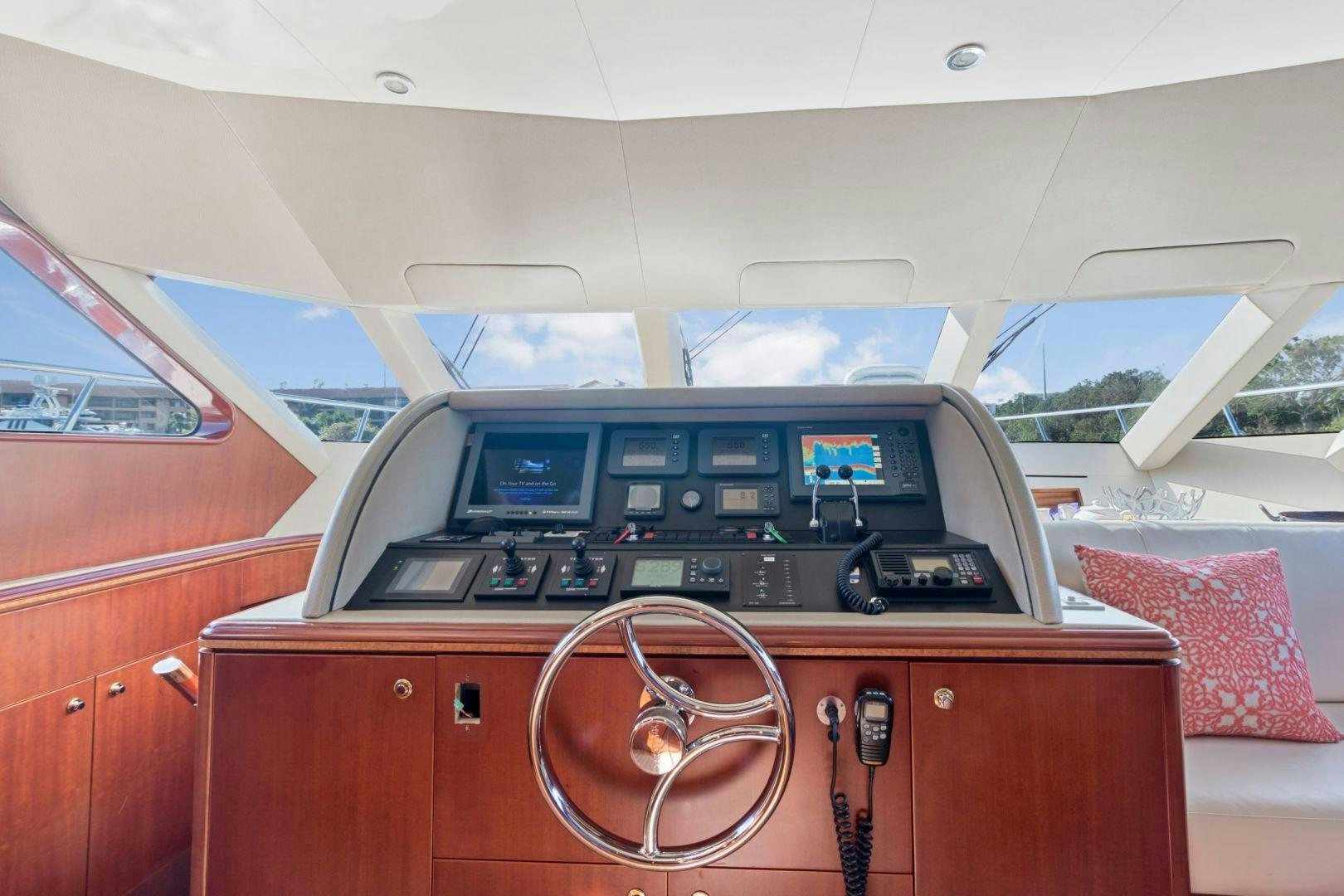

  • The helm station on the flybridge has full repeat electronics as in the pilothouse. This is a premier entertainment area. There are three Crown helm chairs, bench seating and table. All of this is under the removable hard top that can easily be removed to pass under low bridges.  Aft of this area are deck chairs for sunning. The boat deck holds a custom Novurania 430 DL w/ 90hp Yamaha outboard with tow package, lifting harness, custom arch and canvas cover, wet bar, JennAir grill & icemaker for entertainment.

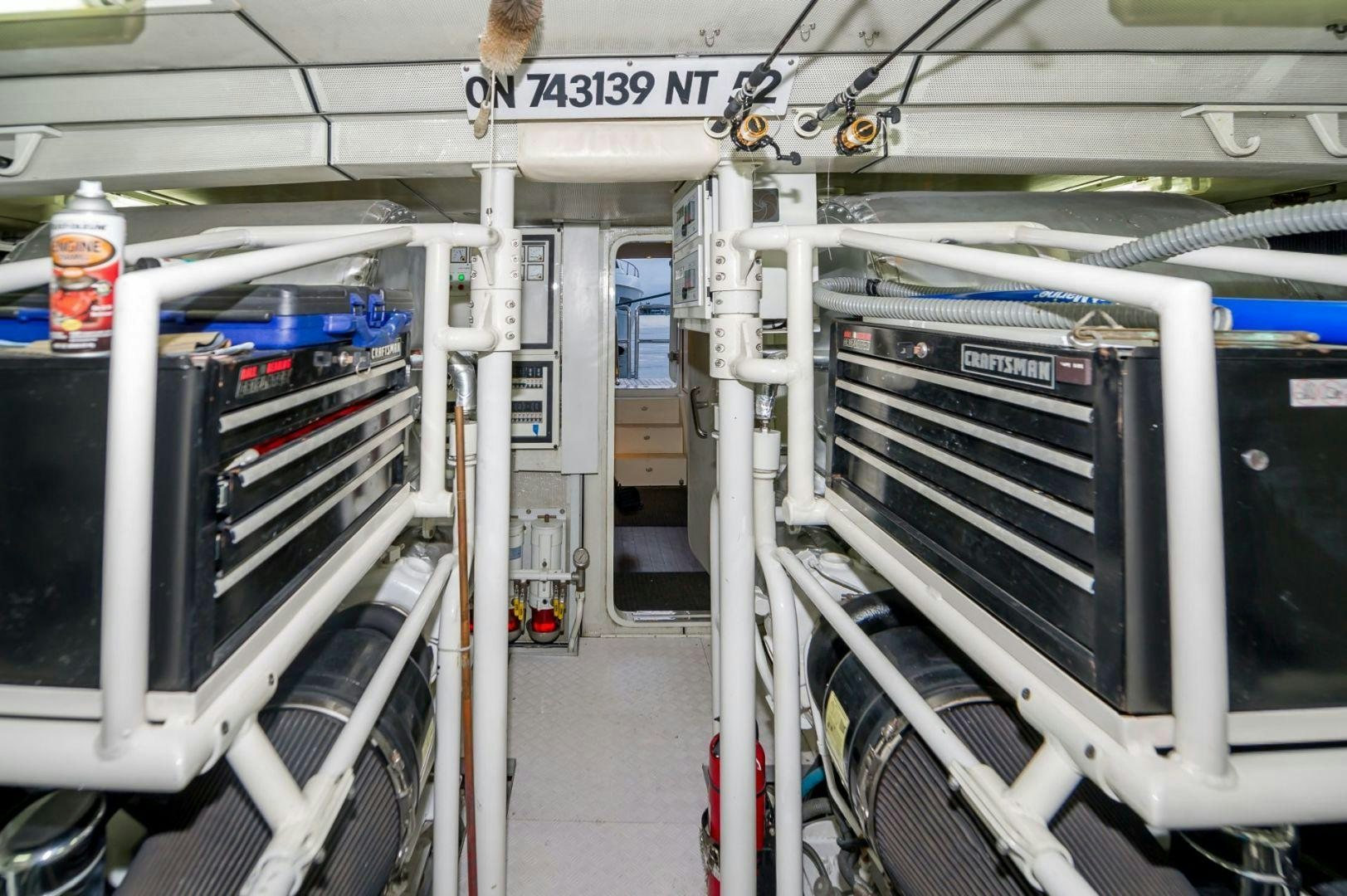

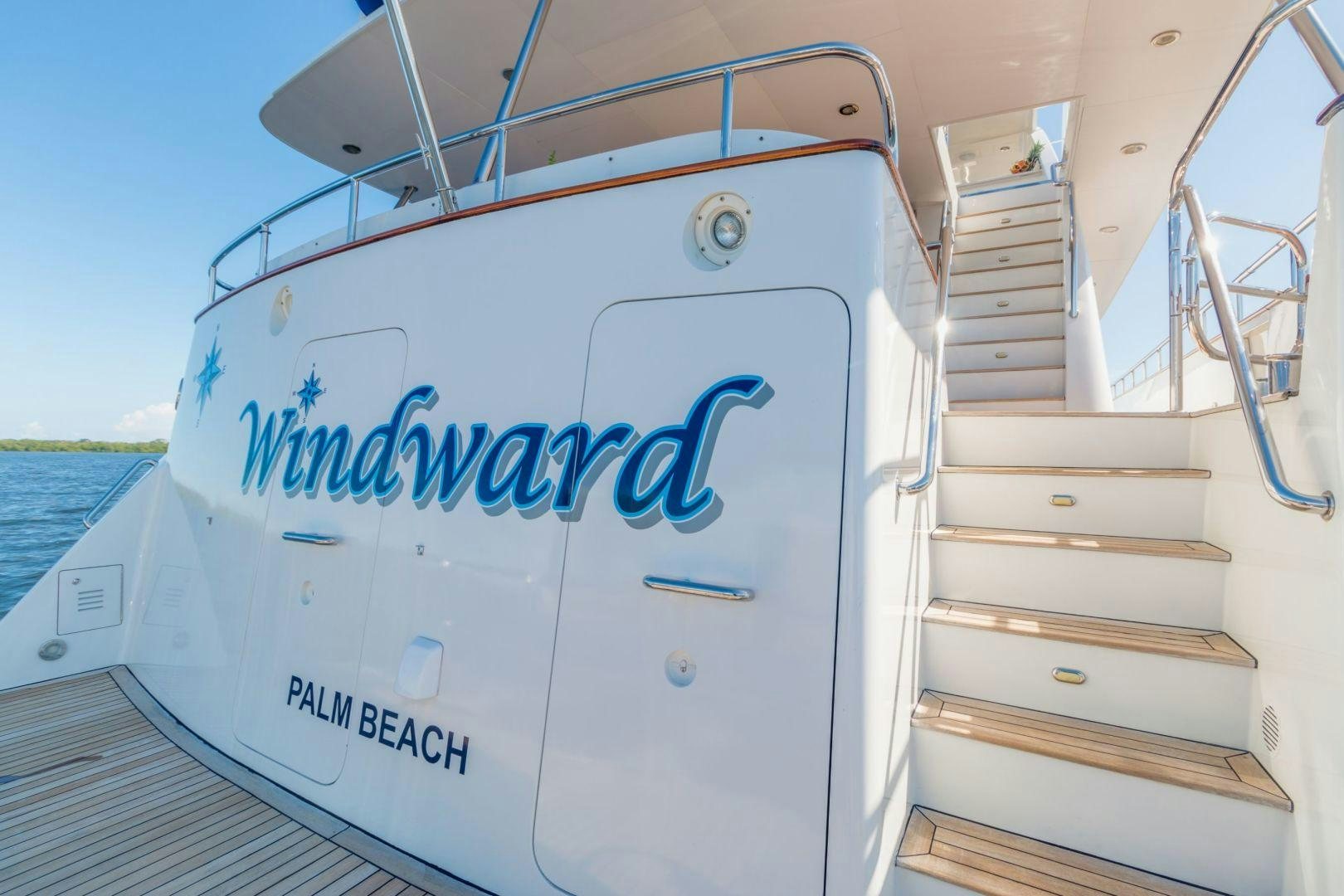

  • Access to two-person crew's quarters and engine room is through the transom door from the swim platform. Just inside the transom door is a storage area for scuba storage and tank filling. There is also a handheld shower. The crew's quarters have twin upper and lower berths, hanging locker, desk with two shelves, a stacked washer/dryer and a full head w/shower. Access to the engine room is forward of the crew area. One of the forward guest cabins can be used for the captain allowing for 3 crew.

Galley & Laundry Equipment


  • Cooking Equipment:   GE Cooktop (new 2022)
  • Dacor Microwave
  • GE Oven (new 2022)
  • Refrigeration/Freezer:  (1)  Subzero 16 cubic ft. refrigerator
  • Dishwasher:  (1)  Whirlpool Dishwasher
  • Other:  SS double sink with garbage disposal


  • Aft Deck: (1)  Icemaker
  • (1)  Bar sink
  • Flybridge  (1) Icemaker
  • (1)  Sub-Zero drawer refrigerator
  • (1)  Bar sink
  • (1)  24” SS gas grill


  • Main Laundry Equipment:  Stacked Miele washer/dryer units (forward)
  • Crew Laundry Equipment:  Stacked Miele washer/dryer units (aft)

Communication Equipment

  • Depth Sounder: Garmin
  • GPS: Furuno
  • AIS: Garmin
  • Horn:  Kahlenberg
  • Search Lights: ACR
  • VHF Radio Fixed: (2) ICOM

Navigation Equipment

  • Monitors: Furuno Nobeltec
  • Radar: Furuno Navnet 4kW 48 mile radius
  • Multifunctional Workstation: Furuno Navnet
  • Chart Plotter: Furuno Navnet touchscreen
  • Magnetic Compass:    Ritchie 5” compass with light, dimmer, and cover.
  • Auto Pilot:    Simrad, AP25
  • Rudder Angle Indicator System: Yes

Entertainment Equipment

  • Main Salon:    LG TV, Direct TV Satellite, Sony stereo receiver and surround sound, Marantz tuner and CD player, Sony Blu-Ray player
  • Master Stateroom:    LG TV, Direct TV
  • VIP Stateroom:    LG TV, Direct TV
  • Guest Staterooms:    LG TV, Direct TV
  • Exterior, Aft Deck, Bar, Bridge Deck:    LG TV, Direct TV
  • Captain’s Cabin/5th Guest Stateroom:    LG TV, Direct TV
  • WIFI:    Yes

Tenders & Toys

  • Novurania 430 DL w/ 90hp Yamaha outboard with tow package

Deck Equipment

  • Anchors:  (2) Manson
  • Anchor Chains:  (1)  200’ of ½” chain (1) 160’of ½” chain
  • Anchor Windlass System:  Dual Maxwell 4000 on the bow
  • Davits:    Nautical Structures 1,700lb hydraulic (serviced in 2022)
  • Sea-stair:   yes
  • Swimming Ladder:   yes
  • Spotlights:   ACR
  • Paint Exterior:  Awlgrip

Safety & Security Equipment

  • Fixed Firefighting System: Fire extinguisher system (new bottle 2021)
  • Fire Alarm:    Yes
  • Alarms: Yes
  • Life Rafts:    (2) 6-man offshore rafts
  • Lifejackets: Yes - 15
  • Immersion Suits: Yes - 3
  • Life Rings:    Yes
  • EPIRB: Yes
  • Flares and Signals: Yes
  • Medical Equipment: Yes

Refit History


  • Replaced p/s engine AGM and generator GEL batteries
  • Replace A/C blower fan stbd salon
  • Replaced galley dishwasher
  • Replaced Headhunter water pressure jar to a larger one eliminating the problem of pressure loss
  • Replaced Bow teak deck
  • Replaced p/s engine sea cock valves and thru hulls, dropped p/s stabilizer fins, full service upper/lower service, bow and stern thrusters
  • Full service to davit, new cable, full disassemble to motor/ramp etc.
  • Replaced lower anchor and 200 ft of chain and shackle
  • Replaced cooling pump
  • Replaced stbd engine room blower and motor
  • Replaced 1 of 2 A/C raw water pump/motor
  • Replaced port engine room blower and motor
  • Concord electronics replaced all interior components on Nobeltec plotter
  • Full replacement KVH satellite/dome
  • Replaced small galley crew fridge and aft deck fridge
  • Replaced carpet in salon and stairs
  • Reupholstered bridge cushion at settee and 3 helm chairs
  • Replaced galley stove top
  • Replaced aft crew and fwd guest washing machines
  • Replaced #1 and #2 water heater and Headhunter fresh water pump
  • Fuel tanks cleaned internally
  • Replaced motor on upper and lower anchor windlass
  • Replaced #1 A/C frequency drive
  • Replaced both upper/lower anchor windlass GEL batteries
  • Replaced port generator
  • Replaced Furuno radar array and new touch screen Furuno Nav/Net plotter
  • Replaced bridge and aft deck ice makers
  • Replaced salon and master headliner
  • New AIS system in galley
  • New gas dewatering crash pump
  • Replaced high pressure pump water maker (have new one as a spare)
  • Replace engine room cooling pump/motor (have new motor as a spare)
  • Concord electronics replaced all interior components on Nobeltech plotter
  • Rebuilt port engine
