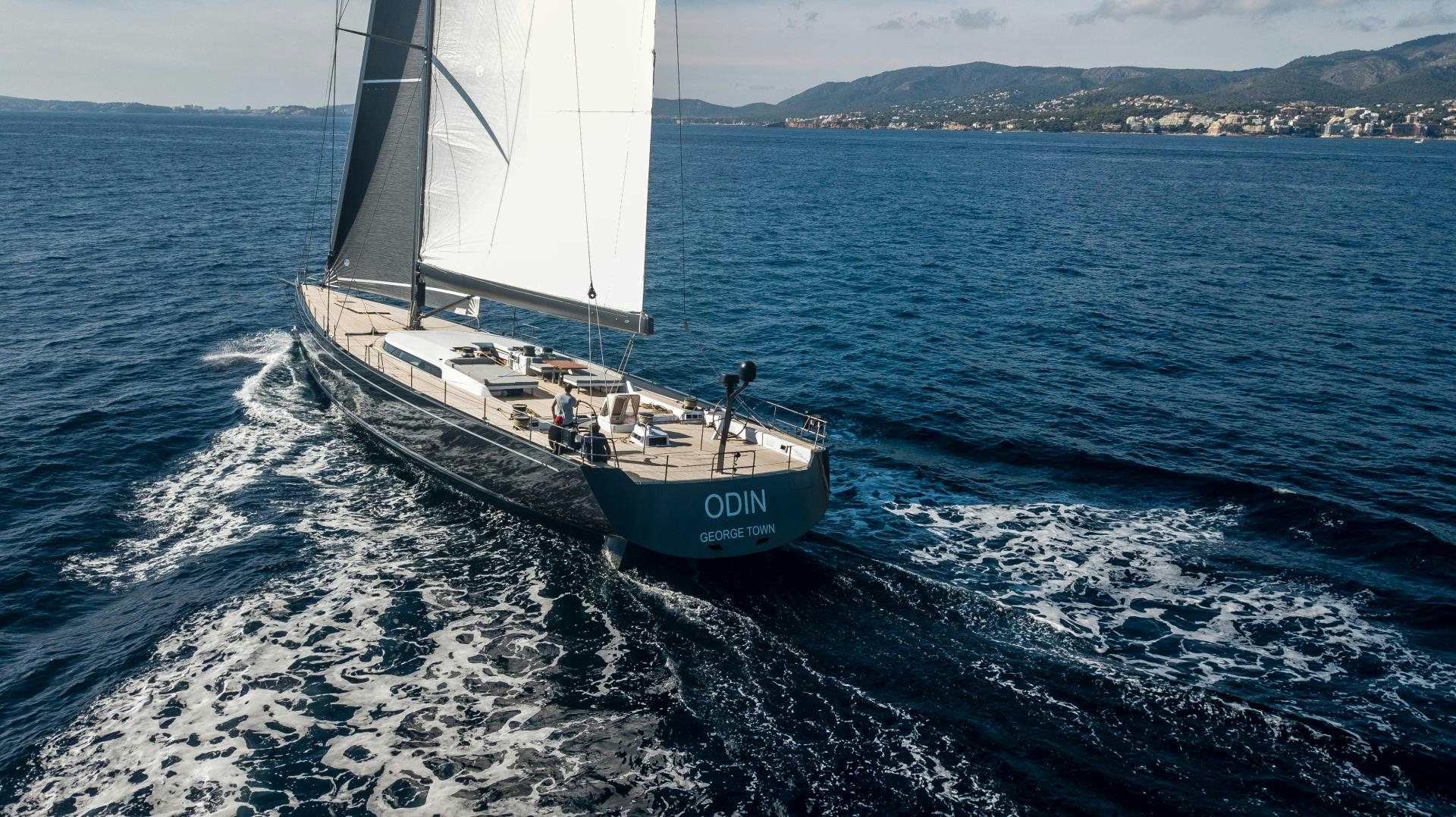

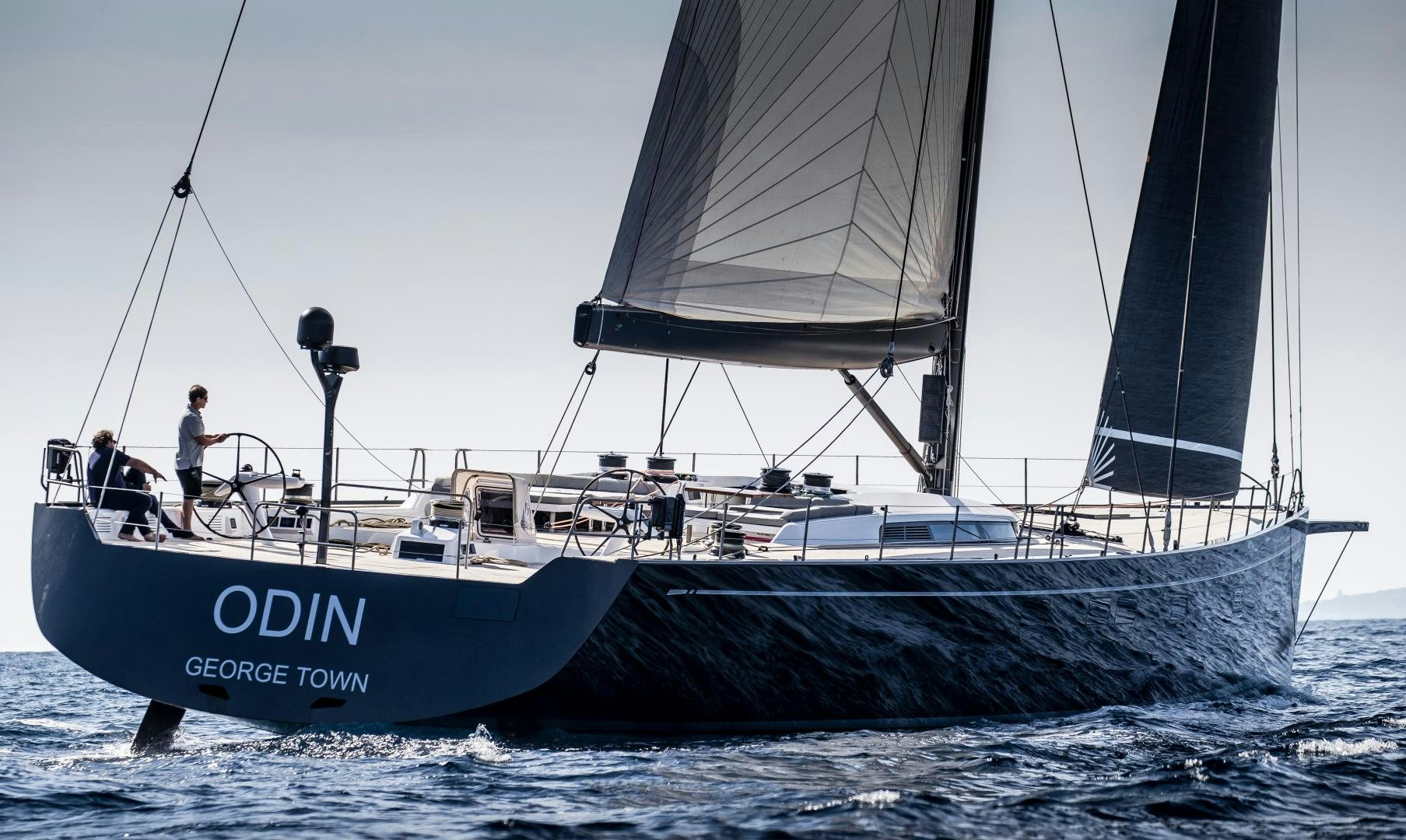

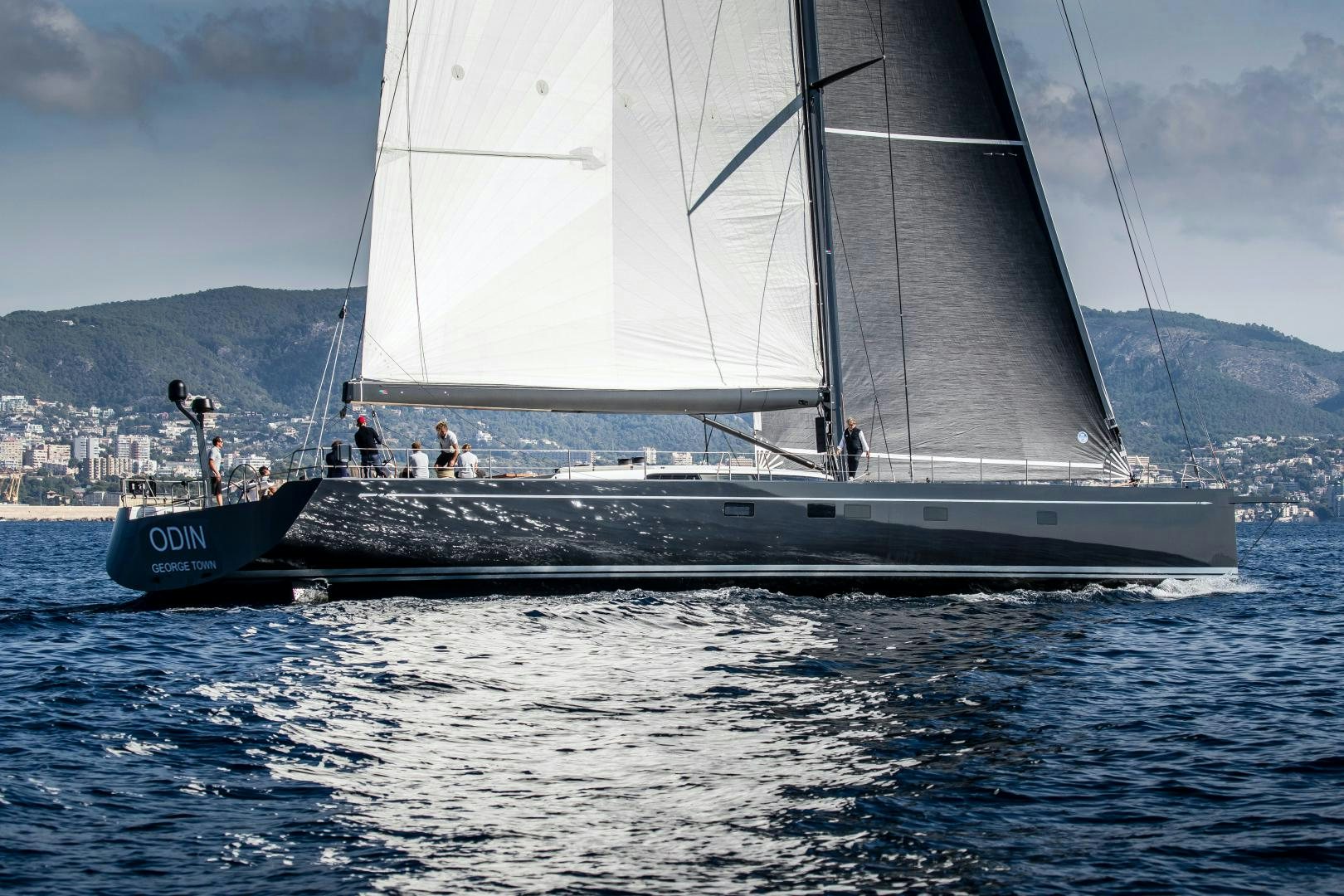

The 115-foot (35.05m) Nautor Swan sailing yacht ODIN is a true masterpiece and one of the most technologically advanced yachts Nautor has ever built. Optimized for competitive racing at the highest level, every detail of the sailing yacht has been studied by world class engineers and boat builders to ensure excellent performance on the water and a soft touch on the helm. The sailing yacht is a carbon foam/nomex sandwich using SPRINT technology and is equipped with an advanced WPT3 race processor. ODIN is very capable of winning the ORC superyacht circuit.

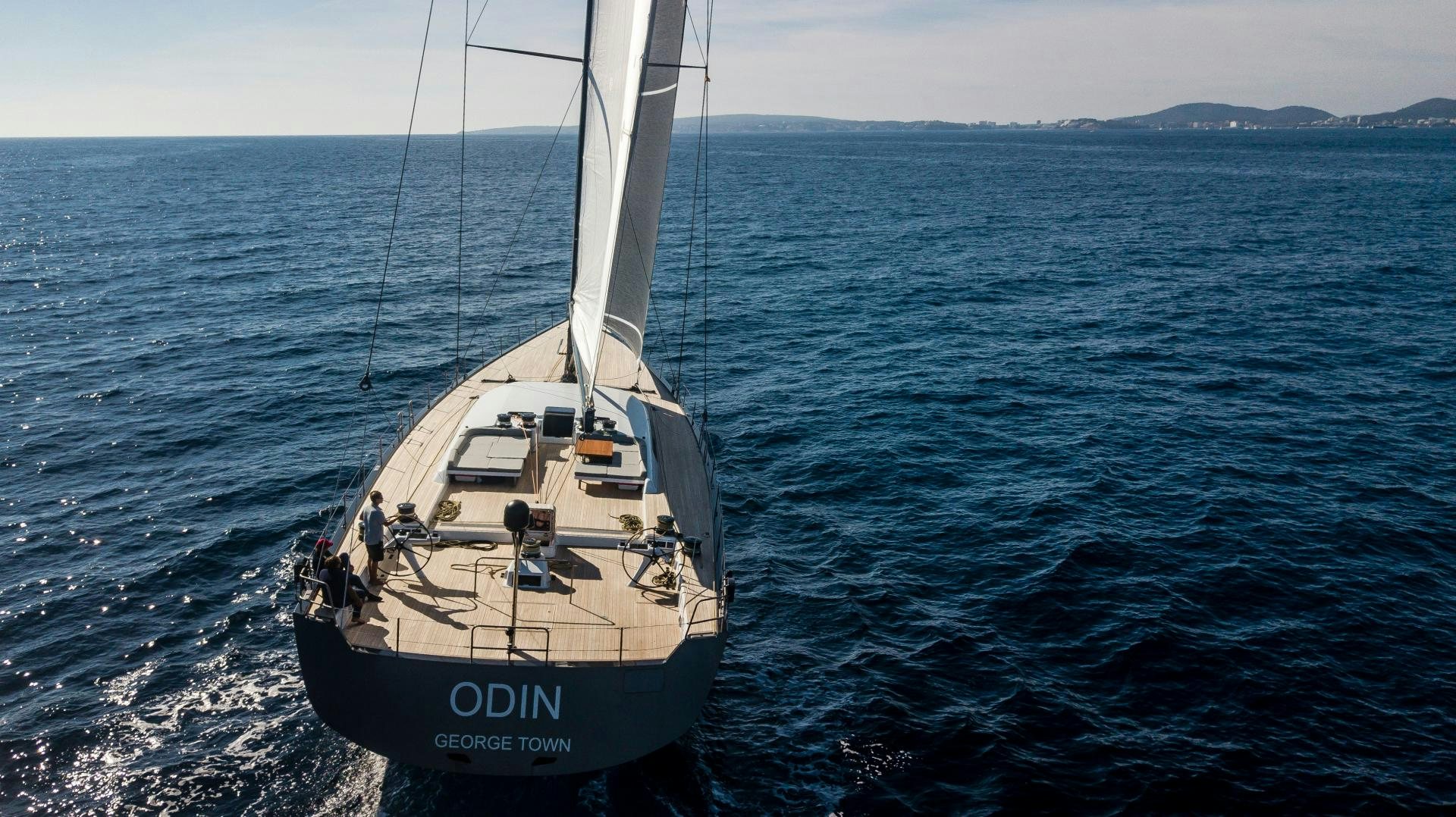

Sailing yacht ODIN showcases a sleek low profile and flushed deck design optimized for performance. The yacht’s guest cockpit is the ideal place to be while underway and at anchor. It has teak tables with adjustable heights for different modes that allow the cockpit to be enjoyed with a variety of uses.

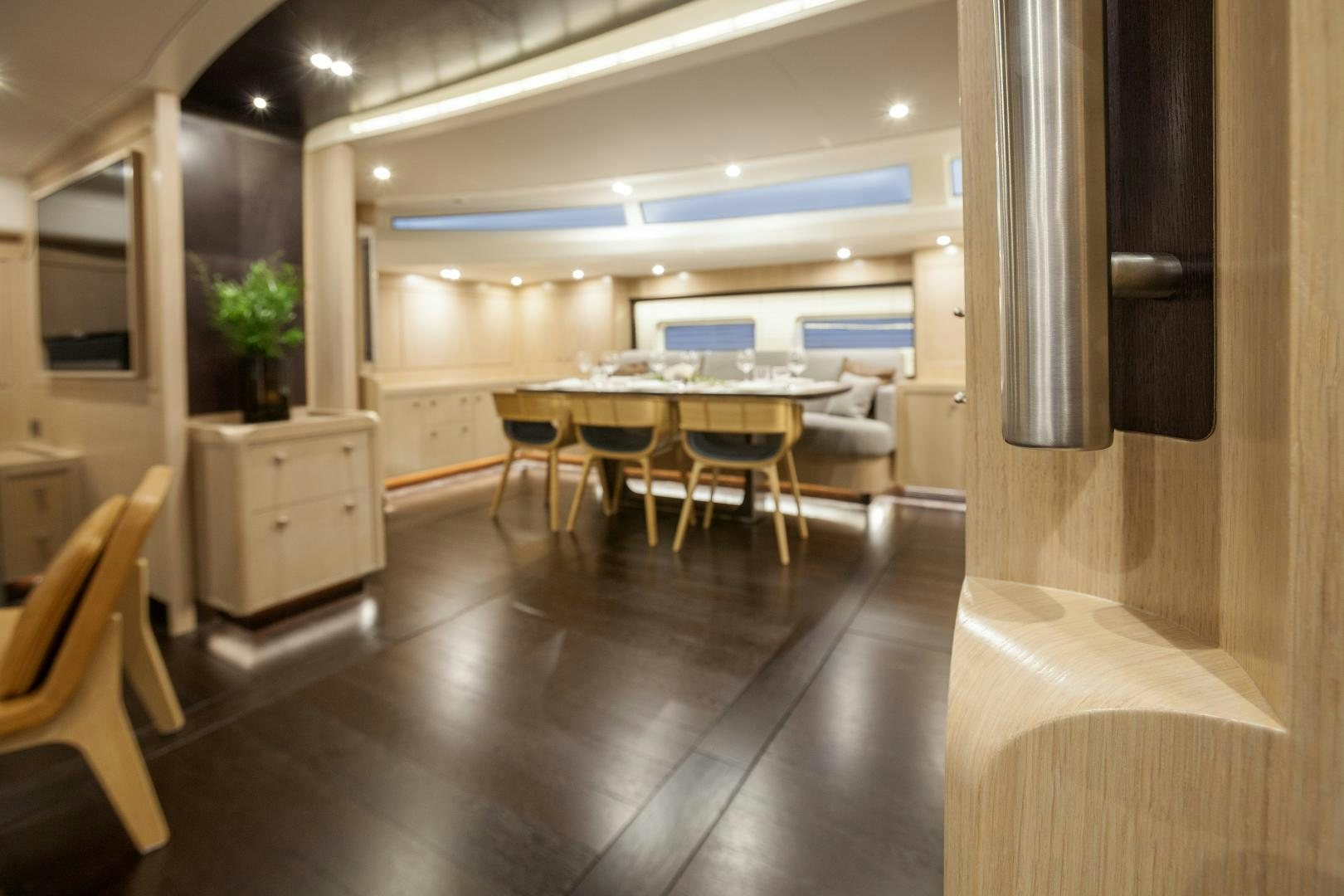

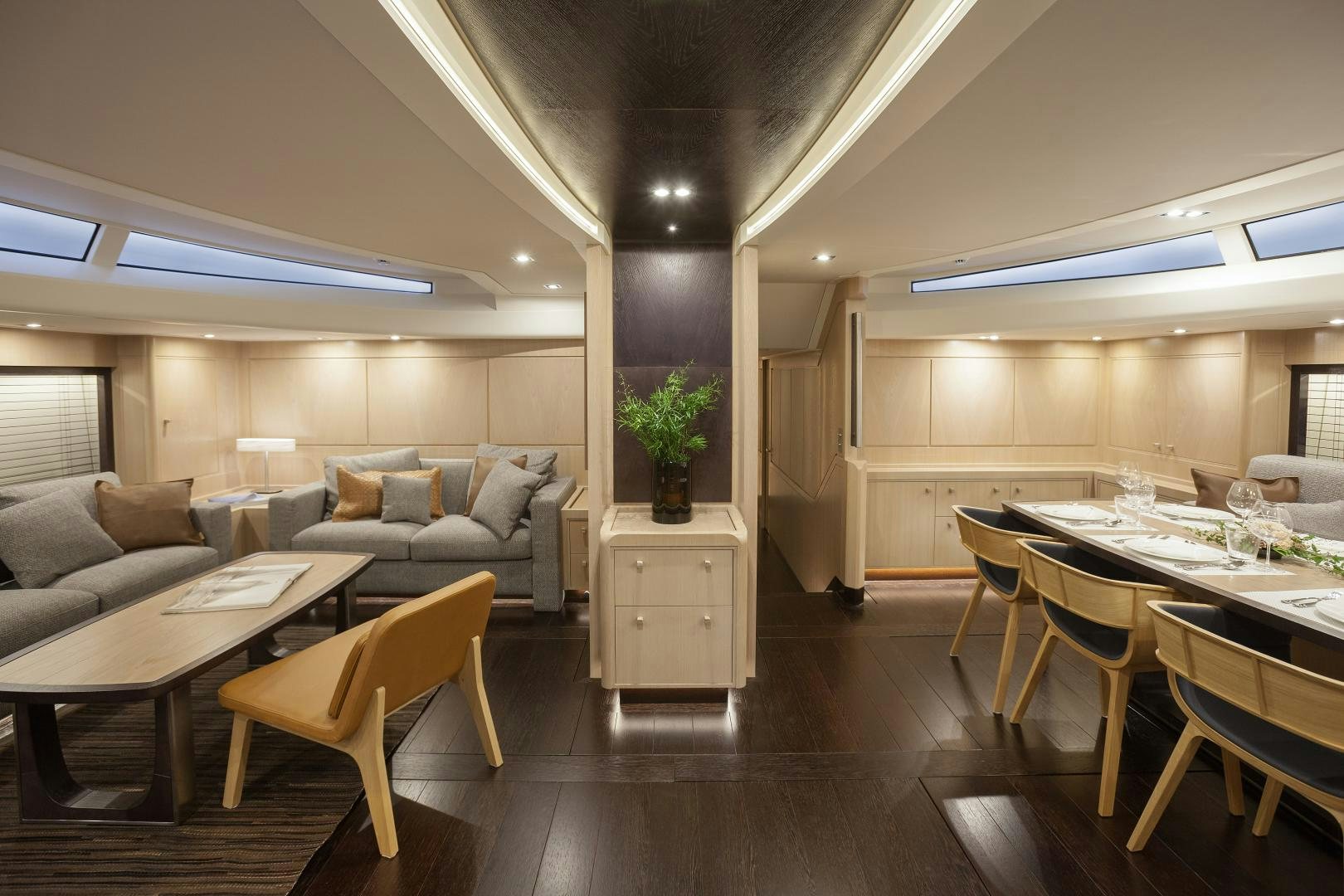

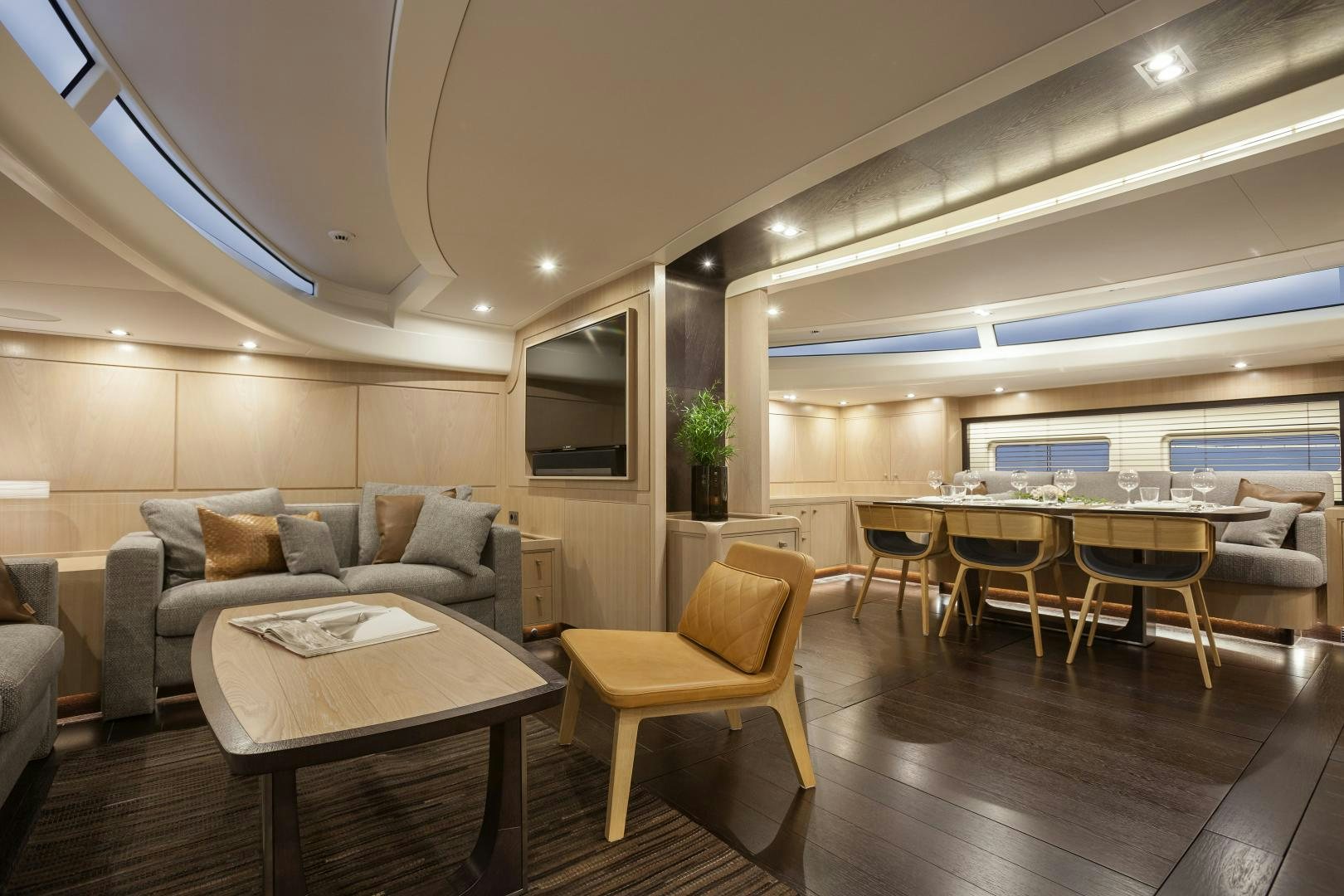

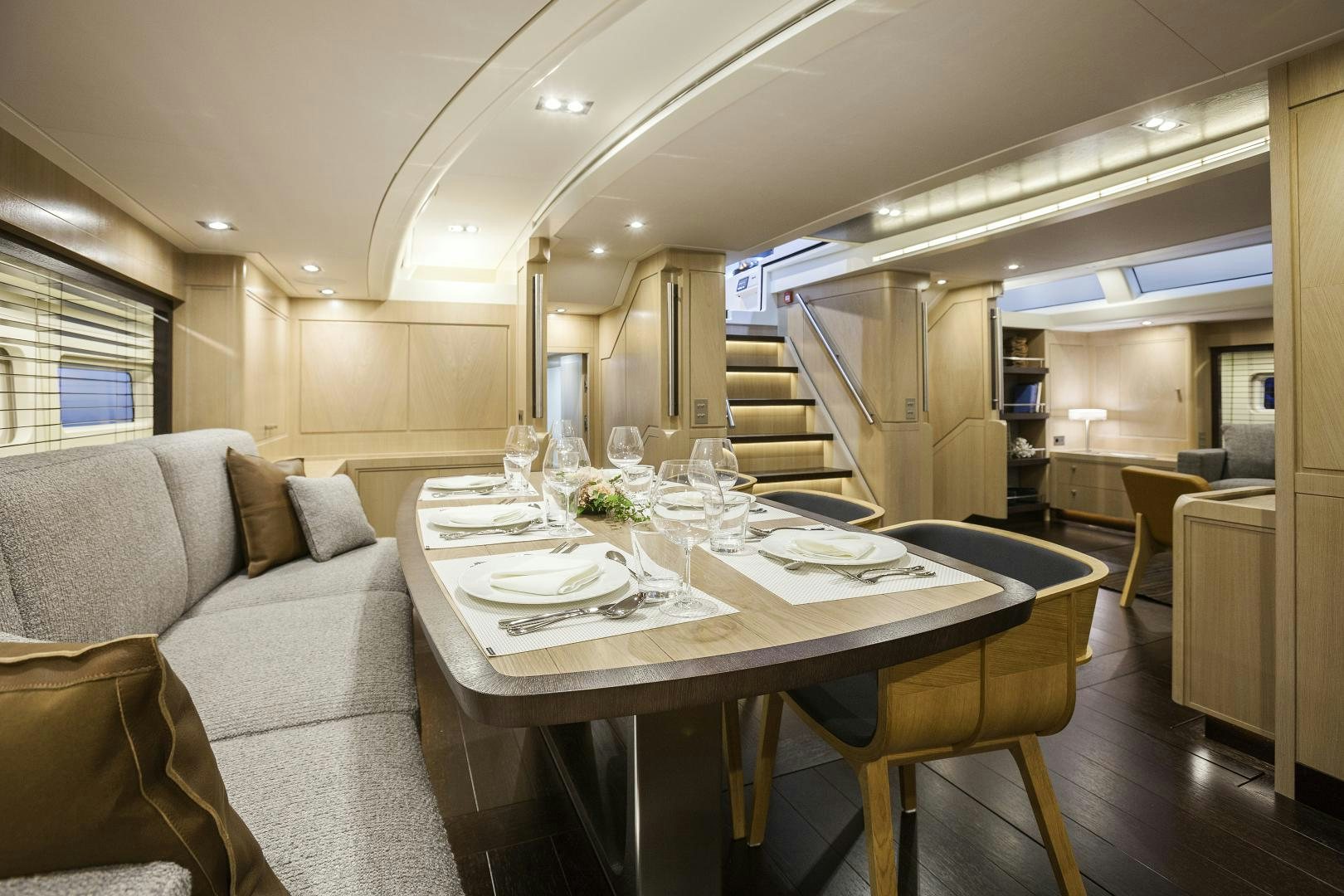

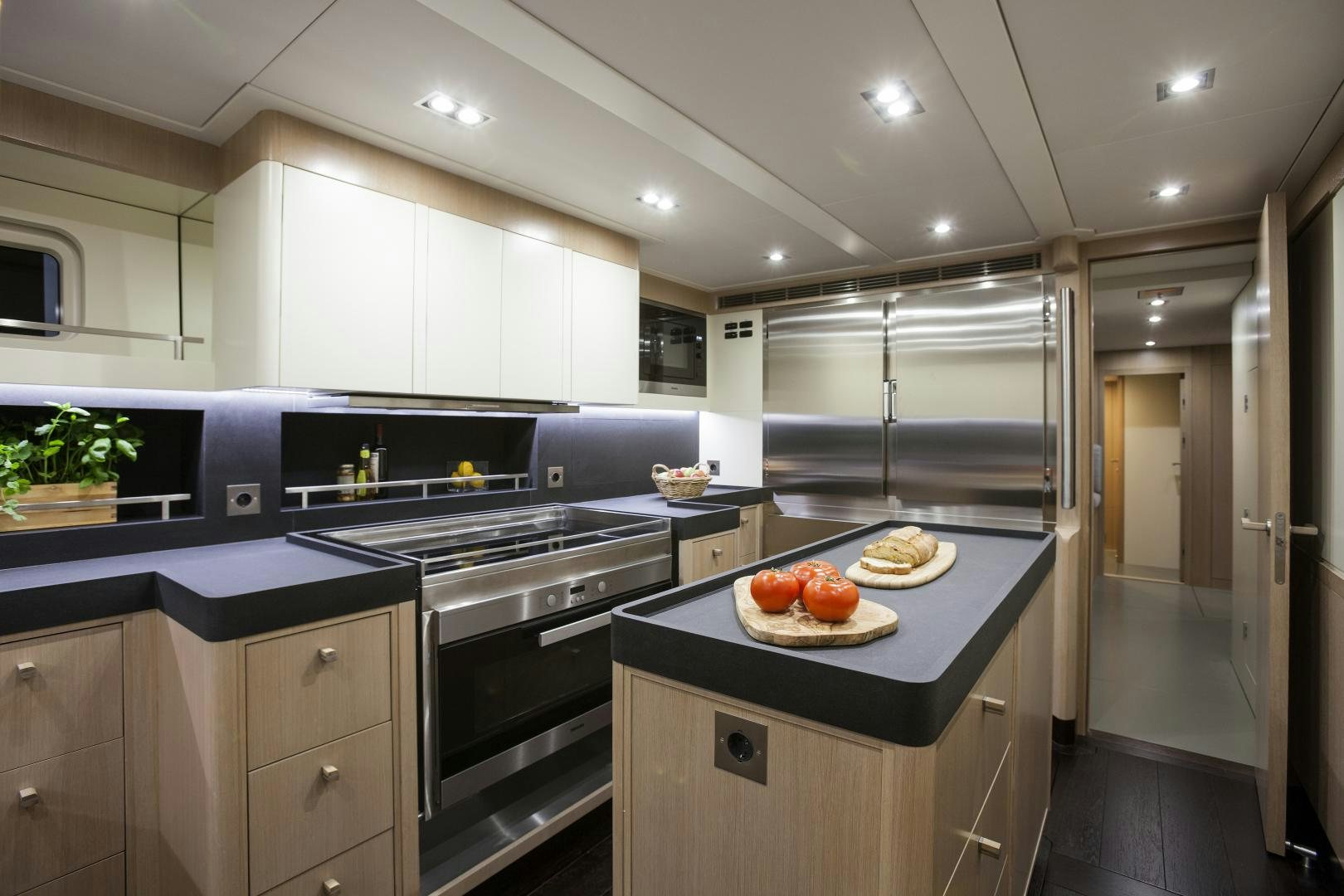

The luxury sailing yacht showcases an inviting interior with a contemporary styling and a soothing ambiance. ODIN’s living area is open and spacious with dining on the STBD side and lounging on the PORT. Her layout is ideal for entertaining as well as relaxing after a fun day of sailing. The yacht also features a well-equipped galley that was intelligently well thought out for service. It features Miele appliances and countertops in blasted granite “Nero Absoluto.”

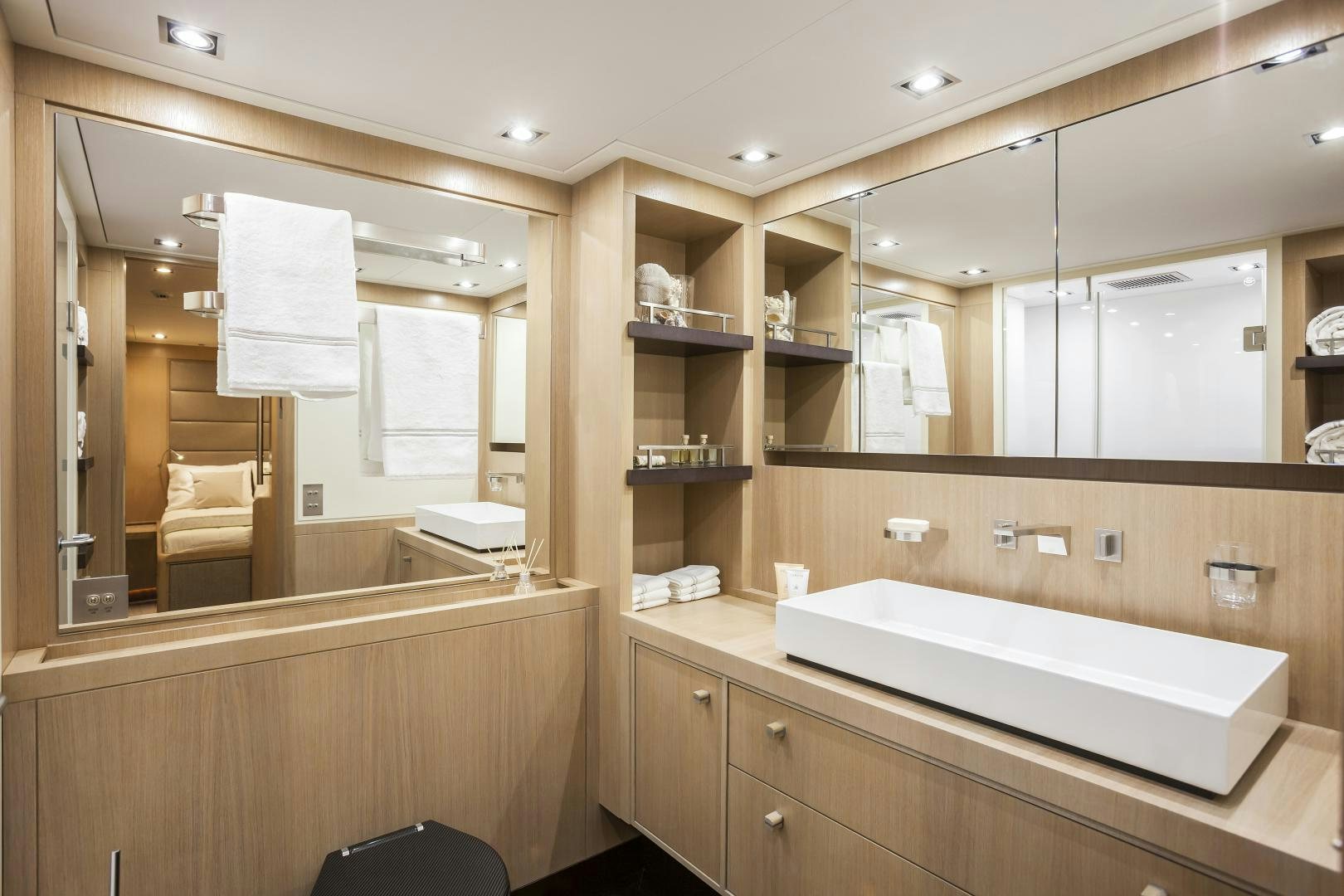

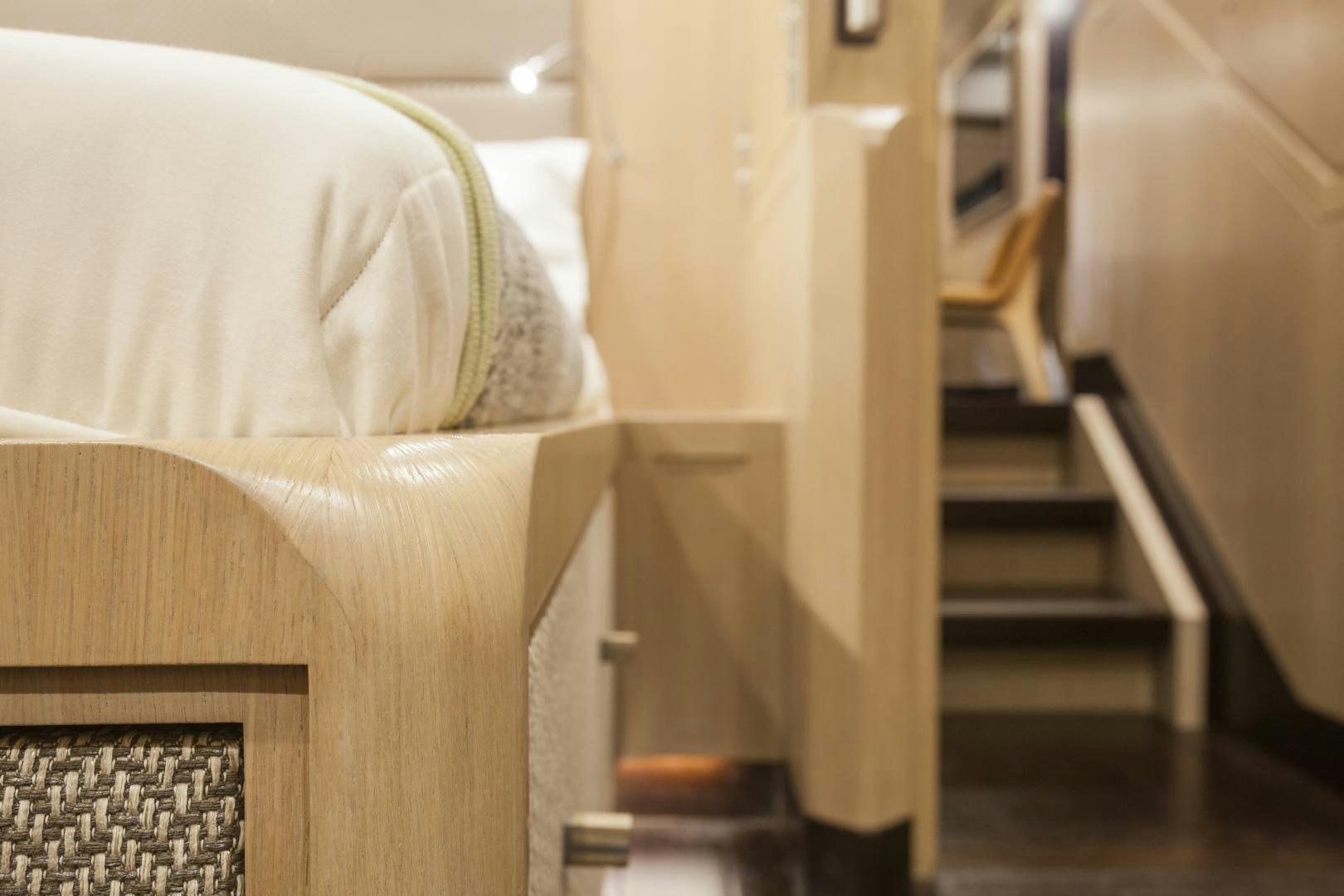

ODIN offers accommodations for six guests in three beautifully designed cabins. The yacht’s master cabin is located on the port side aft of the salon. The soothing cabin features a double bed, en-suite bath, a hanging locker and drawer storage. The additional staterooms aboard sailing yacht ODIN are located forward, include a VIP with a king bed and another generous double bed stateroom. Each stateroom is complete with an en-suite bath, bookmatch panes and padded bed headboard. There is one hull window in each cabin filling the space with natural light. Additionally, the sailing yacht has three cabins for six crewmembers.
ODIN is a donation vessel and being offered as a three-year bareboat charter with purchase option.
ACCOMMODATION
—
OWNER
► Master double cabin with ensuite bathroom
GUESTS
► 2 x Double Guest Cabins with ensuite bathroom & toilet.
CREW
► 3 x twin berth crew cabins.
► 2x Shared shower bathroom & toilet.
MACHINERY
—
Main Engine Cummins QB6.7 312kW (425Hp)
Gear Box ZF-301-A
Shafts & Propeller Shipmotion Retractable Propeller
RPS60C-1100-001. NiALBr 120085-1100-
002, Fixed 4-Blade
Speeds & Fuel Consumptions 8.5kts @ 18L/Hr; 12kts @ 50Lts/Hr
Range 900 nm @ 8.5kts
Engine Hours 523 Hours (December 2020)
TANK CAPACITIES (APPROXIMATE)
—
Fuel 2100 Litres (555 US Gallons) 2x 1000L, 100L Day tank
Watermakers Aqua Whisper DX 1400 approx 220Lts/Hr
Water 1500 Litres (396 US Gallons)
2x 750L
AUXILIARY MACHINERY & ELECTRICAL SYSTEM
—
Generator Fischer Panda 45i 230V Single Phase
(32kW)
Generator HOURS December 2020
668 Hours
Electricity 230V AC Single Phase; 24V DC
Shore Power/Converter 230V 50/60Hz Single Phase
BATTERIES
► Mastervolt Lithium Ion 6x 24V 1080Ah /10h
► 2x 24V Main Engine (OPTIMA High Performance AGM, 2x 12v 50 Ah)
► 2x 24V Gen Batteries (OPTIMA High Performance AGM, 2x 12v 50 Ah)
ANCILLARY EQUIPMENT
—
HYDRAULICS
► Custom 350 Bar Hyd. System from Marine Hydraulics, Finland. >100kW
► Adjustable PLC Configuration, Race mode, Cruise mode, Upwind/
Downwind.
► Heavily optimised for weight and performance
KEEL APM
► Lifting Keel 2.25m Stroke.
► Titanium bottom plate, tapping bars, bearings and side wedges.
STEERING SYSTEM
► Custom Owen Clark Design with windward floating rudder, rudder toe
adjustment and two gear sprocket.
► Custom composite quadrants and pedestals
► Isotop five spoke carbon steering wheels
Bow Thruster OYS H-300-V-048-04 80kW. Custom vertical titanium
tube and carbon tunnel.
Fire/Bilge Pump Fire: Gianneschi BMA-s 32/125 B1 24VDC
Bilge: 8x Gianneschi Maxi Sub 150L/min (AC)
WC’s 5x Carbon Tecma X-Light, FW Flushing
Airconditioning Condaria 120,000BTU 230V 50/60Hz
10x Air Handlers.
VENTILATION
► Cabin ventilation by two (Port and STBD) Fresh Air Supply Circuits running
the length of the ship.
► Engine room ventilation controlled by temperature and pressure. 2x Ziehl-
Abegg ZN045-6IL.B.D.V7P2
► Battery ventilation is thermostat controlled with an independent DC fan
► Galley Extractor Hood Miele DA 3496
SAILS, SPARS & RIGGING
—
Mast And Boom Southern Spars High Modulus Carbon mast
and Racing Box Boom
RIG MEASUREMENTS
► IG = 44.180m; 144.95ft
► P= 45.300m; 148.62ft
► E=13.80m; 45.28ft
► J= 13.35; 43.80ft
Standing Rigging Future Fibres EC6 Continuous carbon
Winches 9x Optimized Harken 1235 Winches L/R R/H
Rotation, Direct/1st Reduced, FSB
SAIL WARDROBE
► North Cruising/Delivery Norlam Mainsail
► North Racing 3Di Raw Jibs(J1,J2,J3,J4, J5/GS)
► North A3, Manual KZ Furler
► North SpinStaysail, Manual KZ Furler
► Storm Tri-sail and Storm Jib
NAVIGATION EQUIPMENT
—
Magnetic Compass Silva Sweden Type 125
Gyro Compass B&G Halcyon Gyro And 2x B&G Precision 9
Compasses
Automatic Pilot B&G H5000
Radar B&G Broadband 4g
Plotter & Gps B&G Zeus 2
Hemisphere A325 Gps Nmea
SAILING INSTRUMENTS
► B&G WPT3 CPU Race Processor
► H5000 Displays
► 3x Signet marine Speed Transducers
DECK EQUIPMENT
—
Anchor Windlass Maxwell 4500 Hydraulic Windlass
Anchor Flush Pocket Anchor 150kg, 120m X 14mm
Chain
Passerelle Swiss Carbon Manhattan 2.7m
Swim Platform Carbon Exit Swim Ladder
Awning Dolphin Sails Uk, Flying Boom Awning
COMMUNICATION EQUIPMENT
—
Satcom Kvh Tracphone V3ip
Cellular System Pepwave Internet 4g+Wifi System (Eu)
Telephone Panasonic Kx-Tg1611nl
VHFS
► B&G H90 VHF Nav Station
► B&G V90 VHF Wireless H50 Handset
► 4x ICOM IC M91D
AUDIO/VISUAL ENTERTAINMENT SYSTEMS
—
MAIN SALOON
► Sonos Connect Amp, Playbar and Sub
► B&W CCM362 speakers in ceiling (2 sets)
► Sony LCD 49” TV
► Sony Blu-Ray Player
OWNERS CABIN
► Sonos Connect Amp
► B&W CCM362 Speakers in ceiling
► Sony 32” LCD TV
GUEST CABINS
► Sonos Connect Amp
► B&W CCM362 Speakers in ceiling
CREW MESS
► Sonos Connect Amp
► B&W CCM362 Speakers in ceiling
► Sony 32” LCD TV
► Sony Blu-Ray Plater
SUN DECK
► Sonos Connect Amp
► Poly-Planar, A6500 speakers (2 sets)
SAFETY & SECURITY EQUIPMENT
—
SAFETY
► 4 x 8 Person TransOcean Plastimo Life Rafts
► 2x Jon Buoy recovery modules (Black)
► 1x Dan Buoy recovery module (Black)
► 10x Spinlock Deckvests with PLB recovery systems
► 10x Survival suits
► McMurdo EPIRB and SART
► Grab Bag
► 2x ICOM DSC Handheld VHFs, IC-M91-D
► Exposure MOB Search light
FIRE FIGHTING
► FirePro Aerosal, engine room flooding system
► FirePro Aerosal, generator flooding system
► One Seawater deck wash/firefighting pump plumbed into the fire main
line, one connection aft and one forward
► 11x Portable fire extinguishers
► 2x AFFF
► 2x CO2
► 7x ABC
► 1x Fire blanket
SHIPS MONITORING SYSTEM
All alarms are connected to the E-T-A and PLC System and monitored on the
two touch screens.
MEDICAL
MedAire Offshore Med Kit
OFFICE EQUIPMENT
—
Computers Panasonic Toughbook
Photocopier/Printer Samsung C48x Office
DOMESTIC EQUIPMENT
—
MAIN GALLEY
► Miele induction cooktop KM6389
► Miele electric oven H6290
► Miele convection microwave M-6040 SC
► Miele Extractor DA 3496
► Jura 6 Coffee Machine
SALOON
► U-Line Ice Maker
REFRIGERATION
► 2x Fridges
► 2x Freezers
LAUNDRY
► Miele washer/dryer WT 2796
OTHER EQUIPMENT
—
TENDER
► Zodiac MilPro III, 4.2m. 4-Stroke 40Hp
► Yamaha outboard with tiller steering
