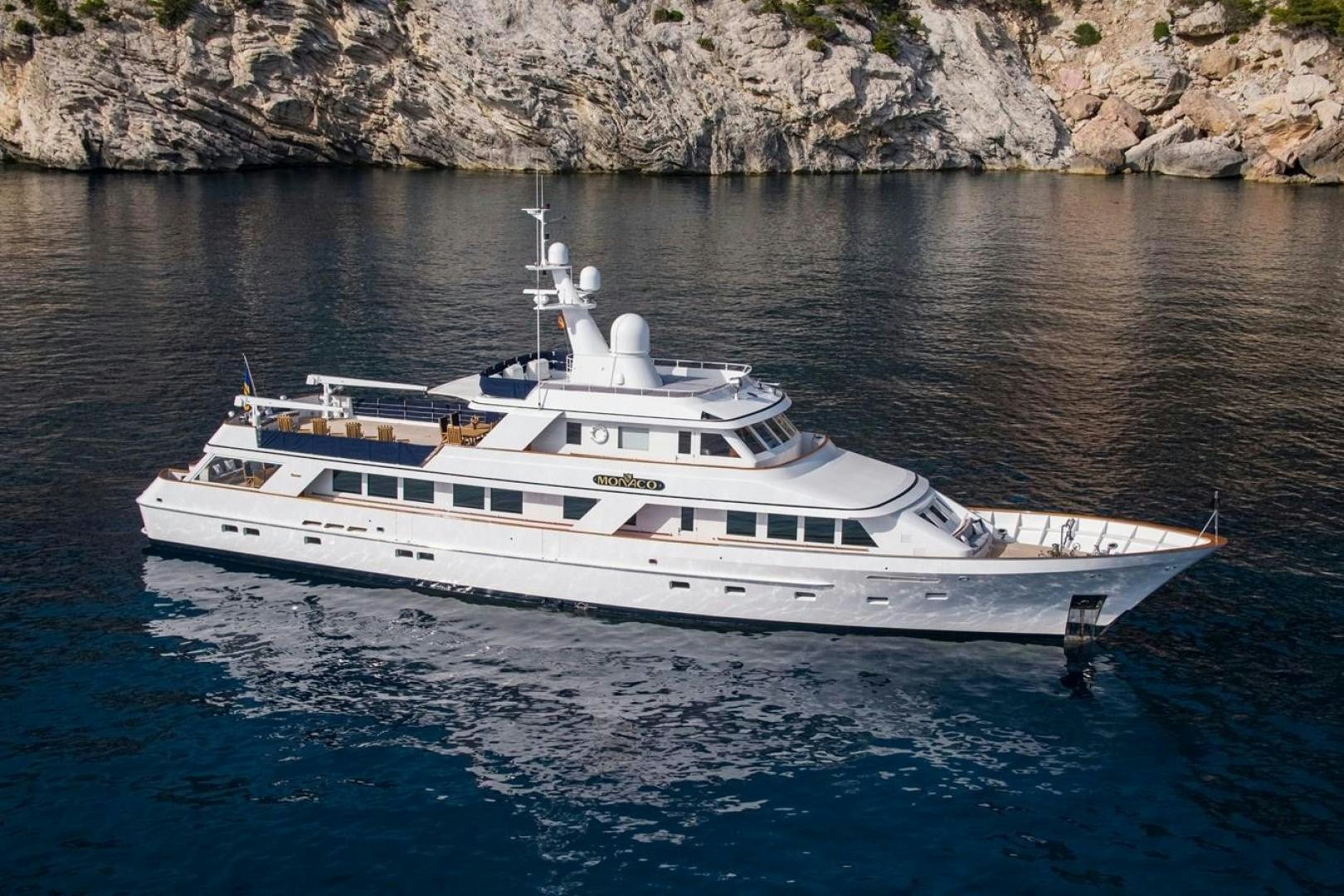

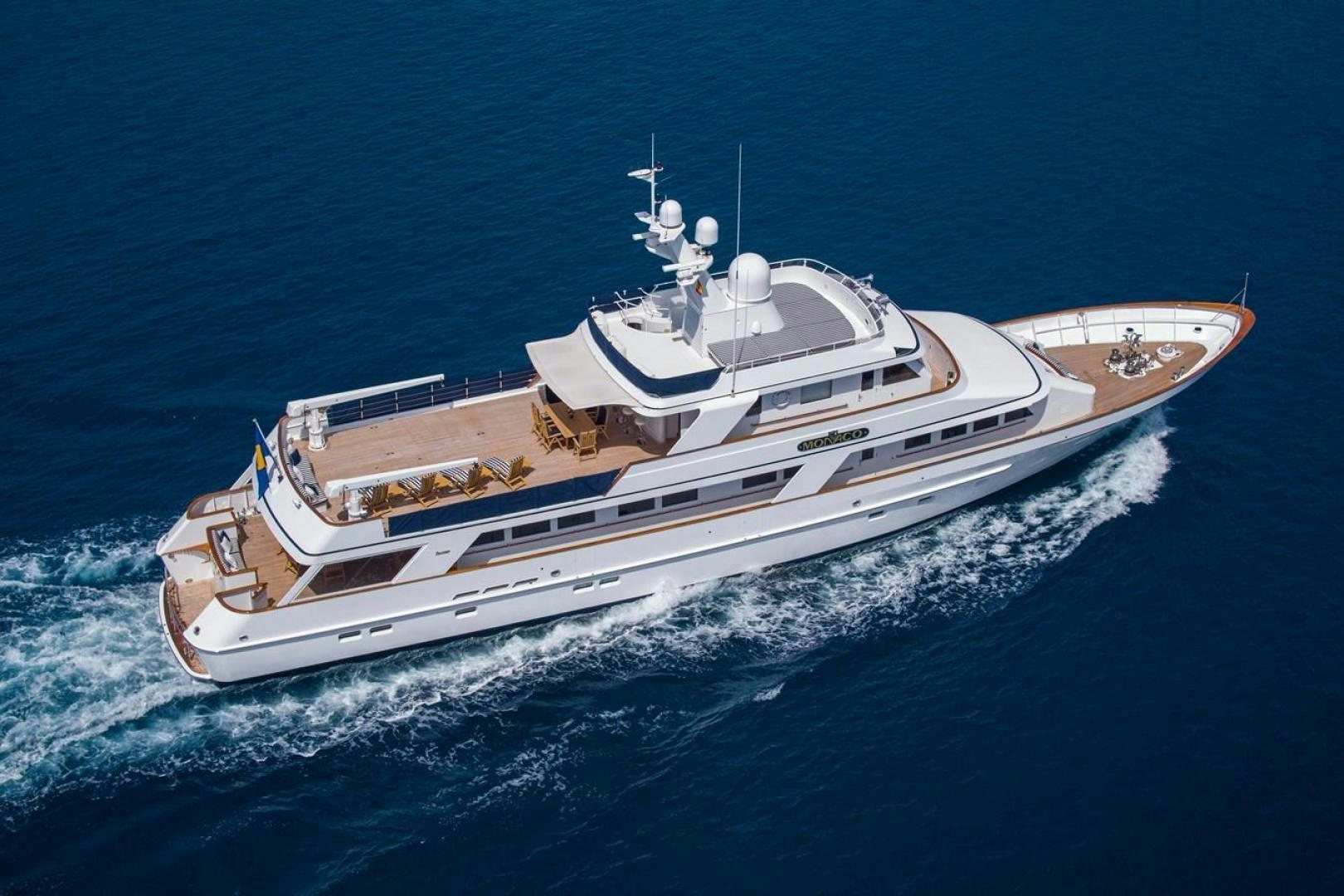

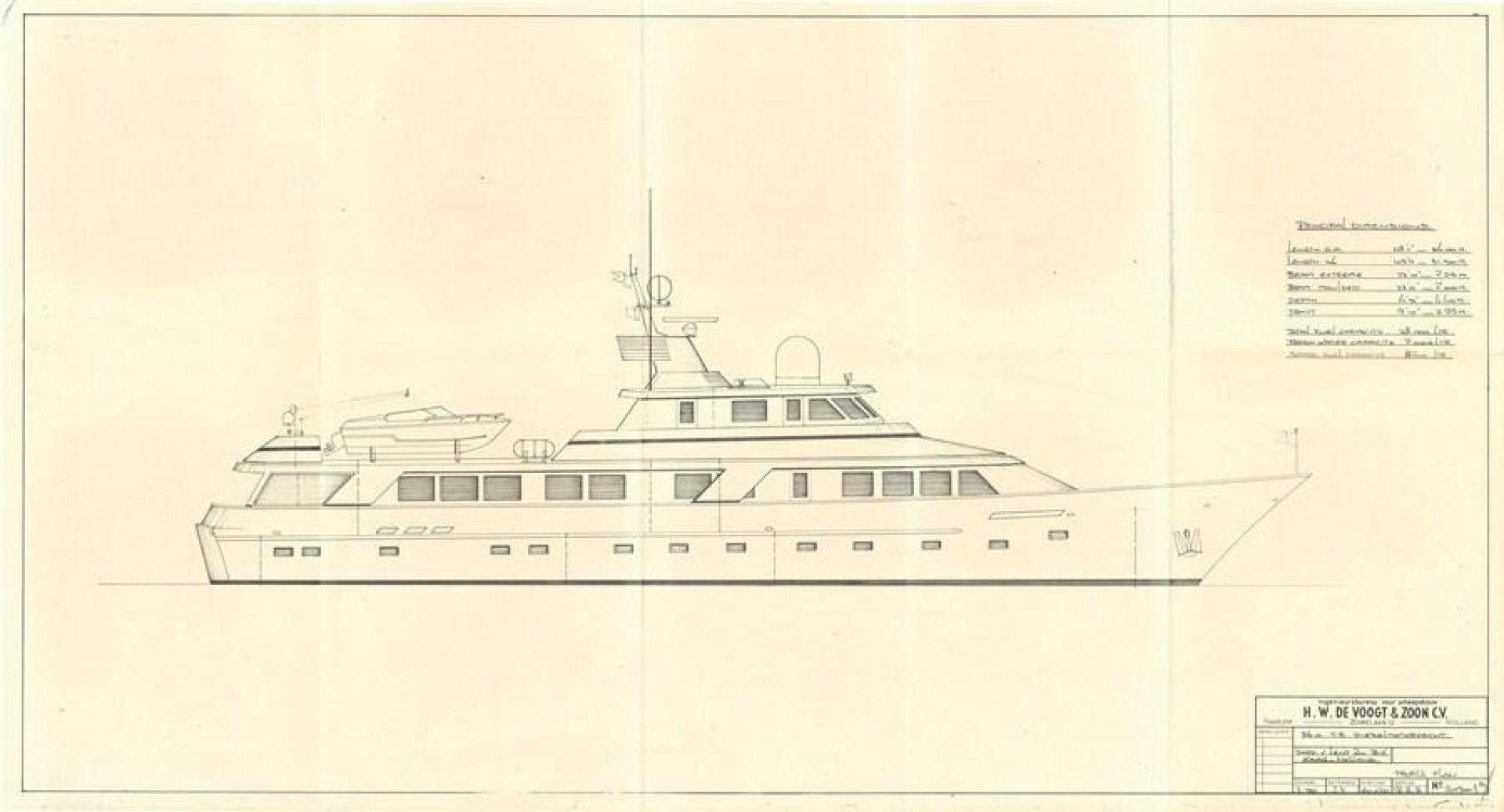

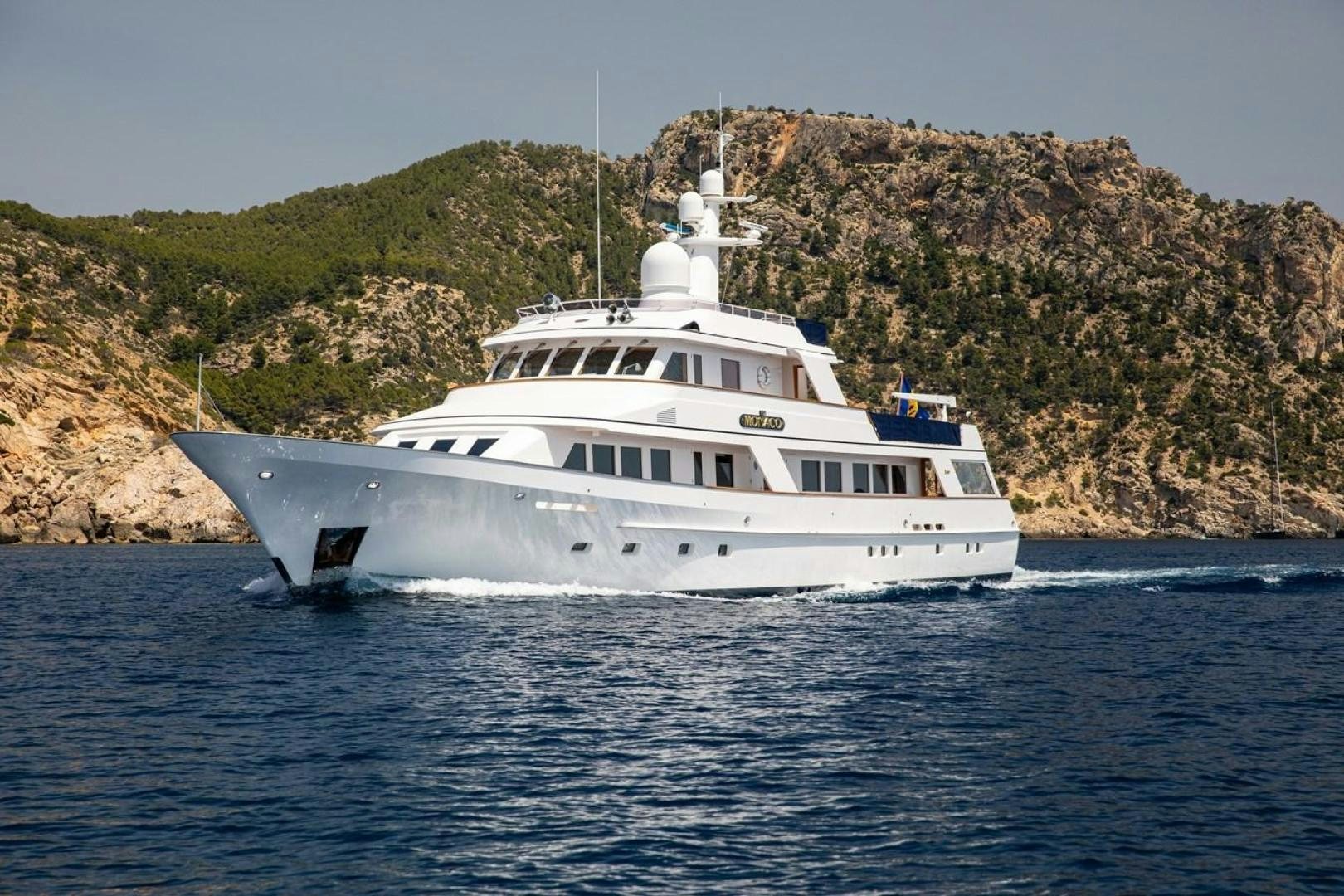

MONACO was built by Royal Van Lent in 1981 and delivered to her first owner in 1982. The exterior and technical designs are by naval architect de Voogt and the interior design is by Terence Disdale. MONACO is beautifully maintained. She has classic Feadship pedigree. Her 40-year Lloyds survey and major refit in 2022/23 were done at the MB92 Super Yacht shipyard in Barcelona.

The details can be found in the listing and also regarding previous refits. More details on request

Northrop and Johnson is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Denison Yachting. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

View Yacht for Charter

Amenities

Personal Watercraft
Wi-Fi

Specifications

Builder	Feadship
Length (LOA)	125' (38.1m)
Year	1982
Gross Tonn.	257
Draft	10' 3" (3.12m)
Beam	23' 10" (7.26m)
Range	3,500 NM
Location	Barcelona, Spain

Accommodations

Staterooms	4
Sleeps	8
Heads	6

Capt. Quarters	No

Dimensions & Capacity

LOA	125' (38.1m)
LWL	110' (33.25m)
Min Draft	9' 10" (3.00m)
Max Draft	10' 3" (3.12m)
Fuel Tank	7,396 g (27,996 L)
Fresh Water	1,849 g (6,999 L)
Gross Tonn.	257

Construction

Hull Material	Steel
Ext. Designer	De Voogt Naval Architects
Int. Designer	Terence Disdale Design Ltd.
Max Speed	15 Knots
Cruising Speed	11 Knots
Range	3,500 NM
Stabilizers	None

Engines (x2)

Engine Make	Caterpillar
Engine Model	D348
Engine Type	Inboard
Power HP	920
Power KW	686
Fuel Type	Diesel

Full Details

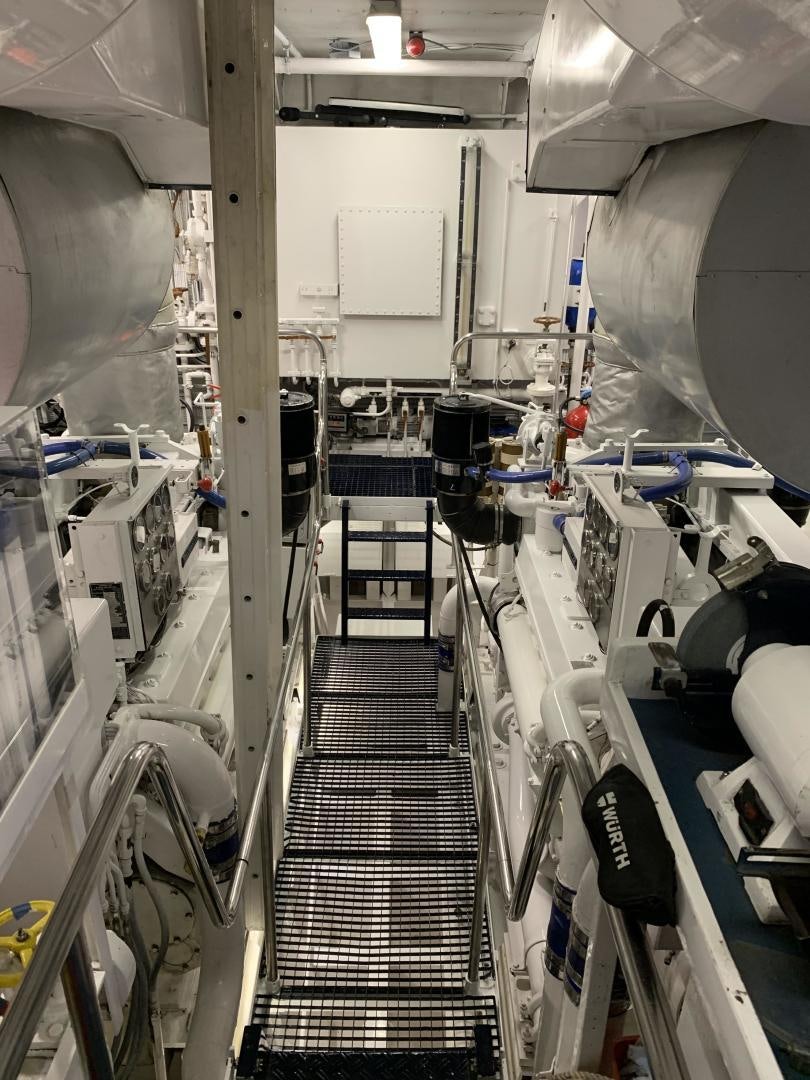

Other Machinery

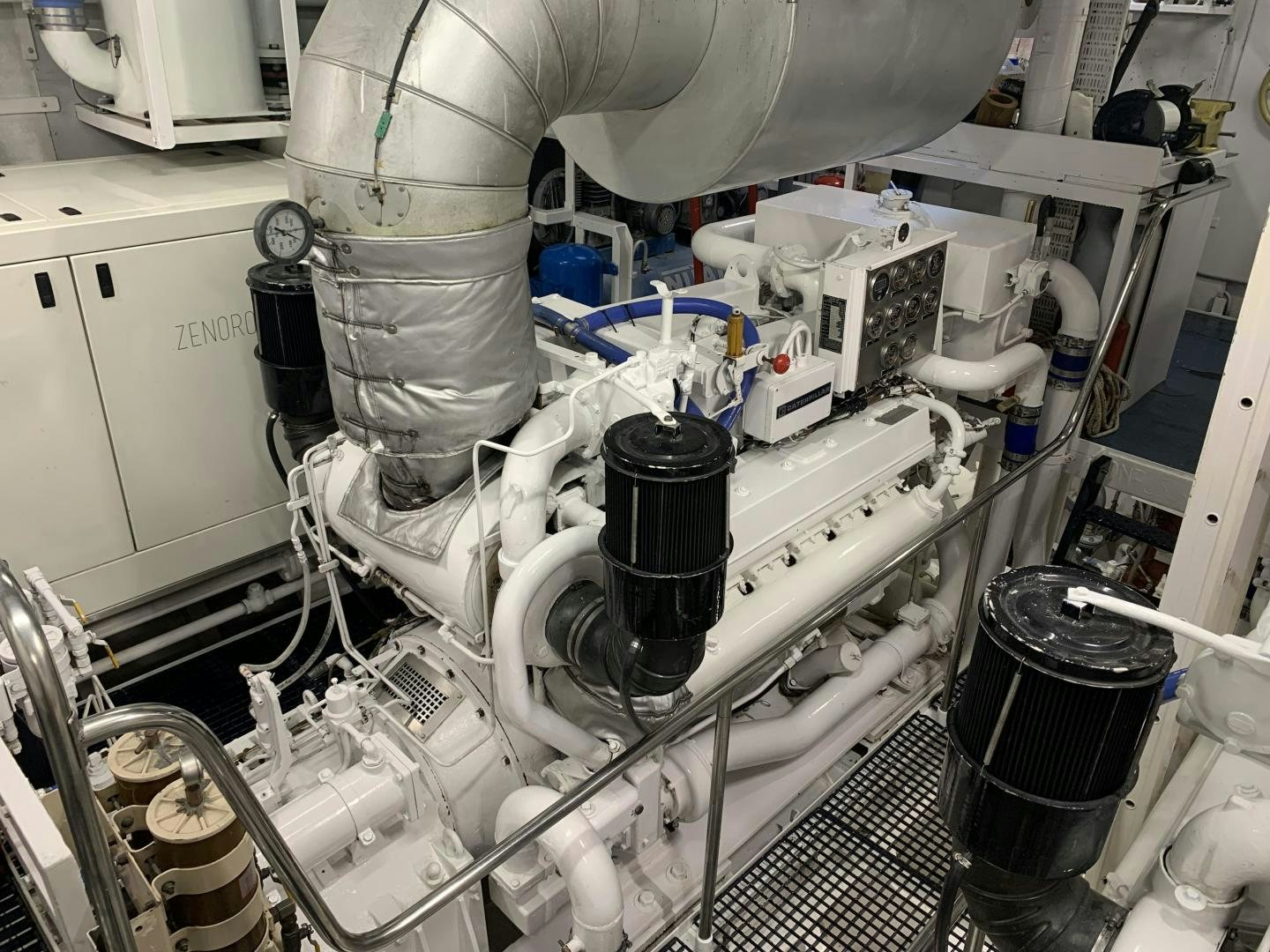

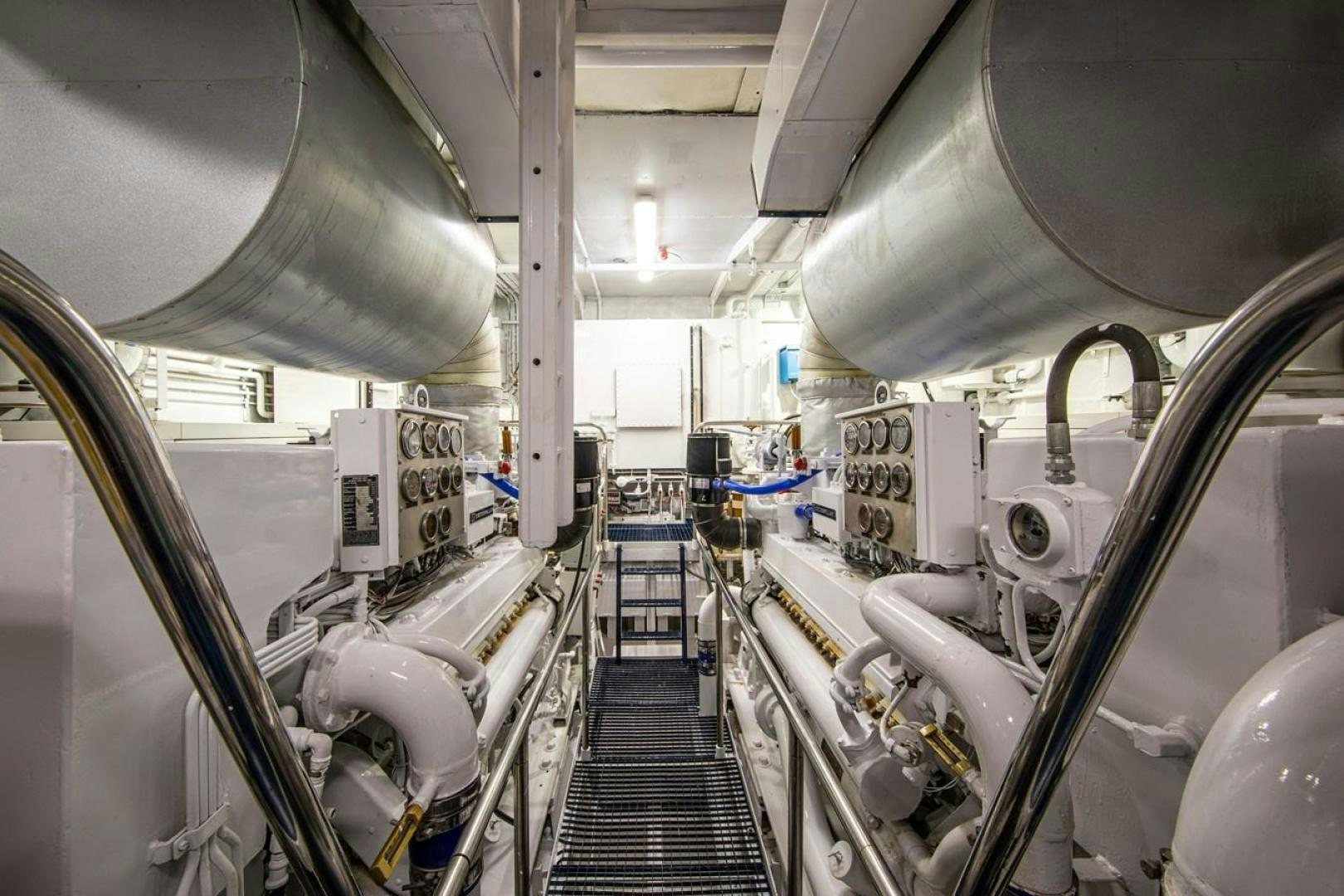

ENGINES

2 x 671 kW (900 Hp) Caterpillar D348 Diesel

ENGINE HOURS

6,500 hours each engine as of July 2021

PROPULSION

Shaft

RUDDER ANGLE

35 degrees

GENERATORS

Zenoro (New 2016)

GENERATOR HOURS

7,000 hours on each as of July 2021

TYPE

Lead Acid

MAIN ENGINE START

Electric starter

SERVICE

Lead acid

GENERATOR START

Electric starter

CHARGERS

Mastervolt

CONVERTERS

Eekels TBI shore power converter

EMERGENCY

Batteries

HYDRAULICS

Steering, stabilisers and cranes

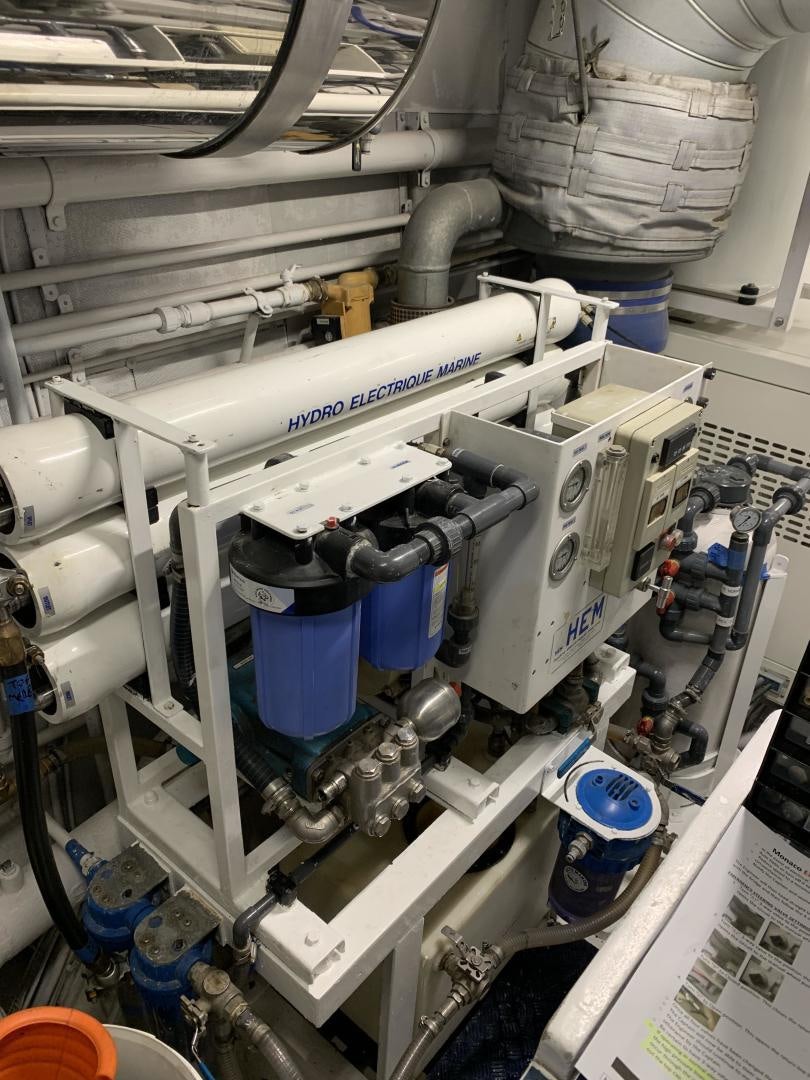

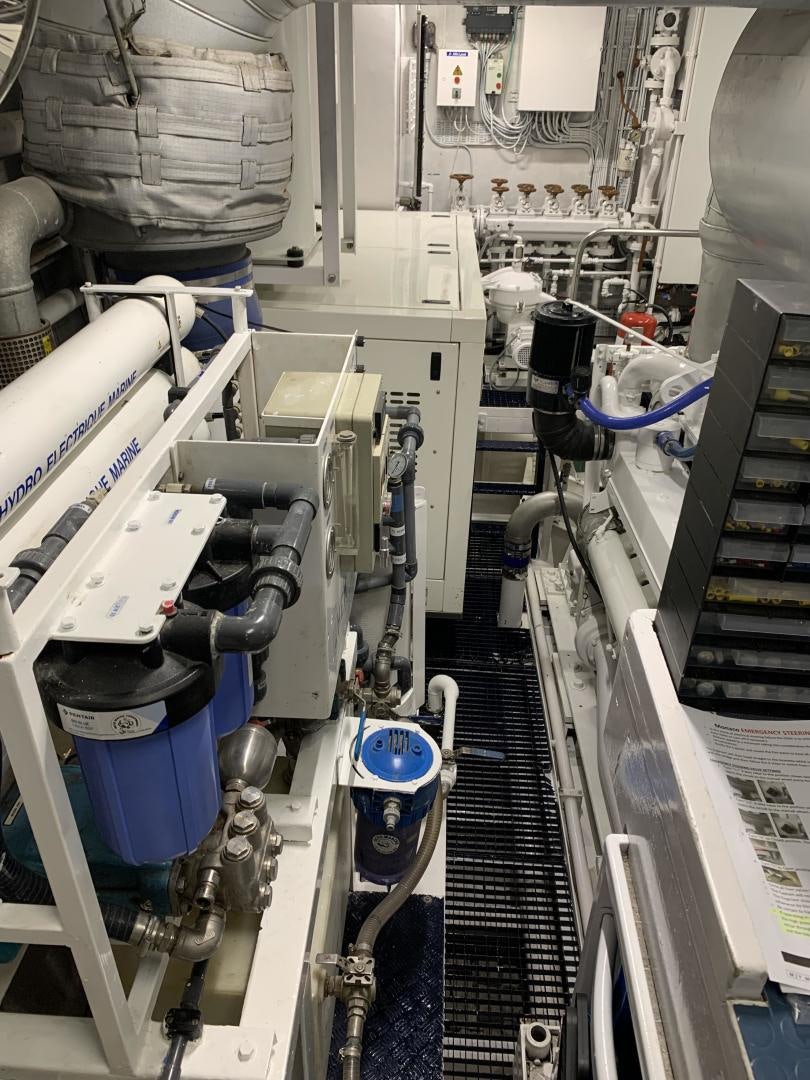

WATER MAKER

HEM 450 litres / hour

WATER SYSTEM

Yes

TOILET SYSTEM

Vacuum

SEWAGE SYSTEM

Hamann

FUEL CENTRIFUGE

Alfa Laval

FUEL SEPARATOR

Racor filters

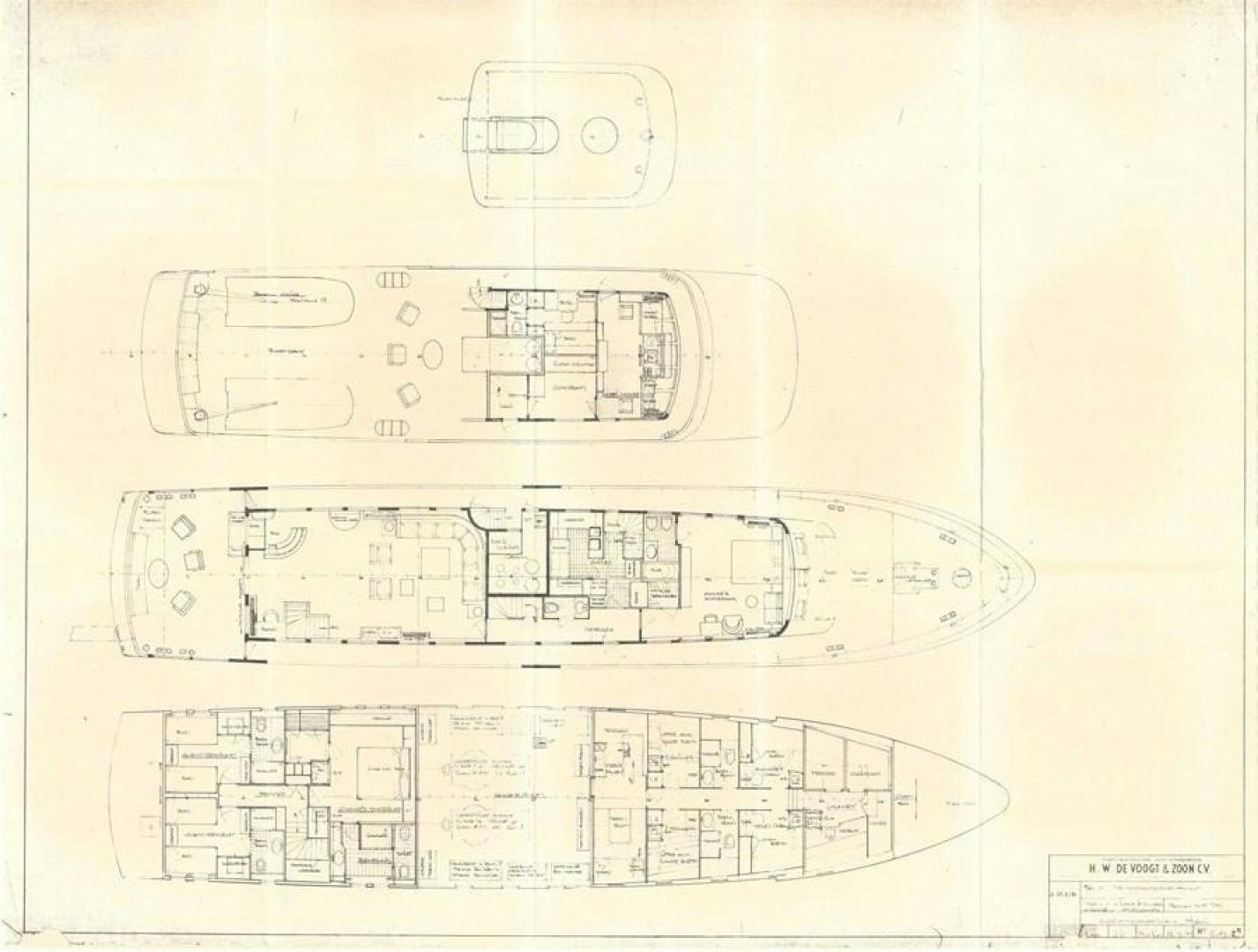

Accommodation

MAIN DECK

1 x Master cabin

LOWER DECK

1 x VIP cabin

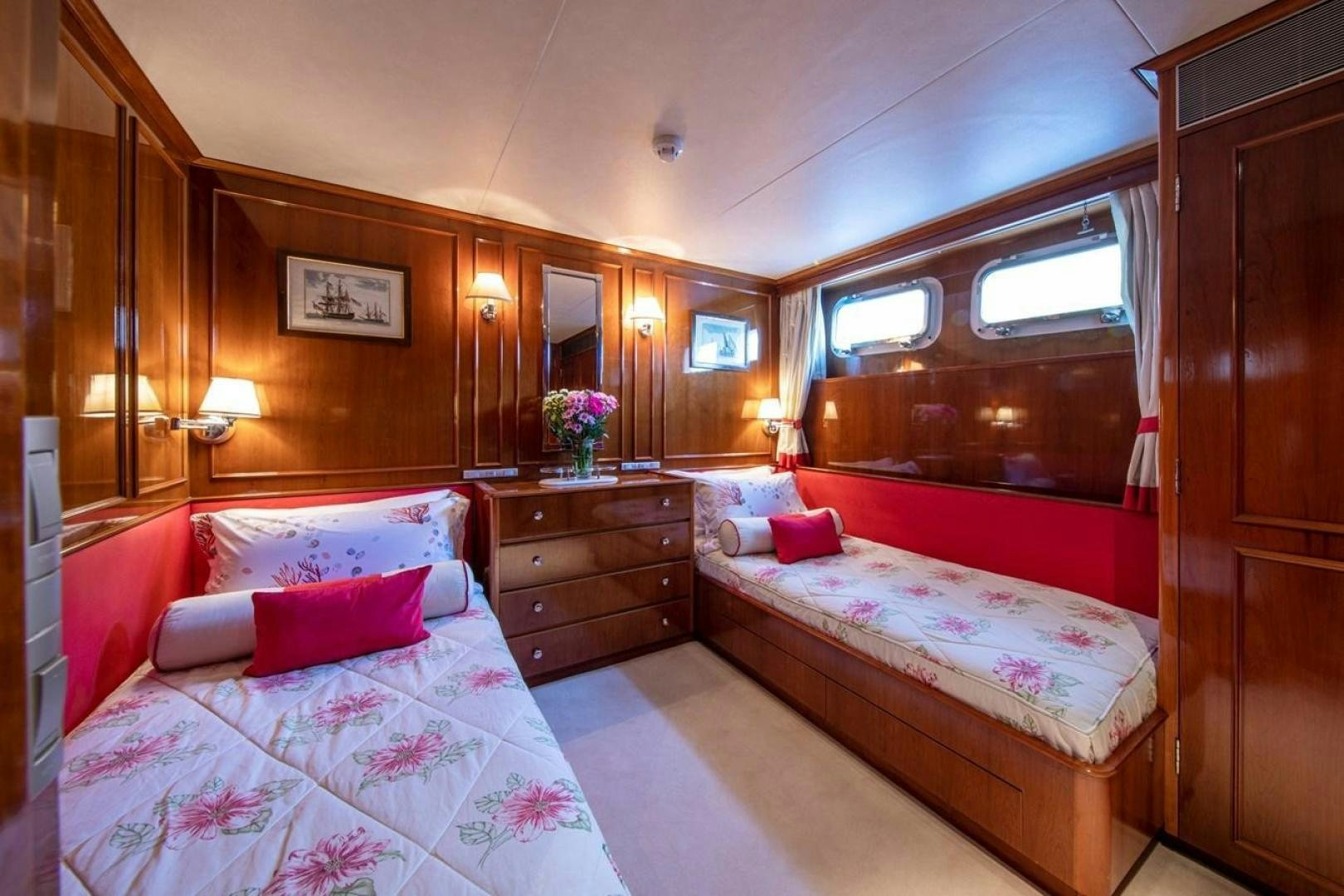

2 x Twin cabins

CREW QUARTERS

1 x Captain cabin
3 x Crew cabins

Galley & Laundry Equipment

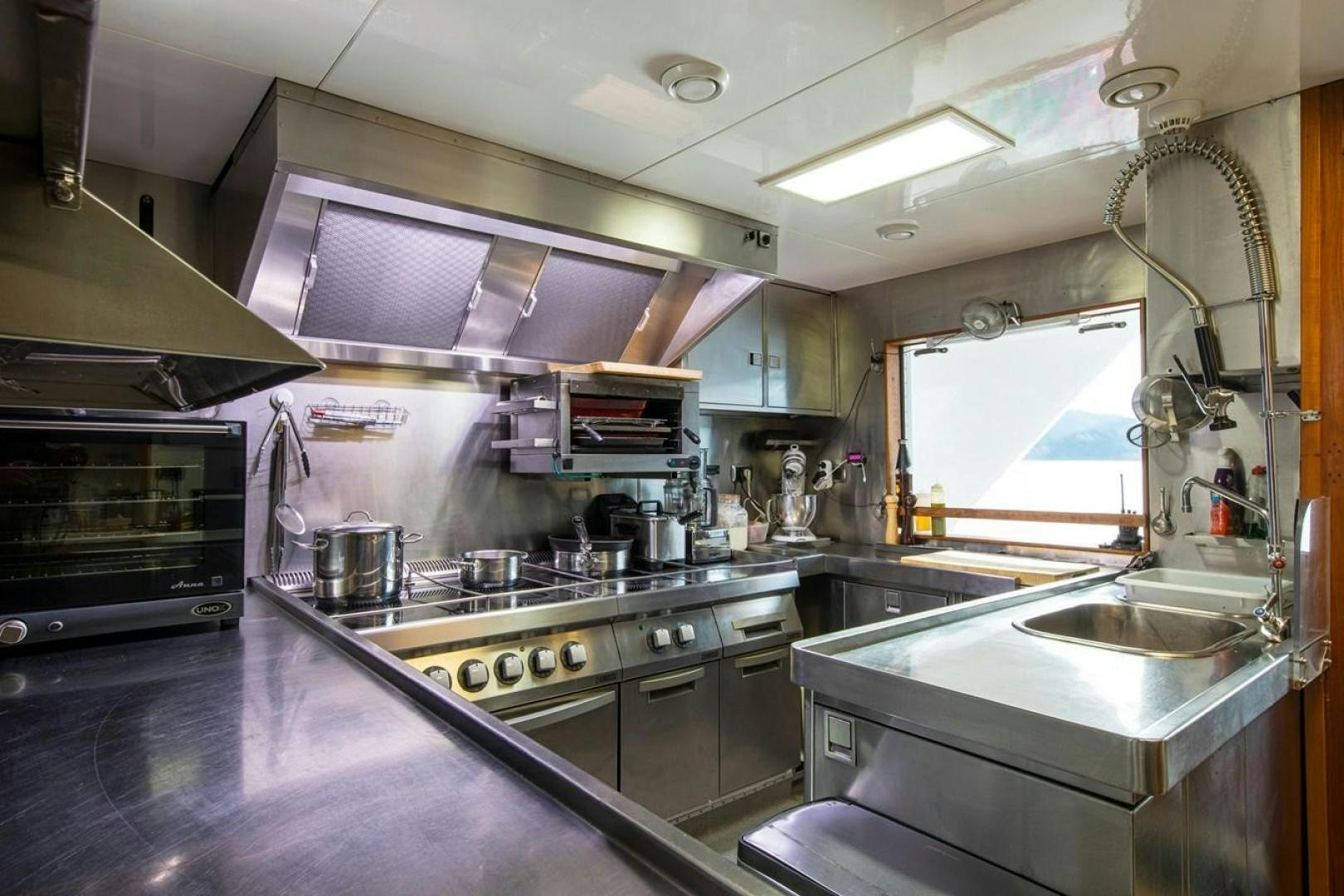

GALLEY

Zanussi cook top and built-in ovens
Additional bench-top oven
Vacuum machine
Deep fryer

LAUNDRY

2 x Miele washing machines
2 x Miele dryers

Communication Equipment

SATCOM

Fleet 77

VHF

Icom M323

SSB

Sea 235

TELEPHONE EXCHANGE

Yes

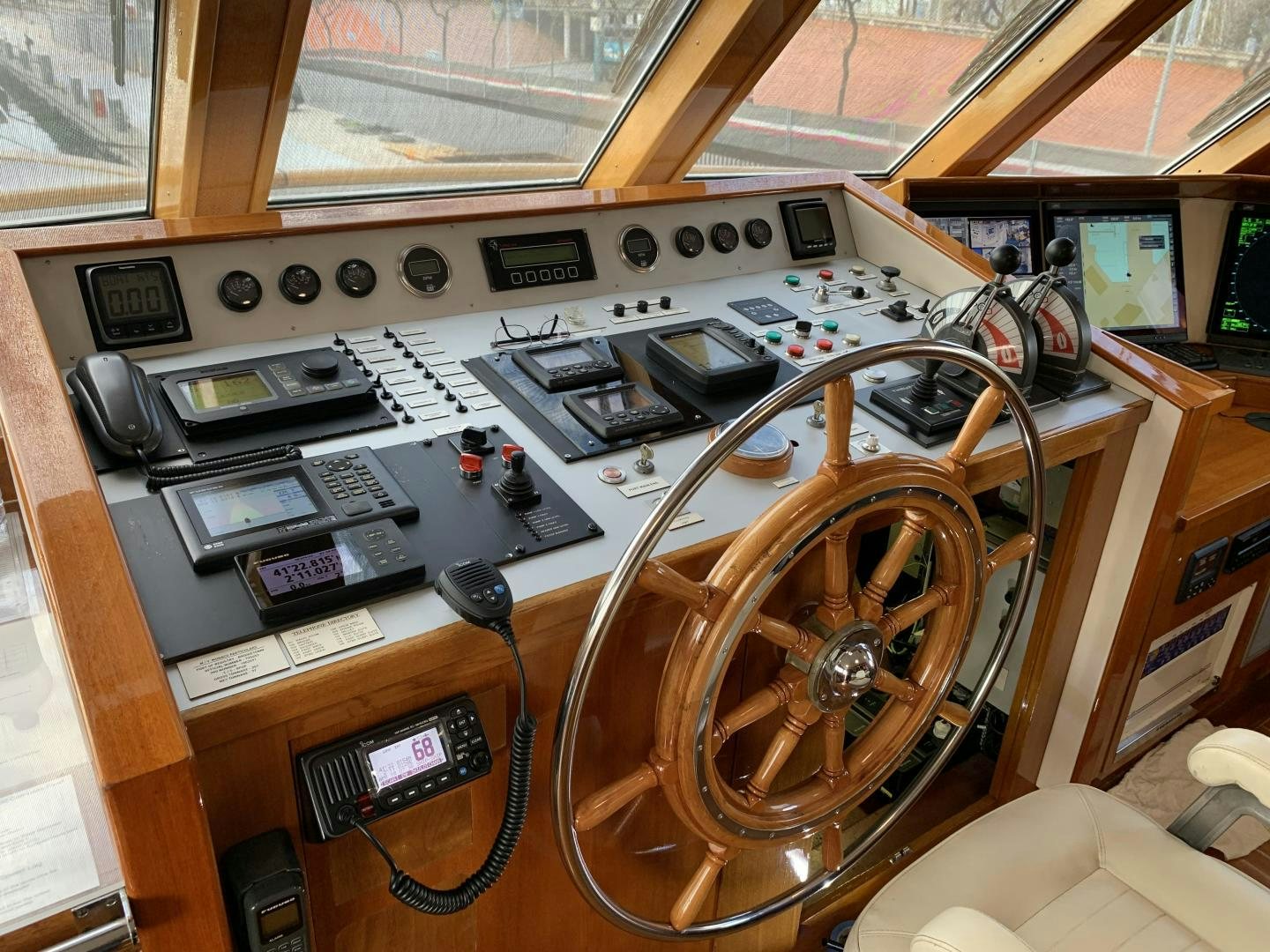

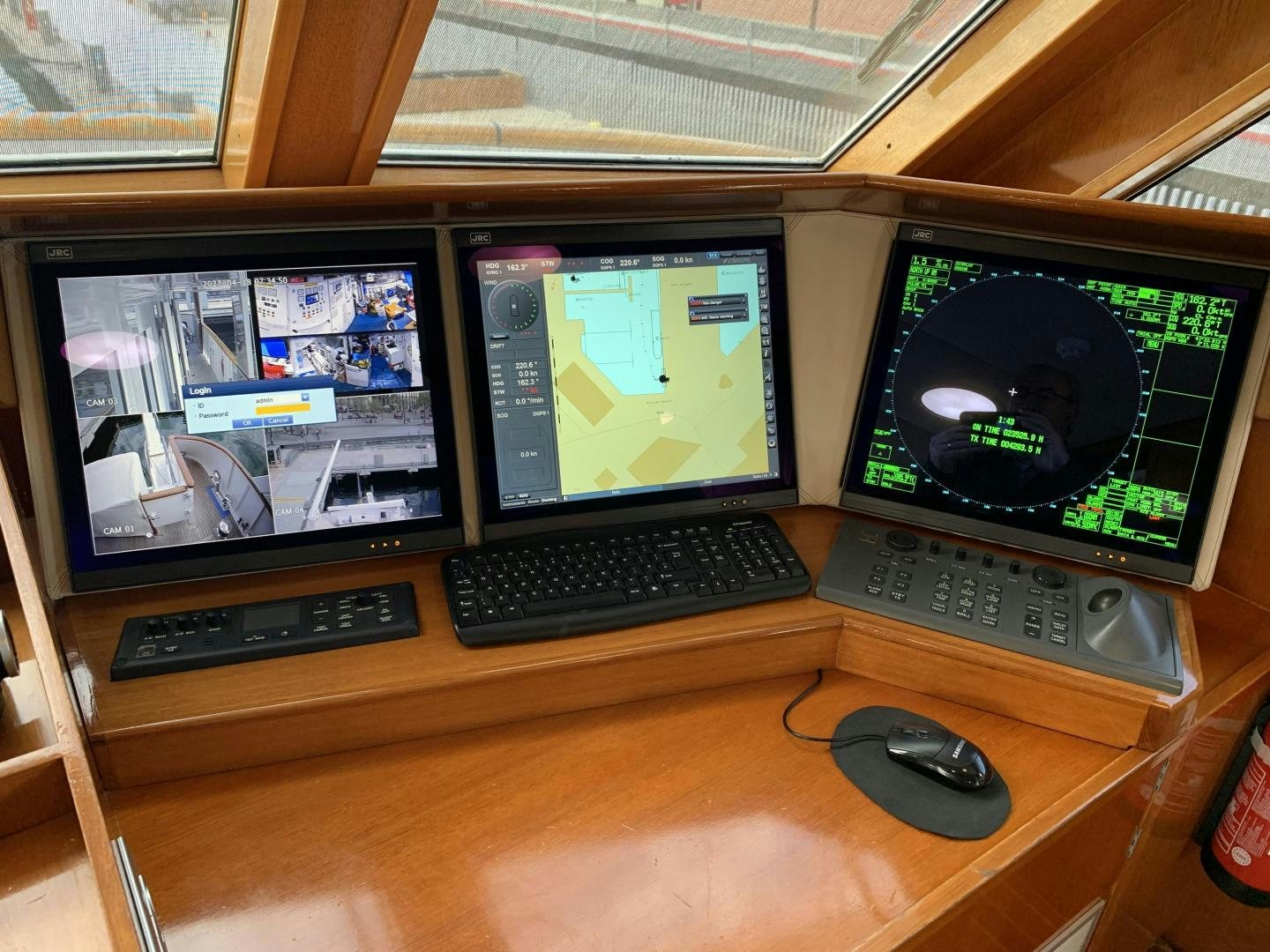

Navigation Equipment

MAGNETIC COMPASS

C-Plath

SATELLITE COMPASS

Furuno SC-702

AUTOMATIC PILOT

SimradAP 50

ECHO SOUNDER

Furuno FCV 650

RADAR

2 x Furuno 9GHz

AIS

Furuno FA 170

DGPS

Furuno GP 170

GPS

Furuno GP 39

CHART PLOTTER

Transas

NAVTEX

Furuno NX-300

WIND INSTRUMENTS

Raymarine

SEARCHLIGHTS

Yes

CAMERA(S)

Samsung

Entertainment Equipment

MAIN SALOON

50’’ flat screen
Surround sound system

DINING

Surround sound system

CREW

Flat screen TV

Tender & Toys

TENDER

2 x Novourania 550DL RIB tenders

WATERSPORTS

1 x Laser Pico sailing dinghy
3 x Waterskis
1 x Towable wake board
2 x inflatable SUP boards
1 x Jobe Kick Flip inflatable towable toy
1 x Jobe inflatable 4-person Chaser
1 x Inflatable donut

DIVING

8 x full sets of diving equipment

Deck Equipment

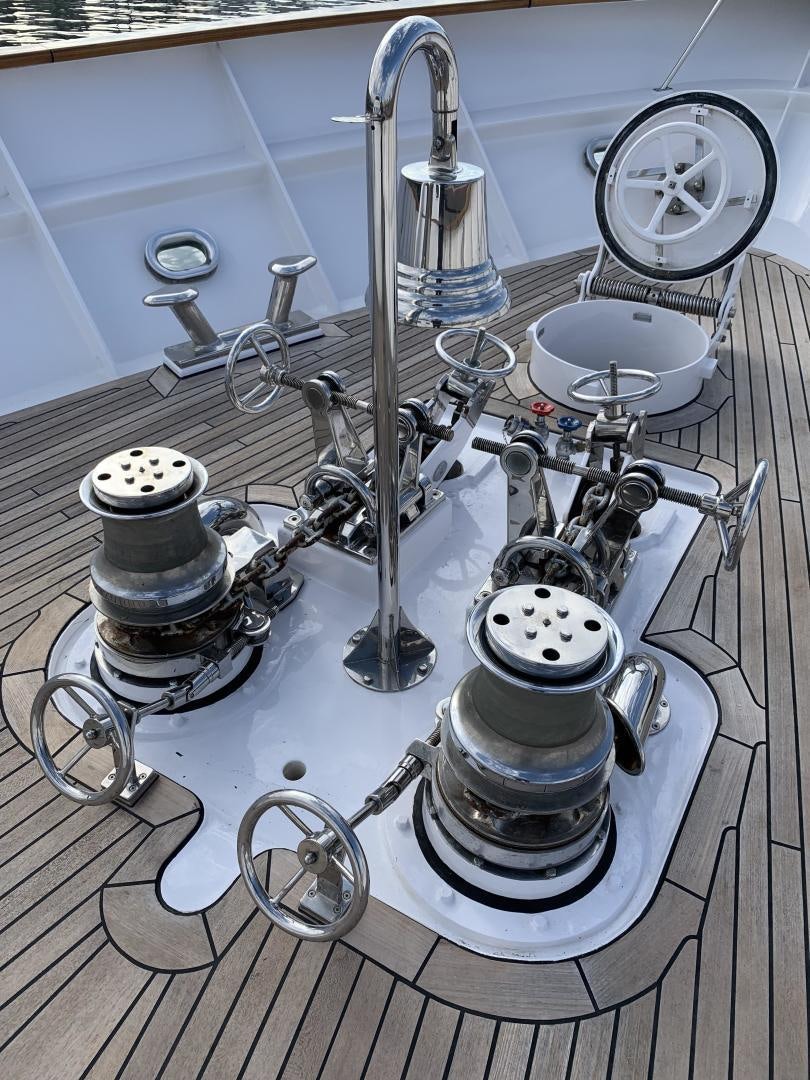

ANCHOR WINDLASSES

2 x Foredeck capstans with gypsys

AFT WARPING CAPSTANS

2 x Aft capstans

ANCHORS

2 x Galvanized steel

ANCHOR CHAINS

2 x Galvanized steel (approx. 150m each)

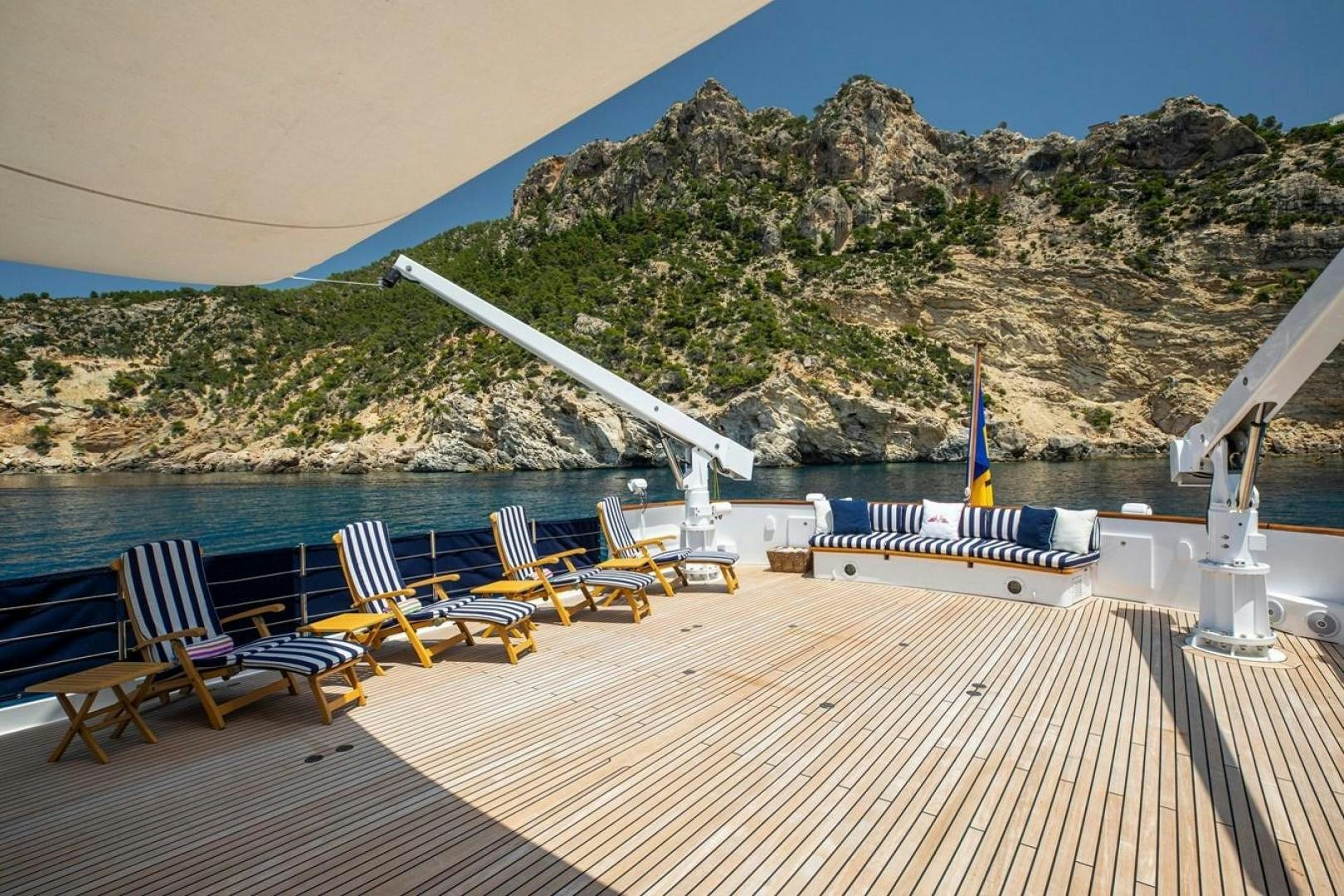

BOAT CRANES

2 x Custom (Pendennis)

PASSERELLE

Fibreglass 2-piece passerelle

SIDE BOARDING LADDER

Marquipt

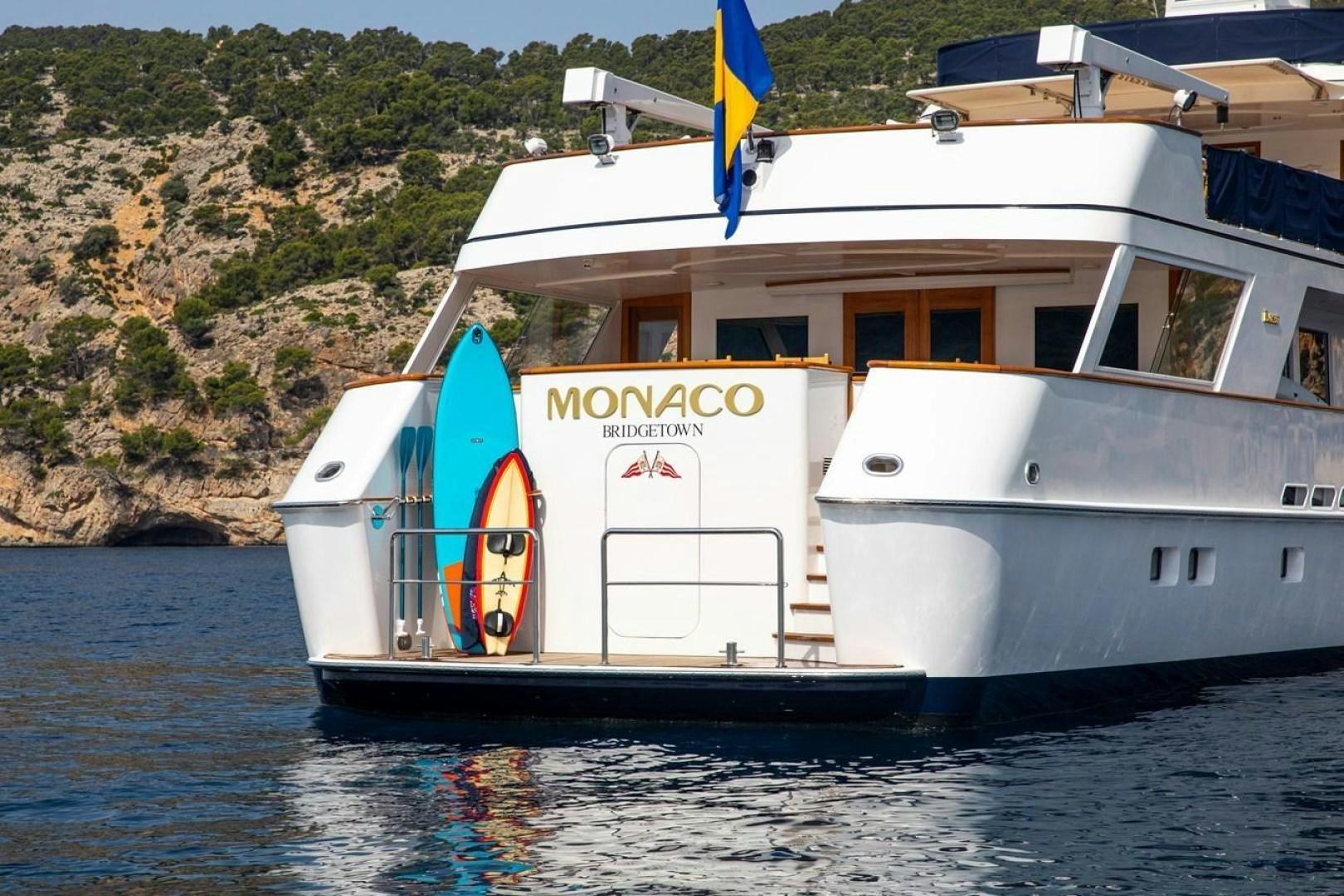

SWIMMING PLATFORM

Yes

AWNINGS

For sundeck

COVERS

For all exterior seats

Refit History

WINTER 2016

Pendennis shipyard for comprehensive maintenance work in E.R.
New generators installed

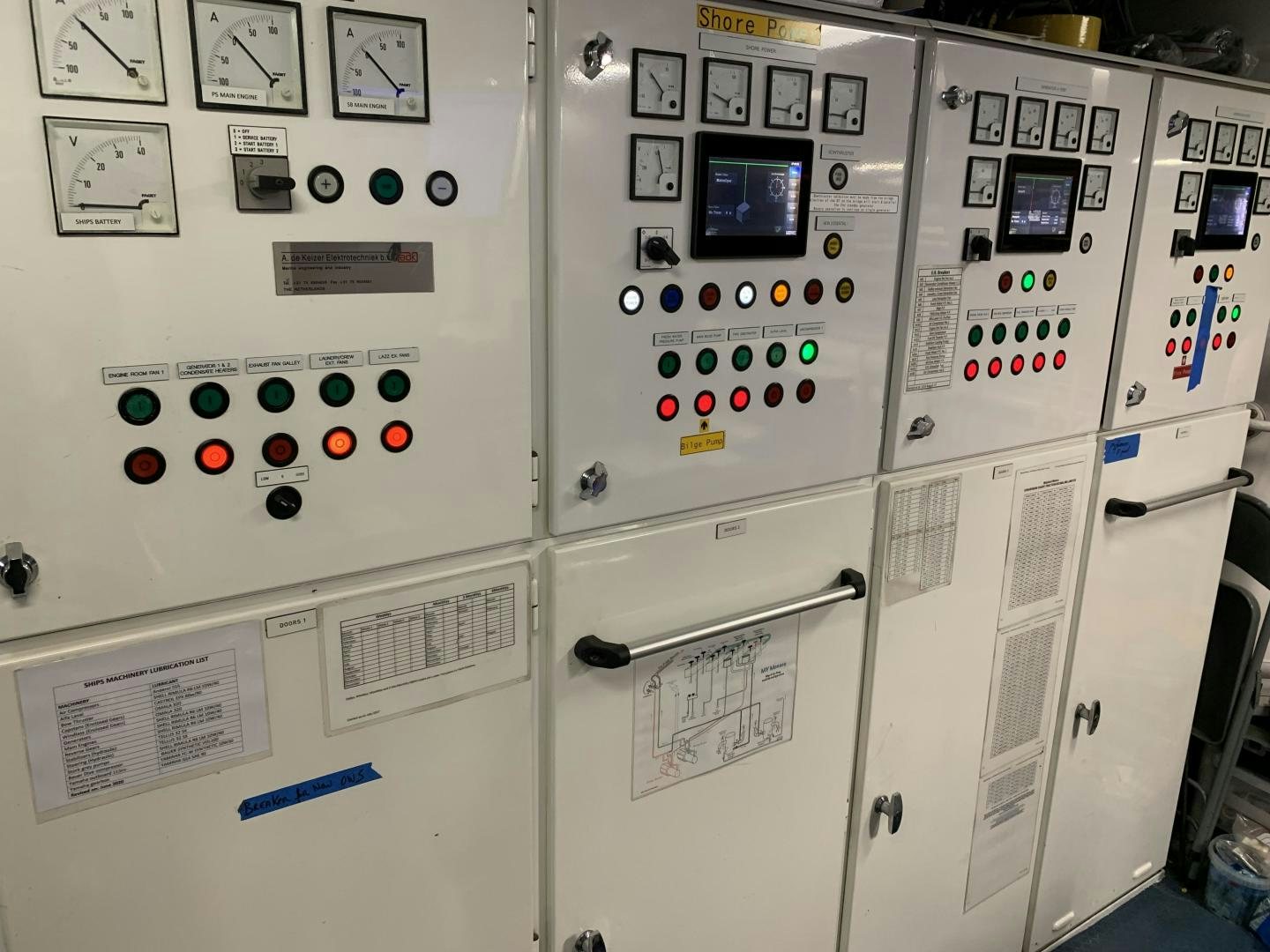

Electrical distribution panels in E.R. upgraded
All varnish stripped and built up
Full paint over all exterior
Both Main Engines - full rebuild back to zero hours
All decks sanded
Haul-out for anti-fouling
All tanks cleaned, painted and small repairs made (per Lloyds standards)
AC system (overhaul and renewal of AC plant & chillers)
Galley rebuilt / modernization

WINTER 2013 / 2014

MB 92 for 30 year Lloyd’s survey and comprehensive maintenance work in E.R.
4G internet aerial and router fitted and connected to the yachts network
Tender outboards serviced
Various varnish works -exterior and interior
Various exterior paint works
New carpet throughout interior except main salon / dining room.
Topsides painted
Both Main Engines - full rebuild back to zero hours
Bar area upgraded with more varnished teak
All decks sanded
Port & Starboard generators overhauled and serviced to zero hours
Haul-out for anti-fouling
Seatel and Sky TV installation
Watermaker Upgrade
Decks sanded
New corian on boat-deck bar area
Lloyds Special Survey (25-yr at 5-yr intervals)
All tanks cleaned, painted and small repairs made (per Lloyds standards)
Hull prep & anti-foul and related maintenance
Partial paintwork completed to superstructure and hull
V7 KVH installation & Furuno Satellite compass system installed
Haul-out for anti-fouling & full re-paint of hull, superstructure, rolling stock
Teak deck - full replacement
Mastervolt system upgrade
Bow thruster upgrade
Bridge electronics & controls upgrade
Anchor windlass system service
AC system (overhaul and renewal of AC plant & chillers)
Renewal of Engine Room switchboard
Servowatch tank monitor-systems installed
CCTV surveillance installed
Fleet 77 installed
New screen wipers & electrical unit installed
Master Cabin re-fit
Galley rebuilt / modernization
2 x new Avon Tenders
Main Engines - full engine service and overhaul (@ 11.5K hrs)

Safety & Security Equipment

SAFETY

All LSA in accordance with Lloyds and Barbados requirements

FIRE FIGHTING

All fire equipment in accordance with Lloyds and Barbados requirements
