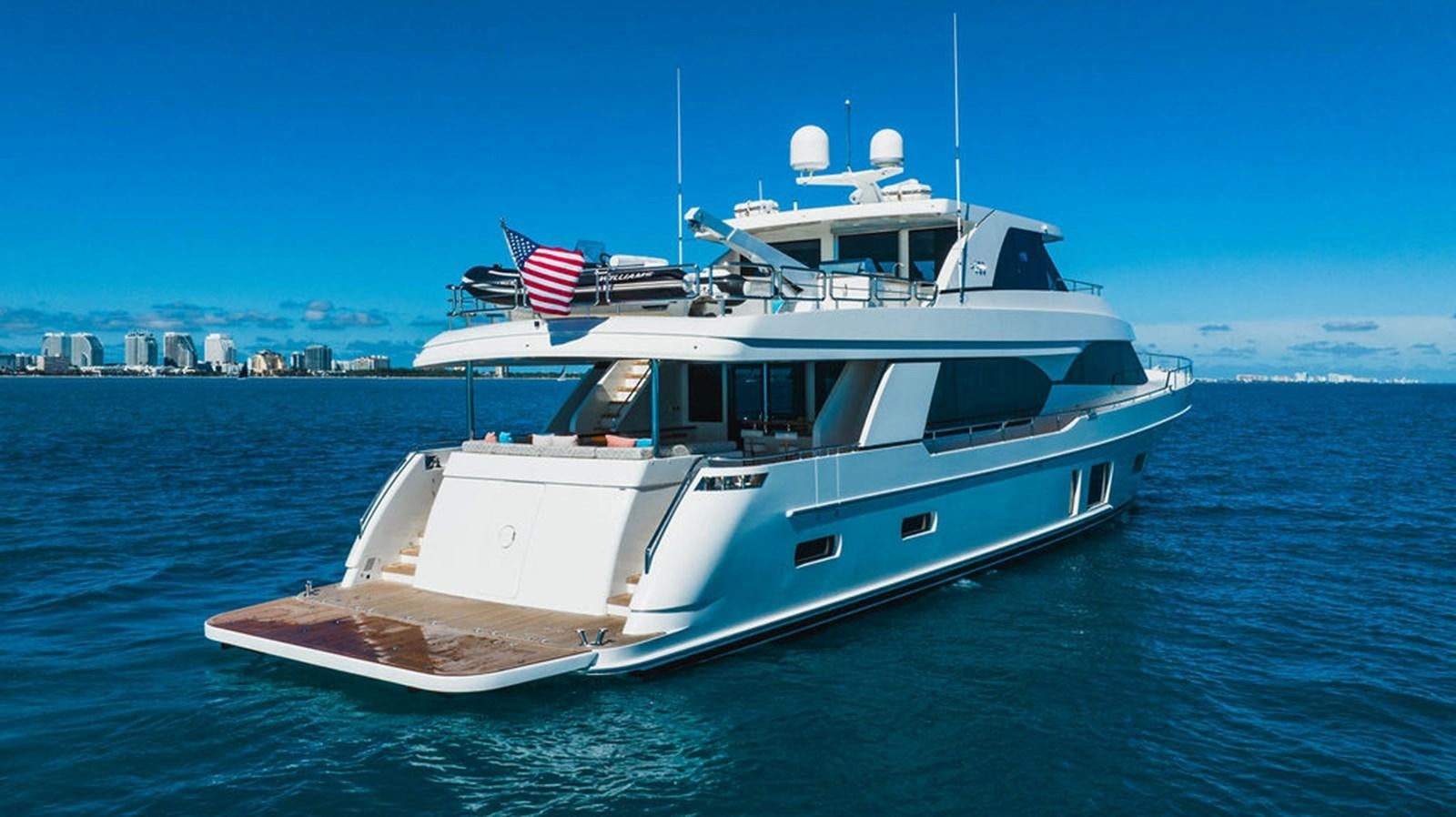

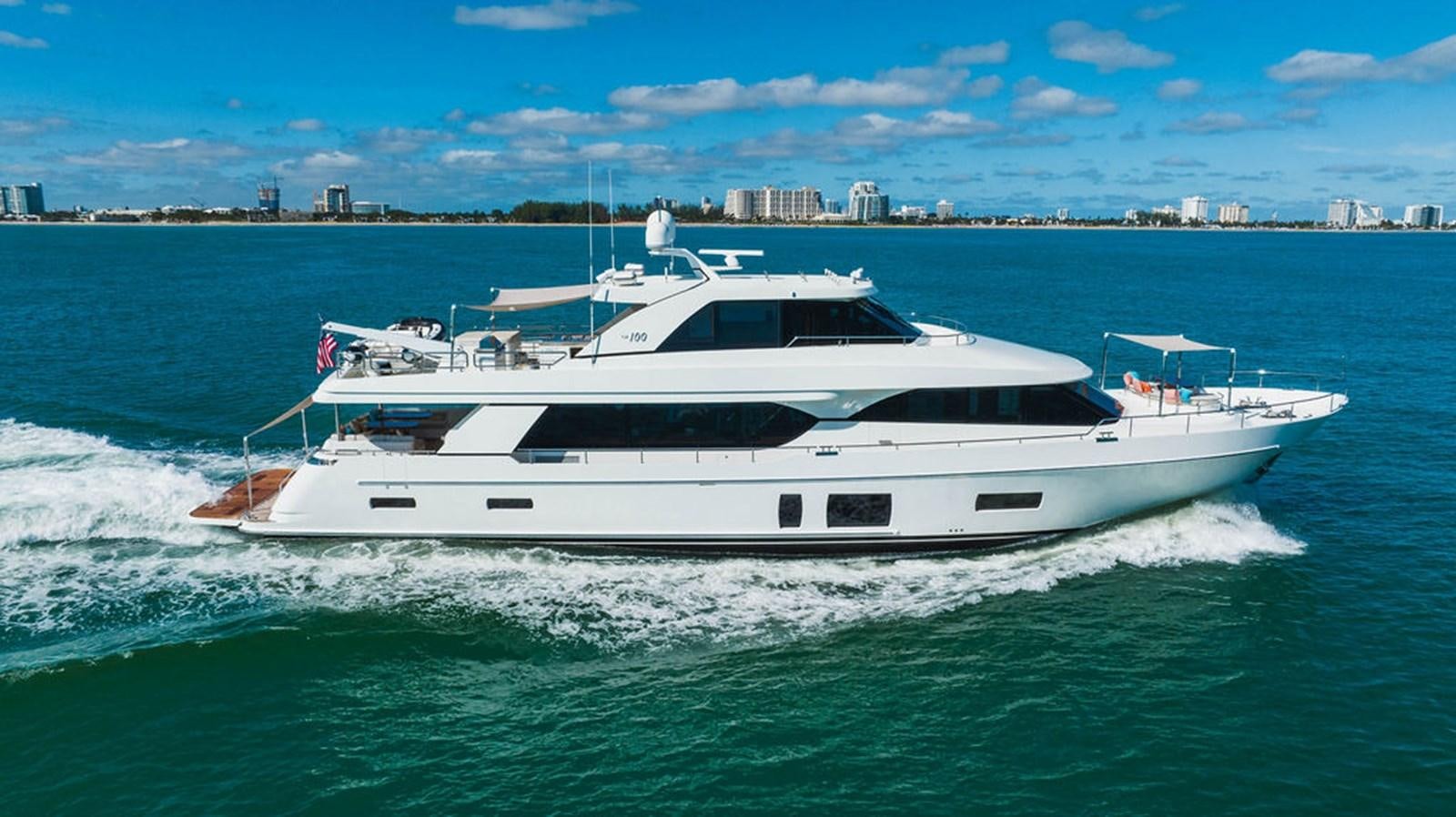

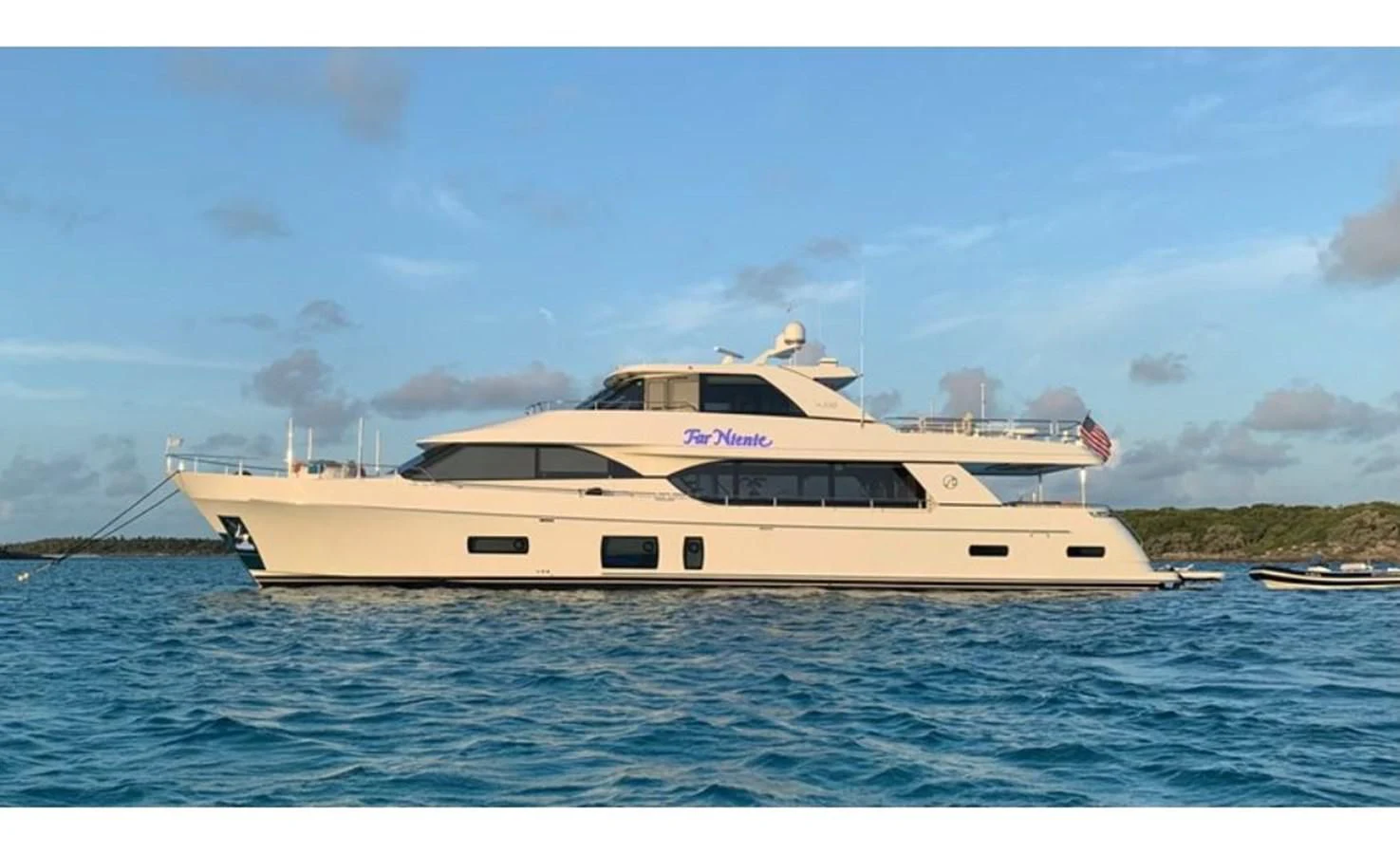

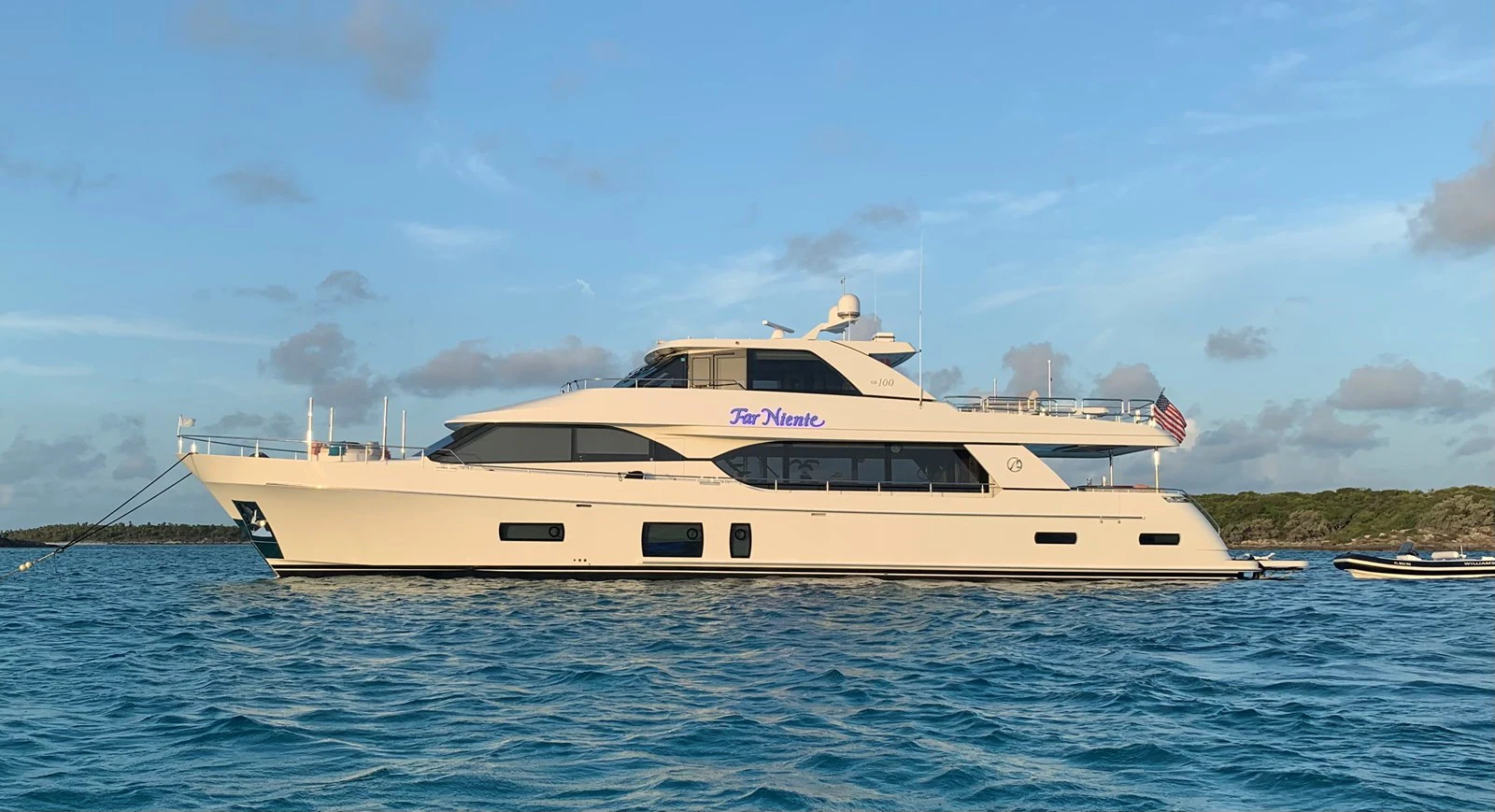

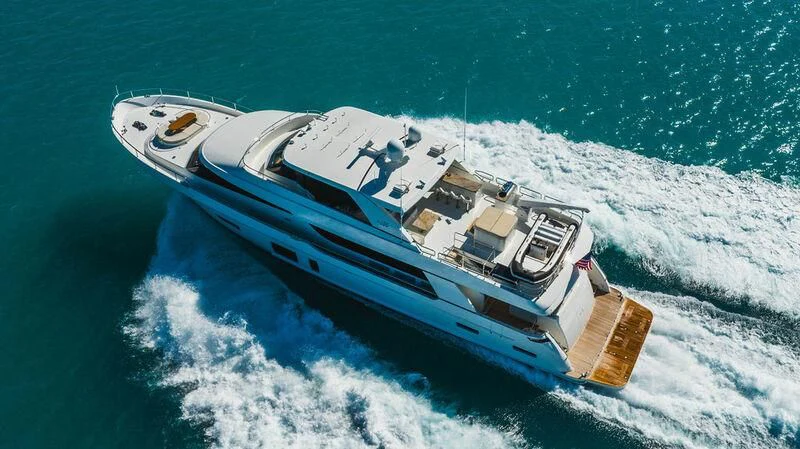

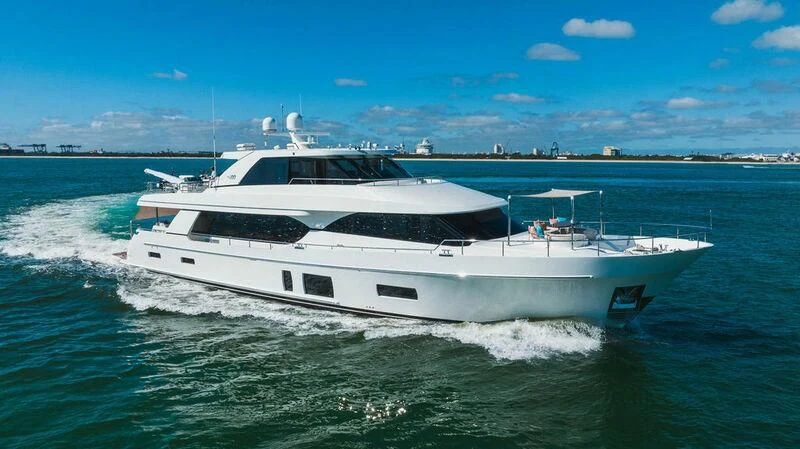

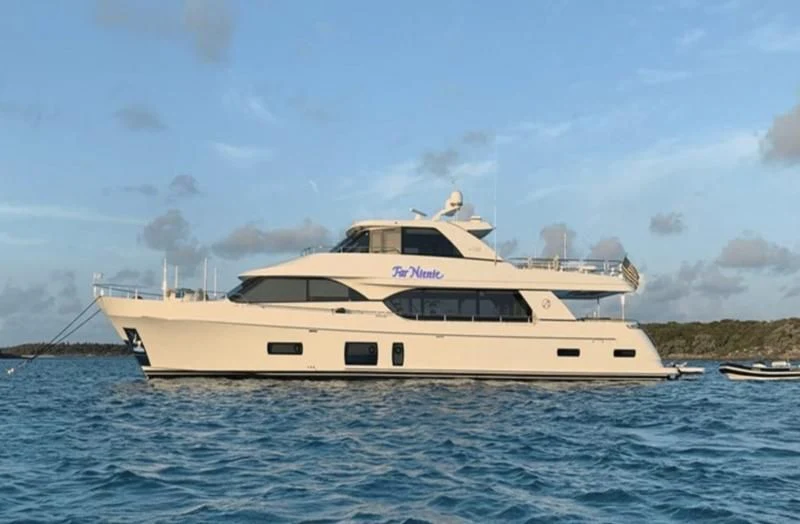

FAR NIENTE Yacht for Sale

LOA:    100' 0" (30.48m)

Beam:  23' 0" (7.01m)

Min Draft: 5' 6" (1.68m)

Max Draft: 6' 5" (1.96m)

Ext Designer:   Fiberglass

Fuel Capacity: 4,000 g (15,142 l)

Water Capacity: 650 g (2,461 l)

Holding Tank:  200 g (757 l)

Flag: New Build

Location: Fort Lauderdale, Florida

United States

Year: Mfg­2018 Model­2018

Builder: OCEAN ALEXANDER

Model: Motor Yacht

Type: Top: Motor Yacht

Speed: Cruising 22-23 knots  80% load

Engines: 2600 HP, Twin, Inboard, Diesel, 16V2000, MTU

Staterooms: 5

Sleeps: 10

Heads: 10

Crew:   3

Price: Price On Application Quarters:

Crew Berths:

Captain Cabin: No Classifications:

MCA: None     ISM: None

Vinylester resin with high­density structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. (Usually only found in vessels 100’+)

Longitudinal and lateral fiberglass stringers filled with high­density foam

Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise

transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting in vibration/sounds levels that are industry leading and at times 1/2 to 1/10 of ISO­6954 requirements. (Unique OA feature)

Sylomer floating floor system (Unique OA standard, usually found on 130’+ vessels)

Fiberglass with infusion lamination manufacturing technology

Reinforced collision bulkhead frameless windows

All exterior hardware to be S/S 316 or to manufacturer requirements

Weather­tight bulkheads with further sound and temperature insulation

Painted exterior surface with professional grade Alexseal polyurethane paint and epoxy based primers. Highest gloss and color retention compared with gelcoat or other paint brands. Guarantee color match by

Alexseal. No fading, yellowing and minimum maintenance with no annual compounded necessary on exterior paint. For first 3 years just use soap and water (Unique OA standard feature, not an optional upcharge like competitors).   Marine grade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and “abrasive” sounds while underway. Also allows for one of the

largest uninterrupted glass/window spans in the industry. (Unique OA feature) Use of cross­knit directional carbon fiber in high stress area for added structural integrity and torsional strength. Fiberglass staircase from cockpit to FB w/teak steps.

Black boot top stripe

Interior structural components all bonded to hull

Three coats of Seahawk™ primer, hi­build epoxy barrier coat and covered with three coats of Seahawk selfpolishing bottom paint (Unique OA feature, optional on competitors)

Fiberglass rub rail w/ S/S striking plate

Bronze through­ hull fitting

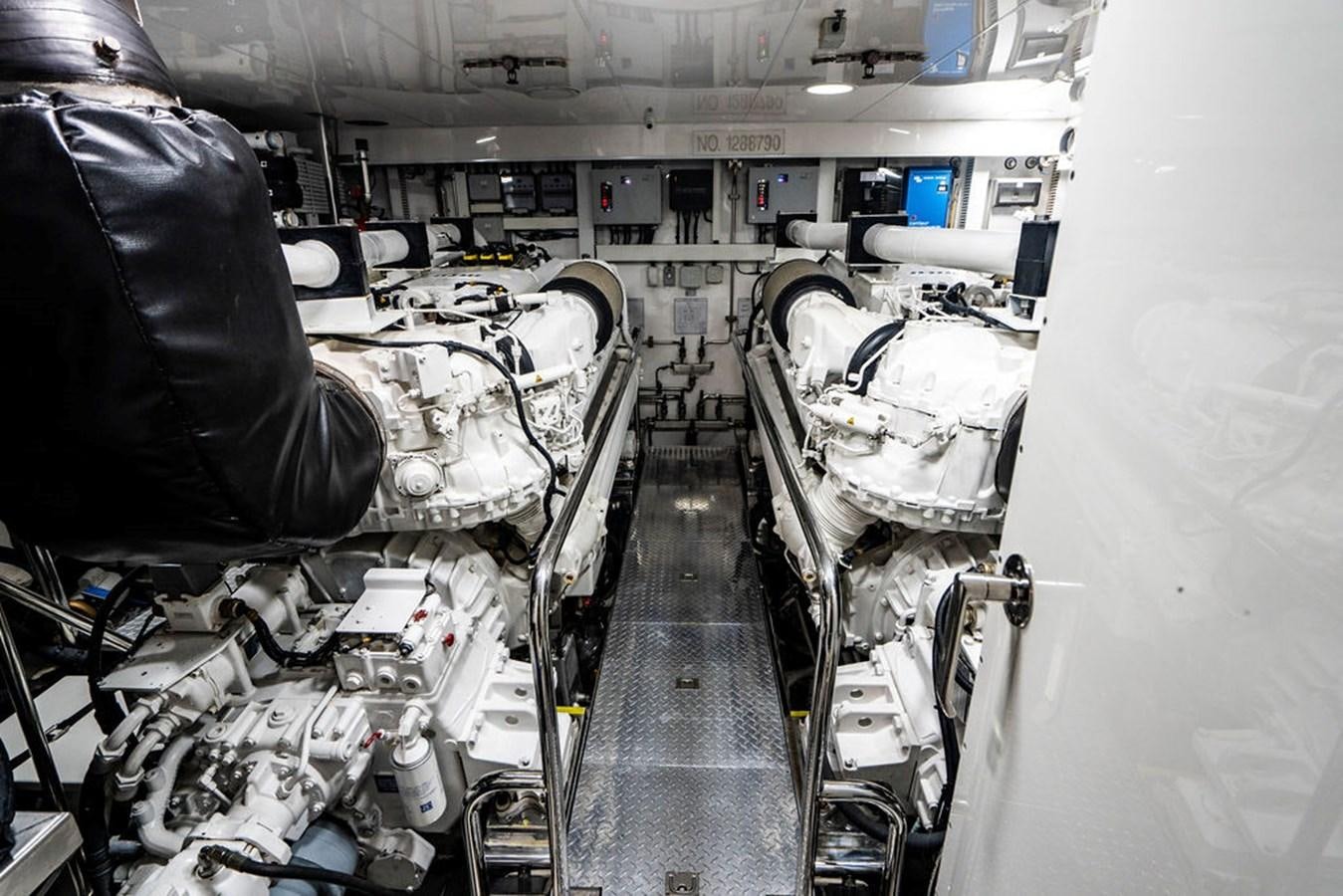

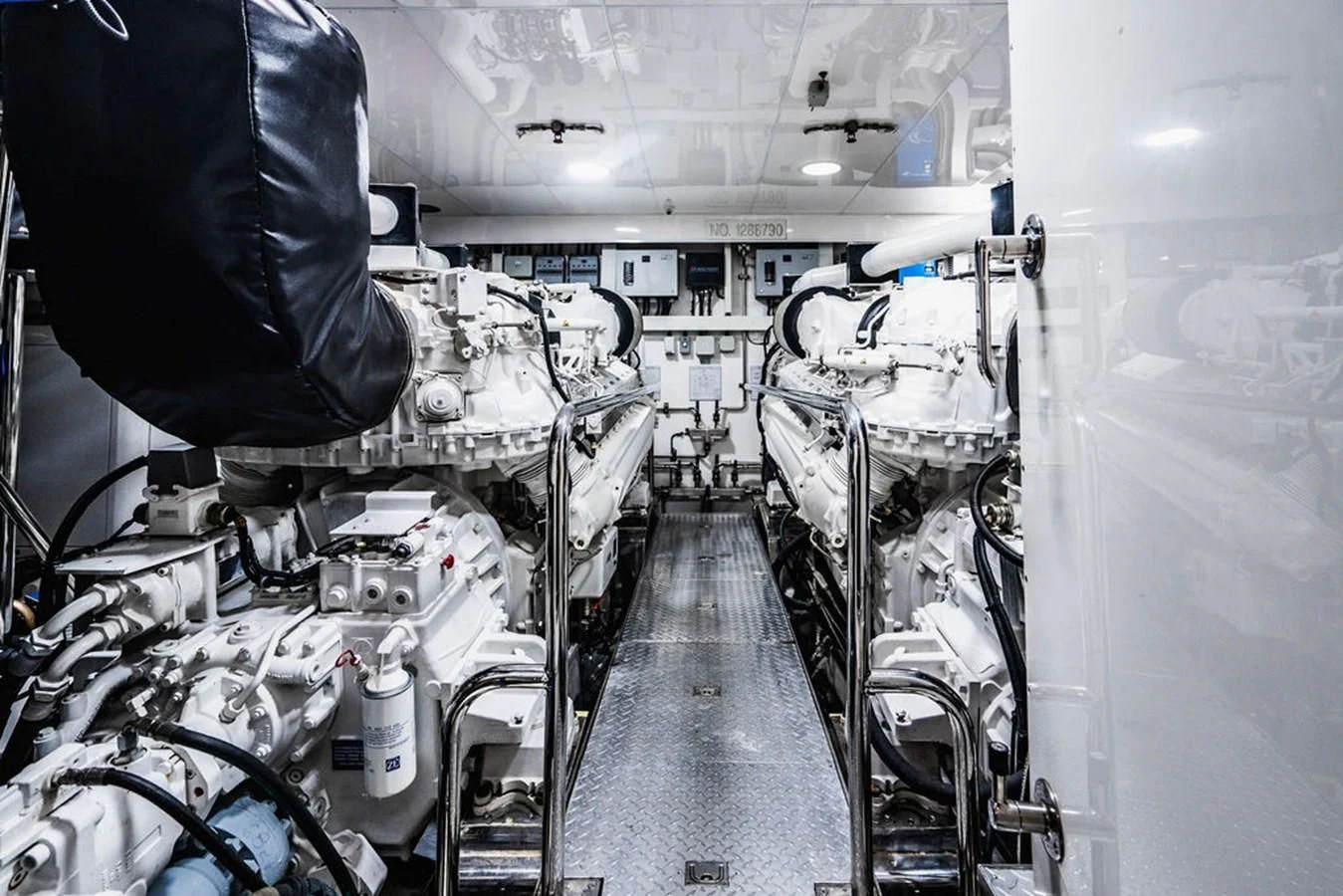

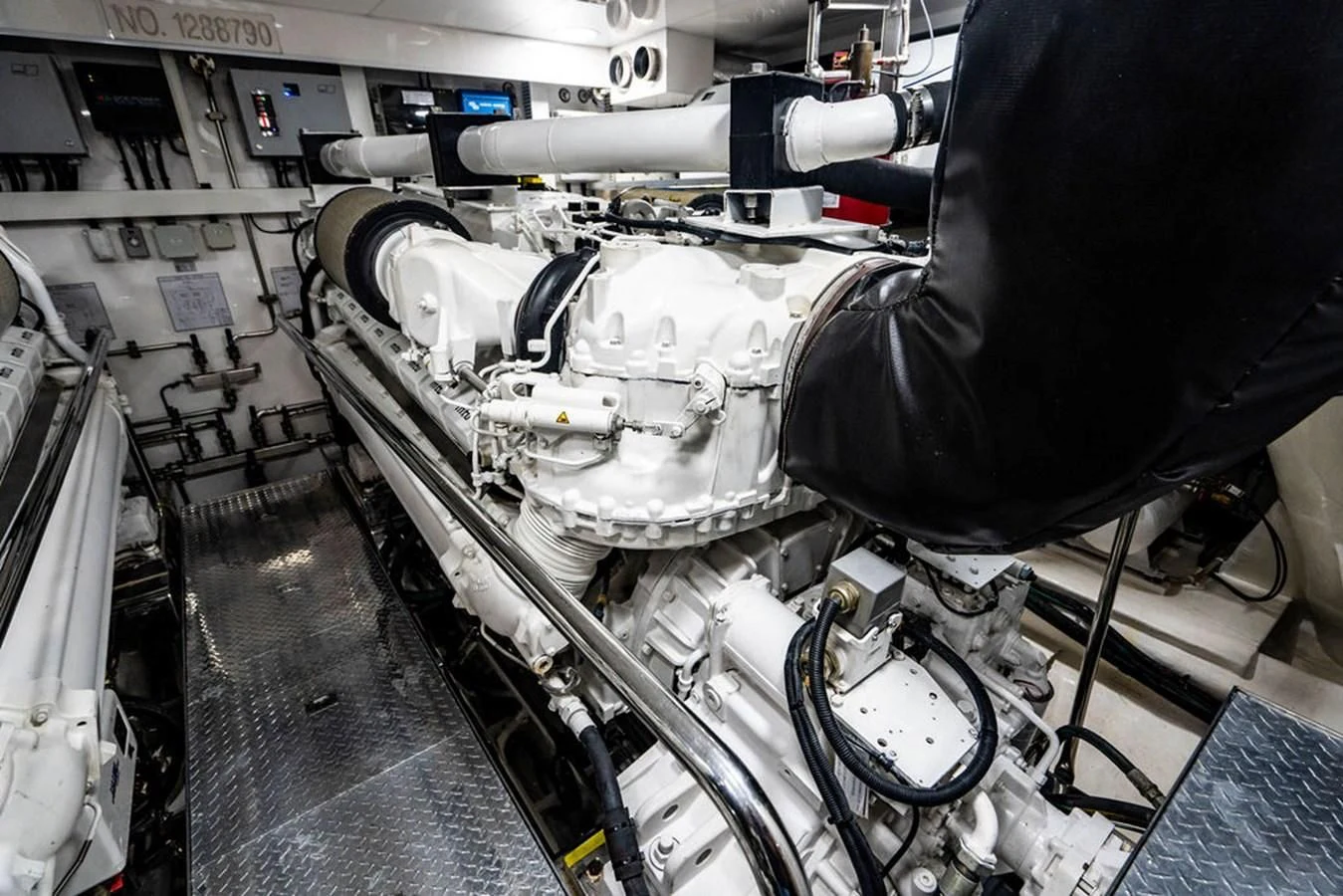

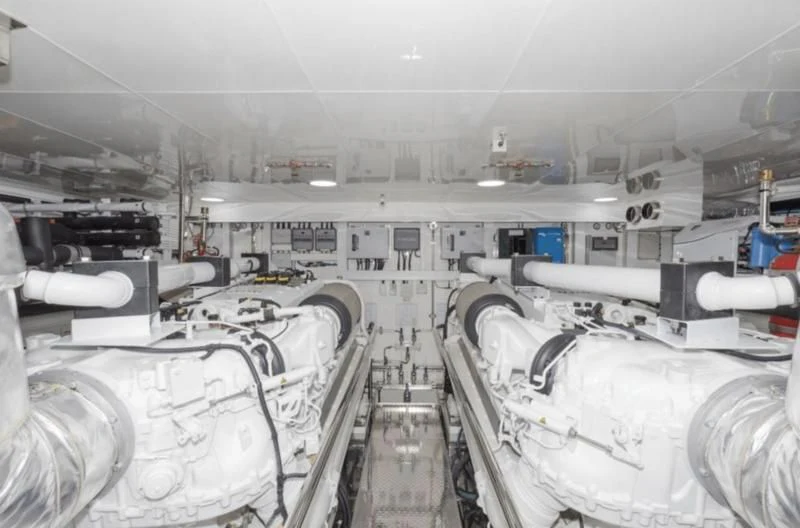

MTU® 16V2000 2600HP engines W/extended MTU warranty

Engine alarm system, for low oil pressure and high water temperature

S/S engine beds

Lube oil change system for engines/generators with approximately 45­gallon lube tank. Allows for oil change during cruise w/o need to stop & locate oil change service centers. (Normally found on 135’+ yachts, unique OA feature)

Automated computerized Delta­T® intake/exhaust fans with variable frequency drives shall be mounted to facilitate the pushing and/or pulling of air through the machinery spaces and the providing of a high rate of air exchange. Ducts shall have fire dampers installed with manual/ automatic triggering that shall be tied into the machinery shut down circuits. Ducts in way of interior living space shall be insulated and soundproofed. System of water separator grills used on intake and exhaust sides of system

Adjustable/Reversible Delta­T® fans for engine exhaust located on superstructure instead of hull side. Maximizes water protection and salt spray, resulting in safer and lower maintenance ownership (Unique OA feature)

Stabilizer with power take­off from both engines to provide redundancy (Unique OA feature)

One fixed control stations at skylounge, with complete engine instrumentation with lighted, modern switches.

Ocean Alexander employs aerospace grade “autoclave” to make “hard coat” exhaust with AL­6XN alloys (used in Saturn V rocket nozzle). Ocean Alexander is unique in utilizing Military standards that ensures optimum and sustained performance in its exhaust system.)

JASTRAM Hydraulic steering system

Steering control station with complete instrumentation

S/S rudders w/integrated zinc plates

Dripless seal for rudder post

High performance computer designed and machined NiBrAl propeller

Skylounge steering wheel Ultraleather wrapped

Maintenance free “dripless” seals for engine shaft packing glands

Propeller shaft Aqua 22HS. 22HS is a high­ grade austenitic alloy stainless steel that provides superior corrosion resistance (comparable to Aqua 22) along with excellent toughness and high strength (comparable with Aqua 17). A no­ compromised approach adopted by navies around the world   Stidd® electrical helm seats x3

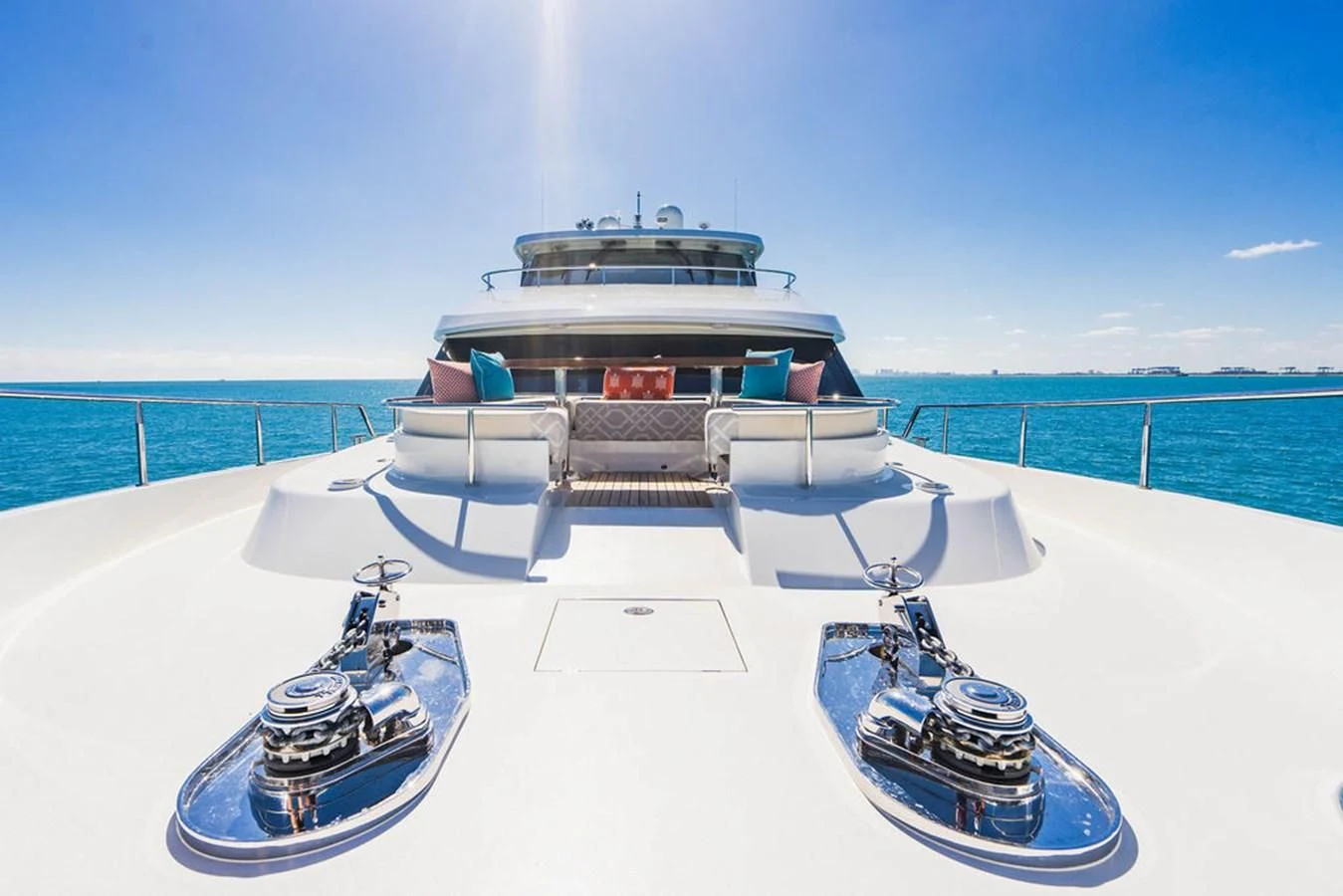

Dual Hydraulic windlasses, VWCLP4000

Dual stainless steel anchors 350 lbs. from hull sides w/ 300ft anchor chain (1/2" HT) & chain stoppers.

Integral roller and chain stopper with anchor winch

Two vertical electric rope winches for Aft Deck,VC2500 (Standard versus competitors’ optional) Reinforced anchor platform and anchoring system

Chain counter

Hands­free anchor chain wash system – allows for cleaning of chain during anchor operation (Unique OA feature)

Sidepower™ Vector Fin (DAME 2013 award winner) 15 ft2 hydraulic stabilizer find with zero speed stabilization function.

Sidepower’s patented “curved” fin design not only provides lift underway it is also unique in the industry with active “predictive” inertia control.

55HP bow and 40HP stern thrusters

Above included as standard versus competitors’ optional

Stainless steel rails on side of engine and stainless steel engine mounting plates (Unique Ocean Alexander engineering affords industry leading torsional rigidity and engine alignment assurance. Further reducing vibration and high torque pressures)

Color­ coded piping system for easy identification

Hydraulic 2500 lbs. yacht crane

Fire extinguisher system with engine­shutdown feature

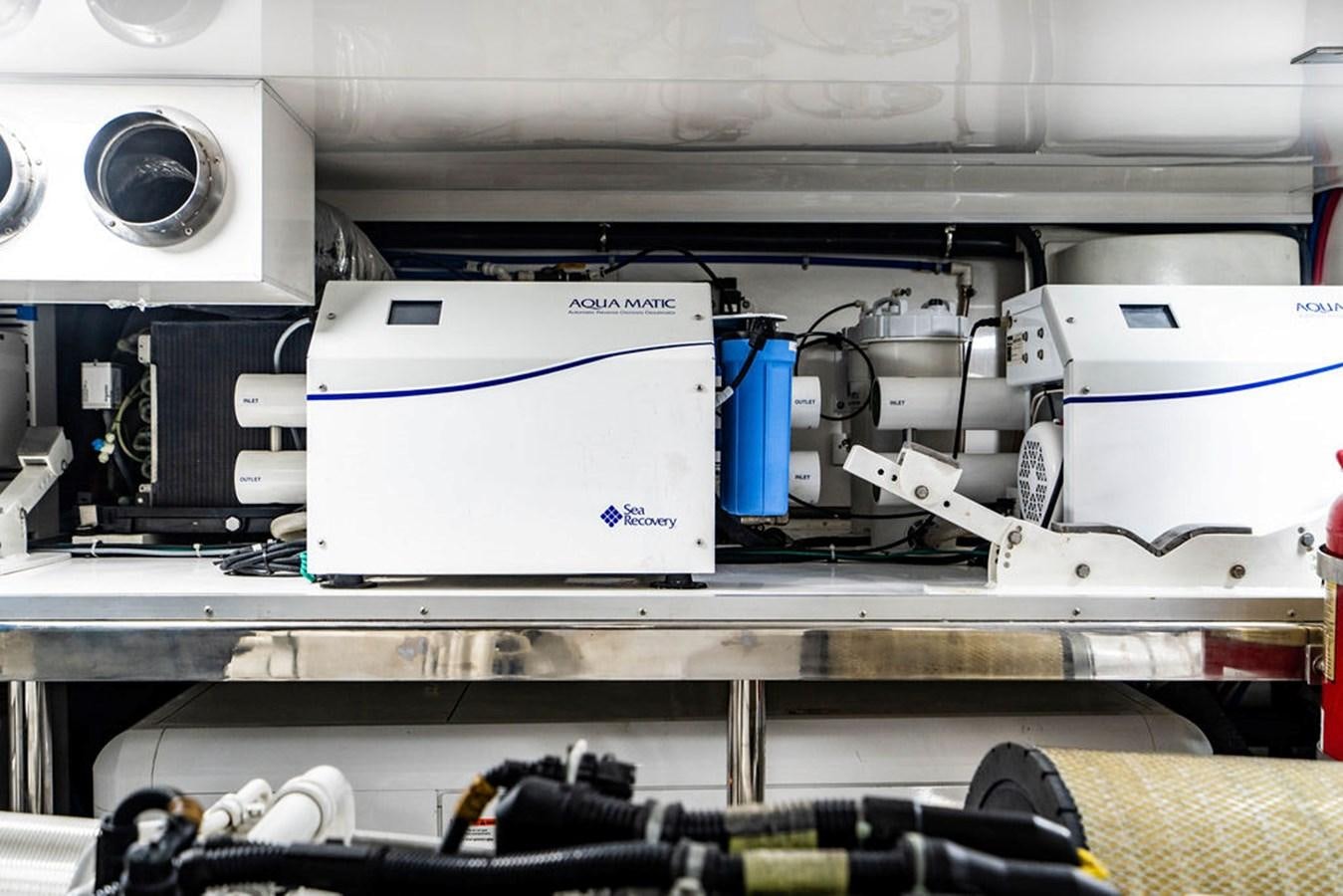

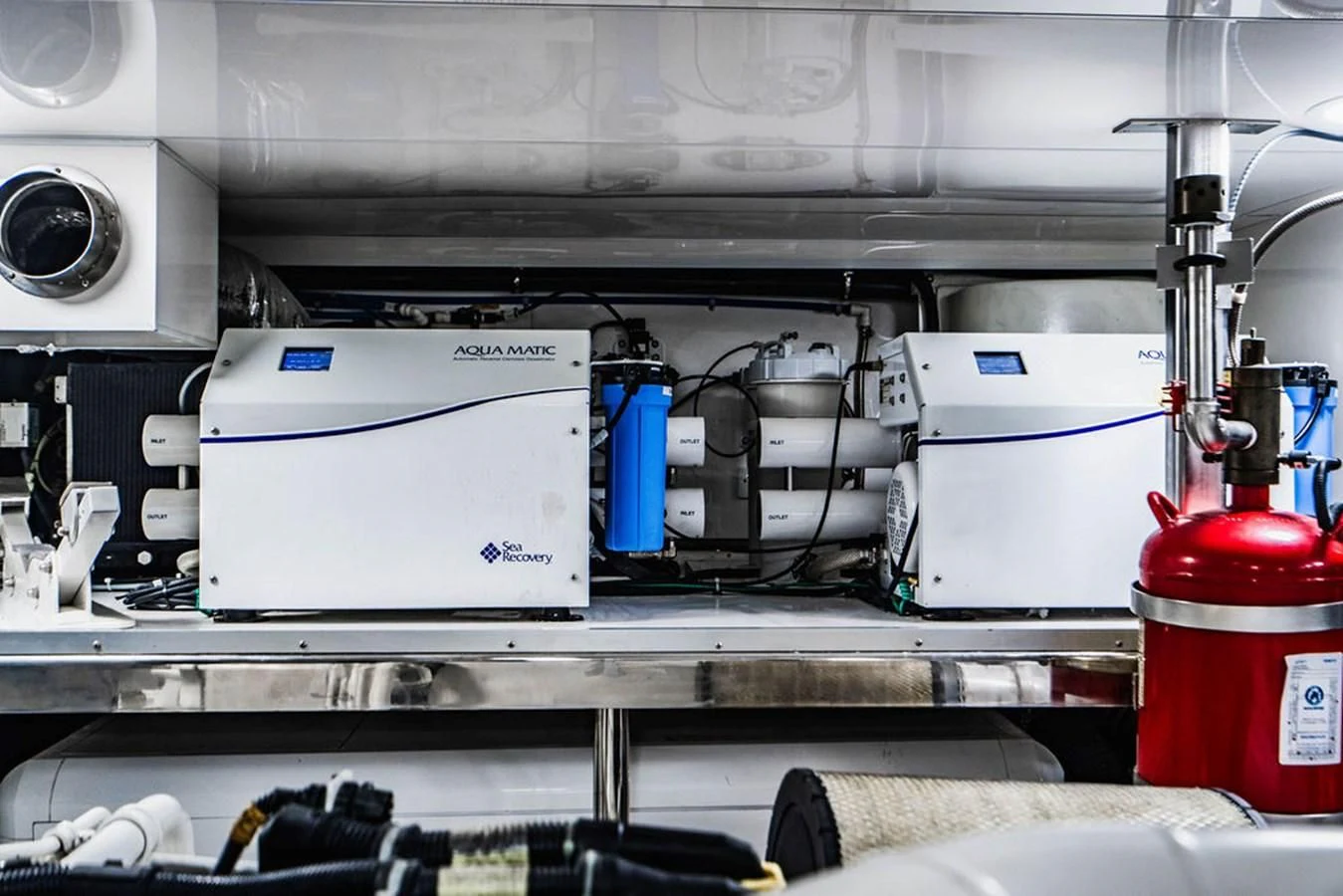

Sea Recovery 1400G/Day water maker w/auto fresh water flush operation, PH Neutralizer, UV sterilizer and

Commercial Pre­filter (US Coast Guard 14 person unit, Standard versus competitors’ optional)

Kahlenberg™ heavy­duty horn

All engine room and bilge spaces shall be primed and top coated with polyurethane paint system. Heavy­duty commercial grade pantograph windshield wipers & washers w/ intermittent function Detailed stringers in engine room

Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free. Any moisture from condensation is evacuated outside the yacht to keep a clean and healthy cruising environment.

Ocean Alexander design in oversized shafts, rudder and other drive train systems typically one­class larger than competition. Superior handling, longevity is ensured with Ocean Alexander drive­train systems. Compressed air in engine room and Aft deck cabinet

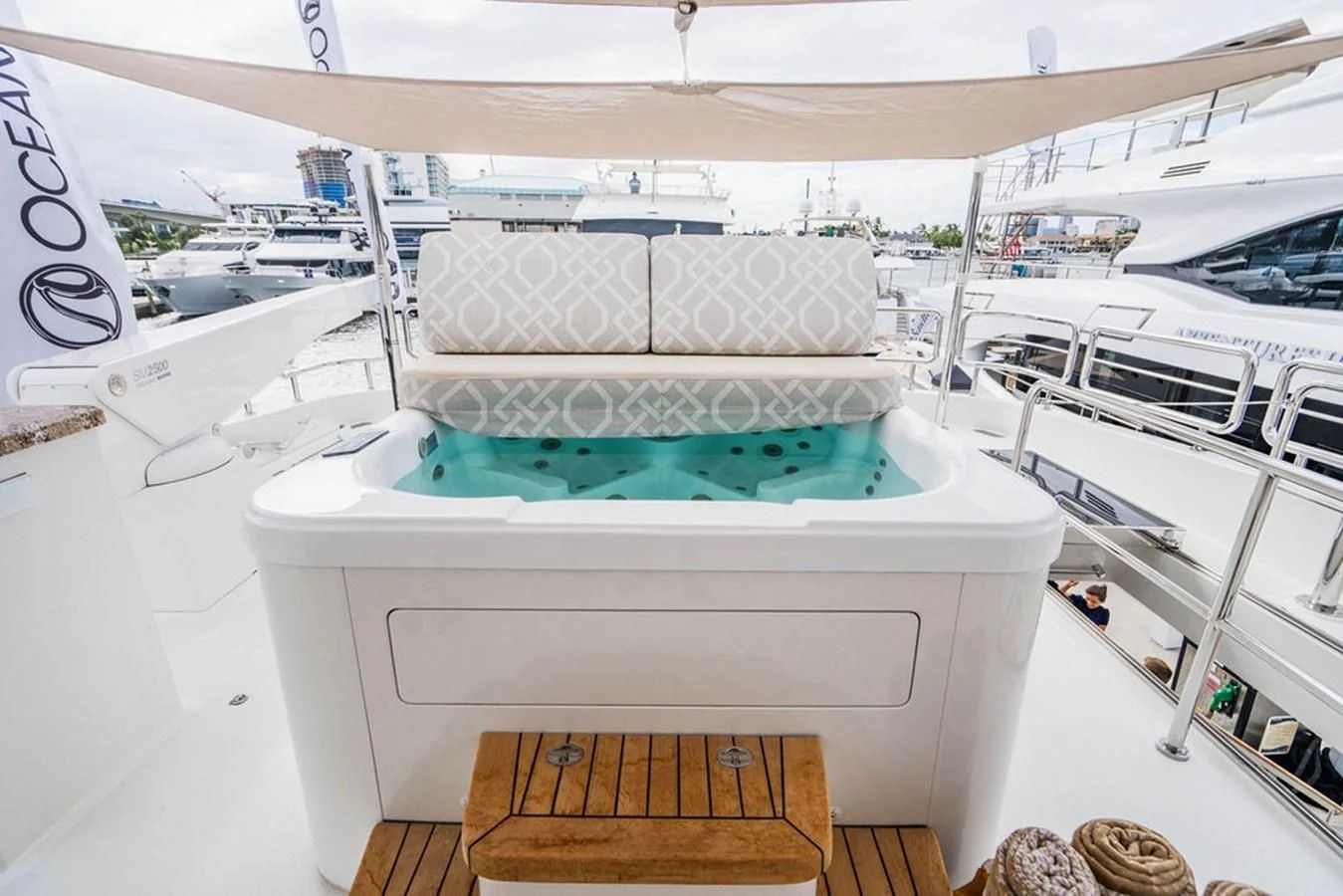

Pre­plumbing and wiring for jacuzzi

2mm thickness 316 S/S water tank w/ sight gauge Headhunter™ pressure fresh­water system

Fresh­water outlet with hose for engines & generators

Cold fresh­water wash down at bow, stern and boat deck

Dockside water connection

Two 40­gallon water heaters with high density fiberglass insulation w/ dual high efficiency heating element that speeds heating by 50%

Sight gauges for all tanks

4.5mm thickness 5052 Aluminum fuel tanks with

sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system

Dual Racor® fuel/water separator with Y­valves for engine & generator

Gulfcoast™ Fuel polishing system

Dual MTU® fuel filter w/ remote readout of filter performance. (Unique OA standard, usually found on 150’+ vessels)

ECOmar™ waste treatment system (600Gal/day)

Oversized drains to overboard

Automatic bilge pump ­ The vessel shall be outfitted with automatic bilge pump with manual and automatic switches in each space as divided by weather­tight bulkheads. High water alarms will be mounted in each of these bilge zones

AC outlets throughout

All primary AC & DC electrical wiring is appropriately labeled throughout the yacht

GFI (110V) AC outlet in potential “wet” areas. In addition, entire boat is dual protected via ELCI Octoplex breakers. (OA is unique in the industry to provide dual protection GFCI & ELCI) 24 Volt system

High water bilge alarm at every Rule® bilge pump station

Dry bilge area arrangement in center engine room

Lighted bilge with built­in (when necessary) S/S ladder (Unique OA Feature) 100 AMP Chargers

Heavy­duty batteries

Battery paralleling system w/ control switch

Service battery switch

Bonding system throughout

The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent Engine battery isolation switches

AGM Batteries with 40°F to 140°F operating temp and industry leading low self­discharge rates 1 to 3%

Octoplex NMEA 2000 Monitor Network electrical control system

Based on aerospace technology for remote activation, control and status reporting of AC and DC breakers. Monitors power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no­load indication, dimming and usage information with touch screen monitor that is user reconfigurable. Brown­out configurable control through auto load shedding is included where operator designated equipment (e.g. navigation and other essential systems) remains powered­on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitor system. Provides main access doors, tank level, bilge level and battery monitoring of current, voltage and temp. (Unique OA standard feature, not an optional upcharge like competitors)

Dometic® chilled water system air conditioning system, rated for “Extreme Tropical Climates” (with reverse cycle for operation down to 40°F water temp)

Refrigerant type is accepted worldwide under the

Montreal Protocols

Dedicated engine room air conditioning

Where possible A/C exits from custom made ceiling panels hidden from view. Shortens A/C ducting thus improving efficiency and speed of cooling by over 20%. Also reduces dB reading by over 7 dB (Design cues from 135) LIGHTING

24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander Convenience lights

International navigation lights

High output LED underwater lights x8 (four at stern­aft, two each at MSR­sides)

ACR searchlight (RCL100) and spreader lights for swim platform and FB deck

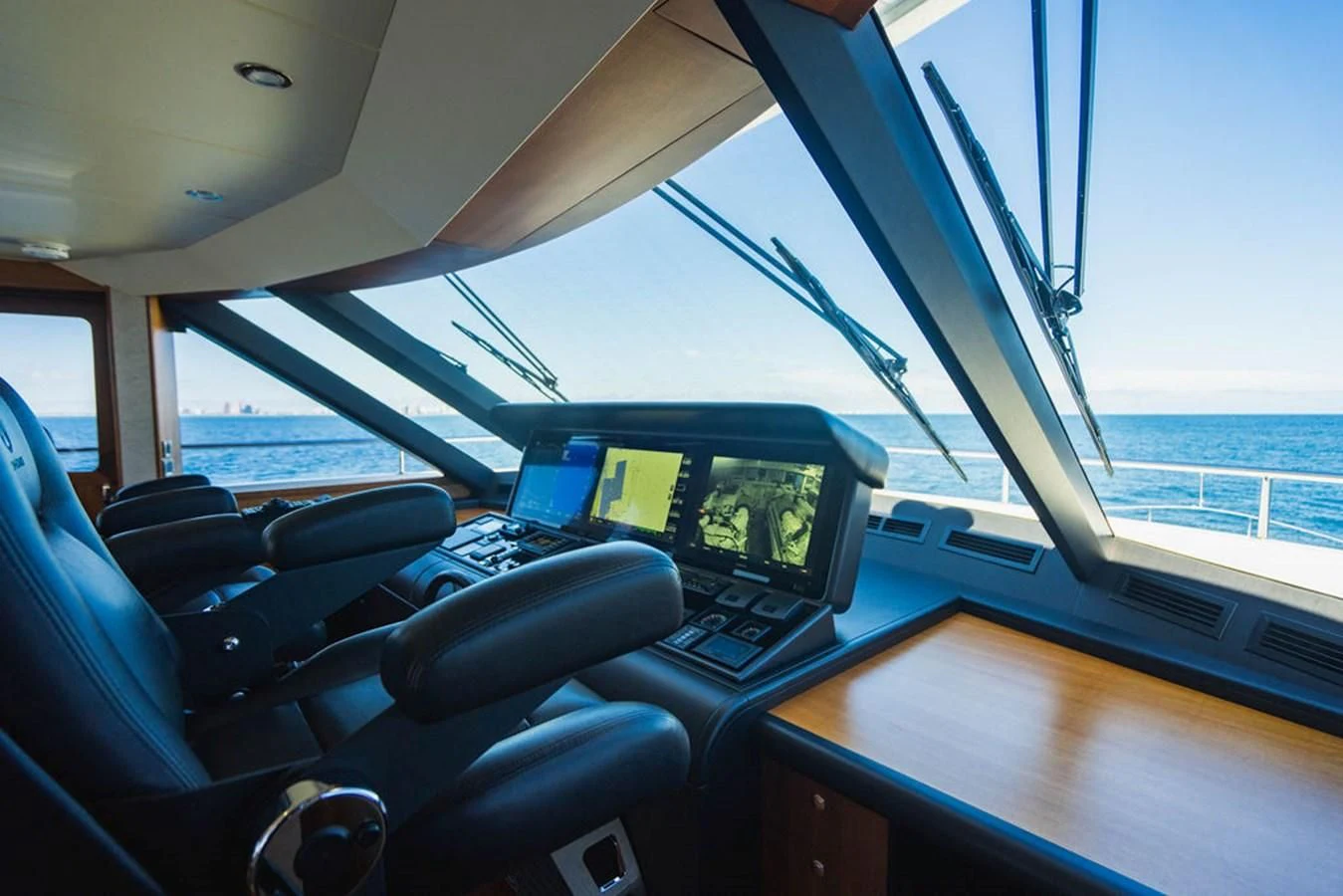

Garmin 8600 Series Black Box on Skylounge with Three 24” Touch screens

Garmin GRID remote input device installed on helm chair

Garmin 25KW Open Array Radar

Garmin Autopilot GHC20

Garmin VHF and Card Reader

Garmin Blackbox sounder

Garmin AIS with NMEA GPS

Garmin Marine Camera (2 in engine room and 1 aft deck)

Triband HD7 with DIRECTTV® receivers

Ritchie Compass 5"

iPad with built­in Garmin App for navigational control/viewing via iPad Navigational electronics standard versus optional with competitors

Atlas 50/60 Hz Power Converter. Allows for automatic marina connection irrespective of 60 Hz (USA) or 50 Hz(European) standards.

Onboard intranet, driven by commercial­grade 4G SIM card capable Wi­Fi router. Allows outside 4G Internet card and/or internal intranet net connection via supplied iPad to Systems monitoring, Garmin and other onboard equipment apps. (Unique OA feature)

Vimar™ switches and outlets (without lazaret) Panasonic Intercom System – includes Panasonic phone system and Digital Panasonic Phones for MSR, Port & STBD VIPs, Port & STBD Guest Staterooms, Crew, Salon, Galley, Skylounge.

These security/safety automatic monitoring and alert abilities include using Apple iPad or Android for wireless access to operate, view, and alarm Octoplex data and navigation system with a fully customizable screen layout, and remote notification (cell phone) capability.

These monitoring abilities include: Main Engines and Generators, AC Monitoring, DC House Bank Battery

Monitoring, Engine Room Weather­tight Bulkhead Doors, Tank Levels, Fire System, Bilge Level (High­water), Exterior Door Sensors(Unique OA standard feature, not an optional upcharge like competitors)

LED 50” flip­down TV with A/V System

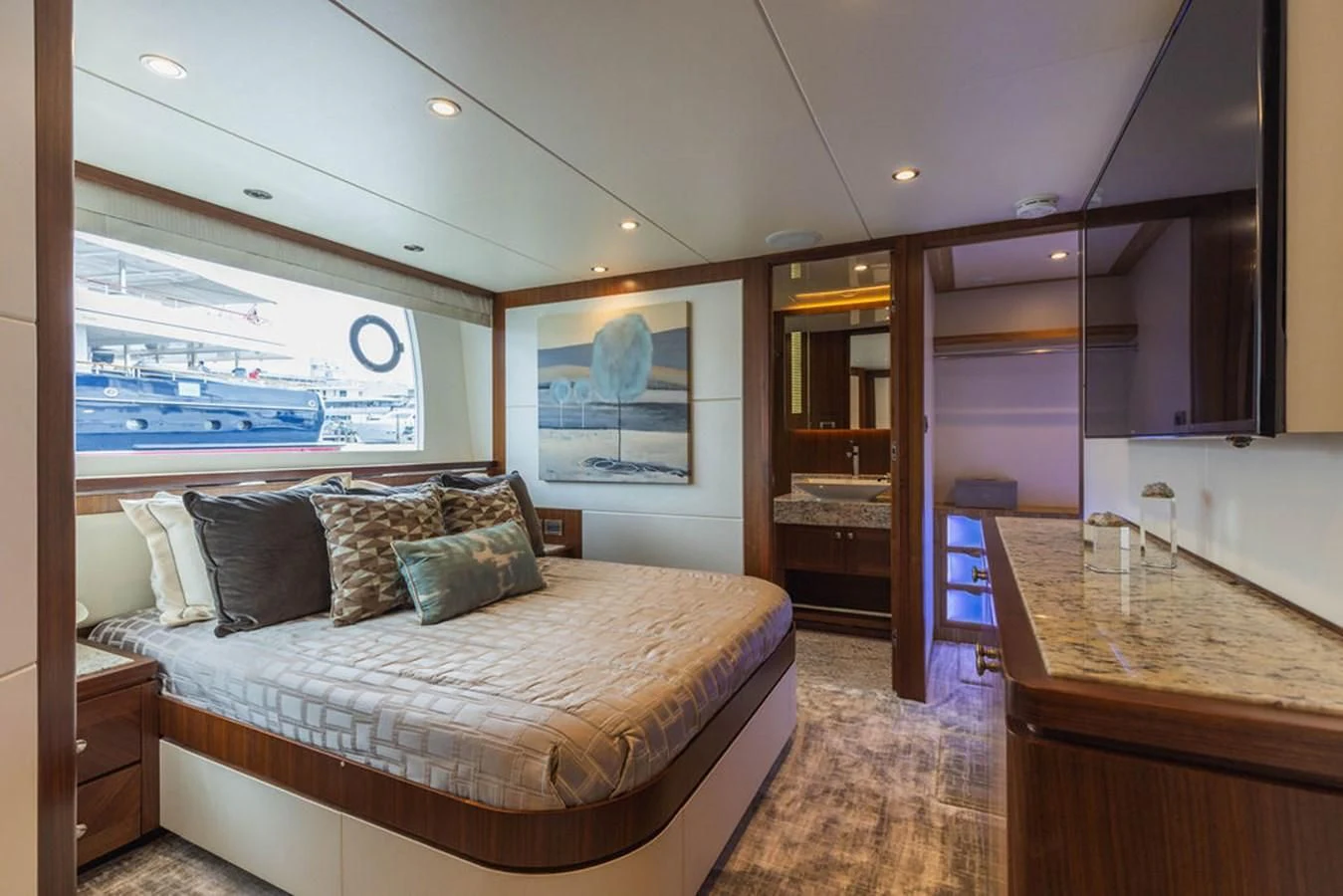

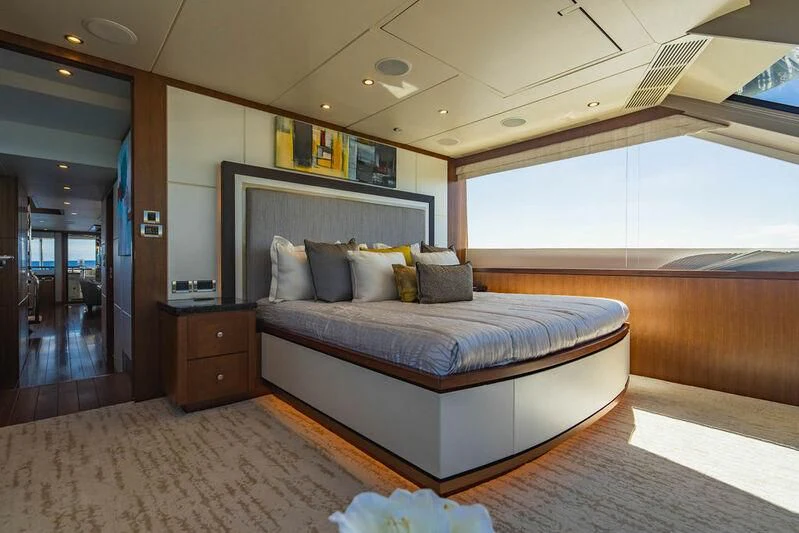

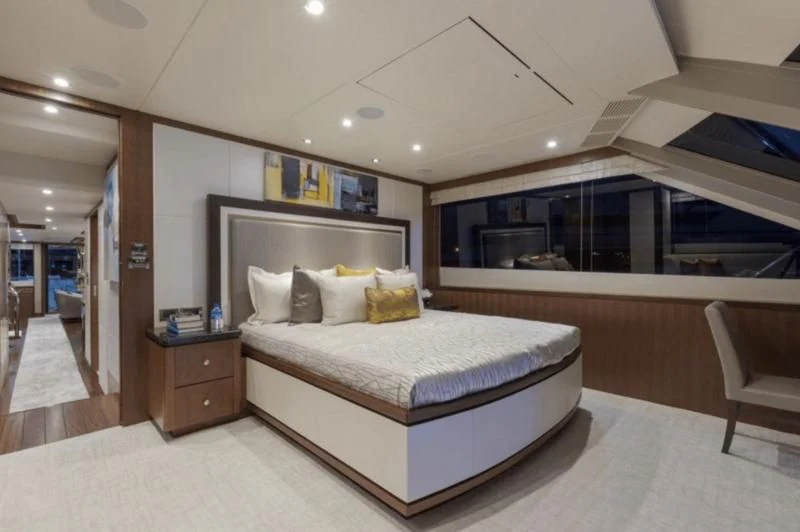

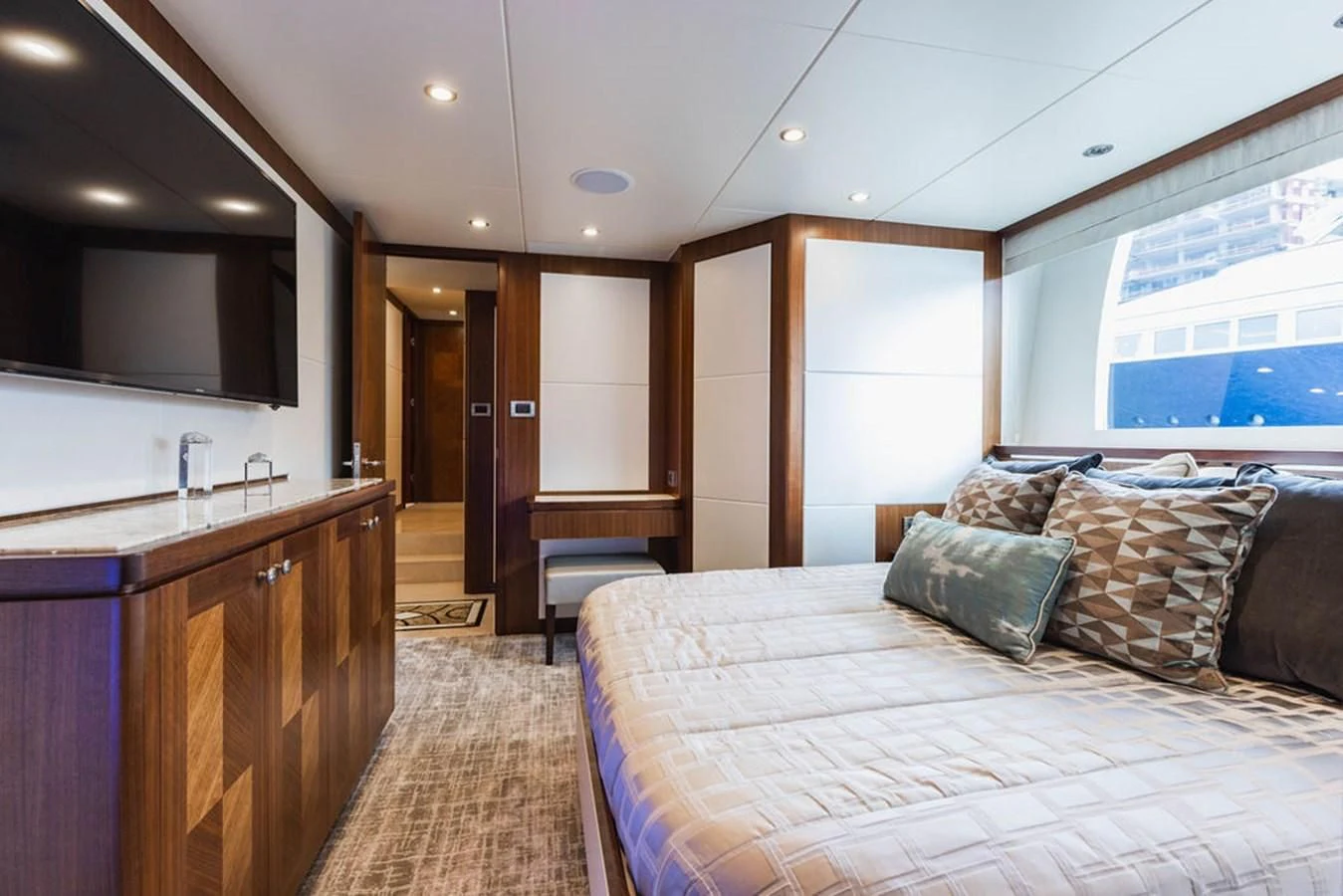

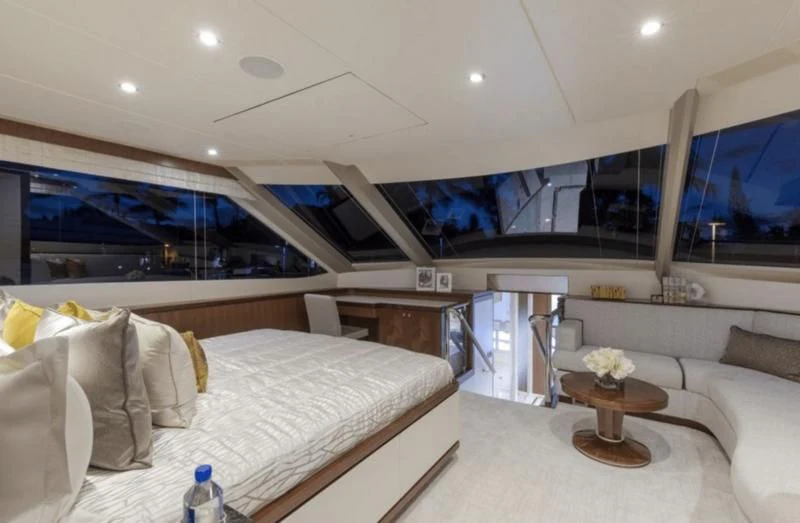

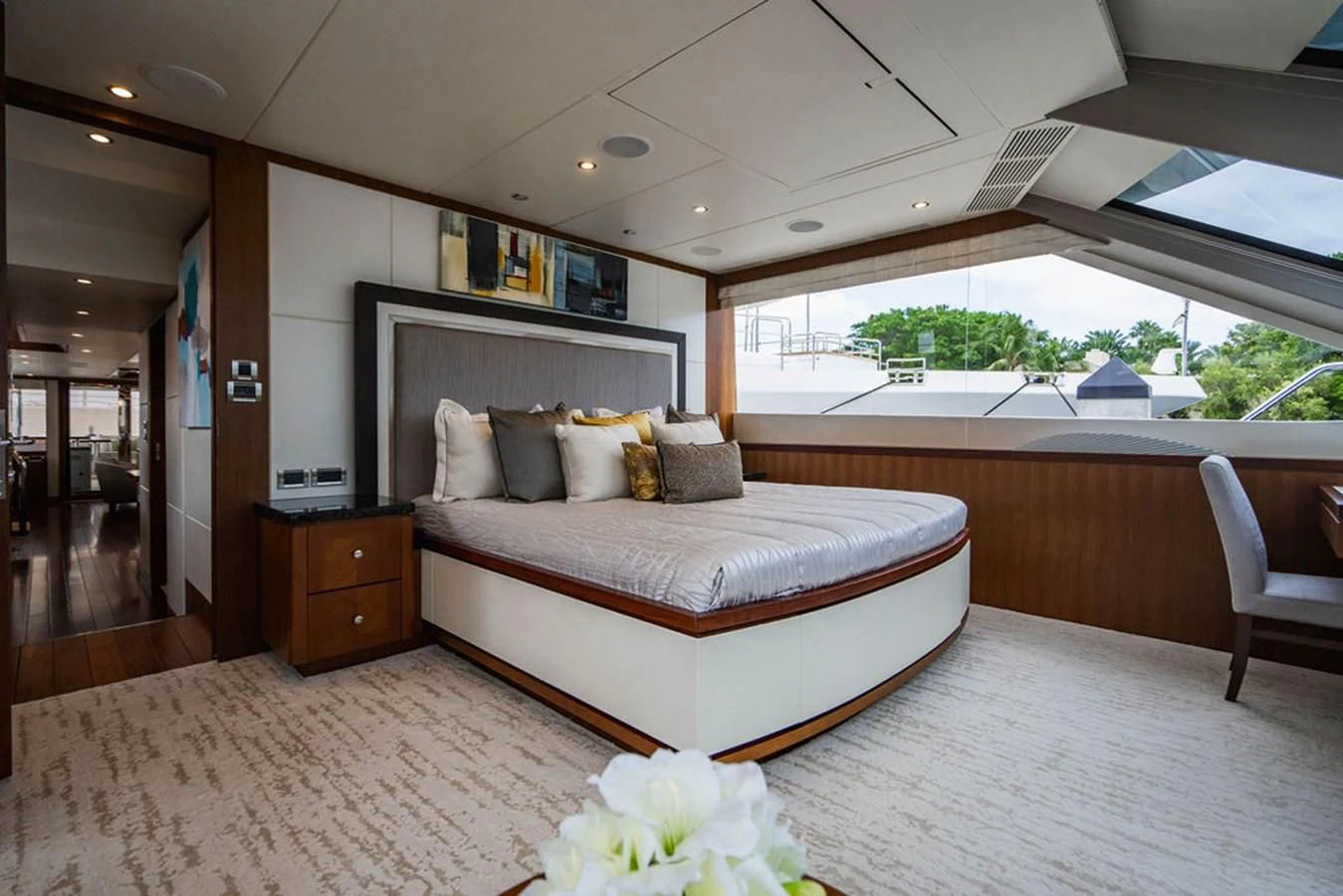

King­sized berth (with independently coiled his & her sections to ensure minimal transfer of movement) Two nightstands with stone countertops

Vanity on port, sofa with table on starboard

Hidden safe in hanging locker

Walk­in closet Dayhead

Wide­opened curved window with custom engineered solution incorporating aluminum beams allows greatest visibility and incoming light

Custom headboard with recessed indirect lighting

Cedar­lined

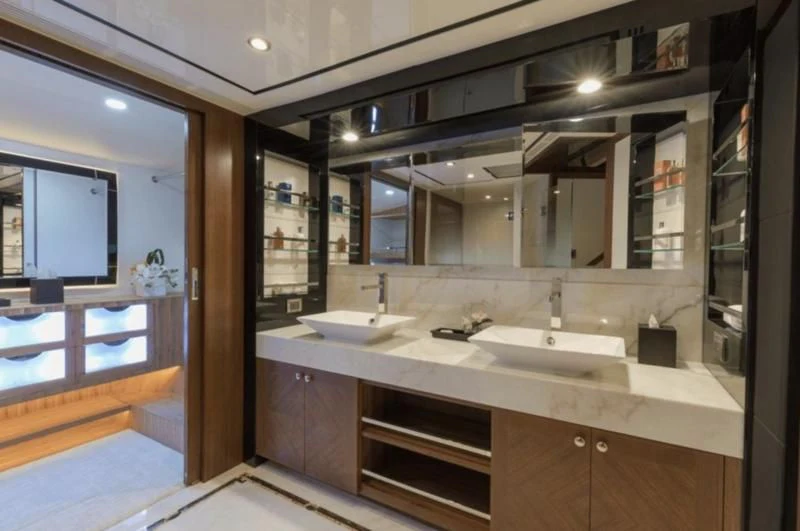

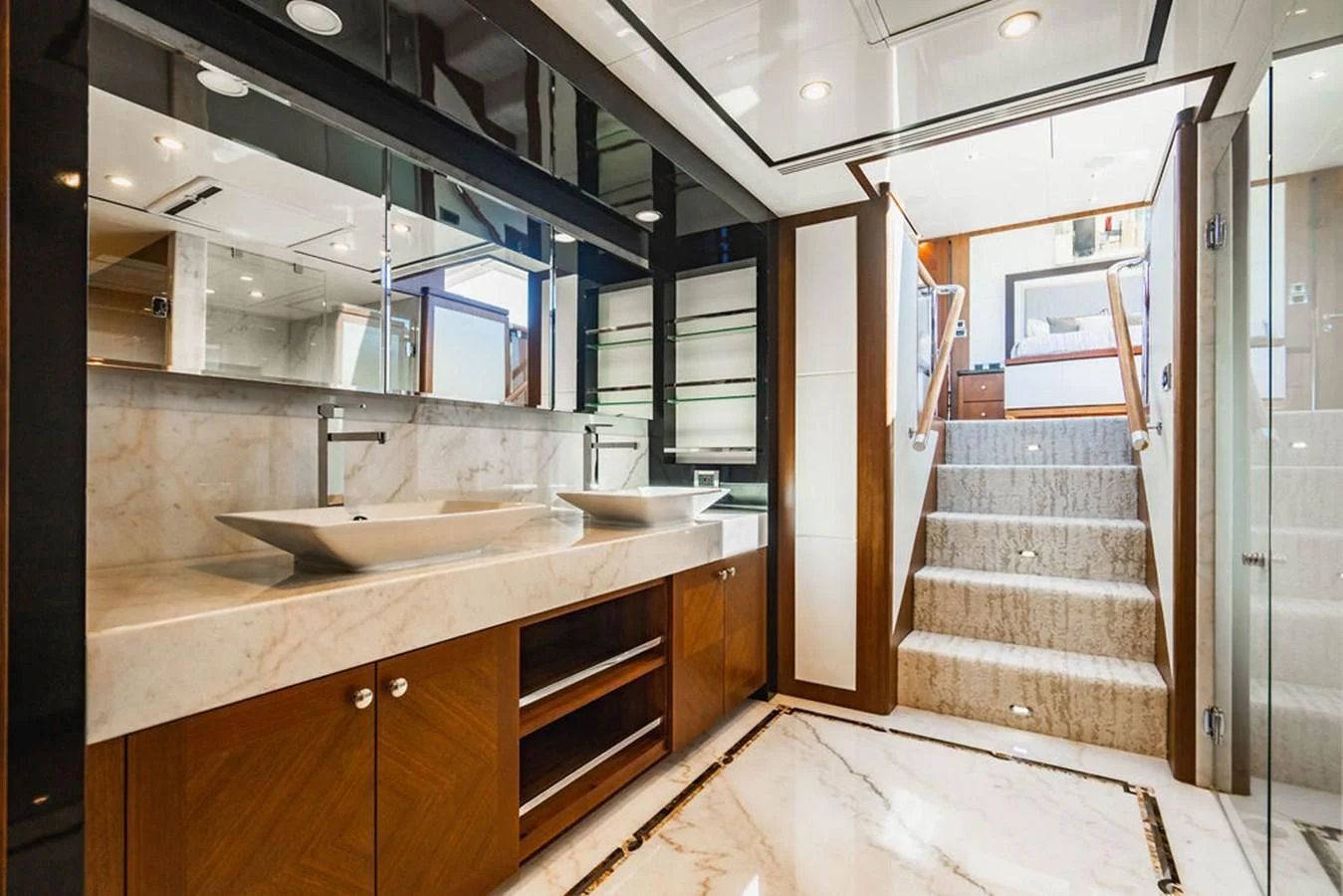

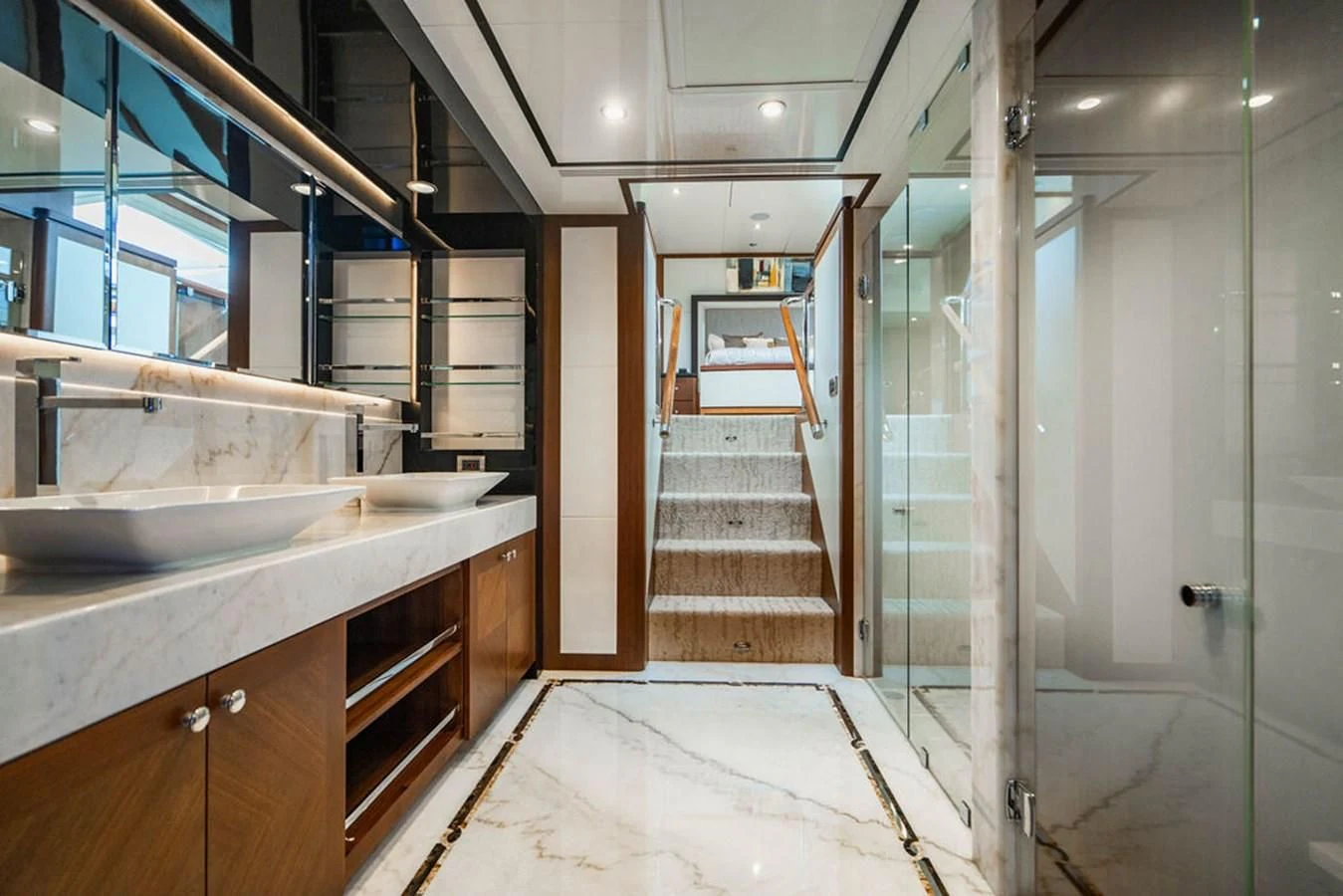

Heated stone floors in Master bathroom

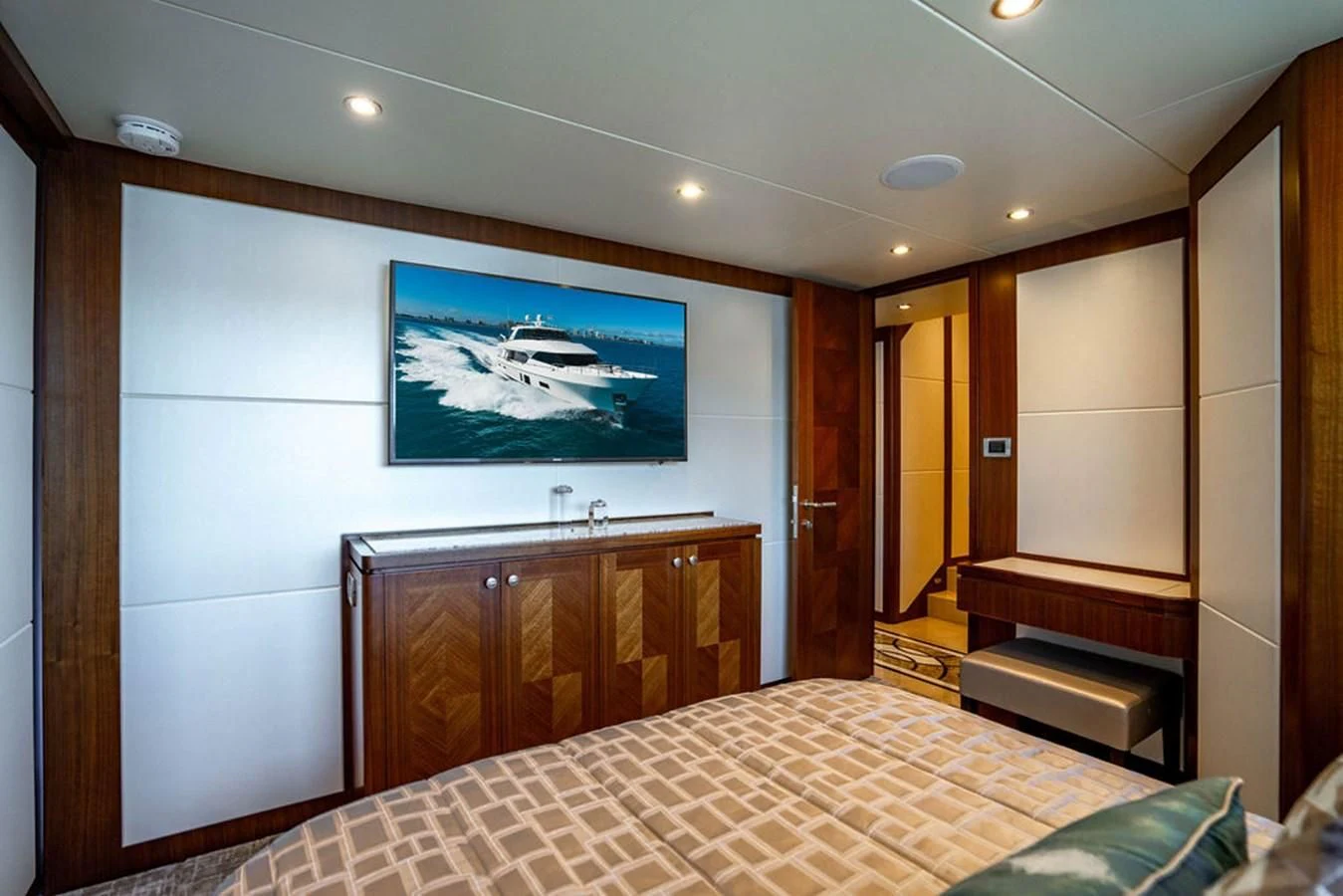

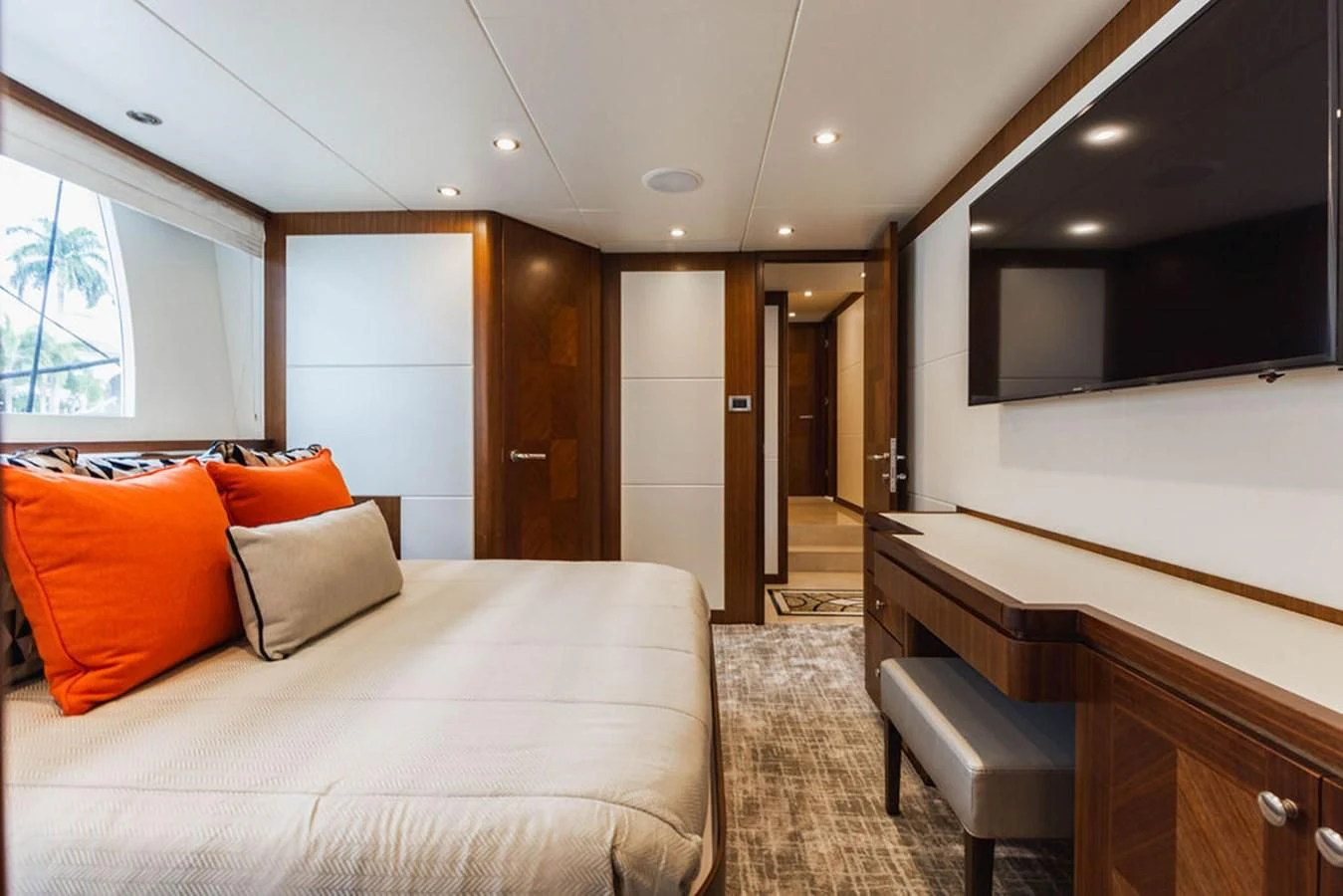

LED 50” TV

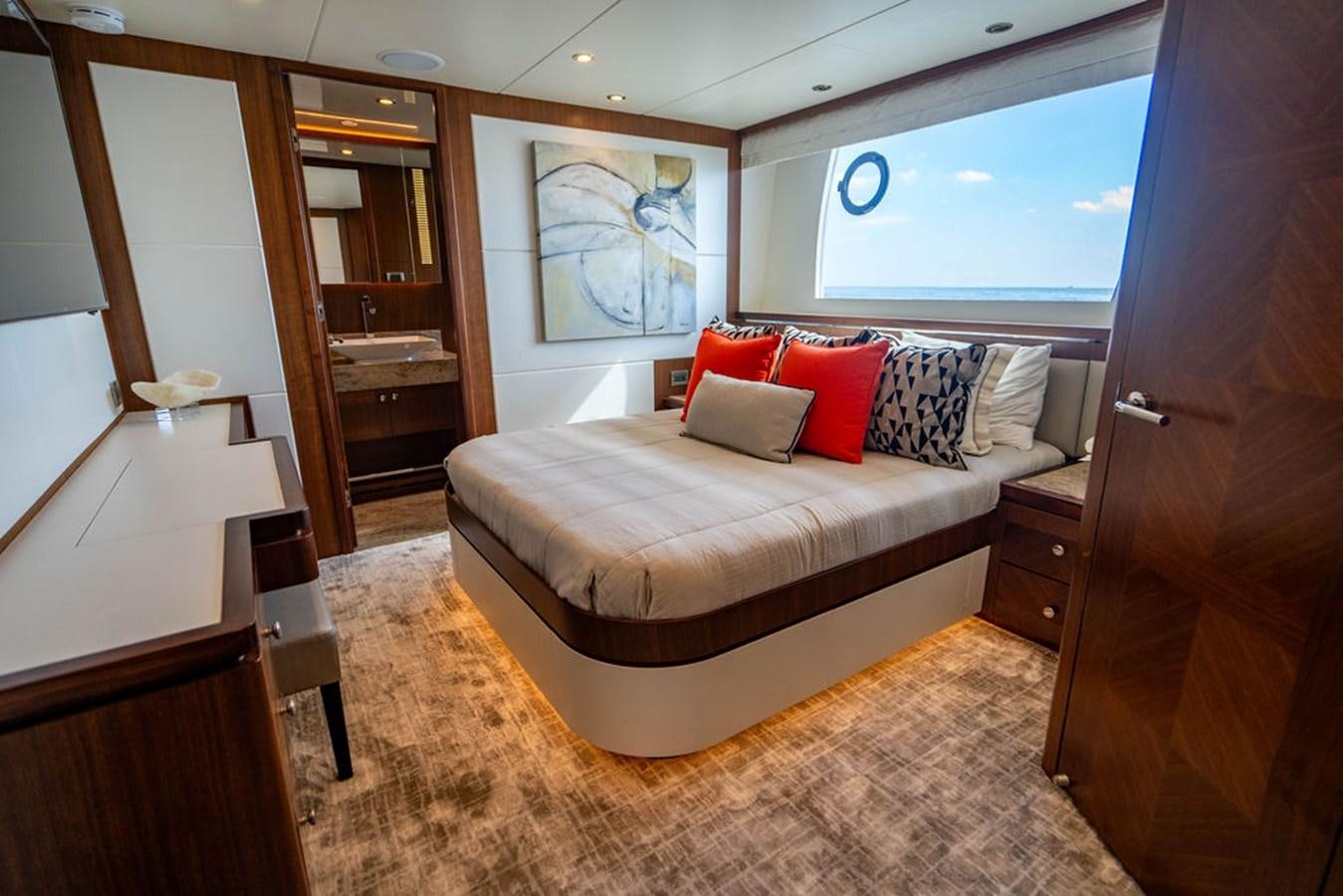

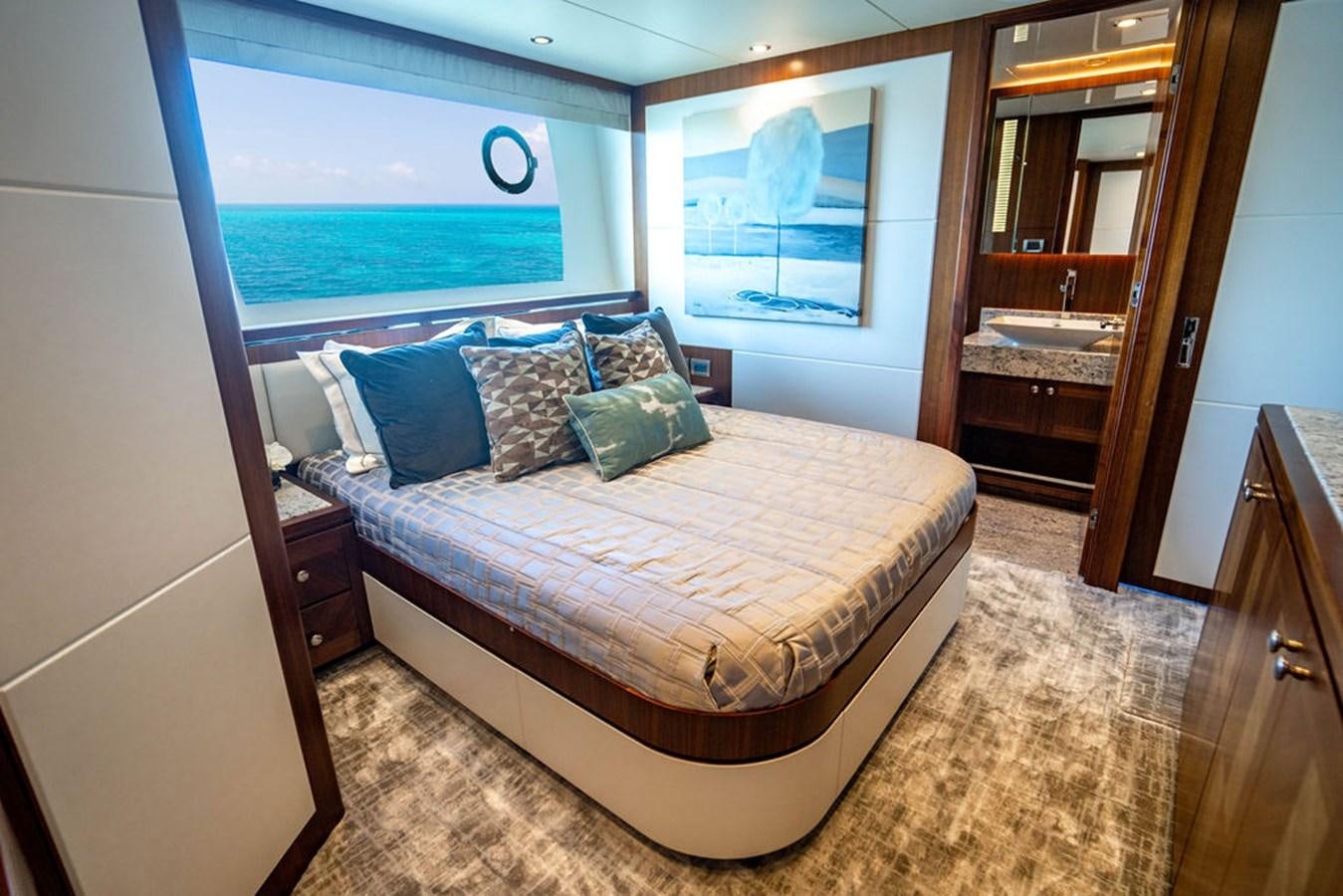

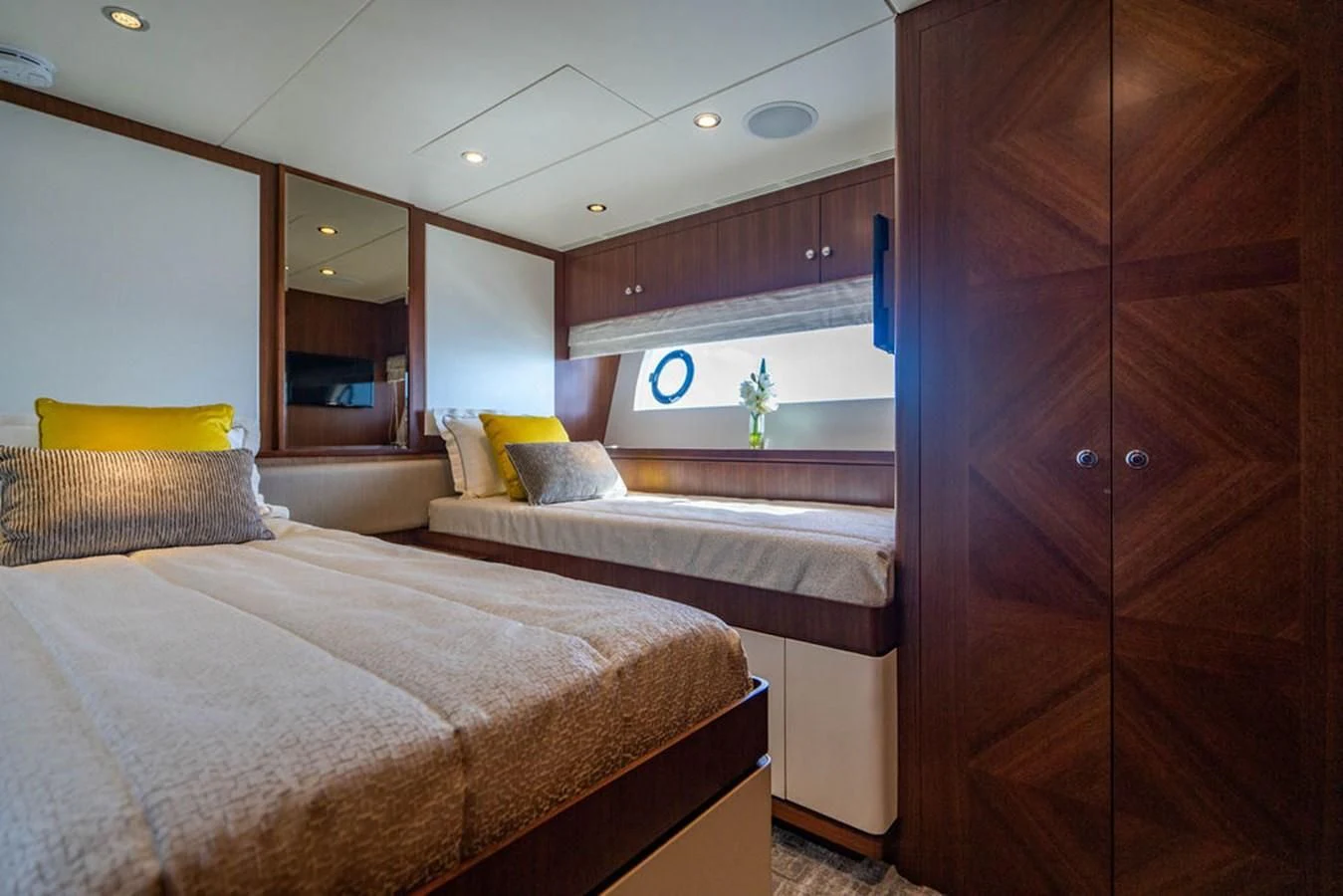

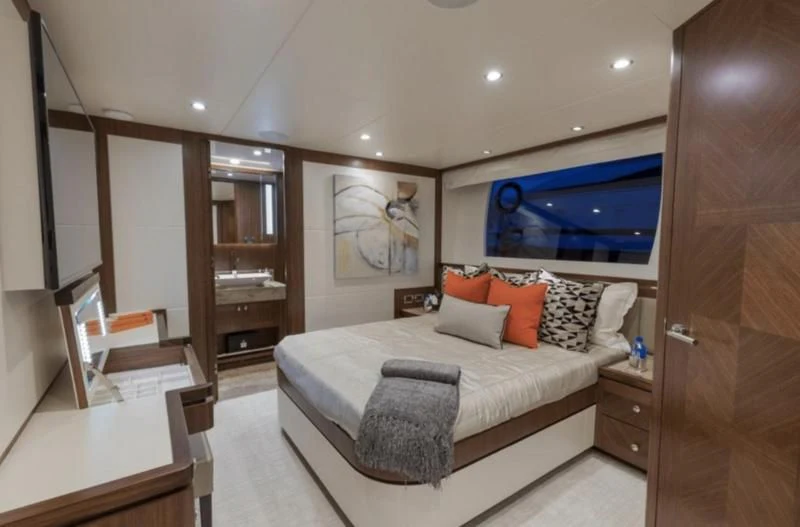

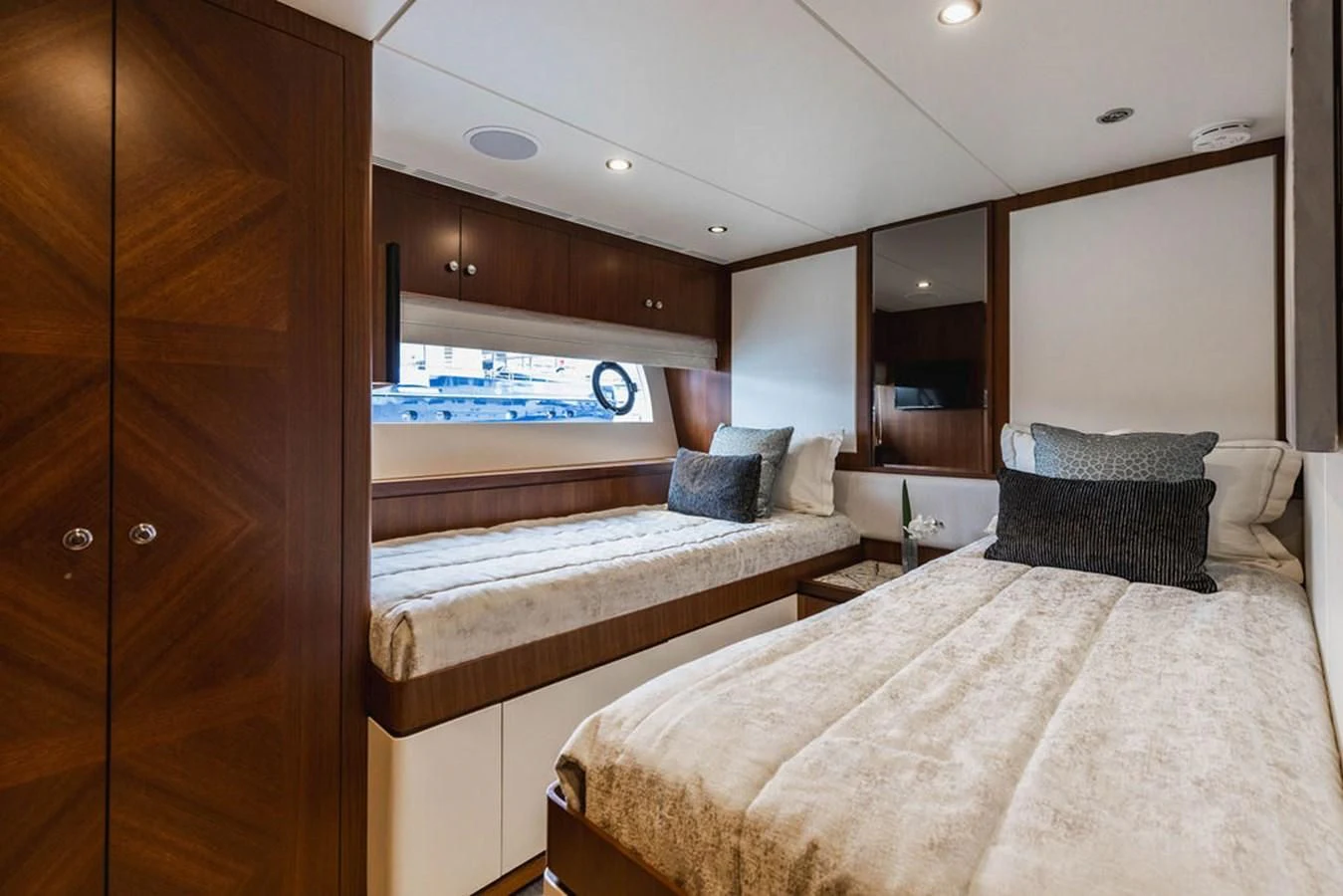

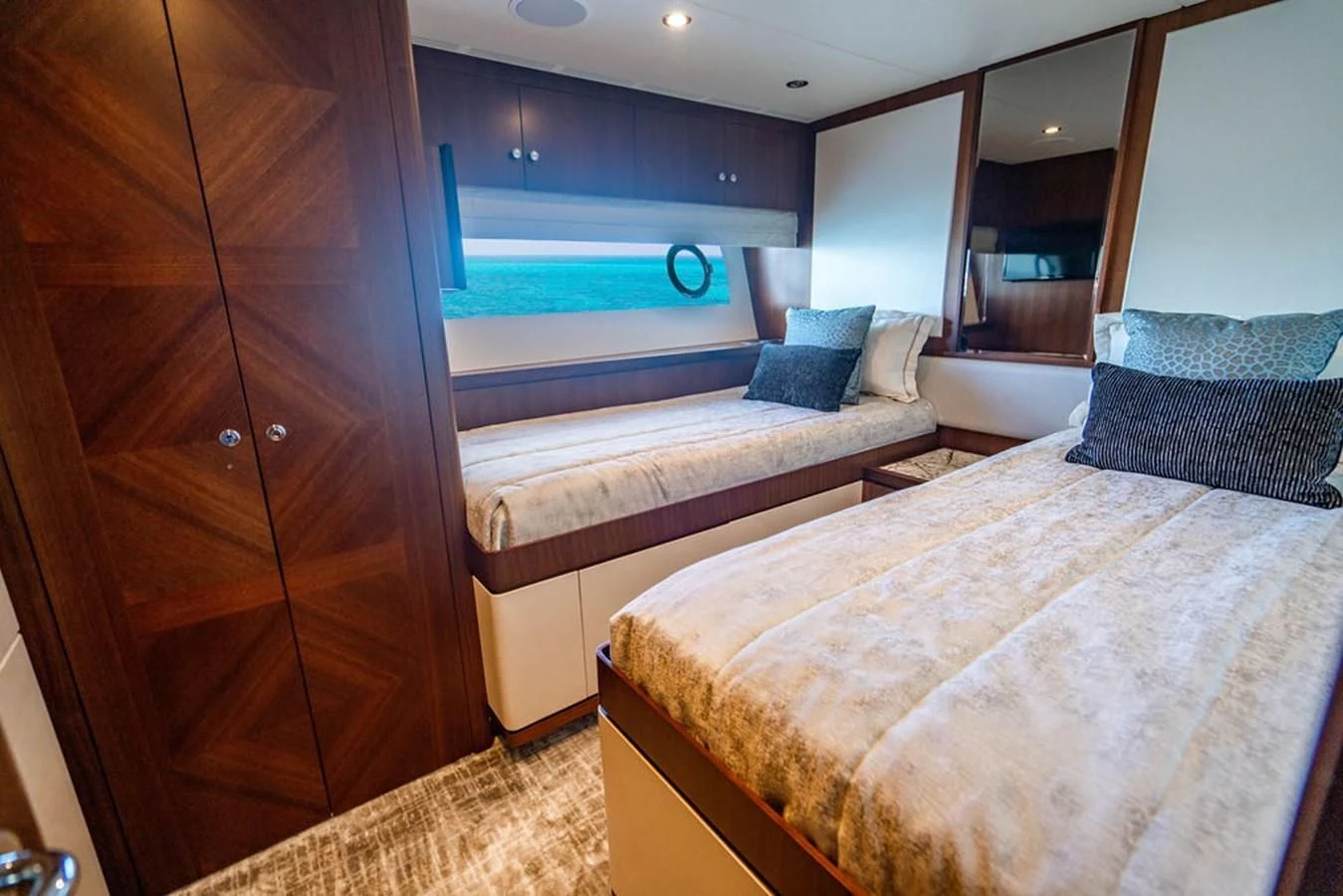

Double berth

Two nightstands with stone countertops

Vanity table with chair

Walk ­in closet

Storage cabinet with lighting

LED 50” flip­down TV with A/V System

Cabinet including wet bar, Jennair™ drawer fridge w/solid panel door and storage

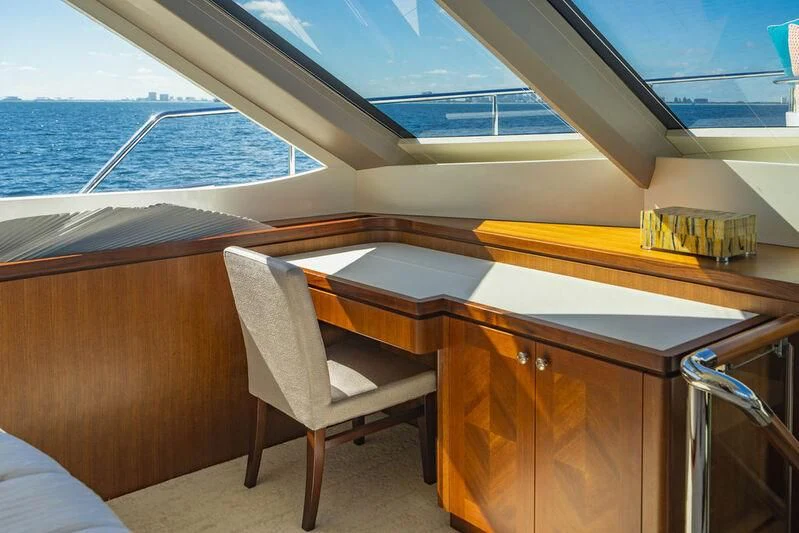

Wood valance board Wood desk

Settee with table

Day head

Chart locker

Phantom screen (for insects + pollen protection) with dedicated wood box for door Electric Stidd helm seats x3

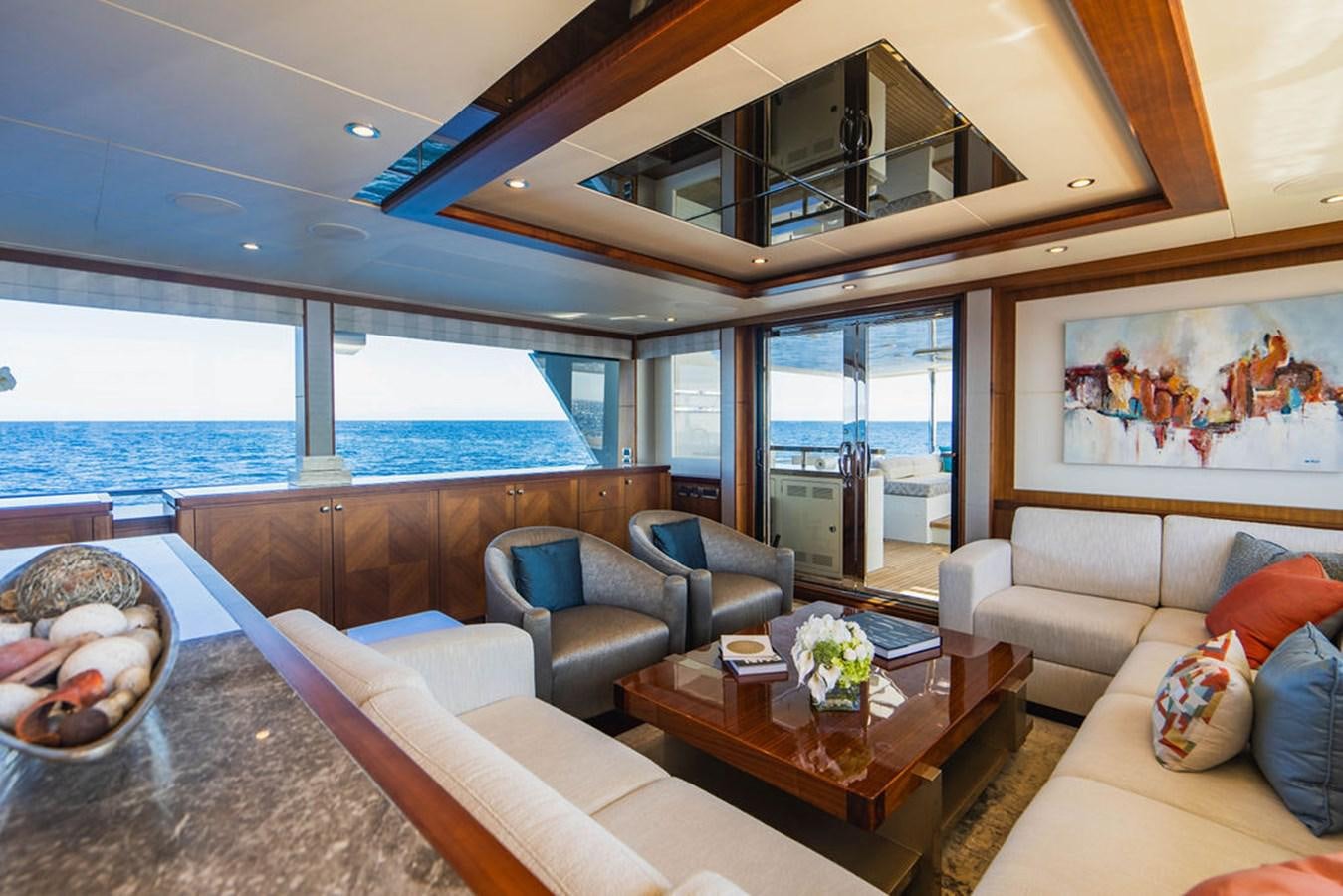

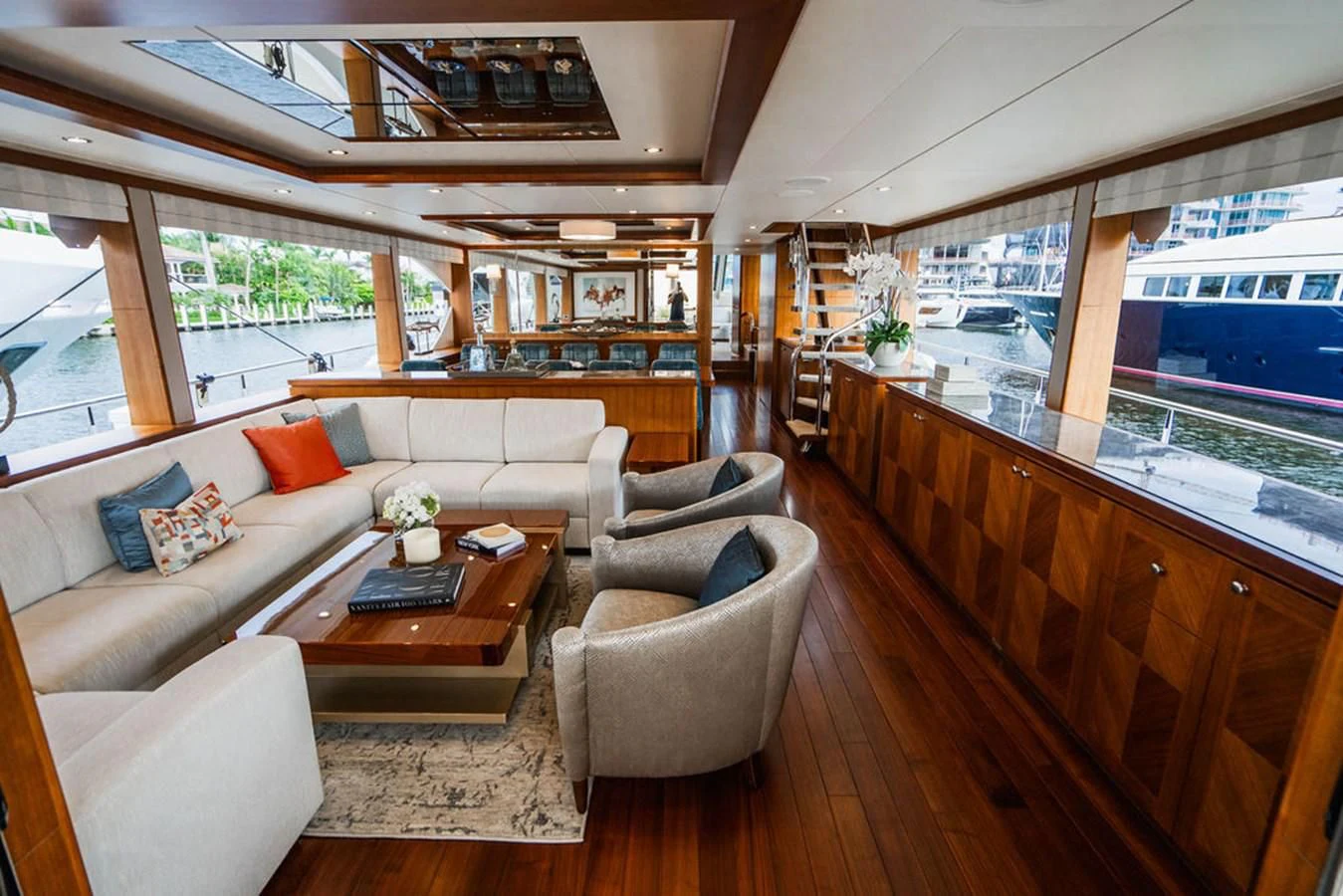

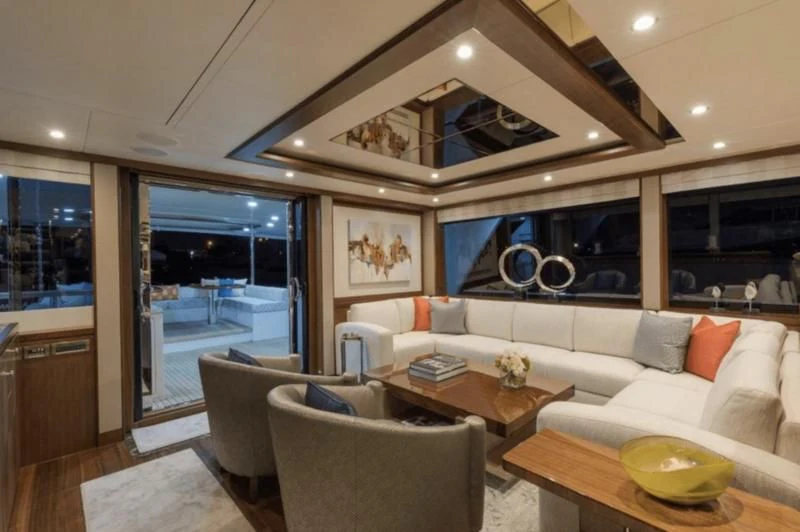

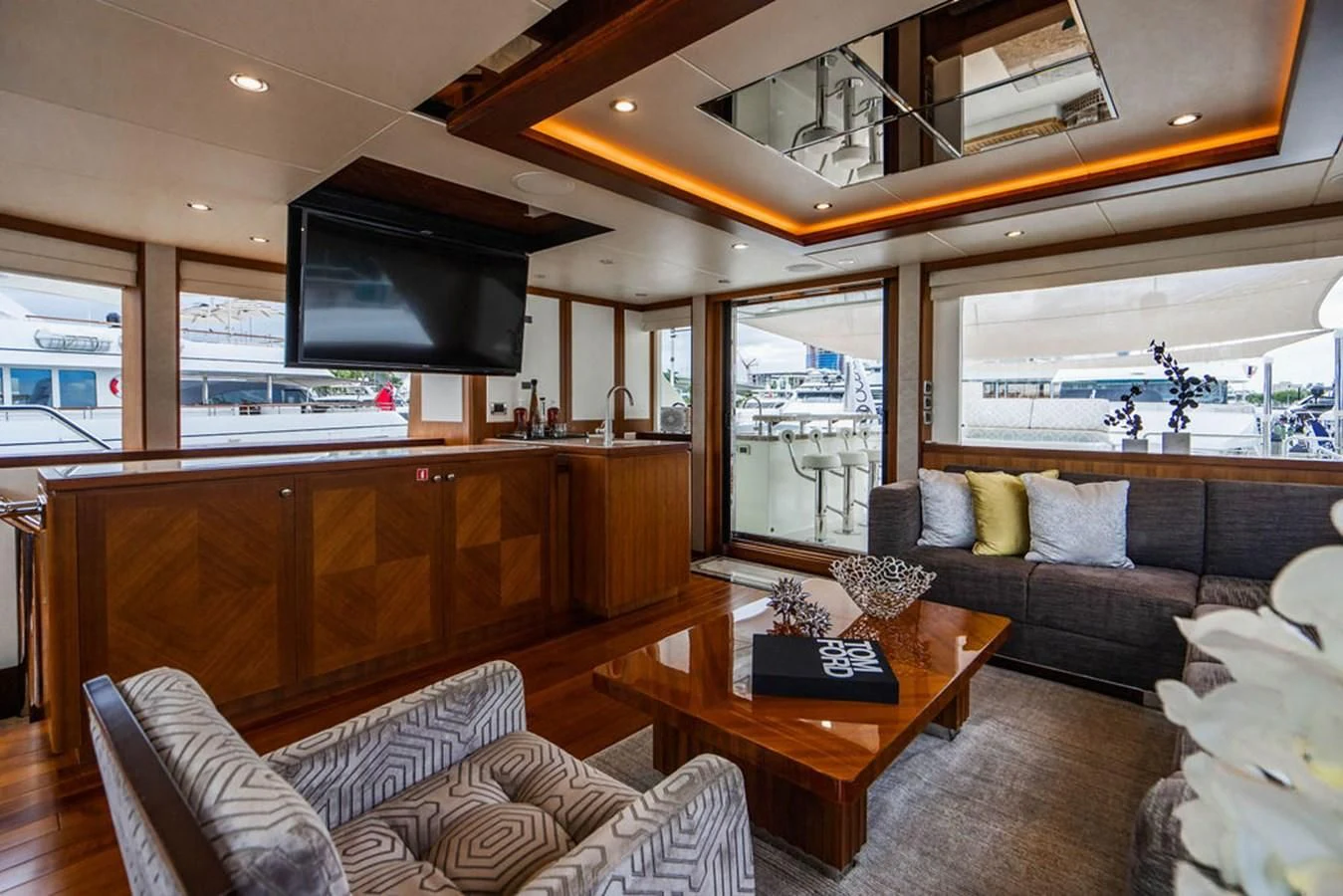

LED 60” flip­down TV with Blu­Ray A/V system

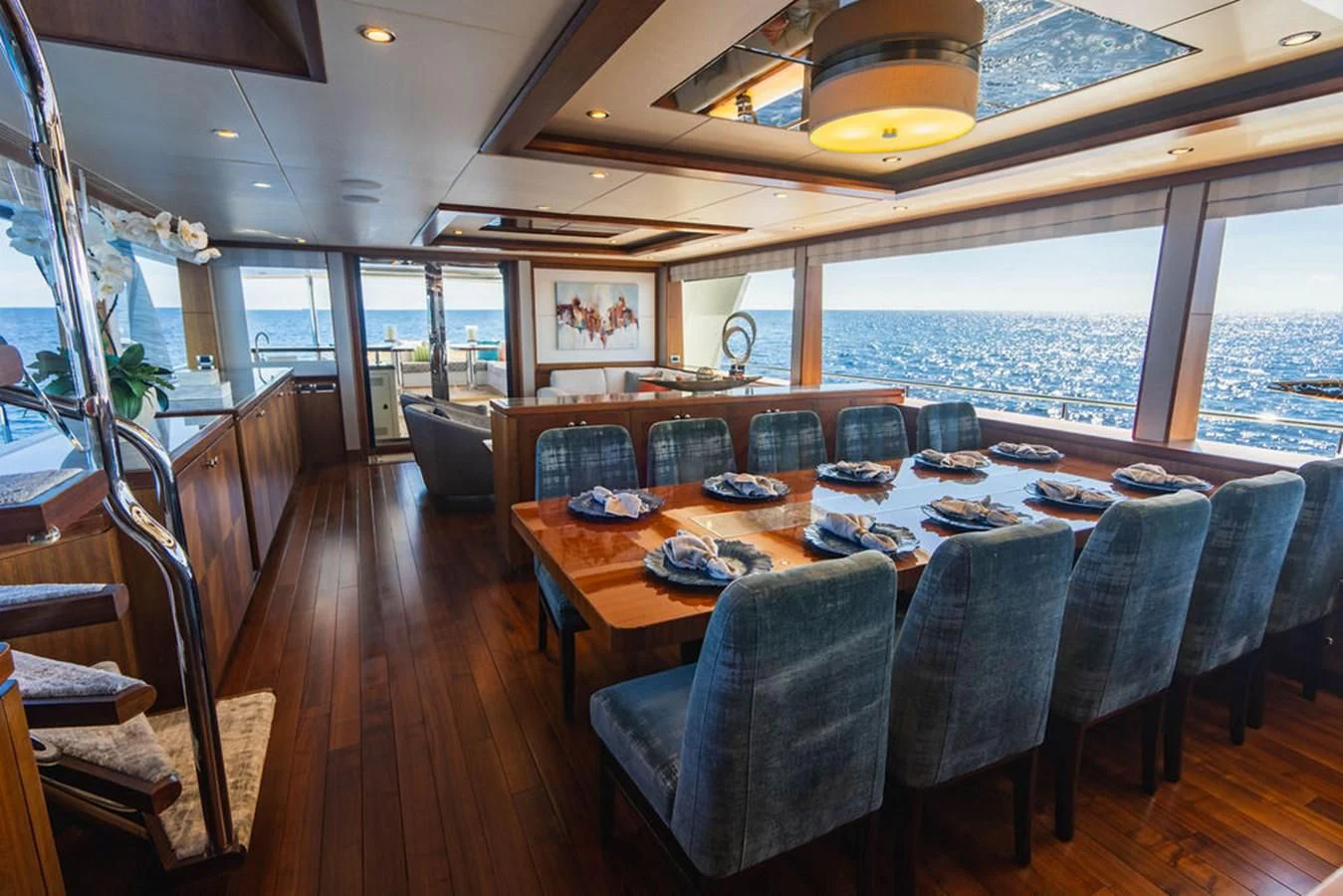

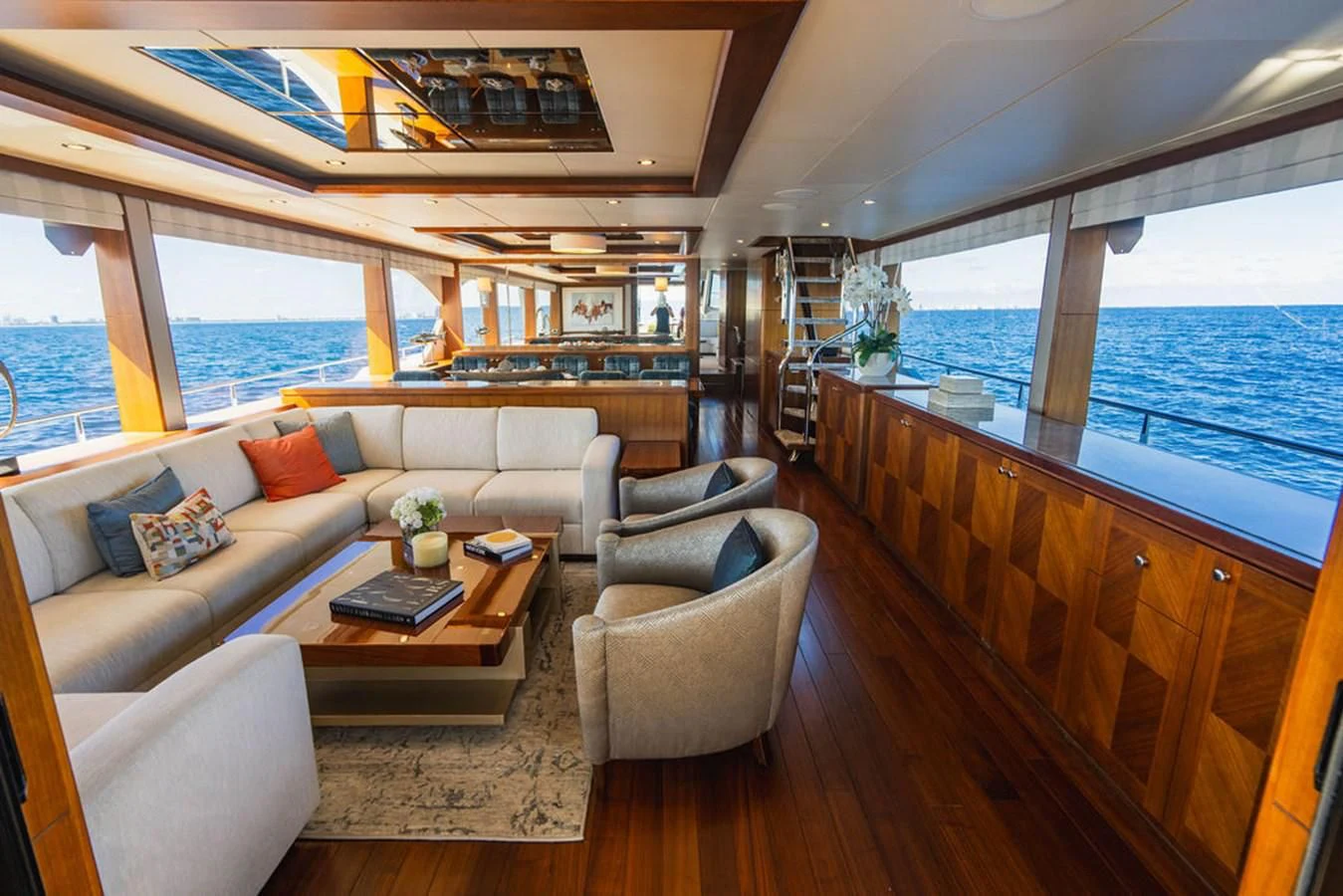

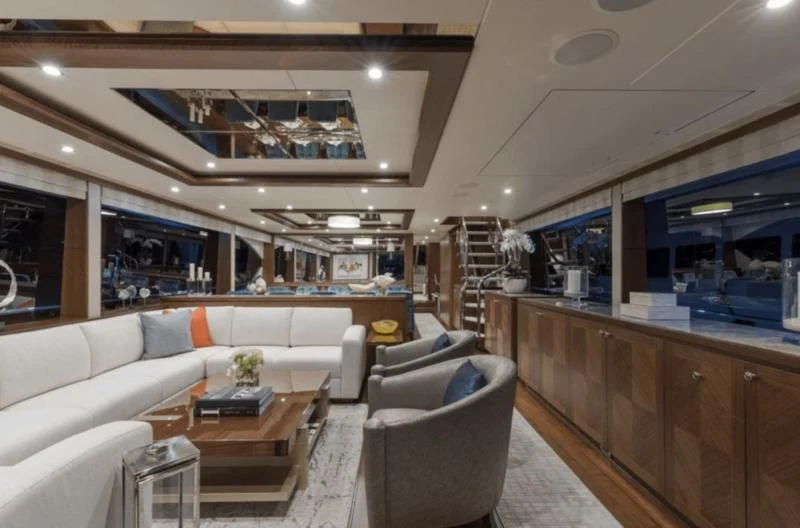

Wood paneling and cabinetry

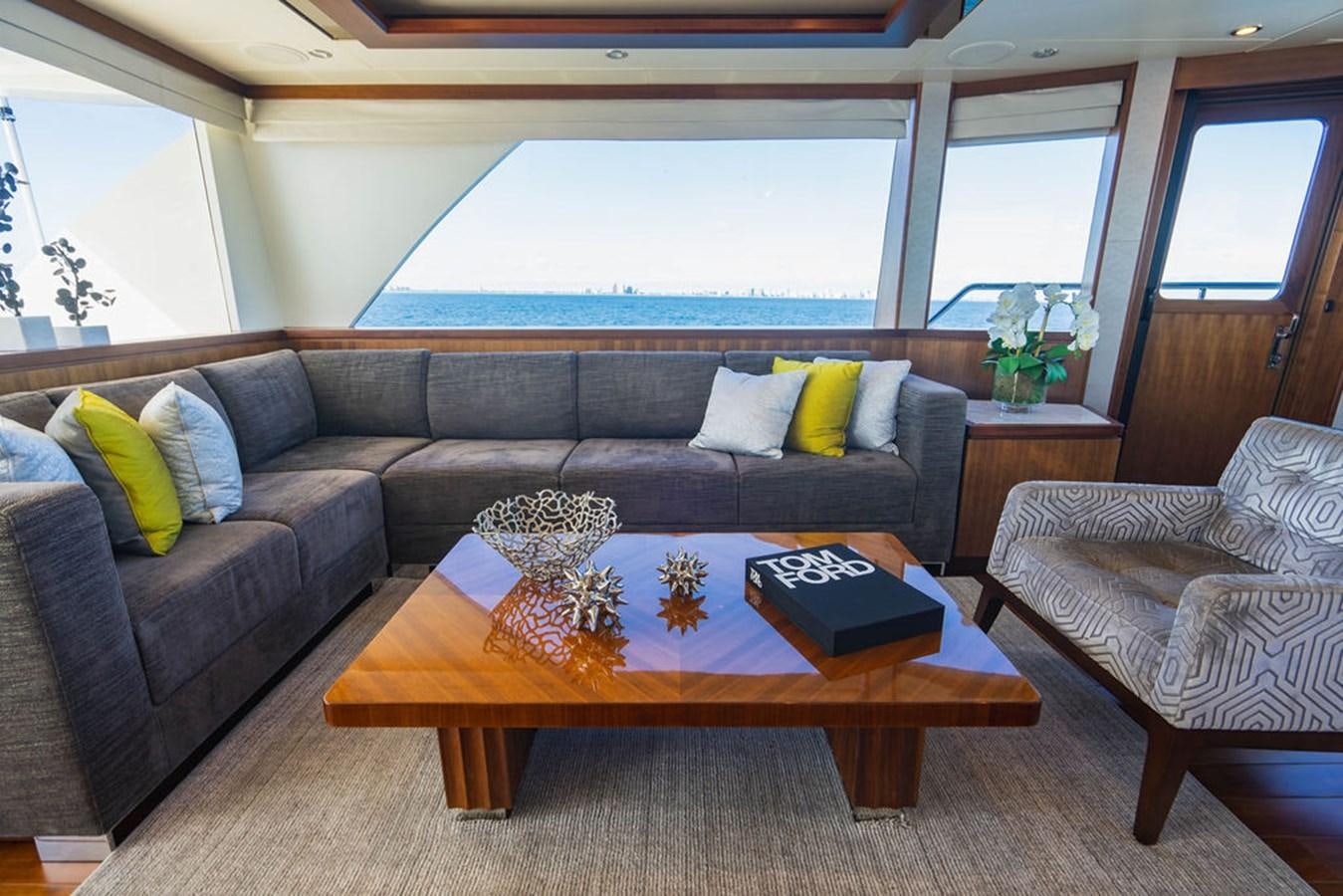

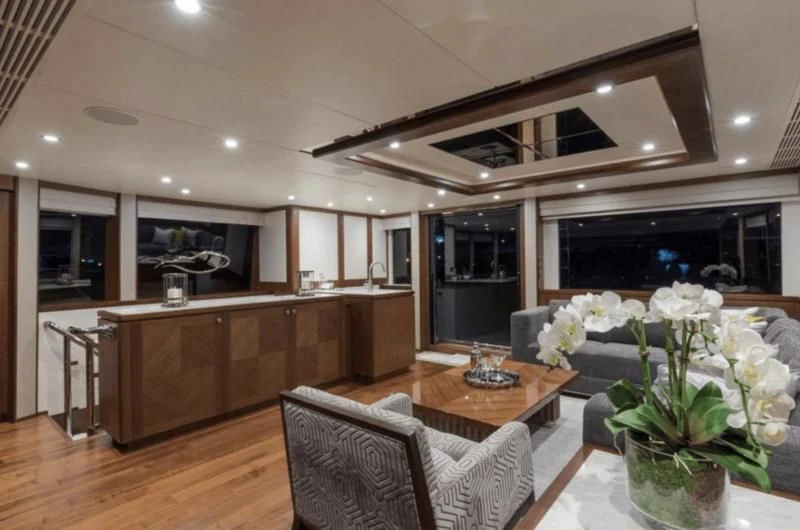

Evan K Marshall custom design salon furniture and sofa.

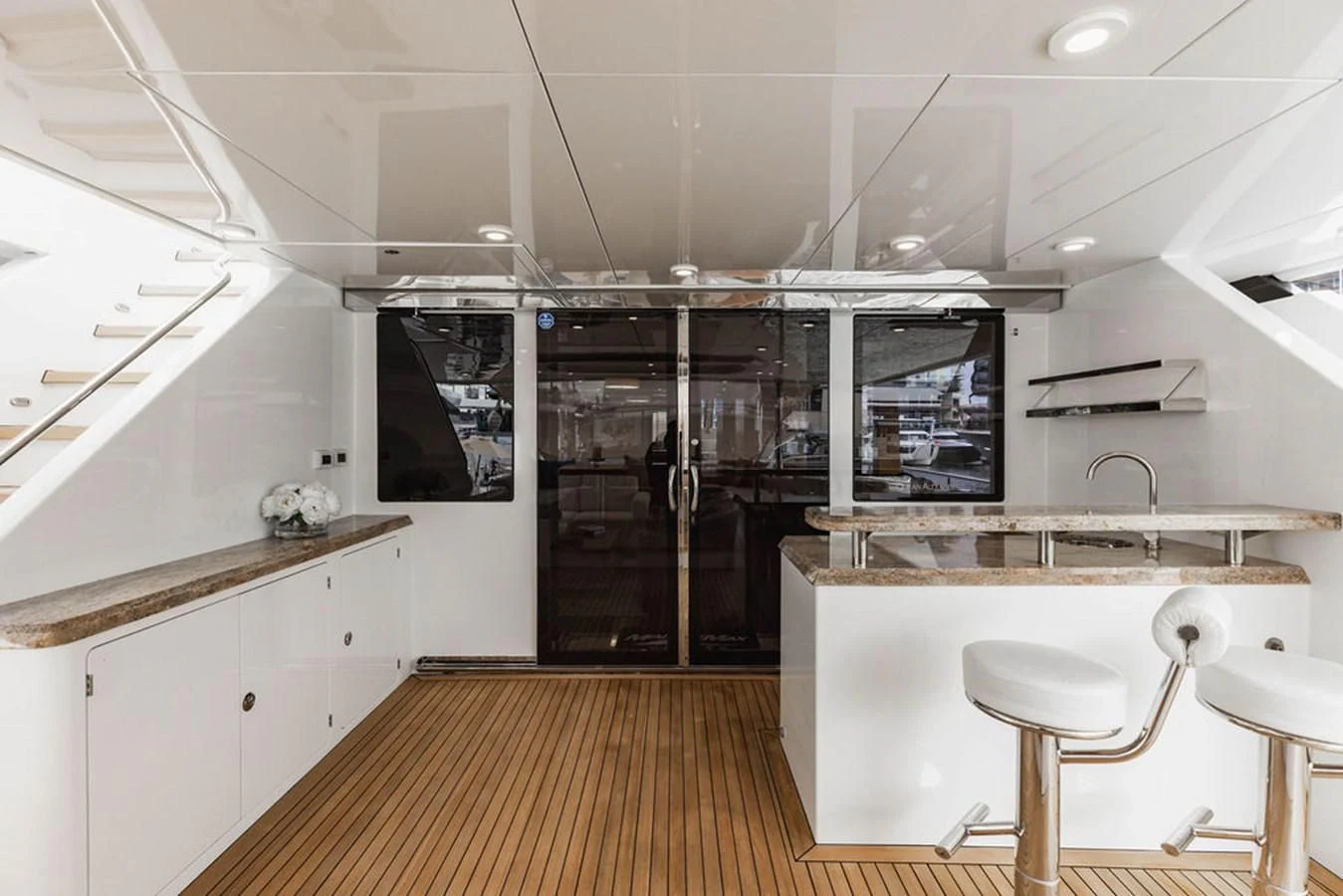

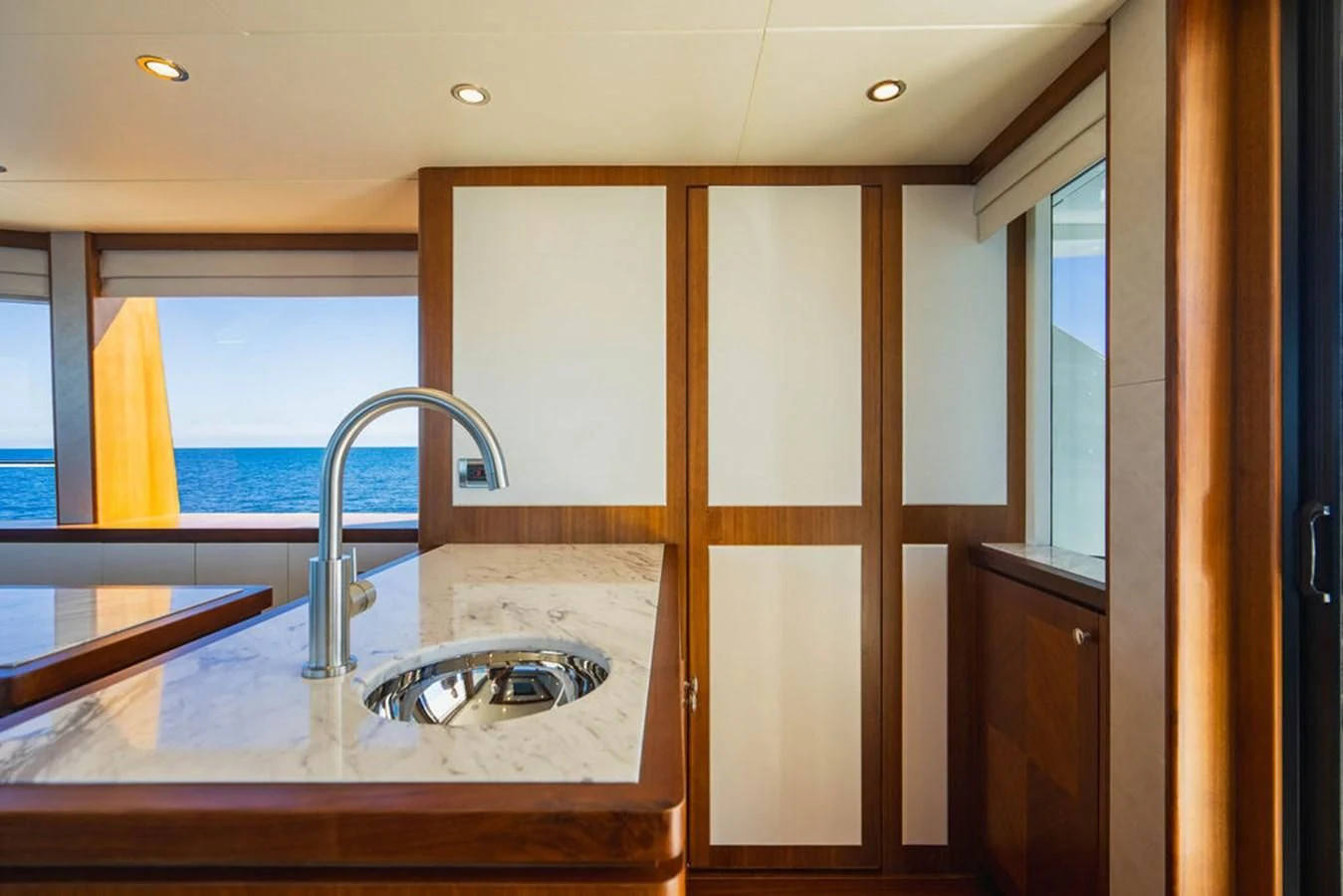

Stone countertop at wet bar, cabinet, and dining room divider cabinet

Custom designed window mullion

Decorative ceiling treatment

Phantom screen (for insects + pollen protection) with dedicated wood box for door

Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse. Incorporate (where possible) A/C outlet from ceiling, provides unobstructed view to outside (Design cues from 135, improved for 2016)

Sylomer floating floor and wall

Sub Zero™ refrigerator

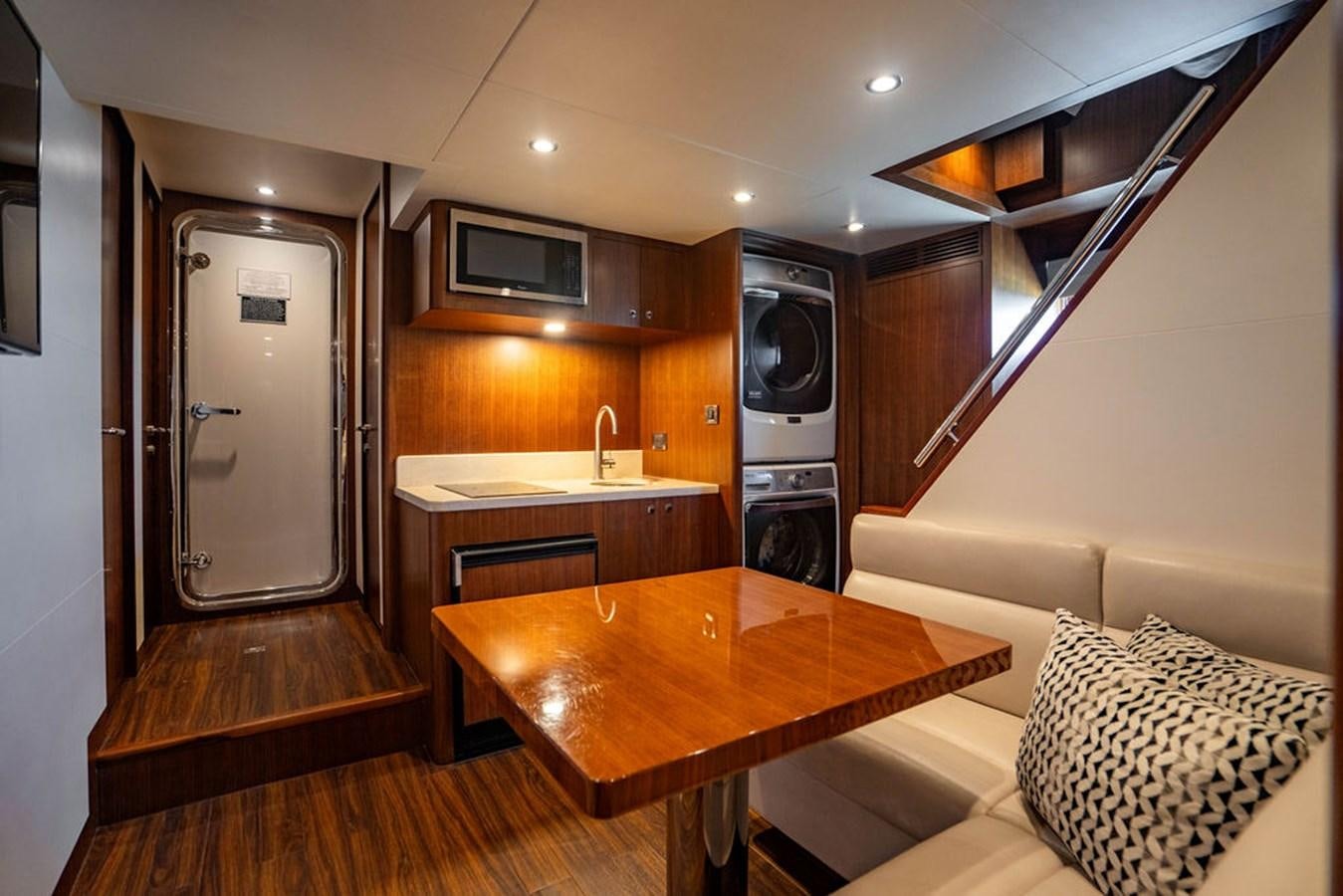

Largest crew quarters in its class with Ocean

Alexander’s unique design, the crew quarters doubles as a Cabana. Allows for day head and rest/eat area for swimming/out of water activities without needing to access salon/main deck interiors.

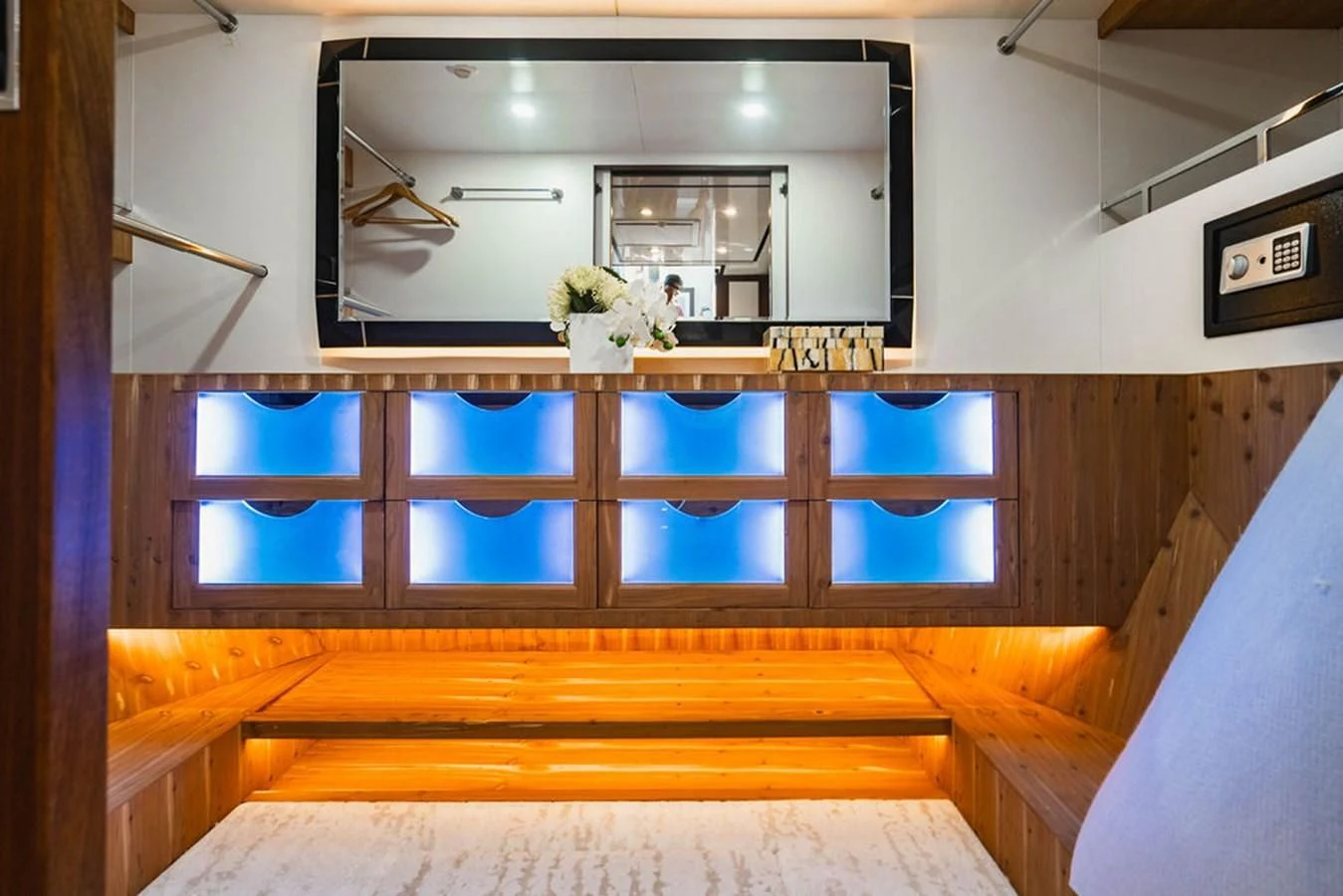

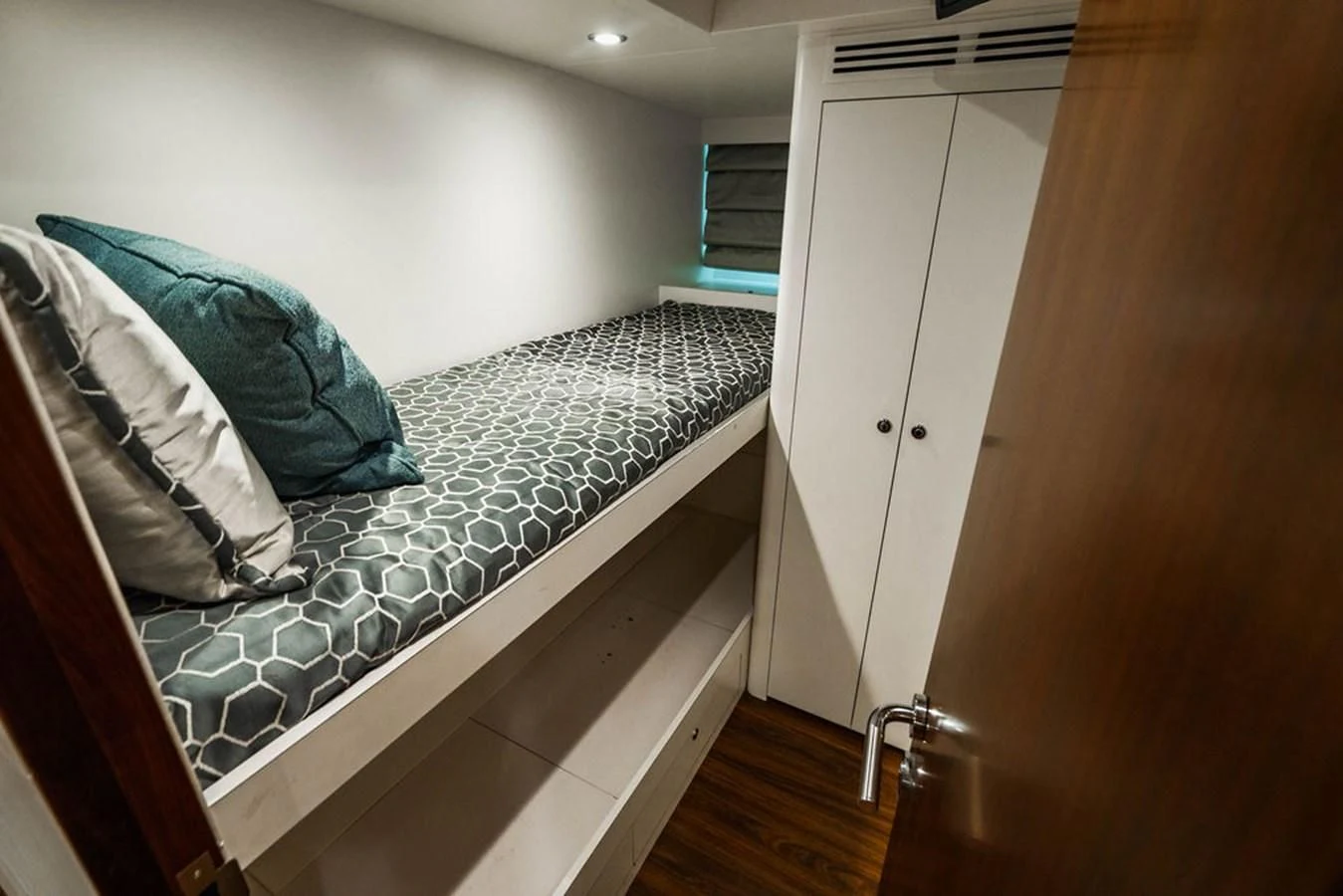

Captain room Cedar­lined hanging locker with automatic lighting

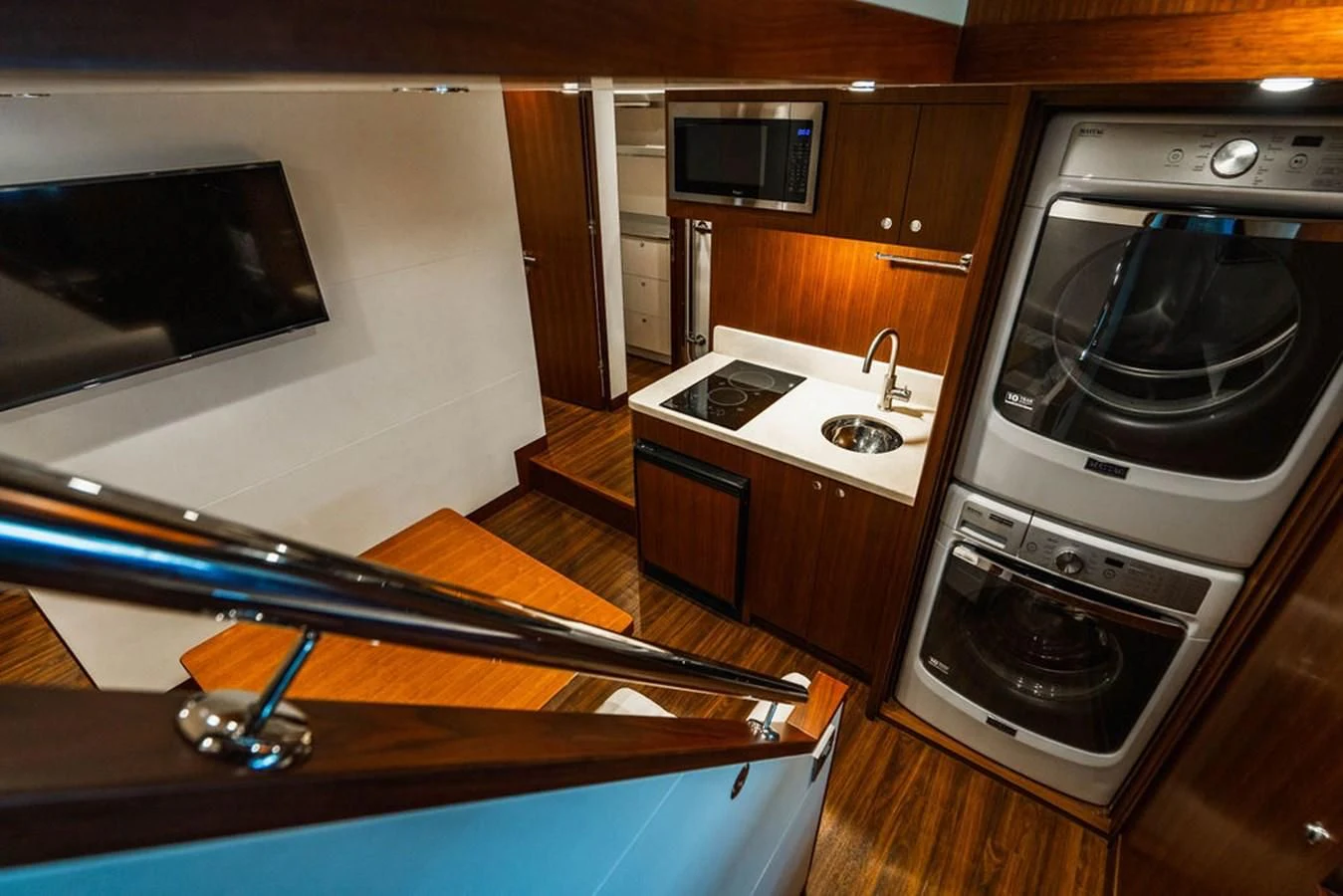

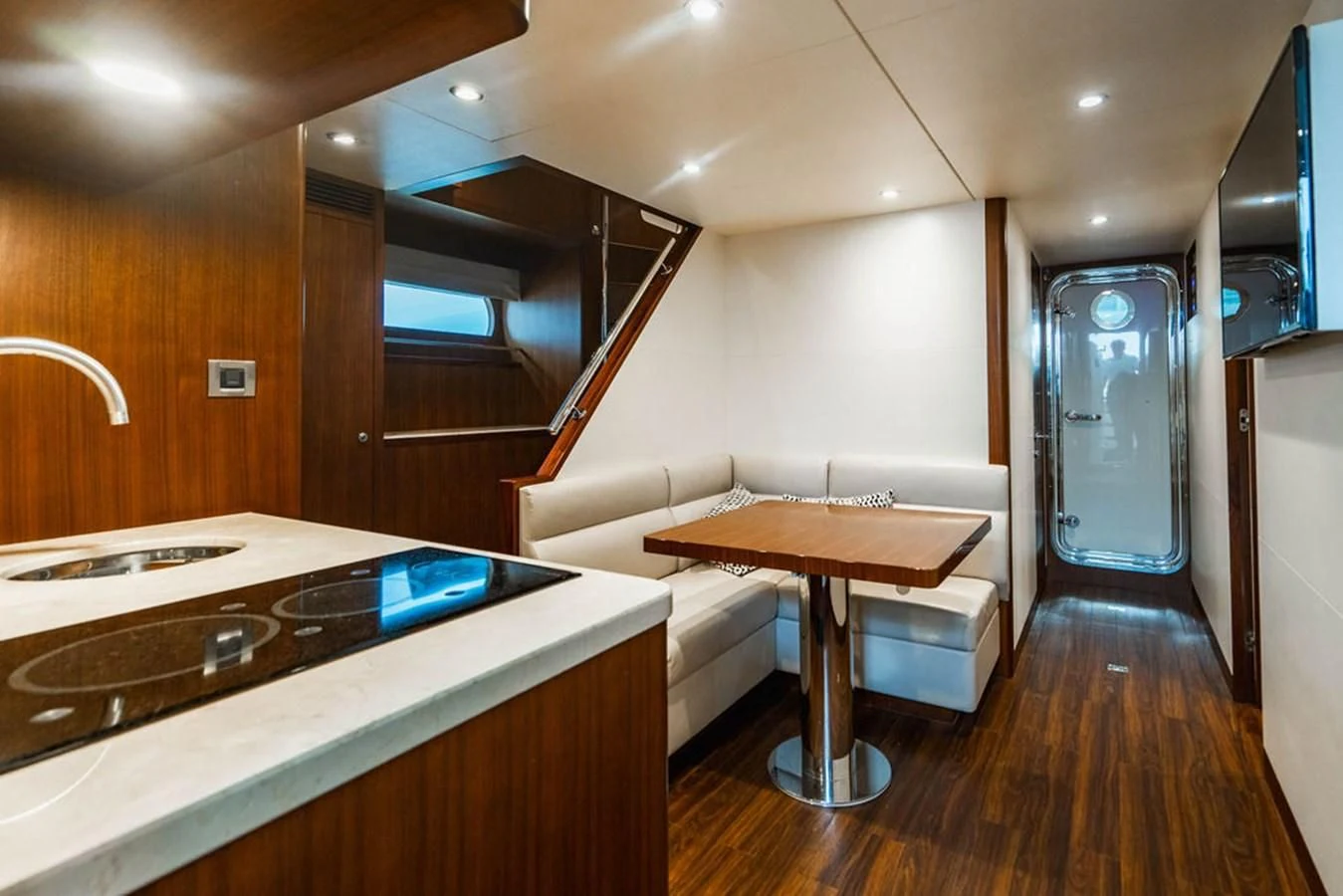

Kitchenette (sink, microwave, cooktop and refrigerator/icemaker)

Storage locker

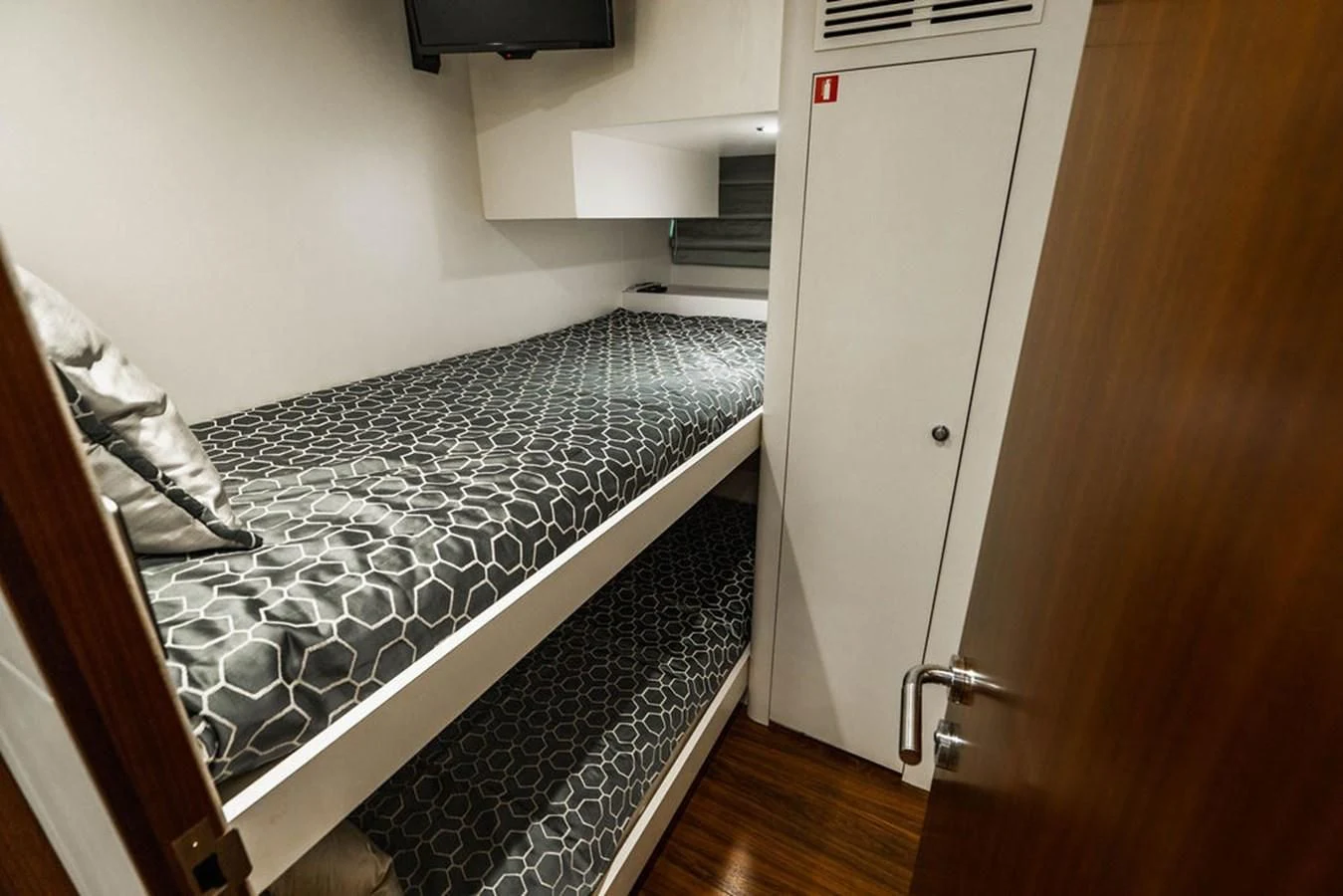

Drawers under bunk

LED 32” TV & DVD with Satellite Receiver(Captain)

LED 40” TV & DVD with Satellite Receiver(Lounge)

Captain quarters includes N2KView linked Apple iPad for systems diagnostics/alerts/settings. Full height hanging closet and queen size berth with storage under

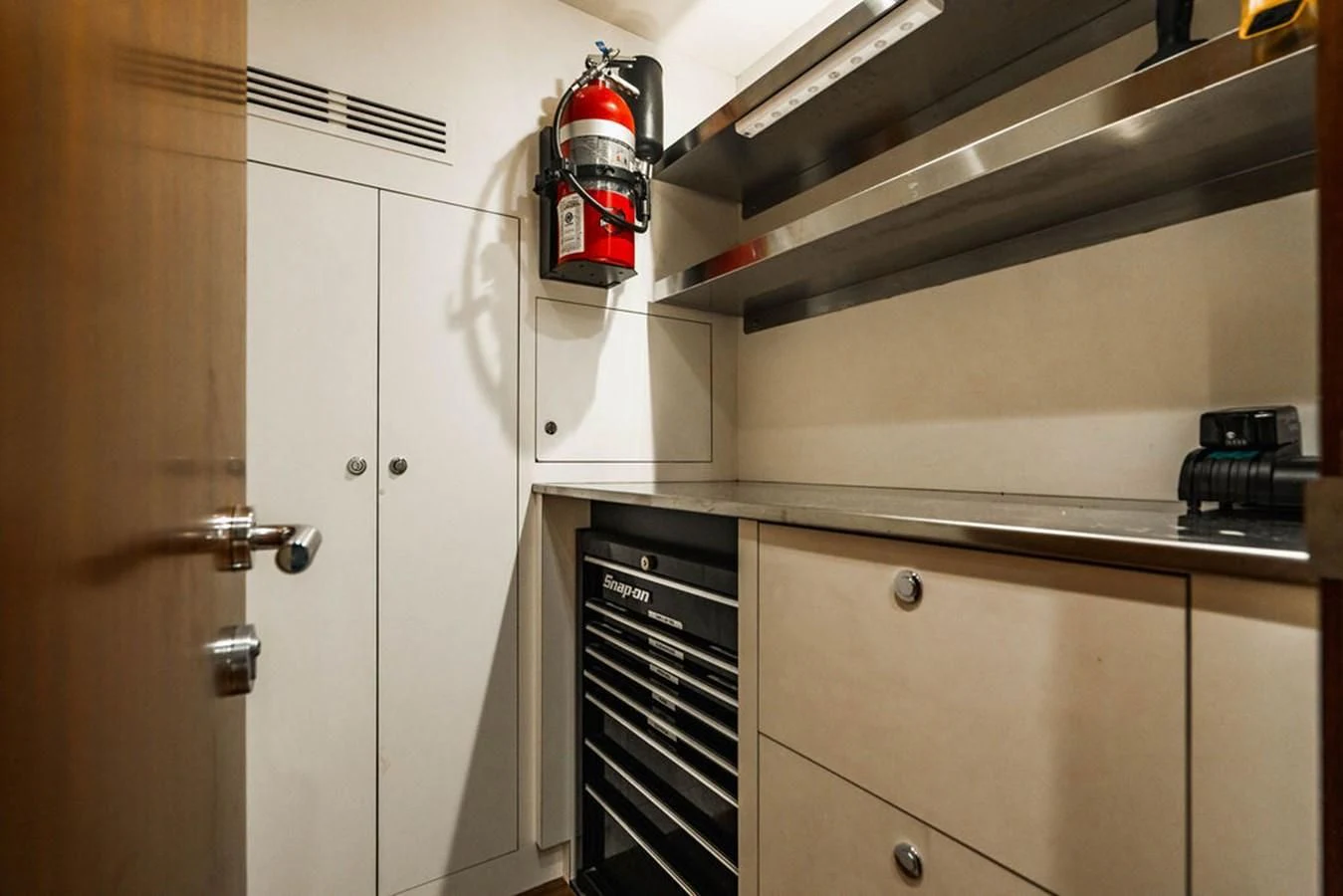

Dedicated stainless work bench and Snap­on tool chest. Also includes a wet locker (with ventilation and separate water drain) and storage compartment. All staterooms fully air­conditioned

Wood paneling and cabinetry in semi­gloss

Interior ceiling panels removable and finished with

Diamond faceted edging. Provides a sharper and

structured tailored look. (Design cues from 135)

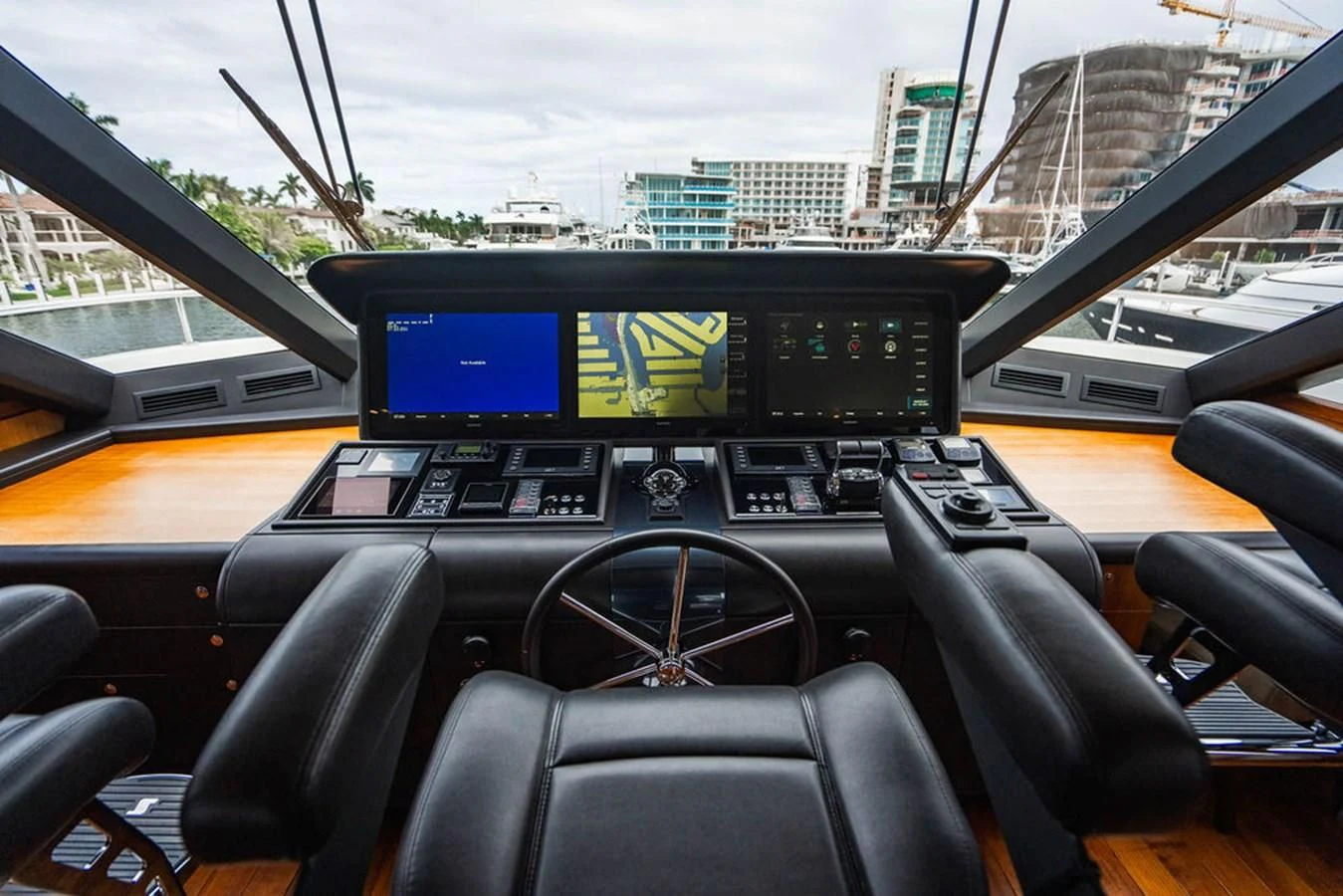

Evan Marshall designed interior pilot station and display pod. With matching wood/Ultra leather and

“floating” display pod. Ergonomically designed and laid out to enhance pilot experience/performance.

(Design cues from 135)

Custom designed and water jet cut granite with stainless steel insert in lower foyer and master bathroom. (Design cues from 135)

Carbon monoxide and smoke detectors Air extraction in each head shall be by low noise extraction fans, switched separately from lights

High quality European door locks

Cedar­ lined, hanging locker with auto lighting(crew without Cedar ­lined)

Fabric covered walls for lower walkway walls

Concealed hinges throughout interior cabinets

Ergonomically designed mattresses and settees

Washer/ dryer (Commercial quality, Energy star washer/dryer) in lower foyer

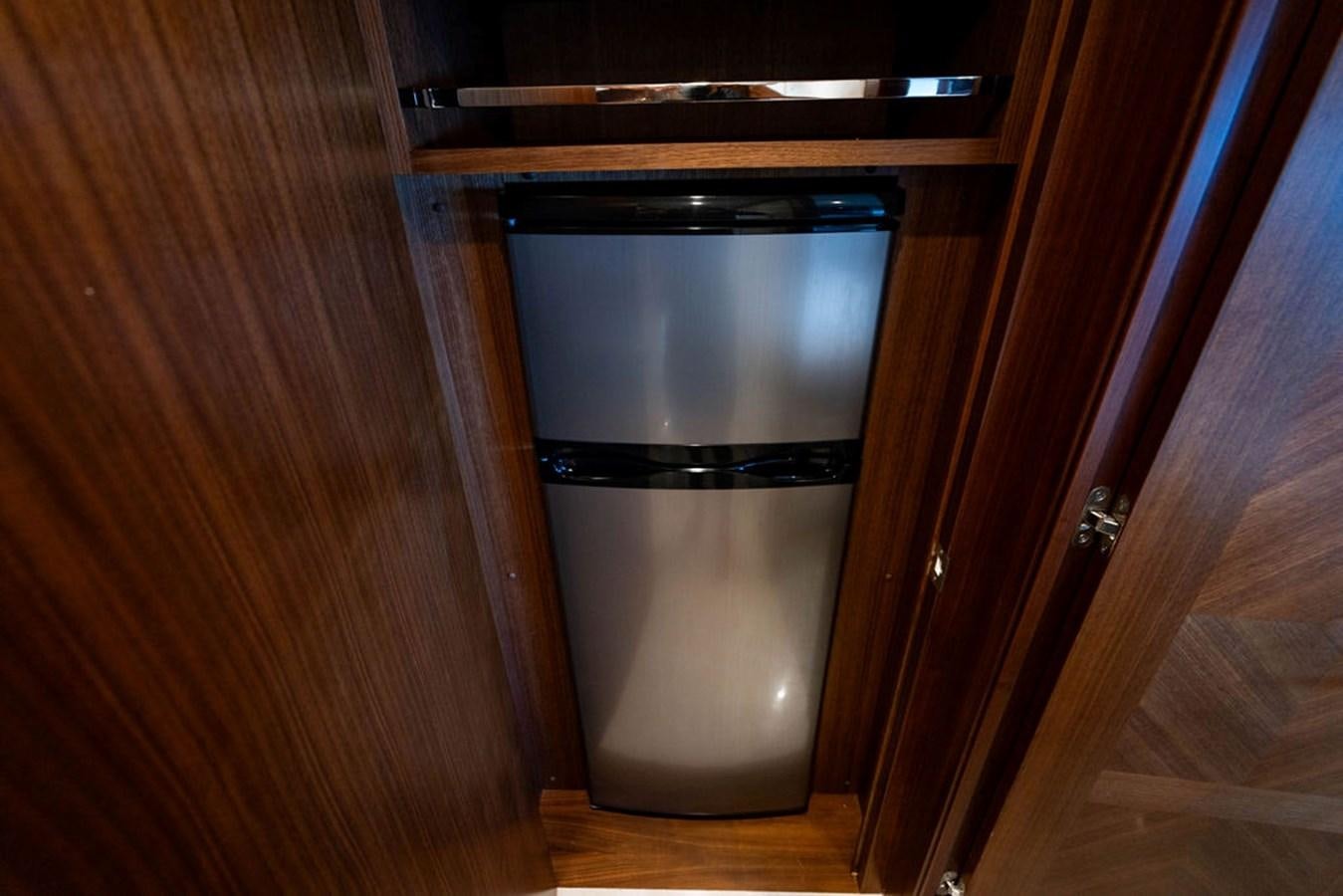

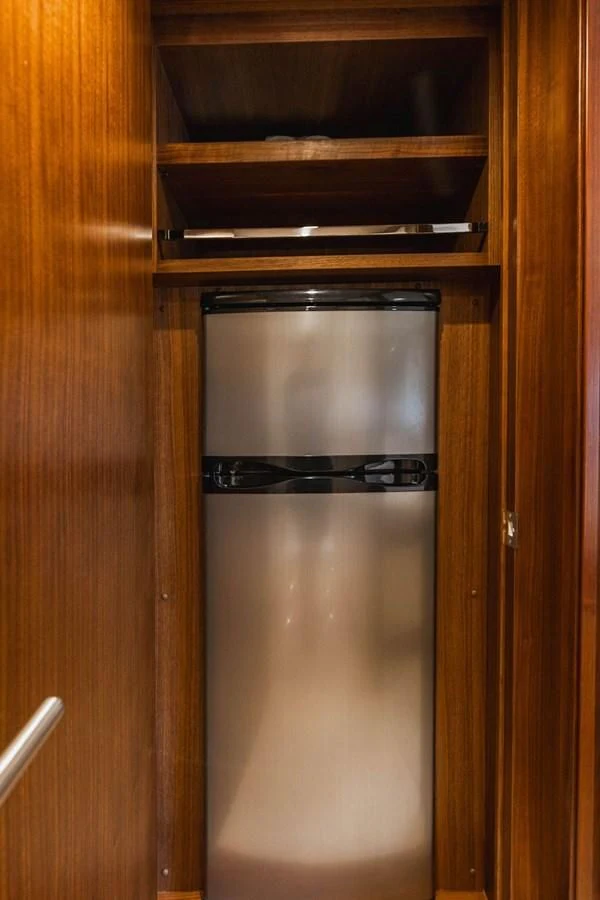

Danby refrigerator in lower foyer

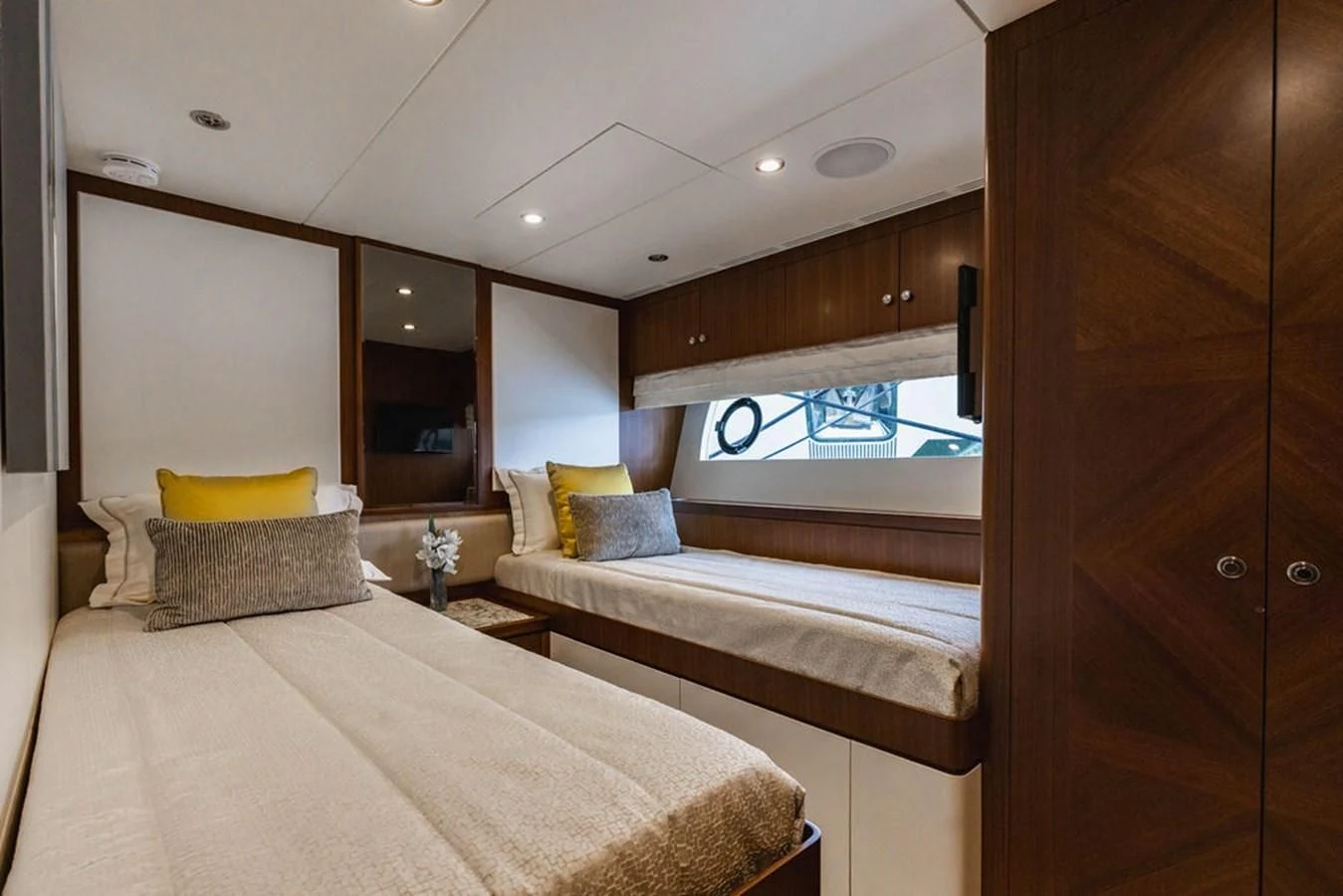

Port & STBD staterooms side­ by­ side berths can slide together and convert to single queen berth. Electrical blinds for Salon, Dining, and Master (excluding heads) and sky lounge (excluding day head)

USB power plug inside MSR port nightstand, and sky lounge console desk

Ocean Alexander wood floor is custom made in Kentucky with solid wood top surface with the same wear capacity as solid ¾’’ wood flooring. It uses 7 layers of European birch assembled in a cross­grain

direction with a top layer of exotic hardwood to match the interior of the boat. (Unique Ocean Alexander Feature)   Crestron audio/video package

Wood panel and cabinetry with positive ­latch doors or proprietary drop­lock drawers. Provides containment of stored objects while underway (Std. feature often ignore by competitor)

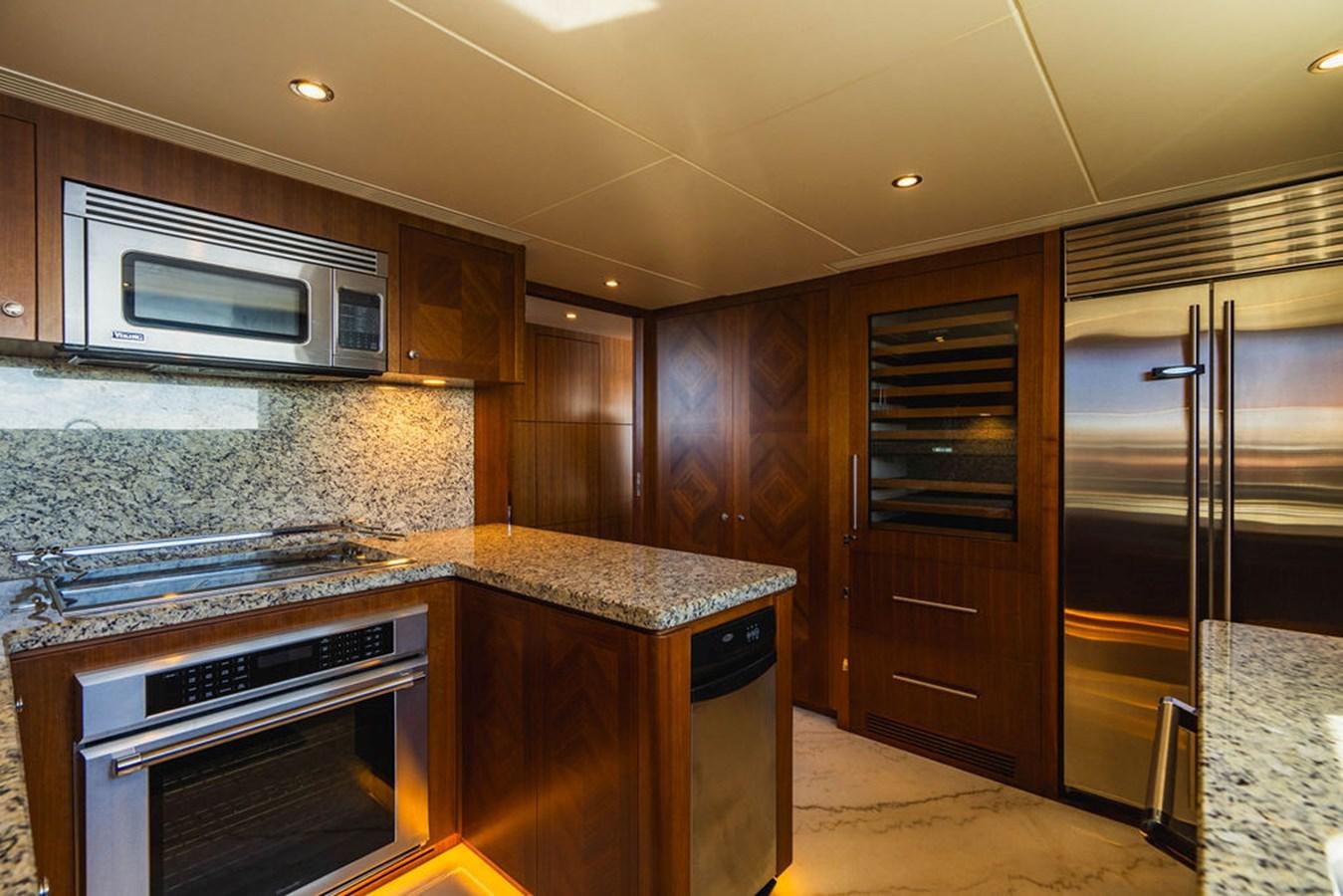

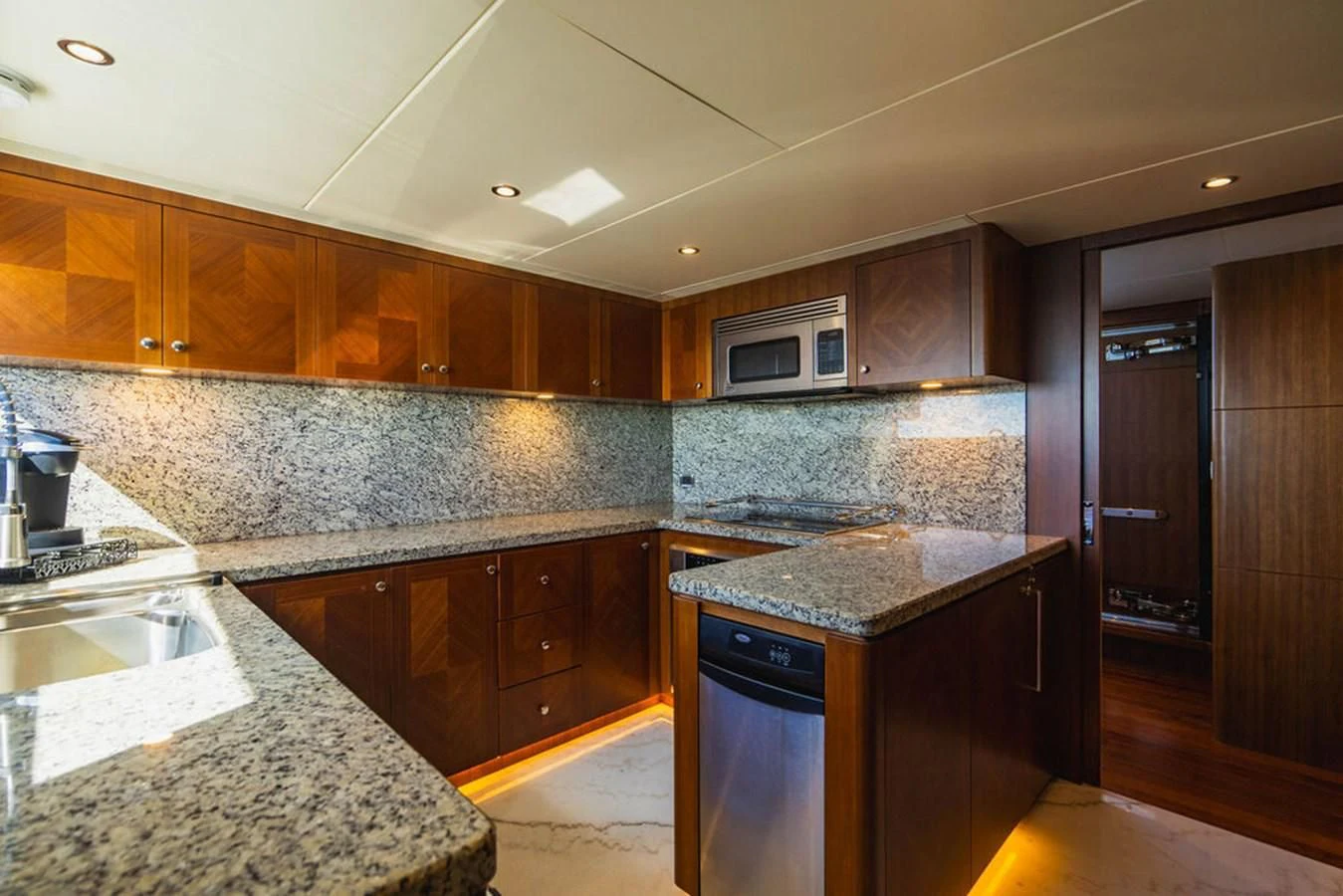

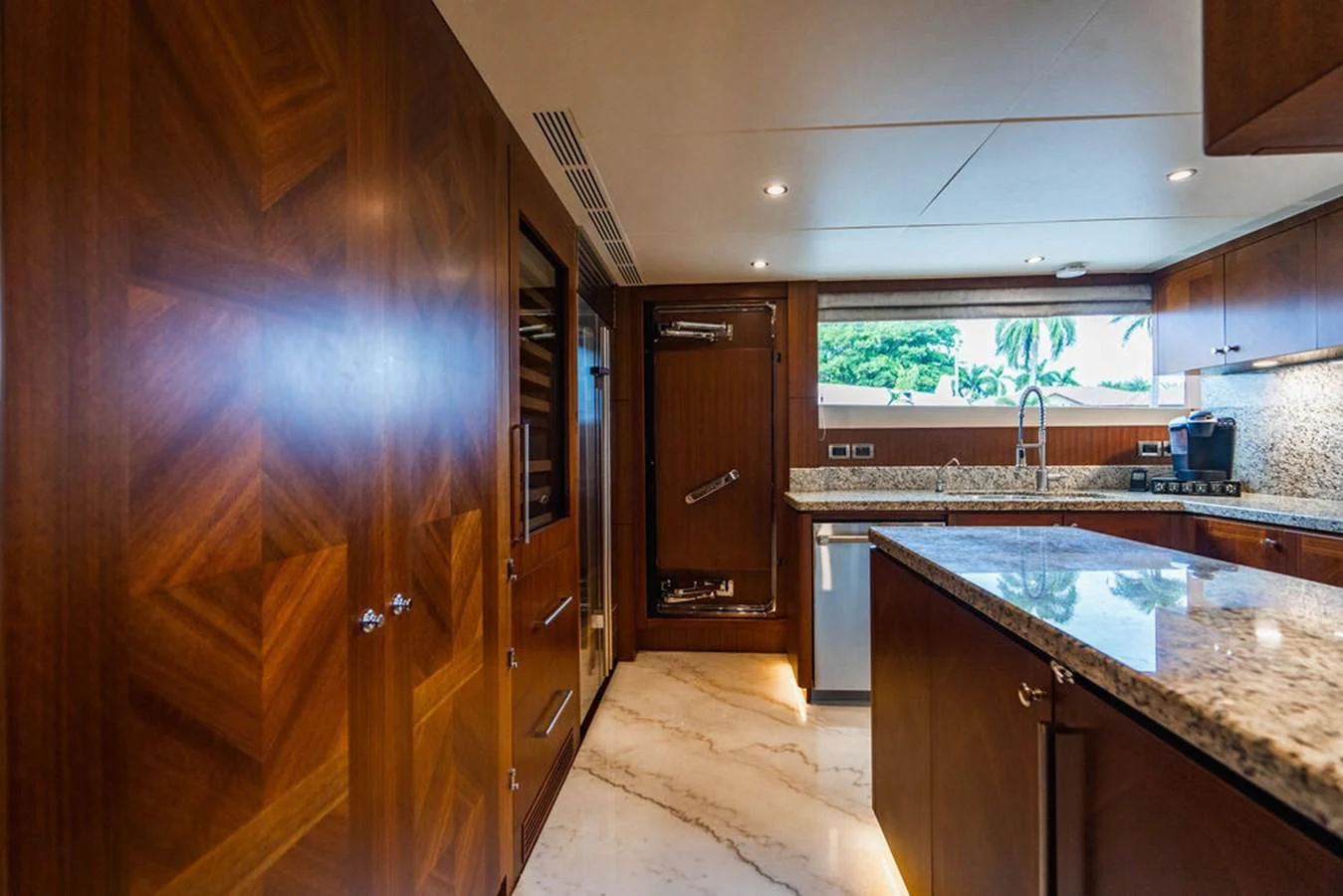

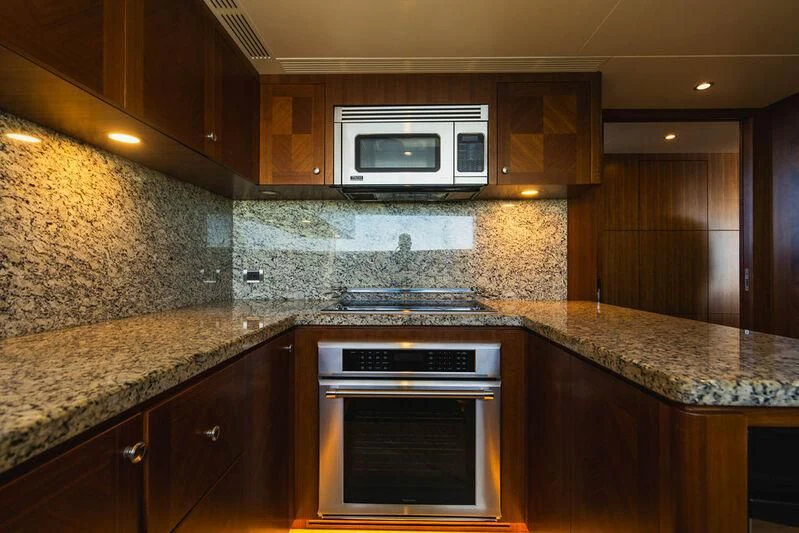

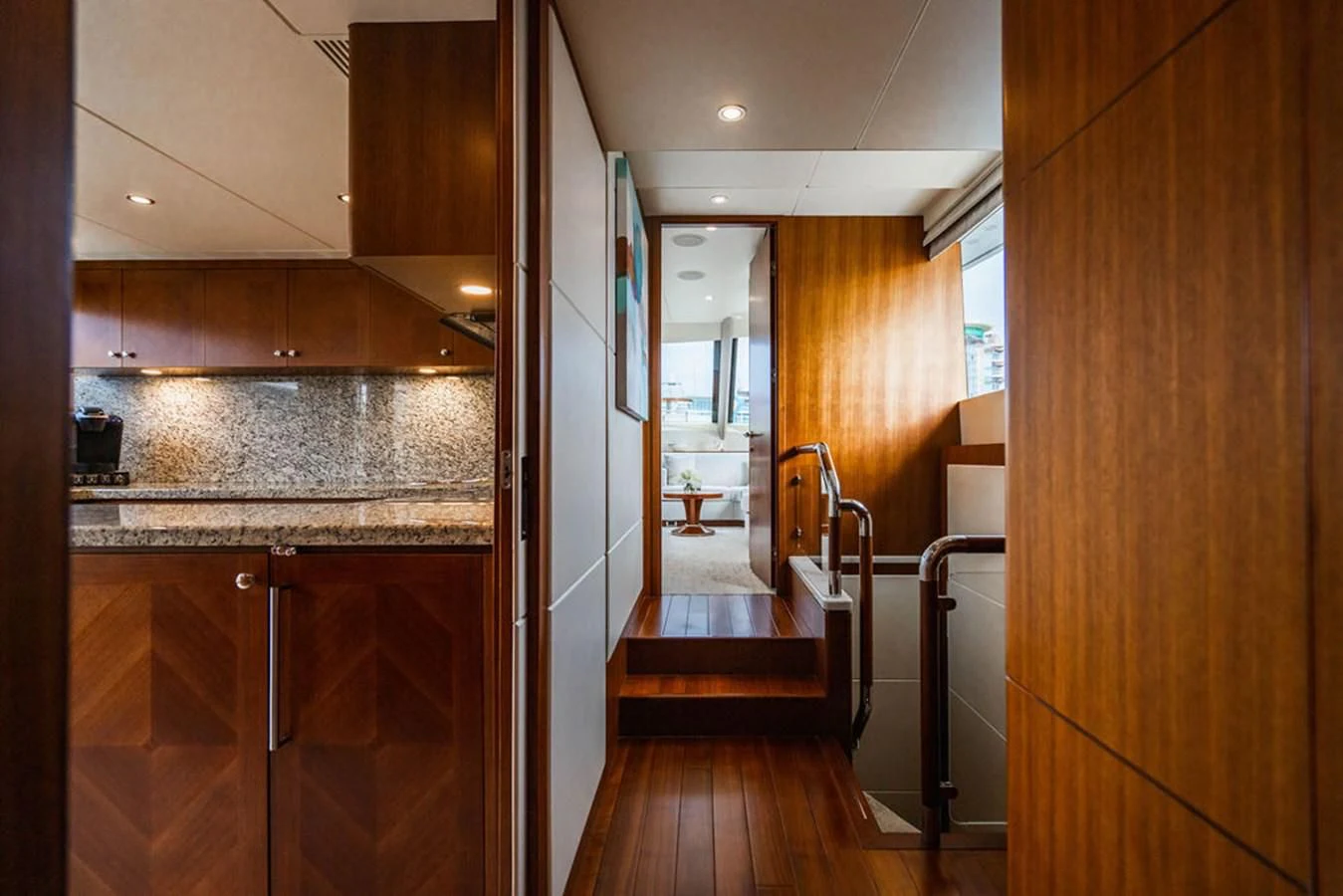

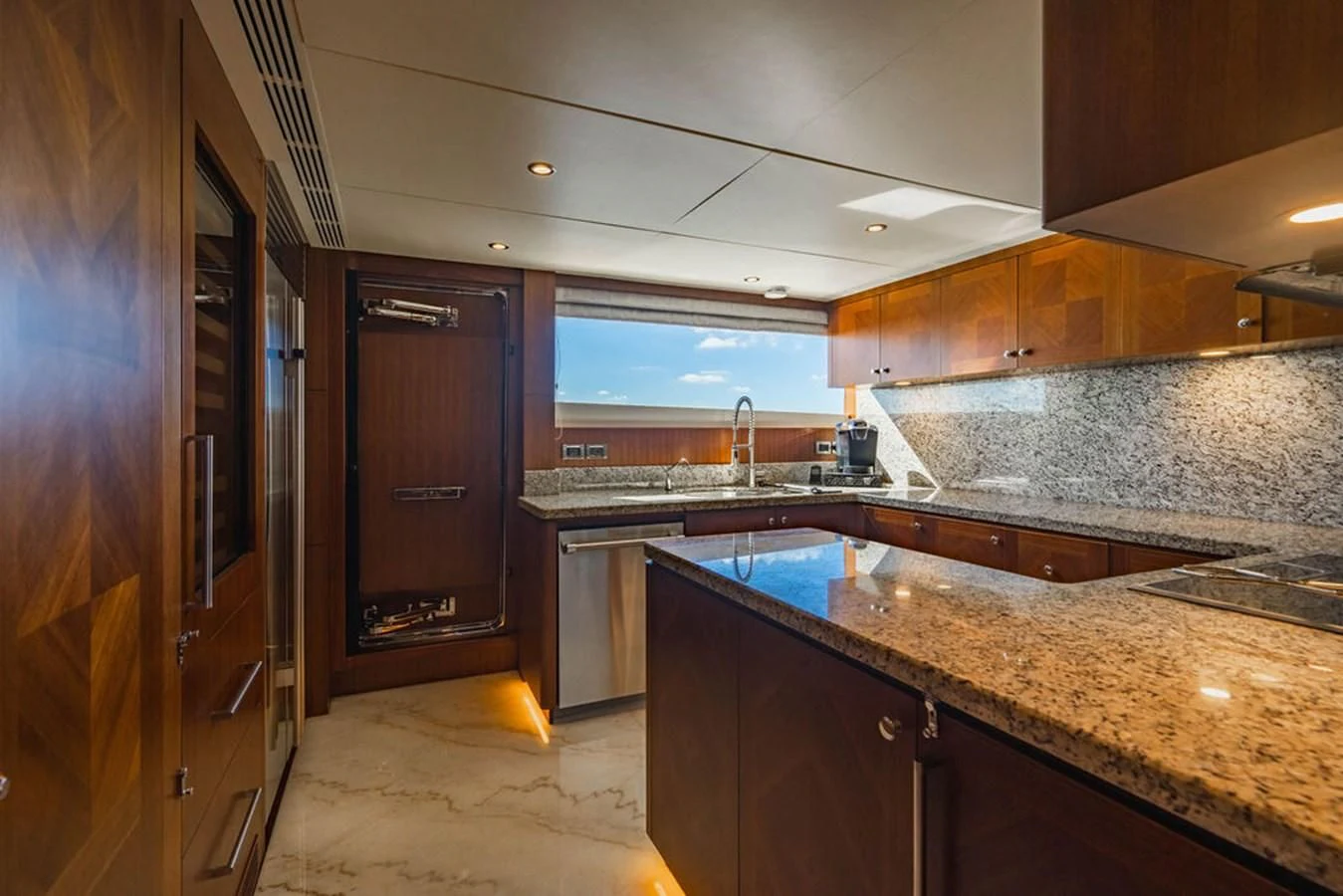

Galley storage cabinetry w/hidden hinges

Stone countertops

Stone floor in galley

Elkay™ professional series kitchen sink w/ pull out tap

Overhead dish locker fwd & aft

30” Thermador™ electric cook top

30” Thermador™ electric oven

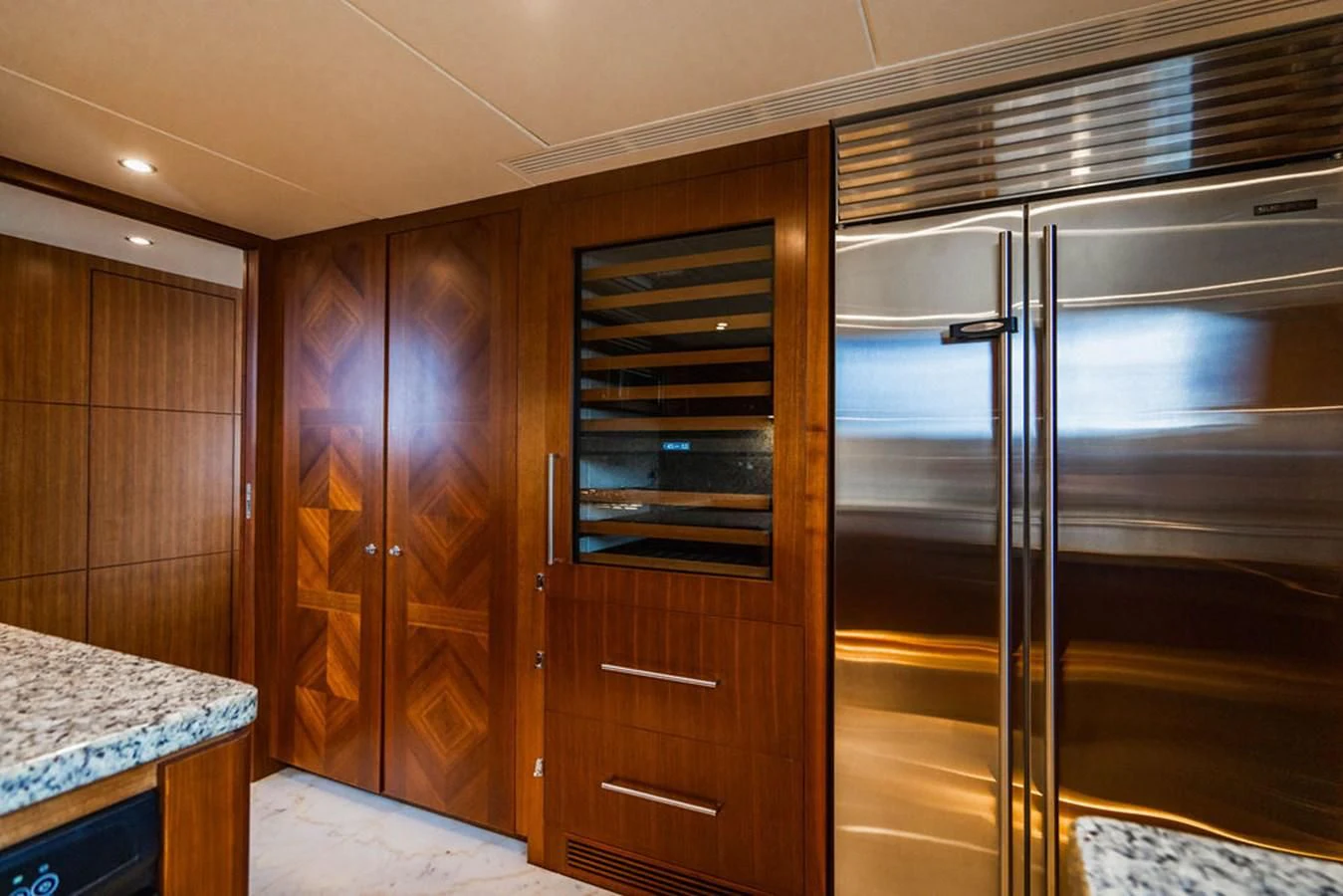

Sub­Zero® Refrigerator/ freezer

Sub­Zero® ice maker

Sub­Zero® wine cooler

Whirlpool™ garbage disposal

30" Viking™ Over­the Range Microwave with exhaust

Thermador™dishwasher

15” Whirlpool™ trash compactor

Seagull™ water purifier (ADEX design award winner w/filtration to 0.1 microns & EPA certification for microbiological purification)

Custom S/S potholder for cook­top for securing pots while cooking underway

Wood paneling and cabinetry

Stone countertops with china sink

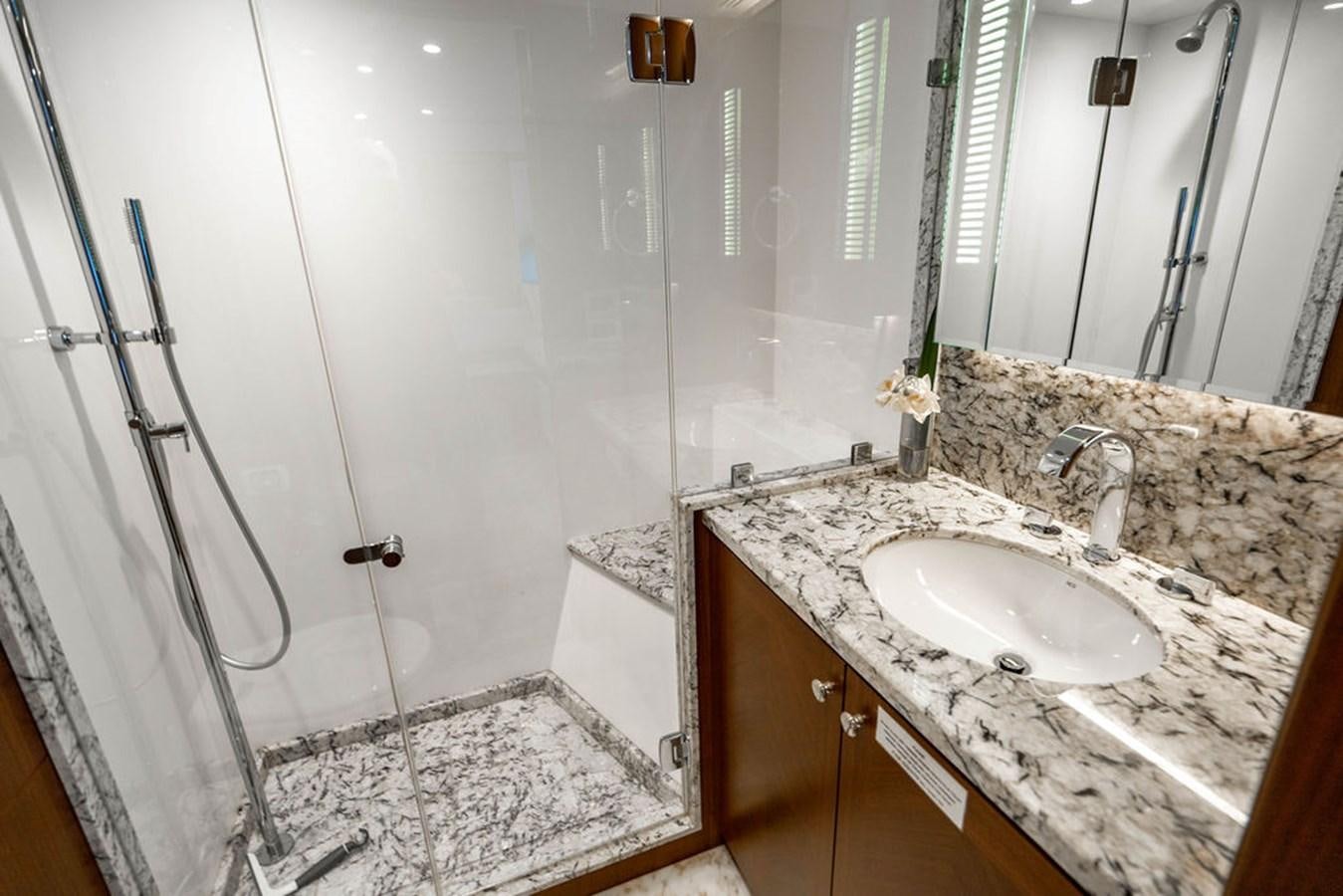

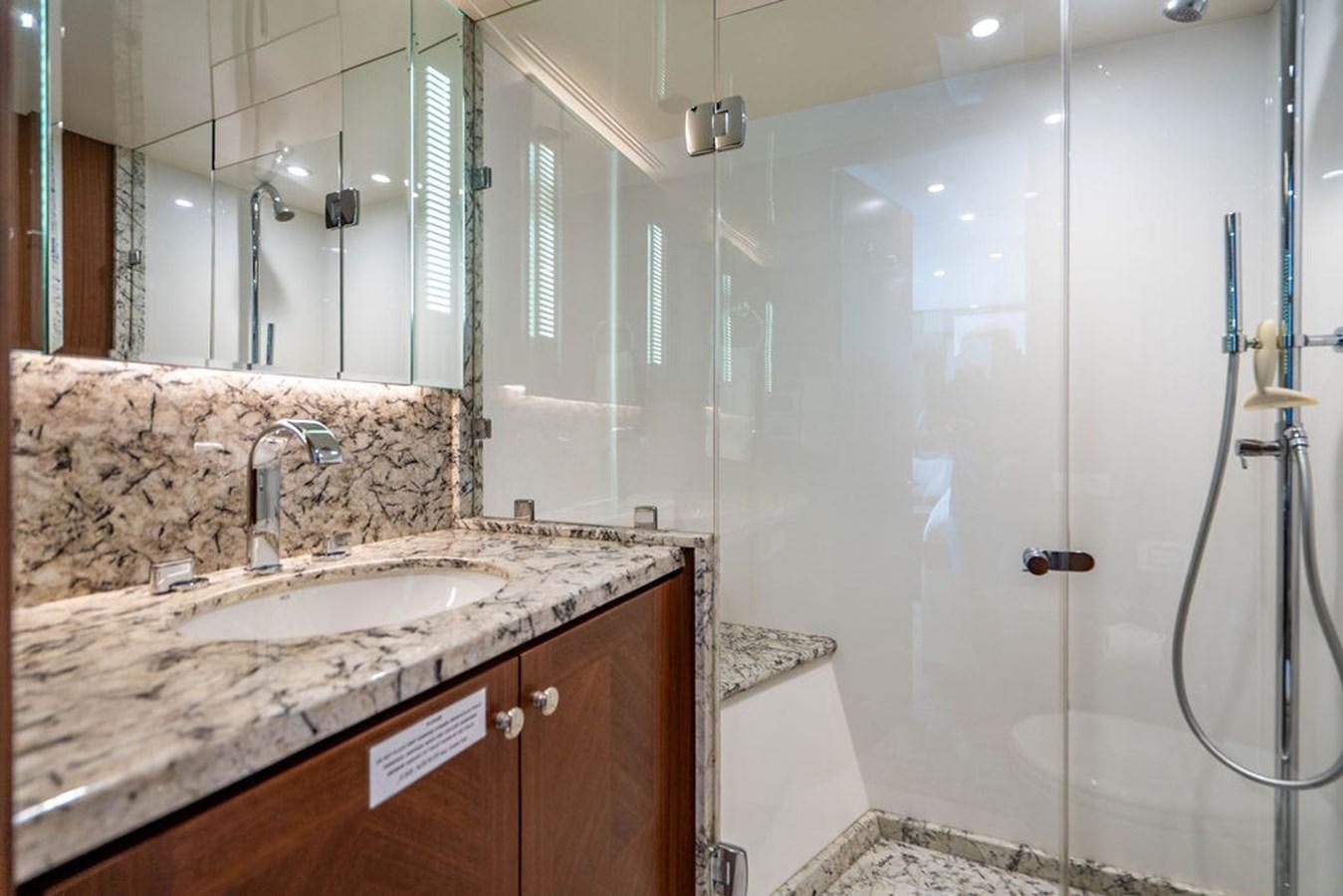

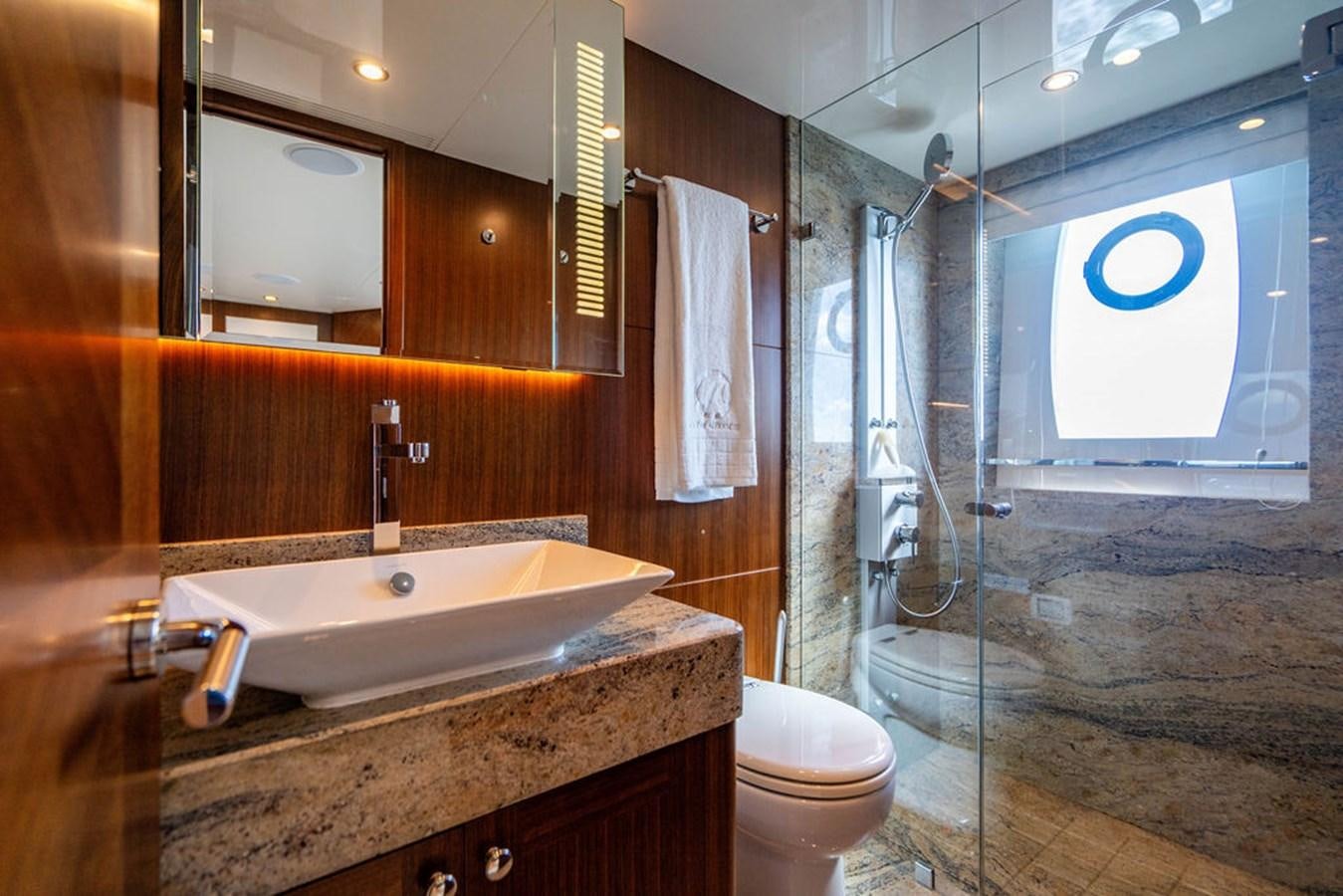

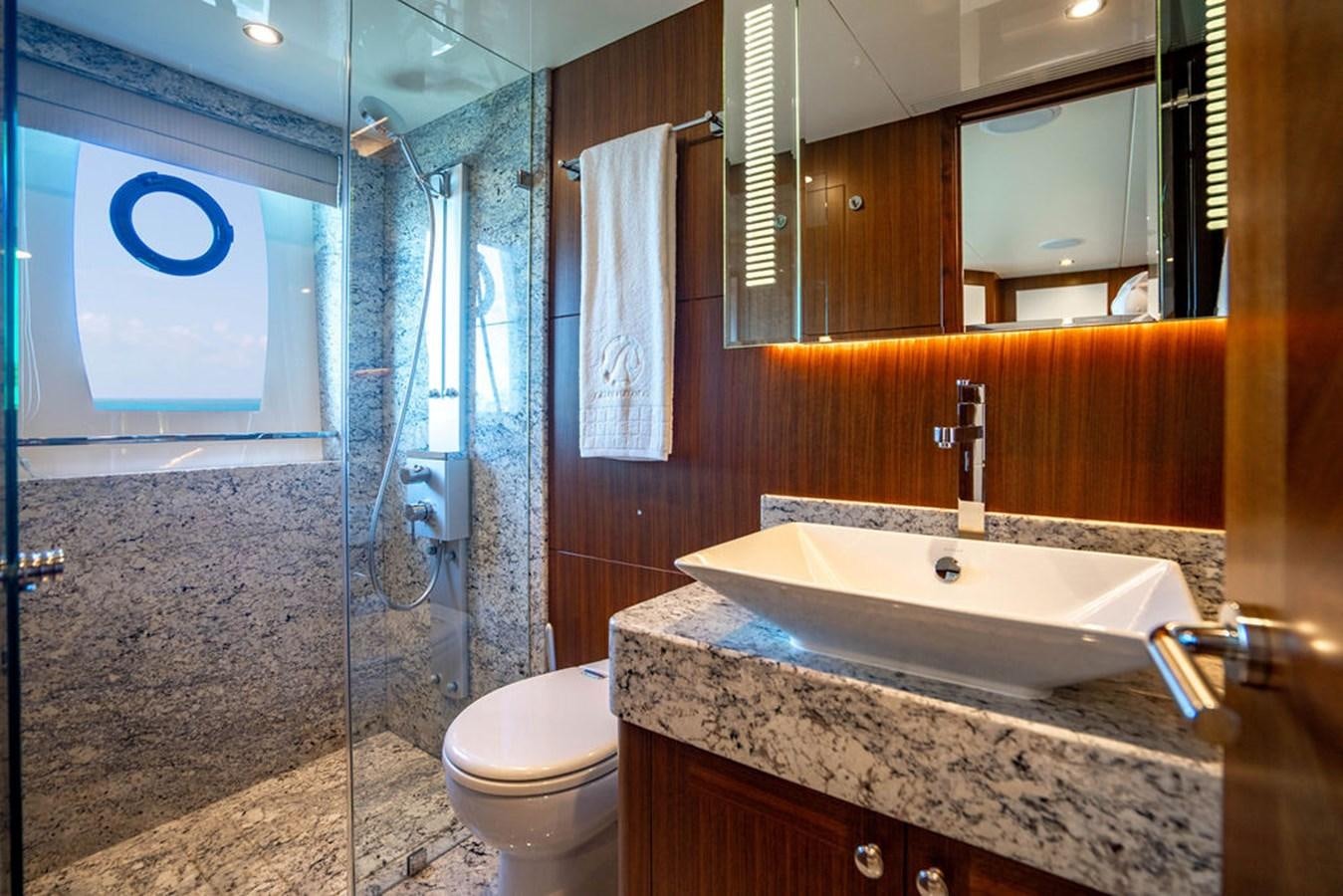

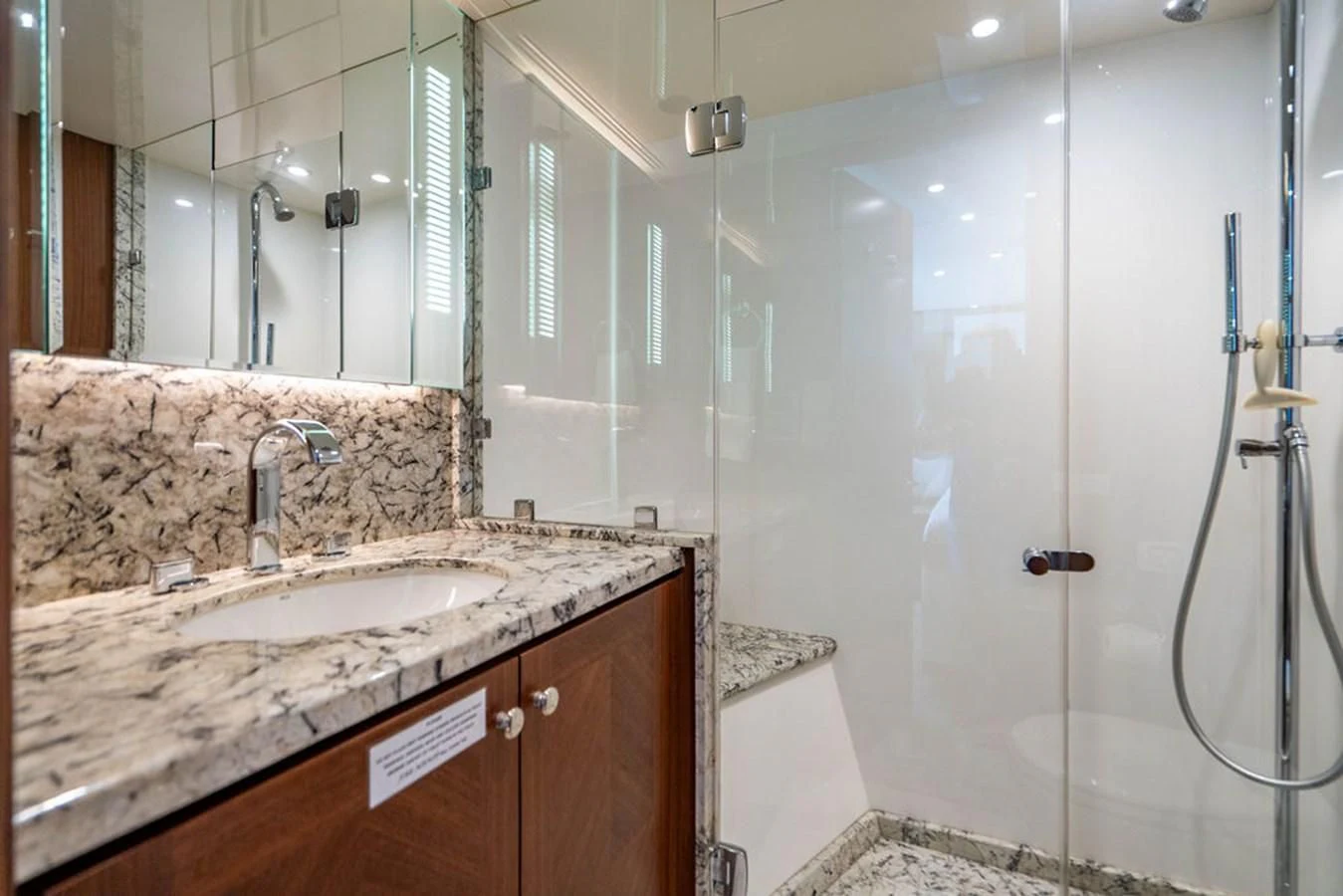

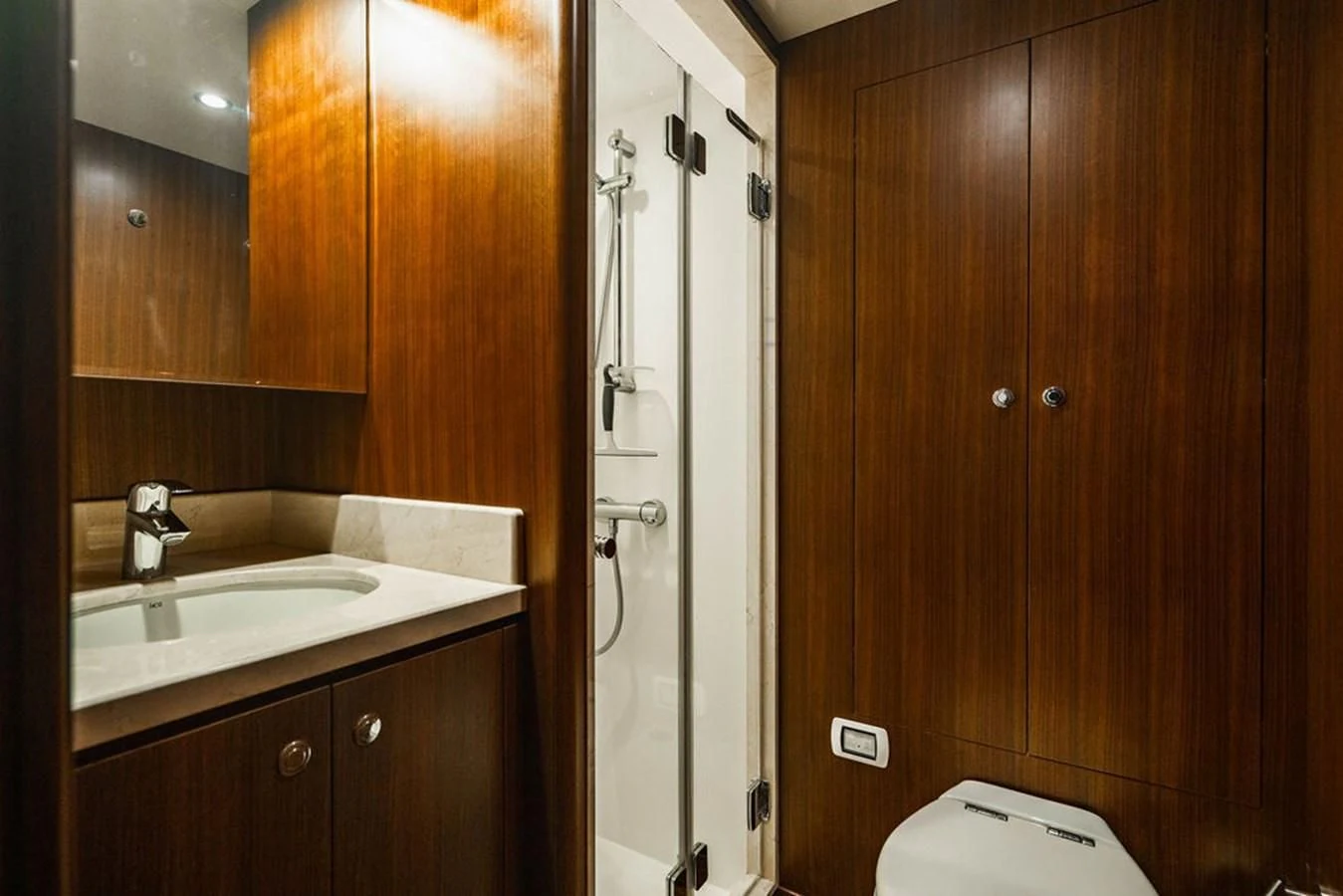

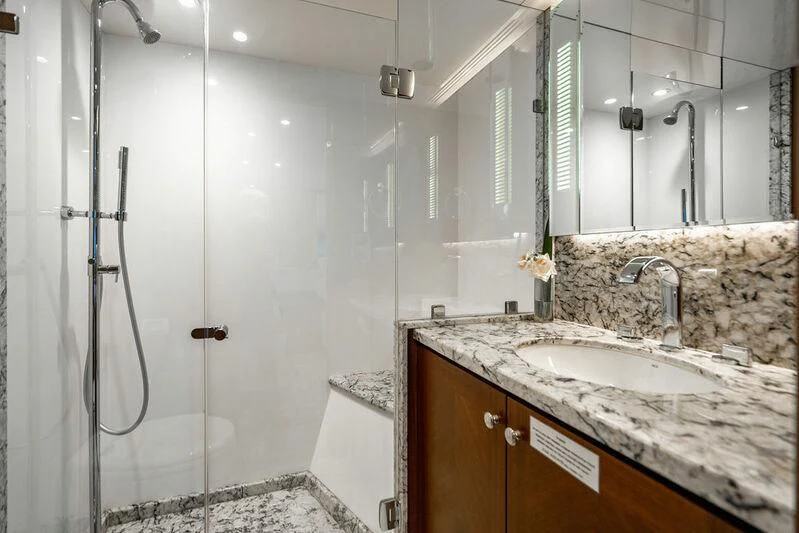

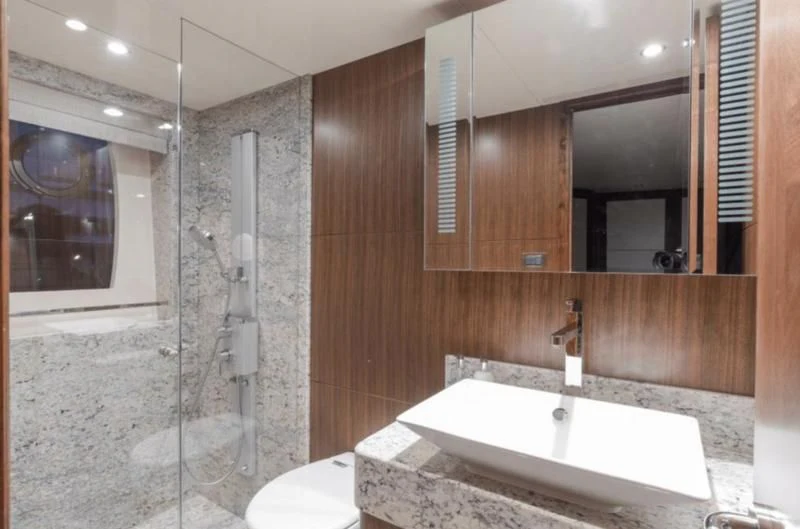

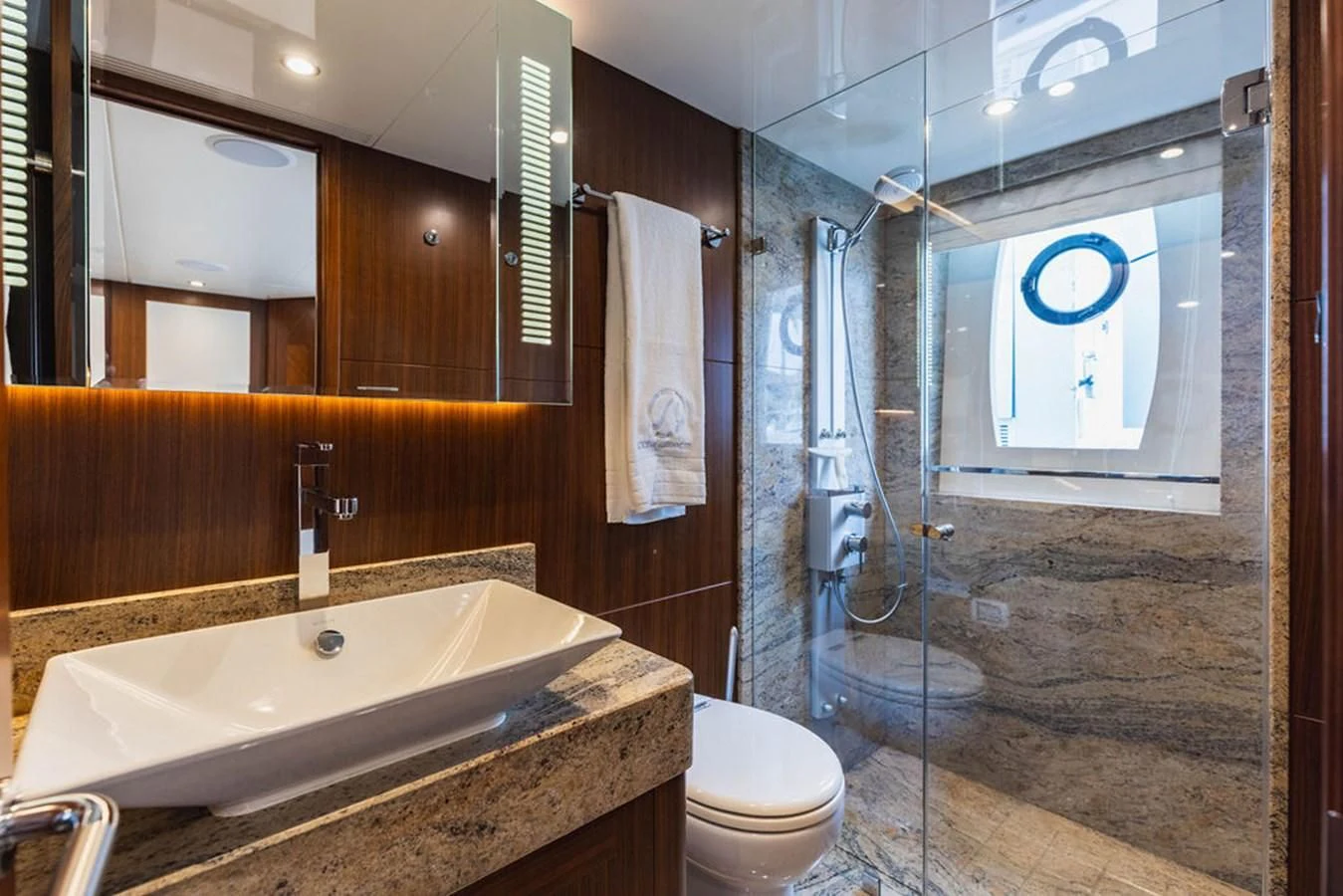

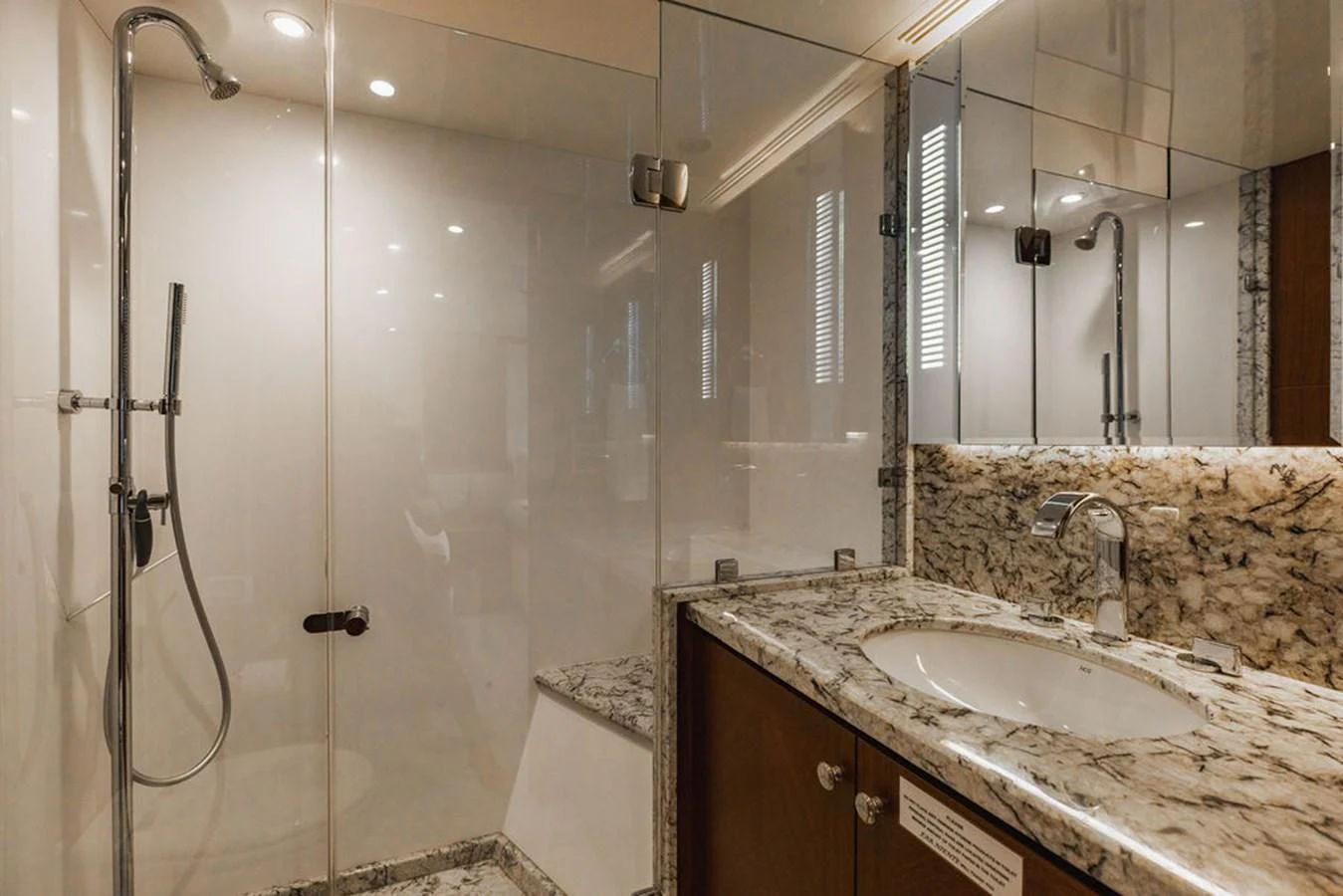

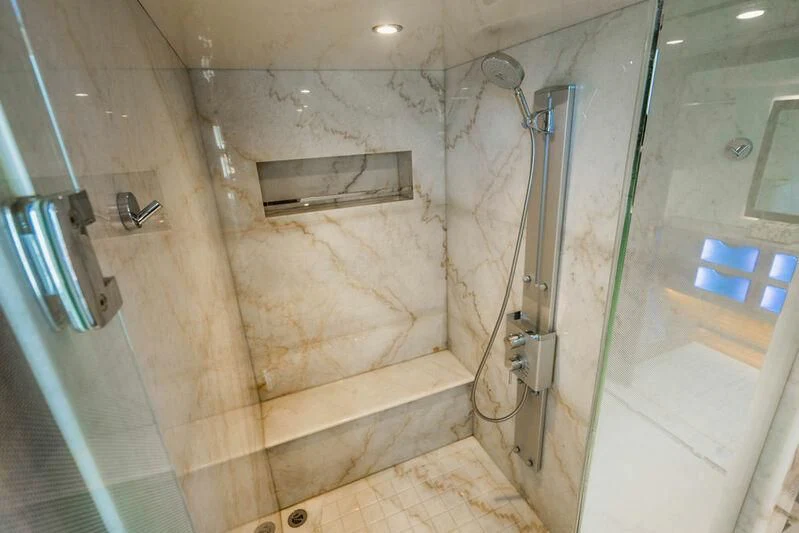

Seamless fiberglass stall shower w/ one ­piece glass door. Industry leading seamless one ­piece shower stall design provides long term protection against moisture, water intrusion behind the shower panels leading to foul odors and water damage (Unique OA feature)

Shower door shall use “crystal clear” glass custom made for Ocean Alexander. Providing superior transparency and reflectiveness. Together with custom made for Ocean Alexander “minimalist and

transparent water strips” provides a unique Ocean Alexander proprietary “Crystal Shower”

Cabinet with mirror door above sink (without salon and sky lounge day head)

Air extraction in each head shall be by low noise extraction fans

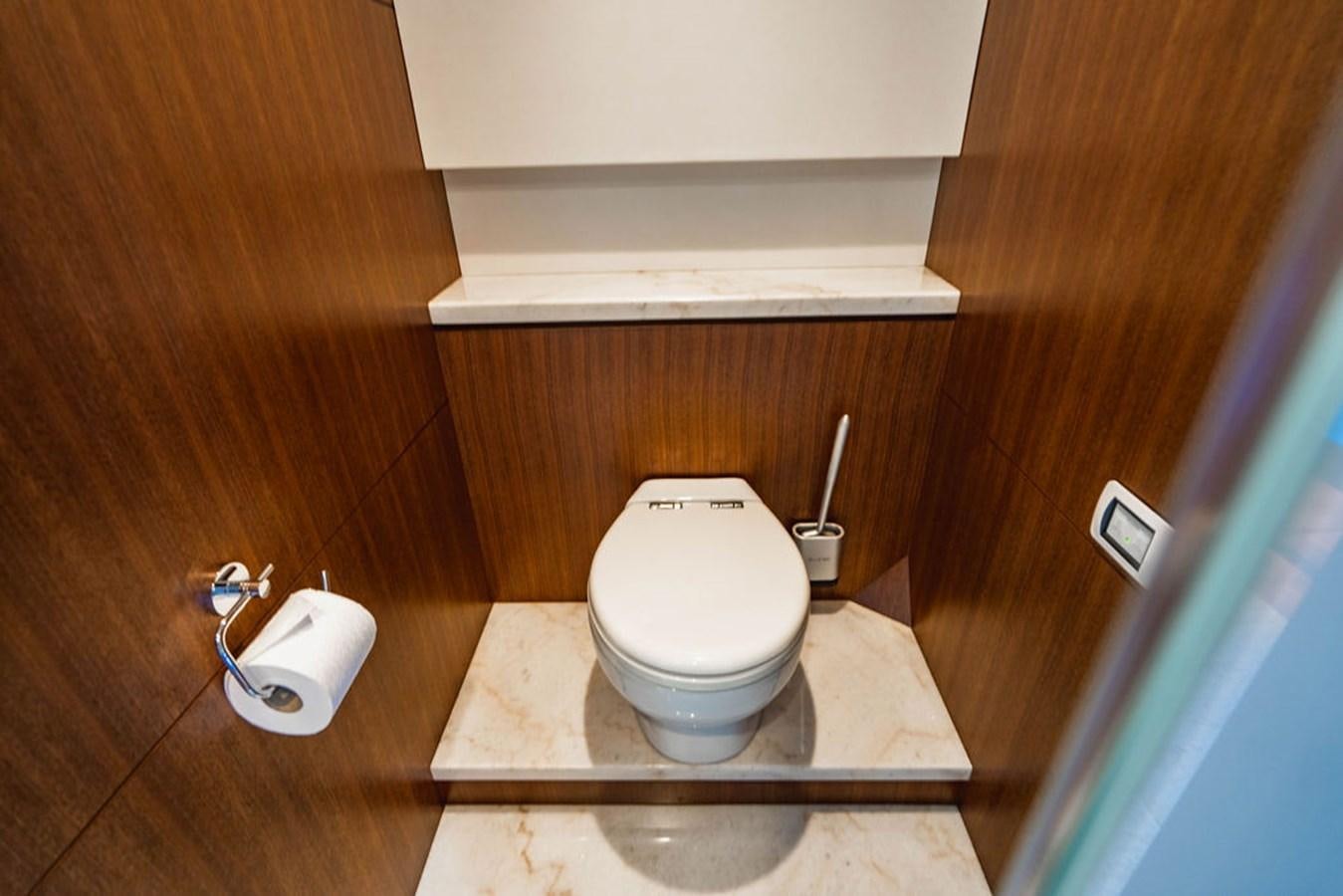

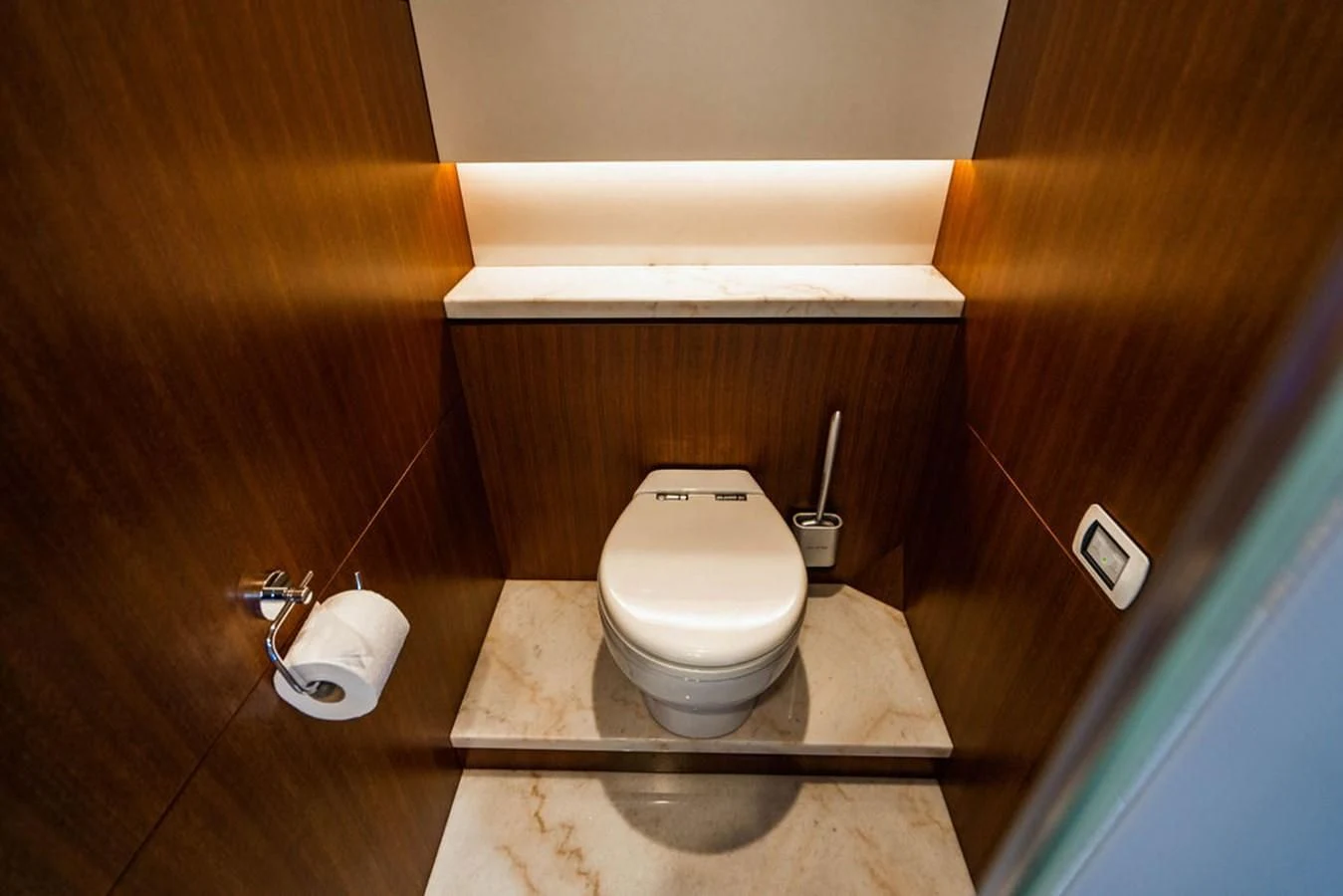

Planus™ toilet system throughout with unique Ocean Alexander proprietary “Toilet lock out” system. Provides “lock out” of flushing when holding tank is full. Prevents accidental spillage or “blow back” often found on competitor yachts. Tankage status and alarm is standard via N2KView monitoring system.

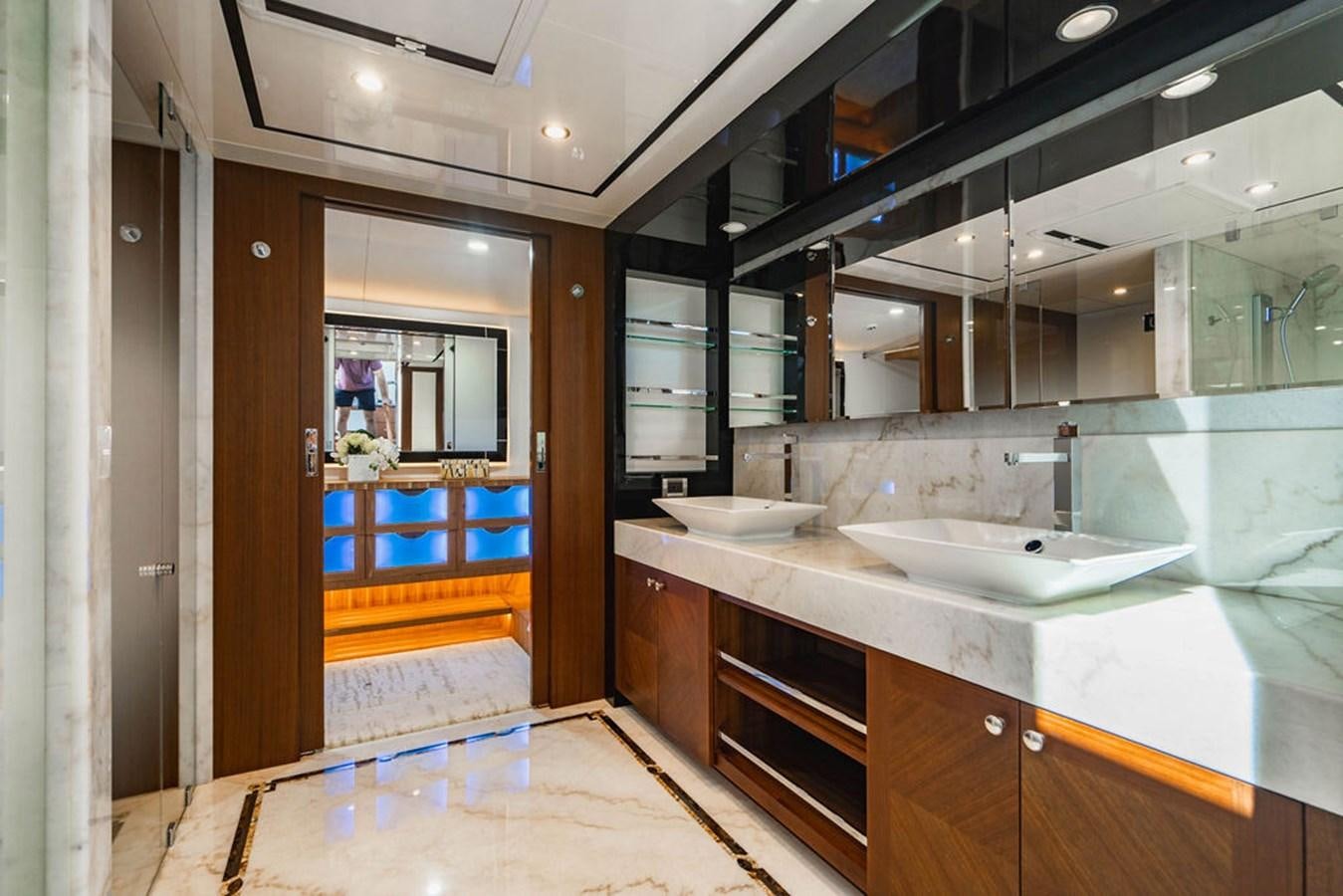

Custom bathroom fixtures

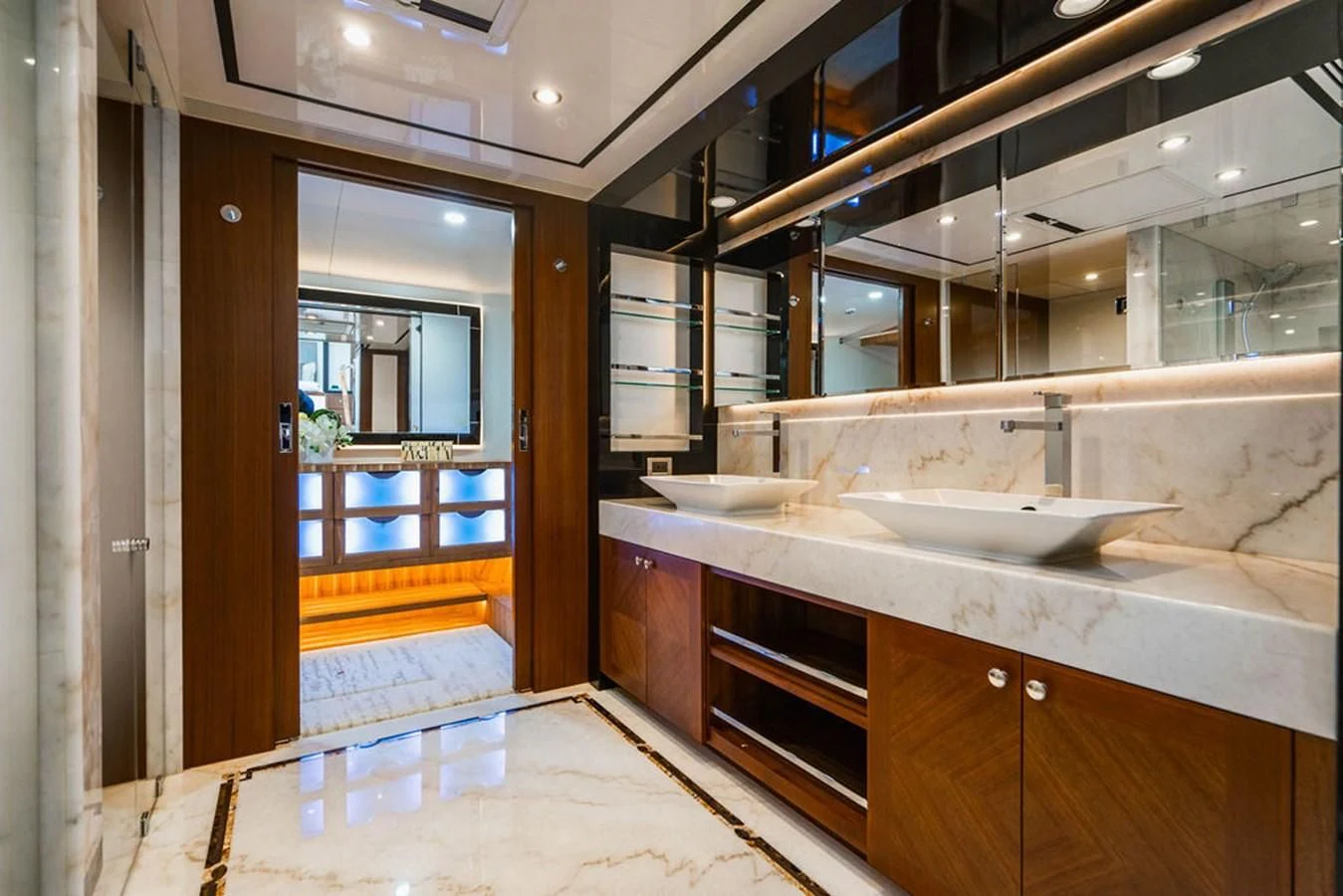

Stone countertops and back splash in heads with china sink

Crew quarters w/private head, shower

Dedicated custom S/S ladder to navigational electronics

(Standard versus optional with competitors)

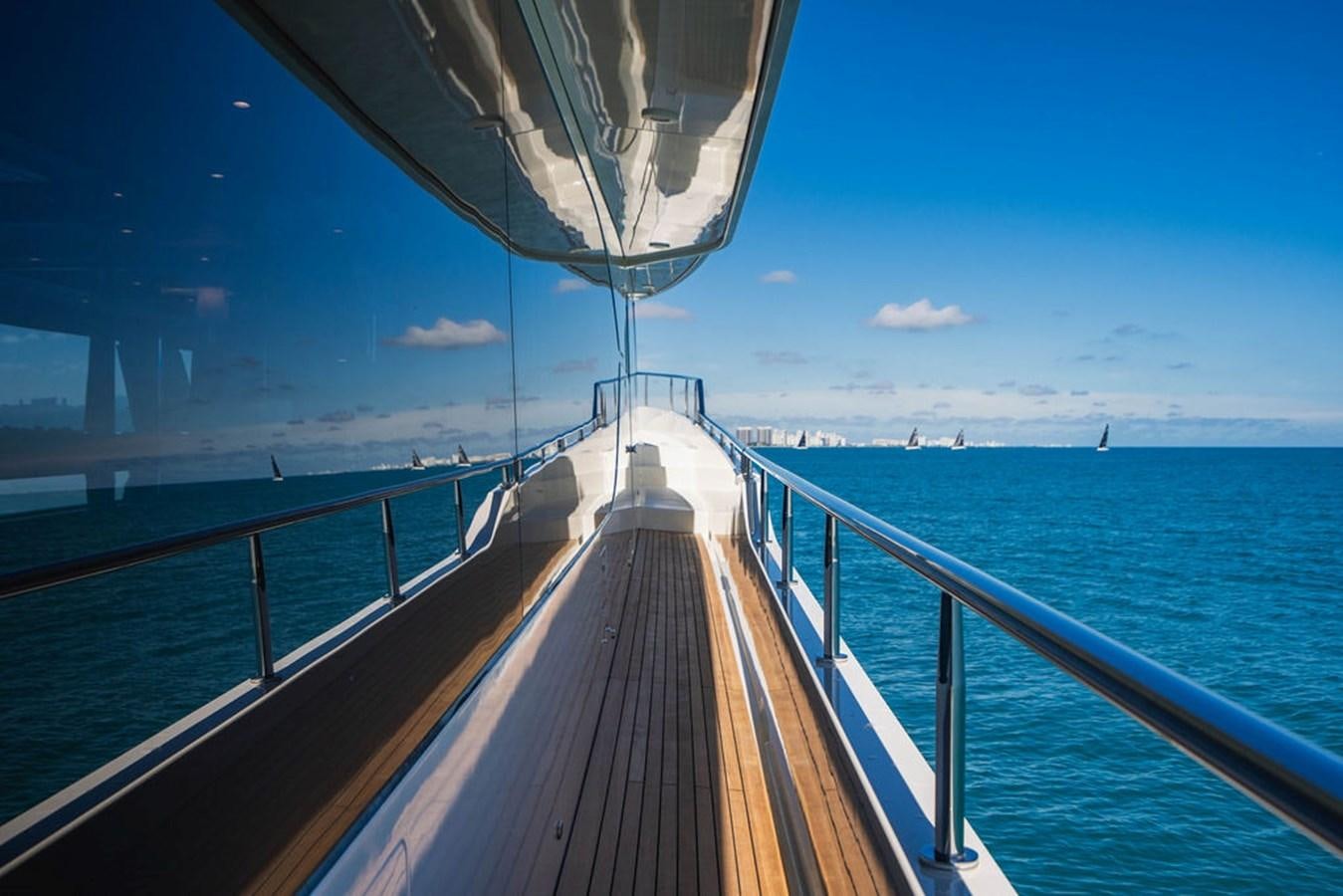

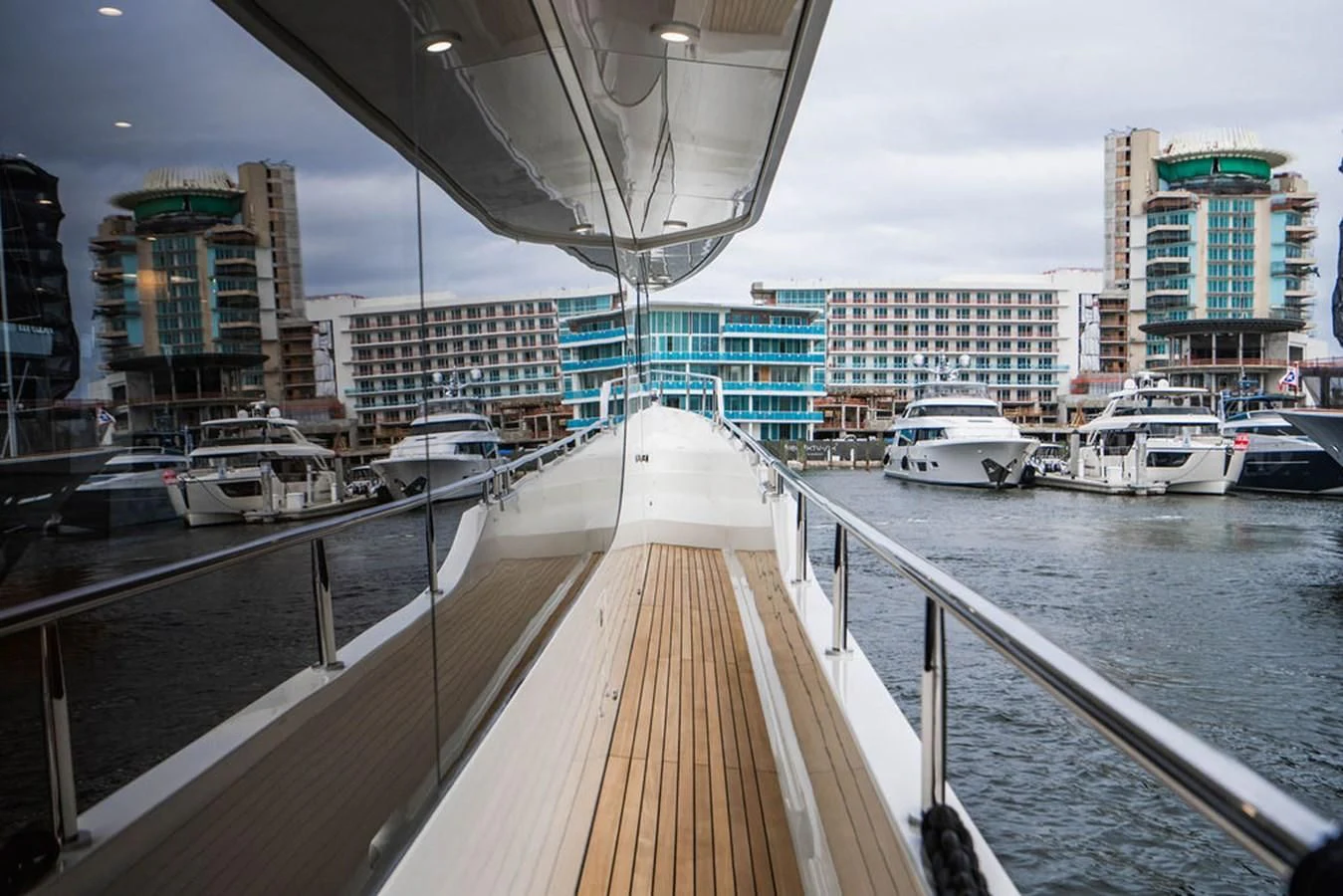

2” elliptical 316L Stainless steel handrails & stanchions, main deck 1­1/2” on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater “grip strength” for safety and comfort (Unique OA feature)

316 stainless­ steel cleats

Elec. stainless ­steel sliding doors for salon and sky lounge with safety light curtain that senses obstruction and protect for grandkids/pets. Also includes “foot­ kick button” control for operation when both hands with full food trays/other items.

Two S/S flag poles, fore and aft.

Teak and stainless swim ladder, foldable

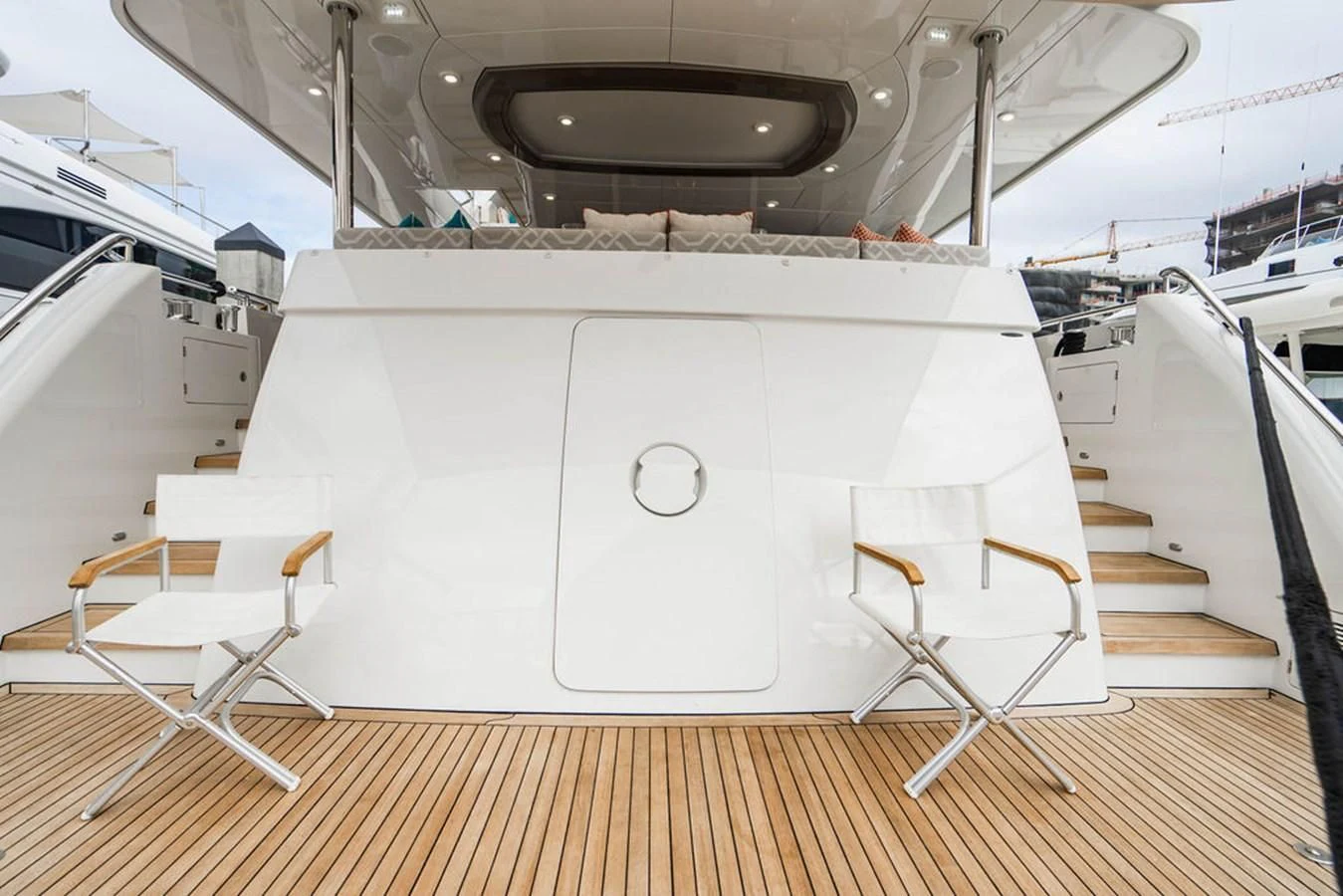

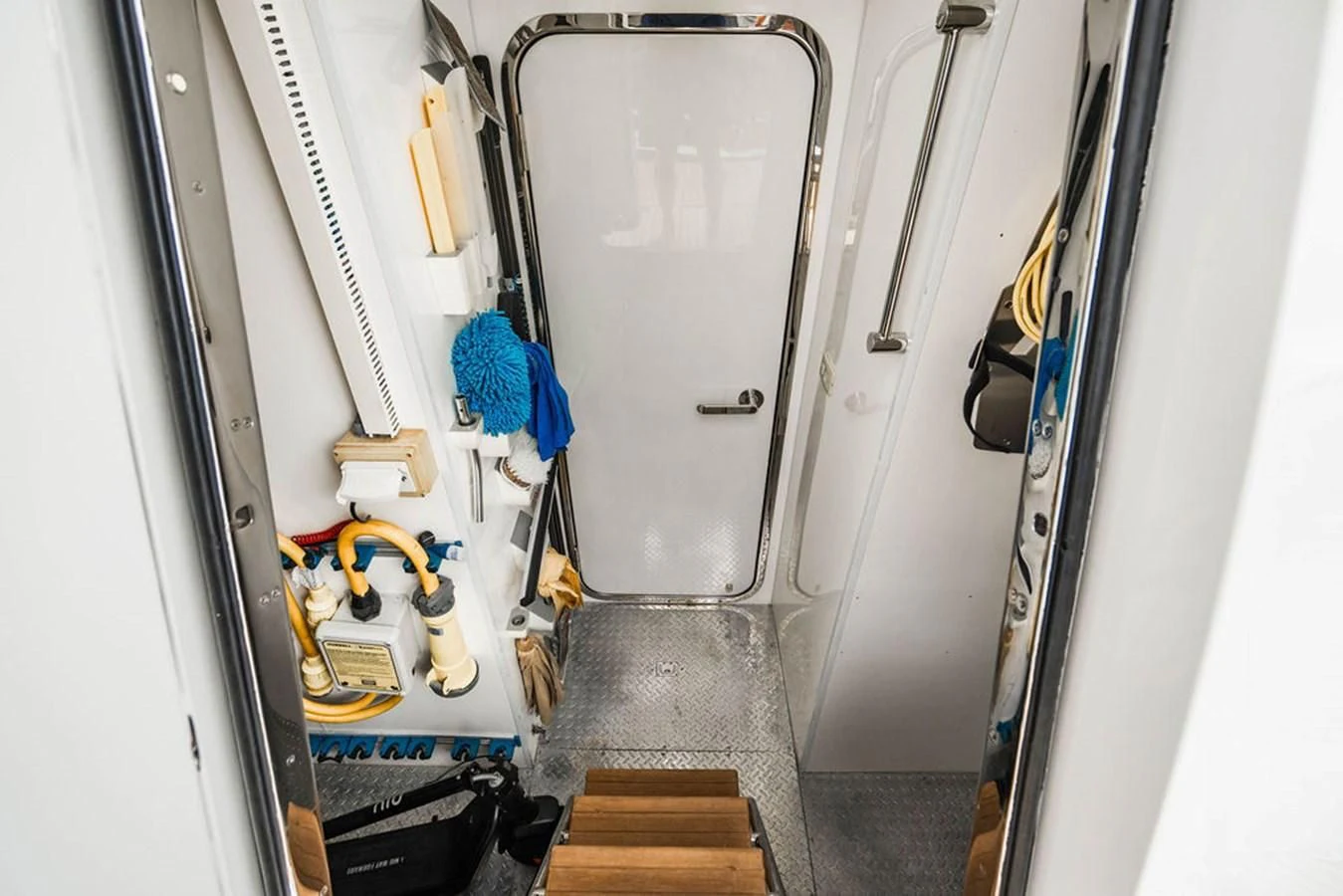

Weather­tight door on transom for access to engine room/ crew quarters

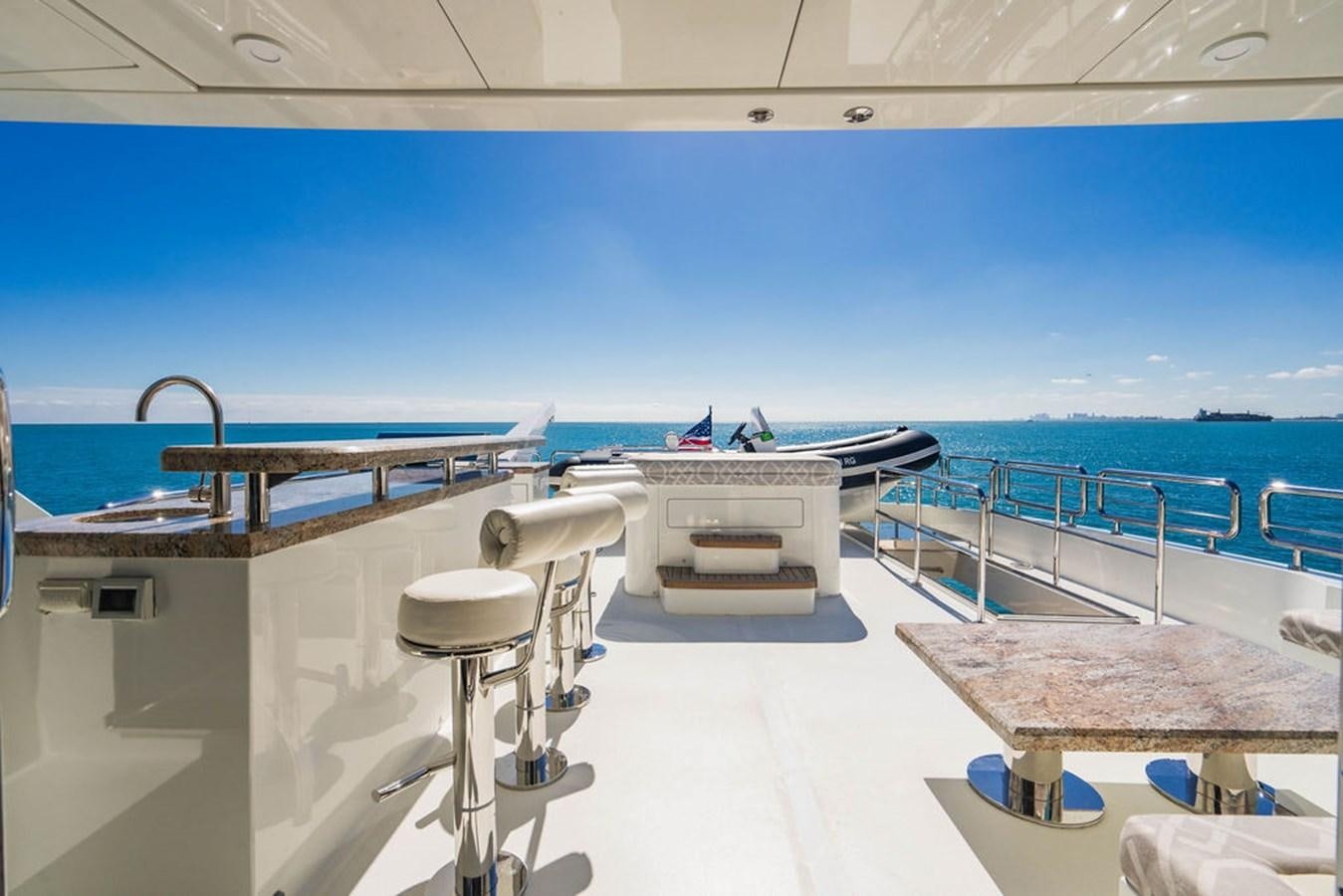

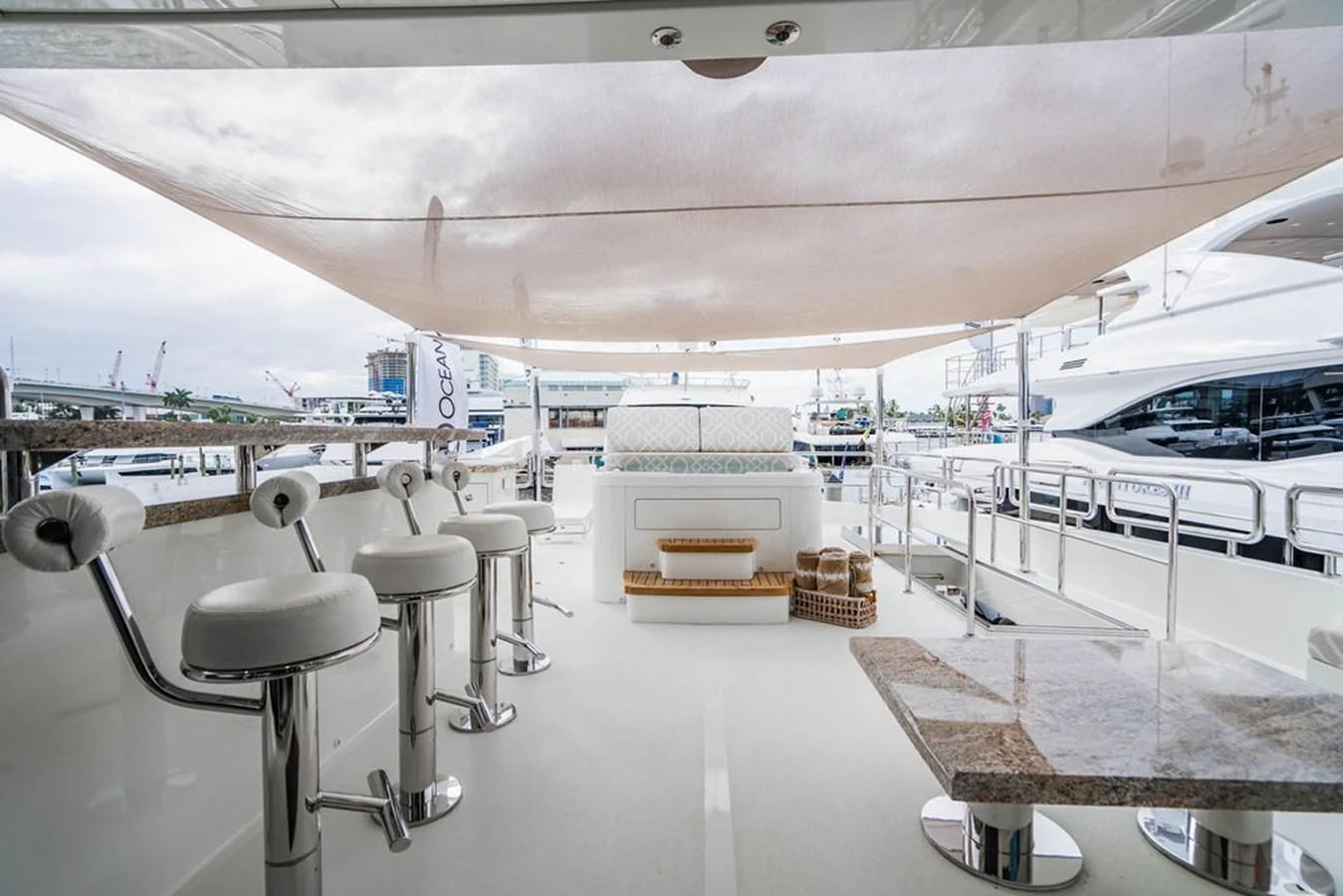

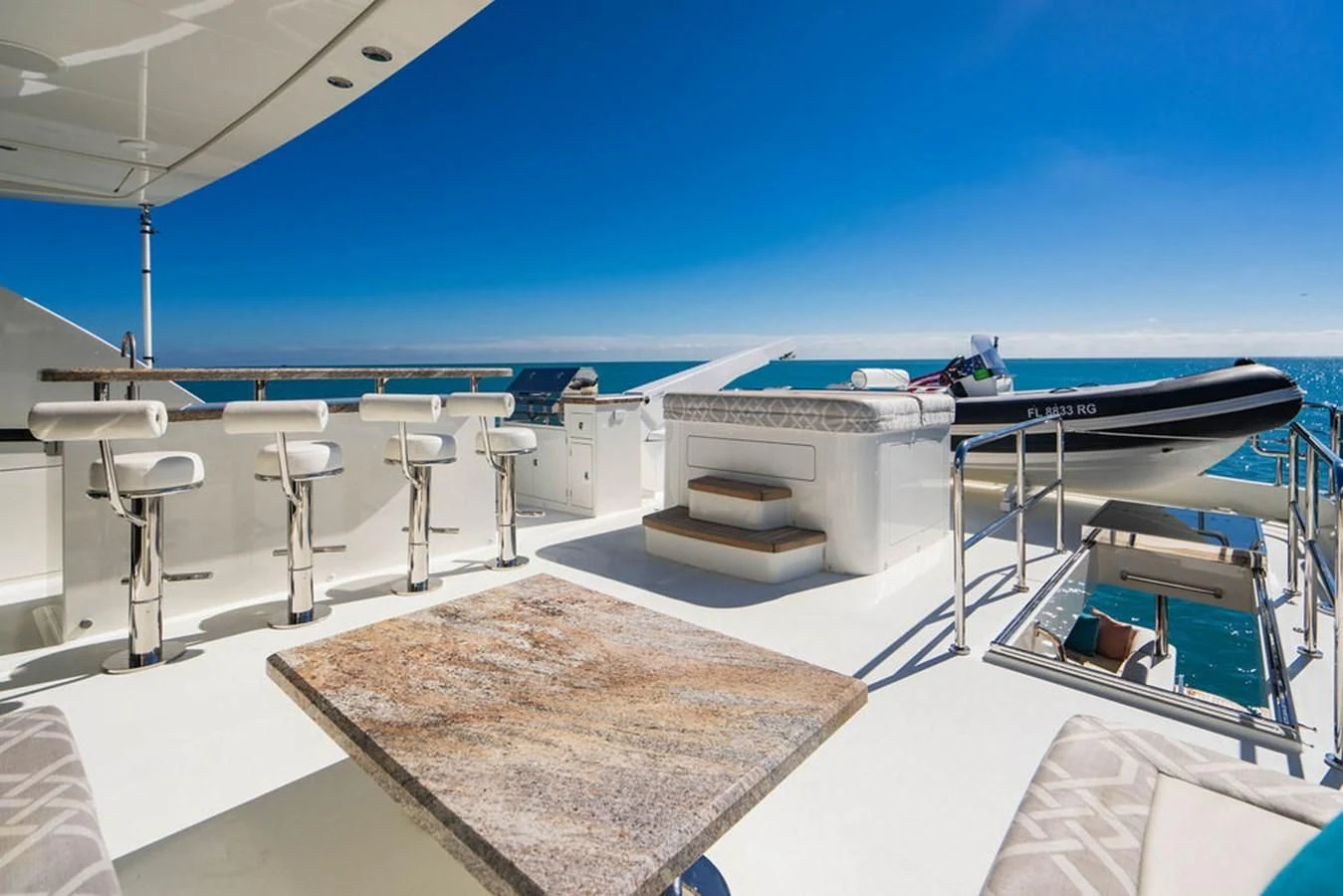

White non­skid fly bridge & fore deck

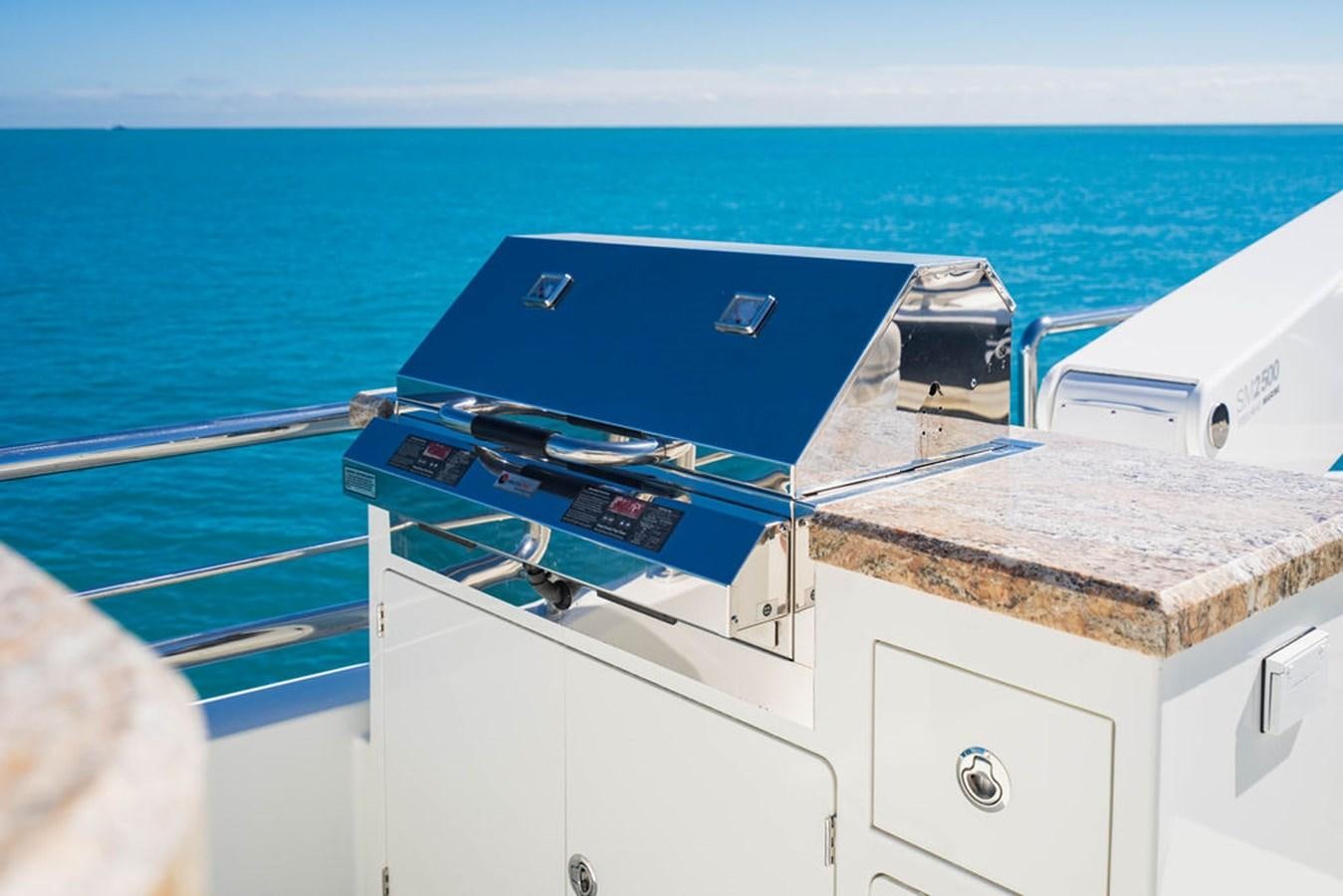

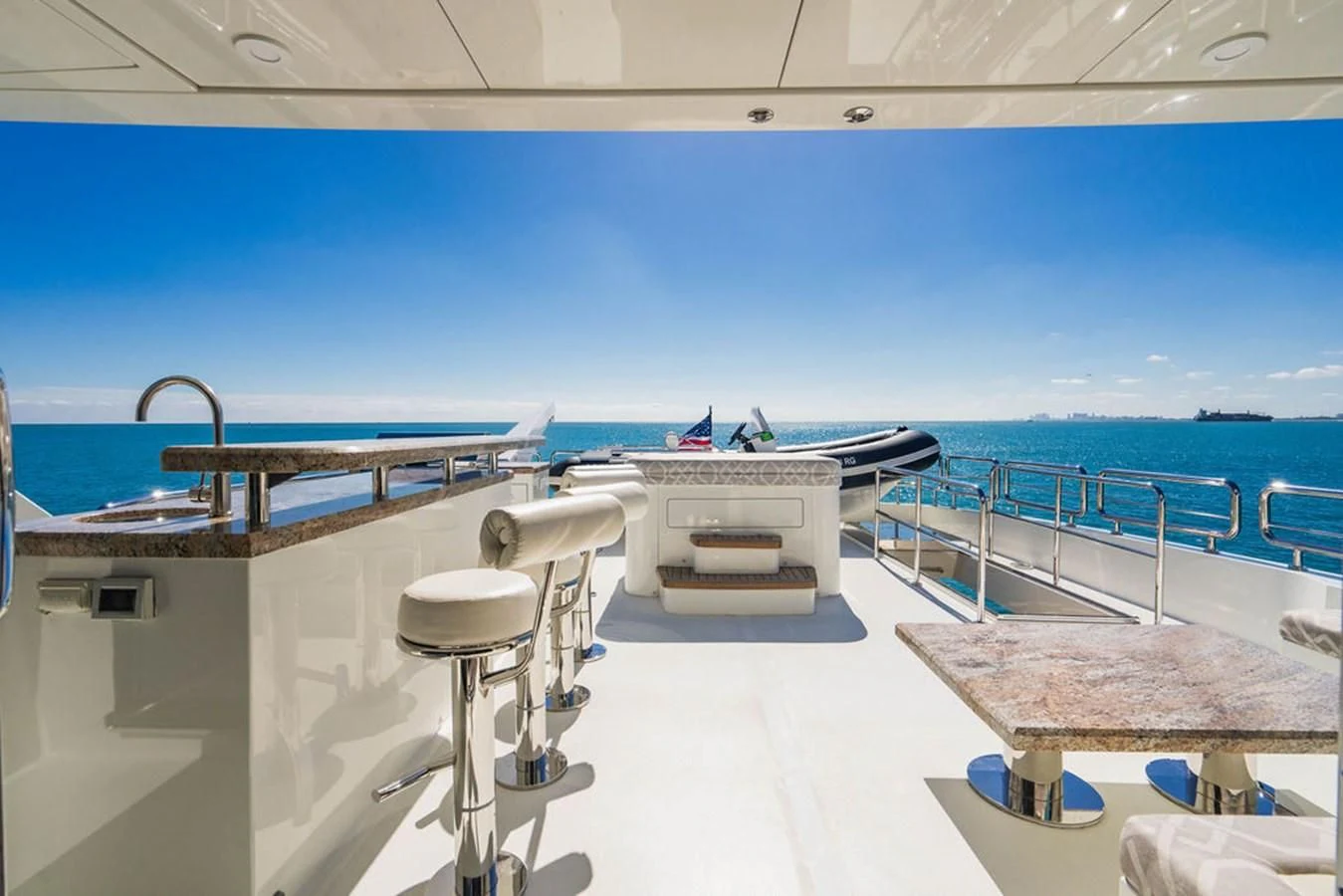

32” Electri­Chef™ electric barbecue custom­ made for OA using

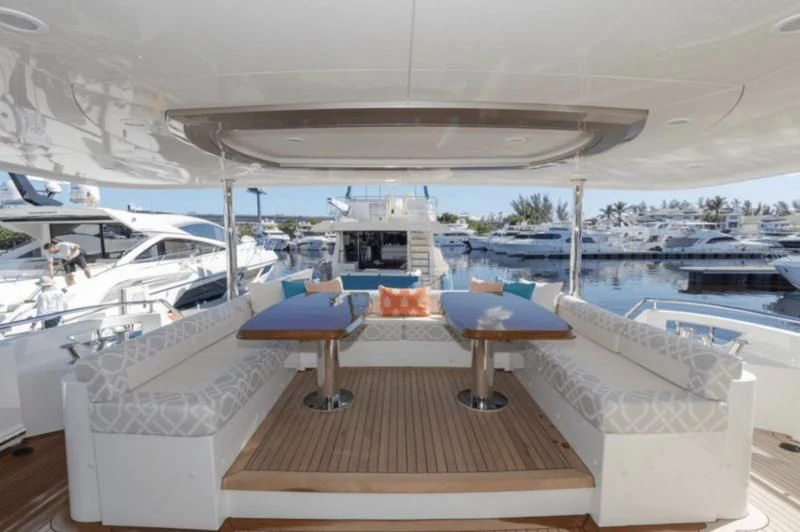

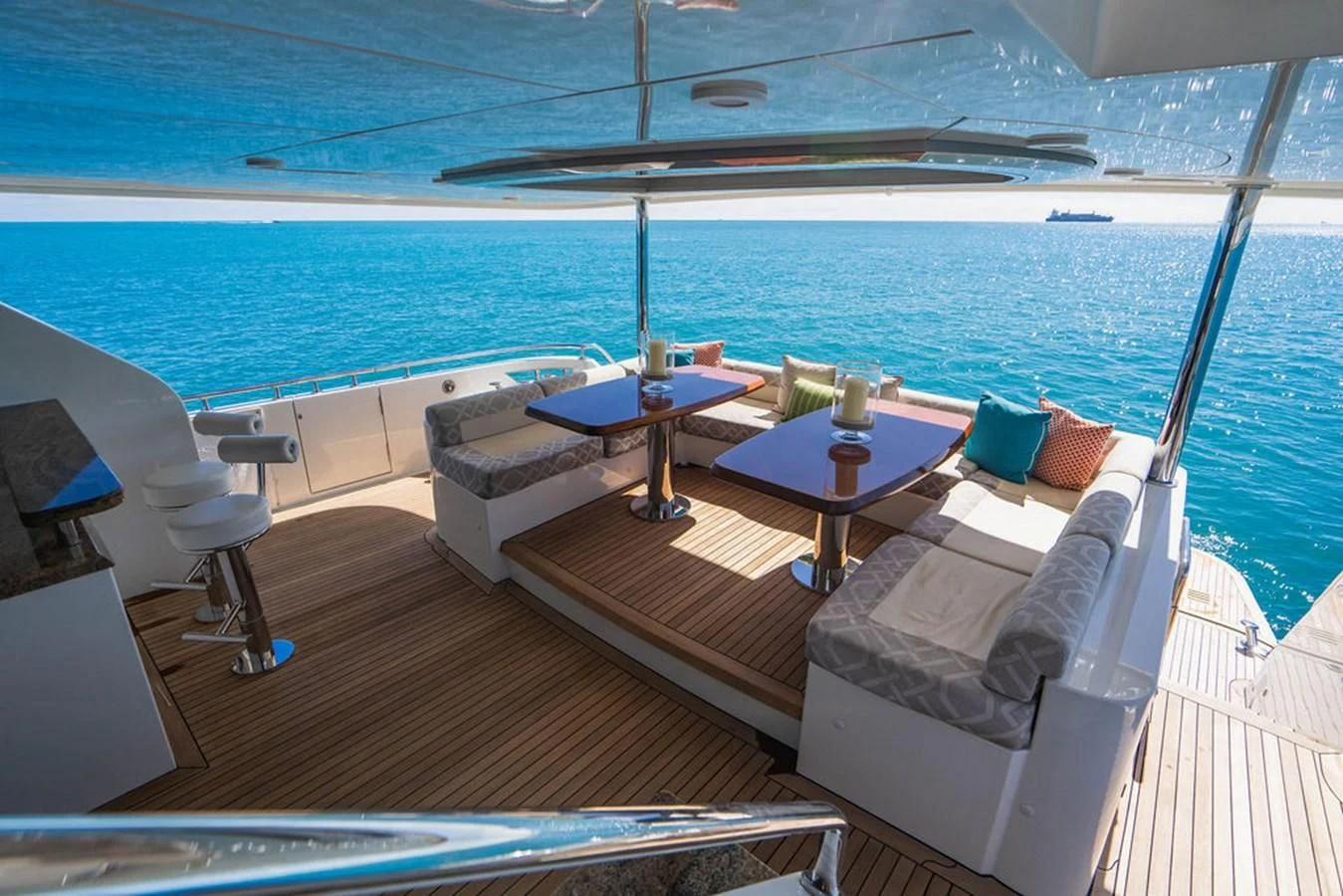

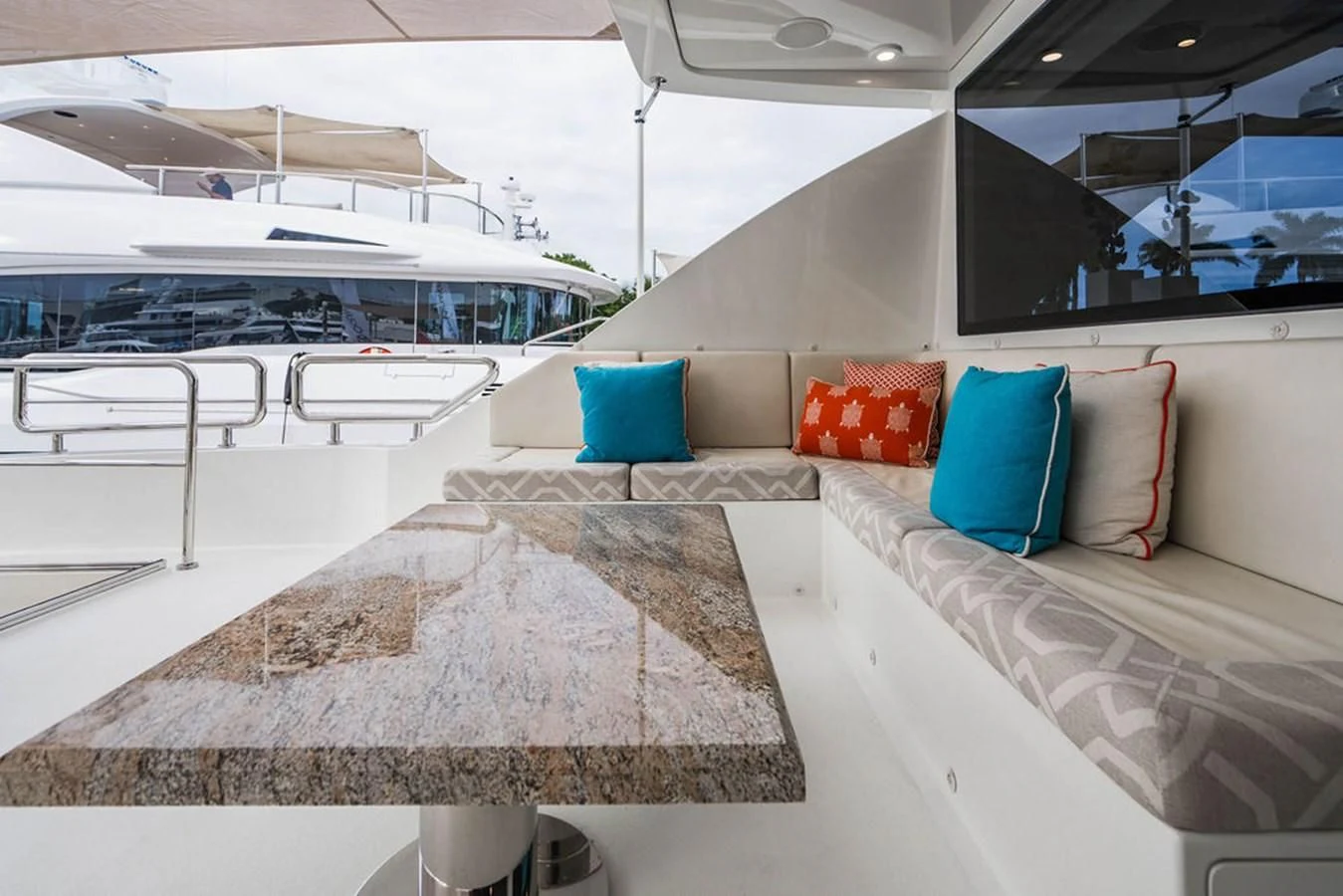

316 S/S, versus competitors’ 304 materials. Flybridge seat w/storage underneath and stone table

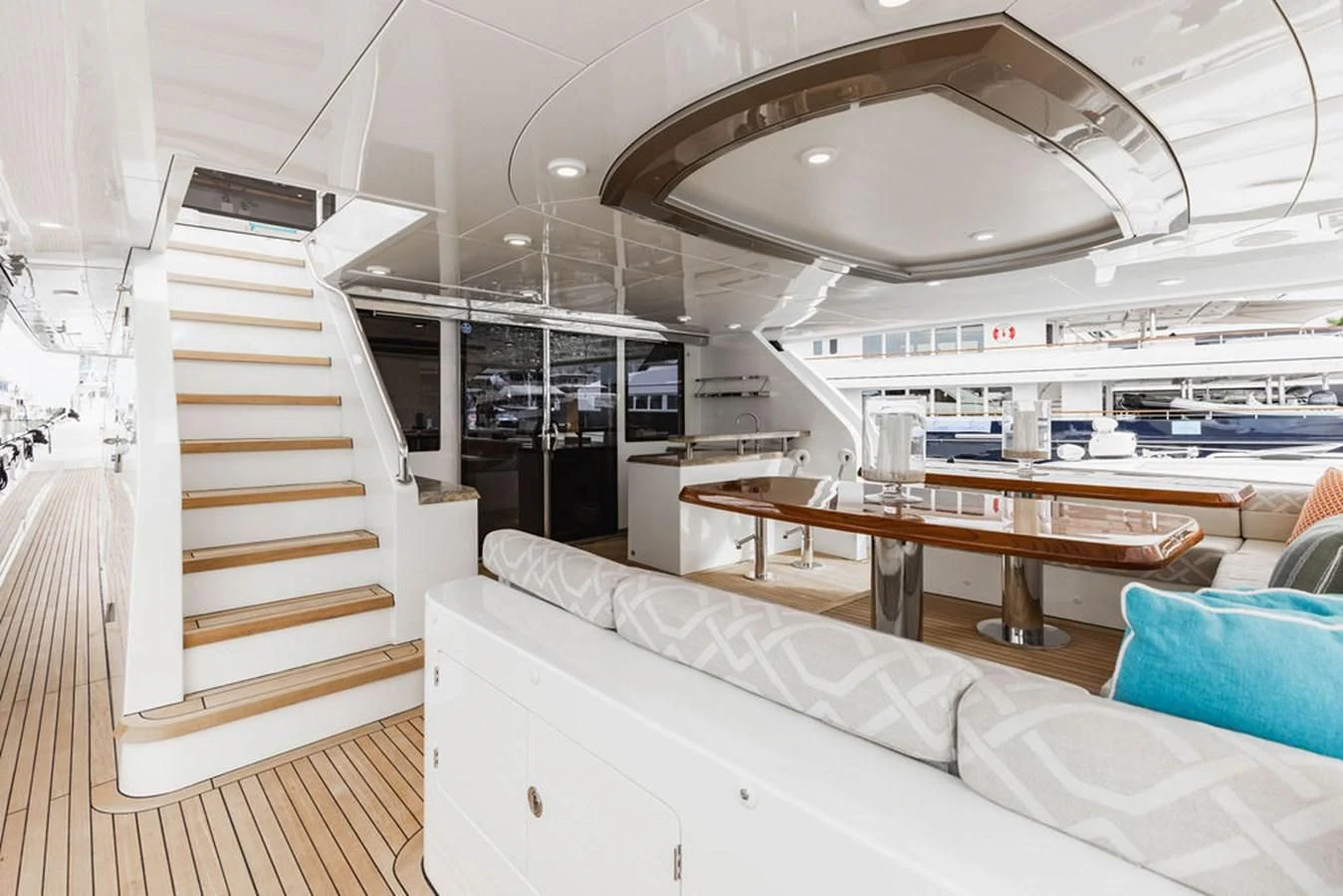

Fiberglass stairway up to Flybridge from cockpit w/teak steps

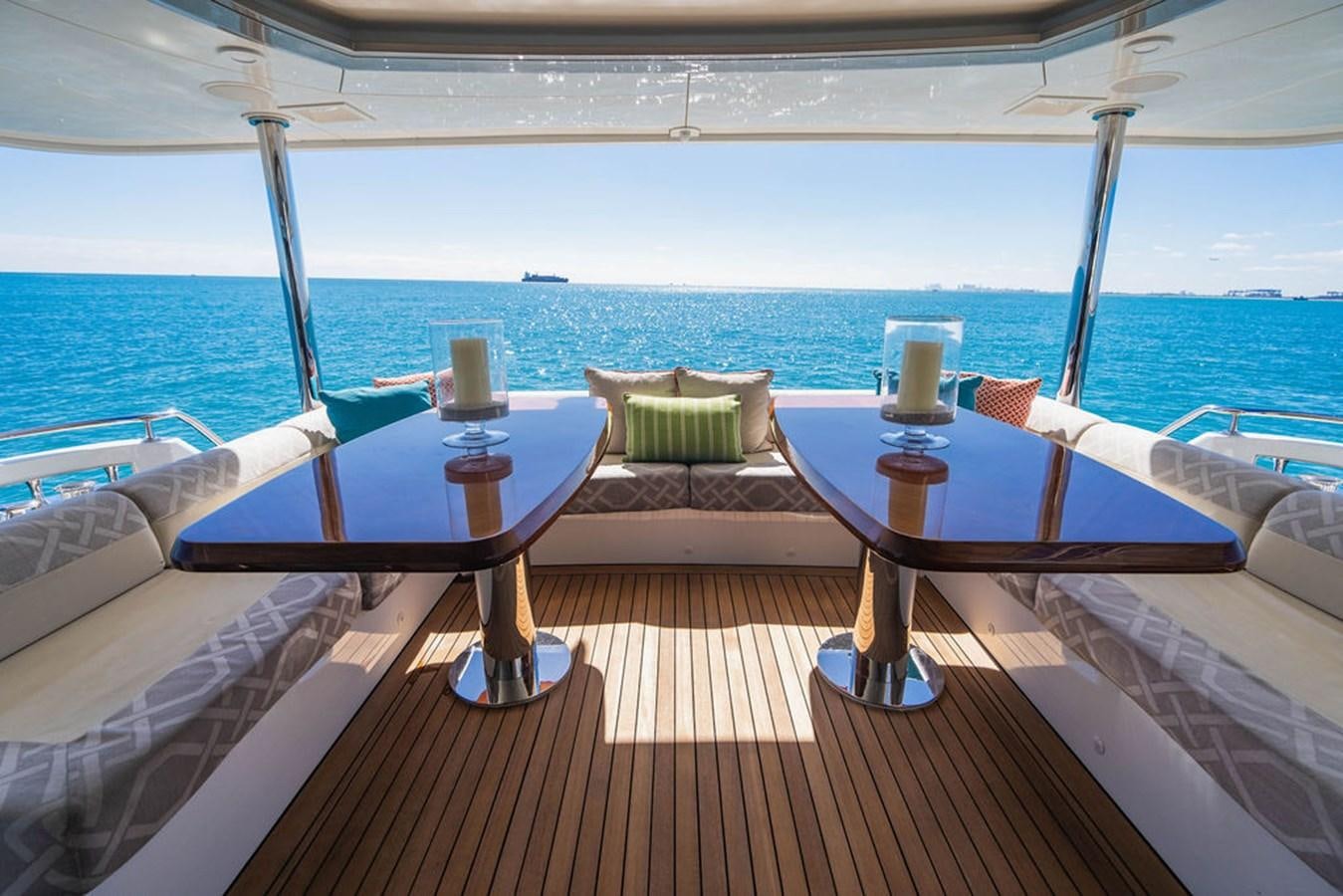

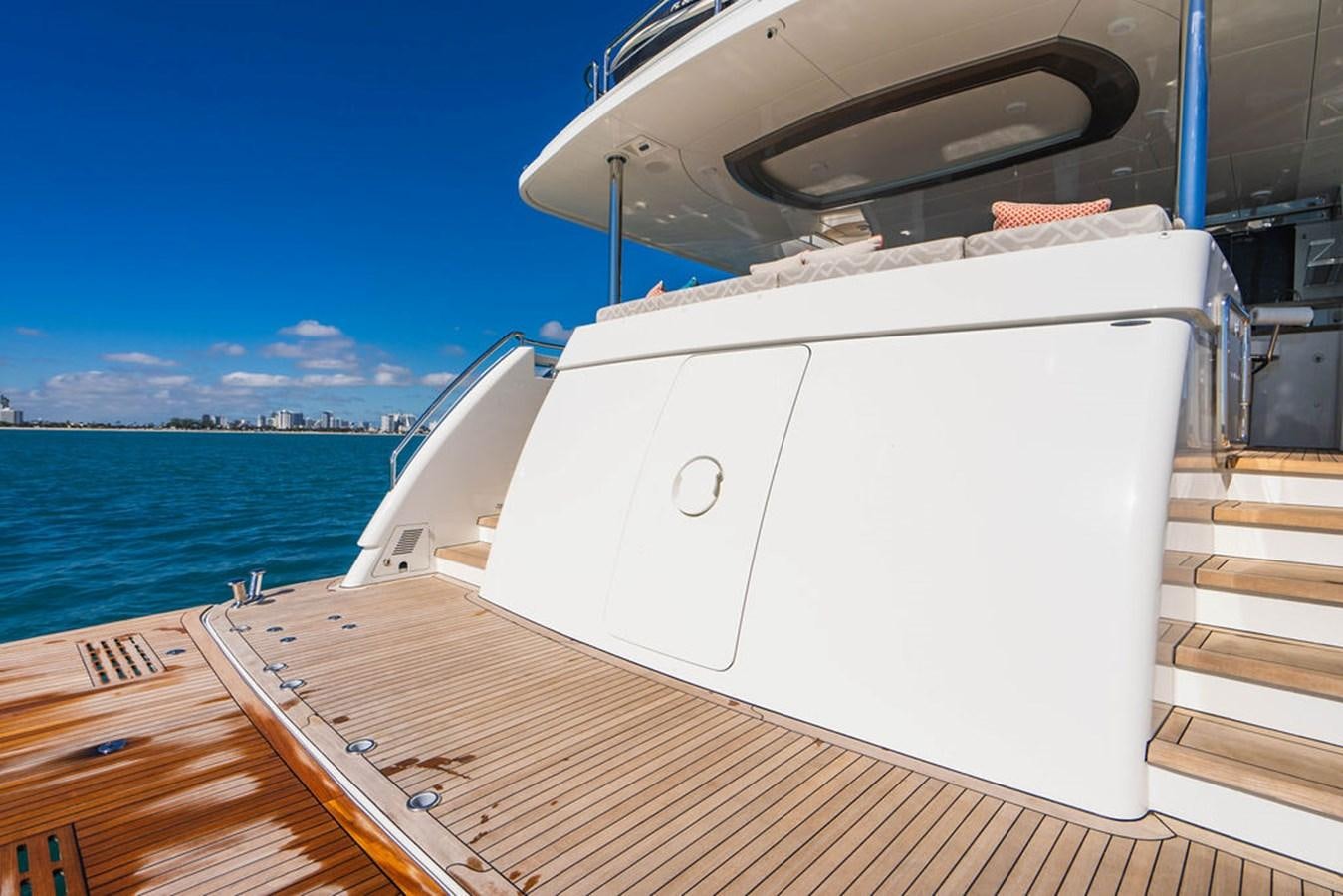

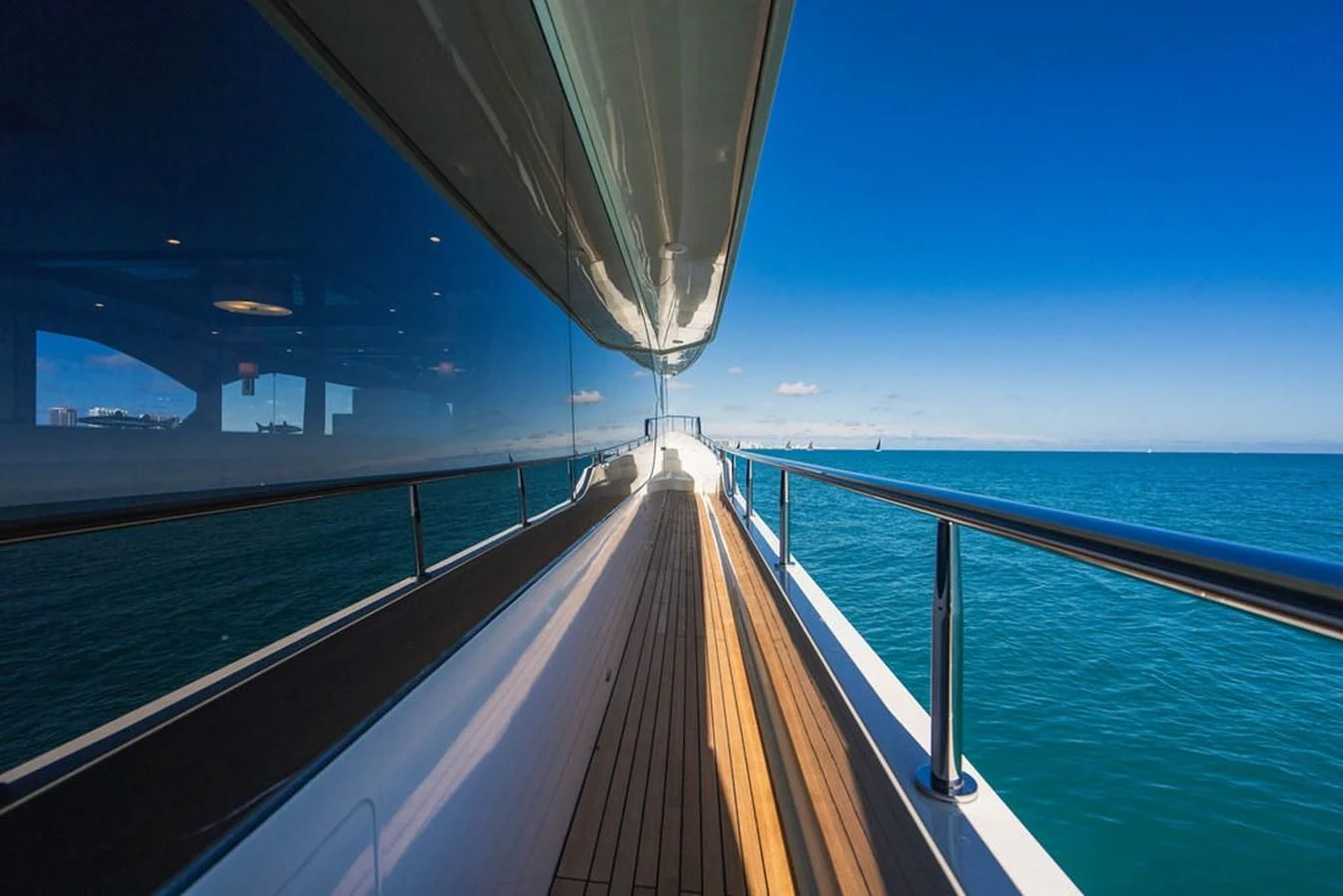

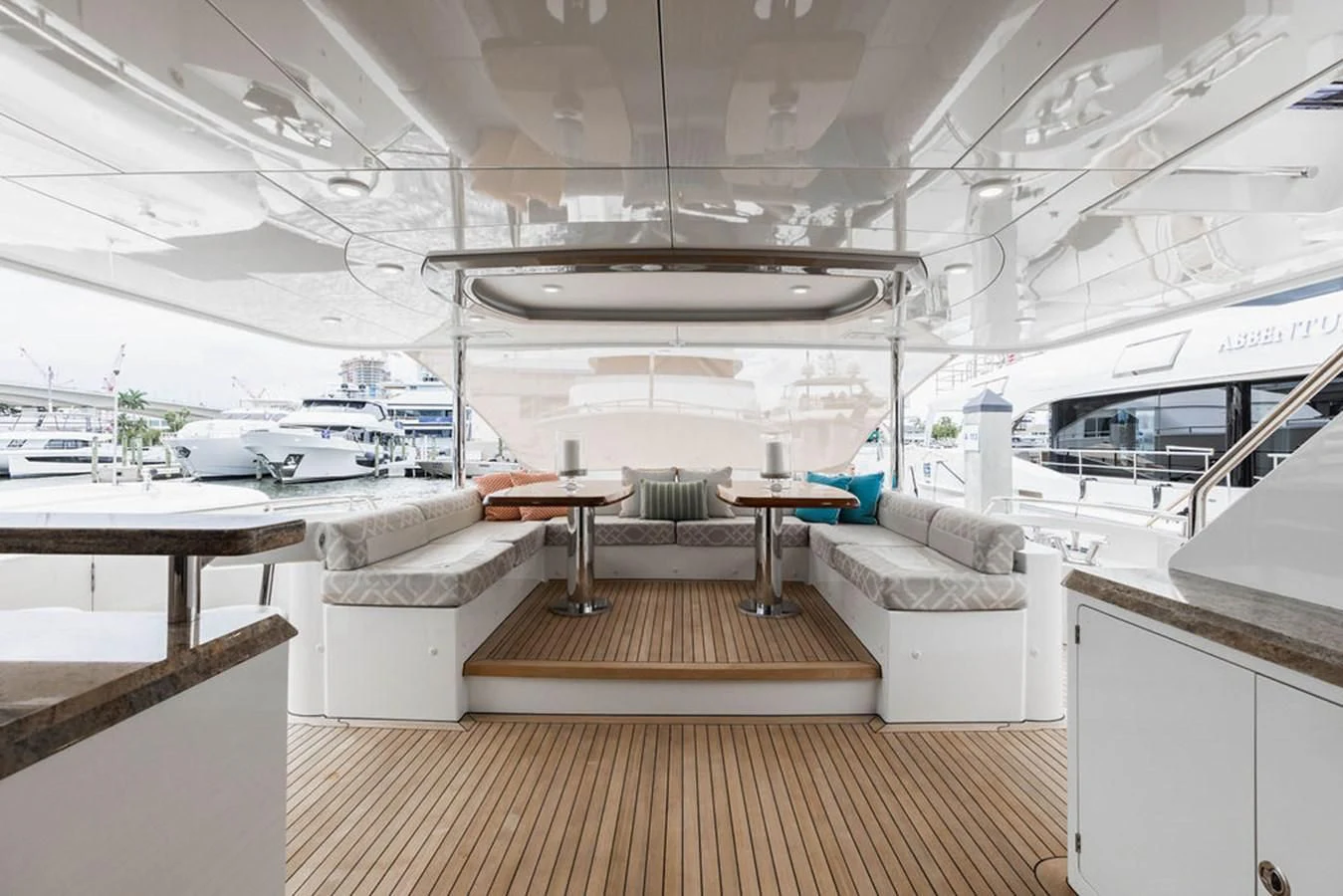

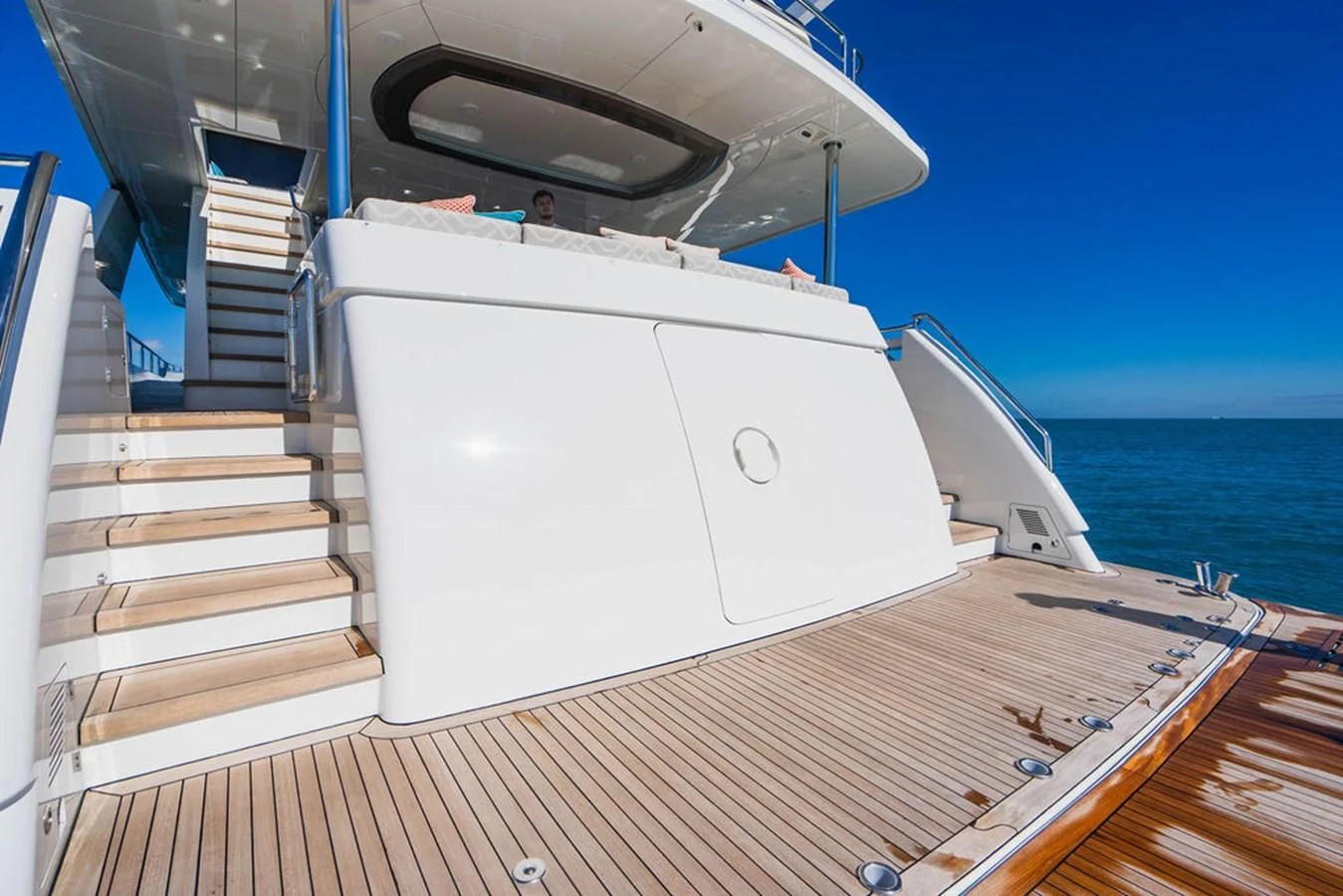

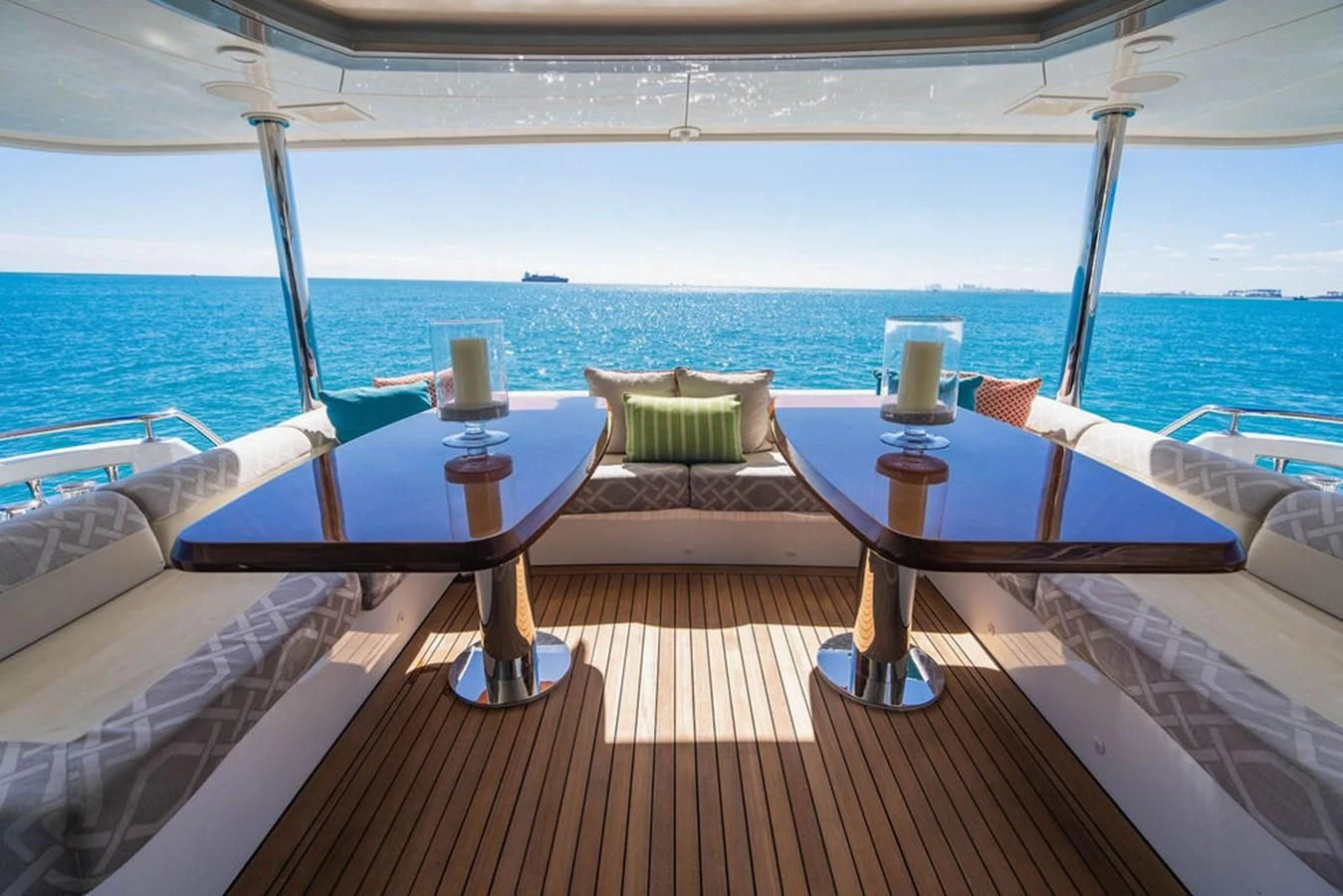

Teak deck for aft deck and walkway to midship

Teak swim platform w/ teak steps High bulwark w/deck lights

Side boarding gates in cockpit

Recessed boarding ladder on starboard gunnel with OA logo teak steps (Unique Ocean Alexander standard feature.Competitors either optional or not available)

Exterior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look. Also allows for easy service of navigational electronics and plumbing runs. (Design cues from 135)

Custom designed fender storage at bow/chain locker/lazarette

Aft Sky lounge: Flip down 32’ TV with Satellite Receiver & speakers aft Deck: Flip down 40’ TV with Satellite Receiver & speakers

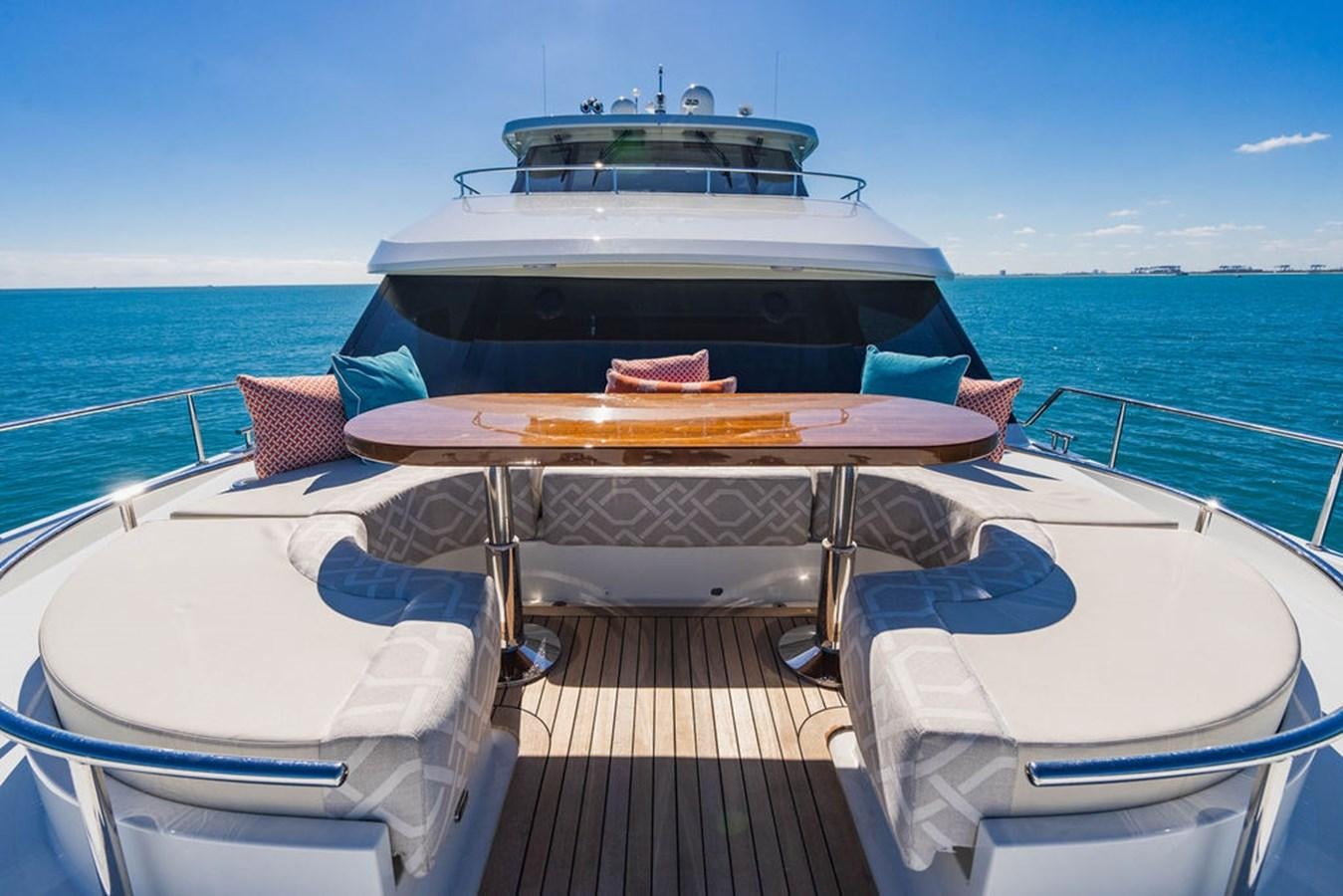

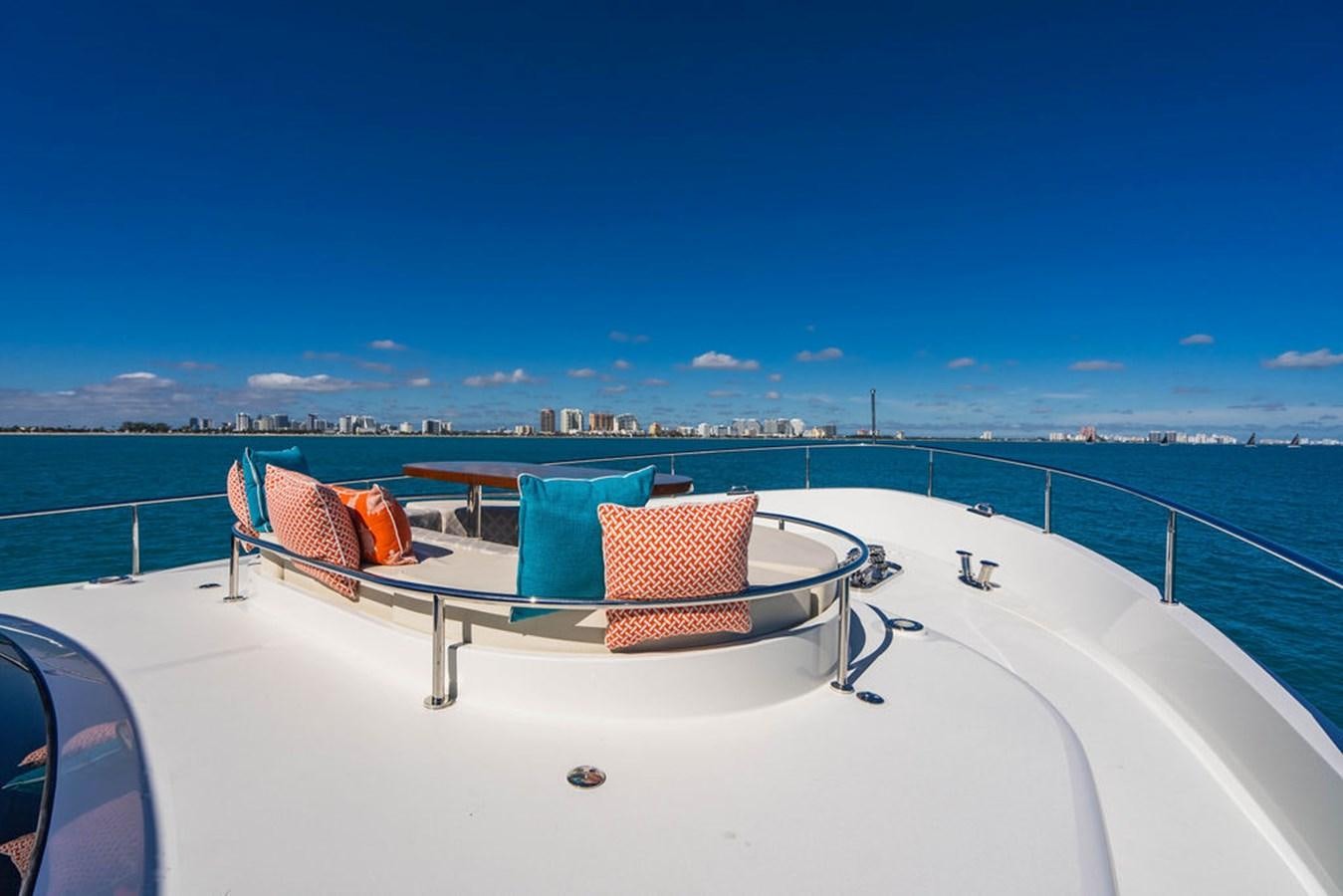

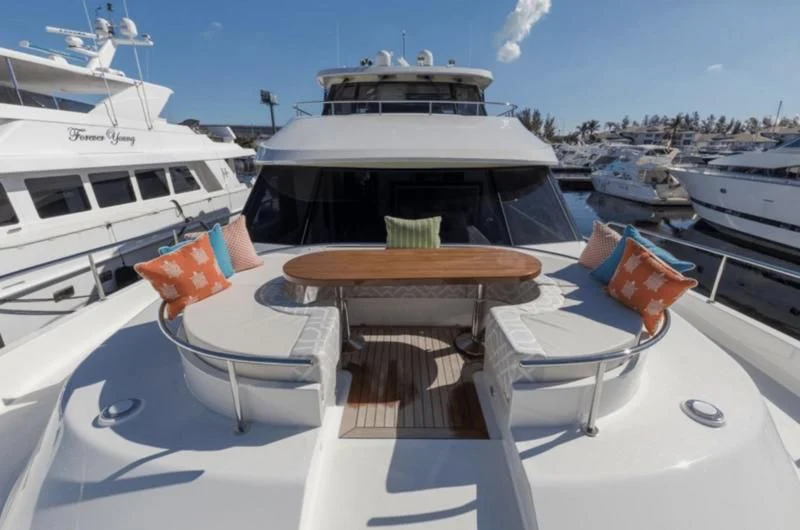

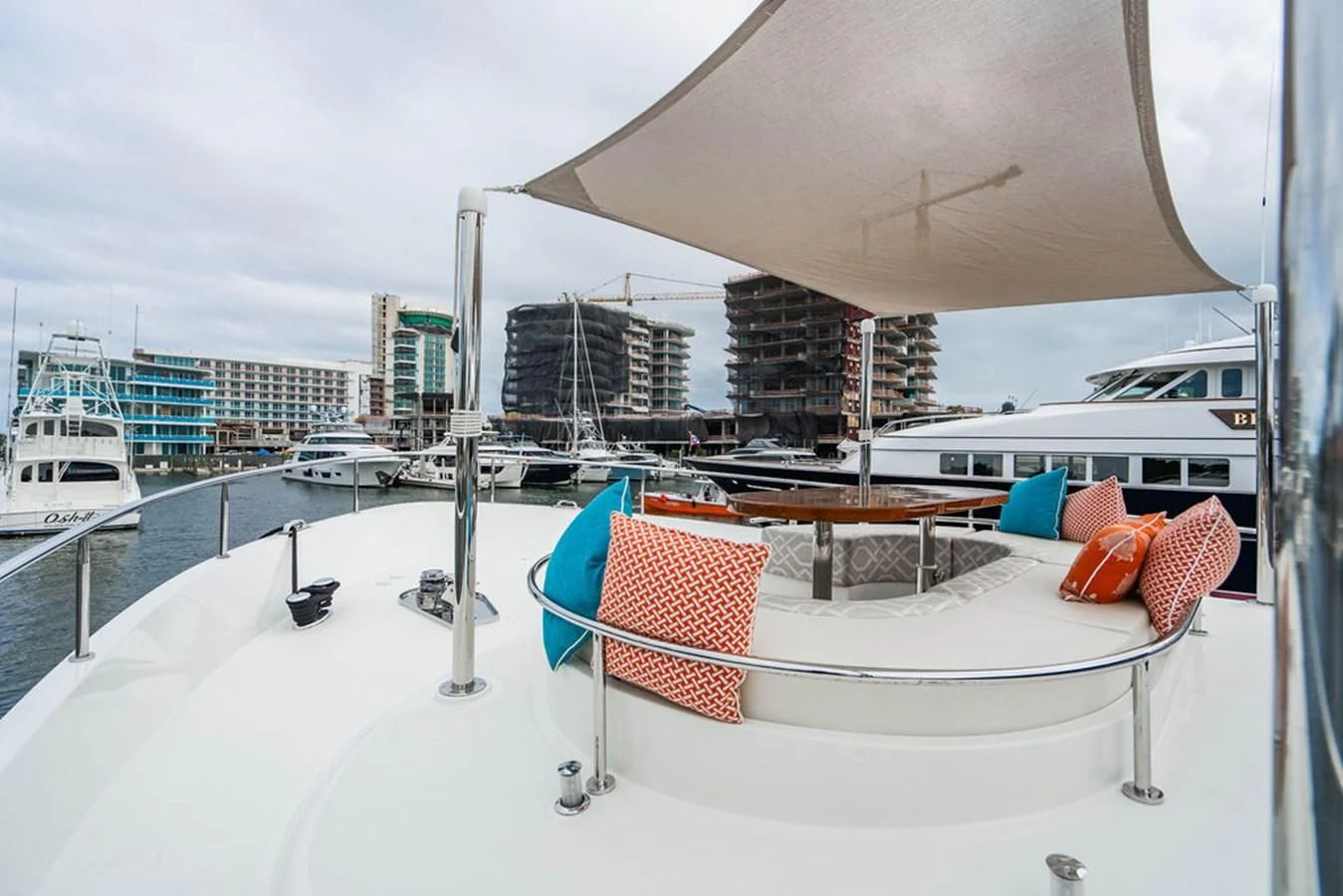

Bow seating with concealed pop­up lighting and hi­low table converts to sun pad

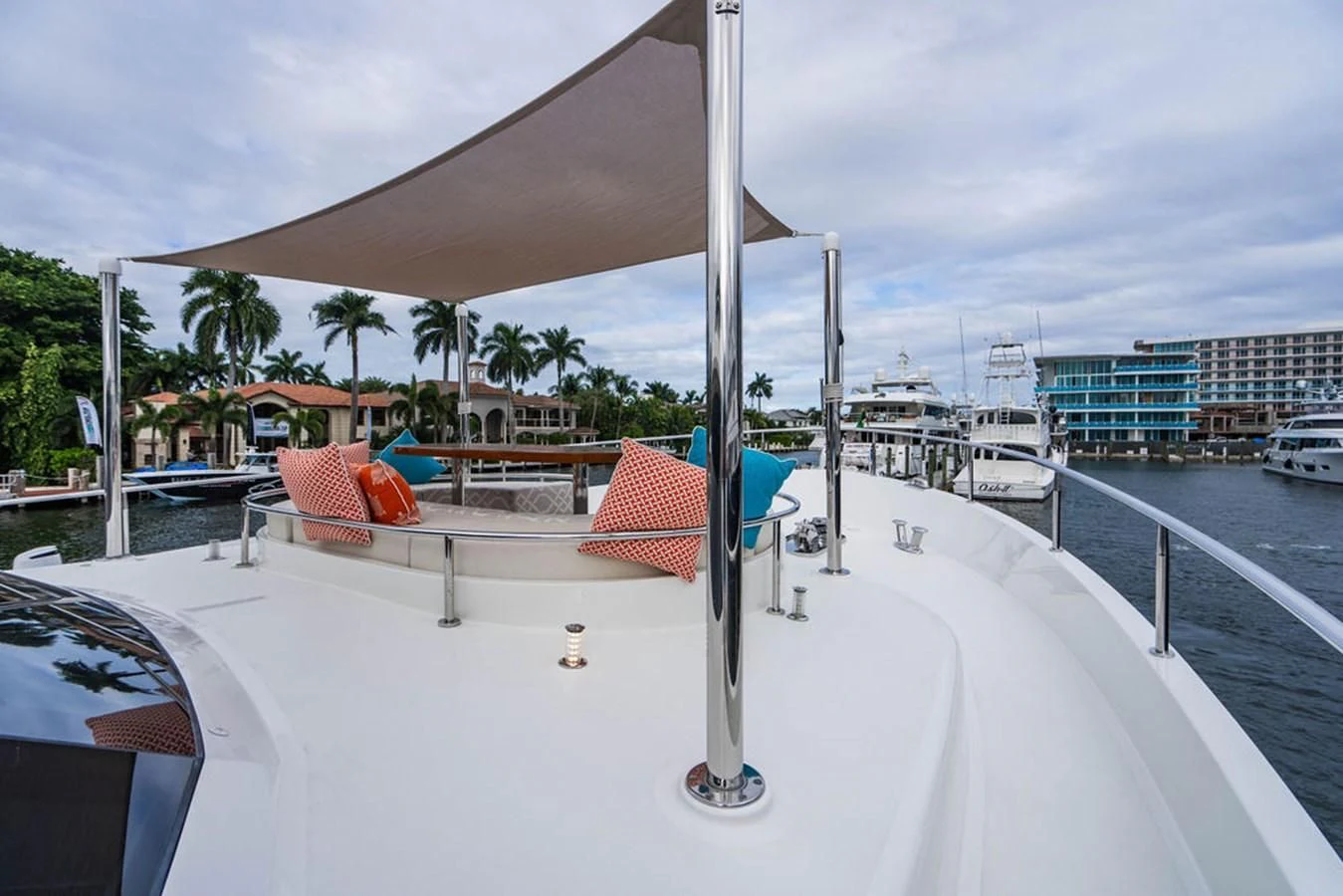

Manual awning for Bow with custom made S.S. poles and marine­ grade exterior “Batyline Crème” Ferrari mesh fabric

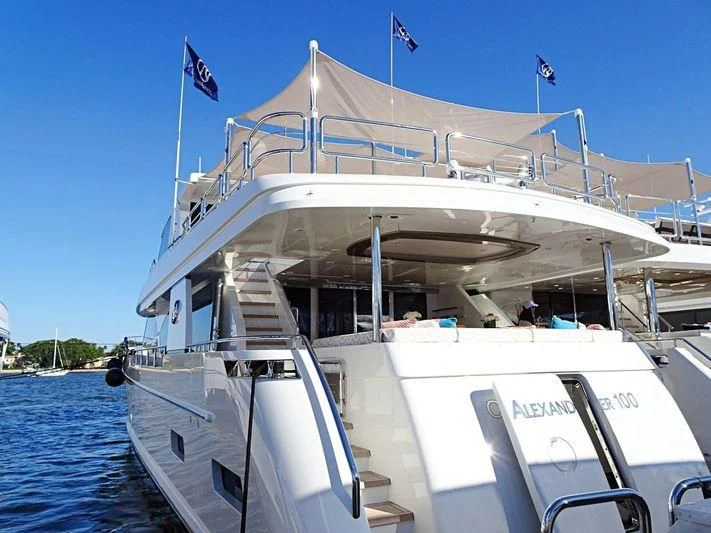

Manual awning for Flybridge with custom made S.S. poles and marine­grade exterior “Batyline Crème” Ferrari mesh fabric

Manual awning for Swim platform with custom made S.S. poles and marine ­grade exterior “Batyline Crème” Ferrari

mesh fabric

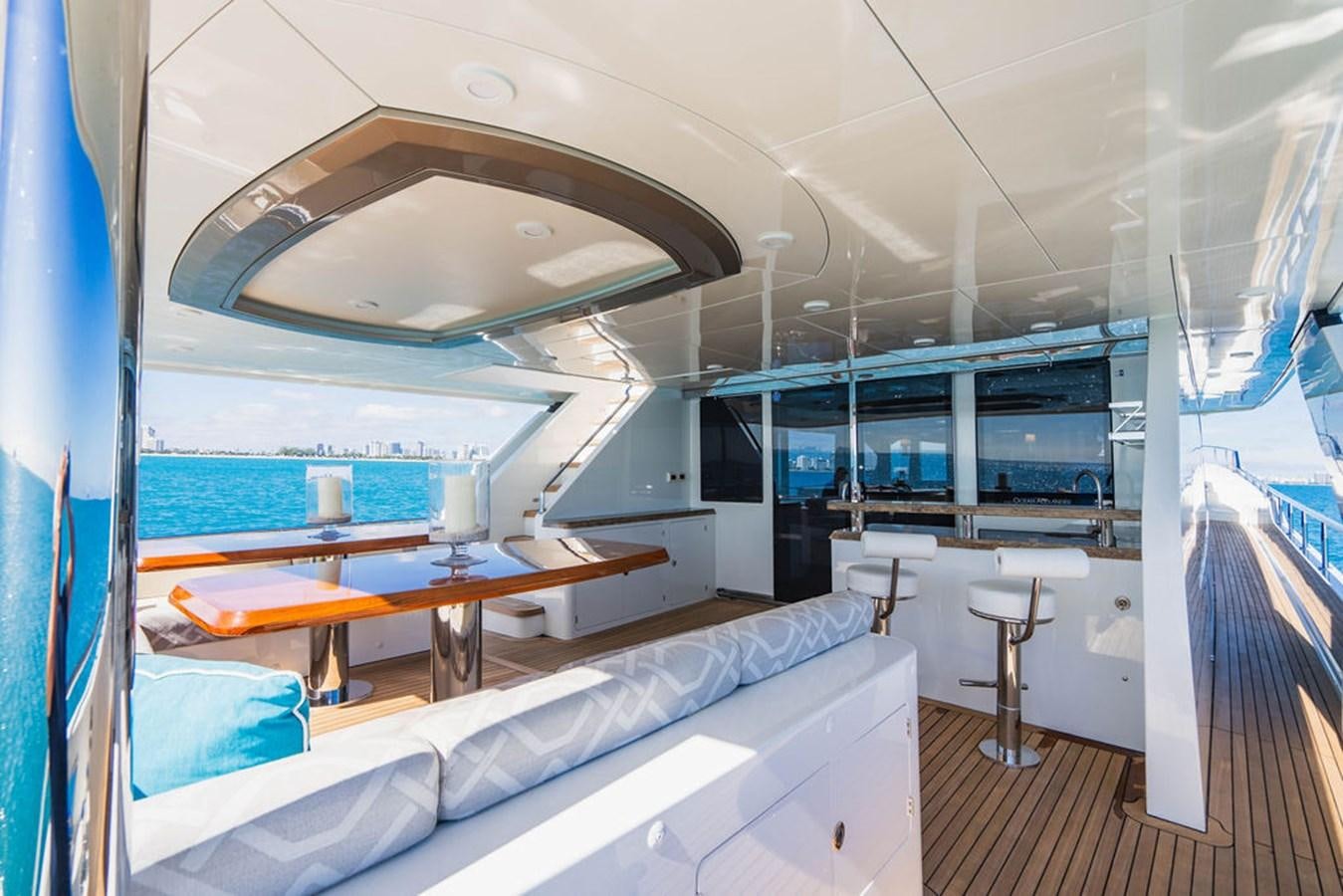

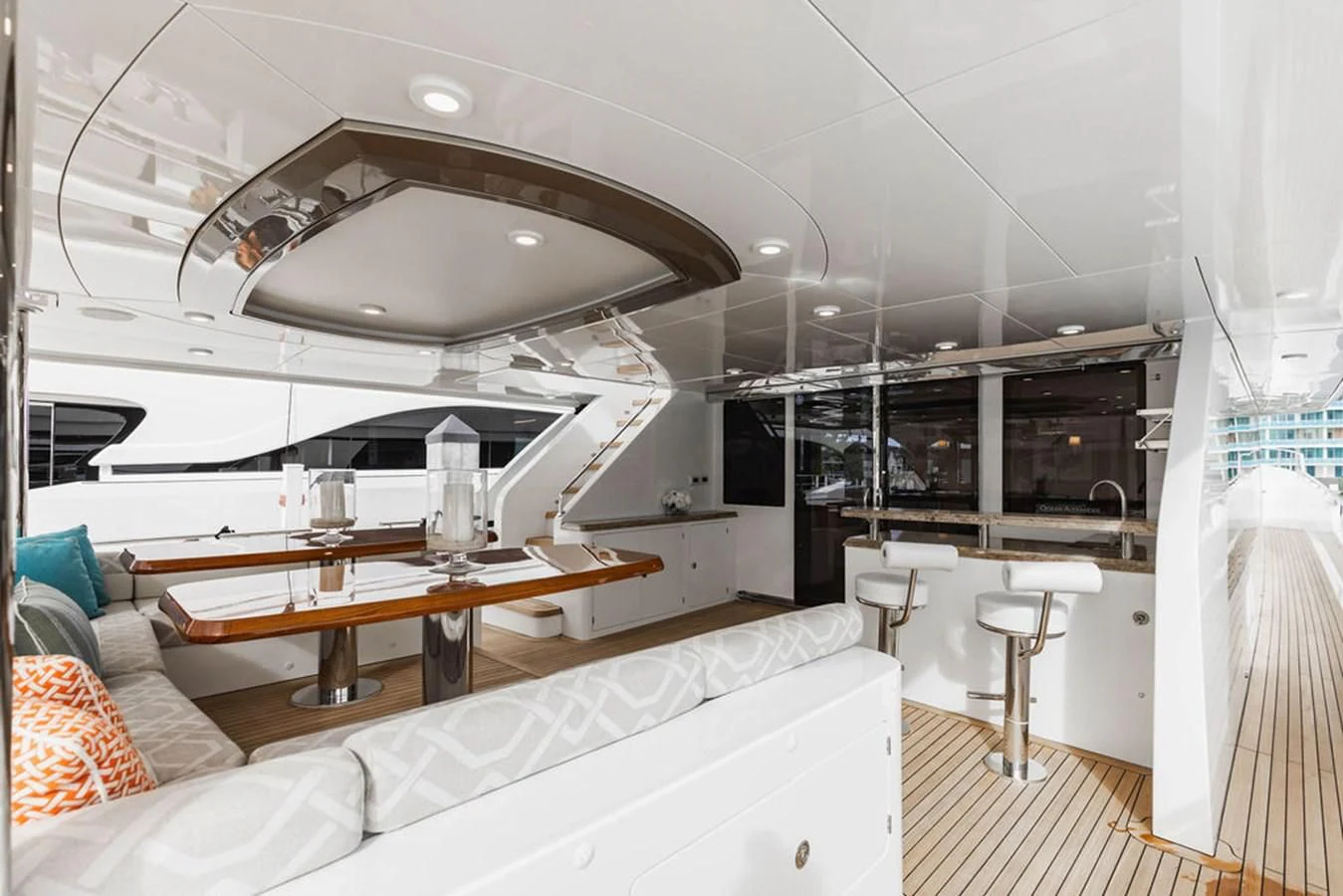

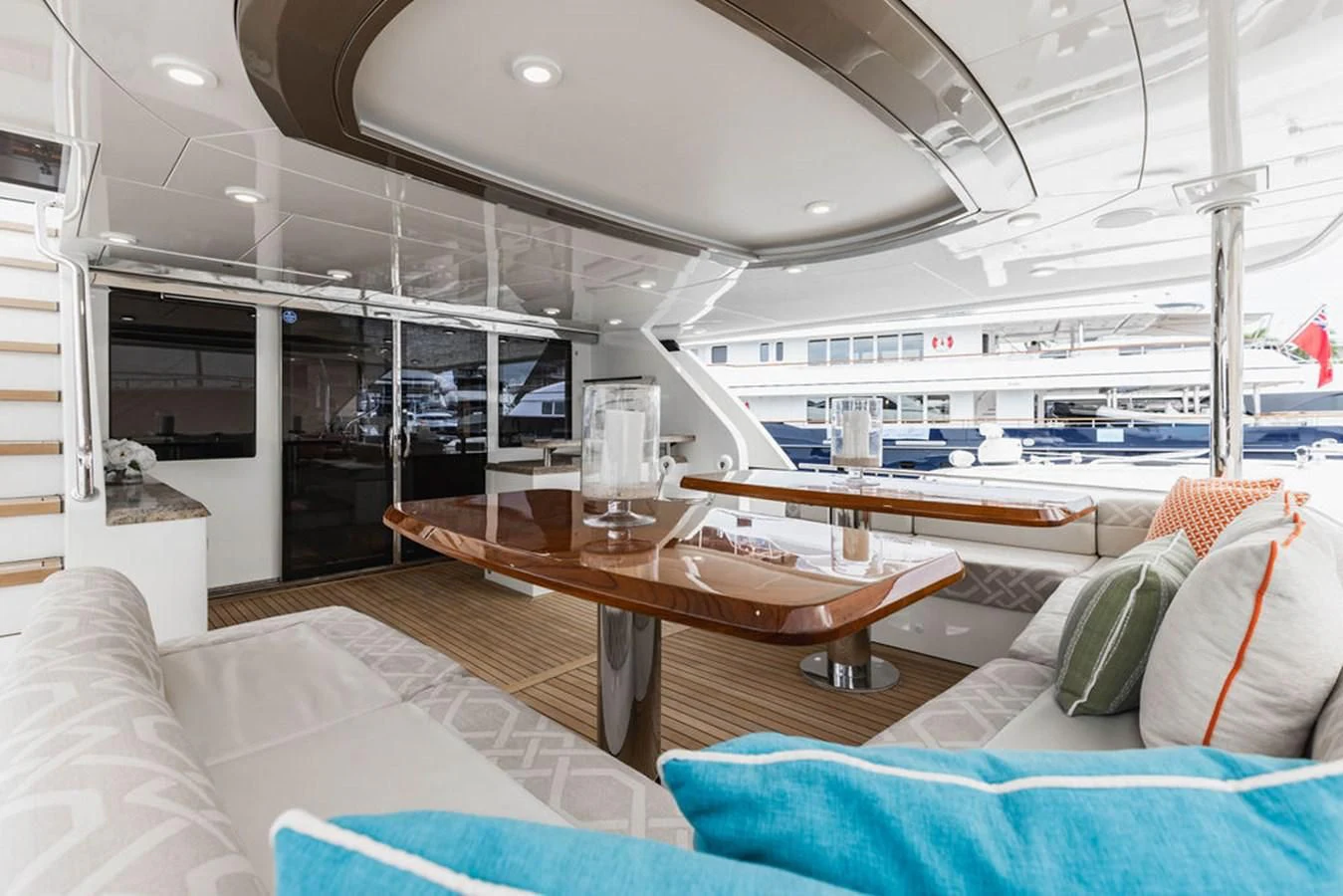

Aft ­deck custom ceiling feature

S/S transom gates for pets/children protection from Aft­ deck to swimstep

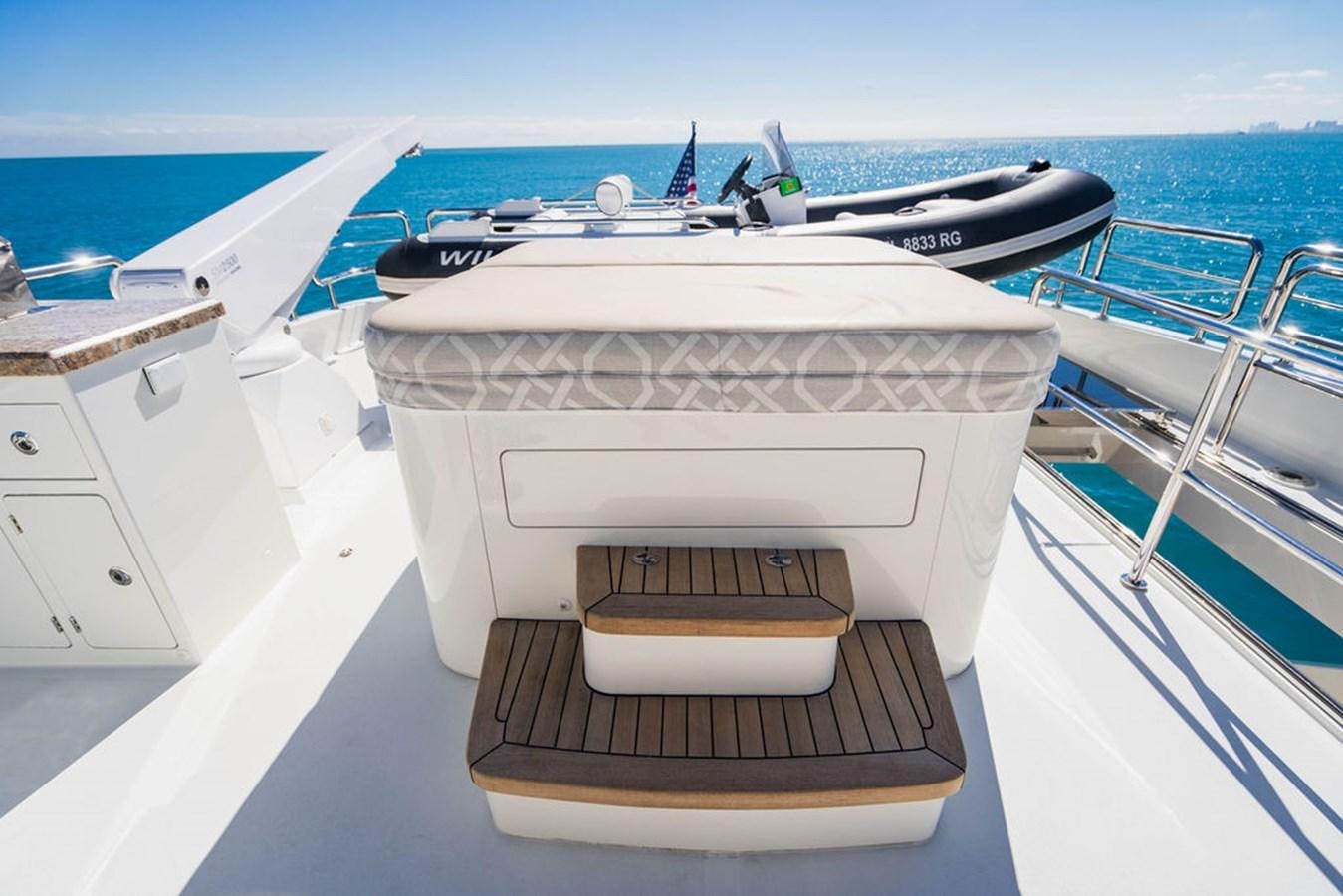

Boat deck sliding hatch

High output LED underwater lights (eight)

Custom exterior protection canvas and windshield mesh cover for exterior seating and BBQ

Spare Parts Package

                      Spare parts include:

Spare: Bilge pump, LED light, Engine/ Generator filter, Wiper blades, Touch up paint, Fuses,     Engine manuf. Spare parts kit, Generator manuf. spare parts kit, Sump pump box, Float switch, Vimar outlet, GFI outlet, Vimar switch, Wood veneer

Install on yacht as back­up “dual”: A/C sea water circulation pump, fresh water pump, treatment system, water maker

International ISO charter regulation safety gear

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
