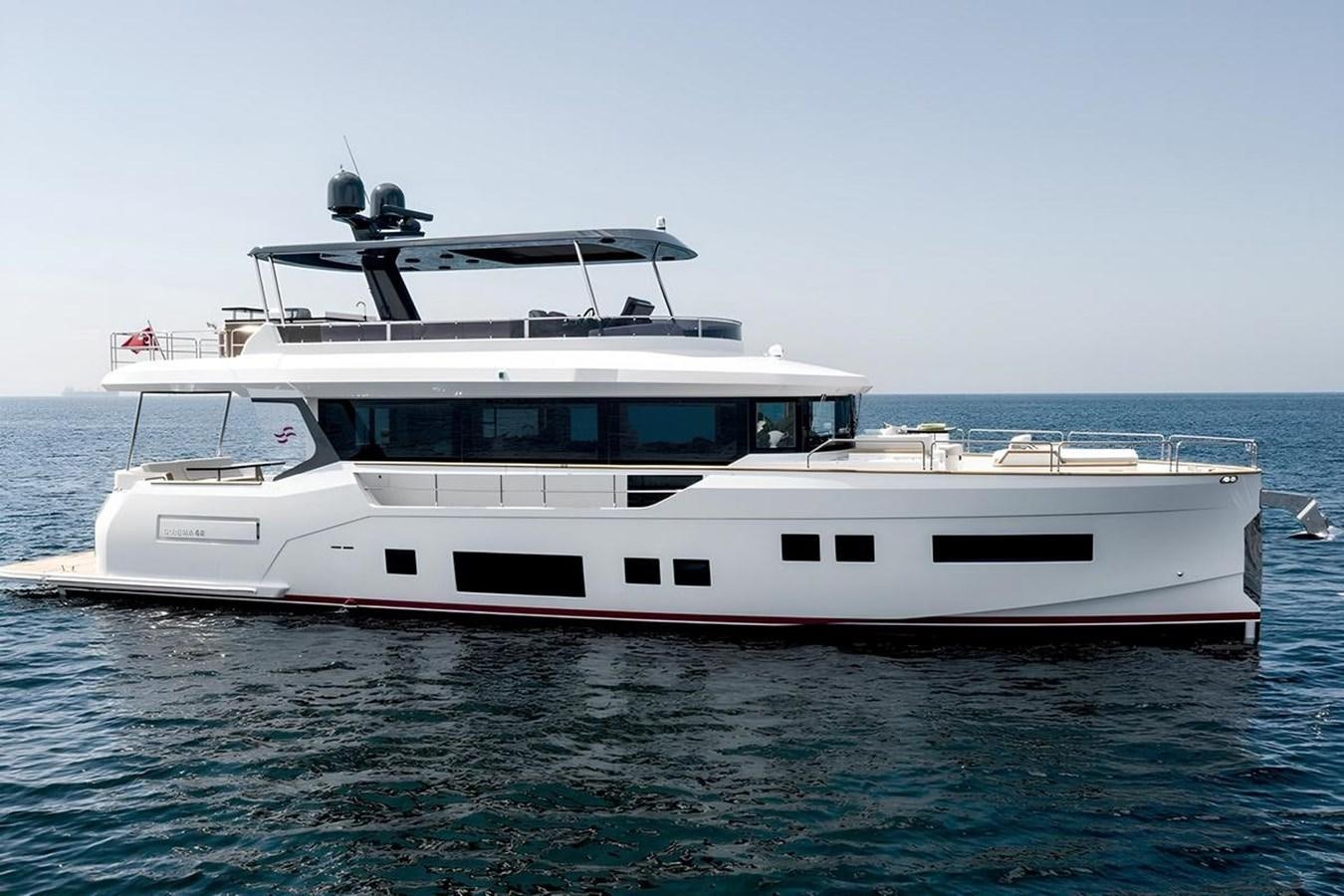

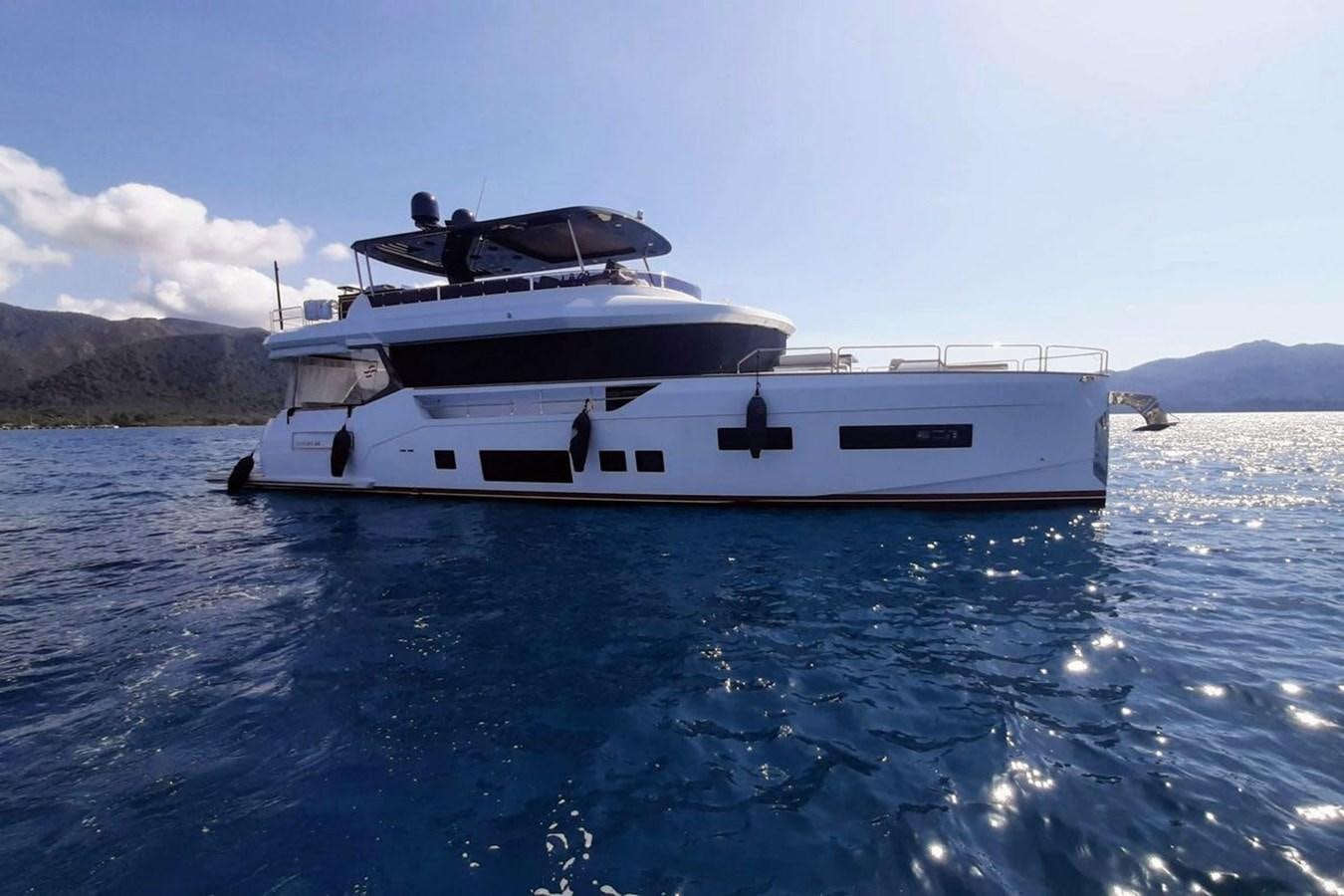

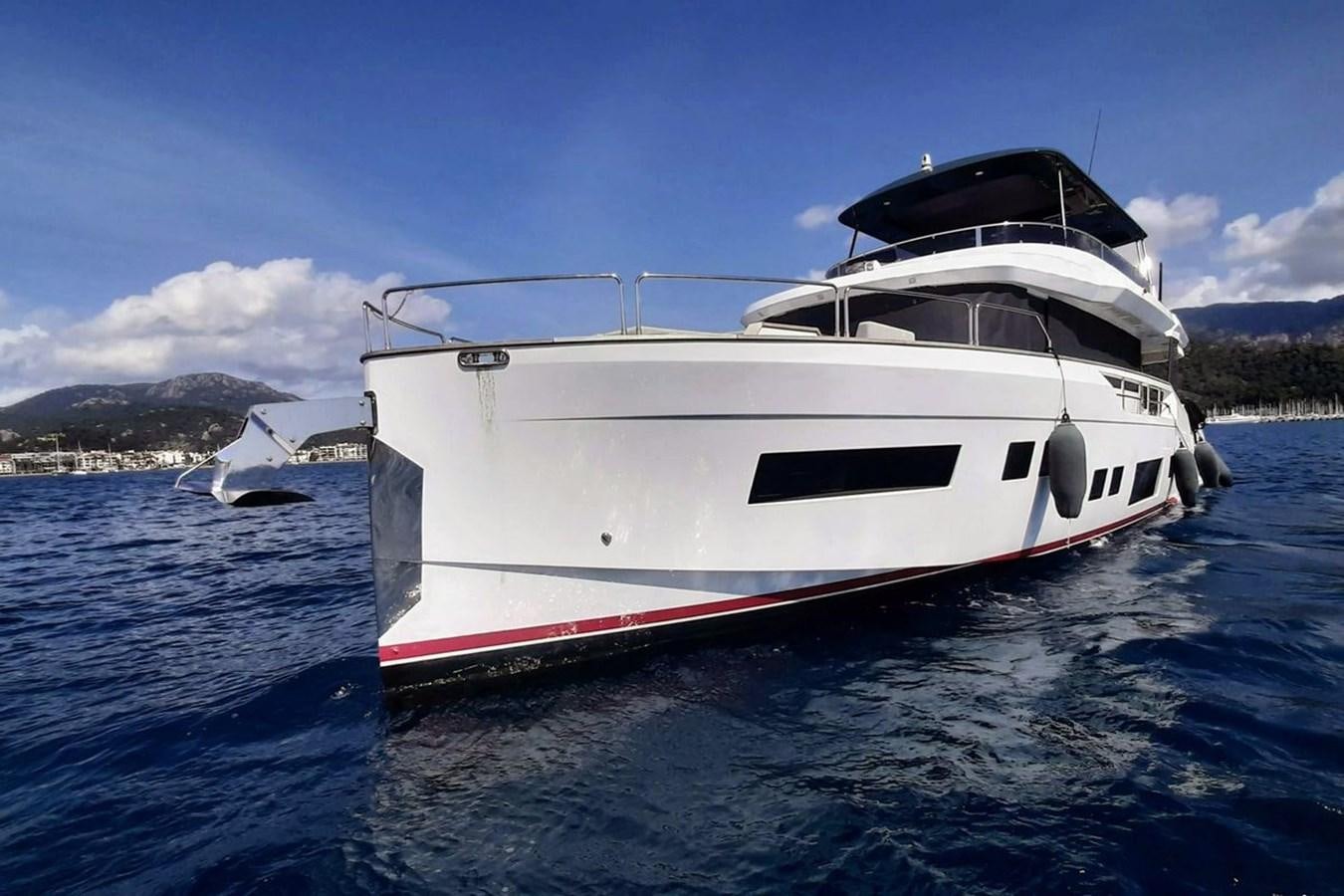

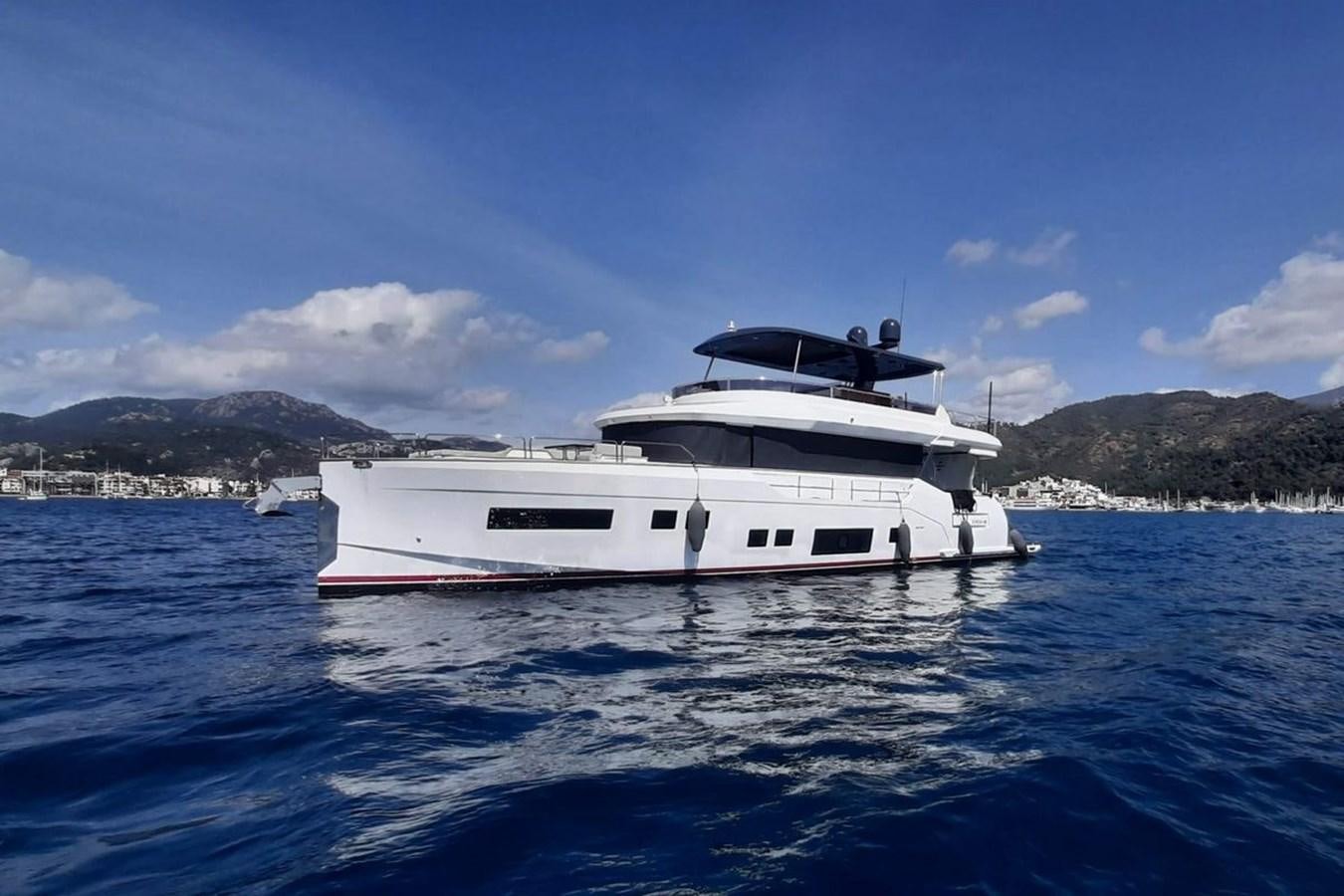

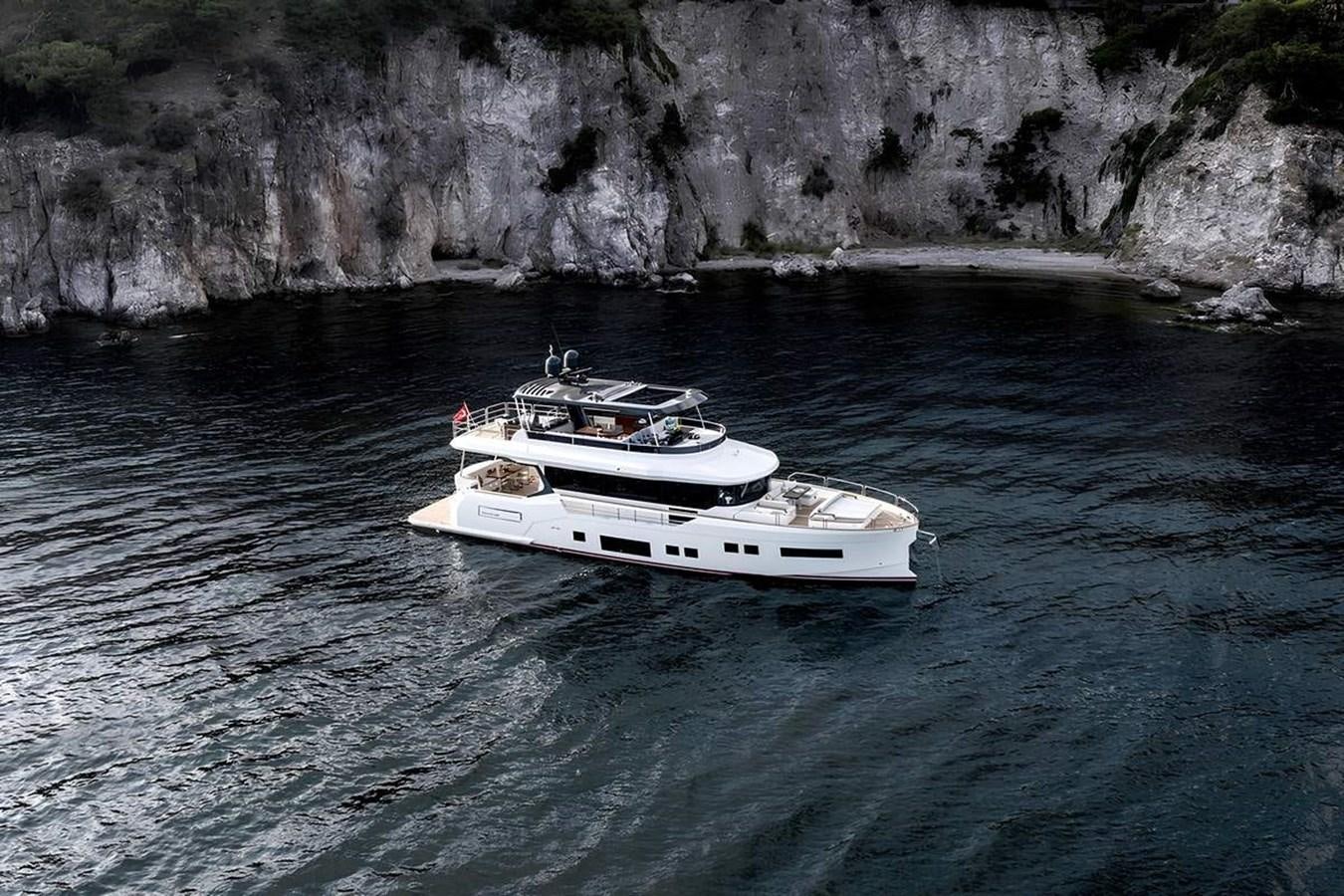

SIRENA 68 Yacht for Sale

PROPULSION SYSTEM

• 2 x VOLVO D13 900HP Engines with V-drive ZF 400 IV Gearbox (ratio 1.964:1)
• 70mm diameter Marinox 25 Duplex shaft with 10 degrees angle
• Aluminium bronze shaft support
• 5 blades Nibral propellers
• PSS shaft seal

STEERING & MANOEUVERING SYSTEMS

• Servo electric power assisted steering system and autopilot system
• Rudder blade in aluminium bronze Servo electric power assisted steering system and autopilot system
• Dynamic automatic trim control via Interceptor
• 10.5kW variable speed bow thruster - 24VDC, D. 250 mm

SHORE POWER CONNECTION

• Shore power socket 230V-63A
• The power lines are protected by dedicated RCBB circuit breakers
• 15 meter shore connection cable

BATTERIES

• Nr. 10 Mastervolt batteries - 130Ah-12V, including: 6 for services, 4 for engine start
• Nr. 1 Mastervolt battery 95Ah 12V for generator
• Nr. 1 Mastervolt battery charger 12V 25A for generator starting battery
• Nr. 1 Mastervolt battery charger 24V 100A for service batteries
• Nr. 1 Mastervolt battery charger 24V 30A for engines starting batteries

BILGE SYSTEM

• Nr. 1 x 24V Electrical Bilge Pump in engine room
• Nr. 2 x 24V automatic Electrical Bilge Pump 24V in the accommodation area
• Nr. 1 manual bilge pump located at aft deck under mooring area. Two suction areas through a valve, one suction at accommodation area, one suction at engine room
• Nr. 6 bilge level alarms Nr. 3 bilge high level alarms
• Engine room emergency pump through a diverting valve fitted on engine seawater cooling line
• Each electrical pumps can be manually activated by switches placed in the helm station

FUEL SYSTEM

• Nr. 2 interconnected S.S. fuel tanks (total 5250 liters) in engine room
• Fuel level indicators for each tank on monitoring system
• Visual level gauge on port and starboard tanks
• Nr. 2 filling ports on deckhouse sides
• 2 single VOLVO separation filters for engines
• 1 single Racor separation filter for generator

FRESH WATER SYSTEM

• Nr. 2 HDPE tanks, 1.400 liters total capacity
• Self-priming fresh water pump
• Tank level indicator and empty status integrated in the monitoring system
• 80 liters water heater 220V-1200W

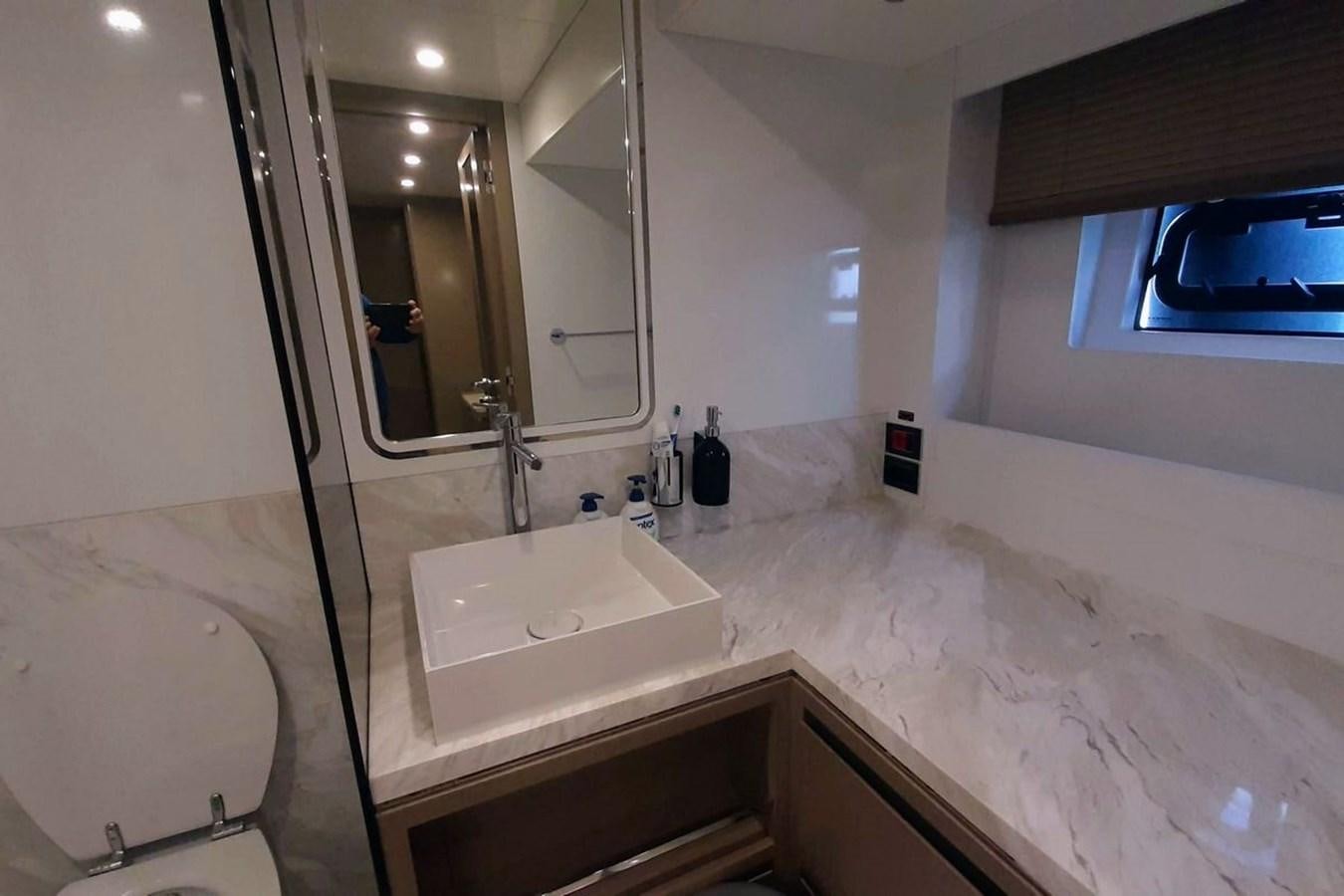

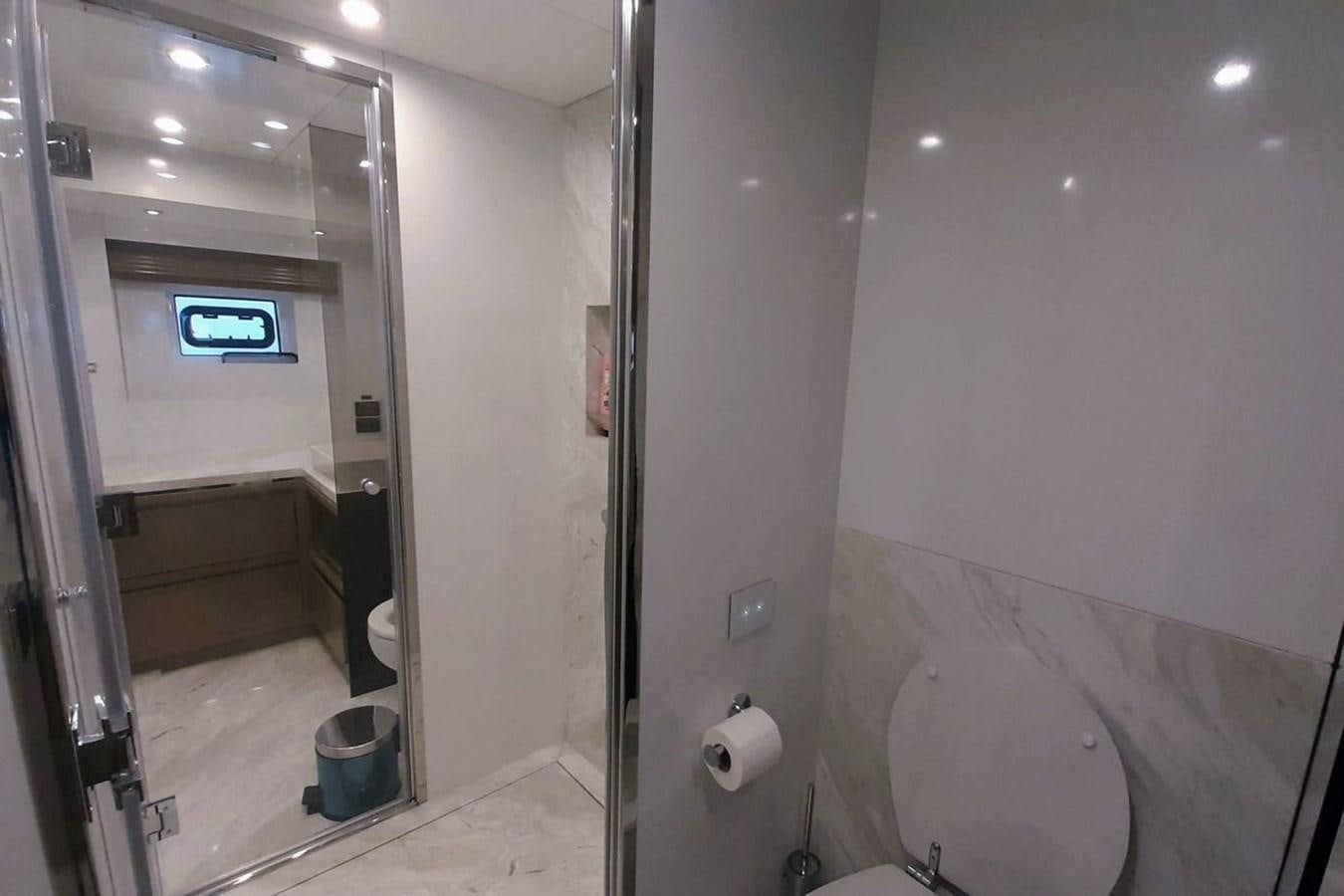

• Hot and cold water in all head rooms, galley, cockpit, flybridge sink and fly shower
• Cold water outlet in engine room
• Filling cap at fore deck
• Shore fresh water connection

BLACK WATER SYSTEM

• Electric toilets with built-in macerators
• Nr. 1 HDPE tank 450 liters capacity
• Tank level indicator integrated in the monitoring system
• 3/4 and full tank indication in the heads
• Fresh water toilet flushing
• Holding tank discharge via suction on deck starboard side walking area.
• Overboard discharge of waste water, via a dedicated line at the exit of the holding tank

GRAY WATER SYSTEM

• Nr. 1 HDPE tank 400 liters capacity
• Nr. 4 sump tanks
• 3/4 and full tank indication in the heads and dashboard
• Water drainage from showers and sinks into tank
• Level sensor integrated in the monitoring system
• Water drainage via manifold
• Manual / automatic overboard discharge

SEAWATER SYSTEM

• Nr. 2 sea water intakes with filters and valves for engine cooling system
• Nr. 1 sea water intake with filter and valve for generator cooling system
• Nr. 1 sea water intake with filter and valve for chain wash and deck wash system

ENGINE EXHAUST SYSTEM

• Water-cooled engine exhaust, thermal-insulated stainless steel manifolds, submerged outlets, and bypass line on hull sides

VENTILATION / EXTRACTION

• Air inlet and outlet openings with a GRP cover on hull sides.
• Nr. 2 24V air inlet fans at port side ventilation channel
• Nr. 4 24V extraction fans starboard side ventilation channel
• Mist eliminators on the ducts at each side in the engine room

OTHER EQUIPMENT

• Six 12 meters mooring lines in 18mm diameter
• Nr. 8 fenders and covers with 8mm diameter lines
• Owner’s manual
• Sirena Yachts reserve the right to change specification without any prior notice.
• Effective from 15th March of 2022 REV.03

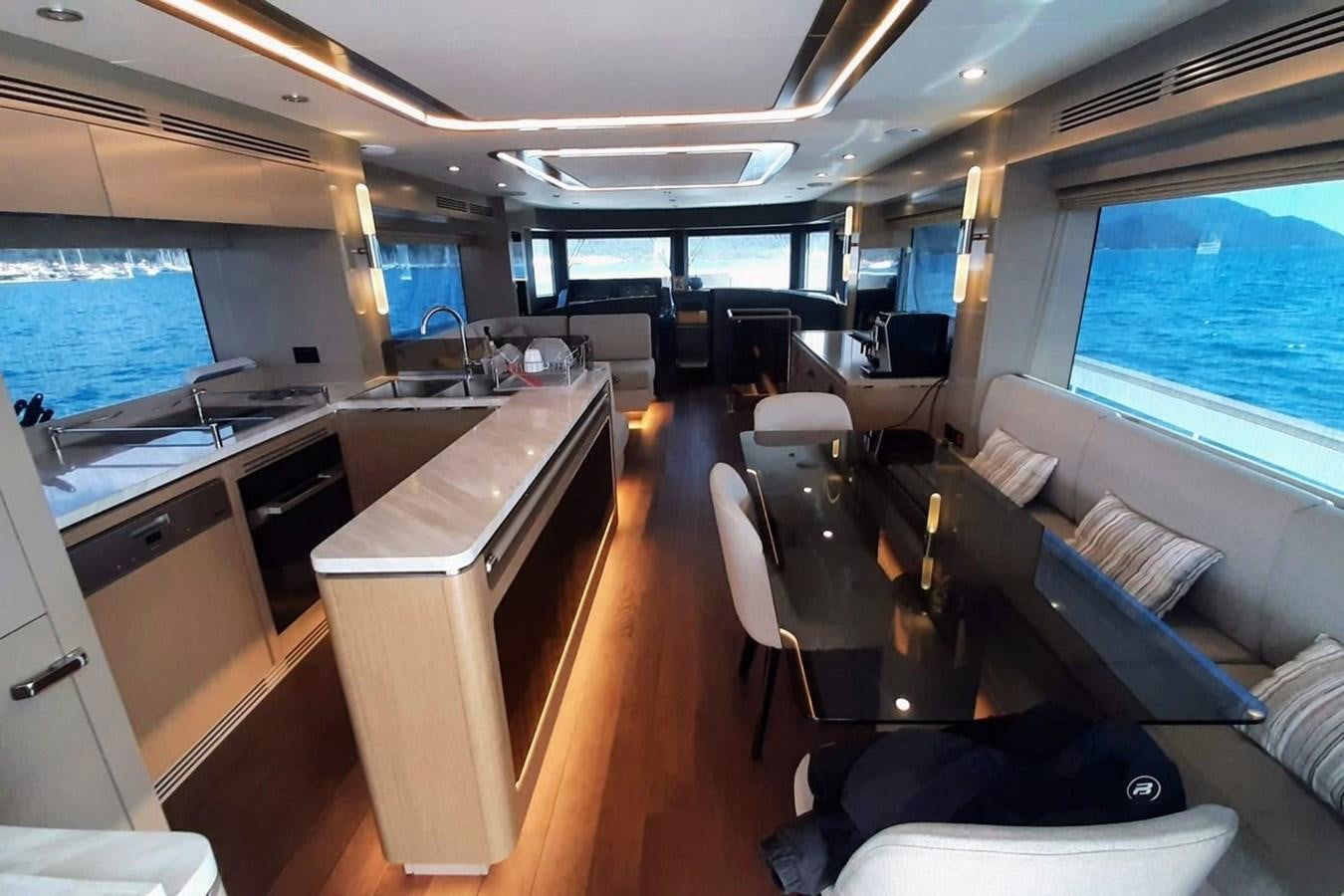

• Galley area on port side at the aft of the saloon
• Venetian blind
• Sliding opening window on port side
• Wooden Floor
• Low cupboards

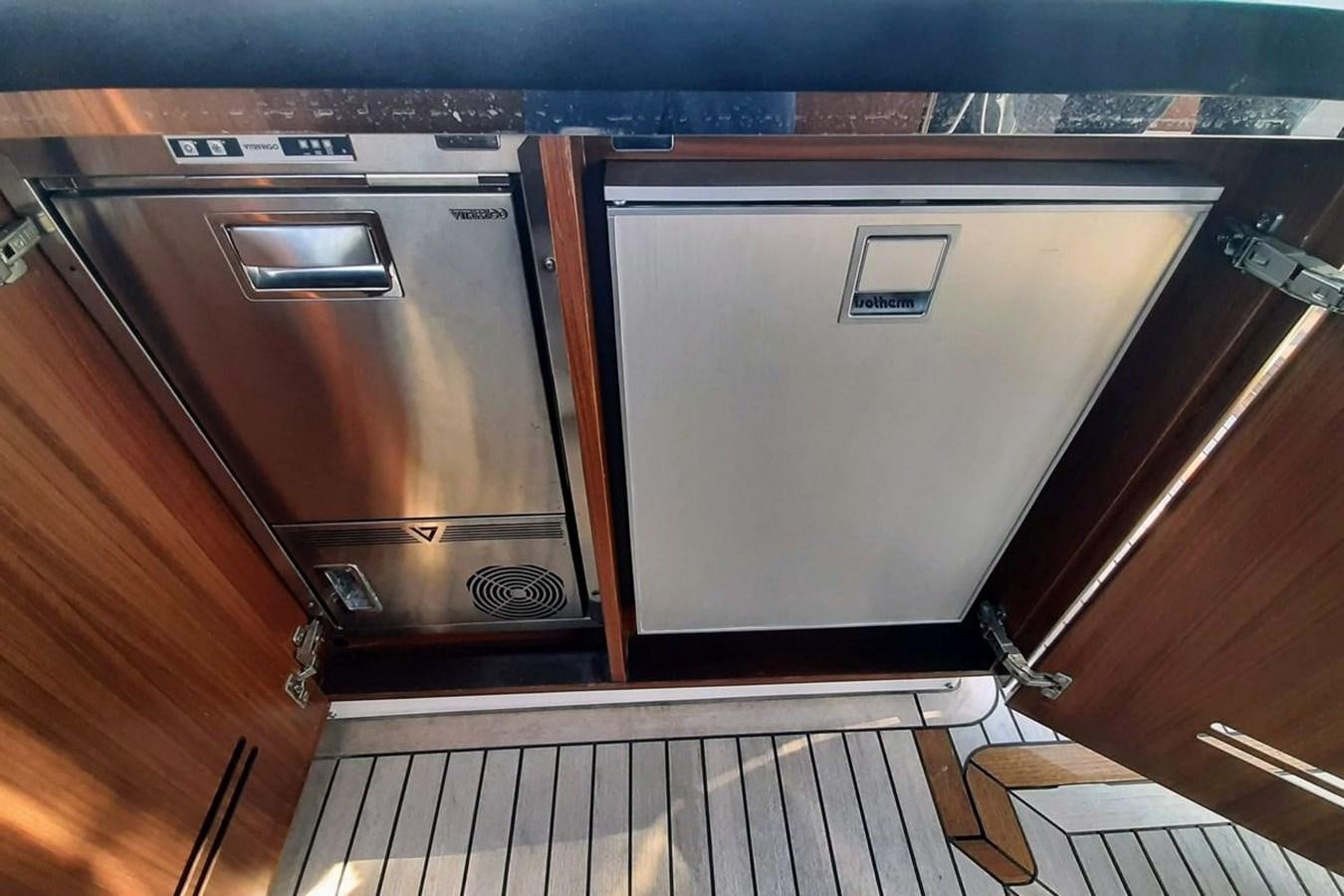

• Refrigerator/freezer 268lt (196lt + 72lt) at portside
• Worktop in Corian®
• Stainless steel sink with water mixer
• Four-hob glass ceramic cooktop with stainless steel pan holder
• Oven
• Extraction hood
• LED spotlights
• Rubbish bin
• Nr. 2 AC socket

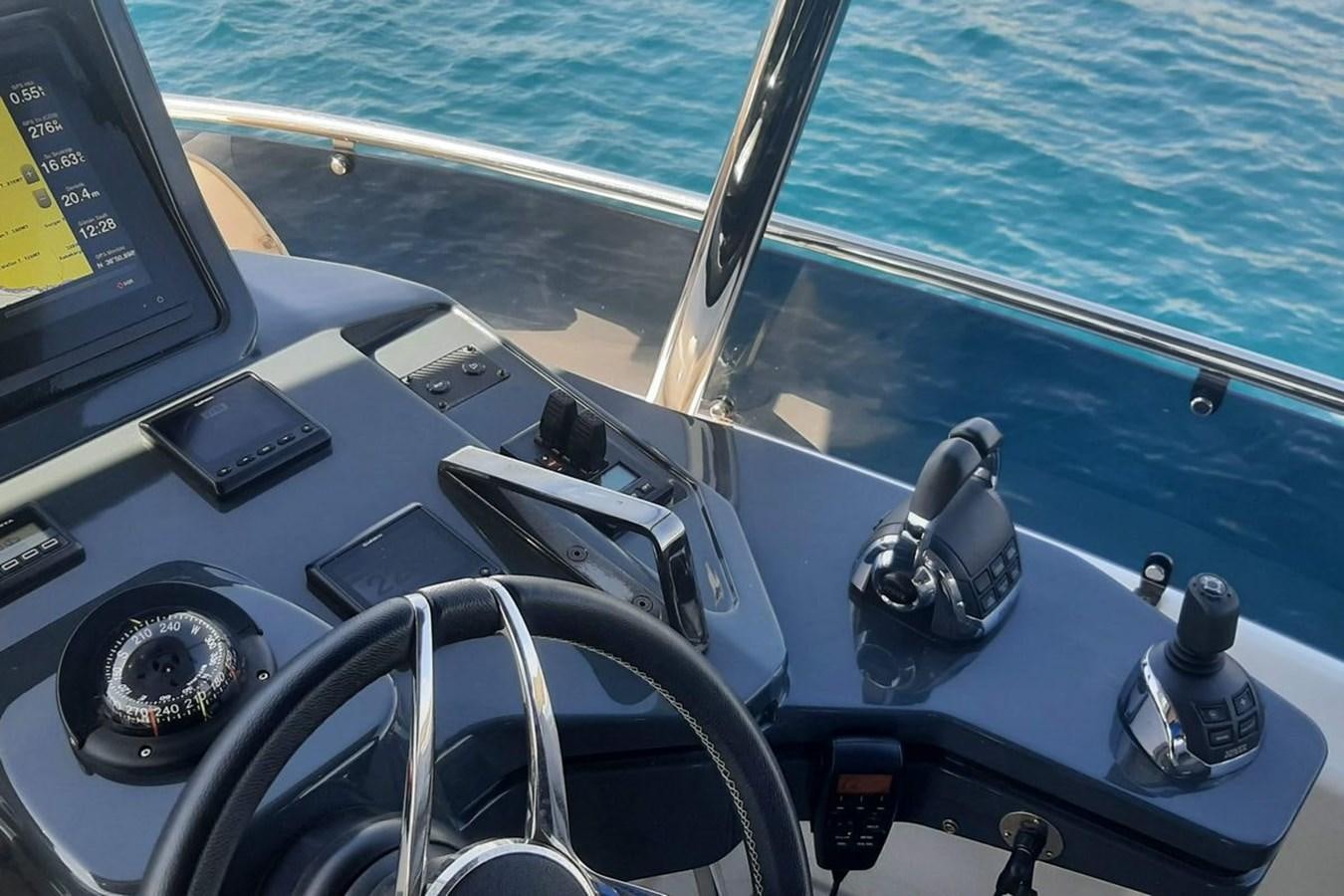

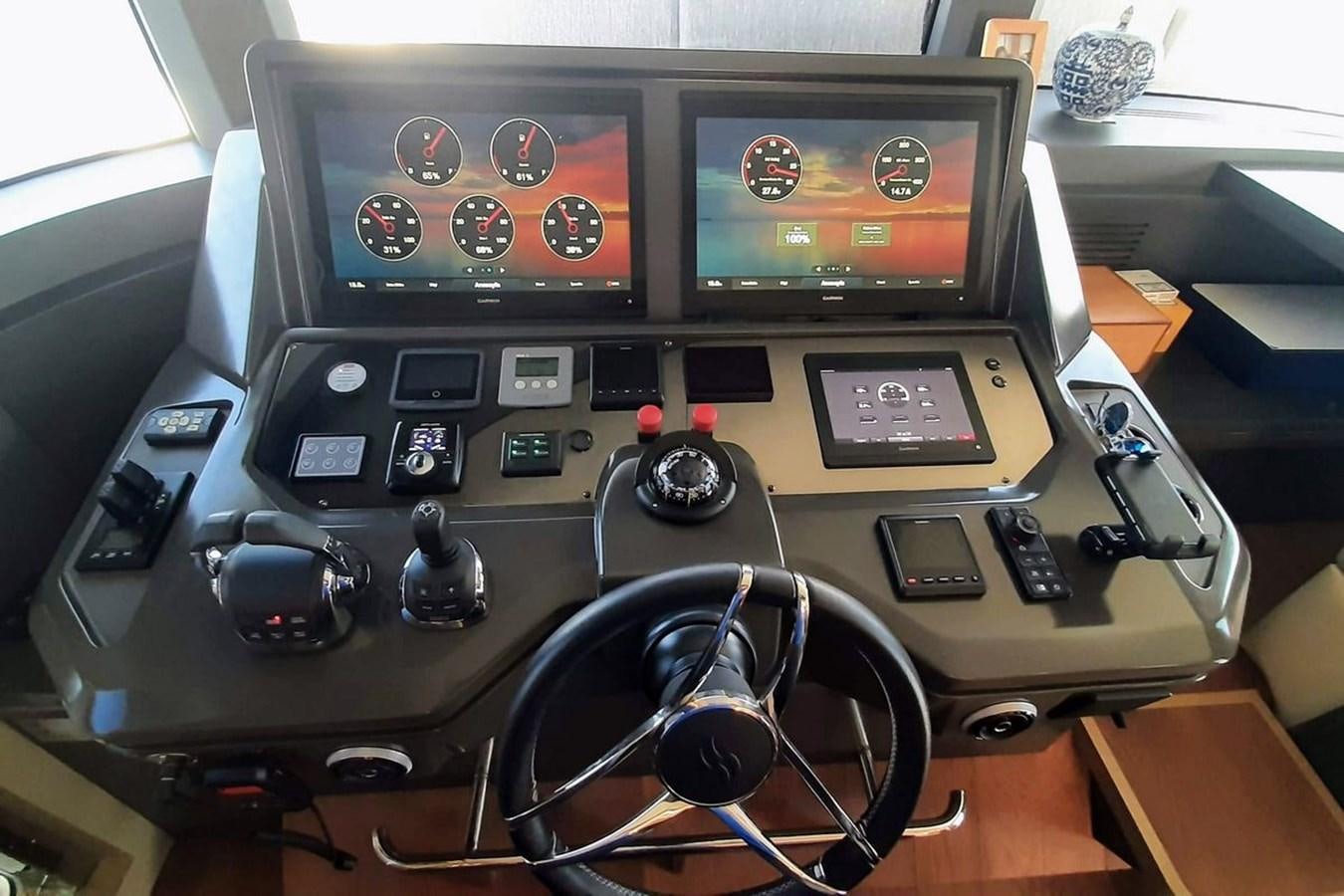

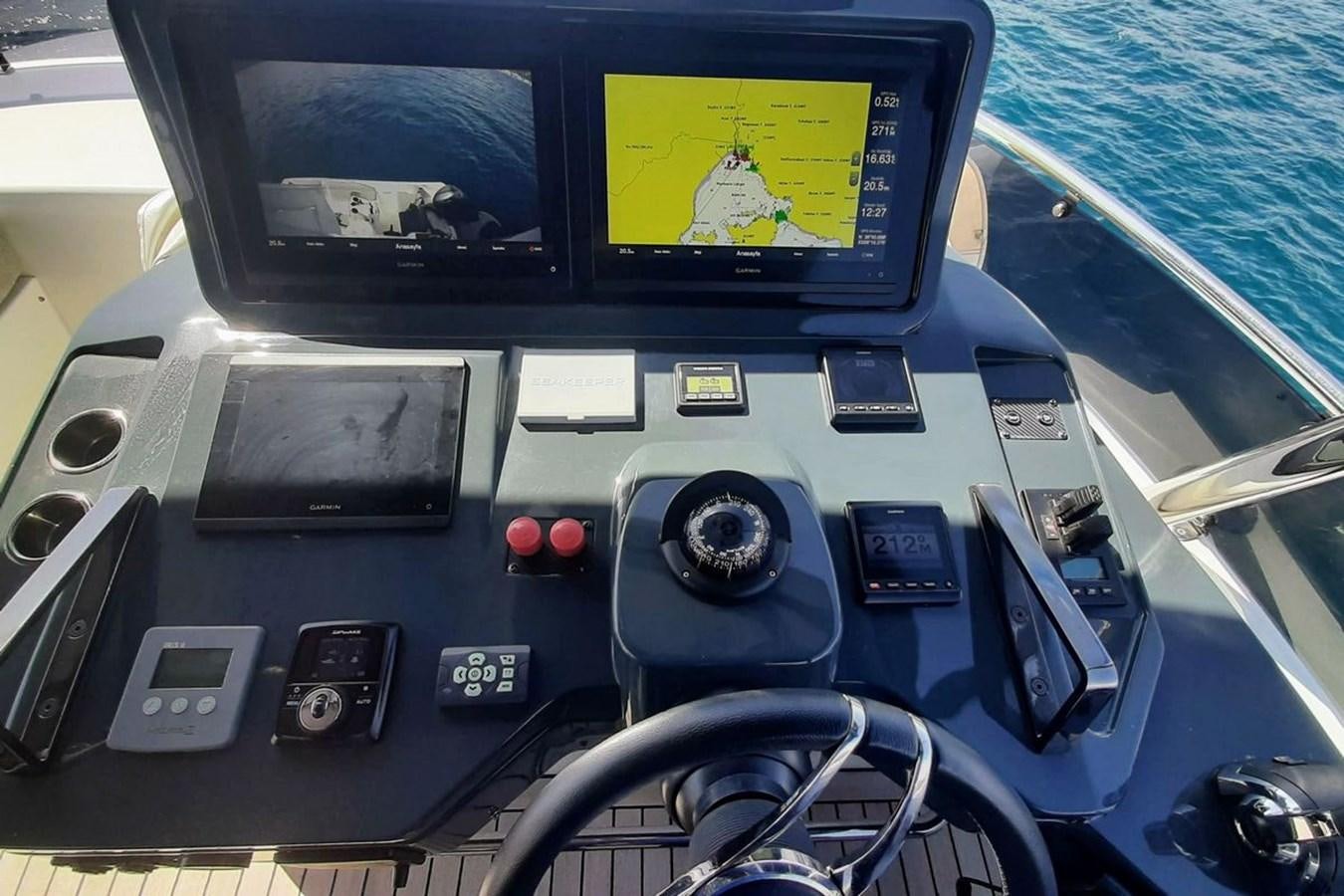

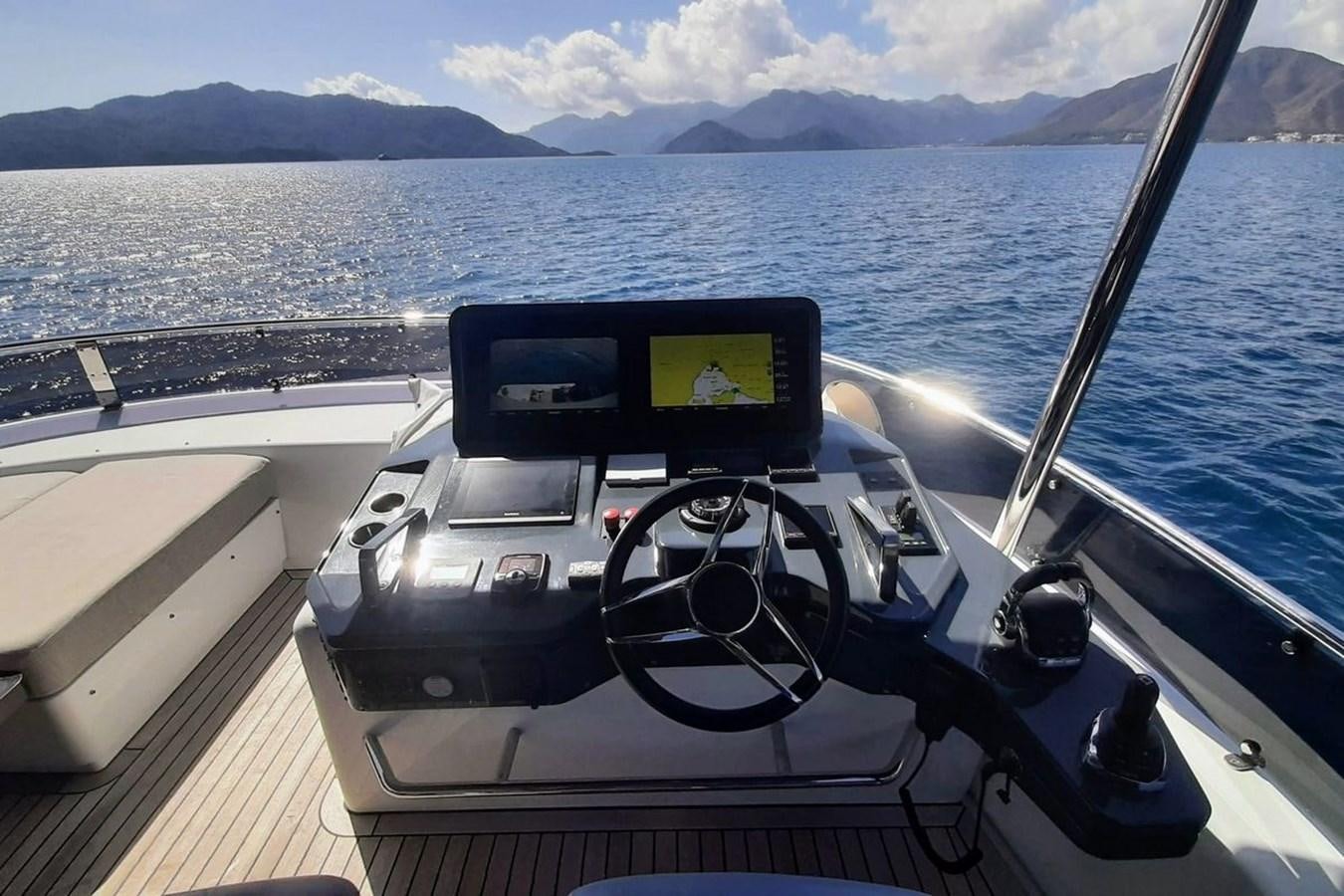

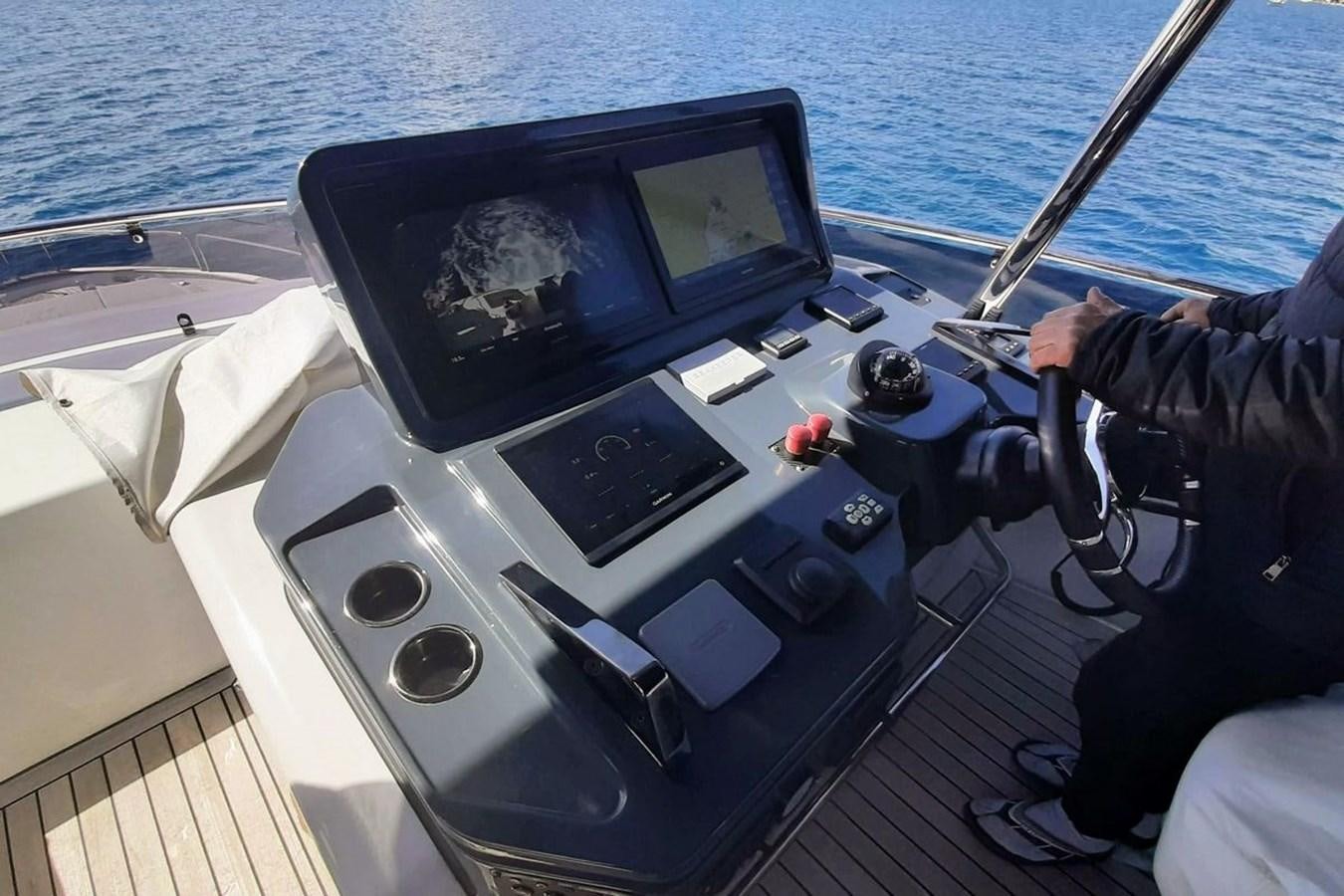

• Garmin GHS 11i VHF Radio

• Garmin 12’’ MFD GPSMAP 8610
• Garmin GHC20 Autopilot Control Head
