Asking
€ 12,907,110

PROJECT OCEAN Yacht for Sale

Length
89' 6" (27.3m)
Builder
Arksen
Build
2023
Guests
6
Cabins
3
Crew
2
Asking Price
€ 12,907,110

Embark on thrilling expeditions aboard the Arksen 85 PROJECT OCEAN, meticulously designed in collaboration between Arksen and Humphreys Yacht Design and expertly crafted by Arksen in the UK. Interior design and sustainable material selection by multi-award-winning, Design Unlimited. She can comfortably accommodate six guests and two crew.

PROJECT OCEAN embodies Arksen’s focus on safety, robustness and a seamless journey blending comfort, security and efficiency. Built to meet commercial regulation (MCA) standards, this vessel offers unrivaled accessibility, empowering you to explore remote destinations with confidence and peace of mind. Designed to handle any obstacle, PROJECT OCEAN lets you embark on remarkable adventures with unwavering assurance.

This vessel is a testament to innovative engineering, seamlessly combining remarkable efficiency with unmatched comfort. Its advanced hybrid propulsion system, state-of-the-art stabilization technology and exemplary systems engineering optimize efficiency while reducing emissions, noise and vibrations. Supported by active fin and gyro stabilizers, PROJECT OCEAN ensures supreme comfort and stability throughout your voyage.

Designed for simplicity of operation and minimal maintenance, PROJECT OCEAN allows you to fully immerse yourself in the excitement of exploration. The hybrid propulsion system offers multiple redundancy and in-service maintenance, ensuring your focus remains on your adventures and reducing the need for downtime. Her aluminum construction provides exceptional strength, corrosion resistance and insulation, minimizing the level of maintenance required.

The choice of an aluminum superstructure was an important one, as it reduces her environmental impact. The aluminum is made from 40% recycled content and is fully recyclable at the end of life, reflecting a strong commitment to sustainability.

PROJECT OCEAN has been designed and engineered for progressive, "preservation" cruising — a first in yachting. This means she has a truly transoceanic 7,000nm range (comparable to motor yachts three times her size). She has the ability to switch to zero emissions mode and silent running at your destination, thanks to the solar array and hybrid propulsion. The virtual anchor also enables the vessel to visit protected marine environments and leave no trace.

Arksen and Humphreys Yacht Design have achieved this by developing a very efficient low displacement/length ratio hull form and incorporating features such as twisted flow rudders to minimize resistance. This will naturally benefit the owners' running costs and reduce emissions. Her hull design is complemented by the Praxis hybrid propulsion system. PROJECT OCEAN achieves near-silent running at all times as the electric motors and generators are mounted and insulated to limit noise and vibrations.

Embark on your adventures knowing you're treading lightly on the environment, enabling future generations to enjoy our planet's wonders.

Complementing her exceptional capabilities, PROJECT OCEAN features a custom-fitted Tesumo timber deck with a 3D milled cork panel underlay that follows the contour of the deck structure on the underside and provides a perfectly flat surface on the top. In addition to reducing the adhesive required during installation, the cork layer provides additional acoustic and thermal insulation.

The large aft deck was designed to be a flexible space for storage for up to a 5.5m tender, with a high-capacity crane or to allow for vital ocean research. Owners who take the Arksen Sea Time Pledge gain access to a global network of scientists looking to conduct research in some of the most beautiful and fragile locations. You have the opportunity to gain an ultimately unique experience for you and your guests while also providing vital ocean access for marine scientists and researchers. This remarkable attribute sets this Arksen 85 apart from similar vessels of the same size, enhancing your adventures and embracing the spirit of exploration.

Embark on an extraordinary journey aboard PROJECT OCEAN, where reliability, robustness and breath-taking discovery converge. This true exploration yacht ensures your safety, unrivaled comfort and effortless operation. With minimal maintenance and profound respect for the environment, she paves the way for remarkable expeditions that redefine your perspective.

Highlights

  • New build 85% completed by Arksen on the Isle of Wight
  • Hybrid propulsion system for high efficiency, lower emissions, silent running, low vibrations
  • Aluminum-built for minimal environmental cost and fully recyclable; excellent quality in terms of weight, strength, corrosion resistance and insulation
  • Zero speed stabilization system
  • Built to commercial regulation (MCA) and below 24-meter load line
  • Low maintenance and running costs
  • Ample storage capacity for up to 5.5 meter tender and toys
  • 3 guest cabins for up to 6 guests
  • Open galley on main deck

Specifications

Builder Arksen
Model Custom
Length (LOA) 89' 6" (27.3m)
Year 2023
Gross Tonn. 125
Draft 5' 1" (1.55m)
Beam 22' 11" (7.01m)
Range 7,000 NM
Location United Kingdom
Classification Lloyds

Accommodations

Staterooms 3
Twin Beds 2
Crew Cabins 1
Crew Sleeps 2

Dimensions & Capacity

LOA 89' 6" (27.3m)
LWL 84' (25.79m)
Max Draft 5' 1" (1.55m)
Fuel Tank 4,755 g (18,000 L)
Fresh Water 1,585 g (6,000 L)
Gross Tonn. 125
Displacement 112

Construction

Hull Material Aluminum
Hull Config Semi Displacement
Ext. Designer Humphreys
Int. Designer Unlimited
Max Speed 14 Knots
Cruising Speed 12 Knots
Range 7,000 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Hull & Dimensions

Type:                            Arksen 85

Hull:                             Aluminum

Superstructure:              Aluminum

Builder:                         Arksen Ltd

Model:                          Arksen 85

Year built:                     2023

L.O.A:                          27.40m

Hull length:                   26.22m

Beam:                           7.01m

Draft:                            1.55m

Displacement:                Full Load 112 tonnes

Cruising Speed:             9-12 knots

Max Speed:                   14 knots

Max Range:                   7,000 nm

Max Electric Range:      30 nm

Design:                         Arksen / Humphreys Yacht Design

Flag:                             Cayman Islands



Mechanical Equipment

Engines: 3 x 200kW Variable Speed Diesel Generators (Praxis Hybrid System)

Engine hours: Commissioning hours only

Propulsion: 2 x 250 kw Electric Motors

Propellers: Twin Screw, 5 blade,

Fuel Capacity: 18,000 litres

Keenan Fuel Polishing System

Fresh Water capacity: 6,000 litres

Cathelco Seafresh H2016 Mk3 Duplex RO Water Maker, 2 x 276 lph

Cathelco HEM Water Softener

Black water tank: 900 litres

550 litres sludge tank

Hamman Compact 0125 Sewage Treatment Plant

Thrusters: OYS 36kW Fixed Bow Thruster/ OYS 36kW Swing Down Stern Thruster

Control: Wireless, joystick control position keeping and maneuvering system

Stabilisation:Humphree Fin Stabilisers

1 x SK 09 and 1 x SK 18 Seakeeper Gyro Stabilisers

Humphree Interceptor Ride Control System

Air Conditioning: MAR-IX Air Conditioning System

Heating:CWarm 33 Diesel Boiler





Electricity

Generators:                    3 x 200kW Variable Speed Diesel Generators

Batteries:                       160kWh LiFePO4 Propulsion/House Batteries in A60 Battery Room

                                     200 Ah LiFePO4 24V DC Service Battery Bank

                                     300 Ah LiFePO4 24V DC Emergency Battery Bank

                                     100 Ah LiFePO4 24V DC GMDSS Battery Bank

Shore Power:                 3 Phase 63A 50Hz or 60Hz

                                     Glendinning shore power cable reels

AC Power:                     3-Phase 400V 50Hz AC Power to primary consumers

                                     Single Phase 230V 50Hz AC Domestic ring main

Solar Power:                  6kW Maximum output



Navigation



4 x 24” Touchscreens at main bridge for navigation, control and monitoring

2 x 24” Touchscreens at lower bridge for navigation, control and monitoring

2 x Furuno DR12A NXT Open Array Radar Scanners

Anschutz Standard 22 Compact Gyro Compass with heading repeaters at each bridge

Furuno SCX-20 GPS Compass

Furuno PG700 Solid State Rate Gyro Fluxgate Compass

Furuno Autopilot, control head at each bridge

Furuno GP170 GPS

Furuno GP39 Backup GPS

Furuno FA-170 Class A AIS

Furuno FI-70 Instruments at main bridge, lower bridge, crew cabin

Furuno TZT3 9F MFD in crew cabin

FLIR M364C Stabilised Camera

4 x External, 2 x Engine Room, 1 x Battery Room CCTV Cameras

Network Video Recorder





Communication

2 x Furuno FM4850 VHF with handsets at upper and lower bridge

Thrane LT-3100S Iridum GMDSS

Furuno Felcom 9 Inmarsat C Terminal

Sailor 4300 Iridium Certus Satellite Data

KVH VSAT V7HPS Satellite Data

Furuno NX700B Navtex

Yellowbrick YB3i Tracker

Pepwave MAX BR1 Mk2 4G Router

On board WiFi Network





Audio & Video

Sony 55” TV on lift in main saloon

Sony 40” TV on lift in upper saloon

Sony 43” TV in snug/office

Samsung 32” Frame TV in master cabin

Apple TV, Chromecast and network connection for each TV

Sonos Audio in each cabin and saloon

Sonos Audio at main deck and upper deck aft seating areas

Sonos Move portable audio for external spaces

OutClass-R Media Server

Crestron Control of AV and Hotel Systems





Deck Equipment

Ultra 130 kg SHHP Stainless Steel primary anchor

Lewmar Claw 80kg Stainless Steel secondary anchor

140m of 14mm stainless steel short link chain per anchor

2 x Lewmar V8 3-ph Vertical Stainless Steel windlass with Gypsy and Warping Drum

2 x Andersen 62 stainless steel self tailing winches for aft deck line handling

2 x Lewmar EST REVO back winding winches for outrigger and lifting control

Opacmare 3078-45 hydraulic crane for tender handling

Carbogale carbon fiber folding gangway





Accommodation

Master Suite configured as double ensuite bedroom, plus snug/library/office/cabin with direct access

Port guest cabin can be configured as double, twin, or triple

Starboard guest cabin can be configured as single or double

Twin crew cabin

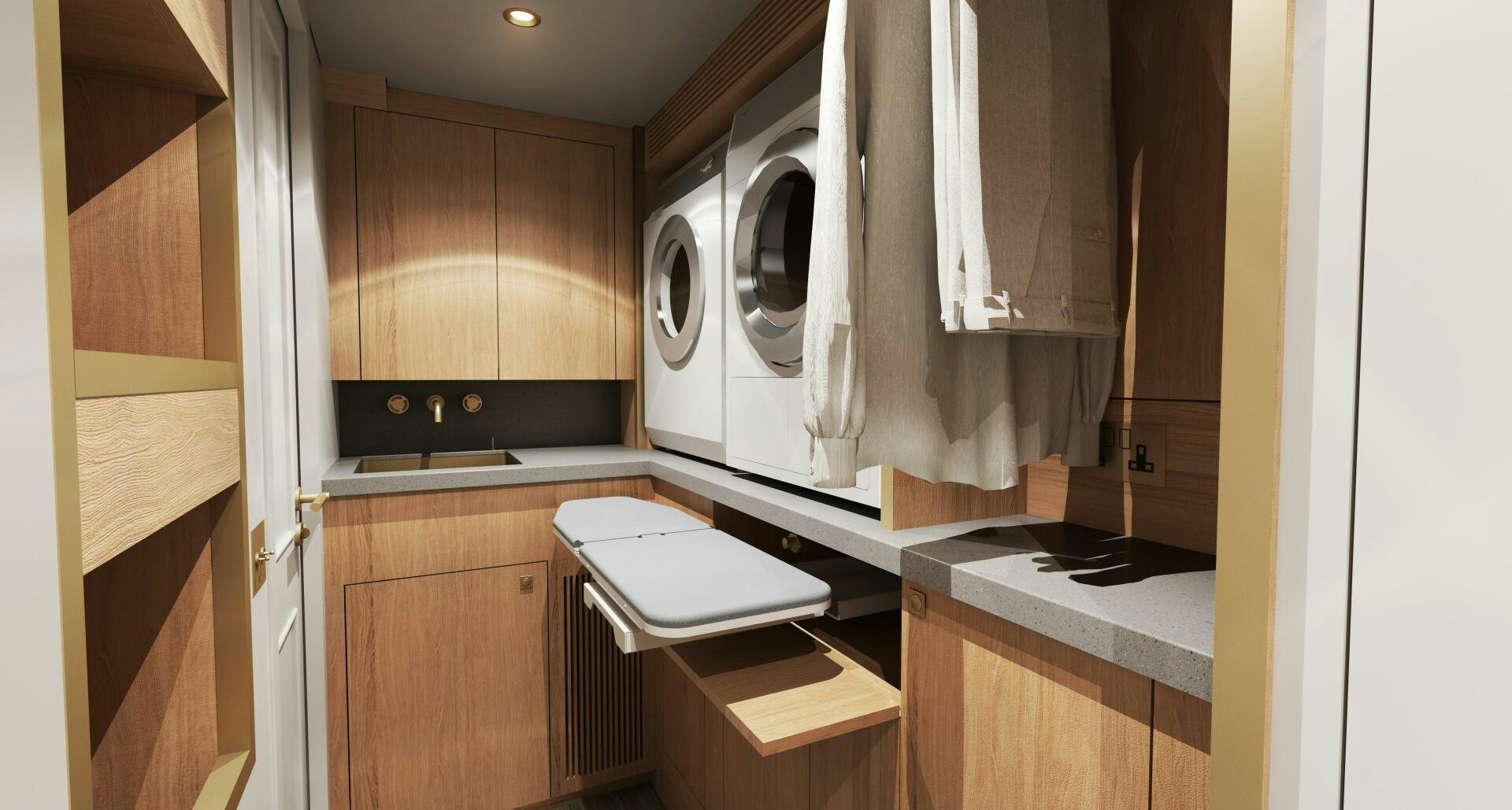

Laundry/utility/storage space

Main deck aft lobby with storage and day head/shower

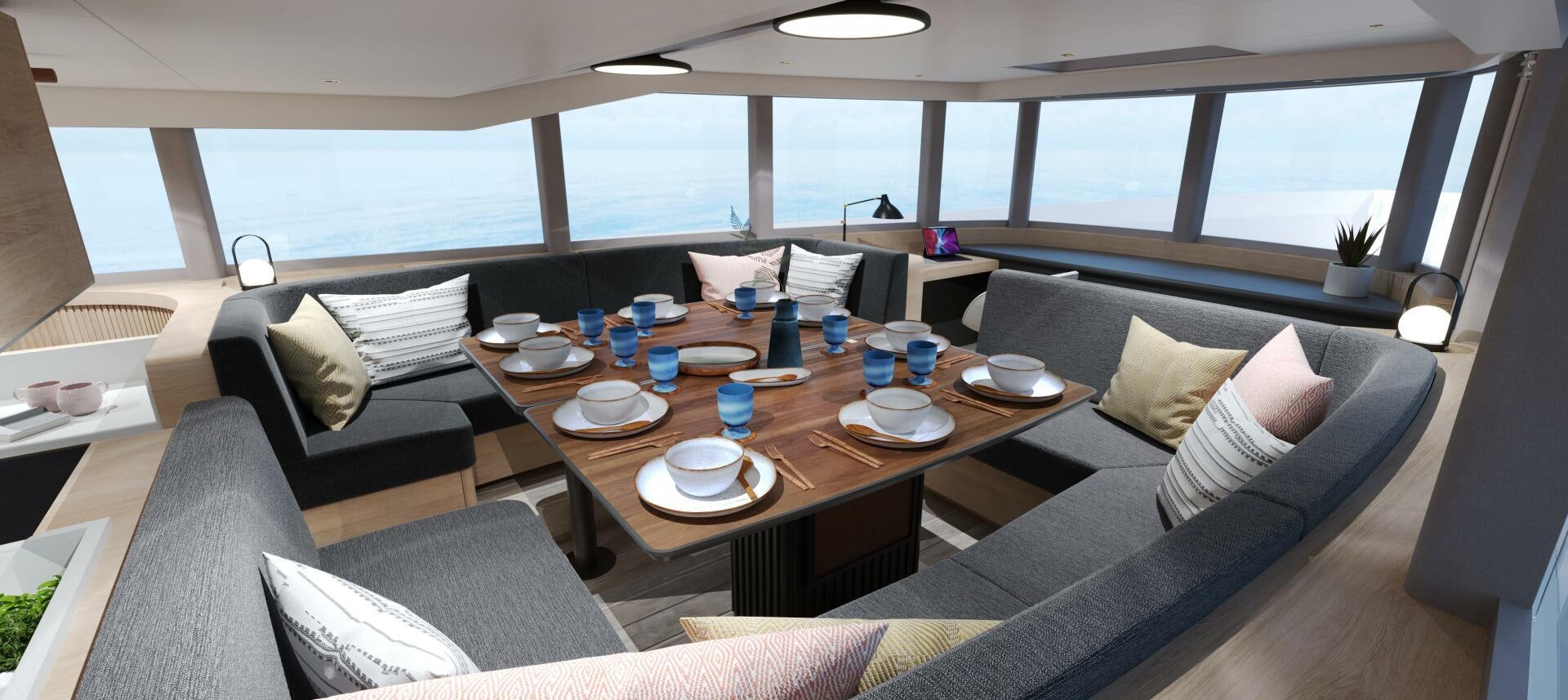

Open plan galley and large seating/dining area on main deck. Office/concealed bridge area forward.

Seating/dining area on bridge deck. Ships office/chart table. Bridge area forward.

Seating/dining area on main deck aft. Awning for shade. Servery/BBQ area.

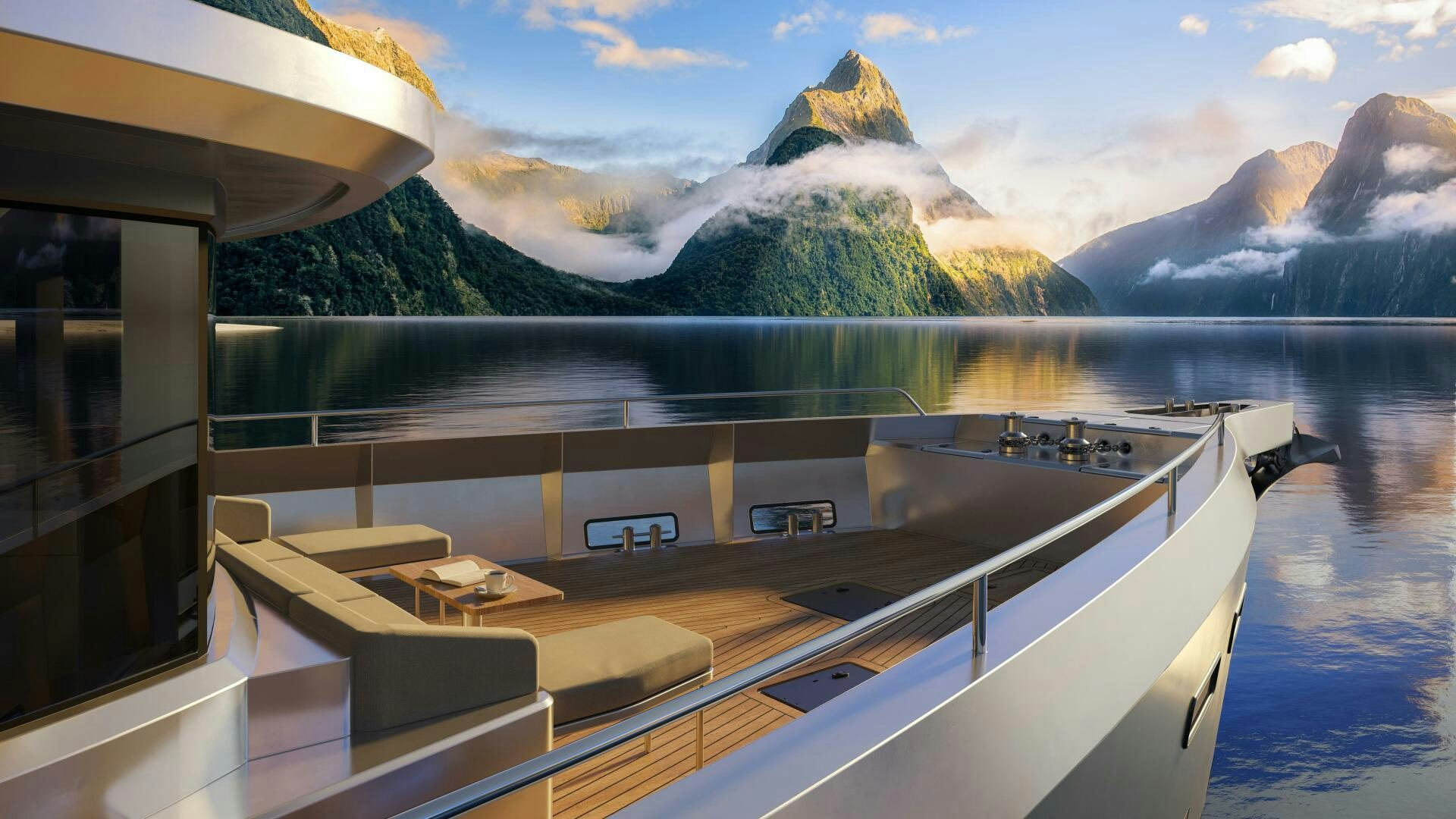

Seating/dining/sunbathing area on main deck forward. Awnings for shade.

Seating areas on bridge deck forward and aft

External decks covered in Tesumo sustainable timer

Asking Price

GBP 10,995,000
