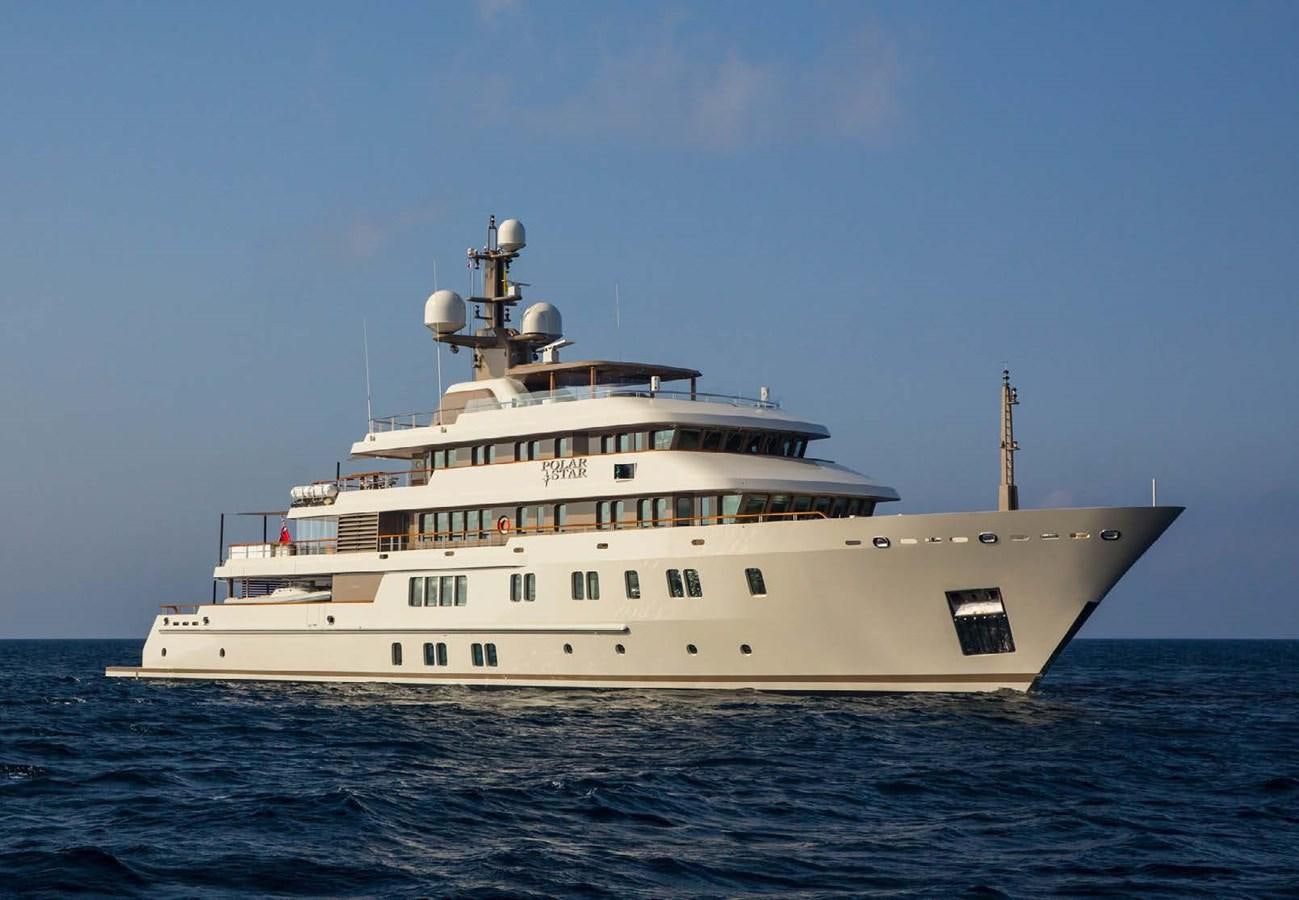

POLAR STAR Yacht for Sale

• Water makers: 2 x HEM reverse osmosis type: 23m³/day (Total: 46m³/day)
• Water heaters: 3 x water heaters heated by immersion heaters. (Total cap: 1500 litres)

The domestic freshwater system consists of the following main parts:

• 1 freshwater pressure tank units
• 3 water heater with and immersion heater (2 x 10 kW) made of stainless steel
• 2 freshwater feeding pump (one running, one standby)
• 2 hot water circulation pump
• 2 UV-sterilizing units
• 1 silver ionization injection unit
• 1 water softener
• 5-micron Filters in addition to activated charcoal freshwater treatment prior to consumers

Electricity:

• 400 V, 50 Hz, 3 phases for power consumers 230 V, 50 Hz, 1 phase for small equipment and lighting.
• 110 V, 60 Hz, 1 phase for small portable domestic equipment in Owner’s and guests’ cabins/bathrooms and wheelhouse (via Converter 20 kW)
• 24 V DC for monitoring, external communication, different nautical and other consumers

Emergency Switchboard for:

• Emergency illumination
• Navigation light
• Navigation equipment
• Radio system
• Rescue boat crane
• Steering gear
• Firefighting pump
• Provision refrigeration system
• Battery charging units
• High-fog system
• Emergency generator room supply fan
• One start air compressor
• Bilge pump
• Alarm and monitoring system

Shore power:

• 2x Shore connection cables of 30 m length stored on reel.
• 2 TRAFOTEK transformer 125 kVA type 3 PUK 350/490
• output: 400/230V 50Hz
• input 380/400/420V/50Hz
• 2 Shore connection box, fitted with fuses, voltmeter with selector switch, phase sequence indicator and reverse phase rotation switch to find the correct connection. Phase sequence is supervised for interlocking functions.

Batteries:
Battery Chargers:

• The following 24 V DC units are provided:
• 2x 50A Rectifier/battery charger to charge the battery and supply the monitoring system and different consumers.
• 1x 25A Charging Rectifier to charge the starting
• battery of the emergency generator set.
• 2x battery charger for SSB

Air Conditioning

• 2 x Carrier chilled water units, each with 2x compressors
• 3 x AC air handler units
• Separate thermostats & fan controls for all accommodation areas

Bilge:

• The bilge system is operated by 2 electrically driven centrifugal pumps and 2Bilge ejectors. The centrifugal pumps are also used as fire and ballast pumps.
• The pressure side of the bilge ejector can also be operated by each fire pump.
• The suction lines of the bilge ejectors are connected to the bilge main. Each watertight compartment has a suction strum box to the bilge main.
• Additionally, the engine room is fitted with two direct suctions from the suction side of the fire/bilge pumps, and one emergency suction from one chilled water pump. One ejector is installed for draining chain locker and fore peak.

Galley

• Deep fryer
• Gaggenau large oven
• MKN Salamander
• Hoshizaki icemaker
• Sharp microwave
• Hobart Dishwasher FXLS-10A
• Schott Ceran Induction top
• Grill
• 2x MKN programmable oven & steam oven
• Walk in fridge
• Foster Freezer Eco Pro G2

Tank Deck

• Walk in freezer
• Walk in dry store.
• Walk in Bonded Store
• Walk in Fridge
• Medical Locker

Crew Mess

• Microwave
• Hoshizaki ice maker
• Undercounter Subzero Fridge & Freezer
• Miele dishwasher
• Nespresso Gemini coffee machine
• Foster full height Fridge

Main Deck Pantry

• 1x Etna Microwave
• 1x Subzero TC700 Wine Fridge
• Hoshizaki icemaker
• Subzero Fridge & freezer

Owners Deck Pantry

• Subzero 700BR drawer fridge
• Hoshizaki icemaker
• Sage Oracle Coffee Machine
• Nespresso Coffee machine

Sundeck Deck Exterior

• Subzero 700BR drawer fridges
• BBQ Electric
• Hoshizaki Ice Machine

Laundry

• 2x Miele Washing machines
• 2x Miele professional tumble dryers
• 1x Miele T5206 professional dryer
• Pony Steam Iron
• 1x Miele WS5425 professional washer
• 1x Miele HM21-140 roller press

Waste Disposal

• Refrigerated garbage store.
• Vacuum Bag Compacter Machine

• 2x Sailor 6222 VHF DSC radios
• 1x Sailor 6301 MF/HF DSC radio
• 1x GMDSS Alarm Panel Mini C, MF/HF, VHF
• Motorola UHF Crew radios
• 4 x Skanti leisure slave VHF
• 1 x Sailor 6280 AIS with GPS
• ICOM ICM23 VHF portables
• Chrome plated Kahlenberg F-2 marine air horn system
• 2 x Sailor 6006 Mini-C GMDSS Terminal
• 1 x Sailor 6391 Navtex System
• 2 x Thrane & Thrane Mini M sat phones
• 1 x Phonetec intercom system
• 1 x Marble MS421B BNWAS
• Zöllner 5+S automatic Fog Signal Timer
• 3 x McMurdo R2 GMDSS handheld VHF

• 7x 26’ Information display screens
• 1x Consilum SD1-7 Elec trip log
• 1x Furuno FCV-1200L LCD sounder
• 1x Raytheon Skipper GDS 101 Sounder
• 1x Raytheon NX 25 kW X Band Radar
• 1x Raytheon NX 30 kW S Band Radar
• 1x Transas 4000
• 2 x Meteo LCD Weather Information Displays
• 2x Simrad MX510 GPS
• 1x Raytheon NX Nautoconning
• 2x Raytheon ECDIS NX Workstations
• 1x Raytheon Steering Control System
• 2x Anschutz Nautopilot 5400 Subsystem
• Wing Control Consoles Port & STB
• Control levers propulsion systems
• Remote control for the bow thruster (direction/speed)
• Rudder control (tiller)
• Bow thruster and stern thruster control.
• Rudder angle indicator
• Shaft revolution indicator
• Horn button
• Control panels are illuminated and fitted with dimmers.
• Search Light controls.
• Furuno Nav Display in Deckhead

• The AV system is new as of a 2016 Refit by VBH Holland which is Crestron controlled.
• All entertainment areas are linked to a Kaleidoscope
• Movies on Demand System and Apple TV, Air Play

Sun Deck

• Removable screen with projector
• Karaoke system
• 4 x outdoor waterproof speakers
• iPad controlled system.

Gym

• iPad control for all systems
• Exterior speakers in Jacuzzi area

Owner’s Cabin

• Samsung 40» Flatscreen TV
• iPad controlled system.

Owner’s Lounge

• Samsung 60» Flatscreen TV
• Denon amplifier
• iPad controlled system
• Panasonic Blue-Ray player
• Sonance surround sound speakers

Upper Aft Deck

• Exterior speakers with separate controls

Main Salon

• Samsung 60» Flatscreen TV
• Panasonic Blue-Ray player
• Denon amplifier
• Sonance surround sound speakers
• iPad controlled system.

Guest 4 (Fwd Stb Guest)

• Samsung 40» Flatscreen TV
• BOSE DVD player
• iPod docking station
• BOSE surround sound with separate control
• iPad control system

Guest 2 (Fwd Port Guest)

• Samsung 40» Flatscreen TV
• BOSE DVD player
• BOSE DVD player
• BOSE surround sound with separate control
• iPad control system
• iPod docking station.

Guest 3 (Fwd double Guest)

• Samsung 40» Flatscreen TV
• BOSE DVD player
• iPod docking system
• BOSE surround sound
• iPad control system

Guest 1 (Fwd Double Guest)

• Samsung 40» Flatscreen TV
• BOSE DVD player
• iPod docking system
• BOSE surround sound
• iPad control system

Massage Room

• Sonance surround sound
• iPod docking station
• iPad control system

Aft Deck

• Sonance Exterior speakers

Crew Mess

• Samsung 40» TV
• Sonance Surround sound

• 9.5 meter / 31’ Linx twin jet Tender - 2022
• 7.6 meters / 25’ Zodiac N-ZO – 300hp Yamaha 2014
• 2 x 1800cc Yamaha waverunners - 2015
• 1 x Fliteboard Ultra
• 1 x Tiwal inflatable Sailboat
• 3 x Seabobs
• 8 x SCUBA sets
• 12 x snorkeling sets
• 4 x water skis
• 2 x wake boards
• 2 x Wake skate boards
• 1 x 6-man towing banana
• 1 x Towing doughnut
• 1 x Molecule towing tube
• Bauer Junior ll-E (200/300 bar, 100 ltr./min) compressor
• Various folding beach chairs and tables, with 2 x coal beach BBQ.
• 4 x Standup Paddle boards
• 2 x Inflatable Hobie Kayaks

• 7-meter Yacht Tec telescopic aft Gangway
• Marquip Seastair side boarding ladder
• Lutz 4 deck elevator, 225Kg/3 persons, serving from Tank Deck to

Wheelhouse Deck

• 2x TTS Gantry Cranes
• 1x Yachttec foredeck Crane
• Hydraulic shell service door
• 2x 750kg Galvanized steel anchors, High Holding POOL type
• 2x Electric Steen Anchor Capstans with dual speed
• 2x Electric warping capstans with 2 speed (aft deck)
• 2x Aft wind doors (port & Stb Owners Aft deck)
• 14 pc stainless steel bollards (600 x 260mm base plate, height 350mm)
• 16 pc fixed hawses abt. 400 x 250mm clear opening

• Marioff HI fog Sprinkler system
• Minerva T2000 fire detection system
• 4 x RFD 25 man life rafts
• 4 x Fire Fighting BA sets
• 2 x McMurdo S4 Rescue SART’s
• 2 x McMurdo G5 GPS EPIRBS
• 2 x Phillips Defib sets
• 1 x Tempus IC Patient Monitor
• 8 x Life rings
• 1 x Zodiac 420 rescue tender with 40HP outboard
• CONLAN Coded Crew security door

CCTV System:
Cameras:

• Main deck
• Sundeck
• Engine room

Monitors:

• Bridge
• Crew Mess
• ECR

Engineering Alarm Column System:

• The light column is activated for the following indications:
• General alarm
• Fire alarm
• Engine alarm
• Telephone alarm
• Engine order telegraph alarm
• Hi-Fog Fire System
• 1 large light column, wall-mounted unit including:
• 5 alarm indication fields
• 1 rotating light lamp (red)
• 1 rotating light lamp (amber)
• 1 siren
• 1 horn

Fire Detection System consist of:

• 2x Fire alarm control panels
• 117x Heat and/or optical smoke detectors in accommodation and machinery spaces
• Manual alarm push buttons behind glass in the alleyways and by deckinterior doors

Bilge Alarm System:

• Level switches for Bilge High Level monitoring are provided.
• Second level Bilge Alarm in Engine room

General Alarm System:

• An acoustic alarm system is installed to give alarms to all relevant areas.

Tank Level Indication:

• High alarms in all tanks
• Tank gauges in ECR
• Additional fuel gauges at fuel manifold

Fire Extinguishing System:

• Seawater Fire Extinguishing System
• The 2 bilge pumps, which are also used as fire pumps, are installed in the engine room. There are local controls on both these pumps.
• Near each fire valve a C-type fire hose and an adjustable nozzle is installed.
• In accommodation five valves with D38-hose couplings and connected fire hoses with adjustable nozzle is installed.
• Deck hydrants and hoses are located in the various deck storage lockers.
• AFFF Applicator system. Usable with all onboard firehoses
• Hi-fog sprinkler system fitted throughout all accommodation, engine room and technical spaces.
• The galley exhaust ducting and deep fat fryer are fitted with Hi-Fog sprinkler system
• Emergency fire pump, located in the bow thruster compartments separate from the two primary pumps.

15-year Survey Items – 2019/2020

• Main Engine and Generator rebuild
• Hull Sandblasting and Antifouling
• Bow and Stern Thruster service
• Stabilizer Removal and Service
• Shaft Removal and Alignment
• Propeller removal and balancing
• Rudder and Steering Gear Service
• Electrical Switchboard Surveys and mega Testing
• Bilge and Ballast Valve works
• Hull Thickness Survey
• Ballast Tank Sandblasting and Painting

2015/2016 Refit

• Full vessel repaint in new colours, Awl grip Polar Star Brown, and Grey Stone.
• Full Raytheon Bridge Upgrade including GMDSS Equipment
• IT and AV, CCTV Upgrade
• Exterior Cushion and Awning upgrade
• Sauna Upgrade to Klafs
• HUG Generator Exhaust replacement on all three Generators
• Engine room repaint
• Complete Interior Upgrade
• Teak – Foredeck, Sundeck, Bridge Deck Aft and Swim Platform replaced
• Sundeck remodelled to new layout with Carbon Fibre hard top and furniture
• New Inclining and Stability Book issued
• Crew Cabin upgrades – Bathrooms, Cupboards, Carpets
• Lazarette and Dive Store Upgrade and Layout modifications
• Beam Cranes re-built by TTS Germany
• Hull extension on the swim Platform from 62.97 Meters to 65.17 Meters
• Mist Cooling System Owners Deck Aft installed
• Exterior LED Lighting upgrade
• Interior Deckheads replaced – Lower Deck and Tank Deck
• Auto Transfer Ballast System Installed
• Exterior Furniture upgrade
• Jacuzzi upgrade along with Sunbeds
• Gym Equipment Upgrade – Technogym
• Massage Room Upgrade from a Guest Office
• MD Aft Wooden Slats added.
• Exterior Deckheads replaced

2018 Refit

• Approved Ballast Water Treatment plant installed
• Routine maintenance

2019 Refit

• Guest Cabin 2 – Modified to a Bunk bed four berth cabin as per photos sent
• Galley Upgrade – Flooring, Cabinetry revamp
• LOP Safety system upgrade on Generators
• Generator Mounts replaced

2021/2022 Refit

• Complete Exterior vessel repaint
• Air-conditioning Upgrade – All Air handler units and control upgraded to ROMV
• Exterior Cushion Fabric replacement
• V-Sat dome upgrade
• Starlink Installation
• Custom 9.5 Meter Linx Tender Upgrade
• Bow and Stern Thruster service
• Routine Maintenance
• Anchor Chains replaced
