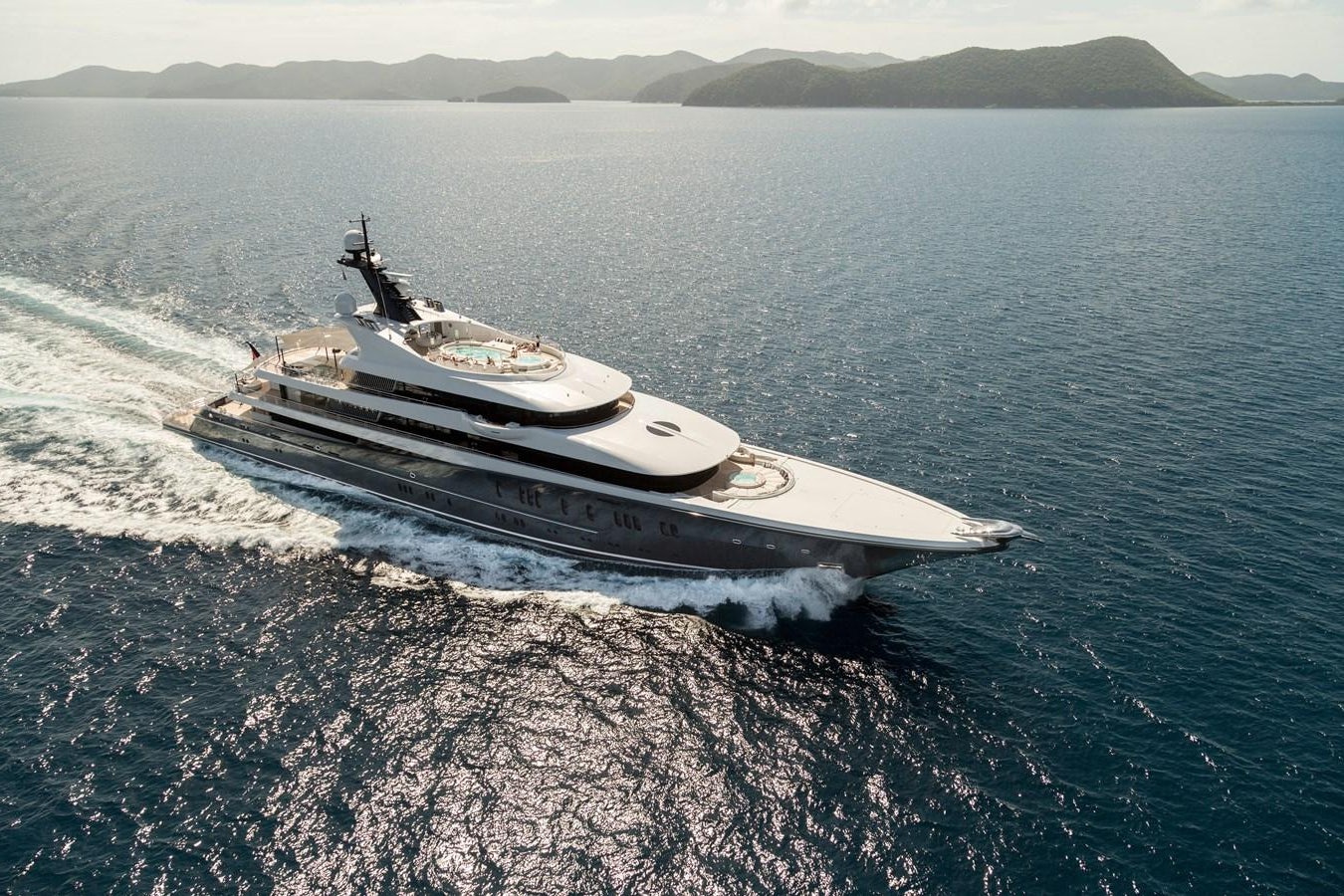

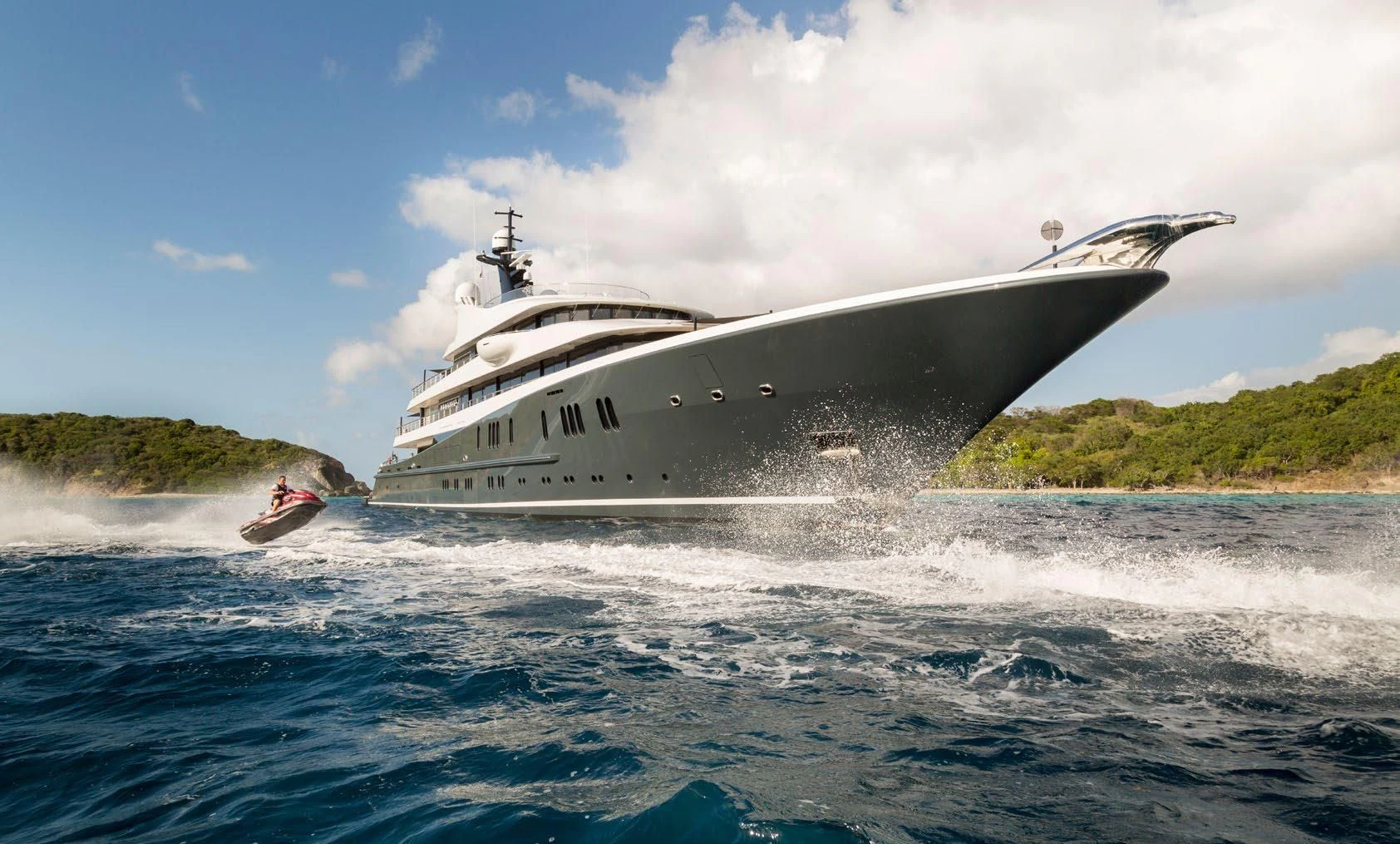

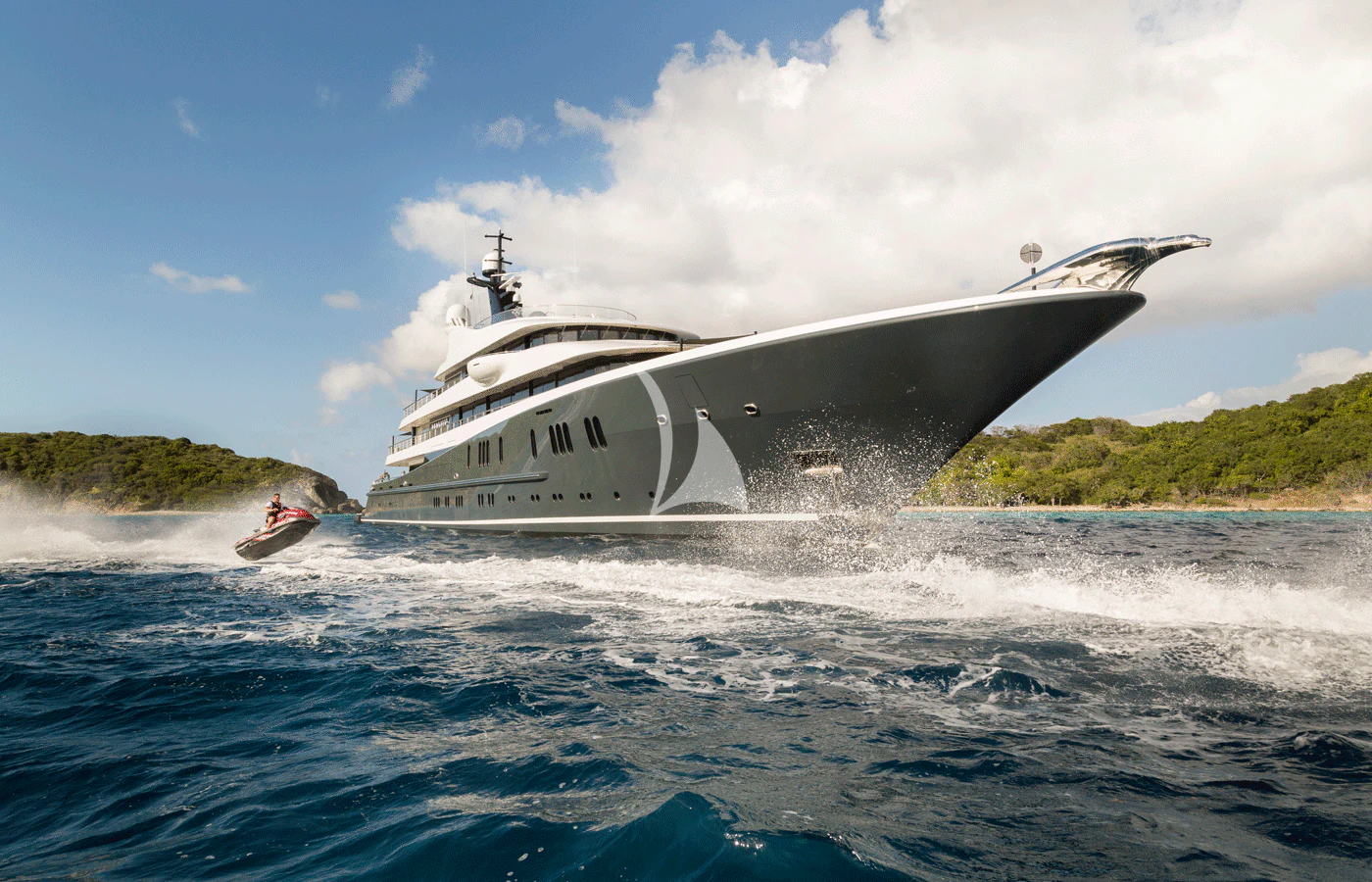

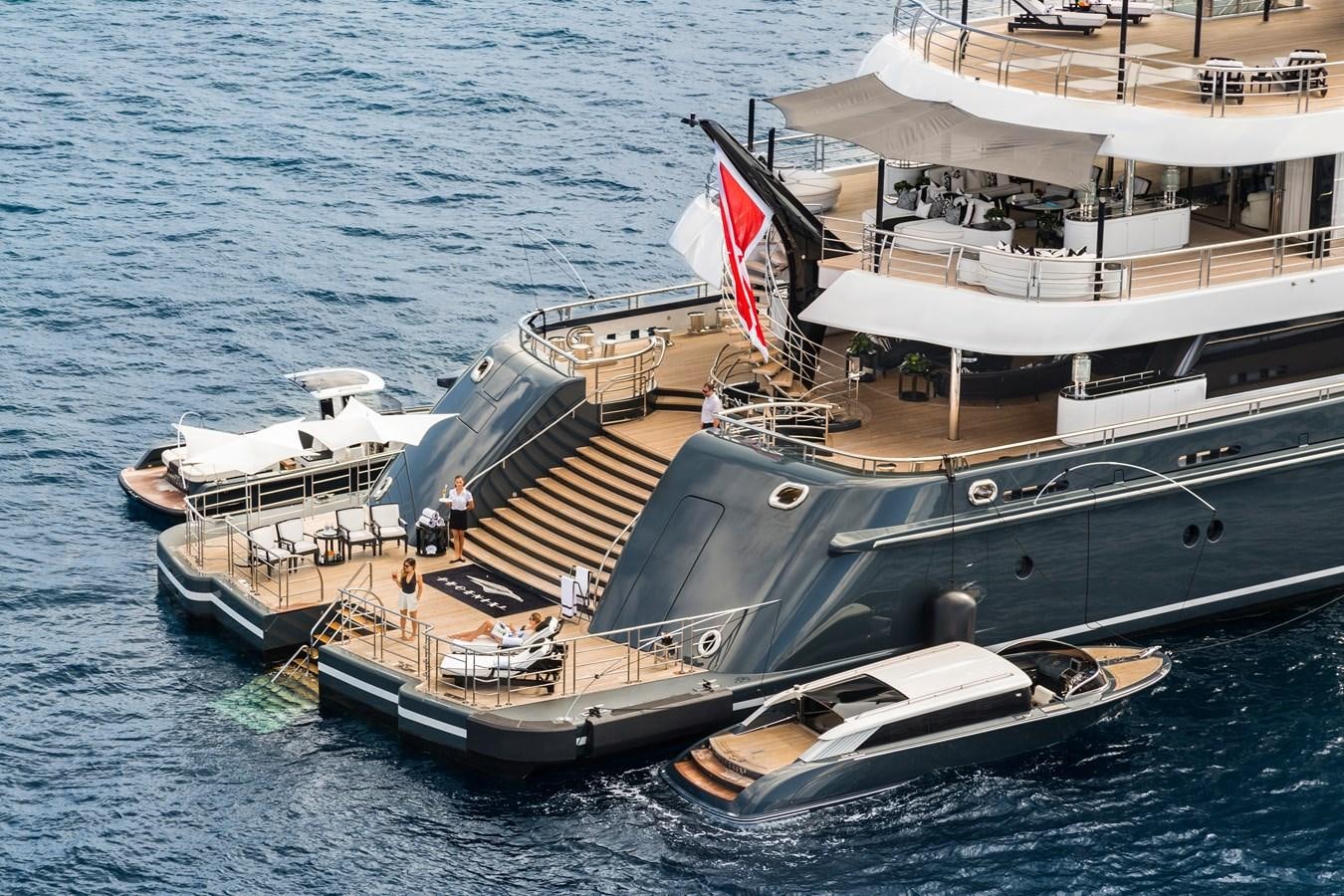

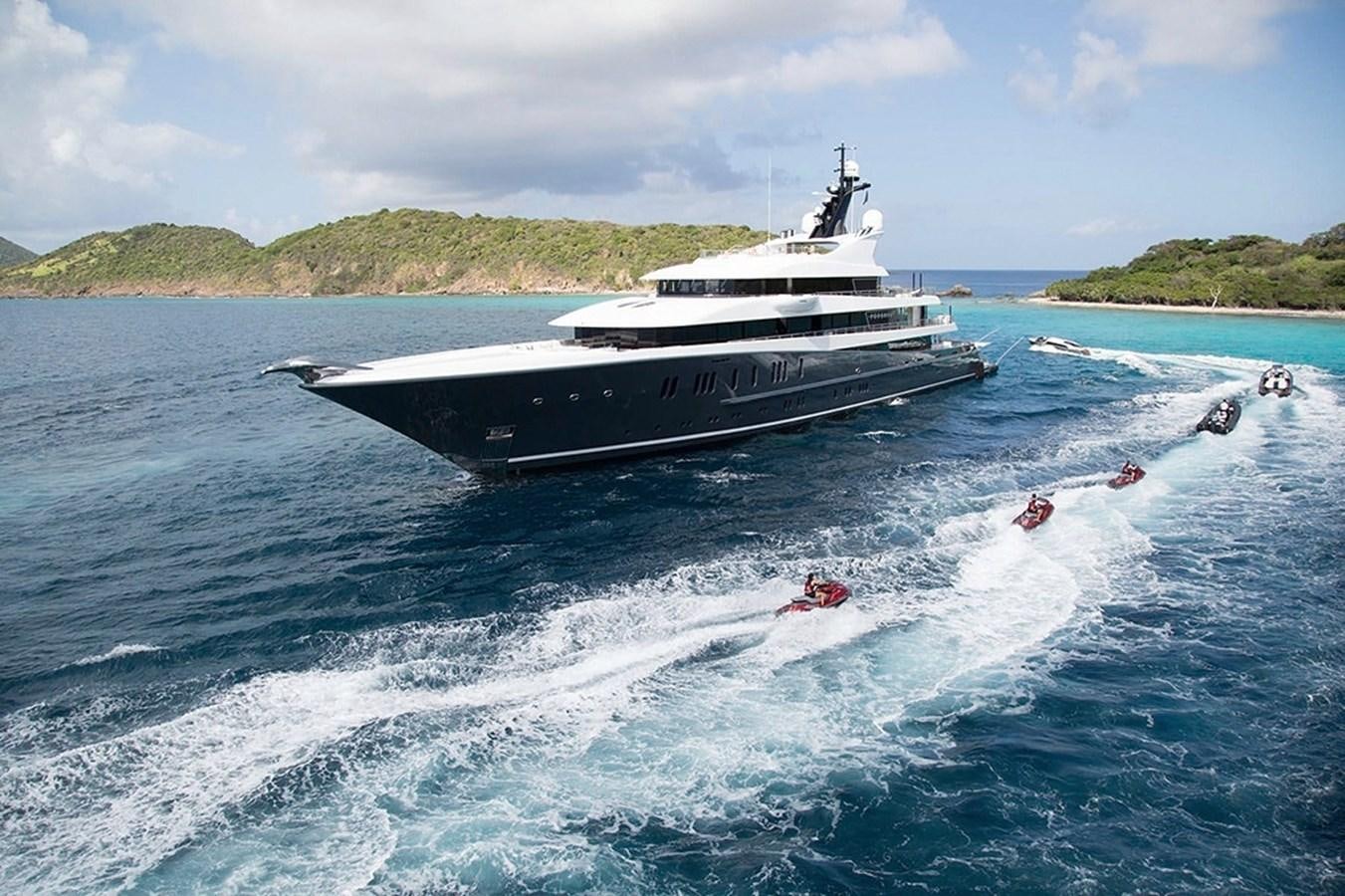

PHOENIX 2 Yacht for Sale

SPEEDS & CONSUMPTIONS

• Maximum speed of 18 knots for a fuel consumption of approx. 1,000 litres/265 US gallons per hour
• Cruising speed of 14 knots for a fuel consumption of approx. 520 litres/137 US gallons per hour
• Economical long range of 12 knots for a fuel consumption of 300 litres/80 US gallons per hour

ELECTRICITY

• 230v AC, single phase, 50 Hz (lighting, domestic equipment, control circuits and nautical equipment)
• 110v AC, single phase sockets from Invertor (Guest Bathrooms and Interior Pantries)
• 24v DC, provided by Jovy Atlas Rectifiers
• The installation is to be a 3-phase, four wire system, neutral earthed, 400v/230v AC, 50 Hz

BATTERIES, RECTIFIERS

• 1 x Battery bank (24v DC) with charging system for Emergency Generator Start.  Additional hydraulic starter
• 1 x UPS battery bank (24v DC) for GMDSS equipment
• 2 x Automation UPS Rectifiers providing 24v DC supply for control systems of Engine room and Control room
• 1 x Navcom UPS Rectifier for Bridge equipment
• 1 x UPS for Audio Visual racks and equipment

WATERMAKERS

• HEM Reverse Osmosis unit with 2 x reverse osmosis desalination systems, each with a capacity to produce approximately 18,000 litres/ 4,755 US gallons per day

STEERING SYSTEM
The steering time is approx.: (30°-0°-35°)

• 22 sec with one (1) pump in operation
• 11 sec with two (2) pumps in operation

Modes of steering provided to be:

• Follow up steering by hand;
• Non-follow up steering by hand via Rolls-Royce panel;
• Follow up steering through auto-pilot;
• Emergency steering in port side aft, hand hydraulic pump

DYNAMIC POSITIONING

• Dynamic Positioning (DP) system, make Kongsberg cJoy Station keeping by means of bow and stern thruster to a maximum wind speed up to 20 knots

FUEL COALESING FILTER

• Type Mahle KFWA-2by water separator

FUEL SEPERATOR

• Gea Westfalia Alfa Laval P Flex separation system

FUEL TRANSFER PUMPS

• 2 x Kraal Screw type KV 210.2 A1A pumps

TENDER FUELING SYSTEM

• 1 x Altons Haar tender refuelling system type HP08-3399 from day tanks

LUBE OIL FILLING PUMP

• 1 x Steimel type GMB2D 16R pump, capacity 13 litres/3.4 US gallons per minute with retractable hose reel & gun counter

DIRTY OIL DISCHARGE PUMP

• 1 x Borger Rotary Lobe type AL 50 pump, capacity 1.5m³/396 US gallons per hour with retractable hose reel connection to engines

COOLANT PUMP

• 1 x Speck type SK 2001 LA pump, capacity 2m³/528 US gallons per hour

OIL/WATER SEPARATOR

• 1 x DVZ type 1000FSU oily bilge water separator
• Oil Monitor Unit type Deckma OMD-2005 measuring cell, capacity 1,000 litres/264 US gallons per hour capacity

BILGE/BALLAST PUMP

• 1 x Speck type 80-65/200 IA pump, capacity 55m³/14,530 US gallons per hour - Delivery Head: 5 Bar
• Interchangeable with the fire pumps via valve settings for redundancy

FIRE PUMPS

• 2 x Speck type 80-65/200 IA pumps, capacity 55m³/14,530 US gallons per hour - Delivery Head: 5 Bar
• Interchangeable with the bilge pump via valve settings for redundancy

FIXED FIRE FIGHTING SYSTEM

• Marioff Hi-Fog Sprinkler System
• 1 x Electrical driven sprinkler pump unit type SPU4+1/SEP with 5 x high pressure pumps
• 1 x Nitrogen Cylinder Unit type NAU8/140S-V with 8 x bottles @ 175 bar
• 1 x Water Cylinder Unit type WAU8 with 8 x bottles

FIRE DETECTION SYSTEM

• Tyco MX Addressable fire detection system
• 219 x smoke/heat/IR detectors
• 2 x Control panels (Bridge & ECR)

FIRE DOORS

• 26 x Lethe A60 rated hinged fire doors with solenoid release
• 6 x Kaefer automatic sliding fire doors type A3000mini A60 rated

FIRE & SMOKE DAMPERS

• 92 x Actionair A60 dampers with Belimo drive motors

GAS DETECTION SYSTEM

• Martek type MM1000 gas detection system
• 4 x Sensor locations (tender garage void bilge, tender garage port & stbd and rescue boat tender garage)

IMPRESSED CURRENT SYSTEM

• Cathelco type C-Shield ICCP Impressed current cathodic protection

ANTI-FOULING SYSTEM

• Cathelco type CA38672 with 5 x copper anodes & 5 x aluminium anodes

WATERTIGHT VALVES

• 18 x Bernard Controls type OA15 watertight valves

WATERTIGHT DOORS

• 9 x Tebul type 900X A60 watertight doors

EXTERIOR AUTOMATED DOORS

• 14 x HGB Lethe automated exterior sliding doors

INTERIOR AUTOMATED DOORS

• 12 x Reisinger type S4000 Decorative automated doors

SEWAGE TREATMENT

• 1 x HMSA biological sewage treatment plant, type MSD-II/50 CSTM enlarged VAC - complies to IMO MARPOL Annex IV Chapter 3 and IMO MEPC 159 (55)
• 2 x Jets 25 MBA Vacuum pumps, capacity 26m³/6,870 US gallons per hour

WC's

• Fresh water vacuum toilet EVAC type VAC VT 910

GREY WATER PUMPS

• 2 x BBA Pompen type B40 BVGMC, capacity 21m³/5,548 US gallons per hour

COMPRESSED AIR SYSTEM

• 2 x Sauer & Sohn type WP33L 2-stage air-cooled high-pressure compressors, 30 bars.
• 2 x Romer Air Receivers (0.75m³)
• 2 x Donaldson Compressed Air Dryers type SD 0100 AP
• 1 x Sauer & Sohn manual hand compressor

DIVE COMPRESSOR

• 1 x Bauer type Mini Verticus III with air receiver’s storage bottles for quick fill

DECK WASH

• 2 x Speck type SK4004 LL pumps, capacity 8m³/2,113 US gallons per hour, pressure set to 6 bar

DECK WASH HEATER

• 1 x Oso/Wesco Navy type 17RA600, capacity 600 litre/158 US gallons 24.6kW water heater

FRESHWATER TRANSFER PUMP

• 1 x Speck type SK4001 LA pump, capacity 7m³/1,849 US gallons per hour. For transfer of water from freshwater tanks and technical freshwater tanks if necessary

FRESHWATER PUMPS

• 4 x Speck type SK 3304 LL pumps, capacity 5.5m³-7m³/1,453-1,849 US gallons per hour, pressure set to 6 bar

FRESHWATER TREATMENT

• HEM freshwater treatment type Skid FWS 3400, incorporating 5-micron filter unit, carbon filtration unit, silver Ion sterilizing unit & UV sterilization

WATER SOFTENER

• 1 x HEM K60 type 1 water softener for softening hard water

COLD WATER PLATE COOLER

• 1 x GEA Ecoflex flexible plate type cooler.  Cools the circulating cold water to the outlets

HOT WATER BOILERS

• Oso/Wesco Navy 600 litre/158 US gallons 24.6kW water heater, type 17RE600.  Hot water is circulated to the outlets and back to the calorifiers to minimise delay of hot water at the tap

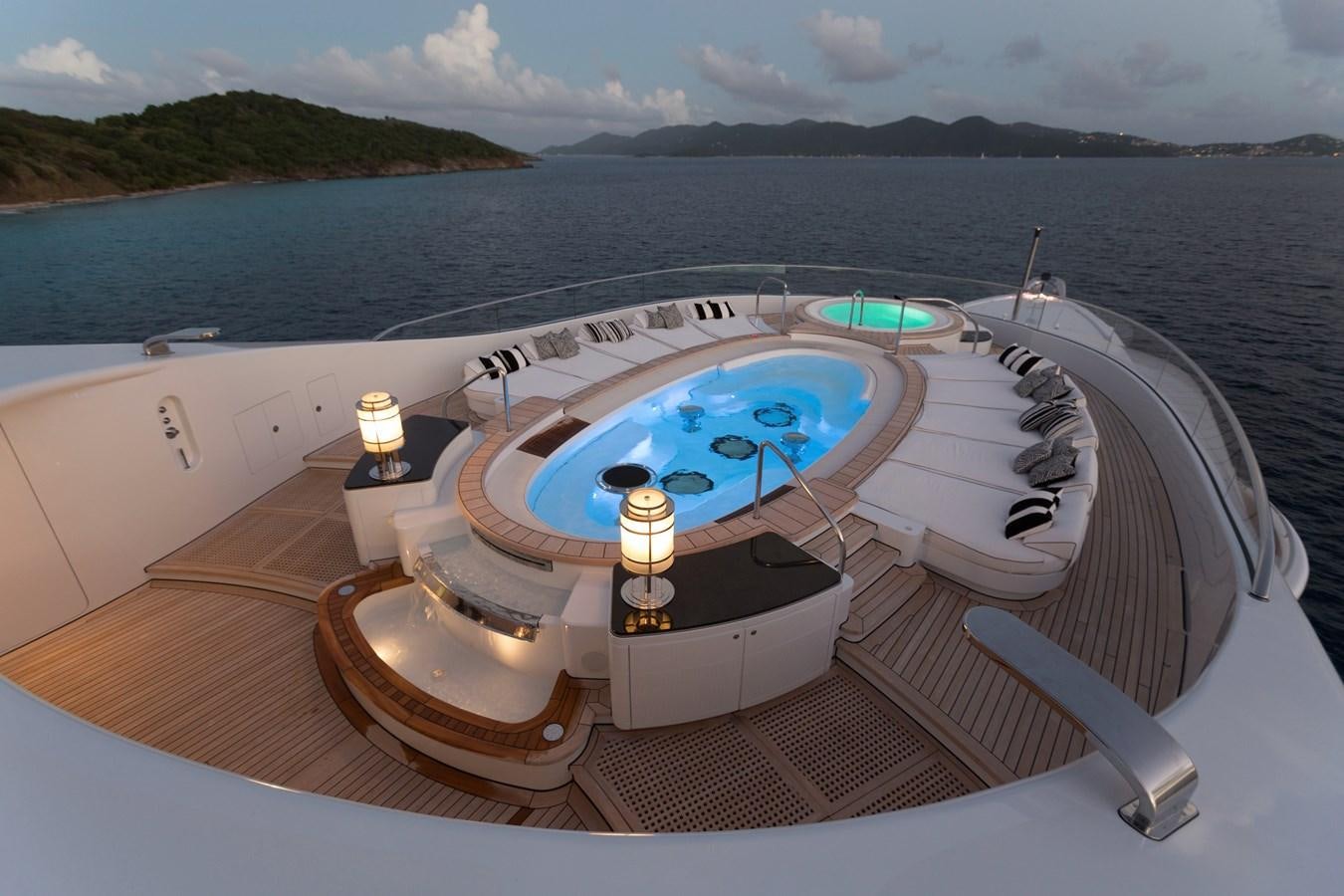

POOL TREATMENT SKID

• 1 x BADU type Resort 55 pump, Bayrol Pool Manager control system for PH+ / PH - dosing, Bromide dosing and temperature control.  Big One filter unit – string wound sediment filter

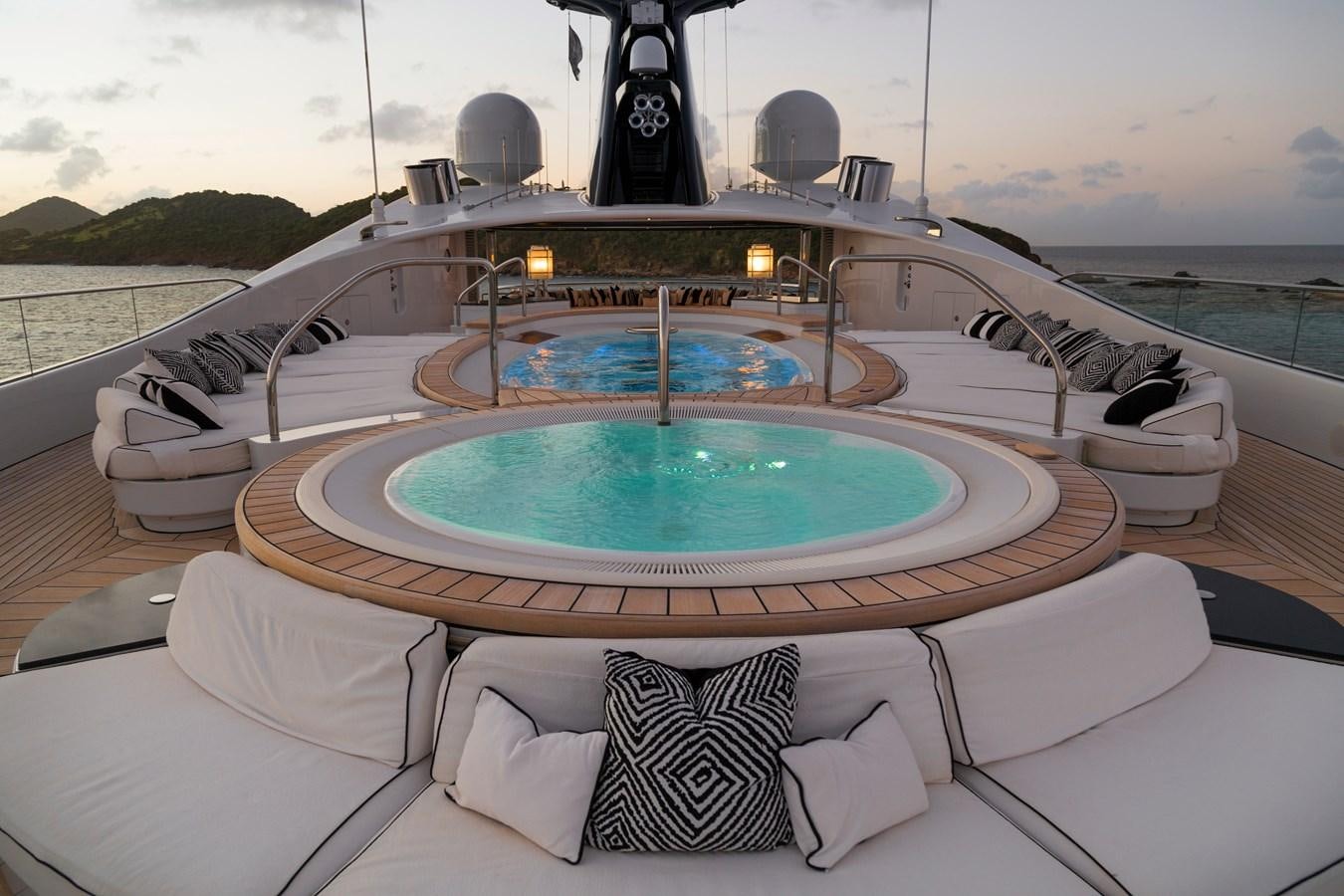

JACUZZI TREATMENT SKID

• 1 x BADU type Resort 55 pump, Bayrol Pool Manager control system for PH+ / PH - dosing, Bromide dosing and temperature control.  Big One filter unit – string wound sediment filter

GARAGE DRAIN TANK PUMP

• 1 x Speck HM 40-A1 pump, capacity 14m³/3,698 US gallons

WINTERGARDEN UPGRADE 2015

• Girschner Marine Additional A/C System installed for the winter garden, both cooling and heating.  Although system is independent from Heinen & Hopman system, it is connected to the chilled water loop

LD CHANGE RM UPGRADE 2017

• Girschner Marine fan coil unit installed above headliner in the guest changing area by swim platform to condition this environment for showering and changing guests

BRIDGE INFORMATION SYSTEM

• Interschalt/Rockson Automation Systems (BIS System)
• 2 x Rockson touch screen control systems for the monitoring and control of the following systems:
• Fire & Bilge pump start/stop
• Shell door condition monitoring and lock-out/release controls
• Fire door condition monitoring and local/remote operation. All close switching
• Watertight door condition monitoring and local/remote operation. All close switching
• Watertight valve condition monitoring and local/remote operation. All close switching
• Hi-Fog monitoring
• Navigation light switching and indication
• General exterior light switching and indication
• RGB light switching and indication
• Underwater light switching and indication

GENERAL ALARM PAGING

• The alarm & paging system consists of 2 x sets of RCS amplifiers and control heads, one set is a duplicate of the other.  The control heads and amplifiers are in the bridge deck AV room
• 104 x Speakers throughout all spaces of the vessel
• 3 x Handheld microphones for announcements located in the wheelhouse, safety locker and mooring deck
• Along with announcements from the handheld microphones the system transmits the general alarm, abandon ship alarm and the fire alarm when they are activated in the wheelhouse by the captain
• The GAPA can also be used to play music from the AV system

FIRE DETECTION SYSTEM

• Tyco type CCU3/C-MXMB MX addressable fire detection system with 219 x smoke/heat/IR detectors
• 2 x Control Panels (Bridge & ECR)

GAS DETECTION SYSTEM

• Martek type MM1000 gas detection system with 4 x sensor locations, (tender garage void bilge, tender garage port & stbd sides and rescue tender garage)

IMCS

• The Integrated Monitoring Control System (IMCS) is designed to supervise and control all aggregates which are related to the engineering systems
• There are 3 x process control stations; 1 x wheelhouse, 2 x Engine Control Room with a high-quality PCs, keyboards, trackballs, high resolution colour monitors, along with an uninterruptible power supply unit
• 2 x sub-control panels, one in the engine room and the other in the ECR
• XAS or external alarm panels are also located in the following areas for alarm sounding; Wheelhouse, Captain’s cabin, ECR, Crew Mess, Chief Engineer’s cabin, 2nd Engineer’s cabin & 3rd Engineer’s cabin
• Flashing light columns and panels are located in high noise areas, these are in the engine room, bow thruster space and stern thruster space
• The system monitors alarm and fault conditions of almost all equipment onboard the vessel
• The system monitors pressure and temperatures of the main engines and generators
• The system displays the levels in all tankage
• The system displays the open/close position of doors and hatches
• The system displays fire detectors and manual call points for the fire detection system
• The system displays various bridge steaming and anchor equipment
• The system allows for control of the following pumping systems; Fire & Bilge pumps and valves, Fuel pumps and valves, Ballast pumps and valves & garage drain tank pump

CCTV SYSTEMS

• Mobotix Digital IP camera system consisting of 4 x display locations; Wheelhouse, Radio Room, Crew Mess & Engine Control Room.  There are a total of 25 cameras throughout the vessel strategically placed to cover entries and work spaces.  Many of the cameras are set to record movement, particularly at entry points and the recorded data is saved.  The two mast cameras also have infared sensor to display heat signatures

CREW ACCESS DOORS

• The crew door on main deck port side and the port side wheelhouse doors have security fob sensors, allowing crew with proximity cards to enter the vessel after lock down hours of an evening

She can accommodate up to 14 guests in 7 cabins
OWNER

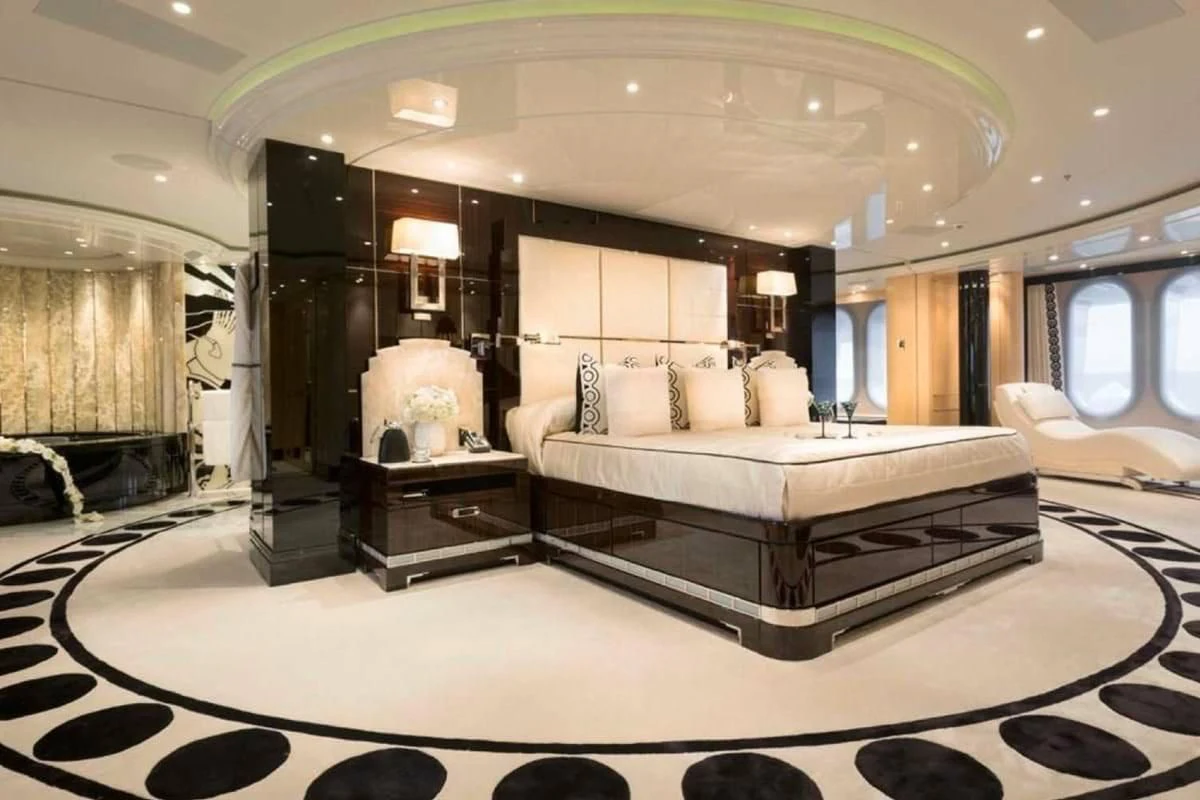

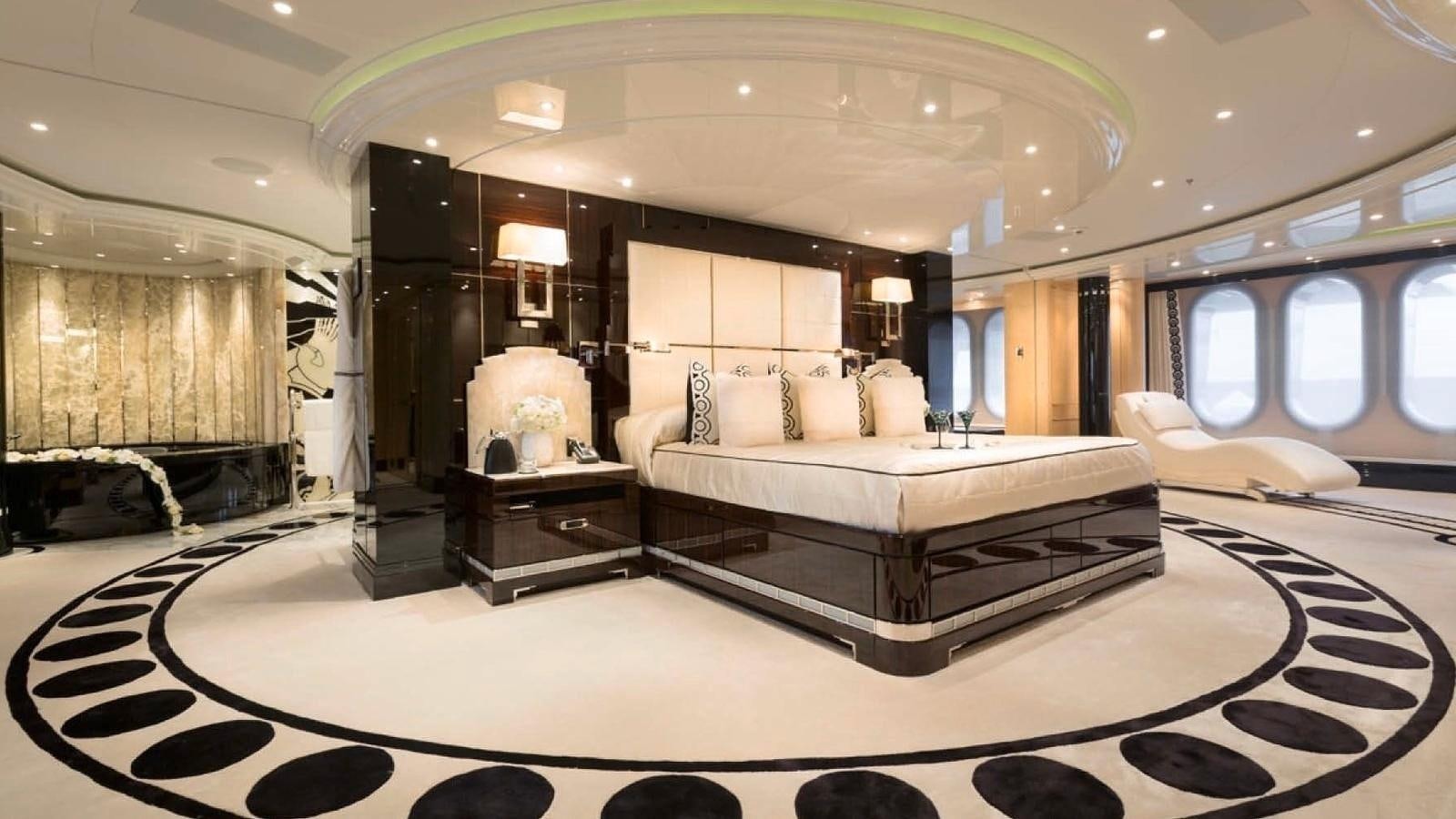

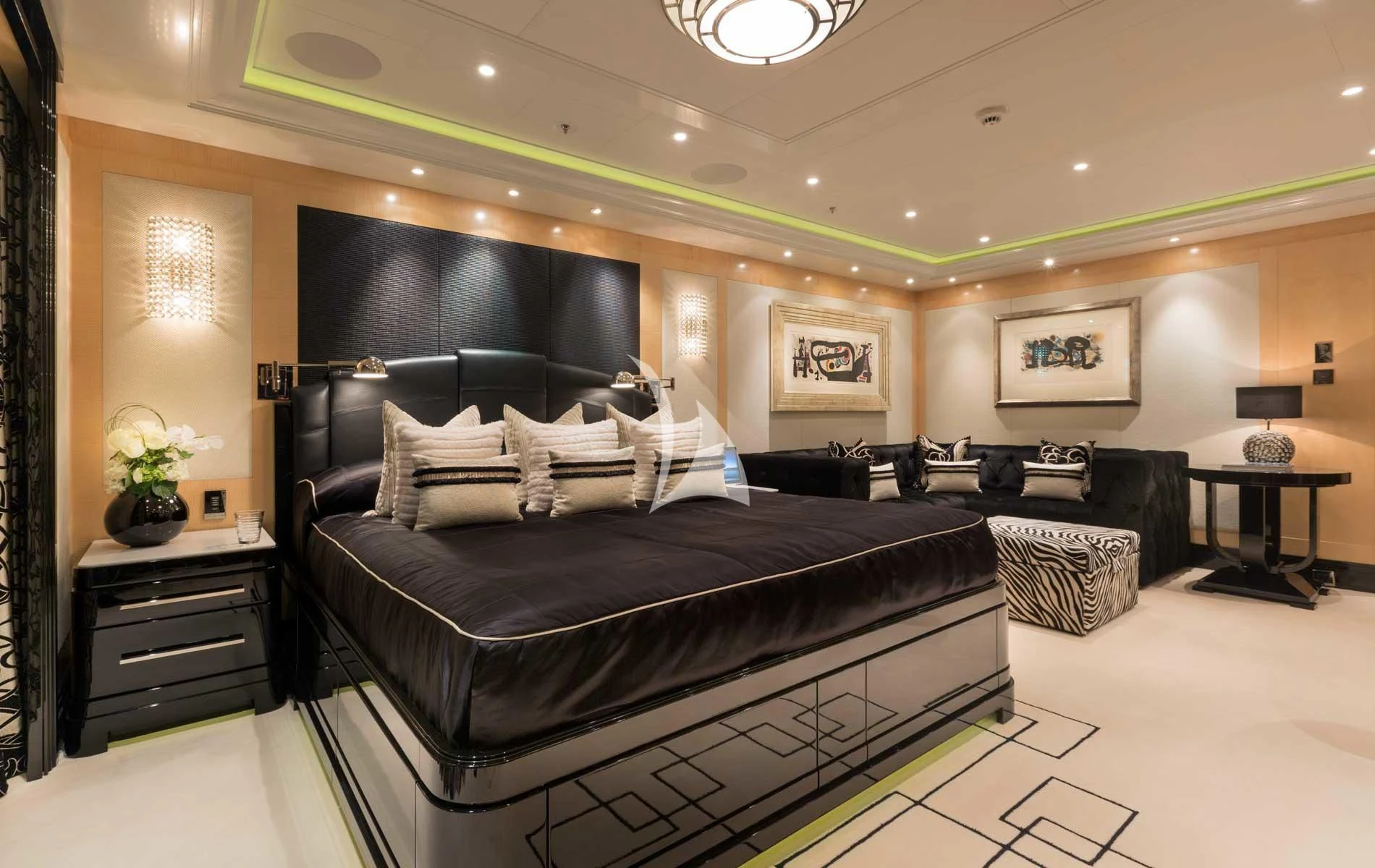

• Duplex Master Stateroom with a full width double sleeping suite on main deck with bathroom forward with optional motorised separation wall to separate into His and Her ensuite bathrooms (hers with a jacuzzi bathtub and his with a luxury steam shower). One large dressing room aft on port side and another smaller dressing room aft on stbd side.  A large entry foyer on main deck incorporating glass staircase to the owner’s private lounge/office on the upper deck, with an outdoor Jacuzzi & seating forward

GUESTS

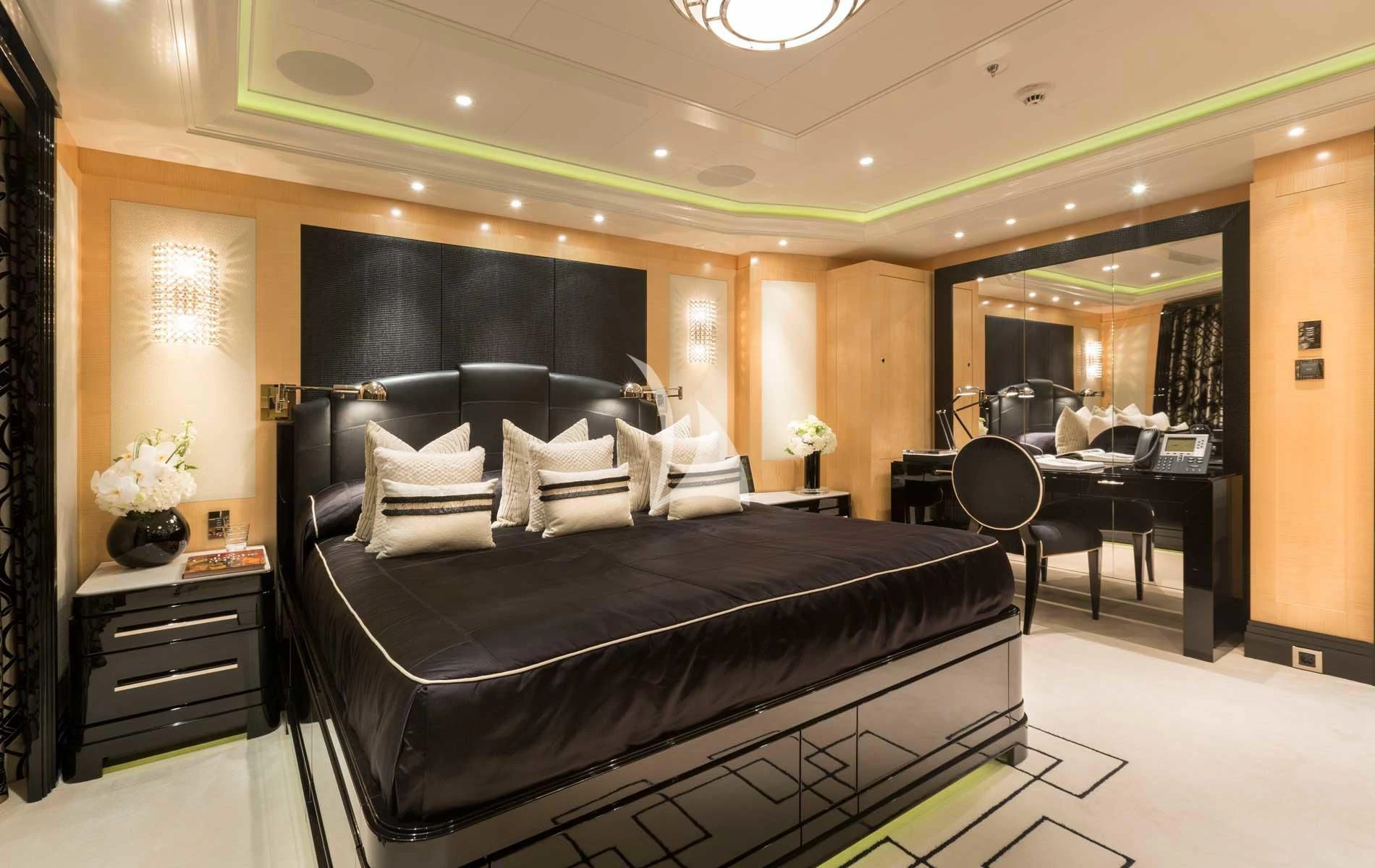

• 2 x Guest double suites on the upper deck with private balcony onto the side companionways and ensuite bathrooms
• 2 x Large guest double suites on the main deck each with ensuite shower rooms
• 1 x VIP double suite on the lower deck with 2 x ensuite bathrooms and separate lounge area - this cabin can be converted into 2 x separate cabins via a dividing wall that can be closed between the bedroom and the lounge; the lounge then converts into either a double or 2  x single beds and each cabin then has its own ensuite bathroom

CREW
Accommodation for 28 crew in 14 cabins

• 1 x Captain double cabin (bridge deck)
• 1 x 1st Officer cabin (bridge deck)
• 1 x Chief Engineer double cabin (lower deck)
• 2 x 3 bunk crew cabins (lower deck)
• 9 x Twin bunk crew cabins (lower deck)

GALLEY EQUIPMENT

• 1 x Foster refrigerator/freezer combination
• 8 x Foster undercounter Gasro Ecopro range refrigerators
• 1 x Manitowoc type EC60 icemaker
• 1 x Castel type T3 blast chiller
• 2 x MKN HansDampf compact steam ovens
• 2 x IME Premio type 6131 pizza ovens
• 1 x Panasonic type NE-3240 microwave
• 2 x Hobart type FP-10A dishwashers
• 1 x Bohner glass ceramic stove
• 1 x MKN electric Salamander Vario
• 1 x MKN griddle plate
• 1 x MKN deep fat fryer
• 1 x Hydrotap instant hot water tap
• 1 x Oxytec air purification hood

LAUNDRY EQUIPMENT

• 2 x Miele type PW6131 EL washing machines
• 4 x Miele type PW6065 washing machines (1 in garage)
• 2 x Miele type PT7331 dryers
• 4 x Miele type PT7136 dryers (1 in Garage)
• 1 x Miele type HM 21-140 rotary iron
• 2 x Aghinetti Camptel type TV/SG2F steam iron stations

CREW MESS EQUIPMENT

• 2 x Miele type G7856 dishwashers
• 1 x Foster type HR150 refrigerator
• 1 x Scholl Bain Marie type 3211-3213
• 1 x La Cimballi type M1 coffee machine
• 1 x Hydrotap instant hot water tap
• 1 x Triton 150 Procon soda machine


MAIN DECK PANTRY

• 1 x Miele type G7856 dishwasher
• 1 x Foster type HR410 refrigerator
• 1 x Foster type LR140 freezer
• 1 x Manitowoc type EC30 icemaker

UPPER DECK PANTRY

• 1 x Miele type G7856 dishwasher
• 1 x Foster type HR410 refrigerator

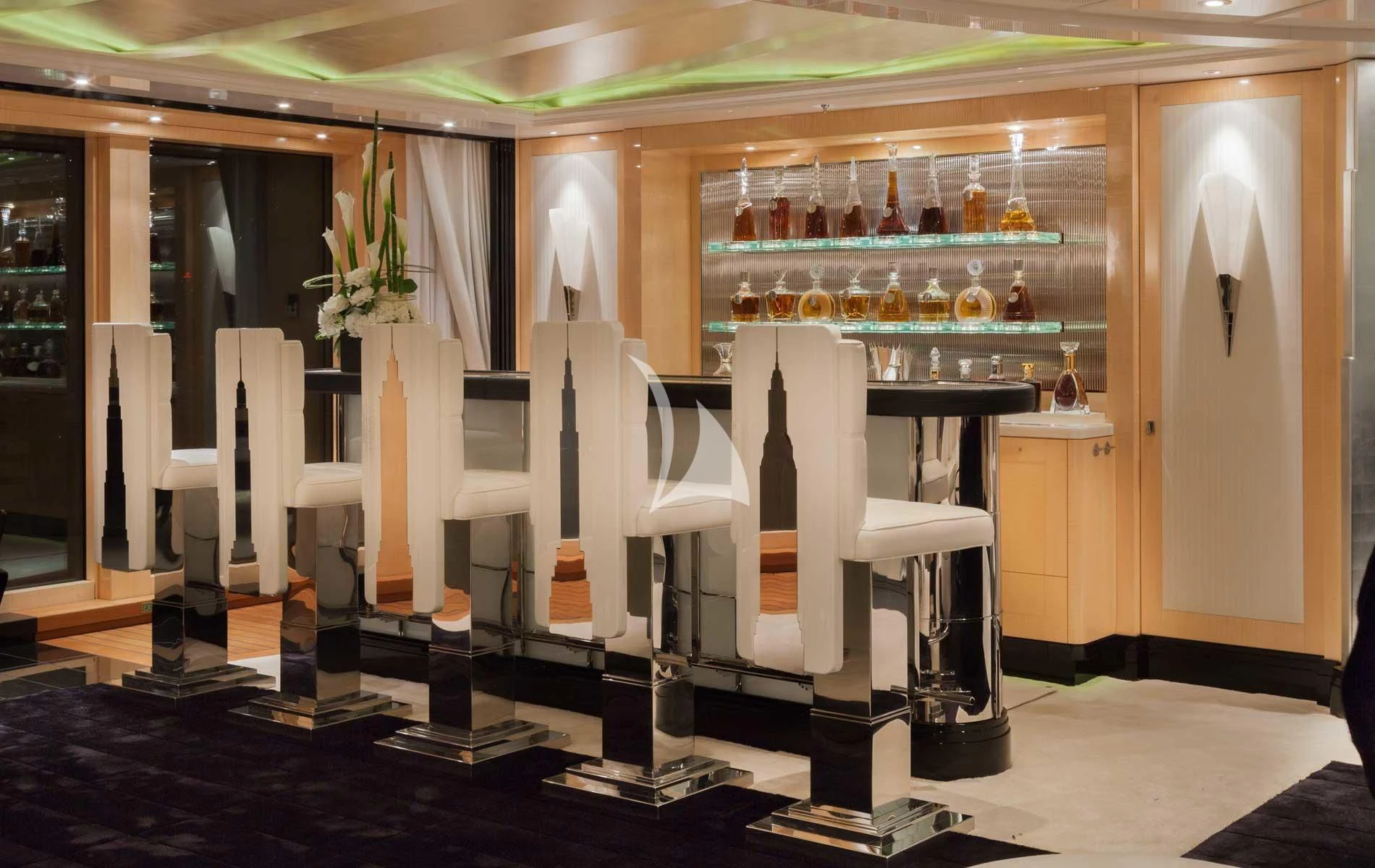

UPPER SALON BAR

• 1 x Hoshizaki type IM-30CLE icemaker


TOP DECK (Exterior)

• 1 x Foster type F-20 A ice cube maker
• 1 x Sub Zero type 700BR drawer refrigerator

BRIDGE AFT BUFFET

• 1 x Foster type F-20 A ice cube maker
• 1 x Sub Zero type 700BR drawer refrigerator

UPPER DECK AFT BUFFET

• 1 x Sub Zero type 700BR drawer refrigerator

MAIN DECK AFT BUFFET

• 1 x Foster type F-20 A ice cube maker
• 1 x Sub Zero type 700BR drawer refrigerator

TENDER GARAGE LAUNDRY

• 1 x Hoshizaki type IM-240WM2E icemaker
• 1 x Foster type HR140 refrigerator

SATCOM

• Two (2) Thrane & Thrane InMarSat fleet type SAM "3275" satellite communications systems, consisting of:
• One (1) fleet Broadband 500 antenna
• One (1) fleet Broadband 500 terminal
• One (1) Fleet Broadband 150 antenna in Fleet BB500 dome
• One (1) Fleet Broadband 150 terminal
• (1) InMarSat C (C) Type Mini-C SAM TT-3000 E
• SSAS Included in GMDSS Mini-C
• Remote Distress Alarm Unit type TT-5042 console mounting
• One (1) RX/TX antenna for mini-C GMDSS SAM 3000E
• One (1) Junction box TT-3616C for mini-C GMDSS
• One (1) Data terminal DEBEG 3646, bk. INM-C/SITOR
• One (1) Keyboard TT3601E black (KB4641E)
• One (1) Printer DEBEG H1252B
• One (1) Remote Distress alarm SAM TT05042CP
• One (1) Interconnection cable F for 3042CP
• One (1) Alarm key 1
• One (1) Alarm key 2
• One (1) SSA activation code; mini-C GMDSS 3000E

CELLULAR SYSTEM

• Two (2) Ericsson type W25 triple band GSM for voice/fax/data

PBX

• Cisco Call Manager System (62 internal phones)

VSAT

• 1 x Seatel type 6006 Antenna Pedestal
• 1 x Seatel type DAC 2200
• 1 x X7 Modem

MINI VSAT

• 1 x TracPhone type V7-VTS

VSAT VoIP

• Cisco type SP112

4G/5G

• 2 x Cellweaver 4 x SIM units with bonding

EMERGENCY INTERCOM

• Jotron Phontech type CIS 3102
• Intercom from wheelhouse to the following: ECR desk, engine room via headset, port steering compartment via headset

VHF RADIOTELEPHONES
A complete external communication system complying with the requirements for the Global Maritime Distress and Safety System (GMDSS) sea area A-3 consisting of the following installations and equipment

• 1 x Raytheon type AP5065 alarm panel
• 1 x Raytheon type CU5100 MF/HF radio
• 2 x Raytheon type RT5020 Duplex
• 1 x Remote handset for VHF with one (1) for tender garage

• The Wartsila NACOS navigational bridge is based upon seven (7) 67cm/27” flat multi-functional & inter-changeable screens. These workstation screens are able to display and control the following: Chart radar, Radars, Electronic chart display information system (ECDIS) and Conning. The three (3) multifunctional workstation screens display 3, 4 and 6 in the matrix below are working as a dedicated redundant integrated navigation system. The four (4) remaining displays 1, 2, 5 and 7 are reserved for the Alarm Monitoring and Control System (AMCS), Dynamic positioning, CCTV. Display 8 (the 4th multifunctional workstation is independent from the other units in the wheelhouse console) with a 56cm/22” flat screen and keyboard and is designated as the planning station.

MAGNETIC COMPASS

• Raytheon Anschütz Sonde type 108--010

GYRO COMPASS

• 2 x Raytheon Anschütz gyro compass system type Standard 22
• 1 x Raytheon Anschütz repeater compass 360/10° type IP23

AUTOMATIC PILOT

• Raytheon Anschütz NP2025 type 102-886 NG001


LOG

• Skipper Electronics type EML 224/124 electromagnetic speed log

ECHO SOUNDER

• Furuno type FCV-1200L/120LM colour LCD depth sounder

FWD LOOKING SONAR

• FarSounder type FS-3DL

RADAR

• 2 x Wartsila 4.3m/14ft & 2.4m/8ft radars (S-band & X-band)

CHARTPLOTTER

• Wartsila NACOS Platinum

GPS

• 2 x DGPS type SAAB R5 Supreme


AIS

• GPS Sensor is an additionally approved navigational sensor, can be used as second source

WIND INSTRUMENTS

• Lambrecht Instruments type METEO-LCD 14742

AUTOMATIC IDENTIFICATION

• Saab TransponderTech type R4 AIS Class A

• The Audio-Visual system was upgraded in 2016.  The system now comprises of Savant Control System that links all of the system components into one easy to use application.  The application is installed on iPads.  The host server for the system uses an Apple Mac Mini.
• The system is networked through fibre optic cables from the Cisco core switches in the tank deck AV room to Cisco 48 port switches on each deck level, the back-haul between switches is 20GB. Each of the services to the individual locations is maintained in the tank deck AV room and directed through JAP port switching devices upon request from the iPad controls.  The AV room on the tank deck is kept at a very cold 18°C / 64°F. The individual components that make up the services of the complete system are listed below.
• It is possible to play the same music selection in any guest area whether inside or outside, or conversely have different music playing in different areas. So, adults in the upper salon, Wintergarden and upper deck aft listening to classic rock and the kids on the top deck, bridge deck playing Spotify favourites.

SATELLITE TV SYSTEM

• 2 x SeaTel Antennas type 6004
• 2 x Seatel type DAC2200
• Each guest area has a dedicated satellite receiver located in the AV room.  In the EU we use a Polsat NC+ Receiver as it gets the maximum coverage and has many English Channels including HBO, Cinemax, BBC news, CNN, and many more.  In the Caribbean we use receivers from Trinidad for maximum satellite footprint

MOVIE SERVER

• Kaleidescape System with over 1800 movies and TV series Each guest area with a TV has a dedicated K-player located in the tank deck AV room

APPLE TVs

• There is an Apple TV in each guest cabin as well 2 x networked Apple TVs located in the tank deck AV room

RADIO STATIONS

• There are 10 x “Phoenix 2” Radio Stations that play a choice of genres to provide easy choice of music styles in all areas without the need to be constantly choosing the next song.  Each genre has enough songs that it would take 2 weeks to hear any song twice. The genres are: Blues, Buddha Bar, Classic Rock, Classical, Dance, Jazz, Lounge Music, Pop, Reggae & World Music

AIRPLAY

• There are 5 x Airplay device services for the guests to select in all areas of the vessel.  This means the guests can connect directly to the system speakers


MUSIC SERVER

• There is a music server onboard with 10 x available streams in all guest areas.  The music library holds over 16,000 songs of various and varied genres.  This is completely separate to the Radio Station selections.  The Streams are outputted to 3 x autonomic devices which also have the ability to stream Spotify and radio stations from all over the world through the internet connection

BLUERAY DVD PLAYERS

• There are two OPPO Blue-Ray DVD players onboard, one in the upper salon and the other in the cinema.  These are there for those moments that the guests come back to the boat with a new DVD and want to watch it immediately.  Of course, if they would prefer for it to be installed on the Kaleidescape, this can be done within about 25 mins

PLAYSTATION 4

• There are two PlayStation 4 onboard with VR goggles located in the upper salon and cinema for that all-encompassing video game experience

LIGHTING CONTROL

• The guest area lighting for each area or cabin can be controlled by the iPad through the Savant App

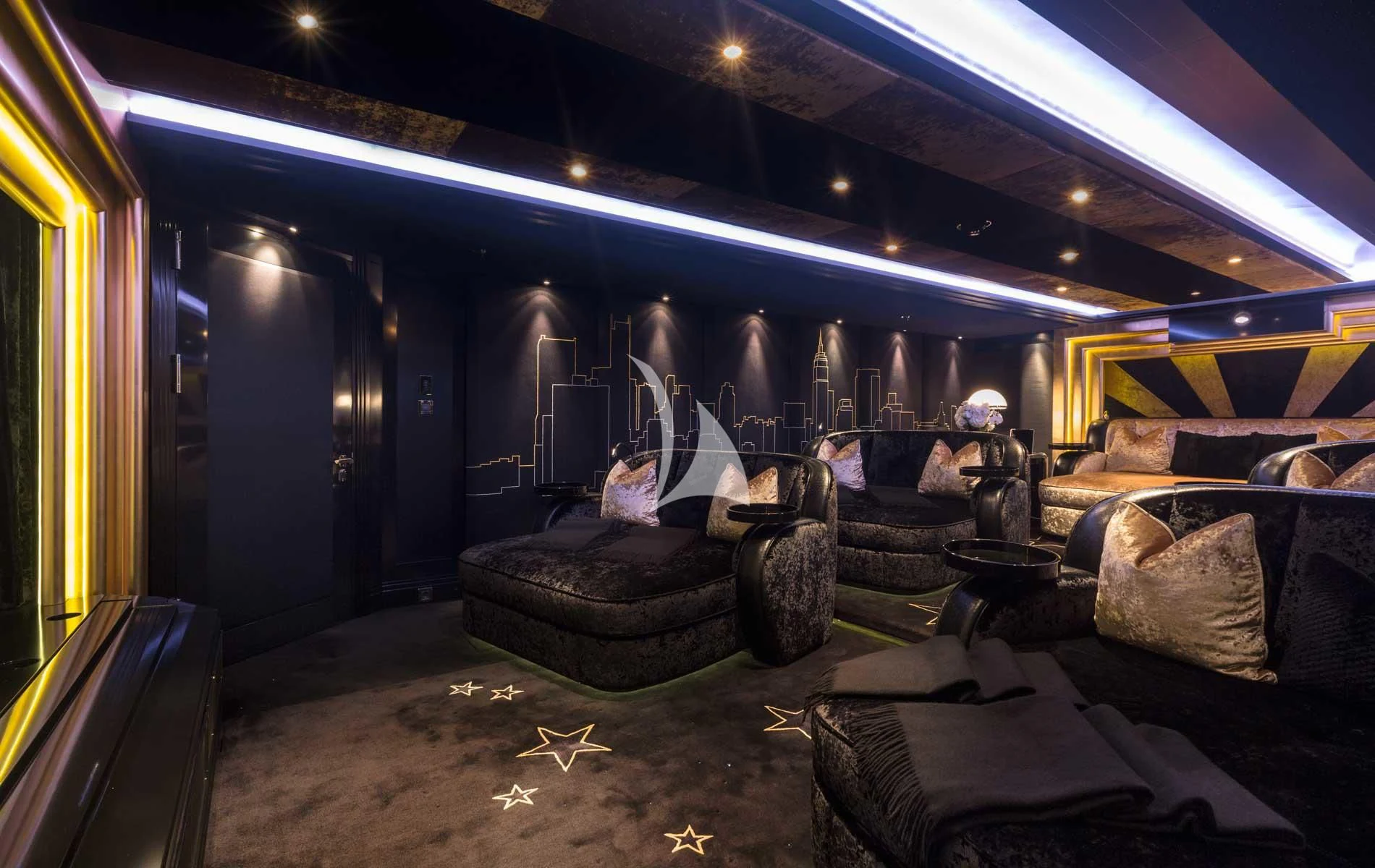

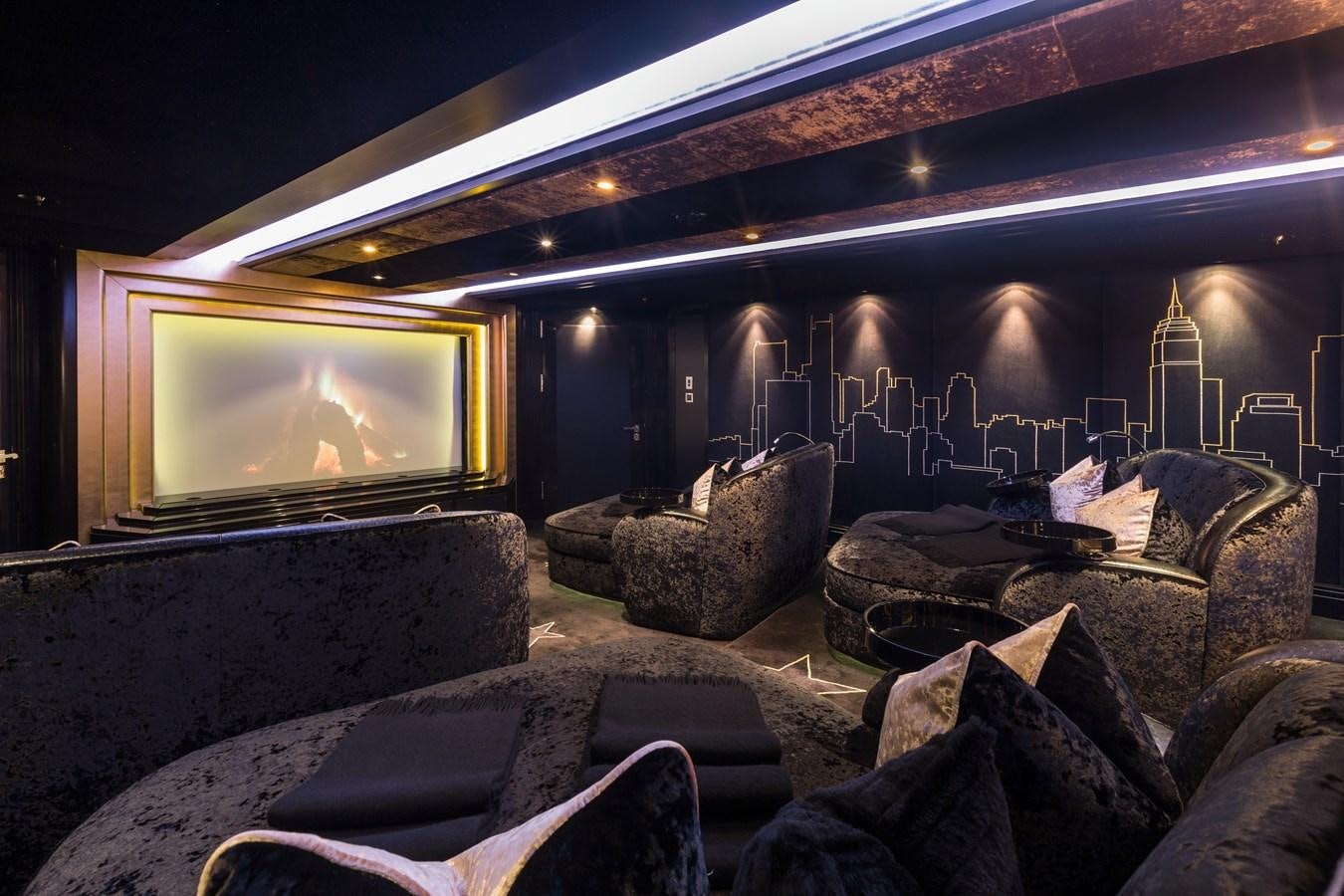

CINEMA

• The cinema is situation on tank deck level and has 7 x 2-person luxurious loungers stepped up towards the back of the room. There is a Sony 4K protector located in the cinema shining onto a 240cm/94” screen

OUTDOOR CINEMA

• An outdoor cinema screen and projector can be setup on the sun deck for evening of fresh air cinema.  The screen is viewable from both sides, so those in the pool can watch at the same time as those on the lounges

TVs

• The TVs are mostly Samsung LCD screens throughout the guest area and cabins.  The bathroom TV are Aquavision waterproof displays

AMPLIFIERS

• Rotel amplifiers are used throughout the guest areas, along with Kramer digital amplifiers in certain areas

CREW AREAS

• Each of the crew bunks has its own TV with access to crew TV receivers, K-players, crew music streams and crew airplay devices

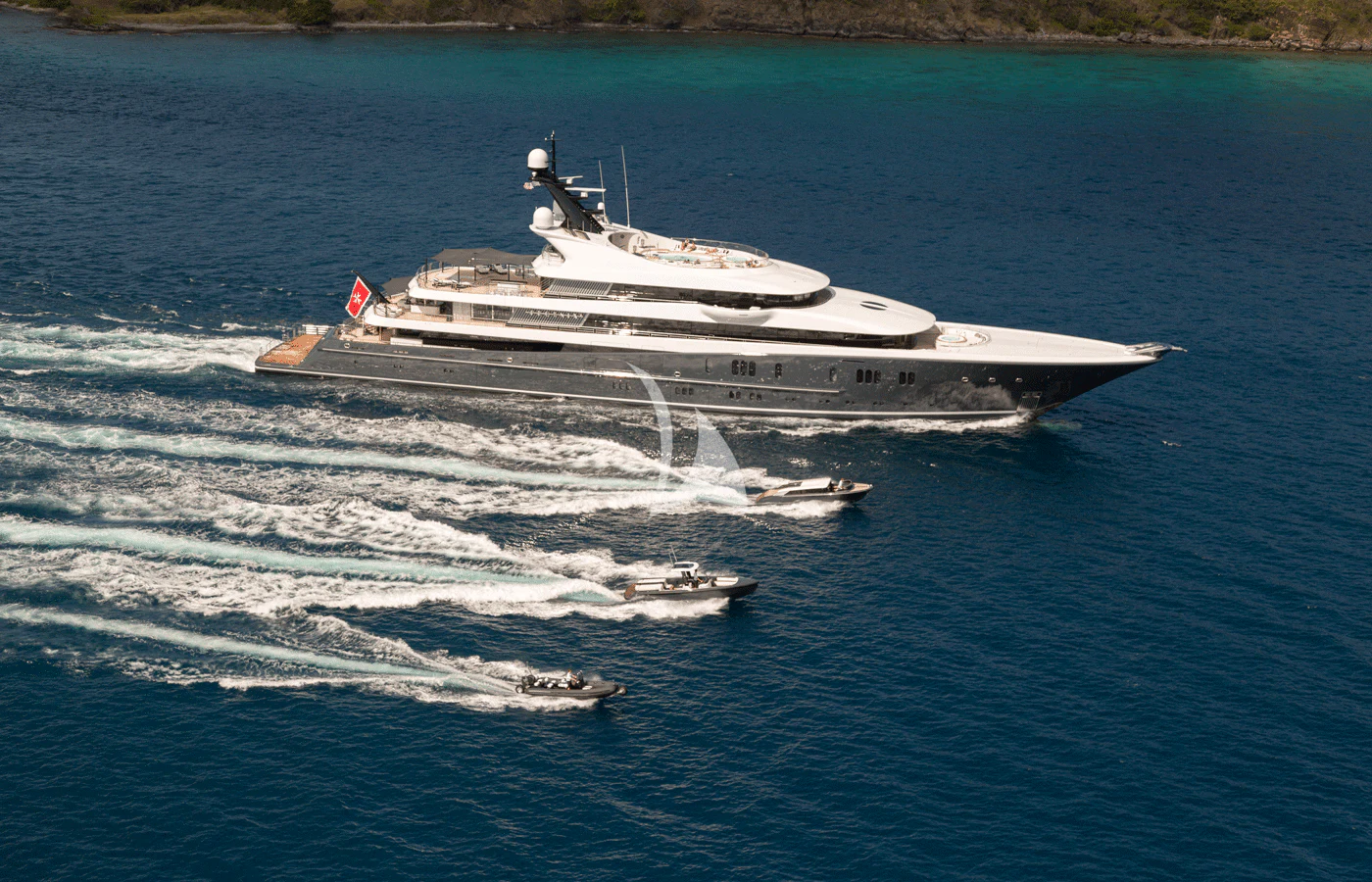

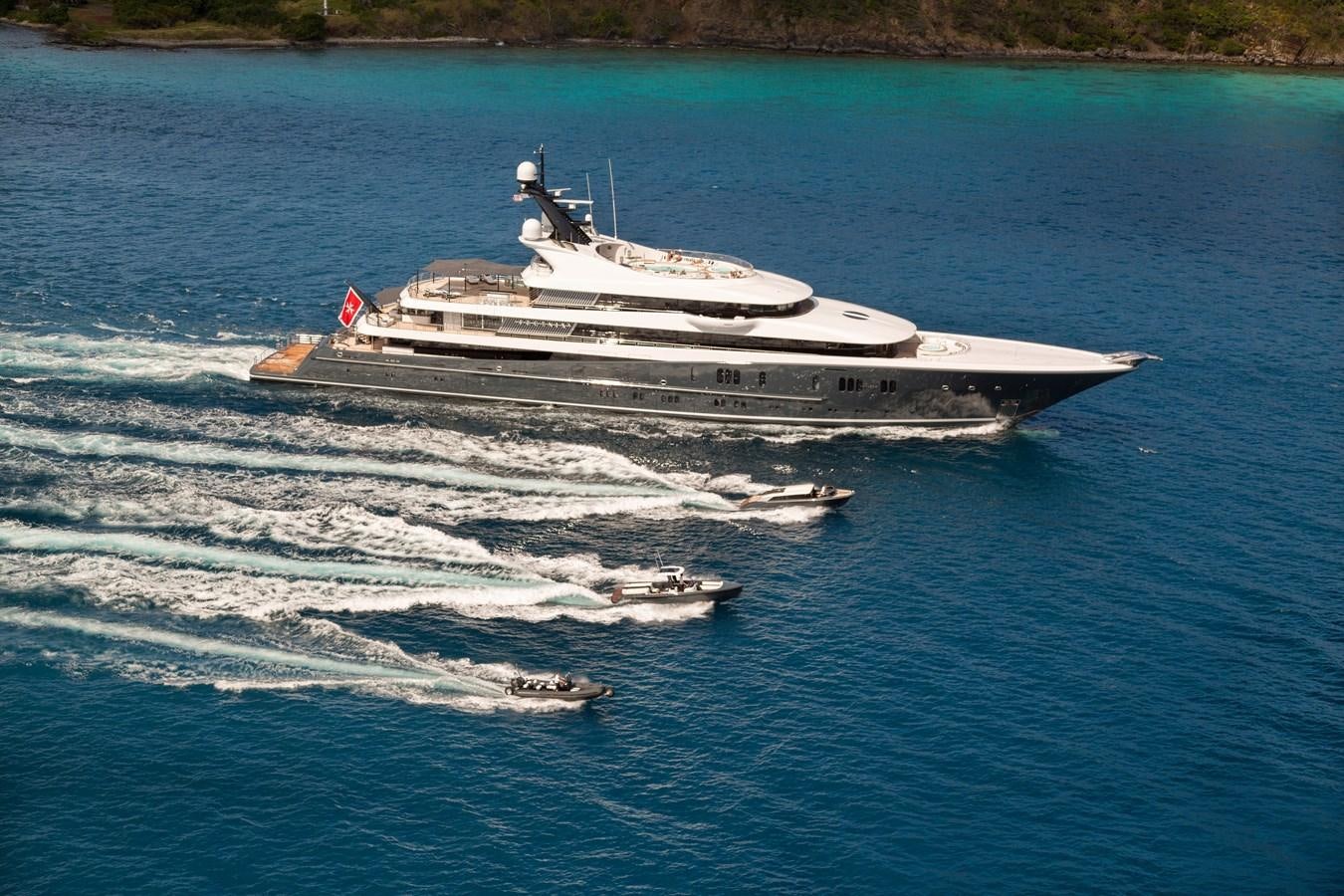

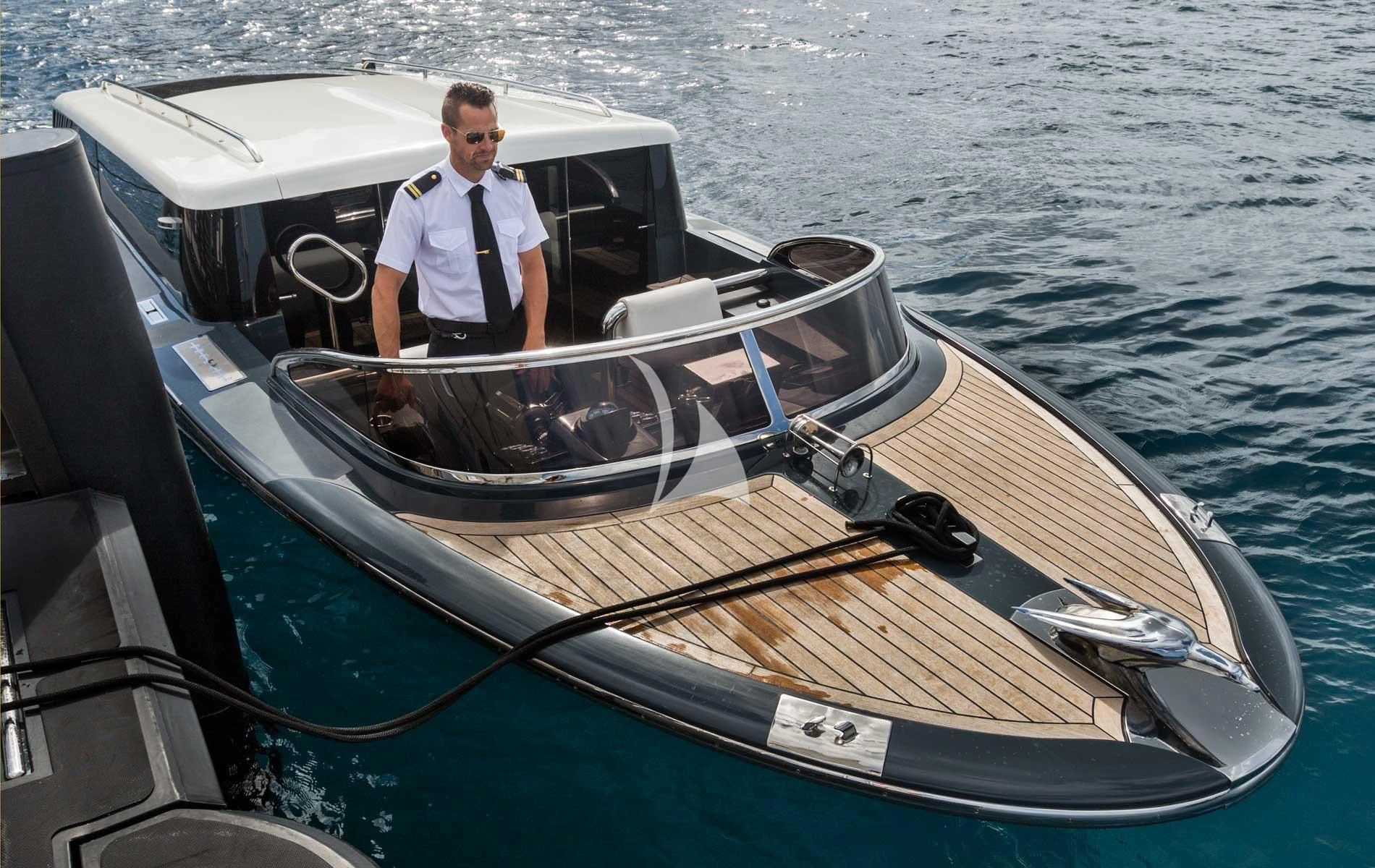

LIMO TENDER

• 1 x 10m/33ft Custom Delphia Limousine Launch with 2 x 315Hp Yanmar inboard turbo diesels

SPORT TENDER

• 1 x 10m/33ft Custom Sports Tender with 2 x 315Hp Yanmar inboard turbo diesels

BEACH TENDER

• 1 x 7.5m/24.6ft SeaLegs RIB beach landing on wheels with 150Hp Evinrude outboard

RESCUE TENDER

• 1 x 6.4m/21ft Custom Fassmer RIB tender with 1 x 236Hp Steyr jet turbo inboard diesel

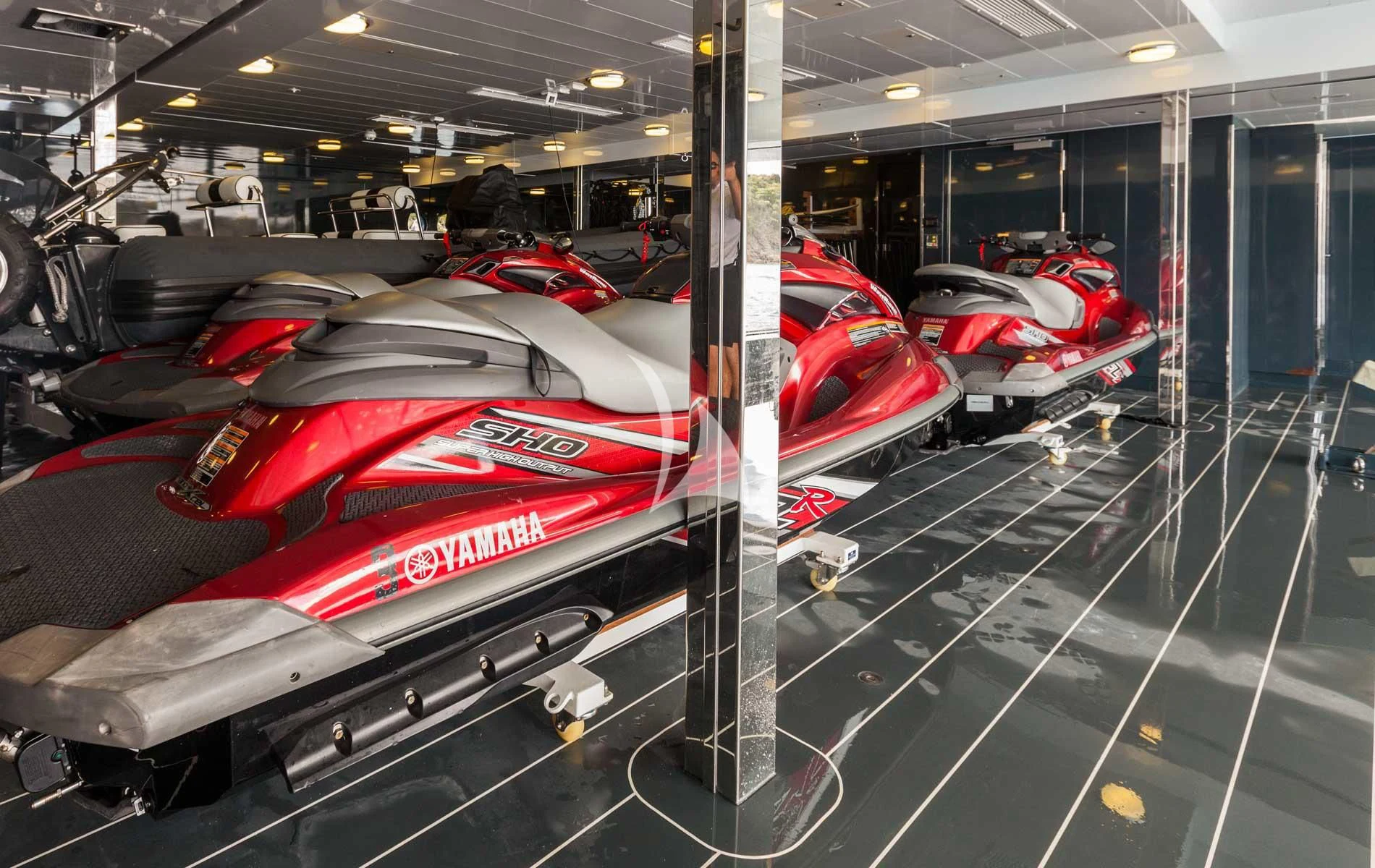

WAVERUNNERS

• 4 x Yamaha FZR Waverunners with 1,812cc (155Hp) Yamaha petrol supercharged marine engine

SEABOBS

• 2 x Sea Bobs type Cayago F7

E-FOIL

• 1 x Vinga

E-WAKE

• 1 x Ravik 3

KAYAKS

• 2 x Kayaks type ‘Pungo 140’

SURFBOARDS

•  2 x Custom Surfboards by Rory Oke Shapes; 2.3m/7.6ft & 2.0m/6.6ft

KITE SURFS

• 2 x Cabrinha kite surfers: 1 x 10m²/108ft² kite sail & 1 x 12m²/129ft² kite sail

WINDSURFERS

• 2 x Windsurf boards with 3 different size sails: 1 x wide beginners’ level, 1 x semi-floating & 1 x advanced level

SAILBOAT

• 1 x Fully rigged Pico laser sailing dinghy

PADDLE BOARDS

• 2 x Stand up paddle boards

MOUNTAIN BIKES

• 2 x Cannondale mountain bikes

BEACH EQUIPMENT

• 3 x Beach barbecues and 6 x tents

ANCHOR WINDLASS

• 2 x Steen type 23-9-14, stainless steel vertical anchor windlasses each with vertical warping capstans

AFT WARPING CAPSTANS

• Two (2) Steen type 59-9-10 electrically driven capstans with a pulling rate of approx. 40kN

GROUND TACKLE

• Two (2) fully balanced HHP (High Holding Power), make Kettenfabrik 1,080kg/2,380lbs each, type Pool N anchors connected to 7.5 shackles/205m/675ft x 400mm/1.575” galvanised steel stud link anchor chain

GANTRY CRANE (GARAGE)

• Two (2) Fuchs electric full beam overhead sliding davits, one (1) front beam and one (1) aft beam
• The front beam has in total two (2) lifting points; one (1) lift point on PS and one (1) lift point on SB
• Safe Working Load (SWL) per hoisting point is 3,125kg/6,889lbs
• The aft beam has in total four (4) lifting points; one (1) pair (2 x 1) on PS and one (1) pair (2 x 1) on SB
• SWL per pair is 2,500kg/5,511lbs. per lifting point

RESCUE BOAT CRANE

• Gilbert & Schmalriede Luffing telescopic boom rescue boat crane - Safe Working Load: 3,450kg/7,605lbs

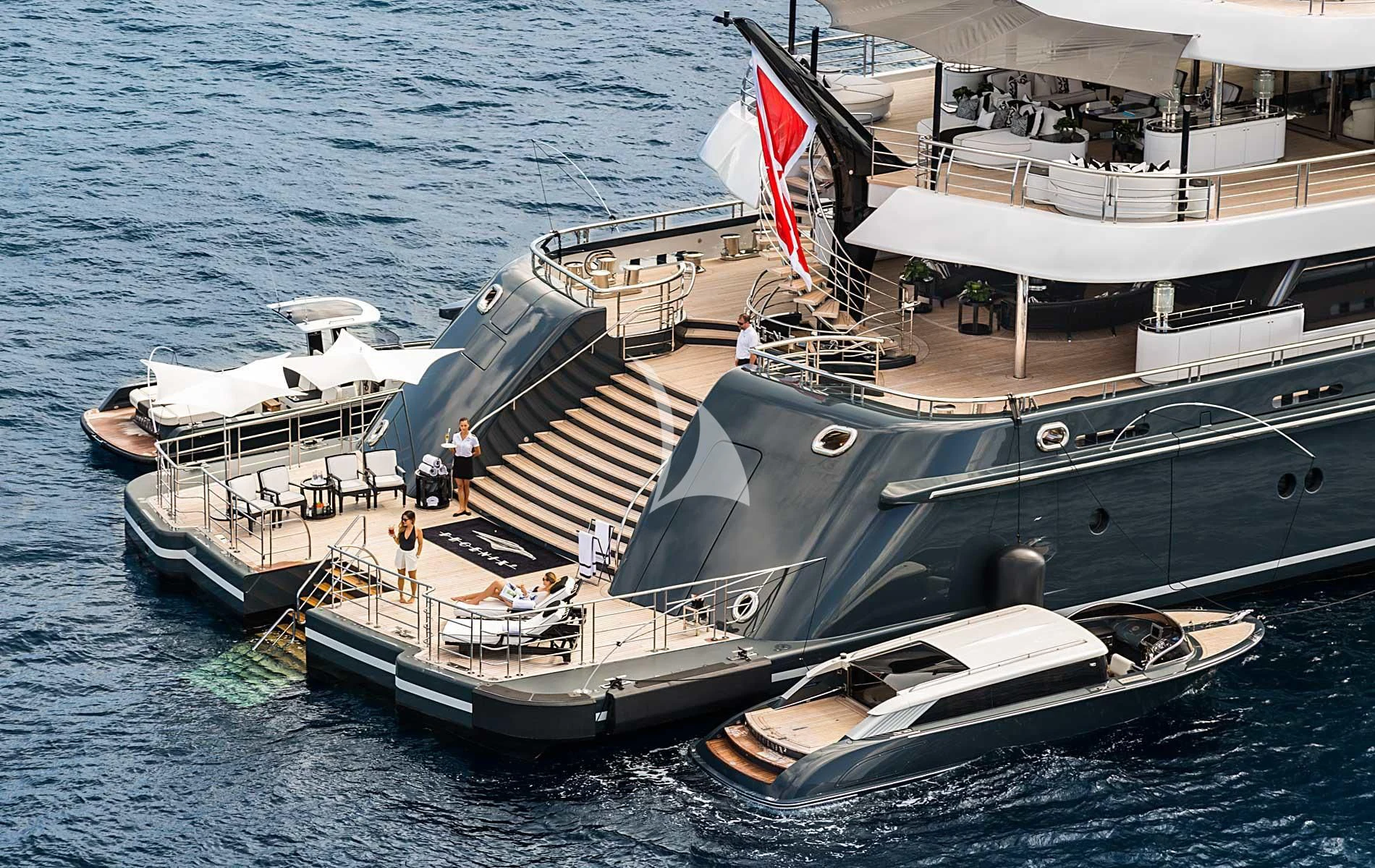

STERN GANGWAY

• Aljo electric hydraulic telescopic passerelle, with total extendable length of 12.6m/41ft and approx. 85cm/33.4” width

SIDE BOARDING LADDER

• Fassmar electric hydraulic operated accommodation ladder with a length of approximately 7.44m/24.4ft

SEARCHLIGHT

• Two (2) Carlisle and Finch type XY2EDE-RF searchlights on main mast

AWNINGS

• Awnings can be installed in the following locations; Bridge Deck Aft, Foredeck Jacuzzi, Upper Aft Deck Seating

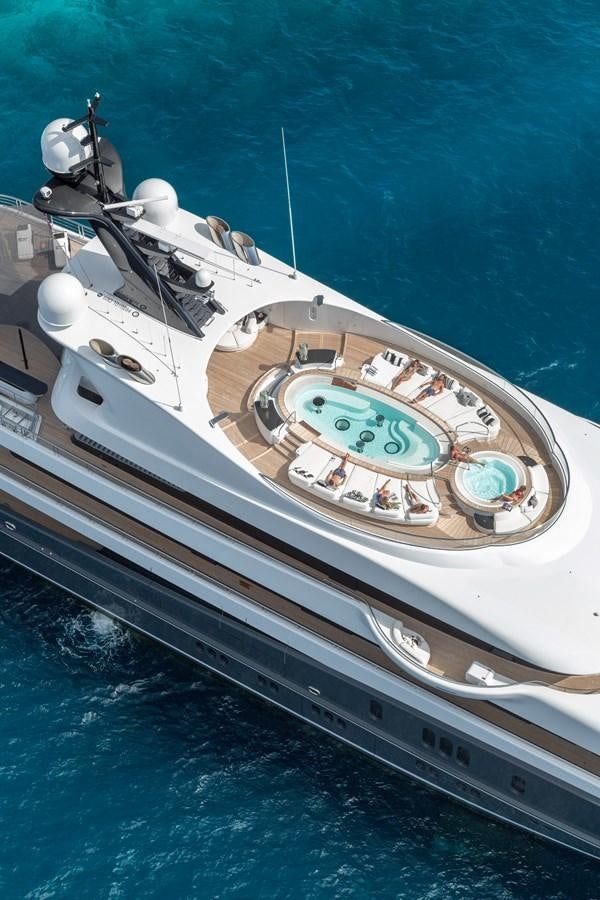

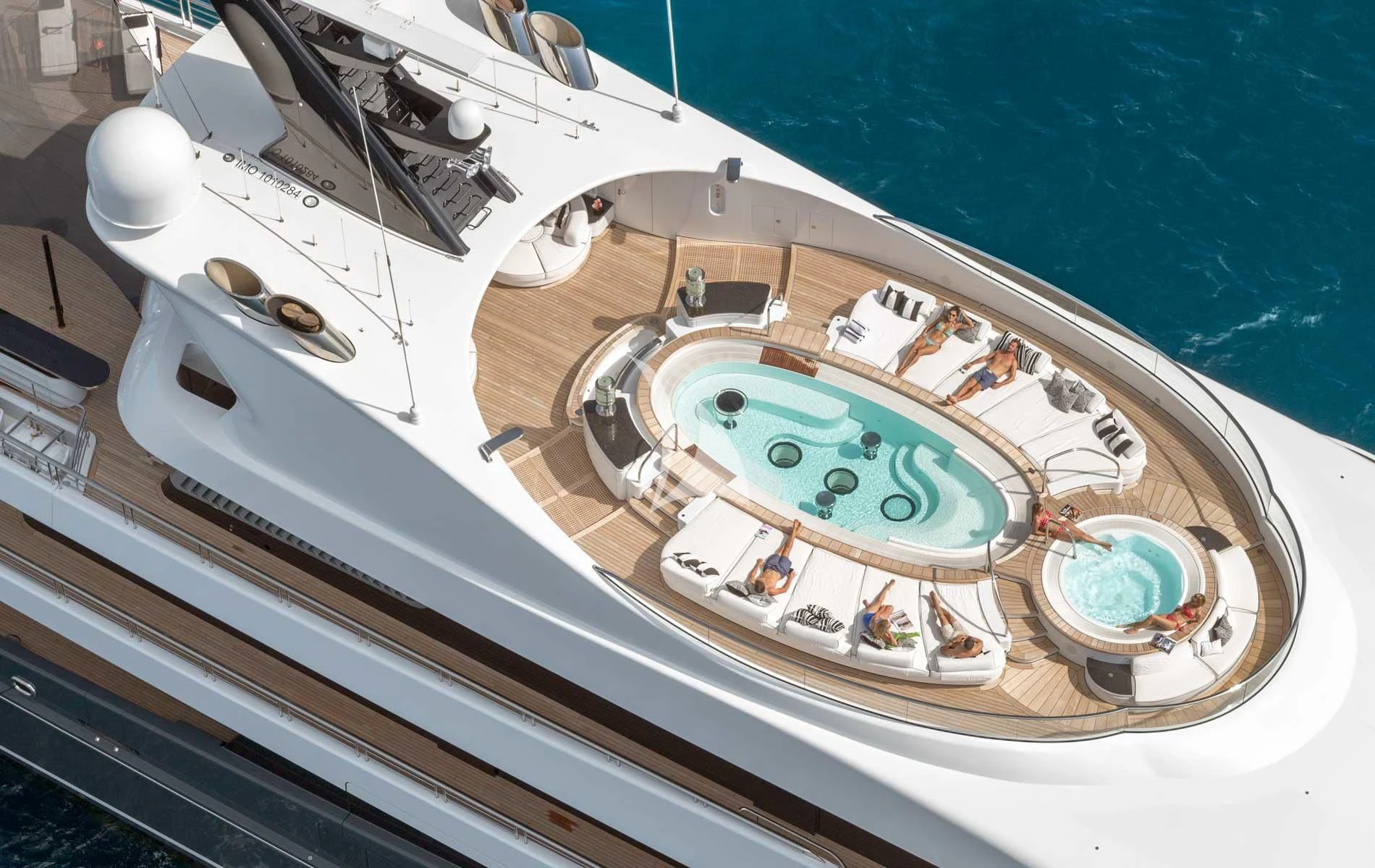

SWIMMINING POOL

• L: 6.5m /21.3ft x W: 2.8m/9.2ft x D: 1.0m/3.3ft GRP freshwater pool with Bromide sterilization holding 14,000 litres/3,698 US gallons

JACUZZI

• One Jacuzzi on sun deck in front of the main pool
• One jacuzzi on upper deck in front of Owner’s office

SAFETY

• 43 x Challenger Hydrosafe livevests
• 52 x Kadematic lifevests
• 25 x Mullion lifevests
• 9 x MTM lifevests
• 1 x Formula lifevest
• 4 x Crew Saver lifevests
• 4 x Stearns immersion suits
• 48 x PS 2004 immersion suits
• 2 x Stearns (child) immersion suits
• 4 x Crewsaver (child) immersion suits
• 8 x Viking immersion suits
• 4 x Viking 25-man life rafts with Hammar H20 hydrostatic release mechanisms
• 4 x ACR type “Rapid Ditch” grab bags
• 2 x McMurdo EPIRB type E5 Smartfind
• 1 x McMurdo SART type S4 Rescue SART
• 3 x Thrane & Thrane portable VHF radios type SP3520 (with 3 x spare batteries)
• 5 x Icom type i25 portable VHF radios

MEDICAL

• 3 x KKCR/Luxer 3 litre oxygen cylinders
• 2 x Philips type Hearstart defibrillators
• 2 x Evacuation stretchers and 1 x neck immobiliser
• 5 x Petzel type Avao Bod safety harnesses and 8 x safety lines

FIRE FIGHTING

• 8 x BA cylinders
• 5 x Drager full face masks & BA sets
• 4 x Innitex fire protection suits
• 23 x Fire hoses & couplings
• 47 x Gloria fire extinguishers throughout
• 10 x Interspiro Emergency Escape Breathing Devices (EEBD)
• 2 x Viking heat protection suits for heli-ops
• 4 x Motorola fireproof radio communication sets

HULL PAINT JOB

• Hull paint job was completed in June 2019 including upper deck outer bulwarks

BOTTOM PAINT JOB

• Bottom paint job was completed in June 2021

SURVEY ITEMS COMPLETED

• Lloyds 10-year special survey – completed during haul-out period in Germany 2019
• 2022 Annual Surveys complete
• Bottom Survey completed in June 2021 not due again until 2023
• Hull Intermediate Survey completed June 2022 not due again until 2023
• Continuous machinery surveys up-to-date and ongoing
• Screw shaft surveys not due until 2024
