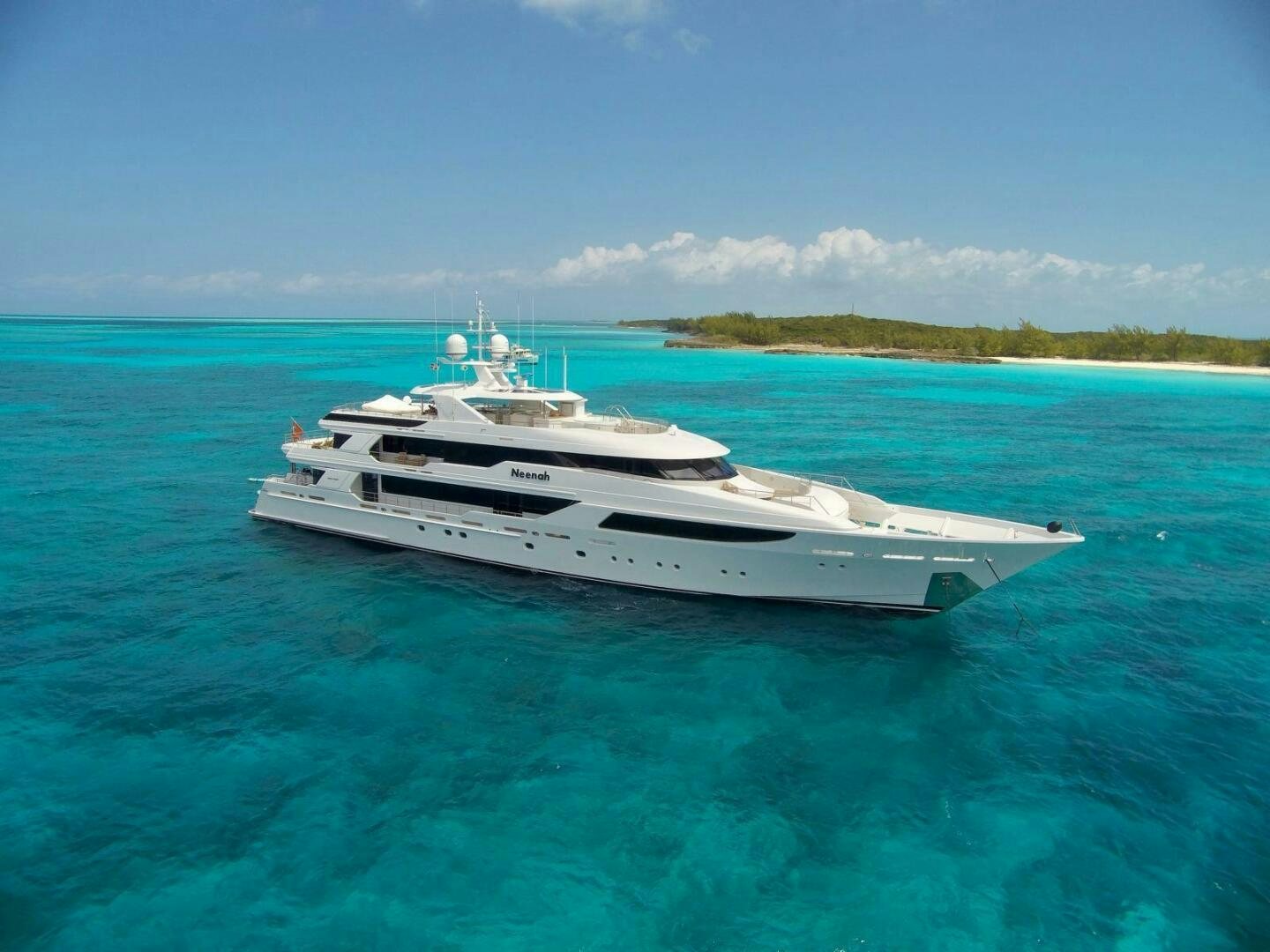

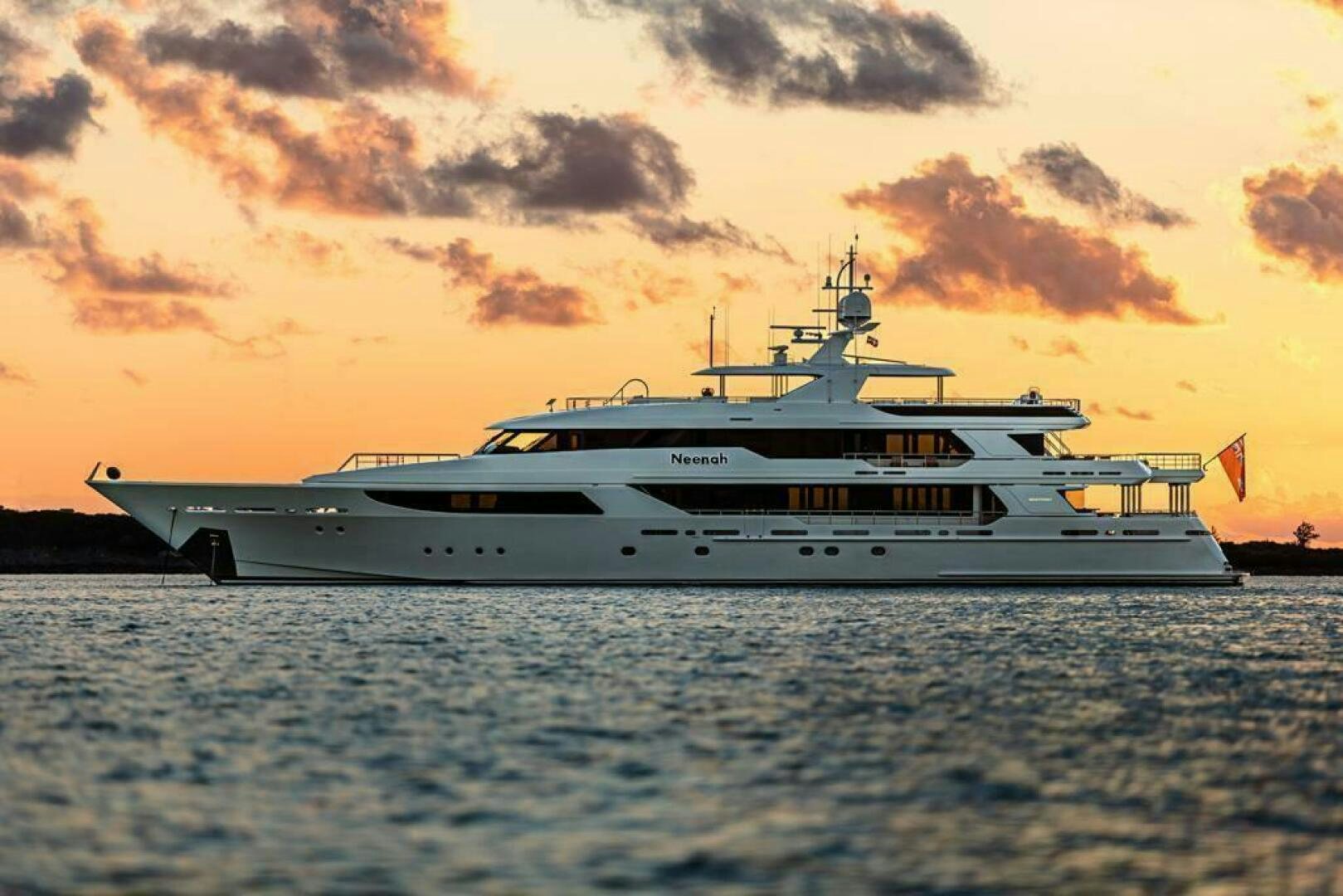

NEENAH Yacht for Sale

• Controls: Electronic with throttle synchronizing and LCD data display
• Filters: Racor 500
• Marine gear: ZF model 9050A, remote mount, 8 degree down angle, ratio 2,958:1 with trailing pump
• Shaft seals: Wartsila, carbon face
• Exhaust: Stainless steel collector with hard thermal insulation, Integral spray ring for 20" main underwater FRP exhaust piping and flanged connections
• Underwater exhaust outlet: Molded FRP 'blister' design with chine exit includes head reducing molded hull ventilator. (Westport fabrication)
• By-pass exhaust: 12" FRP piping, Soundown silencer
• Heading input from gyro and fluxgate compass
• Rudders: Welded stainless steel
• Seals: PYI, PSS dripless
• HVAC Systems
• HVAC system: Marine Air1 45 ton capacity, three compressors, independent seawater intake
• Make-up air: For cycling air through vessel interior
• Keypads (thermostat/controls): For control of individual air handlers and for main chiller control, Marine Air digital fan control with individual heating controller and remote temperature sensors
• Air handlers: 208 volt/single phase/60 Hz of various BTU ratings
• Central Hydraulic System
• Gauge package: Pressure and flow gauges for each valve manifold
• Davits; Two telescopic masts with telescopic length booms, 1,700 pound capacity, hydraulic proportional control (Sun Deck davit includes emergency power pack for back-up)
• Beam crane: 5,000 pound capacity, driven by the central hydraulics system
• Battery Chargers: 24 volt DC chargers/rated power supplies
• Main engine starting bank: 20amp
• House bank/ship's system: 95 amp
• Generator starting bank: 20 amp
• Reserve bank: 20 amp
• Emergency DC service: 95 amp
• Seamless Transfer: From shore power to ship's power through the ASEA converters
• Wiring: Single and multiple conductors, ABS Type or Class Approved
• Main switchboard: Extruded aluminum construction with powder coat finish. Unit Is built to IP20 level of protection. Included is control and monitoring electronics. Forced draft cooling.
• Full gauge package {for all sources): Volts/amps of each line, phase, power, power factor and frequency.
• Generator gauge package: Northern Lights (ADE)

Fuel System

• Diesel: 20,000 US gallons over 5 tanks with transfer system
• Optional Jet Fuel Tankage: 1,000 US gallons (which would reduce the total diesel to 19,000 gallons)
• Pumps
• Primary: AC, 75 gpm
• Secondary: DC positive displacement back-up/priming pump

Filters

• Generators: Three Racor S00
• Fuel transfer: Facet fuel filter FG-220
• Fuel centrifuge: Two plumbed in parallel directly into day tank (4C) for 400 GPH total capacities; Y strainer {316SS) before AC pump1 strainer before DC pump
• Electronic fuel meter: Positive displacement with remote electronic display and automatic pump shut off pre-set capability.
• Valves: Stainless steel three piece ball types for fuel transfer manifold and consumer isolation
• Deck fills: 2" stainless steel 'Diesel' with threaded cap

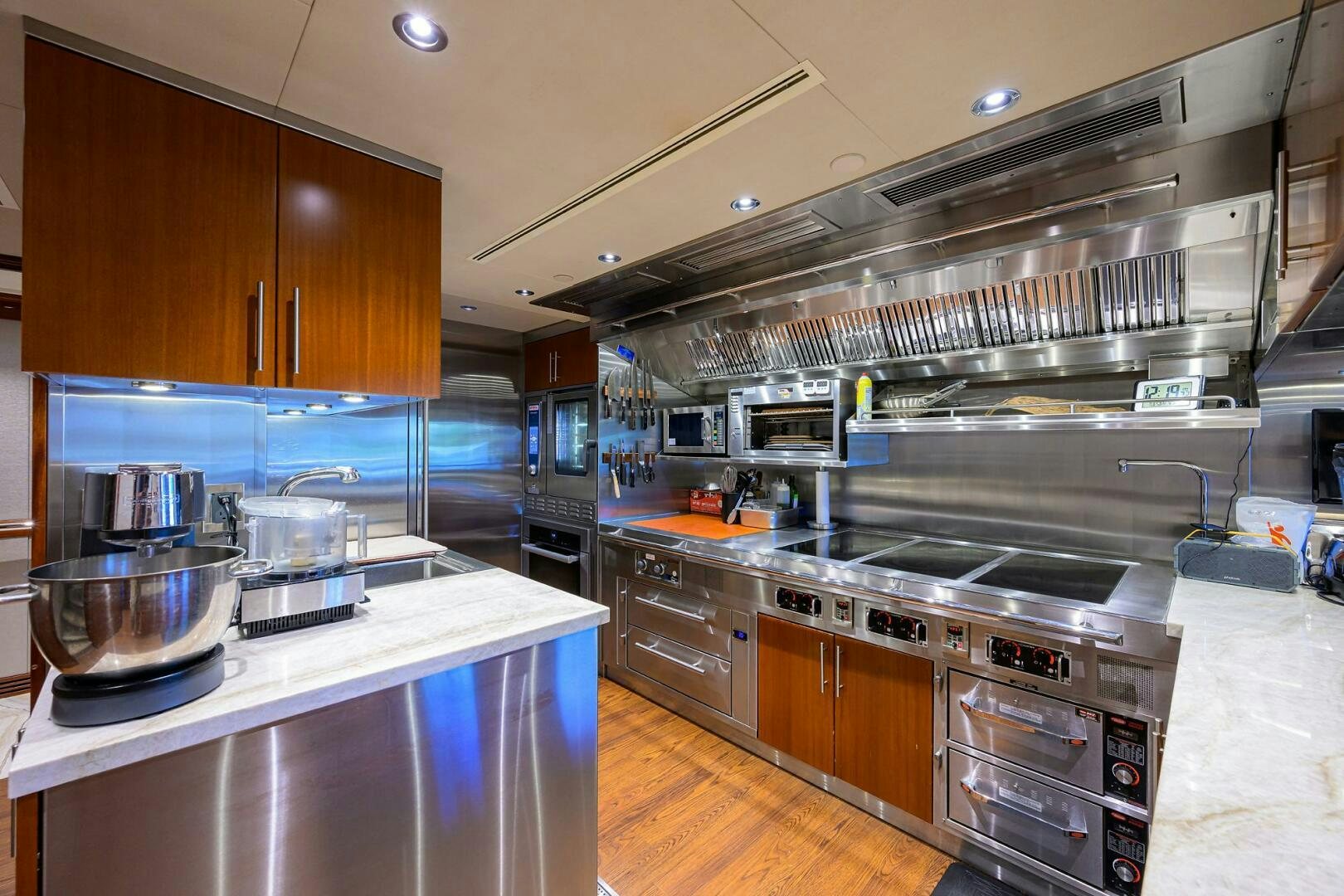

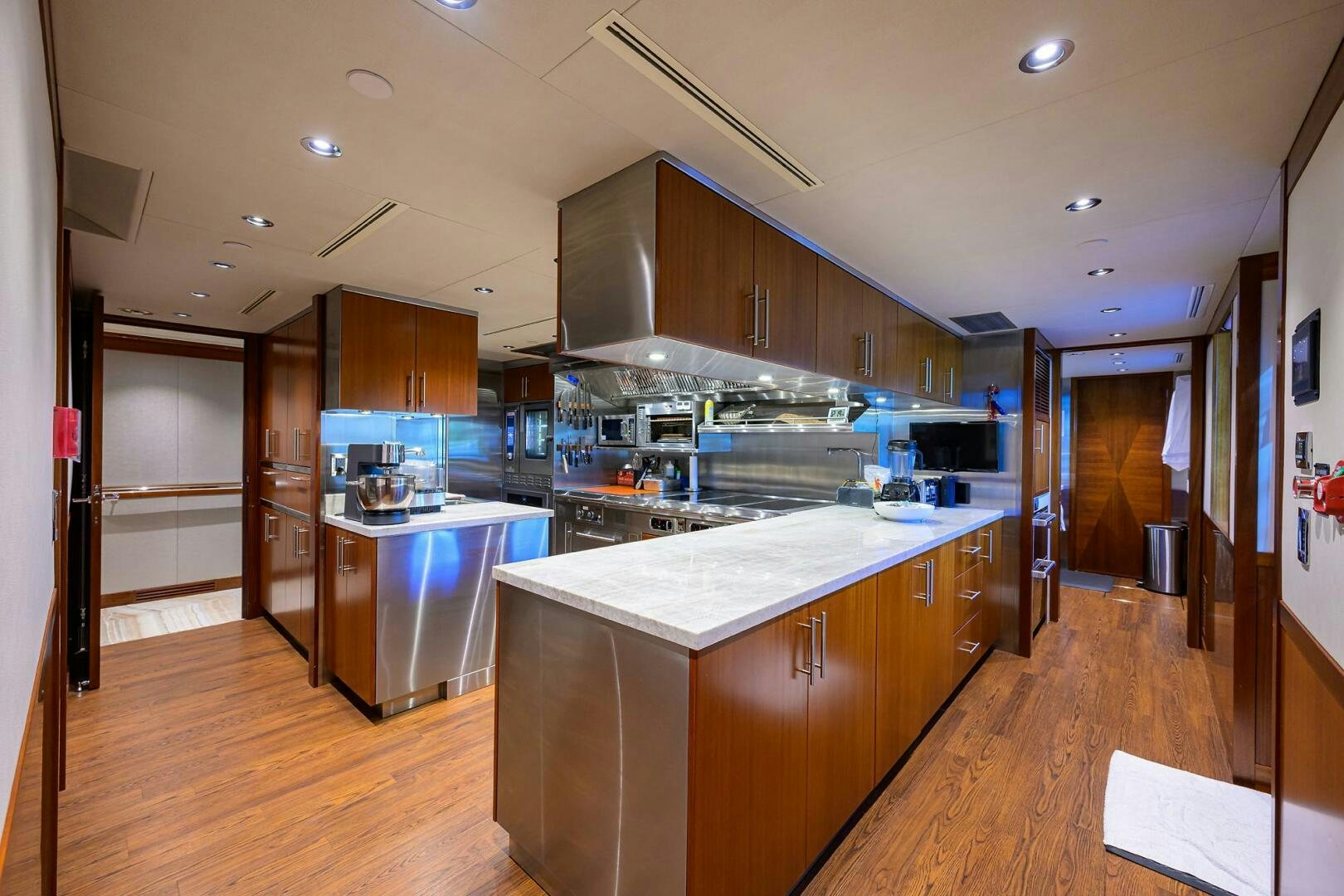

GALLEY

• Commercial galley
• CookTek induction range
• Miele oven
• Rational combi oven
• Hatco warming drawers
• APW Wyott finishing oven
• Wells charbroiler
• Panasonic Commercial Microwave
• Waring Commercial Food processor
• Hamilton Beach Commercial food mixer
• Perlick refrigerator
• Omnitemp refrigerated drawer base
• Electrolux dishwasher

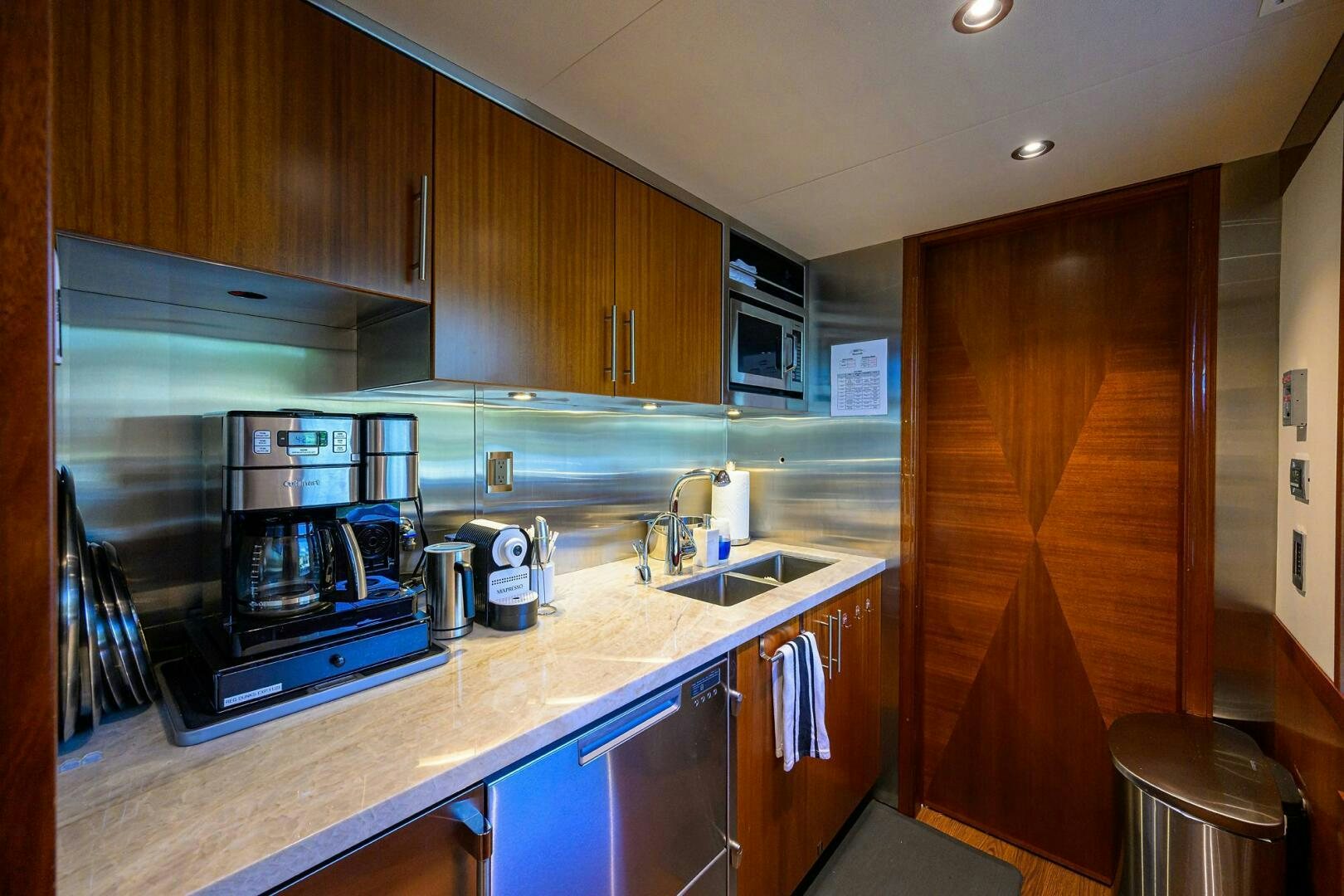

GALLEY PANTRY

• Prep counter
• Storage cabinets
• Dumbwaiter
• Panasonic Commercial microwave
• InsinkErator InstaHot water dispenser
• Fisher Paykel dishwasher
• Perlick undercounter refrigerator
• Perlick refrigerator drawers
• Astra espresso machine
• Fetco coffee brewer
• Perlick wine cooler

GALLEY STORES

• Dry storage shelving
• RDS walk in cooler
• RDS walk in freezer
• Manitowac ice maker and bin
• Krushr trash compactor

SWIM PLATFORM

• Teak deck
• Hose bibs for washdowns
• Portable shower
• Swim ladder, folding handle, stainless steel with teak treads
• 4 pop up cleats
• Hatch for gasoline filling and service station
• Port and Starboard steps to main deck
• 2 warping capstains
• 6 LED underwater lights
• 2 mooring bits, port and starboard
• Access doors to equipment room starboard, control room port, and tender garage center

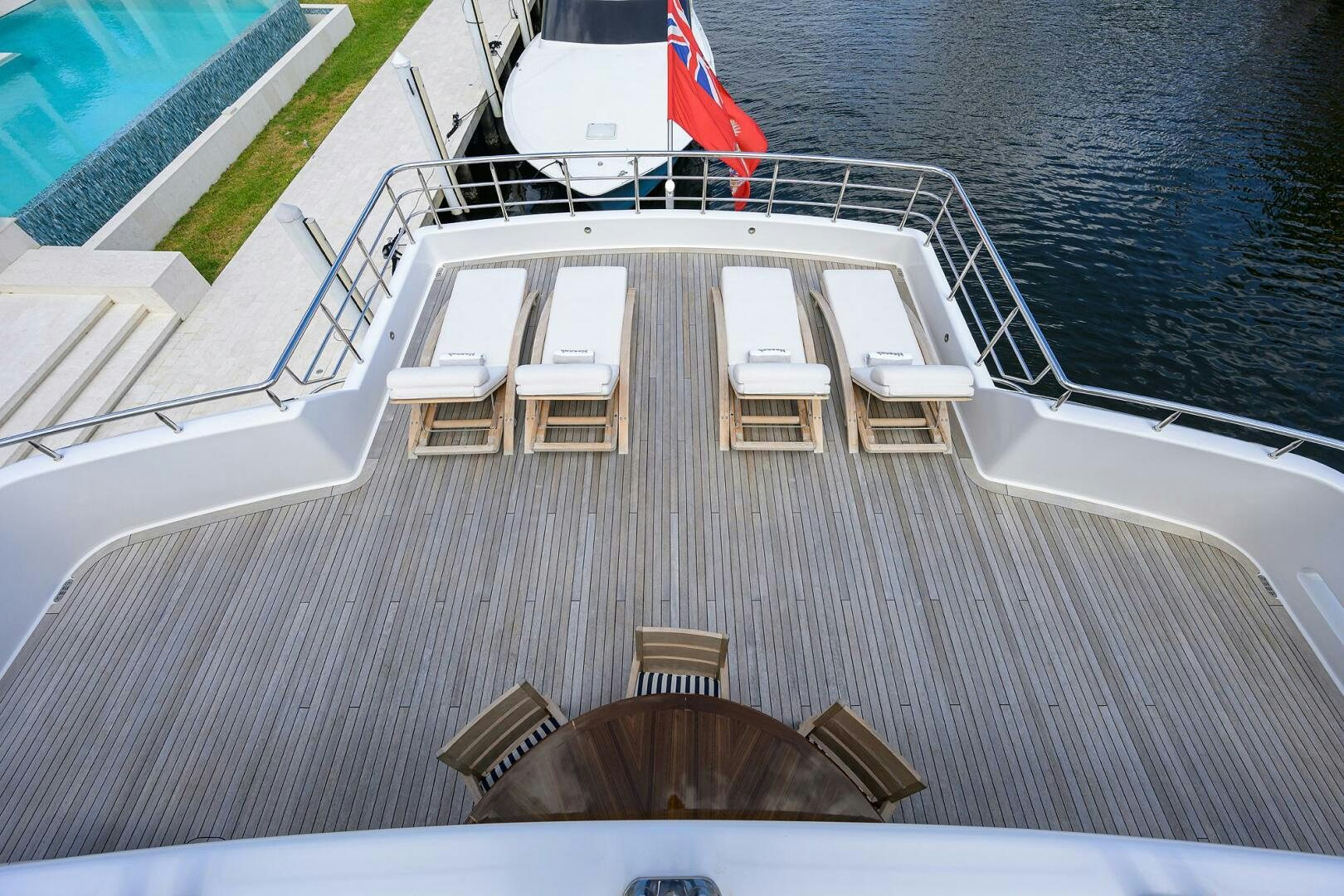

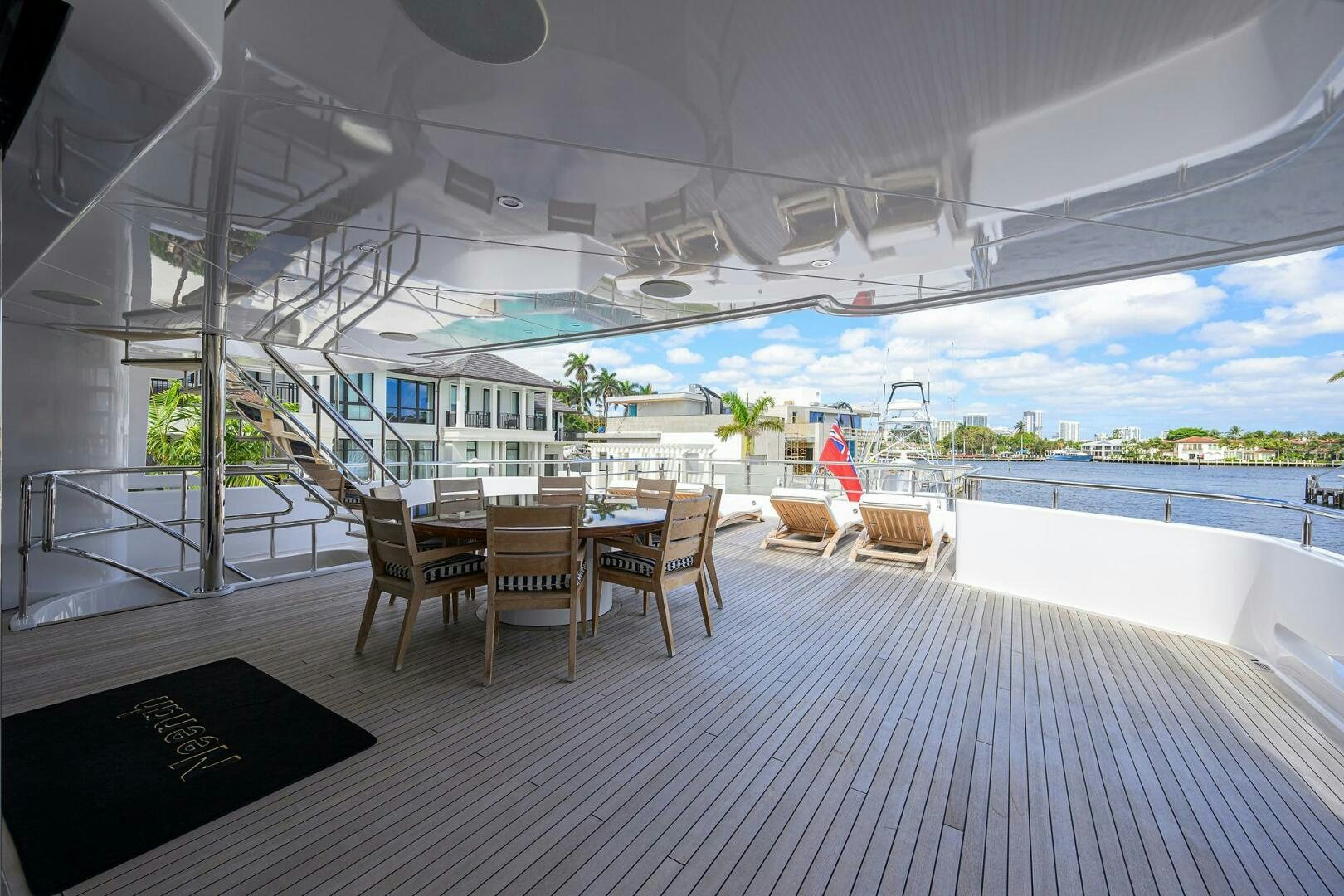

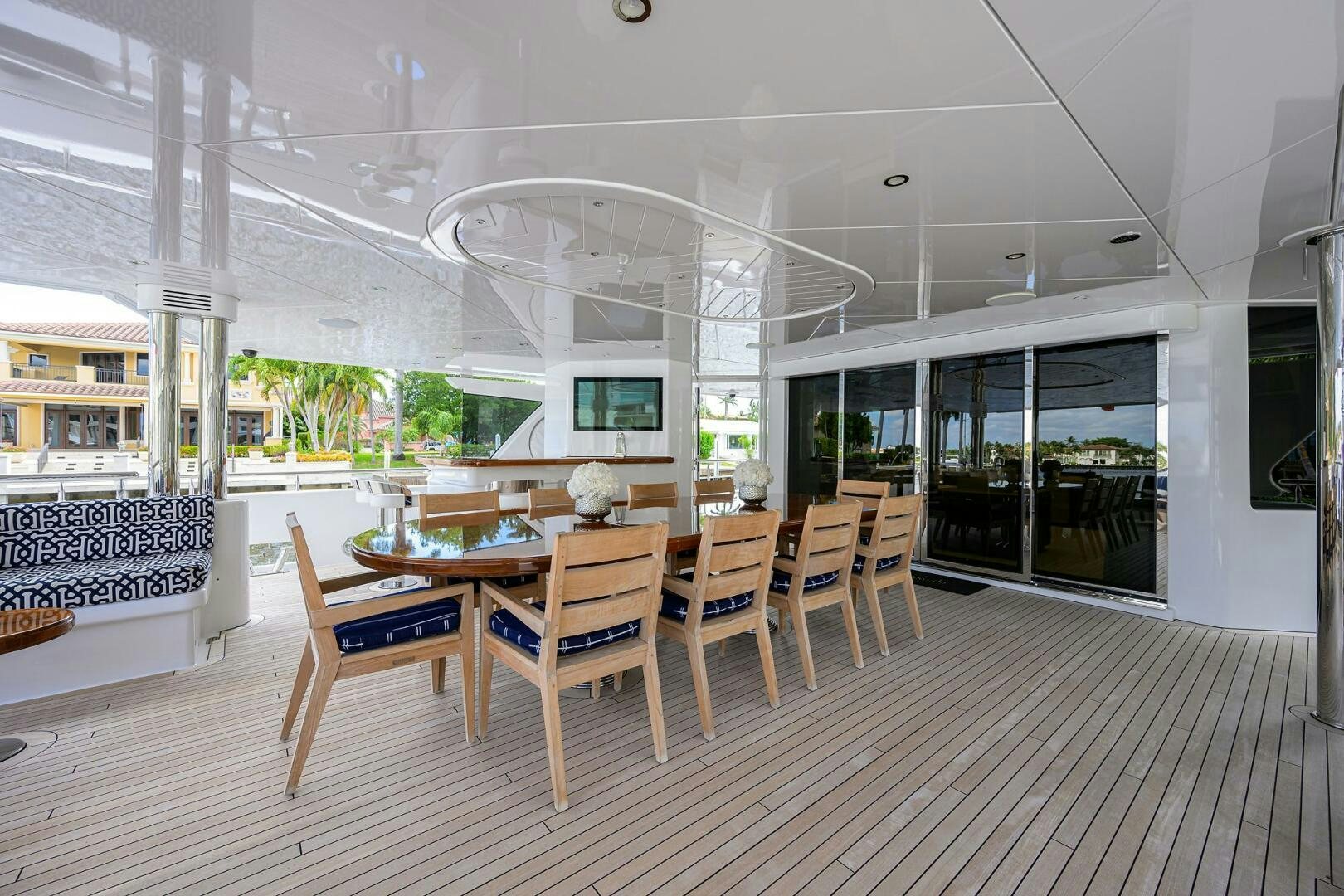

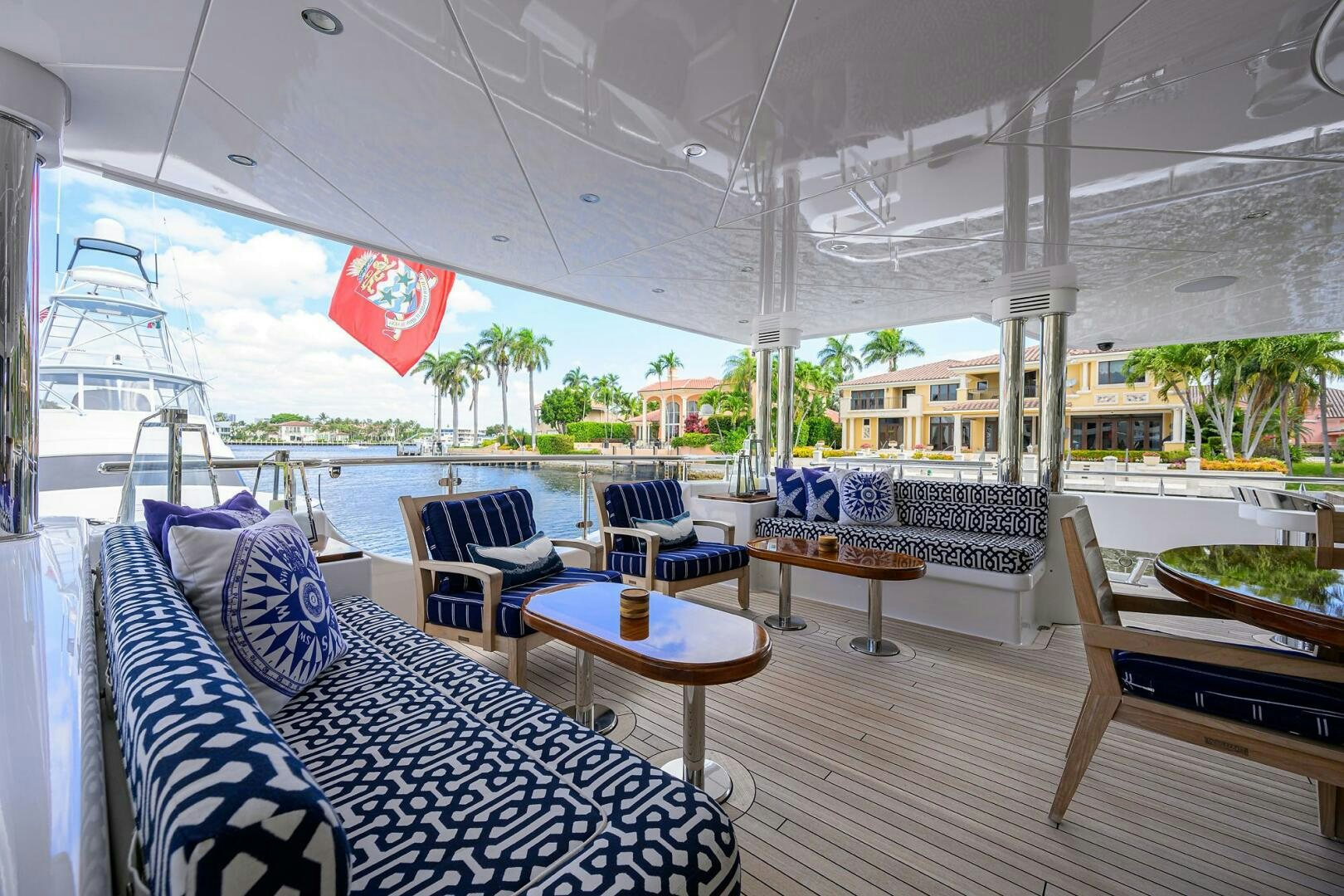

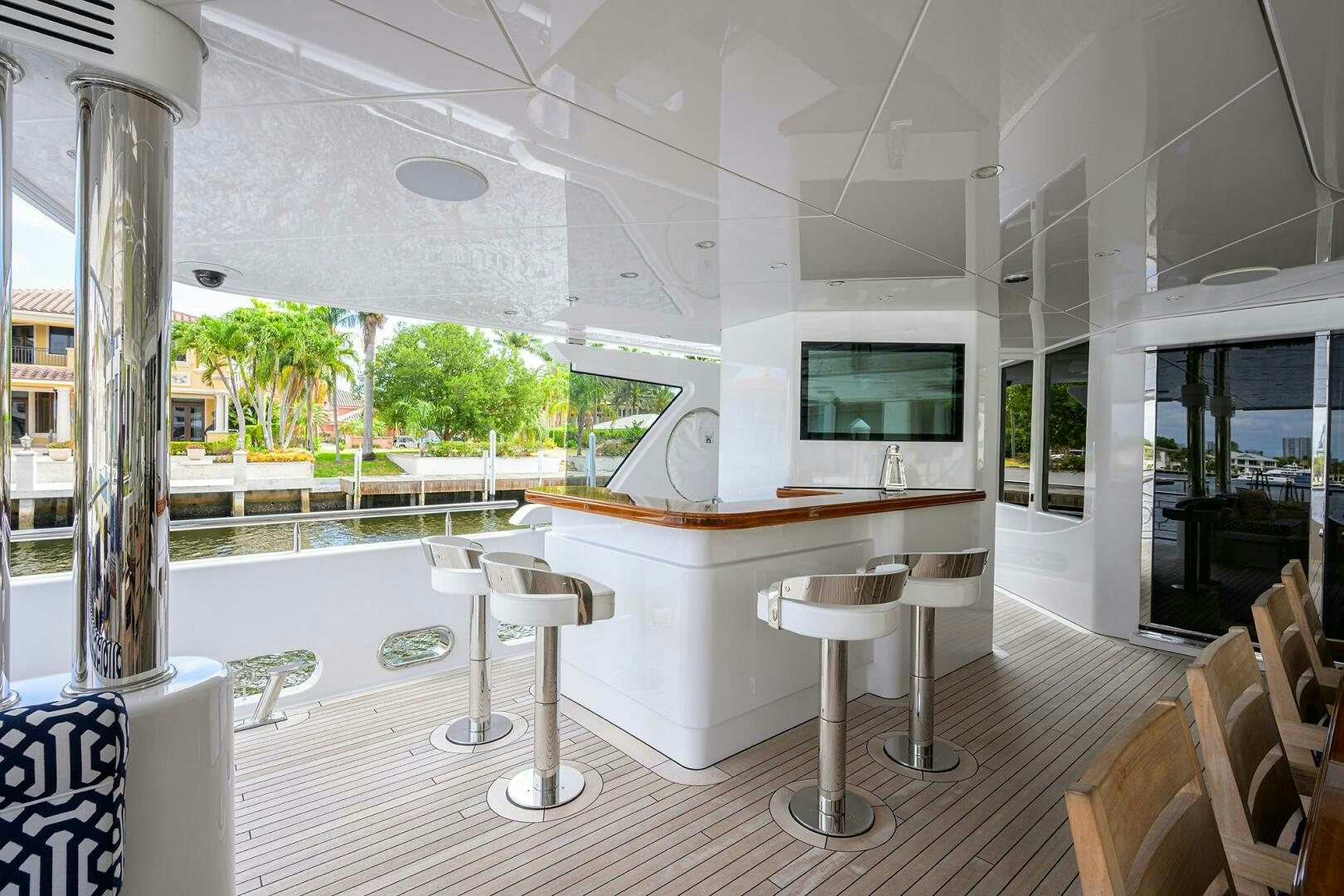

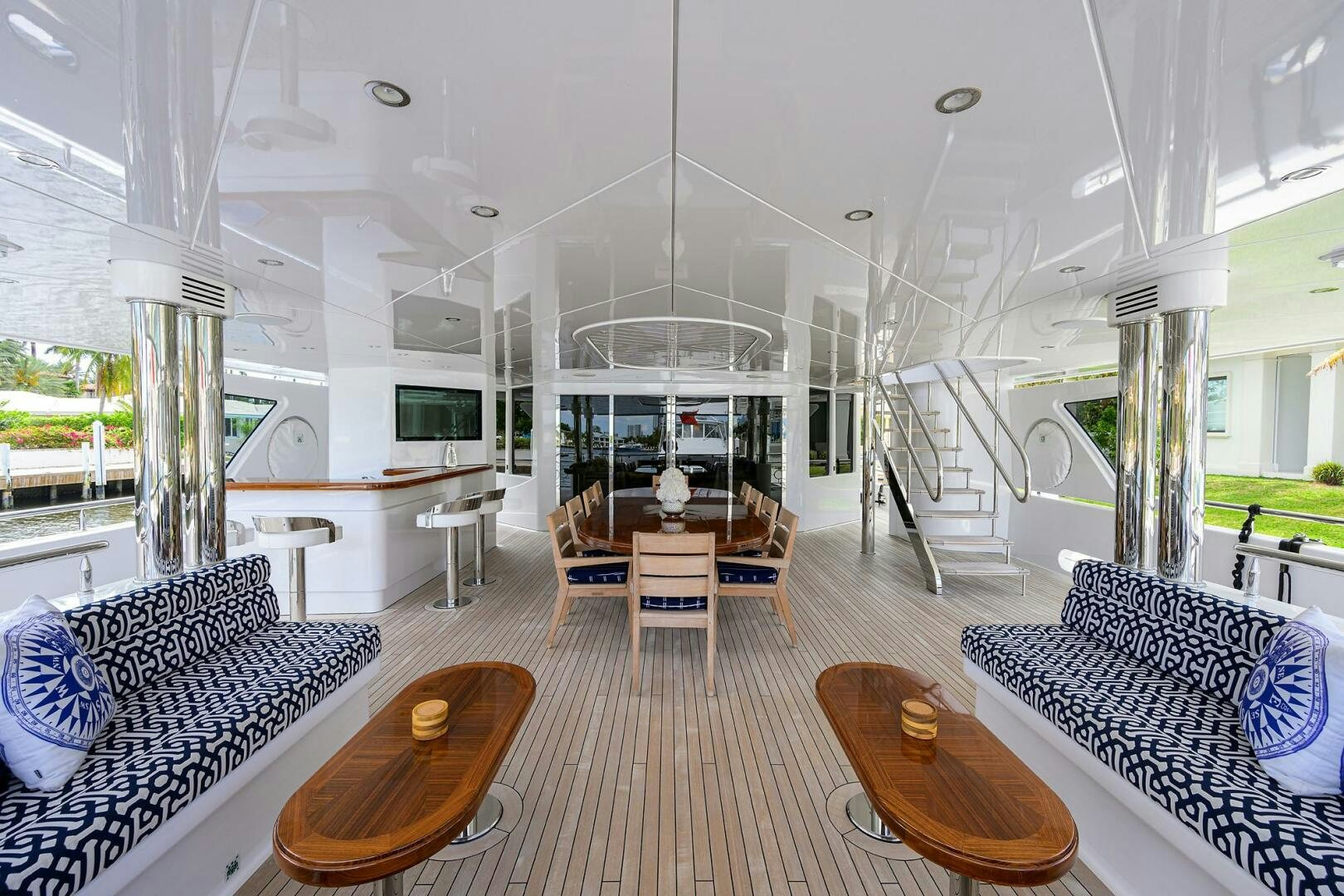

AFT DECK

• Teak deck
• Teak dining table with 12 teak chairs
• Settees facing inboard with 2 cocktail tables between
• Traditional full-service bar with teak bar top, stone work surfaces, refrigerator, ice bin, sink, bottle and barware storage
• 4 barstools
• Nautical Structures hydraulic passerelle

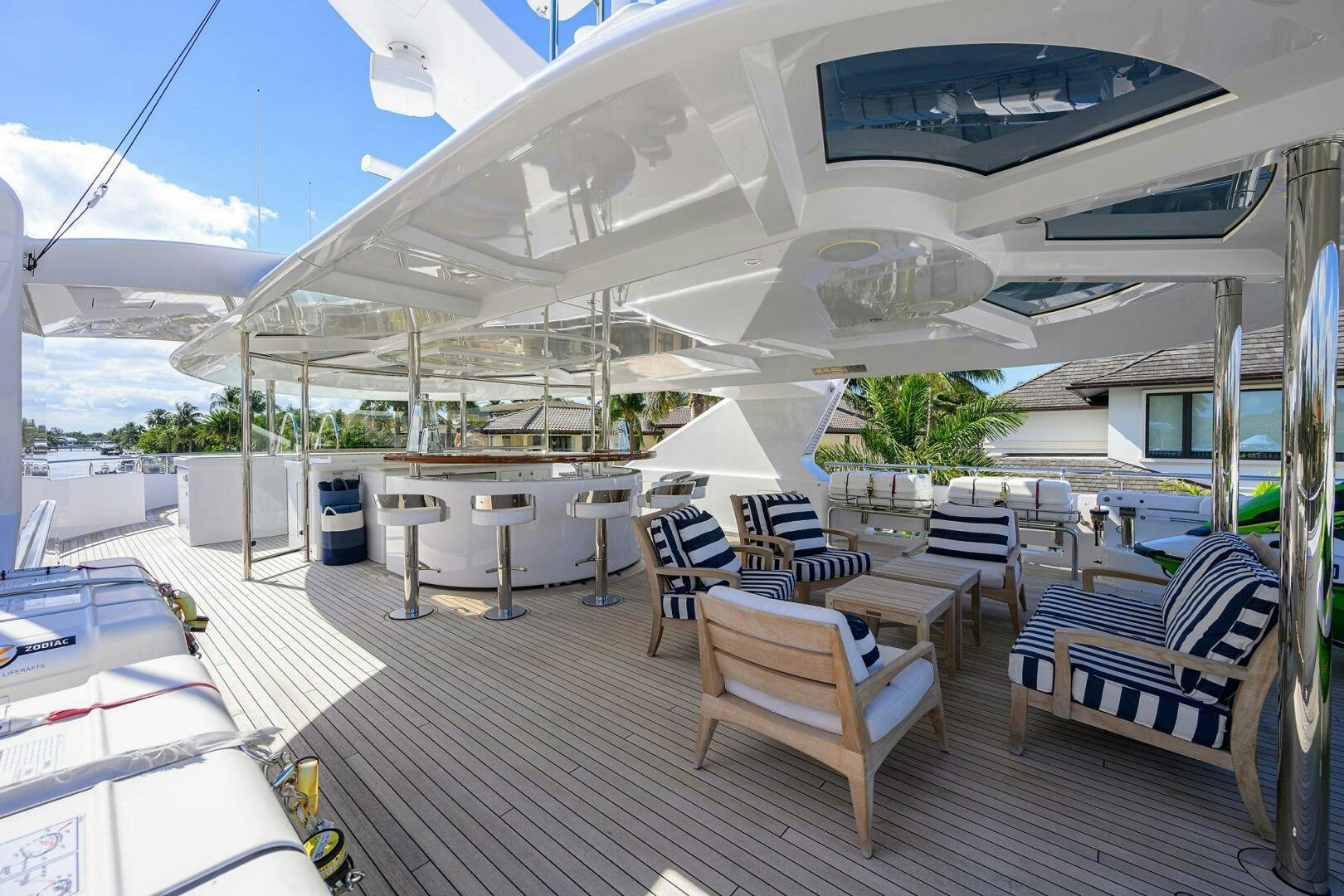

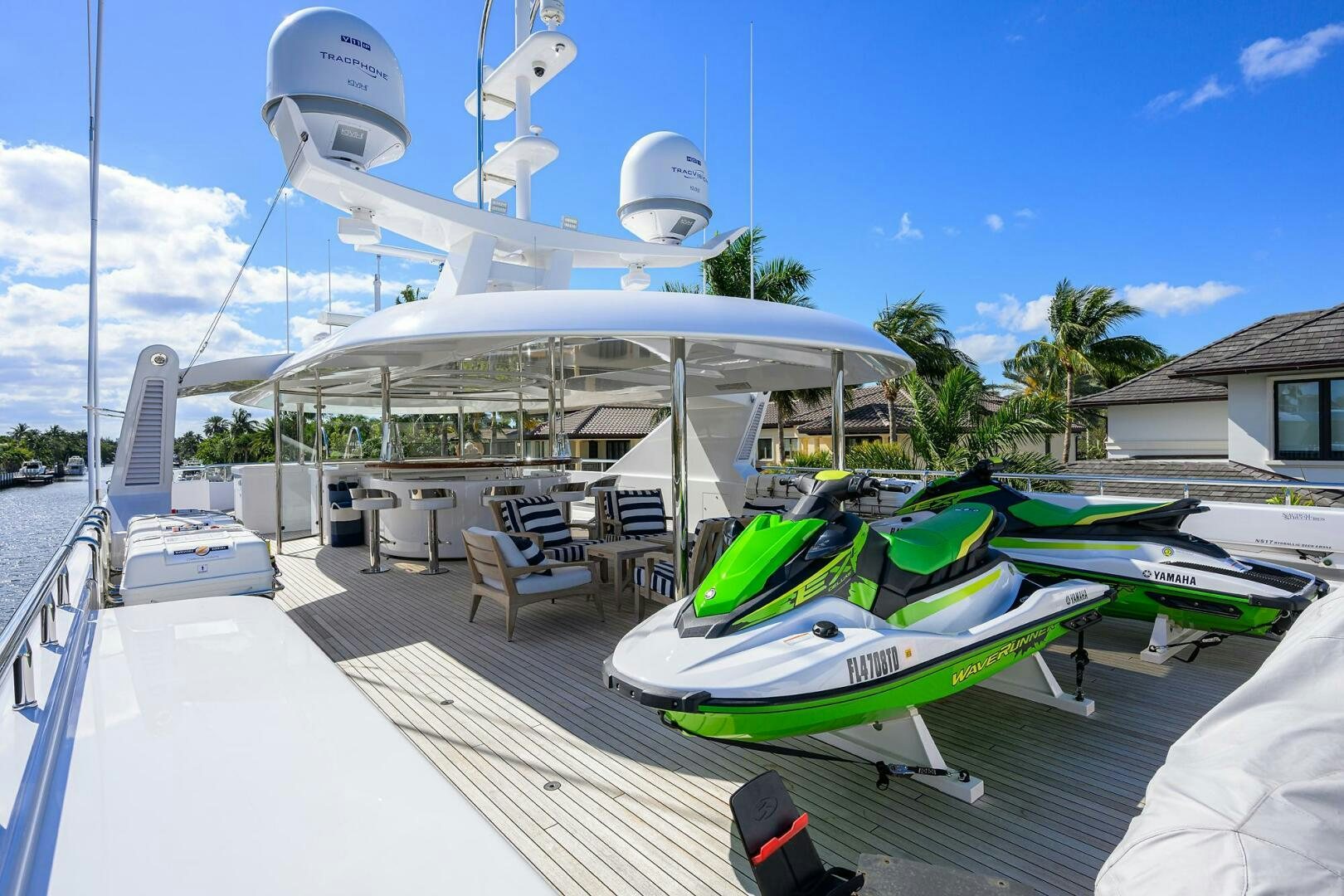

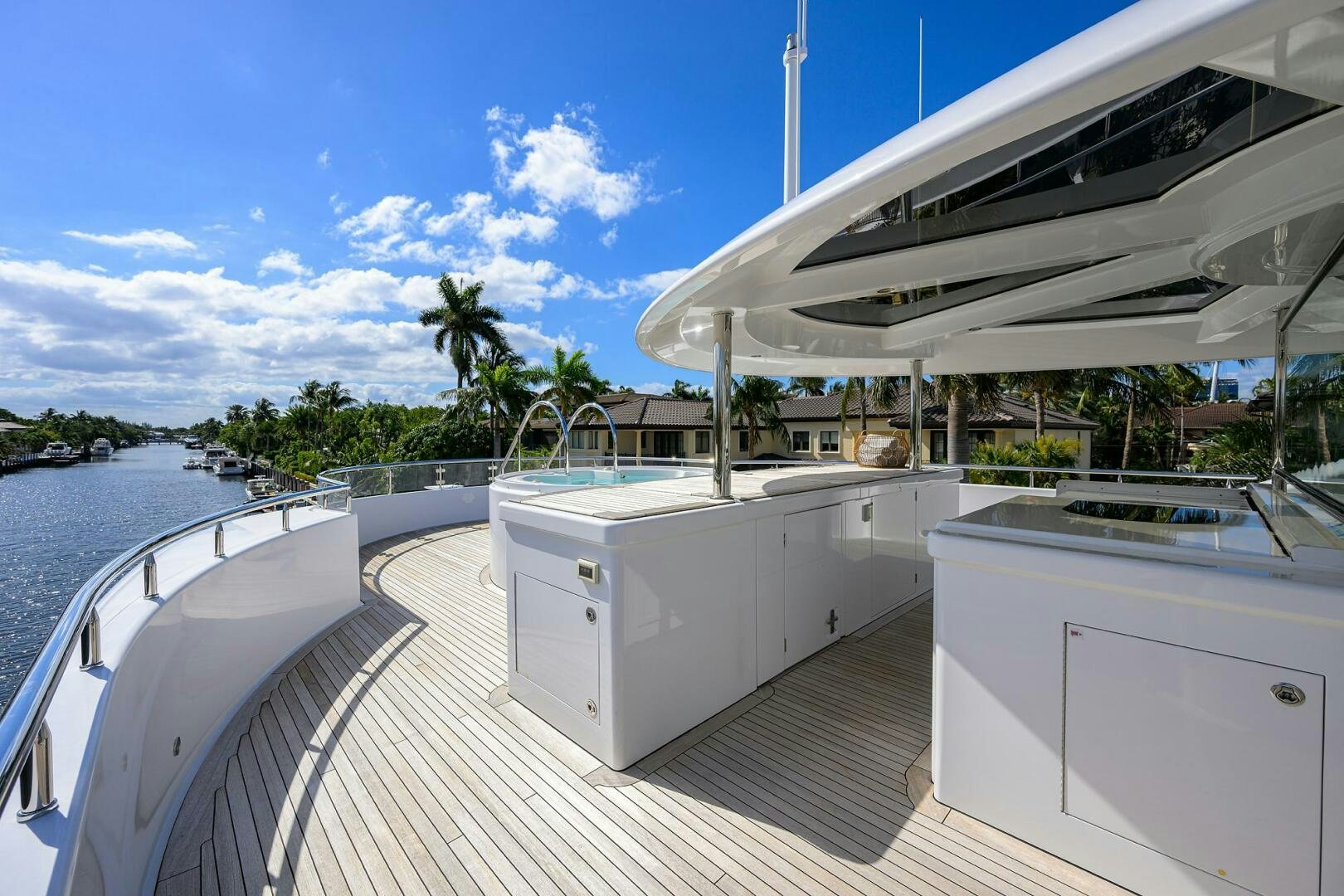

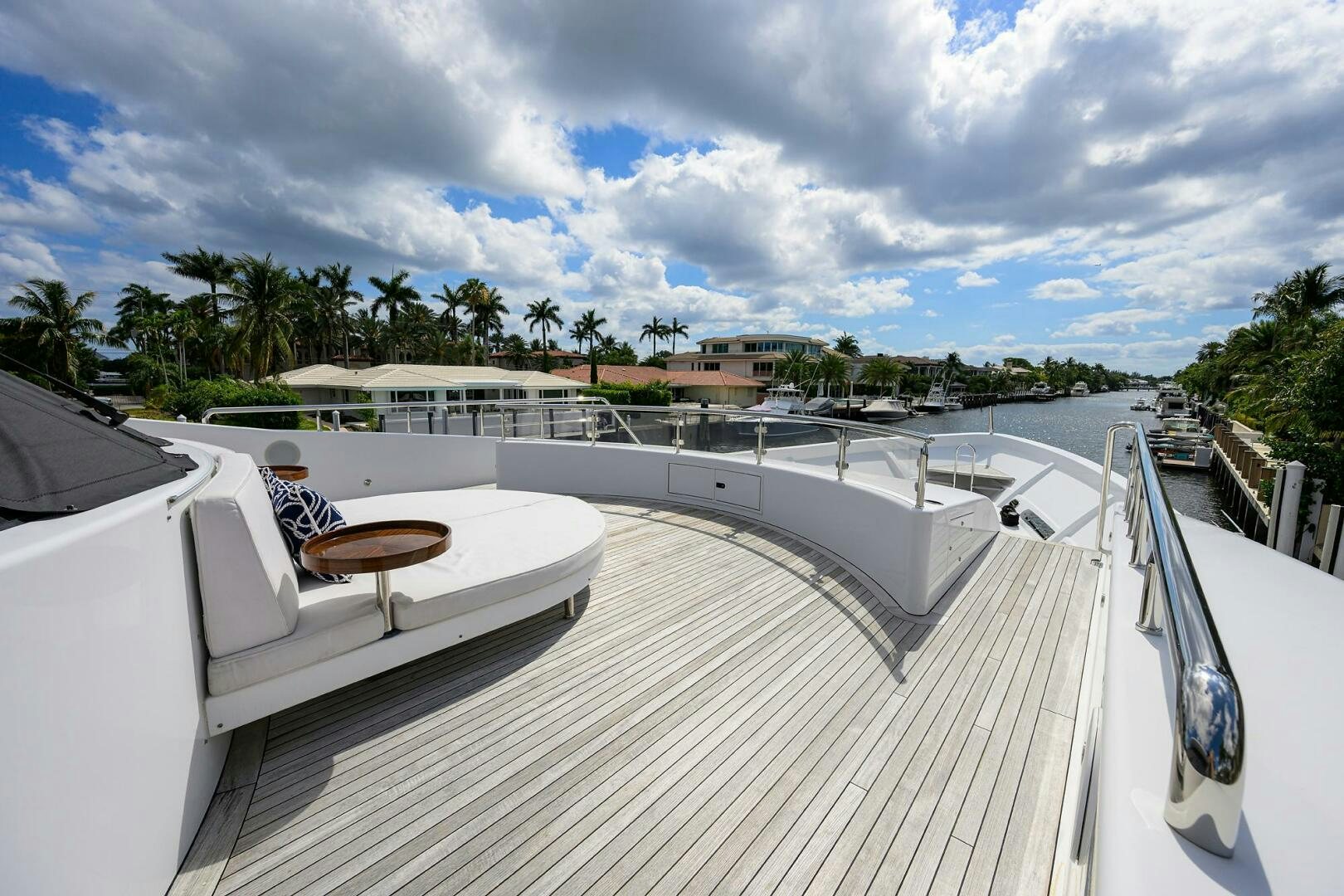

SUNDECK

• Teak deck
• 6 barstools
• Loveseat
• 2 occasional chairs
• Cocktail table
• Windscreen

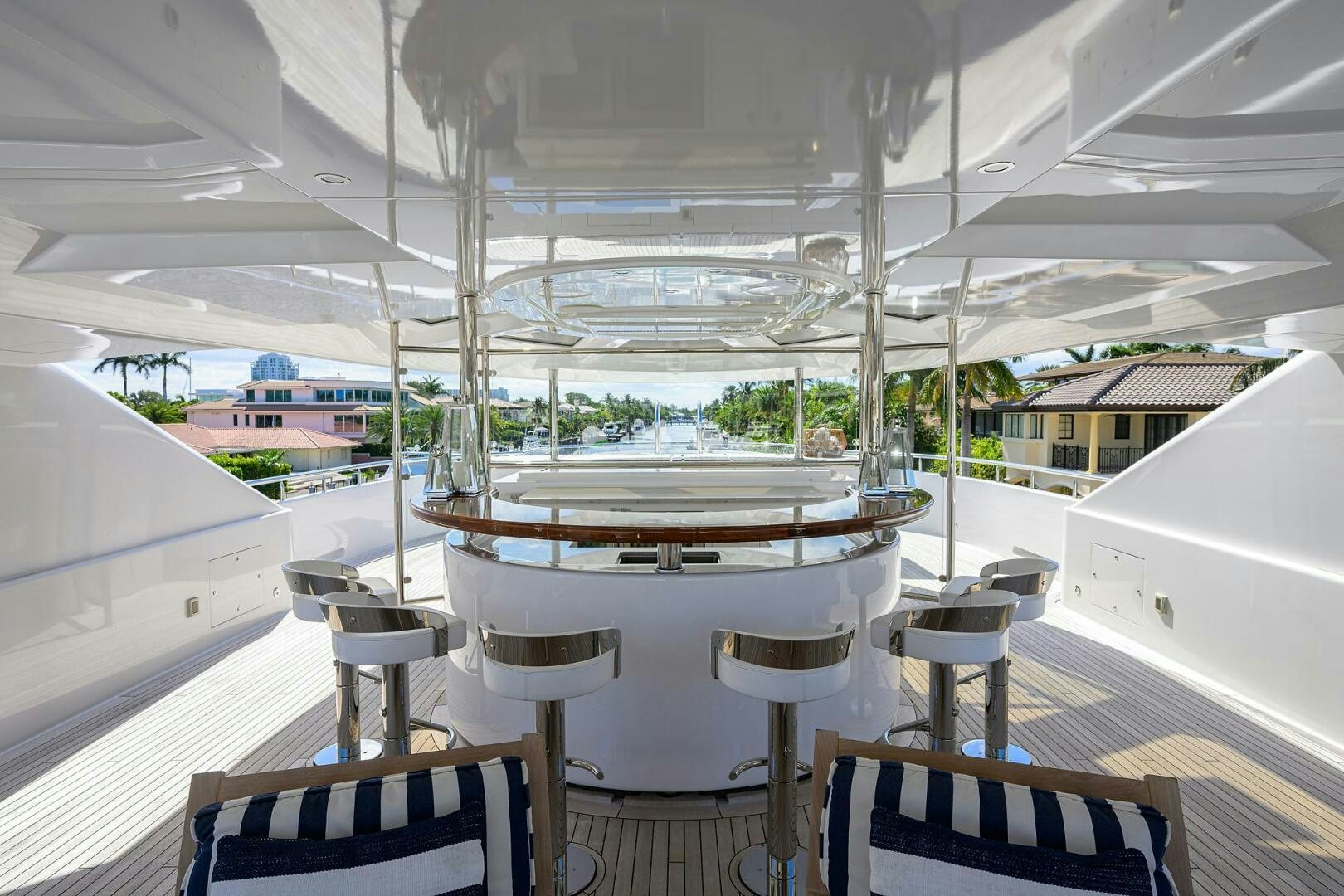

• Full service U shaped bar with sink and refrigerator

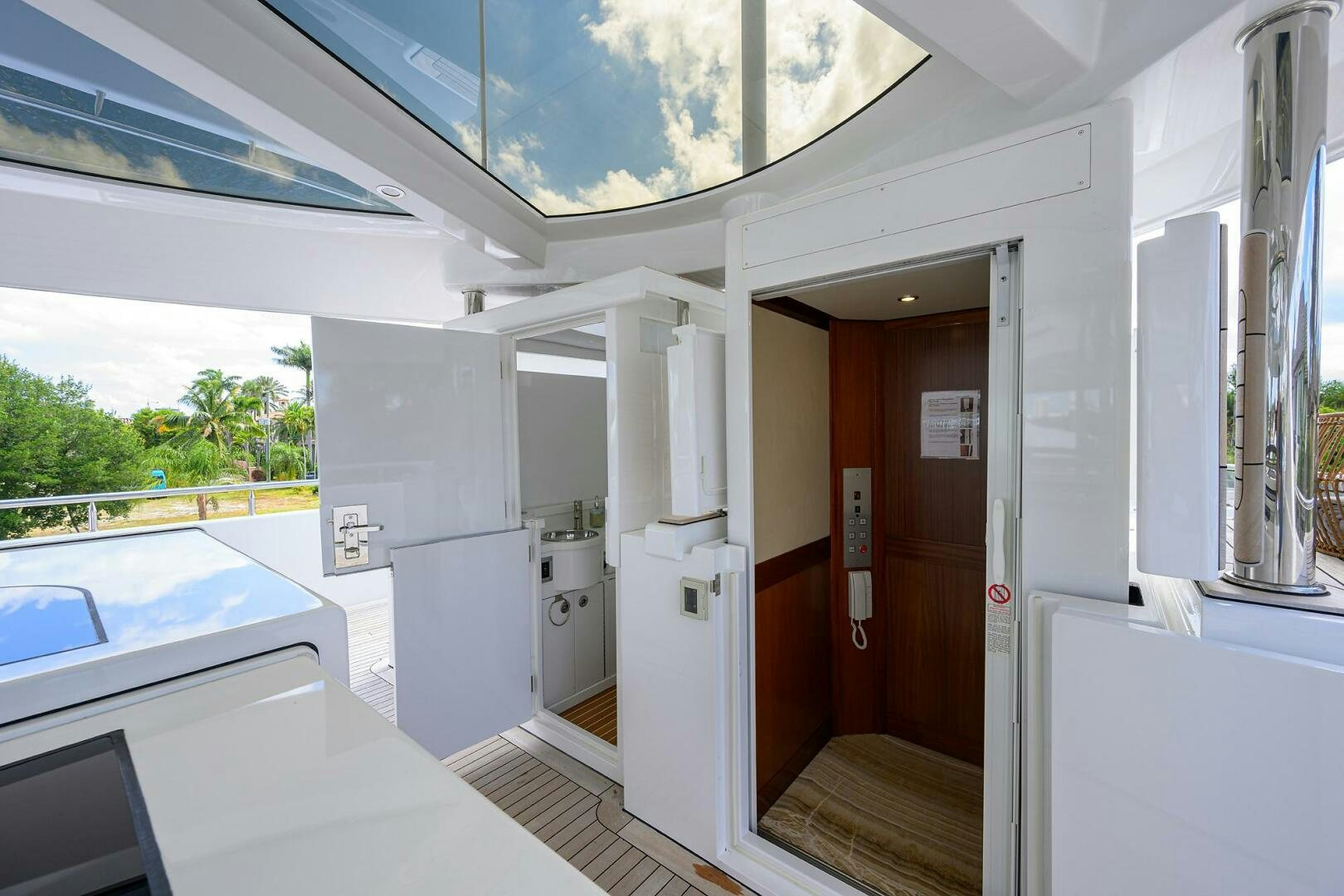

• Dumbwaiter

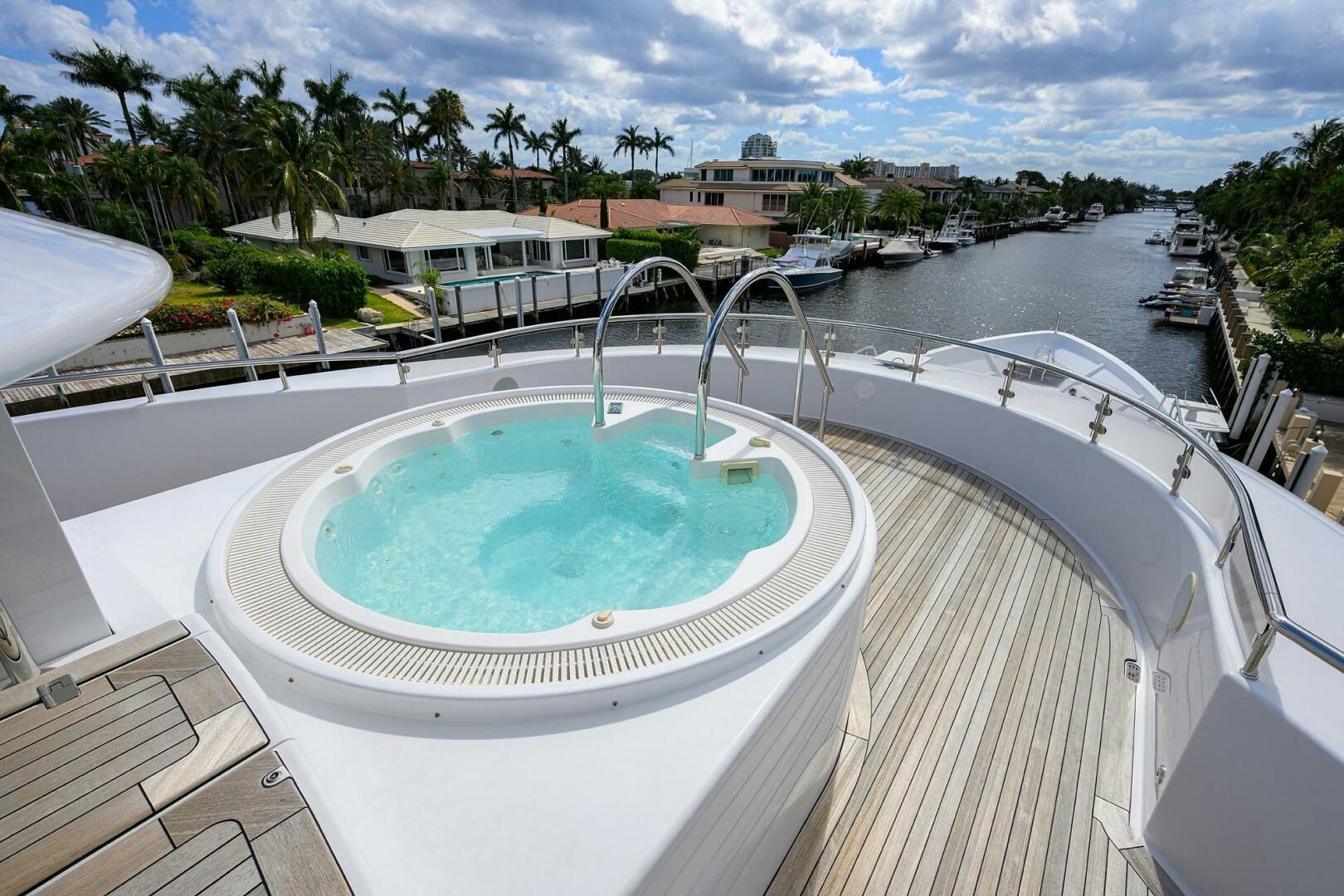

• Hot tub

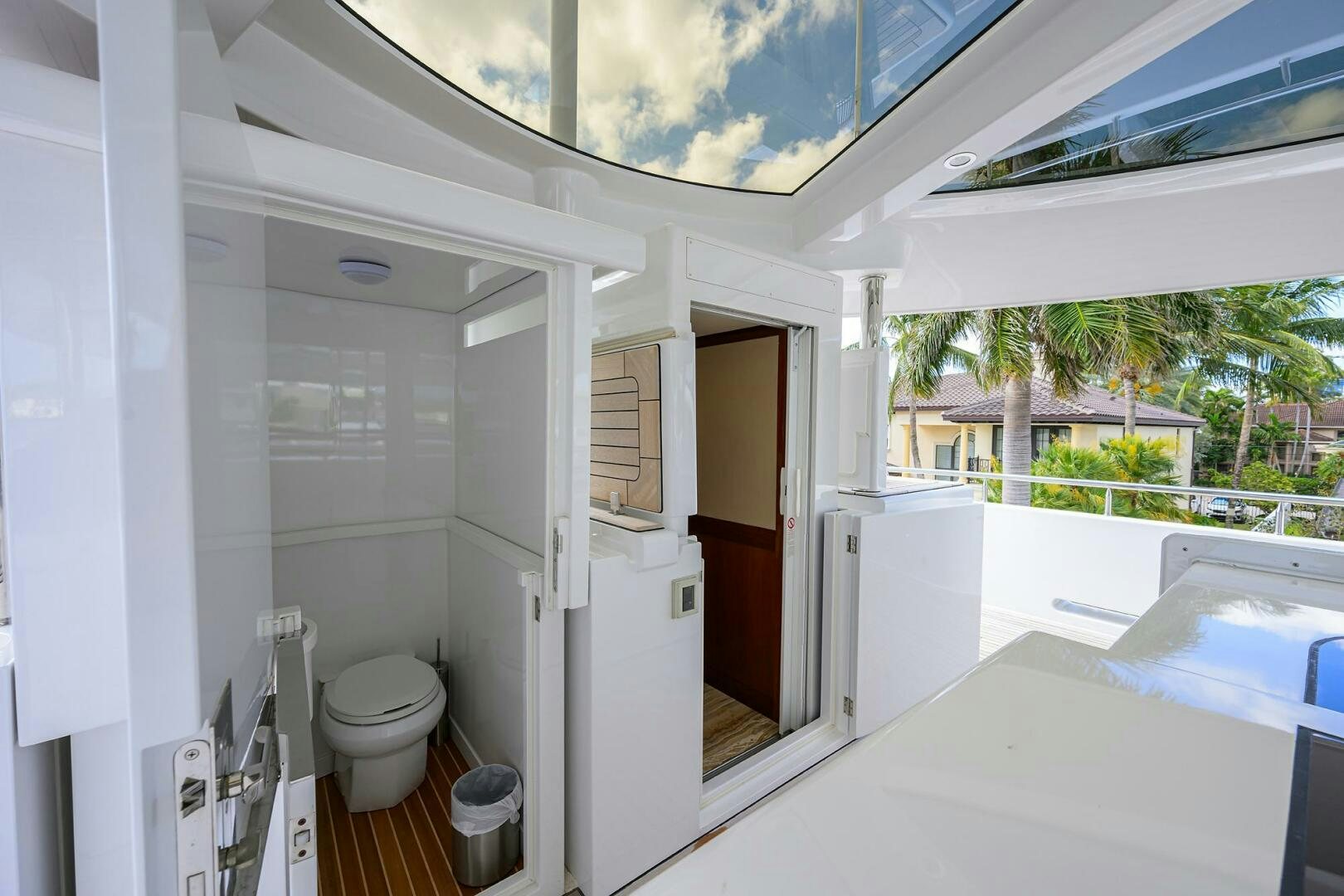

• Pop up head with toilet, sink, A/C and vent
• Deck lighting
• Tinted acrylic skylights
• Hose bibs for washdowns
• Hard top
• Composite mast
• Davit with 1700 pound capacity
• Chocks, universal mounting system
• Life rafts
• Powered sliding hatch to central stair

Fire Fighting Equipment

• Hoses: Six 1 ½" x 50' FM listed lay flat type, NST thread
• Fire nozzles: Six ABS Approved, one at each of the hydrant static ns
• Primary pump: Centrifugal, flooded suction, 66gpm
• Back-up pump: Diesel powered, flooded suction, centrifugal
• Strainer: Sea suction strainer for fire/bilge manifold (Bronze 2" V strainer, or equivalent)
• Seawater intake: Bronze with stainless steel grate
• Hose Rack: FRP, for rolled hose storage at fire stations
• Pressurized fire sprinkler system
• Engine room fire system
• Automatic fire boy
• Galley hood fire system
• Insulation
