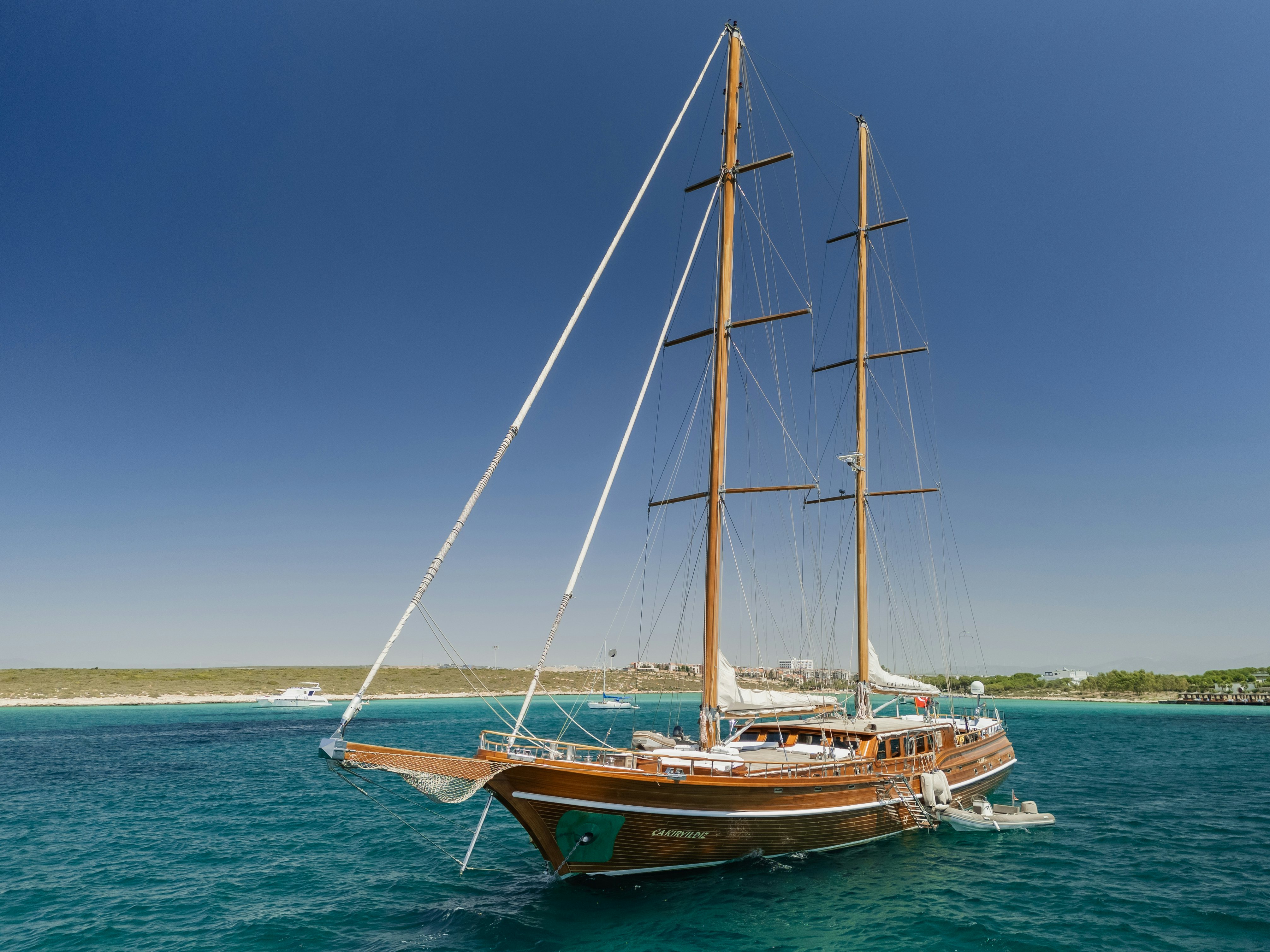

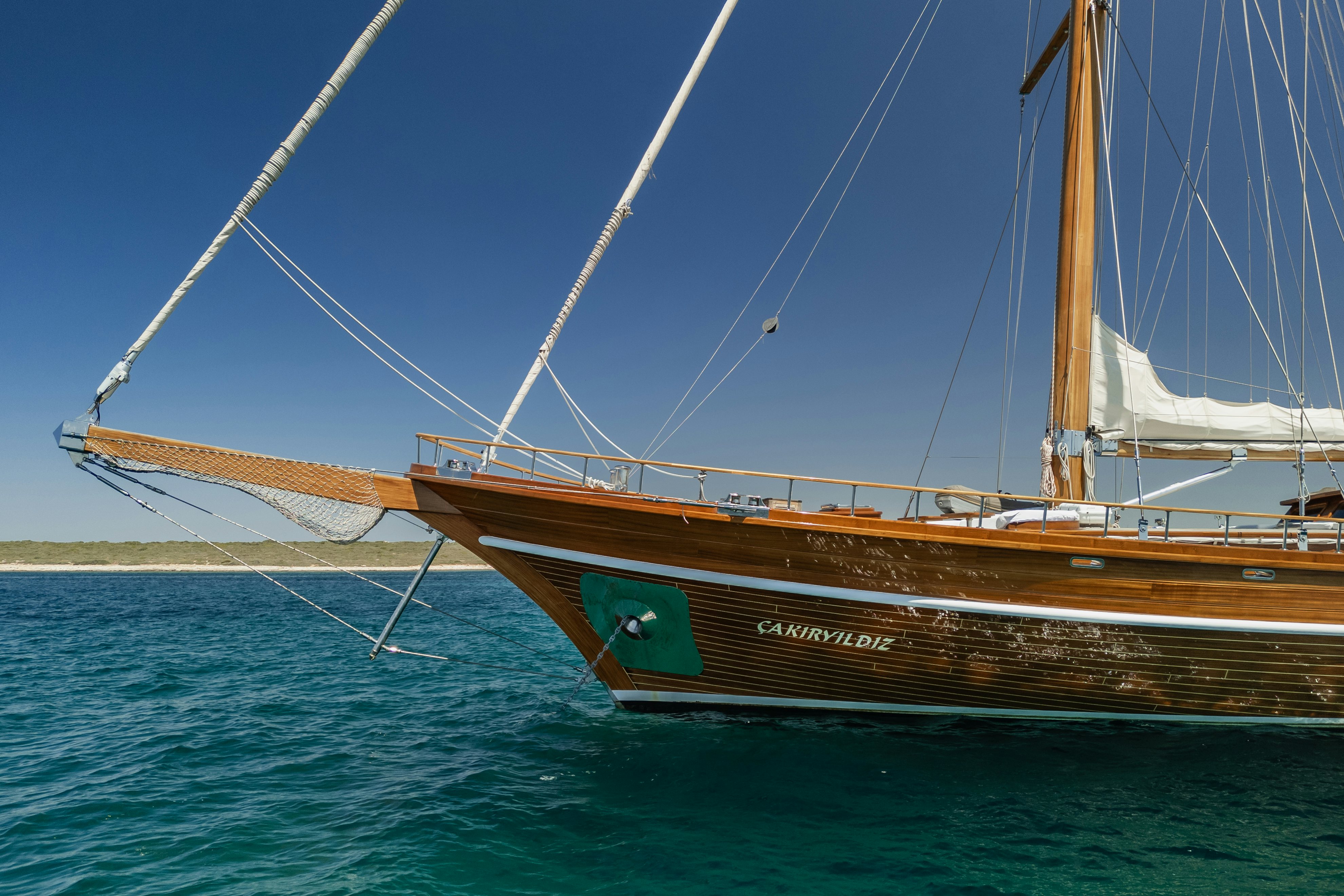

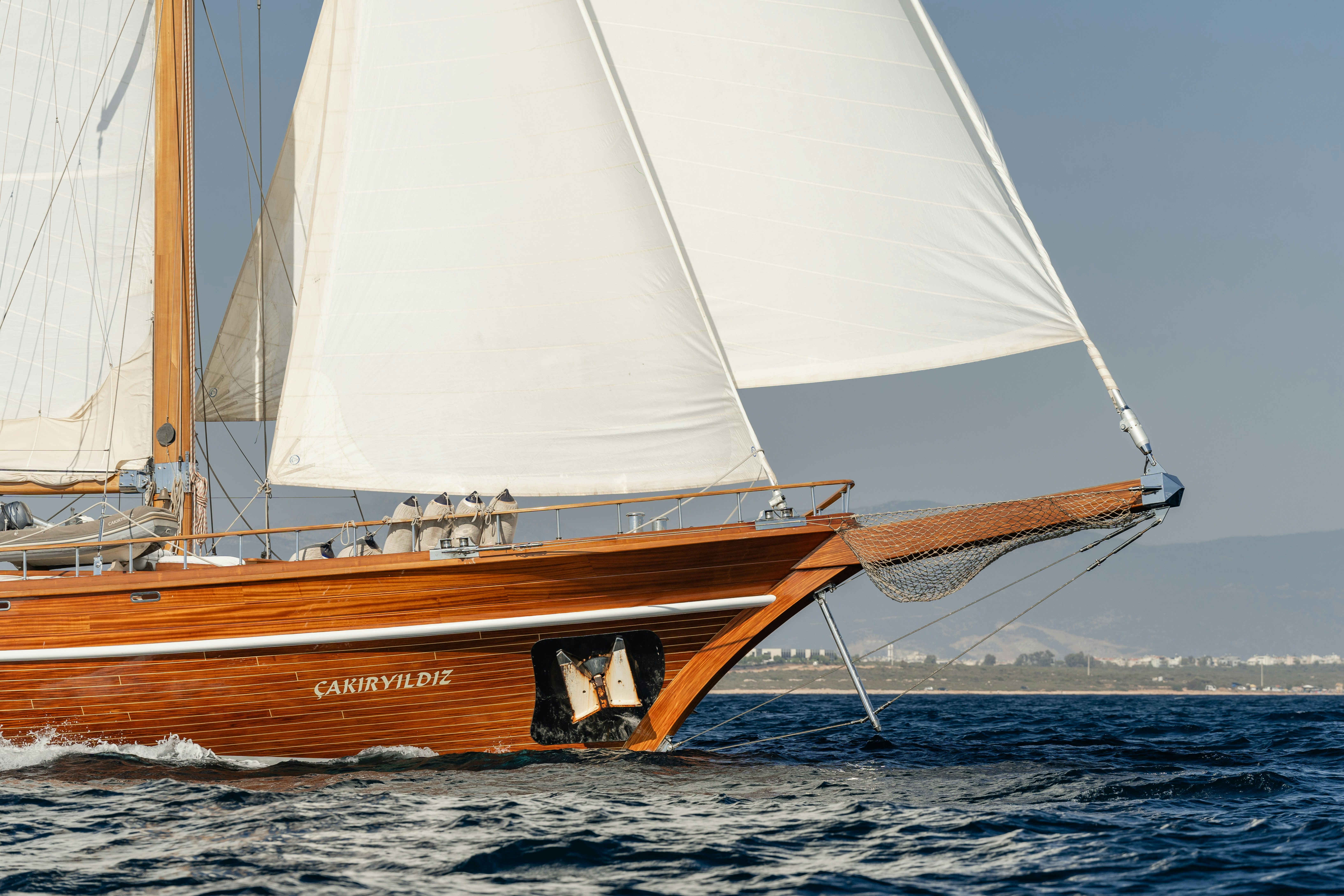

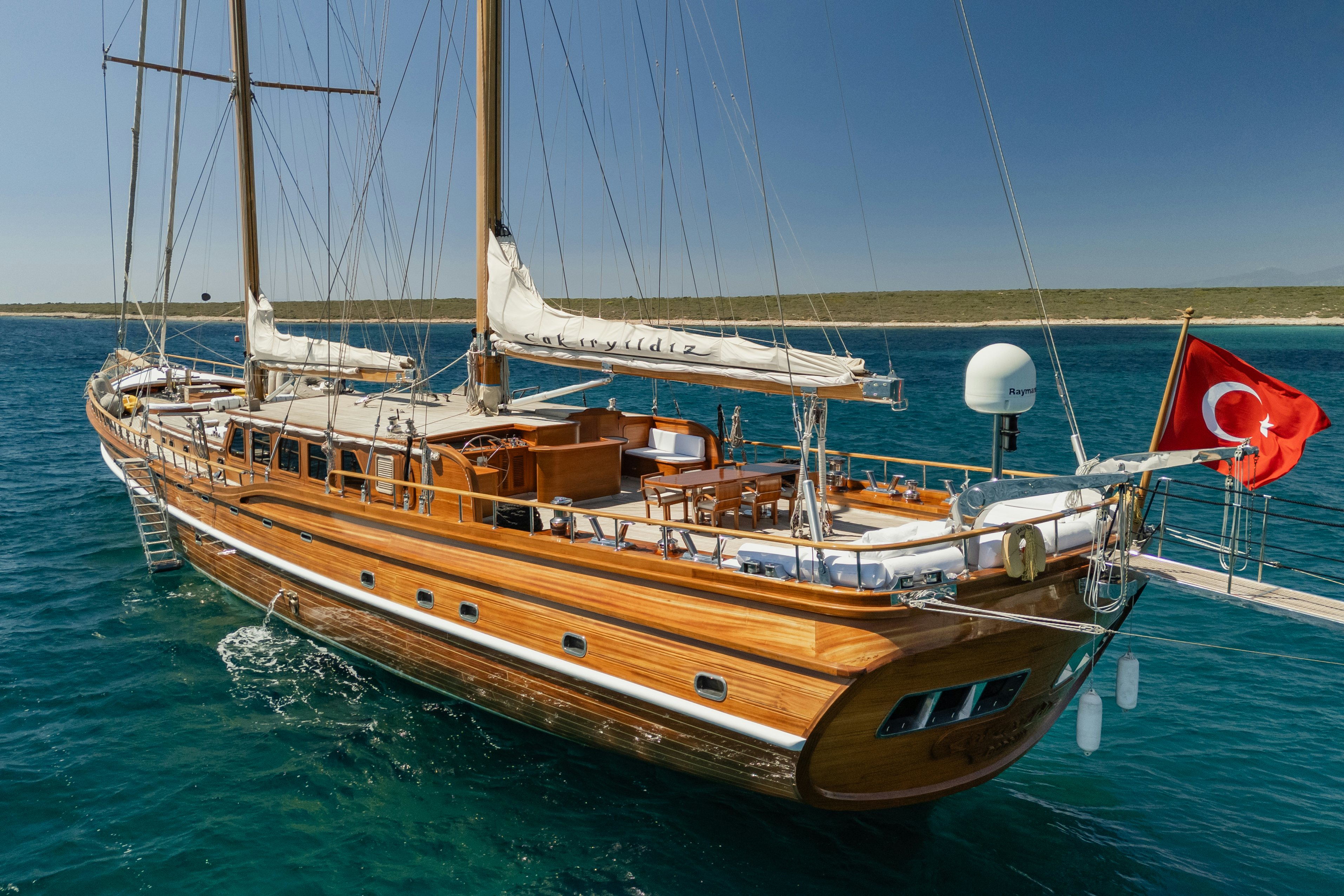

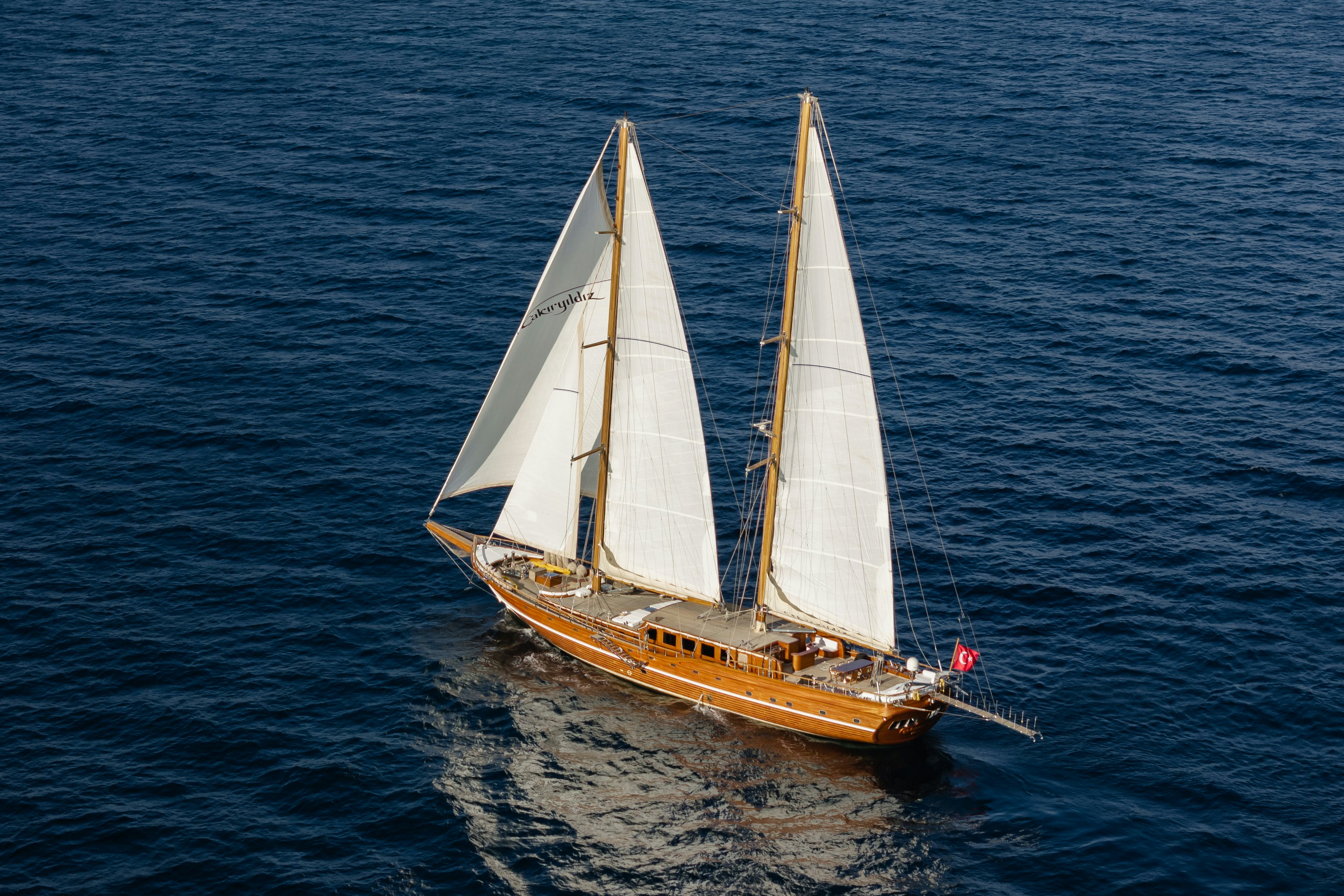

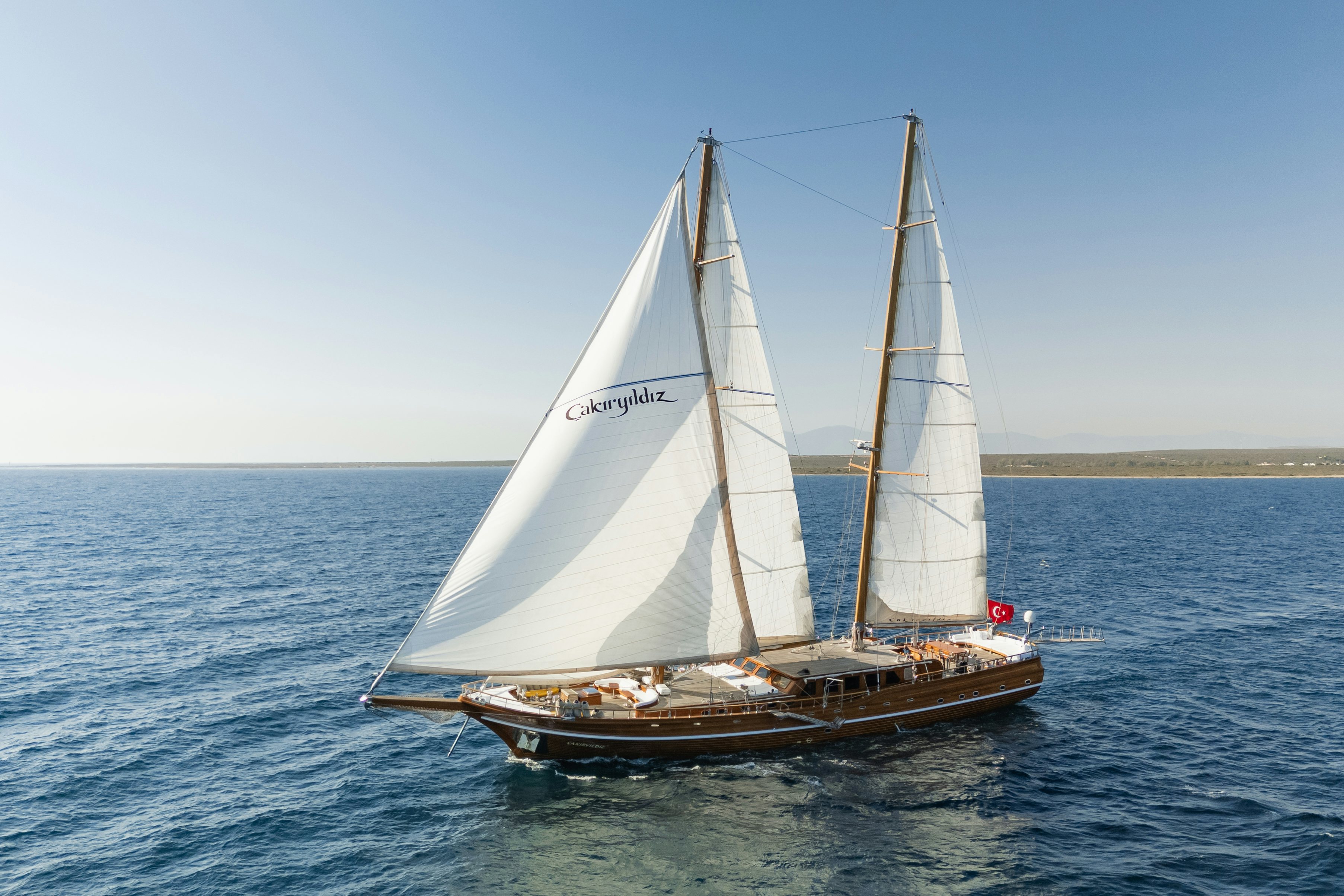

CAKIRYILDIZ Yacht for Sale

DESIGN

• Designer: Akivades Design&Consultancy

• Naval Architect: Akivades Design&Consultancy

• Interior Designer: East Shipyard

• Wood: Laminated mahogany 9 ply,

• Keel, frames and stringers laminated mahogany,

• Screws, nails and bolts silicone bronze,

• Staples, composite,

• Epoxy: International Epiglass

• Paint: topsides are fully Epifanes varnish, underwater International antifouling system

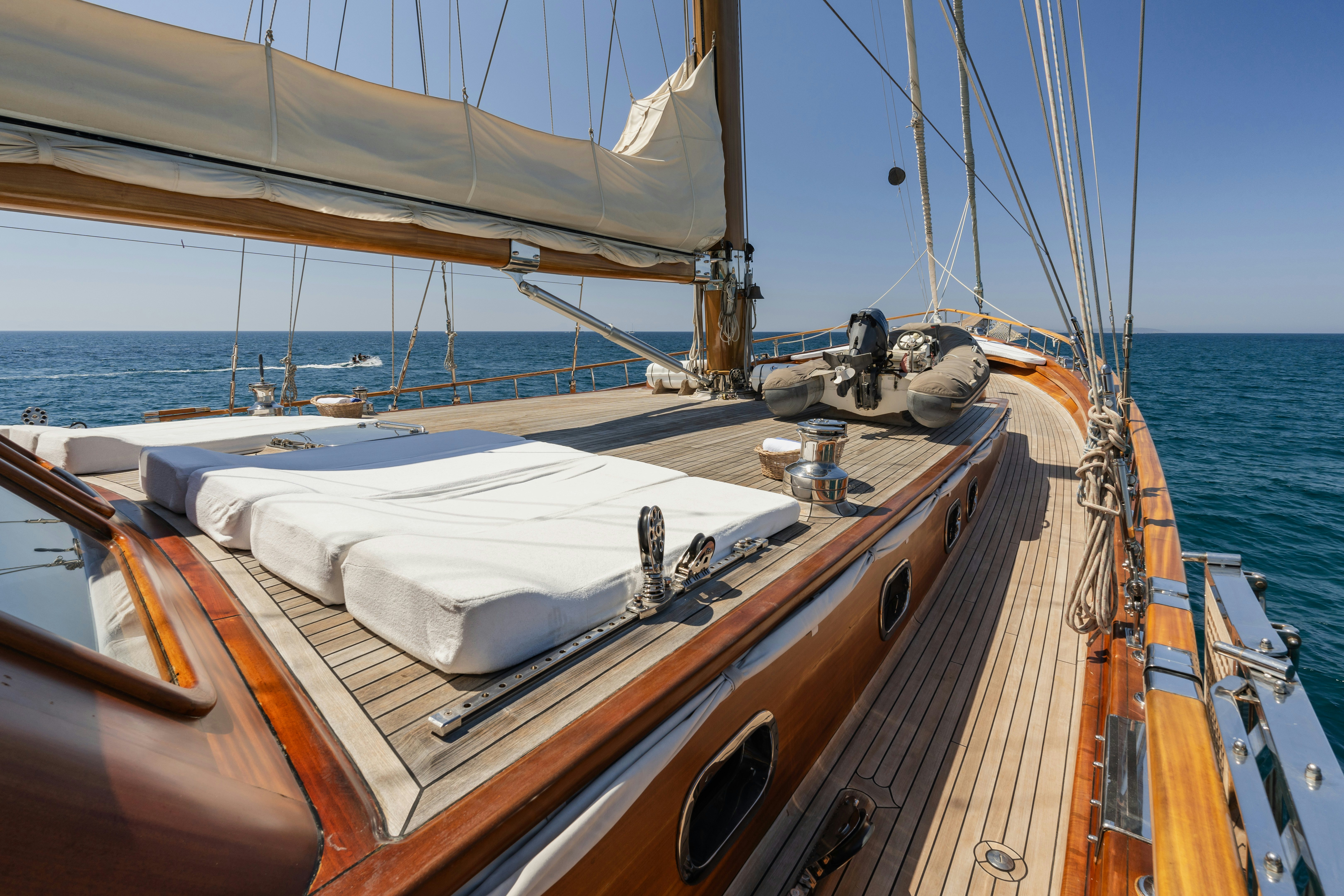

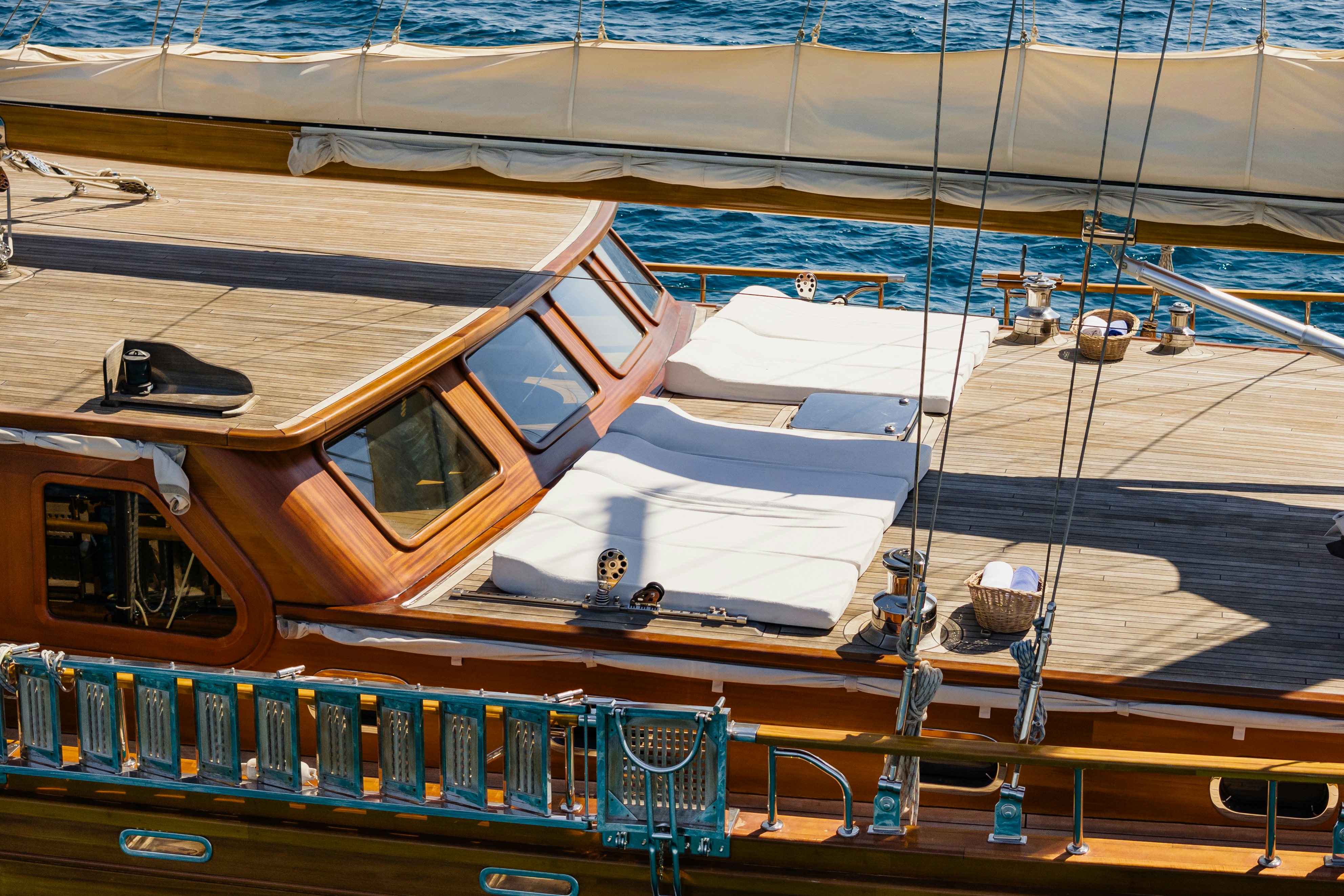

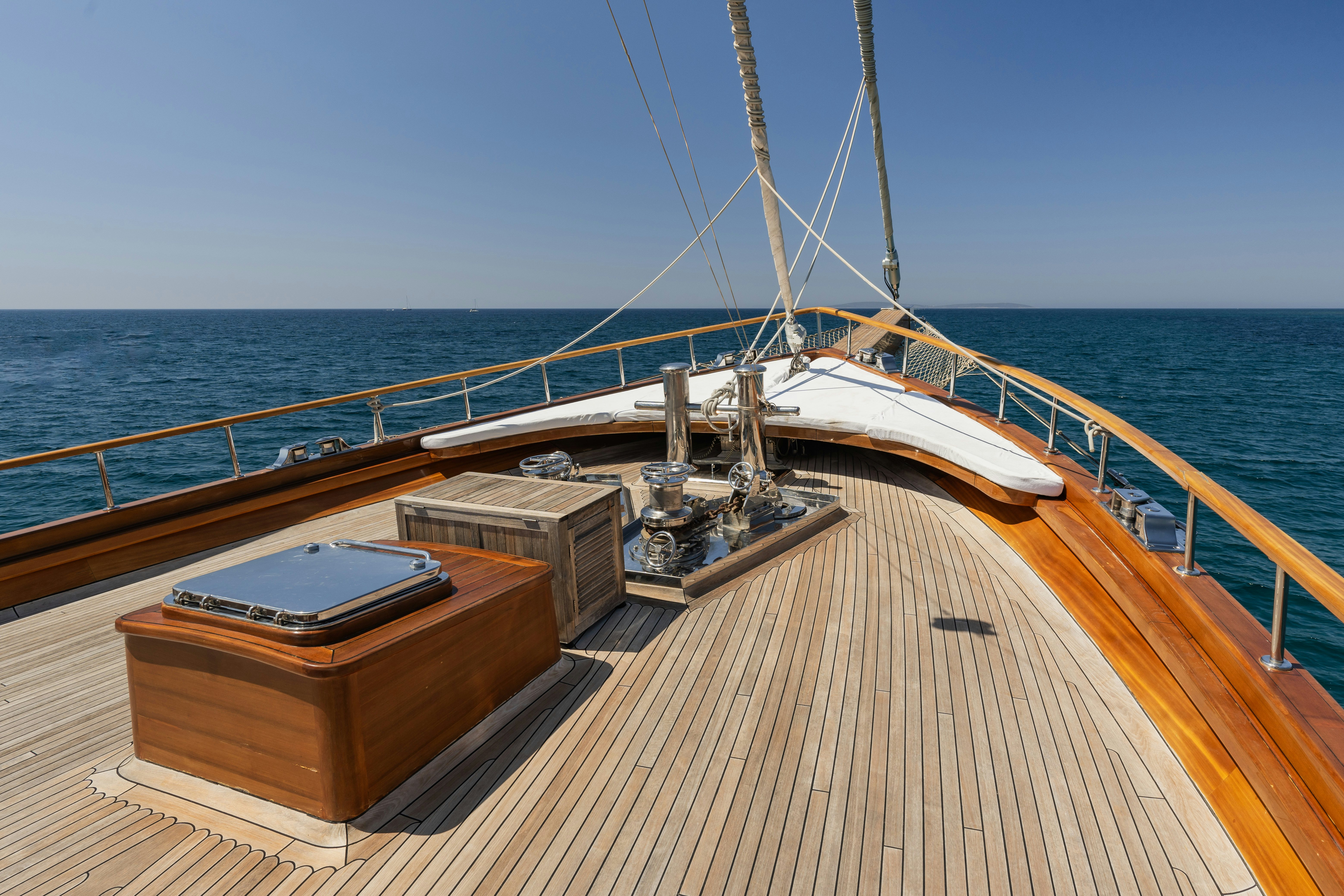

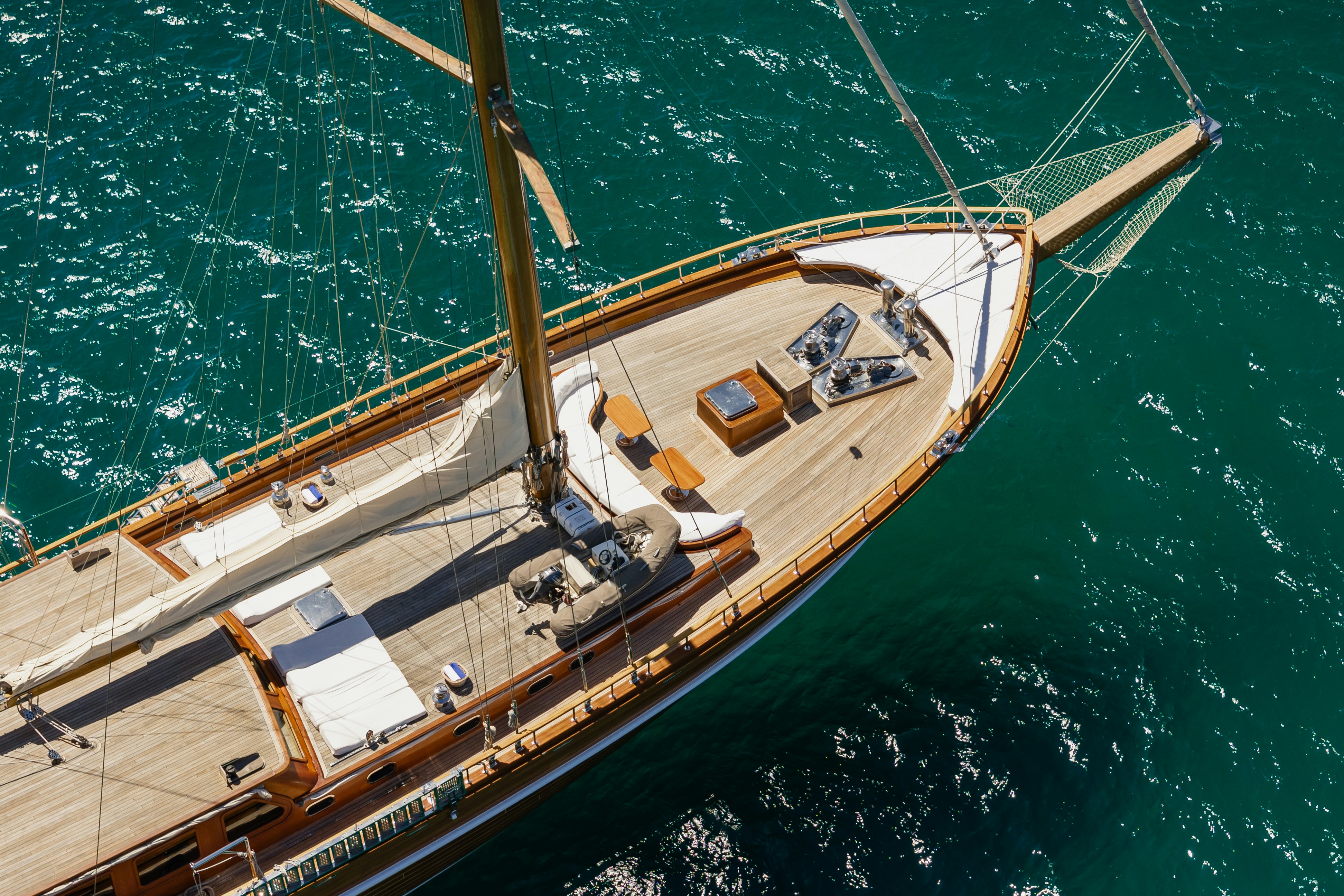

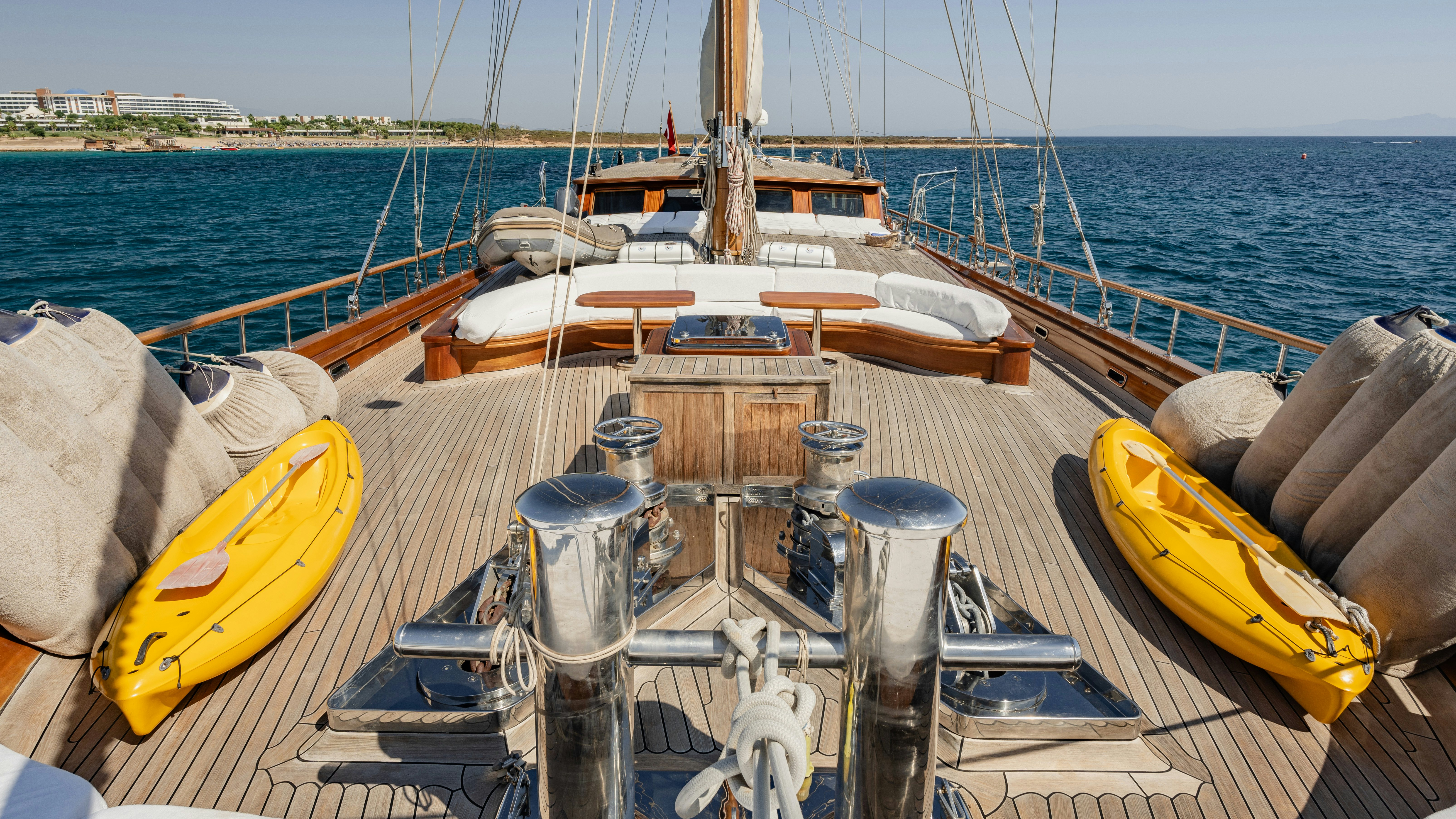

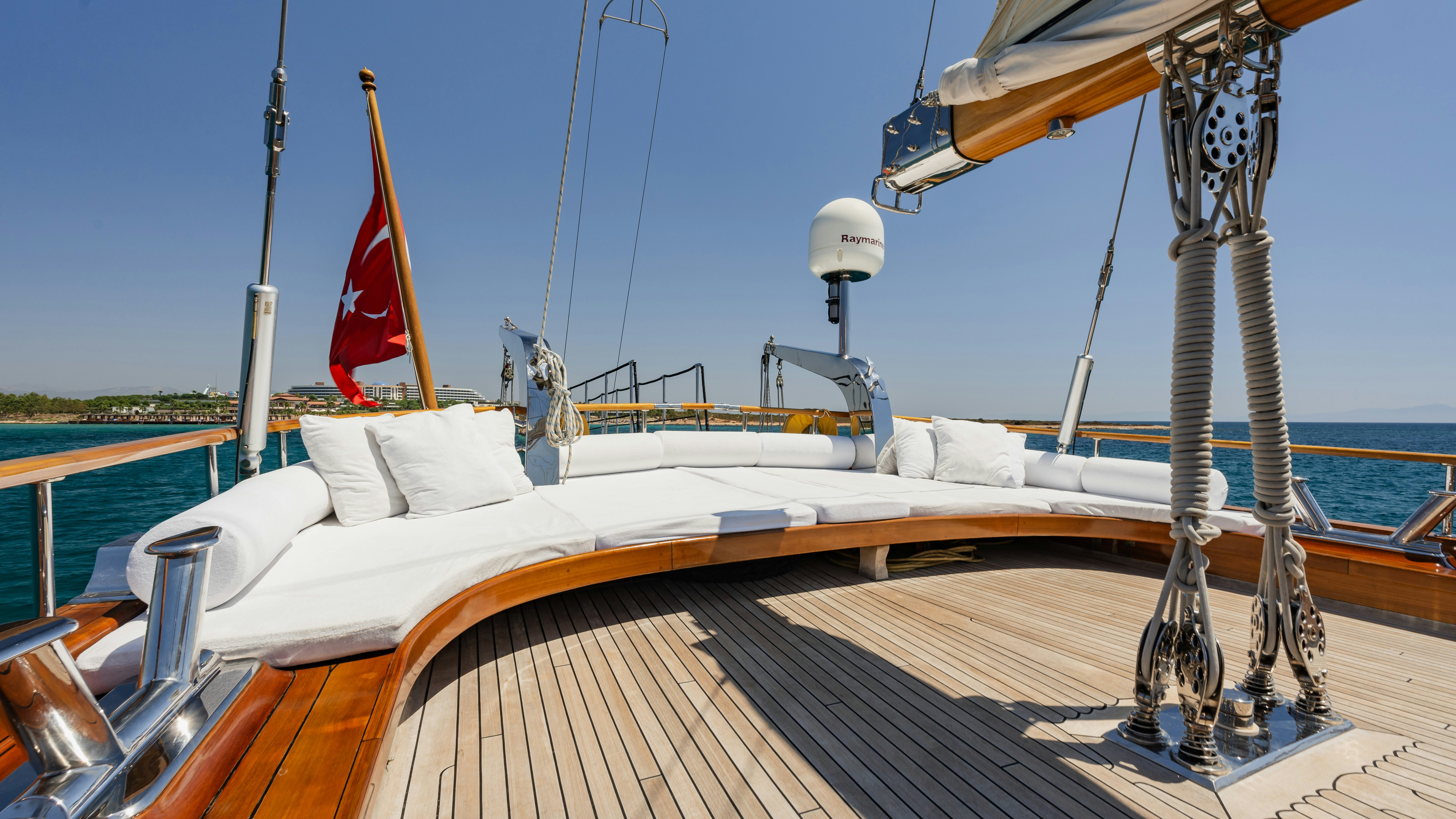

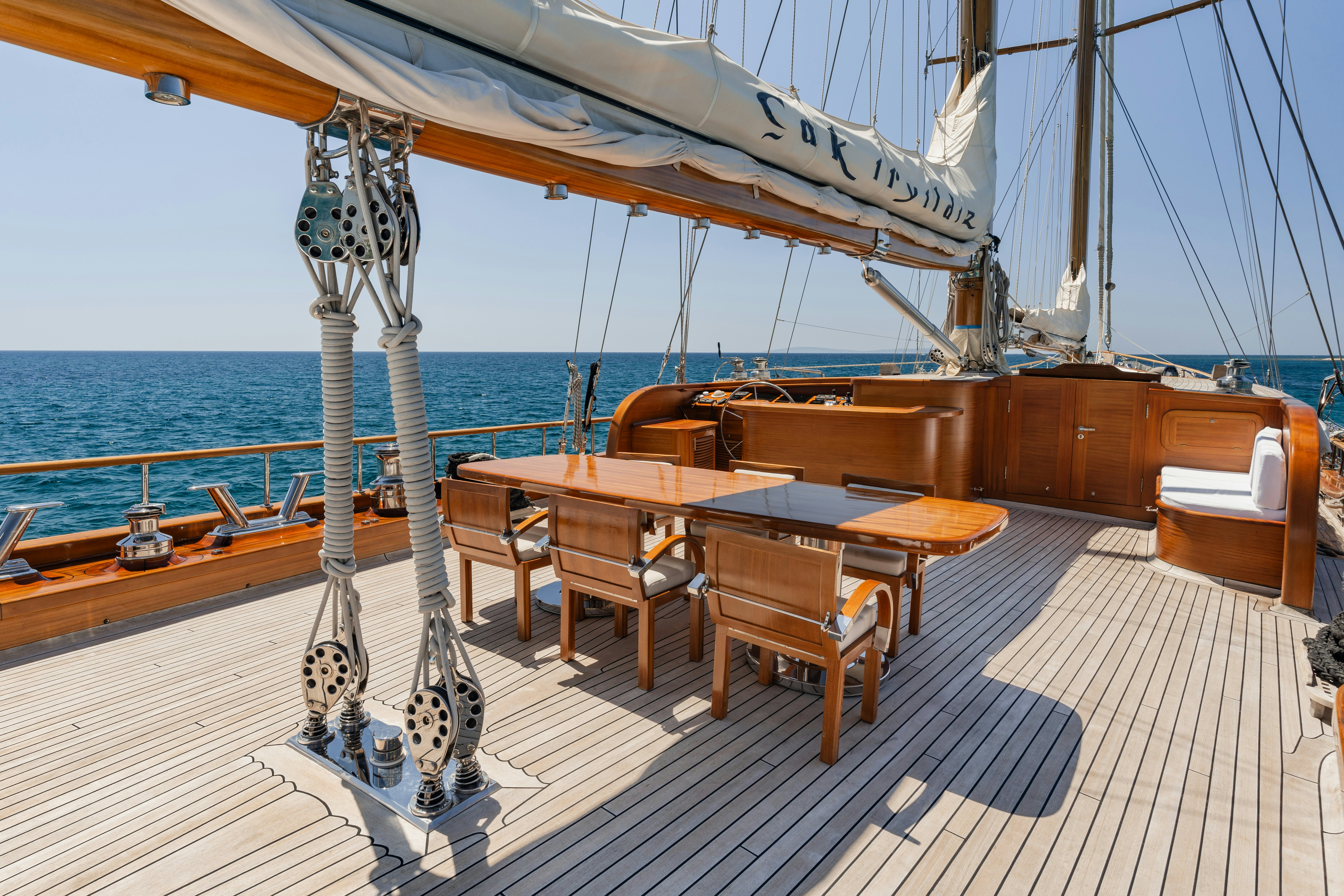

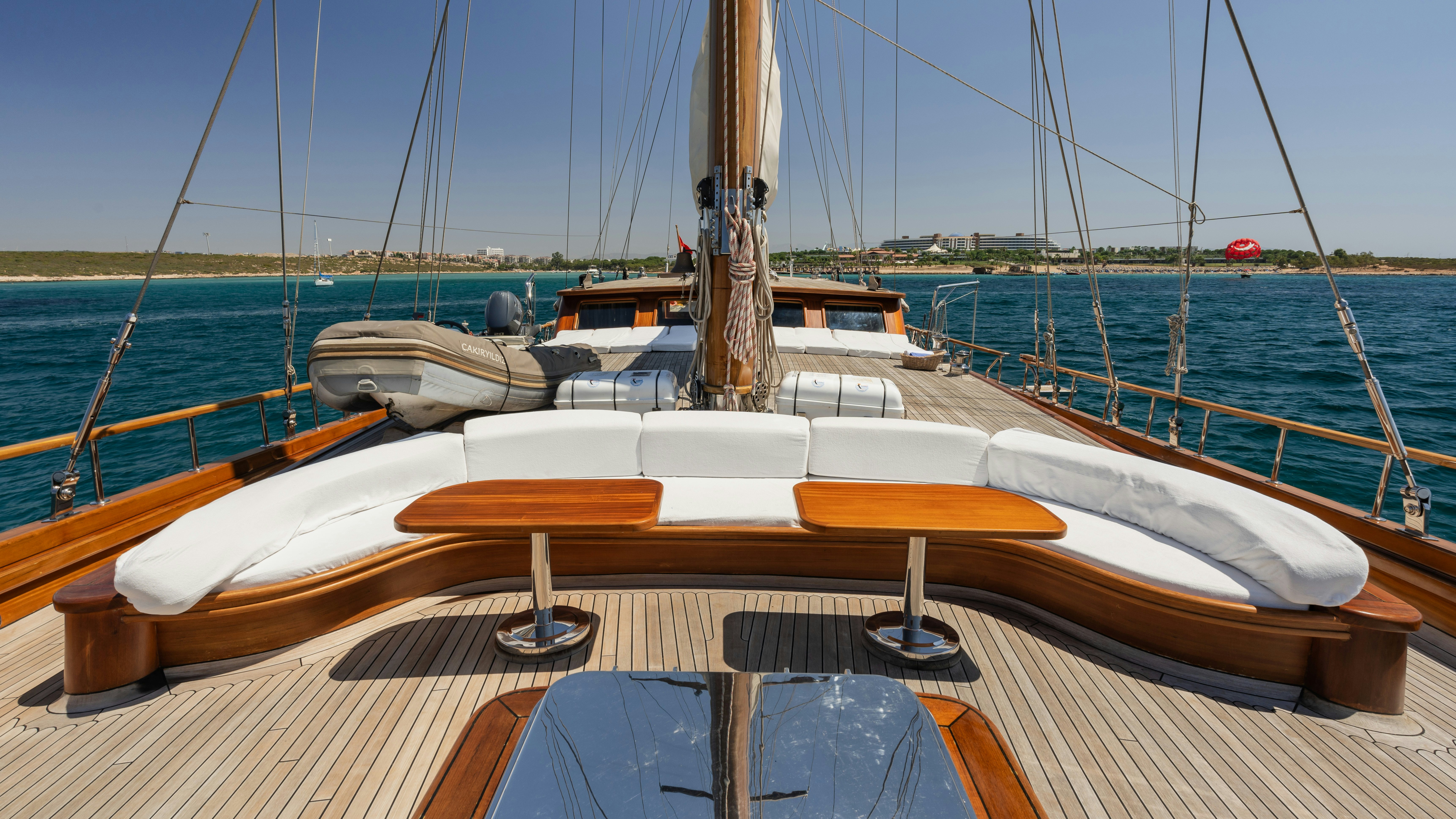

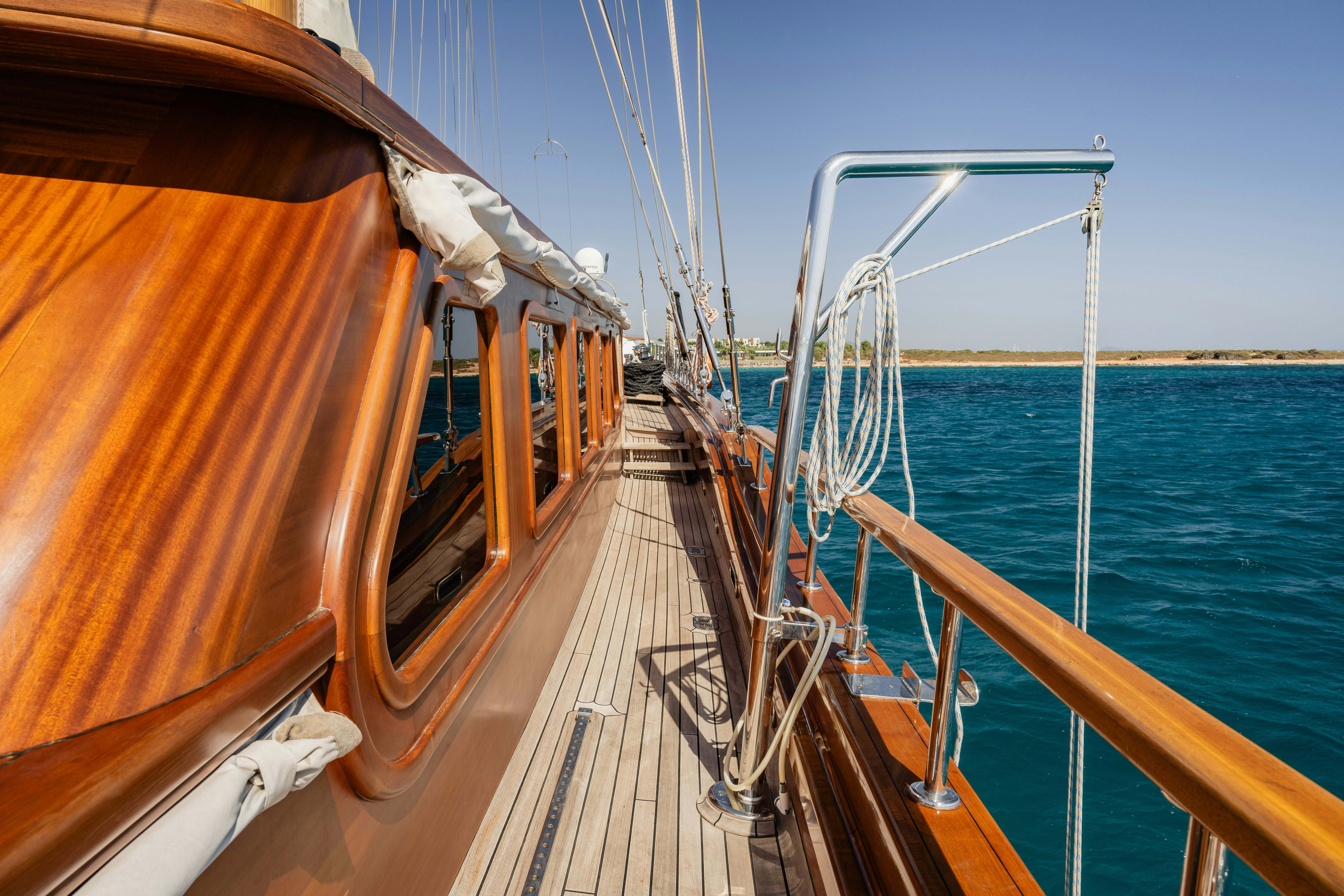

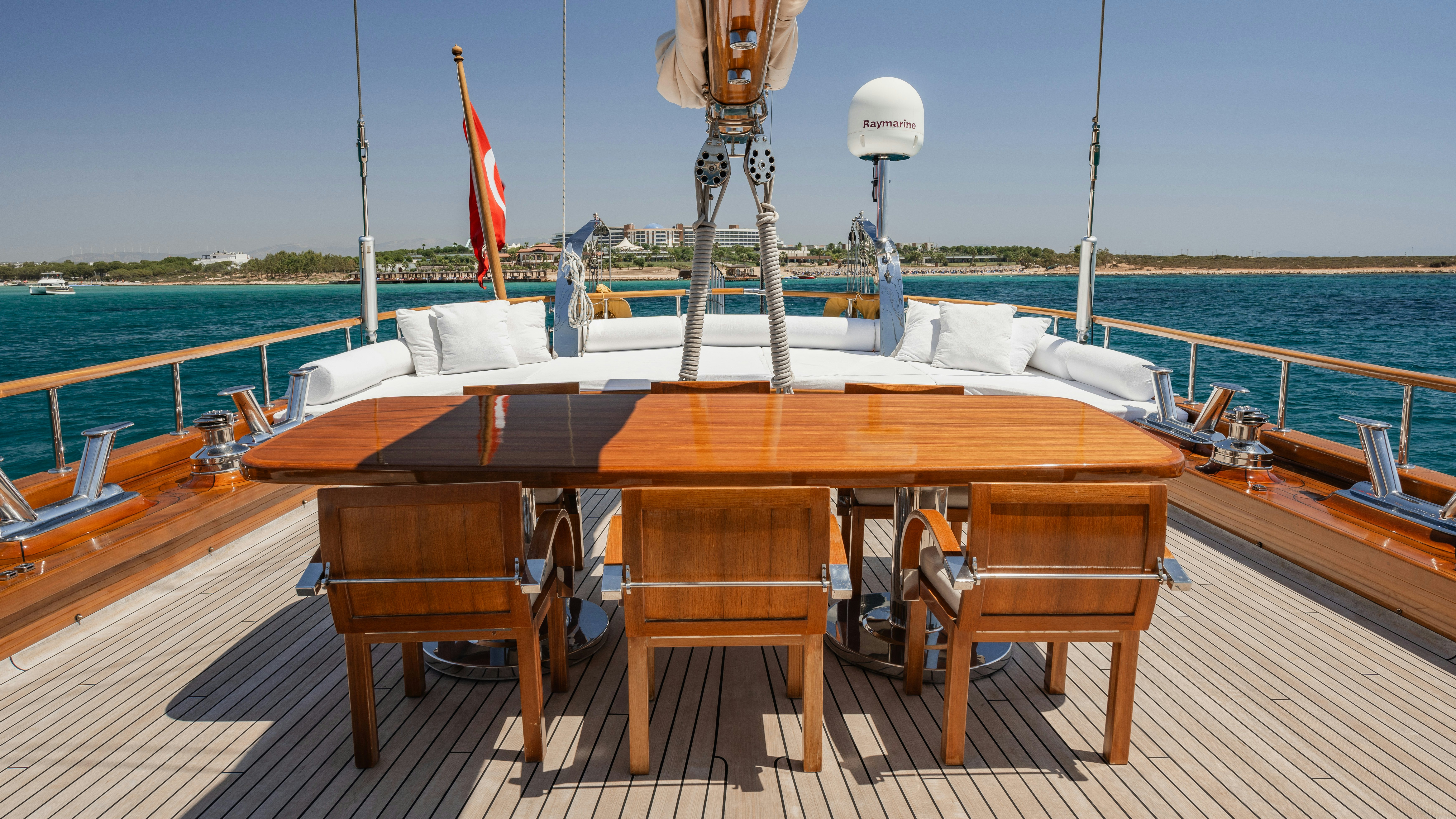

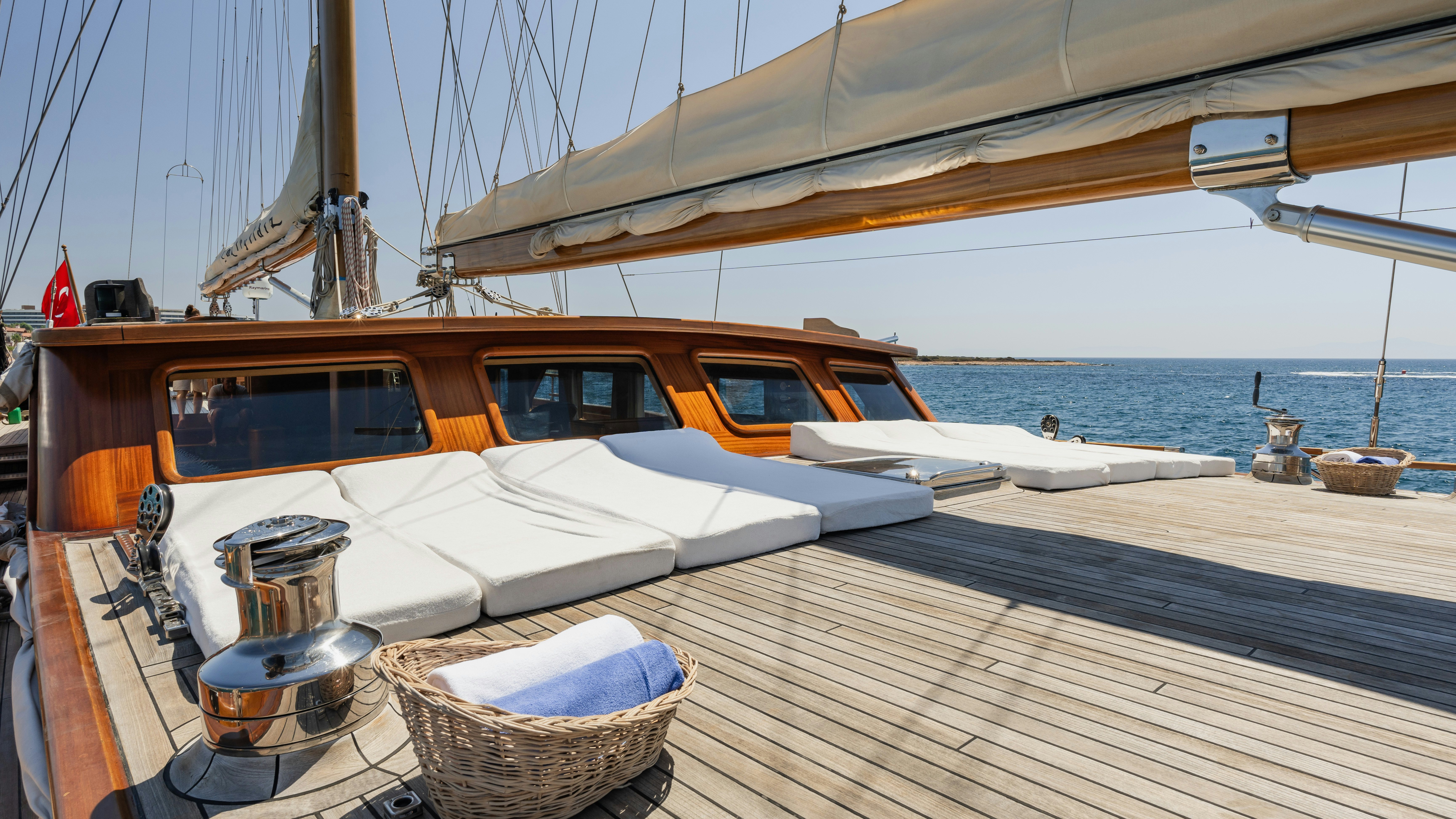

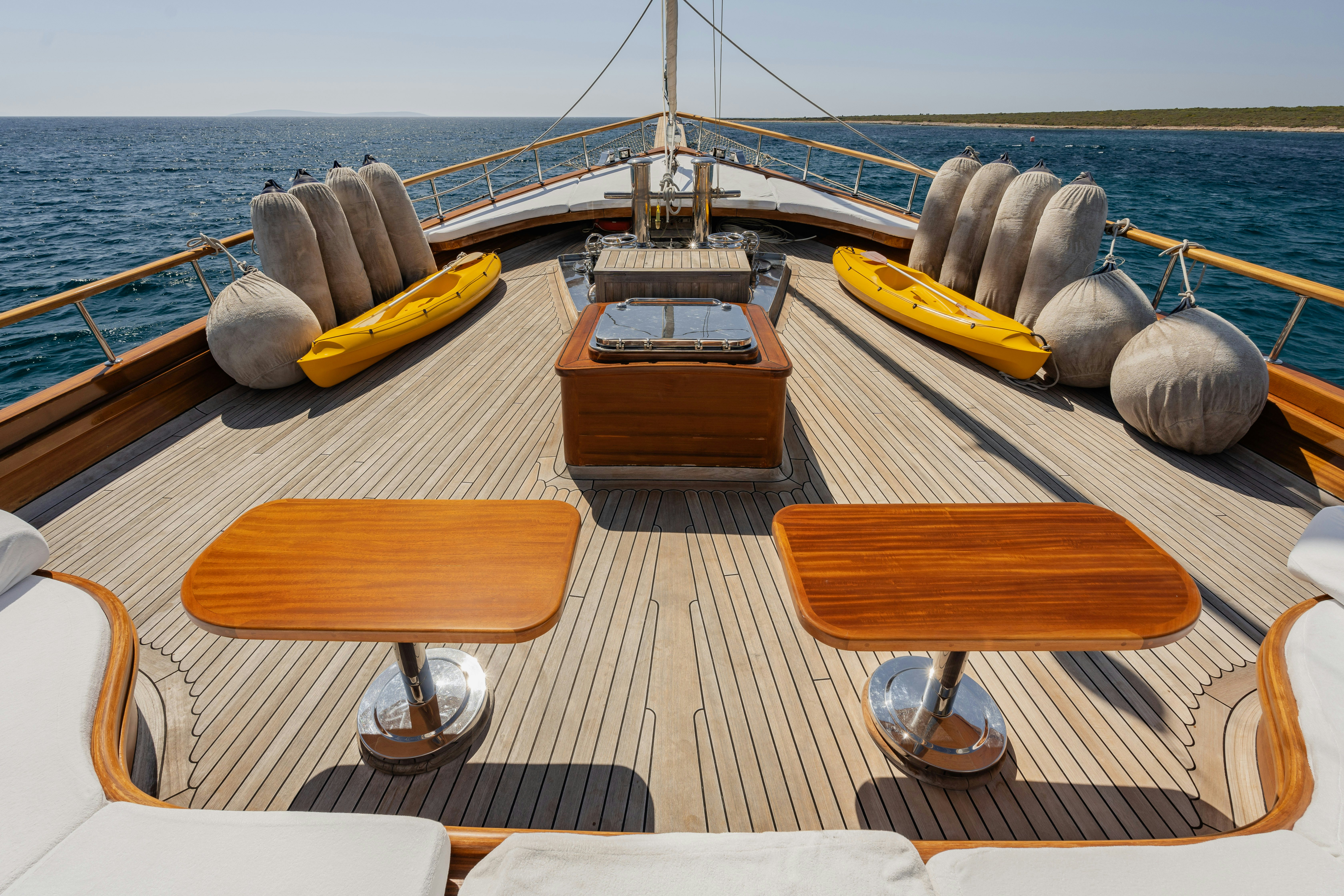

• Decking: 8 ply with insulation plus 15 mm Burma teak

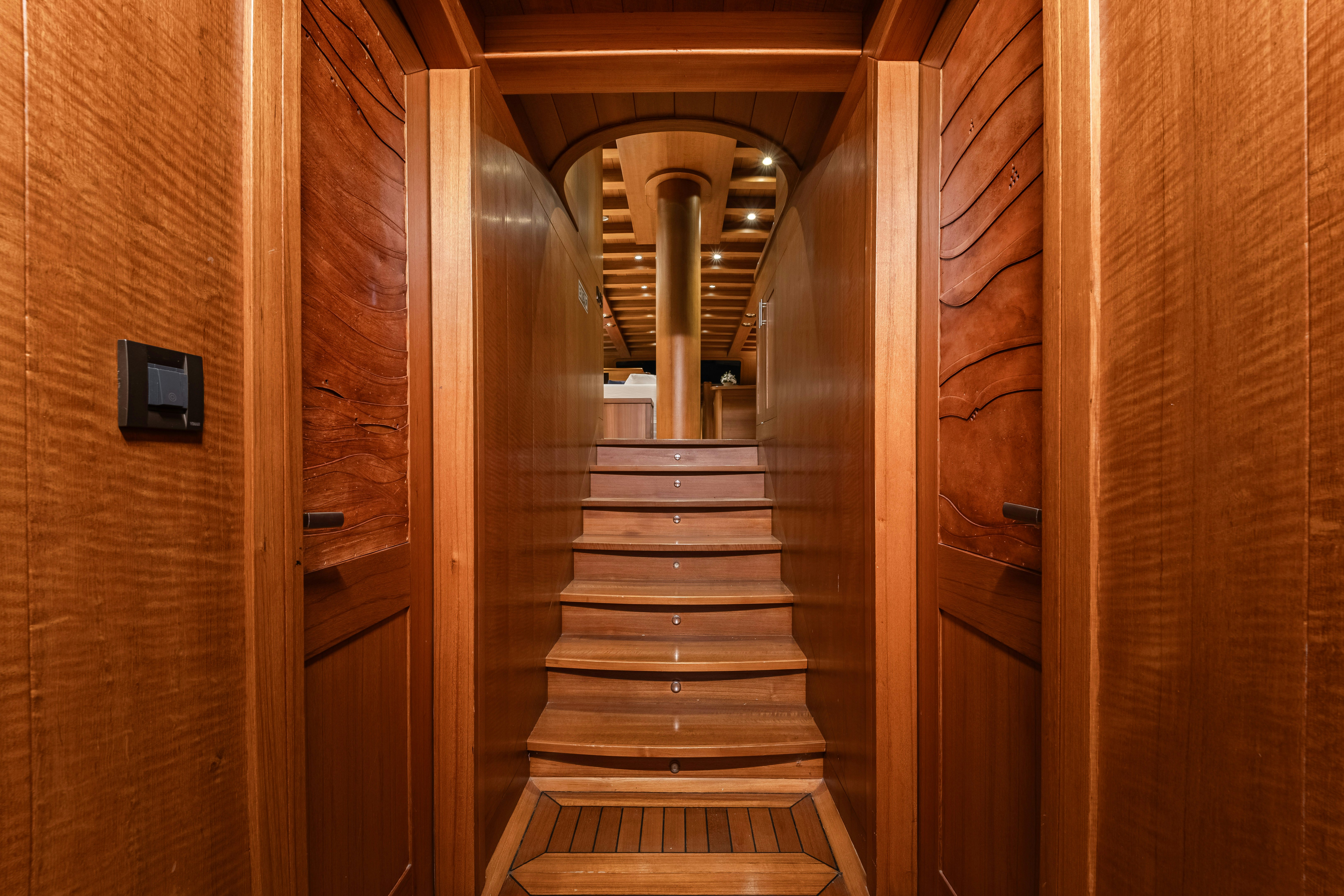

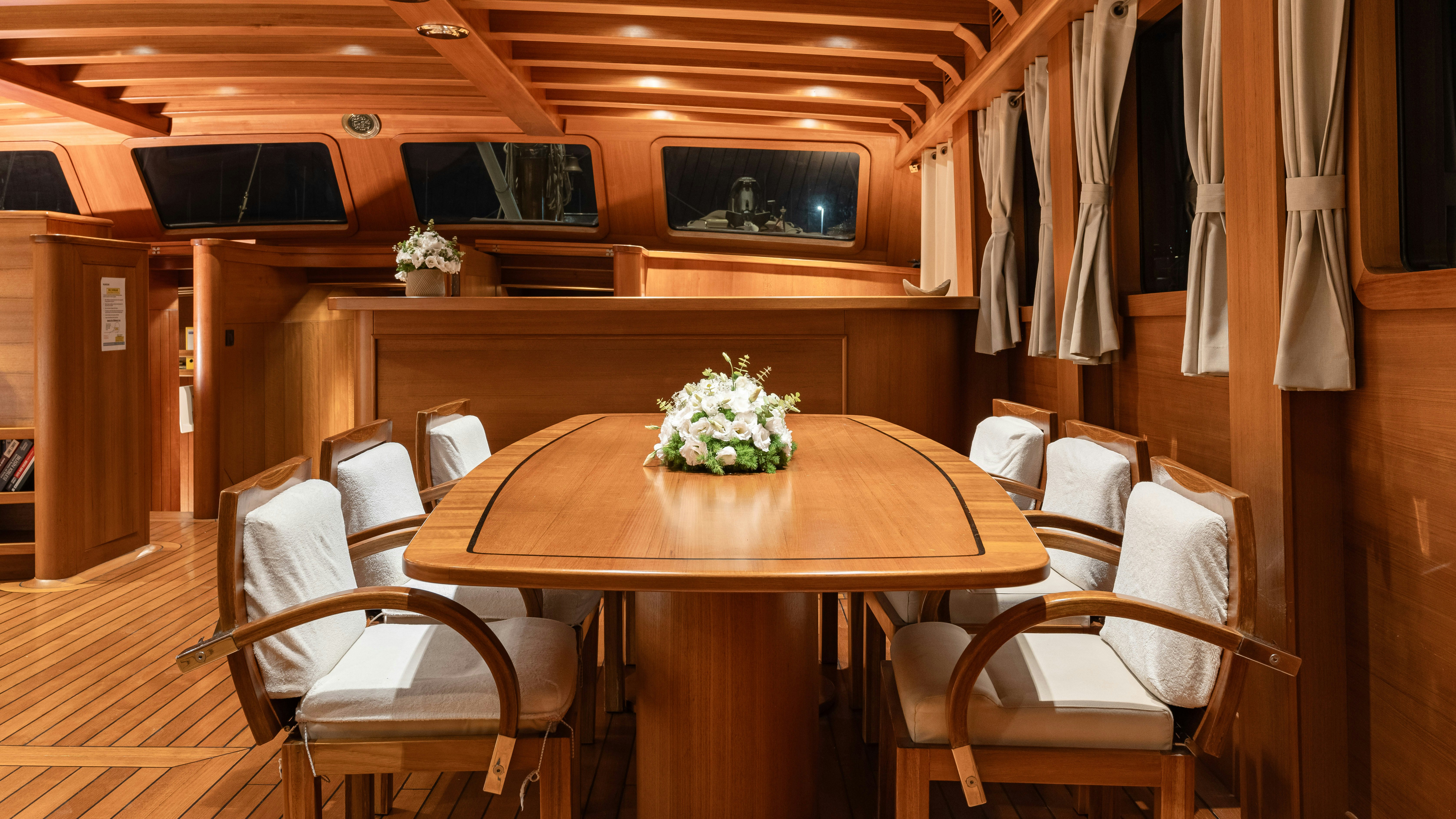

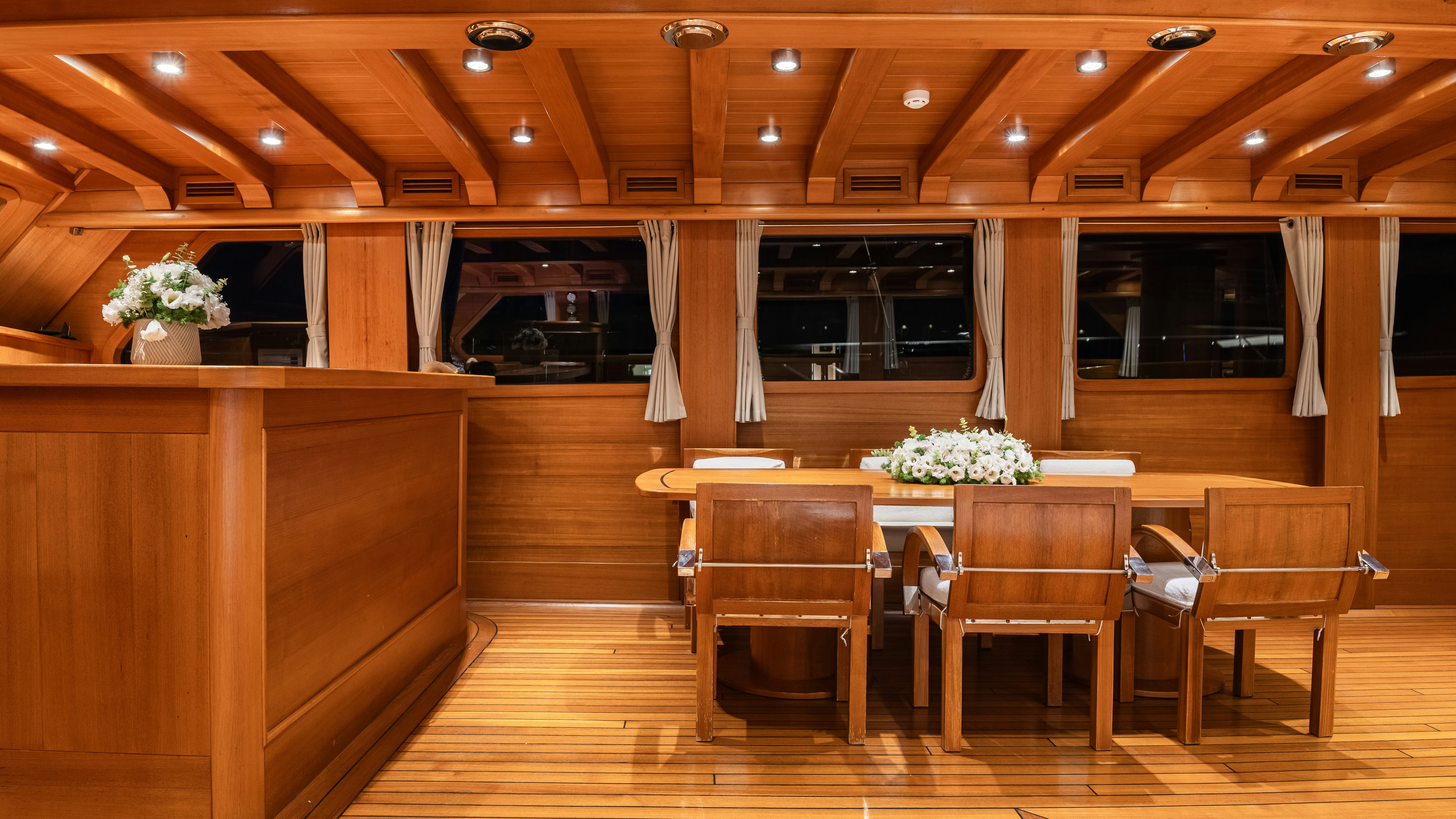

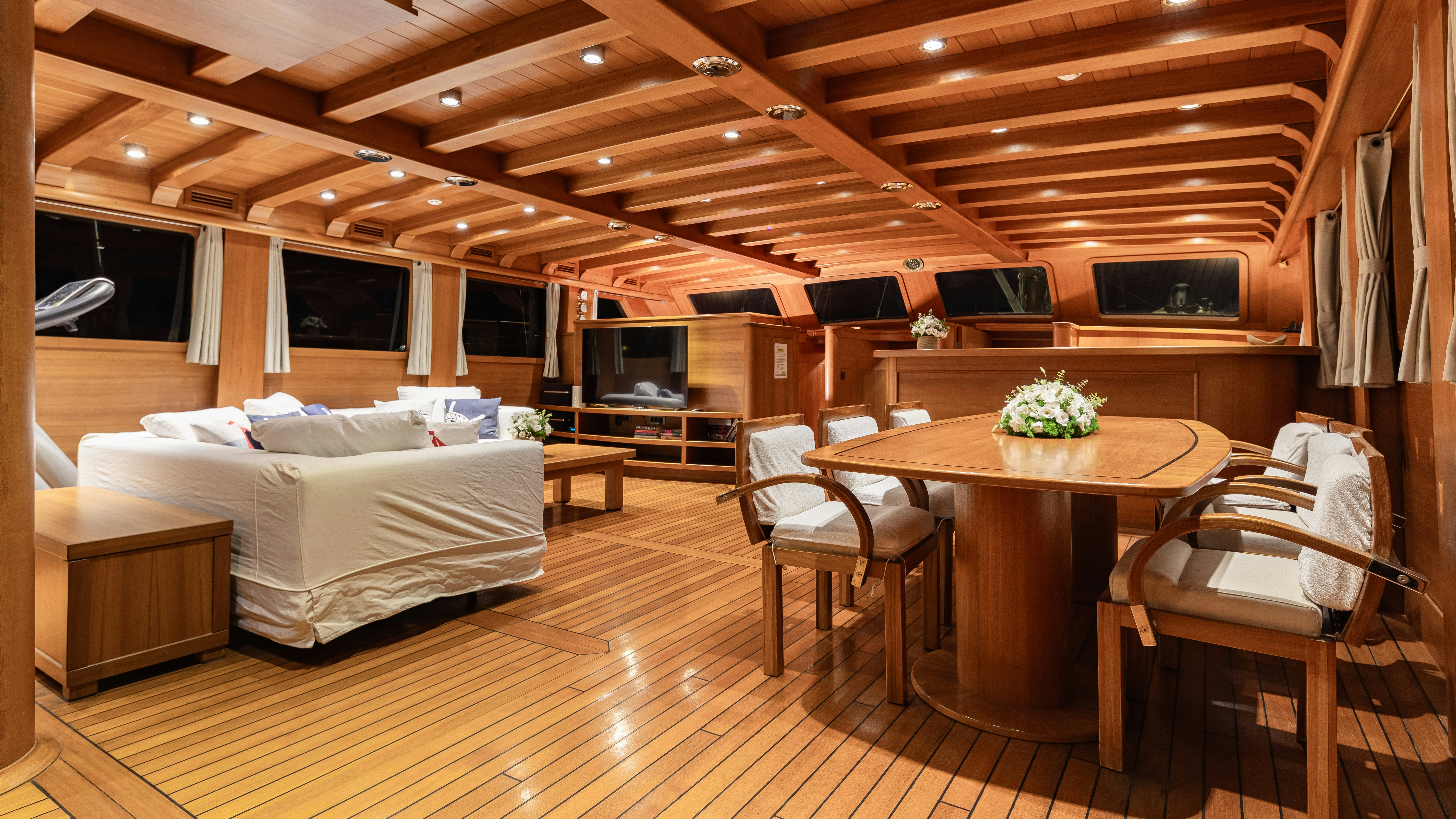

• Interior: fully Burma teak

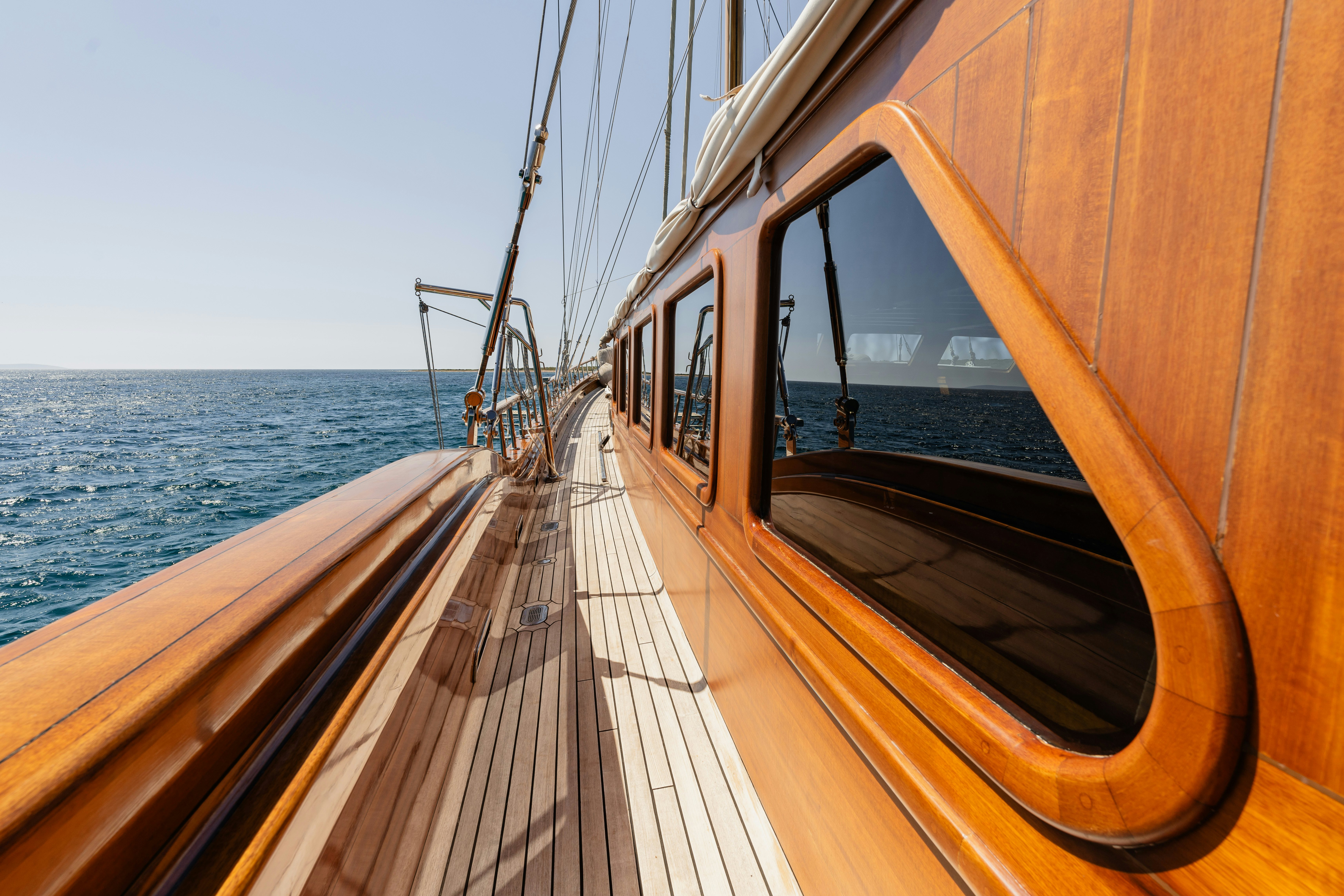

• Custom made stainless steel portholes, hatches and watertight doors

• Speed: 14.5 knots

• Fuel capacity: 9,500 lt

• Water capacity: 5,500 lt

• Black water capacity: 6,360 lt

• Grey water capacity: included in black water

• Engines: 2x CATERPILLAR

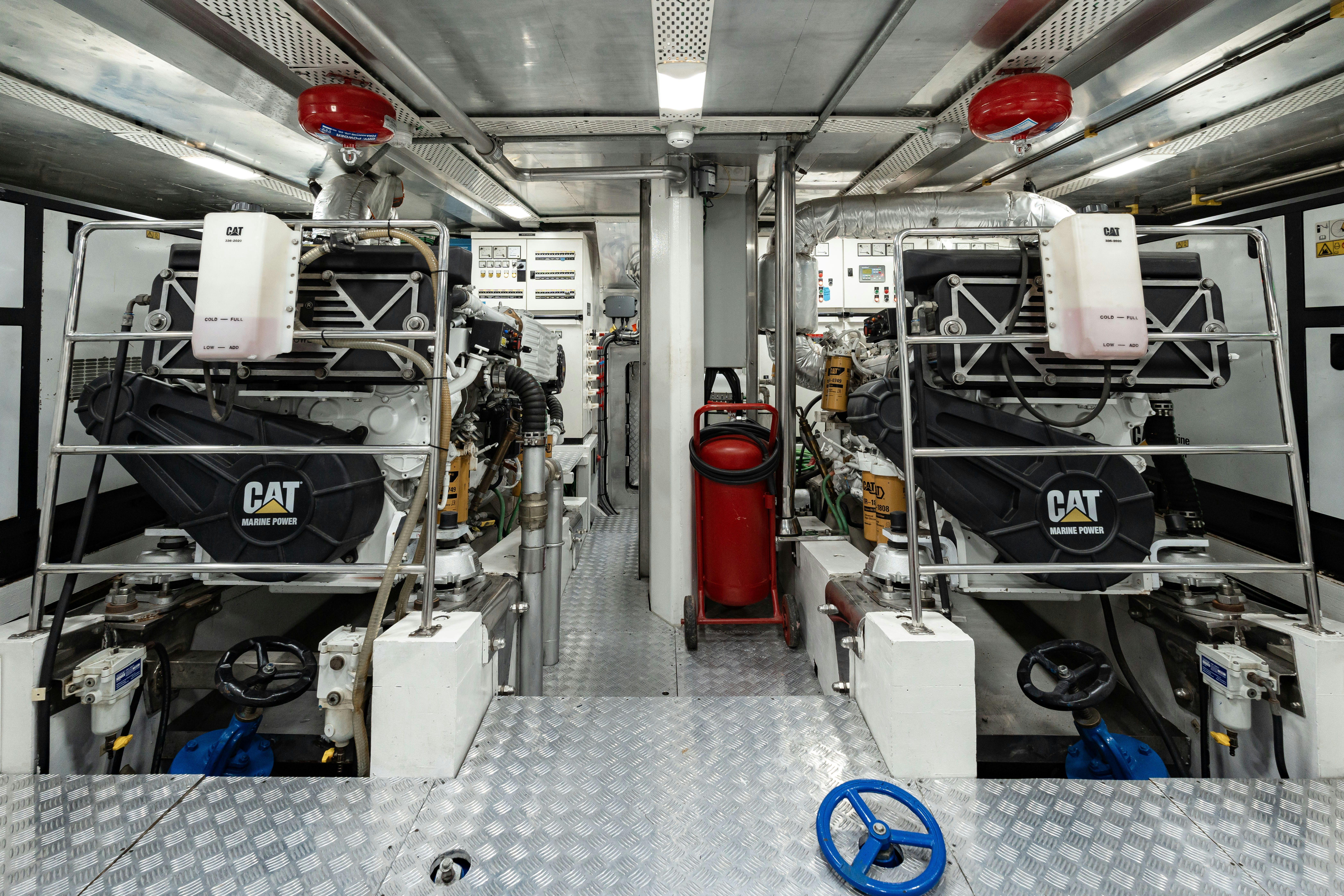

• Engine model: 2x CAT C18 ACERT, 600 HP, 1800 rpm, B Rating

• Engine hours: 2000 hrs

• Fuel: Diesel

• Propulsion: Conventional type (with g/b, shaft, a bracket and fixed pitch props)

• Gearboxes: 2x ZF W650, Ratio 3,605:1, with live PTO

• Steering Hydromarine: Steering Gear

• Stabilizers: N/A

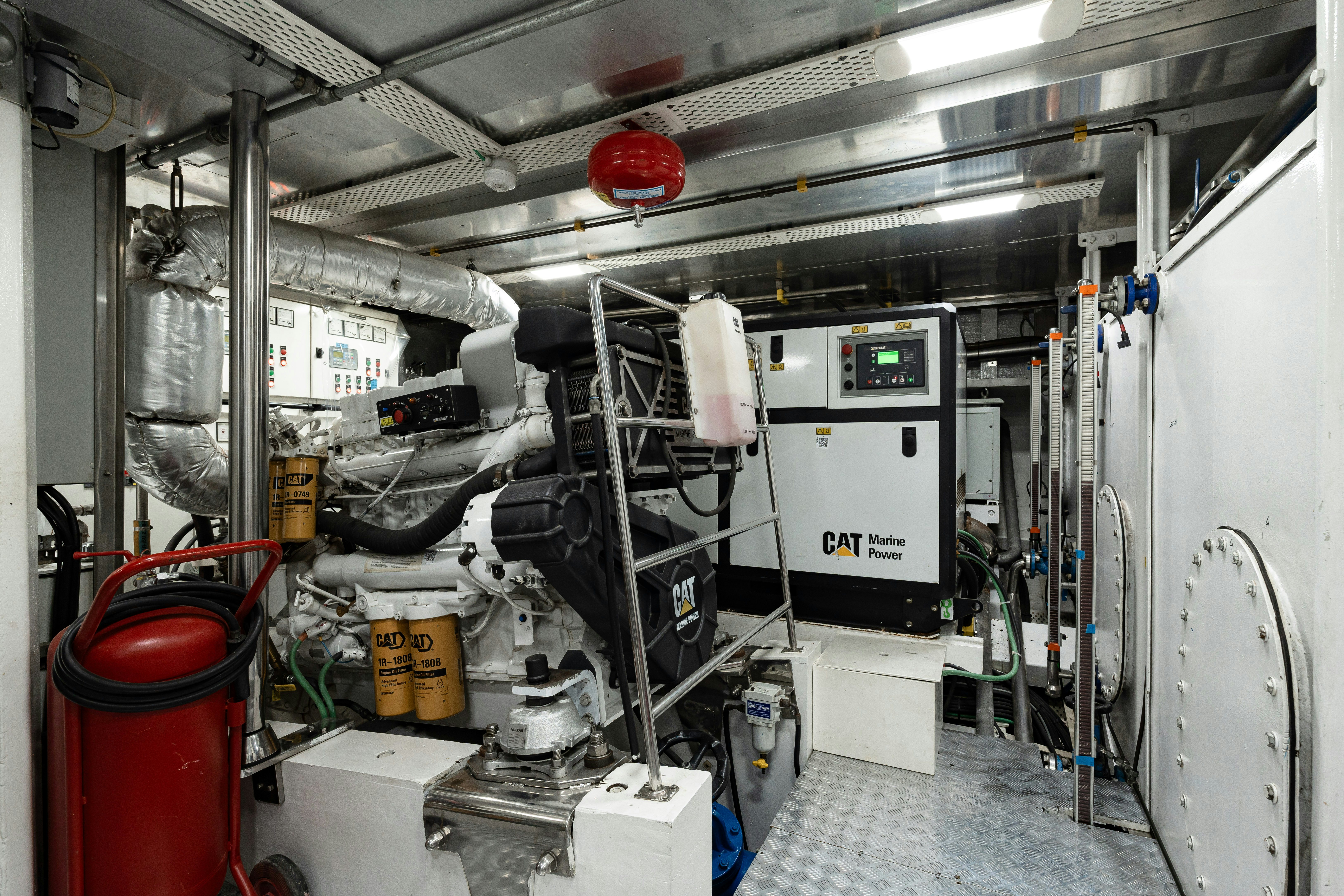

• Generators: 2x CAT 4.4 DITA 69 kWe 50 Hz plus CAT 4.4. DINA 38 kWe 50 Hz

• Generator hours: 8000 hours on 69kW

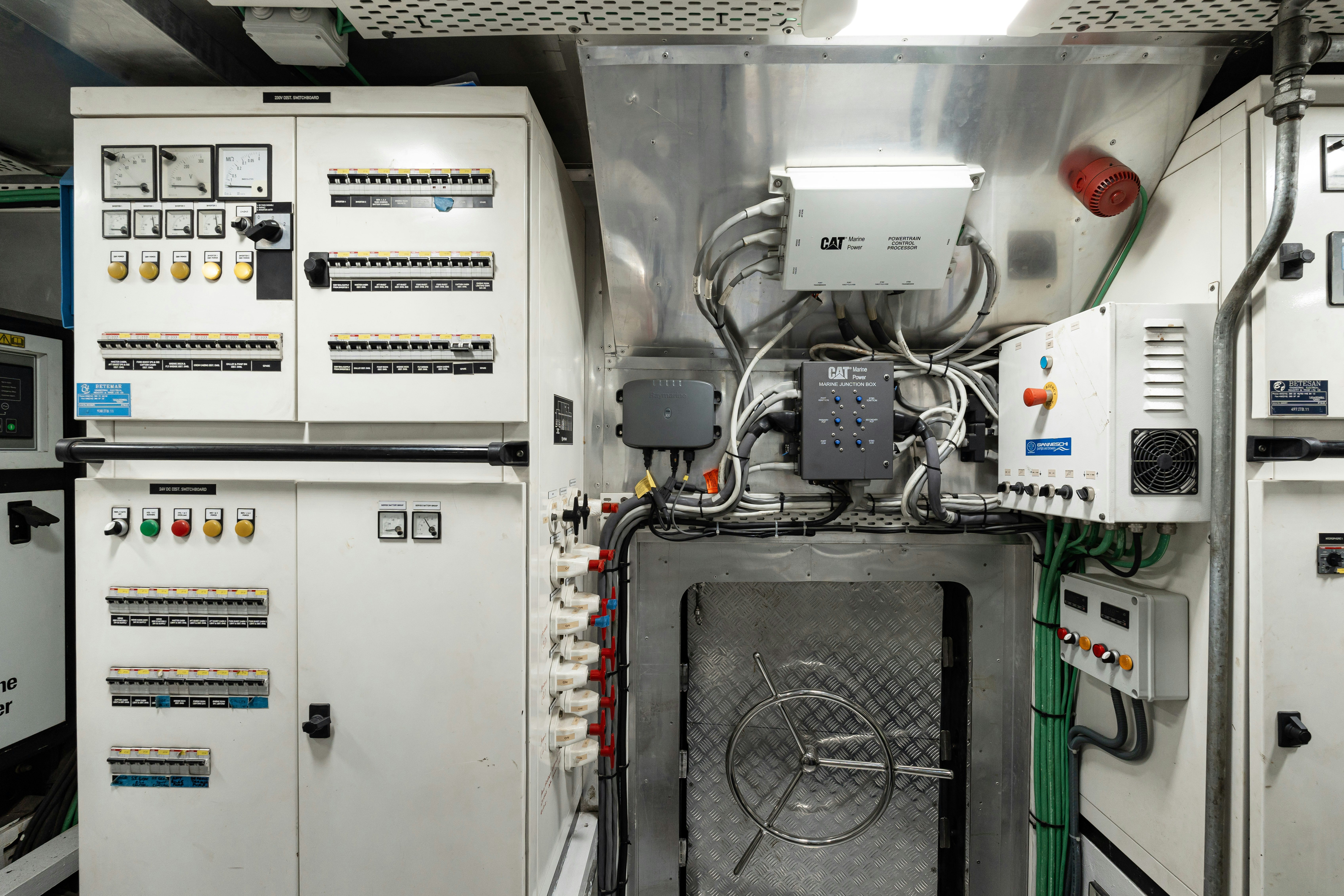

• 380 VAC main switchboard and 24 VDC&230 VAC main switchboard has been located in Engine room

• 20 pcs independent switchboard panels,

• All generators could be running in parallel conditions, both automatically or manually

• Inverter: 2x Victron Energy Multiplus 5000 W

• Battery Chargers: Victron Energy Skylla and Orion models,

• Batteries: Victron Energy 12x 2 V-1500 A Gel type batteries,

• AGM type batteries for starting and emergency, Shore power Batteries

• Victron Energy 12x 2 V-1500 A Gel type batteries, AGM type batteries for starting and emergency

• Marincold Air Handling Unit : MC320 H/C – 320.000 BTU

• Marincold Fancoils for each cabin and compartment

• Bow Thruster: Wesmar hydraulic fixed pitch propeller

• Stern Thruster: N/A

• Water makers: 2x SELMAR PACIFIC 280 CS, 600 lt/hrs

• Propellers: 2x Fixed Pitch Al Cu3 Bronze propeller

• Shafts: 2x stainless Steel Shafts Rudder angle indicators Hydromarine Rudder Angle İndicator

• Fuel filters: 2x Separ SWK-2000/5

• Fuel Filter for each main engine

• Fuel oil separator: N/A

• Oil/water separator: N/A

• Fire bilge pump: 2 pcs G&R ACM 501 BT (15 cbm/hr cap) bilge&fire pump 1 pc G&R Diesel Driven

• Emergency fire pump

• Boilers: 2x 100 lt G&R Boilers (with independent circulation pump)

• Sewage treatment: 2x HAMANN Super Mini Plus

• Waste water treatment unit

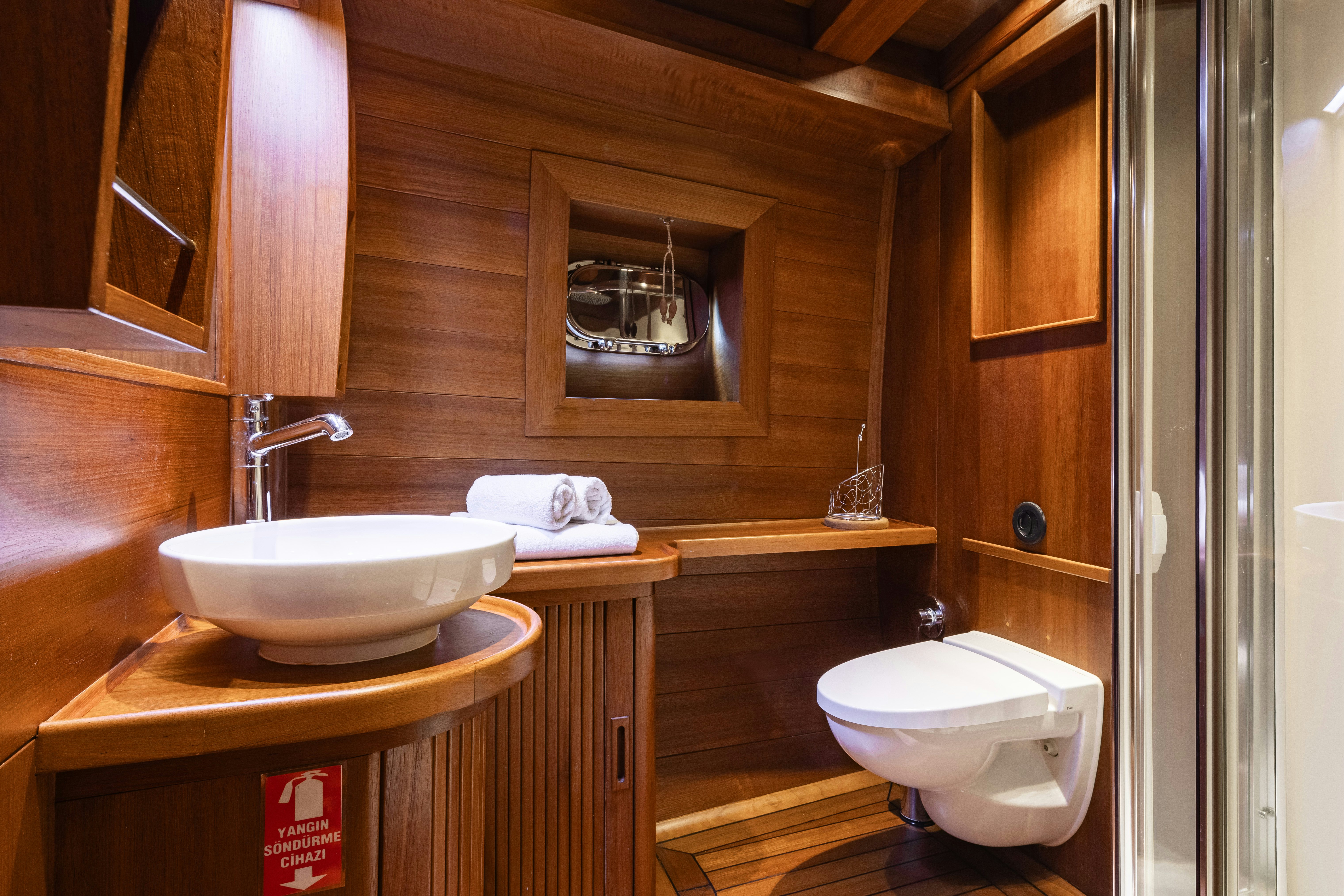

• WC’s EVAC Vacuum System, 24 VDC and 230 VAC usable Fresh Air

• Make up unit Marincold Fresh Air Make Up Unit:  MCF/A 480 – 48.000 BTU

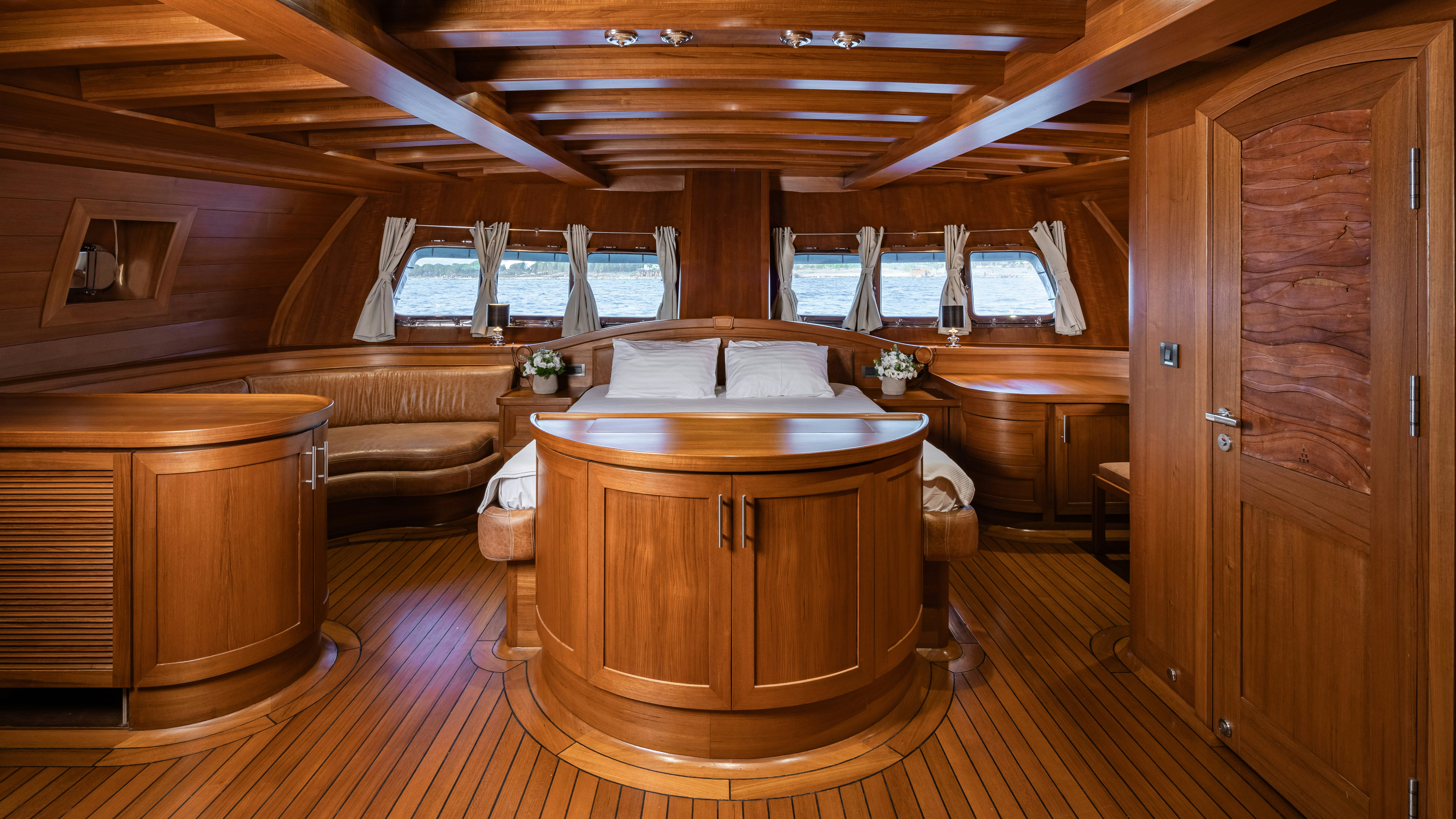

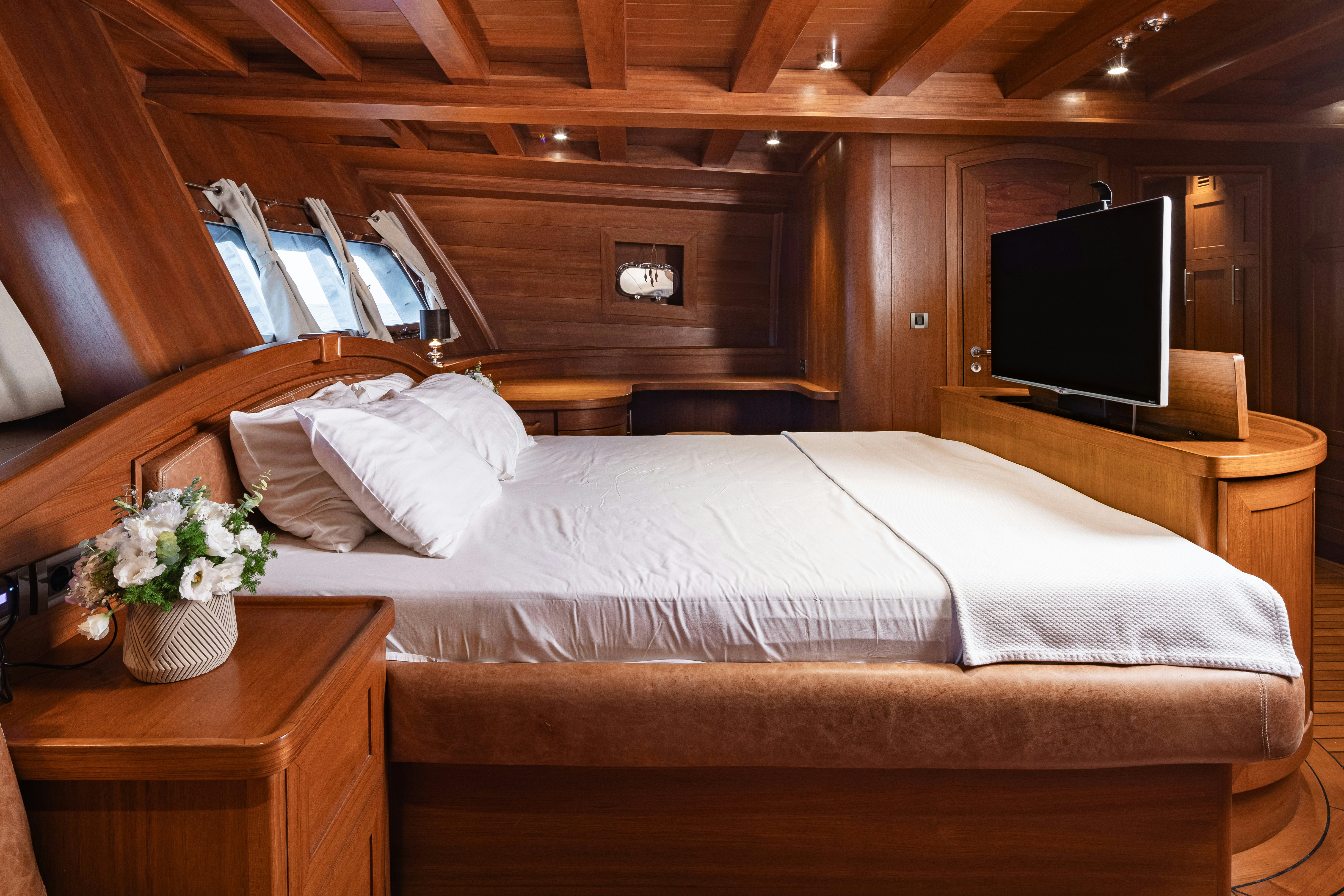

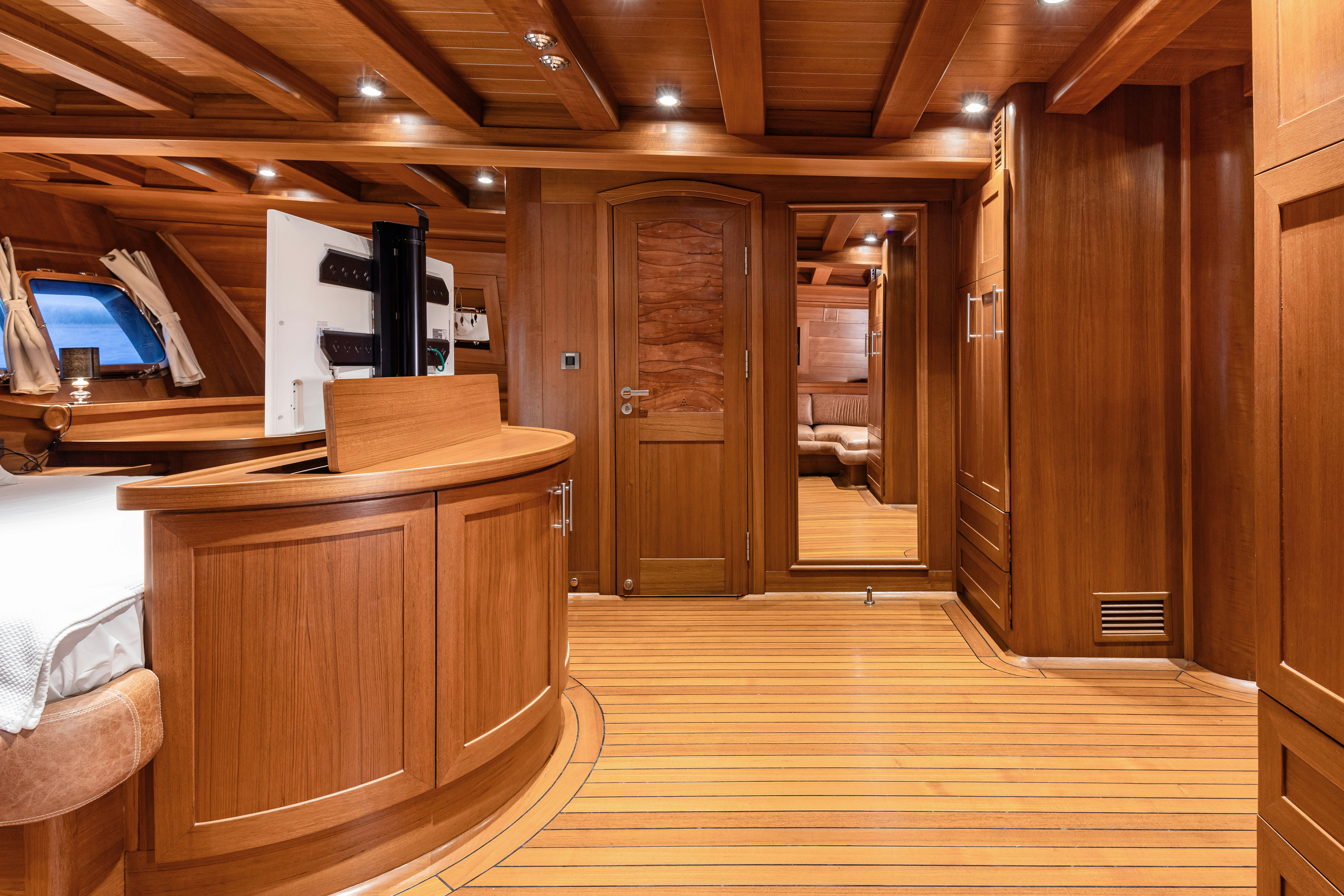

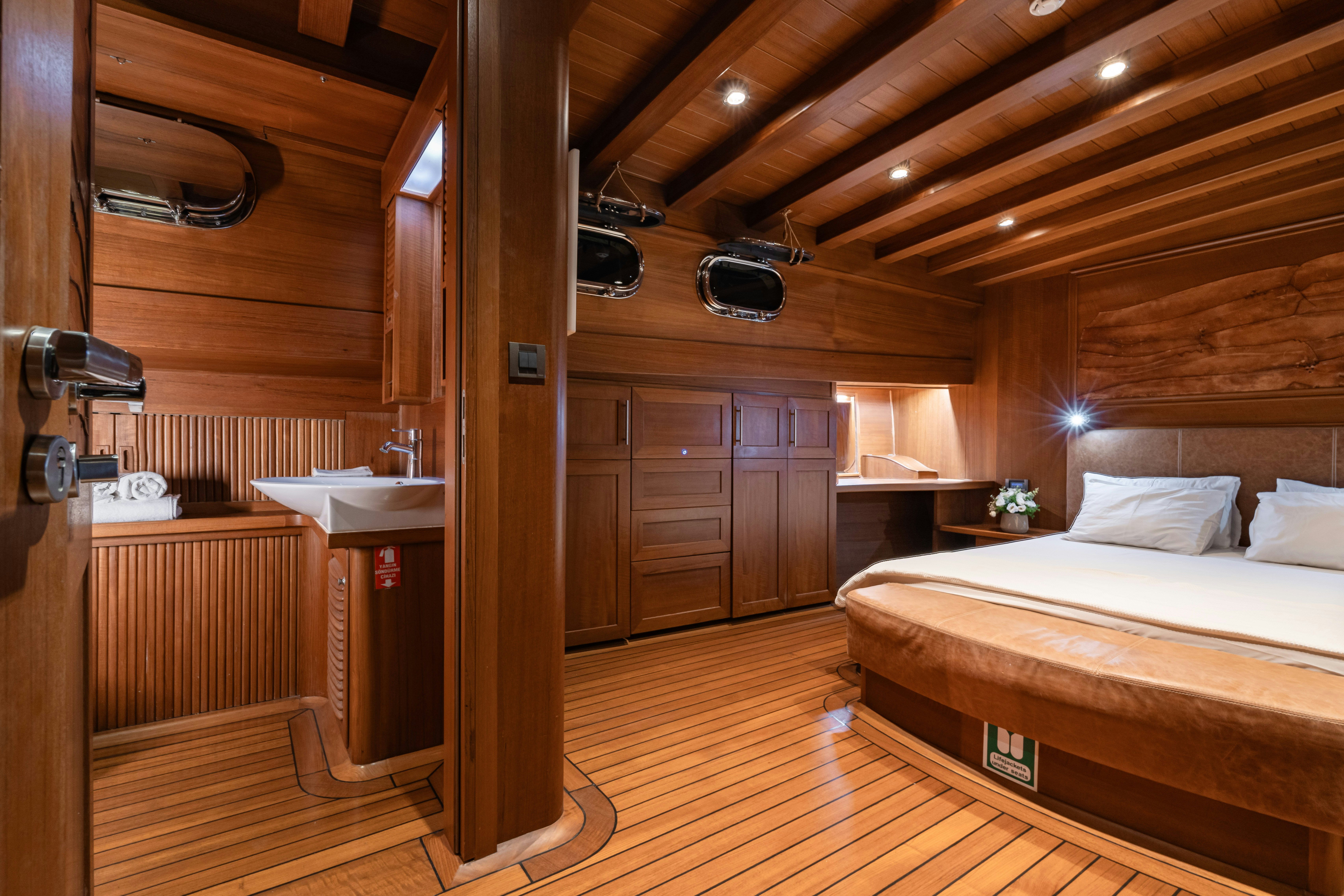

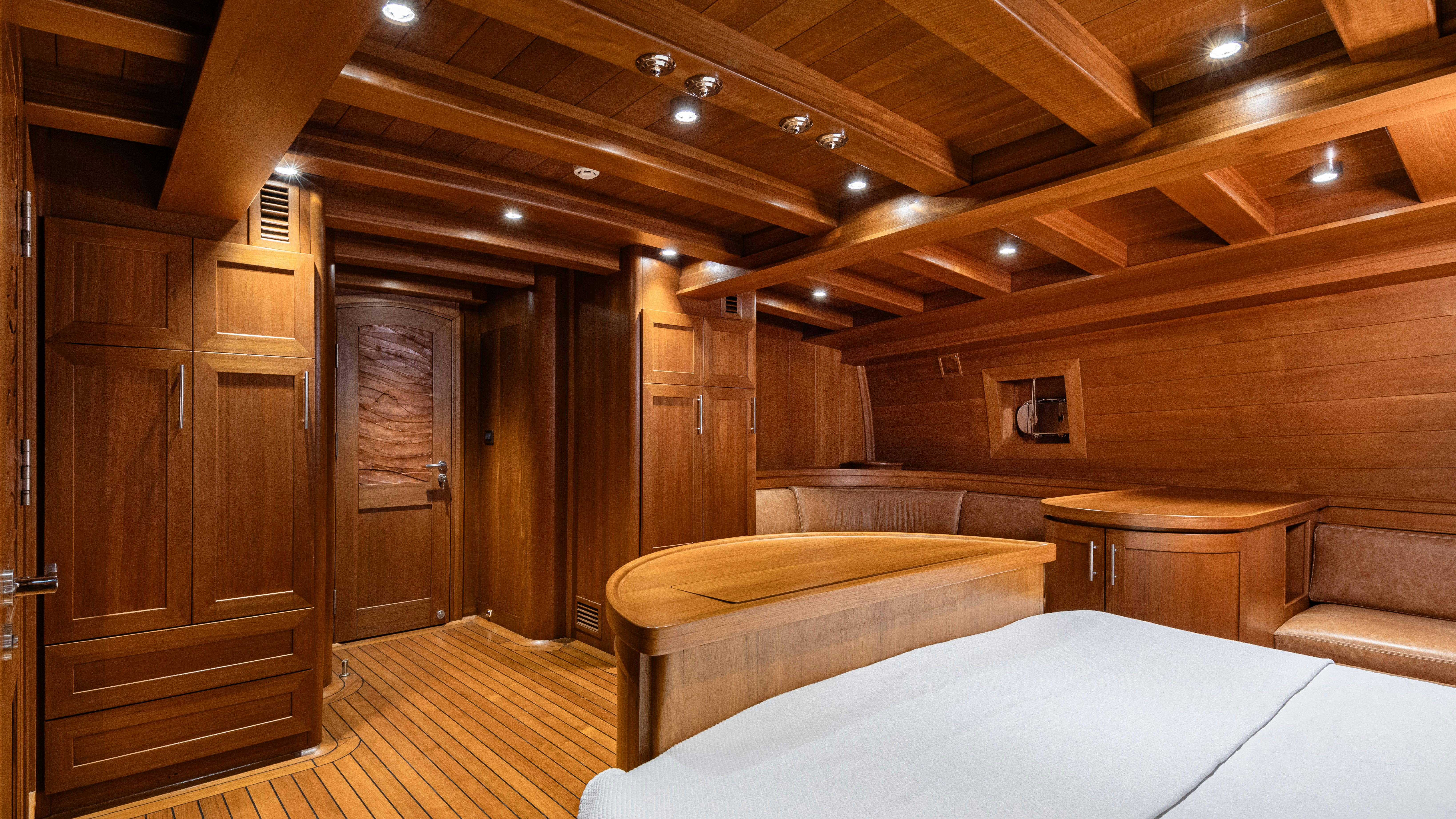

• OWNER Master Cabin located aft side of yacht

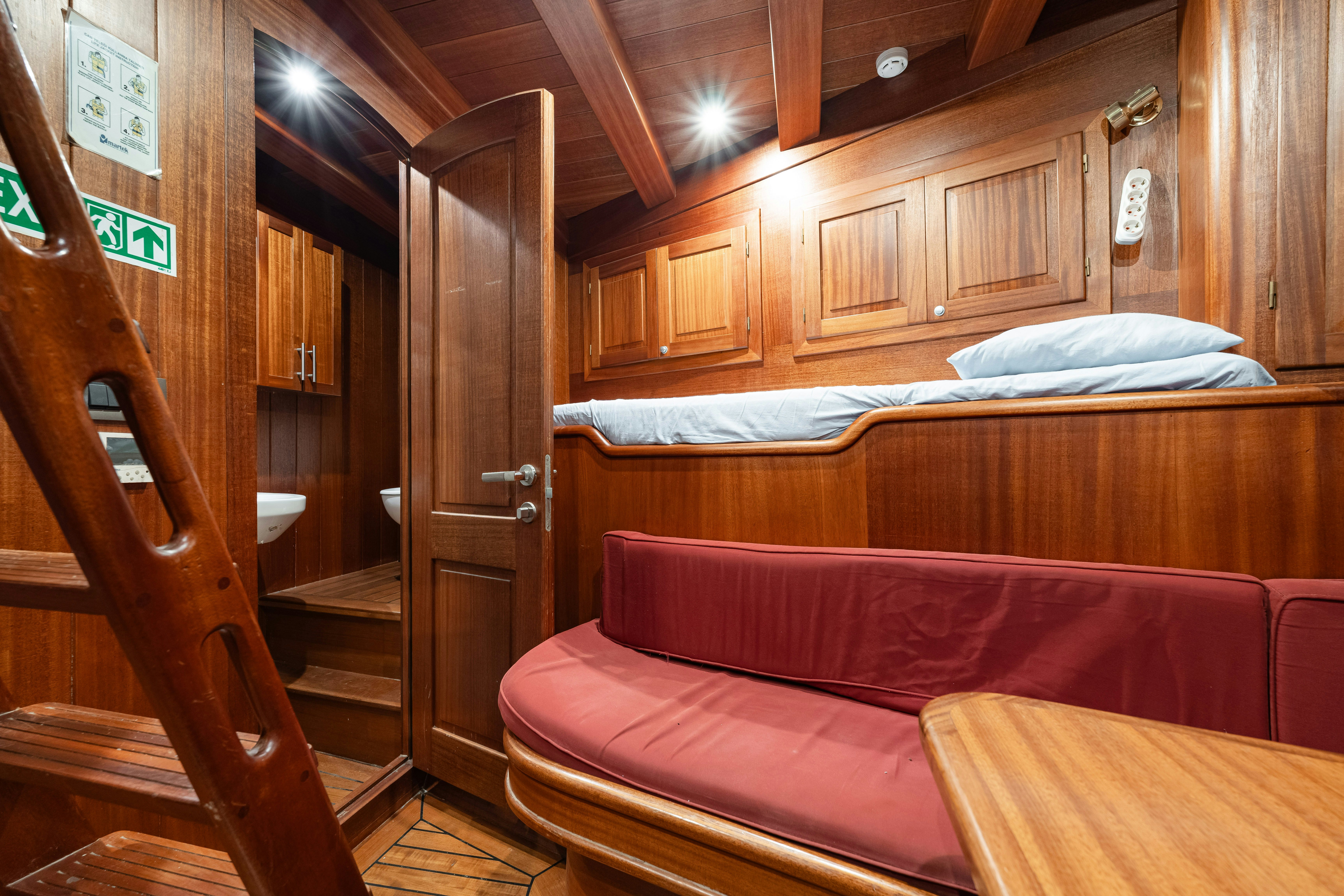

• GUESTS 4x Guest cabin

• STAFF Hosts cabin

• CREW Captain Cabin and crew cabins (fore side)

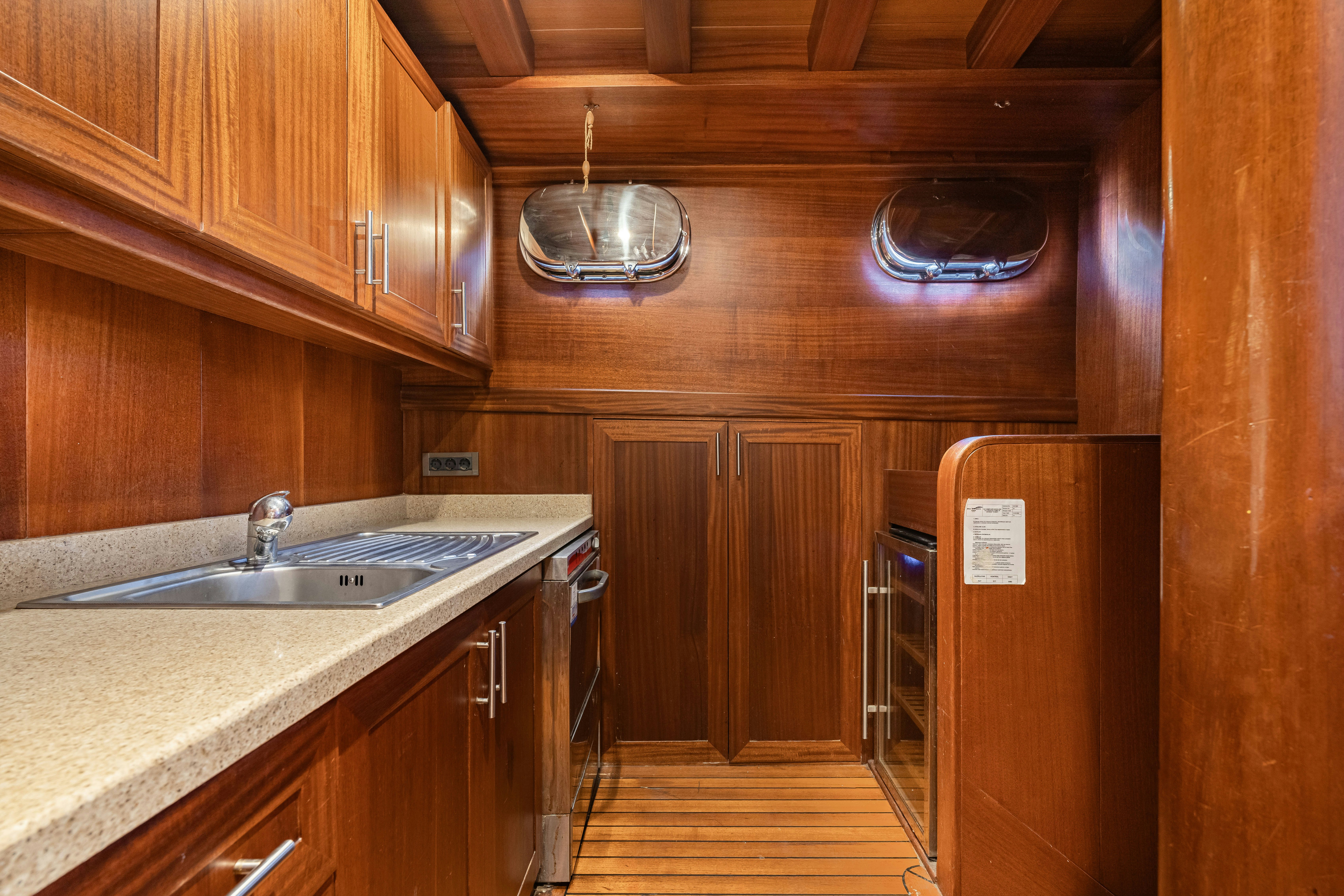

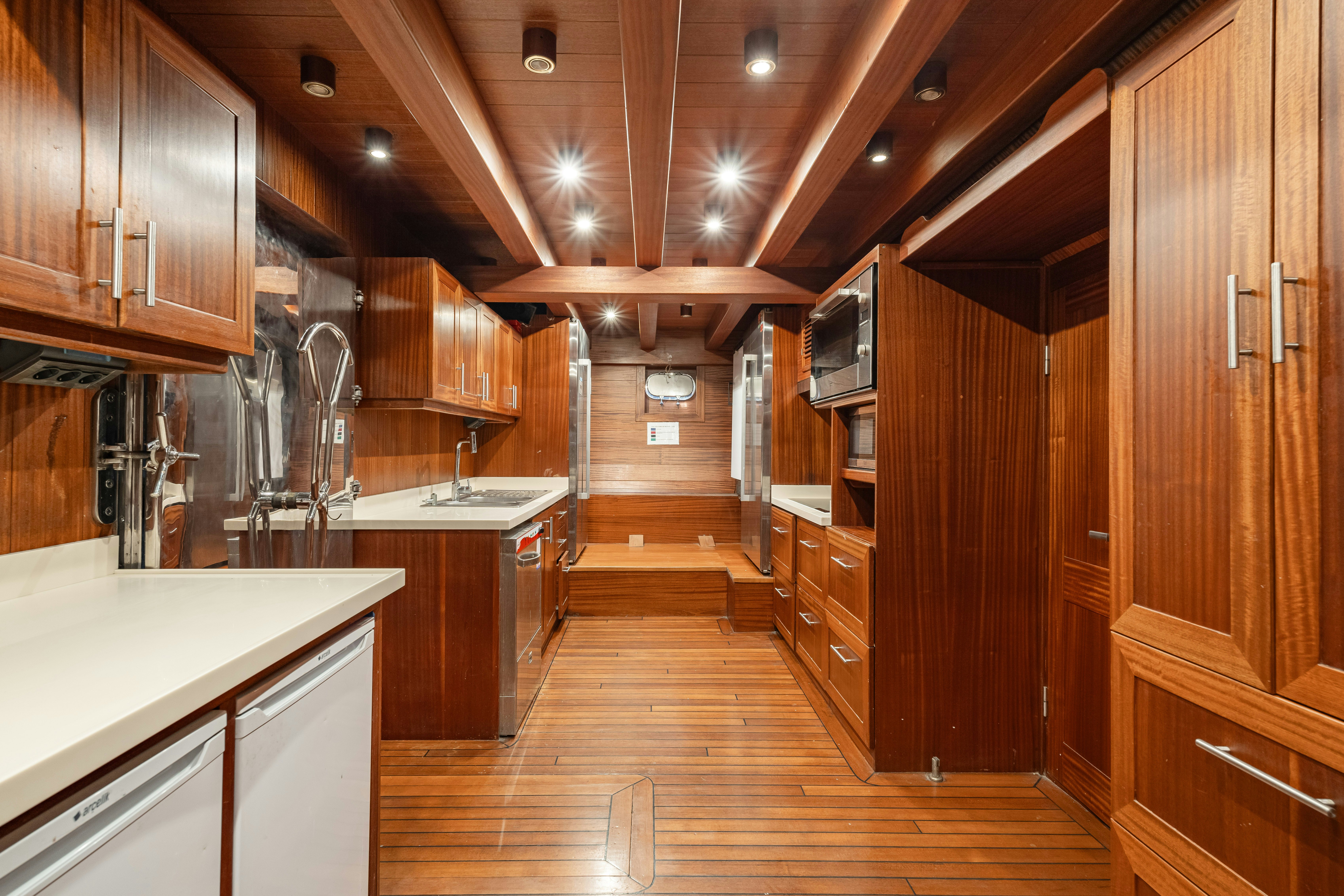

• Electric powered cooking plate with 5 sections

• Franke oven

• 2 pcs Siemens Refrigerator

• 2 pcs Deepfreeze

• 1 pc washing machine

• 1 pc drying machine

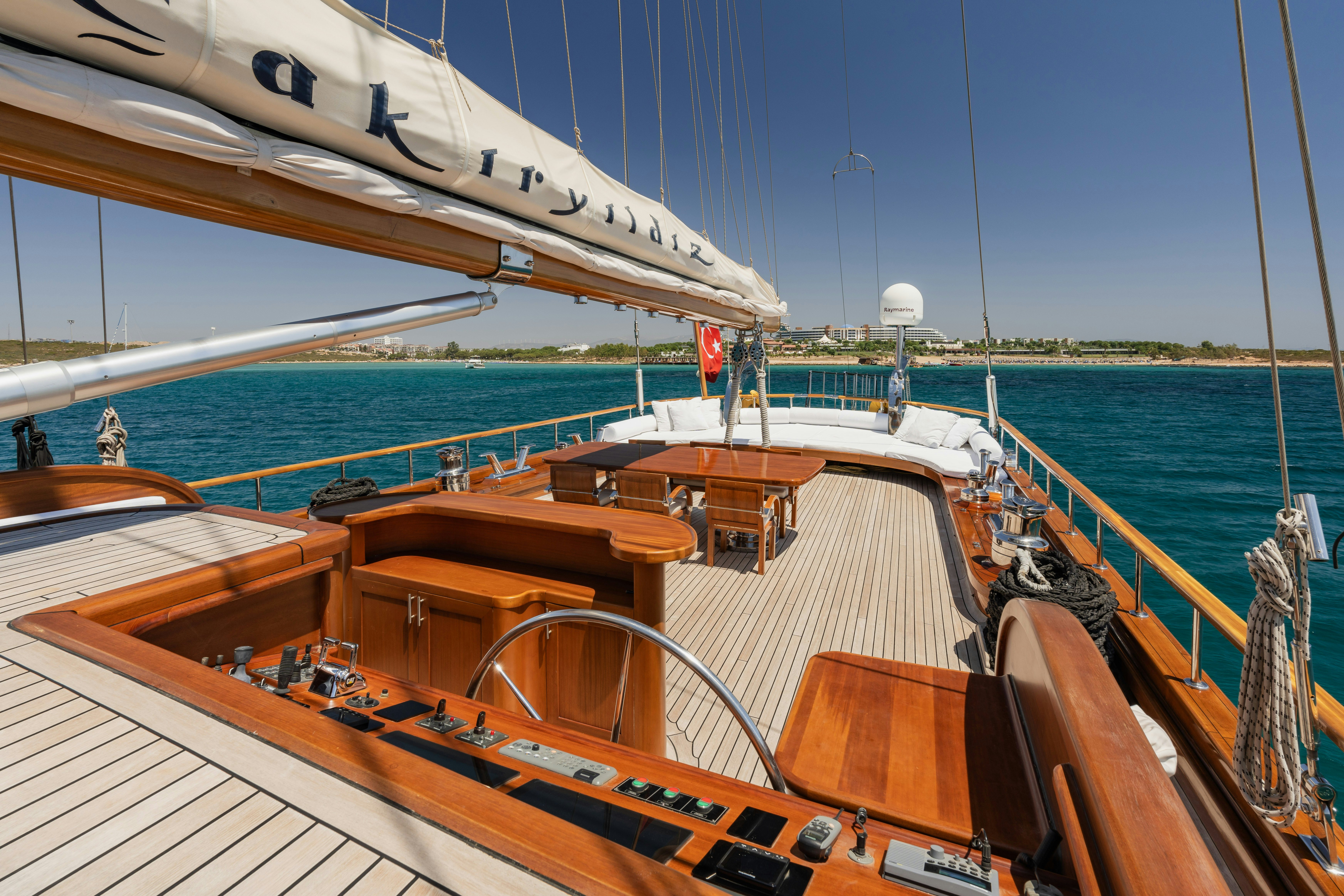

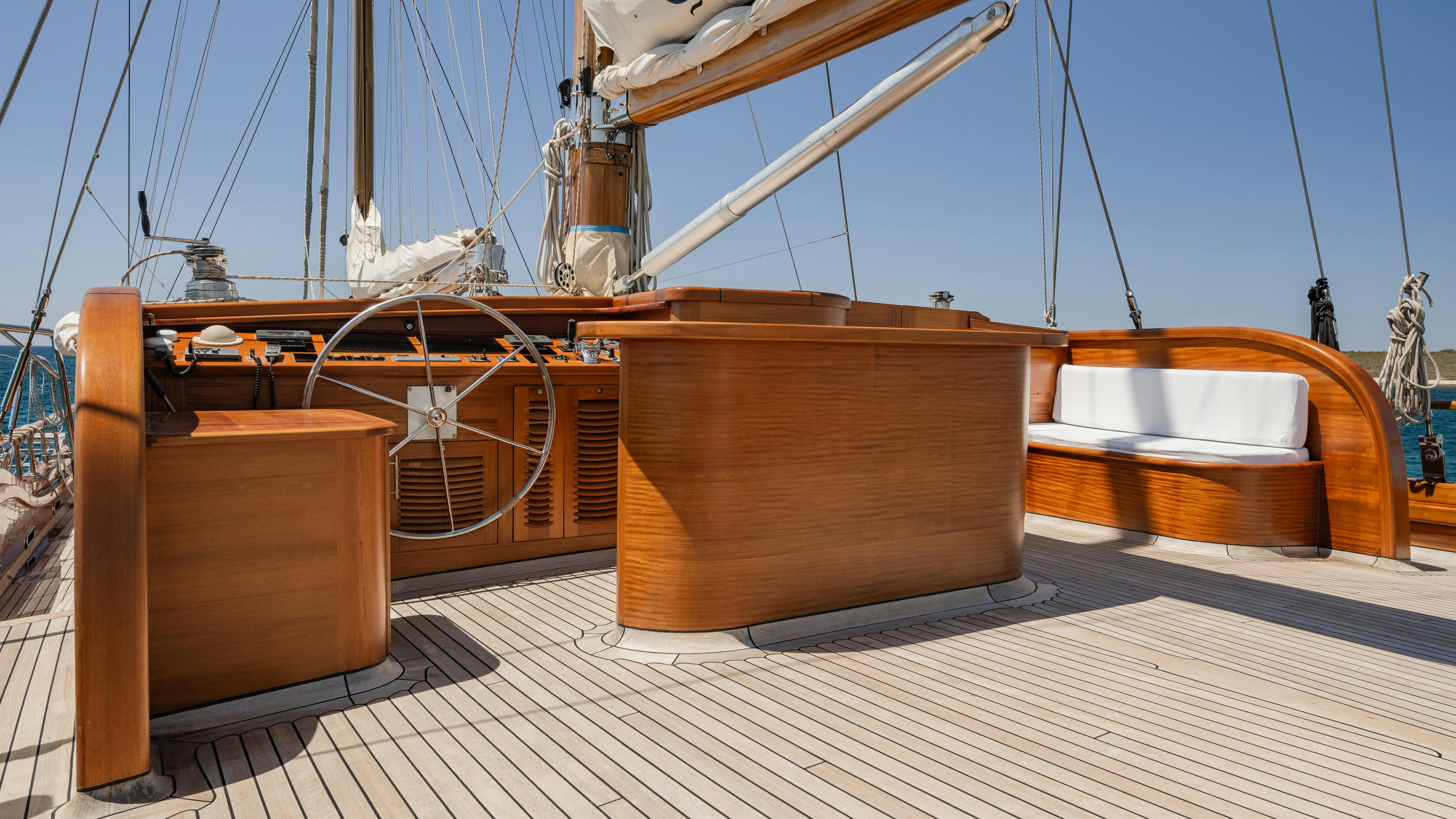

• Steering System Hydromarine Hydraulic System

• Windlass 2x Hydromarine Hydraulic Windlass

• Anchors 2x 230kg HHP Stockless Anchors

• Chains 19mm Galvanized Chain, 275mt

• COMMUNICATIONS EQUIPMENT
  Raymarine VHF & UHF

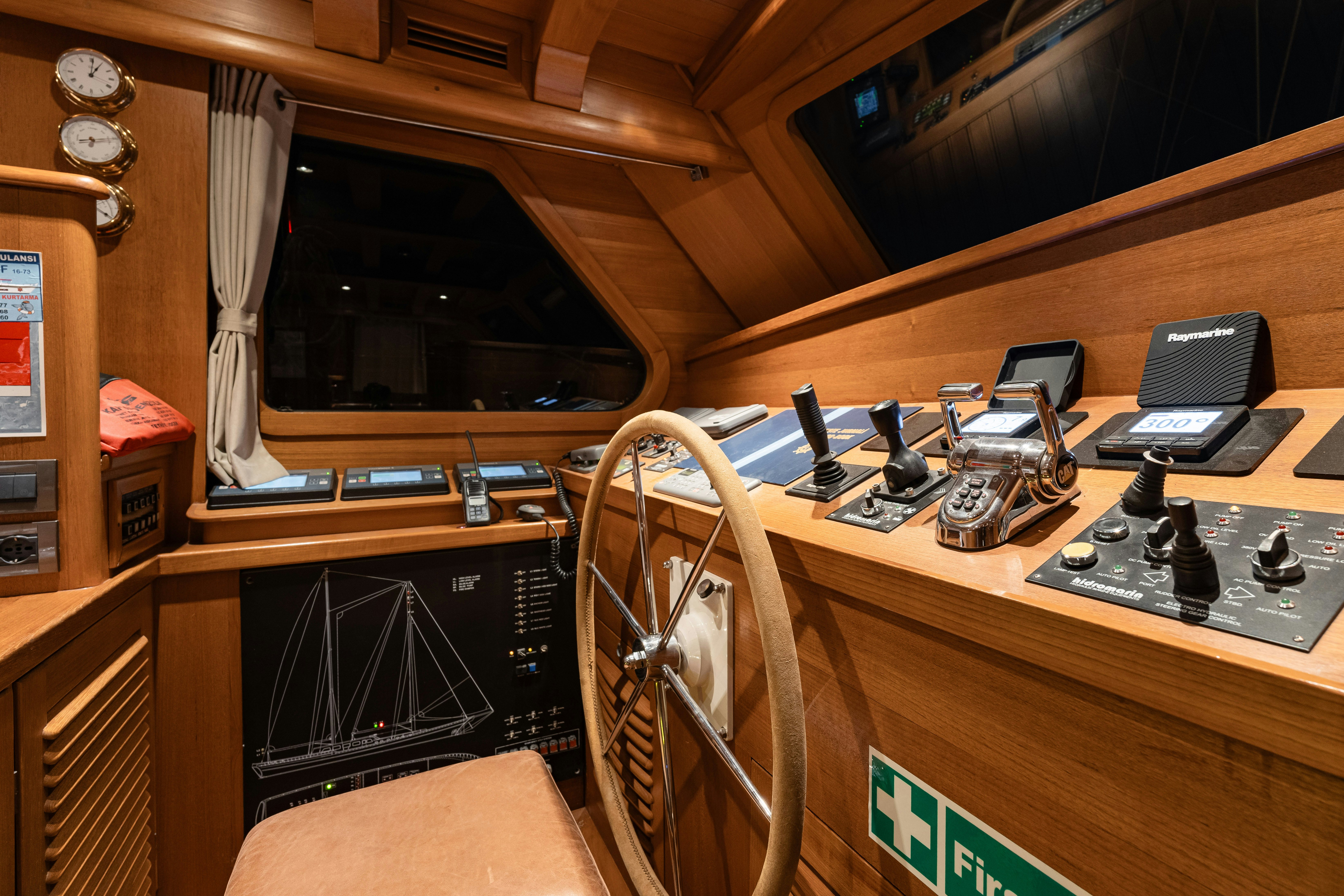

• NAVIGATION EQUIPMENT
  2x Raymarine Radar,
  Raymarine Autopilot,
  Raymarine Chart Plotter,
  Raymarine Echosunder & Sppedlog

ENTERTAINMENT EQUIPMENT
► Satellite TV in each cabin and saloon
► Home cinema in saloon and master cabin
► Sonos central music system available in every cabins and
areas

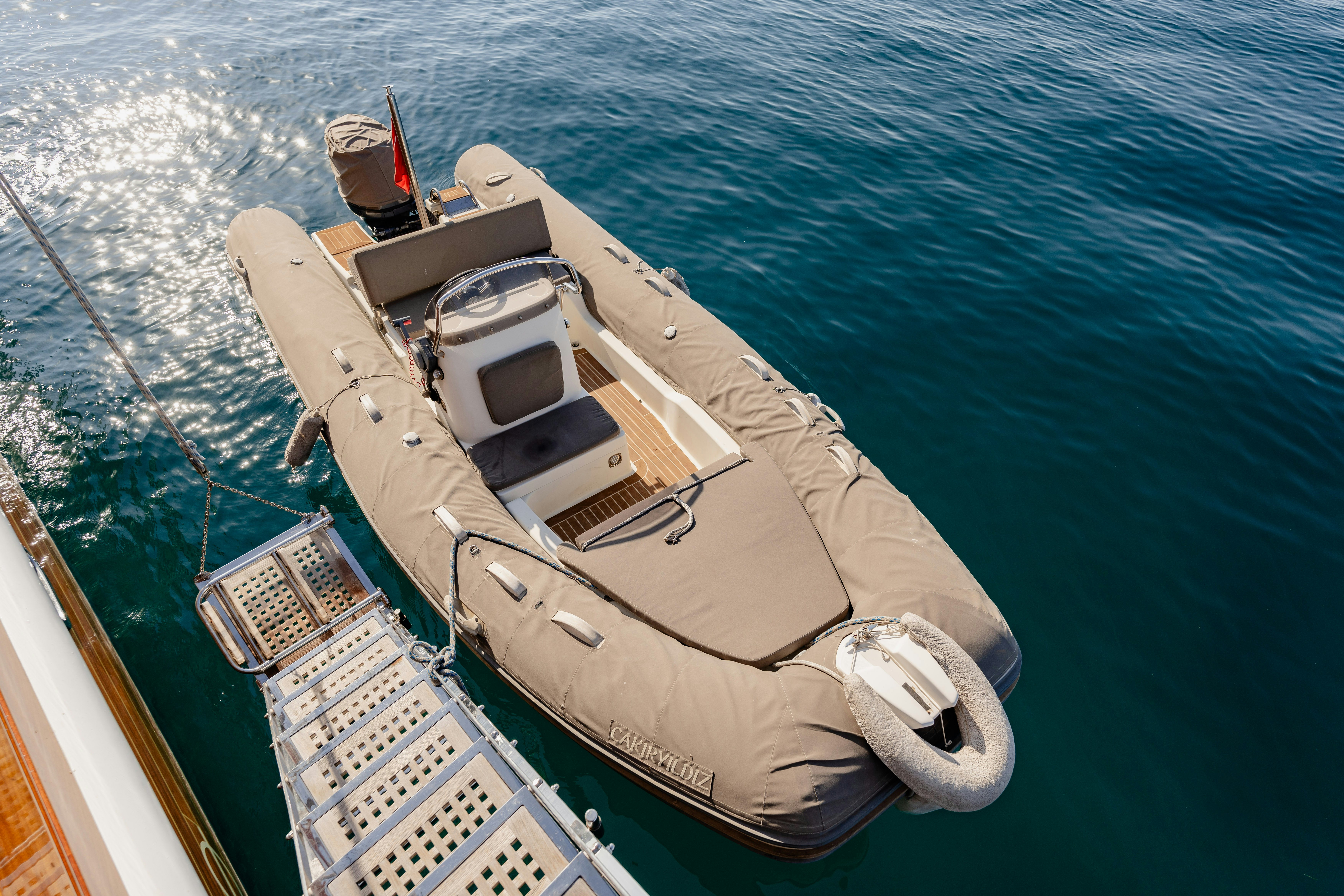

• TENDERS

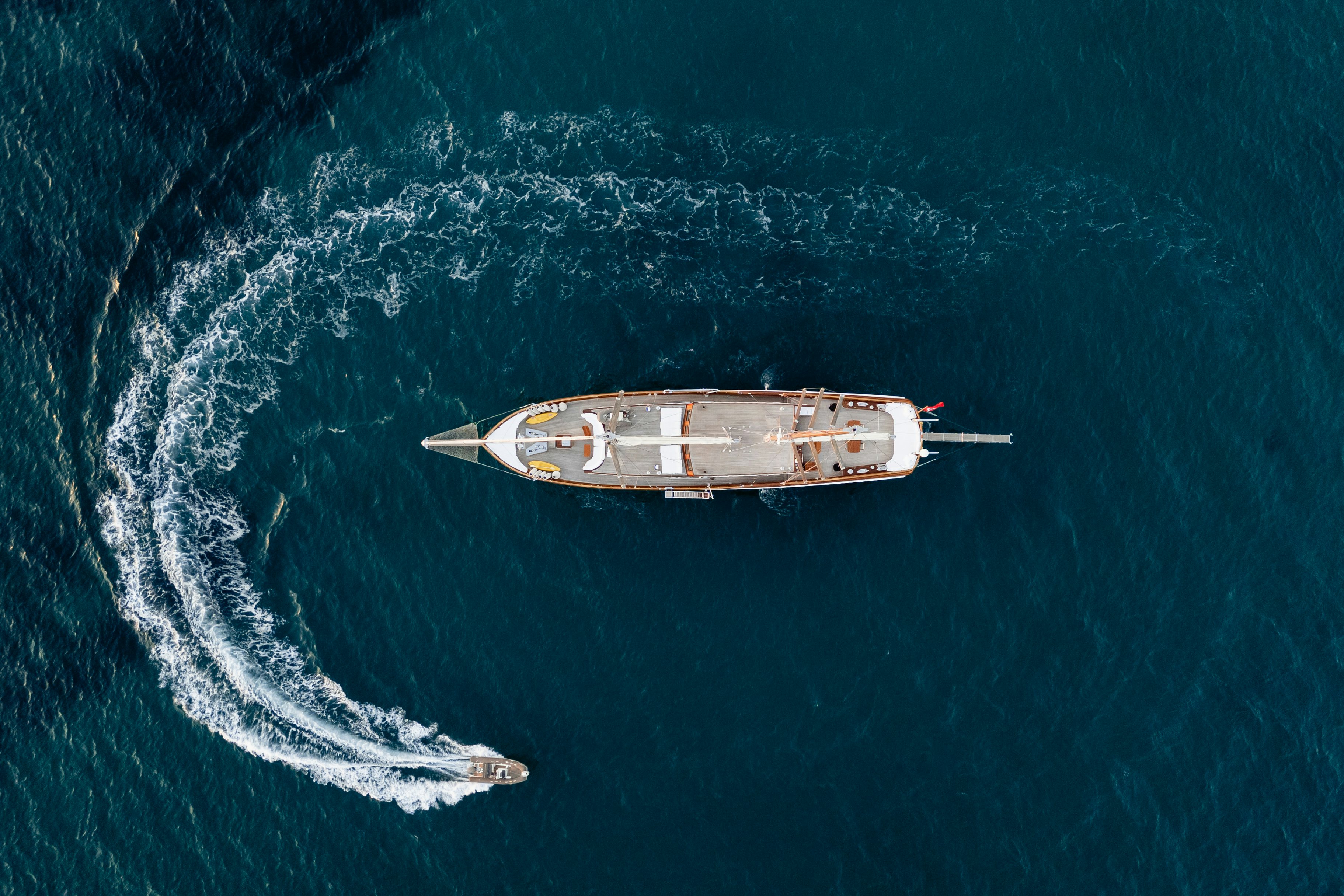

  Zodiac Medline 5,40 mt with 100 HP Yamaha outboard
  Zodiac Cadet 3,10 mt with 20 HP Yamaha Outboard

• Banana (3 person)

• 2 sets water ski set for adults

• 1 set water ski set for children

• Kneeboard

• Wakeboard

• 2x Ringo

• 2x kano

• 2x Liferaft (12 person/each)

• 12x Lifejacket

• 5x Lifejacket (for children)

• 6x Lifebuoy

• Line Throwing Set

• 12x parachute Signal Rockets

• 2x Handheld Radiotelephone Apparatus

• Fixed CO2 system with Engine Room (acc to BV Rules)

• Fire detection System for each compartment

• 14x Powder Extinguisher ( 6 kg)

• 10x Powder Extinguisher (2 kg)

• Quick Closing Valve System (for fuel tanks)

• Fire Station

• Quick Clos Dampers for Engine Room fans

• Fire Hoses and Nozzles for each fire hydrant

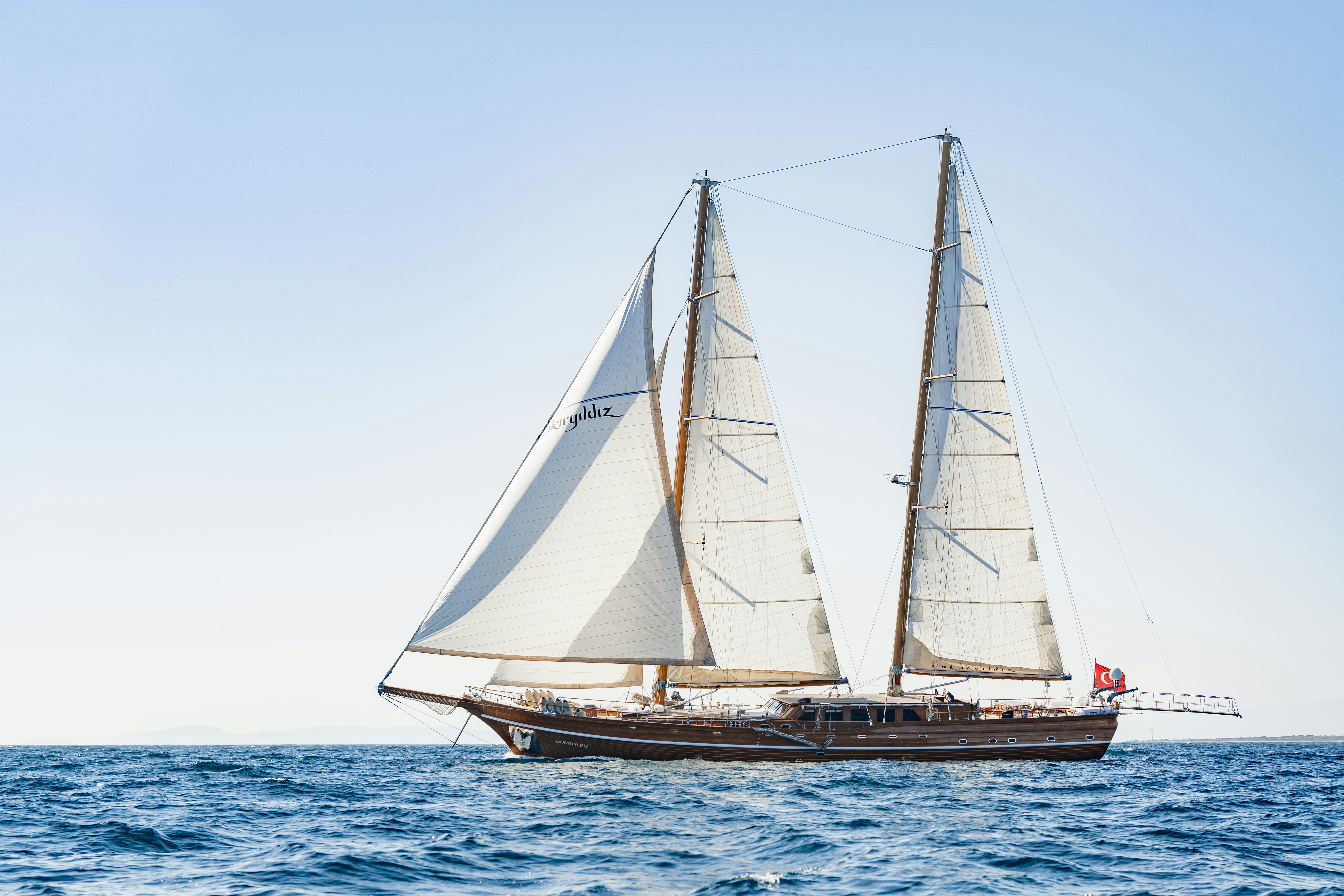

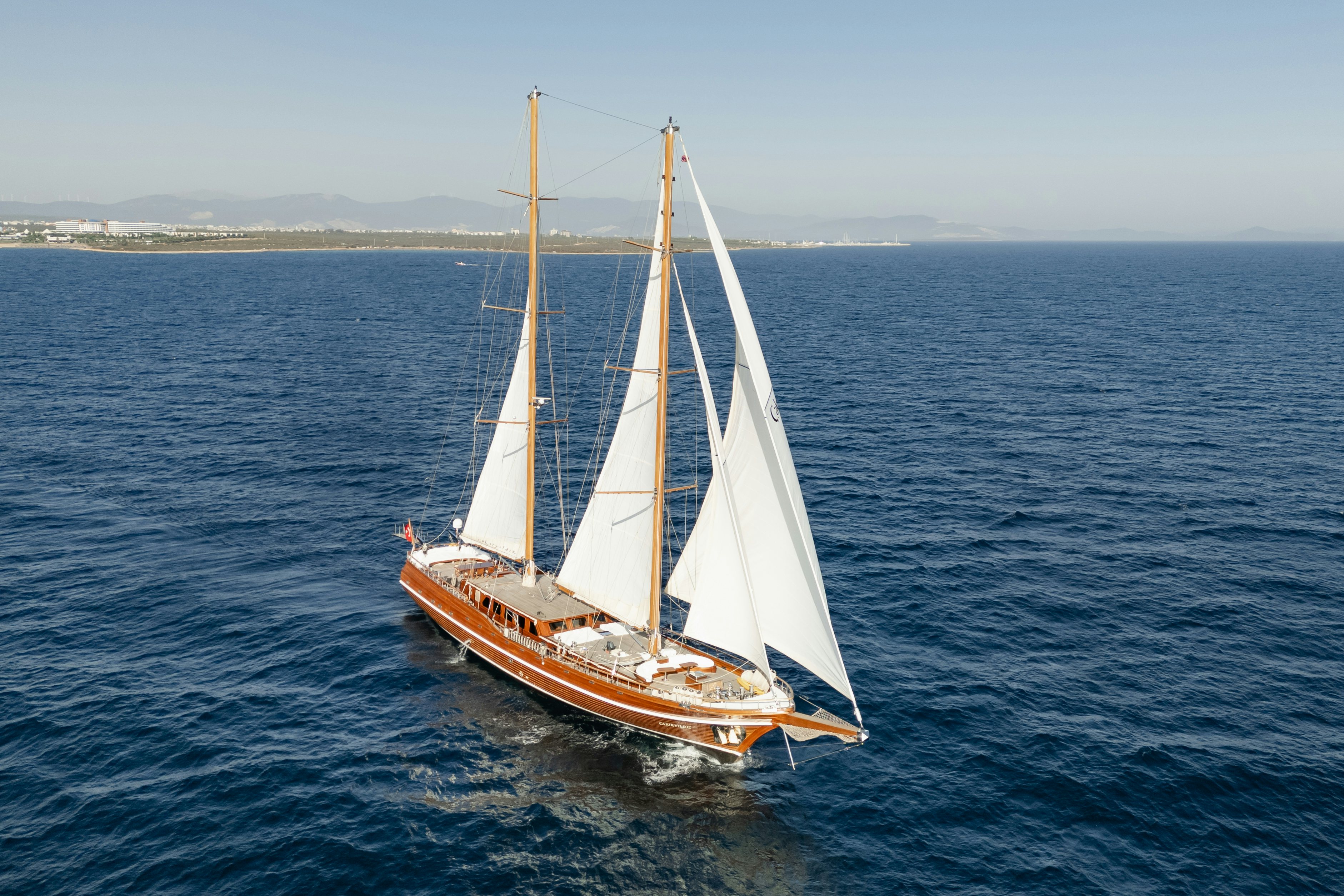

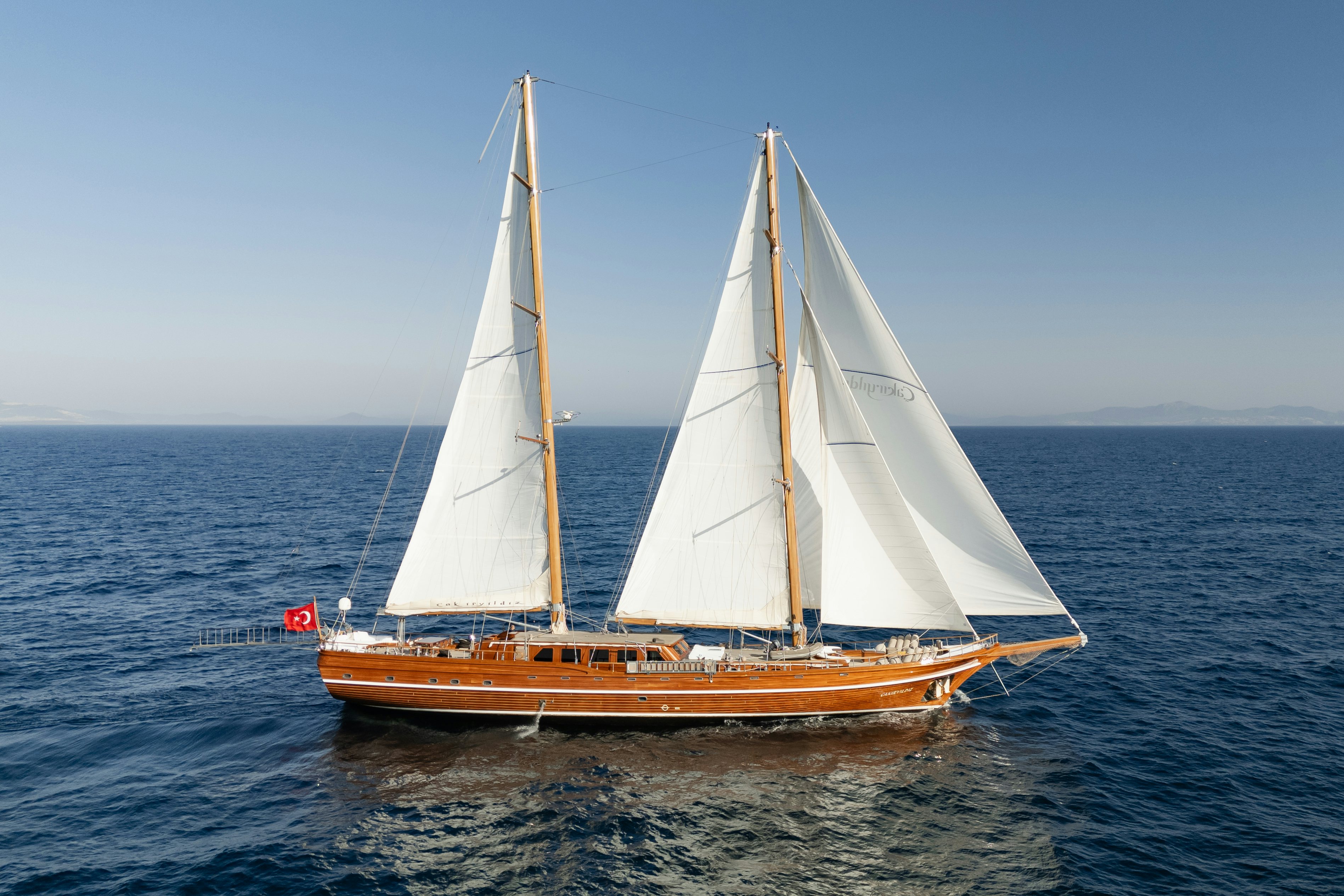

• Main Sail: 227 m2

• Mizzen Sail: 193 m2

• Spinnaker Sail: 95 m2

• Genova Sail: 233 m2

• Laminated wooden masts

• Sail winches: 10 pcs Andersen stainless steel hydraulic winches on deck

• Furlings, boom vangs and backstays: Bamar

• Deck blocks and sailing equipments: Antal

• Custom made stainless steel liftings and accessories

• A complete list of exclusions is available upon request.
