Asking
$ 11,750,000

ATLAS Yacht for Sale

Length
102' (31.09m)
Builder
CANTIERE DELLE MARCHE
Build
2017
Cabins
4
Asking Price
$ 11,750,000

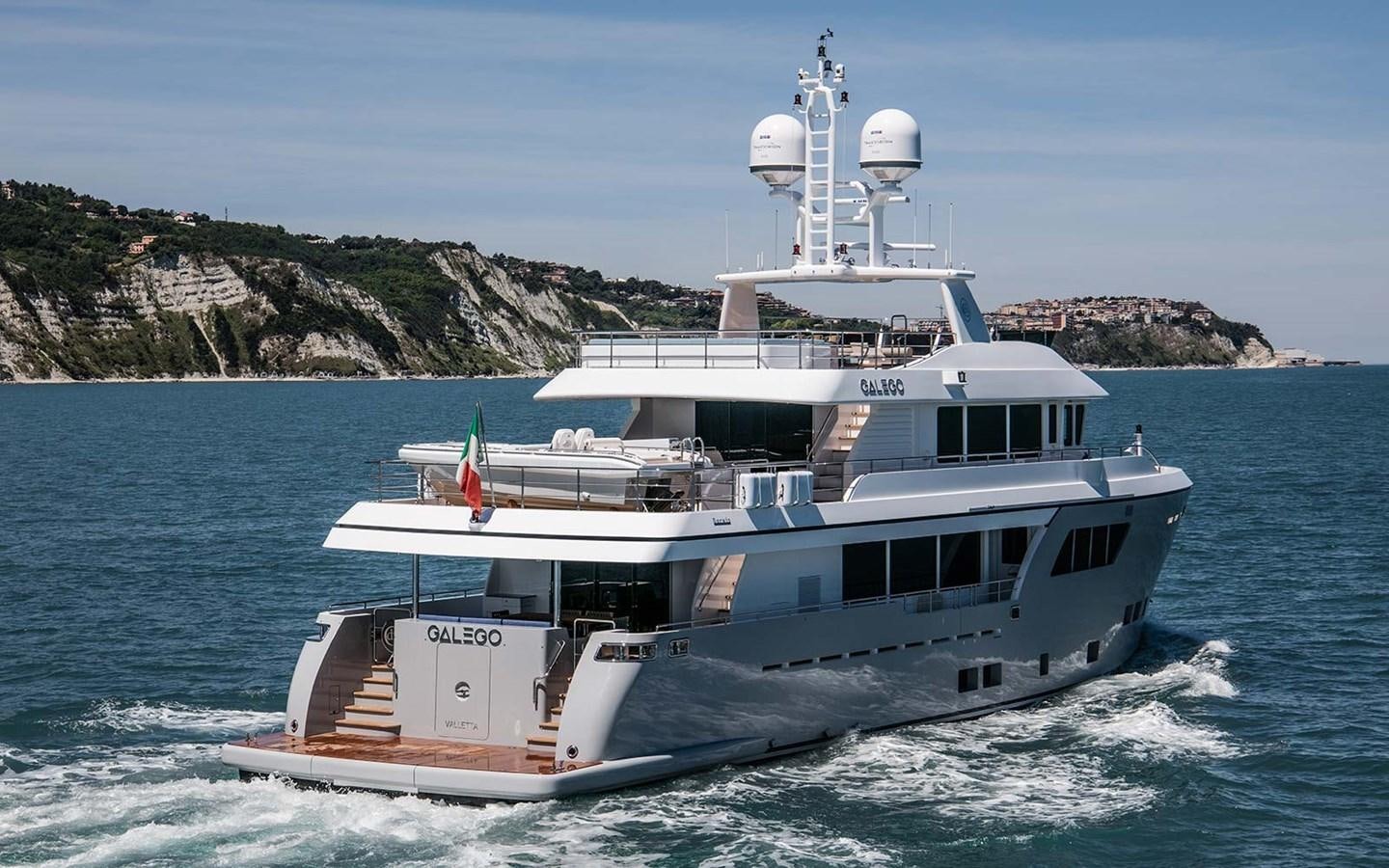

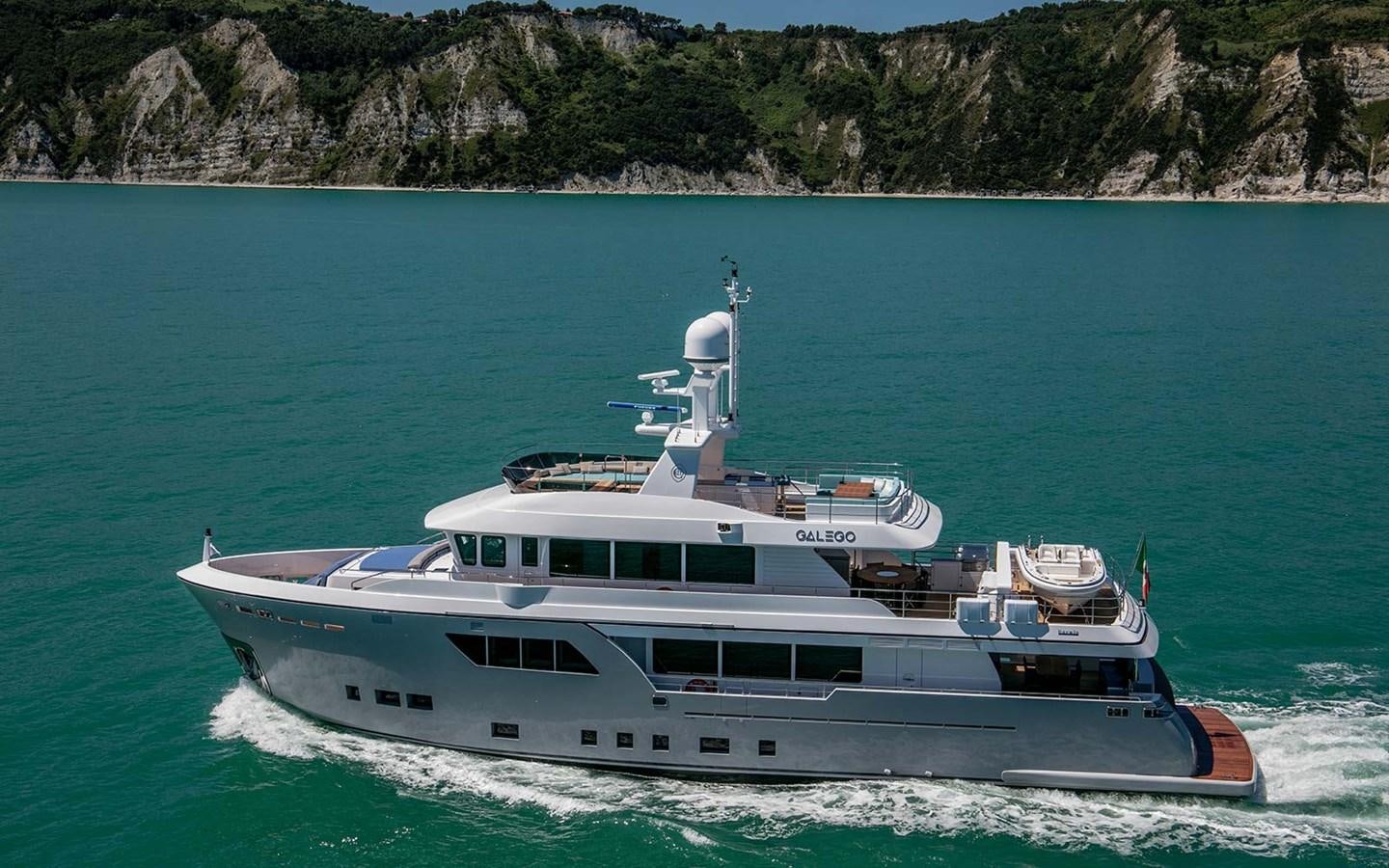

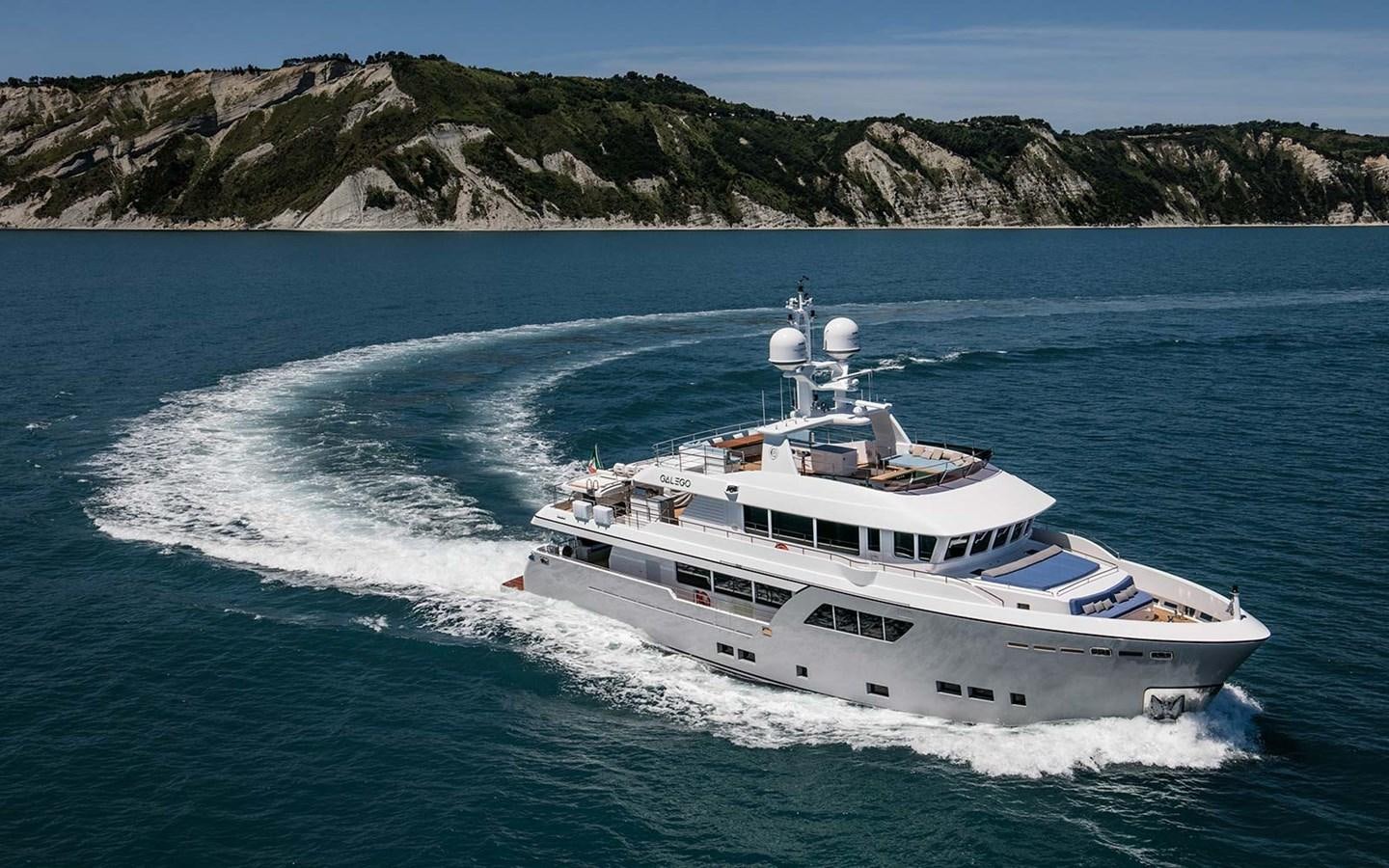

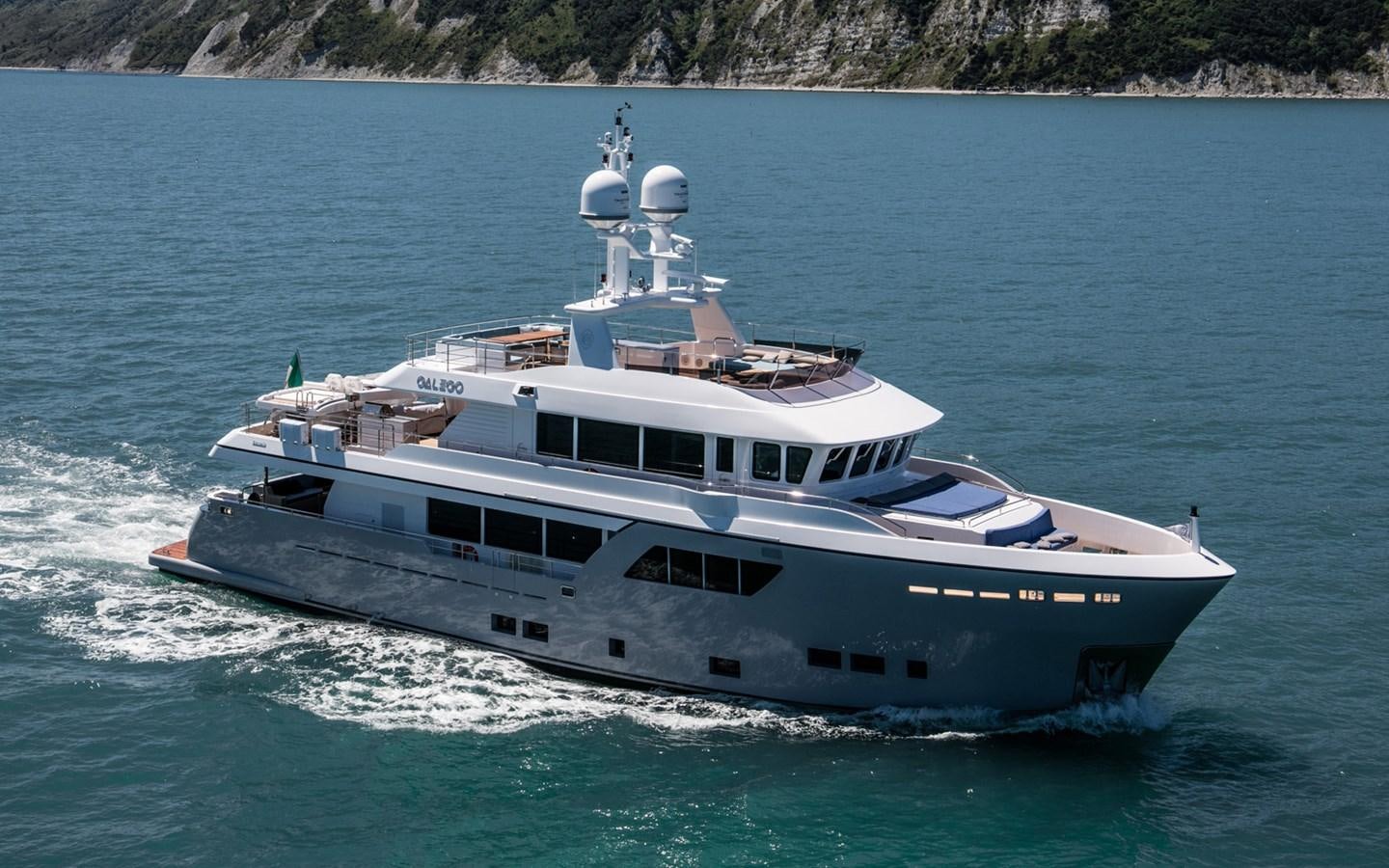

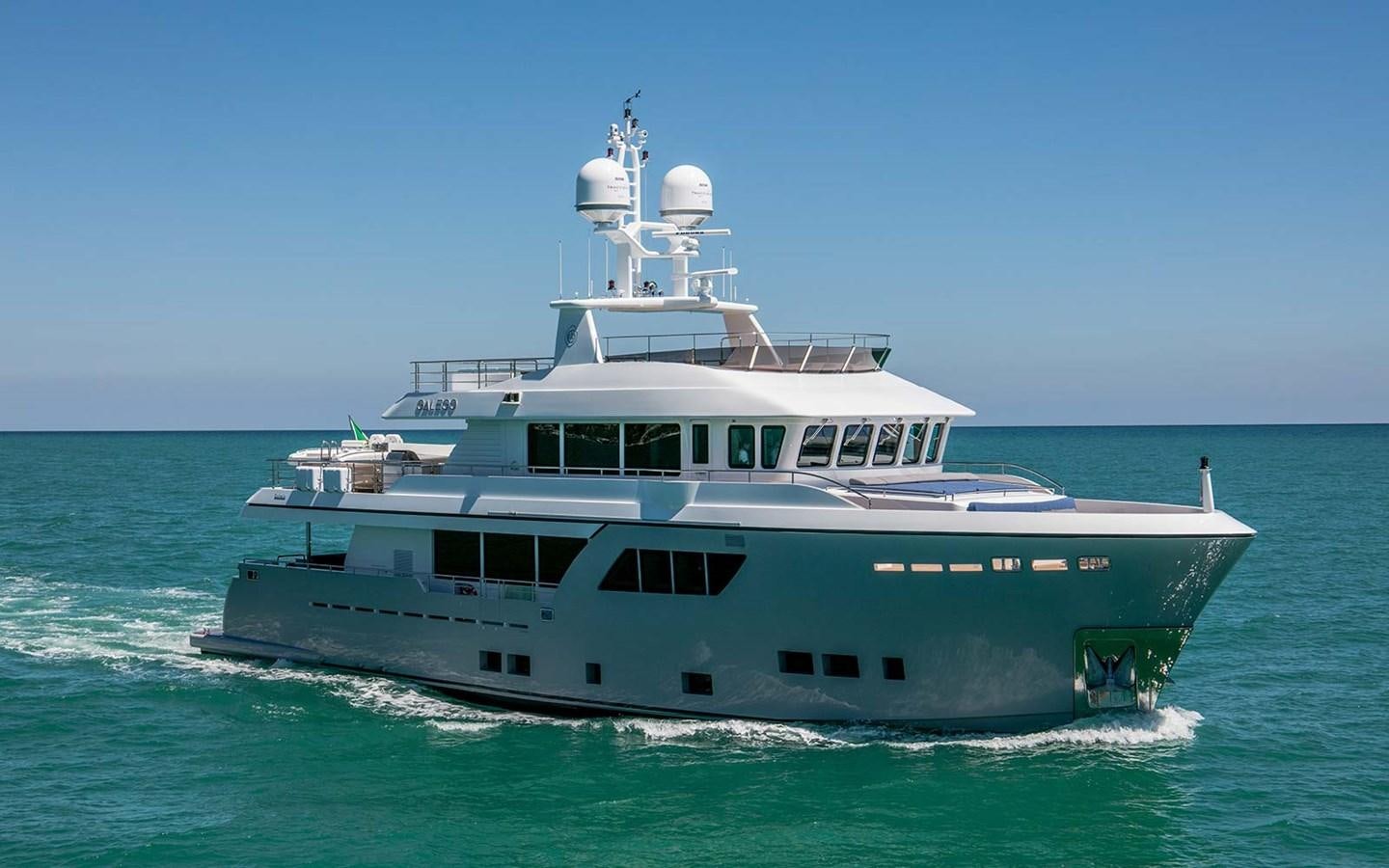

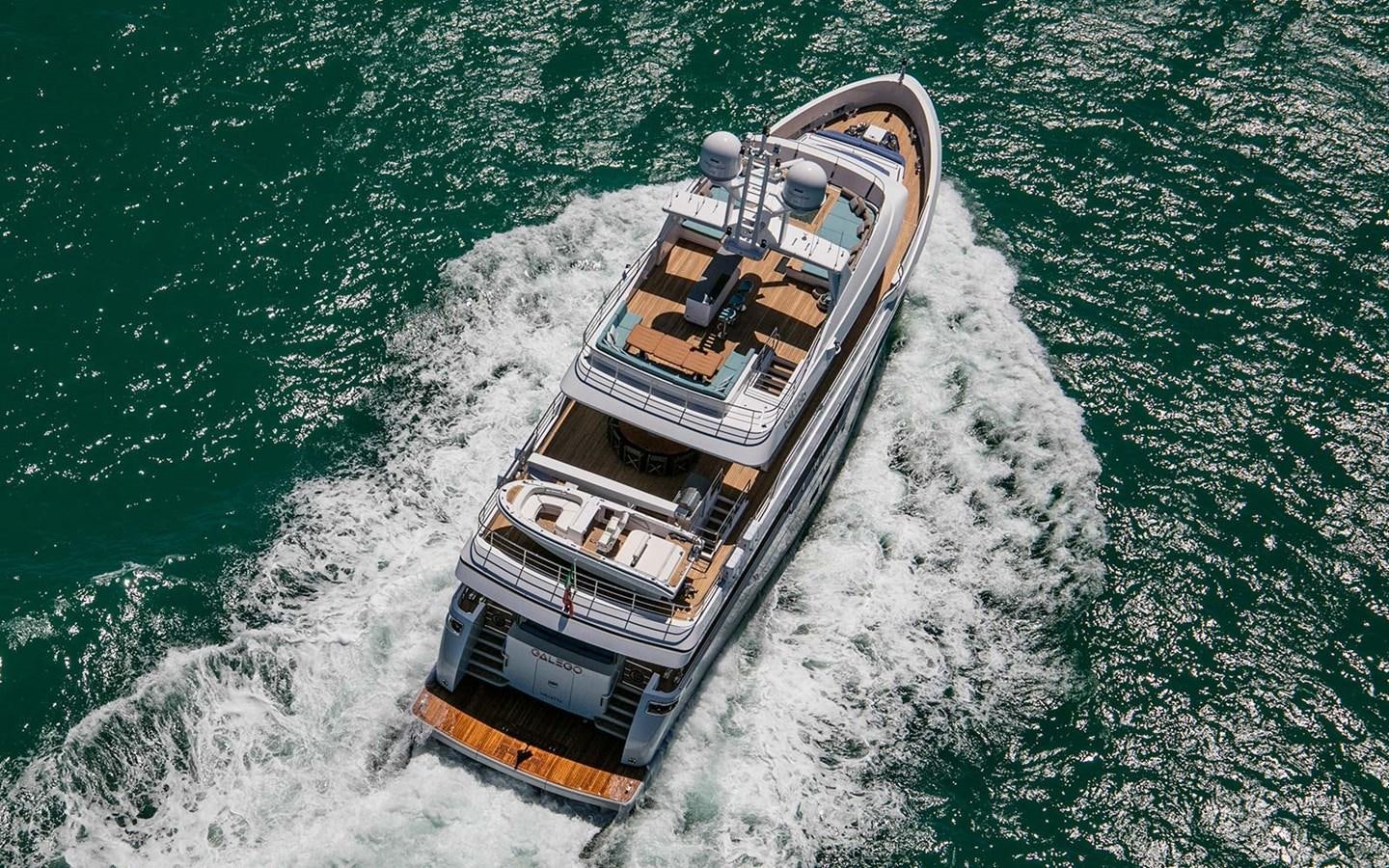

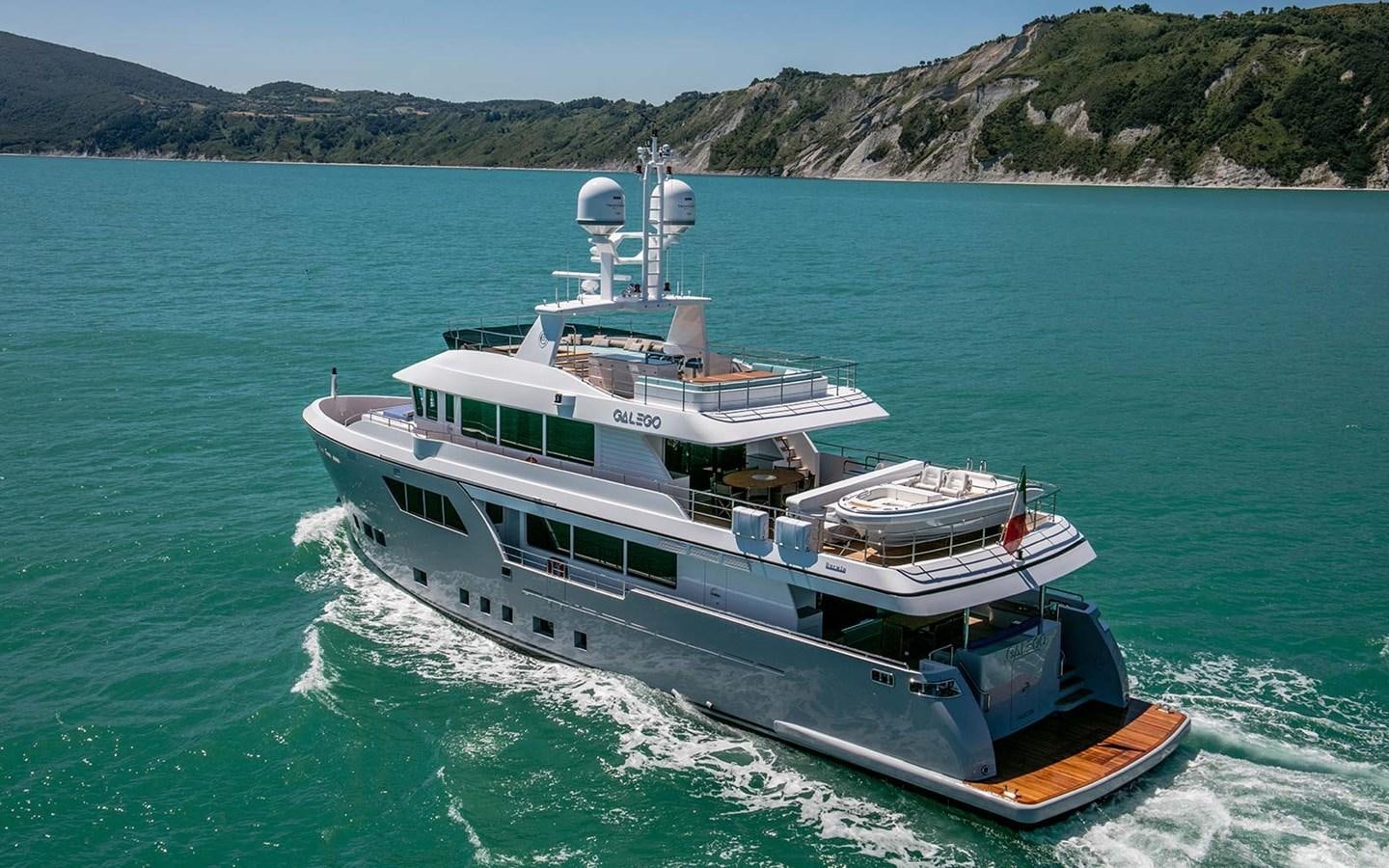

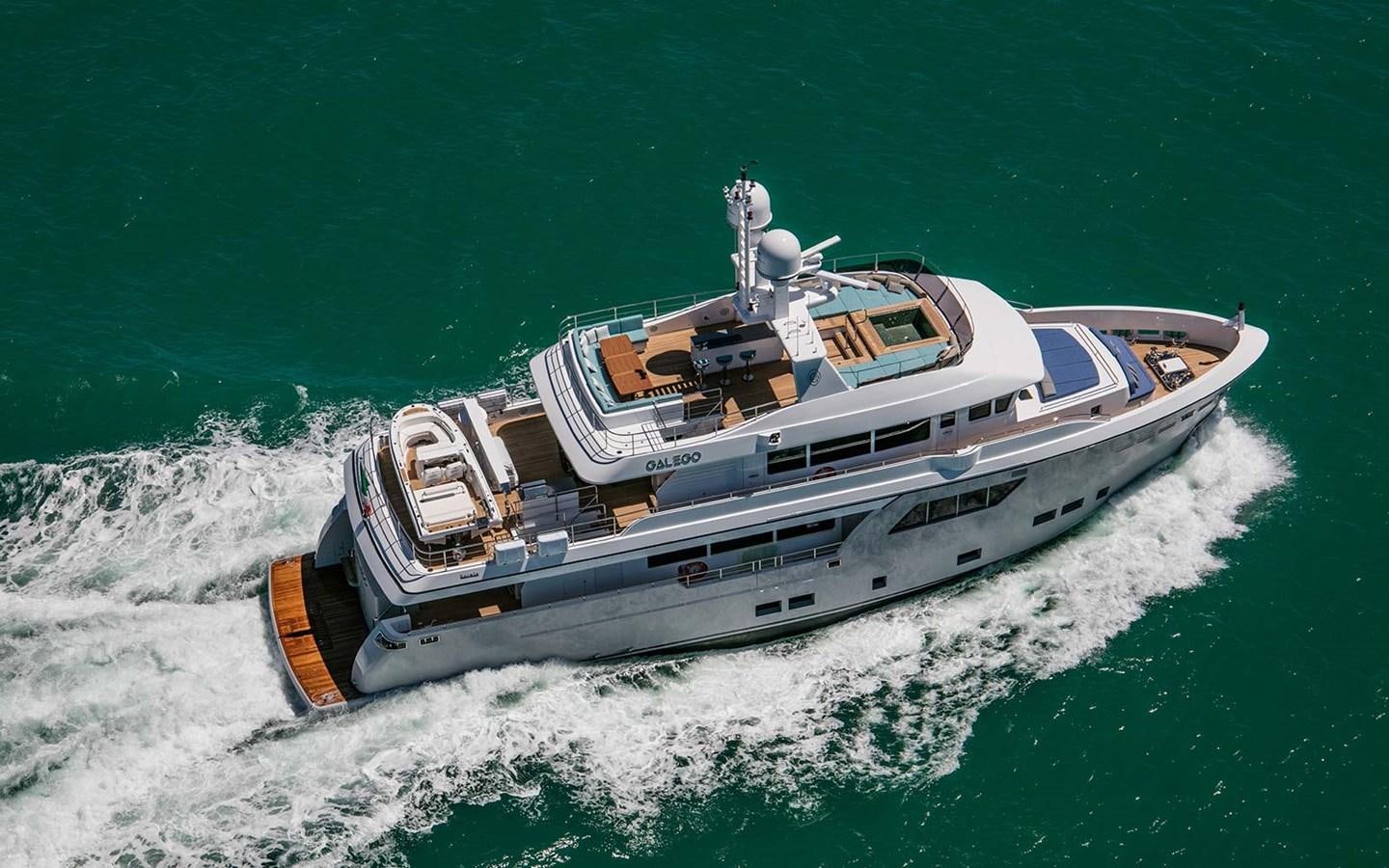

M/Y ATLAS is a 102 ft steel and aluminum Explorer vessel, the third of the fortunate Darwin Class series to hit the water. Built in compliance with LY3 regulations, she boasts a series of interesting customizations, both withregards to function and design. The already ample spaces were specifically designed and reproportioned in height, exceedingthe already excellent standards of all the Darwin Class Explorer yachts.

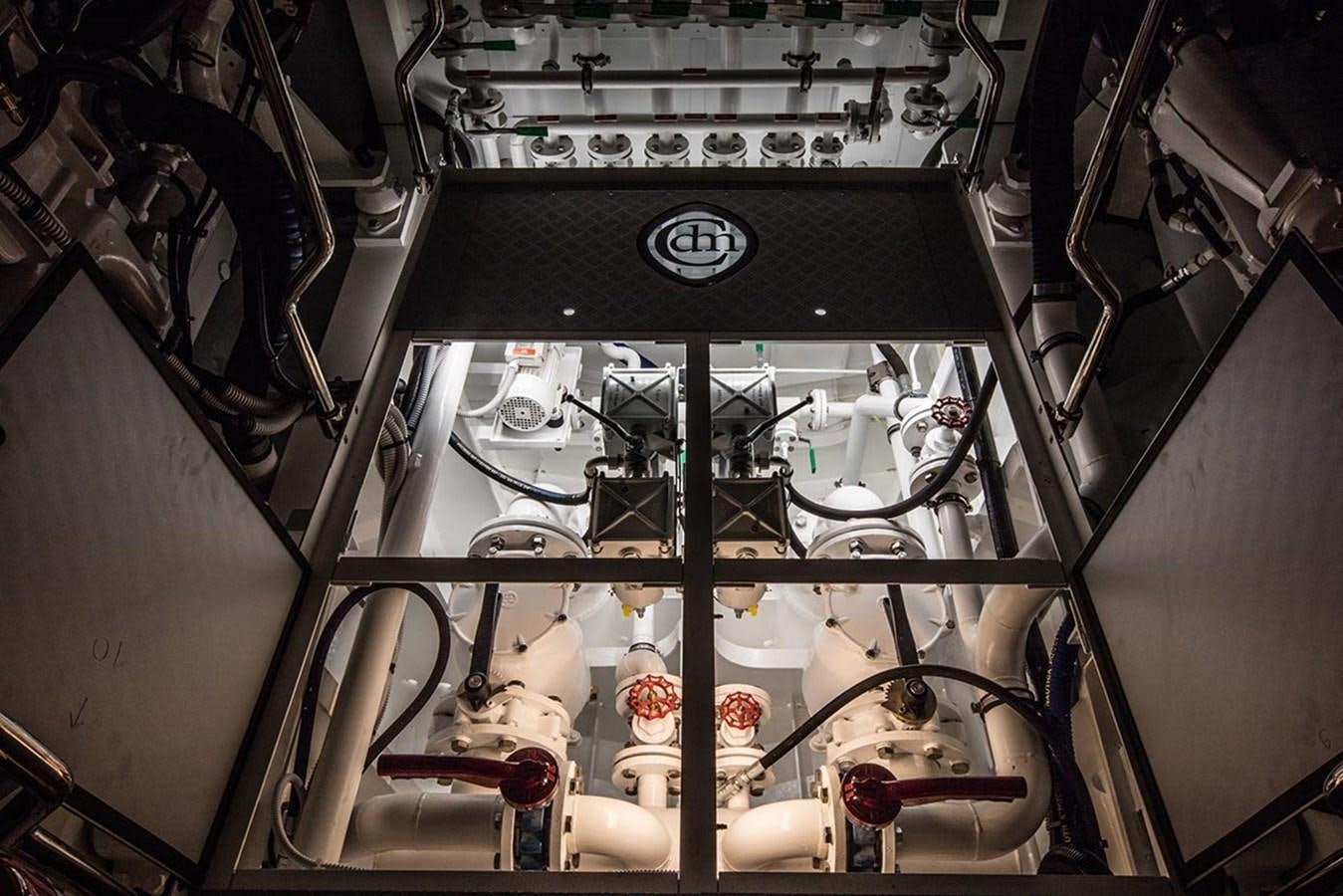

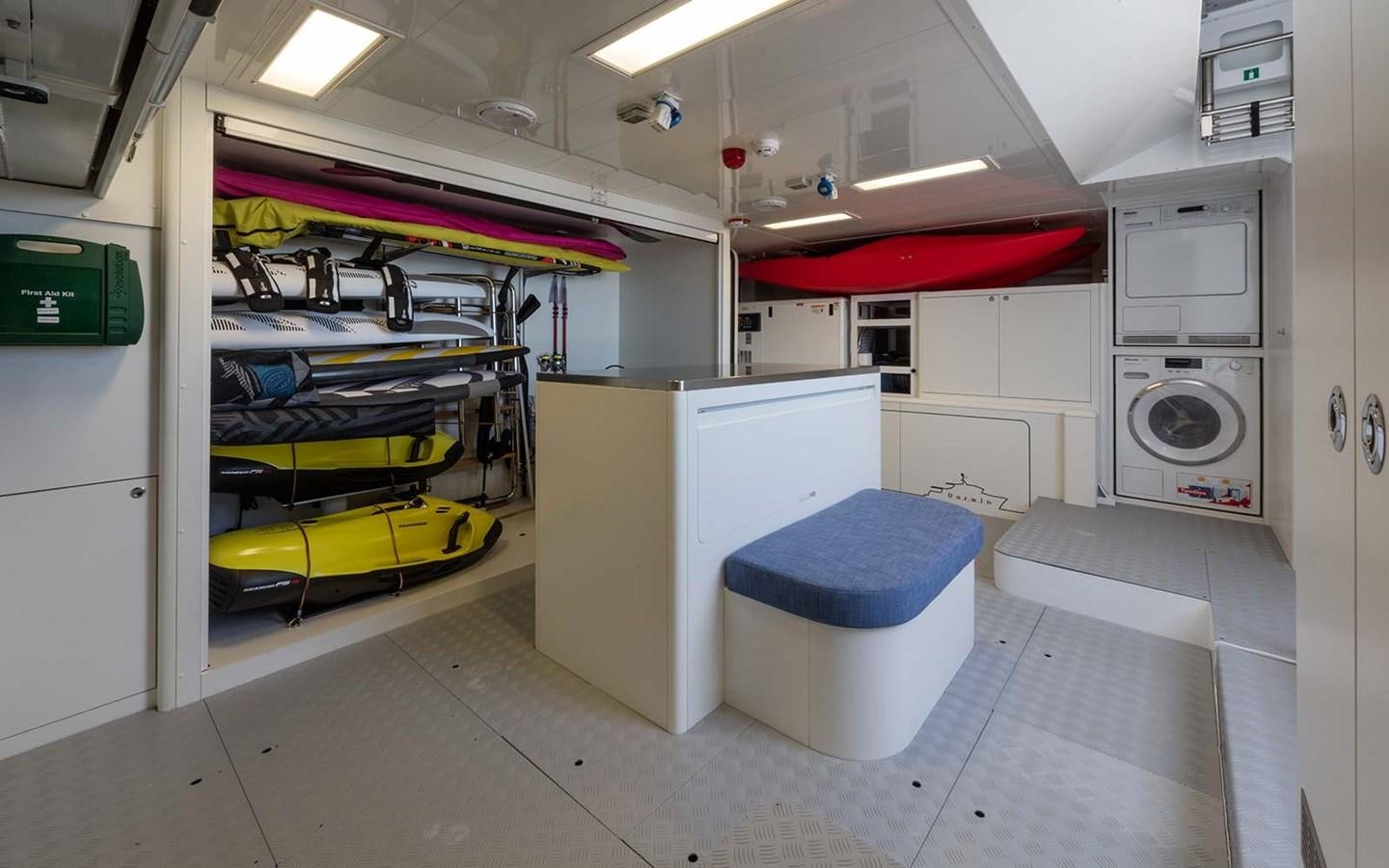

The technical standards that have made CdM a benchmark in its sector have been maintained: 12mm steel hull, cupronickel piping, independent rudders, automatic generator parallel (3 generators), electric fins stabilizers, as well as wastewater treatment systems for black, gray, and bilge waters that have been adapted from the world of work ships and designed to be used 24/365. In order to let the owners live an active life while enjoying the oceans and their sailing destinations, careful attention was dedicated to the layout of the garage, designed to hold numerous toys and transportation vehicles, as well as a complete diving center.

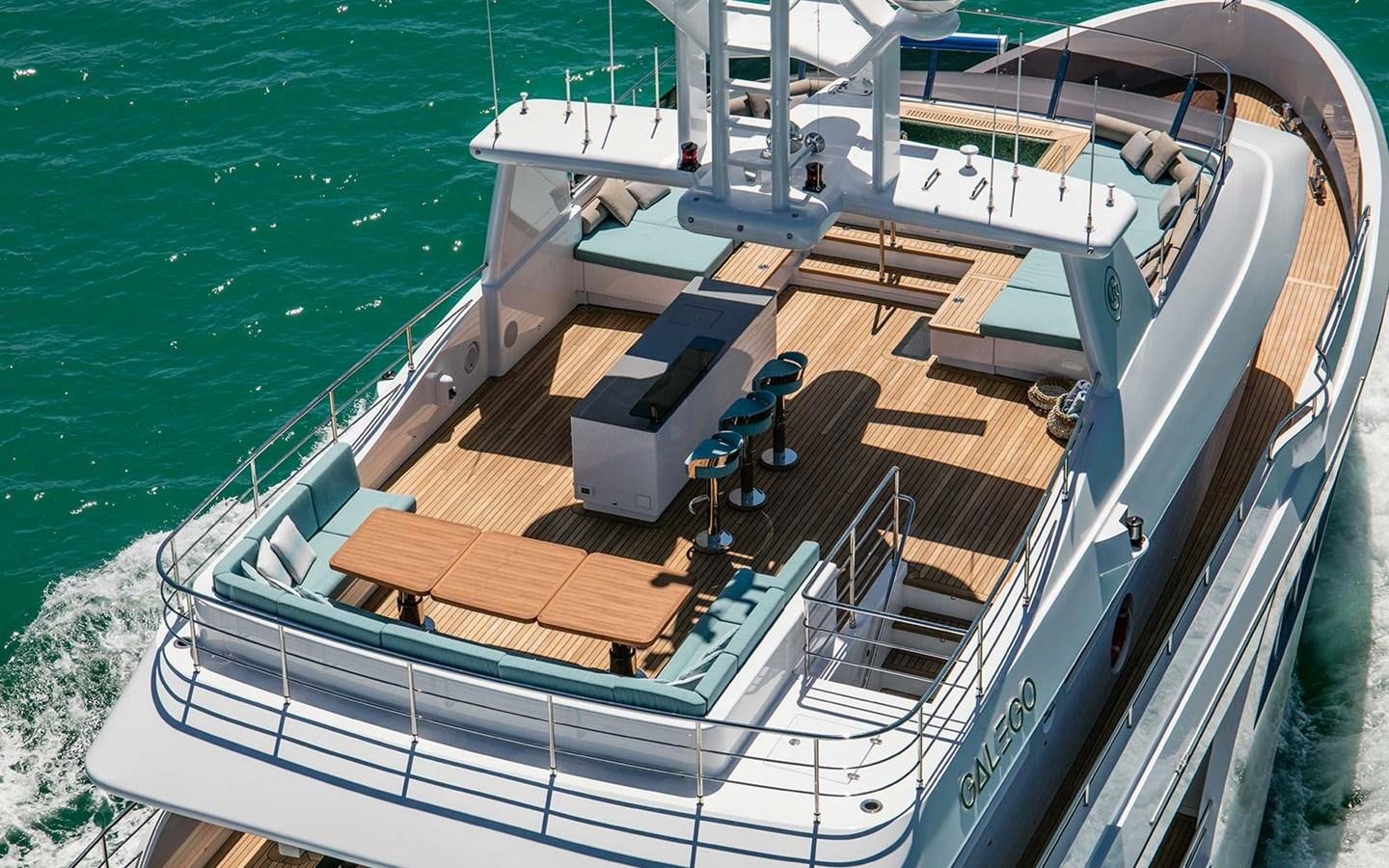

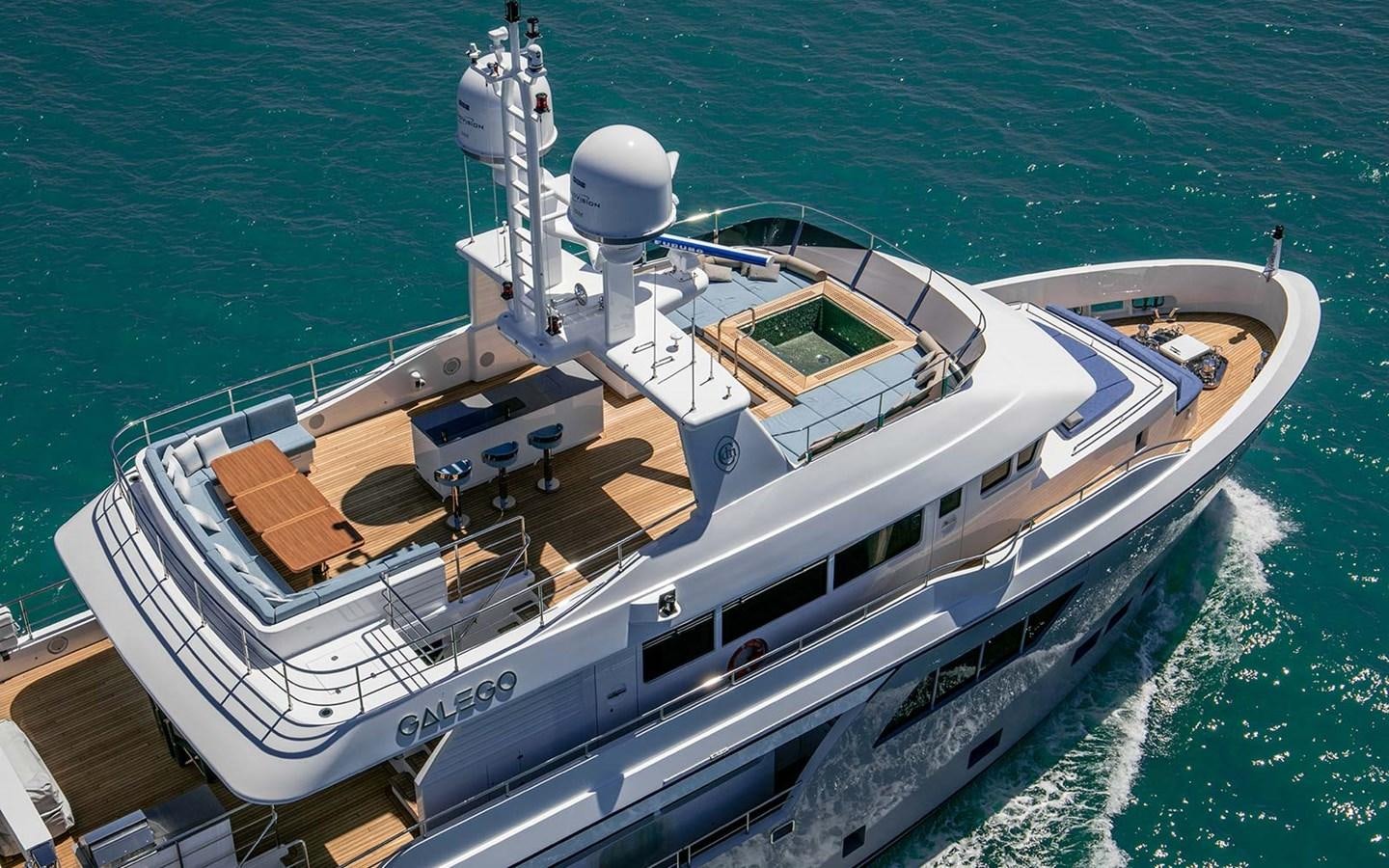

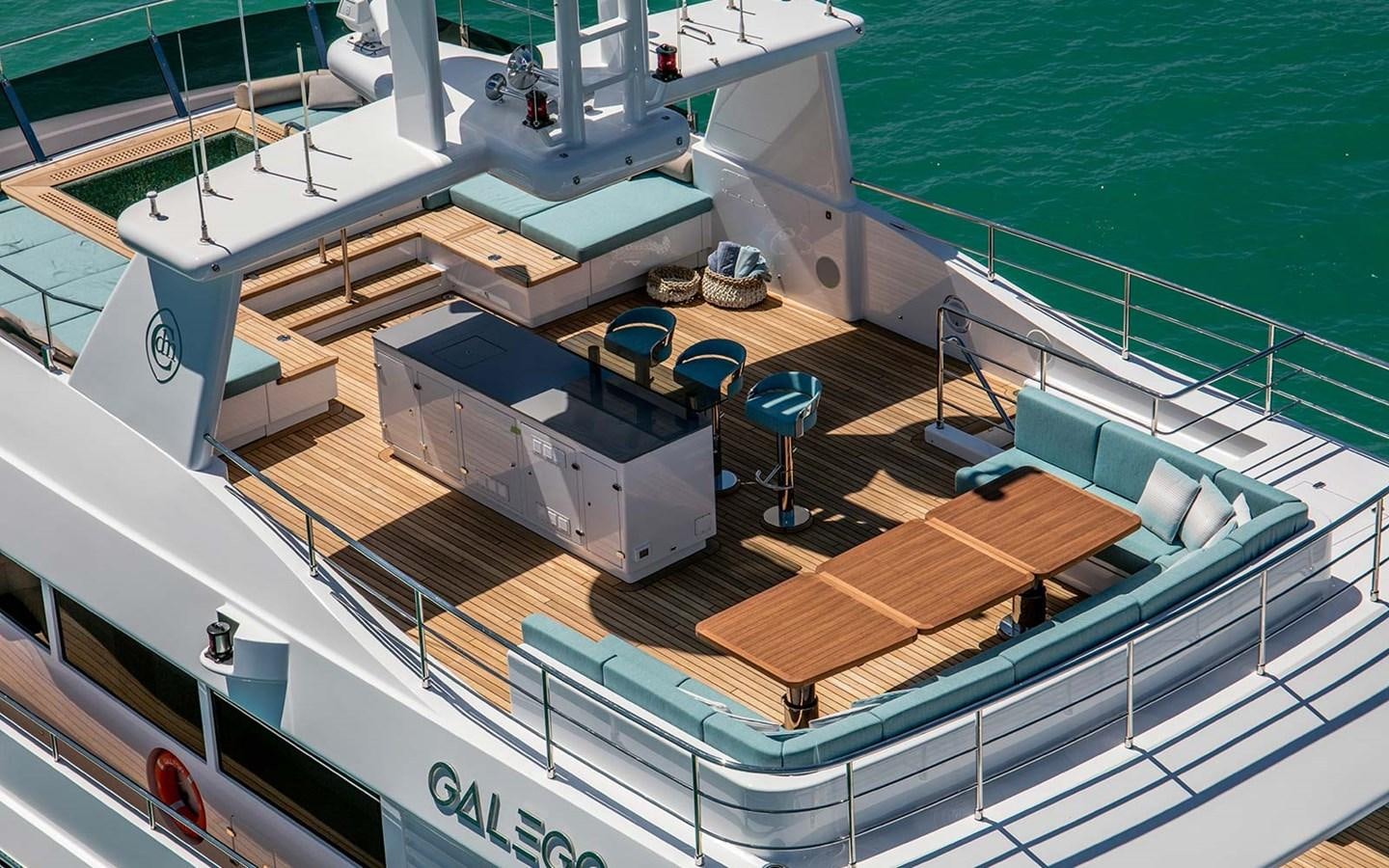

The sundeck was custom designed for both a lounge area - with a big sofa with up/down tables, a bar in the center full optional equipped for cooking and cocktails - and for the wellness: a fully-equipped open-air fitness area with a pool so to keep up with their daily workout routines, even when the owners are at sea and far away from their regular gym.

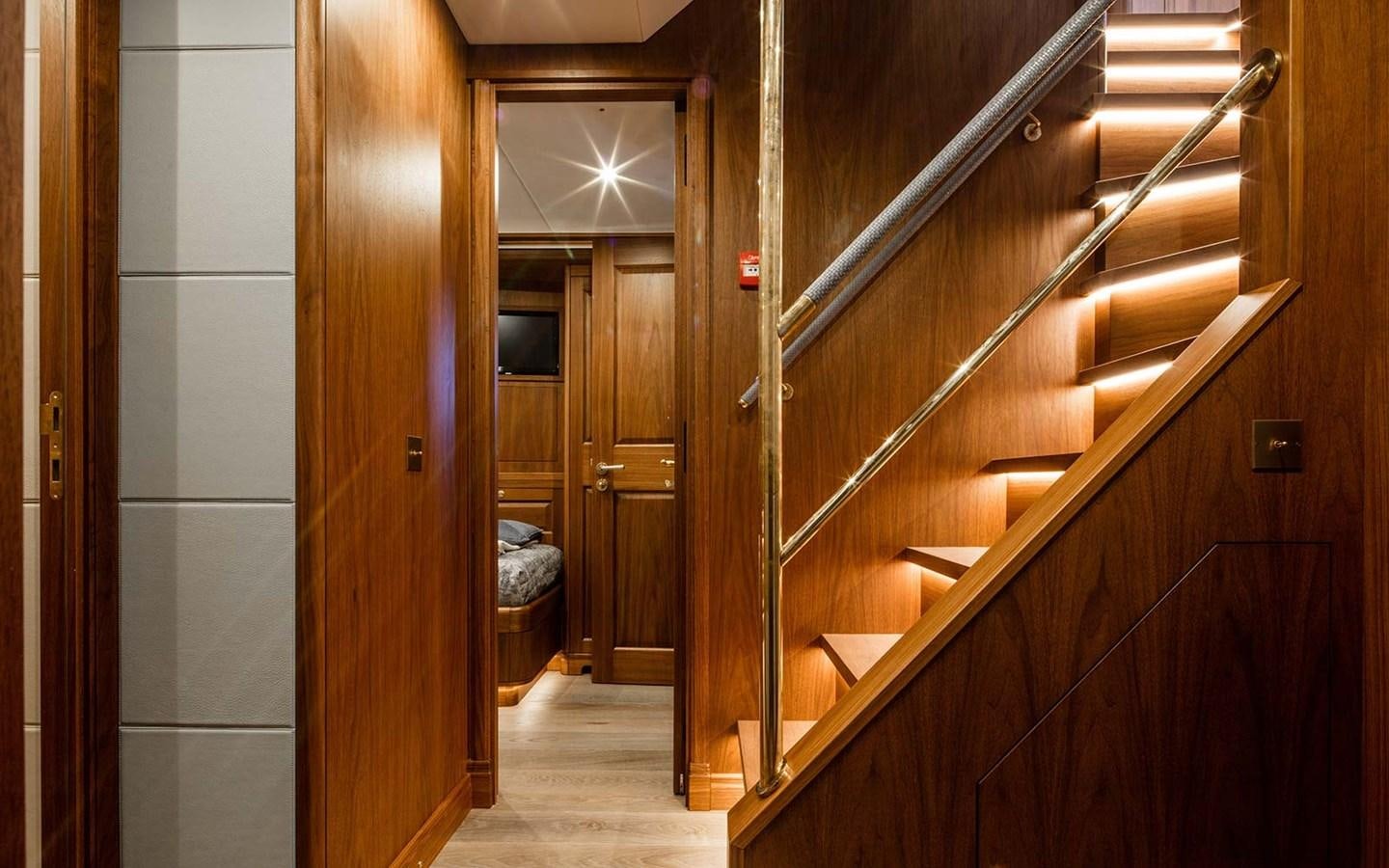

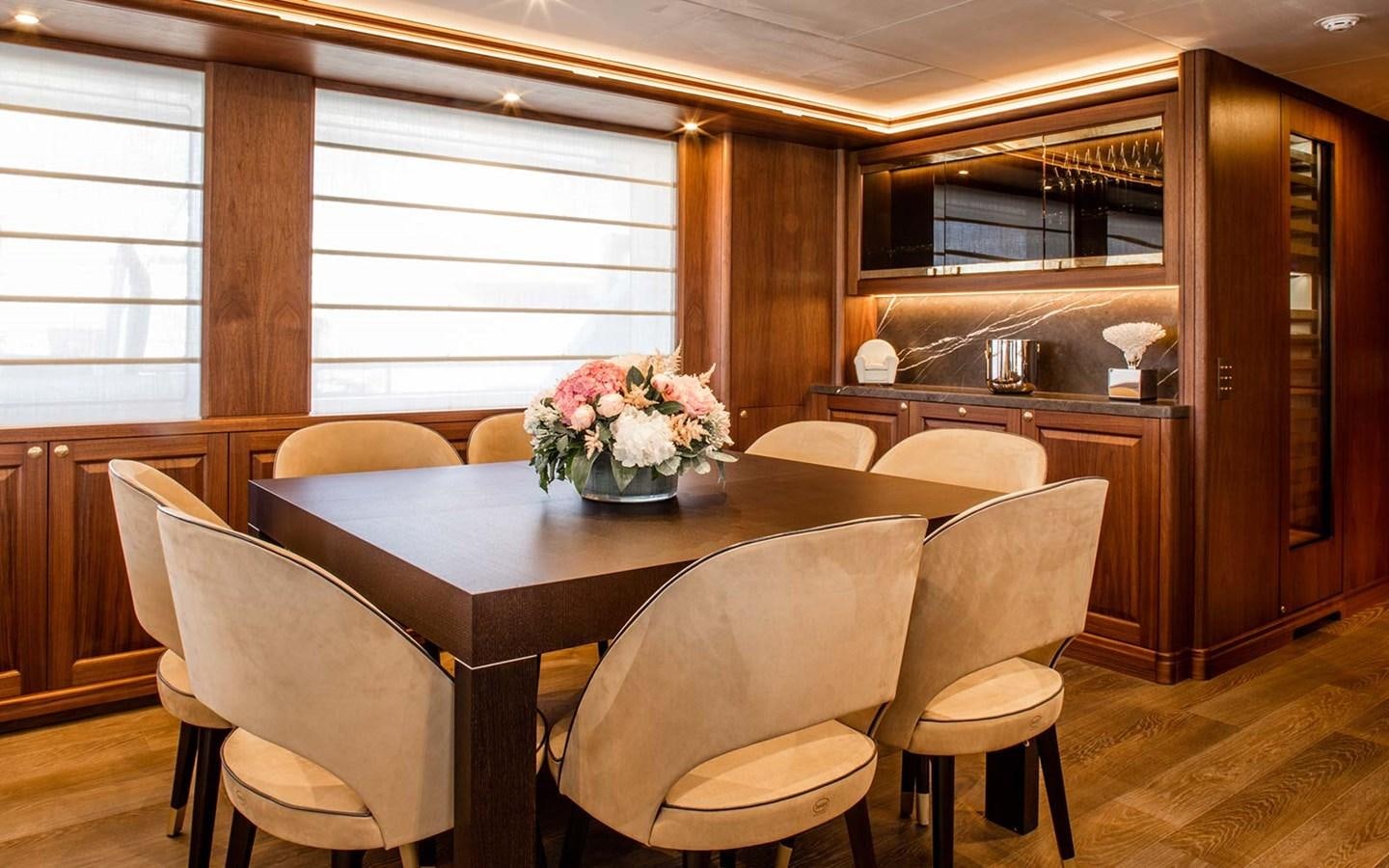

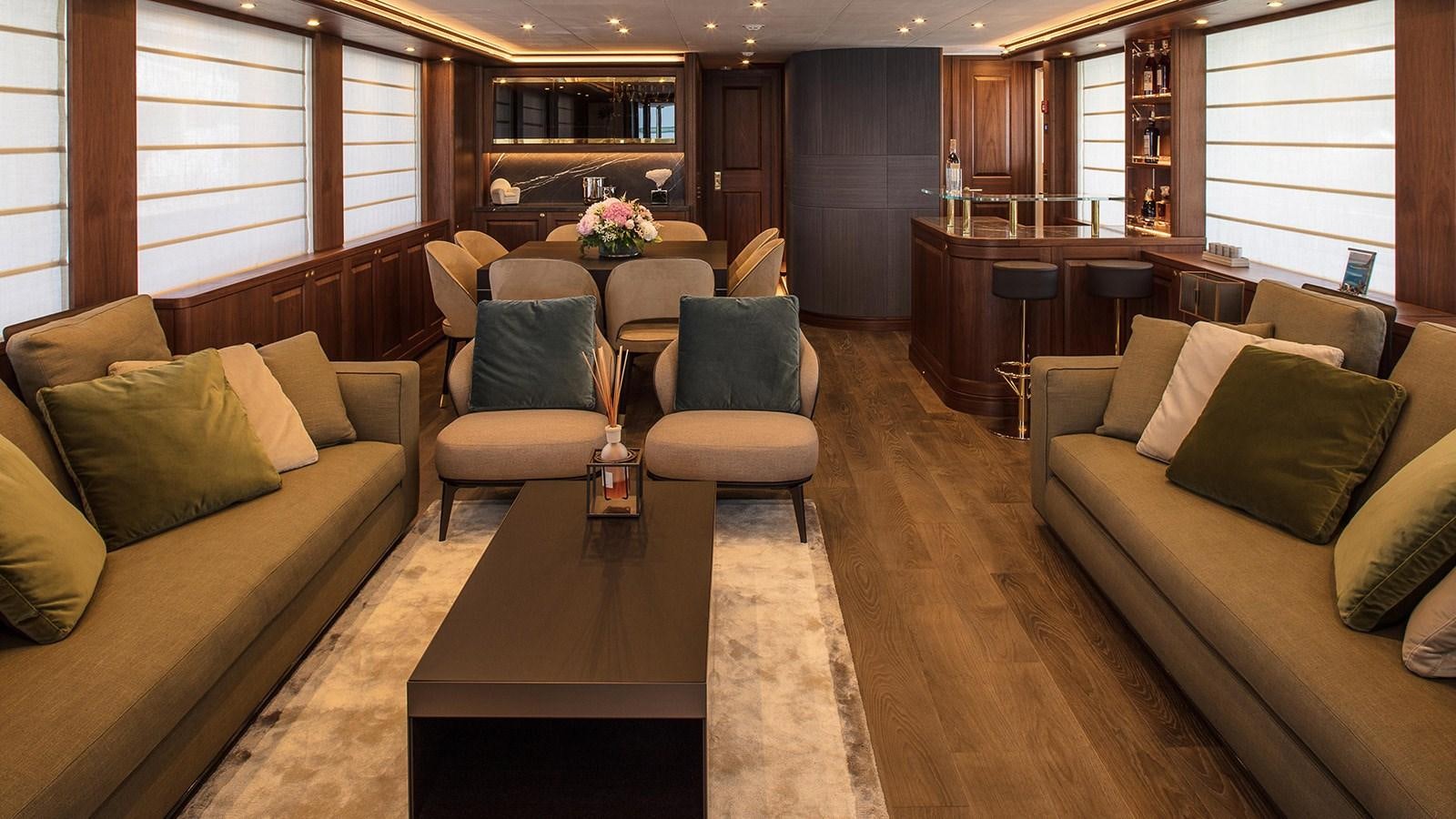

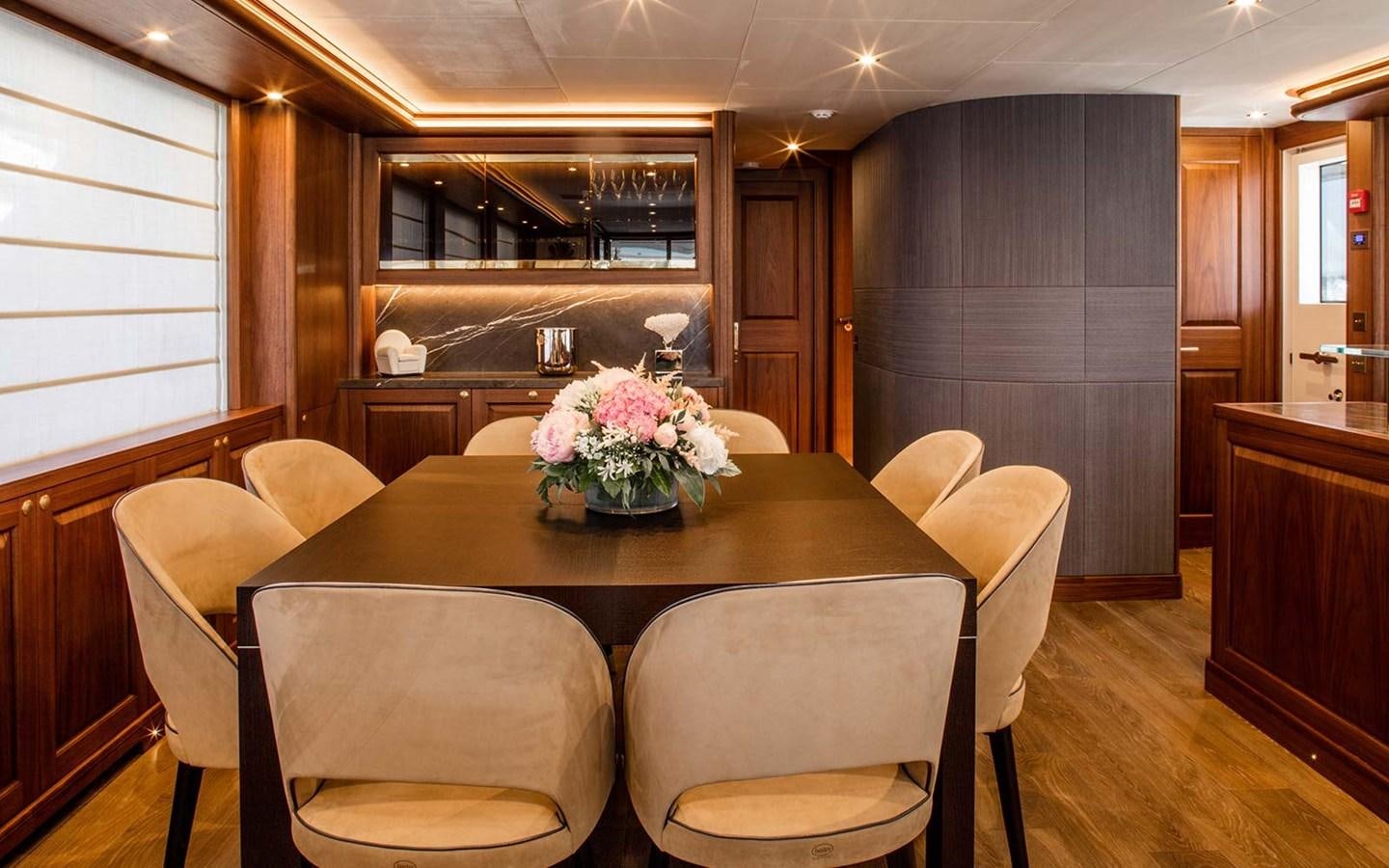

M/Y ATLAS's interior design style is warm and welcoming. The walnut wood tones find their perfect complement in the Poltrona Frau leather that covers 90% of the walls in all the yacht. The theme is pairing classical style and modern touches, especially in accessories and free standing pieces of furniture, like Minotti and Baxter pieces, that offer a tremendous visual impact in terms of aesthetics. The briefing for the kitchen was to emphasise the light from the large windows, so the choice has been the use of white with stainless steel for all accessories and appliances, included a blast-chiller freezer, a water dispenser and a double wash area.

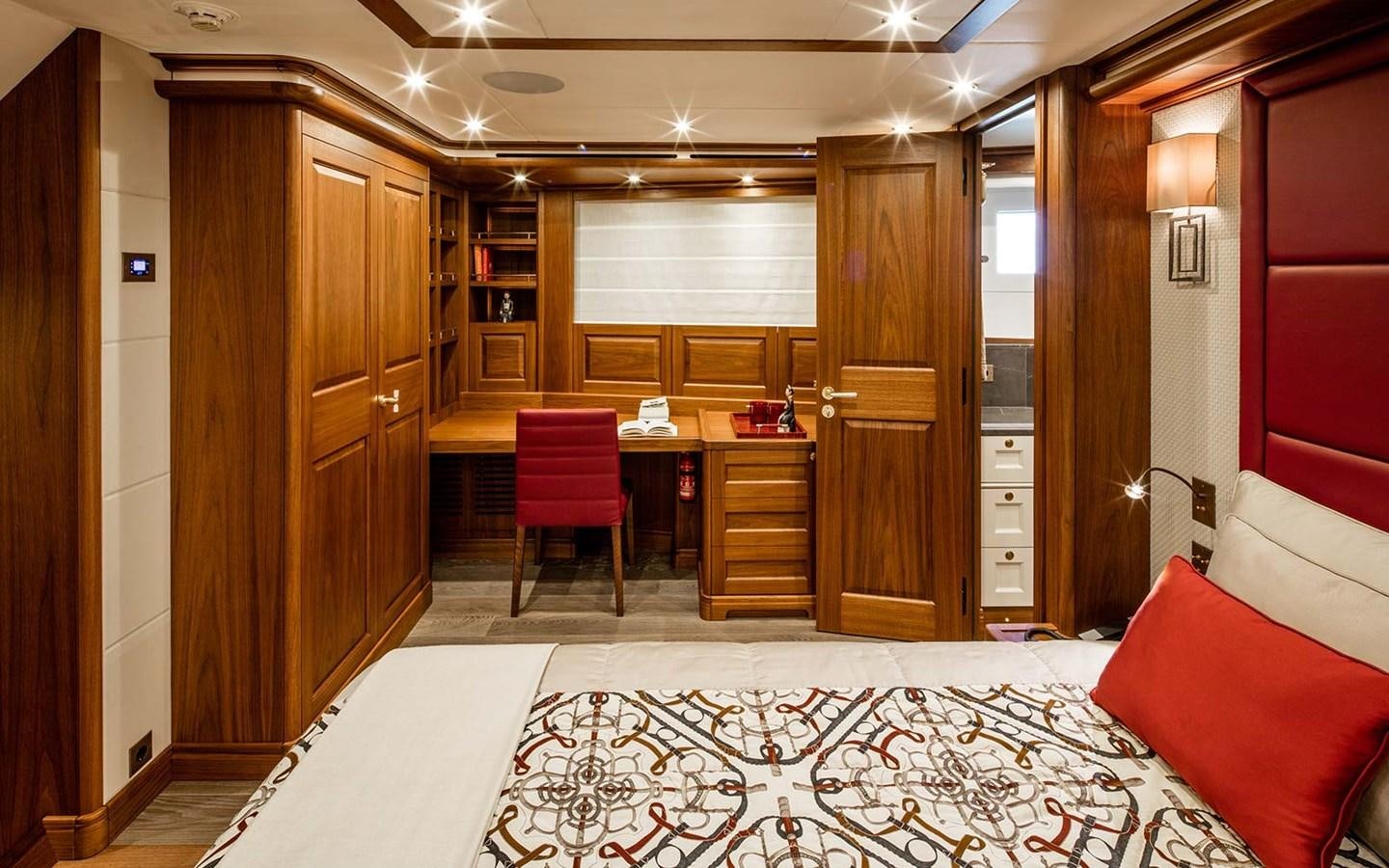

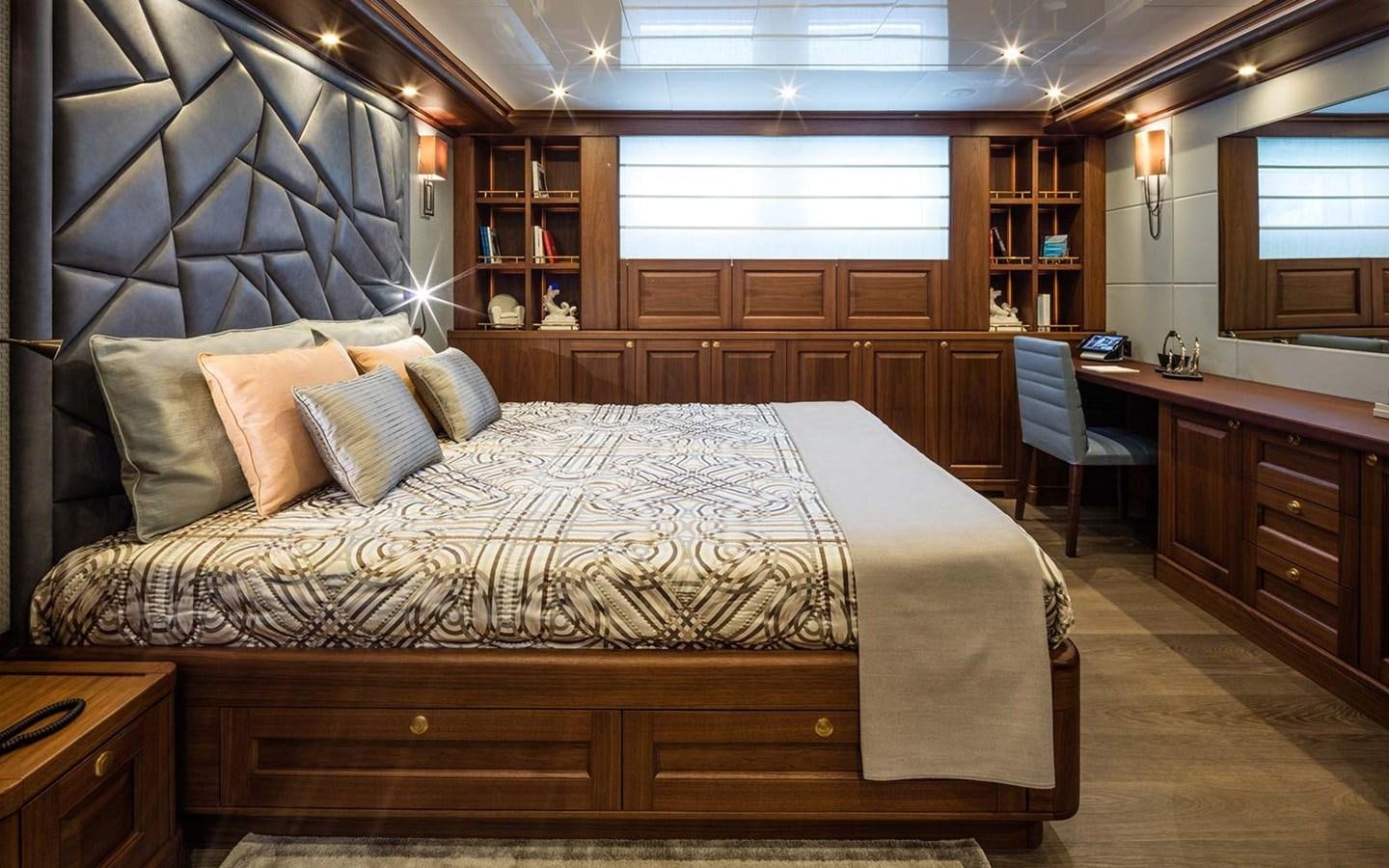

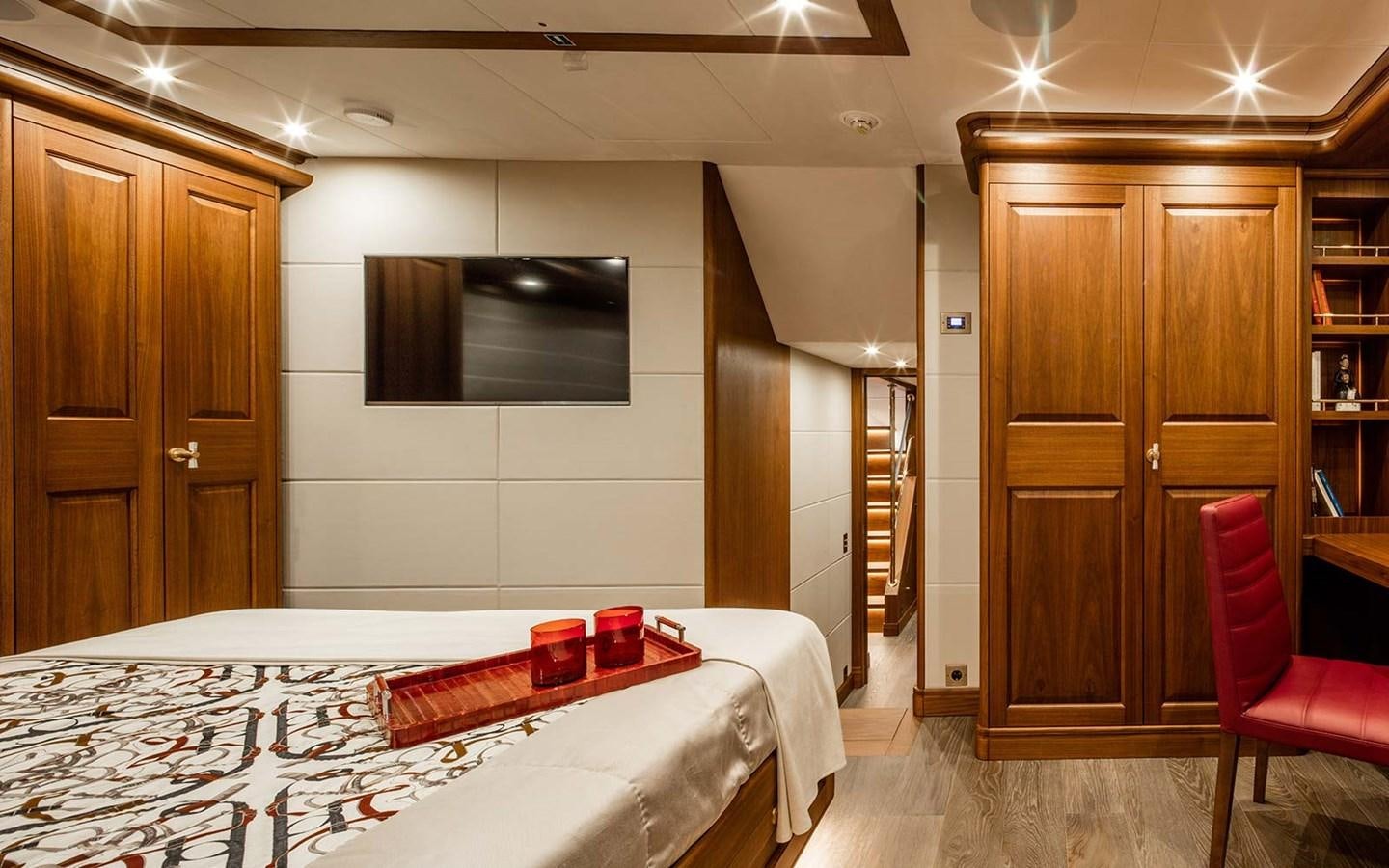

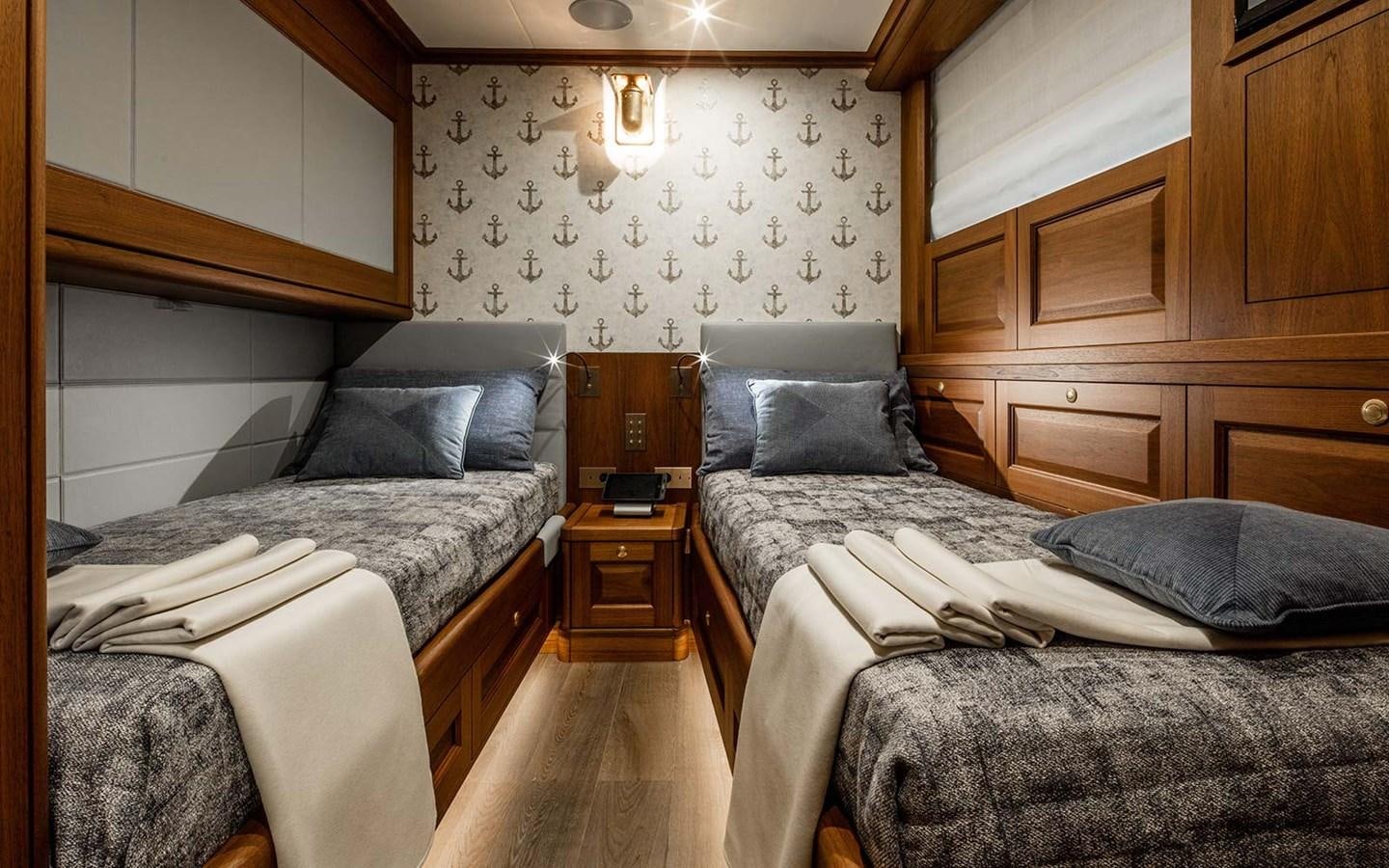

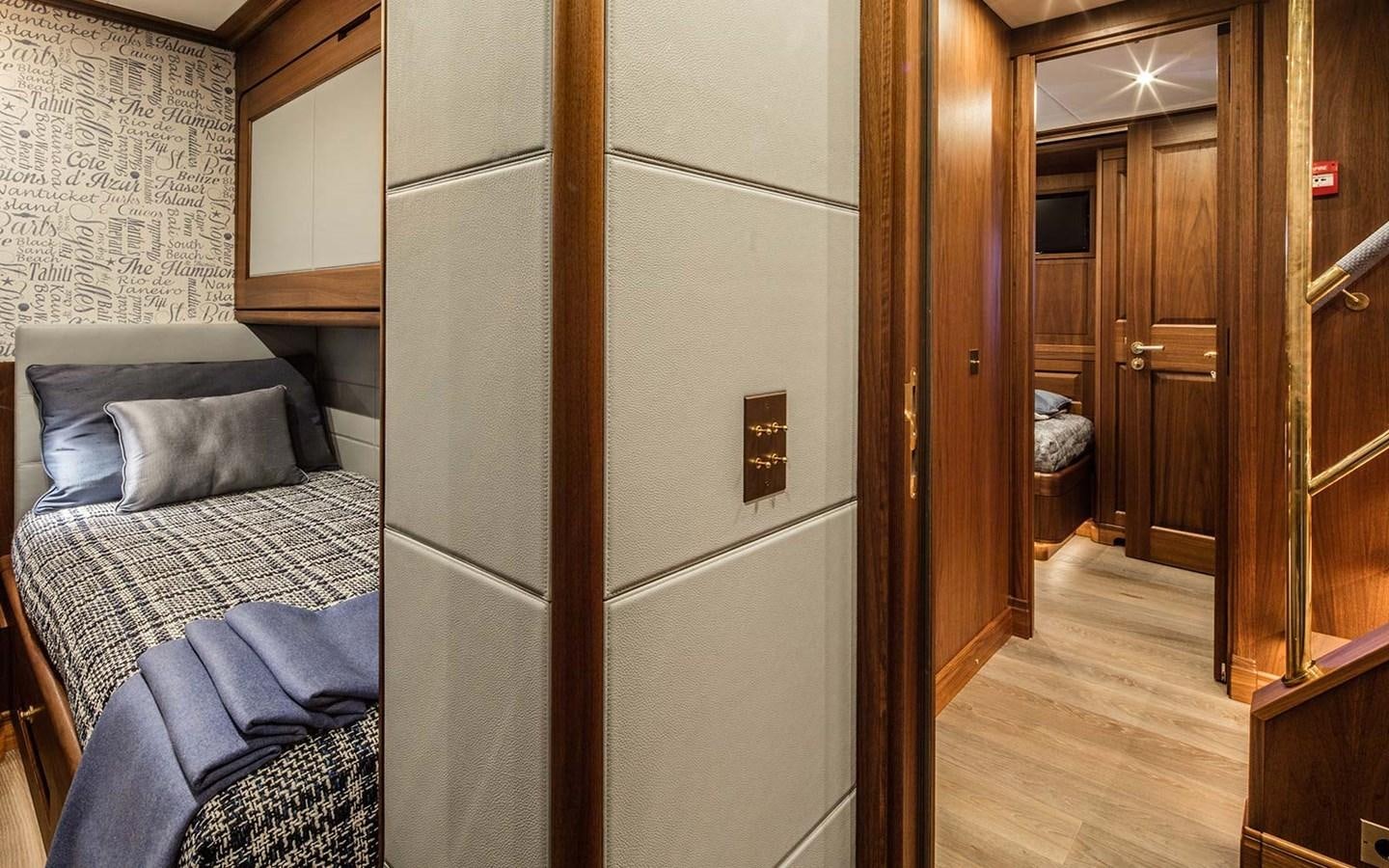

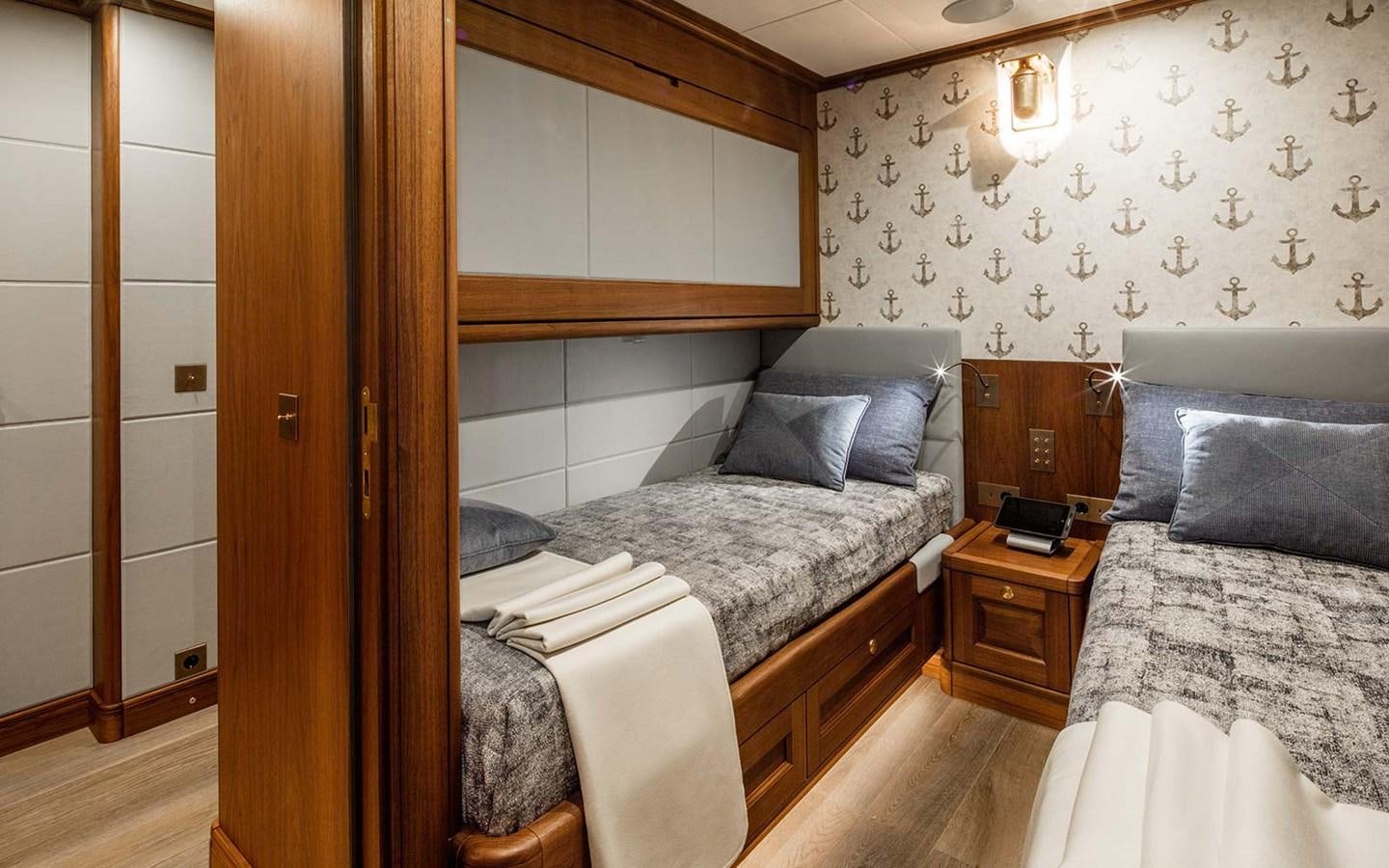

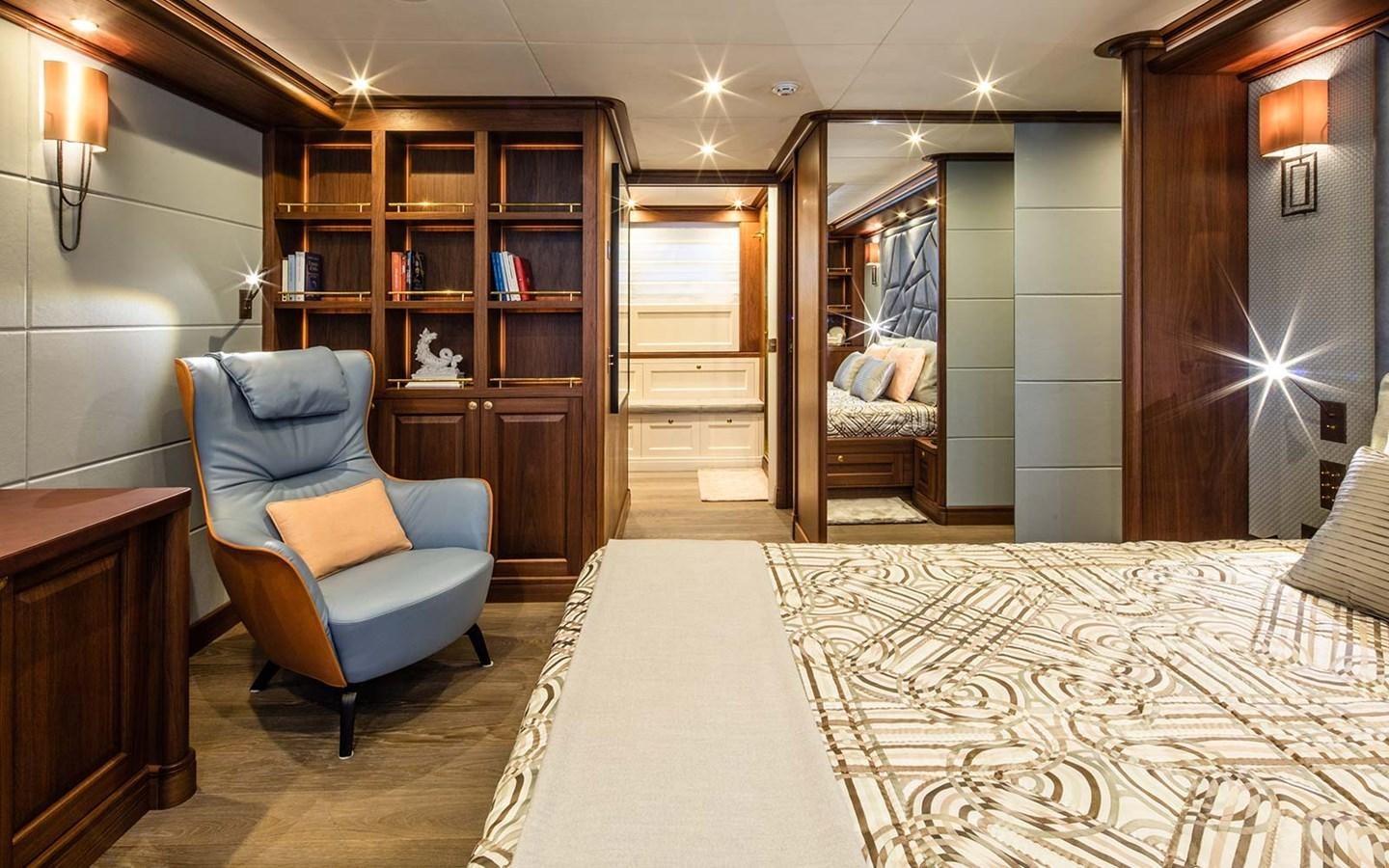

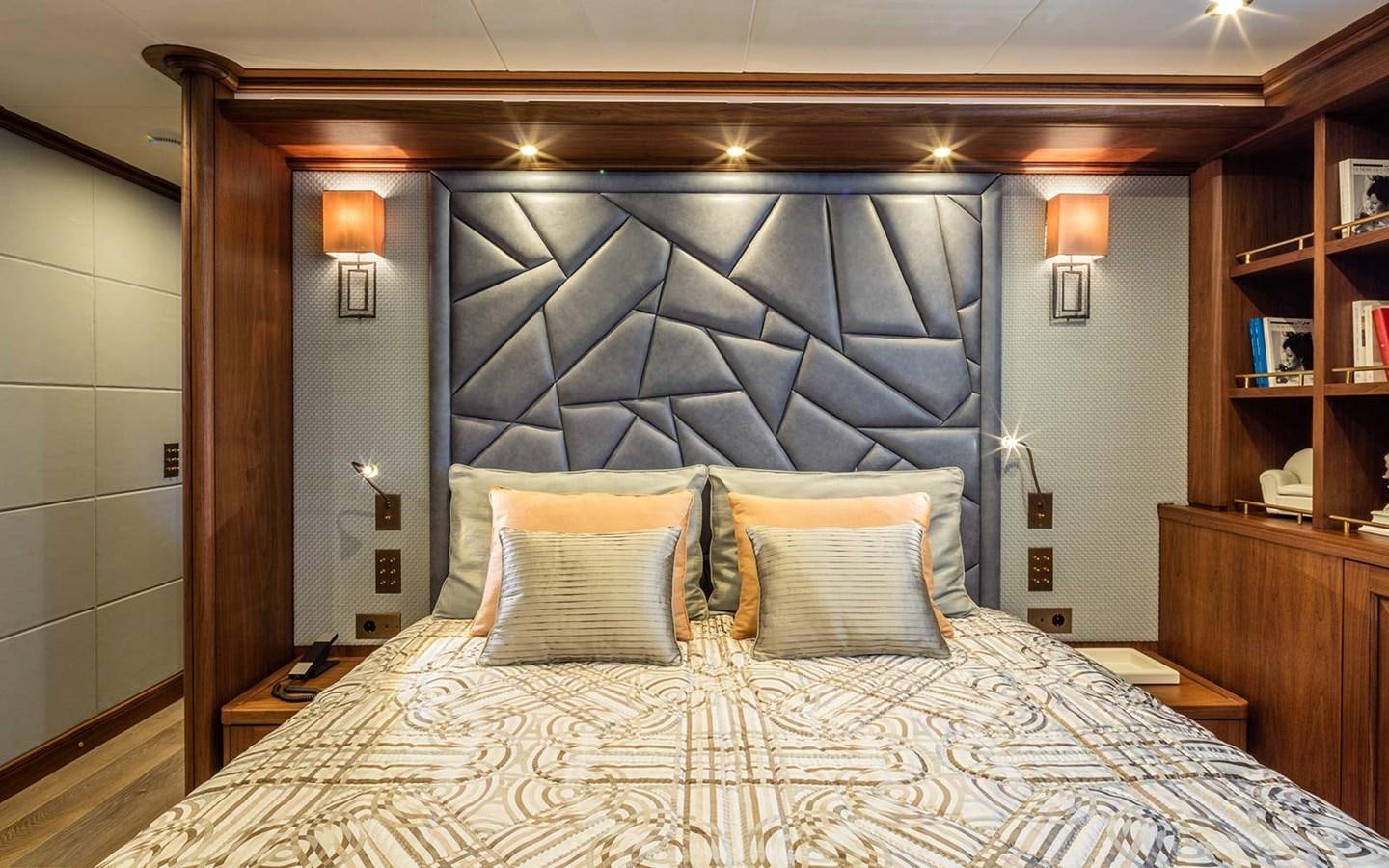

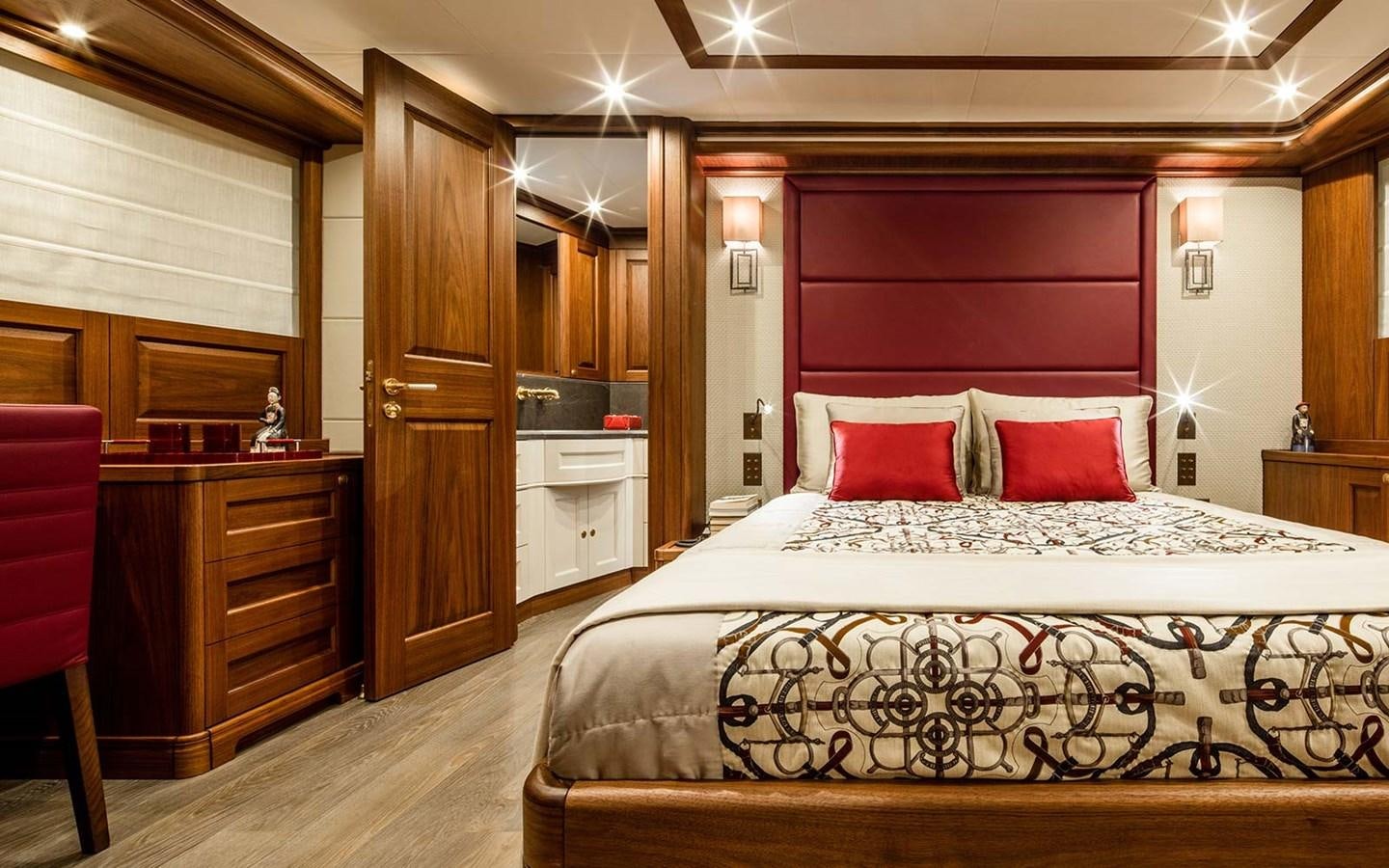

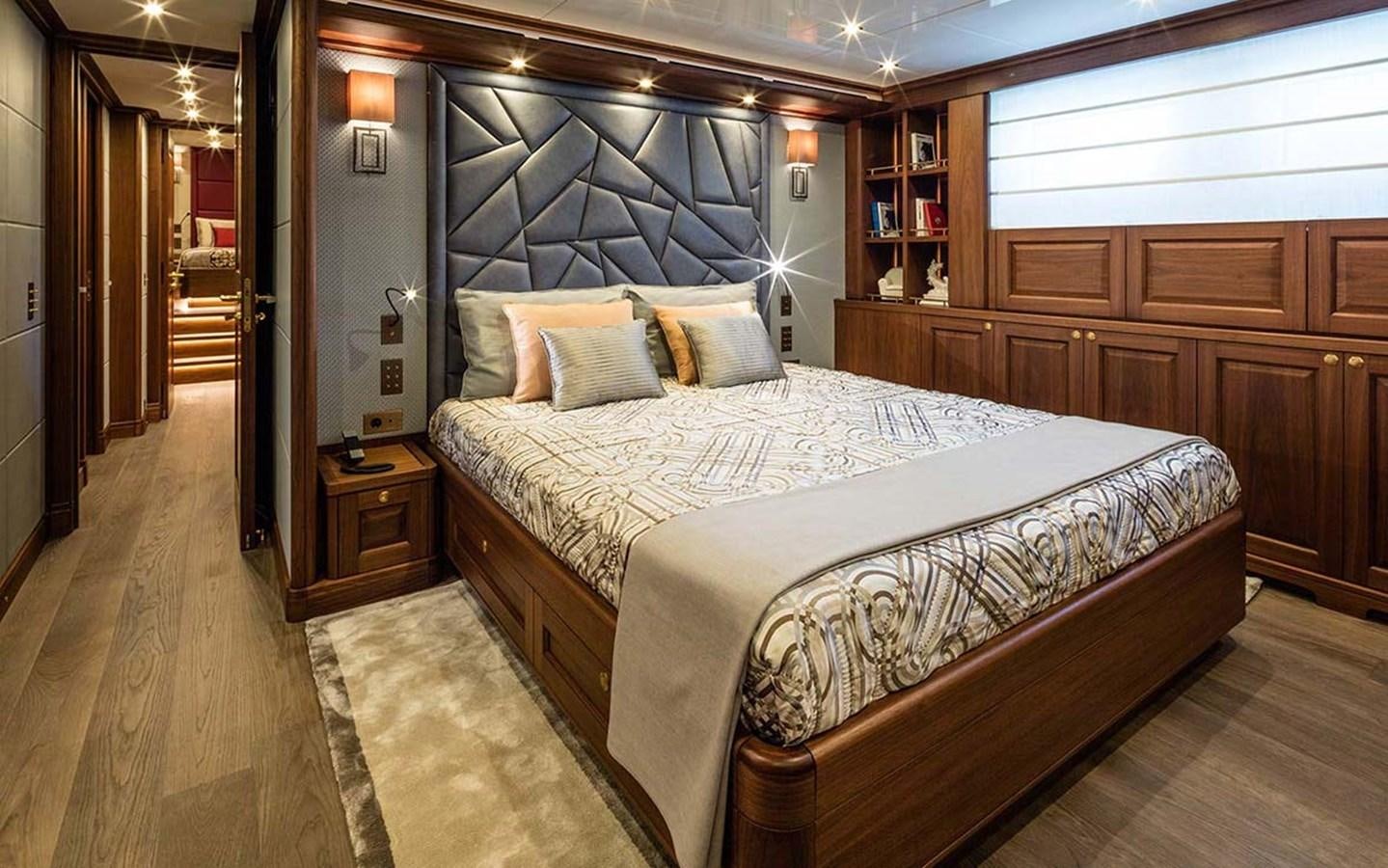

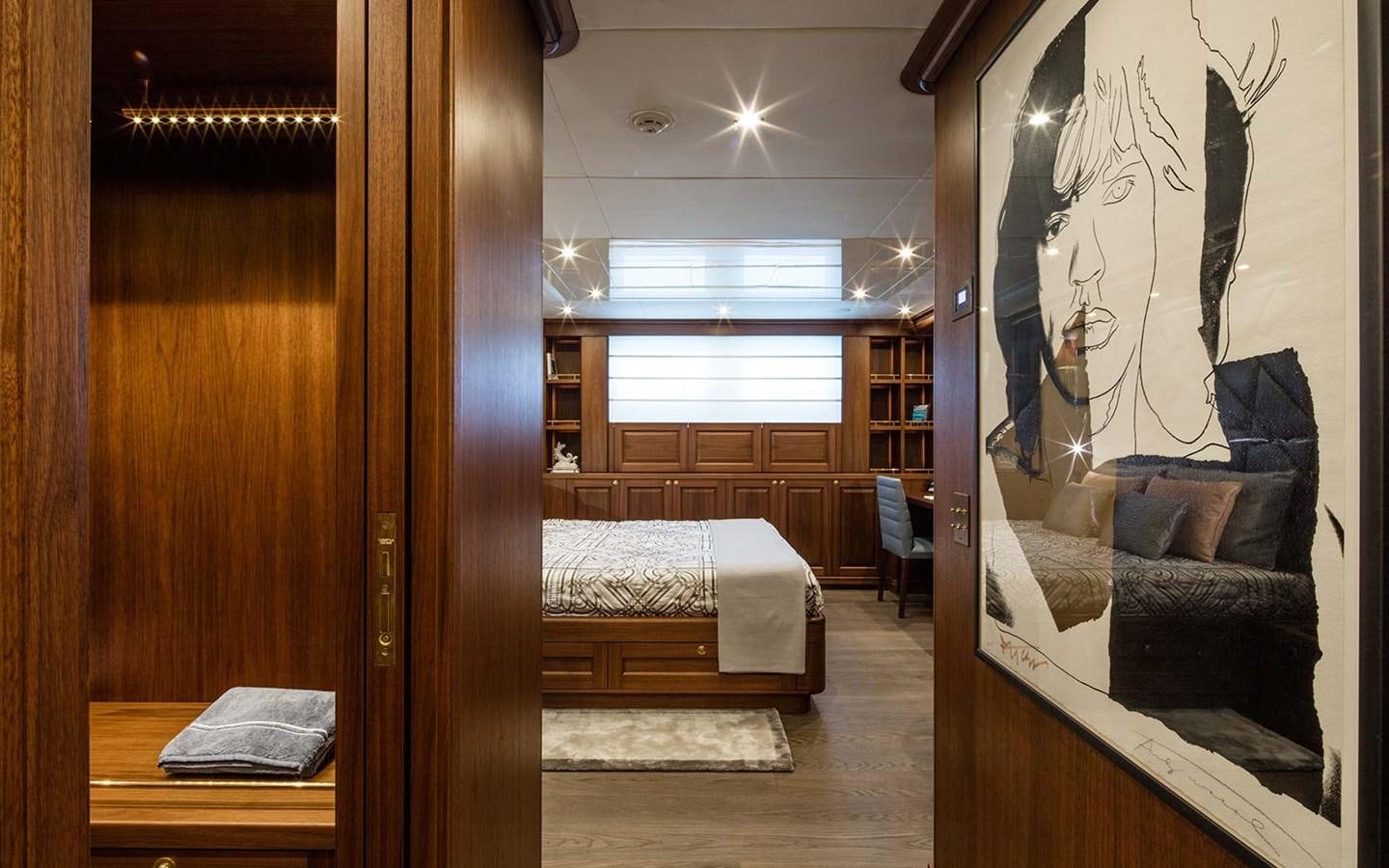

The yacht hosts a total of four cabins for the guests (Master, one VIP, and two guest cabins) plus two crew cabins and one Captain's double cabin adjacent to the cockpit. For an higher level of service to Owners and guests, the laundry cabin in the crew area could be easily refitted into a third crew cabin. This exceptional explorer vessels offer unparalleled level of comfort, luxury, and performances encompassed into a robust steel cocoon. Our commitment to providing the utmost in accommodations has led us to optimize and expand various aspects of the Darwin Class concept to ensure extraordinary and safe voyages to the most remote areas of the world. All Darwin 102 boast state-of-the-art amenities and each one is designed and built to cater to the diverse interests and needs of their Owners.

Specifications

Builder CANTIERE DELLE MARCHE
Model darvin
Length (LOA) 102' (31.09m)
Year 2017
Gross Tonn. 244
Draft 27' (8m)
Beam 24' 6" (7.47m)
Range 5,000 NM
Location united states

Accommodations

Staterooms 4
Sleeps 10
Crew Cabins 5
Capt. Quarters No

Dimensions & Capacity

LOA 102' (31.09m)
LWL 92' (28m)
Max Draft 27' (8m)
Fuel Tank 10,566 g (39,996 L)
Fresh Water 1,585 g (5,999 L)
Holding Tank 290 g (1,097 L)
Gross Tonn. 244
Displacement 240

Construction

Hull Material steel
Hull Config Displacement
Ext. Designer Hydro Tec
Int. Designer Pierluigi Floris Architetto
Cruising Speed 10 Knots
Range 5,000 NM
Stabilizers None
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

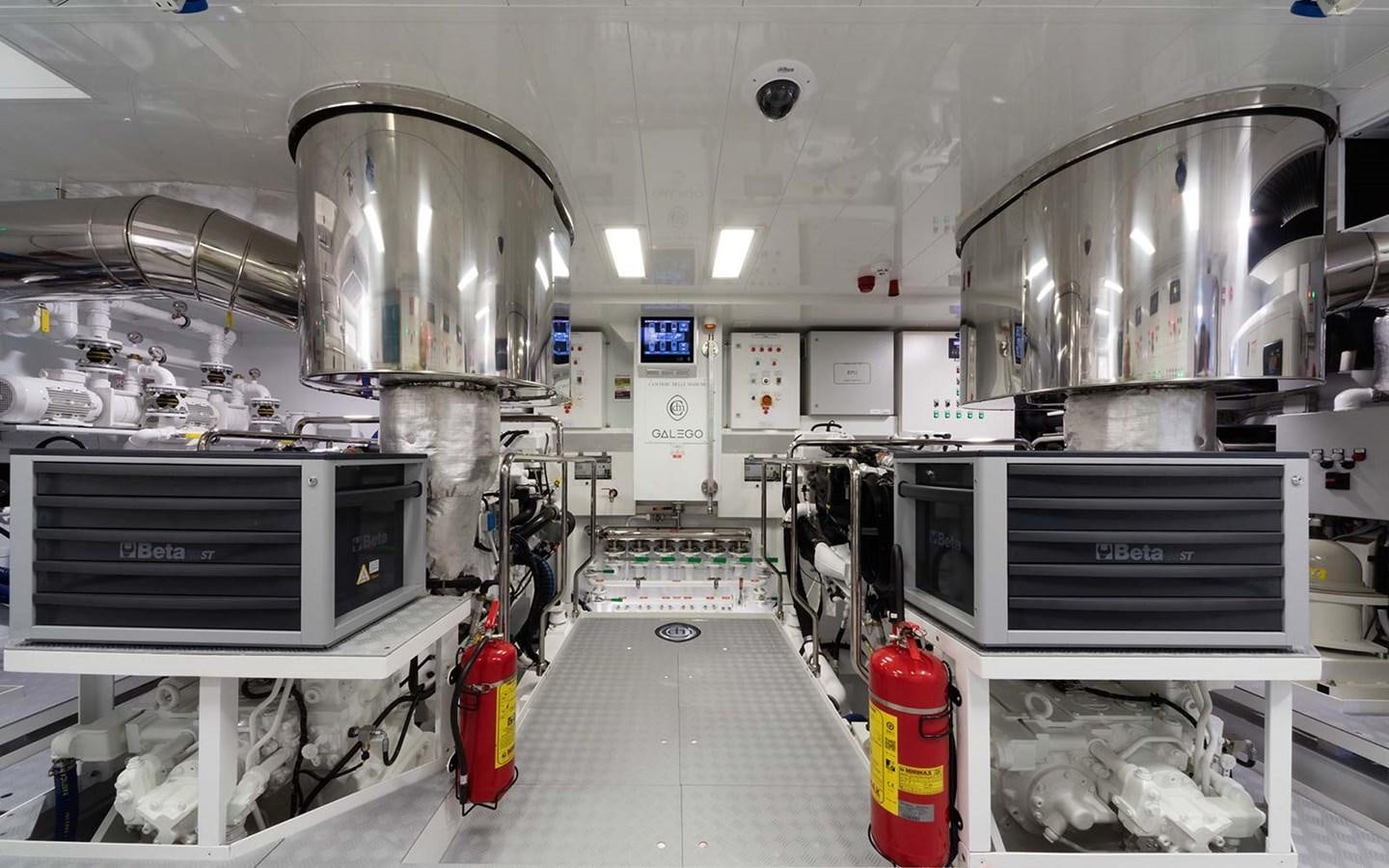

Other Machinery

  • WATER MAKER: Idromar MC-3 Duplex 360 lt/h
  • ELECTRICAL BOILER: 1x 150 lt, 1 x 300 lt
  • FUEL SEPARATOR: Westfalia
  • WATER TREATMENT: Mini-Biocon
  • TOILET SYSTEM: Tecmar

Accommodation

  • GUEST CABINS: 4
  • GUESTS: 10
  • CREW: 6 (incl Captain) / 3 cabins

Galley & Laundry Equipment

LAUNDRY CABIN

  • Washing machine Miele WMH121,
  • Tumble dryer Miele T8822 C

LAZARETTE

  • Washing machine Miele WMH121,
  • Tumble dryer Miele T8822 C

Communication Equipment

ANTENNAS

  • Tracphone V7IP in dome HD11 KTPV7IPR- 3X-11, Tracvision antenna HD
  • KTV-HD11
  • WI-FI SYSTEM
  • SLM224PT Switch 24 Port (12 POE/ 12 Standard), Nr 5 WAP121N access point
  • Cisco 3, Nr 2 WAP321 access point

TELEPHONE

  • Telephone system Panasonic, KXNCP500NE main unit Panasonic, Nr 9 telephone Jacob Jensen

Navigation Equipment

  • Nr 4 hatteland display 19" mmd
  • Furuno main radar arpa FAR-2117 BB -
  • 12 kw - imo version
  • Furuno Navnet 3D Black Box
  • Antenna radar open array 12 kw
  • Nr 2 GPS Furuno GP-33
  • Dgital fish finder furuno DFF1
  • Airmar additional depth transducer
  • Nr 4 FI-70 remote display
  • Furuno satellite compass SC-50
  • Gyrocompass system Navigat 100
  • Furuno AIS class a FA-170 transponder
  • - imo approved
  • Furuno Navtex GMDSS NX-700 B
  • Furuno display data repeter & Navnet
  • TZT9 for captain cabin
  • Furuno display data repeter & navnet
  • TZT9 for crew mess area
  • Navigation pc and Maxsea ECS
  • navigation sw
  • Raytheon/anshutz autopilot nautopilot
  • NP60
  • C-plath magnetic compass – imo
  • approved
  • Ocean signal epirb (gmdss) (imo
  • version)
  • Radiotelephone VHF Furuno FM-8900s
  • GMDSS class A
  • FM4721 marine VHF radiotelephone
  • Sailor Inmarsat standard c mod. 6110
  • GMDSS
  • Flir T400 therminal and low camera
  • Fourth helm station on main deck
  • cockpit

Entertainment Equipment

MAIN SALON

  • TV LED Samsung 55’’ POP UP
  • Sintoampli Denon, DVD Blueray Denon
  • Apple TV, Control panel Russound, Bose
  • 891 speakers, PSB Active subwoofer
  • Dock station per I PAD mini, I PAD mini with Bitwise Entertainment system

SKYLOUNGE

  • TV LED Samsung 55’’ POP UP
  • Sintoampli Denon, DVD Blueray Denon,
  • Apple TV, Control panel Russound, Bose
  • 891 speakers, PSB Active subwoofer
  • Dock station per I PAD mini, I PAD mini with Bitwise Entertainment system

OWNER CABIN

  • TV LED Samsung 55’’ Mirror, Apple TV
  • Control panel Russound, Bose system with subwoofer, Dock station per I PAD mini, I PAD mini with Bitwise
  • Entertainment system

Tenders & Toys

  • Highfield aluminium boat
  • Patrol 600 with outboard diesel engine Mercury
  • Rasing DSI V6,3,0L, 75Hp
  • Highfield aluminium boat
  • Ocean Master 350 with outboard diesel engine
  • Dtorgue 50hp

Deck Equipment

  • Transformer Opacmare 4 steps 33840 plus pop out
  • 2 x VRC6000 Muir vertical windlass
  • 2 x VC4000 Docking capstans
  • 2 x Anchor 225 Kg
  • 2 x 137,5 mt anchor chains, 16 mm
  • Stern gangway Bitecnomare Magnum
  • Due
  • Stainless steel bollards and chocks
  • Crane Sanguinetti Chiavari 2000 Kg
