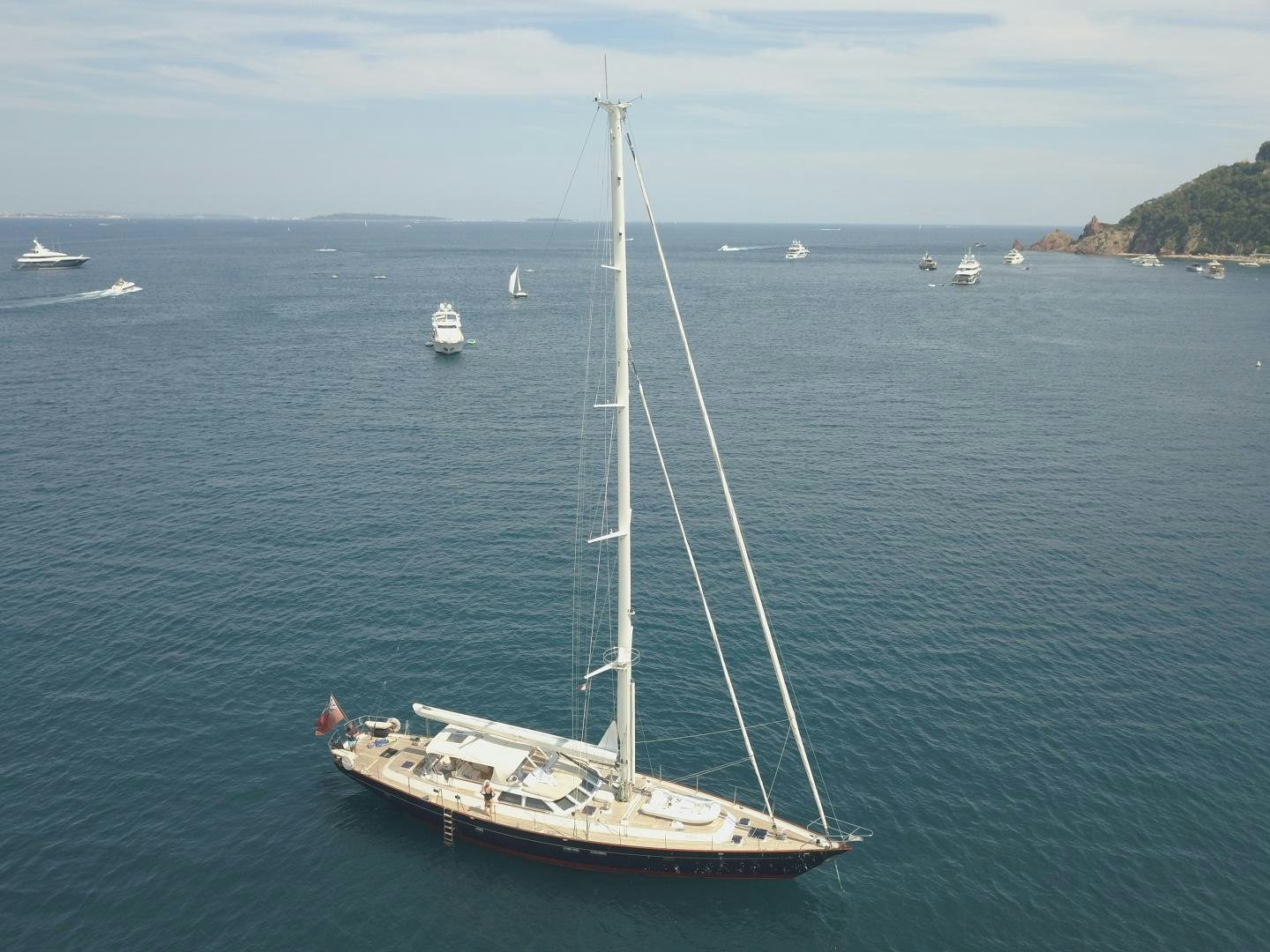

TIGA BELAS Yacht for Sale

80' 8" (24.59m)

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

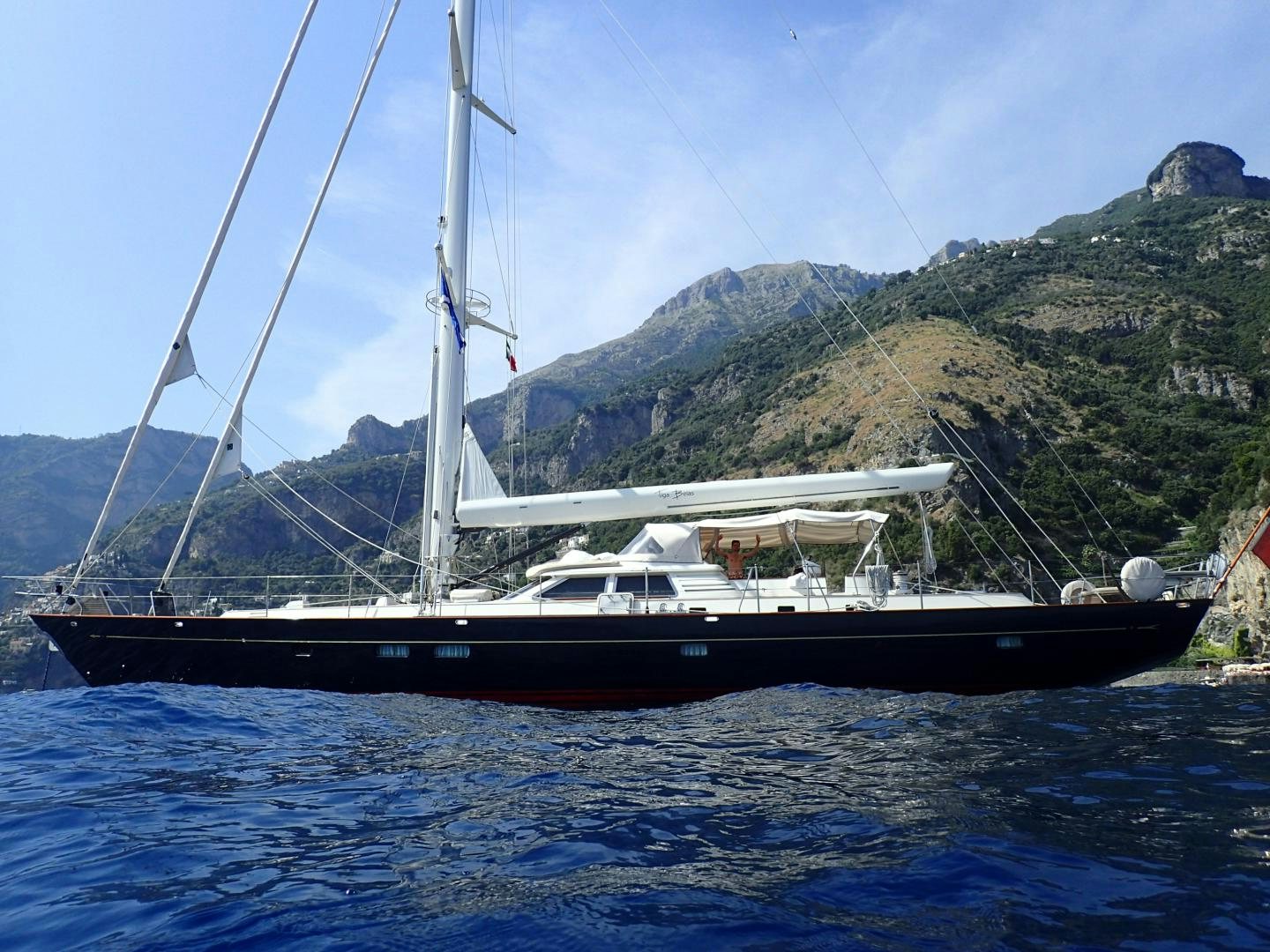

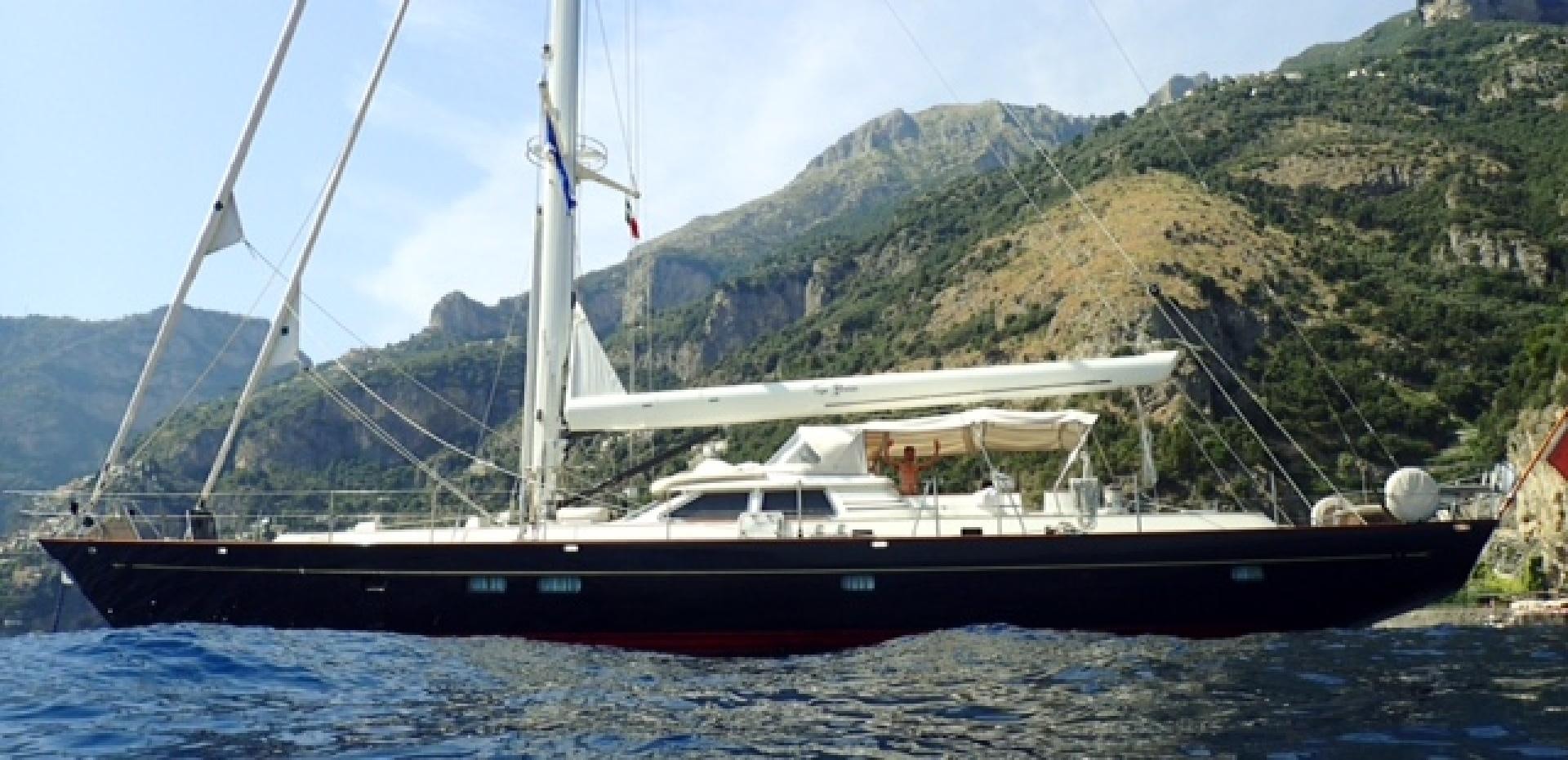

TIGA BELAS is a very comfortable, easy to handle, safe and well performing sailing sloop.

Designed by Bill Dixon Yacht Design Studio, built by Austral Yachts in 2001, the beautiful 24 metre deck-saloon sailing yacht TIGA BELAS features a classic appearance and beautiful sheer lines.

The idea was to create an uncompromisingly comfortable, easy to handle, safe and well performing sloop of the highest standard in respect to construction, materials and equipment.

Consequently an extremely rigid hull construction was chosen.

The vessel is easy to manoeuvre in marinas virtue of her variable controllable pitch propeller and the 45 hp bow-thruster.

Cruising speed at economical consumption is around 8 knots and 2,600 litres of fuel (in 4 tanks) give an approx. range under engine of about 1,000 nautical miles excluding generator consumption.

Sailing the yacht is pleasure. The mainsail, which is operated by the Leisure Furl patented carbon boom, can be hoisted hydraulically either by 24v battery power (in light conditions) or by a power take off connected to the main engine in a matter of 1.5 minutes only. The fully battened sail with a considerable roach gives an excellent shape even when reefed. Reefing is merely a matter of pushing a button.

The Genoa, (also furled by the push of a button), just like the self-tacking staysail, are efficient and easily managed sails.


When we acquired Hanseat in April 2014 we inherited a bespoke yacht that had been built to an incredibly high standard in New Zealand, however she had been somewhat overlooked by her previous owner. We embarked on a multi-winter program of investment, learning more each summer and we believe that she is mechanically in her best condition since her keel was laid.

Her new owner will own a boat with a litany of bedded in and proven mechanical improvements over the original design, and one that has been invested in, maintained and improved.

The current skipper planned and managed the investment program and has been Master of Tiga Belas throughout our ownership


  • Particularly spacious owner accommodation
  • Solid construction
  • Excellent living areas
  • Two guest cabins
  • Easily sailed
  • Excellent family yacht
  • Ready to be enjoyed


  • Underwater lights


Builder Austal
Model Dixon 24.6m
Length (LOA) 80' 8" (24.59m)
Year 2001
Year Refit 2018
Draft 10' 7" (3.23m)
Beam 20' (6.10m)
Location France


Staterooms 3
Sleeps 8
Heads 4
Crew Cabins 1
Crew Sleeps 2
Capt. Quarters No

Dimensions & Capacity

LOA 80' 8" (24.59m)
Max Draft 10' 7" (3.23m)
Fuel Tank 687 g (2,600 L)
Fresh Water 145 g (550 L)
Holding Tank 276 g (1,045 L)
Displacement 61,700


Hull Material Composite
Cruising Speed 8 Knots
Stabilizers None


Engine Make Lugger
Engine Model 6108A2
Engine Type Inboard
Power HP 300
Power KW 0
Fuel Type Diesel
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details



Hull, Deck & Superstructure Construction:

TIGA BELAS has an extremely rigid hull construction with a 45 mm red cedar core and multiple inner and outer layer of epoxy GRP was chosen. The outer layer was additionally fitted with 1.5 layers of Kevlar for improved impact resistance. Structural members such as keelson, engine beds and mast step were constructed in solid mahogany and epoxy GRP coated.

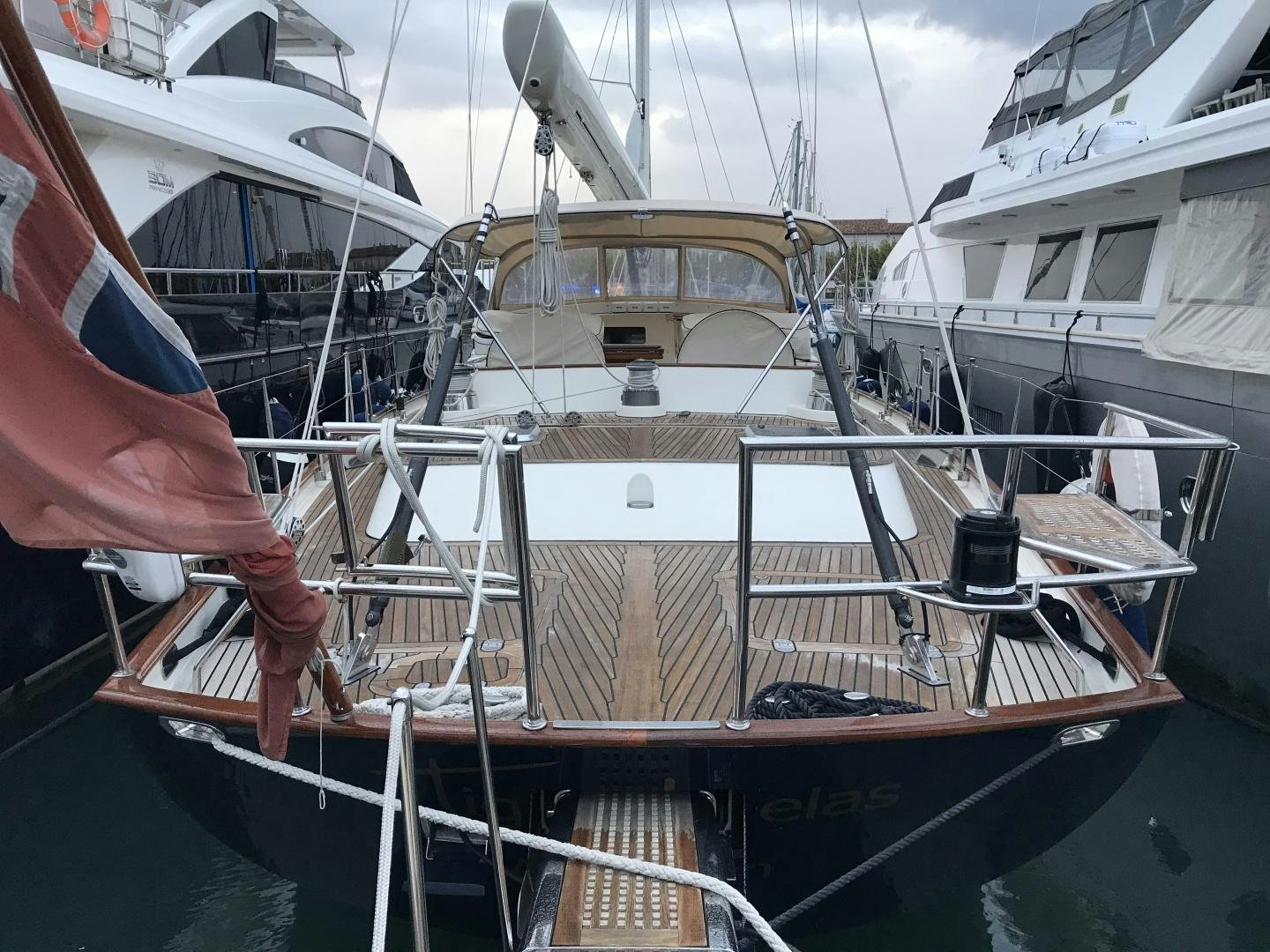

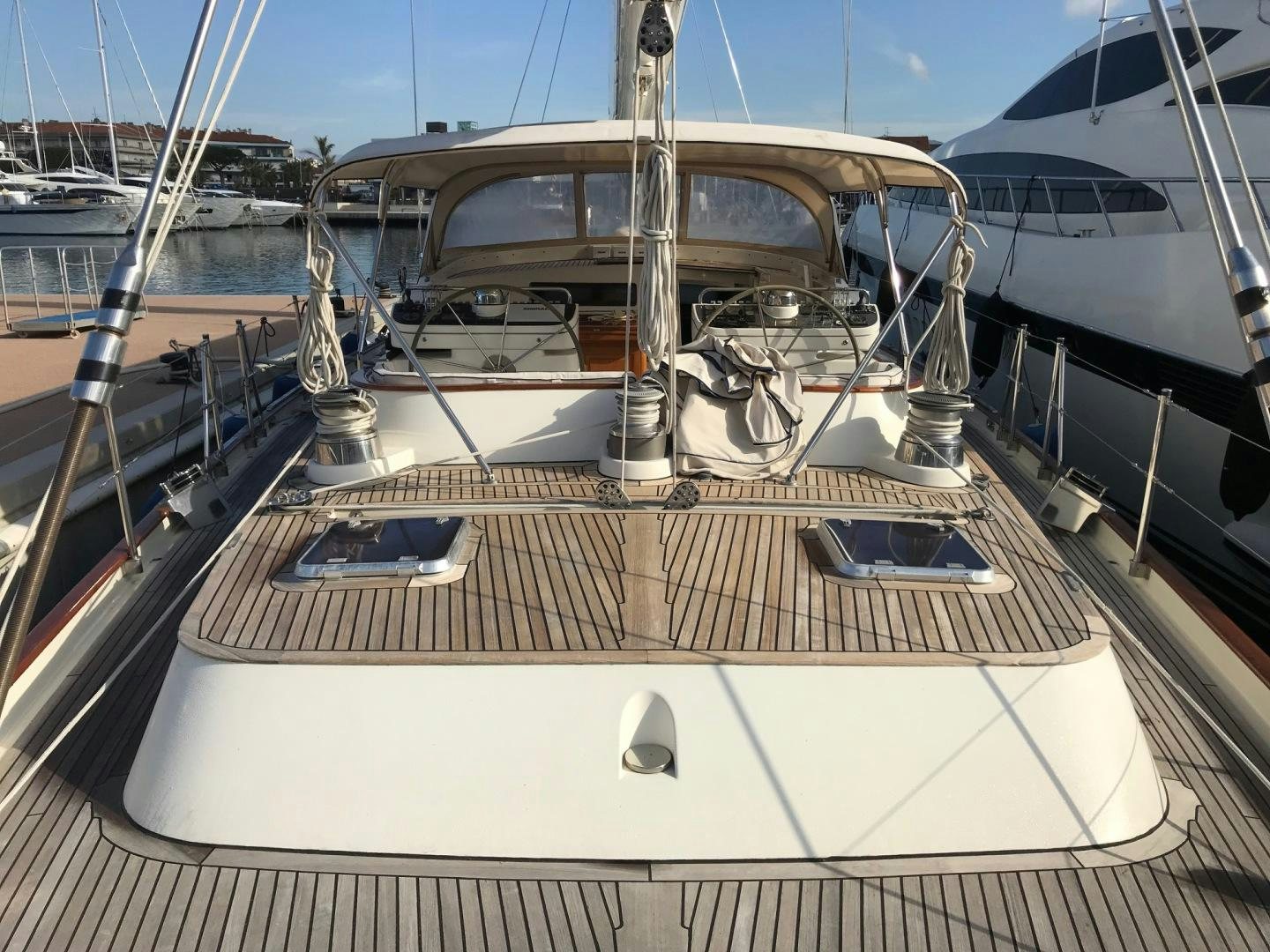

Deck joinery: The foredeck, side and aft decks, pilothouse and cockpit floors and aft bridge deck are covered with teak planking (which was of 15 mm thickness when new) – sanded and refinished March 2019.

Varnished teak capping rail and cockpit coamings.

Awlgrip, 2 pack paint system, with Flag Blue Topsides, red antifouling, white superstructure and gold cove line.

Keel & Rudder:

Keel constructed of (12 mm) mild steel with top plate 18 mm, bottom plate 50 mm and bulb plate 15 mm.

The keel is used as a fuel tank.

The keel is bolted to the Mahogany keel stub, which is encapsulated with (4 x QE 1200 E- glass).

There are 17 upper keel bolts with a diameter of 35 mm each.

The number of lower keel bolts is 15 with diameter of 24 mm each.

The Keel bolts are fabricated from stainless steel 316 (Recently had Ultrasound on 4 selected keel bolts - report available).

Hydraulic, twin helm pumps drive two unbalanced rams. System supplied by Gerhard Seegers. The system gives about 4.5 turns lock to lock. Full rudder arc 70 degrees. Rams are cross-connected and valved, so that in case of one ram failure, the yacht can run on the other ram alone for emergency. Safety and bypass valves are fitted.

Emergency steering by lever onto square on top of rudderstock. Tiller connected to control lines, which are led to both primary winches.

Rudder blade fully balanced, glassed over foam with E-glass and Kevlar, stainless steel reinforced. Rudderstock solid stainless steel of 110 mm diameter (rudder was extended at some stage by a former owner - documentation available on request; regarding the safety of this change).



Engine & Gearbox:

Lugger 6108A2 main engine

Rated output 300hp continuous duty at 2300 rpm.

Aquadrive 20600 fitted.

Hundestad controllable pitch propeller fitted, with 3 electronic Kobelt controls combined with throttle controls.

The yacht can be manoeuvred on either the gearbox or the pitch controls.

Cruising speed under power 8 knots at 1450 rpm.

Engine hours at March 2018 - 7273

Propulsion & Steering:

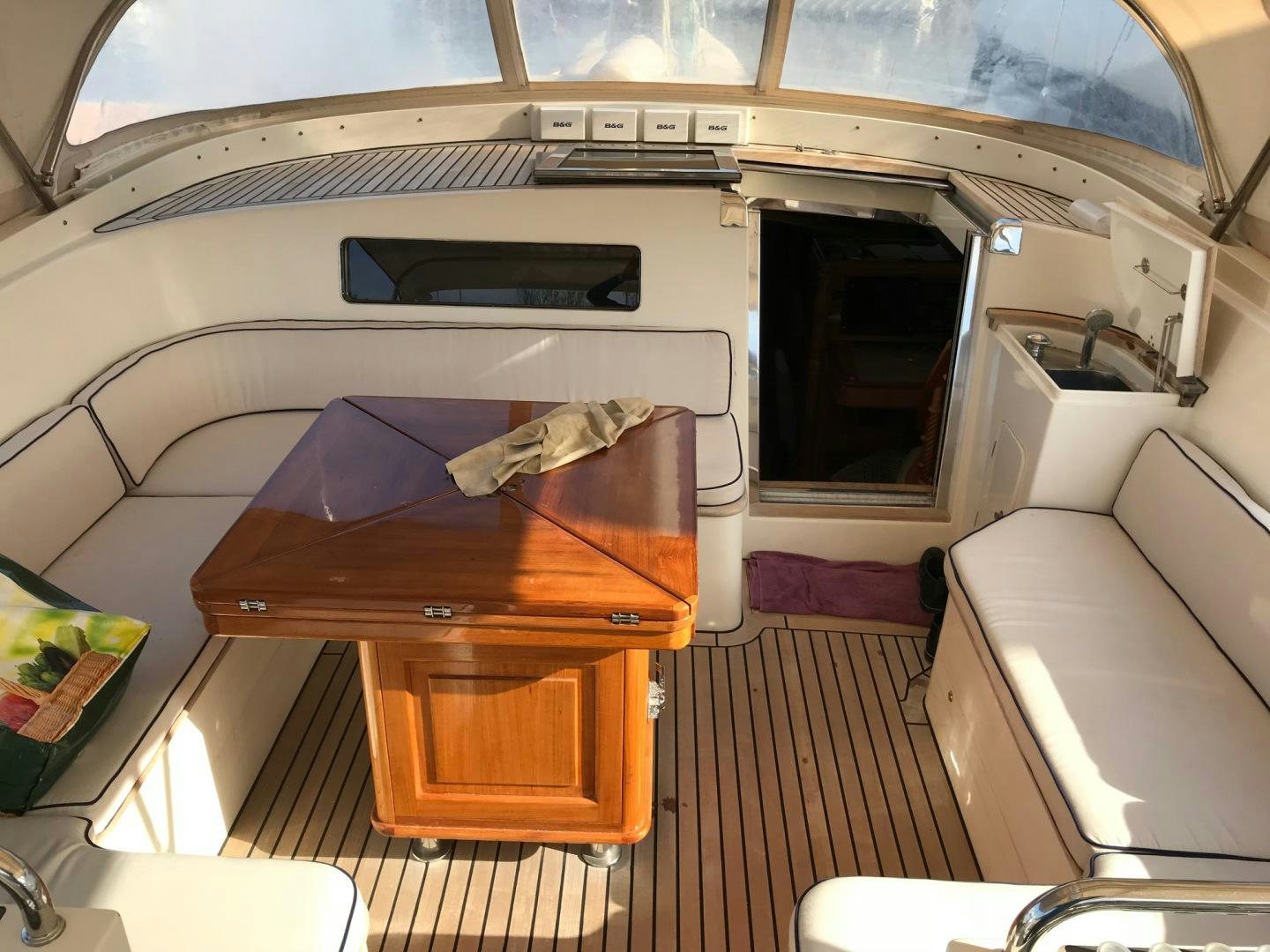

A spacious and well-separated steering cockpit provides ample space to work with no ropes or winches interfering.

2 steering positions

Bowthruster: The thruster is manufactured by Lewmar, Type SVT400, vertical retracting, 45hp

A PTO mounted at the front of the main engine powers the thruster.

Joystick controls are mounted on each of the helm consoles with audible and visual alarms

2 x Electronic engine controls manufactured by Kobelt are installed at each helm station and the chart table.

Each helm station also has a Lewmar Joystick control for the bowthruster

Hydraulic Systems

The hydraulic system comprises the following:

One PTO on the main engine driving a pump

One Lewmar Commander 9+5 with 3 pumps of 9kw + 5kw + 5kw capacity

The PTO operates all the functions, which operate hydraulically with engine running.

The Commander operates in silent ship mode (no engine running) on 24v current supply from the hydraulic battery bank and operates all hydraulic sails and hatch functions, except the bowthruster

The hydraulics operate the following functions:

Headsail furler (Reckmann).

Staysail furler (Reckmann).

Anchor windlass.

Primary winches.

Primary Winch.

Staysail sheeting captive winch.

Main Sail Boom Furling Mandrel.

Main halyard Captive Winch.

Halyard winch.

Halyard winch.

Mainsheet Winch.

Navtec Panel for Vang and Backstays.

Main Traveller Ram.

Dinghy Hatch.

Engine Room Hatch.


Note: The Opacmare passerelle is also operated hydraulically but has its own dedicated electronic/hydraulic system.

Electrical Systems

Battery Banks

2 x Lucas battery banks - 1200 Ah each, Gel traction cell type, each battery cell 2 V, linked to form 24 V.

Banks are dedicated to either general services (“house”) or hydraulics, but in case of failure switchable to serve the other, failing, circuit or starter batteries. House batteries were new 2018.

Main engine starting battery: 2 x 200 Ah, 12 V, in series 24 V (New 2014 180 AH).

Generators starting batteries: 2 x 200 Ah, 12 V, in series 24 V (New 2014 180 AH).

Battery Chargers

2 Mastervolt Mass combi chargers 24/4000, plus one 175 A alternator mounted on the main engine to charge the service and hydraulic batteries.

Alternator can charge all the battery banks through a Vetron diode which was fitted in 2016

Starting batteries are charged through the alternators fitted to main engine and each generator or shore power.


1 x Main engine alternator – 175 amp.


Northern Lights ML 984 - 25 KW, continuous rating at 1500 rpm, single phase, 50 Hz.

Generator hours at February 2018 - 6202

Shore Power:

220v shore power connection.

Other Electrical:

3 Mass 24/3500 resp. 24/4000 inverters supply AC power from the service battery bank.


1 x Main engine alternator – 175 amp.


Northern Lights ML 984 - 25 KW, continuous rating at 1500 rpm, single phase, 50 Hz.

Generator hours at February 2018 - 6202

Shore Power:

220v shore power connection.

Other Electrical:

3 Mass 24/3500 resp. 24/4000 inverters supply AC power from the service battery bank.

Plumbing & Tankage

Fresh Water & Water Heating System:

2 x Boilers – Large / Small; capacities unknown.


Sea Recovery Aqua Whisper Model 1200-2AWC.

Bilge Pumps:

There are 6 bilge compartments using a manifold with 2 main bilge pumps, one electric and the other hydraulically driven, each with a capacity of 300 litres per minute

Manual Whale gusher pump with a capacity of 25 litres a minute is installed in the cockpit.

5 nuisance water pumps will discharge smaller quantities of water from the respective areas

Main bilge pumps are used as fire fighting pumps through special piping system


All tanks are manufactured from 3mm stainless steel and are mounted on soft supports and strapped down. All tanks have been pressure tested to 0.3 bar, in excess of what is required under classification rules.

Fuel pipe work is manufactured of stainless rigid piping up to 1” and above that of nitrile lined rubber to classification standard. In the engine room all fuel lines are made of stainless steel.

Pipe work for water is made of Class approved PVC.

All tanks are provided with Kuebler level indicator gauges, connected to synoptic panels and alarms.

All tanks have large inspection hatches

All tanks are vented into the mast.


Total capacity of 2,600 litres (571 gallons) in 4 x stainless steel tanks.

Fresh water:

Total capacity of 550 litres (120 gallons) in 2 x stainless steel tanks.

Grey/Black water holding tanks:

Total grey water capacity of 610 litres (134 gallons) – stainless steel.

Total black water capacity of 435 litres (95 gallons) – stainless steel.

Navigation & Communication Systems


B+G sailing instruments as follows:

Hydra 2000 FFD (1 at chart table, 1 at helm stations, 1 in owners’ cabin).

Hydra 2000, 360 degree Wind, analogue, (1 at chart table, 2 at helm stations).

B+G 20/20, boom angle, heading, depth, speed, (4 at cockpit front).

Depth transducers.

Furuno Navigation instruments:

2 x Simrad plotters and radar (2015).

GPS GP-31, (one at Chart Table as backup).

Robertson Autopilot:

Robertson AP 20 (one at Chart Table, one at helm station).

Communications Equipment:

Sailor 150 2015 with satellite telephone without data lines or fax

Simrad VHF 2015 with cordless handset on the starboard helm station).

PABX for internal onboard communication through Intercom system.

One foghorn.

One of the helm stations has a crew alarm.


2 Ritchie magnetic, (one on each helm station).

2 Fluxgate, one Furuno, one Simrad, both interfaced with all Nav. Instr.

Synoptic Panels:

These are located in the Navigation area and are divided into three sections:

First division, status lamps:

a) Navigation lights.

b) Water pressure pump running.

c) Refrigeration compressors.

d) Electric bilge pump running.

Second division, Alarm warning lamps combined with flashing and audible alarm:

a) Engine room fire.

b) Lazarette fire.

c) High bilge water level in any compartment.

d) Low battery voltage.

e) Low level keel tank.

f) Black water tank full.

g) Grey water tank full.

h) Low level fresh water tanks.

i) Low level fuel tanks.

System status with analogue/digital read out meters showing:

a) Voltage for services/hydraulics battery banks (through master view display new 2014)

b) Charge/discharge current for services/hydraulics battery banks (as above).

c) Earth leak conditions (synoptic display).

d) Voltage (Master view).

e) Amp hours (Master view).

f) Shore power polarity (synoptic display).

g) Remote control panel for the Generators start/stop

h) Remote control panel for the air-condition system

There is a switch to change from generator/shore power/inverter and to load shed (2 switches for each Buss system on board).

Domestic Equipment


Ceramic 4 burner stove top, Miele 2014

Oven with grill, hot air, top and bottom heat, Miele, 2014, with Miele Extractor fan.

Miele Dishwasher.

Miele Washing Machine 2016

Miele Condenser Dryer 2016

2 Refrigerators, custom made in stainless steel, front loaded, appropriately divided and 1 Refrigerator, custom made in stainless steel, incorporated in the cockpit table and 1 Freezer, custom made in stainless steel, front loaded, divided with slide out drawers.

Icemaker, 220 V AC, self-contained.

All refrigerators and the Freezer (except the Icemaker) are operated by 6 Frigomatic K DC compressors.


A deck shower is installed on the aft deck.

4 x Superflush Prestige toilets 2002. Flushing is by fresh water into stainless steel black water holding tanks, which can only be discharged by manual activation for environmental reasons. Crew toilet is of same technical characteristics but for size reasons made by Sunny Marine.

Holding tanks are fitted with level switches, which send audio and visual signals to the main alarm panel.

Tank discharges overboard below waterline or to a Lee Sanitation Deck fitting to ISO 4567 standard.

Heating & Ventilation:

Air conditioning: CruiseAir system. The yacht is throughout equipped with 7 controllable air handlers

The size varies depending on the size of the cabin

Total capacity is 45,000 B.T.U. per hour, for both cooling and heating. 51 running amps are required at 230v


CD in each cabin.

DVD – CD player in saloon.

Speakers in cockpit.


Just behind the Rudder about 1 foot under waterline there are 2 underwater lights (port and starboard) have been installed.

The lights are switchable from the port helm station.

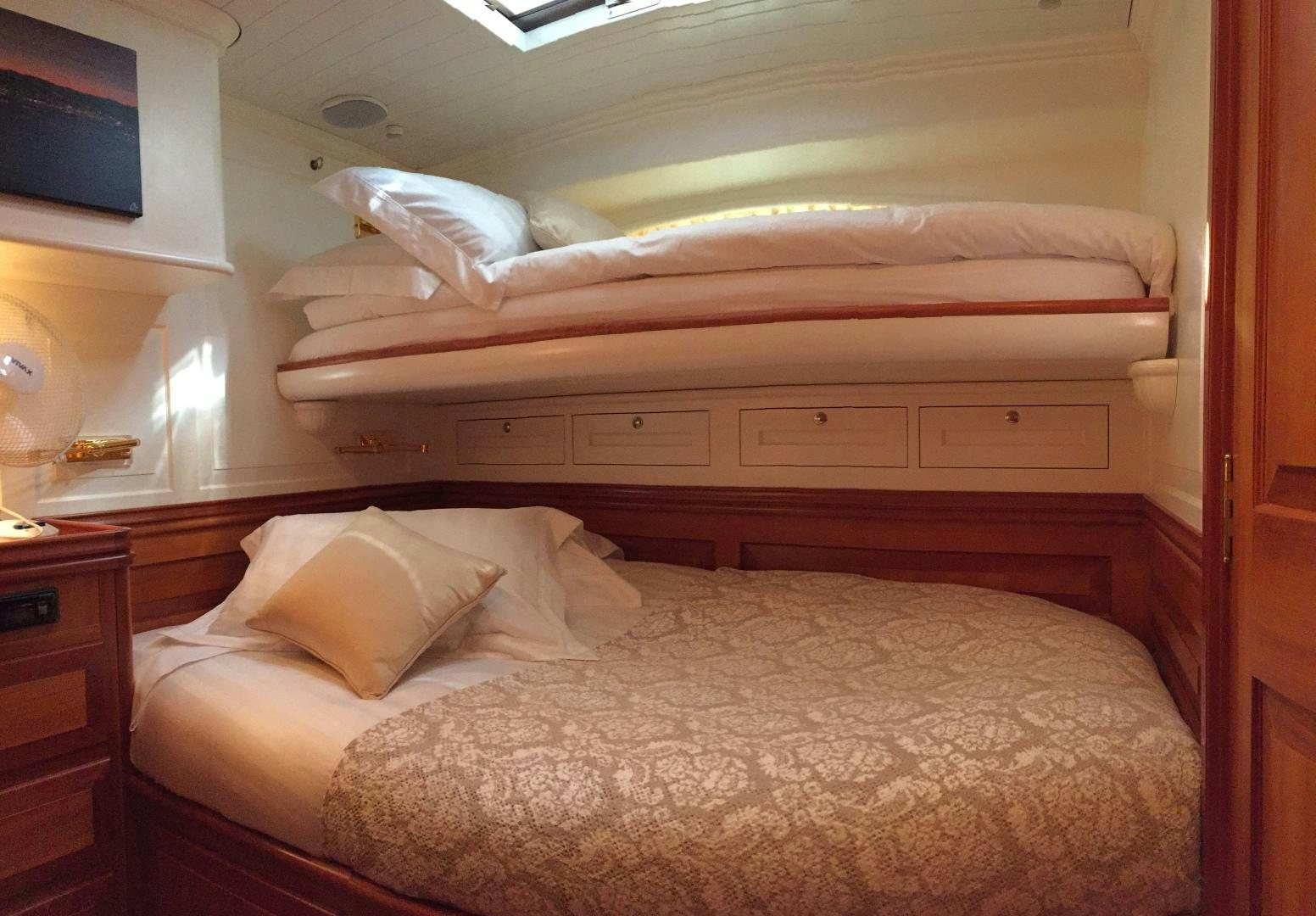

Summary of Accommodation:

The classically-styled interior is tasteful and is executed in American Cherry wood.

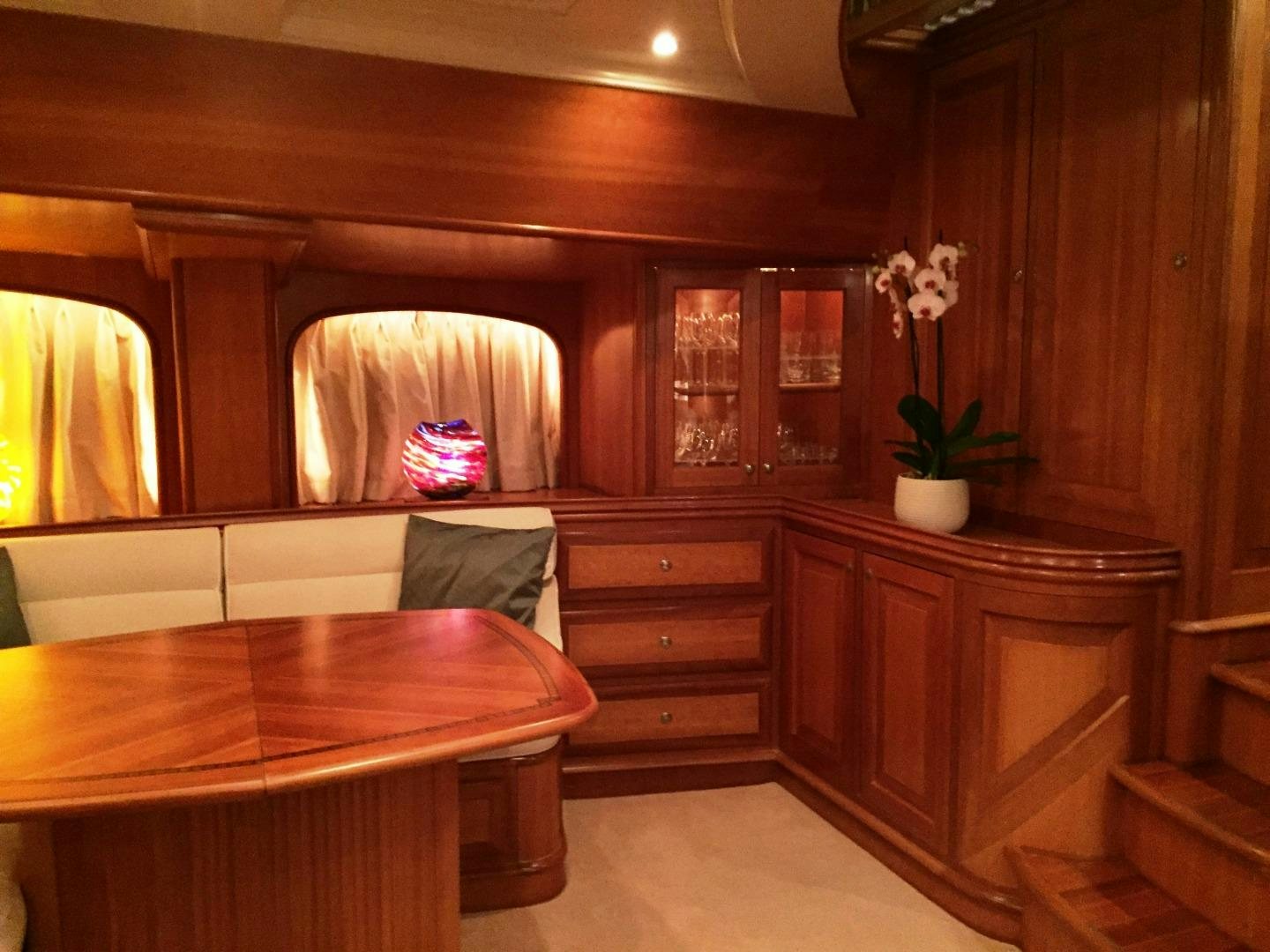

The upper salon is a comfortable area, perfect for enjoying the surrounding environment while under sail (new pale leather upholstery fitted 2016).

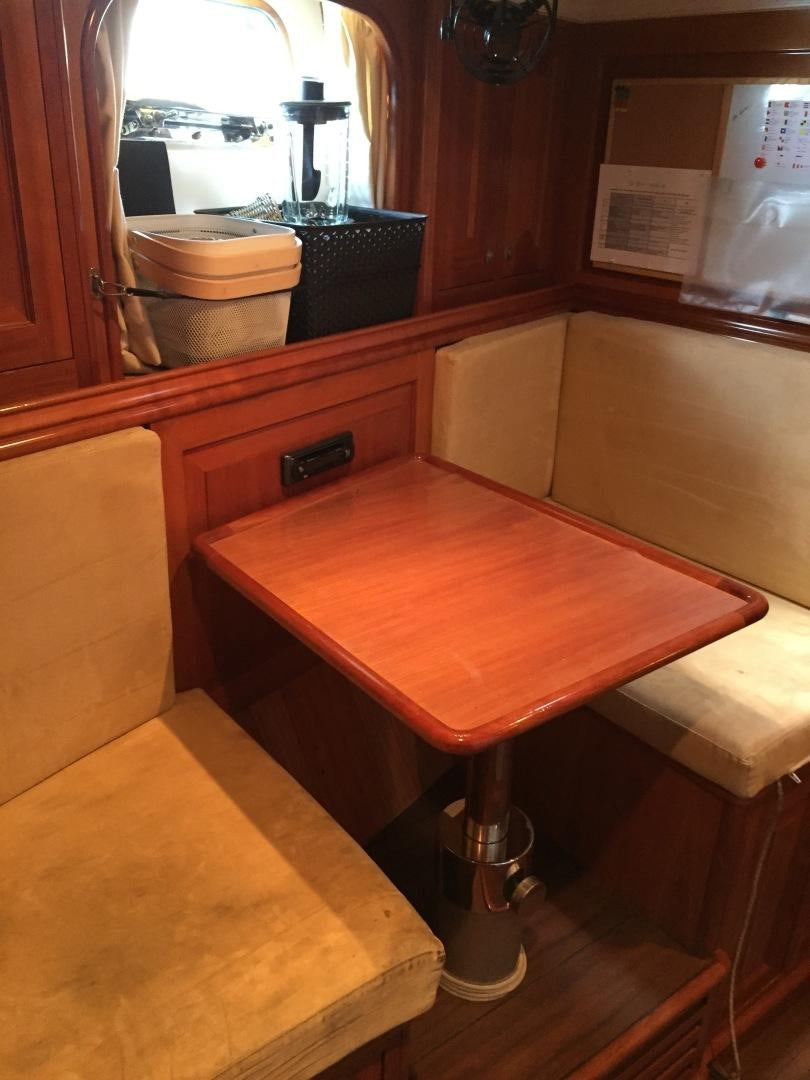

The lower or dining saloon offers a comfortable space to read, entertain friends or dine in style.

The hull ports are manufactured by Van Wingerden in stainless steel and fitted with storm blinds (note: storm blinds are onboard but not for every port hole).

Spars & Rigging


Spars manufactured by: Marten Spars Ltd., Auckland, New Zealand.

Mast and Boom are made of carbon fibre.

Boom is manufactured under Leisure-Furl license for mainsail stowage and reefing.

Mast has 4 swept back spreaders (carbon fibre).

Boom has integral custom-made sunshade systems.

Mast and Boom have integrated mast and cockpit illumination systems.

Standing rigging by Riggarna, stainless steel 316 Rods (8 year service done in 2015 when the rigging was sent to Denmark for complete overhaul).

Running rigging: Vectran halyards and Spectra sheets.

The entire Rig is painted with Awlgrip paint in Oyster White (last painted 2015).

Boom vang and Backstay cylinders: Navtec.

Genoa and Staysail Furlers: Reckmann RF90-3 R50, resp. R40 in stainless steel (both Reckmann furlers returned to Reckmann in 2015 for complete overhaul).

Deck hatches are Lewmar Ocean Range in polished aluminium.


Mainsail, new June 2018 by Doyle (Stratis)

Genoa and staysail were new 2015.

Main and headsail are hydraulically furled.

APC (MPS) is stowed in a sleeve.

APC (MPS) in Nylon in rainbow colours: 406 m2; stowed in a sleeve, for easy hoisting.


Sizes of sails:

1.Mainsail = 143.9 m2;

2.Genoa = 139 m2 (NEW 2015 material Dacron).

3.Staysail = 57 m2 (NEW 2015 material Dacron).

Rig Measurements:

1.I = 29,024 m.

2.J = 8,816 m.

3.P = 26,188m.

4.E = 9,616m.

Deck Equipment


The deck hardware is supplied from Harken’s custom stainless steel line, including traveller tracks and cars, blocks and end stops.

The winches are supplied by Lewmar and are again in stainless steel:

1. Two Primaries 88/3 SHST.

2. One Mainsheet 77/3 SHST.

3. Two Halyard 77/3 SHST.

Two Captive Winches, one Lewmar and one Nielssen, are installed in Deck lockers outside of the Dinghy hatch (both removed and completely overhauled in 2015).

General Accesories And Description


The cockpit table allows 8 guests to dine (with the extension in place) under a bimini which furls out of the boom.

A cockpit fridge ensures drinks are always chilled and ready at hand.

A small cockpit pantry with washbasin, water tab and stowage space is installed on the starboard side.

A huge aft deck allows space to sunbathe or fish with two fishing rods; 2 x rod holders supplied, no fishing rods.

There are sun mattresses on the deckhouse and 4 separate single sun mattresses for front and stern, and 1 x side swimming ladder for both sides.

Lazarette and deck lockers are teak laid with gas ram supported lids.

Opacmare passerelle is hydraulically operated, 3 parts extendable and 15 degrees up and down tilting, 2015.

Lifelines, stanchions, pushpit and pulpit are stainless steel.

4 stanchions on either side are telescopic. When extended, they serve as holding points for the Sun awning, which is integrated into the boom.

Anchoring & Mooring Equipment:

Mooring bollards, cleats and fairleads are custom made and of stainless steel 316.

Coaming ports are made of stainless steel

Stainless steel, 90kg Bruce anchor, with a 120 m galvanized 16 mm chain new in 2014

40 kg Fortress Anchor.

Nielssen hydraulic anchor windlass, vertically installed and operated by remote control, with a chain washing function which is also can be operated from the starboard outside helm position

Covers, Canvas & Cushions:

A sprayhood is installed over the main companionway.

Tender & Toys

Water Toys:

1 x Williams turbojet 325, 98hp jet tender.

1 x Wakeboard.

1 x Slalom ski.

1 x Set beginners skis.

1 x Doughnut tube.

Assortment of dive masks, snorkels and fins.

Safety & Security

Fire-fighting equipment:

One automatic CO2 fire extinguishing system installed in the engine room 2015

All cabins and living and working spaces have been fitted with handheld fire extinguishers.

Safety Equipment:


Lifejackets "solas" (adult) - master cabin – 2 - May-17.

With whistle & hood port – total - 14:

1. Guest cabin – 3 - May-17.

2. Stb guest cabin – 3 - May-17.

3. Crew cabin – 3 - May-17.

4. Extra - lower saloon – 3 - May-17.

Smoke hoods:

1. Master cabin - 2 - Feb-18.

2. Port guest cabin – 3 - Feb-18.

3. Stb guest cabin – 3 - Feb-18.

Mcmurdo handheld gmdss vhf - nav station – 2:

1. Non- rechargeable battery - nav station – 2 - May-20.

Acr rapid fix 406 epirb - push pit – 1 - Apr-18.

Acr pathfinder 3 sart - nav station – 1 - Apr-20.

Pyrotechnics (flares):

2. Red rocket parachute - grab bag - stb cockpit – 6 - Aug-18.

3. Red handheld grab bag - stb cockpit – 6 - Aug-18.

4. Orange smoke - grab bag - stb cockpit – 2 - Aug-18.

Life raft - ocean (solas commercial) - deck under vang -2 - May-17.

Hydrostatic release units – 2 - May-17.

Grab bags - port cockpit – 2 - May-17.

Johnbuoy/danbuoy with light – 1 -May-17.

Life ring with light, without flag & drogue – 2 - Feb-17.

Kim pick up sail - port cockpit – 1.

Jack stays 25mm white polyester homologated - stb cockpit - 50 m.

Thermal protective aids (tpa) - grab bag - stb cockpit – 11.

High powered led search light with charger - nav station – 1.

Interior lighting (red stairs lights).


1. Master cabin, port guest.

2. Stb guest, upper saloon.

Cordless grinder - stb saloon aft settee – 1.

Mechanical Disclaimer

Engine hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.


The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

How to Buy a Yacht Our experienced brokers will assist you throughout your yacht buying journey
Northrop & Johnson
Hi there!
Would you like to get more information about TIGA BELAS? Our brokers are standing by to help.
