Asking
€82,500,000
O'PTASIA Yacht for Sale
Length 278' 8" (85m) Builder Golden Yachts Build 2018/2024
- Guests
- 22
- Cabins
- 10
- Crew
- 29
- Asking Price
- €82,500,000
Not for sale or charter to U.S. residents while in U.S. waters.
Stepping into the world of luxury yachting, we present to you O'PTASIA, an exquisite masterpiece from the renowned shipyard of Golden Yachts. Launched in 2018 and refurbished in 2024, this custom model is a perfect blend of elegance and performance. With a gross tonnage of 2342, O'PTASIA stands as a testament to superior craftsmanship and innovative design.
Exemplifying grandeur at its finest, O'PTASIA stretches an impressive 278 feet (85 meters) in length with a beam width of 45 feet (13.8 meters). Its steel hull gracefully cuts through the water at cruising speeds reaching up to 14 knots while capable of achieving a maximum speed of 17 knots. The displacement motor yacht can accommodate up to twelve guests within its ten luxurious cabins, ensuring each guest experiences unparalleled comfort during their voyage.

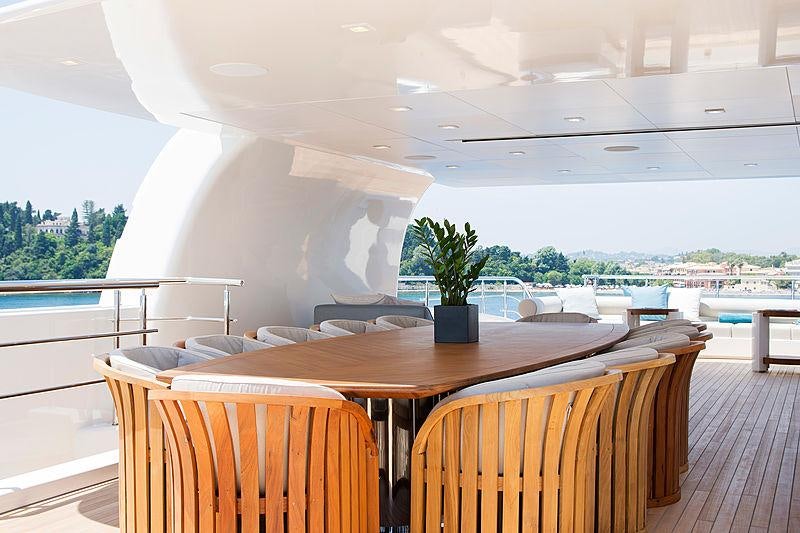

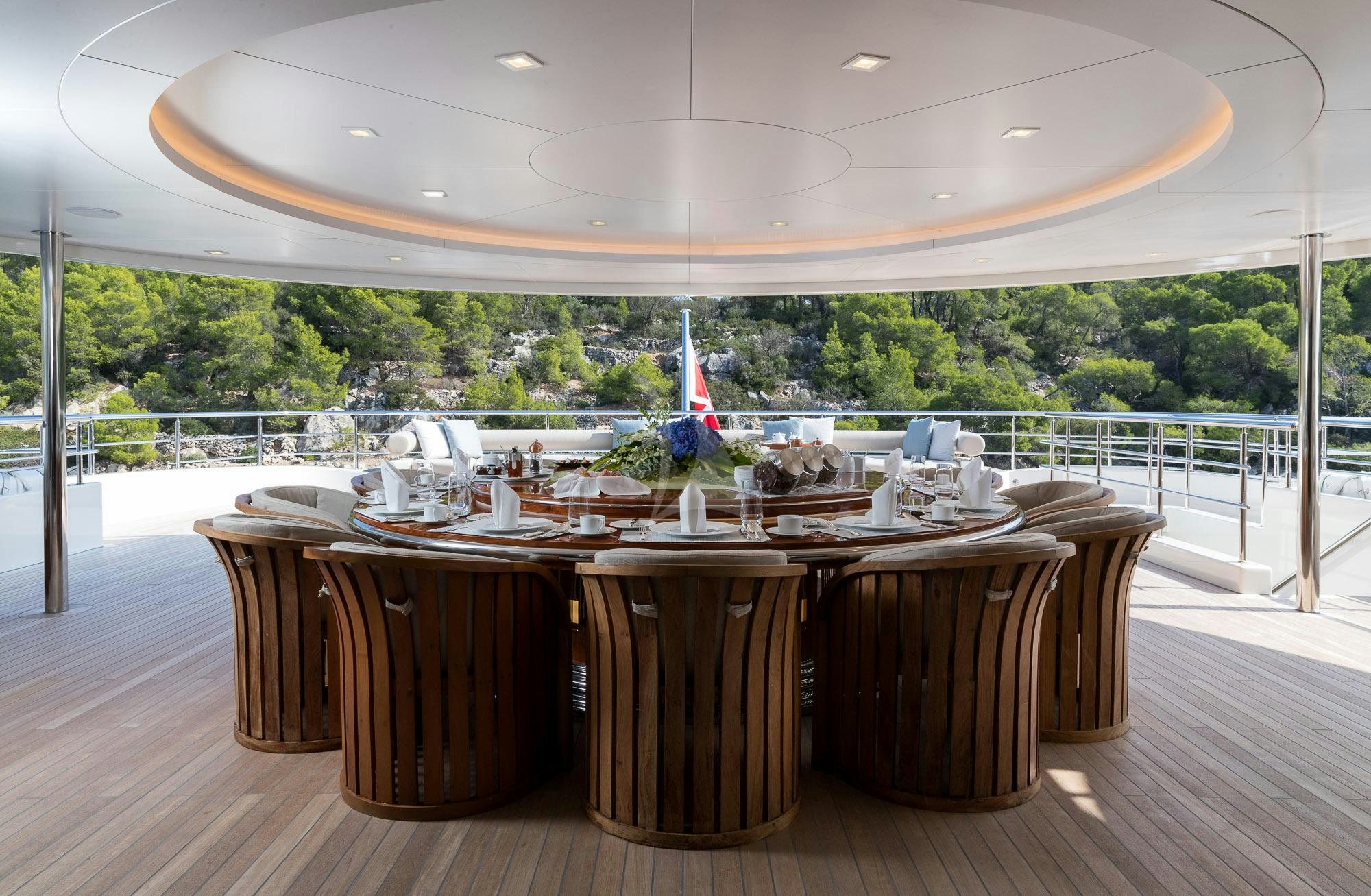

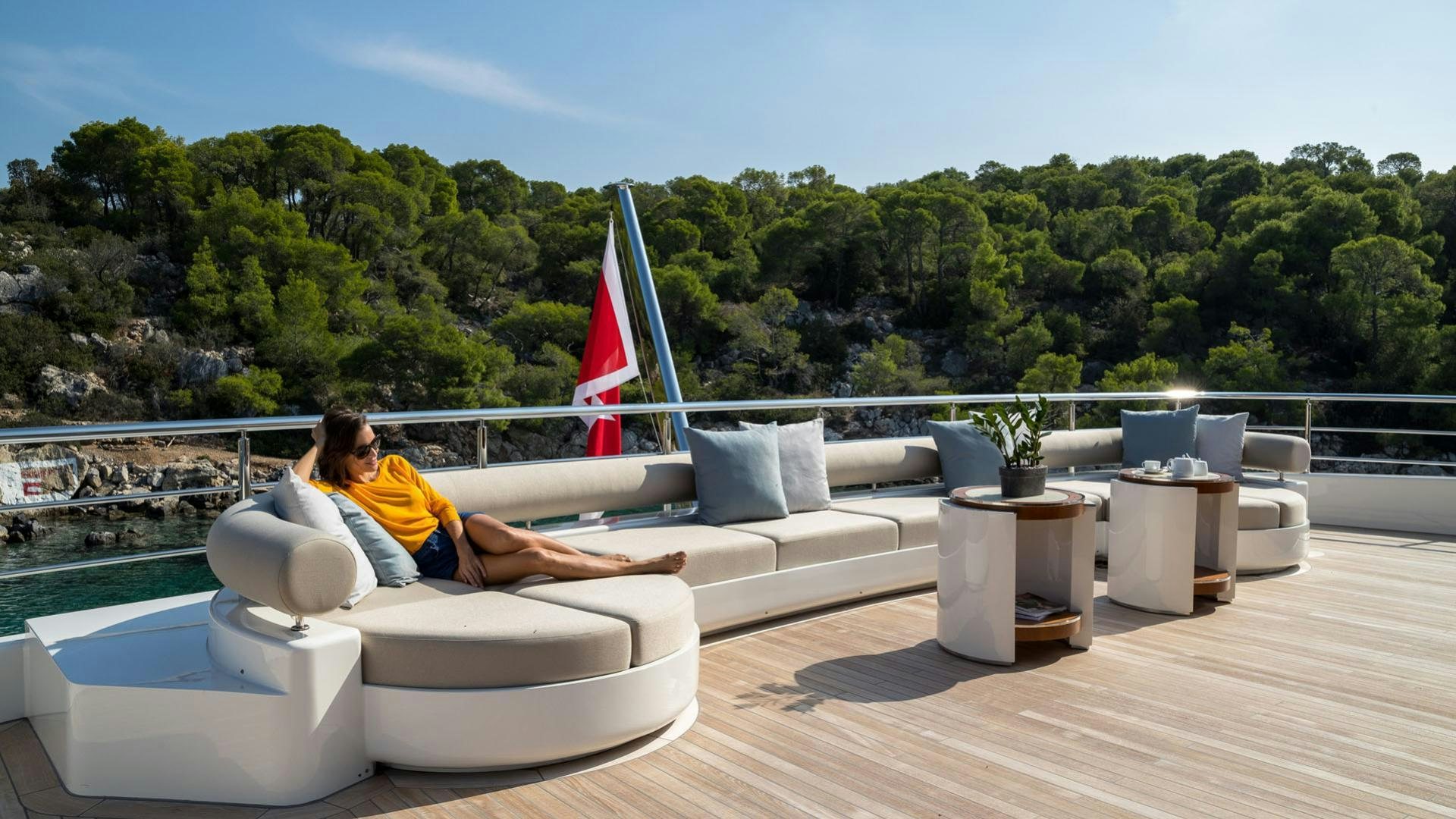

As you step aboard O'PTASIA, you are greeted by expansive sundecks that offer breathtaking panoramic views. Alfresco dining areas provide an intimate setting for meals under the stars while lounging areas invite relaxation and leisurely conversations. Amenities such as a beach club complete with steam room, Jacuzzi and gym cater to your wellness needs. A masseuse is on hand for those seeking rejuvenation after adventurous days out on the sea.
In addition to these luxuries, O'PTASIA also boasts state-of-the-art machinery including two Caterpillar engines providing a combined power output of 3386 hp / 2524 kW that propels this magnificent vessel across oceans effortlessly. The vessel features Zero Speed stabilizers ensuring smooth sailing even in choppy waters. For added convenience, there's an elevator onboard along with Wi-Fi connectivity keeping guests connected throughout their journey.

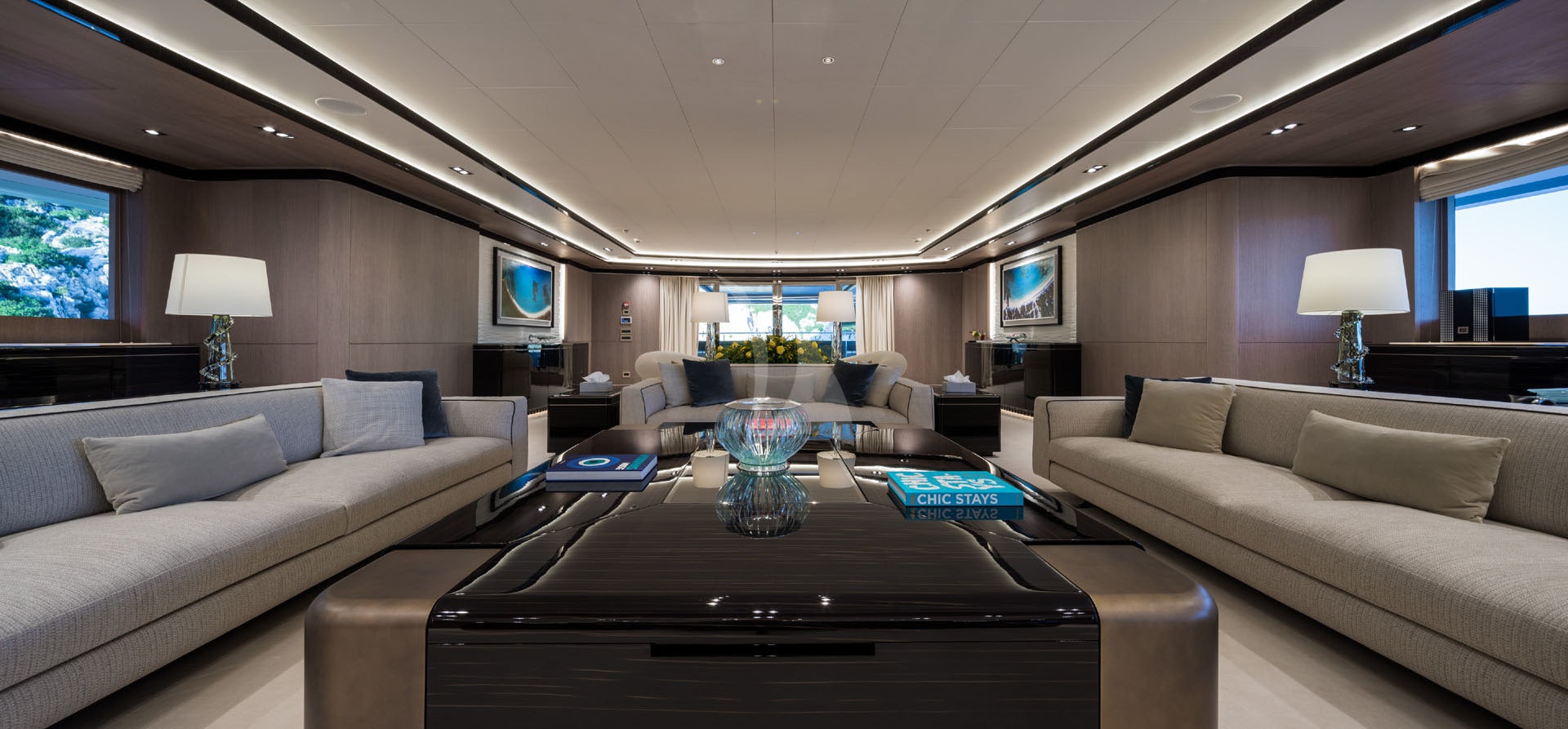

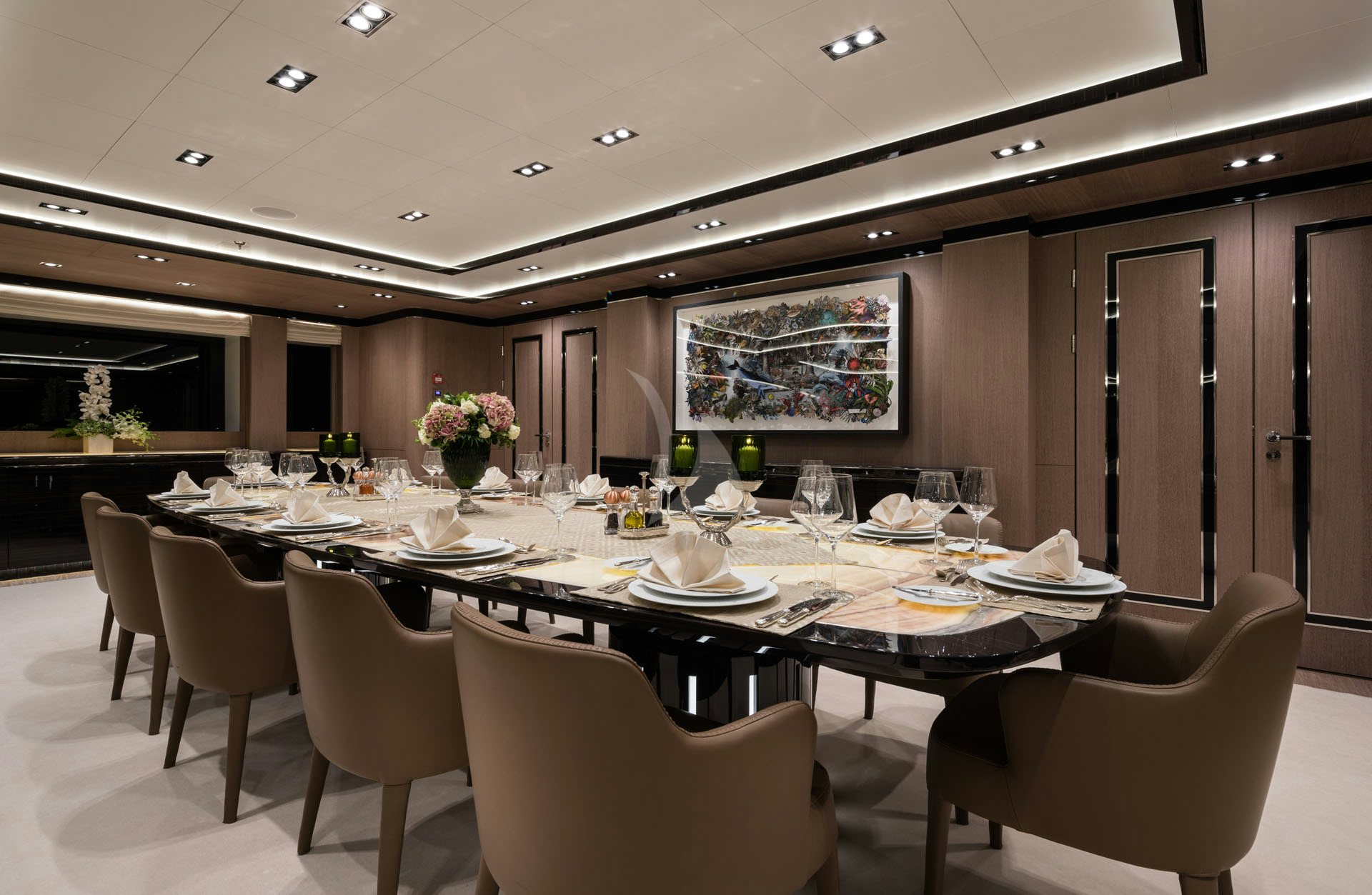

The interiors are nothing short of spectacular; every detail meticulously designed to create an atmosphere of opulence and tranquility. Each cabin exudes warmth through its tasteful color palette complemented by unique design elements that add character to spaces.
O'PTASIA is equipped with high-capacity tanks holding up to 76193 gallons fuel capacity which ensures long-range expeditions without frequent refueling stops. It also has freshwater capacity amounting up to17309 gallons along with holding tank capacity reaching1566 gallons that cater efficiently for onboard requirements.
For thrill-seekers and water sports enthusiasts alike,O'PTASIA comes fully loaded with water toys inventory promising endless fun on the waves while tenders ensure seamless transfers between shorelines or other vessels when anchored offshore.
A crew consisting of twenty-nine professional members ensures top-notch service catering to all your needs around the clock making sure every moment spent onboard O’PTASIA becomes part of unforgettable memories etched forever.
Indeed,O’PTASIA offers not just luxury but an experience – one where every detail is crafted meticulously ensuring excellence at every turn making it one extraordinary yacht worth exploring.
Amenities
-
Scuba Diving
-
Masseuse
-
Beach Club
-

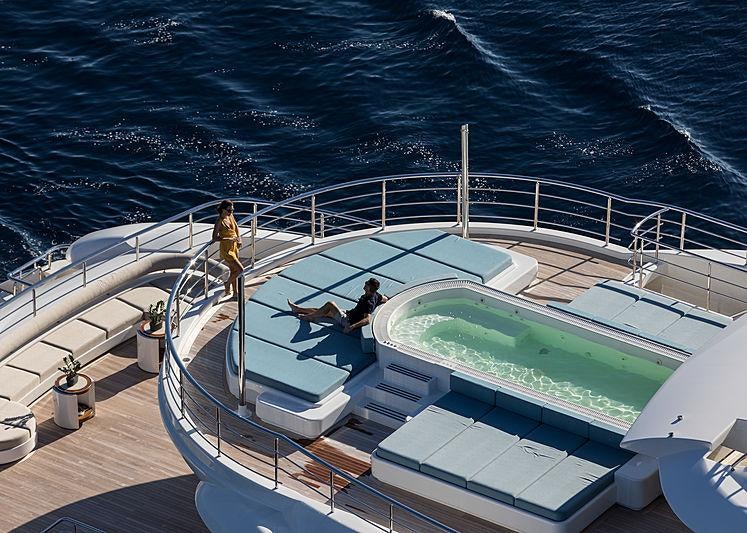

Jacuzzi
-
Gym
-
Steam Room
-
Helipad
-
Fishing Equipment
-
Personal Watercraft
-
Stabilizers
-
Wi-Fi
-
Elevator
-
Crane
In The News
Specifications
| Builder | Golden Yachts |
|---|---|
| Model | Custom |
| Length (LOA) | 278' 8" (85m) |
| Year | 2018 |
| Year Refit | 2024 |
| Gross Tonn. | 2,342 |
| Draft | 11' 8" (3.6m) |
| Beam | 45' 3" (13.8m) |
| Range | 10,015 NM |
| Location | None, Greece |
| Classification | Bureau Veritas |
Accommodations
| Staterooms | 10 |
|---|---|
| Single Cabins | 1 |
| Twin Cabins | 2 |
| Double Cabins | 8 |
| Crew Sleeps | 29 |
|---|
Dimensions & Capacity
| LOA | 278' 8" (85m) |
|---|---|
| LWL | 241' 7" (73.7m) |
| Max Draft | 11' 8" (3.6m) |
| Fuel Tank | 76,193 g (288,420 L) |
| Fresh Water | 17,309 g (65,520 L) |
| Holding Tank | 1,566 g (5,930 L) |
| Gross Tonn. | 2,342 |
Construction
| Hull Material | Steel |
|---|---|
| Hull Config | Displacement |
| Ext. Designer | Vafiadis |
| Int. Designer | Vafiadis |
| Max Speed | 19 Knots |
| Cruising Speed | 16 Knots |
| Range | 10,015 NM |
Complete the form below and one of our experienced sales brokers will be in touch soon.
Full Details
Other Machinery
- 2 x Navalprom, Italy, 17-4ph steel propeller shafts.Diameter 180mm approx. Fully machined H8. One side with propeller cone for keyless attachment, bronze propeller nut and plastic streamline cap, the other side cylindrical for hydraulic coupling. 2 x 17-4ph steel intermediate shafts fully machined. Diameter 180mm approx. One side with coupling flange cone for keyless attachment and coupling flange nut, the other side cylindrical for hydraulic coupling. 2 x Steel 39NICRMO3 coupling flanges for keyless fitting between thrust shafts and gear boxes, included 42CRMO4 non-fitted bolts.
- 2 x Navalprom, Italy, D180mm prop. shaft seals to be installed on the forward face of the stern tube, bronze housing, oil reservoir, hoses, greasers.
- 2 x Propeller bracket boss water lubricated D180mm. Shaft bearings by Orkot. 4 x Stern tube water lubricated D180mm shaft bearings by Orkot.
- 2 x Shaffran, Germany, nickel-aluminium-bronze-CU3. Diameter 2,400mm, 5 blades, 1 x right and 1 x left turning. Tolerances acc. ISO 484/2-1981 class ‘S’
- 12.5 knots economical speed @ 360 litres / hr 16 knots cruising speed @ 460 litres / hr20 knots max speed @ 1150 litres / hr
- 10,015nm at 12.5 knots5,016nm at 20 knots
- Double shore connection panel (A/C/MSB) 2x250A with capability of uninterruptible connection with the shore power. Double shore connection cable. Two isolation transformers 175KVA.Shoreground isolation via special galvanic isolators.
- 1X100A battery charger with battery isolator for MEs starting battery packs.
- 1 x 75a battery charger with battery isolator for
- AES starting battery packs.
- 1x50A battery charger with battery isolator for Emergency generator starting battery packs maker Mastervolt, Holland.
- Wills Ridley LTD, UK, Torque 23000nm, rudder angle35DEG, steering time 28 sec.
- Nautosteer as system maker Anschuetz, Germany.Nautopilot 5100, Anschuetz, Germany. Speed adaptive: quick tune via 5 individual configurable parameter sets, approved as heading control system, approved as heading control system for high-speed crafts.
- Wills Ridley LTD, UK, 3 x Wheelhouse, 1 x Local
- Naiad maker, USA, 300KW double propeller electrical bow thruster, diameter 1000mm.
- Racor-P arker, USA
- Fuel separator 1x Alfa Laval, Sweden, MAB 104, 1850 ltr/hr at dist. fuel 1,5-5,6CST CST/40°C.
- Stainless steel (technical spaces, E.R and Geberit or Blucher (accommodation areas)Sewage treatment system Triton, EC65 daily Capacity 6500lt/day. EVAC system, Finland, vacuum toilets 910 prestige With automatic operated top-toto 912 models, with control mechanism on wall. 2pcs online vacuummerator, and 2pcs complete sets evac 912 toto aquaplus washlet toilets for special suites and cabins.2 x pumps Gianneschi MVI100, Italy, 230/400v TR. HZ50 1,5KW single screw in s/steel AISI 316, universal joint and motor shaft in s/steel AISI 316. 1 x pump Gianneschi, Italy, ACB 431/B 230/400v 50Hz T 2,2kW 1500RPM, self-priming pump with body pump and impeller in bronze, shaft in s/steel AISI 316.
- Cupronickel with flanged connections, bronzed/stainless steel fitting and valves. Maker Guidi, Italy. 1 x Pump Gianneschi, Italy, ACG 65-227/A/B KW25 400/690V 50Hz 2P, self priming pump with body pump/diffuser in bronze, centrifugal impeller in bronze, helicoidally impeller in al-bronze, shaft, in s/steel AISI 316.Bilge oil water separator Poseidon Evo 2.5 with capacity 2.5 M3/H.
- 1 x Pump Gianneschi, Italy, ACG 65-247/A/B KW30 400/690V 50HZ 2900RPM, self priming pump with body pump/diffuser in bronze, centrifugal impeller in bronze, helicoidally impeller in al-bronze, shaft in s/steel AISI 316.BOILERS2 x Boiler Gianneschi, Italy, Boiler 500 LT VE 3x12KW V400 3P
- Triton EC 65 EPE, Greece, treatment 6500lt/day (part of black & grey water system above)
- 2 x OnlineVac 52 EVAC, Finland (part of black & grey water system above)
- Stainless steel network, bronzed/stainless steel fittings and valves. Network made of stainless steel or carbon steel (hull)and aluminium (superstructure) with flanged/welded connections and stainless steel fitting where needed.
- Air compressor Ceccato, Italy, CSM 4 D, 200 LIT/MIN fad at 10 bar, 10 bar max. 4HP, 61 DB, dry version. With dryer and line filter.
Accommodation

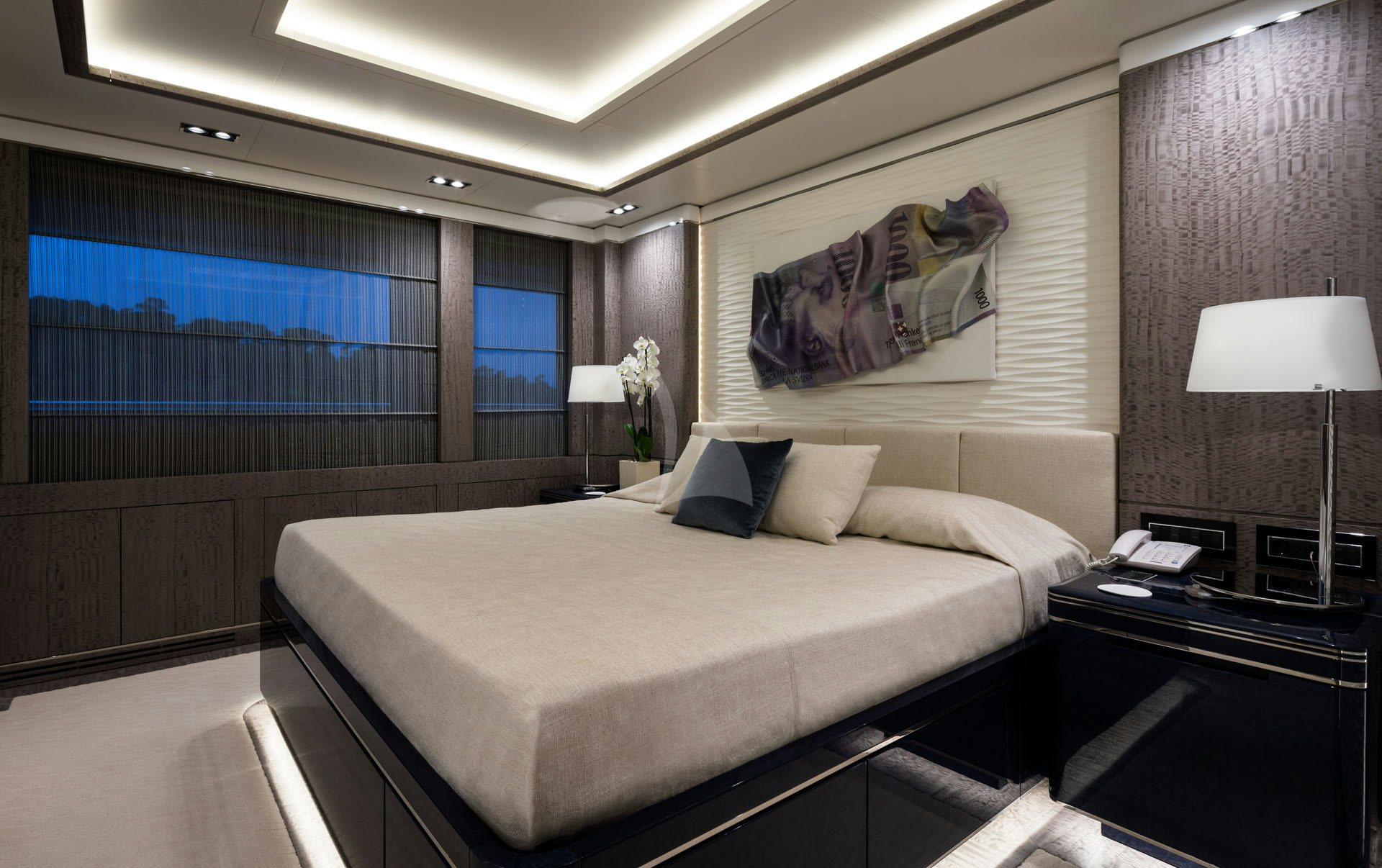

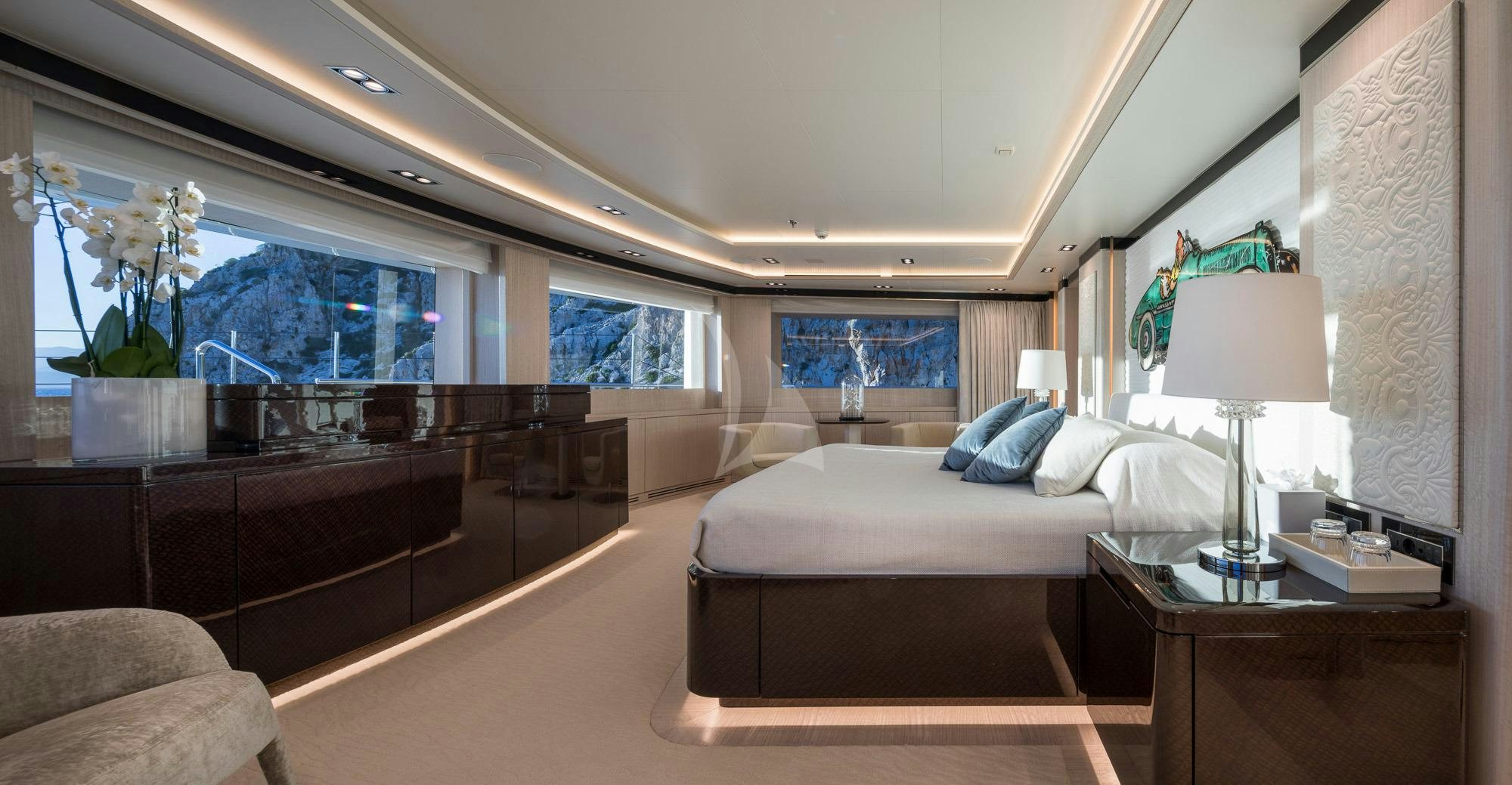

- Owner’s suite is located on the upper deck forward with a king size bed, seating areas, a generously sized en suite bathroom and a private foyer which connects the master cabin with a large walk in closet.
- 2 x double cabins on the upper deck with queen size beds and en suite bathrooms.

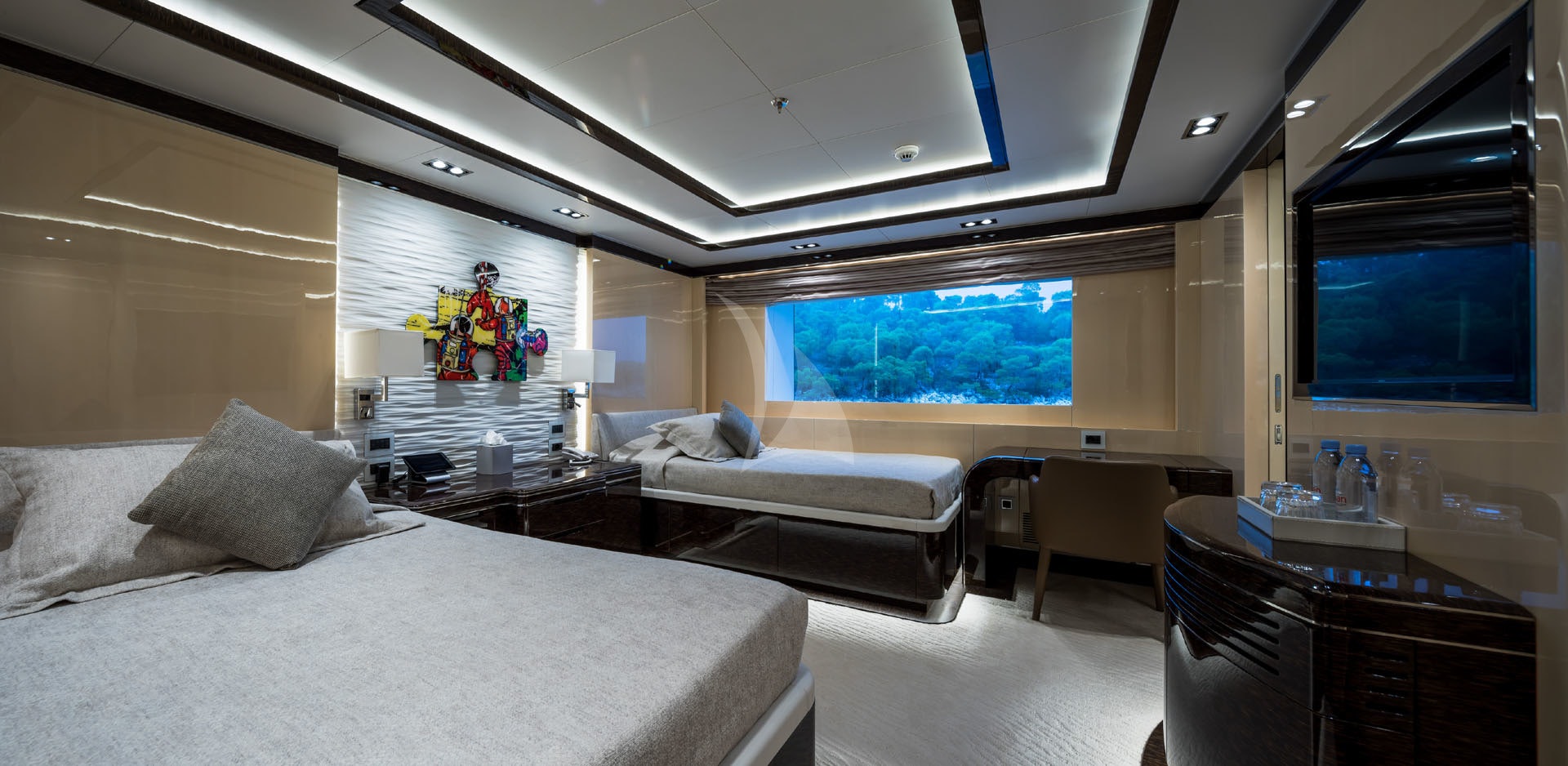

- 1 x twin cabin on the upper deck with en suite bathroom and pullman berth
- 1 x VIP cabin on the main deck forward with king bed, TV lounge, his and hers walk in wardrobes and a generously sized en suite bathroom.
- 2 x Double guest cabins on the main deck with queen sized beds and en suite bathrooms.
- 2 x Double/Twin cabins on the main deck with en suite bathrooms
- 1 x twin cabin on the main deck with en suite bathroom and a pullman berth
- 1 x Twin / hospital cabin with a pullman berth in the lower deck with en suite bathroom
- 30 crew in 17 cabins
Galley & Laundry Equipment
- 1x MKN electric combi steamer, capacity6x1/1GN, equipped with 6 types of cooking, soft steaming, steaming, express steaming, convection, combisteaming and regeneration.
- 1 x Aluminox electric deep fat fryer, 1 oil basin, 17lt capacity. Heavy duty model in stainless steel.
- 1 x Aluminox electric griddle, Heavy duty model in stainless steel. Temperature controls by thermostats 50-350°c.
- 1 x static oven.
- 1 x Aluminox electric range in stainless steel.
- 1x Electric induction range.
- 1 x Riga electric surface induction range. Made in stainless steel.
- 1x drop in heated plate dispenser.
- 1 x dish and glasswasher machine tank capacity 68lt and boiler 13.5lt made of stainless steel.
- 1 x food waste disposer disperator with capacity 100kgr/hr.
- 1 x Aluminox freezer operating temperature -0°c to18°c.
- 2 x Aluminox refrigerator operating temperature -0°c to +5°c.
- 1 x Lavamac professional washer
- 1 x Lavamac professional tumble dryer
- 1 x Lavamac flatwork ironer 140cm roller length
- 1 x Venus 110 professional vacuum ironing table.
- 1 x Nespresso professional coffeemaker
- 1 x Siemens freezer GS36NVI30
- 1 x Siemens refrigerator KS36VVI30
- 1 x icemaker Brema, Italy
- 1 x icemaker ISOTHERM1 x fridge mini bar
- 1 x icemaker Brema, Italy
- 1 x dishwasher Aluminox, Greece
- 2 x Hoover, HWCA 2335, mini wine cellars
- 1 x Siemens KS36VVI30
- 1 x icemaker Brema, Italy
- 1 x dishwasher Aluminox, Greece
- 2 x Hoover, HWCA 2335, mini wine cellars
- 1 x Siemens KS36VVI30
- 1 x icemaker Brema, Italy
- 1 x dishwasher Aluminox, Greece
- 2 x Hoover, HWCA 2335, mini wine cellars
- 1 x Siemens KS36VVI30
Communication Equipment
- COBHAM SAILOR, UK, 1 x VSAT Sailor V-900
- COBHAM SAILOR, UK, 1 x FleetBroadBand
- COBHAM SAILOR FBB-250
- 2 x 4G/LTE Modems with 3 antennas, capable for up to 3 simultaneous links, (Custom-made, MARPOINT, GREECE)
- Full GMDSS equipment Wartsila Sam Electronics,MF/HF radio telephone Sailor 63102x VHF radio telephone Sailor 6222 2x Inmarsat C Sailor 6110SSAS SSA 6120GMDSS power supply, dual power 230V AC. Furthermore, including satellite EPIRB AUT., safelinks
- AIS SART, VHF handheld, VHF Airband handheld.EPRIB Kannad Marine, UK, distress alert table.
- BNWAS, Wartsila Sam Electronics
- Wartsila Sam Electronics, 2918 NAVTEX Receiver
- Integrated PABX/talk back system, Zenitel ACM- M-D-V2
- Zenitel batteryless telephone x 6 areas (wheelhouse,ECRC, E/R, steering room, bow thruster, emergency generator).
- ICOM handhelds, Japan.
Navigation Equipment
- Nacos Platinum Navigation System maker Wartsila SAM Electronics, Germany, merging of automation and navigation system onto a common ethernet network. This would enable upgrading of all or selected PC workstations to multifunctional workstations providing E.G. common alarm handling, harmonized human machine interface (HMI), seamless application switching between the included automation and navigation applications. Independent operation of both systems is possible if integration is not desired. Designed according to the existing IMO standards for radar, ECDIS and track keeping systems as well as the upcoming INS and IBS performance standards.
- 3 x Workstation multipilot platinum1x Workstation multipilot platinum for ECDIS system Radar antenna 1st 14 ft s-band transmitting power 30 KWRadar antenna 2nd 5 ft x-band transmitting power 25KW Automatic Identification System (A.I.S.) R5Supreme Speed log EM log SAM 4642Echosounder 1st NES 4610, 50 KHZEchosounder 2nd NES 4610, 200 KHZ2 x GPS / DGPS SAAB R5 Wind Station Lambrecht
- Bridge/Qatch Alarm System BNWAS basicNight vision camera control panel (FLIR M series).
- Peters & Bey, Germany, system with remote service capability through the web.
Entertainment Equipment
- films, video and music, accessible from all zones of the yacht. Dual controls’ automation system of audio-video equipment, lights, curtains and air conditioning is offered through wall-mounted fixed touch panels and iPad, while personal iPhone or iPad of guests can be connected to the audio-video system. New generation, high-definition TVs are featured in the salons and all cabins. Remote service capability through the web. Multiroom audio distribution system for 29 zones, each with independent air play, Bluetooth, internet radio, Spotify and simultaneously streaming music from music server for each zone. Alternatively you can choose to listen to: tune in
- radio, Pandora, Sirius XM, Deezer, Napster. Indoor & outdoor speakers and soundbars cover almost every area. Music selection can be made by dedicated mini iPads that are located in every cabin. Guests can connect their iPhone / iPad / Android to the AV system for complete personalized entertainment. In total 18 TV’s from 32’ up to 84’ are installed. Master suite, VIP suite and salons have dedicated home cinema amplifiers for total 5.1 movies experience. Additionally, outdoor cinema in the sun deck area. Dedicated media players, satellite receivers, Apple TV players are connected to the cinema amplifiers. Each area can watch independently at the same time movies, satellite tv or steaming media. A 16x16 digital media system is installed distributing images to the rest of the TV’s located in all other areas. Each tv can choose from satellite receivers, media players, local tv channels, Apple tv, media player, Blue-ray player and local inputs for connecting video cameras or gaming consoles etc. The movies server contains 1450+ movies. TV control is made by dedicated mini iPads that are located in every area with custom graphical user interface that has shortcuts for easy selection between movies server, sports channels, news channels and movie channels.
- As accommodation areas.
- TV with terrestrial antenna and car audio system.
- As accommodation areas.
- Only audio through wall-mounted fixed touch panels.
- 2 x HP laptops
- 1 x HP printer, 3G/SAT fax
Tenders & Toys
- 1 x custom Limo tender, LOA 9.75m, with 2 x Volvo Penta D3, 440HP engines.
- 1 x Chris Craft launch 27, LOA 8.13m, with Mercury V8 6.2L.1
- x Novurania catamaran 20, LOA 6m with Yamaha diesel outboard engine 115hp.
- 1 x Avon 4.40m tender with Yamaha outboard engine 60HP.
- 1 x Zodiac SOLAS 450 rescue boat with Yamaha outboard engine F25g SOLAS.
- Various scuba diving equipment
- Snorkelling equipment
- Waterski Equipment
- Fishing equipment
- 4 x Seabobs F5
- 2 x Sea-Doo
- 1 x Sea-Doo Spark
- Various inflatable water toys
- 2 x electronic bikes
- 1 x Bike leader safari
- Kayaks
Deck Equipment
- Model MTHW-10/32, 2 x INOX mirror polished anchor windlasses, 30KW, chain size 32mm. Continuous max pull 100kn at 10m/min. Brake holding load 100 kn. Planetary gear box ET-3250 FE. Variable displacement piston motor no 2. Double power unit. anchor windlass, maker M.T.LTD, automatic mechanical applications.
- Port and starboard MTWC-3 INOX mirror polished capstans, 22KW, maximum continuous pull 80kn at 15m/min, max speed 20kn at 30m/min. Variable displacement piston motor 2pcs. Double power unit. Capstans, maker M.T.LTD, automatic mechanical applications.
- Posidonia maker, Italy, anchors, 2x 1200kg HHP PTW+ ® anchor, fully balanced, φ32mm/U3.
- 1 x Hydromar maker, Holland, SOLAS approved crane of 1 ton capacity, situated on the FW at STB side. 1 x Hydromar maker, Holland, non SOLAS approved. 1 ton capacity fitted on FW at port side.
- 1 x Hydromar maker, Holland. SSL-2-1800-4000, 1pc x LIFT 4 ton capacity. Extension 1500mm. Hydraulic movement 7.5KW. Material ST52.
- Hydromar maker, Holland, SW5-SL-T- 10 high European standards, length ~10m, placed on the aft port side, rotational 40°l. SWL 250KG. Up movement 15°, slewing movement standard 45° PS, 45° STB. Teak walking steps and platform. Width of smallest part 800mm with width of teak 625mm. Material ST 316L. Passerelle frame material aluminium. Material cylinder ST 316L. Max deflection 180mm at maximum length with SWL at the end of the passerelle.
- Hydromar maker, Holland, SST-P-3-SL-13 lowering accommodation ladder with length ~6,400m, width ~700mm. Scale height 3000mm. Hydraulic system 7.5KW. Construction material INOX 316. Teak laid stairs. Rotational 90ºL, high European standards.
- Hydromar maker SSW-3-9 teak covered steps and platform, driving in and out of the trunk. Topping up and down for total 80°. Moving direction ~55° downwards and ~25° upwards. Stairway frame material AISI 316. With closing hatch. Fully hydraulic gangway of about 9 steps on 4m x 2m wide bottom plate platform and stainless steel handrails. Stronger construction for embarkation facilities
- Sanshin Electric maker, Japan, 1 x HRX-300, 2 x controls
- 2 x Pillars, NG Waterjet, GREECE.
- Max take-off weight of 2.6ton for helicopters with landing skids or wheels.
Safety & Security Equipment
- Fully equipped according to life safety plan
- Fully equipped with medicalequipment/pharmacy to bridge area, crew area, passenger’s area and on garage area for tenders.
- Marioff maker, fire fighting system, Finland, total system covering all the yacht full complement of SOLAS approved. Equipped with EPU 4+1 pump unit. Maximum flow 362 L/min, maximum system pressure 110 bar.
- Maker Minimax, Germany, CO2 flood fixed fire fighting system in engine room. Maximum system pressure 250 bar. Maximum flow 700 L/min.
- Tyco maker, USA, addressable (IP) fire detection system based on smoke, heat and gas sensors throughout the vessel. Dual power system. Main monitoring station in wheelhouse, AUX monitoring station in engine control room. Gas detectors in garage spaces.
- Zenitel, Belgium, CCTV system to be consisting of 12 IP cameras, monitor 19”, central monitoring station on bridge, AUX monitoring stations on ship's office, crew mess and engine control room
Refit History
- Hull repaint
- 5-year survey advance work including shafts pulled and inspected
- New carpets Sky Lounge
- AV/IT upgrades
- Shell door upgraded •Exhaust re-directed out of water
- Various ongoing mechanical and systems checks and maintenance per cycle
- Full repaint of superstructure.
- Upholstery replaced where required.
- New carpet on main salon area
- Upgrade in bathrooms.
- Upgrade on crew corridor floor.
- Polishing of all marbles.
- Updated movie list.
- Annual maintenance of engines and generators.
- Installation of a dedicated 1.6mm filter for sea chest of M.E. and auxiliary
- Overhauling of PS stabiliser and new seals for STB stabilizer
- Upgraded echo sounder on bow
- Upgrade on heat exchangers of M.E.
- Drydock, new antifouling paint.
Full Details
Other Machinery
- 2 x Navalprom, Italy, 17-4ph steel propeller shafts.Diameter 180mm approx. Fully machined H8. One side with propeller cone for keyless attachment, bronze propeller nut and plastic streamline cap, the other side cylindrical for hydraulic coupling. 2 x 17-4ph steel intermediate shafts fully machined. Diameter 180mm approx. One side with coupling flange cone for keyless attachment and coupling flange nut, the other side cylindrical for hydraulic coupling. 2 x Steel 39NICRMO3 coupling flanges for keyless fitting between thrust shafts and gear boxes, included 42CRMO4 non-fitted bolts.
- 2 x Navalprom, Italy, D180mm prop. shaft seals to be installed on the forward face of the stern tube, bronze housing, oil reservoir, hoses, greasers.
- 2 x Propeller bracket boss water lubricated D180mm. Shaft bearings by Orkot. 4 x Stern tube water lubricated D180mm shaft bearings by Orkot.
- 2 x Shaffran, Germany, nickel-aluminium-bronze-CU3. Diameter 2,400mm, 5 blades, 1 x right and 1 x left turning. Tolerances acc. ISO 484/2-1981 class ‘S’
- 12.5 knots economical speed @ 360 litres / hr 16 knots cruising speed @ 460 litres / hr20 knots max speed @ 1150 litres / hr
- 10,015nm at 12.5 knots5,016nm at 20 knots
- Double shore connection panel (A/C/MSB) 2x250A with capability of uninterruptible connection with the shore power. Double shore connection cable. Two isolation transformers 175KVA.Shoreground isolation via special galvanic isolators.
- 1X100A battery charger with battery isolator for MEs starting battery packs.
- 1 x 75a battery charger with battery isolator for
- AES starting battery packs.
- 1x50A battery charger with battery isolator for Emergency generator starting battery packs maker Mastervolt, Holland.
- Wills Ridley LTD, UK, Torque 23000nm, rudder angle35DEG, steering time 28 sec.
- Nautosteer as system maker Anschuetz, Germany.Nautopilot 5100, Anschuetz, Germany. Speed adaptive: quick tune via 5 individual configurable parameter sets, approved as heading control system, approved as heading control system for high-speed crafts.
- Wills Ridley LTD, UK, 3 x Wheelhouse, 1 x Local
- Naiad maker, USA, 300KW double propeller electrical bow thruster, diameter 1000mm.
- Racor-P arker, USA
- Fuel separator 1x Alfa Laval, Sweden, MAB 104, 1850 ltr/hr at dist. fuel 1,5-5,6CST CST/40°C.
- Stainless steel (technical spaces, E.R and Geberit or Blucher (accommodation areas)Sewage treatment system Triton, EC65 daily Capacity 6500lt/day. EVAC system, Finland, vacuum toilets 910 prestige With automatic operated top-toto 912 models, with control mechanism on wall. 2pcs online vacuummerator, and 2pcs complete sets evac 912 toto aquaplus washlet toilets for special suites and cabins.2 x pumps Gianneschi MVI100, Italy, 230/400v TR. HZ50 1,5KW single screw in s/steel AISI 316, universal joint and motor shaft in s/steel AISI 316. 1 x pump Gianneschi, Italy, ACB 431/B 230/400v 50Hz T 2,2kW 1500RPM, self-priming pump with body pump and impeller in bronze, shaft in s/steel AISI 316.
- Cupronickel with flanged connections, bronzed/stainless steel fitting and valves. Maker Guidi, Italy. 1 x Pump Gianneschi, Italy, ACG 65-227/A/B KW25 400/690V 50Hz 2P, self priming pump with body pump/diffuser in bronze, centrifugal impeller in bronze, helicoidally impeller in al-bronze, shaft, in s/steel AISI 316.Bilge oil water separator Poseidon Evo 2.5 with capacity 2.5 M3/H.
- 1 x Pump Gianneschi, Italy, ACG 65-247/A/B KW30 400/690V 50HZ 2900RPM, self priming pump with body pump/diffuser in bronze, centrifugal impeller in bronze, helicoidally impeller in al-bronze, shaft in s/steel AISI 316.BOILERS2 x Boiler Gianneschi, Italy, Boiler 500 LT VE 3x12KW V400 3P
- Triton EC 65 EPE, Greece, treatment 6500lt/day (part of black & grey water system above)
- 2 x OnlineVac 52 EVAC, Finland (part of black & grey water system above)
- Stainless steel network, bronzed/stainless steel fittings and valves. Network made of stainless steel or carbon steel (hull)and aluminium (superstructure) with flanged/welded connections and stainless steel fitting where needed.
- Air compressor Ceccato, Italy, CSM 4 D, 200 LIT/MIN fad at 10 bar, 10 bar max. 4HP, 61 DB, dry version. With dryer and line filter.
Accommodation
- Owner’s suite is located on the upper deck forward with a king size bed, seating areas, a generously sized en suite bathroom and a private foyer which connects the master cabin with a large walk in closet.
- 2 x double cabins on the upper deck with queen size beds and en suite bathrooms.
- 1 x twin cabin on the upper deck with en suite bathroom and pullman berth
- 1 x VIP cabin on the main deck forward with king bed, TV lounge, his and hers walk in wardrobes and a generously sized en suite bathroom.
- 2 x Double guest cabins on the main deck with queen sized beds and en suite bathrooms.
- 2 x Double/Twin cabins on the main deck with en suite bathrooms
- 1 x twin cabin on the main deck with en suite bathroom and a pullman berth
- 1 x Twin / hospital cabin with a pullman berth in the lower deck with en suite bathroom
- 30 crew in 17 cabins
Galley & Laundry Equipment
- 1x MKN electric combi steamer, capacity6x1/1GN, equipped with 6 types of cooking, soft steaming, steaming, express steaming, convection, combisteaming and regeneration.
- 1 x Aluminox electric deep fat fryer, 1 oil basin, 17lt capacity. Heavy duty model in stainless steel.
- 1 x Aluminox electric griddle, Heavy duty model in stainless steel. Temperature controls by thermostats 50-350°c.
- 1 x static oven.
- 1 x Aluminox electric range in stainless steel.
- 1x Electric induction range.
- 1 x Riga electric surface induction range. Made in stainless steel.
- 1x drop in heated plate dispenser.
- 1 x dish and glasswasher machine tank capacity 68lt and boiler 13.5lt made of stainless steel.
- 1 x food waste disposer disperator with capacity 100kgr/hr.
- 1 x Aluminox freezer operating temperature -0°c to18°c.
- 2 x Aluminox refrigerator operating temperature -0°c to +5°c.
- 1 x Lavamac professional washer
- 1 x Lavamac professional tumble dryer
- 1 x Lavamac flatwork ironer 140cm roller length
- 1 x Venus 110 professional vacuum ironing table.
- 1 x Nespresso professional coffeemaker
- 1 x Siemens freezer GS36NVI30
- 1 x Siemens refrigerator KS36VVI30
- 1 x icemaker Brema, Italy
- 1 x icemaker ISOTHERM1 x fridge mini bar
- 1 x icemaker Brema, Italy
- 1 x dishwasher Aluminox, Greece
- 2 x Hoover, HWCA 2335, mini wine cellars
- 1 x Siemens KS36VVI30
- 1 x icemaker Brema, Italy
- 1 x dishwasher Aluminox, Greece
- 2 x Hoover, HWCA 2335, mini wine cellars
- 1 x Siemens KS36VVI30
- 1 x icemaker Brema, Italy
- 1 x dishwasher Aluminox, Greece
- 2 x Hoover, HWCA 2335, mini wine cellars
- 1 x Siemens KS36VVI30
Communication Equipment
- COBHAM SAILOR, UK, 1 x VSAT Sailor V-900
- COBHAM SAILOR, UK, 1 x FleetBroadBand
- COBHAM SAILOR FBB-250
- 2 x 4G/LTE Modems with 3 antennas, capable for up to 3 simultaneous links, (Custom-made, MARPOINT, GREECE)
- Full GMDSS equipment Wartsila Sam Electronics,MF/HF radio telephone Sailor 63102x VHF radio telephone Sailor 6222 2x Inmarsat C Sailor 6110SSAS SSA 6120GMDSS power supply, dual power 230V AC. Furthermore, including satellite EPIRB AUT., safelinks
- AIS SART, VHF handheld, VHF Airband handheld.EPRIB Kannad Marine, UK, distress alert table.
- BNWAS, Wartsila Sam Electronics
- Wartsila Sam Electronics, 2918 NAVTEX Receiver
- Integrated PABX/talk back system, Zenitel ACM- M-D-V2
- Zenitel batteryless telephone x 6 areas (wheelhouse,ECRC, E/R, steering room, bow thruster, emergency generator).
- ICOM handhelds, Japan.
Navigation Equipment
- Nacos Platinum Navigation System maker Wartsila SAM Electronics, Germany, merging of automation and navigation system onto a common ethernet network. This would enable upgrading of all or selected PC workstations to multifunctional workstations providing E.G. common alarm handling, harmonized human machine interface (HMI), seamless application switching between the included automation and navigation applications. Independent operation of both systems is possible if integration is not desired. Designed according to the existing IMO standards for radar, ECDIS and track keeping systems as well as the upcoming INS and IBS performance standards.
- 3 x Workstation multipilot platinum1x Workstation multipilot platinum for ECDIS system Radar antenna 1st 14 ft s-band transmitting power 30 KWRadar antenna 2nd 5 ft x-band transmitting power 25KW Automatic Identification System (A.I.S.) R5Supreme Speed log EM log SAM 4642Echosounder 1st NES 4610, 50 KHZEchosounder 2nd NES 4610, 200 KHZ2 x GPS / DGPS SAAB R5 Wind Station Lambrecht
- Bridge/Qatch Alarm System BNWAS basicNight vision camera control panel (FLIR M series).
- Peters & Bey, Germany, system with remote service capability through the web.
Entertainment Equipment
- films, video and music, accessible from all zones of the yacht. Dual controls’ automation system of audio-video equipment, lights, curtains and air conditioning is offered through wall-mounted fixed touch panels and iPad, while personal iPhone or iPad of guests can be connected to the audio-video system. New generation, high-definition TVs are featured in the salons and all cabins. Remote service capability through the web. Multiroom audio distribution system for 29 zones, each with independent air play, Bluetooth, internet radio, Spotify and simultaneously streaming music from music server for each zone. Alternatively you can choose to listen to: tune in
- radio, Pandora, Sirius XM, Deezer, Napster. Indoor & outdoor speakers and soundbars cover almost every area. Music selection can be made by dedicated mini iPads that are located in every cabin. Guests can connect their iPhone / iPad / Android to the AV system for complete personalized entertainment. In total 18 TV’s from 32’ up to 84’ are installed. Master suite, VIP suite and salons have dedicated home cinema amplifiers for total 5.1 movies experience. Additionally, outdoor cinema in the sun deck area. Dedicated media players, satellite receivers, Apple TV players are connected to the cinema amplifiers. Each area can watch independently at the same time movies, satellite tv or steaming media. A 16x16 digital media system is installed distributing images to the rest of the TV’s located in all other areas. Each tv can choose from satellite receivers, media players, local tv channels, Apple tv, media player, Blue-ray player and local inputs for connecting video cameras or gaming consoles etc. The movies server contains 1450+ movies. TV control is made by dedicated mini iPads that are located in every area with custom graphical user interface that has shortcuts for easy selection between movies server, sports channels, news channels and movie channels.
- As accommodation areas.
- TV with terrestrial antenna and car audio system.
- As accommodation areas.
- Only audio through wall-mounted fixed touch panels.
- 2 x HP laptops
- 1 x HP printer, 3G/SAT fax
Tenders & Toys
- 1 x custom Limo tender, LOA 9.75m, with 2 x Volvo Penta D3, 440HP engines.
- 1 x Chris Craft launch 27, LOA 8.13m, with Mercury V8 6.2L.1
- x Novurania catamaran 20, LOA 6m with Yamaha diesel outboard engine 115hp.
- 1 x Avon 4.40m tender with Yamaha outboard engine 60HP.
- 1 x Zodiac SOLAS 450 rescue boat with Yamaha outboard engine F25g SOLAS.
- Various scuba diving equipment
- Snorkelling equipment
- Waterski Equipment
- Fishing equipment
- 4 x Seabobs F5
- 2 x Sea-Doo
- 1 x Sea-Doo Spark
- Various inflatable water toys
- 2 x electronic bikes
- 1 x Bike leader safari
- Kayaks
Deck Equipment
- Model MTHW-10/32, 2 x INOX mirror polished anchor windlasses, 30KW, chain size 32mm. Continuous max pull 100kn at 10m/min. Brake holding load 100 kn. Planetary gear box ET-3250 FE. Variable displacement piston motor no 2. Double power unit. anchor windlass, maker M.T.LTD, automatic mechanical applications.
- Port and starboard MTWC-3 INOX mirror polished capstans, 22KW, maximum continuous pull 80kn at 15m/min, max speed 20kn at 30m/min. Variable displacement piston motor 2pcs. Double power unit. Capstans, maker M.T.LTD, automatic mechanical applications.
- Posidonia maker, Italy, anchors, 2x 1200kg HHP PTW+ ® anchor, fully balanced, φ32mm/U3.
- 1 x Hydromar maker, Holland, SOLAS approved crane of 1 ton capacity, situated on the FW at STB side. 1 x Hydromar maker, Holland, non SOLAS approved. 1 ton capacity fitted on FW at port side.
- 1 x Hydromar maker, Holland. SSL-2-1800-4000, 1pc x LIFT 4 ton capacity. Extension 1500mm. Hydraulic movement 7.5KW. Material ST52.
- Hydromar maker, Holland, SW5-SL-T- 10 high European standards, length ~10m, placed on the aft port side, rotational 40°l. SWL 250KG. Up movement 15°, slewing movement standard 45° PS, 45° STB. Teak walking steps and platform. Width of smallest part 800mm with width of teak 625mm. Material ST 316L. Passerelle frame material aluminium. Material cylinder ST 316L. Max deflection 180mm at maximum length with SWL at the end of the passerelle.
- Hydromar maker, Holland, SST-P-3-SL-13 lowering accommodation ladder with length ~6,400m, width ~700mm. Scale height 3000mm. Hydraulic system 7.5KW. Construction material INOX 316. Teak laid stairs. Rotational 90ºL, high European standards.
- Hydromar maker SSW-3-9 teak covered steps and platform, driving in and out of the trunk. Topping up and down for total 80°. Moving direction ~55° downwards and ~25° upwards. Stairway frame material AISI 316. With closing hatch. Fully hydraulic gangway of about 9 steps on 4m x 2m wide bottom plate platform and stainless steel handrails. Stronger construction for embarkation facilities
- Sanshin Electric maker, Japan, 1 x HRX-300, 2 x controls
- 2 x Pillars, NG Waterjet, GREECE.
- Max take-off weight of 2.6ton for helicopters with landing skids or wheels.
Safety & Security Equipment
- Fully equipped according to life safety plan
- Fully equipped with medicalequipment/pharmacy to bridge area, crew area, passenger’s area and on garage area for tenders.
- Marioff maker, fire fighting system, Finland, total system covering all the yacht full complement of SOLAS approved. Equipped with EPU 4+1 pump unit. Maximum flow 362 L/min, maximum system pressure 110 bar.
- Maker Minimax, Germany, CO2 flood fixed fire fighting system in engine room. Maximum system pressure 250 bar. Maximum flow 700 L/min.
- Tyco maker, USA, addressable (IP) fire detection system based on smoke, heat and gas sensors throughout the vessel. Dual power system. Main monitoring station in wheelhouse, AUX monitoring station in engine control room. Gas detectors in garage spaces.
- Zenitel, Belgium, CCTV system to be consisting of 12 IP cameras, monitor 19”, central monitoring station on bridge, AUX monitoring stations on ship's office, crew mess and engine control room
Refit History
- Hull repaint
- 5-year survey advance work including shafts pulled and inspected
- New carpets Sky Lounge
- AV/IT upgrades
- Shell door upgraded •Exhaust re-directed out of water
- Various ongoing mechanical and systems checks and maintenance per cycle
- Full repaint of superstructure.
- Upholstery replaced where required.
- New carpet on main salon area
- Upgrade in bathrooms.
- Upgrade on crew corridor floor.
- Polishing of all marbles.
- Updated movie list.
- Annual maintenance of engines and generators.
- Installation of a dedicated 1.6mm filter for sea chest of M.E. and auxiliary
- Overhauling of PS stabiliser and new seals for STB stabilizer
- Upgraded echo sounder on bow
- Upgrade on heat exchangers of M.E.
- Drydock, new antifouling paint.
