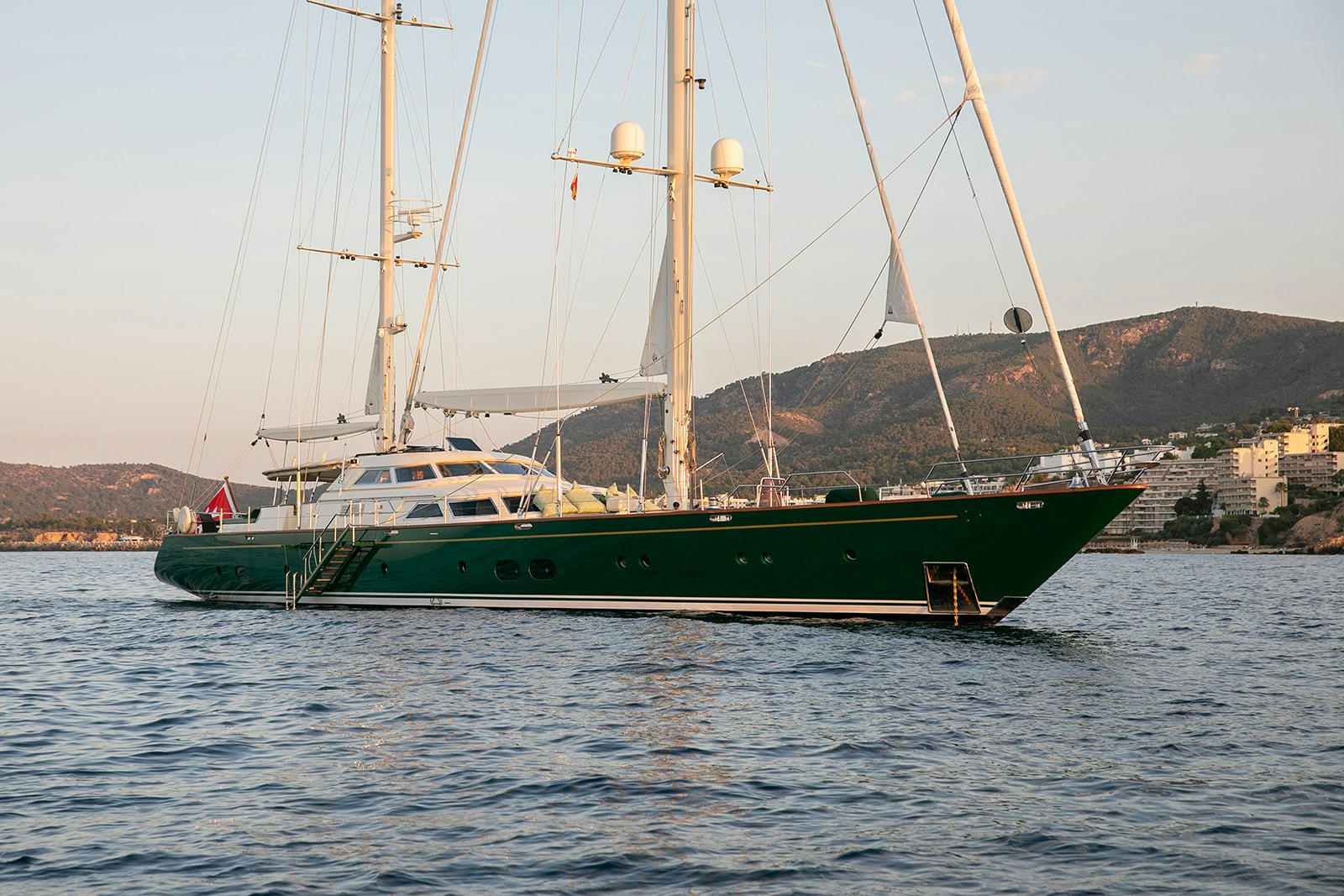

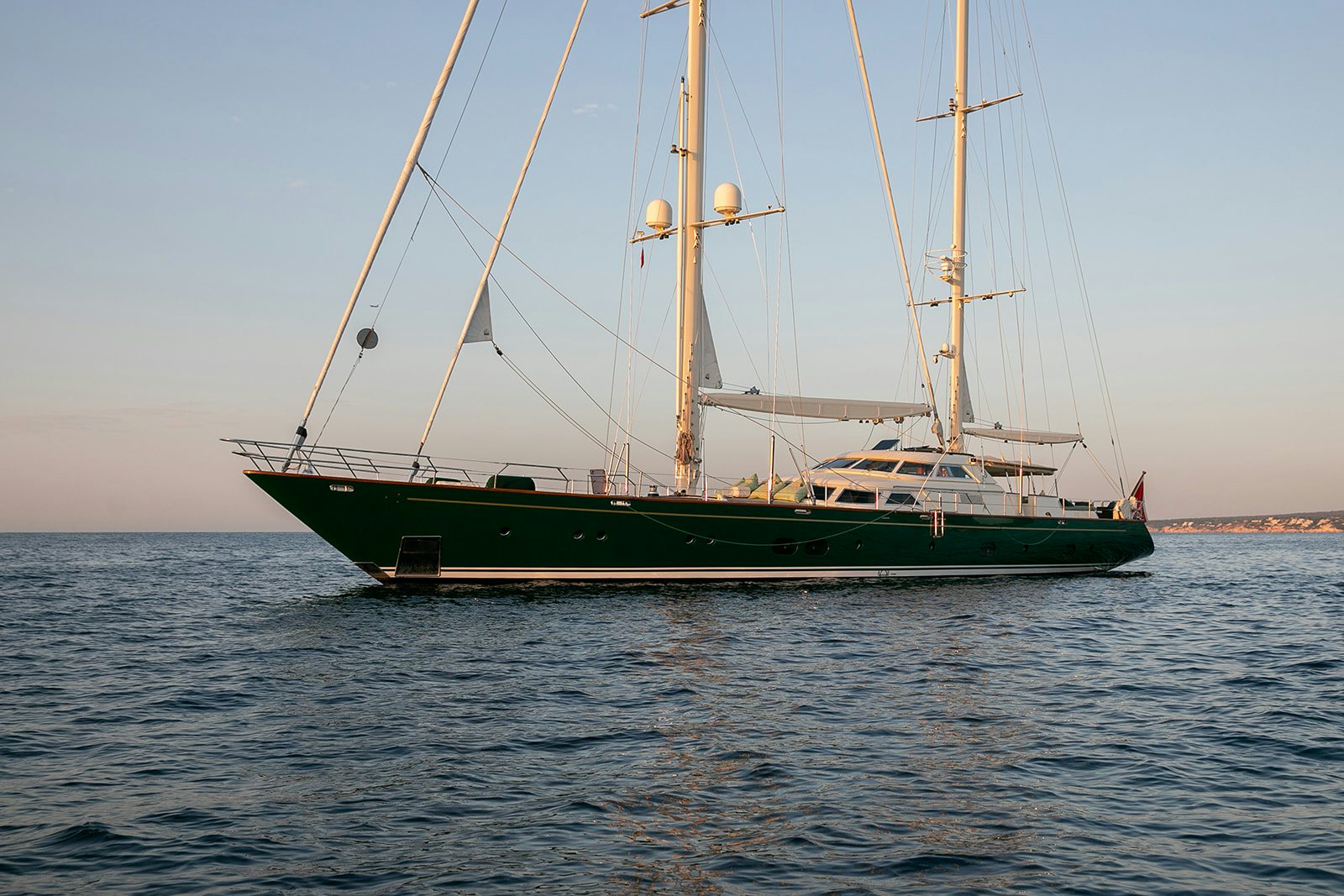

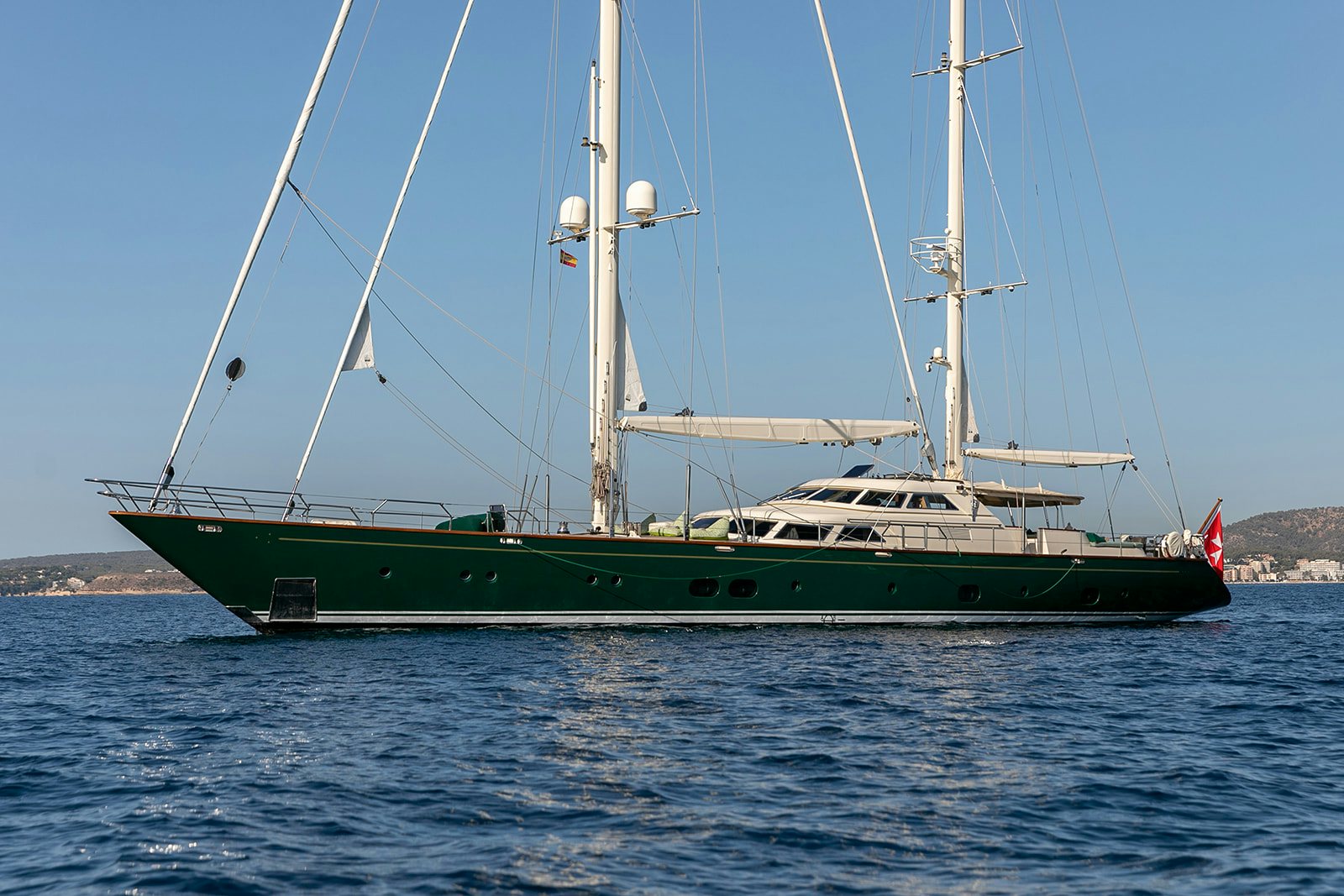

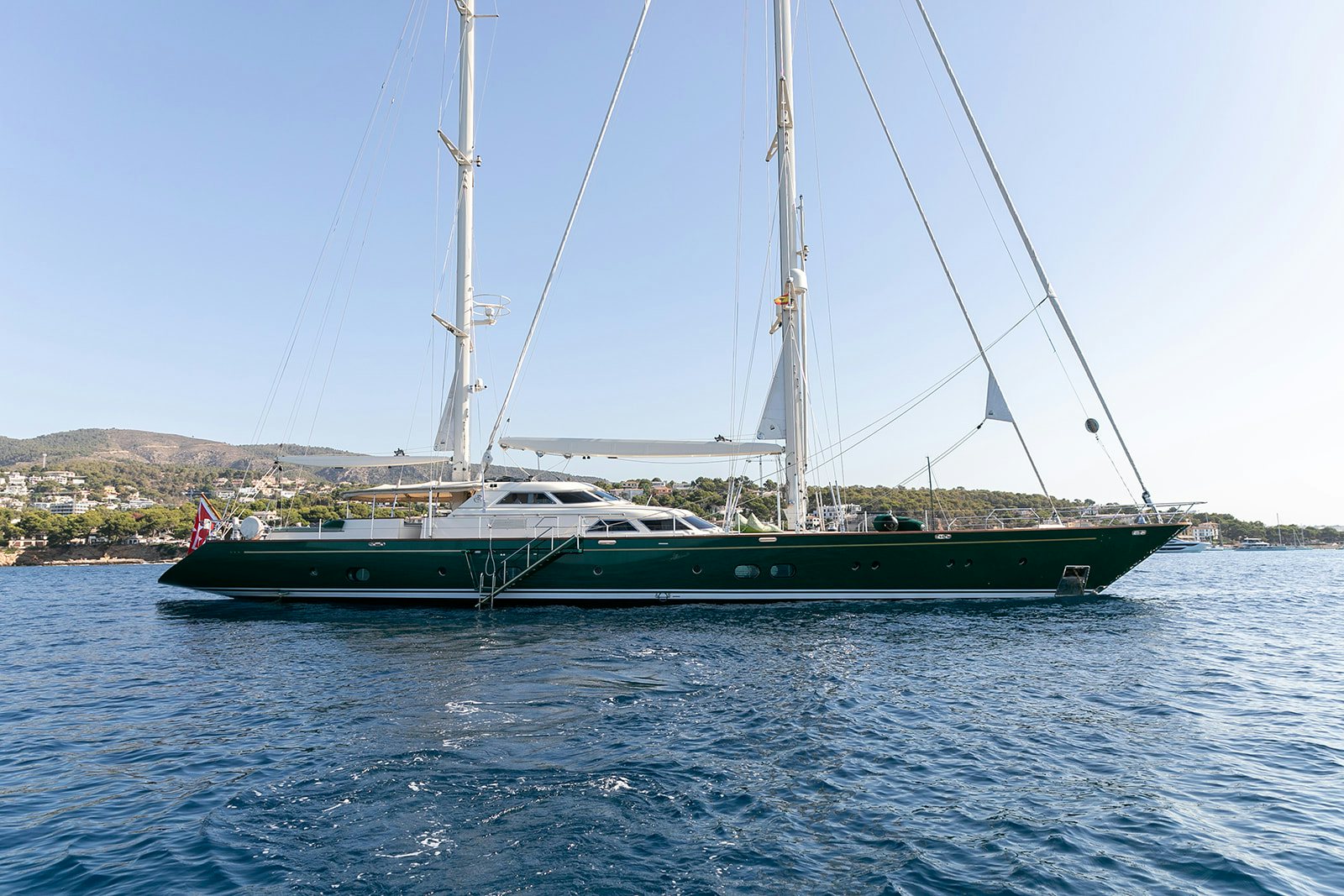

NORFOLK STAR Yacht for Sale

Length
121' (37m)
Builder
PERINI NAVI
Build
1996
Cabins
3
Crew
5

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Amenities

  • Wi-Fi

Specifications

Builder PERINI NAVI
Length (LOA) 121' (37m)
Year 1996
Gross Tonn. 164
Draft 21' (6.4m)
Beam 24' (7.52m)
Range 3,850 NM
Location France

Accommodations

Staterooms 3
Sleeps 6
Heads 4
Crew Cabins 5
Crew Sleeps 5
Capt. Quarters Yes

Dimensions & Capacity

LOA 121' (37m)
LWL 107' (32.5m)
Min Draft 11' (3.2m)
Max Draft 21' (6.4m)
Fuel Tank 5,168 g (19,563 L)
Fresh Water 1,876 g (7,100 L)
Gross Tonn. 164
Displacement 236

Construction

Hull Material Steel
Cruising Speed 11 Knots
Range 3,850 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • HOT WATER: 160 litres (42.3 US gallons)
  • WATERMAKERS: 250 litres (66.05 US gallons)
  • LUBE OIL: 599 litres (158.3 US gallons)
  • DIRTY LUBE OIL: 599 litres (158.3 US gallons)
  • GREY/BLACK WATER: 1,424 litres (376.2 US gallons)
  • BILGE WATER: 1086 litres (286.89 US gallons)
  • RUDDER: Perini Navi
  • RUDDER ANGLE INDICATOR: Perini Navi
  • BOW: Schottel 30kva
  • FUEL SEPARATOR: Alfa Laval MIB 303S-13
  • FUEL TRANSFER FILL & PUMP: 1 x G&R RACB1302 fuel transfer pump
  • HOT WATER BOILERS: 2 x Gianneschi 80 Lt. hot water boilers
  • WC's: Evac Vacuum Flush
  • COMPRESSED AIR SYSTEM: 1x Inersol Rand
  • AIR HORN: Yes

DROP-KEEL:

  • Yes - Perini Navi
  • 3.20 m. keel up.
  • 6.40 m keel down

FUEL FILTERS

  • Volvo fuel filter (3825133-6)
  • Parker Fuel Water Separator M03637

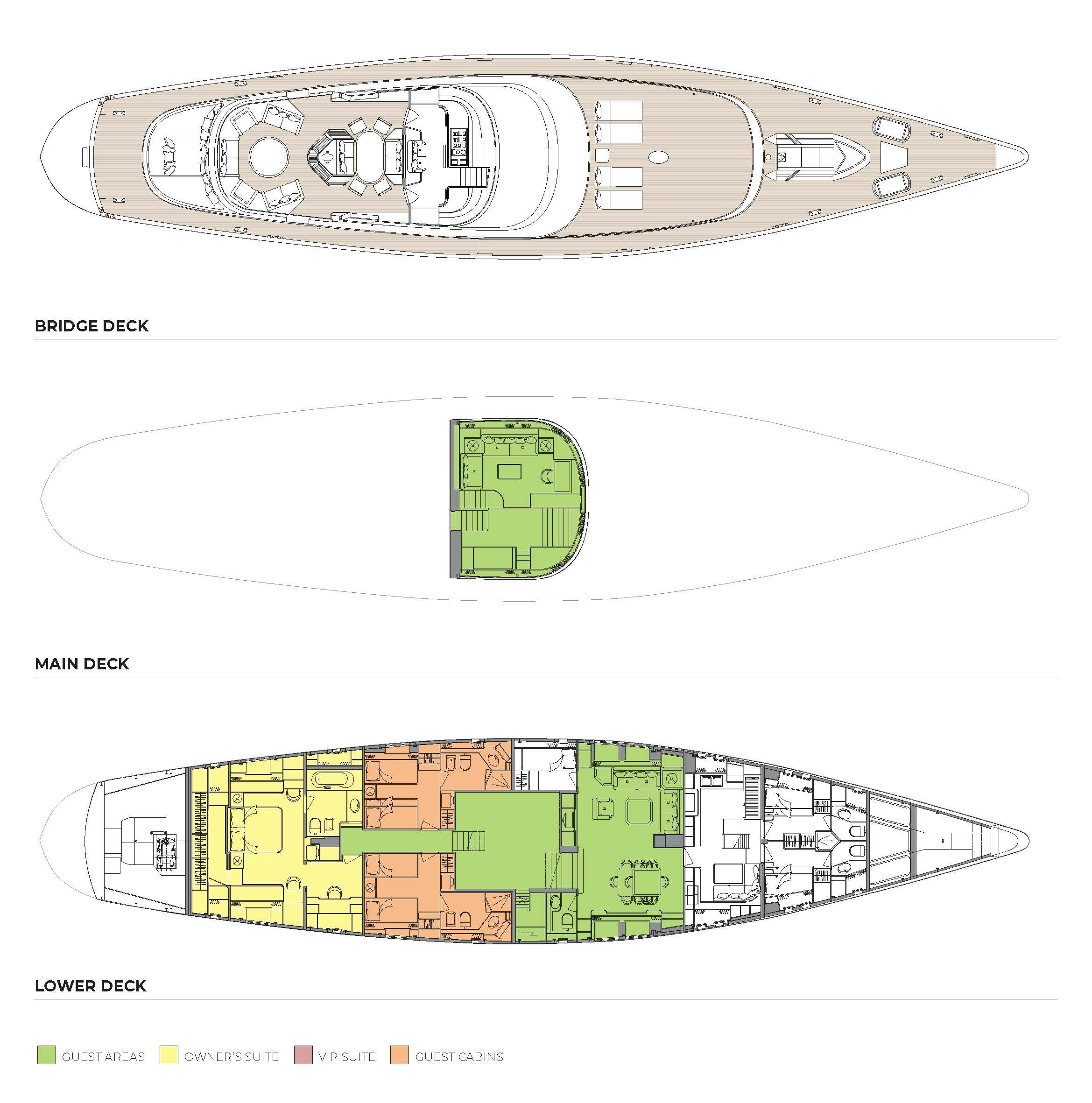

Accommodation

  • Accommodation for 6 guests in 3 cabins

OWNER

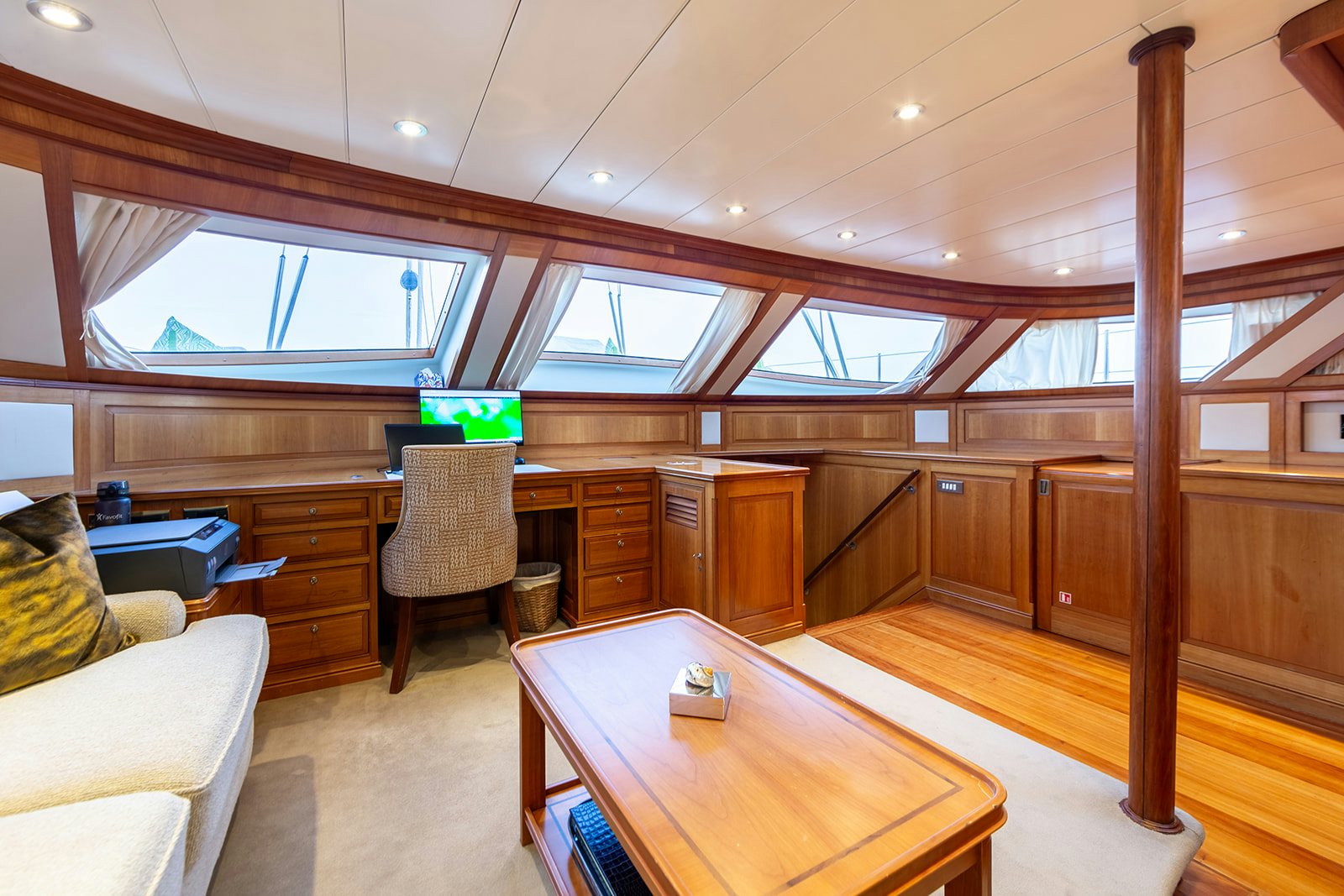

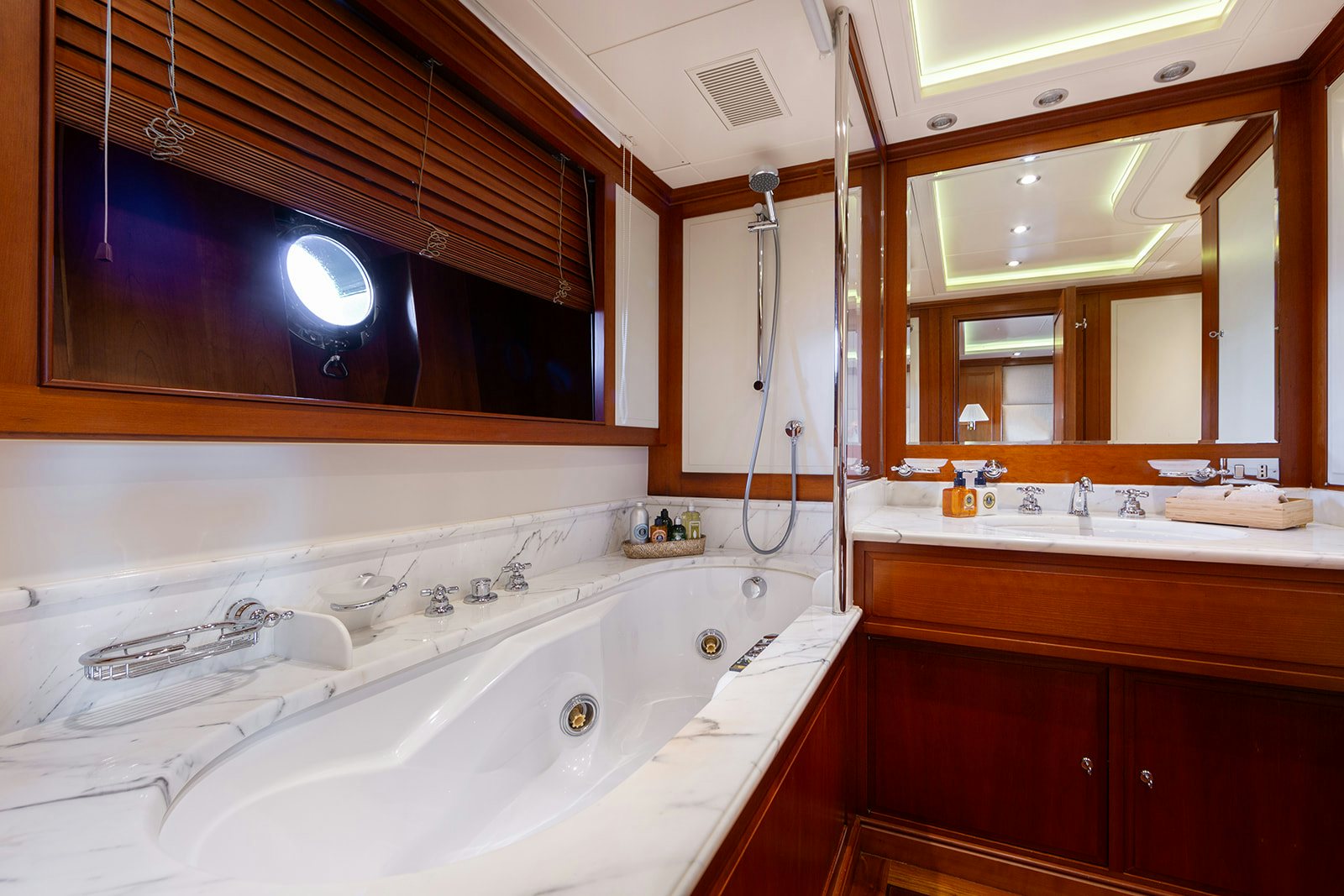

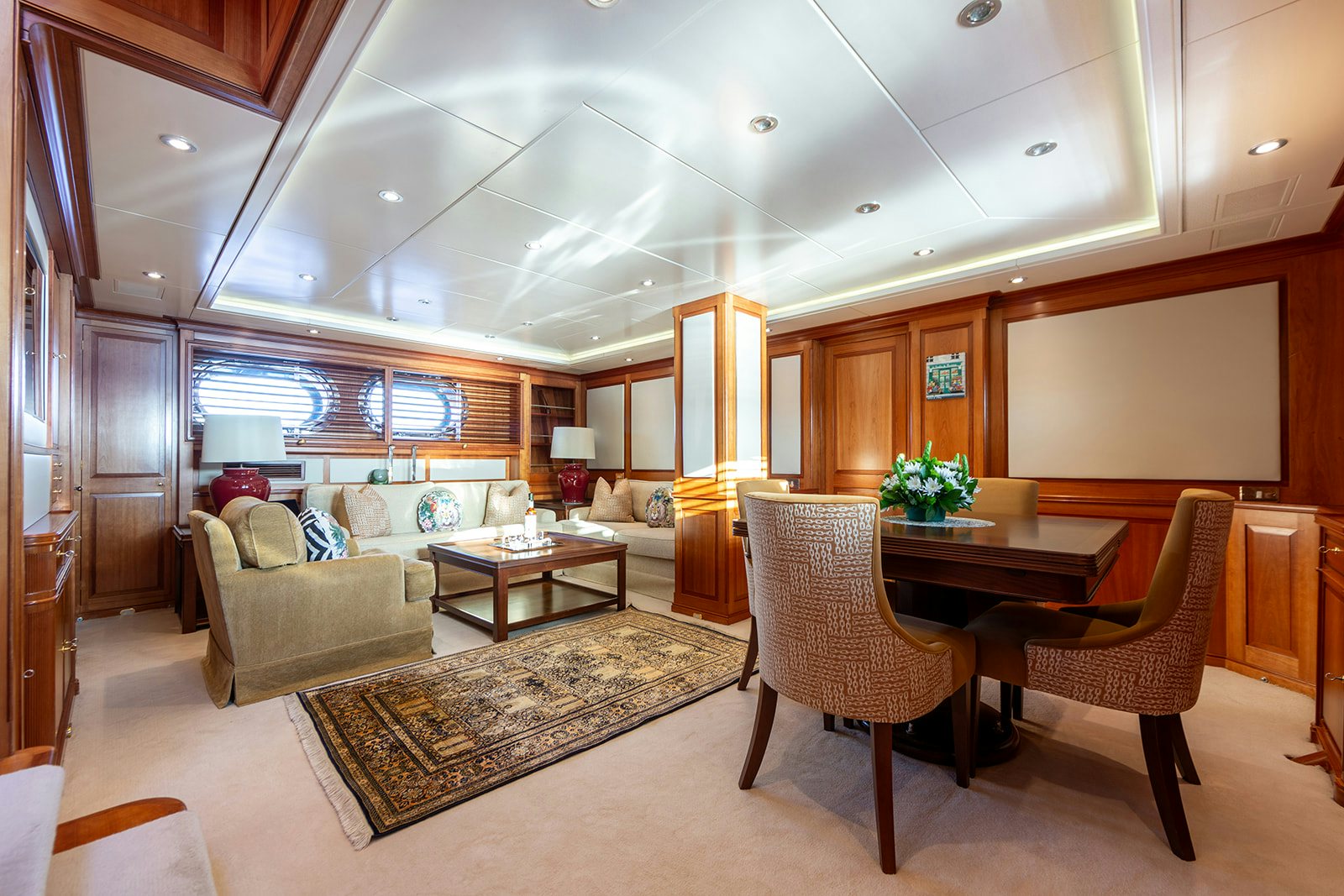

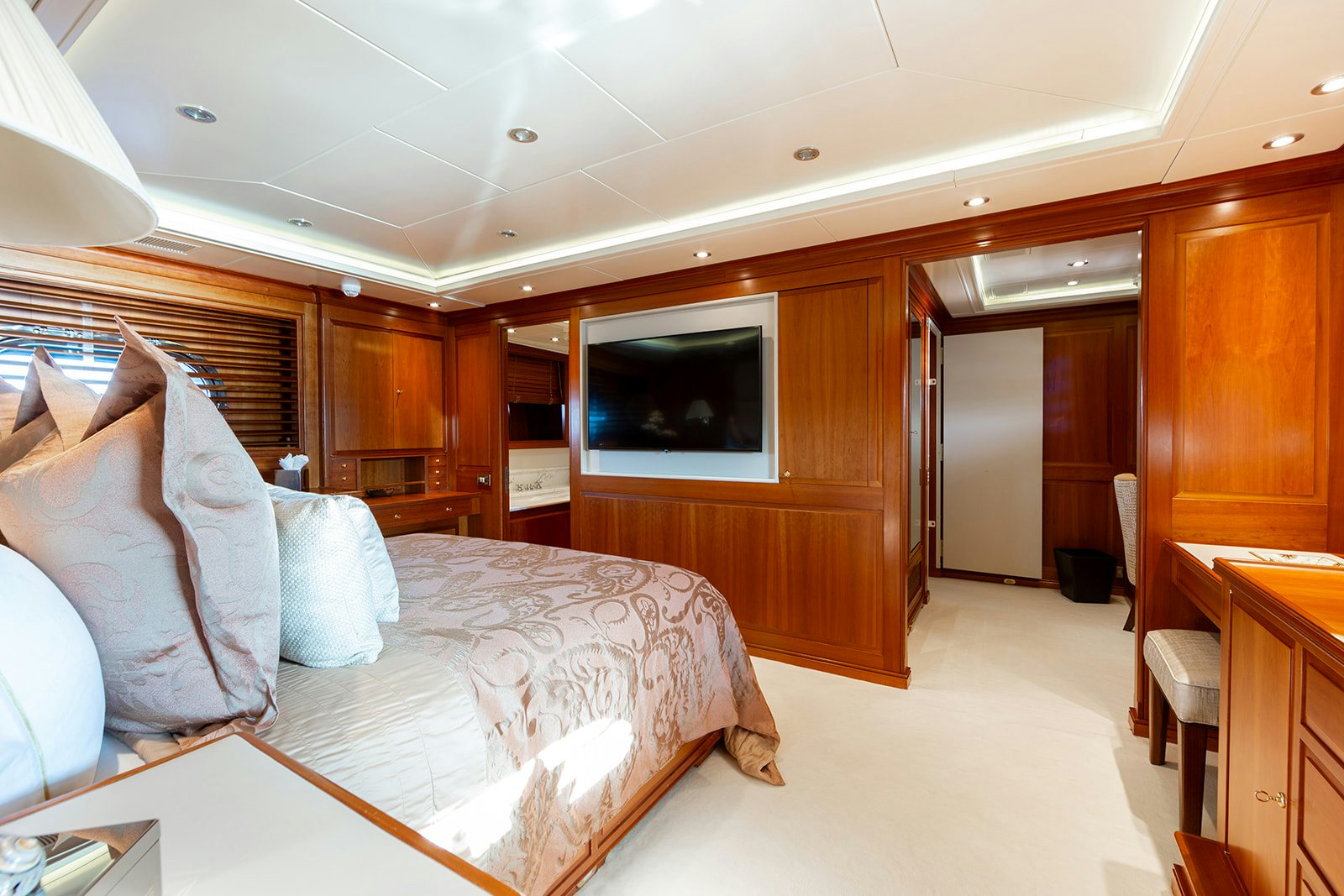

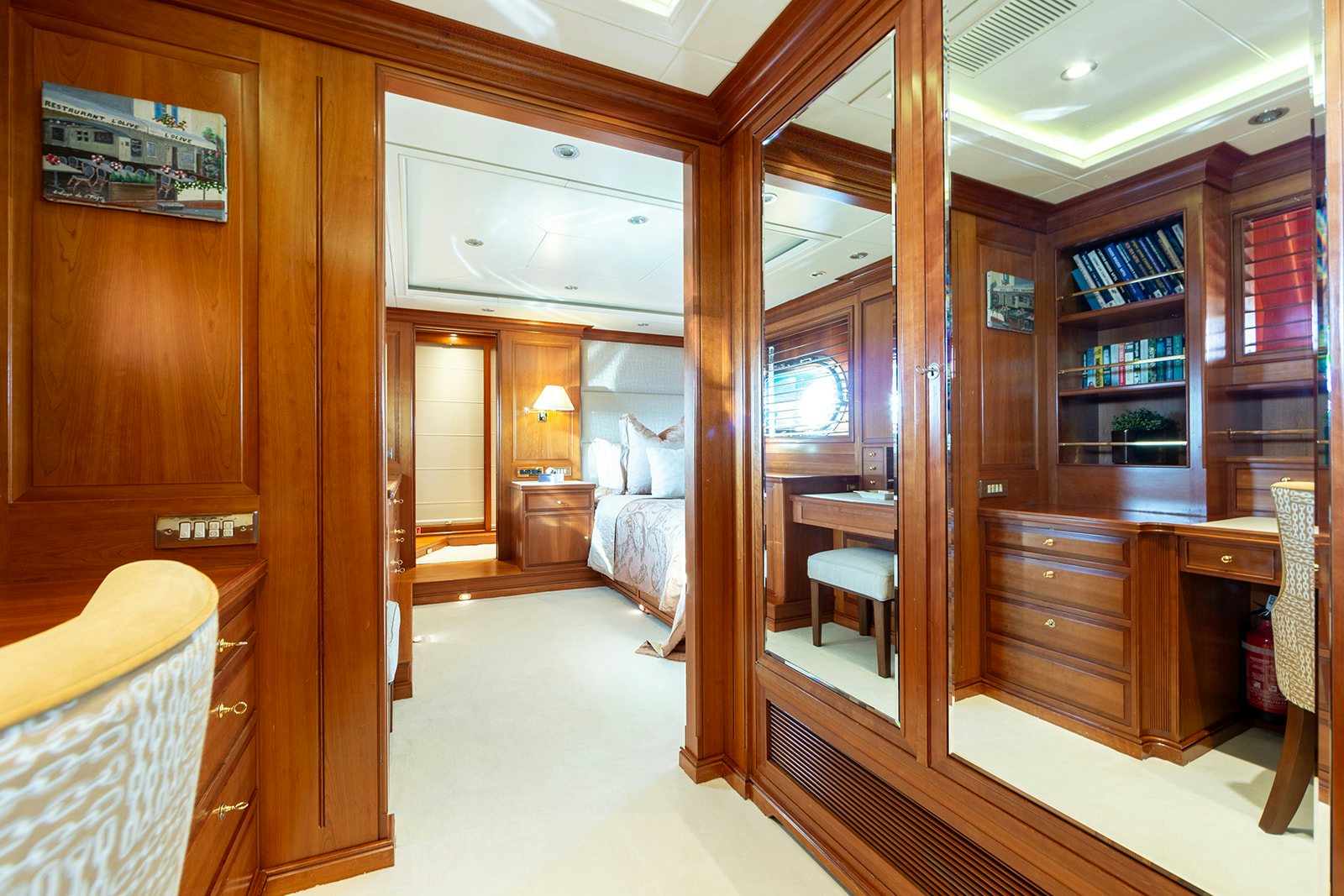

  • 1x full beam master stateroom with walk in wardrobe, separate office area, and large en suite with bath

GUESTS

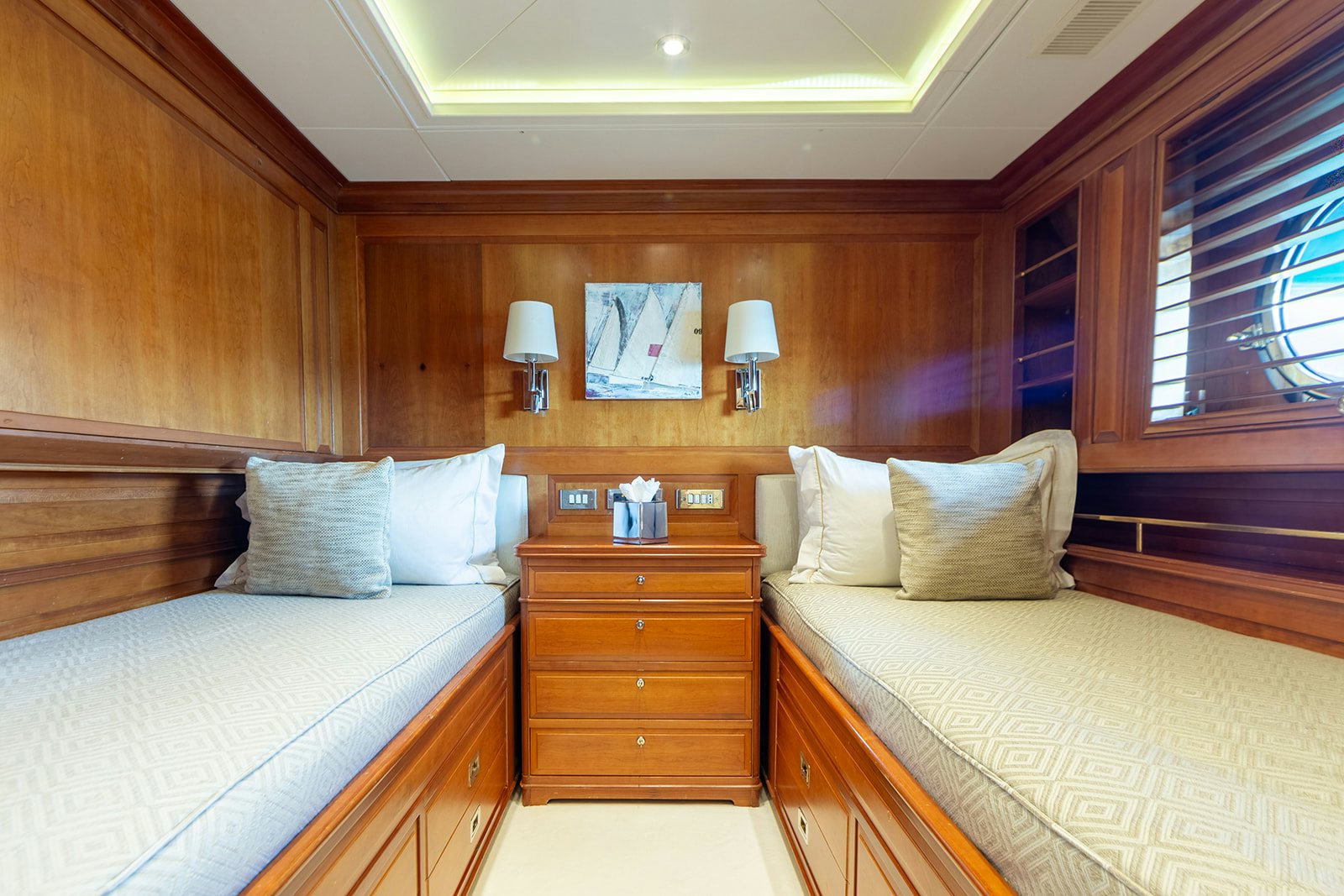

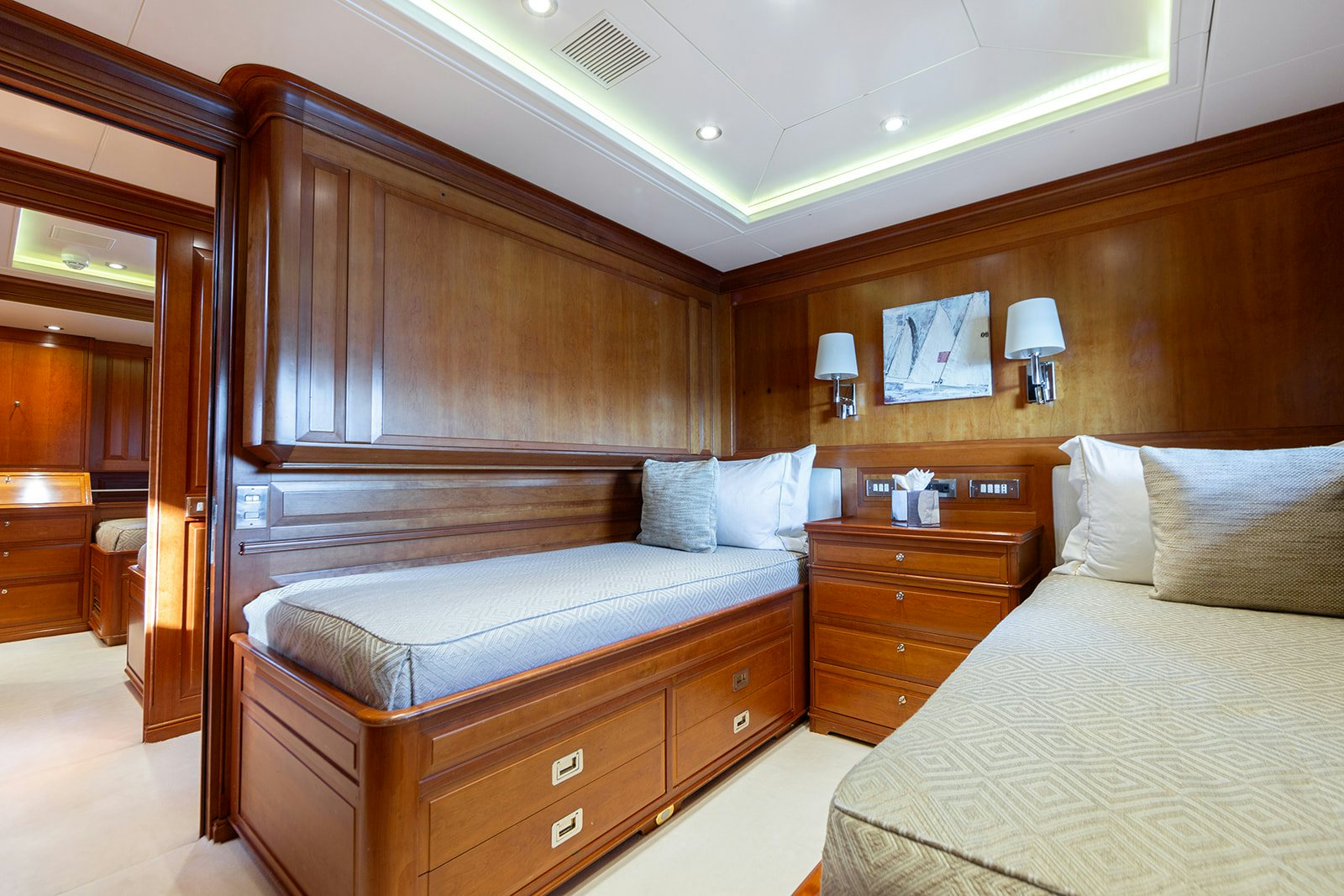

  • 2 x twin guest cabins

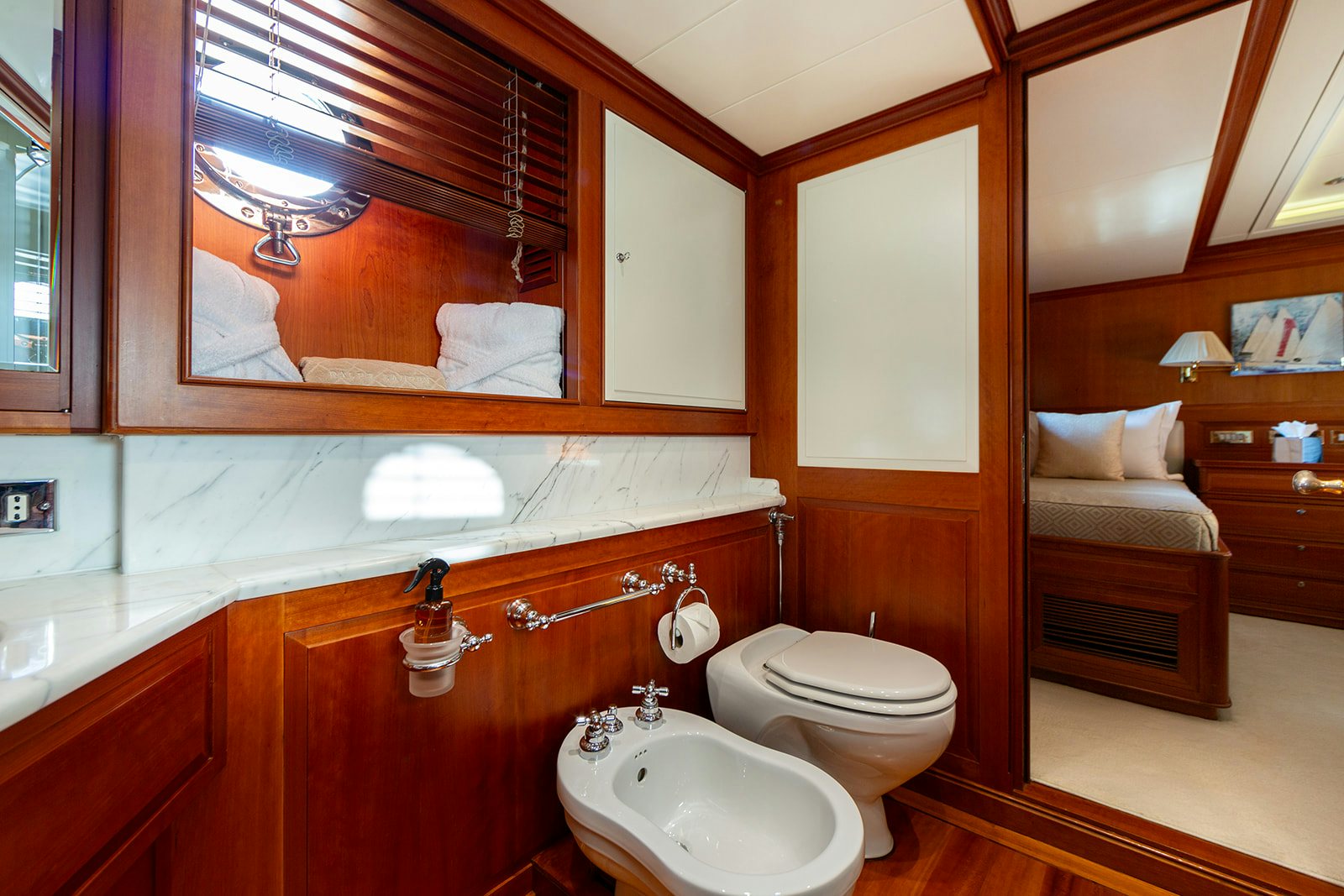

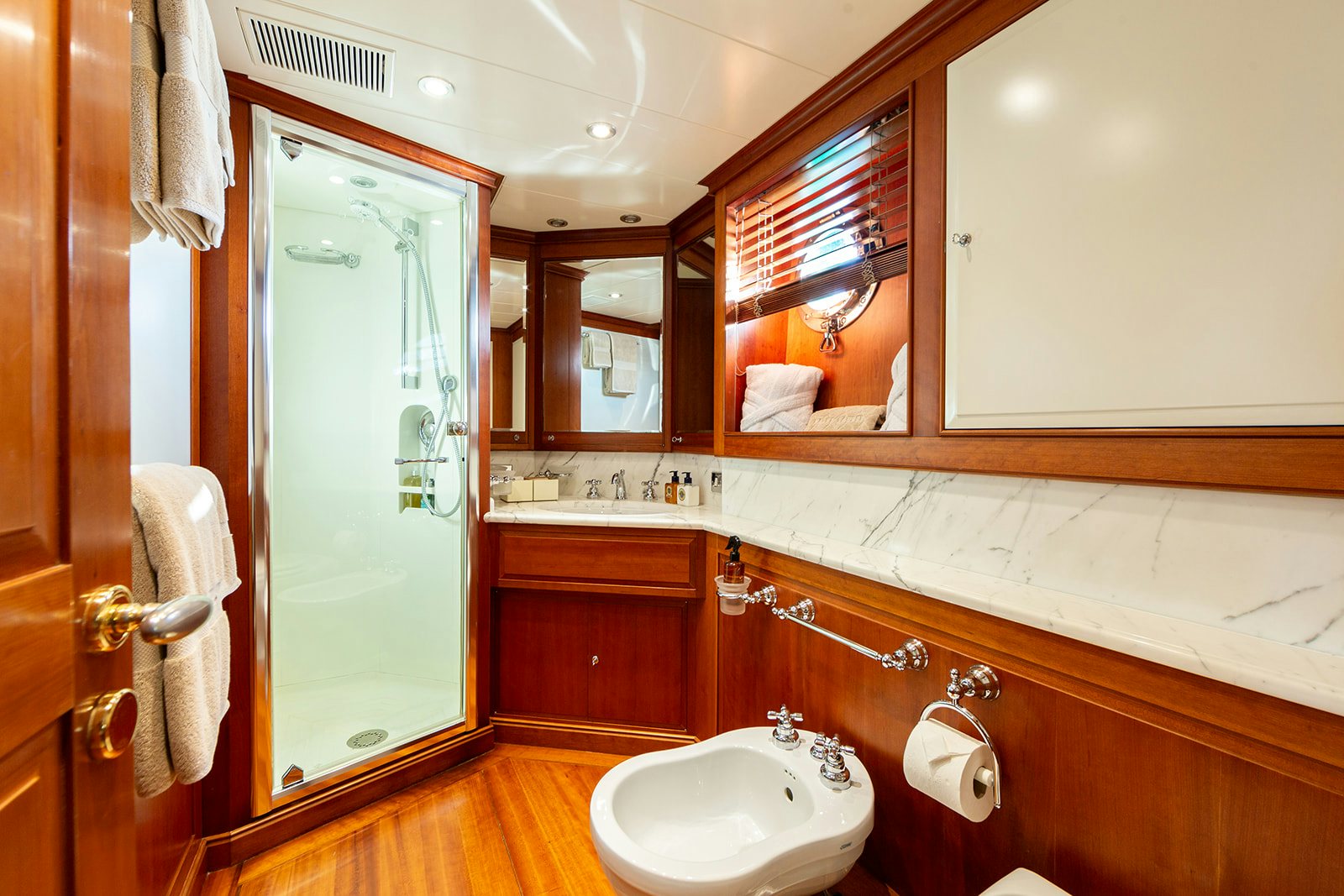

  • Port cabin having an additional pullman berth, both with generous en suite shower rooms

CREW

  • 2 x cabins forward, each with own bathroom and shared shower room. The cabins are able to be set up as either a double or two singles depending on configuration.
  • 1 x small cabin off the main saloon suitable for use for staff or additional crew member

Galley & Laundry Equipment

MAIN GALLEY

  • Miele H7890 90cm wide oven
  • Miele induction 5 ring KM6388
  • 4 x Perini custom fridges
  • Miele dishwasher Active SC
  • 1 x Waeco Freezer
  • Samsung Micriowave
  • Quatreau Smart Tap hot/ chilled/ sparkling water
  • K371 boiler for instant hot water
  • Octo Marine Slim line 5 stage filtration system
  • Hoshizaki ice maker

LAUNDRY

  • Miele W3242 washing machine SpeedCare 1400
  • Miele Softronic T8622C Dryer

CREW MESS

  • PHILIPS 24¨ TV

OTHER APPLIANCES

  • 1x drink fridge in wheelhouse

Communication Equipment

CELLULAR SYSTEM

  • 4G Pepwave & Panasonic PABX

SATCOM

  • VSAT
  • Inmarsat FX Duel 60cm

VHF RADIOTELEPHONES

  • VHF Sailor TT-6222A in Galley and Bridge

SSB

  • HF/SSB ICOM IC-M710

TELEPHONE EXCHANGE

  • Fleet broadband 250, SAT C

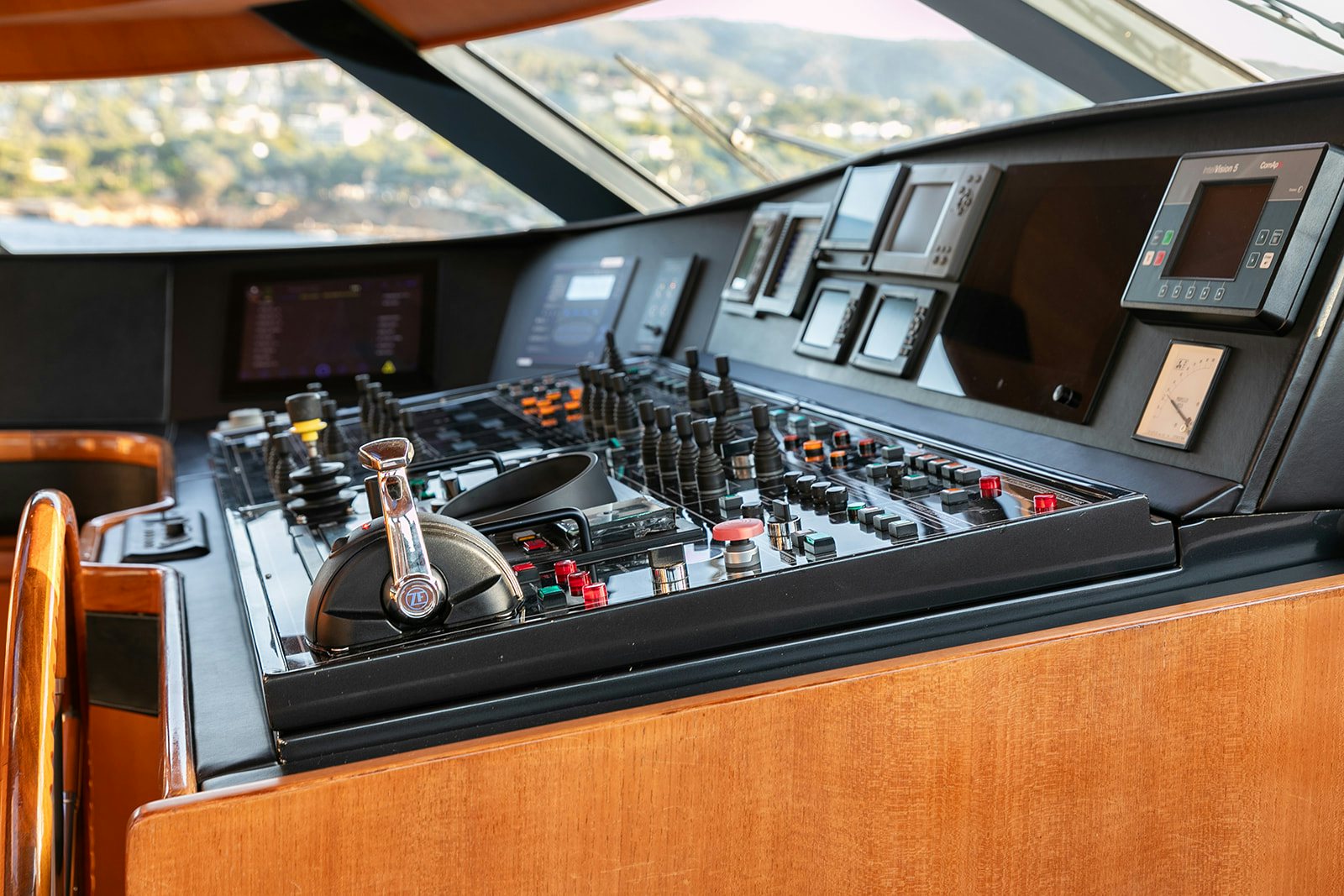

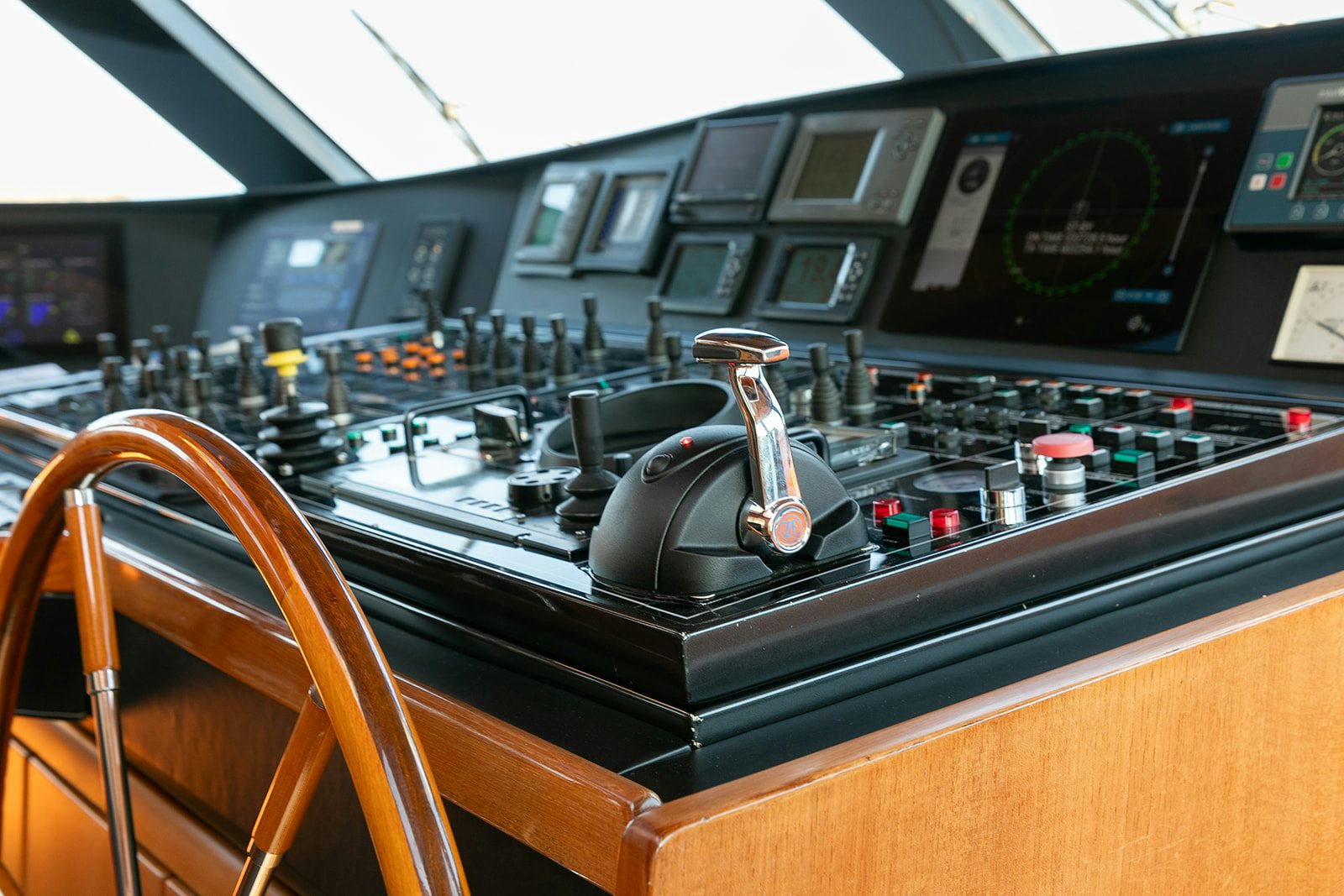

Navigation Equipment

COMPASS

  • JRC JLR 20/30 GPS compass

AUTOMATIC PILOT

  • C Plath Navipilot V

LOG

  • Yes

ECHO SOUNDER

  • A+T Echo Sounder

RADAR

  • 1 x Furuno 1724C with plotter
  • 1x Furuno 1510 Mark 3 with APRA

AIS SYSTEM

  • FA 150 linked to Furuno radar and
  • Maxsea navigation computer

CHART PLOTTER

  • 1 x Maxsea Time Zero on own computer
  • 1 x Furuno Navnet 1724C plotter

GPS

  • 1 Sailor 6004

NAVTEX

  • Furuno NX-700

NAVIGATION INSTRUMENTS

  • A+T Instrumentation

COMPUTERS & MONITORS

  • Media PC
  • Comms PC
  • Navigation PC
  • 2 x Nottrot Bridge Screens

OTHER

  • FLIR thermal & lowlight camera
  • AXIS Engine room surveillance Camera
  • AXIS PZT Main mast surveillance Camera
  • AXIS PZT Mizzen mast surveillance Camera

Entertainment Equipment

  • Samsung QLED Ultra HD 49¨
  • Samsung QLED Ultra HD 49¨
  • PHILIPS 24¨
  • Deck Samsung LED 40’’
  • PHILIPS 24¨
  • Crestron SWAMPI- 24x8
  • Master Cabin is controlled by Crestron and iPad
  • Guest and crew area have Bose Soundbars
  • Cockpit Music system by Crestron and iPad
  • Deck Music system by Crestron and iPad
  • Guest Cabins and crew area music system uses Bose Sound Bars
  • Apple TV in the master cabin, Guest cabins, Saloon, and crew area

Tenders & Toys

TENDERS

  • 5m Williams Jet tender 505 with 110 hp engine.

WATERSPORTS EQUIPMENT

  • Kayak (2-3 person)
  • 2 x stand up paddle boards
  • Wakeboard
  • Skis, adult and children Snorkeling gear
  • Dive equipment
  • Dive compressor
  • Flight board

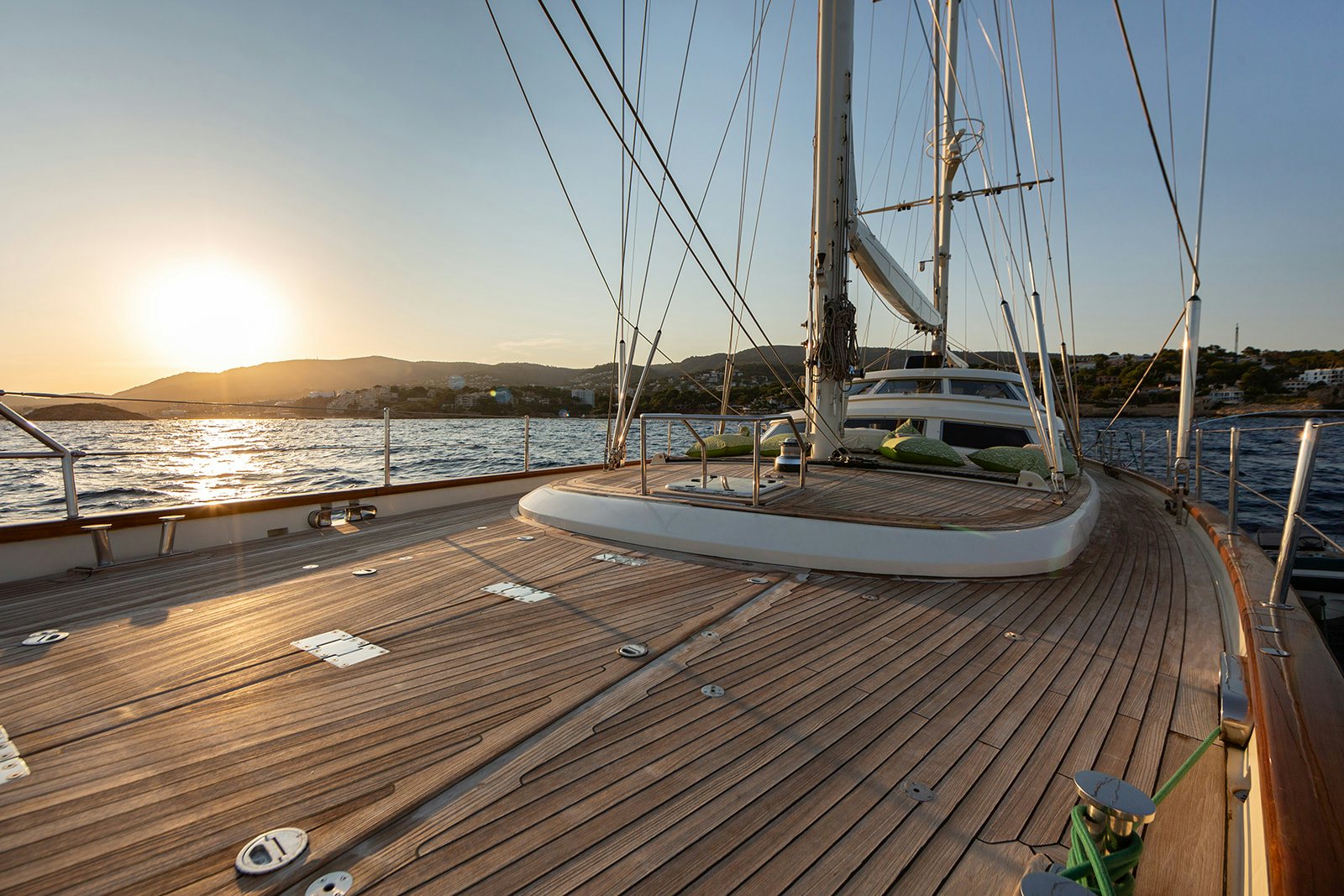

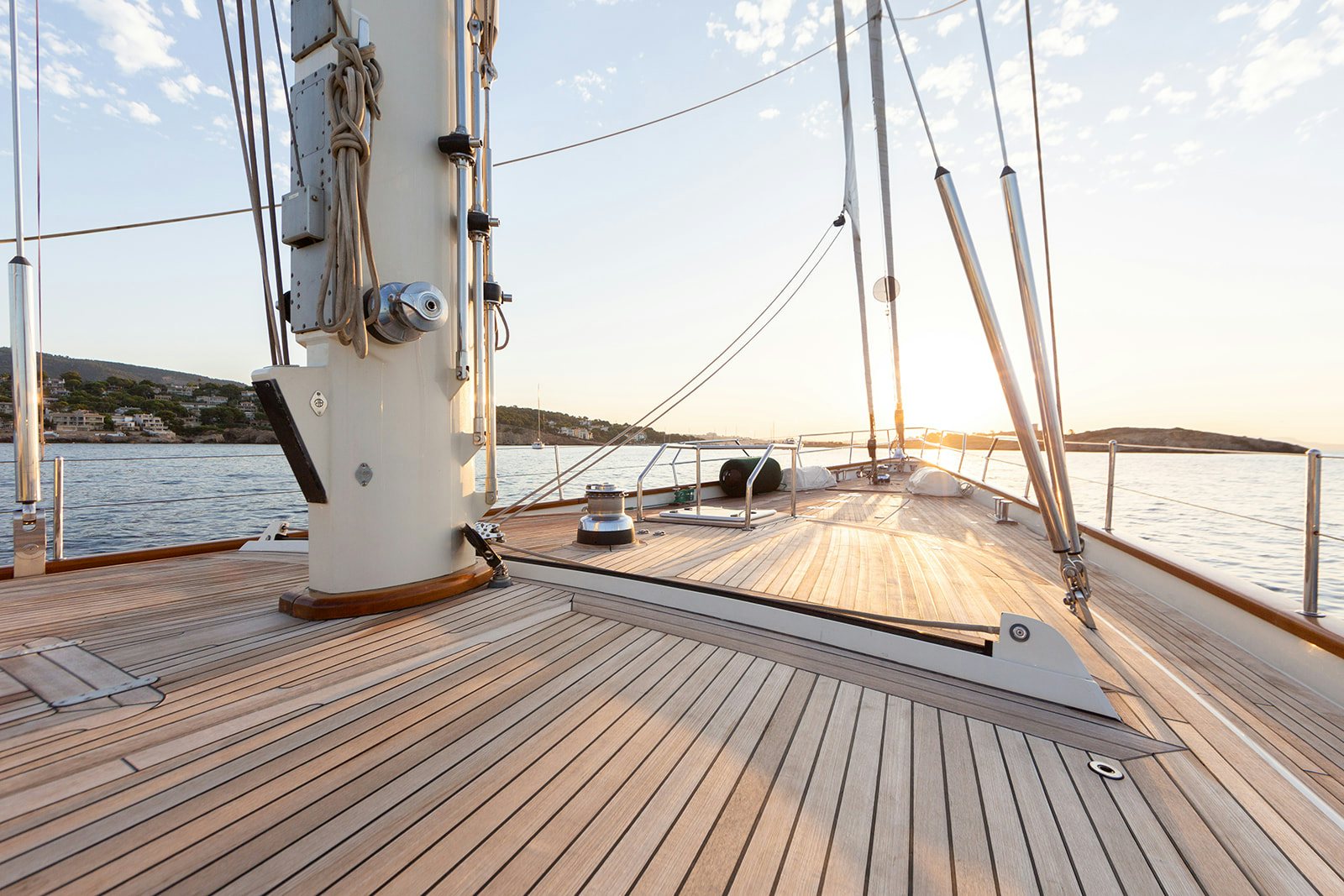

Deck Equipment

  • ANCHOR WINDLASS: 2 x Stainless steel in recessed pockets-120m 18mm galvanized chain each side
  • FOREDECK WARPING CAPSTAN: Available x1
  • AFT WARPING/MPS CAPSTANS: 2 (1 x Port & 1 x Stbd)
  • TENDER CRANE & HATCHES: 1 x tender crane/2 x Hatches
  • PASSERELLE: 1 x Perini hydraulic passarelle
  • SIDE BOARDING LADDER: 1 x Perini hydraulic
  • SWIMMING PLATFORM: Starboard side swimming platform

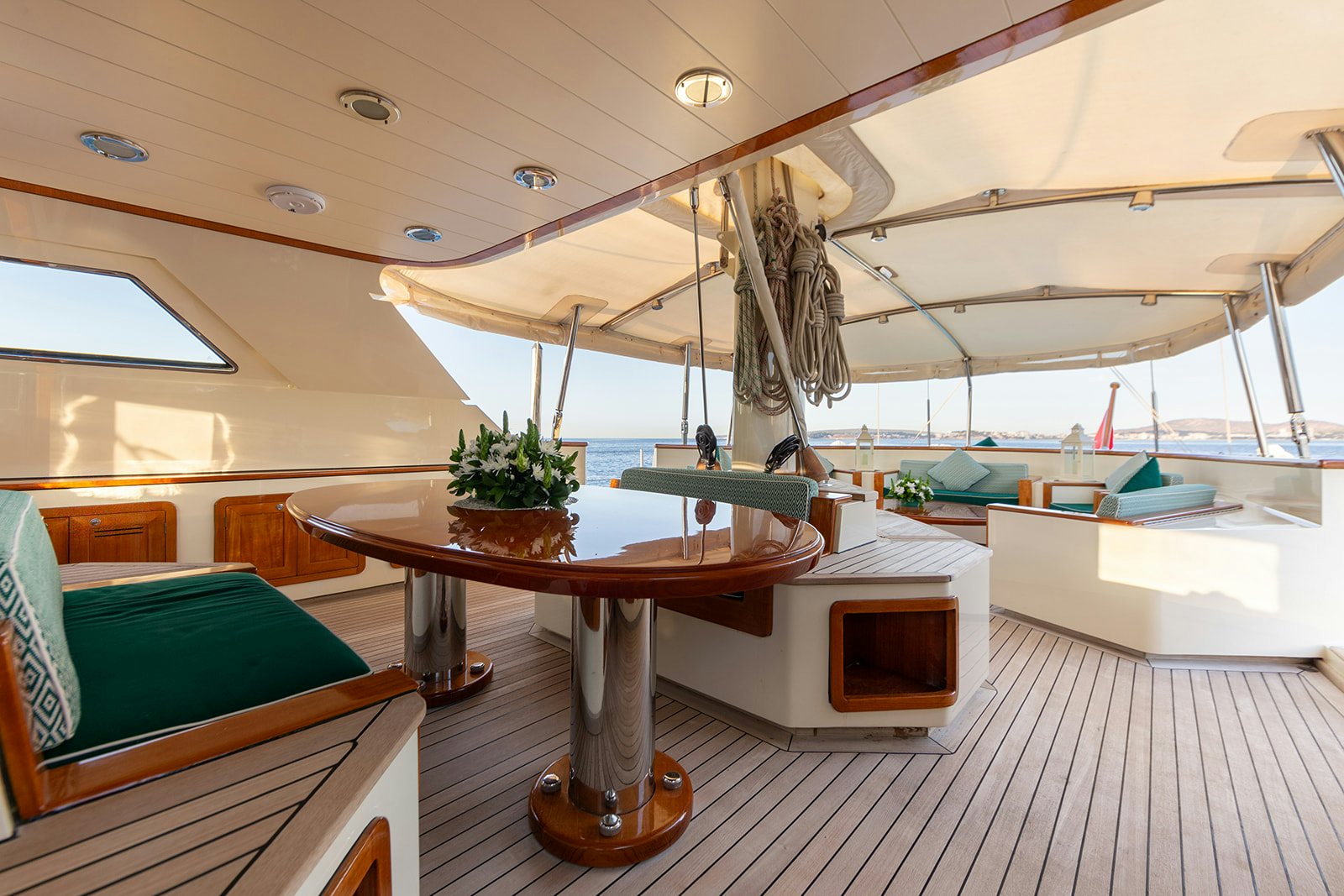

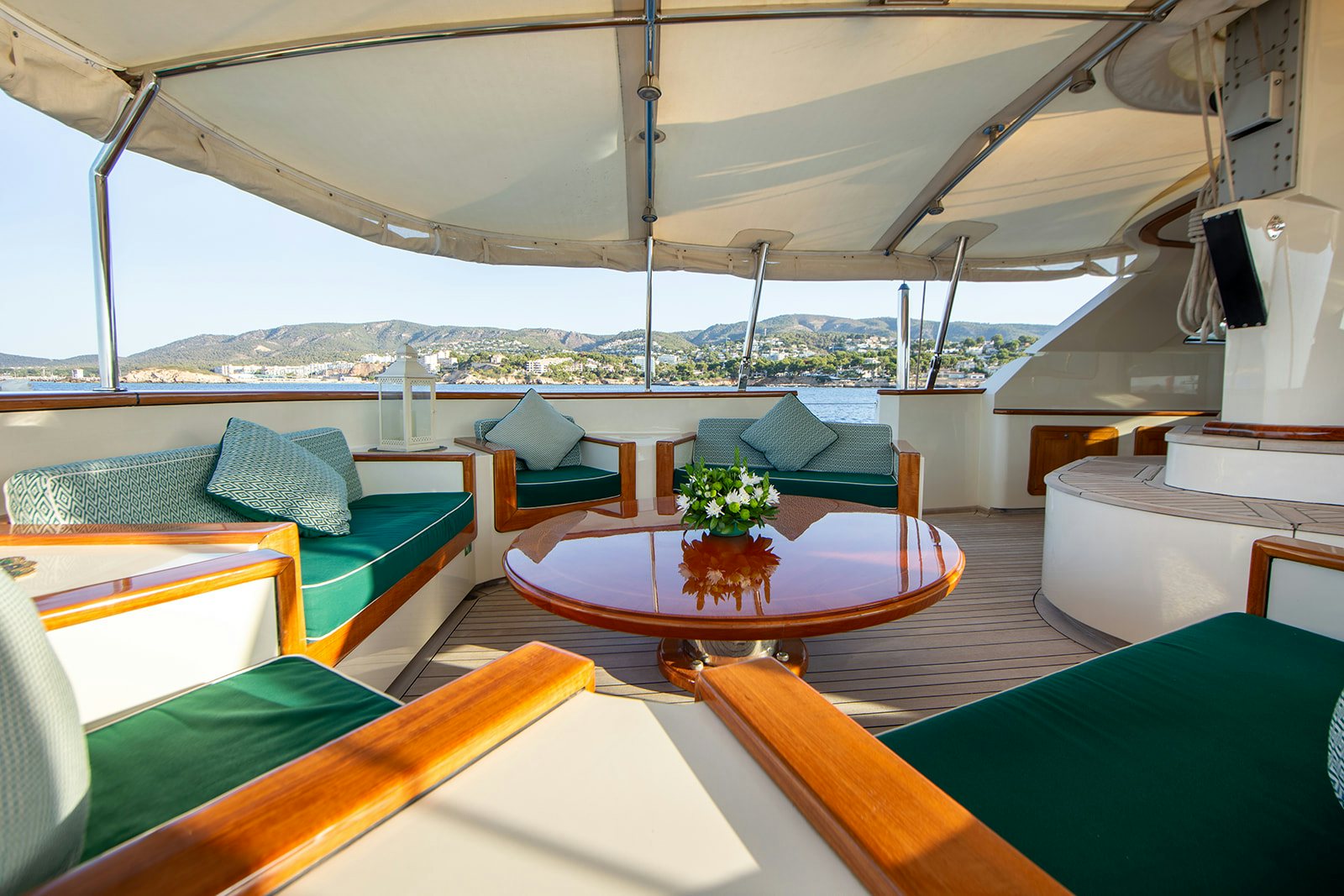

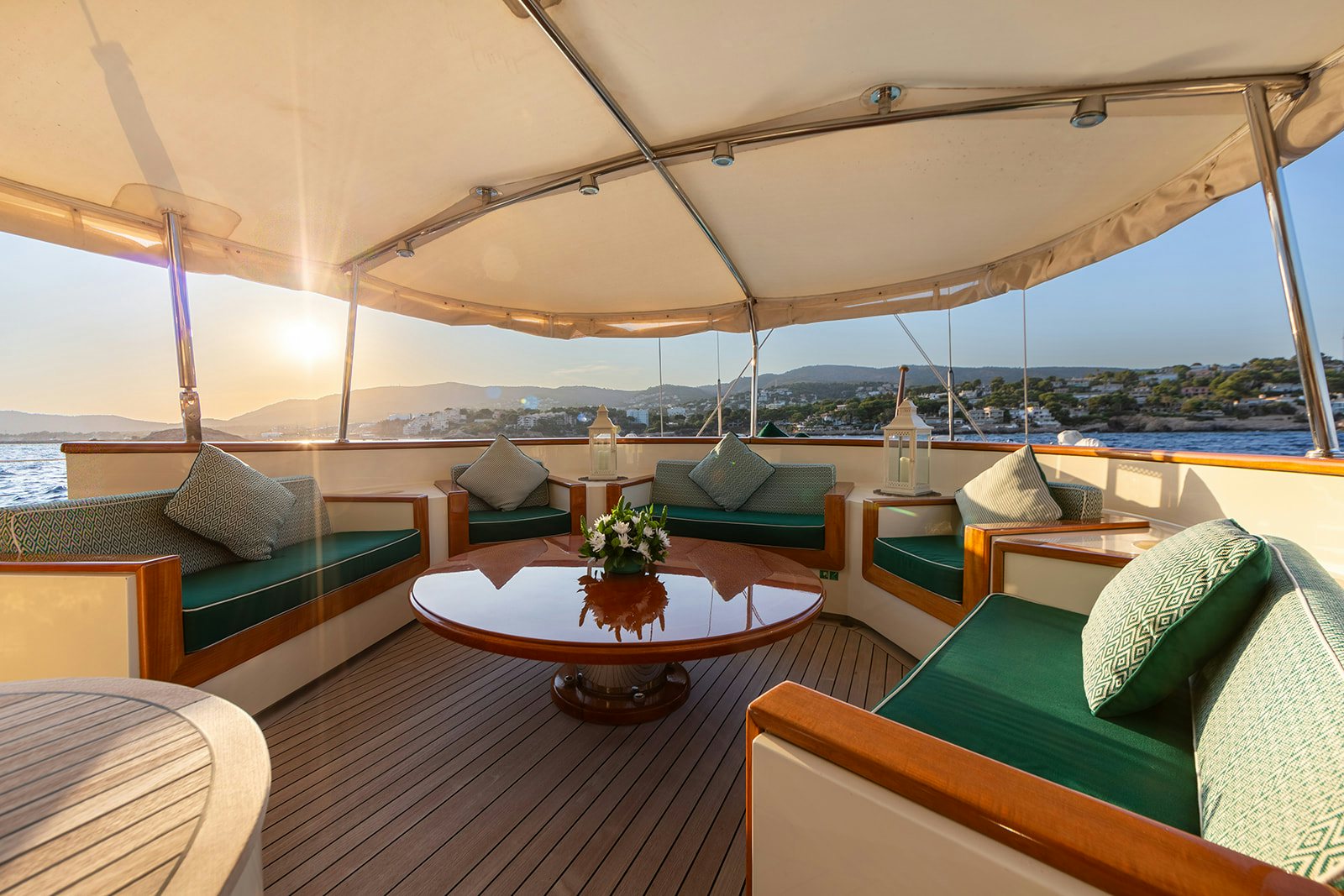

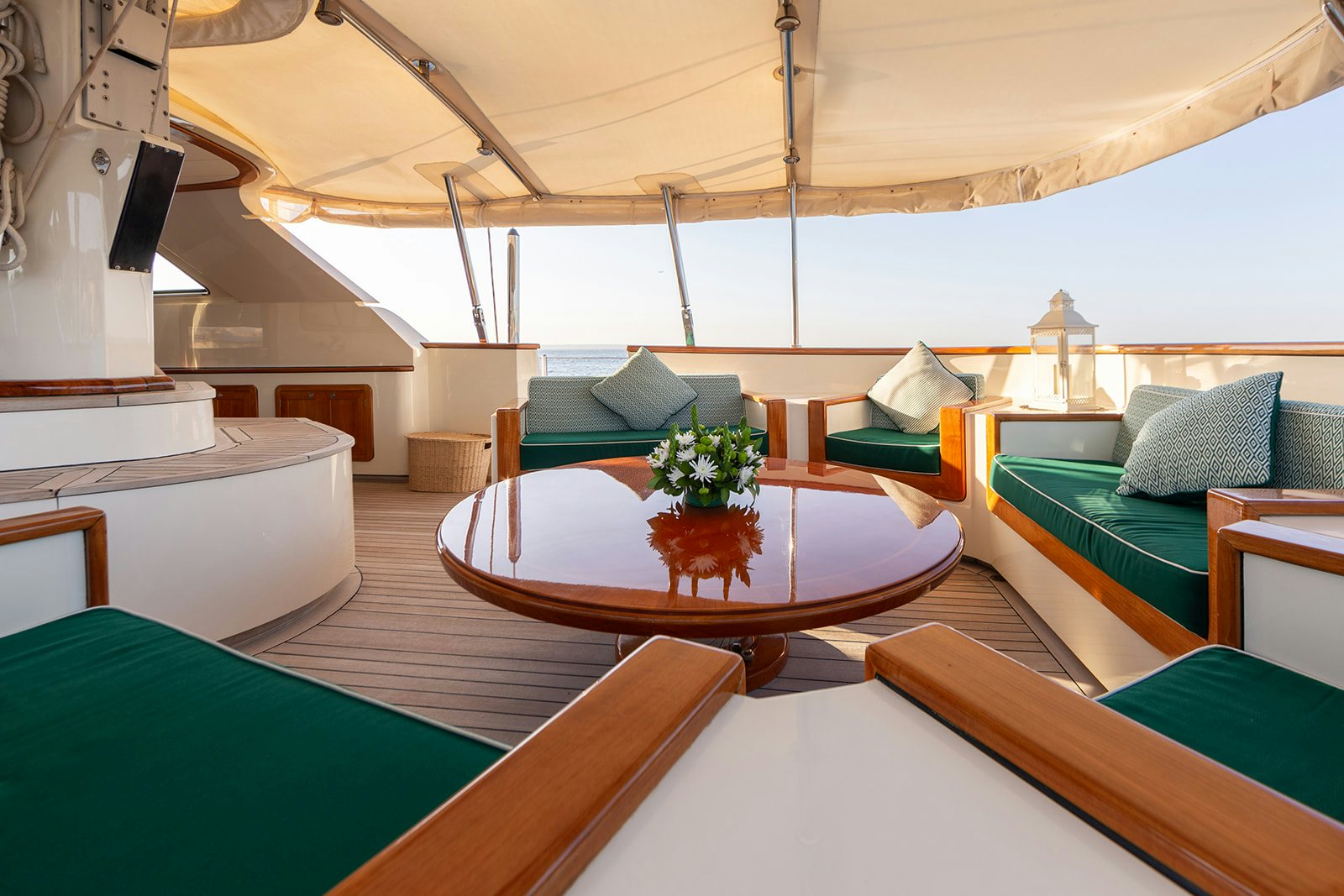

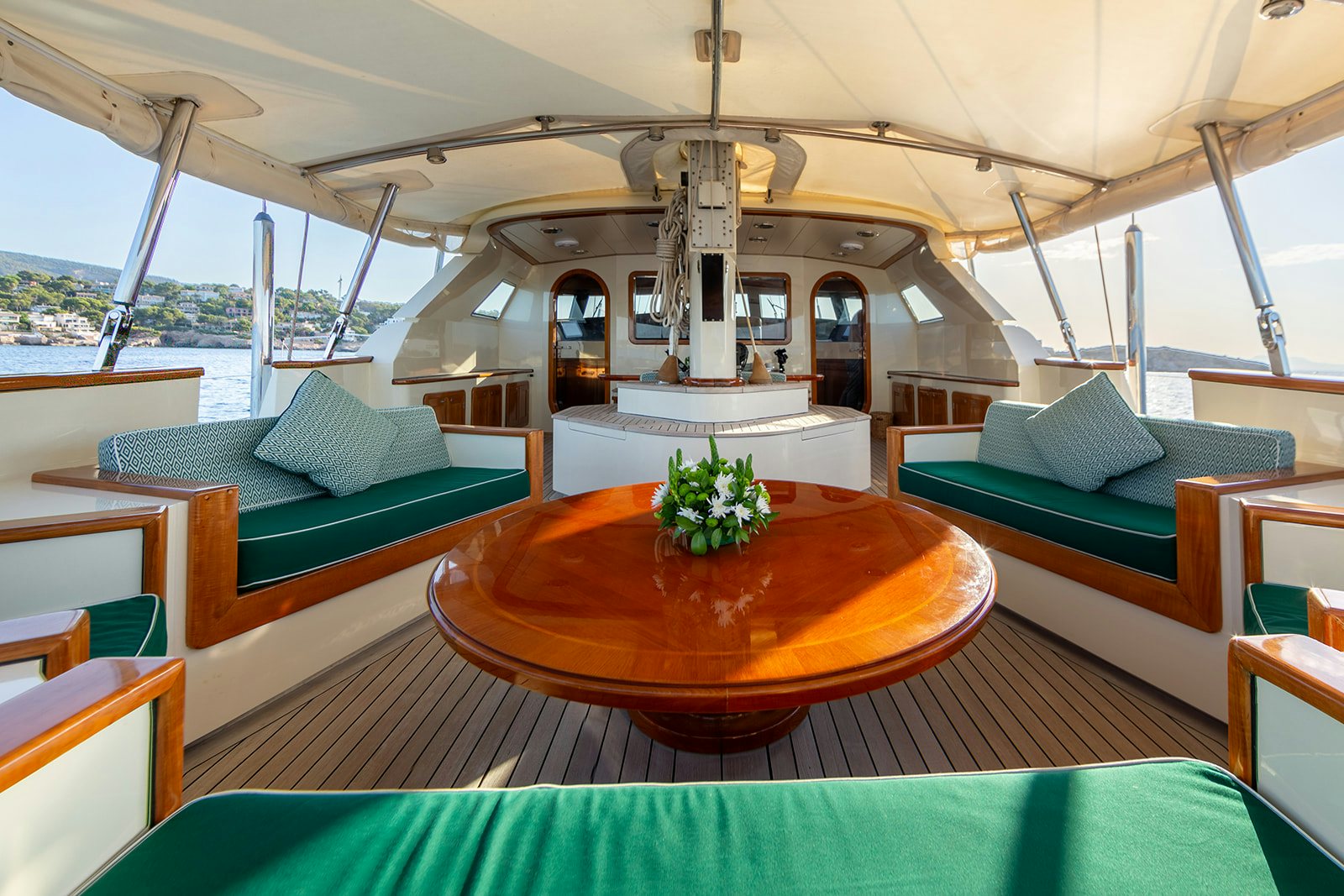

  • AWNING: Aft deck seating area
  • COCKPIT GLASS: Yes

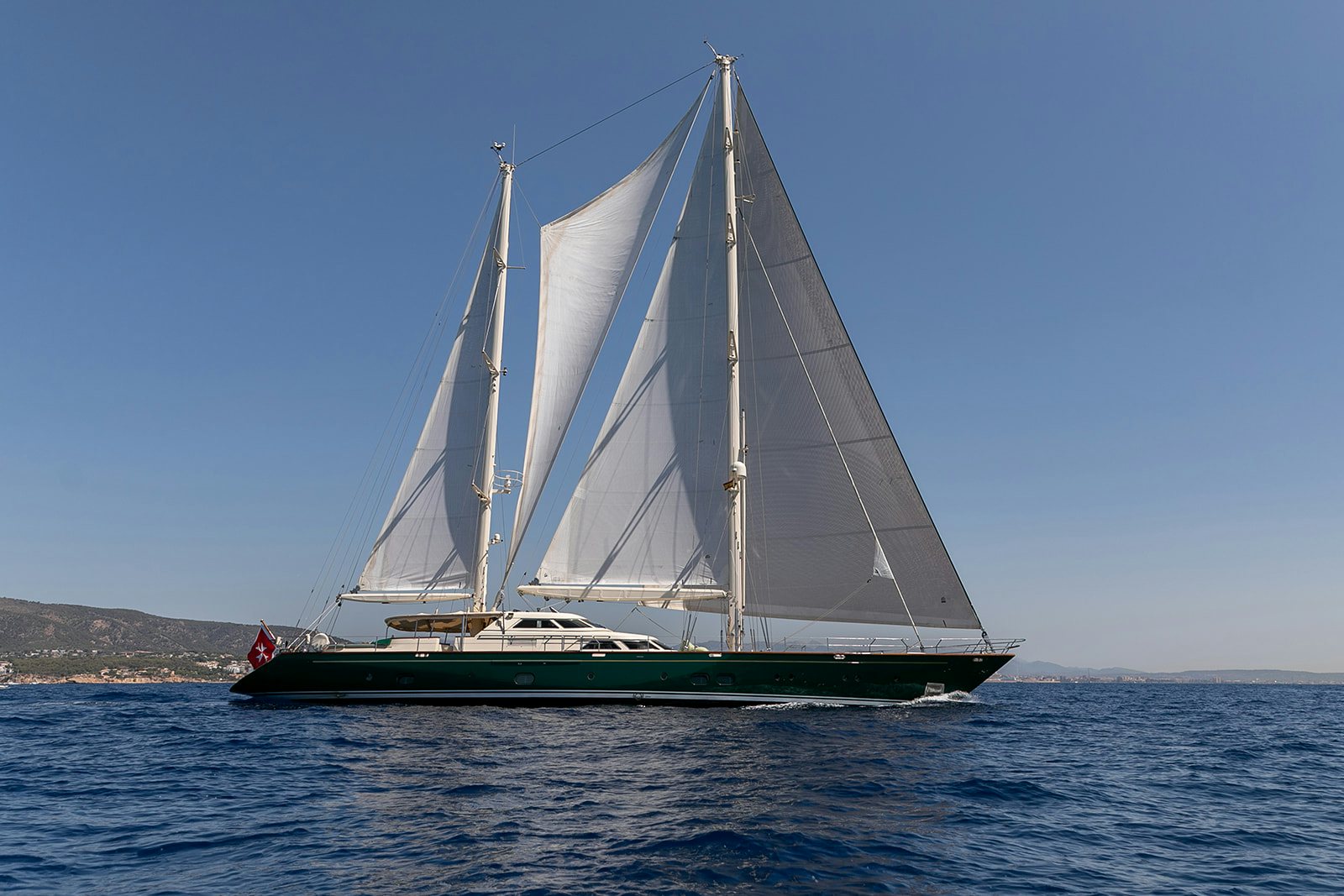

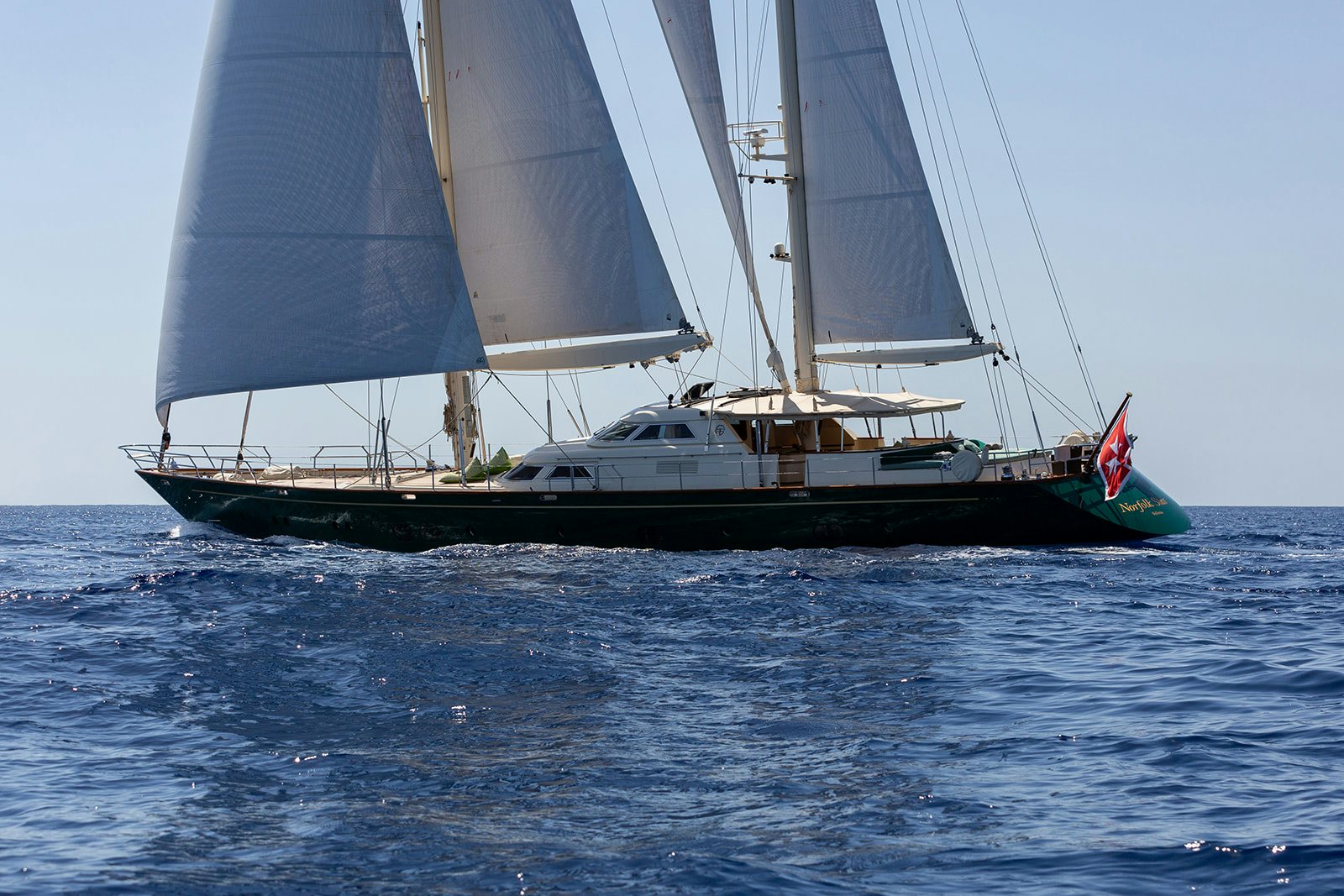

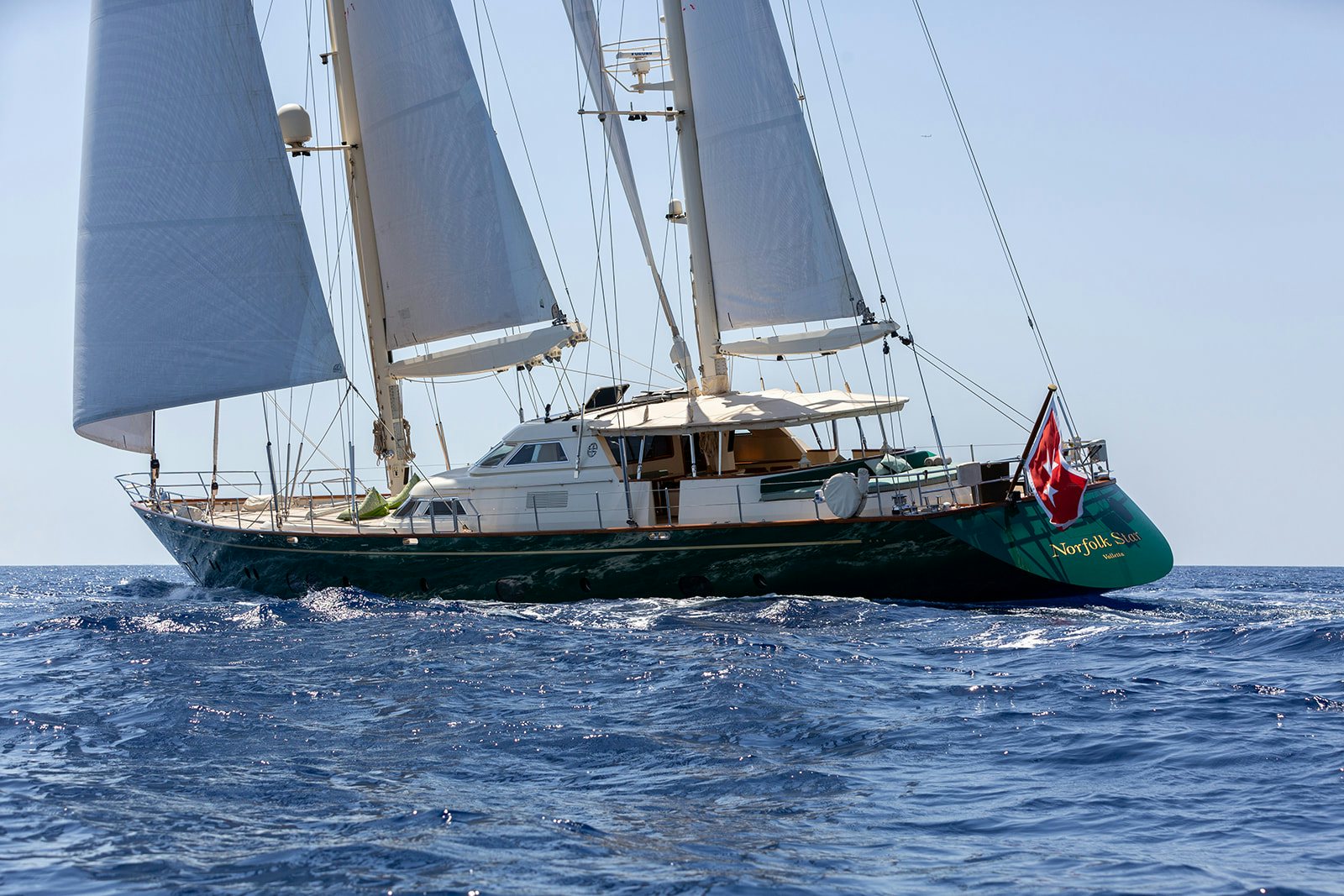

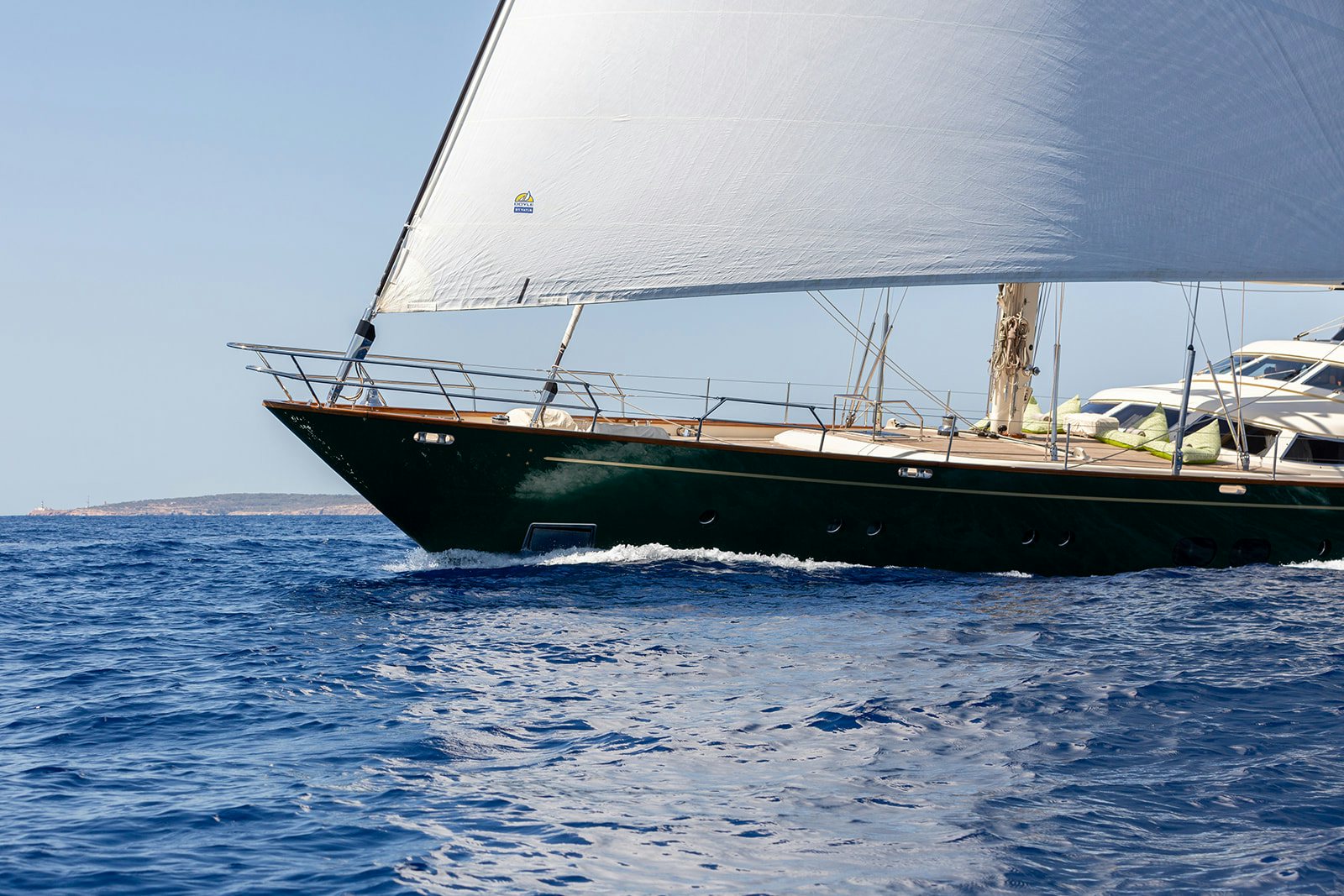

Rigs & Sails

  • SPARS: x 2
  • RIGGING: Perini Design 37M Ketch running rigging: OYS Nitronic with Kevlar backstays
  • FURLING GEAR: x 5
  • WINCHES: x 8

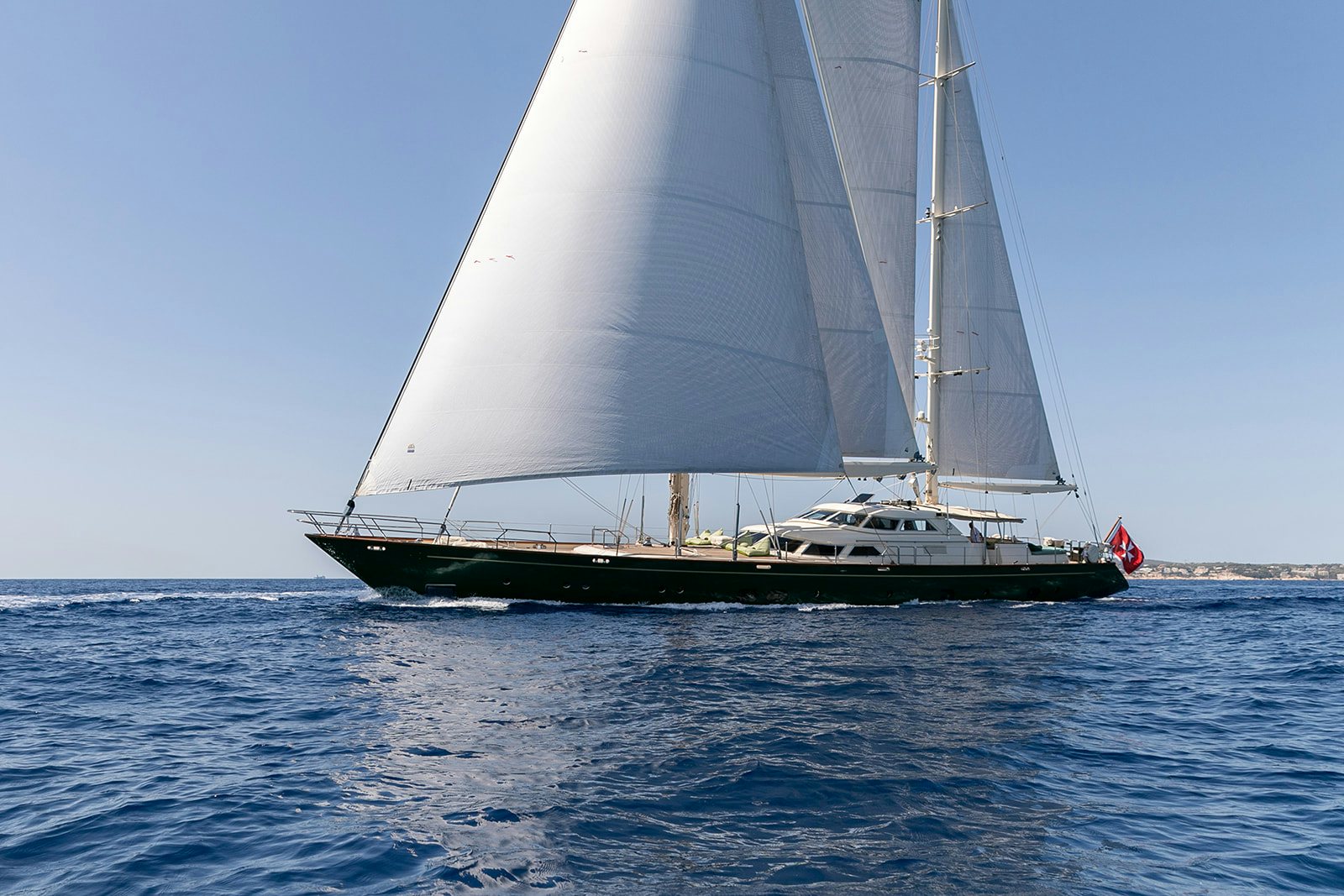

SAILS:

  • Sail Wardrobe, Doyle
  • New 2020
  • Mainsail
  • Mizzen
  • Genoa 120%
  • Staysail
  • Fisherman (Perini style gaff topsail)

Safety & Security Equipment

SAFETY

  • 2 x RFD
  • 12 x Liferafts

FIRE FIGHTING

  • FM200 fire suppressant, Kiddle Fire System

ALARMS

  • General alarm system
  • Watch Keeper Alarm BNWAS

FIRE/BILGE PUMP

  • 2 x G&R fire/bilge pumps

EMERGENCY FIRE/BILGE PUMP

  • Yanmar YDP Series

SECURITY

  • 13 x Lifejackets
  • 4 x Child lifejacket
  • 11 x Immersion suits

Refit History

2018-2020 Refit:

  • Full five-year Lloyd’s survey (2020)

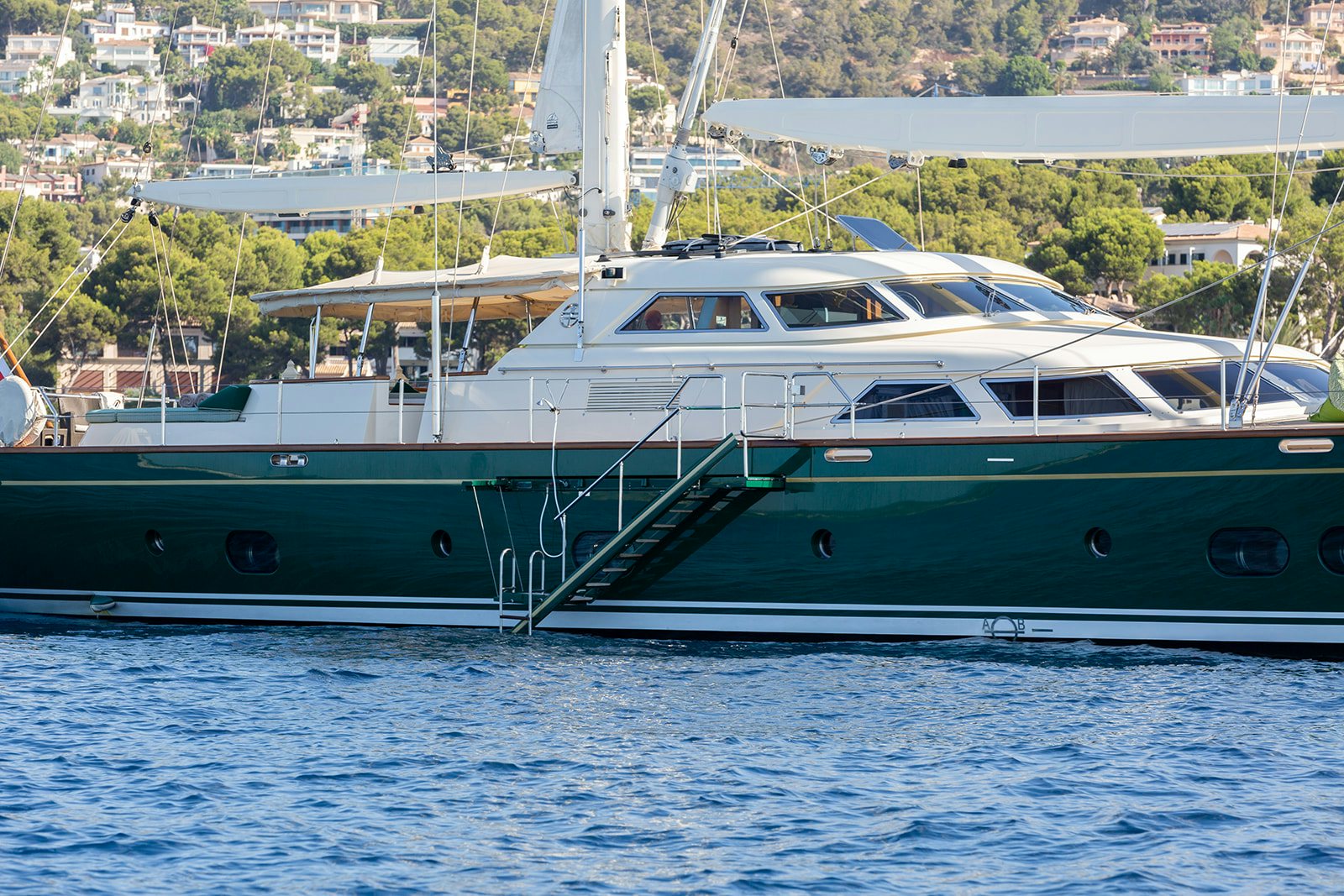

  • Full repaint, including hull colour change to green
  • Full hull inspection
  • New main engine fitted
  • 2 x New generators fitted and accompanying wiring
  • Rigs services and painted
  • All new BSI Denmark Rod Rigging
  • All new running rigging
  • New head Reckmann head stay
  • New head Reckmann staysail
  • New sails from Doyle
  • New 505 Williams tender
  • New PLC system added
  • New Magnus Marine shore power converter with new step down transformer
  • Gear box rebuilt
  • Bow thruster overhauled
  • New HEM watermakers
  • Drop down keel fully serviced
  • Upgraded LTEA 4G Pepwave plus and installed new WiFi routers throughout the yacht
  • Installed new Inmarsat VSAT dome. Upgraded VSAT throughout the yacht
  • Full recover of exterior fabrics, professional sanding of teak
  • Full recover of interior main salon sofas. Professional cleaning of all carpets and floors. Professional cleaning and coating of all showers and marble on board.
