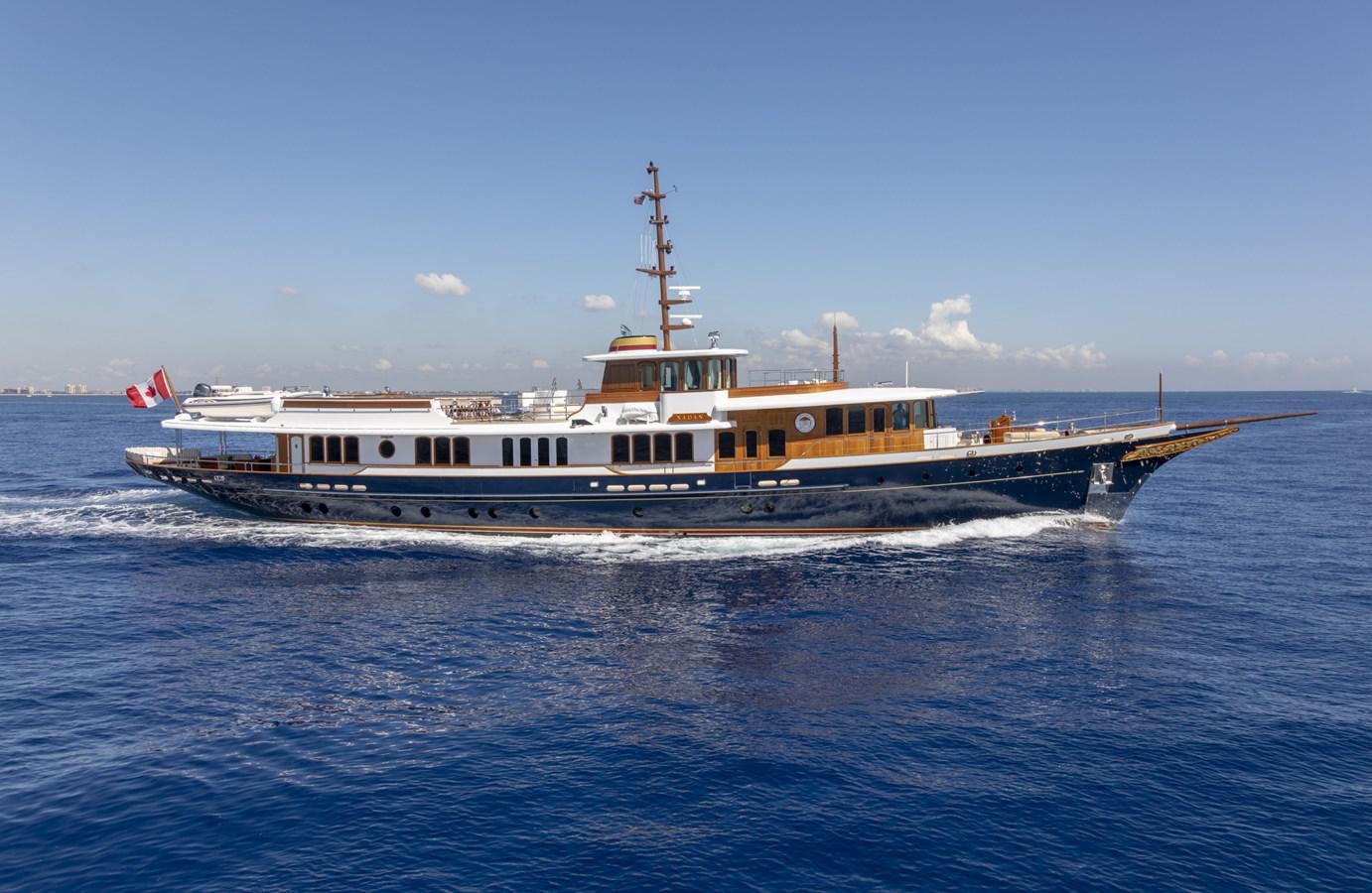

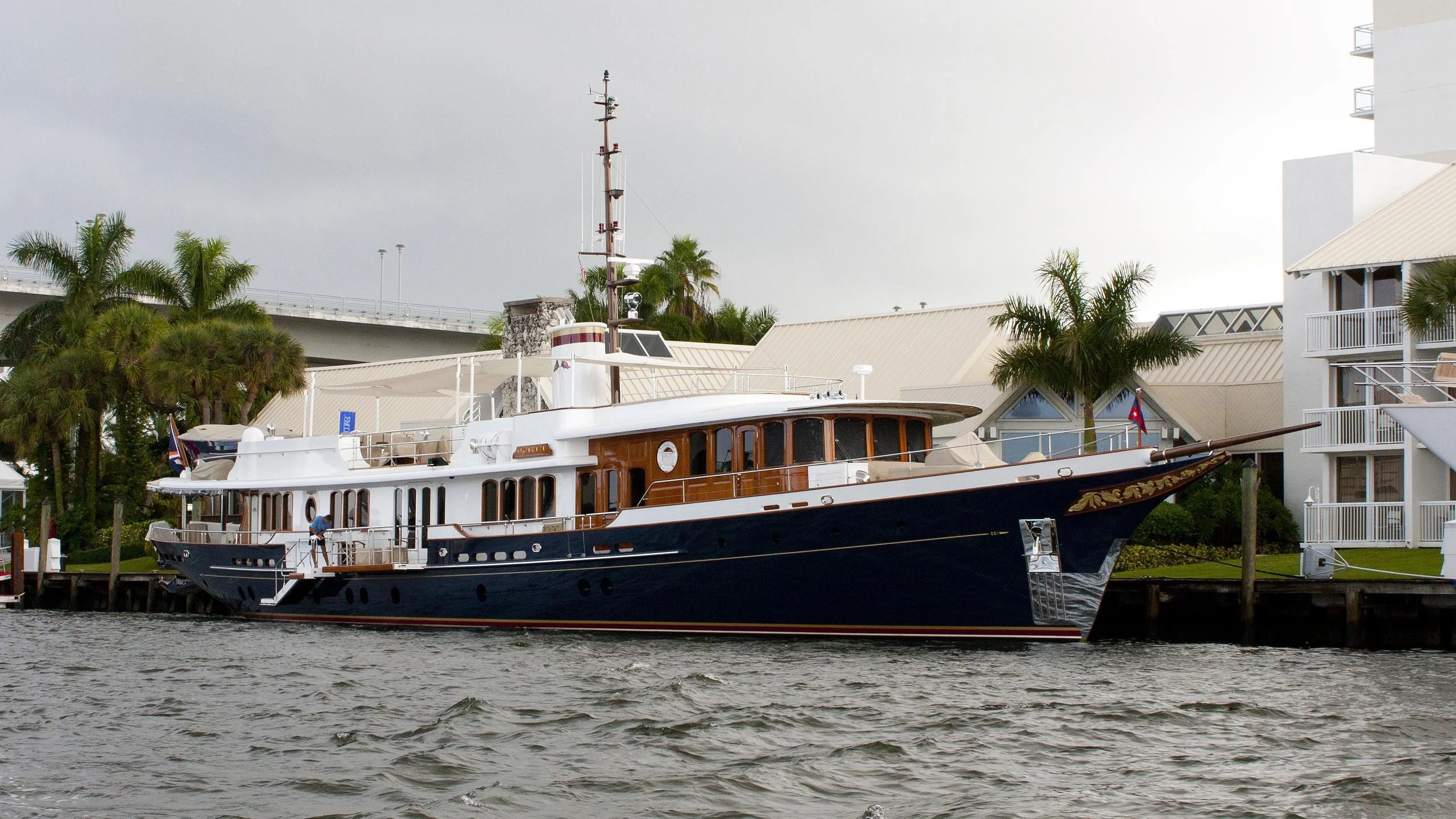

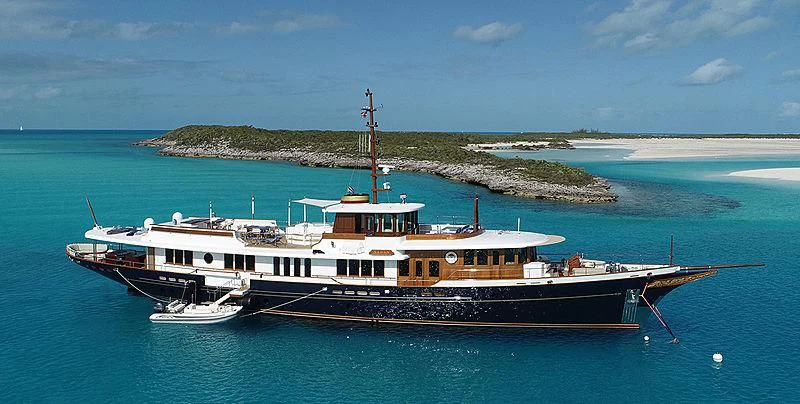

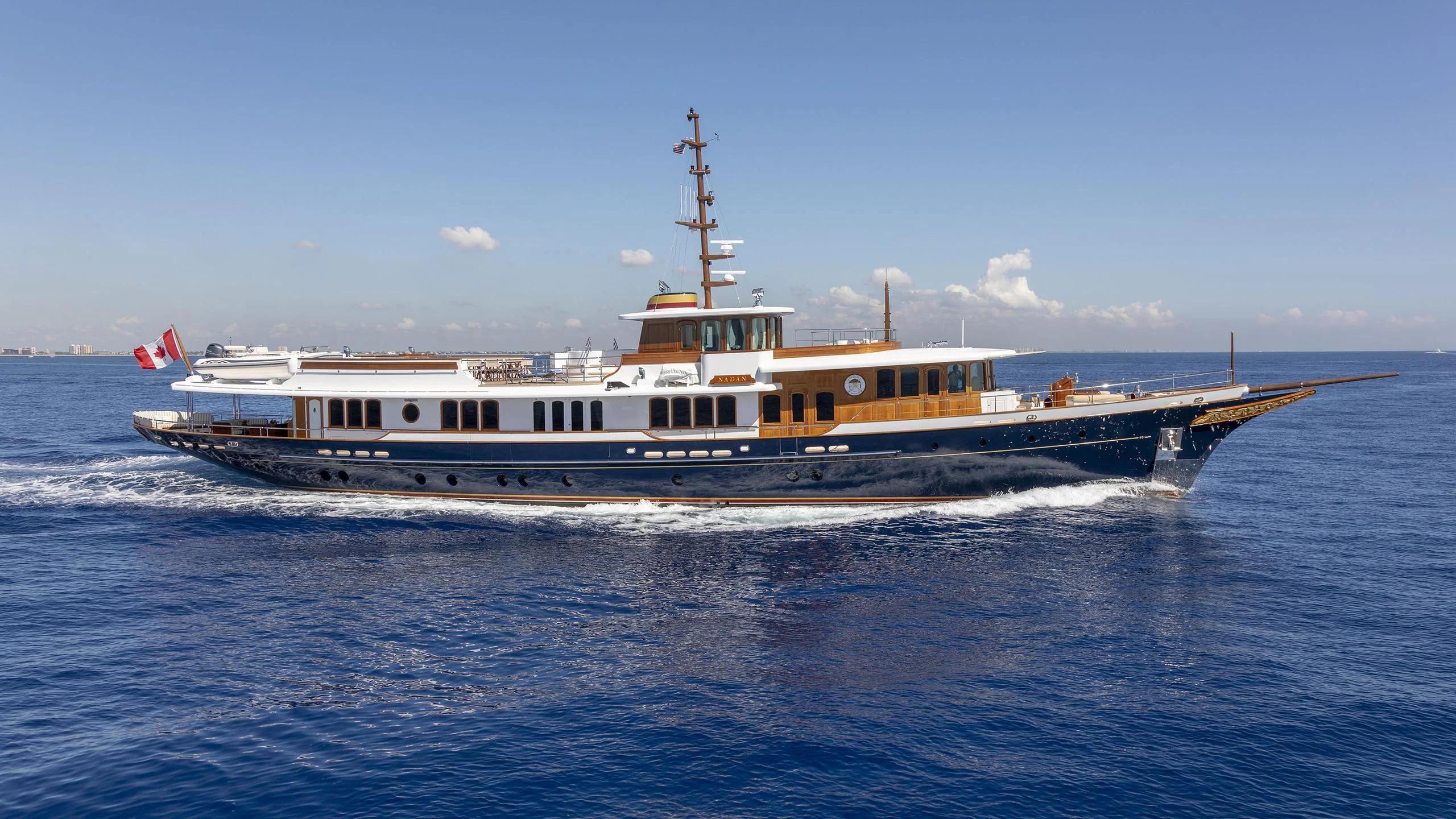

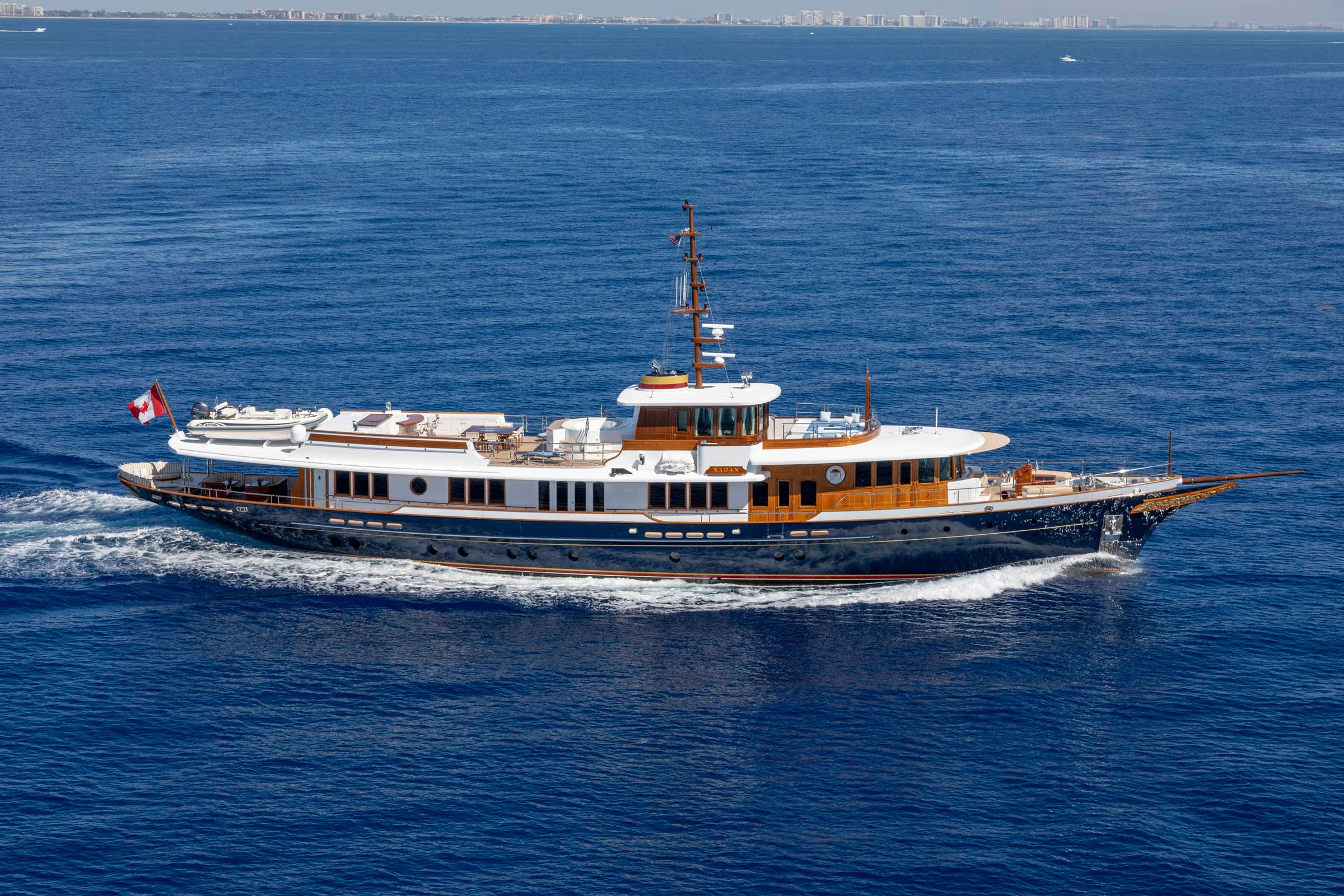

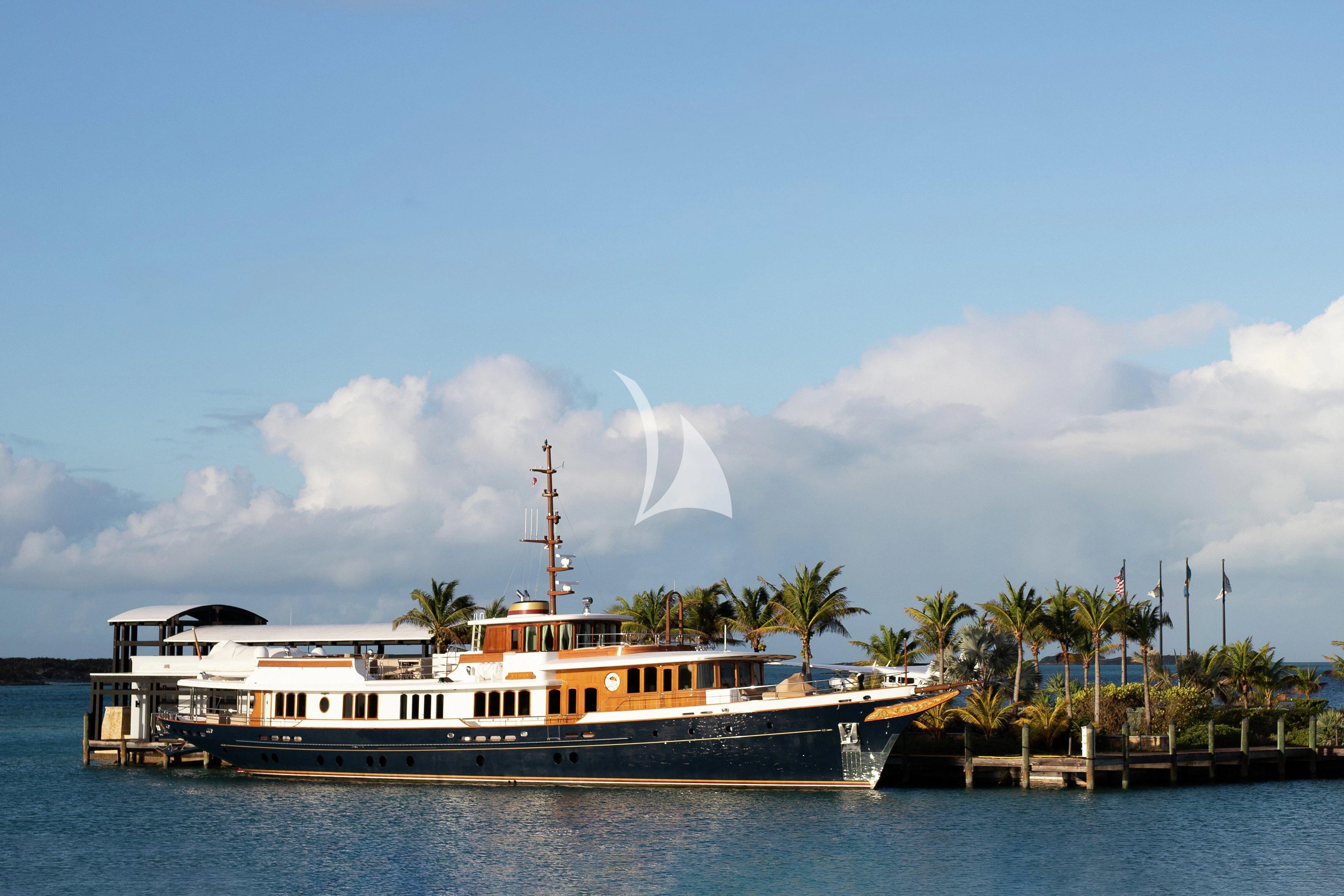

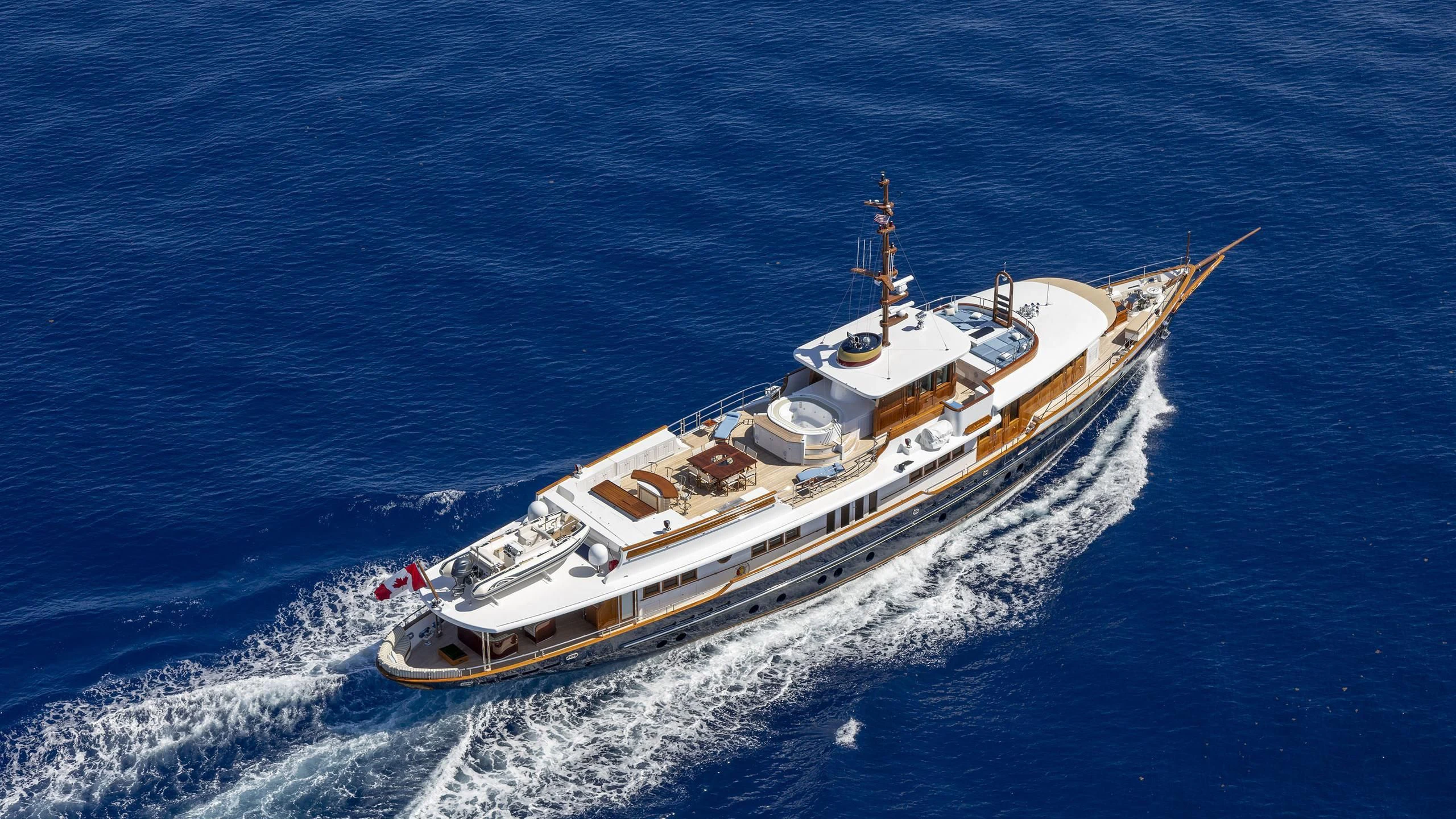

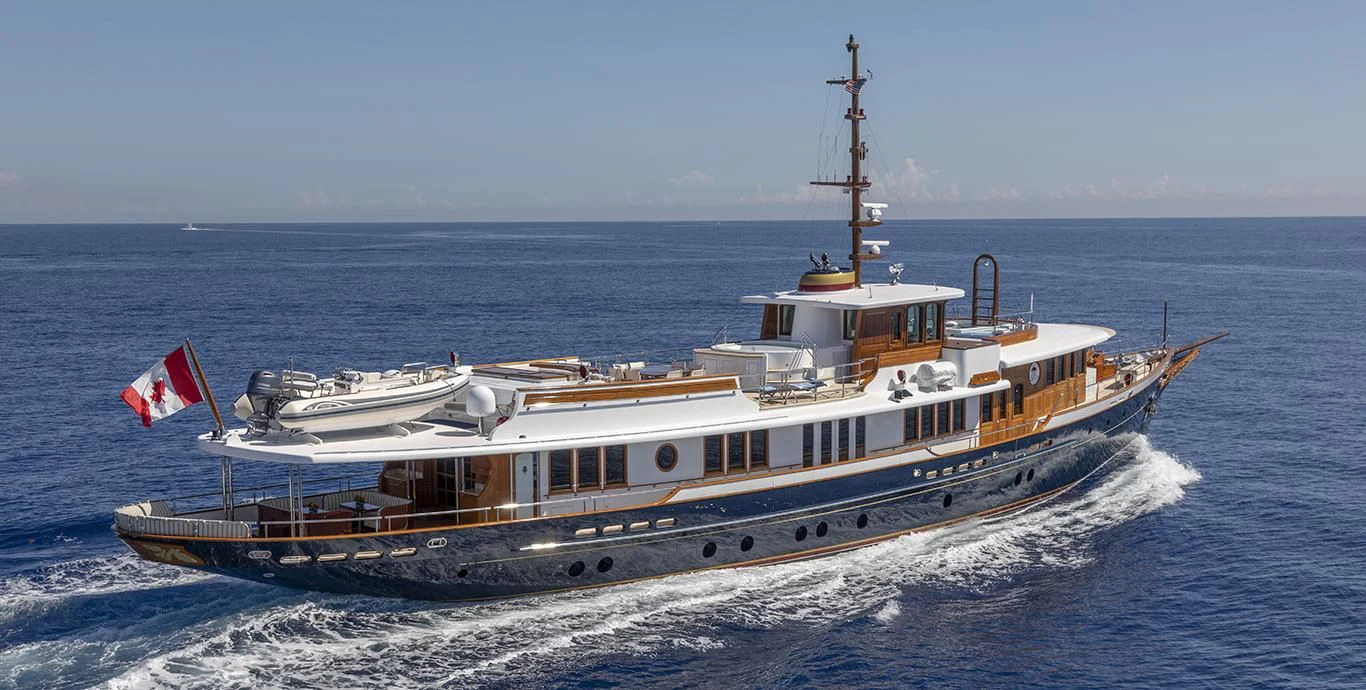

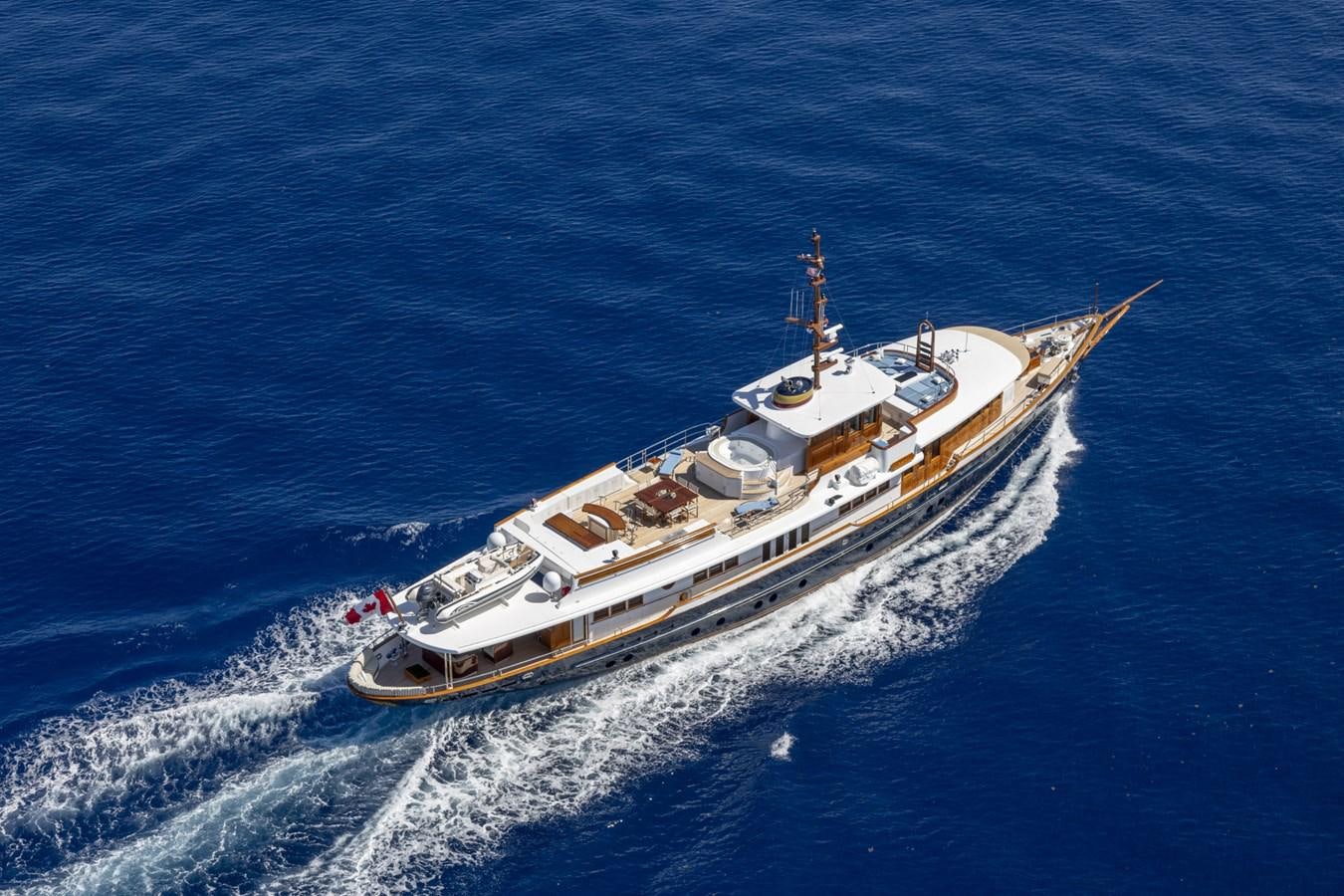

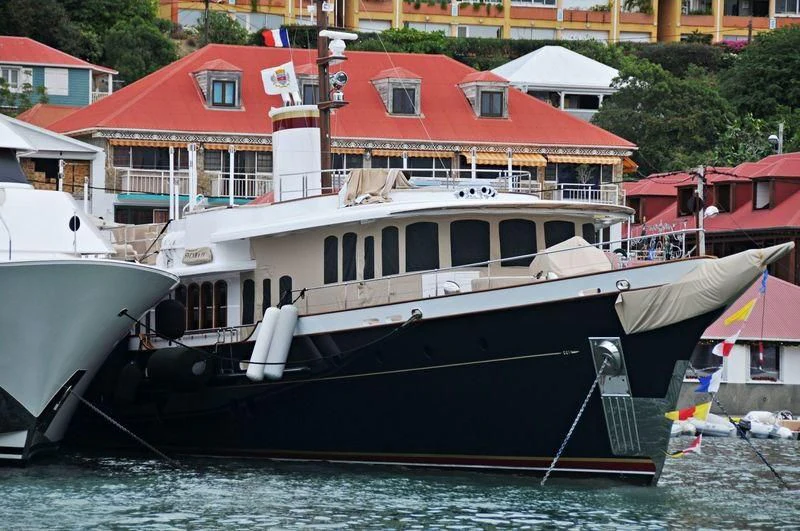

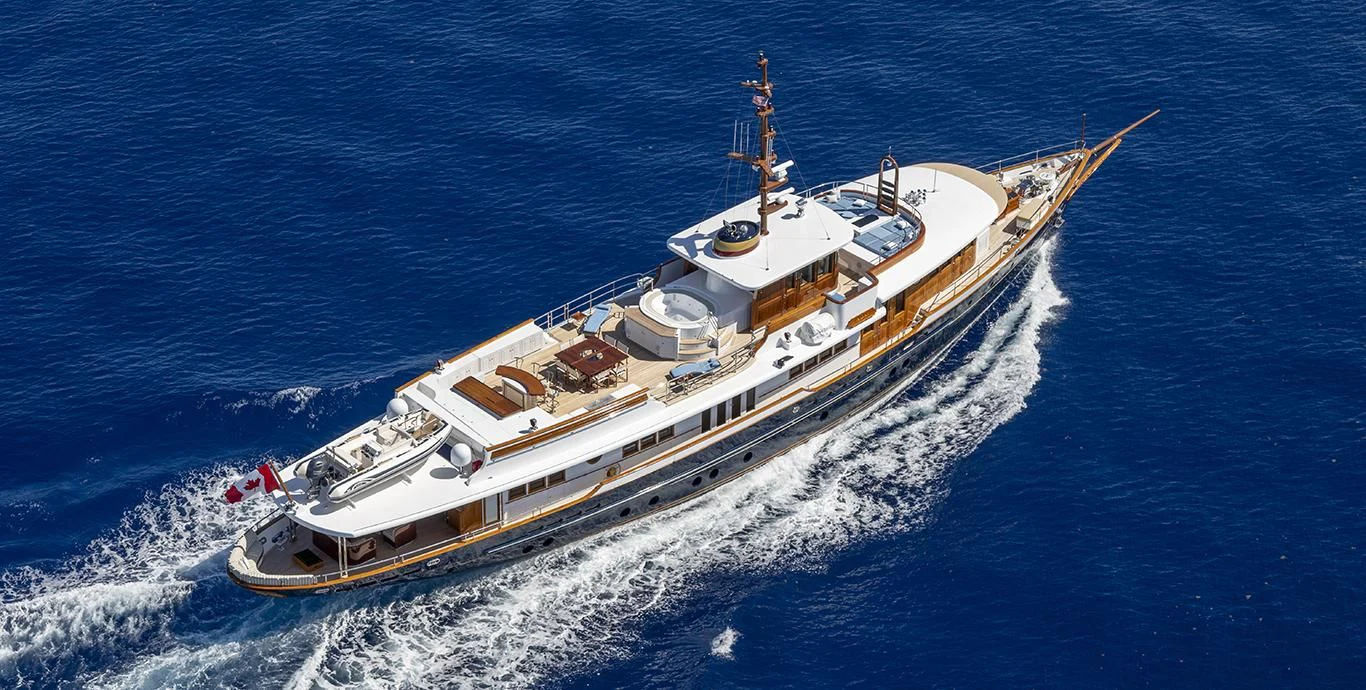

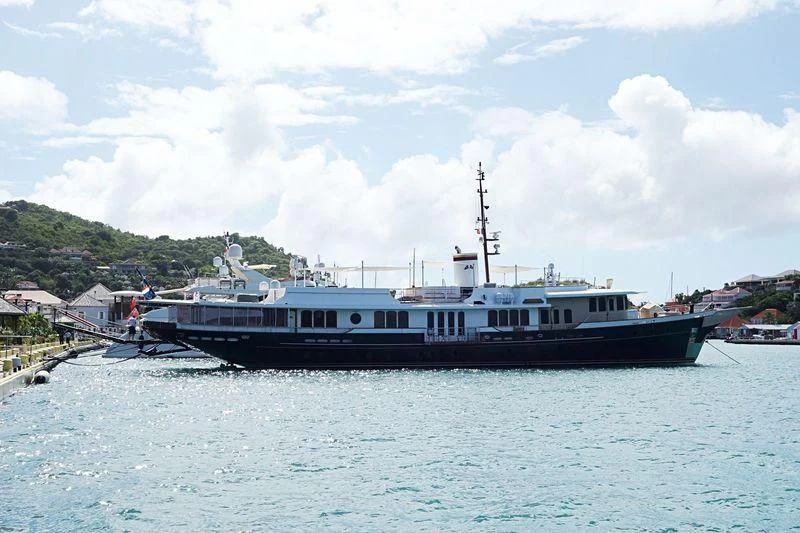

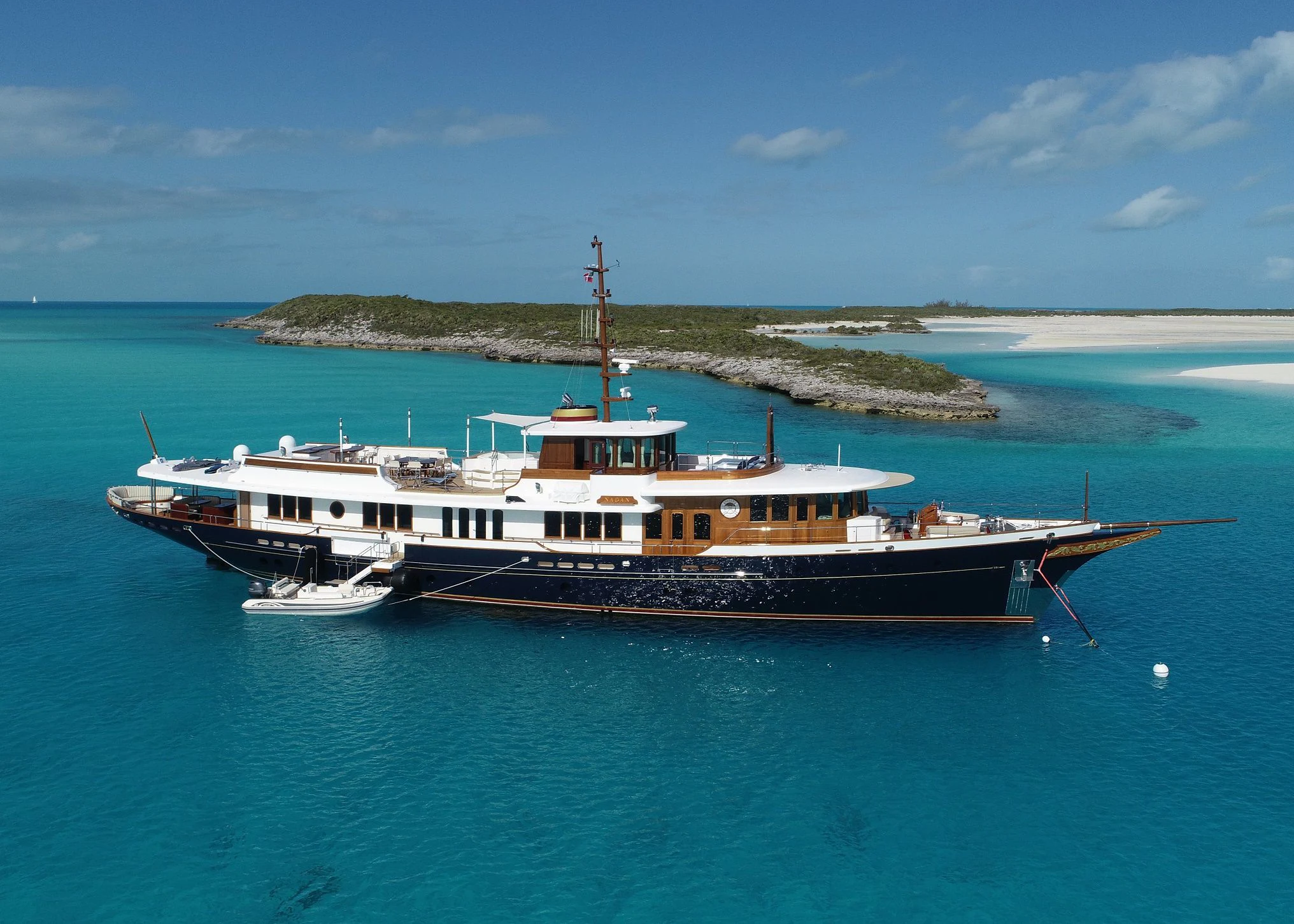

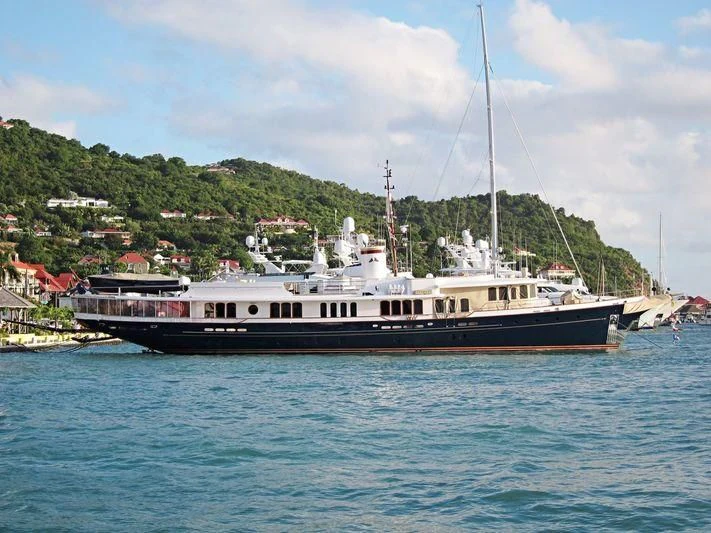

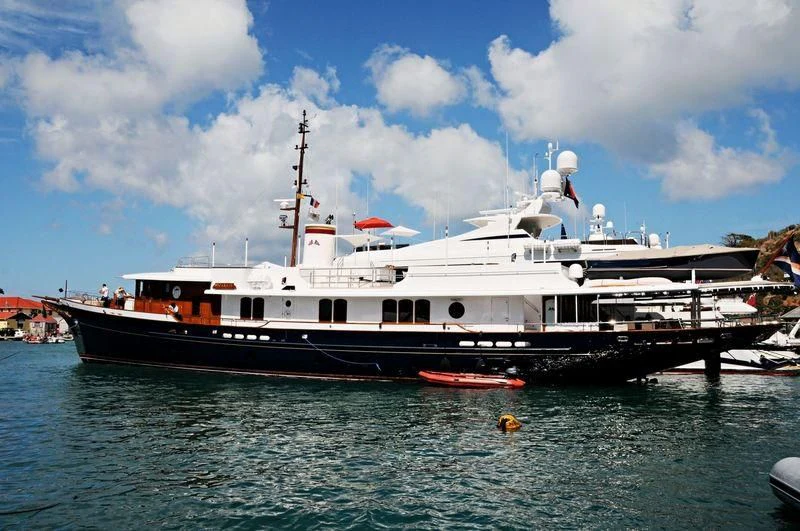

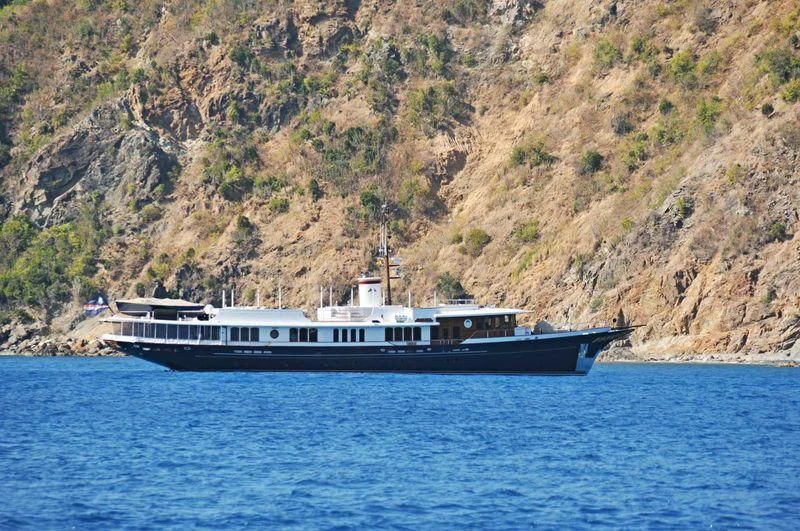

NADAN Yacht for Sale

Length: 151' (46.1m)
Builder: BURGER BOAT COMPANY
Build: 2009/2021

Cabins: 4
Crew: 7
Asking Price: $16,900,000

Amenities

Specifications

Inquire

Amenities

Accessible
Jacuzzi
Passarelle
Stabilizers
Underwater lights
Wi-Fi

In The News

Specifications

Builder	BURGER BOAT COMPANY
Length (LOA)	151' (46.1m)
Year	2009
Year Refit	2021
Gross Tonn.	271
Draft	7' (1.83m)
Beam	26' (8.05m)
Range	1,700 NM
Location	United States

Accommodations

Staterooms	4
Sleeps	9

Crew Cabins	7
Crew Sleeps	7

Dimensions & Capacity

LOA	151' (46.1m)
Max Draft	7' (1.83m)
Fuel Tank	4,269 g (16,161 L)
Fresh Water	1,501 g (5,680 L)
Gross Tonn.	271
Displacement	216

Construction

Hull Material	Aluminum
Ext. Designer	Burger Boat Company
Int. Designer	Burger Boat Company / Ken Freivokh Design (USA)
Cruising Speed	12 Knots
Range	1,700 NM

Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

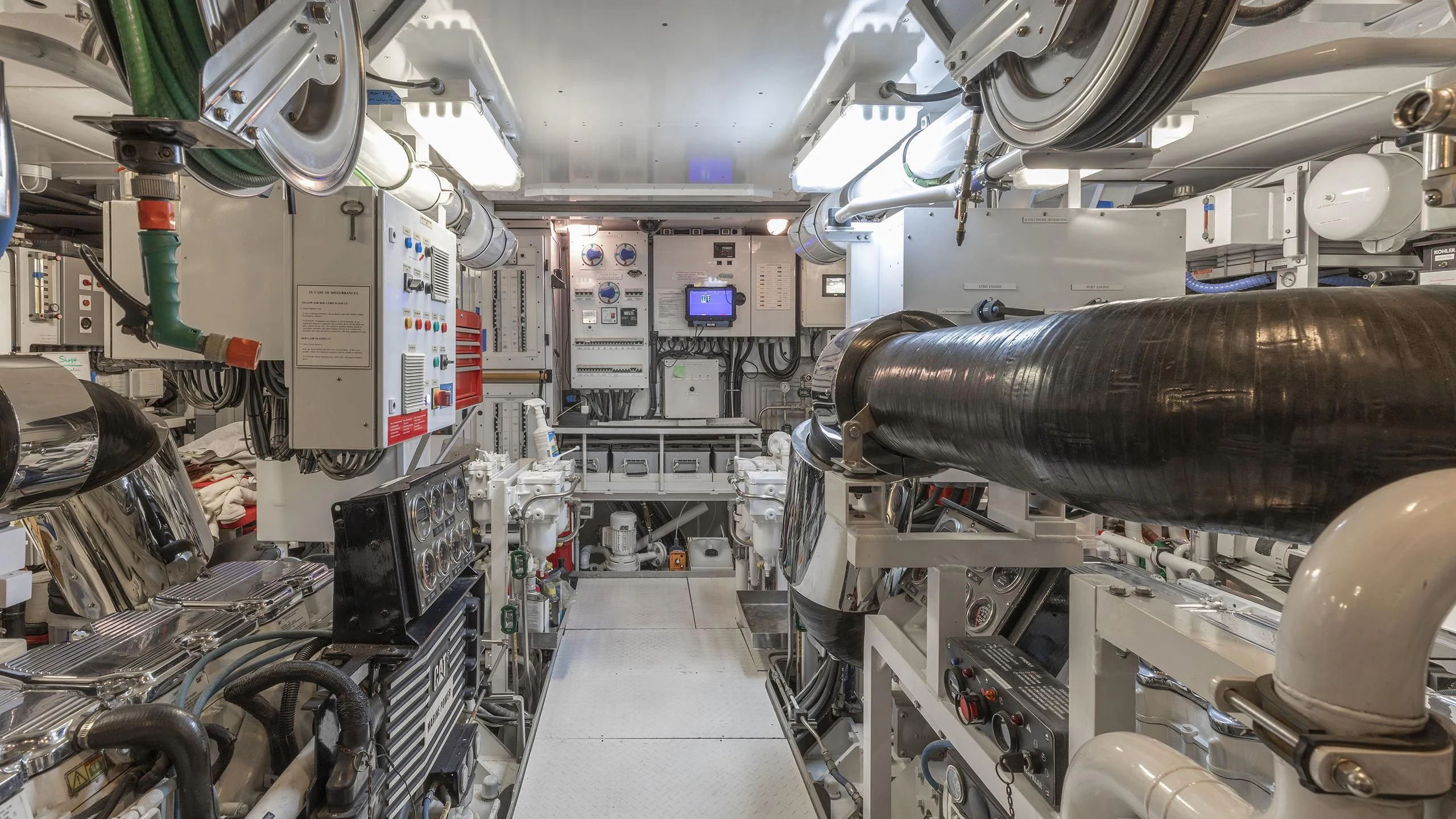

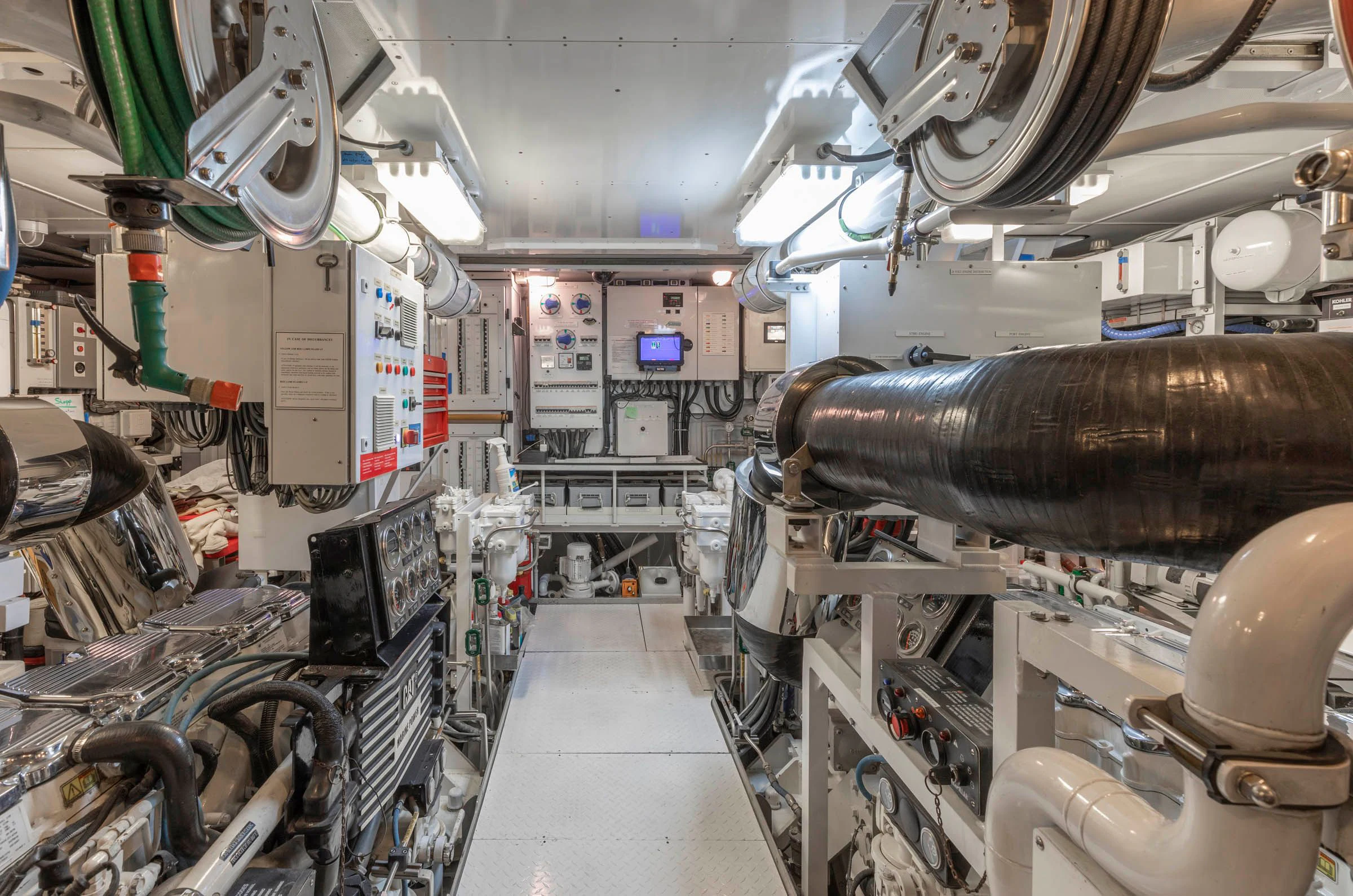

Other Machinery

AIR COMPRESSOR

Powerex 7.6 CFM @ 145 PSI

VENTILATION

Delta-T Systems with 2 x reversible, variable speed axial fans in E/R

WATER MAKER

1 x Matrix S-2600 reverse osmosis desalination @ 9,842 l / 2,600 USG/day

FRESH WATER MAKER

1 x Matrix Silver B System, 3600 GPD reverse osmosis, 3 x membranes

FRESH WATER PRESSURE

2 x Grundfos MQ345 1Hp pumps

HOT WATER

1 x Nibe SP-200 storage tank w/Nibe ELK-213 heater

FRESH WATER FILTERS

Dual Stage 5” x 20” particle and carbon

FRESH WATER HEATERS

1 x Nibe 200 ELK213, 53 gallons
2 x Grundfos circulating pumps

TOILETS

Jets Vacuum collection, 10 x Jets marine toilets

SEWAGE TREATMENT

Hamann Wassertechnik Mini L

OIL/WATER SEPARATOR

A Heli-Sep bilge oil/water separator
OCD oil content meter in compliance w/ USCG/Marpol

FUEL SEPARATOR

Kaydon CF112, 12 GPM Coalescer filter

FUEL FILTERS

2 x Separ SWK2000/ 18/U water separator
2 x Separ SWK2000/5/50U water separator

FUEL OIL TRANSFER

1 x G&R ASV331, 26 GPD

OIL PUMPS

Oberdorfer

Accommodation

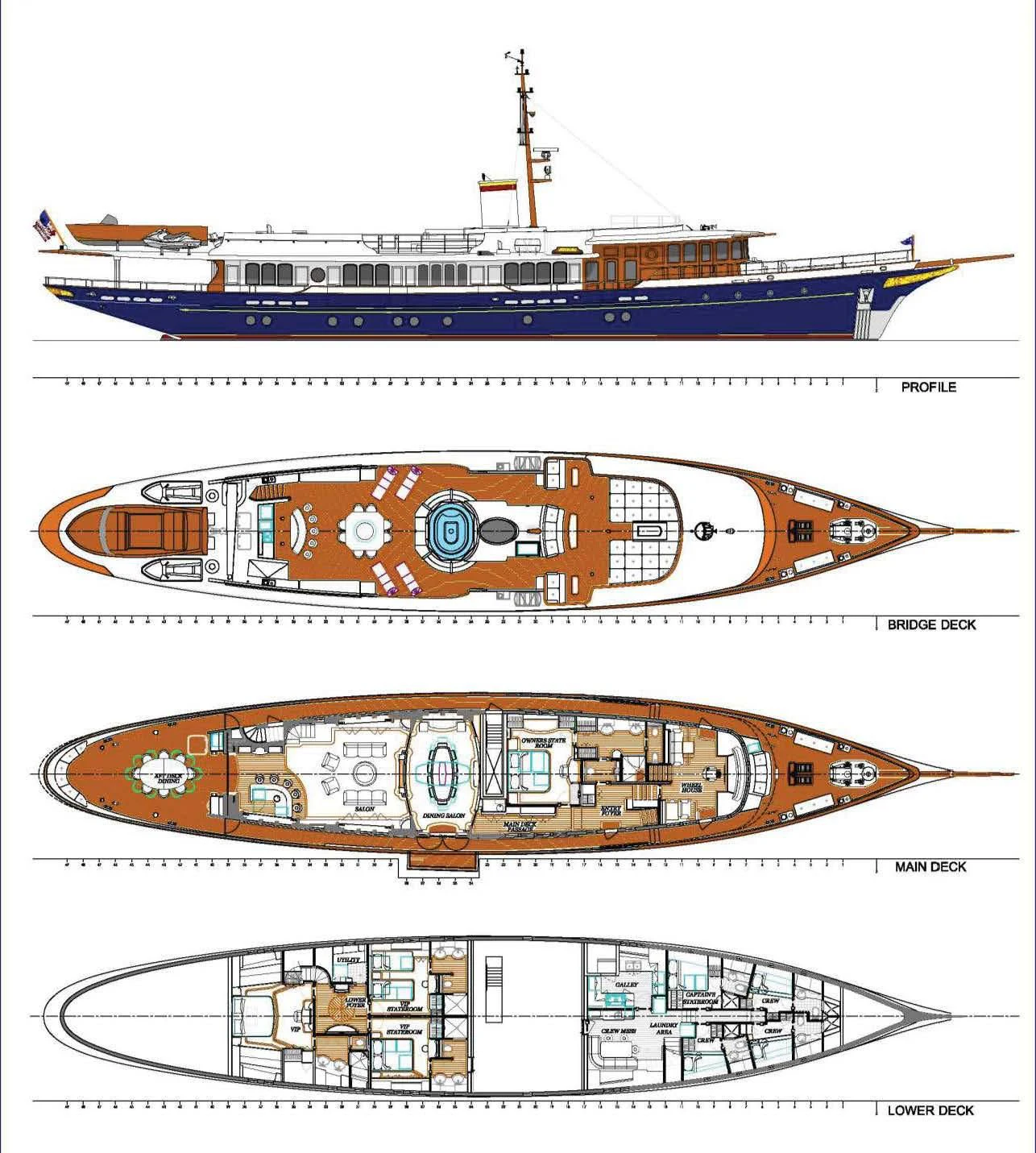

OVERVIEW

She sleeps 9 in the Owner’s party in 4 cabins with one Pullman berth, plus crew accommodations for up to 7 in 4 cabins (including Captain’s Cabin).

BRIDGE DECK

Sky lounge with en-suite toilet.

MAIN DECK

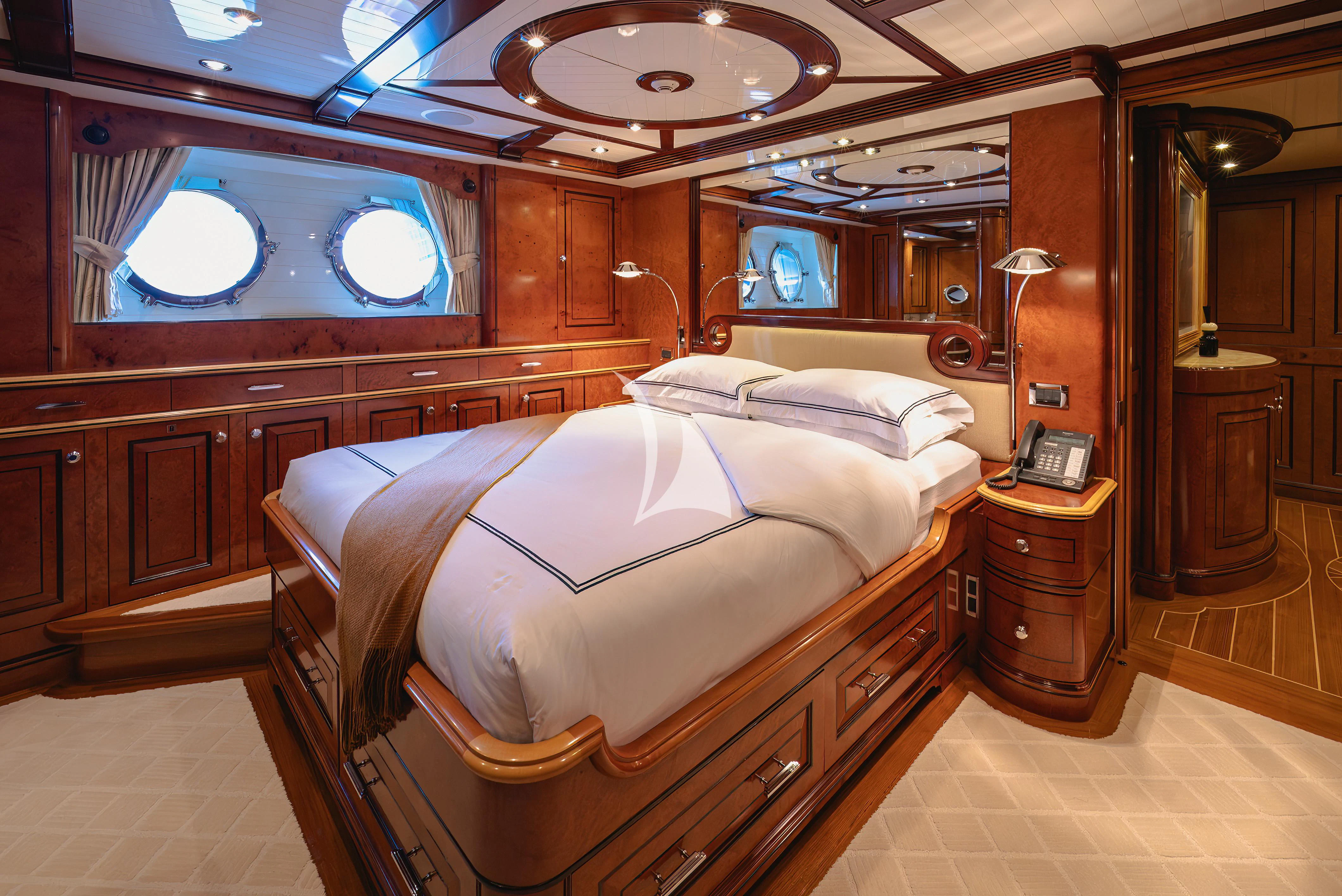

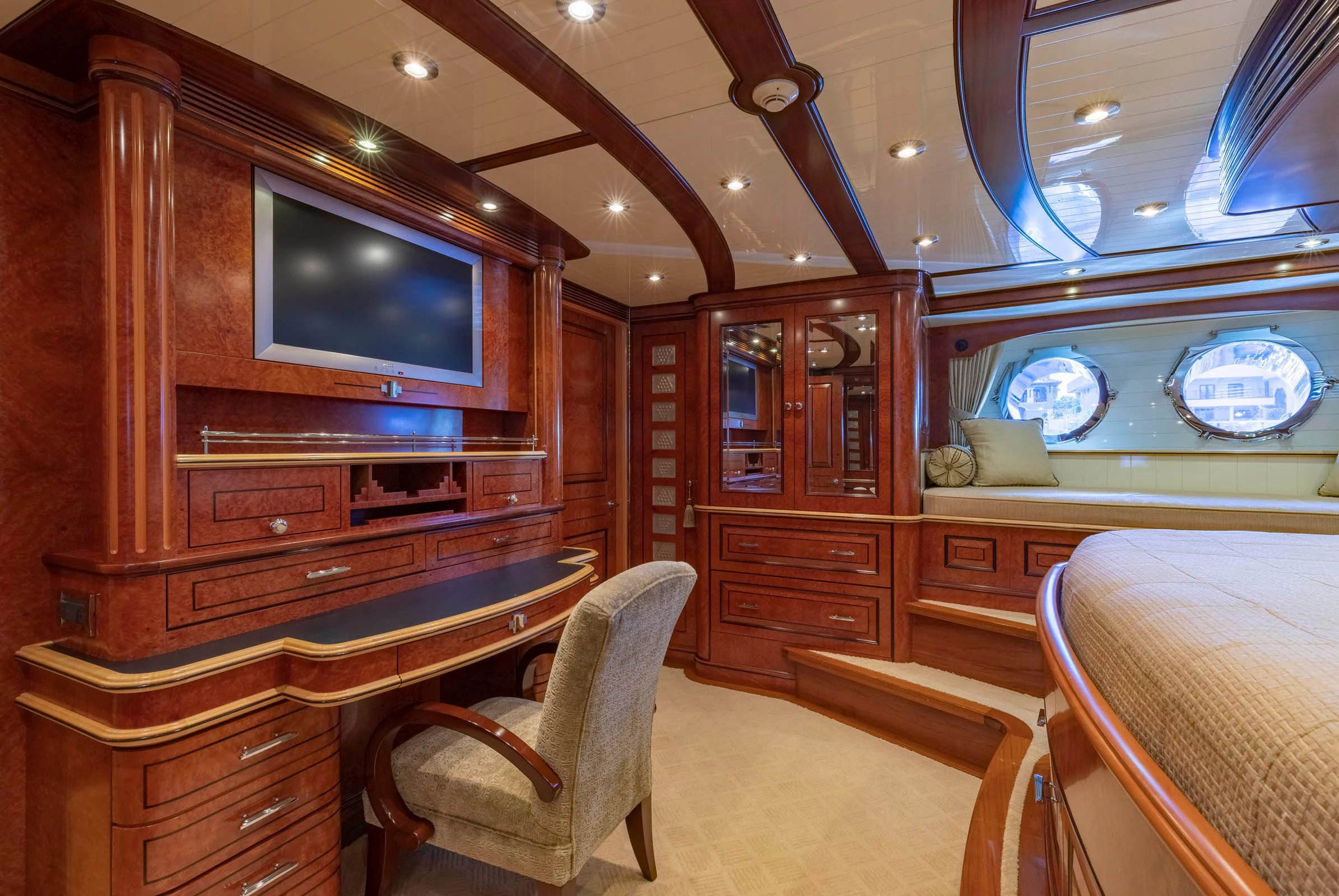

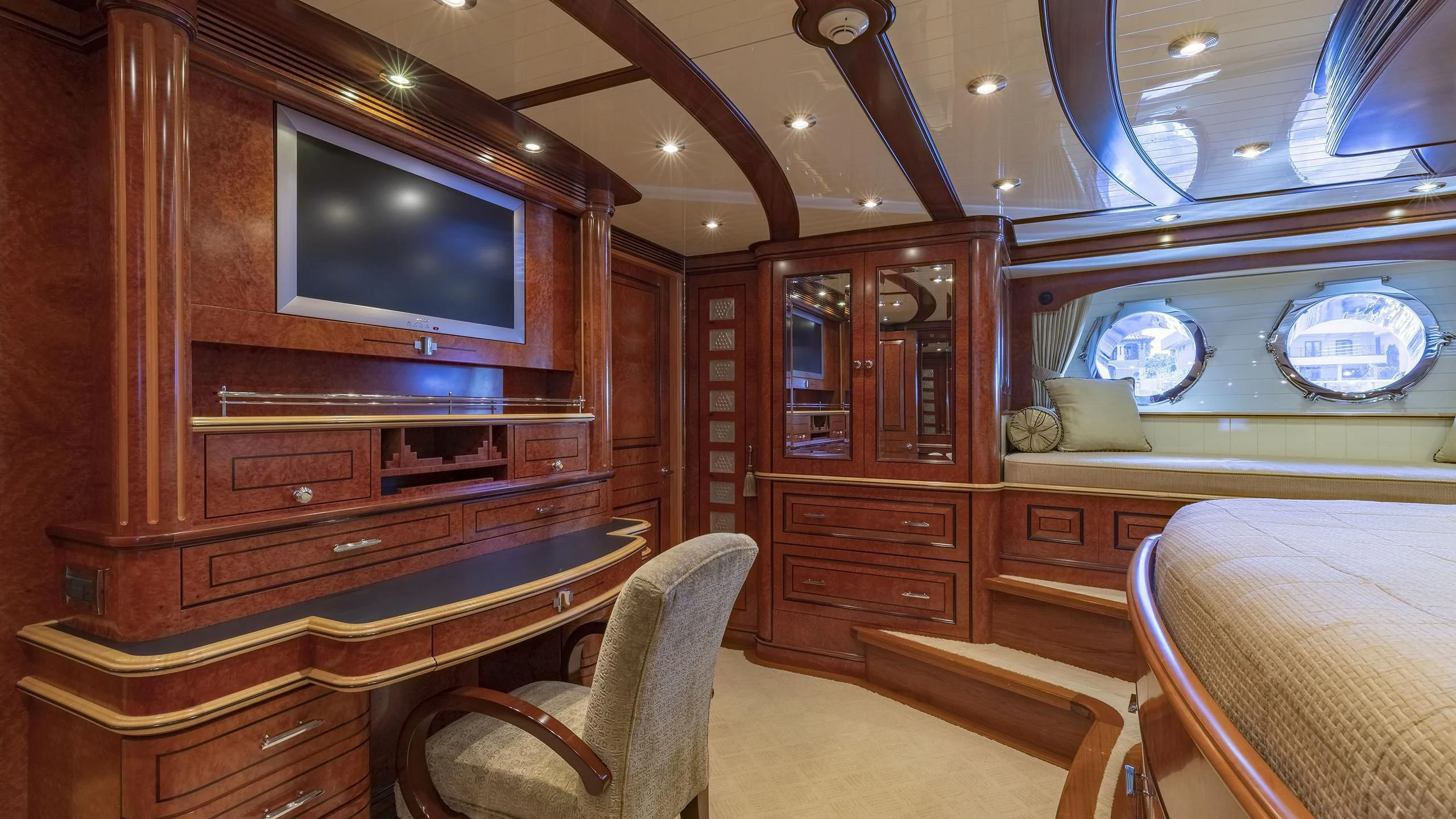

Owner’s Cabin on the main deck with king size bed and en-suite bathroom.

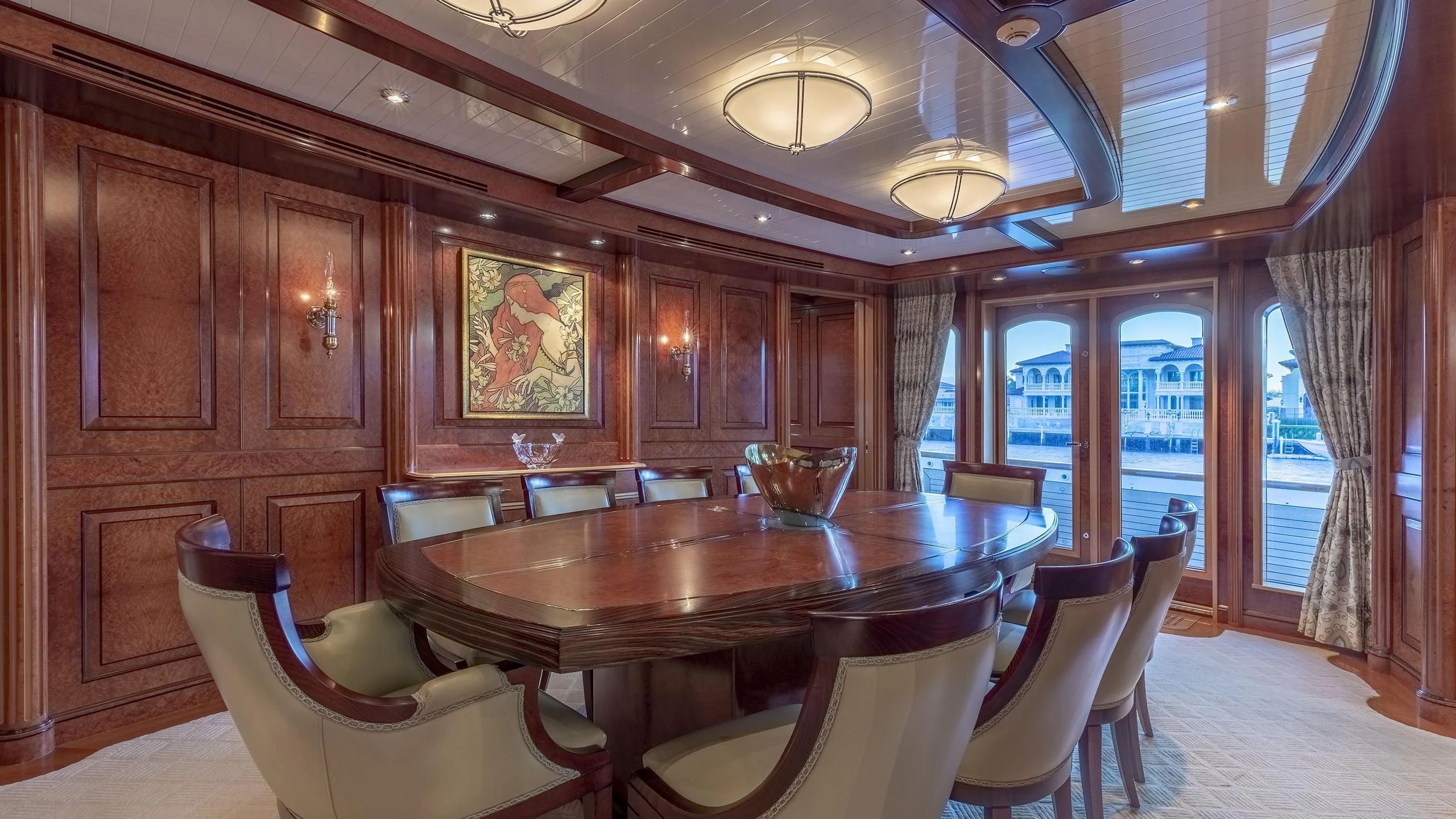

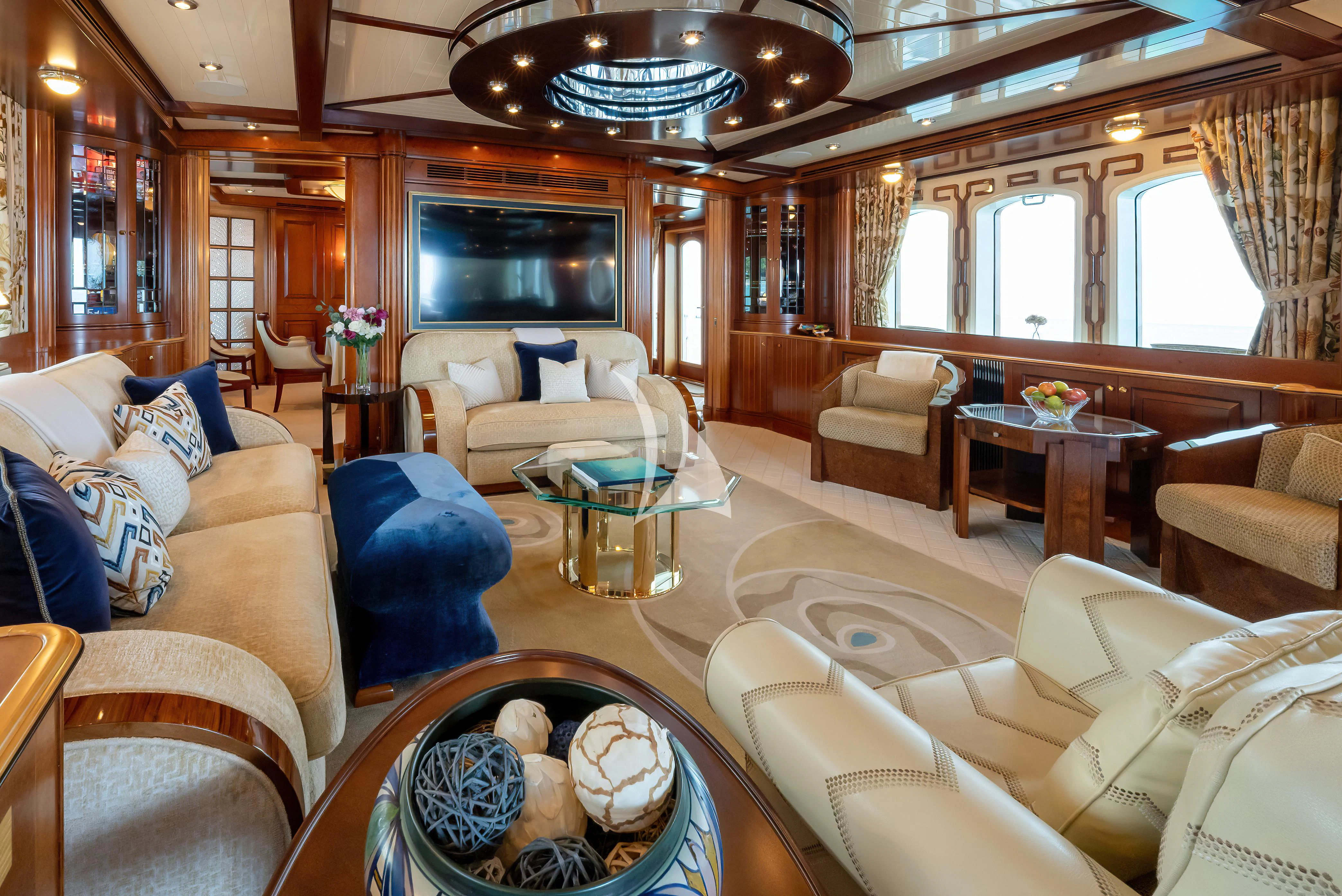

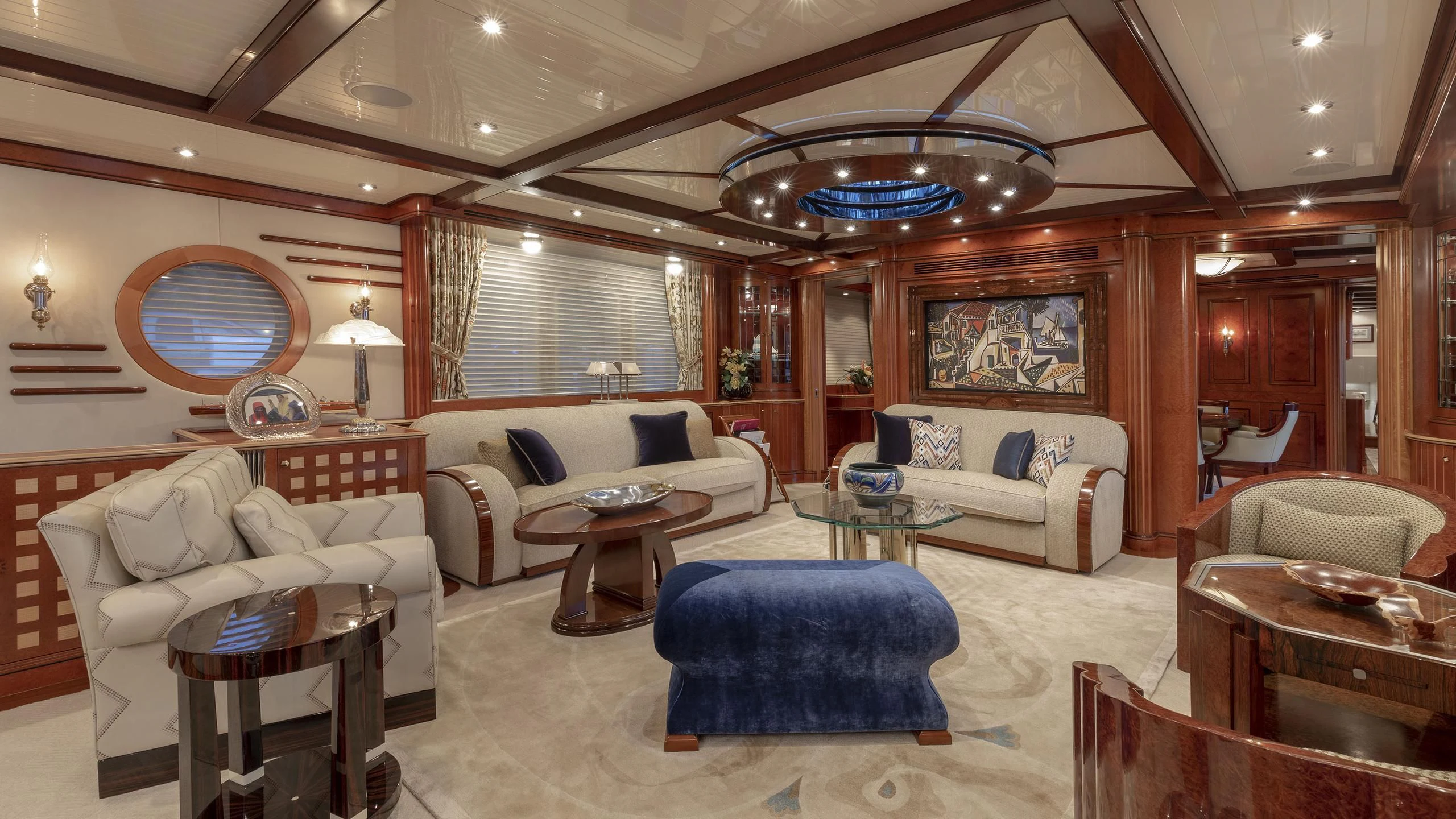

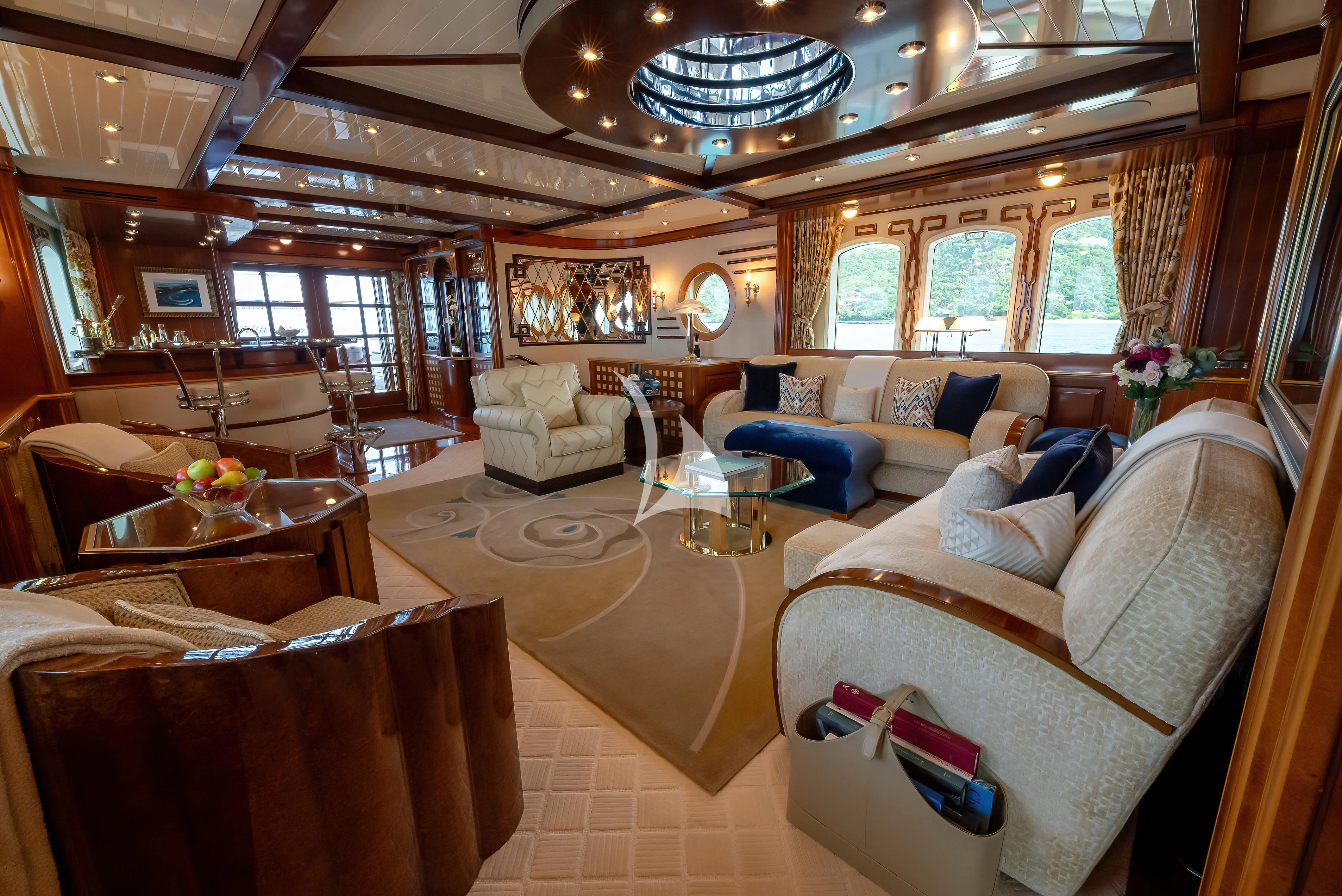

Main Salon & Dining with veranda.

LOWER DECK

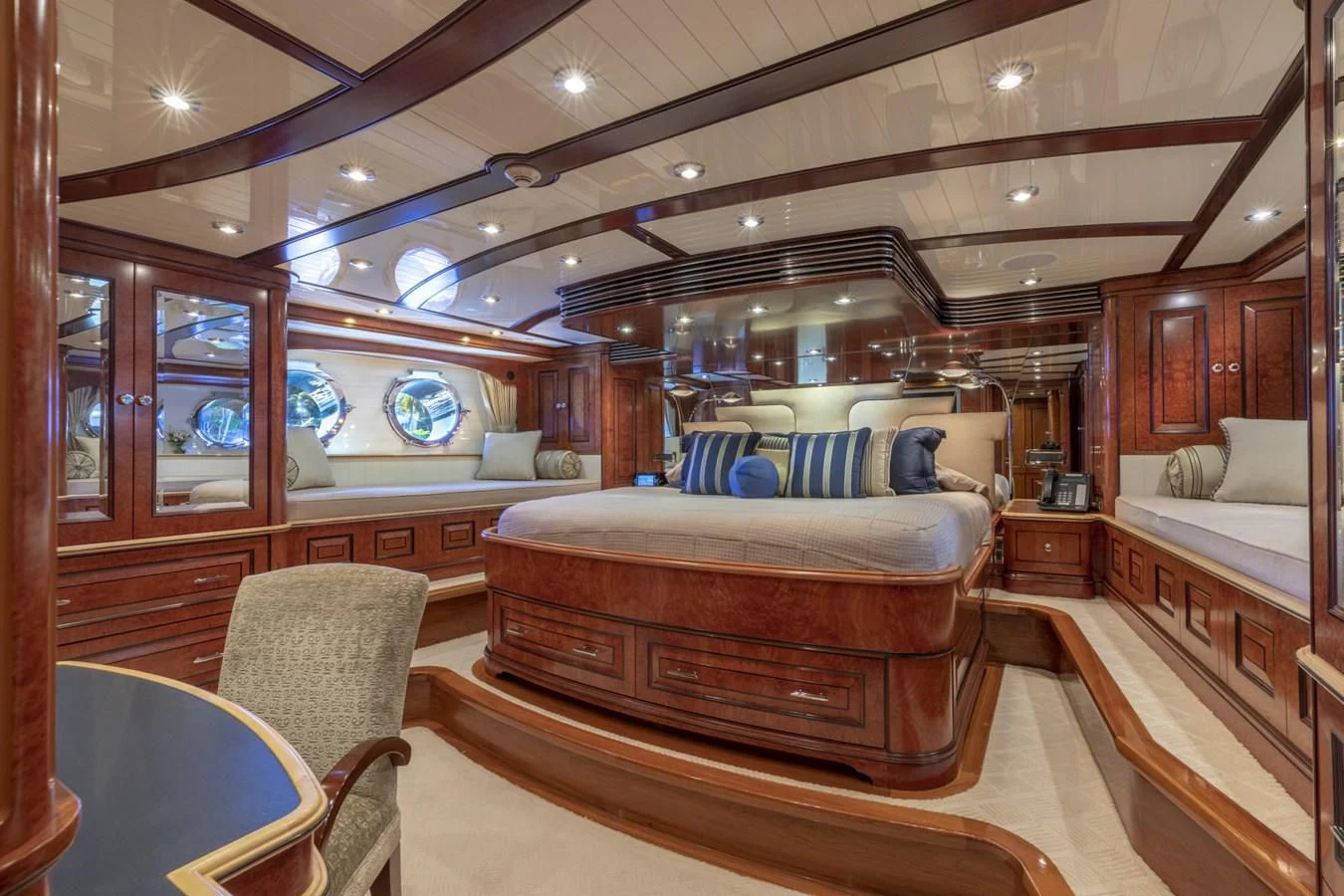

1 x VIP Guest Cabin – full beam aft with king berth and en-suite bathroom.
1 x Double Guest Cabin – with queen size berth and en-suite bathroom.

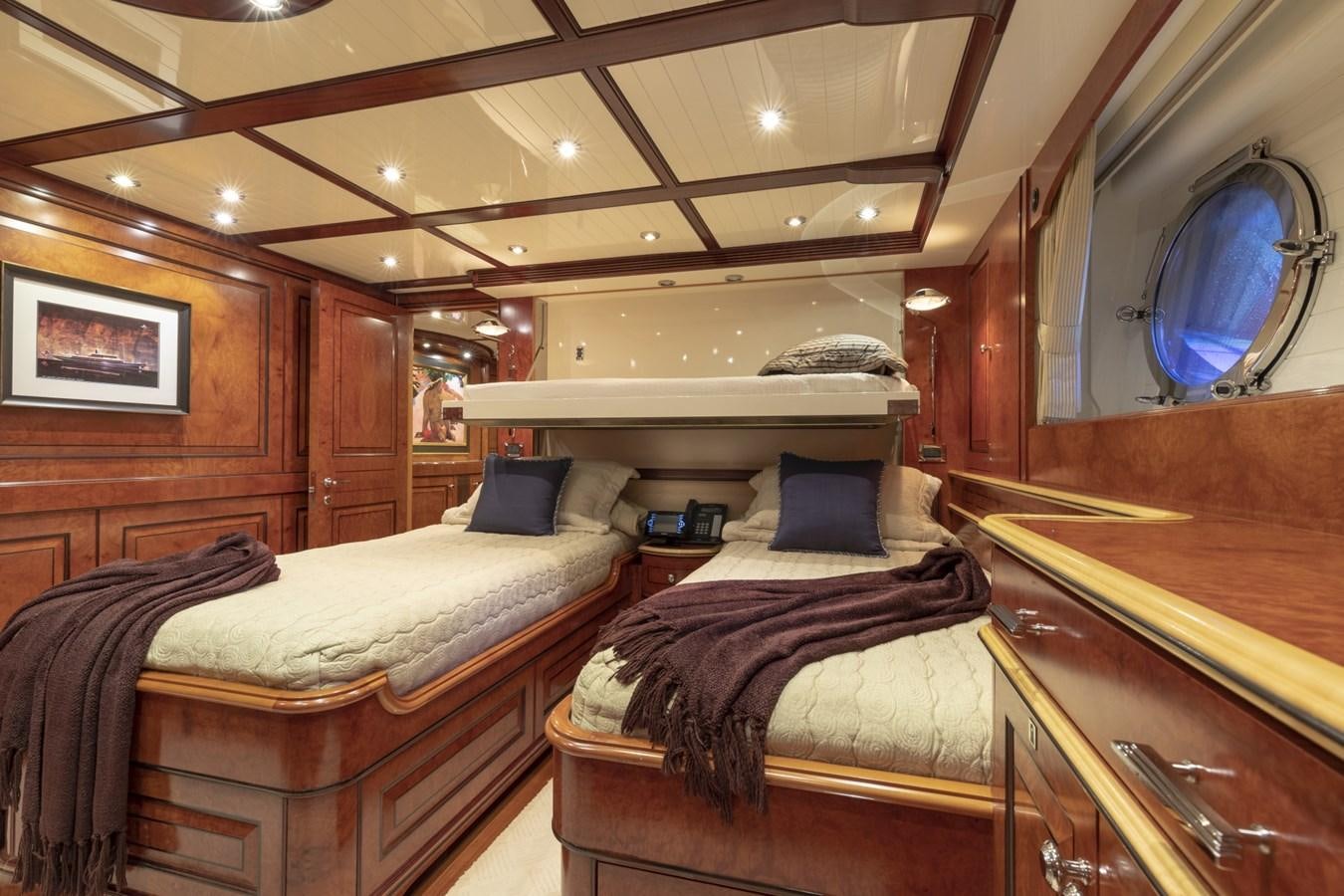

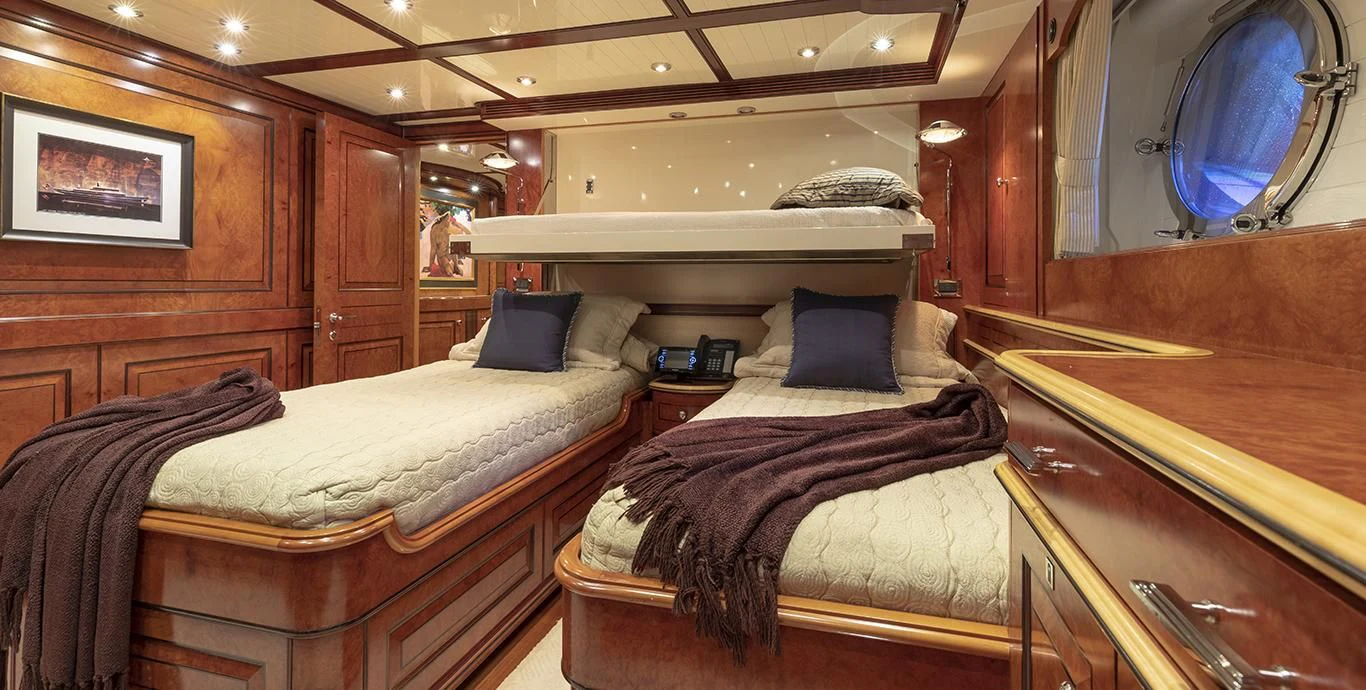

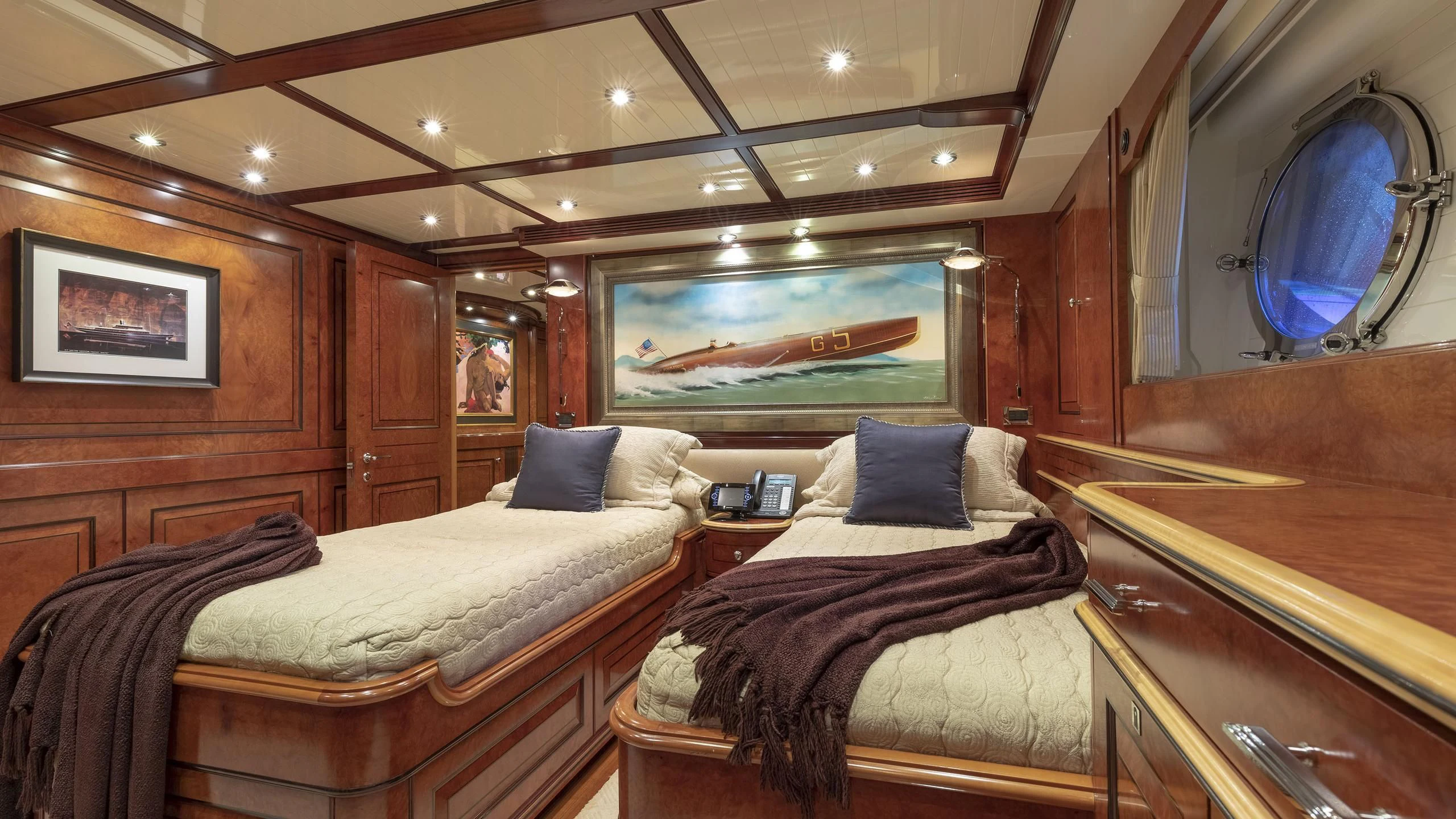

1 x Twin Guest Cabin – with twin berths plus one Pullman berth and en-suite bathroom.

CREW

4 x crew cabins (including Captain’s Cabin) forward on the lower deck.

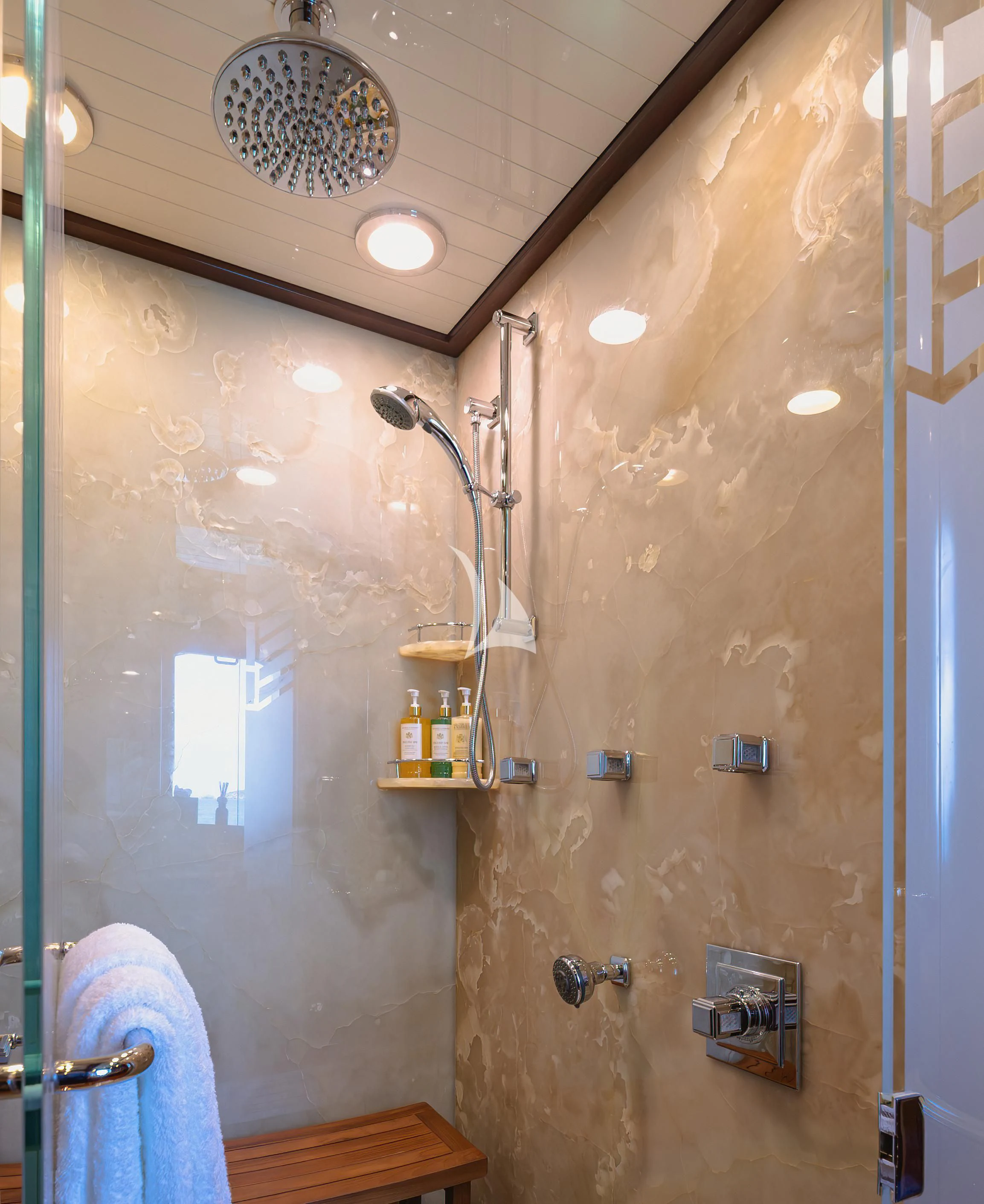

Each cabin has an en-suite toilet and shower

Galley & Laundry Equipment

MAIN SALON BAR

1 x Ice Maker Hoshizaki, Mod AM-50BAJ, SN H12647L
1 x Refrigerator Sub Zero, Mod UC-24R, SN P2875739
1 x Basin

MAIN SERVICE

1 x Refrigerator Sub Zero, Mod UC-24R, SN P2875741
1 x Heat Lamps Hatco Glo Ray GRH-18
1 x Basin

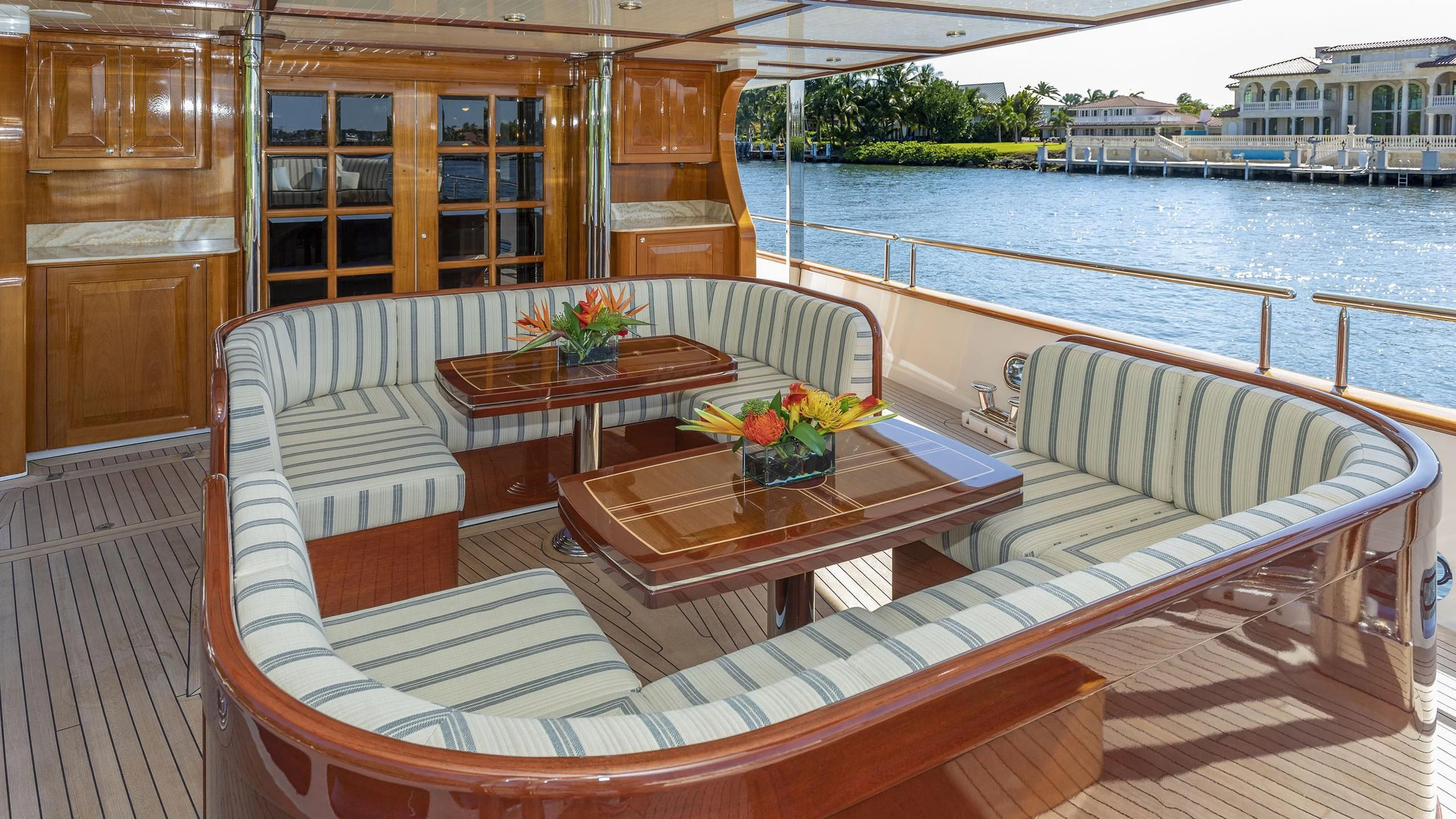

AFT DECK

1 x Sub Zero Refrigerator UC-24R, SN P2806803

FORE DECK

1 x Refrigerator U-Line U-2115RW-00, SN 083284-07-0005

UPPER AFT DECK

1 x Sub Zero Refrigerator UC-24R, SN G3657723
1 x Sub Zero Ice Maker, UC-1510, SN 3881916

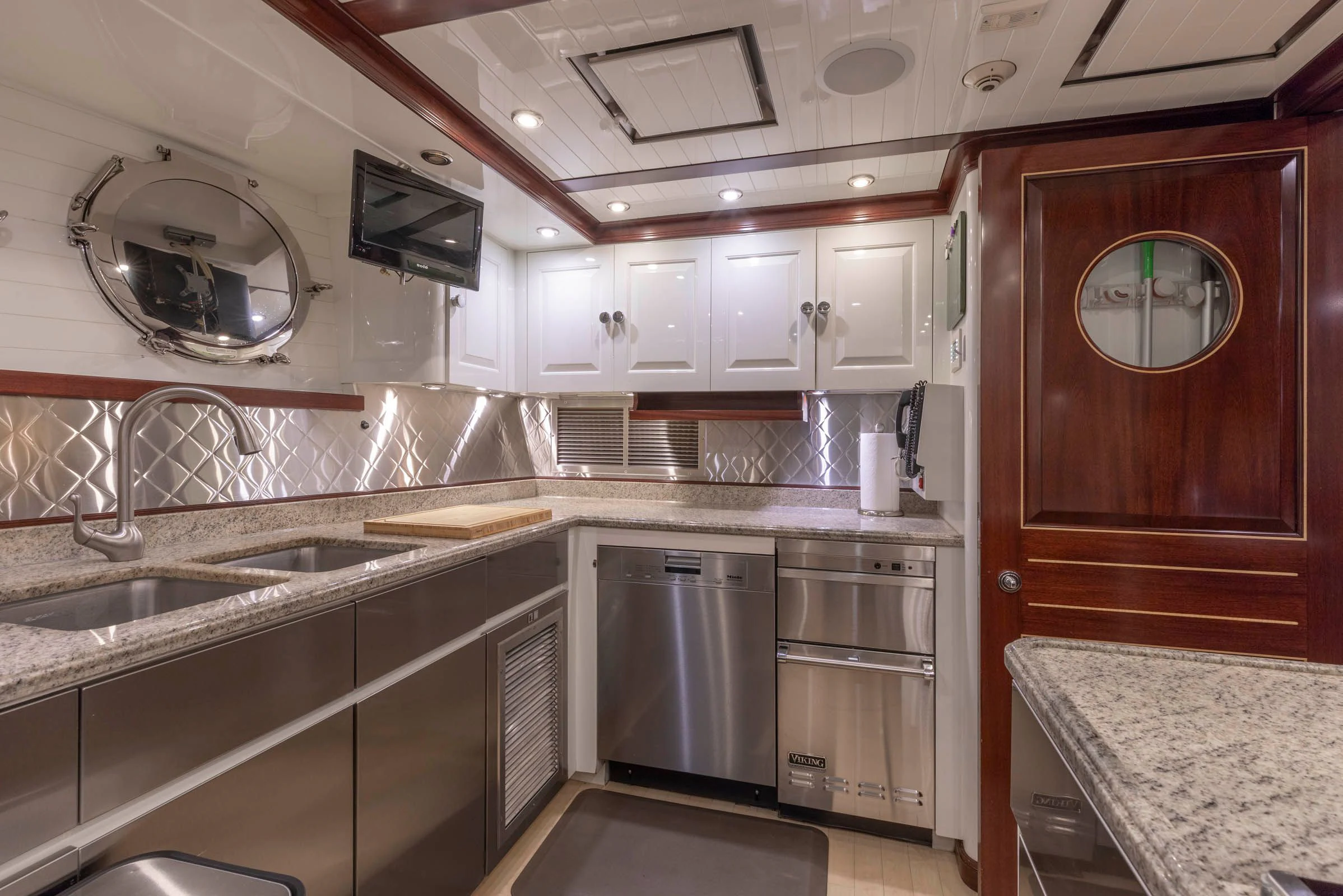

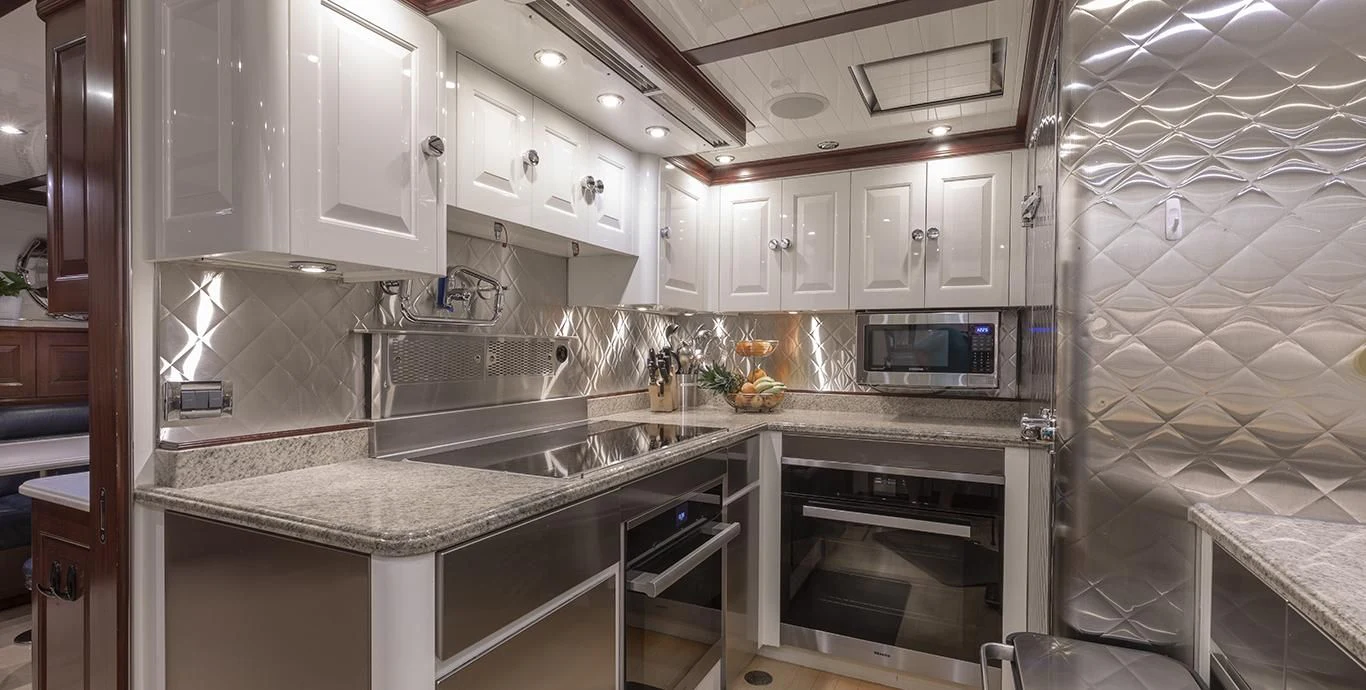

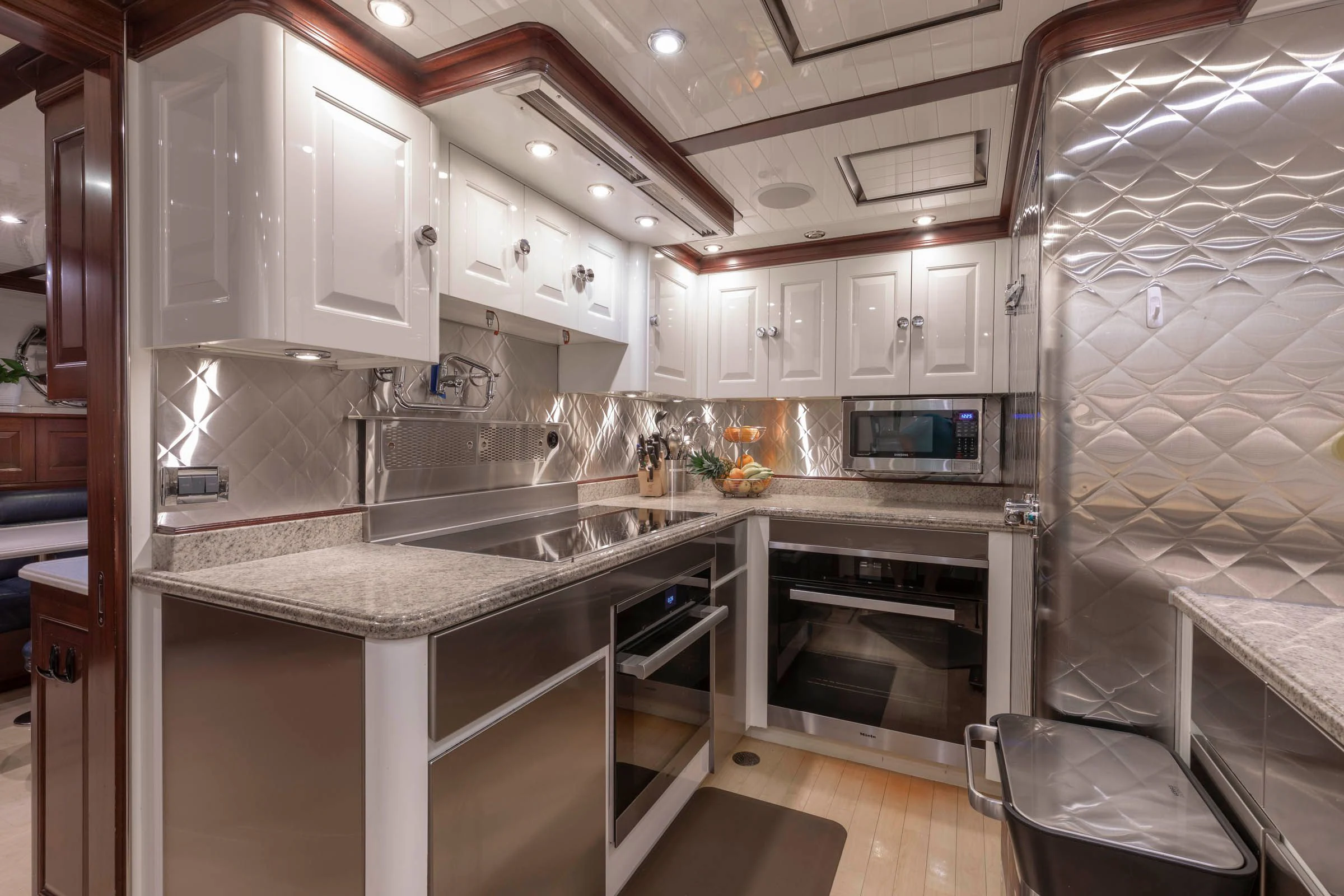

MAIN GALLEY

1 x Miele Oven 30” H6680BP, SN 09769460
1 x Miele Oven 24” H6560BP, SN 09769410
1 x GE Profile Range 5-burners 36” SS
Refrigeration, walk-in
Cospolich WIC Artic Safe, SN 256507
1 x Dishwasher Miele PG8080, SN 64/147316140
1 x Compactor Viking Professional VUC 181SS
1 x Microwave Oven Samsung
1 x Garbage Disposal InSinkErator Excel-4

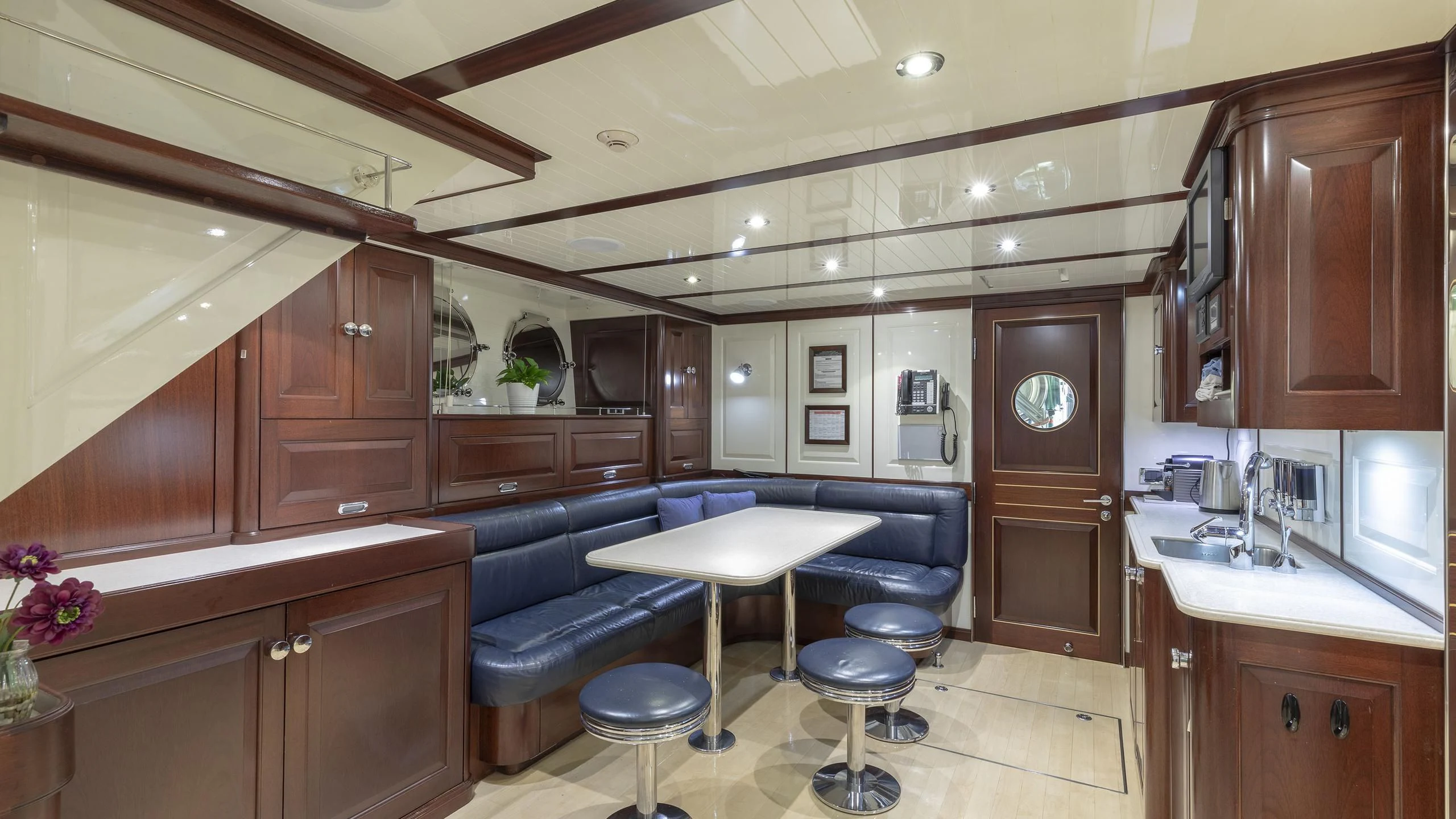

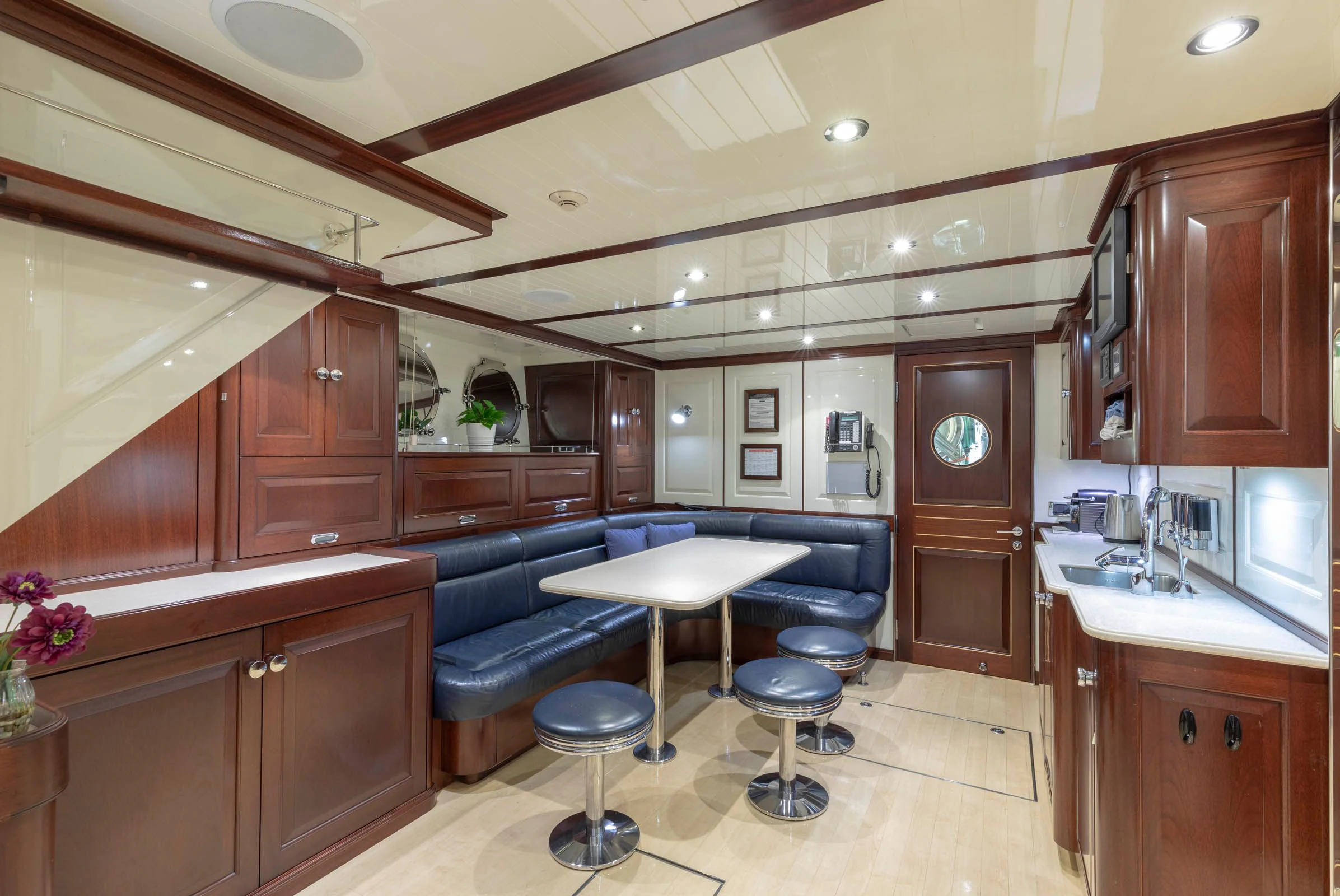

CREW MESS

1 x GE Microwave JE0736SM1SS, SN VR913709U
1 x Sub Zero 2-drawer refrigerator Mod 700BR3, SN M2584869
2 x Cospolich Freezer 27.5”W x 33”D x42”H
1 x Perlick ice maker H50IMSL, SN E02716A
1 x Jura coffee Machine
1 x Toaster

LAUNDRY

1 x Miele Washer / Dryer Stacked Mod PT7136 Plus/PW6065 Vario, SN 40/66678314-40/69866304
1 x Basin

CREW LAUNDRY

1 x Miele Washer PT7136 Plus, SN 40/66742306
1 x Dryer Miele PW6065 Vario, SN 56/114924785

Communication Equipment

Navigation Equipment

RADAR

Furuno / Arpa BB2127BB

GYROCOMPASS

Anschutz Digital gyro STD22
Simrad AP50 helm station fwd

MAGNETIC COMPASS

Sperry Marine Nortrop Grumman 2060
Anschutz repeater at helm station fwd

AUTOMATIC PILOT

Simrad AP50
Furuno MultiPurpose LCD display MU155C at helm station fwd

DEPTH SOUNDER

Furuno Colour LCD FCV1200L

GPS

Furuno Navigator GP170 at helm station fwd

CHART PLOTTER

Time Zero Professional

WIND INSTRUMENTS

B&G Wind H3000, repeater at helm station fwd
Furuno RD33

SPEED LOG

Furuno Doppler Speed DS-80

NAVTEX

Furuno NX-700

AIS

Furuno Universal FA150

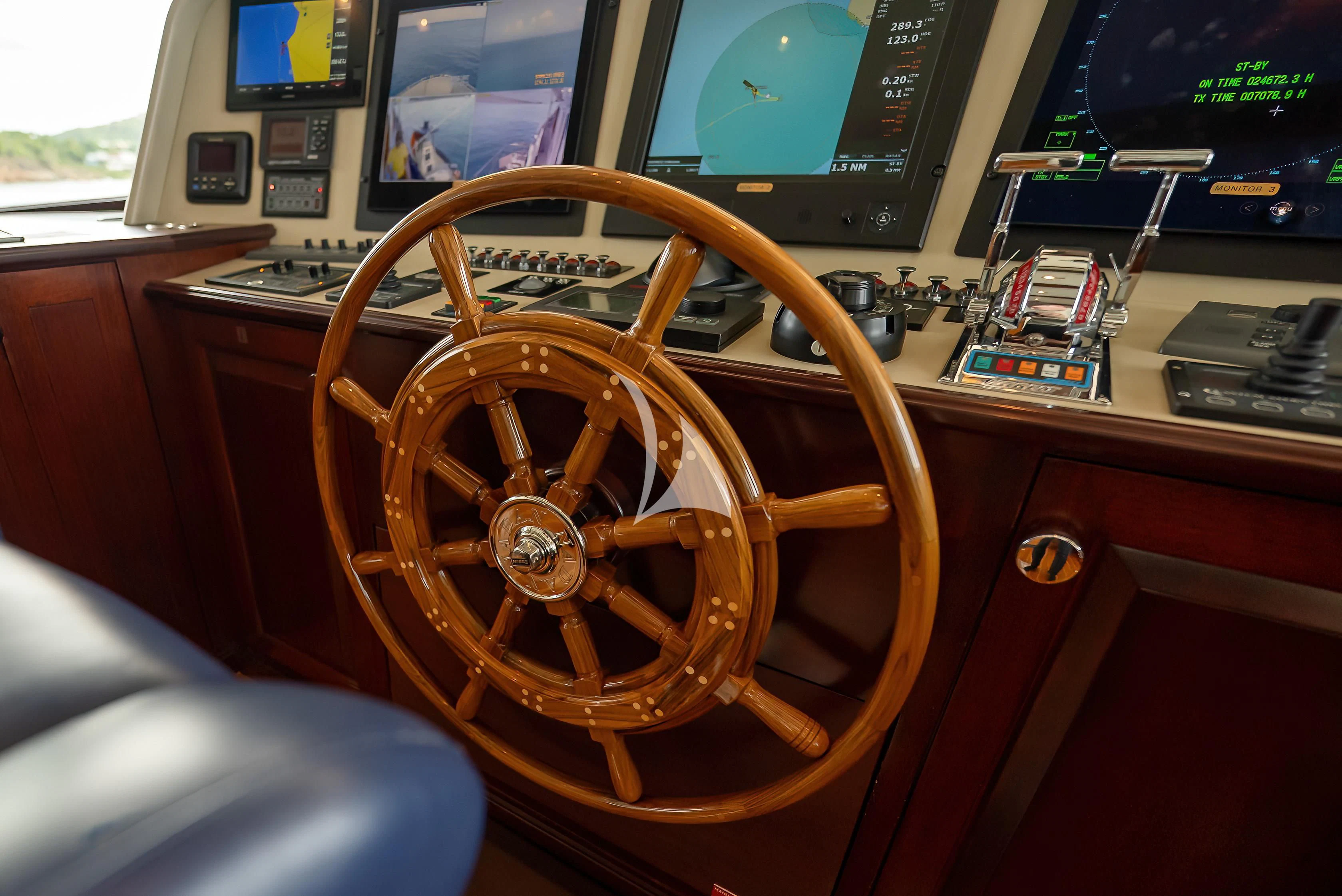

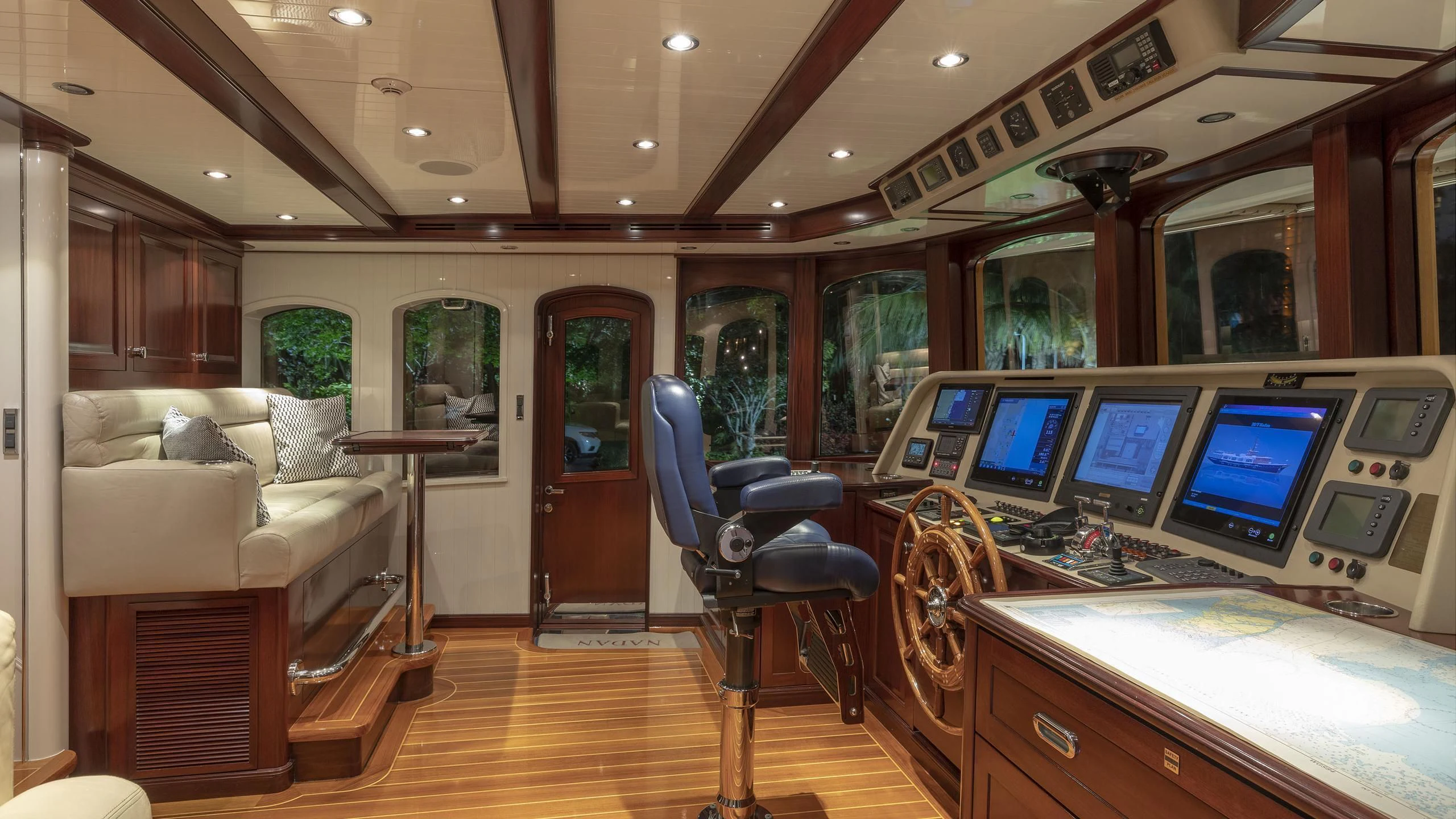

HELM CONTROL STATIONS

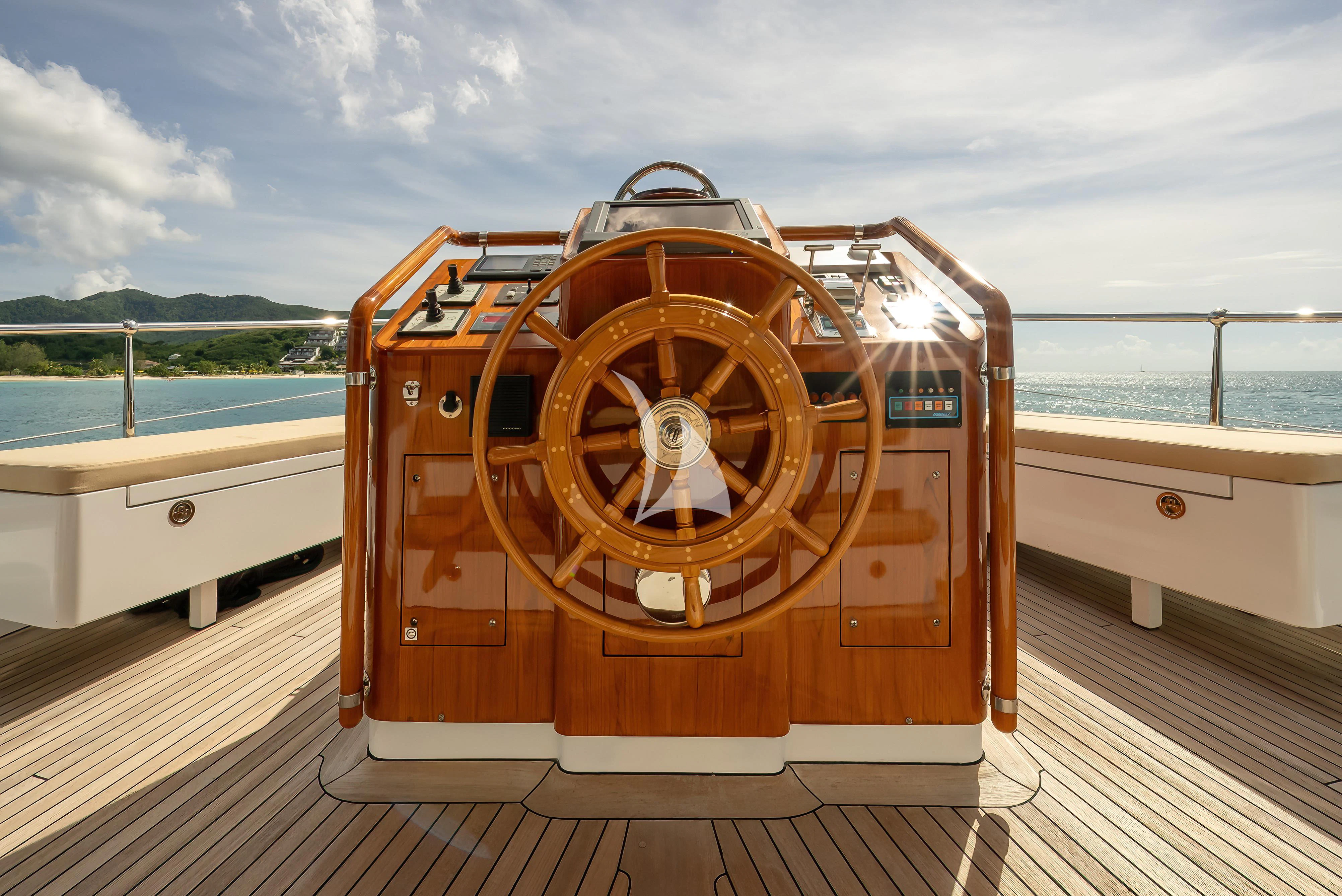

Helm Station Forward Deck
Pilot House and sundeck remote

Entertainment Equipment

CENTRAL AUDIO SYSTEM

Crestron controlled central system
Sat TV Intellian i6 28”

TV RECEIVERS

Dish Network 14 x Wally receivers

MAIN SALON

52” TV Samsung UHDTV (2019) with Crestron control
Stereo 5:1 Surround Sound

MASTER CABIN

30” TV Sole with Crestron control
13-Pin iPhone Dock

VIP CABIN

32” TV Sole with Crestron control
13-Pin iPhone Dock

GUEST CABINS

2 x 22” TVs Sole with Crestron control
13-Pin iPhone Dock

SKY LOUNGE

24” TV Samsung

EXTERIOR

Stereo Sat TV audio aft deck and upper deck

CAPTAIN’S CABIN

19” TV Sole
DVD Samsung
Stereo Sound Craft

CREW MESS

32” TV Sole with Crestron control

CREW CABINS

12” TV Vision flip down TV/DVD combo
Stereo Sound Craft

Tenders & Toys

Deck Equipment

ANCHORS

2 x Davis Pool type anchors HP400 316L s/s polished

ANCHOR CHAINS

2 x 360 feet galvanised 5/8” stud link Grade 2 chains

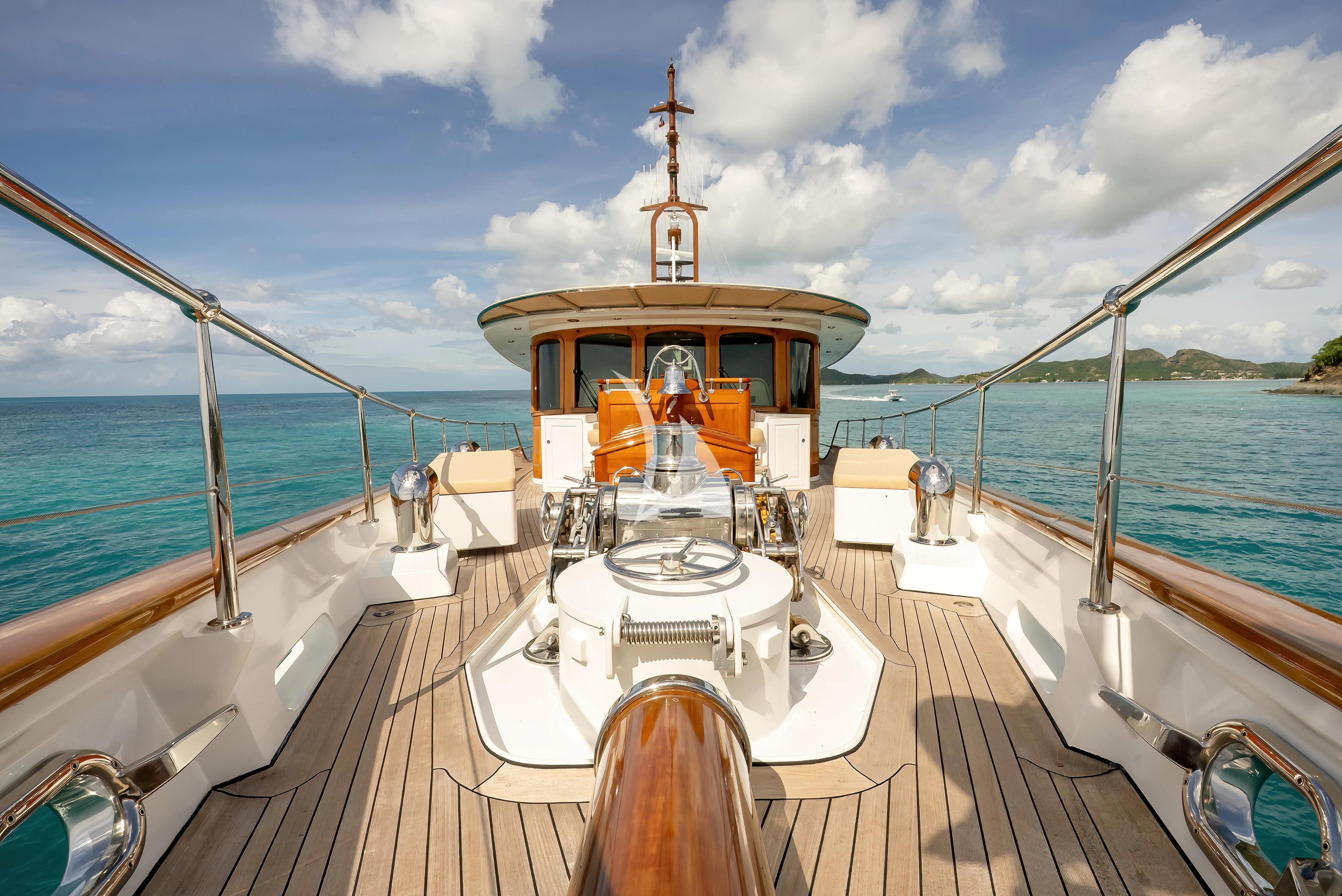

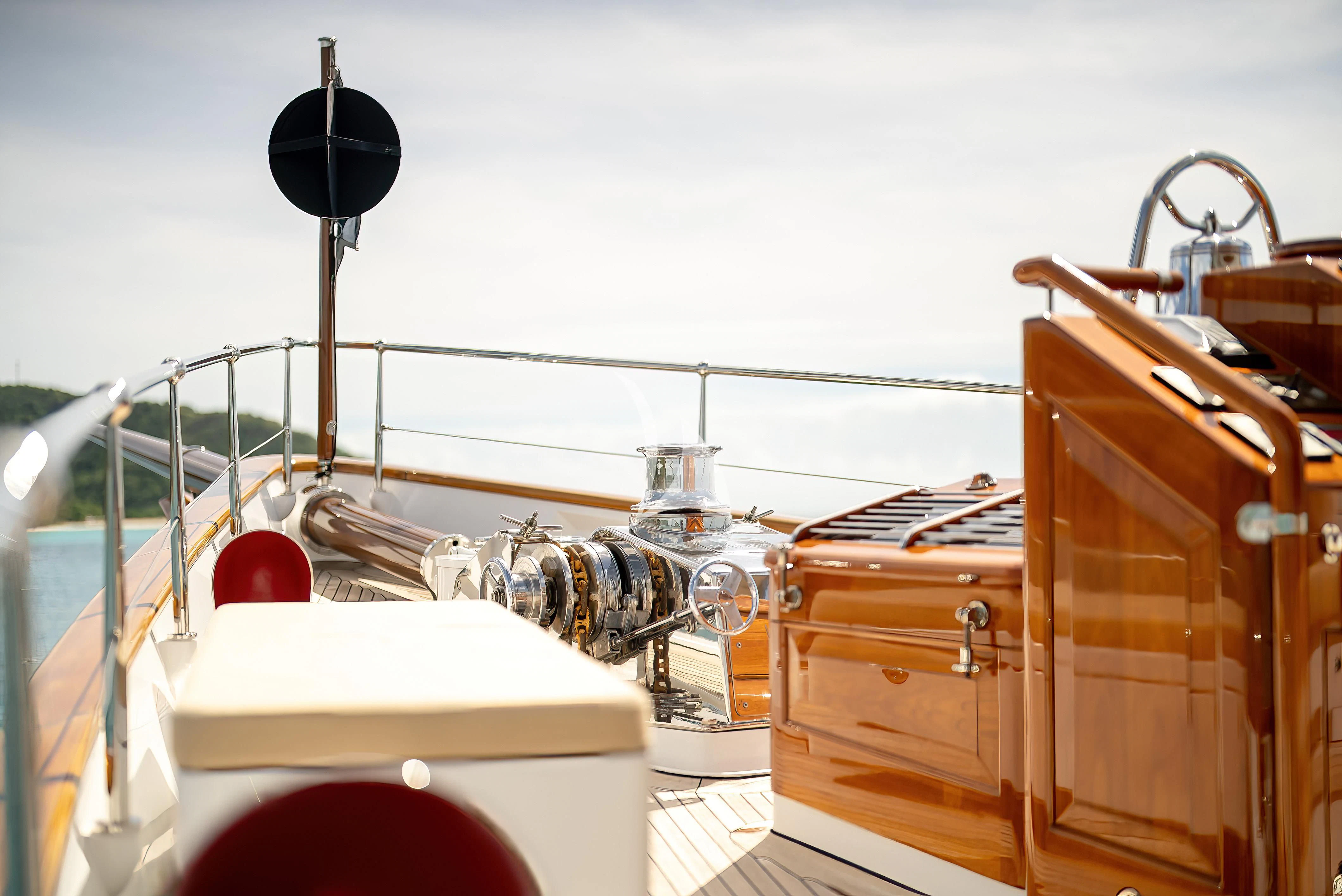

ANCHOR WINDLASS

2 x Ideal H9M horizontal windlass, 10Hp hydraulic 8,000lb pull

AFT WARPING CAPSTANS

2 x Muir VC4000

BOAT CRANE/DAVITS

1 x Nautical Structures EZ5500EX, 5,500 lbs SWL on boat deck

PASSARELLE

Nautical Structures Hydraulic, 7-steps portable

SIDE BOARDING

Cramm custom hydraulic load holding

STERN BOARDING GANGWAY

Nautical Structures hydraulic telescopic 20’, slewing to 90 Port

SPOTLIGHT

1 x Carlisle & Finch

UNDERWATER LIGHTS

4 x Underwater lights

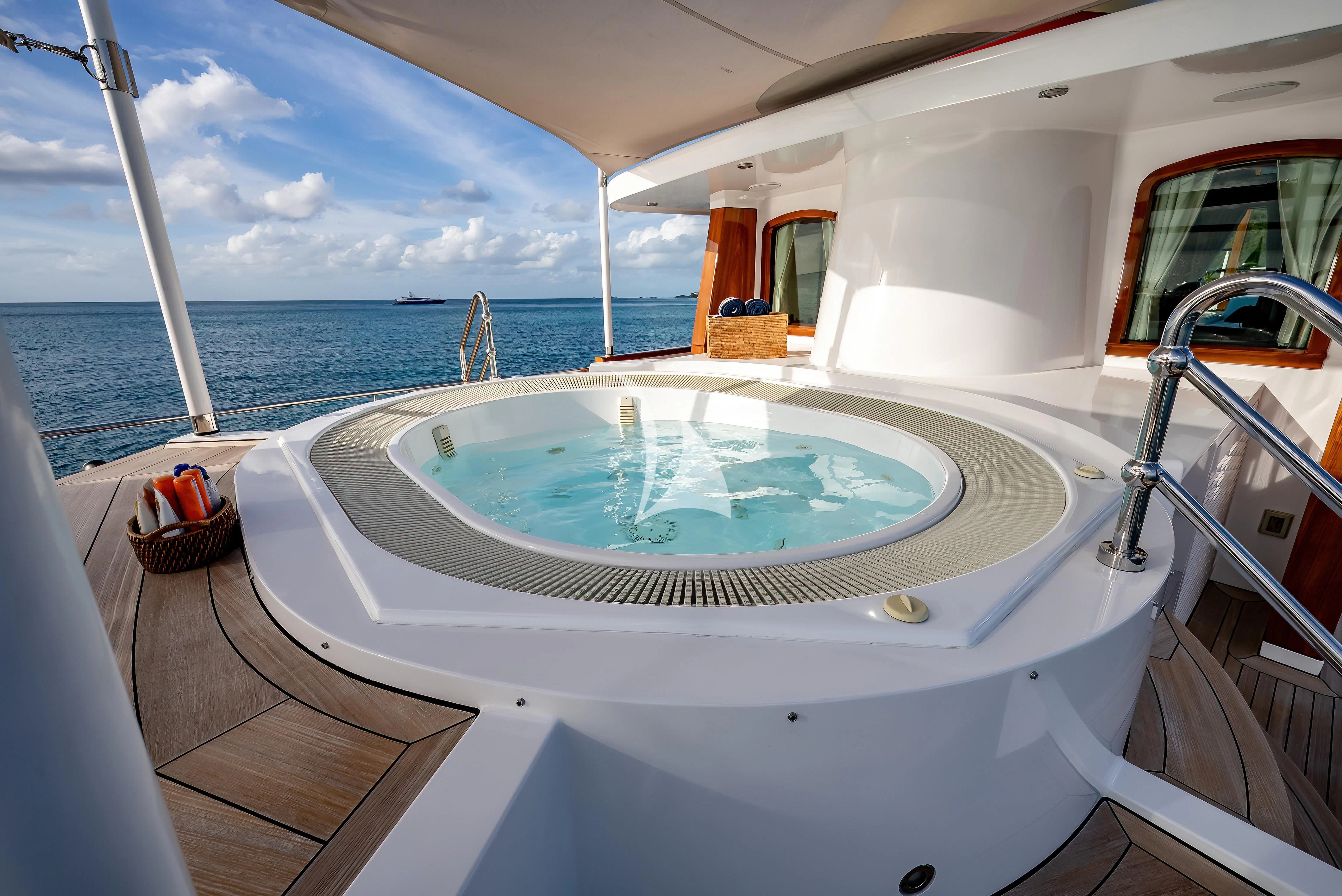

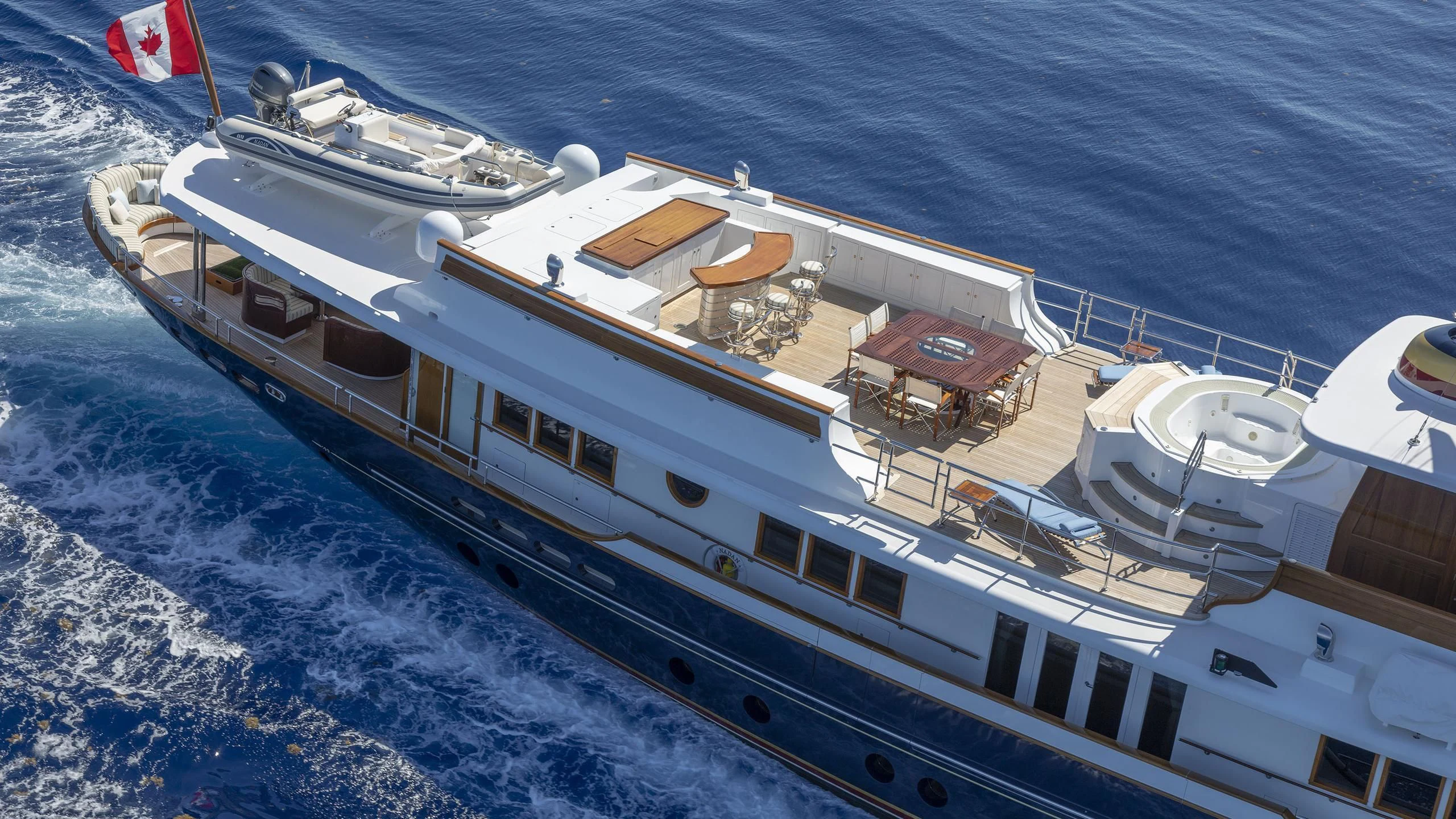

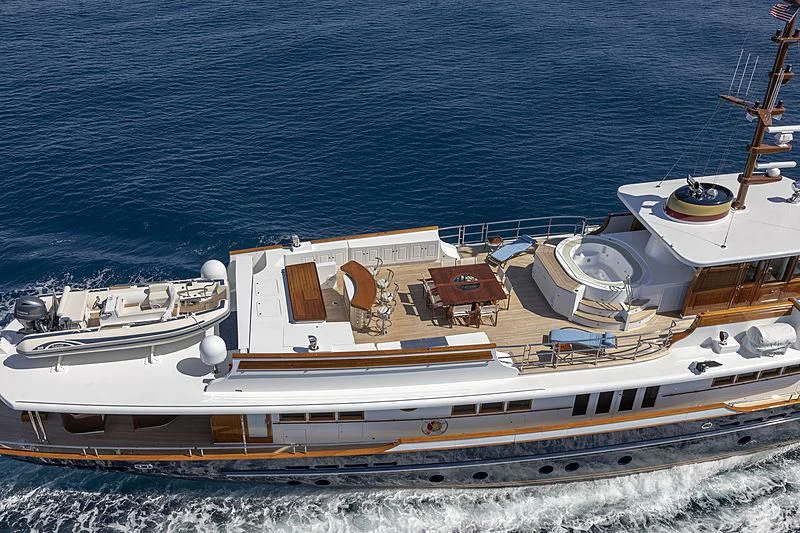

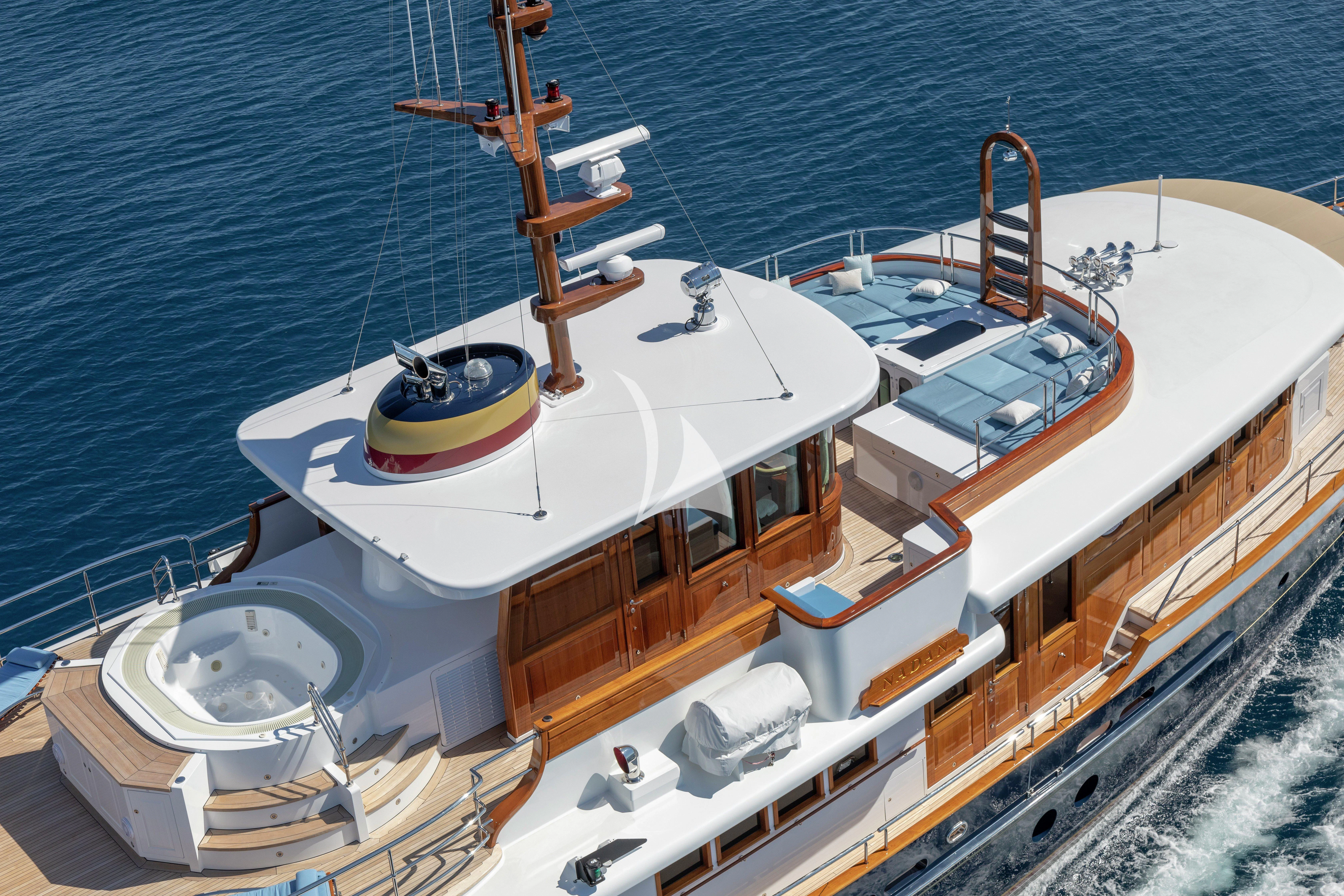

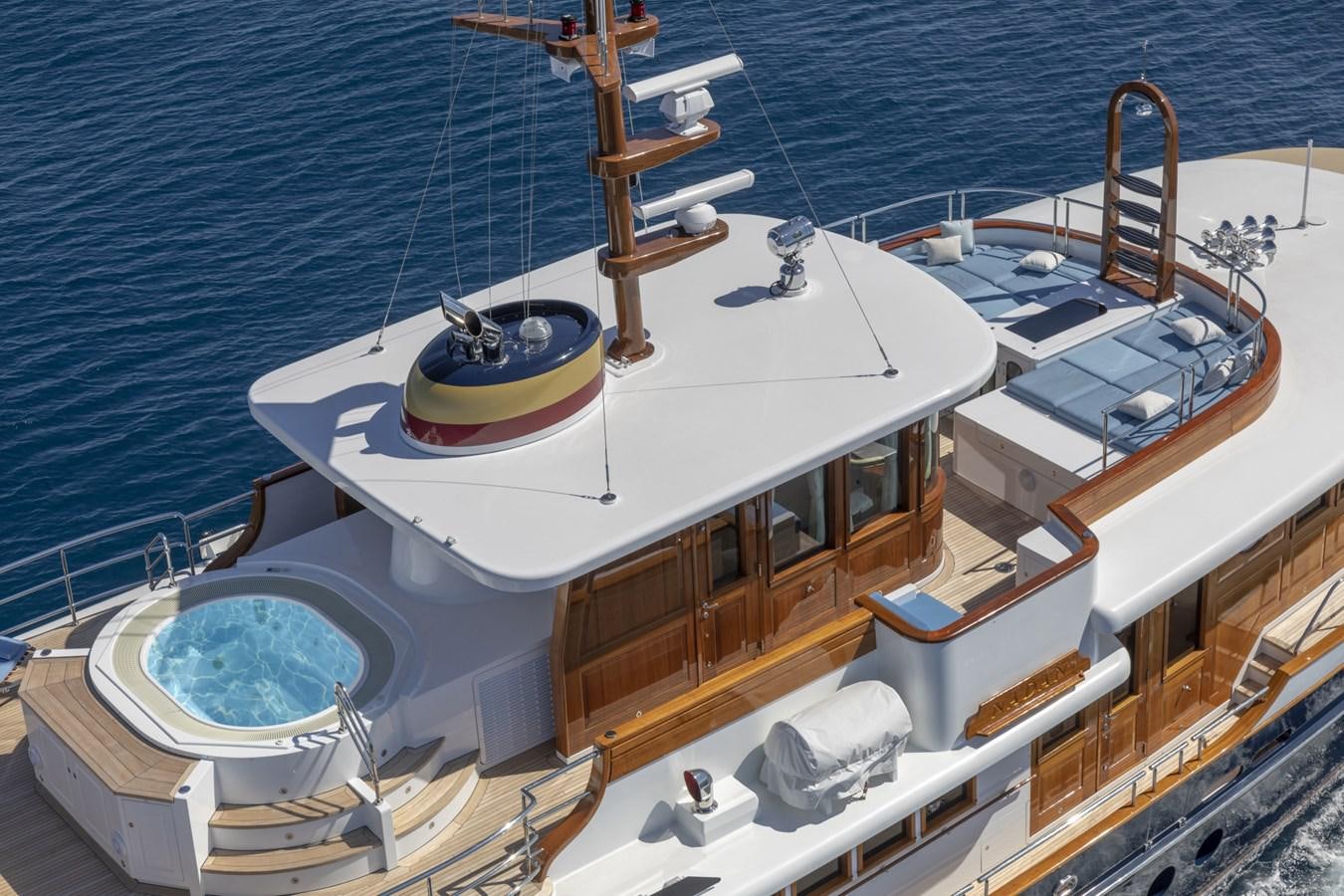

JACUZZI

Baja Spas on sun deck

PAINT SYSTEM

Exterior Awlgrip Mystique Blue & Snow White
Interior Awlcraft White
Underwater Seahawk Biocop TF, Prop Speed antifouling

LOUDHAILER

Horn Kahlenberg model F2, 5 x trumpets

Security & Safety Equipment

SAFETY

2 x 16-person Viking life rafts
1 x 4-person Viking life raft
4 x 30” life rings (2 x with Smoke MK9)
2 x EBIRBS (ACR Cat 1 & McMurdo Cat 2)
3 x MK9 flares
6 x Red Parachute flares
12 x MK8 flares
1 x Line thrower
16 x Inflatable life jackets
10 x Life jackets
18 x Imperial immersion suits

FIRE FIGHTING

Fixed CO2 for Engine Room
Notifier fire detection system
Ansul CO2 system discharging in engine room
3 x Portable CO2 of 10lbs
19 x ABC Fire Extinguishers
Simon Alarms / Monitoring

SECURITY

CCTV Pelco – Hard Drive Recording
7 x Pelco cameras
3 x Hatteland 19”X Monitors

SHIP’S SAFES

3 x AmeriSafe, Master/VIP/Stbd Guest
1 x Sentry Safe, Port Twin Guest
4 x Amsee, Crew Cabins

MEDICAL EQUIPMENT

1 x Medic Bag
1 x Defibrillator
1 x Oxygen Tank

Refit History

REFIT 2021:

ABS - 15-year survey
Hauled yacht, checked, and serviced overboard valves
Pulled shafts and checked shaft seals
Inspected all tanks and painted freshwater tank
Varnish and paint touch-ups
Polish hull
Service main engines and generators
All recommended service on other equipment
Fitted protection against a lightning strike

MAJOR UPGRADES 2019:

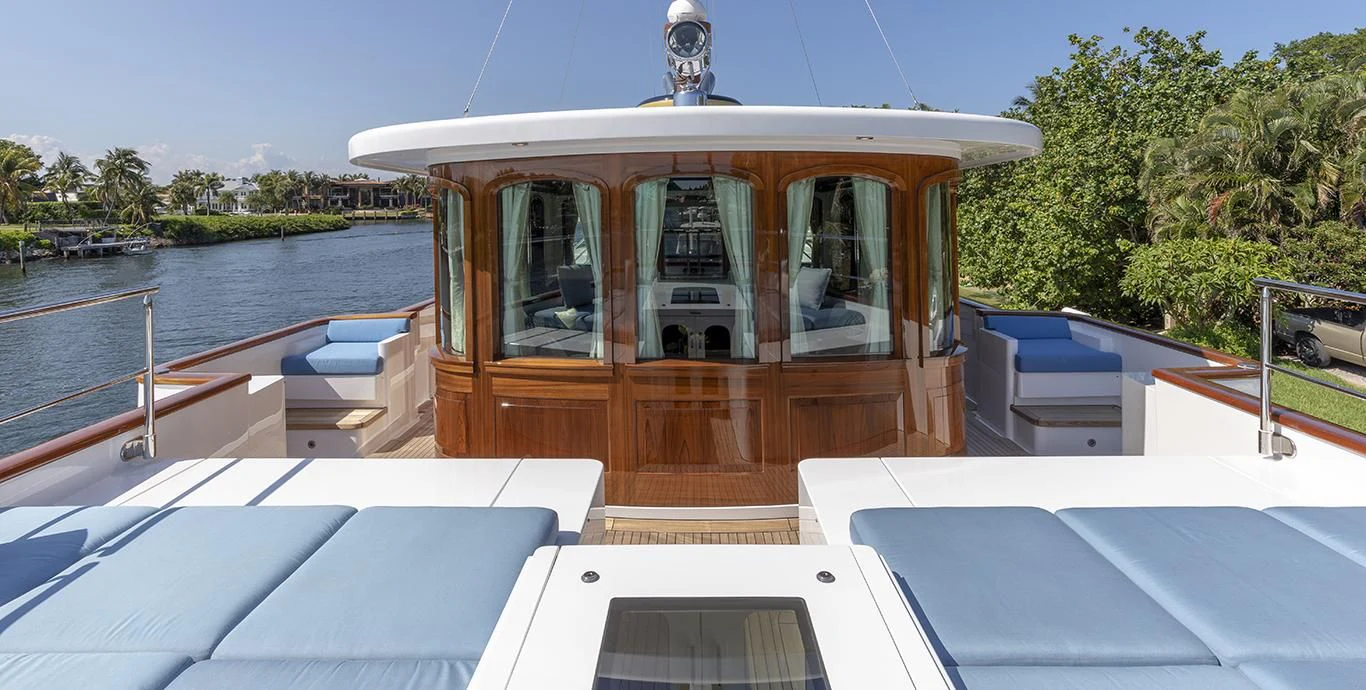

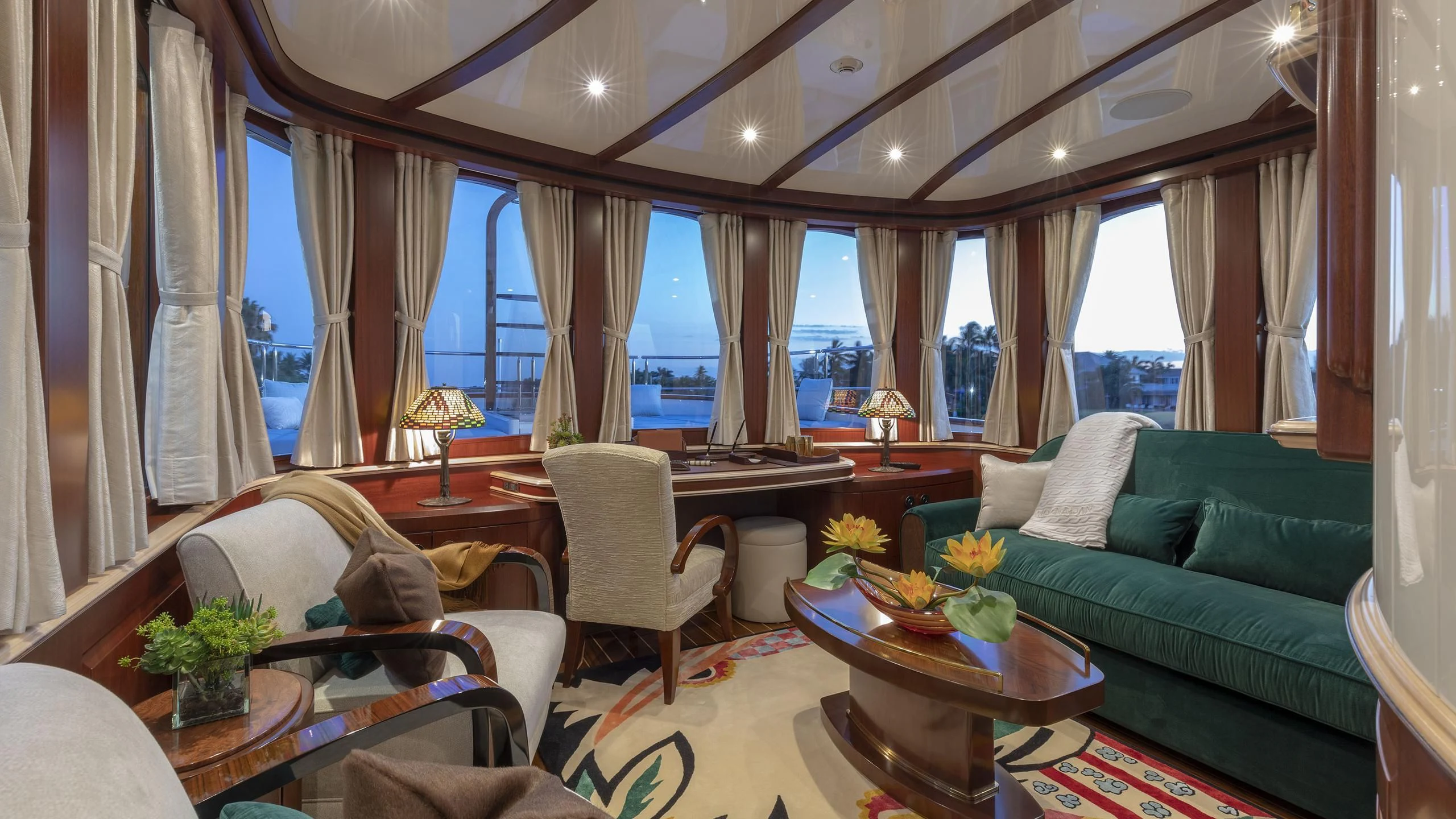

A skylounge was added with bathroom, featuring large windows, interior mahogany panels and tongue and groove panelling, painted gloss white, with teak and holly flooring, designed by Ken Freivokh, perfectly complements the original interior/exterior styling and finish, as well as the exterior profile of this classic yacht
Shortened the carbon fibre mast and installed electronics, teak faux painted
Added Crow’s Nest and teak cladding all-around, under the upper deck’s cap rail
Added teak cap rail on the upper deck
Added height to the forward flag mast

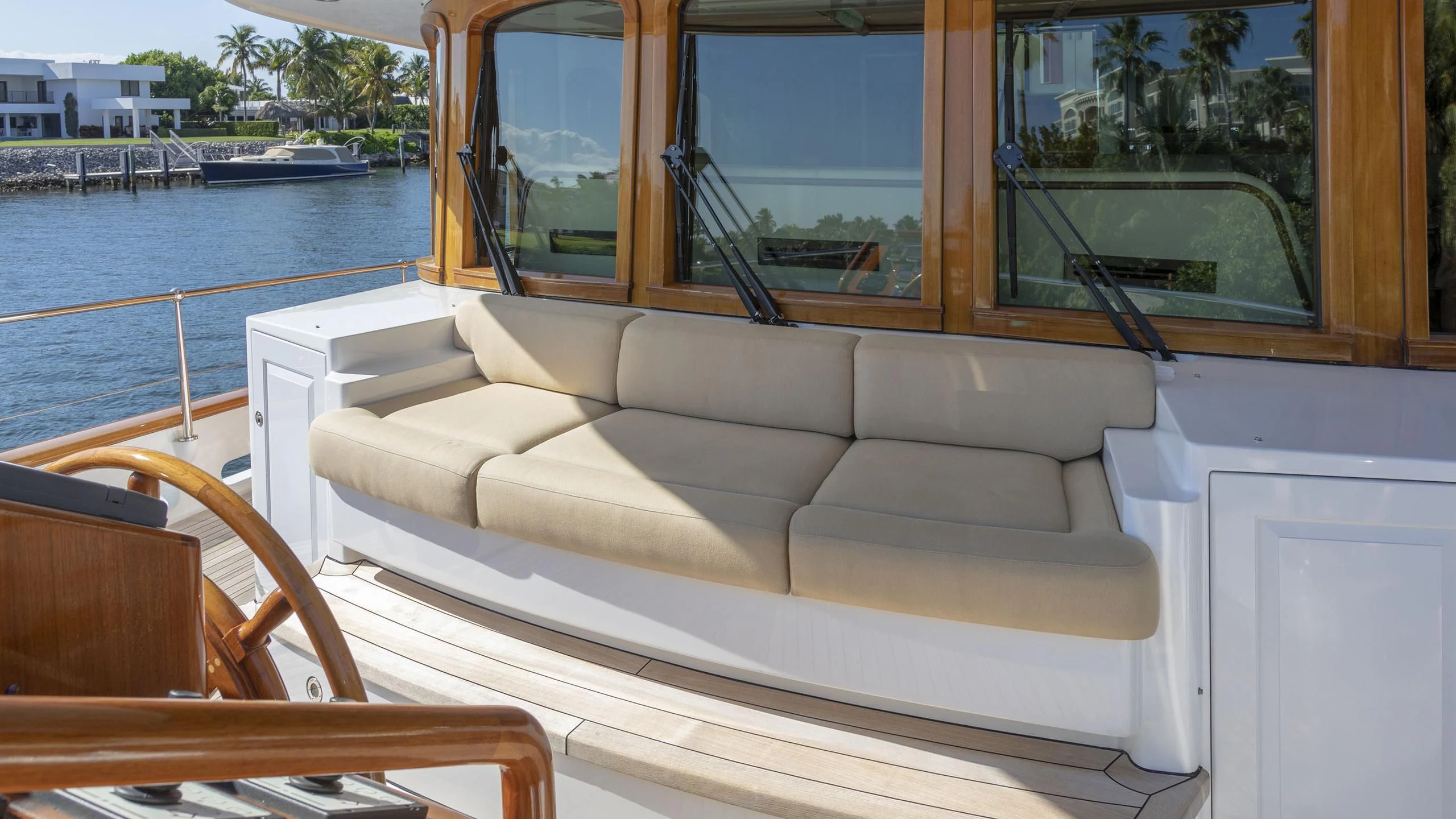

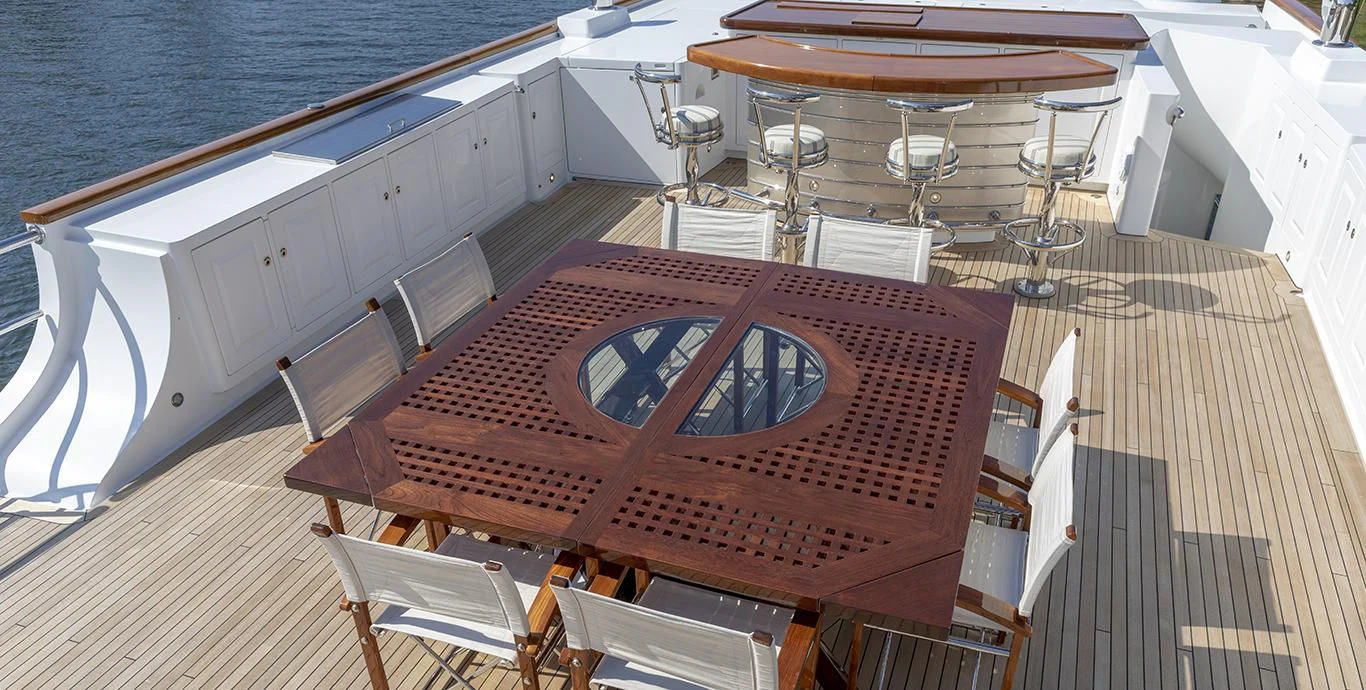

Modified the aft deck seating layout with 2 x new sofas and 2 x tables
Shortened the upper aft deck above the transom seat

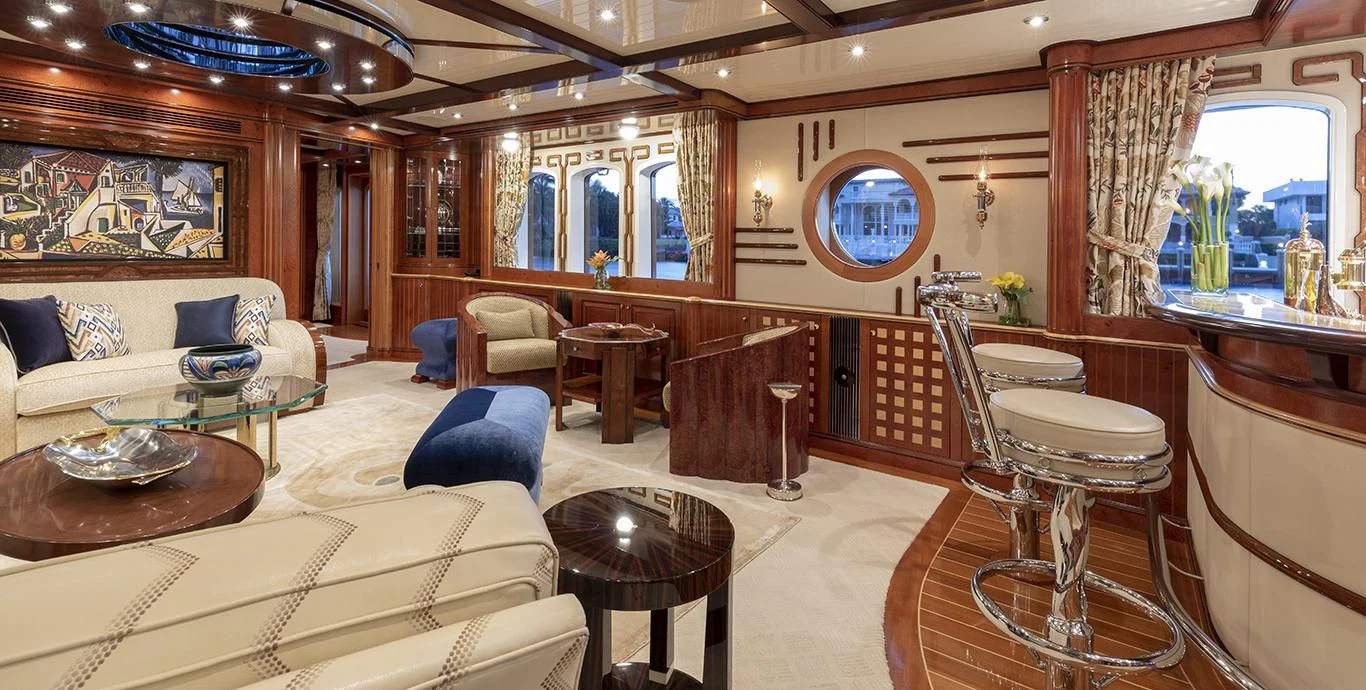

Redesigned the main salon with faux leather panels with wood design, custom art deco sofas, arm chairs and tables

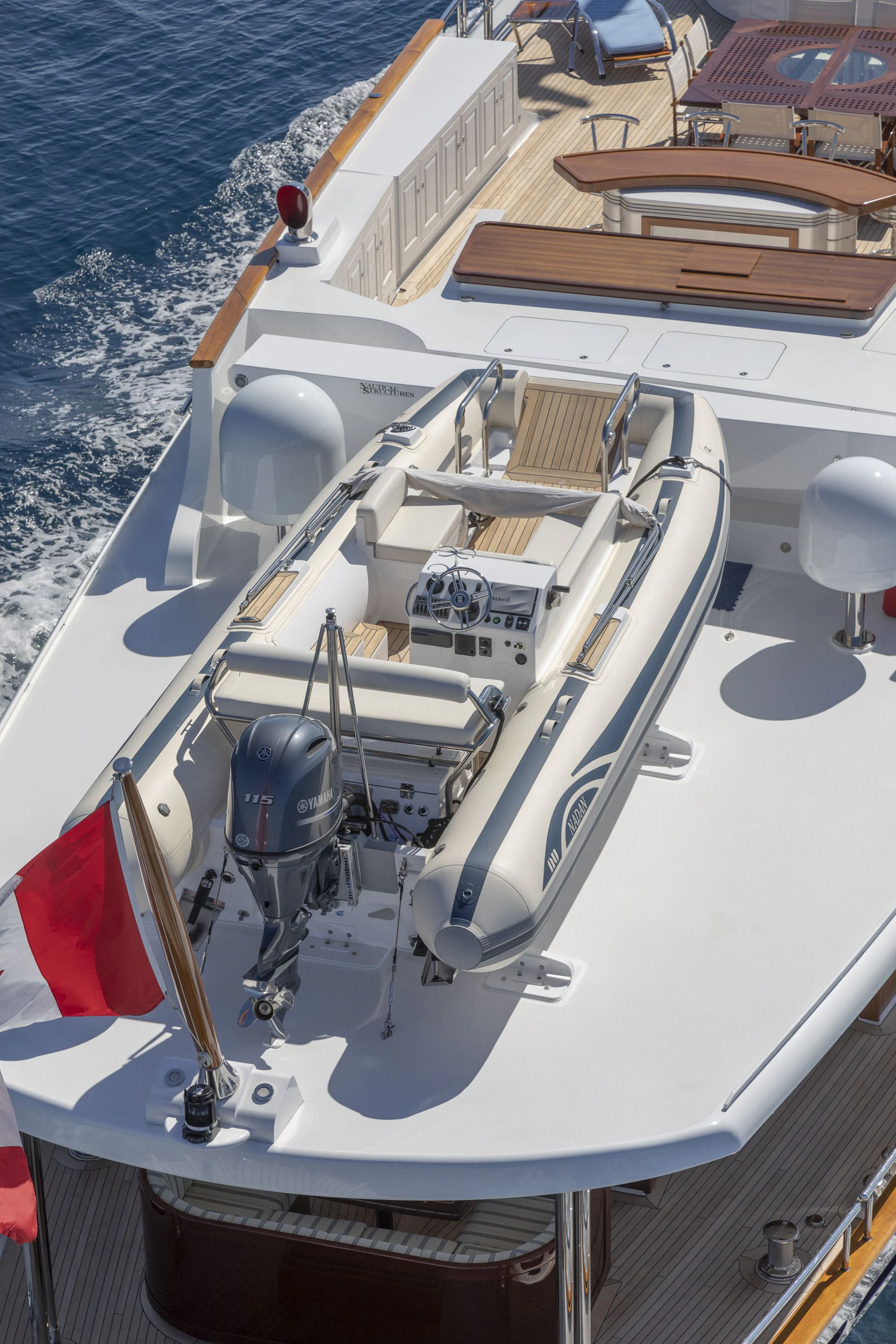

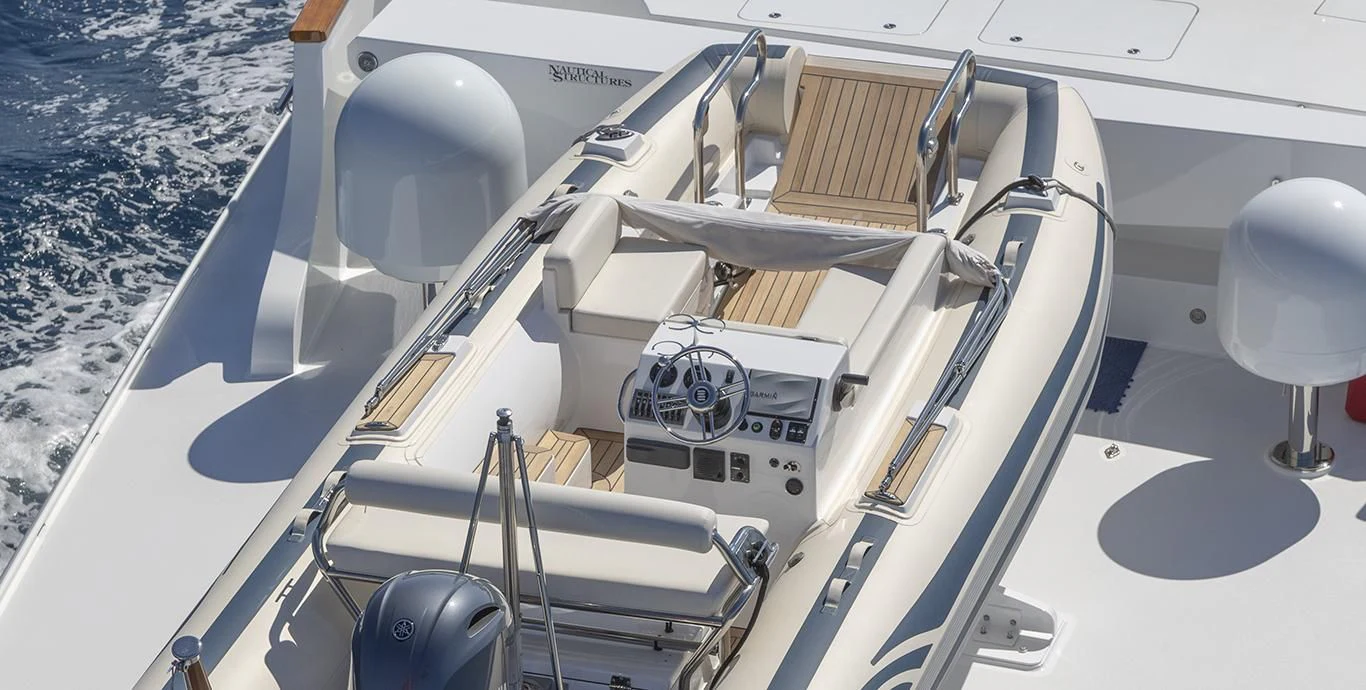

New Novurania CAT 18 tender with 115 Hp Yamaha
New Air MakeUp AC Handler
New insulation on AC lines in all accessible areas
New AC/DC neutral ground fault systems
3 x New pilothouse 19” monitors
New GPS Map/Radar 12”
New Samsung UHD TV 52” in Salon

Comments

The owner’s passion for the classic and neoclassic style cruisers led him to her and her transformation. His specific vision and attention to detail was implemented to attain the timeless elegance and charm of the 1920's. The new skylounge and crow's nest compliment the yacht's fluid lines and pleasing proportions while reflecting the same commitment to perfection. Her shallow draft enables her to cruise the Bahamas and inland waterways, which is very difficult to find in a vessel of this design. She is in immaculate condition.
