MIZU


174' (53.04M) :: OCEANFAST :: 2004/2016

$14,900,000

Asking Price

Inquire Now

In Japanese philosophy there are five elements, of which Mizu or water is one. It represents all things fluid and flowing but also relates to adaptability, flexibility and magnetism. Renamed by her current owner in 2011 and extensively refit in 2016, 53m MIZU represents many characteristics attributed to her name. her striking and almost military exterior exudes character and adventure. Her contemporary interior spaces are calm yet vibrant and an impressive range of entertainment features, including an on deck jacuzzi and basketball court, envoke guest interaction and energy. With an exhilarating top speed of 28 knots and an impressive long range cruising capability, this ocean-going yacht lives up to her name.
Not available for sale to U.S. residents, while in U.S. waters

Overview

The 53m yacht was custom built in 2004 by Oceanfast in Australia & was last refitted in 2016 with well over $5m USD spent. Sam Sorgiovanni is responsible for her beautiful & unique exterior & interior design. Originally named Sea Bowld, “MIZU” is built to explore the world's oceans in style & comfort. Constructed with an Aluminium hull & Aluminium superstructure, she is capable of cruising at 24 knots, a max speed of 28 knots & affords a range of 4,500 nautical miles. “MIZU” is built to some of the highest standards in the world, giving her a perfect combination of luxury & grit.

Specifications
Year Built - 2004
Builder - Oceanfast
Type - Fast Performance Long Range Motor Yacht HSS
Classification - Germanischer Lloyds + 100 A5 OC4 Motor Yacht + MC AUT
Flag - Cayman Islands
Hull Number - 078

Dimensions & Tankage
Length O.A. - 53.03m (174’)
Beam - 8.84m (29’)
Draft - 2.5m (8’ 2”)Fuel
Fuel - 88,300 Litres (23,326.38 US Gallons)
Water - 15,200 Litres (4,015.42 US Gallons)
Lube Oil - 2,200 Litres (581.18 US Gallons)
Dirty Oil 2,300 Litres (607.60 US Gallons)
Grey Water - 6,200 Litres (1,637.87 US Gallons)
Black Water - 4,900 Litres (1,294.44 US Gallons)
Bilge Oil - 2,000 Litres (528.34 US Gallons)

Tonnage
Gross - 498 Tons
Displacement - 378 Tons (Full Load)

Construction
Hull & Superstructure - Aluminium
Interior / Exterior Designer - Sam Sorgiovanni

Accommodations
Guests - 10 Guests in 5 Cabins
Crew - 8 Crew in 4 Cabins Plus 2 in Captain’s Cabin

Refit
Year Completed - 2016
Budget - Excess of $5m USD, Full Breakdown Available

Mechanical Equipment
Main Engines - 2 x MTU 16V4000 M90
Engine Hours August 2018
Port Main Engine - 3,485 hrs
Starboard Main Engine - 3,485 hrs
Gearbox - 2 x ZF Reverse Reduction Gearboxes (ZF7540)
Fuel - Diesel
Propulsion - Twin Screw
Propellers - 2 x Brunton Fixed Pitch Propellers (1590mm)
Rudder Angle - ± 35 Degrees
Steering System - Seastate Hydraulic Steering System
Stabilizers - Seastate Ride Control System
Bow thruster - Quantum Thruster QT120
Generators - 2 x Northern Lights 150kW(E) (M6108AZ)
Generator Hours August 2018 - Port: 10,533 HRS - Starboard: 3,861 HRS
Electricity - 120/208/440V/60Hz
Shore Power - 2 x 100Amp / 480V
Main Engine Start - 24V DC Starting Batteries (4 x 12V, 200Ah)
Service - 24V DC Power for Non-Essential Services
Generator Start - 24V DC Starting Batteries (4 x 12V, 200Ah)
Air Conditioning - N.R. Koeling BV, 3 x Air Handler Units
Water Maker - H.E.M. Duplex 30/2100 RO Plants (16,000 litres/day total)
Water System - H.E.M. Type 3300 Water Treatment Plant
Toilet System - JETS Vacuum Toilet System
Sewage System - Hamann Wassertechnik Sewage Treatment Plant (STP)
Fuel Centrifuge - Alfa Laval MAB104
Fuel Separator - Racor Fuel Separator

Audio and Visual
Savant Control System
Sonance Interior Speakers
JL Audio Exterior Speakers

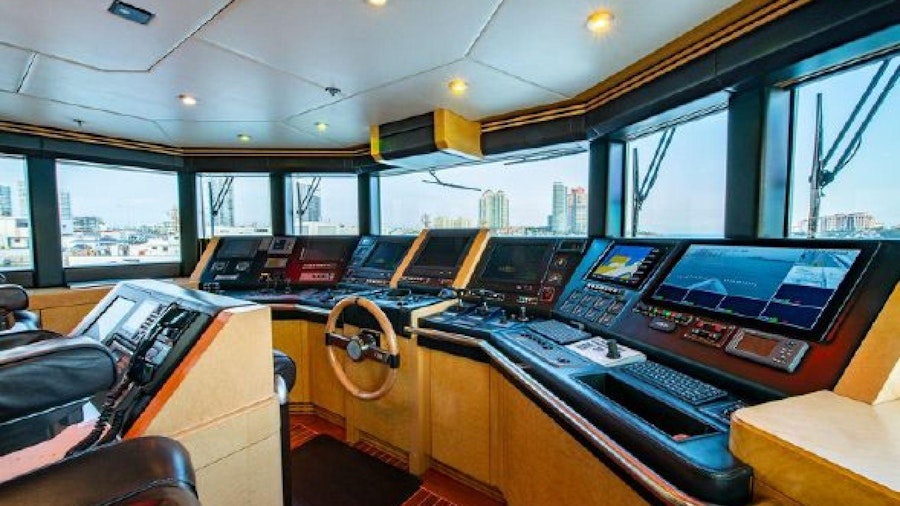

Electronics, Communication and Navigation:
Satellite Compass - Furuno SC-60
Gyro Compass - C-Plath Navigate 2100 / SR2100
Automatic Pilot - C-Plath Navipilot V HSC
Echo Sounder - Furuno Navigational Echo Sounder FE-700
Radar - Furuno X-Band FAR-2127 Furuno S-Band FAR-2137S
AIS - Furuno Universal AIS FA-150
GPS - Furuno GPS Navigator GP-170
Chart Plotter - Transas Navi-Sailor 4000
Navtex - 1 x Furuno NX-500
Searchlights - 2 x Sanshin S.D. Searchlight
Camera(s) - 7 x Pelco CCTV Cameras with Central Recording
Satellite Communications - KVH V3-IP
SASS & LRIT - 2 x Furuno Inmarsat C IC-306
Fleet Broadband - KVH V3-IP
VHF - 7 x ICOM IC-M602
Portable VHF - 12 x ICOM UHF Radios
SSB - 2 x ICOM FM-8500
Landline/Intercom - 4G LTE SIM & Internal Intercom System

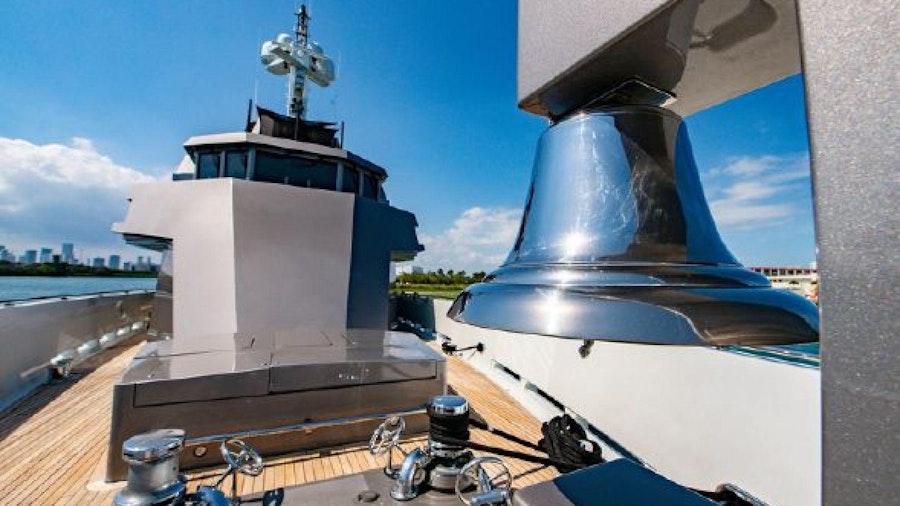

Anchoring System
Anchor Windlasses - 2 x MUIR VRC18000 Polished SS Vertical Anchor Windlass
(2) MUIR VR18000 Polished SS Vertical Mooring Windlass Capstans
(2) 675kg Fully Balanced HHP Poole Anchors
(2) Sections of 192.5m of 24mm Grade U3 Galvanized Studlink Chain

Boat Cranes and Davits
(2) Nautical Structures EZ-5500-LD-MCA Hydraulic Deck Cranes
Passerelle - Yacht-Tec Retractable Passerelle
(2) Mar-Quipt 12-Step Sea Stair Side boarding ladders
Jacuzzi
Swim Platform
Removable Sun Awnings Over Sundeck and After Upper Deck

Galley Equipment
Vulcan Six Ring Electric Cooktop
Vulcan Electric Combination Oven
(2) Hobart Electric Combination Oven and Steamer
Vulcan VMB Single Broiler (Grille), Built In
Miele Electric Deep Fryer
Amana Microwave Oven
Kitchen Aid Under Sink Waste Disposal Unit
Hobart Dishwasher
Subzero Full Height Wine Storage
Subzero Full Height Refrigerator
Scotsman Under Counter Compact Cuber Ice Maker
General Electric Trash Compactor
Fire Suppression Systems
SEMCO Hi-Fog Water Mist, Fixed Fire Fighting System
Consillium Fire Detection System
Engine Room CO2 Fire Extinguishing System
Portable Fire Extinguishers Fire Hoses and Nozzles
Fireman’s Outfit and Breathing Apparatus
Security
(7) Pelco CCTV Cameras and Central Recording
(5) Viewing Locations (Bridge, Captain’s Cabin, Crew Mess, Engineer’s Cabin, Engine Control Room)





Length 174 FT (53.04 M)
Beam 29 FT (8 M)
Draft 8 FT (2 M)
Gross Tonnage 498 Ton
Builder OCEANFAST
Designer Sam Sorgiovanni
Year Built 2004
Construction Aluminum
Cruising Speed 24Knots
LOA 174 FT (53.04 M)
Beam 29 FT (8 M)
Max Draft 8 FT (2 M)
Cruising Speed 24 Knots
Max Speed 28 Knots
Gross Tonnage 498 Ton
Holding Tank 1,294 Liters
Fuel Capacity 88,300 Liters
Hull Material Aluminum
Designer Sam Sorgiovanni

FULL SPECIFICATIONS


Preliminary Listing

Not available for sale to U.S. residents, while in U.S. waters

Highlights and Key Features:

  • Full refit completed in 2016
  • Incredibly unique and head turning design
  • Germanischer Lloyds build classification (HSS Rated)
  • Extremely shallow draft of sup 8’ 6"
  • Remarkable range of 4,500 nautical miles at 12 knots (transpacific and transatlantic)
  • Capable of reaching speeds of 28 knots
  • Dedicated Owner’s deck
  • Impressive sun deck with 14-person Jacuzzi pool, bar & sun loungers
  • Storage for two 25' tenders on the aft deck
  • Extremely quiet underway
  • Expansive exterior decks for entertaining
  • Oversized windows throughout
  • Asian inspired Modern-Deco interior design
  • Upper deck home theatre and latest AV/IT throughout

The 53m yacht was custom built in 2004 by Oceanfast in Australia & was last refitted in 2016 with well over $5m USD spent. Sam Sorgiovanni is responsible for her beautiful & unique exterior & interior design. Originally named Sea Bowld, “MIZU” is built to explore the world's oceans in style & comfort. Constructed with an Aluminium hull & Aluminium superstructure, she is capable of cruising at 24 knots, a max speed of 28 knots & affords a range of 4,500 nautical miles. “MIZU” is built to some of the highest standards in the world, giving her a perfect combination of luxury & grit.

Specifications
Year Built - 2004
Builder - Oceanfast
Type - Fast Performance Long Range Motor Yacht HSS
Classification - Germanischer Lloyds + 100 A5 OC4 Motor Yacht + MC AUT
Flag - Cayman Islands
Hull Number - 078

Dimensions & Tankage
Length O.A. - 53.03m (174’)
Beam - 8.84m (29’)
Draft - 2.5m (8’ 2”)Fuel
Fuel - 88,300 Litres (23,326.38 US Gallons)
Water - 15,200 Litres (4,015.42 US Gallons)
Lube Oil - 2,200 Litres (581.18 US Gallons)
Dirty Oil 2,300 Litres (607.60 US Gallons)
Grey Water - 6,200 Litres (1,637.87 US Gallons)
Black Water - 4,900 Litres (1,294.44 US Gallons)
Bilge Oil - 2,000 Litres (528.34 US Gallons)

Tonnage
Gross - 498 Tons
Displacement - 378 Tons (Full Load)

Construction
Hull & Superstructure - Aluminium
Interior / Exterior Designer - Sam Sorgiovanni

Accomodations
Guests - 10 Guests in 5 Cabins
Crew - 8 Crew in 4 Cabins Plus 2 in Captain’s Cabin

Refit
Year Completed - 2016
Budget - Excess of $5m USD, Full Breakdown Available

Mechanical Equipment
Main Engines - 2 x MTU 16V4000 M90
Engine Hours August 2018
Port Main Engine - 3,485 hrs
Starboard Main Engine - 3,485 hrs
Gearbox - 2 x ZF Reverse Reduction Gearboxes (ZF7540)
Fuel - Diesel
Propulsion - Twin Screw
Propellers - 2 x Brunton Fixed Pitch Propellers (1590mm)
Rudder Angle - ± 35 Degrees
Steering System - Seastate Hydraulic Steering System
Stabilizers - Seastate Ride Control System
Bow thruster - Quantum Thruster QT120
Generators - 2 x Northern Lights 150kW(E) (M6108AZ)
Generator Hours August 2018 - Port: 10,533 HRS - Starboard: 3,861 HRS
Electricity - 120/208/440V/60Hz
Shore Power - 2 x 100Amp / 480V
Main Engine Start - 24V DC Starting Batteries (4 x 12V, 200Ah)
Service - 24V DC Power for Non-Essential Services
Generator Start - 24V DC Starting Batteries (4 x 12V, 200Ah)
Air Conditioning - N.R. Koeling BV, 3 x Air Handler Units
Water Maker - H.E.M. Duplex 30/2100 RO Plants (16,000 litres/day total)
Water System - H.E.M. Type 3300 Water Treatment Plant
Toilet System - JETS Vacuum Toilet System
Sewage System - Hamann Wassertechnik Sewage Treatment Plant (STP)
Fuel Centrifuge - Alfa Laval MAB104
Fuel Separator - Racor Fuel Separator

Audio and Visual
Savant Control System
Sonance Interior Speakers
JL Audio Exterior Speakers

Electronics, Communication and Navigation:
Satellite Compass - Furuno SC-60
Gyro Compass - C-Plath Navigate 2100 / SR2100
Automatic Pilot - C-Plath Navipilot V HSC
Echo Sounder - Furuno Navigational Echo Sounder FE-700
Radar - Furuno X-Band FAR-2127 Furuno S-Band FAR-2137S
AIS - Furuno Universal AIS FA-150
GPS - Furuno GPS Navigator GP-170
Chart Plotter - Transas Navi-Sailor 4000
Navtex - 1 x Furuno NX-500
Searchlights - 2 x Sanshin S.D. Searchlight
Camera(s) - 7 x Pelco CCTV Cameras with Central Recording
Satellite Communications - KVH V3-IP
SASS & LRIT - 2 x Furuno Inmarsat C IC-306
Fleet Broadband - KVH V3-IP
VHF - 7 x ICOM IC-M602
Portable VHF - 12 x ICOM UHF Radios
SSB - 2 x ICOM FM-8500
Landline/Intercom - 4G LTE SIM & Internal Intercom System

Anchoring System
Anchor Windlasses - 2 x MUIR VRC18000 Polished SS Vertical Anchor Windlass
(2) MUIR VR18000 Polished SS Vertical Mooring Windlass Capstans
(2) 675kg Fully Balanced HHP Poole Anchors
(2) Sections of 192.5m of 24mm Grade U3 Galvanized Studlink Chain

Boat Cranes and Davits
(2) Nautical Structures EZ-5500-LD-MCA Hydraulic Deck Cranes
Passerelle - Yacht-Tec Retractable Passerelle
(2) Mar-Quipt 12-Step Sea Stair Side boarding ladders
Jacuzzi
Swim Platform
Removable Sun Awnings Over Sundeck and After Upper Deck

Galley Equipment
Vulcan Six Ring Electric Cooktop
Vulcan Electric Combination Oven
(2) Hobart Electric Combination Oven and Steamer
Vulcan VMB Single Broiler (Grille), Built In
Miele Electric Deep Fryer
Amana Microwave Oven
Kitchen Aid Under Sink Waste Disposal Unit
Hobart Dishwasher
Subzero Full Height Wine Storage
Subzero Full Height Refrigerator
Scotsman Under Counter Compact Cuber Ice Maker
General Electric Trash Compactor
Fire Suppression Systems
SEMCO Hi-Fog Water Mist, Fixed Fire Fighting System
Consillium Fire Detection System
Engine Room CO2 Fire Extinguishing System
Portable Fire Extinguishers Fire Hoses and Nozzles
Fireman’s Outfit and Breathing Apparatus
Security
(7) Pelco CCTV Cameras and Central Recording
(5) Viewing Locations (Bridge, Captain’s Cabin, Crew Mess, Engineer’s Cabin, Engine Control Room)
