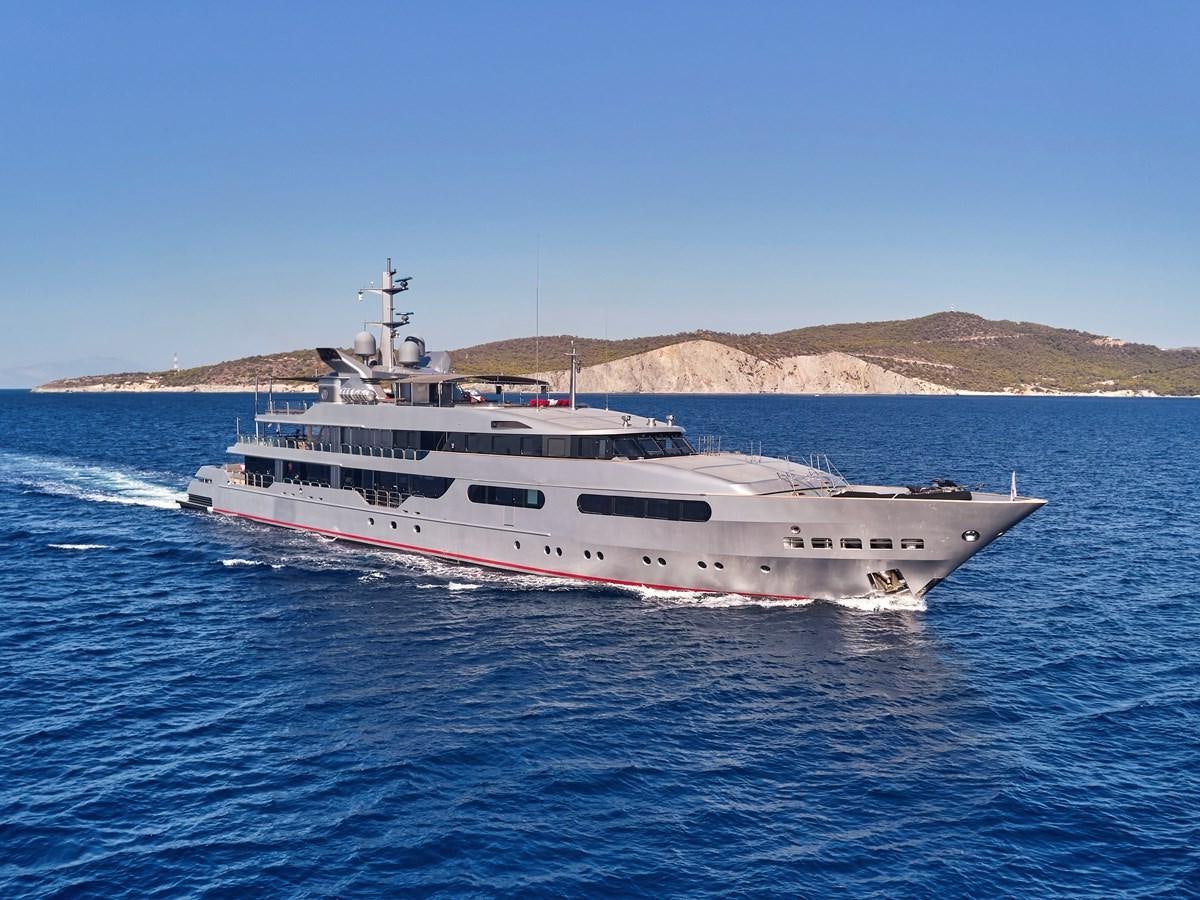

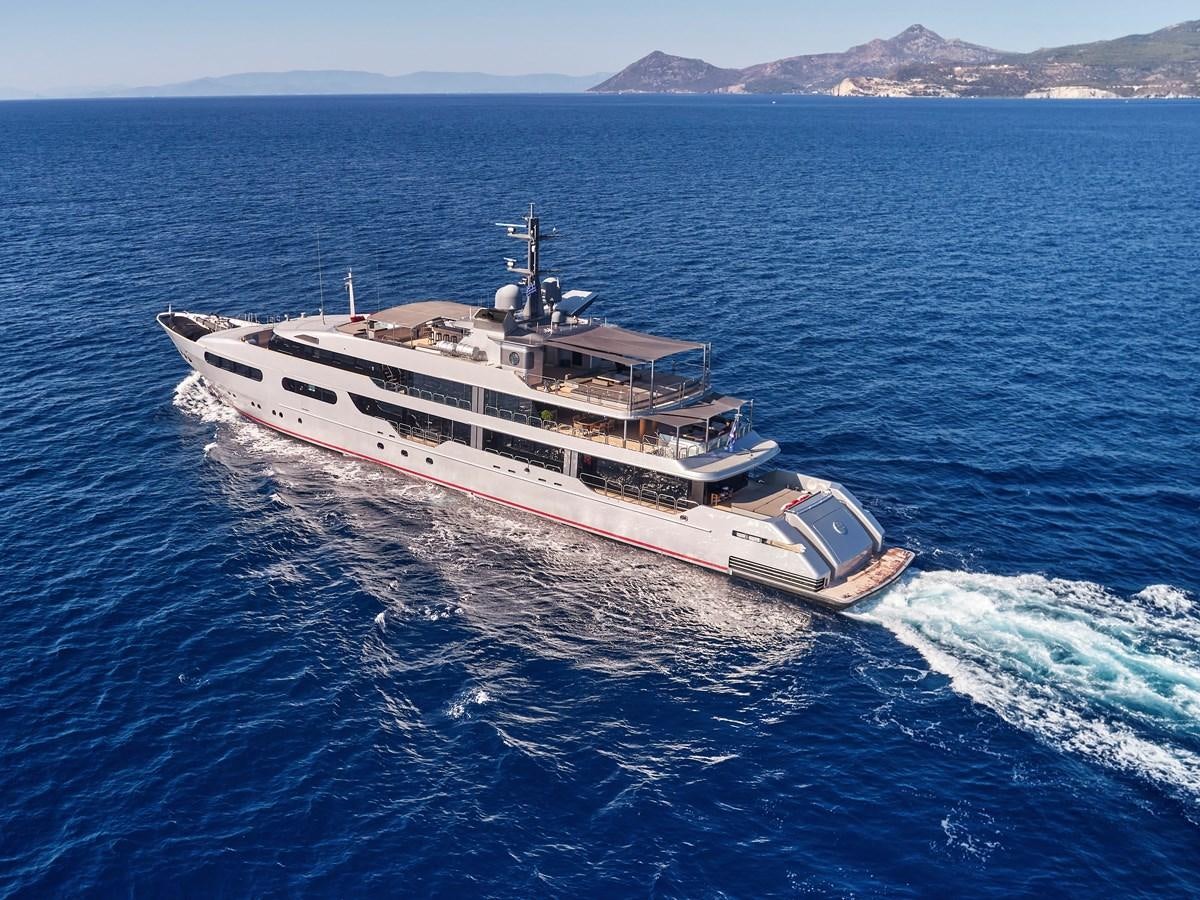

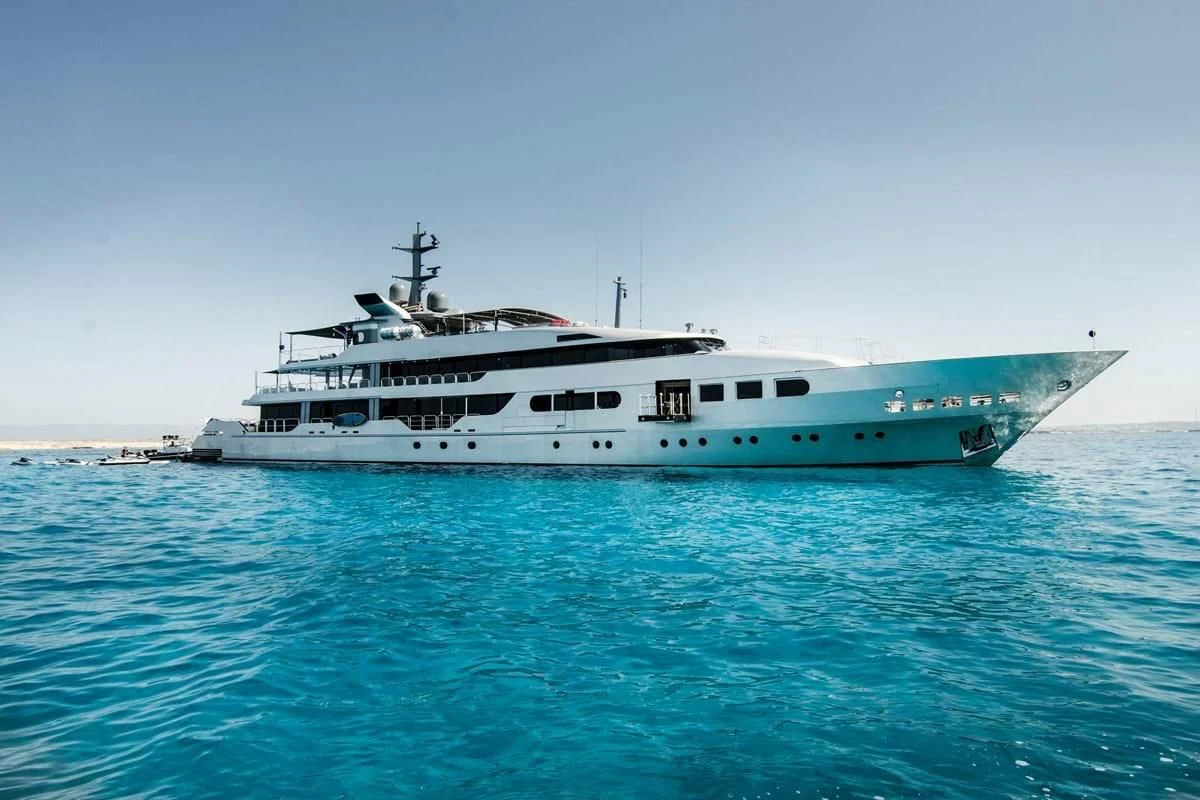

MAGNA GRECIA Yacht for Sale

Length
209' (63.8m)
Builder
ELSFLETHER WERFT
Build
1986
Cabins
6

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

  • Helipad
  • Jacuzzi
  • Kaleidescape

Specifications

Builder ELSFLETHER WERFT
Length (LOA) 209' (63.8m)
Year 1986
Gross Tonn. 850
Draft 13' (3.8m)
Beam 29' (8.9m)
Range 4,300 NM

Accommodations

Staterooms 6

Dimensions & Capacity

LOA 209' (63.8m)
Max Draft 13' (3.8m)
Fuel Tank 52,834 g (200,000 L)
Fresh Water 15,850 g (60,000 L)
Gross Tonn. 850

Construction

Hull Material Steel
Hull Config Monohull
Ext. Designer Hans M Huchzermeier
Int. Designer Francesco Paszkowski Design
Cruising Speed 14 Knots
Range 4,300 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

BATTERIES

  • BRIDGE 24V-GMDSS 24V-ATLAS CRANE 24V-E/R 24V
  • EMERG. GEN 24V-No1-2 D/G 24V-No1-2 M/E 24V

WATERMAKERS

  • HEM 2x450 Lt/Hour

CLEAN LUB OIL

  •  5.53 m3

DIRTY LUB OIL

  •  3.2 m3

FUEL FILTERS

  • RACOR FILTERS/CAT FILTERS

FUEL OIL SEPARATOR

  • WESTFALIA

OIL/WATER SEPARATOR

  • BILGE MON 488/EPE

BILGE PUMP

  • NISM 2/40-25OU3D – 25 m3/HOUR

FIRE PUMP

  • NISM 2/40-25OU3D – 25 m3/HOUR

BOILERS

  • GIANNESCHI BOILER 300 LIT x 2

SEWAGE TREATMENT

  •  HAMWORTHY

WC's

  • GRAVITY SYSTEM

VENTILATION

  •  NOSKE-KAESER

Accommodation

  • Accommodation for 12 guests in 6 cabins

OWNER:

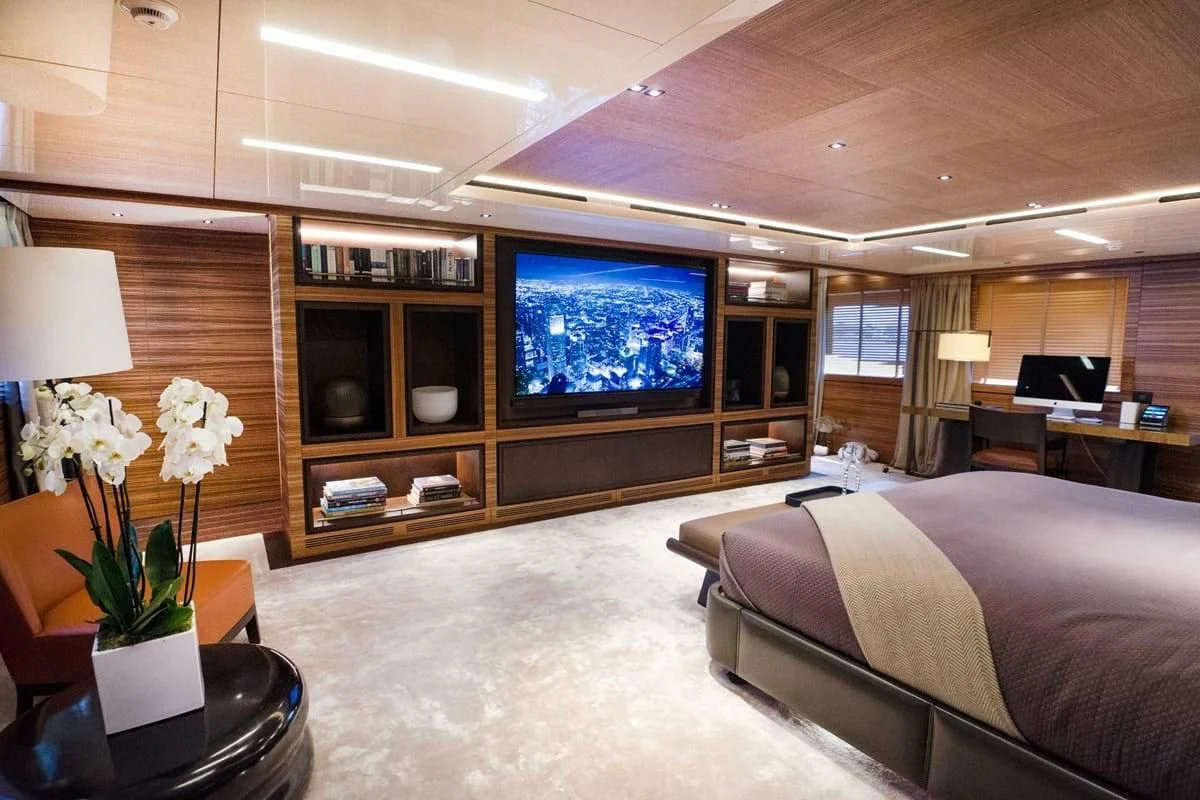

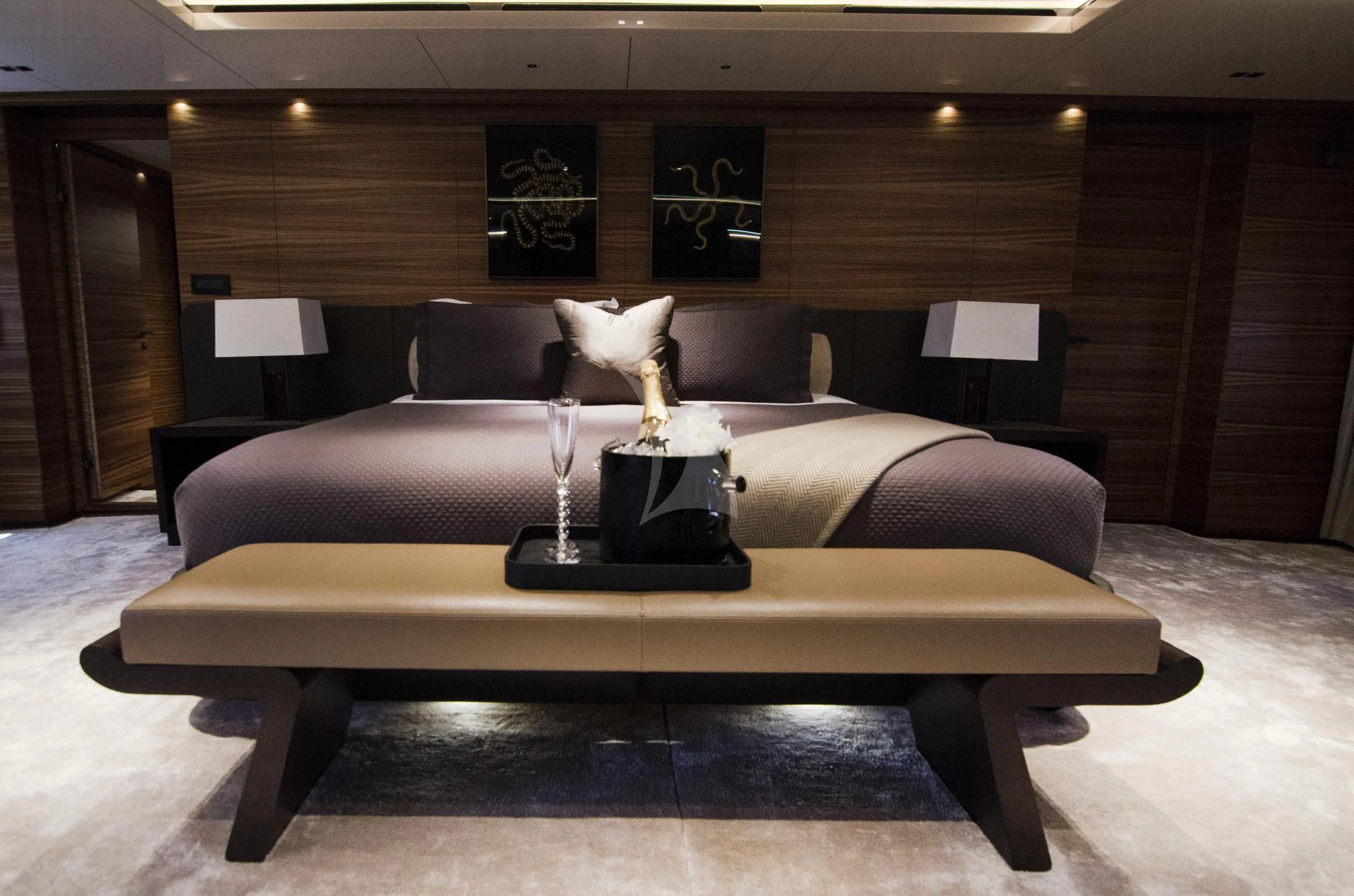

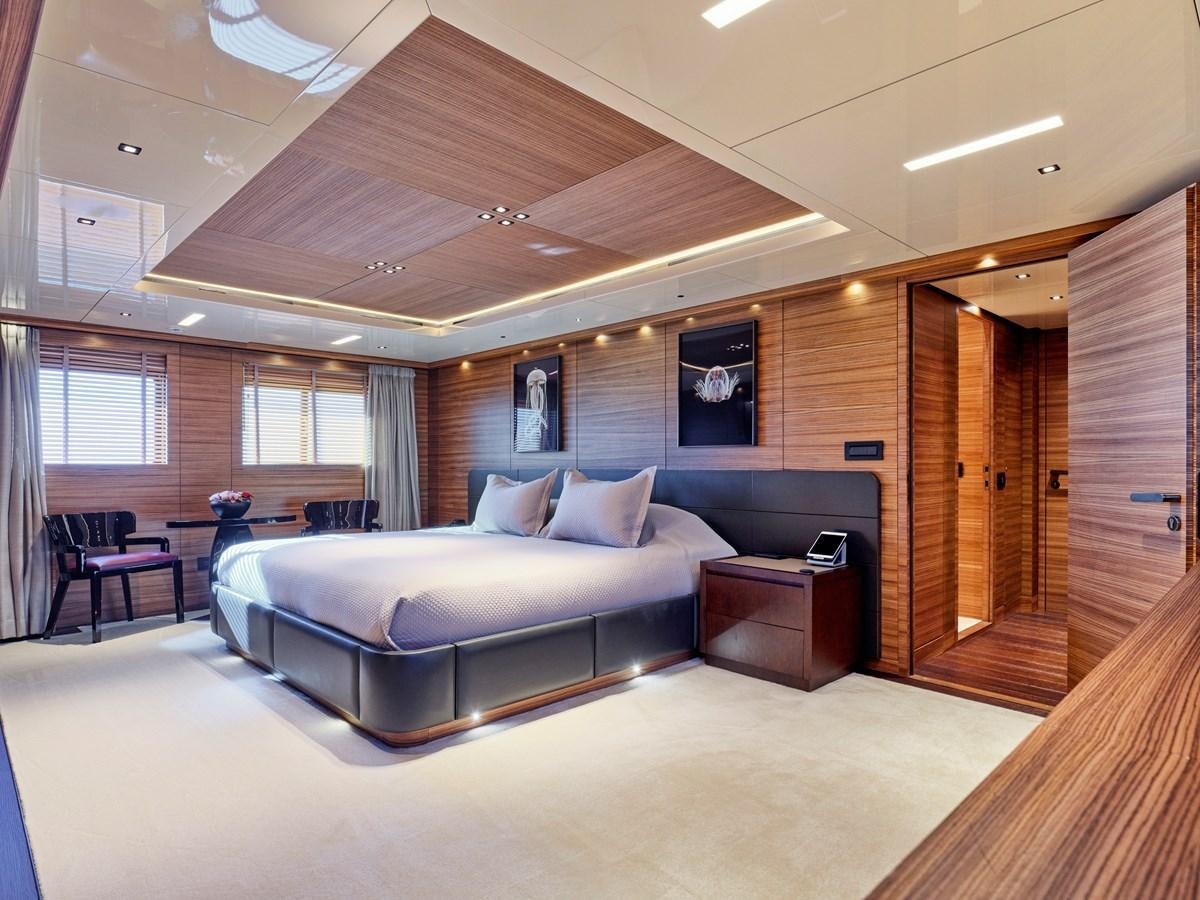

  • 2 / Master Cabin

GUESTS:

  • 2 / VIP Cabin

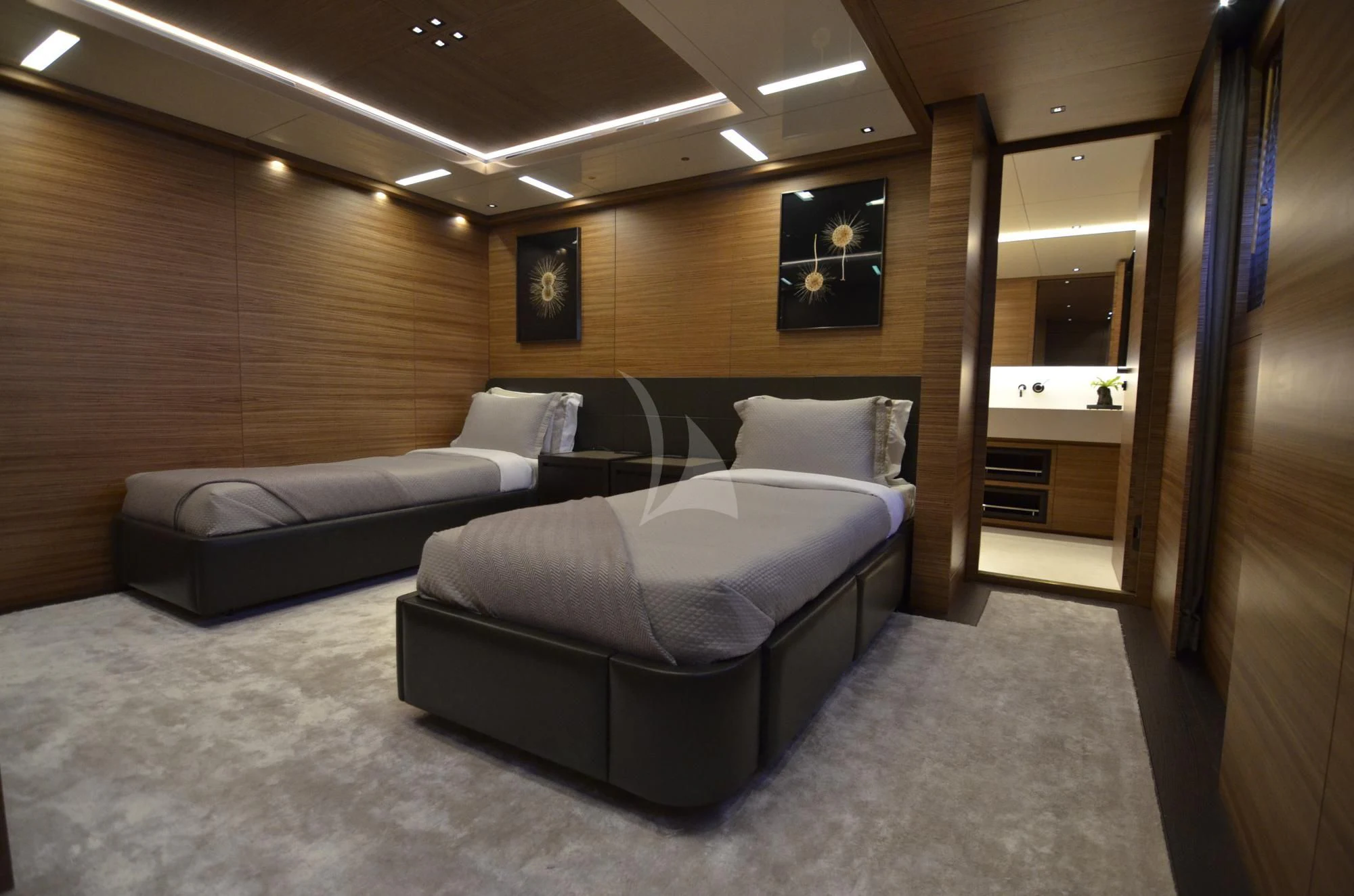

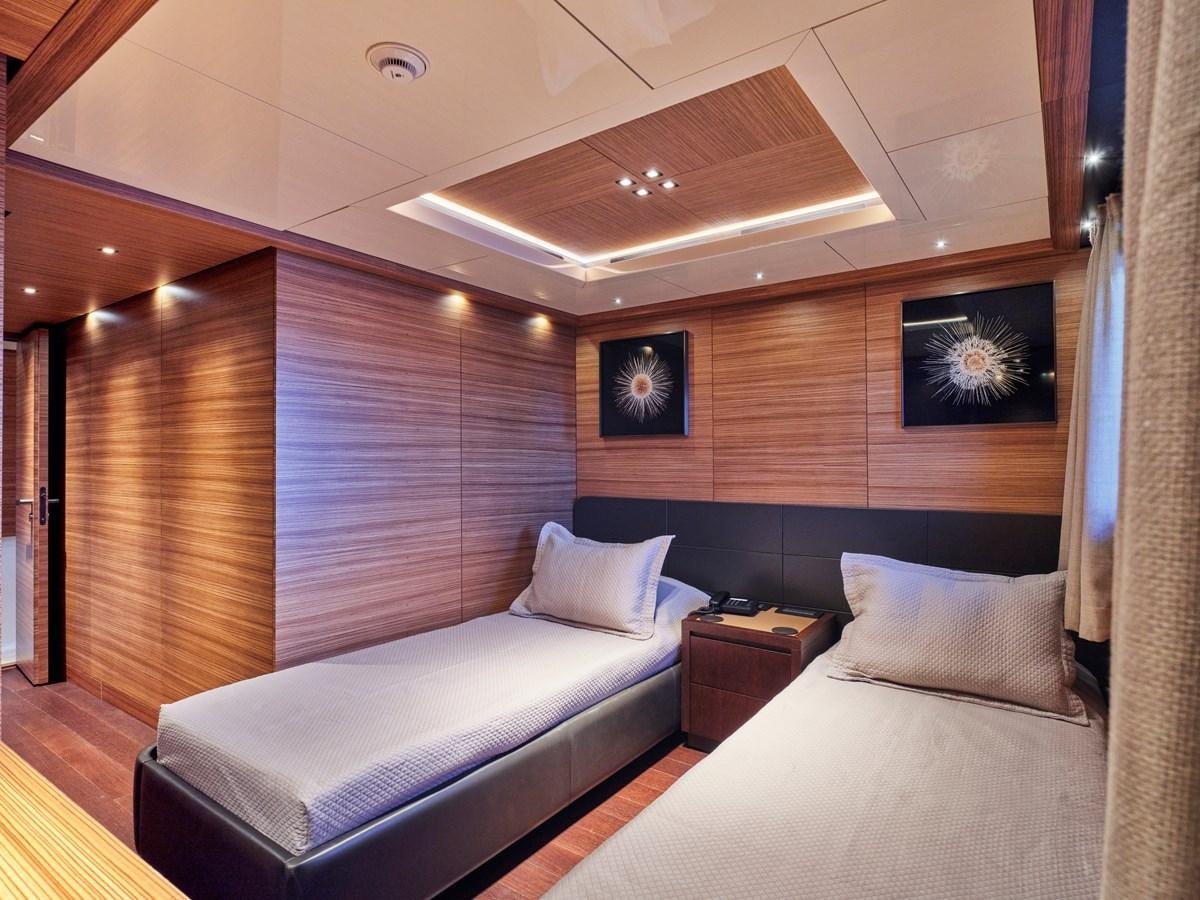

  • 8 / 4 Double/Twin Cabins

*  The large Owner’s office has a luxury pullman (thus taking guest number in private use to 14)
CREW

  • 14 + Captain

Galley & Laundry Equipment

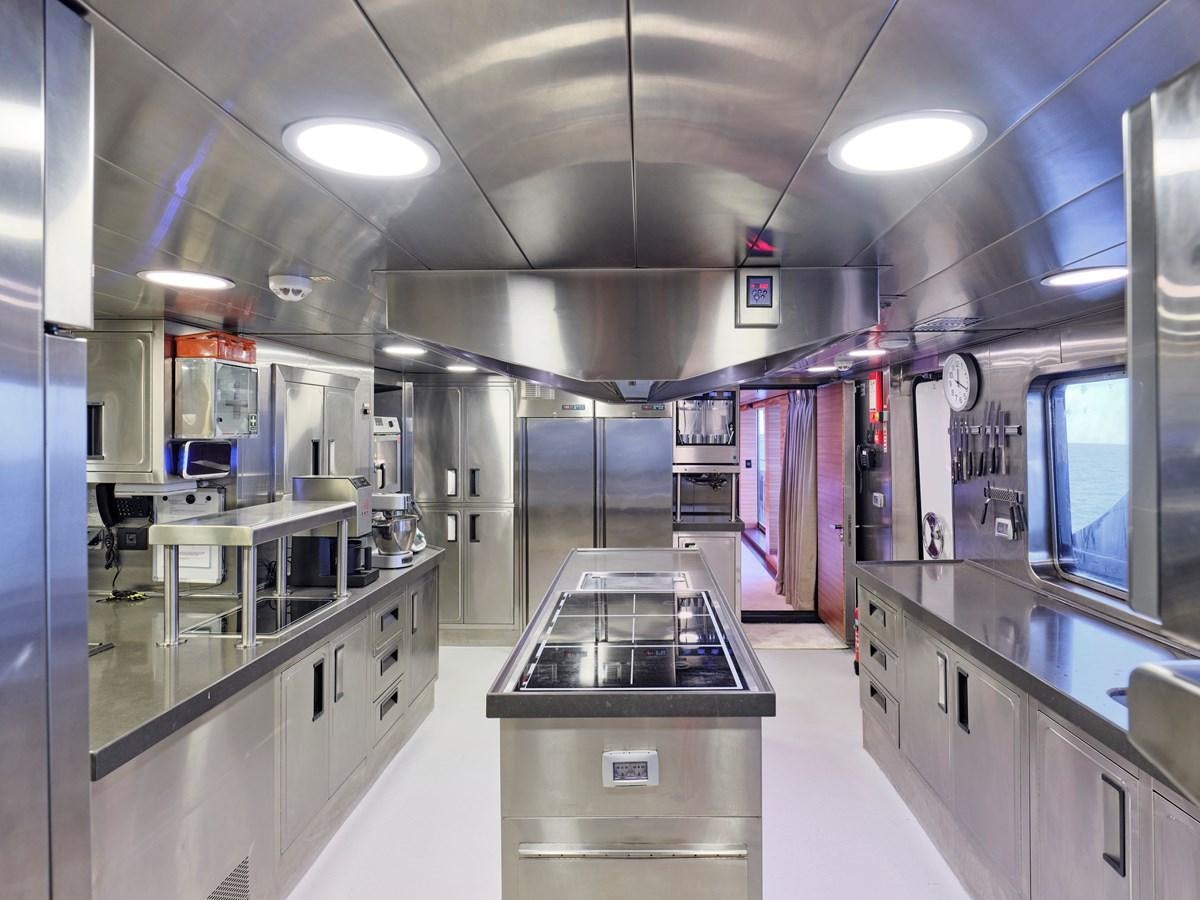

  • MAIN GALLEY: CONVOTHERM COMBI STEAMER x2/INDUCTION PLATES x6/ GRILL PLATE/BLAST CHILLER/ FRIDGESx2/DEEP FRIDGE x1
  • LAUNDRY: MIELE IRON BOARD/ MIELE IRON CYLINDER
  • PANTRY: ESPRESSO MACHINE/ICE MAKER/MEIKO DISHWASHERx2
  • CREW MESS: MICROWAVE MIELE/FRIDGE MIELE/DISHWASHER
  • SUNDECK: WINE FRIDGE/ICE MACHINE/MEIKO DISH WASHER/FRIDGE DRAWERS x4

Communication Equipment

  • SATCOM: Dual VSAT
  • CELLULAR SYSTEM: VSAT – 4G/5G - Mobile
  • VHF RADIOTELEPHONES: 2 - iCOM
  • SSB RADIOTELEPHONE: A3
  • WATCHKEEPING: YES
  • RECEIVER: YES
  • AIRCRAFT EMERGENCY COMMS: YES
  • TELEPHONE EXCHANGE: YES
  • UHF COMMUNICATIONS: YES

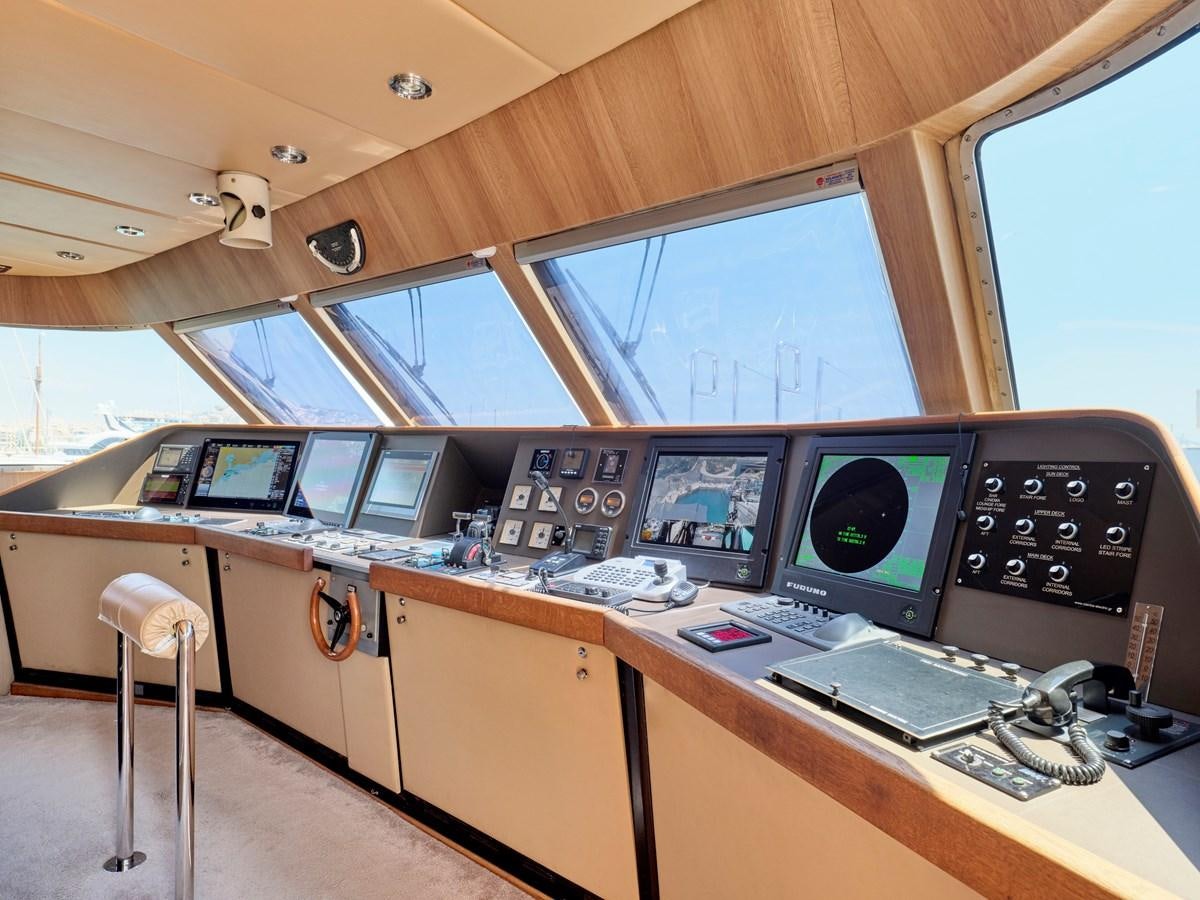

Navigation Equipment

  • MAGNETIC COMPASS: YES
  • GYRO COMPASS: YES - ANSCHUTZ
  • AUTOMATIC PILOT: YES - ANSCHUTZ
  • LOG: YES
  • ECHO SOUNDER: YES
  • RADAR: 2 xBand Furuno
  • CHART PLOTTER: Certified & Approved Transas ECDIS
  • GPS: 2 - Furuno
  • NAVTEX: YES - Sailos
  • WIND INSTRUMENTS: YES
  • AIS: YES

Entertainment Equipment

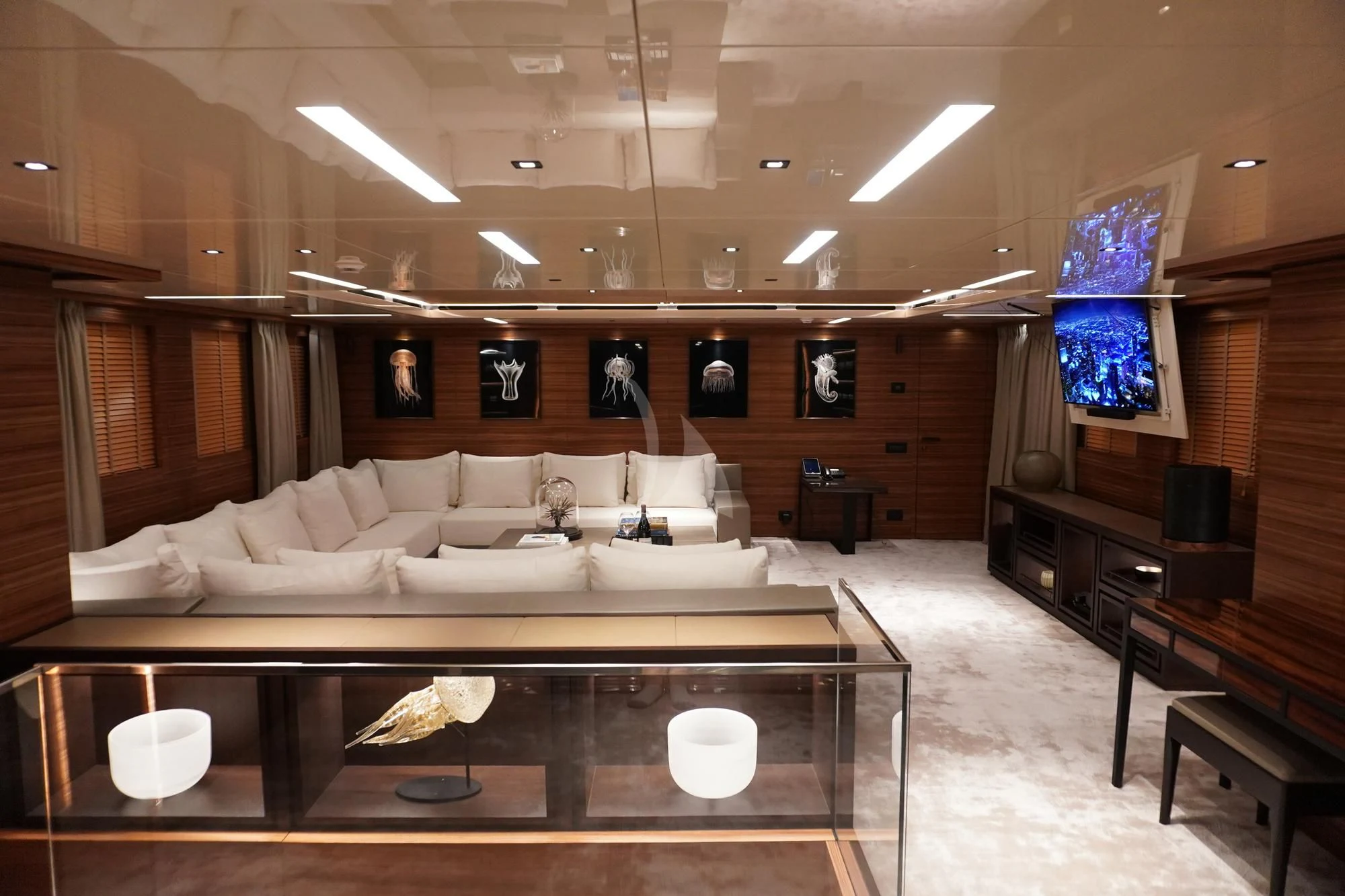

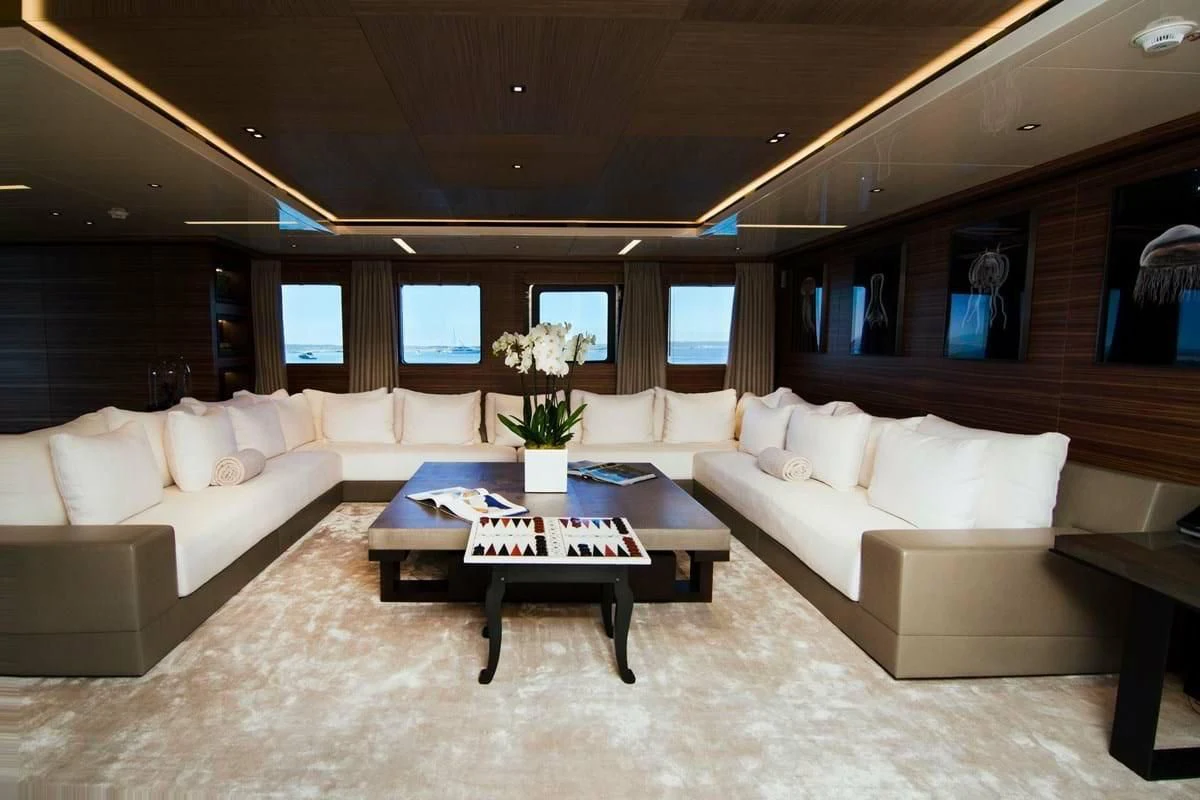

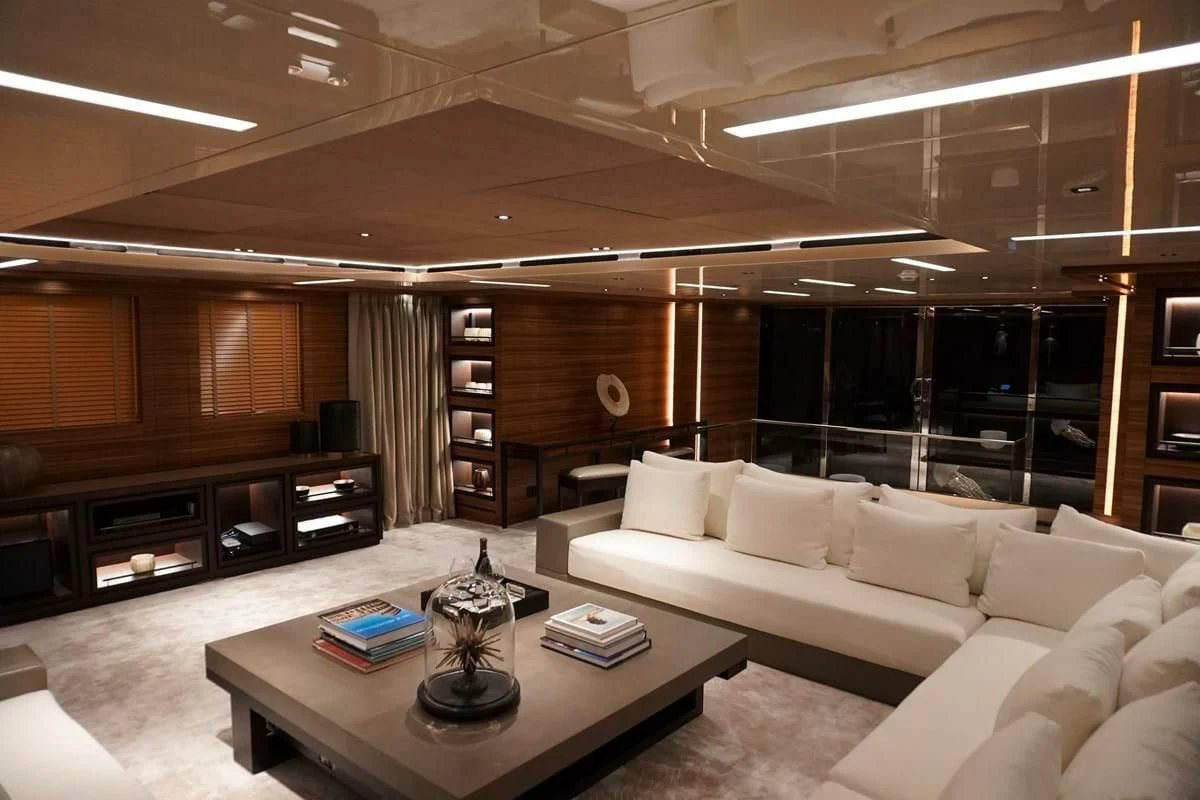

  • MAIN SALON: 55’ TV/HOME CINEMA/DVD PLAYER/PLAYSTATION 4
  • BRIDGE DECK : 46’ TV/BOSE SPEAKERSx4

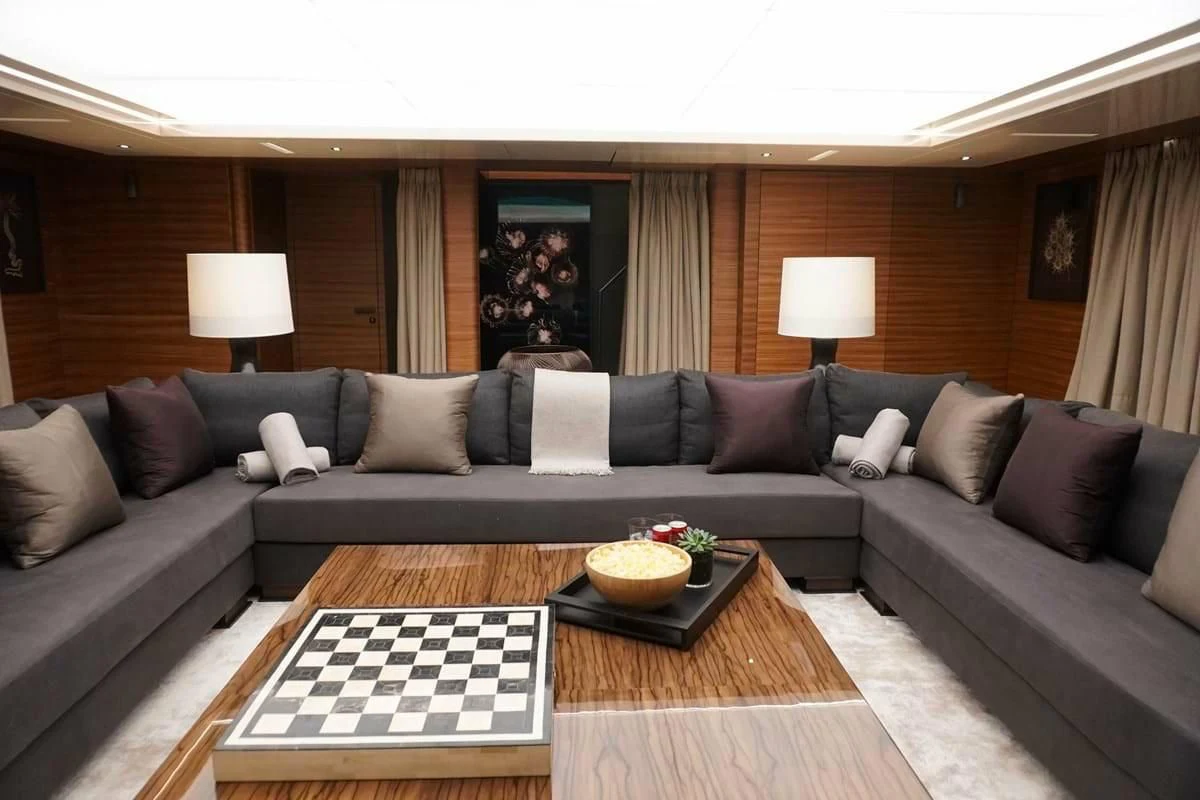

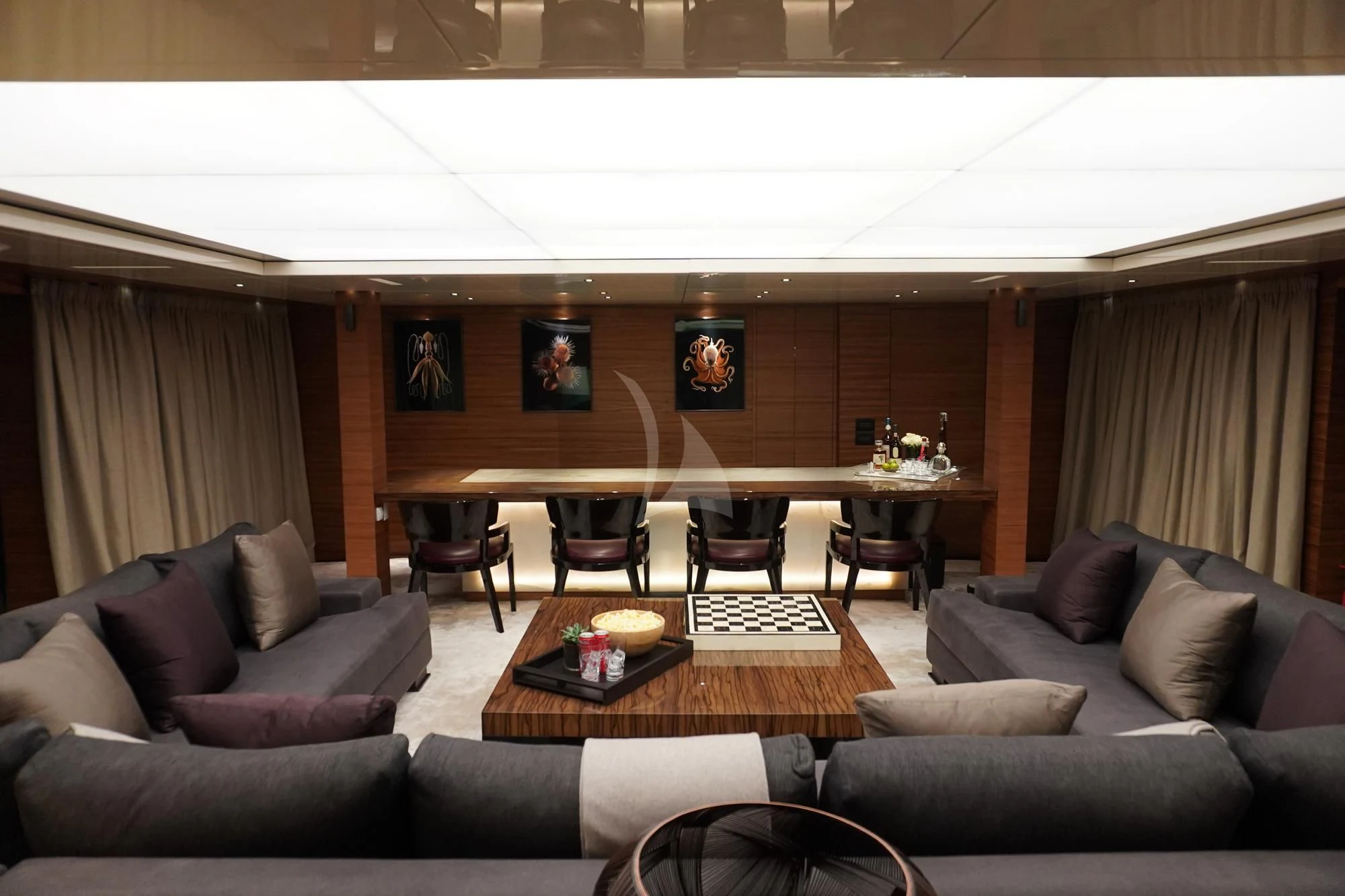

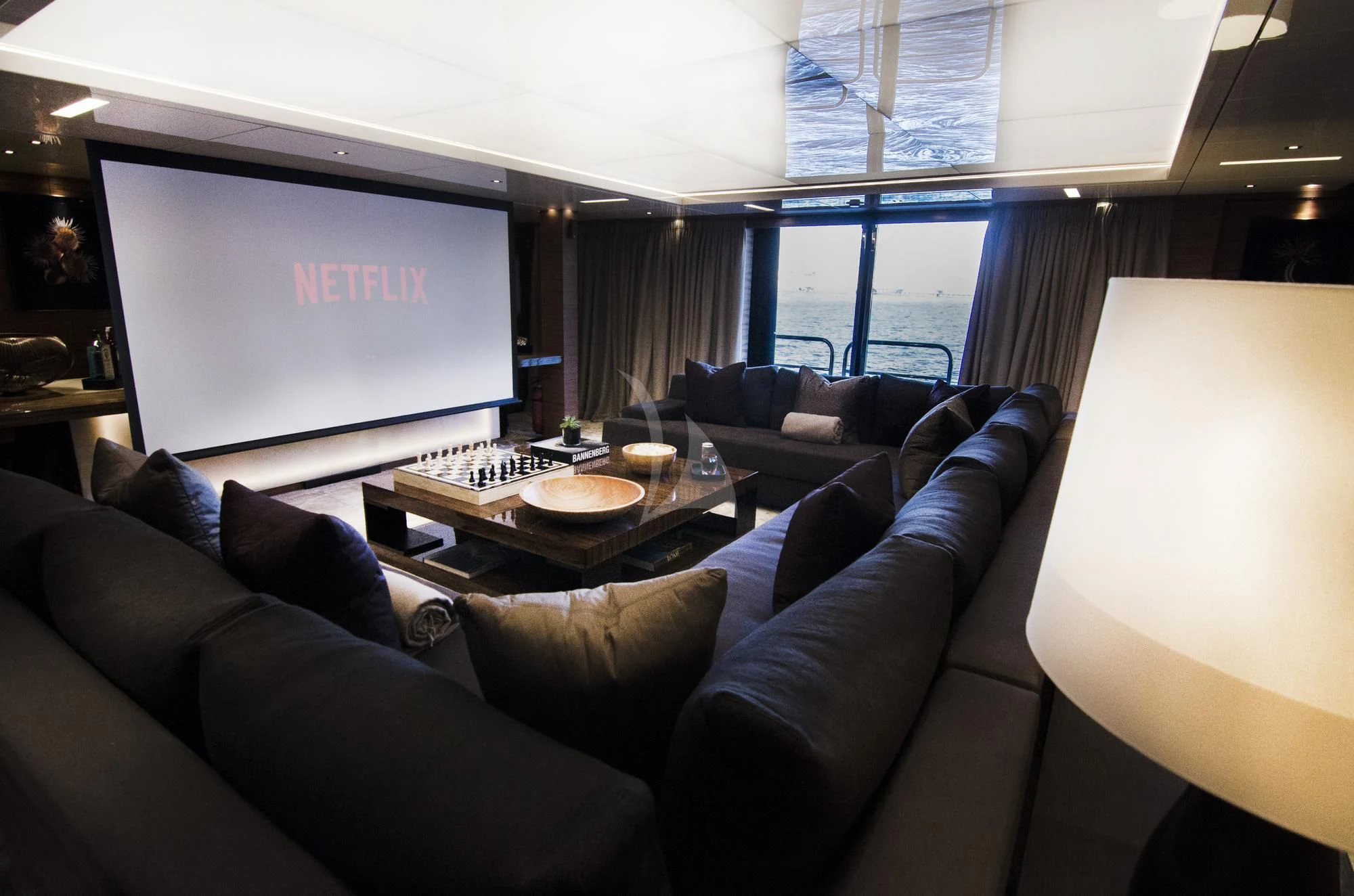

  • LOUNGE: SONY CINEMA PROJECTOR/HOME CINEMA

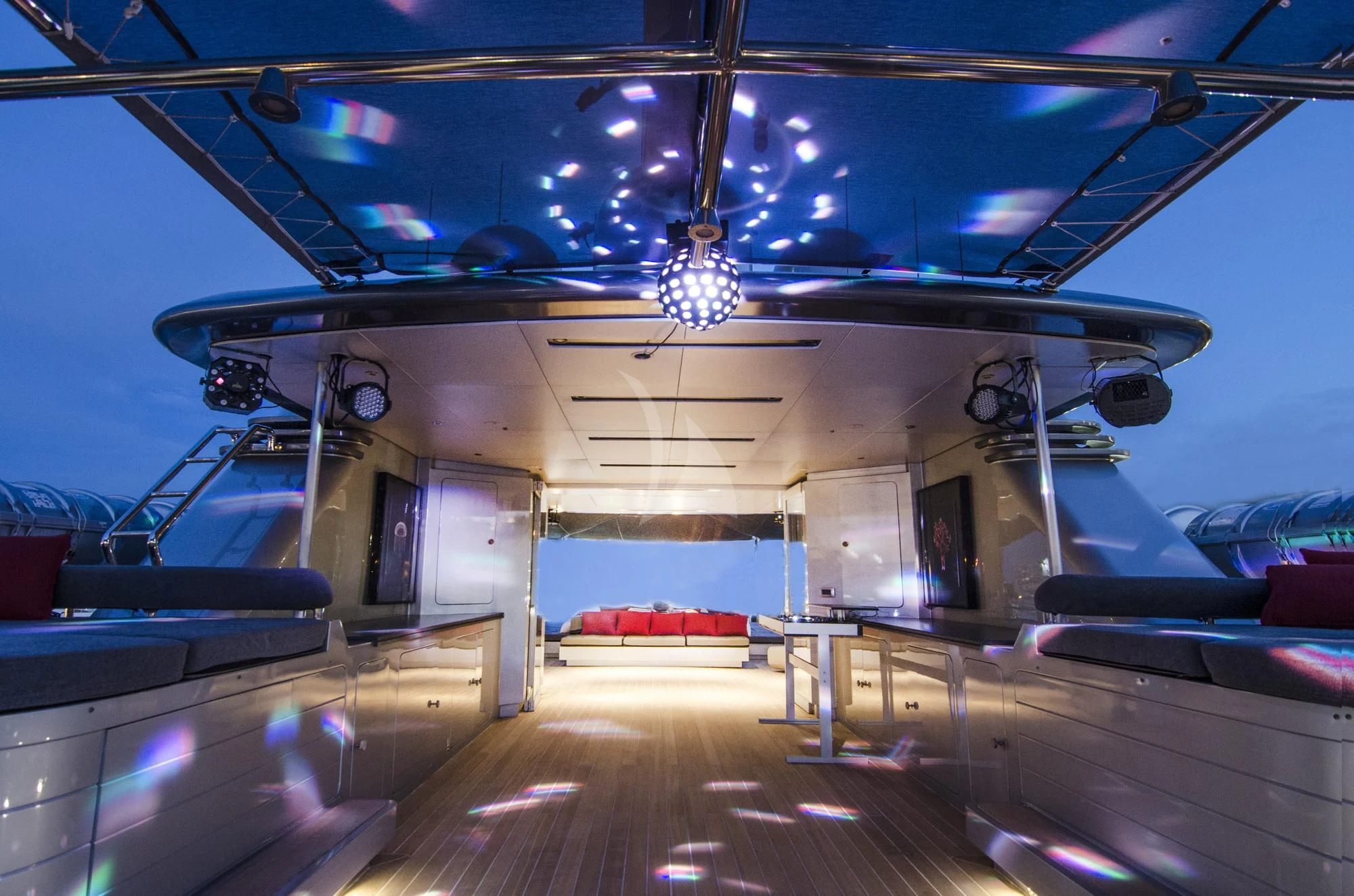

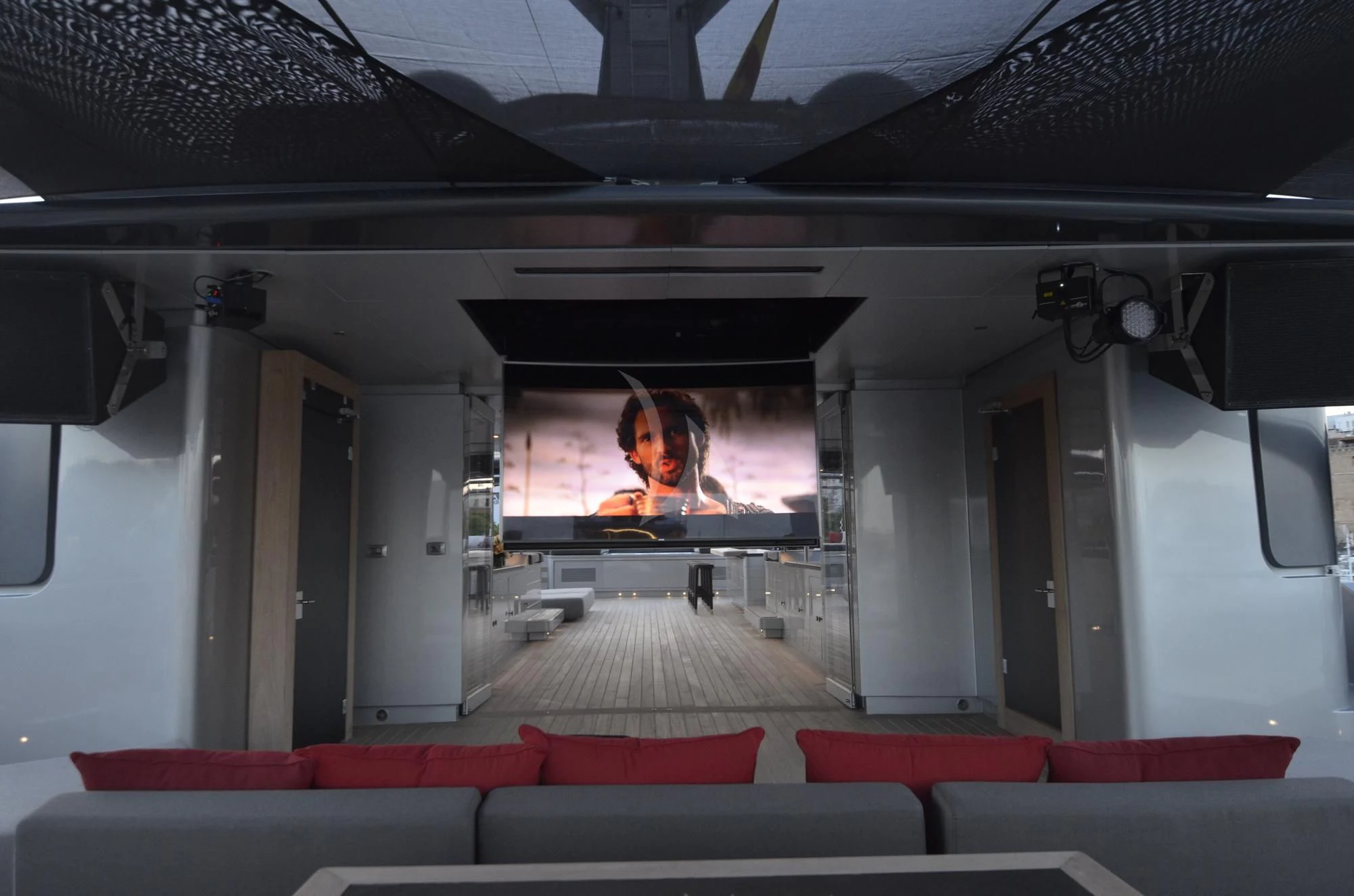

  • SUN DECK: 88’ TV/8 SPEAKERS/PARTY LIGHTS

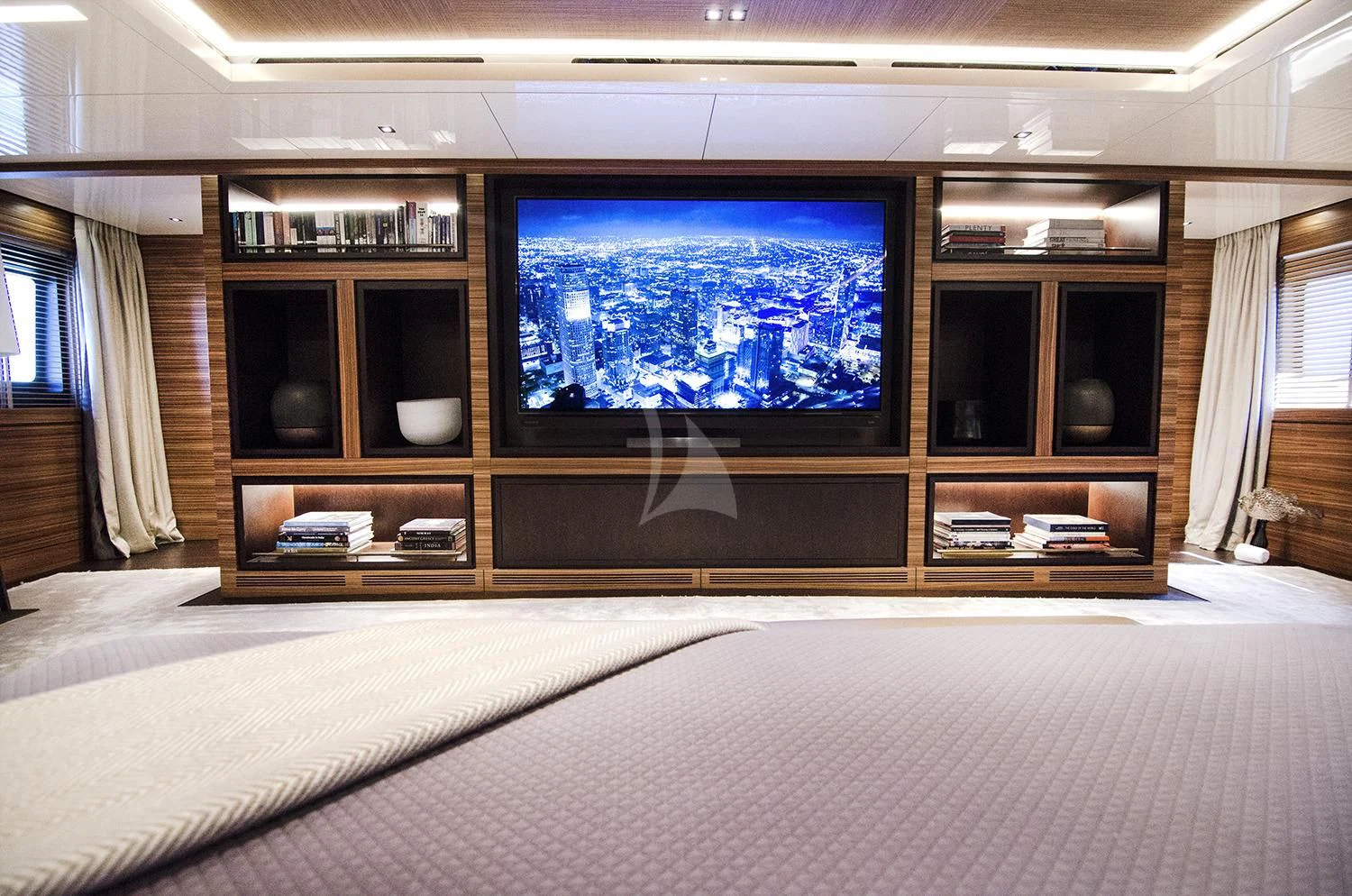

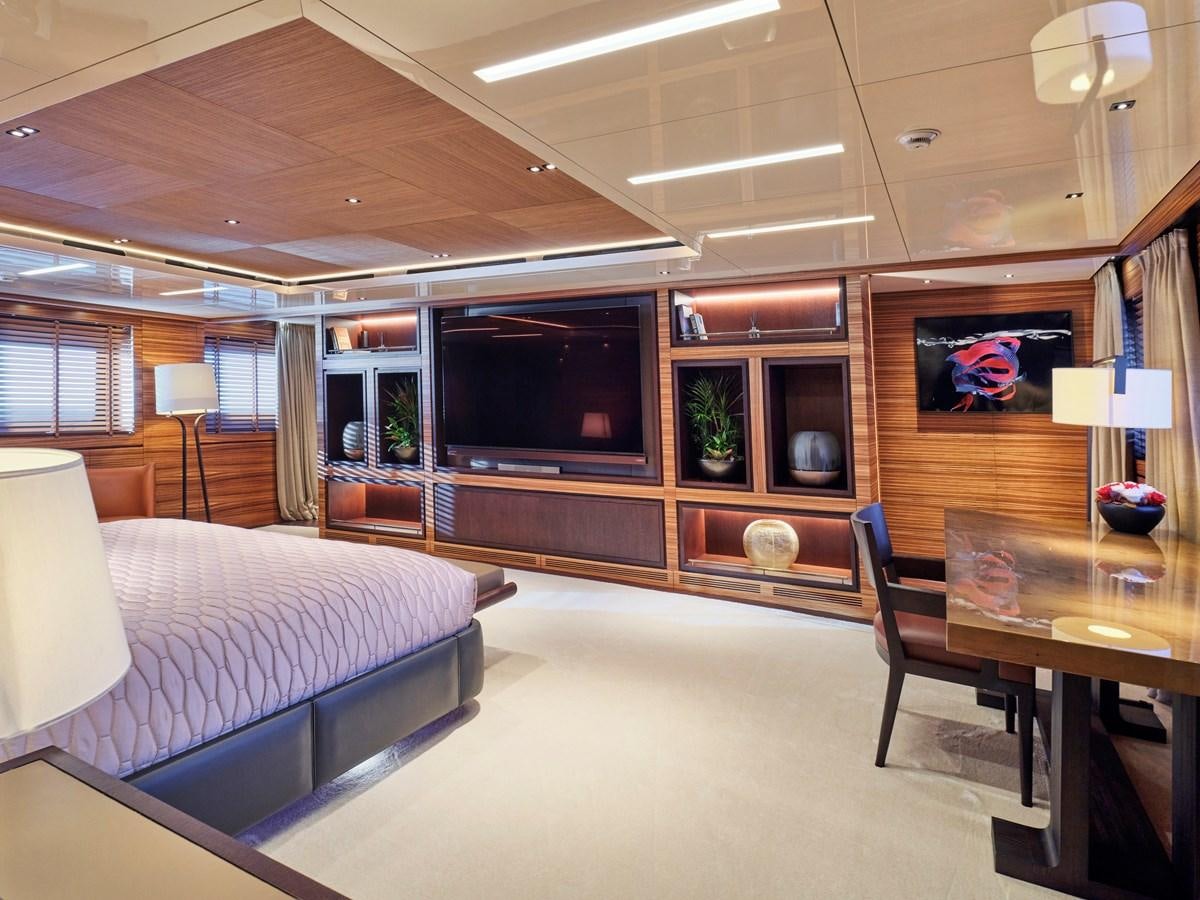

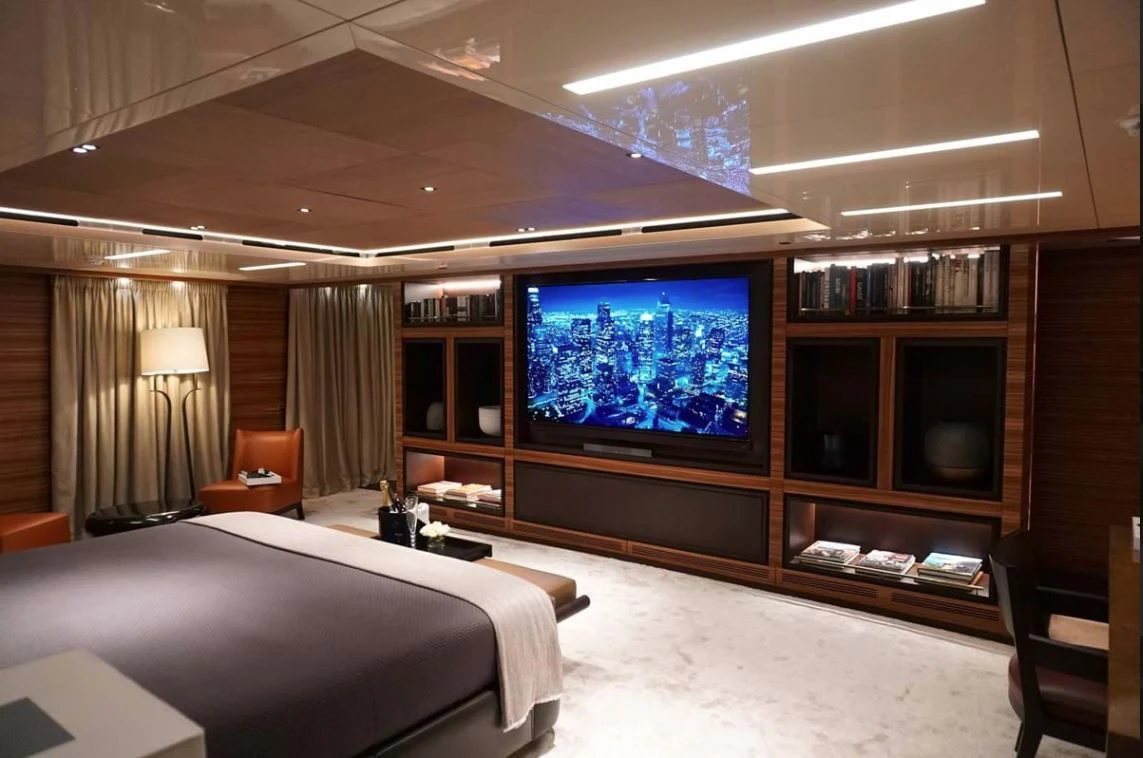

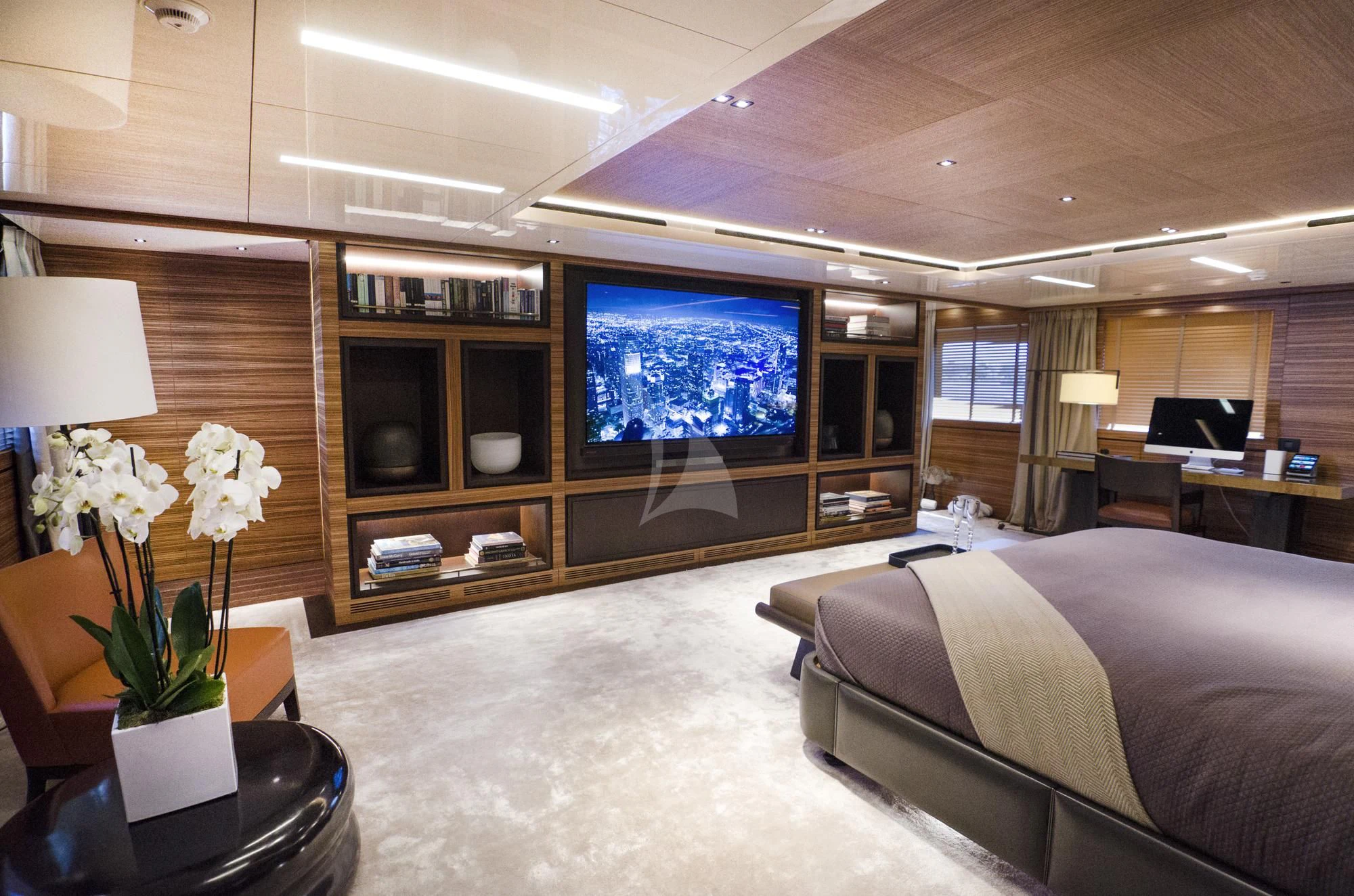

  • OWNERS CABIN: 77’TV/HOME CINEMA / DVD PLAYER
  • VIP CABIN: 65’ TV/HOME CINEMA
  • CAPTAIN´S CABIN: 42’ TV
  • CREW CABINS: Chief Engineer and Officers  46’ TV
  • CREWMESS: 42’TV
  • LAUNDRY: 3 MIELE LAUNDRY MACHINES,  3 MIELE DRYERS

OFFICE EQUIPMENT

  • BRIDGE DECK: 1PC (Onwer’s Oficce Microsoft Hub)
  • COMPUTERS: CAPTAINS CABIN PC-C/E CABIN PC- E/R LAPTOP
  • SHIP'S SAFES: 8 (1 Captain’s – 2 Owner’s Cabin – 5 Guest Cabins)

Tenders & Toys

GYM EQUIPMENT:

  • Yes

TENDERS:

  • PROTECTOR 8.5m RIB/YAMAHA 250 HPx2
  • CASTOLDI 5.5m RESCUE/YANMAR 180 HP

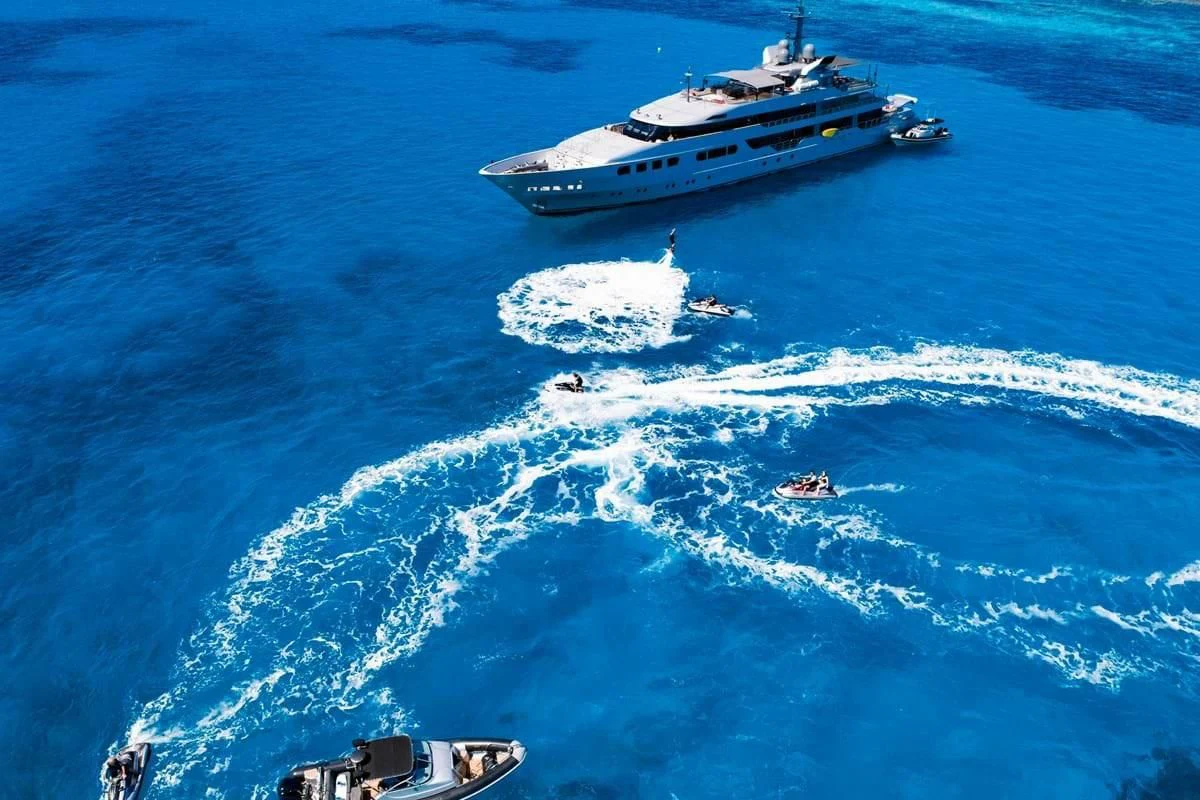

WATERSPORTS:

  • 2 JET SKI Sit Down
  • SEA-BOB

Deck Equipment

  • ANCHOR WINDLASS: SINGLE MOTOR FOR BOTH ANCHORS
  • AFT WARPING CAPSTANS: PORT-STBD CAPSTANS
  • BOAT CRANE & DAVITS: SANGUINETI FWD EMERG.CRANE/ SUN DECK ATLAS CRANE
  • PASSERELLE: MNV PASSERELLE 6m
  • SWIMMING PLATFORM: Yes
  • SEARCHLIGHT: 2 SEARCHLIGHTS
  • AWNING: Yes Reckmann
  • HELICOPTER CAPABILITY: A bolt on / bolt off heli-deck is part of the inventory for sale
  • ELEVATOR: No
  • JACUZZI DIP POOL: VILLEROY BOCH JUST SILENCE HOT TUB

Safety & Security Equipment

  • SAFETY:  Fully compliant
  • FIRE FIGHTING: GALLEY-E/R PERMANENT SYSTEM
  • ALARMS & MONITORING: CONSILLIUM FIRE MOTORING SYSTEM WITH HEAT AND SMOKE DETECTORS


Refit History

REFIT & REBUILD HISTORY
2019:

  • Stern extension from 58,50m to 63,80m
  • Construction of new garage area for storing a large tender and five jet skis, fitted with all the required ventilation, gas detection, fire detection & fire extinction arrangements.
  • Installation of a hydraulic watertight transom (MNV) door leading to the garage area
  • Installation of four watertight hatches leading to the garage area.
  • Installation of new hydraulic gangway (MNV)
  • Installation of new hydraulic tender candle (MNV) for tender Protector 8,5m

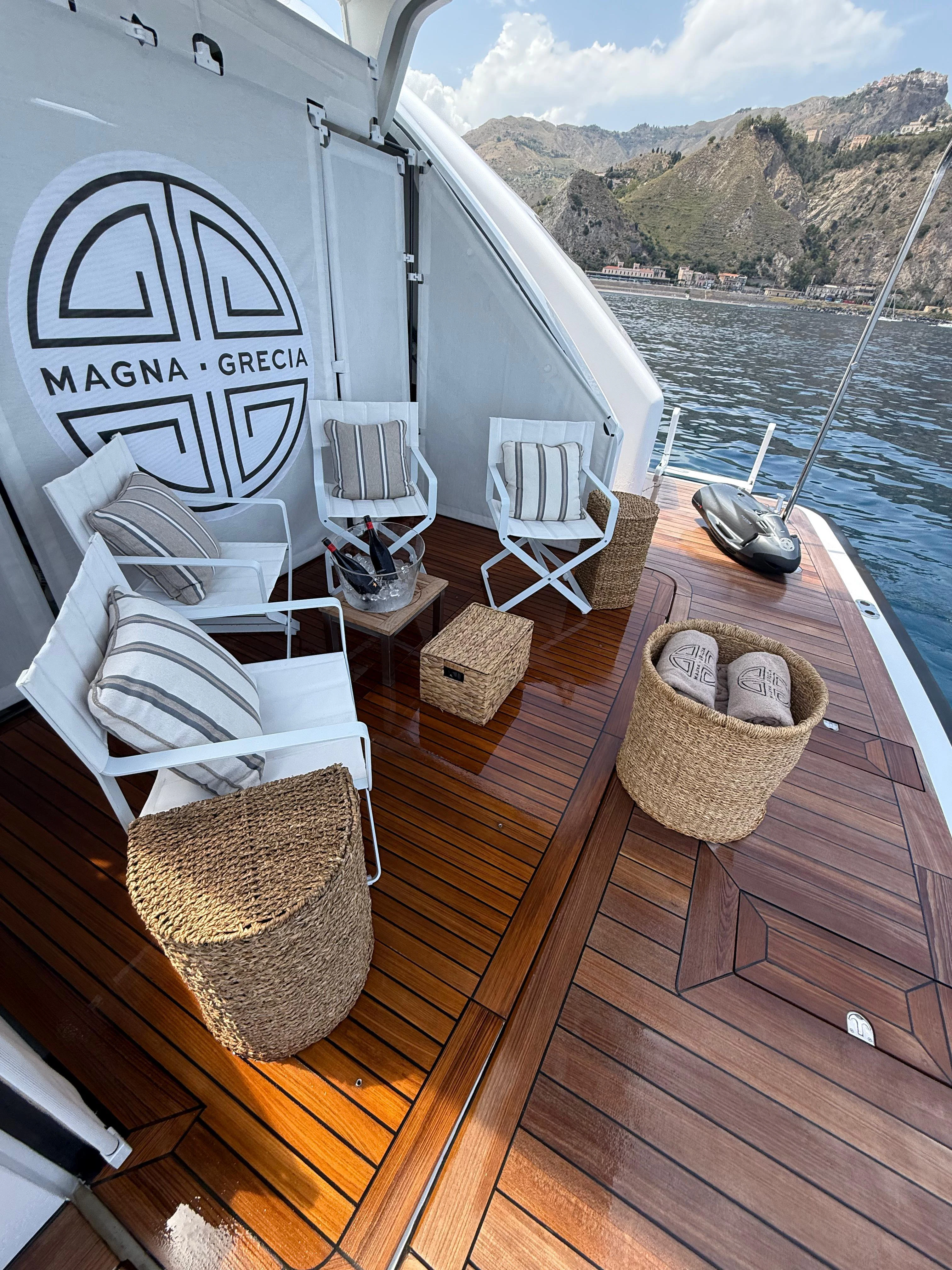

  • Construction of new stern with swim platform, two staircases
  • Steering system disassembly and re-assembly
  • Rudders removal and reinstallation
  • Supply of new gangway (MNV)
  • Capstans removal, maintenance and reinstallation
  • Building and installation of new harbor switchboard
  • Installation of new underwater lights 6 x Megaled ultimate 75
  • 2 bollard bids for swim platform
  • Construction of raised deck in way of the tender garage (sun pads area)
  • Building of fuel oil bunkering station for the tenders
  • Two access hatches for garage area (access to bilges)
  • Zinc Anodes for new plating
  • Gas detection system
  • Local sprinkler system
  • Inlet - Outlet fire dampers

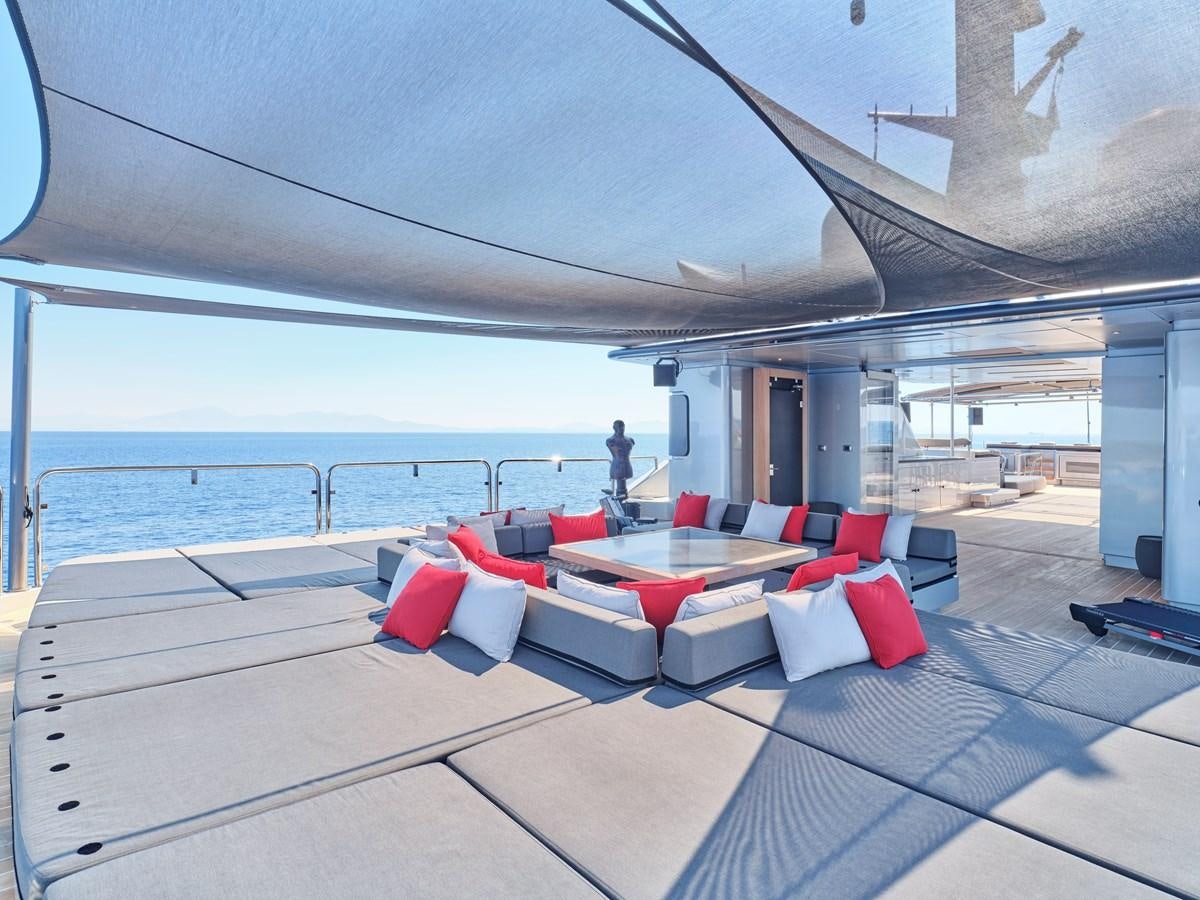

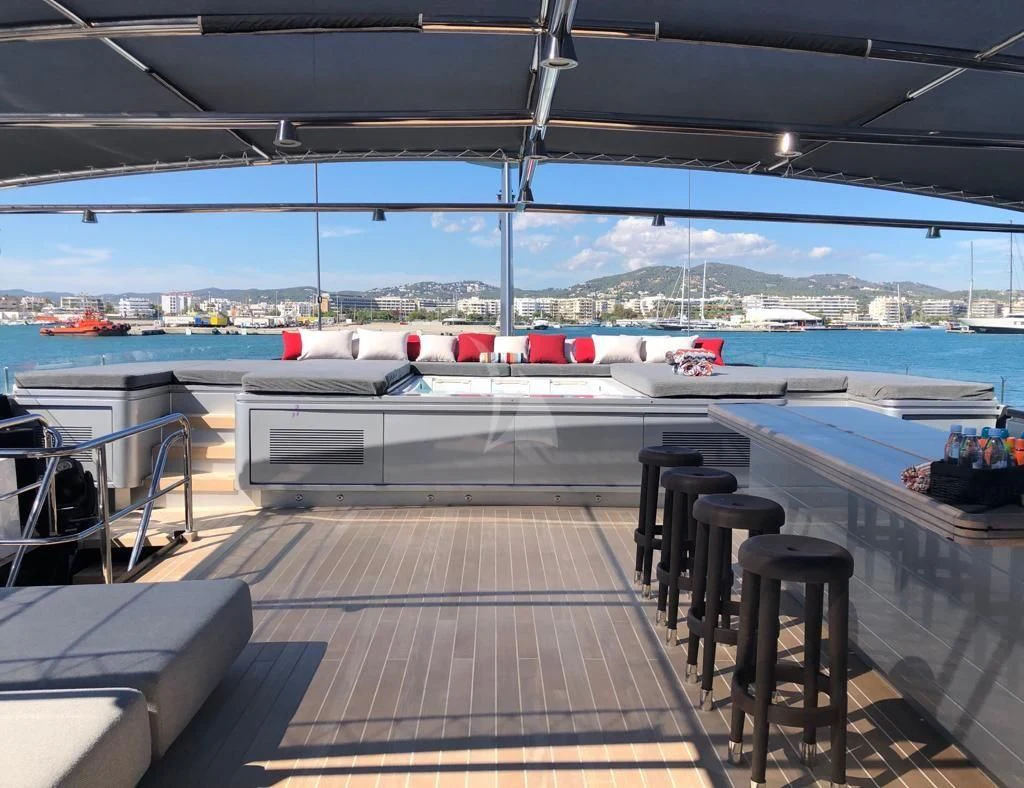

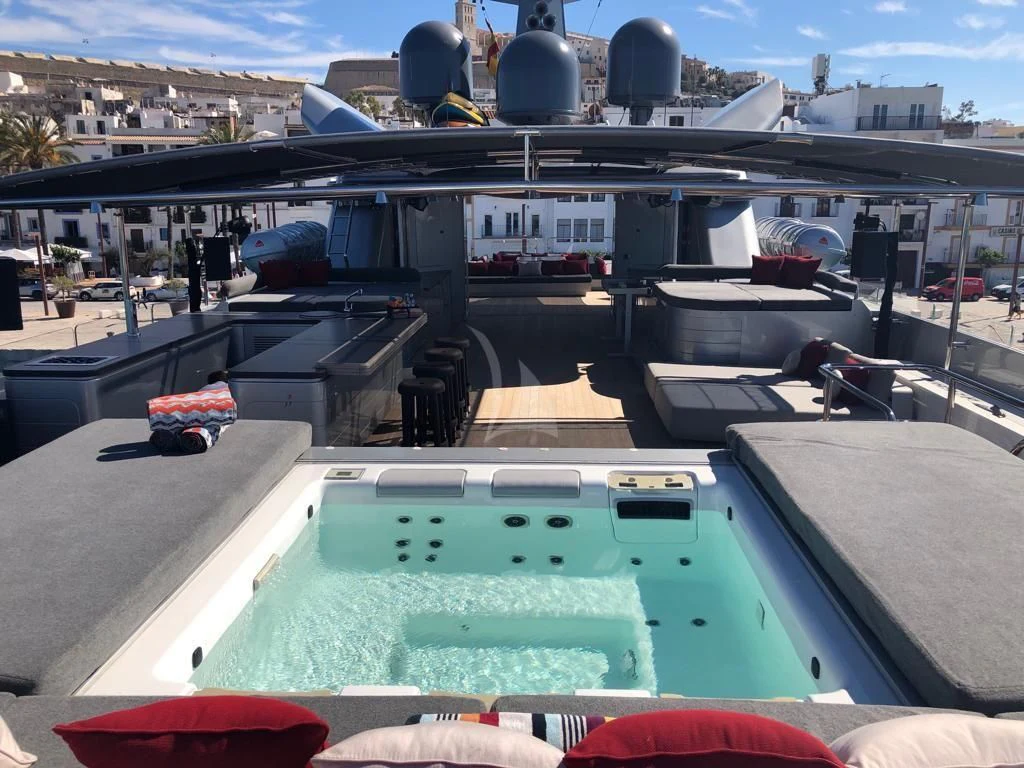

  • Sun deck – with new laid teak decking, a large Villeroy Boch Jacuzzi area with sun pad at the front, a large bar with Caesarstone top and Bar Stools by Christian Liaigre with club features such as disco lights, smoke machines and a modern music system. There is a double Manutti SunDed Kumo 6C and a large new comfortable sofa area aft with a ceiling mounted projector screen - all covered in custom made black covers and in order. High quality throughout. New WC complete and in very good order.
  • Rebuild of sun deck, new hardtop design / Antenna layout as follows:
  • Complete gymnasium structure demolition ‐ Removal of existing domes foundations for relocation
  • Widening of deck area between two funnels
  • Construction and installation of a new aluminum fore mast (Height 3,2m platforms and foundations
  • Removal of Jet Ski cranes and modification of foundations. Installation of one deck socket on each foundation to accommodate the portable ATLAS crane/ ATLAS 1600, SWL 500 kg.
  • Installation of new hard top (area 35m2) in place of the existing one with infrastructure for TV mechanism (SAMSUNG UE 88 JS 9500 LXXH 88’’ Curved)
  • Construction of a WC / Shower area aft from the starboard funnel (basis 16m2 plating)
  • Application of new FEQ teak deck‐ 17mm thick & 100mm wide with grey caulking (Total area 140m2) / Application of new underlay ‐ filler (up to 1cm)

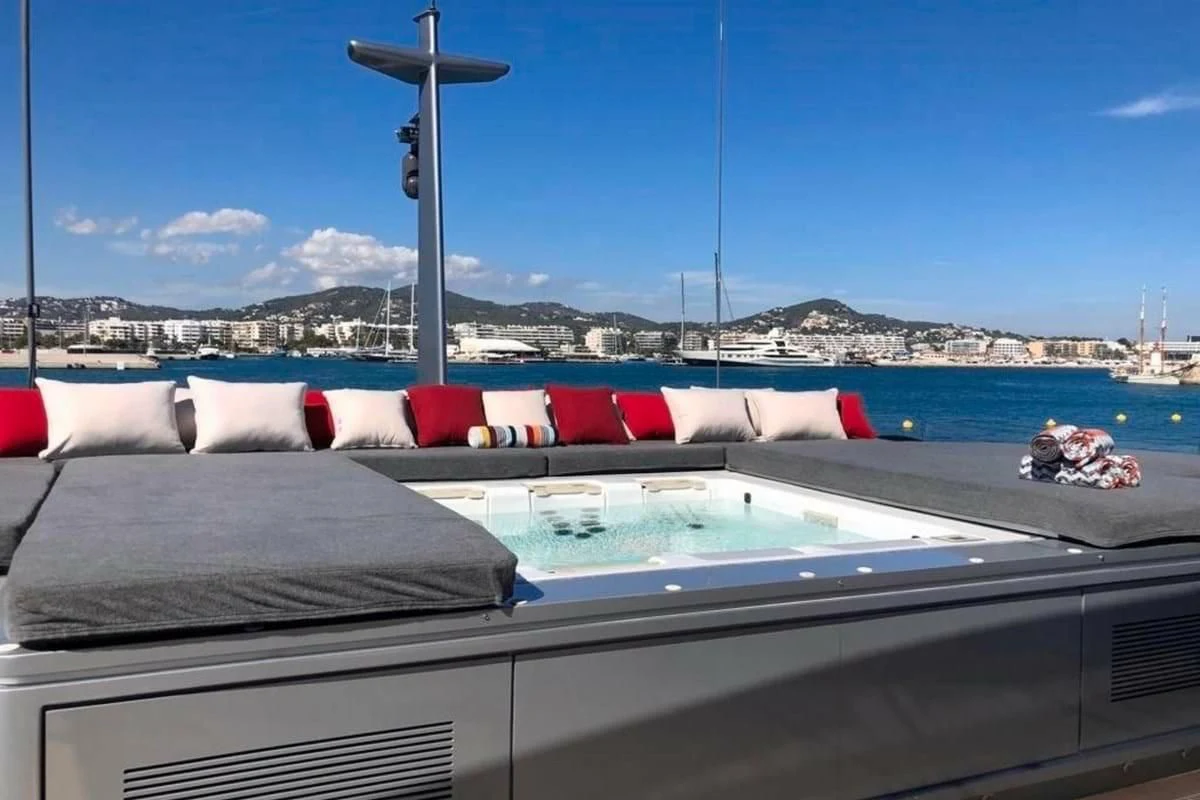

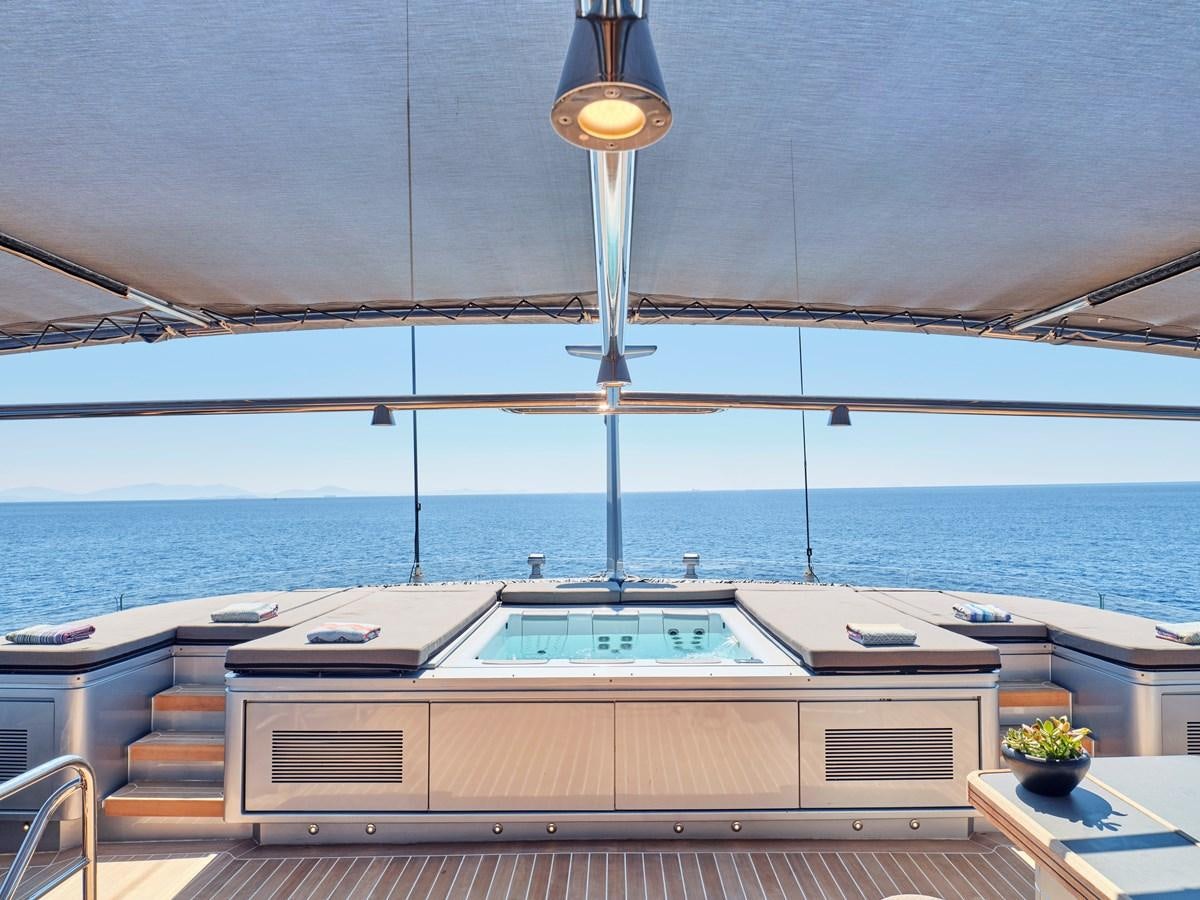

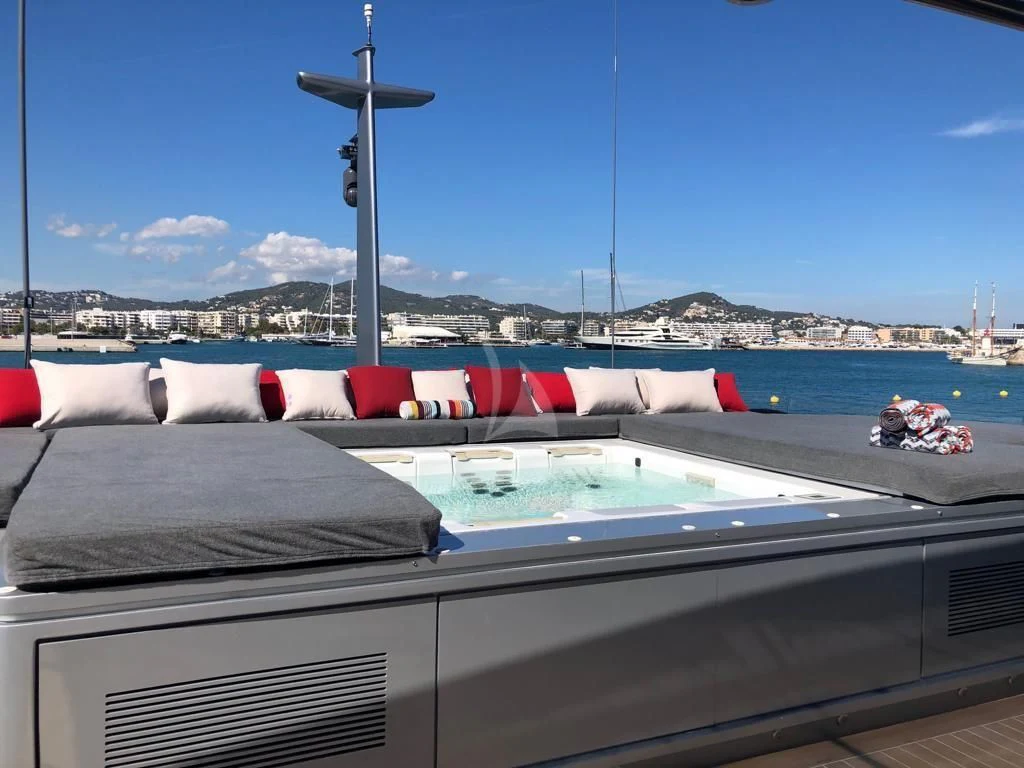

  • New Jacuzzi Villeroy & Boch Just Silence and Sun pads structure (23m2)

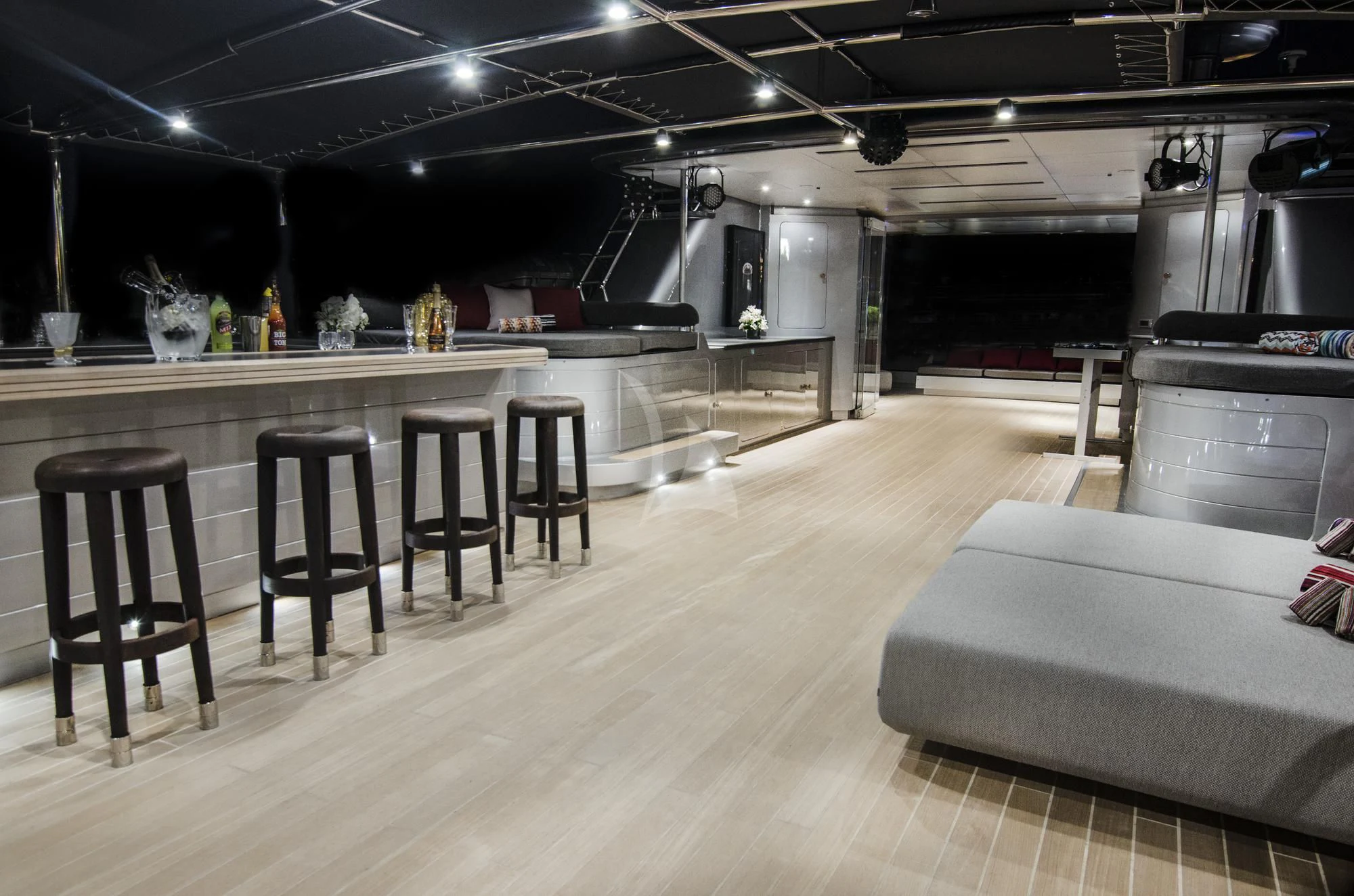

  • New bar structure (25m2) with Caesarstone Top, 4 Christian Liaigre Bar Stools and full set of Appliances (Glasswasher by Hobart (PROFI GXC), IceMaker by Hoshizaki (IM 30 CWNE), Wine Fridge by Vintec (ALV40SGE), 4 Refrigerators Drawers by FrigoNautica (model FC/2) and Beer Froster
  • All cushions made completely waterproof with Sunbrella Dark Smoke, using acrylic lines, mesh underneath for drainage and secure fastering FastMount TC06, Reinforced foam with a layer of Ricellen 2cm so the cushions can’t absorb water underneath. Toweling Cover by Sunbrella Terry Grey and Black Covers by Acrylic Fabric Sunbrella Plus.
  • Reckmann sunFLIP awning system to our yacht with the optimum regards to style and aesthetics, resilience, weight, handling and durability, constructed by Carbon Poles and Stamoid Alluminium

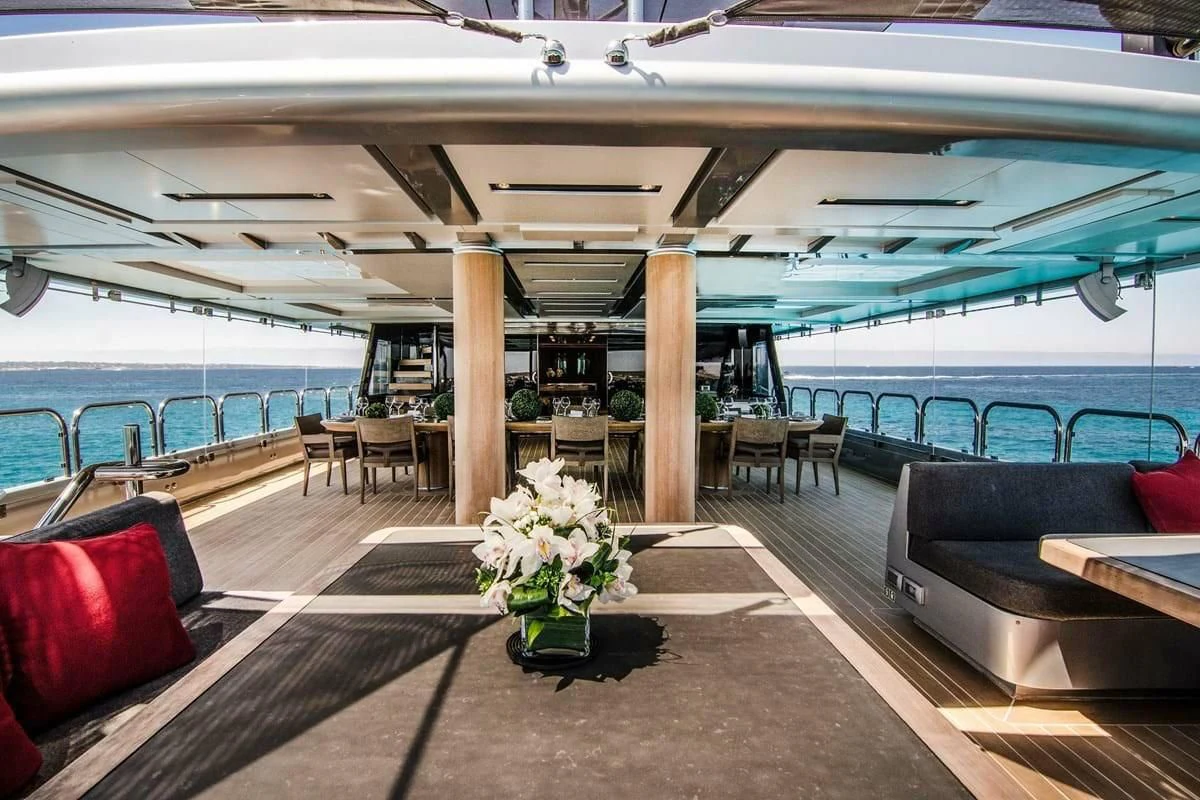

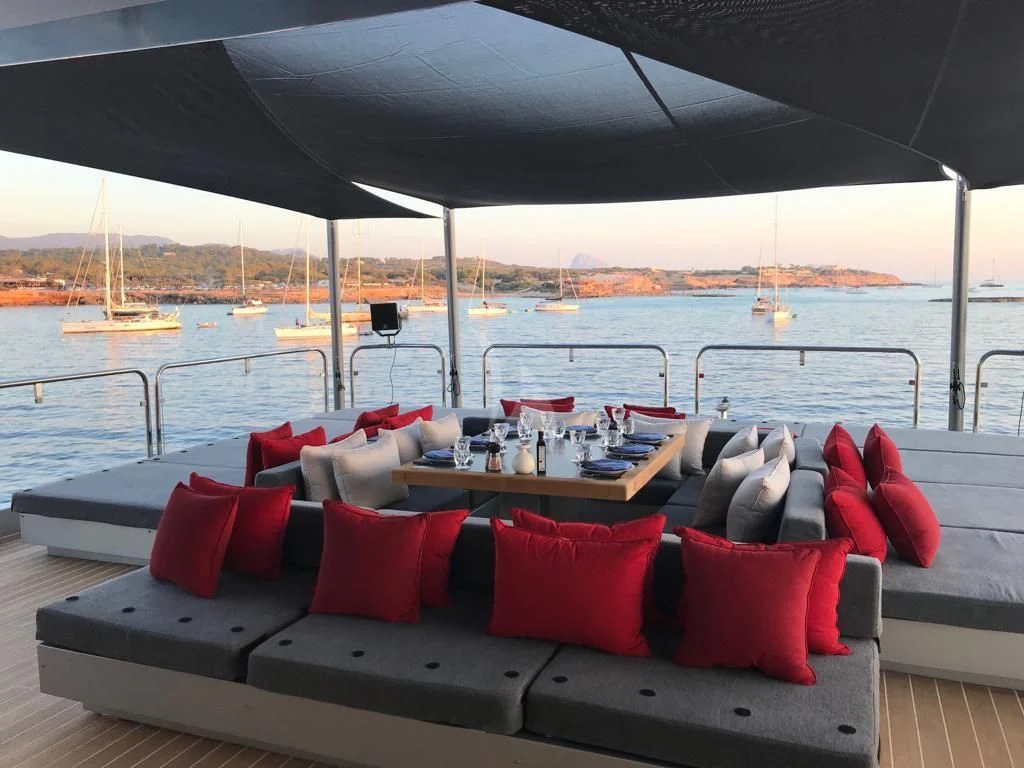

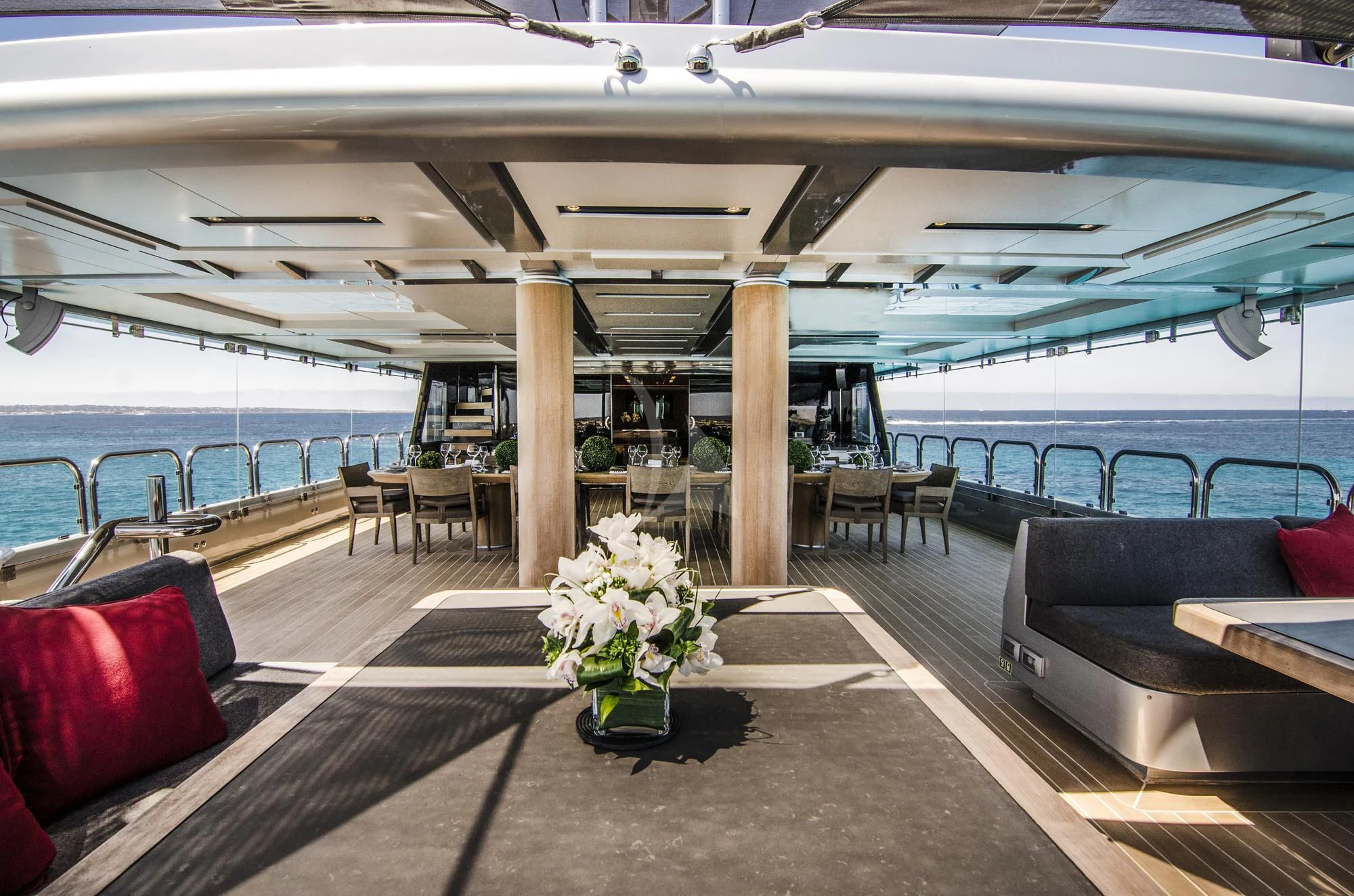

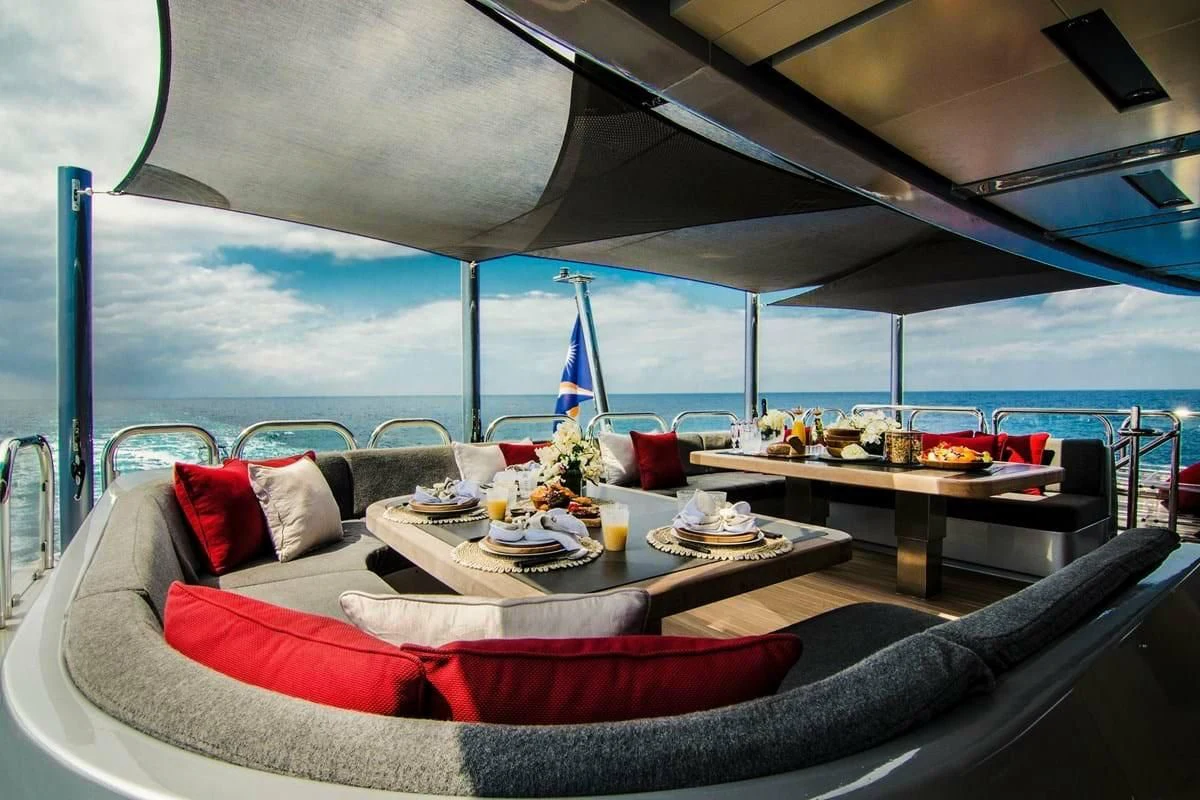

  • Bridge deck – exterior – all new laid teak decking and new corner sofa area similar to the sun deck with neat custom-made black covers and new large multi-choice fixed dining table (either 1 long table or 2 separate smaller tables). Previous dining area now equipped as cinema (but plans are to be able to quickly rearrange to separate dining room as no other indoor dining is available) with a VIP double guest cabin in front and new bathroom (complete and in good condition). Wheelhouse – navigation equipment partly upgraded - most technical upgrades completed.

Navigation Equipment Upgrade

  • ECDIS – Navi Sailor 4000 / Navi Planner 4000 / 2 x MPC24 (paperless)
  • Furuno XBanfd Radar
  • Furuno IMO GPS GP-170
  • Furuno IMO DGPS GP-170
  • SAILOR® 6110 mini-C GMDSS with SAILOR® 6006 message terminal
  • Interfacing Complex IEC60945
  • SAILOR 6391 NAVTEX SYSTEM
  • SAILOR 6120 mini-C SSAS & LRIT
  • SAILOR 6301 Control Unit DSC Class A
  • AIS TYPE EM-TRAK A100
  • SAILOR 6310 MF/HF 150W DSC CLASS A
  • SAILOR 6018 MESSAGE TERMINAL FOR GMDSS
  • AIRBAND VHF ICOM IC A25CE
  • GMDSS PORTABLE VHF MCMURDO R5 (X3)
  • SARTS JOTRON TRON SART (X2)
  • VHF/DSC ICOM GM-600 (X2)
  • COSPAS SARSAT EPIRB KANNAD MARINE (406MHZ)

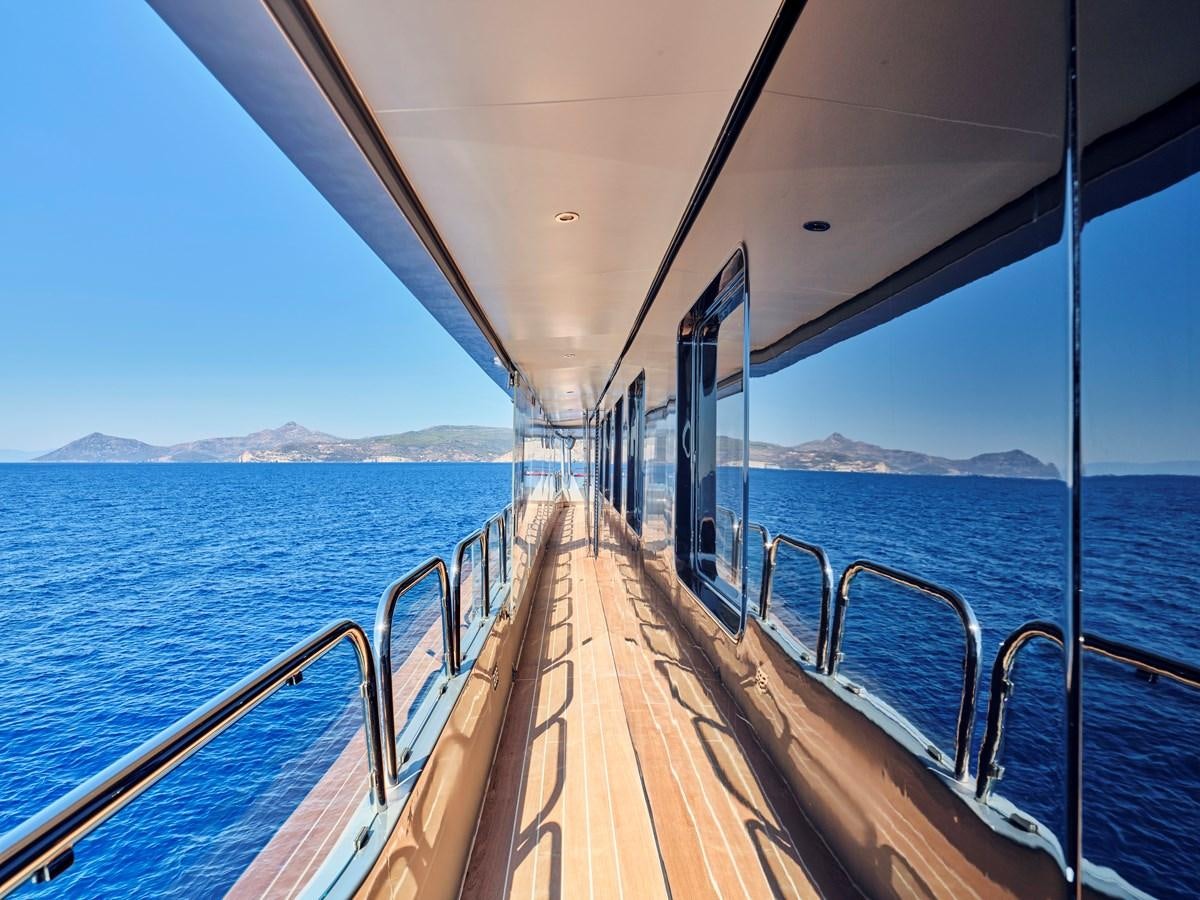

  • Main deck – all exterior decks have had hand rails changed as well as new glass plates. We understand the teak will be replaced. A new Owner's study will be created aft behind the main saloon, but that the remainder of the deck will remain as per the current General Arrangement, but with a mostly new interior. It is difficult to assess the standard and quality as this work is still in process, although the full beam Owner’s suite, bathroom and wardrobe are complete and up to good standards and high quality of fabrics with newly fitted balcony on the starboard side.

Main Deck - New Owner Study (WC incl.)

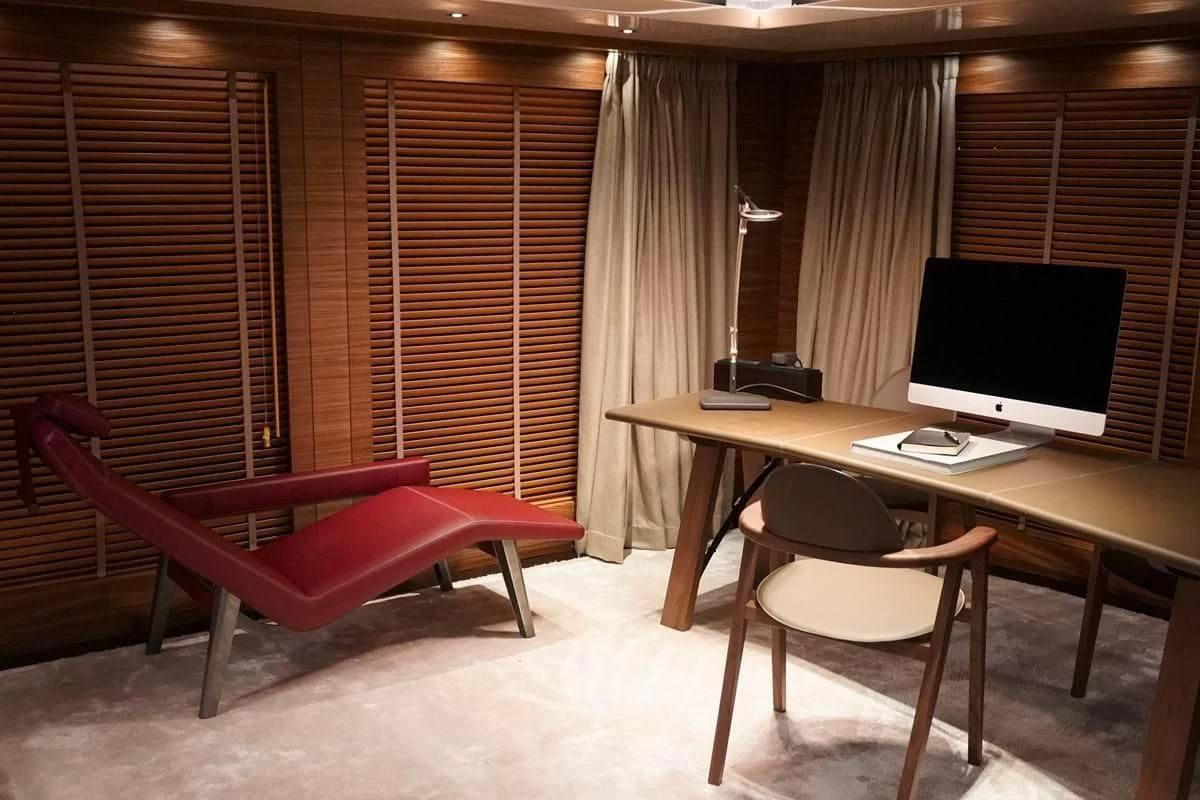

  • Construction of new Owner’s office area in the aft part of the Main Deck.
  • Application of filler levelling OF MD TEAK AND STEPS
  • Building of a new steel staircase port of centerline
  • Watertight door (entrance to foyer/port entrance to WC)
  • Cabling in owner study and foyer (cable trays, 6 main sockets, 10 dimmable ceiling lights, 3 ceiling light in the WC and 3 in foyer) - Two level diming applies
  • WC piping in owner study
  • Ventilation ducts in owner study/foyer/WC
  • Windows for owner study structure (3 straight & 2 curved)
  • Application of new FEQ Teak Deck – 20mm thick – with white caulking and application of new underlay (up to 1cm)

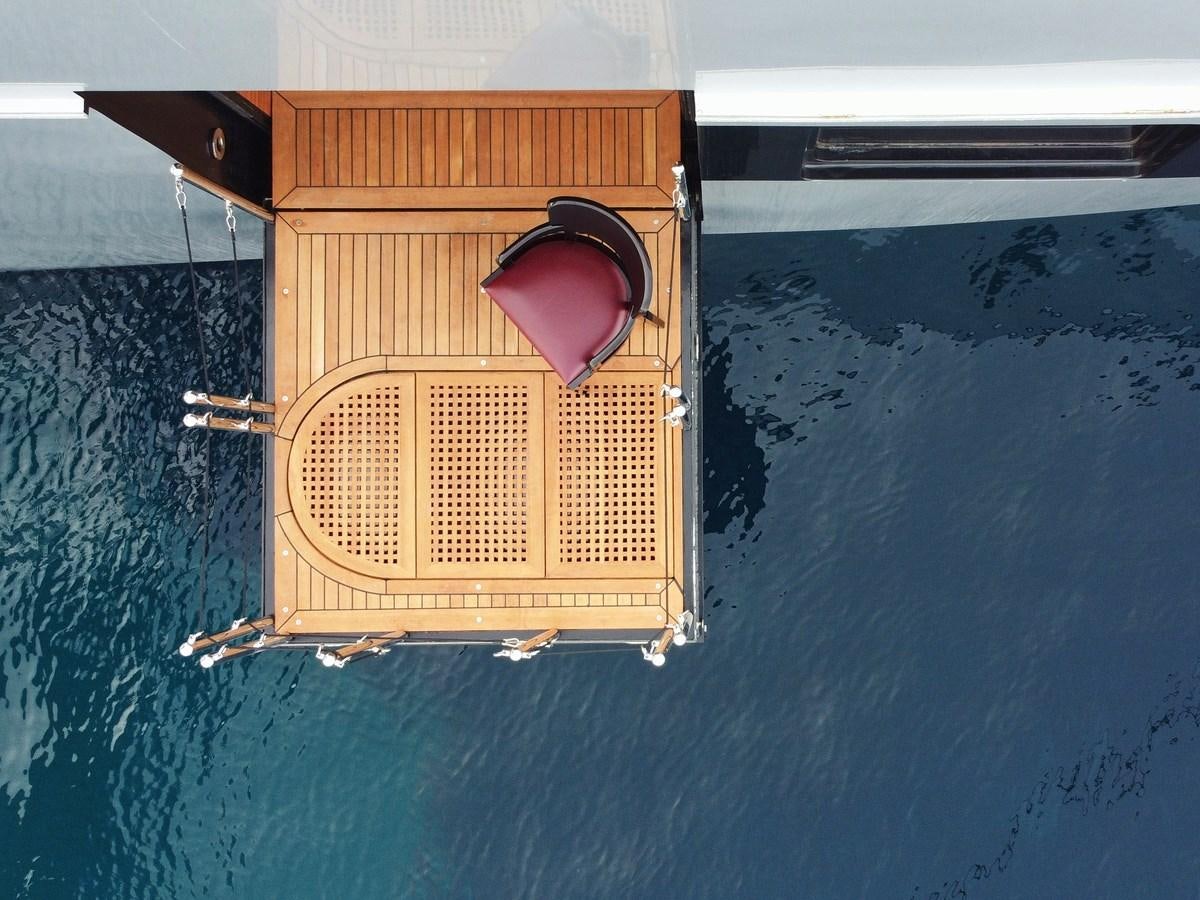

  • Cropping of bulwarks to main deck level and starboard side shell plating in way of owner's cabin for Installation of retractable balcony with teak deck on owner's cabin

General Refit of Crew Accommodation as Follow

  • Amtico Floor, whole wrapping by 3M, new ceiling panels by Majiilite, Corian Bathrooms reconstruction with new shower cabins, crew mess reconstruction/redesign as per design of whole crew area with new Miele rridge MIELE KFN 14943 SD ED/CS-1 / Microwave M 6012 SC and professional dishwasher of MIELE PG 8056
  •  Construction and installation of crew mess partition bulkhead with security glass and installation of hinged door with lining.
  • New laundry area with above specification of construction as per crew area built with 3 new sets of MIELE Washer and dryer PWT 6089 Inox / ΡΤ 7189 Inox, roller iron of Miele HM 16-83 and Ironing board of Miele B-1700. Sink constructed as well
  • On the area of laundry also constructed walking cold room with door and stainless steel +4c max and walking freezer room with door and stainless steel -18C.
  • Both include shelving racks/ lighting/ alarm button and doors designed with emergency handles inside. New fan coil installed as well for their support.
  • Conversion of the old laundry of the yacht into an electrical room containing the yacht’s emergency switchboard, transformers and shore power converters. Installation of 2 Units ASEA shore power converter AC150NVHE-3/2 also with installation of chiller unit Super 60-40 series made by Frigomar SRL


Main Deck

  • Replacement of the hatch leading to the forepeak area with a new watertight one.
  • Fitting of all exterior doors and hatches with open/close indication sensors, connected to the yacht’s monitoring system.
  • Completion of outfitting works in the Main Deck guest areas.

General

  • All Lights are production of Italian Luxury Innovation | AltraLuce Int Srl.
  • Interior and exterior lights, spots/panels/outdoor panels/artwork lights etc
