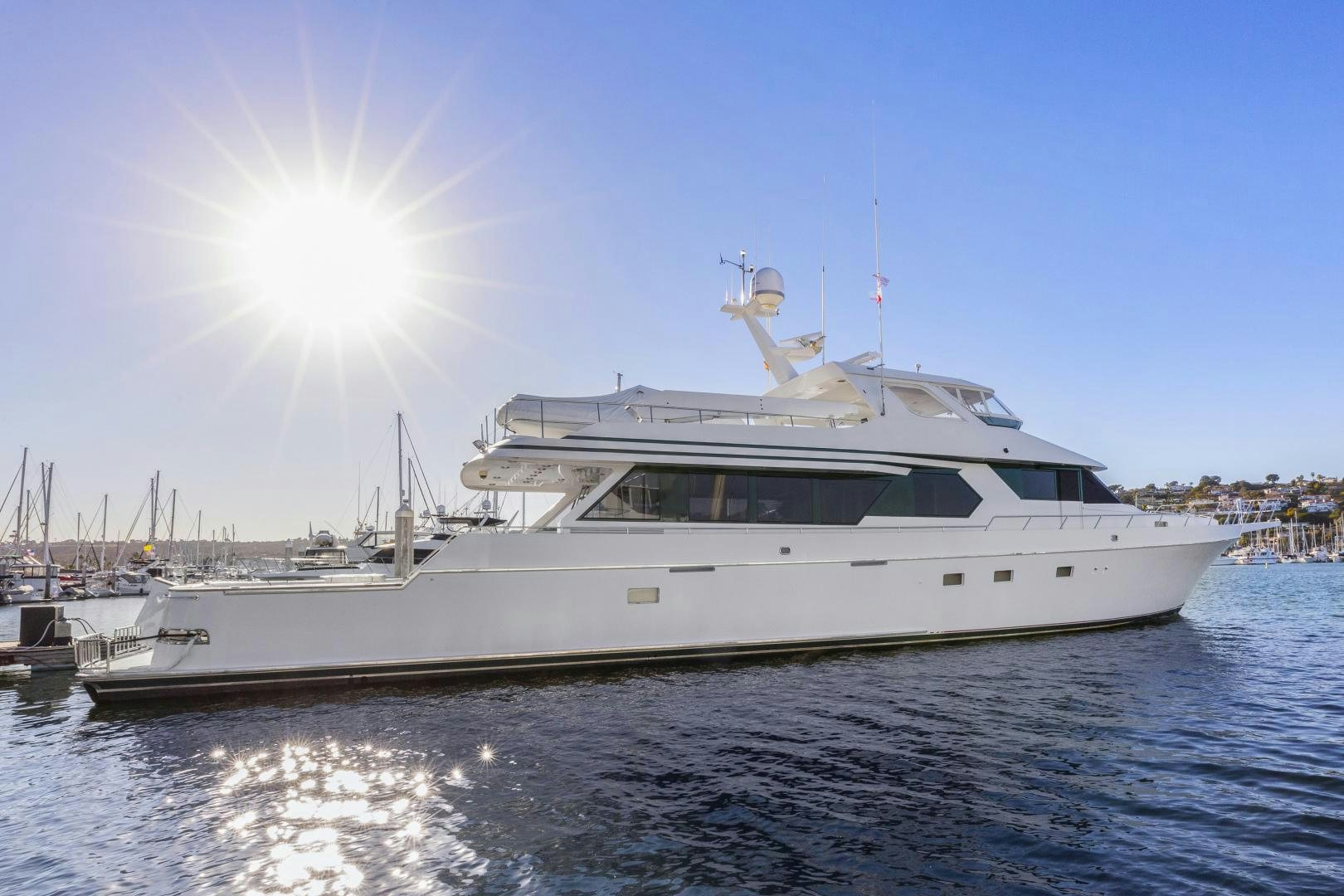

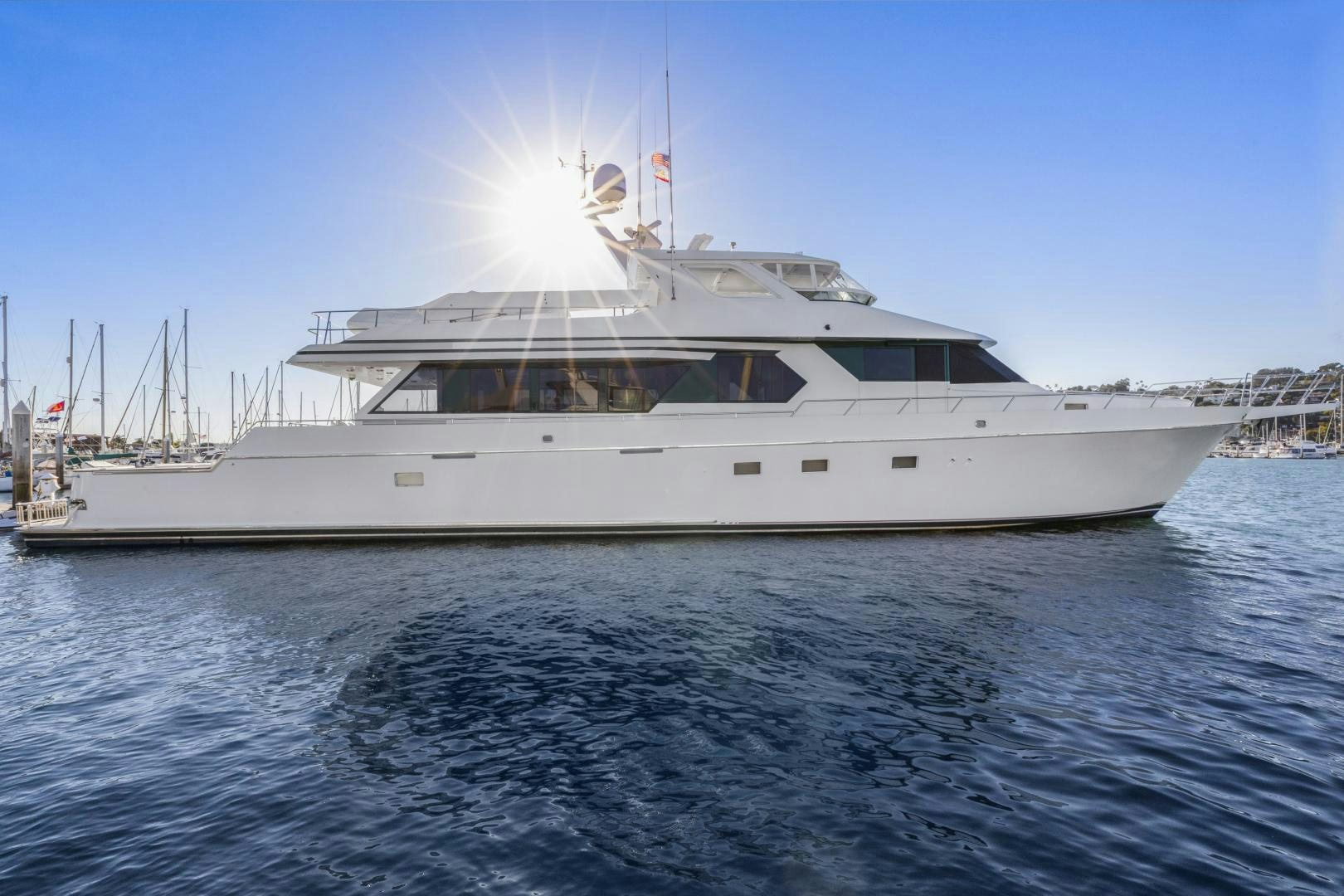

ILLEAGLE Yacht for Sale

3D Tour Available.

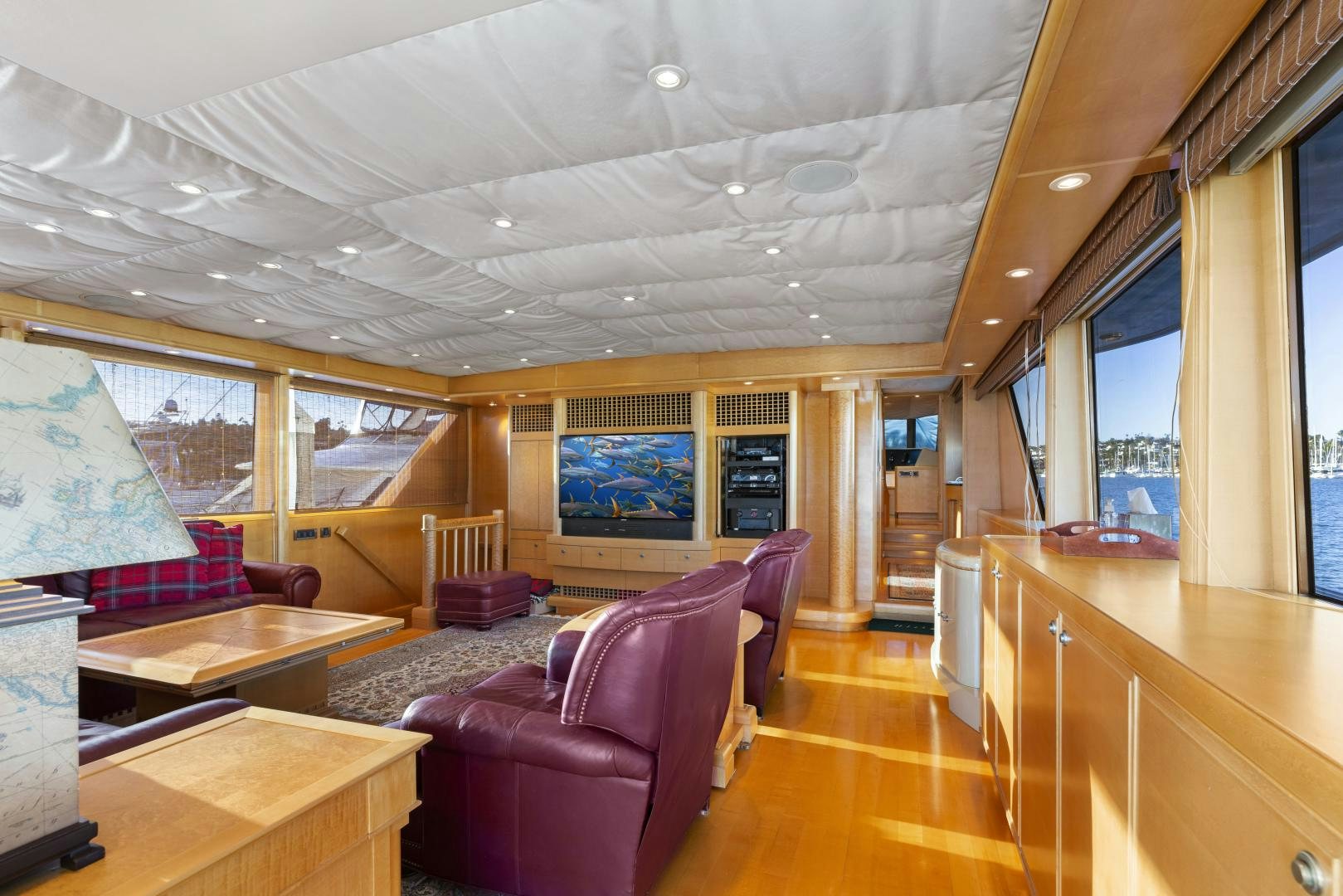

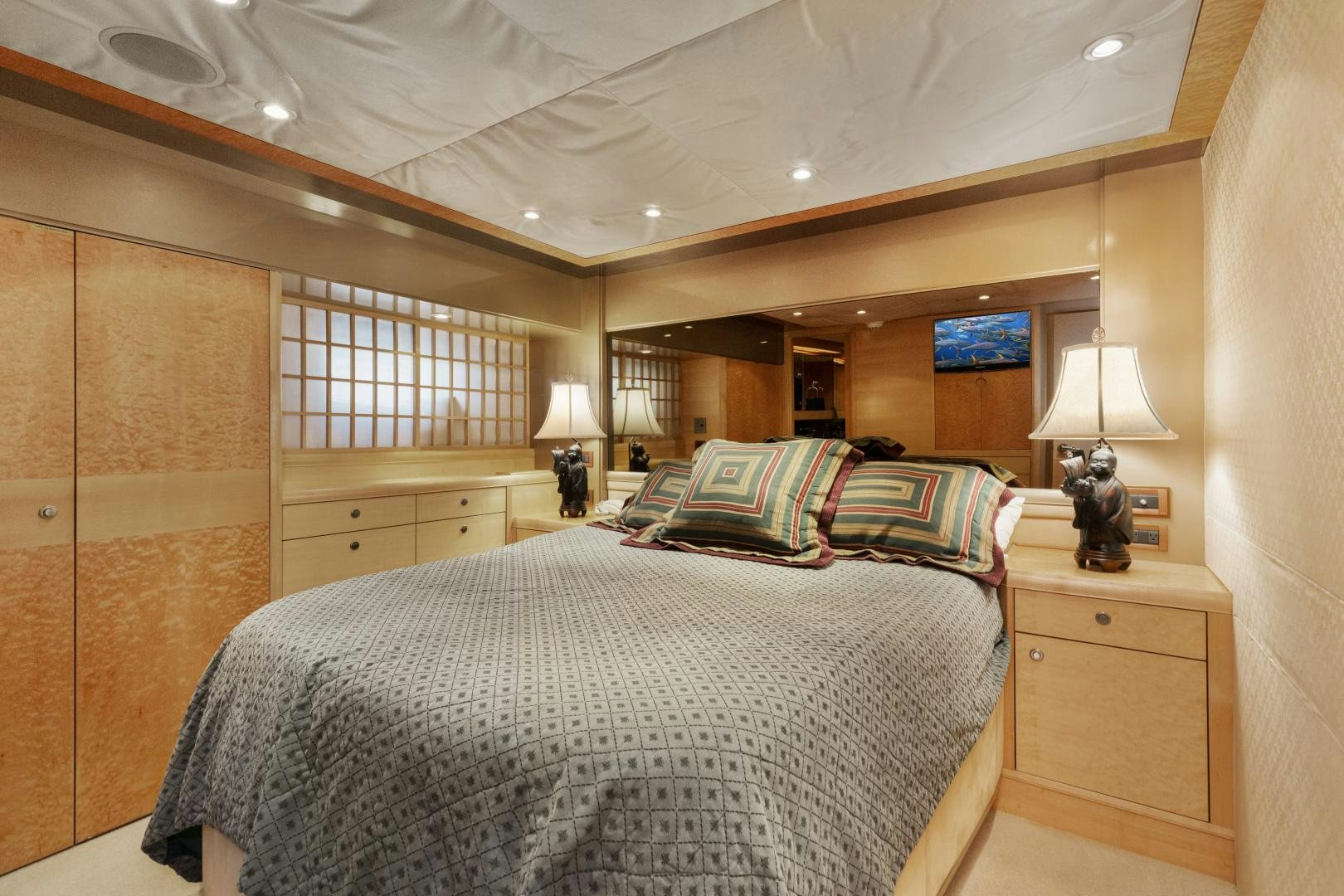

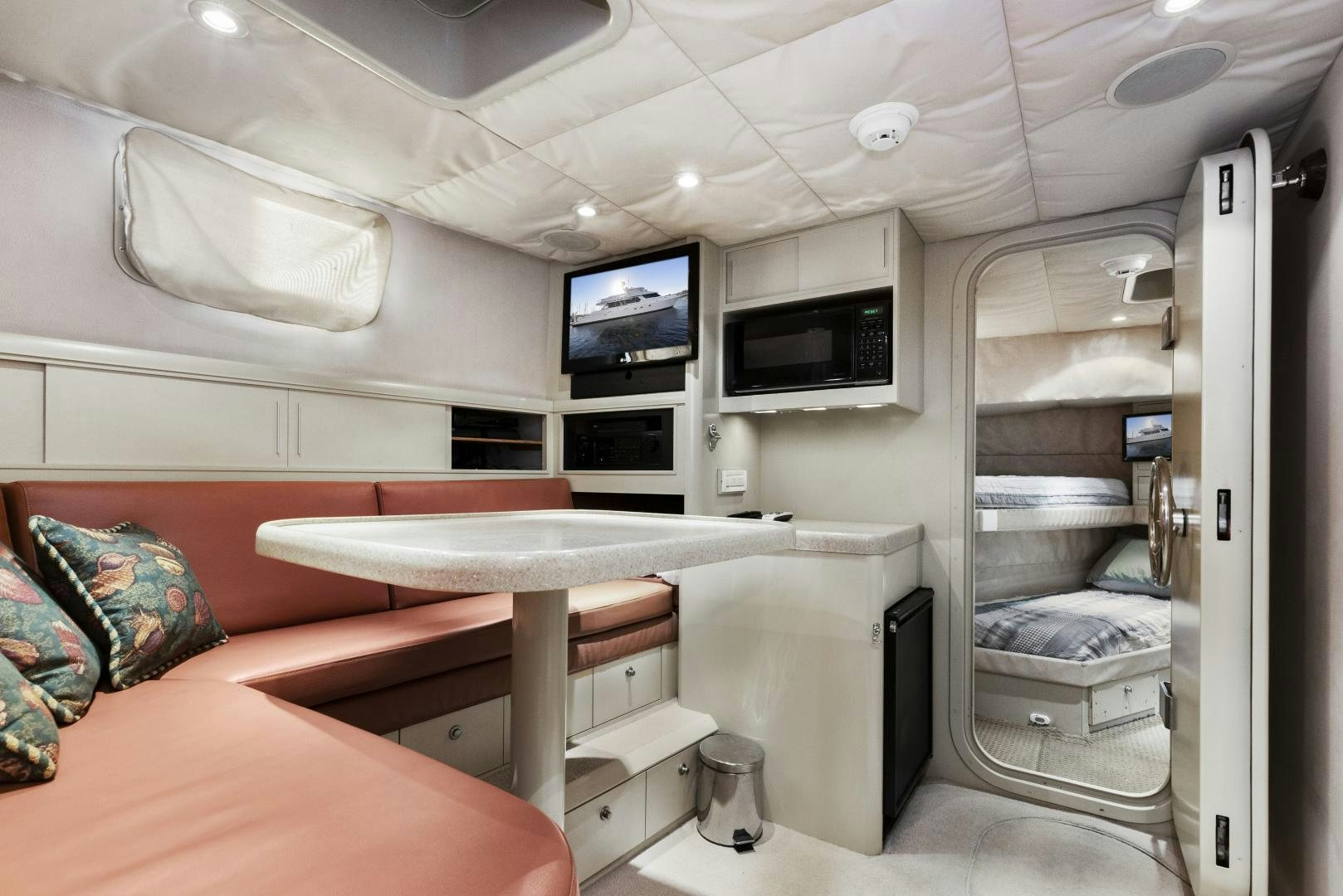

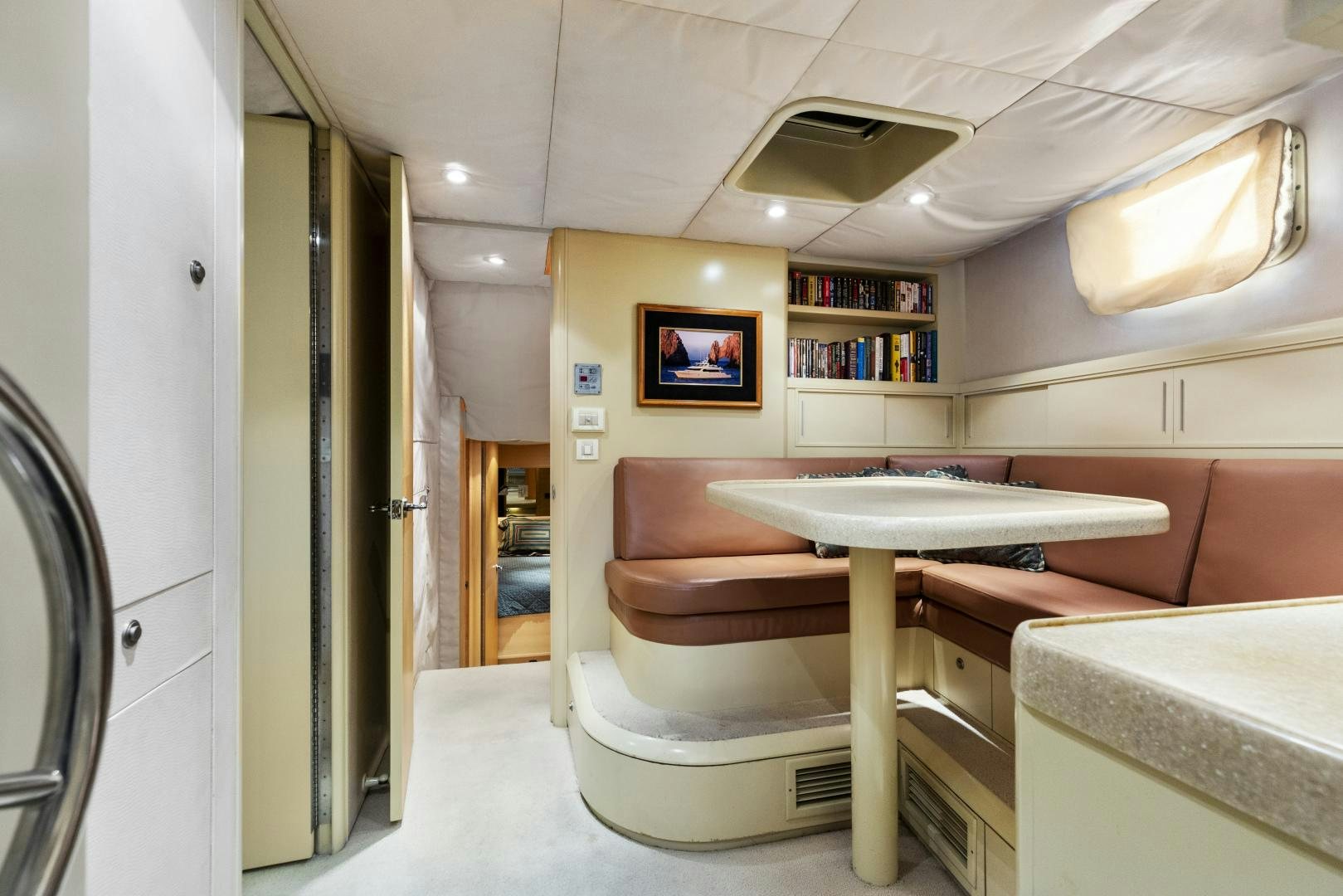

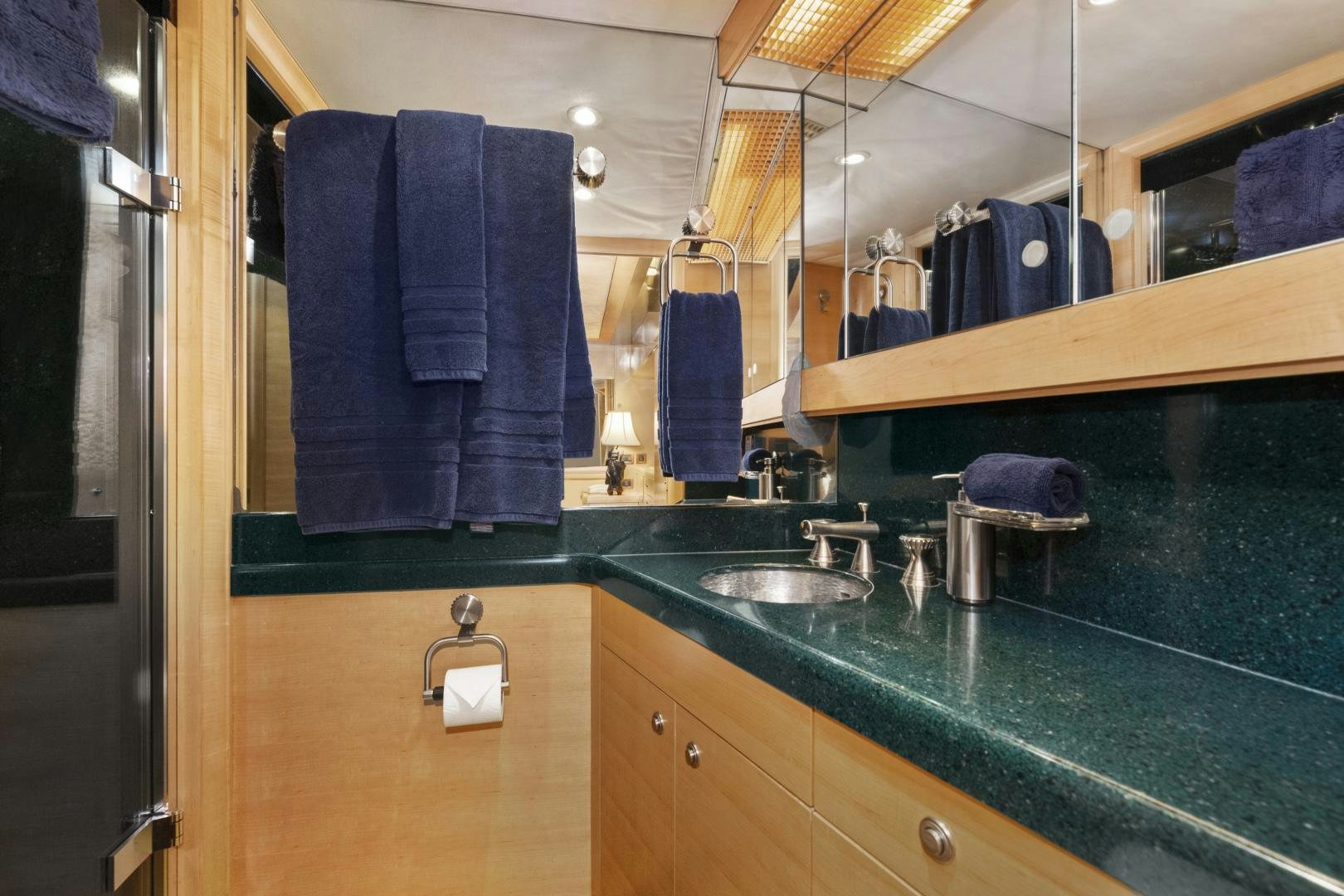

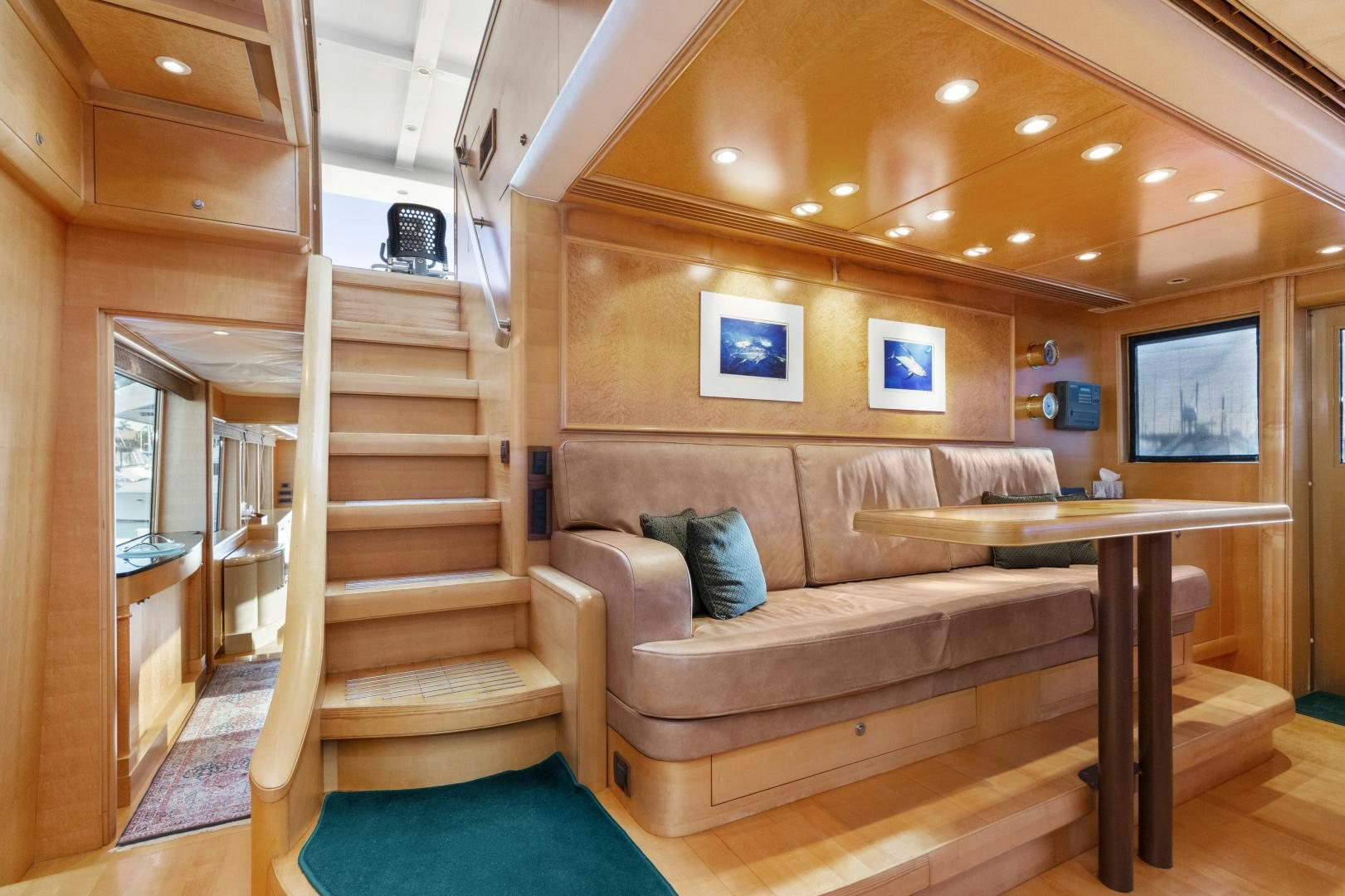

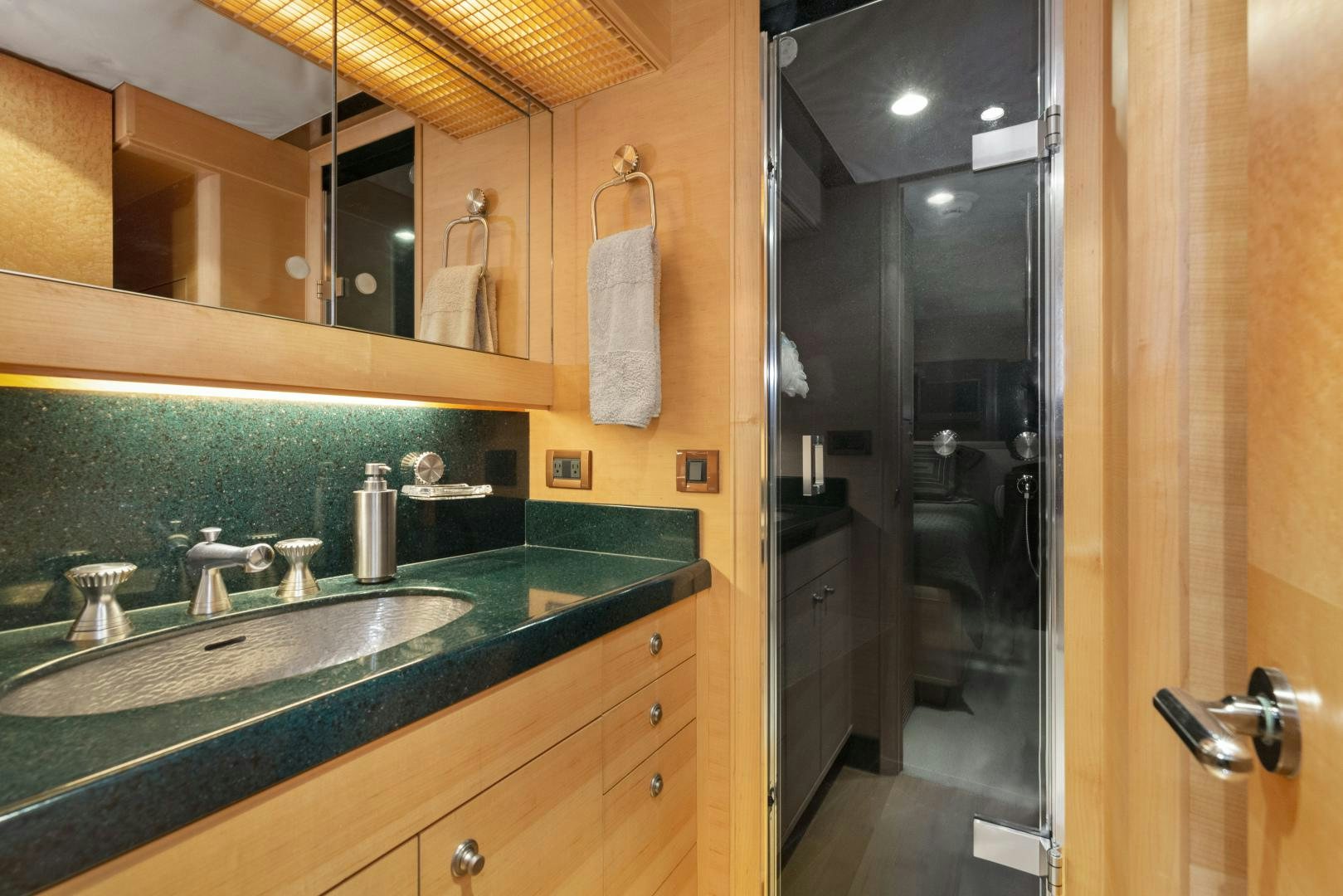

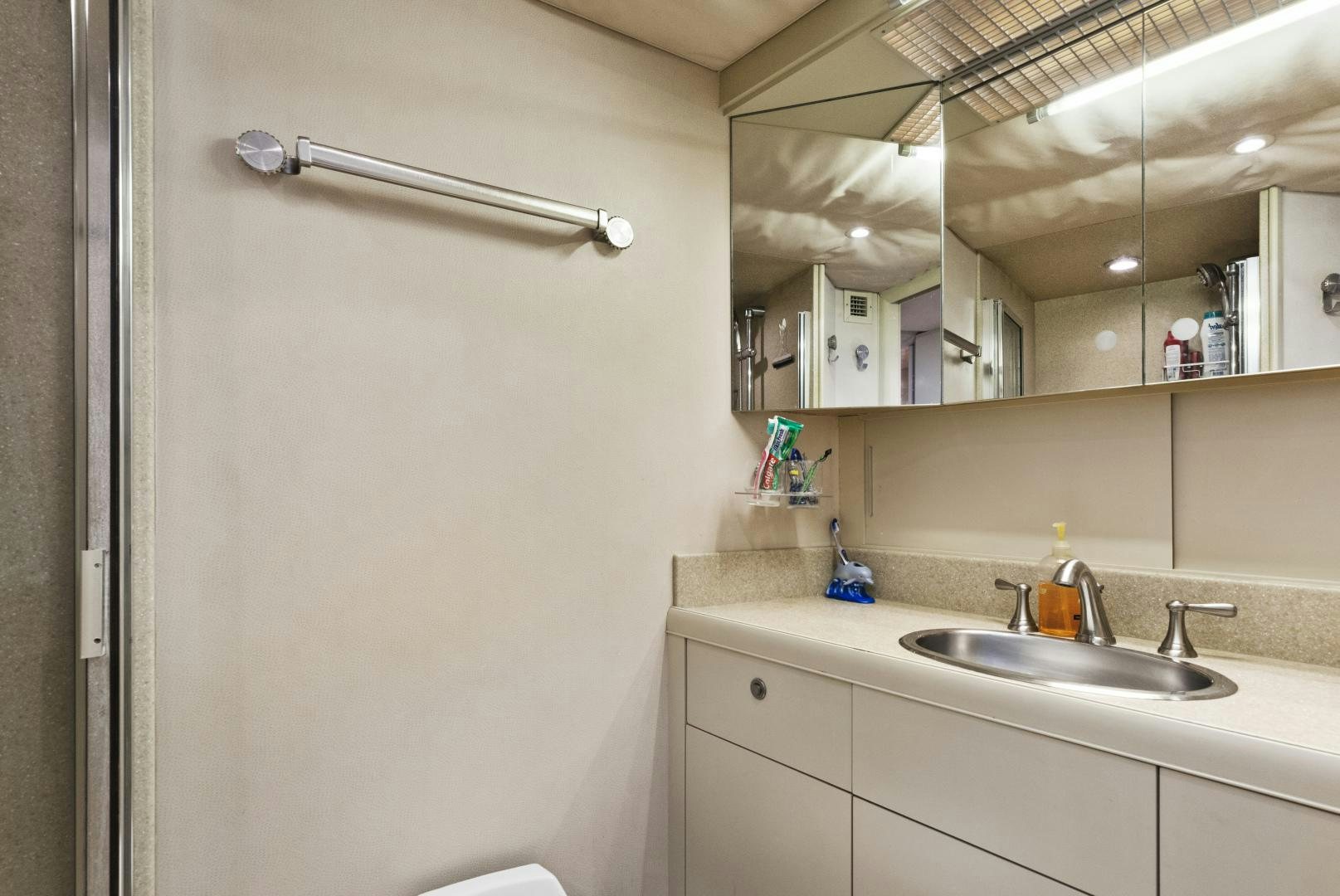

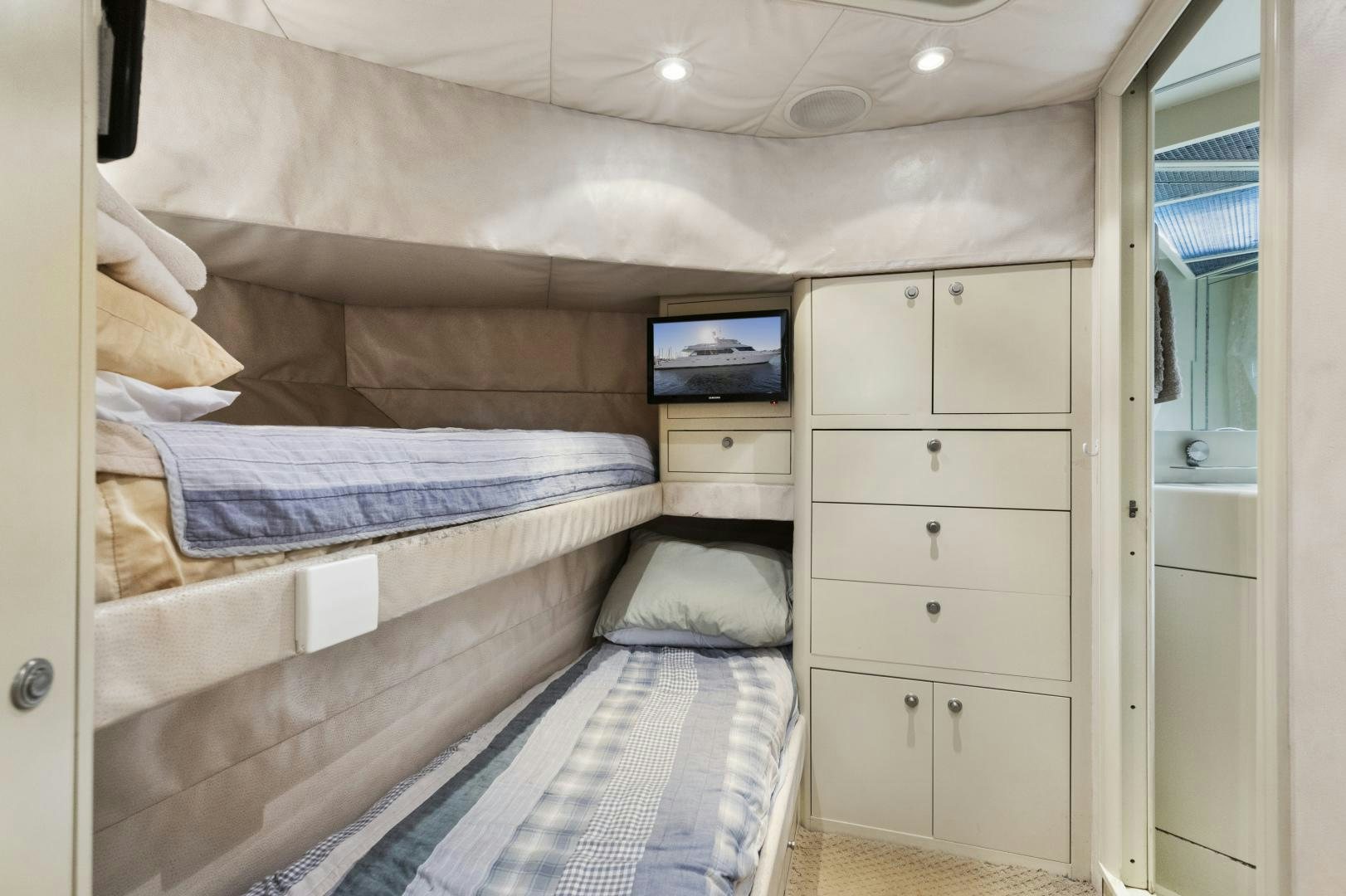

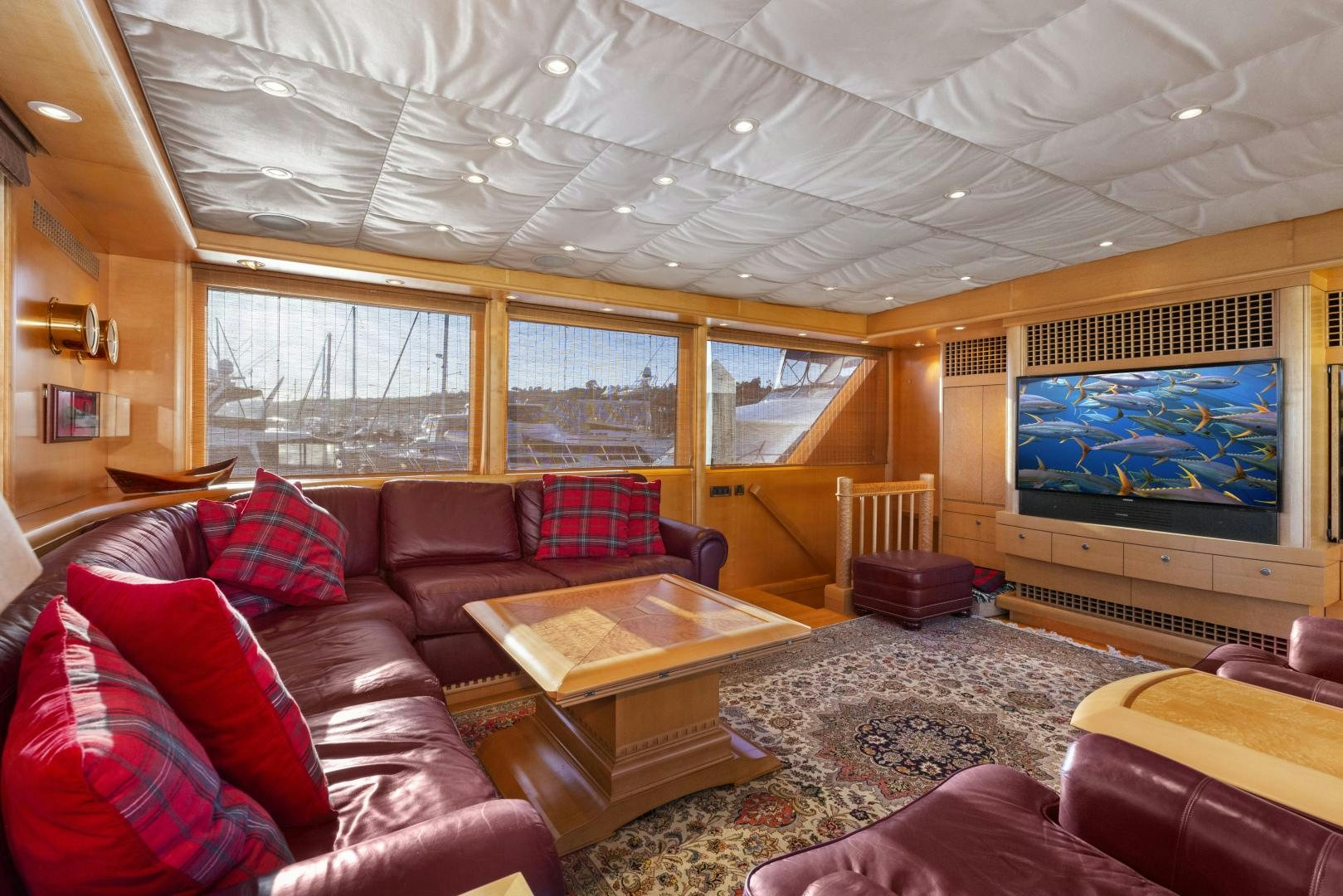

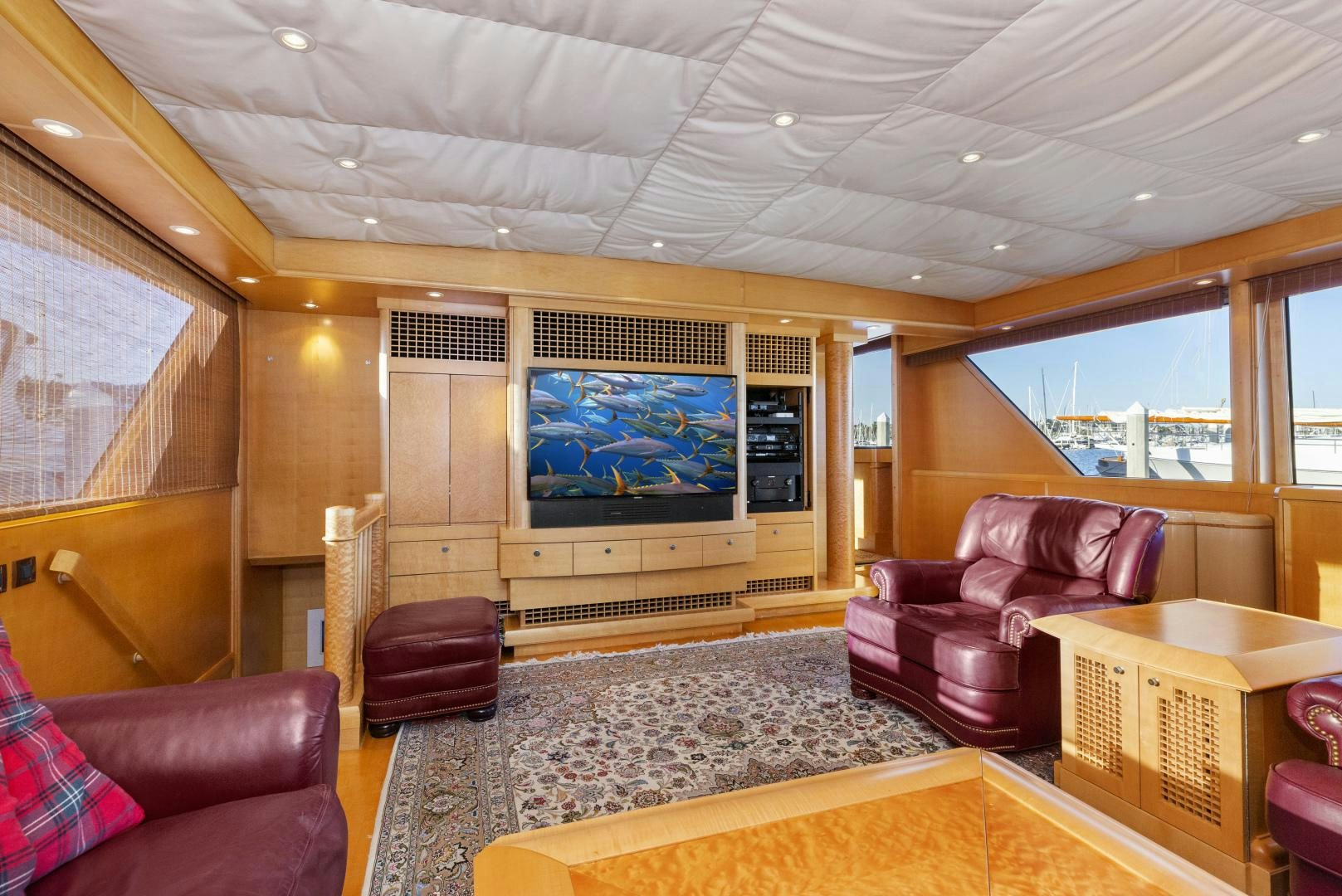

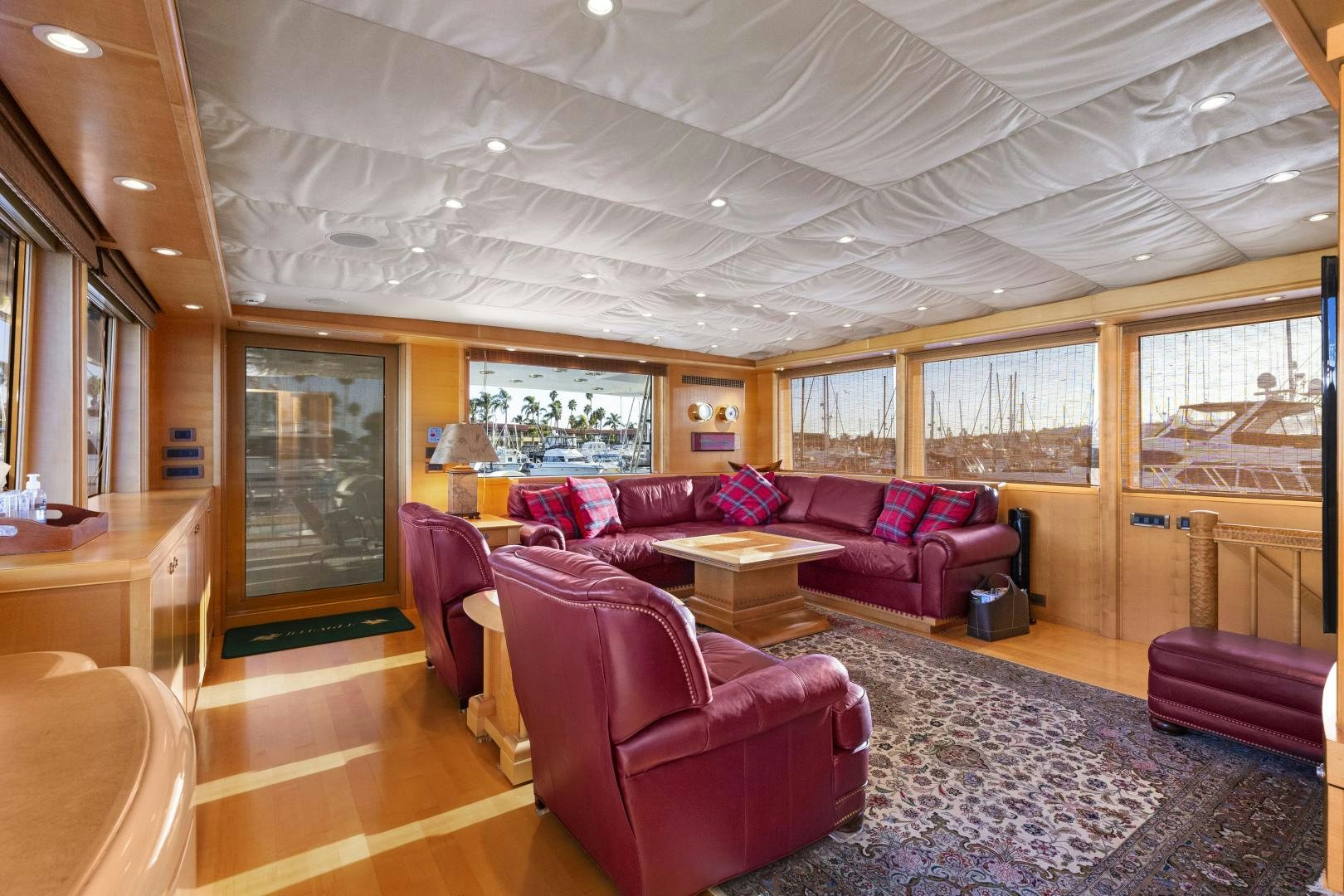

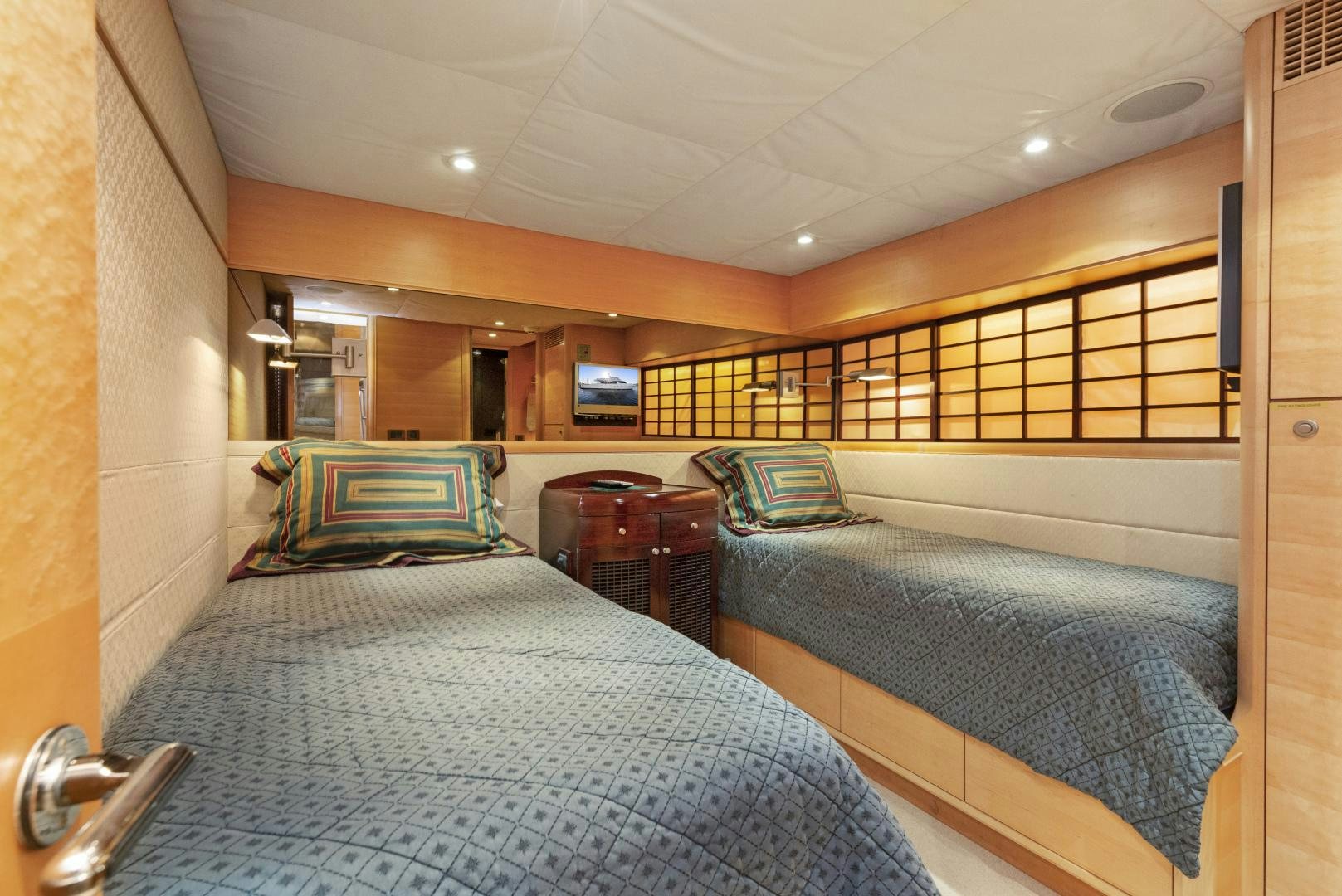

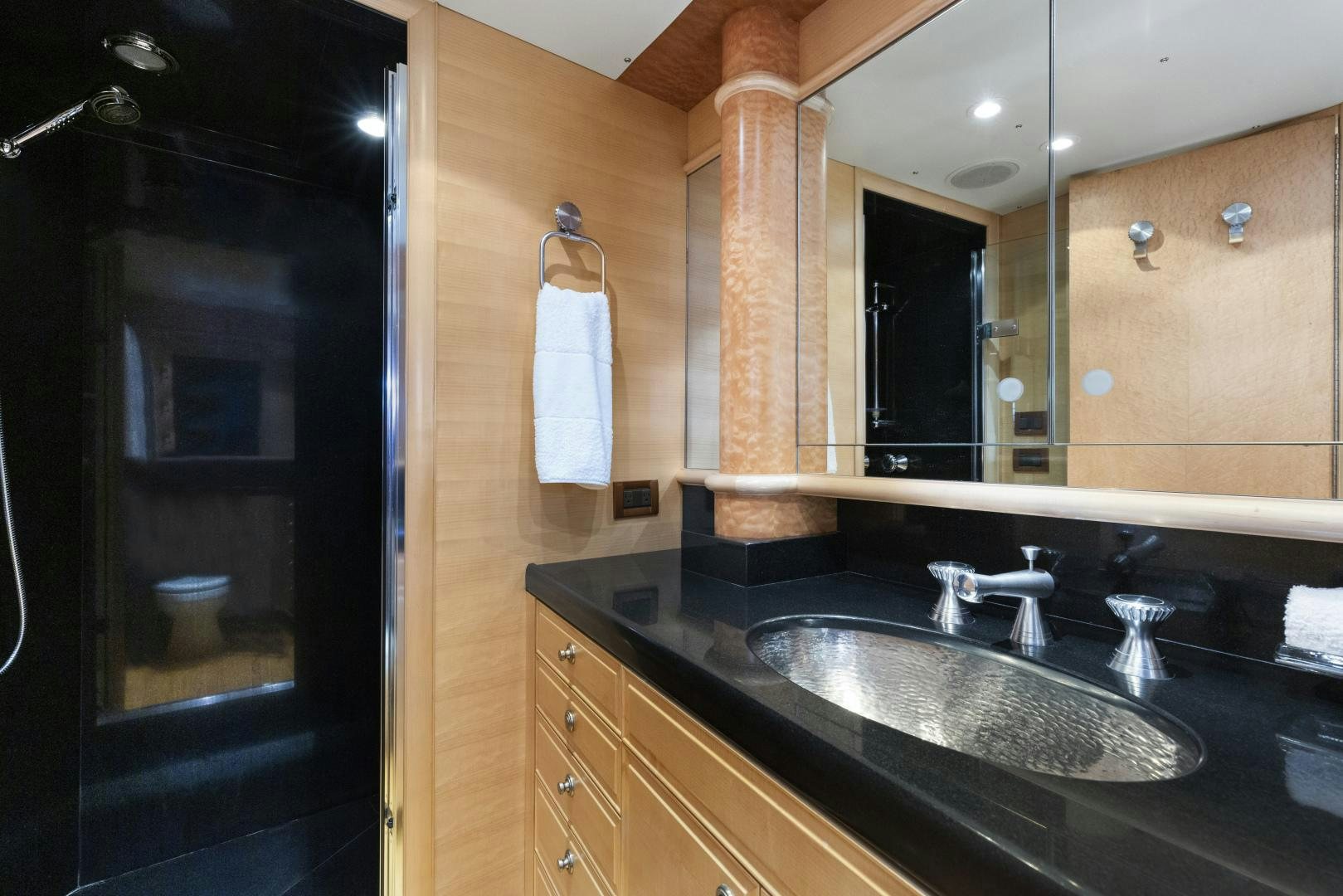

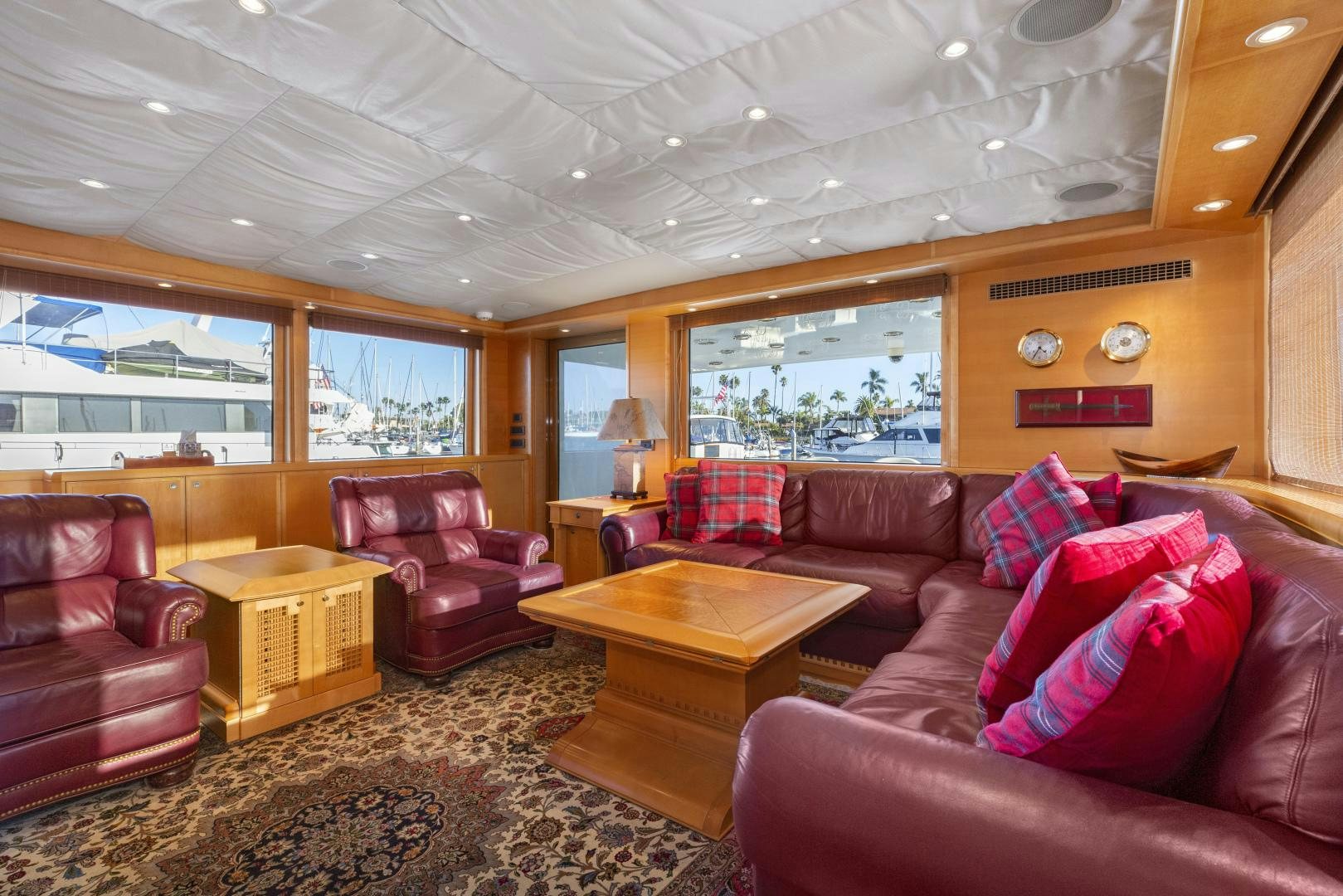

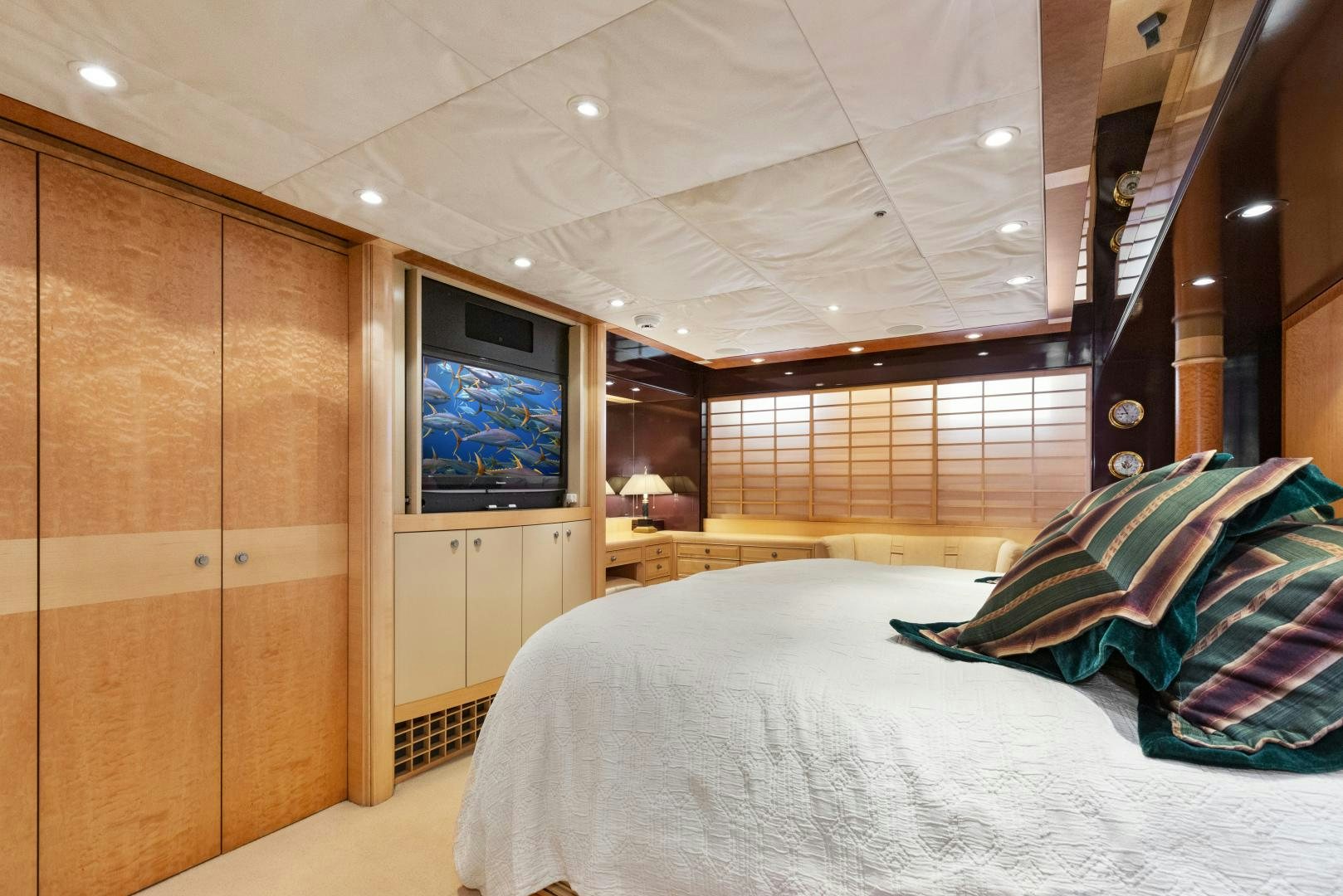

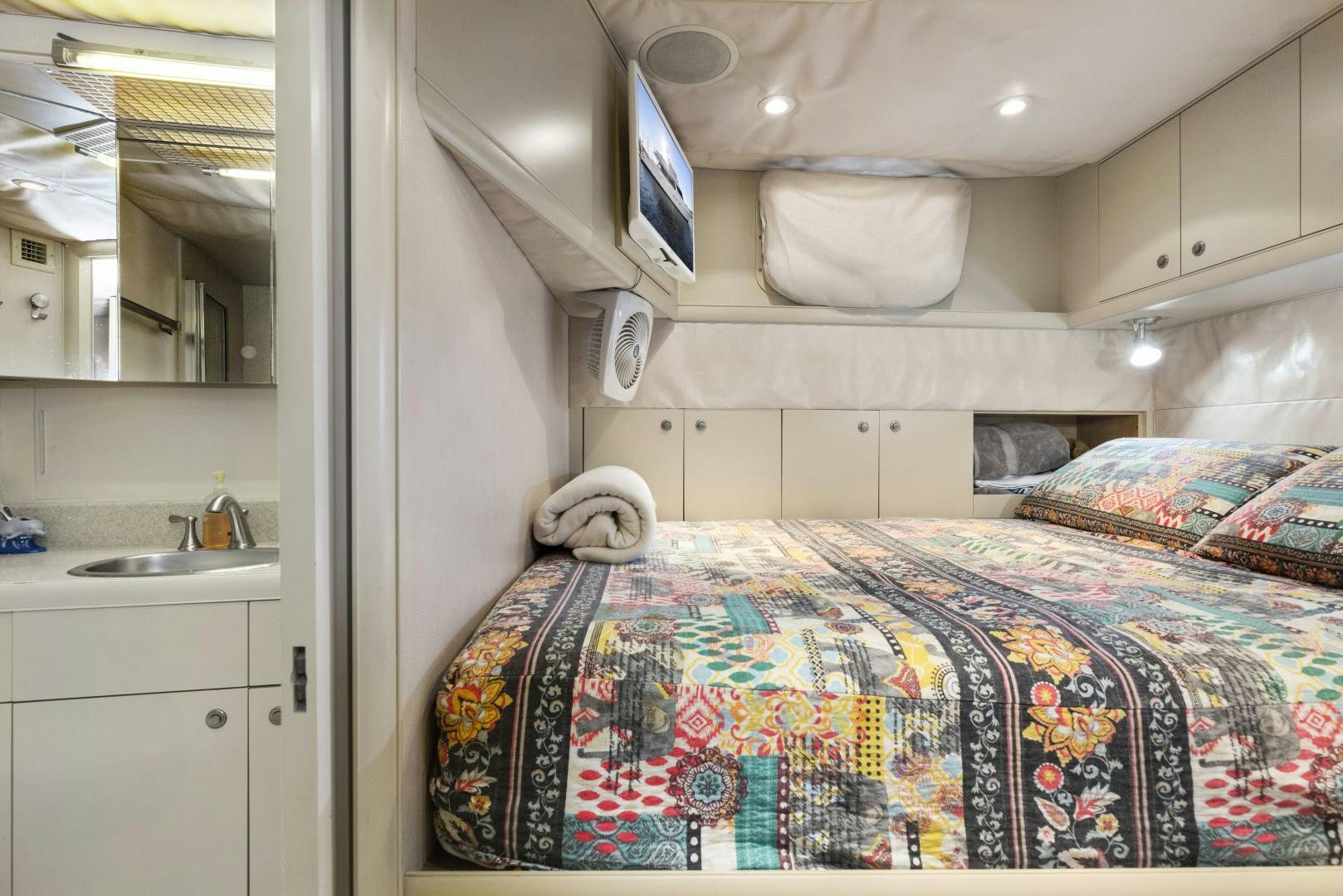

ILLEAGLE features a three stateroom layout plus crew quarters; the master stateroom is full beam with its own private entrance from the salon. Guest staterooms are accessed forward of the pilothouse, each with ensuite heads and showers. Crew quarters are located in the forward section of the yacht, with two staterooms and a crew lounge area. The interior features high quality maple joinery with burle accents throughout.

General:

·        Length Overall: 105'

·        Beam: 24'

·        Draft: 6'

·        Tonnage: 115 GRT

Capacities:

·        Fuel Capacity: 5,800 (aluminum)

·        Water Capacity: 400

·        Grey Water: 300 (plastic)

·        Black Water: 200

·        Lube Oil: 150 gallons (2 tanks: 75 each)·

Main Engines:

·        Main Engines: Caterpillar 3412, 1050hp each

·        Gearboxes: Twin Disc

·        Drive: Direct

Generators and Electricity:

·        Output: 120/240 VAC, 24 VDC

·        Generators: (2) Northern Lights 55kW

·        Shore Power: Single 100 amp; (2) 50 amp

·        Battery Chargers: (1) Newmar PT-24-95U, (1) Newmar PT-25W (generator), (1) Newmar PT-24-45U (main engines)

Batteries:

·        Main Engines: (2) 8D per engine

·        Generator Starting: (1) 8D per engine

·        General Service: (6) 8D

·        Emergency: (2) 4D

Air Conditioning:

·        Type: Aqua Air (2 chillers)

Other Machinery:

·        Watermakers: (2) Sea Recovery 45gph and 60gph

·        Stabilizers: Naiad

·        Bow Thruster: Hi-Pro (hydraulic)

·        Steering System: Hydraulic

·        Fuel Separator: Alpha Laval

·        Filtration: Dual Racor fuel filters

·        Fresh Water System: (2) Mach 5 fresh water pumps

·        Bilge Water System: Engine driven pump with manifold

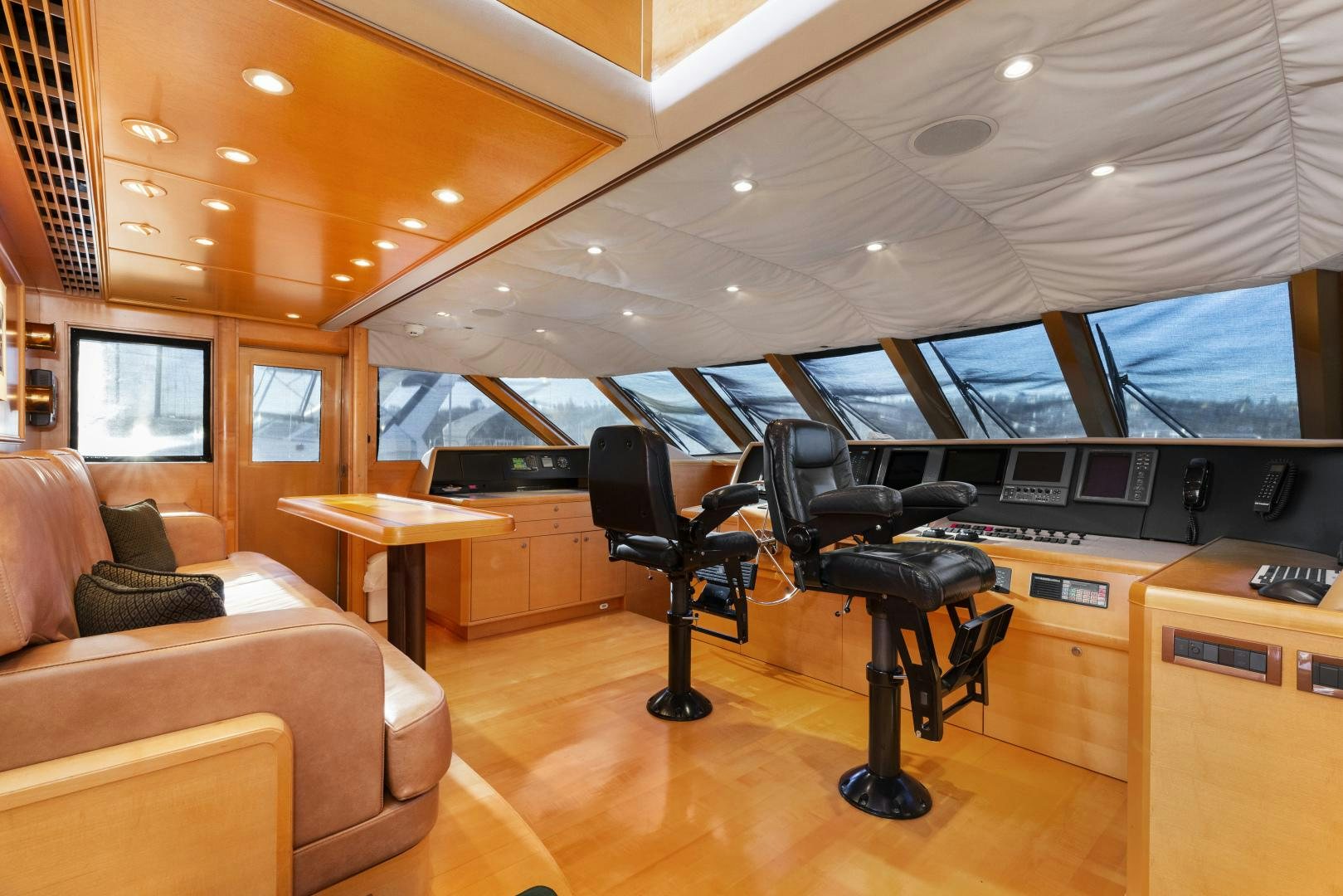

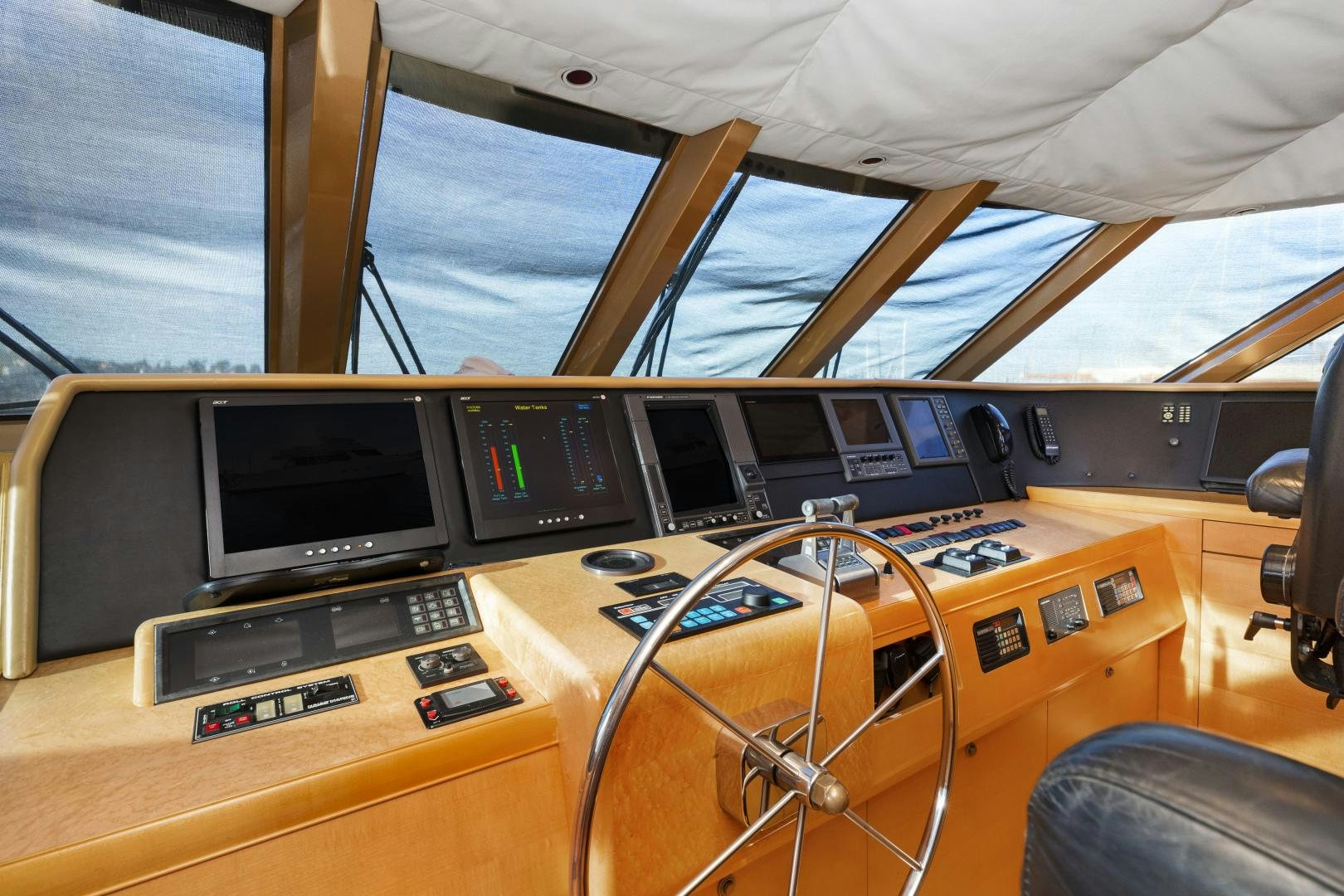

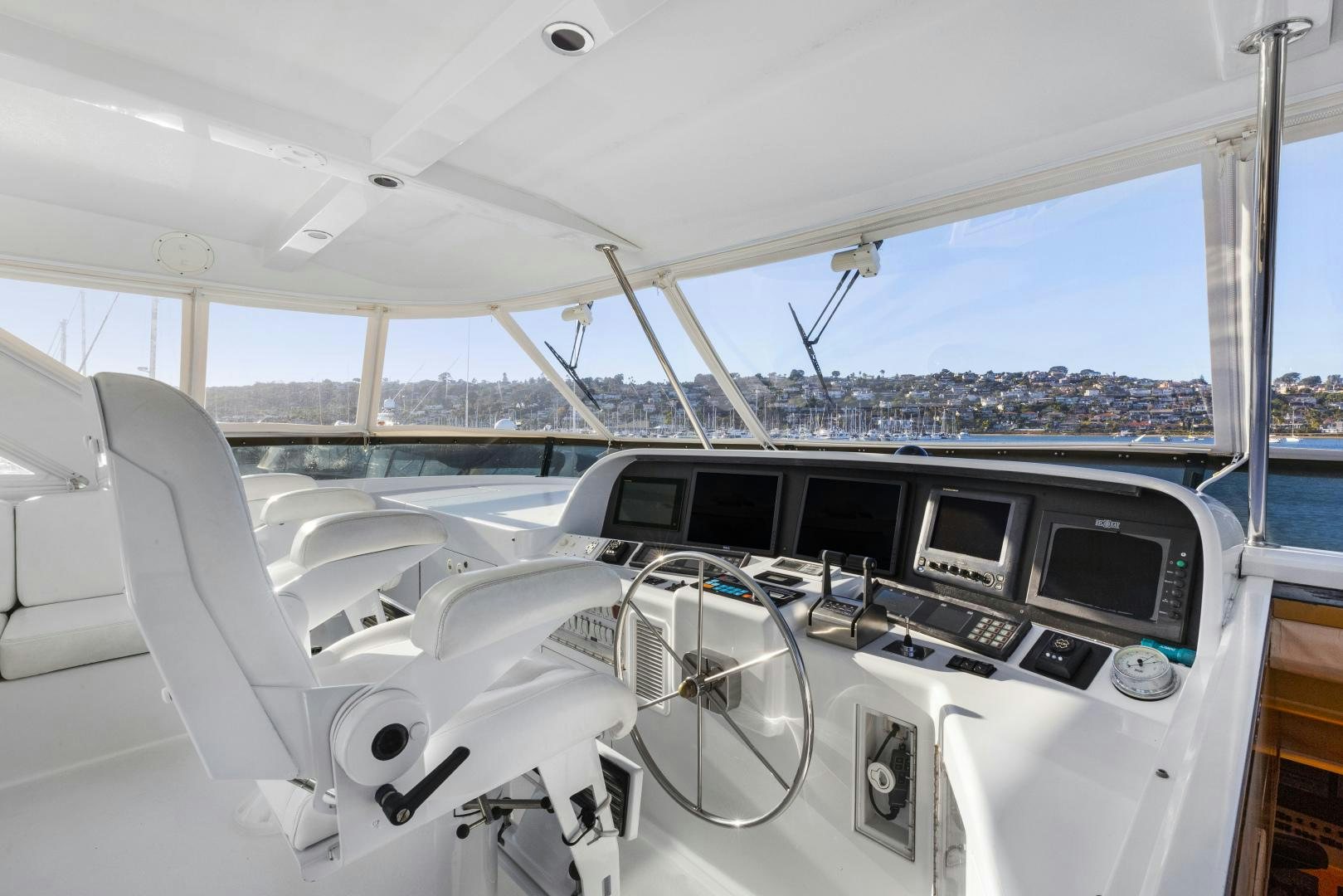

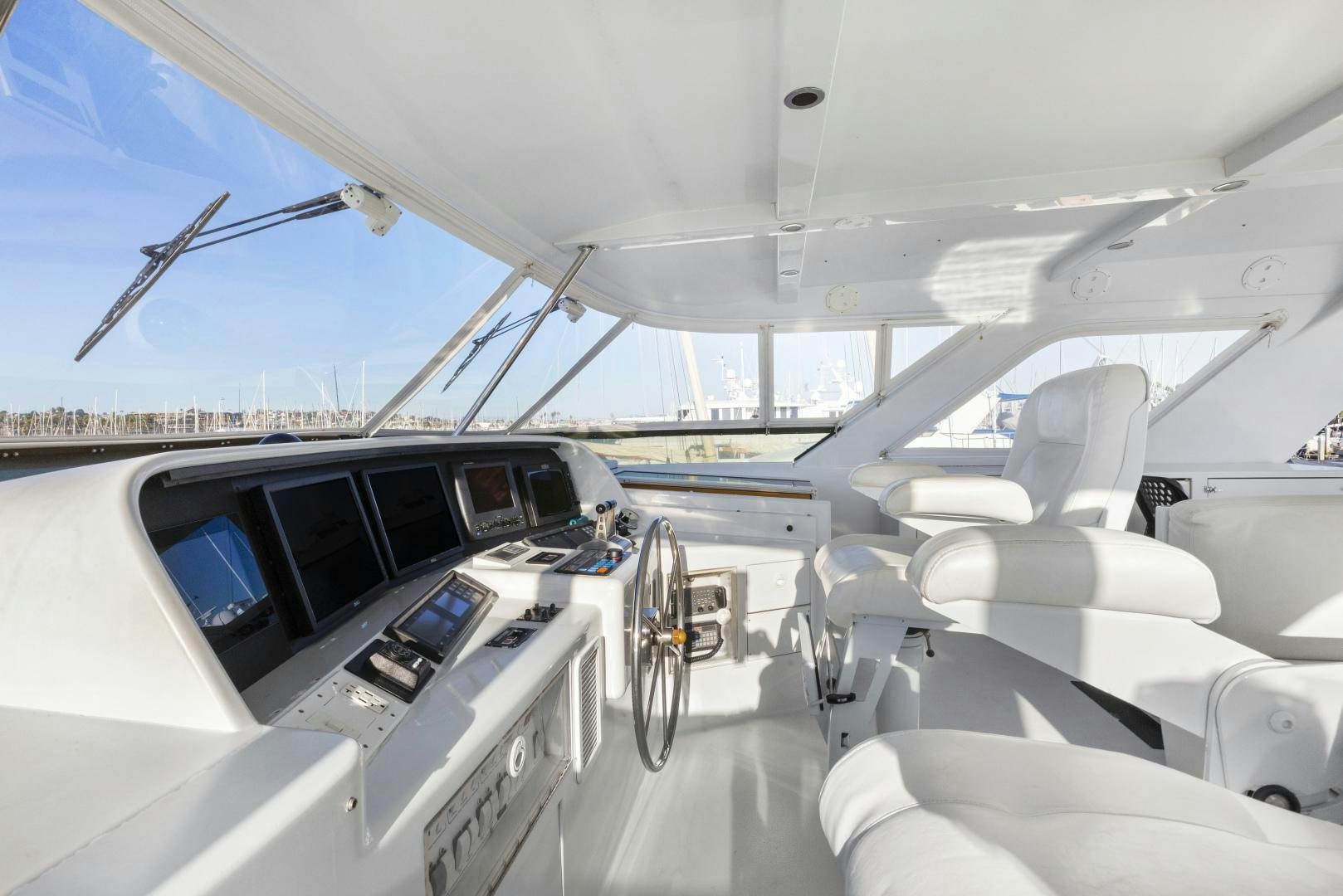

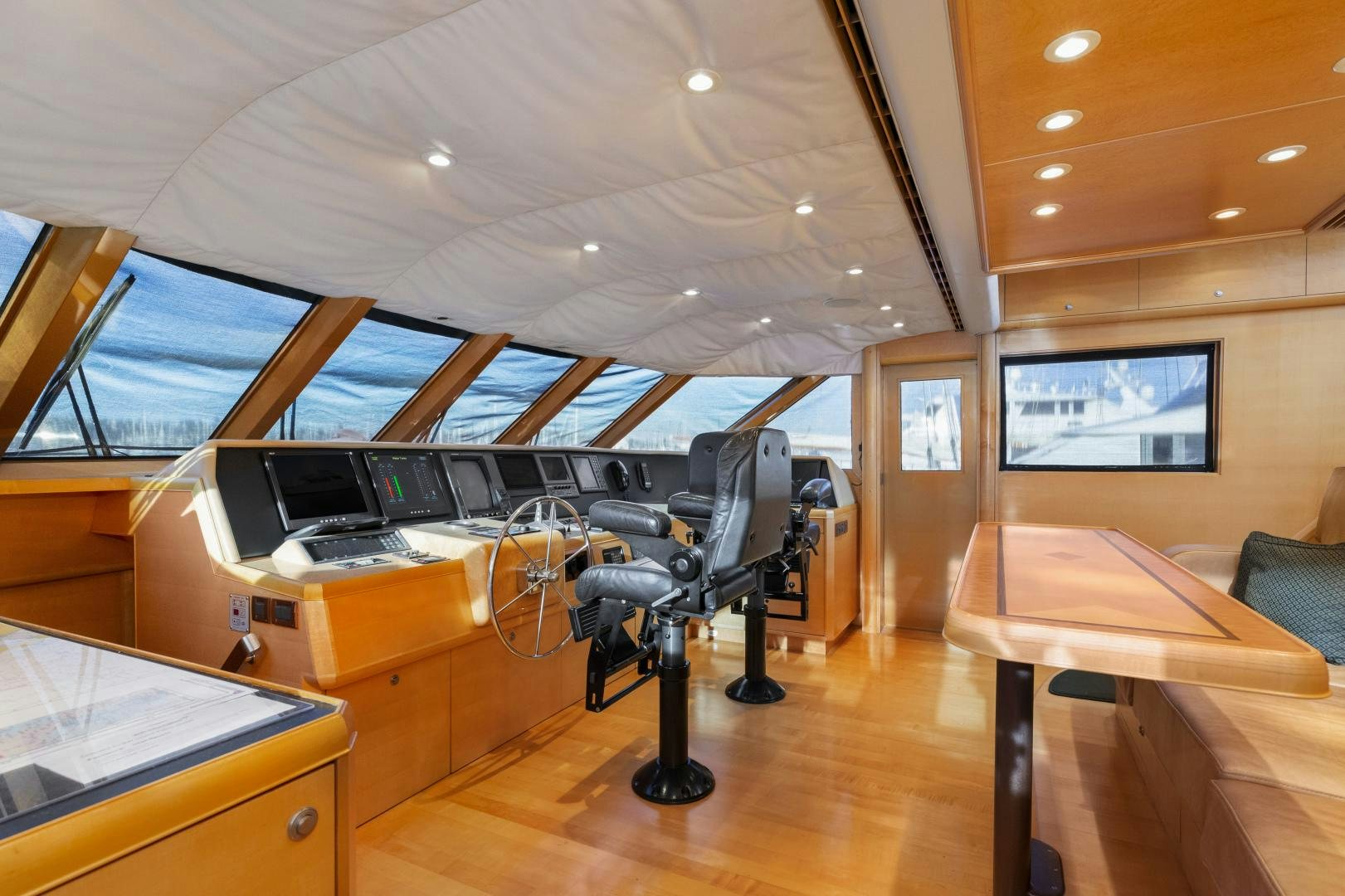

·        Helm Control: Glendinning electronic controls (pilothouse, flybridge, aft deck, boat deck, port and starboard wings)

·        Misc.: Nuvair dive compressor (2020)

·        Satellite TV System: KVH Tracvision Tv8

·        SSB: SEA 225

·        VHF Fixed: (2) SEA 156

·        Ship's Computer: Dell

·        Ship's Printer: (1)

·        Radar #1: Furuno, 96-mile

·        Radar #2: Furuno TZtouchLT (2020)

·        Autopilot: Robertson AP9

·        GPS #1: Northstar 952X

·        GPS #2: Furuno

·        Plotter Software: Nobletec

·        Depth Sounder: Furuno 292

·        Sonar: Furuno CH 250

·        Compass: Gyro: Cortron; Magnetic: Ritchie (flybridge)

·        Weather Fax: Furuno

·        Wind Indicator: Datamarine

·        Speed Indicator: Datamarine

·        Misc: (2) ACR Spotlight, ISIS alarm system

·        TVs: 55" Samsung (salon), 37" Panasonic (master), 26" Samsung (guest), 23" Sony (guest), 26" LG (crew lounge), 24" LG (captain), 18" Samsung (crew)

·        Audio Equipment: Speaker Craft (interior); Kenwood speakers (exterior)

·        Stereos: Marantz Receiver (salon), Denon Receiver (crew quarters), Yamaha Receiver (master)

·        DVDs: Sony Blu-Ray (salon, port and guest staterooms), LG Blu-Ray (crew quarters)

·        CD Player: Yamaha 5-disc changer (guest stateroom)

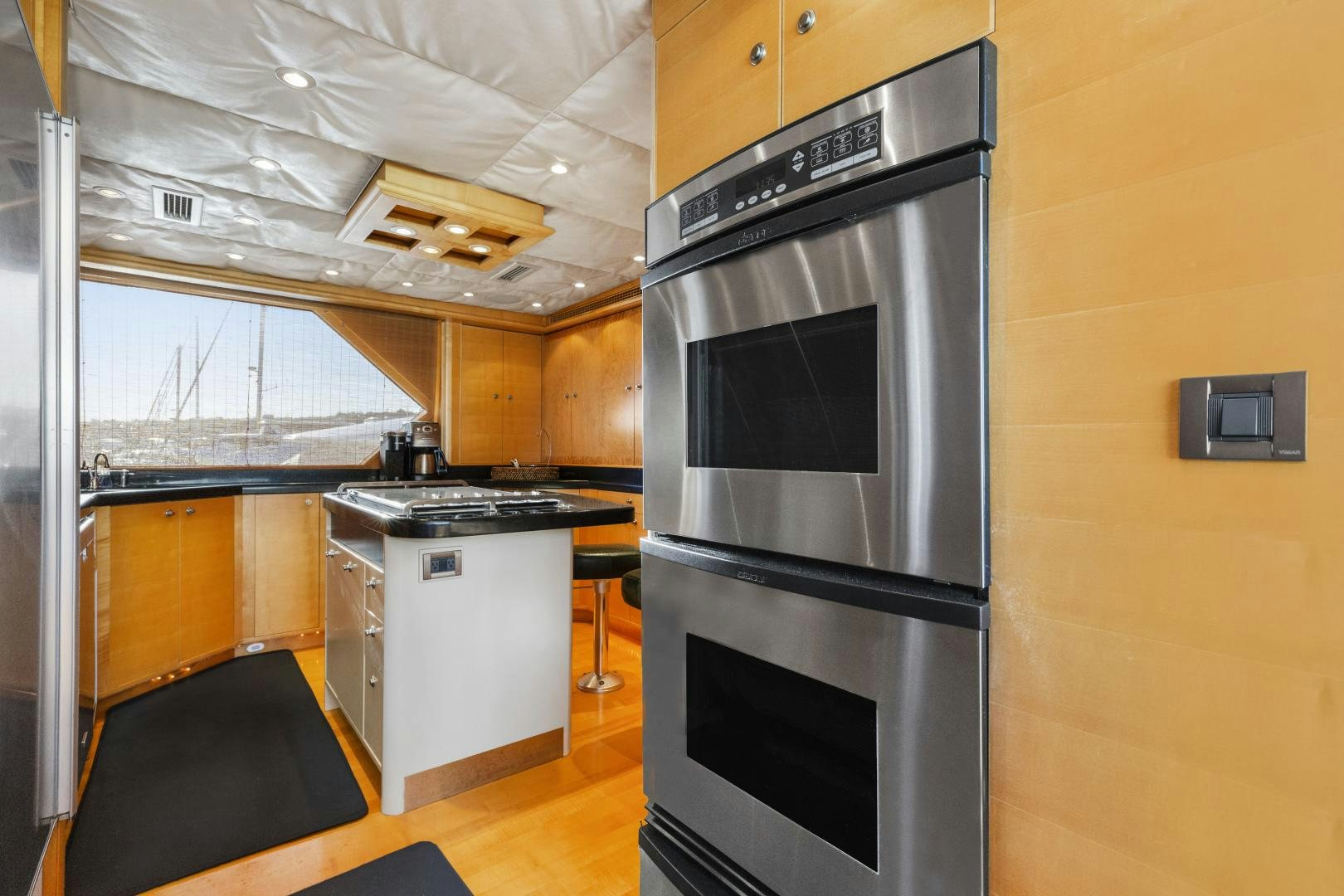

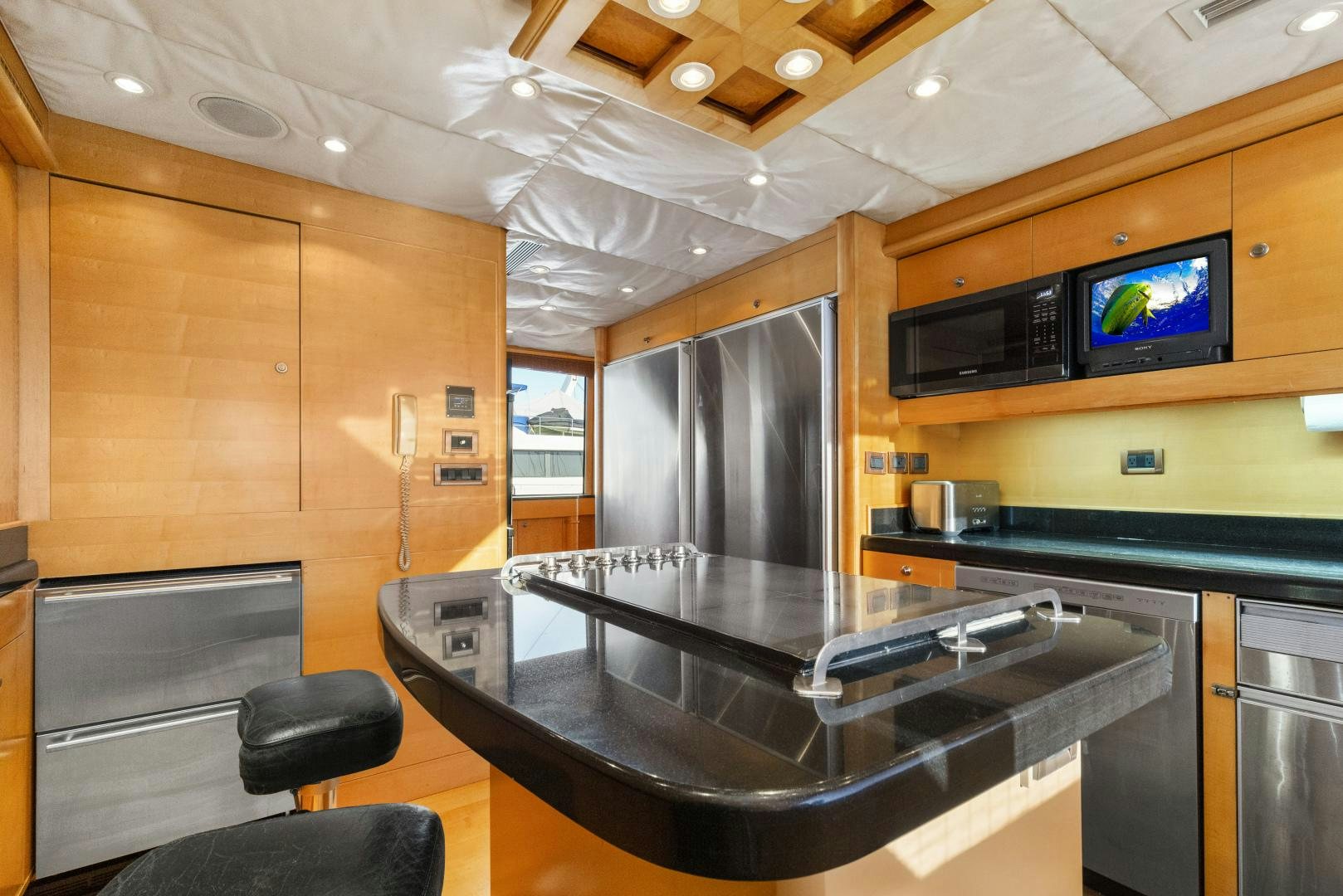

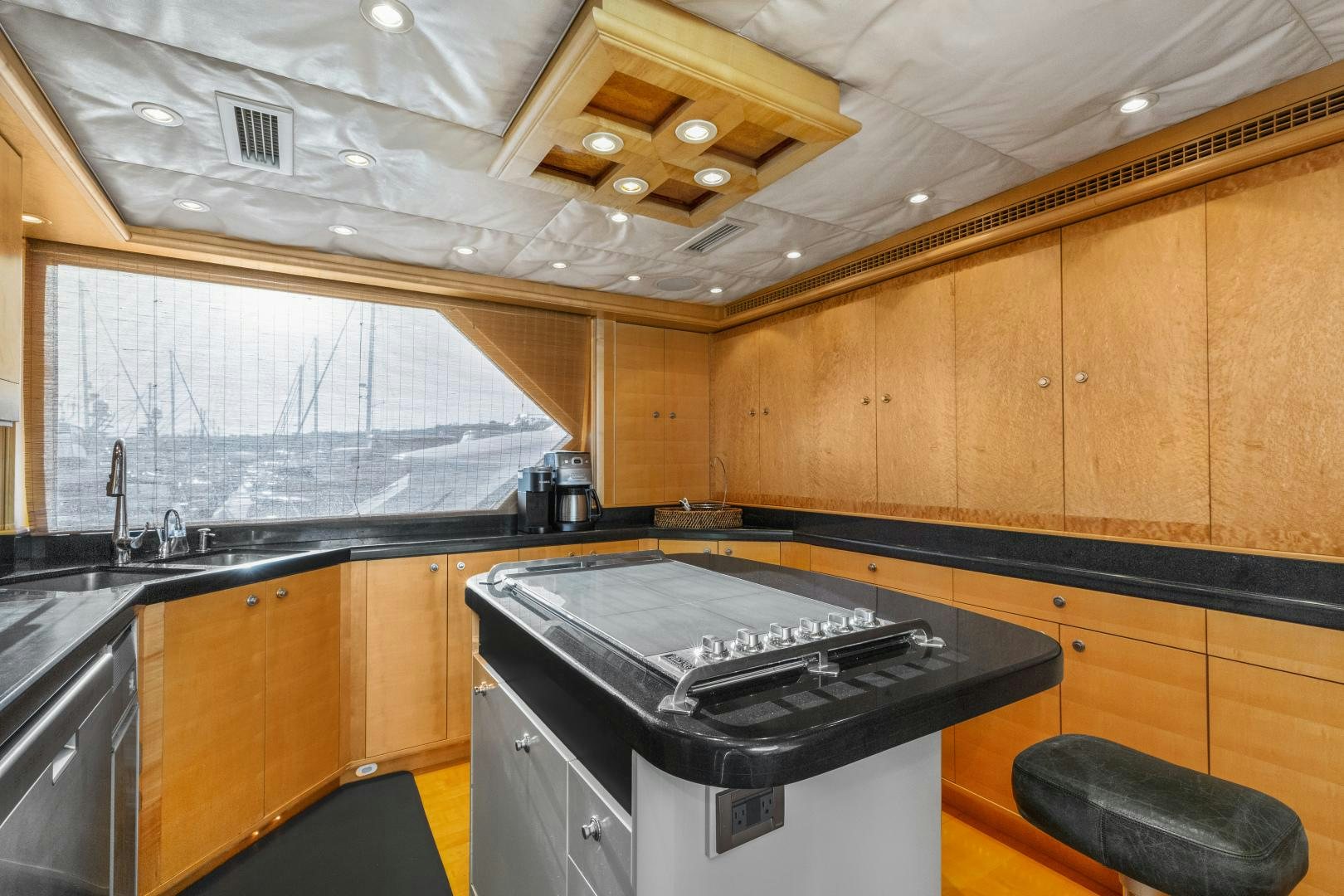

·        Range: Viking 6-burner electric cooktop

·        Oven: Dacor upper/lower convection oven

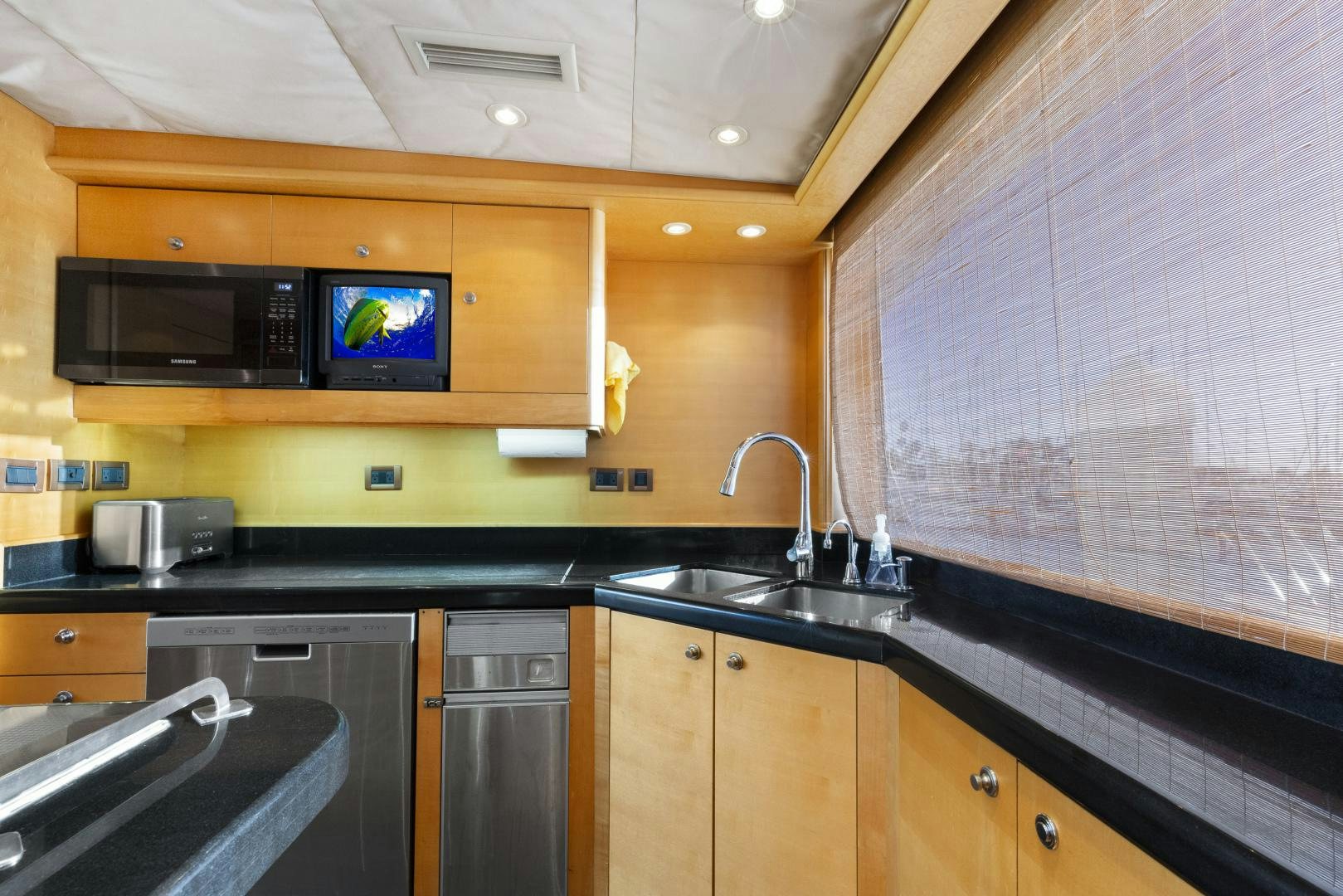

·        Microwave: Samsung

·        Refrigeration: (2) Full size stainless steel Sub-Zero 501 R; (2) Drawer-type U-Line

·        Freezer: (2) stainless steel freezers (lazarette), (2) Sub-Zero 501F (laundry room)

·        Icemakers: Flybridge and California Deck

·        Small Fridge: U-Line (crew quarters)

·        Dishwasher: KitchenAid

·        Misc. Galley: Trash compactor

·        Main Laundry Washer: Maytag

·        Main Laundry Dryer: Maytag

·        (2) 200 gallon FRP bait tanks

·        (6) Tuna tubes

·        (3) Slammers in swimstep

·        (15) Stainless steel rocket launchers

·        (8) Flush-mount rod holders

·        Tackle center

·        Bait prep center

·        Anchor Windlass System: JK Manufacturing (hydraulic)

·        Anchors: CQR

·        Anchor Chain & Rode: 100' chain, 700' cable

·        Deck Capstans: (2) Maxwell (electric)

·        Davit/Cranes: (1) Steelhead 4,000 lbs

·        Accommodation Ladders: California deck to Flybridge

·        (2) ACR Spotlights

·        Exterior Shower: Cockpit

·        Swim Ladder: Swimstep

·        (2) Underwater Lights

·        Fire/Heat/Smoke Detectors: Overhead CO alarms/detectors

·        Fixed Fire Fighting System: Kidde Halon

·        Flare Kit

·        Medical Kit

·        Fire Extinguishers: various portable ABC extinguishers·

·        Life Rafts: (2) Avon 6-man

·        Life Rings: 1

·        EPRIB: (1) ACR

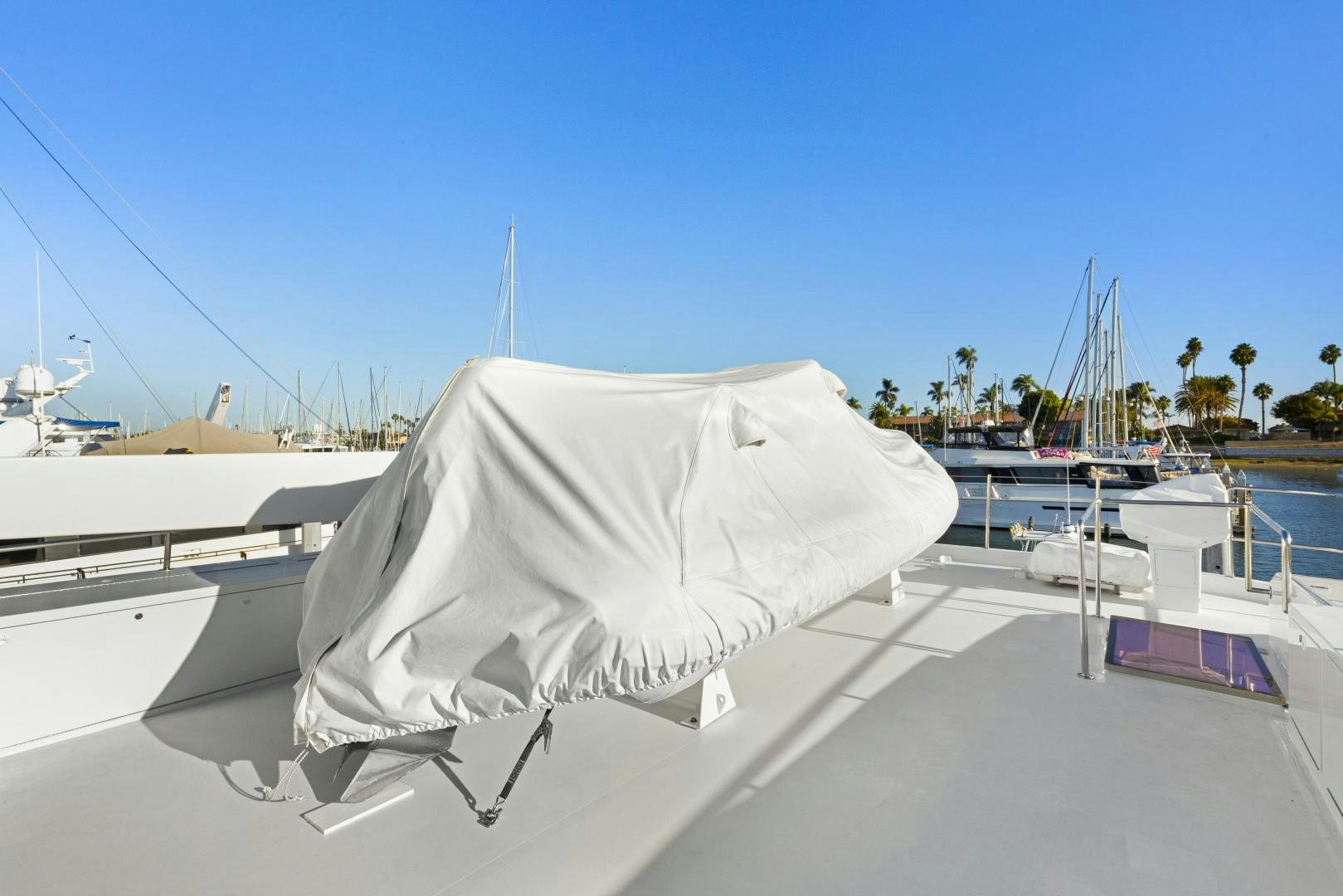

·        18' (5.5m) Novurania (2004), 115hp four-stroke Yamaha outboard engine (2004)

3D Tour Available.

ILLEAGLE is an excellent example of a world class long-range Yachtfisher. Designed by Ed Monk, Jr and constructed at the famed Nordlund Boat Co. in Tacoma, WA, ILLEAGLE boasts the perfect combination of luxury, comfort, and fishability. Let the ILLEAGLE take you to the farthest fishing destinations while traveling in luxury.
