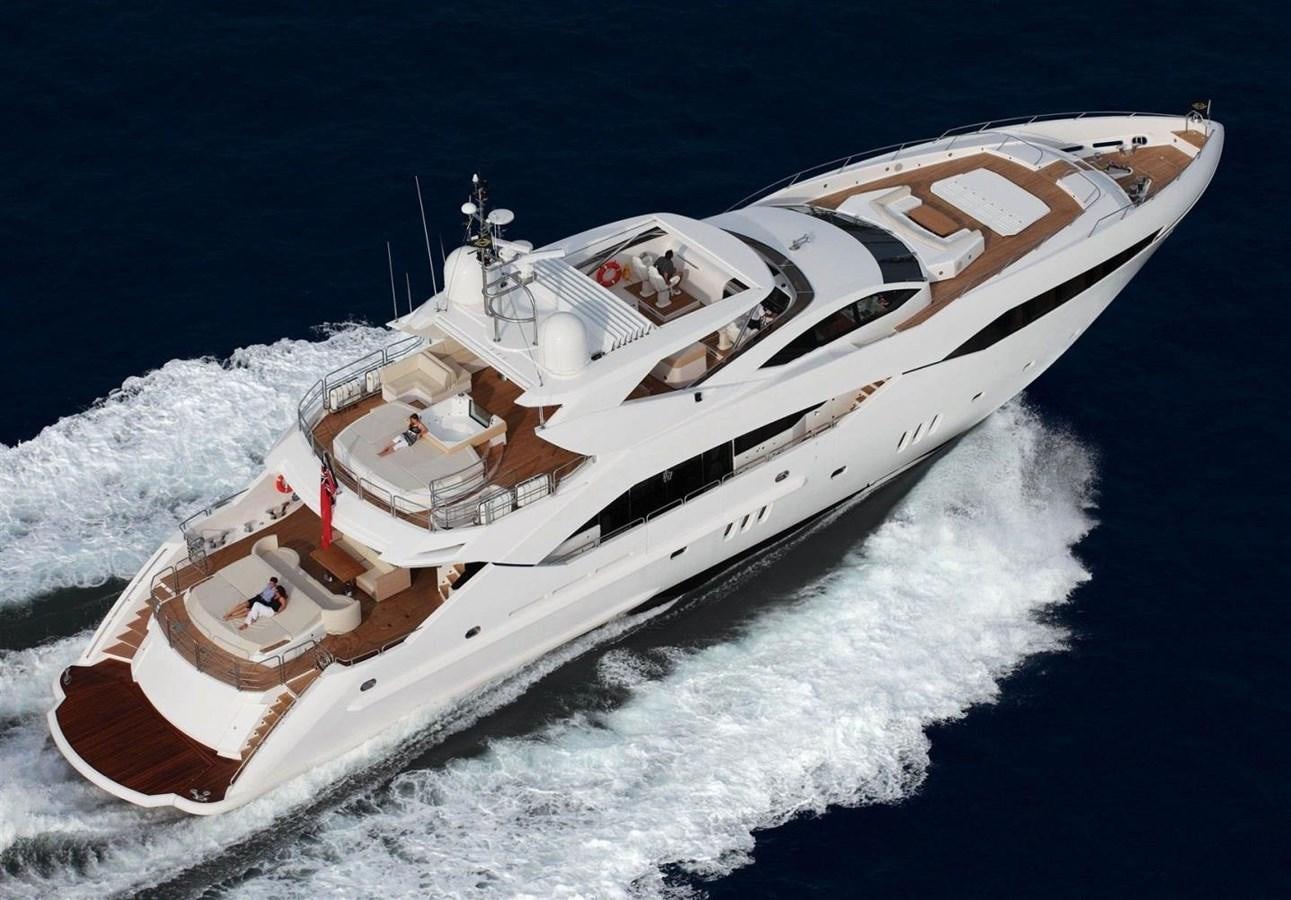

EVIL ZANA Yacht for Sale

• Air Conditioning: MARINE AIR (4) Chilled Water System, BTU: 480.000
• Fresh Air System: (2) 24.000 BTU (including Gym room)
• Compressed air system: BAUER Junior II compressor & workshop compressor
• Shore Power – Volts: 220/380V – 3 Phases – 50 Hz
• Converter – Incoming Volts: 380V
• Shore Power Converter (2012): ASEA converter AC90V – 3
• Main Engine Starting batteries: (8) 24V 105Amps
• Service batteries: (6) GEL 24V 105Amp
• Emergency batteries: (4) 24 Volts 105 Amp
• Radio batteries: (2) 24 Volts 105 Amp
• Emergency Lights batteries: (2) 24 Volts 105 Amp
• Frequency Converter: (1) POTENTIA PP95-1-3/3 Modular
• Battery Charger: NEWMAR: Service (67A), Engine (67A), Emergency (44A), Radio (20A)
• AC Supply & Distribution
• Connection to shore power through Glendenning 100amp 20mt master cable. Seamless transfer switching between generator and shore power
• Marine Personal Assistant (M.P.A) control of tank levels, breaker status, alarm activation and monitoring, pump controls, bilge and fire information and all electrical load management
• WATERMAKER #1: HRO 180L/H 2 membranes Horizon Seafari H1212101480
• WATERMAKER #2: HRO 120L/H 1 membrane Horizon Seafari H1212000630
• Stabilizers (at anchor): ABT TRAC 370 fin Stabilizer 21.5 Sq ft (type 16X)
• Bow Thruster: ABT TRAC 20 100HP (American Bow Thruster)
• Stern Thruster: ABT TRAC 65HP
• Steering System: HYDRIVE
• Emergency Steering System: MANUAL, 220V/24V

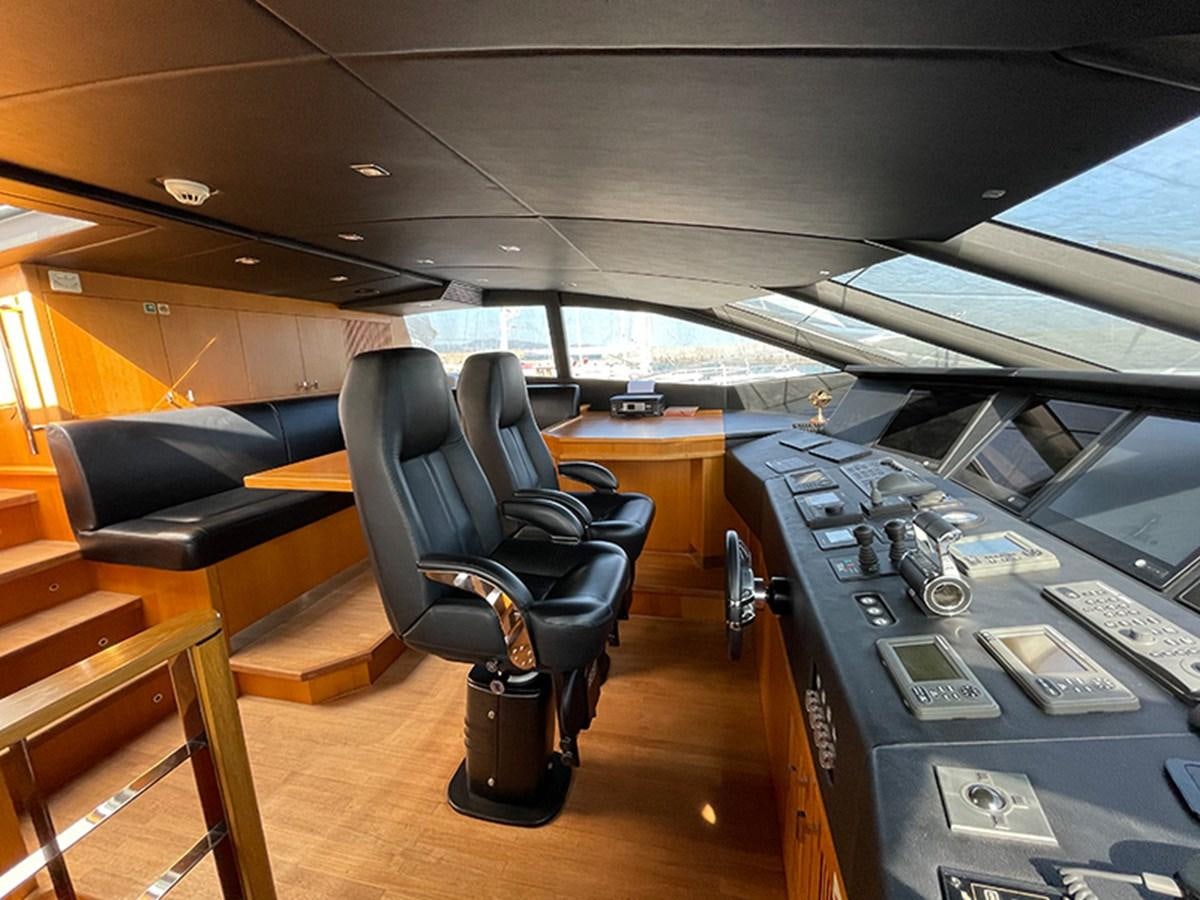

• Helm/Control (4) Stations: Wheelhouse – Fly bridge – (2) Wings
• Sewage System: HAMANN
• Black Water System: TECMA 24V
• Discharge/macerator pump: 220/380 V AC – 140l/min
• Fresh Water System: (2) GIANNESCHI
• Water mist system: Fly bridge hardtop – 8 pcs
• Steam shower Owner: Kohler 7kW
• Grey Water System: TECMA wastewater pumping units
• Discharge/macerator pump: 220/380V AC – 160 l/min
• Fuel Filtration: ALFA LAVAL MIB 303S-13 7500T/Min 760 lt/hr
• Extraction & Ventilation System: 165m3/mn A60 approved marine fire dampers
• Power pack: (2) pumps 220V AC, Oil Tank Capacity up to 100 litres
• Auxiliary Hydraulic Pack: Tender garage door, Tender garage door locking pins, Trim tabs, Hydraulic Tender Recovery Winch, Hydraulic Rise & Fall Bathing Platform, Bulwark, Balconies and locking cylinders, Master Stateroom Balconies and locking cylinders
• Central Hydraulic System: American Bow Thruster bow & stern, Stabilizers, (2) Anchor winches, (2) warping capstans. (2) hydraulically driven seawater-cooling pumps.
• PTO: pump on port Generator, both Main engine, 2x 11kw AC pump
• A locally mounted manual hand pump, in the event of ships power loss, can also operate the System

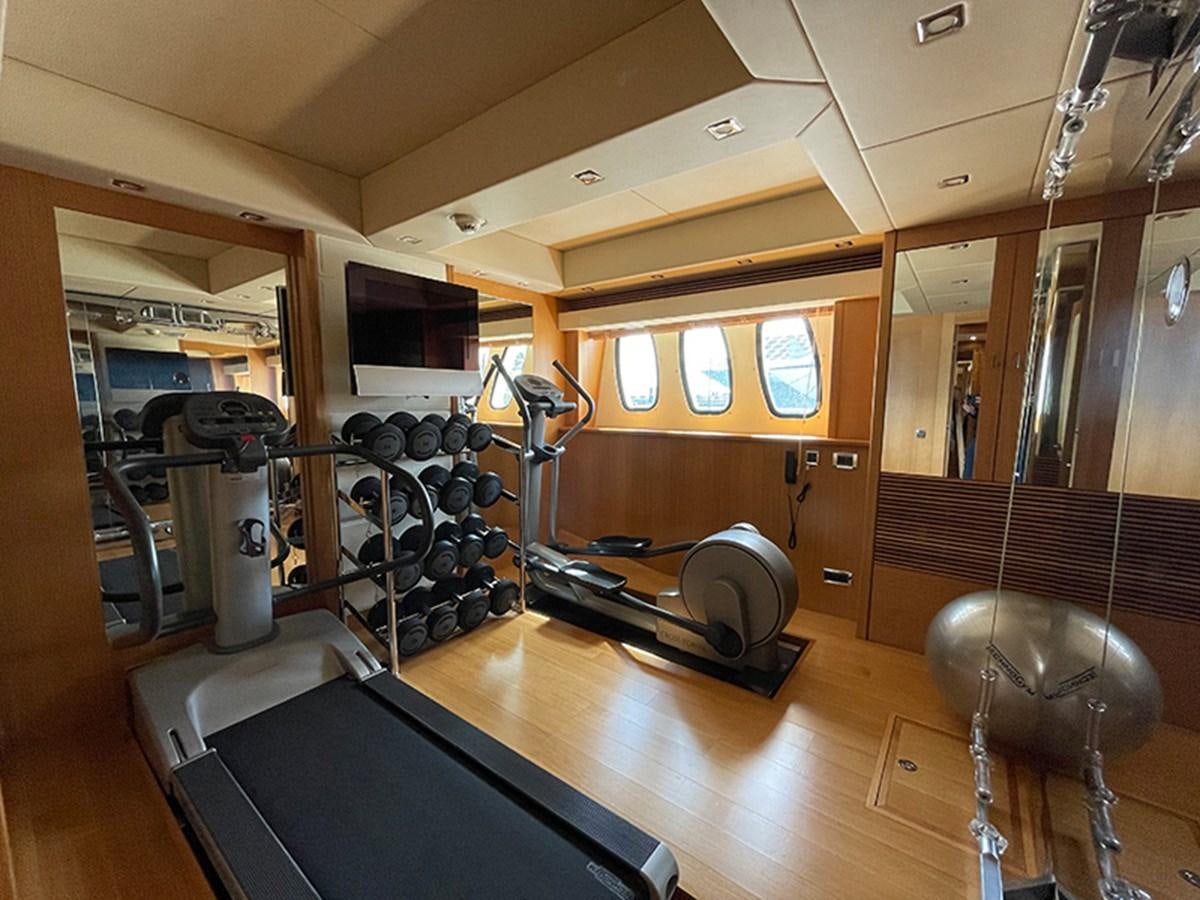

• Sleeps 8 in 4 staterooms

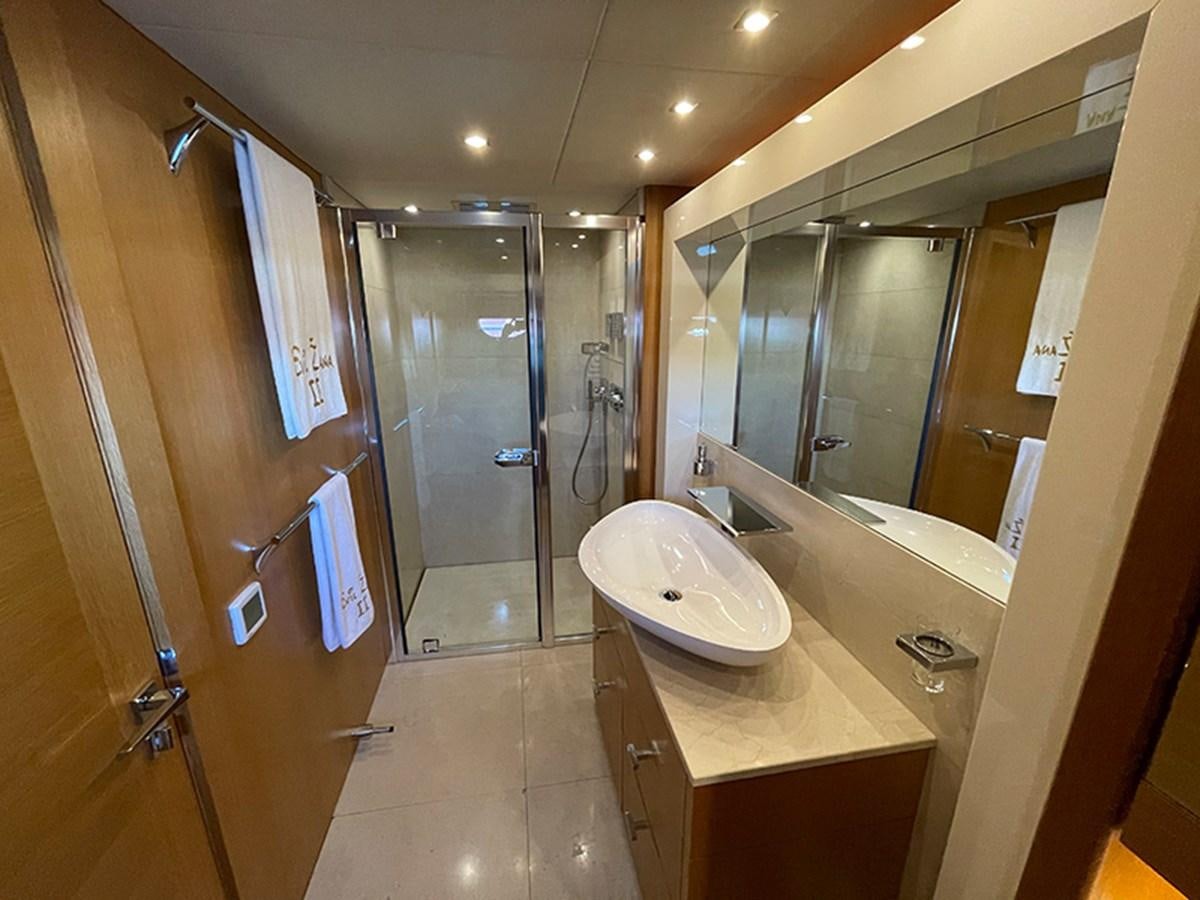

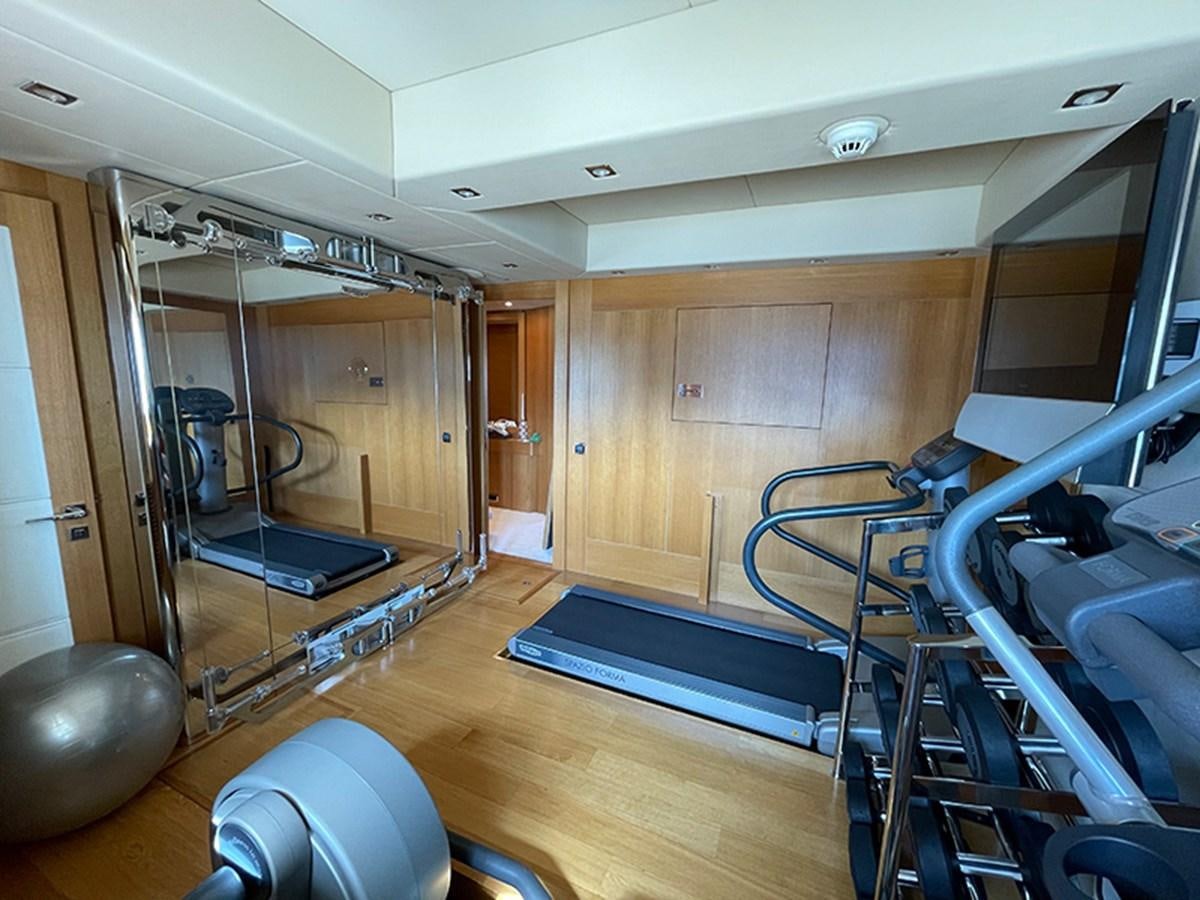

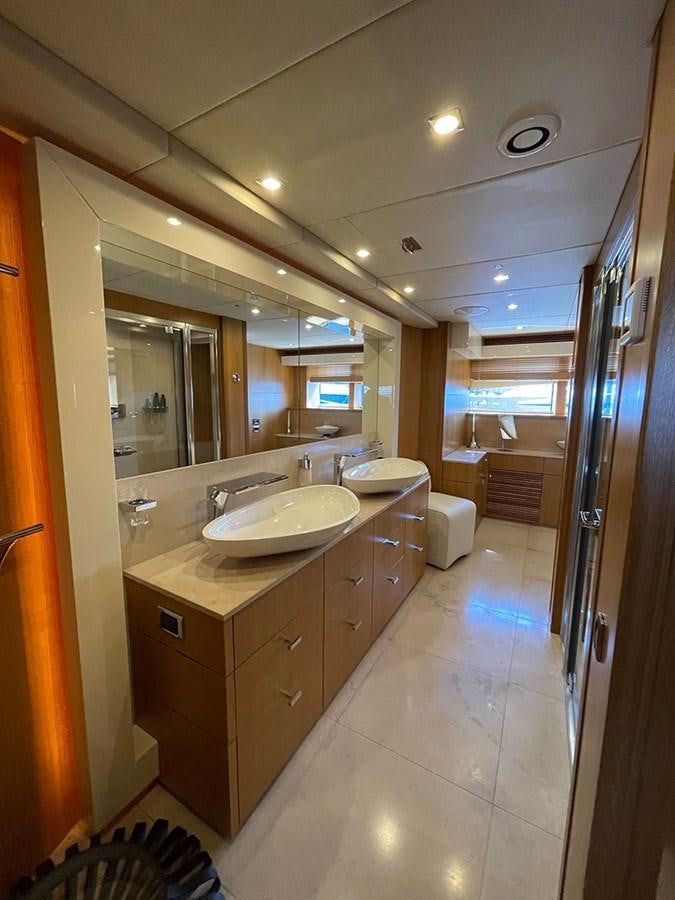

• There are 3 guest cabins on the lower deck plus the gymnasium plus the owner's cabin on the main deck. As well as 6 guest heads and 5 guest showers.

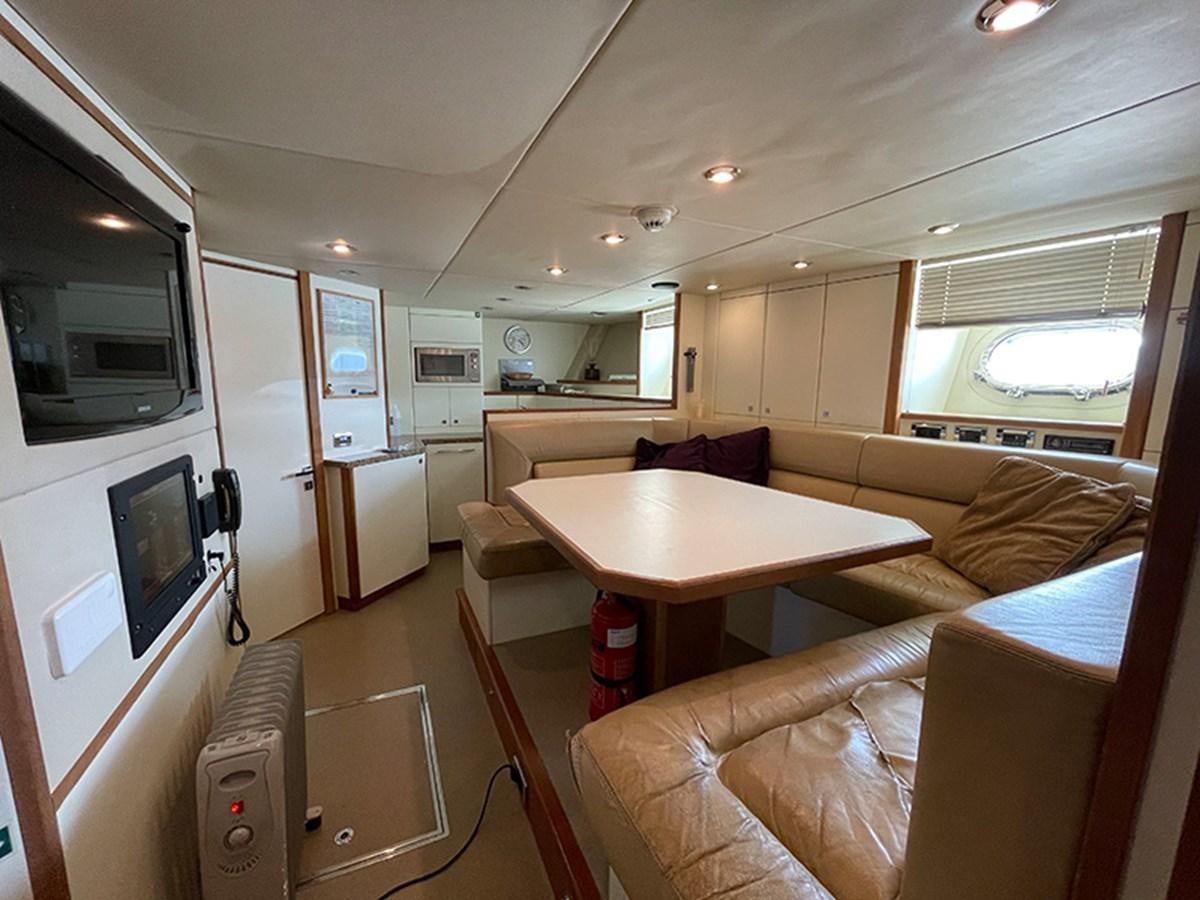

• Crew accommodations include 7 berths, 4 heads, and 4 showers. The Captain's quarter is separate.

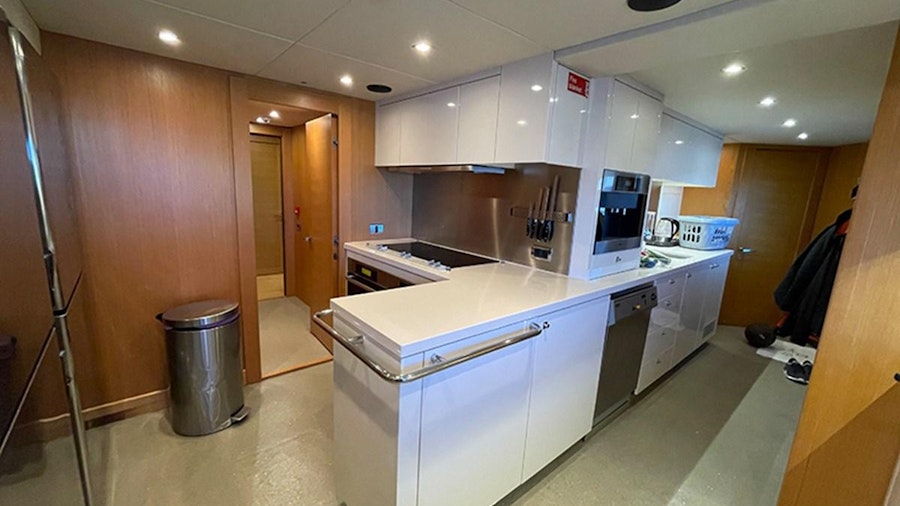

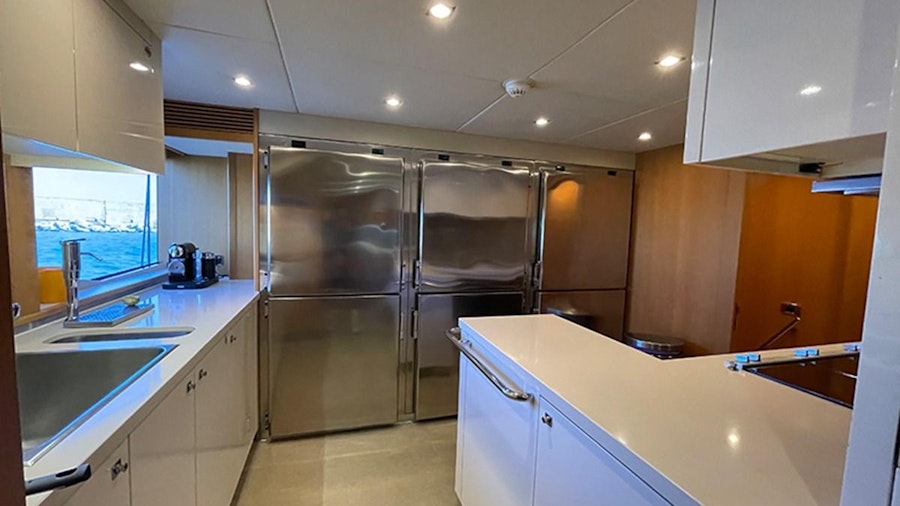

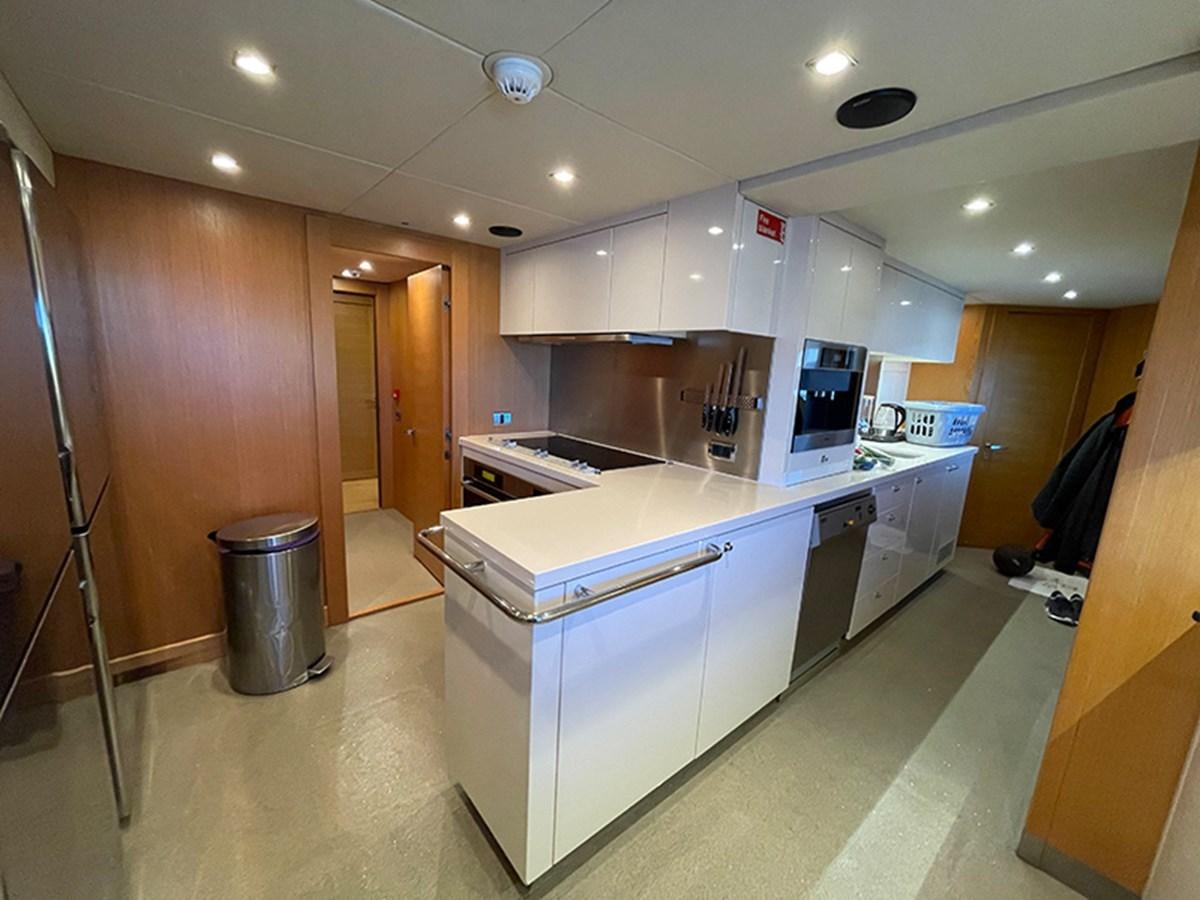

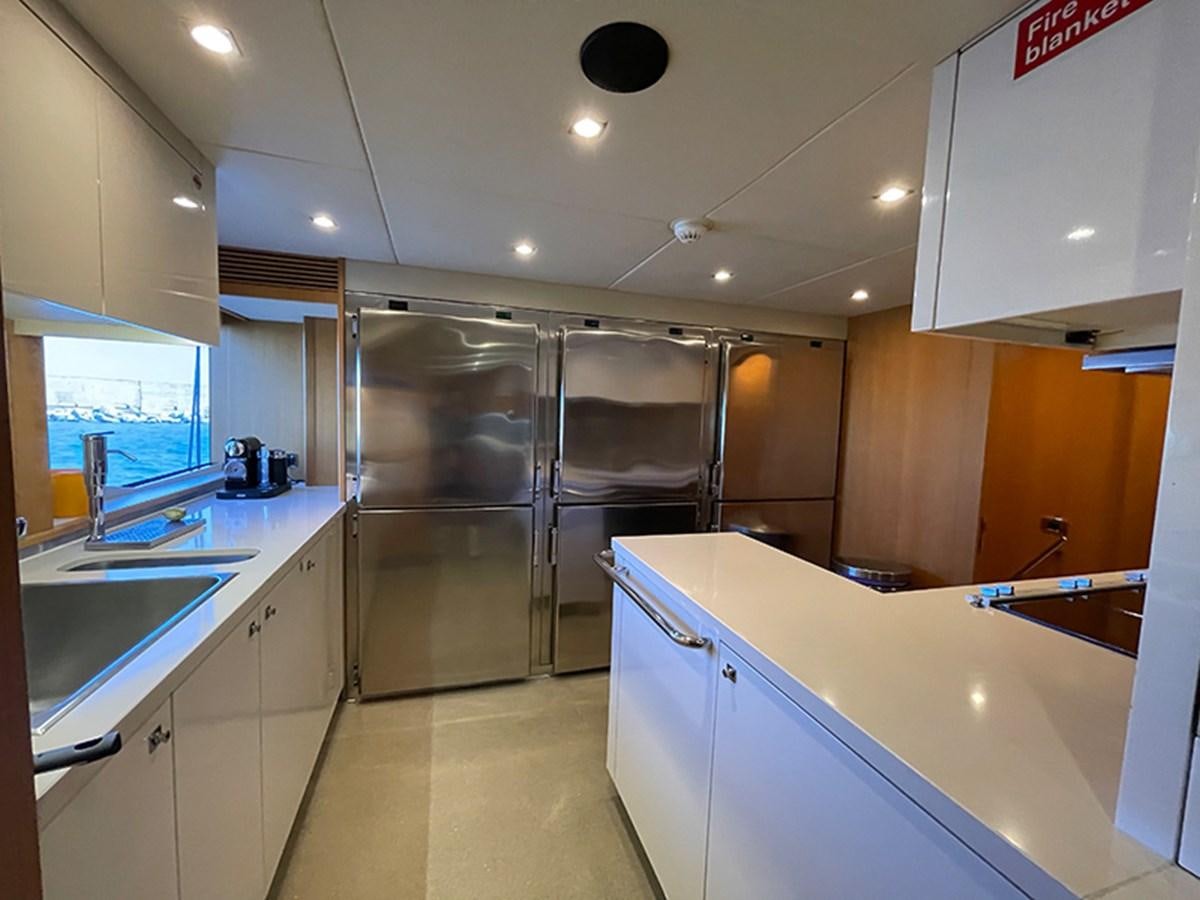

• Oven: (2) MIELE M5681B 600mm
• Micro-wave: MIELE 8261SS
• Ceramic Cook top: GAGGENAU VC230
• Induction Cook top: (2) GAGGENAU VI230
• Extraction Hob: MIELE DA3190 (with upgraded metallic ducting)
• Dishwasher: MIELE Professional G7856
• Coffee Machine: MIELE CVA 5056 (Built-in)
• Wine Cooler: MIELE KWL4154 UG-1
• Icemaker: RARITAN
• Refrigerator: MIELE K621 Ui-1 (undercounter)
• Stern Laundry appliances:
• Washing Machine: MIELE Professional PW6065
• Condenser Dryer: MIELE Professional PT7135
• Microwave: MIELE M8201-1
• Refrigerator: MIELE K621 Ui-1
• Dishwasher: MIELE G1162 SCVI
• Fridge: (2) Waeco CR110
• Icemaker: RARITAN Standard
• Griddles/grill: (2) GAGGENAU VR421
• Crushed Ice Machine: (incorporated into flybridge GRP Ice Chest)

• Communication System: Panasonic KX-T7730
• Satcom(s): Furuno 0560
• VHF Fixed: SAILOR RT5022 VHF DSC
• VHF Handheld: MIALANA SIMRAD GMDSS
• VHF: SIMRAD RS87 DSC VHF (wheelhouse, flybridge helm, crew mess, emergency steering)
• VHF: Sailor RT5022 repeater hand set at the fly helm
• Loudhailer: (1) Hailer horn connected to SIMRAD RS87
• Telephone System Two shoreline: (1) phone and (1) fax connected to PABX
• PABX telephone: B&O telephone Wheelhouse, Captain’s cabin, Main Saloon, Master Stateroom, Starboard twin guest cabin, Port twin guest cabin
• Emergency Radio Beacon: SIMRAD EP50 EPIRB & SART SIMRAD SA50
• Communication Equipment: (2) handheld VHF SIMRAD AX50 GMDSS
• Thrane & Thrane V7 broadband
• Fixed data points
• Wireless Access Points

• Sat TV: (2) Seatel 4004
• Radar: Furuno FAR2117BB 96 Nm
• Radar: Furuno 1944BB 72 Nm
• Autopilot: SIMRAD AP 50 Autopilot with RF45X Rudder ref
• Gyrocompass: COMNAV DV2-FURUNO Satellite Compass
• Compass: FURUNO SC50 Satellite compass interfaced to autopilot
• Compass: Richie COMPASS

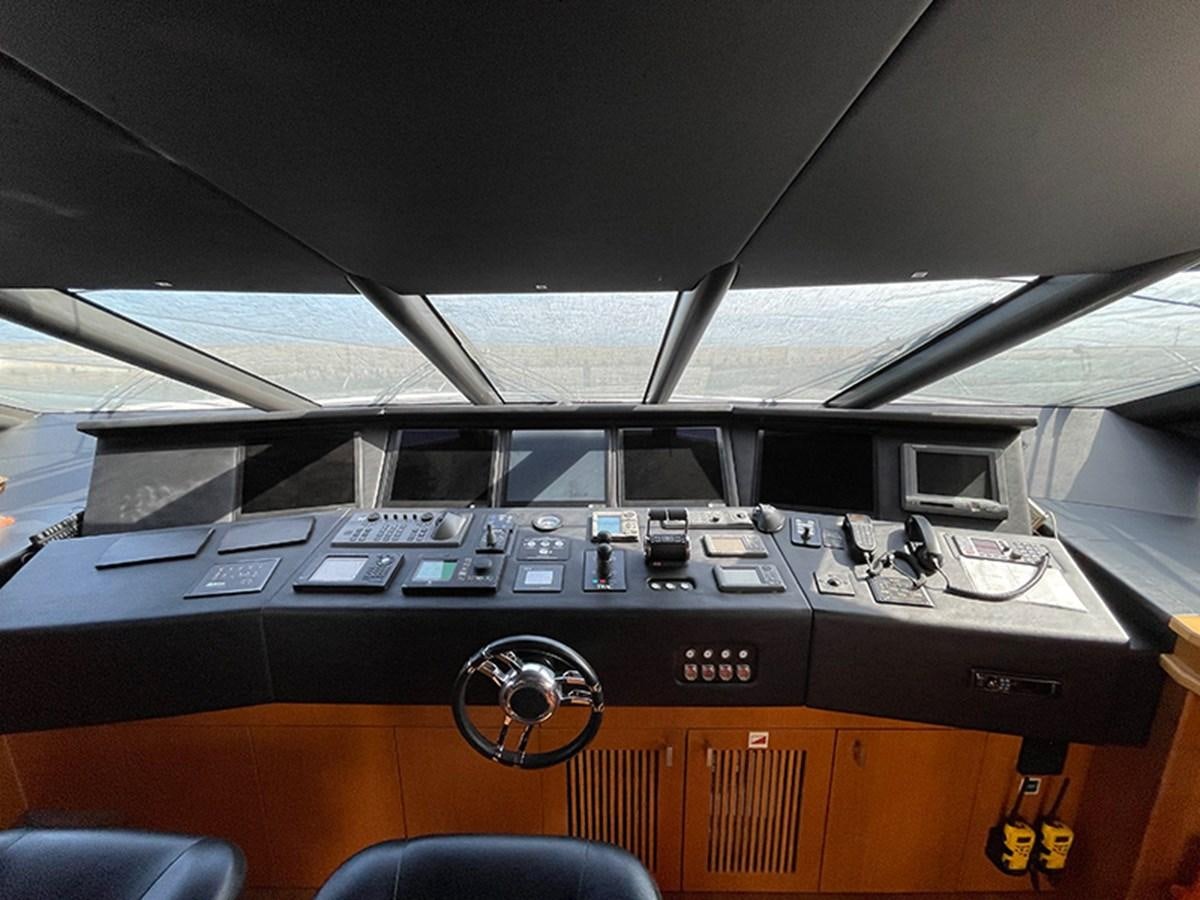

• Displays wheelhouse: (3) 19’’ Hatteland screen
• Display Flybridge: (2) 15’’ Hatteland screen
• Radar integration for Transas, AIS class A transponder, ARPA Integration for Transas
• Navigation display: Signal from Transas to be fed on Saloon TV only
• Satellite System: THRANE & THRANE fleet 33 phone system
• Searchlight: (1) 24V Sanshin remote searchlight
• Windscreen Wipers: (5) pantograph with screen washers
• Air Horn: Kahlenberg D2 with KA500 Air Compressor
• Depth Sounders: Furuno MULTI STATION RD 30
• GPS: SIMRAD GN 33
• Navigation Display: Hatteland
• Chart Software: Transas Navisailor chart plotting bridge & flybridge
• GPS: FURUNO
• NAVTEX: FURUNO NX700
• AIS: FURUNO FAI
• Weather Fax: INMARSAT C FURUNO N700B
• Wind Indicator: SIMRAD

• BANG and OLUFSEN system Audio Visual up throughout all accommodation

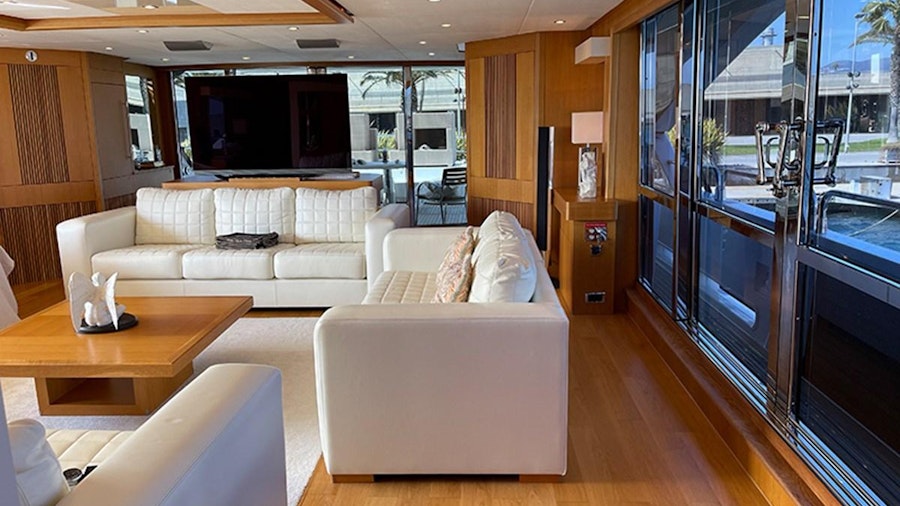

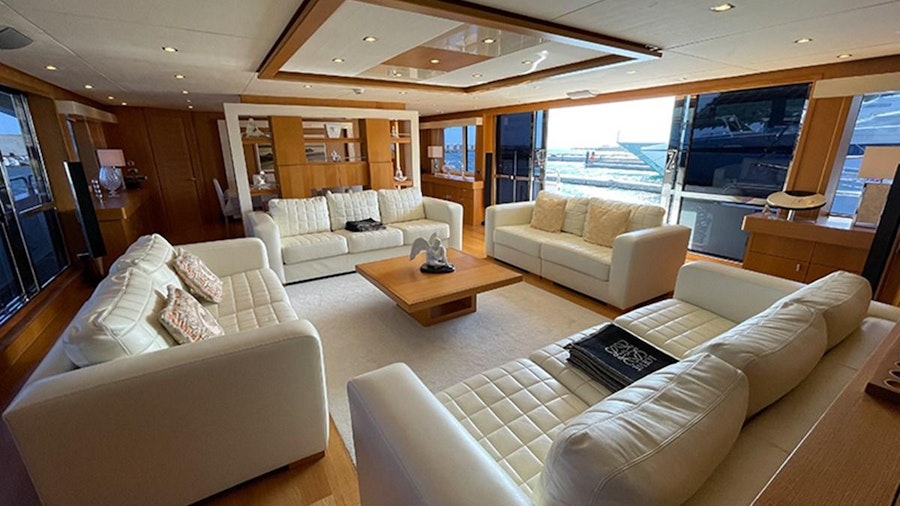

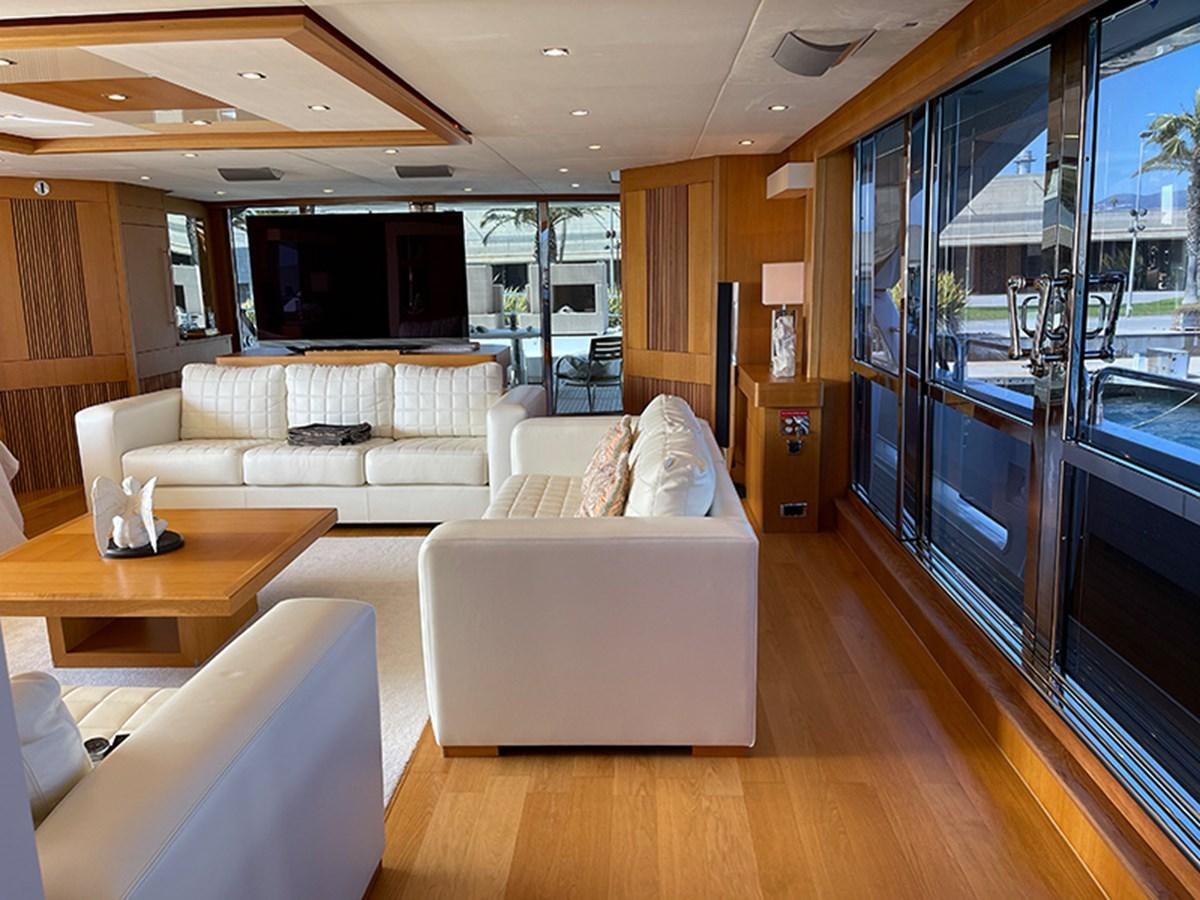

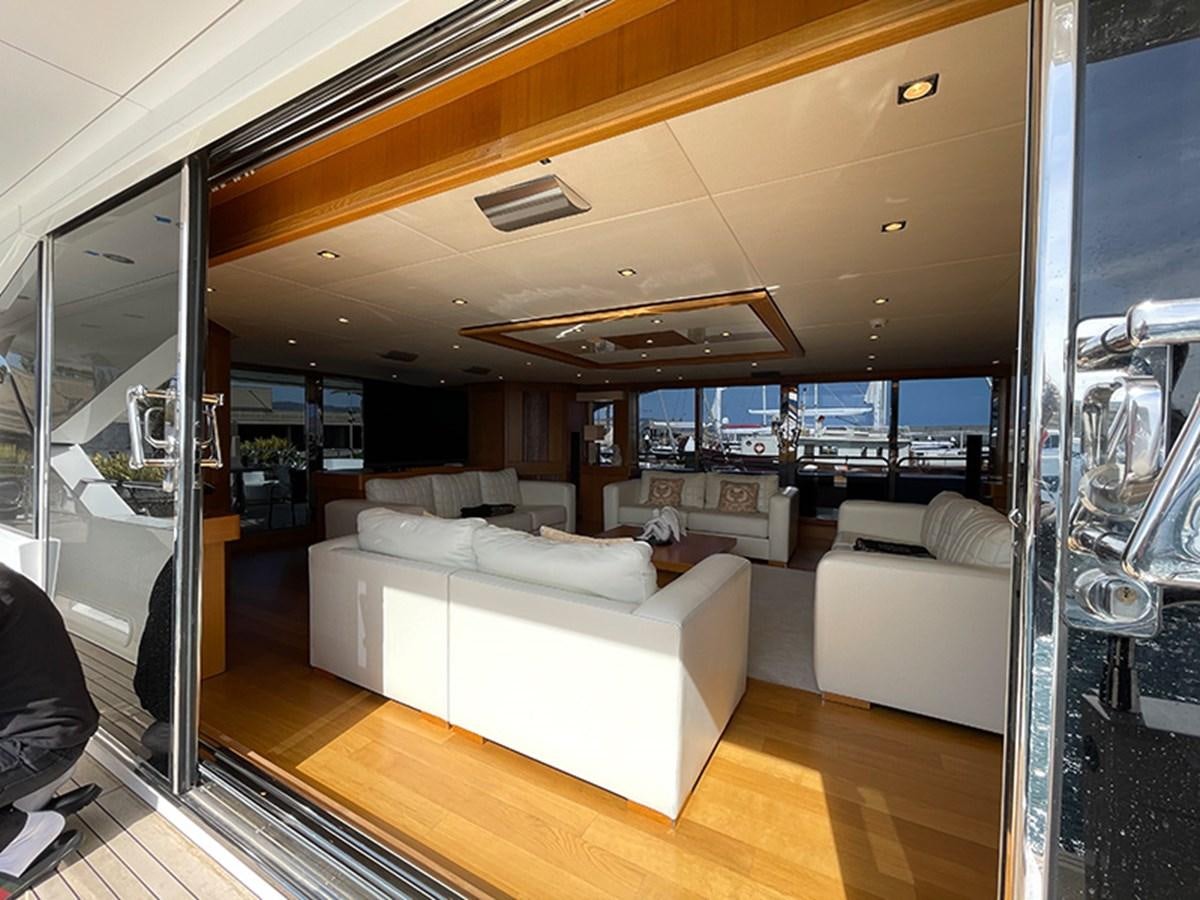

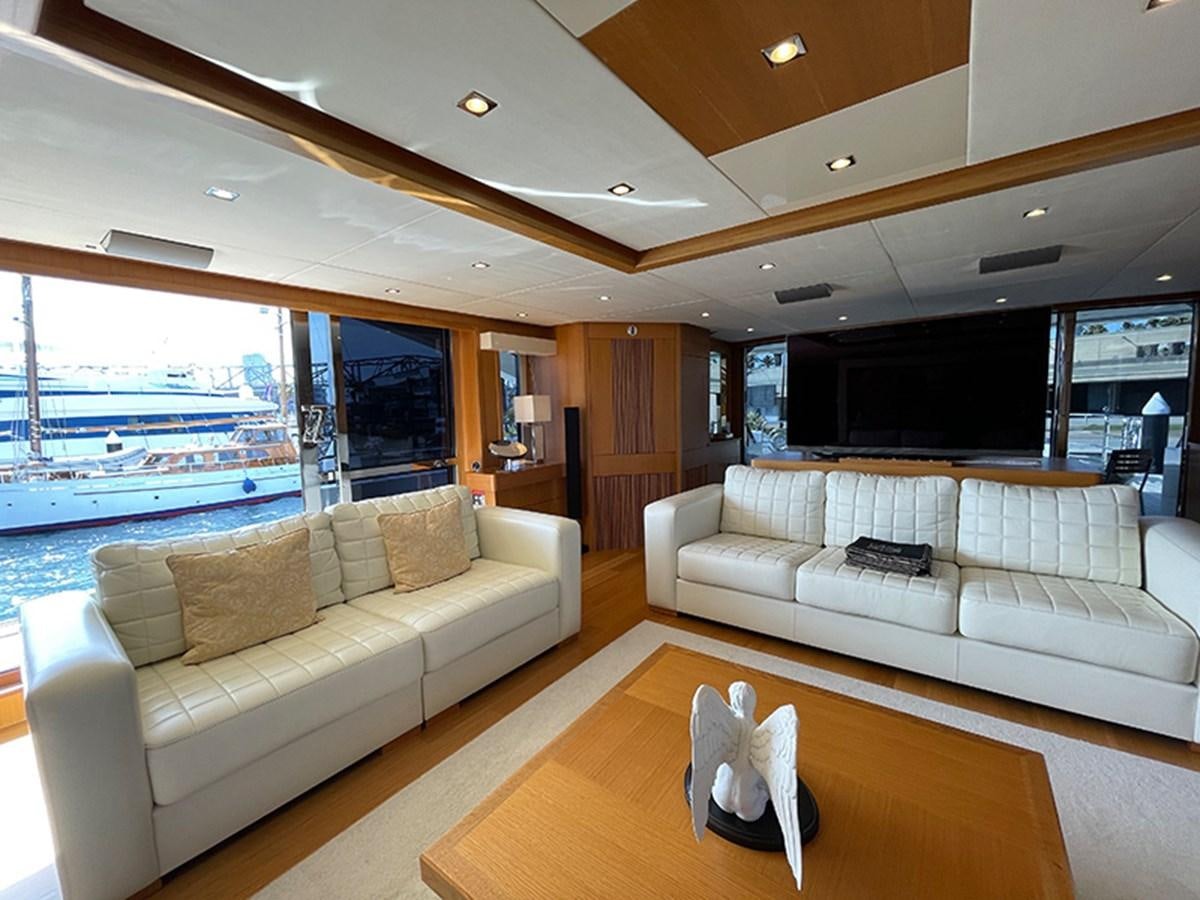

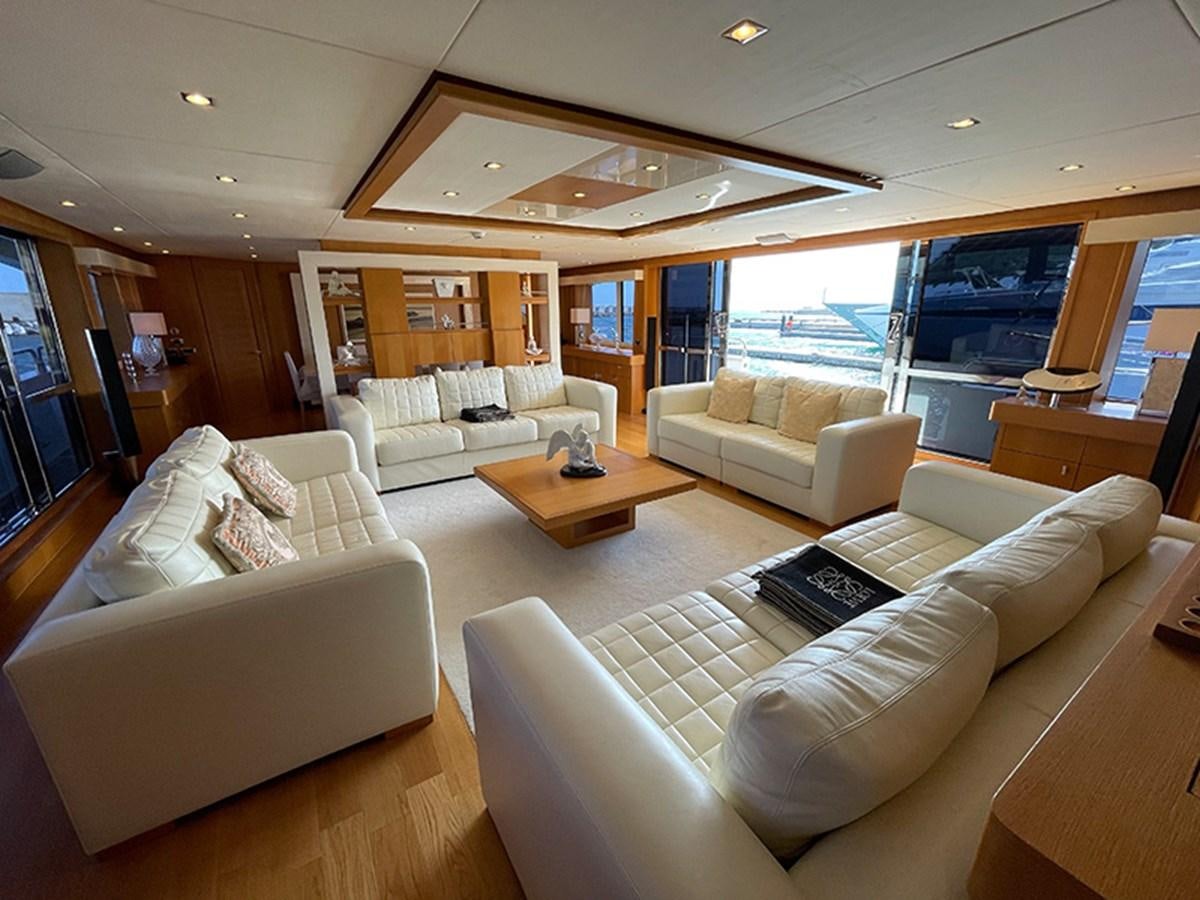

Main Deck Saloon:

• LG 4K OLED 65 Model 65E7V "fixed"
• Bose 38 Lifestyle surround sound-system
• Satellite decoder with local control
• iPod docking station

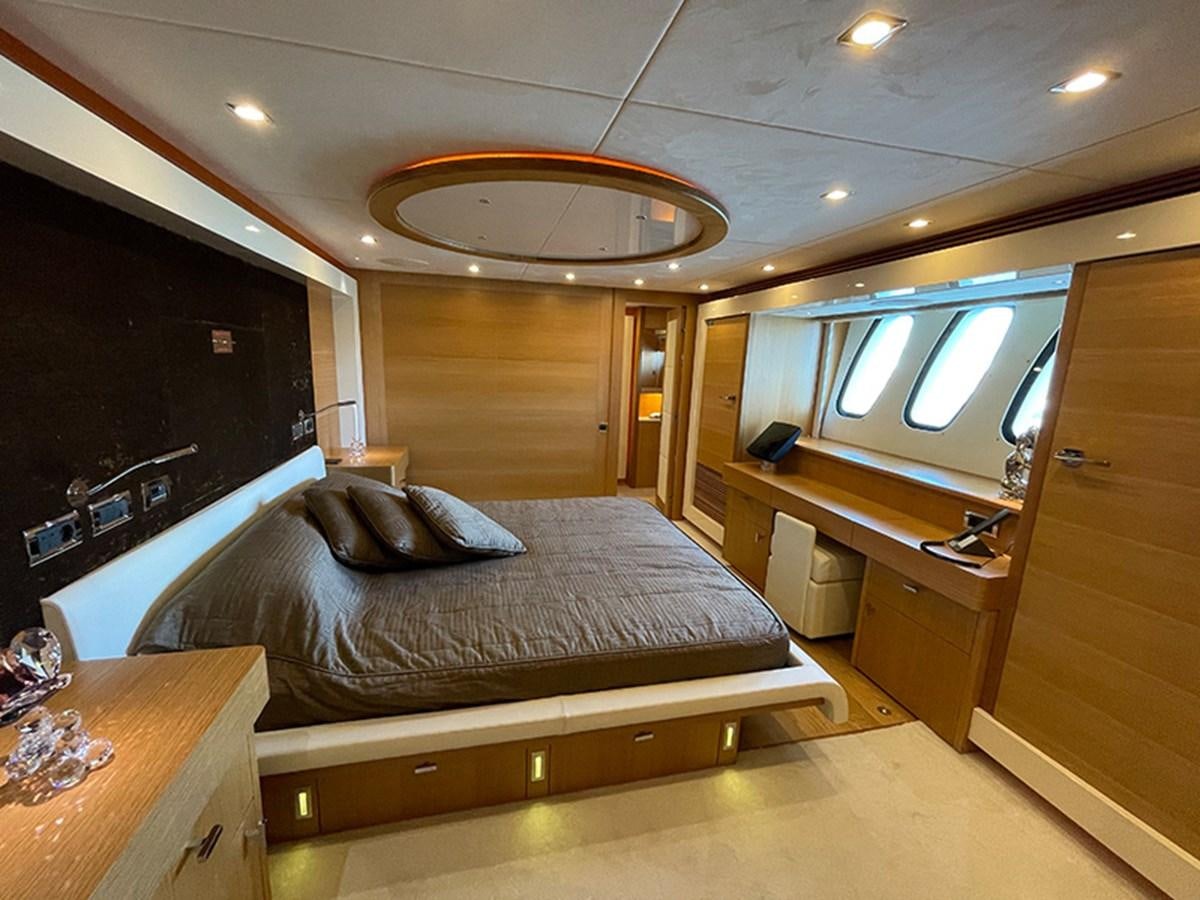

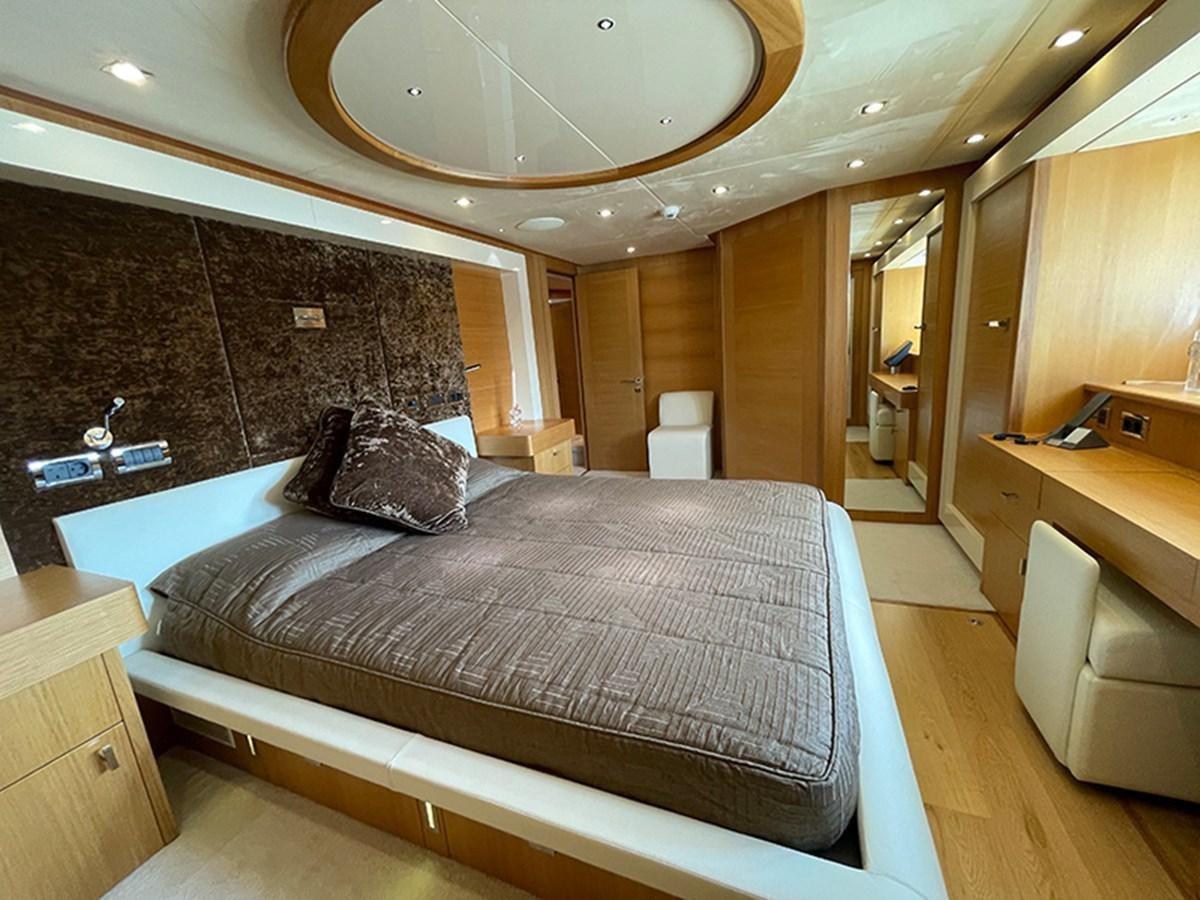

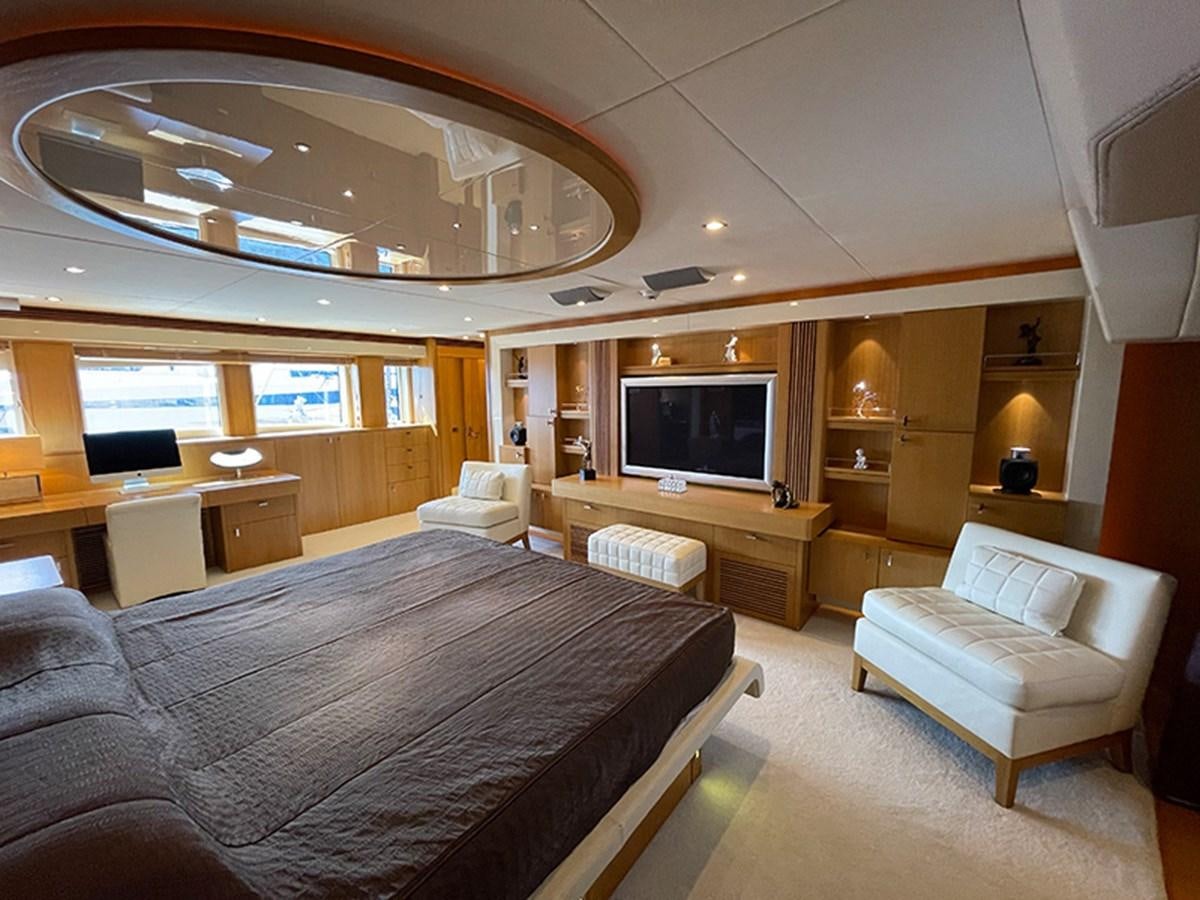

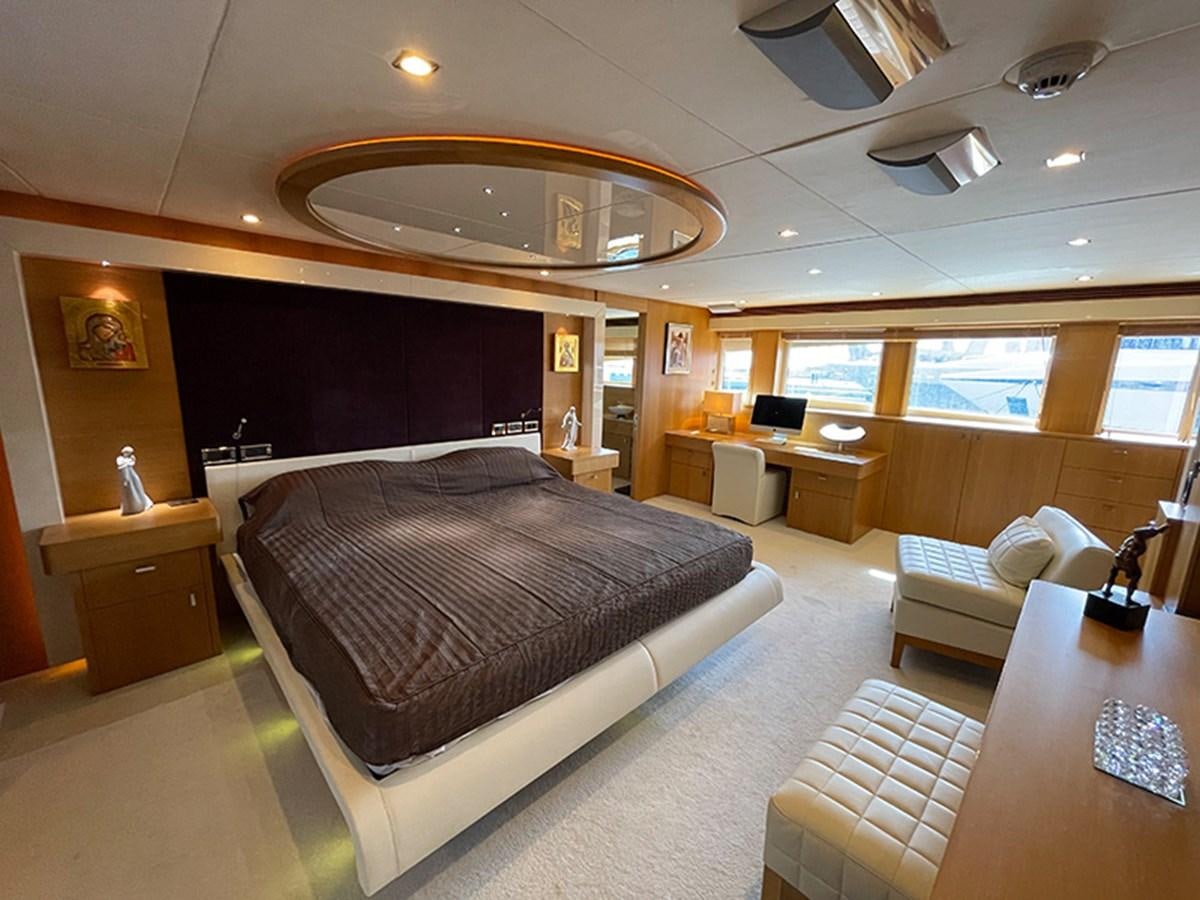

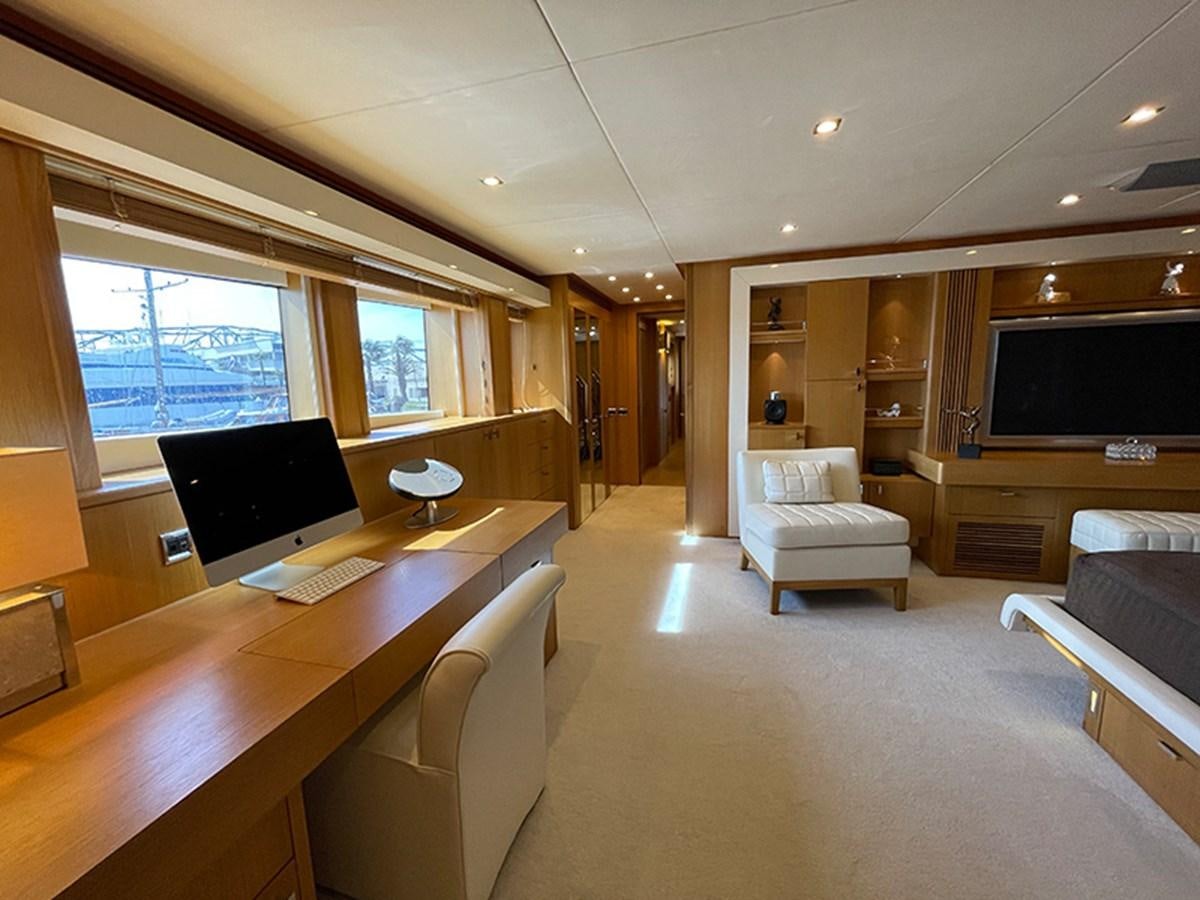

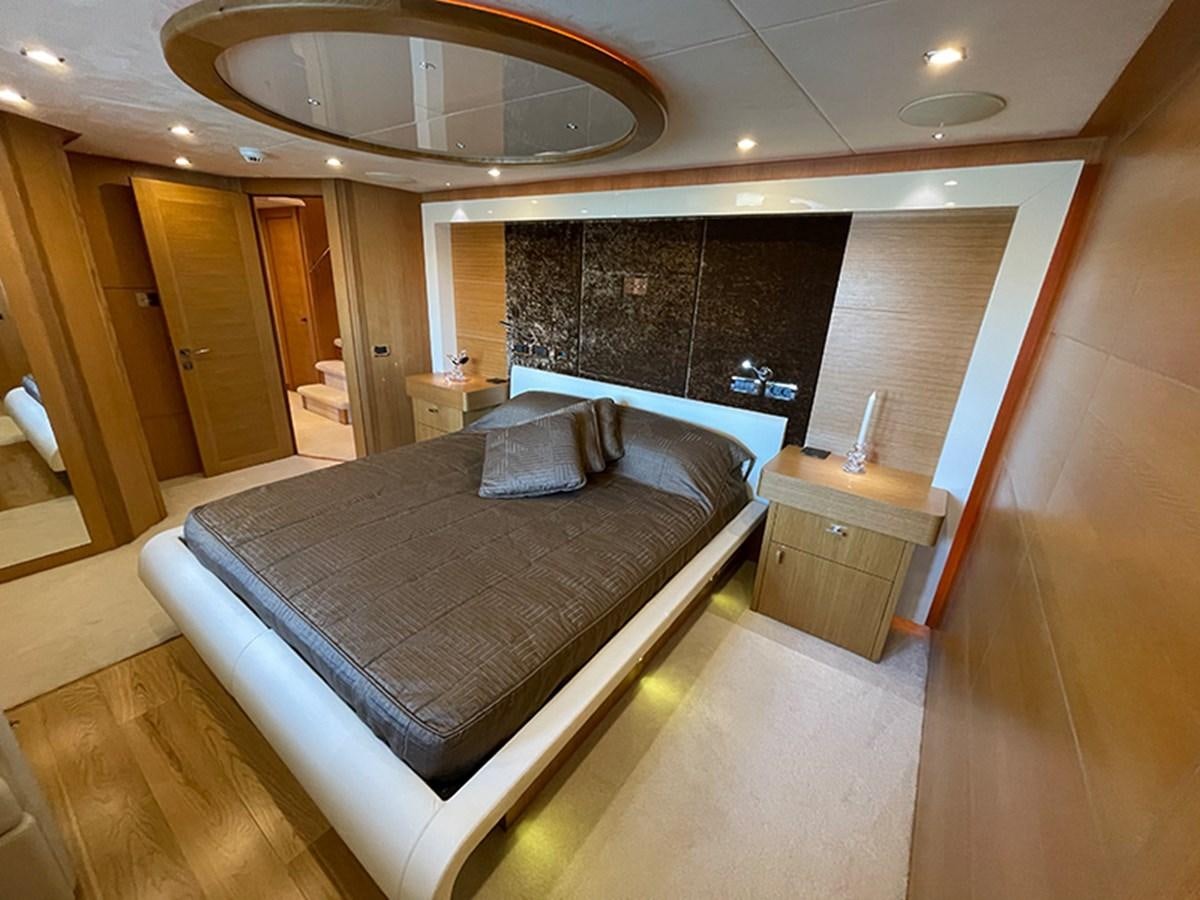

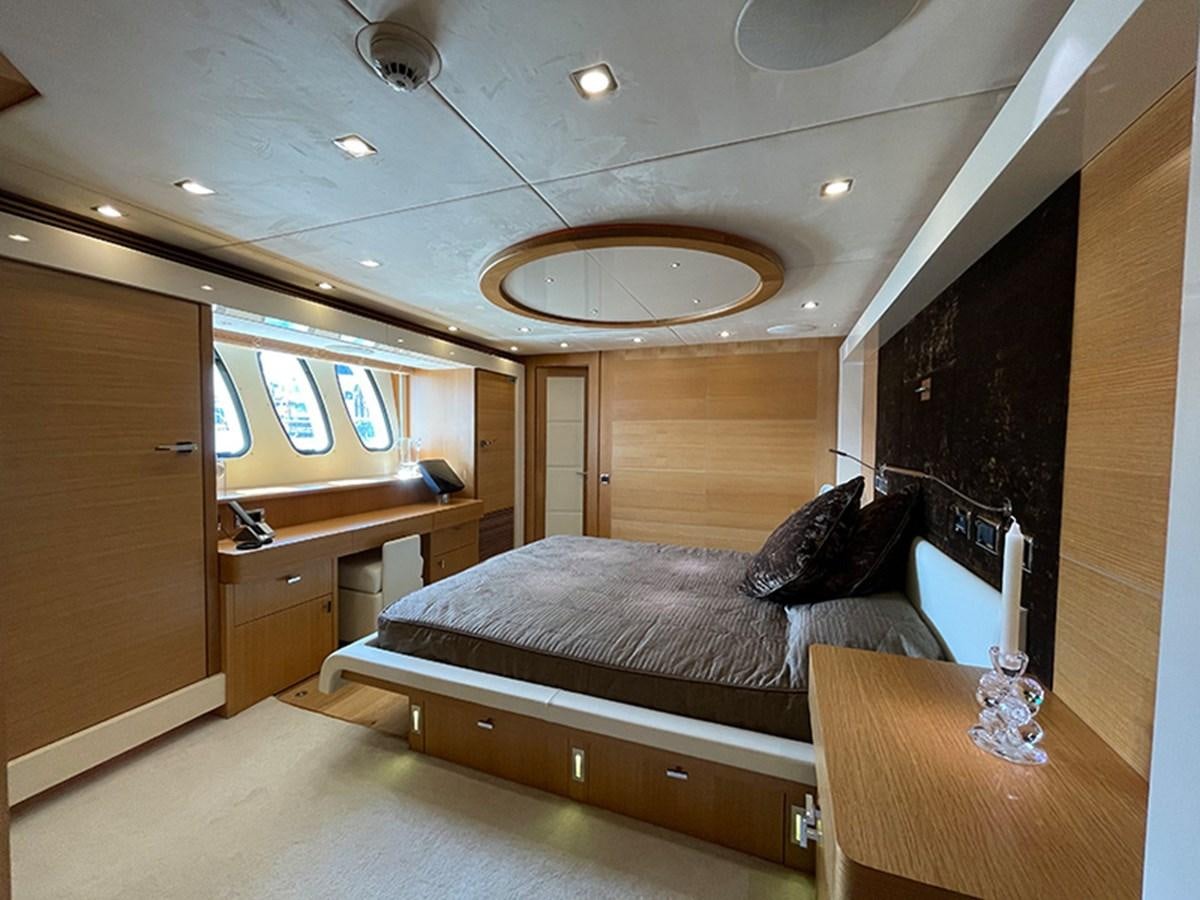

Owner Cabin:

• 50” LCD television
• Bose 28 Lifestyle surround sound-system
• Satellite decoder with local control
• iPod docking station

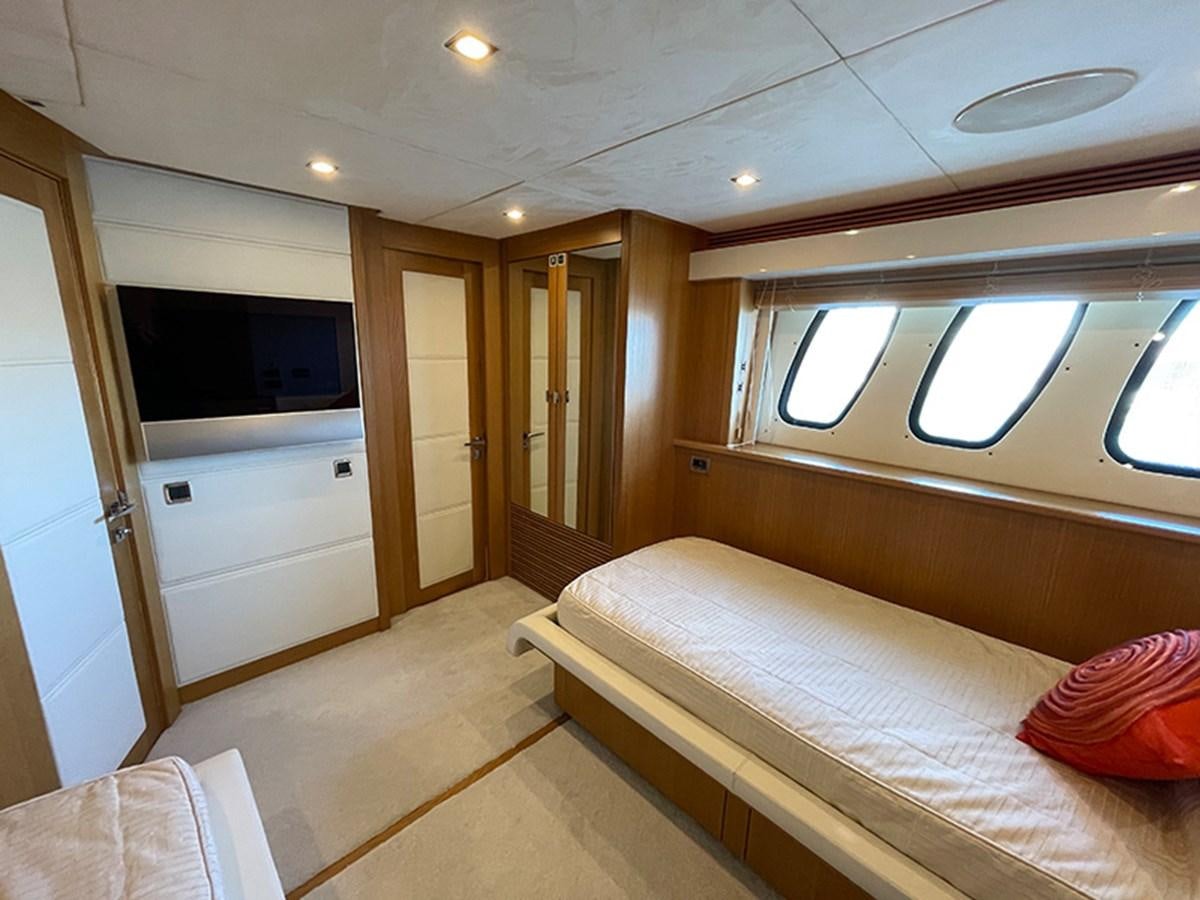

Guests Double Cabins (2):

• 32” LCD television
• Bose 321
• Satellite decoder with local control
• iPod docking station

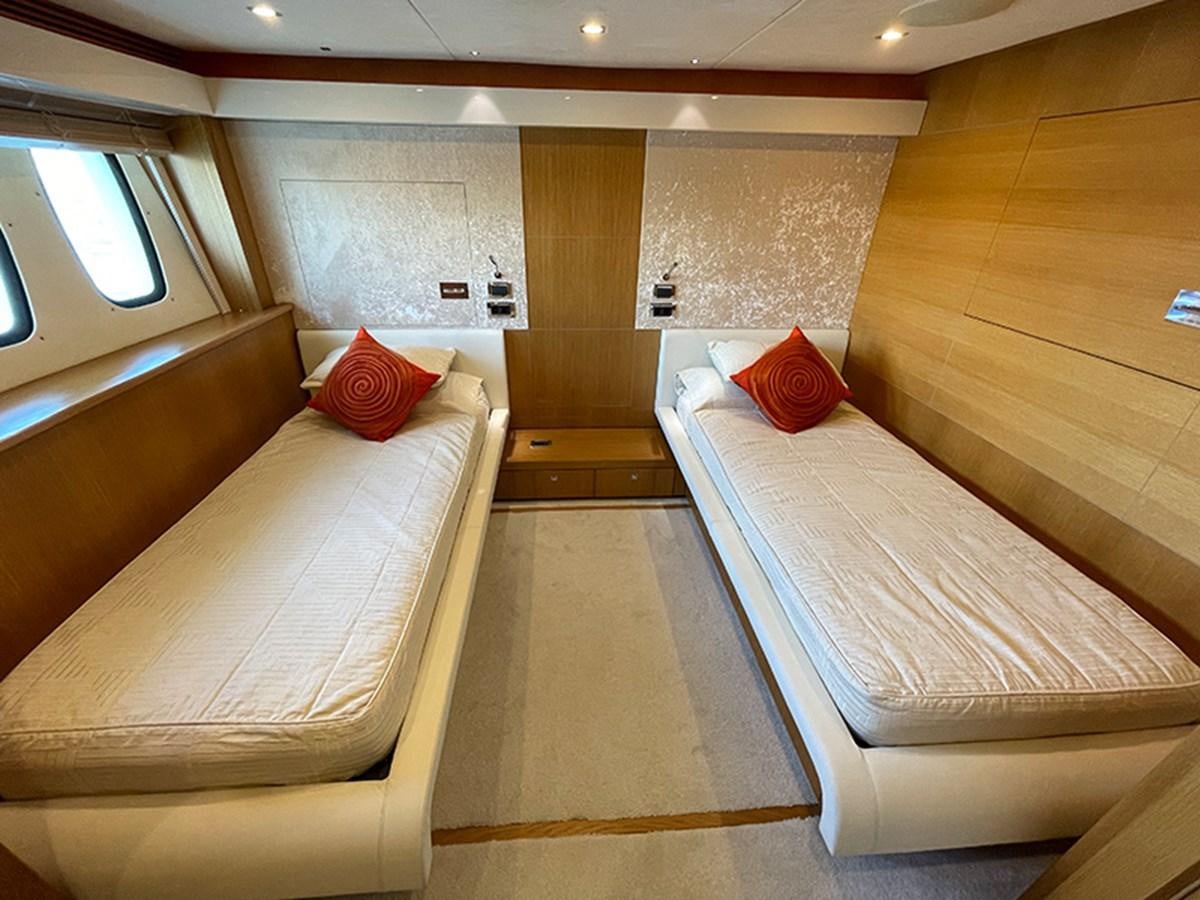

Twin Cabin & Gym Room:

• 26” LCD television
• Bose 321
• Satellite decoder with local control
• iPod docking station

Sun Deck & Main Deck Aft Cockpit:

• (3) pairs Marine speaker (zoned from Main Saloon)
• (3) Bose SA2 Amplifier
• Bose PMC II remote
• BANG and OLUFSEN system Audio Visual up throughout all accommodation

• Main Tender: 6 Meters PASCOE YANMAR 180HP Jet
• Dive Compressor: BAUER Junior II dive compressor

• All Oak Panelling & Floor
• Blade Store Wood
• Fridge & Icemaker
• AV System BO
• 4 Sofas – Coffee Table
• UV Tinting on main deck saloon side windows and patio doors
• Electric Patio Door

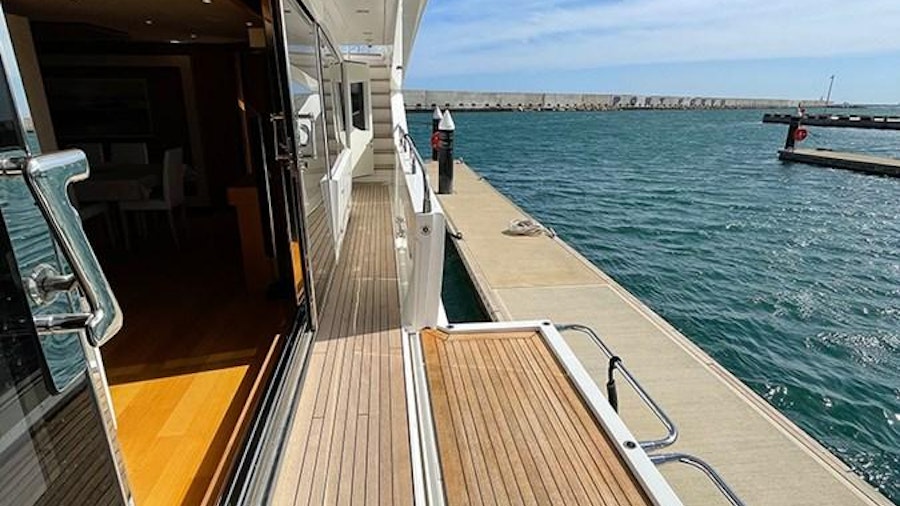

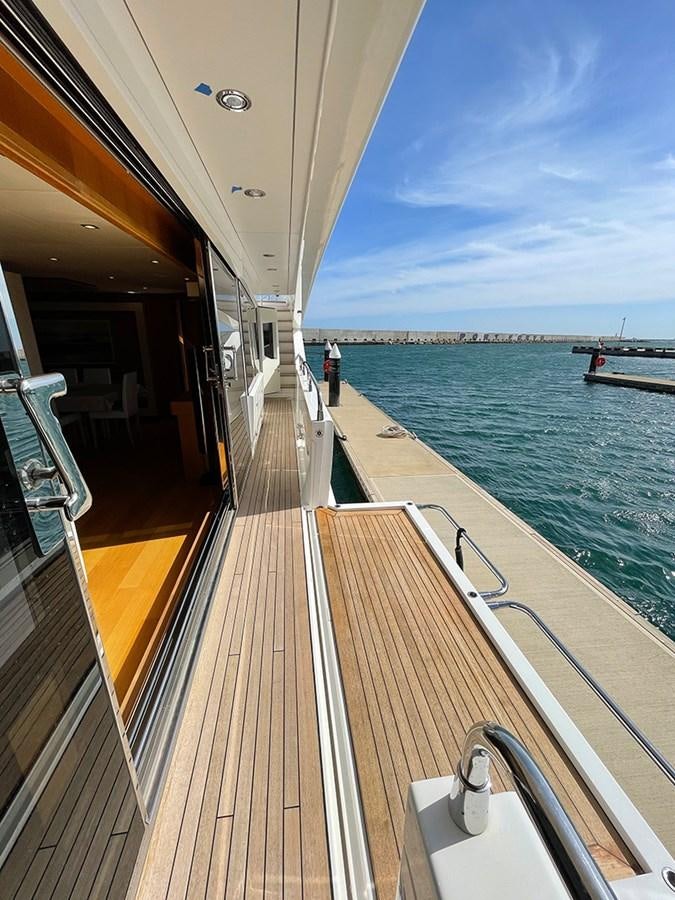

• Full height bulwalk balcony fitted with manual stanchions

Security

• CCTV System (cameras): 1 Port side facing forward, facing aft, 1 Starboard side deck, forward-facing aft, 1 Main Deck Aft Cockpit, 2 Engine Room, 1 Tender Garage
• Full 15’’ M.P.A Master Touchscreen display in crew mess
• Navigation parameter interface allowing NMEA data to be displayed on the M.P.A screens
• Primary M.P.A Touchscreen (2) Electrical Main and Wheelhouse
• Slave M.P.A Touchscreen (2) Engine Room and Crew Mess
• Tisseen System: Monitoring all system on yacht (electric power, generators, water, outside light)

Safety and Life Saving equipment (LY2)

• Life rafts: (4) ZODIAC (10 men) XTREM 2010 10 MANSART
• Life Buoys: (2) 4kg & (2) 2.5kg
• Life Jackets: 22 Complete with retro-reflective tape and lights adult
• Life Jackets Child: 2
• Water Sports Buoyancy aids: 6
• Grab Bags: 2 SOLAS B
• MOB smoke & light: 2
• Buoyant Line: 2
• Set of line throwers: 1
• Rocket flares: 6
• Flare polybottle: 1
• Axis 30 VHF emergency radio: 2
• Axis 30 Spare testing battery: 2
• (6kg Powder, 9ltr Foam, 5kg CO2, Spare powder Cartridge, Spare Powder, Sapre Foam Cartridge, Sapre Foam Compound)
• Cat C Medical kit for 20 persons (positioned under the captain’s bunk)

Firefighting Equipment

• Smoke detectors/ heat Sensors: In all cabins
• Fixed CO2 Fire System: (2) Electrical Room
• High Fog System: Garage/Engine Room
• Sprinkler System: (2) Garage Sprinkler
• Fire Extinguishers: (2) FM 200 Fire Engine Room/ Electrical Room; (2) Portable Co2 in the Engine Room; (1) Portable Co2 in the Electrical Room; (6) Powder in the engine Room; (1) Powder in the Electrical Room; Fire fighting: (2) Asbestos Suit
• Smoke detector alarms: Machinery spaces with heat detector alarms

Fire & Bilge System

• Primary Fire & Bilge pump: 400 V A.C 5.5kW 50/60Hz 3 phase – self priming – Circa 45m3/hr - (Approx 12.5l/sec) @ 10m head in the engine room
• Secondary Fire & Bilge pump: Coupled to a manual start diesel engine – capacity of circa 40m3/hr (approx 11l/sec) @ 10m head in a dedicated pump room
• Emergency Bilge pump: Engine driven – self priming

• RINA cleaning and painting tanks: water, sanitary, fuel
• RINA SOS radio batteries
• RINA "MEGGER TEST" Insulation resistance test report for all 220 systems.
• RINA Radio contract
• RINA Generator - replacement of two magnetic parts
• RINA bottom and fire pump service
• RINA Fire Equipment Inspection
• RINA Rescue Equipment Inspection
• RINA generators - inspection "KOHLER" three units
• RINA dry dock - antifouling paint
• RINA material paint Antifouling coating HEMPEL 7110P
• RINA disassembly/assembly of propellers, gearboxes, and shafts. (wear, cracks)
• RINA inspection of anchor chains (wear no more than 12% of the diameter)
• RINA dismantling/assembly and inspection of magnetic tapered shaft parts
• RINA dismantling/installation of bottom valves for visual inspection
• RINA purchase and replacement 3 bottom valves (DN 125 DN 150)
• RINA test of all systems of navigation systems, fire, and emergency
• Epoxy painting of black and water tanks
• Fiber enforcement of the walls where the central bottom filters are installed
• Teak work
• Underwater Zinc replacement
• Platform Hydraulic Cylinder replacements and service
• RINA MTU - change of oil and filters current technical maintenance and issuance of certificates
• RINA MTU - battery test
• Replacing the head motor batteries
• Replacing emergency lamp batteries (engine room)
• Purchase of a new GPS satellite transmitter
• Bottom Diesel Pump Service
• Polishing the superstructure
• Service Hydraulic balconies
• Professional interior cleaning and disinfection
• Tender serviced
• Polishing front glass
• Cleaning all the water tubes
• Air-condition pumps serviced
• Water pumps serviced
• All RINA certificates are issued and up to date
