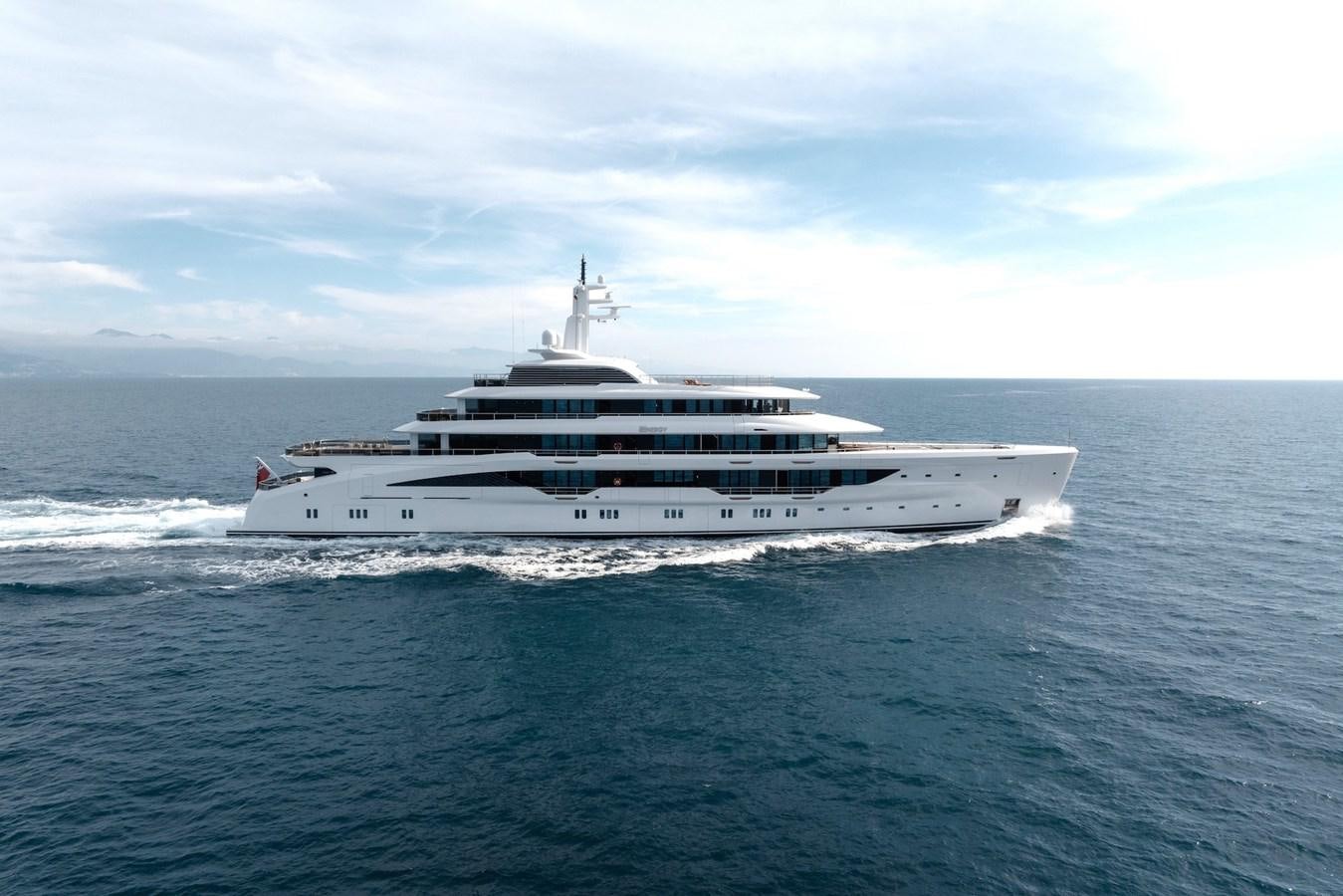

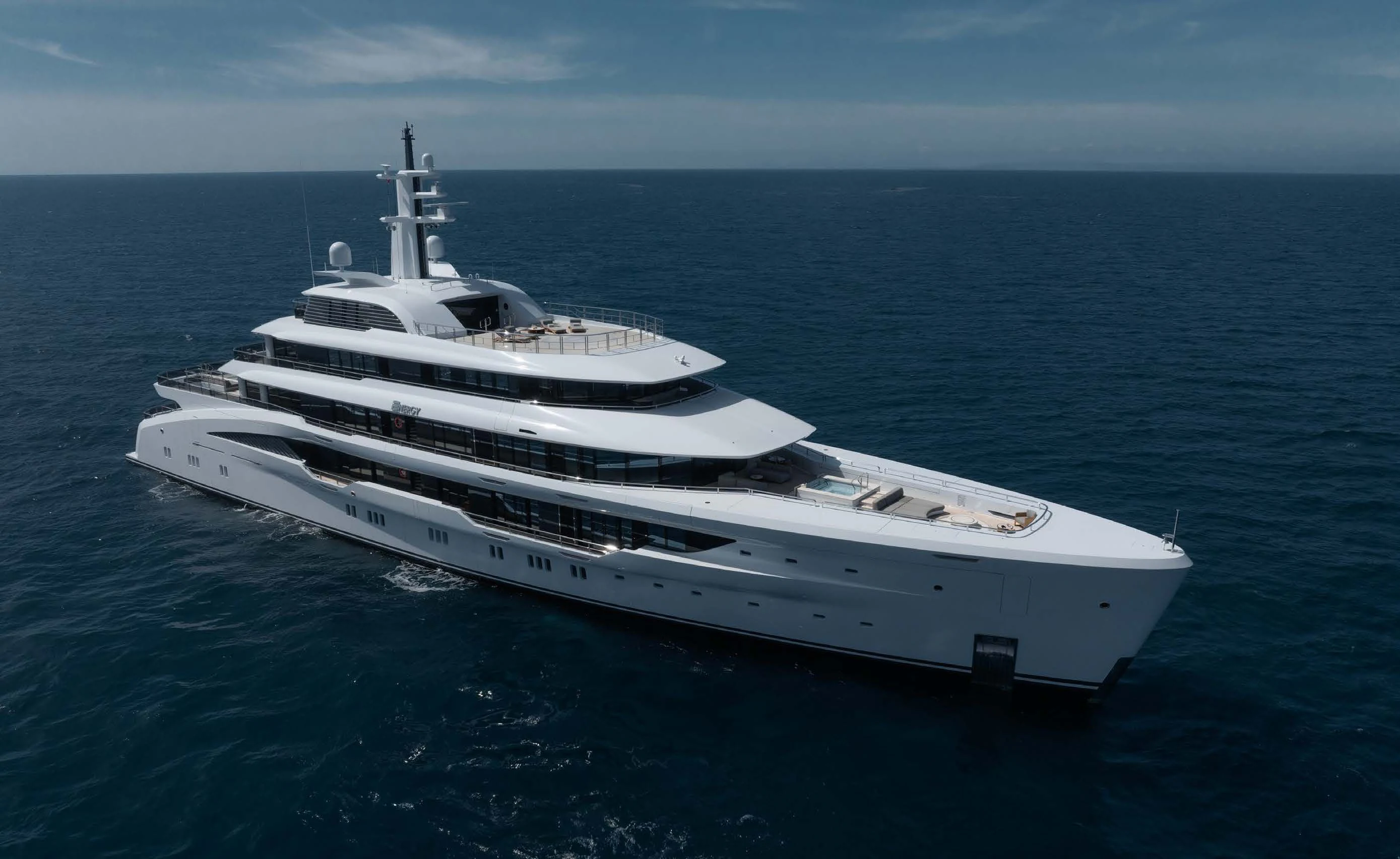

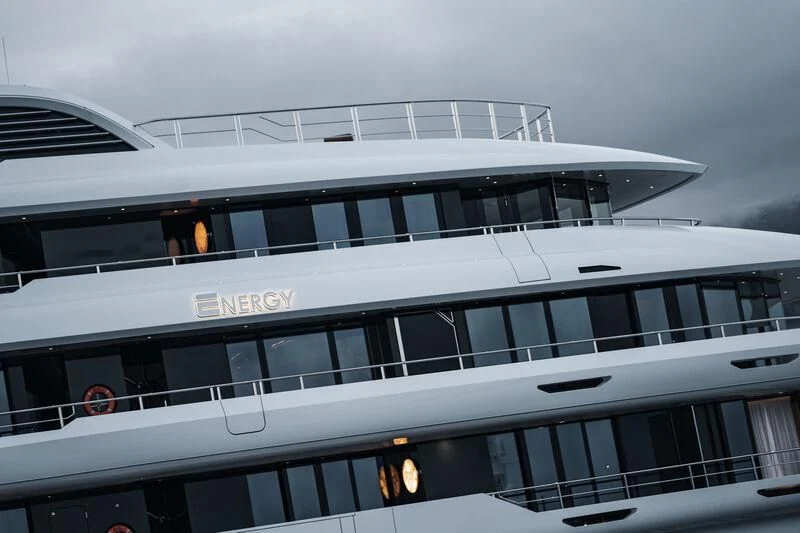

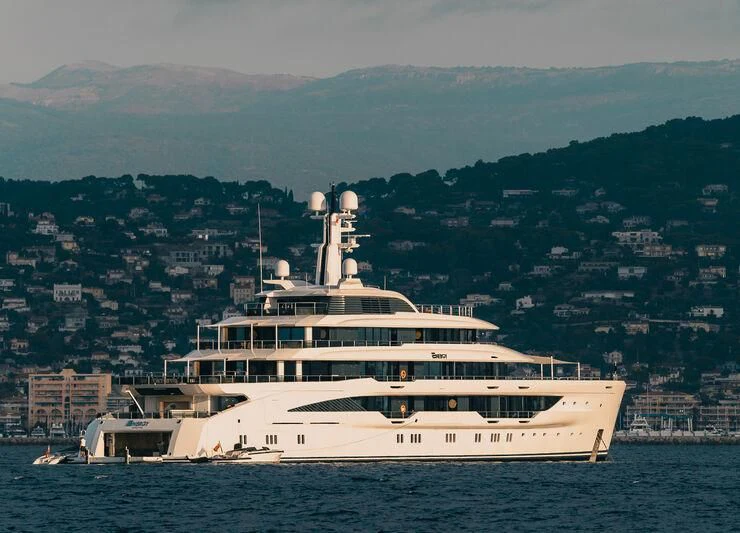

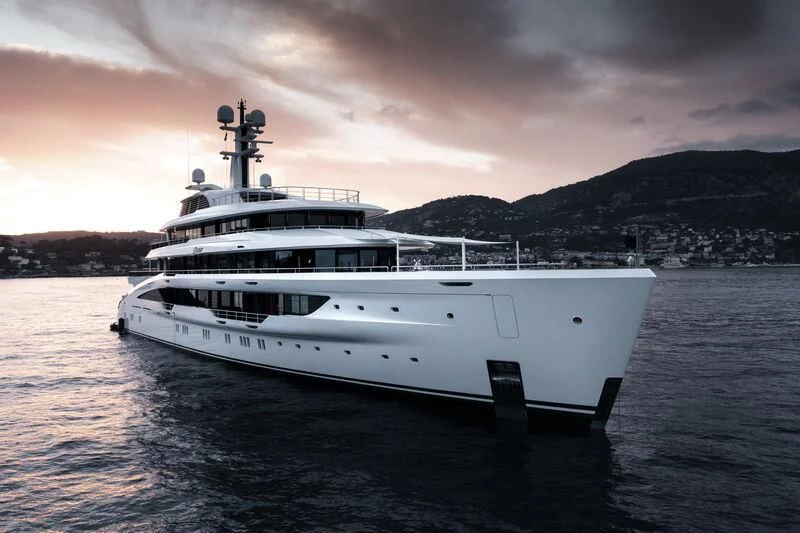

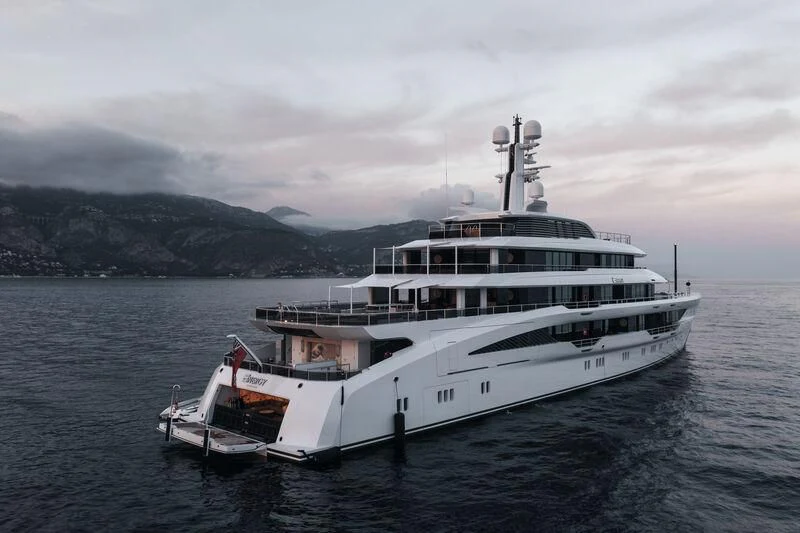

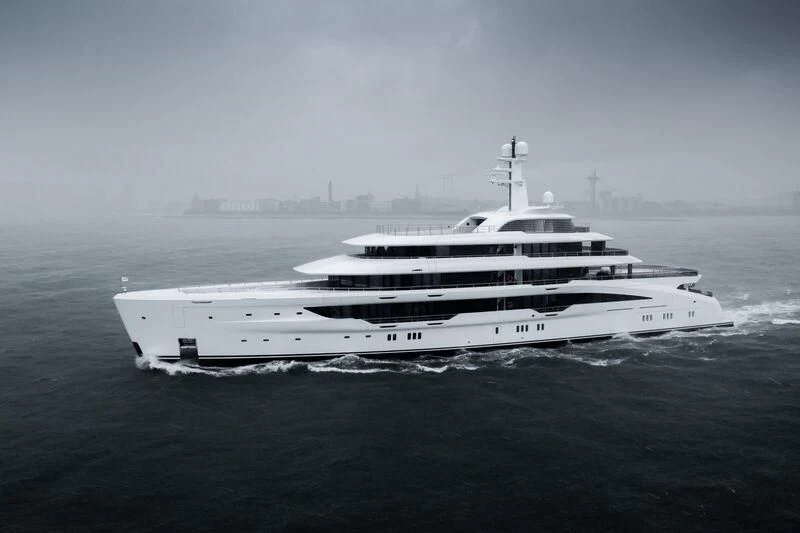

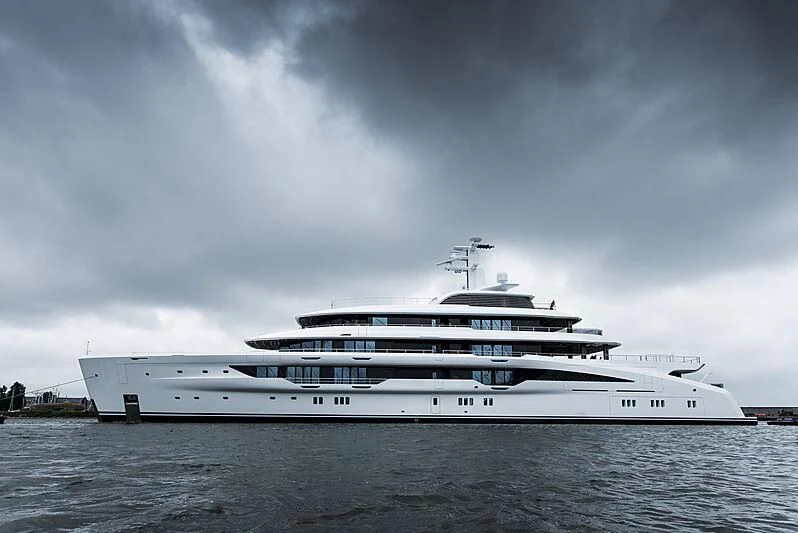

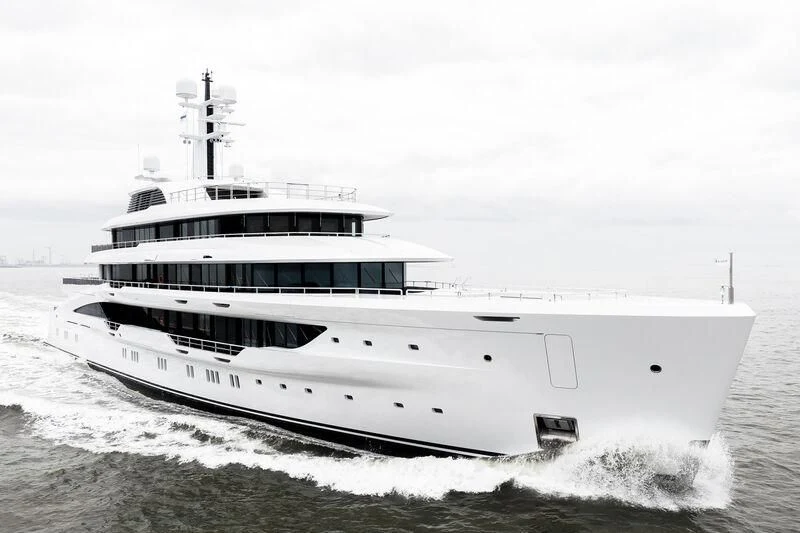

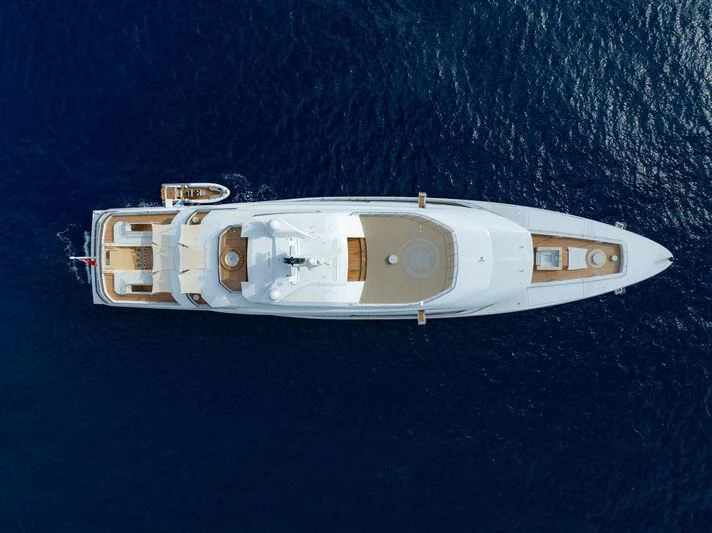

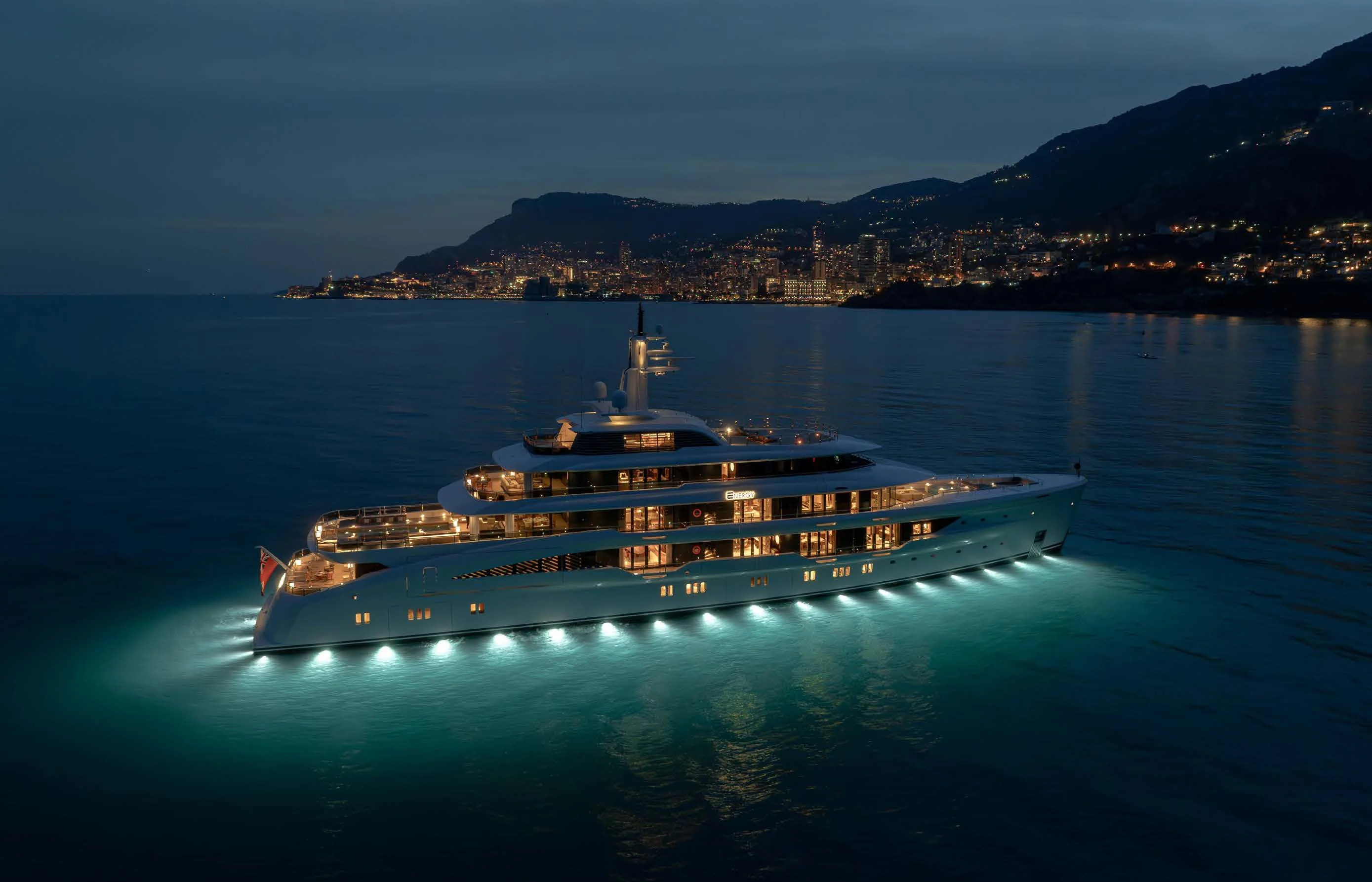

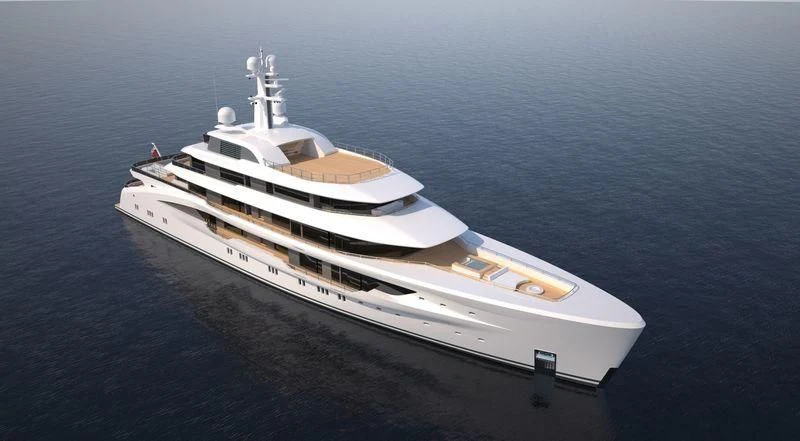

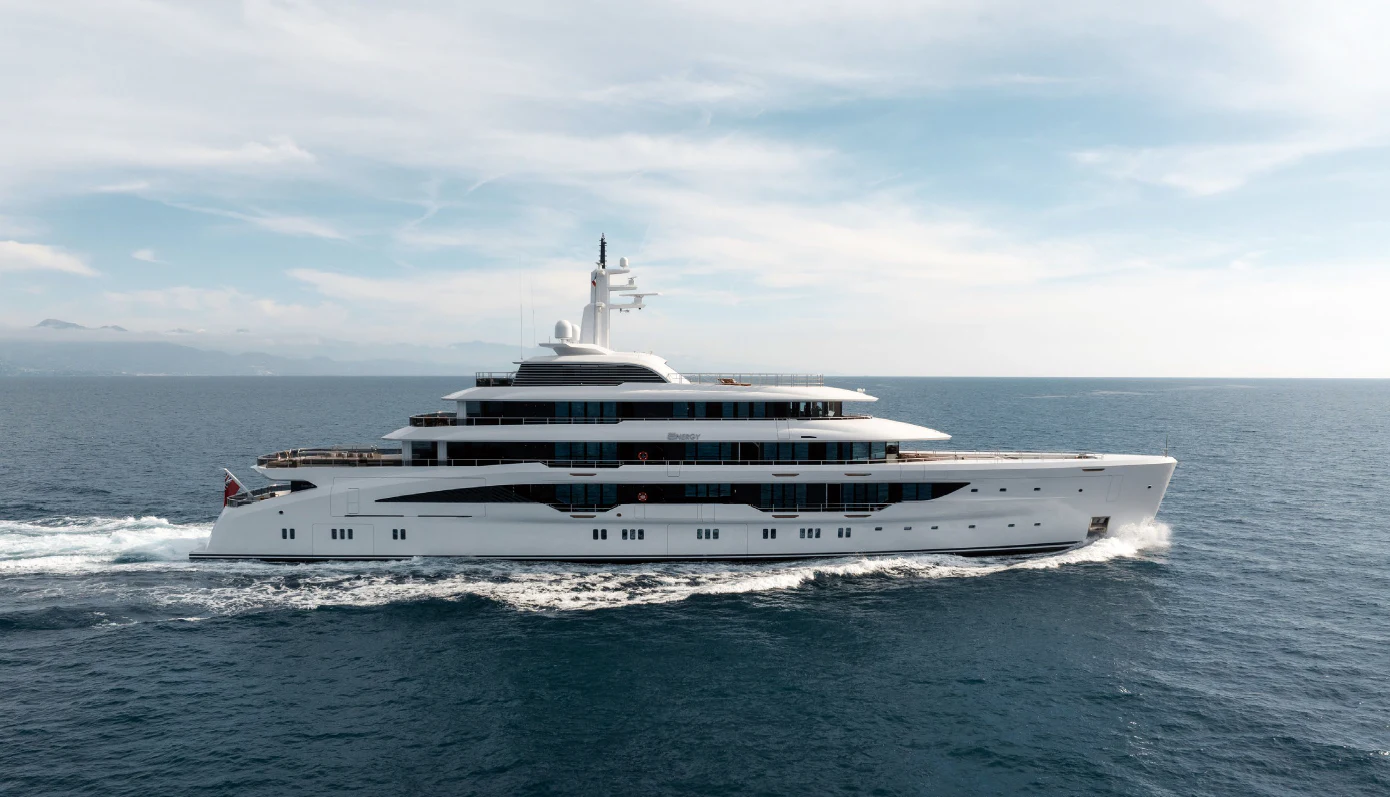

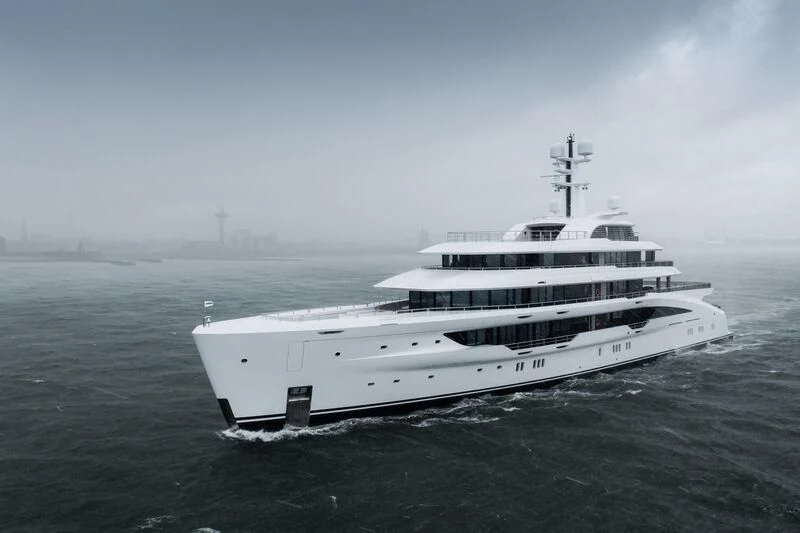

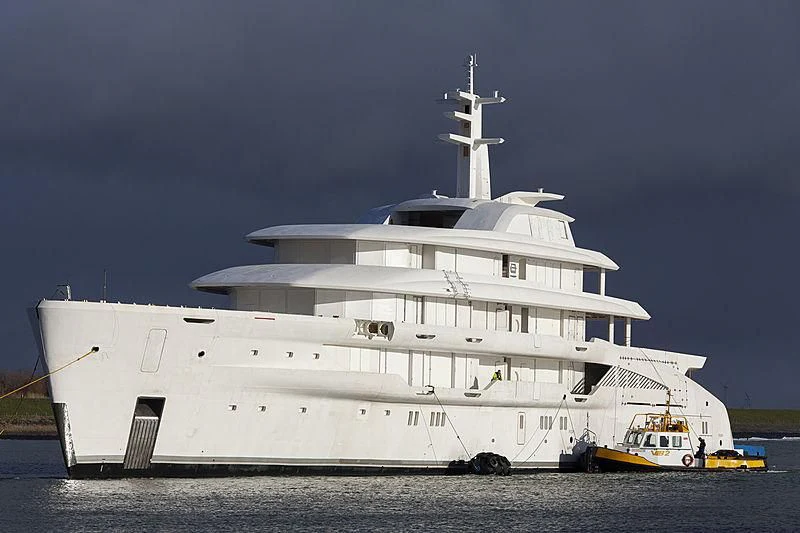

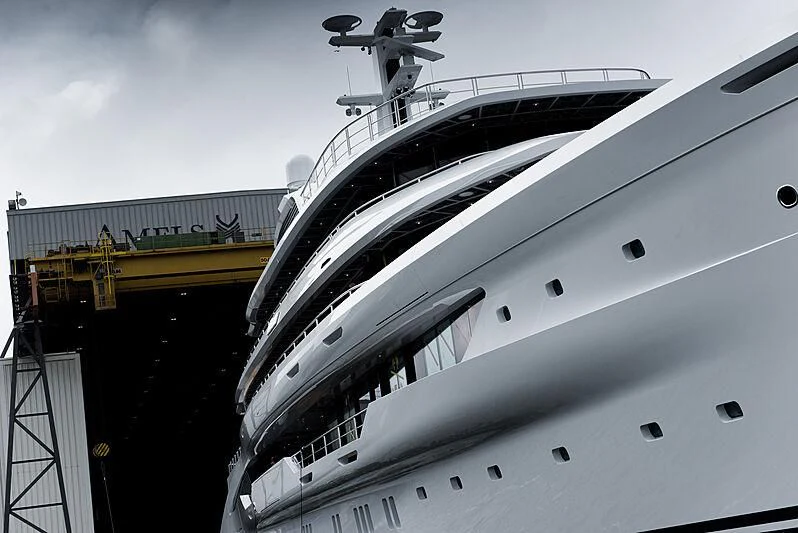

ENERGY Yacht for Sale

PROPELLERS

• 2x 5 Blade
• Diameter propeller: 1850 [mm]

SHORE POWER

• Shore Connection – Transformer 300 kVA/400VAC
• Four (4) single core cables are provided, the 3 phase cables are suitable for the maximum load of the transformer. The cable length is thirty (30) m.
• A motorized cable reel is provided to store the shore cable as specified.

BATTERIES

• Low Voltage System 24 VDC
• Main engines and auxiliary engines
• Emergency Generator engine:
• General Service/Emergency Battery/Plant:
• GMDSS battery plant.

RUDDERS/STEERING SYSTEM

• The Yacht is fitted with two (2) balanced spade rudders. The rudders are of a welded steel construction and are double plated. Each rudder has streamlined sections and has appropriate rudder area for good directional stability and manoeuvrability The rudder trunks are adequately built into the hull framing structure An oil-lubricated roller bearing is fitted on the upper side of each rudderstock.

STABILIZERS

• Naiad Hydraulic power unit 2x18,5 kW
• The Yacht is provided with four (4) stabilizer fins for active roll damping from zero to maximum speed. The two (2) forward fins are installed in a dedicated watertight compartment around Fr 74 – 80, the aft two (2) fins are fitted in the engine room. Location and construction as per section 0010. The dimensions and shape of the fins are designed for optimised performance at zero speed (at anchor) and a cruising speed of 14 kn.

FUEL OIL SEPARATOR

• Alfa Laval P605

OIL/WATER SEPARATOR

• Facet CPS-2,5B MKIII+EBM

BILGE PUMP

• Bilge / Fire Pump, 39-26m3 / hour at 0.95 / 5.5 bar x 1

FIRE PUMP

• Fire / Bilge Pump, 37-25m3 / hour at 0.95 / 5.5 bar x 1

EMERGENCY FIRE/BILGE PUMP

• Emergency Fire / Bilge Pump, 37-25m3 / hour at 0.95 / 5.5 bar x 1

BOILERS

• 3 x 1,000 litres & 1 x 600 litres of Hot water

SEWAGE TREATMENT

• Hamann AG HL cont plus 10

WC's

• EVAC OPTIMA 5 WALL TOILET

AIRCONDITIONING & VENTILATION

• Heinen & Hopman Engineering
• Airconditioning
• Chilled Water Plant
• Warm Water Plant
• Mechanical Ventilation Exhaust
• Mechanical Ventilation Supply

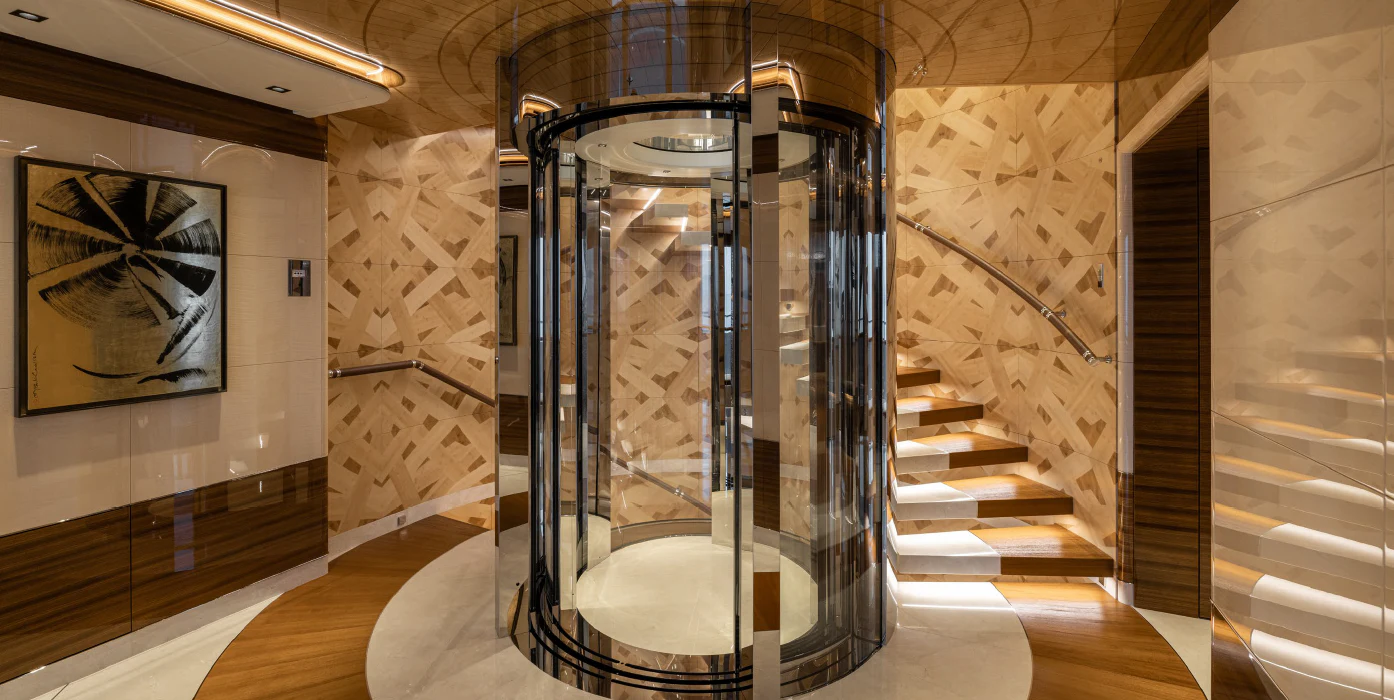

ELEVATORS

• Holland Marine Lifts
• 1 x Guest Elevator
• 1 x Crew Elevator
• 1 x Dumb waiter

• Accommodation for 14 guests in 7 cabins

OWNER

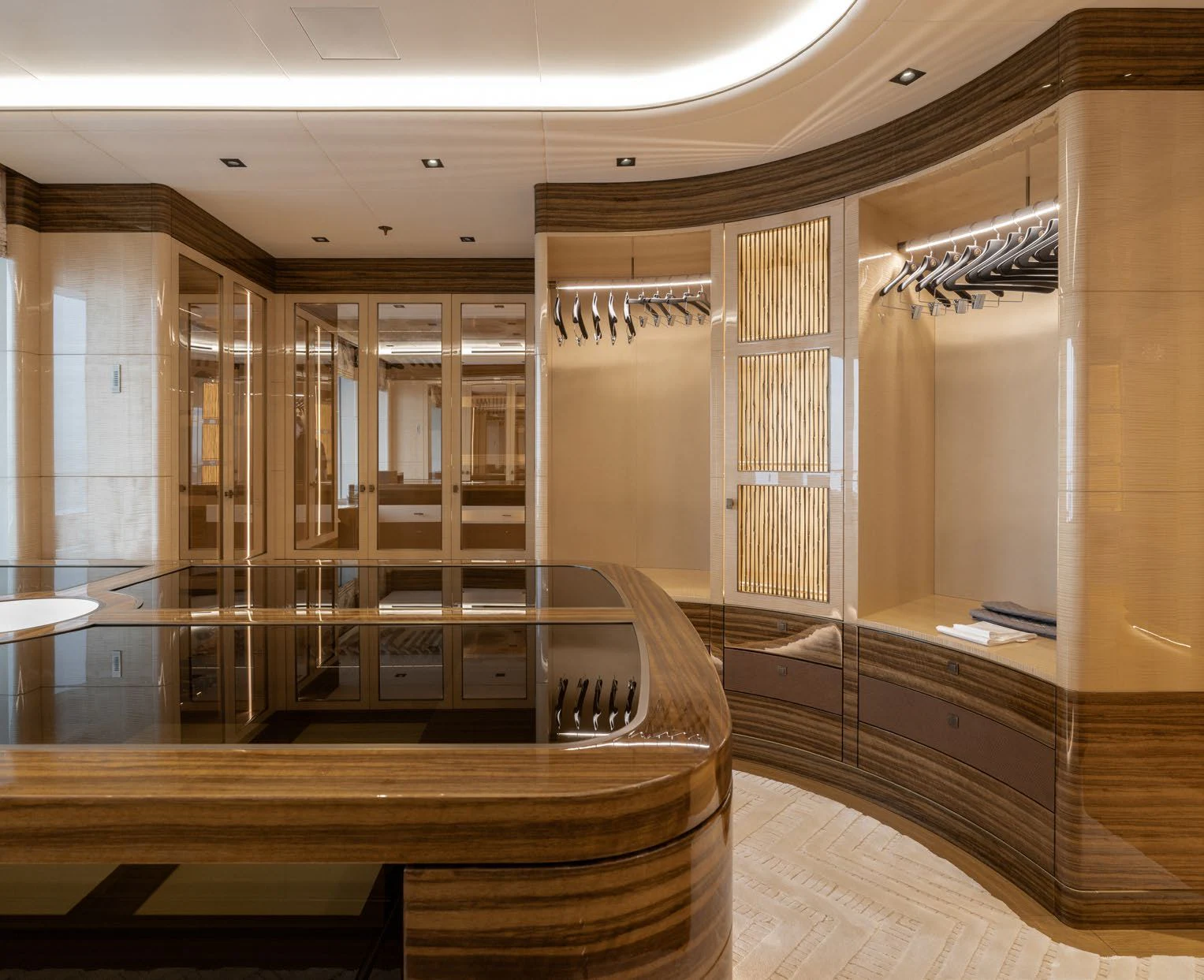

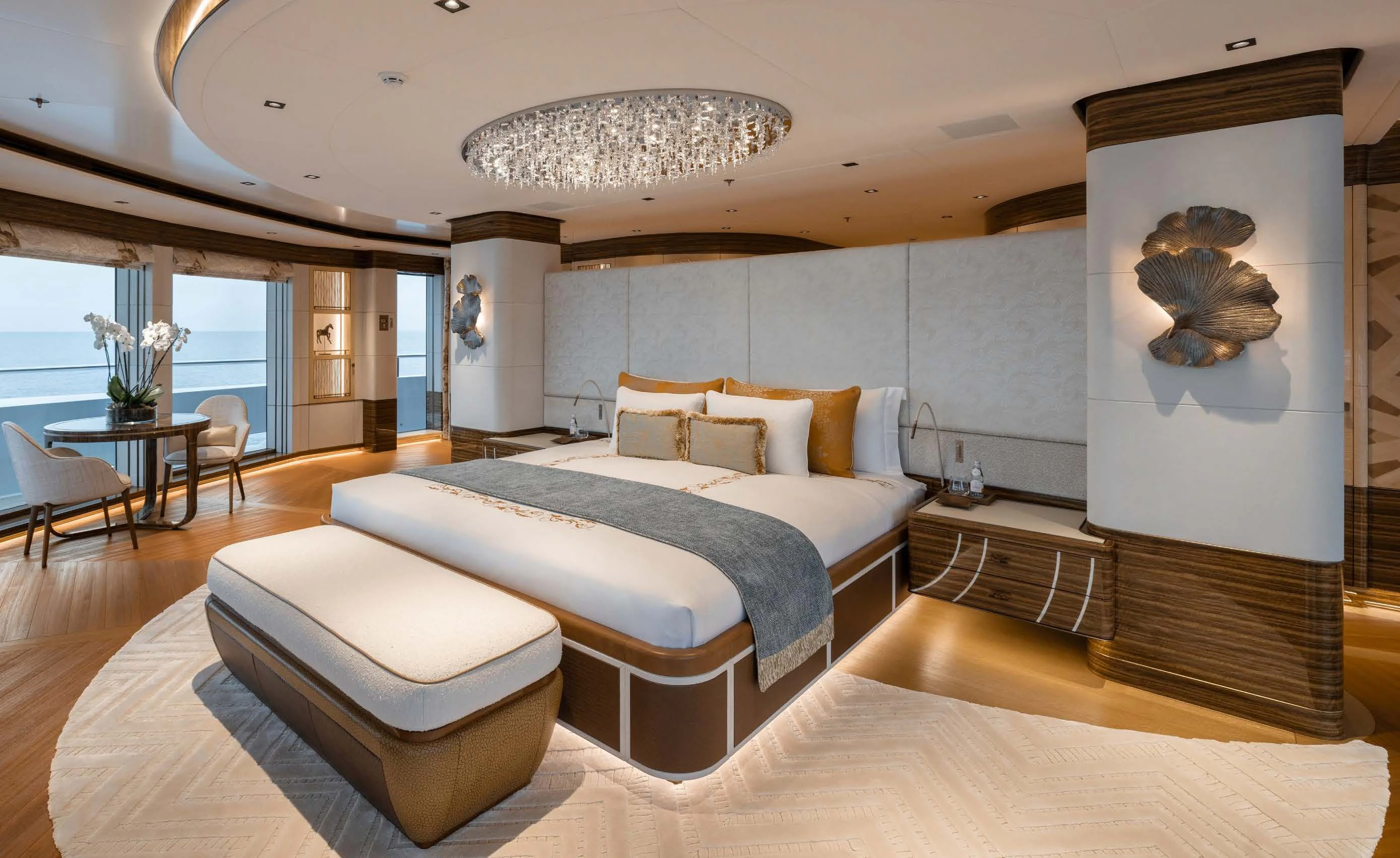

• Owner’s suite on upper deck with large dressing room and en suite bathroom

GUESTS

• 2 x VIP cabins on main deck with en suite bathrooms
• 4 x double guest cabins on lower deck with en suite bathrooms

CREW

• 27

LAUNDRY

• 2x Miele Professional PW 814 big capacity washing machine
• 2x Miele Professional PT 8257 WP big capacity drying machine
• Miele PW 6065 standard capacity washing machine

BRIDGE DECK PANTRY

• Miele fridge/freezer
• 1x Miele Dishwasher
• Panasonic NE-1037 Microwave

CREW MESS

• 1x Miele fridge/freezer
• 1x Miele fridge
• 2x Miele Dishwasher
• Panasonic NE-1037 Microwave

MAIN DECK PANTRY

• Miele Dishwasher
• 1x Miele Dishwasher
• Panasonic NE-1037 Microwave

SATCOM

• Dual Sailor 900 VSAT installation with arbitrator as a primary Satellite Internet connectivity system.
• Starlink dual High Performance flat panel installation
• Sailor 500 Inmarsat Fleet Broadband satellite communication system for satellite telephony and low bandwidth data communication.
• Two Sailor 6110 mini-C Inmarsat C maritime satellite transceiver with integrated GPS (Part of the GMDSS)

4G Receiver

• Peplink MAX-HD2-LTEA-WF

CELLULAR SYSTEM

• 2N Voice Blue Max GSM gateway.
• No onboard GSM distribution system

VHF RADIOTELEPHONES

• Sailor 6222 VHF DSC

SSB RADIOTELEPHONE

• Sailor 6300 MF/HF DSC SSB

WATCHKEEPING

• SM Electrics Integrated class approved BNWAS

AIRCRAFT EMERGENCY COMMS

• I-Com, Airband Radios x 2

TELEPHONE

• CISCO ISR4331 /K9 gateway with UCM
• CISCO 7821 desk phones and 8821 handhelds

EXCHANGE

• No onboard exchange server

UHF COMMUNICATIONS

• Hytera digital mobile radio system with a single RD985S base station/repeater and Hytera HP685 handhelds.

• MAGNETIC COMPASS: Cassens & Plath Reflecta
• GYRO COMPASS: Anschutz Gyro Standard 22
• AUTOMATIC PILOT: NautoPilot 5000 Series
• LOG: Skipper EML224
• ECHO SOUNDER: Skipper ESN200
• RADAR: Radar Synapsis NX, X-Band & S-Band
• CHART PLOTTER: ECDIS Synapsis NX Upgraded to E05.03
• GPS: DGNSS System Sailor 6560 GNSS / Sailor 6570 DGNSS
• NAVTEX: NAVTEX Sailor 6390
• WIND INSTRUMENTS: Raytheon
• AIS: Furuno Sailor 6280

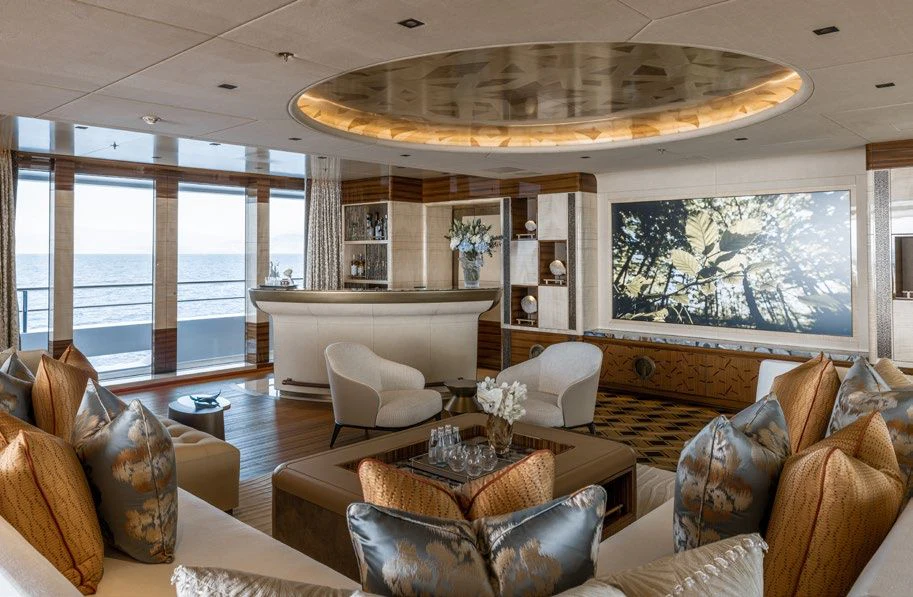

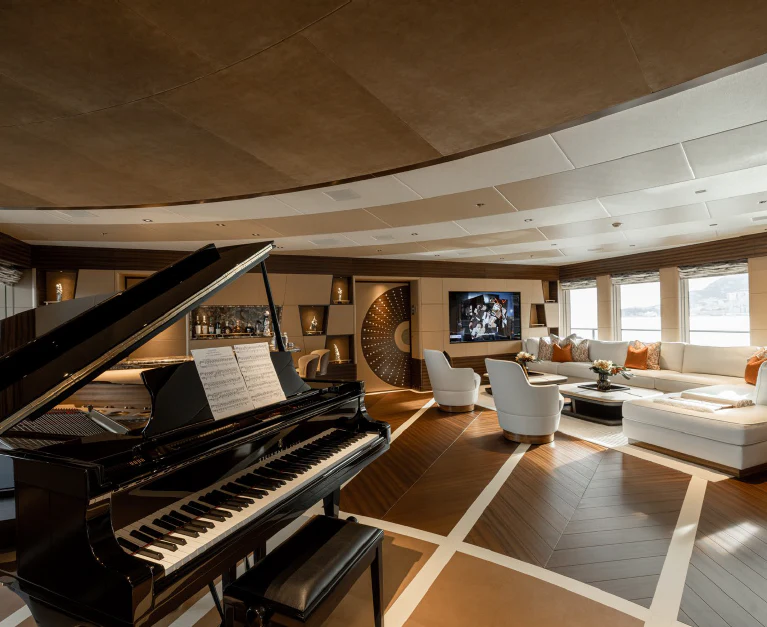

MAIN SALON

• Crestron DM-NVX-351 endpoint, Sony 4K 85” Display
• Dante digital audio distribution, Ceiling integrated James Loudspeakers QXC 820S

UPPER DECK LOUNGE

• Crestron DM-NVX-351 endpoint, LG 98” 4K Display
• Dante digital audio distribution, Ceiling integrated CAT speakers (California Audio Technology – Elite Sausalito Marine)

BRIDGE DECK MUSIC LOUNGE

• Crestron DM-NVX-351 endpoint, Sony 4K 77” Display
• Dante digital audio distribution, Ceiling integrated CAT speakers (California Audio Technology – Elite Sausalito Marine)

SUN DECK

• Dual Crestron DM-NVX-351 endpoints with two SAMSUNG 65” Terrace (outdoor designated) 4K displays
• Dante digital audio distribution, Ceiling integrated B&W Marine Speakers

OWNERS CABIN

• Crestron DM-NVX-351 endpoint, Sony 4K 77” Display Future Automation TV lift
• Dante digital audio distribution,
• Ceiling integrated James speakers
• (James Loudspeakers – QXC820S)

GUEST CABINS

• Crestron DM-NVX-351 endpoint, Sony 4K 65” Display
• Dante digital audio distribution, Ceiling integrated B&W speakers (B&W CCM362)

CAPTAIN´S CABIN

• Crestron DM-NVX-351 endpoint, Sony 4K 49” Display
• Dante digital audio distribution, Ceiling integrated B&W speakers (B&W CCM362)

CREW CABINS

• Lithe Audio Bluetooth Ceiling Speaker

CREWMESS

• Crestron DM-NVX-351 endpoint, Sony 4K 55” Display
• Dante digital audio distribution, Ceiling integrated B&W speakers (B&W CCM362)

GALLEY

• Ceiling integrated B&W speakers (B&W CCM362)

LAUNDRY

• Crestron DM-NVX-351 endpoint, Sony 4K 43” Display

OFFICE EQUIPMENT
BRIDGE DECK

• EPSON ET-16650 Printer

CREW MESS

• EPSON ET-5800 Printer

COMPUTERS

• 9psc of Dell XPS 15” Laptops
• Dell Latitude 5430 Toughbook
• iMac all-in-one desk computer
• 2pcs of Lenovo Think Station P360 with HP 27” monitors
• Fractal custom high performance tower PC with dual HP 27” monitors

SHIP'S SAFES

• 1 x Dometic Safe in Ships Office
• 1 x Dometic Safe in Captain Cabin
• 6 x Dometic Safe in Guest and VIP Cabins
• 1 x Stockinger Safe in Master Cabin
• 1 x Dometic Safe in Master Cabin
• 1 x Stockinger Safe in Owners Office

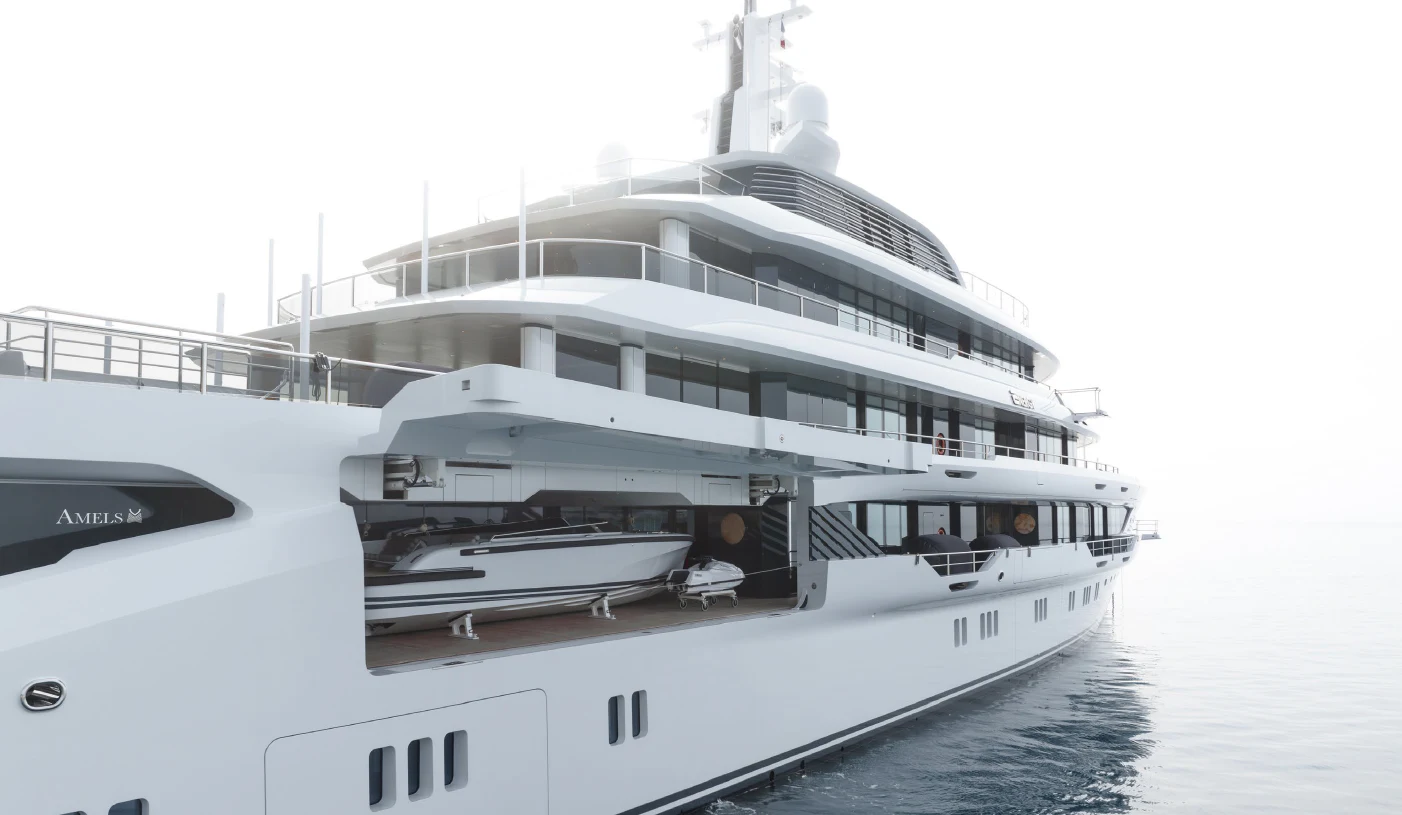

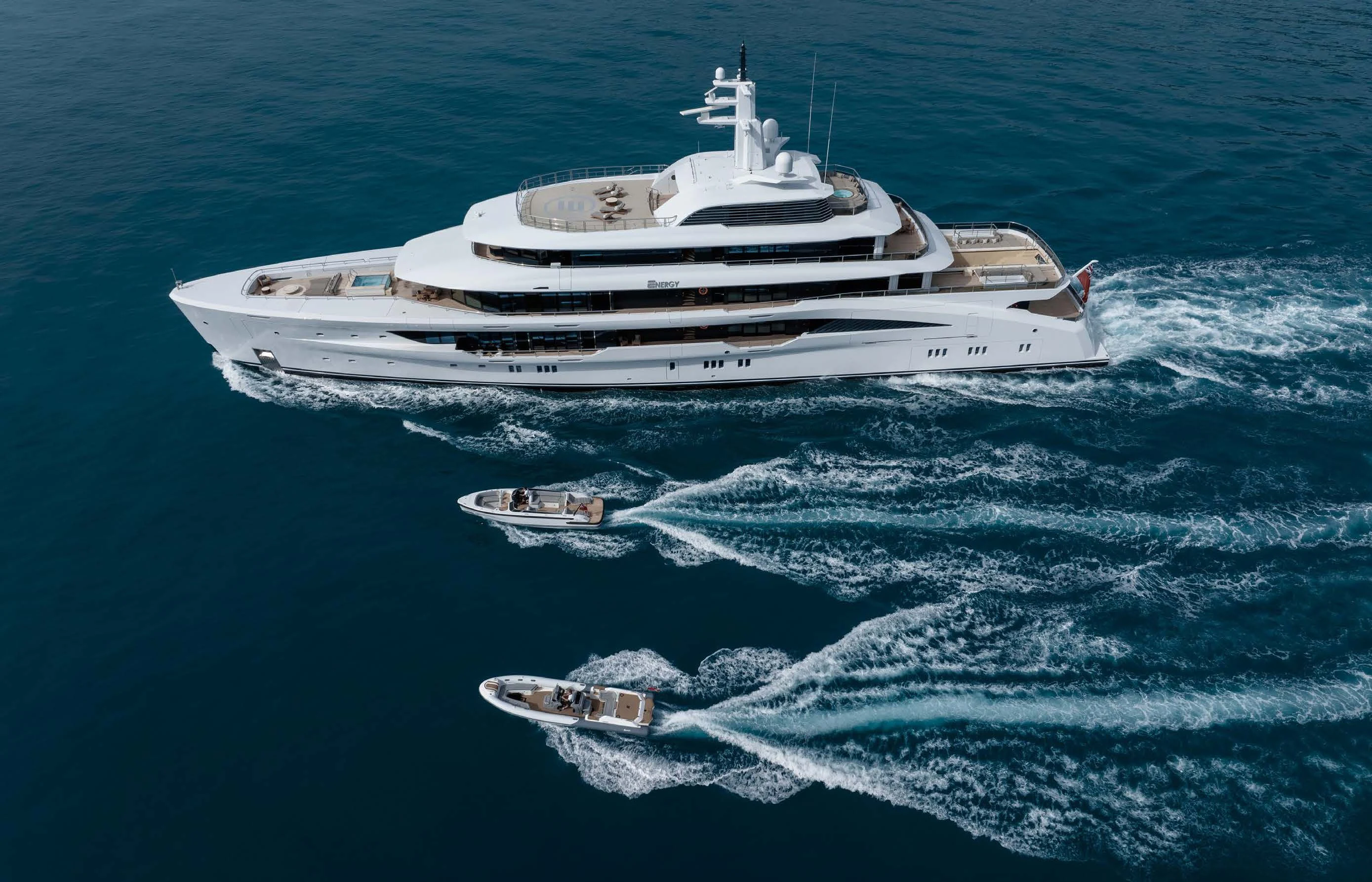

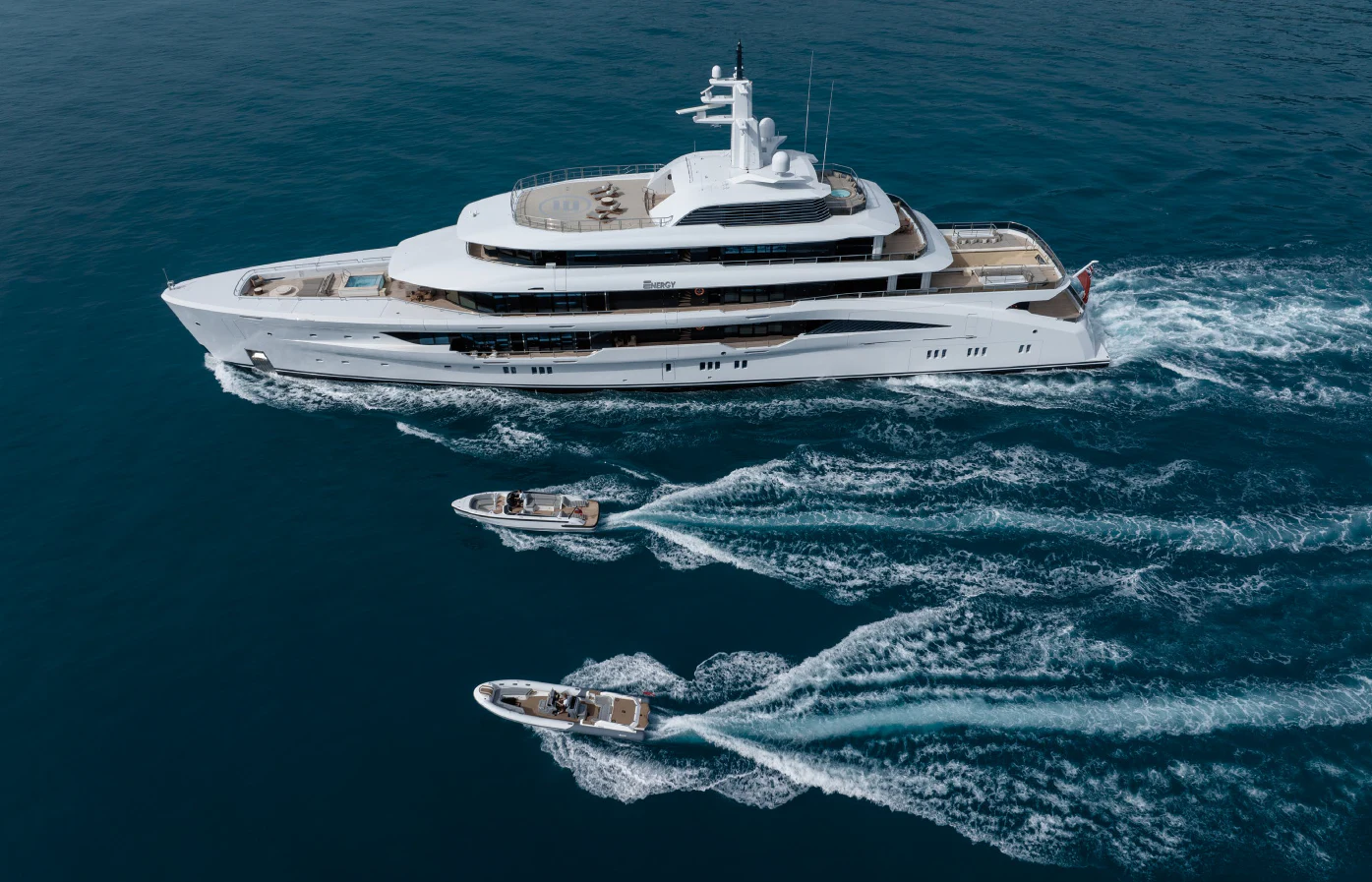

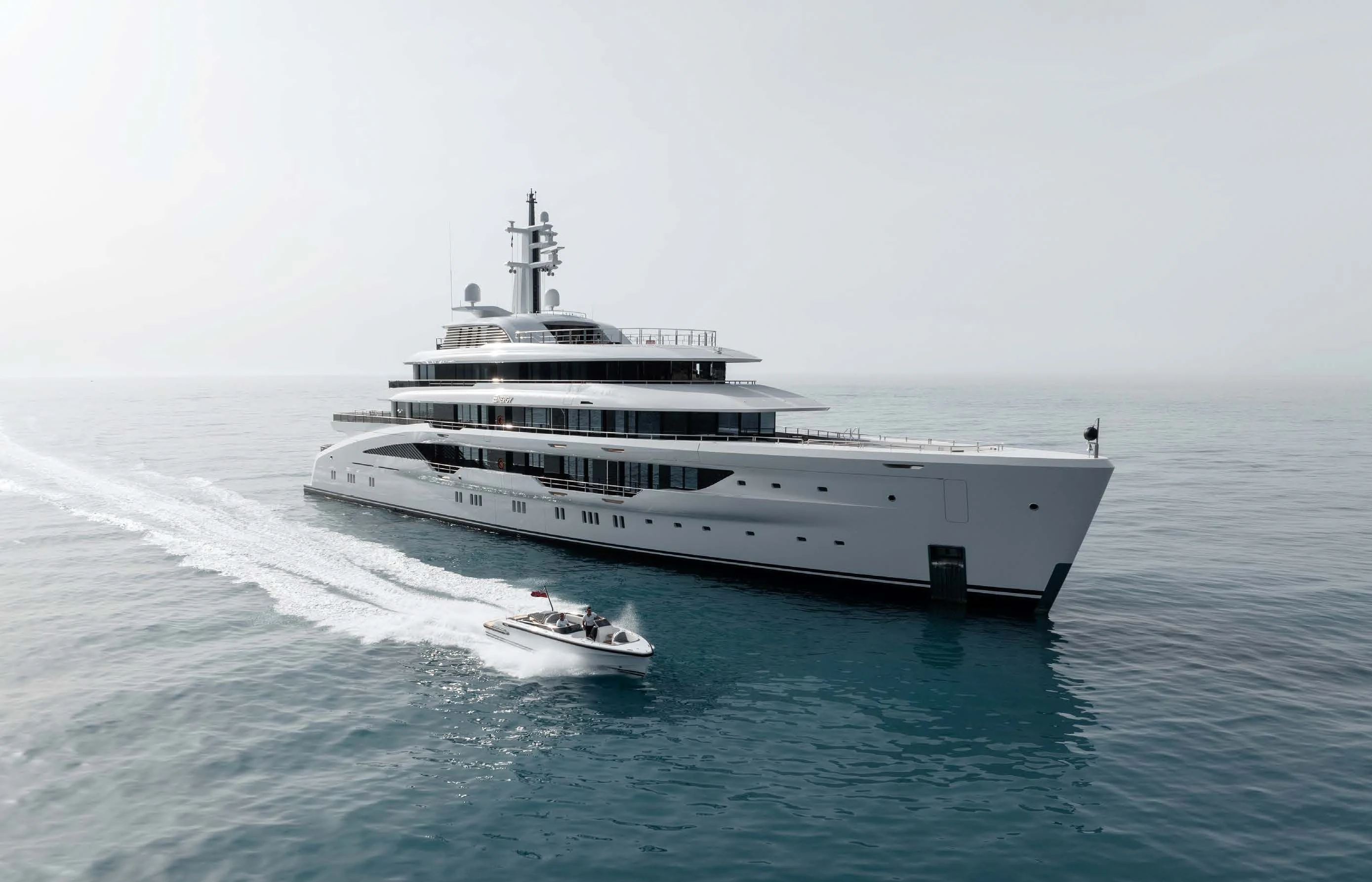

TENDERS

• Pascoe 10m, 500HP Yanmar x2 , 16 Pax
• Ribeye 9.8m 250HP Yanmar x 2, 14 Pax

WATERSPORTS EQUIPMENT

• Seadoo Jet ski GTX 300 Limited 2022 300HP x 2
• Seadoo Jet ski RXP-X 300HP x 1
• Seadoo Jet ski Spark Trixx – 3 UP 90 HP x 1
• Yamaha Stand up Super Jet 1095 cc x 2
• Jet Surf Awake Ravik 3 XR 57kph x 1
• E-Foil Flite board Series 2 Pro 55 kph x 1
• Wake board Ronix Quarter till Midnight x 1
• Wake board Ronix RXT Blackout x 1
• Water Bike Mirage Eclipse ACX 10.5 x 1
• Water Skis Hemi Combo 59” x 1
• Wake Surf Phase matrix pro premium skim
• Sea Bobs F5 SR 22km/h x 3

OTHER SPORTS EQUIPMENT

• Jobe Inflatable 4 Persons, Sonar x 1
• Jobe Inflatable 4 Persons, Chaser x 1
• Jobe Inflatable 3 Persons, Airstream II x 1
• Jobe Inflatable 1 Persons, Resolve x 2
• Jobe Inflatable 1 Persons, Hydra x
• Kayaks Carolina Deluxe x 3
• SUP Bluefin Cruise Carbon x 2
• SUP Elite MSL Inflatable x 1
• Slide FunAir Extreme Slide, 9 meters x 1
• Cressi SCUBA diving sets x 6

ANCHOR WINDLASS

• Muir VRC 22000

AFT WARPING CAPSTANS

• Muir

GROUND TACKLE

• M32, Polyester, Black Lines, 40mm - 25m, 35m, 40m, 60m

BOAT CRANE & DAVITS

• Van Driel - Rescue Boat Crane 1400KG SWL Knuckle Boom with extendable jib
• Van Driel – Tender Boat Double Telescopic Overhead Crane PS & SB sides. 4500KG SWL
• Jeremy Rogers – Portable Atlas Crane, 500KG SWL

PASSERELLE

• Winel

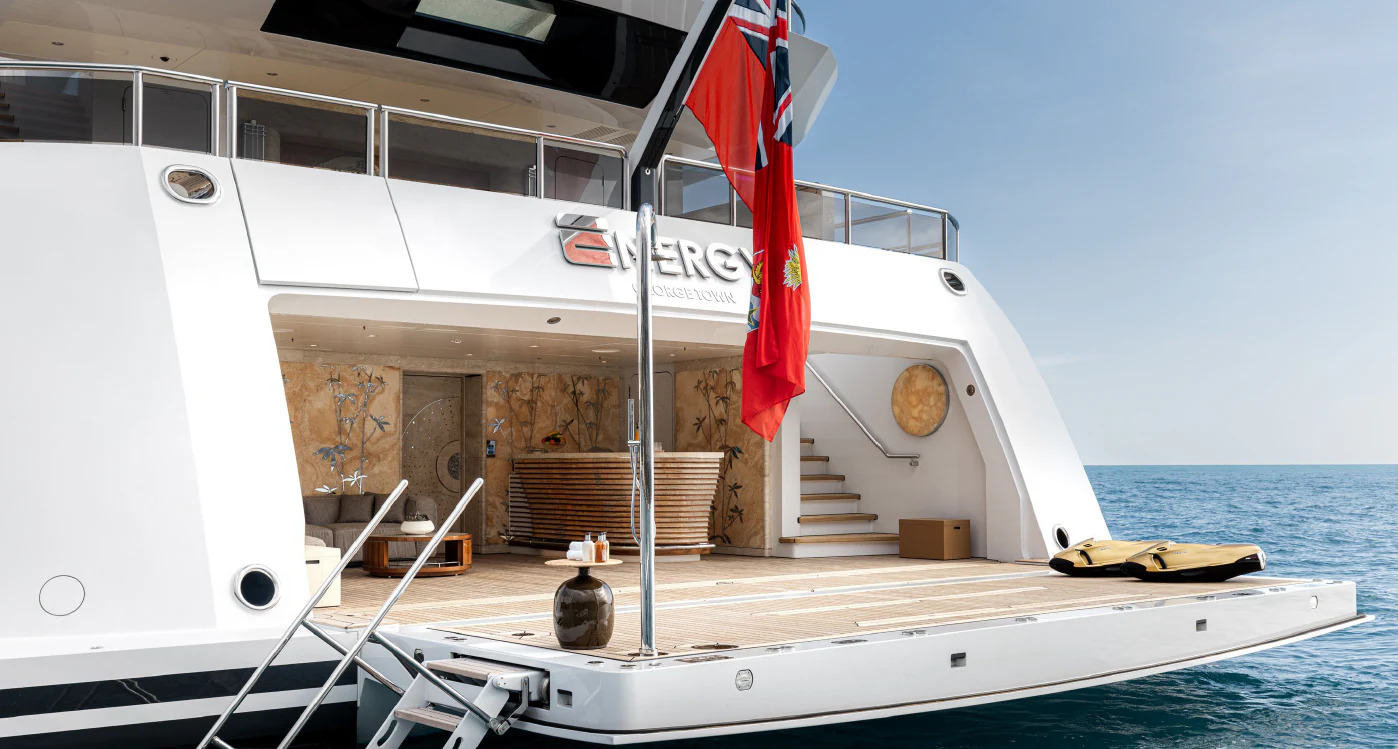

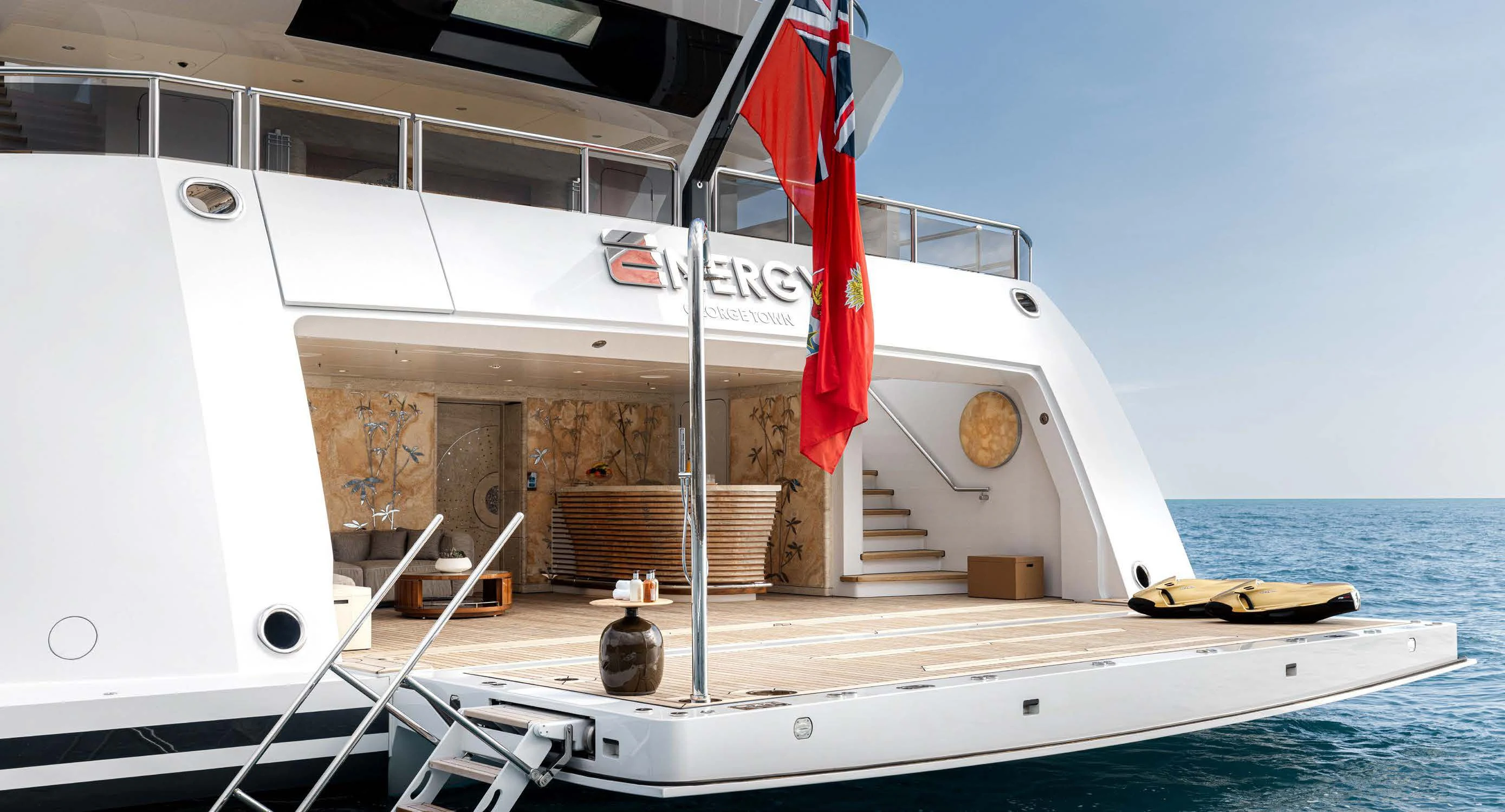

SWIMMING PLATFORM

• Winel & Newthex
• Transom Swim Platform, 7.6m x 2.1m
• Wellness Plartform, 2.1m x 10.2m
• Relax Platform, 2.1m x 3.8m
• Sea Entrance Platform, 2.1m x 5.1m

SEARCHLIGHT

• 2x SL2 Luminell

AWNING

• Sun Awnings, Reckmann. Long & Short versions, Max 30 knots during usage

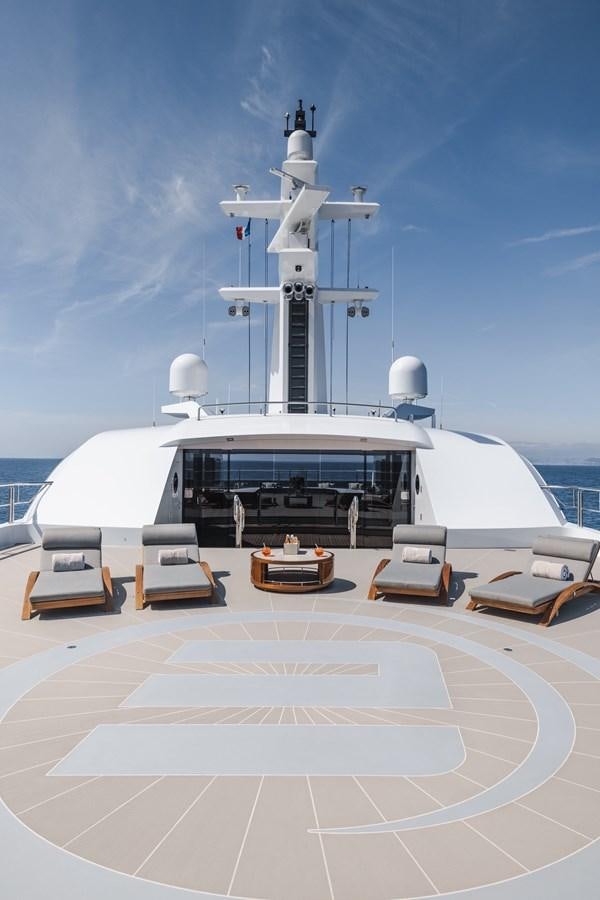

HELICOPTER CAPABILITY

• Touch & Go (maximum weight 3.700 kg)

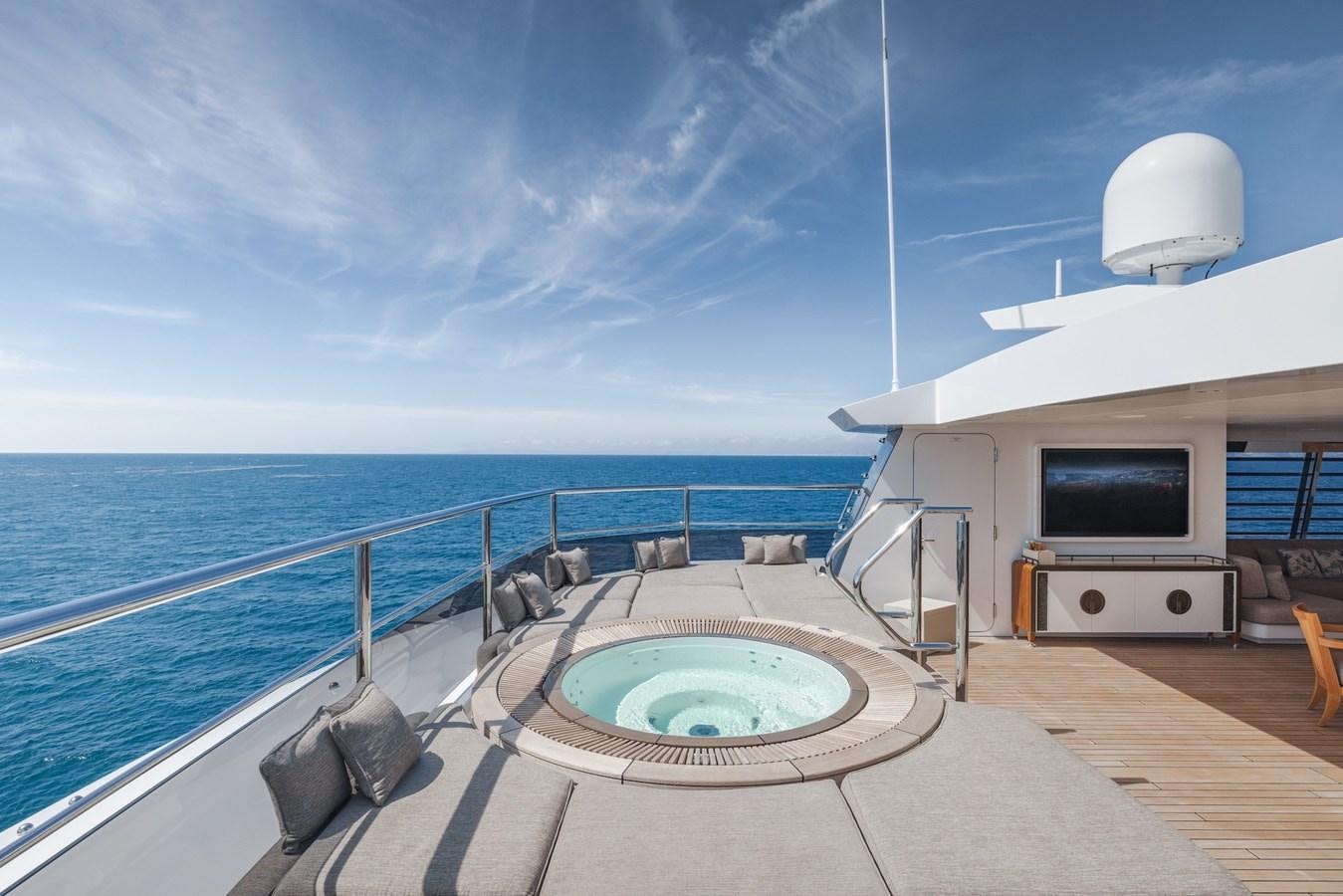

JACUZZI/POOL

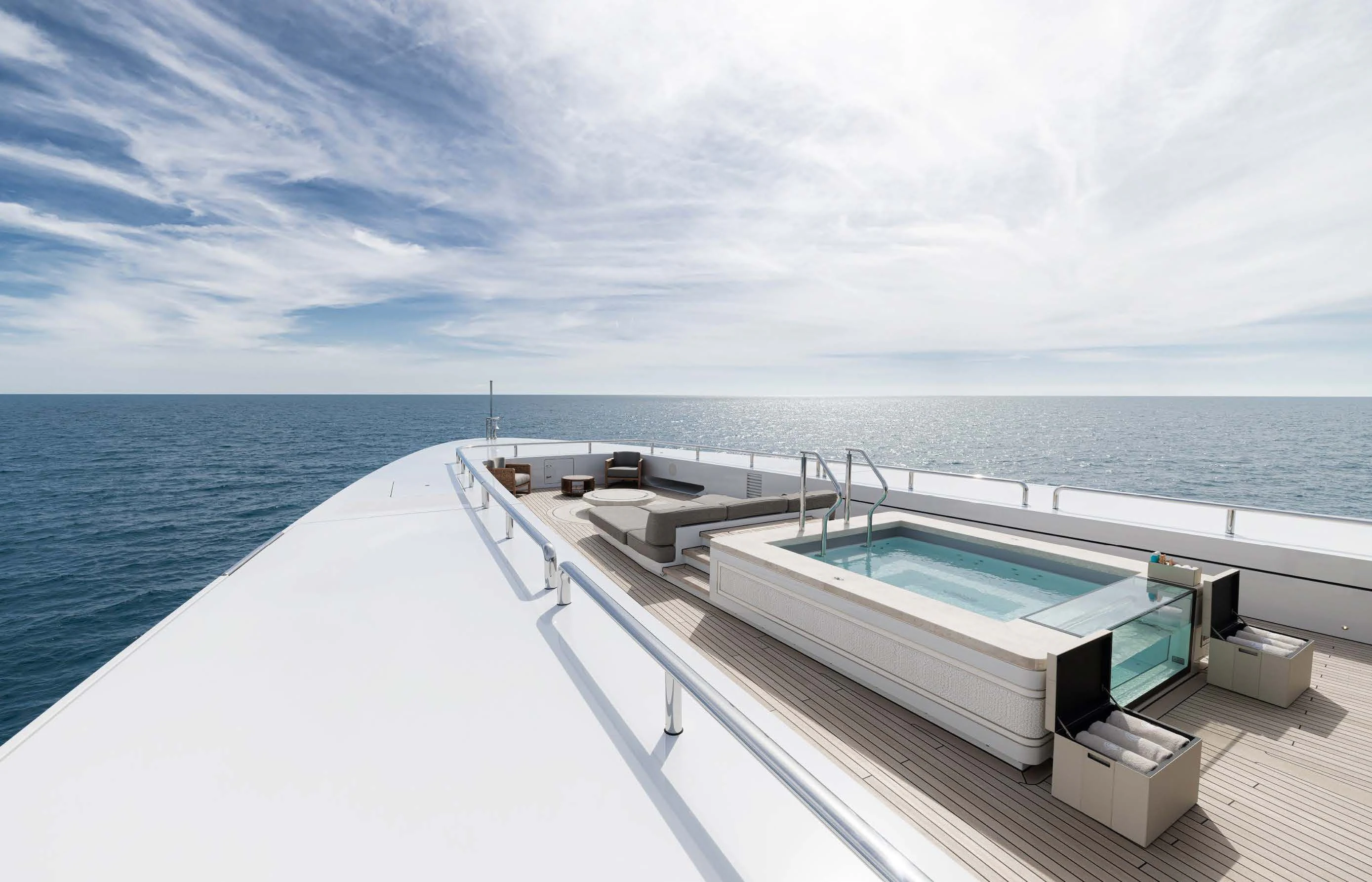

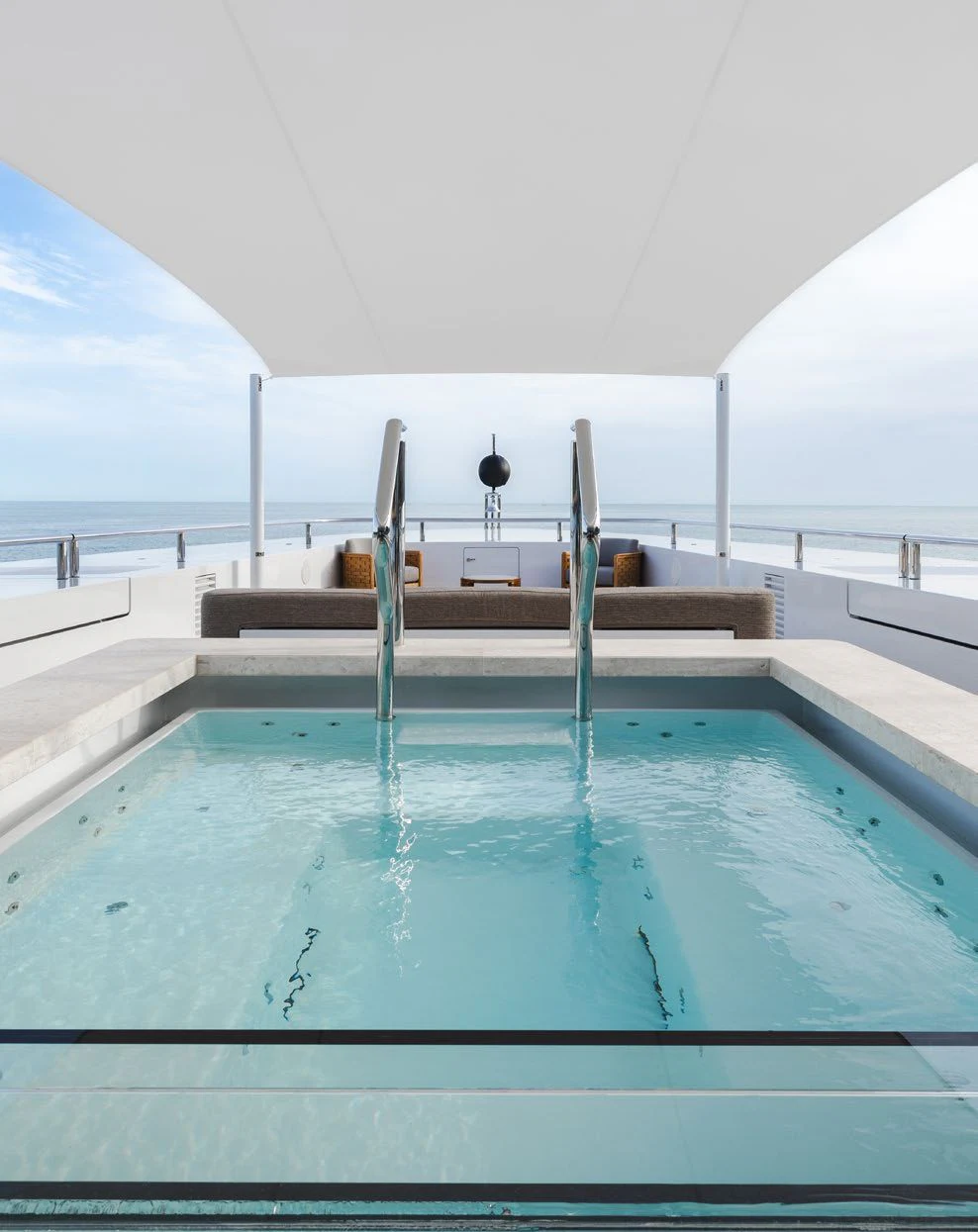

• 1 x Jacuzzi sun deck
• 1 x Whirlpool Upper deck forward

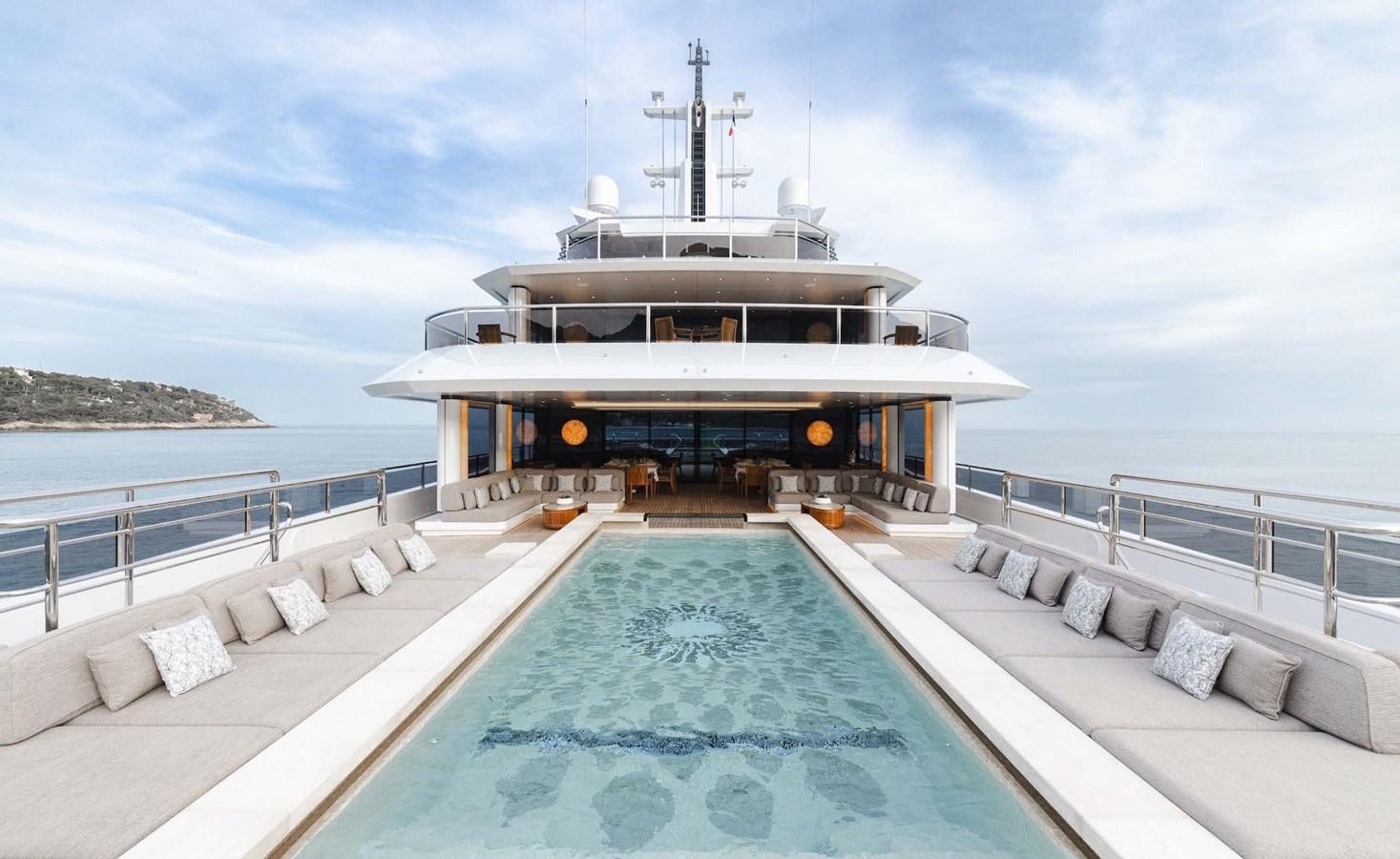

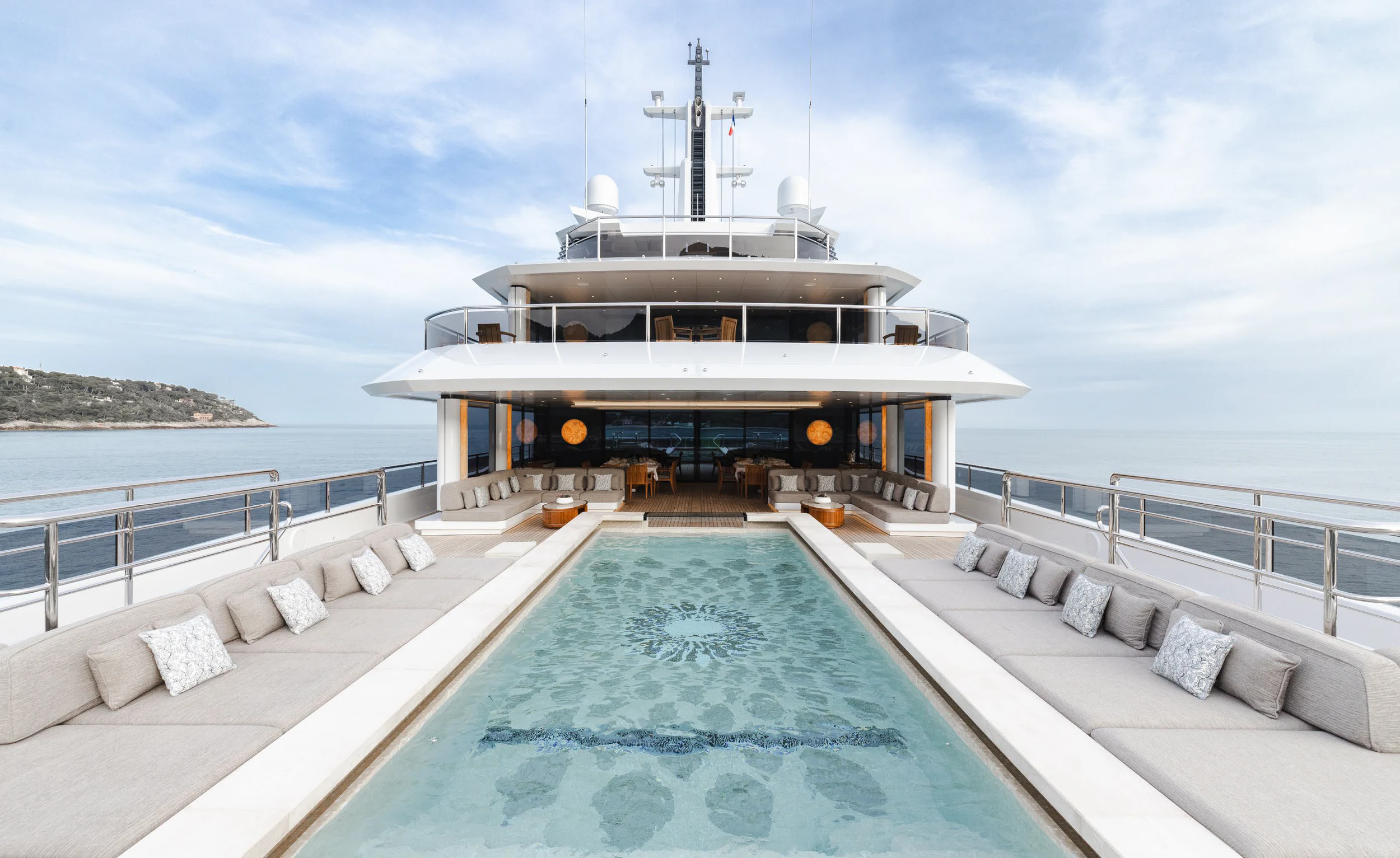

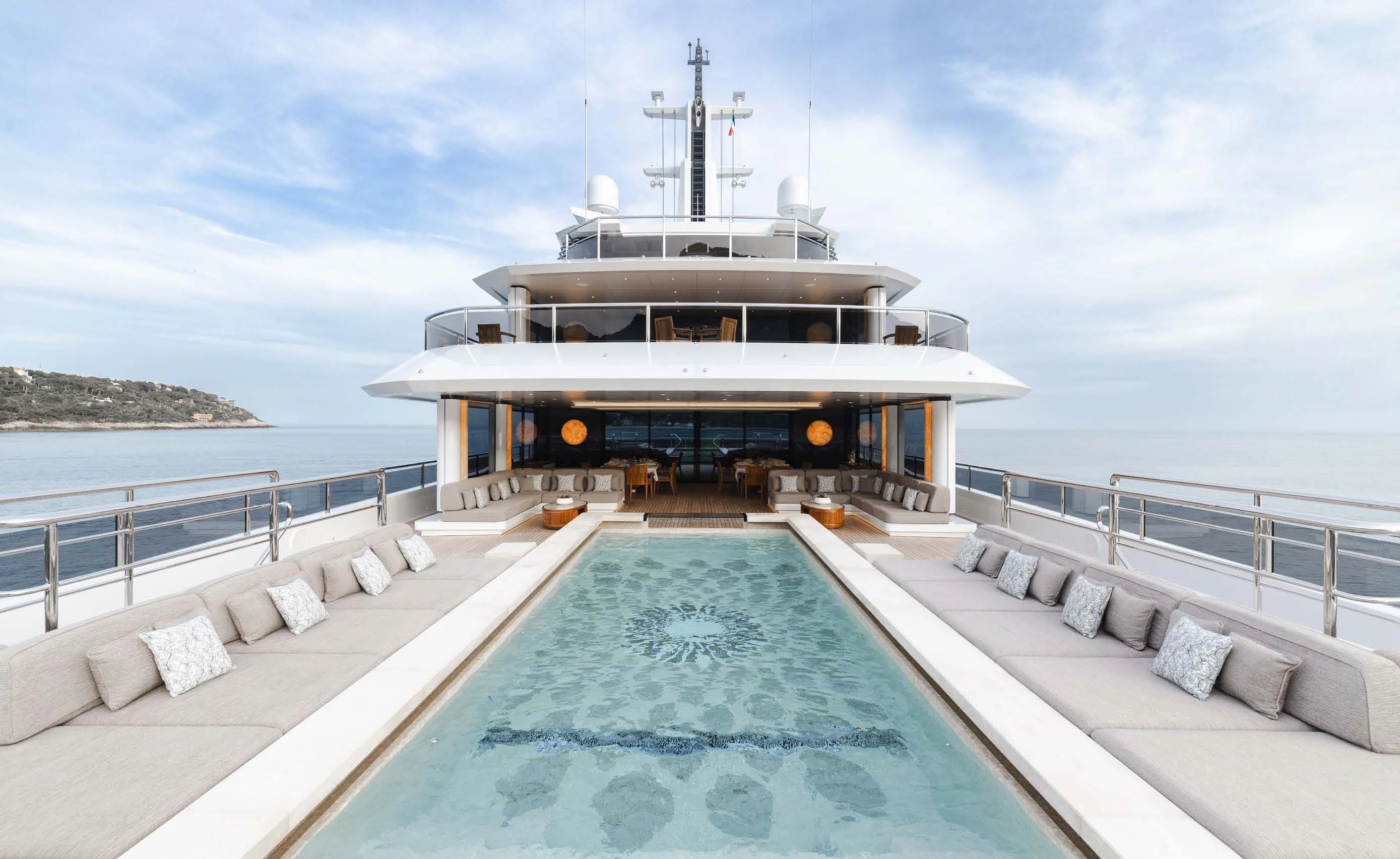

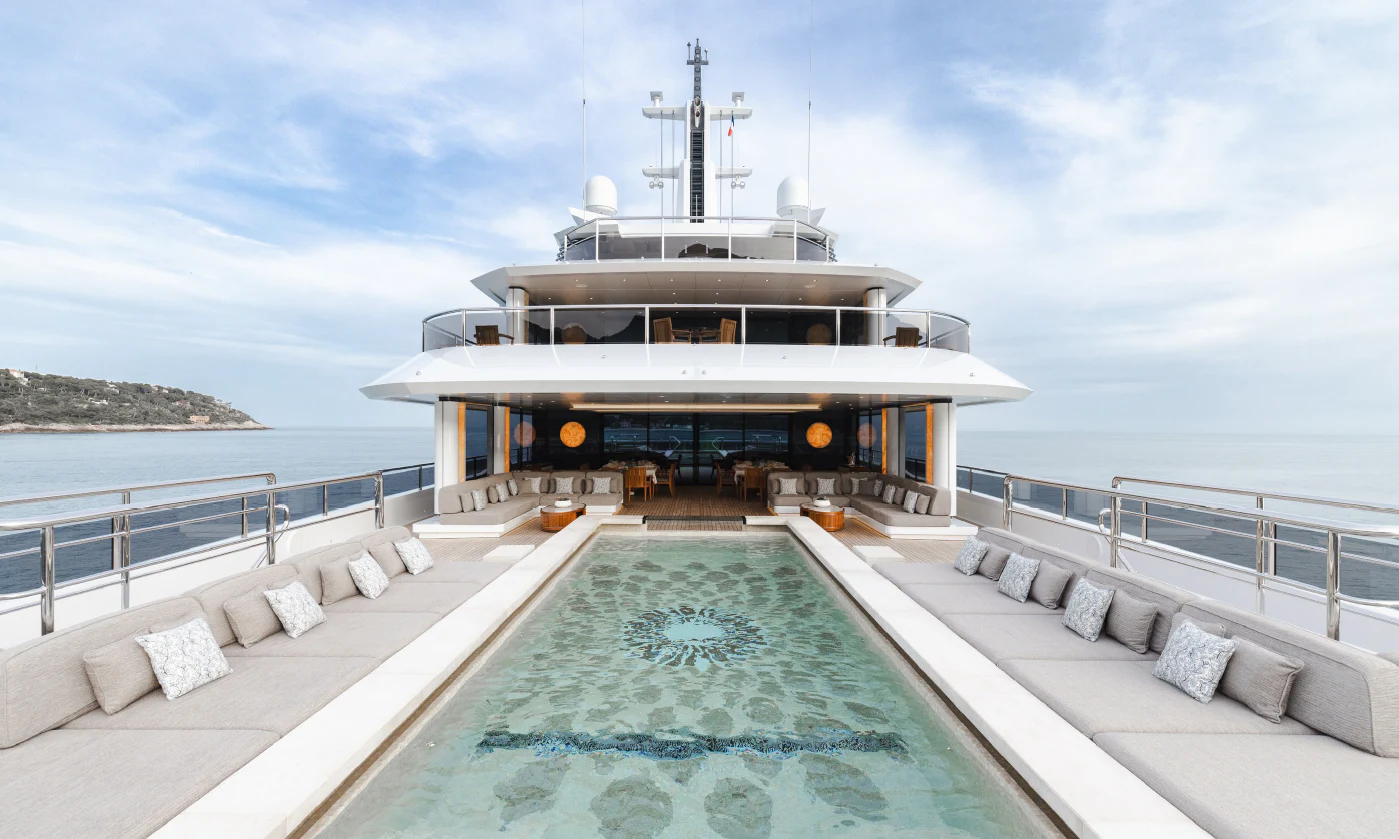

• 1 x Pool Upper deck aft

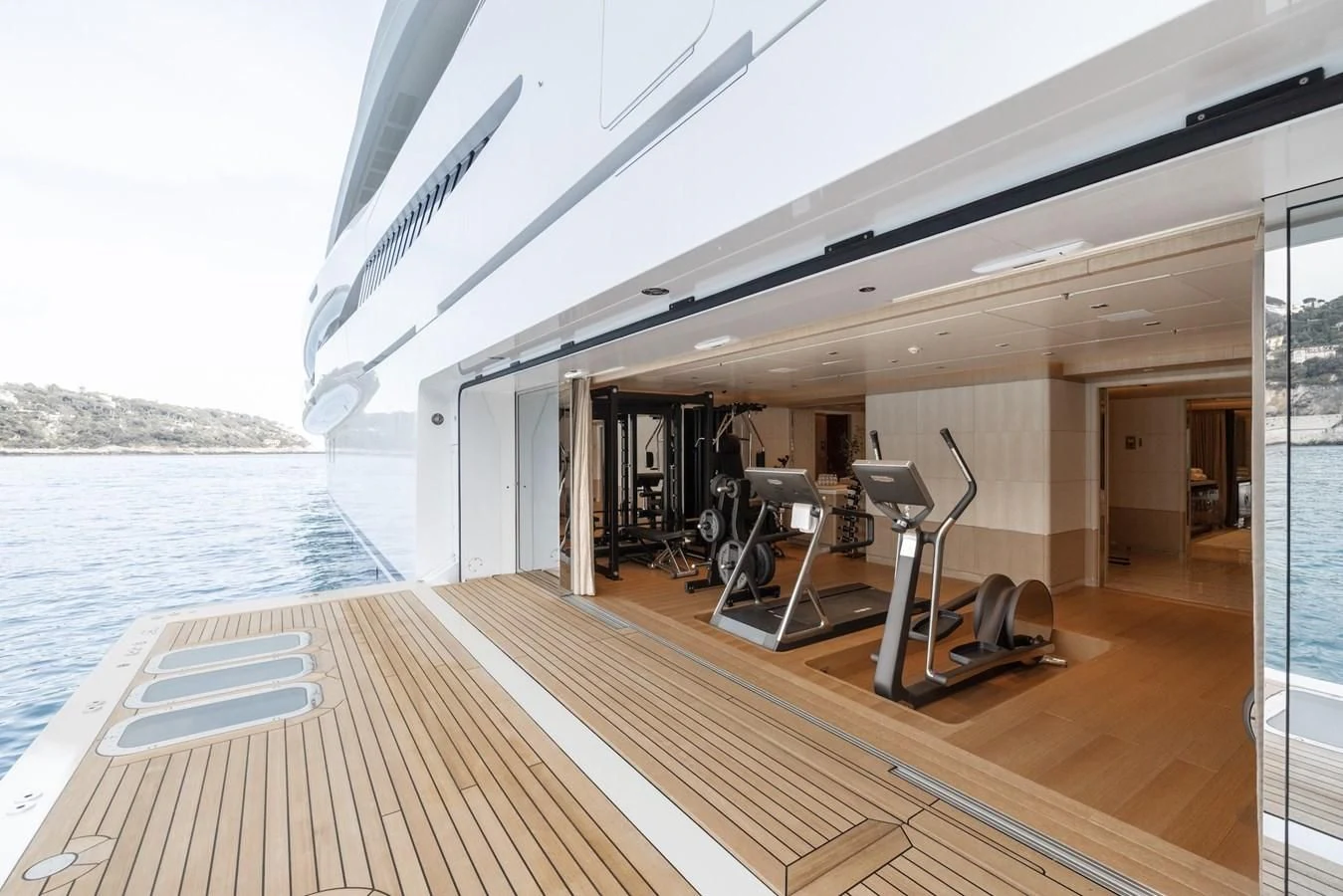

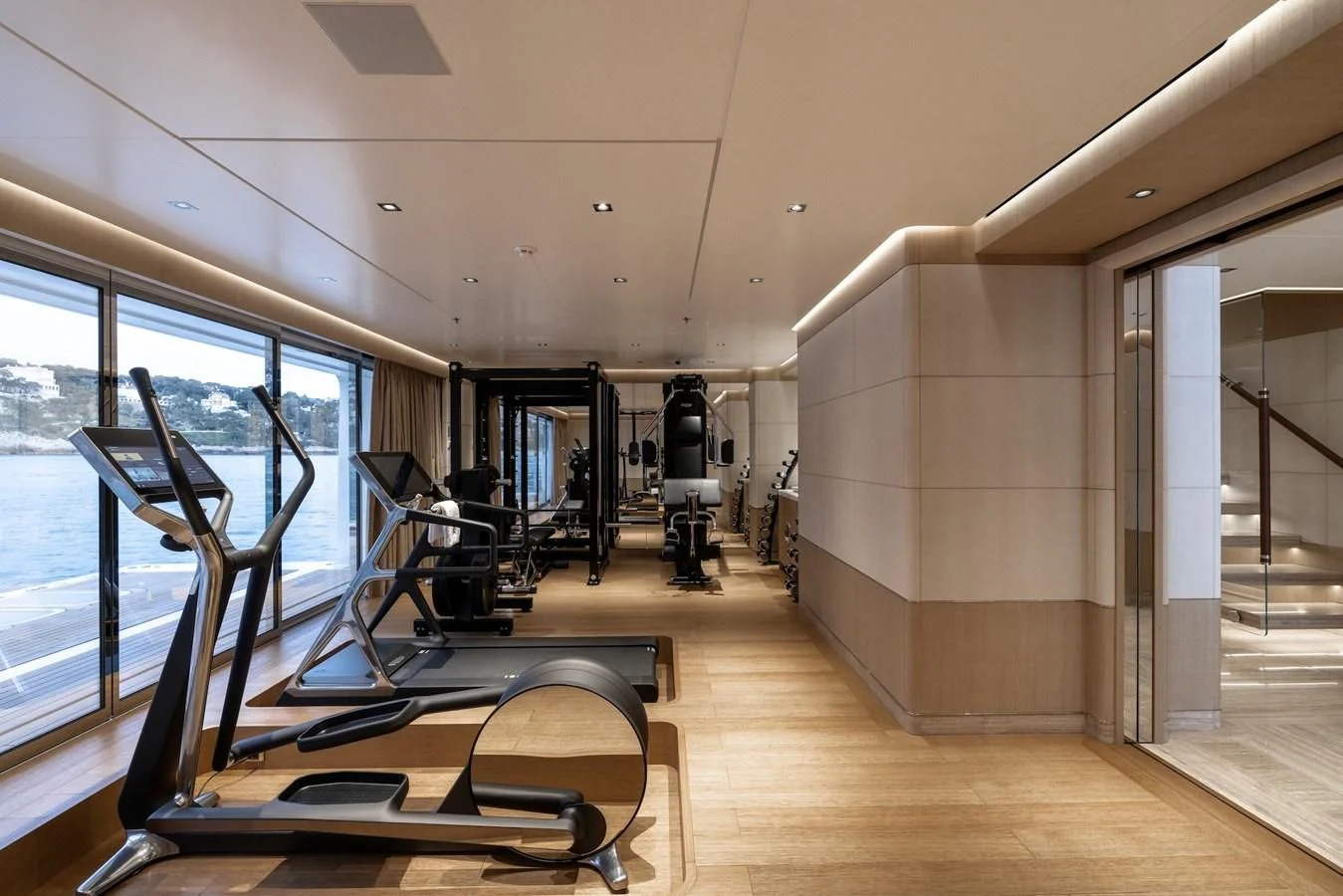

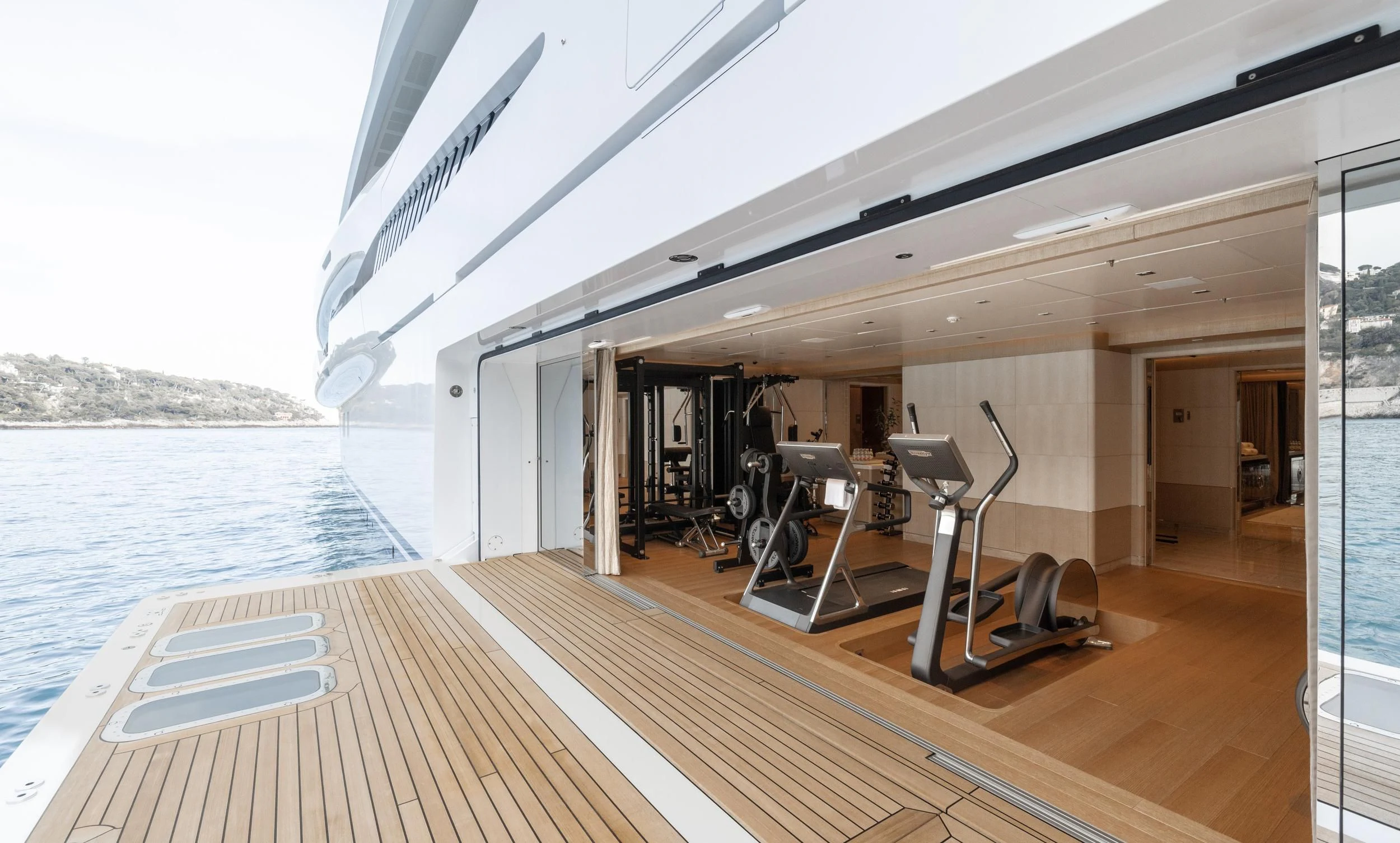

GYM EQUIPMENT

• Techno Gym

SAFETY

• Survitec Embarkation Ladder 4.30m x 1
• Castoldi SOLAS Rescue Boat rigid/inflatable 4.28m x 1
• Life raft RFD Survival MK IV 25 Pax x 4
• Life raft RFD Survival MK IV 20 Pax x1
• Position Indicating Lights for Lifebuoys x 2
• Lifebuoys Self Activating Smoke Signals x 2
• Lifebuoy 2,5 Kg. / 4 Kg x 6
• Rocket Parachute Flares x 12
• Red Handheld Flares x 4
• Orange Smoke x 2
• Line Throwing Appliance x 4
• SOLAS Adult Lifejackets Crew saver x47
• SOLAS Child Lifejackets Stearns x 6
• SOLAS additional Lifejackets x 39
• SOLAS Adults Immersion Suits, Crew Endurance x47
• SOLAS Child Immersion Suits, Crew Saver x 6
• Drager Smoke Hoods x 47
• EEBD, Ocenco / Drage x 8
• Emergency Torches, Peli 3310 x 24
• Personal Locating Beacons x 4
• EPIRB, Sailor x 2
• SART, Sailor x 2
• GMDSS Handheld VHF Radios x 3
• MOB Rescue Sling x 1

MEDICAL

• MSOS – Category A Kit x 1
• Themis Telemedical Communication Platform x 1
• AED x 1
• Invacare, Oxygen Concentrator x 1
• Rigid body stretcher x 1
• Body Splint Stretcher x 1
• Kendrick Extraction Device x 1

FIRE FIGHTING

• Consilium Fire Detection system
• Fire / Bilge Pump, 37-25m3 / hr at 0.95 / 5.5 bar x 1
• Bilge / Fire Pump, 39-26m3 / hr at 0.95 / 5.5 bar x 1
• Emergency Fire / Bilge Pump, 37-25m3 / hr at 0.95 / 5.5 bar x 1
• Marioff Hi-Fog Water mist system
• Co2 High Pressure System in Galley ducting
• Drager Bodyguard 7000&3M Fire Team Equipment x 4
• BA Air bottles 300 BAR, 6ltr x 12
• Heli Foam AFFF System 3%`
• Fire Hose, Box & Nozzle x 27
• Manually Operated Call Points x 56
• Portable Fire Extinguishers x 85
• Self-Inducing Foam Branch pipe/ Variable in-line Foam Inductor x 2
• Fire Blankets x 6
• International Shore Connection x 1

ALARMS & MONITORING SYSTEMS

• AMS – Symatic ET200SP

SECURITY

• A security system for the exterior entry doors and hatches that provide access to crew and luxury spaces is fitted. The vessel is currently ISPS compliant.
