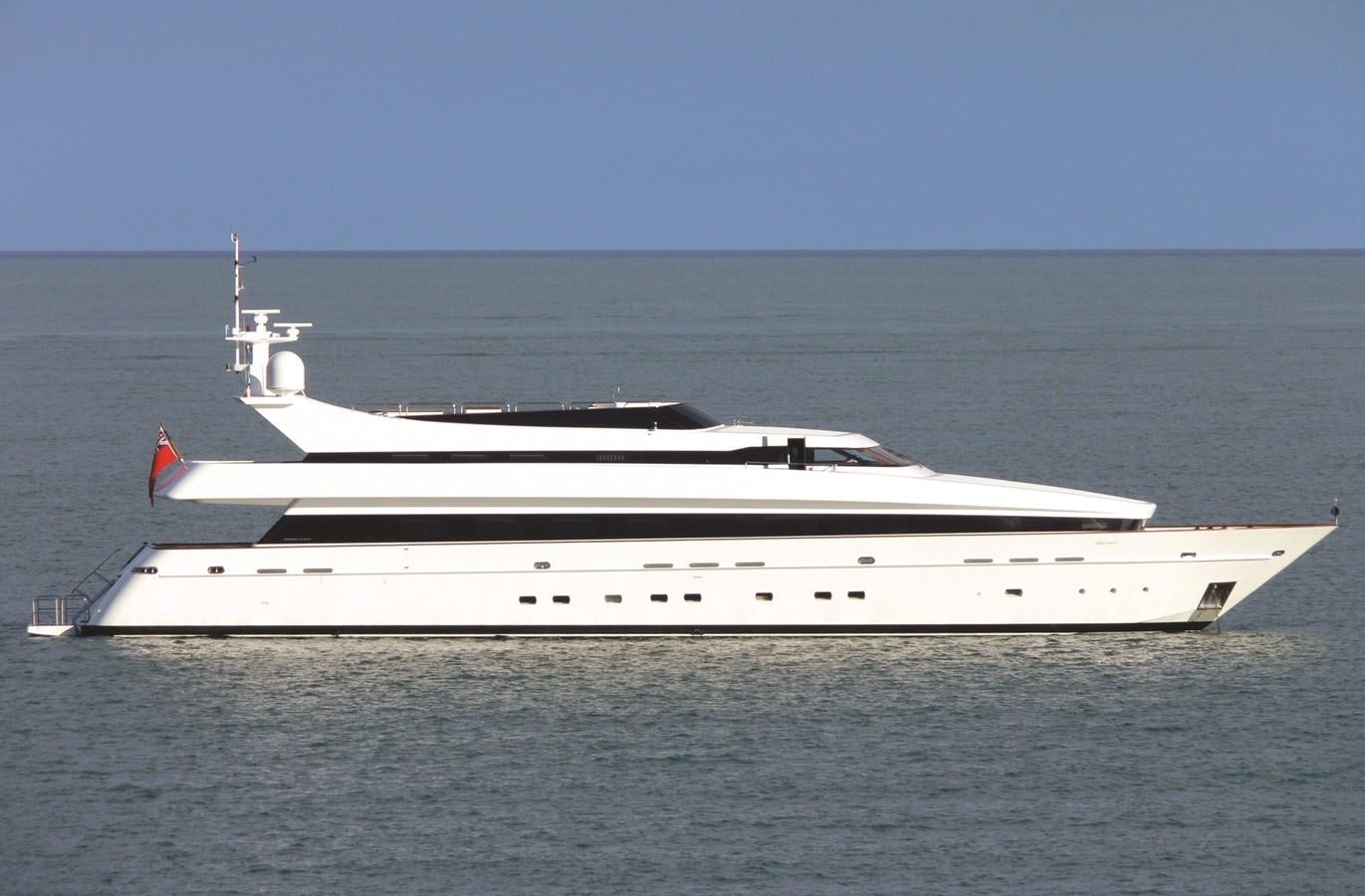

ELEMENT Yacht for Sale

140' (42.7m)
CANTIERI DI PISA
2002

Not for sale or charter to U.S. residents while in U.S. waters.

Length 140 FT (42.7 M)
Beam 27 FT (8.3 M)
Draft 7 FT (2.1 M)
Gross Tonnage 383 Ton
Guests 12
Crew 9
Builder CANTIERI DI PISA
Designer Cantieri di Pisa, Italy
Year Built 2002
Construction Fiberglass
Cruising Speed 14 Knots
LOA 140 FT (42.7 M)
LWL 123 FT (37.28 M)
Beam 27 FT (8.3 M)
Max Draft 7 FT (2.1 M)
Cruising Speed 14 Knots
Max Speed 26 Knots
Gross Tonnage 383 Ton
Water Capacity 1,374 Liters
Fuel Capacity 7,621 Liters
Hull Material Fiberglass
Designer Cantieri di Pisa, Italy

Full Specifications


  1. MAIN CHARACTERISTICS

    TYPE
    • Semi Displacement Motor Yacht
    BUILDER
    • Cantieri di Pisa, Italy
    NAVAL ARCHITECT
    • Cantieri di Pisa, Italy
    EXTERIOR DESIGN
    • Cantieri di Pisa, Italy
    INTERIOR DESIGN
    • Cantieri di Pisa, Italy and Frederic Mechiche (France)
    YEAR
    • 2002
    REFIT
    • 2006 / 2007 / 2009 / 2017
    CLASSIFICATION
    • Lloyd's class / MCA compliant
    • 15 year Lloyd's survey completed 2017
    CONSTRUCTION
    • Fibreglass Hull & Superstructure
    • Teak Decks
    CREW
    • 9 Crew
    FLAG
    • Cayman Islands
    ENGINES
    • 2 x 3,700Hp MTU 16V 4000 M90 Diesel
    GT
    • 363
  2. DIMENSIONS

    LOA
    • 42.70m / 140'1''
    LWL
    • 37.28m / 122'3''
    BEAM
    • 8.30m / 27'2''
    DRAFT
    • 2.10m / 6'10''
  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 26 knots
    CRUISING SPEED
    • 14 knots
    ECONOMICAL SPEED
    • 12 knots
    FUEL CONSUMPTION
    • 520 l/h @ 14 knots
    • 360 - 380 l/h @ 12 knots
    RANGE
    • 800nm @ 12 knots
  4. CAPACITIES

    ACCOMMODATION
    • 12 x Guests in 6 cabins
    CREW
    • 9 x Crew in 5 cabins
    FUEL
    • 28,850 litres /7,621 US gallons
    FRESH WATER
    • 5,200 litres / 1,374 US gallons
    WATER MAKERS
    • 230 litres / 61 US gallons
    LUBE OIL
    • 330 litres / 87 US gallons
    DIRTY OIL
    • 200 litres / 53 US gallons
  5. ACCOMMODATION

    Modern and elegant, the Cantieri di Pisa motor yacht ELEMENT accommodates 12 guests in 6 well-appointed cabins. Located forward on the main deck, the owner'ssuite features large, horizontal windows offering sweeping views, a study, walk-in wardrobe, and his-and-hers en suite baths joined by a double shower. Additional guest cabins consist of a full-beam forward VIP, 2 twins, and 2 double cabins.
    The interior features contemporary styling, plush soft furnishings, and abundant spaces for entertaining and socialising. She offers outdoor dining on the main deck aft, a more casual social area on the upper aft deck, as well as a vast sun deck with a large Jacuzzi and sunpads.
  6. MECHANICAL EQUIPMENT

    ENGINES
    • MTU (W-5 service completed in 2017)
    ENGINE HOURS
    • As of September 2019
    • Port: 5,836 hours
    • Stbd: 5,719 hours
    GEARBOX
    • ZF 7550
    PROPULSION
    • Twin screw
    STEERING SYSTEM
    • Cantieri Di Pisa
    STABILISER
    • Naiad NK420 – active fin
    BOWTHRUSTER
    • Hydro Systems HBT 800
    STERNTHRUSTER
    • Hydro Systems HBT 600
    GENERATORS
    • 2 x 80kW Kohler - rebuilt – 2017
    GENERATOR HOURS
    • As of September 2019
    • Port: 18,279 hours
    • Stbd: 18,315 hours
    ELECTRICITY
    • 380 3 Phase, 220 SPH, 24VDC
    BATTERIES
    • Mastervolt
    AIR CONDITIONING
    • Condaria WMSFCL
    WATER MAKER
    • 2 x Indromar Int. MC55
    SEWAGE SYSTEM
    • Triton 196
    FUEL SEPARATOR / FILTER
    • Mahle AF 173
  7. NAVIGATION EQUIPMENT

    MAGNETIC COMPASS
    • C Plath 2843 Deckhead Mounted
    GYRO COMPASS
    • Sperry Navigat 2100
    AUTOMATIC PILOT
    • C Plath Navipilot VHSC
    ECHO SOUNDER
    • Furuno FCV582L
    RADAR
    • Furuno FR 2115
    • Furuno FR 7112
    AIS
    • Furuno FA 150
    GPS
    • Furuno DGPS GP36
    CHART PLOTTER
    • Transas 4000
    NAVTEX
    • Furuno NX 500
    WIND INSTRUMENTS
    • Simrad IS20 (speed, depth wind)
  8. COMMUNICATION EQUIPMENT

    SATCOM
    • Mini M (Nonfunctional upgrade req)
    VHF
    • Furuno VHF FM 3000
    • Skanti VHF / DSC 1000
    CELLULAR SYSTEM
    • 4G router
    TELEPHONE / INTERCOM SYSTEM
    • Internal exchange only
  9. DECK EQUIPMENT

    ANCHOR WINDLASSES
    • Maxwell 6000
    AFT WARPING CAPSTANS
    • Maxwell 6000
    ANCHORS
    • 2 x Posidonia 180kg
    ANCHOR CHAINS
    • 150m Chains
    BOAT CRANE
    • & DAVITS Motomar
    PASSERELLE
    • Motomar
    SWIMMING PLATFORM
    • Garage door folds out to create
  10. ENTERTAINMENT EQUIPMENT

    MAIN SALOON
    • Samsung Flat Screen TV
    • Crestron wireless iPod Service
    • Philips Blu-ray DVD/CD Player
    • Sky Digibox
    • Crestron Remote Control Unit (iPad)
    SKY LOUNGE
    • Samsung Flat Screen TV
    • Crestron wireless iPod Service
    • Philips Blu-ray /DVD/CD Player
    • Sky Digibox
    • Crestron Remote Control Unit (iPad)
    SUN DECK
    • Crestron wireless iPod Service
    • Crestron Remote Control Unit (iPad)
    MASTER CABIN
    • Samsung Flat Screen TV
    • Philips Blu-ray /DVD/CD Player
    • Sky Digibox
    • Crestron Remote Control Unit (iPad)
    • Aux iPod connection
    VIP CABIN
    • Samsun Flat Screen TV
    • Philips Blu-ray /DVD/CD Player
    • Sky Digibox
    • Harmon Kardon Stereo
    • Logitech Single Remote Control
    • Aux iPod connection
    GUEST CABINS (4)
    • Sharp Flat Screen TV
    • Blu-ray /DVD/ CD Player
  11. GALLEY & LAUNDRY EQUIPMENT

    GALLEY
    • Semiprofessional oven
    • Miele Multi-functional microwave oven
    • 2 x Miele induction hobs with three rings
    • Miele induction hob with 2 rings
    • Miele convection oven
    • ‘ASEB' Deep fat fryer unit
    • 3 x Foster commercial stand up fridges
    • 1 x Foster commercial standup freezer
    • 2 x Miele dishwashers
    • Scotsman AC45 icemaker
    • 1 x Nespresso Magimix coffee machine
    • 1 x Hamilton Beech liquidizer
    CREW MESS
    • Miele multi-functional microwave oven
    • Miele household fridge / freezer
    • Miele Dishwasher
    LAUNDRY
    • 2 x Miele professional washing machines
    • 2 x Miele professional dryers
    • Miele professional roller iron
    • Ironing board and iron(s)
  12. SECURITY & SAFETY EQUIPMENT

    SAFETY
    • 1 x Zodiac 6 person life raft
    • 4 x Life rings
    • 1 x EPIRBS
    • 29 x Flares, red + smoke
    • Medical Equipment as per MSN 1768
    SECURITY
    • Pelco CCTV System
    • 6 x Pelco MX4000 cameras (2 x remote controlled)
    • 17” Hateland displays
    FIRE FIGHTING
    • Tyco T1000 Fire control system
    • 43 x Various types of fire extinguishers
    • Alarms / Detectors in all areas
  13. TENDER & WATERSPORTS EQUIPMENT

    • TENDER

      • 1 x 9.8m Intrepid 323 Cuddy chase boat 2006 with 2 x 300hp Mercury Verado 2015 engines
      • 1 x Ribeye 4.3m Rib tender with Yamaha 50Hp Outboard
    • WATERSPORTS

      • 2 x Yamaha GP1300R Jet Skis
      • 2 x Sea-doo Spark 2up Trixx
  14. COMMENT

    • KEY FEATURES

      • Accommodations for up to 12 guests in 6 cabins including an on-deck master suite & VIP cabin on the lower deck
      • Well planned deck areas include a spacious Sun deck with Jacuzzi & a multitude of seating, al fresco dining and lounging options
      • MTU power provides speeds up to 26 knots, with cruising speed at 20 knots and a range of 800 nm @ 12 knots (W-5 service completed 2017)
      • Generators rebuilt 2017
      • Air Conditioning replaced 2017
      • Lloyd's class / MCA compliant (15 year Lloyds survey completed 2017)
      • Exterior paint completed in 2017
      • Fiberglass hull and superstructure
      • 383 GT
      • Custom Intrepid chase boat
  15. REFIT & MAINTENANCE NOTES

    • MAJOR WINTER WORKS 2019-2020

      • Port Generator @ 18,630 running hours pistons and liners has been replaced, oil cooler cleaned and gaskets changed, FW cooler cleaned and coolant changed, flywheel dumper replaced, injectors replaced, hydro elastic mounts replaced
      • Starboard Generator @ 18,295 running hours pistons and liners has been replaced, oil cooler cleaned and gaskets changed, FW cooler cleaned and coolant changed, flywheel dumper replaced
      • Engine room Fan/Extractor motors replaced with new one
      • A/C raw water pump replaced with new one, chilled water loop has been washed with detergent and refilled with new glycole, A/C equipment has been serviced accordingly
      • Passerelle ram has been dismantled and serviced accordingly
      • New sea water pumps installed on Mains
      • Cosmetics:

        • Resurfacing of interior wood floors
        • Renovation of exterior wood surfaces
        • Paint maintenance
        • Various repairs / replacements to exterior cushions
        • Flag annual audit completed
        • Large scale repairs to sundeck caulking
        • Windscreen bridge uprights re-sprayed
        • New lamps fitted on aft and bridge decks
    • WINTER 2018 -2019

      • Both Stern and bow thrusters complete overhaul
      • Complete service of Stabilisers
      • Isolation of trim tabs due to lack of necessity (can easily be reversed)
      • Complete overhaul of garage door hydraulics and bearings
      • Anti-foul re-coat in December + Prop-speed application
      • Re-caulking of entire aft deck
      • Interior floors re-laquered
      • Re-galvanizing of all anchor chain cable + installation of new Lloyds certified Swivels
      • New sea chest valves installed
      • Stb side embarkation ladder removed and serviced: cars and tracks cleaned and serviced, hydraulic check
      • Port side embarkation ladder inspection hatch removed, all parts are in good condition
      • PTO hydraulic circuit oil flushed and changed
      • New carpet in the Main saloon, master and master office
      • Windlasses overhauled
      • Varnishing of Chairs, Tables, capping rails
      • AC upgrades in Laundry, Galley, Bridge.
      • Various Paint touch ups
      • AC Duct cleaning in all areas
      • 3000hr service for washers and dryers
      • New Crew Mattresses
      • Upgrading of waterproof system on bosuns locker including installation of additional drainage
    • WINTER 2016-2017

      • Generators rebuilt – 2017
      • Air Conditioning replaced - 2017
      • Lloyd's class / MCA compliant (15 year Lloyds survey completed in 2017)
      • Exterior paint completed in 2017
      • W-5 service completed in 2017
    • WINTER 2014-2015

      • Upgrades on decks, outdoors, AV and machinery
    • WINTER 2013-2014

      • Under new Ownership ELEMENT had spent 8 months in shipyard to get a comprehensive exterior and interior refit which has included all soft fabrics, furnishings, bed and bath linen.
      • Change of carpet throughout the yacht: Ivory in all guest area
      • Symmetric pattern in beige with silver in upper salon and master suite
      • Symmetric pattern in beige with brown in main salon
      • All blinds throughout the yacht are new: beige linen with red stripes
      • New blinds on the aft sliding doors: cream coloured bamboo
      • All sofas in main salon: cream coloured with red and navy blue patterned throw cushions
      • Main saloon coffee tables and lamps: original art deco
      • Main saloon side tables: silver snake skin
      • Dining table top: Picasso style glass top in blue, orange and black design
      • All furniture in bridge saloon- Cream coloured L shaped sofa, turquoise throw cushions; Black and beige sectioned tables; Blue snake skin lamps; All outside seating areas changed
      • Main deck and bridge deck: cream coloured seat cushions with red trim and blue and red (naval alphabet
      • Main deck and bridge deck: cream coloured seat cushions with red trim and blue and red (naval alphabetinspired) throw cushions
      • Jacuzzi deck: navy blue cushions on sunning area with blue and red themed throw cushions
      • Wooden chair on main deck and bridge deck have new navy blue or red seat and back covers
      • New deck towels: half of them red, half of them blue
      • New throw cushions in Master Suite and VIP: beige with red
      • Magazine holder from Eichholz for saloons and Master suite

Fiberglass hull and superstructure, teak decks

General
Length Overall (L.O.A.):
140.17 feet  (42.70 meters)
Length at Waterline (L.W.L.):
122.31 feet
(37.28 meters)
Beam (molded):
  27.23 feet (  8.30 meters)
Draft (loaded):
    6.92 feet (  2.10 meters)
Tonnage:
363 gross
Capacities
Fuel Capacity:
7,621 US Gallons
(28,850 liters)
Water Capacity:
1,374 US Gallons
(  5,200 liters)
Watermakers:
     61 US Gallons
(     230 liters)
Lube Oil:
     87 US Gallons (     330 liters)
Waste Oil:
     53 US Gallons (     200 liters)
Speed
Maximum:
26.0 knots
Cruising:
20.0 knots
Economical:
14.0 Knots

Main Engines
Engine Type:
  • (2) MTU 16V 3700hp main engines
Gearboxes for Main Engines:
  •  ZF (7550)
Drive:
  •  Twin screw
Generators & Electricity
Output:
  • 380 3 phase, 220 sph, 24Vdc
Generators:
  • (2) 80kw Kohler generators
Batteries:
  •  Mastervolt
Air Conditioning
Type:
  •  Condaria WMSFCL
Other Machinery
Watermakers:
  •  Indromar Int. MC55 (two of)
Trim Tabs/Stabilizers:
  • NAIAD NK420 – active fin
Bow Thruster
  • Hydro Systems HBT 800
Stern Thruster:
  • Hydro Systems HBT 600
Steering System:
  • Cantieri Di Pisa
Fuel Separator & Filtration:
  • Mahle AF 173
Sewage System:
  • Triton 196

Communication Systems
SATcom:
  • Mini M (Nonfunctional upgrade req)
Telephone System:
  • Internal exchange only
VHF:
  • Furuno VHF FM 3000
  • Skanti VHF/DSC 1000
Cellular Phone System:
  • 4G router
Intercom:
  • Via Telephone exchange
Navigation Systems
Radar:

  • Furuno FR 2115
  • Furuno FR 7112
Gyrocompass:
  • Sperry Navigat 2100
Magnetic Compass:
  • C Plath 2843 Deckhead Mounted
Auto Pilot:
  • C Plath Navipilot VHSC
Ecosounder:
  • Furuno FCV582L
GPS:
  • Furuno DGPS GP36
Ships Computer:
  • 1
Chart Plotter:
  • Transas 4000
Wind/Speed Log:
  • Simrad IS20 (speed, depth wind)
Navtex:
  • Furuno NX 500
AIS:
  • Furuno FA 150

Entertainment System:
Main Salon
•Samsung Flat Screen TV
•Crestron wireless iPod Service
•Philips Blu-ray DVD/CD Player
•Sky Digibox
•Crestron Remote Control Unit (iPad)

Skylounge
•Samsung Flat Screen TV
•Crestron wireless iPod Service
•Philips Blu-ray /DVD/CD Player
•Sky Digibox
•Crestron Remote Control Unit (iPad)

Sun Deck
•Crestron wireless iPod Service
•Crestron Remote Control Unit (iPad)

Master Stateroom
•Samsung Flat Screen TV
•Philips Blu-ray /DVD/CD Player
•Sky Digibox
•Crestron Remote Control Unit (iPad)
•Aux connection to eg iPod

VIP Stateroom
•Samsun Flat Screen TV
•Philips Blu-ray /DVD/CD Player
•Sky Digibox
•Harmon Kardon Stereo
•Logitech Single Remote Control
•Aux iPod connection

Guest Staterooms (4)
•Sharp Flat Screen TV
•Blu-ray /DVD/ CD Player
Galley Equipment
Cooking Equipment:
  • Semiprofessional oven
  • Miele Multi-functional Microwave oven
  • (2) Miele Induction Hobbs with three rings
  • Miele induction Hobb with 2 rings
  • Miele Convection Oven
  • 'ASEB' Deep fat fryer unit
Refrigeration/Freezer:
  • (3) Foster commercial stand up Fridges
  • (1) Foster Commercial Standup Freezer
Dishwasher:
  • (2) Miele dishwashers
Other:
  • Scotsman AC45 Icemaker
  • (1) Nespresso Magimix Coffee Machine
Crew Mess Equipment
Cooking Equipment:
  • Miele Multi-functional Microwave oven
Refrigeration/Freezer:
  • Miele household fridge/freezer
Other:
  • Miele Dishwasher
Laundry Equipment
Main Laundry Equipment
  • (2) Miele professional washing machines
  • (2) Miele professional dryers
Other:
  • Miele Professional Roller Iron
  • Ironing board and Iron(s)

 Tender:
  • (1) 22' (7m) Intrepid 323 Cuddy
 Other:
  • (2) Yamaha GP 1300R Jet-Skis
  • (2) Sea-doo Spark 2up Trixx
Anchor Windlass System:
  • Maxwell 6000
Aft Warping Capstans:
  • Maxwell 6000
Anchors:
  • See Below
Anchor Chain:
  • (2) Posidonia 180 Kg +150m chain
Boat Crane and Davits:
  • Motomar
Passerelle:
  • Motomar
Swimming Platform:
  • Garage door folds out to create

Security Equipment
CCTV System:
  • Pelco
Cameras:
  • (6) Pelco MX4000 (2 Remote controlled)
Monitors:
  • 17” Hateland Displays
Fire Fighting Equipment
Fire Control System:
  • TYCO T1000
Fire Extinguishers:
  • 43 various types
Alarms:
  • Detectors in all areas.
Safety Equipment
Life Rafts:
  • (6) Zodiac 6 man
Life Rings:
  • (4)
EPIRBS:
  • (1)
Flares:
  • (29) red + smoke
Medical Equipment:
  • As Per MSN 1768

Modern and elegant, the Cantieri di Pisa motor yacht ELEMENT accommodates 12 guests in 6 well-appointed staterooms. Located forward on the main deck, the owner’s suite features large, horizontal windows offering sweeping views, a study, walk-in wardrobe, and his-and-hers en suite baths joined by a double shower. Additional guest staterooms consist of a full-beam forward VIP, 2 twins, and 2 double staterooms.

The ELEMENT interior features contemporary styling, plush soft furnishings, and abundant spaces for entertaining and socializing. She offers outdoor dining on the main deck aft, a more casual social area on the upper aft deck, as well as a vast sun deck with a large Jacuzzi and sunpads

  • Accommodations for up to 12 guests in 6 staterooms incl. an on deck master suite & VIP on the lower deck
  • Well planned deck areas include a spacious  Sun deck with Jacuzzi & a multitude of seating, al fresco dining  and lounging options
  • MTU power provides speeds to 26 knots, with cruising speed at 20 knots  and a range of 800 nm @ 12 knots  (W-5 service completed in 2017)
  • Generators rebuilt – 2017
  • Air Conditioning replaced - 2017
  • Lloyd’s class / MCA compliant  (15 year Lloyds survey completed in 2017)
  • Exterior paint completed in 2017
  • Fiberglass hull and superstructure
  • 383GT
  • EU VAT PAID

·Antifoul 2 coats

·Full top to bottom Paint job

·Removal and checking of all running gear including shafts, props and rudders.

·Installation of brand new shafts, bearings and shaft seal system. Pre and post alignment checks

·Meggertest

·Fuel Tank inspection

·Fresh water tank paint touch up

·Black/Grey water tanks inspected, treated and painted.

·All overboard seacocks changed or serviced

·Load testing

·4500hrs gear box service

·Steering Hydraulics overhauled

·New AC chiller plant installed, total cleaning of fresh water circuit.

·Servicing of both port and Starboard Generator alternators

·Generator servicing as required

·MTU Main Engines W5 service (inc new aletrnators both engines)

·Hydraulic cooling system replaced.

·Mahle Fuel filtration system serviced

·All on board LSA serviced as required

·Some upgrades carried out on AV system

·Installation of code keypad for crew night entry

·Renovation of the interior wood flooring

- Exclusions include all of Owner's personal effects -

"All speeds, capacities, consumption, etc. are approximate or estimated; measurements can also be approximate.Specifications are provided for information only and particulars herein obtained from sources believed to be correct, but are not guaranteed.Buyer should instruct his agent and/or surveyor to check all details for accuracy.Offered subject to prior sale, price and/or inventory change, or withdrawal from the market without notification."

Have Questions?

Ask our experienced sales brokers about this yacht

Related Yachts for Sale
