COTYTTO Yacht for Sale

Length: 56' 9" (17.3m)
Builder: BRUCKMANN CUSTOM YACHTS
Build: 2003

Cabins: 3
Asking Price: $649,000

Overview

Specifications

Inquire

Not for sale or charter to U.S. residents while in U.S. waters.

2003 BRUCKMANN CUSTOM YACHTS 56ft

Designed by Mark Ellis and built by Bruckmann Yachts
Deep V hull configuration and high bow
Accommodates 6 guests in 3 staterooms
CAT engines
New Raymarine electronics in 2022
Excellent handling, quiet and comfortable
Separate entrance to the cockpit from master

In The News

Specifications

Builder	BRUCKMANN CUSTOM YACHTS
Model	Flybridge Motoryacht
Length (LOA)	56' 9" (17.3m)
Year	2003
Gross Tonn.	56
Draft	14' (4m)
Beam	17' (5.18m)
Location	united states

Accommodations

Staterooms	3
Sleeps	8
Heads	2

Capt. Quarters	No

Dimensions & Capacity

LOA	56' 9" (17.3m)
LWL	55' (16.46m)
Min Draft	4' (1.35m)
Max Draft	14' (4m)
Fuel Tank	1,150 g (4,353 L)
Fresh Water	300 g (1,135 L)
Holding Tank	60 g (227 L)
Gross Tonn.	56

Construction

Hull Material	fiberglass
Hull Config	deep vee
Cruising Speed	20 Knots
Stabilizers	None

Engines (x2)

Engine Make	Caterpillar
Engine Model	3196
Engine Year	2002
Engine Type	Other
Power HP	660
Fuel Type	Diesel

Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Detailed Description:

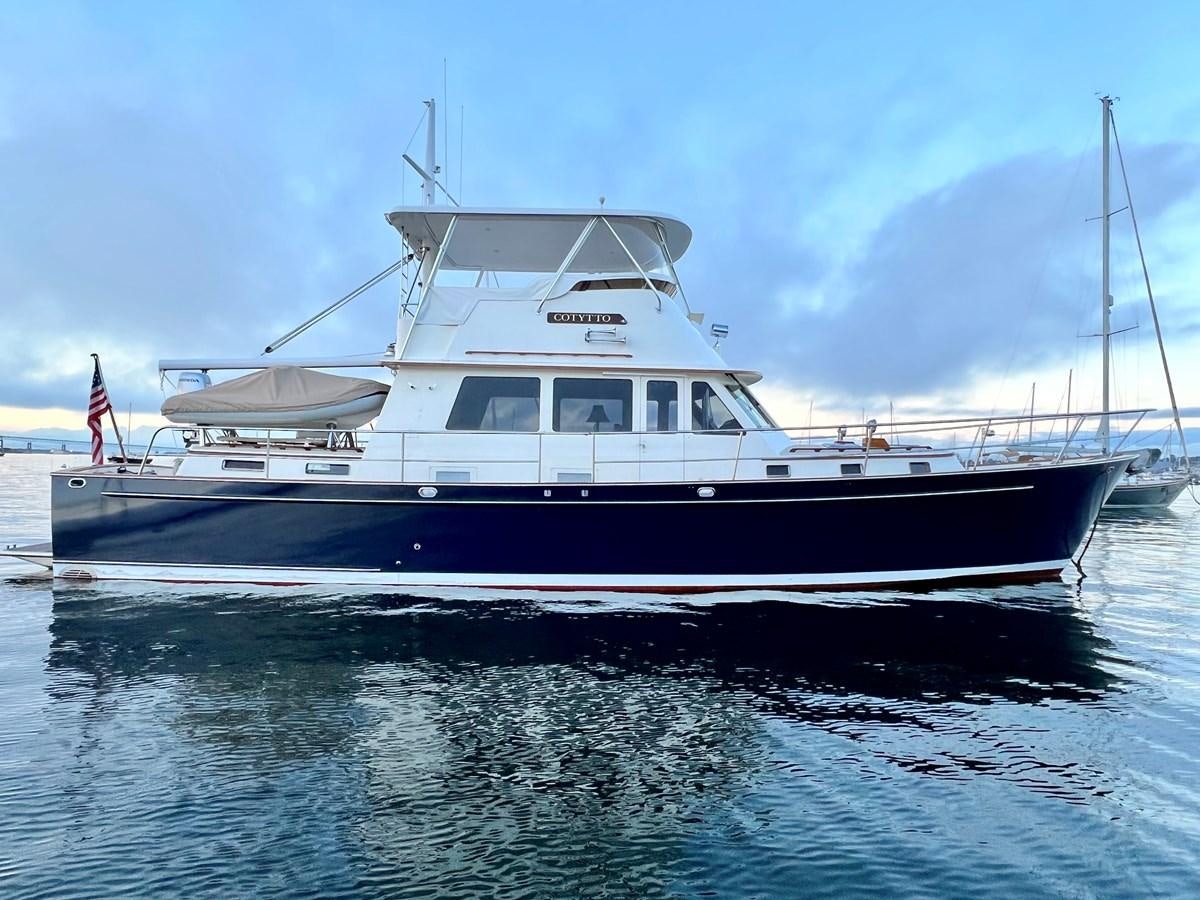

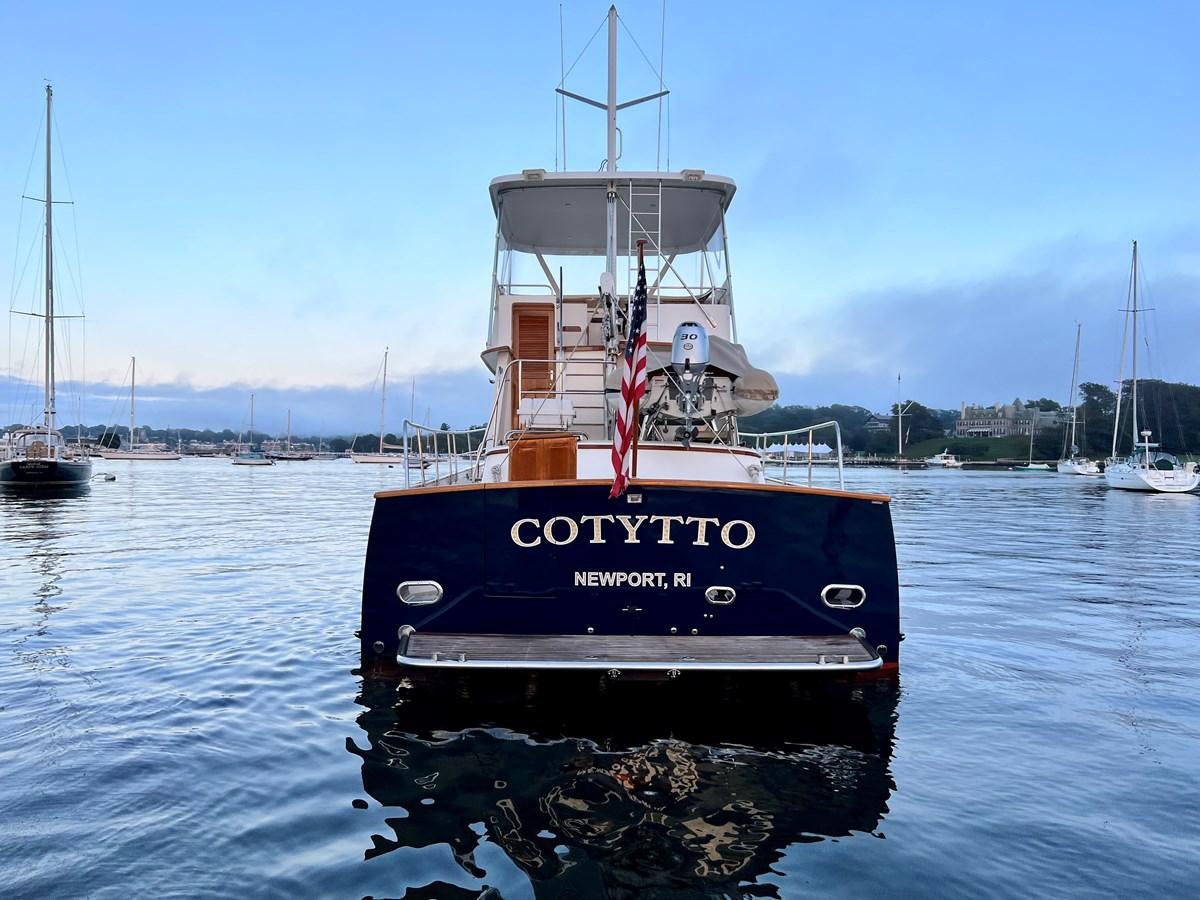

Cotytto is a traditionally laid out three-stateroom flybridge motoryacht from renowned designer Mark Ellis and custom builder Mark Bruckmann. She is capable of long-range open ocean cruising with her deep V hull and high bow. She is CAT powered with relatively low engine hours, and systems that are typically found in larger yachts. Cotytto is well-built, quiet running, sea-kindly, yet easily maneuvered at all speeds, and perfect for her intended purpose of coastal cruising.

Her owner has enjoyed her for the past seven years but would like to move on. He has removed all of his personal items and will not be using her again, so she is now seriously for sale with offers encouraged. She is very clean and available to be seen at any time.

Construction, Hull, & Deck:

Hull: Flag Blue Awlcraft 2000 (2022)

Bootstripe: Double White

Decks: Moondust Semigloss Awlgrip

Bottom: Red

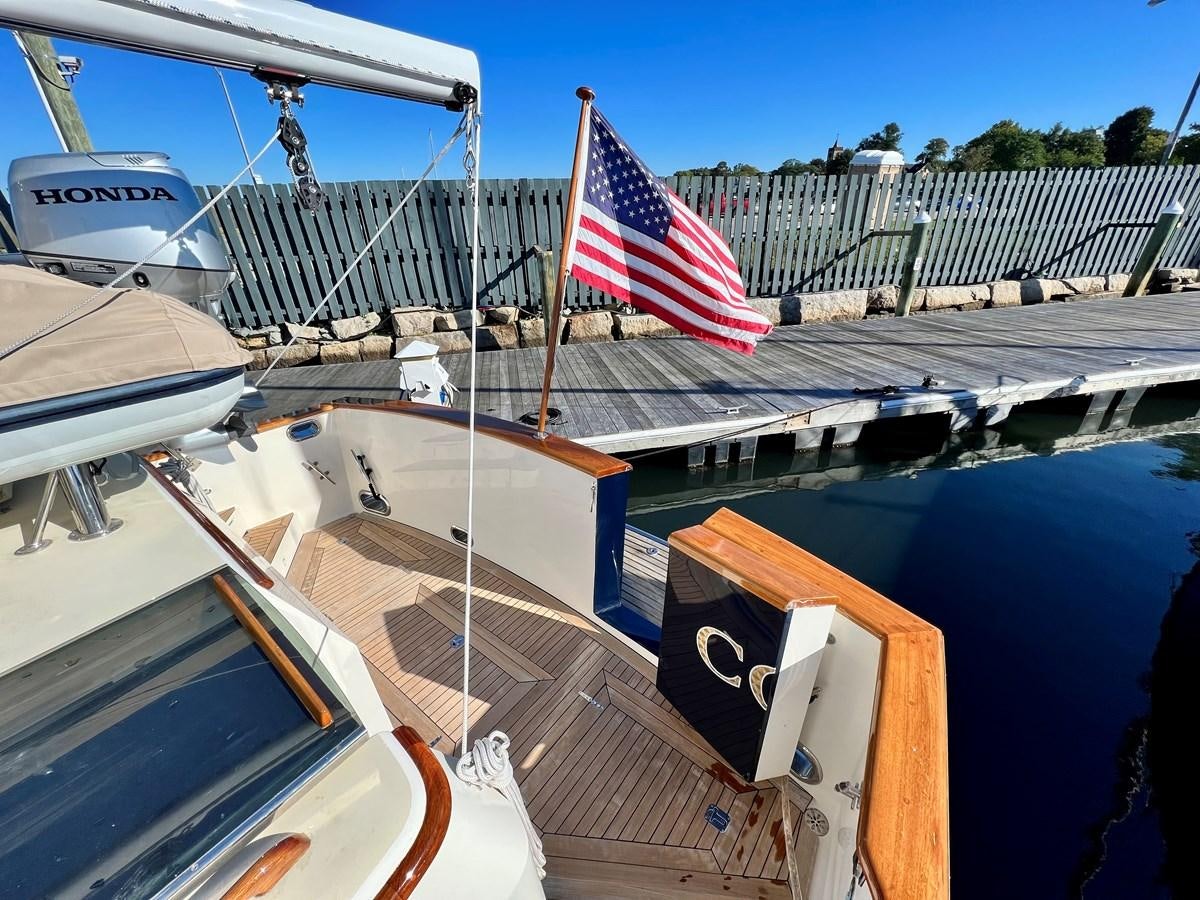

The hull laminate is first class with the use of Vinylester resin throughout. Core-cell foam core has been added for stiffness as well as sound and thermal insulation. The deck also utilizes core-cell foam. The hull-to-deck joint is bonded and fastened every four inches. There are fiberglass rub and hip strakes molded to the hull fitted with stainless strikers. Oversized full pipe stainless steel swim platform structure with a teak inlay, cleats, and folding ladder. Teak soles on aft cockpit, side decks, and flybridge. The foredeck, forward housetop, and aft housetop sections are Desert Sand Awlgrip sprayed non-skid. Custom full-height stainless bow and side rails run the entire length of the boat til the aft cockpit with boarding access to port and starboard. Varnished teak cap rail and housetop accent trim.

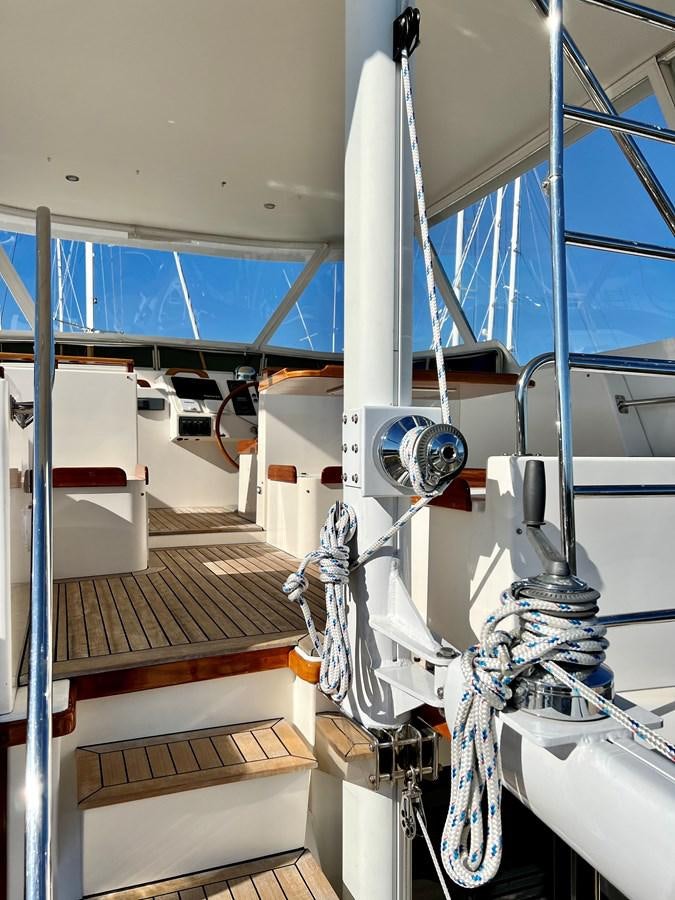

Aluminum electronics mast w/ boom for dinghy lift - Boom has been extended for an easier swing of the tender (Matterhorn White Awlgrip, 2021)
(4) polished S/S tender chocks
All cleats run through S/S hawse fittings on the gunwales: (2) 15” bow, (4) 12” midships, (2) 12.5” transom
(3) aft cockpit deck lockers
(2) varnished teak dorade boxes w/ S/S cowls

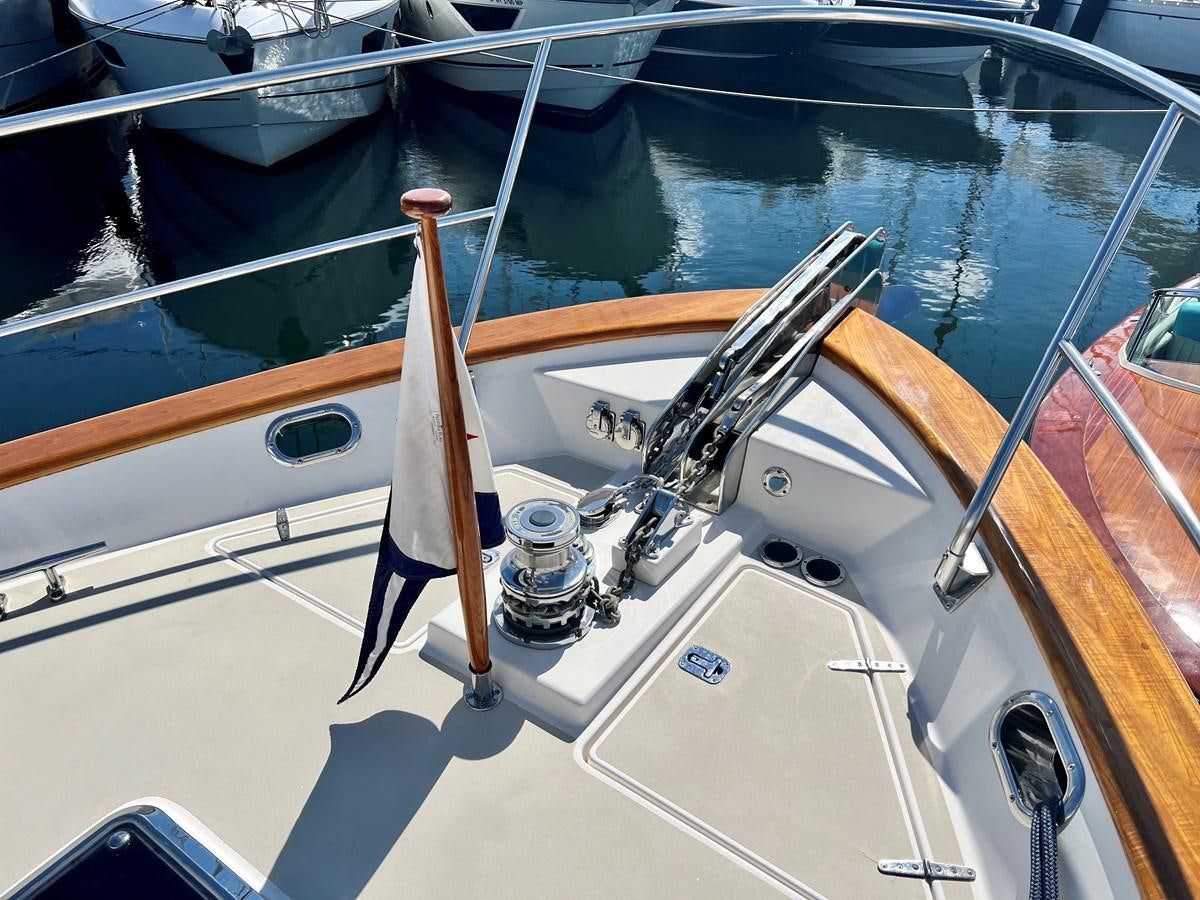

Maxwell 3500 Windlass - P10088 System w/ footswitches & controls at both helms
Ground Tackle: Suncor Clawmaster 70lb 316 S/S, Suncor Plowmaster 45lb 316 S/S - Both anchors have swivels w/ all galvanized chain
S/S polished chain hawse pipe
Anchor wash down spigot
(5) Man Ship polished S/S low-profile deck hatches
Winslow 6-person liferaft
(2) Life rings w/ rope buoys
Tide Ride boarding ladder
Passarelle w/ cover in Toast Sunbrella
Kahlenberg dual airhorn
Varnished teak name boards
Varnished teak staff w/ US ensign
Varnished teak burgee staff
(6) 12” x 34” fenders in navy Maine Point fleece socks
(5) 1 ½ double-braided navy dock lines
Various spare lines

Flybridge:

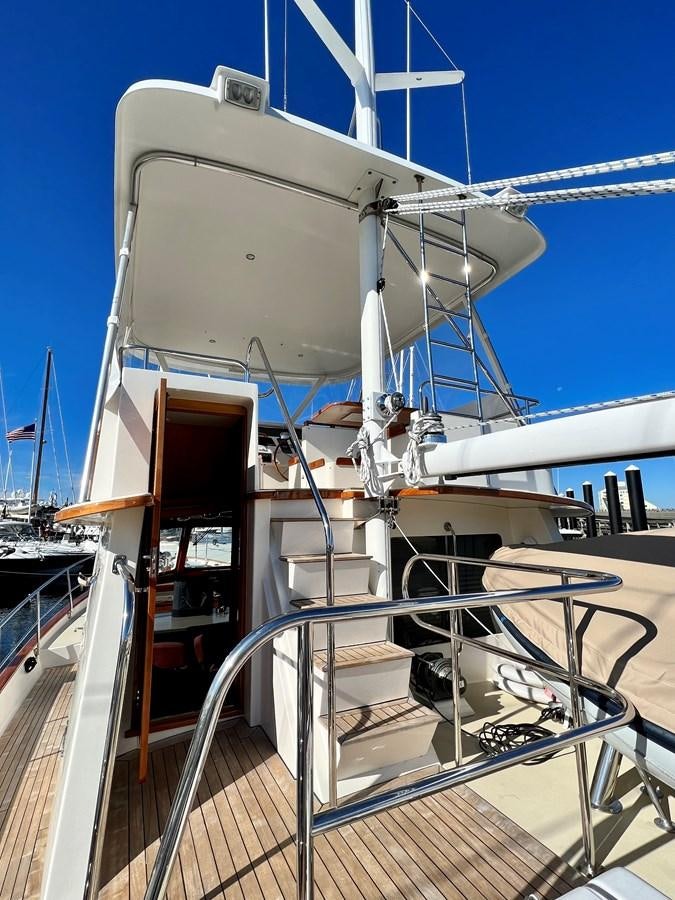

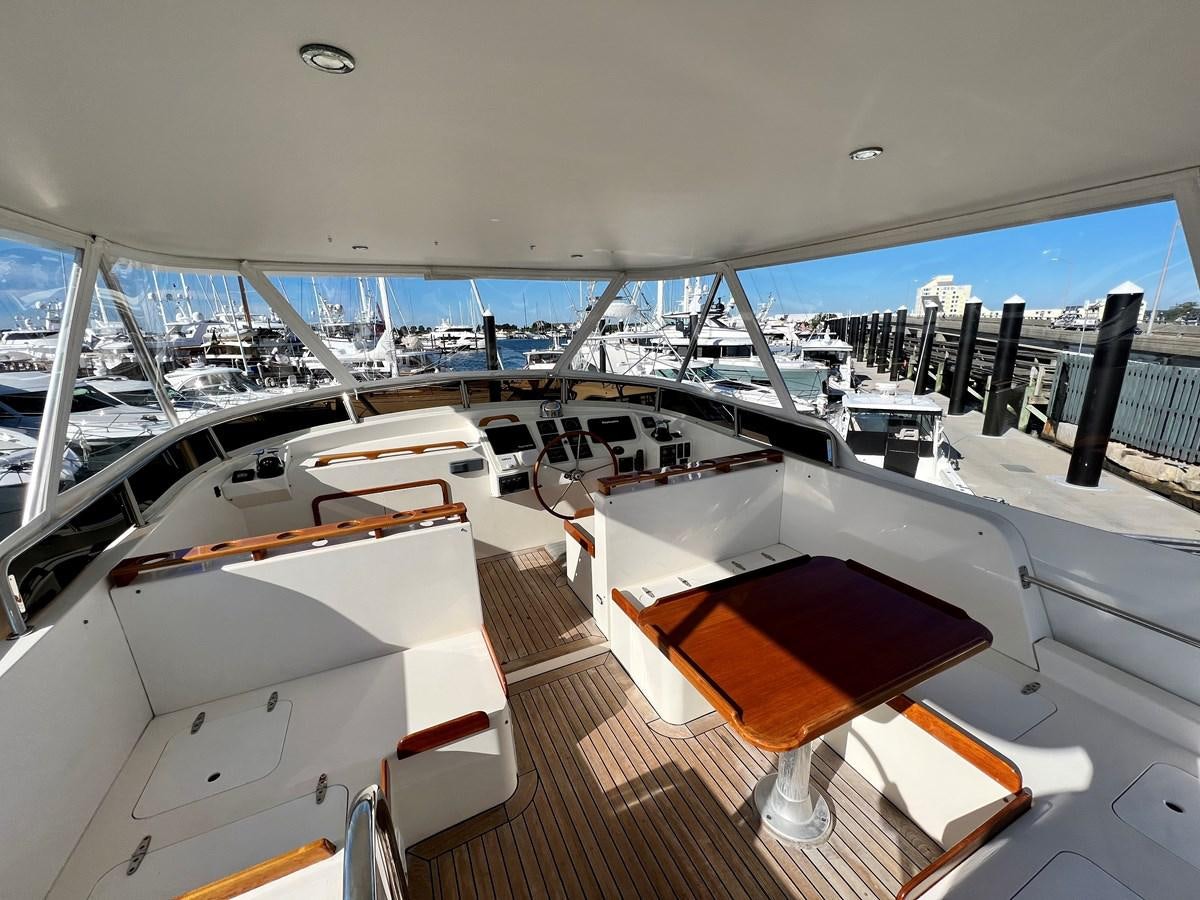

The flybridge is accessed from the stairs on the port side aft. Generous seating for 8 guests comfortably with easy walk-up steps and railings for safety in all conditions. Views of the bow and stern are virtually unobstructed. There are varnished drink and storage holders to port and starboard, grab rails and courtesy lights. A varnished teak dinette table drops flush with the starboard settee to create a lounge area. Ample storage is provided under each bench and by two large lockers under the helm.

FRP hard top w/ overhead LED lighting
White Stamoid canvas (5) piece surround w/ 40 gauge Strataglass panels (2021)
Tan Subrella upholstery w/ black piping
Covers in Toast Sunbrella
Edson 26” teak rimmed destroyer wheel
8-step folding S/S ladder gives access to the top of the flybridge
Isotherm drink refrigerator
12v plug

Navigation & Electronics:

Flybridge Helm:

Dual ZF Marine electronic throttle controls to port & starboard
Dual Vetus bow thruster controls to port & starboard
CAT vision engine display
Ritchie 5” Powerdamp compass w/ S/S hood
Jabsco searchlight control
Maxwell windlass control
Bennett trim tab control
Simrad AP44 auto-pilot control (2021)
Raymarine 12” Hybridtouch MFD
Raymarine Axiom 12” MFD w/ Radar (2022)
Raymarine Qauntum 2 Radar dome (2022)
Raymarine Ray230e modular VHF radio
Furuno RD33 navigation data
Fusion MS-UD760 Bluetooth stereo w/ (4) JL Audio speakers

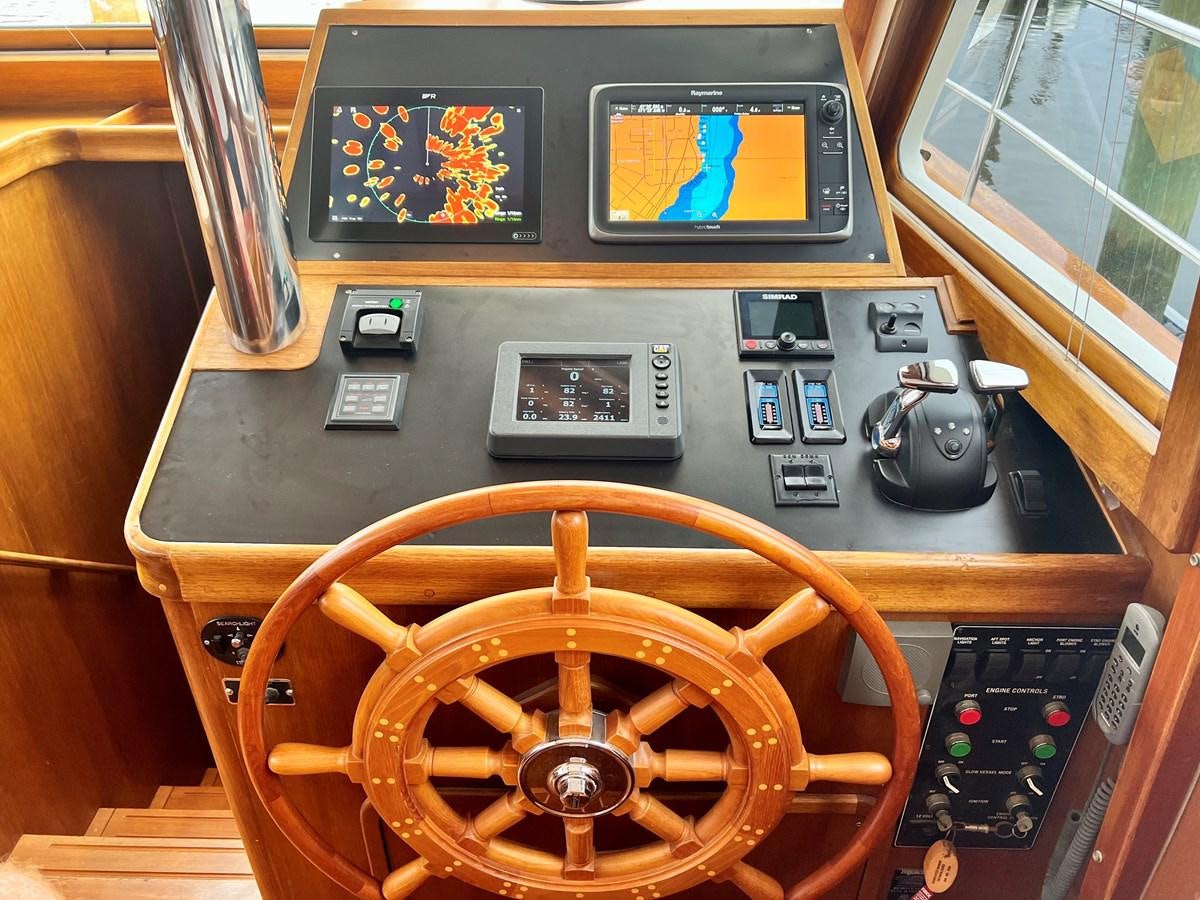

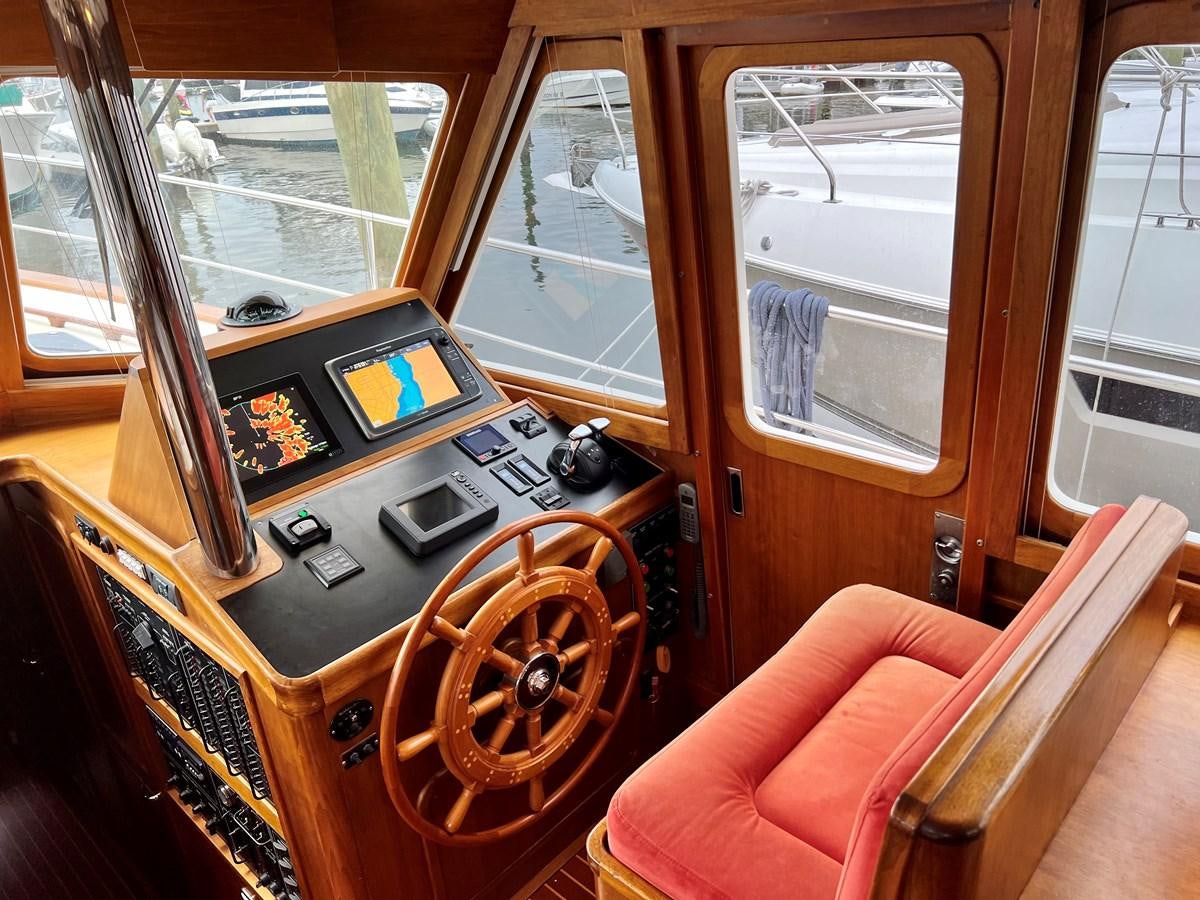

Lower Helm:

ZF Marine electronic throttle controls
Vetus bow thruster control
CAT vision engine display
Engine control ignition panel
Maxwell windlass control
Jabsco searchlight control
Bennett trim tab control
Simrad AP44 auto-pilot control (2021)
Raymarine 12” Hybrid touch MFD
Raymarine Axiom 12” MFD (2022)
Raymarine Ray230e modular VHF radio
Exalto windshield wiper control
Edson 30” full teak wheel

Accommodations:

Cotytto has a luxurious and innovative three-stateroom layout offering comfortable accommodations for all guests. The entire interior features matched grain butternut paneling finished in hand-rubbed satin appointed with a high gloss teak and holly sole. There is a remarkable flow between individual living and sleeping areas, offering far greater privacy due to separation between the owner's stateroom, crew, and guest areas allowing all aboard unencumbered access to the salon.

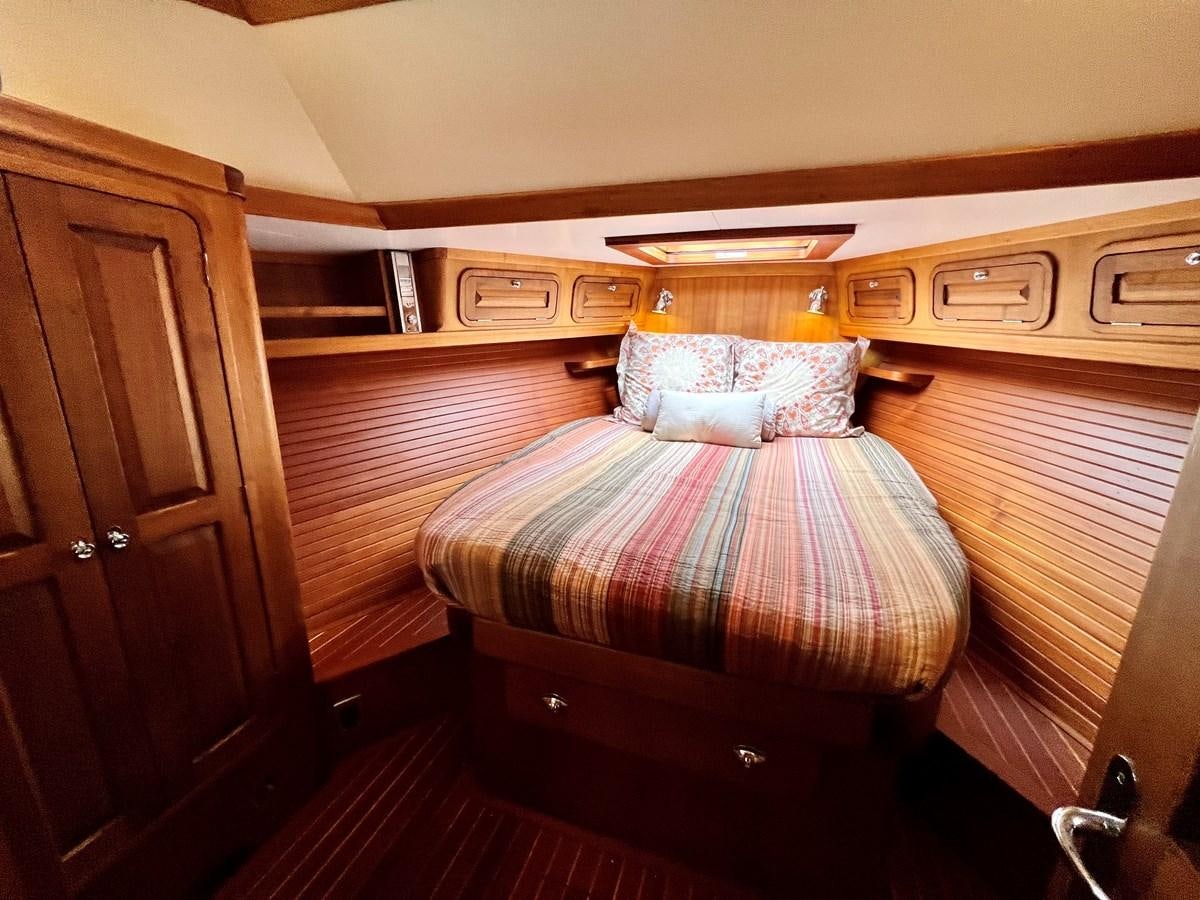

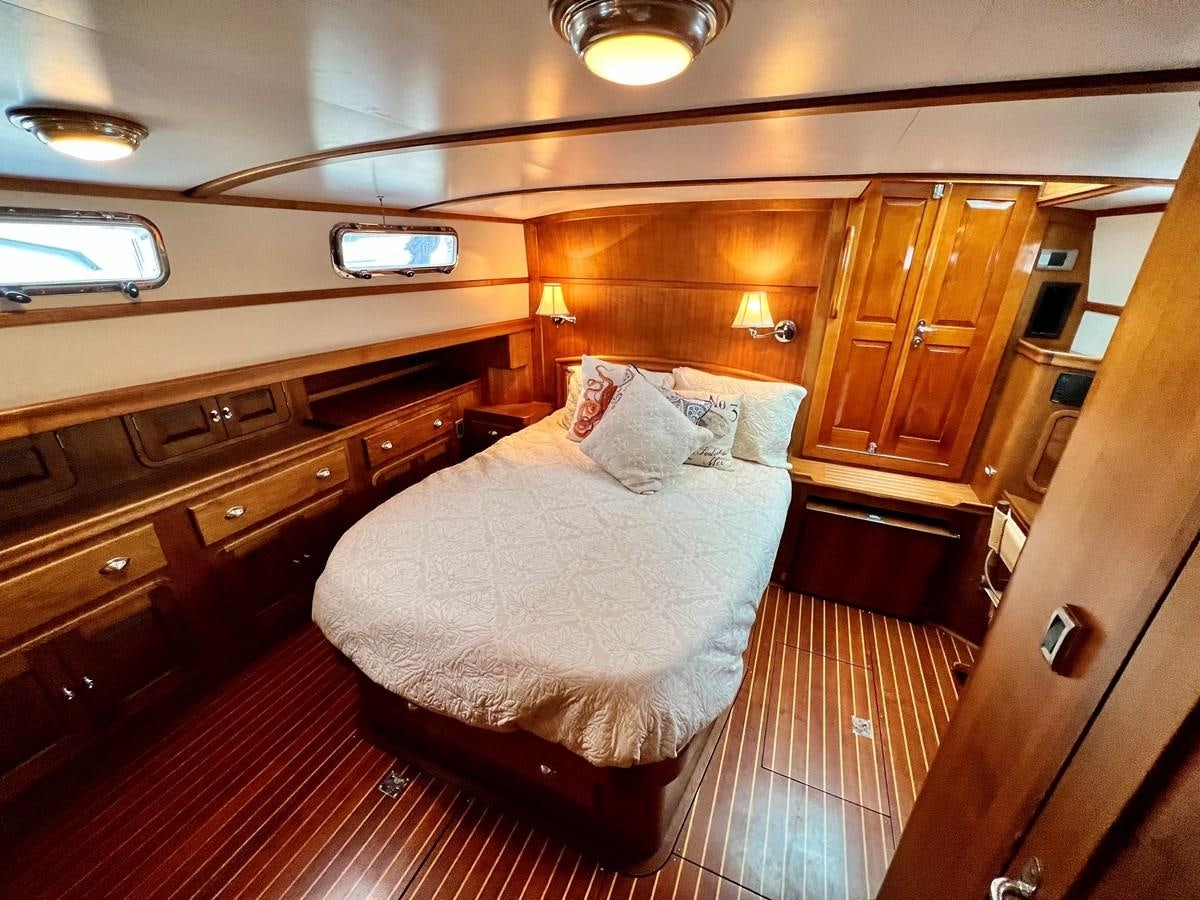

Starting forward is the Forward Stateroom with a queen berth on the centerline, substantial hanging lockers to port/starboard, and numerous storage drawers.

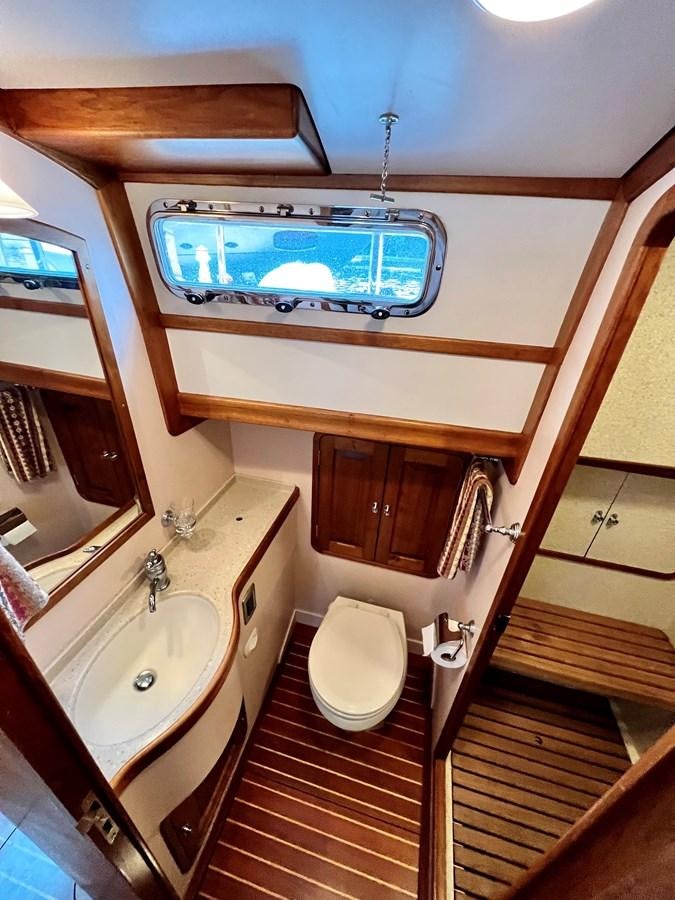

Aft to starboard is the Forward Head, with a vanity, electric head, and separate stall shower, which also has private access from the forward stateroom.

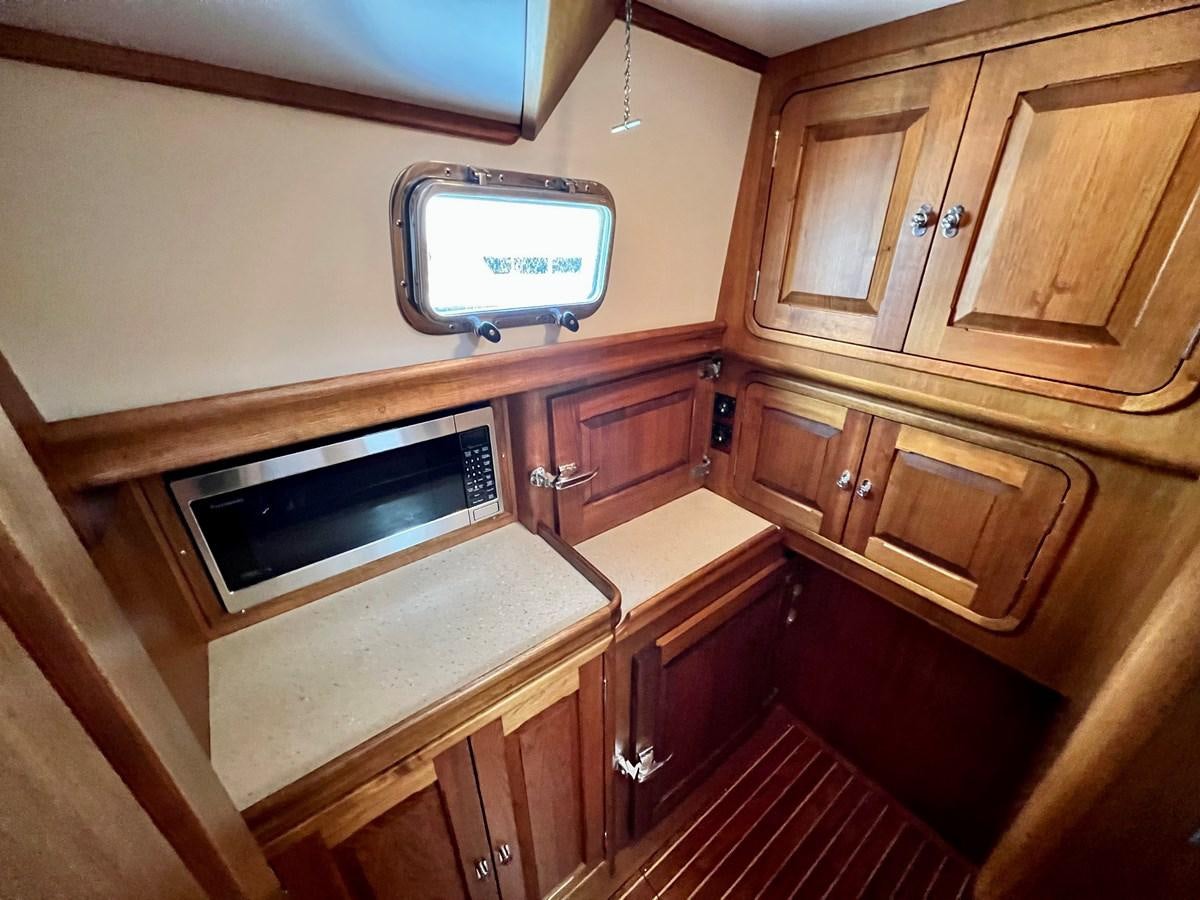

Next aft to starboard is a unique chef's pantry with shelving, drawers, and extra storage lockers that could accommodate any trip’s food provisions. Seafrost holding plate refrigeration and freezer provide dependable cold storage.

Adjacent to the pantry is the Guest Stateroom, which has perpendicular over under single bunks with a desk and closet.

The Galley is up to the portside in the forward part of the salon, featuring a large island with two fixed stools that create a breakfast nook. Beneath the aft portion of the island is a hidden electric piano. The counter forward of the salon has a double sink, cooktop, and two front-loading refrigerators.

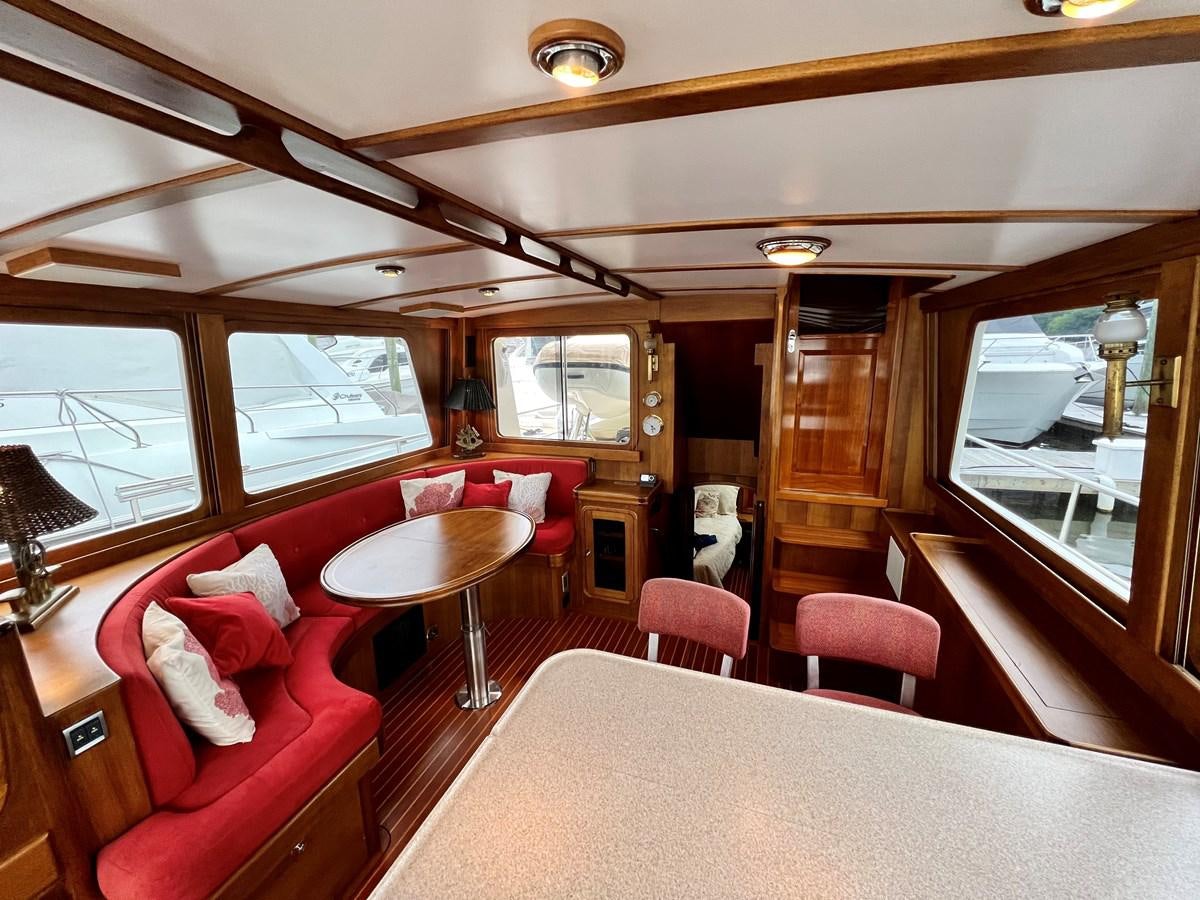

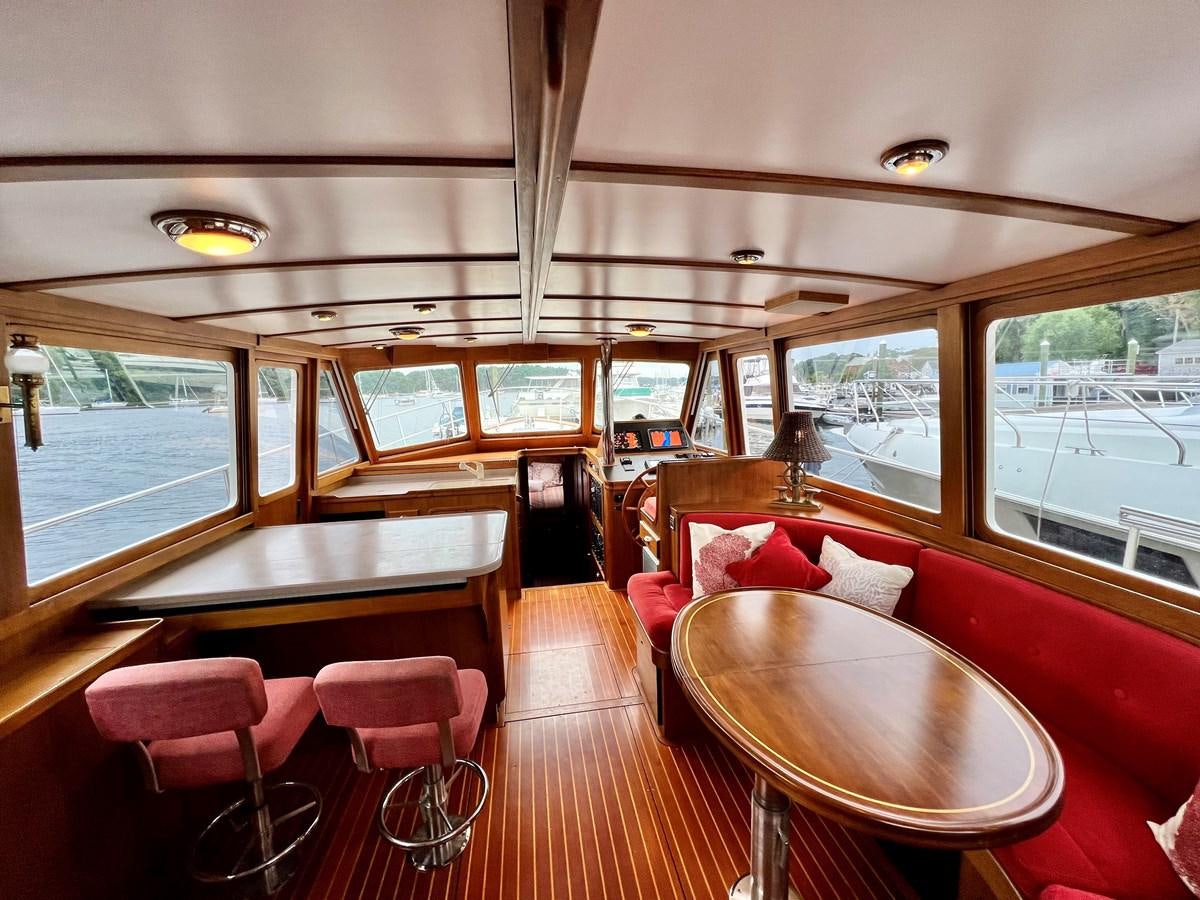

The Salon features a spacious U-shaped settee to starboard with a table and bench. There is a TV hidden in the portside panel against the aft window.

OceanAir electric blinds for all windows
Cantalupi directional reading lights on dimmers
Frigast Denmark overhead dome & wall sconce lights
Red ultra suede upholstery
Skyscreens on overhead hatches
Weems & Plath time & weather instruments
Built-in vacuum cleaner

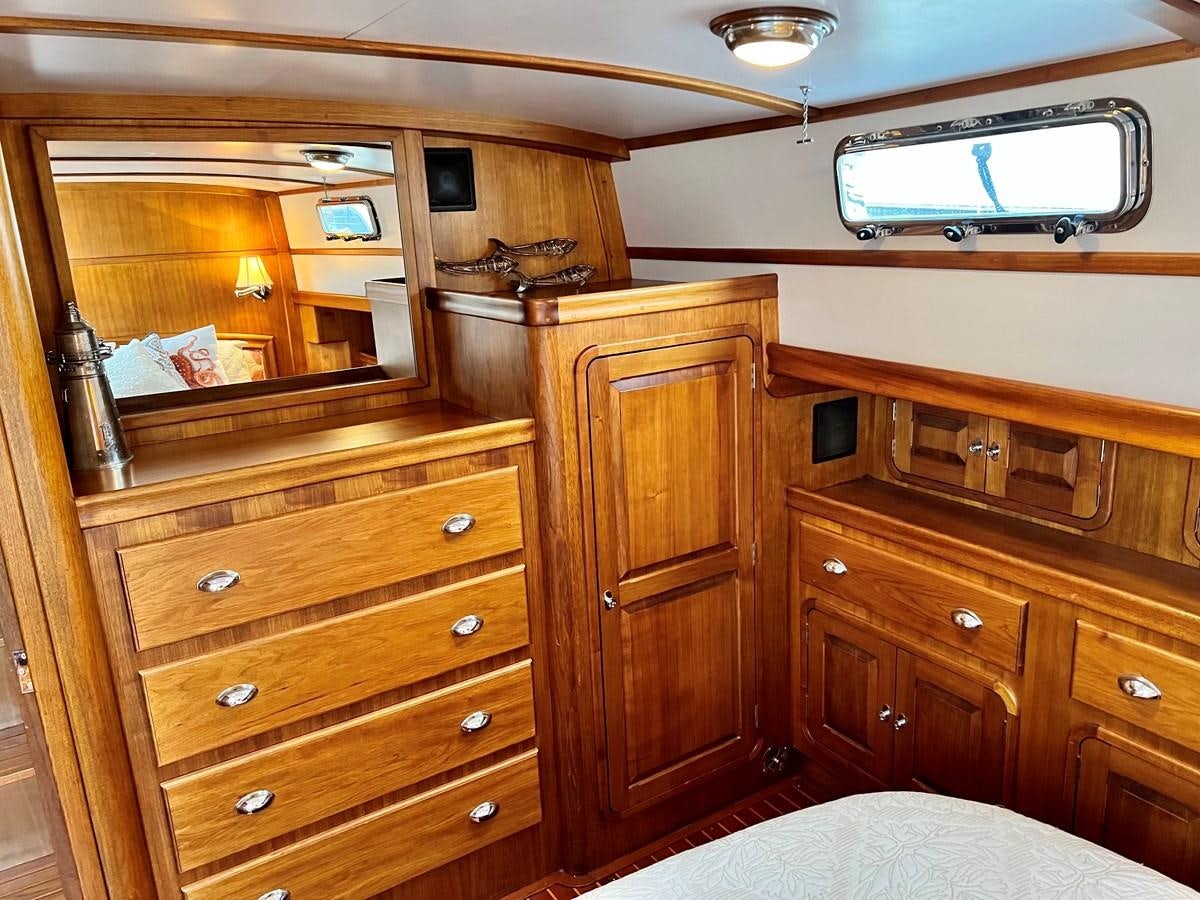

Aft of the salon is the Aft Cabin, which has generous room due to the trunk cabin of the yacht. There is plentiful counter space, a centerline queen bed, and enormous amounts of storage in drawers and lockers. A working desk outboard and head to the port side. This head also features an electric toilet and a separate stall shower. Lastly, the aft cabin has an exit to the cockpit.

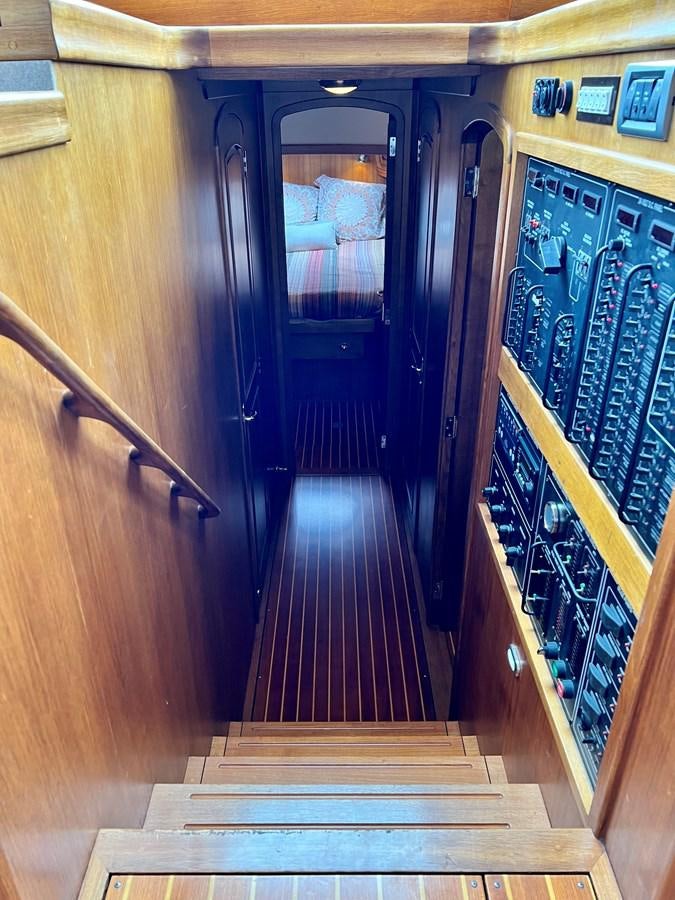

Electrical & Plumbing Systems:

12V/ 24V DC electrical system & 125V/250 AC system by shore power, inverter, or generator allows self-sustaining cruising
Fischer Panda P6+ control panel
Bennett trim tab indicators
Magnum Energy 4000W inverter
ME ARC remote power manager
Prosine Prosport 8 battery charger
(4) 6D house bank batteries (2020), (2) 8D starting, (1) 8D genset
Glendenning CM6/3 50amp shore power reel
Whale gulper manual bilge
Rule 2000 & 3700 pumps on float switches
Torrid Marine 30-gallon hot water heater
Groco raw water strainers
Icerette ice machine
(3) Seafrost holding plate units
SeaFreeze 12v refrigerator
Isotherm 12v refrigerator
Spectra NP400 watermaker
Headhunter X-Caliber water pressure system
Cruisair DX air conditioning system: (4) 8,000 BTU/per hr - aft, fwd, mid cabins & pantry, (1) 14,00 BTU/per hr - main salon. Allowing up to 5 independent temperature control zones.
(2) Webasto air top 5000 diesel heating units

Mechanical:

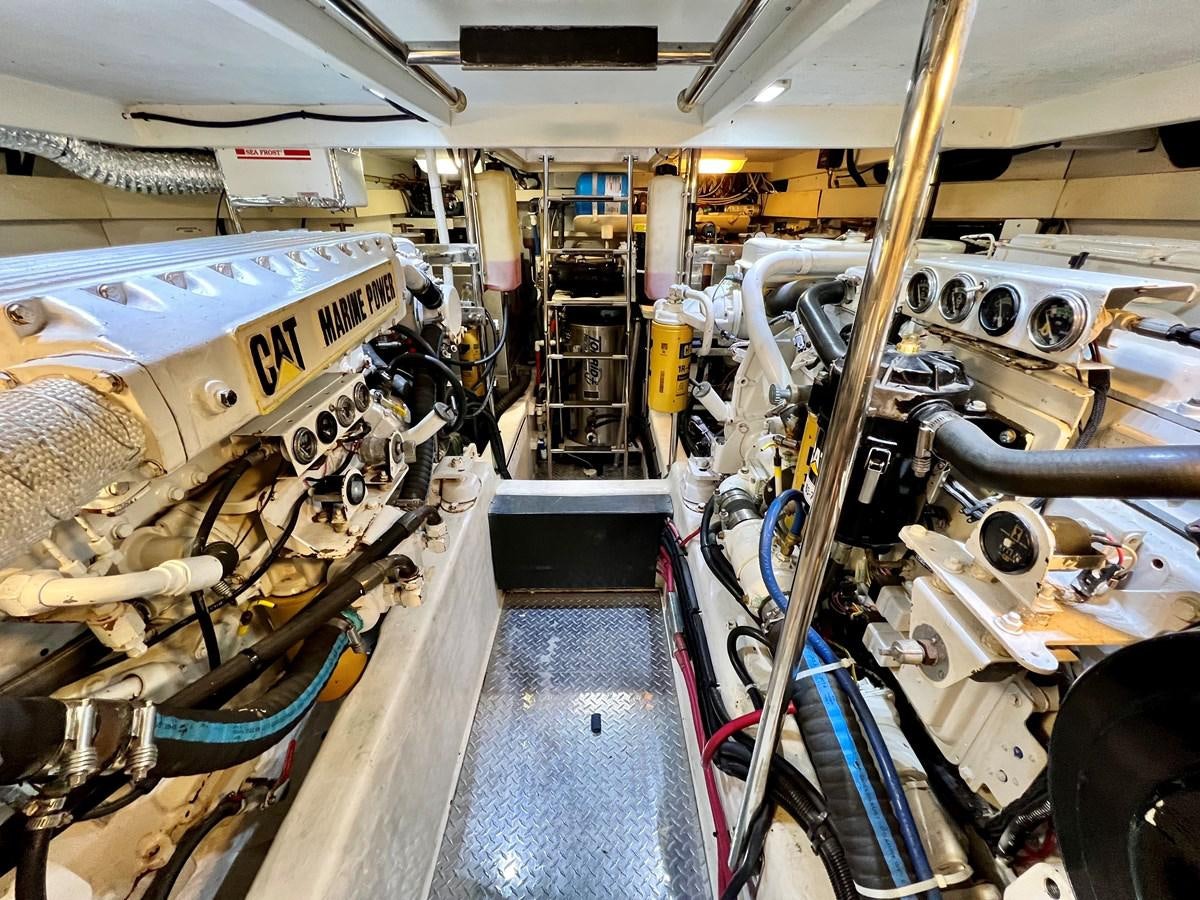

Twin Caterpillar 3196 660HP 6 cylinder diesel engines, Starboard hours: 2411, Port hours: 2406. Recent Maintenance
ZF electric throttles offer trolling and docking features
Fischer Panda 16KW generator
Teleflex Sea Star steering system w/ Capilano helm pumps
X-Change oil system for engine, transmissions & generator
(4) Racor 75-1000M fuel filters for main engines
Depco fuel transfer pump
ZF 32K transmissions
Aquadrive transmission couplings
DeAngelo Marine wet exhaust
Twin Teignbridge 31’ x 36’ 4-blade Nibral propellers
Fireboy engine suppression systems
