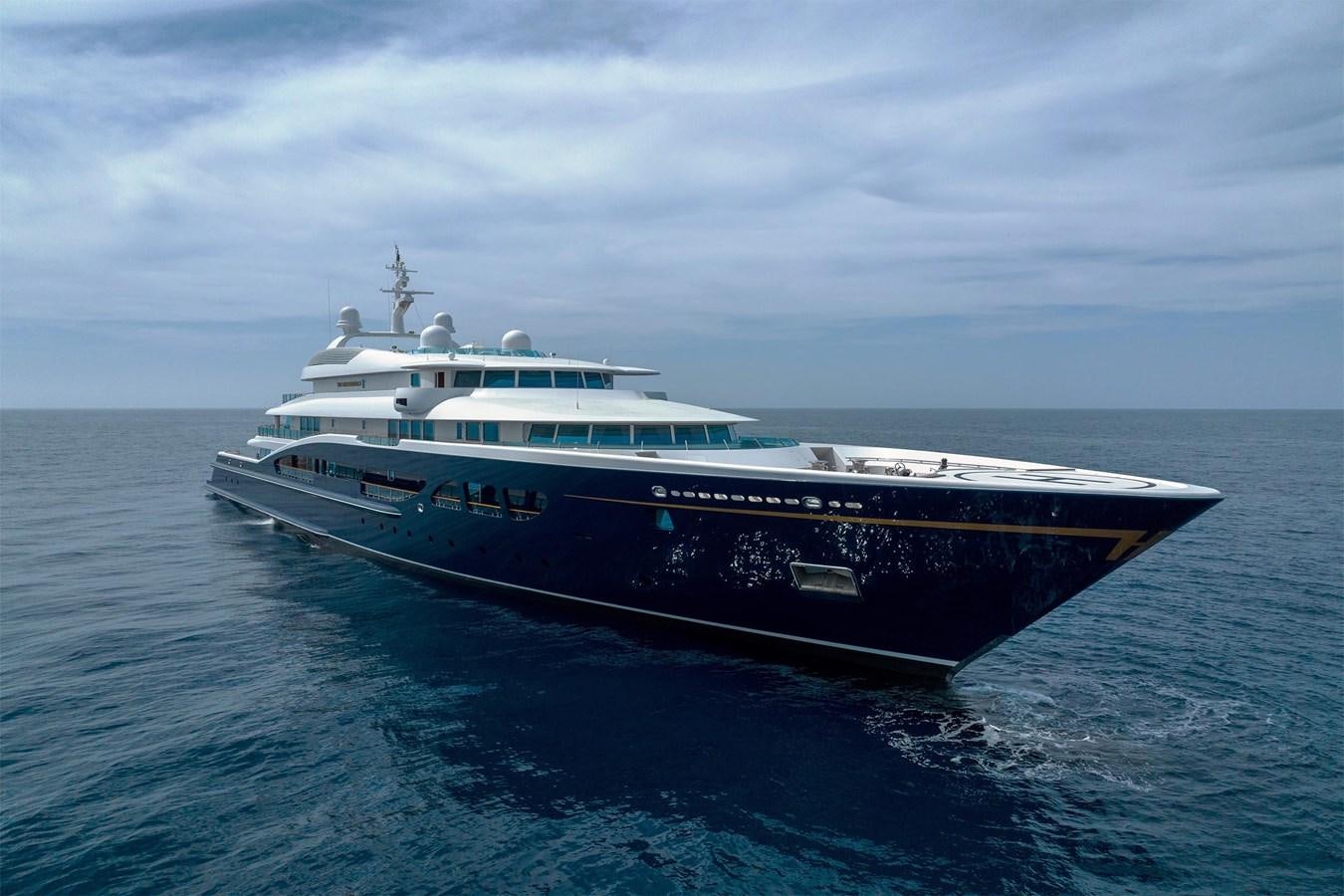

| Name: | CARINTHIA VII | |||
| Type: | Fast-displacement motor yacht with bulbous bow | |||
| Builder: | Fr. Lürssen Werft GMBH & Co.Kg, Germany | |||
| Year Built: | 2002 | |||
| Refit Year: | 2012/2017/2022 | |||
| Construction Project Name: |
FABERGÉ |
|||
| LOA (M/FT): | 97.20 | M | 318’ | 11” |
| LWL (M/FT): | 89.10 | M | 292’ | 04” |
| Length COR: | 87.20 | M | 286’ | 10” |
| Beam Overall (M/FT): | 16.60 | M | 54’ | 06” |
| Beam molded (M/FT): | 15.95 | M | 52’ | 32” |
| Draft (Half Load) (M/FT): | 4.60 | M | 15’ | 01” |
| Draft DWL (M/FT): | 4.80 | M | 15’ | 09” |
| Gross Tonnage: | 3,643 GT | |||
| Net Tonnage: | 1,093 GT | |||
| Displacement (Light Ship): | 3,053 Tons | |||
| Hull and Superstructure: | Steel | |||
| Bulb: | Stainless steel | |||
| Decks: | 35mm Teak | |||
| Flag: | Malta | |||
| Classification: | DNV (+100 A5 Motor Yacht + MC Aut.), private registry | |||
| Naval Architect: | Fr. Lürssen Werft Gmbh & Co. Kg, Germany | |||
| Exterior Design and layout: | Tim Heywood Design | |||
| Interior Design: | Ellerhorst & Kreuter | |||
| Main Engines: | 4 x 10,060hp (7,400Kw) @ 1,350rpm MTU 20V type 1163 TB93 | |||
| Speed: | 10 Kts on one engine, at 800 RPM | |||
| 18-21 Kts on two engines at 850 RPM | ||||
| 24-25 Kts on four engines at 1300 RPM | ||||
| Range: | 5,000 nm @ 15.5 kts | |||
| Guest Accommodations: | 14 Guests in 8 Staterooms | |||
| Crew: | 26 (37 max) | |||
| Minimum Safe Manning: | 8 | |||

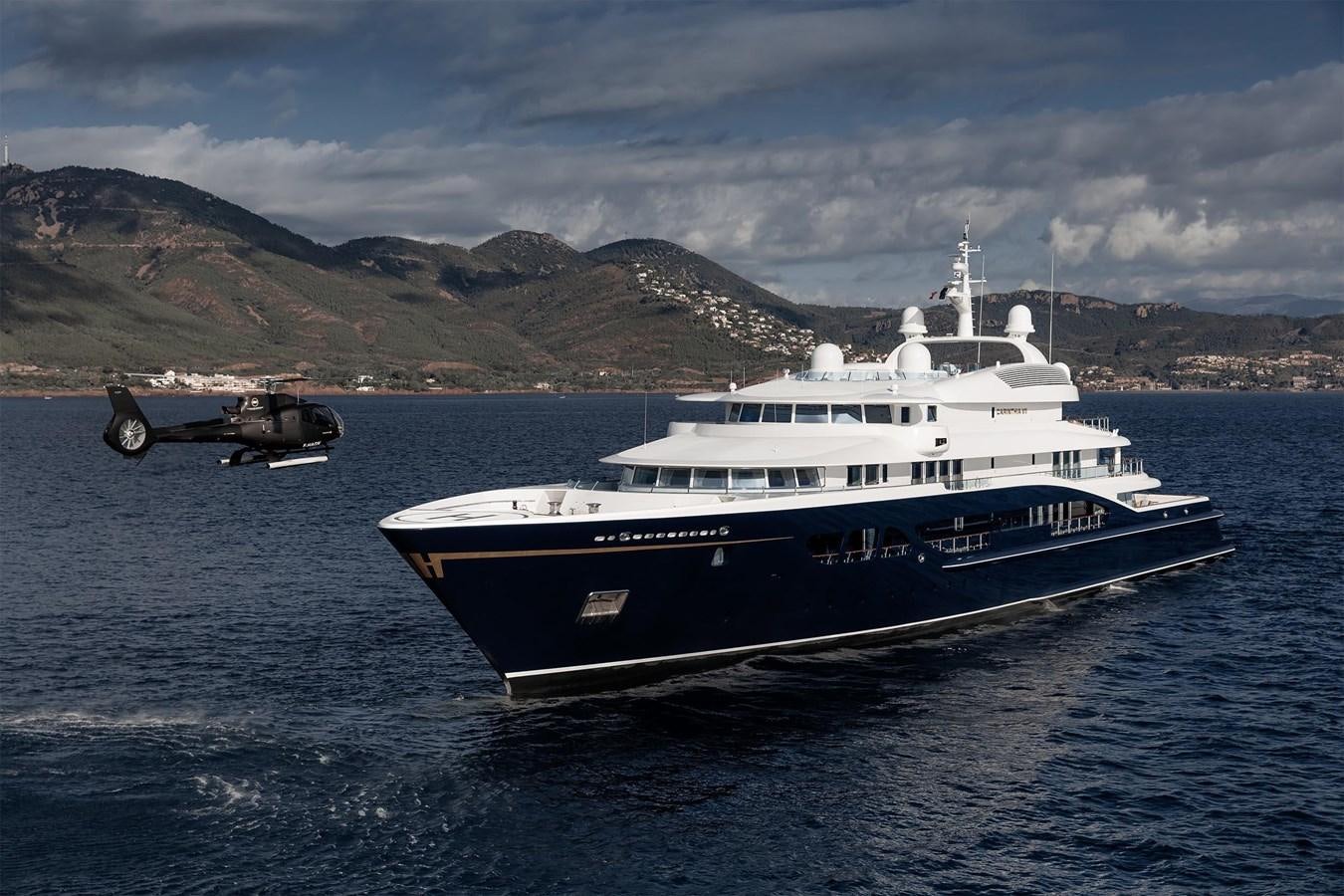

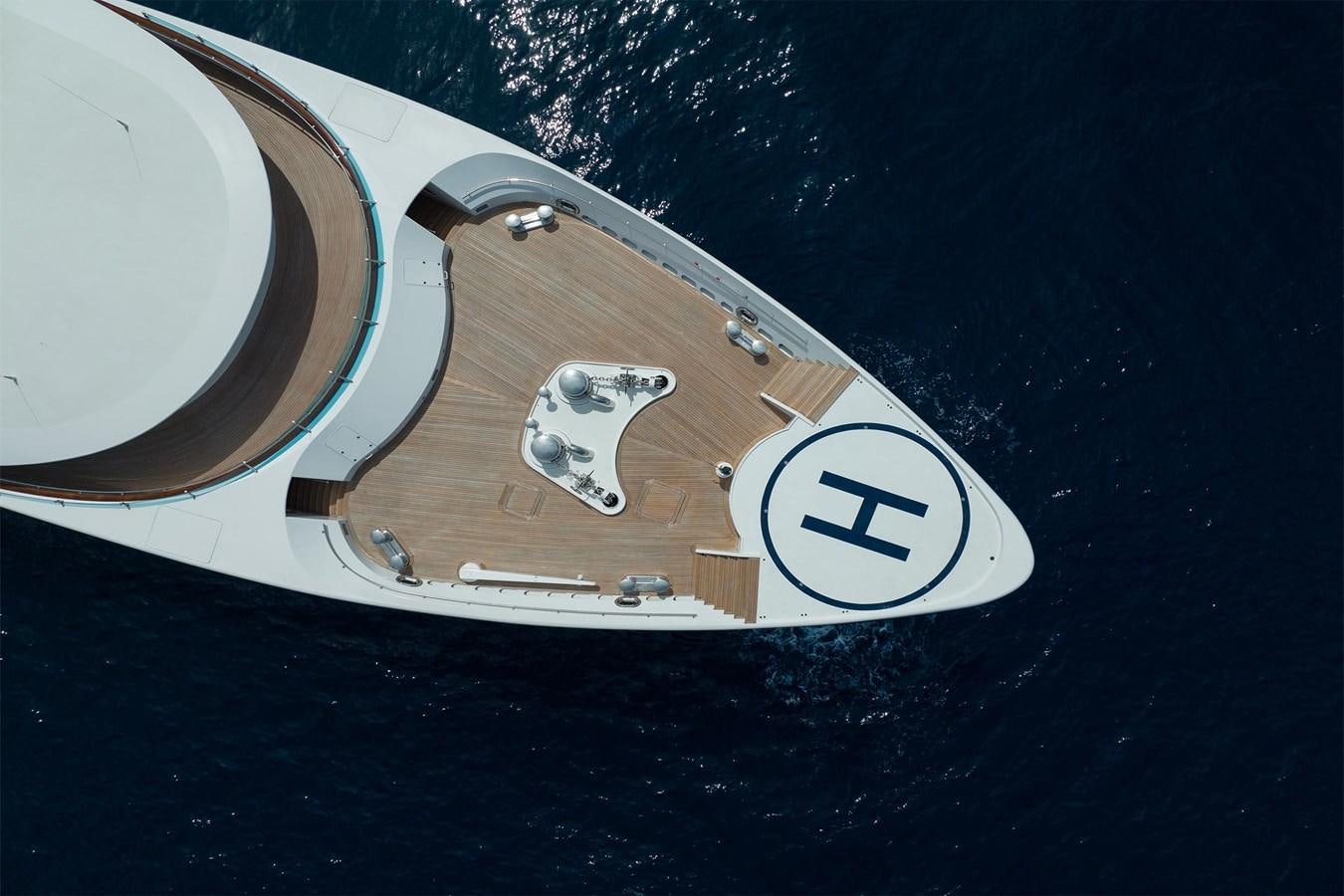

| Helicopter capacity: | Max. 5,000kg (touch and go) |
| ¨TOP QUALITY LÜRSSEN BUILT TO A TIM HEYWOOD DESIGN |
| ¨25 KNOTS MAXIMUM SPEED |
| ¨RETRACTABLE STABILISERS |

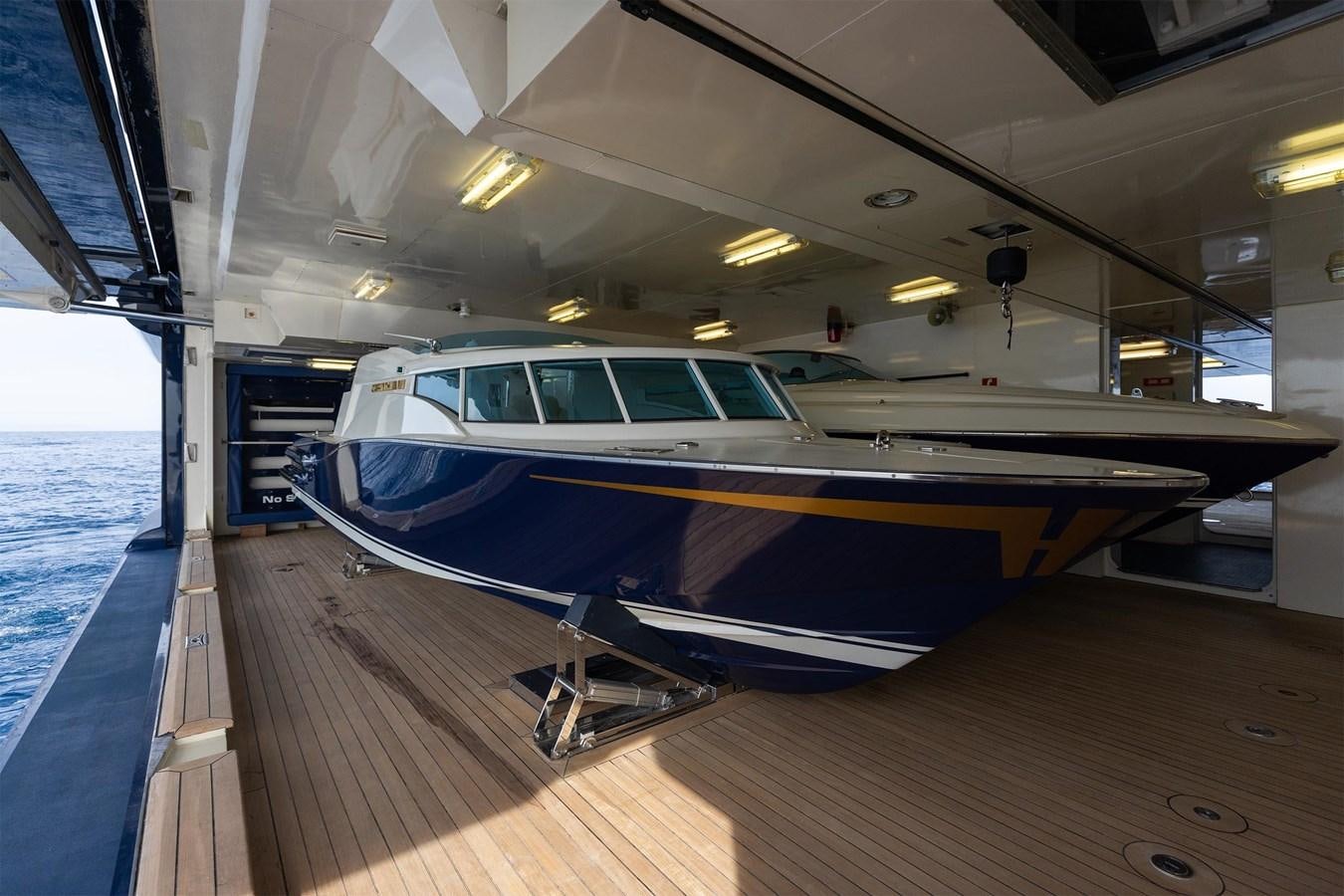

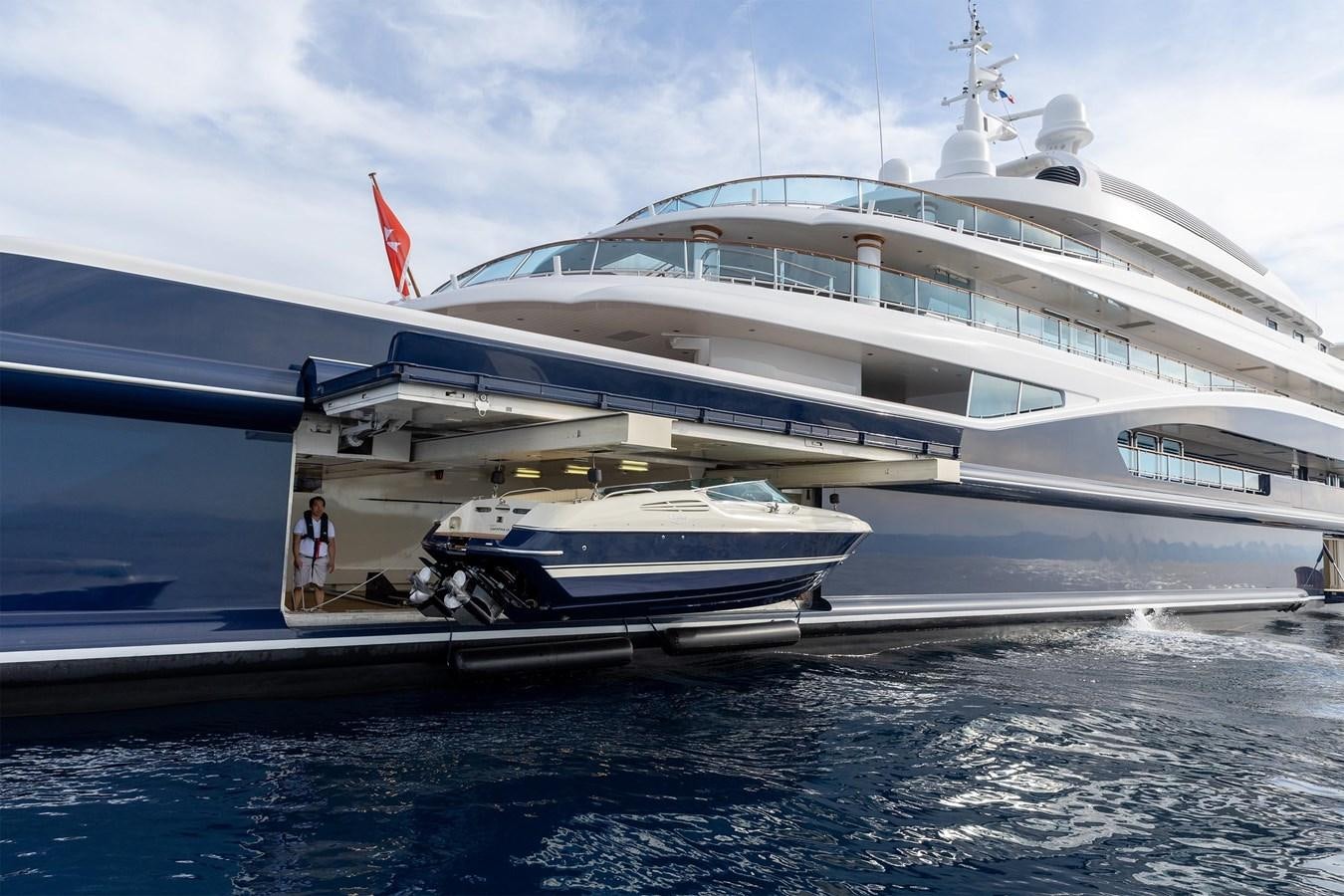

| ¨GOOD SIZE TENDERS IN GARAGES |
| ¨LOW MAIN ENGINE HOURS |
| ¨20 YEAR CLASS SURVEY COMPLETED IN APRIL 2022 |
| ¨PRIVATE OWNER'S DECK WITH SPACIOUS SEPARATE DAYTIME AND NIGHTTIME AREAS |
| ¨6 GUEST STATEROOMS ON MAIN DECK |
| ¨WELLNESS SPA ON LOWER DECK |
| ¨ELEVATOR TO 4 DECKS |
| CLASSIFICATION |
|---|
| Flag: | Malta |
| Port of Registry: | Valetta |
| Classification: | DNV (+100 A5 Motor Yacht + MC Aut.) |
| EU Tax Status: | VAT Paid |
| IMO Number: | 8994001 |
| Home Port: | Antibes, France |
| REGULATION |
|---|
| Vessel Registration: | Private |
| Built to Commercial Compliance: | No |
| SQUARE METERS/FEET |
|---|
| TOTAL EXTERIOR DECKS | 1175 | m2 | 12,650 | ft2 | |
| TOTAL INTERIOR | 822 | m2 | 8,852 | ft2 | |
| Sun Deck | 124 | m2 | 1335 | ft2 | |
| Bridge Deck | 275 | m2 | 2964 | ft2 | |
| Owner’s Deck | 341 | m2 | 3,674 | ft2 | |
| Main Deck | 434 | m2 | 4,675 | ft2 | |
| Owner’s Deck perimeter (running) | 123 | m | 403 | ft | |
| Bridge Deck Total(Interior) | 105 | m2 | 403 | ft2 | |
| Navigation Bridge | 19 | m2 | 213 | ft2 | |
| Captain’s cabin and office | 29 | m2 | 313 | ft2 | |
| First officer’s office | 10 | m2 | 116 | ft2 | |
| Radio room | 12 | m2 | 136 | ft2 | |
| Guest lobby | 17 | m2 | 183 | ft2 | |
| Day head | 2 | m2 | 30 | ft2 | |
| Owner’s Deck Total(Interior) | 345.3 | m2 | 3,716 | ft2 | |

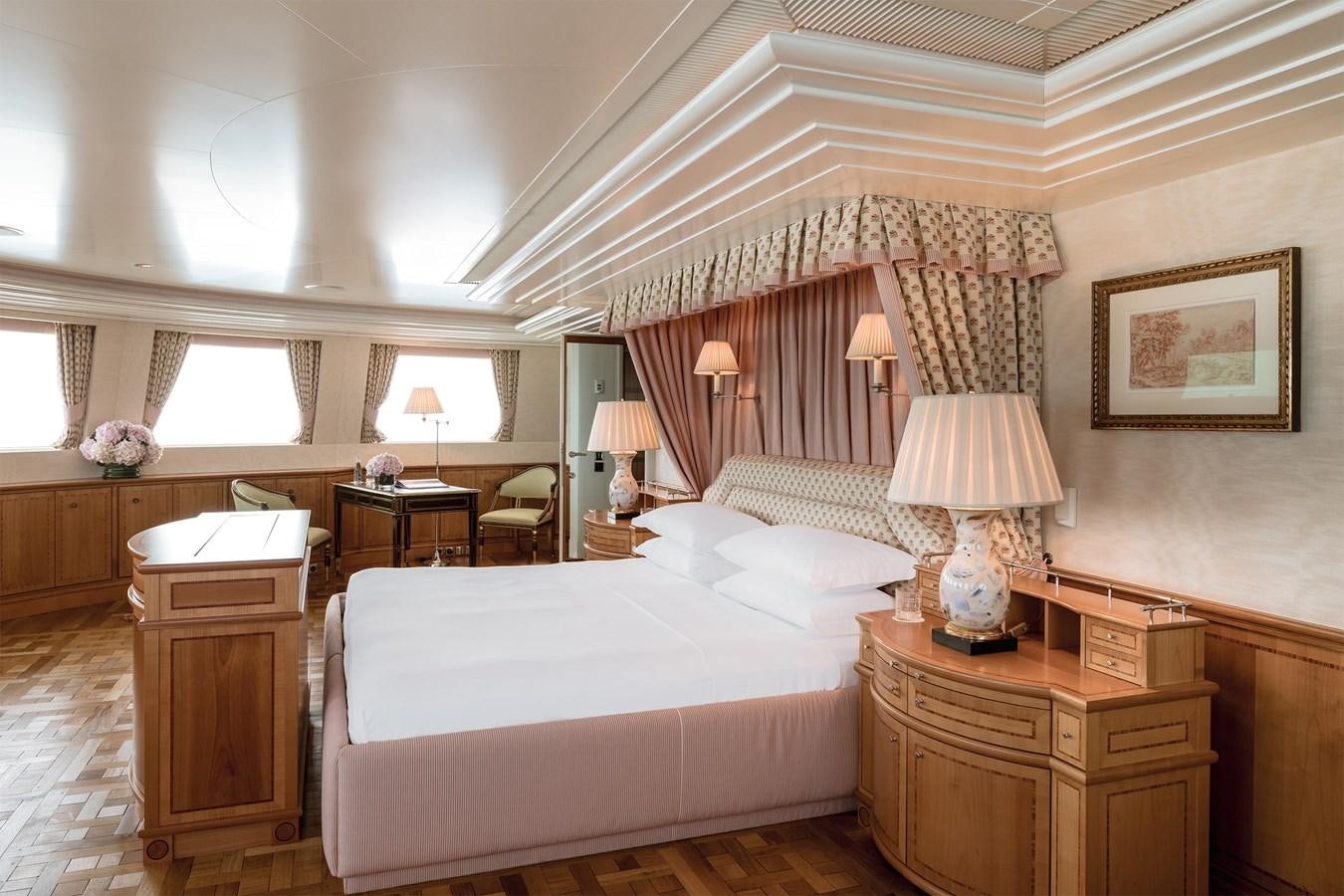

| Master suite (stateroom, dressing and bathroom) | 105.0 | m2 | 1,130 | ft2 | |

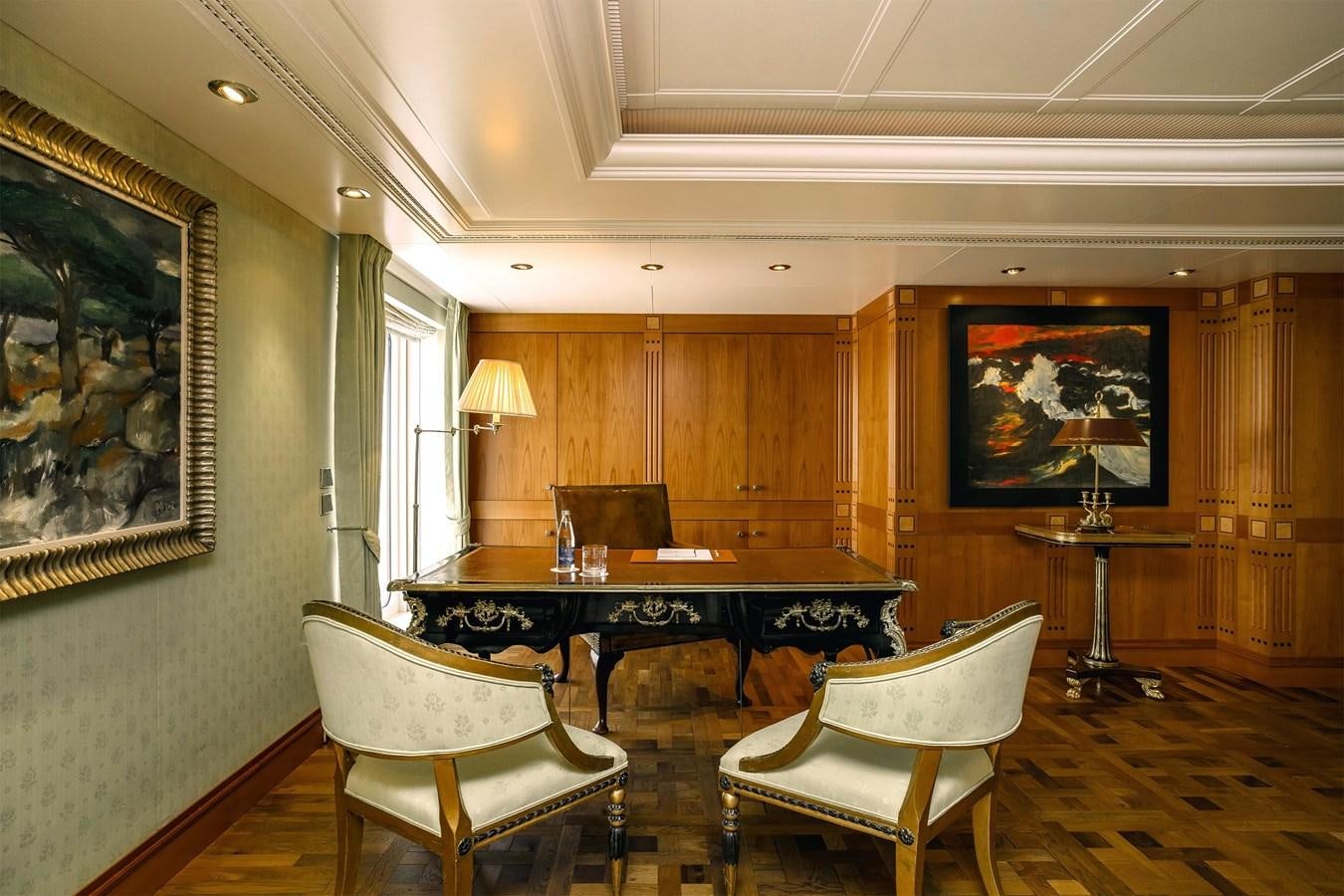

| Owners’ private study | 70.5 | m2 | 758 | ft2 | |
| VIP Stateroom, dressing and bathroom | 43.0 | m2 | 462 | ft2 | |
| Private Salon aft | 101.4 | m2 | 1,091 | ft2 | |
| Lobby | 22.0 | m2 | 236 | ft2 | |
| Day head | 3.4 | m2 | 36 | ft2 | |
| Main Deck Total(Interior) | 386 | m2 | 4,154 | ft2 | |
| Main Salon | 130 | m2 | 1,402 | ft2 | |
| Dining Room | 34 | m2 | 366 | ft2 | |
| Lobby | 75 | m2 | 812 | ft2 | |
| Day head and cloakroom | 8 | m2 | 93 | ft2 | |
| Guest Double Bed Stateroom 1 | 26 | m2 | 283 | ft2 | |
| Guest Double Bed Stateroom 2 | 27 | m2 | 297 | ft2 | |
| Guest Twin Bed Stateroom 1 | 22 | m2 | 238 | ft2 | |
| Guest Twin Bed Stateroom 2 | 22 | m2 | 238 | ft2 | |
| Guest Single Bed Stateroom 1 | 19 | m2 | 211 | ft2 | |
| Guest Single Bed Stateroom 2 | 19 | m2 | 211 | ft2 | |
| Lower Deck Total(Guest) | 71 | m2 | 767 | ft2 | |
| SPA/Sauna/Gym | 64 | m2 | 688 | ft2 | |
| Lobby | 7 | m2 | 78 | ft2 |
| HEADROOM |
|---|
| Main Deck Exterior | 2.25 | m | 7.38 | ft |
| Main Deck Interior | 2.30 | m | 7.54 | ft |
| Owner’s Deck Interior | 2.20 | m | 7.22 | ft |
| Owner’s Deck Exterior | 2.20 | m | 7.22 | ft |
| Bridge Deck Interior | 2.20 | m | 7.22 | ft |
| Bridge Deck Exterior | 2.27 | m | 7.44 | ft |
| Lower Deck Spa | 2.25 | m | 7.38 | ft |
| MAIN DECK |
|---|

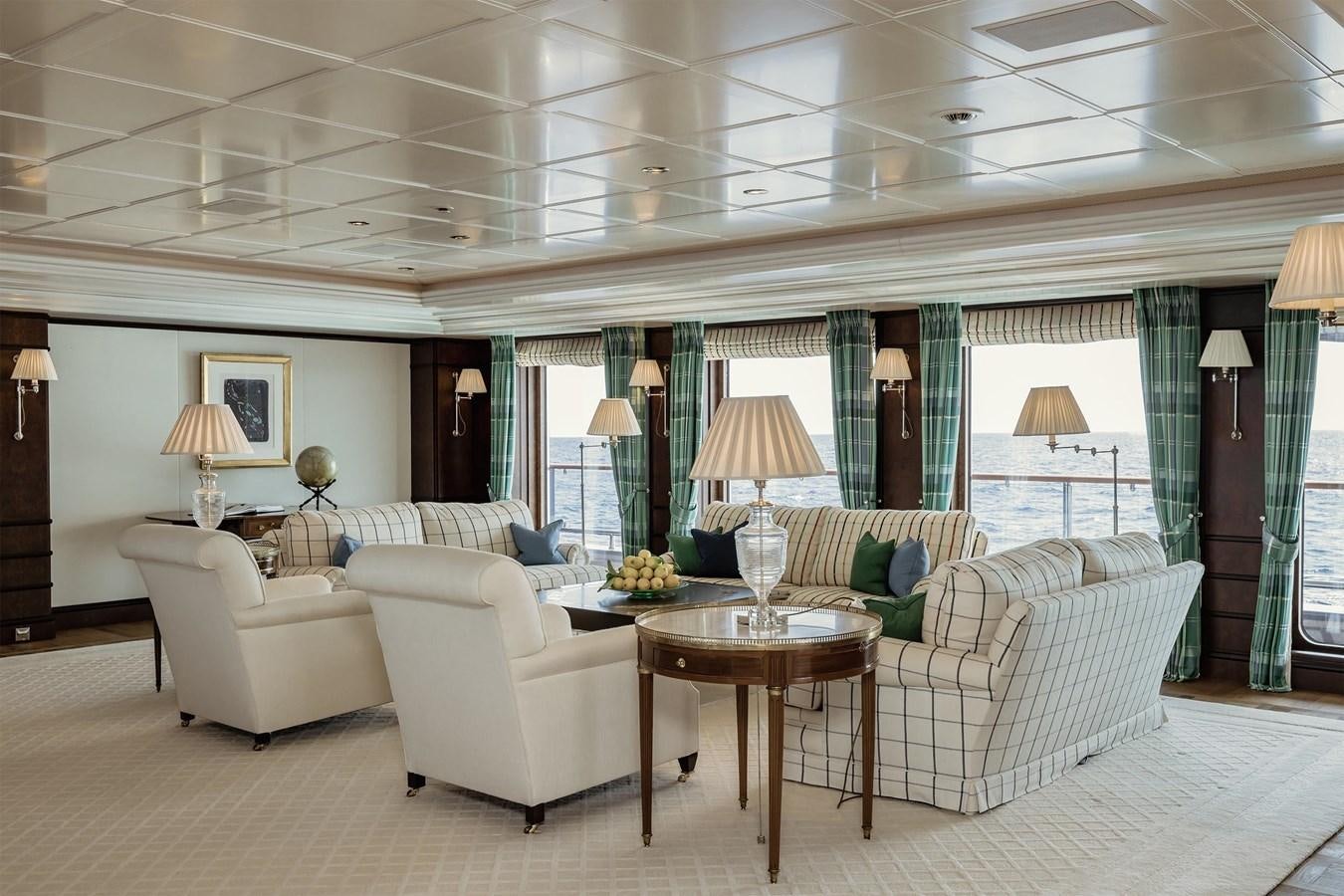

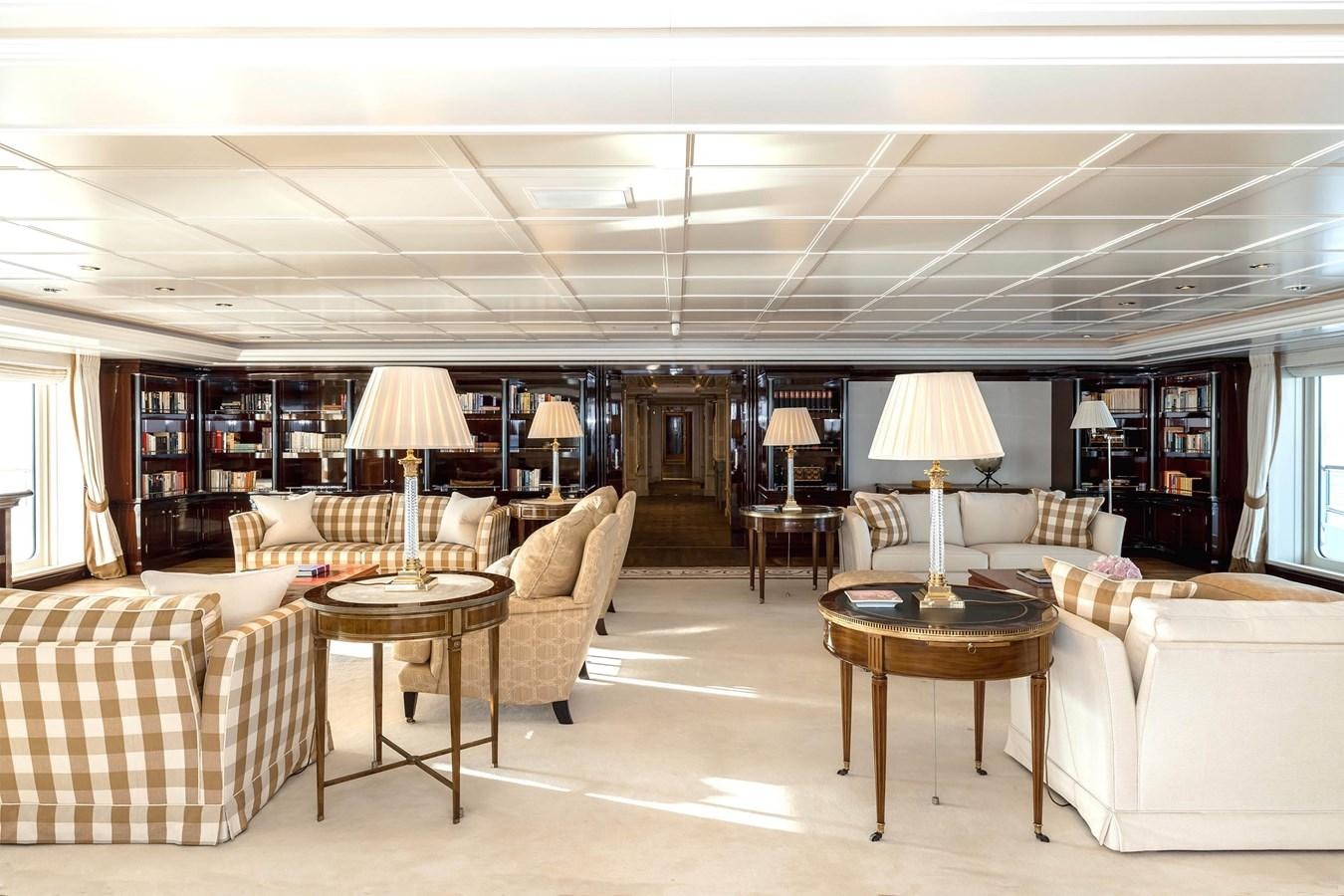

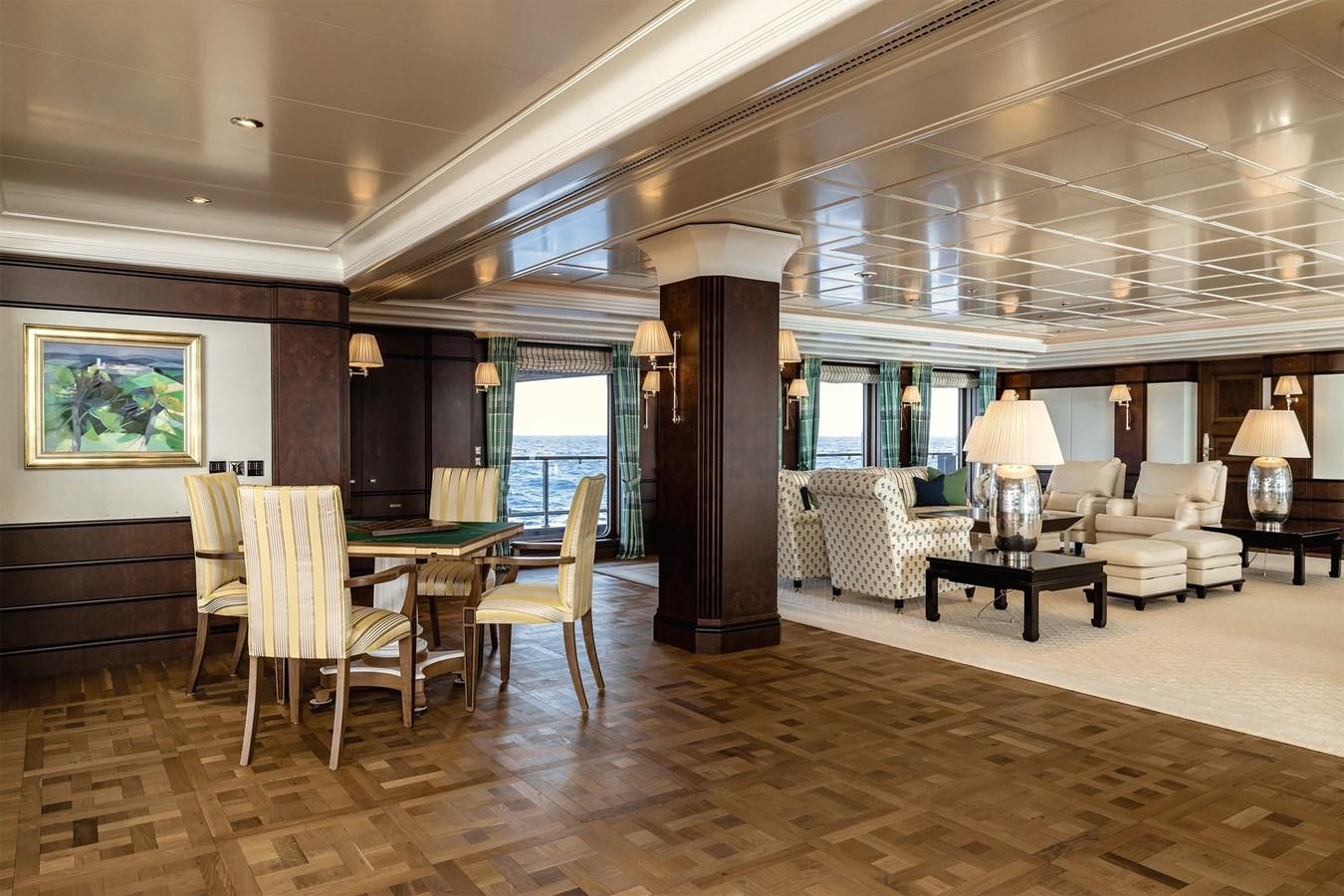

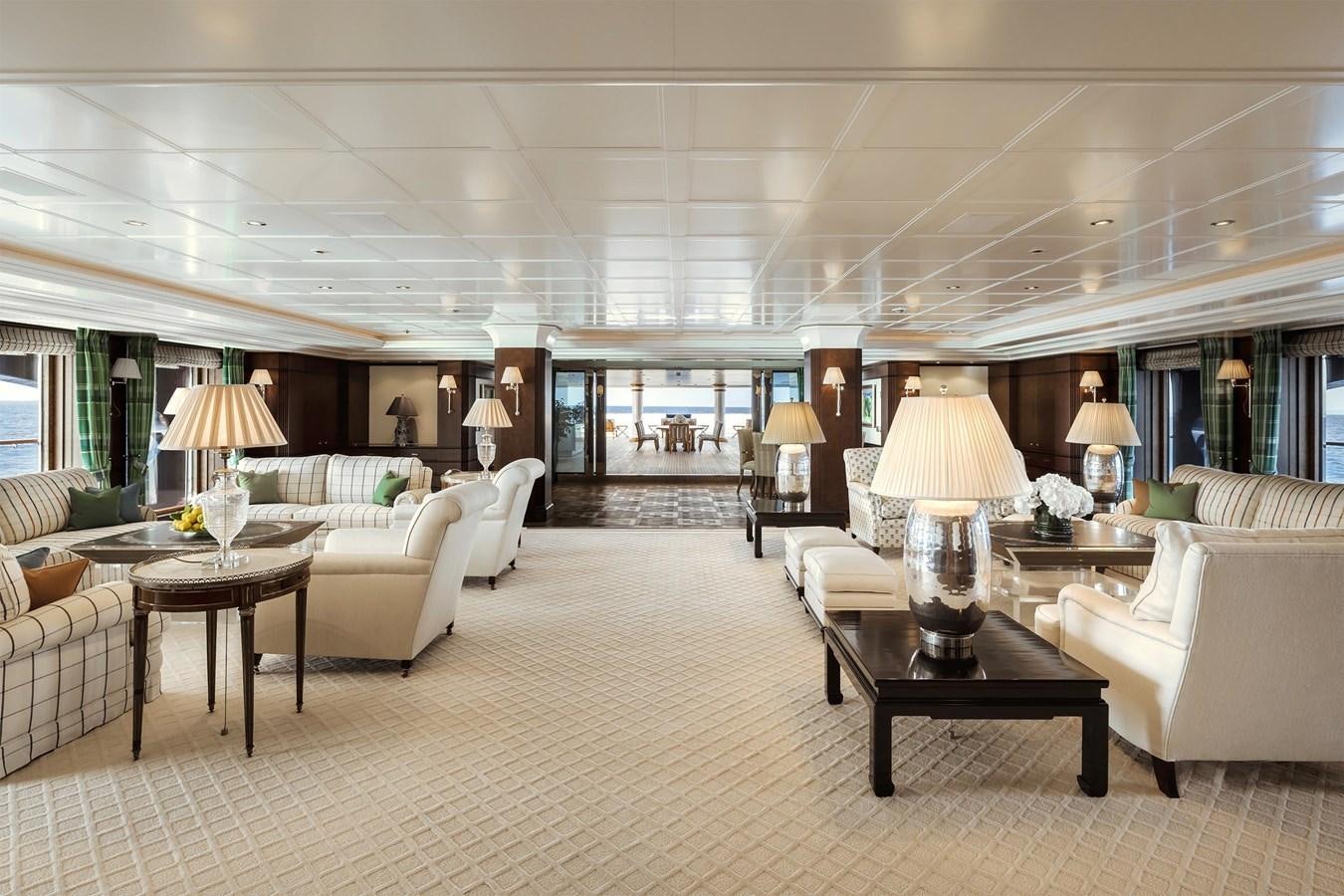

| There is a large Main Salon aft with two separate sitting areas to port and starboard andfull height floor to ceiling windows. |
| A wide corridor links this area to the main foyer amidships with day head and cloakroom. A guest elevator serves four decks from the lower deck to the bridge deck while the guest staircase leads from the lower deck to the sundeck. |
| The dining room for 12 guests is forward to starboard, opposite the guest galley and pantry.Guest staterooms are forward on the main deck. |
| Main Deck Accommodation: |

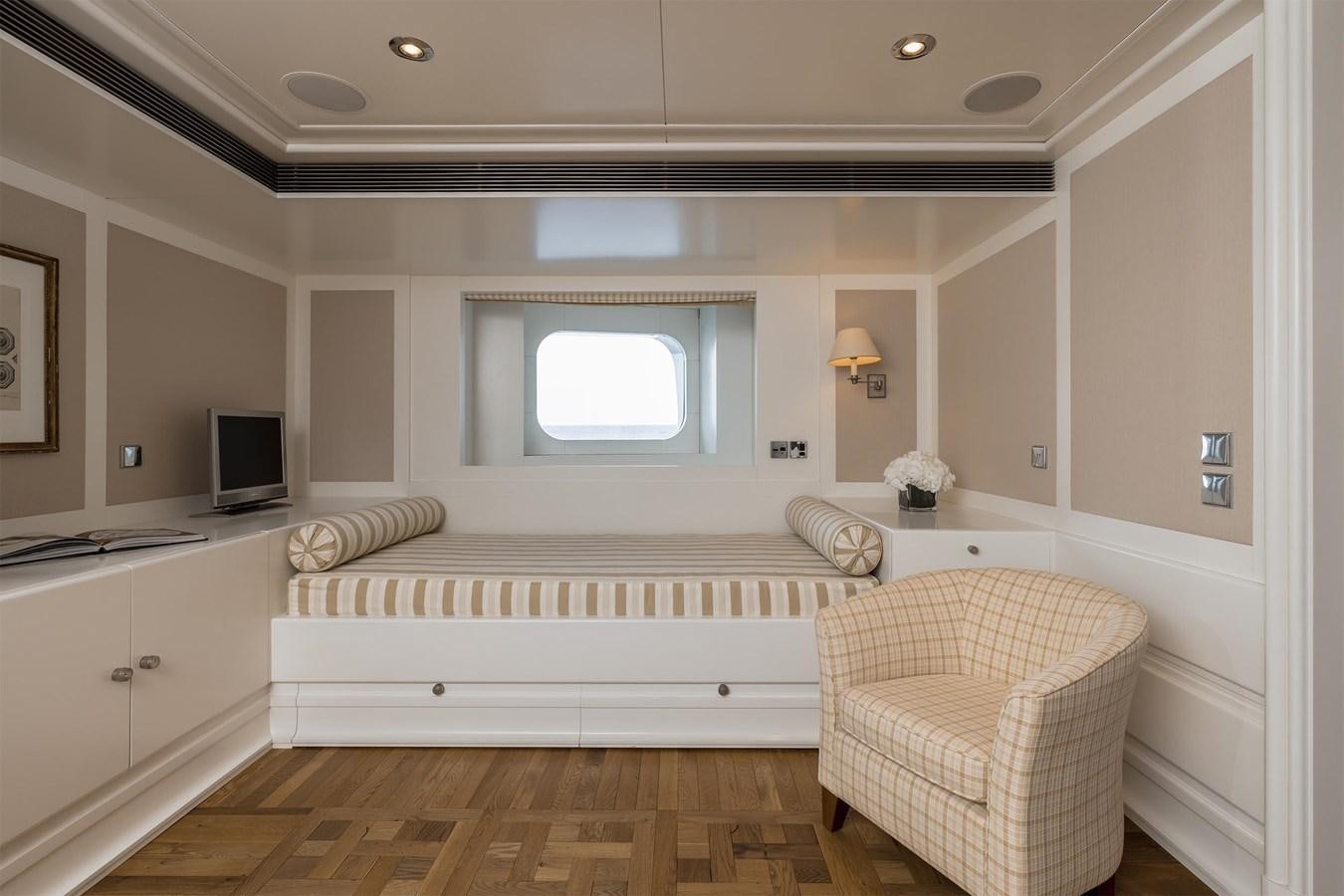

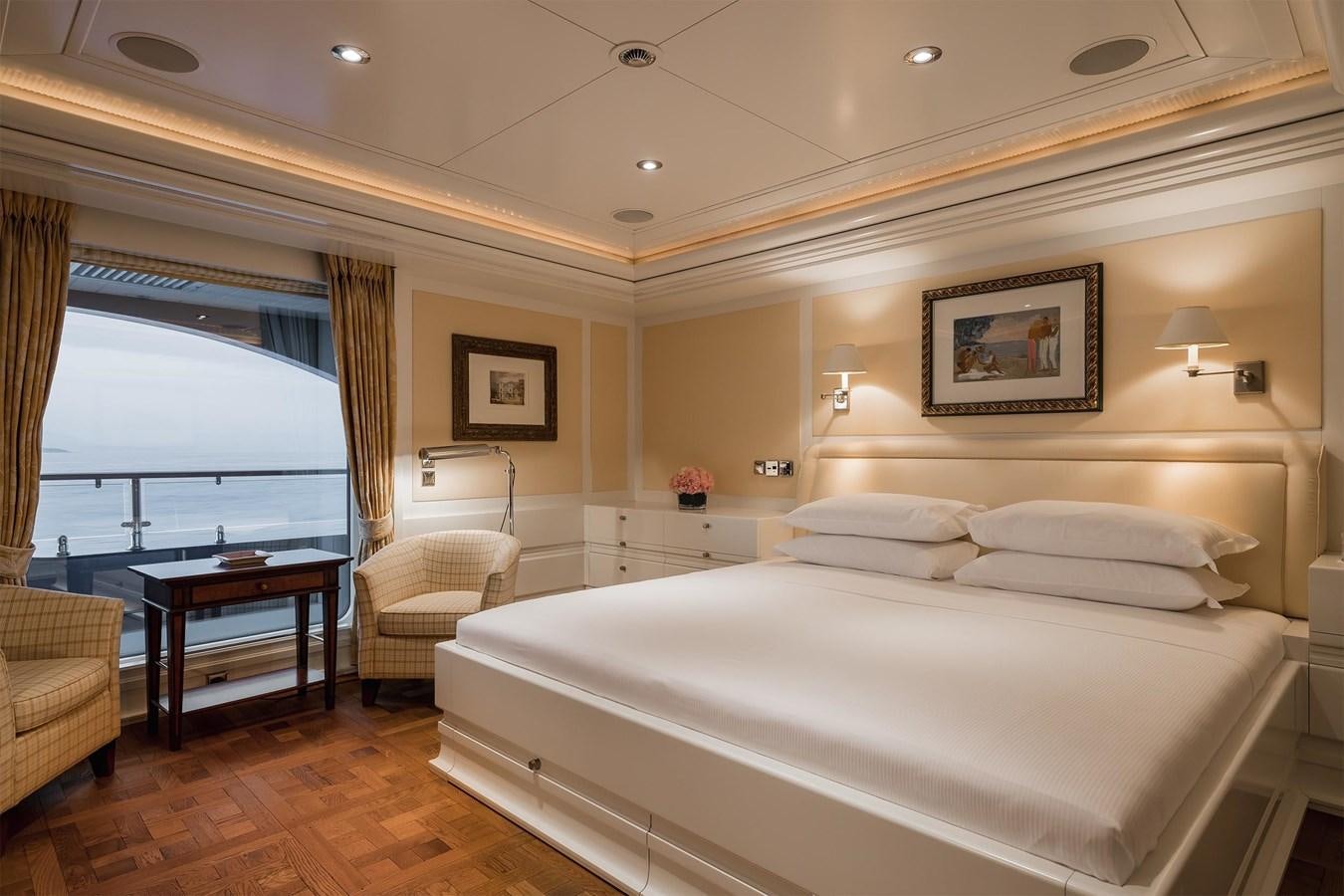

| 2 x Double Guest Stateroomseach with ensuite bathrooms, bathtubs, and walk-in wardrobes. |
| 2 x Twin Guest Stateroomseach with ensuite bathrooms, bathtubs, and walk-in wardrobes. |
| 2 x Single Guest Stateroomswith ensuite bathrooms on main deck forward. |
| PRIVATE OWNER’S DECK |

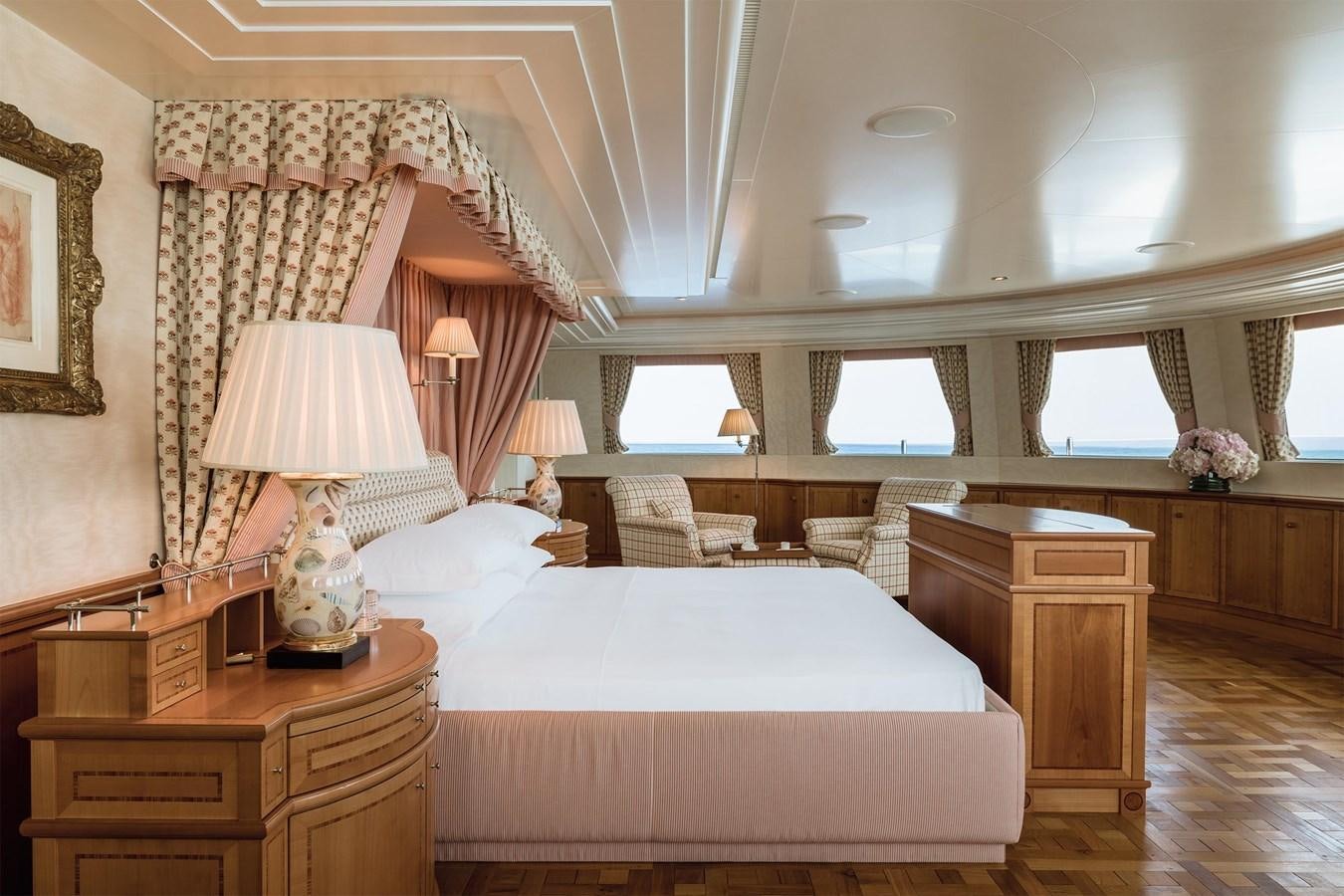

| The Owner’s night-time area is forward and separated from the day areas by double doors and a private corridor. The Owner’s Stateroom is forward facing with large windows giving a 180-degree view over the bow. The ensuite bathroom with steam shower, bathtub/whirlpool and separate head is aft to port. The walk- in dressing room is aft to starboard and there is beauty salon aft to port. A door leads to the private deck forward.Aft doors lead to the Owner’s private office, again with full height windows and lounge. |
| There is a VIP cabin on the Owner’s deck portside with ensuite bathroom, bathtub with shower and walk-in wardrobe. The Owner’s salon is further aft with full length windows either side and access to the owner’s private outside deck aft. |
| BRIDGE DECK: |

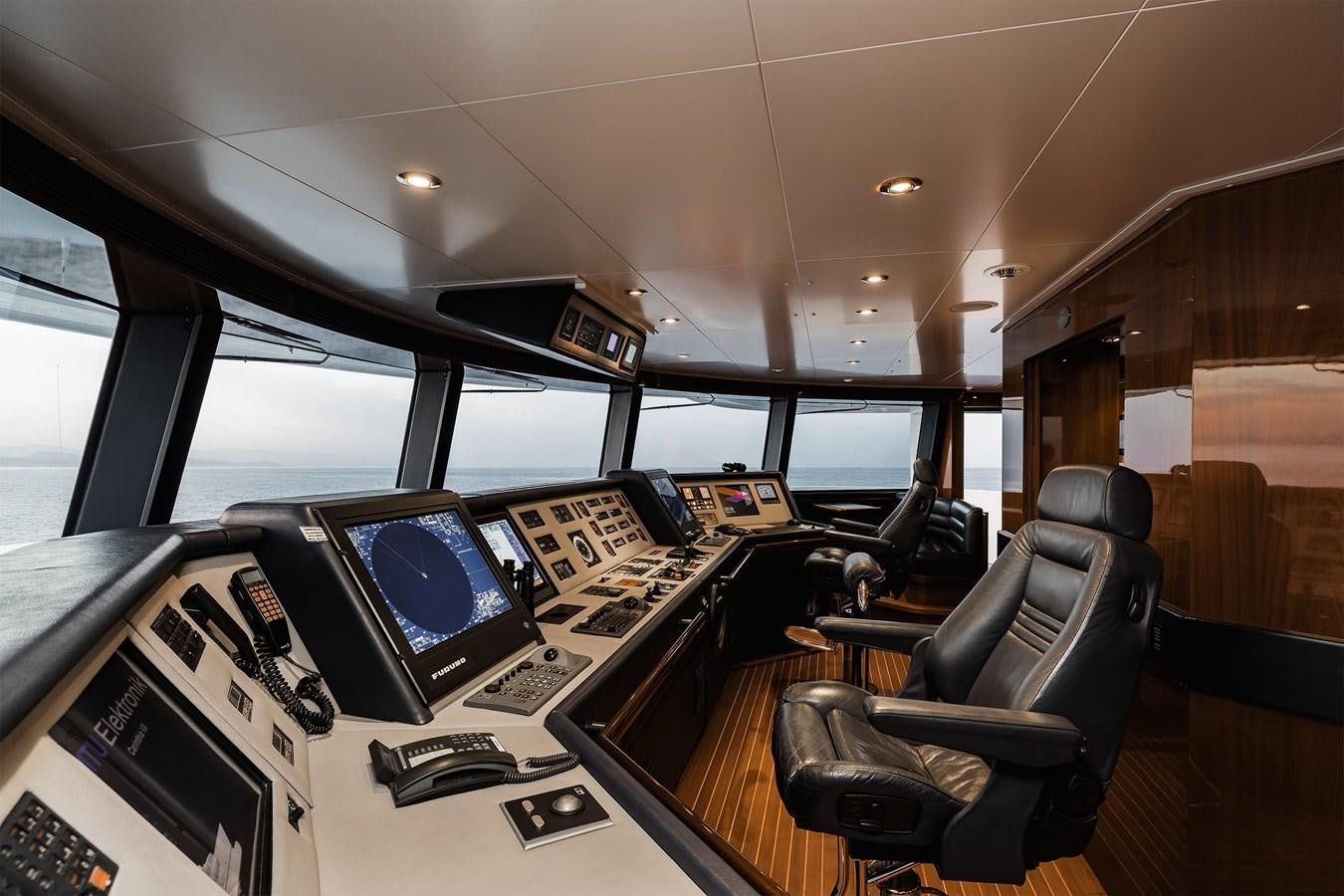

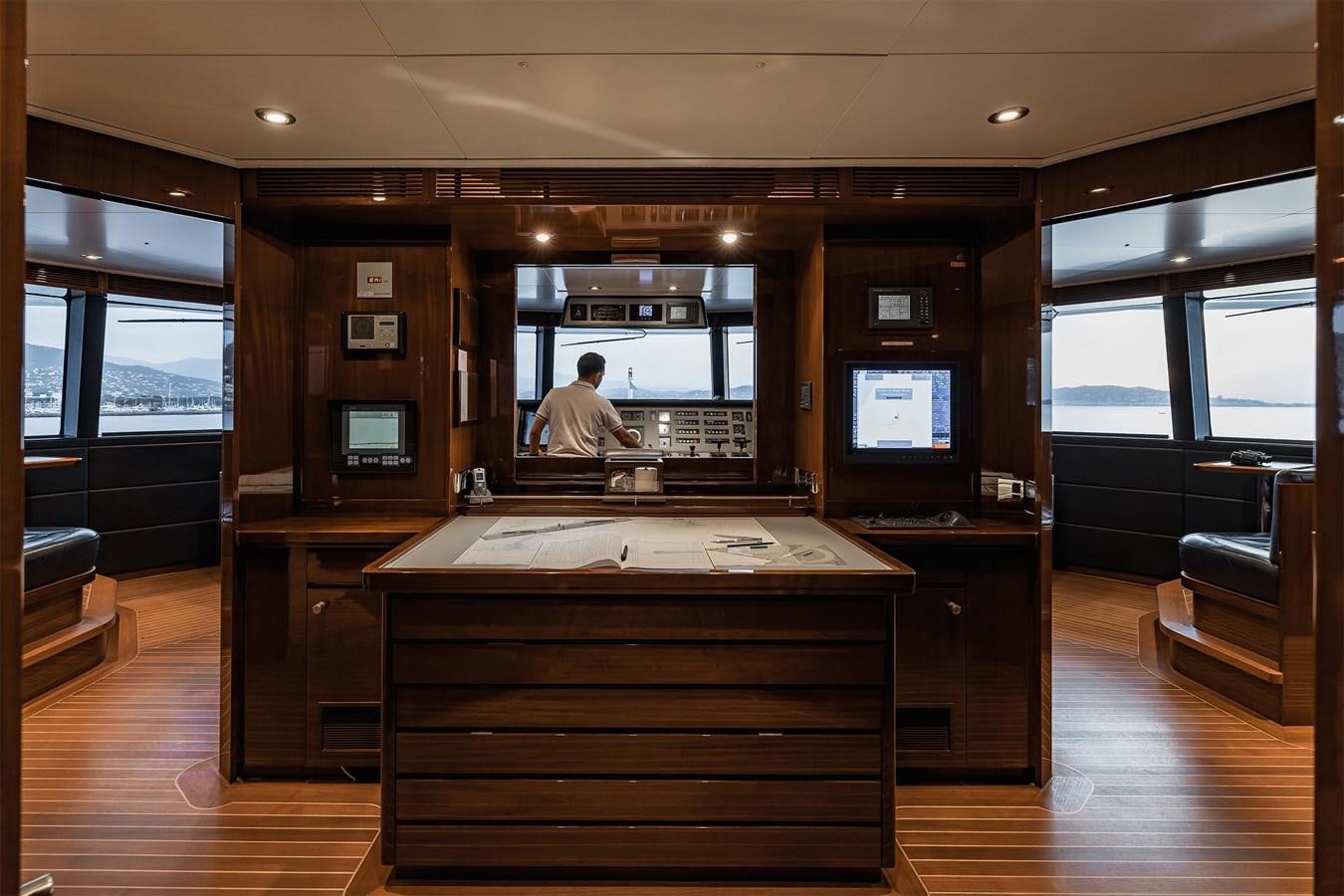

| Essentially a working deck, the mahogany paneled wheelhouse is forward with chart room aft, radio room to starboard with ships office to port and adjacent day-head. The Captain’s office and cabin with en suite bathroom are to starboard, with pantry and service stairs opposite. |

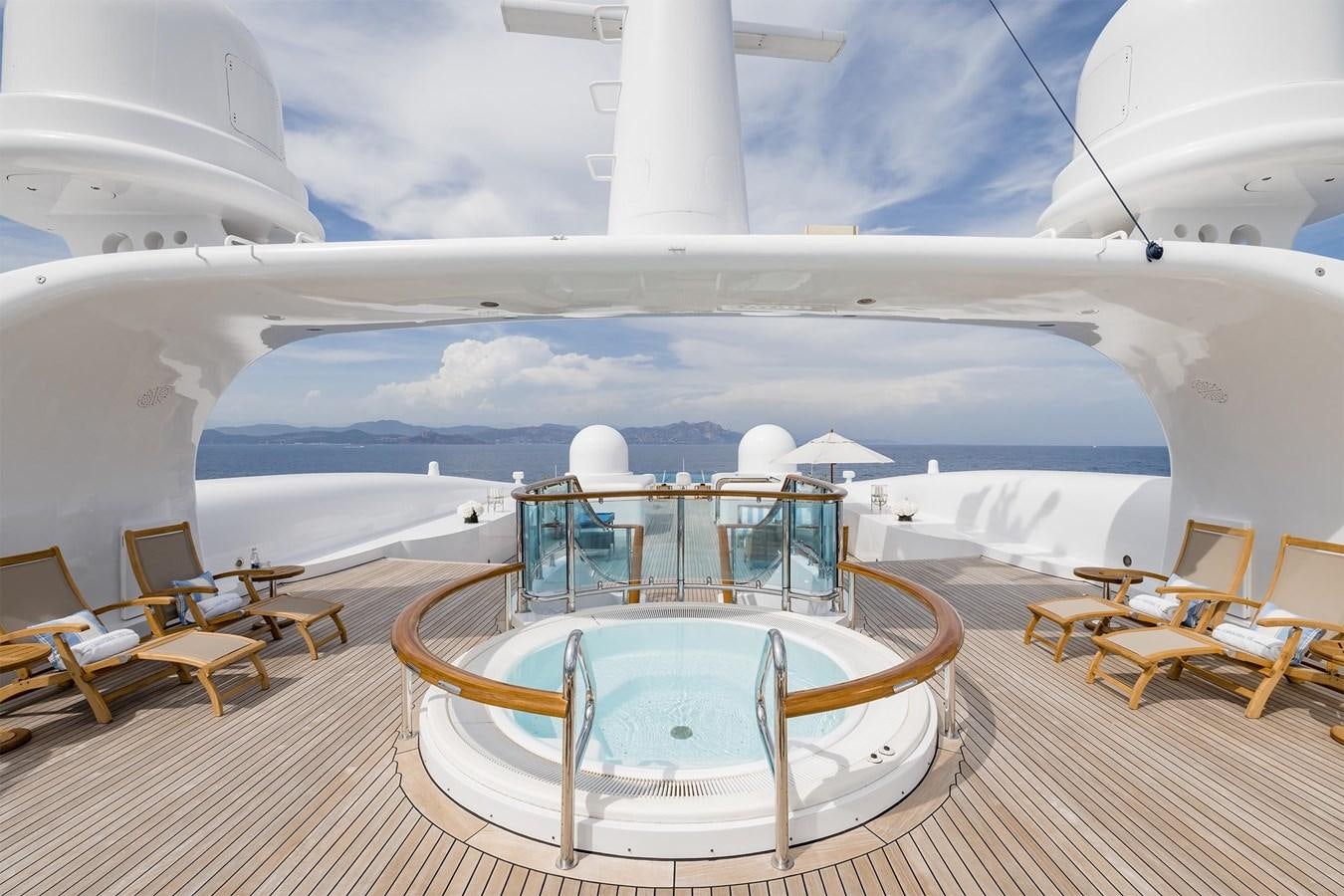

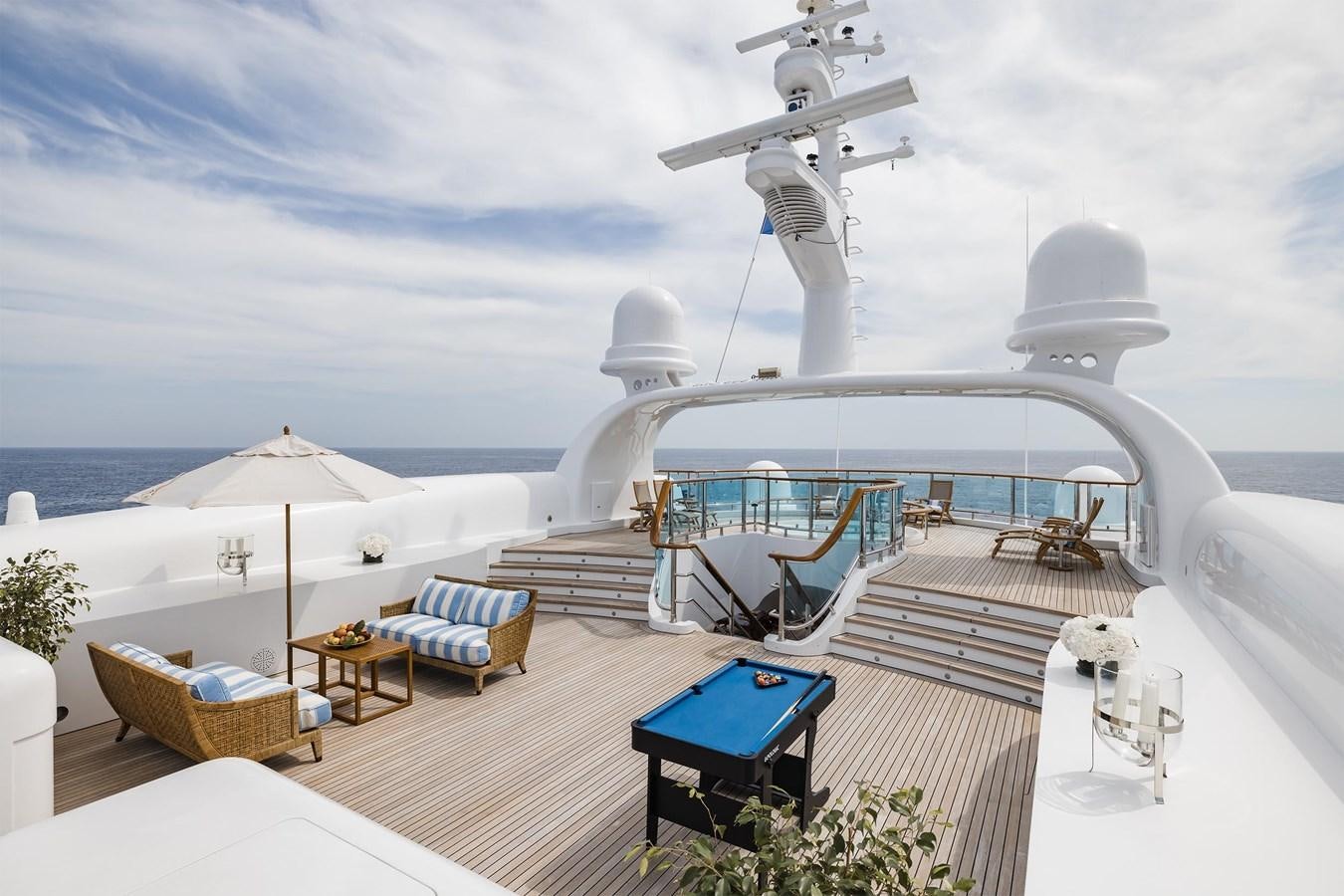

| SUN DECK: |

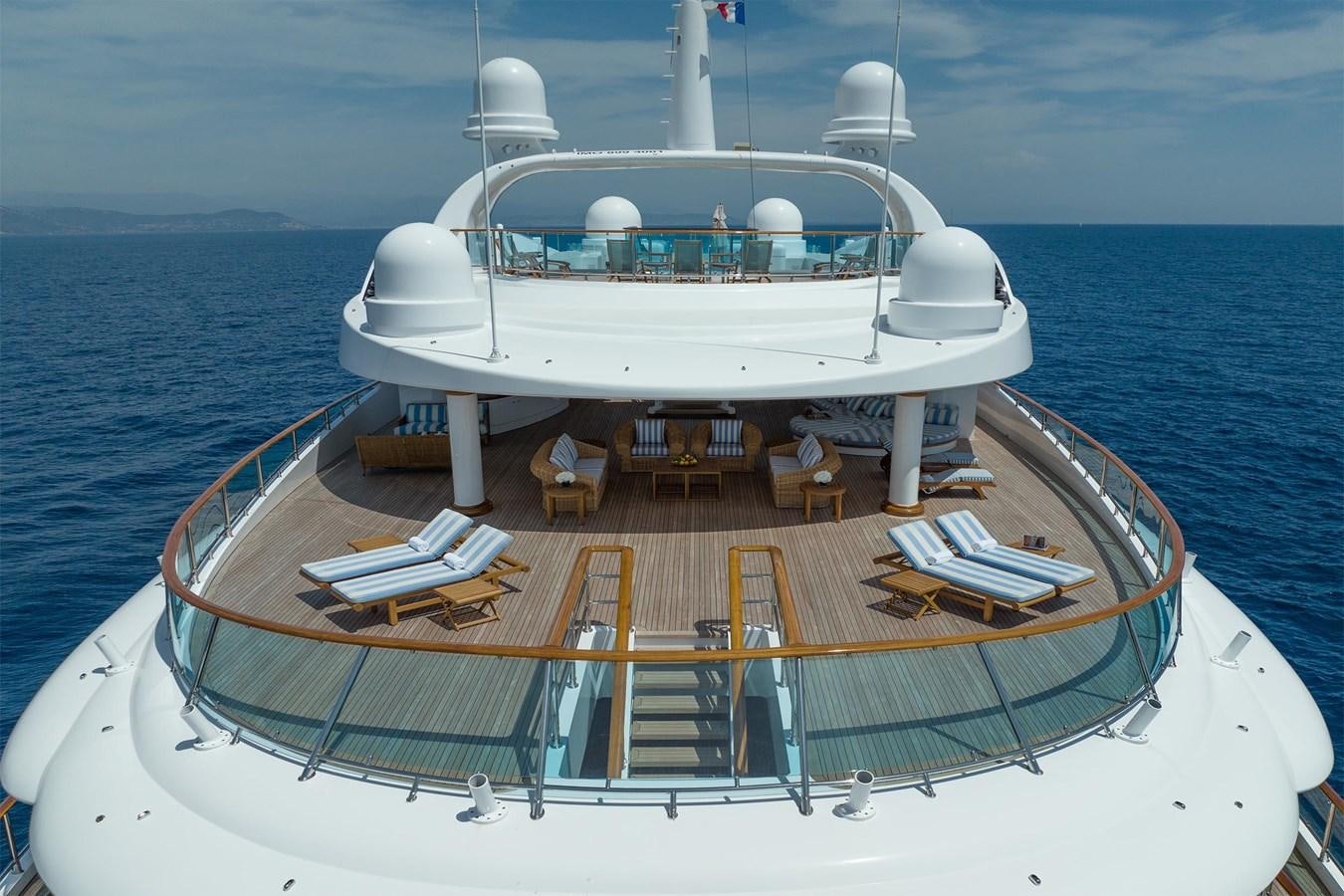

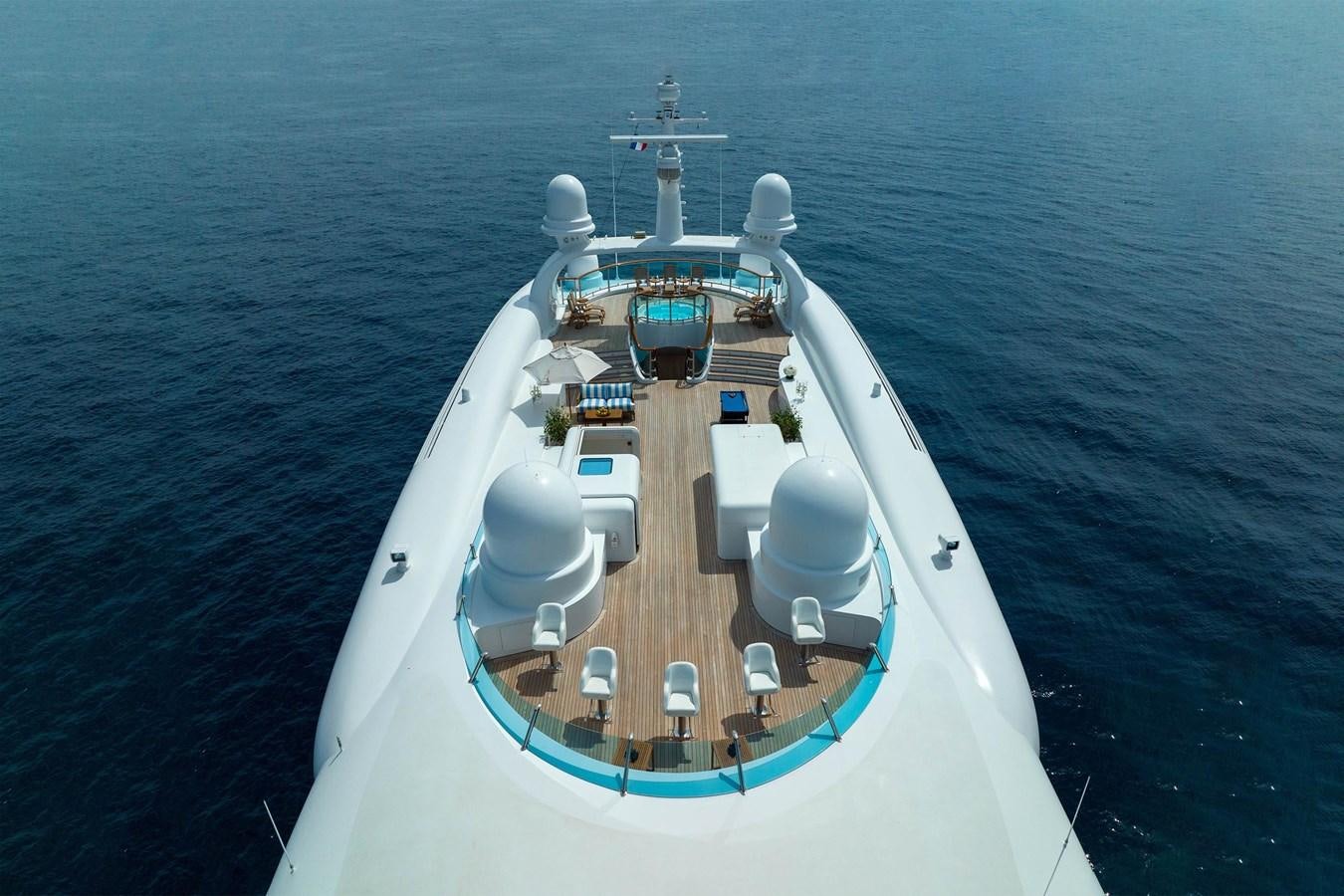

| Forward there is an observation area with five forward-facing chairs. A whirlpool and sun-bathing area on a raised deck are further aft. There is interior access to the sundeck via the main internal staircase as well as from an exterior staircase on the starboard side. Glass bulwarks allow good all-around views. |
| LOWER DECK: |

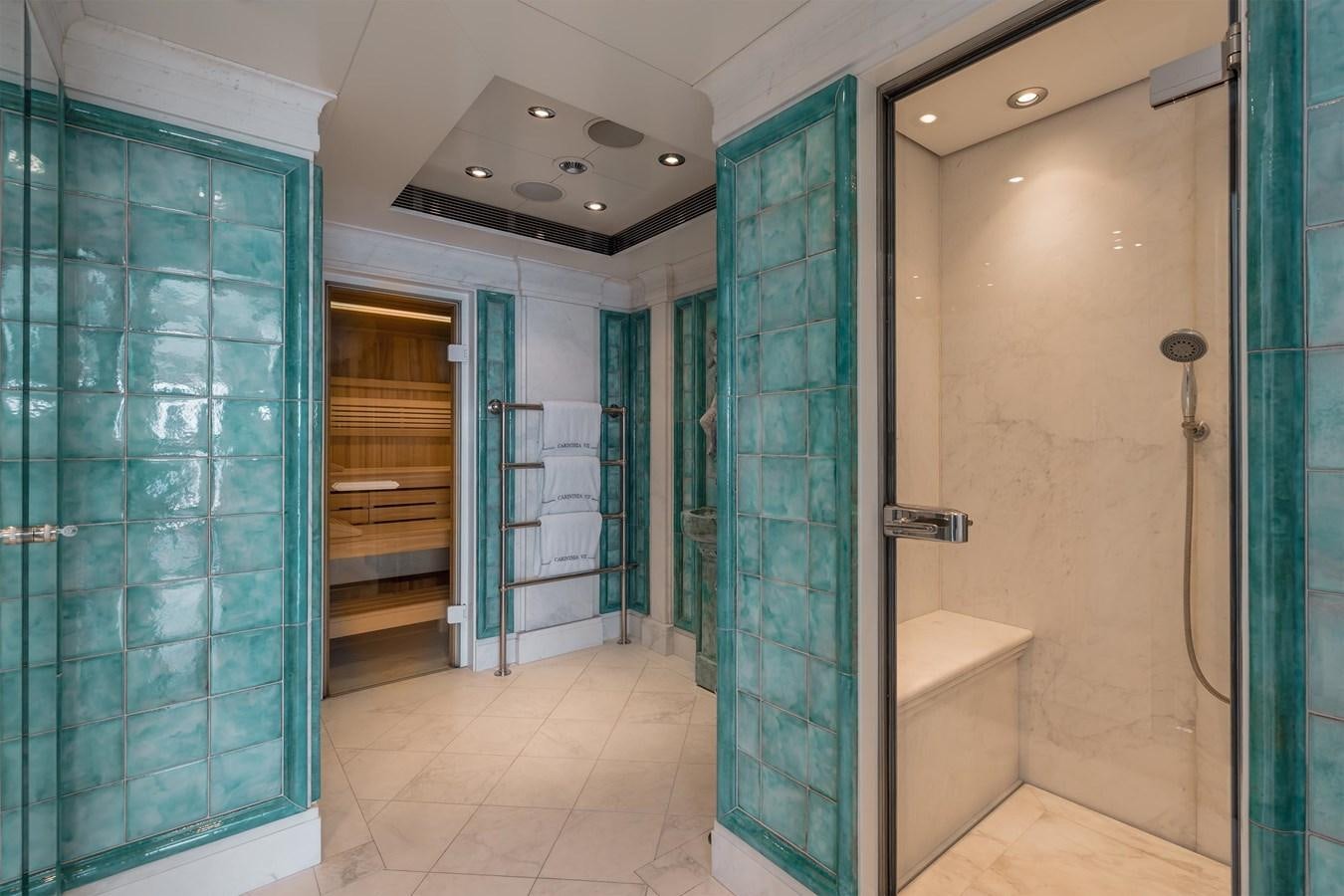

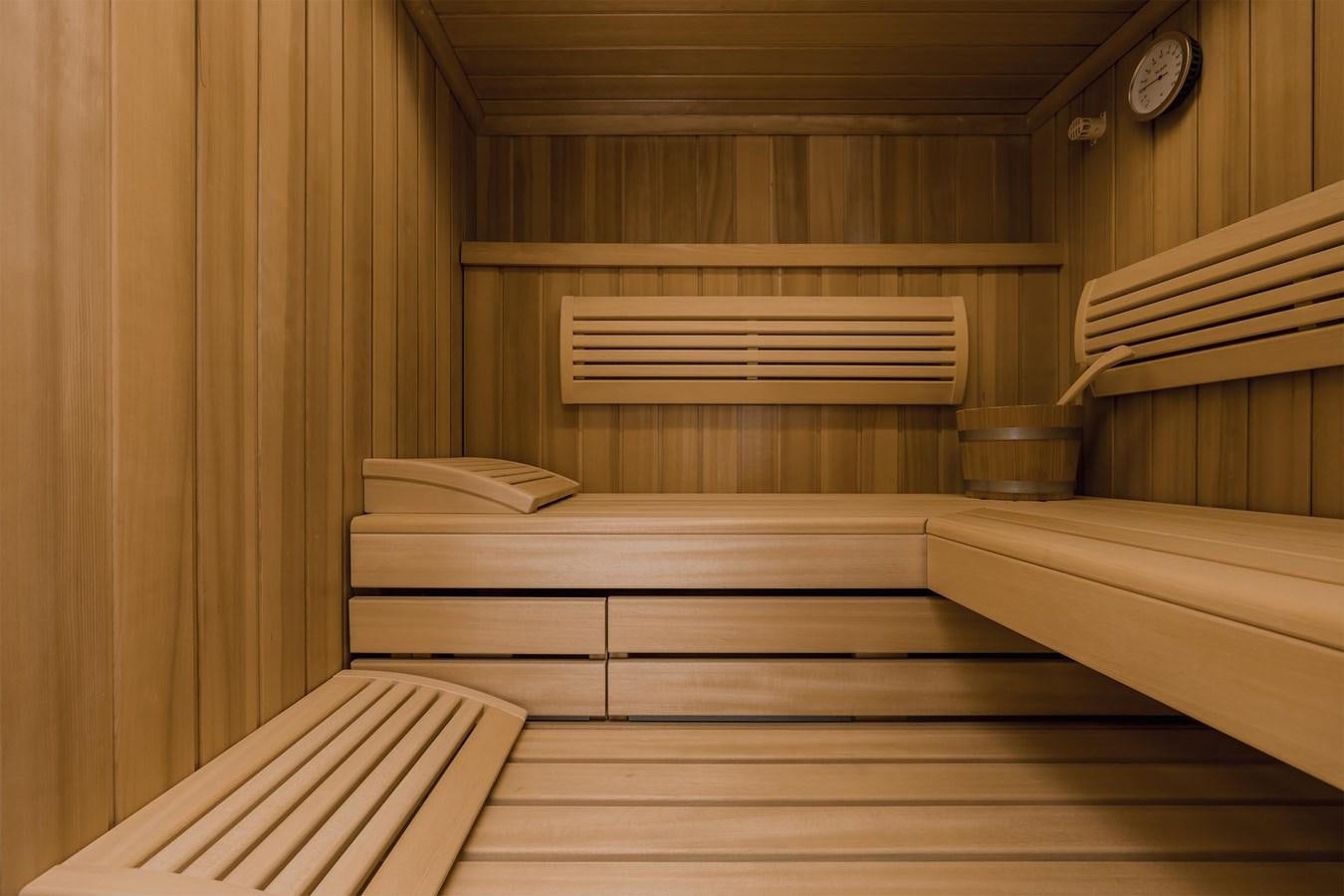

| Spa including Hammam, Sauna, head and shower, gym area, and 0.84m deep cold plunge pool,and shell door opening over the water on the starboard side. Two tender garages are aft with exterior shell-doors port and starboard.There is a stern door leading to the swim platform. |

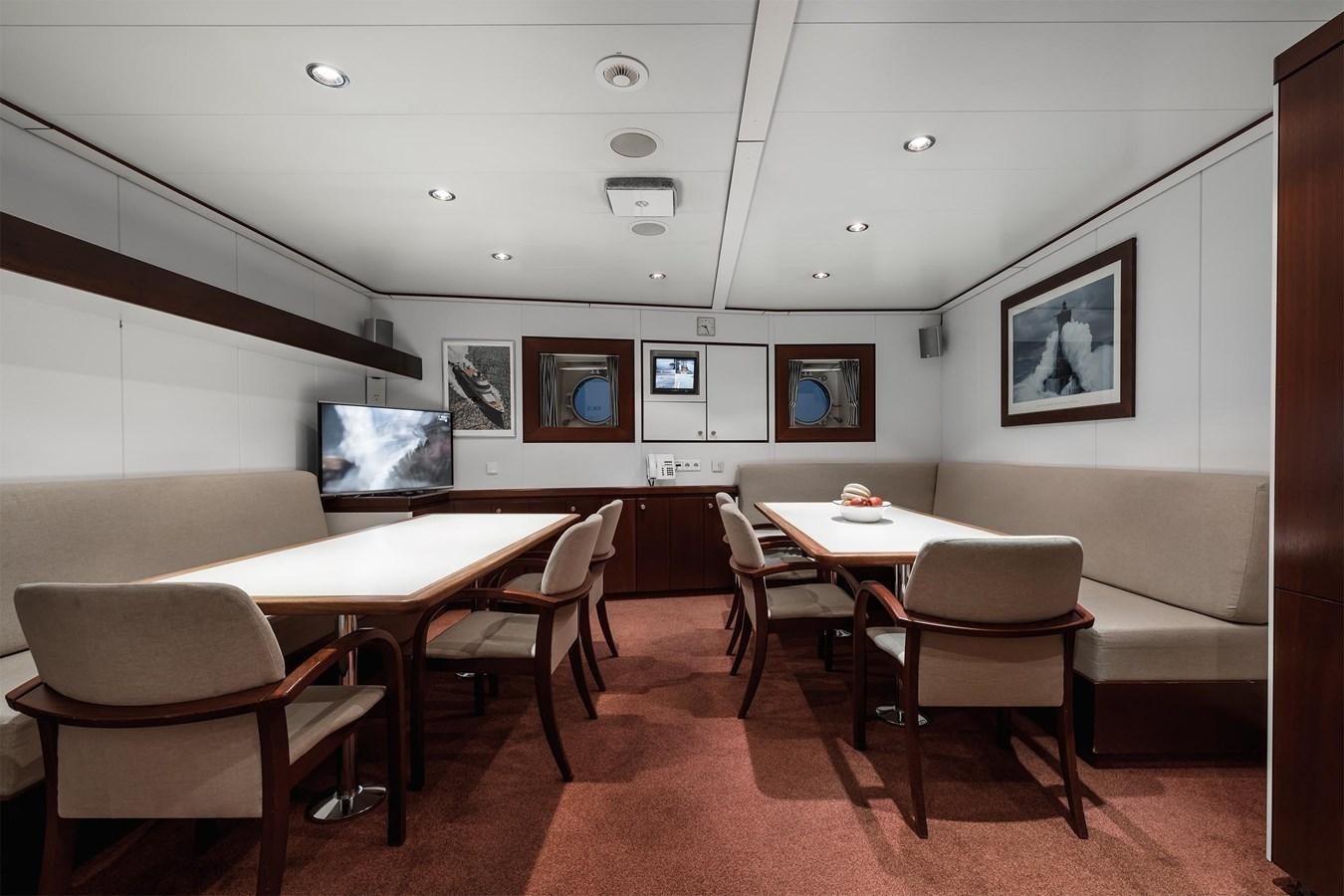

| Lower Deck Crew Accommodation |

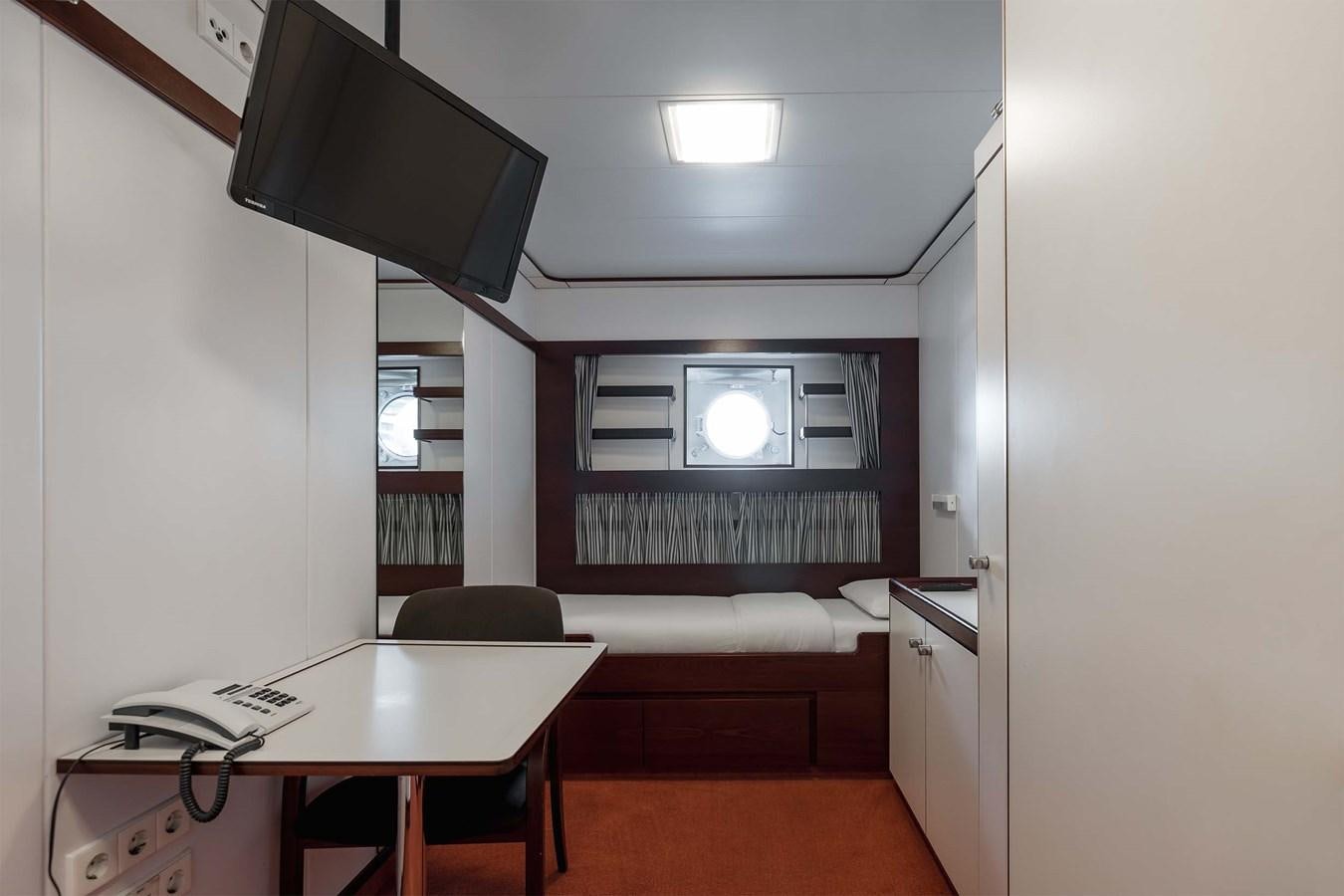

| 2 x Officer’s cabins on lower deck |
| 11 x Crew cabins on lower deck (3 x single, 8 x double cabins) |
| 3 x Staff cabins on lower deck (1 x single, 2 x double) |
| TANK DECK: |
| 5 x Crew cabins on tank deck (1 x, 2 x, 3 x, 4 x beds) |
| Hull and Superstructure material | 8 – 12 mm Steel hull, main deck 7mm, superstructure 6mm |
| Bulb | Stainless steel 12 mm |
| Watertight bulkheads | 8 with 5 automatic watertight doors |
| Deck material | Teak - 35mm / approx. 1175 m² |
| Paint | Awlgrip Carinthia blue H5342 |
| Hull Type | Fast-displacement |
| Number of Decks | 6 |
| Fuel Capacity | 450,0 | m³ | 118,877 | US Gallons |
| 11 x Fuel tanks | ||||
| 2 x Day tanks | 27,7 | m³ | 7,317 | US Gallons |
| 2 x Settling tanks | 48,4 | m³ | 12,891 | US Gallons |
| Leak and overflow tank | 3,7 | m³ | 977 | US Gallons |
| Emergency generator tank | 2,0 | m³ | 528 | US Gallons |
| Storage tank VI A 1 | 82,3 | m³ | 21,741 | US Gallons |
| Storage tank VI A 2 | 56,3 | m³ | 14,873 | US Gallons |
| Storage tank VII A 1 | 50,8 | m³ | 13,420 | US Gallons |
| Storage tank VII A 2 | 91,4 | m³ | 24,145 | US Gallons |
| Storage tank VIII A 0 | 28,4 | m³ | 7,502 | US Gallons |
| Fresh Water Capacity | 130,0 | m³ | 34,342 | US Gallons |
| Main engines fresh cooling water | 2 x 2,2 | m³ | 2 x 581 | US Gallons |
| Grey Water | 21.7 | m³ | 5,732 | US Gallons |
| Sludge tank | 7,3 | m³ | 1,928 | US Gallons |
| Bilge Water tank | 8,6 | m³ | 2,272 | US Gallons |
| Ballast Water | 263 | m³ | 69,477 | US Gallons |
| Clean Lube Oil Mobil Delvac 1640 | 2 x 5,6 | m³ | 2,642 | US Gallons |
| Dirty Oil | 5,6 | m³ | 1,479 | US Gallons |
| Hydraulic Oil Mobil Delvac Excel 10 | 2 x 2,8 | m³ | 740 | US Gallons |

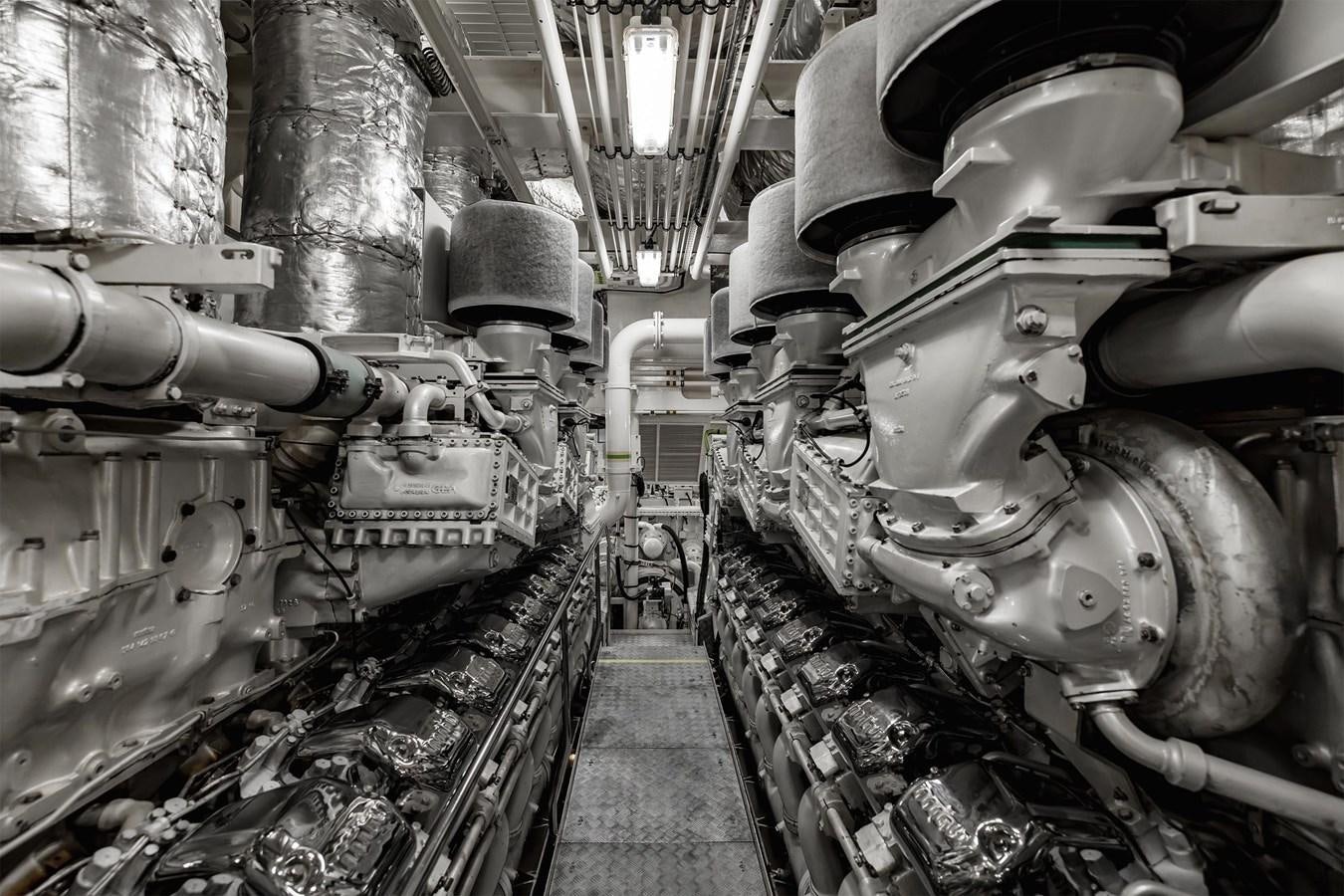

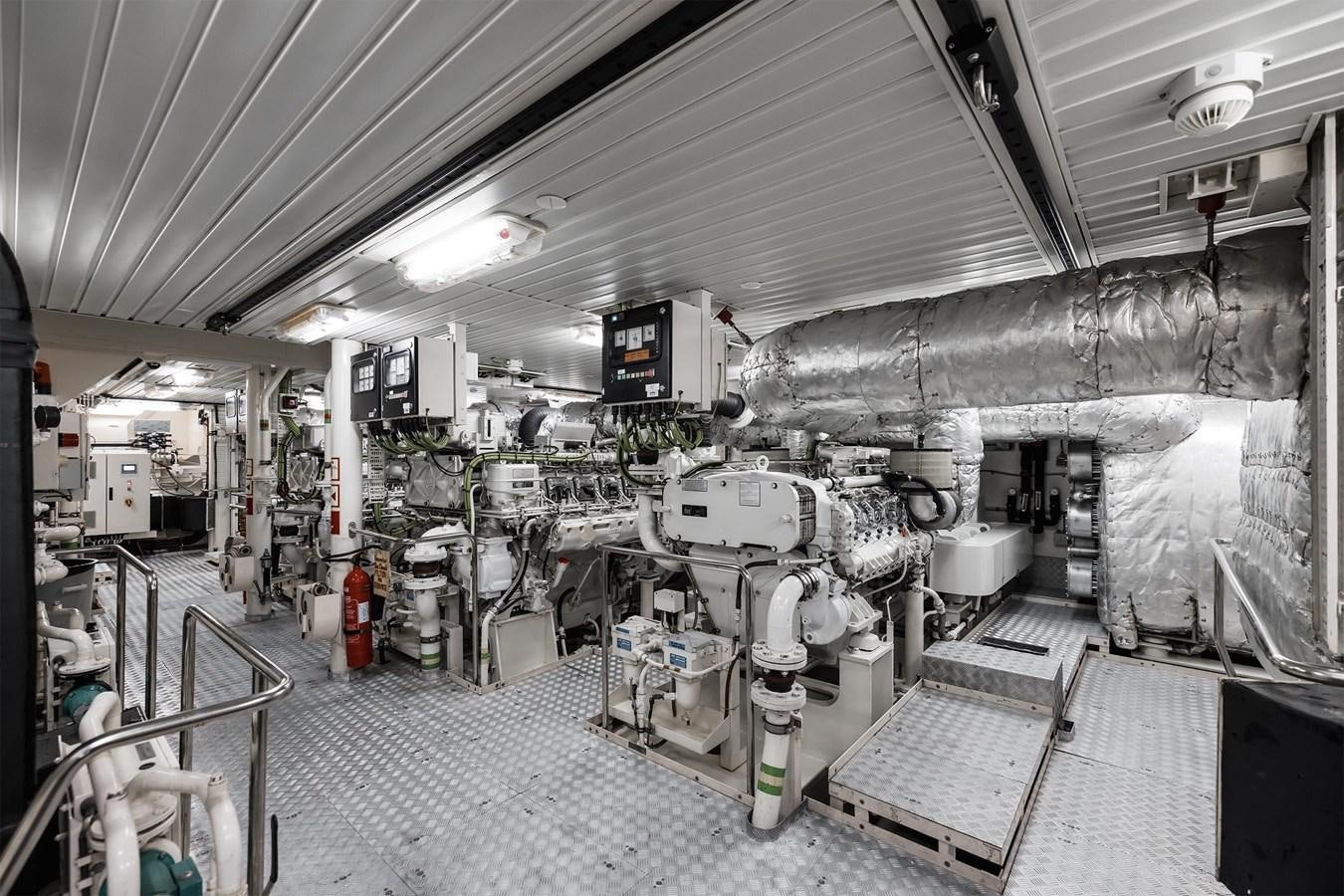

| Main Engines | 4 x 10,060hp (7,400Kw) @ 1,350rpm MTU 20V type 1163 TB93 | ||
| 60°V engine / water cooled / total displacement 232,6 l | |||
| Blocked power output: 7180kW/1300-1350 RPM | |||
| Engine noise 1m distance: 109 dB | |||
| Engine oil filling 750 l | |||
| Engine Hours (June 2022) | Port side outer | ME 1 | 4,458 hrs |
| Original | Port side inner | ME 2 | 4,558 hrs |
| Starboard side inner | ME 3 | 4,534 hrs | |
| Starboard side outer | ME 4 | 4,490 hrs | |
| Propulsion Type | Twin screw control pitch propellers | ||
| Helm/Wing Station Controls | MTU throttle | ||
| Control unit bridge and ER | MTU Elektonic replaced 2021 ECR/CE Cabin/Bridge | ||
| Engine Mounts | 4 x 10 Rubber Metalastik | ||
| Engines exhaust system | Dry to wet over 800 RPM, silencer for ME | ||
| Gear Boxes | 2 x Codad Type AS2x125F Renk, Reduction ratio: 4.8205:1 | ||
| Shafts | 2 x 400mm Simplex, 30.545m length, material 1.4462 / X2CrNiMoN22-5-3 / steel | ||
| Shaft cooling | Oil and seawater | ||
| Propellers | 2 x Sulzer Hydro controllable pitch propellers– 5 blades | ||
| Diameter: 3550mm/140”, blades material: G - Cu Al 1 O NI |
| CONSUMPTION | Speed | Consumption p/h | RPM | Engines |
|---|---|---|---|---|
| Maximum | 25 Kts | 8,264 Liters (2,183 US gallons) |
1,300 | 4 main engines running |
| Cruising | 18 Kts | 1,560 Liters (412 US gallons) |
850 | 2 main engines running |
| Economical | 15.5 Kts | 1,200Liters (317 US gallons) |
700 | 2 main engines running |
| Super Eco speed | 12 Kts | 510Liters (134.72US gallons) |
700 | 1 main engine running |
| Range | 5,000 Nm @ 15.5 kts | |||
| Range at Super Eco speed | 10,000 Nm @ 12 Kts | |||
| Generator fuel consumption: | 1700 l/day full hotel load (excluding stern and bow thruster) |
| GENERATORS and ELECTRICITY | |||
|---|---|---|---|
| Generators: | 2 x 680Kw MTU 8V type 396 TE 54 (outer) | ||
| 2 x 455Kw MTU 12V type 183 TE 52 (inner) (Mercedes) | |||
| Generator Hours (June 2022): | Port side outer | Aux 1: | 12,346 hrs |
| Port side inner | Aux 2: | 19,022 hrs | |
| Starboard side inner | Aux 3: | 18,460 hrs | |
| Starboard side outer | Aux 4: | 12,731 hrs | |
| Exhaust Particle filters: | 2 x ETB EER 607 (48 kW), 2 x ETB EER 906 (48 kW) | ||
| Emergency Generator: | 1 x 180Kw MTU type 6R183TA02 (Mercedes) Bridge deck | ||
| Emergency Generator Hours: | 103 hrs | ||
| Output/Electricity: | 230v AC/10A, 50Hz | ||
| 400v AC/16A, 50Hz | |||
| 24 Volts DC - Navigation | |||
| 24 Volts DC - Radio | |||
| Shore Power: | 400v AC, 3-Phase + PE; 50Hz 2 x 250Kva, 720 Amps | ||
| Shore power cable: | 2 x 45m/250A @ 50°C, in 6 cables | ||
| Batteries: | Replaced during Winter 2021/22 | ||
| Main engine batteries | 2 x 4 Batteries banks EXIDE GEL ES2400 12,0V / 210Ah | ||
| Emergency generator batteries | 4 x EXIDE GEL ES2400 12,0V / 210Ah | ||
| Navigation equipment batteries | 2 x 2 Batteries banks VARTA B90 V / 190Ah | ||
| Battery chargers: | |||
| Main engine Port Side | Rolf Jansen GbmH, charger/power supply 3 x 400V/50Hz | ||
| Rated 24V – 160A DC / 120A DC mains supply | |||
| Charging 4 x Gel batteries Exide 12V/210Ah 2400Wh | |||
| Main engine Starboard side | Rolf Jansen GbmH, charger/power supply 3 x 400V/50Hz | ||
| Rated 24V – 160A DC / 120A DC mains supply | |||
| Charging 4 x Gel batteries Exide 12V/210Ah 2400Wh | |||
| Battery charger bridge | Rolf Jansen GmbH, charger 1 x 230V/50Hz – power 3 x 400V/50Hz | ||
| Rated 24DC, rated current for charging 100A DC – mains supply 80A DC | |||
| Charging 2 x Gel batteries Exide 12V/210Ah 2400Wh | |||
| Emergency generator switchboard | Rolf Jansen GmbH, charger 1 x 230V/50Hz – power 3 x 400V/50Hz | ||
| Rated 24DC, rated current for charging 45A DC – mains supply 30A DC | |||
| Charging 2 x Gel batteries Exide 12V/210Ah 2400Wh | |||
| Radio battery charger | Sailor Power Supply/charger | ||
| Input 110, 120, 220/230, 240V AC, 50/60Hz | |||
| Output DC 26.8V – 28.8V adjustable, 24A max, battery capacity 40-200Ah | |||
| Charging 2 x batteries VARTA B90 12V 190Ah – 1050 A |
| Stabilizers (Fin) | 1 pair retractable Blohm+Voss SIFDICON-D Type S 300, |
| Surface area: 4.2m²/45ft² , (Serviced in 2022) | |
| Steering System | 2 x Tenfjord (Kongsberg) type SG SR 722 steering motors |
| Rudder angle indicators | Raytheon type 101 NGO11-NG017 |
| Bow Thruster | 1 x Schottel, STT 170 LK CP,350 kW, 1090mm propeller |
| Stern Thruster | 1 x Schottel, SRP 170 ZSV, 250Kw, 1000mm propeller, retractable and generates 3 kts speed forward |
| Air Compressor | 2 x J.P.Sauer&Sohn, WP 3232-800, 230 bar |
| 1 x J.P.Sauer&Sohn, WP 4340-100, 350 bar (emergency compressor) | |
| 2 x Starting air bottles 2 x 150 ltr, 200 bar | |
| 2 x Schunemann, 7272 A163, 200 bar reducing stations to 40 bar, 30 bar and 7 bar | |
| Air Compressor functions | Pneumatic start Main Engines |
| Pneumatic start for Generators | |
| Exhausts flaps, Fuel purifiers, Gear boxes, all valves, watertight door seals, sliding door seals operated from 2 air bottles | |
| Working tools and connections throughout | |
| Underwater lights | 14 x Aqua Signal, 150W 230V/50Hz |
| 6 x aft and 2 x 4 Stbd and Pt | |
| Searchlights | 2x Sanshin HRX-150 150W Xenon |
| Fuel and Oil System | |
| Fuel Filters | 2 x 4 Separ filters type 2000/130 Main engines |
| Shafts | 4 x Separ filters type 2000/18 UMS Generators |
| Fuel purifiers | 3 x Westfalia Separators type AG OSC 5-02-066 |
| Flow rate: 1,000 liters up to 2,500 liters (264 to 660 US gallons) per hour | |
| Fuel transfer pumps | 2 x GEMO pumps 15 m³/h each |
| Bunkering stations | Aft StBd transom under gangway |
| Fuel meter | Herrmann Ehlers (15,690,938 L) |
| Fuel tender filling station | Port Side Tender Garage Aft. |
| Oily bilge water separator | DVZ 1000 – 1,5/0,5 bar – 1 m³/h |
| Dirty oil pump | Leistritz L3NG 2 m³/h sludge/bilge water |
| Lubrication oil transfer pump | 1 x oil (main engines, generators, gear boxes) Leistritz L3NG 3 m³/h |
| 1 x pump hydraulic oil Leistritz L3NG 3 m³/h | |
| Pumps and Piping | |
| Dip-trays | Equipped for all pumps, refrigerant and hydrocarbon liquids, condensers, |
| bunkering and filling stations | |
| Piping Cupronickel | Grey and black water, seawater, bilges and ballast |
| Piping stainless steel | Hydraulic, air-system |
| Piping Copper | AC system, fresh water, toilets |
| Sea Water Cooling Circuit | |
| Sea water intake | 2 x high sea chest main engines |
| 2 x low sea chest main engines | |
| 2 x sea chest generators | |
| 1 x sea chest AC system | |
| All sea chest with Cathelco protection (corrosion/electrolysis) | |
| Main engines cooling | 2 x heat exchanger high and low temperature GEA |
| Sea water pumps | 2 x 245 m³/h (per engine) |
| Fresh water pumps | Attached to the engines |
| Cold rooms refrigerant cooling | 2 x seawater pumps 2 m³/h |
| AC cooling | 4 x seawater pump per chiller 75 m³/h |
| Bilge System | |
| Bilge pumps | 1 x Etanorm type B40-250: flow rate up to 640m³ (169,070 US gallons) per hour - 8 bar pressure |
| Oily bilge water separator | DVZ 1000 – 1,5/0,5 bar – 1 m³/h |
| Dirty oil pump | Leistritz L3NG for sludge/bilge water |
| Fresh Water System | |
| Fresh water makers | 2 x Hamann Blue Series type B13620 (569 hours and 735hours) |
| Capacity 13,620 liters (3,600 US gallons) per day each | |
| 2 x 3 membranes replaced 2017 | |
| Fresh water treatment | |
| Fresh water distribution | 2 x hydrophore pumps KSB SRN 4425 m3/h |
| 2 x charcoal filter Hamann | |
| 2 x UV sterilizer filters Aqualine CSL-4R | |
| Fresh water pressure | 5 bar via 2 hydrophore tanks |
| Hot water boilers | 2 x 1000 lt (264 US gallons) 80C – 6 bar – 50Kw, Heatsystem. |
| Hot water circulation | 2 x KSB G 32 – 12 D 7m³/h – 60°C |
| Black and Grey Water System | |
| Black and and grey water treatment | 1 x Hamann AG type HL Cont Compact |
| Compliance | Certified to IMO res.MEPC 227 (64), USCG and EU/Med |
| WCs (toilets/bidets) | Jets – VPC vacuum toilets, 10 x Guest toilets, 23 x Crew |
| 3 x Shower Toilets – (Owner’s) Geberit AquaClean 8000plus | |
| Sanitary vacuum system | 2 x Jets type 95MB vacuum pump - max. 730 flushes/hr |
| Sanitary water system | Valves in sanitary water room – possibility to close off water each deck. |
| Black and grey water pumps | 2 x Apollo B50/12, 12 m³/h at 2.0 bar |
| Ice operation | Warm air or water connection in the sea chest to melt ice |
| HVAC System, Refrigerated Rooms and Ventilation | |
| System description | 6 main AC rooms |
| Vessel’s temperature insulation | Engineered to operate Air temp. -5°C to +40°C – 85% relative humidity |
| Sea water temp. 1°C to 35°C | |
| Inside temp Summer: +22°C/40%–60% relative humidity | |
| Inside temp Winter: +25°C/40%–60% relative humidity | |
| Air conditioning | Volker Girschner custom-made air-conditioning system |
| 8 x Bitzer compressors type HSK 7461-80-40P (Refrigerant R 404) | |
| 2 x boilers (capacity - see “heating system”) | |
| 2 x Independent chilled water units (2 x 335kW output incl. chilled water and seawater pumps) | |
| 4 x sea water pumps KSB Etabloc-BN 65 200 (75m3/h) 2 x Chilled water pumps KSB Etabloc-BN 80-160 (180m3/h) |
|
| Crew and technical areas: 1 091 840 BTU/h | |
| Owner’s and Guest areas: 1 607 052 BTU/h | |
| 6 x AC rooms | |
| Air handling units | |
| Heating system | 2 x electric boilers (9 x 30kW each) |
| Cabin temperature control | Honeywell day/night |
| Fridge, freezer and cold storage | 2 x Bitzer 4 CES-9Y-40S (Refrigerant R 440) |
| Cold room | 28 m3 – 5/7°C |
| Freezer room | 23,5 m3 / -20°C |
| Refrigerated Garbage Locker: | 8,4 m3 / 5°C |
| Engine room ventilation | 6 x supply fans (Main ER 4 x 70 000 m³/h, Aux ER 2 x 7 000 m3/h) |
| 3 x exhaust fans (Main ER 2 x 62 240m3/h, Aux ER 1 x 7 300m3/h) | |
| 2 x RCU for AE-room: KLH UKG 45-12S21 | |

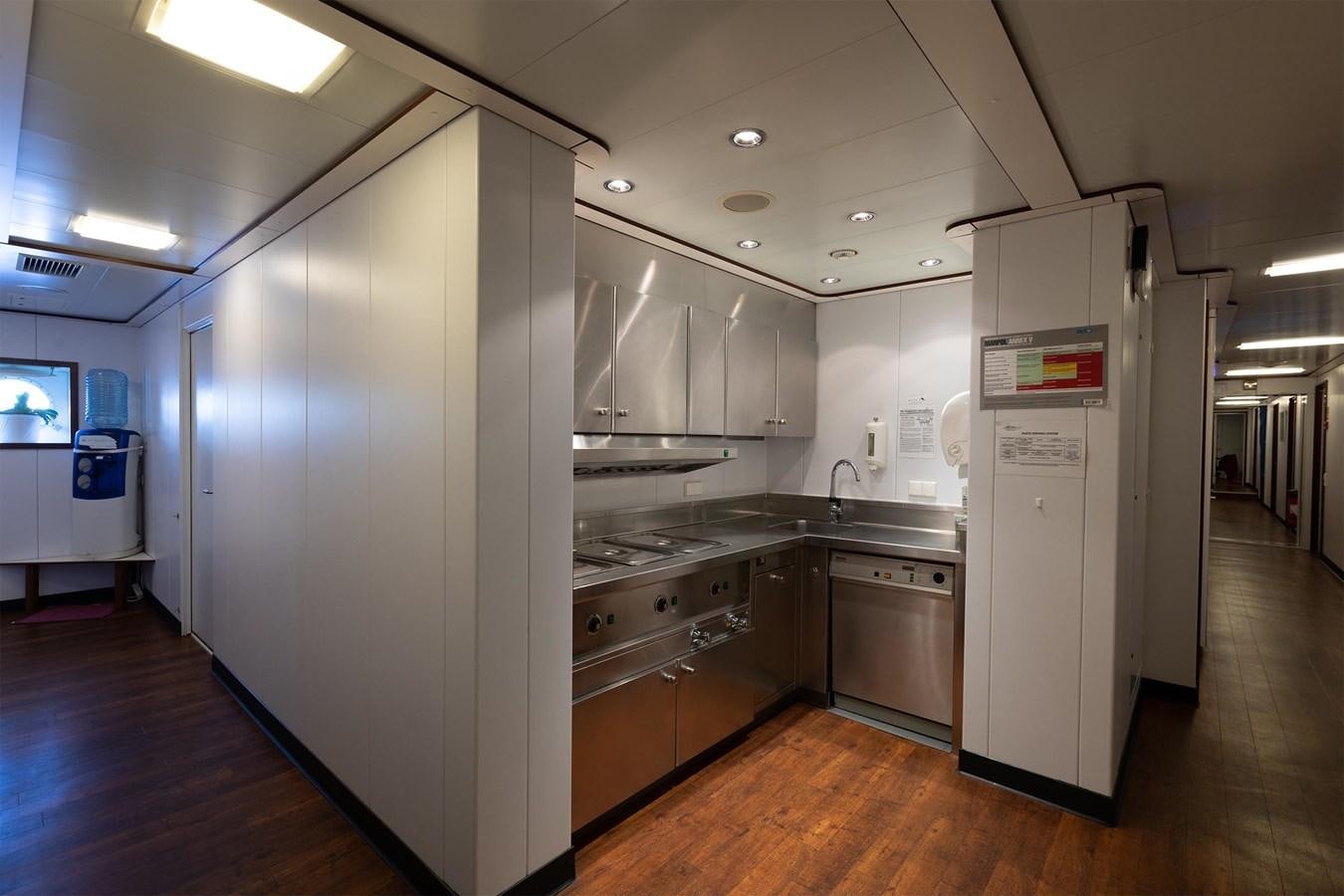

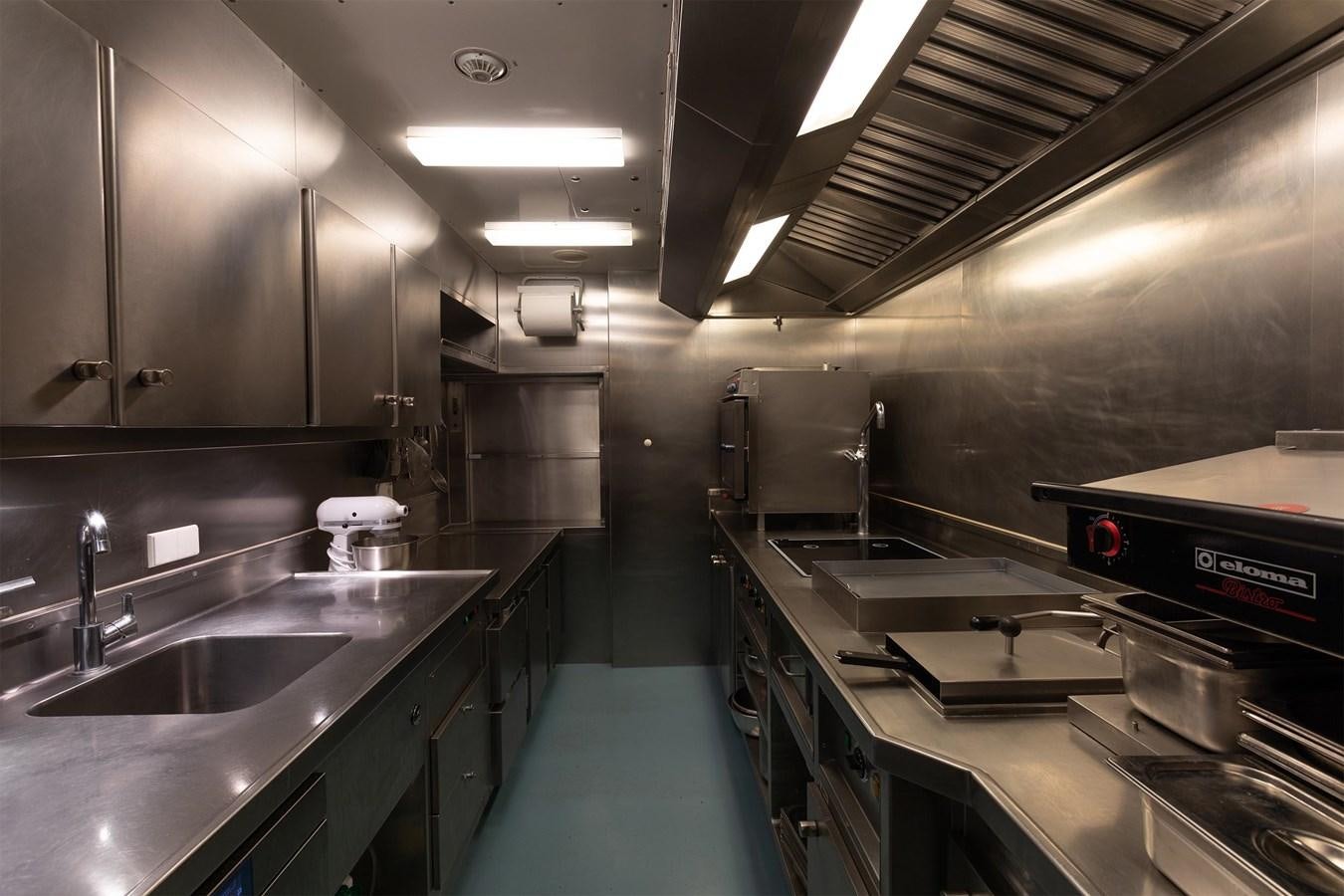

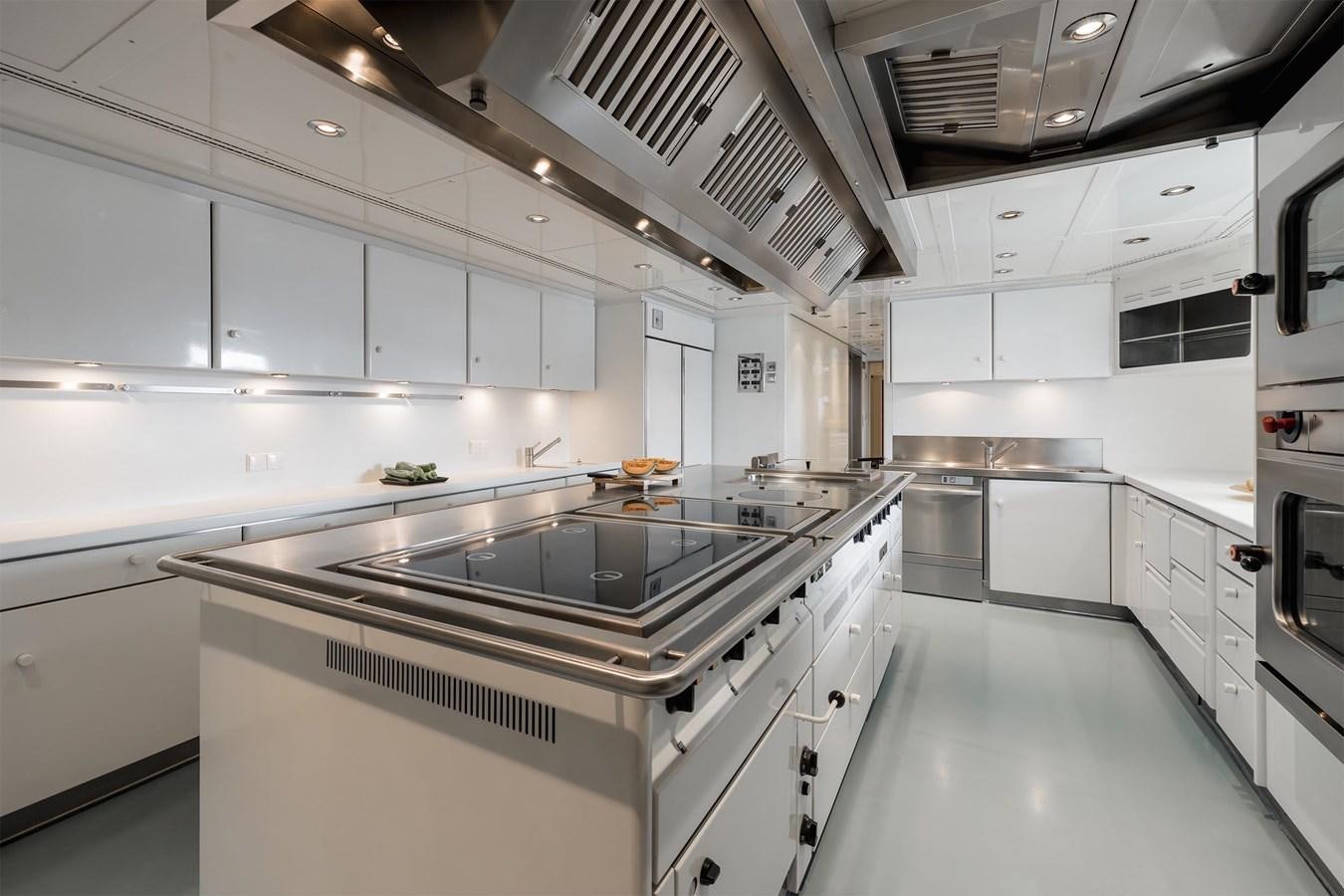

| Galley ventilation and extraction | 1 x Owner’s galley main deck exhaust fan 2700 m³/h (3 speeds) |
| 1 x Crew galley lower deck exhaust fan 500 m³/h (2 speeds) |
| Hydraulic System | |
| Stabilizers’ hydraulic packs | 2 x Simplex Compact S300, Main Pump: A 10 VS = 45 DR axial piston variable pump, Flow 65 ltr/min, pressure 140 bar, Electric motor BG 180 L B3/B5, 21 kW Emergency pump: PGF2/016 gear pump, Flow 20 ltr/min, pressure 100 bar, Electric motor BG 132 S V1; capacity 5.3 kW Oil capacity 160 litre |
| Bow thruster | Hydraulic pump for the pitch adjustment: 2.2 kW, hydraulic oil: 50 litre |
| Stern thruster | Hydraulic pump to retract and turn the propeller: 2.2 kW, Hydraulic oil capacity 30 liter, Oil in the system 85 liter |
| Gantry cranes | Hydroton BV, Main pump 5.5kW, system pressure for winch 60bar, flow 43 l/min, System pressure for travelling 30 bar, flow 21 l/min, oil tank capacity 100 litre |
| Folding deck crane | Motoriduttore MD 111 TS + MLR 125 Hydraulic pump, Oil capacity: 27 liter, Max Pressure 175 bar, Min flow 16 l/min |
| Foredeck folding jib crane | Hydraulic unit CFP 75-10-160 by Hydroton BY, Pump 3 kW, flow 10 ltr/min, Pressure 160 bar |
| Tender garage door | Hamworthy KSE, Electric motor: B 35 / 1,5 kW / 400 V / 50 Hz 1500 U/min; Hydraulic pump unit: output – 4 x 7,5 ltr / min, Motor – 2 x 4 kW / 400 V / 50 Hz; Working pressure: 140 bar; Oil container 160 litre |
| Passarelle aft | Max. pressure 175 bar / Min. flow 5 L/min |
| Pilot Door | Main power unit: Electr. motor: 1,5 kW / 400 V / 50 Hz; Hydraulic power unit: output – 7 ltr / min; Working pressure: 80 bar |
| Locking unit: Electr. motor: 1,1 kW / 400 V / 50 Hz; Hydraulic power unit: output – 7 ltr / min; Working pressure:80 bar |
|
| Oil container: EP 9 / 3 liter / Form B | |
| Sea Terrace SB | Electric motor: 2 x 3 kW / 400 V / 50 Hz; Hydr. Pump: 4 x 5 l/min; Working pressure: 140 bar |
| Side boarding ladder | Main Power: 400 V AC 50 Hz; Hydraulic Installation: Max. pressure 17500kPa (175 bar) / min. flow 3L/min |
| Side-boarding ladder and sea terrace supplied from emergency switchboard | |
| Antifouling, Paint and Cathodic Protection | |
| Antifouling | Coat 1: JOTA MASTIC 90 WH, MEGAVOTE Off white, MEGA sealer buff |
| Coat 2: MEGA YACHT IMPERIAL HYDRA black | |
| Cathodic protection | 8 x Cathelco anti-growth protection for sea all chests |
| Anodes hull | SAM Electronics hull-corrosion-protection |
| Paint | Hull; Awlgrip Carinthia Blue, Superstructure; Awlgrip Snow White |
| Firefighting System | |
| Firefighting and bilge pump: | 1 xEtanorm type B40-250: flow rate up to 640m³ (169,070 US gallons) per hour - 8 bar pressure |
| Fire detection and extinction | Smoke detection system |
| Galley (owner and Crew) fire detection with heat detectors | |
| Mobile firefighting and fire hose | Exterior 12 x fire lockers (20m x 45mm fire hose, hydrants, and hoses with DIN connections) |
| Interior 16 x fire lockers (20m x 45mm fire hose, hydrants, and hoses with DIN connections) | |
| 1 x 50 kg ER mobile liquid foam wheeled fire extingushier and 1 50 kg ER mobile powder wheeled fire extingusher | |
| Fire fighter protection kits | 6 x sets breathing apparatus 18 x 6l air @ 450Bar) |
| 36 x extinguishers CO2, 5kg | |
| 32 x extinguisher powder, 6kg / 12kg | |
| 42 x extinguisher foam,6ltrs | |
| 2 x fire blankets Owner’s galley and crew galley | |
| Fixed firefighting system: | Fixed CO2 System (Machinery Spaces)25 x 67.5 liters |
| Fixed CO2 System (Galleys) 1 x 10.7 and 1 x 2 liters |
| NAVIGATION SYSTEMS | |
|---|---|
| Navigation lights | Halogen and LED light mast lights |
| Navigation mast: | Telescopic, fully retractable |
| X-Band Radar: | Furuno FAR 2117 BB, range 96Nm |
| S-Band Radar: | Furuno FAR 2117 BB, range 96 Nm |
| Chart Plotter: | 2 x Furuno -fae-2107 type ECDIS |
| Magnetic Compass: | Raytheon Anschütz magnetic compass |
| Gyrocompass: | 2 x Raytheon Marine gmbh gyro compass standard 20 |
| Auto Pilot: | Raytheon autopilot np2010 type ap01-s01 |
| Echo Sounder | BEN Marin Anthea |
| Speed Log | Elac nautik type LAZ 5000 |
| GPS: | 2 x Furuno GPS GP-150 |
| AIS: | Furuno type FA-150 |
| Navtex receiver: | Furuno type NX-500 |
| Weather fax: | Furuno DFAX- Facsimile receiver FAX-214 |
| Wind Instruments: | Lambrecht type EOLOS-NAV2 static weather sensor |
| Horn: | Zollner Signal |
| Weather Fax: | Furuno Fax-214 Fero pilot |
| Computers and printers: | 4 x PC Lenovo (captain, chief officer, chief stewardess, chief engineer) |
| 1 x HP Laptop, 2 x Lenovo ThinkPad | |
| 3 x Printers: 1 LaserJet color flow MFP m575, 1 x HP ENVY 4500, 1 x Samsung Xpress M2070FW | |
| COMMUNICATION SYSTEMS | |
| VSAT: | 2 x Seatel 4006 and 6009 |
| 2 x Modems Idirect X7 | |
| TVRO: | 2 x Seatel 6004/5004 |
| Fleet broadband antennas: | 4 x Inmarsat, Telephone, satellite, 64K bandways |
| INMARSAT – C: | 1 x Sailor type H2095C (main unit) |
| 1 x Sailor type DT4646E (terminal) | |
| SSAS: | DSAS MKII Pole Star |
| Telecom systems: | Ascom Tateco Kommunikations Systeme GmbH PABX type Ascotel 2065 |
| 3 x iPhone mobile phones | |
| VHF Radiotelephones: | 1 x Sailor type RT4822 |
| Portable VHF: | 1 x Motorola GP360 |
| 10 x Motorola DP3441E | |
| Portable GMDSS VHF: | 3 x Jotron type Tron TR20 |
| Iridium satellite phone: | Iridium mobile phone |
| Intercom | Commander 1500 – 24V talk back emergency |
| Intercom system: | Public Address System Dynacord Promatix (5 x amplifier) |
| SSB: | 1 x Sailor HC4500 HF/MF |
| EPRIB: | 1 x EPIRB type Jotron Tron 60S GPS |
| SART: | 2 x SART type Jotron TR20 |
| On sun deck, 2 x Varta 12V 190Ah | |
| UPS Protection: | |
| First officer office Server and PC | 1 x APC Smart UPS 1500 |
| Captain’s office PC | 1 x Eaton 5115 |
| Chief officer’s PC | 1 x APC Smart UPS 700 |
| Bridge navigation ECDIS | 1 x Furuno (Veinland GMBH) APC Smart UPS 1000 |
| Chart table ECDIS | 1 x Furuno APC Smart 1000 |
| Transas + Weather PC, radio room | 1 x APC Smart UPS 750 |
| Steward call + Phone PC, radio room | 1 x Eaton Eclipse ECO 800 |
| Phone PABX Radio room / Phone rack | 1 x APC Smart UPS RT2000 |
| Battery modul DEM 316, Radio room | 1 x PA-system Dynacord Promatrix |
| TV Hilkom, SatTV Rack 1 | 1 x Riello UPS – UPS DLP 100 Rack 1000VA/700W |
| SatTV/Creston, SatTV Rack 2 | 1 x APC Smart UPS 1500 |
| SatTV/VSAT, SatTV Rack 3 | 1 x Riello AROS Sentinel Dual UPS SDH 1500 |
| Dallmeier, Radio room | 1 x Riello PRTK Dialog Plus Rack 70-100 |
| Engine Control Room PC | 1 x APC Smart UPS 750 |
| ECR Honeywell PC | 1 x Eaton 5115 |
| Bridge deck AC room-AC9/10 Klima 1 | 1 x APC BX750MI 750VA – 410W |
| Main deck AC room-AC4/6 Klima 3 | 1 x APC Smart UPS 750 |
| Lower deck AC room-AC3/13 Klima | 1 x APC Smart UPS 750 |
| Guest elevator | 1 x Powersure-Personal PSP XT450-Liebert |
| Crew elevator | 1 x Powersure-Personal PSP XT450-Liebert |
| CCTV monitoring PC, crew mess | 1 x Riello AROS UPS iPlug IPG800DE |
| Fire alarm system, bridge | 1 x Autronica/Autrosafe |
| 1 x Daitem D14000 Hager Security SAS | |
| Siren safety alarm, Owner’s deck | 10 x Daitem motion detectors |
| Anchors | 2 x Pool stainless steel anchors, weighing 1,575Kg/3,472lbs |
| Anchor chains | 2 x 7.75 shackles/210m/690ft stainless steel anchor chains |

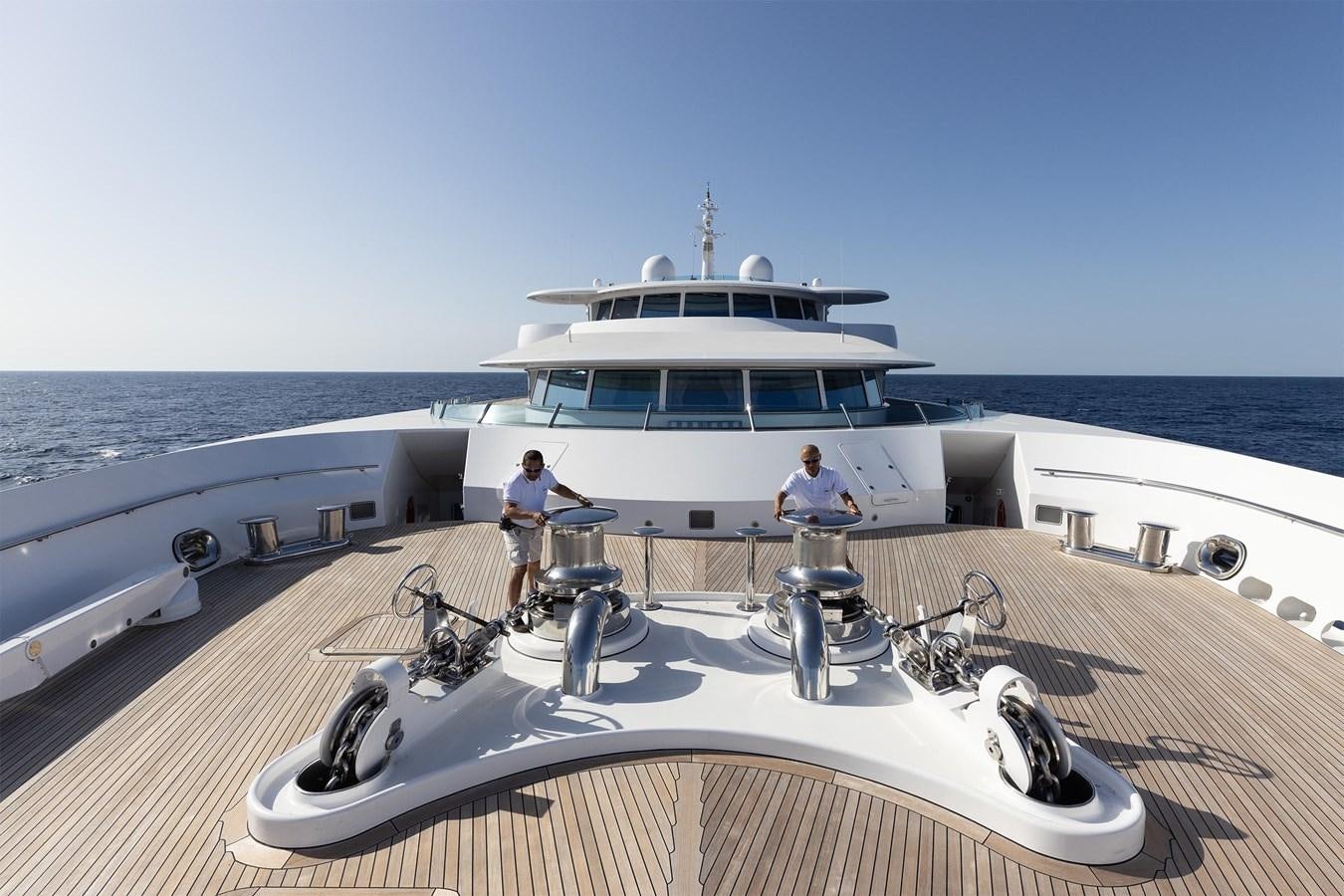

| Anchor windlass system | 2 x Steen anchor capstans type 23.16-19 |
| Cranes | 2 x Van Driel overhead davit gantry cranes 5,000kg/11,023lbs SWL |
| 1 x Staalart foldable deck crane with 1,000kg/2,205lbs SWL | |
| 1 x Van Driel Jet Ski crane with 500kg/1,102lbs SWL foredeck | |
| Warping Capstans | 2 x Steen capstans type 59.53 aft main deck |
| 2 x Steen capstan type 59.53 Transom platform | |
| Outlets washdown/fire hose | 4 x main deck, 3 x Owner’s deck, 2 x bridge deck, 1 x sun deck, 1 x transom |
| By-pass with firefighting outlets | |
| Passerelle | 1 x Staalart 8.80m/29.9ft custom made electronically driven guest passerelle. Width 78cm/2'5" and max. load 200kg. Rotation angle:45° from amidship to each side; Heave angle: 30° up / 15° down |
| 1 x Mescon 4.87m/16ft custom made electrically driven crew Passerelle; Max load 150kg, Inclination: +15° / -10° | |
| Side boarding ladder | 2 x Staalart 5.24m/17.8ft custom made (port and stbd); SWL: 200kg on lower platform, 250kg equally spread on side boarding ladder |
| Swimming ladder SPA | 1 x hydraulic platform on starboard side (gym and Spa access) |
| Swimming ladder transom | 1 x Swim platform aft with ladder |
| Sea terrace SB | 9.7m x 2.1m platform; Opening time: 93 sec., Closing time: 105 sec. |
| Smoke Detector | Autronica ionization 237 detectors |
| Alarms and monitoring system | ELNA, CO2-Alarm Interface type EJB-3/2BN |
| Fire alarm Autronica | |
| Step sensors | 9 step sensors |
| Security system | Keylex aft lazarette door code lock |
| 9 step sensors on decks connected to the CCTV cameras | |
| Doorbell | Doorbell with integrated intercom |
| Exterior doors | Locking code controlled |
| Windows | PA loudspeaker system DYNACORD DPC 4510 |
| 53 x waterproof loudspeakers for outdoor | |
| 145 x ceiling loudspeakers for indoor | |
| 7 x loudspeakers for spa area | |
| alarms siren in the speakers | |
| visual signals in ER alarm panel |
| Security – CCTV | Geutebruck, ethernet infrastructure |
| 2 x Panasonic type WV-CS580 cameras (bridge wings) | |
| 11 x Panasonic type WV- CL930 cameras (exterior decks) | |
| 1 x Ganz type ZC-D8000 camera (boat garage) | |
| 1 x NEC type P401 monitor – 102cm/40” (crew mess) | |
| 2 x NEC type E222W monitors – 56cm/22” (crew mess) | |
| 3 x Ag Neovo x-15P monitors – 38cm/15” (bridge deck) | |
| 2 x Ag Neovo x-15P monitors – 38cm/15” (ECR) | |
| 1 x JVC type LM150 monitor – 38cm/15” (officers’ Mess) | |
| 1 x digital recorder at the bridge, Storage Server – Fujitsu Primergy TX120 S3 | |
| Safety equipment | As per flag state and classification society rules for 42 persons aboard |
| Life rafts | 4 x Life rafts type RFD Surviva (25 persons each) |
| Lifejackets | 45 x Life jackets |
| 5 x children life jackets | |
| Buoys | All kits according to flag state and Class society |
| MOB boat | Rescue Moat DSB 420 RIB, 15 HP Tohatsu engine |
| Life Rings | 8 |
| Flares and signals | 12 x Parachute Rocket flares |
| 12 x Handheld flares (red) | |
| 4 x Line throwing apparatus | |
| Survival kits | 40 x Immersions suits |
| Medical kit and equipment | 1 x AED Lifepak50 |
| Med Aire System for 14 persons | |
| Ship’s safes | 1 x Owner’s Salon, 1 x Owner’s small Bedroom, 6 x Guests Bedrooms, 1 x Captain’s Cabin, 1 x Chief-officer office |

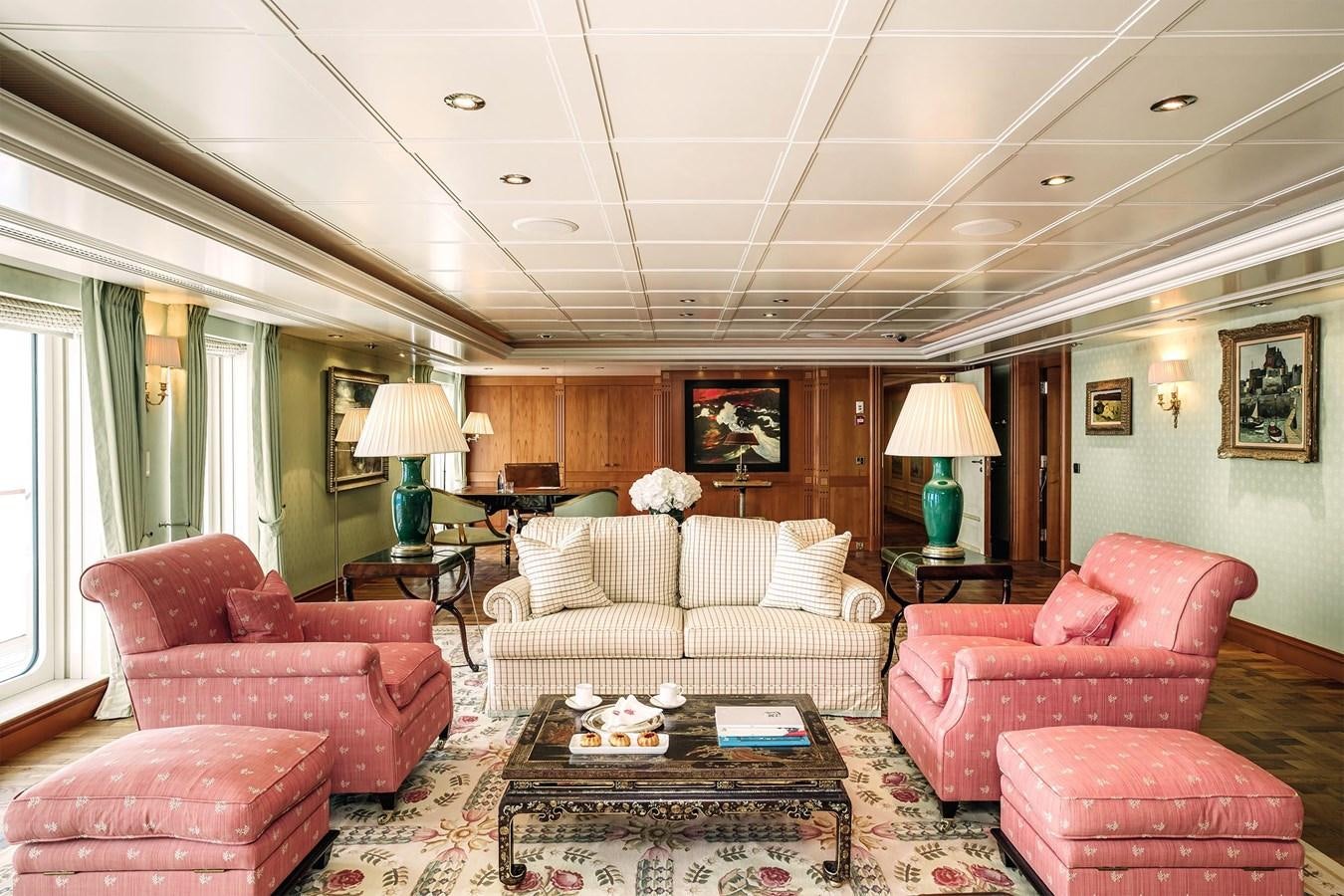

| Main salon | 1 x Tv Pioneer plasma PDP, 127cm/50” |
| 1 x Sat-Receiver VU+ DUO² | |
| 1 x Panasonic DVD player type DVD-S33 | |
| 1 x Pioneer Audio Video Receiver type VSX 909 | |
| 1 x Pioneer tape deck type CT-S250 | |
| 1 x Pioneer CD changer type PD-M426 | |
| 1 x CD central music system with iPod sources | |
| 8 x Loudspeakers | |
| Bridge deck | 1 x Tv Panasonic LCD type TH50PF11, 127cm/50” |
| 1 x Sat-Receiver VU+ DUO² | |
| 1 x Oppo Blu-Ray type BDP-103 | |
| 1 x Panasonic DVD player type DVD-S29 | |
| 1 x Denon AVR type 4310 | |
| 1 x Pioneer CD changer type PD-M426 | |
| 1 x Central iPod | |
| 1 x Pioneer CD central music system type PD-F706 | |
| 6 x Loudspeakers | |
| 1 x IP Tv Intel NUC | |
| 1 x Okugi deckhead Tv lift system | |
| 1 x PIS System | |
| 1 x Pioneer repeater type VSX-D510 | |
| 1 x CD central music system with central iPod | |
| 4 x Loudspeakers | |
| Sun deck exterior | 1 x Pioneer AVR type VSX-909 |
| 1 x CD central music system | |
| 1 x Crestron remote control type CNWM | |
| 8 x Loudspeakers | |
| Owner’s deck exterior | 1 x Tv Panasonic LCD type TH50PF11, 127cm/50” |
| 1 x Sat-Receiver type VU+ DUO² | |
| 1 x Panasonic DVD Player type DVD-S29 | |
| 1 x Denon AVR type 4310 | |
| 1 x CD central music system with central iPod | |
| 6 x Loudspeakers | |
| 1 x IP Tv Intel NUC | |
| 1 x HandM deckhead Tv lift system | |
| Main deck exterior | 1 x Tv Pioneer Plasma type PDP503, 127cm/50” |
| 1 x Sat-Receiver VU+ DUO² | |
| 1 x Panasonic DVD Player type DVD-S29 | |
| 1 x Denon AVR type 4310 repeater | |
| 1 x CD central music system with central iPod | |
| 8 x Loudspeakers | |
| 1 x HandM deckhead Tv lift system | |
| Master and VIP stateroom | 1 x Tv Samsung LCD type UE46HB890, 117cm/46” |
| 3 x Tv Panasonic LCD type TH42PF11, 107cm/42” | |
| 3 x Sat-Receivers type VU+ DUO² | |
| 3 x Panasonic DVD players type DVD-S29 | |
| 3 x Denon type AVR 4310 repeaters | |
| 3 x Pioneer CD changer type PD-M426 | |
| 3 x CD central music system with central iPod, | |
| 34 x Loudspeakers | |
| 4 x Bose 2nd zone Amplifier + control + loudspeaker | |
| 3 x IP Tv type Intel NUC | |
| 2 x PIS System | |
| Guest staterooms | 6 x Tv Sharp type LC20VM2, 51cm/20” |
| 6 x Humax Sat-Receivers type HDFOX | |
| 6 x Pioneer AVR type VSX-D510 | |
| 6 x Panasonic DVD-players type DVD-S33 | |
| 36 x Loudspeakers | |
| 6 x CD central music | |
| 6 x Bose 2nd zone amplifiers, controls and loudspeakers | |
| Fitness area | 1 x Tv Pioneer Plasma type PDP 503, 127cm/50” |
| 1 x Sat-Receiver VU+ DUO² | |
| 1 x Panasonic DVD player type DVD-S33 | |
| 1 x Pioneer CD changer type PD-M426 | |
| 4 x Loudspeakers | |
| 1 x Bose 2nd zone amplifier, control and loudspeaker | |
| Captain’s cabin | 2 x Tv Samsung LCD type UE37D6500VS, 94cm/37” |
| 4 x Loudspeakers | |
| Crew cabins | 16 x Tv Toshiba LCD type 24W1343G, 61cm/24” |
| Crew mess | 1 x Tv Sony LCD type KDL40Z5800, 102cm/40” |
| Officer’s mess | 1 x Tv Panasonic LCD type Viera TX-42ASW654, 107cm/42” |
| IT network | Business LAN Network cable: Captain’s office, C. Engineer’s office, ECR |
| Radio room and navigation | |
| Owner’s LAN Network | |
| Shore connected only, LAN/Wifi bridge and crew | |
| WIFI/router | Bridge, bridge deck aft |
| Owner’s deck (stateroom, study and salon) |
| Owner galley main deck | 1 x Eloma Multimax type 6-11 EDC convection steamer |
| 1 x Eloma Multimax type 6-11 EDA convection steamer | |
| 3 x Induction cooking hobs – Schott; 4+2+1 plate | |
| 1 x Electric Griddle Plate type MKN EB | |
| 1 x Electric deep fat fryer type KKN EF | |
| 1 x Roasting and Baking oven type MKN | |
| 1 x Salamander type Schmalz SE | |
| 1 x Panasonic microwave oven type NE-2740 | |
| 1 x Winterhalter dishwasher GS302 | |
| 1 x Scholl dish warmer type 2006 | |
| Extraction hob | |
| Dumbwaiter | |
| Refrigeration/freezer | Chilled drawers |
| 2 x standing fridges | |
| 1 x Wine coolers Liebherr | |
| Crew galley, lower deck | 1 x Oven Eloma Joker B |
| 4 x Induction plates Plattner | |
| 1 x Grill Plattner | |
| 1 x Deep-frier Plattner | |
| 1 x Salamander Eloma | |
| 1 x Dishwasher Hobart | |
| 4 x Chiller/cooler | |
| Dumbwaiter | |
| Extraction hob |
| PANTRIES | |
| Main deck pantry | 1 x Microwave Panasonic Pro II NE2740 |
| 1 x Ice maker Hoshizaki | |
| 6 x Chiller drawers | |
| Owner’s deck pantry | 1 x Microwave Panasonic Pro II NE2740 |
| 1 x Ice maker Hoshizaki | |
| 4 x Chiller drawers | |
| Bridge deck pantry | 1 x Ice maker Hoshizaki and 4 x chiller drawers |
| Exterior decks fridge | Main deck, Owner’s deck, Bridge deck and sun deck |
| Crew pantry, lower deck | Bain-marie buffet Plattner with extractor |
| 1 x Dishwasher Miele G7856 | |
| 1 x Coffee machine WMF Presto | |
| 1 x fridge | |
| LAUNDRIES | |
| Owner’s Laundry equipment | 1 x Miele industrial washing machines type WS5101ES |
| 1 x Miele industrial laundry dryers’ type T6251EL | |
| 1 x Viet ironing machine type 2365/2 | |
| 1 x Trevil heated ironing board | |
| 1 x Miele ironing press type HM5316 | |
| Crew Laundry equipment | 1 x Miele industrial washing machines type WS5101ES |
| 1 x Miele industrial laundry dryers’ type T6251EL | |
| 1 x Trevil heated ironing board | |
| 1 x Miele ironing press type HM21-140 | |
| 1 x Scharf ironing machine type CL-4 | |
| 1 x Miele industrial washing machine type WS5427 | |
| 1 x Miele industrial dryer type PT7136 Vario |
| OTHER EQUIPMENT |
|---|
| Sun deck: | 1 x Hot Tub 800 l, 40C ̊, surge tank 1 500 ltr |
| Spa, lower deck | 1 x Deep cold pool temperature 6°C |
| 1 x Klafs type MK5 SL KIN steam bath | |
| 1 x Klafs sauna type 9000E | |
| Cold water fountain (~8°C) | |
| Shower | |
| Elevators | Schindler crew lift type TX4 320 kg and 4 pax |
| Schindler Owner lift type TX4 320 kg and 4 pax | |
| Dumbwaiter | Schindler 100kg SWL |
| Gym equipment | Treadmill TechnoGym Run Now 700 and Elliptical Cross Trainer TechnoGym Vario Excite 700 |
| Sun awnings | Bridge and upper deck on 6 and 8 poles |

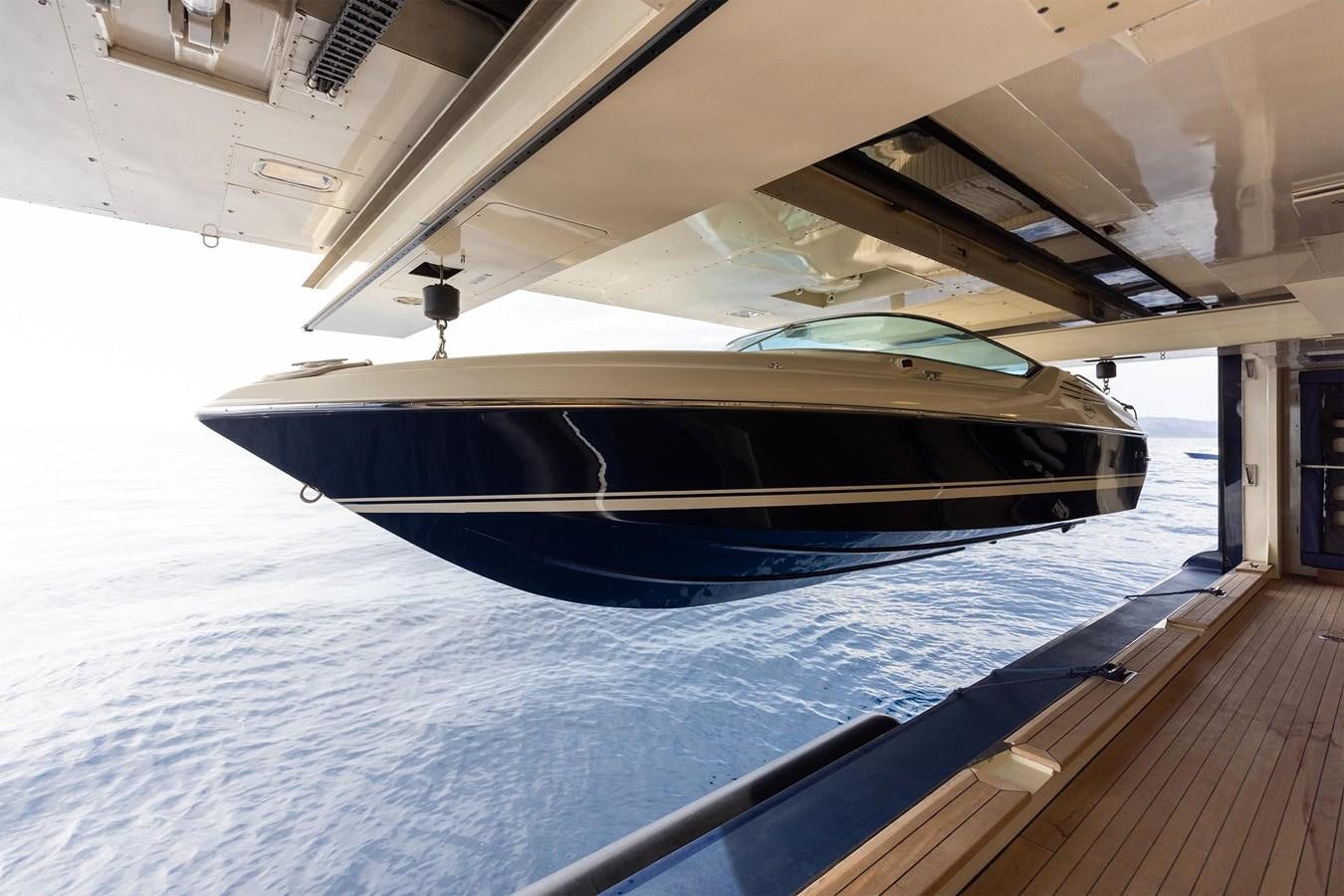

| Tenders | 8m/26.25ft Multiplex Limo diesel tender 2 x 165hp MerCruiser D–Tronic engines (216 hours – June 2022) |
| 7.93m/26ft Giacomo Colombo S.p.A., Vintage tender 2 x 216hp MerCruiser 4.3 litre engines (118 hours – June 2022) |
|
| 5.3m/17.4ft Castoldi S.p.A. diesel jet tender 17 1 x 125hp type “Jet5” inboard engine (104 hours – June 2022) |
|
| 4.03m/13.2ft Boston Whaler 130 Super Sport with 1 x 40hp Yamaha outboard engine (182 hours – June 2022) |
|
| Jet Skis | 2 x 1,500cc JetSki Bombardier Sea Doo with 155Hp Rotax engine (8 hours – June 2022) |
| Toys | Diving equipment |
| Diving Compressor | Bauer Junior II |
| Workshop | Work bench with vice-bench |
| Bench grinder | |
| Drill press | |
| Lathe 700mm | |
| Welding station, blowtorch… | |
| Comprehensive toolbox and special tools | |
| Working at height equipment | 2 x Raptor W6 Skylock, 2 x harness Petzl 150 N |
Complete the form below and one of our experienced sales brokers will be in touch soon.
