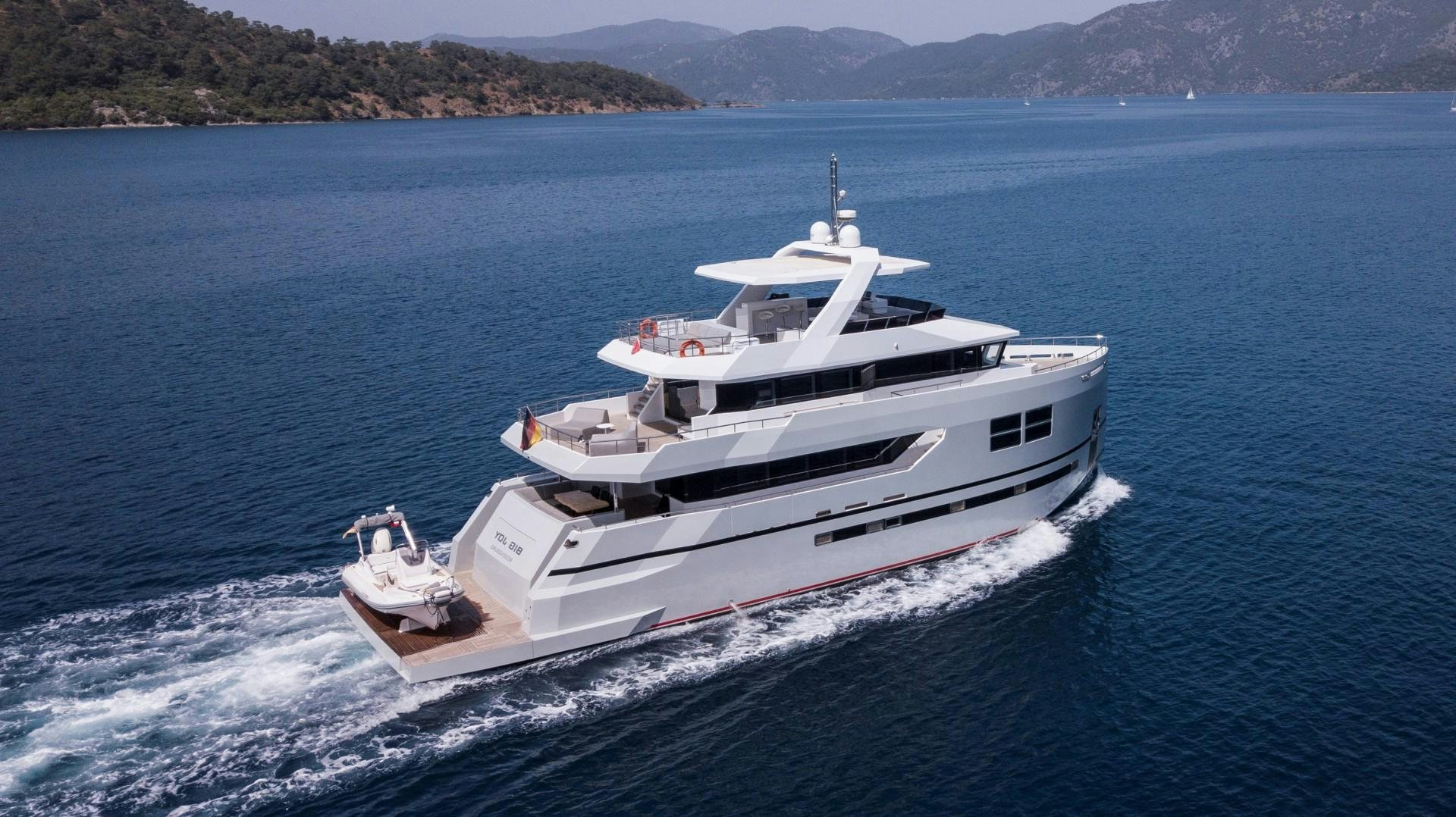

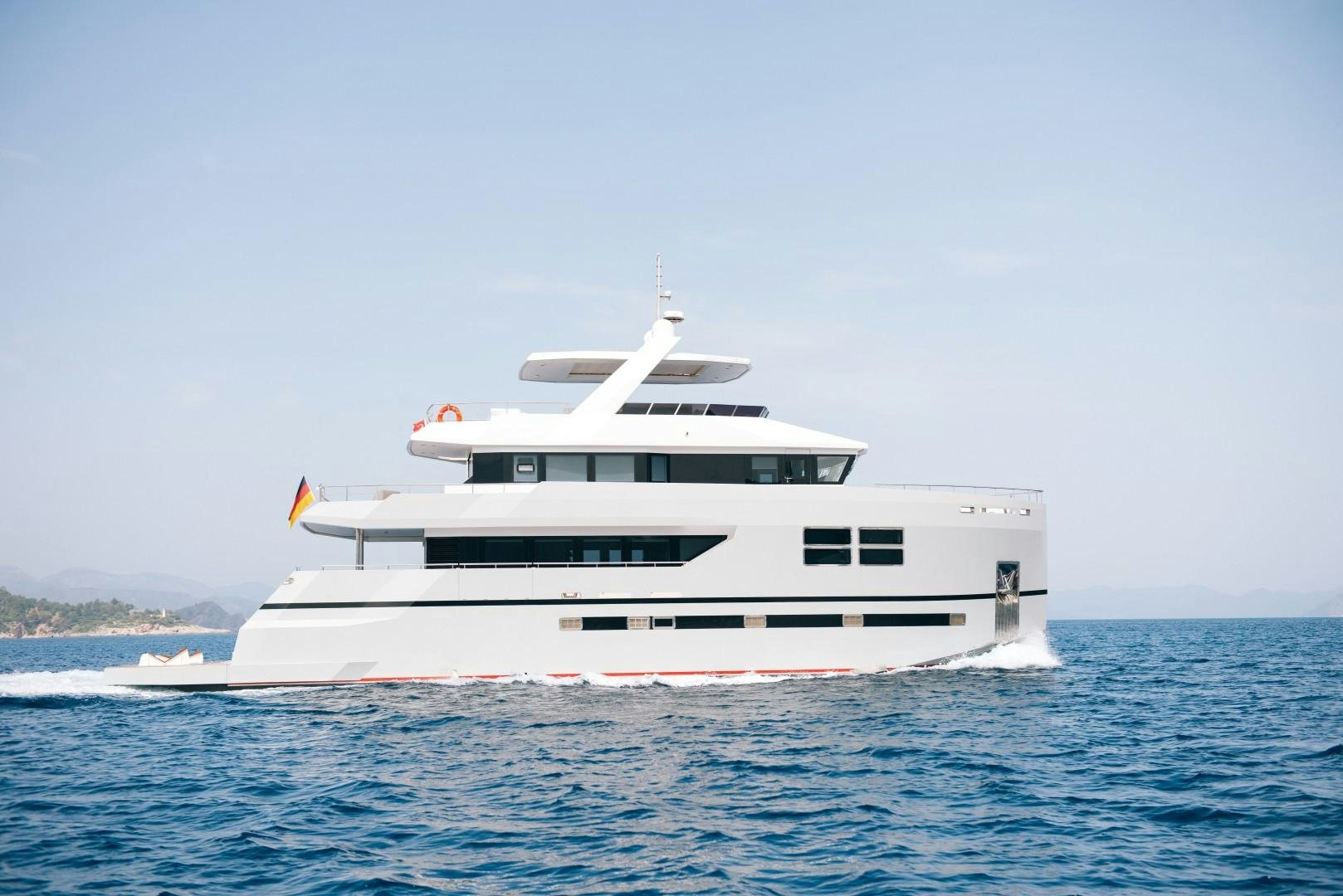

Launched in 2018 by Arkin Pruva Yachts BIG JOY is an 89-foot (27.18m) Future Line motor yacht ideally suited for cruising with family and friends. Custom-built for her current owner, this impressive motor yacht offers exceptional volume for a yacht this size thanks to her wide beam and four decks. Her hull is built in epoxy composite with a fiberglass and PVC foam core and superstructure.
The interior spaces of BIG JOY are modern with a minimalistic style. Gray tones throughout and beautiful parquet floors in the salon and all the guest areas create a resplendent design aesthetic. The furnishings and surfaces are beautifully finished. The main salon has a lounge seating area with custom furniture. A large wooden table seats up to eight for formal dining. This space also is outfitted with a bar and wine cooler. The yacht’s well-equipped galley is also fitted with an island counter and a breakfast corner. The bridge deck is fully dedicated to the helm steering position that offers impressive views and is fitted with two captain’s chairs and a sofa and then, to the master stateroom and its private outdoor areas such as the solarium located aft and the comfortable seating area located forward.
Four staterooms welcome eight guests aboard BIG JOY. The master stateroom is located on the bridge deck. It has a king-size bed, a dressing room, a private office, a petite couch, and an en-suite bathroom. The yacht’s additional three double-bedded staterooms are all located on the lower deck and all have en-suite bathrooms. The yacht’s sauna is also located on the lower deck and so is also the crew cabin that is located forward on this deck.
The deck spaces of BIG JOY are ideally suited for enjoying the outdoor lifestyle. The aft deck has a U-shaped seating area and table. The flybridge is fitted with comfortable seats, sunbathing area, a wet bar, a grill, and a fixed sun awning with a sliding roof as well as a steering position. A stern garage carries the tender and toys. The yacht also has a separate Jet Ski garage.
Name: BIG JOY
Type: Semi-displacement motor yacht
Builder: Arkin Pruva Yachts
Year: 2018
Hull No: NB104
LOA: 27.18m / 89’2”
LWL: 23.40m / 76’9”
Beam: 7.53 m / 24’8”
Draft (Half Load): 1.45m / 4’9”
Draft (Full Load): -
Hull Material: Epoxy composite with fiberglass and PVC foam core
Superstructure: Same
Decks: Teak laid decks
Flag: German
Classification: RINA Hull lines approval and CE Category B
MCA: N/A
Naval Architect: Karatas Yacht Design
Exterior Designer/Stylist: Karatas Yacht Design
Interior Designer: Burçin Akin
Main Engines: 2x MAN, 1.400hp each
Max Speed: Approx. 19 knots
Cruising Speed: Approx. 12 knots
Range: Approx. 1300 nm at cruising speed
Stabilizers: Humphree electric with 4 fins
Electrical: 24 / 220 / 380V
Displacement (Fully Loaded): 90 Tons
Gross Tonnage: 140 Tons
Guest Accommodations: 8 Persons in 4 double cabins
Crew Accommodation: 2 Crew in 1 cabin

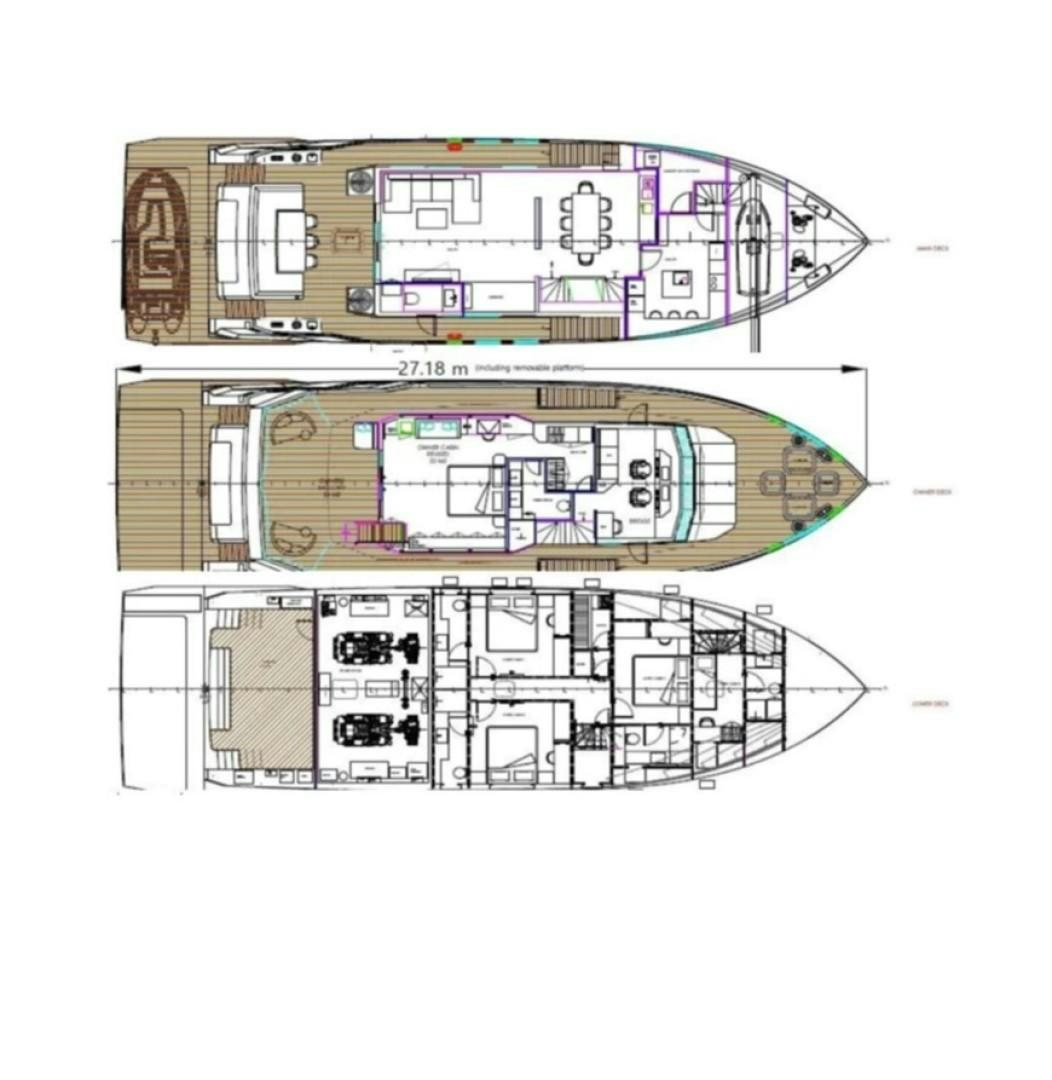

This yacht offers a spacious interior layout with 4 double bedded guest cabins, including the owner’s stateroom on the bridge deck and a separate crew cabin forward in the bow section
LOWER DECK:

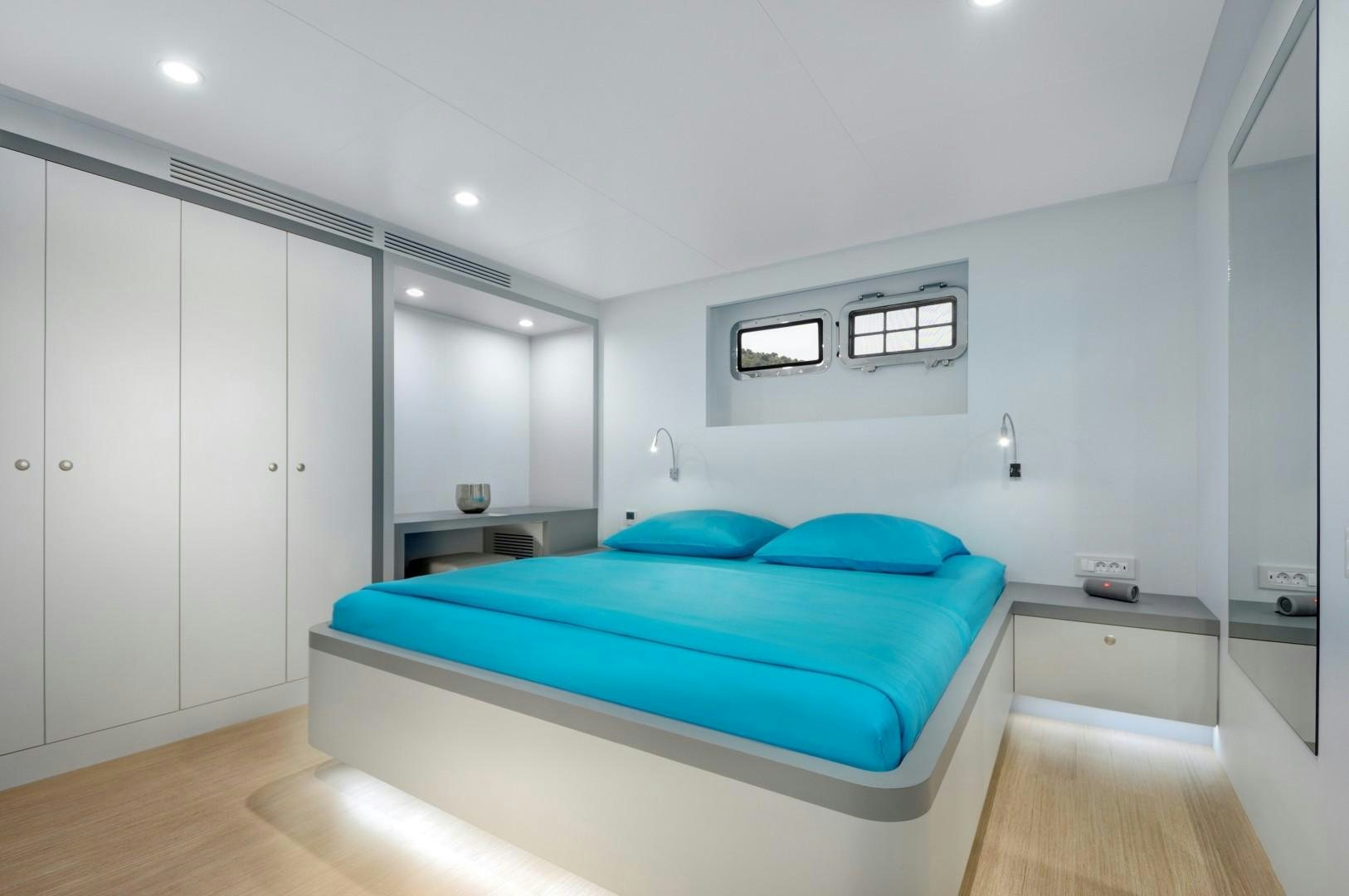

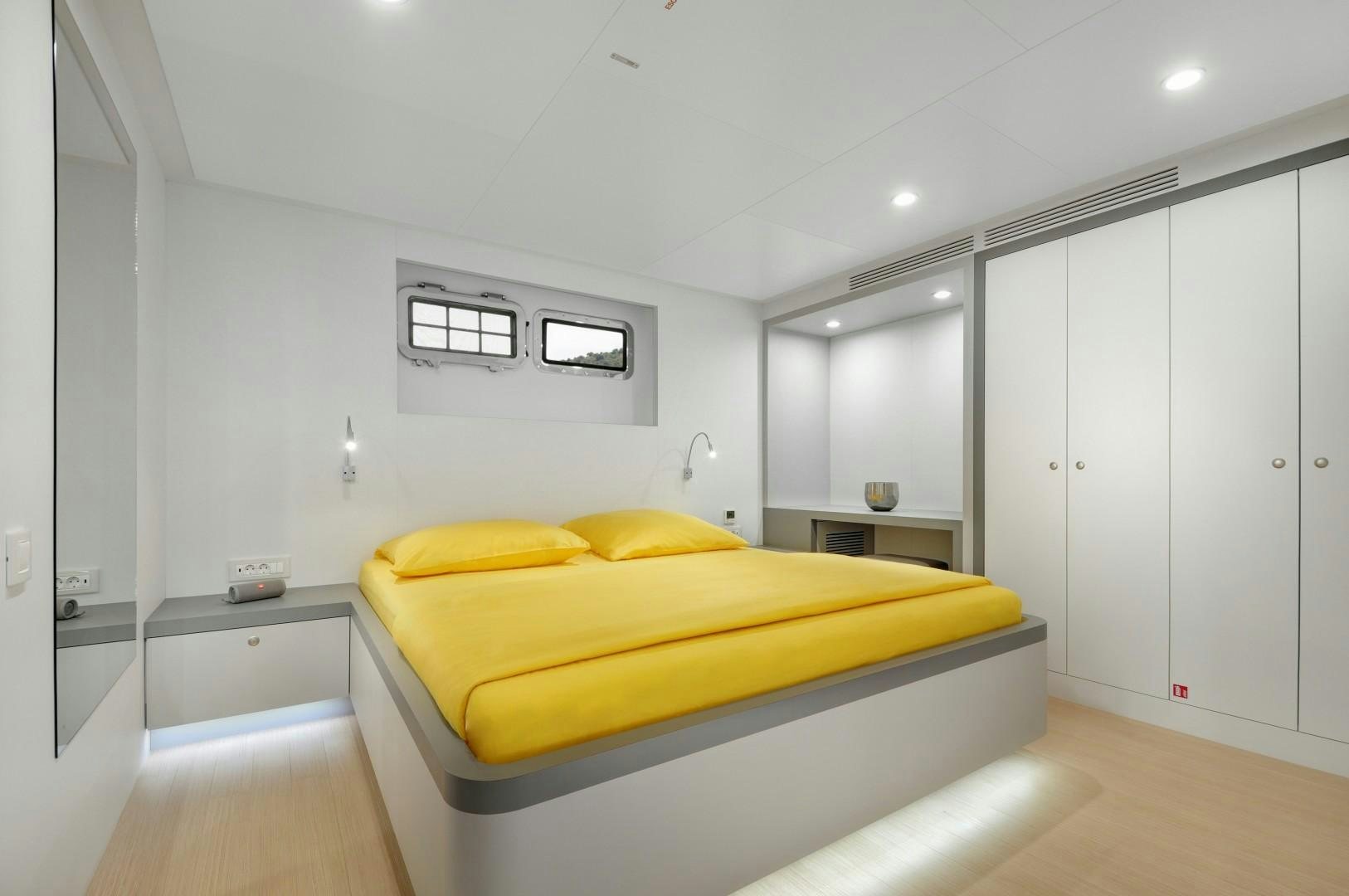

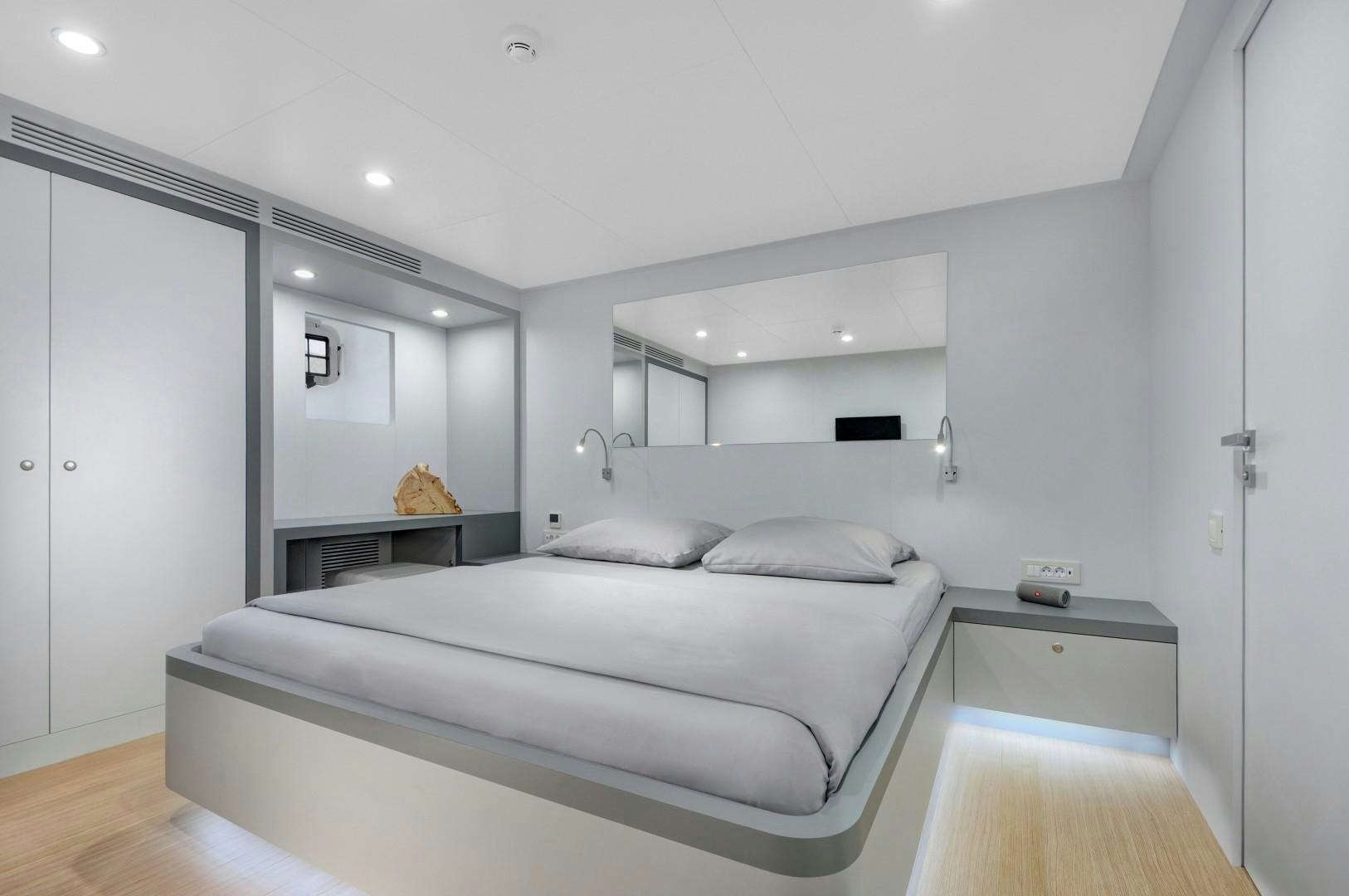

Three double bedded guest cabins, all with ensuite bathrooms
Sauna
Crew cabin forward with Pullman bed, small desk and separate bathroom
Large stern garage with storage space and work bench/tools.
MAIN DECK:
Spacious aft deck with seating area and table.

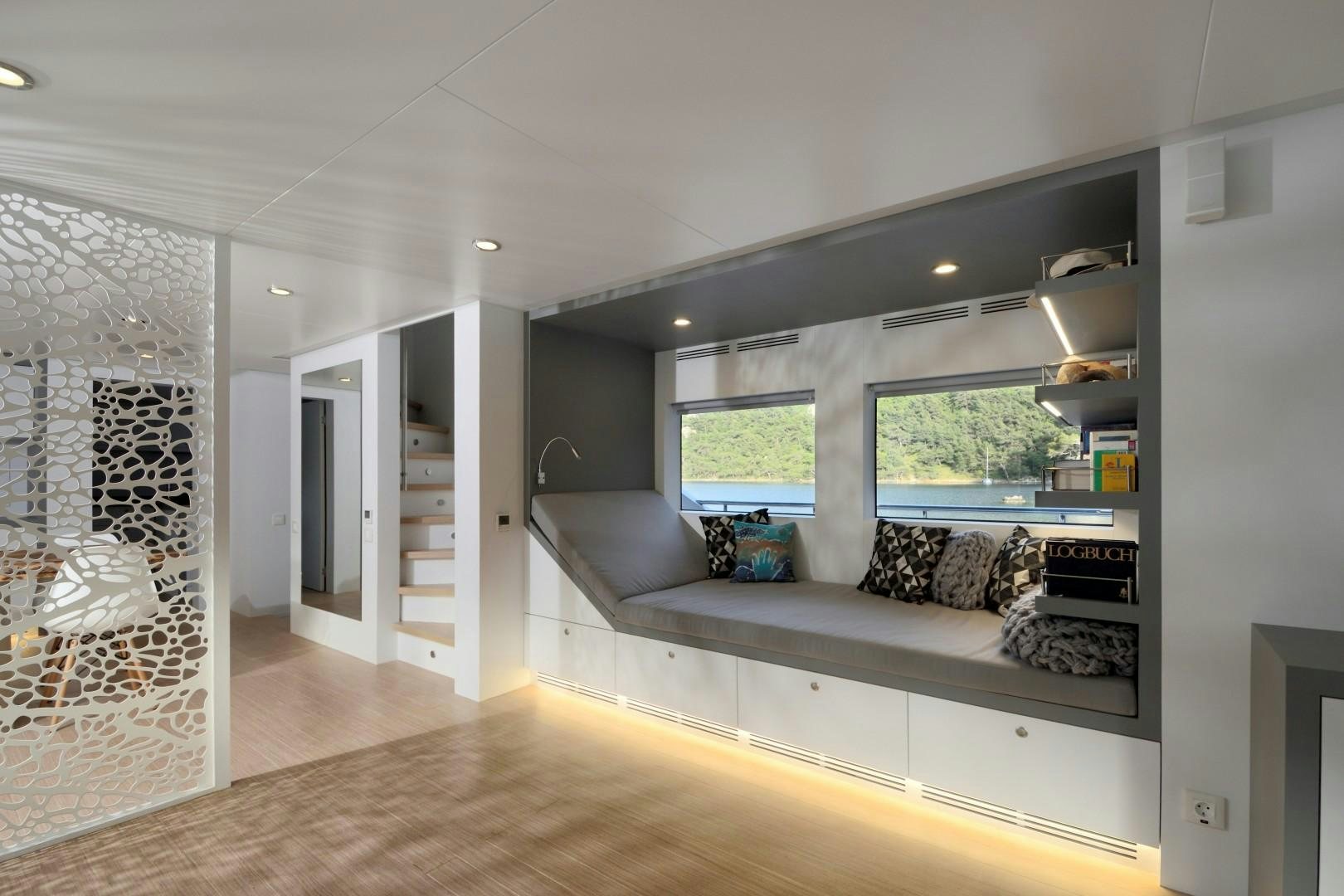

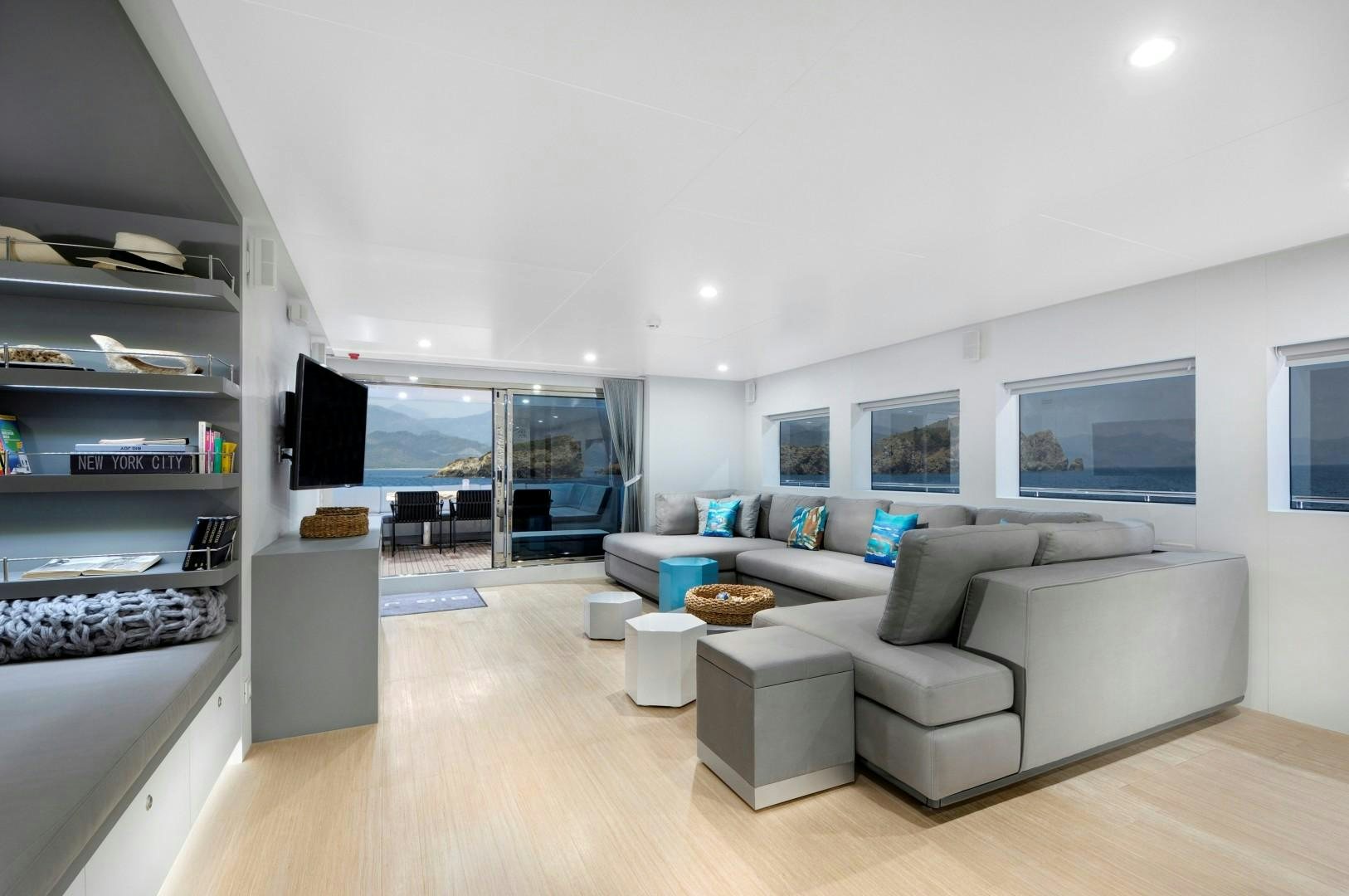

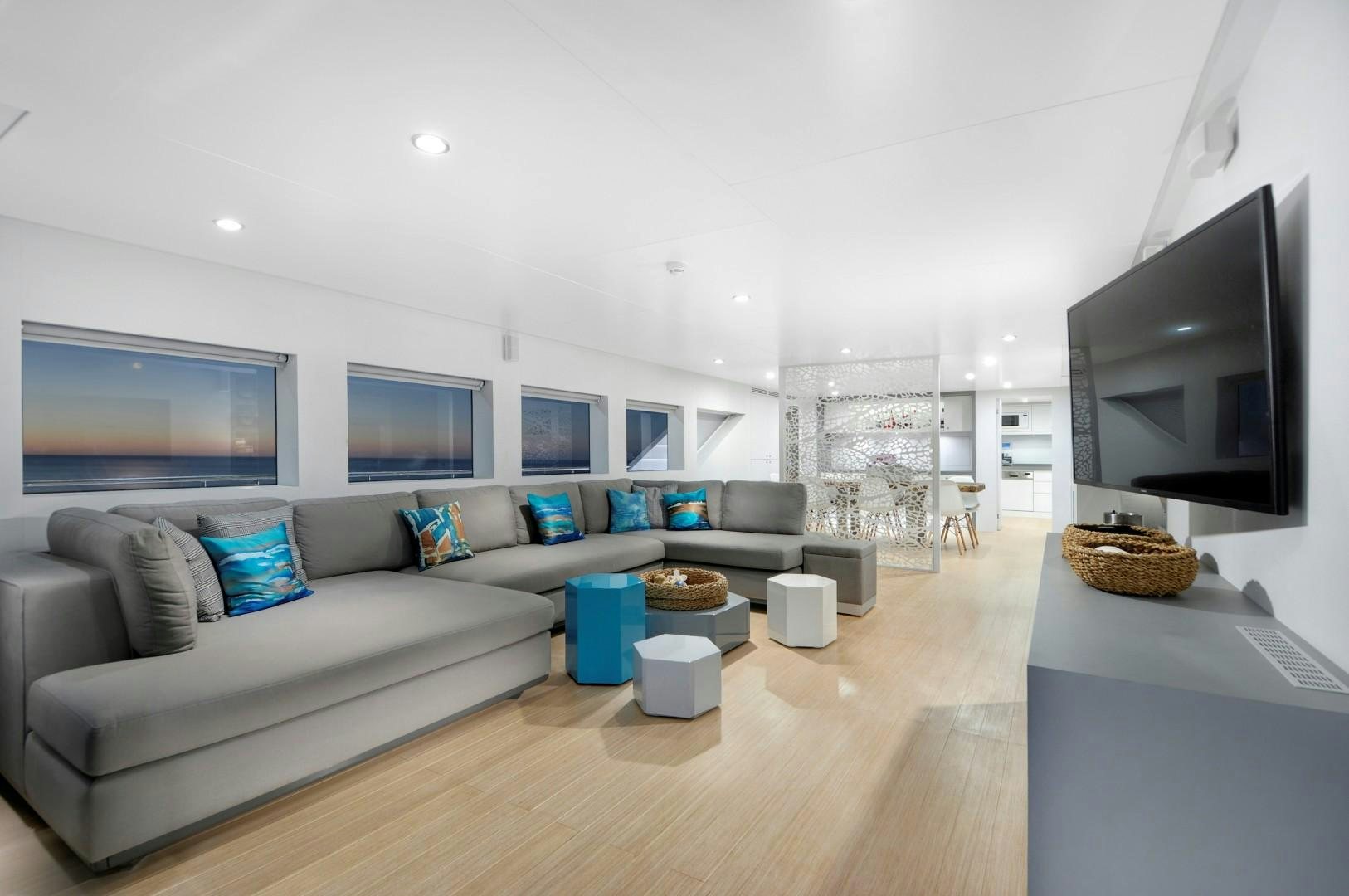

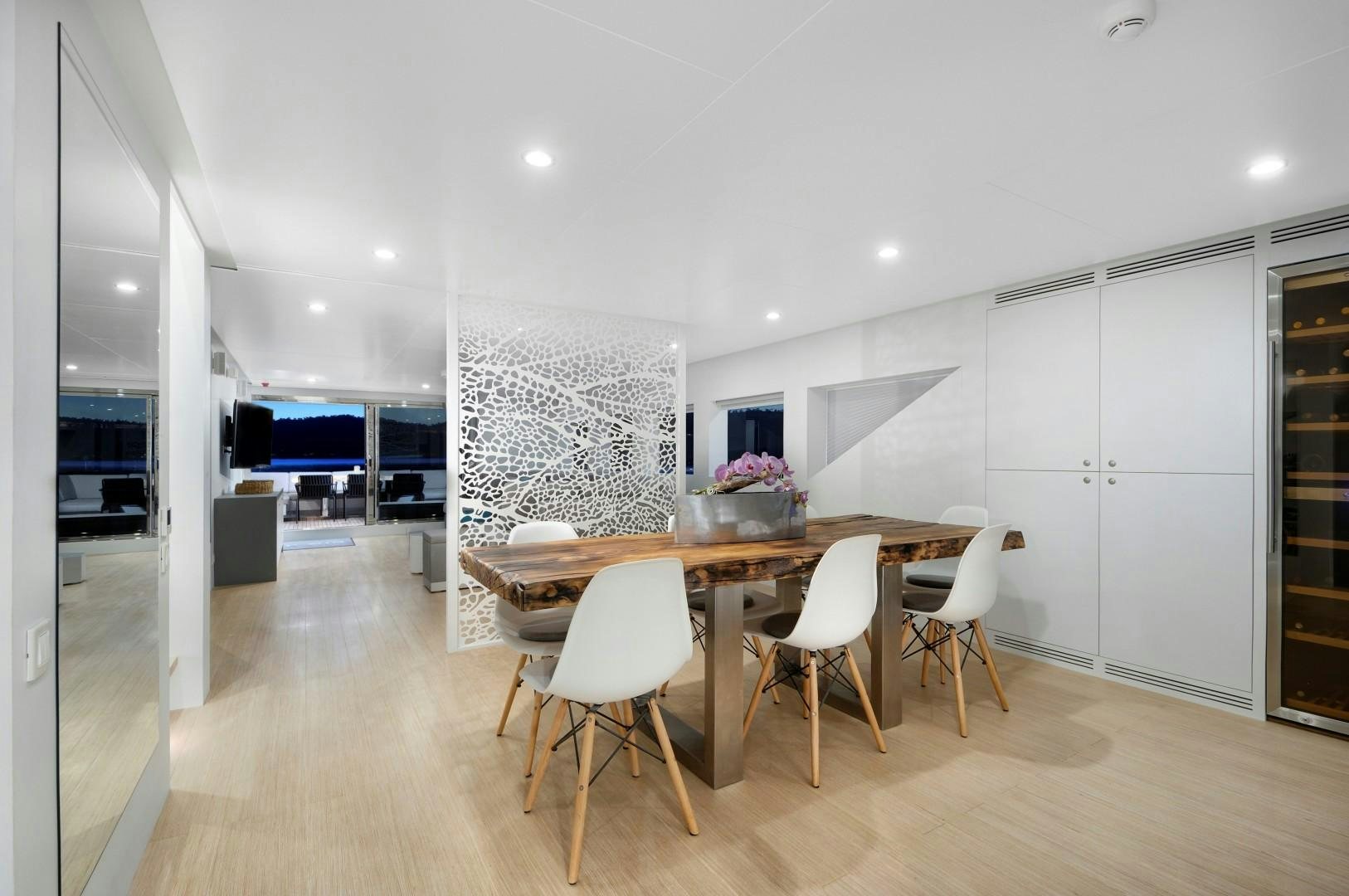

Salon area with lounge area with custom made furniture and built-in chaise lounge unit for a reading experience with a view. Dining area with a large wooden table seating 6 to 8 persons separated from the salon by a semi-transparent decorative panel and a Bar with wine cooler.

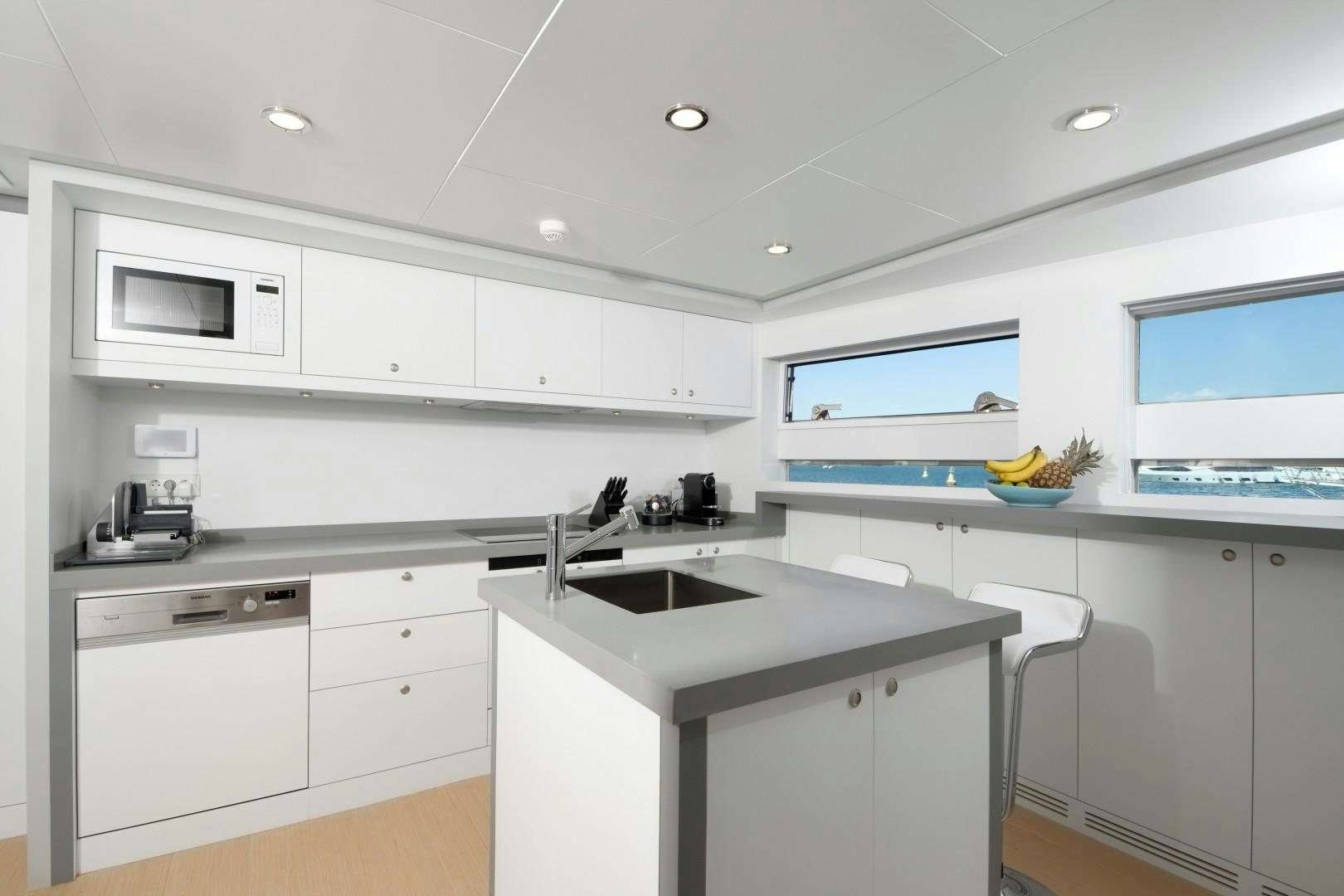

Fully equipped galley with island counter and a bar height breakfast corner.
BRIDGE DECK:

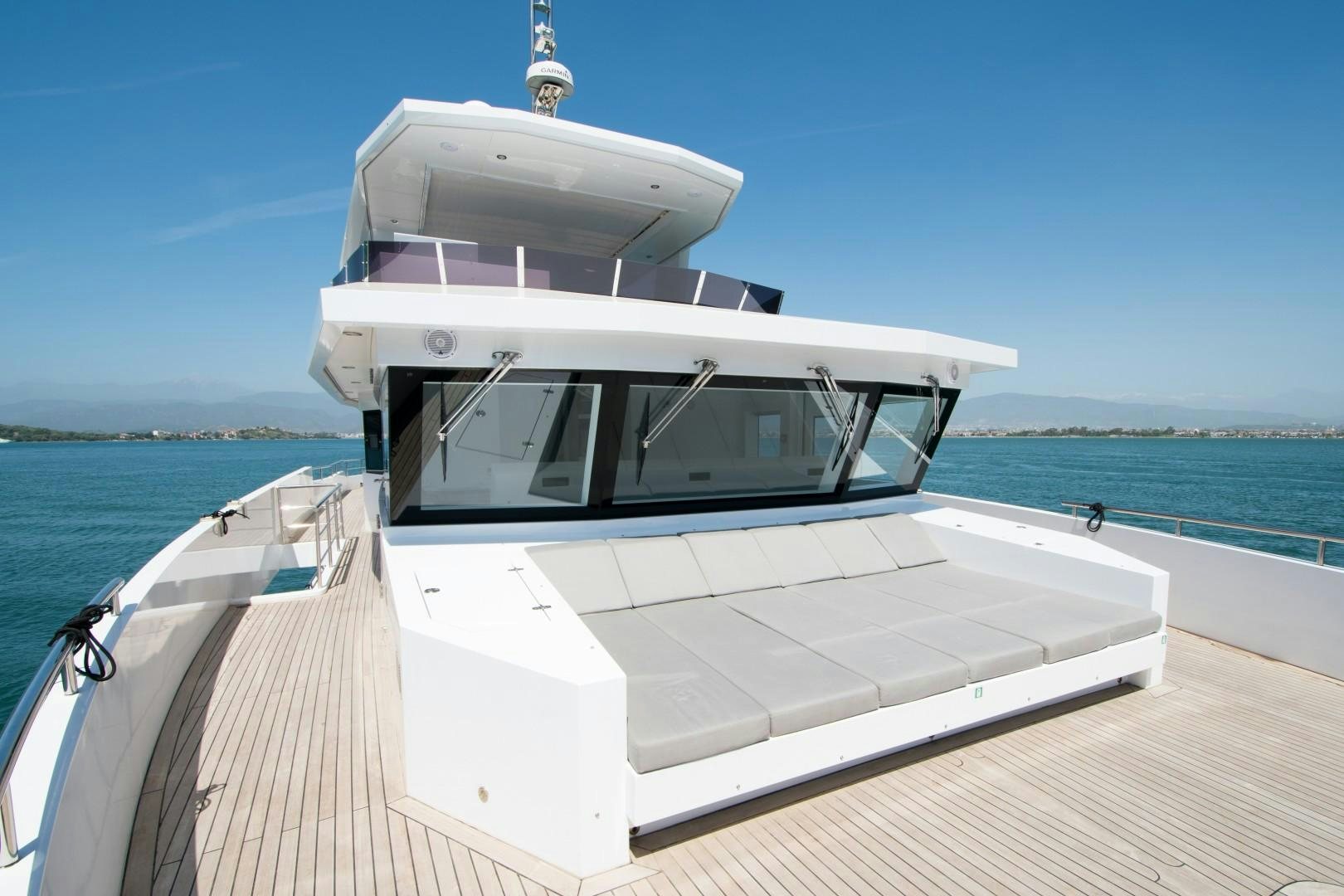

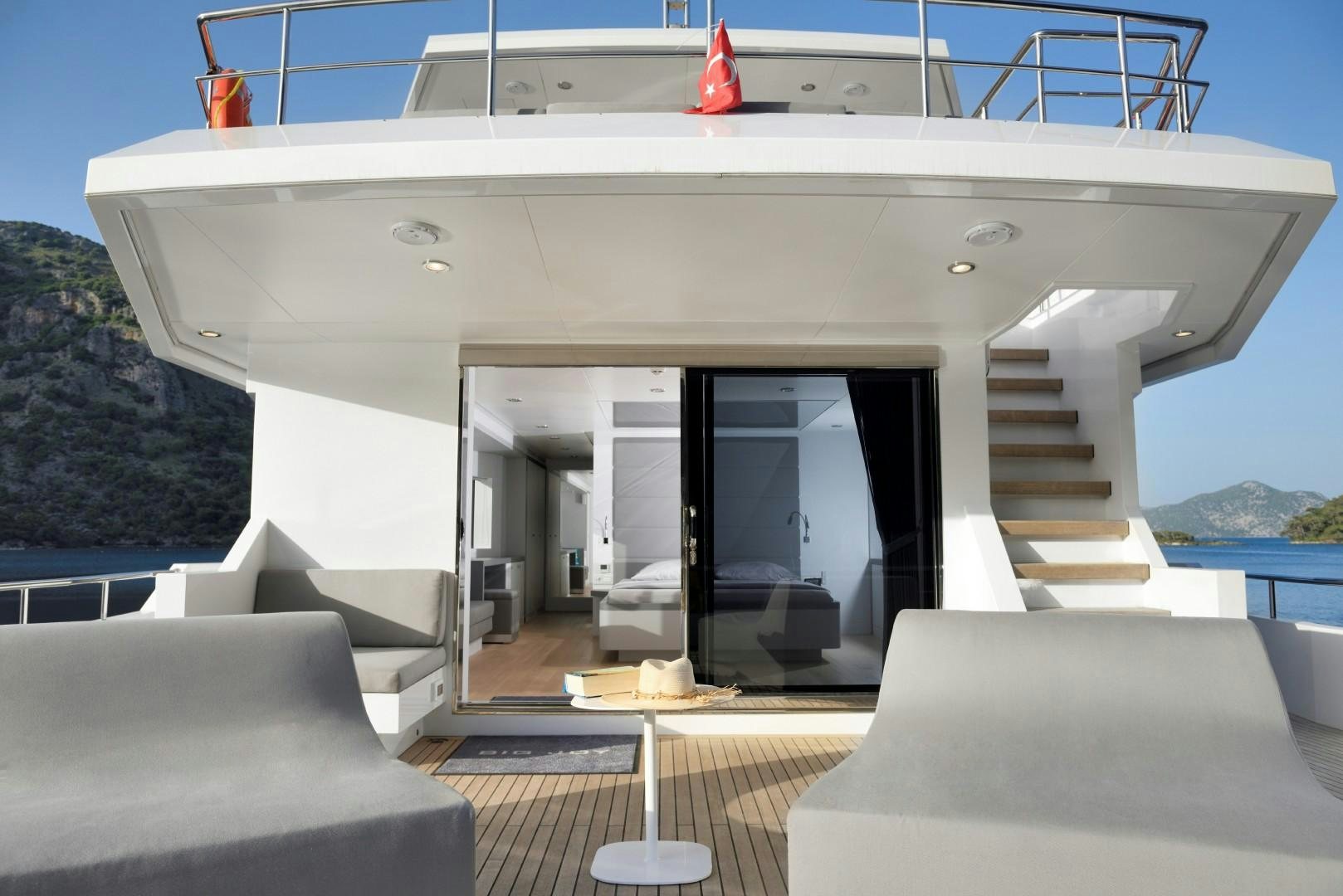

Large deck space with seating areas, access to the master stateroom and sunbathing area on the foredeck.

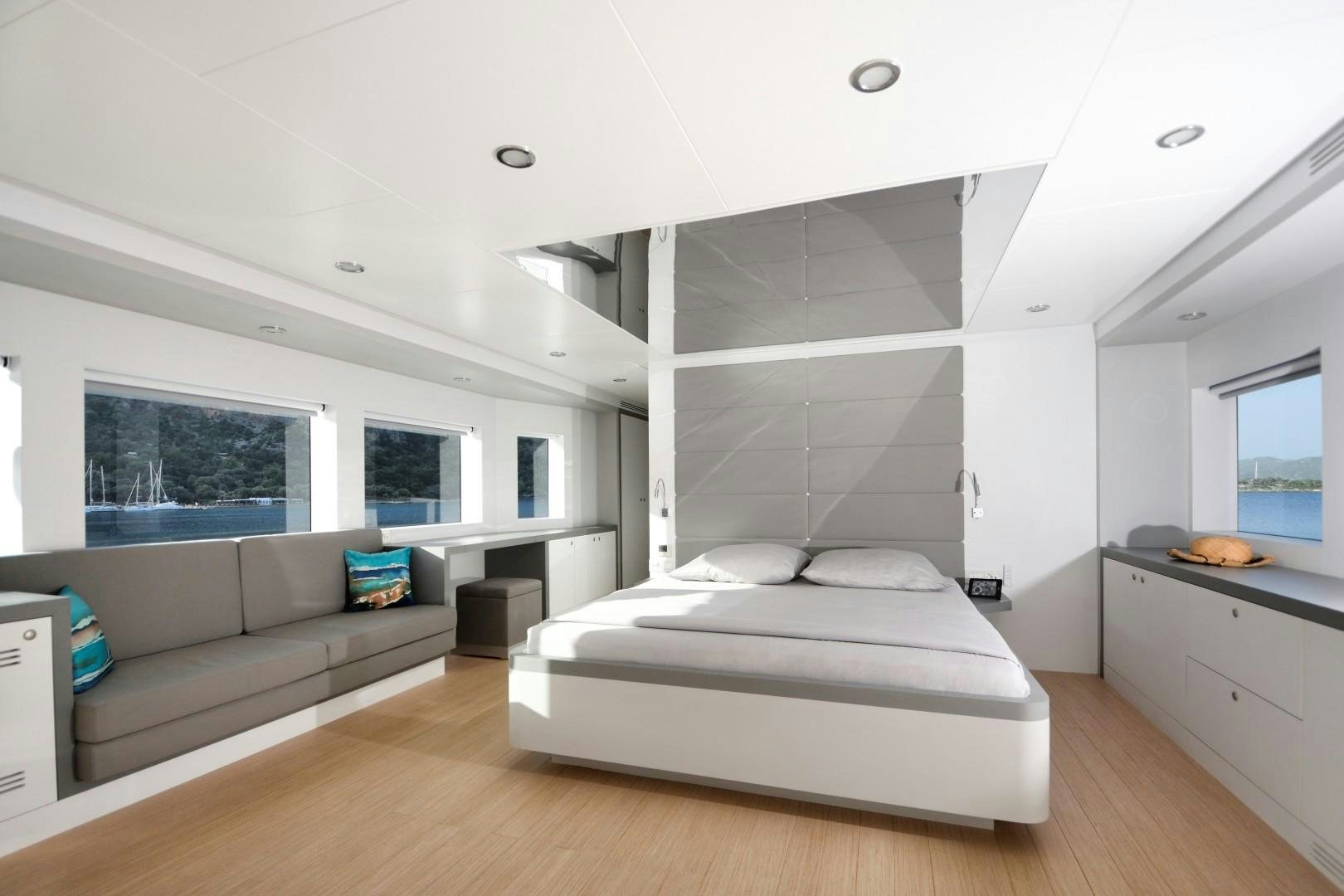

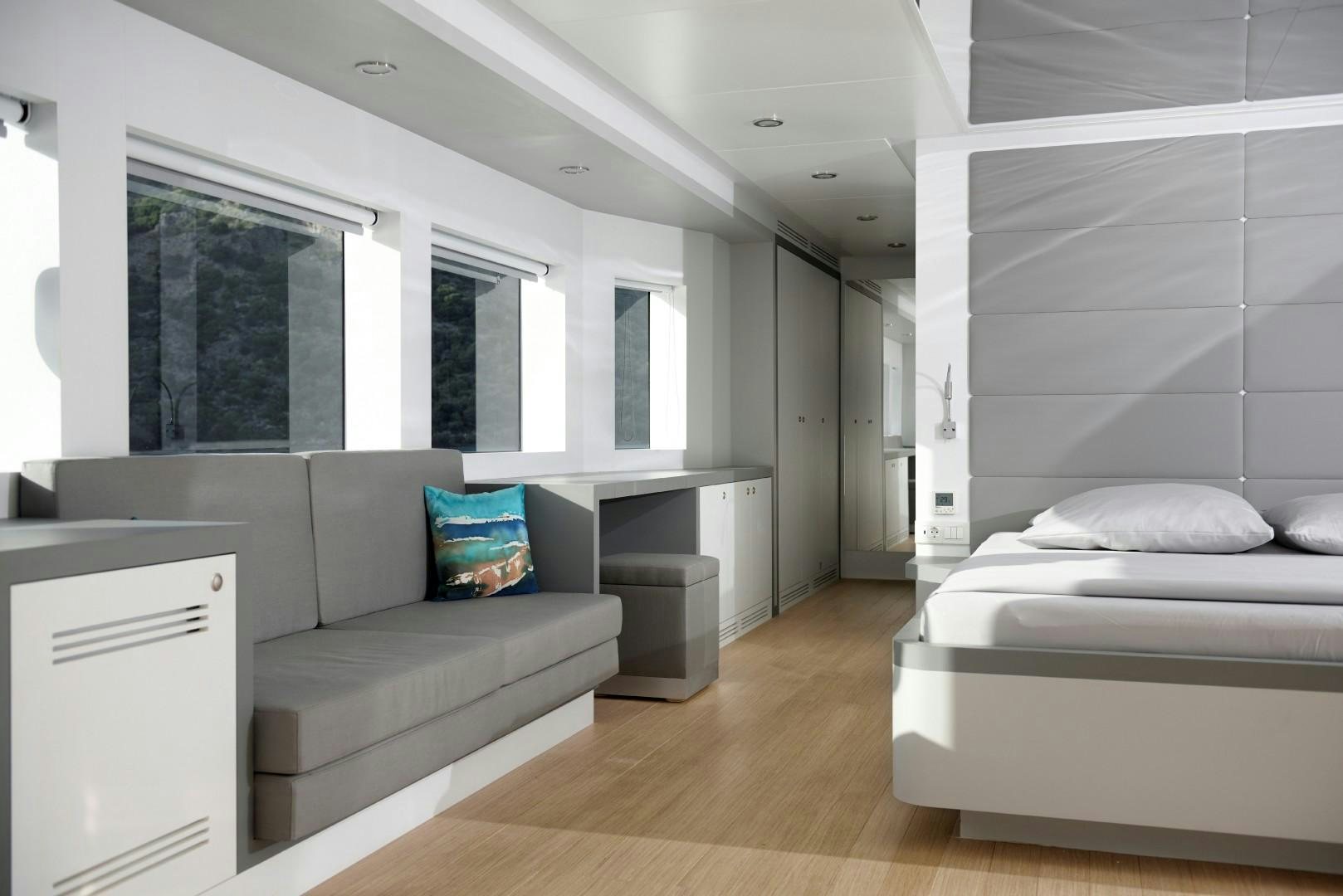

Master stateroom with king-size bed including a dressing room, private office a petite couch and en-suite bathroom.
Steering position with very good views, two captain’s chairs, small sofa and doors to both side decks.
FLYBRIDGE:
Large deck space with seating area and table to portside, sunbathing area aft.
Mini bar with three bar stools, sink and a Weber grill.
Steering position with two captain’s chairs.
Fixed sun awning with integrated Besenzoni electric opening soft top sun awning.
Hull: Composite
Superstructure: Composite
Decks: Teak laid decks
Paint: White & grey
Fuel Capacity: 4623 US Gallons / 17.500 Liters
Water Capacity: 660 US Gallons / 2.500 Liters
Waste water capacity: 396,25 US Gallons / 1.500 Liters
Water maker: 63,40 US Gallons / 240L/hr
Maximum Speed: 19 kts / 540 l/h / 550 nm
Cruising Speed: 12 kts / 160 l/h / 1300 nm
Main Engines: 2x MAN D2862 LE446, 1400 hp each
Engines Hours: 250 hrs approx.. (Feb 2021)
Engine Controls: MAN
Engine Mounts: Flexible
Gear Boxes: ZF 3000V @ 1:3
Shafting: Dublex stainless steel
Propellers: Mn-Bronze
Generators & Electricity
Electrical system: 24/220/380V
Generators: 2x Kohler 25 KW
Generators Hours: 400 hrs approx. (Feb 2021)
Shore Power: Glendenning cable reel
Output volts: 220/380V
Battery chargers: Victron Skylla TG 24V, 100Amp for service bank
Victron Skylla TG 24V, 50Amp for engine start
Victron Skylla TG 24V, 50 Ah for stabilizers
Inverters: Victron
Battery management system: Victron
Batteries: Victron Energy
Generator Start: Yes
Air Conditioning: Marincold central system 240.000 BTU
Engine room fans: 2x Gianneschi ELL/AP 717 with fire dampers
Bow and Stern Thruster: Side Power hydraulic
Fresh Water Heaters: 200 ltr stainless steel electric boiler
Fresh Water Maker: 1x Sea Recovery Aqua Whisper DX-1400, 220 l/h
Fresh Water Pressure System: Gianneschi Group 2 Jet 24v + 380v
Fuel Separator: Alfa Laval MIB 303
Fuel Filters: Yes
Fuel transfer pump: Gianneschi CP30 + Gianneschi Excelsior ¾”
Shore Power Transformer: Glendenning
Sewage Treatment System: Tecnicomar
Waste Water transfer pump: Gianneschi MVI 44
Toilet System: Tecma with electric macerator pumps
Stabilizers: Humphree electric stabilizers with 4 fins
Interceptors: Humphree
Steering System: DATA DDS 2x290S electro hydraulic
Under Water Lights: 13x Bluefin LED
Helm/Control Stations: 2
Anchors: 2x
Anchor Chains: 2x
Anchor Windlass System: 2x DATA DZC 1400
Aft Warping Capstans: 4x DATA DHC 1600
Boat Crane/aft platform: Besenzoni hydraulic platform lifting system, 1600 kg capacity
Stern garage door: Hydraulic opening door with lock

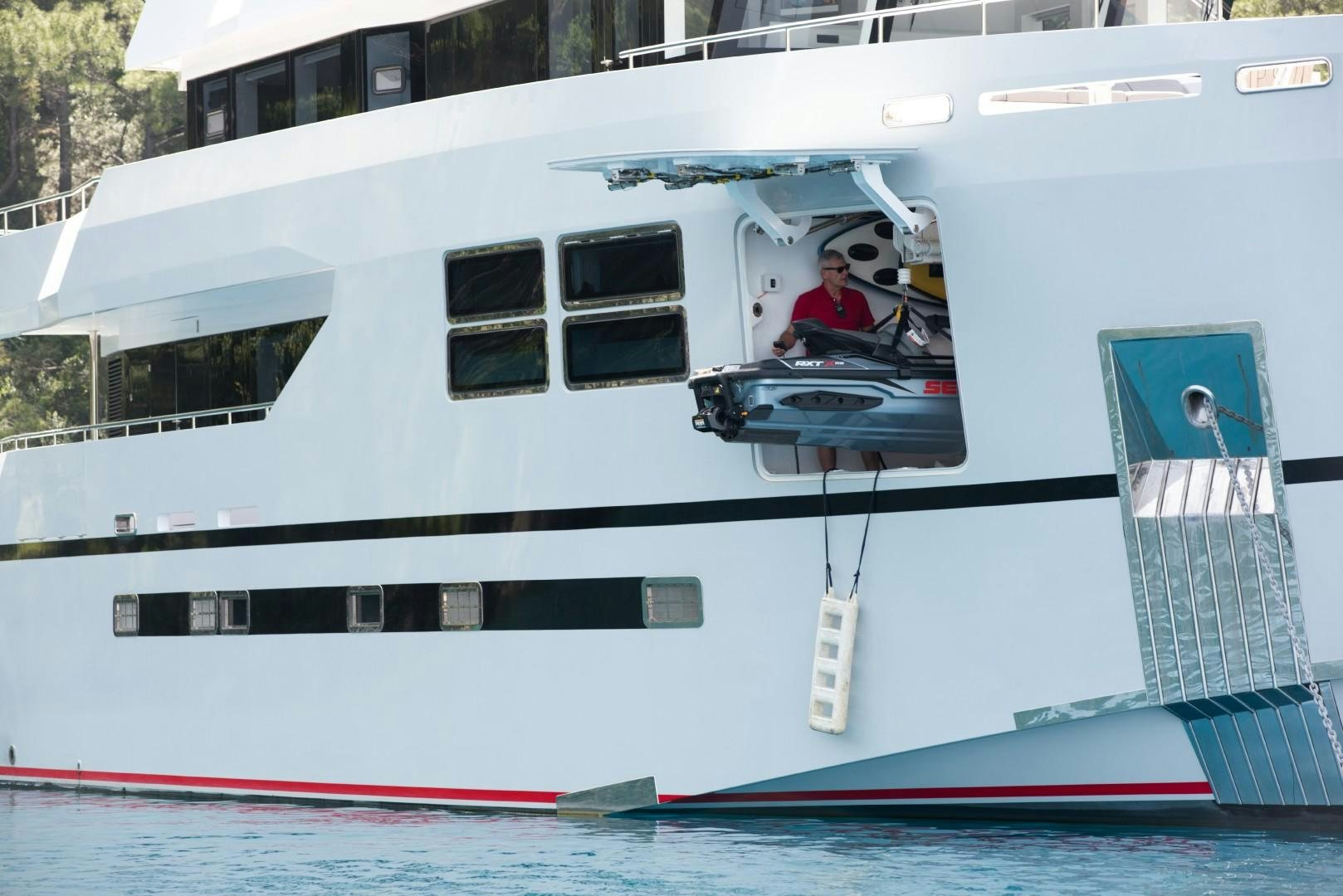

Jetski launching system: Besenzoni hydraulic ceiling crane, 700 kg capacity
Shell door: Side hull hydraulic opening door with locks for jetski garage
Passarelle: Besenzoni hydraulic
Stern Boarding Gangway: Yes
Spotlights: Yes
Soft Top: Besenzoni electric opening soft top awning system
Security Equipment
CCTV: Arlo net gear
Cameras
Monitors/PLC system: Custom made touch screen control alarm and monitoring system
Ship’s Safe
Fire Fighting
Fire Fighting Equipment: Gianneschi ACB 431/B 24V Fire Pump
Portable CO2: Yes
Fire Extinguishers: Fixed fire extinguishers in engine room
Alarms: Fire alarm system
Safety Equipment
Life Rafts: 2x 6 pax
Life Rings: Yes
EPIRBS: Yes
Flares: Yes
Medical Equipment: Yes
Audio system: Bose music system
Sat TV: KNS K7 Satellite TV system
Internet: Cellular GSM based WiFi system all around the boat
Communication Systems
VHF Fixed: Garmin
VHF Handheld: Yes
Navigation Systems
Radar: Garmin GMR 24 XHD
Chart plotter: 4x Garmin
Magnetic Compass: Yes
Auto Pilot: Garmin
GPS: Garmin
Main Galley Equipment
Cooking Equipment: Siemens electric
Oven: Siemens
Refrigeration/Freezer: 2x Siemens
Dishwasher: Siemens
Other: Extractor
Sinks with hot & cold water
Laundry Equipment
Main Laundry Equipment: 1x washing machine
1x dryer
Tenders: 1x ZAR 59SL with Suzuki outboard
Jet Skis: 1x Seadoo RXT-X300

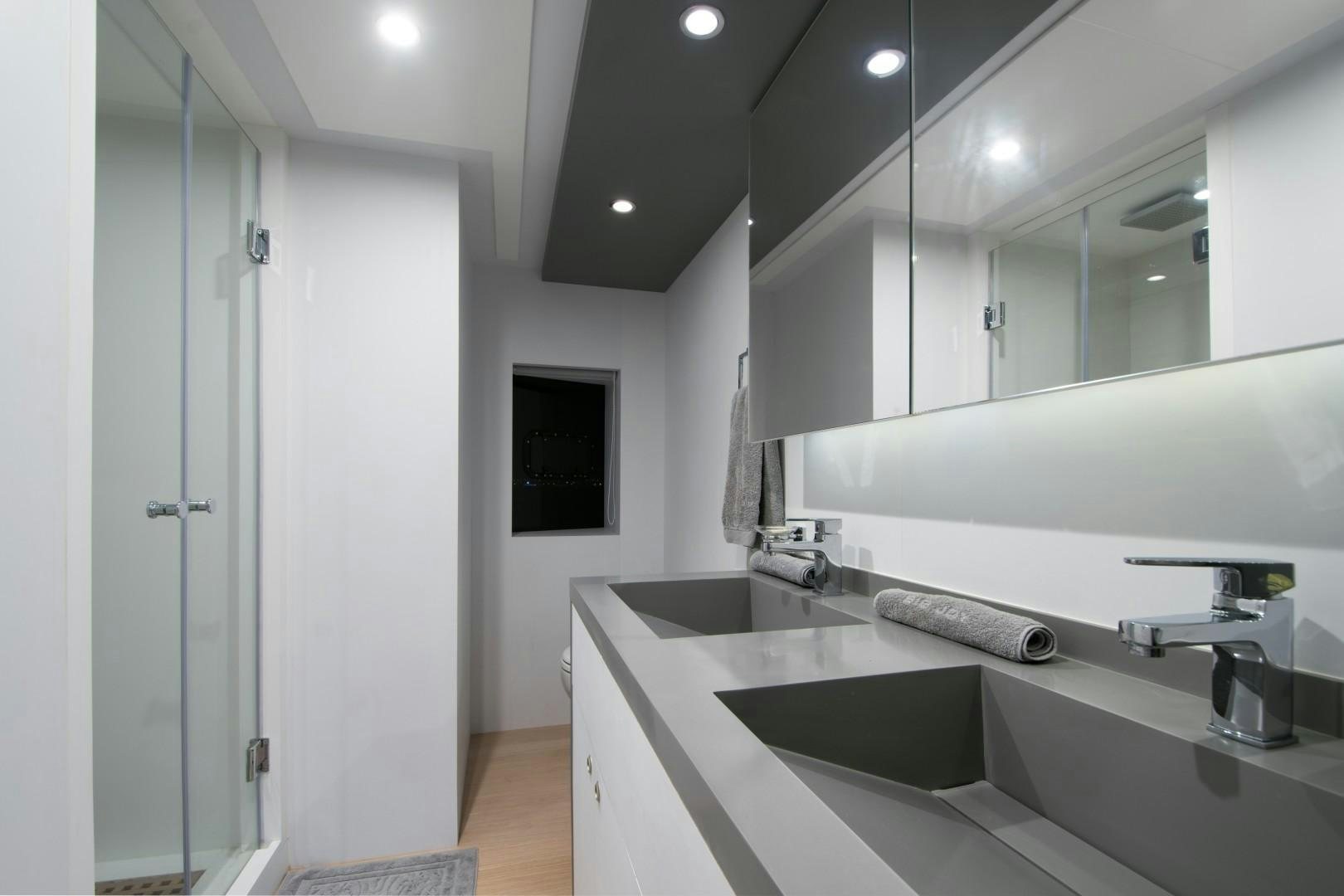

The contemporary and minimalistic interior has been designed to achieve luminous and spacious areas with a color theme and tones of grey throughout in combination with parquet floors in the saloon and all the guest areas. The interior’s furniture and surfaces have been finished in Formica. Corian is used for the bathrooms/wet areas and for custom made sinks. Lighting fixtures are from Cantalupi.
