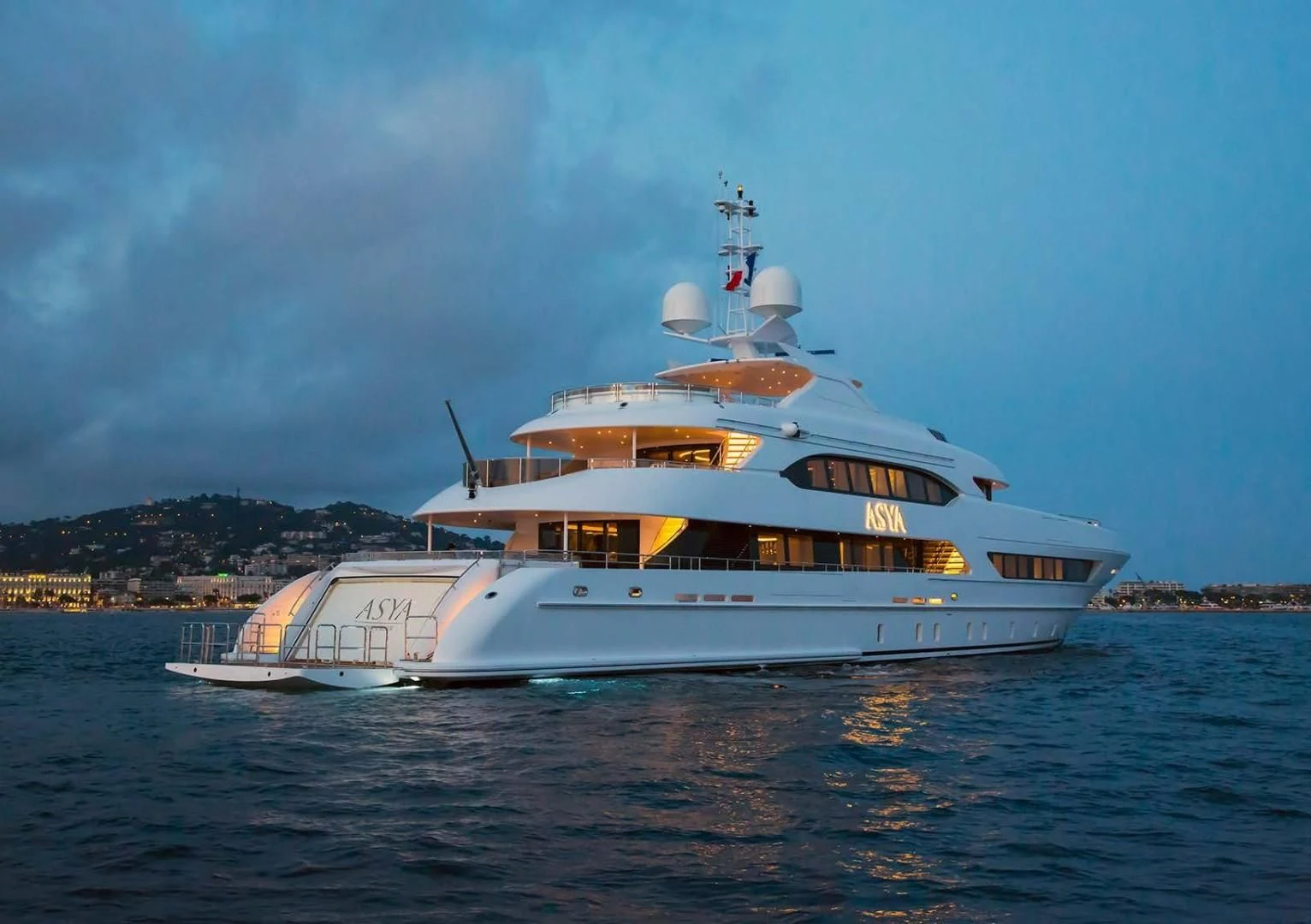

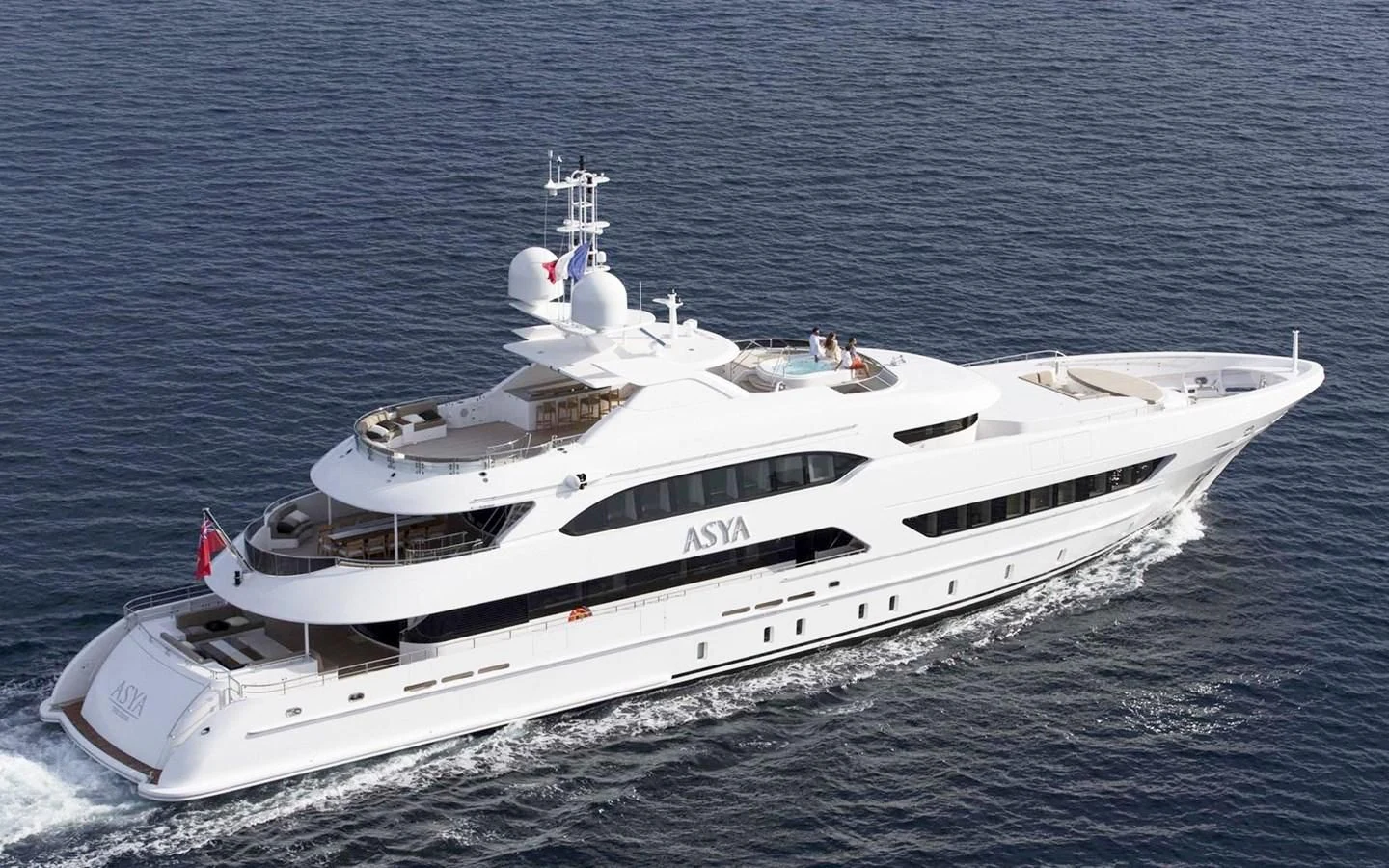

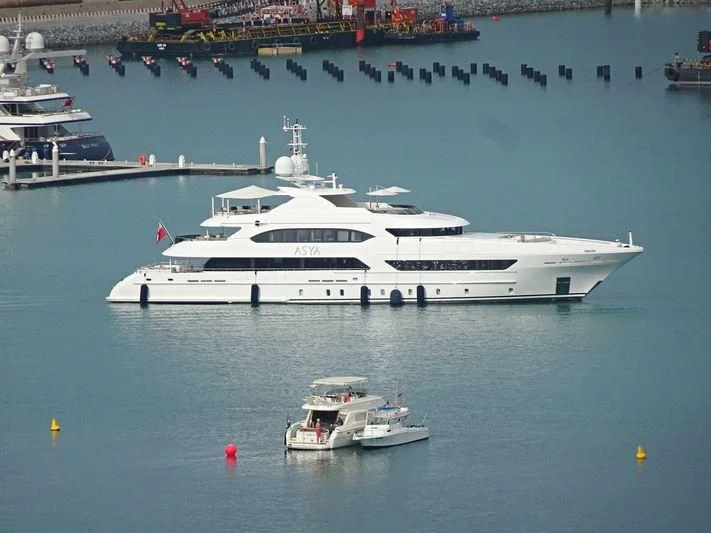

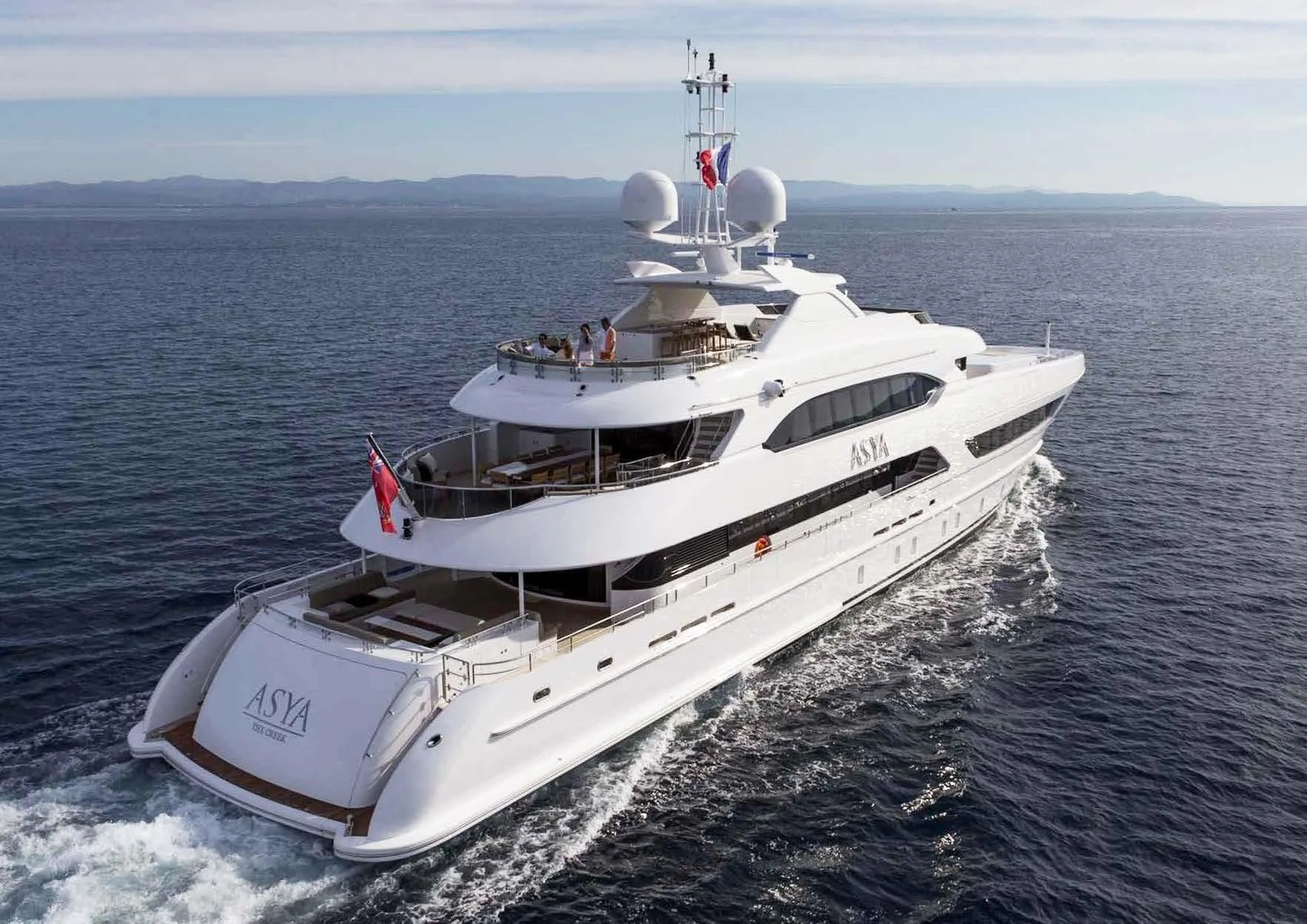

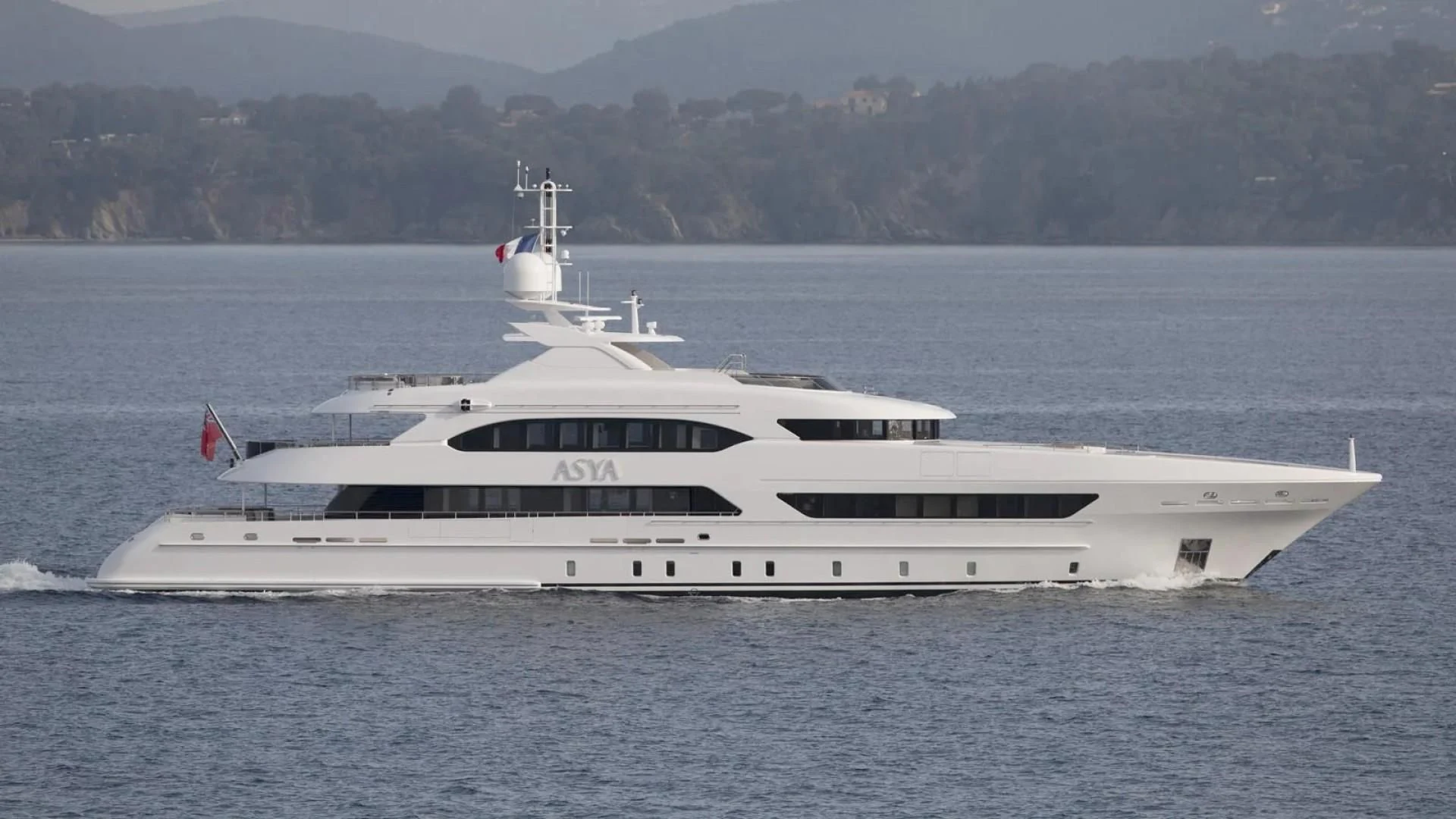

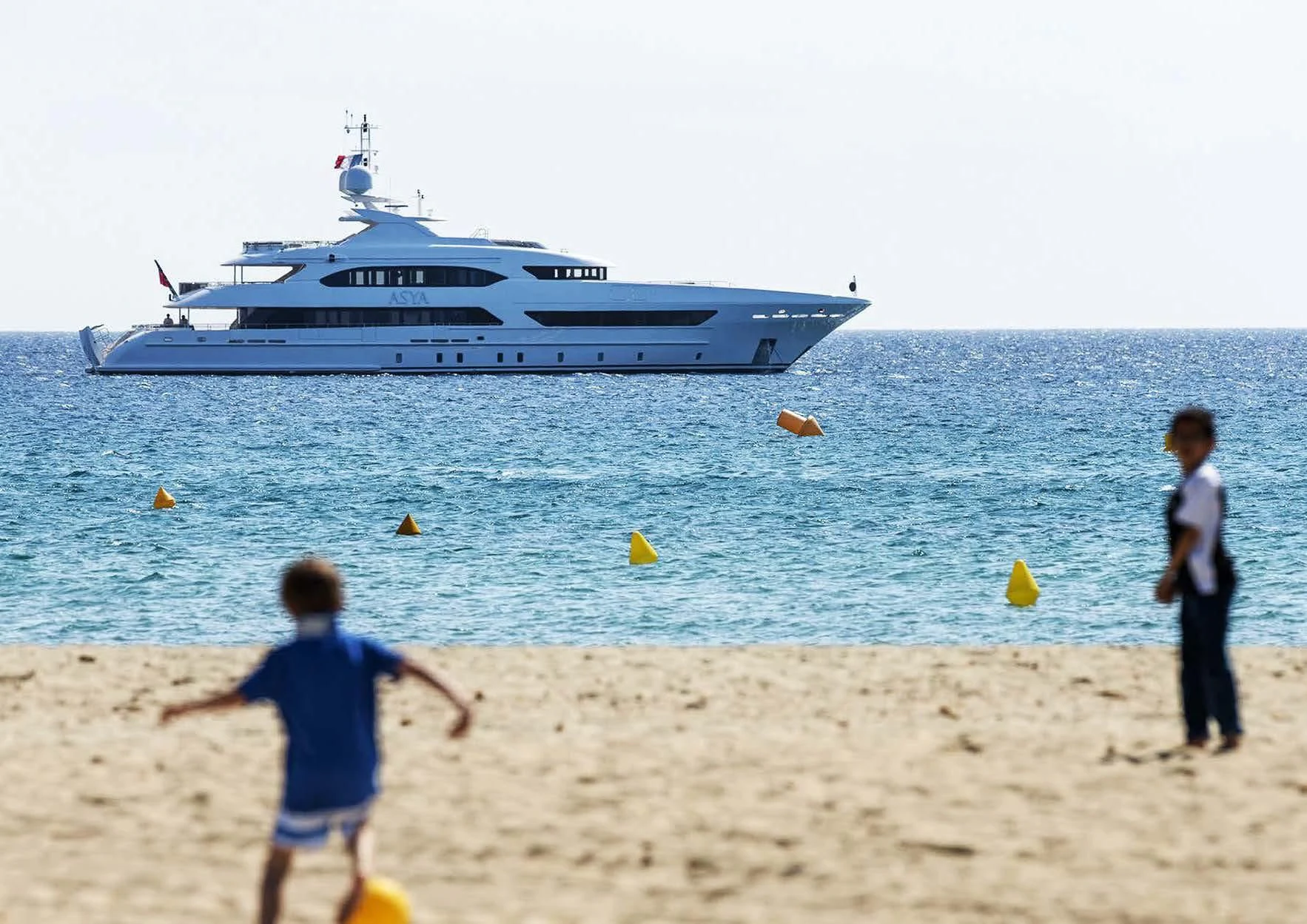

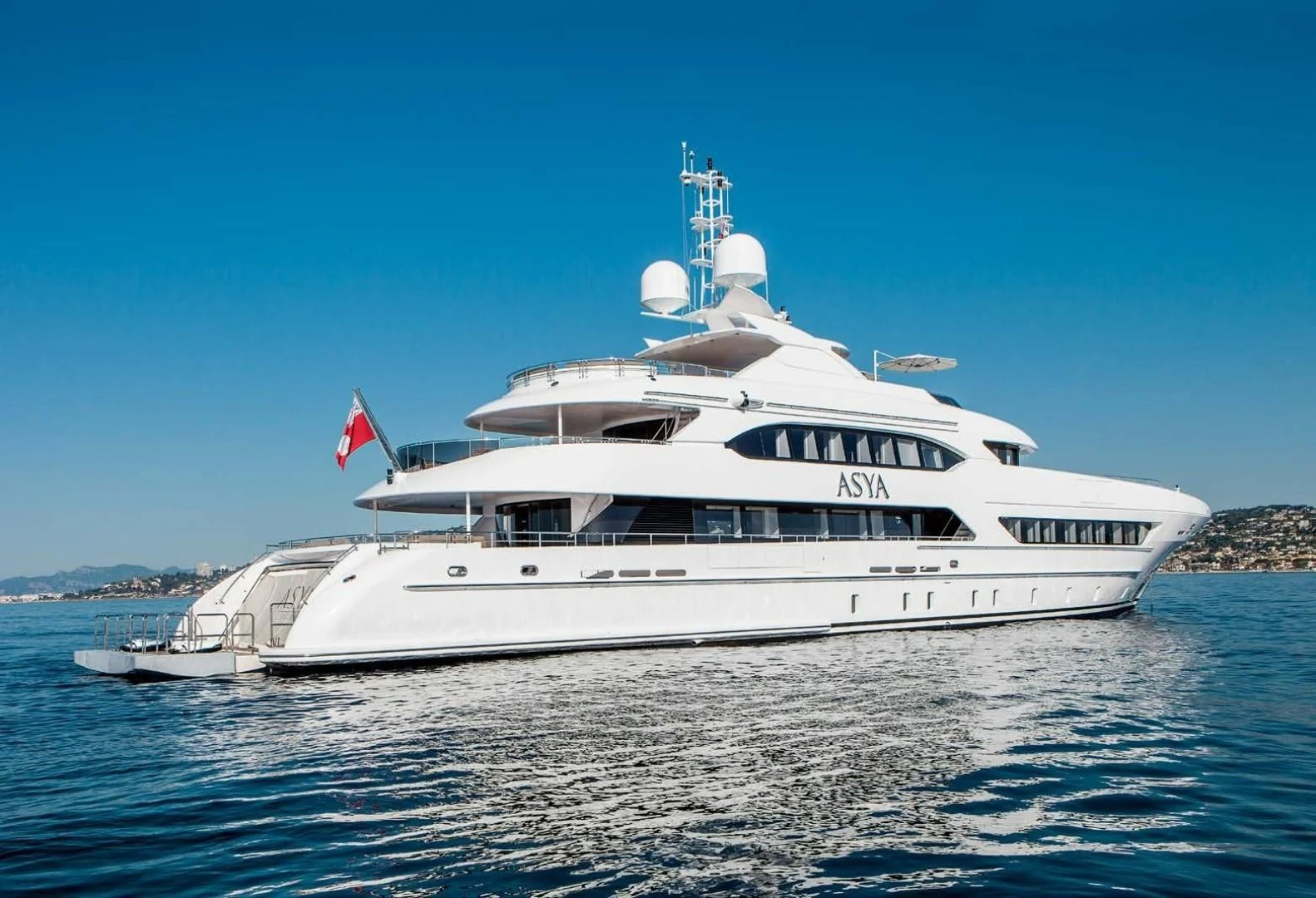

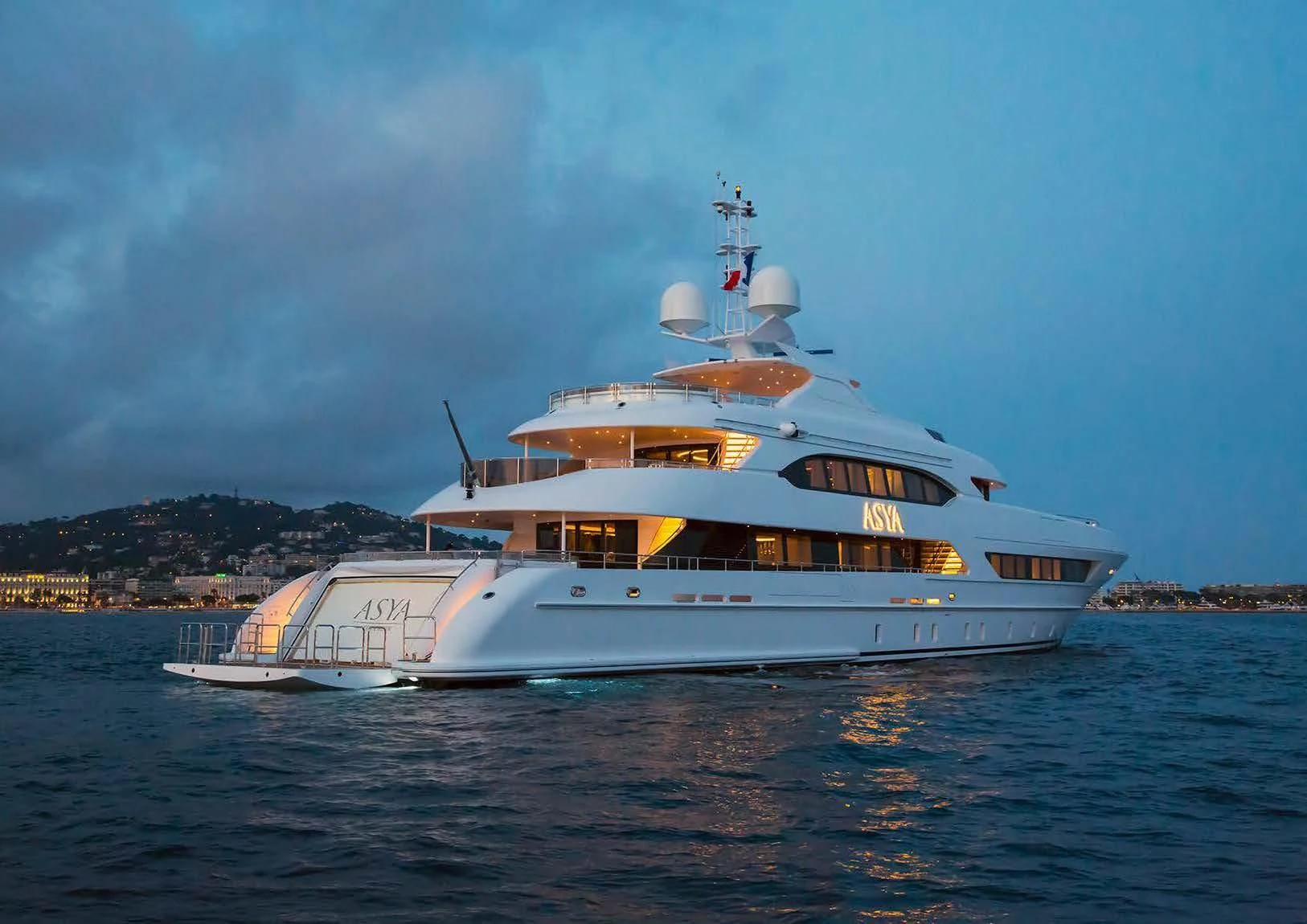

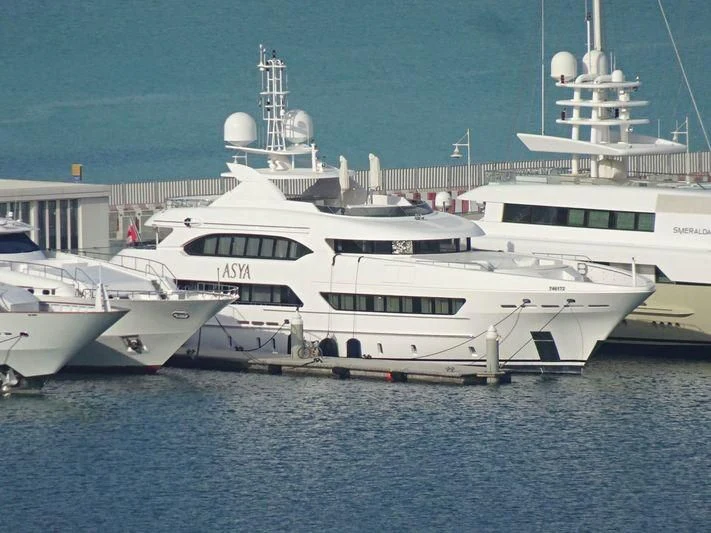

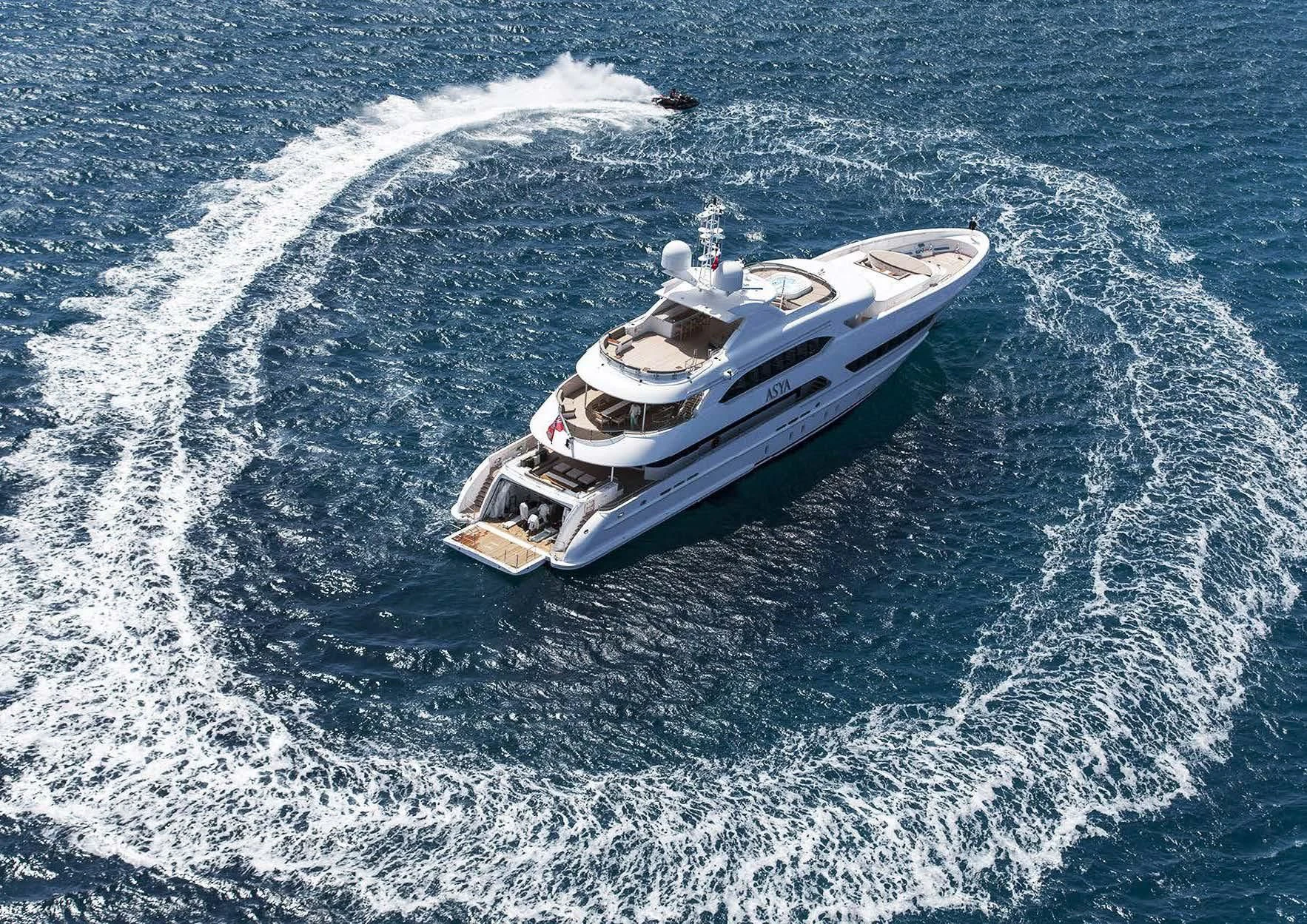

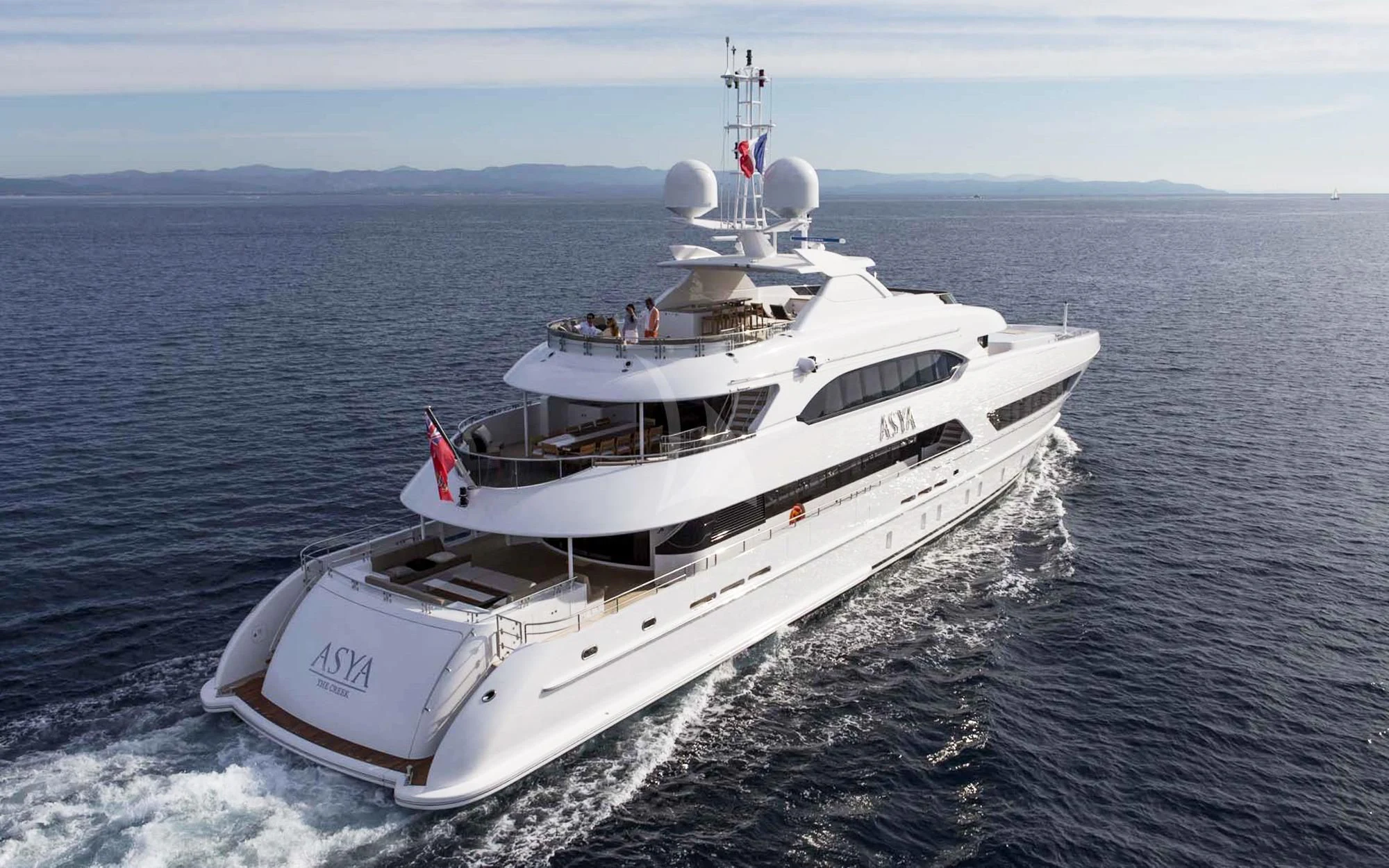

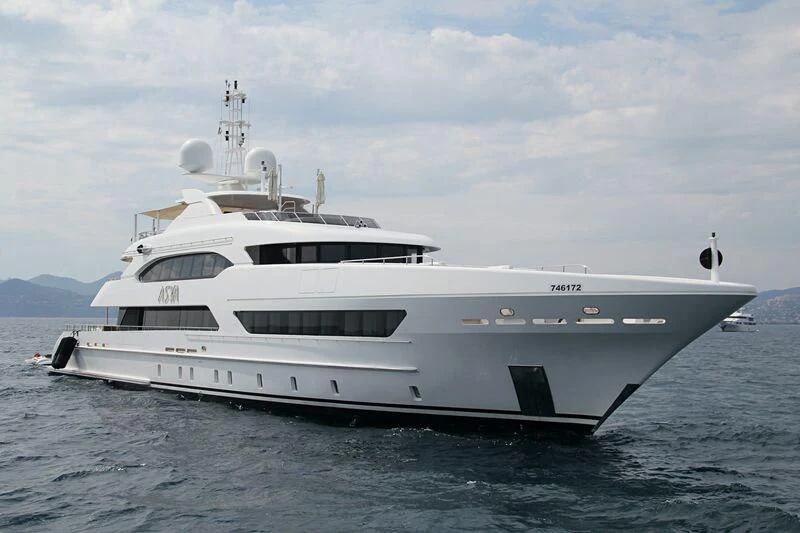

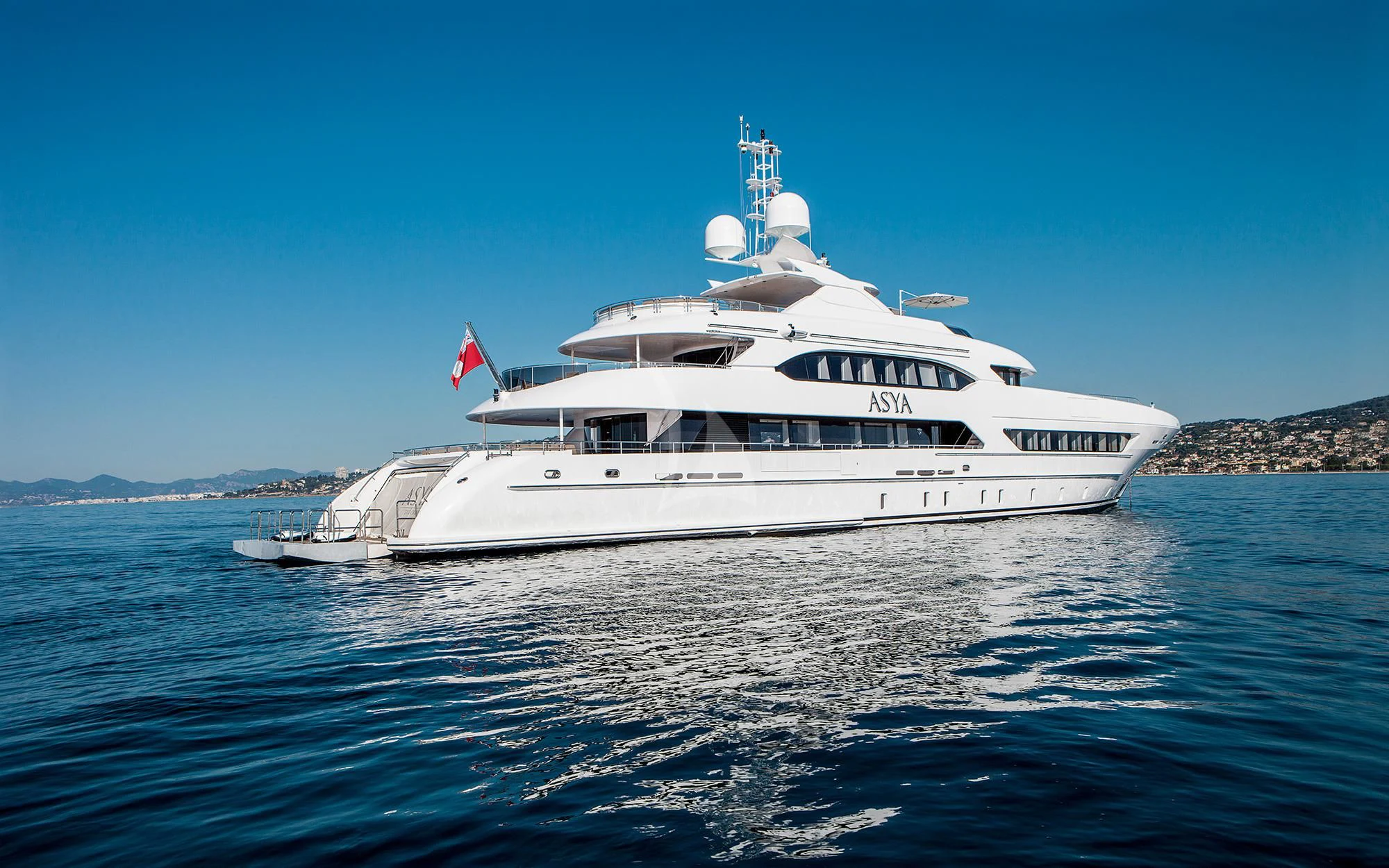

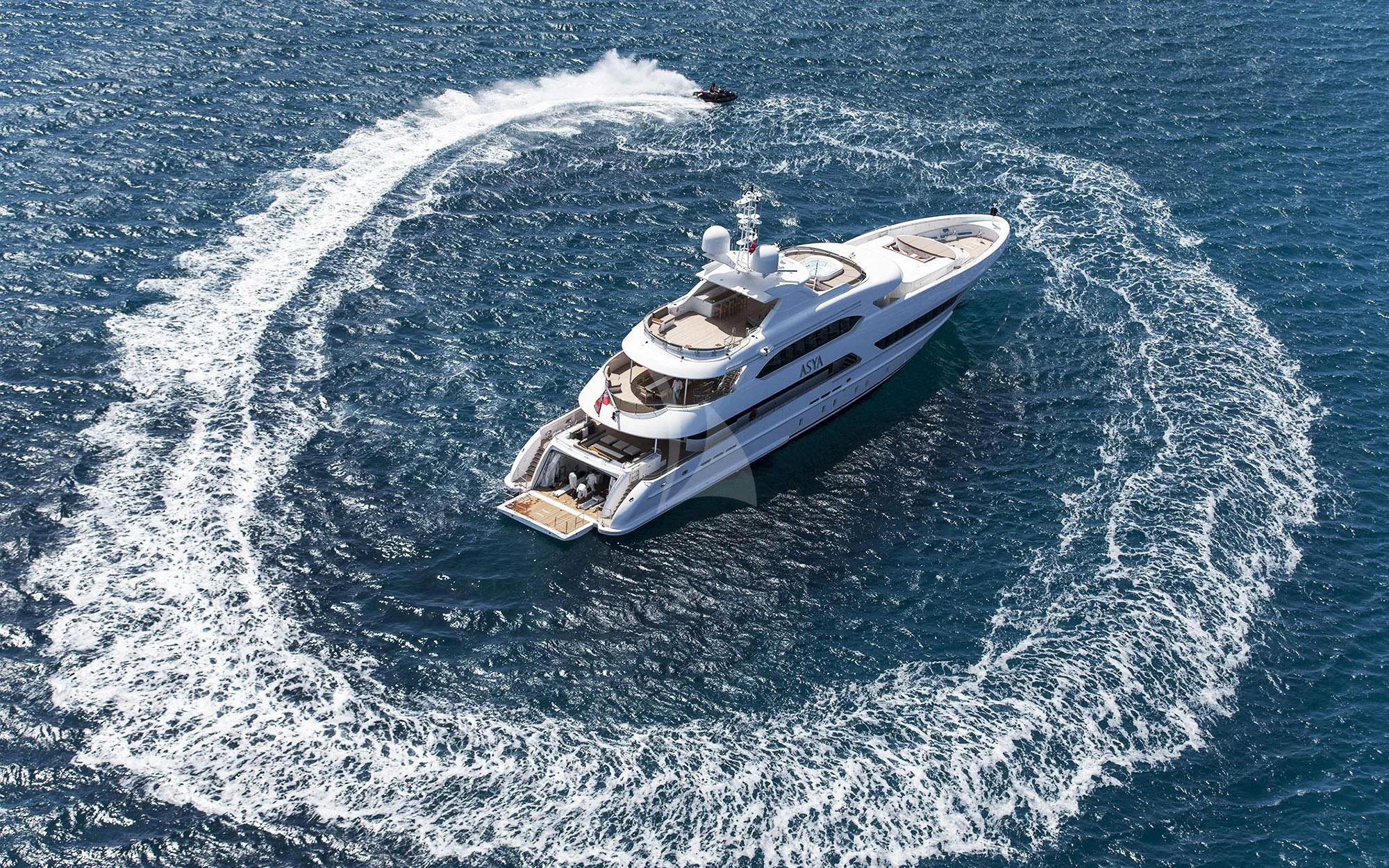

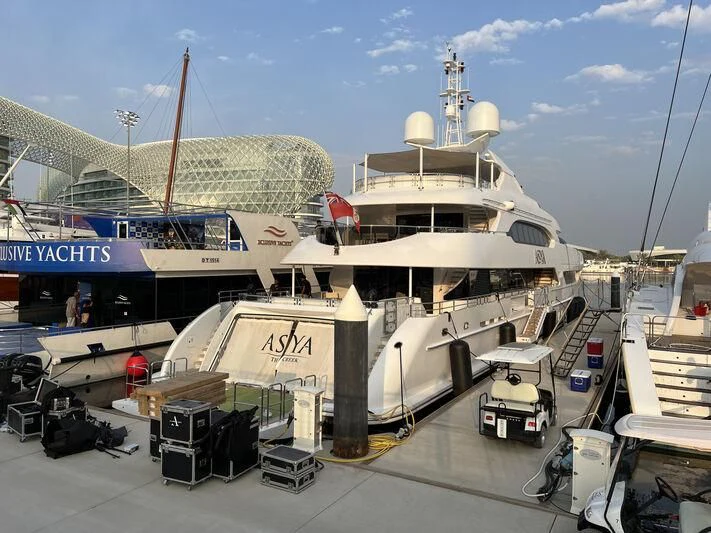

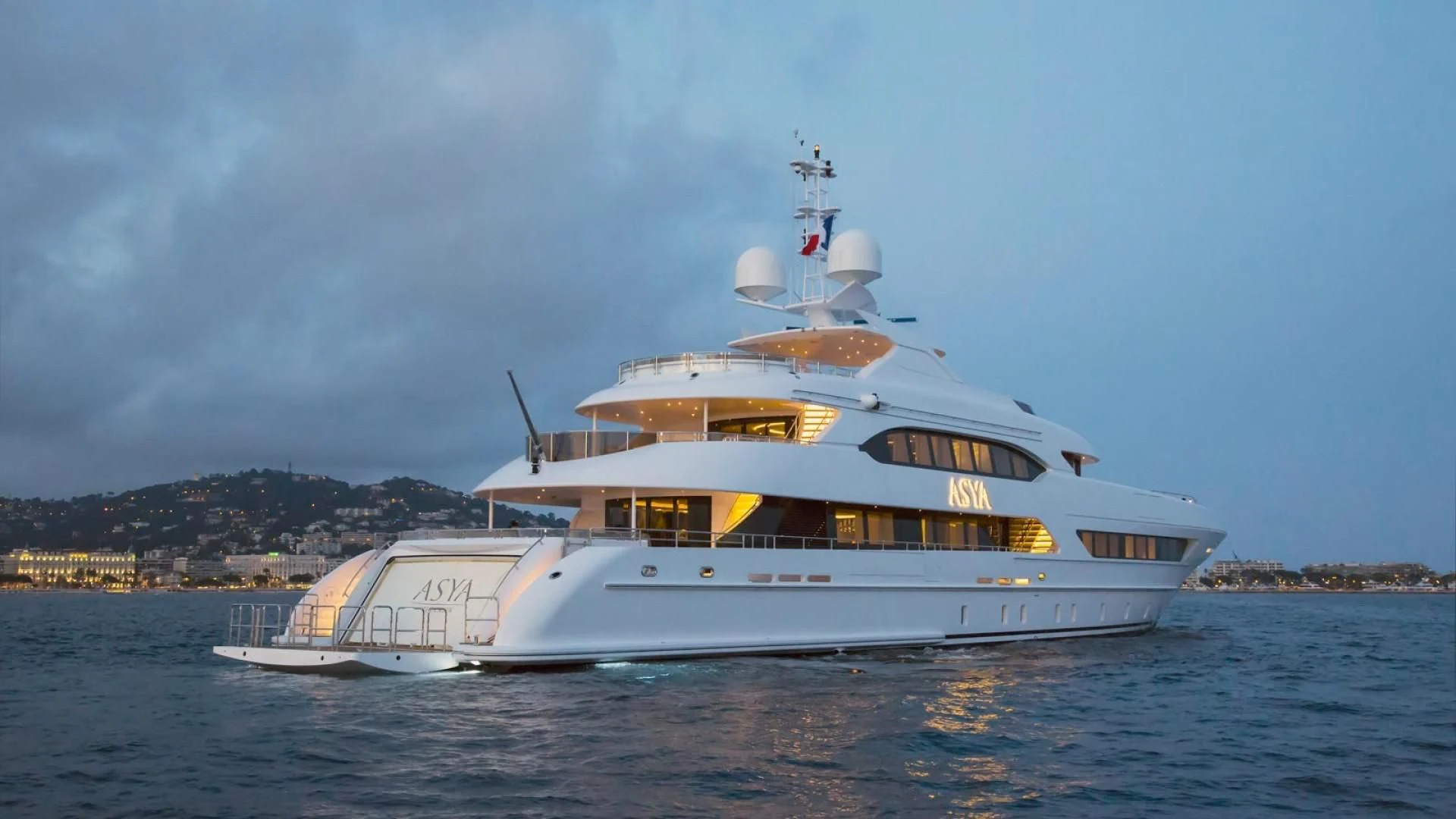

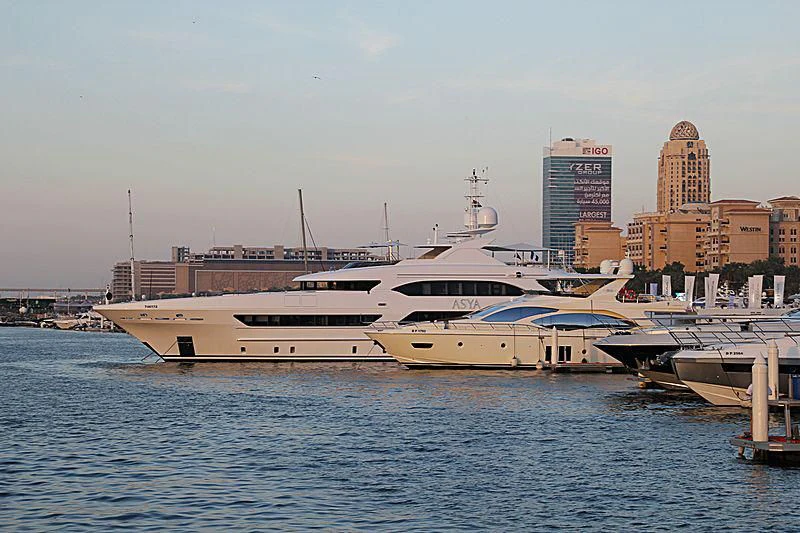

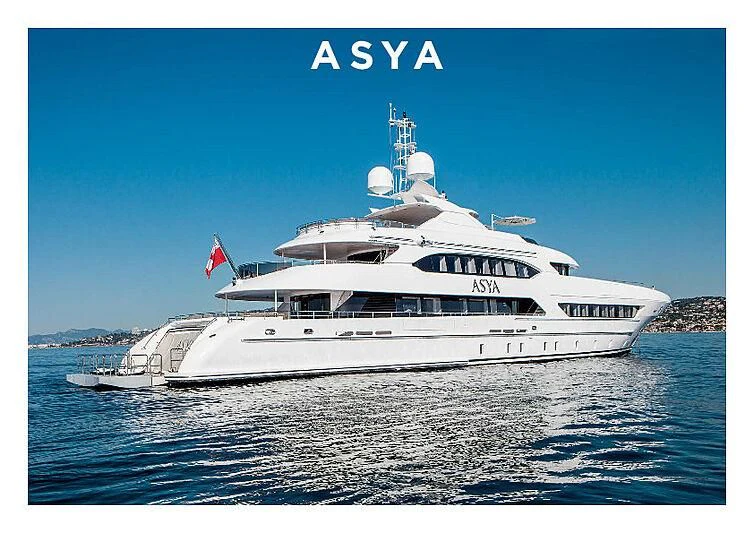

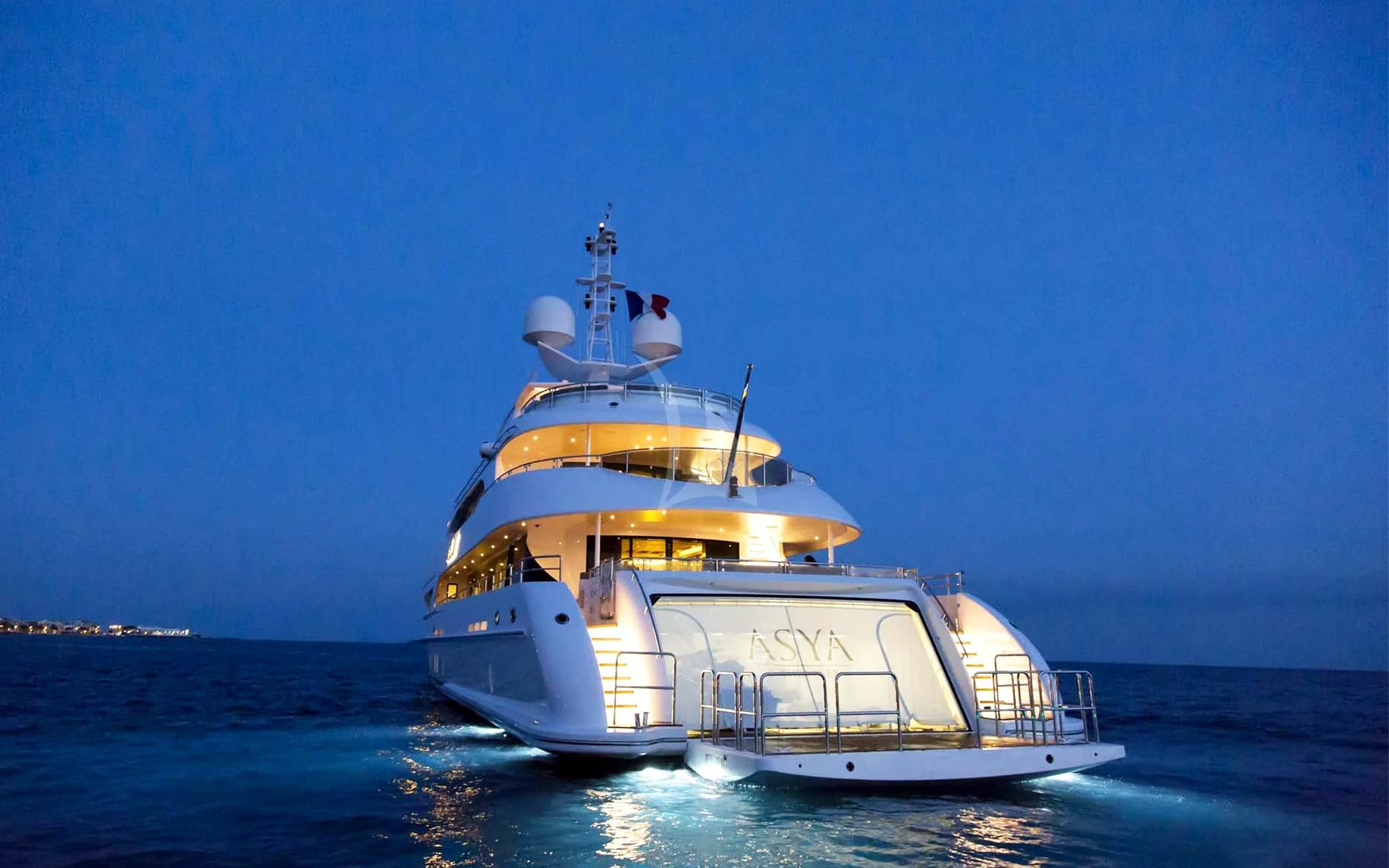

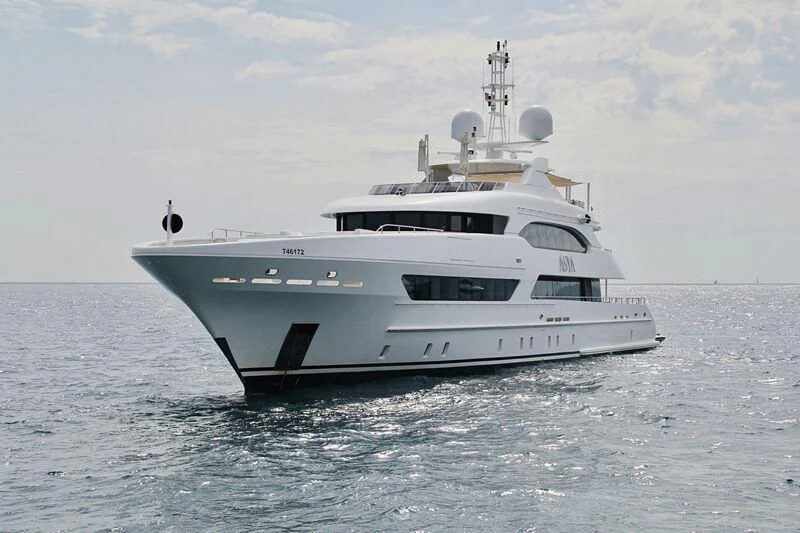

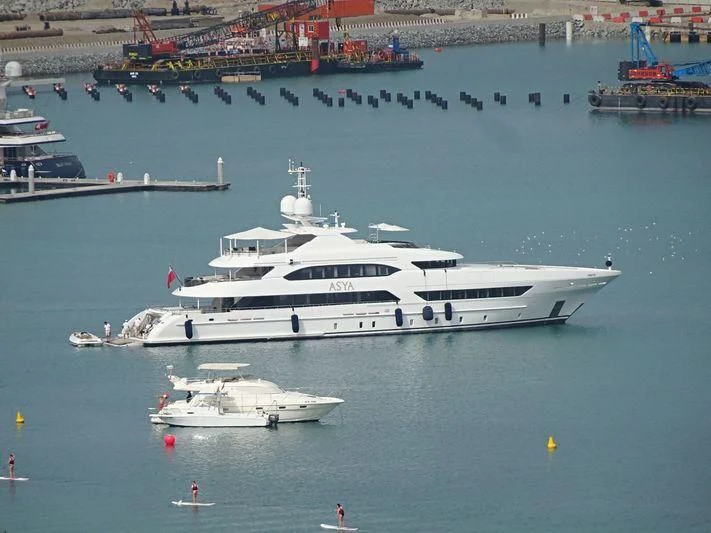

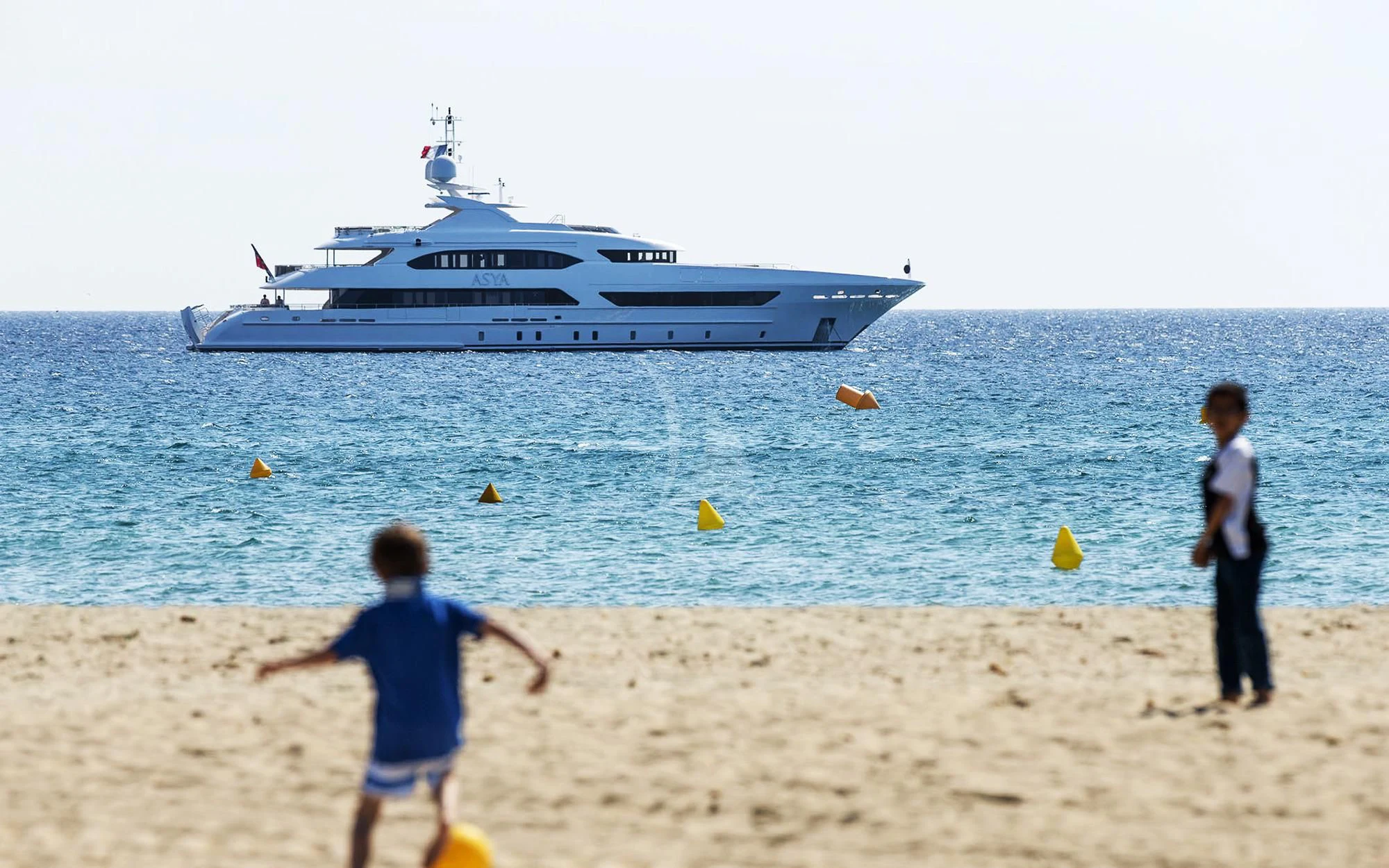

ASYA Yacht for Sale

154' (47m)
Heesen Yachts
2015

Not for sale or charter to U.S. residents while in U.S. waters.

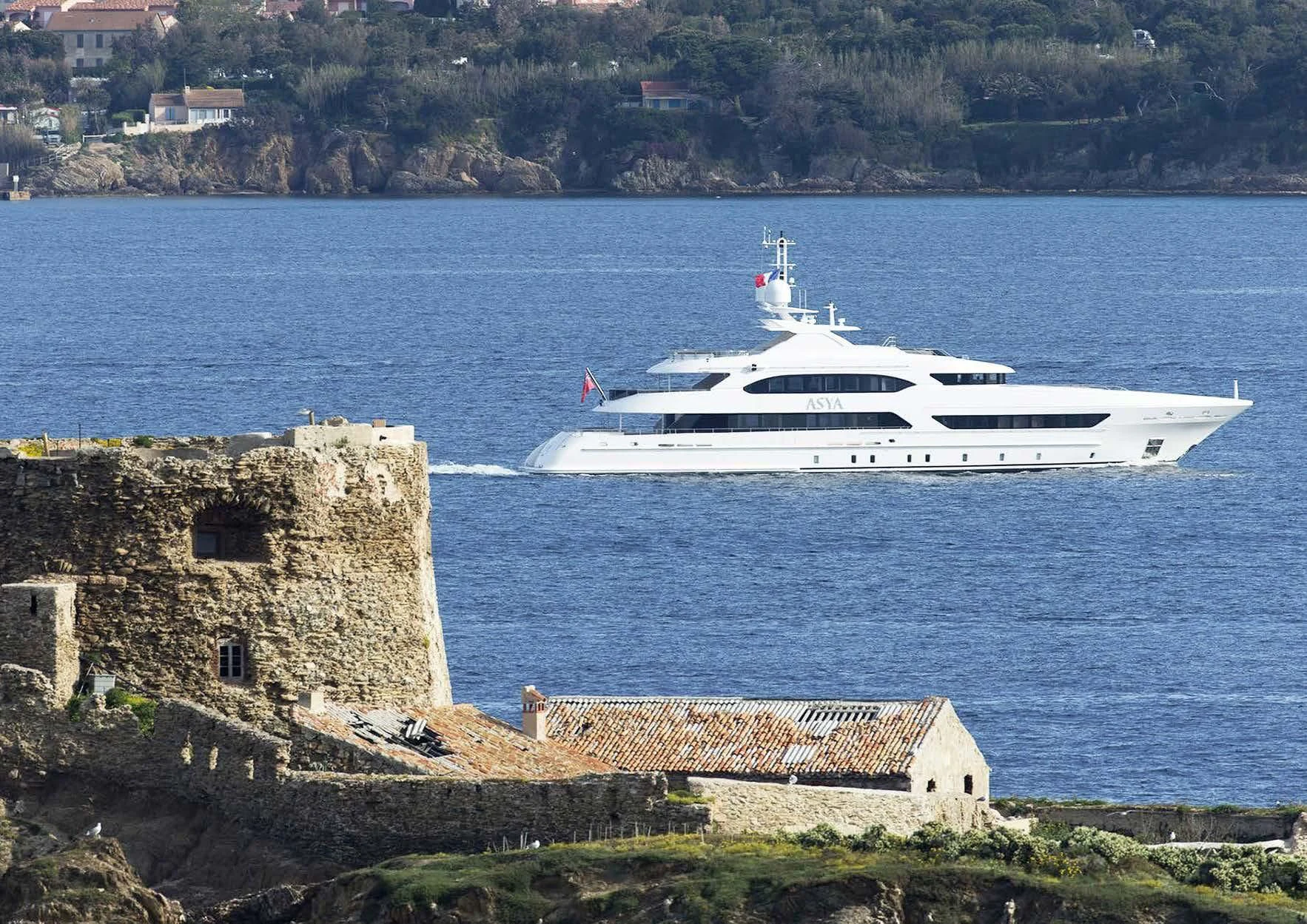

ASYA is the second in the restyled 47m class, a breed of yachts whose exterior design by the talented Frank Laupman of Omega Architects combines elegant traditional lines with contemporary flair, a marriage emphasized by the continuous glass windows and matching black paintwork on the main deck and upper decks.

Simplicity as the ultimate form of sophistication is the guiding principle of ASYA’s interior design. Her sophisticated interior from the London-based and award-winning studio Bannenberg & Rowell has a distinctly Far Eastern, restful feel, inspired by the designs of Dieter Rams, Frank Lloyd-Wright and Tadao Ando.



She can accommodate up to 12 guests in 5 beautifully appointed staterooms; each holding a modern and refreshing style. Apart from generous interior spaces, there are also plenty of outdoor guest areas for ideal relaxation.

Inquire Now

Details

Length 154 FT (47 M)
Beam 27 FT (8.84 M)
Gross Tonnage 499 Ton
Guests 12
Crew 10
Builder Heesen Yachts
Year Built 2015
Construction Steel
Cruising Speed 12 Knots
LOA 154 FT (47 M)
LWL 132 FT (40 M)
Beam 27 FT (8.84 M)
Min Draft 10 FT (2.9 M)
Cruising Speed 12 Knots
Max Speed 15 Knots
Gross Tonnage 499 Ton
Water Capacity 21,020 Liters
Fuel Capacity 64,859 Liters
Hull Material Steel
Details for ASYA Private Luxury Yacht For sale

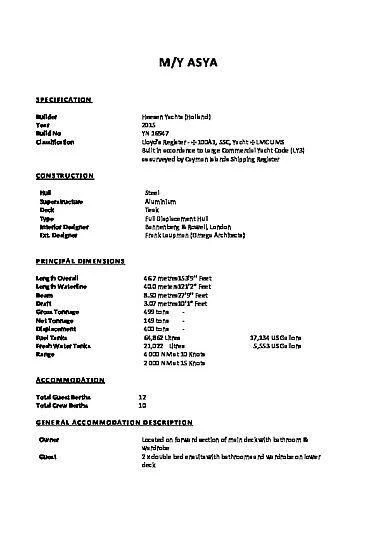

Full Specifications


Owner

-Located on the forward section of the main deck with bathroom & wardrobe.

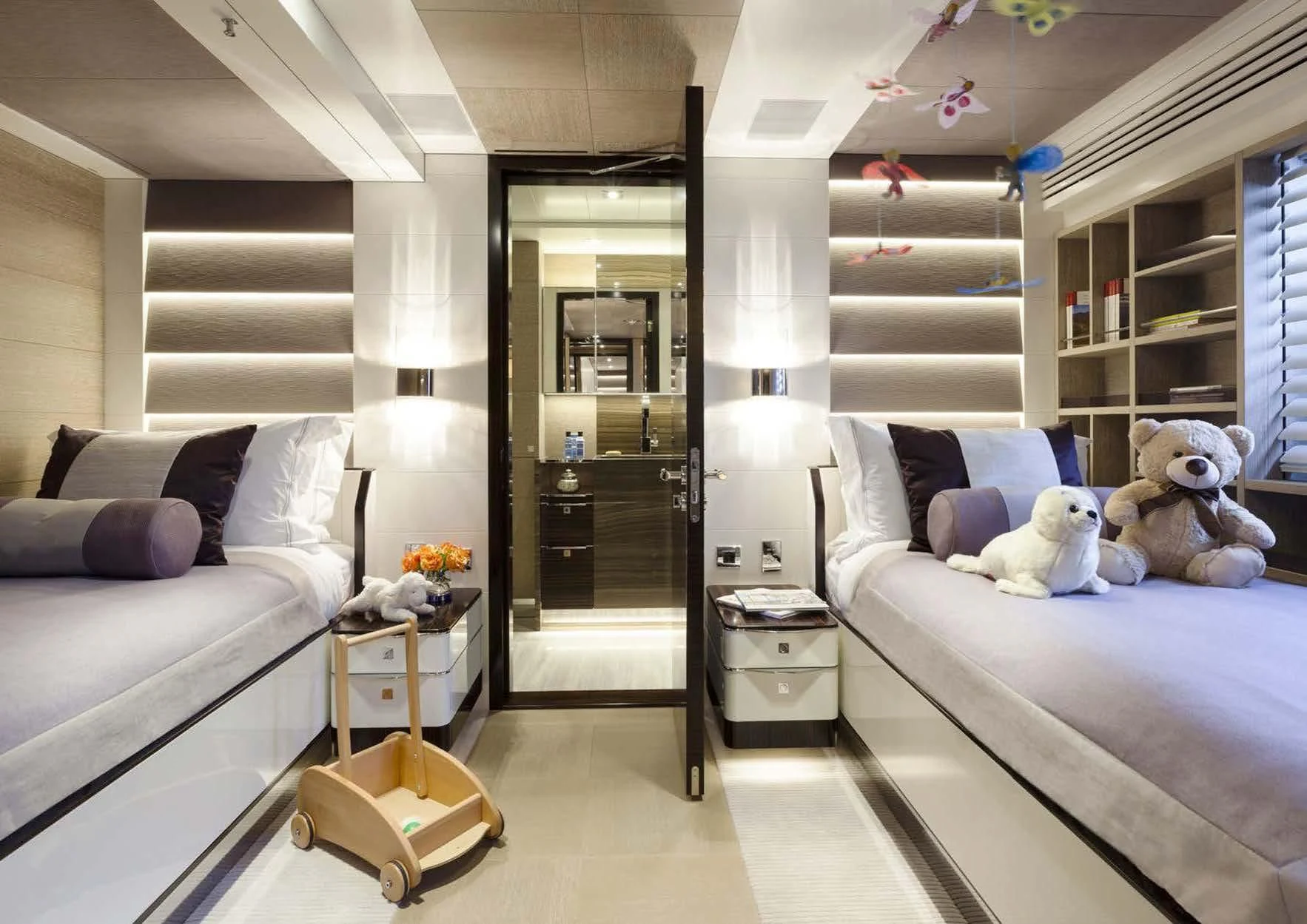

Guest

-2x double bed ensuites with bathrooms and wardrobe on the lower deck.

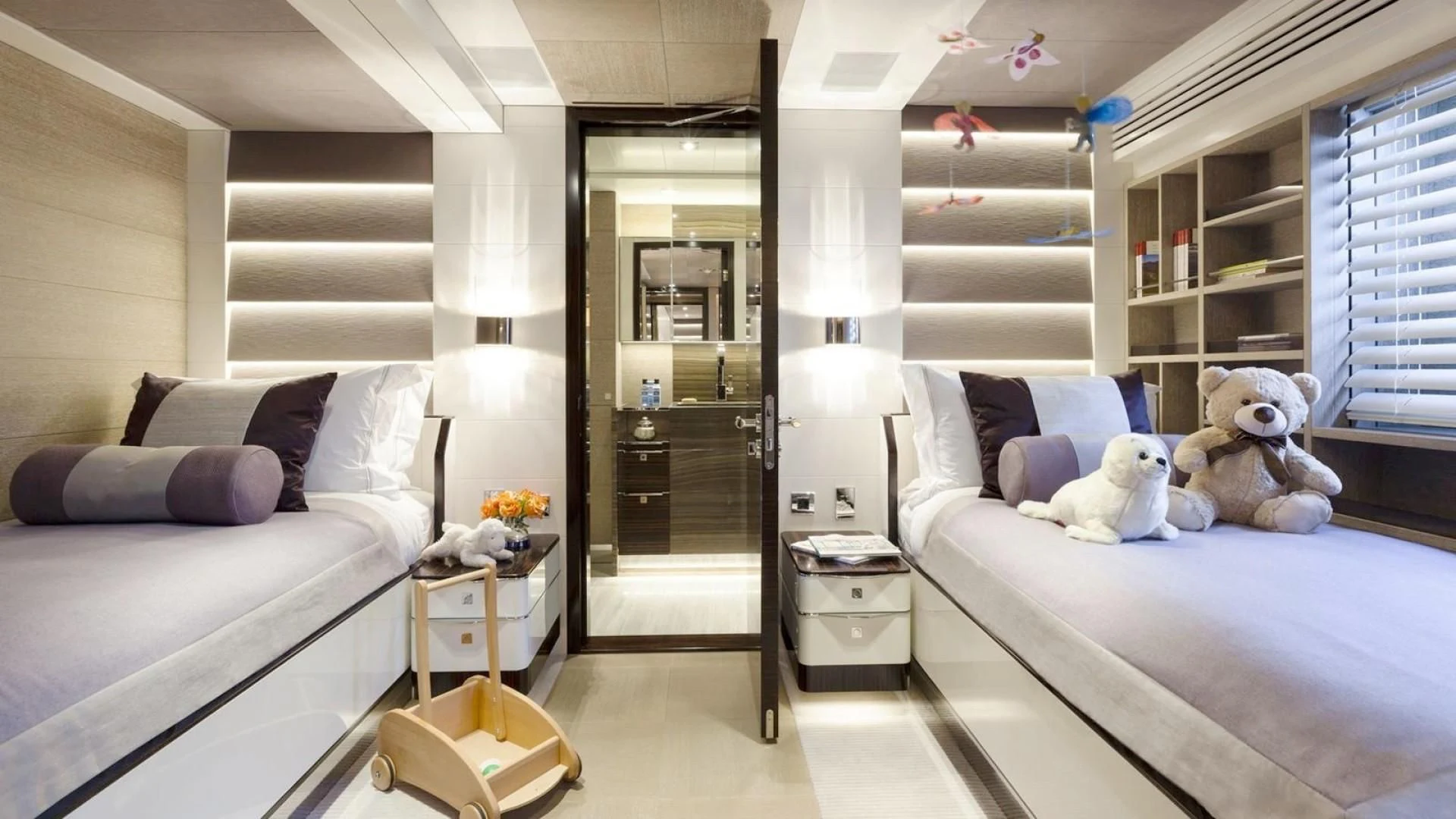

-2x twin bed ensuites with pullman bed, bathrooms, and wardrobe on the lower deck.

Crew

-Accommodation for 10 crew: 8 bunk beds in lower deck for crew and twin bed on bridge deck behind bridge for Captain

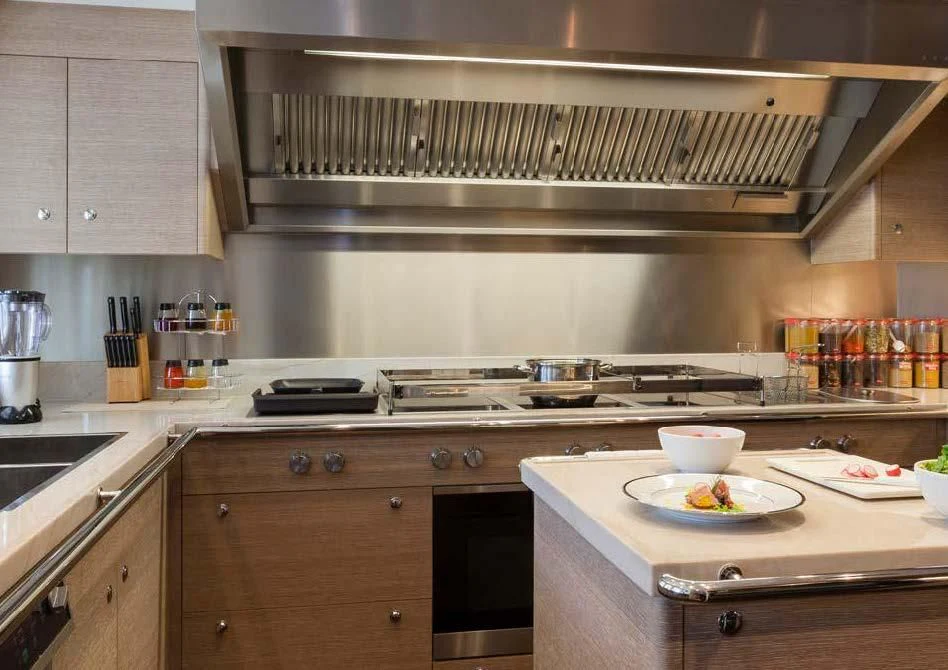

Galley

-3x Induction 2 zone cooktop, Gaggeneu VI 424-110

-1x Oven, Miele H6890BP

-1x Steam Oven, Miele DG6800

-1x Combi Microwave, Miele H6800BM

-1x Grill with cover plate, Gaggeneu VR 414-110

-1x Deep fryer, Gaggeneu VF 414-110

-2x 600Ltr Freezer / Fridges, Foster

-1x Plate warming drawer, Gaggeneu WSP 221-110

-1x Dishwasher, Miele G7856 AE WES

-1x Macerator, Insinkerator LC-50H-13

-1x Double Sink

-1x Extraction Hood, SS Custom built

Pantry Main Deck

-1x Dishwasher, Miele G7856 AE WES

-1x Microwave, Gaggeneu BMP 224-110

-1x Icemaker, Hoshisaki

-1x Winecooler, Eurocave V101

-1x Coffee Machine, Miele CVA 6805

-1x Single Sink

Pantry Wheelhouse Deck

-1x Fridge, Frigonautica 80

-1x Single Sink

Dumbwaiter

-Dumbwaiter Lodige, 3 levels, MD, WHD & SD

Owners Stateroom

-1x Fridge, Frigonautica 80

Sky Lounge Bar

-1x Fridge, Frigonautica 80

-1x Icemaker Hoshisaki

-1x Singe Sink

Crew Mess

-2x 600Ltr Freezer / Fridges, Foster

-1x Microwave, Gaggeneu BMP 224-110

-1x Dishwasher, Miele G7856 AE WES

-1x Coffee Machine, Miele CVA 6805

-1x Single Sink

Laundry

-2x Washers, Miele Professional PW 6065 Plus

-2x Dryers, Miele Professional PT 7136 Plus

-1x Iron Machine, Miele Professional B990D

Wheelhouse Deck Exterior

-1x Fridge, Frigonautica 80

-1x Single Sink

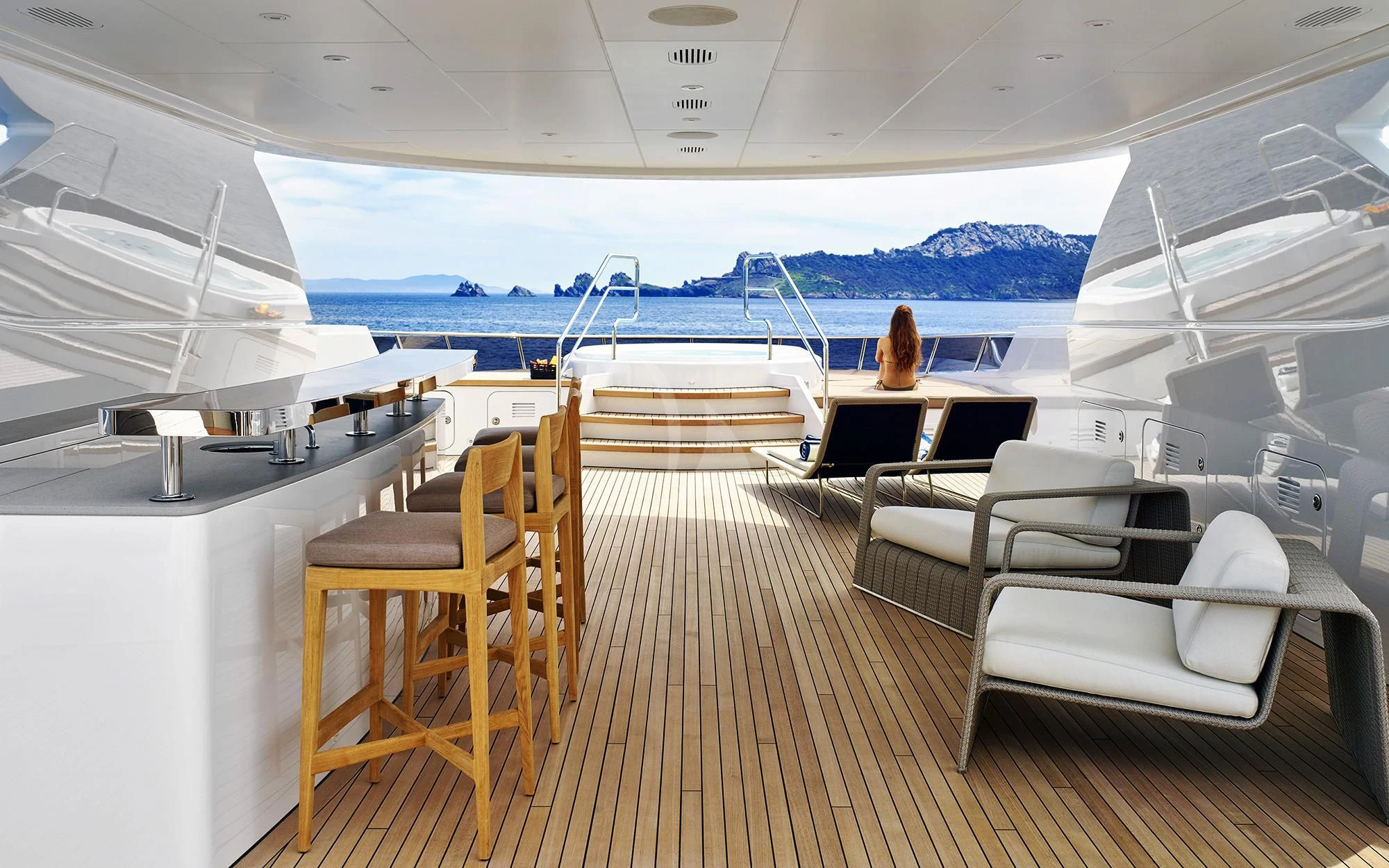

Sundeck Bar

-1x Fridge, Frigonautica 80

-1x Icemaker, Hoshisaki

-1x Teppen Yaki, Jasck Custom Made (500 x 460)

-1x Single Sink

Tender Garage

-1x Cooled Garbage Storage – 500Ltrs without ventilation

Other Domestic Equipment

-2x Philips Iron & Steamer – Comfort Care

-1x Miele C3 Hoover

-1x Nespresso Coffee Machine & Milk Frothier

Deck

-Anchor Windlass: 2x fwd, Staalart CR23 / reversing motor

-Warping Capstans: 2x aft, Staalart CR23 / reversing motor

Ground Tackle

-2x Original Pool High Holding Power Anchors type ‘N’ fully welded & execution fully balanced, 315 kg each, Finish Galvanised

-2x lengths of 6 shackles stud link chain with a diameter of 17,5mm

-Each total length has two end links, a swivel plate, & an anchor D Blot

-Each anchor has a stainless steel plate welded to the bottom

Crane & Passerelles

-Crane: MOB boat hydraulic crane, SWL 550 kg, Hydromar

-Passerelle / Boarding Ladders: 1x Hydraulic telescopic passerelle, SWL 250 kg, Hydromar 1x Hydraulic ladder on starboard, SWL 250 kg, Hydromar 1x Manual Marquip ladder for the crew on the port side and starboard

-Removable, sockets (Multiplex system) on the stern hatch platform

-1x Automatic swim ladder, hydraulically operated

-1x Carbon fiber foldable swim ladder

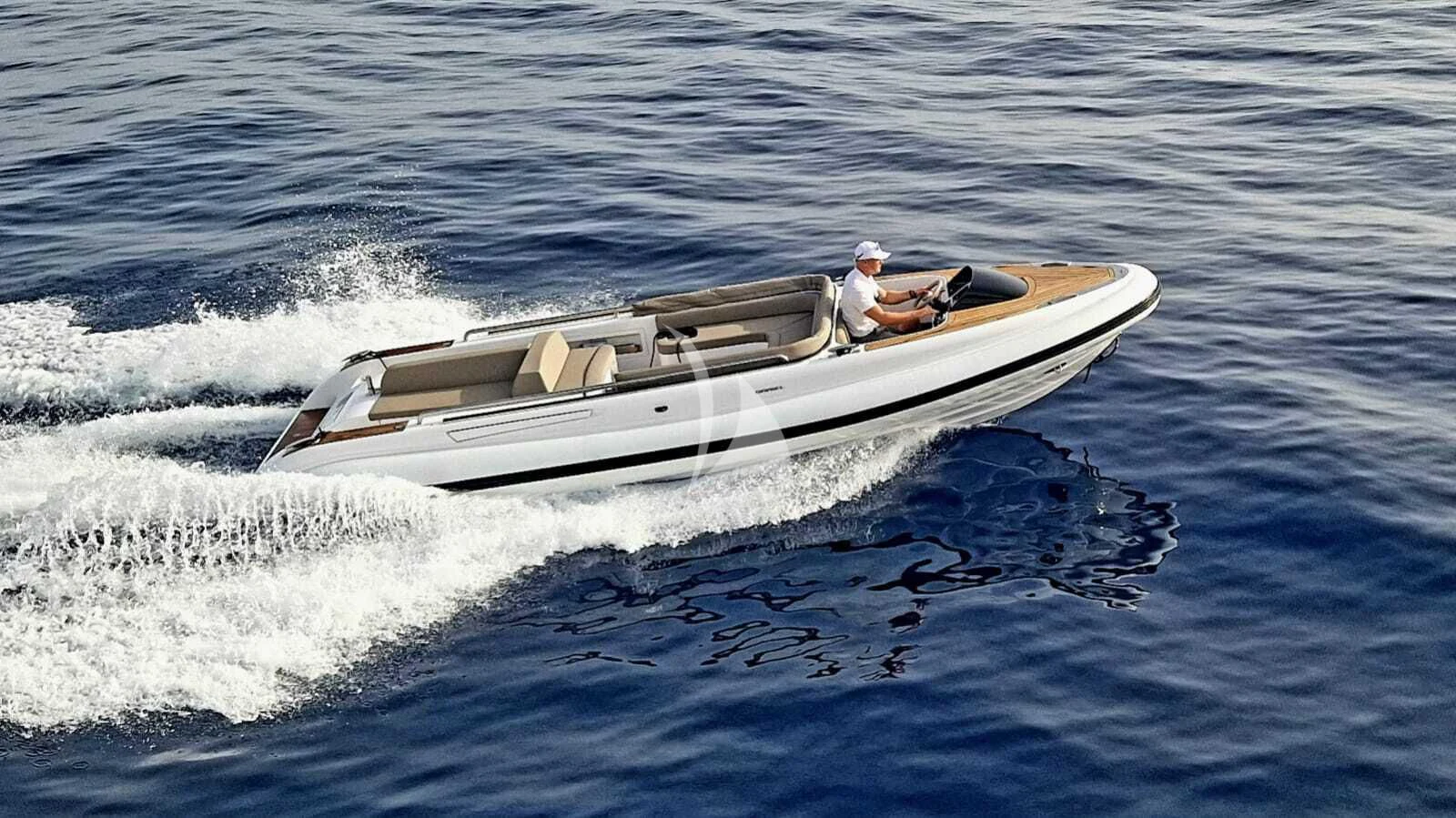

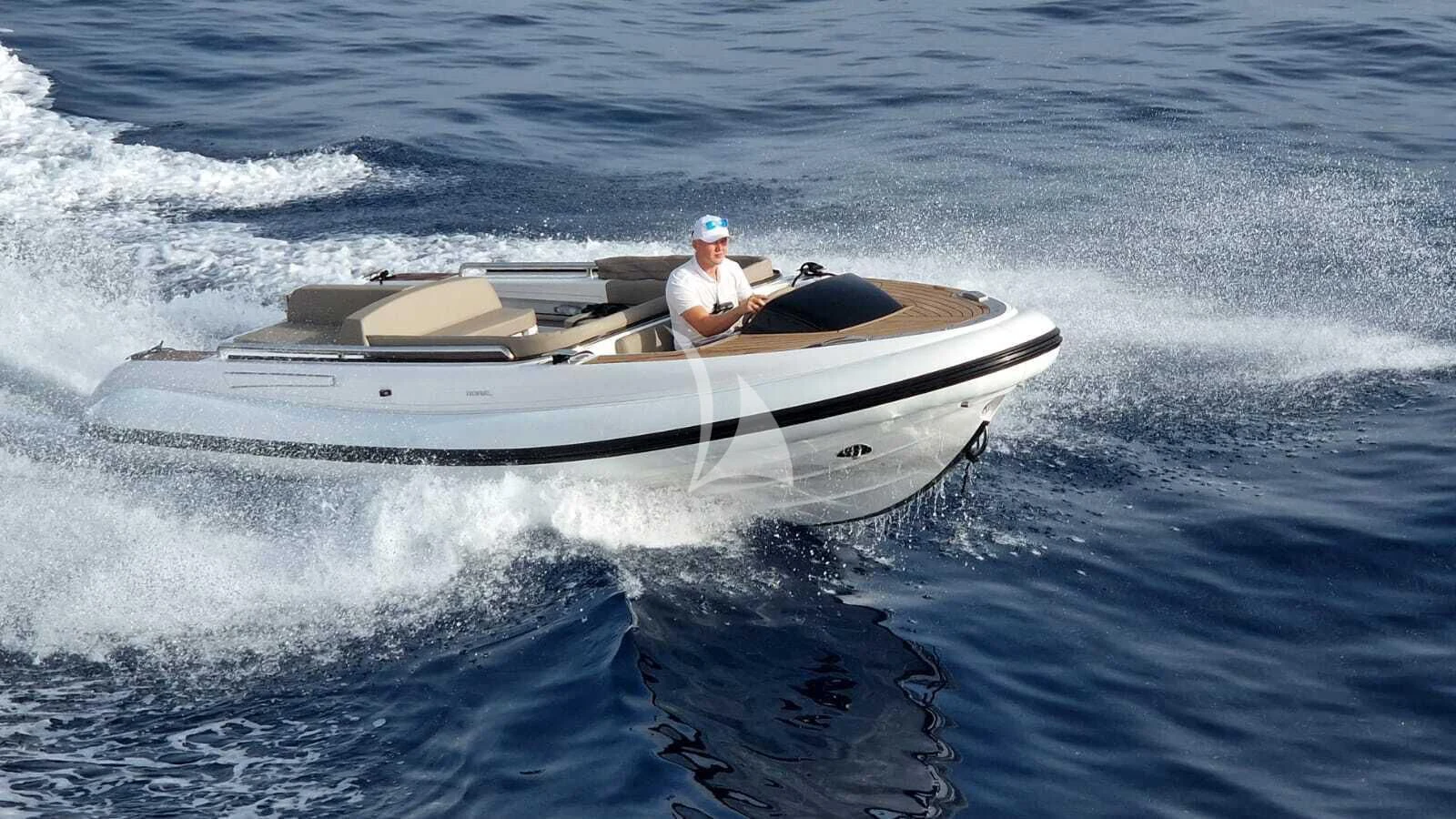

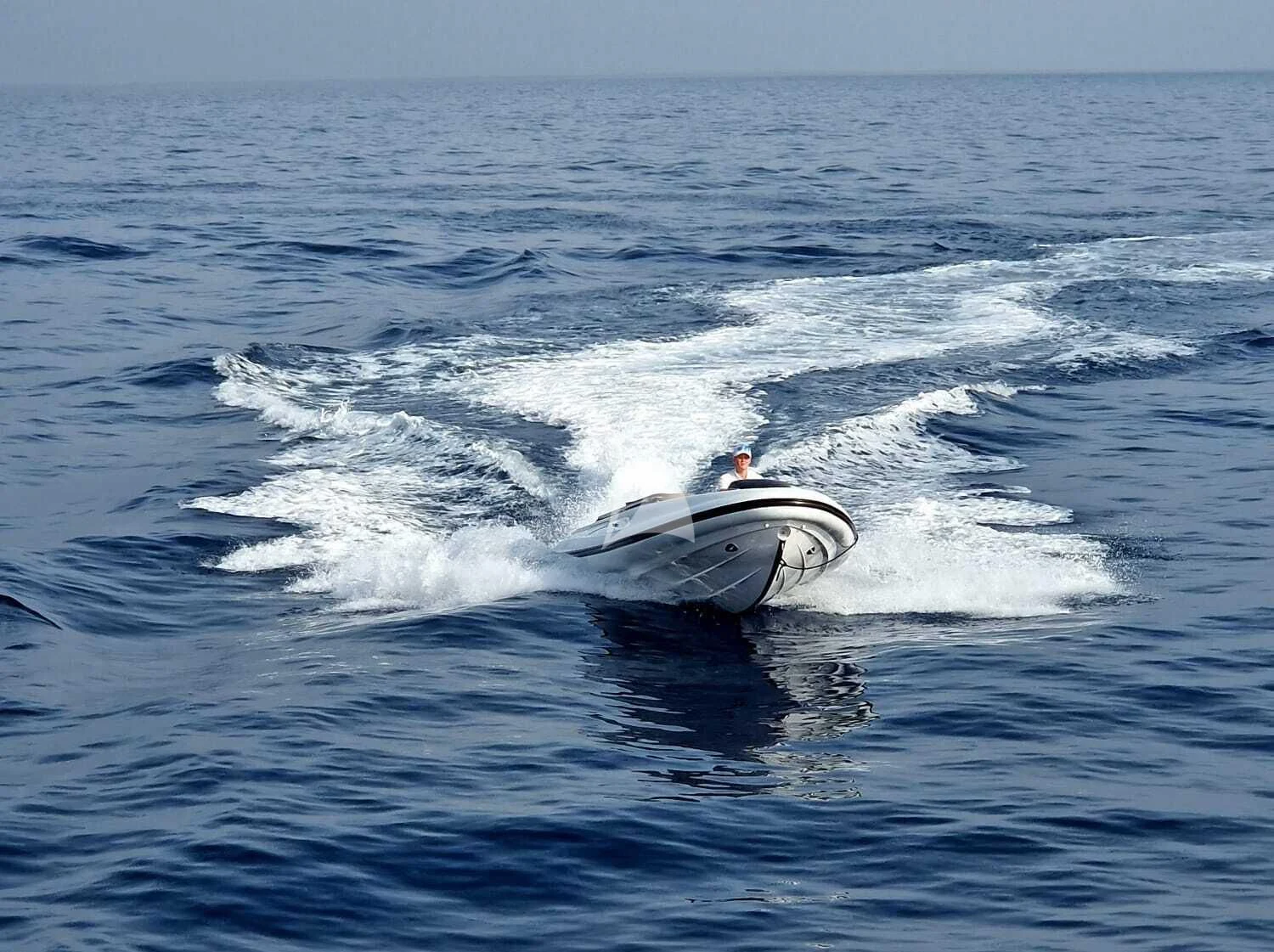

-1x 6.8Mtr Dariel Custom Tender with single Yanmar 260HP engine & MerCruiser Stern Drive

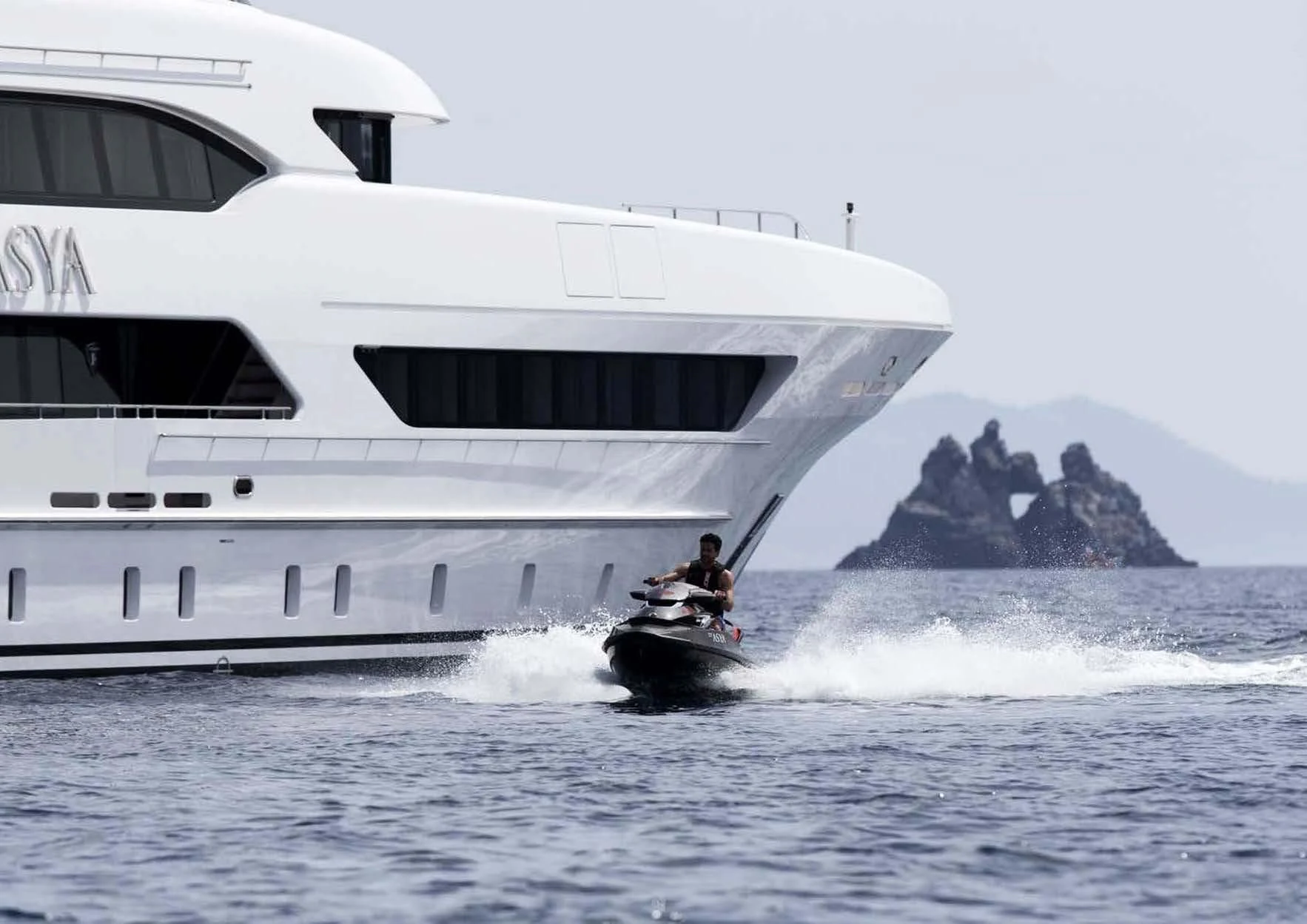

-1x Seadoo GTX iS 260 LTD

-1x Yamaha Waverunner – SJ700S

-2x Seabobs FS5

-1x Jetsurf GP

-1x Zapata Racing Flyboard PRO

-4x Scuba Diving Sets with 6 spare cylinders

-12x Snorkeling Sets

-2x Wakeboards

-1x Kneeboard

-1x Waterski Set

-1x Banana 5P Watersled

-1x Airhead blast 1P

-1x 2P Jobe Towable

-1x 3P Jobe Towable

-2x Jobe Inflatable Paddleboards

-1x 2P Intex Challenger Inflatable Kayak

-1x Airhead G Force Towable

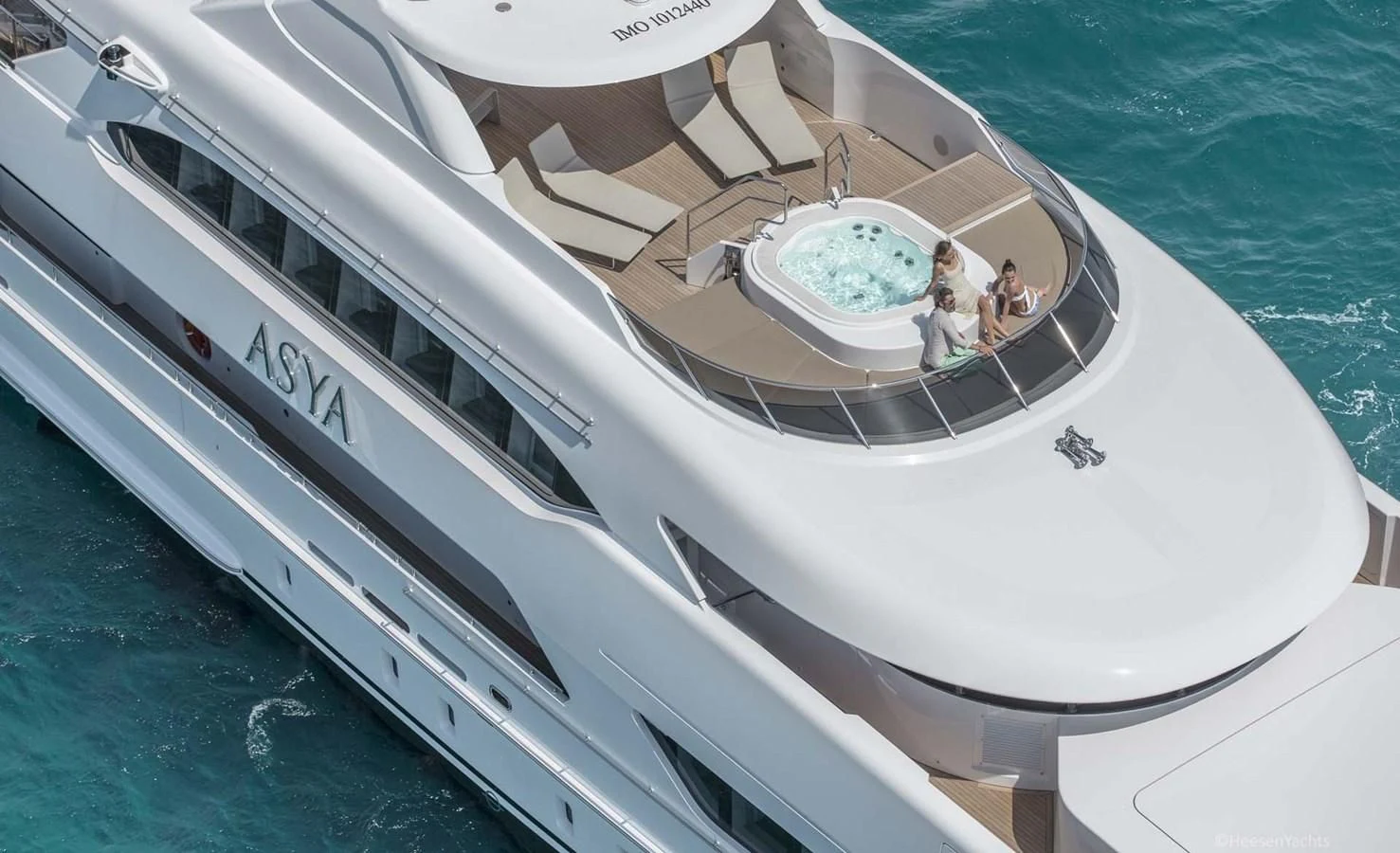

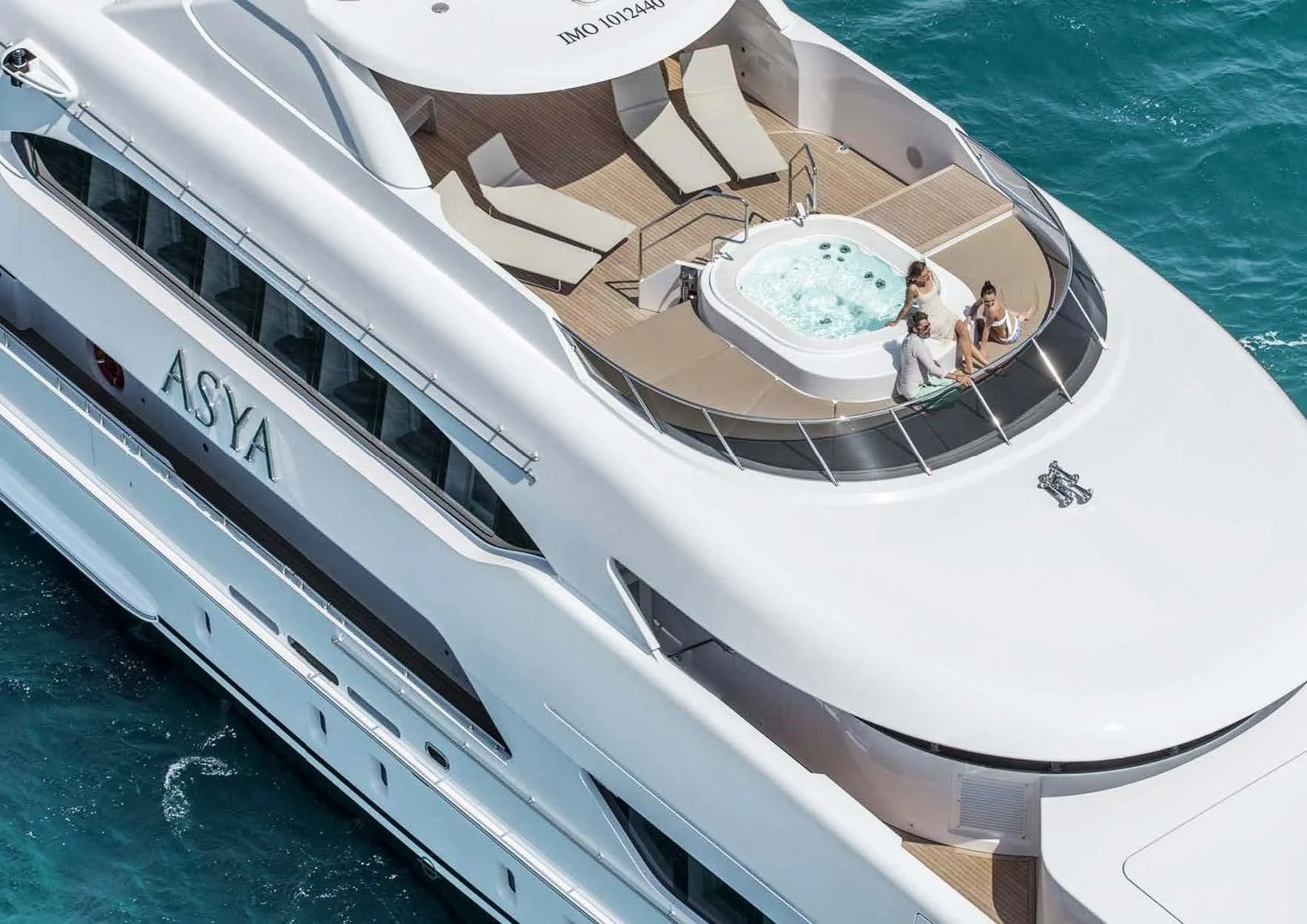

Jacuzzi

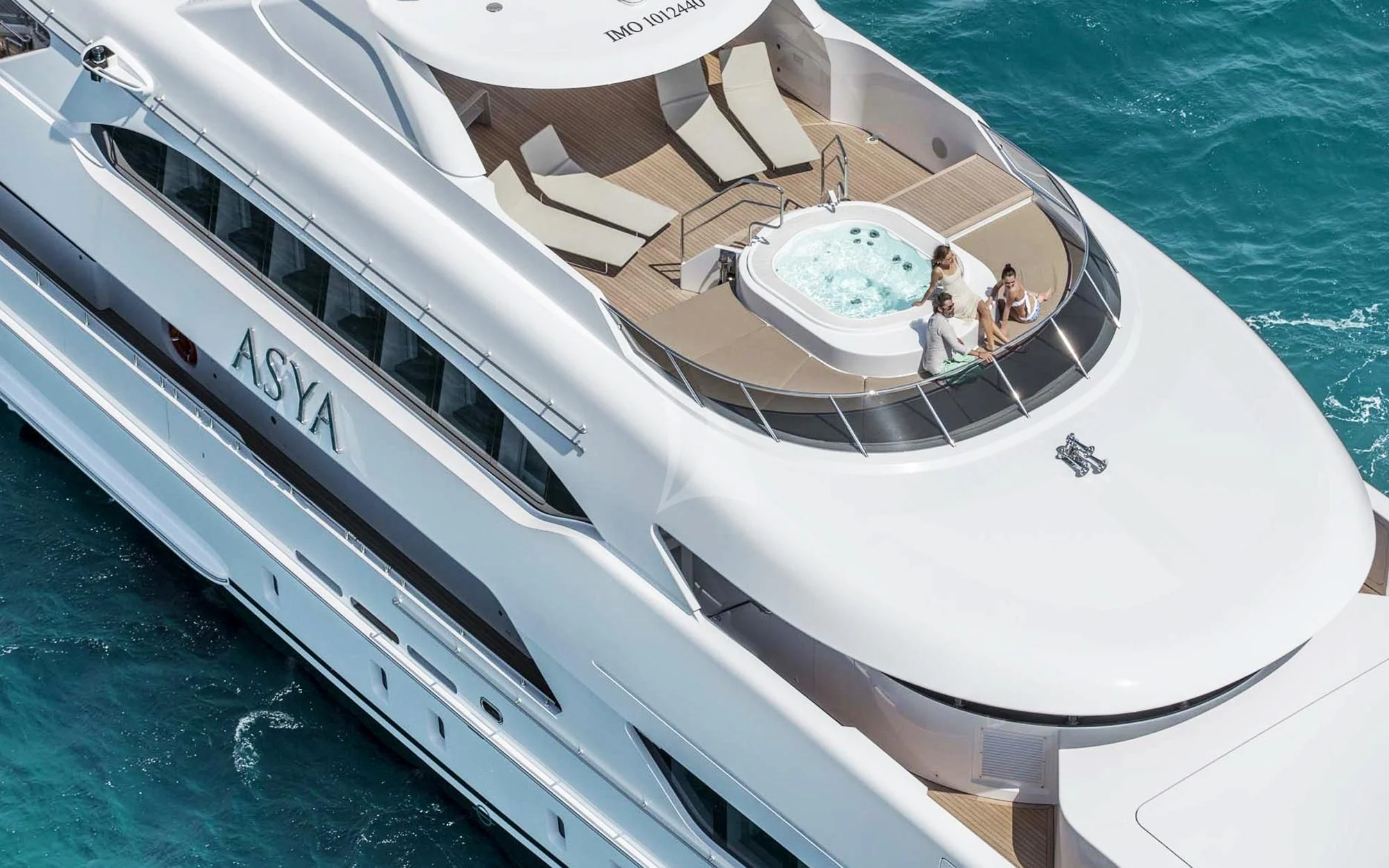

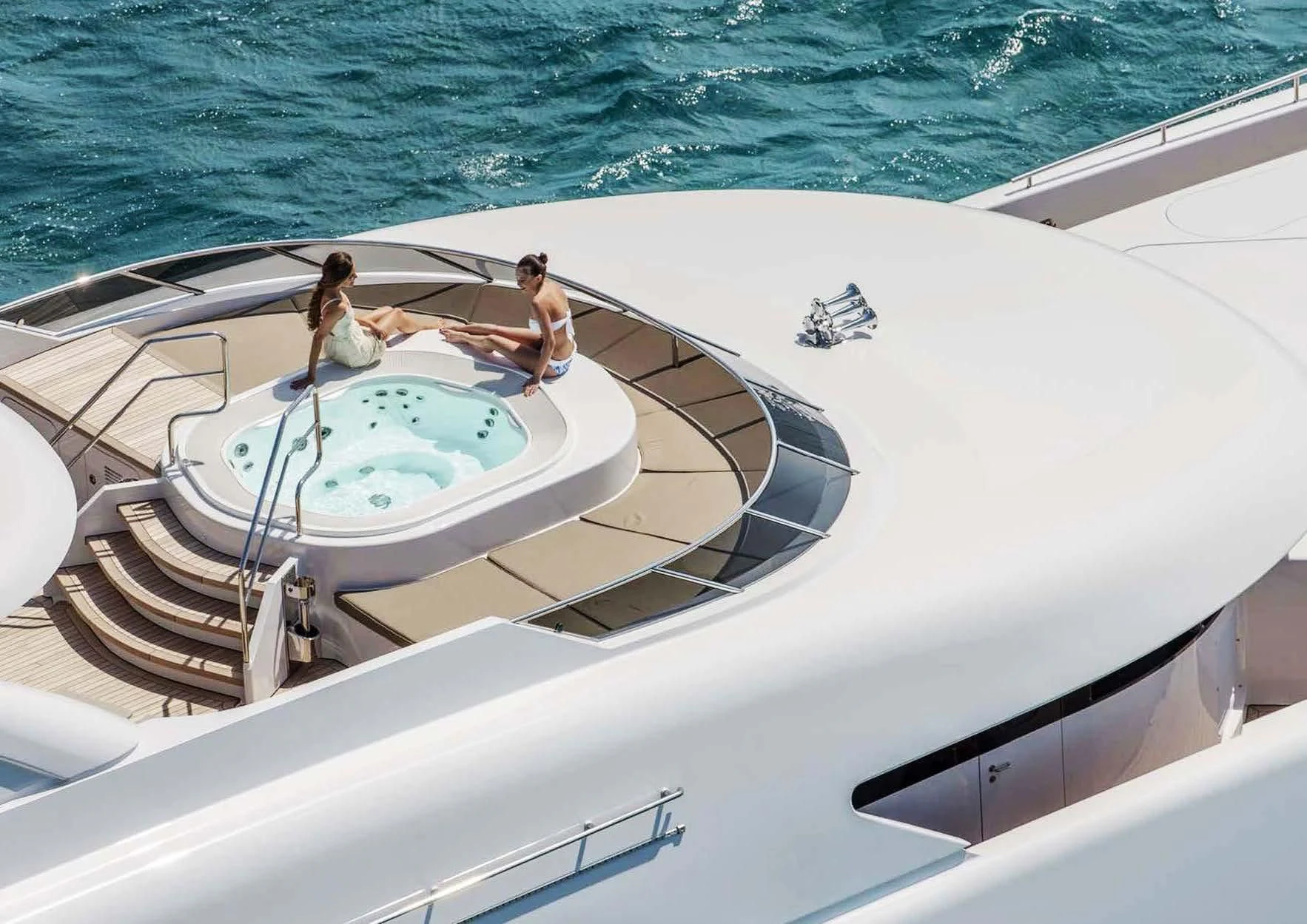

-Four Seasons Jacuzzi with rim-flow / Hexagonal / 7-8 Pax

Gymnasium Equipment

-LifeFitness Cycling Machine

-Dumbells Set Adjustable

-Bench / Gym Mats / Free weights & Misc. loose fitness equipment

Misc

-2x Sun Umbrellas on Sundeck next to Jacuzzi

-1x Sun Awning on Sundeck

-Customized L Shape seating on Main Deck Aft

Machinery

-Main Engines: 2 x MTU 8V4000 M63 / 1000 kW @ 1800 rpm

-Engine Hours: Port 8034, Starboard 8038 (September 2021)

-Propulsion Power: 1398HP 2000 kW

-Gear Box: 2x ZF 4661 – Freestanding marine reverse reduction

-Propellers: 2x 5 blade Schaffran (NiBrAl) fixed pitch 1600mm

-Maximum Speed: 15 knots

-Cruising Speed: 12 knots

-Range: 4000 NM @ 12 knots / 2000 NM @ 15 knots

-Generators: 2x Kilopak 99Kw

-Generator Hours: Port 18139, Starboard 18166 (September 2021)

Ancillary Machinery

-Steering System: 1x Litton Marine System with 2x split tillers and 1 hydraulic unit

-Rudders: 2x SS AISI 316L Rudders with Duplex Shafts – LR Approved

-Stabilizers: 1x VT naiad type 621 stabilizer installation (Zero Speed)

-Water Makers: 2x HEM 25/1600 - reverse osmosis systems - 6000ltrs/day each

-Air Conditioning/Heating: Heinen & Hopman HVAC System

-Bow Thruster: Thruster Systems (Rexroth) 90kW x 01

-Sewage System: Hamann HL-Cont Plus 5

Electrical Systems

-Electrical Power: 400v AC / 50 Hz 3-Phase

-Shore Power: Output 100 kVA, 230/400 VAC - 50 Hz / 1 x 250A, Shore Power Systems (SPS) shore transformer, 2x outlet 3 phase 180-540V/60/60Hz 200A (Mennekes)

-Generators: 2x Kilo-pak DG 99kW / 50Hz / 3 Phase / 230-400V /3 wire / 1.500 rpm, John Deere Engines / 4 stroke / 6 cylinder in line 6068AFM75 Stbd 15683 hours/Port 15663 hours on August 26th, 2020

-Standalone Generator: Fuel consumption = 16,5 to 20,0 ltr/hr 1 x Stamford Generator Single bearing / four pole / 1500rpm / 50Hz / 3 Phase

-Ship Monitoring System: 99kW @ 0.8 power factor 240/400V Tijssen Group Customised control system with multifunctional access to monitor electrical, safety, performance on LAN with displays in Bridge / Engine Room / Engine Control Room & Crew Mess

Video Equipment

-Samsung LED / LCDs across Owner & guests including Captain’s cabin

-Alpine Flipdown Monitors with built-in DVD players for all crew cabins

-VBH supports 4x STBs for Owner / Saloon / Sky Lounge & Crew Mess

-SeaSatCom supports 2x STBs - alternative plug for region channel support

-Apple TV for Owner / Saloon & Sky Lounge - AirPlay streaming and mirroring

-Denon AVR Receivers in all accommodations

-LG Region Free Blu Ray Players

-Pioneer Car Stereo Systems in Wheelhouse, Laundry, & Galley

Audio Equipment

-Sonance Ceiling Speakers VP66 spread all across the yacht (NA in forepeak)

-Velodyne Subwoofers in Owner / Saloon & Sky Lounge

TVRO

-1x Intellian 65” Intellian Rodome with Seatel Marine Stabilized Antenna (5004)

VSAT

-1x Intellian V110 Ku-Band Maritime VSAT Antenna (Upgraded in 2020)

Control

-Creston, gateway providing control of HVAC

-All systems control functions using iPads

IT

-Cisco wired and wireless network

-Wireless LAN Controller 2504-50

-Wireless Access Points 802.11g/n / Cisco 1141 Series – 33 points

-Domain Controller Dell R310 Server

-Livewire Access Controller PRO

-WiFI Hotspot Antenna

-Pepawave Shore WiFi & 4G Router (Upgraded in 2020)

GSM

-2x UMTS Solution Globesurfer III 3G+Data & Voice Wireless broadband router

Office Equipment

-1x HP 6700 Inkjet Scanner in bridge connected on Wireless LAN

-1x Canon Inkjet Multifunction Printer in bridge connected via USB

-1x HP 2540 Deskjet Printer in Captain’s Cabin connected via USB

Inmarsat C Satellite Communication

-1x SAILOR 6110 Inmarsat C GMDSS (C/LRIT and C/SSAS), Thrane & Thrane

Inmarsat F

-1x SAILOR 250FBB (Voice, Data & Fax)

Telecom Systems

-2x VOIP lines over VSAT (Milano Teleport) Telephone Exchange

-1x Panasonic Central Unit KXTD-100 for 24 stations and 8 outside lines

-Providing an internal communication system onboard (Panasonic PABX)

VHF

-2x SP Radio (SAILOR) VHF RT with DSC A Type RT-6222

Intercom Portable VHF

-8x Icom IC-M87 VHF Sets with chargers / Channel 88

Portable GMDSS VHF

-2x Jotrun TR 20 with spare batteries

EPIRB

-1x JOTRUN 60S EPIRB CSTA 222, beacon unit / 121.5 & 406 MHz

SART

-2x JOTRUN - TRON SART 20

Navtex Receiver

-1x Furuno Navtex Receiver NX 700 (display with built-in printer)

GMDSS Battery Plant

-1x 24V GMDSS Power Supply Unit with monitoring interface into PLC

GMDSS Network

-5x GMDSS Network switch

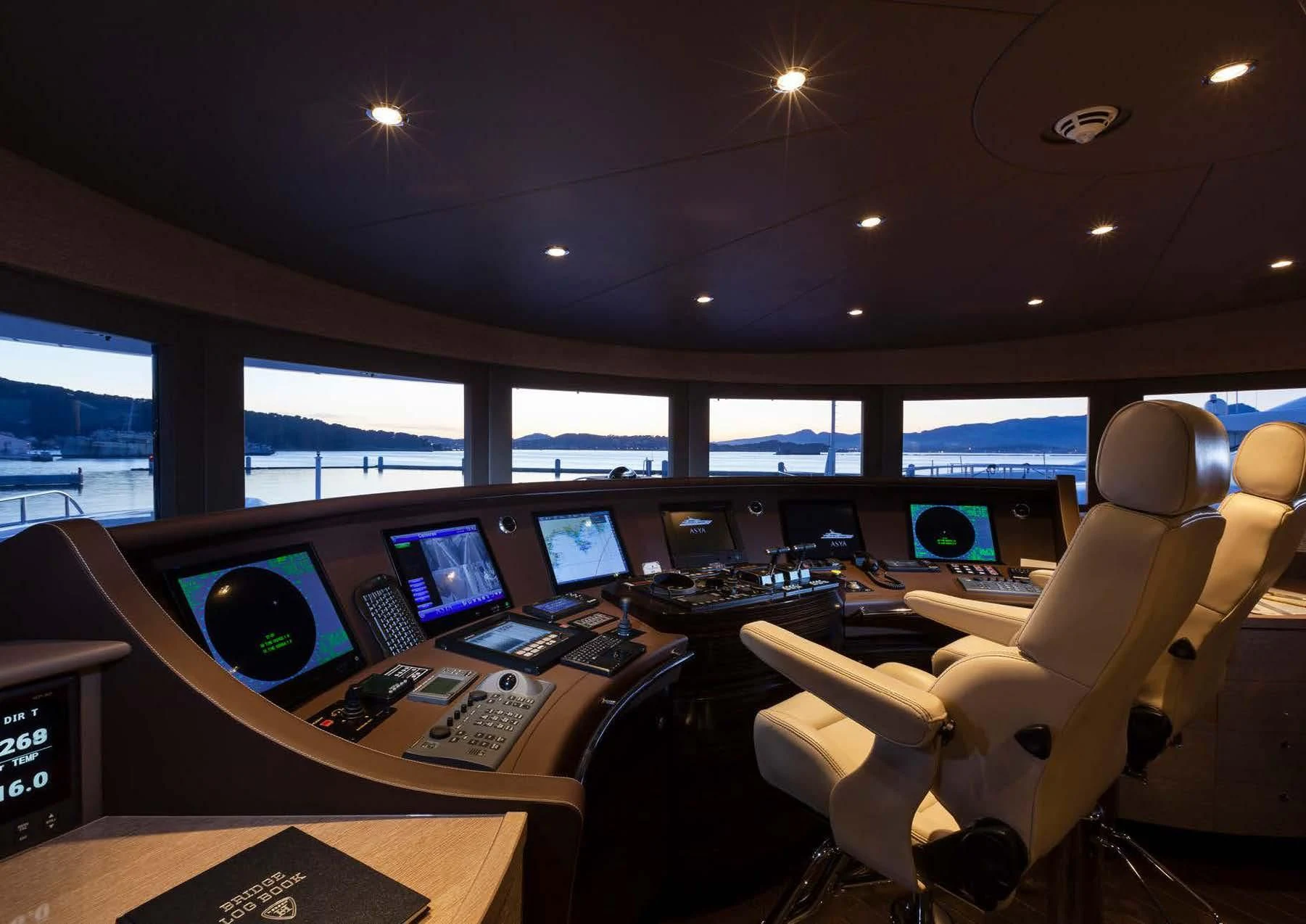

Navigation Bridge

-Integrated Navigation Bridge with 2 wing stations (PORT & STBD)

-Adequate drawers and tables laid out to accommodate charts and misc. bridge eqpt

-2x LED RED Light for night operations on charts and route monitoring

Screens

-5x TFT 19 inch screens with touch screen / tracker ball / keypad controls

-1x 16-inch screen for MTU ECU

Radar

-2x X-Band Radar / Furuno FAR 2117 Black Box Version / 96NMs

-Operator panel with tracker ball

-Gyro interface for GPS & ECDIS / 6.5Mtr Scanner / ARPA Module

ECS

-2x Transas 4000 ECS Units (independent) interfaced with two separate screens in the bridge

-Licensed World Folio with Radio Holland & updates from Wartsila Inc.

UPS

-1x UPS 3000VA (EATON 3150)

Magnetic Compass

-1x Spherical Magnetic Compass VENUS

-1x Electronic Magnetic Fluxgate Compass with NMEA0183 interface

Gyro Compass

-1x Gyro Compass System NAVIGAT X MK1, Mod. 10

-1x Console Repeater Compass 360/10, Sperry Marine

-1x Digital Repeater, Sperry Marine

Autopilot

-1x Navipilot 4000 Microprocessor controlled digital fully adaptive self turning heading unit

Rudder Angle Indicator System

-4x Rudder Angle Indicators, Sperry Marine

Sonar

-1x Forward-Looking Sonar FAR500 with control interface on bridge ECS Monitor

Echo Sounder

-1x Wheelmark approved dual channel navigation echosounder GDS 102

Speed Log

-1x Furuno Doppler Speedlog DS-80 / 230V DC

DGPS

-1x SAAB R5 Supreme / 24V DC

AIS

-1 x SAAB R5 Supreme . 24V DC, AIS System with transponder

-1x SAB R5 Supreme DGPS Navigation Add on Kit

Wind Instruments

-1x Vasala wind sensor WXT 520 / 24V DC

Horn

1x Kahlenberg airhorn Model T1

Windscreen Wipers

-5x Marine type Holles 235 KS Wipers / 2 speed 24V DC motors

Searchlights

-1x Sanshin 24V DC, ARC/RCL 600 – 24V DC

Sextant

-1x Cassens & Plath Sextant Horizon with case

Pelorus

-1x Cassens & Plath “SEA” Model Pelorus with case

Bridge Navigational Watch Alarm

- 1x Furuno BR 500 / 24V DC

Safety

-Life rafts: 04x 12 PAX Zodiac – Oceangoing A Type

-Life jackets: 26x inflatable type & 04x foam type

-Life rings: 04 Nos (2 with lines & 2 with smoke & light)

-Life jackets: 6 children

-Immersion suits: 26 in total

Fire Fighting

-Marioff Hi-Fog SPU 1+1 system

-NOVEC 1230 – 12 Kg for ER

-Foam Applicator – 20Ltrs with spare

-Portable FFE spread across the yacht as per LY3 regulations

-Breathing Apparatus: 2x SCABA sets + 4 Spare Bottles

-Gas detection: Smoke & Gas detection – Honeywell Sensors

Alarms

-Eltek Systems & Cerntral integration into PLC system (Tijssen)

Security

-Crew entrance door is fitted with a coded keypad

-Doorbell: 1x intercom box with 1x call button and weather-resistant speaker/microphone

-Security – Samsung CCTV: 3x Fixed View & 2x Axis Tilt Function Cameras integrated into PLC System

-Ship’s Safes: Located in Owner, Guest, and Captain Cabins
