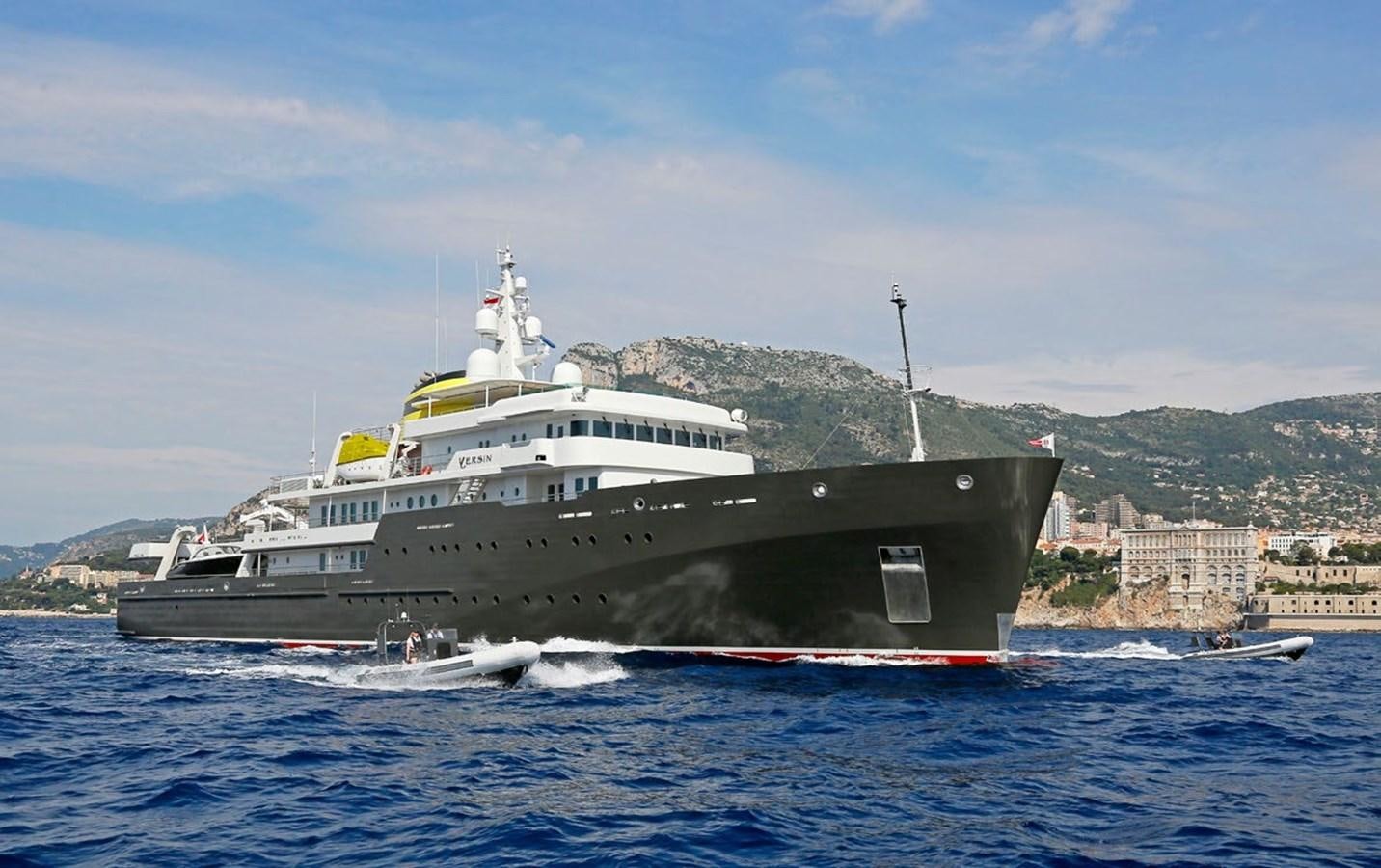

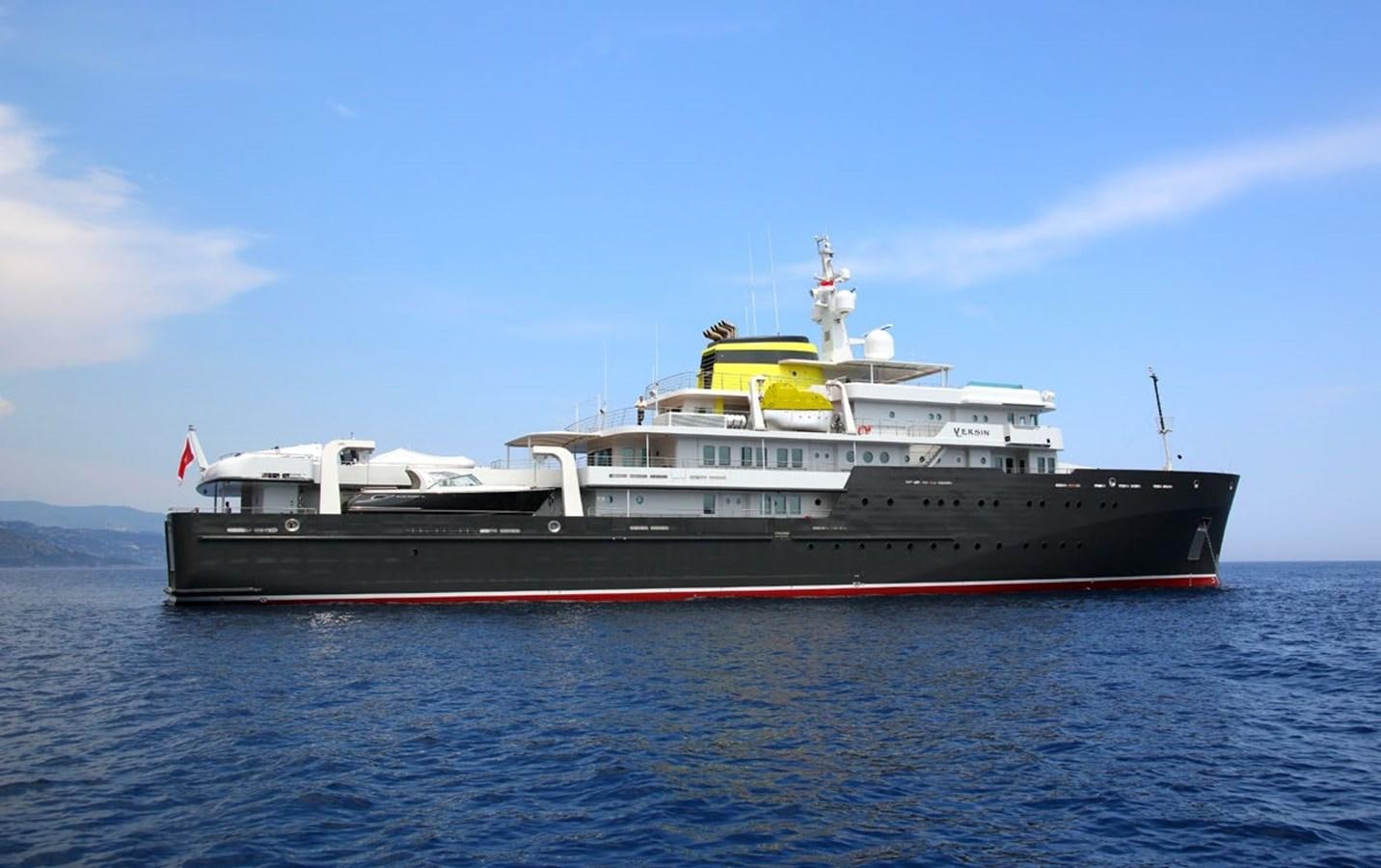

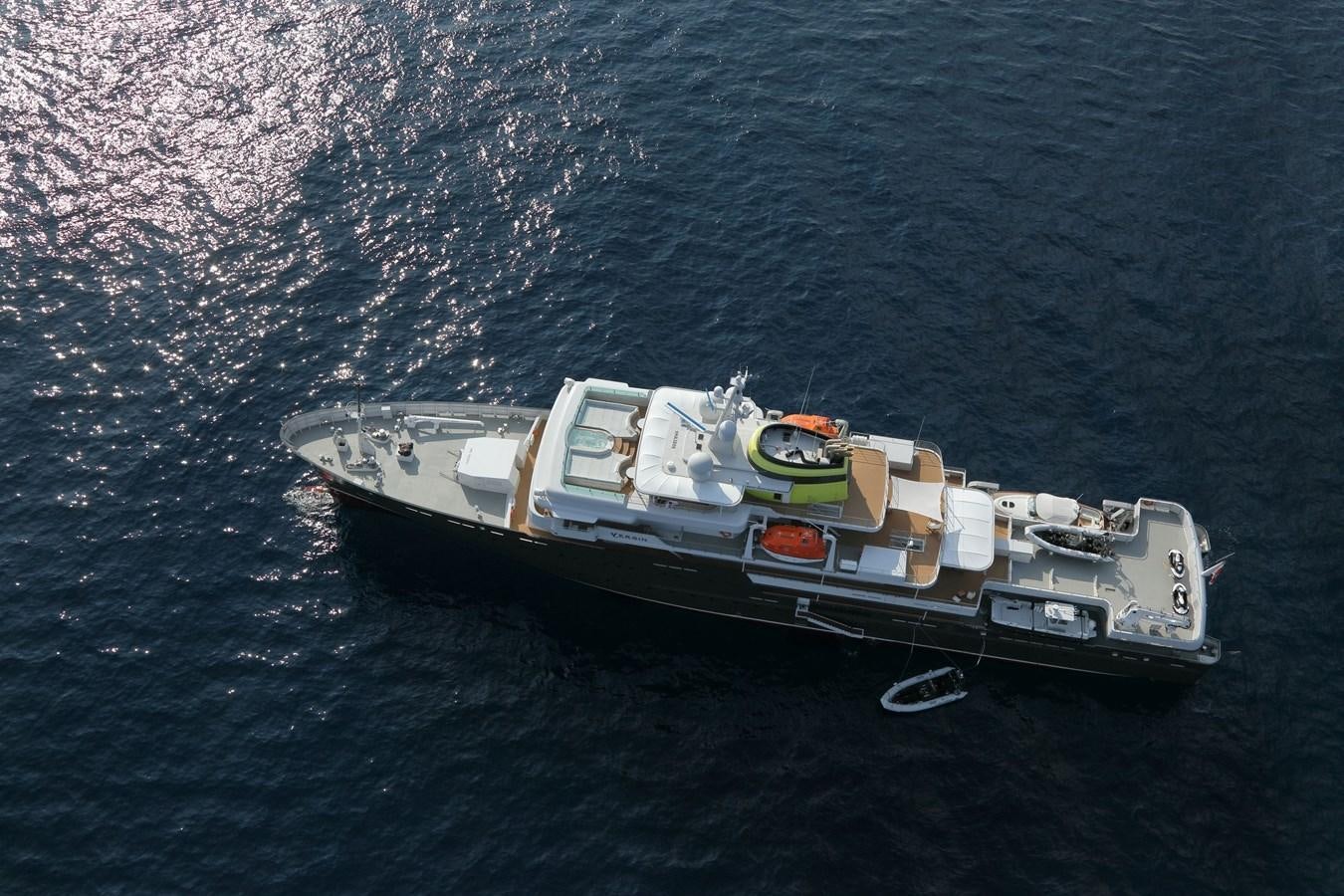

YERSIN Yacht for Sale

Dry-exhaust & Particule filters

• 4 x C32 Nauticlean (Soot & particule filter) FSV16 400
• 2 x C18 Nauticlean (Soot & particule filter) FSV12 400
• Effective reduction of soot (up to 99%)


Electric engine propulsion

• 2 x ALCONZA electric engines 690V/1500Kw, speed 0 – 1250 rpm


Azipod propulsion

• 2 x Azipods 1500Kw Schottel STP 3000 FP
• 360°, double propeller, ice classed up to 40cm thick ice

Bow thruster & propulsion

• Pump-jet 600Kw Schottel SPJ 0132 RD (secondary propulsion up to 6Kts)

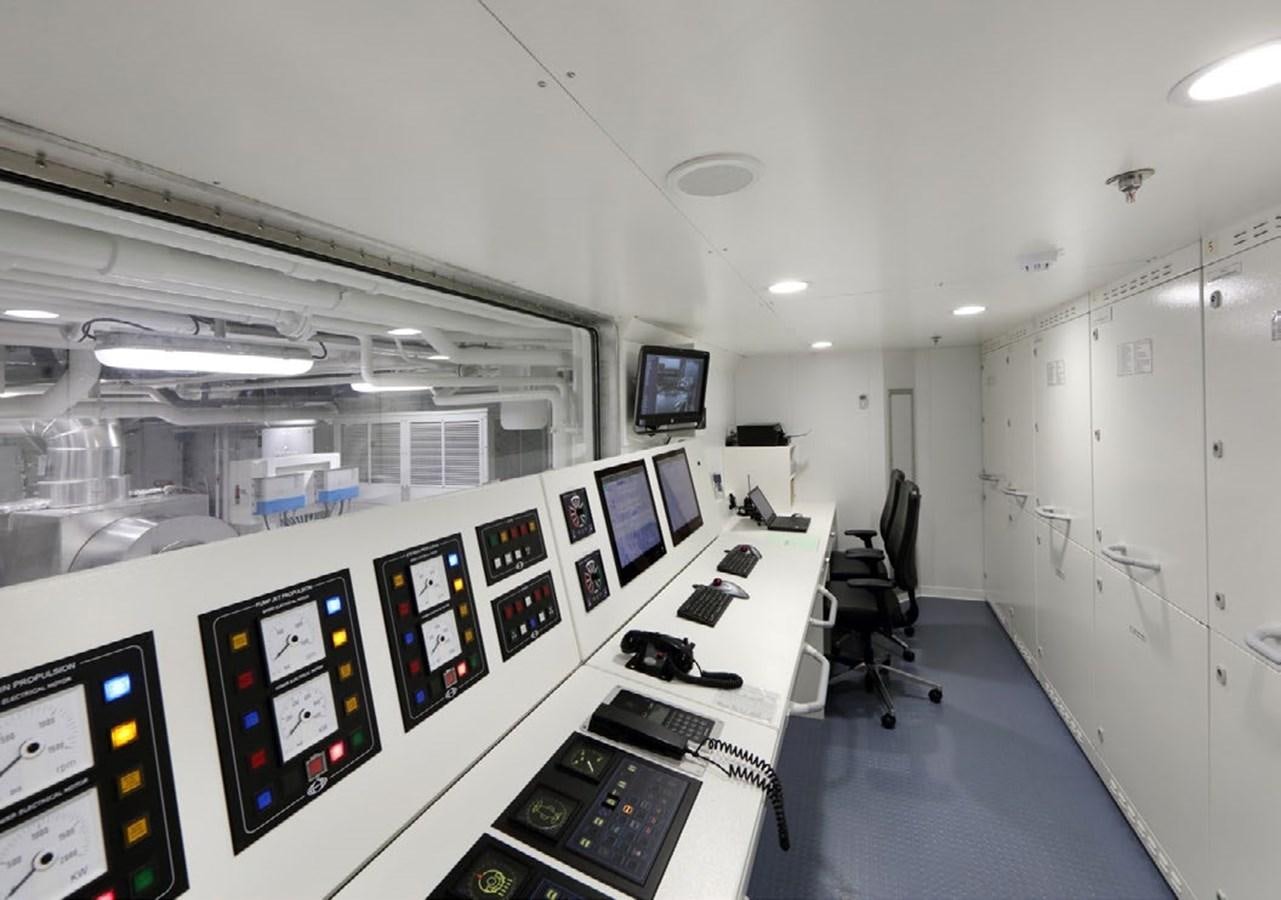

Control unit bridge & ER

• Barillec Marine

Fuel    402 m³

• 100385 US gallons

Petrol SP95    1.88 m³

• 496.6 US gallons

Hydroplane petrol 100LL    1.88 m³

• 496.6 US gallons

Fresh water    50 m³

• 13208 US gallons

Drinkable water tank 1.9 m³

• 264.17 US gallons

Technical water    159.8 m³

• 420215 US gallons

Grey water AFT    19.6 m³

• 5178 US gallons

Grey water FWD    4.05 m³

• 1069 US gallons

Dynamic Positioning System

• SIREHNA


Air compressor

• 2 x Deno DSA11-15 78 Nm³/h, 11kW

Air dryer

• 2 x Deltech Smard SC30
• System designed to allow connection on any type of shore-power supply worldwide

Electricity circuits

• 690v AC / 50 Hz 3-Phases
• 400v AC / 50 Hz 3-Phases
• 230v AC / 50 Hz 1/3-Phases
• 24 Volts DC
• 24 Volts DC - Radio

Shore power converter

• Worldwide Output 250 kVA, 230/400 VAC - 50 Hz / 60 Hz

Shore power transformer

• 2 x transformer 3 phases- 690V - 400V – 50Hz – 750kVA

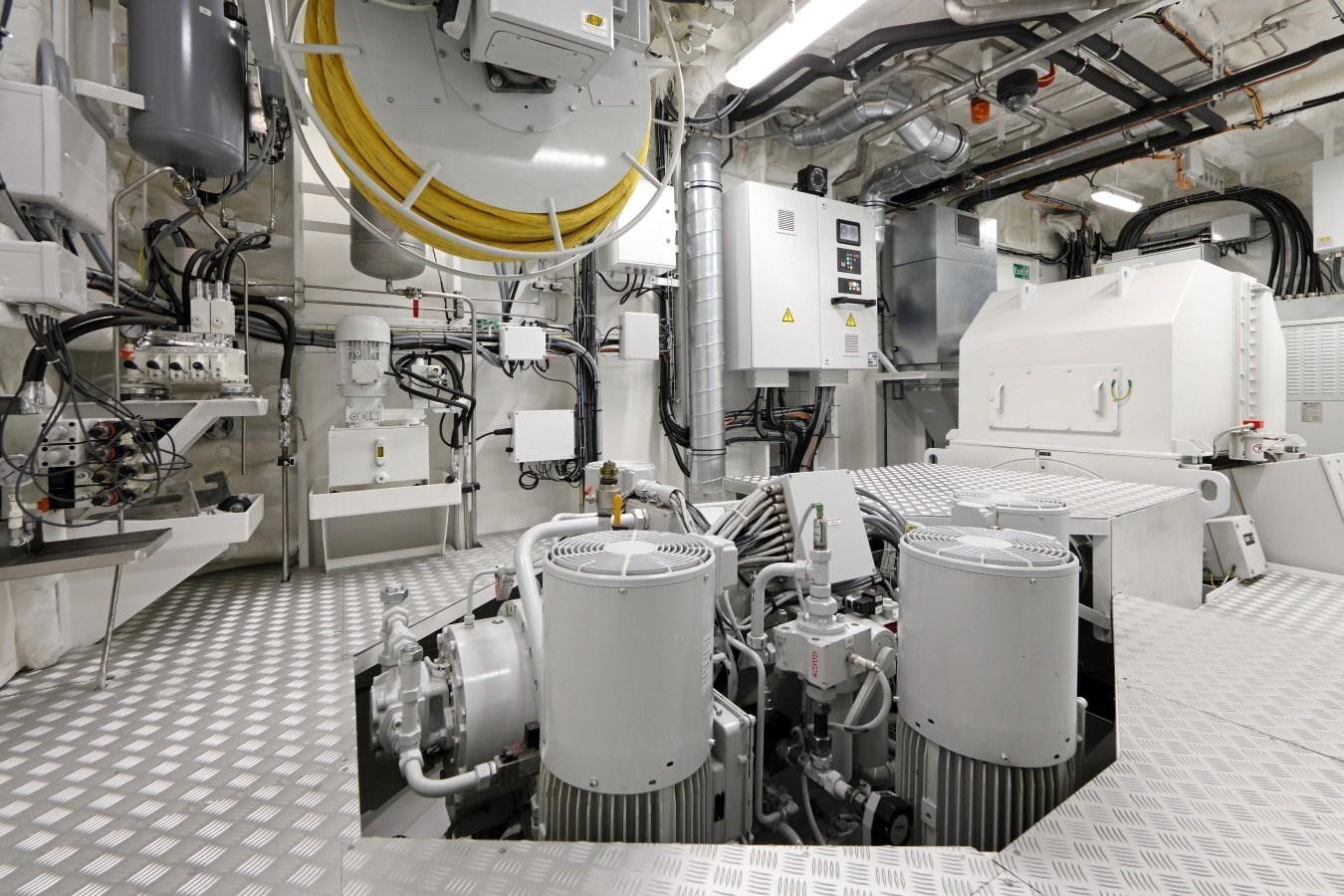

Shore Power cable

• 2 x 40m/250A @ 50°C, electric reeling


UPS

• IT & Communication equipment, Entertainment - 6 x 3000 kVA


Search lights & projectors

• 3 x articulated & 16 x fix Xenon

Underwater lights

• 12 x SEAVISION SV37, Xenon

Piping

• Seawater cupronickel, fresh water black steel

Aspiration

• 3 x seachest with cathodic protection

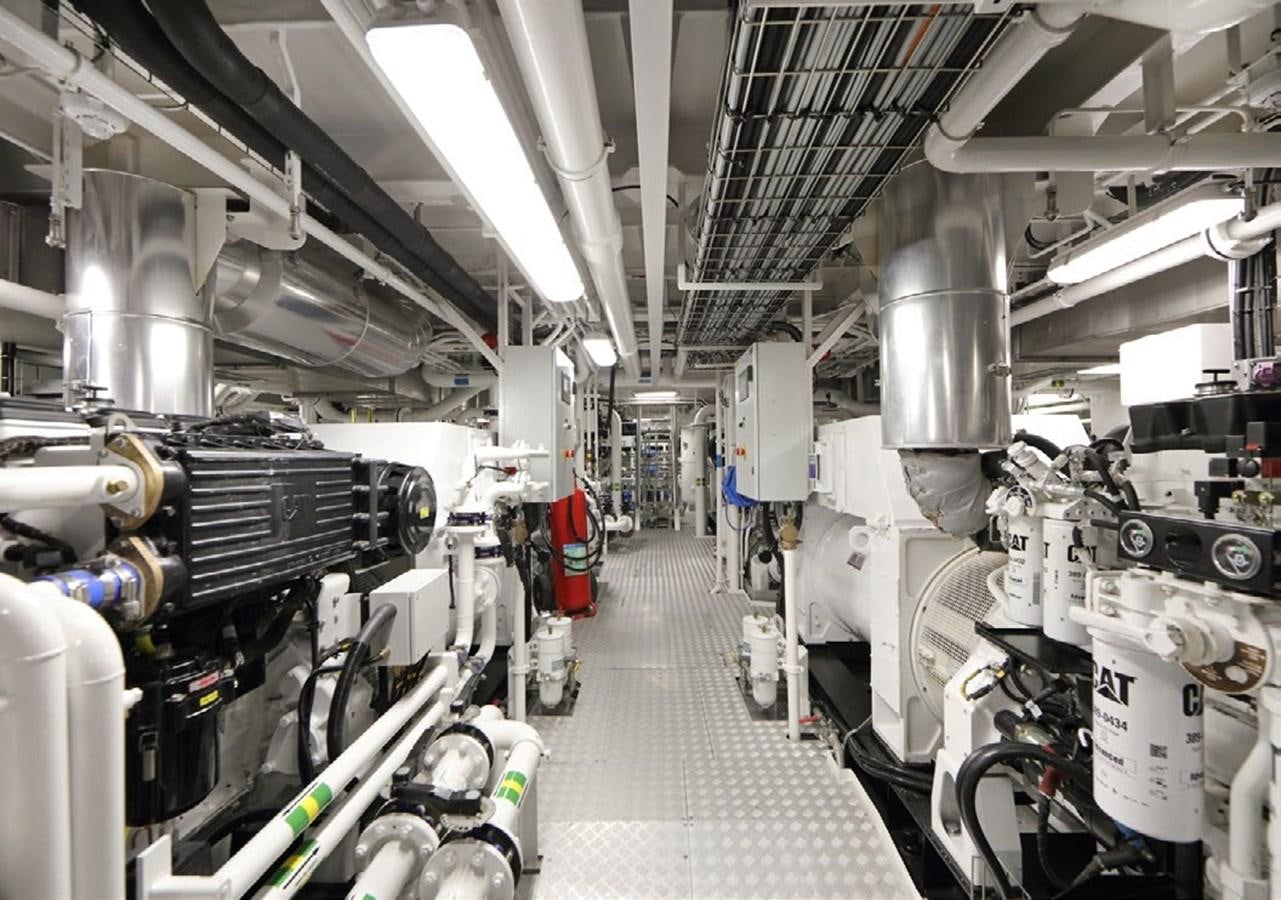

Generator cooling

• 7 x seawater pumps,
• 7 x fresh water pumps
• 7 x heat exchanger with expansion tk.

Electric propulsion cooling
2 x seawater pumps, 2 x heat exchanger & 2 x fresh water pumps
Sea water pumps

•  9 x AZCUE 40m³/h

Fresh water pumps

• 9 x AZCUE 80m³/h

Cold rooms refrigerant cooling

• 2 x seawater pumps

Pump jet cooling

• 1 x seawater pump & 1 x heat exchanger, 2 fresh water pumps

AC cooling

•  1 x seawater pump per chiller + emergency pump

Fuel oil purifier

• 2 x Alfa Laval P605 1850l/h, 2.2kW

Filtered fuel tank filter

•  2 x MAHLE filter KFWA-2by system NVF, water content inferior to 60ppm

Fuel transfer pump

•  2 x AZCUE, 15 m³/h

Bunkering stations

• 3 x bunkering station points - MD StBd/ MD PtSd/MD-1 Aft

Fuel filters

• Generator C32 – Double Prefilter 30 mic - RACOR, 2 x Fine CAT filters
• Generator C18 – Double Prefilter 30 mic RACOR, 2 x Fine CAT filters
• Generator C9 - Double Prefilter 30 mic RACOR, 2 x Fine CAT filters

Fuel meter

• Satam ZC1780/150N – 15/150 m3/h, 10 bar

Fuel tender filling station

• LAFON Technologies – BOXTER.10.VS3 – 90 l/min

Dirty oil pump

•  AZCUE 1m3/h – 2 bar

Lubrication oil transfer pump

• AZCUE 1m3/h – 2 bar

Bilge pumps

•  2 x AZCUE pumps, 60m³/h, located ER & pump jet room

Bilge water oil/water separator

• RWO - SKIT/S-DEB 0.5 m3/h - 5 ppm (clean ship)

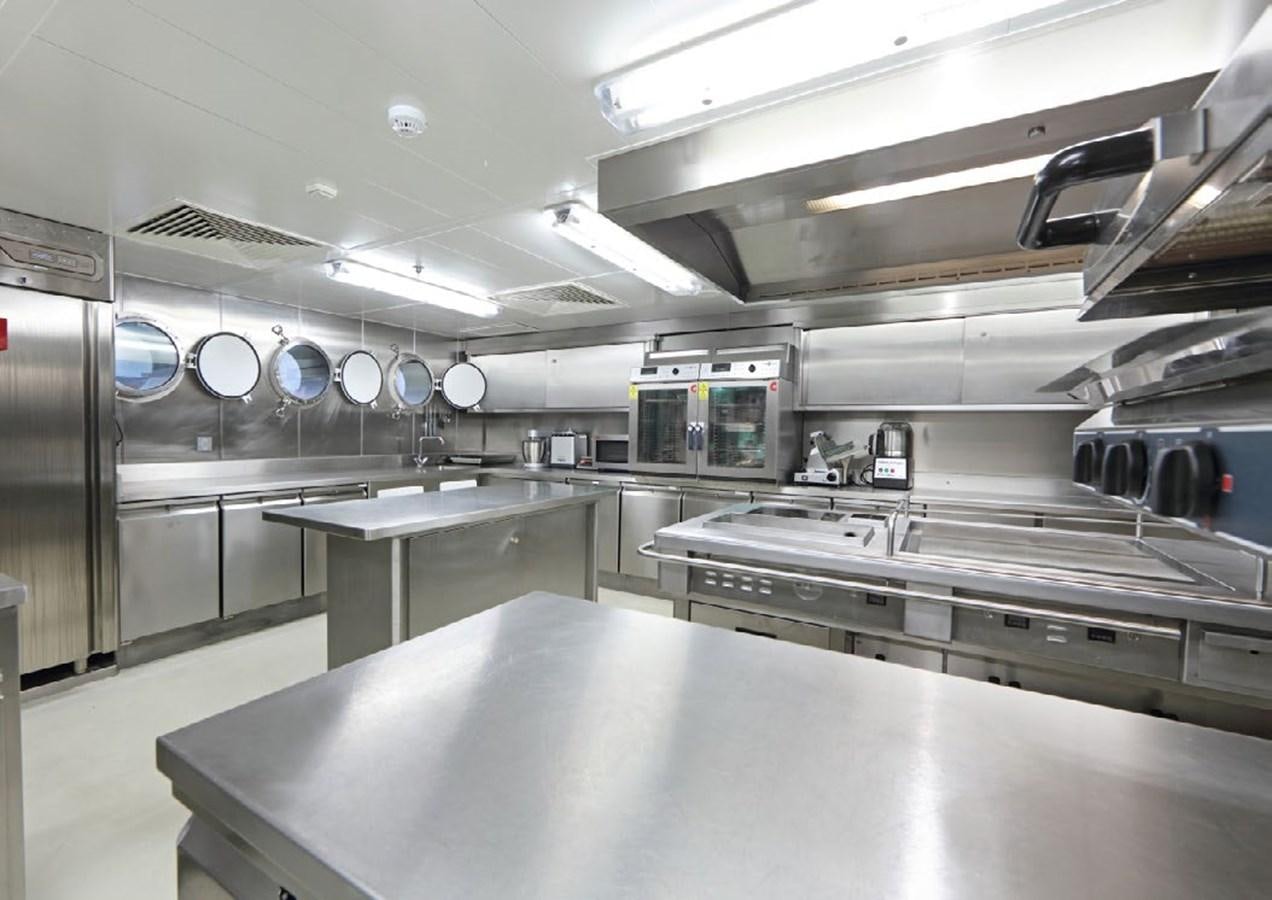

Main Galley

• Induction cooking range, METRO Professional
• Vitroceramic hot plate
• 4 x Hot plates
• 2 x Steamer/oven + hood
• Water cooker
• Deep fryer
• Quick freezer
• Salamander
• Pastry counter
• Deep fat fryer

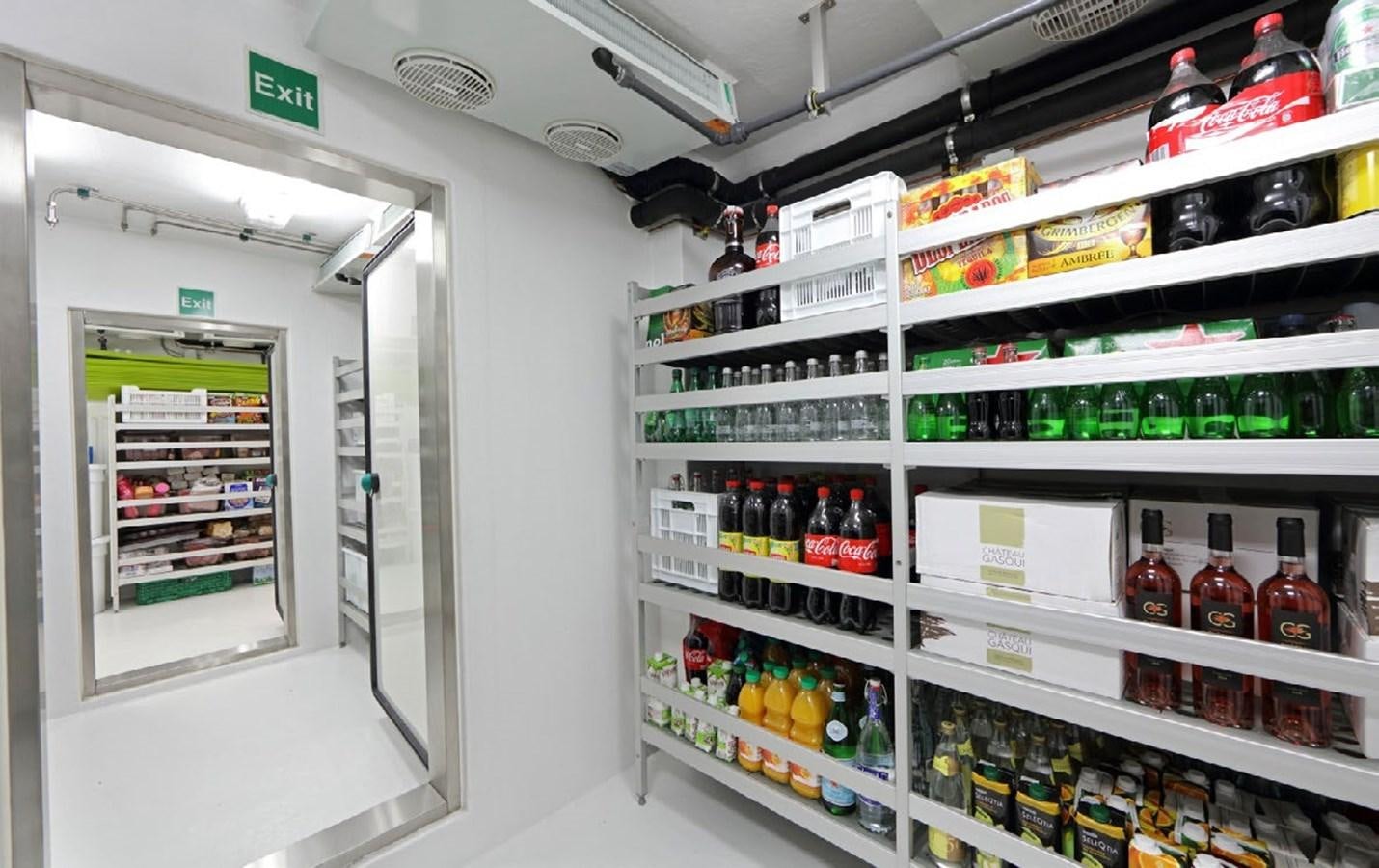

• Cold store
• Fridge 376L
• Fridge 684L
• 2 x Fridge 246L
• Fridge 246L
• Dishwasher


Main deck pantry

• Fridge 240L
• Glass-washing machine
• Icemaker
• Microwave
• Wine locker, 50 bottles


Owner’s deck pantry

• Fridge 240 L
• Dish-washing machine
• Glass-washing machine
• Icemaker
• Nespresso
• Microwave 23L
• Owner’s cabin
• Fridge 139 L
• Microwave
• Stowe

Owner’s salon

• 2 x Fridge


Bridge deck pantry

• Fridge 70 L
• Nespresso


Sun deck pantry

• Fridge 240L
• Dish washing
• Icemaker
• Nespresso


SPA

• Fridge 48L


Guest Cabin corridor

• Fridge 139L


Laundry

• 1 x 24 kg washing machine
• 3 x 8 kg washing machine
• 1 x 24 kg drying machine
• 3 x 8 kg drying machine
• 1 x rotary type iron-press
• 2 x ironing tables

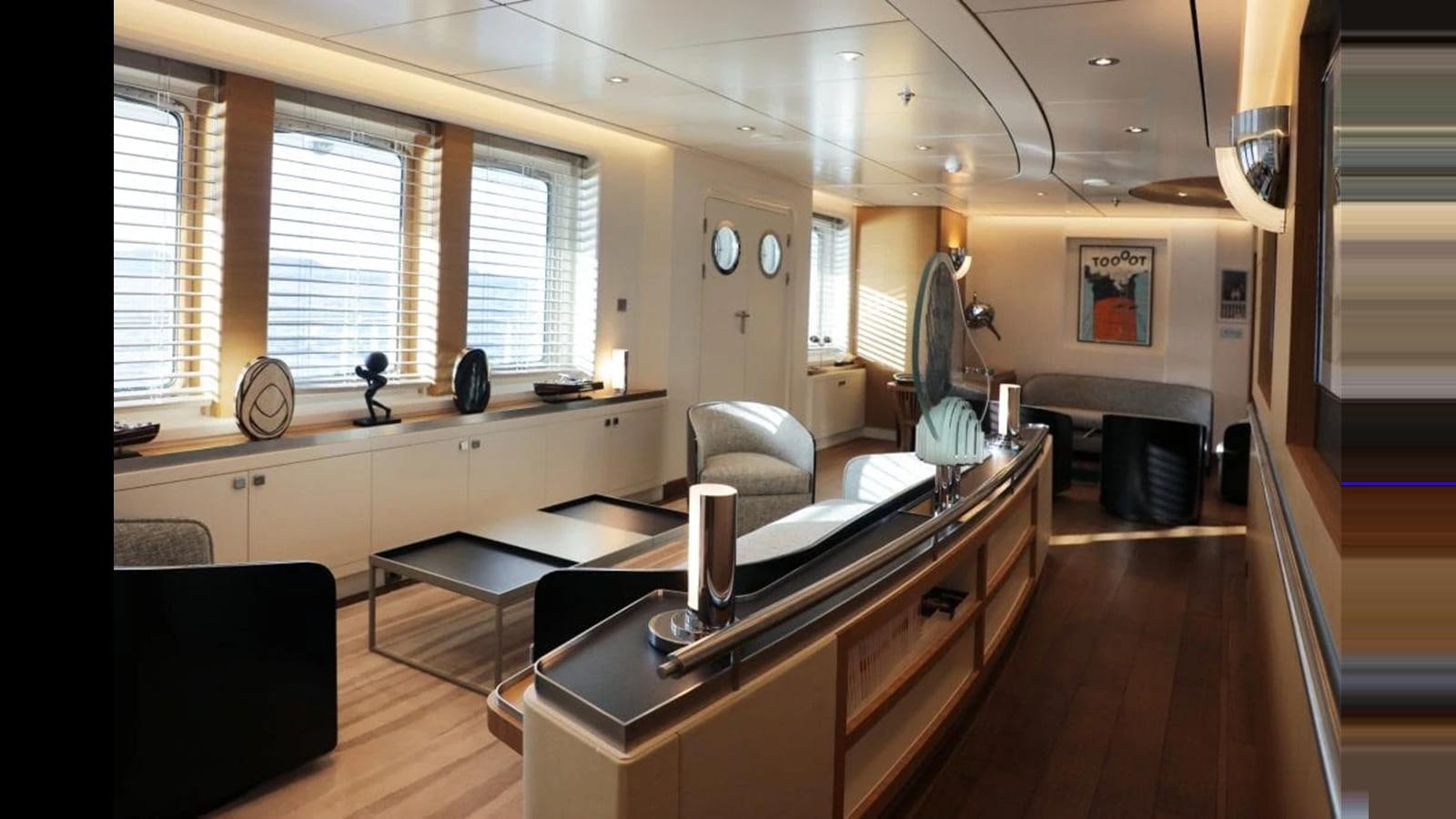

Main Salon Bar

• Fridge 141 L
• Nespresso
• Icemaker
• 2 x wine fridges
• Microwave

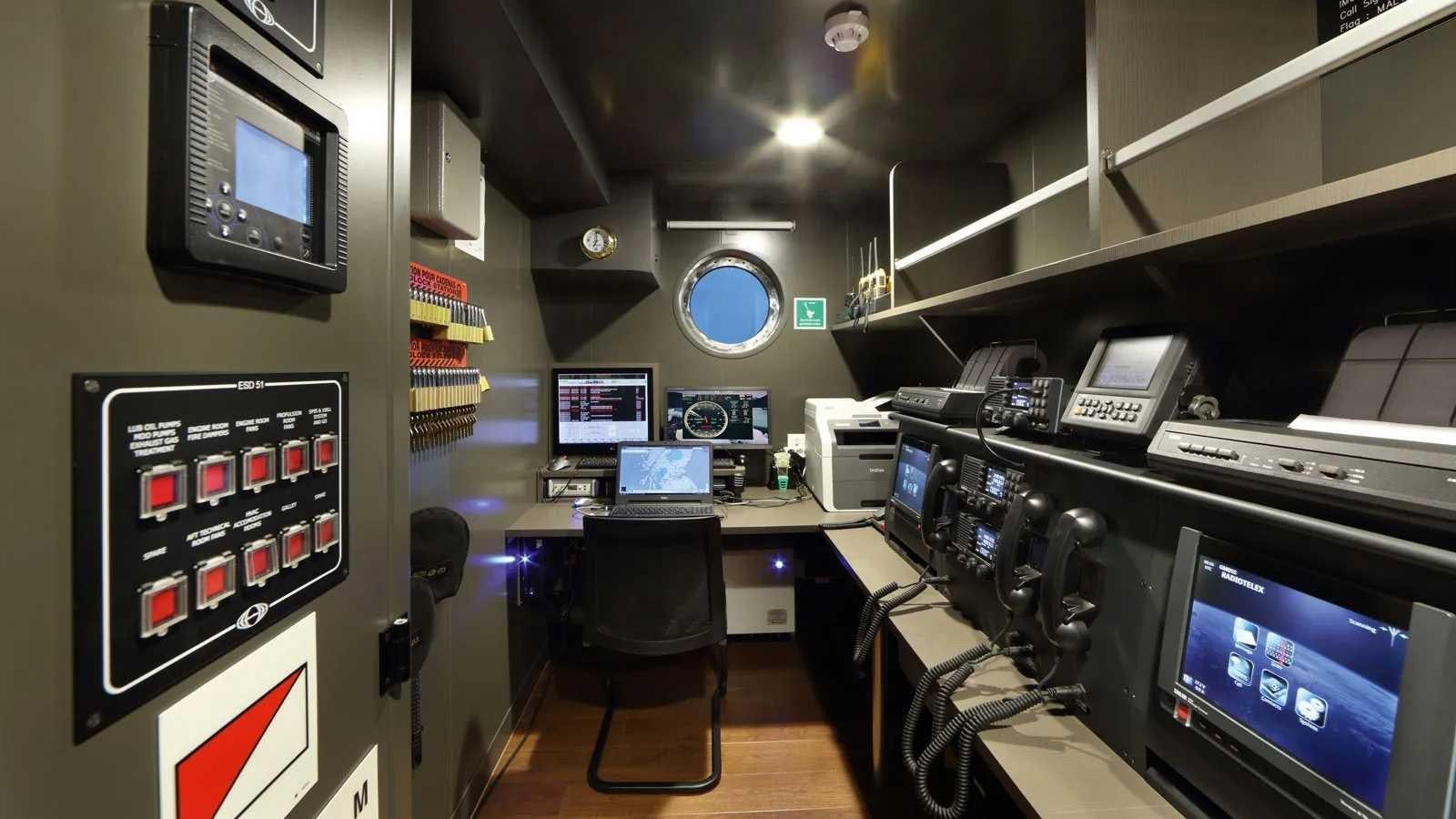

Inmarsat Standard C

• FURUNO FELCOM15

Fleet broadband

• SAILOR FB500

VSAT

• 2 x SAILOR 900 VSAT

Telecom Systems

• 2 x VOIP lines over VSAT
• 1 x GSM lines over GSM gateway
• 2 x Shore Lines/PSTN
• FBB voice line

GSM 4G (phone & internet)

• 1 x modem 4G

VHF Radiotelephones

• 2 x GMDSS SAILOR 6222

Navtex Receiver

• 1 x JMCNT 1800

Portable GMDSS VHF

• 3 x SAILOR SP3520
• 1 x SAILOR 6103 GMDSS alarm panel

VHF Aviation

• 1 x ICOM IC-A110EURO fixe

UHF Communication

• 10 x ICOM IC-F61M

Iridium Satellite Phone

• 2 x Iridium Pilot

SSB Radio/MF/HF

• 2 x SAILOR 6301

Intercom – Telephones

• VINGTOR/STENTOFON IP technology, digital network

Autogenerated Communication

• VINGTOR/STENTOFON voice & light signal

Screens

• 9 x 20’ Hatteland

X-Band Radar

• 1 x FURUNO FAR3000

S-Band Radar

• 1 x FURUNO FAR3000

X-Band River Radar

• 1 x FURUNO RHRS

Echo sounder

• 1 x FURUNO FE700 & 1 x SKIPPER GDS102

Speed Log

• 1 x SKIPPER EML224

Magnetic compass

• 1 x Overhead CASSEN & PLATH T11

Gyrocompass

• 1 x Octans Ixblue & 1 x Quadran Ixblue

Gyrocompass repeaters

• 2 x AR81, 2 x AR80, 1 x AR78

Autopilot

• 1 x SIMRAD AP80

Autopilot interfaces

• 1 x Magnetic compass, 2 x Azipods

ECDIS

• 3 x GECDIS IXBLUE

DGPS

• 1 x FURUNO GP150

GPS

• 1 x PROFLEX 800, 2 x FURUNO, 1 x MX 610 Nav system

Weather stations

• AIRMAR PB200

Weather station repeaters

• 3 x FURUNO RD33 bridge
• 1 x FURUNO RD33 control room

Thermic/infrared camera

• 1 x CURRENT NIGHT NAVIGATOR SOS

AIS

• 1 x FURUNO FA150 U-AIS transponder with GPS & VHF antenna

INMARSAT LRIT

• 1 x FURUNO FELCOM16

VOICE DATA RECORDER

• 1 x FURUNO VR7000

BNWAS system

• 1 x FURUNO BR500
• 2 x central SMC IMU 107

Sonar

• 1 x FAR SOUNDER, 3D colour, positioned in the bulb

Gonio

• 1 x RHOTHETA RT-500

Galileo positioning

• 1 x GALILEO ASHTECK PROFLEX 800

Rudder Angle Indicator System

• Bridge, ECR and locally

Horn

• KAHLENBERG

Printer

• 1 x Printer in ship’s office

Audio/Video Equipment

• Video & music on demand, 3 x Servers (Main, 2-nd, backup)
• Owner’s & guests (iPad controls, TV screen, speakers, KODI interface)
• Crew cabins & mess (iPad controls, TV screen, speakers, KODI interface)
• Guest public places (iPad controls, TV screen, speakers, KODI interface)

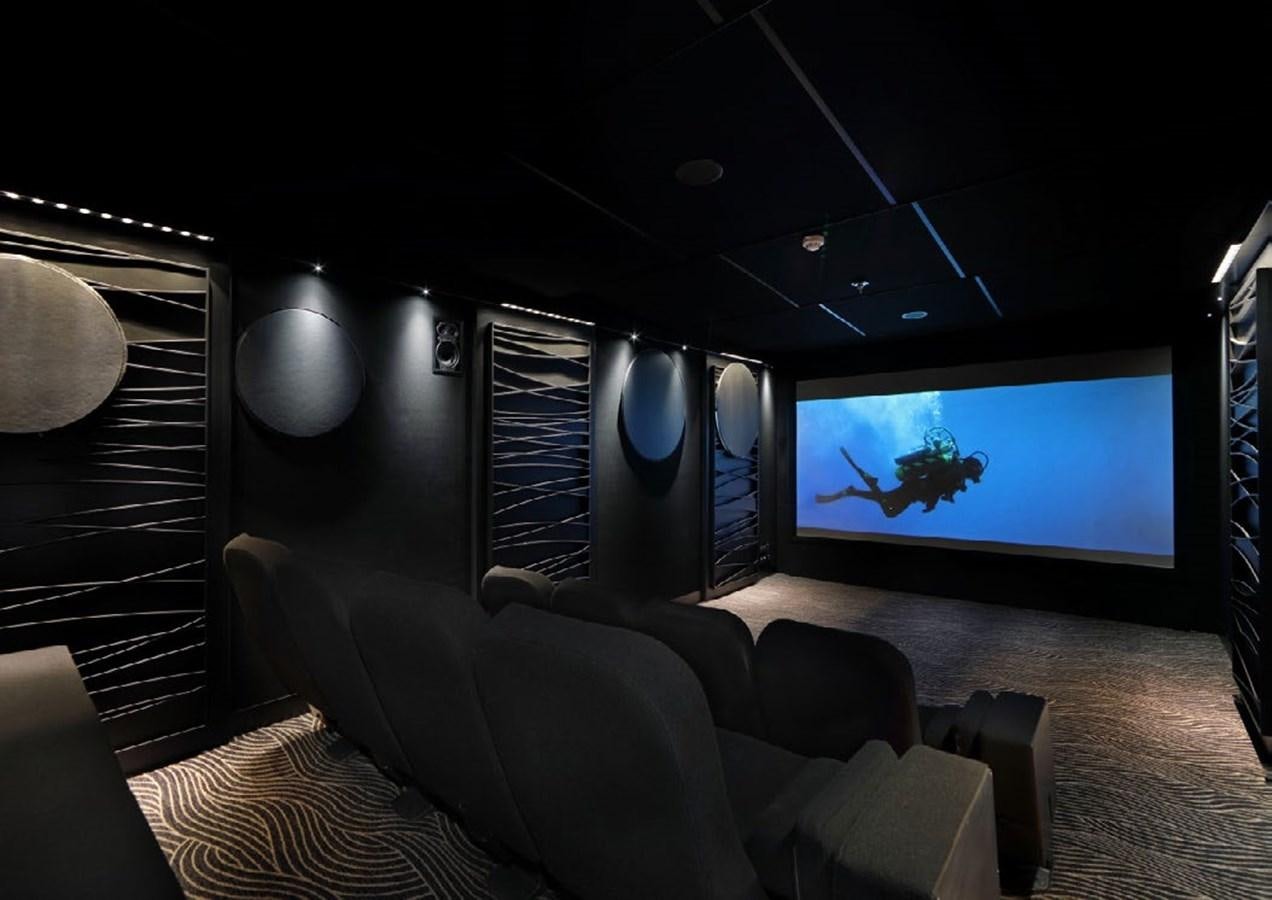

• Cinema (15 seats)

TVRO

• 2 x antennas, SEA TEL

Audio Equipment

• Multimedia linked to central movie server in each cabin and guest lobby

Control

• iPads controlled

IT wired and wireless network

• Full wi-fi access at entire boat with wired connections in each cabin

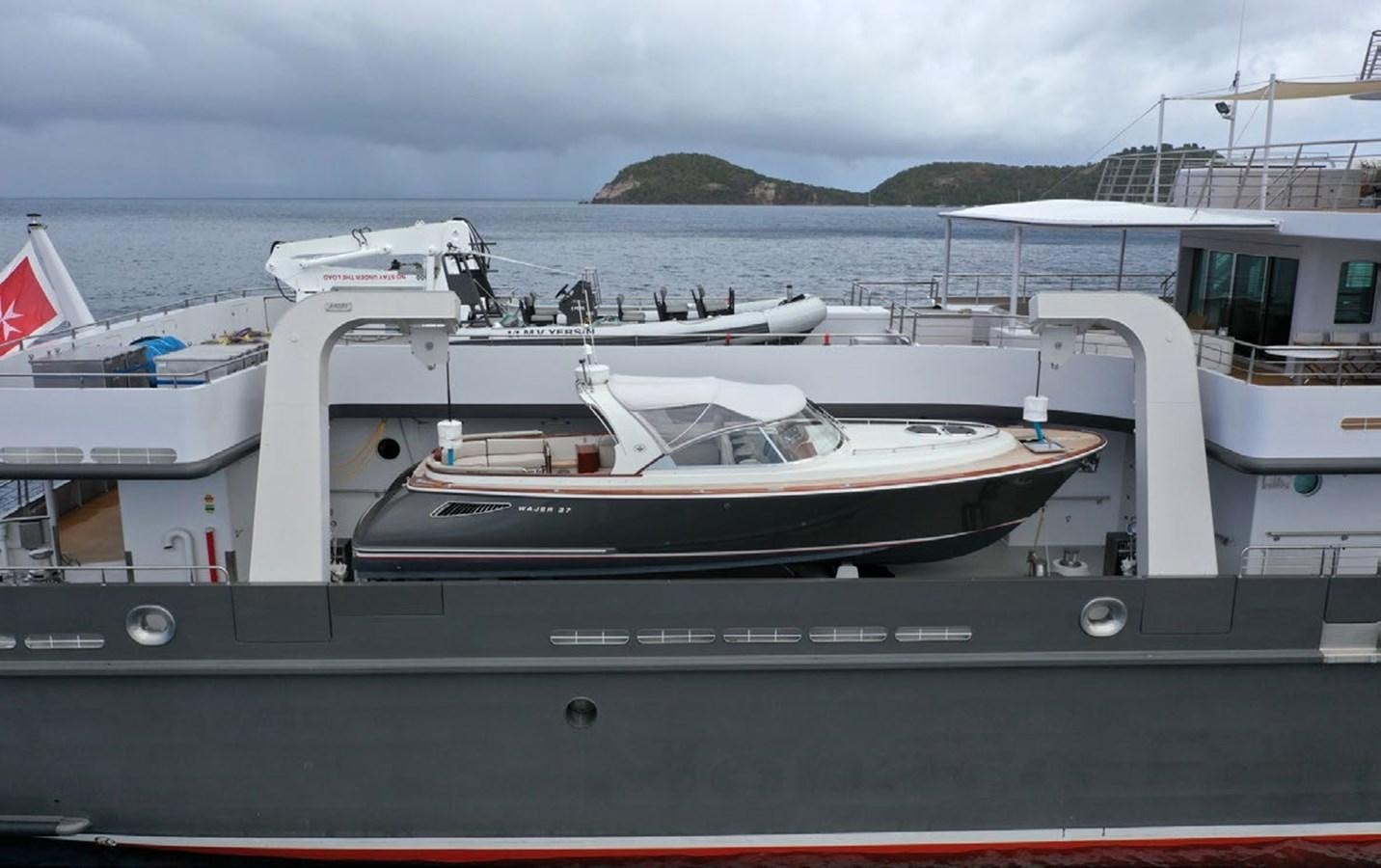

WAJER OSPREY 37

• 11m, 2 x Volvo Penta D6 400 kW, JET propulsion


ZODIAC Hurricane

• 2 x 7.5m, 2 x Volvo Penta D4 - 300 kW

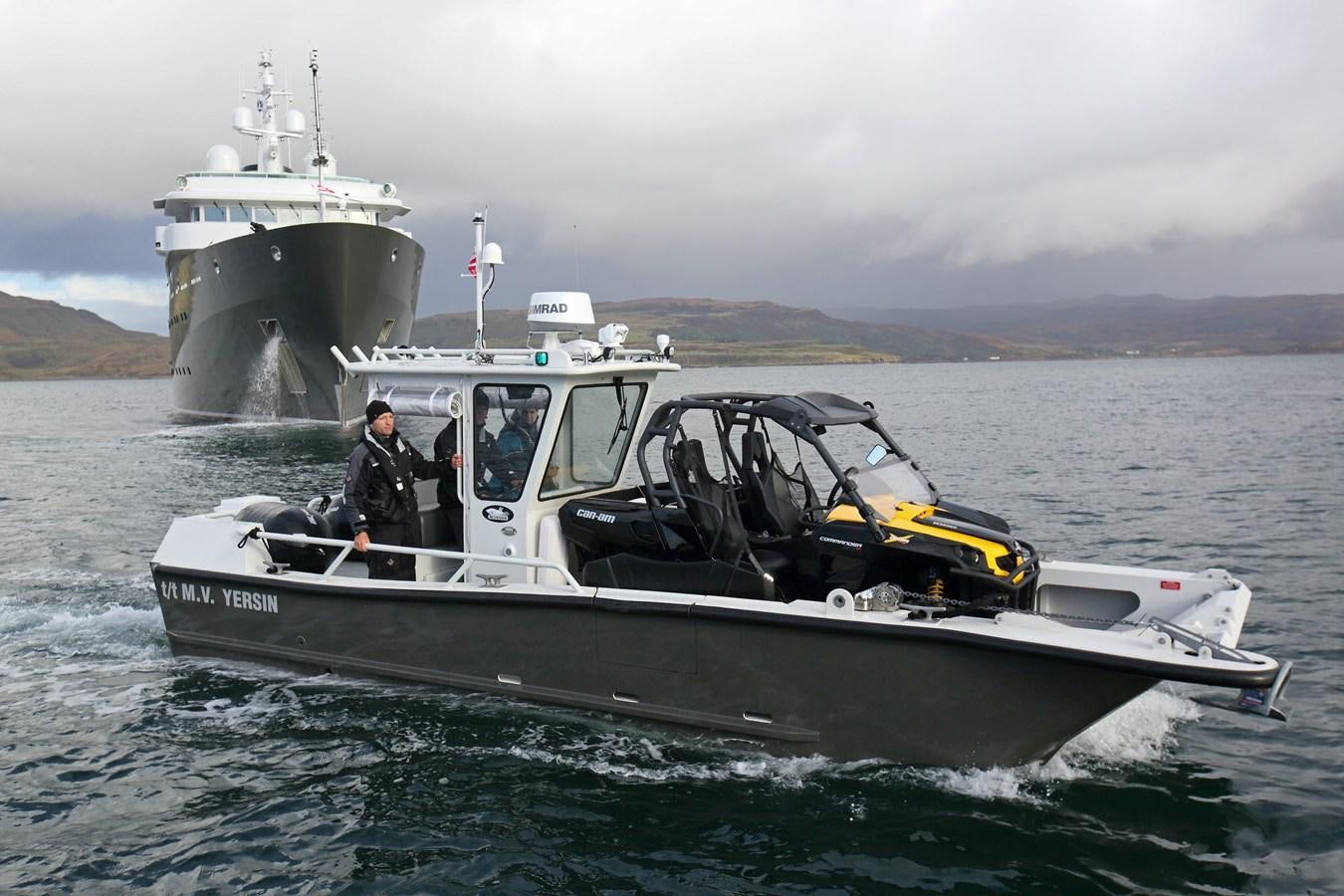

MUNSON landing craft

• 7.3m aluminium, 2 x Volvo Penta D4 - 300 kW

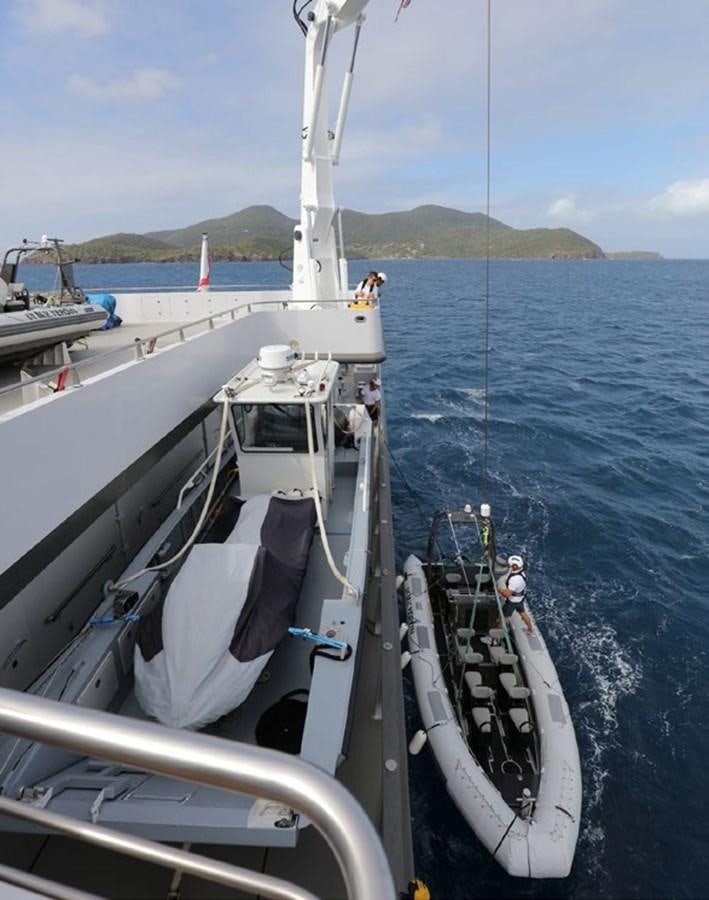

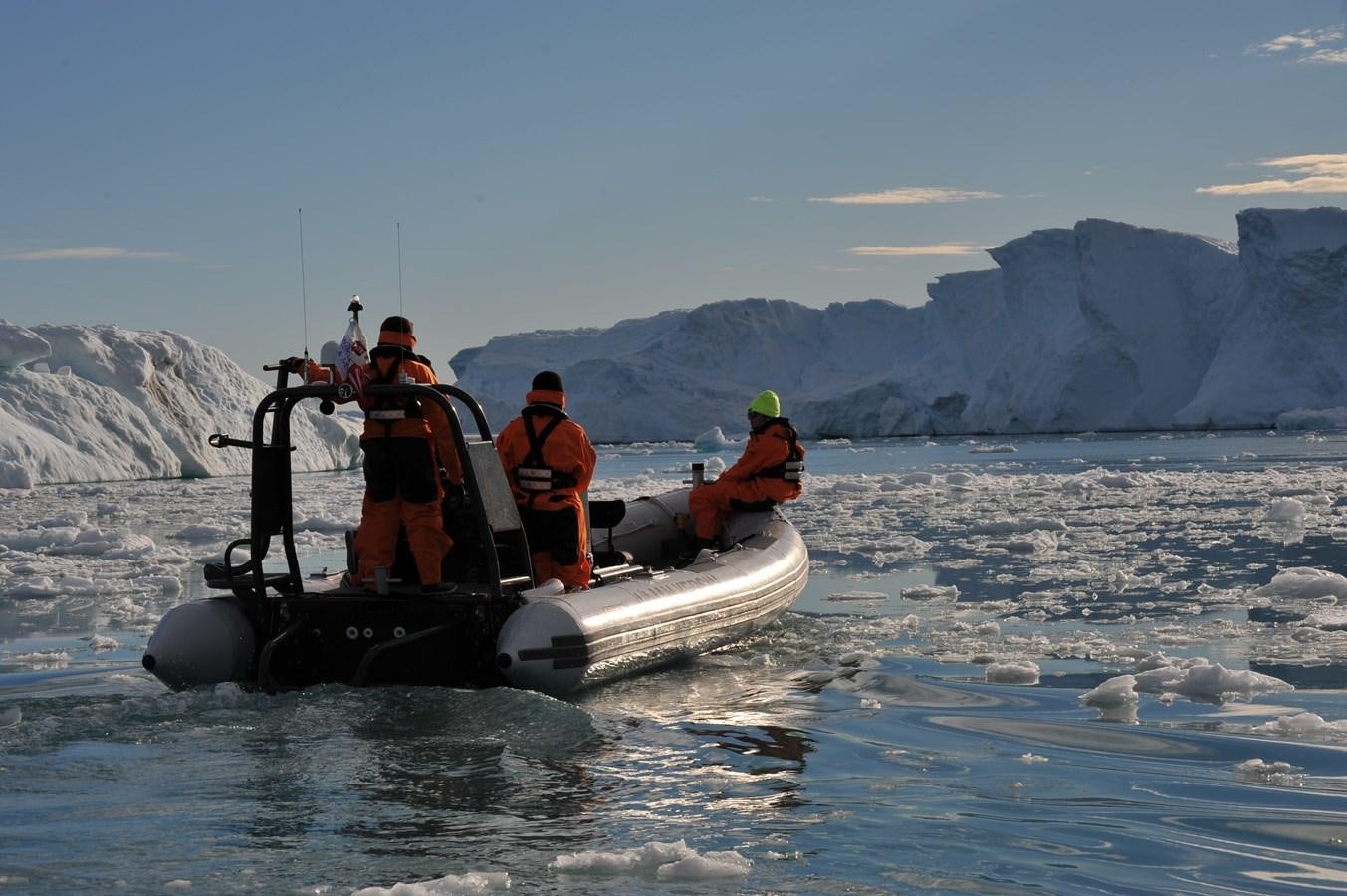

ZODIAC Ribs

• 2 x professional Zodiac gamme AKA Marine
• 3 x Yamaha 4T 60 cv direct drive
• 2 x "PROP GUARD" propeller covers


Waters toys

• 1 x Kayak 1 person Hobie, 1 x Kayak 2 persons Hobie
• 1 x water ski O’Brien Vortex & O’Brien Performer 68
• 1 x wake board O’Brien system 140
• 1 x sailing dinghy Tiwal 3
• 2 x Paddle board Aqua Marina

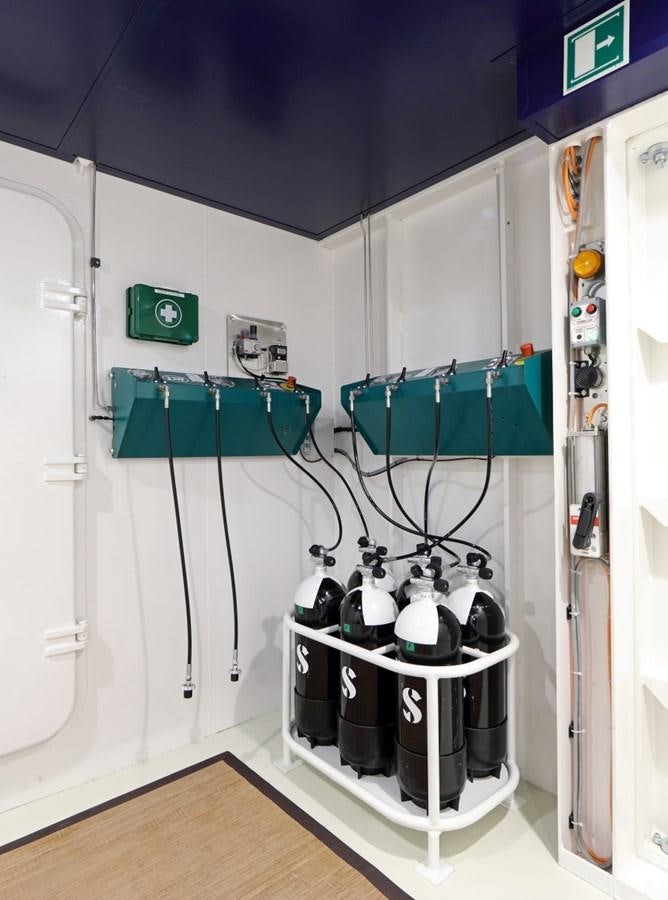

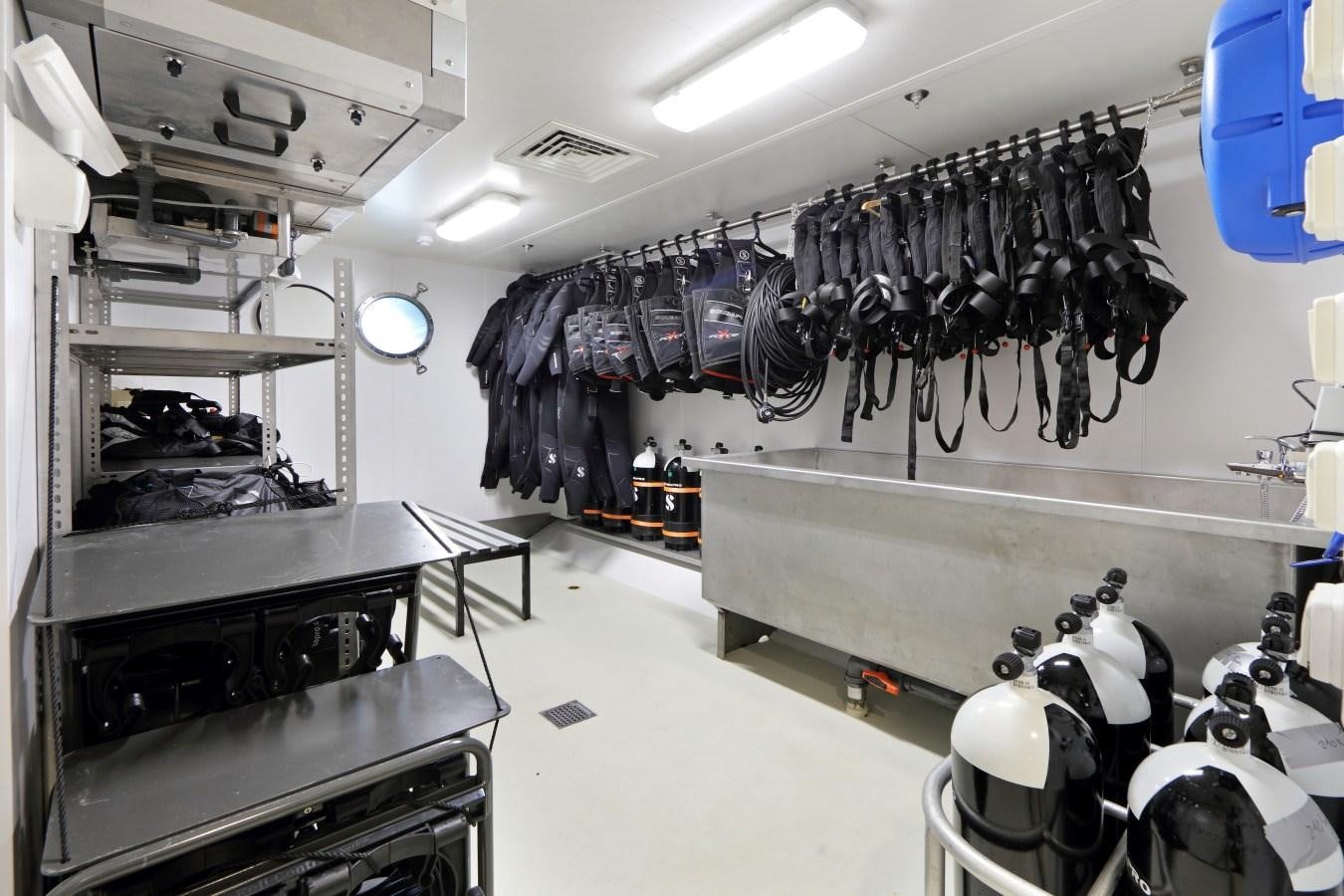

Professional diving centre

• Capacity 3 x 8 divers within 6 hours

Air compressor

• LW Compressors 230 ltrs/min – 330 bars

Diving tanks AIR

• 10 x 12ltrs Scubapro

NITROX

• Mixmaster HP-S

Anchor Winch

• 2 x fwd, MUIR VRC20000
• 1 x aft, MUIR VRC18000

Warping Capstans

• 2 x aft, MUIR VC18000
• 2 x midship MUIR VC15000

Ground Tackle

• 2 x fwd HPT anchors, 1305kg, Pool type
• 1 x aft HPT anchor, 855kg, Pool type

Chains

• 2 x fwd 32mm galvanised chain 220m (8 shackles)
• 1 x aft 26mm galvanised chain 137.5m (5 shackles)

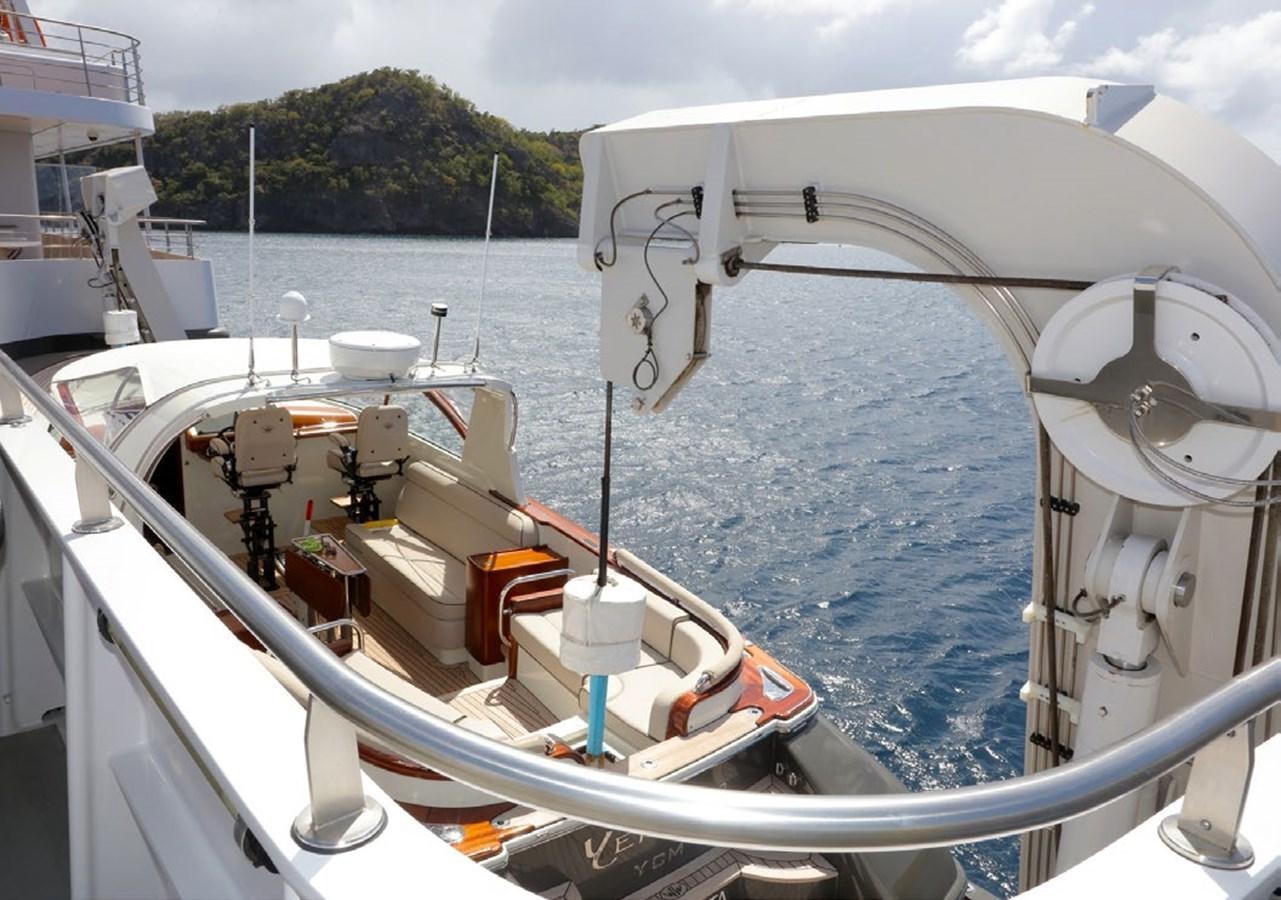

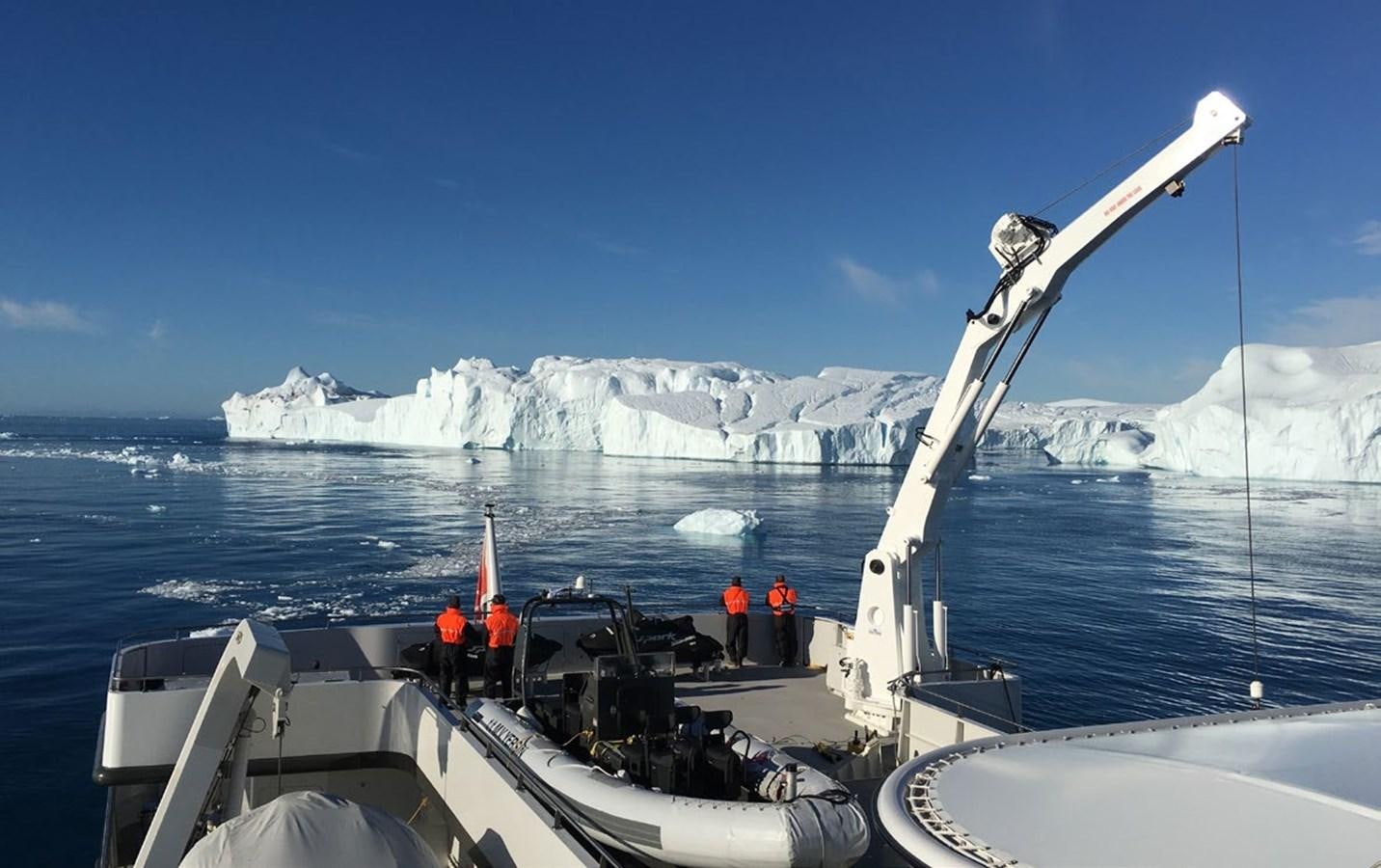

Boat Crane & Davits

• Foredeck crane: Hydro-Armor 1 ton @ 6m, rotation 360°
• Aft deck crane: Hydro-Armor 3 tons @ 5m & 1.5 ton @ 8m
• Dedicated to ZODIAC tenders, MUNSON barge & multipurpose hauling
• Davits: ACEBI, 2 x 6 tons, tender WAJER 37

Passerelle

• Hydromar Seawalk telescopic

Side boarding Port

• Hydromar Seastair

Side boarding Starboard

• Hydromar Seastair

Boarding Ladder

• 1 x Marquipt Seastair

Diving Ladder

• Stainless steel, 1.2m immerged, removable

Sun awnings

•  2

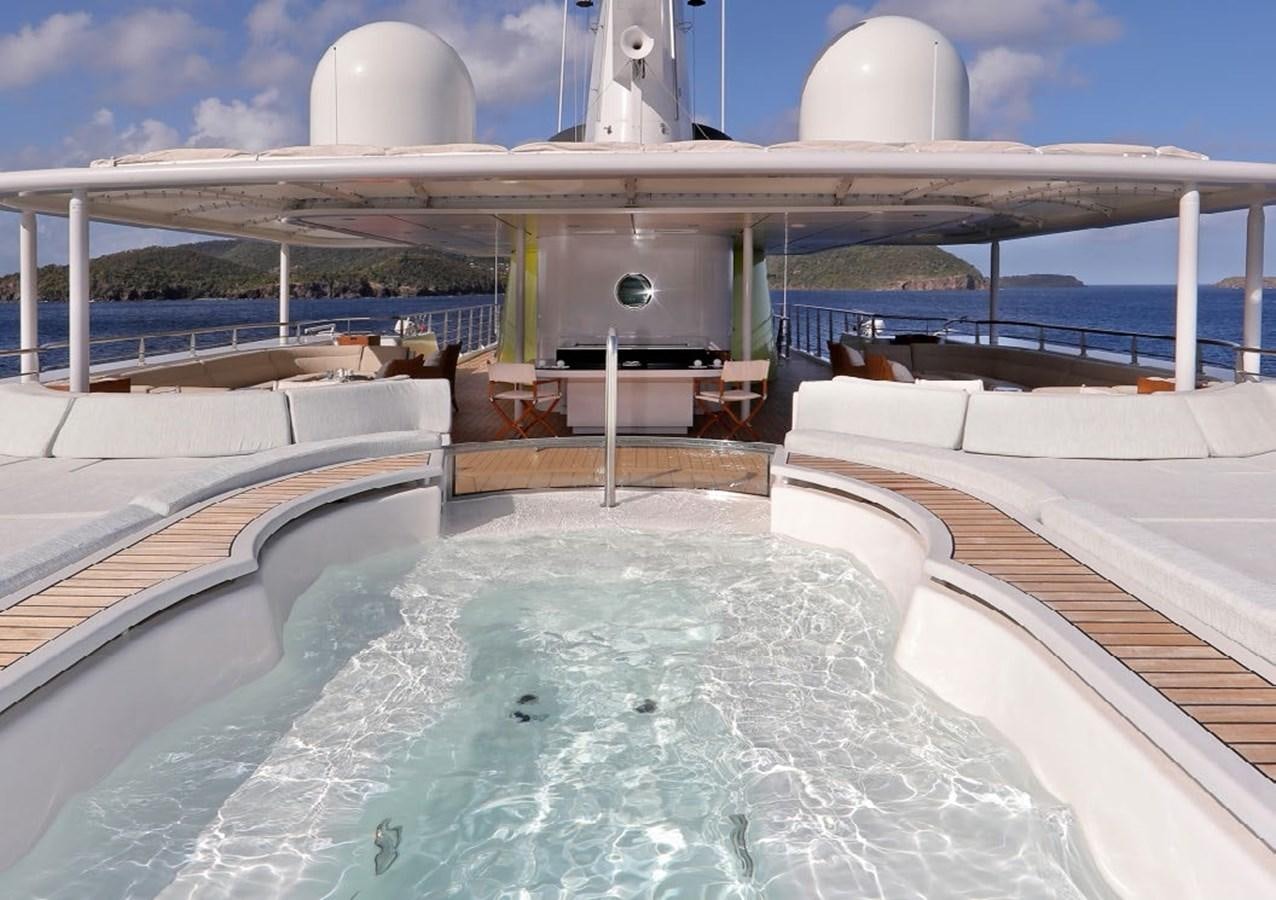

Pool Sun deck

• Whirlpool, 1.5m3
• Pool, 2.2m³

Steam room

• Hammam

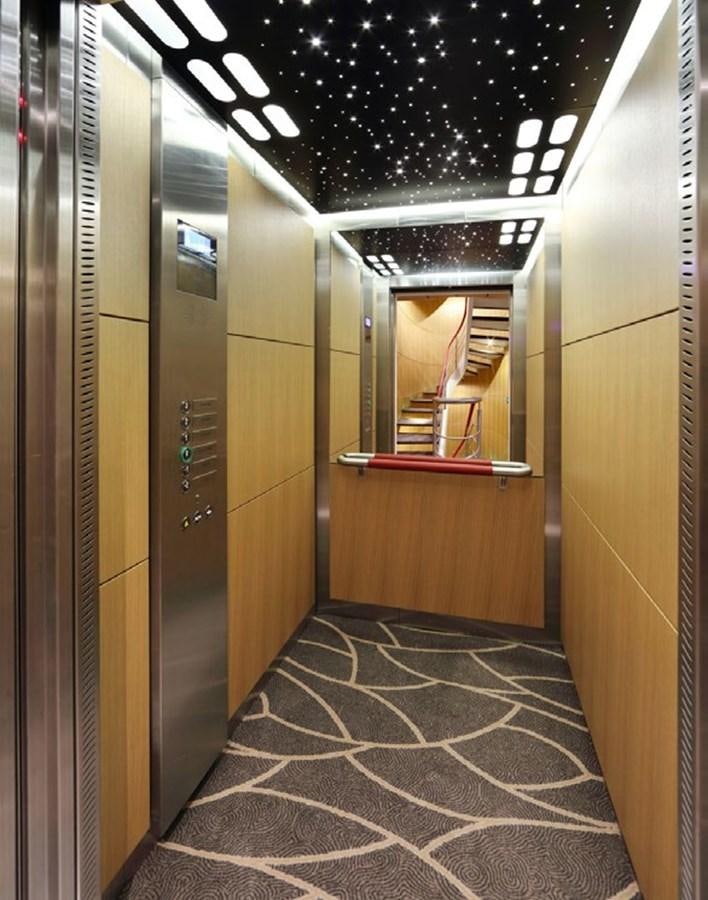

Guest elevator all decks

• Thyssen Krupp, Wheel-chair compliant

Dumbwaiter all decks

• BKG

Ship's safes

• 8 x guest and 23 x crew; 3 x captain’s office


Changing room & weather sass

• 8 x lockers & 20 x boots heaters

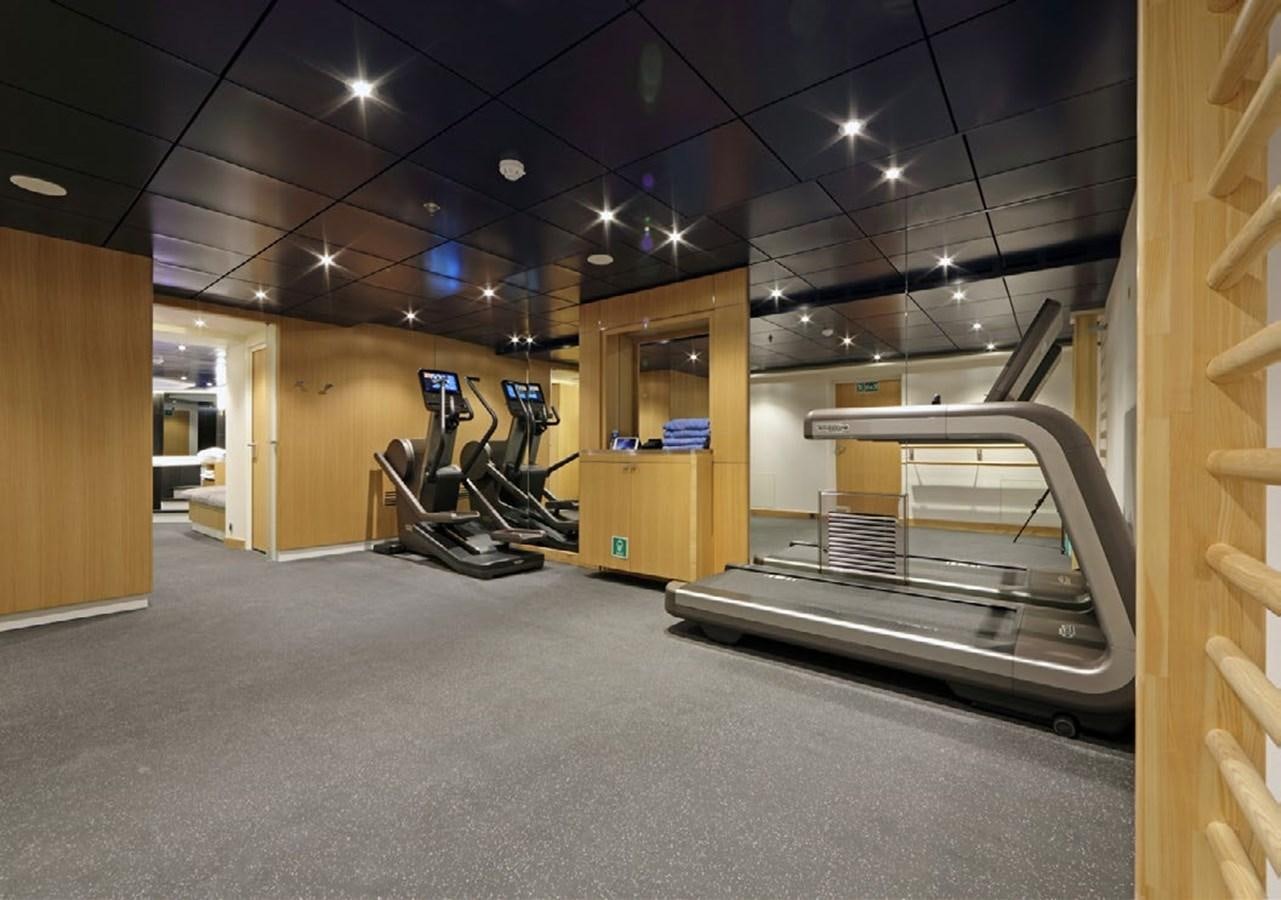

Treadmill & Stepper

• Crew Gym equipment
• Treadmill

Gas detection

• 2 x Honeywell Sensepoint XCD

Alarms

• Integrated to main alarm system

Doorbell

• Doorbell with integrated intercom

Exterior doors

• Locking code controlled

Loudspeakers & alarms

• BOSCH PRAESIDEO system
• BOSCH, ethernet infrastructure


Man Over Board

• Alarm system & localisation MOB


EPRIB

• 1 x KANNAD SAFELINK Auto GPS
• 1 x KANNAD 406 manual

SART

• 2 x KANNAD rescuer 9GHz radar
• 2 x NORSAFE 22 persons

Life rafts

• 4 x 25 persons Life Raft

Life jackets

• 44 x adults + 3 x inflatable
• 8 x children life jackets
• 44 x adults + 8 x children near Muster point

Buoys

• All kits according to flag state & Class society

Flares & signals

• All kits according to flag state & Class society

Survival kits

• 49 x kits for navigation in icy waters, including immersion suits SOLAS

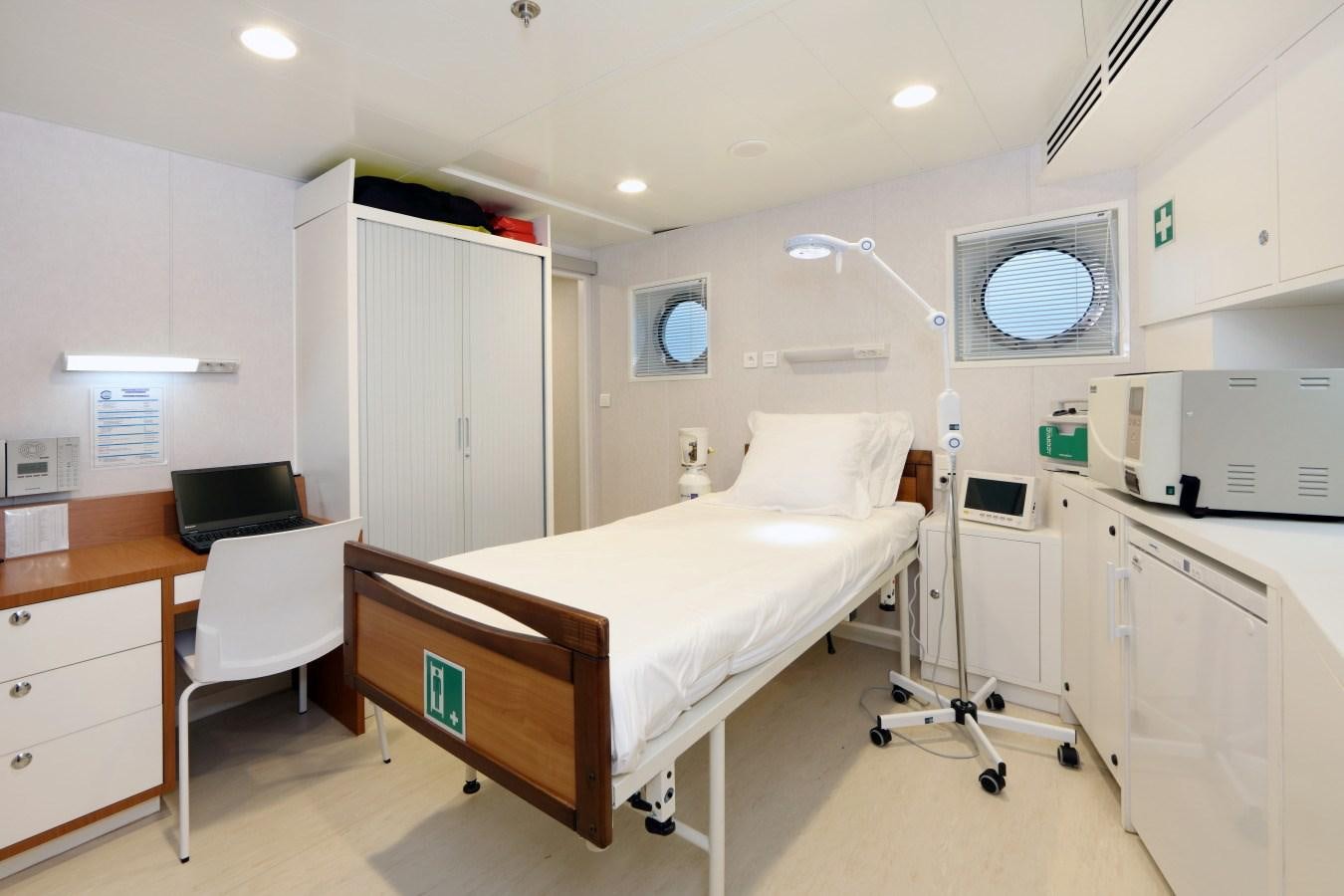

Medical kit & equipment

• Compliant to flag state & Class and according to navigation program

FIRE FIGHTING

• Firefighting pumps
• 2 x AZCUE, 50m³/h (ER & pump jet room)

Ultra-Fog system

• 5 x Bevi Ultra fog

Fire detection & extinction

• According to IMO MSC & SOLAS

Mobile firefighting & fire hose

• Exterior 6 x fire lockers

Interior

• 14 x fire lockers

Fire fighter protection kit

• 4 x sets including breathing apparatus
• 2 x sets (standard fire approach)
• 19 x extinguishers CO2, 5kg
• 32 x extinguisher powder, 9kg
• 12 x extinguisher water, 9 ltrs
• 2 x foam fire retardant in Engine room 1 x 45 ltrs 1 x 150 ltrs in ER
• 2 x fi
