M Yacht for Sale

114' 9" (34.99m)

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

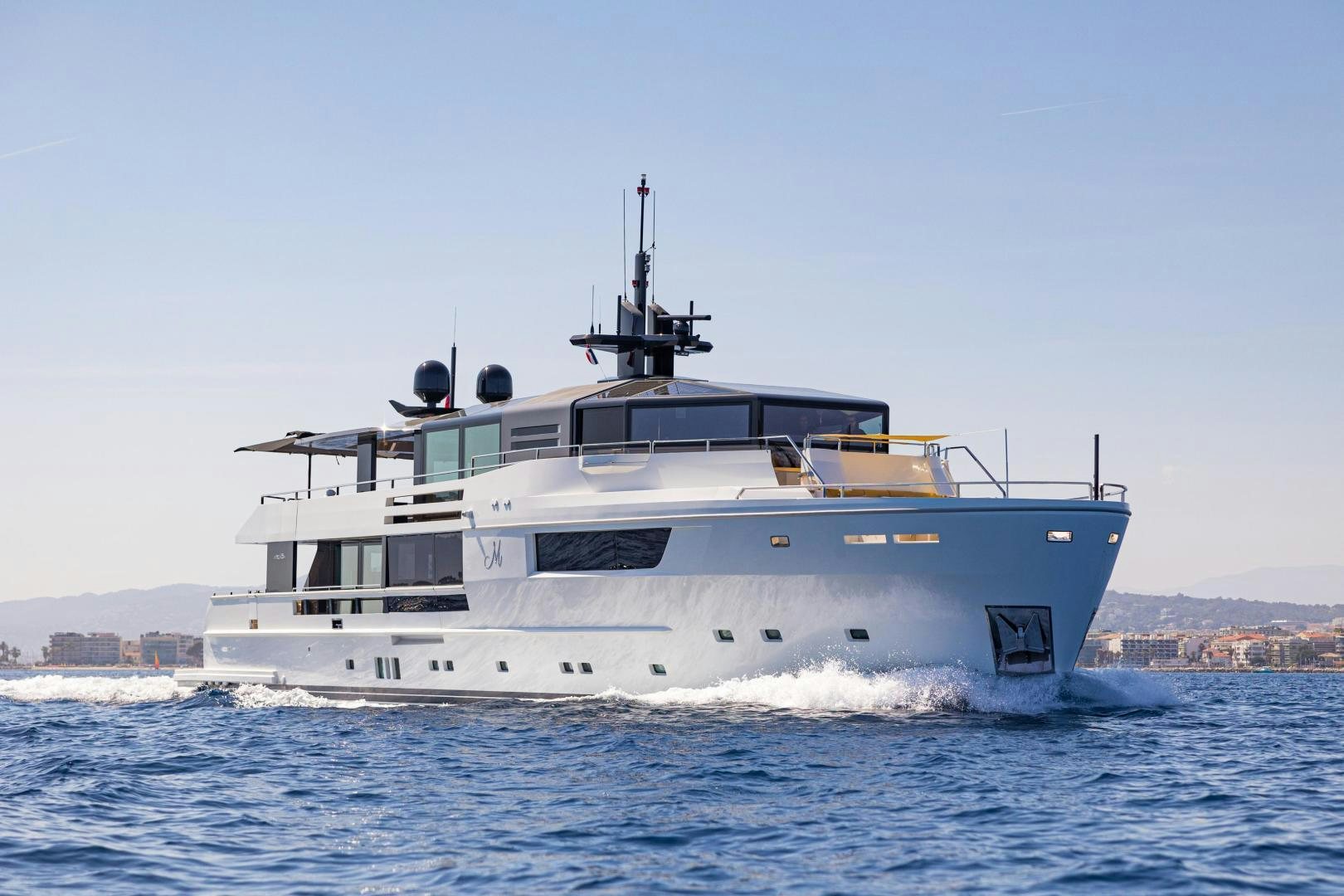

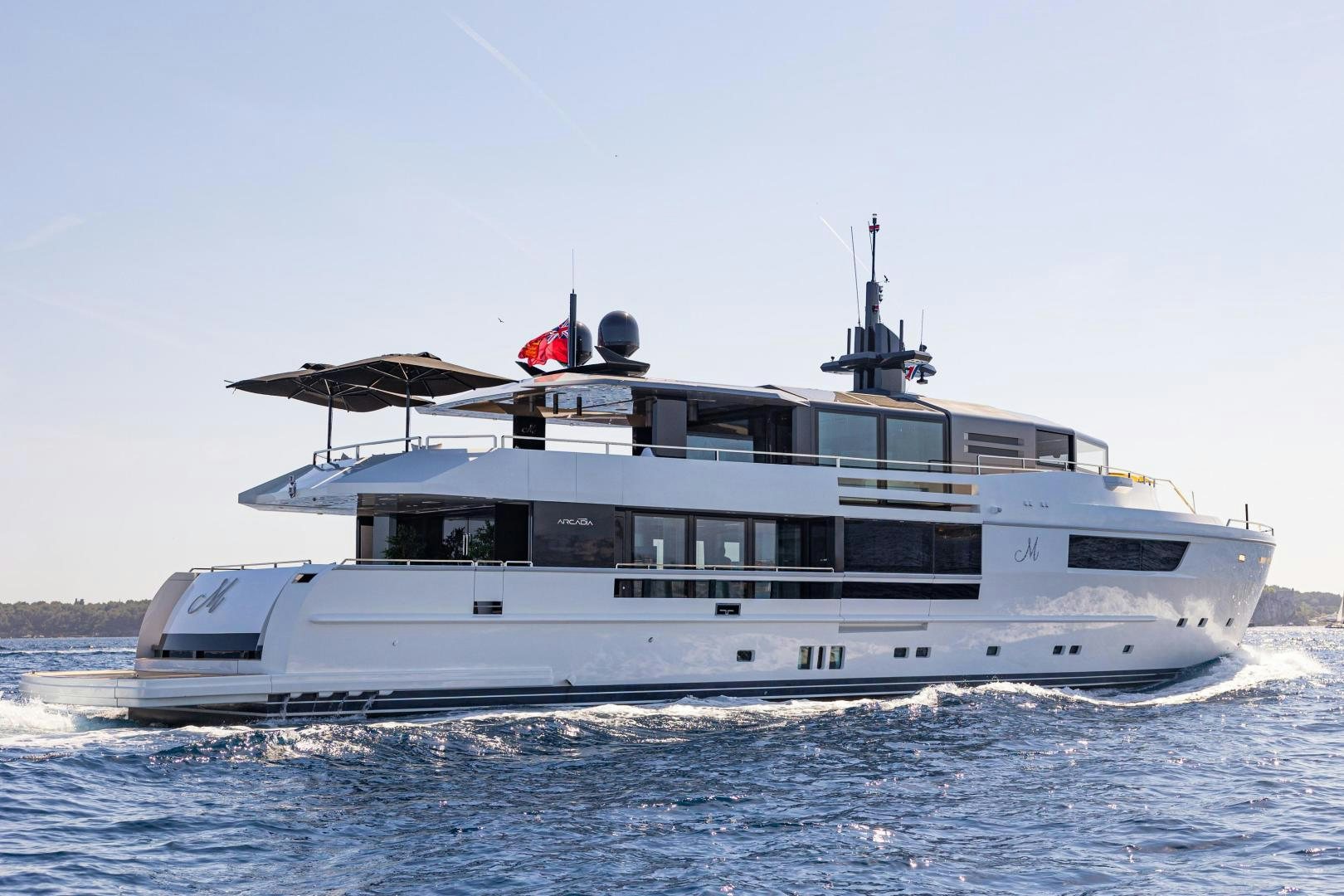

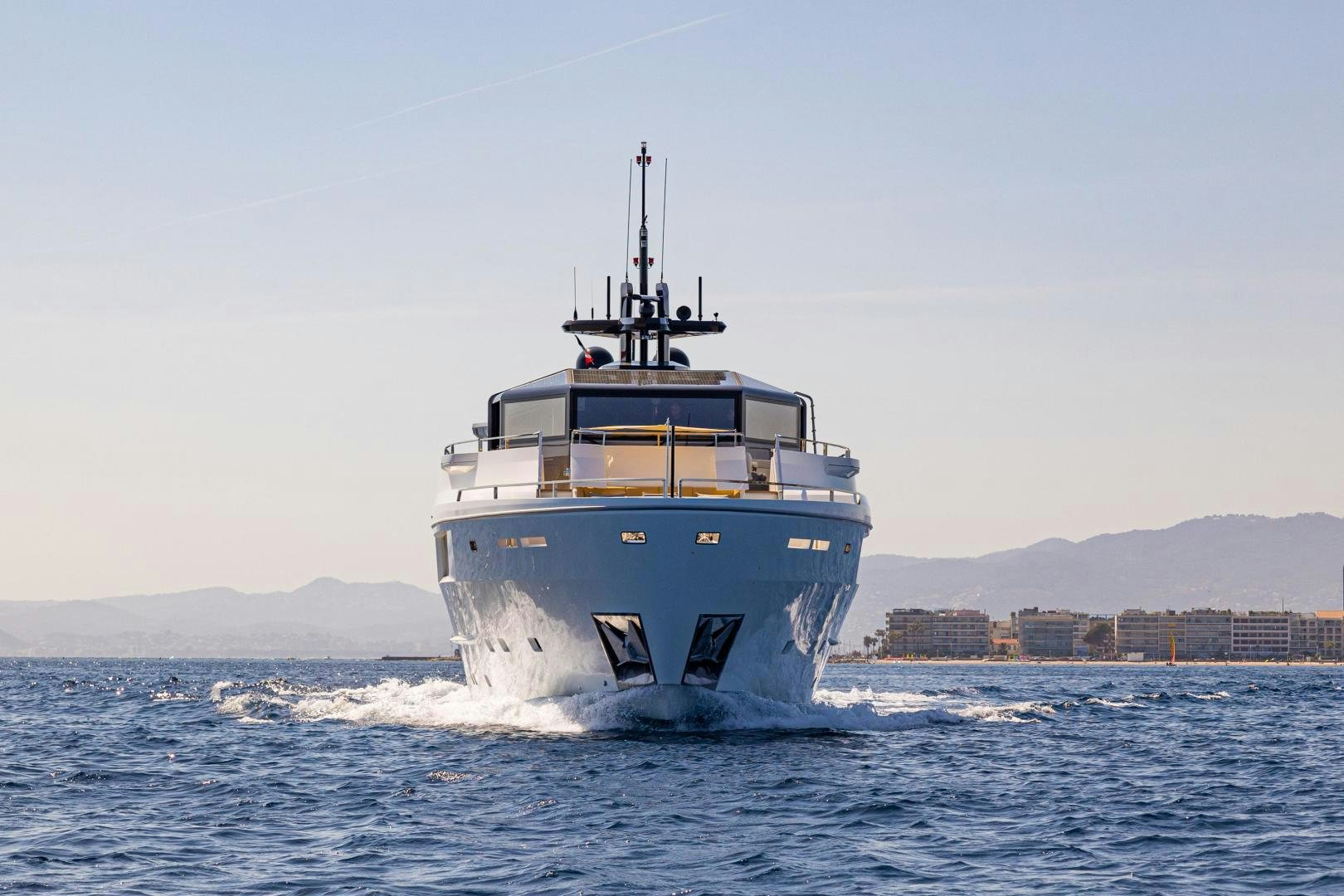

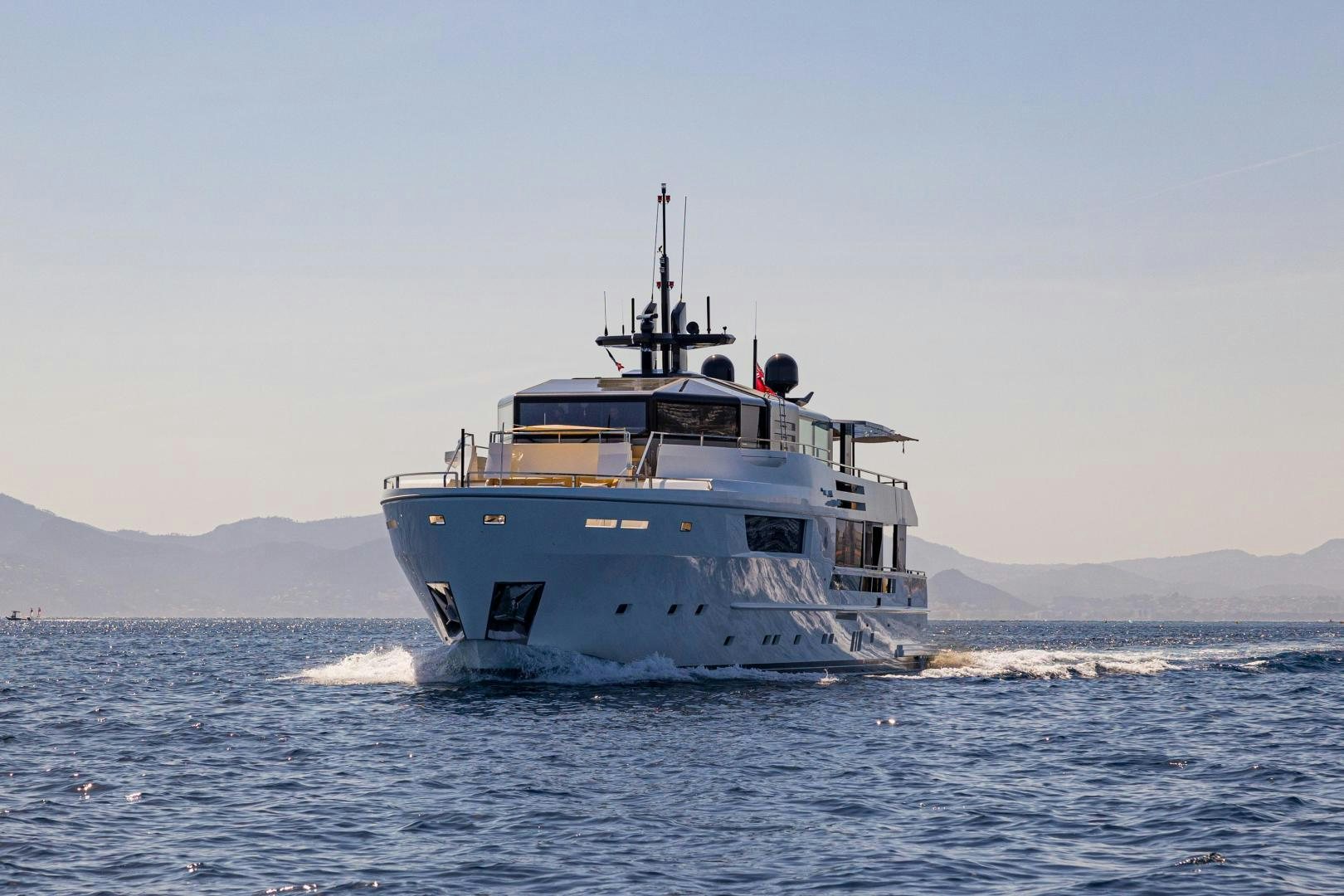

Built by renowned Italian yacht builder Arcadia, with designs by Francesco Guida, M is a vessel built to maximize light and sense of space. She is a unique yacht focusing on economic capabilities featuring efficient engines and solar panels to provide additional charge to the batteries.

M’s zero-speed stabilizers ensure guest comfort both at anchor and underway. The luxury yacht benefited from an extensive shipyard period in 2021/2022, which included overhauling of her mechanical systems and a superstructure repaint. M’s robust exterior structure perfectly contrasts her light, bright and elegant interior.

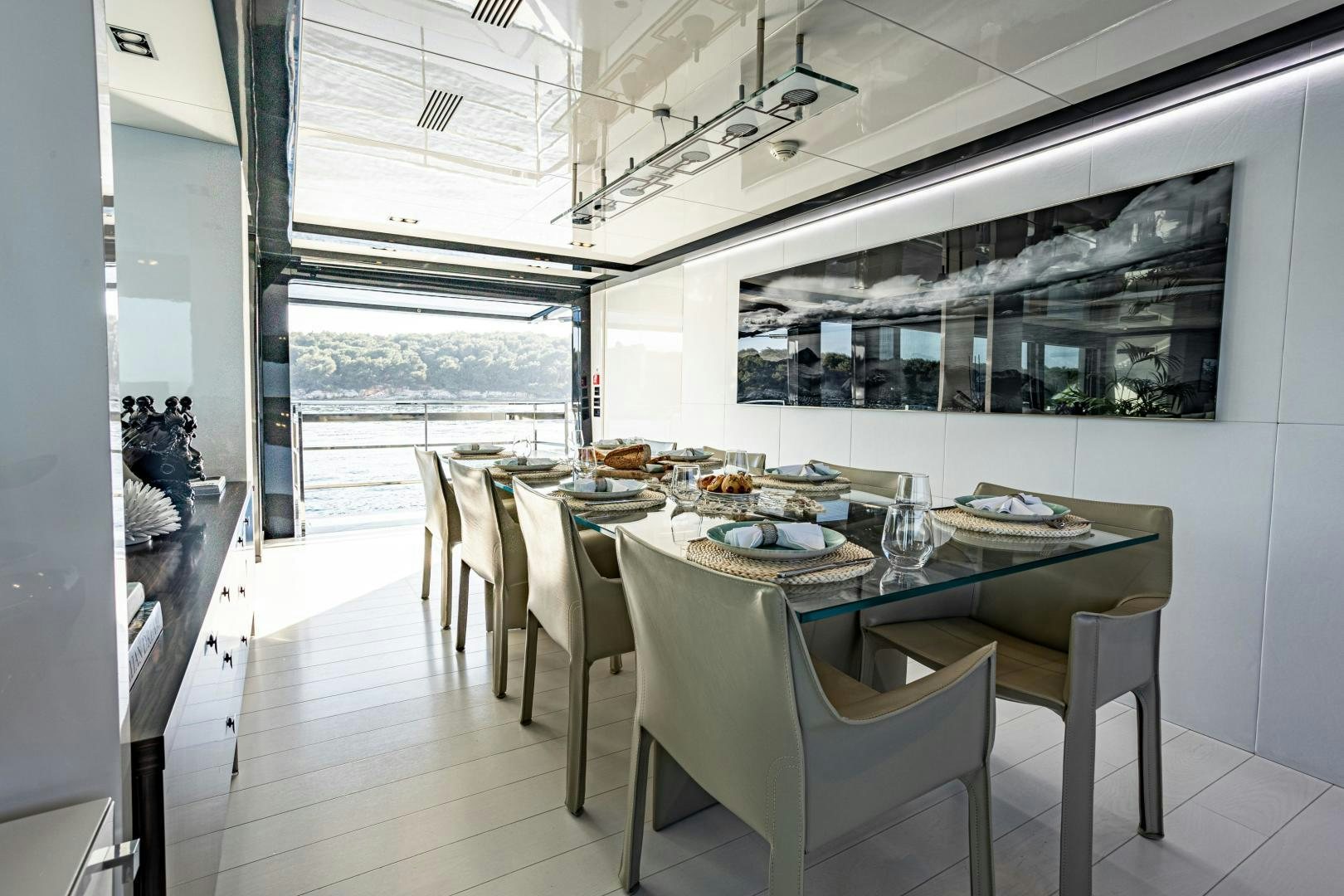

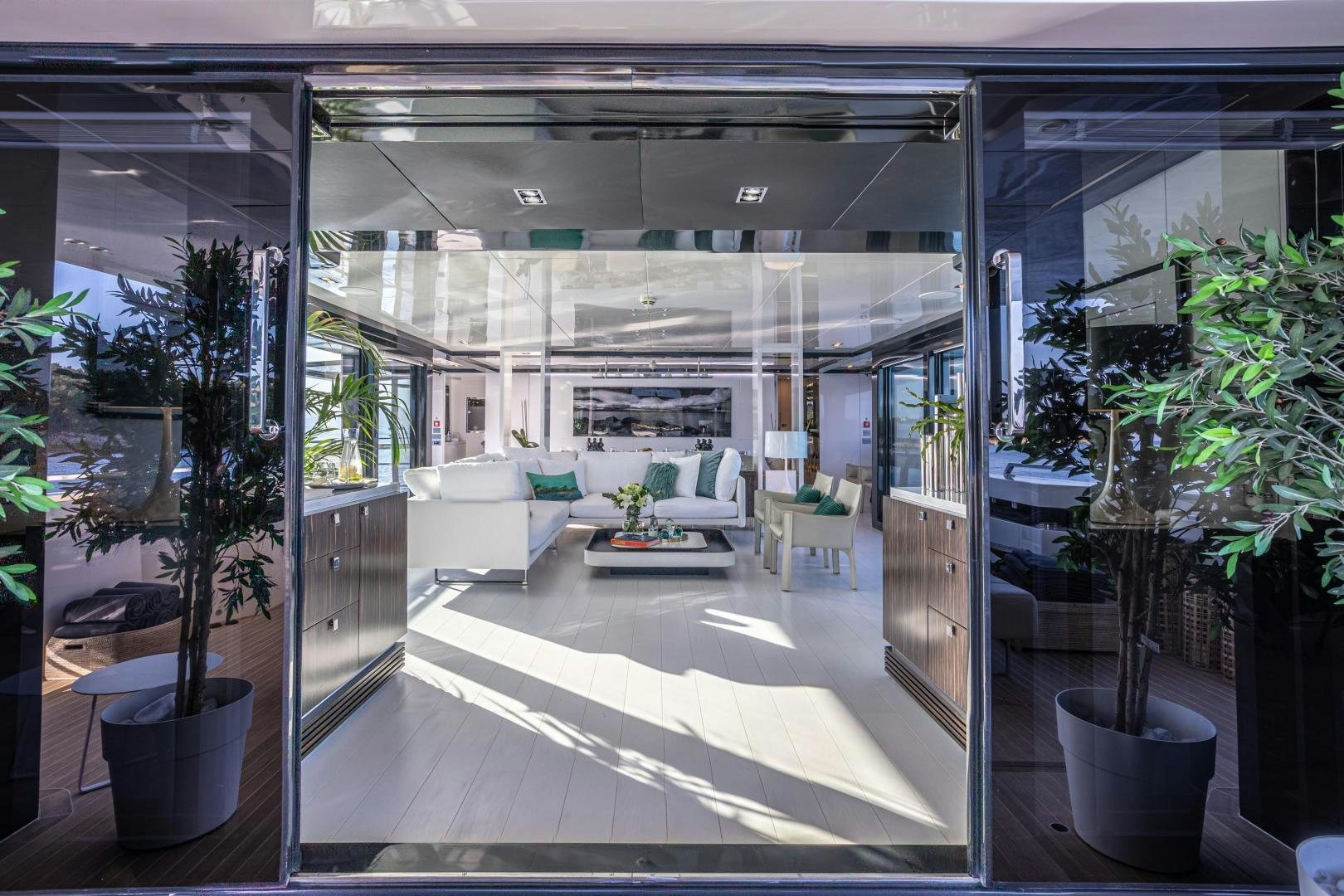

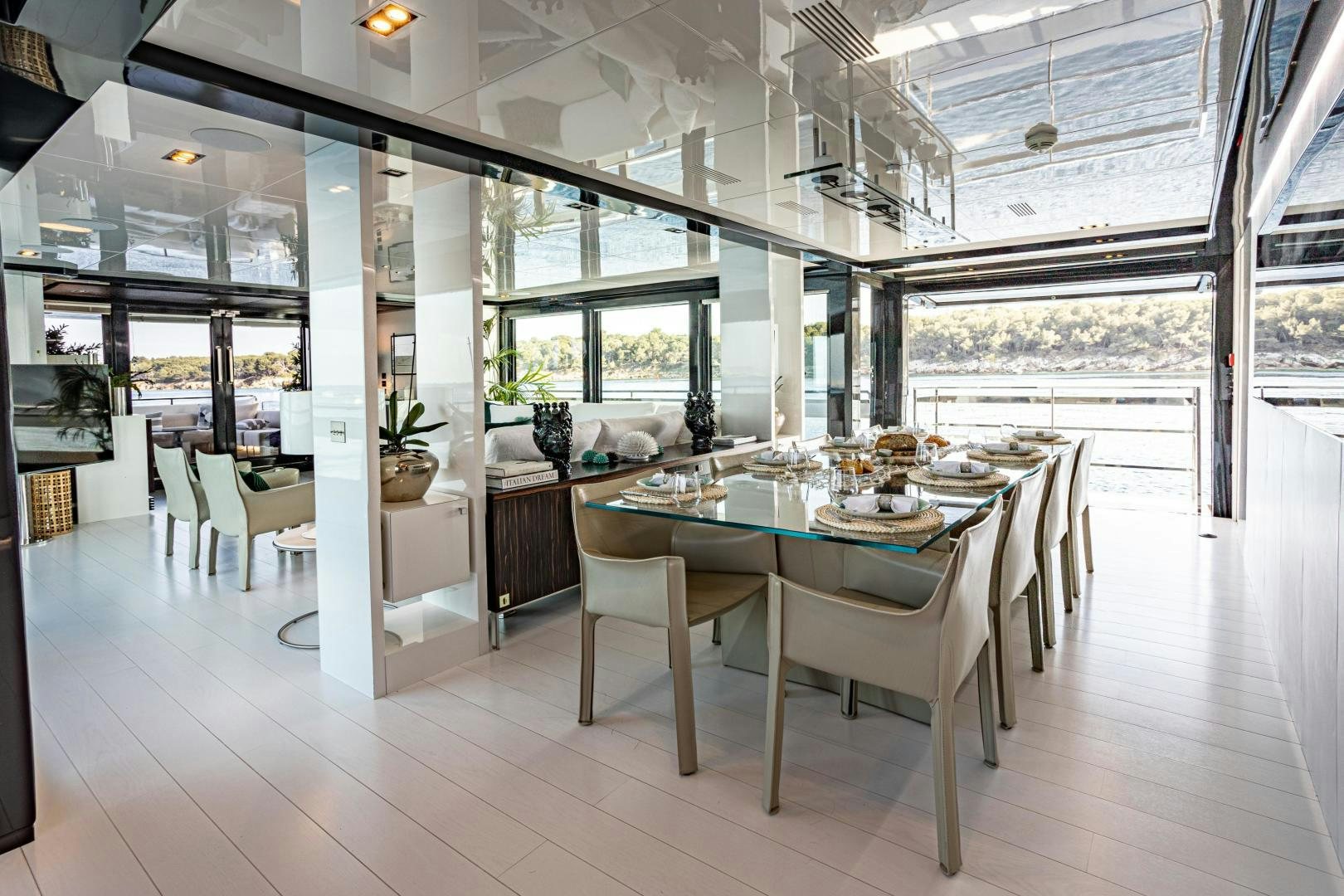

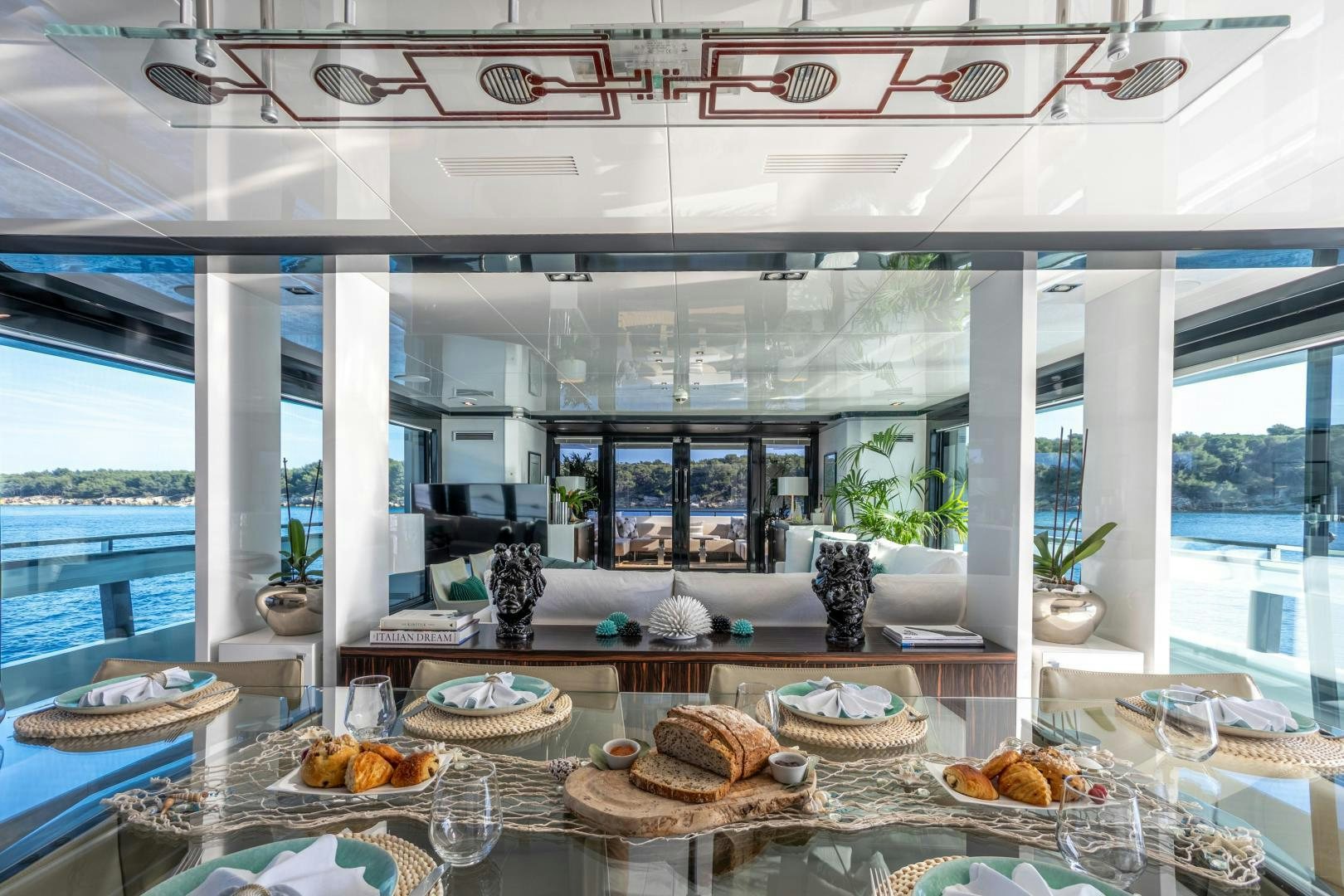

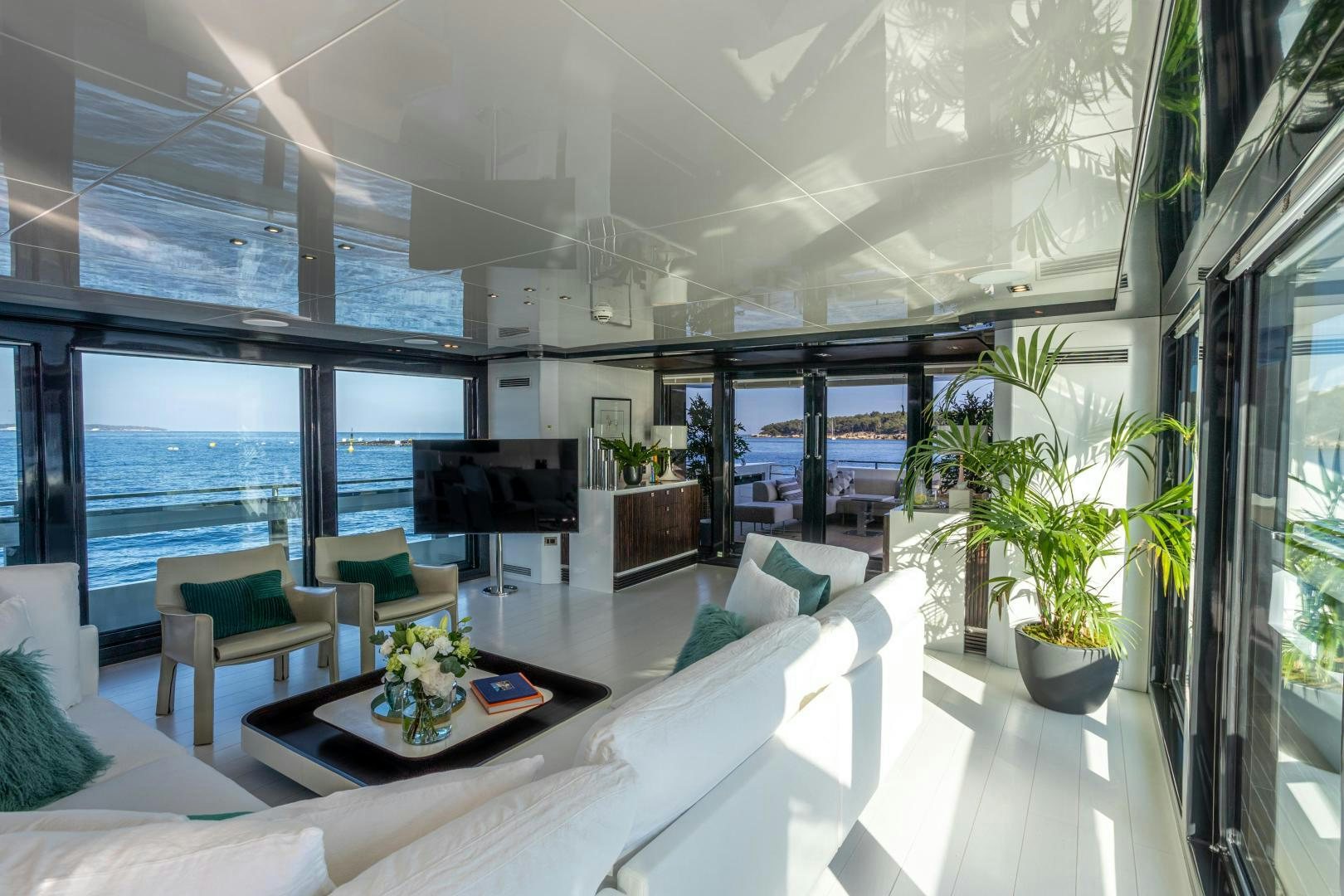

The floor-to-ceiling windows surrounding M’s main salon and 12-person formal dining area offer front-row views of the passing scenery, while the opening balconies on either side allow guests to feel one with the sea. The white, glossy ceiling compliments the influx of light and adds a feeling of spaciousness.

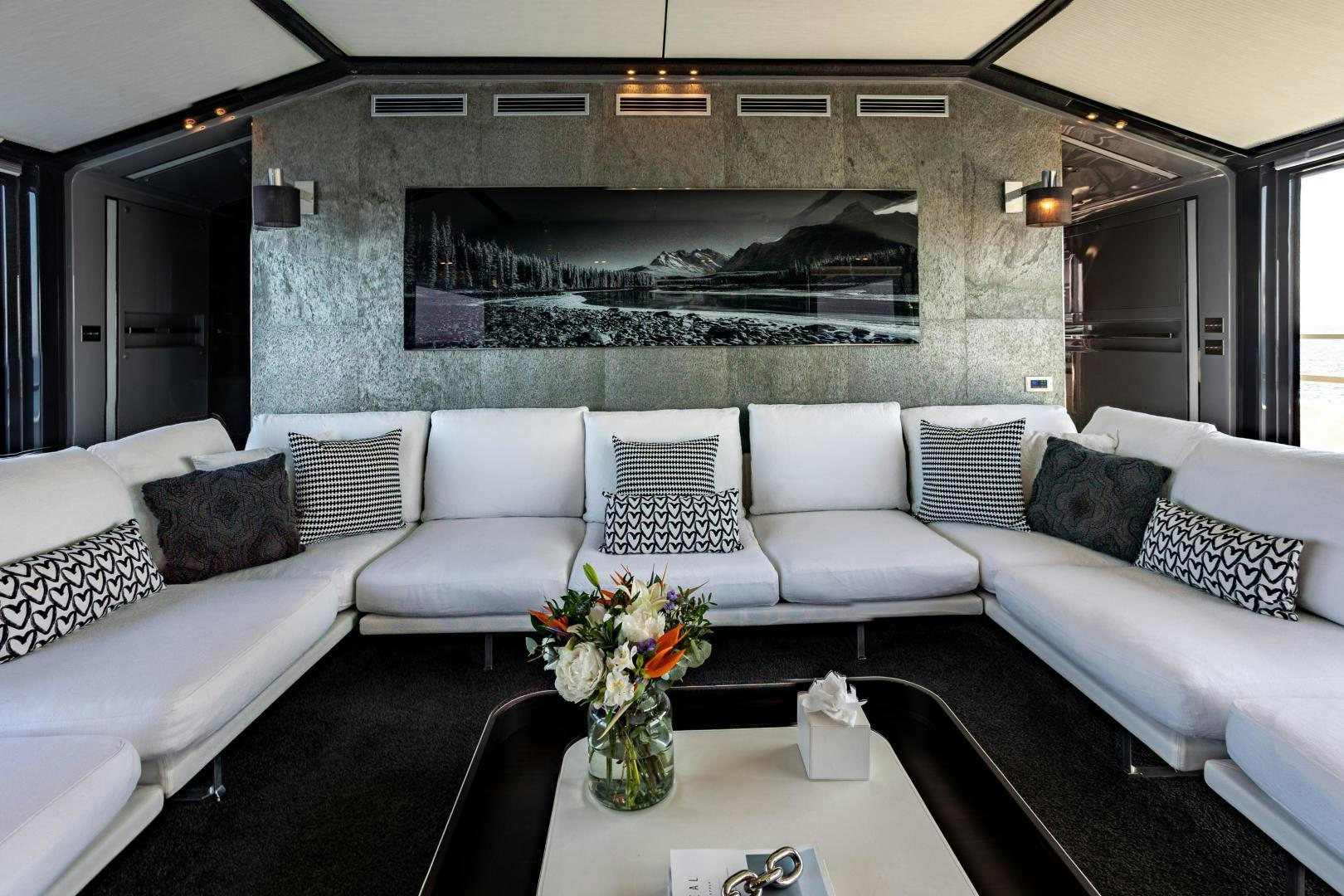

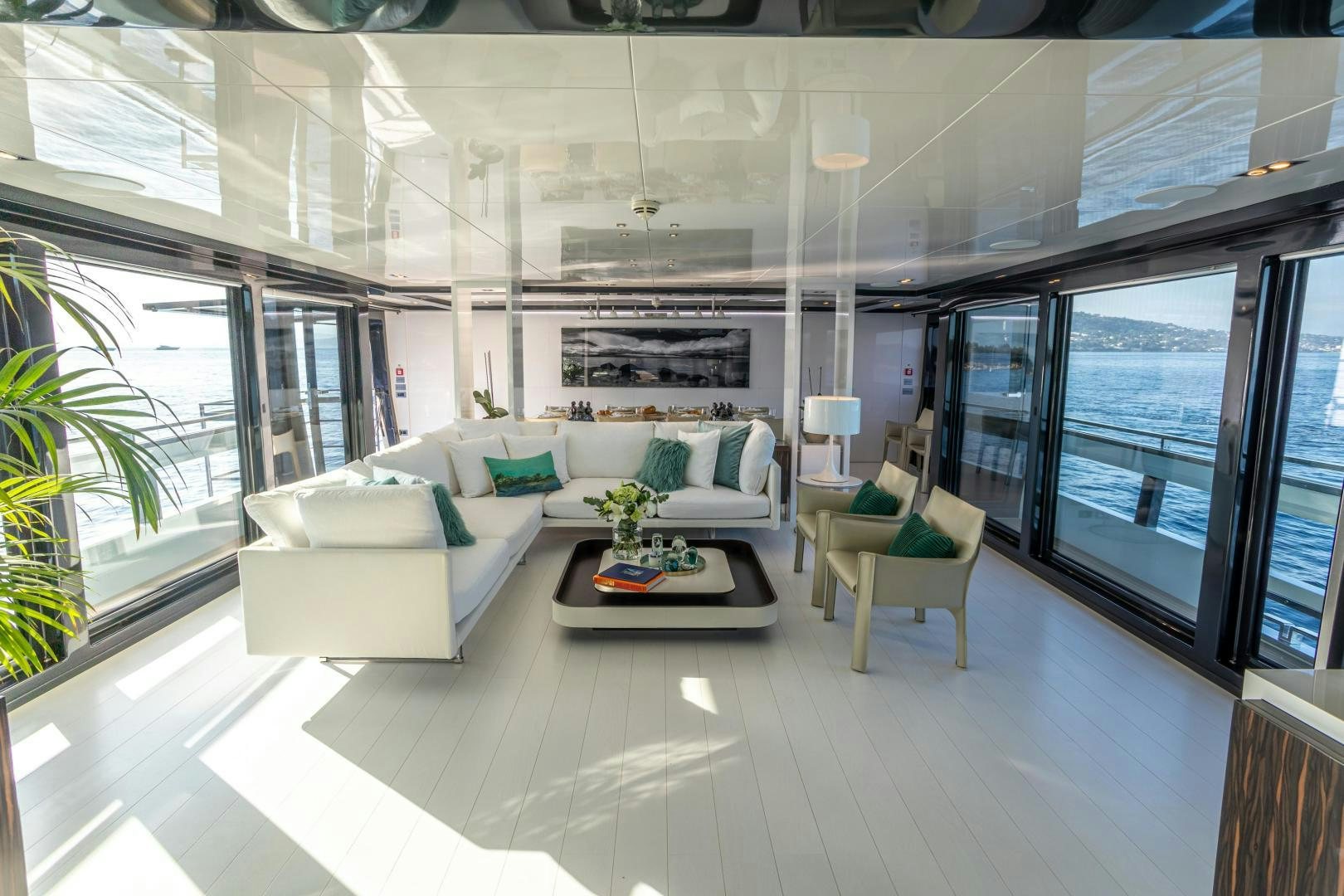

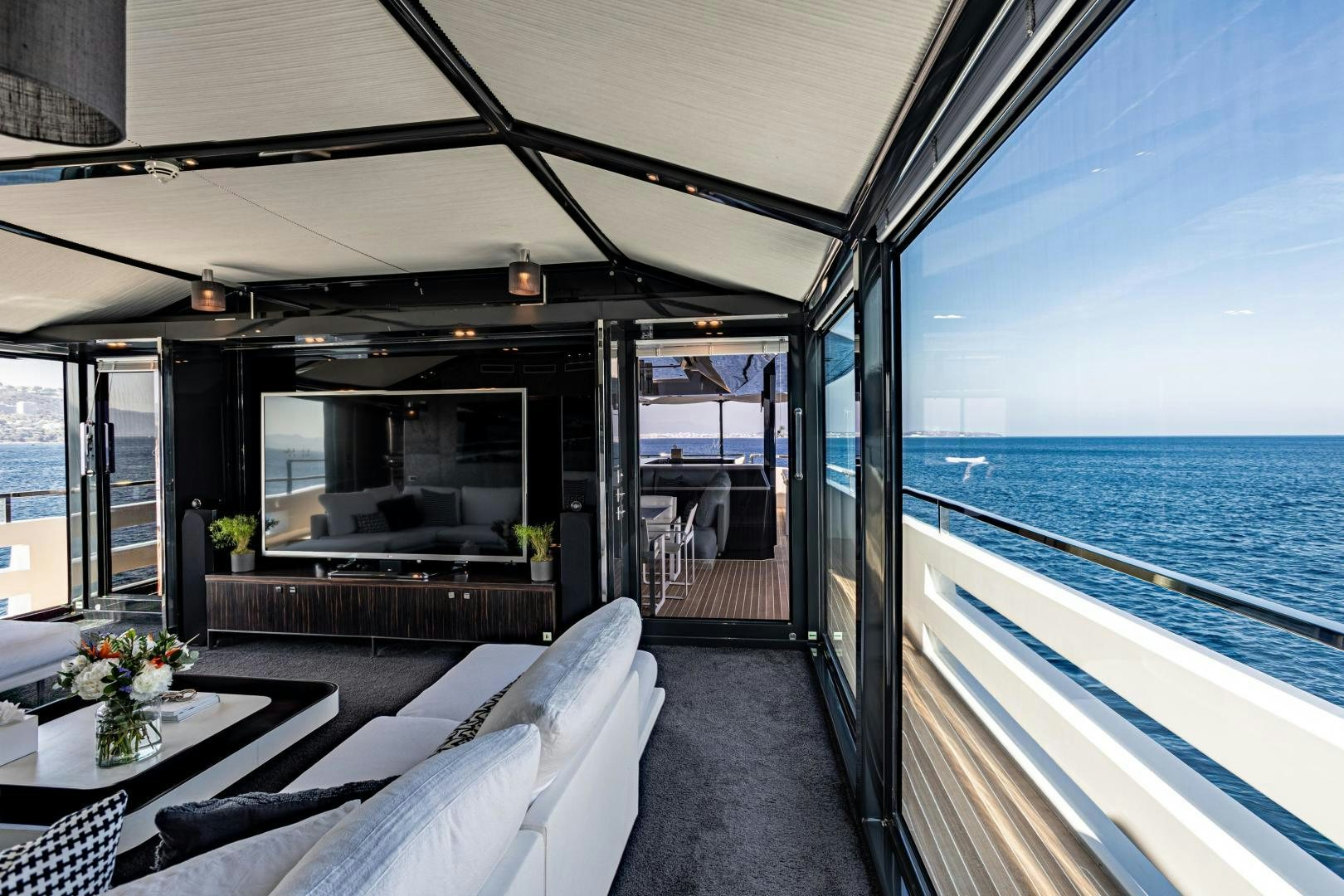

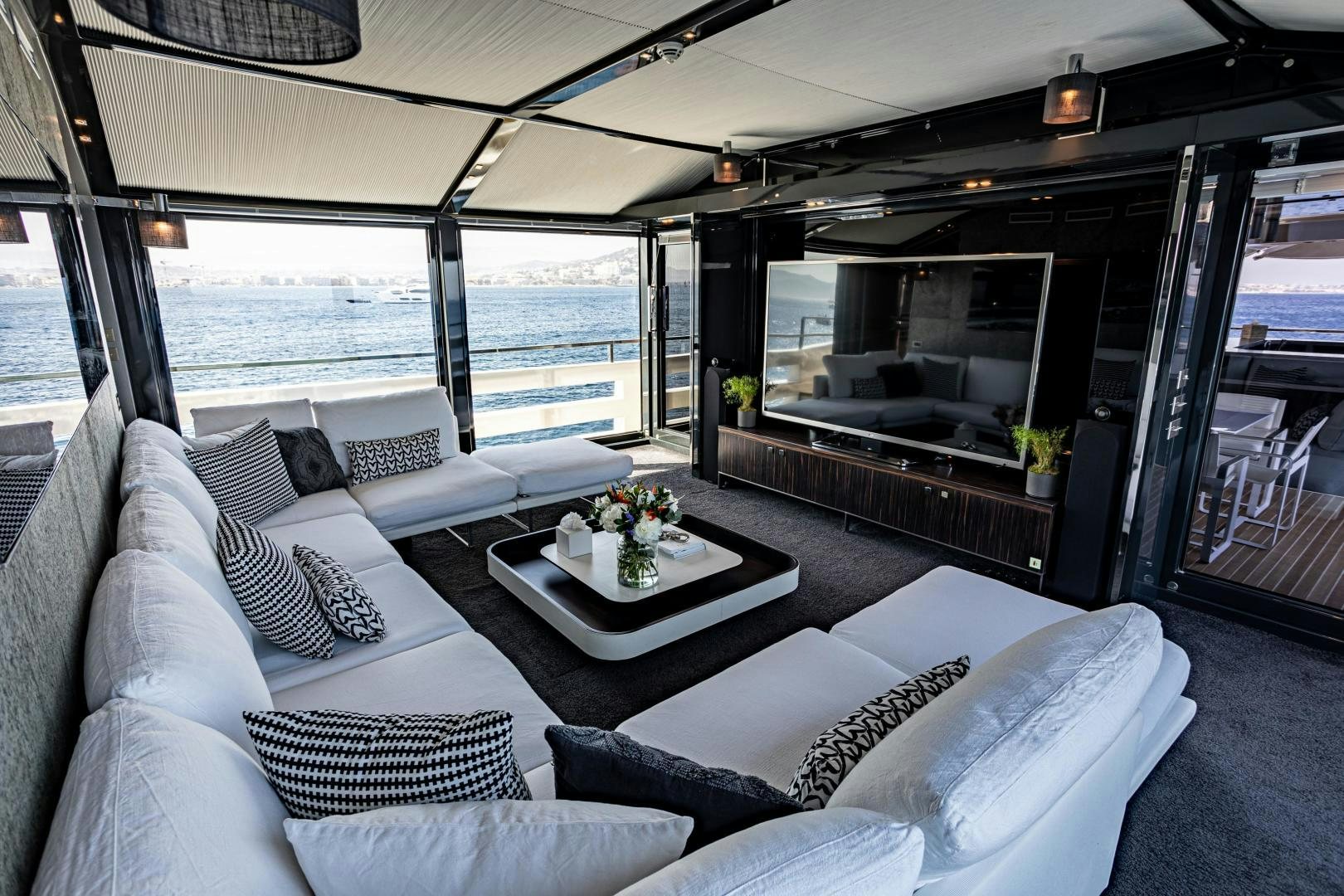

The yacht’s skylounge is impressive, with high glass ceilings that can be covered for shade or opened for a panoramic view of the sky. The space is surrounded by windows, giving the illusion of being entirely alfresco when all the shades are drawn. The large U-shaped sofa is a cozy place for guests to gather and enjoy a movie together. The yacht’s galley is located on the main deck, and an additional pantry can be found just off the skylounge.

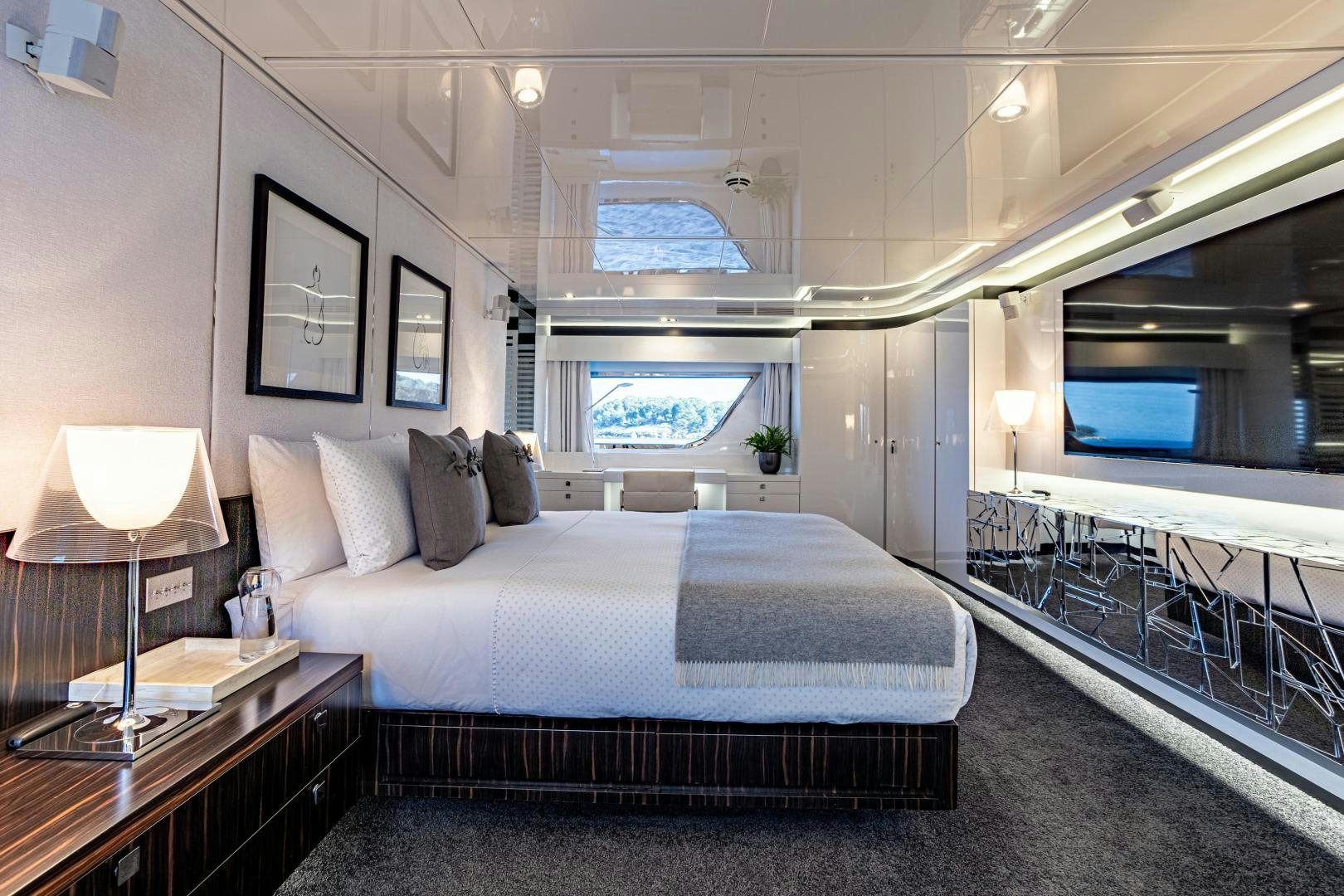

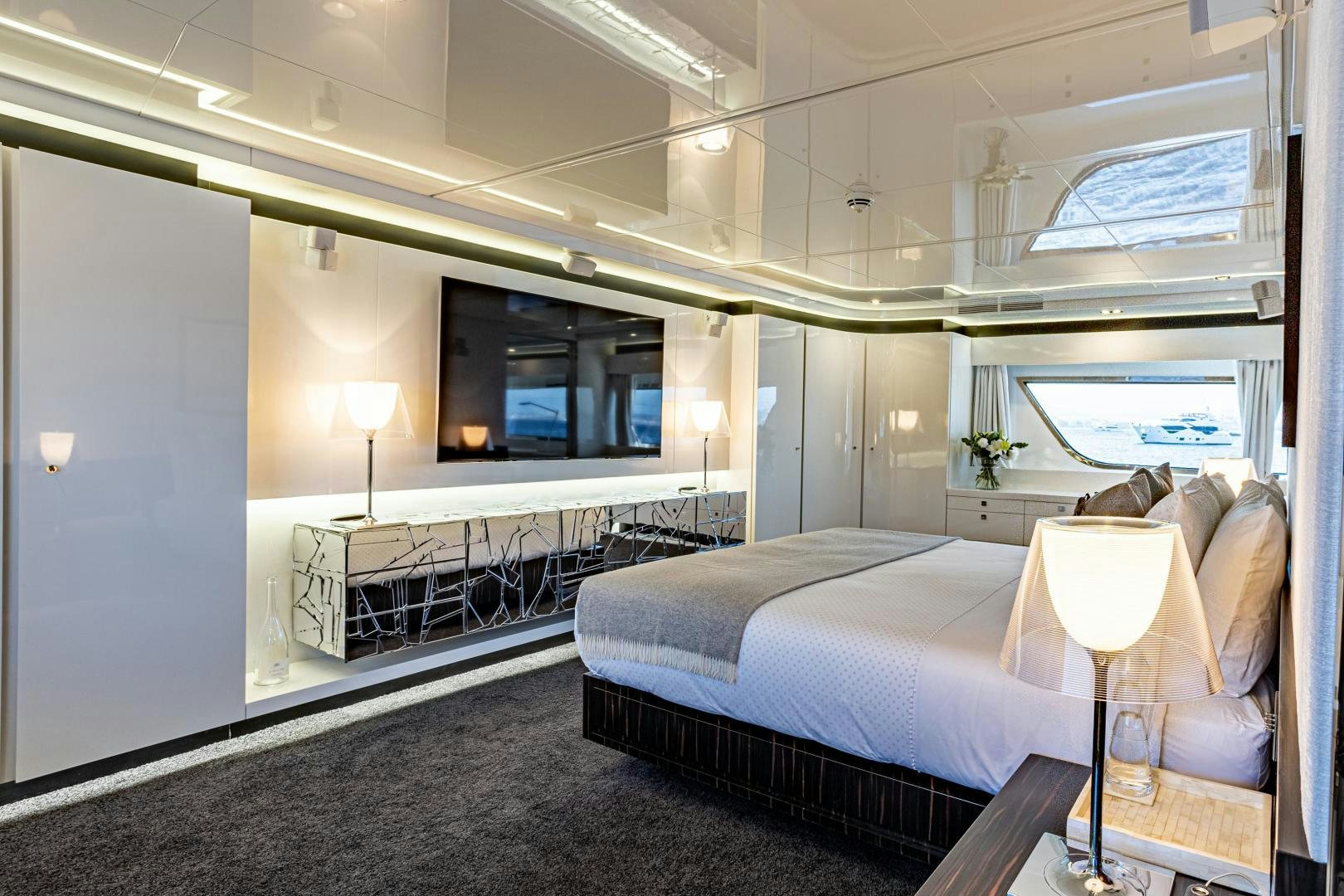

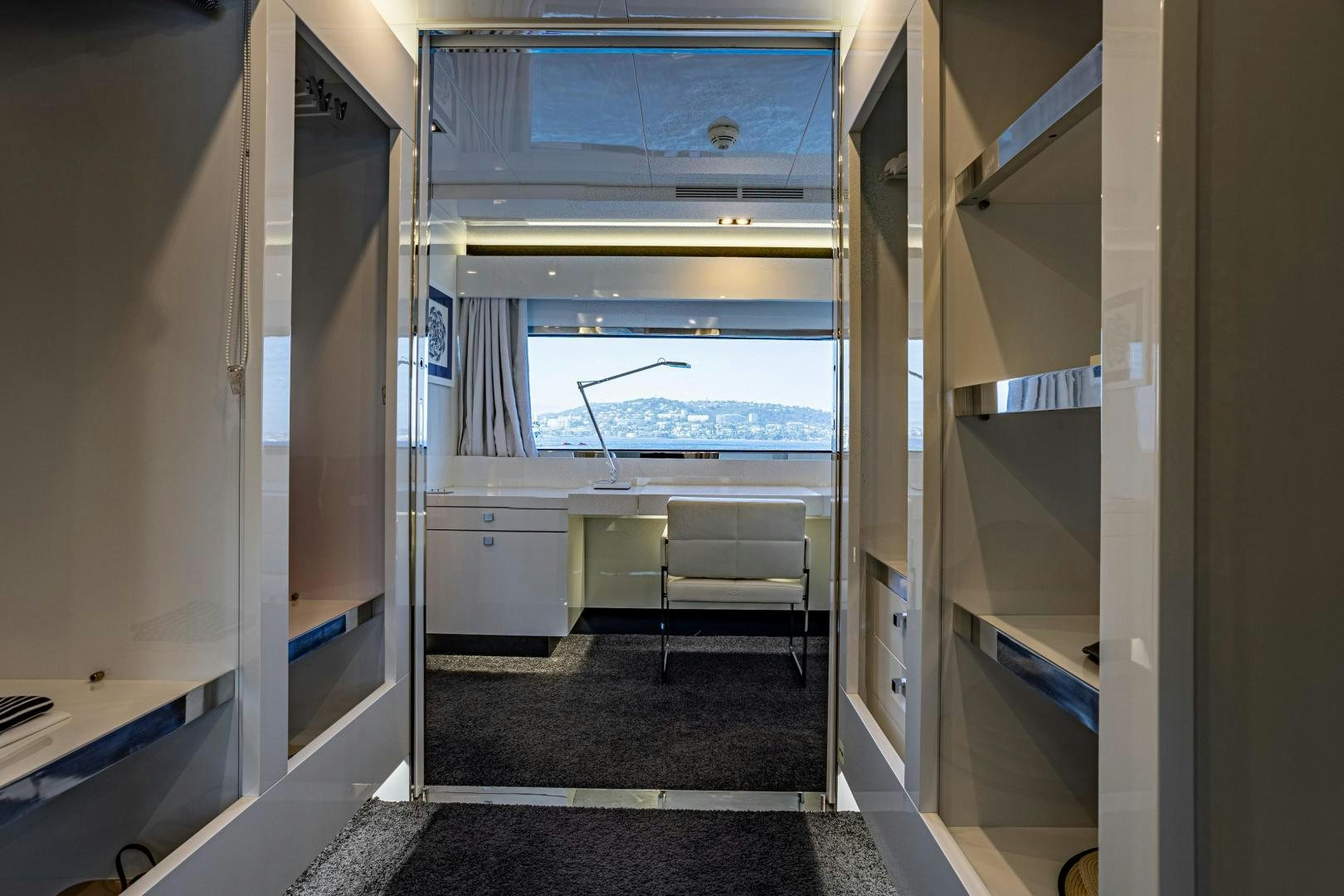

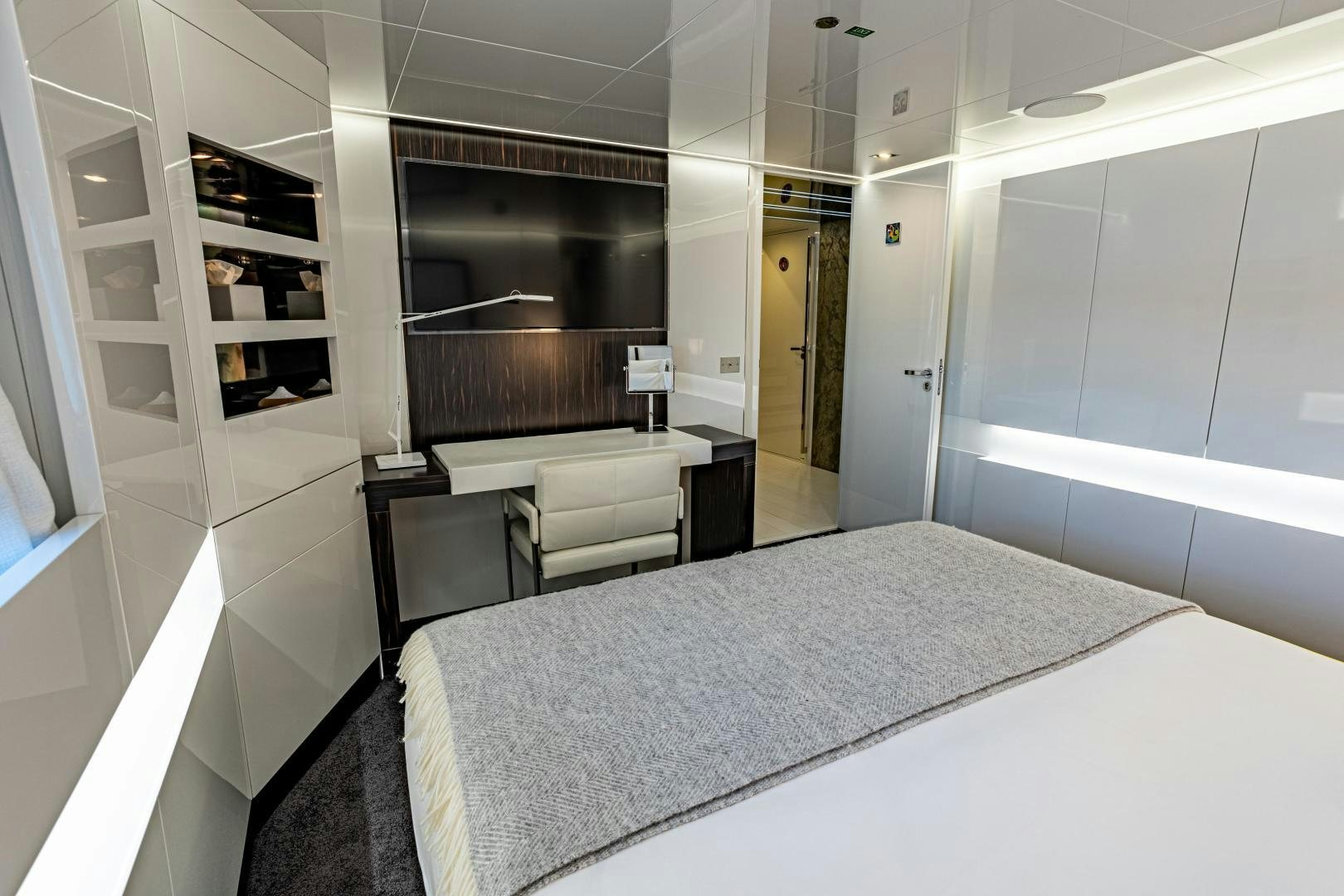

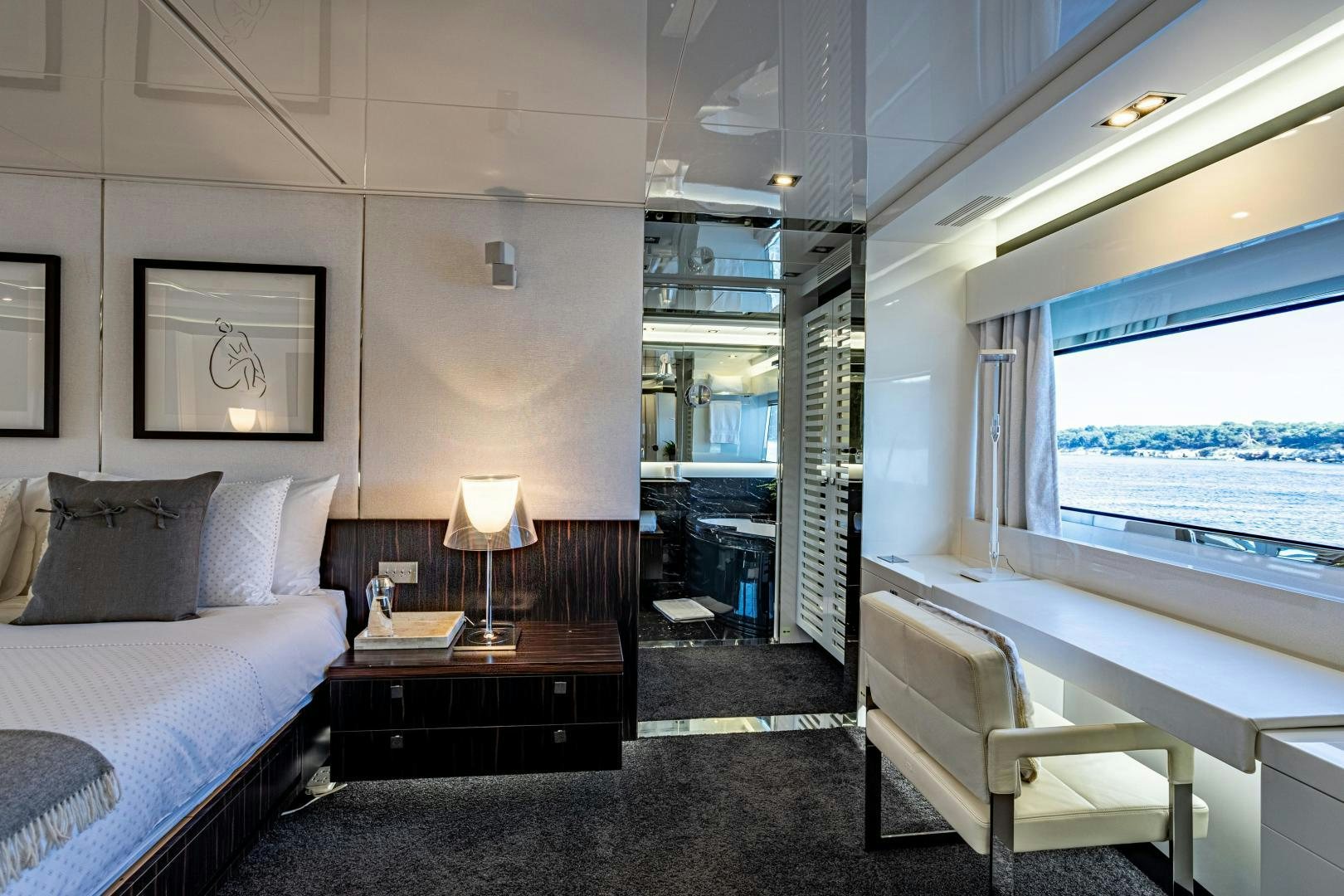

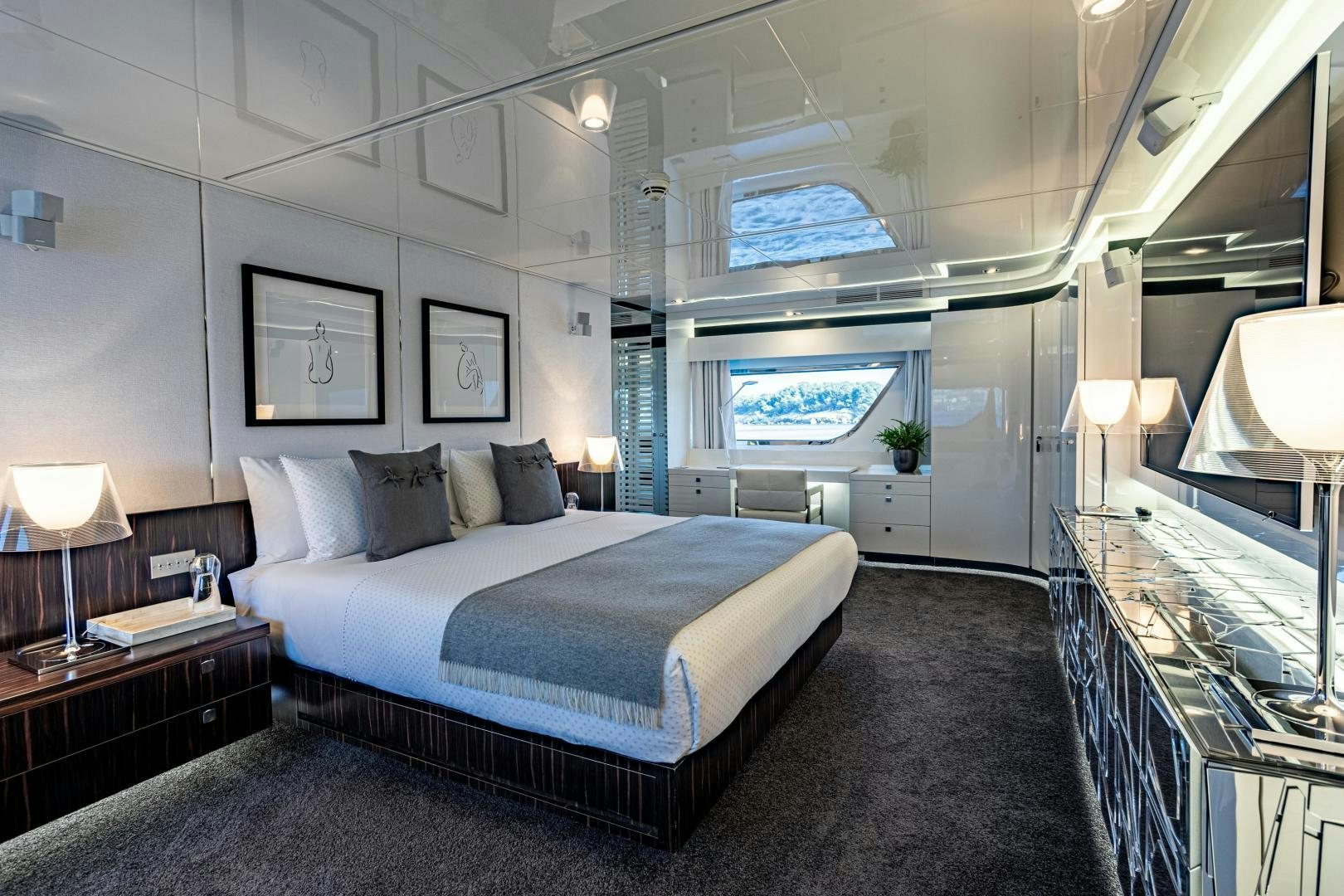

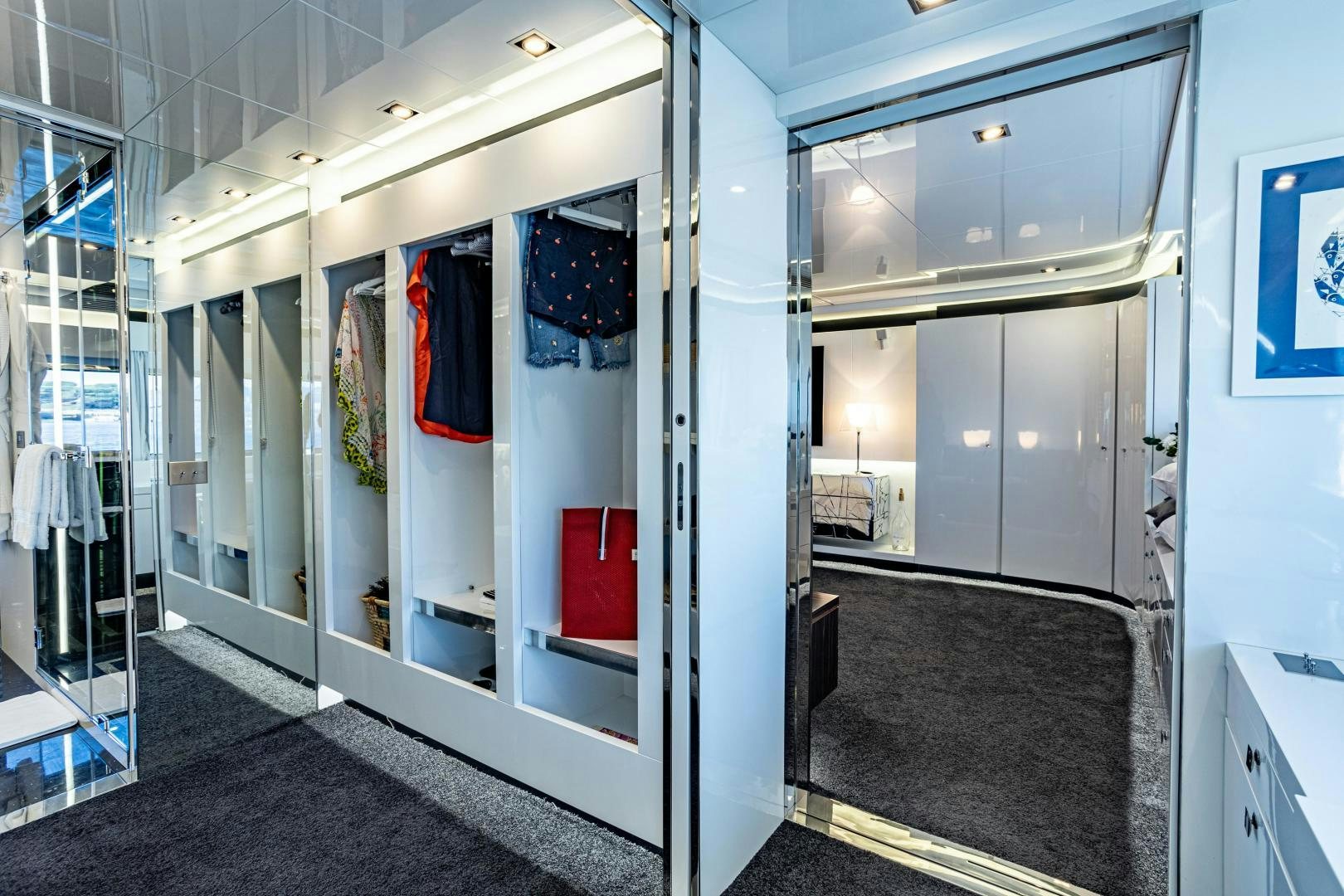

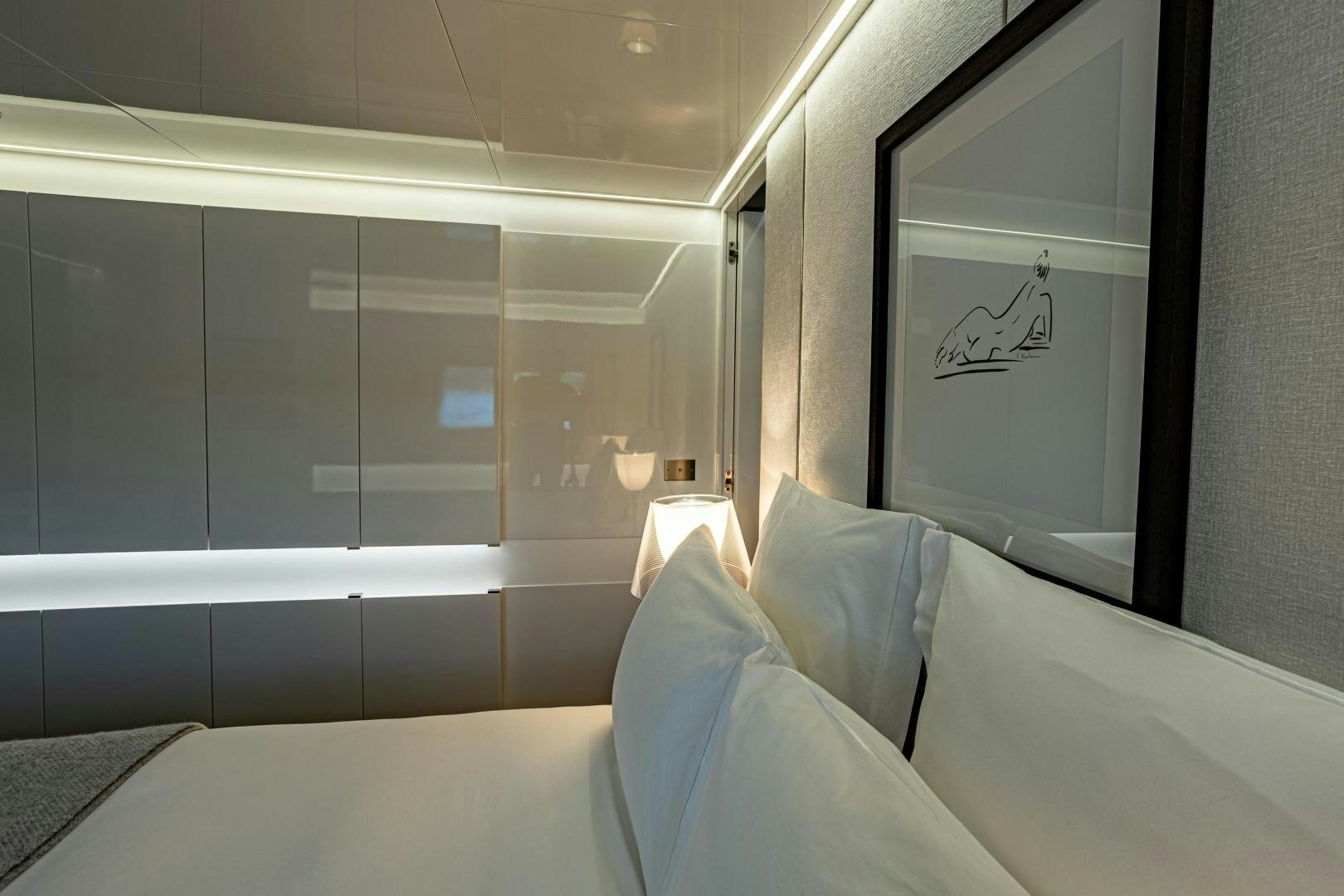

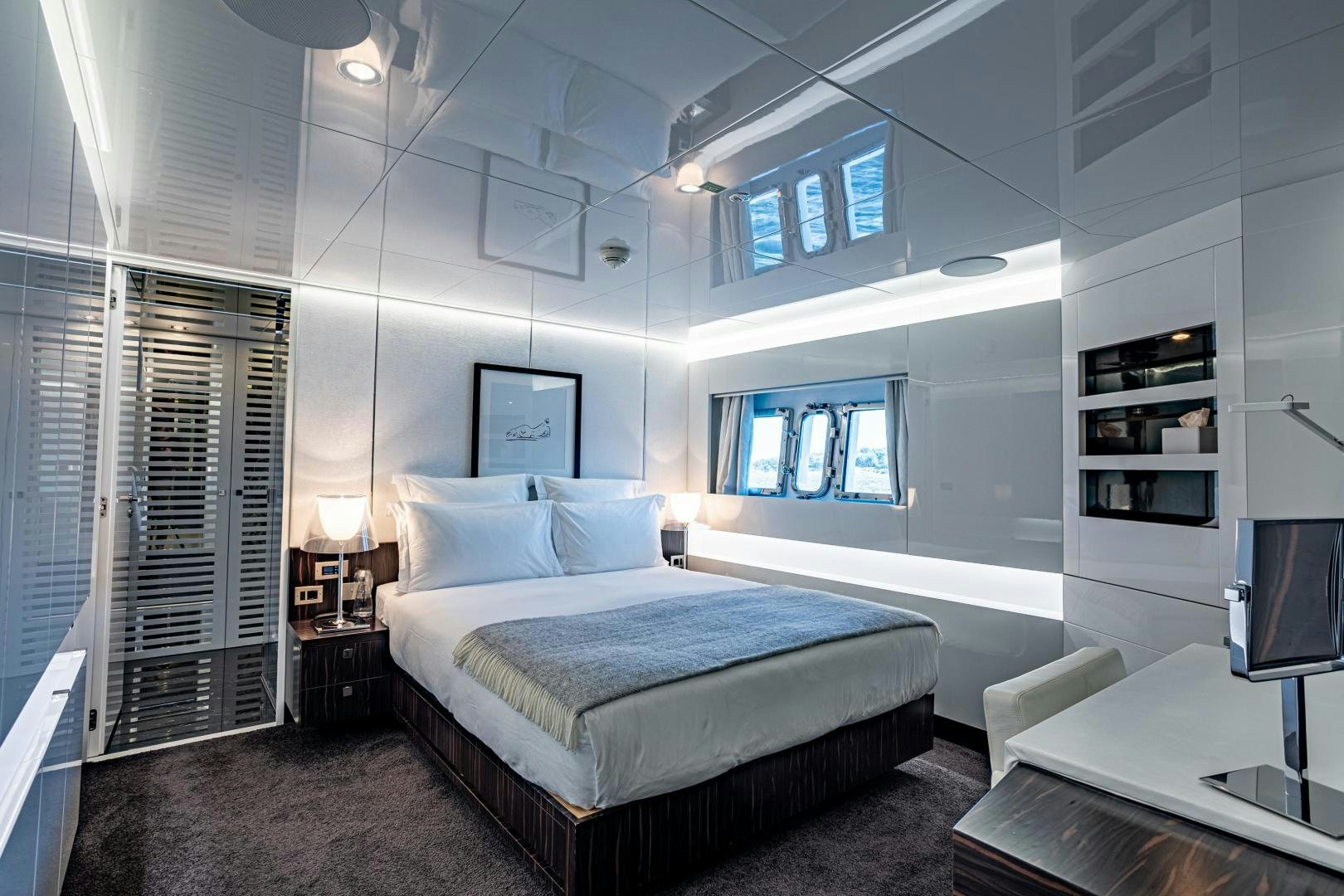

M welcomes 10 guests in five ultra-chic staterooms and eight crewmembers in five well-appointed crew cabins. The main-deck master suite is full-beam with a king-size bed, private study area and full walk-in wardrobe. The modern aesthetic combines rich woods, mirrored furnishings, and a mix of natural and ambient lighting to create a refined space that feels like a private retreat. On the lower deck are four guest cabins, two VIP and two twin cabins, one of which can convert to a double.

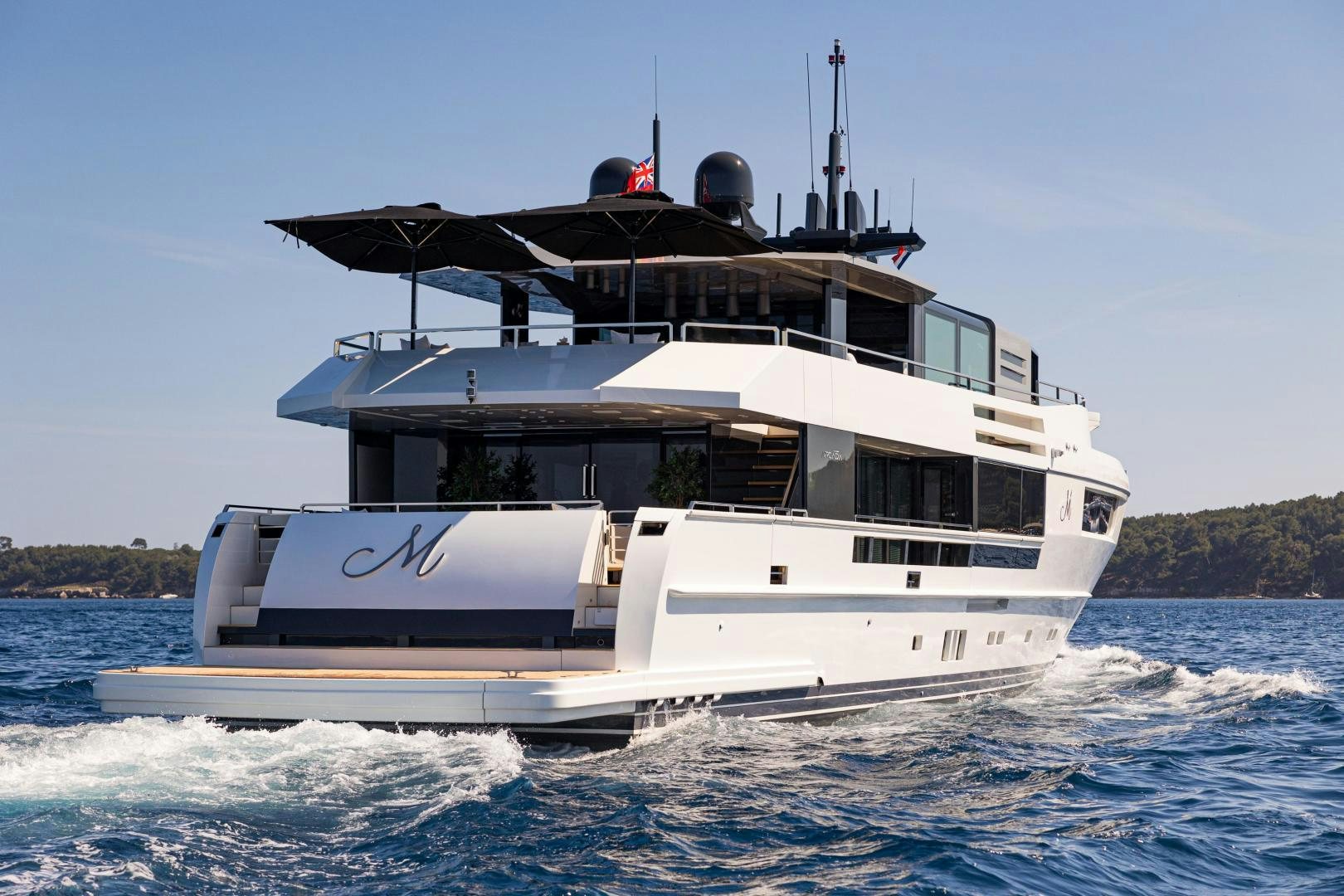

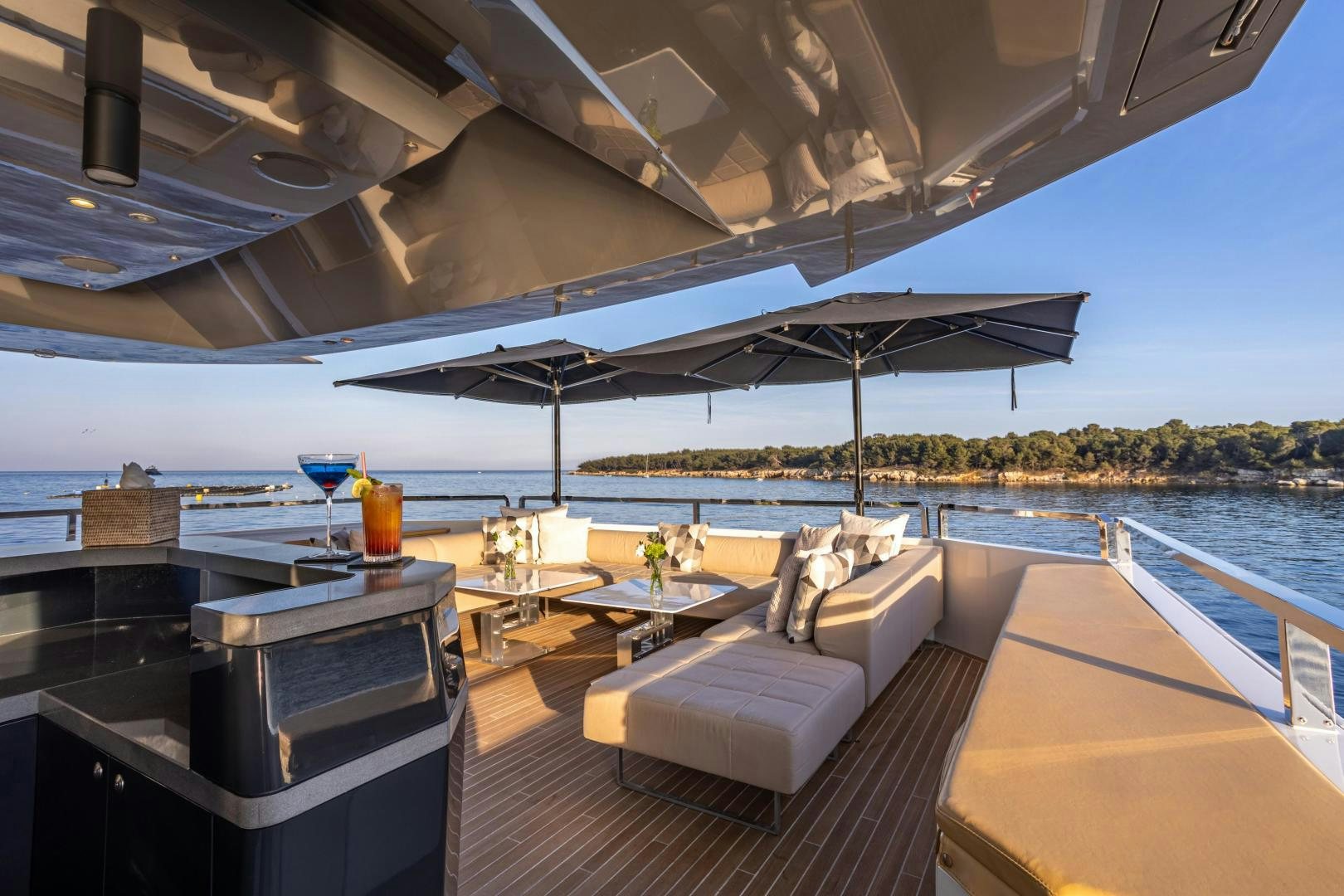

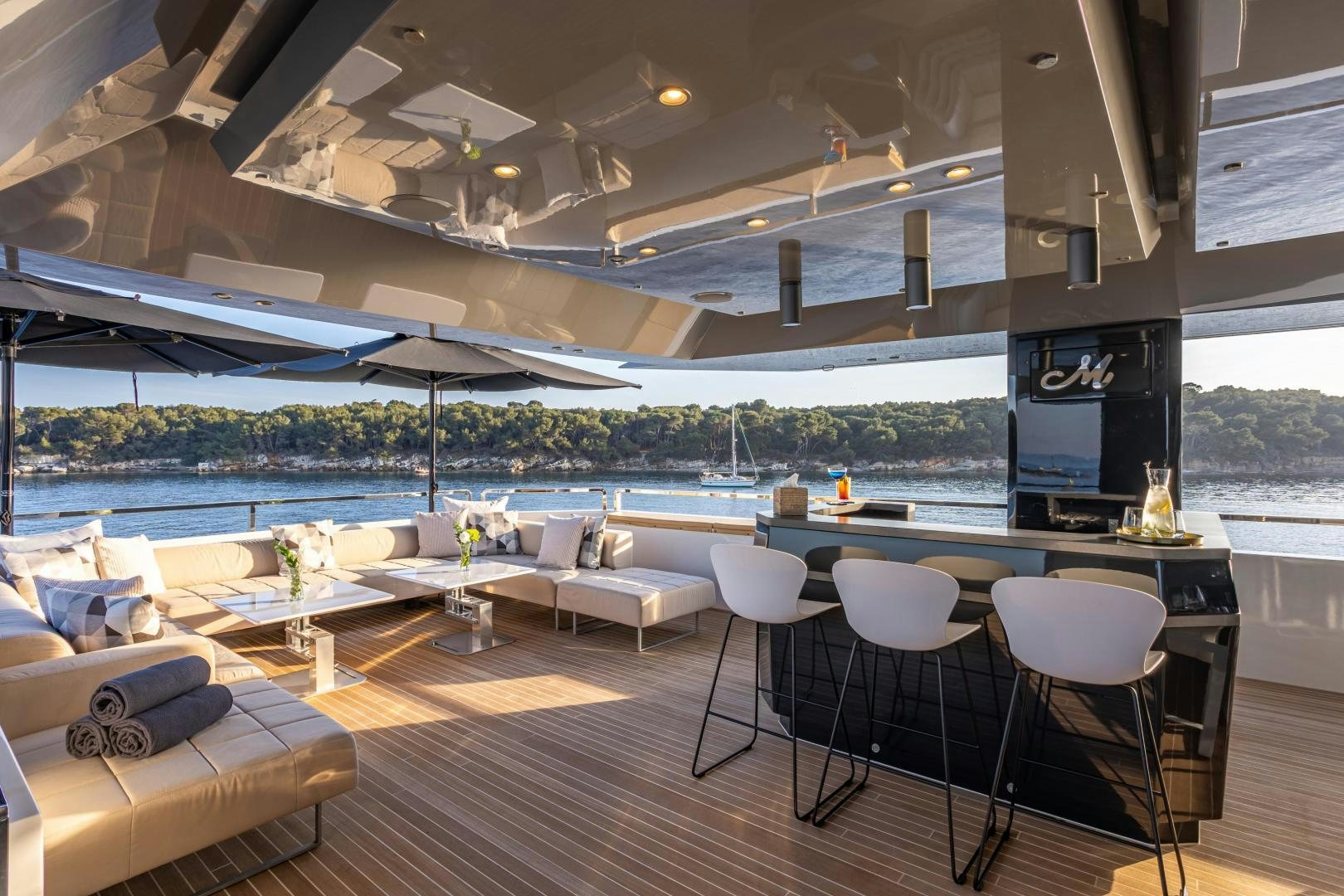

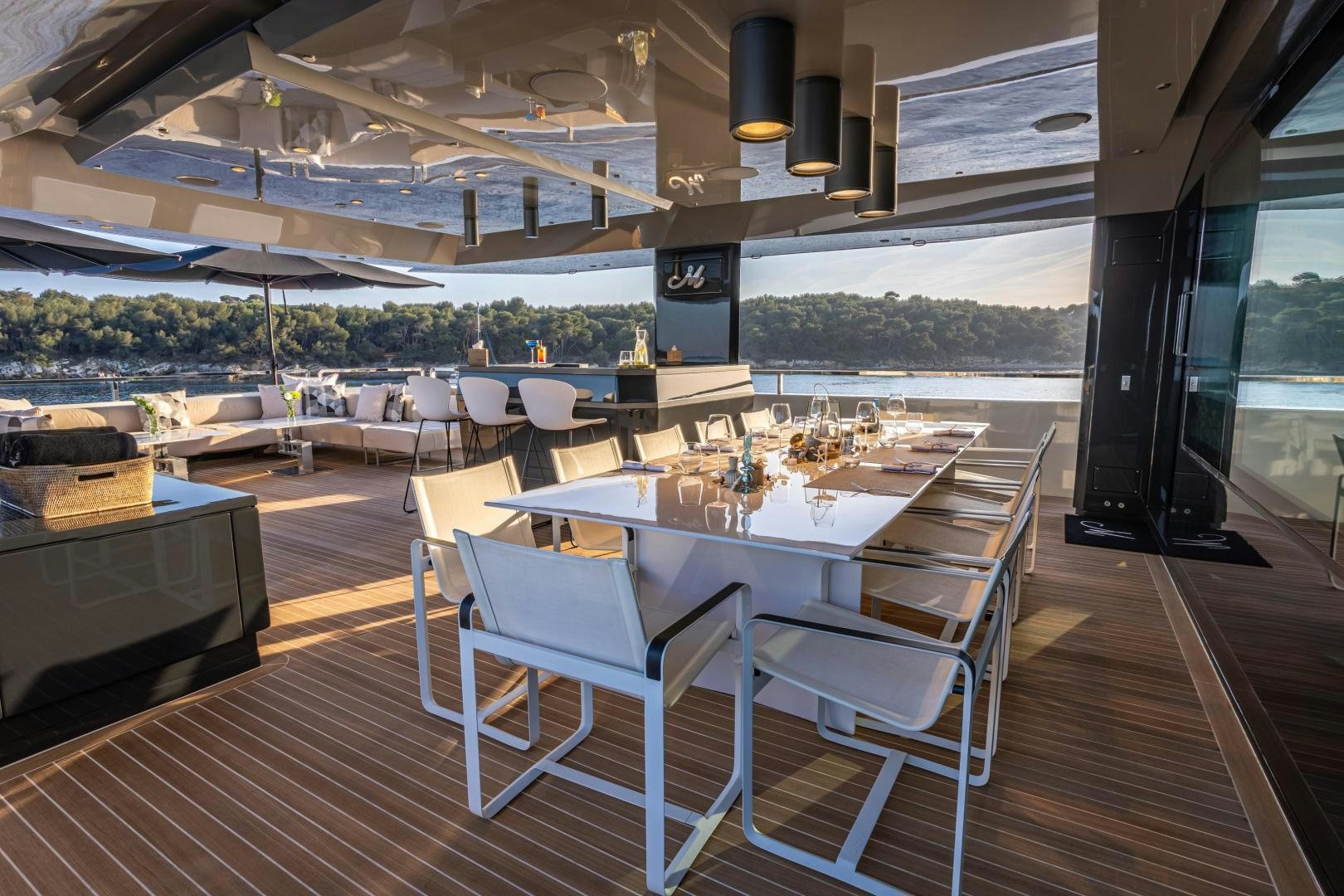

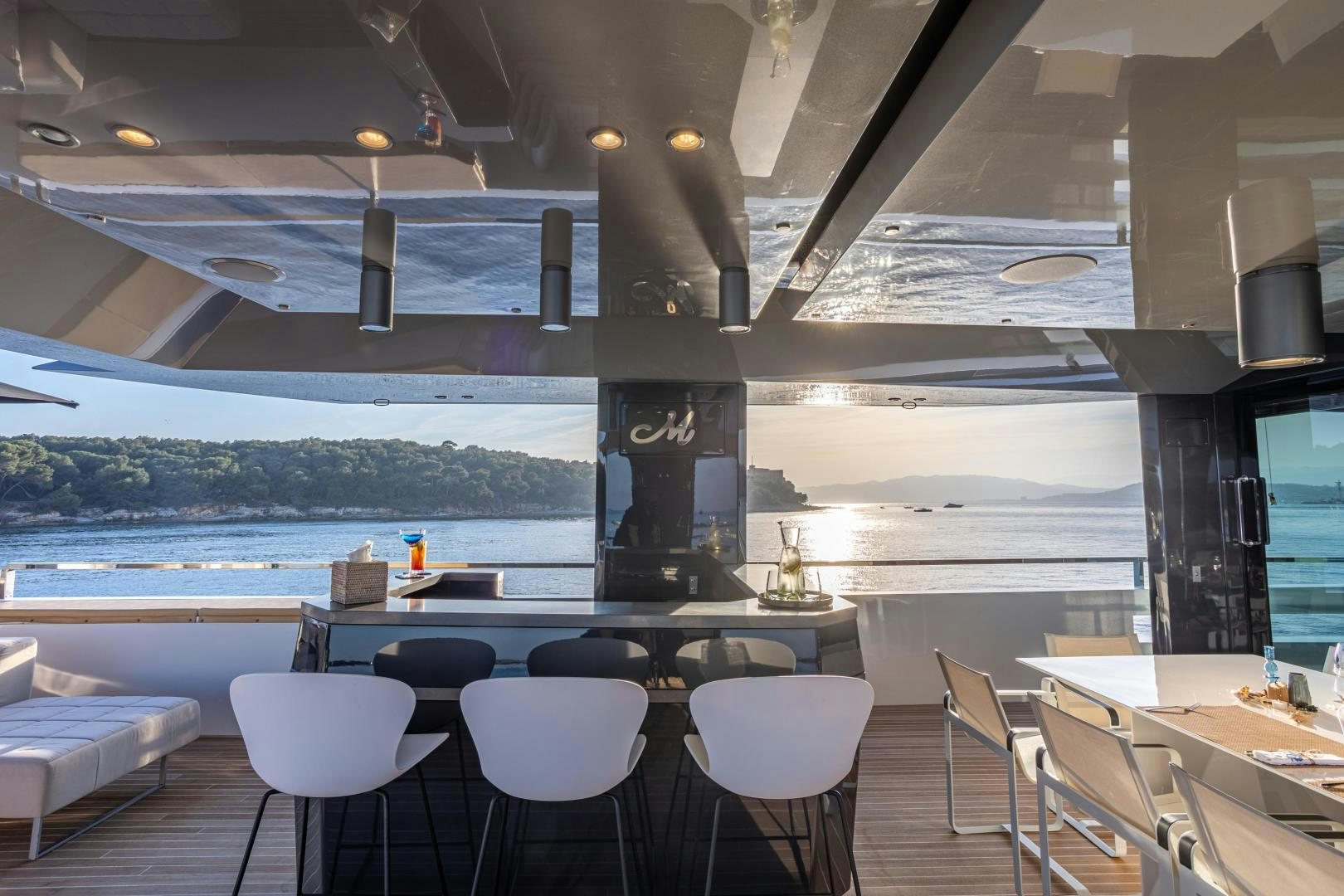

The exterior deck spaces onboard M are nothing short of impressive. Her aft deck features casual seating with a coffee table to welcome guests as they board the yacht and acts as an informal space to enjoy morning coffee or cocktails alfresco. The bridge deck aft is the main exterior guest space for relaxation and dining featuring a table for up to 12 guests, a full bar with stools and a large seating area that can be covered by two large umbrellas. On the foredeck, guests will find the ultimate escape with large sunpads and a Jacuzzi.

M was built to MCA compliance and maintained to the highest standards by a professional crew and experienced owner.


  • Solar panels providing a green energy source onboard
  • Beautifully maintained by experienced crew
  • Bright, modern interiors
  • Excellent headroom throughout
  • Panoramic skylounge
  • Ceiling-to-floor windows
  • Drop-down balconies in the dining room


Builder Arcadia
Model A115
Length (LOA) 114' 9" (34.99m)
Year 2014
Year Refit 2022
Gross Tonn. 266
Draft 8' 8" (2.65m)
Beam 26' 8" (8.13m)
Range 1,000 NM
Location Antibes, France


Staterooms 5
Sleeps 10
Heads 6
Crew Cabins 5
Crew Sleeps 8
Capt. Quarters Yes

Dimensions & Capacity

LOA 114' 9" (34.99m)
LWL 108' (32.75m)
Max Draft 8' 8" (2.65m)
Fuel Tank 4,174 g (15,800 L)
Fresh Water 1,083 g (4,100 L)
Holding Tank 343 g (1,300 L)
Gross Tonn. 266
Displacement 185


Hull Material Fiberglass
Hull Config A115
Ext. Designer Francesco Guida
Int. Designer Francesco Guida
Max Speed 16 Knots
Cruising Speed 12 Knots
Range 1,000 NM
Stabilizers None

Engines (x2)

Engine Make MAN
Engine Model V8 (D2868 LE466)
Power HP 1,300
Power KW 0
Fuel Type Diesel
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

2021/2022 Refit

RINA annual, intermediate & bottom surveys completed

Repaint of the superstructure (all dark areas & light grey resprayed)

Composite cracks grounded and reinforced

Overhaul of black tanks and rebuild of grey tanks

Extensive service on generators and main engines

New batteries and chargers

New water maker (April 2021)

A/C overhaul (new condenser)

Shafts and propellors inspected and aligned

Water tights replaced to PSS system

All superstructure caulking replaced

Internet router, controller and antennas replaced by latest for 5G/4G+

All crew showers refitted and new crew mattresses

Refit of the steering gear including strut replacement

All handrails replaced for new stainless-steel rails

All new laundry equipment (June 2021)


Normatec Jet RIB 4M60

2 x Seabobs

Jet ski Seadoo Spark

Engine Room

Main Engines: 2 x MAN V8 1,300 HP (D2868 LE466)

Engine Hours: 2,880

Gearboxes: 2 x 2000A ZF

Generators: 2 x 55kW 50 Hz Kohler 55EF0ZDJ 400V

Generator Hours: 5,880

Boilers: 3 x 120 L 400 V 3kW

Airconditioning: 324,000 BTU/H PCWM 81004

Stabilizers: ABTrack 370 Digital Stabs

Bilge System: Gianneschi ACB 531/A

ER Ventilation: Gianneschi ELL/AP 409/3

Bow Thrusters: CMC TP 40 Electric 45kW

Solar Panels: 5kW

Water Maker: 2 x Deepblue 200 L/H

Firefighting Systems

ER Fixed Firefighting: Extinguishing Agent FM200

Hydrants: Gianneschi ACB 531/A with 4 Hydrants

Detectors: All living and technical areas as per class requirements

Tank Capacities & Range

Main Fuel Tanks: 14,000 L

Day Tanks: 2 x 900:

Total Fuel Capacity: 15,800L

Fresh Water: 4,100 L

Grey Water: 1,300 L

Black Water: 1,300 L

Range: 1,000 nm at 11 knots

7 Knots – 44 L/H

10 knots – 70 L/H

12 knots – 140 L/H

15 knots – 360 L/H

16 knots – 520 L/H

Black / Grey Water System

Structural tank with 3 x Sanisplit systems

Gianneschi pump ECO MV 44G

WC: Tecma Jet Flow

Black Water Pump: Hamman Cont Compact

Fuel System

1 x Structural Tanks (beam to beam)

2 x Structural Tanks

2 x Day Tanks

Fuel pumps: Gianneschi CP30G

Fuel Filters: Racor MP30

1 x Alfa Laval MIB303S 13-33 (Fuel Polisher)


2 x 24V 300 A/H Main engines

2 x 12 V 150 A/H Generators

1 x 24V 1050 A/H ER Services

1 x 24V 150 A/H Radio Services

1 x 24V 300 A/H Emergency circuit

400v, 220v & 24 Dc Circuits

400 V AC Triphase for technical, deck & systems equipment

220 V AC Monophase for gally & sockets

24 V Circuits for emergency lights, remote controls, navigation lights

Solar Panels

Electricity produced has a max power of 5kW

Energy sent to the batteries and converted to 27.5V

Power galley refrigeration and garage bilge pumps


2 x Multifunction Raymarine 15’4” touchscreens

Navnet TZT2 Black Box

MS-MWIDE Chart Raster Jeppensen Med GP330B GPS Receiver

Furuno Antenna radar 12kW X0Class

Furuno Autopilot NAVPILOT711C

Furuno BNWAS Alarm Panel BR510

Furuno Navtex NX 700B

Furuno VHF DSC FN 8900S A Class GMDSS

Airmar Weather Station WX220

Safesea EPIRB E100G

Safesea SART S100

2 x Safesea portable VHF

Furuno Transducer B744VL

Furuno Transducer DST 800

Furuno GPS GP 170 with 6” display

Cassens & Plath Compass

Main engine electronic controls

Bow thruster control

CMC Marine monitoring display

Ruddle Angle


Windshield wiper


Windlass control

Bilge pump control

Alarm & Monitoring system

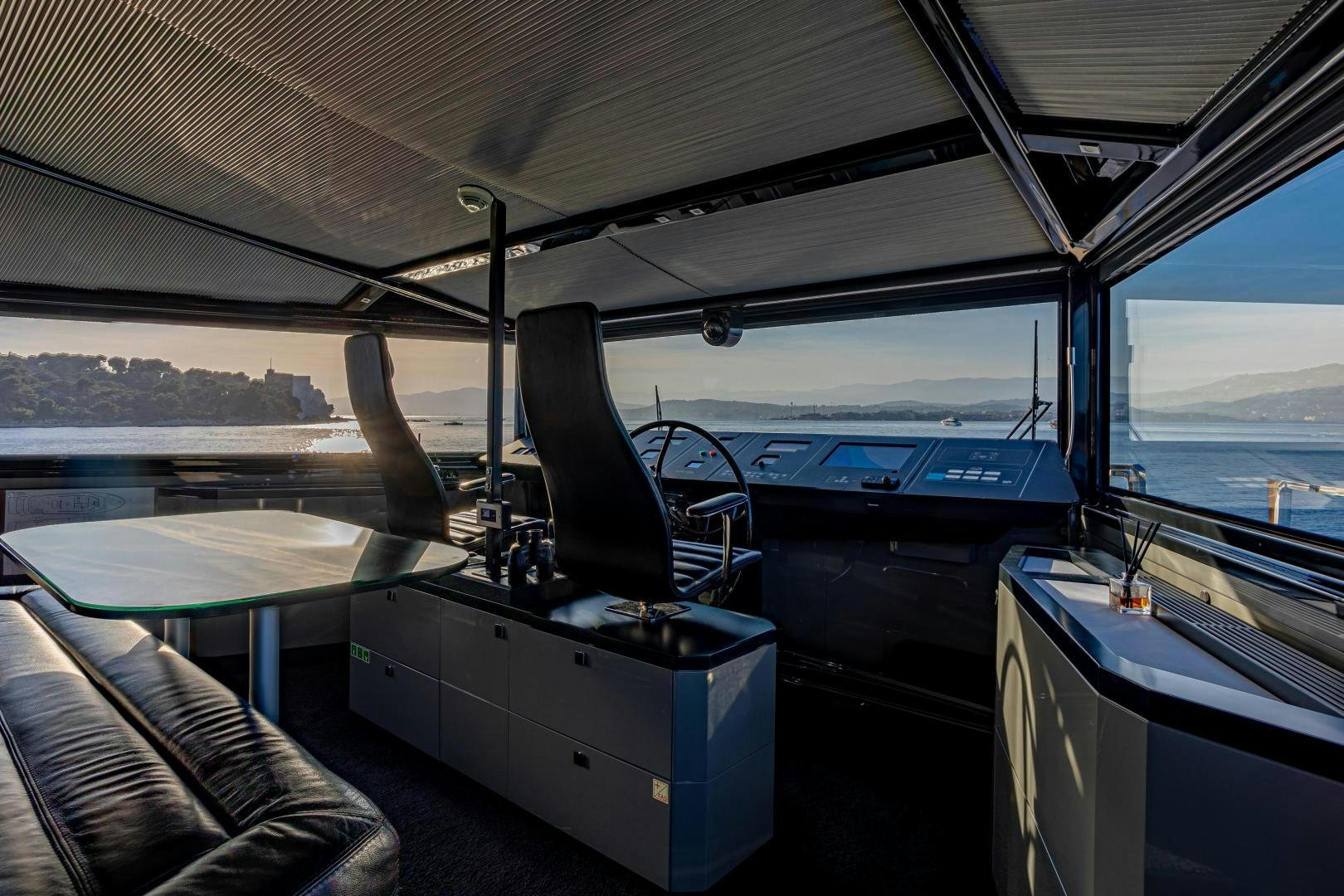

Wings & Helm Stations

Servo-assist helm

Main engine controls and display

Bow thruster control

Rudder angle indicator


GPS Plotter

Tridata instrument – Echo sounder, Mileometer log & Sea water Temperature



380-220-24V service board

Stabilizer control panel


Okite Worktop

Extraction Hood Electrolux AMPV712DT

Siemens Induction Cook Top IQ700

Siemens Oven IQ500

Siemens Microwave Oven IQ500

Silanos Dishwasher DS D45-30

Siemens Refrigerator / Freezer KI86NADF0

Dining Room Bar


Siemens Refrigerator

Virtifrigo Icemaker


2 x Simens Washing Machine WM14VKH911

2 x Siemens Dryer WT47W46911

(All replaced in June 2021)


Tender Davit: Electrohydraulic 600 KG

Gangway: Electrohydraulic 5m 150 KG

2 x 5500 W Maxwell VWC 6000 Windlasses

2 x 140kg Anchors

1 x 150m 14mm Posidonia anchor chain

1 x 100m 14mm Posidonia anchor chain

2 x 3000 W Maxwell Mooring capstans

4 x Bitts on aft deck

4 x Bitts on foredeck

2 x Bitts midship

2 x Fairleads on aft deck

4 x Fairleads on foredeck

Besenzioni 5m telescopic gangway

Besenzioni tender crane 600kg

Cantalupi EVO 160 Underwater lights

Mid-ship side electric balconies

Emergency Equipment

4 x 10 Person Liferaft SOLAS B Pack

22 x Lifejackets

20 x Immersion suit

4 x Lifebuoys


1 x SART

6 x Rocket parachute flares
